Authorisatio tutorial

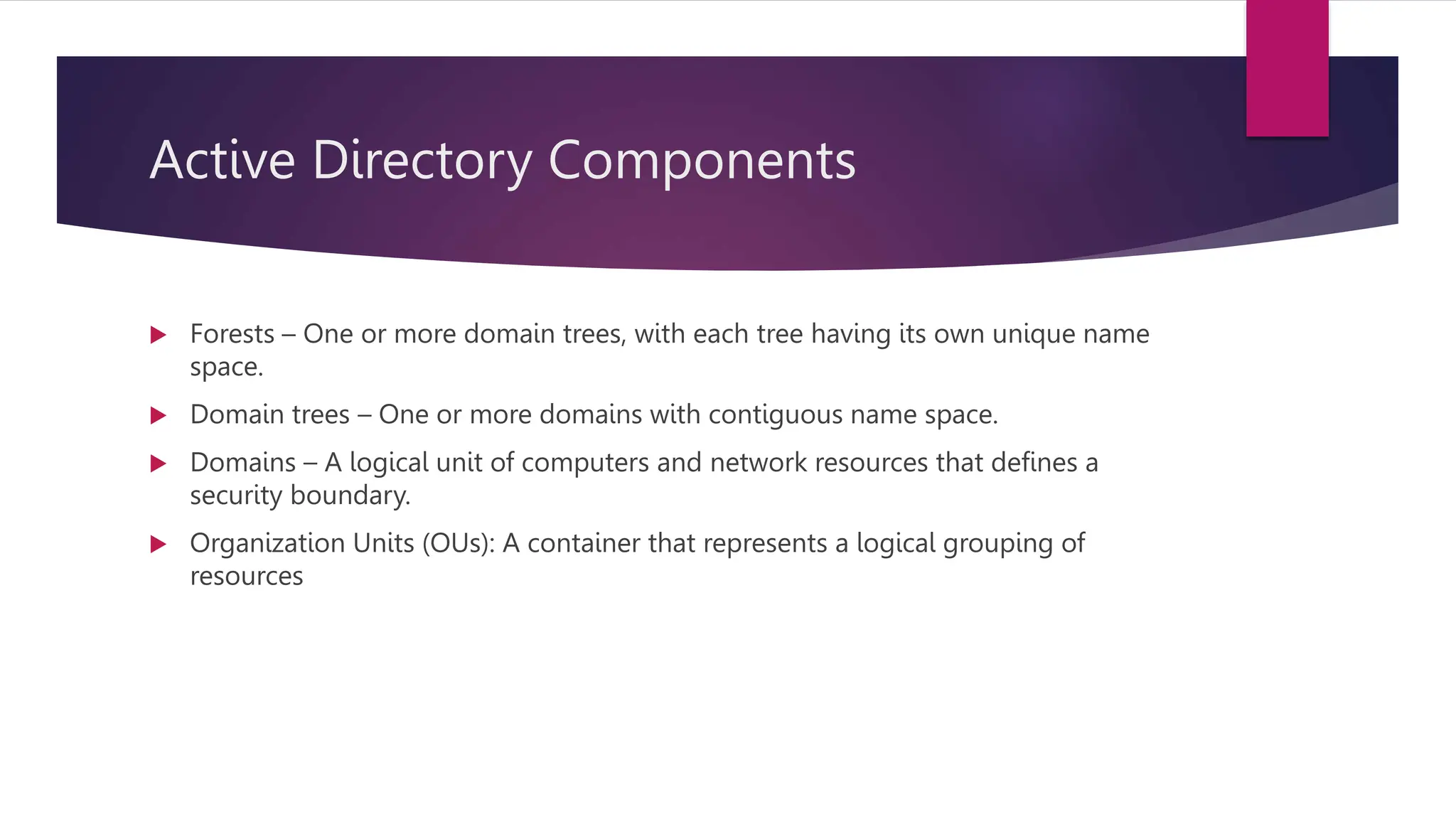

1. Active Directory Components
 Forests – One or more domain trees, with each tree having its own unique name
space.
 Domain trees – One or more domains with contiguous name space.
 Domains – A logical unit of computers and network resources that defines a
security boundary.
 Organization Units (OUs): A container that represents a logical grouping of
resources

2. What Is a Directory Service?
 A directory service that uses the “tree” concept for managing resources on a Windows
network.
 Stores information about the network resources and services, such as user data, printer,
servers, databases, groups, computers, and security policies.
 Identifies all resources on a network and makes them accessible to users and applications.
A service that helps track and locate objects on a network
Active Directory Management
Users
Services
Workstations Files

3. What are we Authenticating?
 Authentication of a person
 Others know you by your appearance or voice
 By your picture on an identification badge
 Other information you have or know
 Authentication of a computer
 Computer authenticating another computer
 Print spooler authenticating a printer, etc.
 Person using a public workstation
 Workstation will (should) not store authentication information for every user.
 Person needs to remember the authentication information
3

4. Active Directory Domains
Boundary of
Authentication
Boundary of
Policies
Boundary of Replication
CONTOSO.COM

5. Active Directory Forests
US.CONTOSO.COM
FABRIKAM.COM
UK.FABRIKAM.COM
CONTOSO.COM
Schema Configuration
Global
Catalog

6. Organizational Units
CONTOSO.COM
OU Admin
Organized For:
•Administration
•Same Requirements
•Delegation
•Group Policy
•Configuration
•Security
OU Policy
OU Security

7. Domain Controllers
 Server that stores the Active Directory database
and authenticates users with the network during
logon.
 Stores database information in a file called
ntds.dit.
 Active Directory is a multimaster database.
 Information is automatically replicated between
multiple domain controllers.
Windows Server
DC
DC
DC
