The case study on Automatic Ticket Vending Machines (ATVMs) highlights significant user experience issues, such as lack of initial guidance, confusing interfaces, and readability problems in bright conditions. Suggestions for improvement include simplifying screens to display one action at a time, providing clear navigational cues, and enhancing user training and support at railway stations. Both designers and railway authorities are encouraged to take steps to make ATVMs more user-friendly.

1. Case Study-ATVM(Automatic Ticket Vending Machines)
 Researchers + Railway authorities expected ATVMs
to be intuitively easy and less time taking to use
 According to an online source:

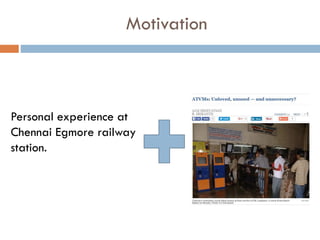

2. Personal experience at
Chennai Egmore railway
station.
Motivation

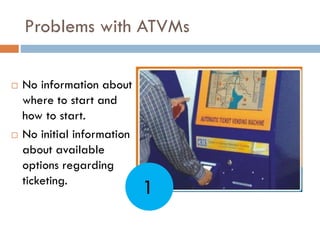

3. Problems with ATVMs
 No information about
where to start and
how to start.
 No initial information
about available
options regarding
ticketing.
1

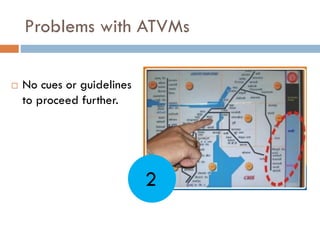

4. Problems with ATVMs
 No cues or guidelines
to proceed further.
2

5. Problems with ATVMs
 Many operations to perform and many options
for each, all in a single screen.
3

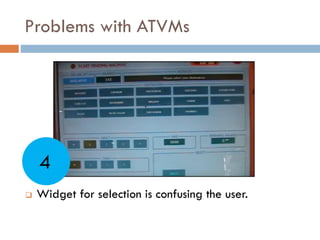

6. Problems with ATVMs
 Widget for selection is confusing the user.
4

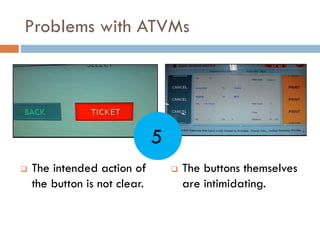

7. Problems with ATVMs
 The intended action of
the button is not clear.
 The buttons themselves
are intimidating.
5

8. Problems with ATVMs
 Screens hard to read in
the glare of daylight
6

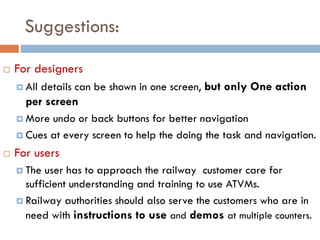

9. Suggestions:
 For designers
 All details can be shown in one screen, but only One action
per screen
 More undo or back buttons for better navigation
 Cues at every screen to help the doing the task and navigation.
 For users
 The user has to approach the railway customer care for
sufficient understanding and training to use ATVMs.
 Railway authorities should also serve the customers who are in
need with instructions to use and demos at multiple counters.

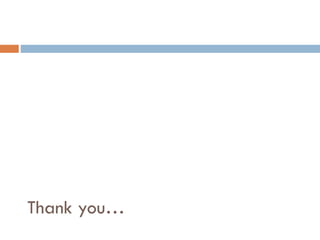

10. Thank you…
