This document discusses using Arista networking solutions to scale cloud computing networks. It presents two use cases: 1) using OpenStack with the ML2 plugin for network virtualization, and 2) using an SDN controller with OVSDB for network abstraction. For use case 1, it demonstrates how CloudVision Exchange integrates with OpenStack Neutron to provide network automation, visibility, and improved scaling through VXLAN hardware VTEPs and an L3 ECMP fabric. For use case 2, it shows how CloudVision Exchange abstracts the network topology to allow adding bare metal servers and VXLAN gateways through an SDN controller using OVSDB.
More Related Content
Similar to Atf 3 q15-6 - solutions for scaling the cloud computing network infrastructure
Atf 3 q15-6 - solutions for scaling the cloud computing network infrastructure
- 1. Technical Forum Solutions forScaling the Cloud Computing Network Infrastructure Autumn 2015

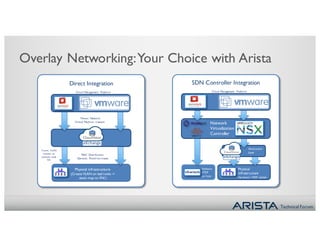

- 2. Technical Forum Overlay Networking:YourChoice with Arista SDN Controller Integration Physical infrastructure Hardware VTEP added to the logical switch vSwitch Software VTEP on host Direct Integration Tenant VLAN creation on compute node link Physical infrastructure (Create VLAN on leaf node -> static map to VNI ) MAC Distribution Dynamic Flood-list create Tenant Network Virtual Machine creation Network Virtualization Controller CloudVision eXchange CloudVision eXchange Abstraction Layer Cloud Management Platform Cloud Management Platform

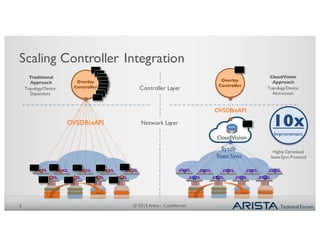

- 3. Technical Forum Overlay Controller Scaling ControllerIntegration 3 OVSDB/eAPI Overlay Controller Network Layer Controller Layer 10x Improvement OVSDB/eAPI Sysdb State Sync Topology/Device Dependent Topology/Device Abstraction Traditional Approach CloudVision Approach © 2015 Arista - Confidential Highly Optimized State Sync Protocol

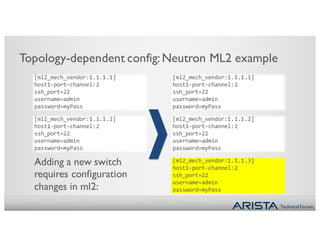

- 4. Technical Forum Topology-dependent config:NeutronML2 example [ml2_mech_vendor:1.1.1.1] host1-port-channel:2 ssh_port=22 username=admin password=myPass [ml2_mech_vendor:1.1.1.2] host1-port-channel:2 ssh_port=22 username=admin password=myPass [ml2_mech_vendor:1.1.1.1] host1-port-channel:2 ssh_port=22 username=admin password=myPass [ml2_mech_vendor:1.1.1.2] host1-port-channel:2 ssh_port=22 username=admin password=myPass [ml2_mech_vendor:1.1.1.3] host1-port-channel:2 ssh_port=22 username=admin password=myPass Adding a new switch requires configuration changes in ml2:
- 5. Technical Forum Use Case1: OpenStack with ML2

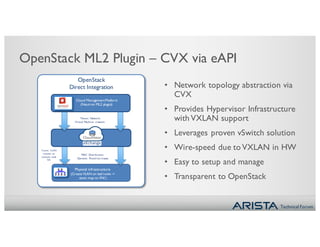

- 6. Technical Forum OpenStack ML2Plugin – CVX via eAPI OpenStack Direct Integration Tenant VLAN creation on compute node link Physical infrastructure (Create VLAN on leaf node -> static map to VNI ) MAC Distribution Dynamic Flood-list create Tenant Network Virtual Machine creation Cloud ManagementPlatform (Neutron ML2 plugin) CloudVision eXchange • Network topology abstraction via CVX • Provides Hypervisor Infrastructure with VXLAN support • Leverages proven vSwitch solution • Wire-speed due to VXLAN in HW • Easy to setup and manage • Transparent to OpenStack

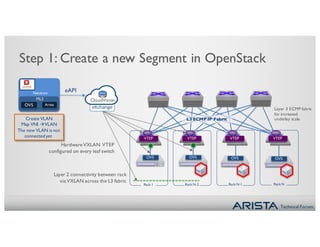

- 7. Technical Forum Step 1:Create a new Segment in OpenStack OVS Arista Neutron ML2 Create VLAN Map VNI àVLAN The new VLAN is not connected yet CloudVision eXchange L3 ECMP IP Fabric Rack NRack N-1Rack N-2Rack 1 VTEP VTEP VTEP VTEP OVS OVS OVS OVS VTI VTI VTI VNTI HardwareVXLAN VTEP configured on every leaf switch Layer 2 connectivity between rack via VXLAN across the L3 fabric eAPI Layer 3 ECMP fabric for increased underlay scale
- 8. Technical Forum Step 2:Create and deploy aVM OVS Arista Neutron ML2 Create VM Assign the Network CloudVision eXchange L3 ECMP IP Fabric Rack NRack N-1Rack N-2Rack 1 VTEP VTEP VTEP VTEP OVS OVS OVS OVS VTI VTI VTI VTI HardwareVXLAN VTEP configured on every leaf switch Layer 2 connectivity between rack via VXLAN across the L3 fabric eAPI Layer 3 ECMP fabric for increased underlay scale
- 9. Technical Forum Step 3:Create and deploy a secondVM OVS Arista Neutron ML2 CloudVision eXchange L3 ECMP IP Fabric Rack NRack N-1Rack N-2Rack 1 VTEP VTEP VTEP VTEP OVS OVS OVS OVS VTI VTI VTI VTI HardwareVXLAN VTEP configured on every leaf switch Layer 2 connectivity between rack via VXLAN across the L3 fabric Create another VM Assign the Network eAPI Layer 3 ECMP fabric for increased underlay scale
- 10. Technical Forum Step 4:L2 traffic flows between theVMs Layer 3 ECMP fabric for increased underlay scale OVS Arista Neutron ML2 L2 traffic is flowing across L3 fabric (VXLAN encaped) CloudVision eXchange L3 ECMP IP Fabric Rack NRack N-1Rack N-2Rack 1 VTEP VTEP VTEP VTEP OVS OVS OVS OVS VTI VTI VTI VTI VNI HardwareVXLAN VTEP configured on every leaf switch Layer 2 connectivity between rack via VXLAN across the L3 fabric eAPI

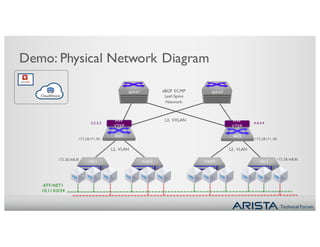

- 11. Technical Forum Demo: PhysicalNetwork Diagram HW VTEP leaf1 leaf2 spine1 spine2eBGP ECMP Leaf-Spine Network 172.28.171.101 HW VTEP kilo1 host3 host4 kilo2 3.3.3.3 4.4.4.4 ATF-NET1 10.11.0.0/24 L2, VLAN L3, VXLAN L2, VLAN 172.28.171.102 172.28.168.30 172.28.168.30

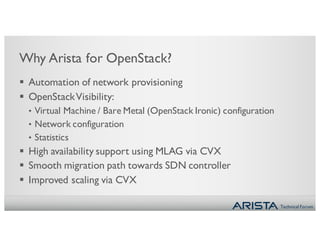

- 12. Technical Forum Why Aristafor OpenStack? § Automation of network provisioning § OpenStackVisibility: • Virtual Machine / Bare Metal (OpenStack Ironic) configuration • Network configuration • Statistics § High availability support using MLAG via CVX § Smooth migration path towards SDN controller § Improved scaling via CVX
- 13. Technical Forum Use Case2: SDN Controller with OVSDB

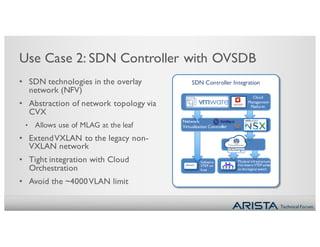

- 14. Technical Forum Use Case2: SDN Controller with OVSDB • SDN technologies in the overlay network (NFV) • Abstraction of network topology via CVX • Allows use of MLAG at the leaf • ExtendVXLAN to the legacy non- VXLAN network • Tight integration with Cloud Orchestration • Avoid the ~4000VLAN limit SDN Controller Integration Physical infrastructure Hardware VTEP added to the logical switch vSwitch Software VTEP on host CloudVision eXchange Network Virtualization Controller Cloud Management Platform

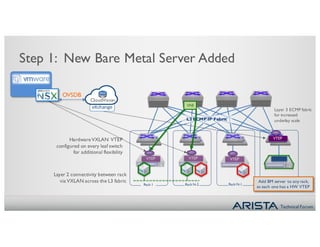

- 15. Technical Forum Step 1:New Bare Metal Server Added Layer 3 ECMP fabric for increased underlay scale CloudVision eXchange Rack NRack N-1Rack N-2Rack 1 VTEP VTEP VTEP VTEP VTI VTI VTI VTI HardwareVXLAN VTEP configured on every leaf switch for additional flexibility Layer 2 connectivity between rack via VXLAN across the L3 fabric OVSDB Add BM server to any rack, as each one has a HW VTEP L3 ECMP IP Fabric VNI

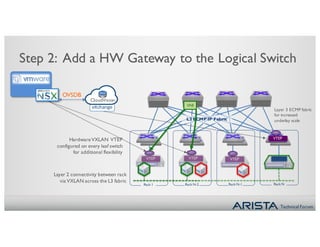

- 16. Technical Forum Step 2:Add a HW Gateway to the Logical Switch Layer 3 ECMP fabric for increased underlay scale CloudVision eXchange L3 ECMP IP Fabric Rack NRack N-1Rack N-2Rack 1 VTEP VTEP VTEP VTEP VTI VTI VTI VTI HardwareVXLAN VTEP configured on every leaf switch for additional flexibility Layer 2 connectivity between rack via VXLAN across the L3 fabric VNI OVSDB
- 17. Technical Forum Step 3:L2 Adjacency Between VMs & BM Server Layer 3 ECMP fabric for increased underlay scale Traffic is flowing as UDP between VTEPs CloudVision eXchange L3 ECMP IP Fabric Rack NRack N-1Rack N-2Rack 1 VTEP VTEP VTEP VTEP VTI VTI VTI VTI HardwareVXLAN VTEP configured on every leaf switch for additional flexibility Layer 2 connectivity between rack via VXLAN across the L3 fabric VNI OVSDB

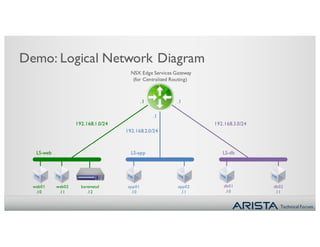

- 18. Technical Forum Demo: LogicalNetwork Diagram NSX Edge Services Gateway (for Centralized Routing) LS-web LS-app LS-db 192.168.1.0/24 192.168.2.0/24 192.168.3.0/24 web01 .10 web02 .11 baremetal .12 app01 .10 app02 .11 db01 .10 db02 .11 .1 .1 .1

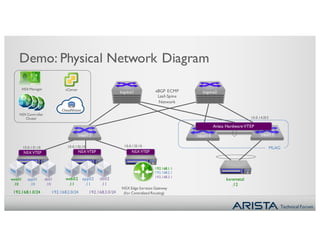

- 19. Technical Forum Demo: PhysicalNetwork Diagram web01 .10 web02 .11 app01 .10 app02 .11 db01 .10 db02 .11 NSX VTEP NSX VTEP NSX VTEP baremetal .12 Arista Hardware VTEP NSX Edge Services Gateway (for Centralized Routing) bleaf13 MLAG bleaf14 bleaf15 bspine1 bspine2eBGP ECMP Leaf-Spine Network NSX Controller Cluster NSX Manager vCenter 10.0.131.10 10.0.132.10 10.0.133.10 192.168.1.1 192.168.2.1 192.168.3.1 192.168.1.0/24 192.168.2.0/24 192.168.3.0/24 10.0.14.253

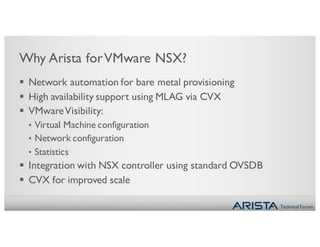

- 20. Technical Forum Why AristaforVMware NSX? § Network automation for bare metal provisioning § High availability support using MLAG via CVX § VMwareVisibility: • Virtual Machine configuration • Network configuration • Statistics § Integration with NSX controller using standard OVSDB § CVX for improved scale
- 21. Technical Forum Use Case2a: OpenStack with L2 Gateway

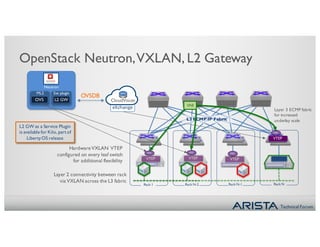

- 22. Technical Forum OpenStack Neutron,VXLAN,L2 Gateway Layer 3 ECMP fabric for increased underlay scale CloudVision eXchange L3 ECMP IP Fabric Rack NRack N-1Rack N-2Rack 1 VTEP VTEP VTEP VTEP VNI VNI VNI VNI HardwareVXLAN VTEP configured on every leaf switch for additional flexibility Layer 2 connectivity between rack via VXLAN across the L3 fabric VNI OVS Neutron ML2 L2 GW Svc plugin L2 GW as a Service Plugin is available for Kilo, part of LibertyOS release OVSDB
- 23.
