ASK provides contactless terminals and readers for various industries including transportation, access control, and banking. Their product lines include OEM couplers, desktop readers, contactless modules, and contactless terminals. ASK has been developing contactless technology expertise since 1997 and their readers are recognized for top performance and universal card acceptance.

1. Contactless Terminals Business Line

2. ASK Contactless Terminals
Four families of products:
OEM couplers Desktop readers
Contactless modules Contactless Terminals

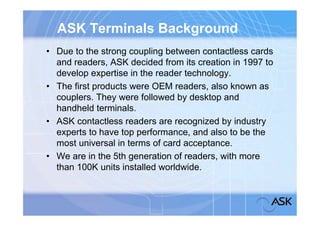

3. ASK Terminals Background
• Due to the strong coupling between contactless cards
and readers, ASK decided from its creation in 1997 to
develop expertise in the reader technology.
• The first products were OEM readers, also known as
couplers. They were followed by desktop and
handheld terminals.
• ASK contactless readers are recognized by industry
experts to have top performance, and also to be the
most universal in terms of card acceptance.
• We are in the 5th generation of readers, with more
than 100K units installed worldwide.

4. OEM Couplers
CPL427
• OEM product dedicated to integrators and equipment
manufacturers
• Medium size coupler (103 x 66mm) optimized for high
speed transactions (transport, access control, banking,
ID)
• ISO 14443 A, B, B’, Calypso, Mifare, ISO 15693
• RS232 and serial TTL interfaces up to 691Kb/s
• 4 SAM’s, 3 LED’s
• Typical applications: bus & tram validators, gates,
vending machines, points of sale
• Other versions:
 CPL417 (Serial and parallel TTL interfaces)
 CPL407-U (1 SAM, 51 x 80mm, USB interface)
 CPL407-S (1 SAM, 51 x 80mm)
 CPL437 (RS232 & USB interfaces)

5. OEM Couplers (cont.)

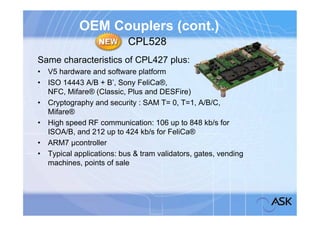

CPL528
Same characteristics of CPL427 plus:
• V5 hardware and software platform
• ISO 14443 A/B + B’, Sony FeliCa®,
NFC, Mifare® (Classic, Plus and DESFire)
• Cryptography and security : SAM T= 0, T=1, A/B/C,
Mifare®
• High speed RF communication: 106 up to 848 kb/s for
ISOA/B, and 212 up to 424 kb/s for FeliCa®
• ARM7 µcontroller
• Typical applications: bus & tram validators, gates, vending
machines, points of sale

6. OEM Couplers (cont.)
CPL108
• Small size coupler (69 x 45mm) based on UCM108
module
• ISO 14443 A/B + B’, Sony FeliCa®, NFC, Mifare®
(Classic, Plus and DESFire)
• USB interface, RS232, or serial TTL up to 691Kb/s
• 1 SAM, 2 LED’s
• Typical applications: Vending machines, points of
sale, ID & access control,
• Available versions:
 CPL108-F (RS232 & USB)
 CPL108-T (serial TTL)
 CPL108-S (RS232) and CPL108-U (USB) for volume
orders
 CPL118 series: with ZIF connector for flat cable

7. Desktop Readers

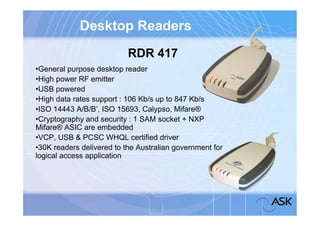

RDR 417
•General purpose desktop reader
•High power RF emitter
•USB powered
•High data rates support : 106 Kb/s up to 847 Kb/s
•ISO 14443 A/B/B’, ISO 15693, Calypso, Mifare®
•Cryptography and security : 1 SAM socket + NXP
Mifare® ASIC are embedded
•VCP, USB & PCSC WHQL certified driver
•30K readers delivered to the Australian government for
logical access application

8. Desktop Readers (cont.)
RDR 437
•High performance desktop reader
•ISO7816 contact smart card interface
•External power supply
•USB & RS232 interfaces
•4 SAM’s
•High data rates support : 106 Kb/s up to 847 Kb/s
•ISO 14443 A/B/B’, ISO 15693, Calypso, Mifare®
•Cryptography and security : 1 SAM socket + NXP
Mifare® ASIC are embedded
•VCP, USB & PCSC WHQL certified driver
•Typical applications: transport, reloading, ID
•Other version: RDR447 (contactless interface only) –
for volume orders

9. Desktop Readers (cont.)

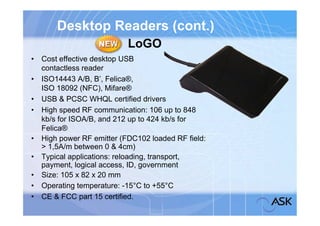

LoGO
• Cost effective desktop USB
contactless reader
• ISO14443 A/B, B’, Felica®,
ISO 18092 (NFC), Mifare®
• USB & PCSC WHQL certified drivers
• High speed RF communication: 106 up to 848
kb/s for ISOA/B, and 212 up to 424 kb/s for
Felica®
• High power RF emitter (FDC102 loaded RF field:
> 1,5A/m between 0 & 4cm)
• Typical applications: reloading, transport,
payment, logical access, ID, government
• Size: 105 x 82 x 20 mm
• Operating temperature: -15°C to +55°C
• CE & FCC part 15 certified.

10. Contactless Modules
UCM108 Universal Coupler Module
• OEM contactless module providing fast time to market solution
for system integrators
• Integrators can adapt to any form factor in their hardware
• Powerful embedded firmware with high level functions => less
development time for applications
• Layout & pinout compatible with industry standard contactless
module
• Serial TTL up to 691Kb/s
• Native USB interface
• 1 SAM 5V, 2 LEDs, user I/Os management
• Typical applications: transport, ID, payment, loyalty, access
control
• Additional functions:
 SPI, I2C
 Up to 4 SAM A/B/C management with additional hardware

11. Contactless Terminals
TEC
• Desktop POS with contactless and contact
interfaces
• Typical applications: transport, reload POS,
ticketing, events
• Built-in Thermal printer
• Built-in PSTN modem or Ethernet interface
• 3 SAM slots
• 16MB Flash
• LCD graphic display
• 17 keys alphanumeric keyboard

12. Contactless Terminals (cont.)
HCR817
• Handheld terminal with contactless and
contact interfaces
• Applications: transport, reload POS, ticketing,
events
• USB interface for data communication and
recharging
• 3 SAM slots
• 16MB Flash
• LCD graphic display 160x160 pixels
• Other version: HCR217 (5 keys keyboard,
display 128x64 pixels)

13. Additional Products
FDC102 Field Detector Card
• Radio field power indicator
• 12-LED color bar graph indicator
• Extended scale from < 1 A/m to > 7.5 A/m
• Easy reading of ISO operating level (green
LEDs from 1.5 to 7.5 A/m)
• Load equivalent to a 13.56 MHz tuned
microprocessor card
• Loaded field measurement: more severe
than ISO10373-6/7, but closer to real cards
• Powered by reader radio field (no battery)

14. Additional Products (cont.)

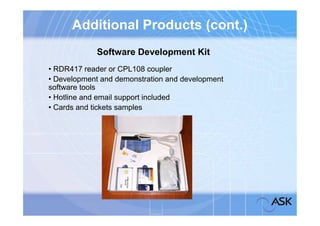

Software Development Kit
• RDR417 reader or CPL108 coupler
• Development and demonstration and development
software tools
• Hotline and email support included
• Cards and tickets samples

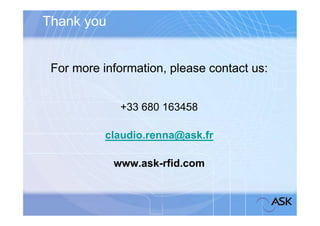

15. Thank you
For more information, please contact us:
+33 680 163458
claudio.renna@ask.fr
www.ask-rfid.com
