ARMvisor @ COSCUP2012
ARMvisor is a KVM implementation for the ARM architecture that allows running virtual machines on ARM-based systems. It uses para-virtualization, trapping sensitive instructions and emulating them to virtualize ARM processors, which are not fully virtualizable. ARMvisor supports ARM Cortex-A8 and ARMv7 ISA via QEMU emulation and uses virtio for I/O and an in-kernel interrupt controller to virtualize devices and interrupts. The developers plan to open source ARMvisor in August 2012 under the GPLv2 license along with documentation to encourage others to try it and provide feedback.
More Related Content
ARMvisor @ COSCUP2012
- 1. ARMvisor: ARM架構上系統虛擬機的實作 Peter Chang @ SSLab, Dept. of CS, NTHU phchang@sslab.cs.nthu.edu.tw This side is licensed under CC-BY-NC-SA 姓名標示─非商業性─相同方式分享 (http://creativecommons.org/licenses/by-nc-sa/3.0/tw/legalcode)
- 2.
- 4.
- 5.
- 6.
- 7.

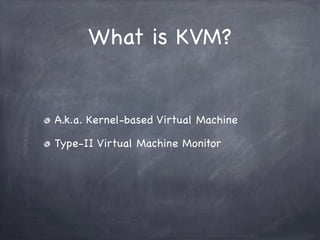

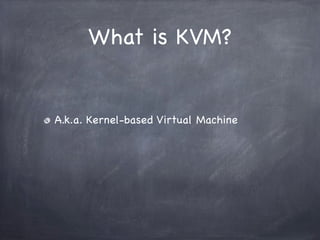

- 8. What is KVM? A.k.a.Kernel-based Virtual Machine
- 9. What is KVM? A.k.a.Kernel-based Virtual Machine Type-II Virtual Machine Monitor

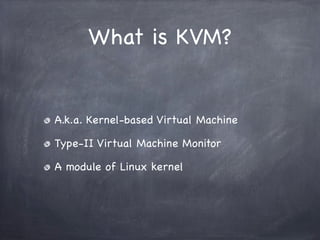

- 10. What is KVM? A.k.a.Kernel-based Virtual Machine Type-II Virtual Machine Monitor A module of Linux kernel
- 11.
- 12. What is KVM? Officiallysupport x86/x64, PowerPC, S390
- 13. What is KVM? Officiallysupport x86/x64, PowerPC, S390 No official support for ARM architecture
- 14.
- 15.
- 16.
- 17.

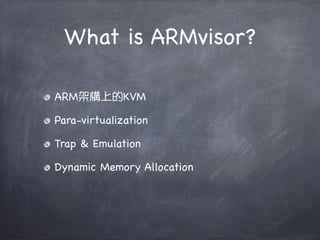

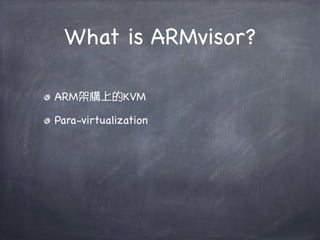

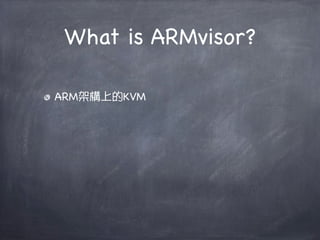

- 18. What is ARMvisor? ARM架構上的KVM Para-virtualization Trap& Emulation Dynamic Memory Allocation

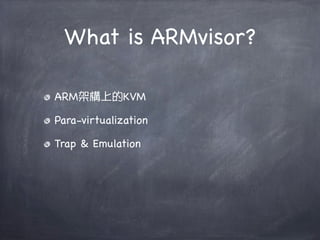

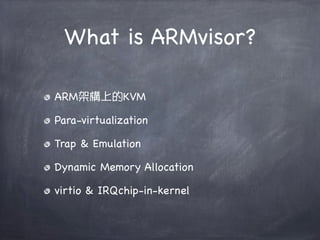

- 19. What is ARMvisor? ARM架構上的KVM Para-virtualization Trap& Emulation Dynamic Memory Allocation virtio & IRQchip-in-kernel
- 20.

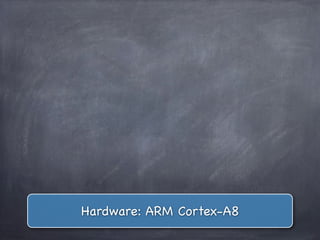

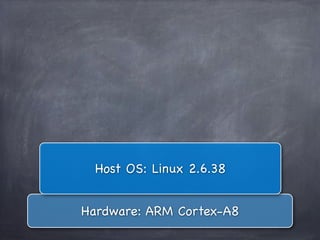

- 21. Host OS: Linux2.6.38 Hardware: ARM Cortex-A8

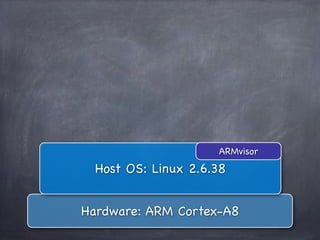

- 22. ARMvisor HostOS: Linux 2.6.38 Hardware: ARM Cortex-A8
- 23. Driver ARMvisor Host OS: Linux 2.6.38 Hardware: ARM Cortex-A8

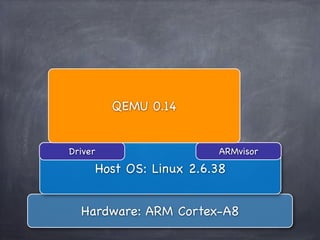

- 24. QEMU 0.14 Driver ARMvisor Host OS: Linux 2.6.38 Hardware: ARM Cortex-A8

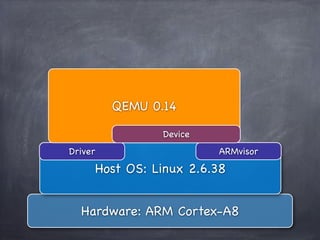

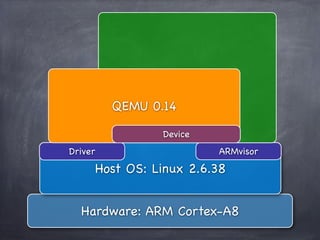

- 25. QEMU 0.14 Device Driver ARMvisor Host OS: Linux 2.6.38 Hardware: ARM Cortex-A8
- 26. QEMU 0.14 Device Driver ARMvisor Host OS: Linux 2.6.38 Hardware: ARM Cortex-A8
- 27. Guest OS: Linux2.6.35 QEMU 0.14 Device Driver ARMvisor Host OS: Linux 2.6.38 Hardware: ARM Cortex-A8
- 28. Guest OS: Linux2.6.35 QEMU 0.14 Device Driver ARMvisor Host OS: Linux 2.6.38 Hardware: ARM Cortex-A8

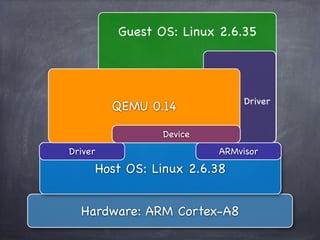

- 29. Guest OS: Linux2.6.35 Driver QEMU 0.14 Device Driver ARMvisor Host OS: Linux 2.6.38 Hardware: ARM Cortex-A8
- 30.

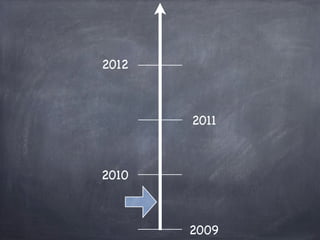

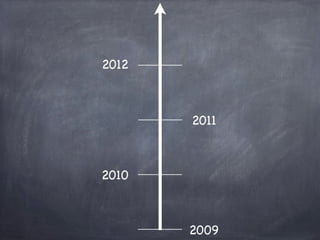

- 31. 2012 2011 2010 2009
- 32. 2012 2011 2010 2009

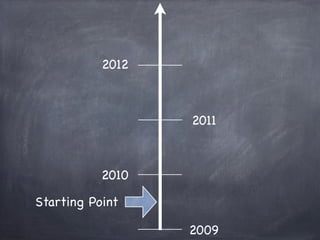

- 33. 2012 2011 2010 Starting Point 2009
- 34. 2012 2011 2010 Starting Point 2009

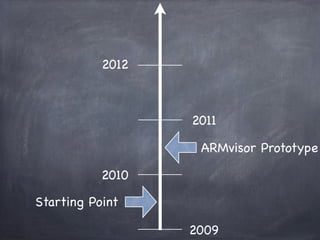

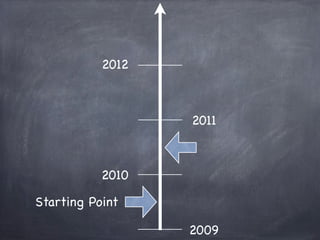

- 35. 2012 2011 ARMvisor Prototype 2010 Starting Point 2009
- 36. 2012 2011 ARMvisor Prototype 2010 Starting Point 2009

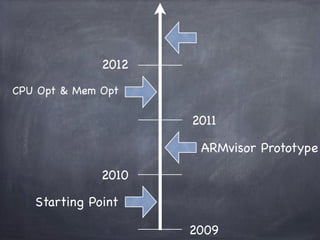

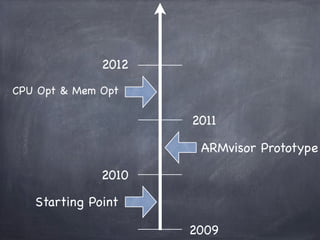

- 37. 2012 CPU Opt &Mem Opt 2011 ARMvisor Prototype 2010 Starting Point 2009
- 38. 2012 CPU Opt &Mem Opt 2011 ARMvisor Prototype 2010 Starting Point 2009

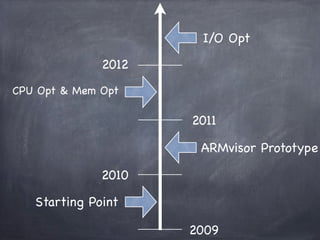

- 39. I/O Opt 2012 CPU Opt & Mem Opt 2011 ARMvisor Prototype 2010 Starting Point 2009
- 40.
- 42.
- 43.
- 44.

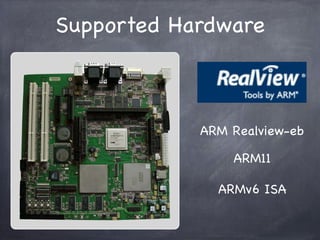

- 45. Supported Hardware ARM Realview-eb ARM11 ARMv6 ISA

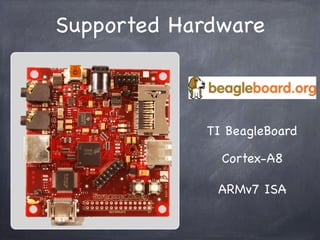

- 46. Supported Hardware TI BeagleBoard Cortex-A8 ARMv7 ISA
- 47. Supported Hardware QEMU emulator Emulating Vexpress-a9 QEMU Cortex-A9 ARMv7 ISA

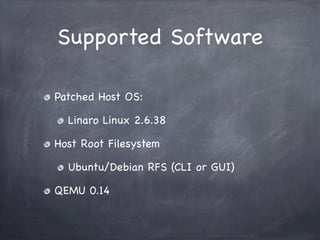

- 48. Supported Software Patched HostOS: Linaro Linux 2.6.38 Host Root Filesystem Ubuntu/Debian RFS (CLI or GUI) QEMU 0.14

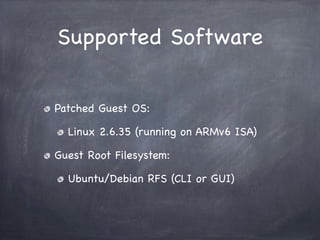

- 49. Supported Software Patched GuestOS: Linux 2.6.35 (running on ARMv6 ISA) Guest Root Filesystem: Ubuntu/Debian RFS (CLI or GUI)

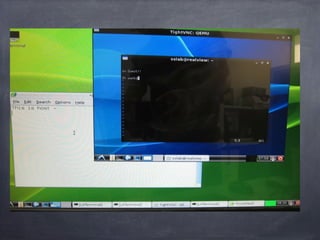

- 51.
- 53. System model of ARMvisor
- 54. CPU virtualization ARM isnon-virtualizable CPU Patch guest OS “Trap and emulation”

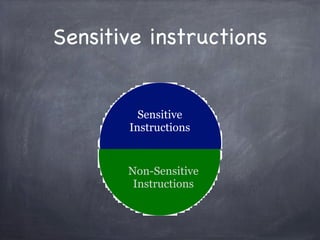

- 55. Sensitive instructions Sensitive Instructions Non-Sensitive Instructions

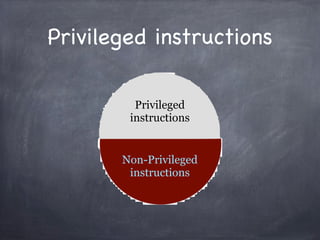

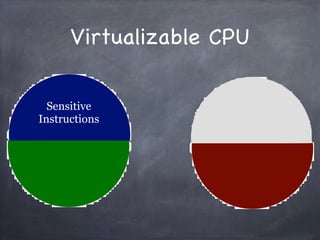

- 56. Privileged instructions Privileged instructions Non-Privileged instructions

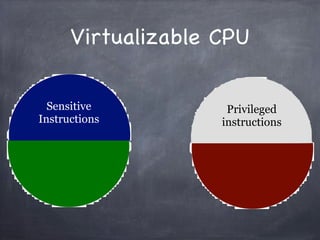

- 57.

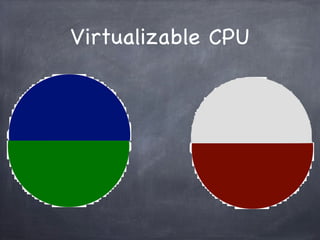

- 58. Virtualizable CPU Sensitive Instructions

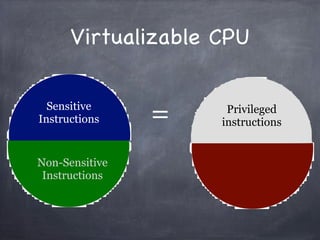

- 59. Virtualizable CPU Sensitive Privileged Instructions instructions

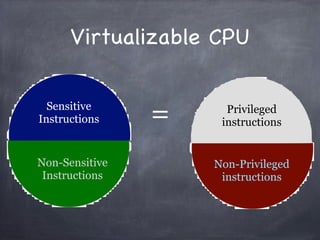

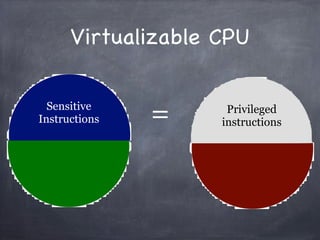

- 60. Virtualizable CPU Sensitive Instructions = Privileged instructions
- 61. Virtualizable CPU Sensitive Instructions = Privileged instructions Non-Sensitive Instructions
- 62. Virtualizable CPU Sensitive Instructions = Privileged instructions Non-Sensitive Non-Privileged Instructions instructions
- 63. Virtualizable CPU Sensitive Instructions = Privileged instructions Non-Sensitive Instructions = Non-Privileged instructions

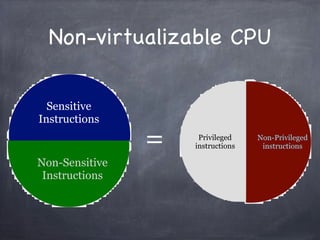

- 64. Non-virtualizable CPU Sensitive Instructions = Privileged instructions Non-Privileged instructions Non-Sensitive Instructions
- 65.

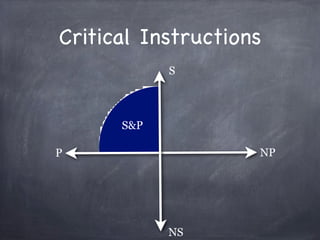

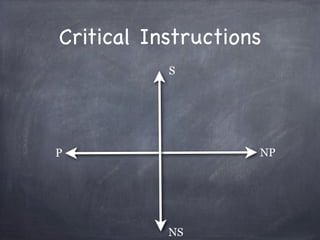

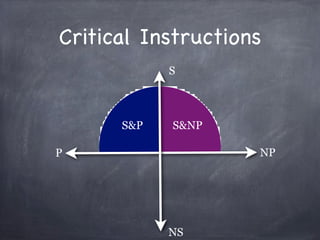

- 66. Critical Instructions S P NP NS

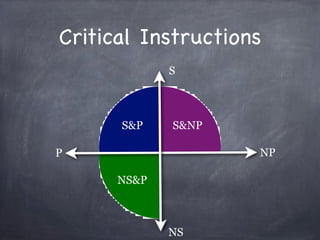

- 67. Critical Instructions S S&P P NP NS
- 68. Critical Instructions S S&P S&NP P NP NS

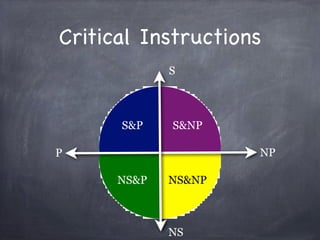

- 69. Critical Instructions S S&P S&NP P NP NS&P NS
- 70. Critical Instructions S S&P S&NP P NP NS&P NS&NP NS
- 71. Critical Instructions S S&P S&NP P NP NS

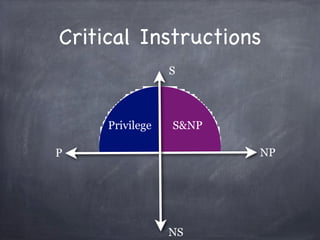

- 72. Critical Instructions S Privilege S&NP P NP NS
- 73. Critical Instructions S Privilege Critical P NP NS

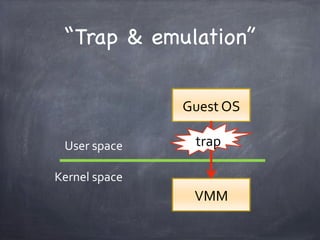

- 74. “Trap & emulation” Guest%OS User%space% trap % Kernel%space VMM
- 75.

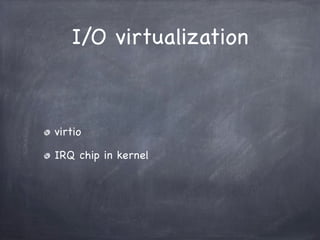

- 76.

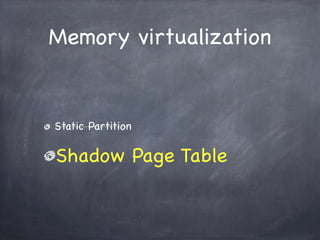

- 77.
- 78. I/O virtualization virtio IRQ chipin kernel
- 79. virtio Vir$o&Driver Guest Vir$o&PCI&Controller Vring Transport Vir$o&PCI&Controller QEMU Vir$o&Device

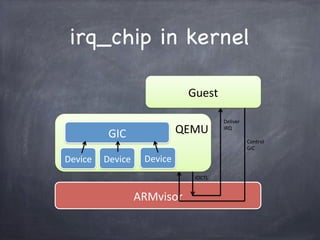

- 80. irq_chip in kernel Guest Deliver7 GIC QEMU IRQ7 Control7 GIC7 Device Device Device IOCTL7 ARMvisor
- 81. irq_chip in kernel Guest Deliver$ IRQ$ QEMU Device Device Device Control$ GIC$ GIC$in$Kernel KVM
- 82.
- 83.

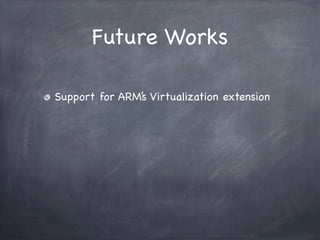

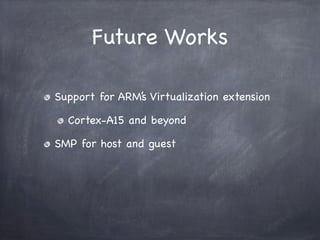

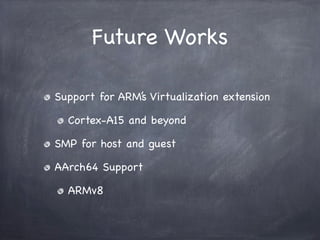

- 84. Future Works Support forARM’s Virtualization extension

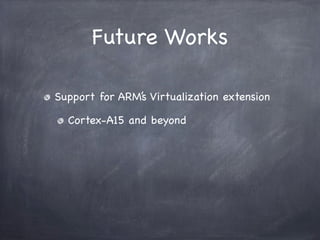

- 85. Future Works Support forARM’s Virtualization extension Cortex-A15 and beyond
- 86. Future Works Support forARM’s Virtualization extension Cortex-A15 and beyond SMP for host and guest
- 87. Future Works Support forARM’s Virtualization extension Cortex-A15 and beyond SMP for host and guest AArch64 Support
- 88. Future Works Support forARM’s Virtualization extension Cortex-A15 and beyond SMP for host and guest AArch64 Support ARMv8
- 89. By the way,...
- 90.
- 91. OpenSource We are goingto opensource in late August, 2012.

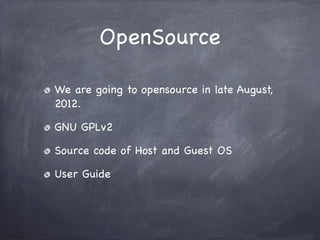

- 92. OpenSource We are goingto opensource in late August, 2012. GNU GPLv2

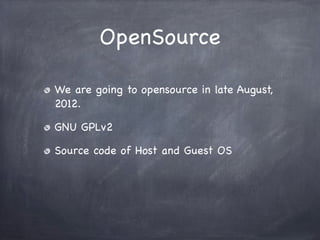

- 93. OpenSource We are goingto opensource in late August, 2012. GNU GPLv2 Source code of Host and Guest OS
- 94. OpenSource We are goingto opensource in late August, 2012. GNU GPLv2 Source code of Host and Guest OS User Guide
- 95. OpenSource We are goingto opensource in late August, 2012. GNU GPLv2 Source code of Host and Guest OS User Guide Welcome to try and feedback to us :)
