4. Who am I?
• Peter Chang
• One of the current developers of ARMvisor
5. Who am I?
• Peter Chang
• One of the current developers of ARMvisor
• http://tw.linkedin.com/in/peterchangtw

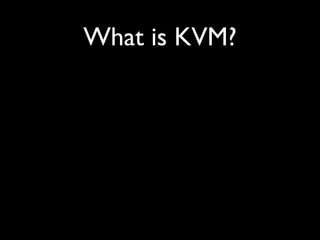

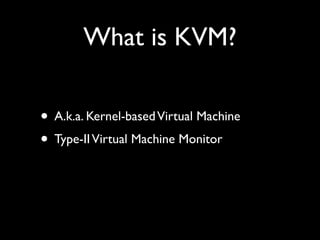

13. What is KVM?
• A.k.a. Kernel-based Virtual Machine
• Type-II Virtual Machine Monitor

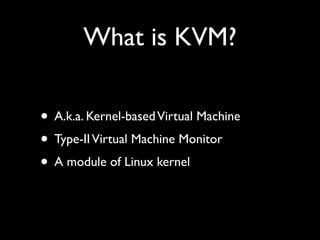

14. What is KVM?
• A.k.a. Kernel-based Virtual Machine
• Type-II Virtual Machine Monitor
• A module of Linux kernel

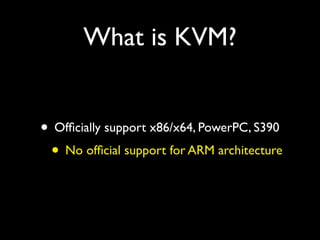

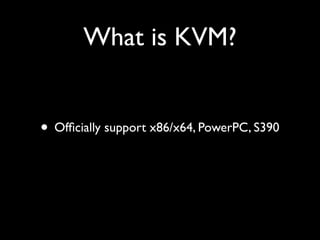

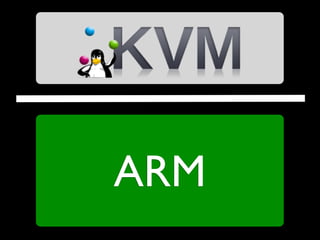

17. What is KVM?
• Officially support x86/x64, PowerPC, S390
• No official support for ARM architecture

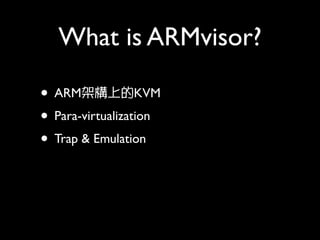

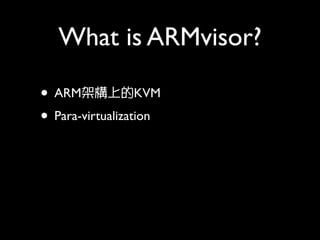

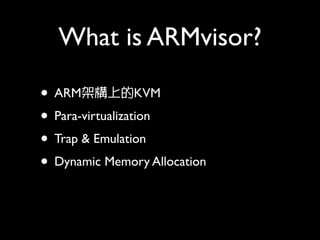

22. What is ARMvisor?
• ARM架構上的KVM
• Para-virtualization
• Trap & Emulation
• Dynamic Memory Allocation

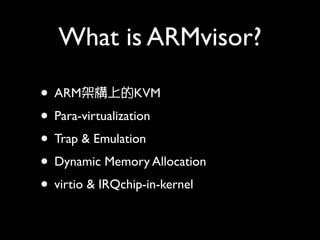

23. What is ARMvisor?
• ARM架構上的KVM
• Para-virtualization
• Trap & Emulation
• Dynamic Memory Allocation
• virtio & IRQchip-in-kernel

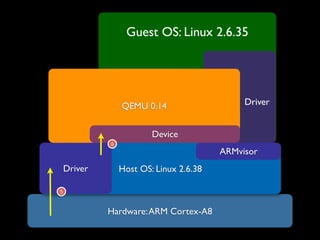

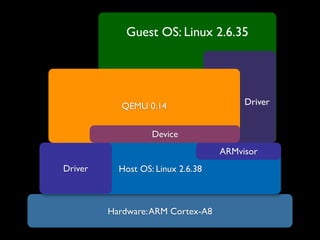

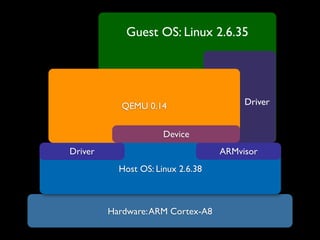

24. Guest OS: Linux 2.6.35
QEMU 0.14 Driver
Device
Driver ARMvisor
Host OS: Linux 2.6.38

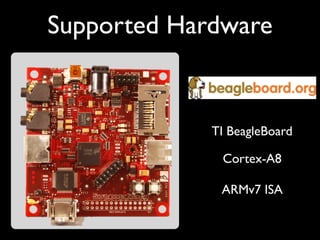

Hardware: ARM Cortex-A8

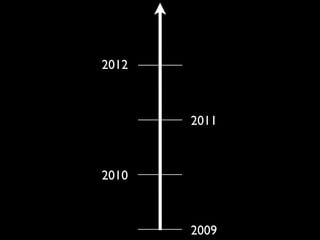

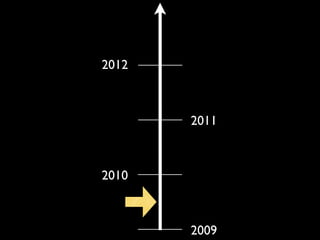

27. 2012
2011
2010
Starting Point
2009

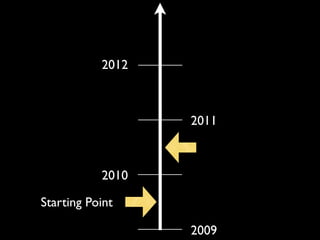

28. 2012
2011
2010
Starting Point
2009

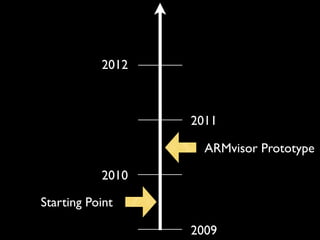

29. 2012
2011
ARMvisor Prototype
2010
Starting Point
2009
30. 2012
2011
ARMvisor Prototype
2010
Starting Point
2009

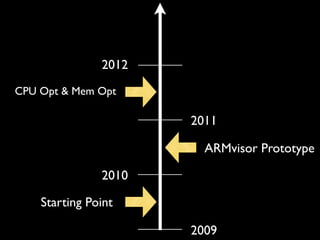

31. 2012
CPU Opt & Mem Opt
2011
ARMvisor Prototype
2010
Starting Point
2009
32. 2012
CPU Opt & Mem Opt
2011
ARMvisor Prototype
2010
Starting Point
2009
33. I/O Opt
2012
CPU Opt & Mem Opt
2011
ARMvisor Prototype
2010
Starting Point
2009

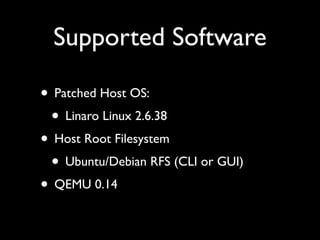

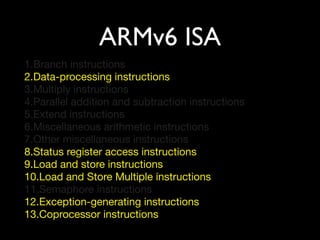

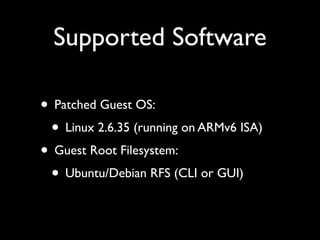

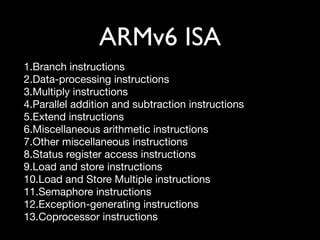

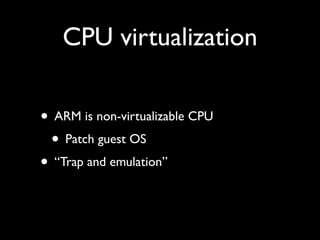

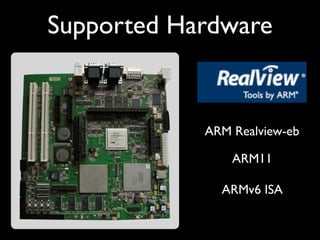

41. ARMv6 ISA
1.Branch instructions
2.Data-processing instructions
3.Multiply instructions
4.Parallel addition and subtraction instructions
5.Extend instructions
6.Miscellaneous arithmetic instructions
7.Other miscellaneous instructions
8.Status register access instructions
9.Load and store instructions
10.Load and Store Multiple instructions
11.Semaphore instructions
12.Exception-generating instructions
13.Coprocessor instructions

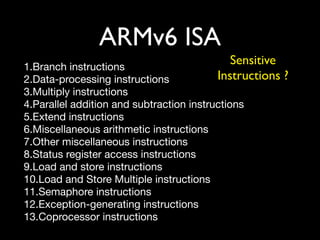

42. ARMv6 ISA
1.Branch instructions
Sensitive
2.Data-processing instructions Instructions ?
3.Multiply instructions
4.Parallel addition and subtraction instructions
5.Extend instructions
6.Miscellaneous arithmetic instructions
7.Other miscellaneous instructions
8.Status register access instructions
9.Load and store instructions
10.Load and Store Multiple instructions
11.Semaphore instructions
12.Exception-generating instructions
13.Coprocessor instructions
43. ARMv6 ISA
1.Branch instructions
2.Data-processing instructions
3.Multiply instructions
4.Parallel addition and subtraction instructions
5.Extend instructions
6.Miscellaneous arithmetic instructions
7.Other miscellaneous instructions
8.Status register access instructions
9.Load and store instructions
10.Load and Store Multiple instructions
11.Semaphore instructions
12.Exception-generating instructions
13.Coprocessor instructions

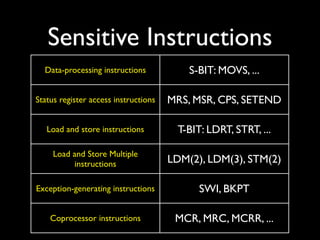

44. Sensitive Instructions
Data-processing instructions S-BIT: MOVS, ...
Status register access instructions MRS, MSR, CPS, SETEND
Load and store instructions T-BIT: LDRT, STRT, ...
Load and Store Multiple
instructions LDM(2), LDM(3), STM(2)
Exception-generating instructions SWI, BKPT
Coprocessor instructions MCR, MRC, MCRR, ...

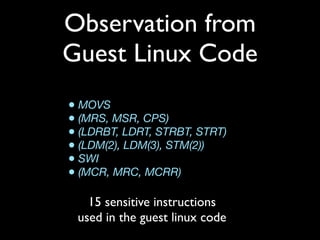

45. Observation from
Guest Linux Code
• MOVS
• (MRS, MSR, CPS)
• (LDRBT, LDRT, STRBT, STRT)
• (LDM(2), LDM(3), STM(2))
• SWI
• (MCR, MRC, MCRR)
15 sensitive instructions
used in the guest linux code

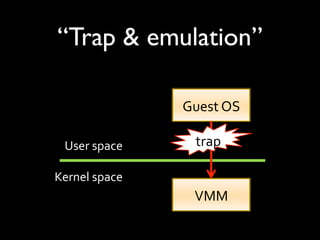

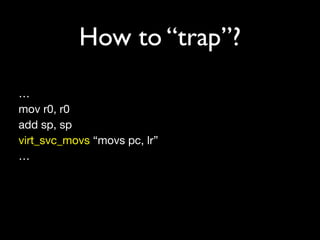

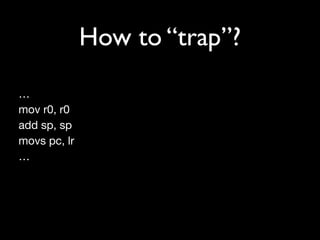

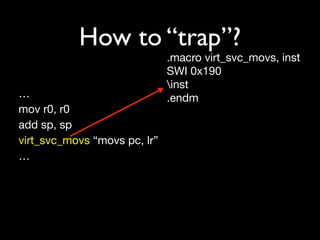

50. How to “trap”?
.macro virt_svc_movs, inst
SWI 0x190
inst
… .endm
mov r0, r0
add sp, sp
virt_svc_movs “movs pc, lr”
…

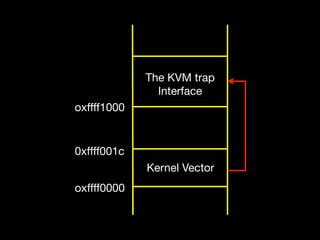

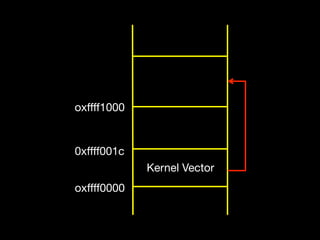

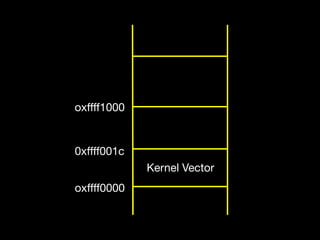

54. The KVM trap
Interface
oxffff1000
0xffff001c
Kernel Vector
oxffff0000

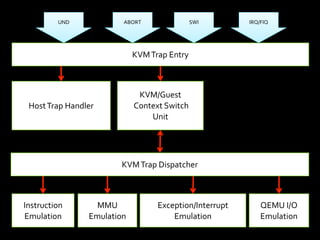

55. UND ABORT SWI IRQ/FIQ
KVM
Trap
Entry
KVM/Guest
Host
Trap
Handler
Context
Switch
Unit
KVM
Trap
Dispatcher
Instruction
MMU
Exception/Interrupt
QEMU
I/O
Emulation Emulation Emulation Emulation

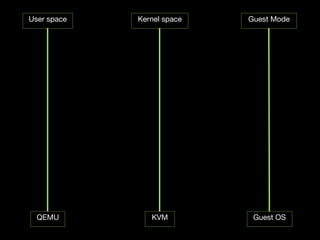

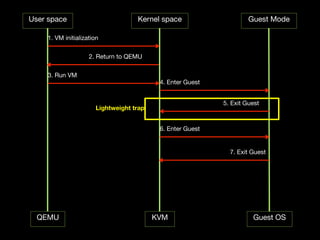

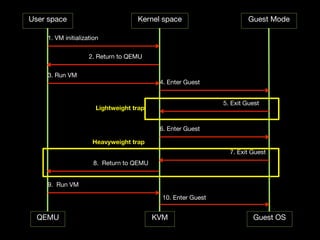

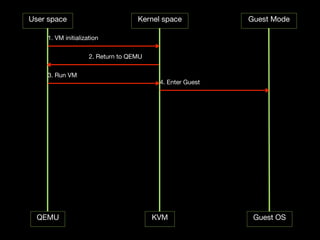

56. User space Kernel space Guest Mode
QEMU KVM Guest OS
57. User space Kernel space Guest Mode

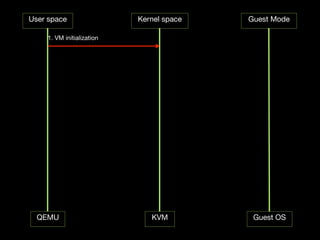

1. VM initialization
QEMU KVM Guest OS

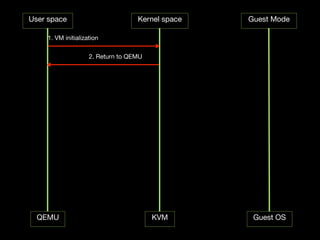

58. User space Kernel space Guest Mode
1. VM initialization
2. Return to QEMU
QEMU KVM Guest OS
59. User space Kernel space Guest Mode
1. VM initialization
2. Return to QEMU
3. Run VM
QEMU KVM Guest OS
60. User space Kernel space Guest Mode
1. VM initialization
2. Return to QEMU
3. Run VM
4. Enter Guest
QEMU KVM Guest OS

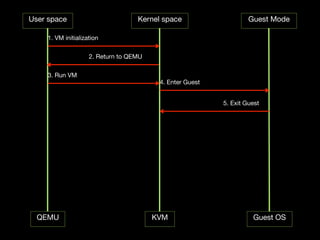

61. User space Kernel space Guest Mode
1. VM initialization
2. Return to QEMU
3. Run VM
4. Enter Guest
5. Exit Guest
QEMU KVM Guest OS

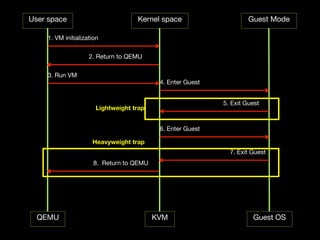

62. User space Kernel space Guest Mode
1. VM initialization
2. Return to QEMU
3. Run VM
4. Enter Guest
5. Exit Guest

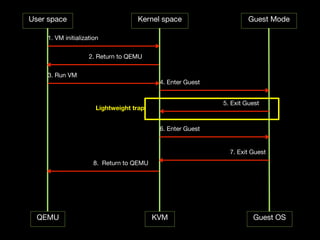

Lightweight trap
QEMU KVM Guest OS
63. User space Kernel space Guest Mode
1. VM initialization
2. Return to QEMU
3. Run VM
4. Enter Guest
5. Exit Guest
Lightweight trap
6. Enter Guest
QEMU KVM Guest OS
64. User space Kernel space Guest Mode
1. VM initialization
2. Return to QEMU
3. Run VM
4. Enter Guest
5. Exit Guest
Lightweight trap
6. Enter Guest
7. Exit Guest
QEMU KVM Guest OS
65. User space Kernel space Guest Mode
1. VM initialization
2. Return to QEMU
3. Run VM
4. Enter Guest
5. Exit Guest
Lightweight trap
6. Enter Guest
7. Exit Guest
8. Return to QEMU
QEMU KVM Guest OS
66. User space Kernel space Guest Mode
1. VM initialization
2. Return to QEMU
3. Run VM
4. Enter Guest
5. Exit Guest
Lightweight trap
6. Enter Guest
Heavyweight trap
7. Exit Guest
8. Return to QEMU
QEMU KVM Guest OS

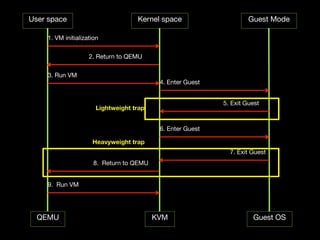

67. User space Kernel space Guest Mode
1. VM initialization
2. Return to QEMU
3. Run VM
4. Enter Guest
5. Exit Guest
Lightweight trap
6. Enter Guest
Heavyweight trap
7. Exit Guest
8. Return to QEMU
9. Run VM
QEMU KVM Guest OS
68. User space Kernel space Guest Mode
1. VM initialization
2. Return to QEMU
3. Run VM
4. Enter Guest
5. Exit Guest
Lightweight trap
6. Enter Guest
Heavyweight trap
7. Exit Guest
8. Return to QEMU
9. Run VM
10. Enter Guest
QEMU KVM Guest OS
69. VCPU
oxffff2000
Register
Sync
File
The KVM trap
Interface
oxffff1000
0xffff001c
Kernel Vector
oxffff0000

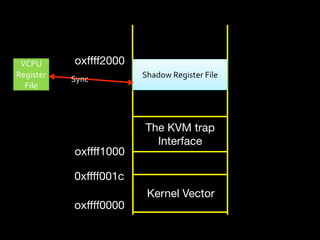

70. VCPU
oxffff2000
Register
Shadow
Register
File
Sync
File
The KVM trap
Interface
oxffff1000
0xffff001c
Kernel Vector
oxffff0000

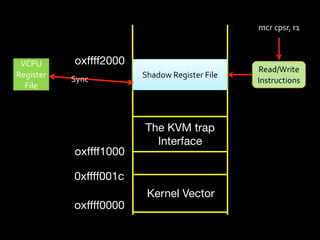

71. mcr
cpsr,
r1
VCPU
oxffff2000
Register
Shadow
Register
File
Sync
File
The KVM trap
Interface
oxffff1000
0xffff001c
Kernel Vector
oxffff0000
72. mcr
cpsr,
r1
VCPU
oxffff2000
Register
Shadow
Register
File
Sync
File
The KVM trap
Interface
oxffff1000
0xffff001c
Kernel Vector
oxffff0000
73. mcr
cpsr,
r1
VCPU
oxffff2000
Read/Write
Register
Shadow
Register
File
Sync Instructions
File
The KVM trap
Interface
oxffff1000
0xffff001c
Kernel Vector
oxffff0000
74. mcr
cpsr,
r1
VCPU
oxffff2000
Read/Write
Register
Shadow
Register
File
Sync Instructions
File
The KVM trap
Interface
oxffff1000
0xffff001c
Kernel Vector
oxffff0000

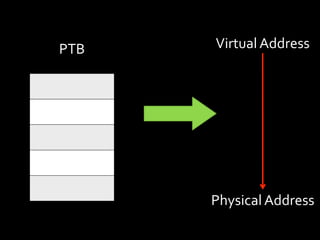

76. PTB Virtual
Address
Physical
Address

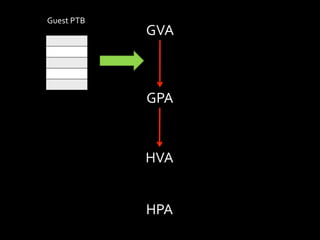

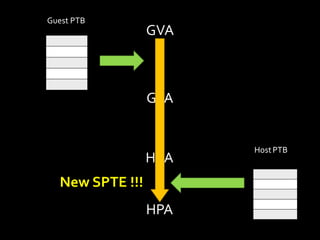

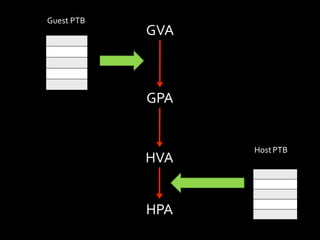

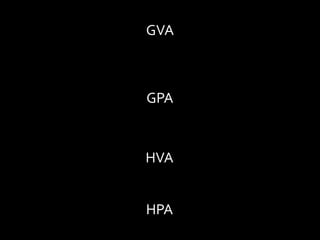

81. Guest
PTB
GVA
GPA
Host
PTB
HVA
New
SPTE
!!!
HPA

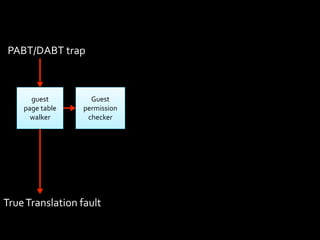

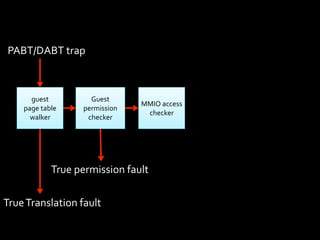

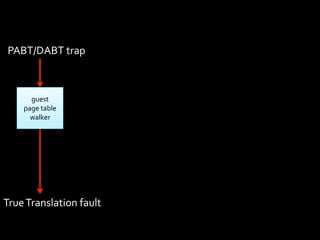

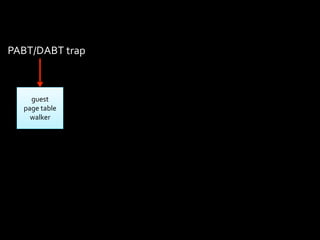

86. PABT/DABT
trap
guest
Guest
page
table
permission
walker checker
True
Translation
fault
87. PABT/DABT
trap
guest
Guest
page
table
permission
walker checker
True
permission
fault
True
Translation
fault

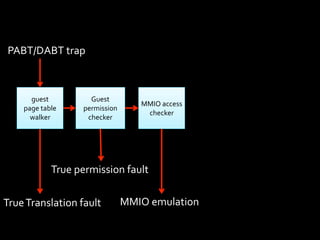

88. PABT/DABT
trap
guest
Guest
MMIO
access
page
table
permission
checker
walker checker
True
permission
fault
True
Translation
fault
89. PABT/DABT
trap
guest
Guest
MMIO
access
page
table
permission
checker
walker checker
True
permission
fault
True
Translation
fault MMIO
emulation
90. PABT/DABT
trap
guest
Guest
Shadow
page
MMIO
access
page
table
permission
table
checker
walker checker mapping
True
permission
fault
True
Translation
fault MMIO
emulation
91. Hidden
protection
fault
PABT/DABT
trap
guest
Guest
Shadow
page
MMIO
access
page
table
permission
table
checker
walker checker mapping
True
permission
fault
True
Translation
fault MMIO
emulation

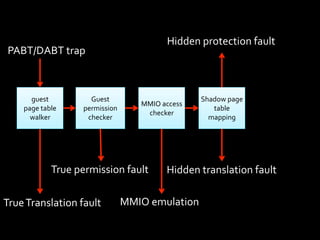

92. Hidden
protection
fault
PABT/DABT
trap
guest
Guest
Shadow
page
MMIO
access
page
table
permission
table
checker
walker checker mapping
True
permission
fault Hidden
translation
fault
True
Translation
fault MMIO
emulation

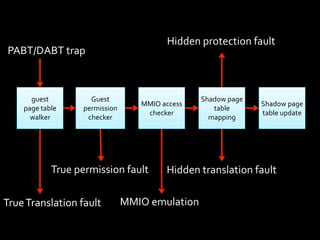

93. Hidden
protection
fault
PABT/DABT
trap
guest
Guest
Shadow
page
MMIO
access
Shadow
page
page
table
permission
table
checker table
update
walker checker mapping
True
permission
fault Hidden
translation
fault
True
Translation
fault MMIO
emulation

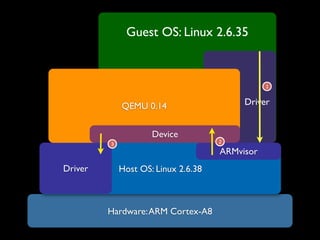

97. Guest OS: Linux 2.6.35
QEMU 0.14 Driver
Device
ARMvisor
Driver Host OS: Linux 2.6.38
Hardware: ARM Cortex-A8
98. Guest OS: Linux 2.6.35
1
QEMU 0.14 Driver
Device
ARMvisor
Driver Host OS: Linux 2.6.38
Hardware: ARM Cortex-A8

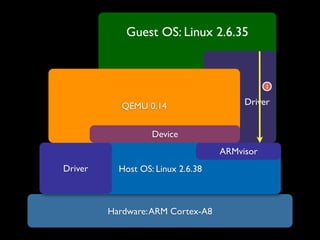

99. Guest OS: Linux 2.6.35
1
QEMU 0.14 Driver
Device
2
ARMvisor
Driver Host OS: Linux 2.6.38
Hardware: ARM Cortex-A8

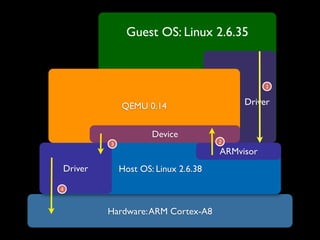

100. Guest OS: Linux 2.6.35
1
QEMU 0.14 Driver
Device
3 2
ARMvisor
Driver Host OS: Linux 2.6.38
Hardware: ARM Cortex-A8
101. Guest OS: Linux 2.6.35
1
QEMU 0.14 Driver
Device
3 2
ARMvisor
Driver Host OS: Linux 2.6.38
4
Hardware: ARM Cortex-A8
102. Guest OS: Linux 2.6.35
QEMU 0.14 Driver
Device
ARMvisor
Driver Host OS: Linux 2.6.38
Hardware: ARM Cortex-A8

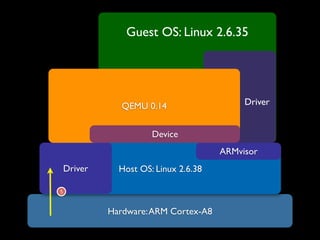

103. Guest OS: Linux 2.6.35
QEMU 0.14 Driver
Device
ARMvisor
Driver Host OS: Linux 2.6.38
5
Hardware: ARM Cortex-A8
104. Guest OS: Linux 2.6.35
QEMU 0.14 Driver
Device
6
ARMvisor
Driver Host OS: Linux 2.6.38
5
Hardware: ARM Cortex-A8
105. Guest OS: Linux 2.6.35
QEMU 0.14 Driver
Device
7
6
ARMvisor
Driver Host OS: Linux 2.6.38
5
Hardware: ARM Cortex-A8

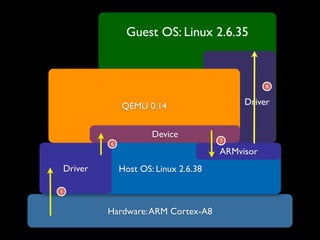

106. Guest OS: Linux 2.6.35
8
QEMU 0.14 Driver
Device
7
6
ARMvisor
Driver Host OS: Linux 2.6.38
5
Hardware: ARM Cortex-A8

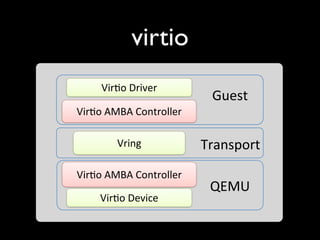

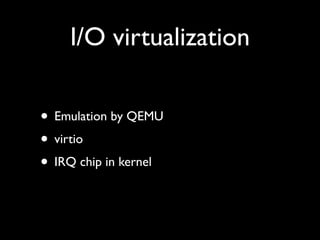

108. virtio
Vir,o
Driver
Guest
Vir,o
AMBA
Controller
Vring Transport
Vir,o
AMBA
Controller
QEMU
Vir,o
Device
110. Opera,ng
System Interrupt
Controller
Deliver
Interrupt
Get
IRQ
number
1
Ack
IRQ
number
Mask
IRQ
2
End
of
IRQ
3
Unmask
IRQ
4

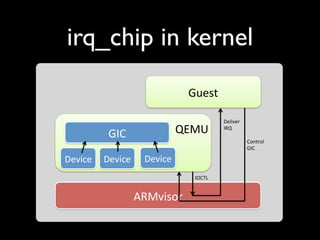

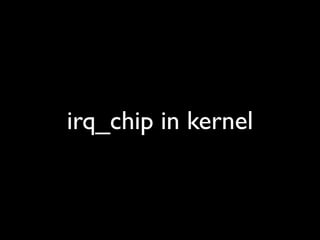

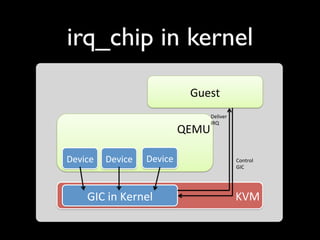

111. irq_chip in kernel
Guest
Deliver7
GIC QEMU IRQ7
Control7
GIC7
Device Device Device
IOCTL7
ARMvisor
112. irq_chip in kernel
Guest
Deliver$
IRQ$
QEMU
Device Device Device Control$
GIC$
GIC$in$Kernel KVM

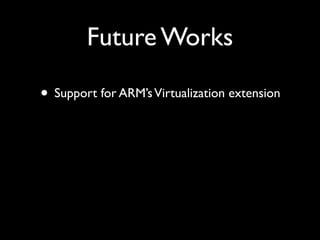

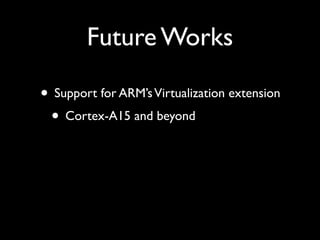

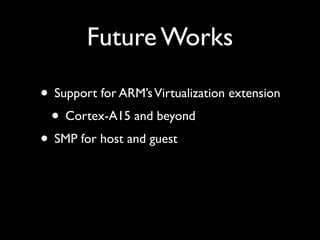

117. Future Works
• Support for ARM’s Virtualization extension
• Cortex-A15 and beyond
• SMP for host and guest
118. Future Works
• Support for ARM’s Virtualization extension
• Cortex-A15 and beyond
• SMP for host and guest
• AArch64 Support

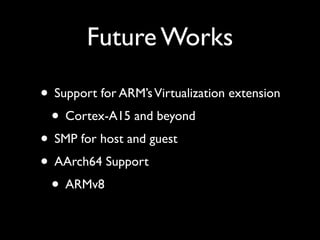

119. Future Works
• Support for ARM’s Virtualization extension
• Cortex-A15 and beyond
• SMP for host and guest
• AArch64 Support
• ARMv8

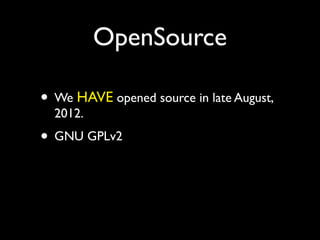

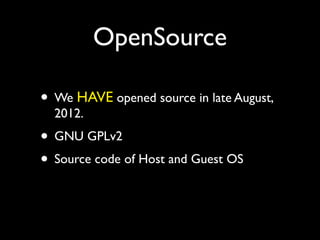

124. OpenSource
• We HAVE opened source in late August,
2012.
• GNU GPLv2
• Source code of Host and Guest OS

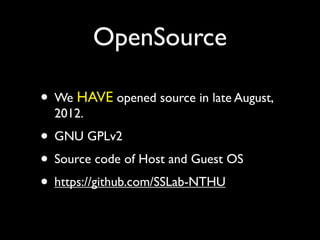

125. OpenSource
• We HAVE opened source in late August,
2012.
• GNU GPLv2
• Source code of Host and Guest OS
• https://github.com/SSLab-NTHU
