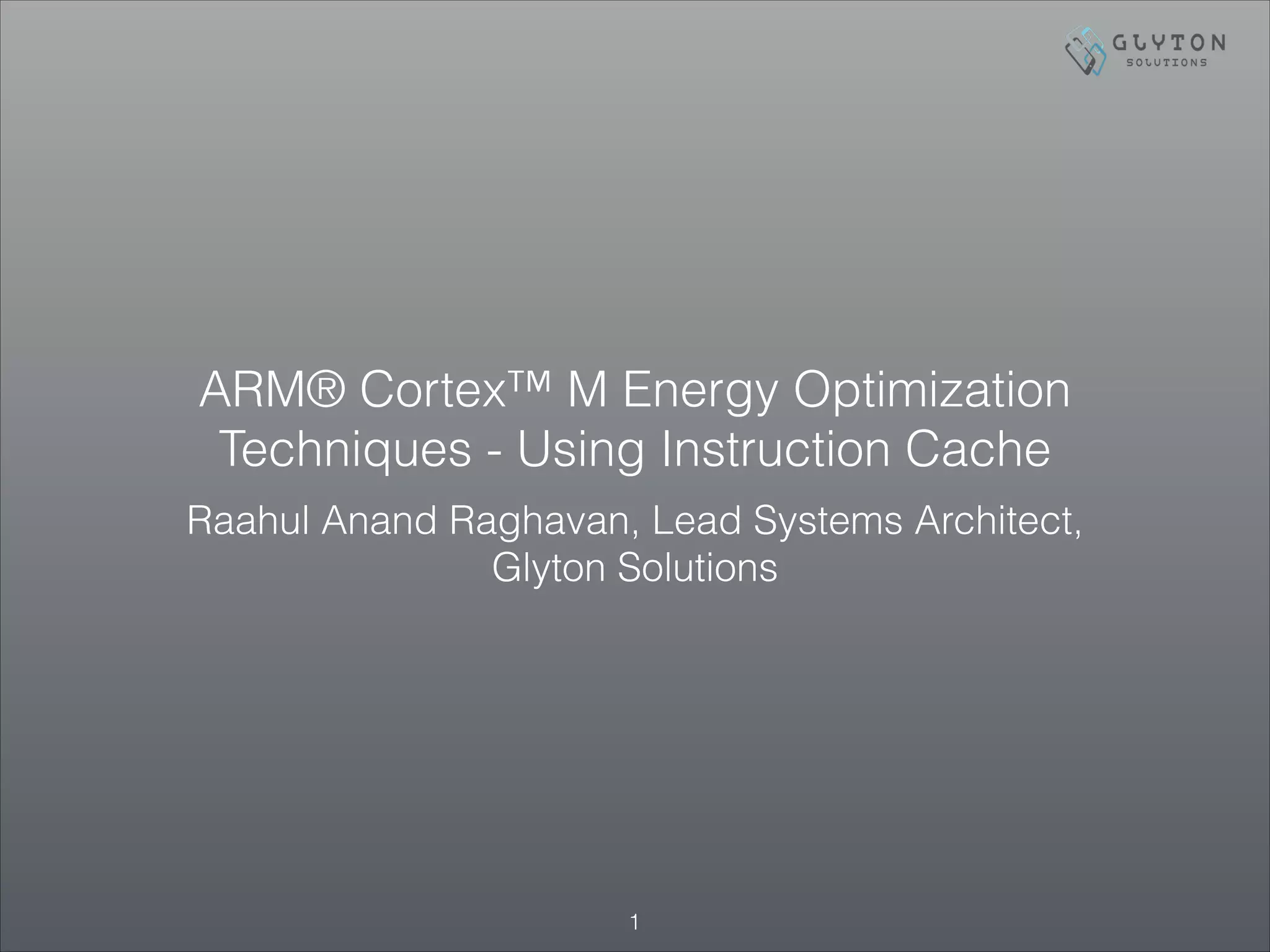

1. ARM® Cortex™ M Energy Optimization
Techniques - Using Instruction Cache
Raahul Anand Raghavan, Lead Systems Architect,
Glyton Solutions
!1

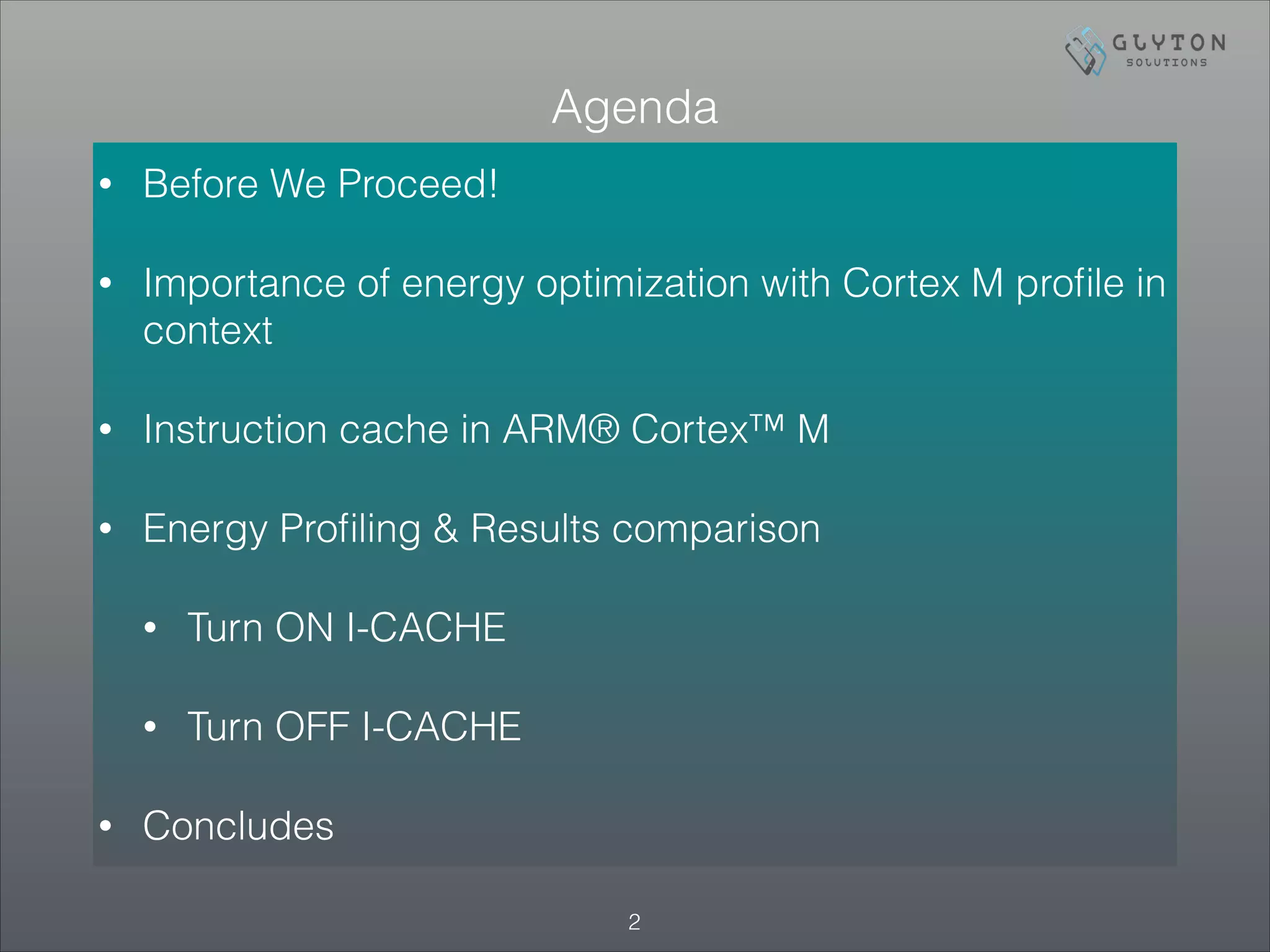

2. Agenda
• Before We Proceed!
• Importance of energy optimization with Cortex M profile in
context
• Instruction cache in ARM® Cortex™ M
• Energy Profiling & Results comparison
• Turn ON I-CACHE
• Turn OFF I-CACHE
• Concludes
!2

3. Before We Proceed!
• In this presentation, we will be investigating role of
I-CACHE when it comes to energy efficiency optimization
• Involves Cortex M0+ based EVM and a suitable IDE
• Official Documentation from ARM®, Silicon Labs will
override information provided here. Treat official TRM’s as
complete guides on Subject Matter
• ARM® Cortex® M trademark - ARM Ltd
• EFM®32, Silicon Labs SDK etc are registered trademarks
!3

4. ARM® Cortex™ M Importance of Energy Optimization (1 / 2)
• Typical products - Cortex M usage scenarios
• Perpetually powered sensor products for industrial control
• Energy harvesting is one key technology used to charge the battery pack when it comes to
perpetually powered low power consumption sensor products
• Products powering IOT (Internet of Things)
• Wearable products catering to
• Fitness trackers
• Elderly / Patient assistance
• ….
• Whats one critical factor judging better end user / enterprise experience across all the products
above ?
• ALWAYS ON functionality
• How do we achieve ALWAYS ON functionality ?
• Best in class energy efficiency
!4

5. ARM® Cortex™ M Importance of Energy Optimization (2 / 2)
• What would be one of the best methods for extreme energy efficiency ?
• Taking advantage of Architectural features
• We will be discussing how one such architectural feature in ARM® Cortex™ M micro-controllers
• I CACHE - Instruction Cache
!5
ARM® Cortex™
Core
Cache Look-Up
Logic
SRAM CACHE
Implementation
IDCOD MUX
CODE
Memory Space
(NV-FLASH)
ICODE!
AHB-LITE BUS
ICODE!
AHB-LITE BUS
Instruction Cache
DCODE!
AHB-LITE BUS
IDCODE!
AHB-LITE BUS

6. ICACHE Implementation - EFM32 MCU’s from Silicon Labs
• ICACHE
• Connected directly to Cortex M Core
• Acts as memory access filter between processor core and memory system
• Consists
• Access filter
• Look-up logic
• 128x32 SRAM (512 Bytes)
• How does it work ?
• Access filter checks if instruction access address falls in code space
• On match , cache look-up and SRAM is enabled and instruction fetch happens
• If no match , then ICACHE is bypassed and access is forwarded to memory
system , then to NV memory such as NAND flash
!6

7. How does ICACHE Impact energy efficiency ?
• In the absence of ICACHE
• Every instruction in CODE section, gets fetched from
external FLASH
• This involves read routines are always costly as it
involves external peripheral access
• The read routines to fetch instructions from external NV
memory such as NAND is always costly (in terms of
current consumption) compared to on-chip components
• Another factor is that , there could be a risk of involving
multiple read cycles for fetching instructions from
external flash
!7

8. Energy Profiling Results (1 / 2)
• Following data might give an idea with respect to what
would be the impact of having ICACHE turned ON and OFF
• ICACHE Turned ON / OFF in EFM32 Zero Gecko
• API used — MSC_EnableCache(bool );
• Does required configuration to turn ON or OFF ICACHE in
memory system controller
• Simple application measuring ambient temperature used
• Simplicity Studio - Energy Profiler from Silicon Labs
• On Board J-LINK debugger
!8

9. Energy Profiling Results (2 / 2)
Average Current Consumption — 60.45μA
Average Power — 200.78μA
Total Energy — 36.50mJ
Average Current Consumption — 73.03μA
Average Power — 242.48μA
Total Energy — 44.28mJ
!9
ICACHE ON
ICACHE OFF

10. Concludes!
• Lets ensure to
• Take advantage of any architectural functionality when
it comes to achieving high energy efficiency
• Take advantage of any ARM® Cortex™ M, silicon
implementer specific functionality when it comes to
achieving high energy efficiency
!10
