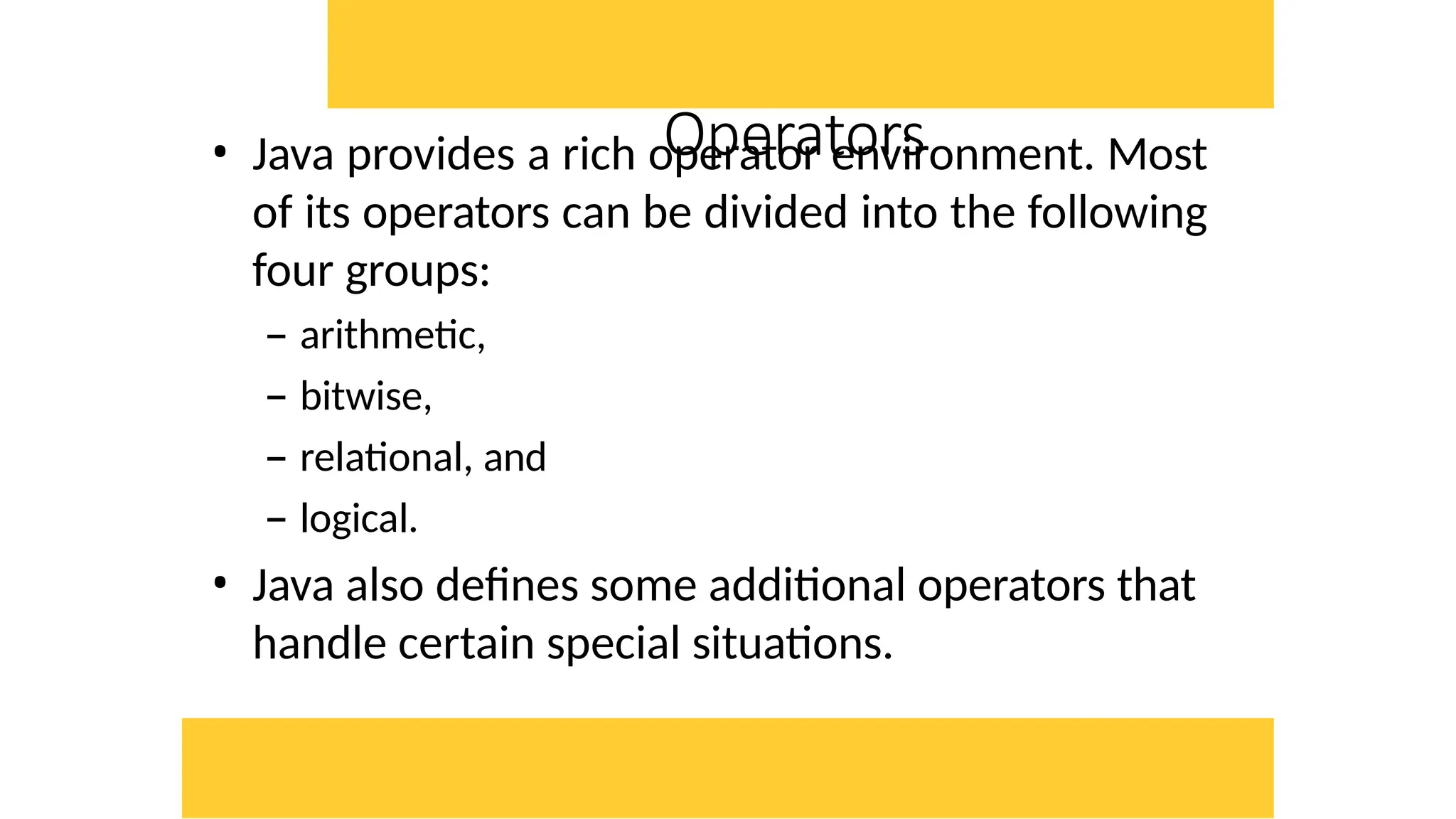

1. Operators
• Java provides a rich operator environment. Most
of its operators can be divided into the following
four groups:
– arithmetic,
– bitwise,
– relational, and
– logical.
• Java also defines some additional operators that
handle certain special situations.

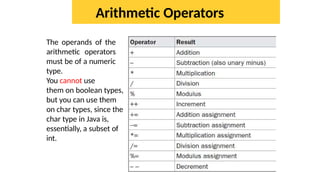

2. Arithmetic Operators
The operands of the
arithmetic operators
must be of a numeric
type.
You cannot use
them on boolean types,
but you can use them
on char types, since the
char type in Java is,
essentially, a subset of
int.

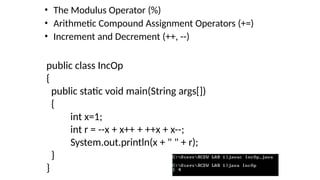

3. • The Modulus Operator (%)
• Arithmetic Compound Assignment Operators (+=)
• Increment and Decrement (++, --)
public class IncOp
{
public static void main(String args[])
{
int x=1;
int r = --x + x++ + ++x + x--;
System.out.println(x + " " + r);
}
}

4. //Guess the output
public class Test {
public
static void
main(String
[] args)
{
int a
=
10;
int b = ++(++a);
System.out.println(b);
}
}
//final
variable
public class
Test {

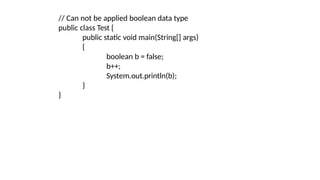

5. // Can not be applied boolean data type
public class Test {
public static void main(String[] args)
{
boolean b = false;
b++;
System.out.println(b);
}
}

6. The Bitwise Operators
• Java defines several bitwise operators that can be applied to
the integer types, long, int, short, char, and byte.
• These operators act upon the individual bits of their
operands.

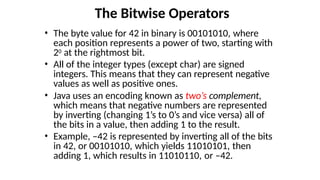

7. The Bitwise Operators
• The byte value for 42 in binary is 00101010, where
each position represents a power of two, starting with
20 at the rightmost bit.
• All of the integer types (except char) are signed
integers. This means that they can represent negative
values as well as positive ones.
• Java uses an encoding known as two’s complement,
which means that negative numbers are represented
by inverting (changing 1’s to 0’s and vice versa) all of
the bits in a value, then adding 1 to the result.
• Example, –42 is represented by inverting all of the bits
in 42, or 00101010, which yields 11010101, then
adding 1, which results in 11010110, or –42.

9. Bitwise OR (|) –
This operator is binary operator, denoted by ‘|’. It returns bit by bit OR of input
values,
i.e, if either of the bits is 1, it gives 1, else it gives 0.
For example,
a = 5 = 0101 (In Binary)
b = 7 = 0111 (In Binary)
Bitwise OR Operation of 5 and 7
0101
|
0111
011
1 =
7
(In
dec
ima
l)
Bitwis
e
AND
(&) –
This operator is binary operator, denoted by ‘&’. It returns bit by bit AND of input values, i.e,

10. Bitwise XOR (^) –
This operator is binary operator, denoted by ‘^’. It returns bit by bit XOR of
input
values, i.e, if corresponding bits are different, it gives 1, else it gives 0.
For example,
a = 5 = 0101 (In Binary)
b = 7 = 0111 (In Binary)
Bitwise XOR Operation of 5 and 7
0101
^
0111
001
0 =
2
(In
dec
ima
l)
Bitwis
e
Compl
ement

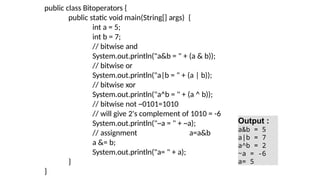

11. public class Bitoperators {
public static void main(String[] args) {
int a = 5;
int b = 7;
// bitwise and
System.out.println("a&b = " + (a & b));
// bitwise or
System.out.println("a|b = " + (a | b));
// bitwise xor
System.out.println("a^b = " + (a ^ b));
// bitwise not ~0101=1010
// will give 2's complement of 1010 = -6
System.out.println("~a = " + ~a);
// assignment a=a&b
a &= b;
System.out.println("a= " + a);
}
}
Output :
a&b = 5
a|b = 7
a^b = 2
~a = -6
a= 5

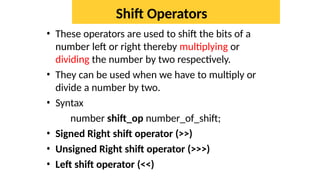

12. Shift Operators
• These operators are used to shift the bits of a
number left or right thereby multiplying or
dividing the number by two respectively.
• They can be used when we have to multiply or
divide a number by two.
• Syntax
number shift_op number_of_shift;
• Signed Right shift operator (>>)
• Unsigned Right shift operator (>>>)
• Left shift operator (<<)

13. log2base2
• Visit log2base2 site for animations

14. public class Shiftoperators {
public static void main(String[] args)
{
int a = 5;
int b = -10;
// left shift operator
// 0000 0101<<2 =0001
0100
// similar to 5*(2^2)
(20)
System.out.println("a<<2 = " + (a << 2));
// right shift operator
// 0000 0101 >> 2 =0000
0001
// similar to 5/(2^2)
(1)
System.out.println("b>>2 = " + (b >> 2));
// unsigned right shift operator
System.out.println("b>>>2 = " + (b >>> 2));
}
}
Output :
a<<2 = 20
b>>2 = -3
b>>>2 =
1073741821

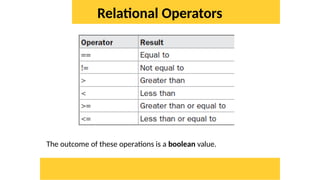

15. Relational Operators
The outcome of these operations is a boolean value.

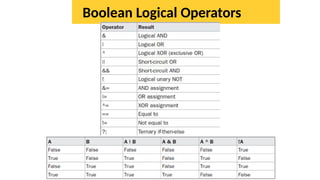

16. Boolean Logical Operators

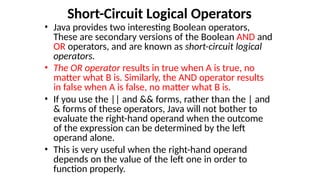

17. Short-Circuit Logical Operators
• Java provides two interesting Boolean operators,
These are secondary versions of the Boolean AND and
OR operators, and are known as short-circuit logical
operators.
• The OR operator results in true when A is true, no
matter what B is. Similarly, the AND operator results
in false when A is false, no matter what B is.
• If you use the || and && forms, rather than the | and
& forms of these operators, Java will not bother to
evaluate the right-hand operand when the outcome
of the expression can be determined by the left
operand alone.
• This is very useful when the right-hand operand
depends on the value of the left one in order to
function properly.

18. Short-Circuit Logical Operators
• if (denom != 0 && num / denom > 10)
• Since the short-circuit form of AND (&&) is used,
there is no risk of causing a run-time exception
when denom is zero.
• If this line of code were written using the single &
version of AND, both sides would be evaluated,
causing a run-time exception when denom is zero.

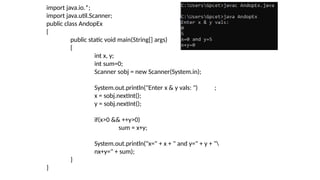

19. import java.io.*;
import java.util.Scanner;
public class AndopEx
{
public static void main(String[] args)
{
int x, y;
int sum=0;
Scanner sobj = new Scanner(System.in);
System.out.println("Enter x & y vals: ")
x = sobj.nextInt();
y = sobj.nextInt();
;
if(x>0 && ++y>0)
sum = x+y;
System.out.println("x=" + x + " and y=" + y + "
nx+y=" + sum);
}
}

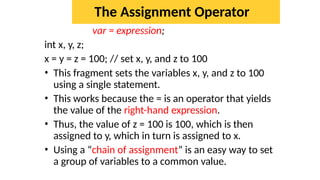

20. The Assignment Operator
var = expression;
int x, y, z;
x = y = z = 100; // set x, y, and z to 100
• This fragment sets the variables x, y, and z to 100
using a single statement.
• This works because the = is an operator that yields
the value of the right-hand expression.
• Thus, the value of z = 100 is 100, which is then
assigned to y, which in turn is assigned to x.
• Using a “chain of assignment” is an easy way to set
a group of variables to a common value.

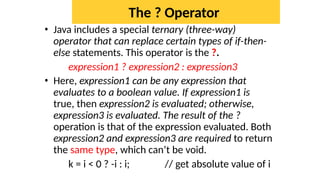

21. The ? Operator
• Java includes a special ternary (three-way)
operator that can replace certain types of if-then-
else statements. This operator is the ?.
expression1 ? expression2 : expression3
• Here, expression1 can be any expression that
evaluates to a boolean value. If expression1 is
true, then expression2 is evaluated; otherwise,
expression3 is evaluated. The result of the ?
operation is that of the expression evaluated. Both
expression2 and expression3 are required to return
the same type, which can’t be void.
k = i < 0 ? -i : i; // get absolute value of i

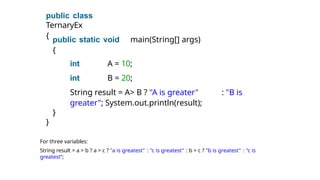

22. public class
TernaryEx
{ public static void main(String[] args)
{
int A = 10;
int B = 20;
String result = A> B ? "A is greater" : "B is
greater"; System.out.println(result);
}
}
For three variables:
String result = a > b ? a > c ? "a is greatest" : "c is greatest" : b > c ? "b is greatest" : "c is
greatest“;

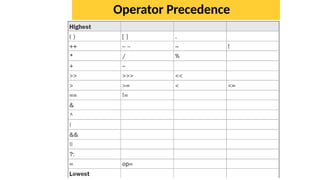

23. Operator Precedence
