This document discusses calculating the area of triangles. It provides the formulas for finding the area of a triangle using base (B) and height (H): A = 1/2 x B x H. Several examples are worked through, applying the formula to find the area when given values for B and H. The document also shows how to find the height or base when given the other variable and the area. It concludes with a couple multi-triangle area problems, using the triangle area formula to calculate total area.

1. The AREA OF THE TRIANGLE
Mrs.Neveen kamel
Prepared by

2. Area of the triangle
Width
Length Base
Height
A =L x W=……Cm² A =½ A
A =½ x L x W
A =½ x B x H

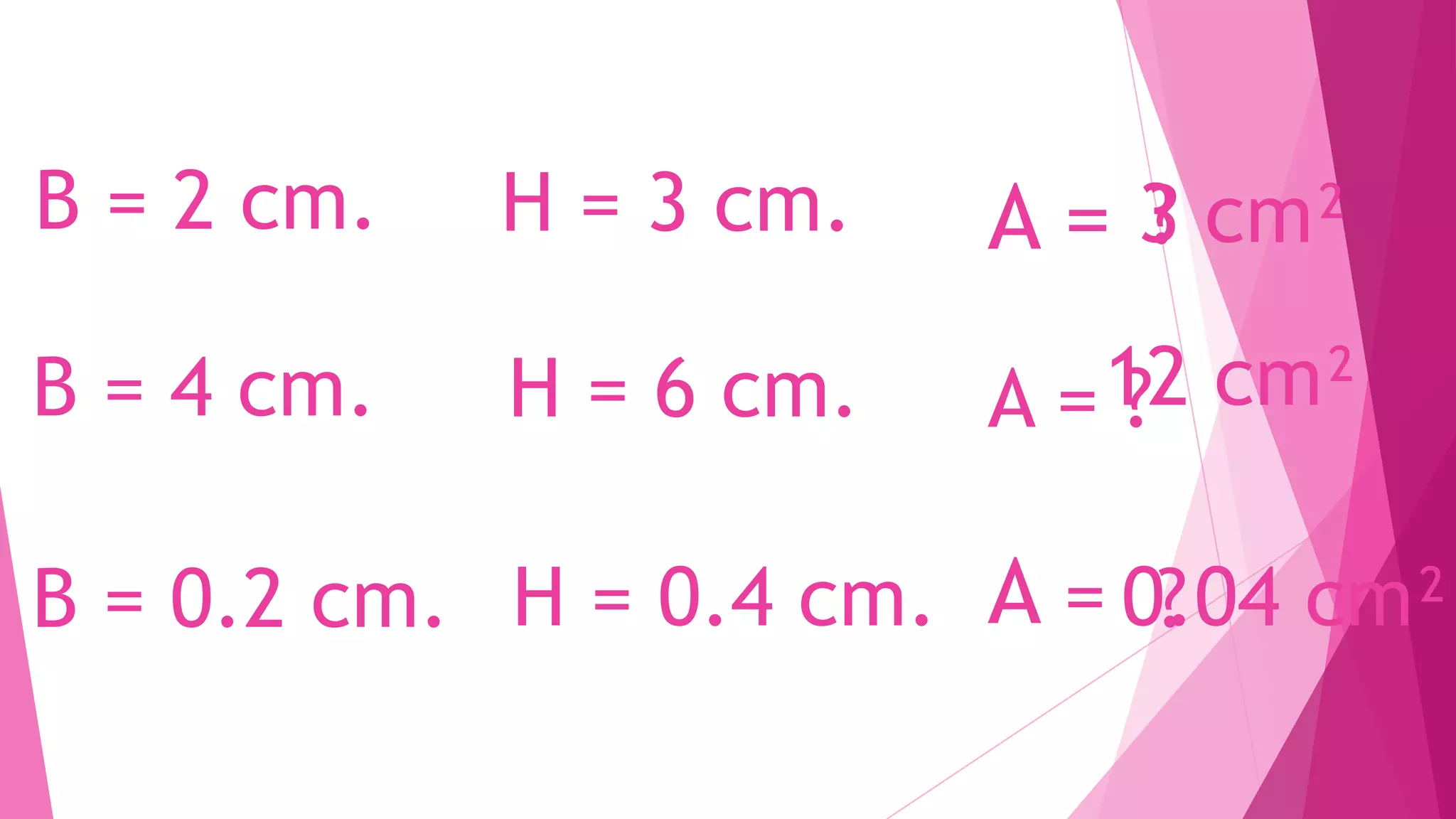

3. B = 2 cm. H = 3 cm. A = ?3 cm²
B = 4 cm. H = 6 cm. A =12 cm²
B = 0.2 cm. H = 0.4 cm. A = 0.04 cm²
?
?

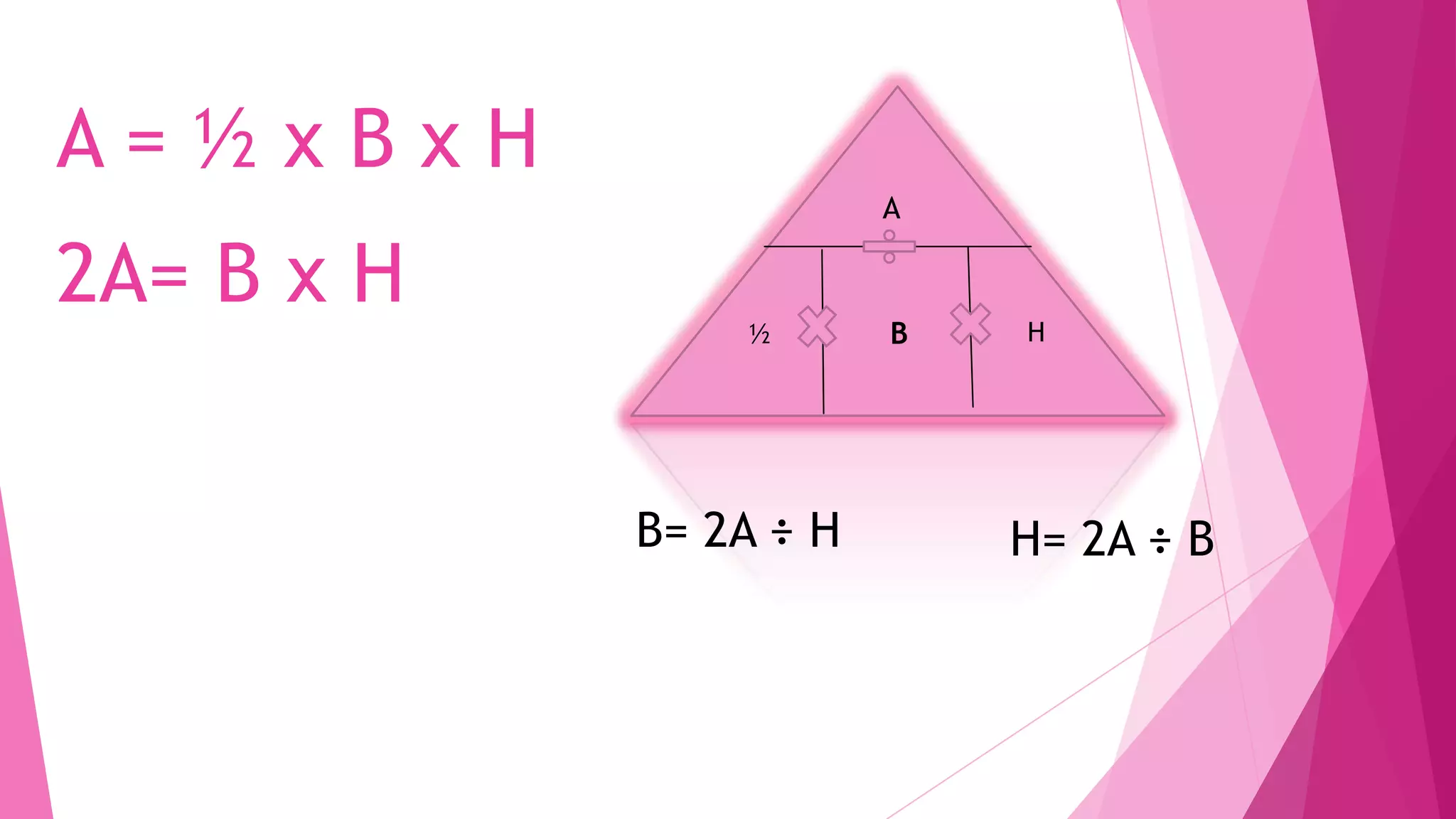

4. A
½ B H
B= 2A ÷ H H= 2A ÷ B
A = ½ x B x H
2A= B x H

5. Calculate the area of ABC in each of following :
B
A
C
A
B C
A
B DC3.6cm.
3.6cm.
12cm.
4cm.
3cm.
8cm.
A = ½ x B x H
= ½ x 3 x 4
= 6 cm².
A = ½ x B x H
= ½ x 12 x 8
= 48 cm².
A = ½ x B x H
= ½ x 3.6 x 3.6
= 6.48 cm².

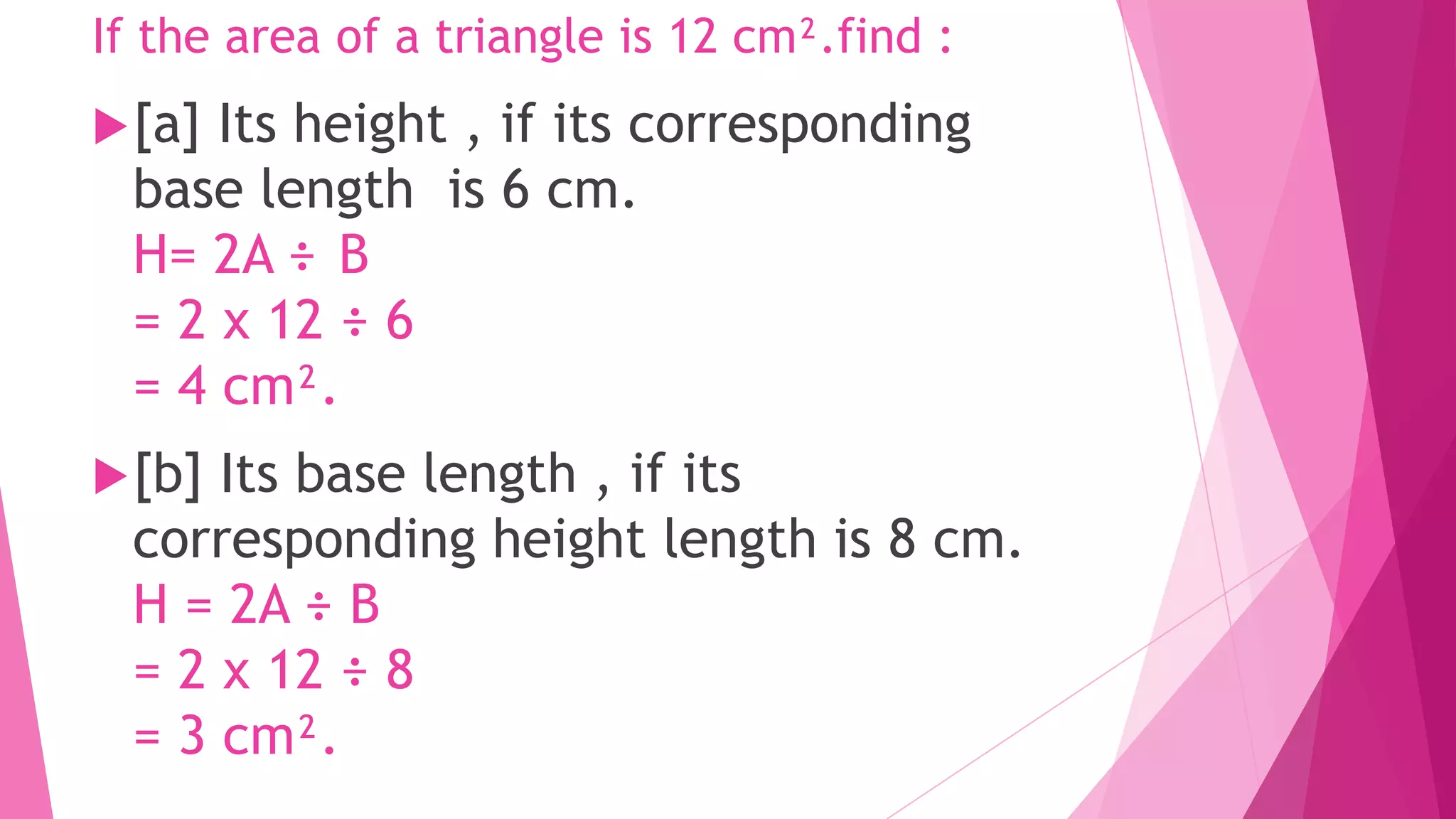

6. If the area of a triangle is 12 cm².find :
[a] Its height , if its corresponding
base length is 6 cm.
H= 2A ÷ B
= 2 x 12 ÷ 6
= 4 cm².
[b] Its base length , if its
corresponding height length is 8 cm.
H = 2A ÷ B
= 2 x 12 ÷ 8
= 3 cm².

7. Calculate the area of the following figure :
D
A
C
3cm.
5 cm.
4cm.
B
E
A = ½ x 5 x 4
= 20 cm².
A = 3 x 5
= 15 cm².
A = A +A
=15+20
=35 cm².

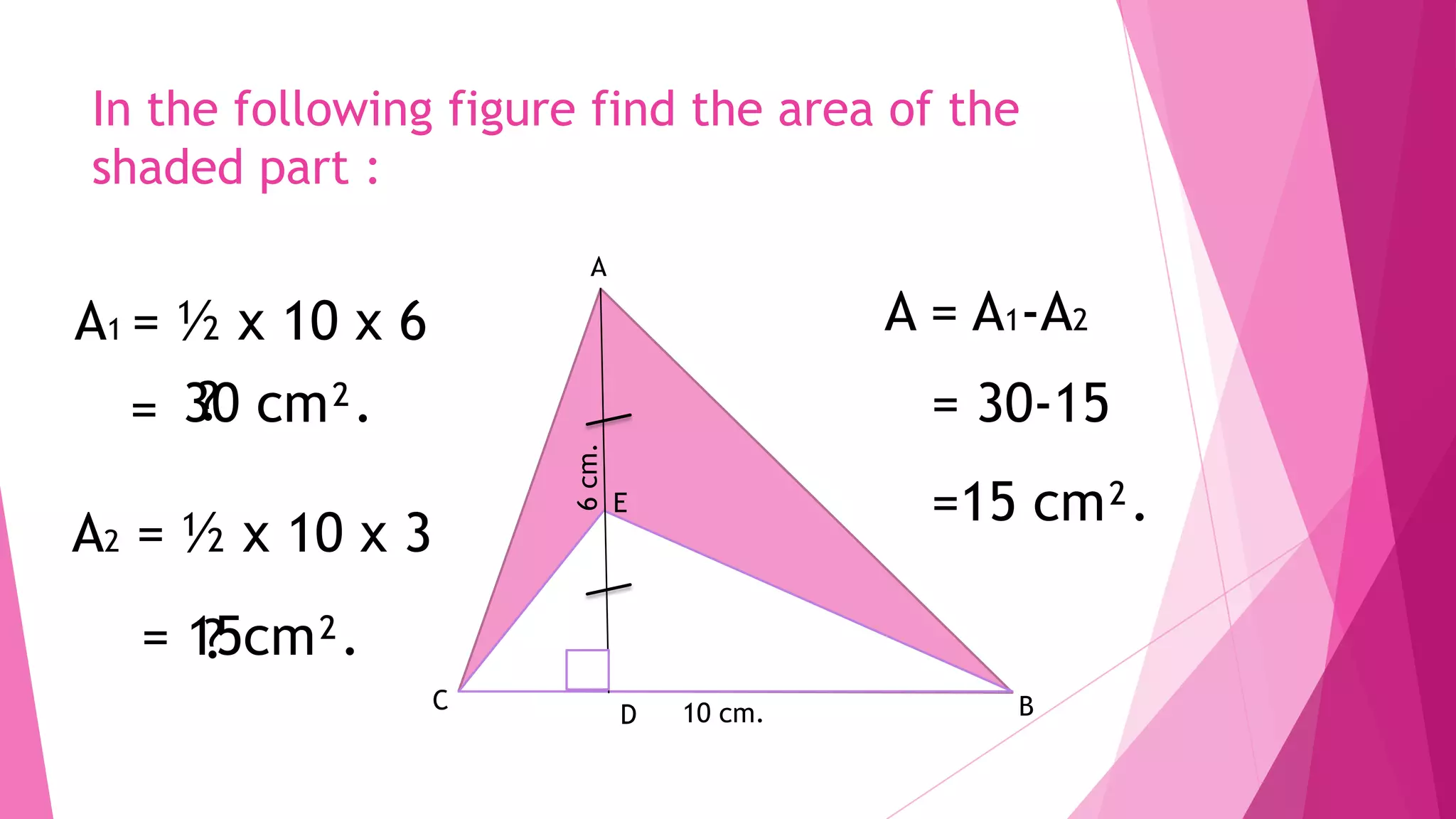

8. In the following figure find the area of the
shaded part :
A
C
D B
E
10 cm.
6cm.
A1 = ½ x 10 x 6
=
A2 = ½ x 10 x 3
=
?
?
30 cm².
15cm².
A = A1-A2
= 30-15
=15 cm².
