api-platform: the ultimate API platform

resourceful
an api-platform story.

2
Stefan Adolf
Developer Ambassador
#javascript #mongodb #serverless
#blockchain #codingberlin #elastic
#aws #php #symfony #react
#digitalization #agile #b2b #marketplaces
#spryker #php #k8s #largescale
#turbinejetzt #iot #ux #vuejs
@stadolf
elmariachi111

Not very smart.
Image courtesy of Paramount Pictures Inc. somewhere in America.

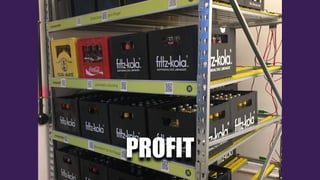

💡imagine

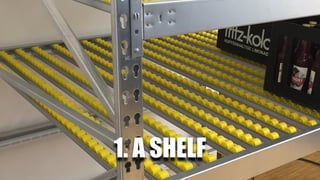

a shelf that tracks its inventory
and can place orders 
automatically.

what do you need to build a
smart shelf?

oh. and a backend.
we need a backend.

a swarm of devices
tracks the stock of
items
that relays them towards 
an event gateway
the API translates a sensor change
to an inventory change.
and sends a constant
stream of change events
to a local message broker
which pushes them to
a REST API
hub aggregates inventory change events  
to build the product stream state
smart shelve hub
customer 7 customer 10
fritz kola: 20%
club mate: 70%
water: 42%
ice tea: 5%

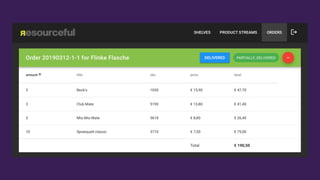

orders are negotiated with suppliers
it applies availability rules
to create orders
cust 10
needs
club mate
for
shelve 3
cust 7
needs
ice tea
for
shelve 5
cust 10
needs
milk
for
shelve 3
orders are placed.and shipped.

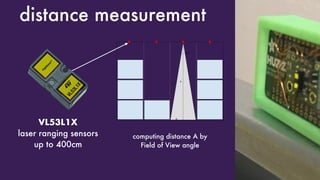

distance measurement
VL53L1X  
laser ranging sensors
up to 400cm
computing distance A by
Field of View angle

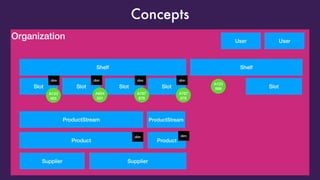

Organization
Concepts
UserUser
Shelf Shelf
Slot Slot Slot Slot
ProductStream
Product
Supplier
A123
465
A654
321
A787
878
dim dim
A787
878
dim dim
ProductStream
Supplier
Product
dim dim
Slot
A123 
999

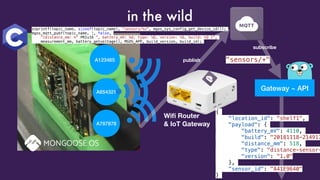

Gateway ~ APIA654321
A787878
A123465
Wiﬁ Router
& IoT Gateway
subscribe
"sensors/+"
{
"location_id": "shelf1",
"payload": {
"battery_mV": 4110,
"build": "20181118-214917
"distance_mm": 518,
"type": "distance-sensor-
"version": "1.0"
},
"sensor_id": "A41E9640"
}
in the wild
snprintf(topic_name, sizeof(topic_name), "sensors/%s", mgos_sys_config_get_device_id());
mgos_mqtt_pubf(topic_name, 1, false,
"{distance_mm: %" PRIu16 ", battery_mV: %d, type: %Q, version: %Q, build: %Q }",
measurement_mm, battery_getvoltage(), MGOS_APP, build_version, build_id);
publish

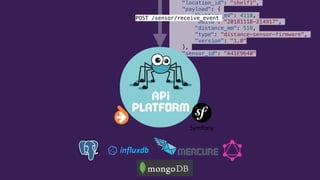

"location_id": "shelf1",
"payload": {
"battery_mV": 4110,
"build": "20181118-214917",
"distance_mm": 518,
"type": "distance-sensor-firmware",
"version": "1.0"
},
"sensor_id": "A41E9640"
}
POST /sensor/receive_event

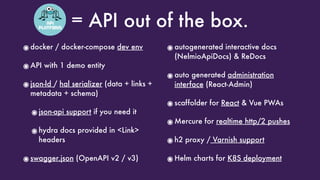

= API out of the box.
๏docker / docker-compose dev env
๏API with 1 demo entity
๏json-ld / hal serializer (data + links +
metadata + schema)
๏json-api support if you need it
๏hydra docs provided in <Link>
headers
๏swagger.json (OpenAPI v2 / v3)
๏autogenerated interactive docs
(NelmioApiDocs) & ReDocs
๏auto generated administration
interface (React-Admin)
๏scaffolder for React & Vue PWAs
๏Mercure for realtime http/2 pushes
๏h2 proxy / Varnish support
๏Helm charts for K8S deployment

/**

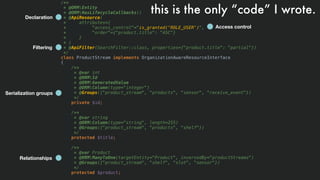

* @ORMEntity
* @ORMHasLifecycleCallbacks()
* @ApiResource(
* attributes={
* "access_control"="is_granted('ROLE_USER')",
* "order"={"product.title": "ASC"}
* }
* )
* @ApiFilter(SearchFilter::class, properties={"product.title": "partial"})
*/
class ProductStream implements OrganizationAwareResourceInterface
{
/**
* @var int
* @ORMId
* @ORMGeneratedValue
* @ORMColumn(type="integer")
* @Groups({"product_stream", "products", "sensor", "receive_event"})
*/
private $id;
/**
* @var string
* @ORMColumn(type="string", length=255)
* @Groups({"product_stream", "products", "shelf"})
*/
protected $title;
/**
* @var Product
* @ORMManyToOne(targetEntity="Product", inversedBy="productStreams")
* @Groups({"product_stream", "shelf", "slot", "sensor"})
*/
protected $product;
Declaration
Filtering
Serialization groups
Relationships
Access control
this is the only “code” I wrote.

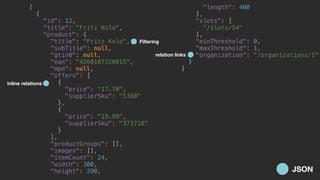

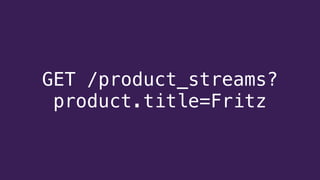

GET /product_streams?
product.title=Fritz

[
{
"id": 12,
"title": "Fritz Kola",
"product": {
"subTitle": null,
"gtin8": null,
"ean": "4260107220015",
"mpn": null,
"offers": [
{
"price": "17.70",
"supplierSku": "5360"
},
{
"price": "19.99",
}
],
"productGroups": [],
"images": [],
"itemCount": 24,
"width": 300,
"height": 290,
"length": 400
},
"slots": [
"/slots/54"
],
"minThreshold": 0,
"maxThreshold": 1,
"organization": "/organizations/1"
}
]
inline relations
Filtering
relation links
JSON

{

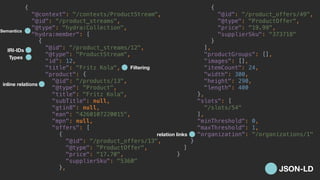

"@context": "/contexts/ProductStream",
"@id": "/product_streams",
"@type": "hydra:Collection",
"hydra:member": [
{
"@id": "/product_streams/12",
"@type": "ProductStream",
"id": 12,
"product": {
"@id": "/products/13",
"@type": "Product",
"subTitle": null,
"gtin8": null,
"ean": "4260107220015",
"mpn": null,
"offers": [
{
"@id": "/product_offers/13",
"@type": "ProductOffer",
"price": "17.70",
},
{
"@id": "/product_offers/49",
"@type": "ProductOffer",
"price": "19.99",
}
],
"images": [],
"itemCount": 24,
"width": 300,
"height": 290,
"length": 400
},
"slots": [
"/slots/54"
],
"minThreshold": 0,
"maxThreshold": 1,
"organization": "/organizations/1"
}
]
}
Semantics
IRI-IDs
Types
inline relations
Filtering
relation links
JSON-LD

{

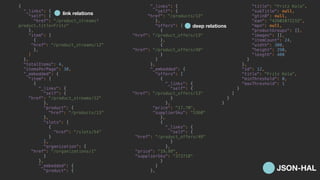

"_links": {
"self": {
"href": "/product_streams?
product.title=Fritz"
},
"item": [
{
"href": "/product_streams/12"
},
]
},
"totalItems": 4,
"itemsPerPage": 30,
"_embedded": {
"item": [
{
"_links": {
"self": {
"href": "/product_streams/12"
},
"product": {
"href": "/products/13"
},
"slots": [
{
"href": "/slots/54"
}
],
"organization": {
"href": "/organizations/1"
}
},
"_embedded": {
"product": {
"_links": {
"self": {
"href": "/products/13"
},
"offers": [
{
"href": "/product_offers/13"
},
{
}
]
},
"_embedded": {
"offers": [
{
"_links": {
"self": {
}
},
"price": "17.70",
},
{
"_links": {
"self": {
}
},
"price": "19.99",
}
]
},
"subTitle": null,
"gtin8": null,
"ean": "42601072215",
"mpn": null,
"images": [],
"itemCount": 24,
"width": 300,
"height": 290,
"length": 400
}
},
"id": 12,
"minThreshold": 0,
"maxThreshold": 1
}
]
}
}
link relations
JSON-HAL
deep relations

{

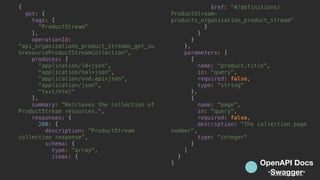

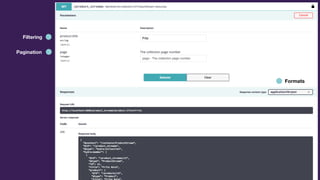

get: {
tags: [
"ProductStream"
],
operationId:
"api_organizations_product_streams_get_su
bresourceProductStreamCollection",
produces: [
"application/ld+json",
"application/hal+json",
"application/vnd.api+json",
"application/json",
"text/html"
],
summary: "Retrieves the collection of
ProductStream resources.",
responses: {
200: {
description: "ProductStream
collection response",
schema: {
type: "array",
items: {
$ref: "#/definitions/
ProductStream-
products_organization_product_stream"
}
}
}
},
parameters: [
{
name: "product.title",
in: "query",
required: false,
type: "string"
},
{
name: "page",
in: "query",
required: false,
description: "The collection page
number",
type: "integer"
}
]
}
} OpenAPI Docs 
“Swagger”

this is where the magic begins.
🧞

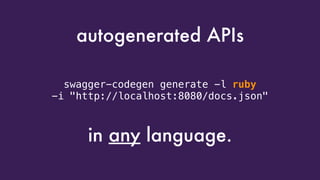

swagger-codegen generate -l ruby  
-i "http://localhost:8080/docs.json"
autogenerated APIs
in any language.

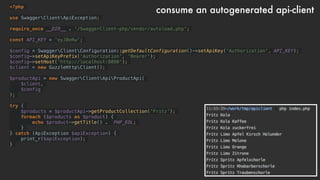

<?php
use SwaggerClientApiException;
require_once __DIR__ . '/SwaggerClient-php/vendor/autoload.php';
const API_KEY = 'eyJ0eRw';
$config = SwaggerClientConfiguration::getDefaultConfiguration()->setApiKey('Authorization', API_KEY);
$config->setApiKeyPrefix('Authorization', 'Bearer');
$config->setHost('http://localhost:8080');
$client = new GuzzleHttpClient();
$productApi = new SwaggerClientApiProductApi(
$client,
$config
);
try {
$products = $productApi->getProductCollection('Fritz');
foreach ($products as $product) {
echo $product->getTitle() . PHP_EOL;
}
} catch (ApiException $apiException) {
print_r($apiException);
}
consume an autogenerated api-client

scaffold Vue/react/rnative apps!

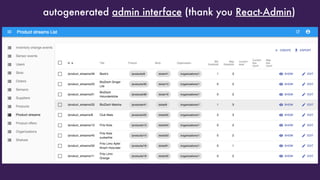

autogenerated admin interface (thank you React-Admin)

composer req webonyx/graphql-php
GraphQL anyone?

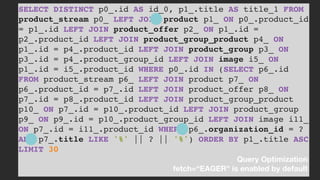

SELECT DISTINCT p0_.id AS id_0, p1_.title AS title_1 FROM
product_stream p0_ LEFT JOIN product p1_ ON p0_.product_id
= p1_.id LEFT JOIN product_offer p2_ ON p1_.id =
p2_.product_id LEFT JOIN product_group_product p4_ ON
p1_.id = p4_.product_id LEFT JOIN product_group p3_ ON
p3_.id = p4_.product_group_id LEFT JOIN image i5_ ON
p1_.id = i5_.product_id WHERE p0_.id IN (SELECT p6_.id
FROM product_stream p6_ LEFT JOIN product p7_ ON
p6_.product_id = p7_.id LEFT JOIN product_offer p8_ ON
p7_.id = p8_.product_id LEFT JOIN product_group_product
p10_ ON p7_.id = p10_.product_id LEFT JOIN product_group
p9_ ON p9_.id = p10_.product_group_id LEFT JOIN image i11_
ON p7_.id = i11_.product_id WHERE p6_.organization_id = ?
AND p7_.title LIKE '%' || ? || '%') ORDER BY p1_.title ASC
LIMIT 30
Query Optimization 
fetch=“EAGER" is enabled by default

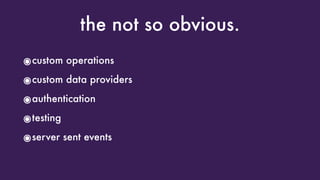

the not so obvious.
๏custom operations
๏custom data providers

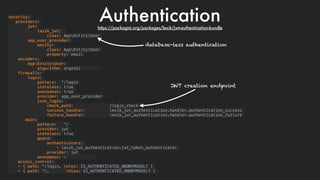

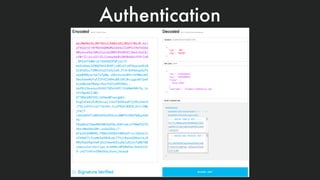

๏authentication

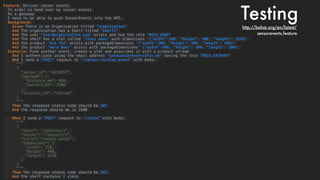

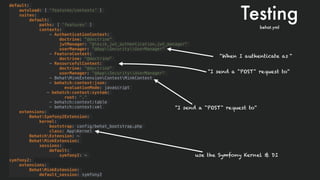

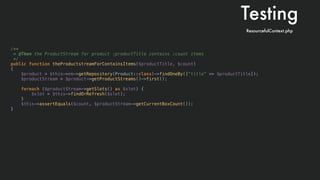

๏testing

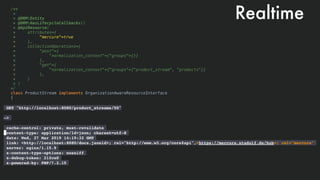

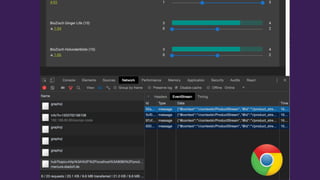

๏server sent events

/**

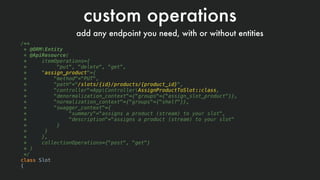

* @ORMEntity
* @ApiResource(
* itemOperations={
* "put", "delete", "get",
* "assign_product"={
* "method"="PUT",
* "path"="/slots/{id}/products/{product_id}",
* "controller"=AppControllerAssignProductToSlot::class,
* "denormalization_context"={"groups"={"assign_slot_product"}},
* "normalization_context"={"groups"={"shelf"}},
* "swagger_context"={
* "summary"="assigns a product (stream) to your slot",
* "description"="assigns a product (stream) to your slot"
* }
* }
* },
* collectionOperations={"post", "get"}
* )
*/
class Slot
{
custom operations
add any endpoint you need, with or without entities

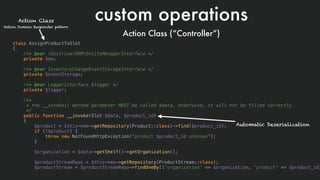

class AssignProductToSlot
{
/** @var DoctrineORMEntityManagerInterface */
private $em;
/** @var InventoryChangeEventStorageInterface */
private $eventStorage;
/** @var LoggerInterface $logger */
private $logger;
/**
* the __invoke() method parameter MUST be called $data, otherwise, it will not be filled correctly
*/
public function __invoke(Slot $data, $product_id)
{
$product = $this->em->getRepository(Product::class)->find($product_id);
if (!$product) {
throw new NotFoundHttpException("product $product_id unknown");
}
$organization = $data->getShelf()->getOrganization();
$productStreamRepo = $this->em->getRepository(ProductStream::class);
$productStream = $productStreamRepo->findOneBy(['organization' => $organization, 'product' => $product_id]
custom operations
Action Class (“Controller”)
Action Class 
Action Domain Responder pattern
Automatic Deserialization

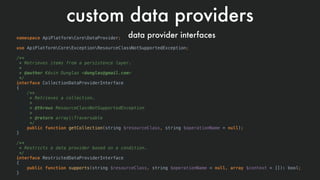

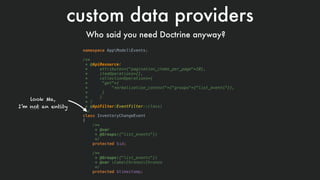

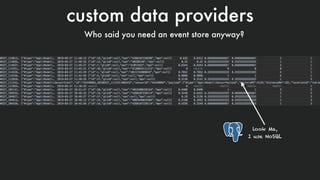

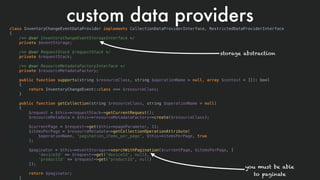

custom data providers
we use:
we should use:

Who said you need Doctrine anyway?
namespace AppModelEvents;
 
/**
* @ApiResource(
* attributes={"pagination_items_per_page"=10},
* itemOperations={},
* collectionOperations={
* "get"={
* "normalization_context"={"groups"={"list_events"}},
* }
* }
* )
* @ApiFilter(EventFilter::class)
*/
class InventoryChangeEvent
{
/**
* @var
* @Groups({"list_events"})
*/
protected $id;
/**
* @Groups({"list_events"})
* @var CakeChronosChronos
*/
protected $timestamp;
look Ma,  
I’m not an entity

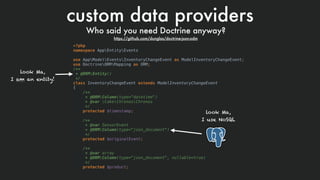

Who said you need Doctrine anyway? 
https://github.com/dunglas/doctrine-json-odm
<?php
namespace AppEntityEvents
use AppModelEventsInventoryChangeEvent as ModelInventoryChangeEvent;
use DoctrineORMMapping as ORM;
/**
* @ORMEntity()
*/
class InventoryChangeEvent extends ModelInventoryChangeEvent
{
/**
* @ORMColumn(type="datetime")
* @var CakeChronosChronos
*/
protected $timestamp;
/**
* @var SensorEvent
* @ORMColumn(type="json_document")
*/
protected $originalEvent;
/**
* @var array
* @ORMColumn(type="json_document", nullable=true)
*/
protected $product;
look Ma,  
I am an entity!
look Ma,  
I use NoSQL

Who said you need an event store anyway?
look Ma,  
I use NoSQL

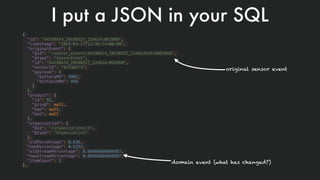

I put a JSON in your SQL
{
"id": "A419BA74_20190327_124614:063960",
"timestamp": "2019-03-27T12:46:14+00:00",
"originalEvent": {
"@id": "/sensor_events/A419BA74_20190327_124614%253A063960",
"@type": "SensorEvent",
"id": "A419BA74_20190327_124614:063960",
"sensorId": "A419BA74",
"payload": {
"batteryMV": 3982,
"distanceMm": 456
}
},
"product": {
"id": 51,
"gtin8": null,
"ean": null,
"mpn": null
},
"organization": {
"@id": "/organizations/3",
"@type": "Organization"
},
"oldPercentage": 0.636,
"newPercentage": 0.6352,
"oldStreamPercentage": 0.66666666666667,
"newStreamPercentage": 0.66666666666667,
"itemCount": 2
},
original sensor event
domain event (what has changed?)

data provider interfacesnamespace ApiPlatformCoreDataProvider;
use ApiPlatformCoreExceptionResourceClassNotSupportedException;
/**
* Retrieves items from a persistence layer.
*
* @author Kévin Dunglas <dunglas@gmail.com>
*/
interface CollectionDataProviderInterface
{
/**
* Retrieves a collection.
*
* @throws ResourceClassNotSupportedException
*
* @return array|Traversable
*/
public function getCollection(string $resourceClass, string $operationName = null);
}
/**
* Restricts a data provider based on a condition.
*/
interface RestrictedDataProviderInterface
{
public function supports(string $resourceClass, string $operationName = null, array $context = []): bool;
}

custom data providersclass InventoryChangeEventDataProvider implements CollectionDataProviderInterface, RestrictedDataProviderInterface
{
/** @var InventoryChangeEventStorageInterface */
private $eventStorage;
/** @var RequestStack $requestStack */
private $requestStack;
/** @var ResourceMetadataFactoryInterface */
private $resourceMetadataFactory;
public function supports(string $resourceClass, string $operationName = null, array $context = []): bool
{
return InventoryChangeEvent::class === $resourceClass;
}
public function getCollection(string $resourceClass, string $operationName = null)
{
$request = $this->requestStack->getCurrentRequest();
$resourceMetadata = $this->resourceMetadataFactory->create($resourceClass);
$currentPage = $request->get($this->pageParameter, 1);
$itemsPerPage = $resourceMetadata->getCollectionOperationAttribute(
$operationName, 'pagination_items_per_page', $this->itemsPerPage, true
);
$paginator = $this->eventStorage->searchWithPagination($currentPage, $itemsPerPage, [
'deviceId' => $request->get('deviceId', null),
'productId' => $request->get('productId', null)
]);
return $paginator;
}
storage abstraction
you must be able 
to paginate

class InventoryChangeEventRelationalStorage implements InventoryChangeEventStorageInterface
{
/** @var DoctrineORMEntityManagerInterface */
private $em;
public function createEventInstance(): AppModelEventsInventoryChangeEvent {
return new InventoryChangeEvent();
}
public function store(AppModelEventsInventoryChangeEvent $event)
{
$this->em->persist($event);
}
public function searchWithPagination(?int $page = 1, ?int $itemsPerPage = 30, ?array $criteria = []): PaginatorInterface {
$firstResult = ($page-1) * $itemsPerPage;
$qb = $this->createQueryBuilder($criteria);
$query = $qb->getQuery()
->setFirstResult($firstResult)
->setMaxResults($itemsPerPage);
$doctrinePaginator = new Paginator($query);
$paginator = new ApiPlatformCoreBridgeDoctrineOrmPaginator($doctrinePaginator);
return $paginator;
}
/**
* @return iterable
*/
public function getIterator(?array $criteria = []): iterable {
return $this->createQueryBuilder($criteria)
->orderBy("ice.timestamp", "ASC");
}
}
factory for concrete 
Models / Entities
decorate Paginator
do your query business

Authenticationsecurity:
providers:
jwt:
lexik_jwt:
class: AppEntityUser
app_user_provider:
entity:
class: AppEntityUser
property: email
encoders:
AppEntityUser:
algorithm: argon2i
firewalls:
login:
pattern: ^/login
stateless: true
anonymous: true
provider: app_user_provider
json_login:
check_path: /login_check
success_handler: lexik_jwt_authentication.handler.authentication_success
failure_handler: lexik_jwt_authentication.handler.authentication_failure
main:
pattern: ^/
provider: jwt
stateless: true
guard:
authenticators:
- lexik_jwt_authentication.jwt_token_authenticator
provider: jwt
anonymous: ~
access_control:
- { path: ^/login, roles: IS_AUTHENTICATED_ANONYMOUSLY }
- { path: ^/, roles: IS_AUTHENTICATED_ANONYMOUSLY }
database-less authentication
JWT creation endpoint
https://packagist.org/packages/lexik/jwt-authentication-bundle

Feature: Deliver sensor events
In order to hand over my sensor events
As a gateway
I need to be able to push SensorEvents into the API.
Background:
Given There is an Organization titled "organization"
And The organization has a Shelf titled "shelf1"
And The user "user@organization.com" exists and has the role "ROLE_USER"
And The shelf has a slot called "links oben" with dimensions '{"width":300, "height": 400, "length": 1250}'
And the product "Ice Tea" exists with packageDimensions '{"width":300, "height": 300, "length": 400}'
And the product "Warm Beer" exists with packageDimensions '{"width":400, "height": 300, "length": 300}'
Scenario: Push another event, create a slot and associate it with a product stream
And I authenticate using the email address "gateway1@resourceful.de" having the role "ROLE_GATEWAY"
And I send a "POST" request to "/sensor/receive_event" with body:
"""
{
"sensor_id": "A123457",
"payload": {
"distance_mm": 950,
"battery_mV": 3500
},
"location_id": "shelve"
}
"""
Then the response status code should be 201
And the response should be in JSON
When I send a "POST" request to "/slots" with body:
"""
{
"shelf": "/shelves/1",
"sensor": "/sensors/1",
"title": "rechts unten",
"dimensions": {
"width": 350,
"height": 400,
"length": 1250
}
}
"""
Then the response status code should be 201
And the shelf contains 2 slots
Testinghttp://behat.org/en/latest/
sensorevents.feature

default:
autoload: [ 'features/contexts' ]
suites:
default:
paths: [ 'features' ]
contexts:
- AuthenticationContext:
doctrine: "@doctrine"
jwtManager: "@lexik_jwt_authentication.jwt_manager"
userManager: "@AppSecurityUserManager"
- FeatureContext:
- ResourcefulContext:
userManager: "@AppSecurityUserManager"
- BehatMinkExtensionContextMinkContext
- behatch:context:json:
evaluationMode: javascript
- behatch:context:system:
root: "."
- behatch:context:table
- behatch:context:xml
extensions:
BehatSymfony2Extension:
kernel:
bootstrap: config/behat_bootstrap.php
class: AppKernel
BehatchExtension: ~
BehatMinkExtension:
sessions:
default:
symfony2: ~
symfony2:
extensions:
BehatMinkExtension:
default_session: symfony2
Testingbehat.yml
“When I authenticate as “
“I send a "POST" request to“
“I send a "POST" request to“
use the Symfony Kernel & DI

/**
* @Then the ProductStream for product :productTitle contains :count items
*/
public function theProductstreamForContainsItems($productTitle, $count)
{
$product = $this->em->getRepository(Product::class)->findOneBy(["title" => $productTitle]);
$productStream = $product->getProductStreams()->first();
foreach ($productStream->getSlots() as $slot) {
$slot = $this->findOrRefresh($slot);
}
$this->assertEquals($count, $productStream->getCurrentBoxCount());
}
Testing
ResourcefulContext.php

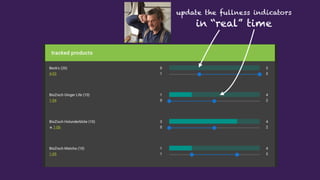

update the fullness indicators
in “real” time

❤ Symfony
๏ ofﬁcial Symfony component since March
2019
๏ written in Go
๏ high level replacement for WebSockets
(socket.io)
๏ following the server-sent events
WHATWG standard
๏ works in all browsers
๏ polyﬁll for Micro$oft “browsers” is
available
๏ compatible with HTTP/2
๏ (which isn’t supported by some PaaS)
๏ auto-discoverable
๏ using hub address in <Link> header
๏ compatible with GraphQL subscriptions
(apollo)

/**
*
* @ORMEntity
* @ORMHasLifecycleCallbacks()
* @ApiResource(
* attributes={
* "mercure"=true
* },
* collectionOperations={
* "post"={
* "normalization_context"={"groups"={}}
* },
* "get"={
* "normalization_context"={"groups"={"product_stream", "products"}}
* },
* }
* )
*/
class ProductStream implements OrganizationAwareResourceInterface
{
Realtime
GET "http://localhost:8080/product_streams/50" 
 
—>  
 
cache-control: private, must-revalidate
content-type: application/ld+json; charset=utf-8
date: Wed, 27 Mar 2019 14:19:32 GMT
link: <http://localhost:8080/docs.jsonld>; rel="http://www.w3.org/core#api",<https://mercure.stadolf.de/hub>; rel="mercure"
server: nginx/1.15.9
x-content-type-options: nosniff
x-debug-token: 21fce0
x-powered-by: PHP/7.2.15

methods: {
enableUpdates(iri) {
const url = new URL("https://mercure.stadolf.de/hub");
url.searchParams.append("topic", iri);
this.eventSource = new EventSource(url.toString());
this.eventSource.onmessage = this.receiveUpdate;
},
receiveUpdate(evt) {
const streamUpdate = JSON.parse(evt.data);
const id = streamUpdate["@id"];
const streams = this.productStreams.edges.filter(e => e.node.id == id);
if (streams.length > 0) {
streams[0].node.currentBoxCount = streamUpdate["currentBoxCount"];
}
}
},
ProductStreams.vue
native(!) server sent events
https://html.spec.whatwg.org/multipage/server-sent-events.html
contains the updated resource.

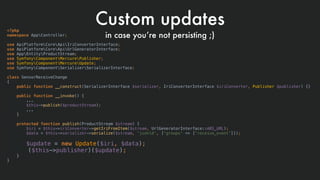

<?php
namespace AppController;
use ApiPlatformCoreApiIriConverterInterface;
use ApiPlatformCoreApiUrlGeneratorInterface;
use AppEntityProductStream;
use SymfonyComponentMercurePublisher;
use SymfonyComponentMercureUpdate;
use SymfonyComponentSerializerSerializerInterface;
class SensorReceiveChange
{
public function __construct(SerializerInterface $serializer, IriConverterInterface $iriConverter, Publisher $publisher) {}
public function __invoke() {
...
$this->publish($productStream);
...
}
protected function publish(ProductStream $stream) {
$iri = $this->iriConverter->getIriFromItem($stream, UrlGeneratorInterface::ABS_URL);
$data = $this->serializer->serialize($stream, 'jsonld', ['groups' => ['receive_event']]);
 
$update = new Update($iri, $data);
($this->publisher)($update);
}
}
Custom updates
in case you’re not persisting ;)

Too long, didn’t listen
๏builds API out of plain entity
descriptions
๏ﬁlters, pagination, ordering are
builtin
๏compatible to all major
standards
๏scaffolds applications and clients
๏comes with container templates,
ready to deploy to production
(K8S)
๏supports Mongo, Elasticsearch,
Mercure
๏if you know Symfony the learning
curve is very low

That’s all, folks
Stefan Adolf 
https://www.facebook.com/stadolf 
https://twitter.com/stadolf 
https://github.com/elmariachi111 
https://www.linkedin.com/in/stadolf/

api-platform: the ultimate API platform

More Related Content

What's hot

Similar to api-platform: the ultimate API platform

More from Stefan Adolf

Recently uploaded

api-platform: the ultimate API platform
