1. Need for Speed
Removing speed bumps in API Projects
Łukasz Chruściel
https://sm.ign.com/ign_in/screenshot/default/nfs-most-wanted_qxww.jpg

2. Introduction

3. Weavers, Sylius

4. Why do we need to thinks
about performance?

5. ~ Amazon
“100ms Faster
=
1% More Revenue.”

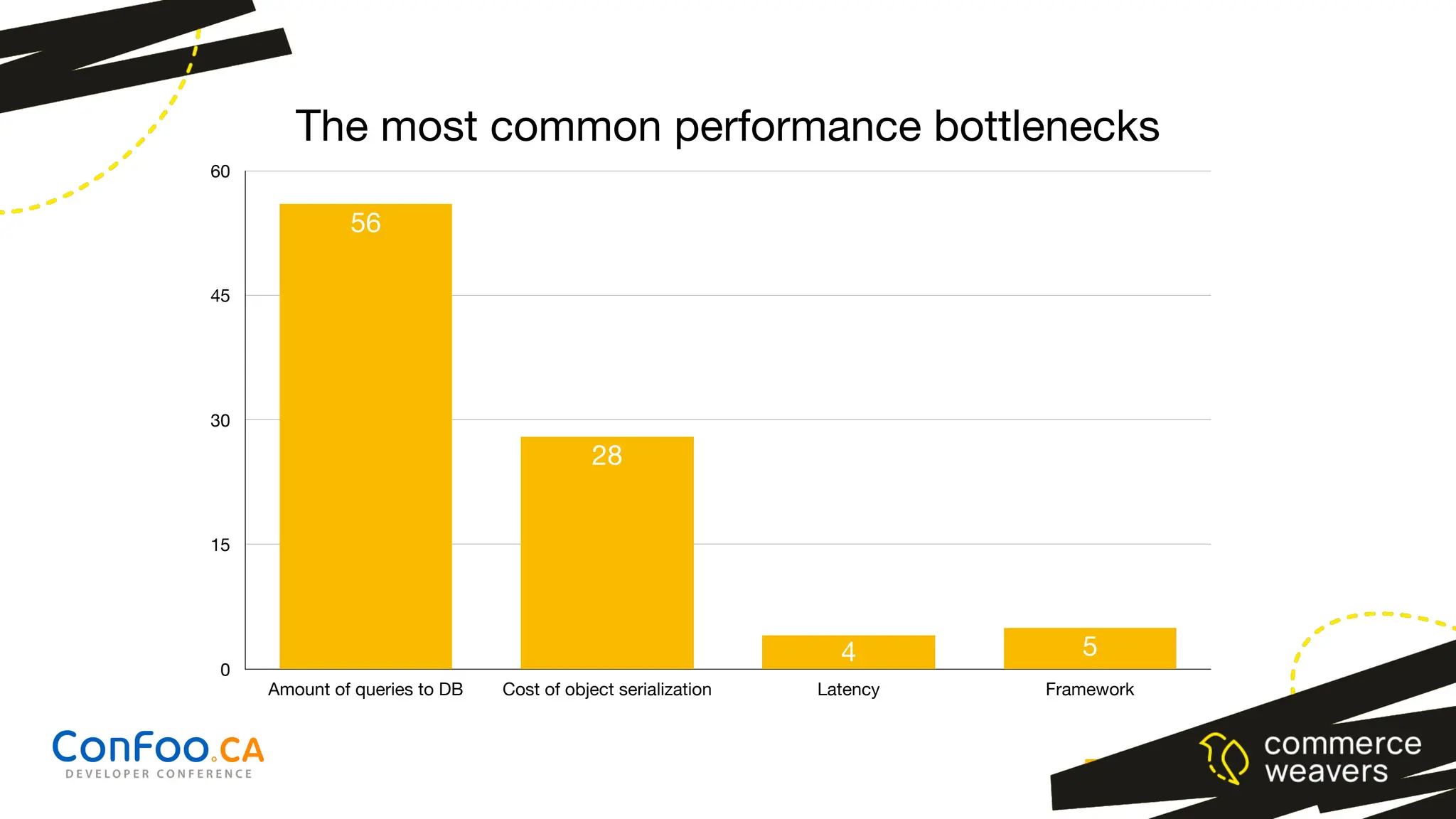

7. The most common performance bottlenecks
0
15
30
45
60
Amount of queries to DB Cost of object serialization Latency Framework
5
4
28
56
Votes

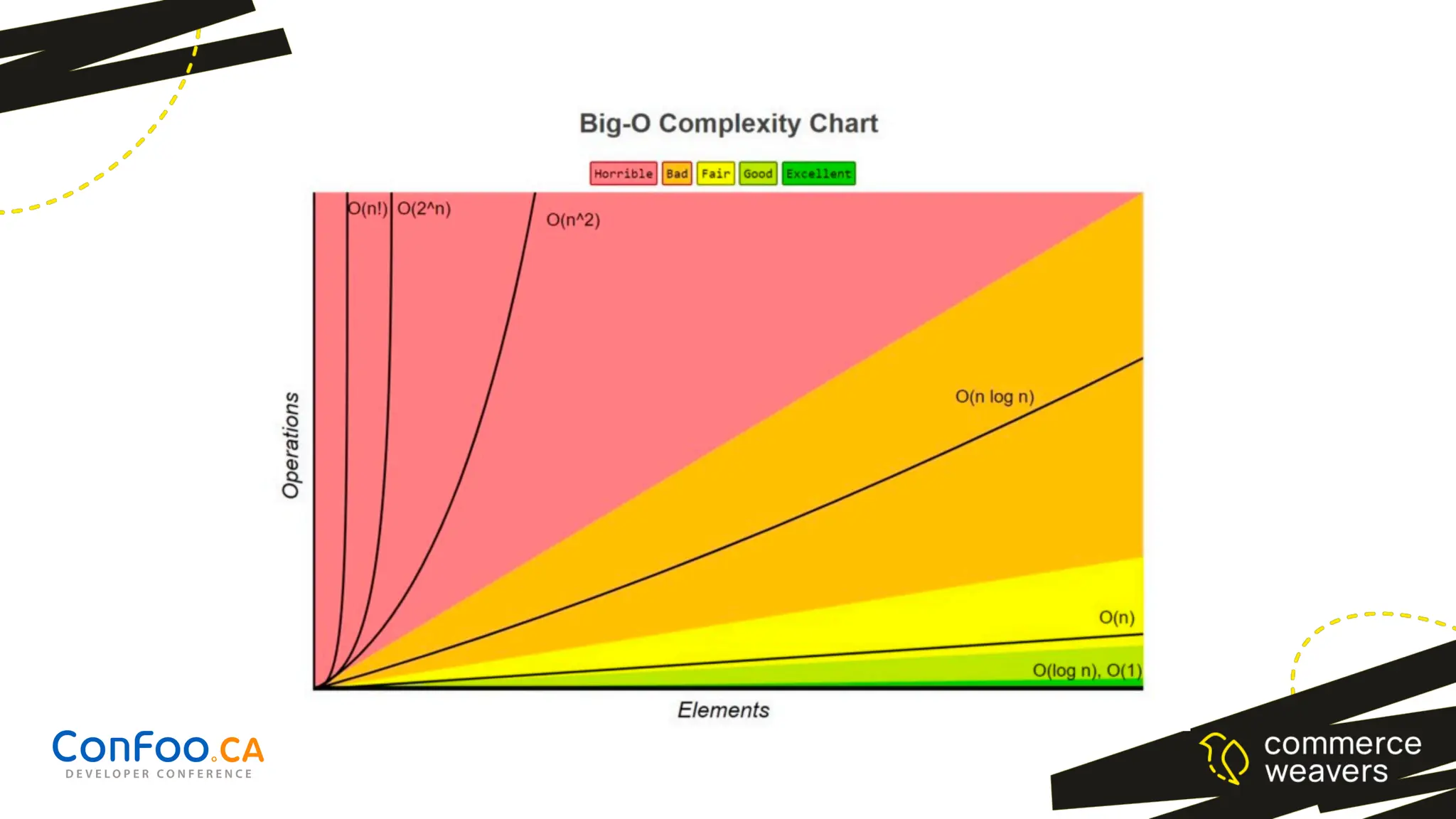

8. Algorithmic complexity

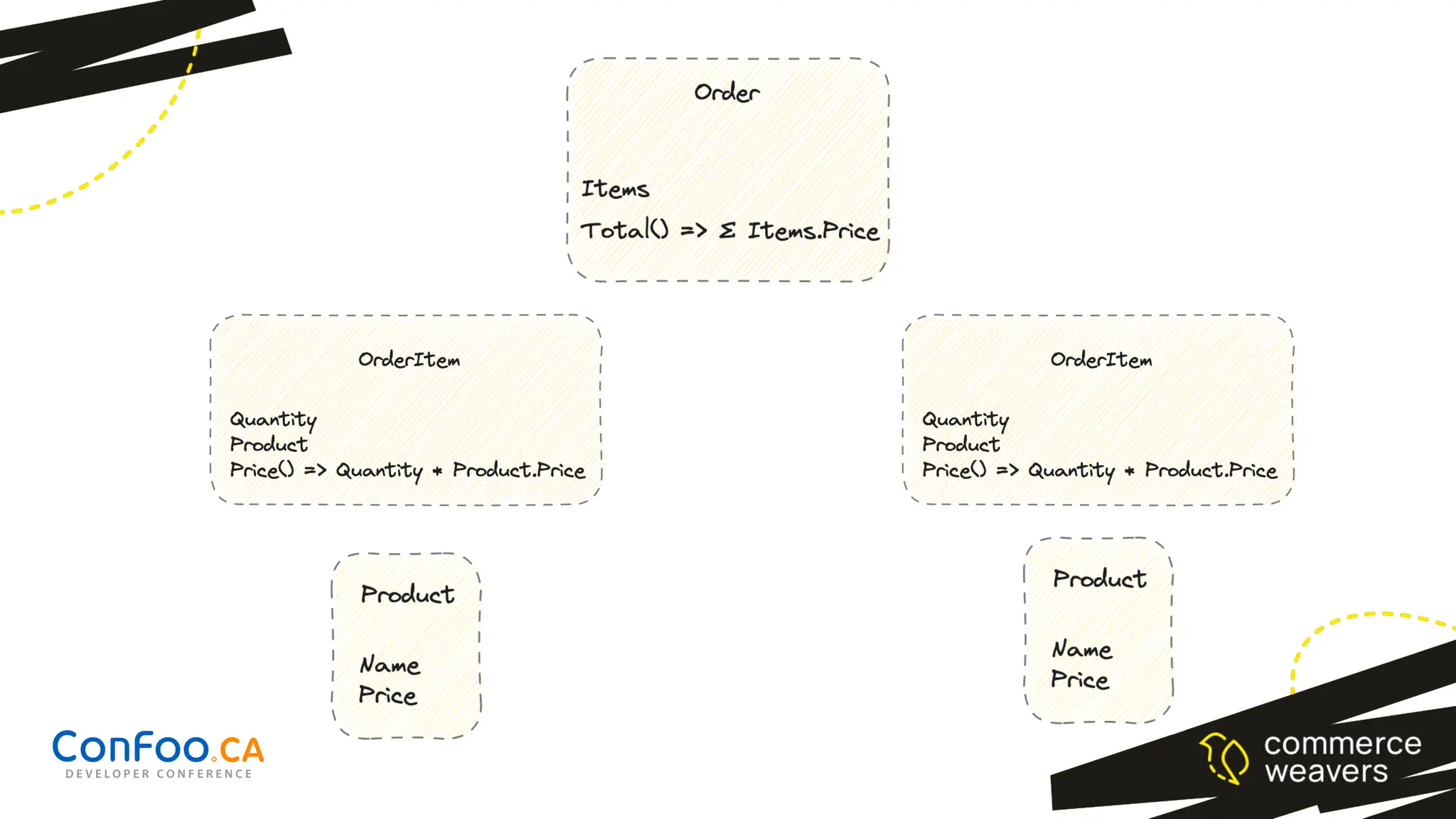

10. Project structure

12. Problems 🎉

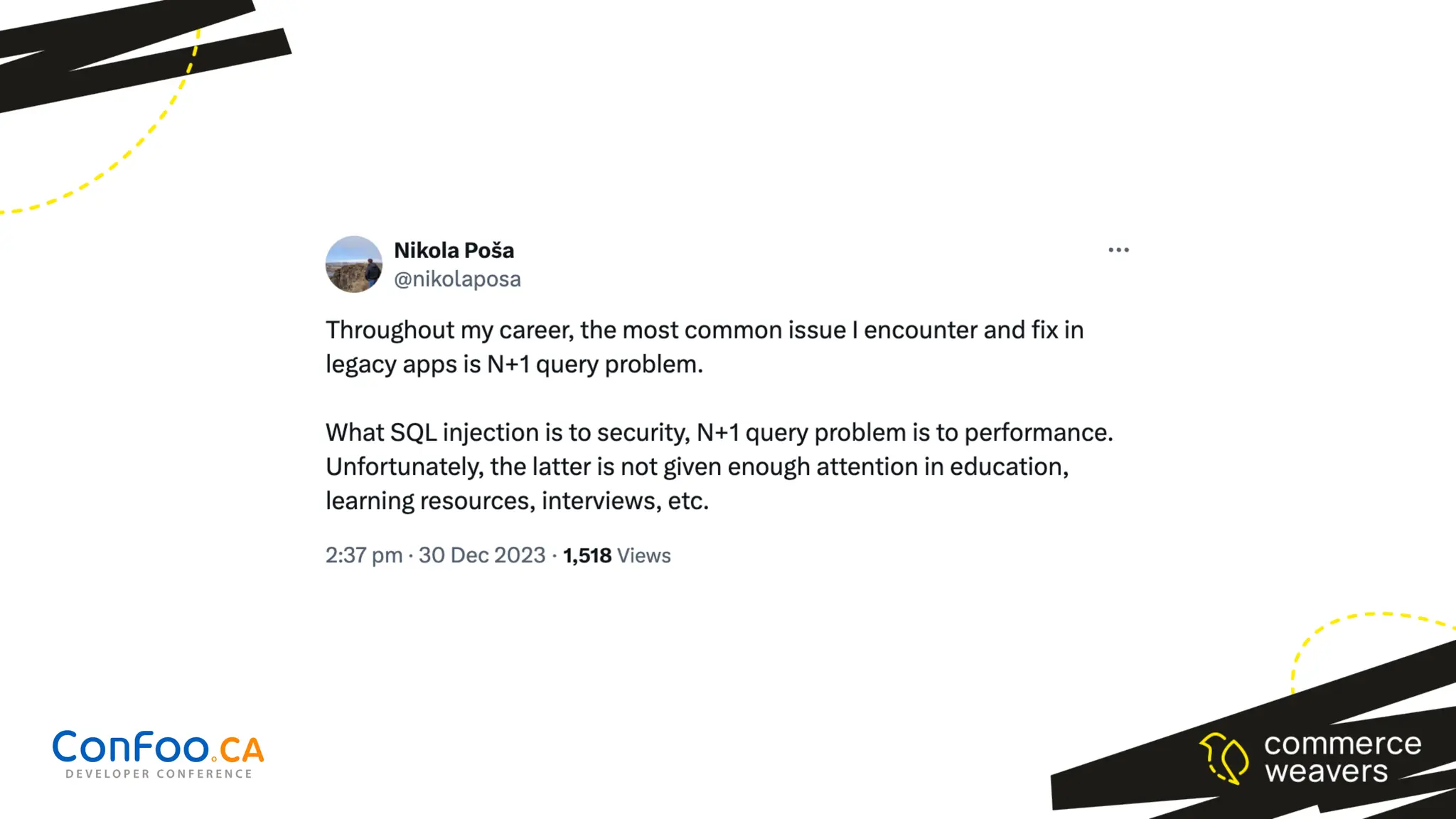

13. N+1

14. ORM anyone? 🧐

15. Product list

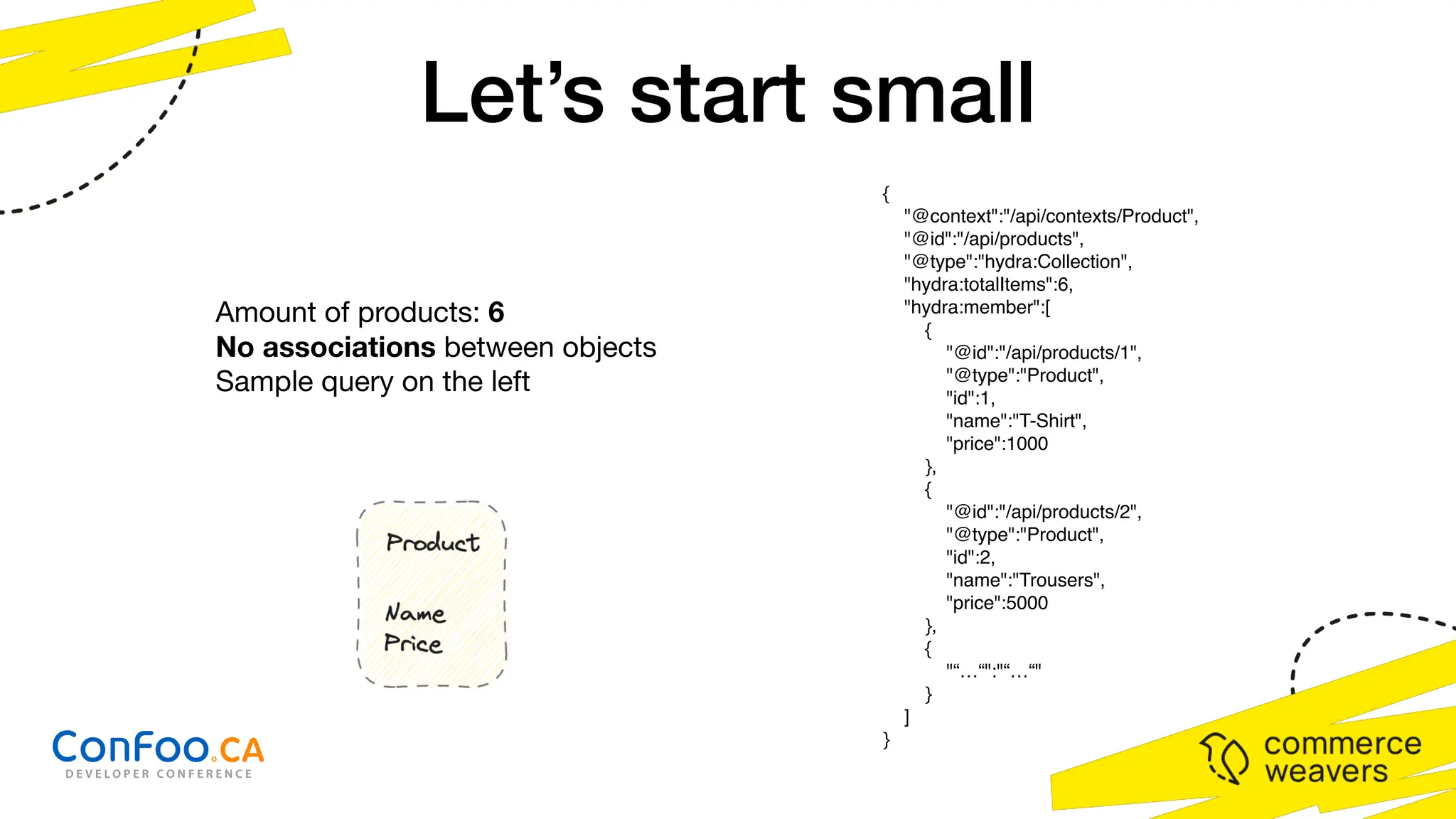

16. Let’s start small
{
"@context":"/api/contexts/Product",
"@id":"/api/products",
"@type":"hydra:Collection",
"hydra:totalItems":6,
"hydra:member":[
{
"@id":"/api/products/1",
"@type":"Product",
"id":1,
"name":"T-Shirt",
"price":1000
},
{
"@id":"/api/products/2",
"@type":"Product",
"id":2,
"name":"Trousers",
"price":5000
},
{
"“…“":"“…“"
}
]
}
Amount of products: 6
No associations between objects

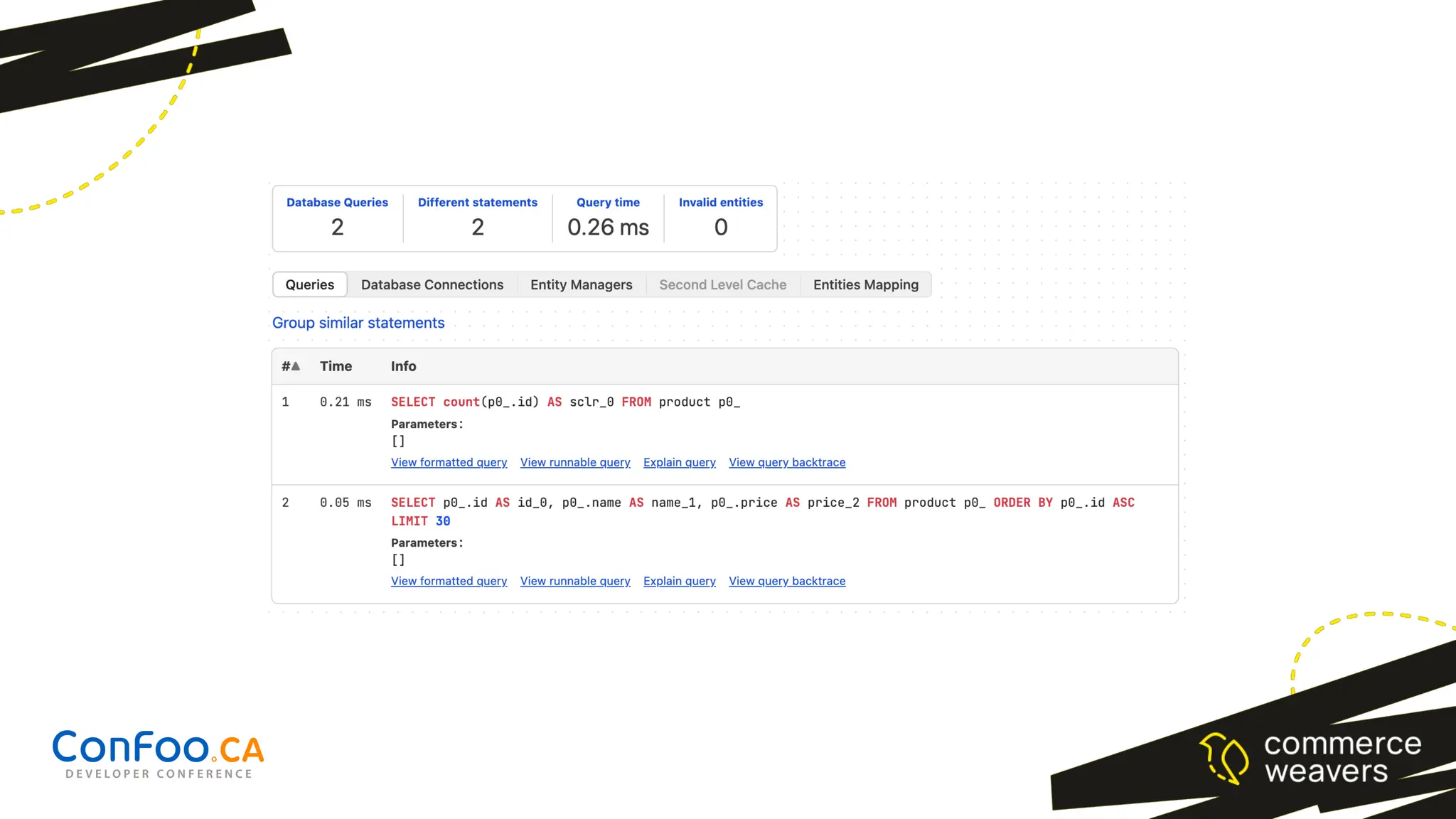

Sample query on the left

18. O(1)

20. Order list

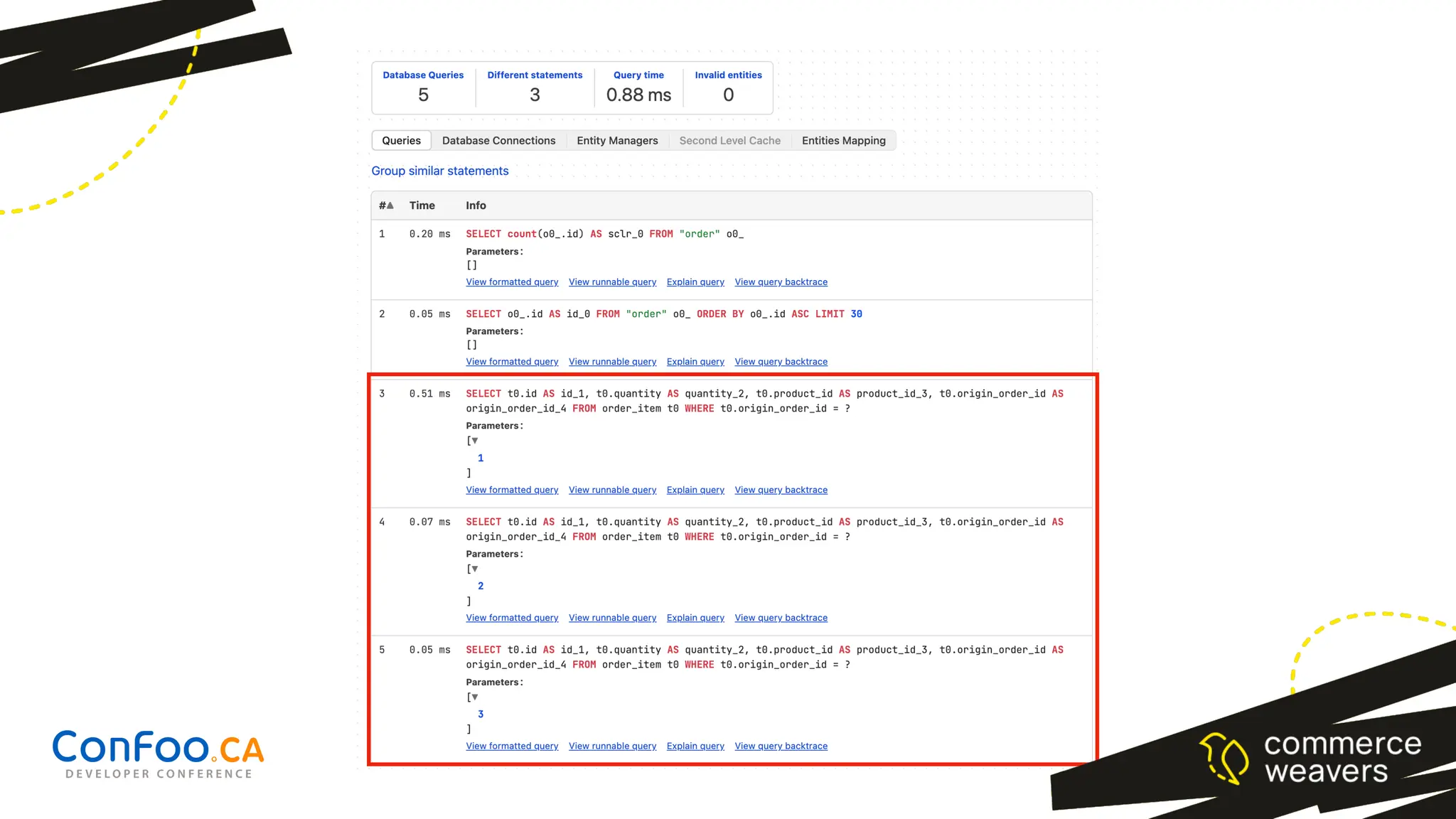

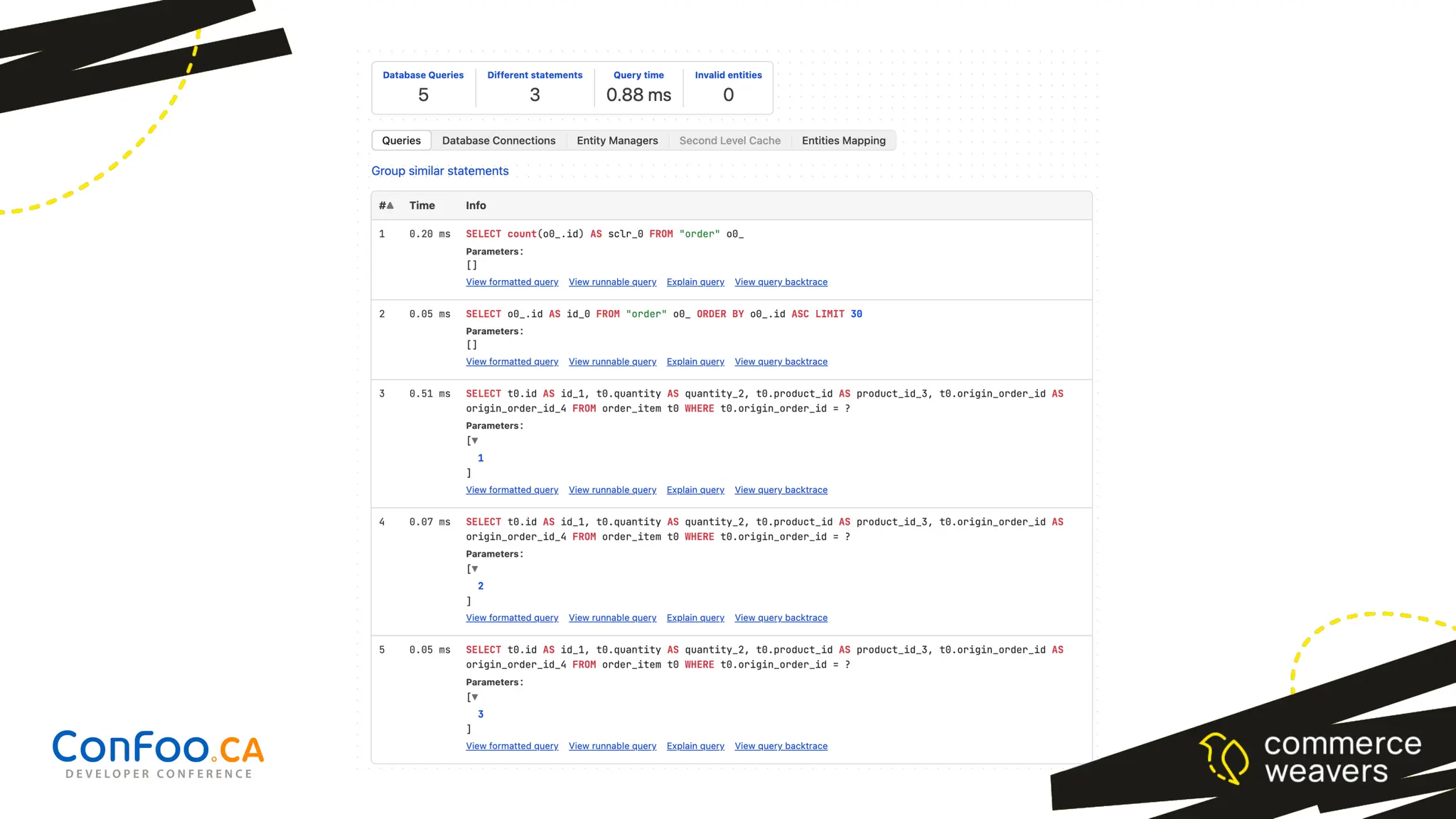

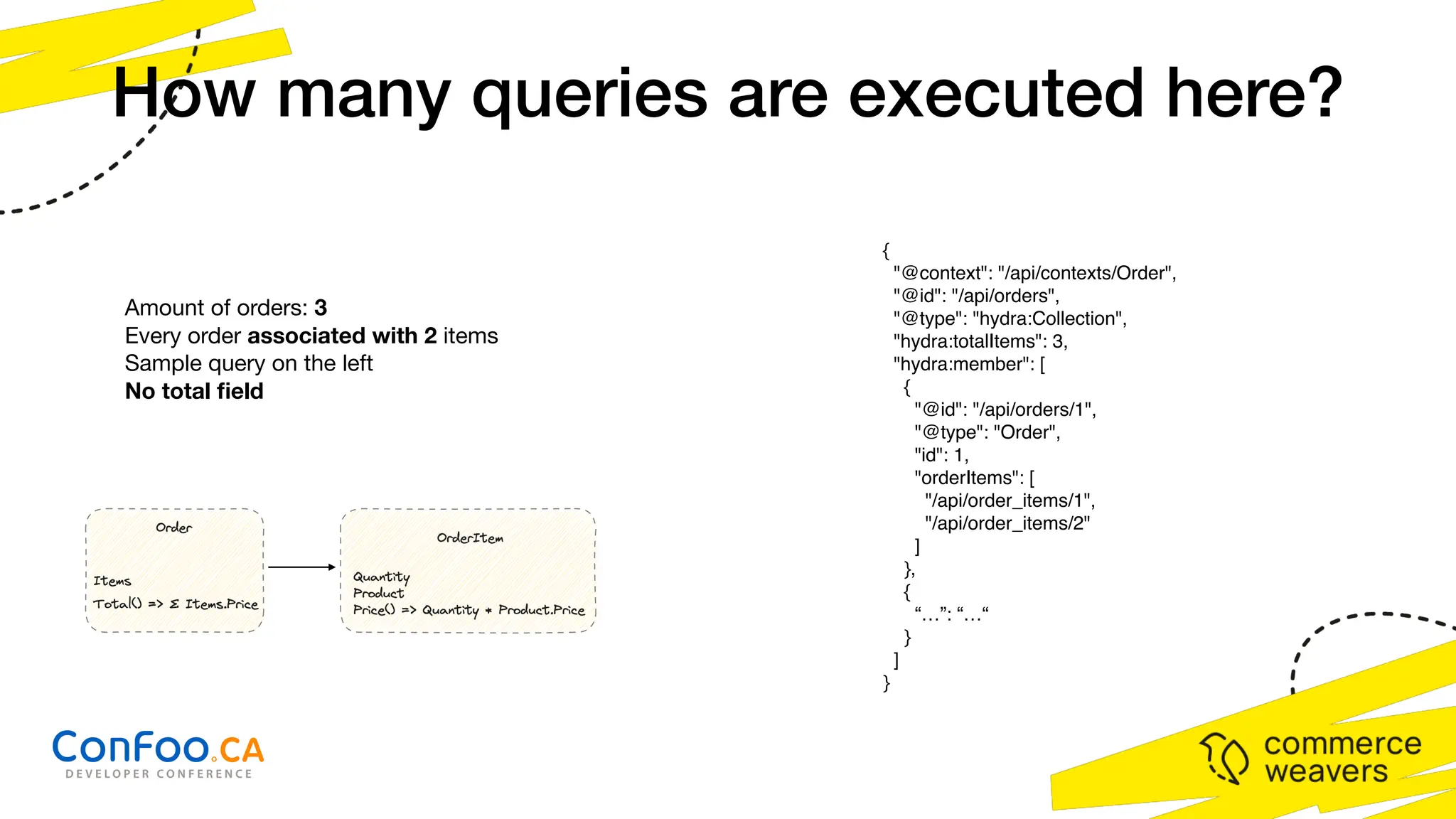

21. How many queries are executed here?
{
"@context": "/api/contexts/Order",
"@id": "/api/orders",
"@type": "hydra:Collection",
"hydra:totalItems": 3,
"hydra:member": [
{
"@id": "/api/orders/1",
"@type": "Order",
"id": 1,
"orderItems": [
"/api/order_items/1",
"/api/order_items/2"
]
},
{
“…”: “…“
}
]
}
Amount of orders: 3
Every order associated with 2 items
Sample query on the left
No total
fi
eld

24. O(N)

26. Order list with additional
fi
eld

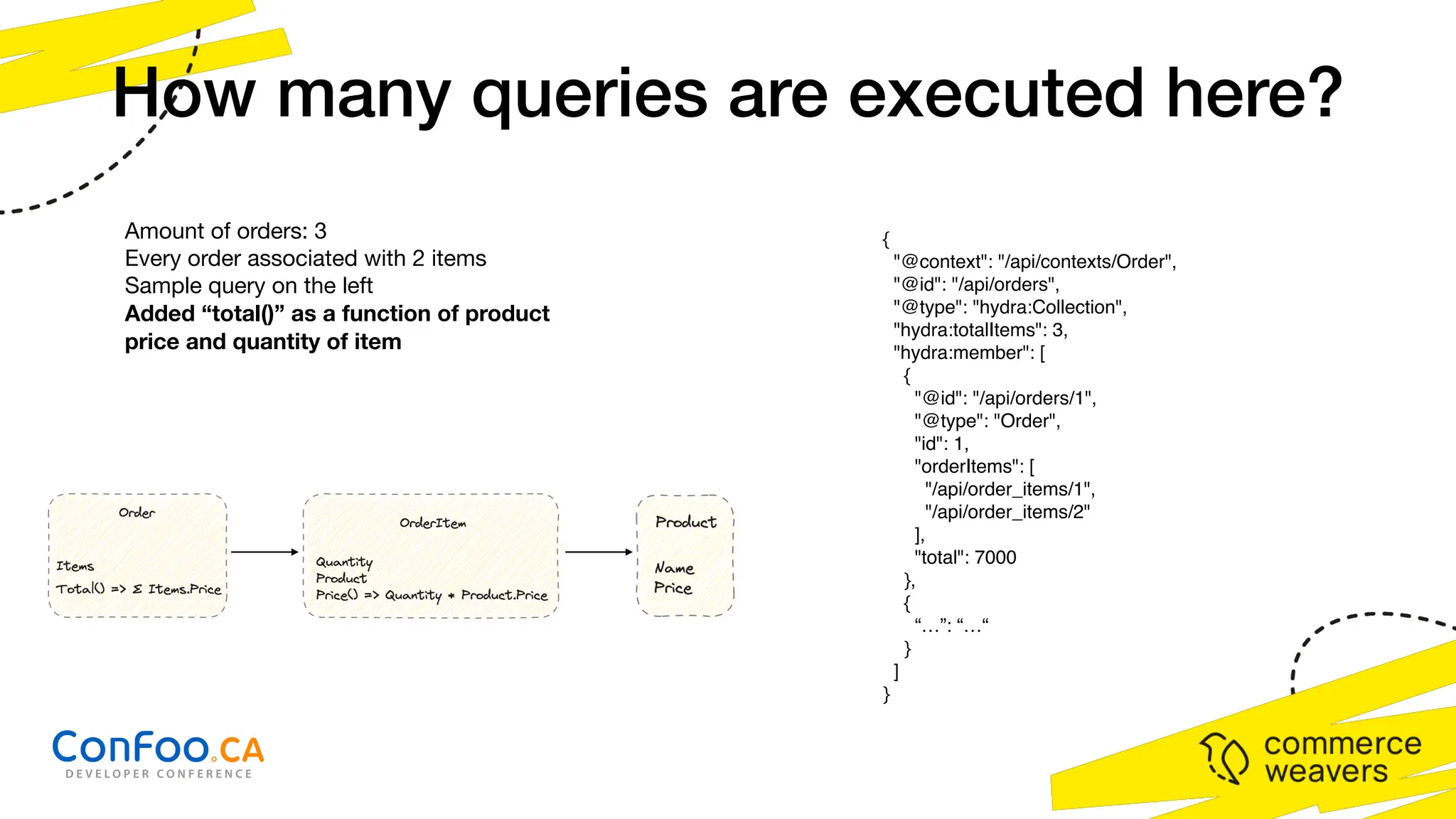

27. How many queries are executed here?
{
"@context": "/api/contexts/Order",
"@id": "/api/orders",
"@type": "hydra:Collection",
"hydra:totalItems": 3,
"hydra:member": [
{
"@id": "/api/orders/1",
"@type": "Order",
"id": 1,
"orderItems": [
"/api/order_items/1",
"/api/order_items/2"
],
"total": 7000
},
{
“…”: “…“
}
]
}
Amount of orders: 3
Every order associated with 2 items
Sample query on the left
Added “total()” as a function of product
price and quantity of item

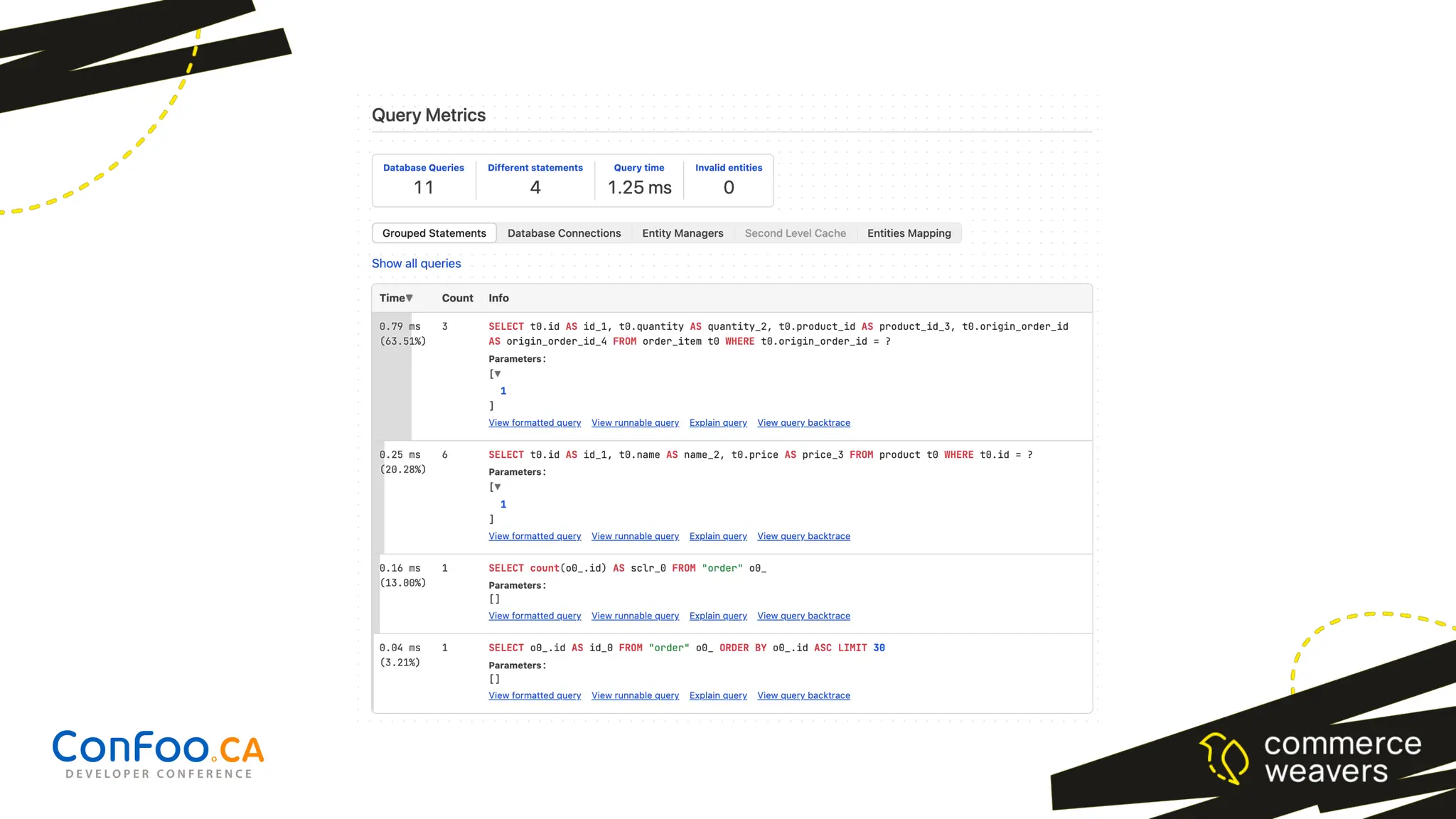

29. O(N*M) or O(N^2) 🚀

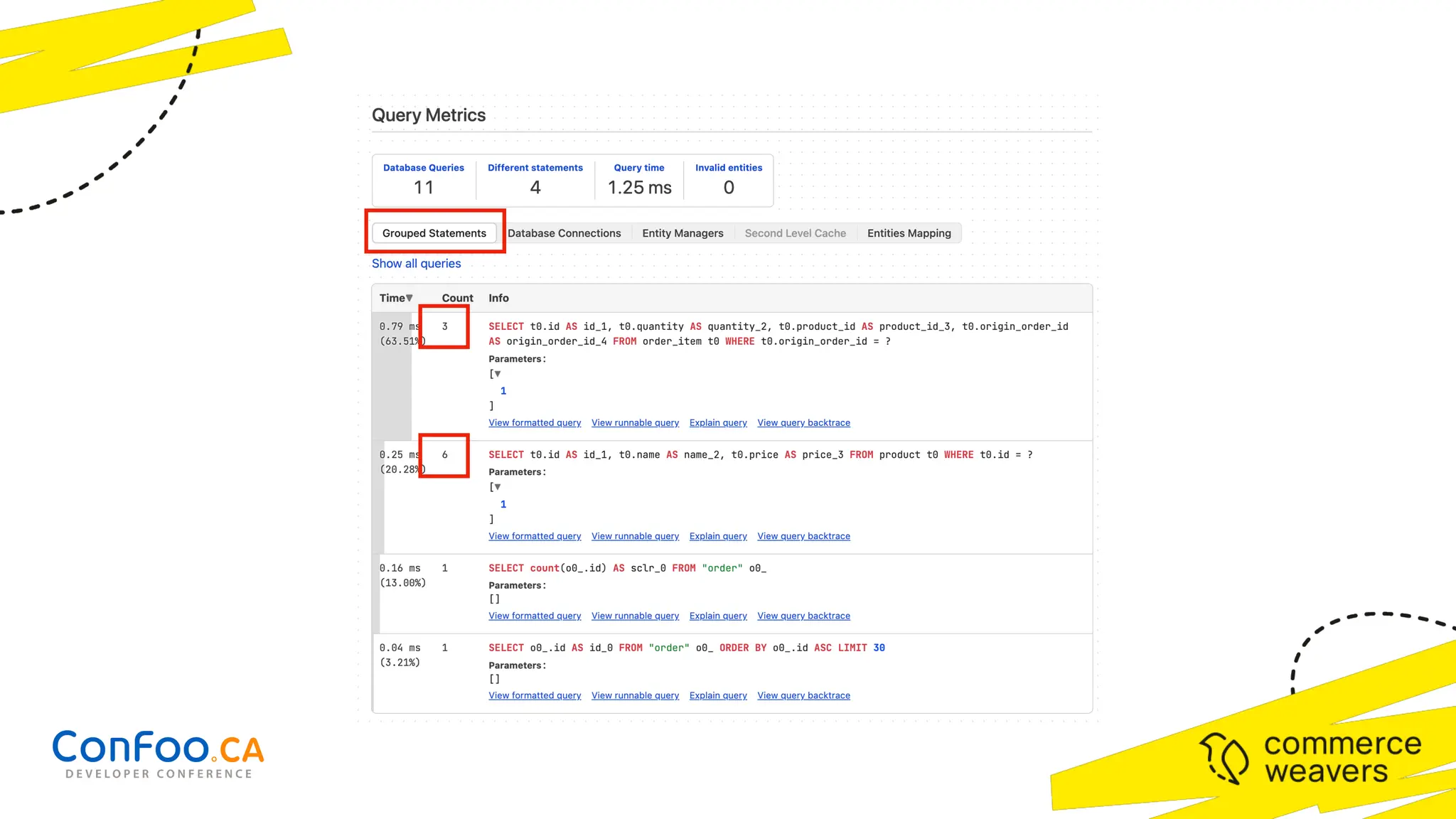

33. How to spot it?

35. How to
fi
x it?

36. Upfront data loading

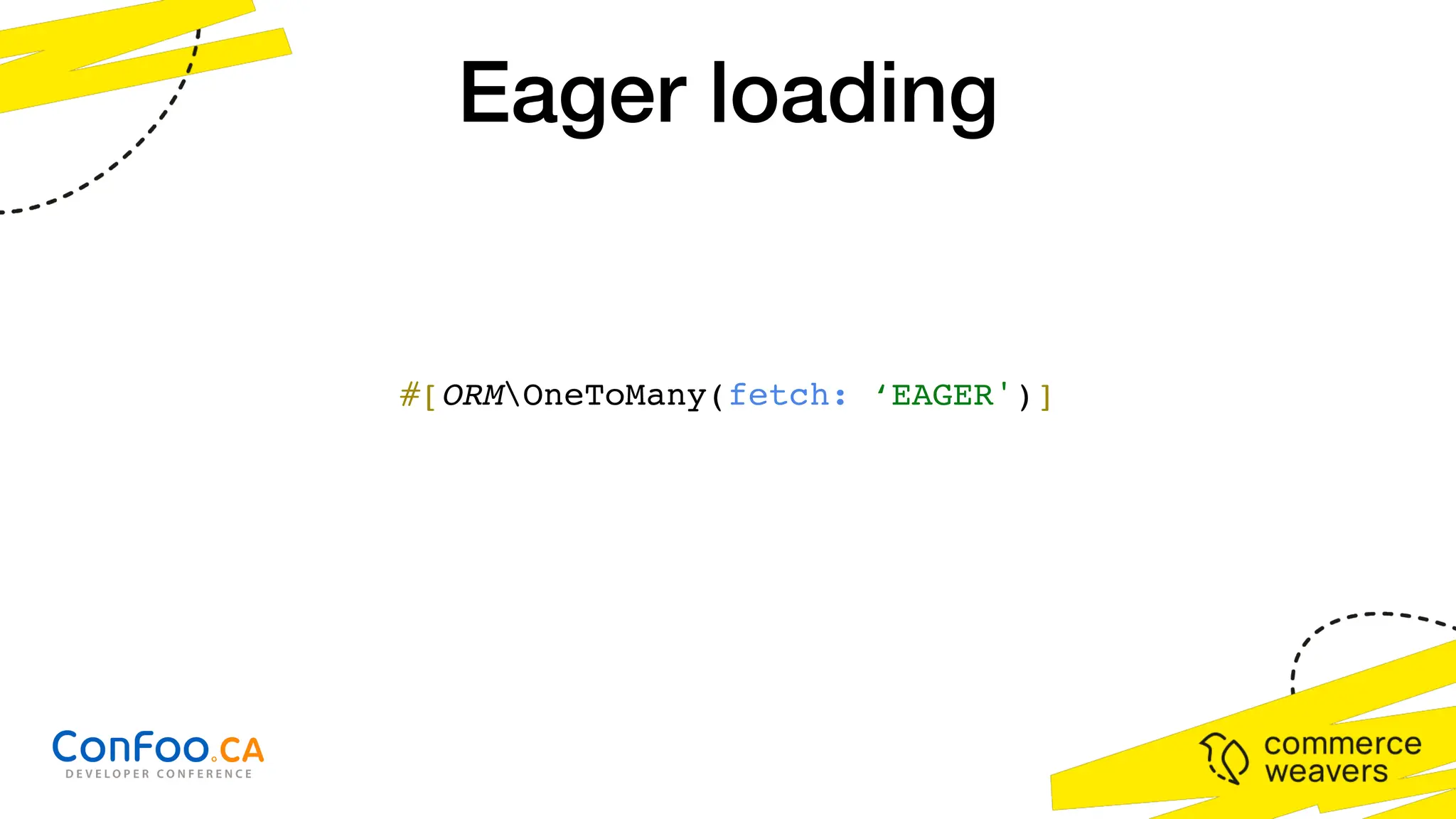

37. #[ORMOneToMany(fetch: ‘EAGER')]
Eager loading

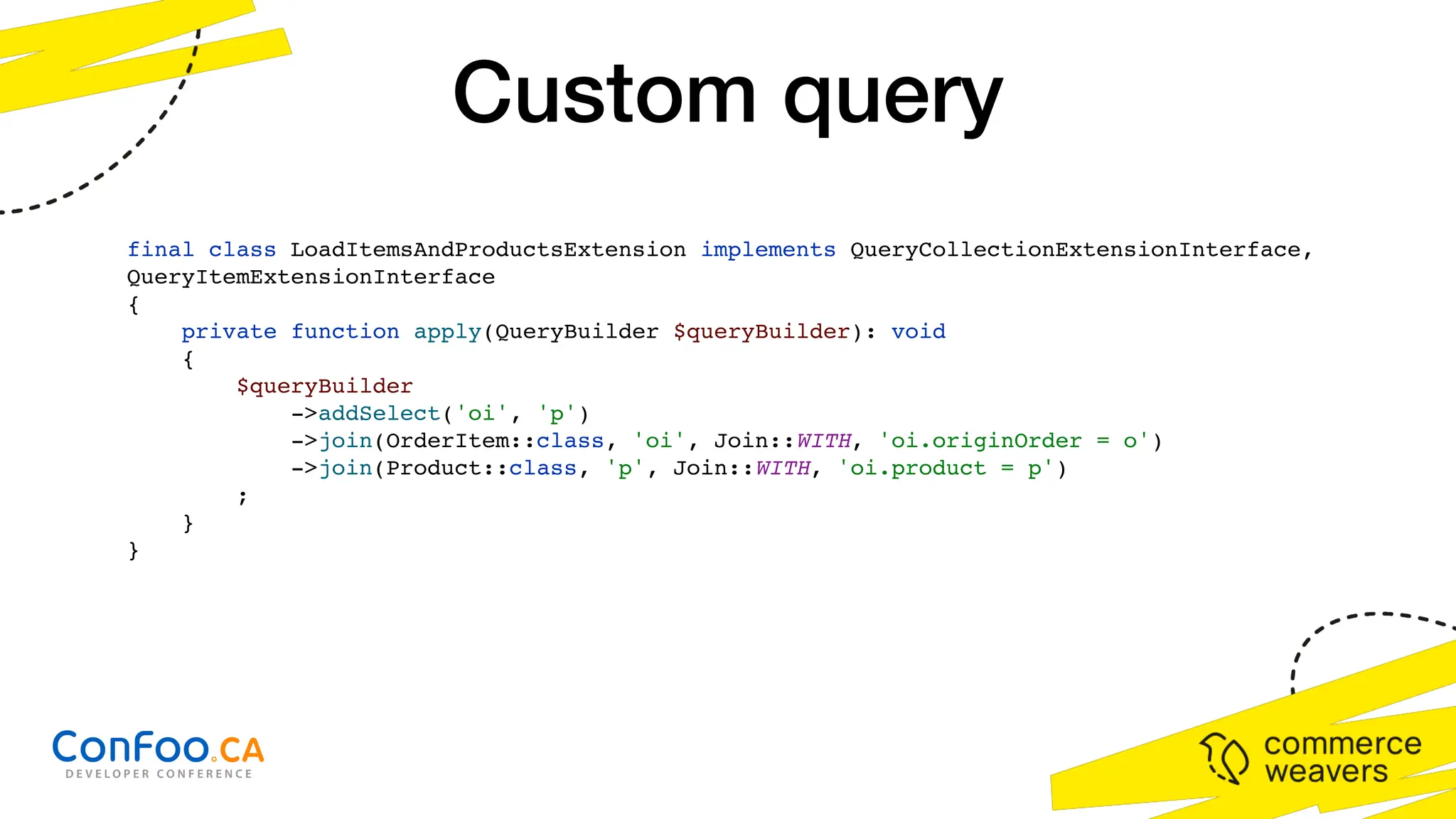

38. final class LoadItemsAndProductsExtension implements QueryCollectionExtensionInterface,
QueryItemExtensionInterface
{
private function apply(QueryBuilder $queryBuilder): void
{
$queryBuilder
->addSelect('oi', 'p')
->join(OrderItem::class, 'oi', Join::WITH, 'oi.originOrder = o')
->join(Product::class, 'p', Join::WITH, 'oi.product = p')
;
}
}
Custom query

39. So is single query an ultimate
solution?

40. ⚠ Not so fast ⚠

41. Joins are expensive 💰

42. Serialisation

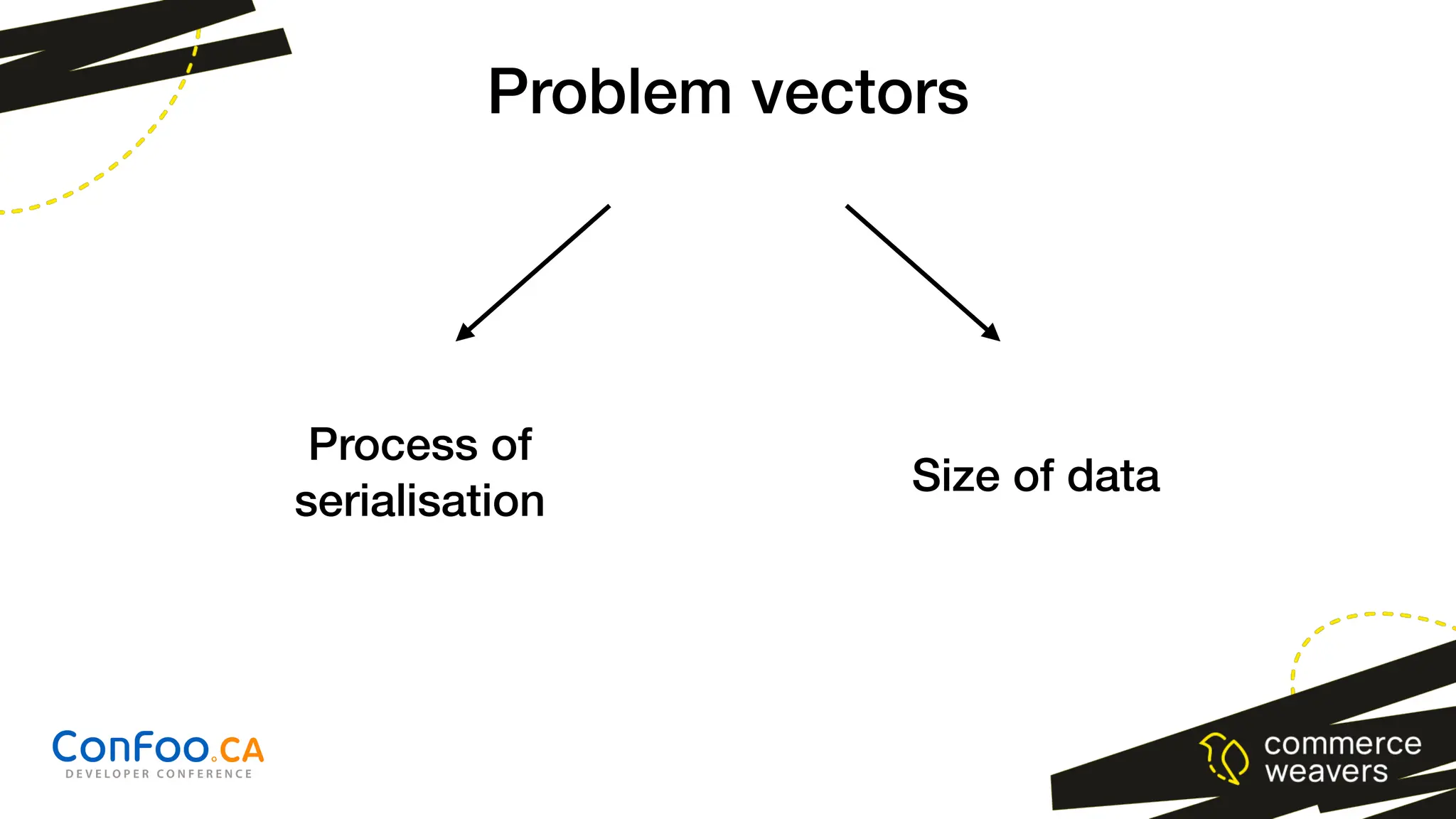

43. Problem vectors
Size of data
Process of
serialisation

44. Process of
serialisation

45. Serialisation process
oversimpli
fi
ed

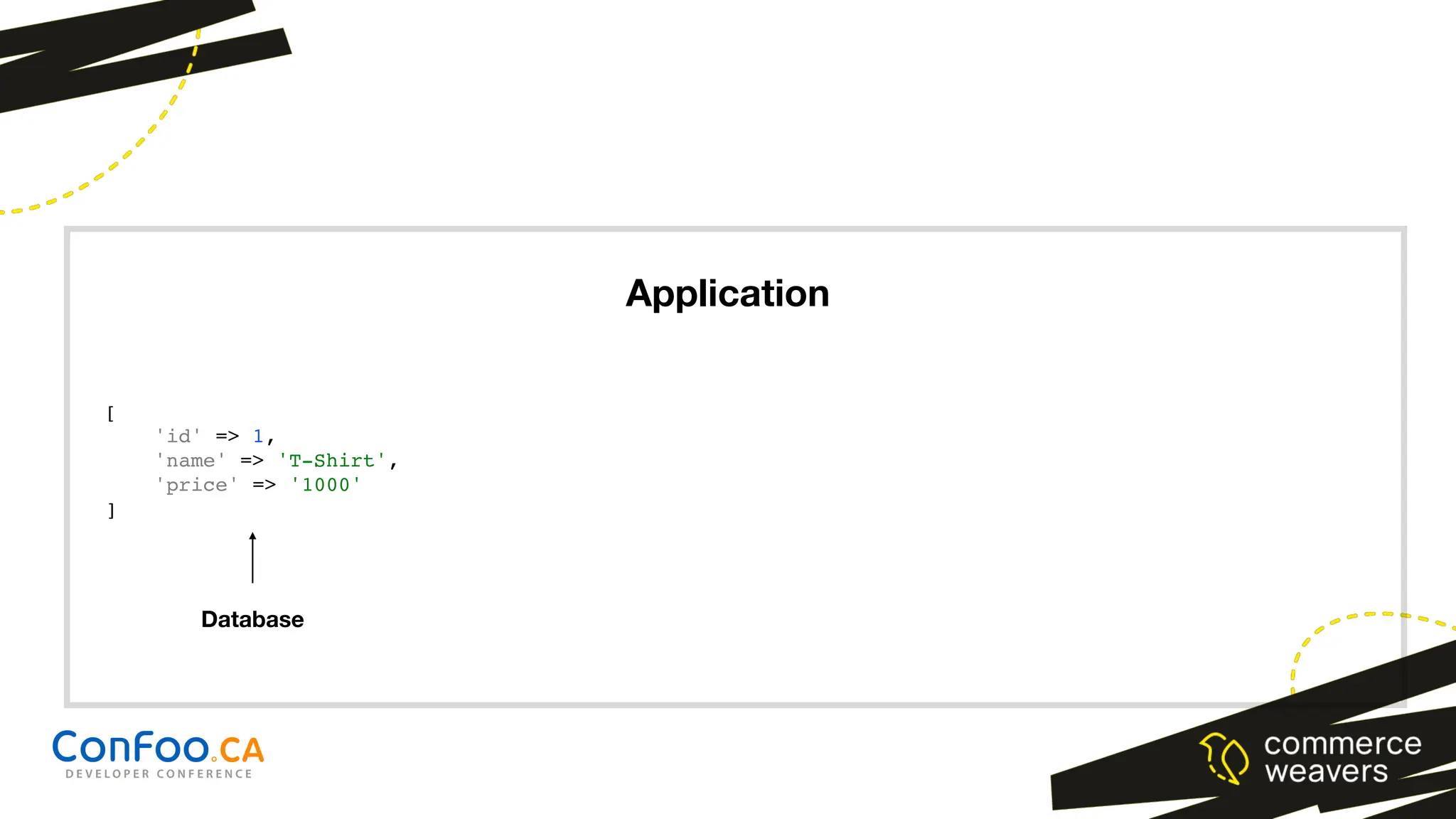

46. [
'id' => 1,
'name' => 'T-Shirt',
'price' => '1000'
]
Application
Database

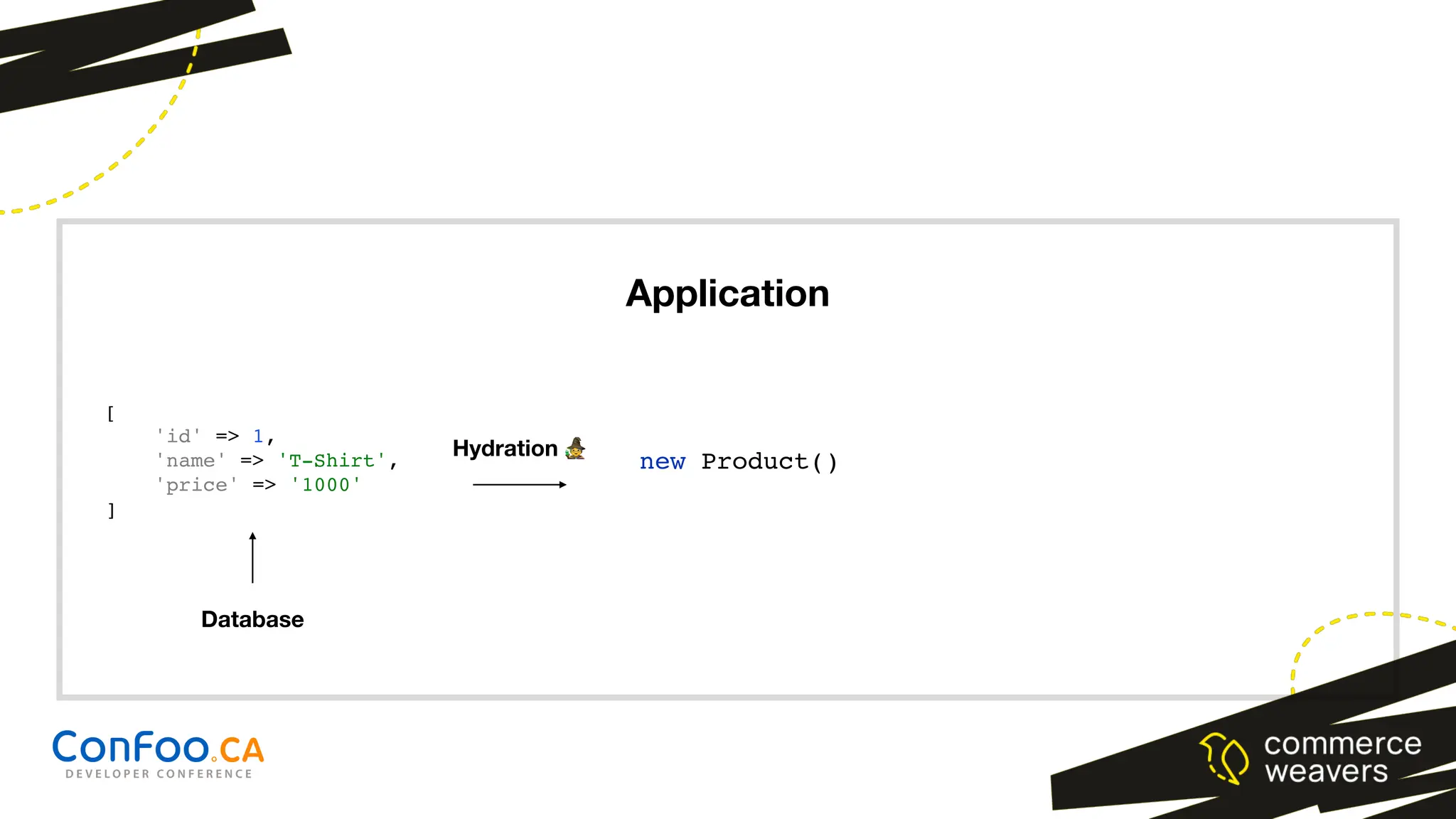

47. [
'id' => 1,
'name' => 'T-Shirt',
'price' => '1000'
]
Hydration 🧙
new Product()
Application
Database

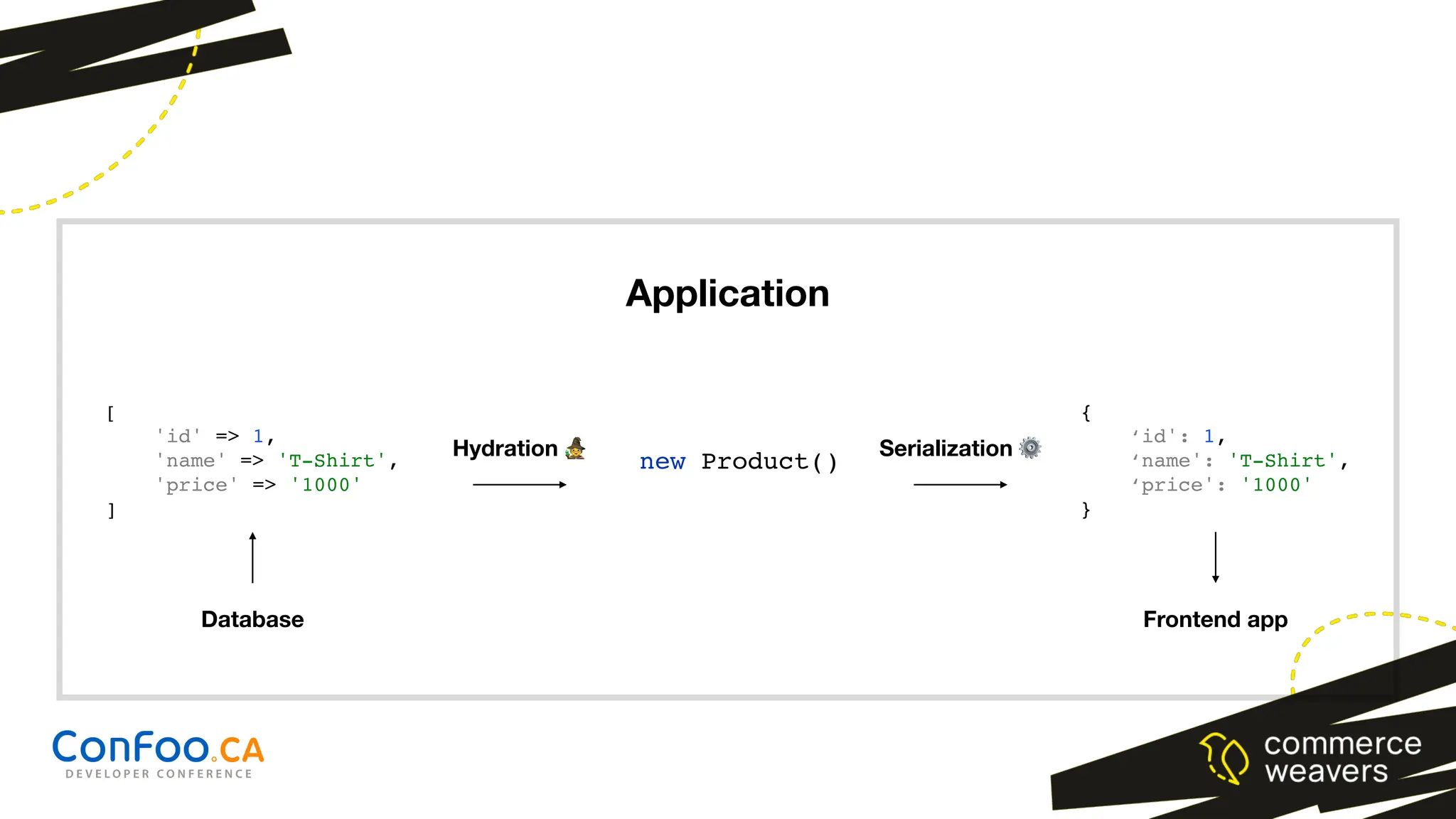

48. [
'id' => 1,
'name' => 'T-Shirt',
'price' => '1000'
]
Hydration 🧙
new Product()
Application
Serialization ⚙
{
‘id': 1,
‘name': 'T-Shirt',
‘price': '1000'
}
Database Frontend app

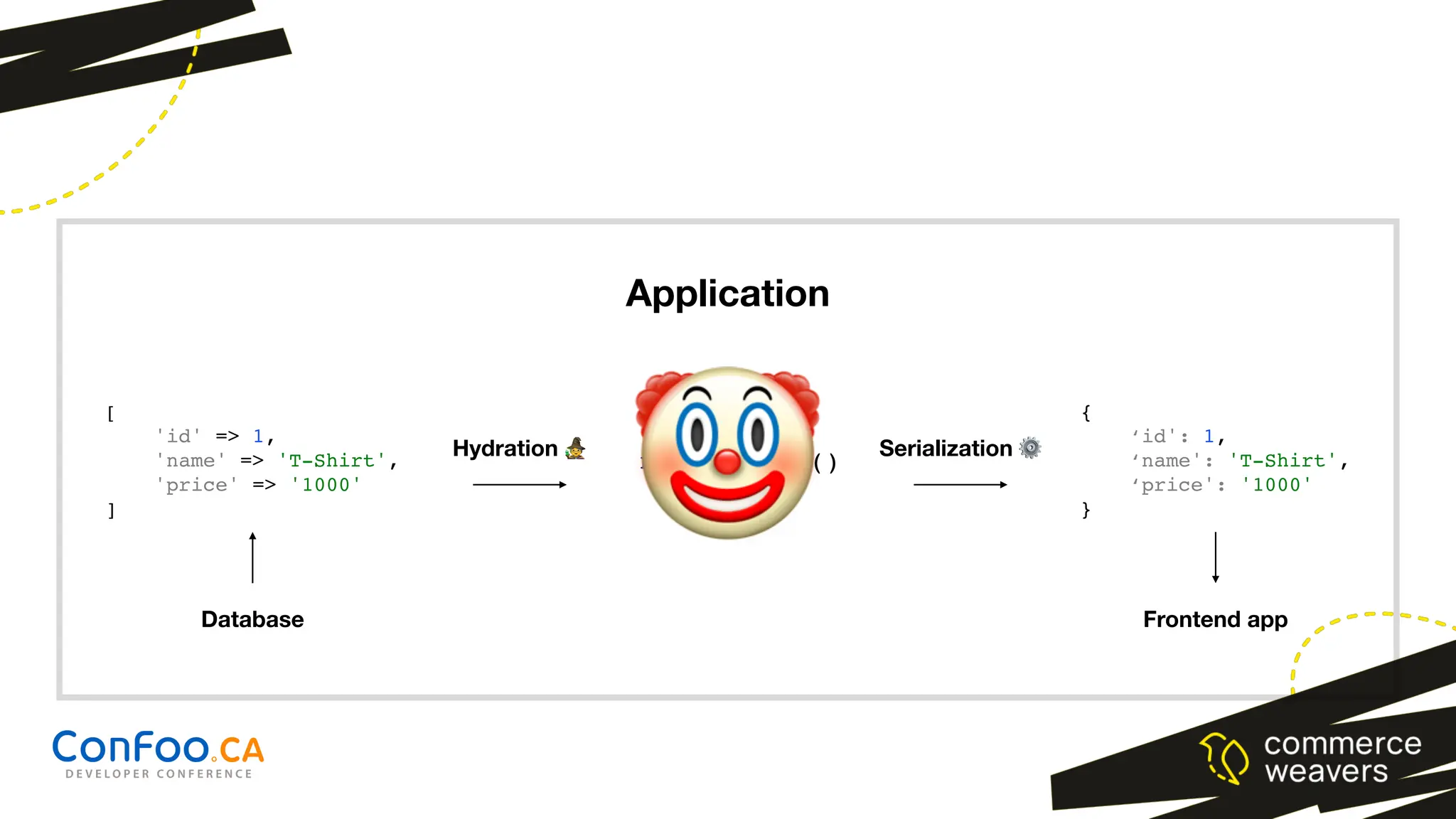

49. [
'id' => 1,
'name' => 'T-Shirt',
'price' => '1000'
]
Hydration 🧙
new Product()
Application
Serialization ⚙
{
‘id': 1,
‘name': 'T-Shirt',
‘price': '1000'
}
Database Frontend app
🤡

50. Full stack vs API

51. Solution - Pre-computing

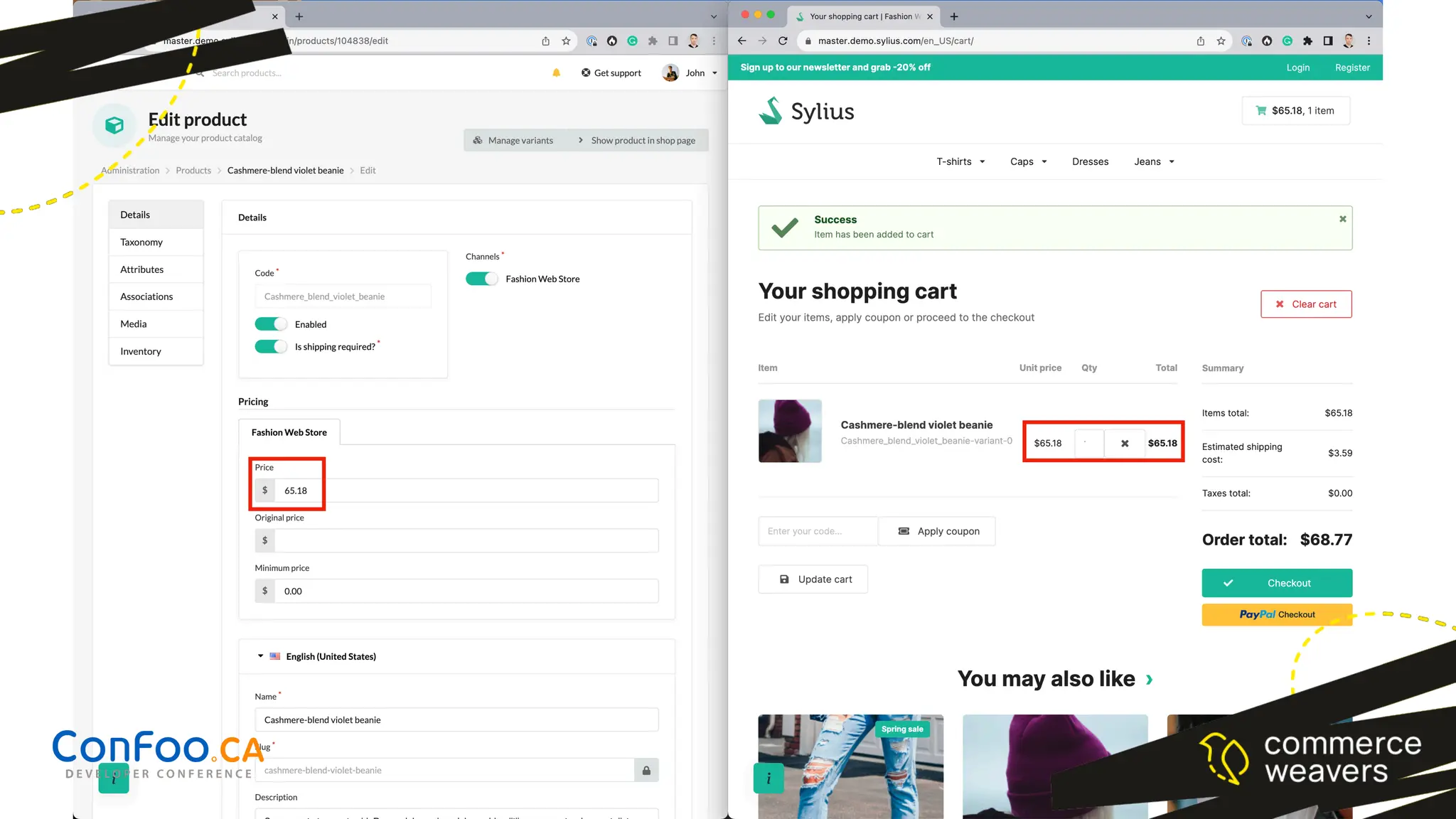

54. Sylius order

56. Saving serialised objects

57. View models doesn’t have to
be models 🤯

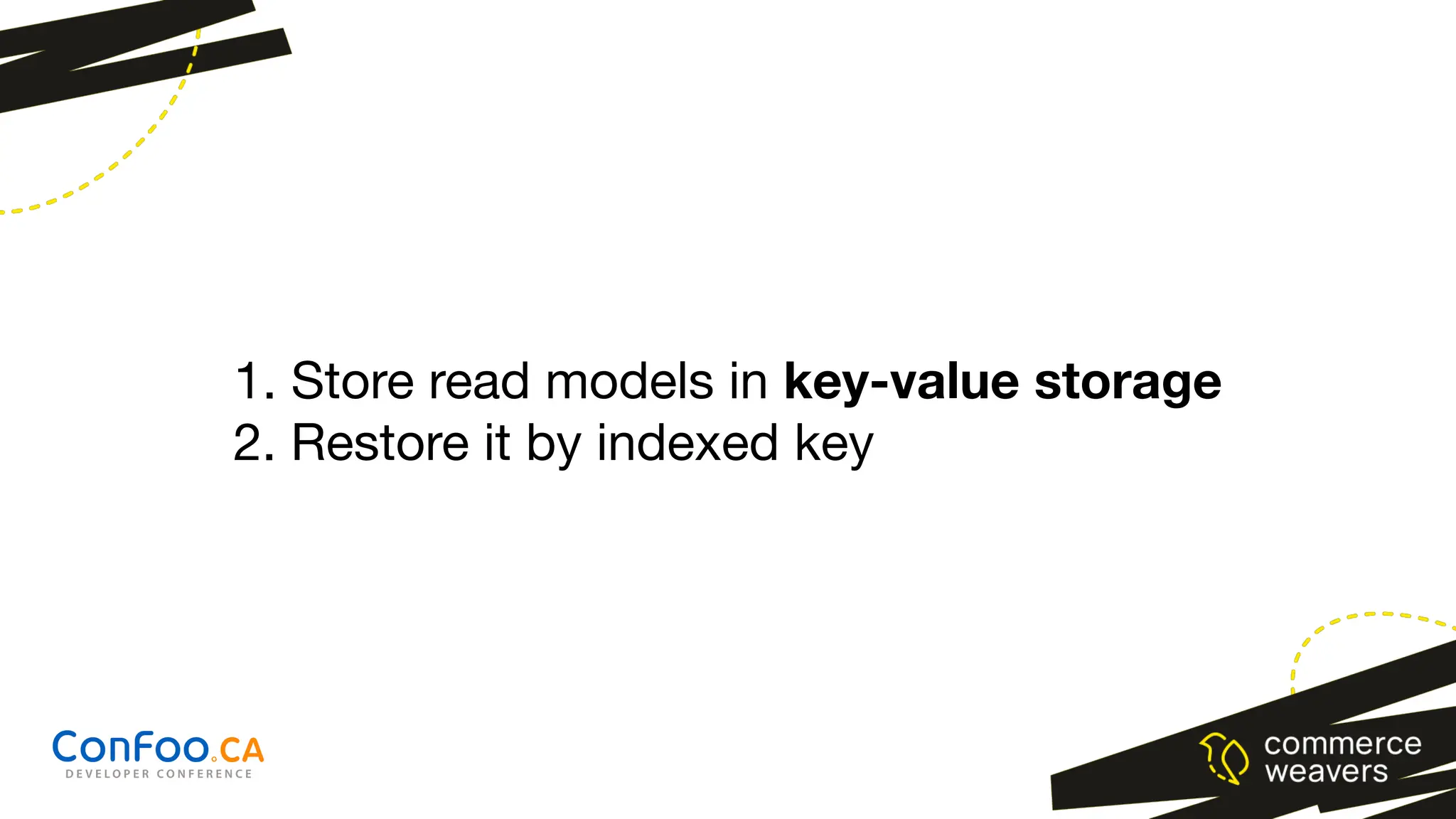

58. 1. Store read models in key-value storage
2. Restore it by indexed key

59. Size of data

60. Entity lifecycle
oversimpli
fi
ed

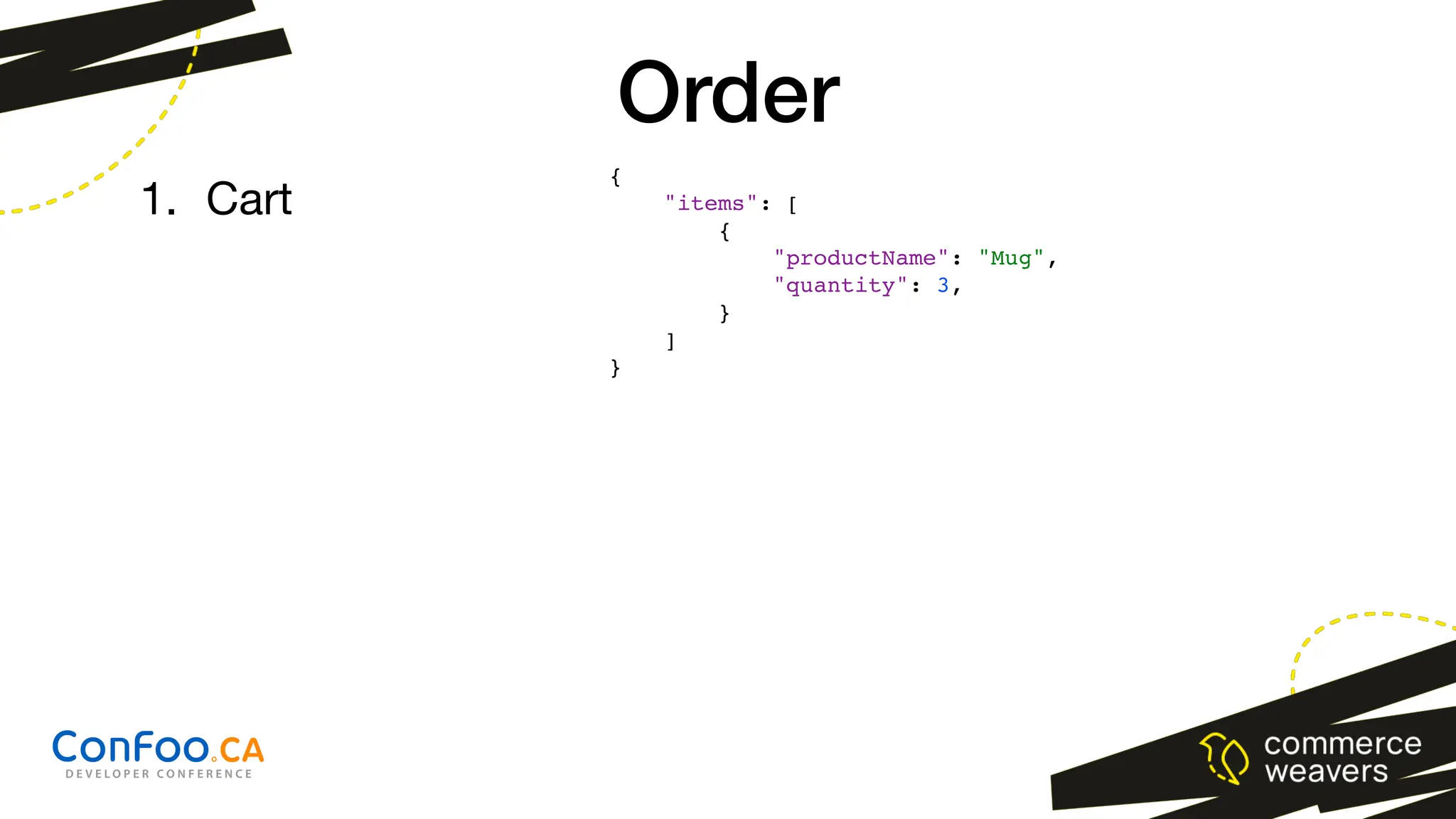

61. Order
{
"items": [
{
"productName": "Mug",
"quantity": 3,
}
]
}
1. Cart

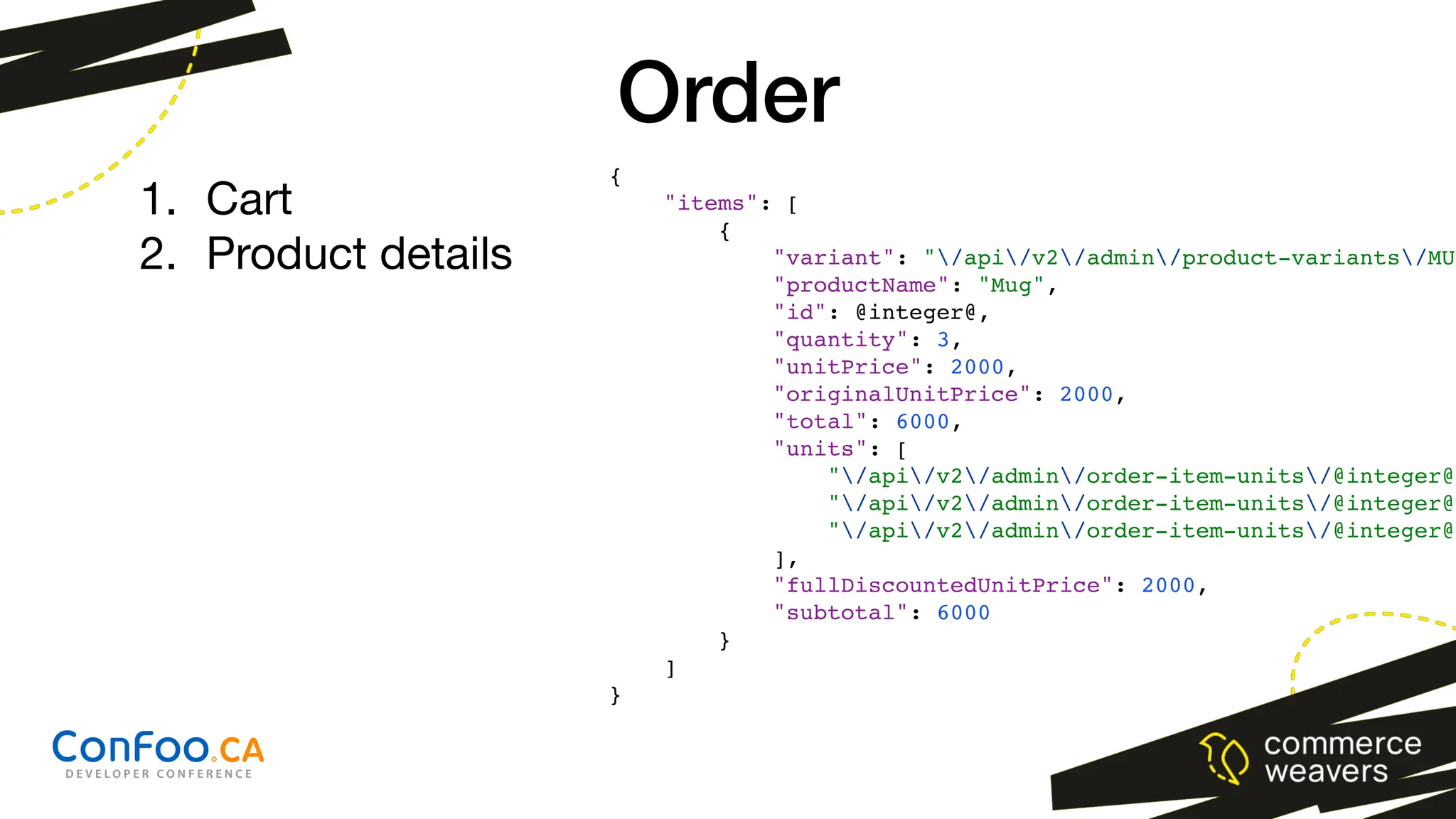

62. {
"items": [
{
"variant": "/api/v2/admin/product-variants/MUG
"productName": "Mug",
"id": @integer@,
"quantity": 3,
"unitPrice": 2000,
"originalUnitPrice": 2000,
"total": 6000,
"units": [
"/api/v2/admin/order-item-units/@integer@"
"/api/v2/admin/order-item-units/@integer@"
"/api/v2/admin/order-item-units/@integer@"
],
"fullDiscountedUnitPrice": 2000,
"subtotal": 6000
}
]
}
Order
1. Cart
2. Product details

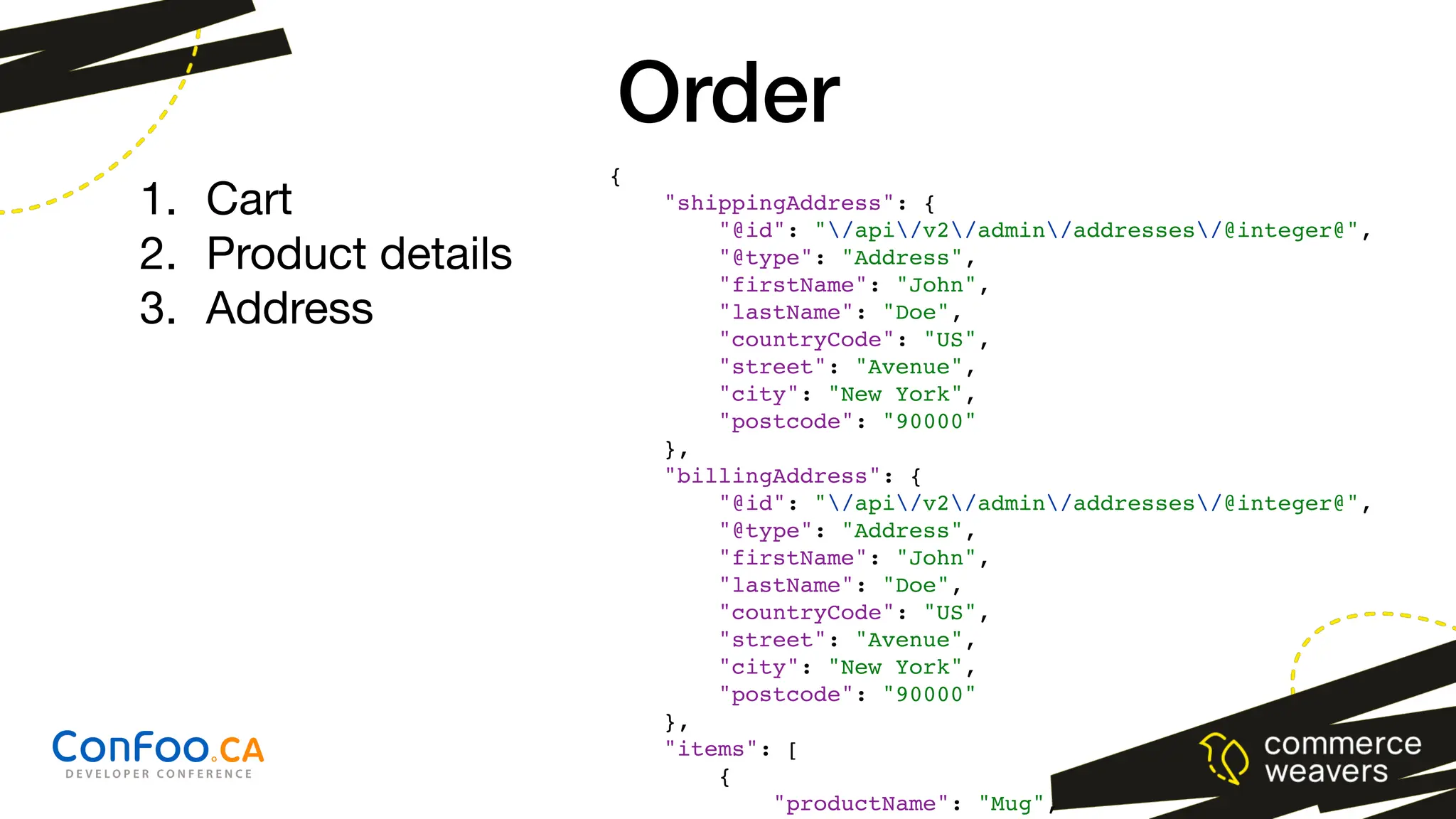

63. {
"shippingAddress": {
"@id": "/api/v2/admin/addresses/@integer@",
"@type": "Address",
"firstName": "John",
"lastName": "Doe",
"countryCode": "US",
"street": "Avenue",
"city": "New York",
"postcode": "90000"
},
"billingAddress": {
"@id": "/api/v2/admin/addresses/@integer@",
"@type": "Address",
"firstName": "John",
"lastName": "Doe",
"countryCode": "US",
"street": "Avenue",
"city": "New York",
"postcode": "90000"
},
"items": [
{
"productName": "Mug",
1. Cart
2. Product details
3. Address
Order

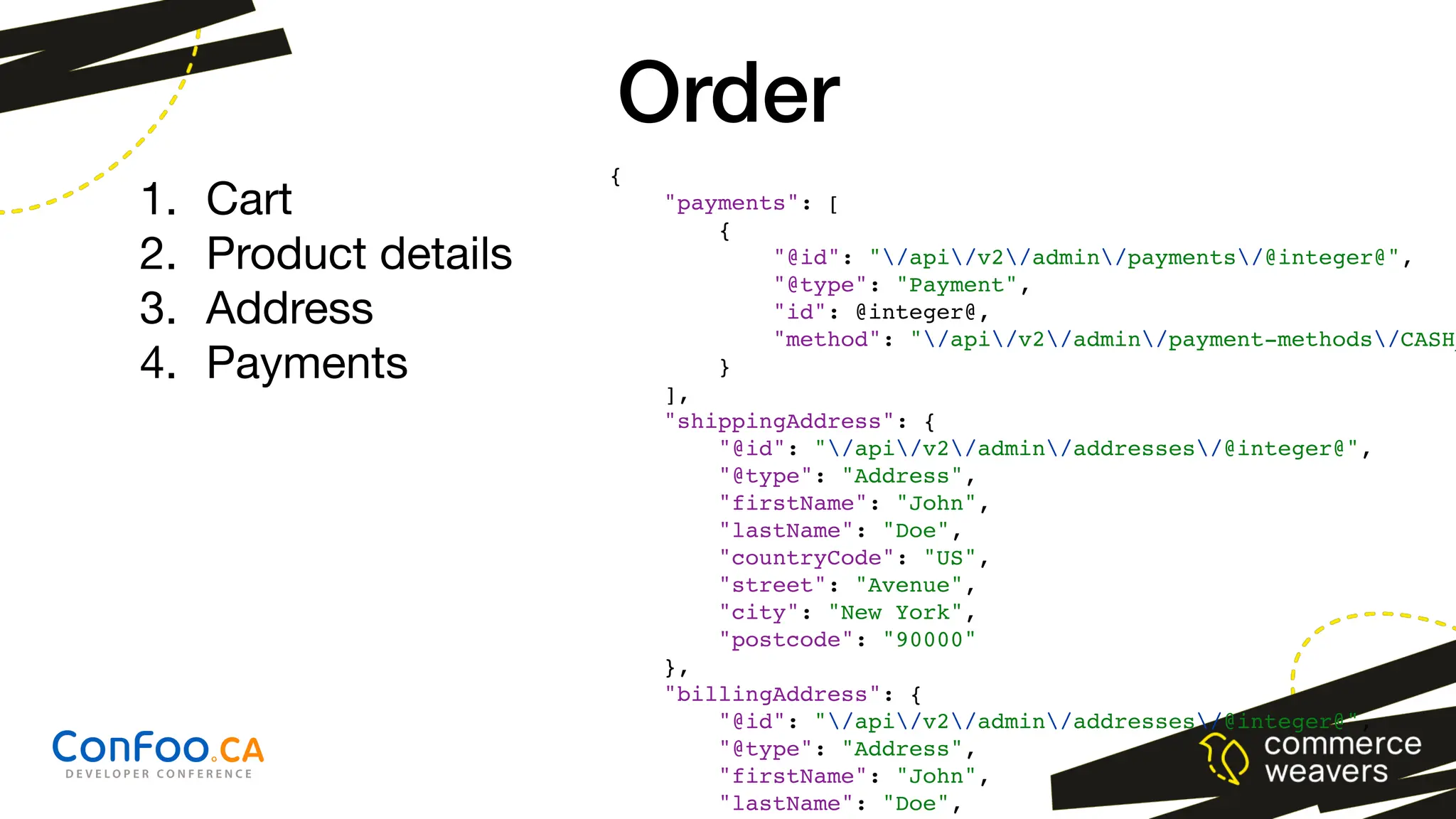

64. Order
{
"payments": [
{
"@id": "/api/v2/admin/payments/@integer@",
"@type": "Payment",
"id": @integer@,
"method": "/api/v2/admin/payment-methods/CASH_
}
],
"shippingAddress": {
"@id": "/api/v2/admin/addresses/@integer@",
"@type": "Address",
"firstName": "John",
"lastName": "Doe",
"countryCode": "US",
"street": "Avenue",
"city": "New York",
"postcode": "90000"
},
"billingAddress": {
"@id": "/api/v2/admin/addresses/@integer@",
"@type": "Address",
"firstName": "John",
"lastName": "Doe",
1. Cart
2. Product details
3. Address
4. Payments

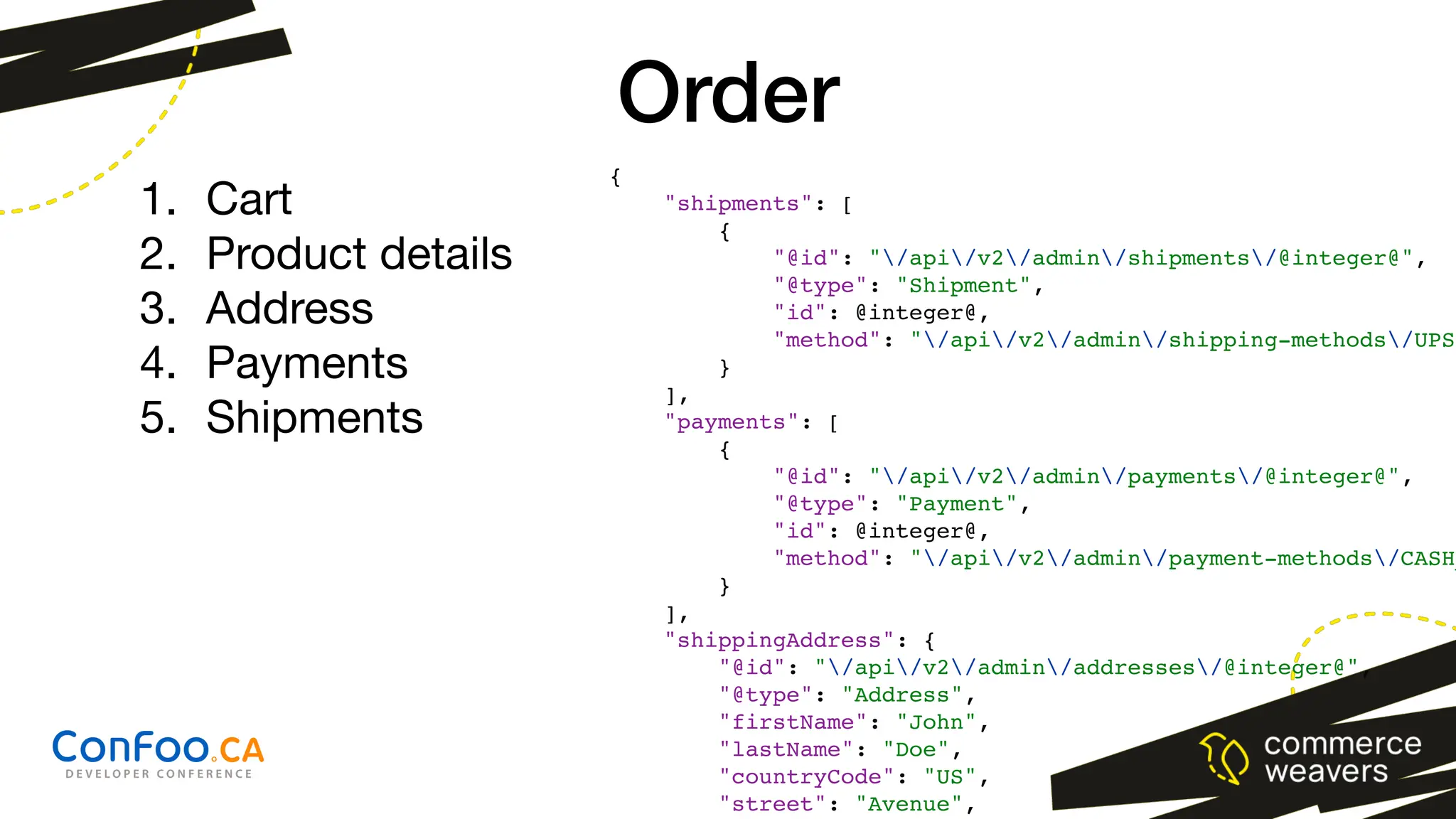

65. {
"shipments": [
{
"@id": "/api/v2/admin/shipments/@integer@",
"@type": "Shipment",
"id": @integer@,
"method": "/api/v2/admin/shipping-methods/UPS"
}
],
"payments": [
{
"@id": "/api/v2/admin/payments/@integer@",
"@type": "Payment",
"id": @integer@,
"method": "/api/v2/admin/payment-methods/CASH_
}
],
"shippingAddress": {
"@id": "/api/v2/admin/addresses/@integer@",
"@type": "Address",
"firstName": "John",
"lastName": "Doe",
"countryCode": "US",
"street": "Avenue",
Order
1. Cart
2. Product details
3. Address
4. Payments
5. Shipments

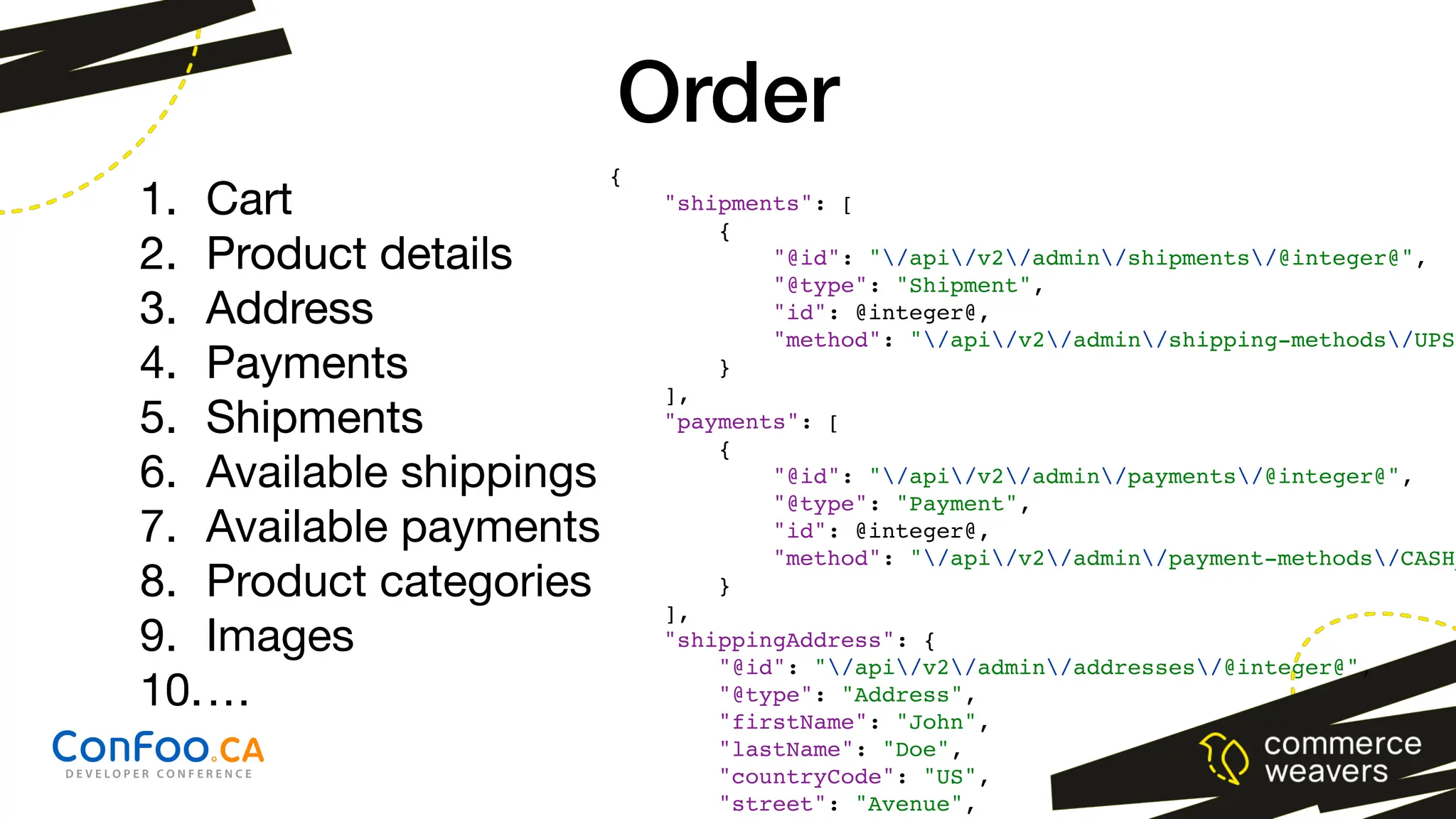

66. {
"shipments": [
{
"@id": "/api/v2/admin/shipments/@integer@",
"@type": "Shipment",
"id": @integer@,
"method": "/api/v2/admin/shipping-methods/UPS"
}
],
"payments": [
{
"@id": "/api/v2/admin/payments/@integer@",
"@type": "Payment",
"id": @integer@,
"method": "/api/v2/admin/payment-methods/CASH_
}
],
"shippingAddress": {
"@id": "/api/v2/admin/addresses/@integer@",
"@type": "Address",
"firstName": "John",
"lastName": "Doe",
"countryCode": "US",
"street": "Avenue",
Order
1. Cart
2. Product details
3. Address
4. Payments
5. Shipments
6. Available shippings
7. Available payments
8. Product categories
9. Images
10.…
1. Cart
2. Product details
3. Address
4. Payments
5. Shipments

67. {
"shipments": [
{
"@id": "/api/v2/admin/shipments/@integer@",
"@type": "Shipment",
"id": @integer@,
"method": "/api/v2/admin/shipping-methods/UPS"
}
],
"payments": [
{
"@id": "/api/v2/admin/payments/@integer@",
"@type": "Payment",
"id": @integer@,
"method": "/api/v2/admin/payment-methods/CASH_
}
],
"shippingAddress": {
"@id": "/api/v2/admin/addresses/@integer@",
"@type": "Address",
"firstName": "John",
"lastName": "Doe",
"countryCode": "US",
"street": "Avenue",
1. Cart
2. Product details
3. Address
4. Payments
5. Shipments
6. Available shippings
7. Available payments
8. Product categories
9. Images
10.…
Performance📉
Order

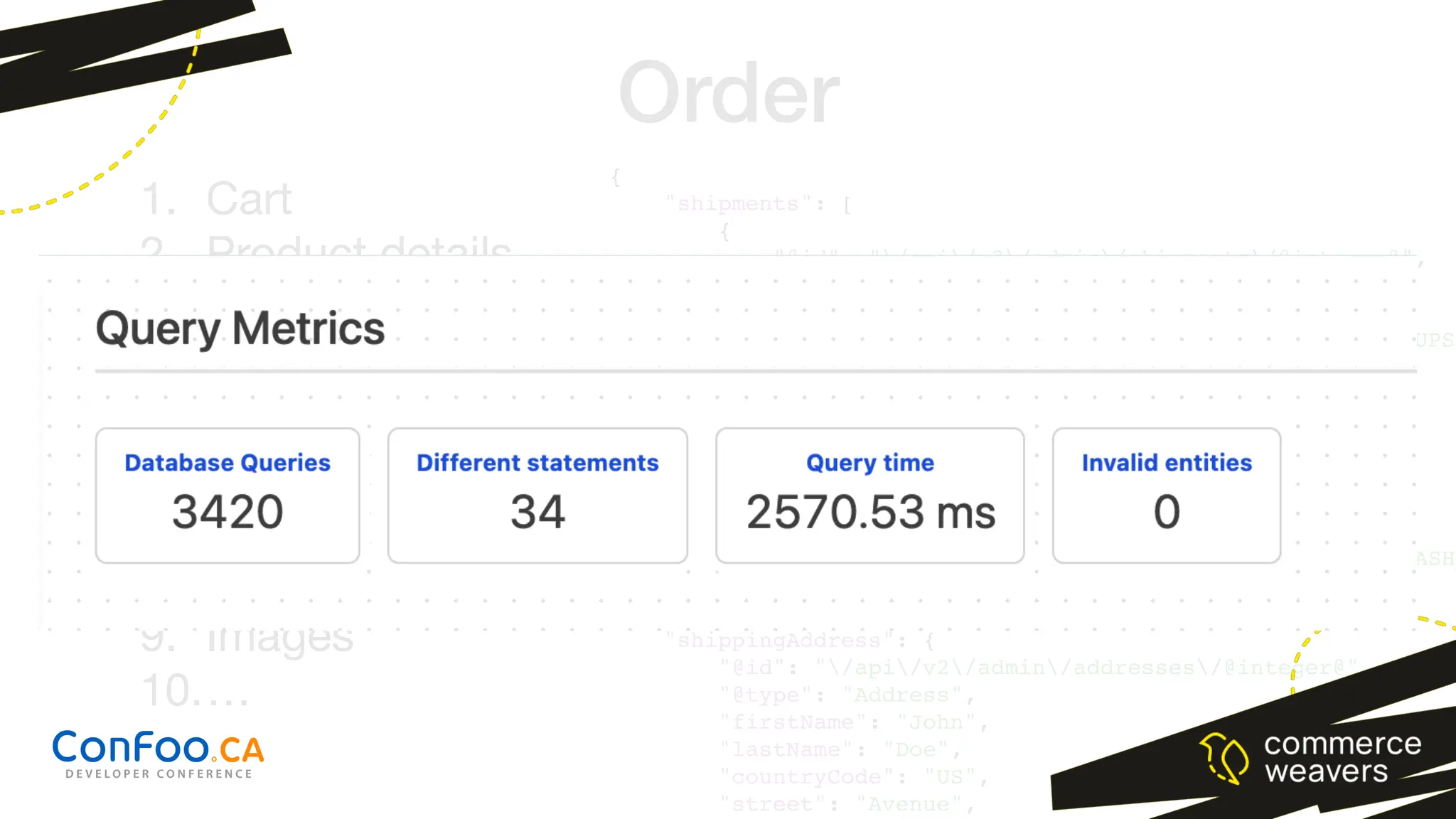

68. {
"shipments": [
{
"@id": "/api/v2/admin/shipments/@integer@",
"@type": "Shipment",
"id": @integer@,
"method": "/api/v2/admin/shipping-methods/UPS"
}
],
"payments": [
{
"@id": "/api/v2/admin/payments/@integer@",
"@type": "Payment",
"id": @integer@,
"method": "/api/v2/admin/payment-methods/CASH_
}
],
"shippingAddress": {
"@id": "/api/v2/admin/addresses/@integer@",
"@type": "Address",
"firstName": "John",
"lastName": "Doe",
"countryCode": "US",
"street": "Avenue",
1. Cart
2. Product details
3. Address
4. Payments
5. Shipments
6. Available shippings
7. Available payments
8. Product categories
9. Images
10.…
Order

69. Size do matter

70. –ANGRY DEVELOPER
“BUT I NEED ALL THAT DATA 🤬”

71. Do you? 🧐

72. Solution - split data

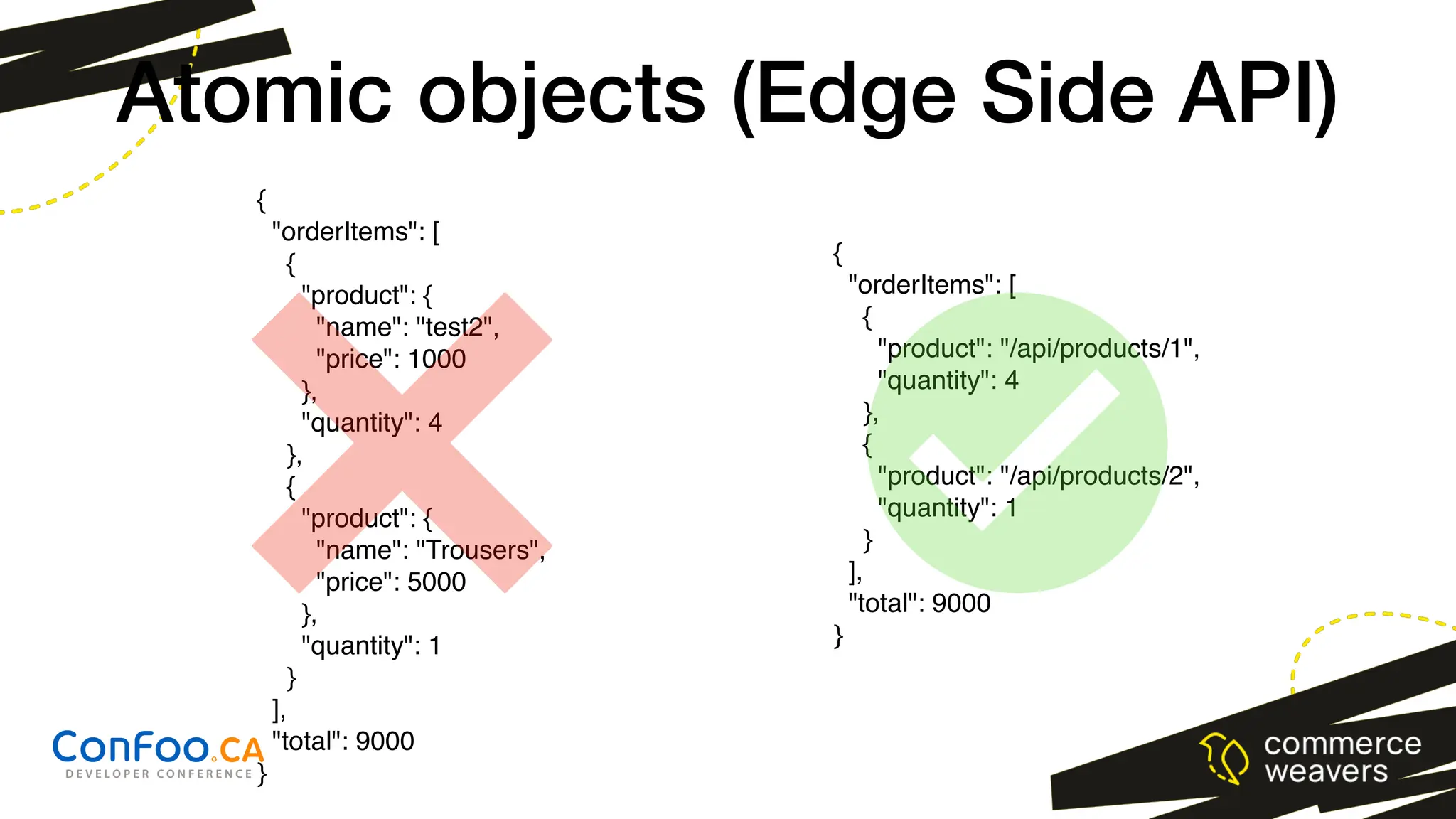

73. {
"orderItems": [
{
"product": "/api/products/1",
"quantity": 4
},
{
"product": "/api/products/2",
"quantity": 1
}
],
"total": 9000
}
{
"orderItems": [
{
"product": {
"name": "test2",
"price": 1000
},
"quantity": 4
},
{
"product": {
"name": "Trousers",
"price": 5000
},
"quantity": 1
}
],
"total": 9000
}
Atomic objects (Edge Side API)

74. Do you need it all the time? 🧐

75. Solution - more variations

76. Property
fi
ltration

77. ?properties[]=<property>&properties[<relation>][]=<property>

78. Property
fi
ltration
GraphQl

79. Property
fi
ltration
GraphQl
Vary header

80. –mdm web docs
“The Vary HTTP response header describes the parts of the request
message aside from the method and URL that in
fl
uenced the content
of the response it occurs in. Most often, this is used to create a
cache key when content negotiation is in use.”

81. Summary

82. Measure, measure, measure…

83. Top Gun: Maverick

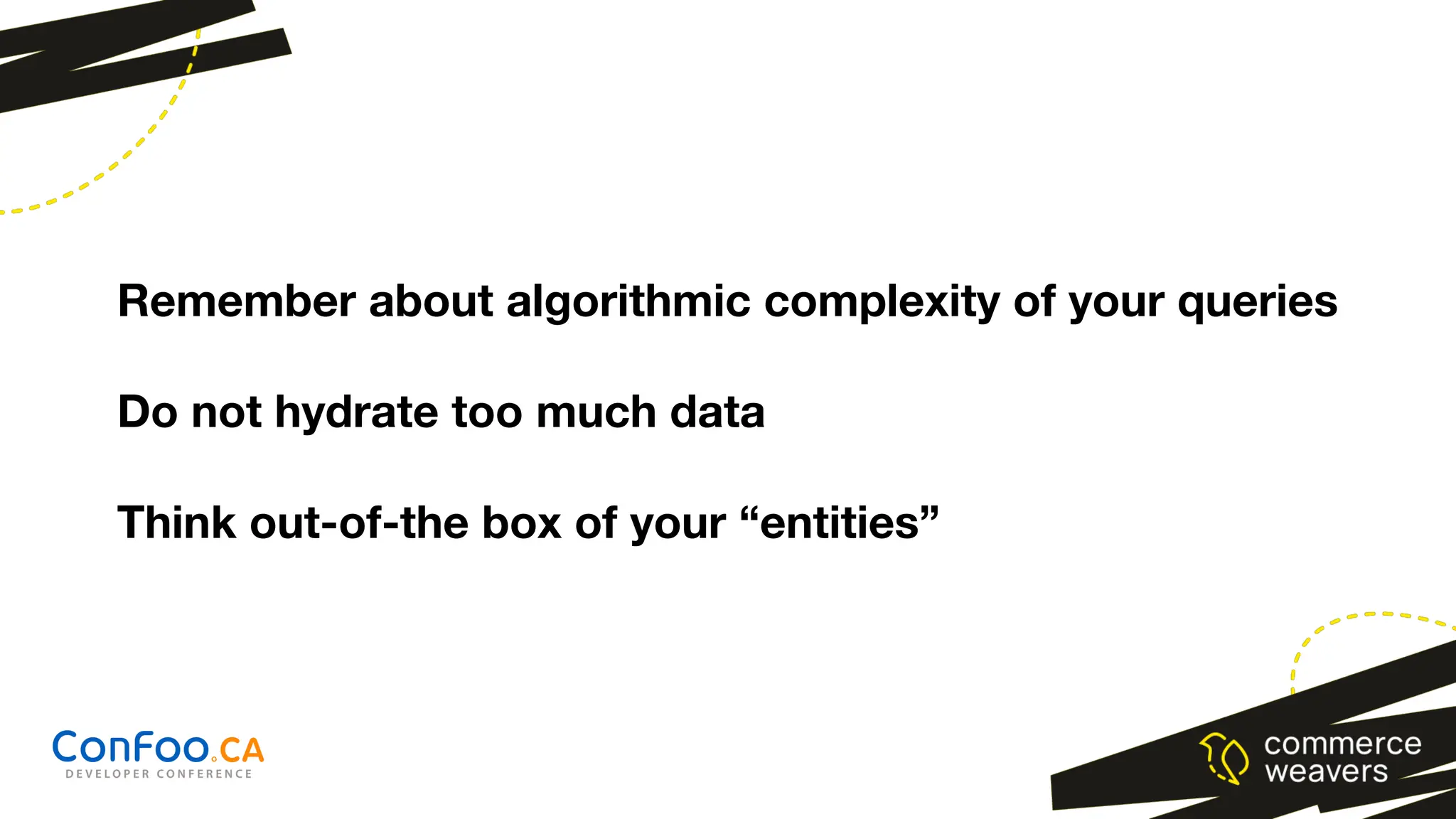

84. Remember about algorithmic complexity of your queries
Do not hydrate too much data
Think out-of-the box of your “entities”

86. Thank you!
