Testing API platform with Behat BDD tests

@stadolf @coding_earth
The Smart Shelf
api-platform in an IoT context
TESTING

2
Stefan Adolf
Developer Ambassador
#javascript #mongodb #serverless
#blockchain #codingberlin #elastic
#aws #php #symfony #react
#digitalization #agile #b2b #marketplaces
#spryker #php #k8s #largescale
#turbinejetzt #iot #ux #vuejs
@stadolf
elmariachi111

May 25th
Festsaal Kreuzberg
12 code heavy talks
https://devday.io #devday19
2 locations / live streamed lunch included 2 panel discussions
live coding challenge powered by platform.sh
use DEVDAYLOVESPHP and go there for €10!

@stadolf @coding_earth devday.io DEVDAYLOVESPHP

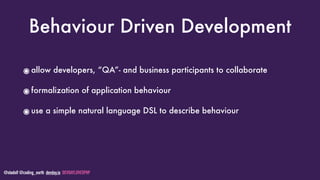

Behaviour Driven Development
๏allow developers, “QA”- and business participants to collaborate
๏formalization of application behaviour
๏use a simple natural language DSL to describe behaviour

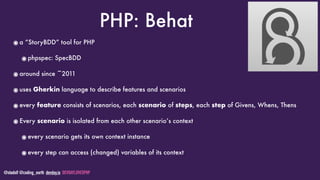

PHP: Behat
๏a “StoryBDD” tool for PHP
๏phpspec: SpecBDD
๏around since ~2011
๏uses Gherkin language to describe features and scenarios
๏every feature consists of scenarios, each scenario of steps, each step of Givens, Whens, Thens
๏Every scenario is isolated from each other scenario’s context
๏every scenario gets its own context instance
๏every step can access (changed) variables of its context

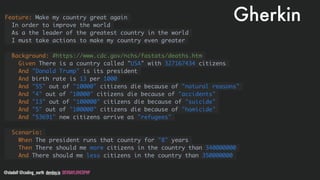

GherkinFeature: Make my country great again
In order to improve the world
As a the leader of the greatest country in the world
I must take actions to make my country even greater
Background: #https://www.cdc.gov/nchs/fastats/deaths.htm
Given There is a country called "USA" with 327167434 citizens
And "Donald Trump" is its president
And birth rate is 13 per 1000
And "55" out of "10000" citizens die because of "natural reasons"
And "4" out of "10000" citizens die because of "accidents"
And "13" out of "100000" citizens die because of "suicide"
And "5" out of "100000" citizens die because of "homicide"
And "53691" new citizens arrive as "refugees"
Scenario:
When The president runs that country for "8" years
Then There should me more citizens in the country than 340000000
And There should me less citizens in the country than 350000000

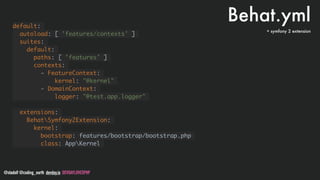

Behat.ymldefault:
autoload: [ 'features/contexts' ]
suites:
default:
paths: [ 'features' ]
contexts:
- FeatureContext:
kernel: "@kernel"
- DomainContext:
logger: "@test.app.logger"
extensions:
BehatSymfony2Extension:
kernel:
bootstrap: features/bootstrap/bootstrap.php
class: AppKernel
+ symfony 2 extension

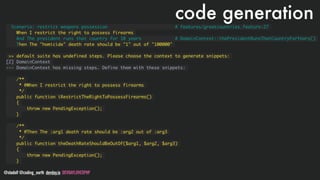

code generation
Scenario: restrict weapons possession # features/greatcountries.feature:27
When I restrict the right to possess firearms
And The president runs that country for 10 years # DomainContext::thePresidentRunsThatCountryForYears()
Then The "homicide" death rate should be "1" out of "100000"
>> default suite has undefined steps. Please choose the context to generate snippets:
[2] DomainContext
--- DomainContext has missing steps. Define them with these snippets:
/**
* @When I restrict the right to possess firearms
*/
public function iRestrictTheRightToPossessFirearms()
{
throw new PendingException();
}
/**
* @Then The :arg1 death rate should be :arg2 out of :arg3
*/
public function theDeathRateShouldBeOutOf($arg1, $arg2, $arg3)
{
throw new PendingException();
}

DEMO: BEHAT

Behat ❤ api-platform

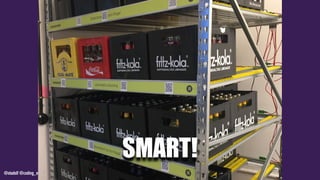

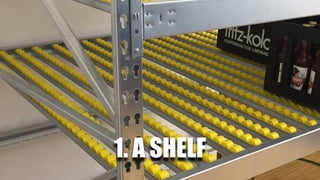

1. A SHELF

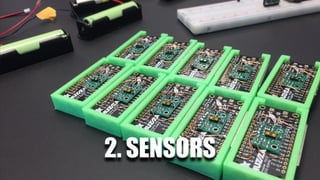

2. SENSORS

3. A CONCEPT

"location_id": "shelf1",
"payload": {
"battery_mV": 4110,
"build": "20181118-214917",
"distance_mm": 518,
"type": "distance-sensor-firmware",
"version": "1.0"
},
"sensor_id": "A41E9640"
}
POST /sensor/receive_event

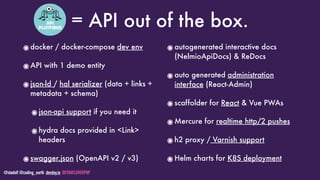

= API out of the box.
๏docker / docker-compose dev env
๏API with 1 demo entity
๏json-ld / hal serializer (data + links +
metadata + schema)
๏json-api support if you need it
๏hydra docs provided in <Link>
headers
๏swagger.json (OpenAPI v2 / v3)
๏autogenerated interactive docs
(NelmioApiDocs) & ReDocs
๏auto generated administration
interface (React-Admin)
๏scaffolder for React & Vue PWAs
๏Mercure for realtime http/2 pushes
๏h2 proxy / Varnish support
๏Helm charts for K8S deployment

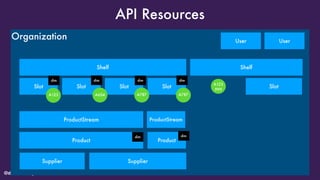

Organization
API Resources
UserUser
Shelf Shelf
Slot Slot Slot Slot
ProductStream
Product
Supplier
A123 A654 A787
dim dim
A787
dim dim
ProductStream
Supplier
Product
dim dim
Slot
A123 
999

/**

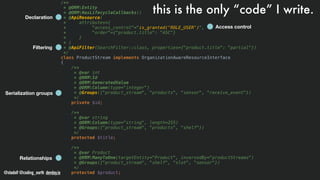

* @ORMEntity
* @ORMHasLifecycleCallbacks()
* @ApiResource(
* attributes={
* "access_control"="is_granted('ROLE_USER')",
* "order"={"product.title": "ASC"}
* }
* )
* @ApiFilter(SearchFilter::class, properties={"product.title": "partial"})
*/
class ProductStream implements OrganizationAwareResourceInterface
{
/**
* @var int
* @ORMId
* @ORMGeneratedValue
* @ORMColumn(type="integer")
* @Groups({"product_stream", "products", "sensor", "receive_event"})
*/
private $id;
/**
* @var string
* @ORMColumn(type="string", length=255)
* @Groups({"product_stream", "products", "shelf"})
*/
protected $title;
/**
* @var Product
* @ORMManyToOne(targetEntity="Product", inversedBy="productStreams")
* @Groups({"product_stream", "shelf", "slot", "sensor"})
*/
protected $product;
Declaration
Filtering
Serialization groups
Relationships
Access control
this is the only “code” I write.

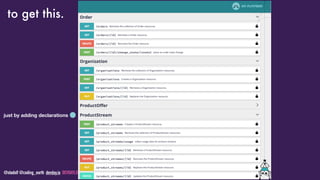

just by adding declarations
to get this.

GraphQL included.

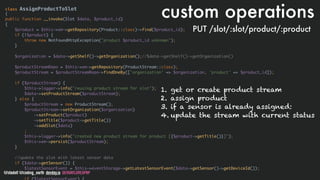

class AssignProductToSlot
{
public function __invoke(Slot $data, $product_id)
{
$product = $this->em->getRepository(Product::class)->find($product_id);
if (!$product) {
throw new NotFoundHttpException("product $product_id unknown");
}
$organization = $data->getShelf()->getOrganization();//$data->getShelf()->getOrganization()
$productStreamRepo = $this->em->getRepository(ProductStream::class);
$productStream = $productStreamRepo->findOneBy(['organization' => $organization, 'product' => $product_id]);
if ($productStream) {
$this->logger->info("reusing product stream for slot");
$data->setProductStream($productStream);
} else {
$productStream = new ProductStream();
$productStream->setOrganization($organization)
->setProduct($product)
->setTitle($product->getTitle())
->addSlot($data)
;
$this->logger->info("created new product stream for product [{$product->getTitle()}]");
$this->em->persist($productStream);
}
//update the slot with latest sensor data
if ($data->getSensor()) {
$latestSensorEvent = $this->eventStorage->getLatestSensorEvent($data->getSensor()->getDeviceId());
custom operations
PUT /slot/:slot/product/:product
1. get or create product stream
2. assign product
3. if a sensor is already assigned:
4. update the stream with current status

BDD TEST YOUR API

Challenges
๏test “real” requests against the API
๏authentication, headers, response codes, request bodies
๏deal with database ﬁxtures
๏integrate external contexts
๏mock the JWT authentication
๏test several API formats (GraphQL)

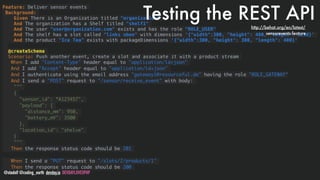

Feature: Deliver sensor events
Background:
Given There is an Organization titled "organization"
And The organization has a Shelf titled "shelf1"
And The user "user@organization.com" exists and has the role "ROLE_USER"
And The shelf has a slot called "links oben" with dimensions '{"width":300, "height": 400, "length": 1250}'
And the product "Ice Tea" exists with packageDimensions '{"width":300, "height": 300, "length": 400}' 
 
@createSchema
Scenario: Push another event, create a slot and associate it with a product stream
When I add "Content-Type" header equal to "application/ld+json"
And I add "Accept" header equal to "application/ld+json"
And I authenticate using the email address "gateway1@resourceful.de" having the role "ROLE_GATEWAY"
And I send a "POST" request to "/sensor/receive_event" with body:
"""
{
"sensor_id": “A123457",
"payload": {
"distance_mm": 950,
"battery_mV": 3500
},
"location_id": "shelve"
}
"""
Then the response status code should be 201
When I send a "PUT" request to "/slots/2/products/1"
Testing the REST APIhttp://behat.org/en/latest/
sensorevents.feature

/**

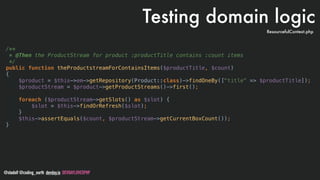

* @Then the ProductStream for product :productTitle contains :count items
*/
public function theProductstreamForContainsItems($productTitle, $count)
{
$product = $this->em->getRepository(Product::class)->findOneBy(["title" => $productTitle]);
$productStream = $product->getProductStreams()->first();
foreach ($productStream->getSlots() as $slot) {
$slot = $this->findOrRefresh($slot);
}
$this->assertEquals($count, $productStream->getCurrentBoxCount());
}
Testing domain logic
ResourcefulContext.php

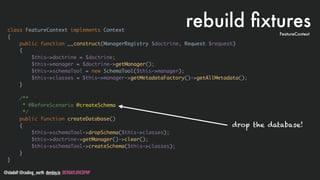

class FeatureContext implements Context
{
public function __construct(ManagerRegistry $doctrine, Request $request)
{
$this->doctrine = $doctrine;
$this->manager = $doctrine->getManager();
$this->schemaTool = new SchemaTool($this->manager);
$this->classes = $this->manager->getMetadataFactory()->getAllMetadata();
}
/**
* @BeforeScenario @createSchema
*/
public function createDatabase()
{
$this->schemaTool->dropSchema($this->classes);
$this->doctrine->getManager()->clear();
$this->schemaTool->createSchema($this->classes);
}
}
rebuild ﬁxturesFeatureContext
drop the database!

Background:
Given There is an Organization titled "organization"
And The organization has a Shelf titled "shelf1"
And The user "user@organization.com" exists and has the role "ROLE_USER"
And The shelf has a slot called "links oben" with dimensions  
'{"width":300, "height": 400, "length": 1250}'
And the product "Ice Tea" exists with packageDimensions  
'{"width":300, "height": 300, "length": 400}' 
 
rebuild ﬁxturessensorevents.feature

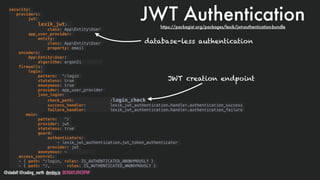

JWT Authentication
security:
providers:
jwt:
lexik_jwt:
class: AppEntityUser
app_user_provider:
entity:
class: AppEntityUser
property: email
encoders:
AppEntityUser:
algorithm: argon2i
firewalls:
login:
pattern: ^/login
stateless: true
anonymous: true
provider: app_user_provider
json_login:
check_path: /login_check
success_handler: lexik_jwt_authentication.handler.authentication_success
failure_handler: lexik_jwt_authentication.handler.authentication_failure
main:
pattern: ^/
provider: jwt
stateless: true
guard:
authenticators:
- lexik_jwt_authentication.jwt_token_authenticator
provider: jwt
anonymous: ~
access_control:
- { path: ^/login, roles: IS_AUTHENTICATED_ANONYMOUSLY }
- { path: ^/, roles: IS_AUTHENTICATED_ANONYMOUSLY }
database-less authentication
JWT creation endpoint
https://packagist.org/packages/lexik/jwt-authentication-bundle

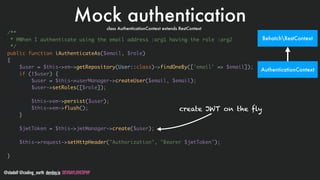

Mock authentication
/**
* @When I authenticate using the email address :arg1 having the role :arg2
*/
public function iAuthenticateAs($email, $role)
{
$user = $this->em->getRepository(User::class)->findOneBy(['email' => $email]);
if (!$user) {
$user = $this->userManager->createUser($email, $email);
$user->setRoles([$role]);
$this->em->persist($user);
$this->em->flush();
}
$jwtToken = $this->jwtManager->create($user);
$this->request->setHttpHeader("Authorization", "Bearer $jwtToken");
}
create JWT on the fly
BehatchRestContext
AuthenticationContext
class AuthenticationContext extends RestContext

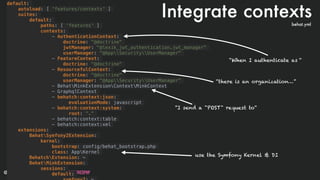

default:
autoload: [ 'features/contexts' ]
suites:
default:
paths: [ 'features' ]
contexts:
- AuthenticationContext:
doctrine: "@doctrine"
jwtManager: "@lexik_jwt_authentication.jwt_manager"
userManager: "@AppSecurityUserManager"
- FeatureContext:
- ResourcefulContext:
userManager: "@AppSecurityUserManager"
- BehatMinkExtensionContextMinkContext 
- GraphqlContext
- behatch:context:json:
evaluationMode: javascript
- behatch:context:system:
root: “."
- behatch:context:table
- behatch:context:xml
extensions:
BehatSymfony2Extension:
kernel:
bootstrap: config/behat_bootstrap.php
class: AppKernel
BehatchExtension: ~
BehatMinkExtension:
sessions:
default:
Integrate contexts
“When I authenticate as “
“I send a "POST" request to“
“there is an organization…”
use the Symfony Kernel & DI
behat.yml

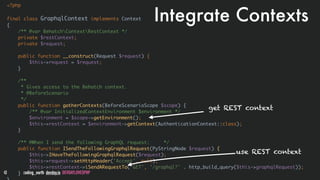

Integrate Contexts
<?php
final class GraphqlContext implements Context
{
/** @var BehatchContextRestContext */
private $restContext;
private $request;
public function __construct(Request $request) {
$this->request = $request;
}
/**
* Gives access to the Behatch context.
* @BeforeScenario
*/
public function gatherContexts(BeforeScenarioScope $scope) {
/** @var InitializedContextEnvironment $environment */
$environment = $scope->getEnvironment();
$this->restContext = $environment->getContext(AuthenticationContext::class);
}
/** @When I send the following GraphQL request: */
public function ISendTheFollowingGraphqlRequest(PyStringNode $request) {
$this->IHaveTheFollowingGraphqlRequest($request);
$this->request->setHttpHeader('Accept', null);
$this->restContext->iSendARequestTo('GET', '/graphql?' . http_build_query($this->graphqlRequest));
}
get REST context
use REST context

@createSchema
Scenario: query all products
When I add "Content-Type" header equal to "application/ld+json"
And I add "Accept" header equal to "application/ld+json"
And I authenticate using the email address "user@organization.com" having the role "ROLE_USER"
And I send the following GraphQL request:
"""
{
products {
edges {
node {
title
width
}
}
}
}
"""
And the response should be in JSON
And the JSON node "data.products.edges[0].node.title" should be equal to "Ice Tea"
And the JSON node "data.products.edges[0].node.width" should be equal to 300
Testing GraphQLhttp://behat.org/en/latest/
sensorevents.feature
affects the REST Request

DEMO: BEHAT  
FOR API-PLATFORM

Too long, didn’t listen
๏BDD is a great tool to deﬁne features in real language
๏Behat can be used for API testing
๏this way it’s closer to SpecBDD than StoryBDD
๏Don’t test everything like this - CI performance will kill you
๏it integrates nicely with api-platform
๏api-platform is great to build APIs.

That’s all, folks
Stefan Adolf 
https://twitter.com/stadolf 
https://github.com/elmariachi111 
https://www.linkedin.com/in/stadolf/

Q&A

Testing API platform with Behat BDD tests

More Related Content

What's hot

Similar to Testing API platform with Behat BDD tests

More from Stefan Adolf

Recently uploaded

Testing API platform with Behat BDD tests
