How do we design a UI when the back-end system consists of dozens (or more) microservices? We have separation and autonomy on the back end, but on the front end this all needs to come back together. How do we stop it from turning into a mess of spaghetti code? How do we prevent simple actions from causing an inefficient torrent of web requests? Join Mauro in building a Composite UI for Microservices from scratch, using .NET Core. Walk away with a clear understanding of what Services UI Composition is and how you can architect front end to be Microservices ready.

1. mauroservienti

2. designing a UI for
Microservices
Mauro Servienti
mauroservienti

3. spaghetti
trademark
is mine
mauroservienti

4. All I wanna do
when I wake up in
the morning is…
Rosanna, Toto. Toto IV
mauroservienti

5. Buy a "Banana Protector"
mauroservienti

6. Does a page like that exist?
mauroservienti

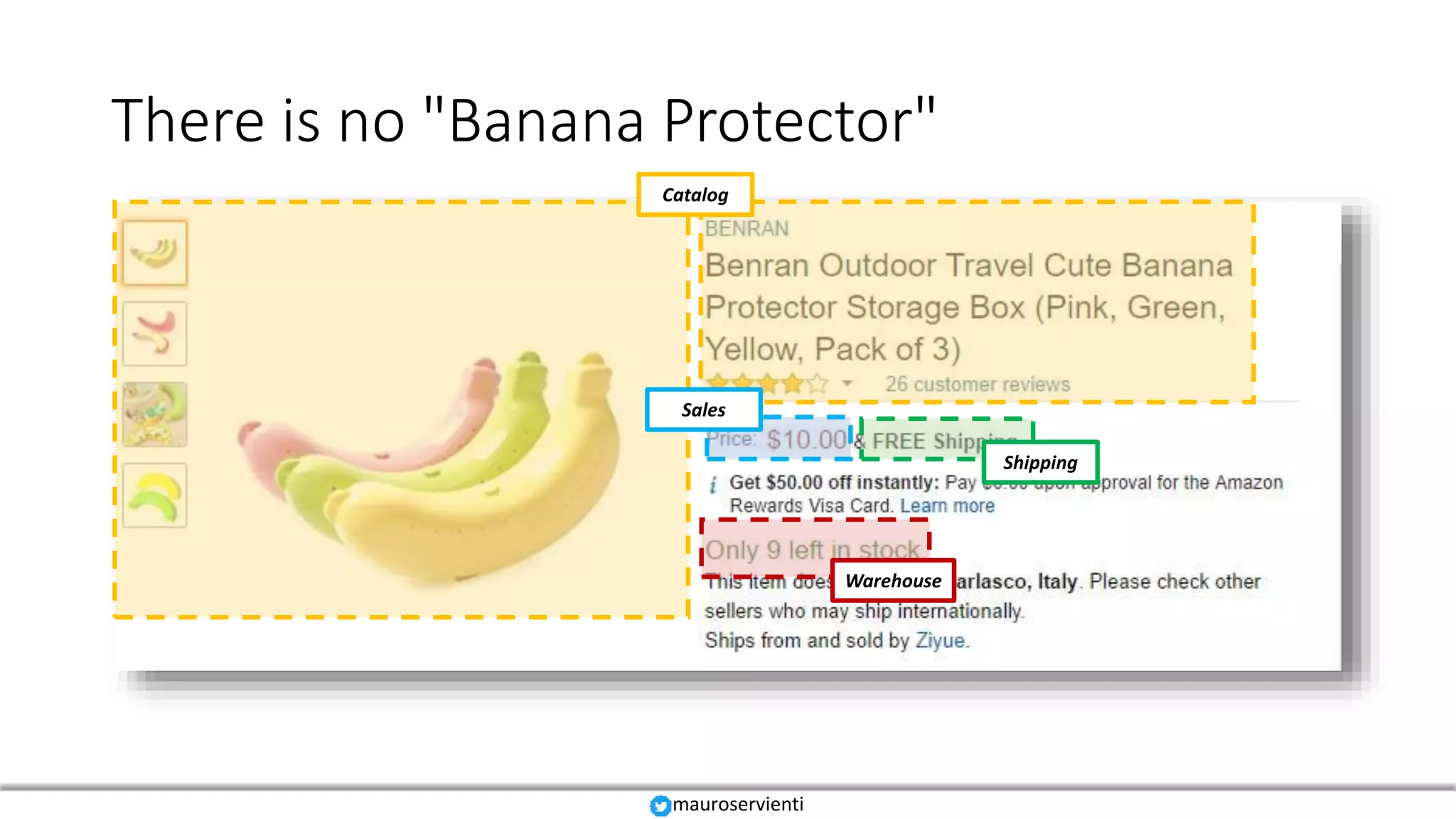

7. There is no "Banana Protector"
Sales
Warehouse
Shipping
Catalog
mauroservienti

8. Domain Model Decomposition
services owning
their own piece of
information
Single Responsibility Principle
mauroservienti

9. How can we design something like that?
mauroservienti

10. Denormalization Temptations…
Catalog Sales Shipping Warehouse
De-normalized API
Client
“Product”ViewModel…
/products/1
mauroservienti

11. that’s a
cache
mauroservienti

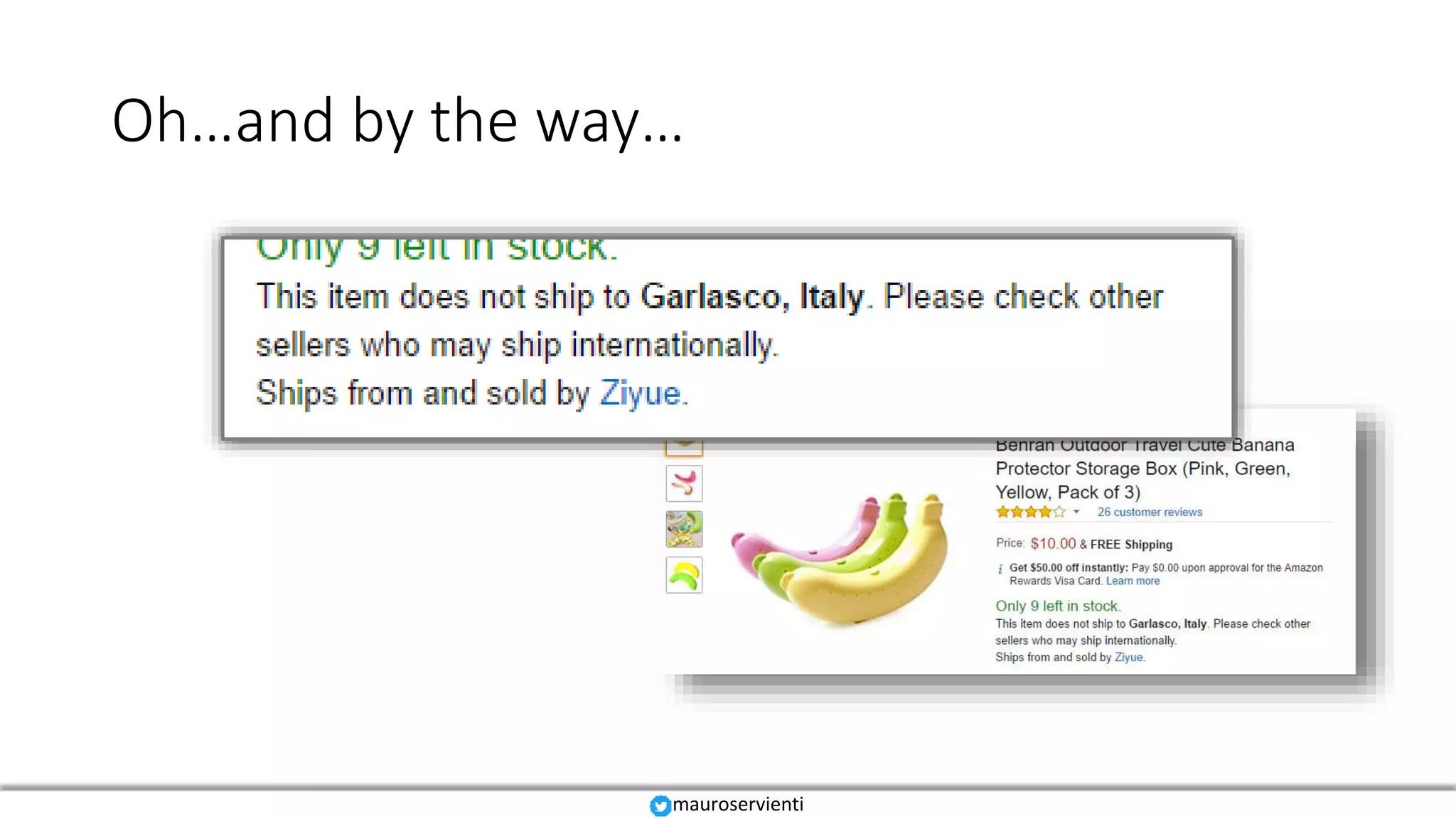

12. Oh…and by the way…
mauroservienti

13. Whatchoo talkin' 'bout, Willis?
a report
not a cache
mauroservienti

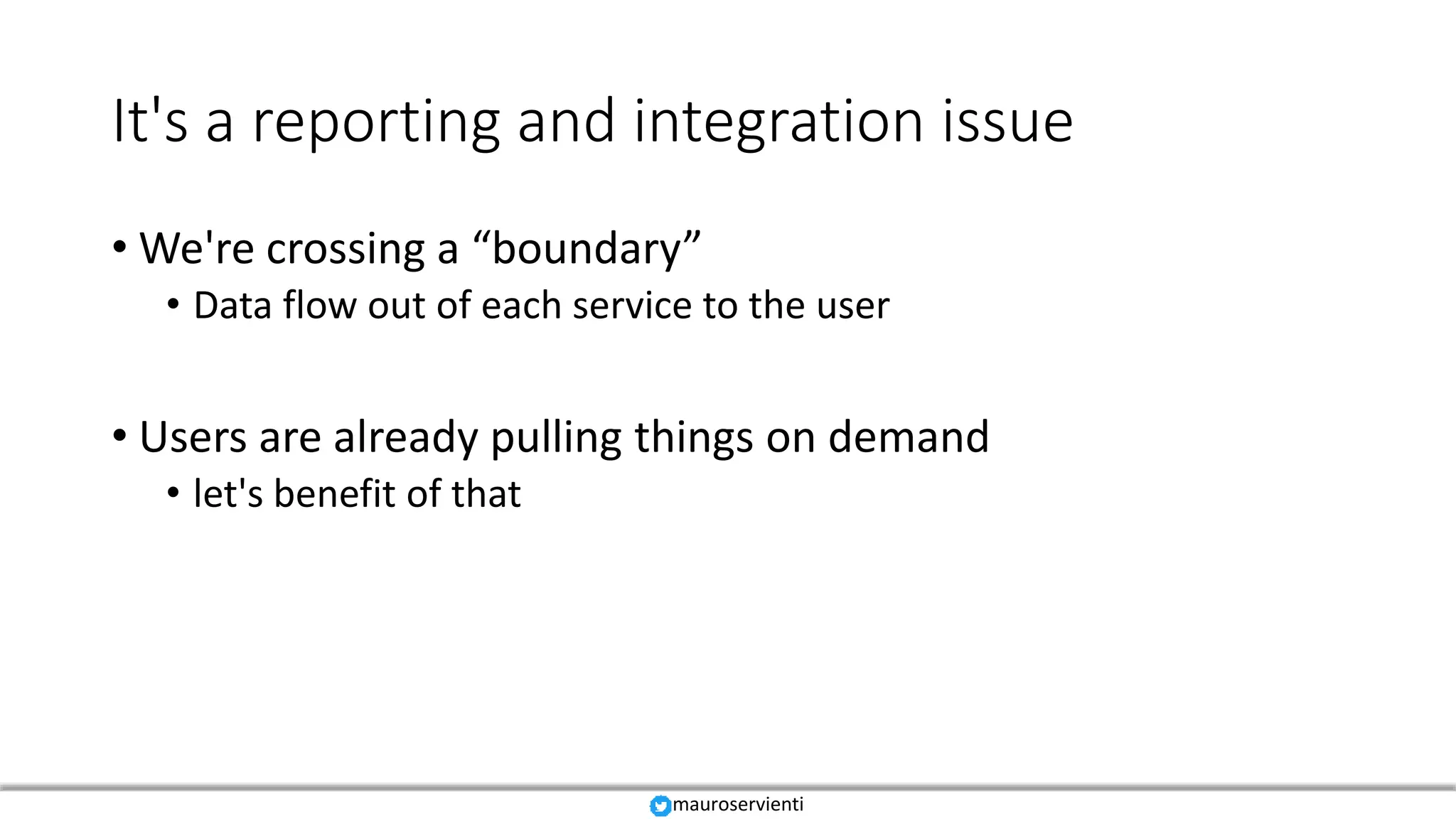

14. It's a reporting and integration issue
• We're crossing a “boundary”
• Data flow out of each service to the user
• Users are already pulling things on demand
• let's benefit of that
mauroservienti

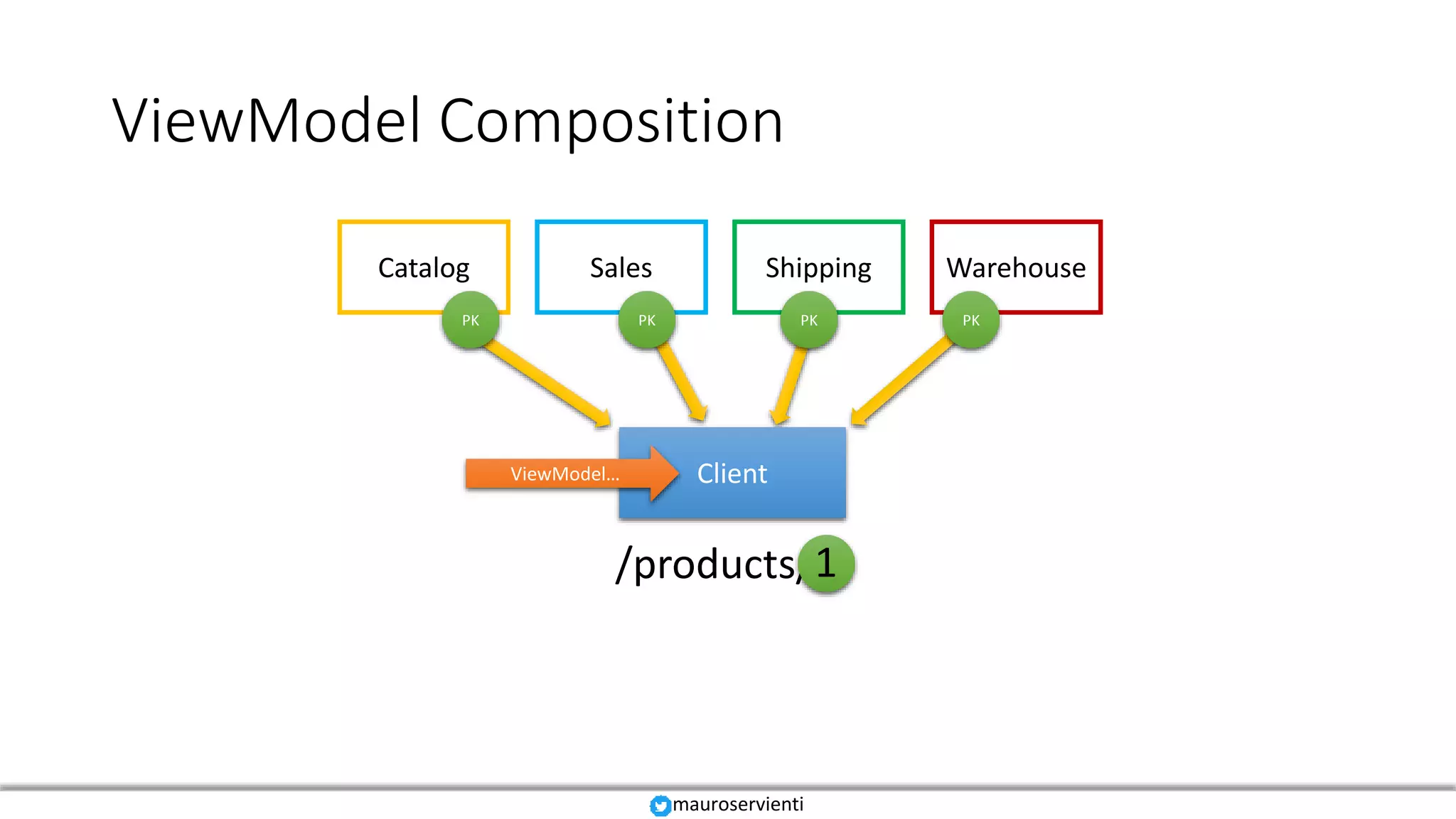

15. ViewModel Composition
/products/
Catalog Sales Shipping Warehouse
Client
PKPKPKPK
1
ViewModel…
mauroservienti

16. ViewModel Composition
Catalog
Sales
Shipping
Warehouse
composition gateway
HTTP Request -> /products/1 Catalog
Handler
Sales
Handler
Shipping
Handler
Warehouse
Handler
Request matching
HTTP Response -> ViewModel
Composition
Composed ViewModel
mauroservienti
Creates empty ViewModel

17. Request Handling
mauroservienti
class ProductDetailsGetHandler : IHandleRequests
{
}

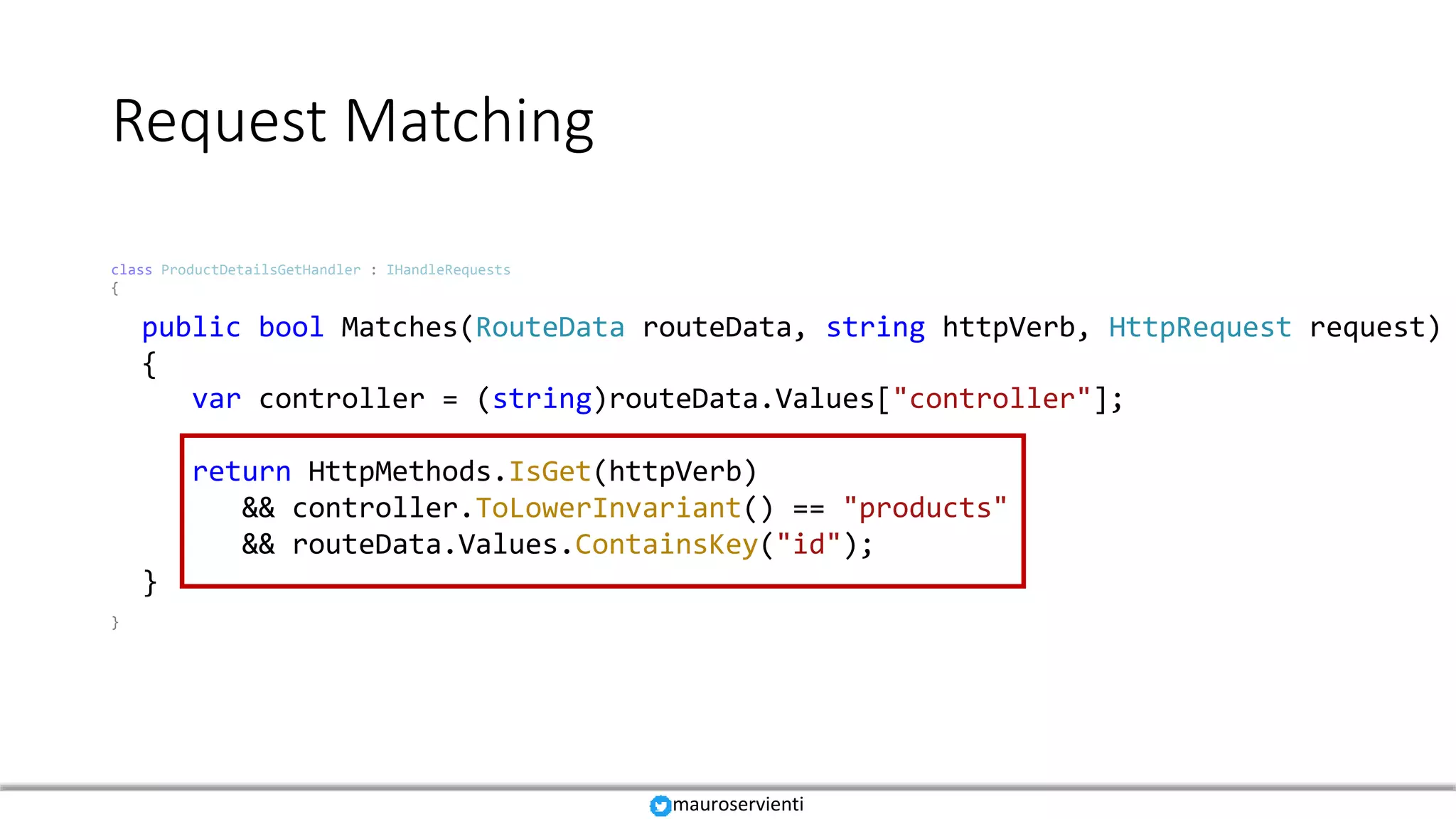

18. Request Matching
mauroservienti
class ProductDetailsGetHandler : IHandleRequests
{
}
public bool Matches(RouteData routeData, string httpVerb, HttpRequest request)
{
}
var controller = (string)routeData.Values["controller"];
return HttpMethods.IsGet(httpVerb)
&& controller.ToLowerInvariant() == "products"
&& routeData.Values.ContainsKey("id");

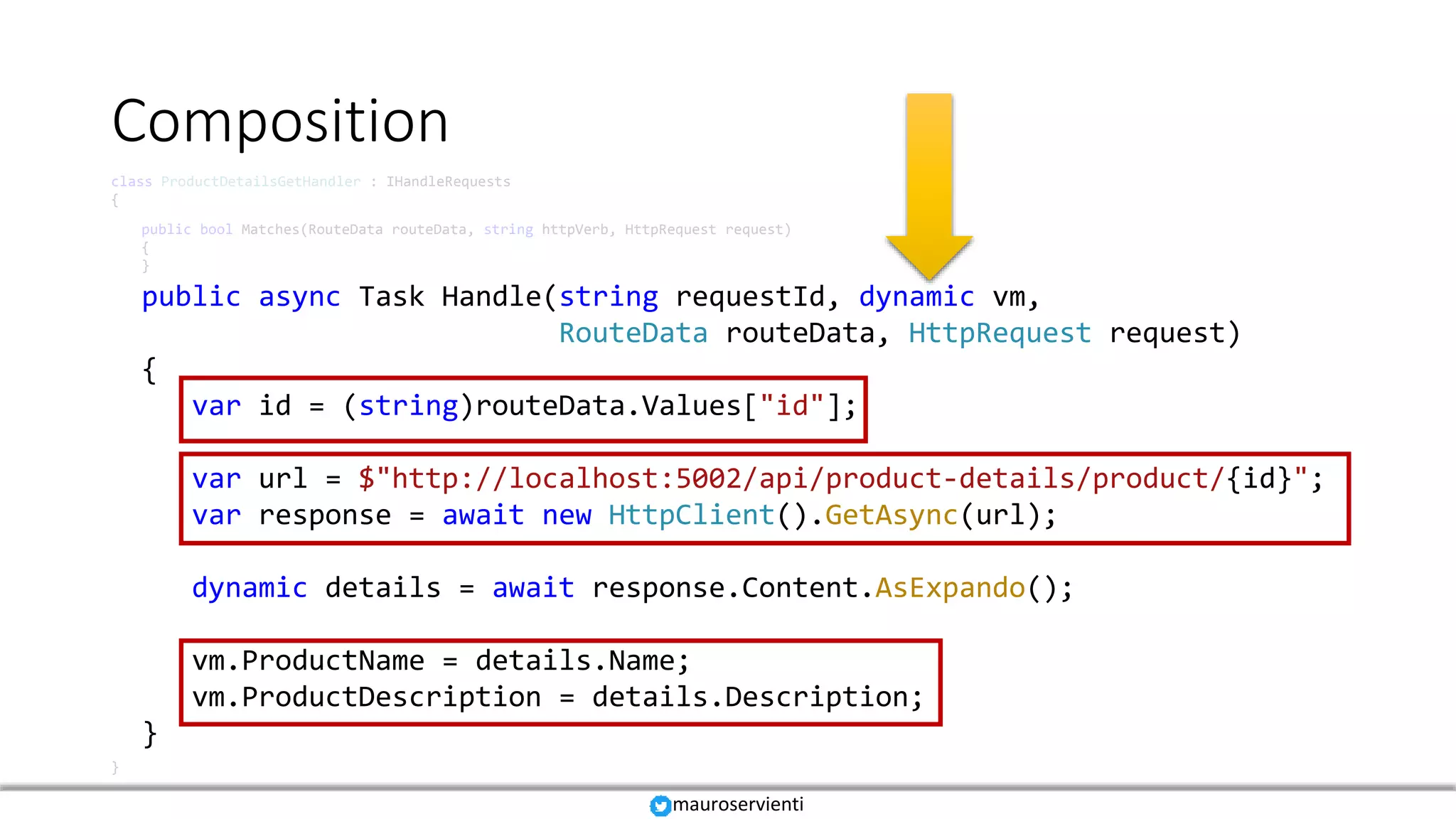

19. Composition
mauroservienti
class ProductDetailsGetHandler : IHandleRequests
{
}
public bool Matches(RouteData routeData, string httpVerb, HttpRequest request)
{
}
public async Task Handle(string requestId, dynamic vm,
RouteData routeData, HttpRequest request)
{
var id = (string)routeData.Values["id"];
var url = $"http://localhost:5002/api/product-details/product/{id}";
var response = await new HttpClient().GetAsync(url);
dynamic details = await response.Content.AsExpando();
vm.ProductName = details.Name;
vm.ProductDescription = details.Description;
}

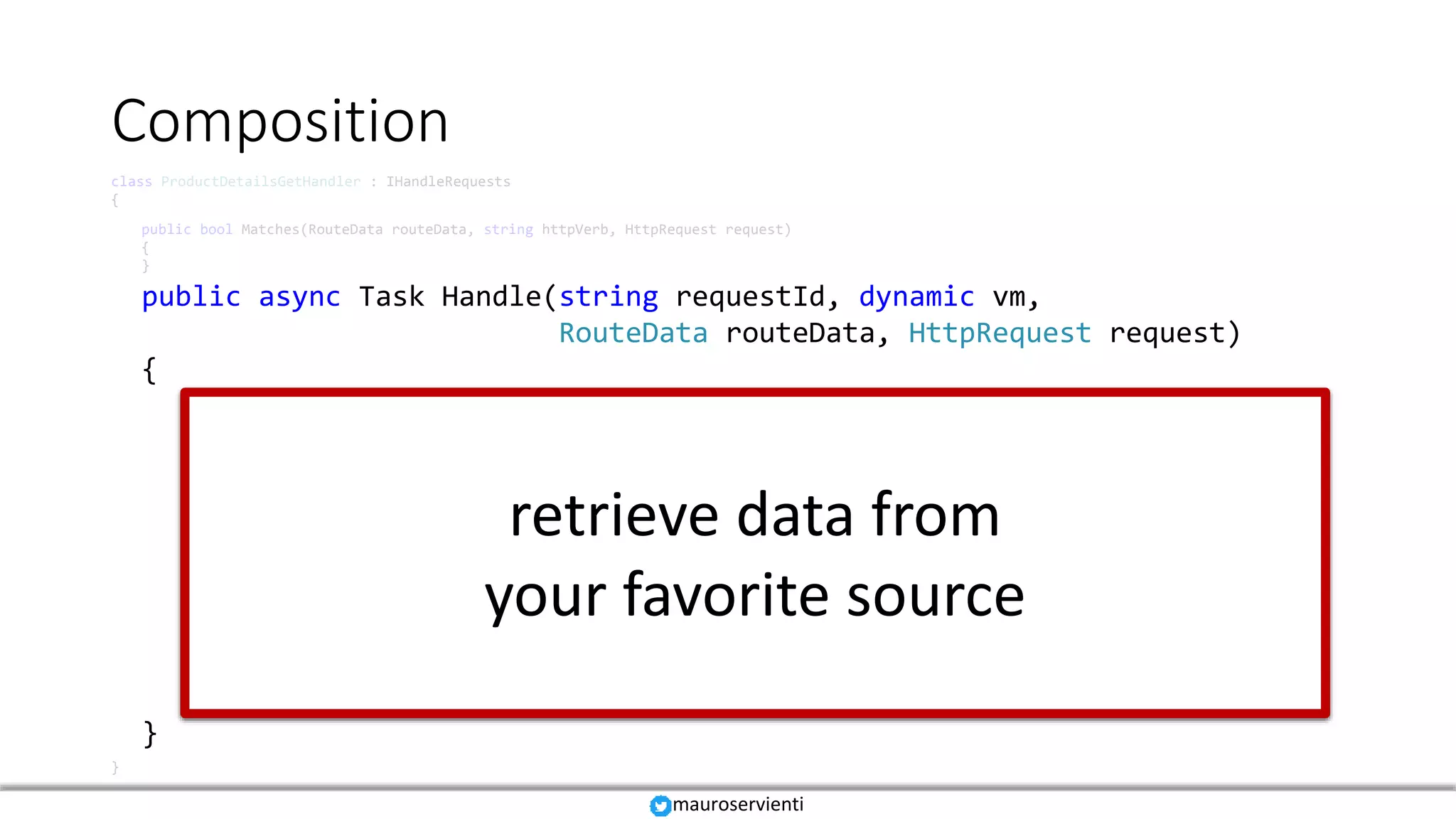

20. Composition
mauroservienti
class ProductDetailsGetHandler : IHandleRequests
{
}
public bool Matches(RouteData routeData, string httpVerb, HttpRequest request)
{
}
public async Task Handle(string requestId, dynamic vm,
RouteData routeData, HttpRequest request)
{
var id = (string)routeData.Values["id"];
var url = $"http://localhost:5002/api/product-details/product/{id}";
var response = await new HttpClient().GetAsync(url);
dynamic details = await response.Content.AsExpando();
vm.ProductName = details.Name;
vm.ProductDescription = details.Description;
}
retrieve data from
your favorite source

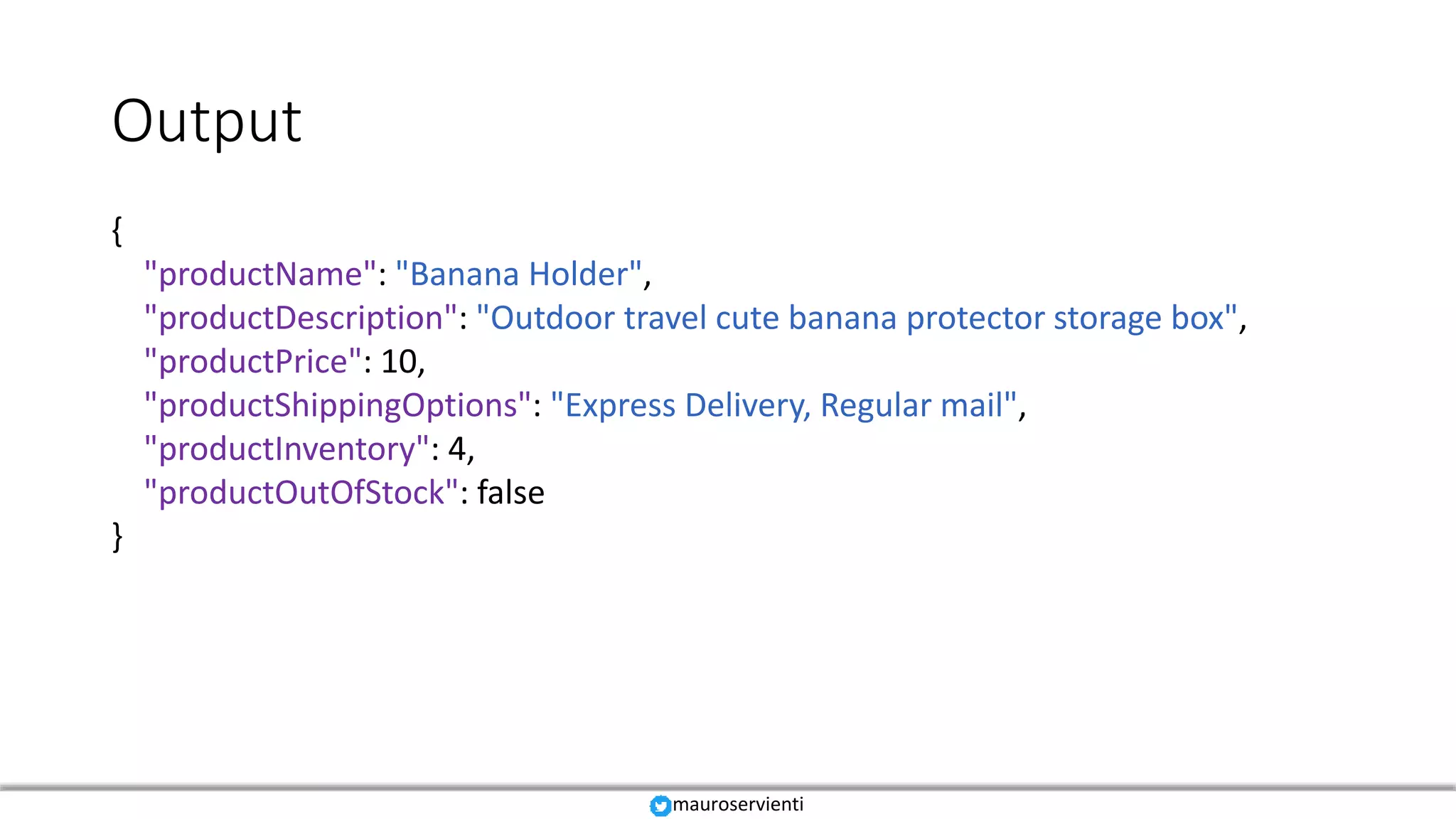

21. Output
mauroservienti
{
"productName": "Banana Holder",
"productDescription": "Outdoor travel cute banana protector storage box",
"productPrice": 10,
"productShippingOptions": "Express Delivery, Regular mail",
"productInventory": 4,
"productOutOfStock": false
}

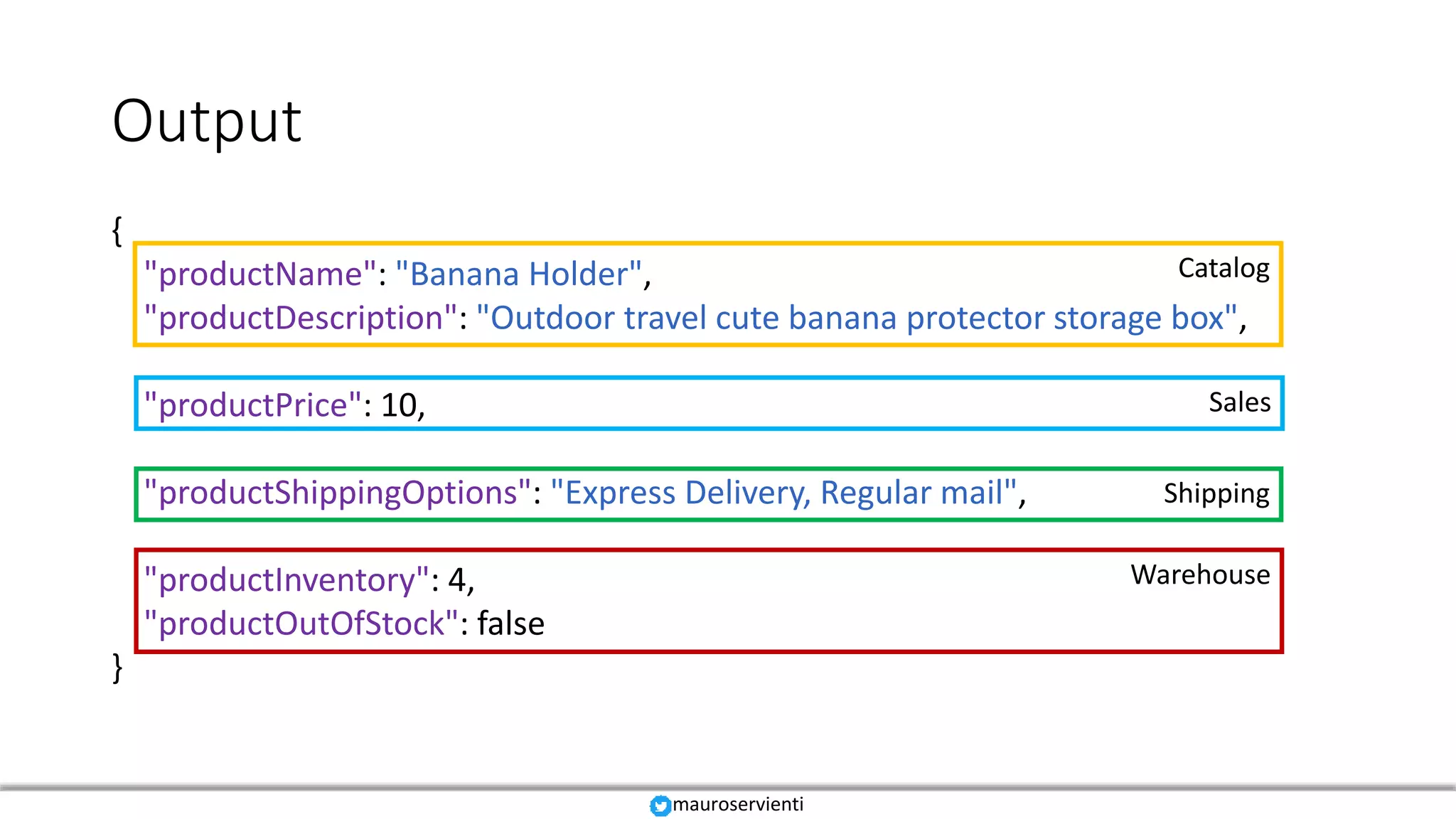

22. Output
mauroservienti
{
"productName": "Banana Holder",
"productDescription": "Outdoor travel cute banana protector storage box",
"productPrice": 10,
"productShippingOptions": "Express Delivery, Regular mail",
"productInventory": 4,
"productOutOfStock": false
}
Catalog
Sales
Shipping
Warehouse

23. is all what glitters gold?
mauroservienti

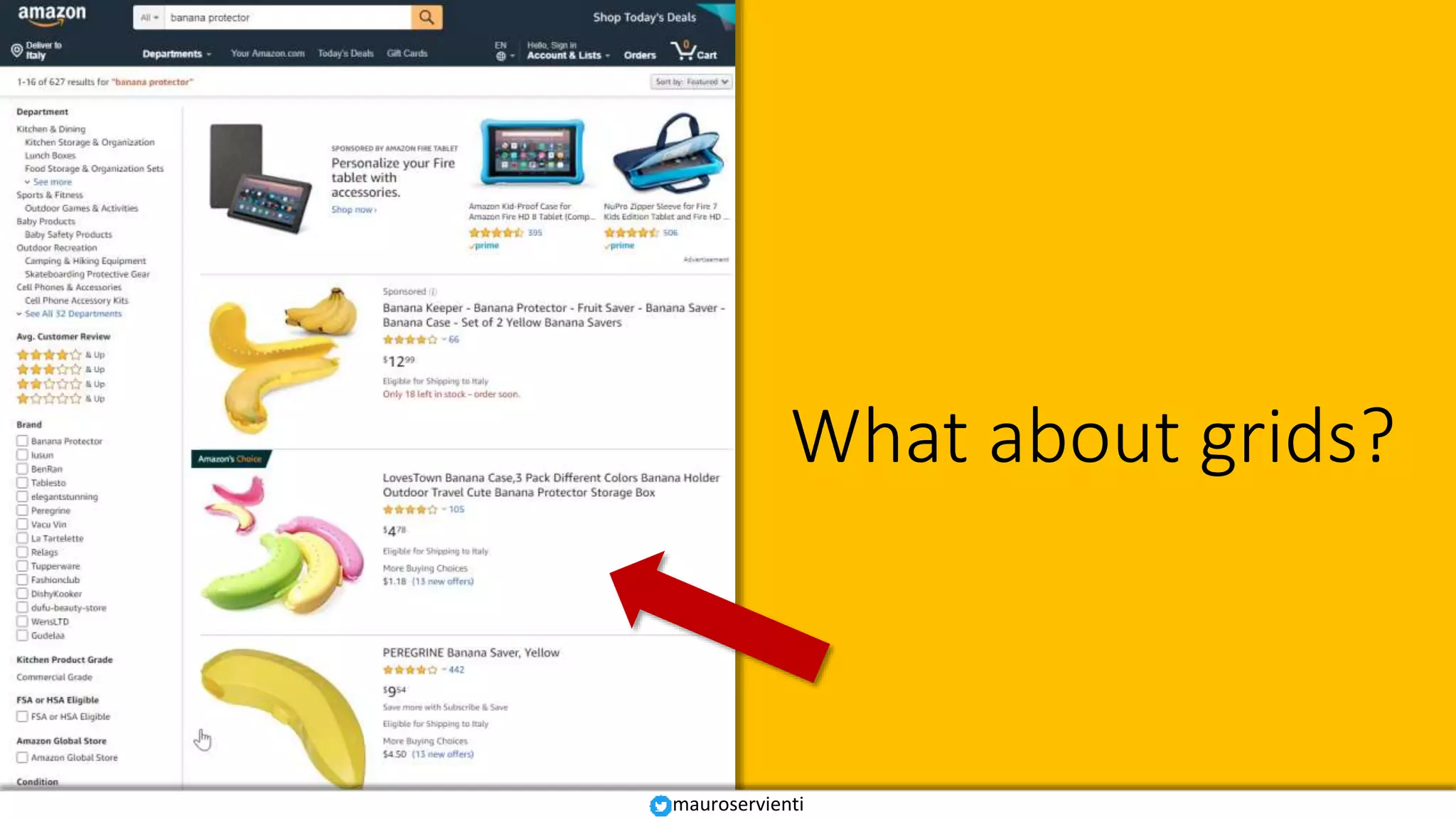

24. What about grids?
mauroservienti

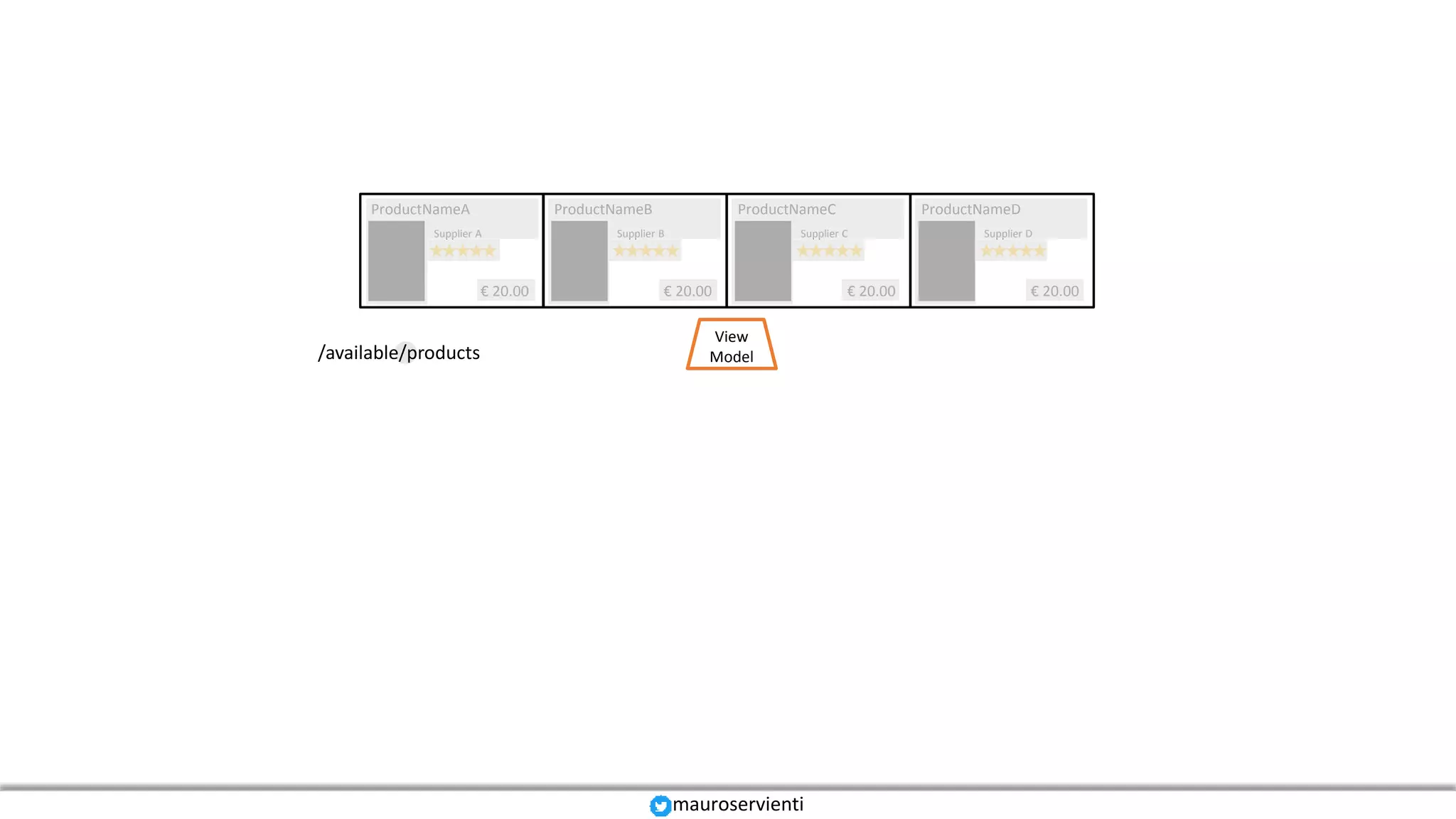

25. ProductNameA
€ 20.00
cover
A
Supplier A
ProductNameB
€ 20.00
cover
B
Supplier B
ProductNameC
€ 20.00
cover
C
Supplier C
ProductNameD
€ 20.00
cover
D
Supplier D
mauroservienti
View
Model/available/products

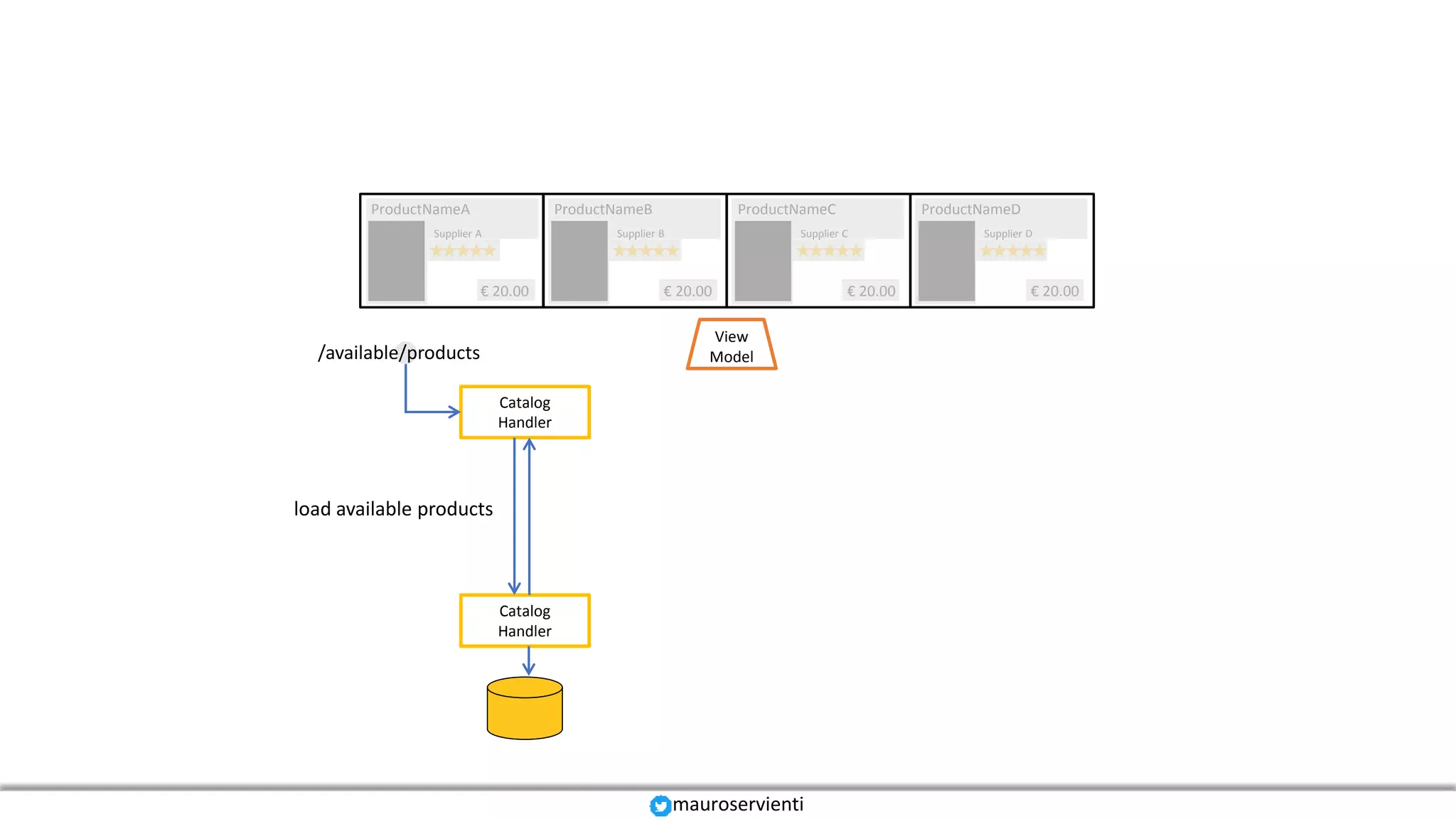

26. Catalog
Handler
View
Model
Catalog
Handler
ProductNameA
€ 20.00
cover
A
Supplier A
ProductNameB
€ 20.00
cover
B
Supplier B
ProductNameC
€ 20.00
cover
C
Supplier C
ProductNameD
€ 20.00
cover
D
Supplier D
load available products
mauroservienti
/available/products

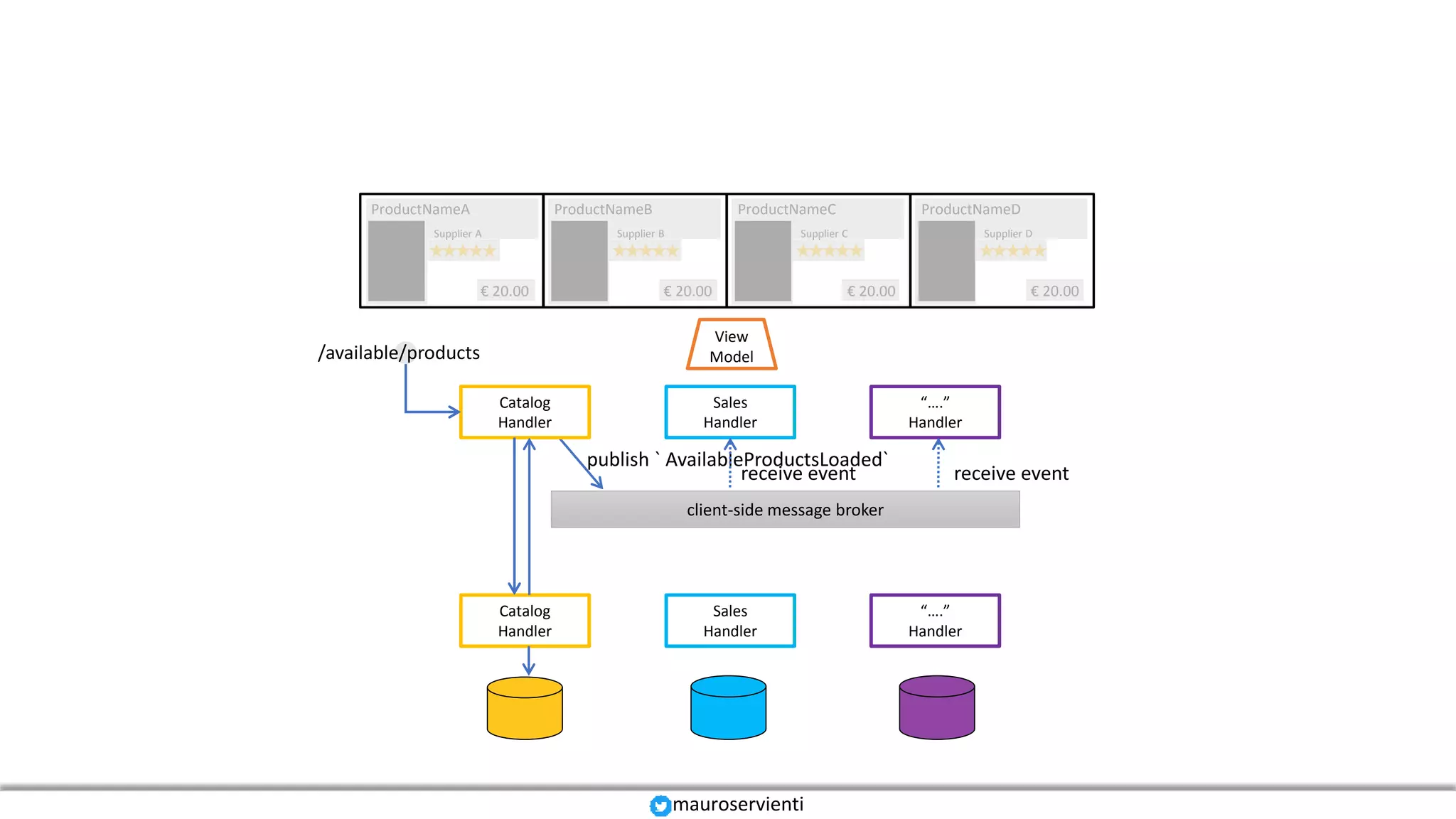

27. client-side message broker
Sales
Handler
“….”
Handler
Sales
Handler
“….”
Handler
ProductNameA
€ 20.00
cover
A
Supplier A
ProductNameB
€ 20.00
cover
B
Supplier B
ProductNameC
€ 20.00
cover
C
Supplier C
ProductNameD
€ 20.00
cover
D
Supplier D
publish ` AvailableProductsLoaded`
receive event
mauroservienti
Catalog
Handler
View
Model
Catalog
Handler
/available/products
receive event

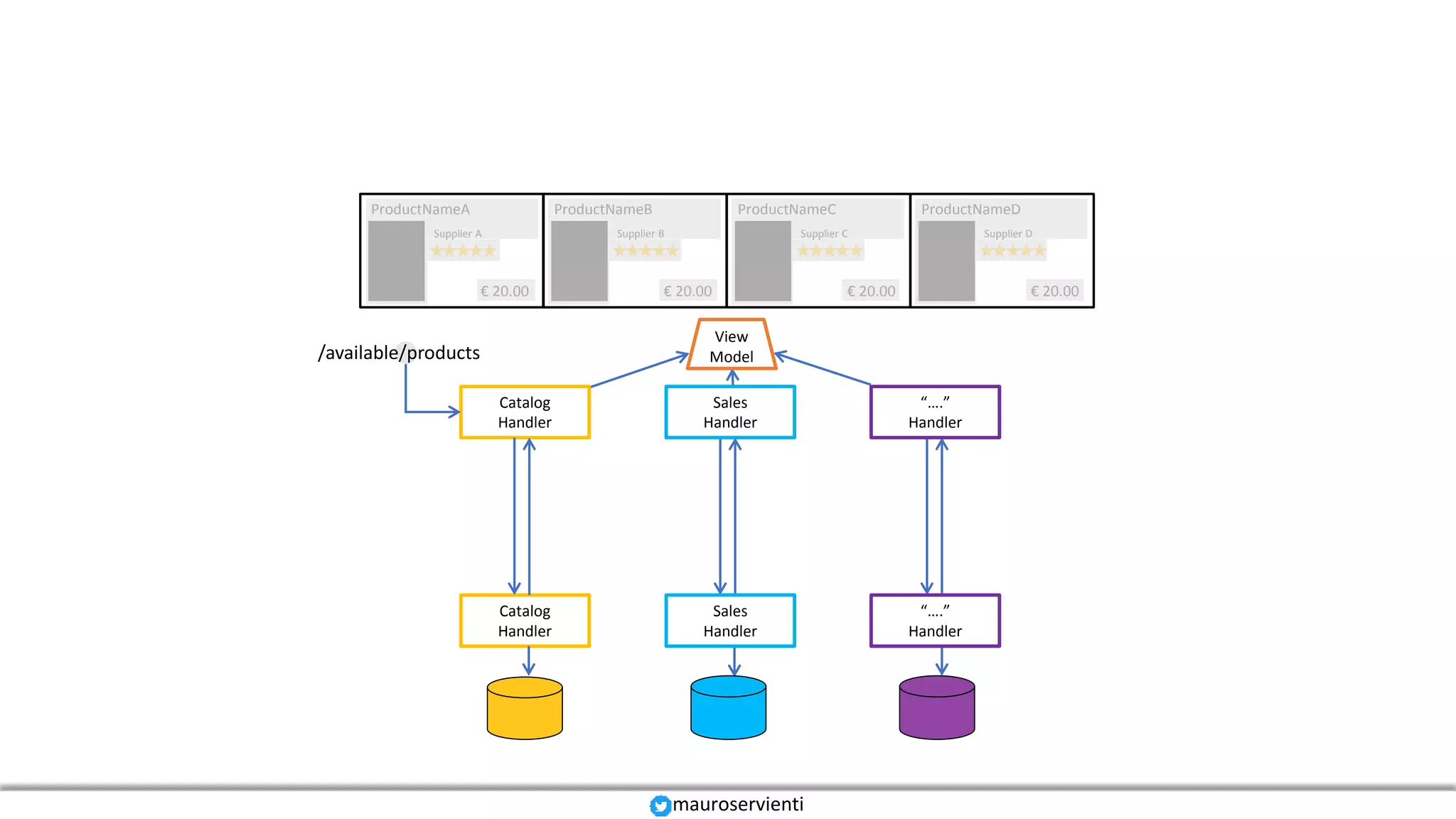

28. ProductNameA
€ 20.00
cover
A
Supplier A
ProductNameB
€ 20.00
cover
B
Supplier B
ProductNameC
€ 20.00
cover
C
Supplier C
ProductNameD
€ 20.00
cover
D
Supplier D
mauroservienti
Sales
Handler
“….”
Handler
Sales
Handler
“….”
Handler
Catalog
Handler
View
Model
Catalog
Handler
/available/products

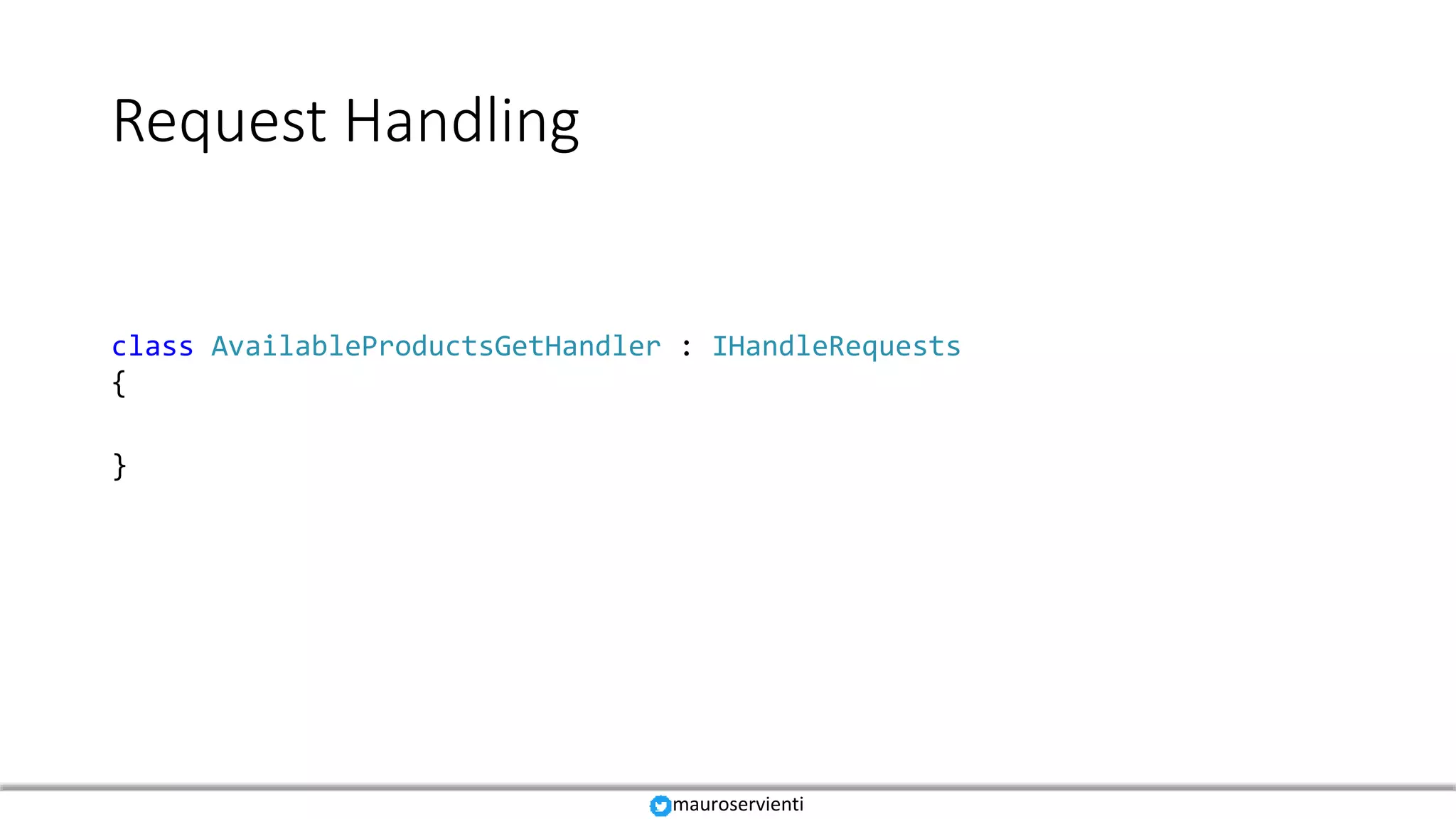

29. Request Handling
mauroservienti
class AvailableProductsGetHandler : IHandleRequests
{
}

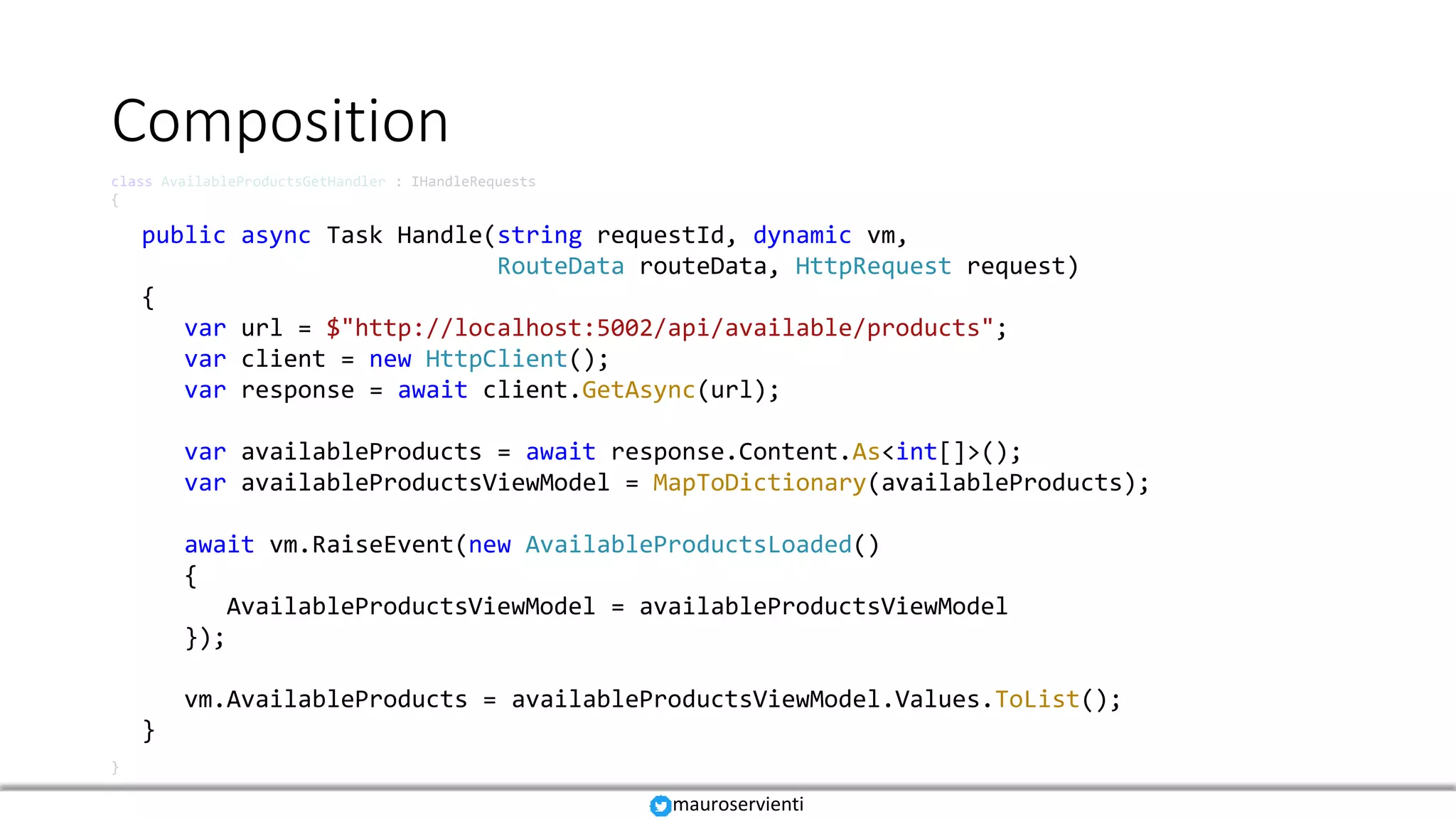

30. Composition
mauroservienti
class AvailableProductsGetHandler : IHandleRequests
{
}
public async Task Handle(string requestId, dynamic vm,
RouteData routeData, HttpRequest request)
{
var url = $"http://localhost:5002/api/available/products";
var client = new HttpClient();
var response = await client.GetAsync(url);
var availableProducts = await response.Content.As<int[]>();
var availableProductsViewModel = MapToDictionary(availableProducts);
await vm.RaiseEvent(new AvailableProductsLoaded()
{
AvailableProductsViewModel = availableProductsViewModel
});
vm.AvailableProducts = availableProductsViewModel.Values.ToList();
}

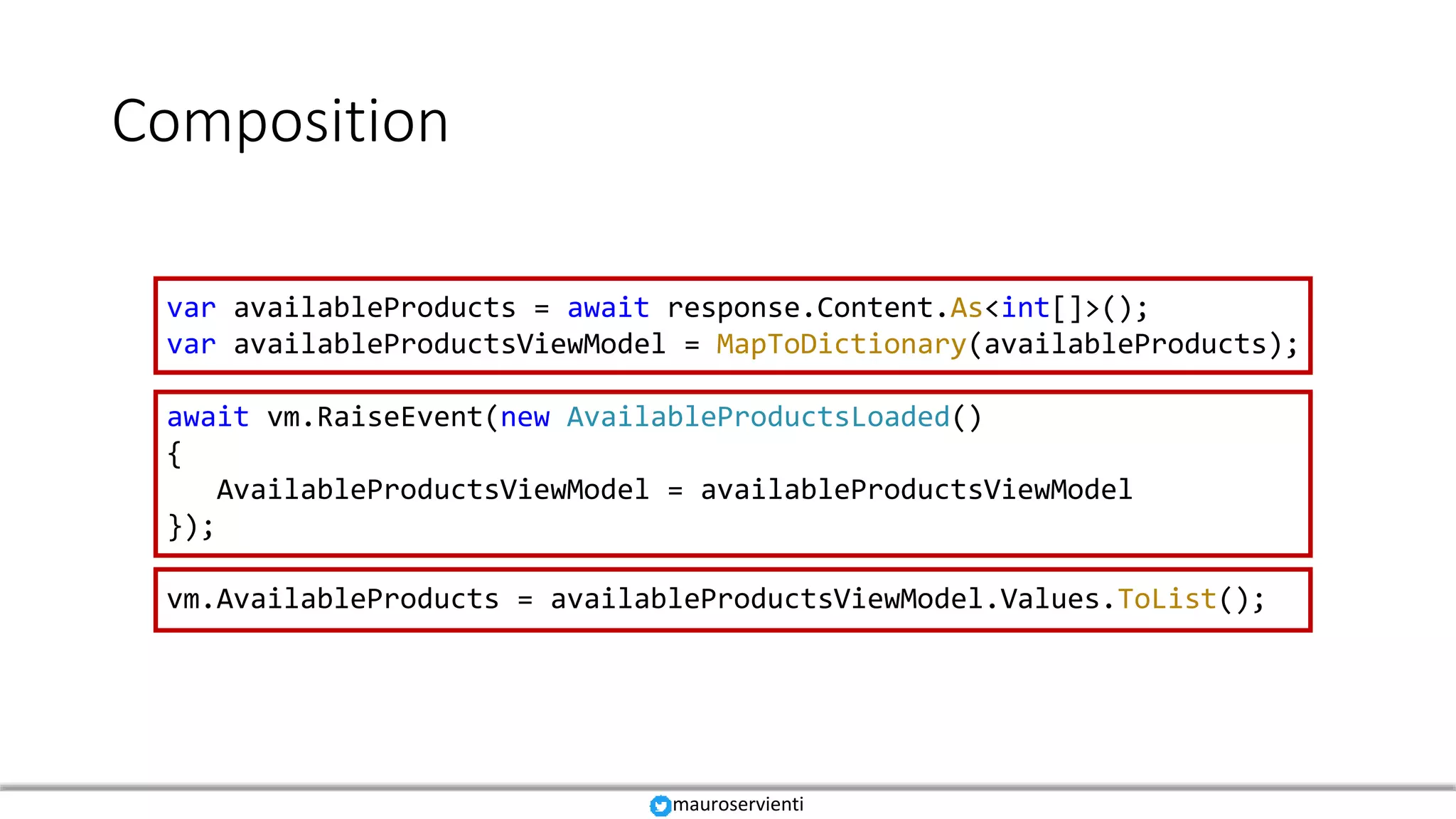

31. Composition
mauroservienti
var availableProducts = await response.Content.As<int[]>();
var availableProductsViewModel = MapToDictionary(availableProducts);
await vm.RaiseEvent(new AvailableProductsLoaded()
{
AvailableProductsViewModel = availableProductsViewModel
});
vm.AvailableProducts = availableProductsViewModel.Values.ToList();

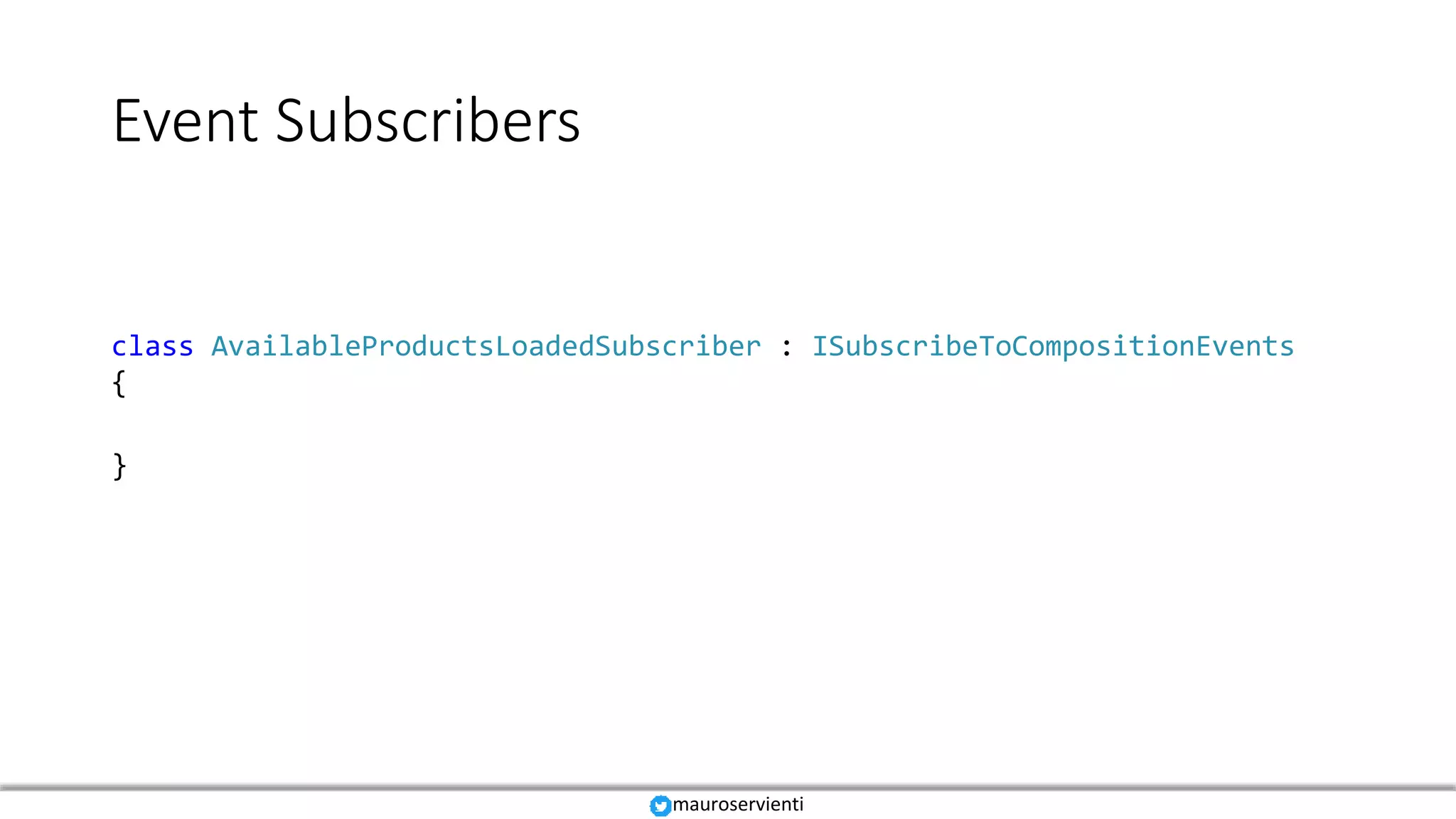

32. Event Subscribers
class AvailableProductsLoadedSubscriber : ISubscribeToCompositionEvents
{
}
mauroservienti

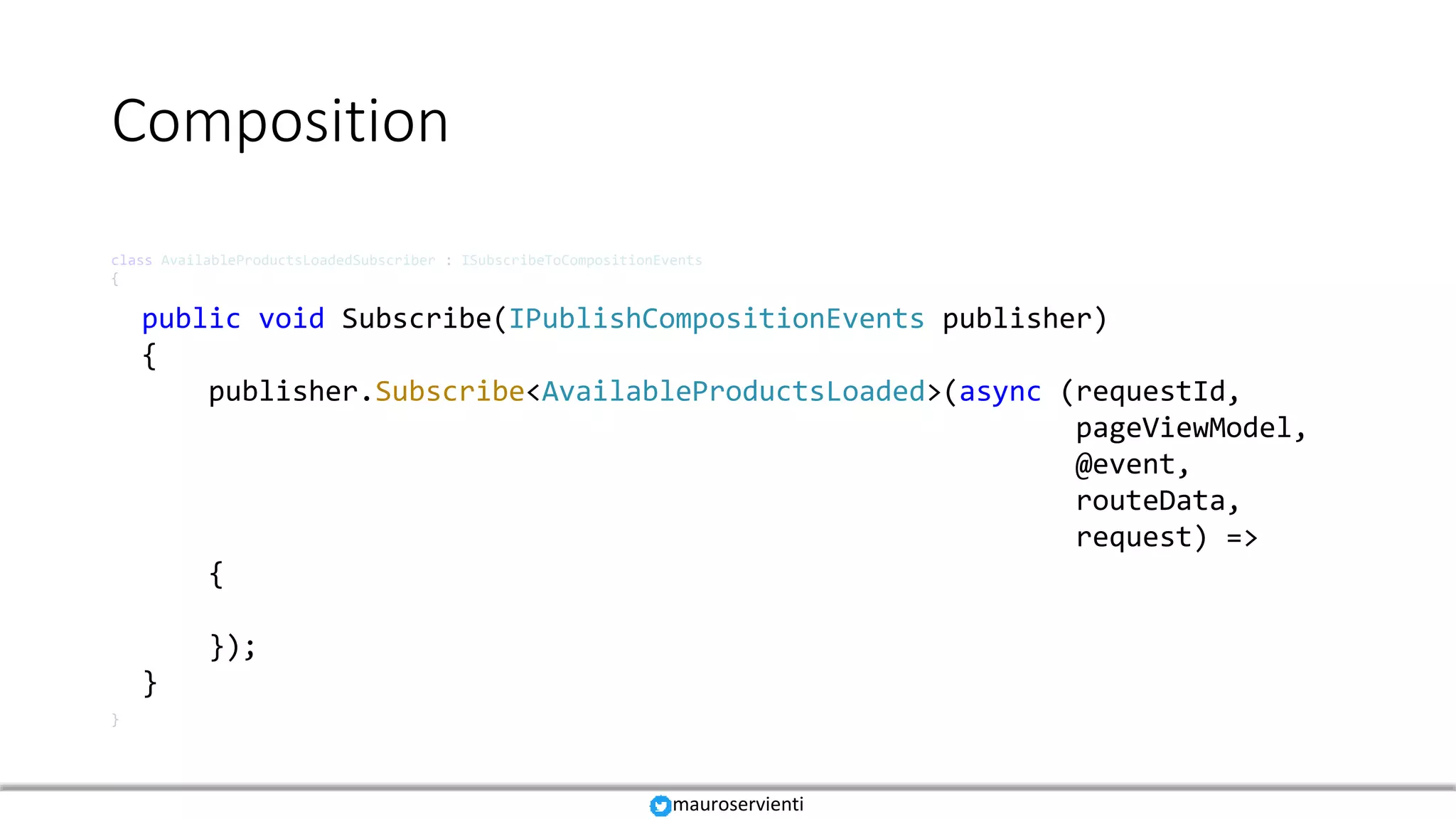

33. Composition
class AvailableProductsLoadedSubscriber : ISubscribeToCompositionEvents
{
}
public void Subscribe(IPublishCompositionEvents publisher)
{
publisher.Subscribe<AvailableProductsLoaded>(async (requestId,
pageViewModel,
@event,
routeData,
request) =>
{
});
}
mauroservienti

34. Composition
}
async (requestId, pageViewModel, @event, routeData, request) =>
{
var ids = string.Join(",", @event.AvailableProductsViewModel.Keys);
var url = $"http://localhost:5001/api/prices/products/{ids}";
var client = new HttpClient();
var response = await client.GetAsync(url);
dynamic[] productPrices = await response.Content.AsExpandoArray();
foreach (dynamic pp in productPrices)
{
@event.AvailableProductsViewModel[(int)productPrice.Id].ProductPrice = pp.Price;
}
});
mauroservienti

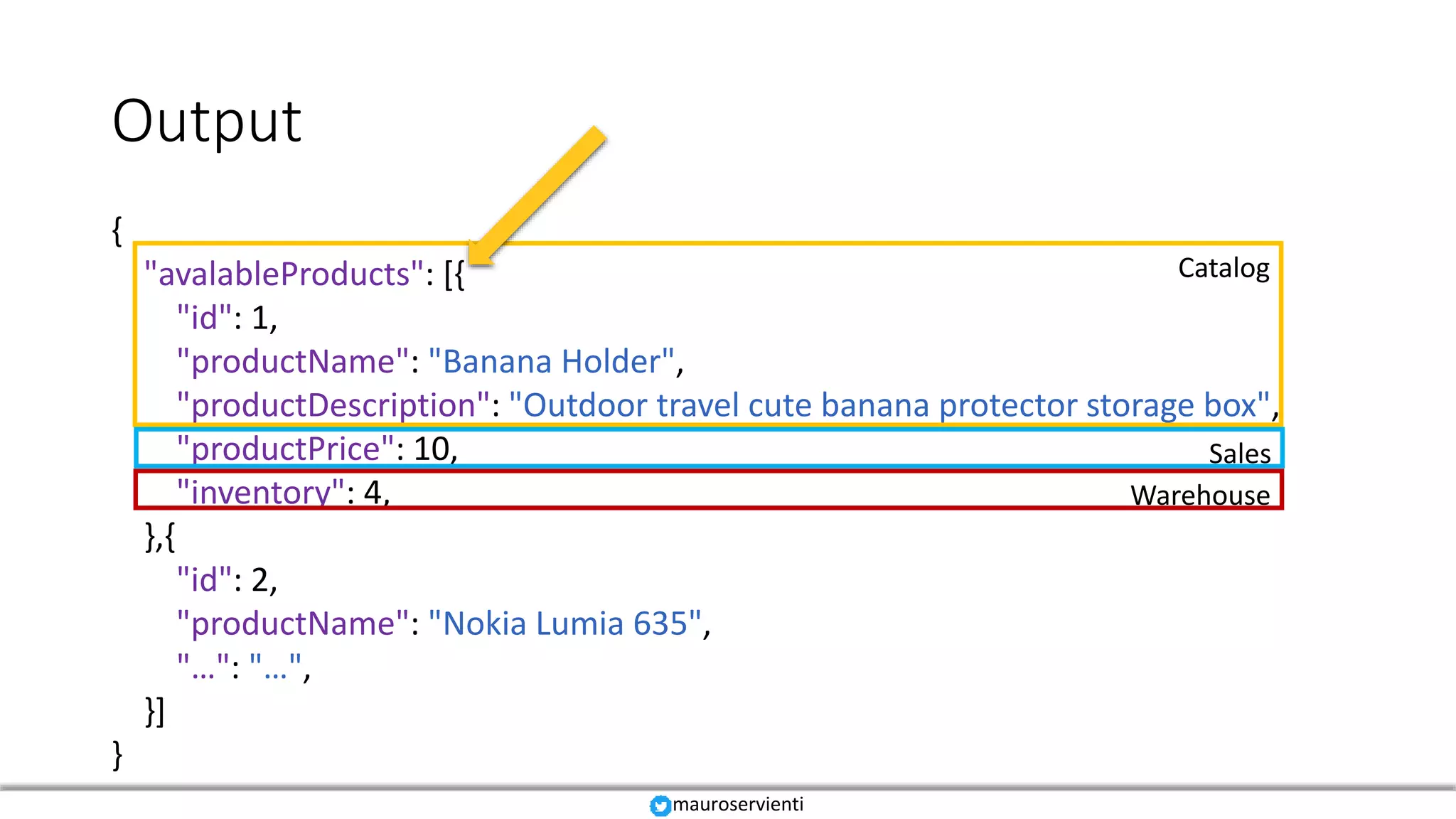

35. Output
mauroservienti
{
"avalableProducts": [{
"id": 1,
"productName": "Banana Holder",
"productDescription": "Outdoor travel cute banana protector storage box",
"productPrice": 10,
"inventory": 4,
},{
"id": 2,
"productName": "Nokia Lumia 635",
"…": "…",
}]
}

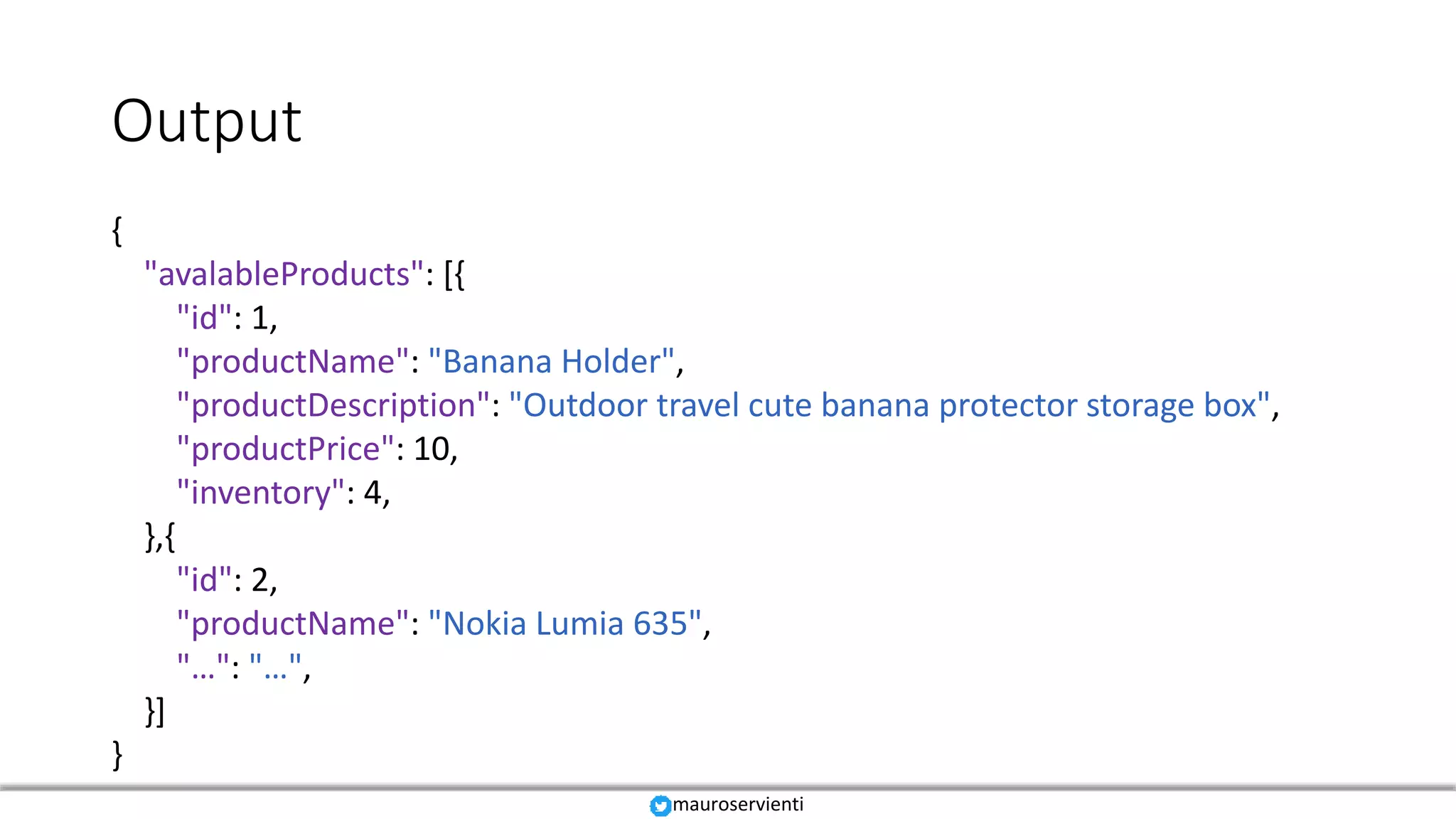

36. Output
mauroservienti
{
"avalableProducts": [{
"id": 1,
"productName": "Banana Holder",
"productDescription": "Outdoor travel cute banana protector storage box",
"productPrice": 10,
"inventory": 4,
},{
"id": 2,
"productName": "Nokia Lumia 635",
"…": "…",
}]
}
Catalog
Sales
Warehouse

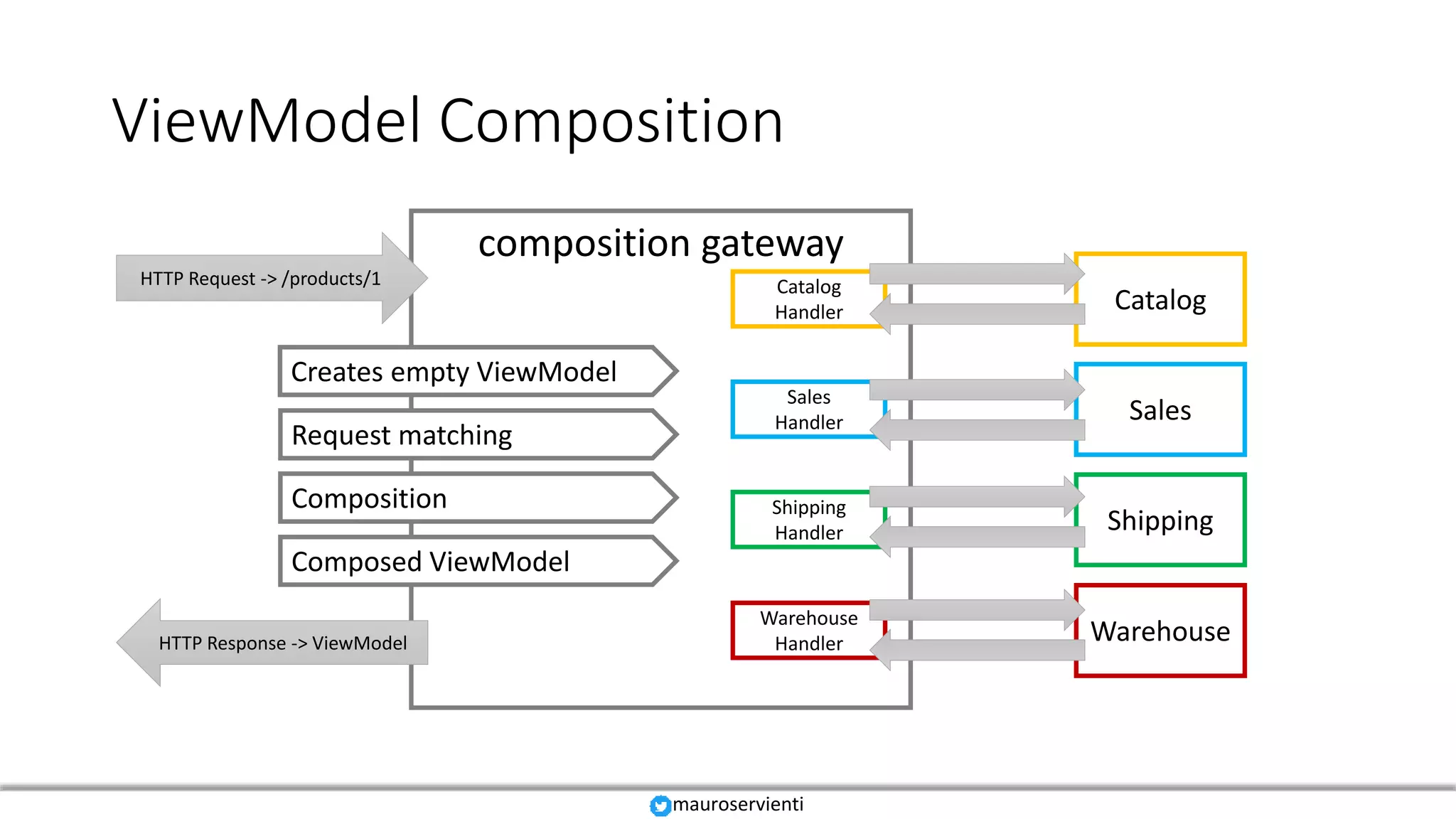

37. ViewModel Composition
Catalog
Sales
Shipping
Warehouse
composition gateway
HTTP Request -> /products/1 Catalog
Handler
Sales
Handler
Shipping
Handler
Warehouse
HandlerHTTP Response -> ViewModel
mauroservienti
Request matching
Composition
Composed ViewModel
Creates empty ViewModel

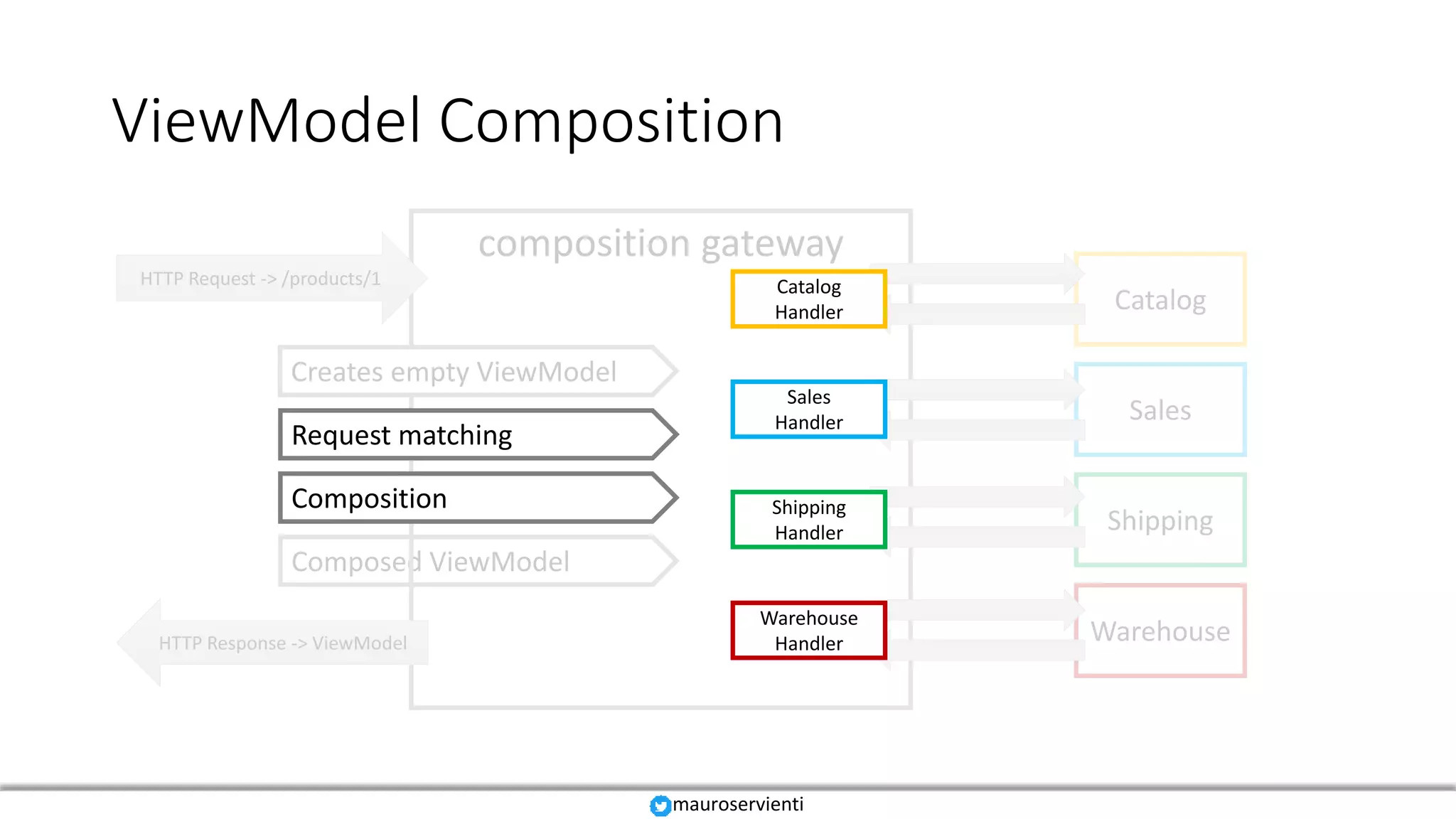

38. Composed ViewModel
ViewModel Composition
Catalog
Sales
Shipping
Warehouse
composition gateway
HTTP Request -> /products/1
HTTP Response -> ViewModel
mauroservienti
Creates empty ViewModel
Request matching
Composition
Catalog
Handler
Sales
Handler
Shipping
Handler
Warehouse
Handler

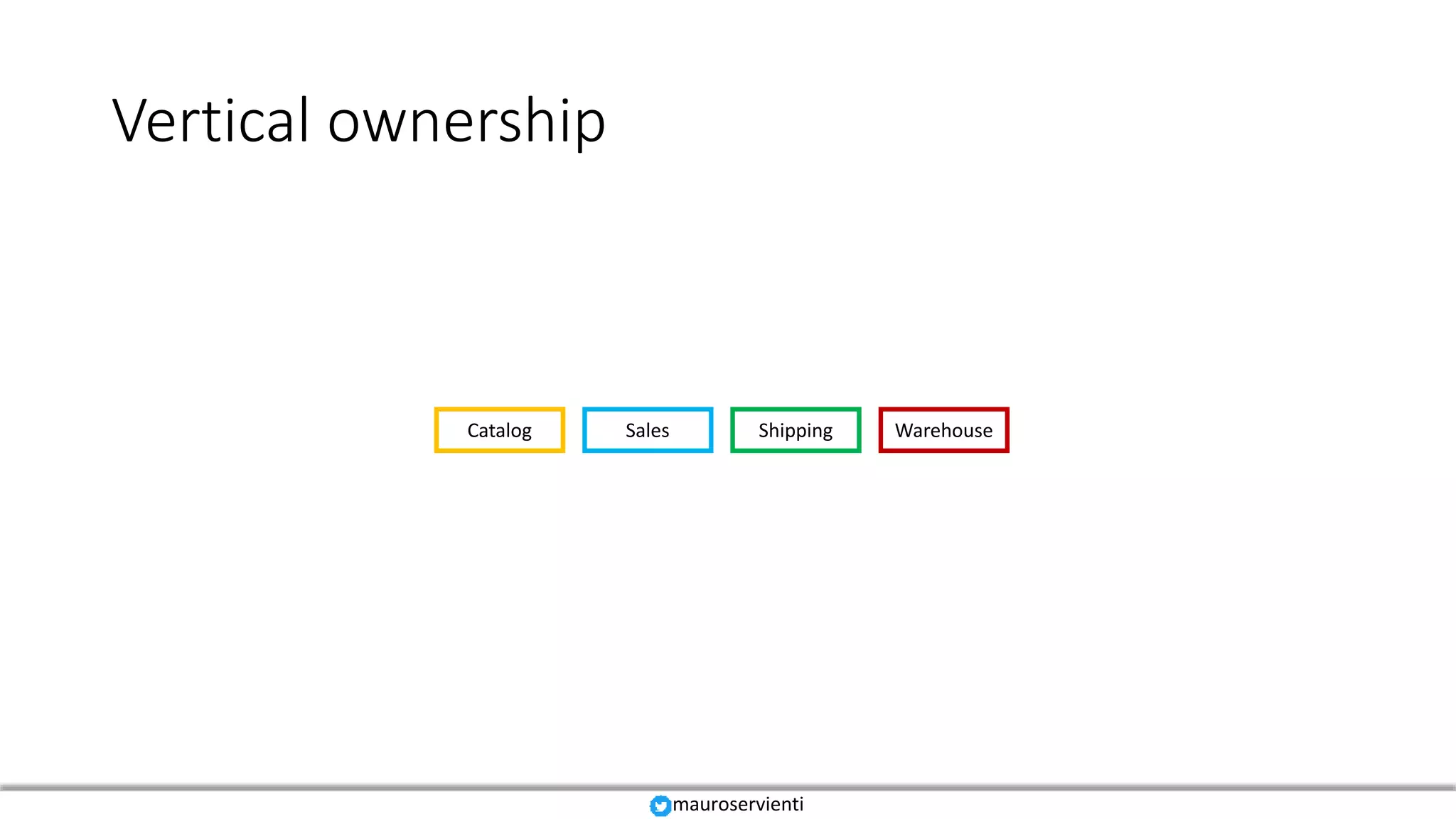

39. Vertical ownership
Catalog Sales Shipping Warehouse
mauroservienti

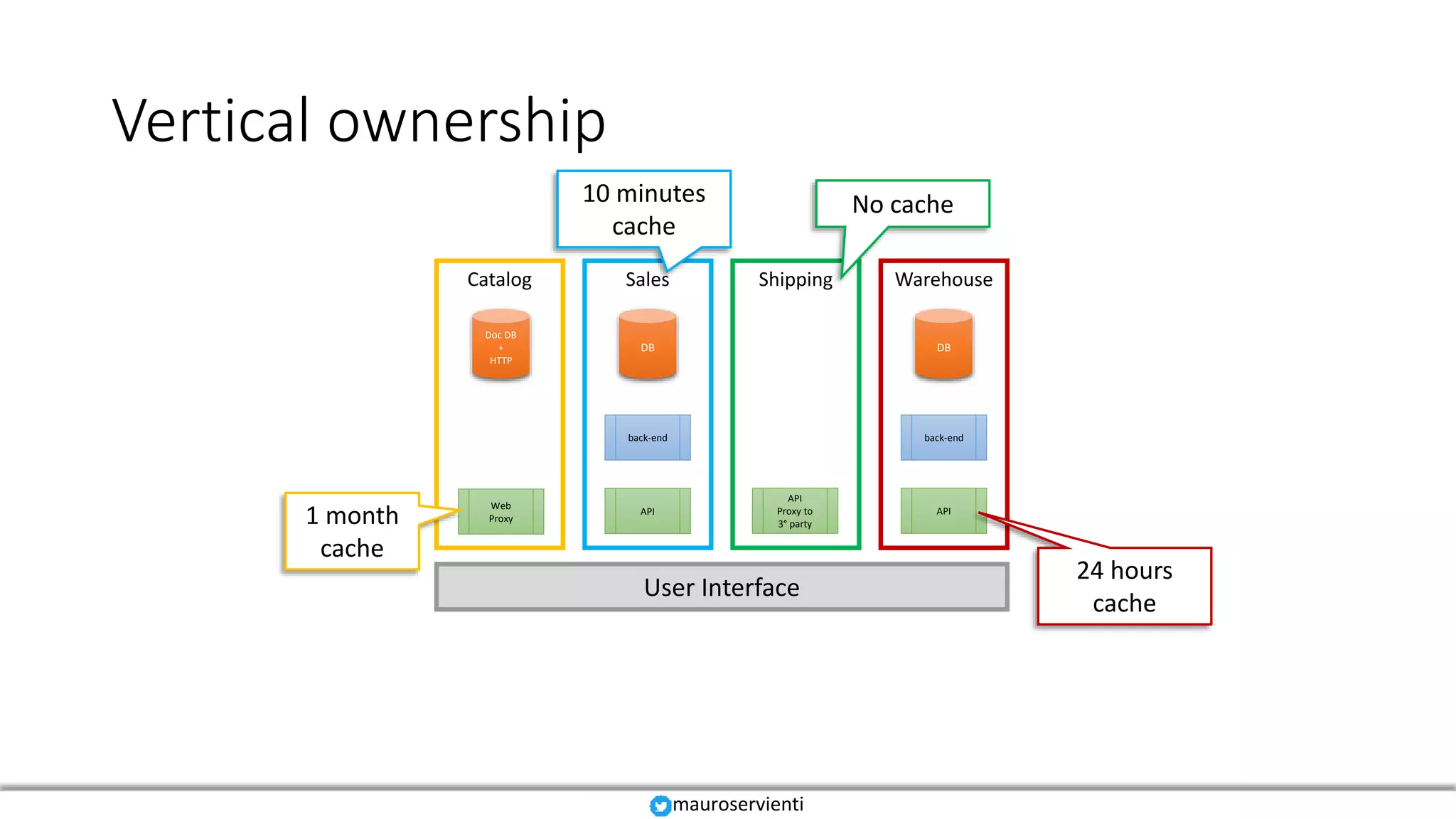

40. Vertical ownership
Catalog Sales Shipping Warehouse
Doc DB
+
HTTP
DB DB
back-end back-end
Web
Proxy
API
API
Proxy to
3° party
API
1 month
cache
24 hours
cache
No cache10 minutes
cache
User Interface
mauroservienti

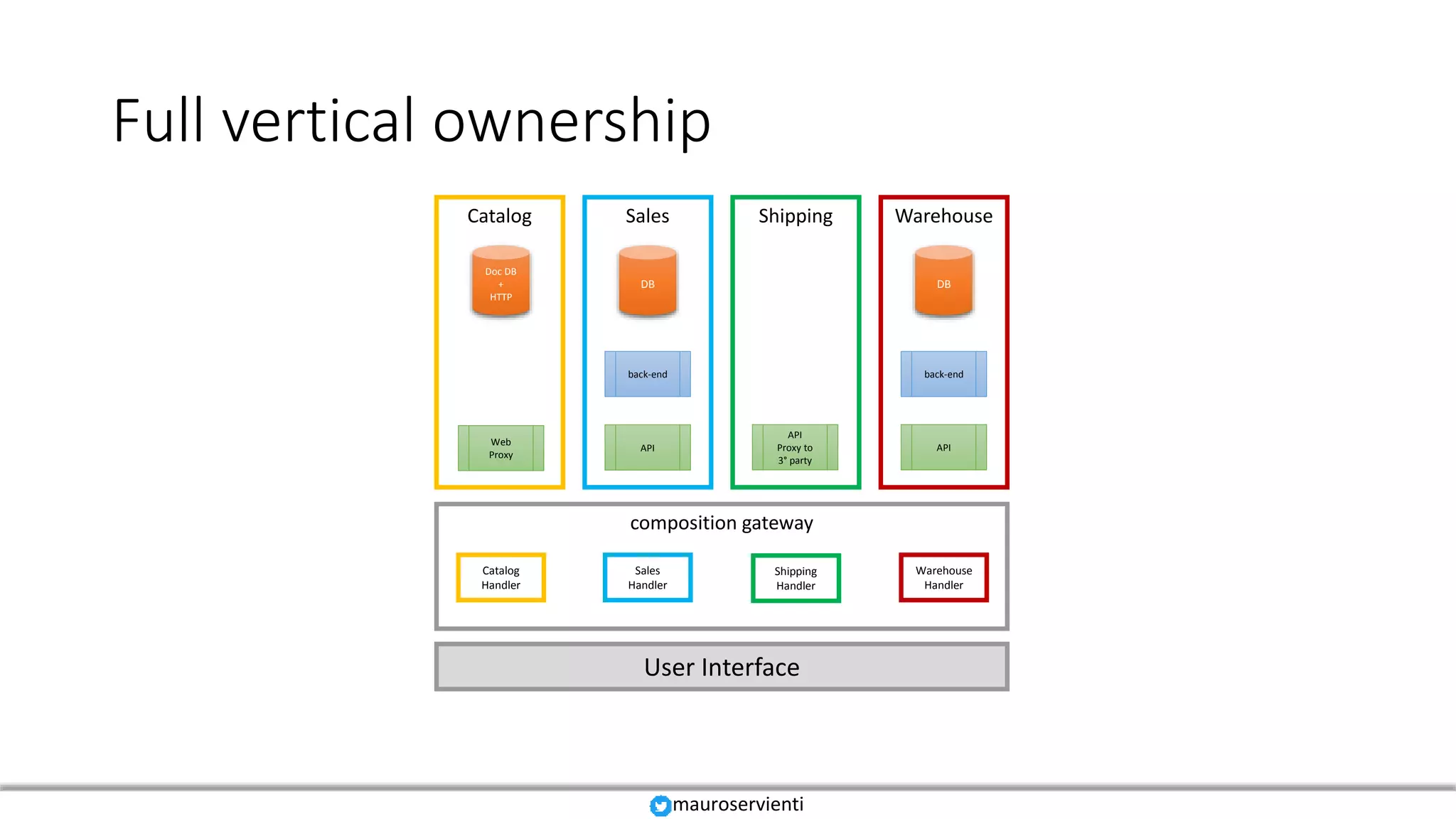

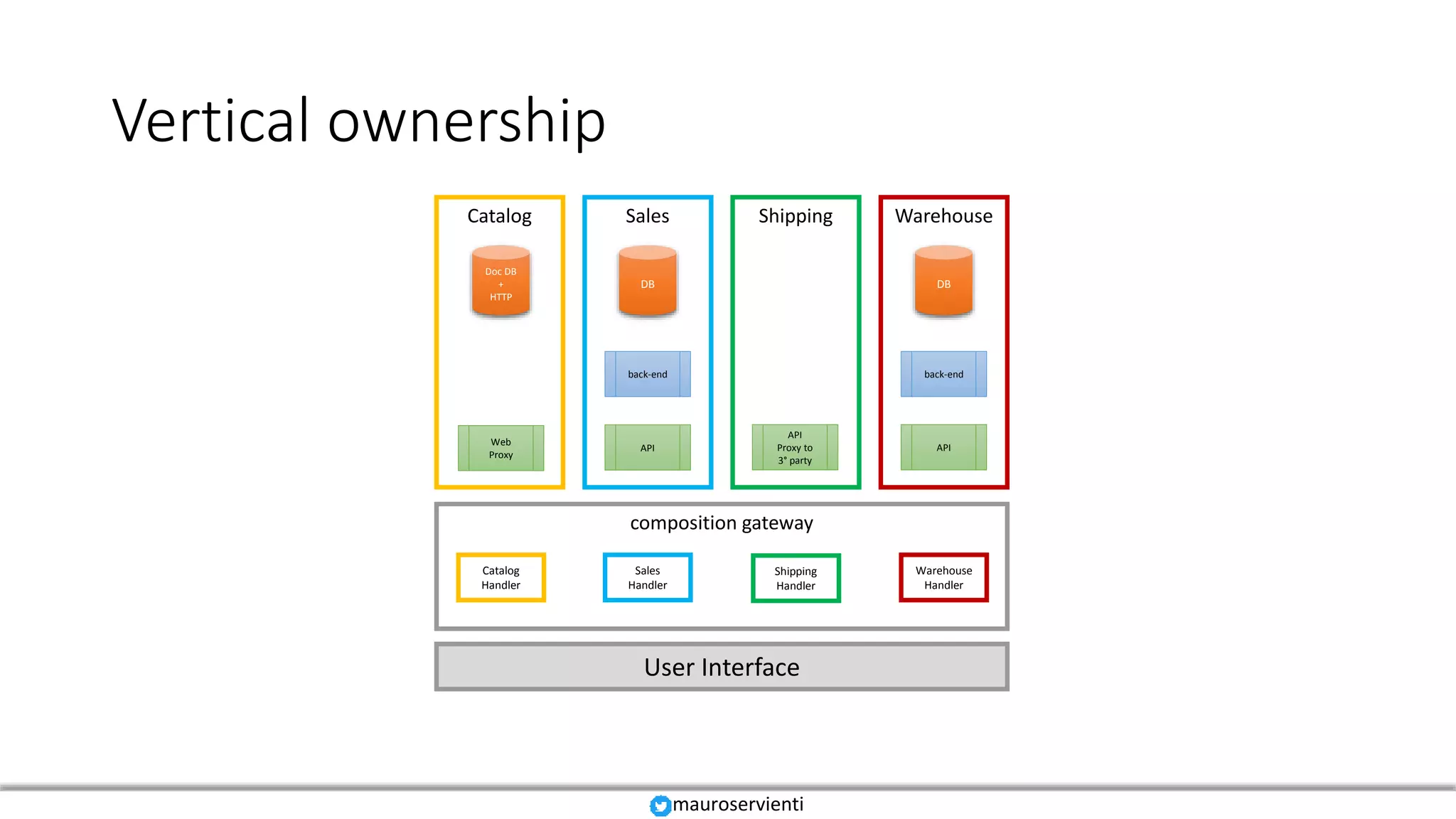

41. Vertical ownership
Catalog Sales Shipping Warehouse
Doc DB
+
HTTP
DB DB
back-end back-end
Web
Proxy
API
API
Proxy to
3° party
API
User Interface
composition gateway
Catalog
Handler
Sales
Handler
Shipping
Handler
Warehouse
Handler
mauroservienti

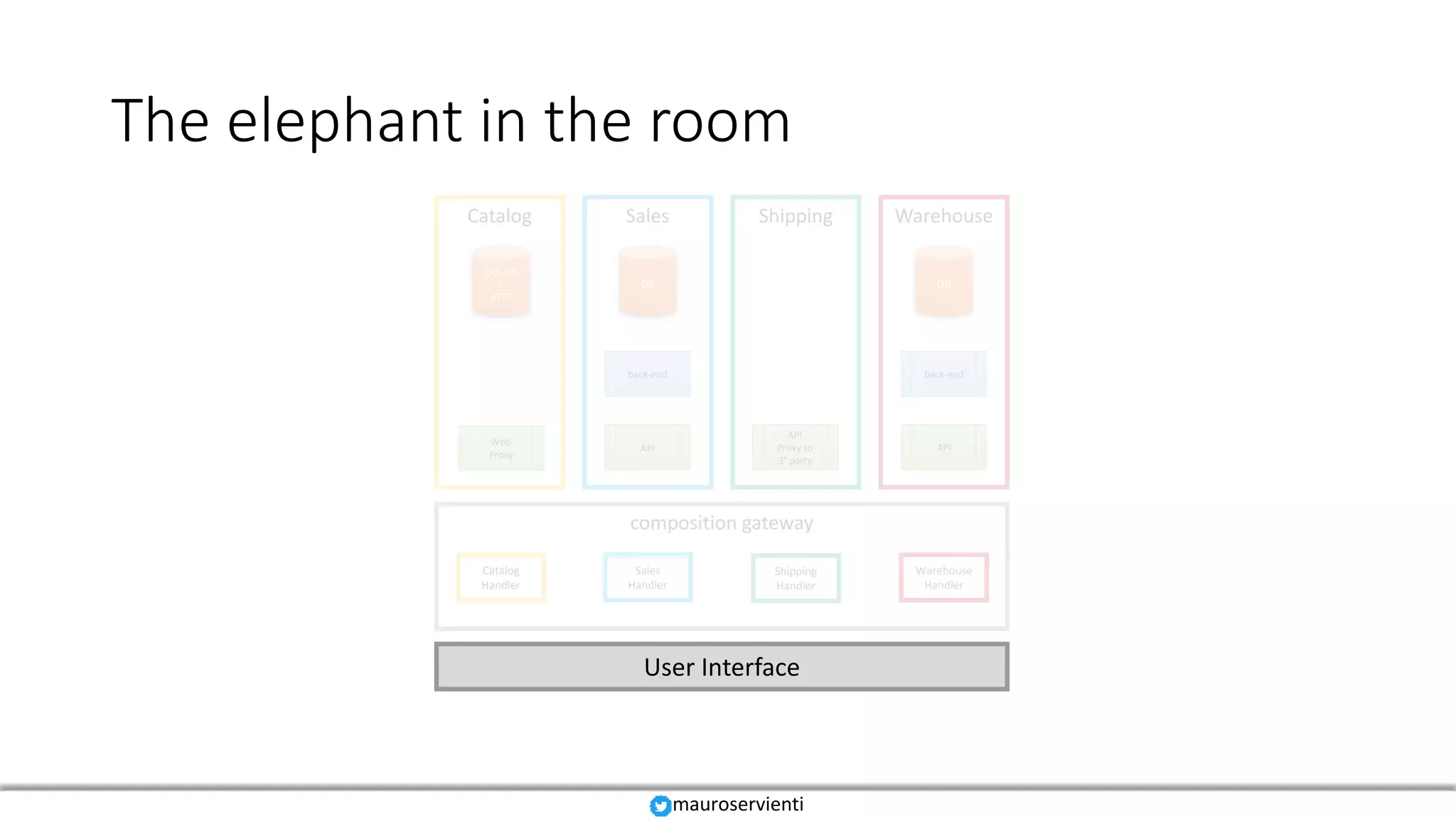

42. The elephant in the room
Catalog Sales Shipping Warehouse
Doc DB
+
HTTP
DB DB
back-end back-end
Web
Proxy
API
API
Proxy to
3° party
API
User Interface
composition gateway
Catalog
Handler
Sales
Handler
Shipping
Handler
Warehouse
Handler
mauroservienti

43. Branding
mauroservienti

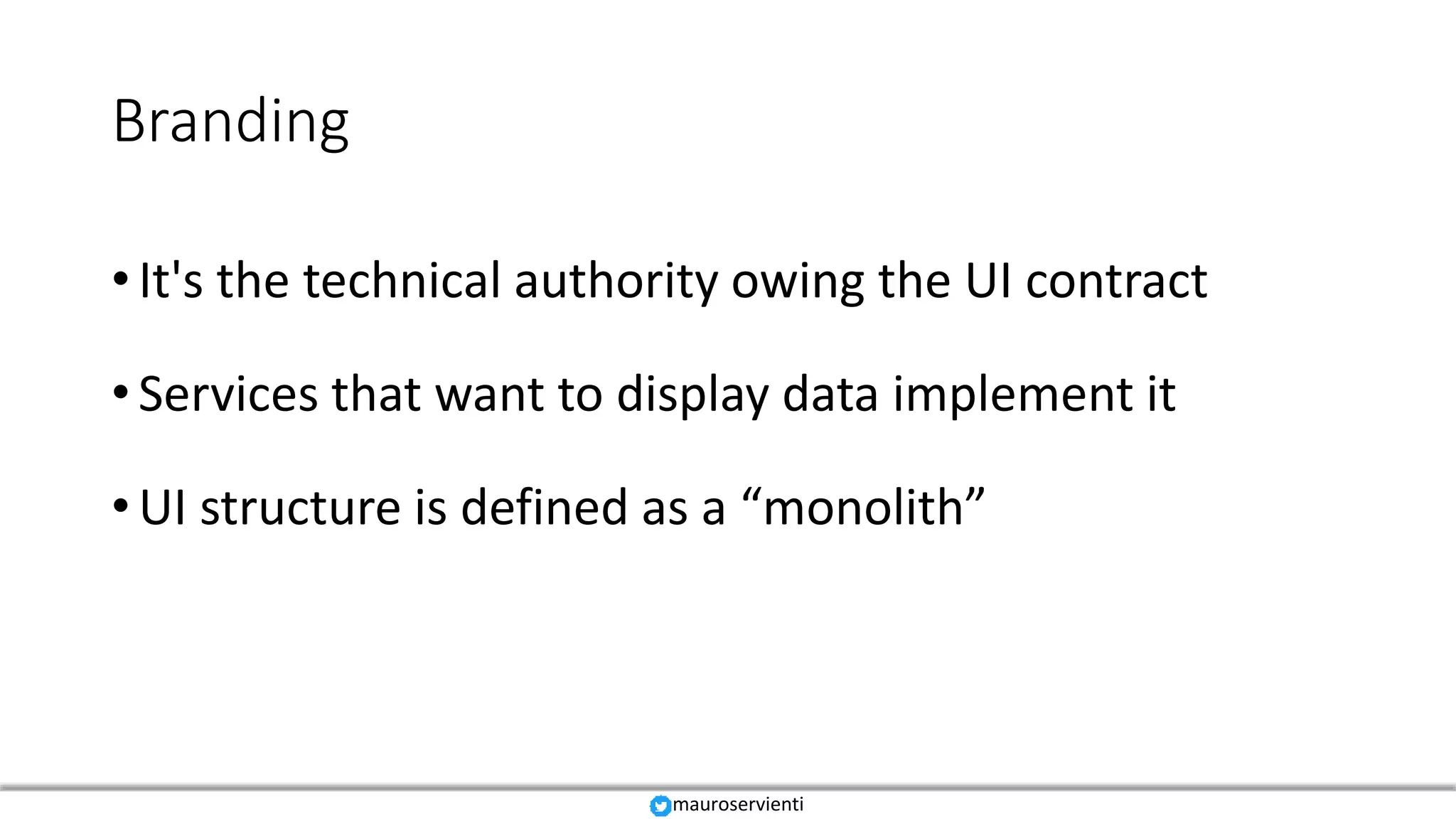

44. Branding
• It's the technical authority owing the UI contract
• Services that want to display data implement it
• UI structure is defined as a “monolith”
mauroservienti

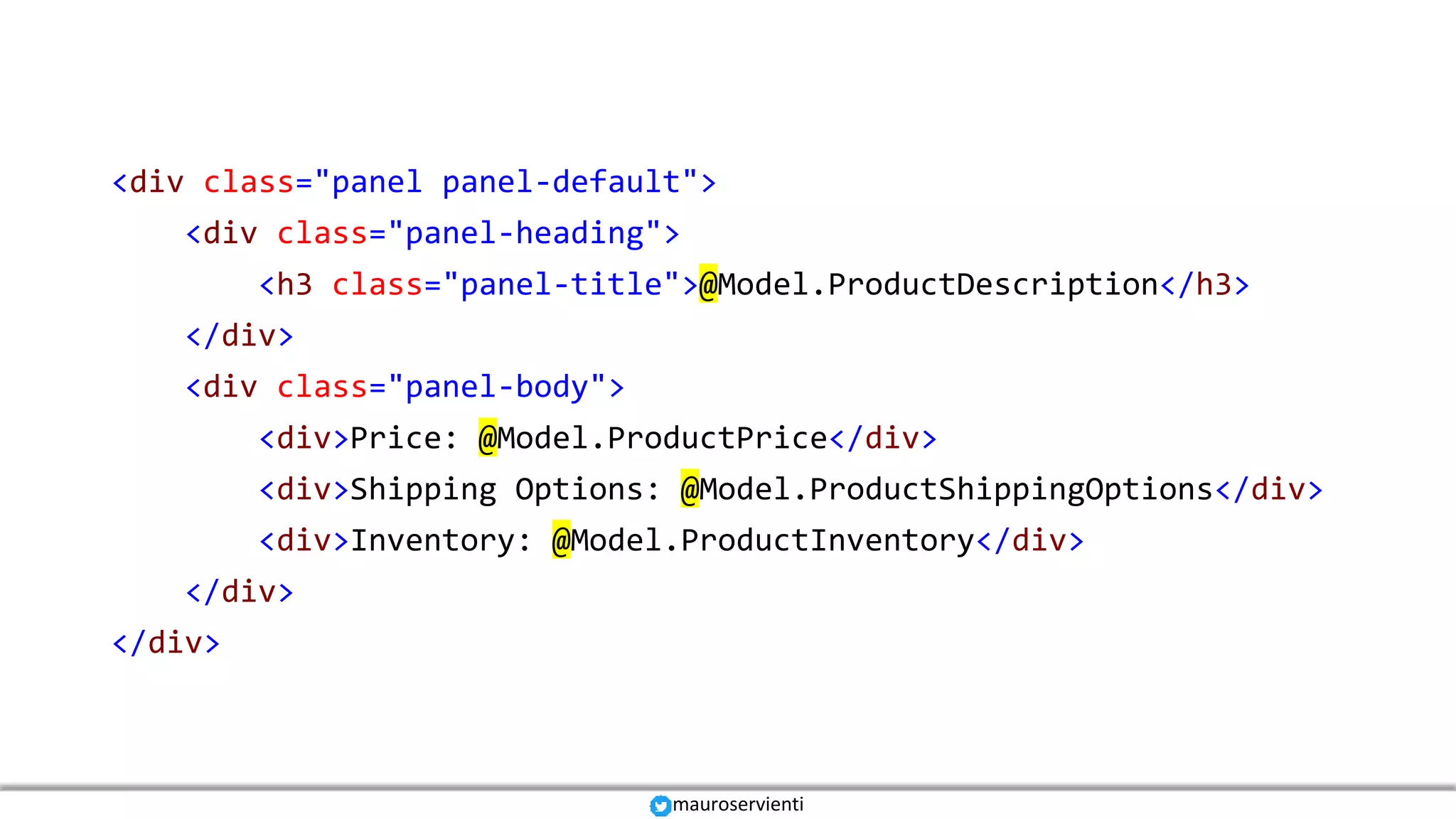

45. <div class="panel panel-default">
<div class="panel-heading">
<h3 class="panel-title">@Model.ProductDescription</h3>
</div>
<div class="panel-body">
<div>Price: @Model.ProductPrice</div>
<div>Shipping Options: @Model.ProductShippingOptions</div>
<div>Inventory: @Model.ProductInventory</div>
</div>
</div>
mauroservienti

46. magic
UI Composition
mauroservienti

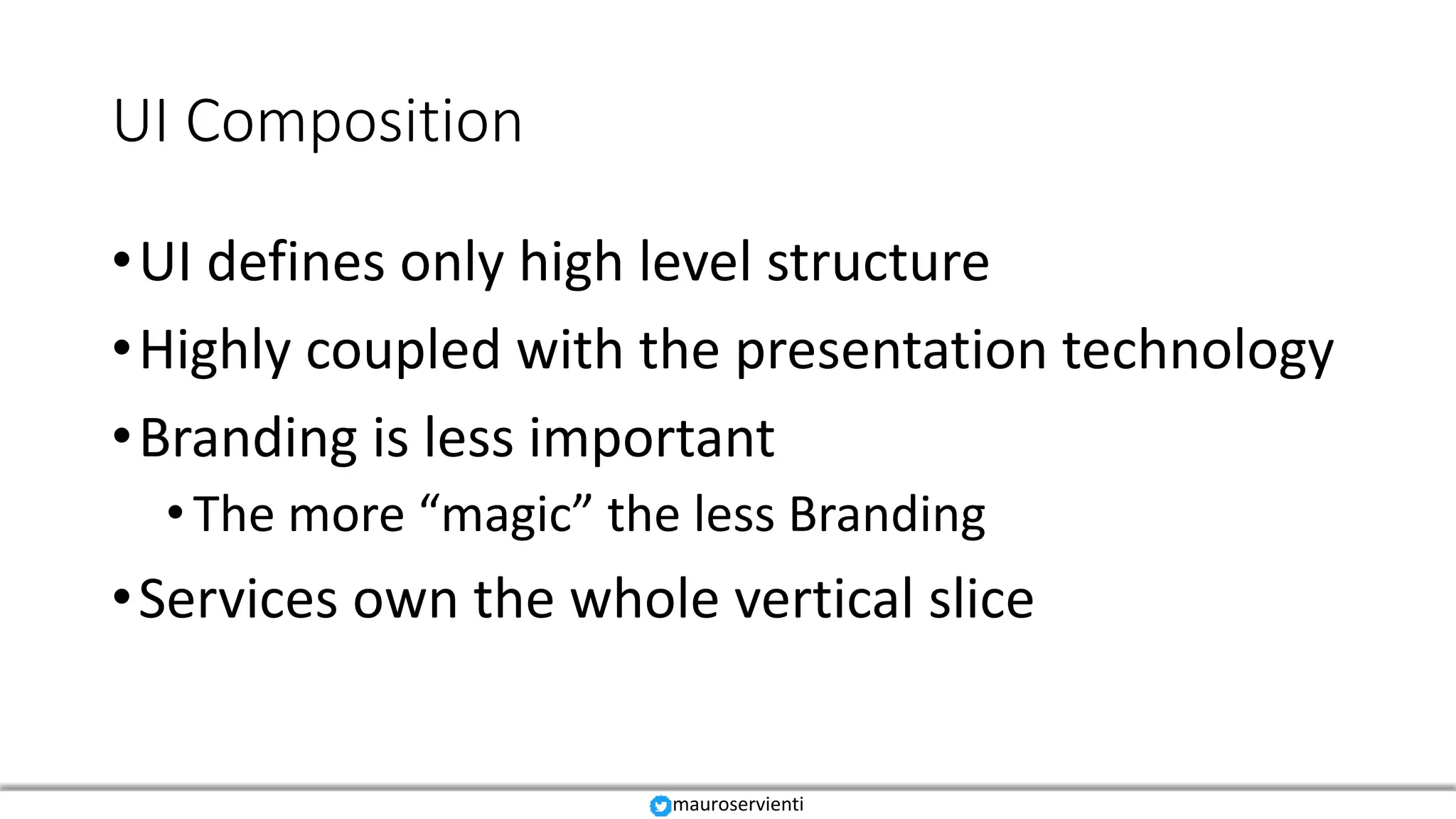

47. UI Composition
•UI defines only high level structure
•Highly coupled with the presentation technology
•Branding is less important
•The more “magic” the less Branding
•Services own the whole vertical slice
mauroservienti

48. <div class="panel panel-default">
<div class="panel-heading">
<h3 class="panel-title">@Model.ProductDescription</h3>
</div>
<div class="panel-body">
@await Component.InvokeAsync("ProductDetailsPrice")
@await Component.InvokeAsync("ProductDetailsShippingOptions")
@await Component.InvokeAsync("ProductDetailsInventory")
</div>
</div>
mauroservienti

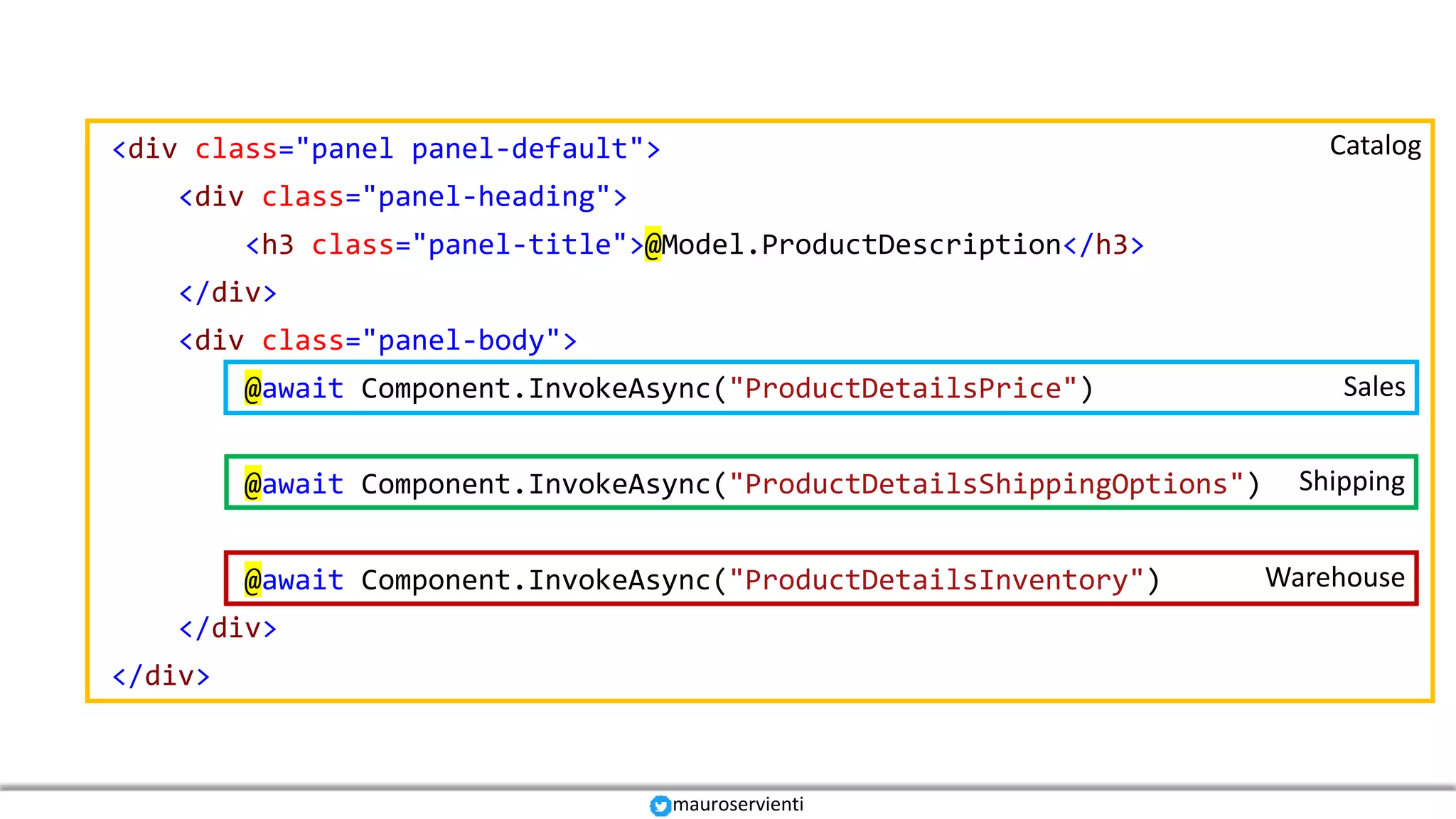

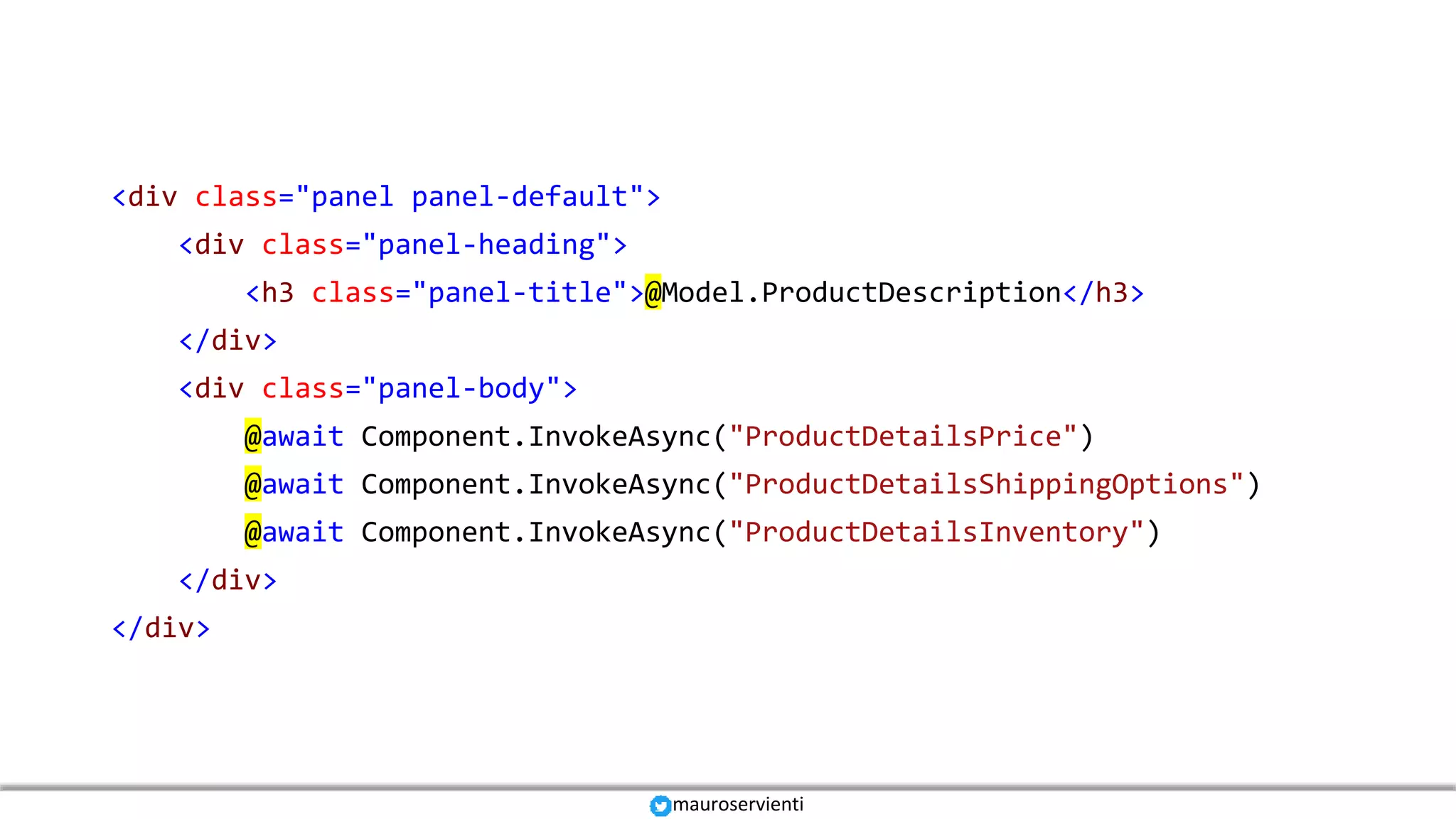

49. <div class="panel panel-default">
<div class="panel-heading">
<h3 class="panel-title">@Model.ProductDescription</h3>
</div>
<div class="panel-body">
@await Component.InvokeAsync("ProductDetailsPrice")
@await Component.InvokeAsync("ProductDetailsShippingOptions")
@await Component.InvokeAsync("ProductDetailsInventory")
</div>
</div>
mauroservienti
Catalog
Sales
Shipping
Warehouse

50. Full vertical ownership
mauroservienti
Catalog Sales Shipping Warehouse
Doc DB
+
HTTP
DB DB
back-end back-end
Web
Proxy
API
API
Proxy to
3° party
API
User Interface
composition gateway
Catalog
Handler
Sales
Handler
Shipping
Handler
Warehouse
Handler

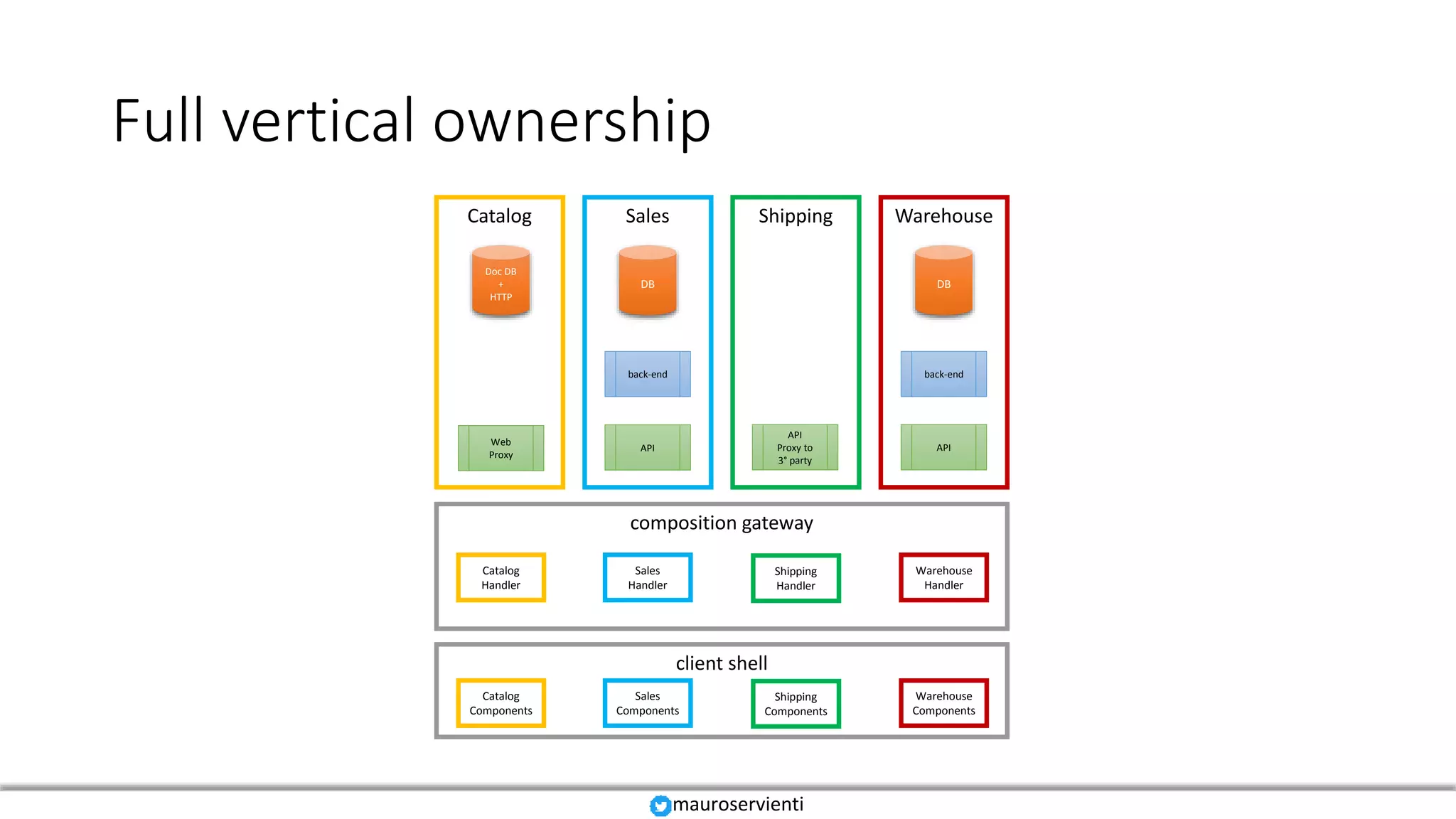

51. Full vertical ownership
client shell
mauroservienti
Catalog
Components
Sales
Components
Shipping
Components
Warehouse
Components
Catalog Sales Shipping Warehouse
Doc DB
+
HTTP
DB DB
back-end back-end
Web
Proxy
API
API
Proxy to
3° party
API
composition gateway
Catalog
Handler
Sales
Handler
Shipping
Handler
Warehouse
Handler

52. Every year is getting shorter never seem to find the time…
ViewModel Composition Demos
bit.ly/dnd19-composition
Udi Dahan about Service Modelling
go.particular.net/dnd19-composition
mauroservienti

53. Demos: bit.ly/dnd19-composition
Videos: go.particular.net/dnd19-composition
Is it worth the effort?
• Complexity increases as “black magic” kicks in
• For large projects with a small UI team a traditional
monolithic UI approach might be better
mauroservienti

54. Demos: bit.ly/dnd19-composition
Videos: go.particular.net/dnd19-composition
Is it worth the effort?
• Complexity increases as “black magic” kicks in
• It’s simpler to break a monolithic UI later
• Than to manage not needed complexity
mauroservienti

55. Demos: bit.ly/dnd19-composition
Videos: go.particular.net/dnd19-composition
Takeaways
• Boundaries are key to success
• Do not bring in more technology to solve non-
technical problems
mauroservienti

56. • Boundaries are key to success
• Mental model can badly influence design
• Users/Business analysts tend to think in term
of data presentation
mauroservienti
Takeaways
Demos: bit.ly/dnd19-composition
Videos: go.particular.net/dnd19-composition

57. Demos: bit.ly/dnd19-composition
Videos: go.particular.net/dnd19-composition
Takeaways
• Boundaries are key to success
• Mental model can badly influence design
• Use ViewModel composition to present data
• No need for complex projections and read
models
mauroservienti

58. Mauro Servienti
Solution Architect @ Particular Software
the makers of NServiceBus
mauro.servienti@particular.net
@mauroservienti
//github.com/mauroservienti
//milestone.topics.it
mauroservienti

59. Thank you!
Join me at the Particular booth
Demos: bit.ly/dnd19-composition
Videos: go.particular.net/dnd19-composition
mauroservienti
