Apache Ant is a free build tool used for building Java applications. It uses XML configuration files to define build processes comprised of targets and tasks. Some key benefits of Ant include being cross-platform since it is written in Java, having XML configuration files that are easy to read and modify, and providing faster builds by executing tasks within the JVM. Common tasks include javac for compiling Java code, jar for packaging files into JARs, and javadoc for generating documentation.

1. Apache Ant
Presented By,
Vinod Kumar V H

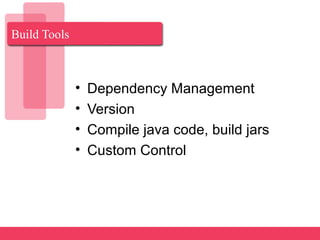

2. Build Tools
• Dependency Management
• Version
• Compile java code, build jars
• Custom Control

3. Why do we need build tools
• Creating a product from source may take
several steps: compile, link, copy files to
various directories, remove intermediate files,
generate documentation.
• The objective should be an automated tool that
does all the work for you. Type or click one
command and create a final product.
• There are a couple of ways this can be done:
– Write a batch file or script
• The scripts tend to be hard to maintain
– Use a tool designed for the task
• Ant

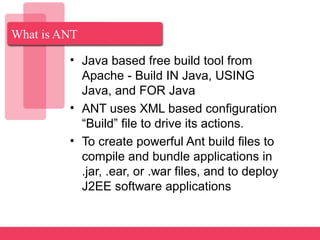

4. What is ANT
• Java based free build tool from
Apache - Build IN Java, USING
Java, and FOR Java
• ANT uses XML based configuration
“Build” file to drive its actions.
• To create powerful Ant build files to
compile and bundle applications in
.jar, .ear, or .war files, and to deploy
J2EE software applications

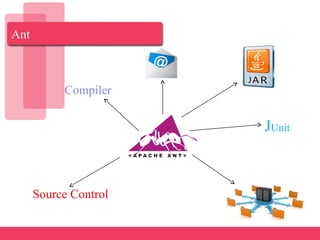

5. Ant
Compiler
JUnit
Source Control

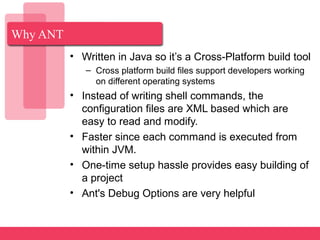

6. Why ANT
• Written in Java so it’s a Cross-Platform build tool
– Cross platform build files support developers working
on different operating systems
• Instead of writing shell commands, the
configuration files are XML based which are
easy to read and modify.
• Faster since each command is executed from
within JVM.
• One-time setup hassle provides easy building of
a project
• Ant's Debug Options are very helpful

7. Installing Ant
• Download Ant binary distribution from:
http://ant.apache.org/bindownload.cgi
• Set ANT_HOME to where you installed Ant
• Include $ANT_HOME/bin in PATH
• Make sure JAVA_HOME is set to point to JDK
• Assume Ant is installed in c:ant. The
following sets up the environment:
set ANT_HOME=c:ant
set JAVA_HOME=c:j2sdk1.6.0_24
set PATH=%PATH%;%ANT_HOME%bin

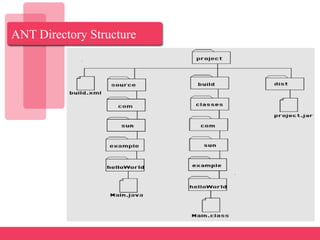

8. ANT Directory Structure

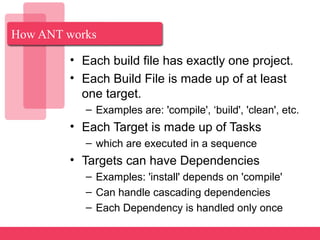

9. How ANT works
• Each build file has exactly one project.
• Each Build File is made up of at least
one target.
– Examples are: 'compile', ‘build', 'clean', etc.
• Each Target is made up of Tasks
– which are executed in a sequence
• Targets can have Dependencies
– Examples: 'install' depends on 'compile'
– Can handle cascading dependencies
– Each Dependency is handled only once

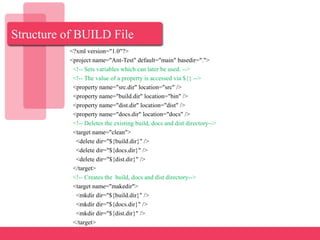

10. Structure of BUILD File
<?xml version="1.0"?>
<project name="Ant-Test" default="main" basedir=".">
<!-- Sets variables which can later be used. -->
<!-- The value of a property is accessed via ${} -->
<property name="src.dir" location="src" />
<property name="build.dir" location="bin" />
<property name="dist.dir" location="dist" />
<property name="docs.dir" location="docs" />
<!-- Deletes the existing build, docs and dist directory-->
<target name="clean">
<delete dir="${build.dir}" />
<delete dir="${docs.dir}" />
<delete dir="${dist.dir}" />
</target>
<!-- Creates the build, docs and dist directory-->
<target name="makedir">
<mkdir dir="${build.dir}" />
<mkdir dir="${docs.dir}" />
<mkdir dir="${dist.dir}" />
</target>

11. Structure of BUILD File Contd…
<!-- Compiles the java code (including the usage of library for JUnit -->
<target name="compile" depends="clean, makedir">
<javac srcdir="${src.dir}" destdir="${build.dir}">
</javac>
</target>
<!-- Creates Javadoc -->
<target name="docs" depends="compile">
<javadoc packagenames="src" sourcepath="${src.dir}" destdir="${docs.dir}">
<!-- Define which files / directory should get included, we include all -->
<fileset dir="${src.dir}">
<include name="**" />
</fileset>
</javadoc>
</target>
<!--Creates the deployable jar file -->
<target name="jar" depends="compile">
<jar destfile="${dist.dir}de.vogella.build.test.ant.jar" basedir="${build.dir}">
<manifest>
<attribute name="Main-Class" value="test.Main" />
</manifest>
</jar>
</target>
<target name="main" depends="compile, jar, docs">
<description>Main target</description>
</target> </project>

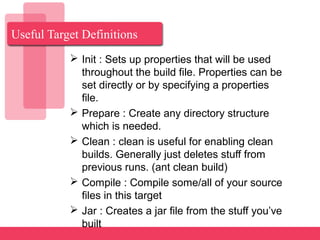

12. Useful Target Definitions
 Init : Sets up properties that will be used
throughout the build file. Properties can be
set directly or by specifying a properties
file.
 Prepare : Create any directory structure
which is needed.
 Clean : clean is useful for enabling clean
builds. Generally just deletes stuff from
previous runs. (ant clean build)
 Compile : Compile some/all of your source
files in this target
 Jar : Creates a jar file from the stuff you’ve
built

13. Tasks Contd…
• javac - The javac task compiles Java
source into class files,just as the javac
command-line tool does. Ant will recompile
only those files that have changed.
• java - Execute a Java class
• javadoc - Generates JavaDoc from your
source files
• jar (and war) - Create JAR files
• mkdir - Makes a directory
• copy - Copies files to specified location
• exec - allows different commands to be
executed based on the OS it is executing
on.

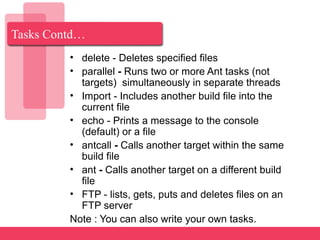

14. Tasks Contd…
• delete - Deletes specified files
• parallel - Runs two or more Ant tasks (not
targets) simultaneously in separate threads
• Import - Includes another build file into the
current file
• echo - Prints a message to the console
(default) or a file
• antcall - Calls another target within the same
build file
• ant - Calls another target on a different build
file
• FTP - lists, gets, puts and deletes files on an
FTP server
Note : You can also write your own tasks.

15. Summary
• Ant is a cross-platform build tool for
Java.
• Ant uses XML based configuration
file typically named 'build.xml'.
• Project, Targets and Tasks
- A build.xml would contain 1 project
with one or more targets and each of
the target containing one or more
tasks.

16. Thank ‘U’
