- 1. Understanding Layouts inAndroid

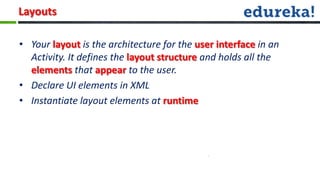

- 2. Layouts • Your layoutis the architecture for the user interface in an Activity. It defines the layout structure and holds all the elements that appear to the user. • Declare UI elements in XML • Instantiate layout elements at runtime

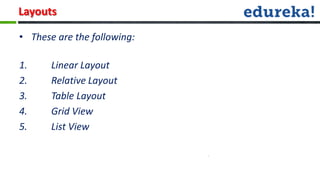

- 3. Layouts • These arethe following: 1. Linear Layout 2. Relative Layout 3. Table Layout 4. Grid View 5. List View

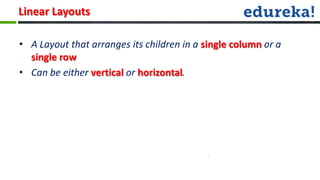

- 4. Linear Layouts • ALayout that arranges its children in a single column or a single row • Can be either vertical or horizontal.

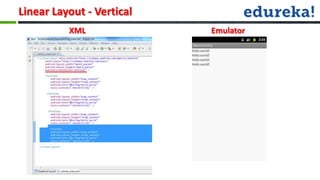

- 5. Linear Layout -Vertical XML Emulator

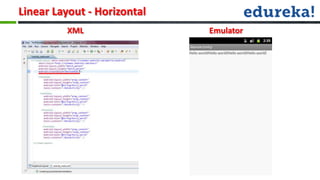

- 6. Linear Layout -Horizontal XML Emulator

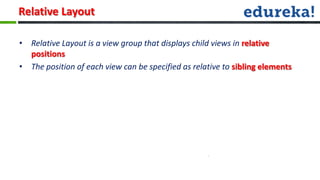

- 7. Relative Layout • RelativeLayout is a view group that displays child views in relative positions • The position of each view can be specified as relative to sibling elements
- 8. Relative Layout XML Graphical Representation

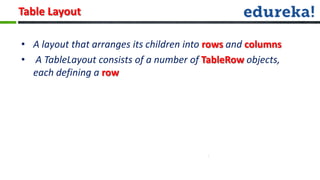

- 9. Table Layout • Alayout that arranges its children into rows and columns • A TableLayout consists of a number of TableRow objects, each defining a row
- 10. Table Layout XML Graphical Representation

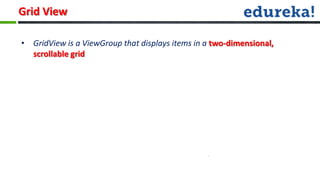

- 11. Grid View • GridViewis a ViewGroup that displays items in a two-dimensional, scrollable grid

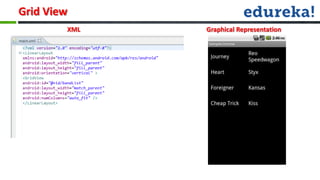

- 12. Grid View XML Graphical Representation
- 13. List View • ListViewis a view group that displays a list of scrollable items. • The list items are automatically inserted to the list using an Adapter

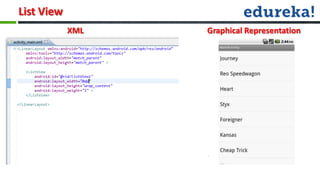

- 14. List View XML Graphical Representation
- 15.

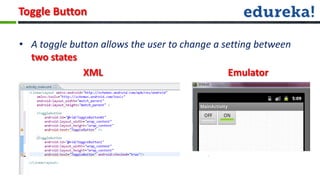

- 16. Toggle Button • Atoggle button allows the user to change a setting between two states XML Emulator

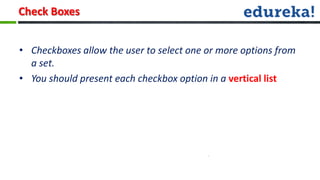

- 17. Check Boxes • Checkboxesallow the user to select one or more options from a set. • You should present each checkbox option in a vertical list

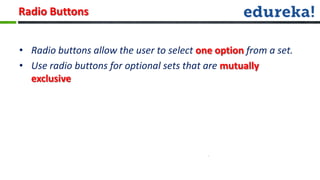

- 18. Radio Buttons • Radiobuttons allow the user to select one option from a set. • Use radio buttons for optional sets that are mutually exclusive
- 19. Check Box andRadio Buttons Check Box Radio Group Radio Button

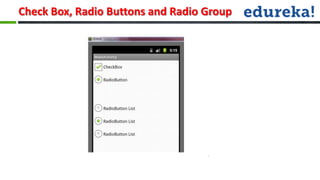

- 20. Check Box, RadioButtons and Radio Group

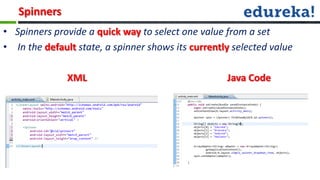

- 21. Spinners • Spinners providea quick way to select one value from a set • In the default state, a spinner shows its currently selected value XML Java Code

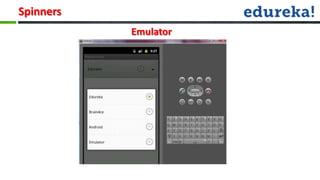

- 22. Spinners Emulator

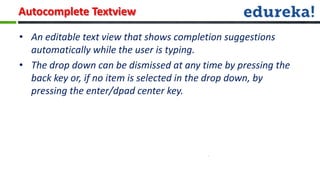

- 23. Autocomplete Textview • Aneditable text view that shows completion suggestions automatically while the user is typing. • The drop down can be dismissed at any time by pressing the back key or, if no item is selected in the drop down, by pressing the enter/dpad center key.
- 24. Autocomplete Text View XML Emulator

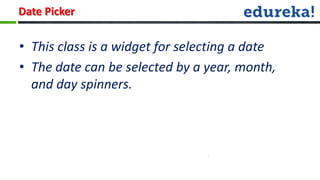

- 25. Date Picker • Thisclass is a widget for selecting a date • The date can be selected by a year, month, and day spinners.

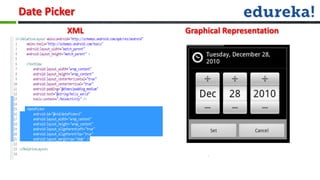

- 26. Date Picker XML Graphical Representation

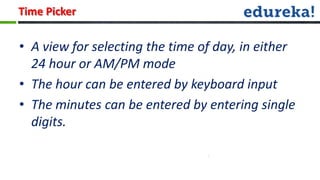

- 27. Time Picker • Aview for selecting the time of day, in either 24 hour or AM/PM mode • The hour can be entered by keyboard input • The minutes can be entered by entering single digits.

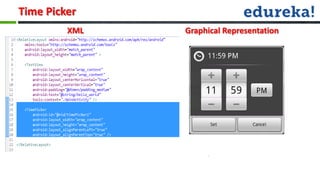

- 28. Time Picker XML Graphical Representation

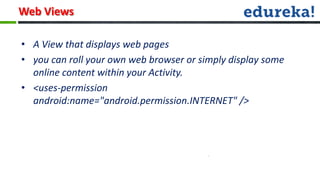

- 29. Web Views • AView that displays web pages • you can roll your own web browser or simply display some online content within your Activity. • <uses-permission android:name="android.permission.INTERNET" />

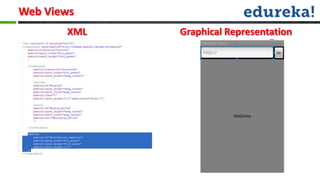

- 30. Web Views XML Graphical Representation
- 31.
