The document provides an overview of the Android Radio Interface Layer (RIL) stack. It describes the key components of RIL including the RIL daemon (rild) which initializes the vendor RIL and processes communication between Android telephony services and radio hardware. It also discusses solicited and unsolicited requests, and provides examples of building RIL for the Mc39i modem on a versatile board and turning on telephony services in Android.

1. Android Radio Layer Interface

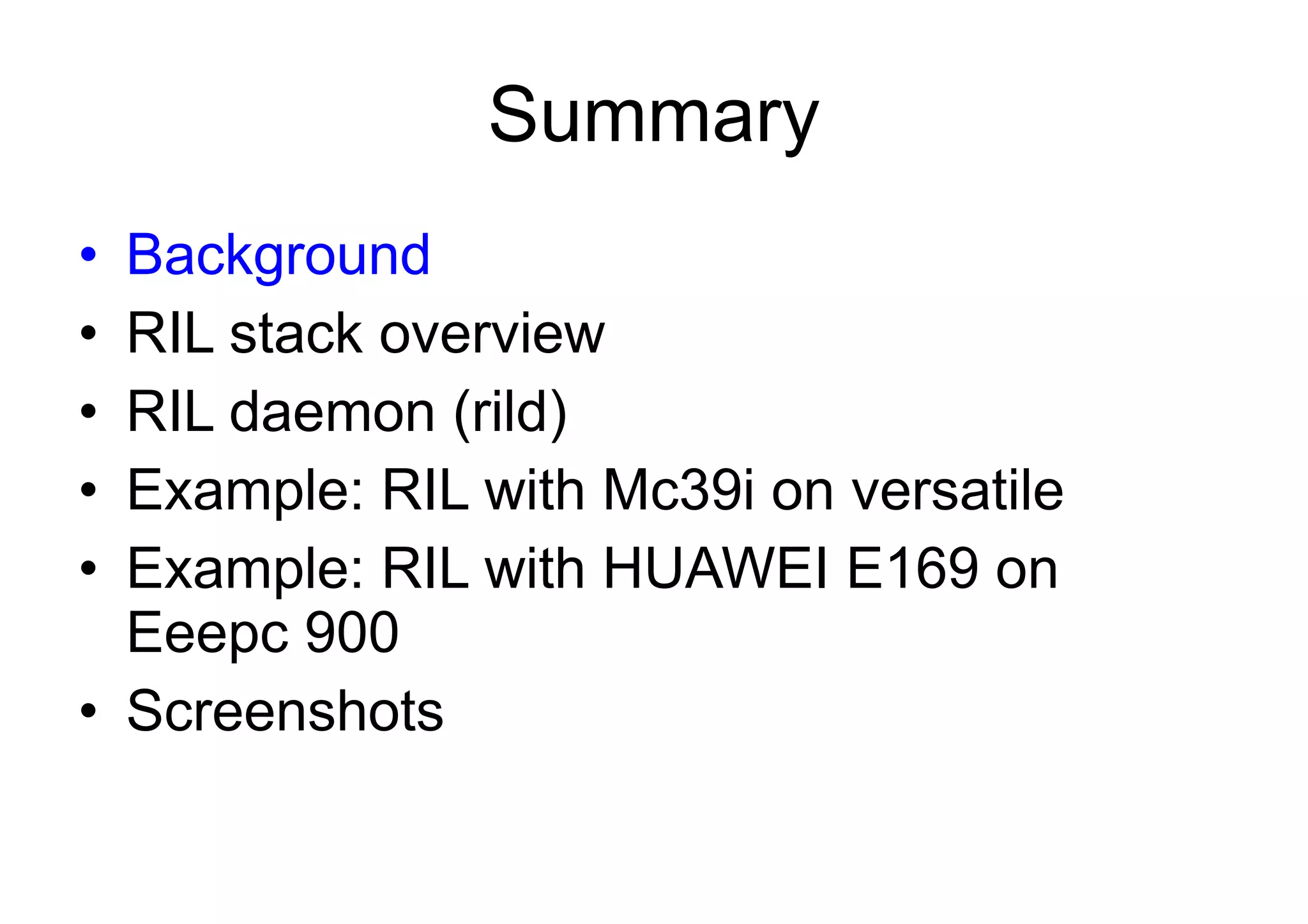

2. Summary Background RIL stack overview RIL daemon (rild) Example: RIL with Mc39i on versatile Example: RIL with HUAWEI E169 on Eeepc 900 Screenshots

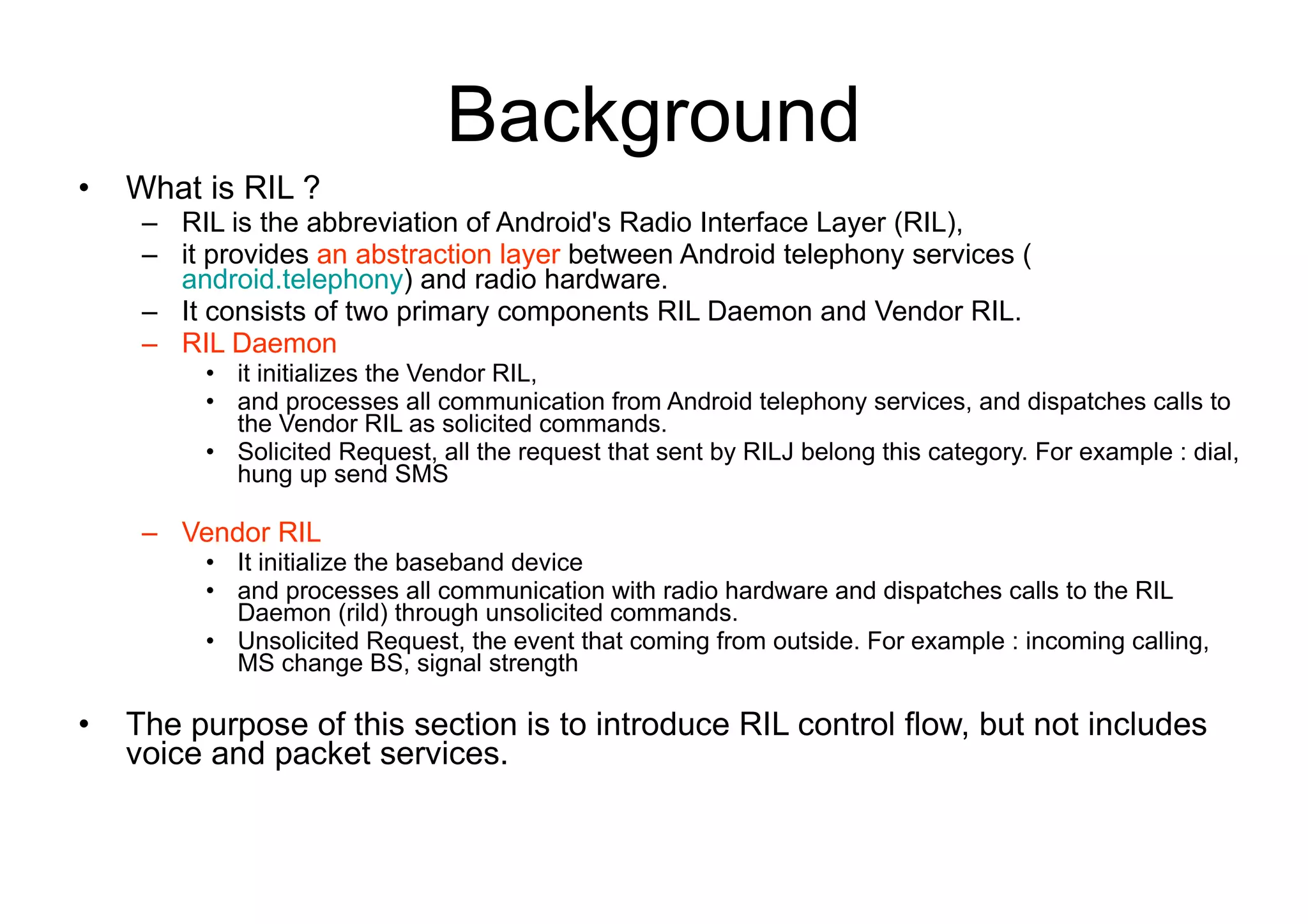

3. Background What is RIL ? RIL is the abbreviation of Android's Radio Interface Layer (RIL), it provides an abstraction layer between Android telephony services ( android.telephony ) and radio hardware. It consists of two primary components RIL Daemon and Vendor RIL. RIL Daemon it initializes the Vendor RIL, and processes all communication from Android telephony services, and dispatches calls to the Vendor RIL as solicited commands. Solicited Request, all the request that sent by RILJ belong this category. For example : dial, hung up send SMS Vendor RIL It initialize the baseband device and processes all communication with radio hardware and dispatches calls to the RIL Daemon (rild) through unsolicited commands. Unsolicited Request, the event that coming from outside. For example : incoming calling, MS change BS, signal strength The purpose of this section is to introduce RIL control flow, but not includes voice and packet services.

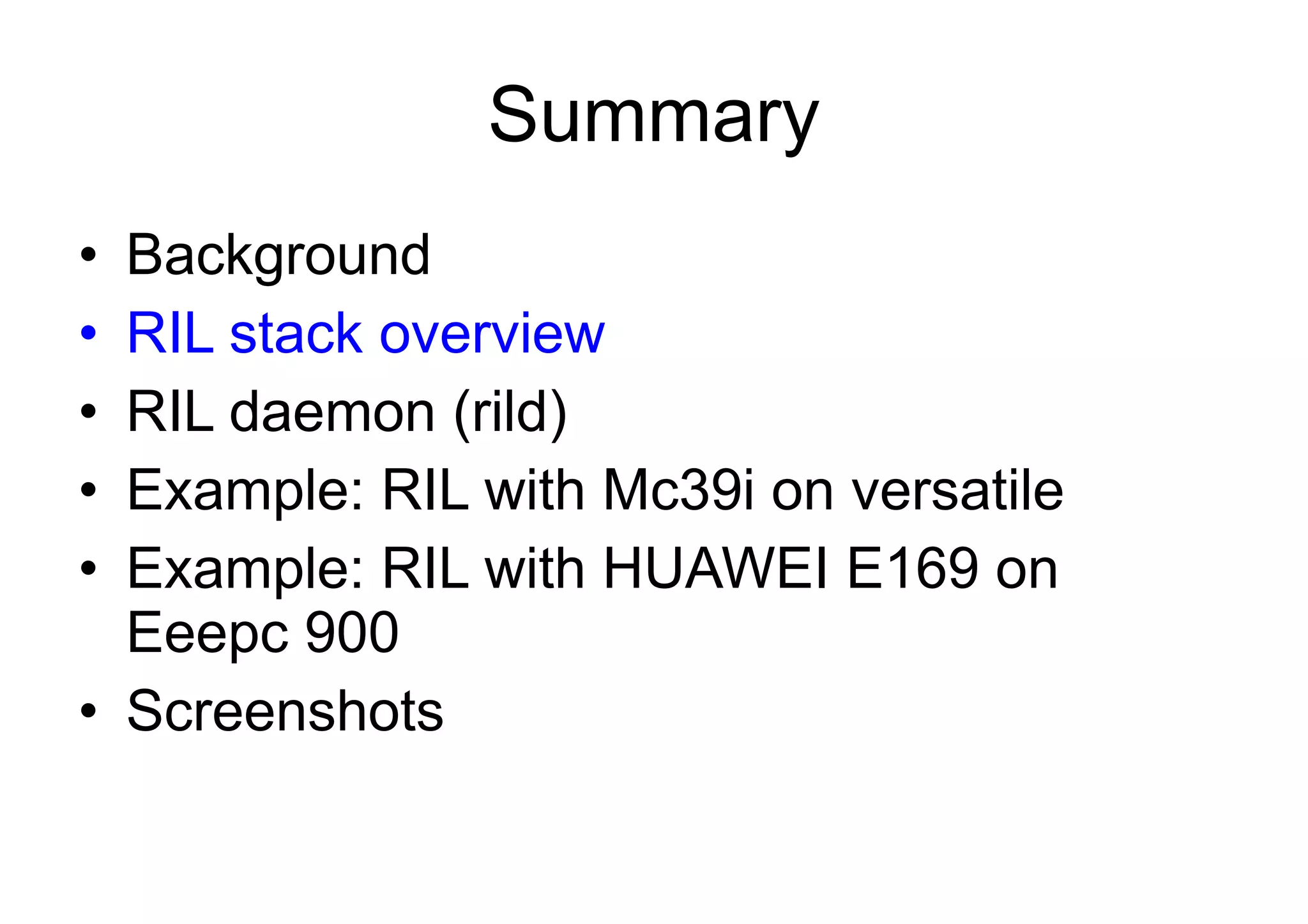

4. Summary Background RIL stack overview RIL daemon (rild) Example: RIL with Mc39i on versatile Example: RIL with HUAWEI E169 on Eeepc 900 Screenshots

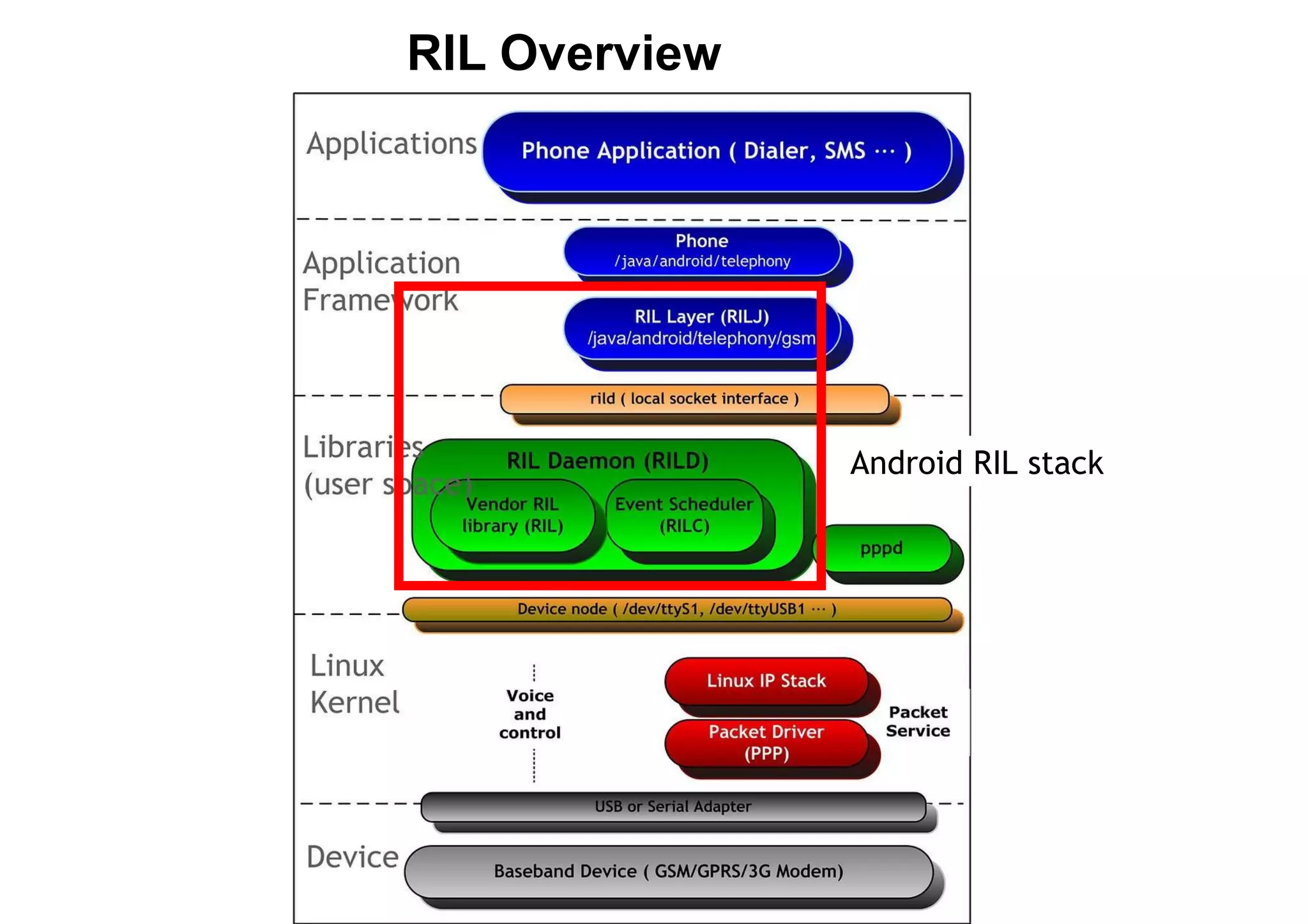

5. RIL Overview Android RIL stack

6. Summary Background RIL stack overview RIL daemon (rild) Example: RIL with Mc39i on versatile Example: RIL with HUAWEI E169 on Eeepc 900 Screenshots

7. RIL daemon (rild) RILD internal structure Startup flow Solicited request flow Unsolicited request flow

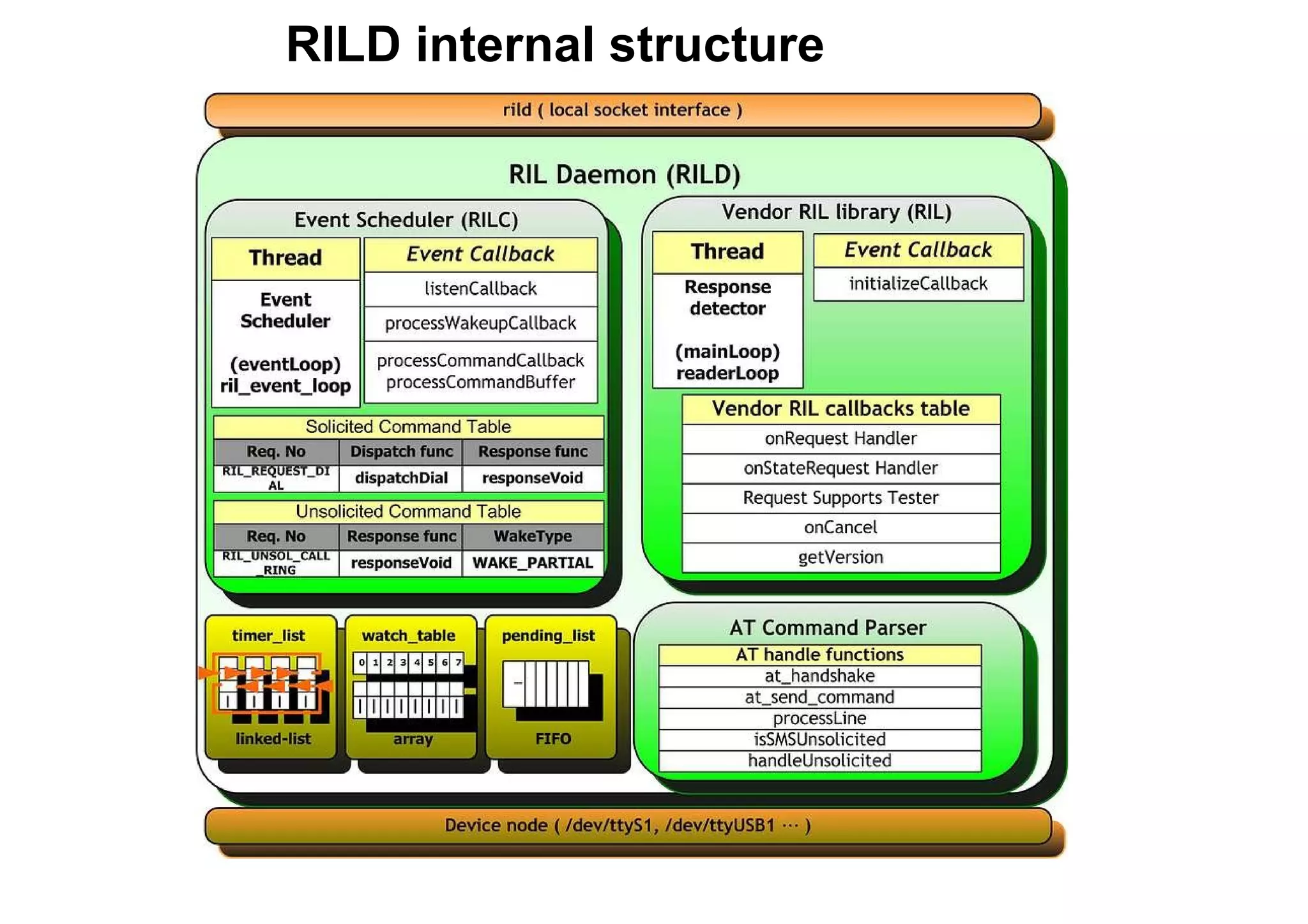

8. RILD internal structure

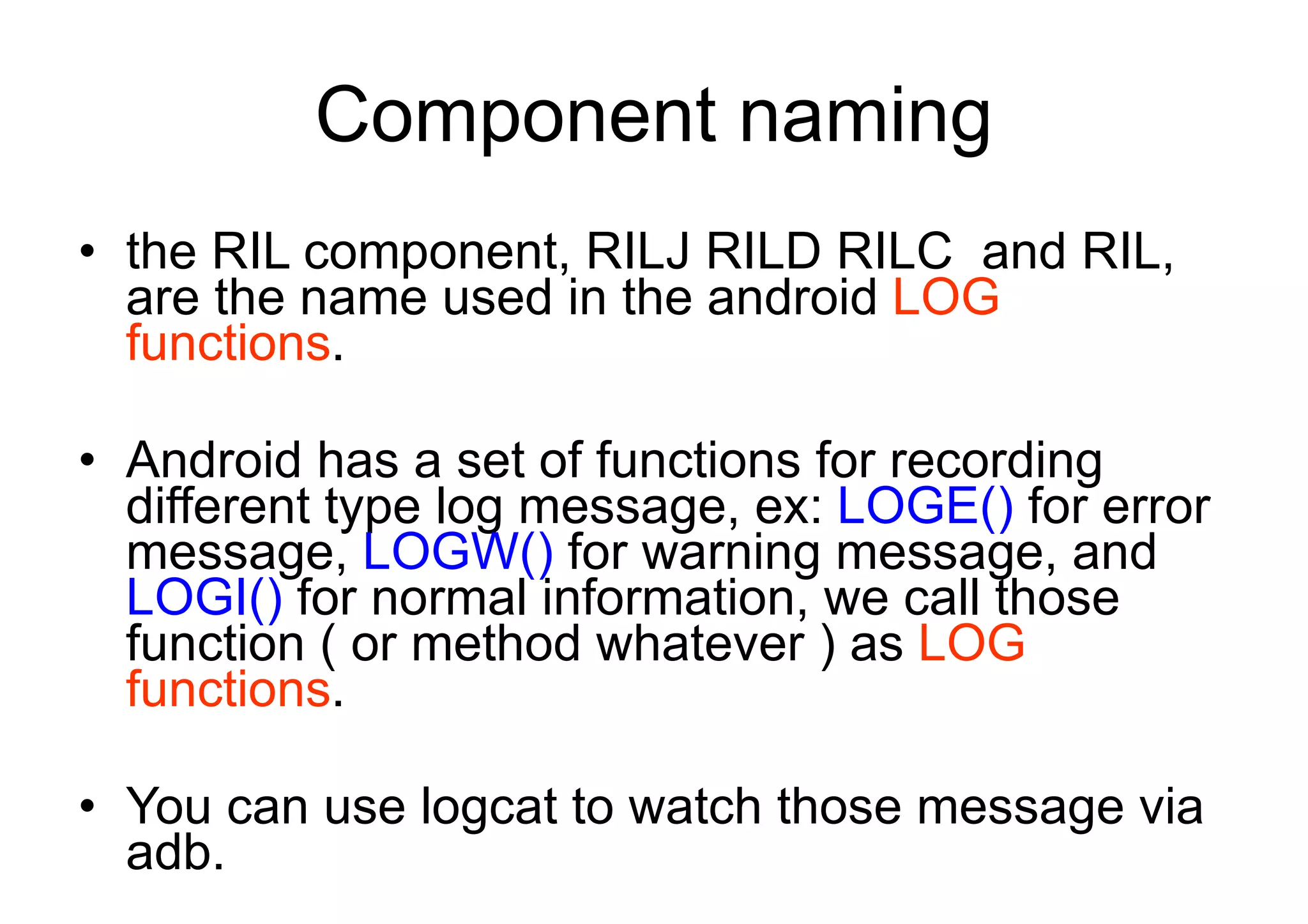

9. Component naming the RIL component, RILJ RILD RILC and RIL, are the name used in the android LOG functions . Android has a set of functions for recording different type log message, ex: LOGE() for error message, LOGW() for warning message, and LOGI() for normal information, we call those function ( or method whatever ) as LOG functions . You can use logcat to watch those message via adb.

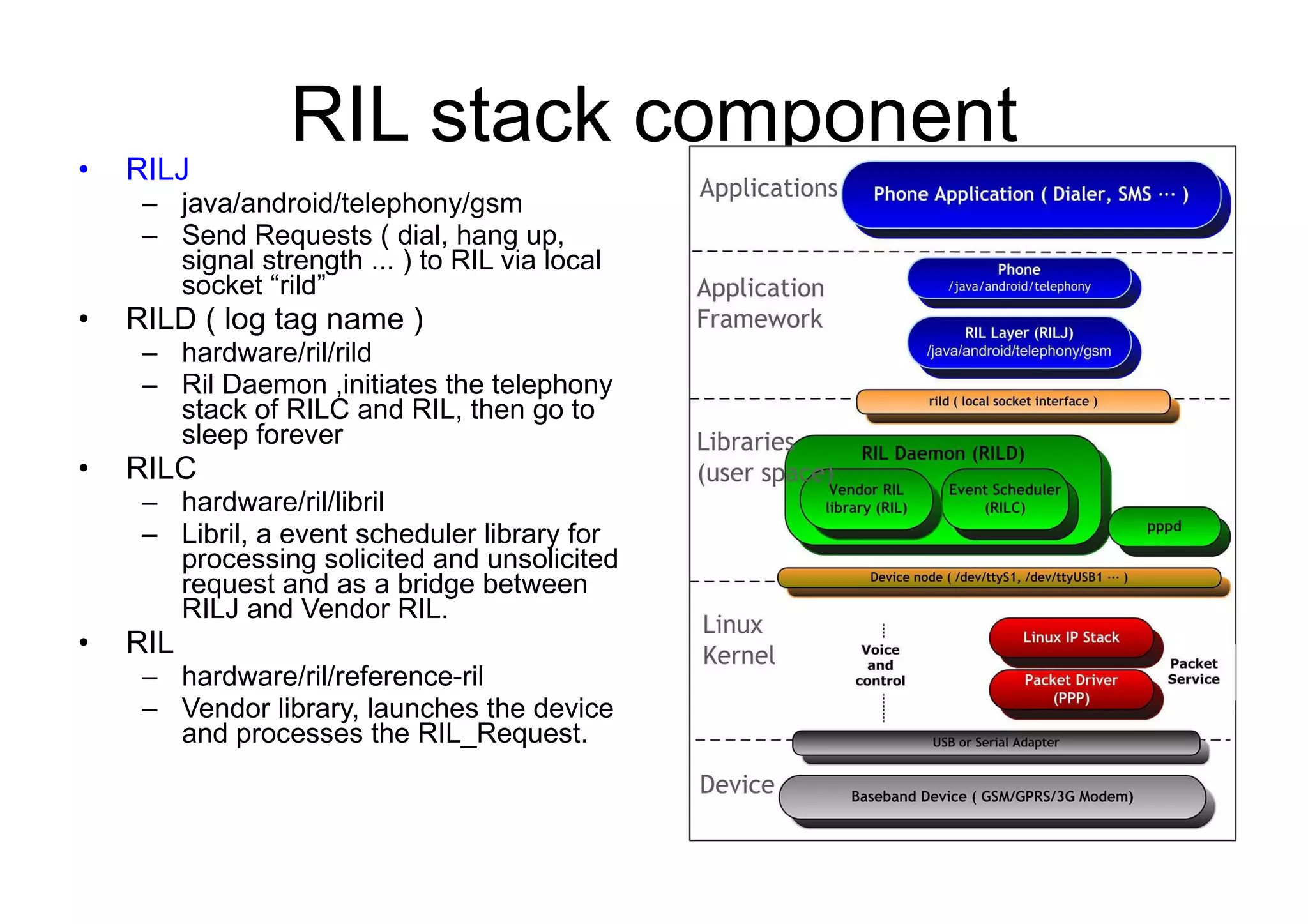

10. RIL stack component RILJ java/android/telephony/gsm Send Requests ( dial, hang up, signal strength ... ) to RIL via local socket “rild” RILD ( log tag name ) hardware/ril/rild Ril Daemon ,initiates the telephony stack of RILC and RIL, then go to sleep forever RILC hardware/ril/libril Libril, a event scheduler library for processing solicited and unsolicited request and as a bridge between RILJ and Vendor RIL. RIL hardware/ril/reference-ril Vendor library, launches the device and processes the RIL_Request.

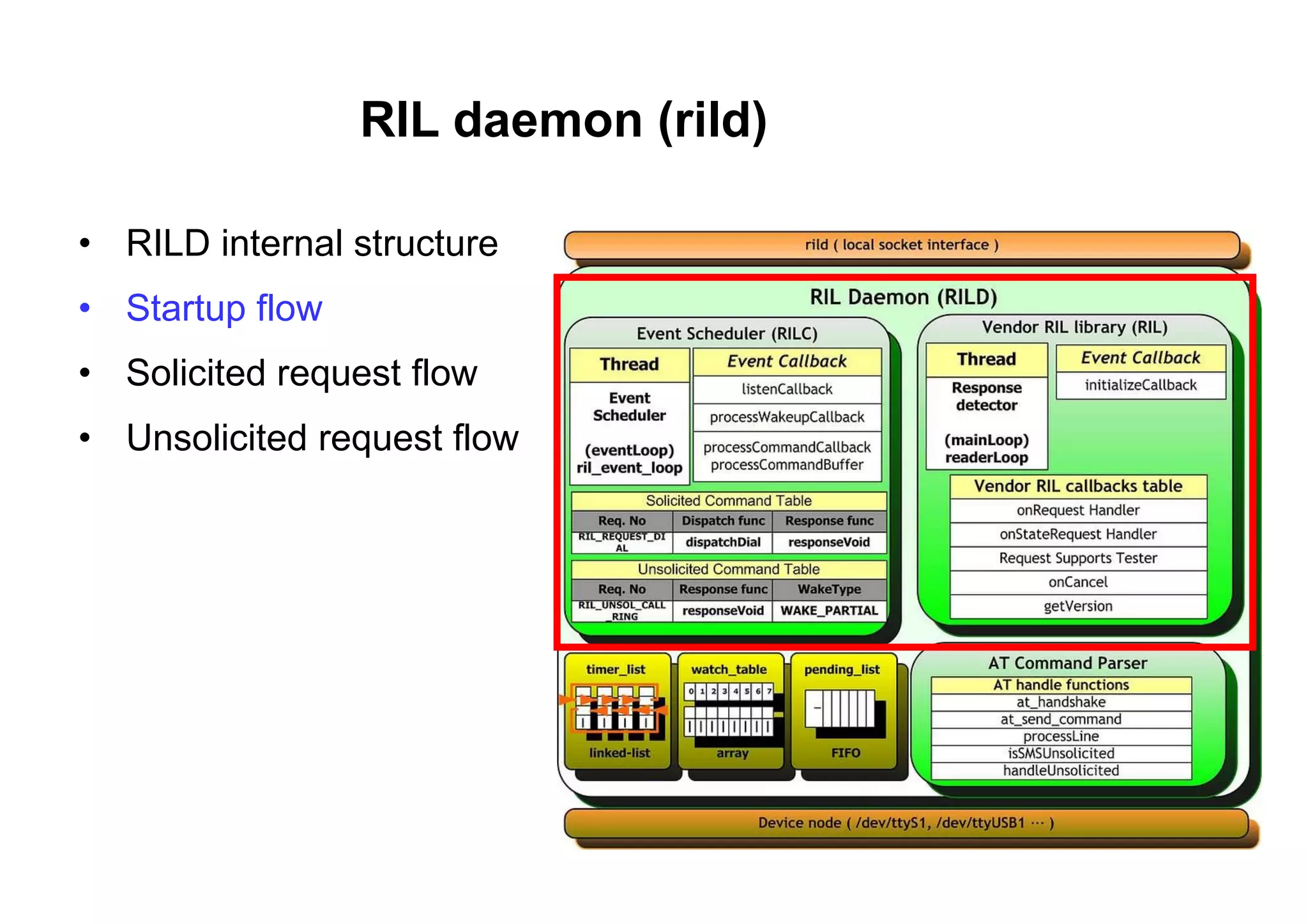

11. RIL daemon (rild) RILD internal structure Startup flow Solicited request flow Unsolicited request flow

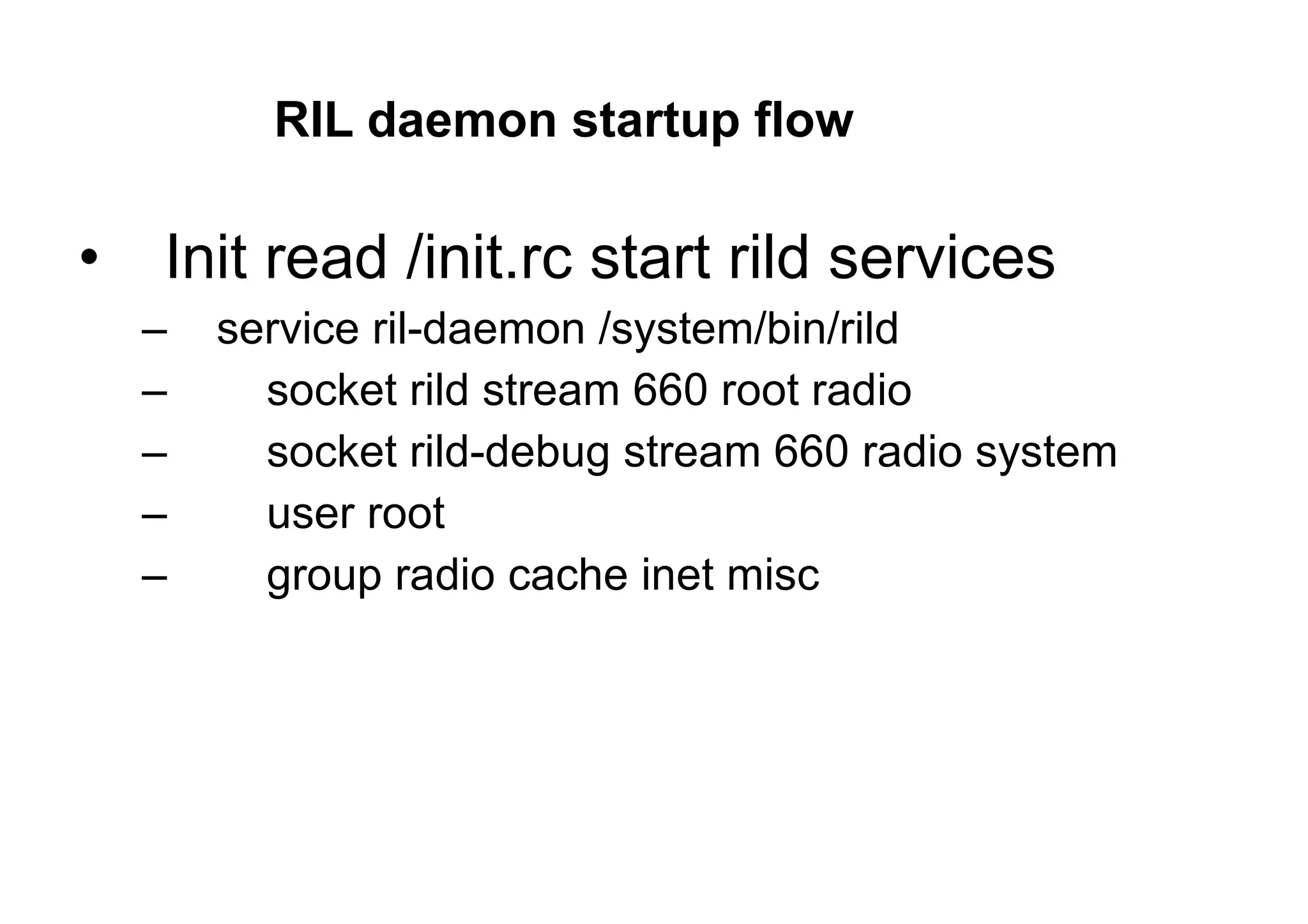

12. RIL daemon startup flow Init read /init.rc start rild services service ril-daemon /system/bin/rild socket rild stream 660 root radio socket rild-debug stream 660 radio system user root group radio cache inet misc

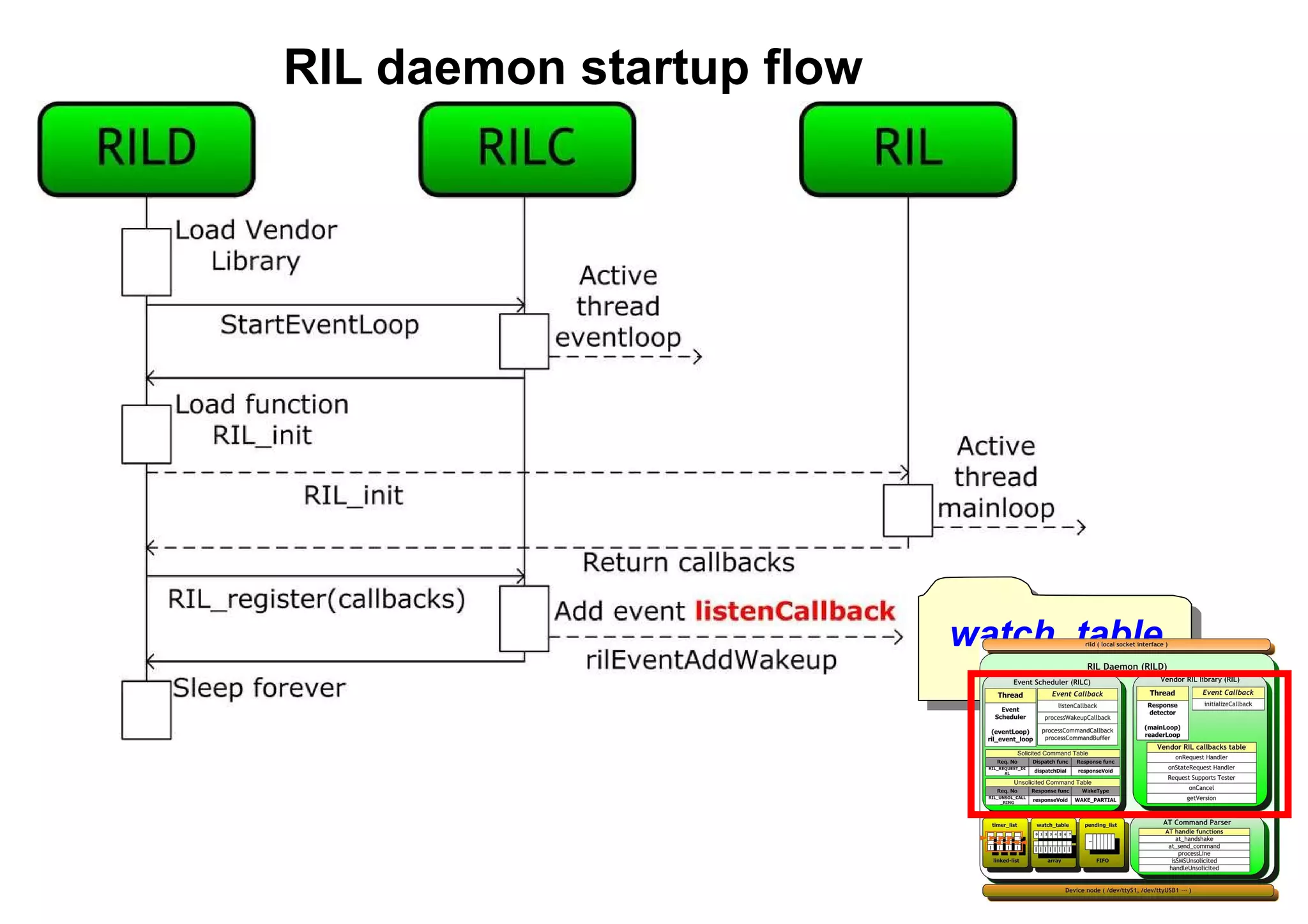

13. RIL daemon startup flow watch_table

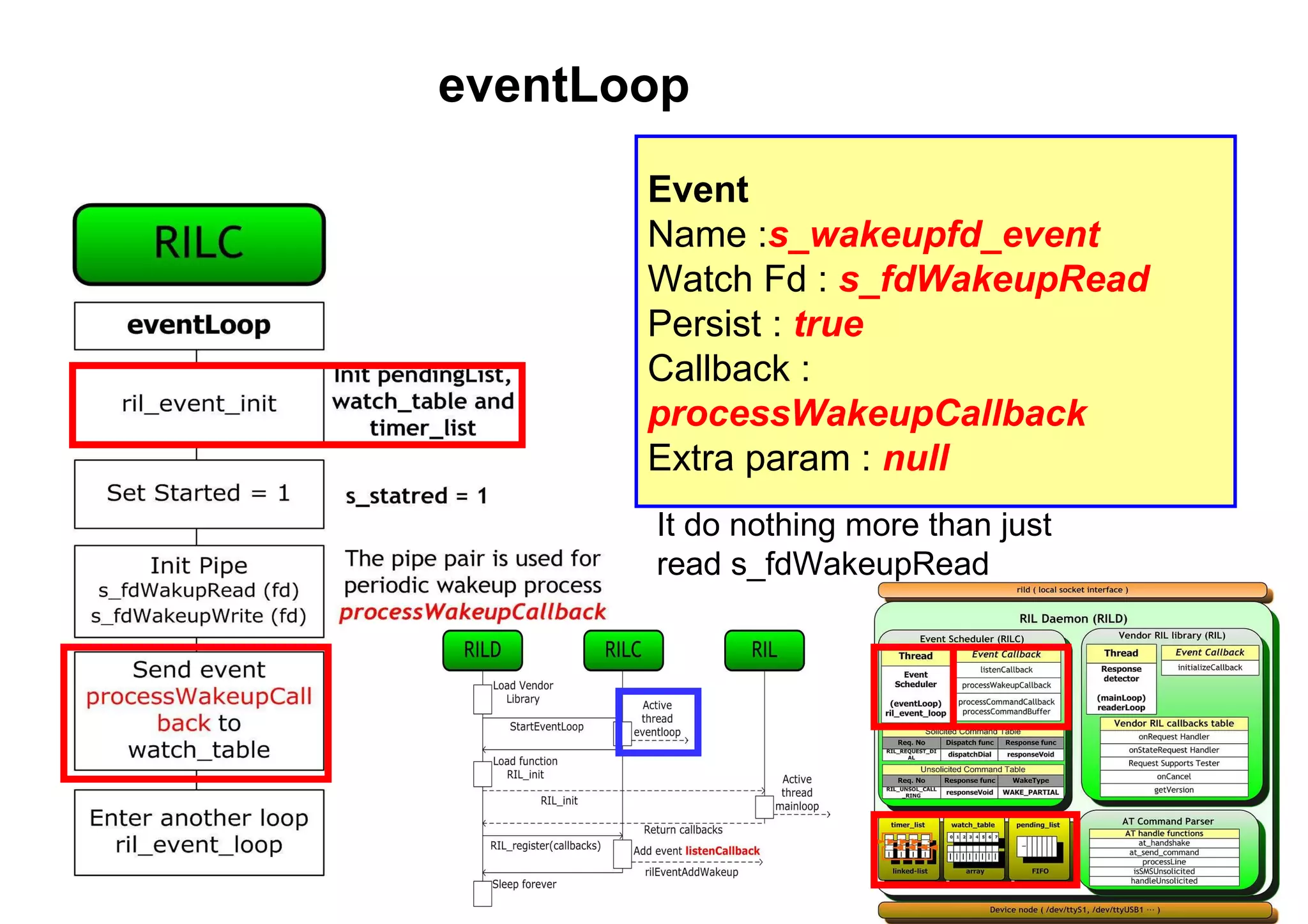

14. eventLoop Event Name : s_wakeupfd_event Watch Fd : s_fdWakeupRead Persist : true Callback : processWakeupCallback Extra param : null It do nothing more than just read s_fdWakeupRead

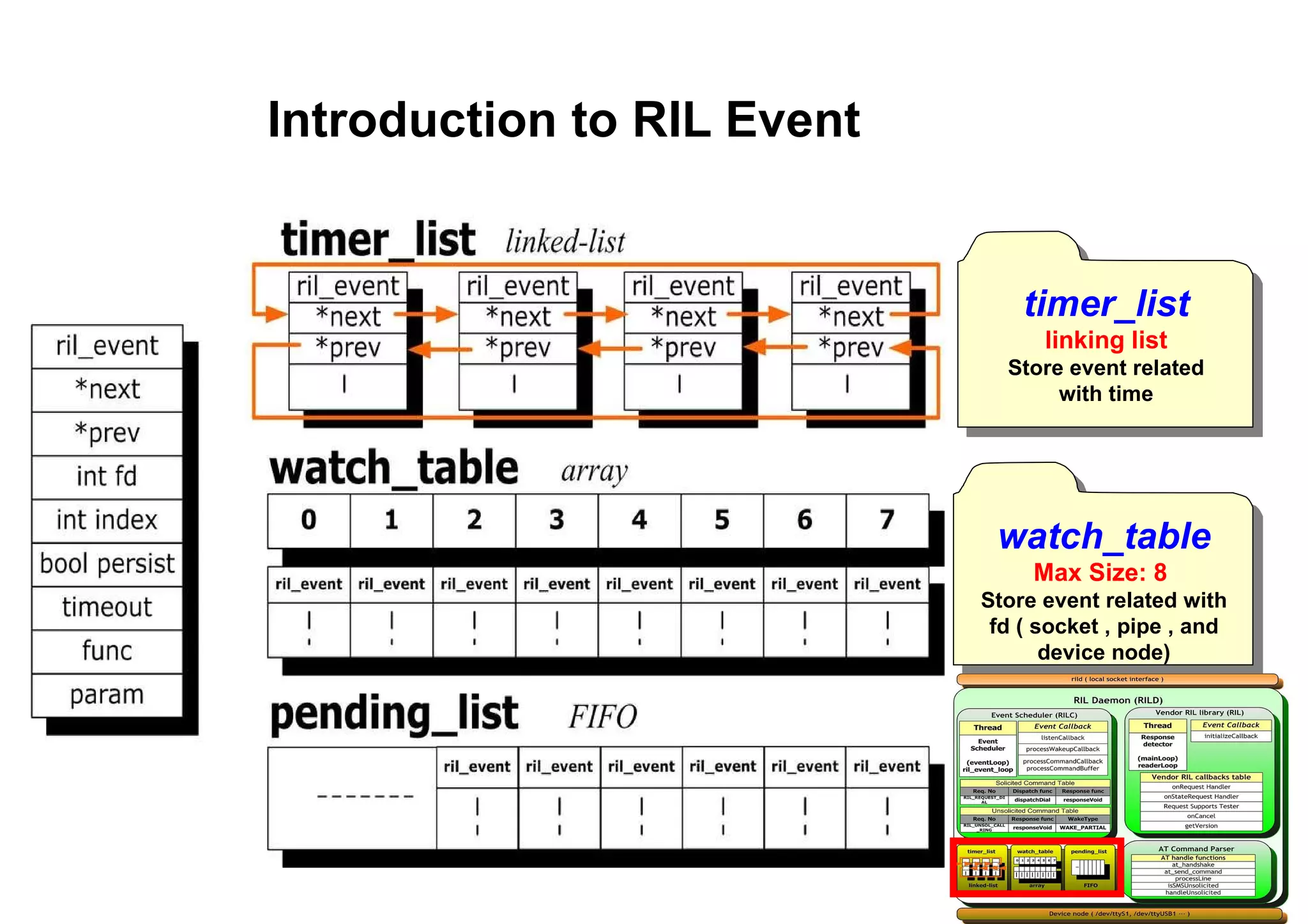

15. Introduction to RIL Event timer_list linking list Store event related with time watch_table Max Size: 8 Store event related with fd ( socket , pipe , and device node)

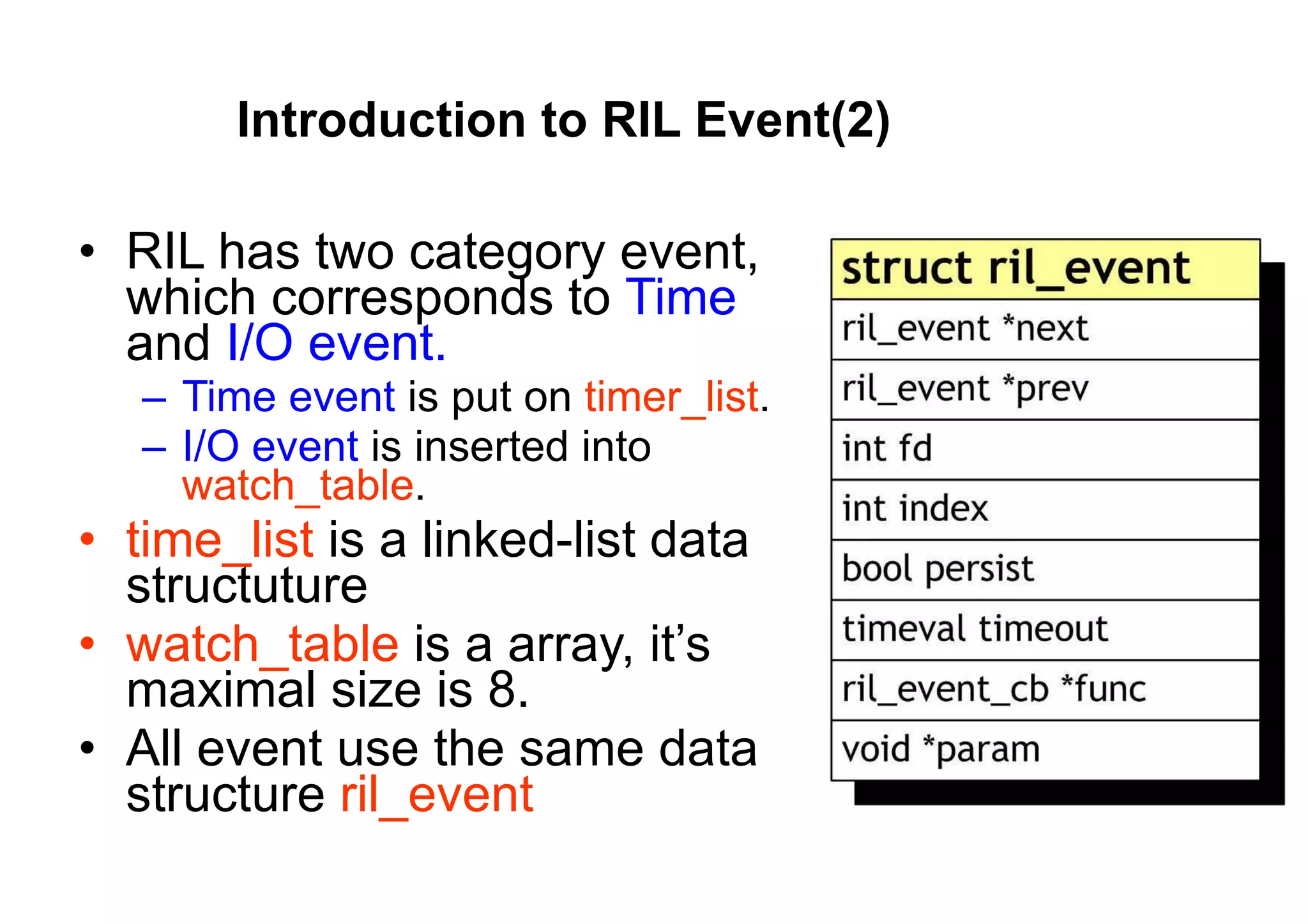

16. Introduction to RIL Event(2) RIL has two category event, which corresponds to Time and I/O event. Time event is put on timer_list . I/O event is inserted into watch_table . time_list is a linked-list data structuture watch_table is a array, it’s maximal size is 8. All event use the same data structure ril_event

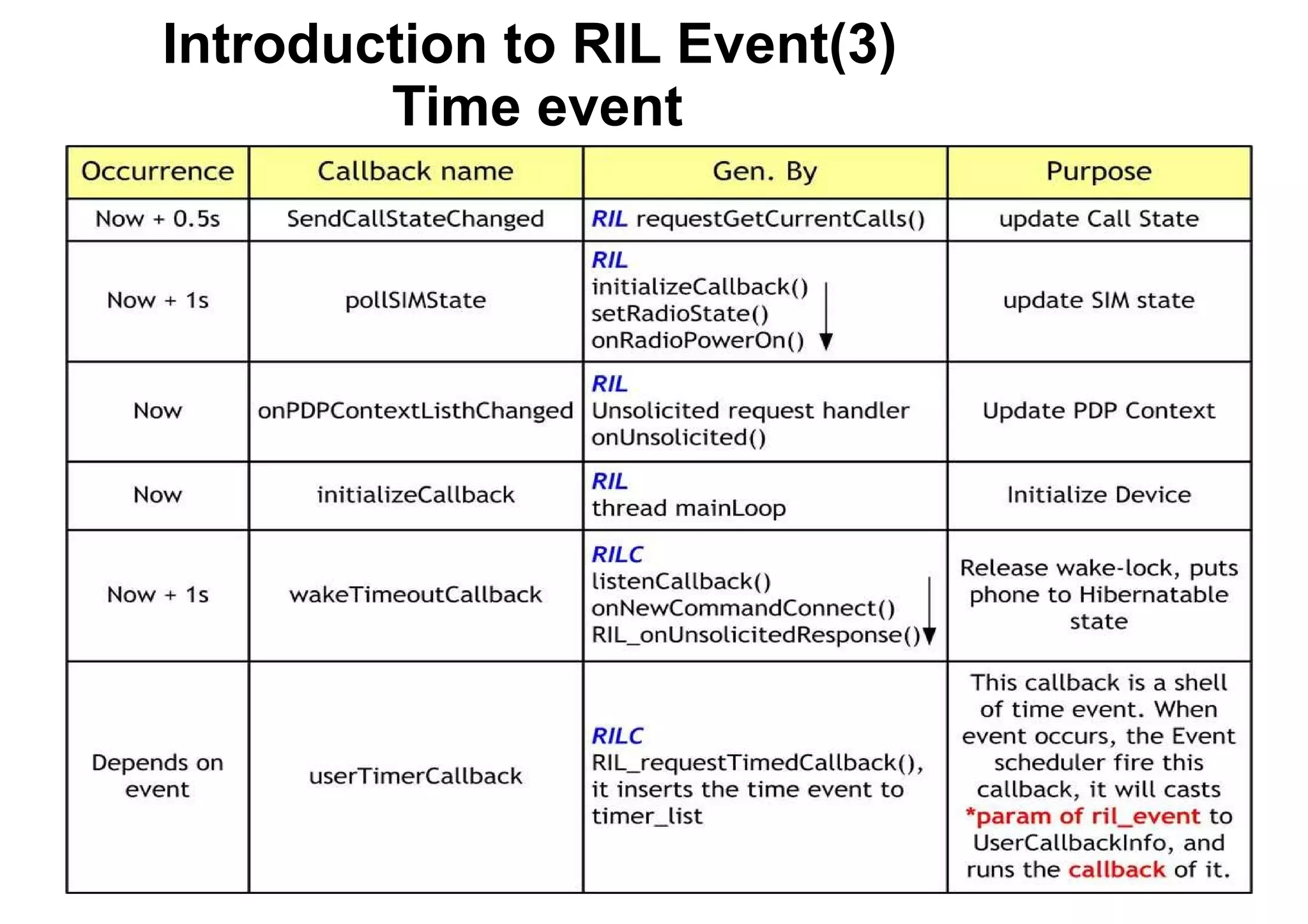

17. Introduction to RIL Event(3) Time event

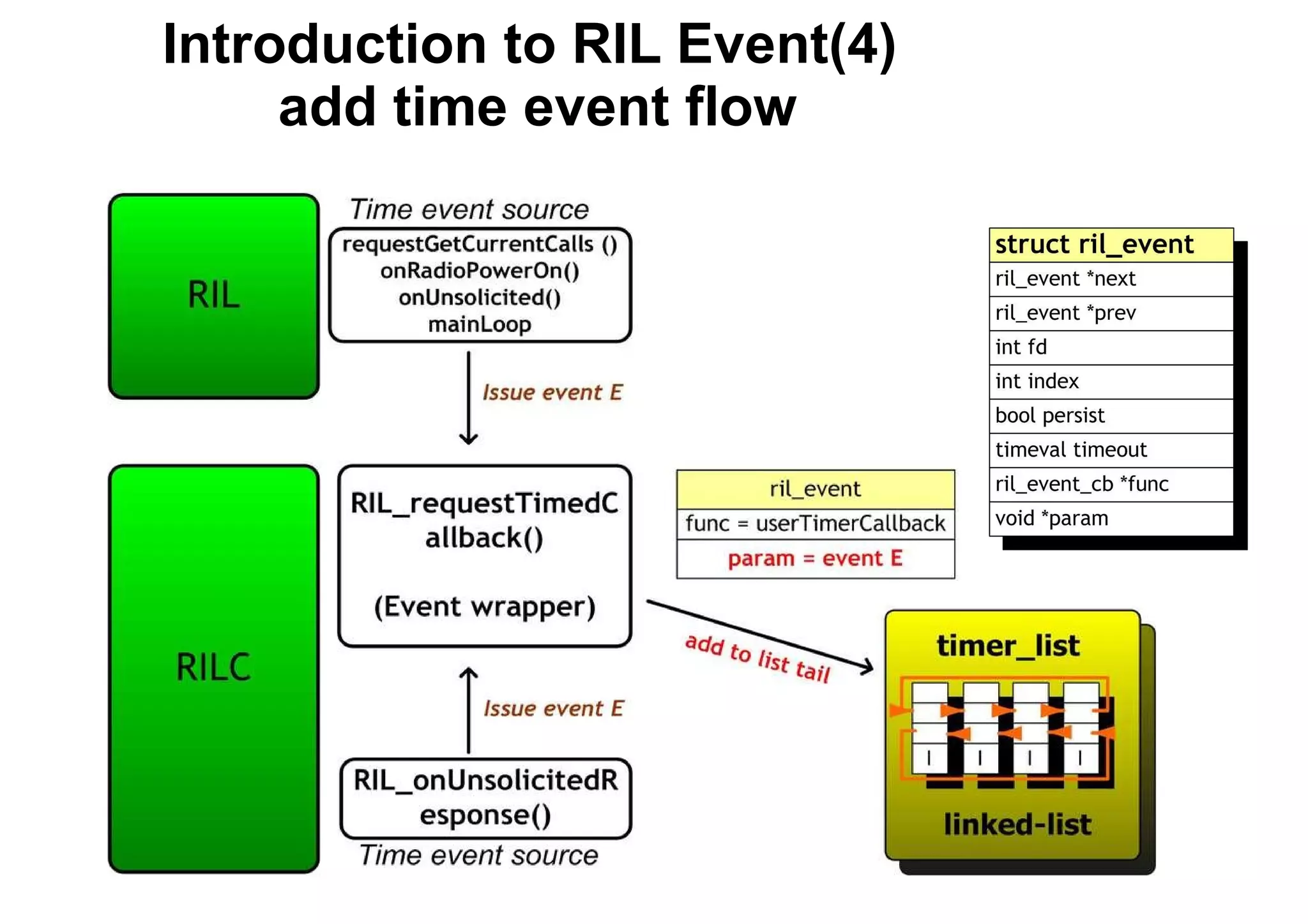

18. Introduction to RIL Event(4) add time event flow

19. Introduction to RIL Event(5) I/O event

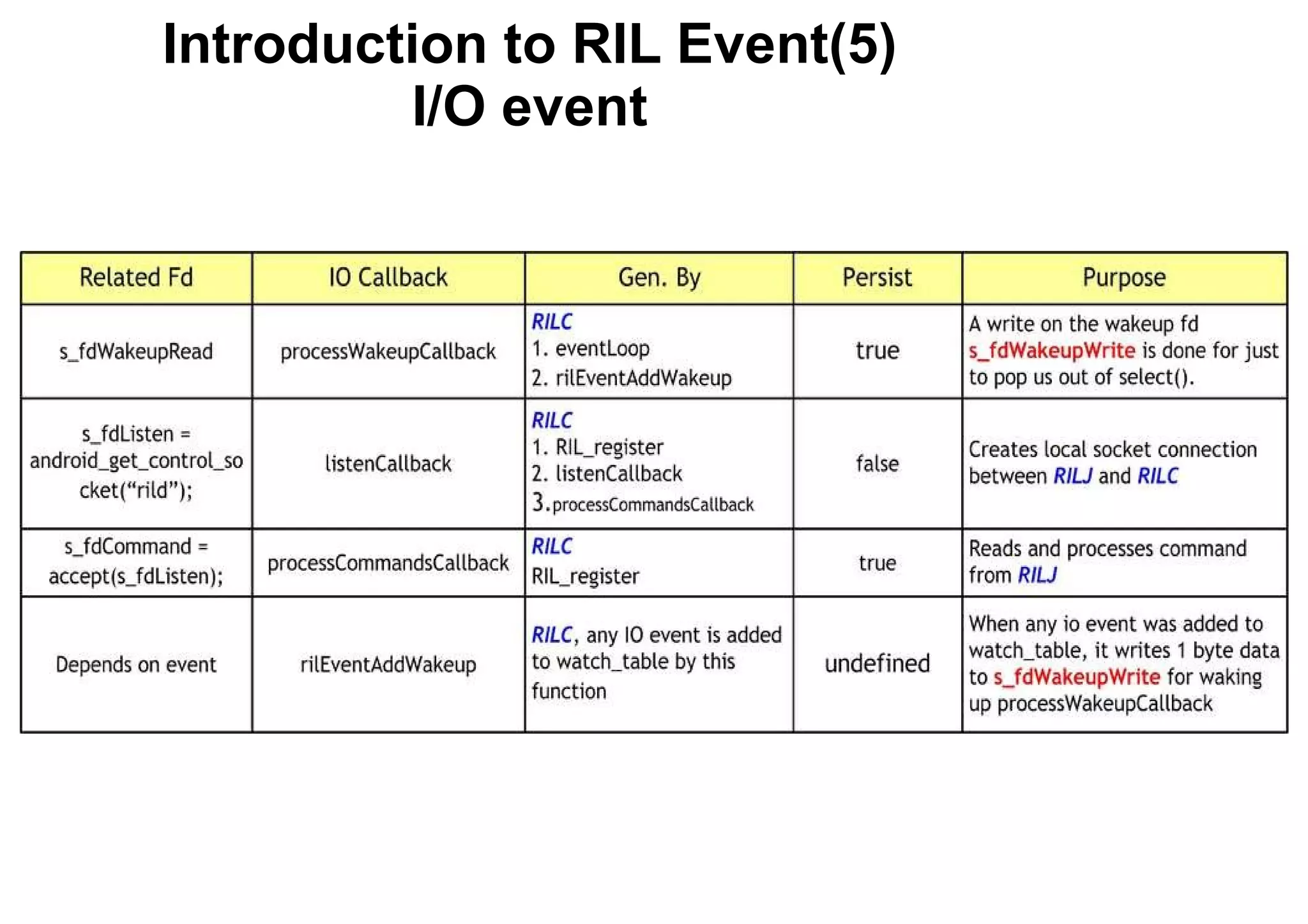

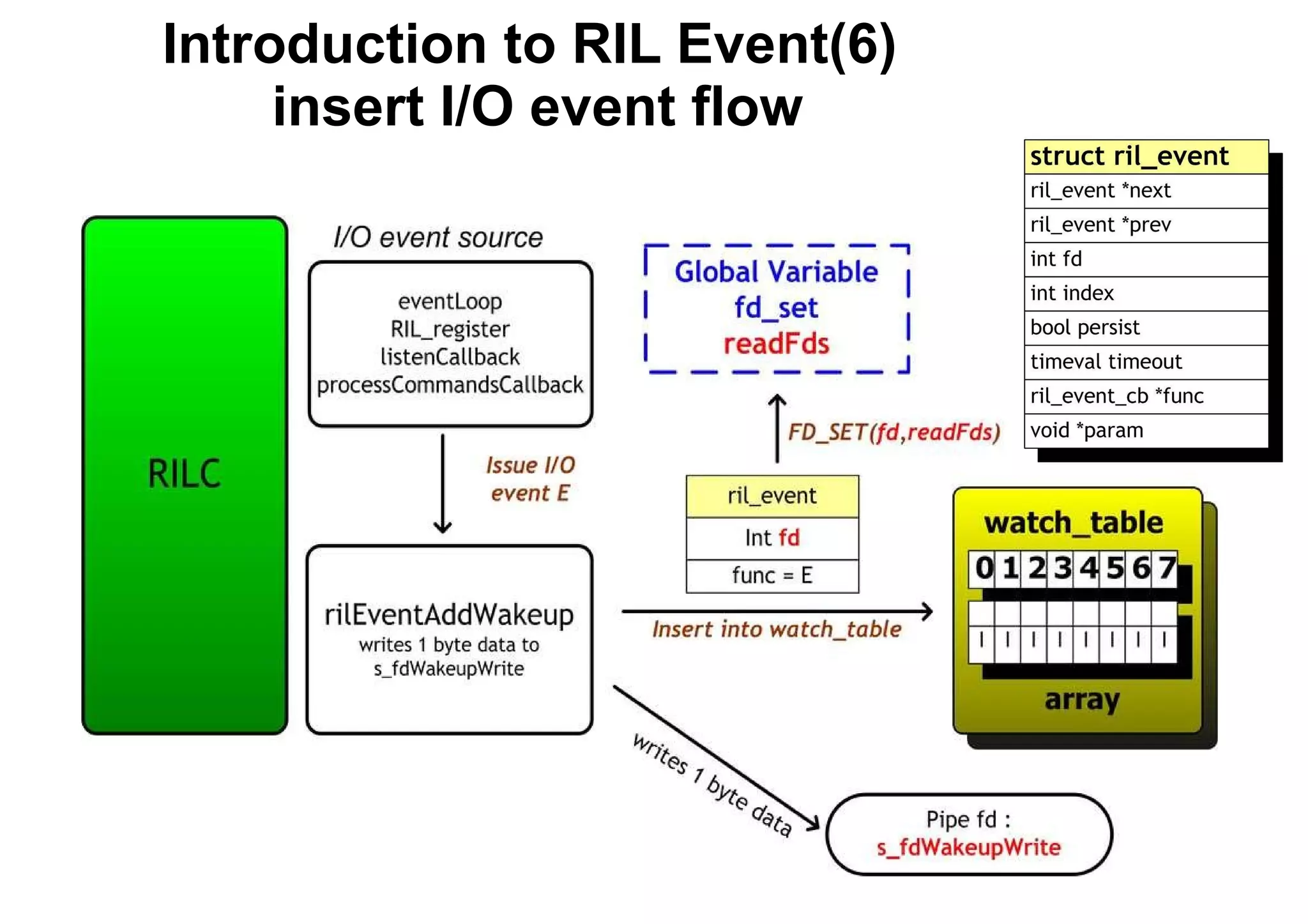

20. Introduction to RIL Event(6) insert I/O event flow

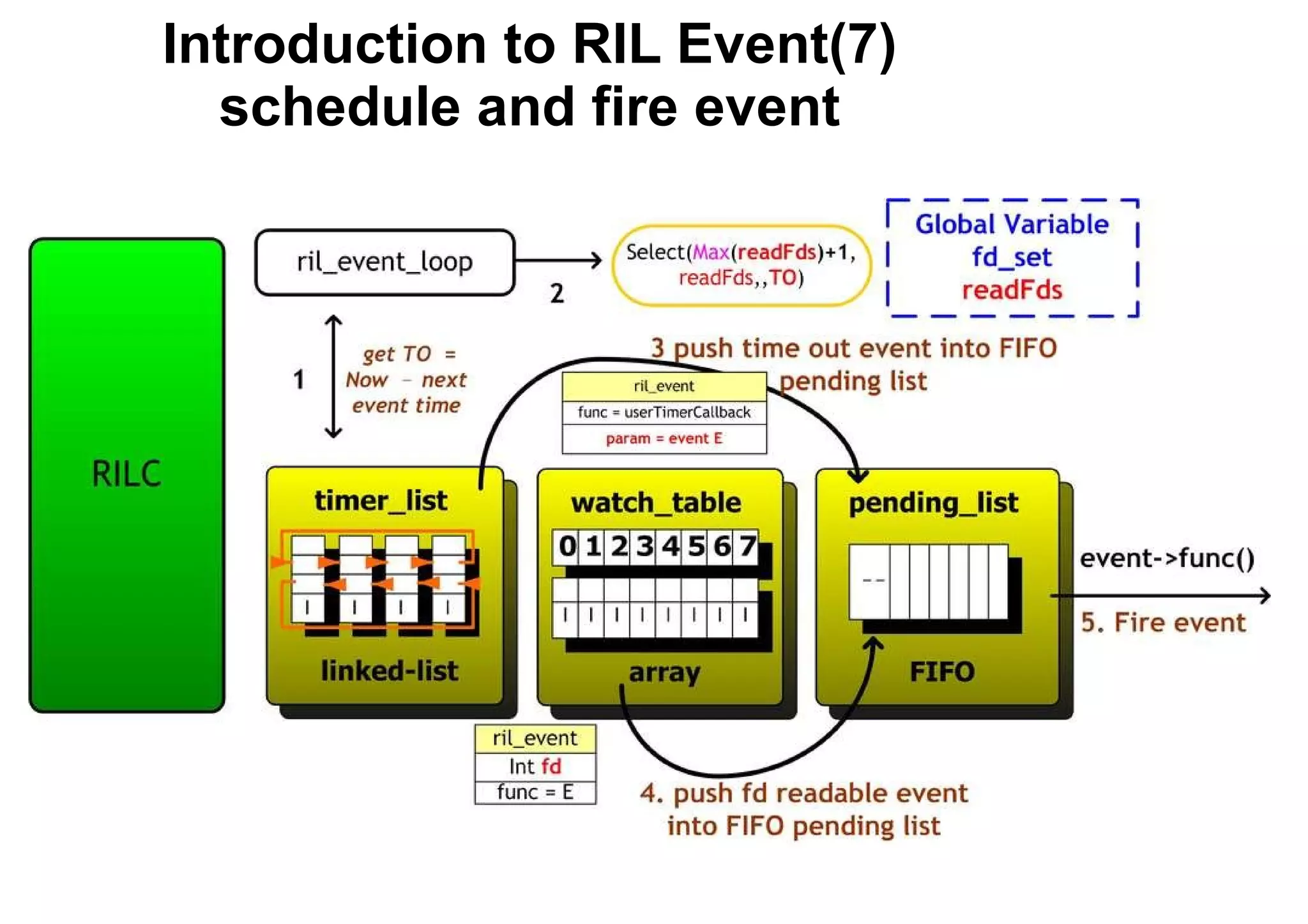

21. Introduction to RIL Event(7) schedule and fire event

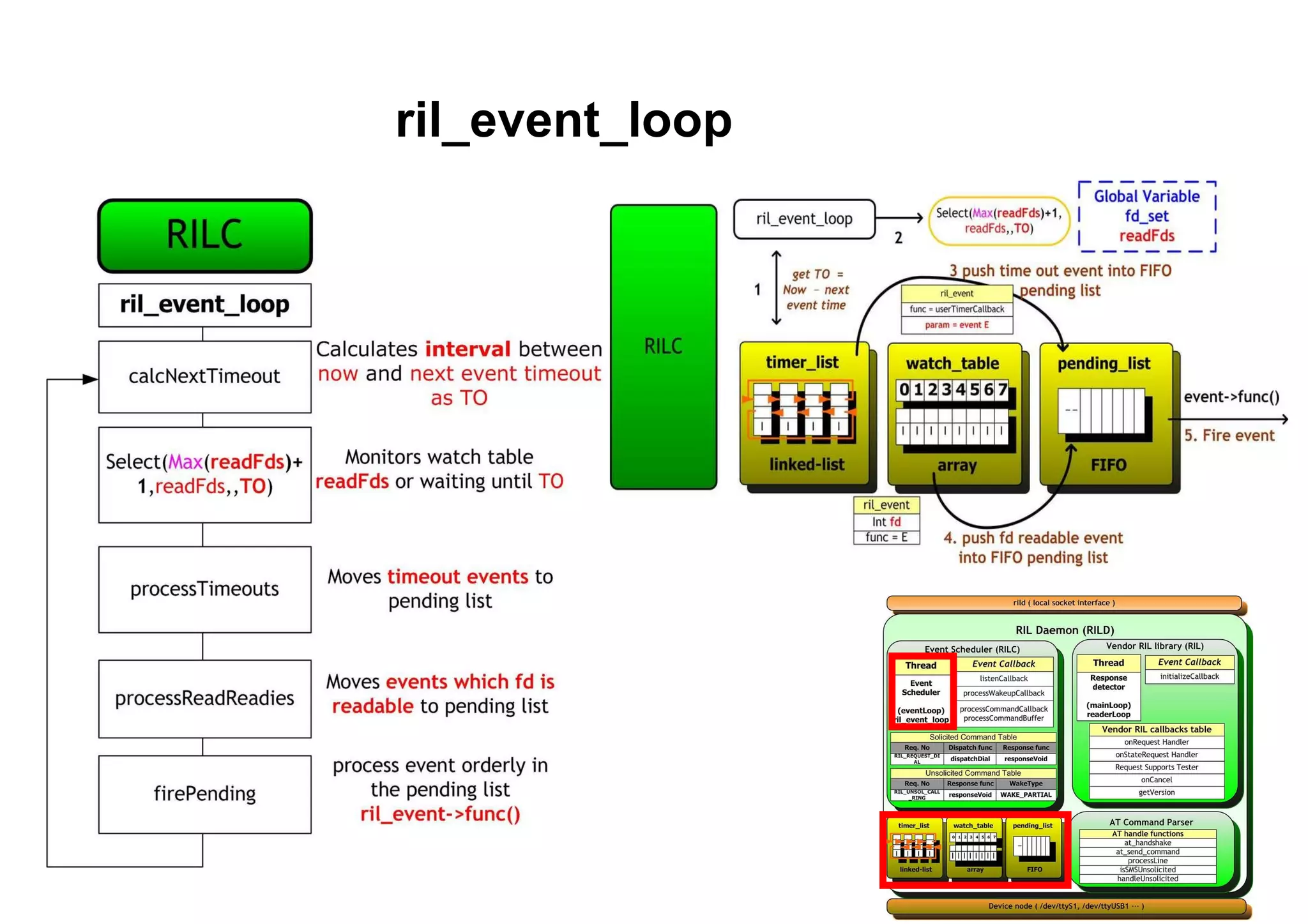

22. ril_event_loop

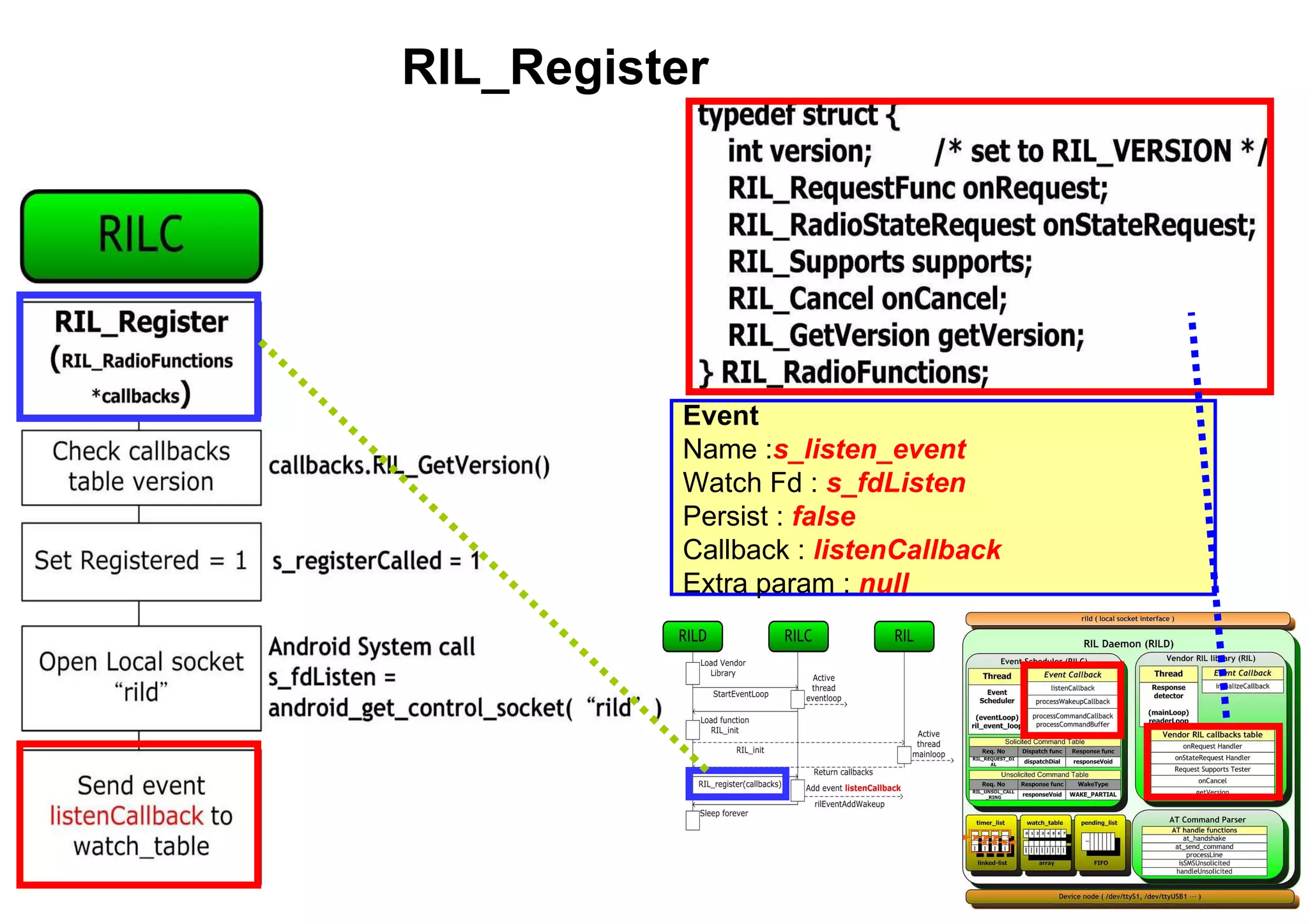

23. RIL_Register Event Name : s_listen_event Watch Fd : s_fdListen Persist : false Callback : listenCallback Extra param : null

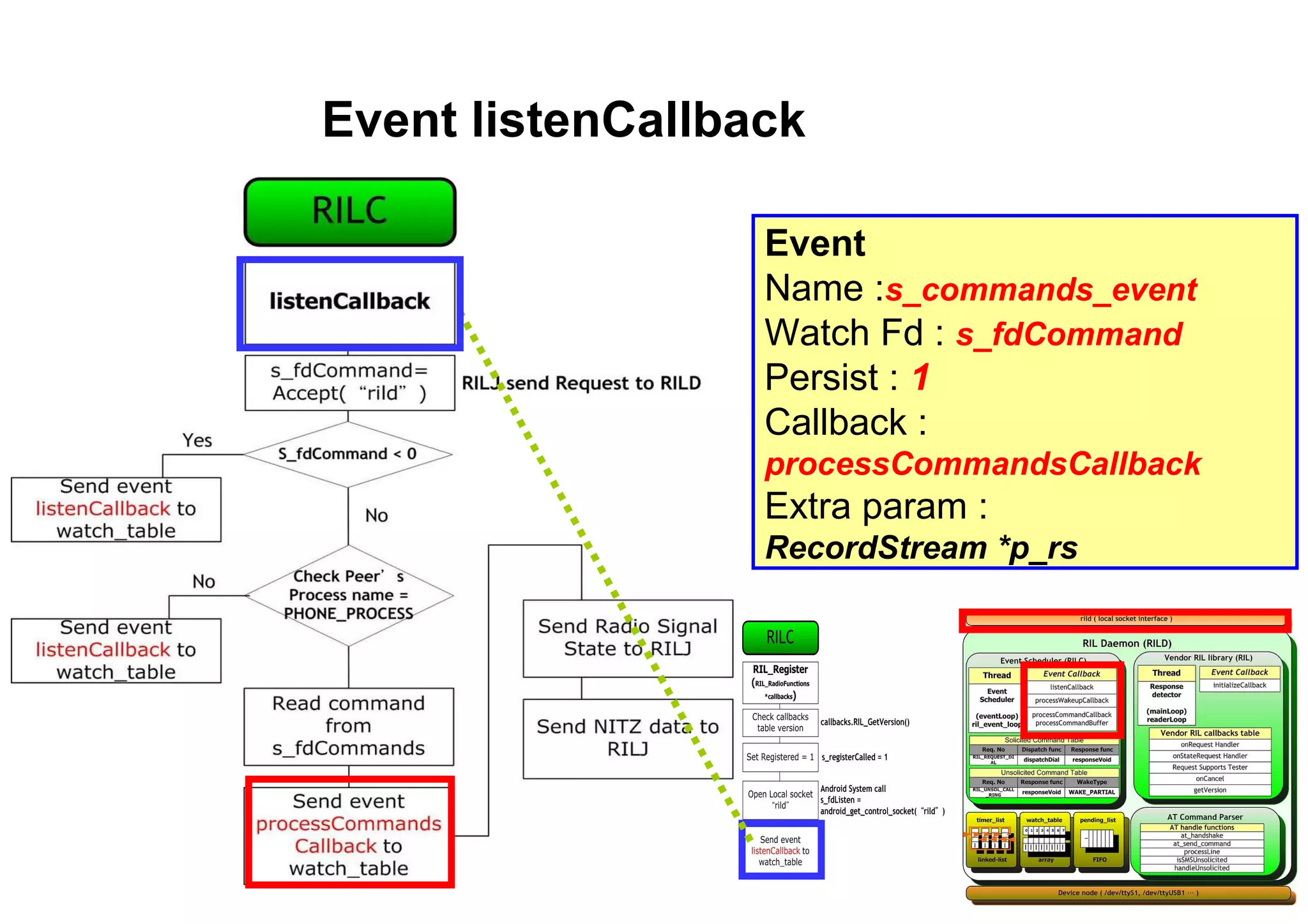

24. Event listenCallback Event Name : s_commands_event Watch Fd : s_fdCommand Persist : 1 Callback : processCommandsCallback Extra param : RecordStream *p_rs

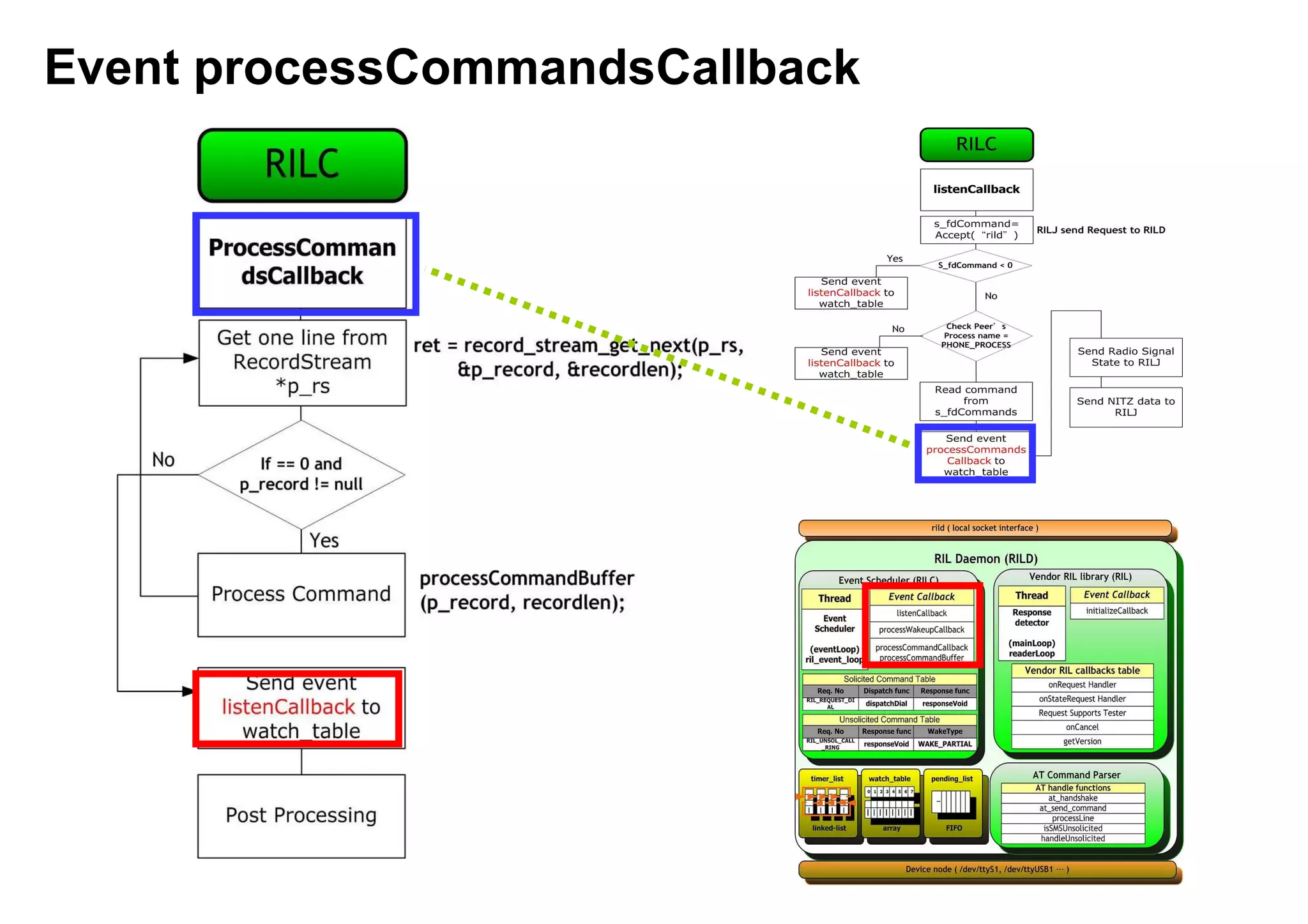

25. Event processCommandsCallback

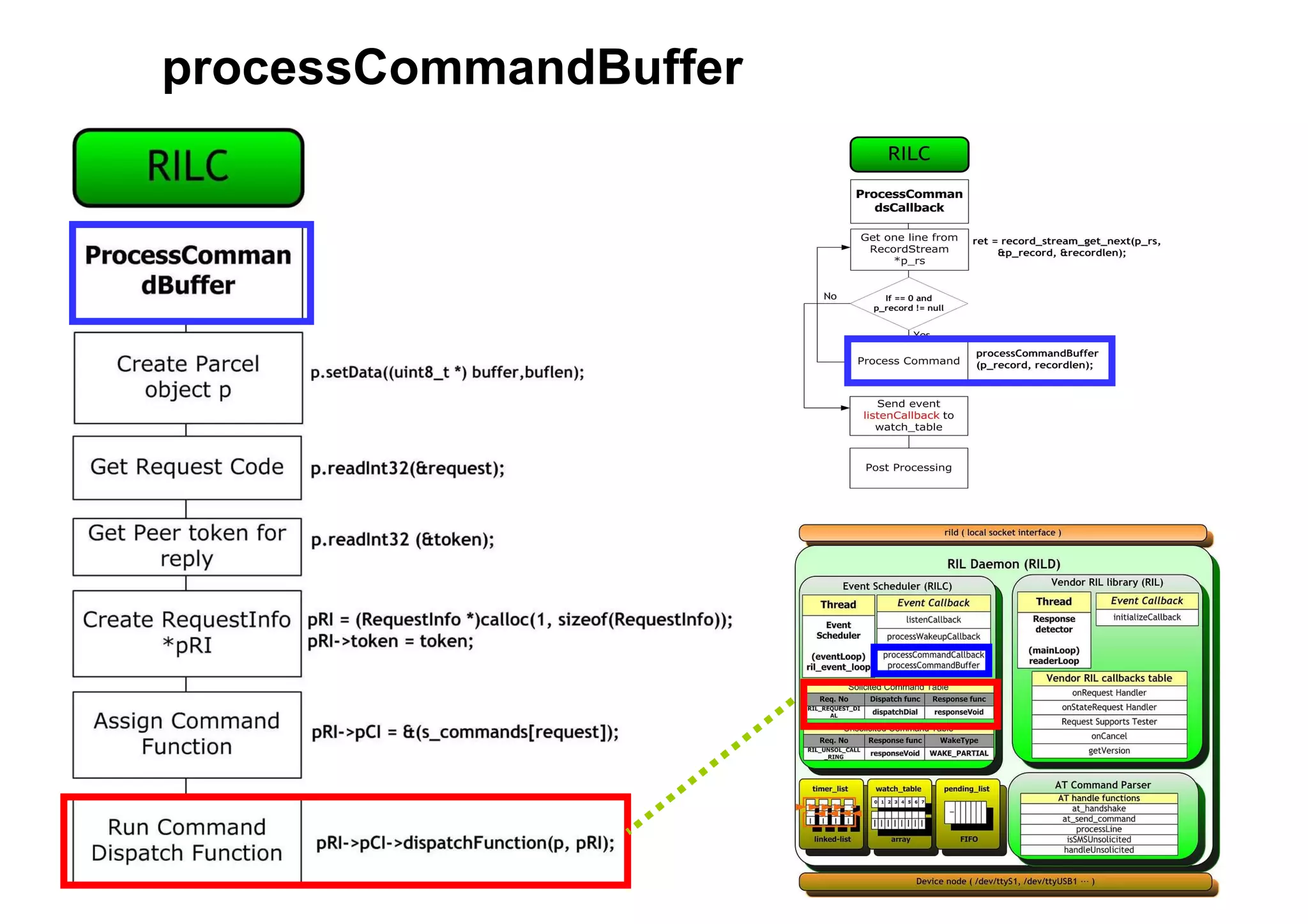

26. processCommandBuffer

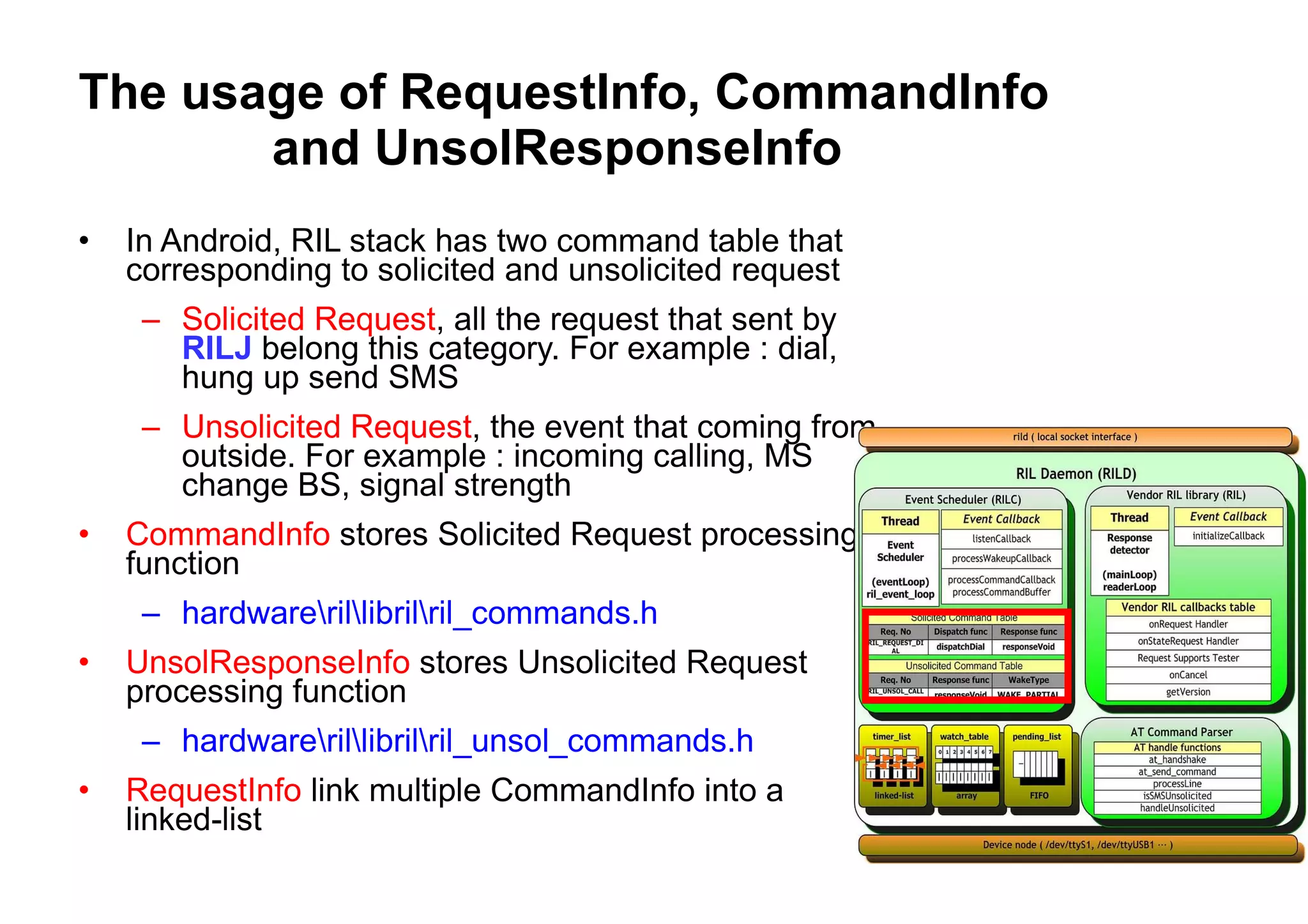

27. The usage of RequestInfo, CommandInfo and UnsolResponseInfo In Android, RIL stack has two command table that corresponding to solicited and unsolicited request Solicited Request , all the request that sent by RILJ belong this category. For example : dial, hung up send SMS Unsolicited Request , the event that coming from outside. For example : incoming calling, MS change BS, signal strength CommandInfo stores Solicited Request processing function hardware\ril\libril\ril_commands.h UnsolResponseInfo stores Unsolicited Request processing function hardware\ril\libril\ril_unsol_commands.h RequestInfo link multiple CommandInfo into a linked-list

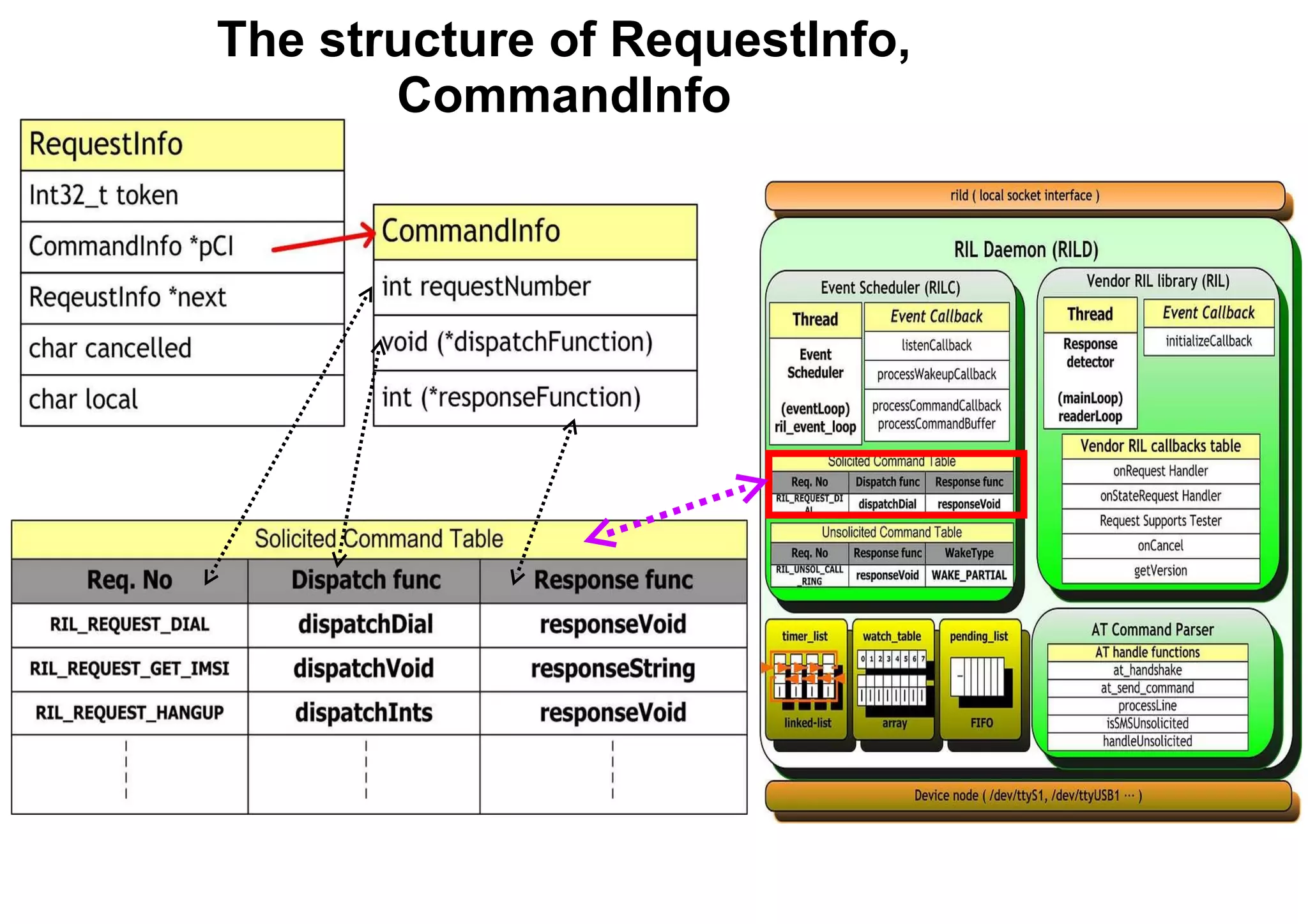

28. The structure of RequestInfo, CommandInfo

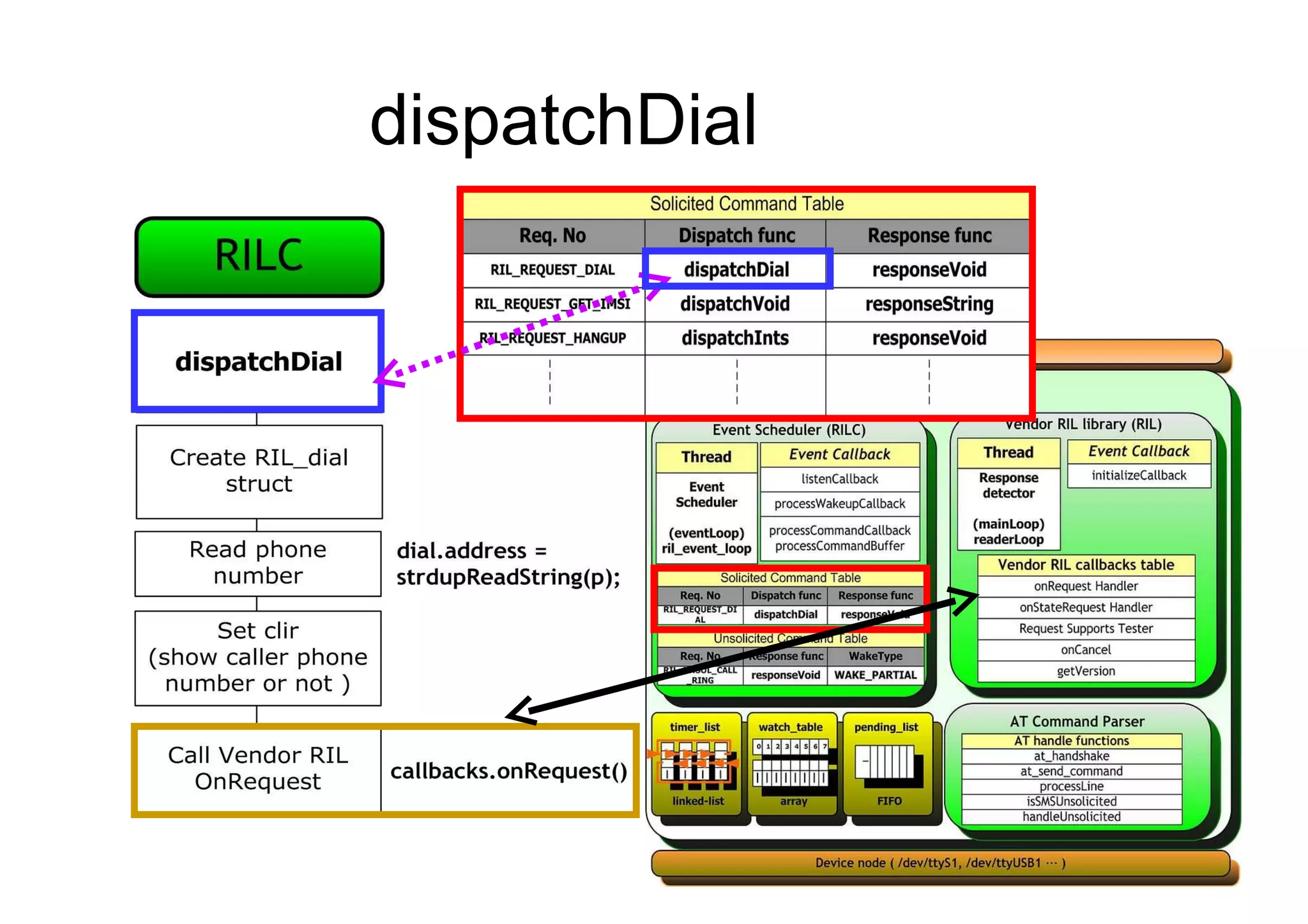

29. dispatchDial

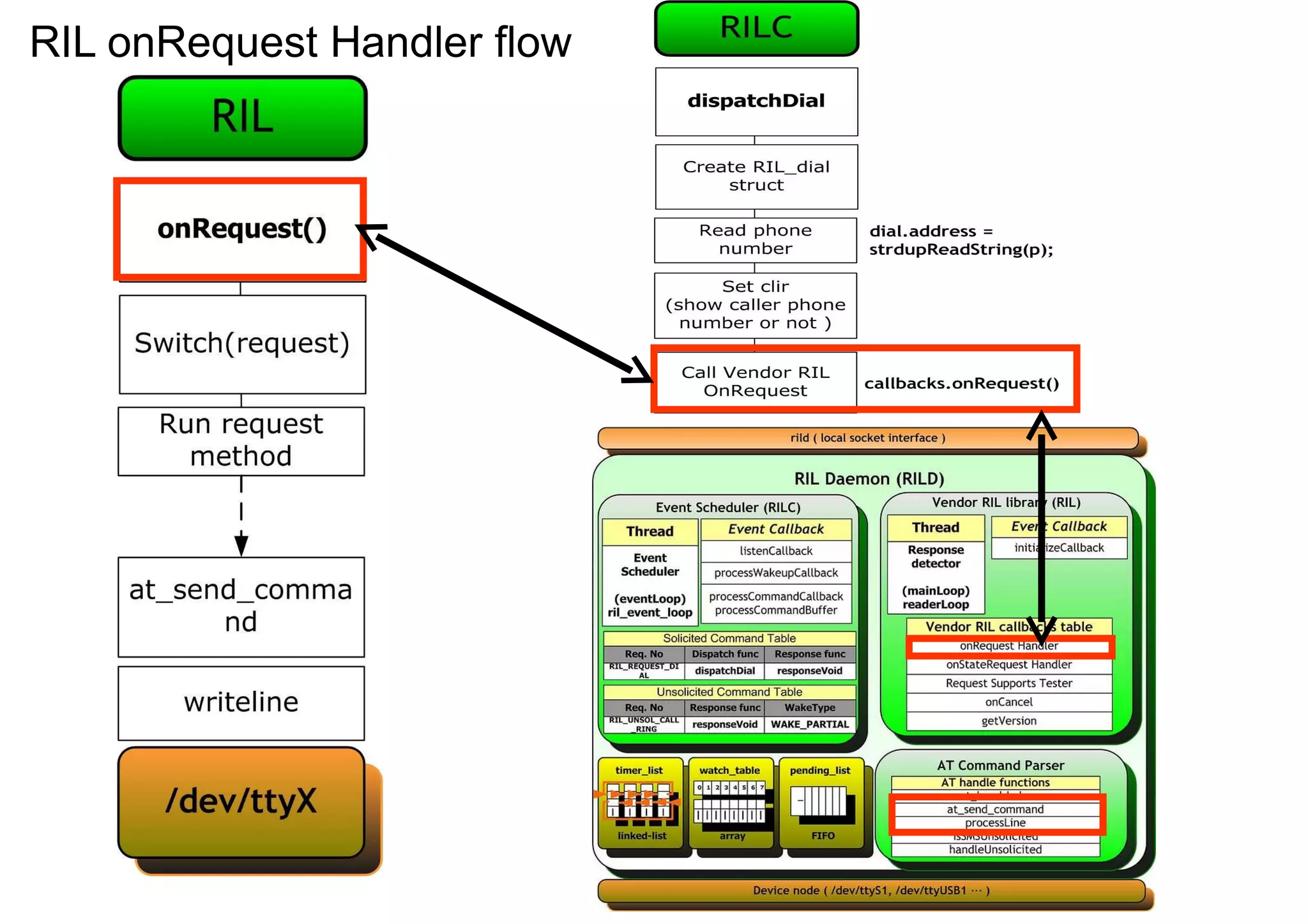

30. RIL onRequest Handler flow

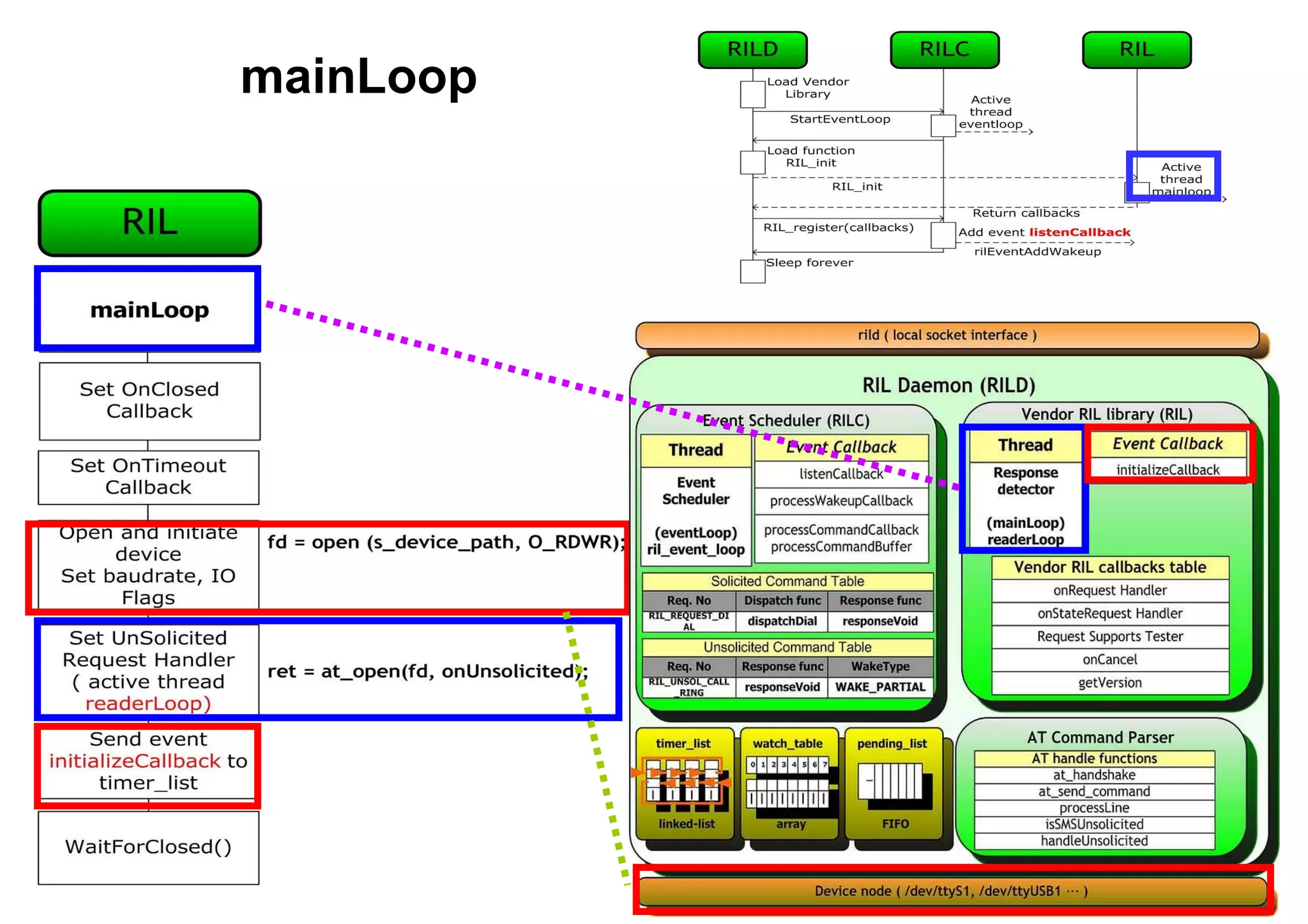

31. mainLoop

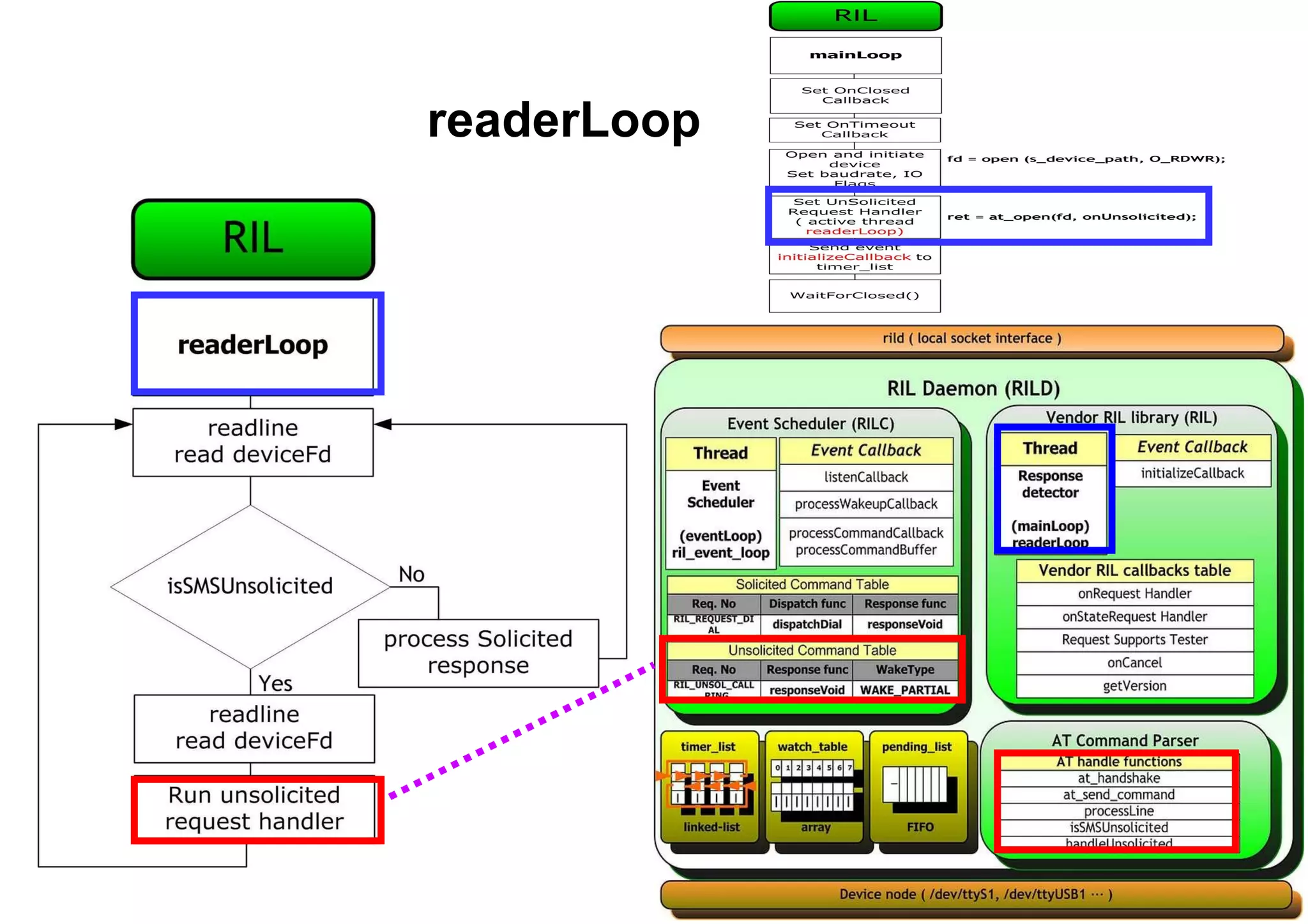

32. readerLoop

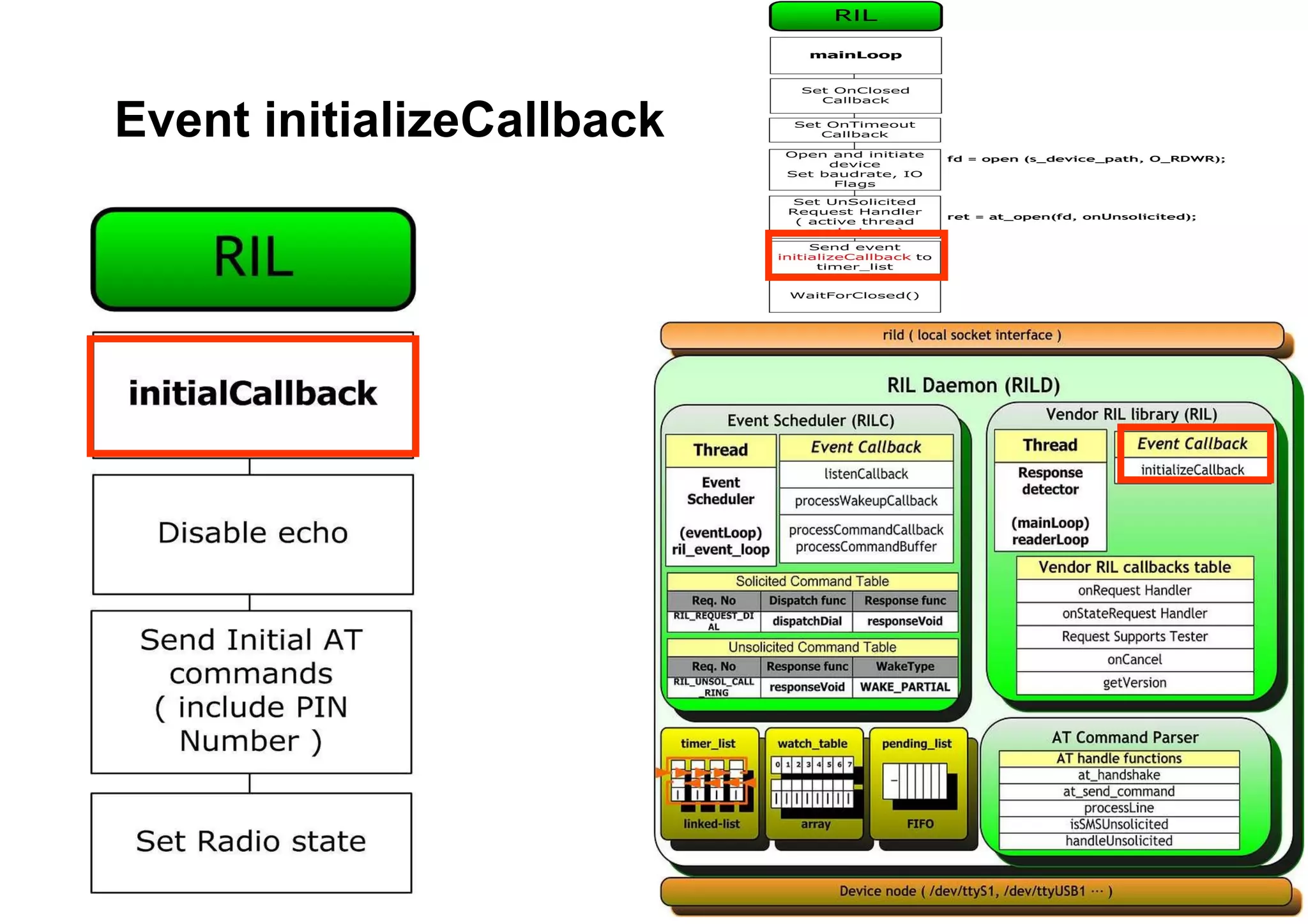

33. Event initializeCallback

34. RIL daemon (rild) Solicited request flow RILD internal structure Startup flow Solicited request flow Unsolicited request flow Request Path Response Path

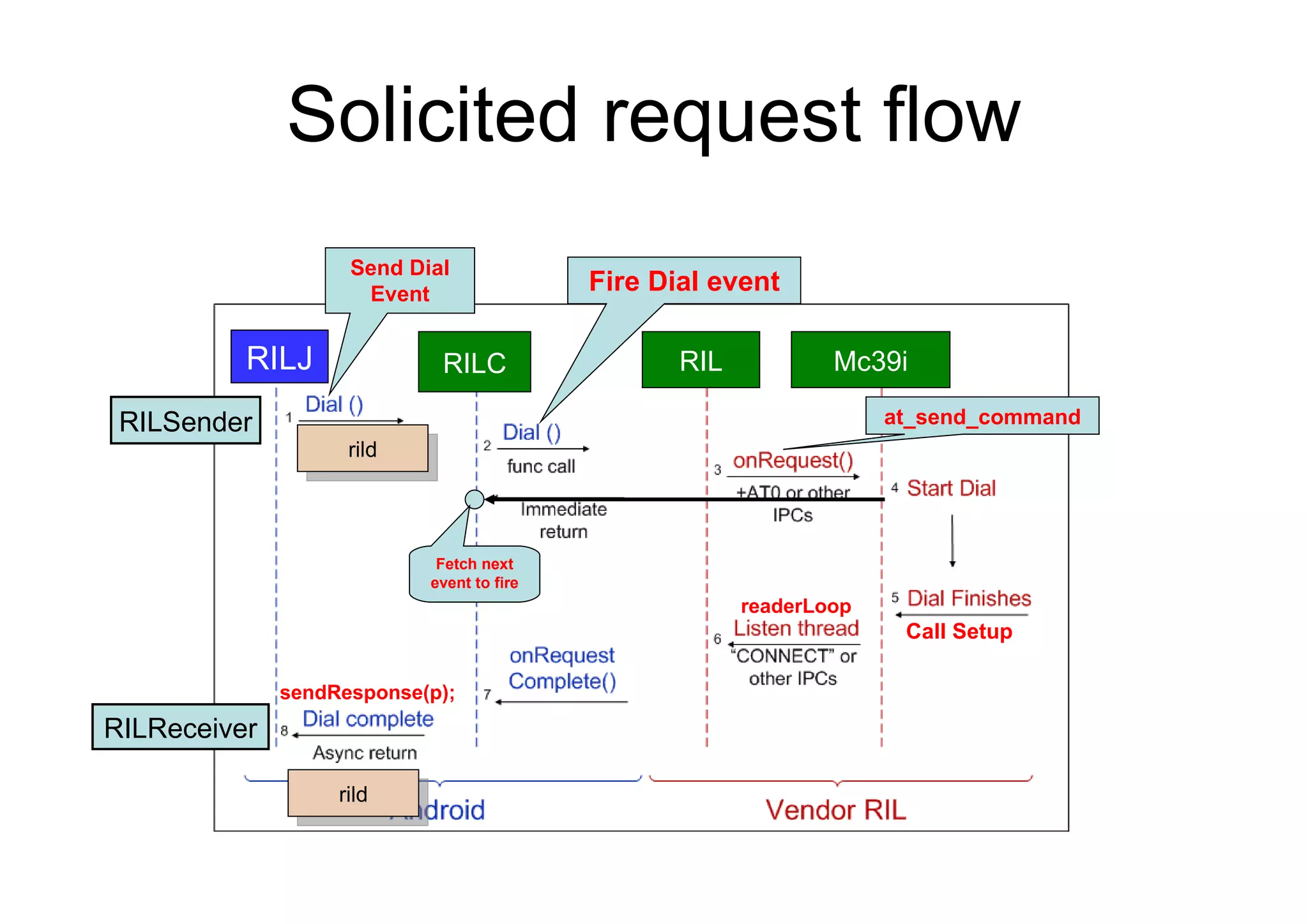

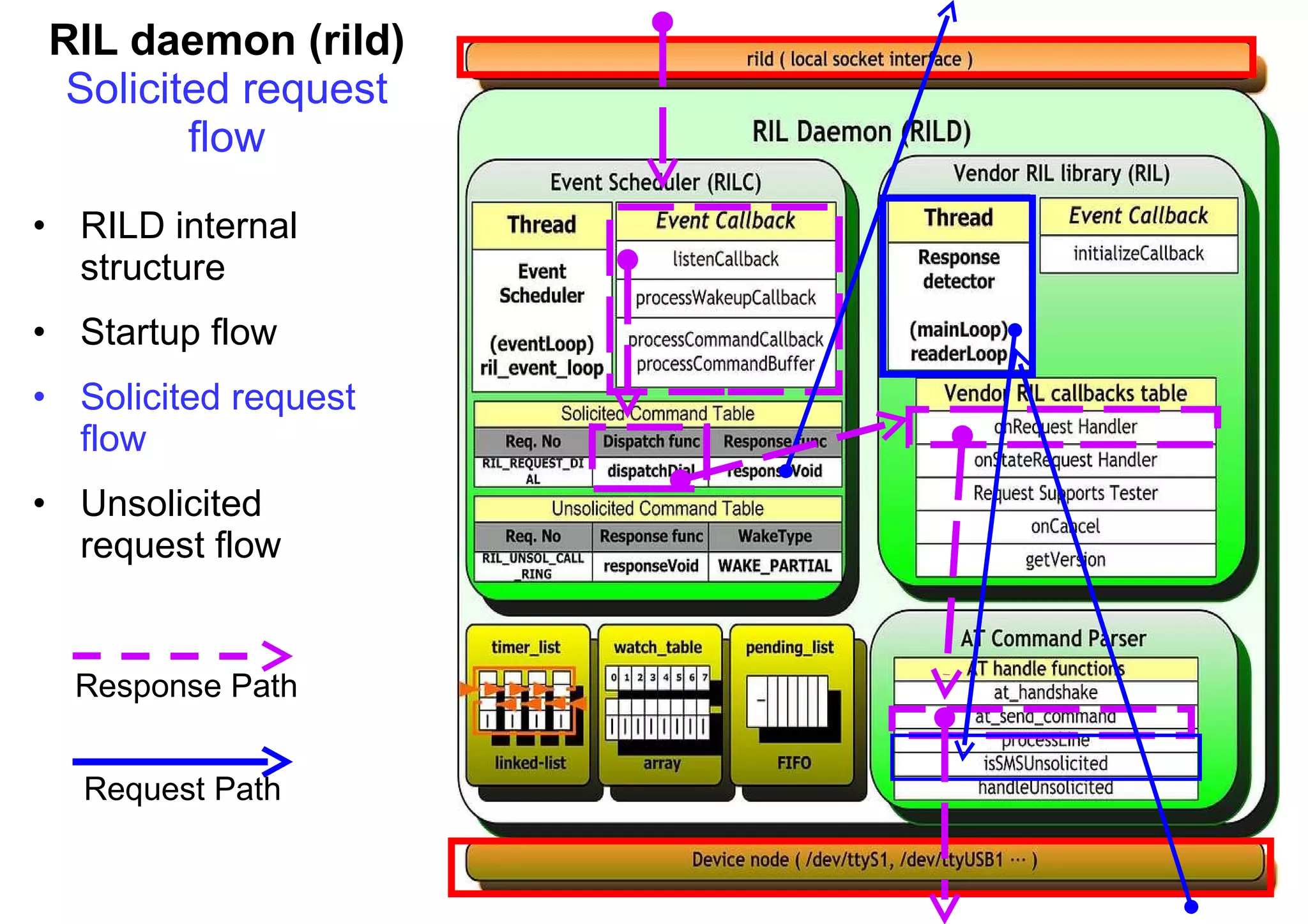

35. Solicited request flow RILC RIL Mc39i rild RILSender RILReceiver sendResponse(p); rild Call Setup readerLoop Send Dial Event Fire Dial event at_send_command Fetch next event to fire RILJ

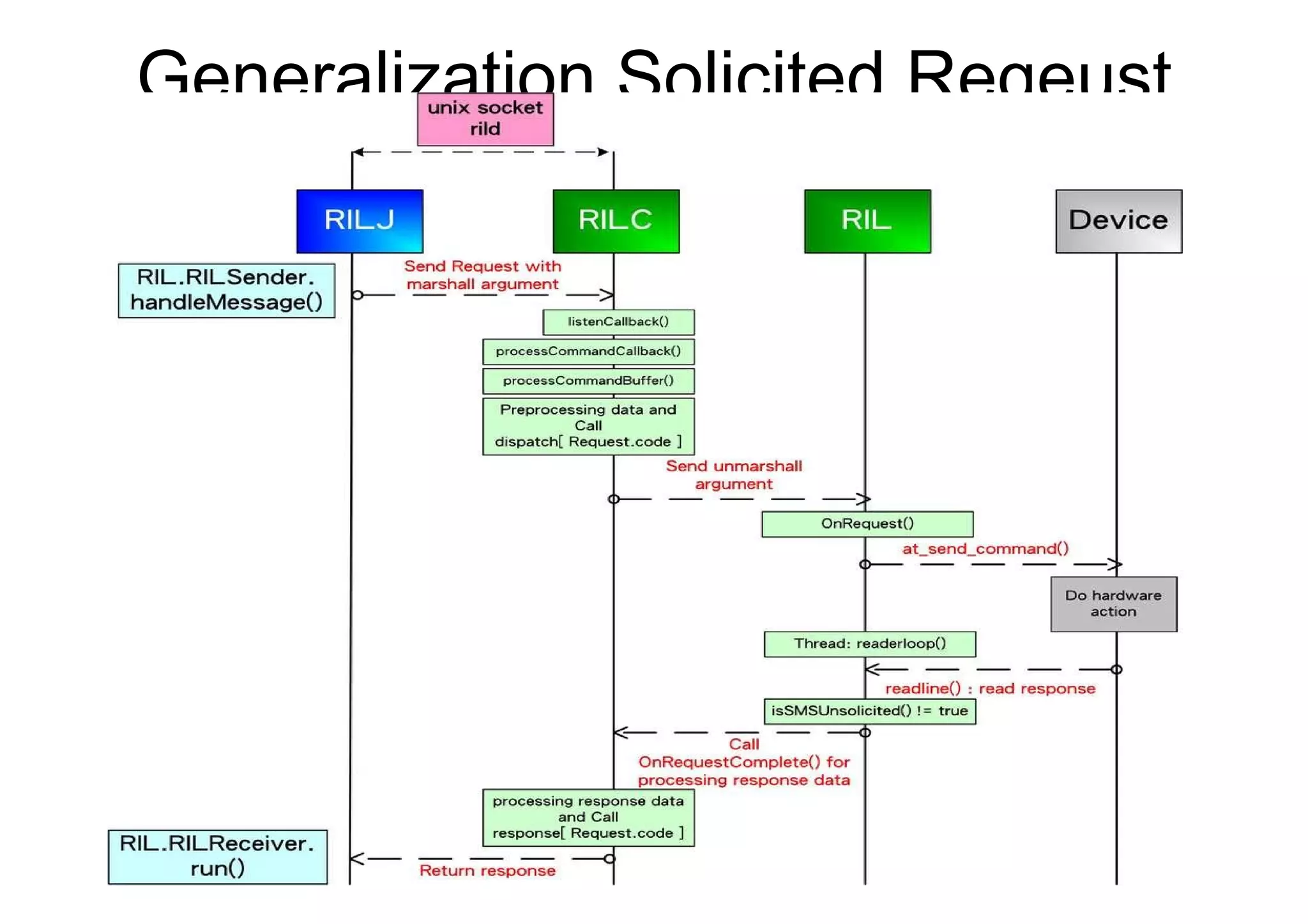

36. Generalization Solicited Reqeust

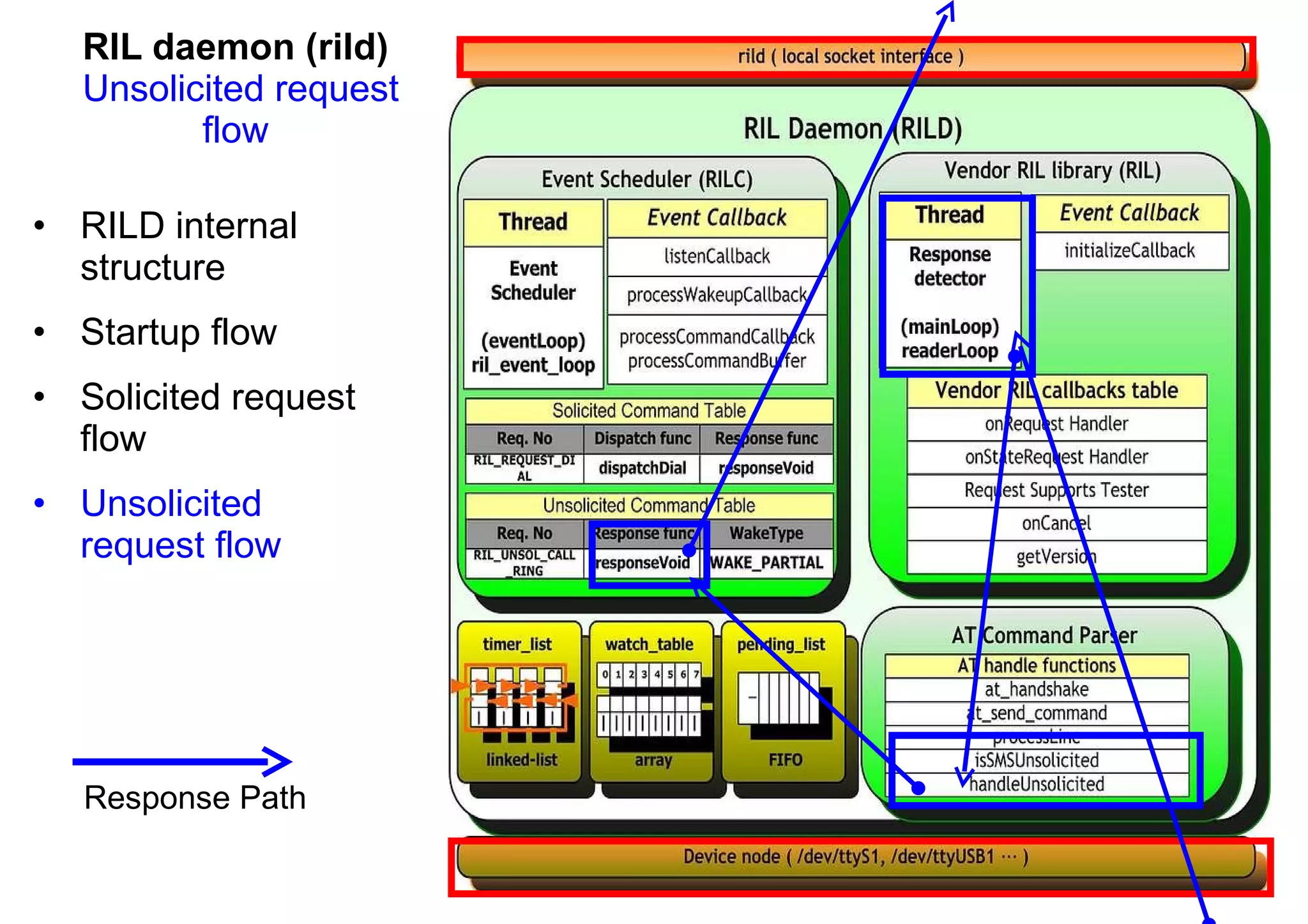

37. RIL daemon (rild) Unsolicited request flow RILD internal structure Startup flow Solicited request flow Unsolicited request flow Response Path

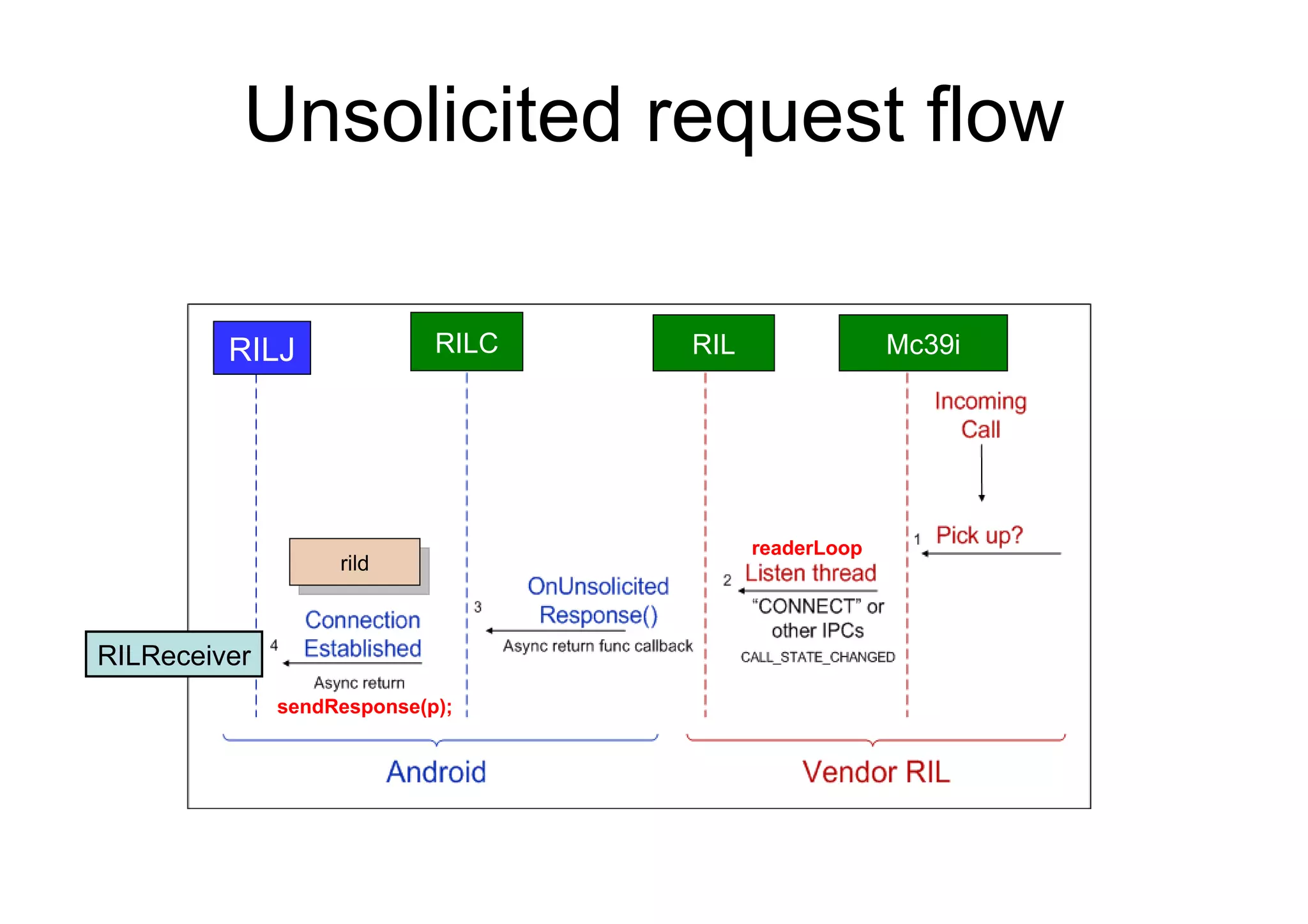

38. Unsolicited request flow RIL Mc39i RILC readerLoop sendResponse(p); RILReceiver rild RILJ

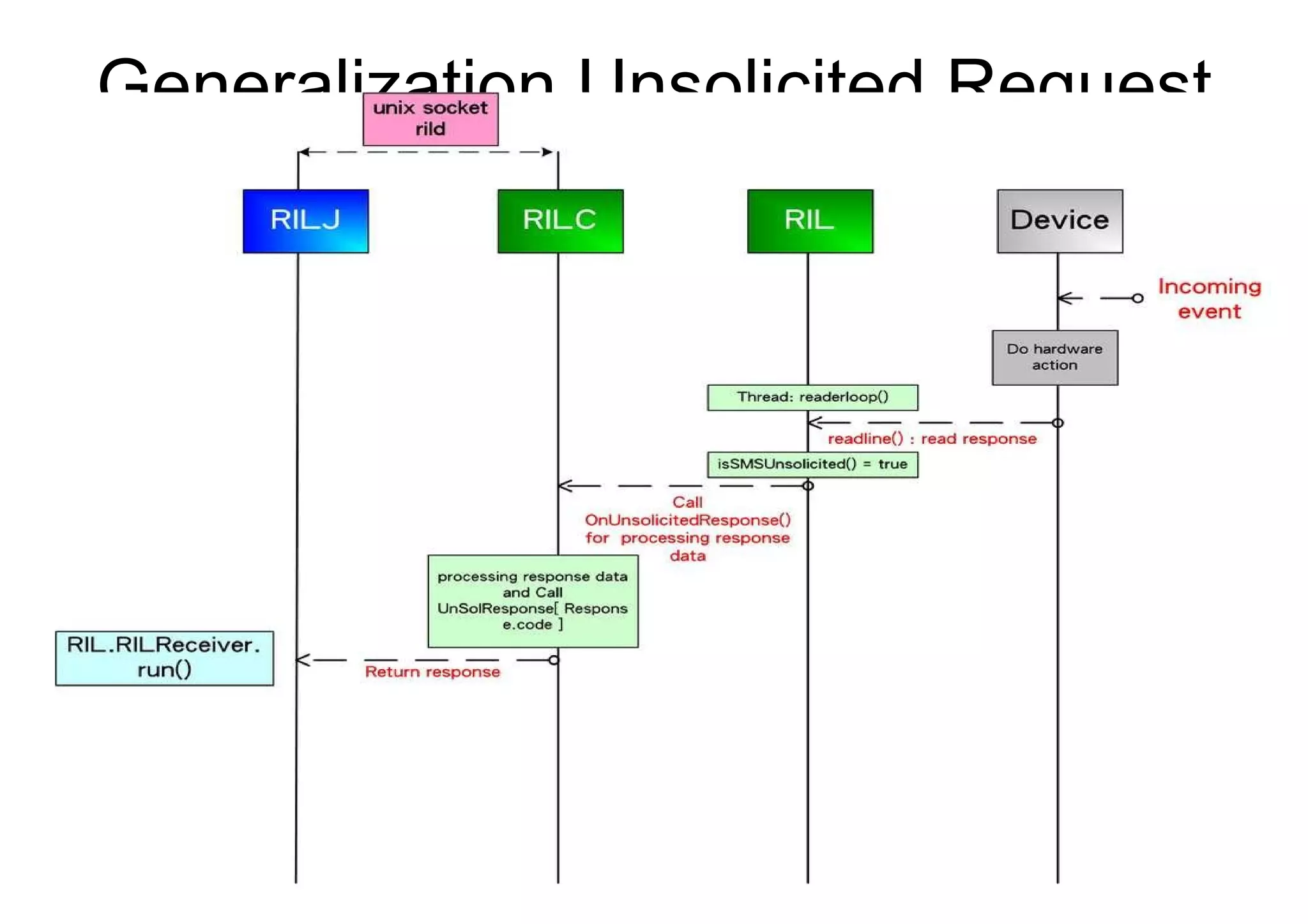

39. Generalization Unsolicited Request

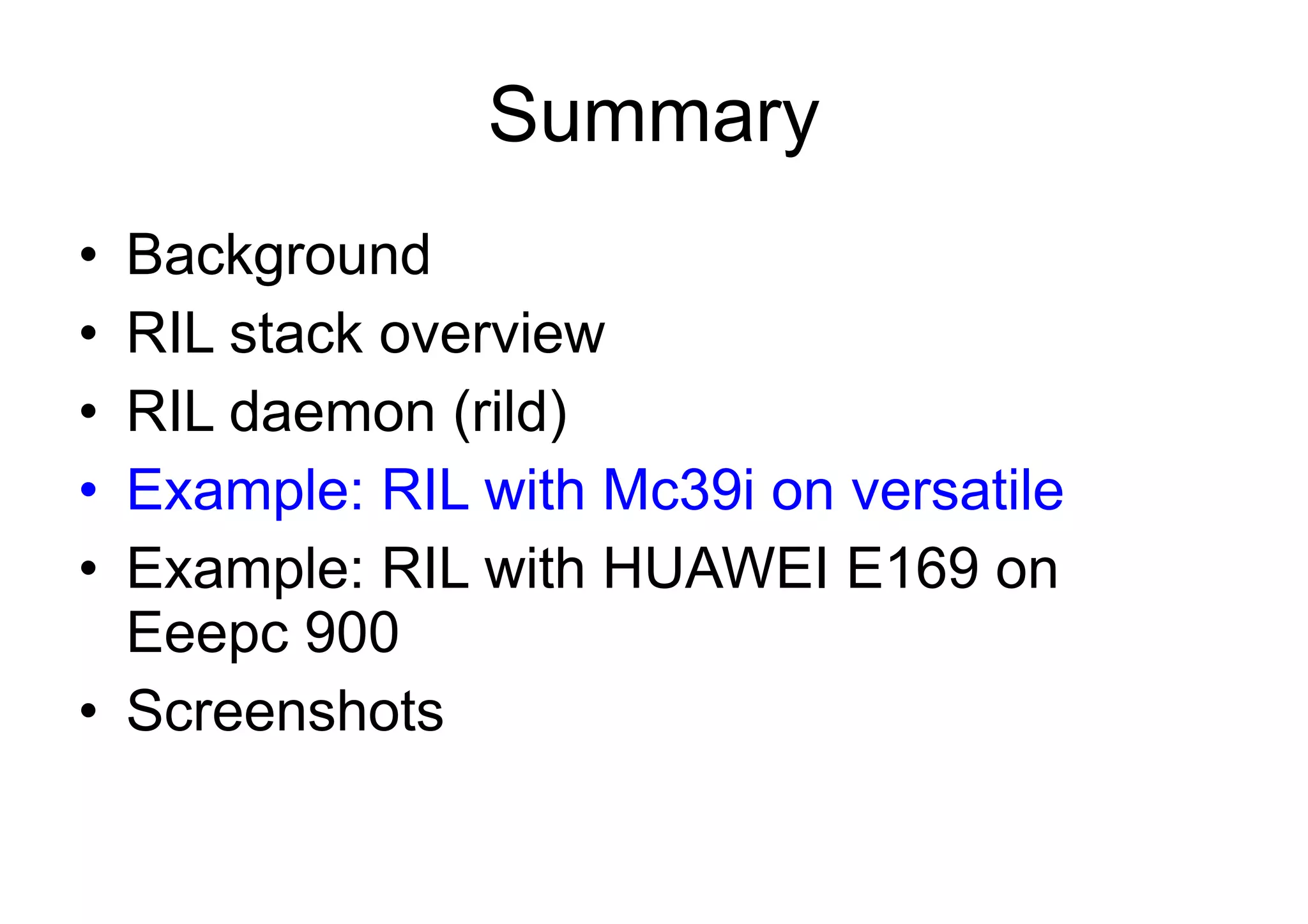

40. Summary Background RIL stack overview RIL daemon (rild) Example: RIL with Mc39i on versatile Example: RIL with HUAWEI E169 on Eeepc 900 Screenshots

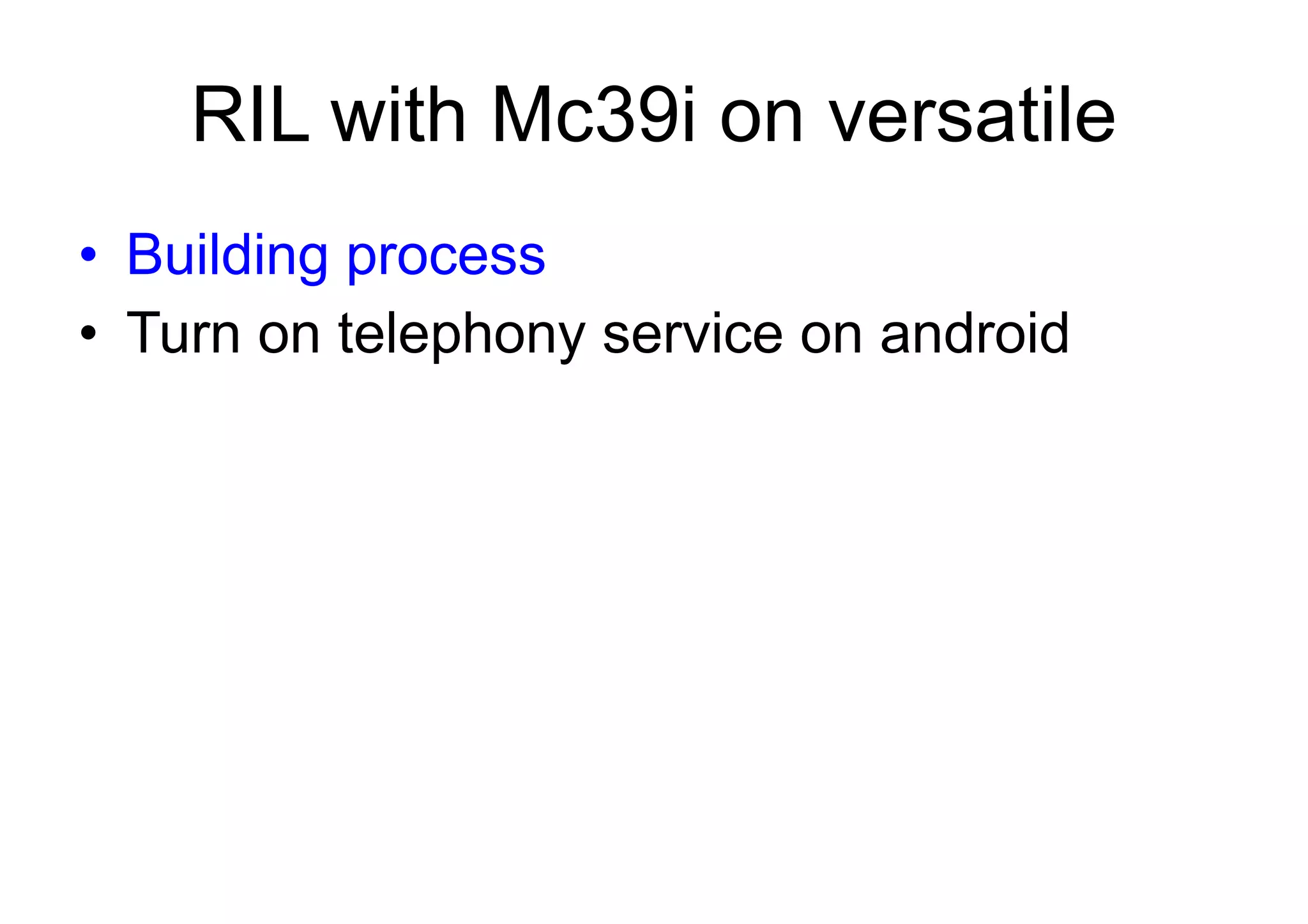

41. RIL with Mc39i on versatile Building process Turn on telephony service on android

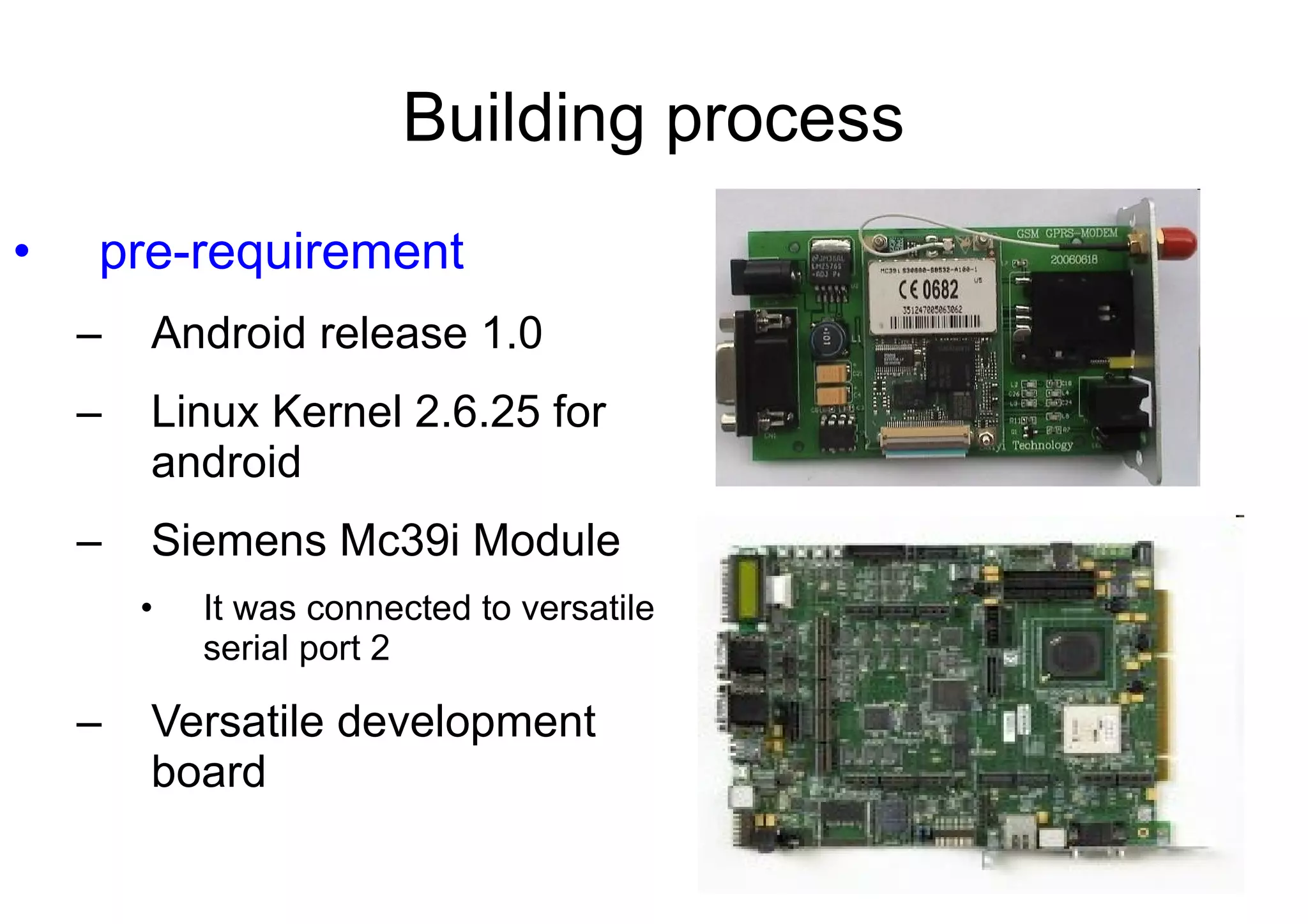

42. Building process pre-requirement Android release 1.0 Linux Kernel 2.6.25 for android Siemens Mc39i Module It was connected to versatile serial port 2 Versatile development board

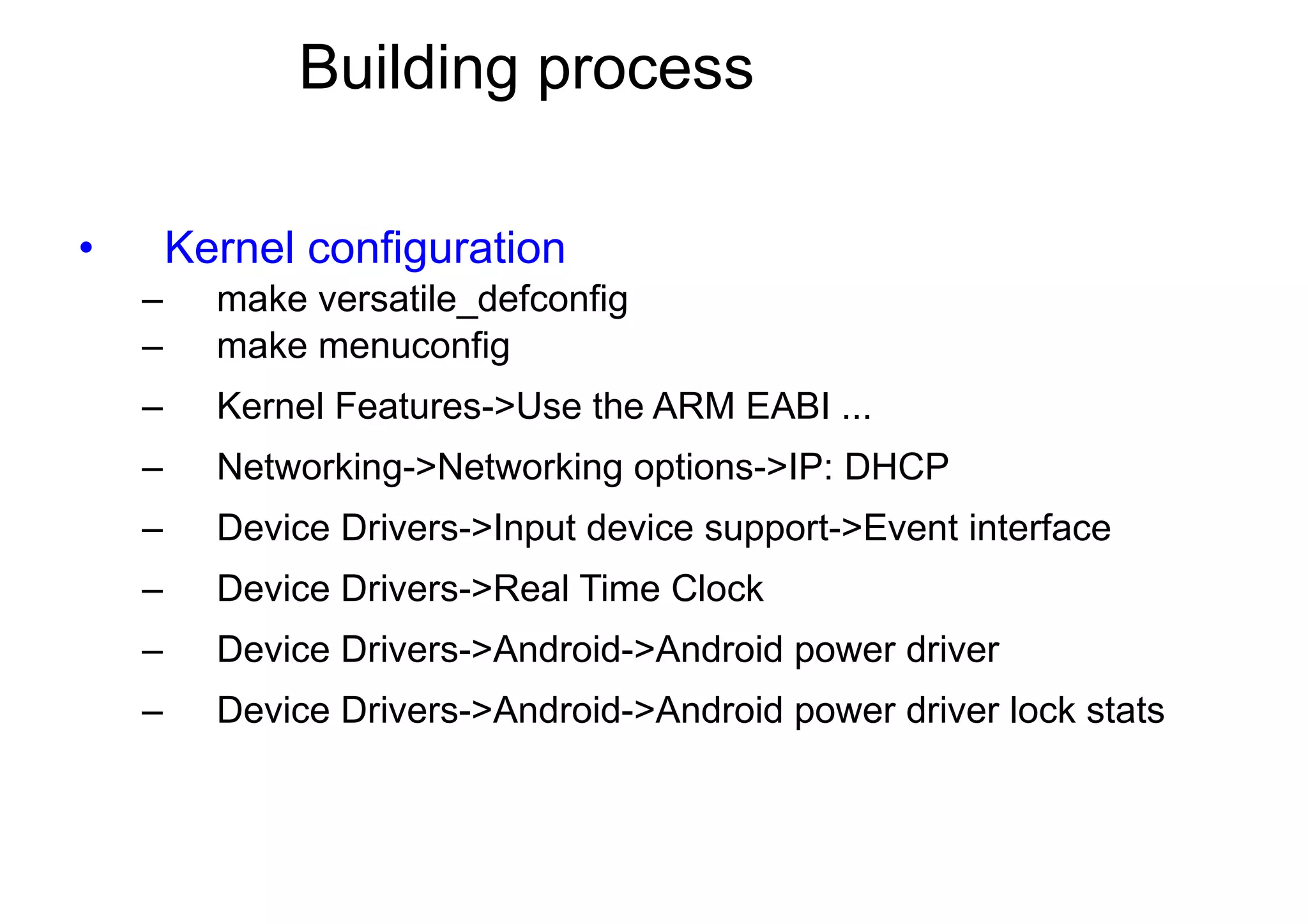

43. Building process Kernel configuration make versatile_defconfig make menuconfig Kernel Features->Use the ARM EABI ... Networking->Networking options->IP: DHCP Device Drivers->Input device support->Event interface Device Drivers->Real Time Clock Device Drivers->Android->Android power driver Device Drivers->Android->Android power driver lock stats

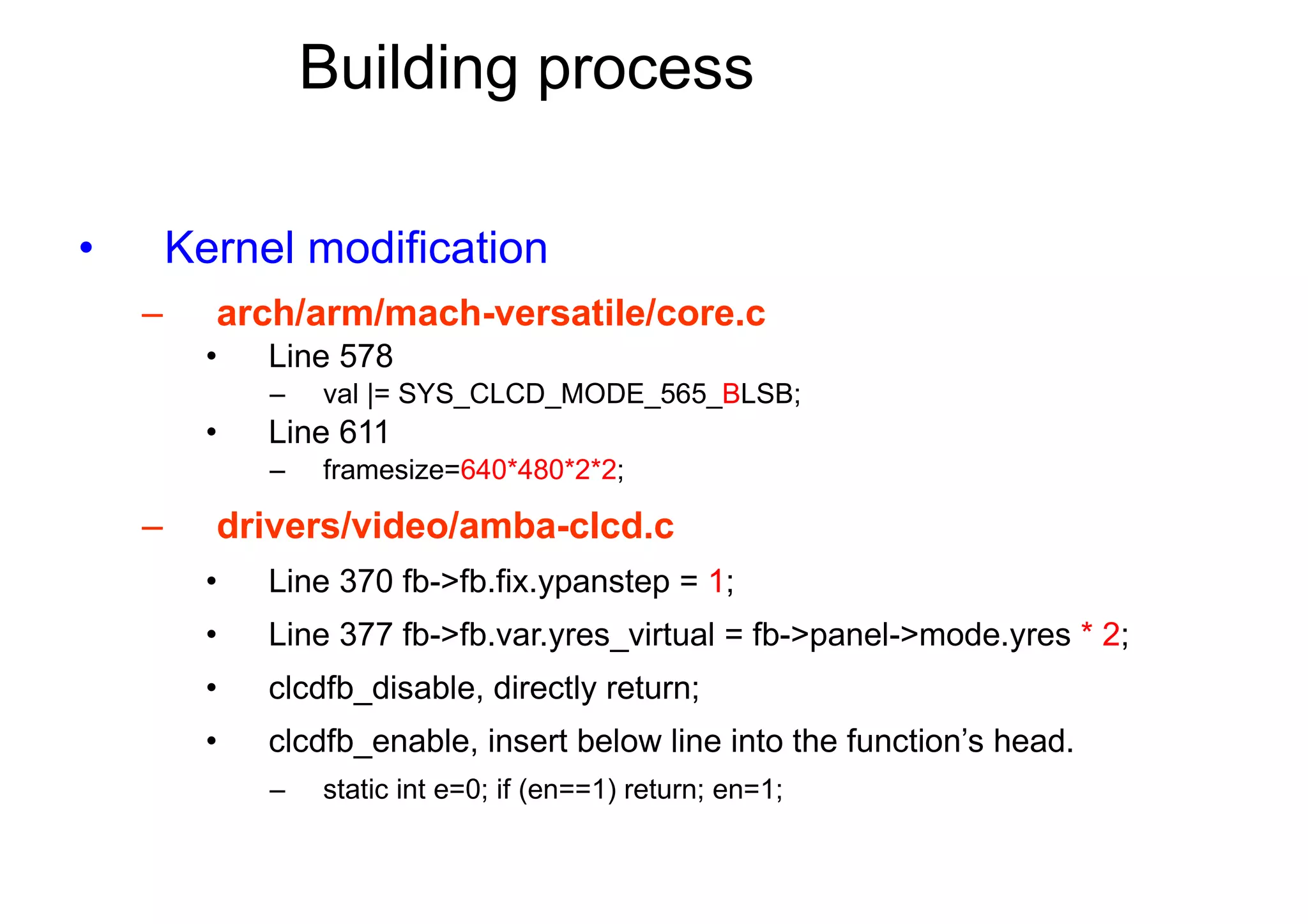

44. Building process Kernel modification arch/arm/mach-versatile/core.c Line 578 val |= SYS_CLCD_MODE_565_ B LSB; Line 611 framesize= 640*480*2*2 ; drivers/video/amba-clcd.c Line 370 fb->fb.fix.ypanstep = 1 ; Line 377 fb->fb.var.yres_virtual = fb->panel->mode.yres * 2 ; clcdfb_disable, directly return; clcdfb_enable, insert below line into the function’s head. static int e=0; if (en==1) return; en=1;

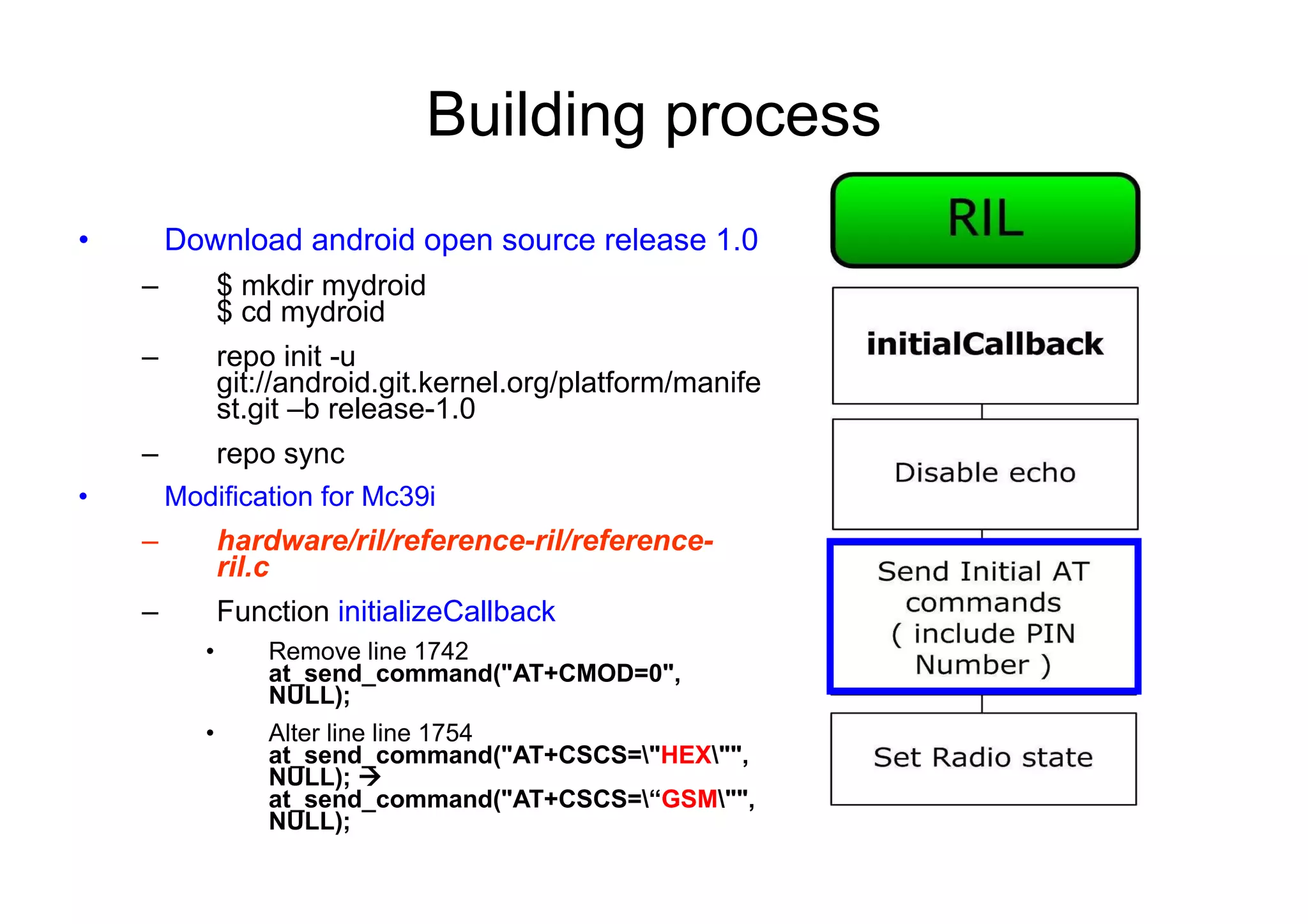

45. Building process Download android open source release 1.0 $ mkdir mydroid $ cd mydroid repo init -u git://android.git.kernel.org/platform/manifest.git –b release-1.0 repo sync Modification for Mc39i hardware/ril/reference-ril/reference-ril.c Function initializeCallback Remove line 1742 at_send_command("AT+CMOD=0", NULL); Alter line line 1754 at_send_command("AT+CSCS=\" HEX \"", NULL);  at_send_command("AT+CSCS=\“ GSM \"", NULL);

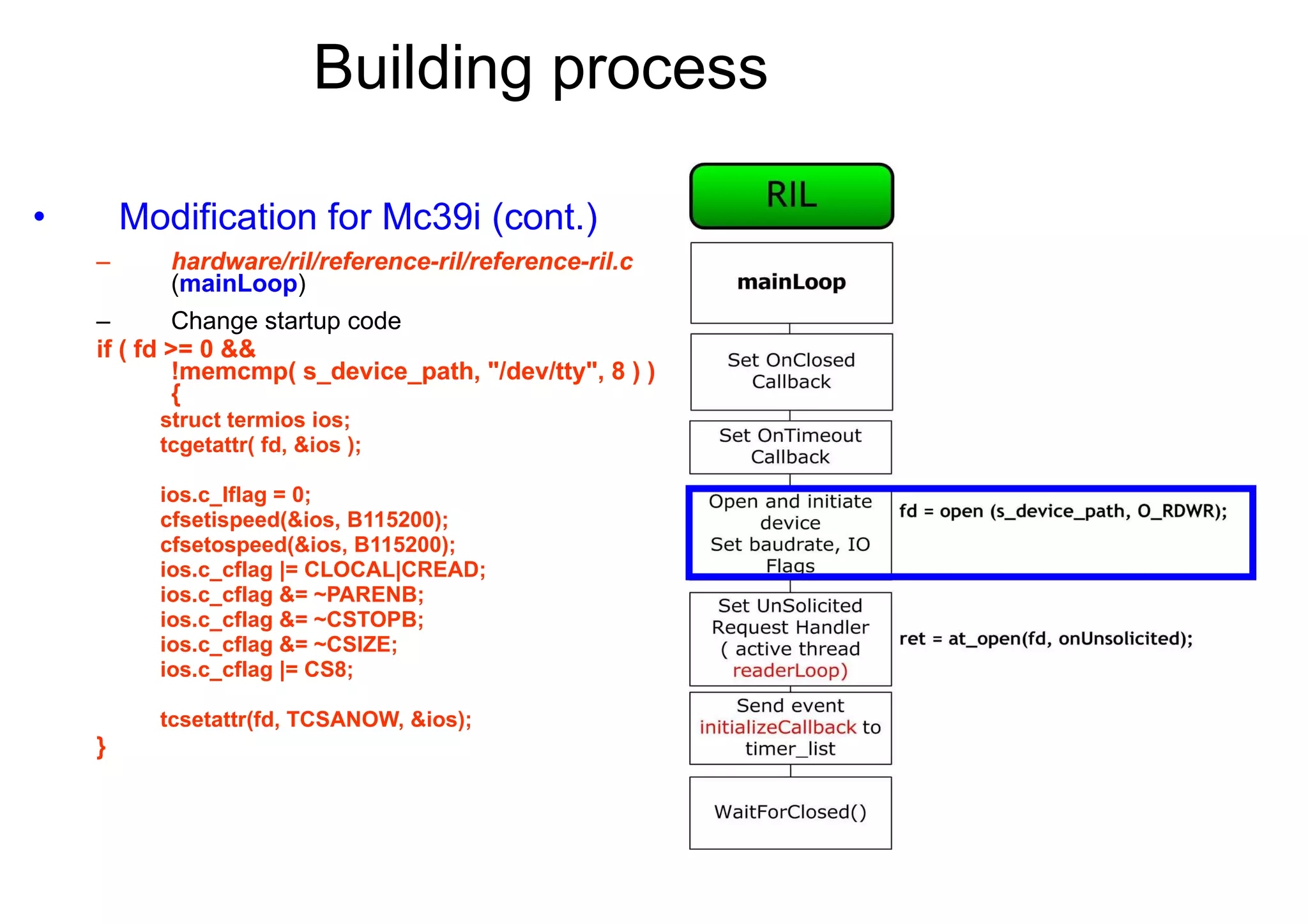

46. Building process Modification for Mc39i (cont.) hardware/ril/reference-ril/reference-ril.c ( mainLoop ) Change startup code if ( fd >= 0 && !memcmp( s_device_path, "/dev/tty", 8 ) ) { struct termios ios; tcgetattr( fd, &ios ); ios.c_lflag = 0; cfsetispeed(&ios, B115200); cfsetospeed(&ios, B115200); ios.c_cflag |= CLOCAL|CREAD; ios.c_cflag &= ~PARENB; ios.c_cflag &= ~CSTOPB; ios.c_cflag &= ~CSIZE; ios.c_cflag |= CS8; tcsetattr(fd, TCSANOW, &ios); }

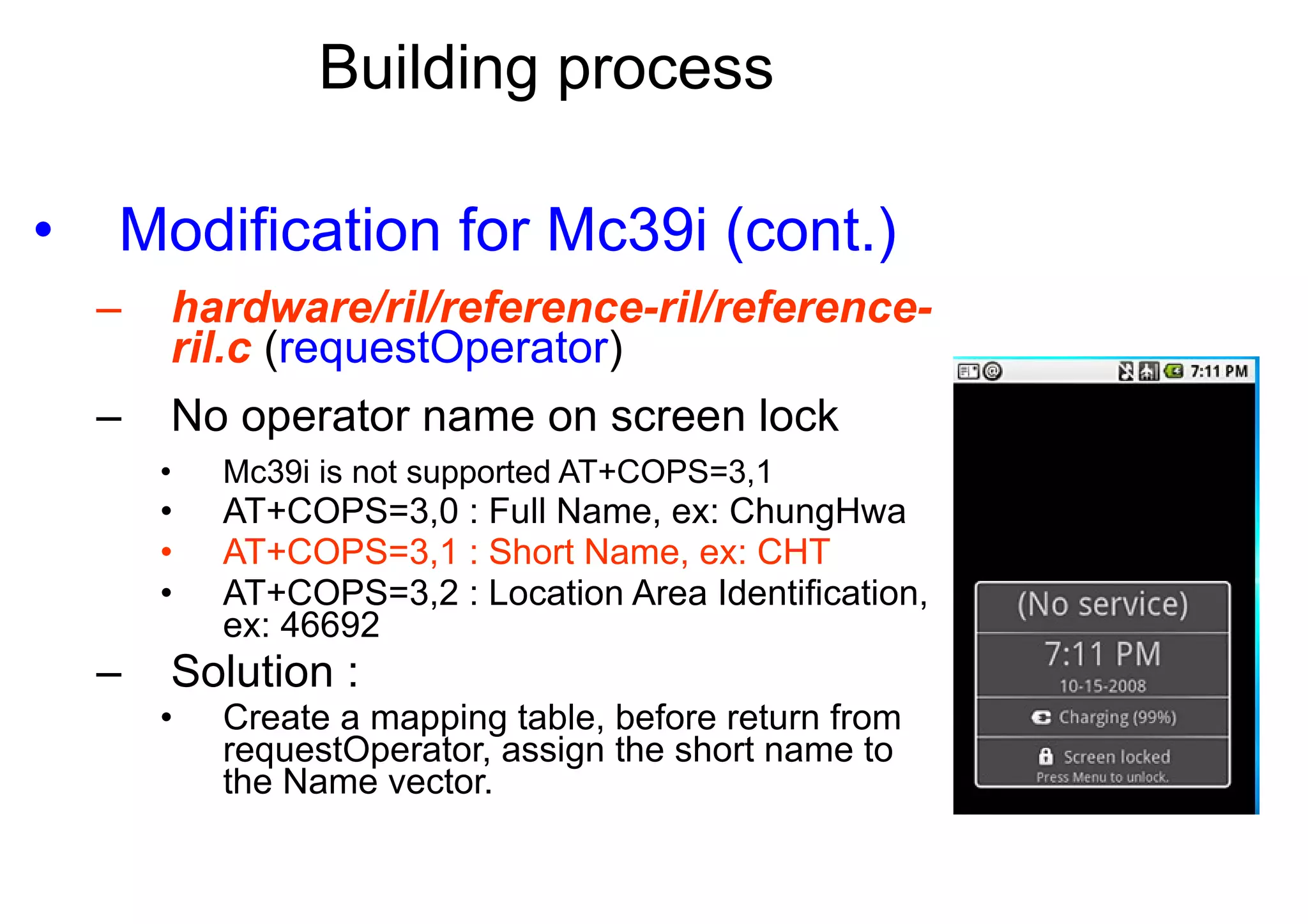

47. Building process Modification for Mc39i (cont.) hardware/ril/reference-ril/reference-ril.c ( requestOperator ) No operator name on screen lock Mc39i is not supported AT+COPS=3,1 AT+COPS=3,0 : Full Name, ex: ChungHwa AT+COPS=3,1 : Short Name, ex: CHT AT+COPS=3,2 : Location Area Identification, ex: 46692 Solution : Create a mapping table, before return from requestOperator, assign the short name to the Name vector.

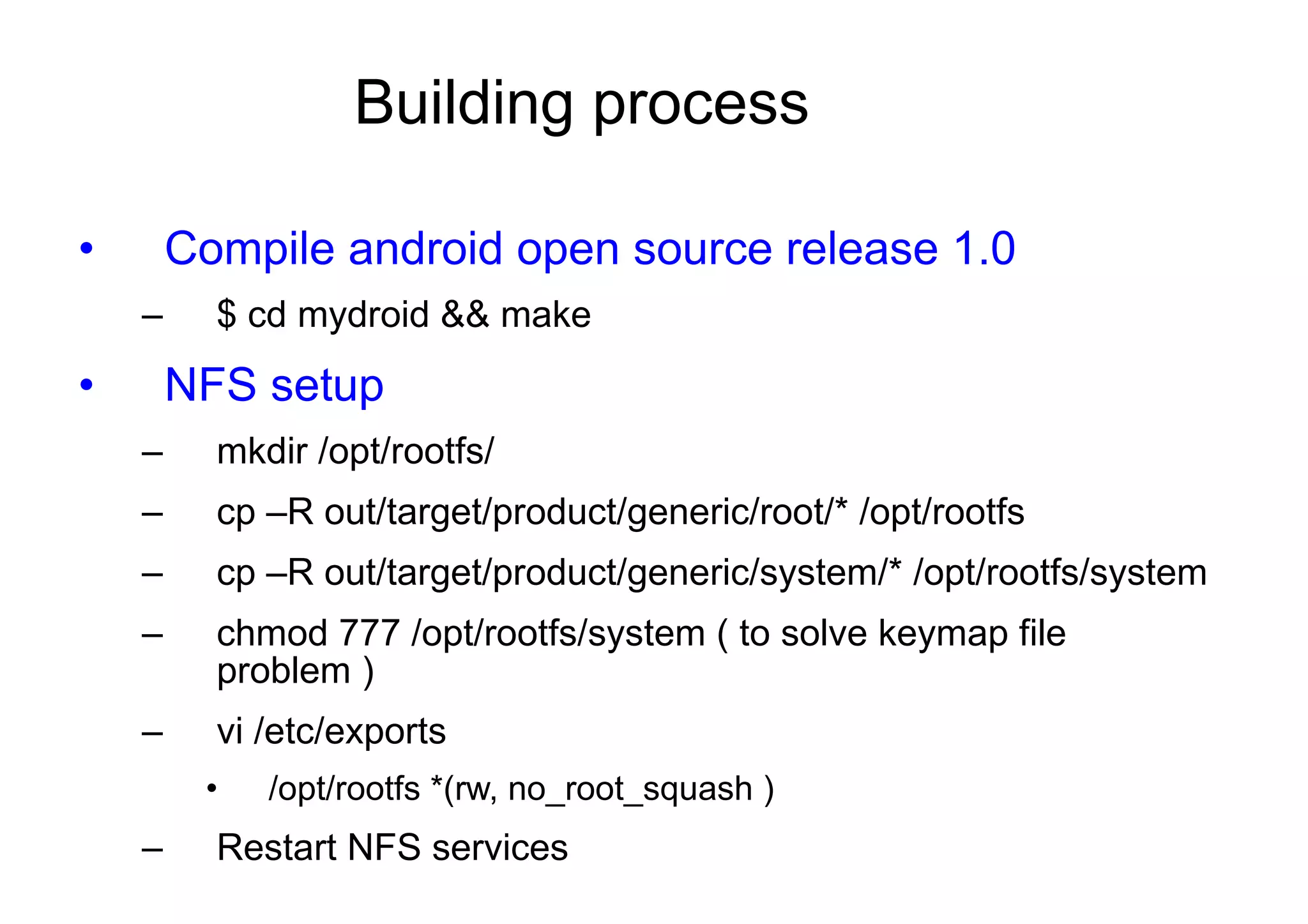

48. Building process Compile android open source release 1.0 $ cd mydroid && make NFS setup mkdir /opt/rootfs/ cp –R out/target/product/generic/root/* /opt/rootfs cp –R out/target/product/generic/system/* /opt/rootfs/system chmod 777 /opt/rootfs/system ( to solve keymap file problem ) vi /etc/exports /opt/rootfs *(rw, no_root_squash ) Restart NFS services

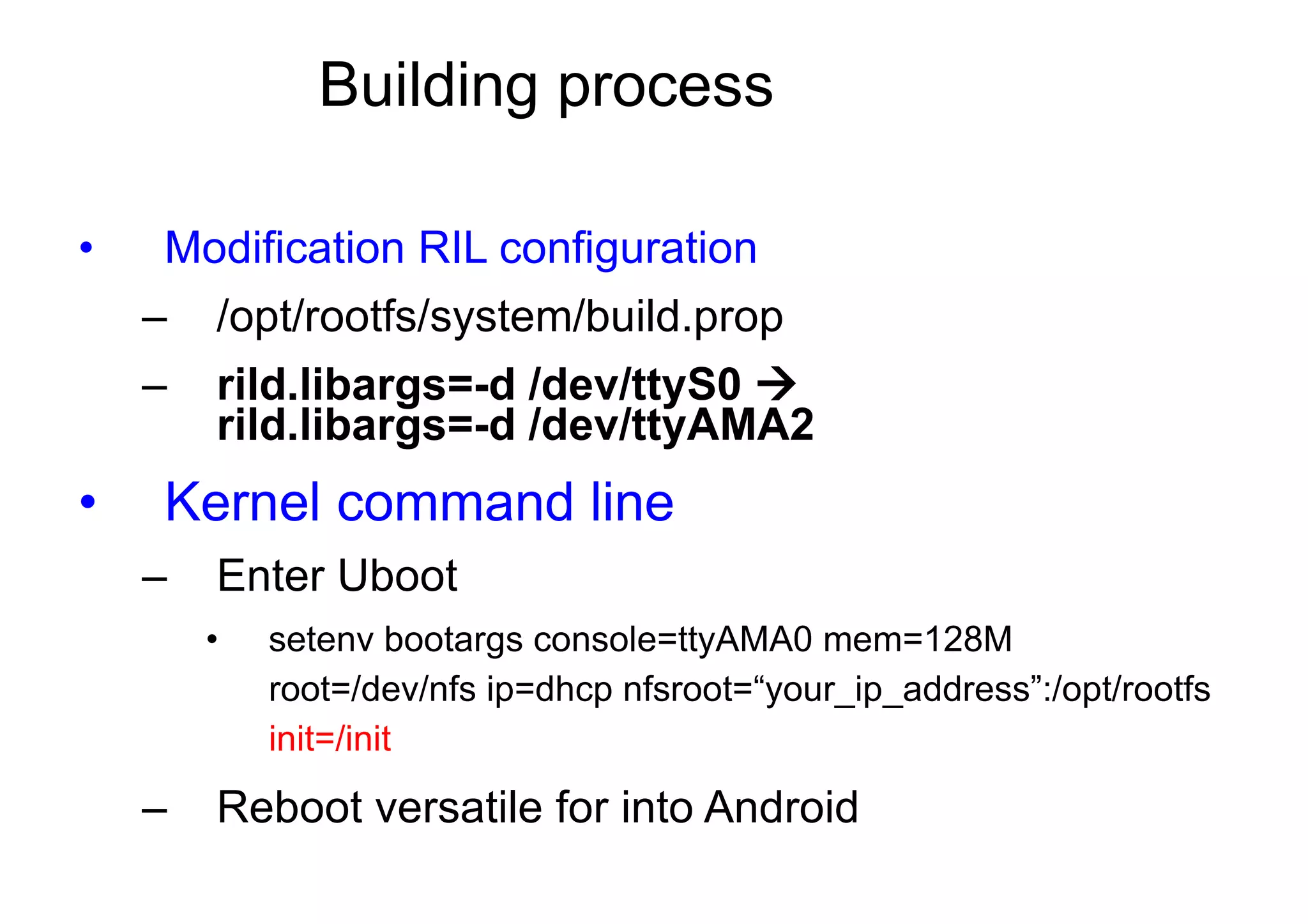

49. Building process Modification RIL configuration /opt/rootfs/system/build.prop rild.libargs=-d /dev/ttyS0  rild.libargs=-d /dev/ttyAMA2 Kernel command line Enter Uboot setenv bootargs console=ttyAMA0 mem=128M root=/dev/nfs ip=dhcp nfsroot=“your_ip_address”:/opt/rootfs init=/init Reboot versatile for into Android

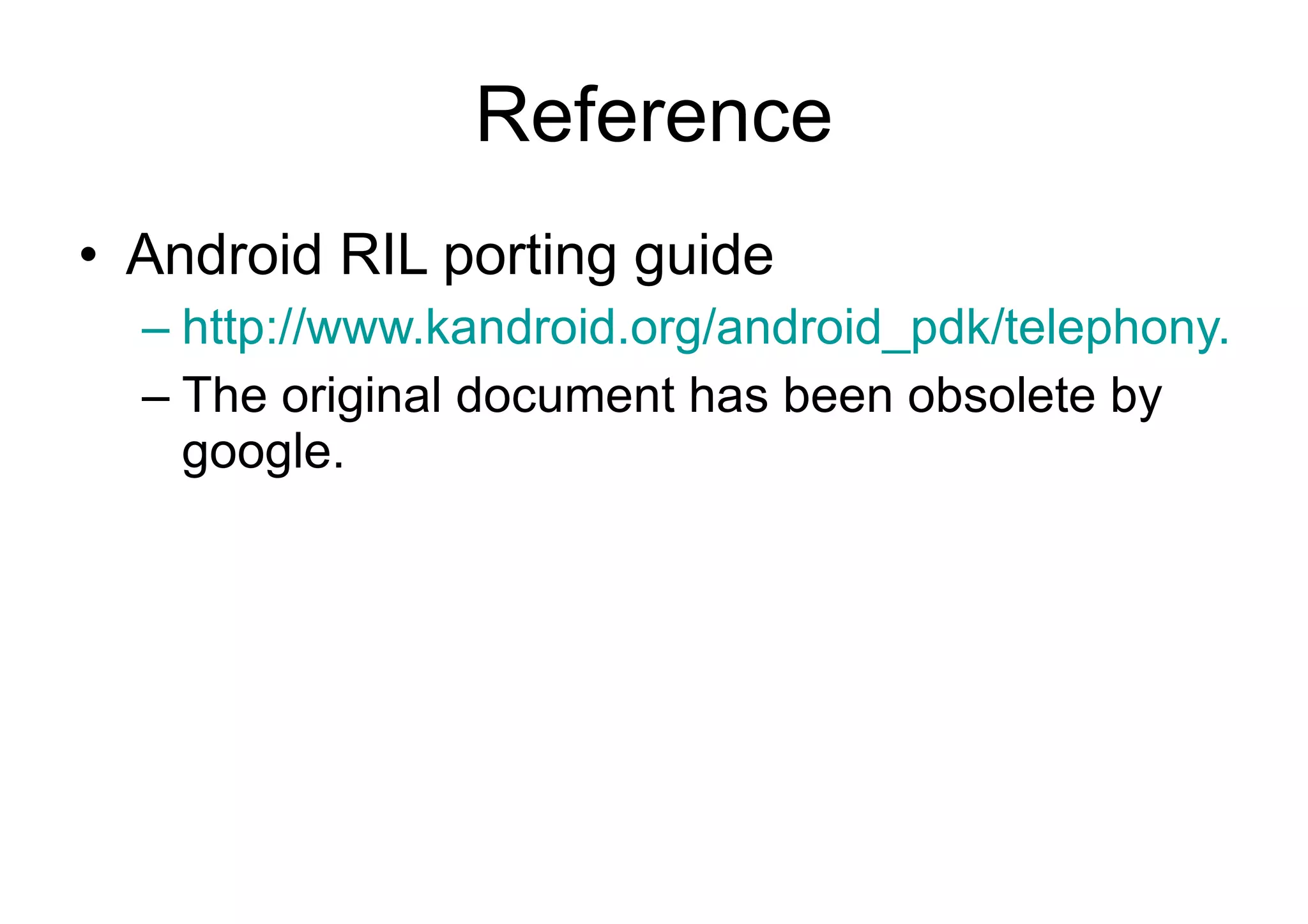

50. Reference Android RIL porting guide http://www.kandroid.org/android_pdk/telephony.html The original document has been obsolete by google.

51. RIL with Mc39i on versatile Building process Turn on telephony service on android

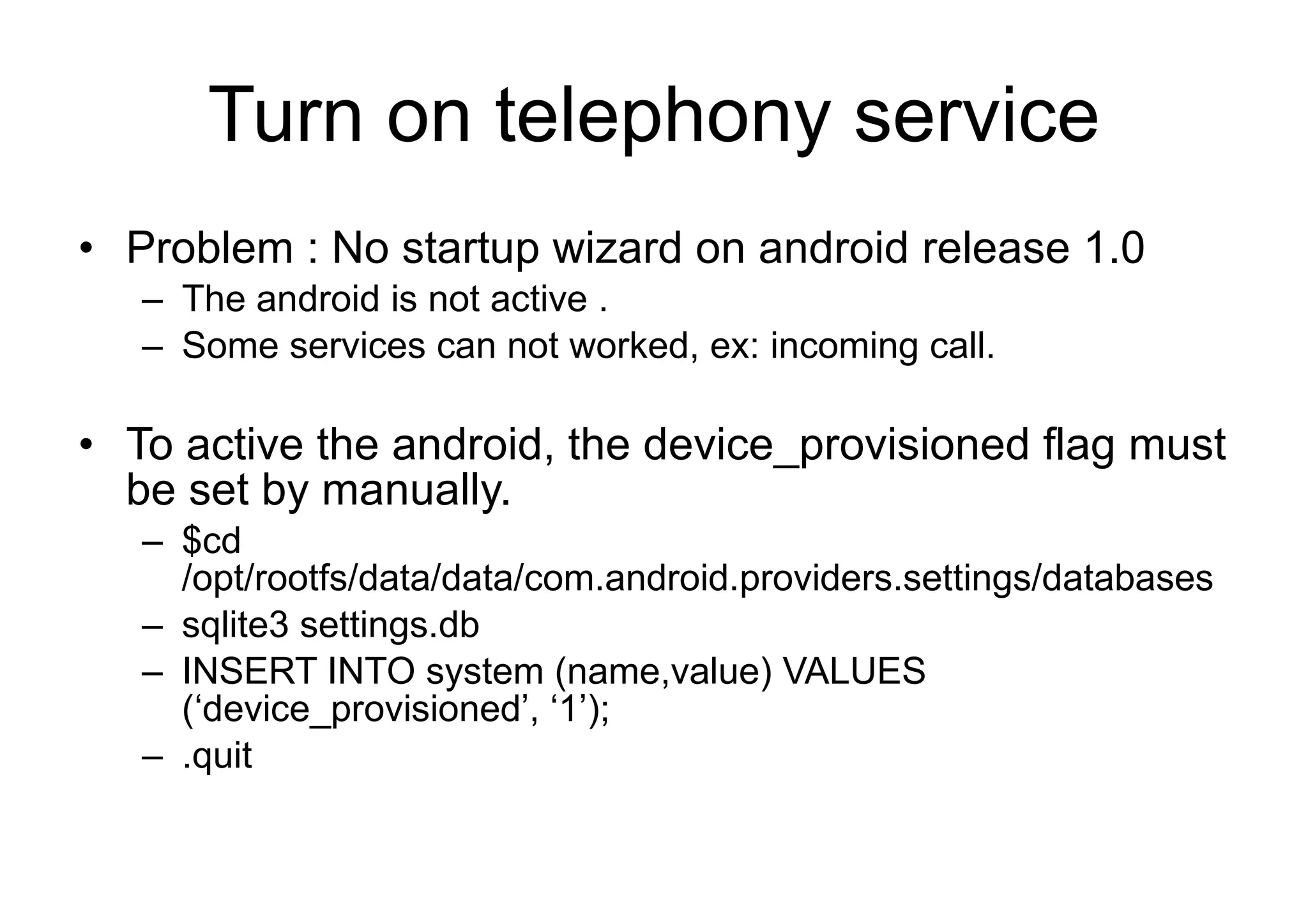

52. Turn on telephony service Problem : No startup wizard on android release 1.0 The android is not active . Some services can not worked, ex: incoming call. To active the android, the device_provisioned flag must be set by manually. $cd /opt/rootfs/data/data/com.android.providers.settings/databases sqlite3 settings.db INSERT INTO system (name,value) VALUES (‘device_provisioned’, ‘1’); .quit

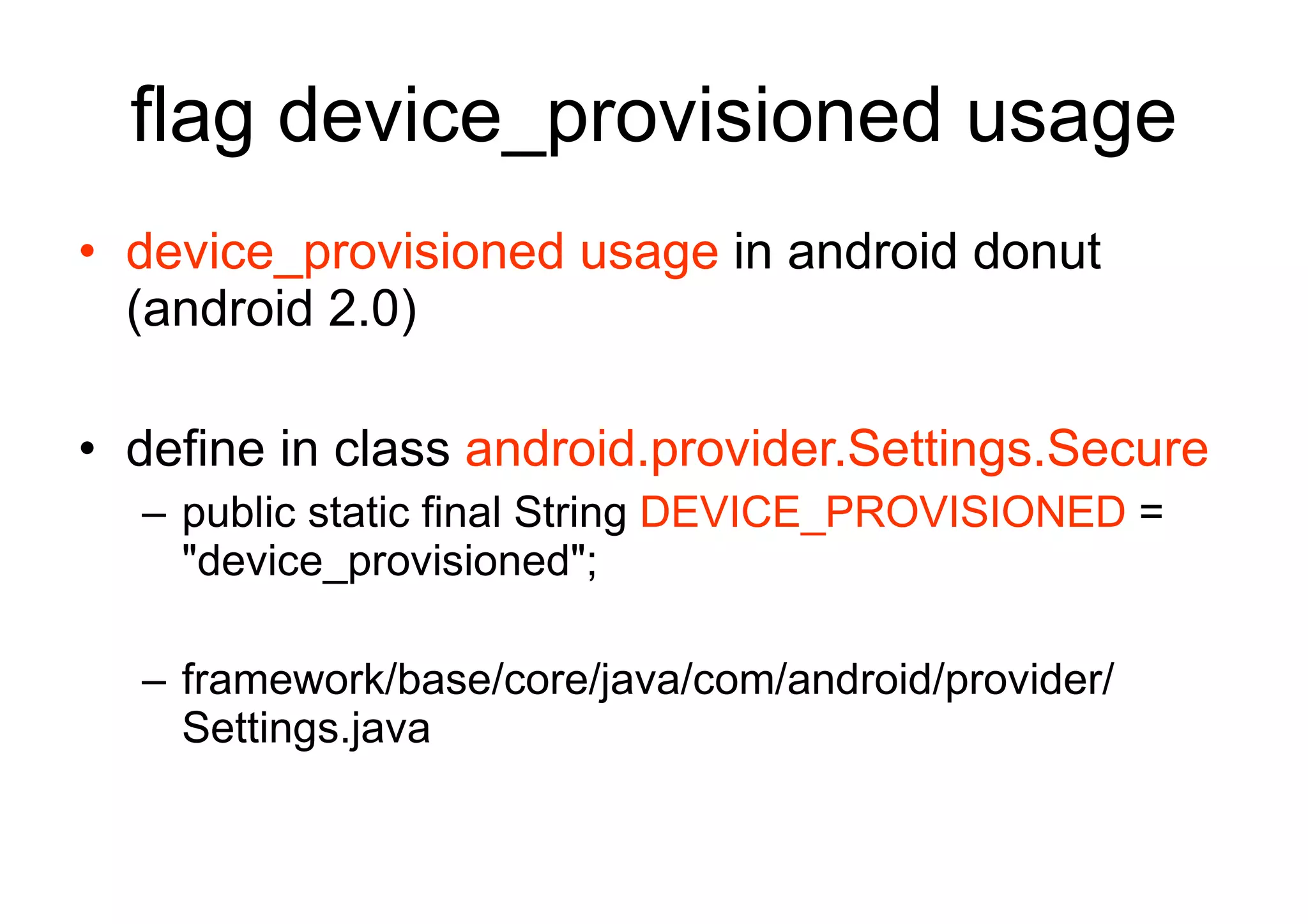

53. flag device_provisioned usage device_provisioned usage in android donut (android 2.0) define in class android.provider.Settings.Secure public static final String DEVICE_PROVISIONED = "device_provisioned"; framework/base/core/java/com/android/provider/ Settings.java

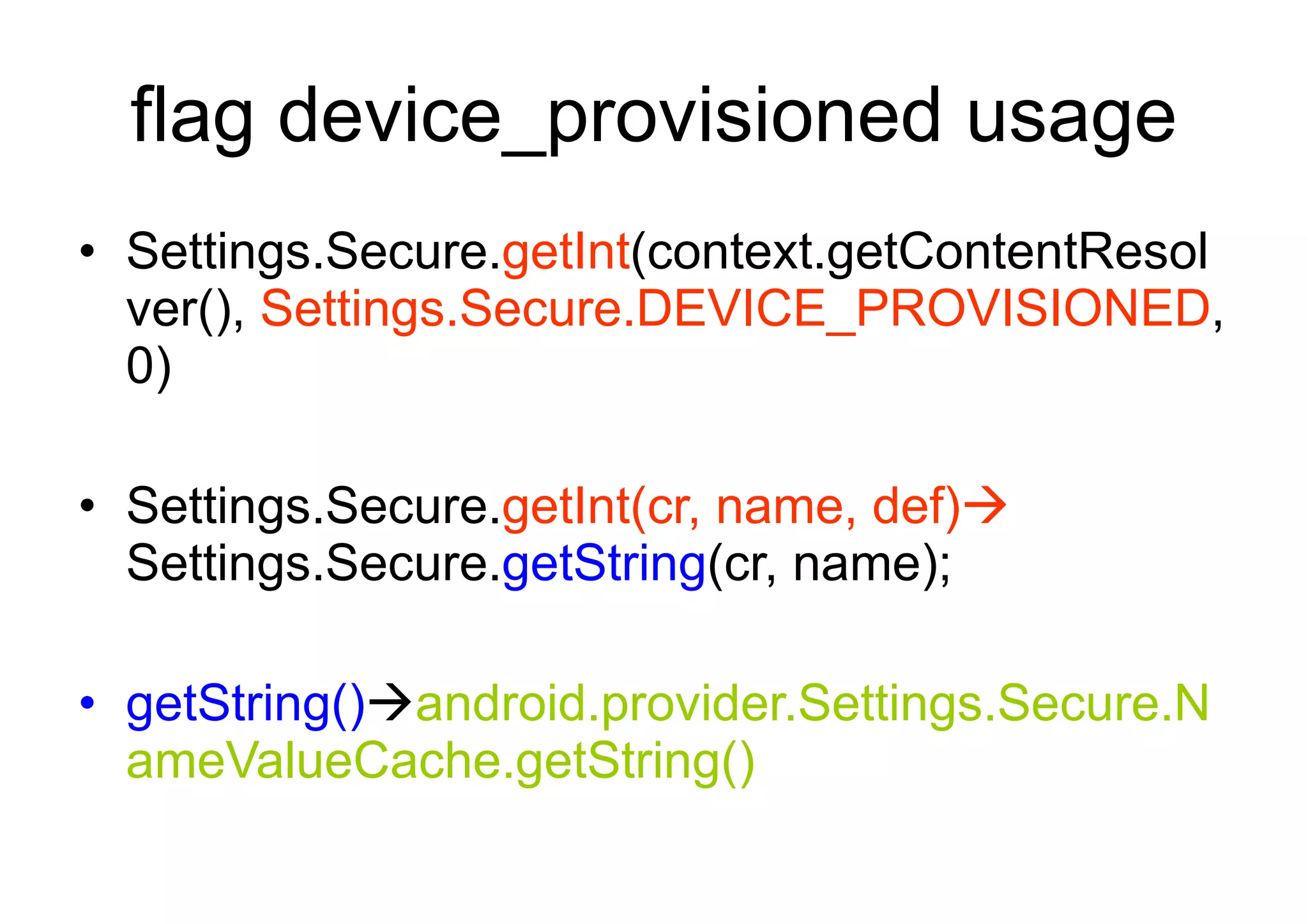

54. flag device_provisioned usage Settings.Secure. getInt (context.getContentResolver(), Settings.Secure.DEVICE_PROVISIONED , 0) Settings.Secure. getInt(cr, name, def)  Settings.Secure. getString (cr, name); getString()  android.provider.Settings.Secure.NameValueCache.getString()

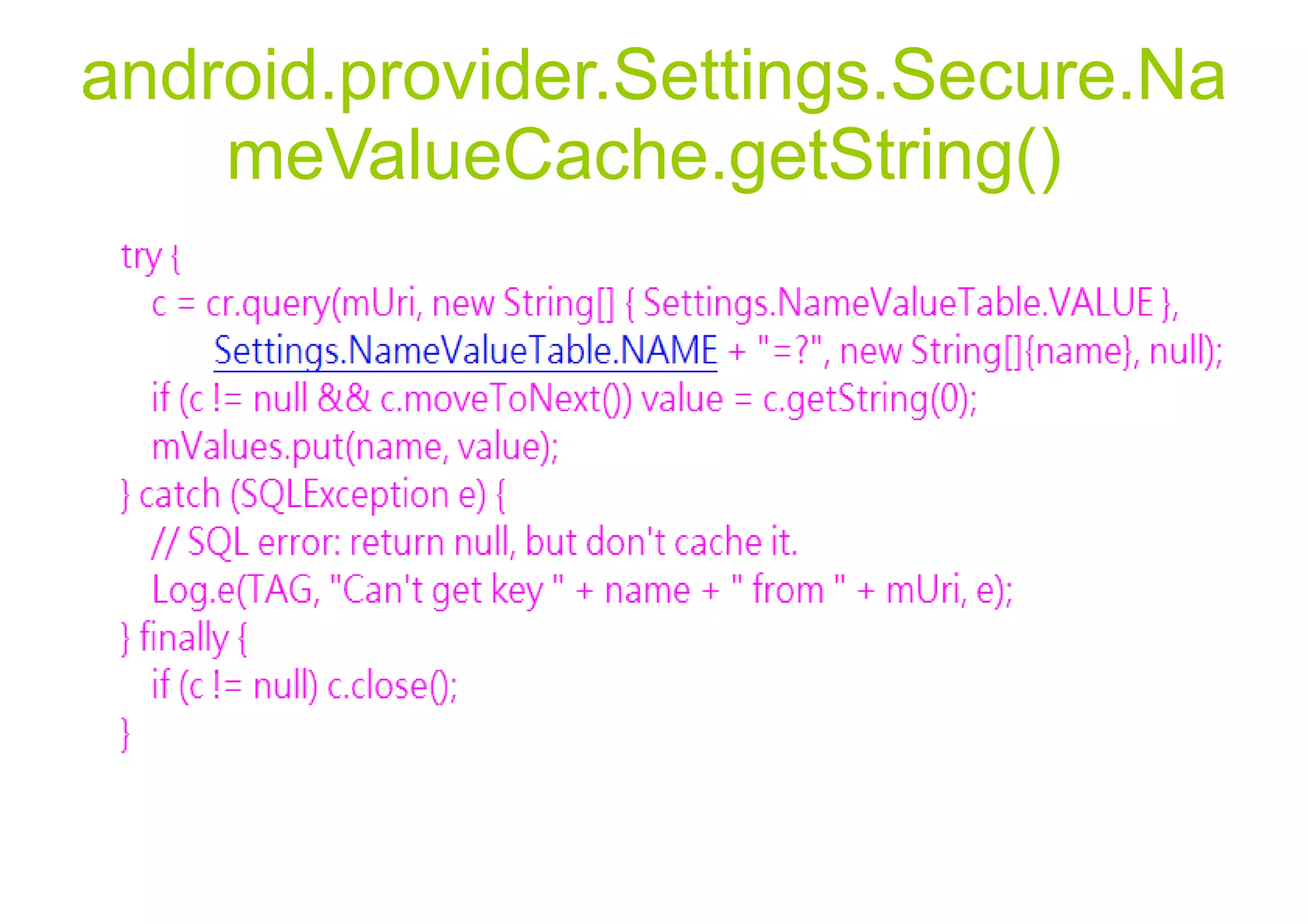

55. android.provider.Settings.Secure.NameValueCache.getString()

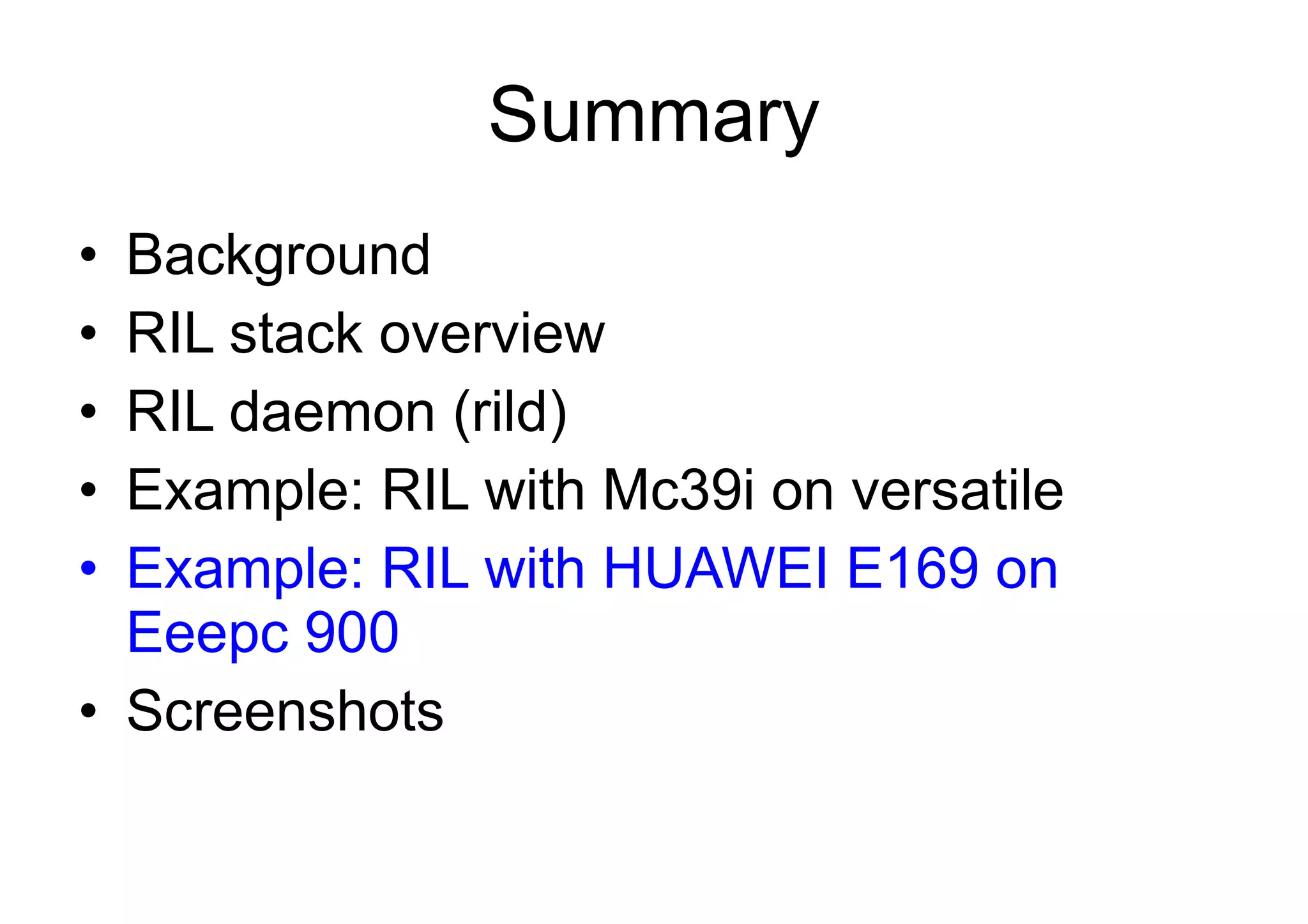

56. Summary Background RIL stack overview RIL daemon (rild) Example: RIL with Mc39i on versatile Example: RIL with HUAWEI E169 on Eeepc 900 Screenshots

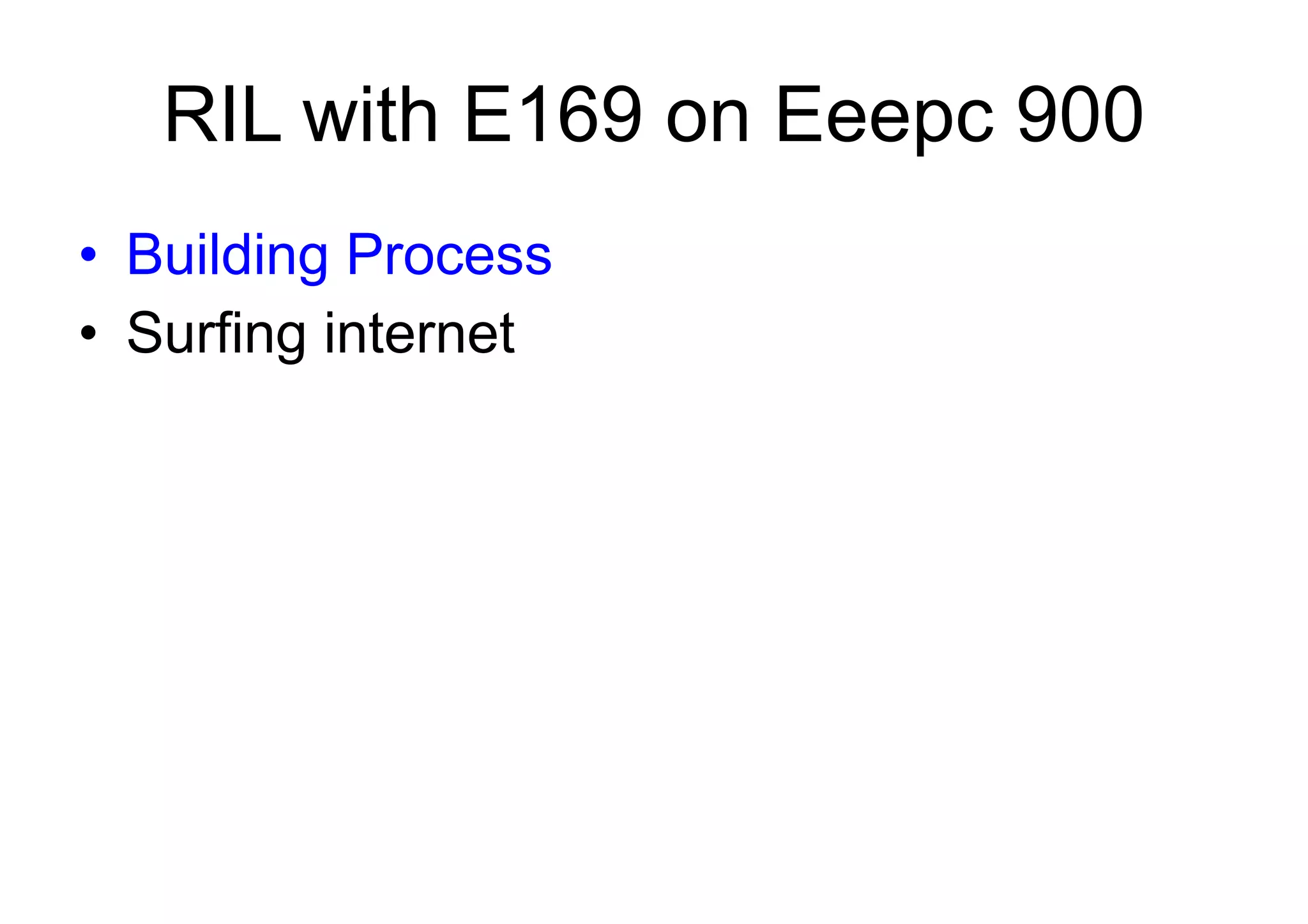

57. RIL with E169 on Eeepc 900 Building Process Surfing internet

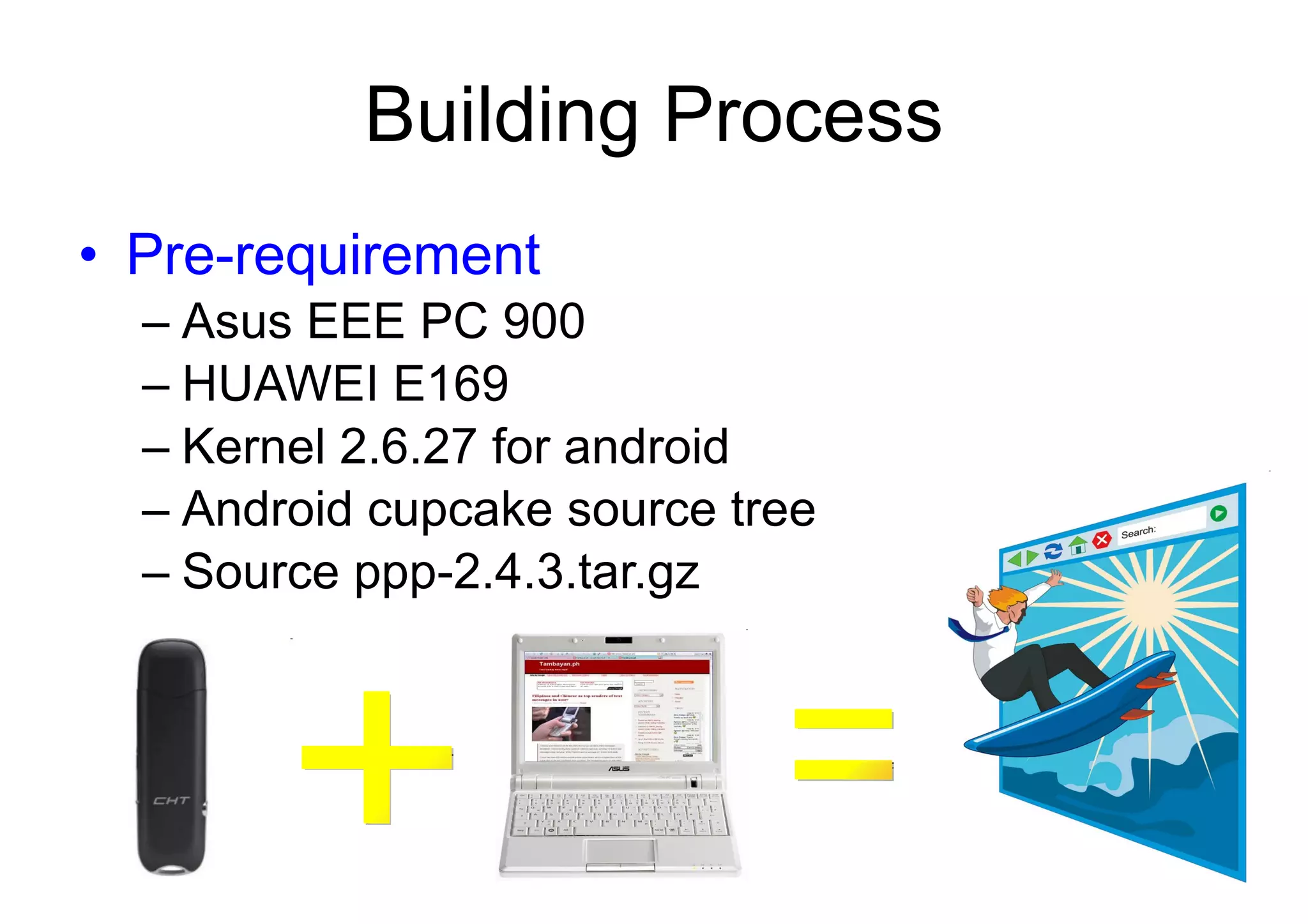

58. Building Process Pre-requirement Asus EEE PC 900 HUAWEI E169 Kernel 2.6.27 for android Android cupcake source tree Source ppp-2.4.3.tar.gz + =

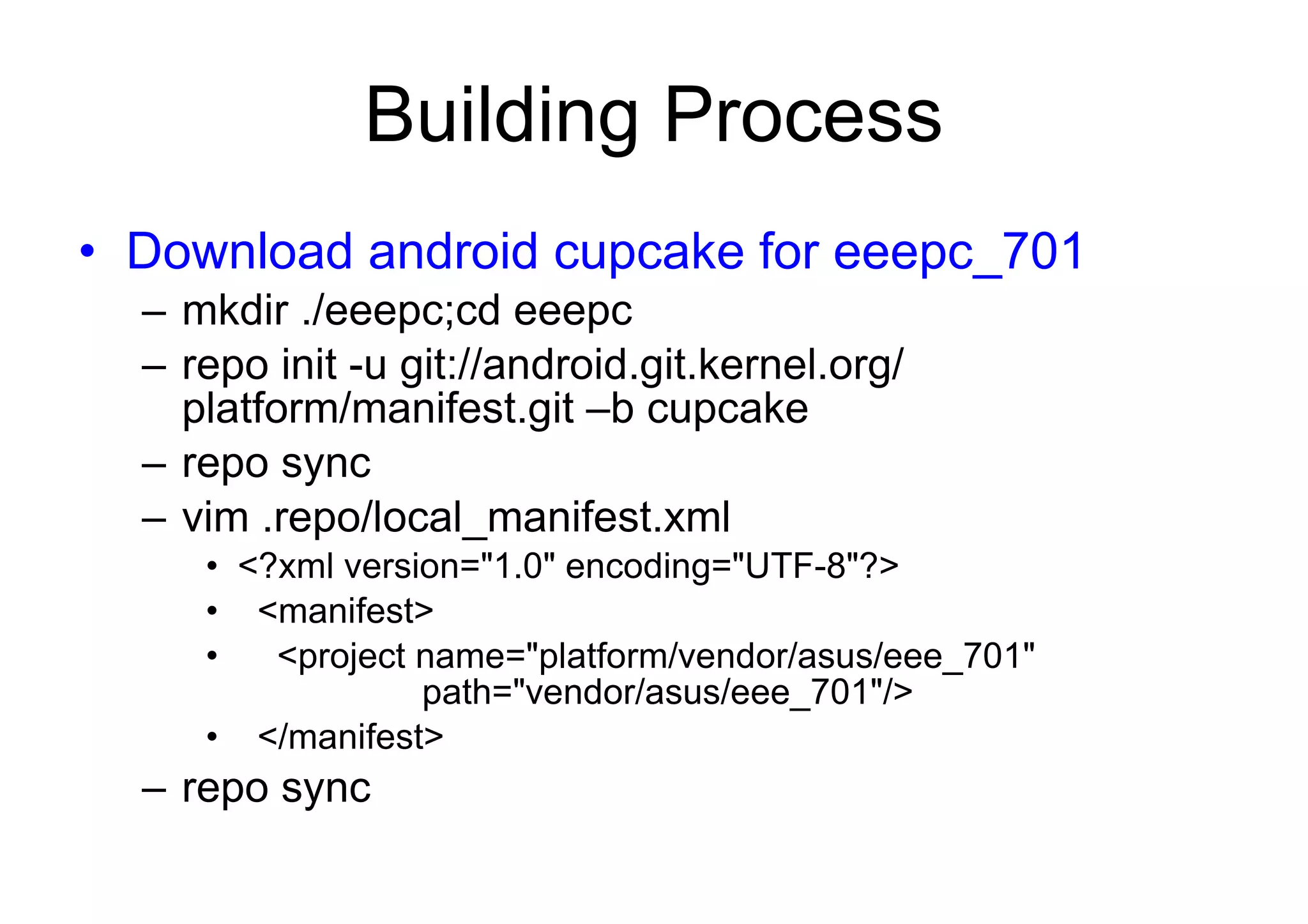

59. Building Process Download android cupcake for eeepc_701 mkdir ./eeepc;cd eeepc repo init -u git://android.git.kernel.org/ platform/manifest.git –b cupcake repo sync vim .repo/local_manifest.xml <?xml version=&quot;1.0&quot; encoding=&quot;UTF-8&quot;?> <manifest> <project name=&quot;platform/vendor/asus/eee_701&quot; path=&quot;vendor/asus/eee_701&quot;/> </manifest> repo sync

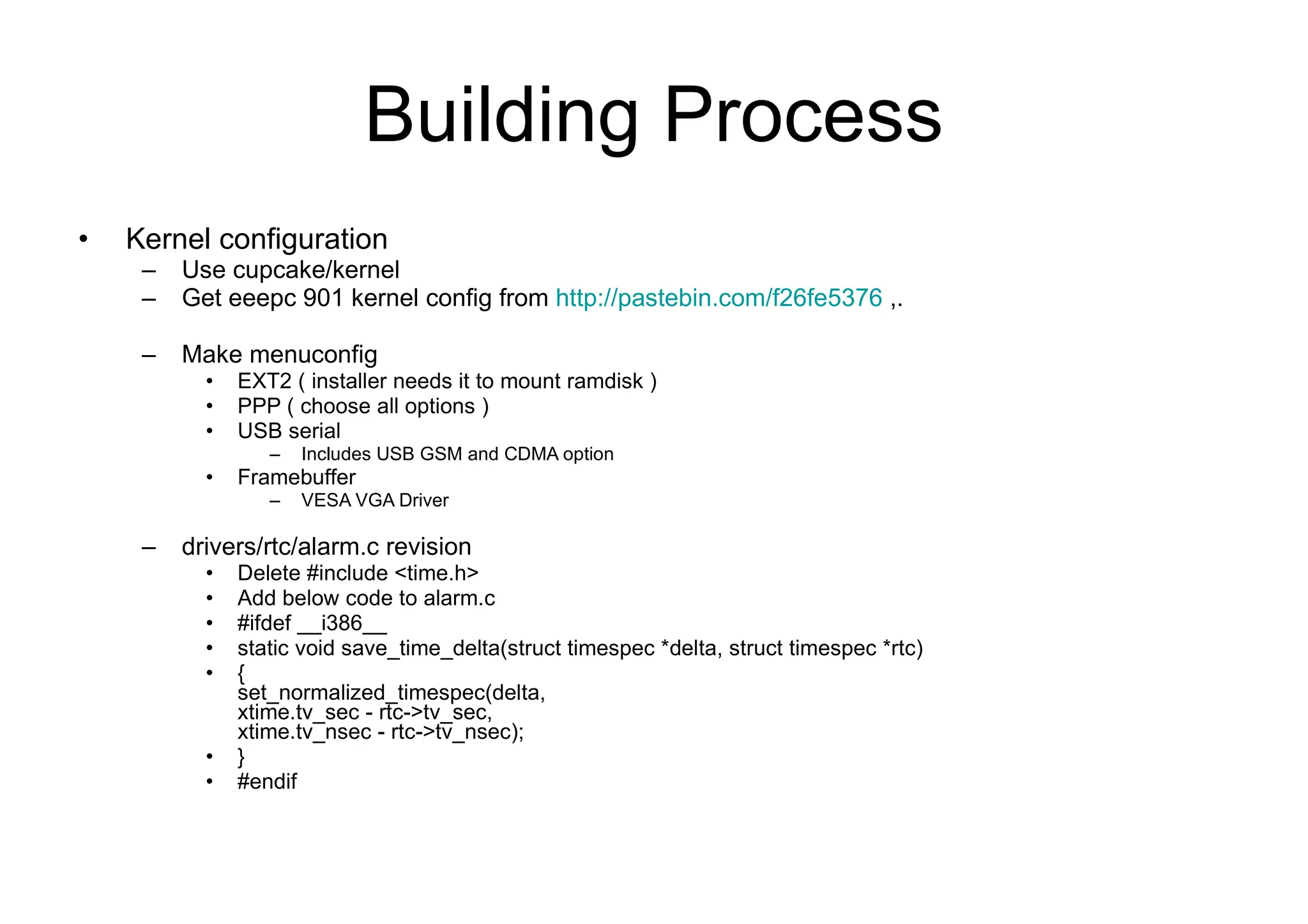

60. Building Process Kernel configuration Use cupcake/kernel Get eeepc 901 kernel config from http://pastebin.com/f26fe5376 ,. Make menuconfig EXT2 ( installer needs it to mount ramdisk ) PPP ( choose all options ) USB serial Includes USB GSM and CDMA option Framebuffer VESA VGA Driver drivers/rtc/alarm.c revision Delete #include <time.h> Add below code to alarm.c #ifdef __i386__ static void save_time_delta(struct timespec *delta, struct timespec *rtc) { set_normalized_timespec(delta, xtime.tv_sec - rtc->tv_sec, xtime.tv_nsec - rtc->tv_nsec); } #endif

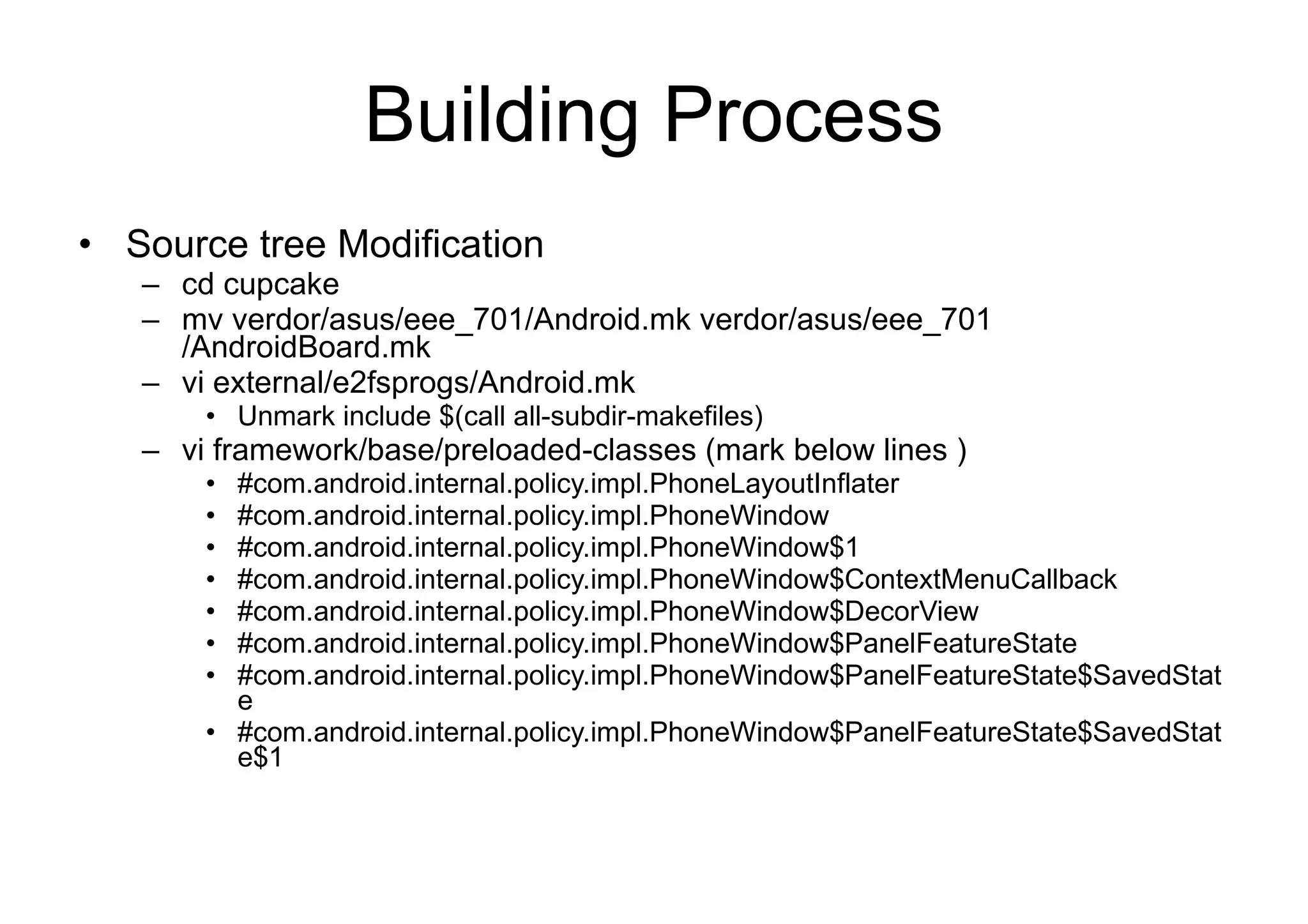

61. Building Process Source tree Modification cd cupcake mv verdor/asus/eee_701/Android.mk verdor/asus/eee_701 /AndroidBoard.mk vi external/e2fsprogs/Android.mk Unmark include $(call all-subdir-makefiles) vi framework/base/preloaded-classes (mark below lines ) #com.android.internal.policy.impl.PhoneLayoutInflater #com.android.internal.policy.impl.PhoneWindow #com.android.internal.policy.impl.PhoneWindow$1 #com.android.internal.policy.impl.PhoneWindow$ContextMenuCallback #com.android.internal.policy.impl.PhoneWindow$DecorView #com.android.internal.policy.impl.PhoneWindow$PanelFeatureState #com.android.internal.policy.impl.PhoneWindow$PanelFeatureState$SavedState #com.android.internal.policy.impl.PhoneWindow$PanelFeatureState$SavedState$1

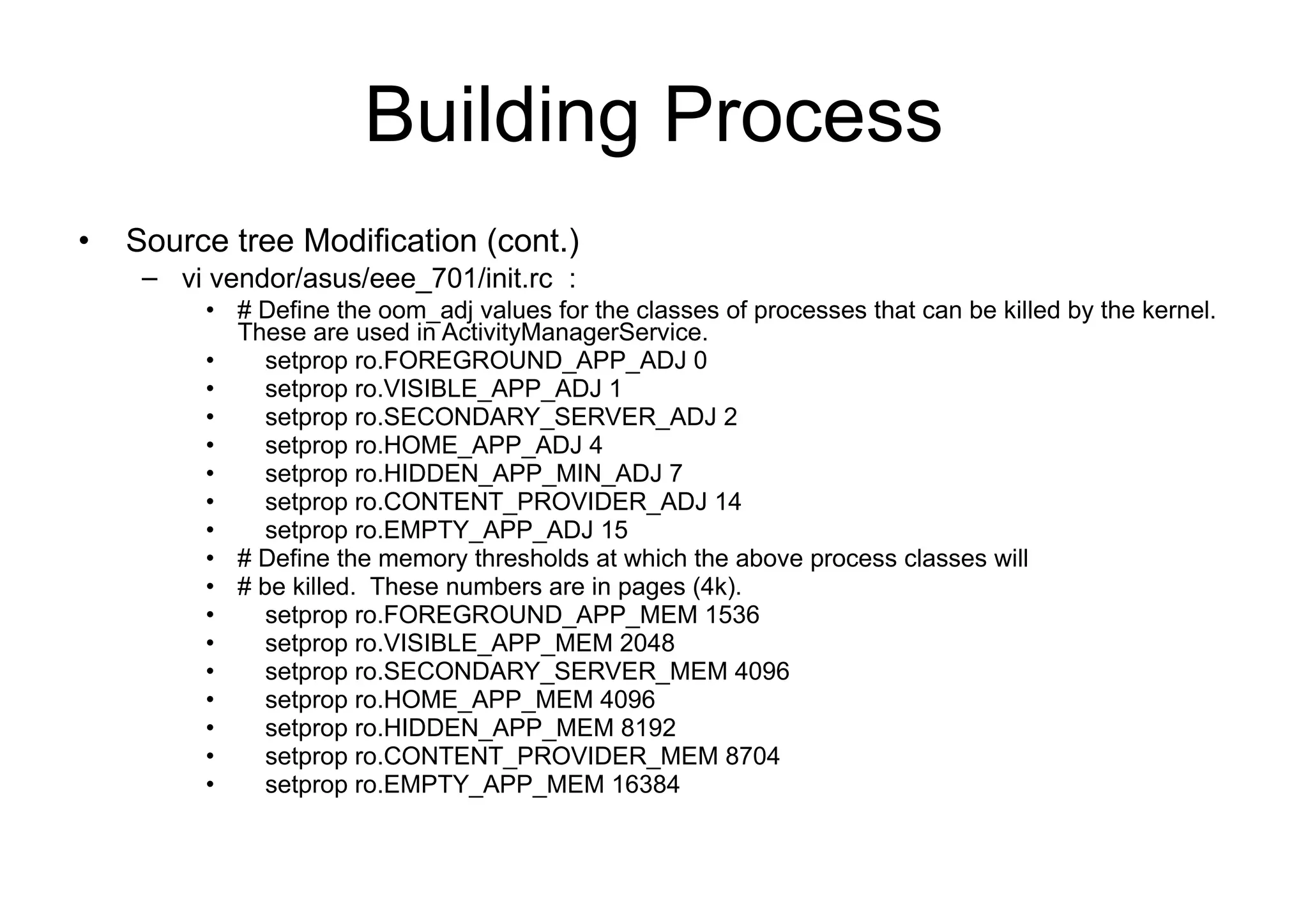

62. Building Process Source tree Modification (cont.) vi vendor/asus/eee_701/init.rc ： # Define the oom_adj values for the classes of processes that can be killed by the kernel. These are used in ActivityManagerService. setprop ro.FOREGROUND_APP_ADJ 0 setprop ro.VISIBLE_APP_ADJ 1 setprop ro.SECONDARY_SERVER_ADJ 2 setprop ro.HOME_APP_ADJ 4 setprop ro.HIDDEN_APP_MIN_ADJ 7 setprop ro.CONTENT_PROVIDER_ADJ 14 setprop ro.EMPTY_APP_ADJ 15 # Define the memory thresholds at which the above process classes will # be killed. These numbers are in pages (4k). setprop ro.FOREGROUND_APP_MEM 1536 setprop ro.VISIBLE_APP_MEM 2048 setprop ro.SECONDARY_SERVER_MEM 4096 setprop ro.HOME_APP_MEM 4096 setprop ro.HIDDEN_APP_MEM 8192 setprop ro.CONTENT_PROVIDER_MEM 8704 setprop ro.EMPTY_APP_MEM 16384

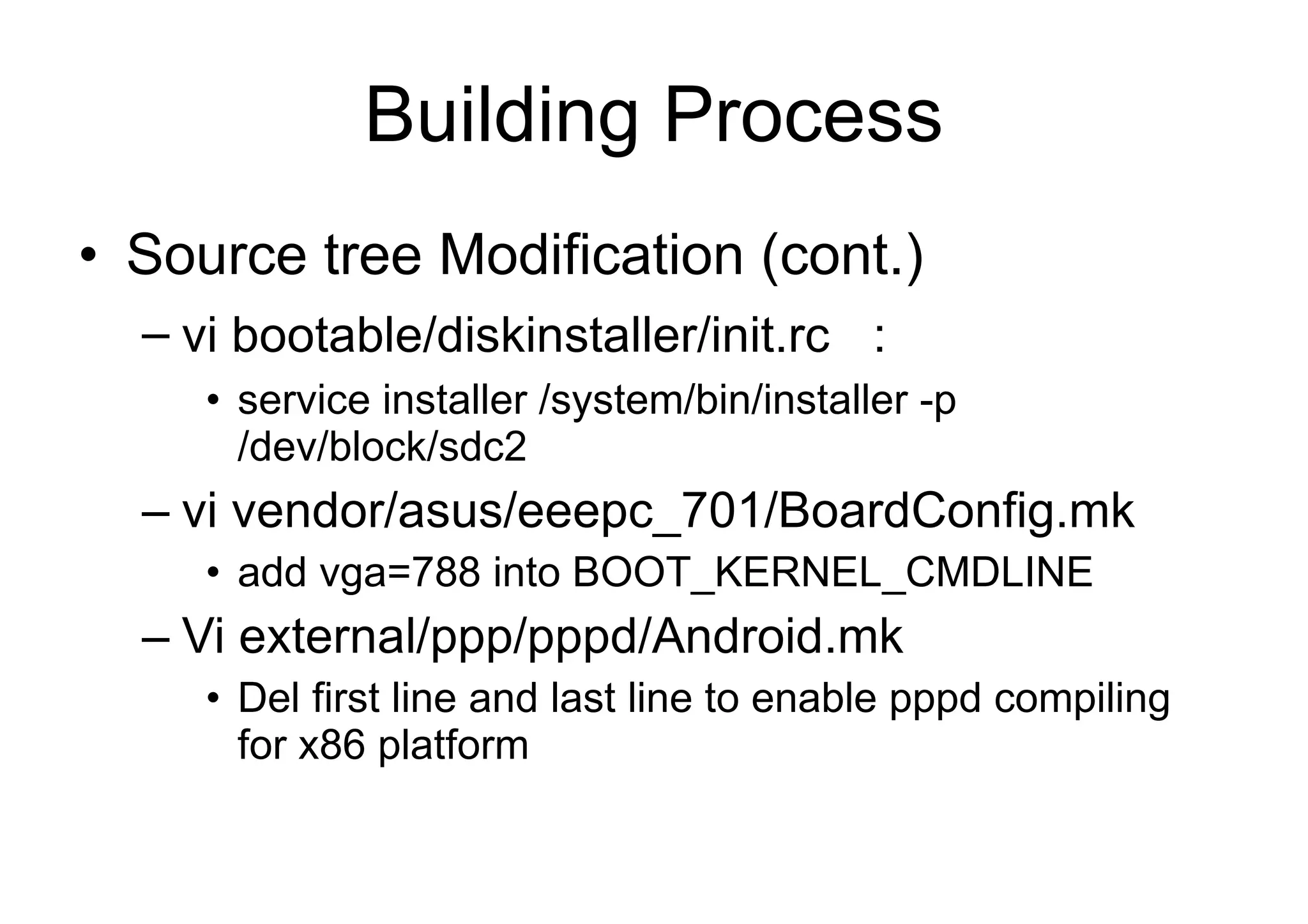

63. Building Process Source tree Modification (cont.) vi bootable/diskinstaller/init.rc ： service installer /system/bin/installer -p /dev/block/sdc2 vi vendor/asus/eeepc_701/BoardConfig.mk add vga=788 into BOOT_KERNEL_CMDLINE Vi external/ppp/pppd/Android.mk Del first line and last line to enable pppd compiling for x86 platform

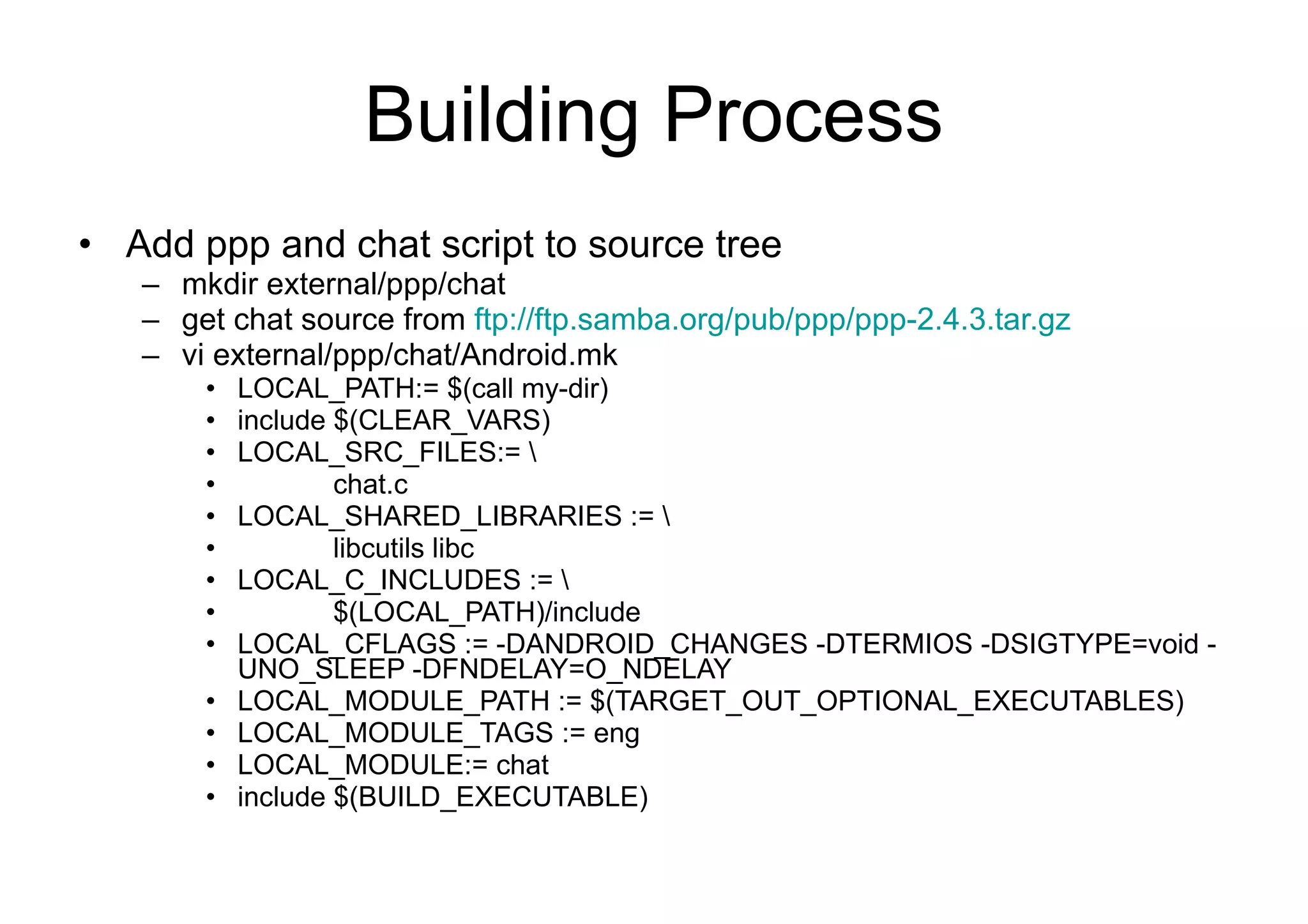

64. Building Process Add ppp and chat script to source tree mkdir external/ppp/chat get chat source from ftp://ftp.samba.org/pub/ppp/ ppp-2.4.3.tar.gz vi external/ppp/chat/Android.mk LOCAL_PATH:= $(call my-dir) include $(CLEAR_VARS) LOCAL_SRC_FILES:= \ chat.c LOCAL_SHARED_LIBRARIES := \ libcutils libc LOCAL_C_INCLUDES := \ $(LOCAL_PATH)/include LOCAL_CFLAGS := -DANDROID_CHANGES -DTERMIOS -DSIGTYPE=void -UNO_SLEEP -DFNDELAY=O_NDELAY LOCAL_MODULE_PATH := $(TARGET_OUT_OPTIONAL_EXECUTABLES) LOCAL_MODULE_TAGS := eng LOCAL_MODULE:= chat include $(BUILD_EXECUTABLE)

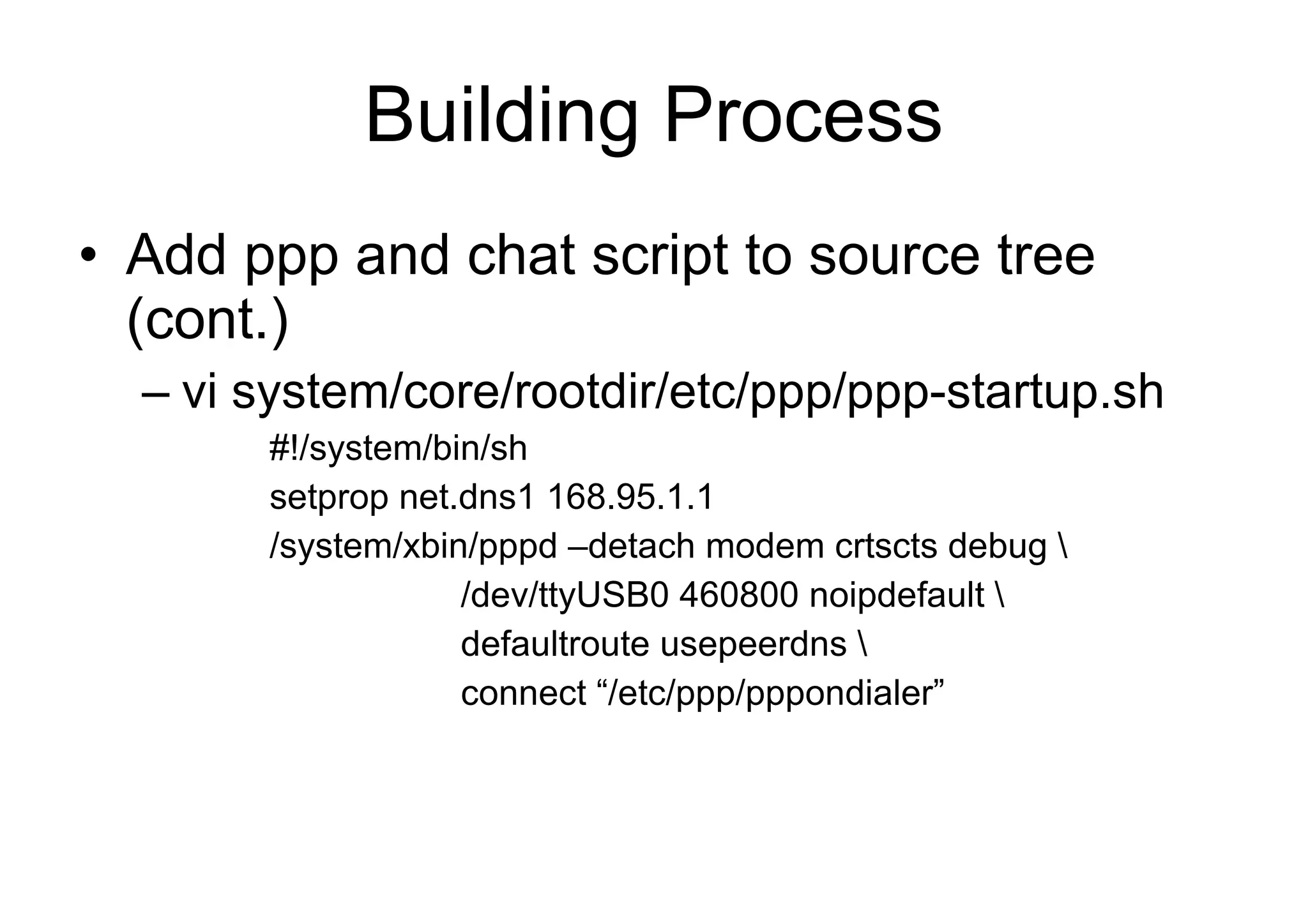

65. Building Process Add ppp and chat script to source tree (cont.) vi system/core/rootdir/etc/ppp/ppp-startup.sh #!/system/bin/sh setprop net.dns1 168.95.1.1 /system/xbin/pppd –detach modem crtscts debug \ /dev/ttyUSB0 460800 noipdefault \ defaultroute usepeerdns \ connect “/etc/ppp/pppondialer”

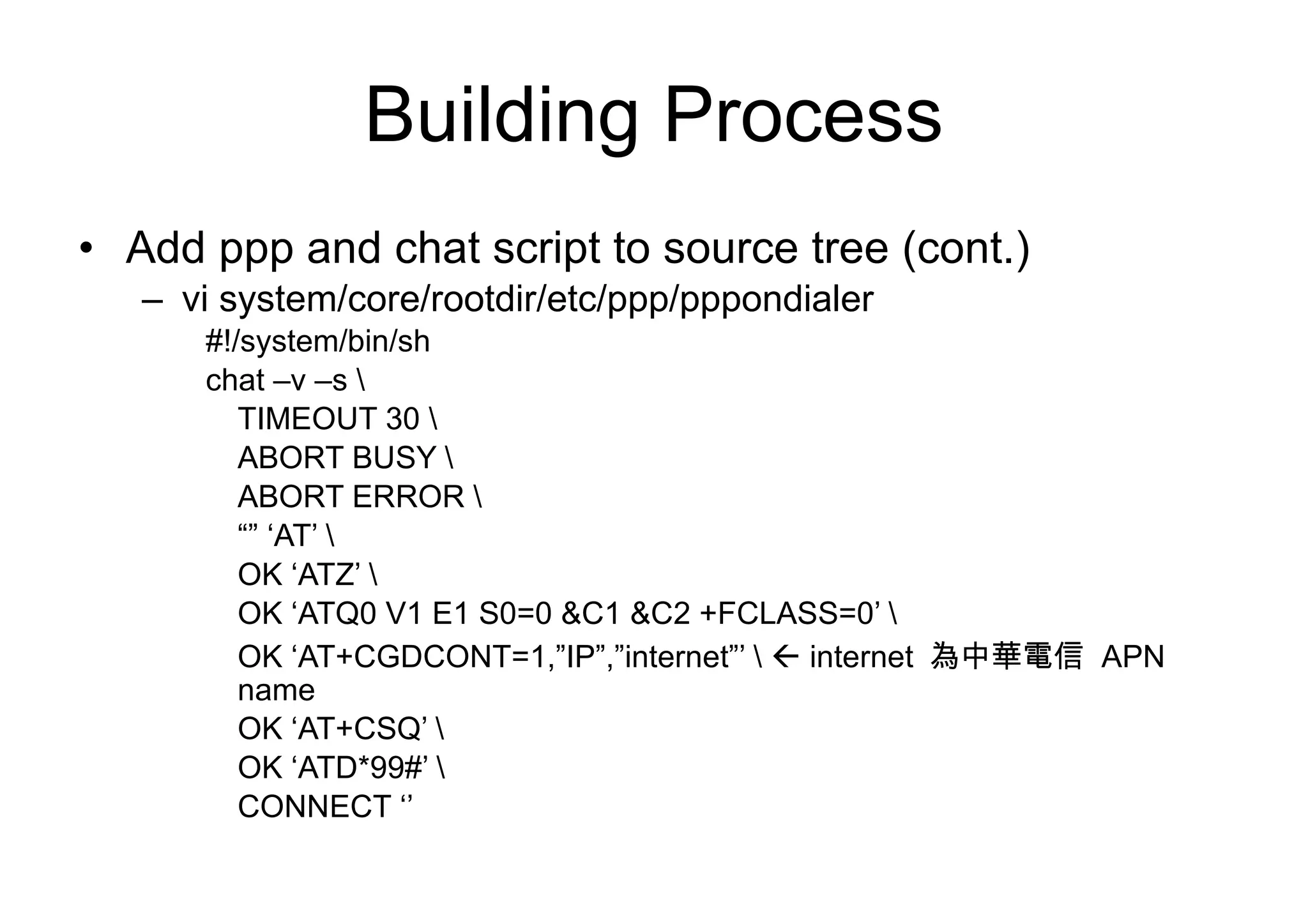

66. Building Process Add ppp and chat script to source tree (cont.) vi system/core/rootdir/etc/ppp/pppondialer #!/system/bin/sh chat –v –s \ TIMEOUT 30 \ ABORT BUSY \ ABORT ERROR \ “” ‘ AT’ \ OK ‘ATZ’ \ OK ‘ATQ0 V1 E1 S0=0 &C1 &C2 +FCLASS=0’ \ OK ‘AT+CGDCONT=1,”IP”,”internet”’ \  internet 為中華電信 APN name OK ‘AT+CSQ’ \ OK ‘ATD*99#’ \ CONNECT ‘’

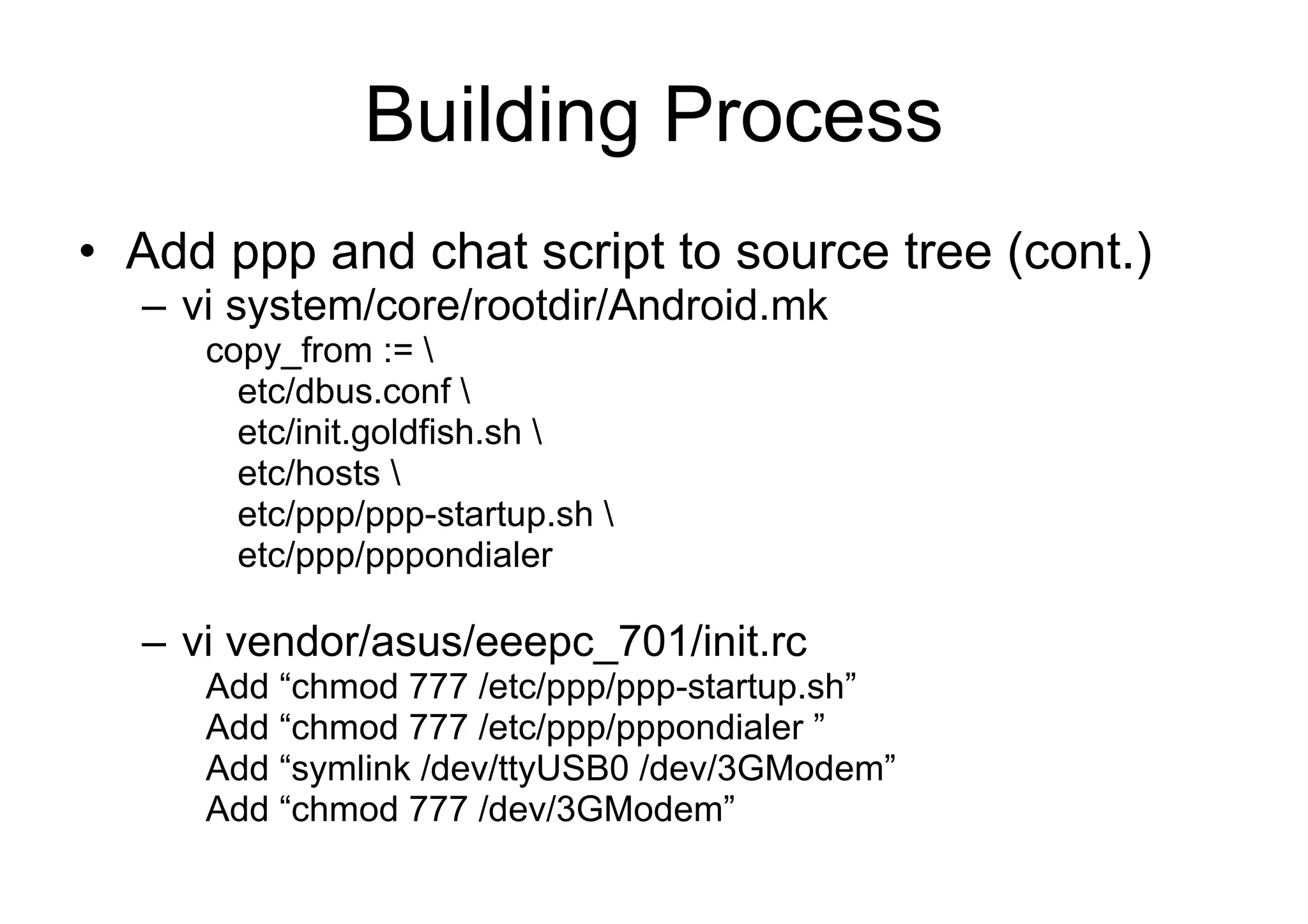

67. Building Process Add ppp and chat script to source tree (cont.) vi system/core/rootdir/Android.mk copy_from := \ etc/dbus.conf \ etc/init.goldfish.sh \ etc/hosts \ etc/ppp/ppp-startup.sh \ etc/ppp/pppondialer vi vendor/asus/eeepc_701/init.rc Add “chmod 777 /etc/ppp/ppp-startup.sh” Add “chmod 777 /etc/ppp/pppondialer ” Add “symlink /dev/ttyUSB0 /dev/3GModem” Add “chmod 777 /dev/3GModem”

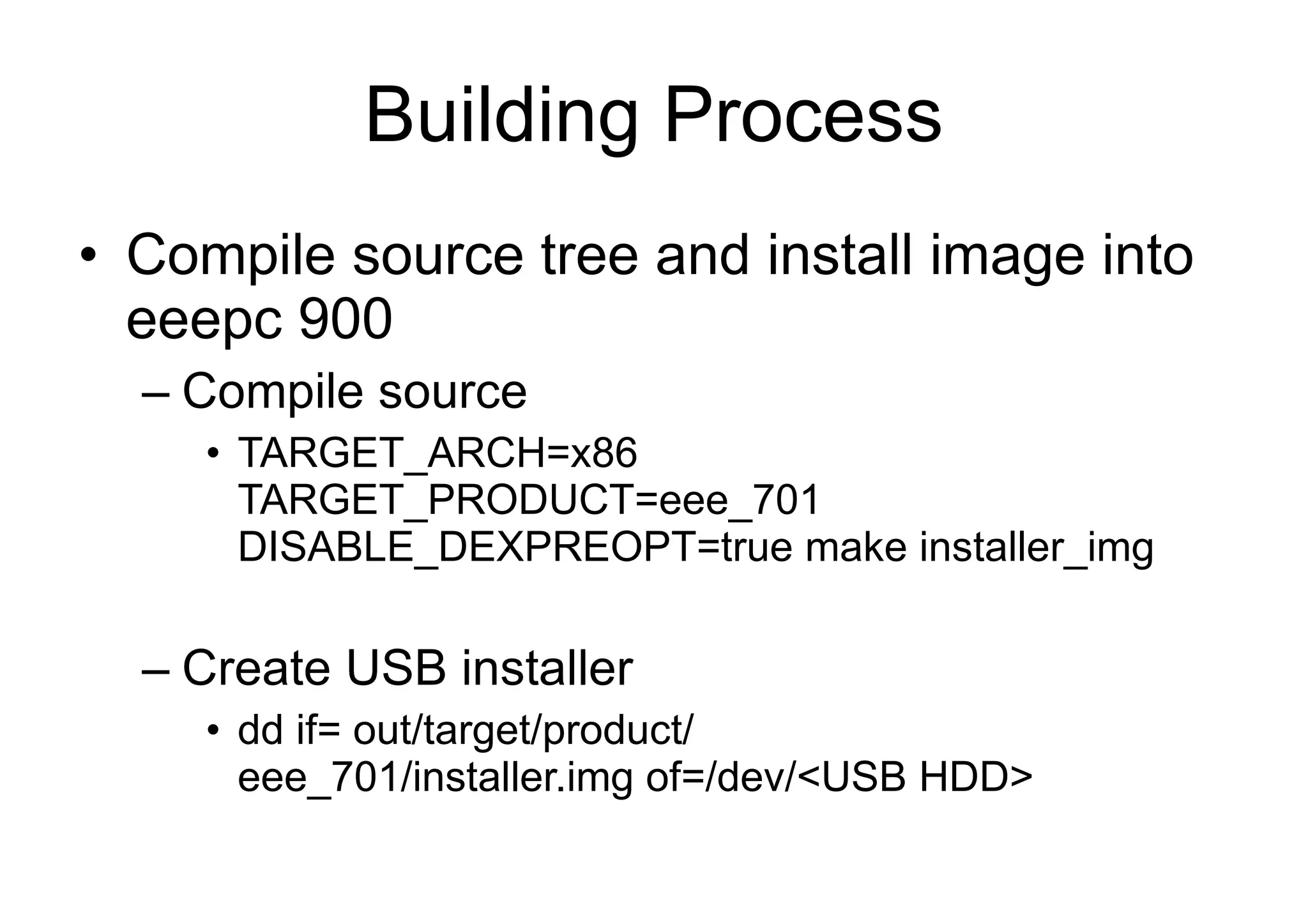

68. Building Process Compile source tree and install image into eeepc 900 Compile source TARGET_ARCH=x86 TARGET_PRODUCT=eee_701 DISABLE_DEXPREOPT=true make installer_img Create USB installer dd if= out/target/product/ eee_701/installer.img of=/dev/<USB HDD>

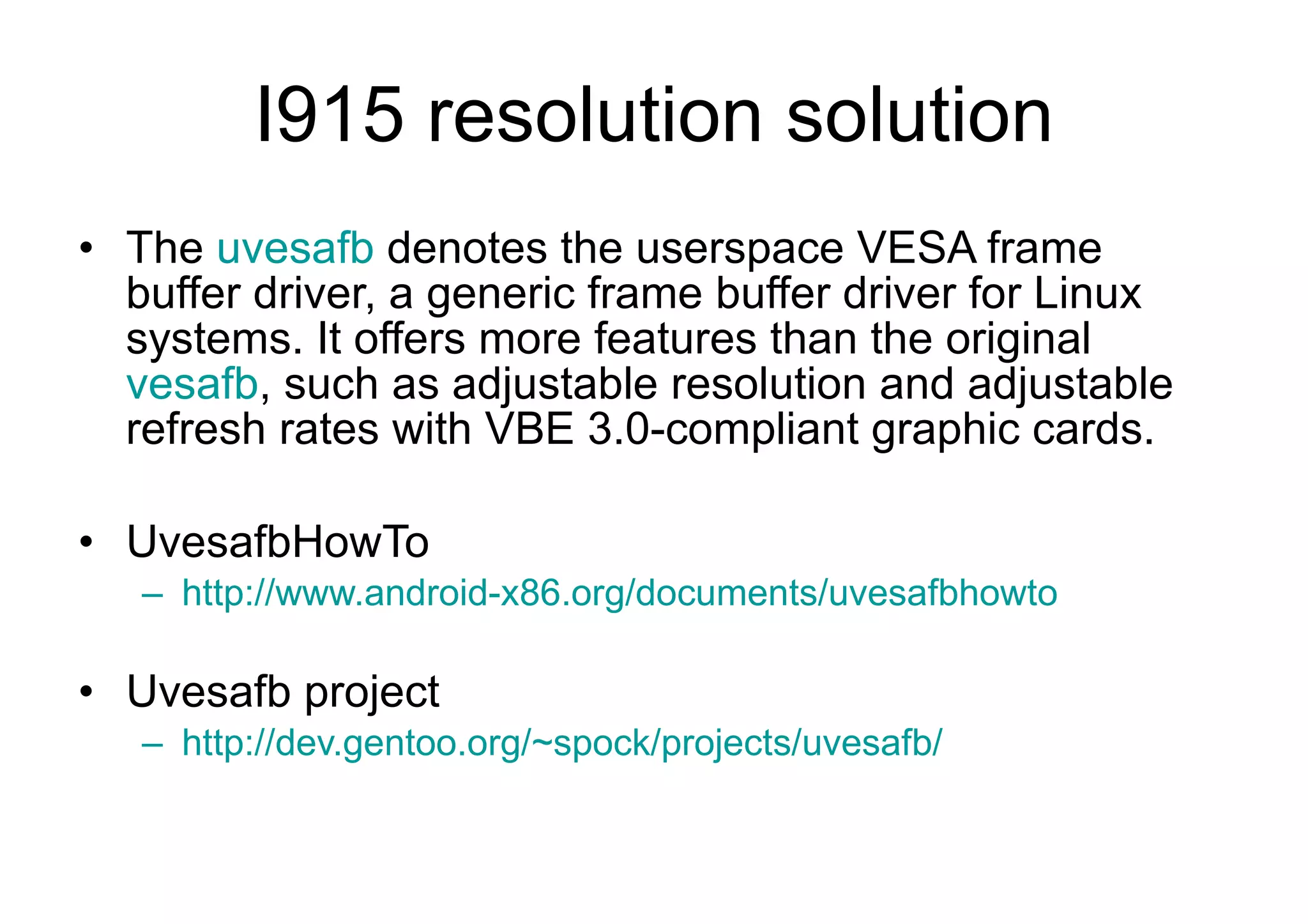

69. I915 resolution solution The uvesafb denotes the userspace VESA frame buffer driver, a generic frame buffer driver for Linux systems. It offers more features than the original vesafb , such as adjustable resolution and adjustable refresh rates with VBE 3.0-compliant graphic cards. UvesafbHowTo http://www.android-x86.org/documents/uvesafbhowto Uvesafb project http://dev.gentoo.org/~spock/projects/uvesafb/

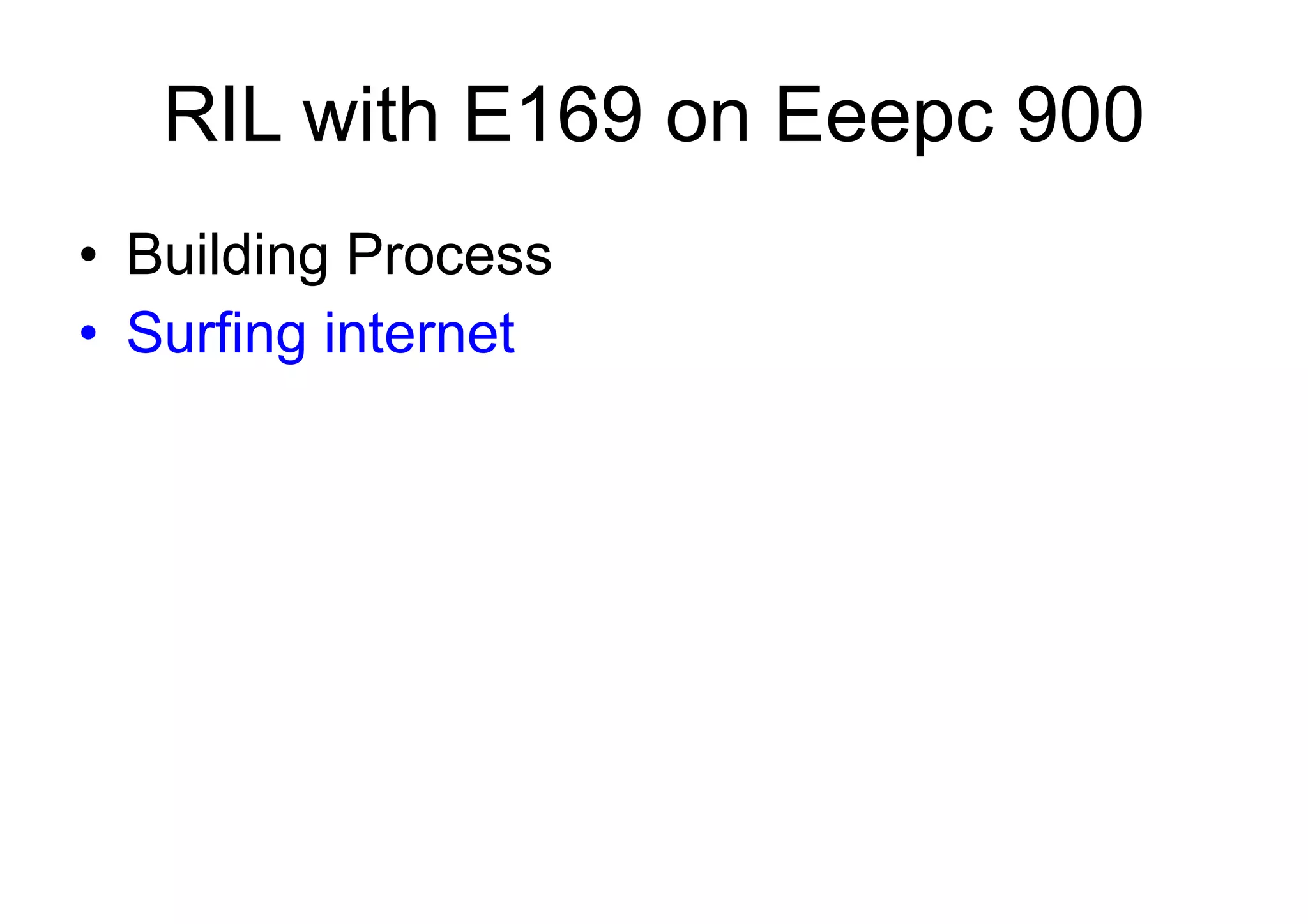

70. RIL with E169 on Eeepc 900 Building Process Surfing internet

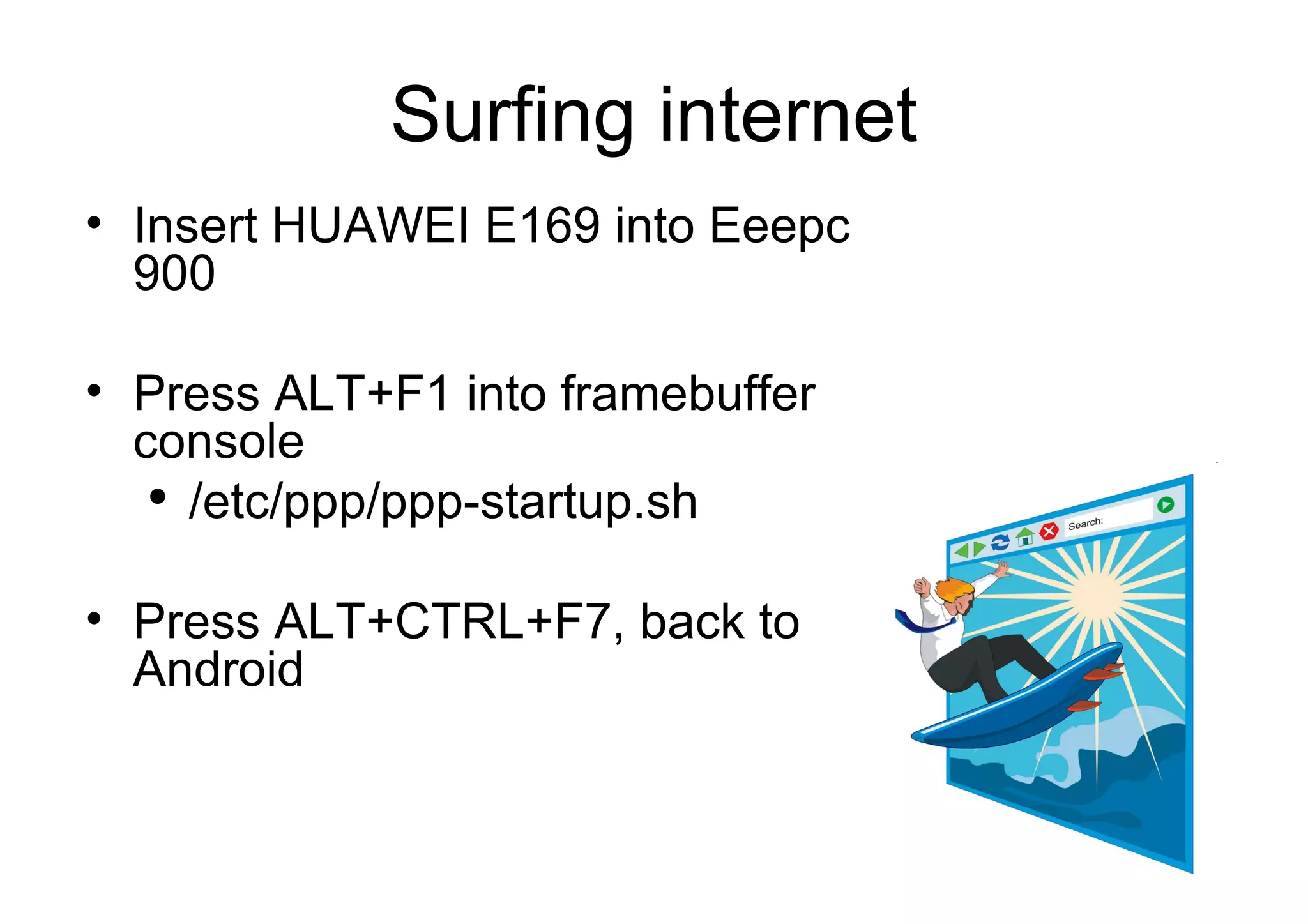

71. Surfing internet Insert HUAWEI E169 into Eeepc 900 Press ALT+F1 into framebuffer console /etc/ppp/ppp-startup.sh Press ALT+CTRL+F7, back to Android

72. Summary Background RIL stack overview RIL daemon (rild) Example: RIL with Mc39i on versatile Example: RIL with HUAWEI E169 on Eeepc 900 Screenshots

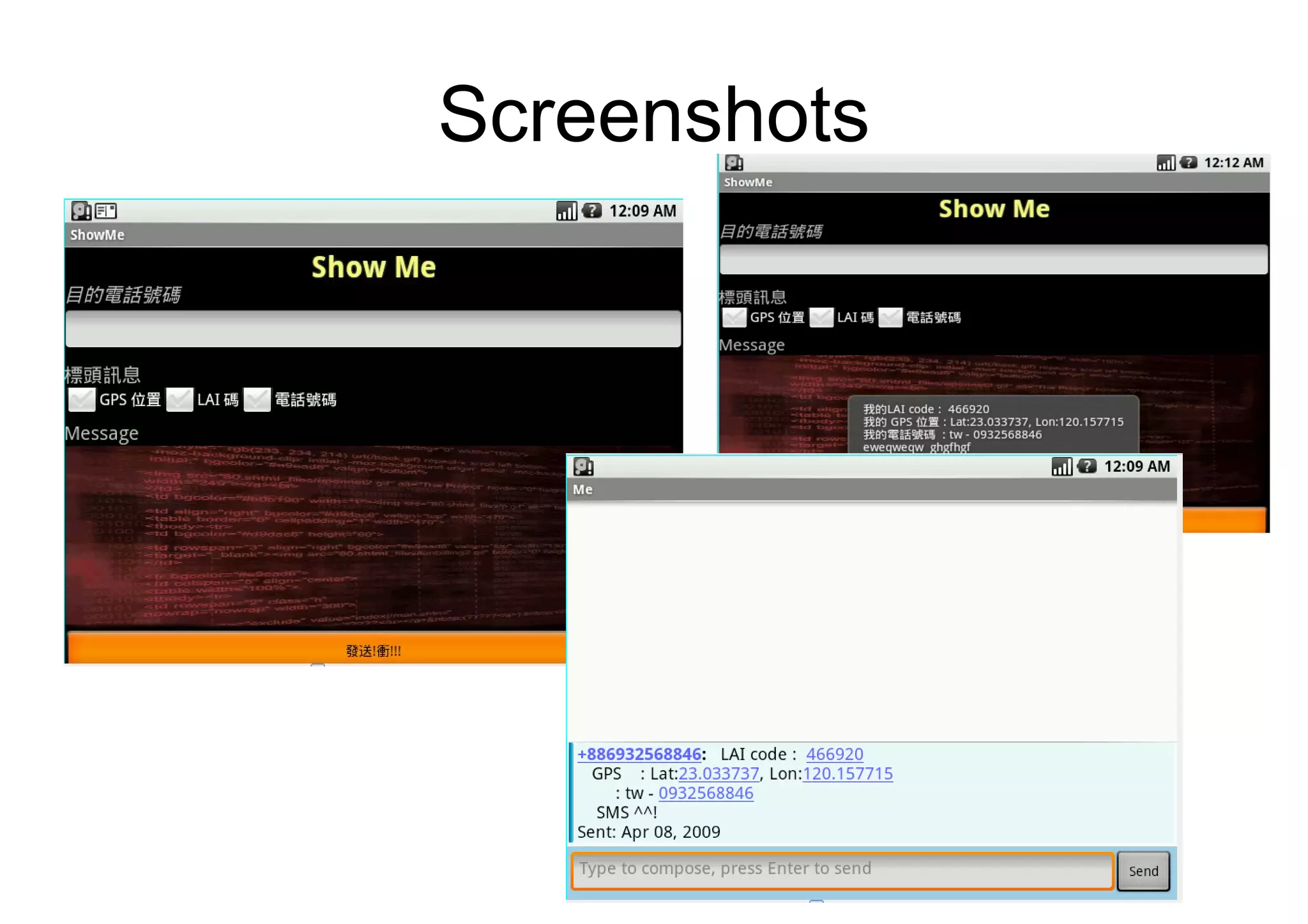

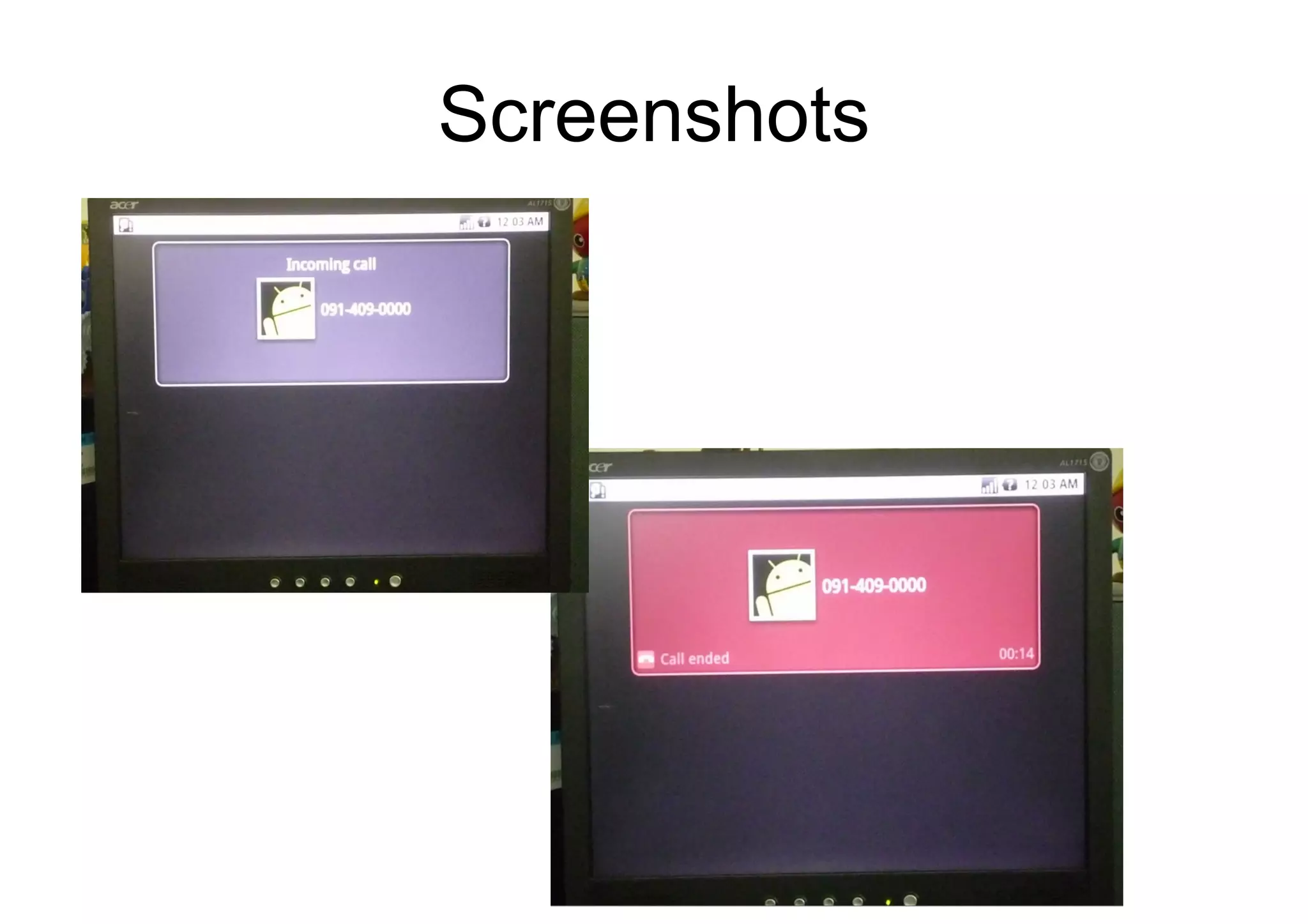

73. Screenshots

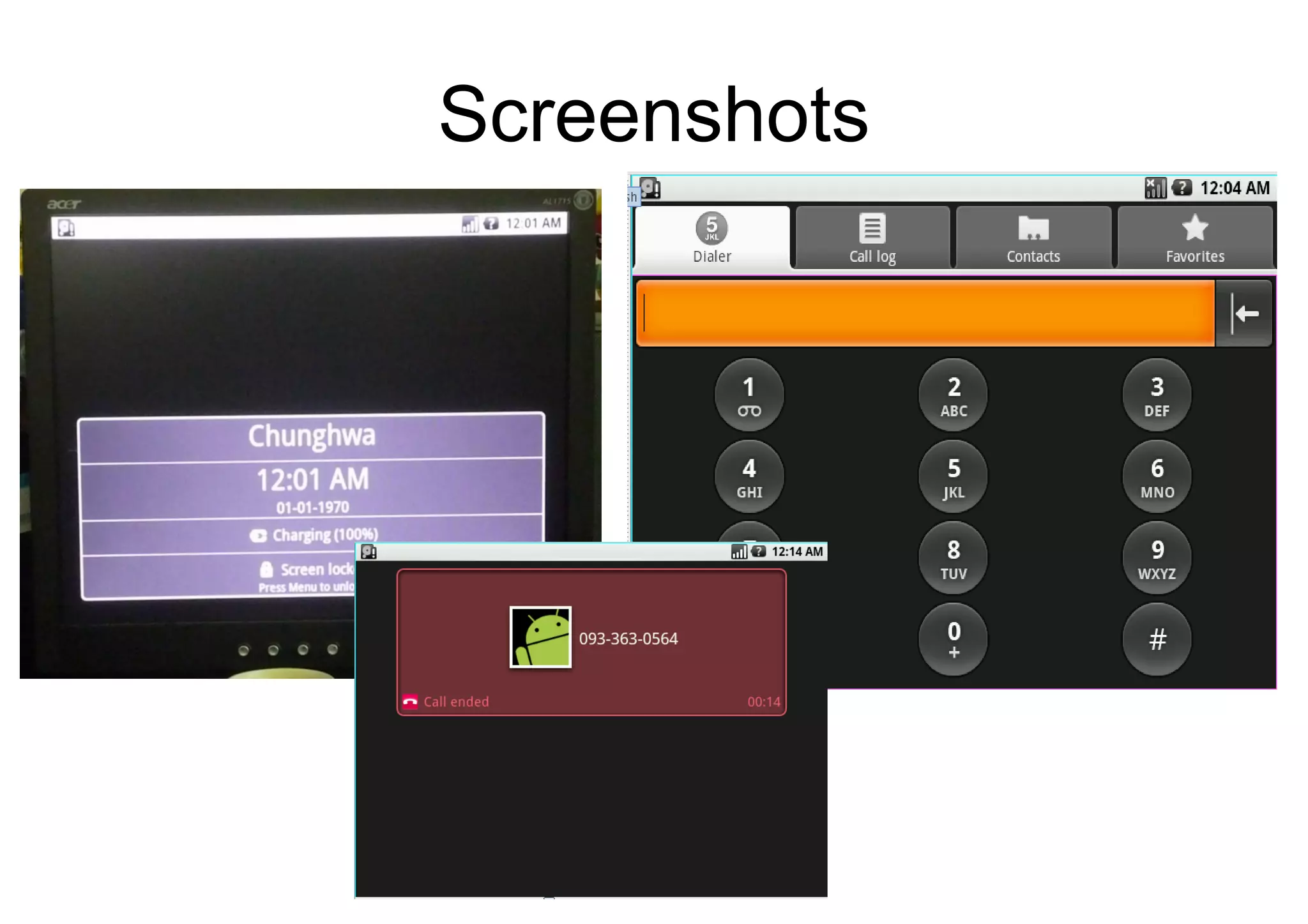

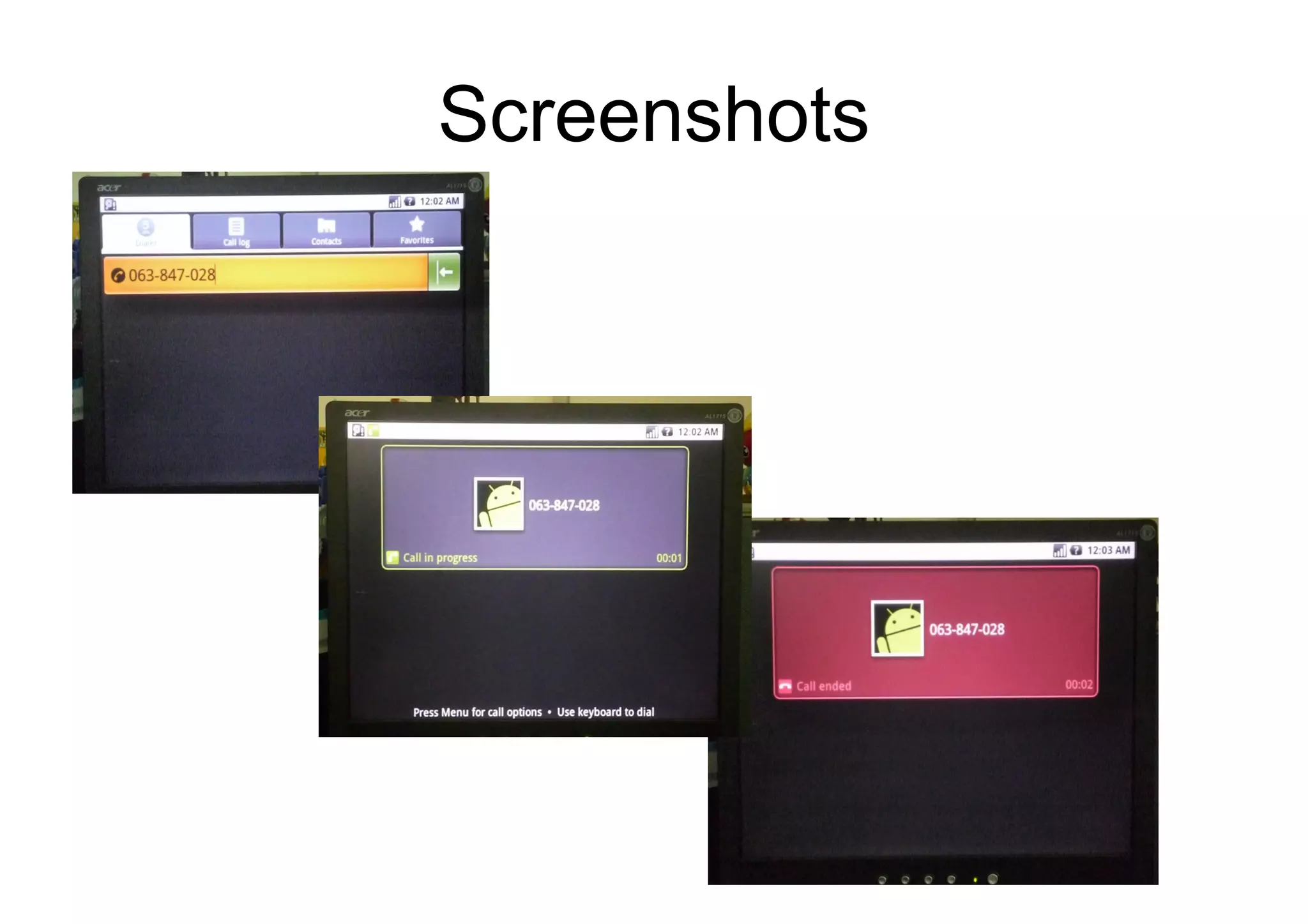

74. Screenshots

75. Screenshots

76. Screenshots

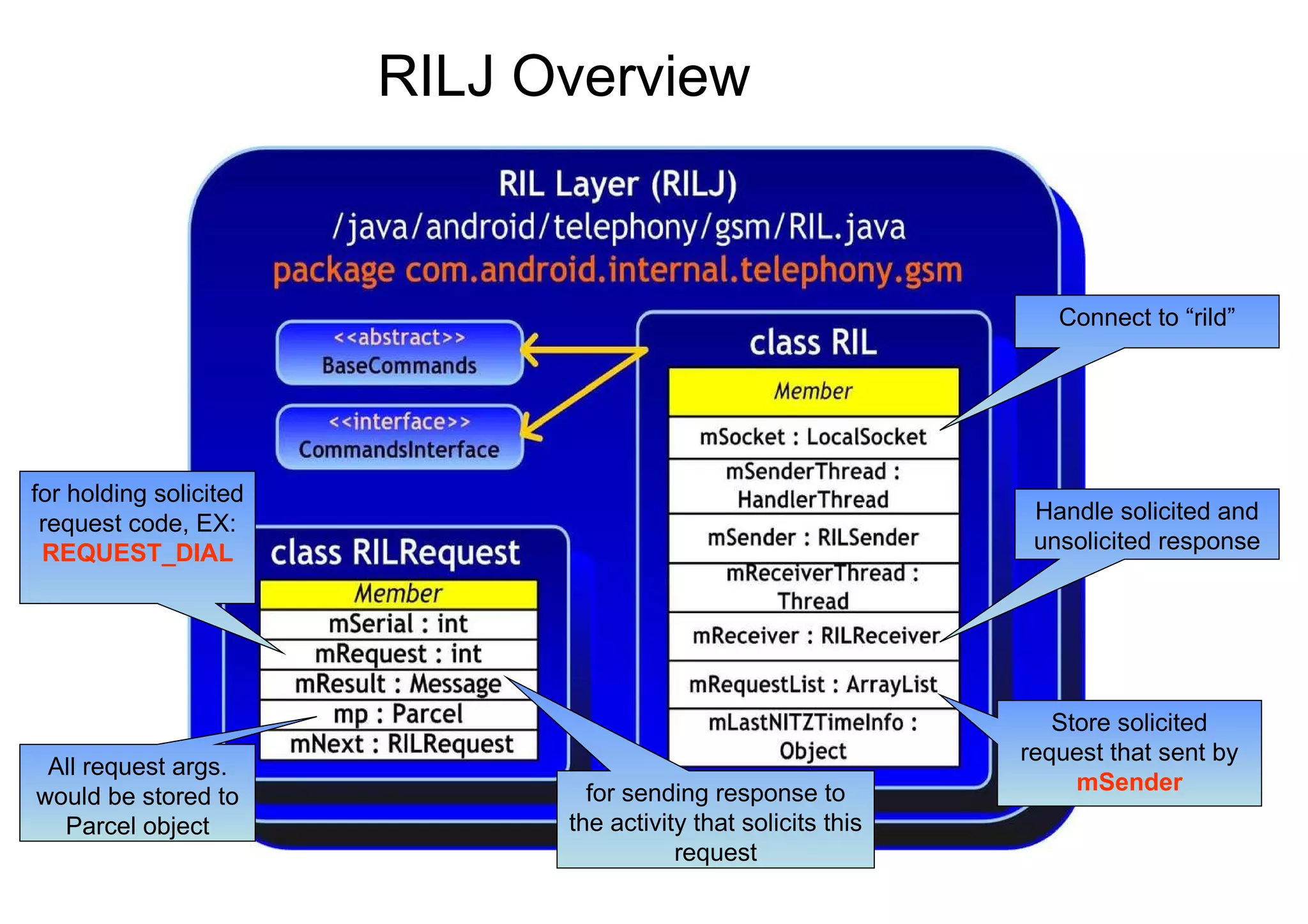

77. Screenshots

78. RILJ Overview Connect to “rild” Handle solicited and unsolicited response Store solicited request that sent by mSender All request args. would be stored to Parcel object for holding solicited request code, EX: REQUEST_DIAL for sending response to the activity that solicits this request
