The document discusses setting up and using Google Play services in an Android application. It provides instructions for installing the Google Play services library, connecting to Google services using the GoogleApiClient, and handling connection failures. It also describes how to display different map types, add markers to a Google map, and generate a signing certificate and API key to use the Google Maps Android API.

1. Google Service Play
Google Maps
Natã Melo

2. Google Services Play
Google Services
Examples: Google Plus and Maps
Advantages: Updates and Integration
Easy and Fast to Implement

3. Google Services Play
Standard Authorization
Google Account
OAuth2: Consistent and Safe
Independent Versions: GP and Android

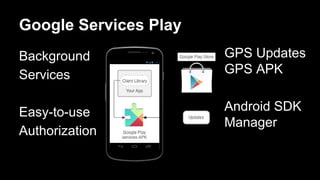

4. Google Services Play
Background
Services
Easy-to-use
Authorization
GPS Updates
GPS APK
Android SDK
Manager

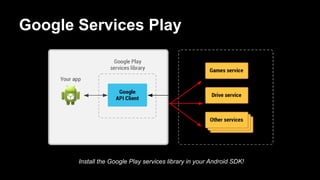

5. Google Services Play
Install the Google Play services library in your Android SDK!

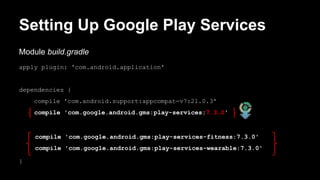

6. Setting Up Google Play Services
Module build.gradle
apply plugin: 'com.android.application'
dependencies {
compile 'com.android.support:appcompat-v7:21.0.3'
compile 'com.google.android.gms:play-services:7.3.0'
compile 'com.google.android.gms:play-services-fitness:7.3.0'
compile 'com.google.android.gms:play-services-wearable:7.3.0'
}

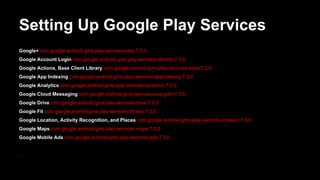

7. Setting Up Google Play Services
Google+ com.google.android.gms:play-services-plus:7.3.0
Google Account Login com.google.android.gms:play-services-identity:7.3.0
Google Actions, Base Client Library com.google.android.gms:play-services-base:7.3.0
Google App Indexing com.google.android.gms:play-services-appindexing:7.3.0
Google Analytics com.google.android.gms:play-services-analytics:7.3.0
Google Cloud Messaging com.google.android.gms:play-services-gcm:7.3.0
Google Drive com.google.android.gms:play-services-drive:7.3.0
Google Fit com.google.android.gms:play-services-fitness:7.3.0
Google Location, Activity Recognition, and Places com.google.android.gms:play-services-location:7.3.0
Google Maps com.google.android.gms:play-services-maps:7.3.0
Google Mobile Ads com.google.android.gms:play-services-ads:7.3.0
...

8. Setting Up Google Play Services
In Activity... implements ConnectionCallbacks, OnConnectionFailedListener
private GoogleApiClient mGoogleApiClient;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
mGoogleApiClient = new GoogleApiClient.Builder(this)
.addApi(Drive.API)
.addScope(Drive.SCOPE_FILE)
.addConnectionCallbacks(this)
.addOnConnectionFailedListener(this)
.build();
}

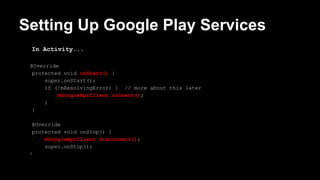

9. Setting Up Google Play Services
In Activity...
@Override
protected void onStart() {
super.onStart();
if (!mResolvingError) { // more about this later
mGoogleApiClient.connect();
}
}
@Override
protected void onStop() {
mGoogleApiClient.disconnect();
super.onStop();
}

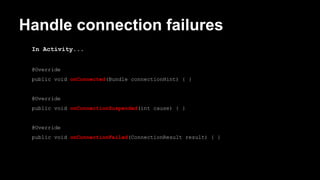

10. Handle connection failures
In Activity...
@Override
public void onConnected(Bundle connectionHint) { }
@Override
public void onConnectionSuspended(int cause) { }
@Override
public void onConnectionFailed(ConnectionResult result) { }

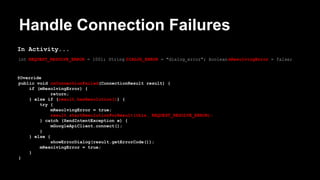

11. Handle Connection Failures
In Activity...
int REQUEST_RESOLVE_ERROR = 1001; String DIALOG_ERROR = "dialog_error"; boolean mResolvingError = false;
@Override
public void onConnectionFailed(ConnectionResult result) {
if (mResolvingError) {
return;
} else if (result.hasResolution()) {
try {
mResolvingError = true;
result.startResolutionForResult(this, REQUEST_RESOLVE_ERROR);
} catch (SendIntentException e) {
mGoogleApiClient.connect();
}
} else {
showErrorDialog(result.getErrorCode());
mResolvingError = true;
}
}

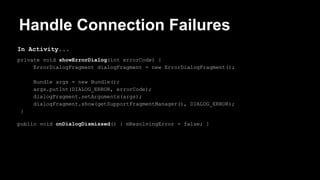

12. Handle Connection Failures
In Activity...
private void showErrorDialog(int errorCode) {
ErrorDialogFragment dialogFragment = new ErrorDialogFragment();
Bundle args = new Bundle();
args.putInt(DIALOG_ERROR, errorCode);
dialogFragment.setArguments(args);
dialogFragment.show(getSupportFragmentManager(), DIALOG_ERROR);
}
public void onDialogDismissed() { mResolvingError = false; }

13. Handle Connection Failures
In Activity...
public static class ErrorDialogFragment extends DialogFragment {
public ErrorDialogFragment() { }
@Override
public Dialog onCreateDialog(Bundle savedInstanceState) {
int errorCode = this.getArguments().getInt(DIALOG_ERROR);
return GooglePlayServicesUtil.getErrorDialog(errorCode,
this.getActivity(), REQUEST_RESOLVE_ERROR);
}
@Override
public void onDismiss(DialogInterface dialog) {
((MainActivity)getActivity()).onDialogDismissed();
}
}

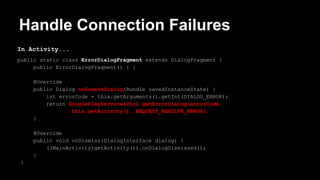

14. Handle Connection Failures
In Activity...
public static class ErrorDialogFragment extends DialogFragment {
public ErrorDialogFragment() { }
@Override
public Dialog onCreateDialog(Bundle savedInstanceState) {
int errorCode = this.getArguments().getInt(DIALOG_ERROR);
return GooglePlayServicesUtil.getErrorDialog(errorCode,
this.getActivity(), REQUEST_RESOLVE_ERROR);
}
@Override
public void onDismiss(DialogInterface dialog) {
((MainActivity)getActivity()).onDialogDismissed();
}
}

15. Handle Connection Failures
In Activity...
@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
if (requestCode == REQUEST_RESOLVE_ERROR) {
mResolvingError = false;
if (resultCode == RESULT_OK) {
if (!mGoogleApiClient.isConnecting() && !mGoogleApiClient.isConnected()) {
mGoogleApiClient.connect();
}
}
}
}

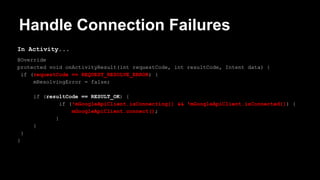

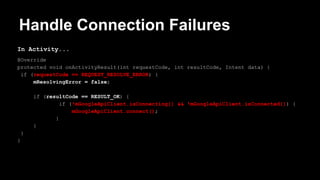

16. Handle Connection Failures
In Activity...
@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
if (requestCode == REQUEST_RESOLVE_ERROR) {
mResolvingError = false;
if (resultCode == RESULT_OK) {
if (!mGoogleApiClient.isConnecting() && !mGoogleApiClient.isConnected()) {
mGoogleApiClient.connect();
}
}
}
}

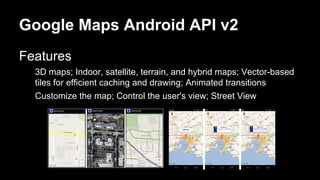

17. Google Maps Android API v2
Features
3D maps; Indoor, satellite, terrain, and hybrid maps; Vector-based
tiles for efficient caching and drawing; Animated transitions
Customize the map; Control the user's view; Street View

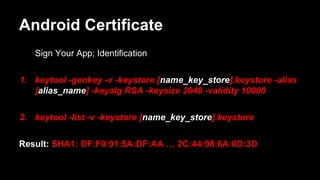

18. Android Certificate
Sign Your App; Identification
1. keytool -genkey -v -keystore [name_key_store].keystore -alias
[alias_name] -keyalg RSA -keysize 2048 -validity 10000
2. keytool -list -v -keystore [name_key_store].keystore
Result: SHA1: DF:F0:91:5A:DF:AA … 2C:44:98:6A:0D:3D

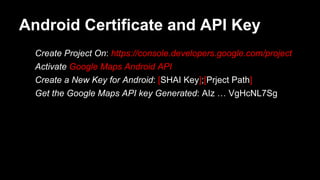

19. Android Certificate and API Key
Create Project On: https://console.developers.google.com/project
Activate Google Maps Android API
Create a New Key for Android: [SHAI Key];[Prject Path]
Get the Google Maps API key Generated: AIz … VgHcNL7Sg

20. Configure Your Manifest
<meta-data
android:name="com.google.android.gms.version"
android:value="@integer/google_play_services_version"
/>
<meta-data
android:name="com.google.android.geo.API_KEY"
android:value="API_KEY"
/>
“Re-build Project”

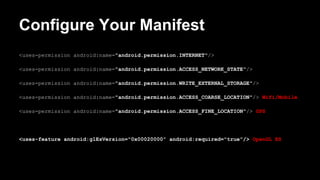

21. Configure Your Manifest
<uses-permission android:name="android.permission.INTERNET"/>
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION"/> Wifi/Mobile
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION"/> GPS
<uses-feature android:glEsVersion="0x00020000" android:required="true"/> OpenGL ES

22. Map Type
GoogleMap map; map.setMapType(GoogleMap.MAP_TYPE_HYBRID);
MAP_TYPE_HYBRID - Satellite maps with a transparent layer of major streets.
MAP_TYPE_NONE - No base map tiles.
MAP_TYPE_NORMAL - Basic maps.
MAP_TYPE_SATELLITE - Satellite maps with no labels.
MAP_TYPE_TERRAIN - Terrain maps.

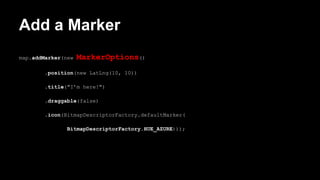

23. Add a Marker
map.addMarker(new MarkerOptions()
.position(new LatLng(10, 10))
.title("I’m here!")
.draggable(false)
.icon(BitmapDescriptorFactory.defaultMarker(
BitmapDescriptorFactory.HUE_AZURE)));

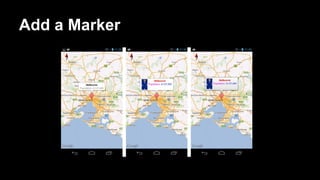

24. Add a Marker

25. Let’s Practice!
Use: Google Plus and Goolge Maps!

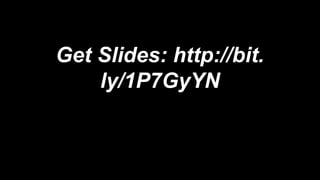

26. Get Slides: http://bit.
ly/1P7GyYN
