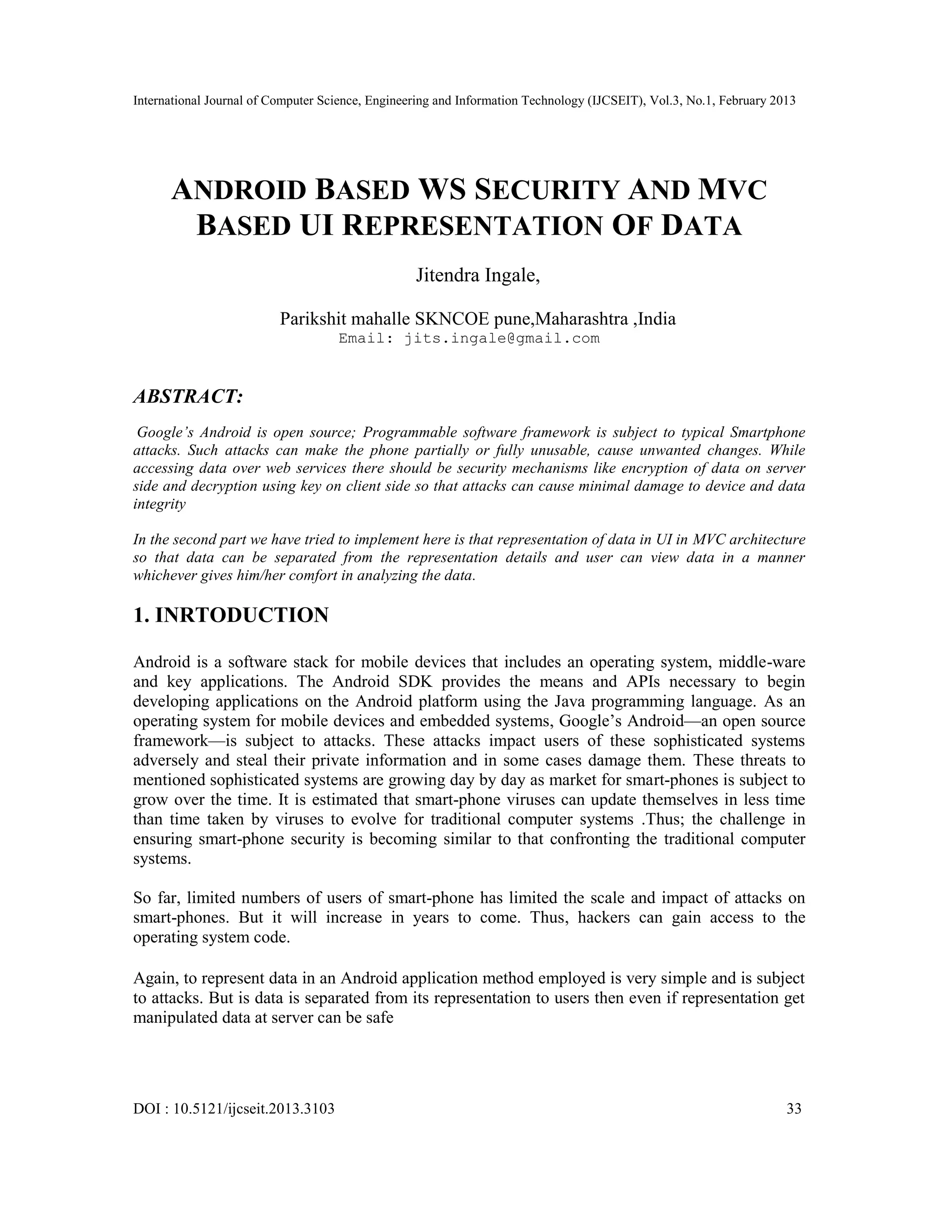

ANDROID BASED WS SECURITY AND MVC
BASED UI REPRESENTATION OF DATA
Jitendra Ingale,
Parikshit mahalle SKNCOE pune,Maharashtra ,India
Email: jits.ingale@gmail.com
ABSTRACT:
Google’s Android is open source; Programmable software framework is subject to typical Smartphone
attacks. Such attacks can make the phone partially or fully unusable, cause unwanted changes. While
accessing data over web services there should be security mechanisms like encryption of data on server
side and decryption using key on client side so that attacks can cause minimal damage to device and data
integrity
In the second part we have tried to implement here is that representation of data in UI in MVC architecture
so that data can be separated from the representation details and user can view data in a manner
whichever gives him/her comfort in analyzing the data.
1. INRTODUCTION
Android is a software stack for mobile devices that includes an operating system, middle-ware
and key applications. The Android SDK provides the means and APIs necessary to begin
developing applications on the Android platform using the Java programming language. As an
operating system for mobile devices and embedded systems, Google’s Android—an open source
framework—is subject to attacks. These attacks impact users of these sophisticated systems
adversely and steal their private information and in some cases damage them. These threats to
mentioned sophisticated systems are growing day by day as market for smart-phones is subject to
grow over the time. It is estimated that smart-phone viruses can update themselves in less time
than time taken by viruses to evolve for traditional computer systems .Thus; the challenge in
ensuring smart-phone security is becoming similar to that confronting the traditional computer
systems.
So far, limited numbers of users of smart-phone has limited the scale and impact of attacks on
smart-phones. But it will increase in years to come. Thus, hackers can gain access to the
operating system code.
Again, to represent data in an Android application method employed is very simple and is subject
to attacks. But is data is separated from its representation to users then even if representation get
manipulated data at server can be safe

2. International Journal of Computer Science, Engineering and Information Technology (IJCSEIT), Vol.3, No.1, February 2013
34
2. MOTIVATION
In an Android application development arena we find that we don’t have enough application o
work with remote server through encrypted web service module. If we see in Appstore, to
maintain UI of an application, there are very few applications that have MVC architecture
implemented .In the application I am discussing here I have maintained MVC architecture by
separating UI and its representation.MVC approach is an effective way to support multiple
presentations of data. Users can interact to each presentation in style that is appropriate to the
presentation. The data to be displayed is encapsulated in model object. Each model object may
have different view objects associated with it where each view is different display representation
of the model. Currently also android OS is in news for security threats that may hamper some
business scenarios. I have tried to take care some of those.
3. PROPOSED WORK
Android is an execution environment for simulating mobile devices. Android SDK comes in
various levels of security. Various system components in the upper layers use libraries from
kernel. Incorporating these libraries in Android applications is achieved via Java native
interfaces(JNI). .dex (Dalvik-executable) files which are compact and memory-efficient than Java
class files. The application framework is written in Java, has Google-provided means as well as
extensions or services.

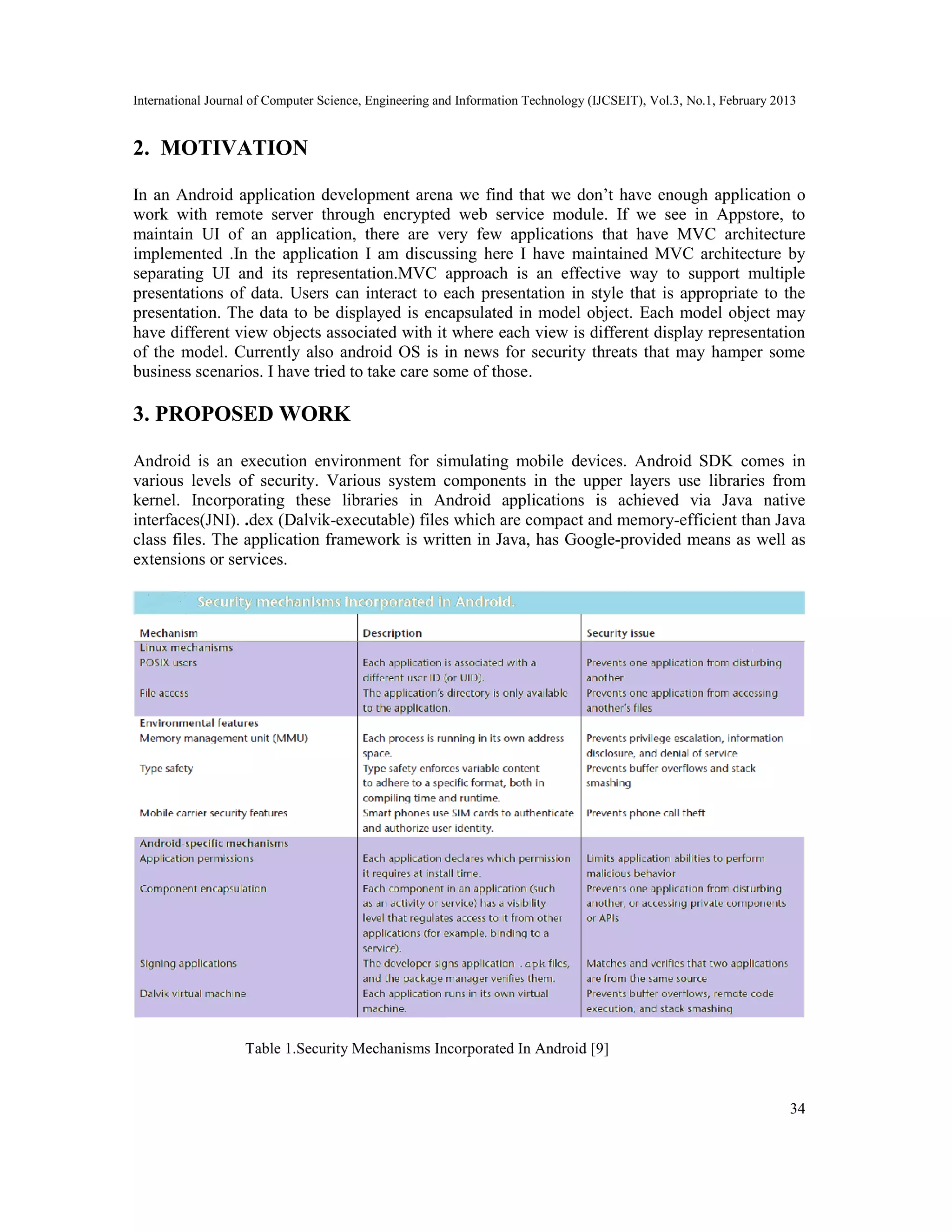

Table 1.Security Mechanisms Incorporated In Android [9]

3. International Journal of Computer Science, Engineering and Information Technology (IJCSEIT), Vol.3, No.1, February 2013
35
At runtime Android execution environment forms .apk installation file. This is similar to a Java
.jar file in the way that it holds all code and other resources (like images or manifest) for the
application. Android applications are developed in Java based on the APIs the Android software
development kit (SDK) provides and there is provision for ensuring correct output in emulator.
Further, applications needs to be digitally signed (code and other).enclosed public key
successfully verifies the signature.

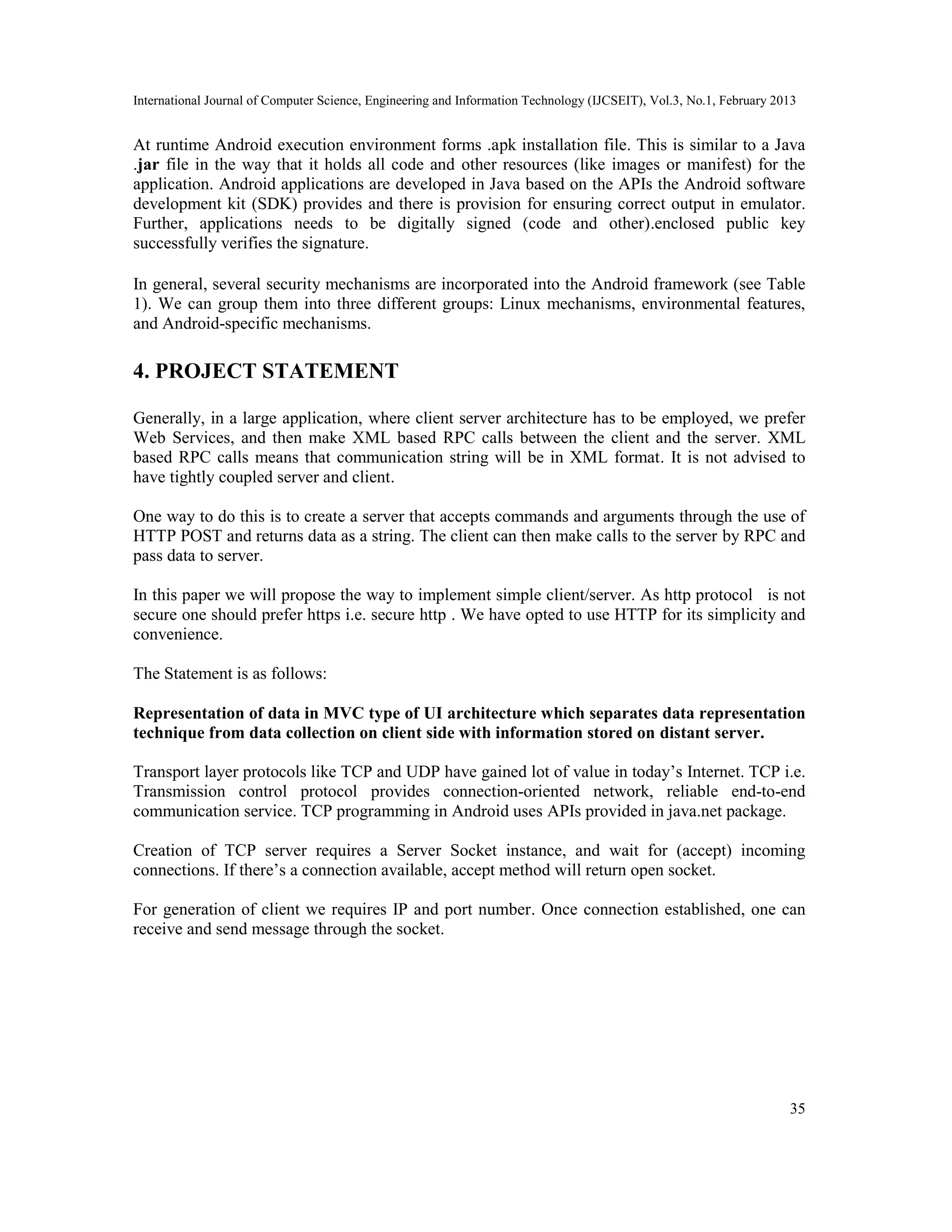

In general, several security mechanisms are incorporated into the Android framework (see Table
1). We can group them into three different groups: Linux mechanisms, environmental features,
and Android-specific mechanisms.
4. PROJECT STATEMENT
Generally, in a large application, where client server architecture has to be employed, we prefer
Web Services, and then make XML based RPC calls between the client and the server. XML
based RPC calls means that communication string will be in XML format. It is not advised to
have tightly coupled server and client.
One way to do this is to create a server that accepts commands and arguments through the use of
HTTP POST and returns data as a string. The client can then make calls to the server by RPC and
pass data to server.
In this paper we will propose the way to implement simple client/server. As http protocol is not
secure one should prefer https i.e. secure http . We have opted to use HTTP for its simplicity and
convenience.
The Statement is as follows:
Representation of data in MVC type of UI architecture which separates data representation
technique from data collection on client side with information stored on distant server.
Transport layer protocols like TCP and UDP have gained lot of value in today’s Internet. TCP i.e.
Transmission control protocol provides connection-oriented network, reliable end-to-end
communication service. TCP programming in Android uses APIs provided in java.net package.
Creation of TCP server requires a Server Socket instance, and wait for (accept) incoming
connections. If there’s a connection available, accept method will return open socket.
For generation of client we requires IP and port number. Once connection established, one can
receive and send message through the socket.

4. International Journal of Computer Science, Engineering and Information Technology (IJCSEIT), Vol.3, No.1, February 2013
36

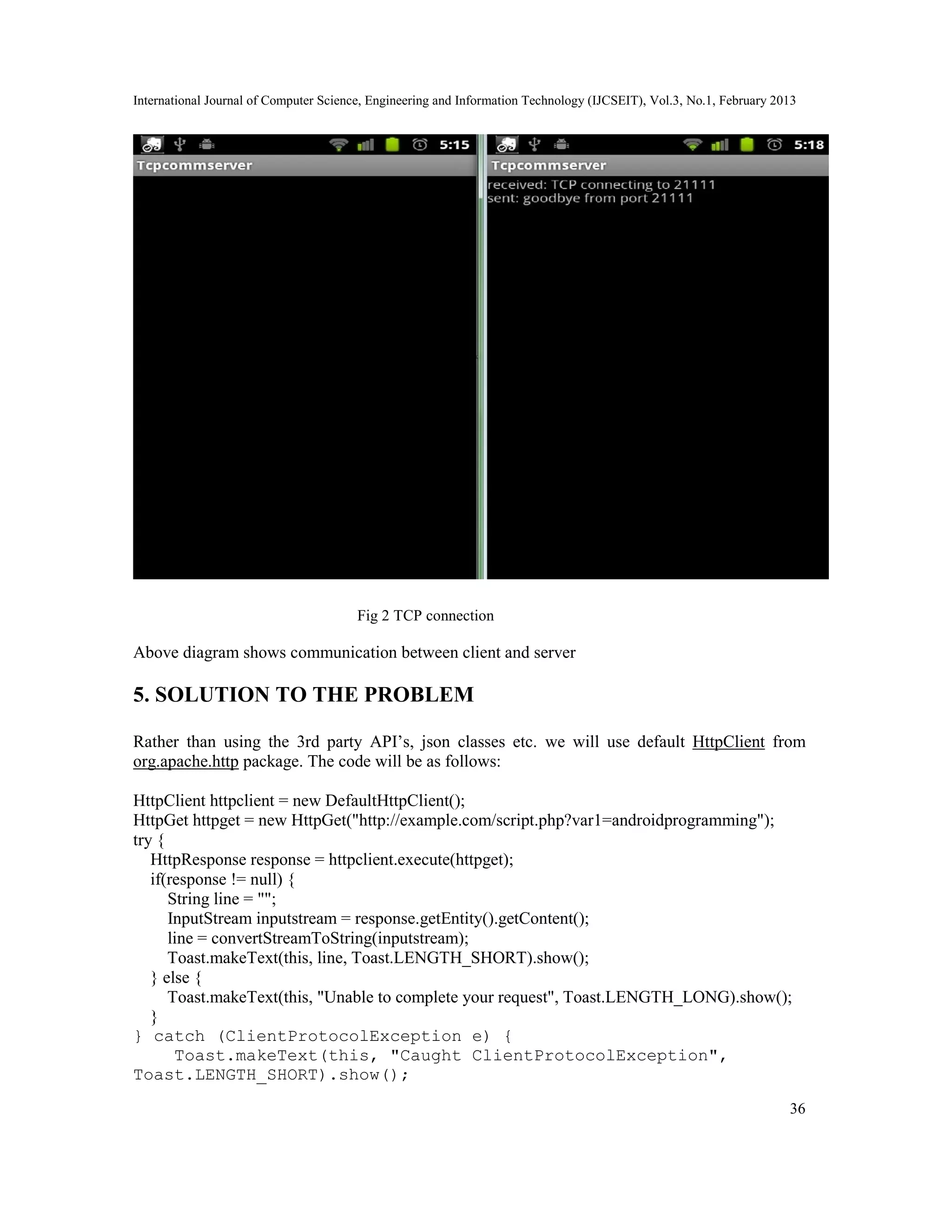

Fig 2 TCP connection
Above diagram shows communication between client and server
5. SOLUTION TO THE PROBLEM
Rather than using the 3rd party API’s, json classes etc. we will use default HttpClient from
org.apache.http package. The code will be as follows:
HttpClient httpclient = new DefaultHttpClient();
HttpGet httpget = new HttpGet("http://example.com/script.php?var1=androidprogramming");
try {
HttpResponse response = httpclient.execute(httpget);
if(response != null) {
String line = "";
InputStream inputstream = response.getEntity().getContent();
line = convertStreamToString(inputstream);
Toast.makeText(this, line, Toast.LENGTH_SHORT).show();
} else {
Toast.makeText(this, "Unable to complete your request", Toast.LENGTH_LONG).show();
}
} catch (ClientProtocolException e) {
Toast.makeText(this, "Caught ClientProtocolException",
Toast.LENGTH_SHORT).show();

5. International Journal of Computer Science, Engineering and Information Technology (IJCSEIT), Vol.3, No.1, February 2013
37
} catch (IOException e) {
Toast.makeText(this, "Caught IOException", Toast.LENGTH_SHORT).show();
} catch (Exception e) {
Toast.makeText(this, "Caught Exception", Toast.LENGTH_SHORT).show();
}

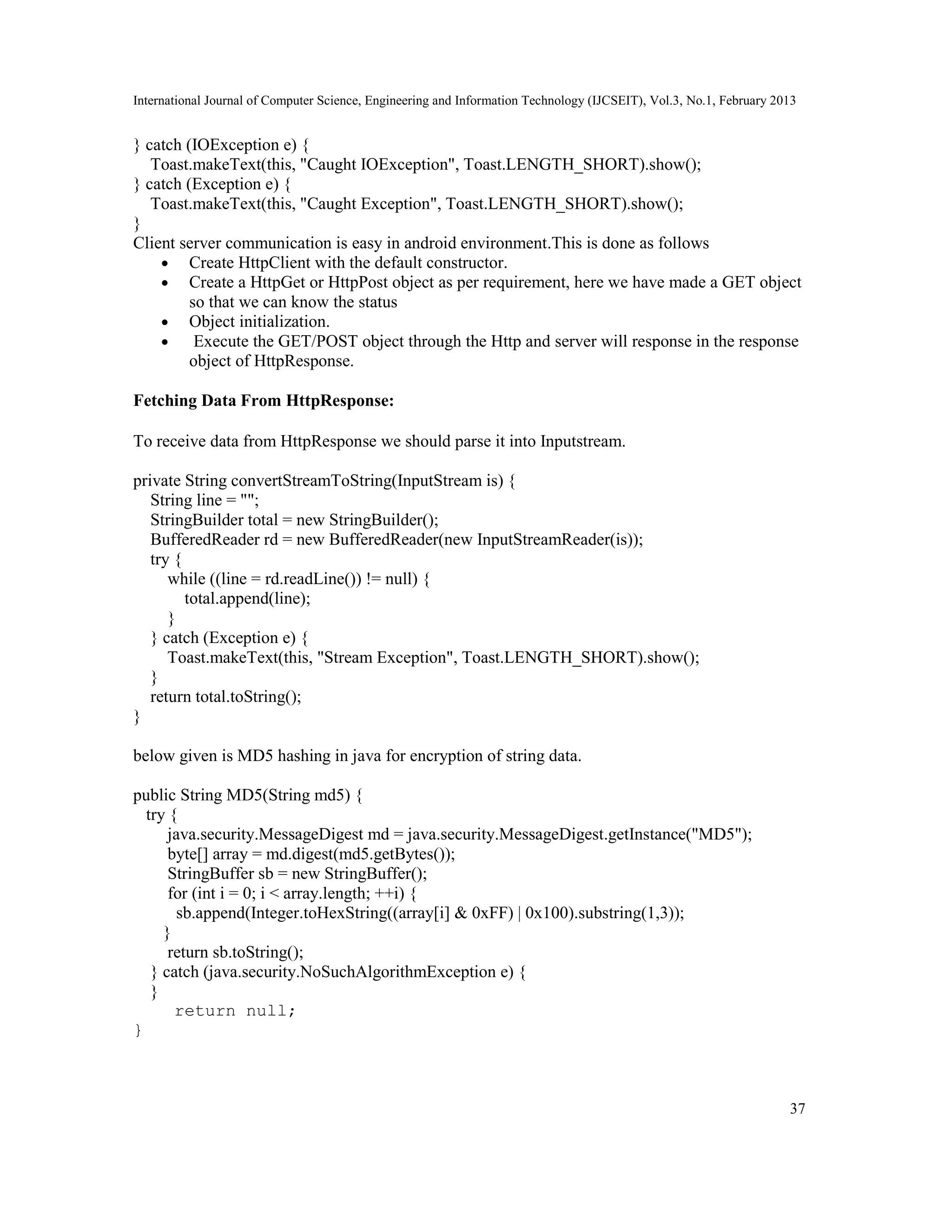

Client server communication is easy in android environment.This is done as follows
• Create HttpClient with the default constructor.
• Create a HttpGet or HttpPost object as per requirement, here we have made a GET object
so that we can know the status
• Object initialization.
• Execute the GET/POST object through the Http and server will response in the response
object of HttpResponse.
Fetching Data From HttpResponse:
To receive data from HttpResponse we should parse it into Inputstream.
private String convertStreamToString(InputStream is) {
String line = "";
StringBuilder total = new StringBuilder();
BufferedReader rd = new BufferedReader(new InputStreamReader(is));
try {
while ((line = rd.readLine()) != null) {
total.append(line);
}
} catch (Exception e) {
Toast.makeText(this, "Stream Exception", Toast.LENGTH_SHORT).show();
}
return total.toString();
}
below given is MD5 hashing in java for encryption of string data.
public String MD5(String md5) {
try {
java.security.MessageDigest md = java.security.MessageDigest.getInstance("MD5");
byte[] array = md.digest(md5.getBytes());
StringBuffer sb = new StringBuffer();
for (int i = 0; i < array.length; ++i) {
sb.append(Integer.toHexString((array[i] & 0xFF) | 0x100).substring(1,3));
}
return sb.toString();
} catch (java.security.NoSuchAlgorithmException e) {
}
return null;
}

6. International Journal of Computer Science, Engineering and Information Technology (IJCSEIT), Vol.3, No.1, February 2013
38

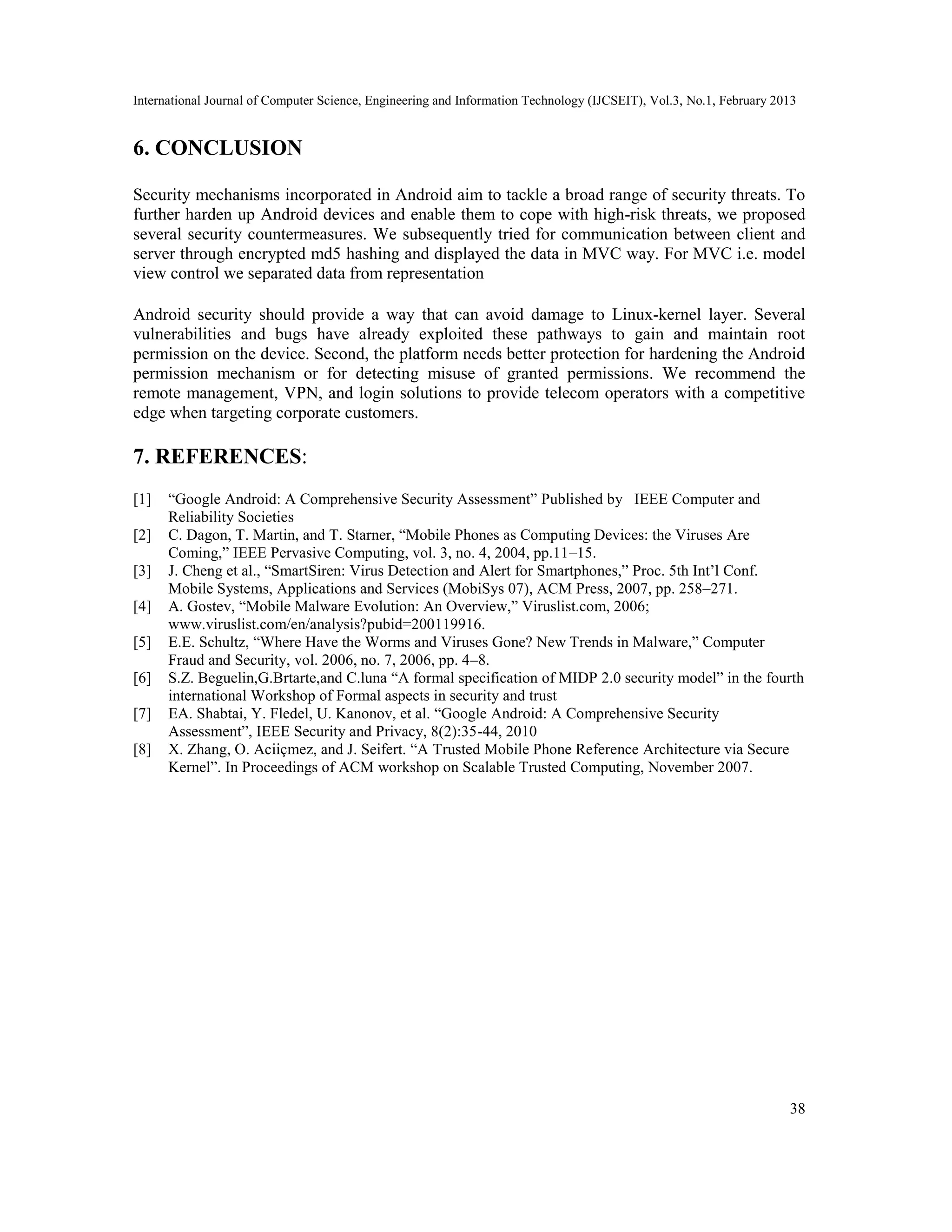

6. CONCLUSION
Security mechanisms incorporated in Android aim to tackle a broad range of security threats. To
further harden up Android devices and enable them to cope with high-risk threats, we proposed
several security countermeasures. We subsequently tried for communication between client and
server through encrypted md5 hashing and displayed the data in MVC way. For MVC i.e. model
view control we separated data from representation
Android security should provide a way that can avoid damage to Linux-kernel layer. Several
vulnerabilities and bugs have already exploited these pathways to gain and maintain root
permission on the device. Second, the platform needs better protection for hardening the Android
permission mechanism or for detecting misuse of granted permissions. We recommend the
remote management, VPN, and login solutions to provide telecom operators with a competitive
edge when targeting corporate customers.
