1. Configuration Manager
Community Event
Switzerland 2014

2. Automating OSD and PostOSD Configuration with
Powershell and
Orchestrator
Triggering Runbooks and Webservices with Powershell in
Pre- and Post-Execution to conform with Asset Details in
the CMDB, allowing complex zero touch deployments
throughout the Desktop life cycle.

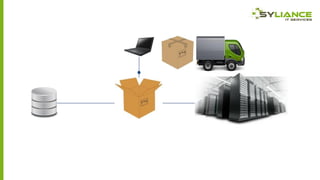

4. Preparing the environment
Demo

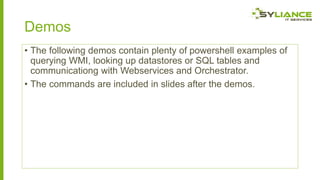

7. Demos
• The following demos contain plenty of powershell examples of
querying WMI, looking up datastores or SQL tables and
communicationg with Webservices and Orchestrator.
• The commands are included in slides after the demos.

8. Using Powershell to trigger local and
remote WMI queries and methods
Demo

10. Using Powershell to access a datastore
Demo

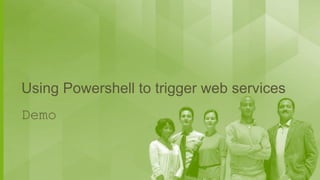

11. Using Powershell to trigger web services
Demo

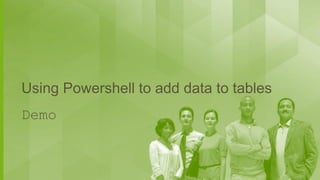

12. Using Powershell to add data to tables
Demo

13. Using Powershell to trigger Orchestrator
runbooks
Demo

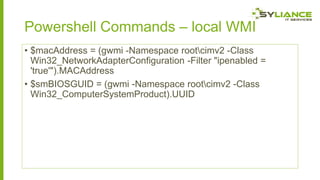

14. Powershell Commands – local WMI
• $macAddress = (gwmi -Namespace rootcimv2 -Class
Win32_NetworkAdapterConfiguration -Filter "ipenabled =
'true'").MACAddress
• $smBIOSGUID = (gwmi -Namespace rootcimv2 -Class
Win32_ComputerSystemProduct).UUID

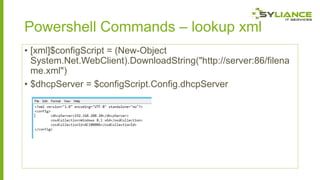

15. Powershell Commands – lookup xml
• [xml]$configScript = (New-Object
System.Net.WebClient).DownloadString("http://server:86/filena
me.xml")
• $dhcpServer = $configScript.Config.dhcpServer

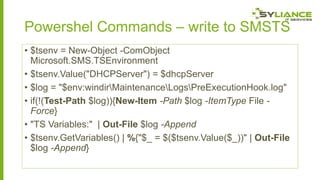

16. Powershel Commands – write to SMSTS
• $tsenv = New-Object -ComObject
Microsoft.SMS.TSEnvironment
• $tsenv.Value("DHCPServer") = $dhcpServer
• $log = "$env:windirMaintenanceLogsPreExecutionHook.log"
• if(!(Test-Path $log)){New-Item -Path $log -ItemType File Force}
• "TS Variables:" | Out-File $log -Append
• $tsenv.GetVariables() | %{"$_ = $($tsenv.Value($_))" | Out-File
$log -Append}

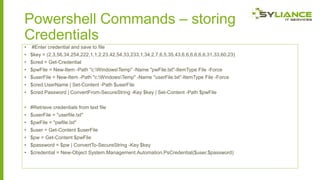

17. Powershell Commands – storing
Credentials
•
#Enter credential and save to file
• $key = (2,3,56,34,254,222,1,1,2,23,42,54,33,233,1,34,2,7,6,5,35,43,6,6,6,6,6,6,31,33,60,23)
• $cred = Get-Credential
• $pwFile = New-Item -Path "c:WindowsTemp" -Name "pwFile.txt"-ItemType File -Force
• $userFile = New-Item -Path "c:WindowsTemp" -Name "userFile.txt"-ItemType File -Force
• $cred.UserName | Set-Content -Path $userFile
• $cred.Password | ConvertFrom-SecureString -Key $key | Set-Content -Path $pwFile
• #Retrieve credentials from text file
• $userFile = "userfile.txt"
• $pwFile = "pwfile.txt"
• $user = Get-Content $userFile
• $pw = Get-Content $pwFile
• $password = $pw | ConvertTo-SecureString -Key $key
• $credential = New-Object System.Management.Automation.PsCredential($user,$password)

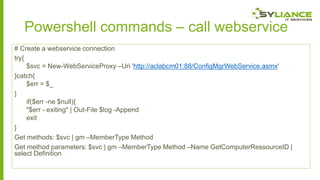

20. Powershell commands – call webservice
# Create a webservice connection
try{
$svc = New-WebServiceProxy –Uri 'http://aclabcm01:88/ConfigMgrWebService.asmx'
}catch{
$err = $_
}
if($err -ne $null){
"$err - exiting" | Out-File $log -Append
exit
}
Get methods: $svc | gm –MemberType Method
Get method parameters: $svc | gm –MemberType Method –Name GetComputerRessourceID |
select Definition

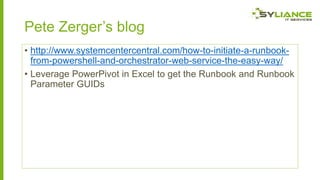

21. Pete Zerger’s blog
• http://www.systemcentercentral.com/how-to-initiate-a-runbookfrom-powershell-and-orchestrator-web-service-the-easy-way/
• Leverage PowerPivot in Excel to get the Runbook and Runbook
Parameter GUIDs

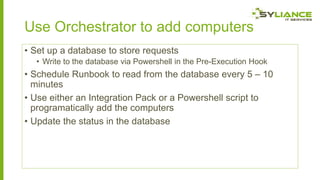

22. Use Orchestrator to add computers
• Set up a database to store requests
• Write to the database via Powershell in the Pre-Execution Hook
• Schedule Runbook to read from the database every 5 – 10
minutes
• Use either an Integration Pack or a Powershell script to
programatically add the computers
• Update the status in the database

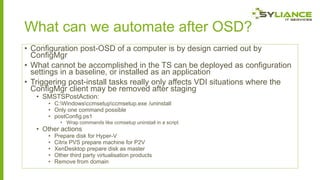

25. What can we automate after OSD?
• Configuration post-OSD of a computer is by design carried out by
ConfigMgr
• What cannot be accomplished in the TS can be deployed as configuration
settings in a baseline, or installed as an application
• Triggering post-install tasks really only affects VDI situations where the
ConfigMgr client may be removed after staging
• SMSTSPostAction:
• C:Windowsccmsetupccmsetup.exe /uninstall
• Only one command possible
• postConfig.ps1
• Wrap commands like ccmsetup uninstall in a script
• Other actions
•
•
•
•
•
Prepare disk for Hyper-V
Citrix PVS prepare machine for P2V
XenDesktop prepare disk as master
Other third party virtualisation products
Remove from domain

26. Questions & Answers
Thank you!

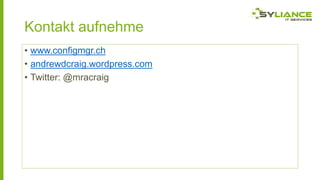

27. Kontakt aufnehme
• www.configmgr.ch
• andrewdcraig.wordpress.com
• Twitter: @mracraig
