1. Title
presenters
Android game
development
Milan Dinic
@milandinic

2. Idea

3. Idea
Wreck-it Ralph movie - Fix it Felix game

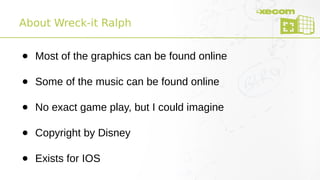

4. ● Most of the graphics can be found online
● Some of the music can be found online
● No exact game play, but I could imagine
● Copyright by Disney
● Exists for IOS
About Wreck-it Ralph

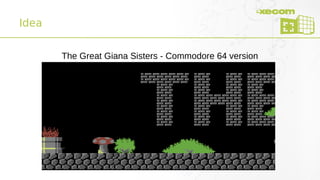

5. Idea
The Great Giana Sisters - Commodore 64 version

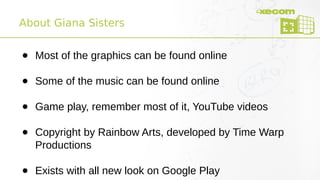

6. About Giana Sisters
● Most of the graphics can be found online
● Some of the music can be found online
● Game play, remember most of it, YouTube videos
● Copyright by Rainbow Arts, developed by Time Warp
Productions
● Exists with all new look on Google Play

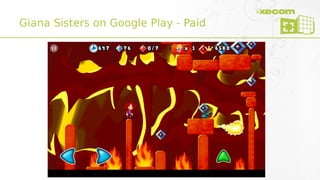

7. Giana Sisters on Google Play - Paid

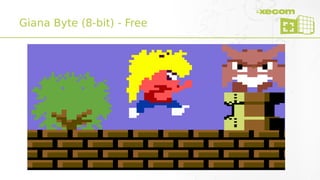

8. Giana Byte (8-bit) - Free

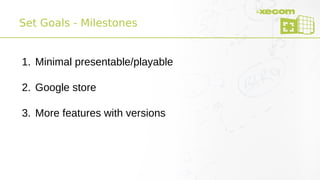

9. Set Goals - Milestones
1. Minimal presentable/playable
2. Google store
3. More features with versions

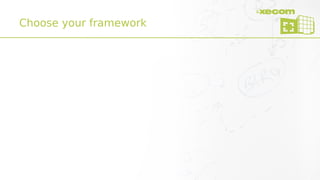

10. Choose your framework

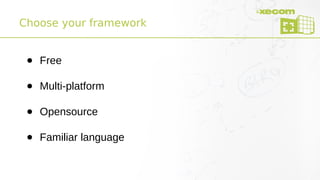

11. Choose your framework
● Free
● Multi-platform
● Opensource
● Familiar language

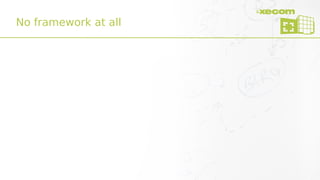

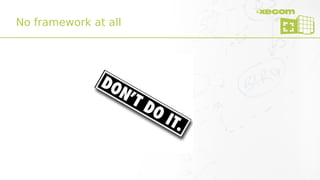

12. No framework at all

13. No framework at all

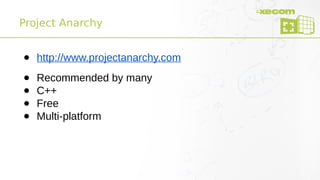

14. Project Anarchy
● http://www.projectanarchy.com
● Recommended by many
● C++
● Free
● Multi-platform

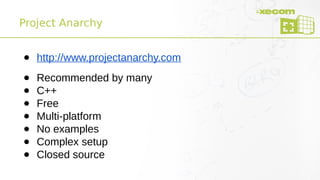

15. Project Anarchy
● http://www.projectanarchy.com
● Recommended by many
● C++
● Free
● Multi-platform
● No examples
● Complex setup
● Closed source

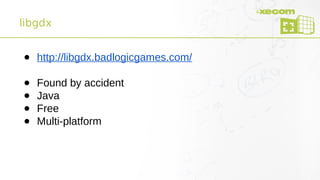

16. libgdx
● http://libgdx.badlogicgames.com/
● Found by accident
● Java
● Free
● Multi-platform

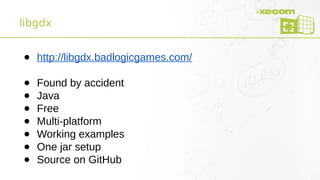

17. libgdx
● http://libgdx.badlogicgames.com/
● Found by accident
● Java
● Free
● Multi-platform
● Working examples
● One jar setup
● Source on GitHub

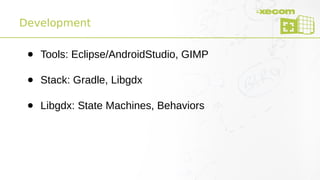

18. Development
● Tools: Eclipse/AndroidStudio, GIMP
● Stack: Gradle, Libgdx
● Libgdx: State Machines, Behaviors

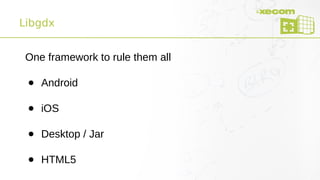

19. Libgdx
One framework to rule them all
● Android
● iOS
● Desktop / Jar
● HTML5

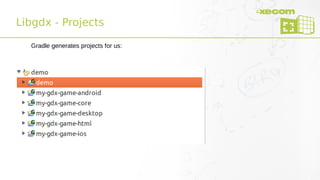

20. Libgdx - Projects
Gradle generates projects for us:

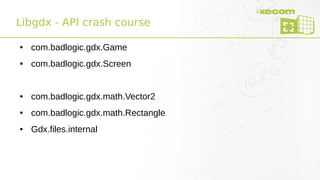

21. Libgdx - API crash course
● com.badlogic.gdx.Game
● com.badlogic.gdx.Screen
● com.badlogic.gdx.math.Vector2
● com.badlogic.gdx.math.Rectangle
● Gdx.files.internal

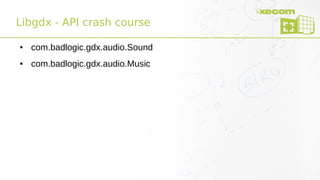

22. Libgdx - API crash course
● com.badlogic.gdx.audio.Sound
● com.badlogic.gdx.audio.Music

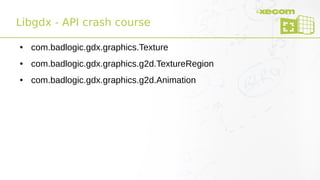

23. Libgdx - API crash course
● com.badlogic.gdx.graphics.Texture
● com.badlogic.gdx.graphics.g2d.TextureRegion
● com.badlogic.gdx.graphics.g2d.Animation

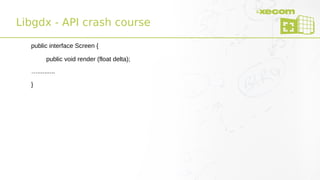

24. Libgdx - API crash course
public interface Screen {
public void render (float delta);
…..........
}

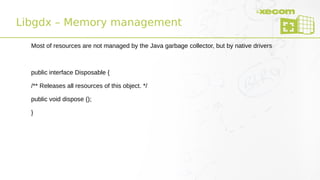

25. Libgdx – Memory management
Most of resources are not managed by the Java garbage collector, but by native drivers
public interface Disposable {
/** Releases all resources of this object. */
public void dispose ();
}

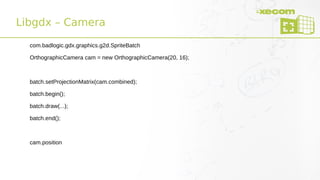

26. Libgdx – Camera
com.badlogic.gdx.graphics.g2d.SpriteBatch
OrthographicCamera cam = new OrthographicCamera(20, 16);
batch.setProjectionMatrix(cam.combined);
batch.begin();
batch.draw(...);
batch.end();
cam.position

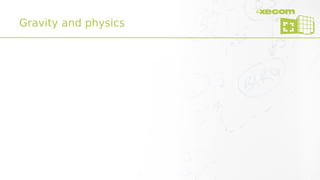

27. Gravity and physics

28. Gravity and physics
Don't reinvent the wheel - a lot of them online

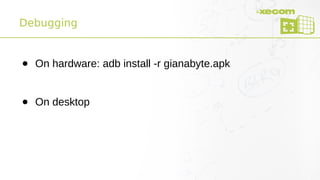

29. Debugging
● On hardware: adb install -r gianabyte.apk
● On desktop

30. Sounds

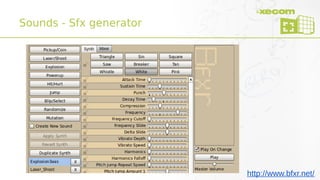

31. Sounds - Sfx generator
http://www.bfxr.net/

32. Sprite

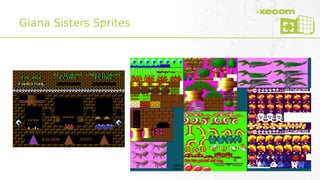

33. Giana Sisters Sprites

34. Sprite tools
● ImageMagick
● GIMP

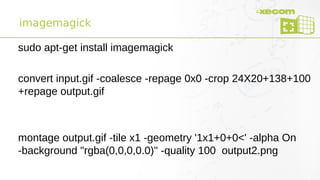

35. imagemagick
sudo apt-get install imagemagick
convert input.gif -coalesce -repage 0x0 -crop 24X20+138+100
+repage output.gif
montage output.gif -tile x1 -geometry '1x1+0+0<' -alpha On
-background "rgba(0,0,0,0.0)" -quality 100 output2.png

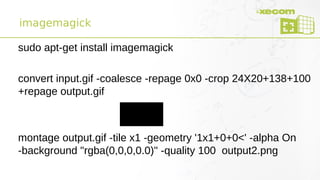

36. imagemagick
sudo apt-get install imagemagick
convert input.gif -coalesce -repage 0x0 -crop 24X20+138+100
+repage output.gif
montage output.gif -tile x1 -geometry '1x1+0+0<' -alpha On
-background "rgba(0,0,0,0.0)" -quality 100 output2.png

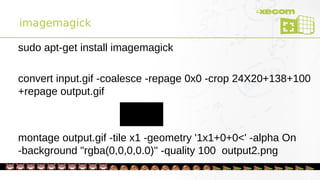

37. imagemagick
sudo apt-get install imagemagick
convert input.gif -coalesce -repage 0x0 -crop 24X20+138+100
+repage output.gif
montage output.gif -tile x1 -geometry '1x1+0+0<' -alpha On
-background "rgba(0,0,0,0.0)" -quality 100 output2.png

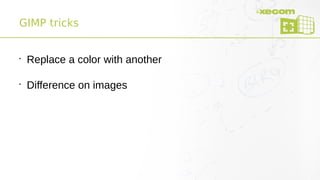

38. GIMP tricks
•
Replace a color with another
•
Difference on images

39. Intro Level

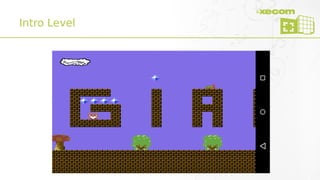

40. Intro Level

41. Launcher Icon
Courtesy of GIMP

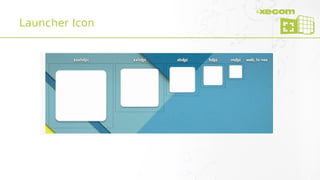

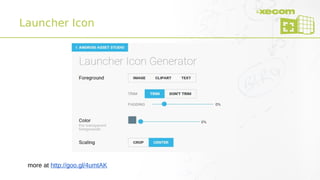

42. Launcher Icon

43. Launcher Icon
more at http://goo.gl/4umtAK

44. Use the Inkscape
Daniel Egan: Creating Your First 2D Game in GameMaker http://goo.gl/3u8KIS

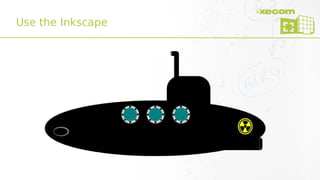

45. Use the Inkscape

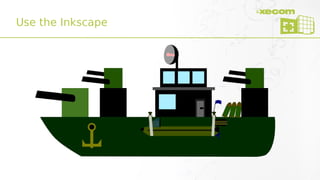

46. Use the Inkscape

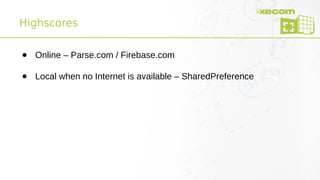

47. Highscores
● Online – Parse.com / Firebase.com
● Local when no Internet is available – SharedPreference

48. Signing the application
1. Generate key (keytool -genkey -v -keystore giana-key.keystore -alias giana -keyalg RSA -keysize 2048
-validity 10000)
2. Compile your application in release mode
3. Sign (jarsigner -verbose -sigalg SHA1withRSA -digestalg SHA1 -keystore giana-key.keystore android-release-unsigned.apk giana)
4. Verify signature (jarsigner -verify -verbose -certs android-release-unsigned.apk)
5. Align (zipalign -v 4 android-release-unsigned.apk gianabyte.apk)
more at:
http://developer.android.com/tools/publishing/app-signing.html

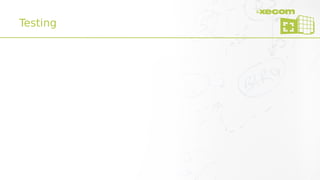

49. Testing

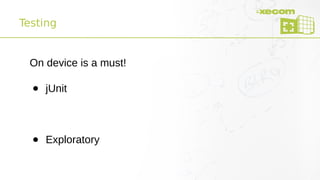

50. Testing
On device is a must!
● jUnit
● Exploratory

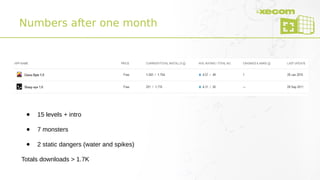

51. Numbers after one month
● 15 levels + intro
● 7 monsters
● 2 static dangers (water and spikes)
Totals downloads > 1.7K

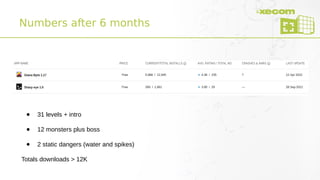

52. Numbers after 6 months
● 31 levels + intro
● 12 monsters plus boss
● 2 static dangers (water and spikes)
Totals downloads > 12K

53. Calendar

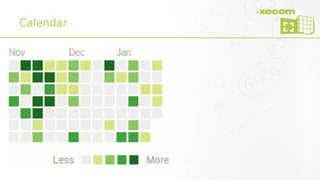

54. Calendar

55. Marketing
● social networks
● adds
● reviews

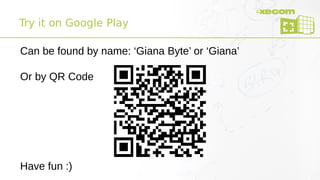

56. Try it on Google Play
Can be found by name: ‘Giana Byte’ or ‘Giana’
Or by QR Code
Have fun :)

57. Q & A
