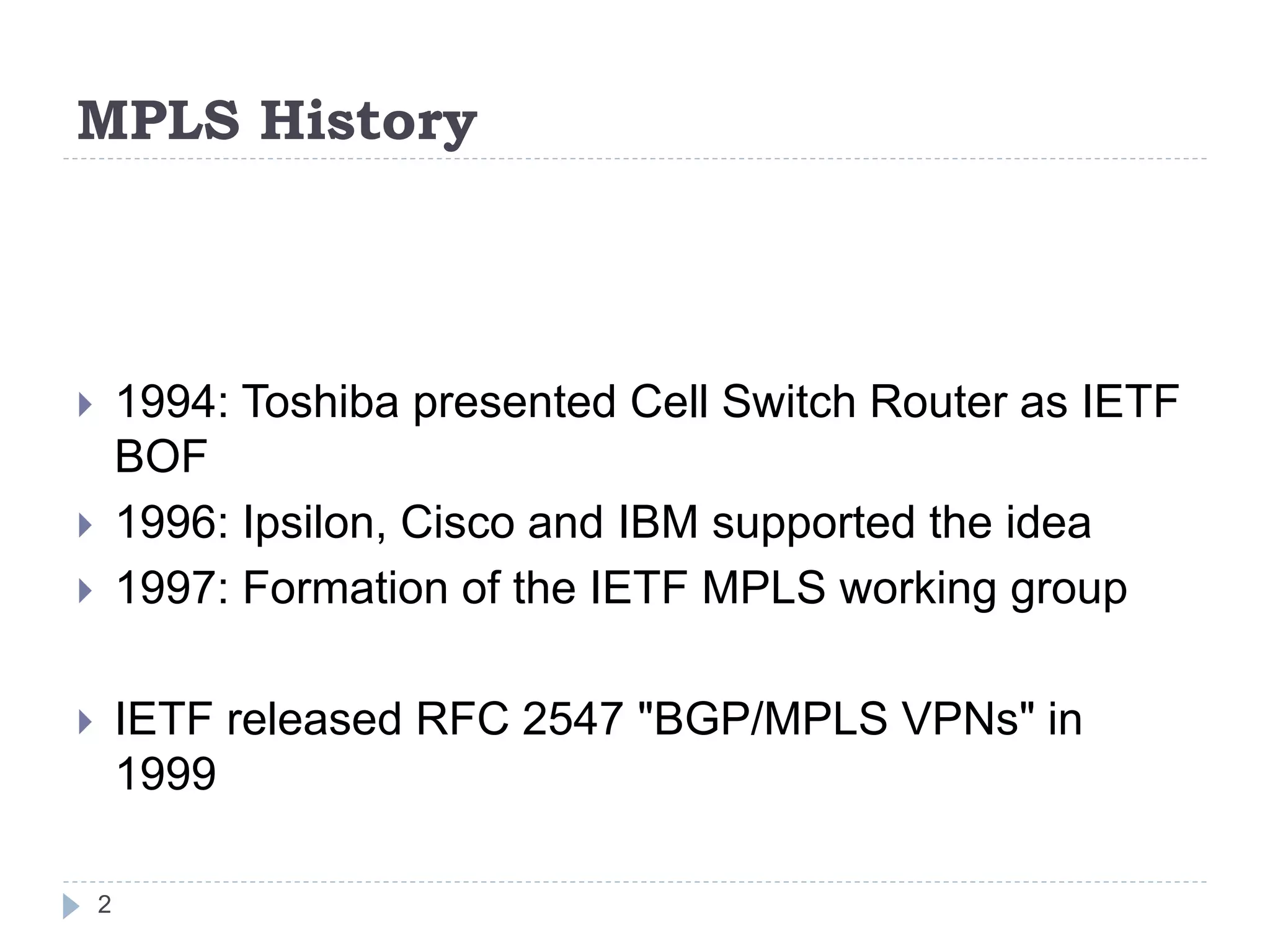

2. MPLS History
1994: Toshiba presented Cell Switch Router as IETF
BOF
1996: Ipsilon, Cisco and IBM supported the idea
1997: Formation of the IETF MPLS working group
IETF released RFC 2547 "BGP/MPLS VPNs" in
1999
2
3. Terminology
Cisco
Terminology
New Terminology
Tag Switching MPLS
Tag Label
TDP LDP (Label Distribution Protocol)
TFIB LFIB (Label Forwarding Information
Base)
TSR LSR (Label Switch Router)
TSC LSC (Label Switch Controller)
TSP LSP (Label Switched Path)
3
4. MPLS Applications
MPLS VPN
Most Popular Application of MPLS
Traffic Engineering
First called RRR or R3 (Routing & Resource
Reservation)
AToM (Any Transport over MPLS)
Point-to-point circuits over MPLS – Frame Relay, ATM,
PPP, HDLC, Ethernet and IEEE 802.1Q
VPLS (Virtual Private LAN Service)
Ethernet Supported in a multipoint fashion.
4
5. Advantages of MPLS
MPLS VPN
VRF routing tables and ease of growth.
Unified infrastructure
Carrier for any technology - ATM, FR, PPP, Ethernet, IPv4 and
IPv6.
Better IP over ATM than pervious solutions
AAL5 - RFC1483, LANE, Multiprotocol over ATM - MPOA
BGP-free core
providers need IP routing but BGP is only required on edges.
Optimal Traffic Flow
Connections logically are fully mesh and no extra circuit
mapping is required.
Traffic Engineering
Different path from least cost path, Source-based routing &
Fast Re-Routing (FRR)
5
6. MPLS Label
32 bits header (4 Bytes) = each stack
Unlimited Stacks supported, The last stack BOS flag=1
Label: 20 bits
EXP: 3 bits
BOS: 1 bit (bottom of stack)
TTL: 8 bits
Label EXP TTL
BOS6
7. Label Stack
Top label and bottom label on a stack:
Label EXP TTL0
Label EXP TTL0
Label EXP TTL1
…
7
8. Label Stack (cont.)
Some MPLS applications like MPLS VPNs require
more than one label in the label stack to forward the
packets.
MPLS VPNs and AToM put two labels in the label
stack.
MPLS is not a Layer 2 Protocol, not even Layer 3
MPLS is viewed as a Layer 2.5 protocol.
Label 0 Label 1 IPv4PPP
8
9. Protocol Identifier
Data Link Layer Protocol Identifier
ATM uses a different way for encapsulating the Label.
Layer 2 Protocol Identifier Field Value (hex)
PPP Protocol Field 0281
Ethernet SNAP Ether-type 8847
HDLC Protocol 8847
Frame Relay NLPID 80
9
10. Label Switch Router
LSR is a router that supports MPLS.
Ingress LSR
Inserts a label (push) and sends packet to MPLS network.
Egress LSR
Removes the label (pop) and sends packet on a data link.
Intermediate LSR
Modifies the label (swap) and switches the packets.
Edge LSR = Ingress and Egress LSRs
10
15. Forwarding Equivalence Class
FEC is group or flow of packets classified for a
forwarding decision and have similar EXP.
Ingress LSR decides which packet belongs to which
FEC.
All packets with same FEC get the same label imposed
by the ingress LSR
Same FEC = Same Label.
Same Label <> Same FEC. (might have different
FEC)
15
16. FEC Classification
Ingress LSR Classifies traffic (FEC) based on:
Certain multicast group
Based on DSCP or Precedence
Based on VC (sub-interface)
Based on Destination IP
Based on BGP Prefixes pointing to the same Next-hop.
In this case all traffic for an Egress LSR (iBGP Peer) can be
forwarded through a specific LSP.
16
17. Label Distribution
Adjacent LSRs must agree to use specific Label for
a specific IP Prefix.
Labels are local and have no global meaning.
Labels are between adjacent LSRs.
A label distribution protocol is required.
Using IP Routing Protocol (EIGRP, ISIS, OSPF)
Using Label Distribution Protocol (TDP, LDP, RSVP)
17
18. Label Distribution with Routing Protocol
Advantage:
Does not need a new label distribution protocol.
Routing and Label distribution are always in sync.
EIGRP implementation is straight forward.
Disadvantage:
Link state routing protocols do not function this way.
18
19. Label Distribution with LDP
Label Information Base (LIB) holds remote and local
label bindings.
One local binding per prefix.
Label Space:
Per platform
Per interface (LC-ATM)
19
20. LIB LFIB
LFIB is Label Forwarding Instance Base, a table
used to forward incoming and outgoing labels for
LSPs.
1. All remote bindings LIB
2. Only one possible outgoing label in LIB LFIB
LDP
Static
MPBGP
RSVP
20
21. MPLS Payload
The MPLS has no Network Level Protocol Identifier.
NLPID exists in all Layer 2 protocols (different
names)
Intermediate LSRs do not need to know what
payload is.
Egress LSR should know what the payload is, to
forward.
Egress LSR is the one who created label binding for
FEC.
21
22. LDP Modes
Label Distribution Mode
DOD Downstream-on-Demand (pull mode – LC-ATM)
UD Unsolicited Downstream (push mode – Default)
Label Retention Mode
LLR Liberal Label Retention (keep all bindings in LIB -
Default)
CLR Conservative Label Retention (LC-ATM)
LSP Control Mode
Independent LSP (immediate local binding for FEC -
Default)
Ordered LSP (IOS ATM switches)
22
23. LFIB Forwarding Commands
show ip cef x.x.x.x
show adjacency table
show mpls forwarding-table
show mpls forwarding-table x.x.x.x
show mpls forwarding-table x.x.x.x detail
show mpls forwarding-table vrf …
show mpls interfaces … detail
23
24. Label Operation
Pop
Swap
Push
Untagged/No Label
Aggregate
Remove the label stack then perform IP Lookup.
24
25. IOS Label Range
Default Label Range 16 to 100,000
Router(config)# mpls label range 16 1048575
Unknown Label: drop
Reserved Label 0 to 15:
Implicit NULL Label (3)
Set by egress LSR for connected and summarized prefixes to
penultimate LSR to not send Label. “penultimate hop popping”
PHP
Explicit NULL Label(0, for IPv6=2)
Like implicit NULL but send label=0 to retain EXP value.
Router Alert Label (1)
Perform software Lookup instead of hardware
OAM Alert Label (14) RFC 3429 – not supported on IOS
25
26. TTL and MPLS
TTL (-1) is copied from IP header to MPLS and vice
versa.
Don’t copy if TTL value is greater than packet TTL.
Label to
IP
Igress
LSR
LSR LSR
TTL=25
4
TTL=25
3
TTL=25
3
TTL=25
3
TTL=25
3
TTL=25
2
TTL=25
3
TTL=25
1
TTL=25
2
IP to
Label
TTL=25
3
Label to
Label
26
27. TTL – Label to Label
Intermediate LSR does not change TTL in IP header or underlying
labels.
POP
LS
R
LSR LSR
TTL=25
3
TTL=25
3
TTL=24
9
TTL=24
8
TTL=25
3
TTL=25
3
TTL=25
1
TTL=25
3
TTL=25
3
TTL=25
1
TTL=25
1
TTL=25
0
SWAP
TTL=25
2
TTL=25
1
PUSH
27
28. TTL Expire
ICMP “time exceeded” (type 11 code 0) is forwarded along the LSP
because interim LSR might have no route to the originator of packet.
Ingress Egres
s
TTL=2 TTL=1
TTL=1
ICMP
Time
Exceede
d
TTL=25
5
TTL=25
5
TTL
Expired
!
ICMP
Time
Exceede
d
TTL=25
4
ICMP
Time
Exceede
d
TTL=25
3
ICMP
Time
Exceede
d
TTL=25
1
TTL=25
3ICMP
Time
Exceede
d
TTL=25
3
TTL=25
2ICMP
Time
Exceede
d
TTL=25
0
LSR LSRLSR
28
29. MPLS MTU
Maximum size of packet that can be sent to data link
without fragmentation.
MRU Maximum Receive Unit used in LFIB for
neighbors.
A value per FEC (or prefix) not based on interface.
On LSR configure MTU to 1508 (1500 + 2 Labels)
(config-if)# mpls mtu 1508
If on switches MTU is not increased = baby giant
drops.
(config)# system jumbomtu
(config)# system mtu 1508
29
30. Fragmentation
Fragmentation <> Performance
LSR strips the label and fragments payload.
Path MTU Discovery
Modern hosts send IP with DF bit set (Don’t Fragment) to
receive ICMP type 3 code 4 “Fragmentation needed”
Process continues with lowering the size till no error is
received and correct MTU achieves.
LSR sends ICMP type 3 code 4 along with LSP (just
like TTL exceeded)
30
