AMD Ryzen Pro

1 | COMMERCIAL | 2017 | AMD CONFIDENTIAL – UNDER EMBARGO – JUNE 29TH 2017 – 9 AM EST

Up to
3.7GHz
with Precision Boost
Up to
8 Cores
16 Threads
AMD
SenseMI
Technology
Up to
20MB
L2+L3 Low latency Cache
See Endnotes
AMD Ryzen 7 PRO
1700 delivers up to
more multi-threaded
performance than
competing products62%

Precision
Boost
Extended Frequency
Range (XFR)
Neural Net
Prediction
Smart
Prefetch
Pure
Power
 Hundreds of networked smart
sensors gather information
every millisecond to meet the
performance demands per
workload/application.
 High precision tuning with
25Mhz increments
 Automatically uplifts processor
clock in the presence of
premium system and processor
cooling to give a huge bump in
performance.
 Increased efficiency from a true
AI that evaluates the current
application and predicts the
next steps before they are
needed.
 Sophisticated learning
algorithms that prefetch vital
data based on user applications
and patterns to help speed up
computing.
 More than 100 embedded
sensors enable exceptional
efficiency with minimal energy
consumption.

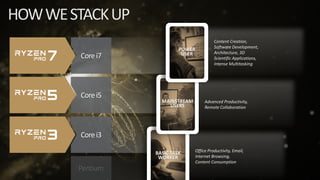

AVAILABLE ON NO ARTICIFICIAL
DIFFERENTIATION

Content Creation,
Software Development,
Architecture, 3D
Scientific Applications,
Intense Multitasking
Advanced Productivity,
Remote Collaboration
Office Productivity, Email,
Internet Browsing,
Content Consumption
Corei7
Corei5
Corei3
Pentium
BASIC TASK
WORKER
MAINSTREAM
USERS
POWER
USER

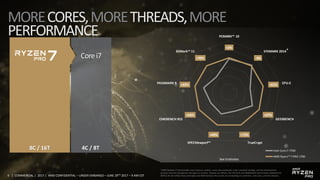

Corei7
8C / 16T 4C / 8T
+2%
-4%
+61%
+27%
+73%+49%
+63%
+33%
+70%
PCMARK™ 10
SYSMARK 2014
CPU-Z
GEEKBENCH
TrueCryptSPECViewperf™
CINEBENCH R15
PASSMARK 9
3DMark™ 11
Intel Core i7 7700
AMD Ryzen™7 PRO 1700
*
*AMD believes IT benchmarks must measure realistic, every day workloads under standard settings, and the development
process must be transparent and open to scrutiny. Despite our efforts, the SYSmark and MobileMark benchmarks published by
BAPCo do not reflect these principles and AMD believes the results are misleading to customers, end users, and the industry.
See Endnotes

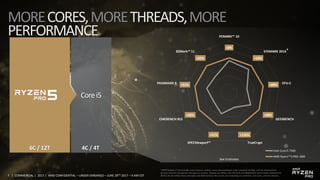

Corei5
6C / 12T 4C / 4T
+8%
+14%
+89%
+39%
+116%+51%
+92%
+51%
+62%
PCMARK™ 10
SYSMARK 2014
CPU-Z
GEEKBENCH
CINEBENCH R15
PASSMARK 9
3DMark™ 11
Intel Core i5 7500
*
See Endnotes

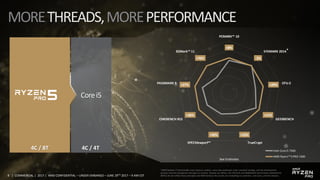

Corei5
4C / 8T 4C / 4T
+8%
-2%
+29%
+11%
+53%+50%
+36%
+27%
+76%
PCMARK™ 10
SYSMARK 2014
CPU-Z
GEEKBENCH
CINEBENCH R15
PASSMARK 9
3DMark™ 11
Intel Core i5 7500
*
See Endnotes

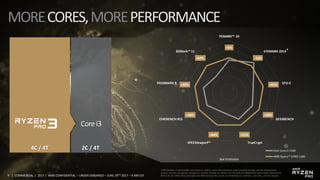

Corei3
4C / 4T 2C / 4T
+6%
-12%
+41%
+28%
+21%+64%
+34%
+32%
+67%
PCMARK™ 10
SYSMARK 2014
CPU-Z
GEEKBENCH
CINEBENCH R15
PASSMARK 9
3DMark™ 11
Intel Core i3 7100
*
See Endnotes

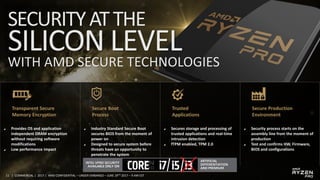

Built-in
AES 128-bit
encryption engine
Supports
fTPM/TPM 2.0
Features
AMD
Secure
Technologies
Windows® 10
EnterpriseSecurity
Support
Trusted by major companies worldwide,
AMD Secure Technologies offer the ultimate
protection against emerging threats

Transparent Secure
Memory Encryption
Secure Boot
Process
Trusted
Applications
Secure Production
Environment
 Provides OS and application
independent DRAM encryption
without requiring software
modifications
 Low performance impact
 Industry Standard Secure Boot
secures BIOS from the moment of
power on
 Designed to secure system before
threats have an opportunity to
penetrate the system
 Hardware based root of trust
 Secures storage and processing of
trusted applications and real-time
intrusion detection
 fTPM enabled, TPM 2.0
 Security process starts on the
assembly line from the moment of
production
 Test and confirms HW, Firmware,
BIOS and configurations
DIFFERENTIATION
INTEL VPRO SECURITY
AVAILABLE ONLY ON
ARTIFICIAL
DIFFERENTIATION
AND PREMIUM

24 months
Processor availability
18 months
Image stability
Industry-leading
DASH
Manageability
Commercial-grade
Quality
Highest yield wafers*
Enabling the experience business users want
with the enterprise-class reliability and
manageability IT Pros need.
*See Endnotes

DIFFERENTIATION
Stability
Processor and
Platform Longevity
Commercial-Grade
Quality
Enterprise-Class
Manageability
Commercial Limited
Warranty
 18-month platform stability
empowers smarter, simpler IT
planning and investment
 24-month processor longevity
virtually enables nonstop
productivity and peace of mind
 AM4 infrastructure available for
4+ years and compatible n-2, n-
1 and n+1 generation
 Commercial-grade quality
assurance
 Processor specifications are set
to meet long term reliability
 Industry-leading DASH
manageability open standard
 CPU agnostic, helping ensure IT
Pros will never get locked into
proprietary solution that can
add cost without meaningful
benefit.
 36-Month Limited Warranty to
System Manufacturer instead of
12 months for consumer parts.
INTEL ENTERPRISE
FEATURES AVAILABLE
ONLY ON
ARTIFICIAL
DIFFERENTIATION
AND PREMIUM

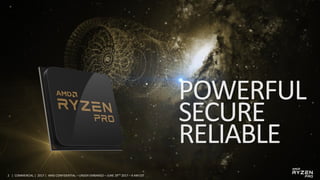

Workstation-class performance
for traditional business desktop
State-of-the-art security
starting at the silicon level
Enterprise-class assurances &
manageability - top to bottom
Powerful
Secure
Reliable

FURTHE R INFORMATION AVAILABLE
AUGUST 2 9 2 0 1 7

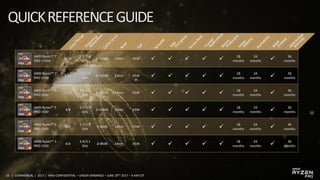

AMD Ryzen™ 7
PRO 1700X
8/16
3.8/3.4
GHz
4+16MB 14nm 95W ✓ ✓ ✓ ✓ ✓
18
months
24
months ✓
36
months
AMD Ryzen™ 7
PRO 1700
8/16
3.7/3.0
GHz
4+16MB 14nm 65W ✓ ✓ ✓ ✓ ✓
18
months
24
months ✓
36
months
AMD Ryzen™ 5
PRO 1600
6/12
3.6/3.2
GHz
3+16MB 14nm 65W ✓ ✓ ✓ ✓ ✓
18
months
24
months ✓
36
months
AMD Ryzen™ 5
PRO 1500
4/8
3.7/3.5
GHz
2+16MB 14nm 65W ✓ ✓ ✓ ✓ ✓
18
months
24
months ✓
36
months
AMD Ryzen™ 3
PRO 1300
4/4
3.7/3.5
GHz
2+8MB 14nm 65W ✓ ✓ ✓ ✓ ✓
18
months
24
months ✓
36
months
AMD Ryzen™ 3
PRO 1200
4/4
3.4/3.1
GHz
2+8MB 14nm 65W ✓ ✓ ✓ ✓ ✓
18
months
24
months ✓
36
months

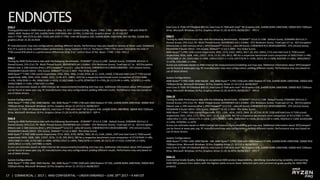

Slide 4
Testing performed in AMD Internal Labs as of May 10, 2017. System Config: Ryzen 7 PRO 1700 : AMD Myrtle – SM with 95W R7
1800X, AMD Radeon R7 240, 2x4096 DDR4-2400 RAM, Win 10 PRO, 512GB SSD, Graphics driver 21.19.142.257
Intel i7-7700: MSI Z270 SLI (MS-7A59) with 65W i7-7700, Intel HD Graphics 630, 2x4096 DDR4-2400 RAM, Win 10 PRO, 512GB SSD,
graphics driver 21.20.16.4534
PC manufacturers may vary configurations yielding different results. Performance may vary based on version of driver used. Cinebench
R15 nT is used to show multithreaded performance. Using Cinebench R15 nT, the Ryzen 7 PRO 1700 scored 1422 while the Intel i7-
7700 scored 878 which is a performance differential of 61.9 or ~ 62% in favor of the Ryzen 7 PRO 1700 – RPZ-2
Slide 7
Testing by AMD Performance labs with the following Benchmarks : PCMARK™ 10 (v1.0.1198 - Default Score), SYSMARK 2014 (v1.5 -
Overall Score), CPU-Z (v1.79 - Multi Thread Score), GEEKBENCH (v4.1.0 64bit - CPU Multicore Score), TrueCrypt (v7.1a - AES Encryption
(Mean) over a 1GB memory drive ), SPECViewperf™ (v12.0.1 - catia-04 Score), CINEBENCH R15 (RC83328DEMO - CPU (nCore) Score),
PASSMARK 9 (build 10014 - CPU Score), 3DMark™ 11 (v2.3.3693 - Fire Strike Score)
AMD Ryzen™ 7 PRO 1700 scored respectively 3764, 1956, 3906, 21182, 8704, 20.11, 1419, 14392, 1740 and Intel Core i7 7700 scored
respectively 3686, 2030, 2430, 16682, 5017, 13.49, 871, 10803, 1022 for a respective benchmark score comparison of 3764/3686-
1=+2%, 1956/2030-1=-4%, 3906/2430-1=+61%, 21182/16682-1=+27%, 8704/5017-1=+73%, 20.11/13.49-1=+49%, 1419/871-1=+63%,
14392/10803-1=+33%, 1740/1022-1=+70%
Scores are estimates based on AMD internal lab measurements/modelling and may vary. Additional information about SPECviewperf
can be found at www.spec.org. PC manufacturers may vary configurations yielding different results. Performance may vary based on
use of latest drivers.
System Configurations:
AMD Ryzen™ 7 PRO 1700: AMD Myrtle - SM, AMD Ryzen™ 7 PRO 1700 with AMD Radeon R7 430, 2x4096 DDR4-2400 RAM, 500GB HDD
7200rpm Drive, Microsoft Windows 10 Pro, Graphics Driver 21.19.512.4, 06/08/2017
Intel Core i7 7700: HP EliteDesk 800 G3, Intel Core i7 7700 with Intel® HD Graphics 630, 2x4096 DDR4-2400 RAM, 500GB HDD 7200rpm
Drive, Microsoft Windows 10 Pro, Graphics Driver 21.20.16.4574, 06/08/2017 - RZP-4
Slide 8
respectively 3434, 1608, 1681, 13527, 3276, 13.35, 595, 8412, 985 for a respective benchmark score comparison of 3714/3434-1=+8%,
1835/1608-1=+14%, 3170/1681-1=+89%, 18782/13527-1=+39%, 7065/3276-1=+116%, 20.13/13.35-1=+51%, 1144/595-1=+92%,
12691/8412-1=+51%, 1597/985-1=+62%
Drive, Microsoft Windows 10 Pro, Graphics Driver 21.20.16.4574, 06/08/2017 - RPZ-5
Slide 9
AMD Ryzen™ 5 PRO 1500 scored respectively 3692, 1574, 2163, 14951, 5017, 20, 810, 10652, 1731 and Intel Core i5 7500 scored
1574/1608-1=-2%, 2163/1681-1=+29%, 14951/13527-1=+11%, 5017/3276-1=+53%, 20/13.35-1=+50%, 810/595-1=+36%, 10652/8412-
1=+27%, 1731/985-1=+76%
Slide 10
1285/1453-1=-12%, 1654/1175-1=+41%, 11872/9293-1=+28%, 2969/2457-1=+21%, 20.16/12.29-1=+64%, 554/414-1=+34%, 8139/6189-
1=+32%, 1570/941-1=+67%
Slide 13
Commercial Grade Quality: Building on exceptional AMD product dependability, identifying manufacturing variability and sourcing
AMD PRO products from wafers with the highest yields ensures fewer defective parts and commercial-grade quality for AMD PRO
products.

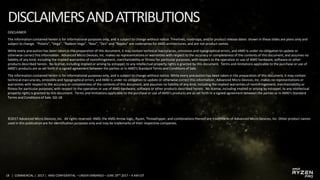

DISCLAIMER
The information contained herein is for informational purposes only, and is subject to change without notice. Timelines, roadmaps, and/or product release dates shown in these slides are plans only and
subject to change. “Polaris”, “Vega”, “Radeon Vega”, “Navi”, “Zen” and “Naples” are codenames for AMD architectures, and are not product names.
While every precaution has been taken in the preparation of this document, it may contain technical inaccuracies, omissions and typographical errors, and AMD is under no obligation to update or
otherwise correct this information. Advanced Micro Devices, Inc. makes no representations or warranties with respect to the accuracy or completeness of the contents of this document, and assumes no
liability of any kind, including the implied warranties of noninfringement, merchantability or fitness for particular purposes, with respect to the operation or use of AMD hardware, software or other
products described herein. No license, including implied or arising by estoppel, to any intellectual property rights is granted by this document. Terms and limitations applicable to the purchase or use of
AMD’s products are as set forth in a signed agreement between the parties or in AMD's Standard Terms and Conditions of Sale.
The information contained herein is for informational purposes only, and is subject to change without notice. While every precaution has been taken in the preparation of this document, it may contain
technical inaccuracies, omissions and typographical errors, and AMD is under no obligation to update or otherwise correct this information. Advanced Micro Devices, Inc. makes no representations or
warranties with respect to the accuracy or completeness of the contents of this document, and assumes no liability of any kind, including the implied warranties of noninfringement, merchantability or
fitness for particular purposes, with respect to the operation or use of AMD hardware, software or other products described herein. No license, including implied or arising by estoppel, to any intellectual
property rights is granted by this document. Terms and limitations applicable to the purchase or use of AMD’s products are as set forth in a signed agreement between the parties or in AMD's Standard
Terms and Conditions of Sale. GD-18
©2017 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo,, Ryzen, Threadripper, and combinations thereof are trademarks of Advanced Micro Devices, Inc. Other product names
used in this publication are for identification purposes only and may be trademarks of their respective companies.
