Allenbradley Micro logix 1400 Plc Hardware information Guide
The MicroLogix 1400 PLC is Rockwell's newest controller that broadens applications with embedded analog inputs and outputs, faster counters, pulse outputs, and Ethernet communication. It maintains features of the MicroLogix 1100 and can expand I/O up to 144 points using input/output modules. The PLC also includes features like a memory module, LCD screen, two serial ports and an Ethernet port to support various communication protocols.
More Related Content
Similar to Allenbradley Micro logix 1400 Plc Hardware information Guide
Allenbradley Micro logix 1400 Plc Hardware information Guide
- 1. ALLENBRADLEY MICRO LOGIX1400 PLC DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER
- 2. ROCKWELL(ALLENBRADLEY) MICRO LOGIX PLCMODULE AVAILABLE The MicroLogix 1400 controller is our newest family of controllers to join the popular MicroLogix 1000, MicroLogix 1100, MicroLogix 1200, and MicroLogix 1500 controllers, and is designed to broaden application coverage through available embedded analog inputs, Ethernet communication, faster high-speed counter (HSC), and pulse train output (PTO) capabilities. DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER
- 3. The base unithouses embedded inputs, outputs, power supply, and communication ports. The base unit also provides the interface to expansion I/O when required by an application. MicroLogix 1400 Base Units inputs outputs communication ports DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER
- 4. MicroLogix 1400 controllersmaintain the same critical features you have come to expect from the MicroLogix 1100 controller, and expands that capability with more I/O, faster HSC/PTO, and an additional serial port. MicroLogix 1400 controllers up to 144 digital I/O. Each MicroLogix 1400 controller includes 20 digital inputs and 12 digital outputs. In addition, several models include 4 embedded analog inputs and 2 embedded analog outputs. Input output Module extended Up to 7 of the 1762 I/O modules. Software supported: RSLogix 500 programming software ROCKWELL(ALLENBRADLEY) MICRO LOGIX 1400 PLC CAPABILITIES DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER
- 5. Micro Logix controllerhas 2 serial ports with DF1/DH485/Modbus RTU/DNP3/ASCII protocol support and a built-in Ethernet port, which supports EtherNet/IP peer-to-peer messaging. An embedded LCD screen lets you monitor controller and I/O status, as well as make changes to bit and integer data.ES COMMUNICATION PROVISION LCD SCREEN IN MICRO LOGIX 1400 DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER
- 6. Controller I/O canbe expanded by using up to seven expansion modules per controller. I/O modules - digital, analog, and temperature MicroLogix 1400 Expansion I/O DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER
- 7. Memory module portcover in place. You can order the memory module to provide removable backup of your User Program and User Data, or to transport your program between controllers. Memory modules allow: User programs and data to be store as backup. Transport programs for use with other controllers. Special safety/security features for press control and other critical applications. Auto-recovery, through a power cycle, after a controller fault. comparison of programs. data file and memory module write protection. Removal/insertion under power. MicroLogix 1400 Memory Module (1766-MM1) DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER
- 8. MicroLogix 1400 ControllerSelection Catalog DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER
- 9. EXPENSION IO MODULECONNECTION WITH MICRO LOGIX 1400 DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER
- 10. EXPENSION IO MODULEFOR MICRO LOGIX 1400 DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER
- 11. MICRO LOGIX 1400PLC INDICATIONS DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER
- 12. DEEPAK GORAI Sr.CONTROL ANDINSTRUMENTATION ENGINEER

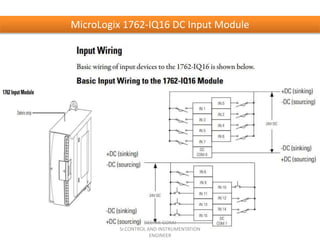

- 13. MicroLogix 1762-IQ16 DCInput Module DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER

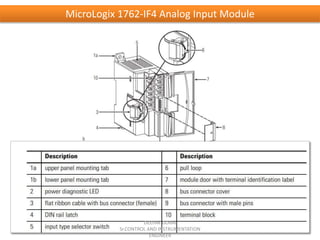

- 14. MicroLogix 1762-IF4 AnalogInput Module DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER
- 15. Solid State 24VDC Source Output Module 1762-OB16 DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER

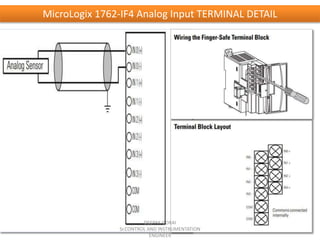

- 16. MicroLogix 1762-IF4 AnalogInput TERMINAL DETAIL DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER
- 17. TRANSMITTER CONNECTION DRAWING DEEPAKGORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER

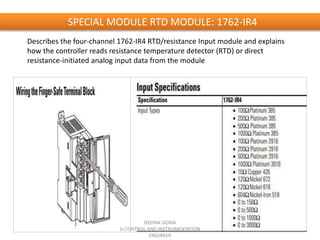

- 18. SPECIAL MODULE RTDMODULE: 1762-IR4 Describes the four-channel 1762-IR4 RTD/resistance Input module and explains how the controller reads resistance temperature detector (RTD) or direct resistance-initiated analog input data from the module DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER
- 19. SPECIAL MODULE RTDCONNECTION DIAGRAM DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER
- 20. WIRING RESISTANCE DEVICE(POTENTIOMETERS) DEEPAK GORAI Sr.CONTROL AND INSTRUMENTATION ENGINEER

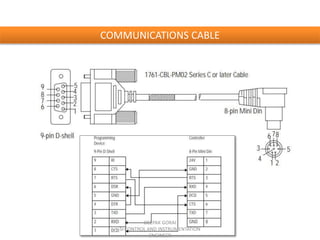

- 21. COMMUNICATIONS CABLE DEEPAK GORAI Sr.CONTROLAND INSTRUMENTATION ENGINEER

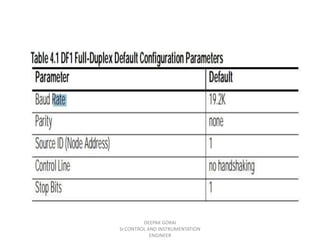

- 22. DEEPAK GORAI Sr.CONTROL ANDINSTRUMENTATION ENGINEER
- 23. PORT AVAILABLE DEEPAK GORAI Sr.CONTROLAND INSTRUMENTATION ENGINEER
- 24. DEEPAK GORAI Sr.CONTROL ANDINSTRUMENTATION ENGINEER THANKS FOR WATCHING
