Algorithm Design and Analysis

Algorithm Design and Analysis
Sayed Chhattan Shah
Associate Professor of Computer Science
Mobile Grid and Cloud Computing Lab
Department of Information Communication Engineering
Hankuk University of Foreign Studies Korea
www.mgclab.com

Acknowledgements
▪ The material in these slides is taken from different sources including:
o Algorithm Design, First Edition
o Introduction to Algorithms, Third Edition
o The Stony Brook Algorithm Repository
o Algorithms and Complexity Course by Atri Rudra
o NPTEL Design and Analysis of Algorithms by Madhavan Mukund
o AlgoDaily

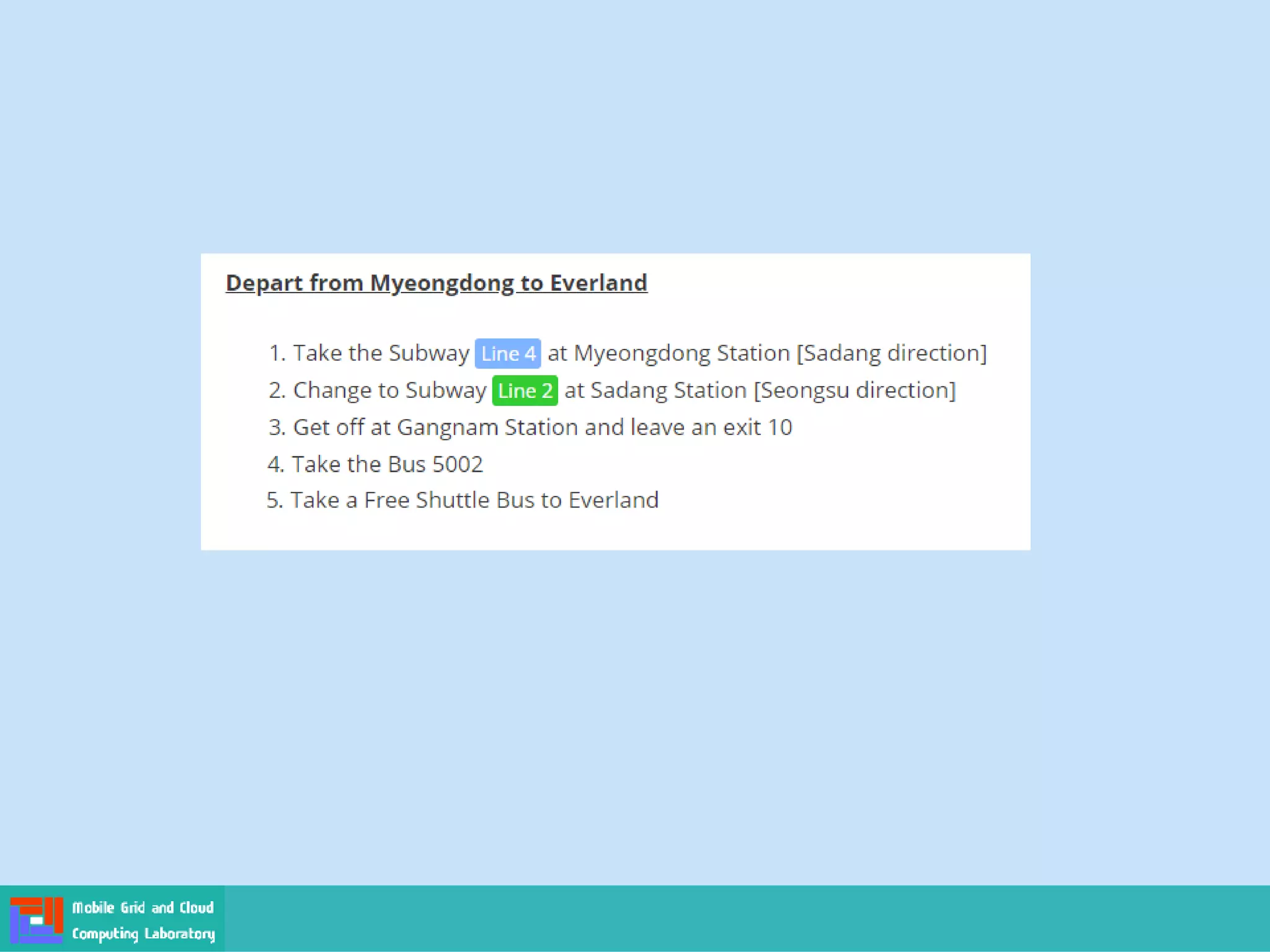

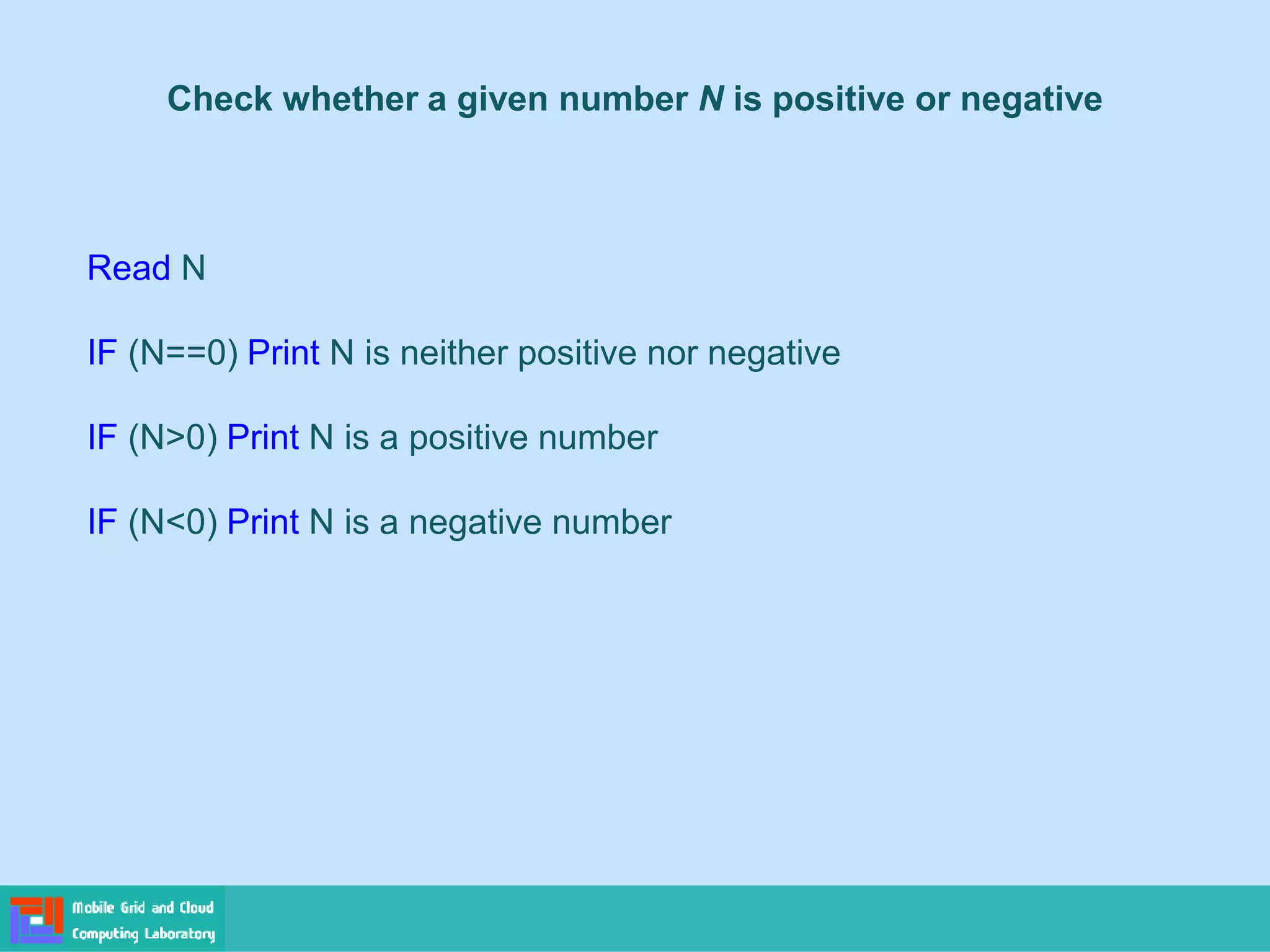

Check whether a given number N is positive or negative
Read N
IF (N==0) Print N is neither positive nor negative
IF (N>0) Print N is a positive number
IF (N<0) Print N is a negative number

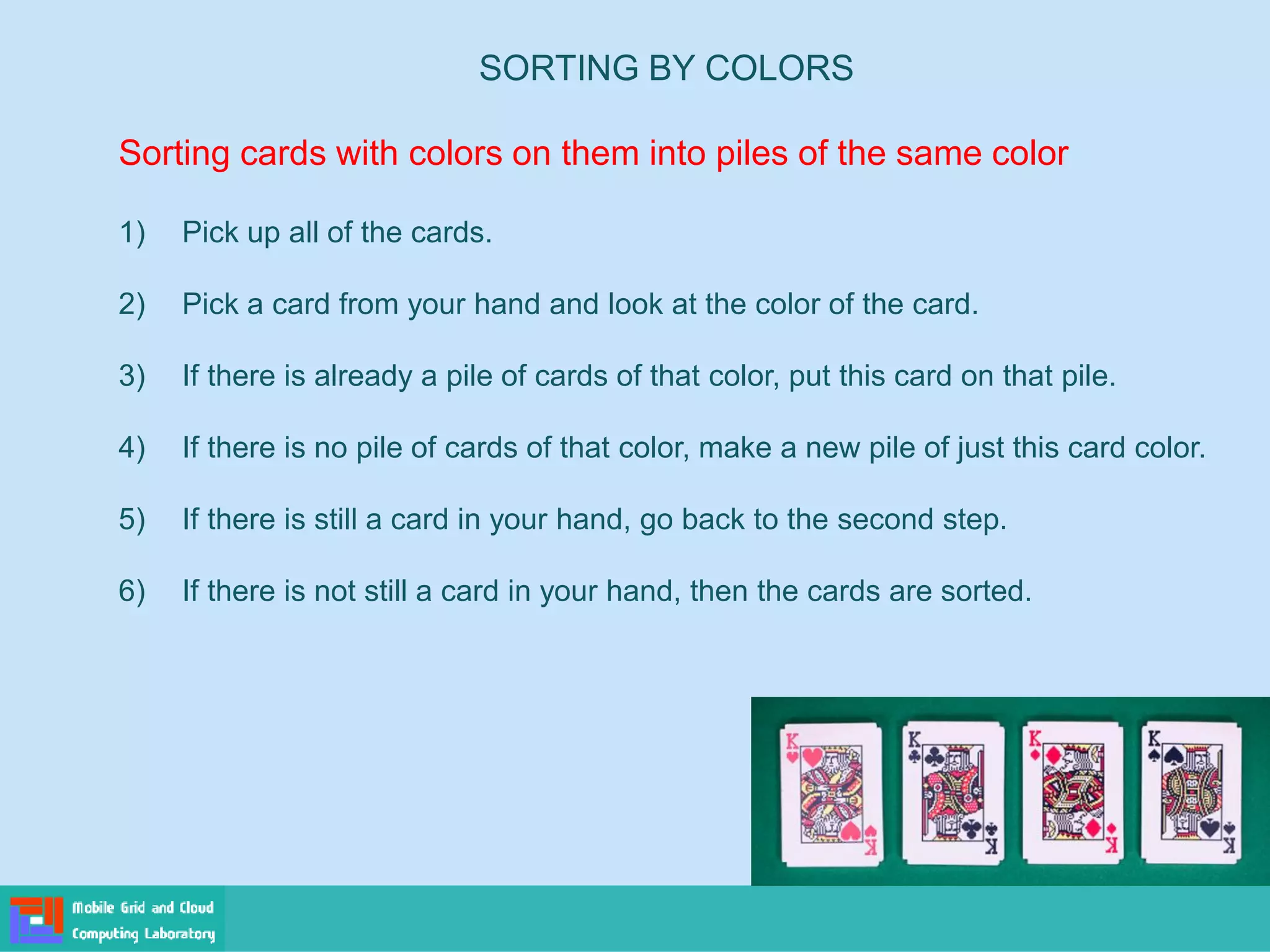

SORTING BY COLORS
Sorting cards with colors on them into piles of the same color
1) Pick up all of the cards.
2) Pick a card from your hand and look at the color of the card.
3) If there is already a pile of cards of that color, put this card on that pile.
4) If there is no pile of cards of that color, make a new pile of just this card color.
5) If there is still a card in your hand, go back to the second step.
6) If there is not still a card in your hand, then the cards are sorted.

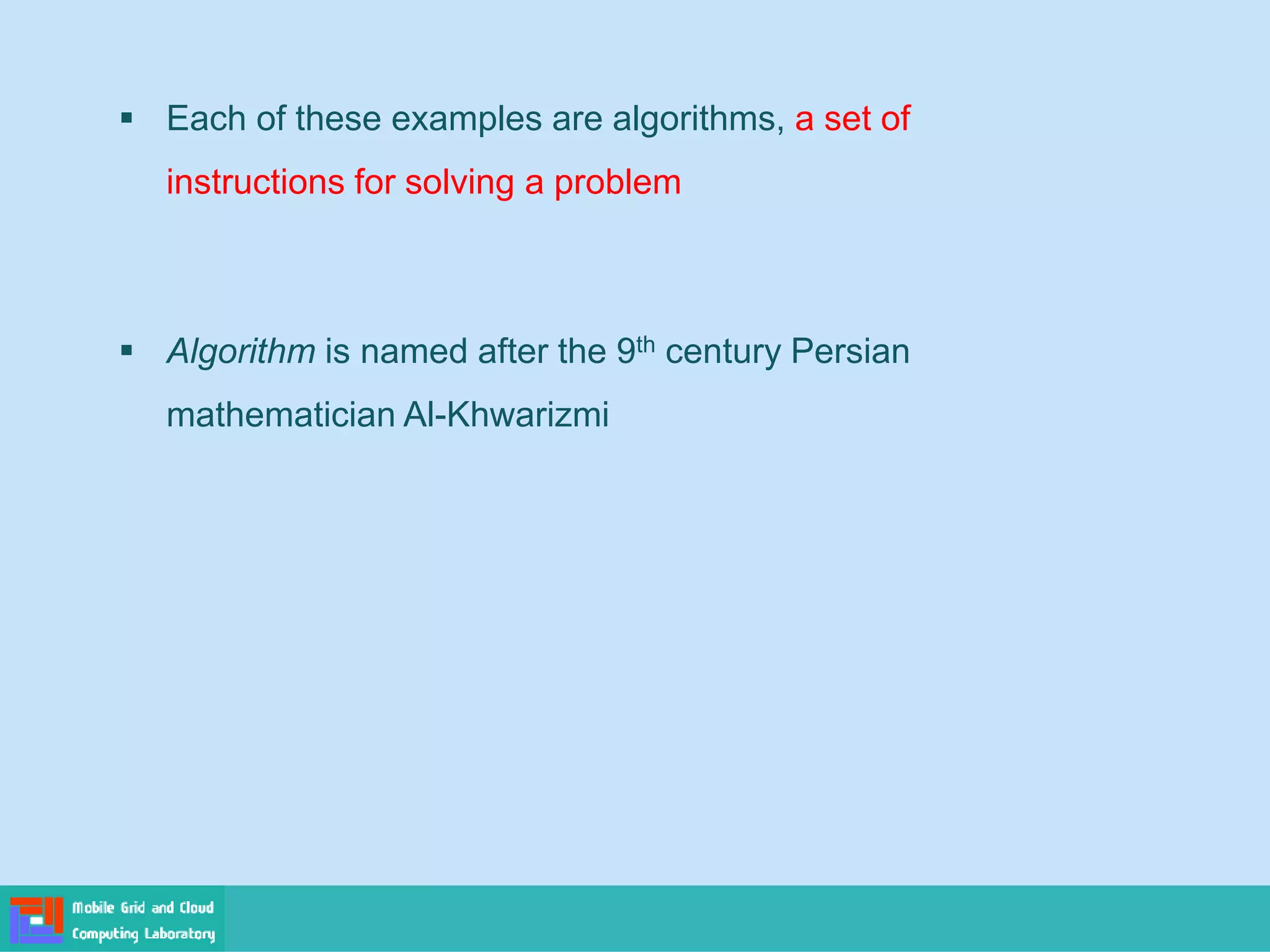

▪ Each of these examples are algorithms, a set of
instructions for solving a problem
▪ Algorithm is named after the 9th century Persian
mathematician Al-Khwarizmi

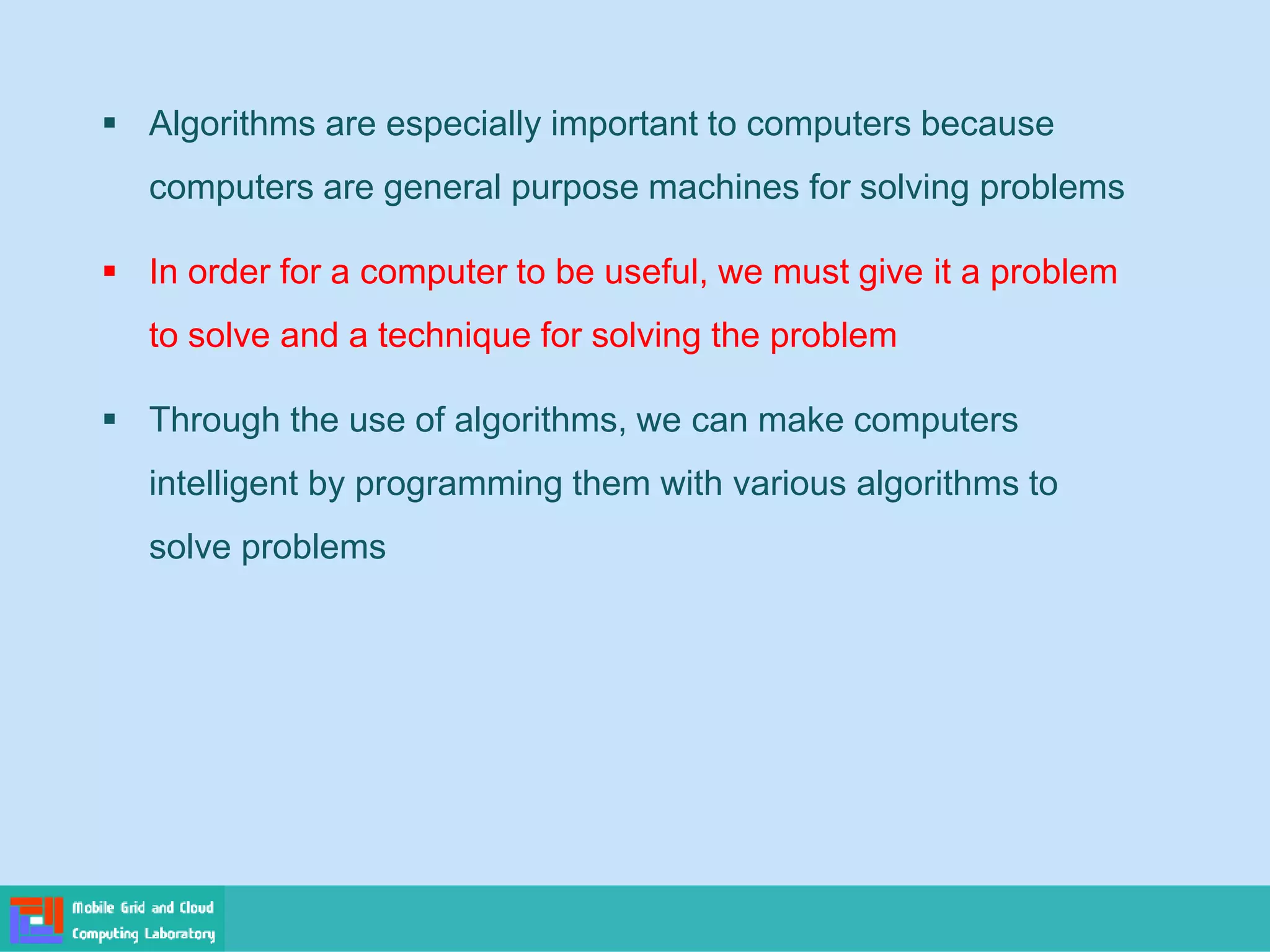

▪ Algorithms are especially important to computers because
computers are general purpose machines for solving problems
▪ In order for a computer to be useful, we must give it a problem
to solve and a technique for solving the problem
▪ Through the use of algorithms, we can make computers
intelligent by programming them with various algorithms to
solve problems

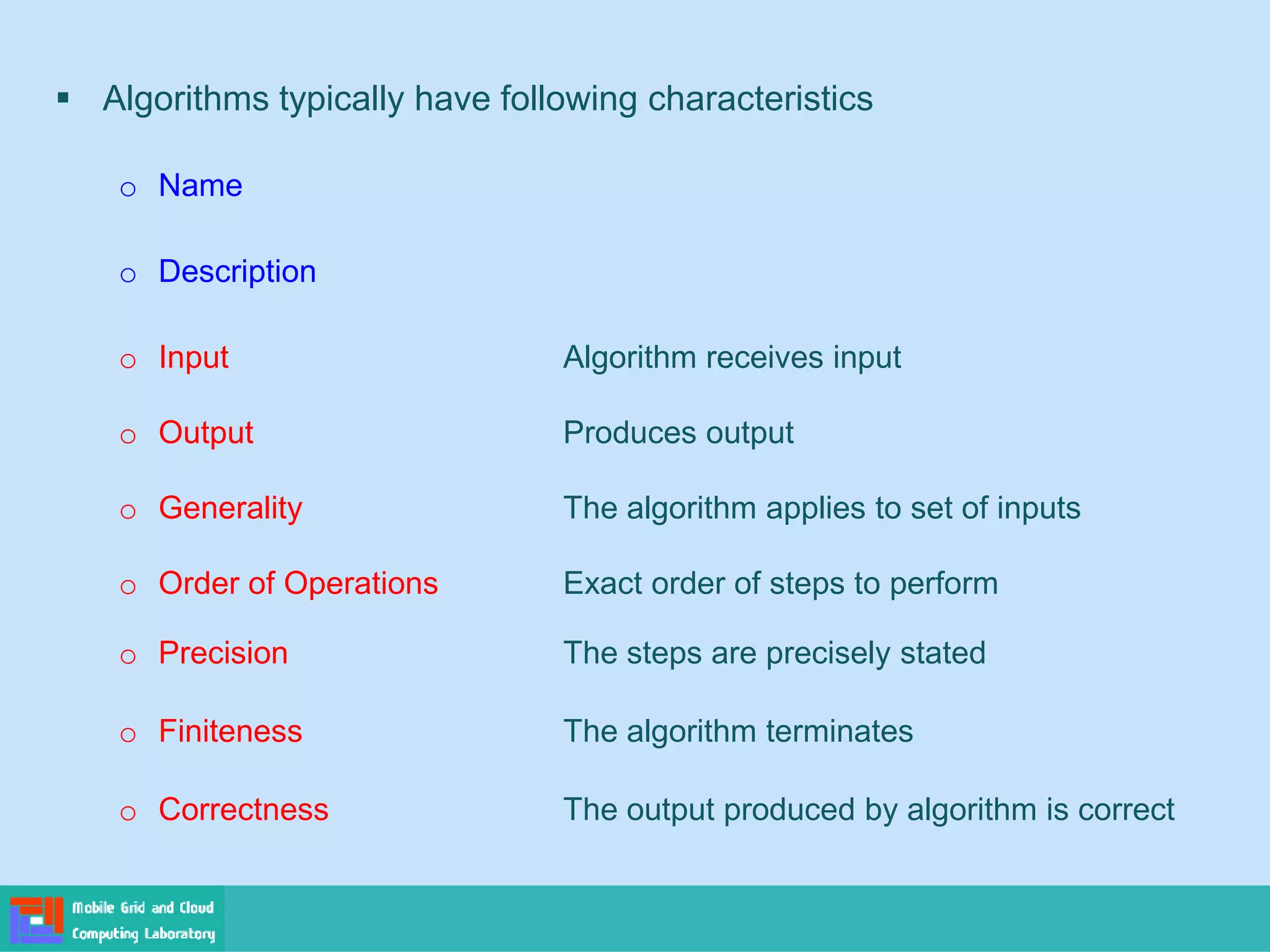

▪ Algorithms typically have following characteristics
o Name
o Description
o Input Algorithm receives input
o Output Produces output
o Generality The algorithm applies to set of inputs
o Order of Operations Exact order of steps to perform
o Precision The steps are precisely stated
o Finiteness The algorithm terminates
o Correctness The output produced by algorithm is correct

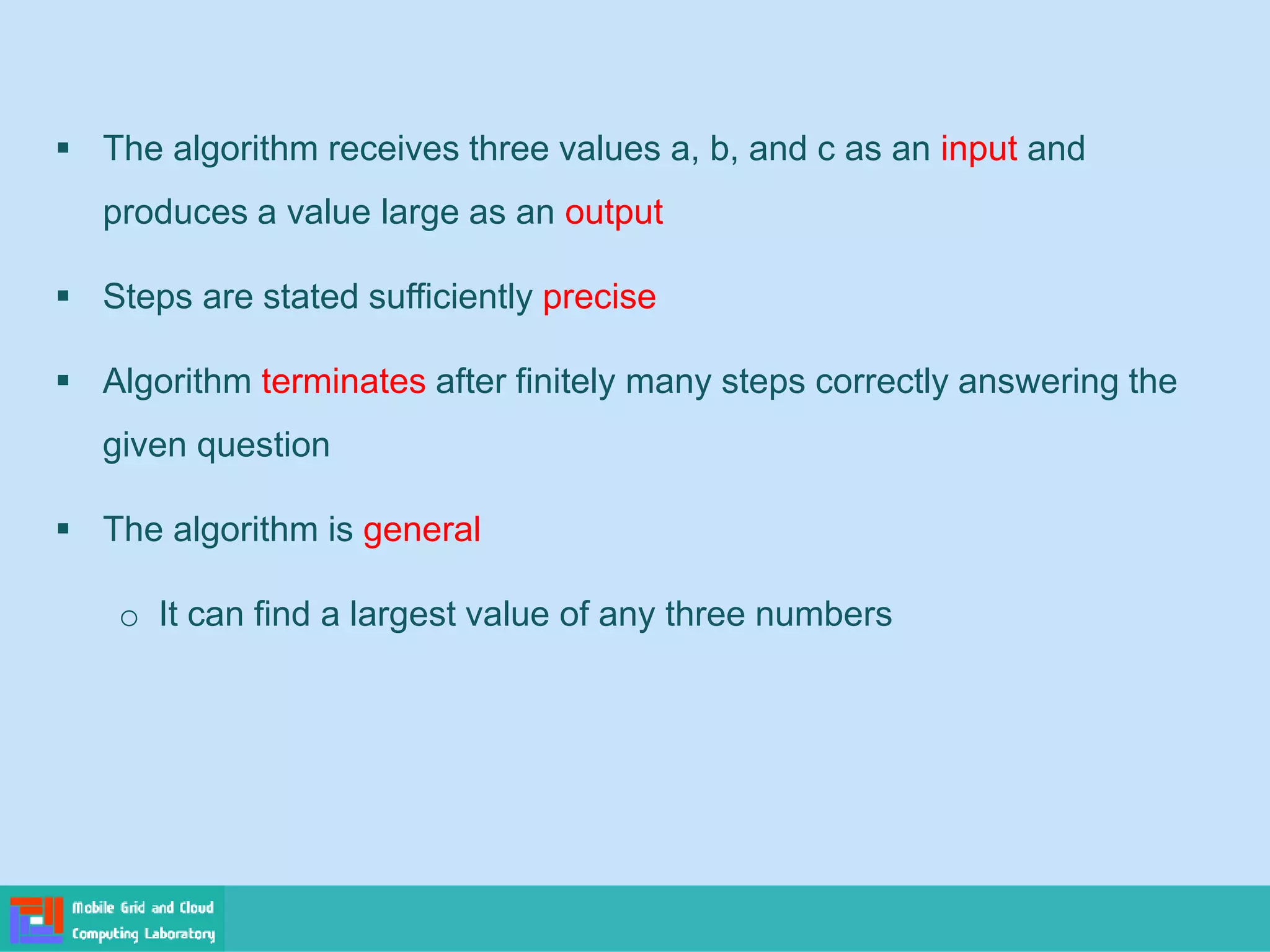

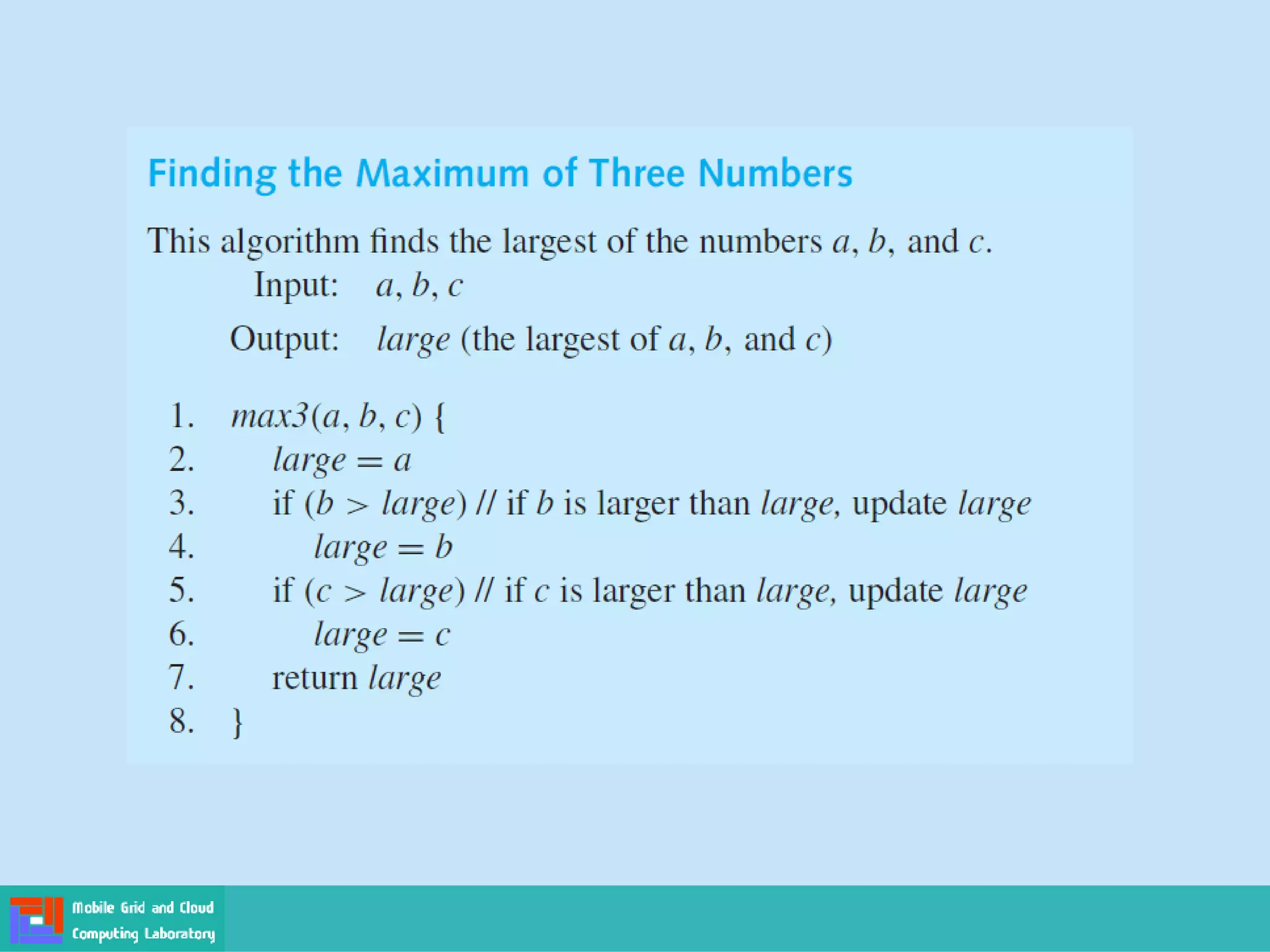

▪ The algorithm receives three values a, b, and c as an input and
produces a value large as an output
▪ Steps are stated sufficiently precise
▪ Algorithm terminates after finitely many steps correctly answering the
given question
▪ The algorithm is general
o It can find a largest value of any three numbers

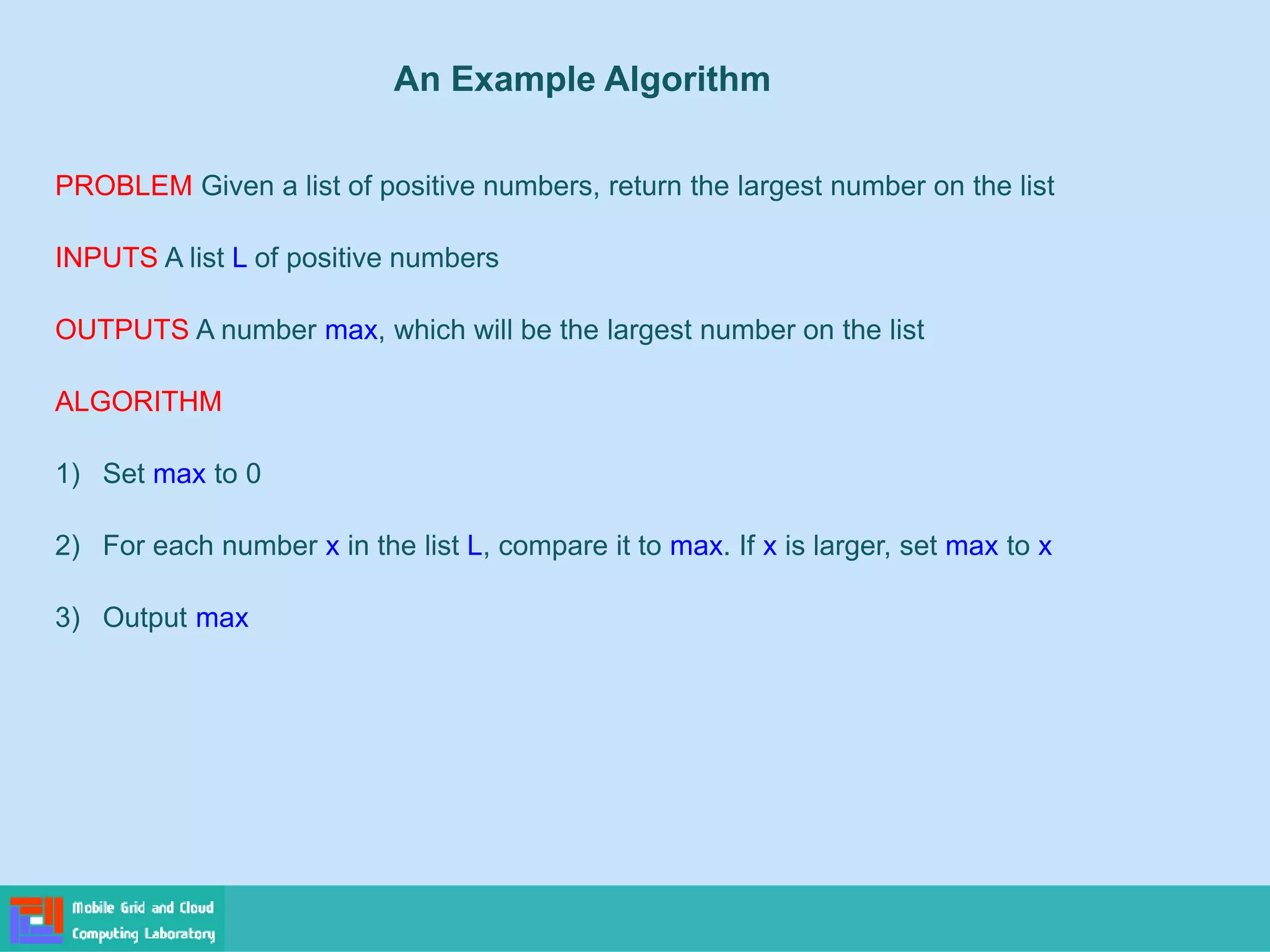

PROBLEM Given a list of positive numbers, return the largest number on the list
INPUTS A list L of positive numbers
OUTPUTS A number max, which will be the largest number on the list
ALGORITHM
1) Set max to 0
2) For each number x in the list L, compare it to max. If x is larger, set max to x
3) Output max

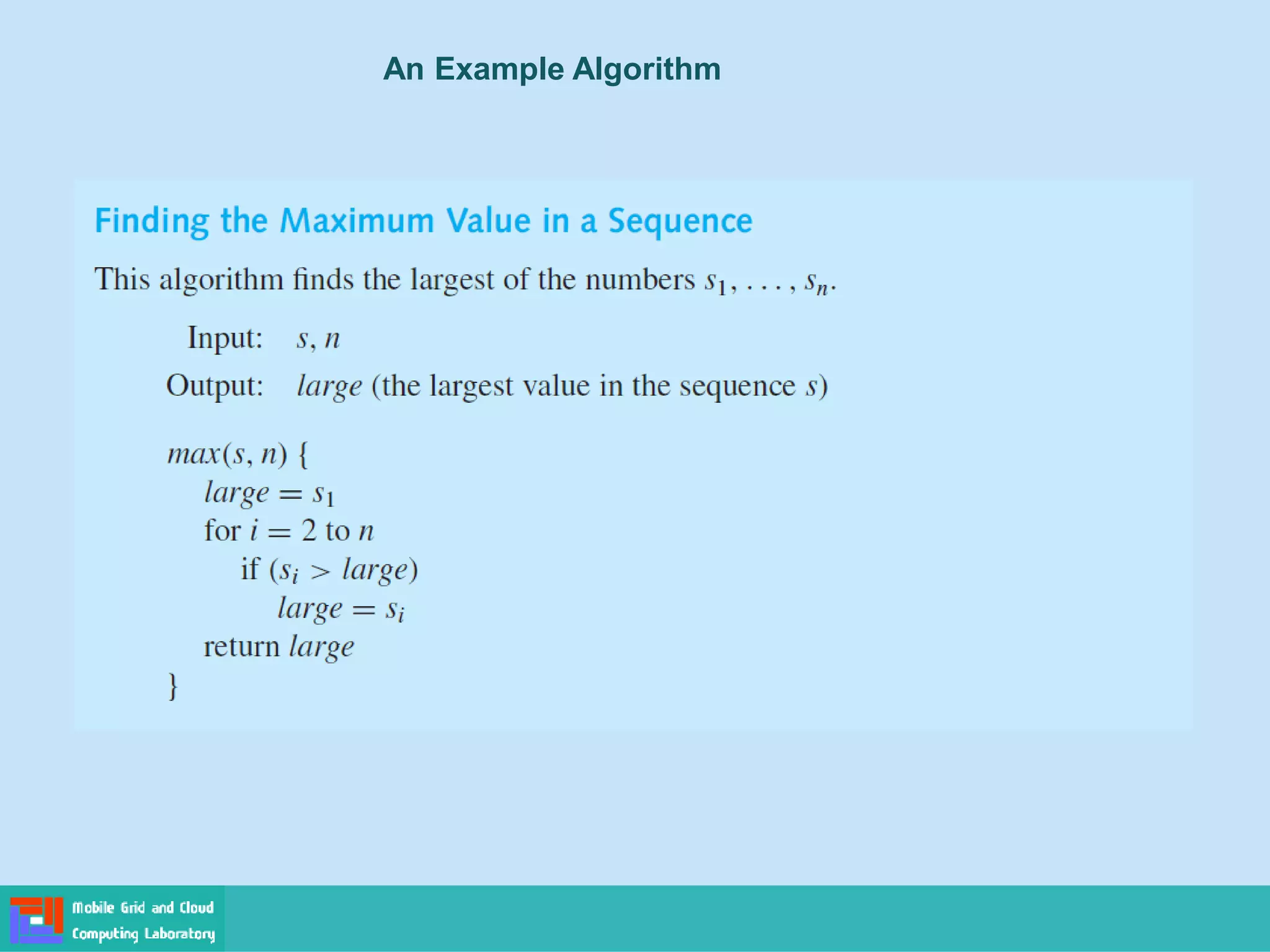

An Example Algorithm

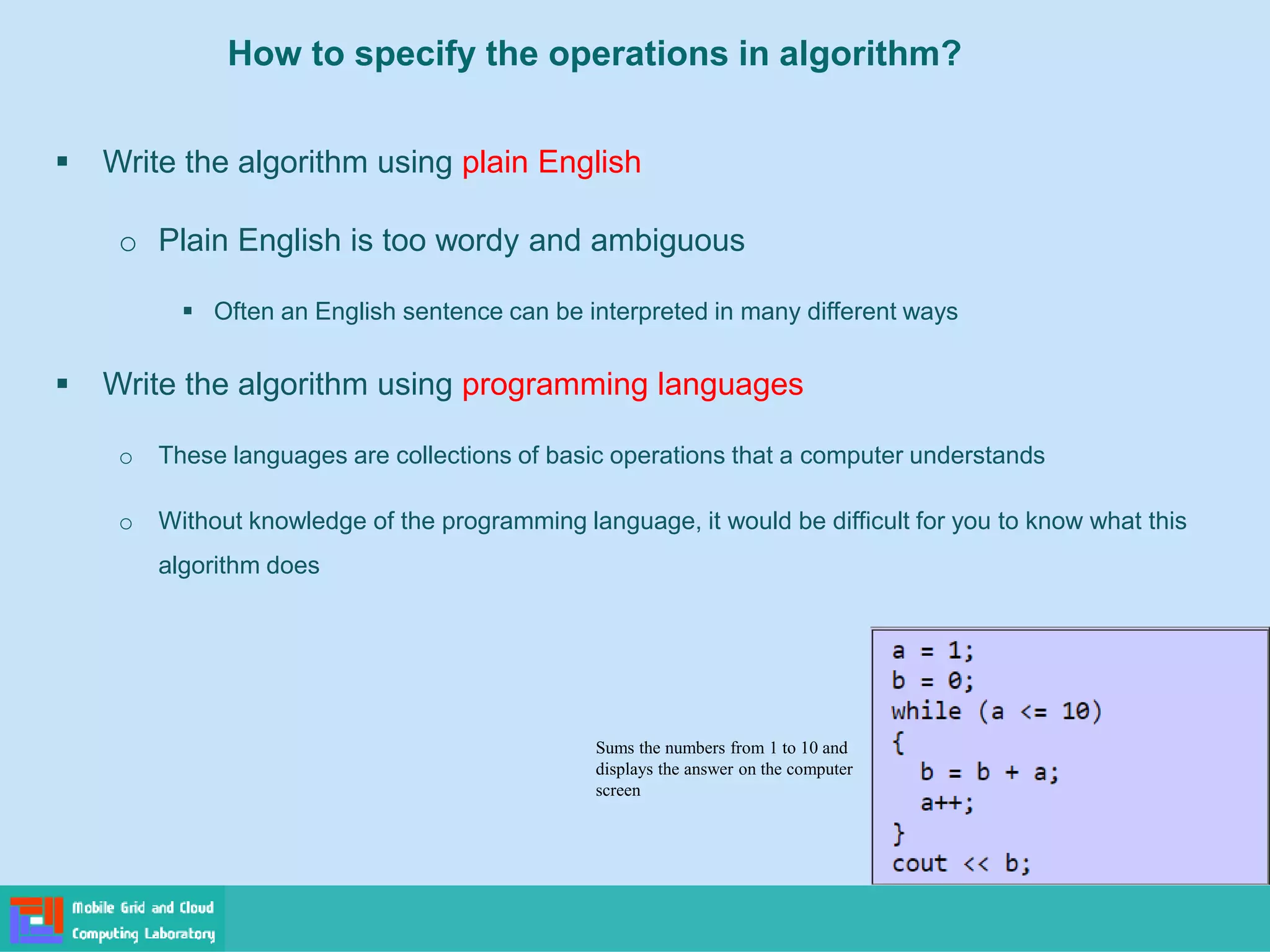

How to specify the operations in algorithm?
▪ Write the algorithm using plain English
o Plain English is too wordy and ambiguous
▪ Often an English sentence can be interpreted in many different ways
▪ Write the algorithm using programming languages
o These languages are collections of basic operations that a computer understands
o Without knowledge of the programming language, it would be difficult for you to know what this
algorithm does
Sums the numbers from 1 to 10 and
displays the answer on the computer
screen

▪ Combine the familiarity of plain English with the structure and order of
programming languages
▪ A good compromise is structured English

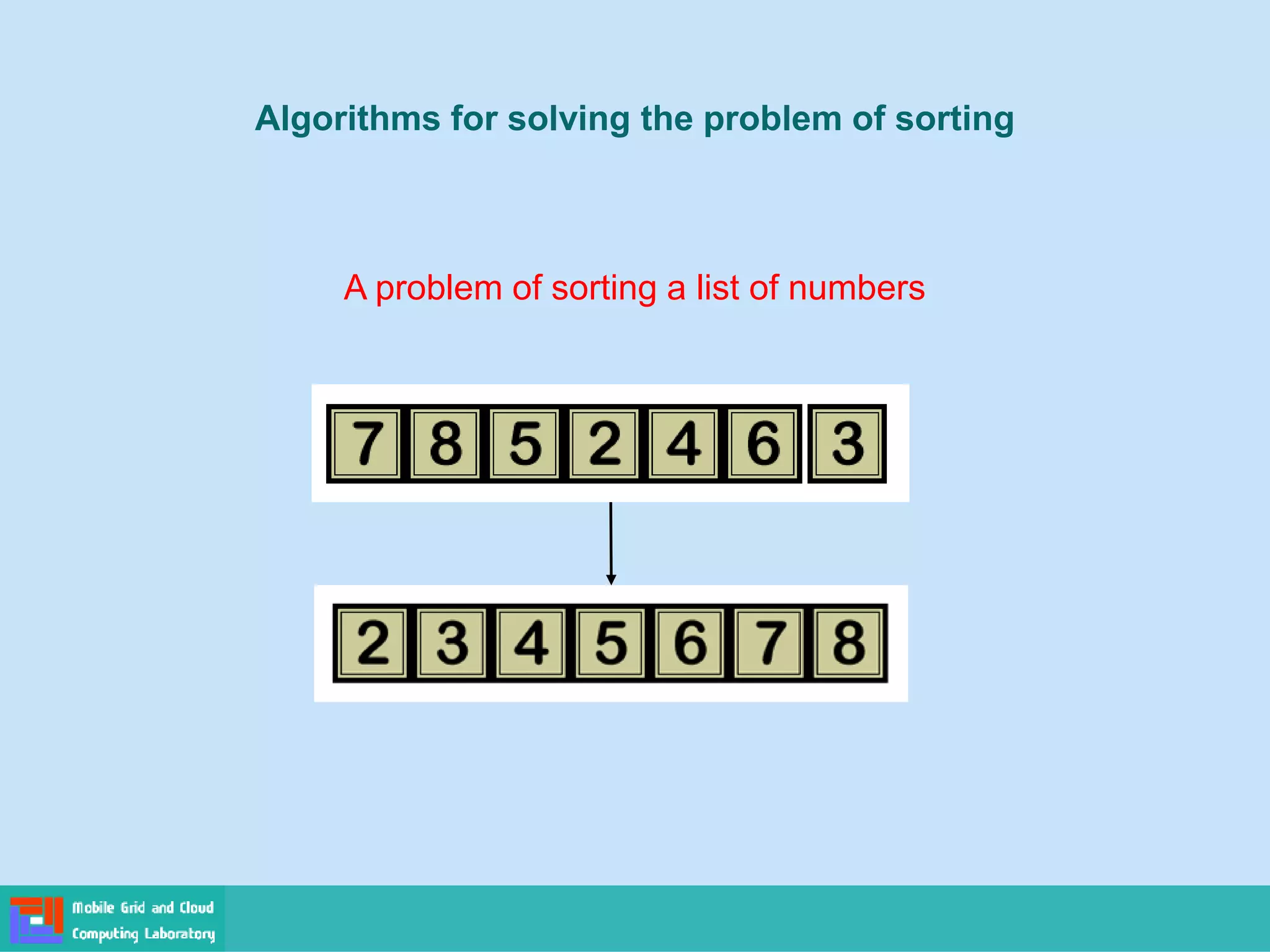

Algorithms for solving the problem of sorting

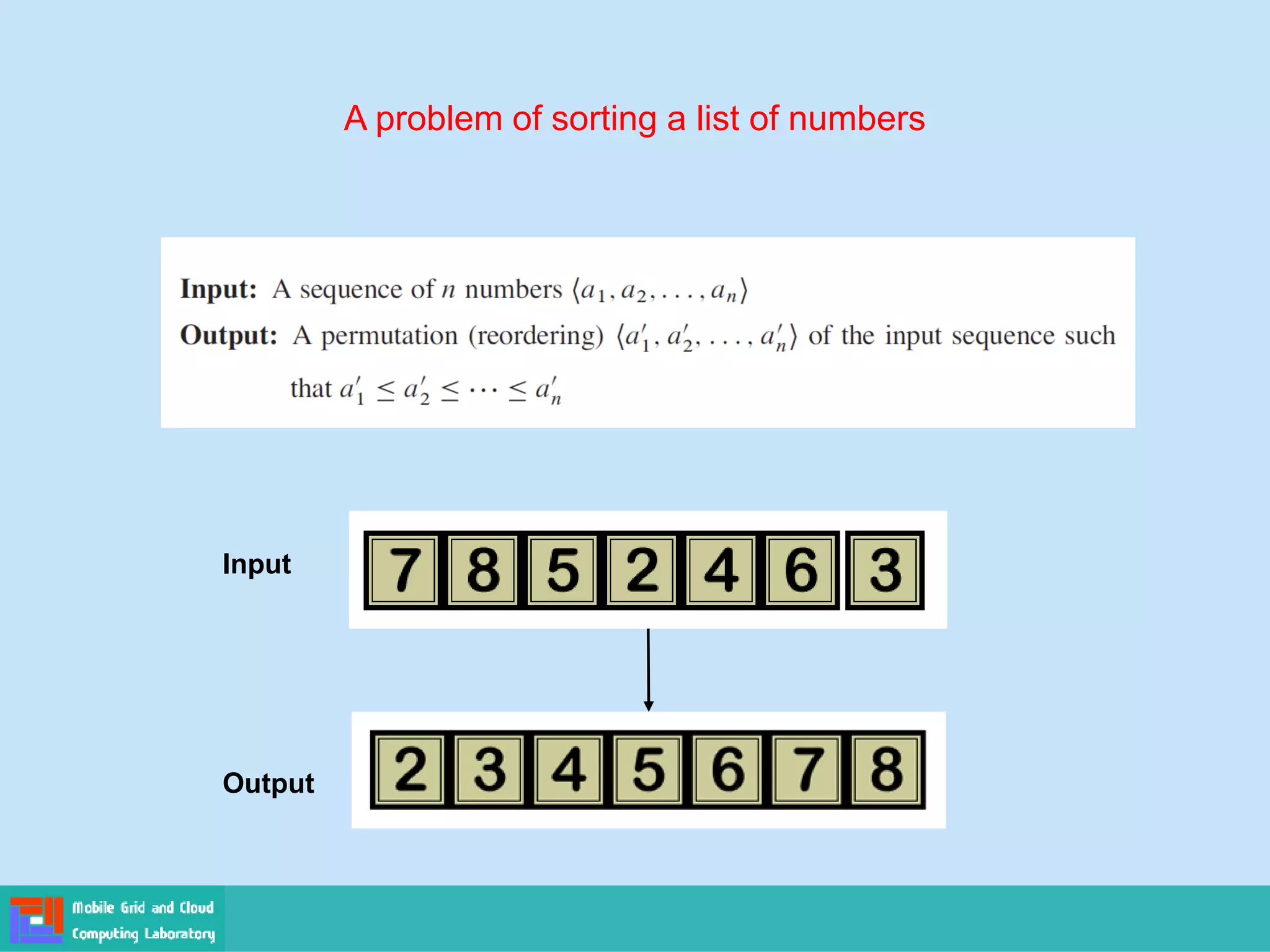

A problem of sorting a list of numbers

A problem of sorting a list of numbers
Input
Output

https://courses.cs.vt.edu/~csonline/Algorithms/Lessons/SimpleSort/index.html

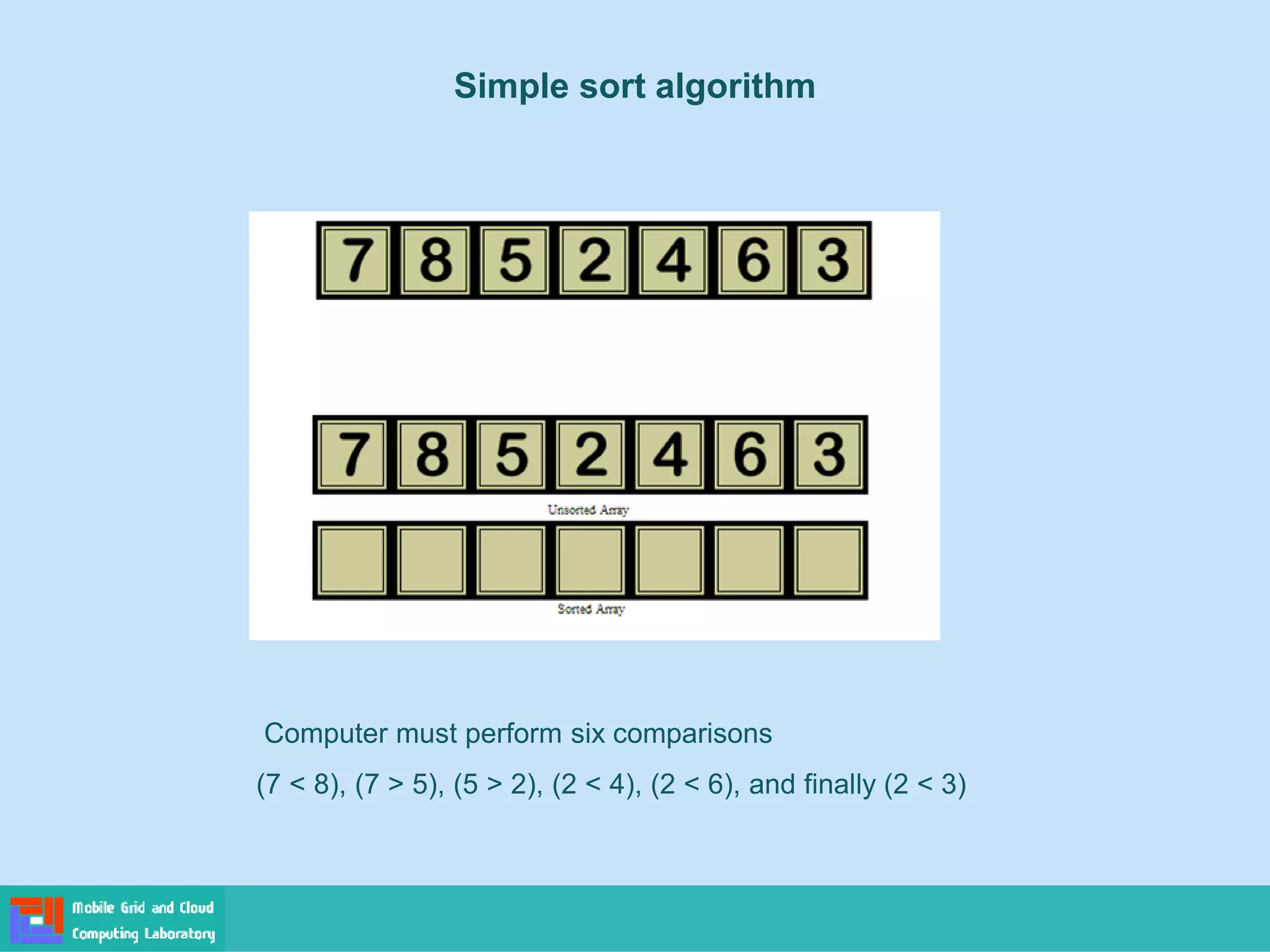

Computer must perform six comparisons
(7 < 8), (7 > 5), (5 > 2), (2 < 4), (2 < 6), and finally (2 < 3)

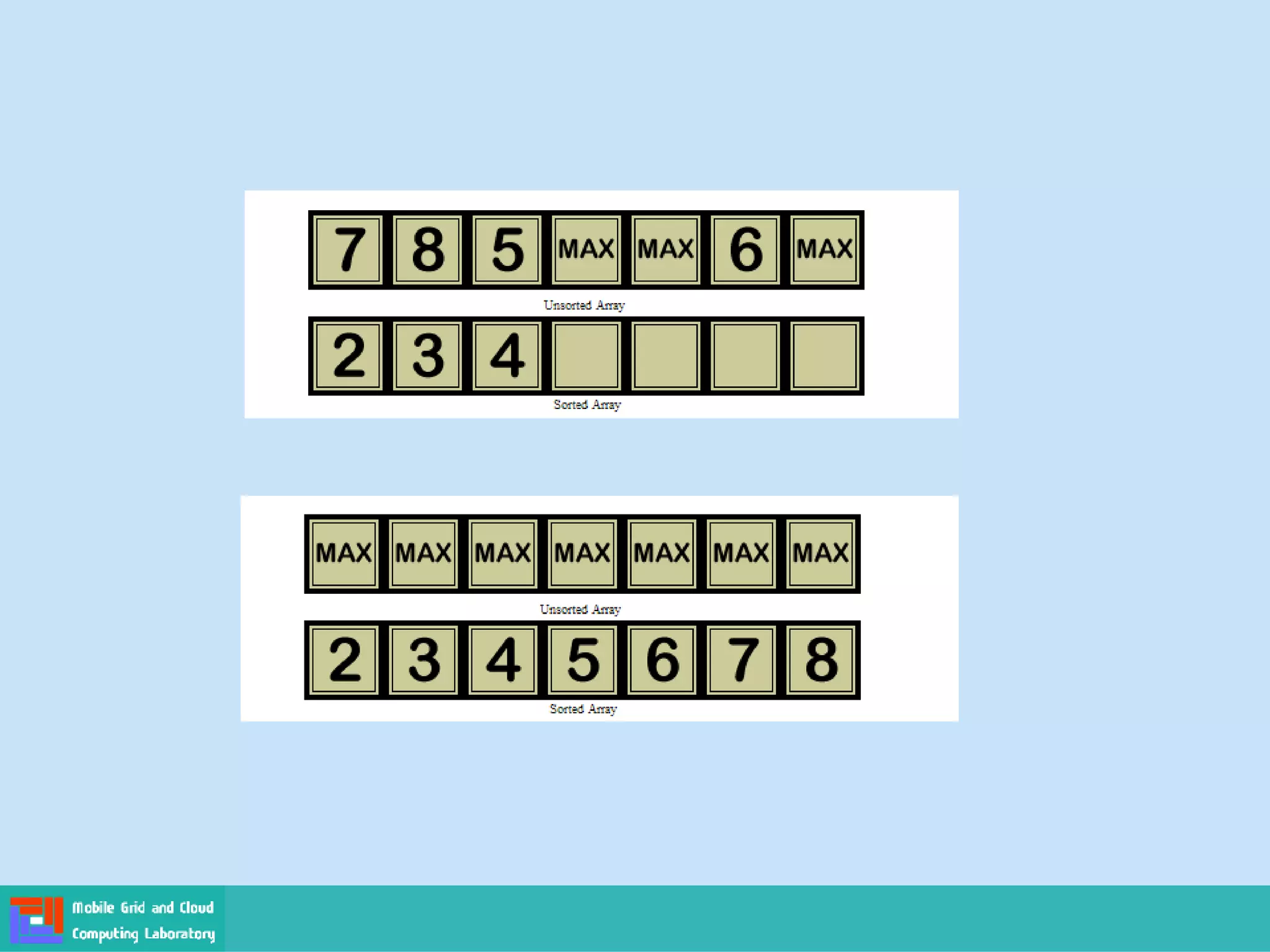

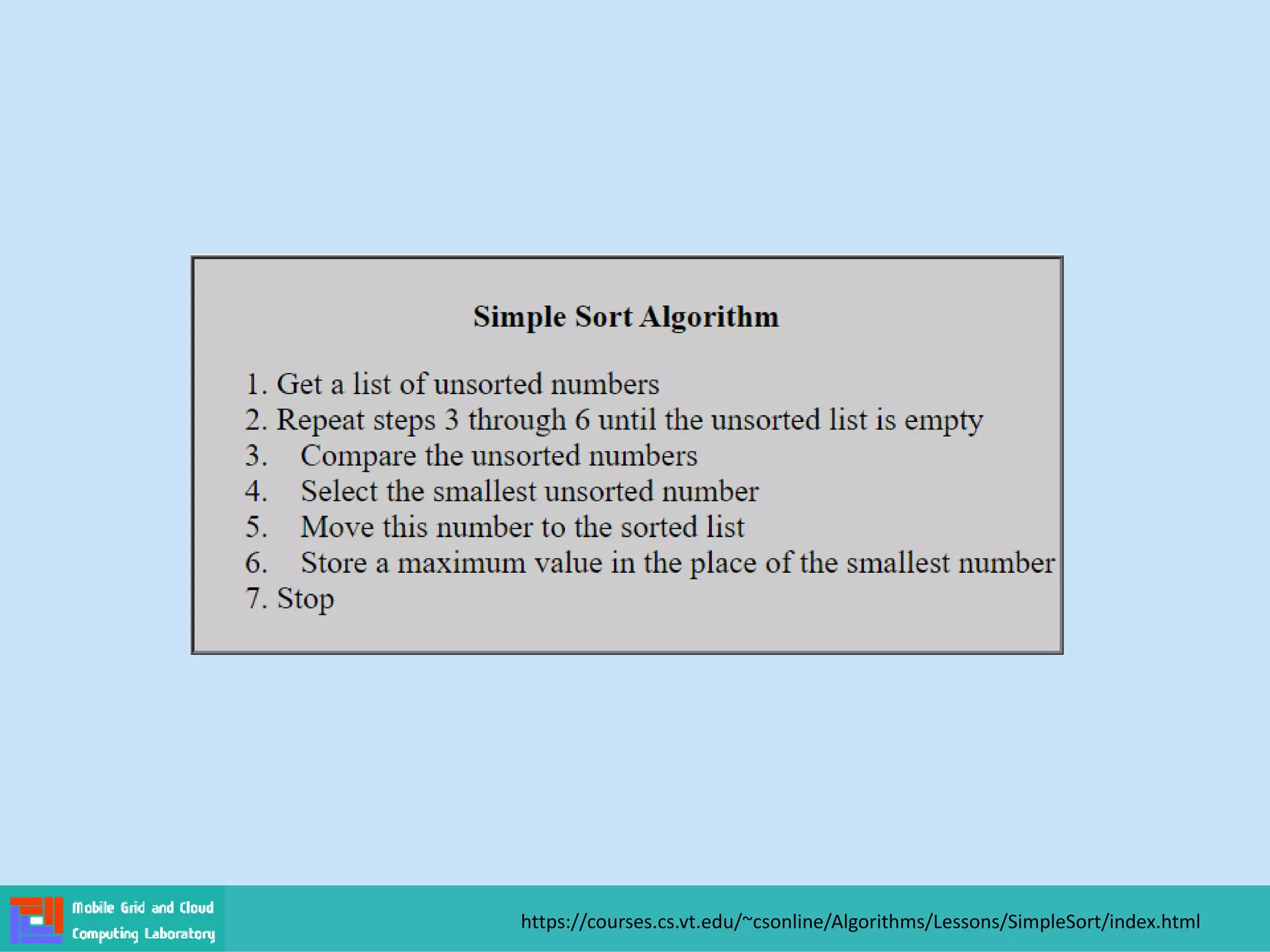

Simple sort algorithm

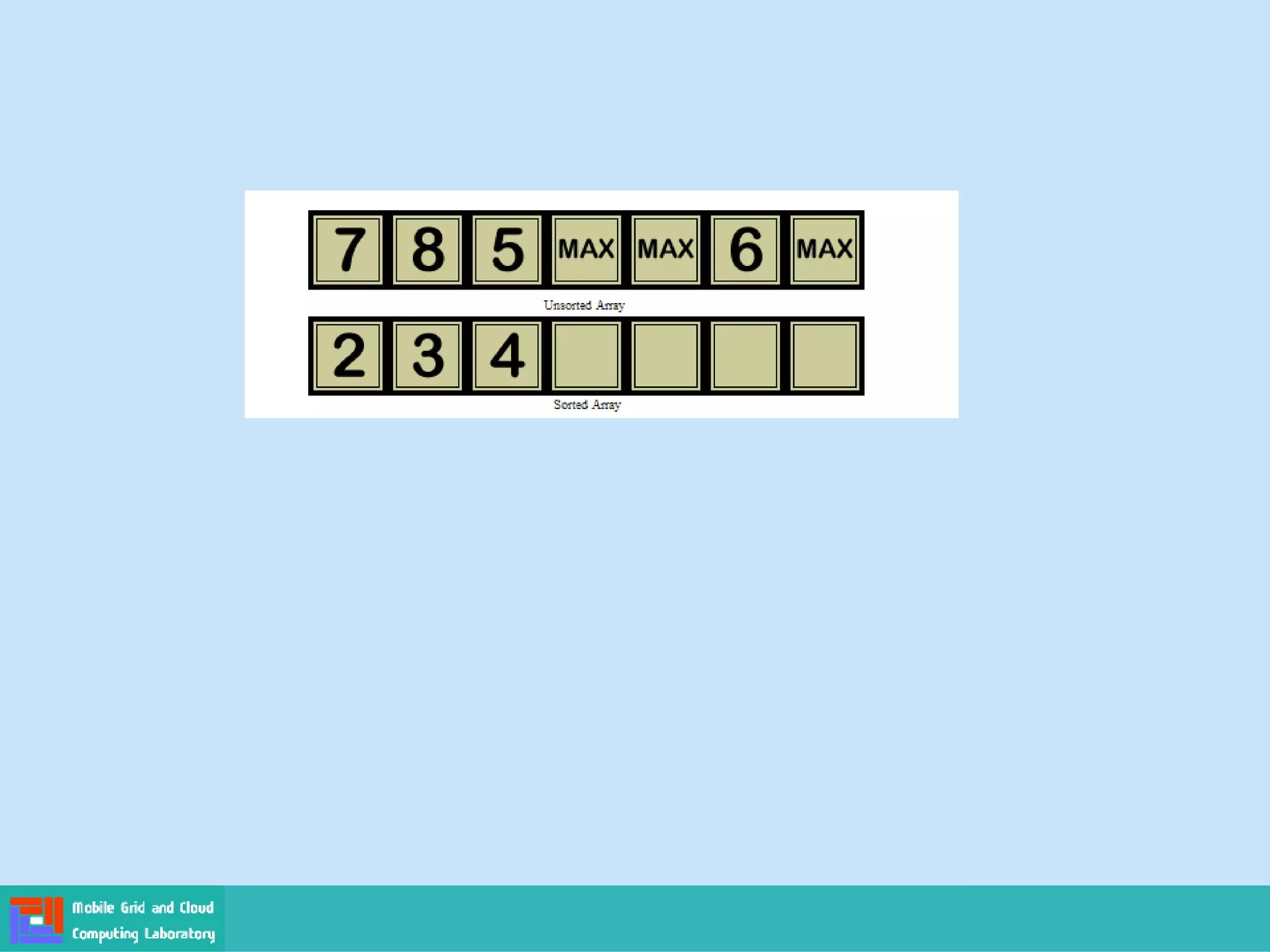

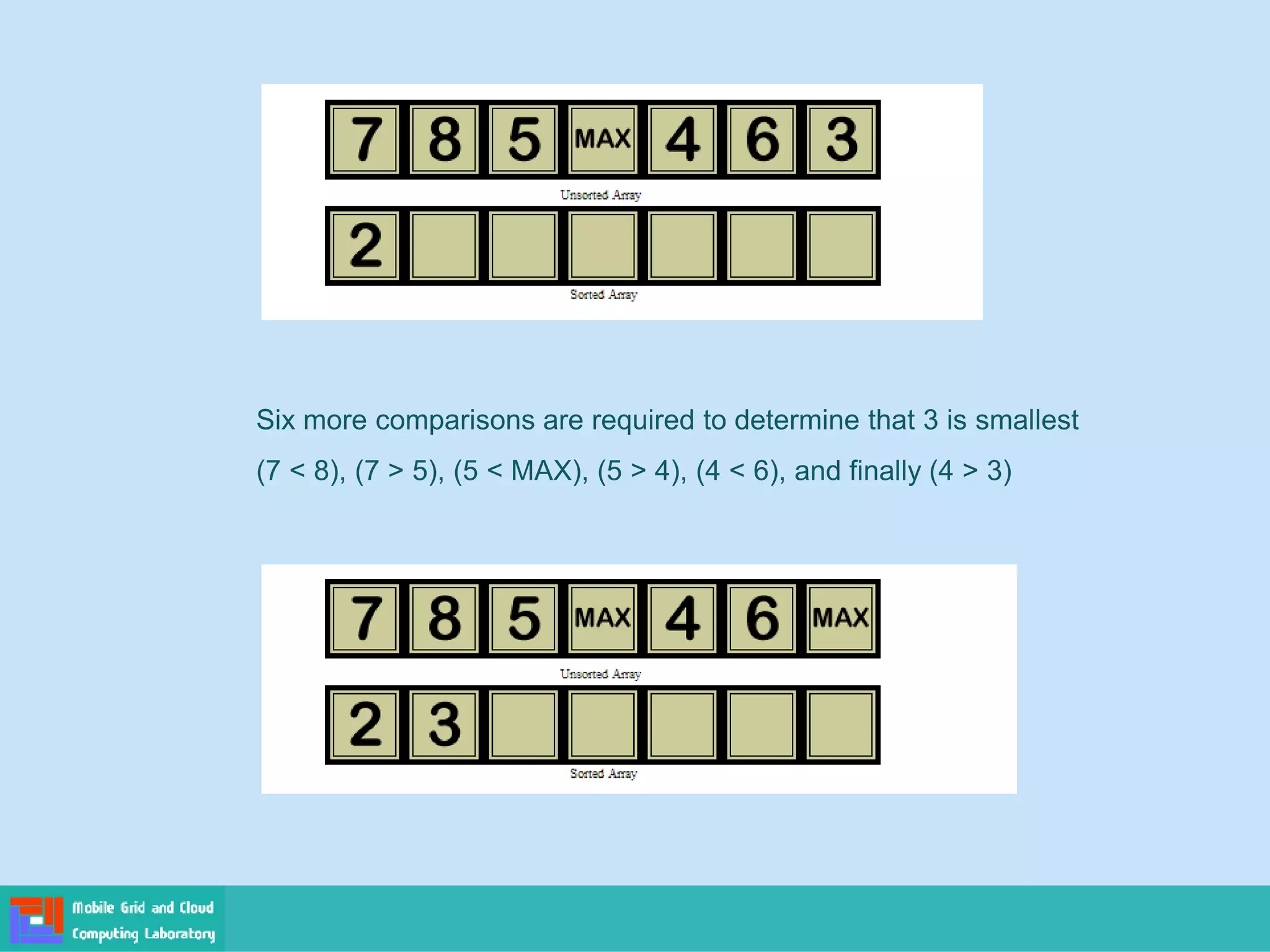

Six more comparisons are required to determine that 3 is smallest
(7 < 8), (7 > 5), (5 < MAX), (5 > 4), (4 < 6), and finally (4 > 3)

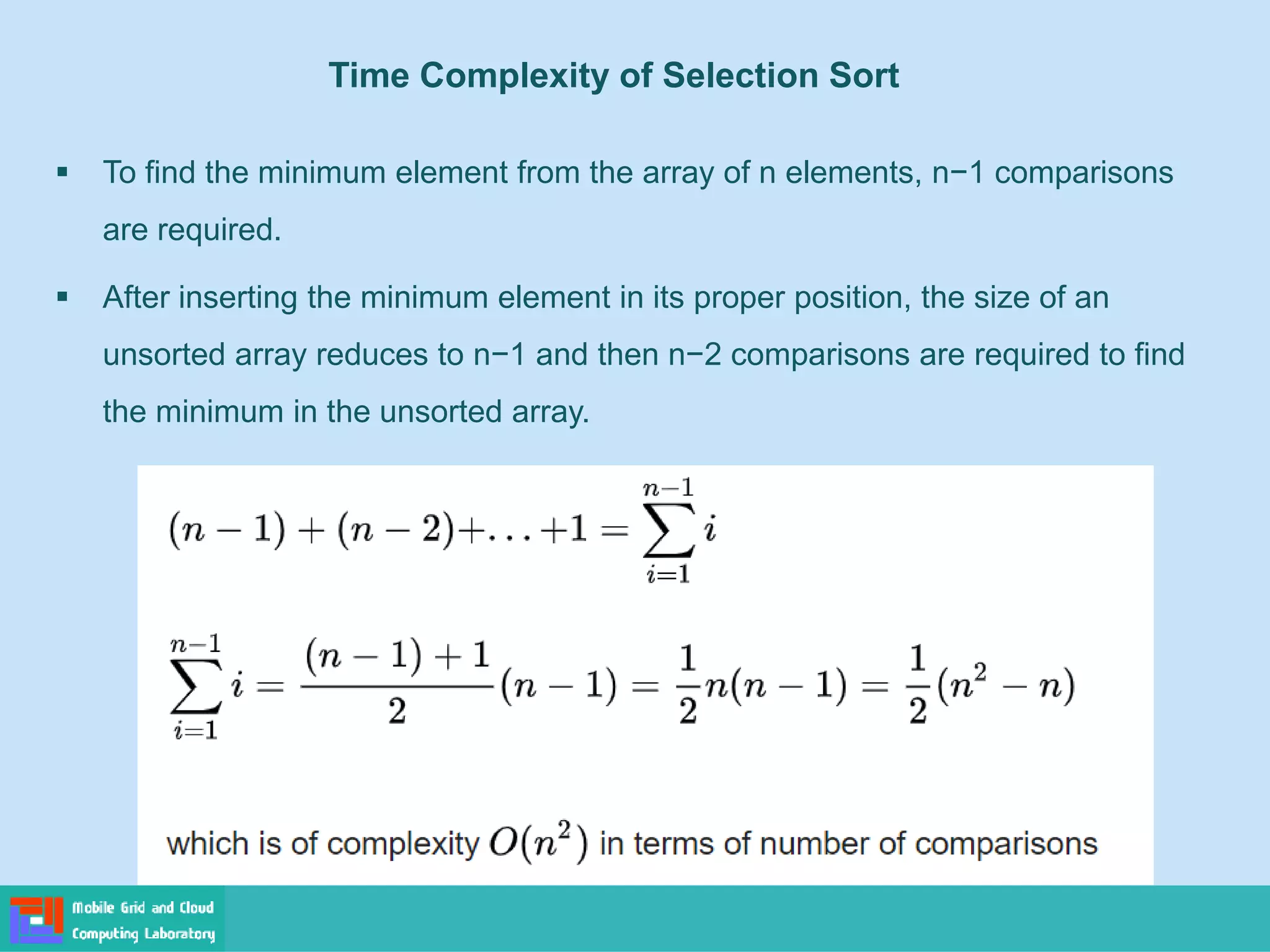

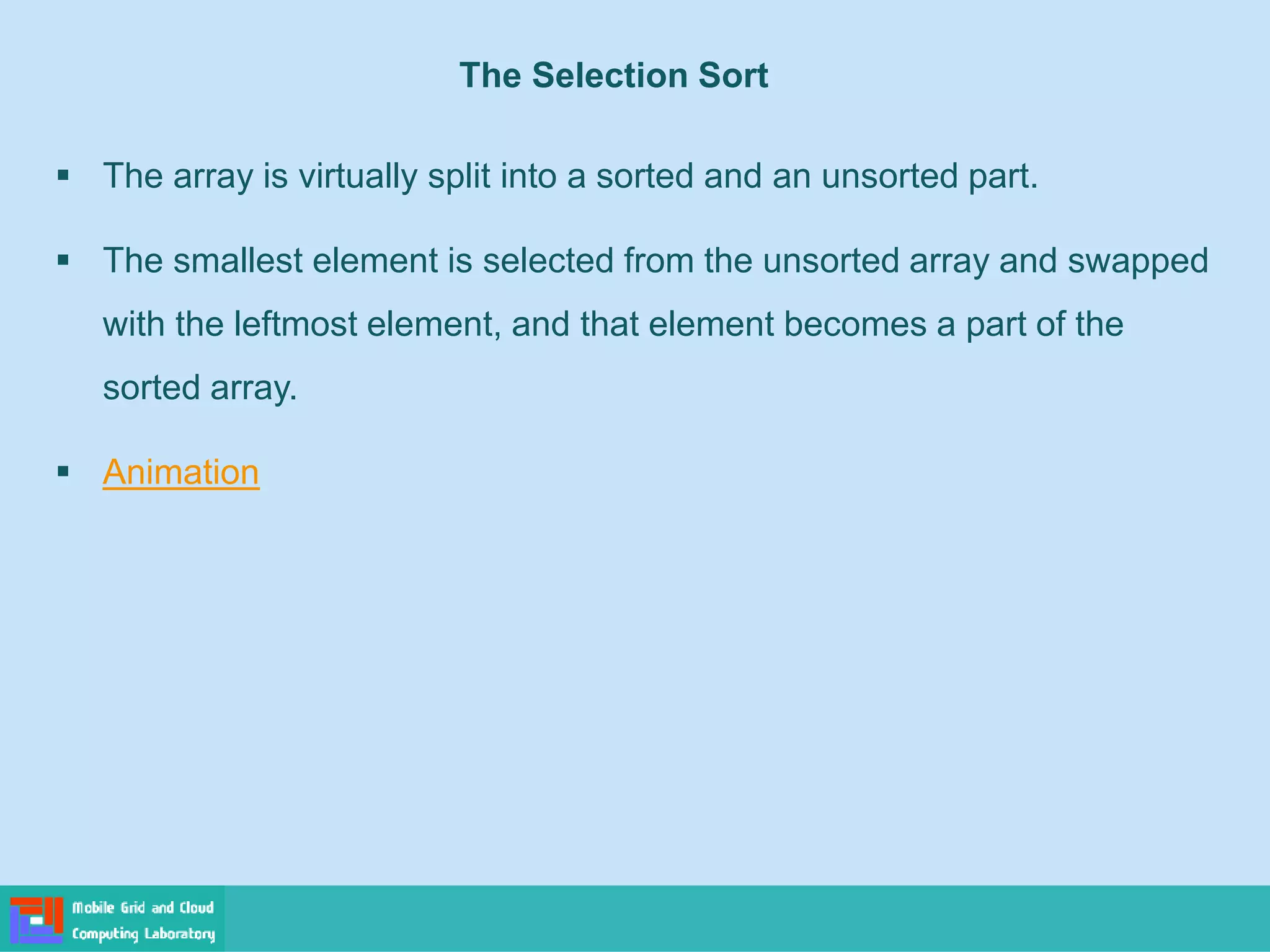

The Selection Sort
▪ The array is virtually split into a sorted and an unsorted part.
▪ The smallest element is selected from the unsorted array and swapped
with the leftmost element, and that element becomes a part of the
sorted array.
▪ Animation

The Selection Sort
array[] = 64 25 12 22 11
Find the minimum element in array[0...4] and place it at beginning
11 25 12 22 64
Find the minimum element in array[1...4] and place it at beginning of array[1...4]
11 12 25 22 64
11 12 22 25 64
11 12 22 25 64

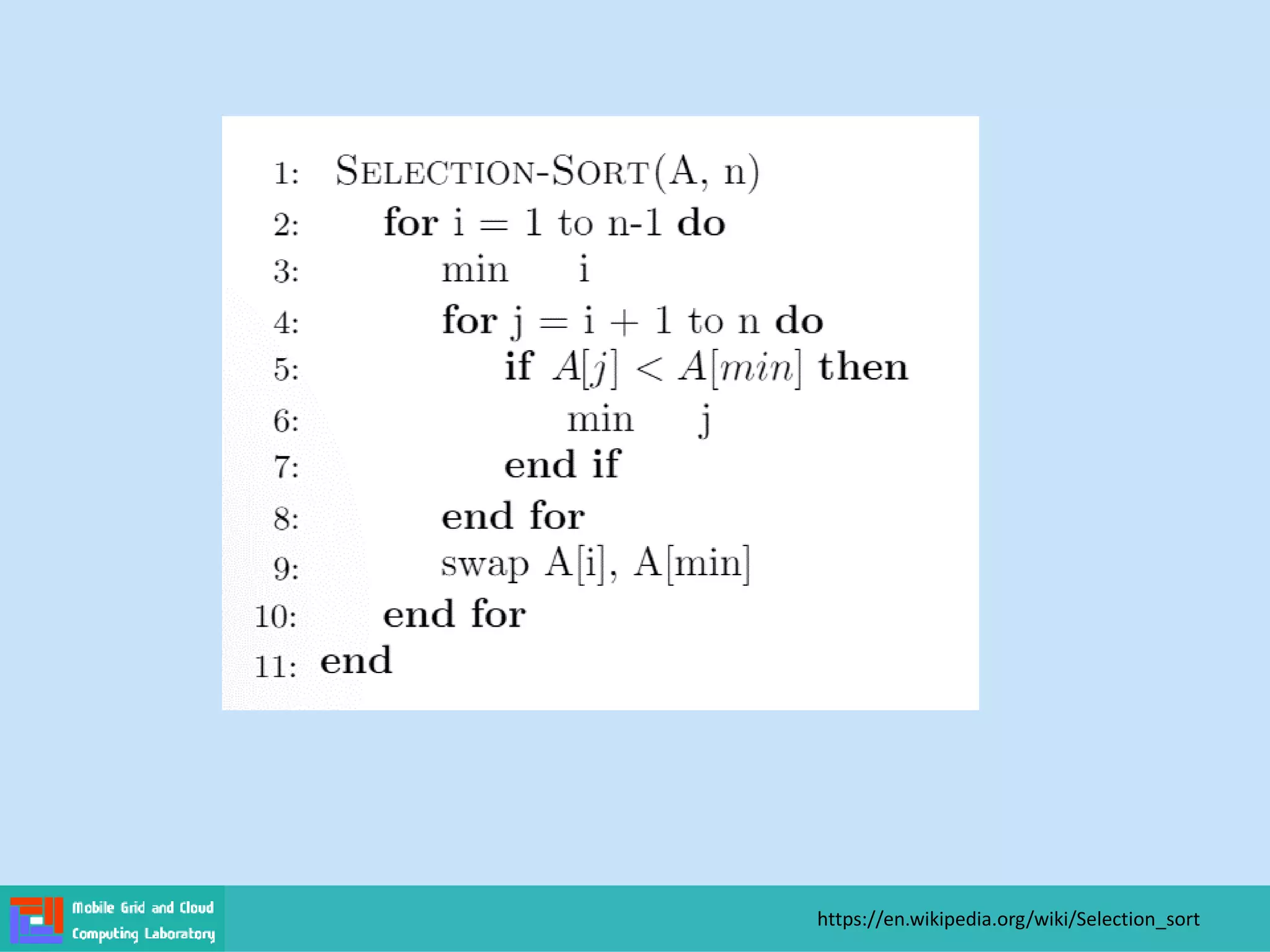

https://en.wikipedia.org/wiki/Selection_sort

https://en.wikipedia.org/wiki/Selection_sort

The Insertion Sort

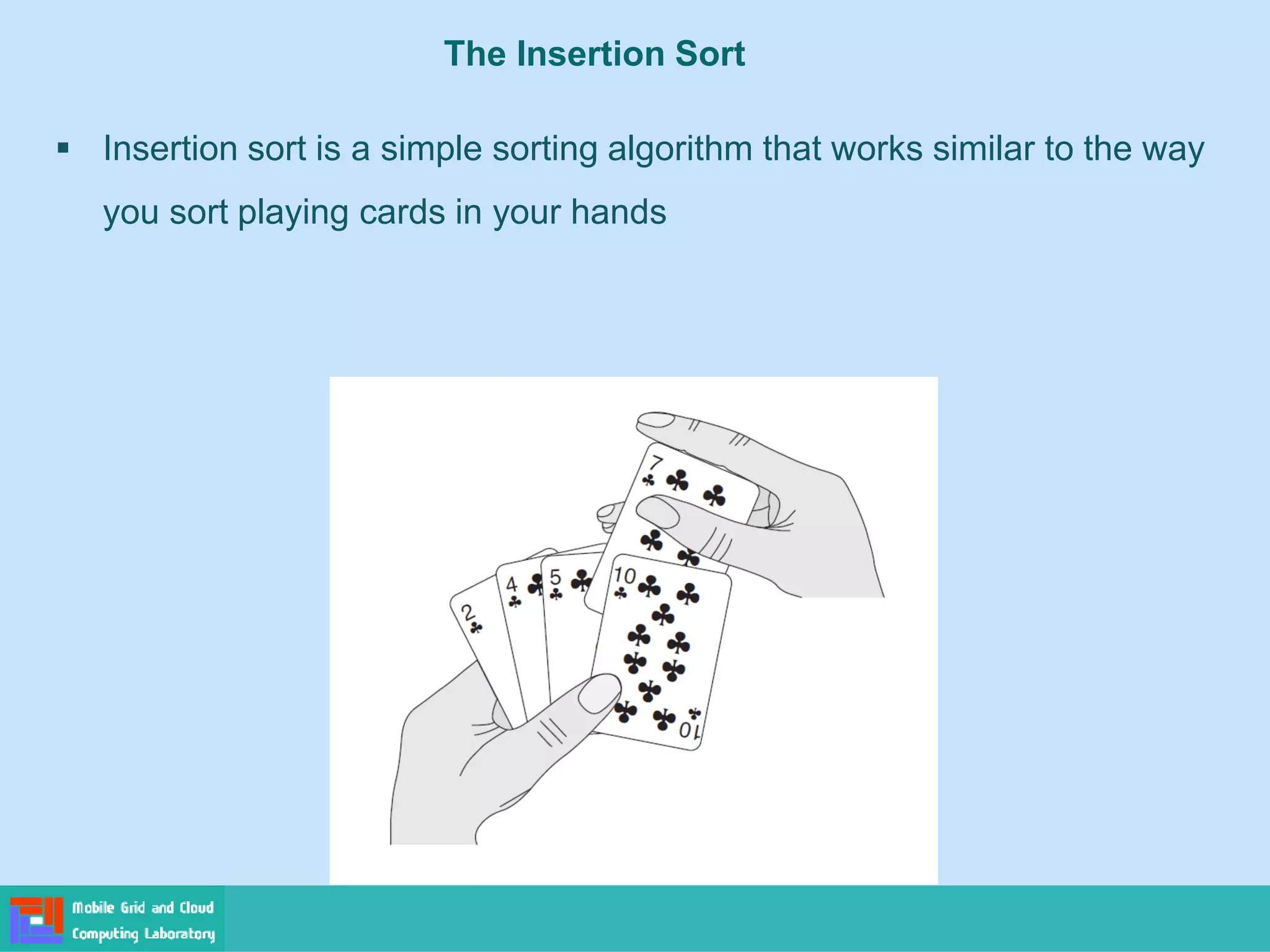

▪ Insertion sort is a simple sorting algorithm that works similar to the way
you sort playing cards in your hands

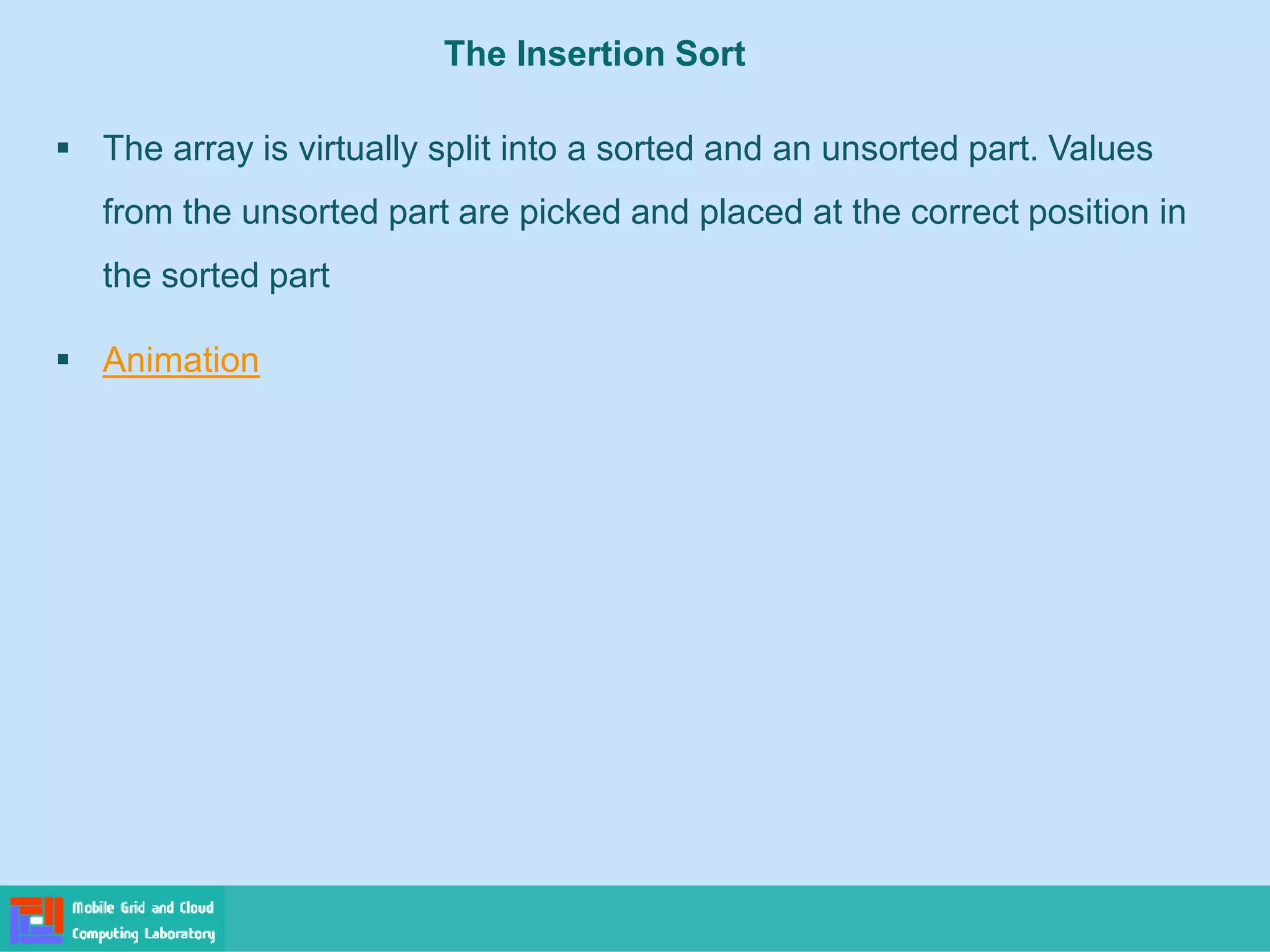

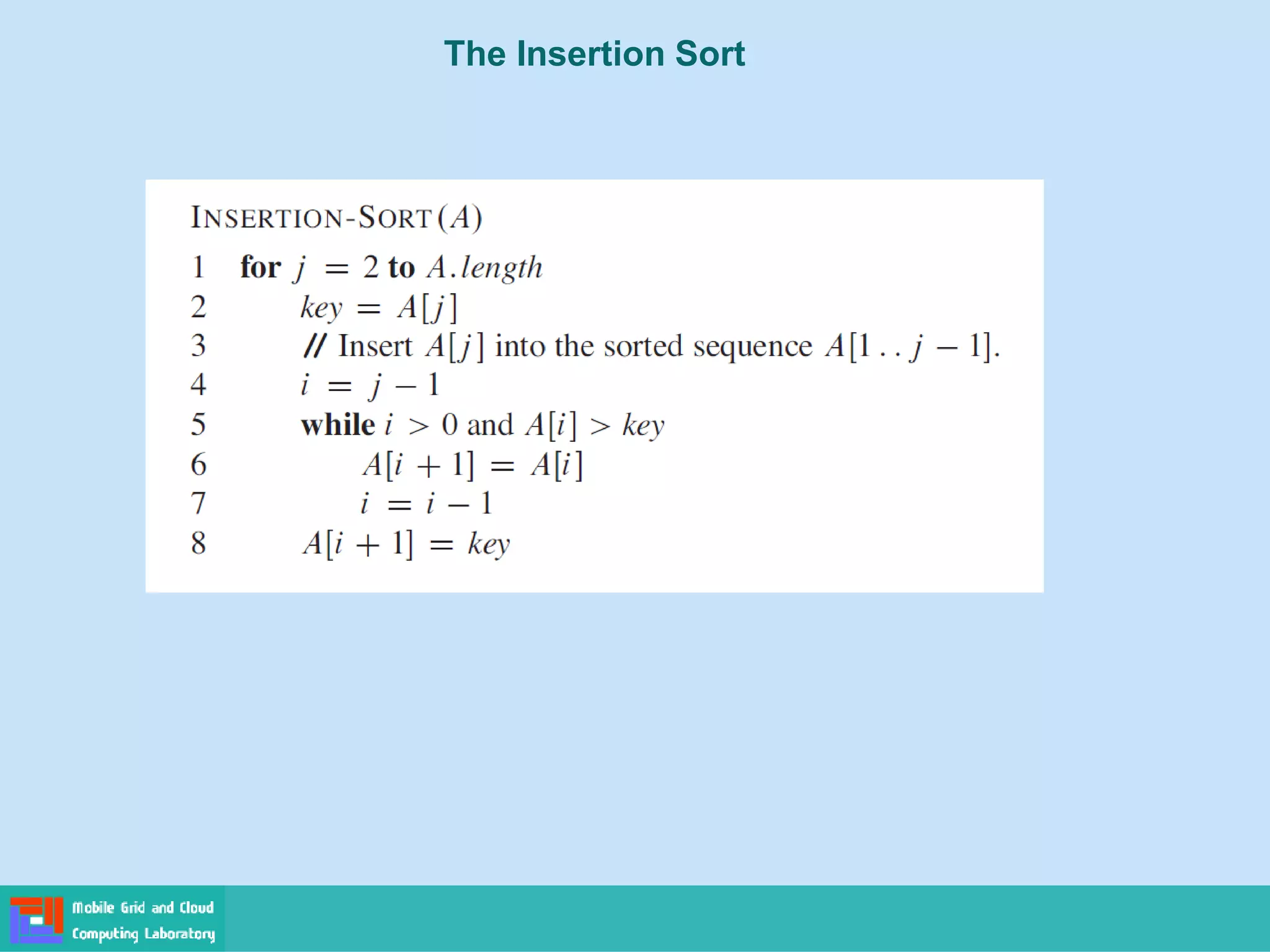

The Insertion Sort
▪ The array is virtually split into a sorted and an unsorted part. Values
from the unsorted part are picked and placed at the correct position in
the sorted part
▪ Animation

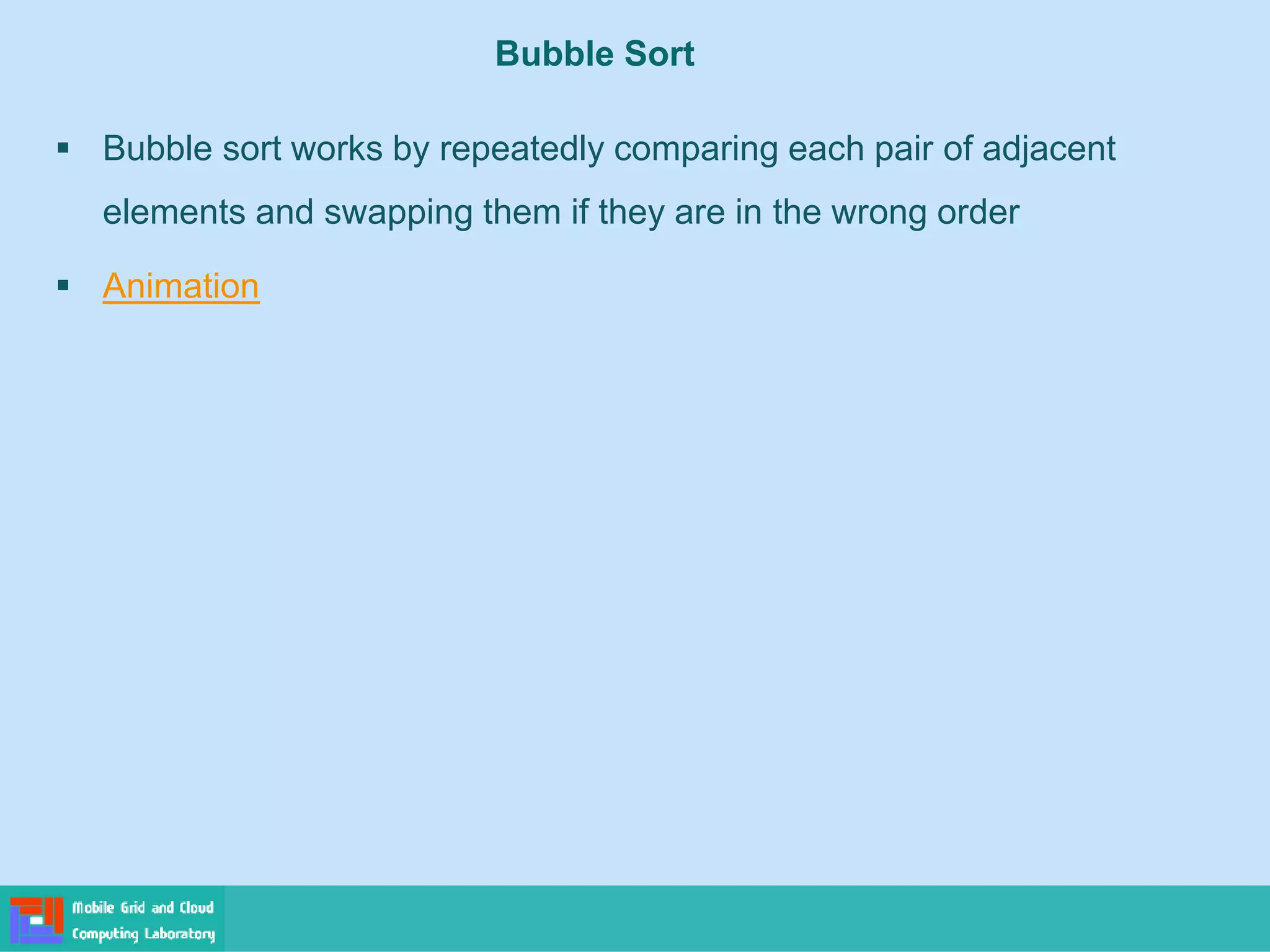

Bubble Sort
▪ Bubble sort works by repeatedly comparing each pair of adjacent
elements and swapping them if they are in the wrong order
▪ Animation

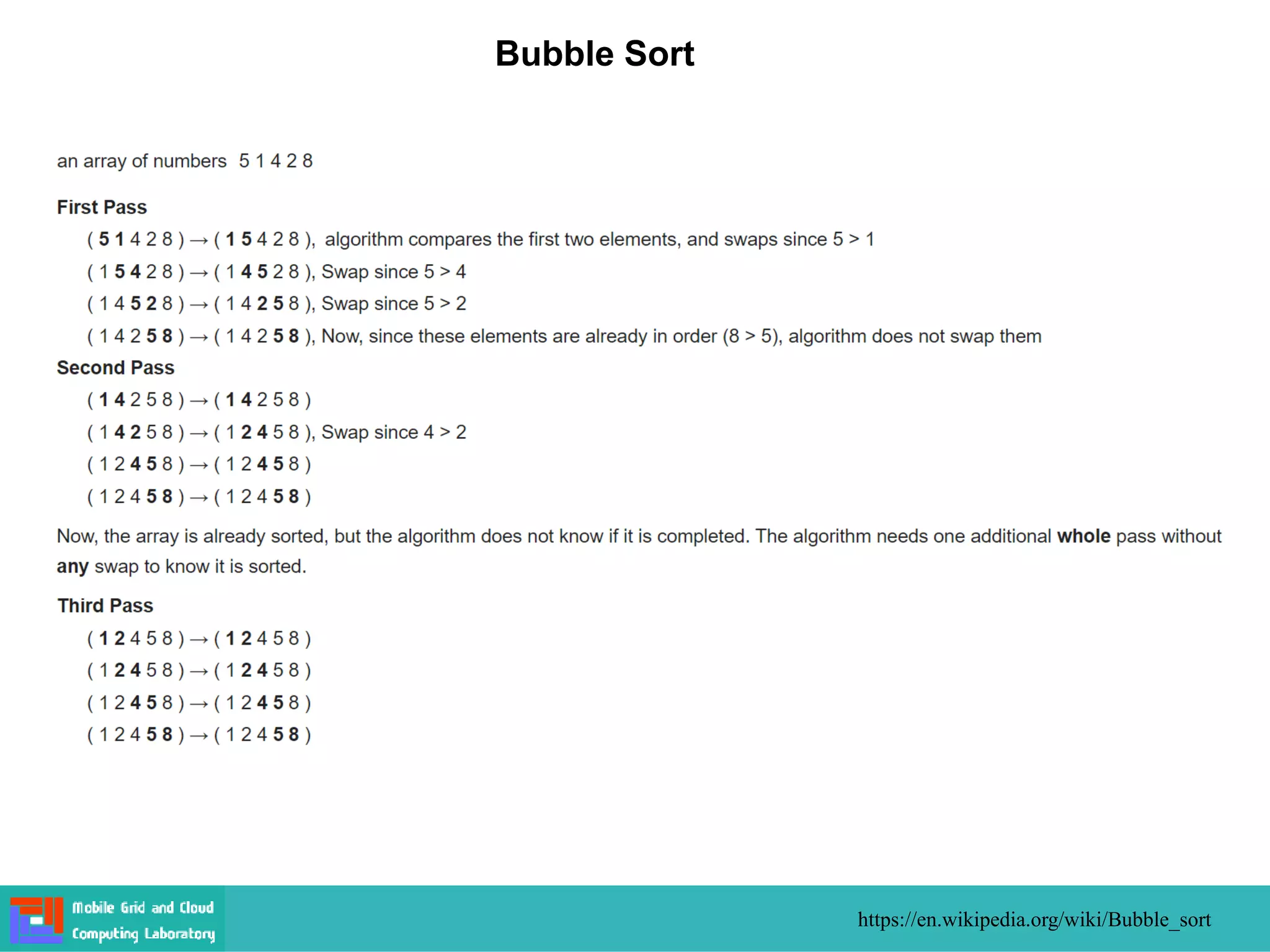

Bubble Sort
https://en.wikipedia.org/wiki/Bubble_sort

Linear and binary search algorithms

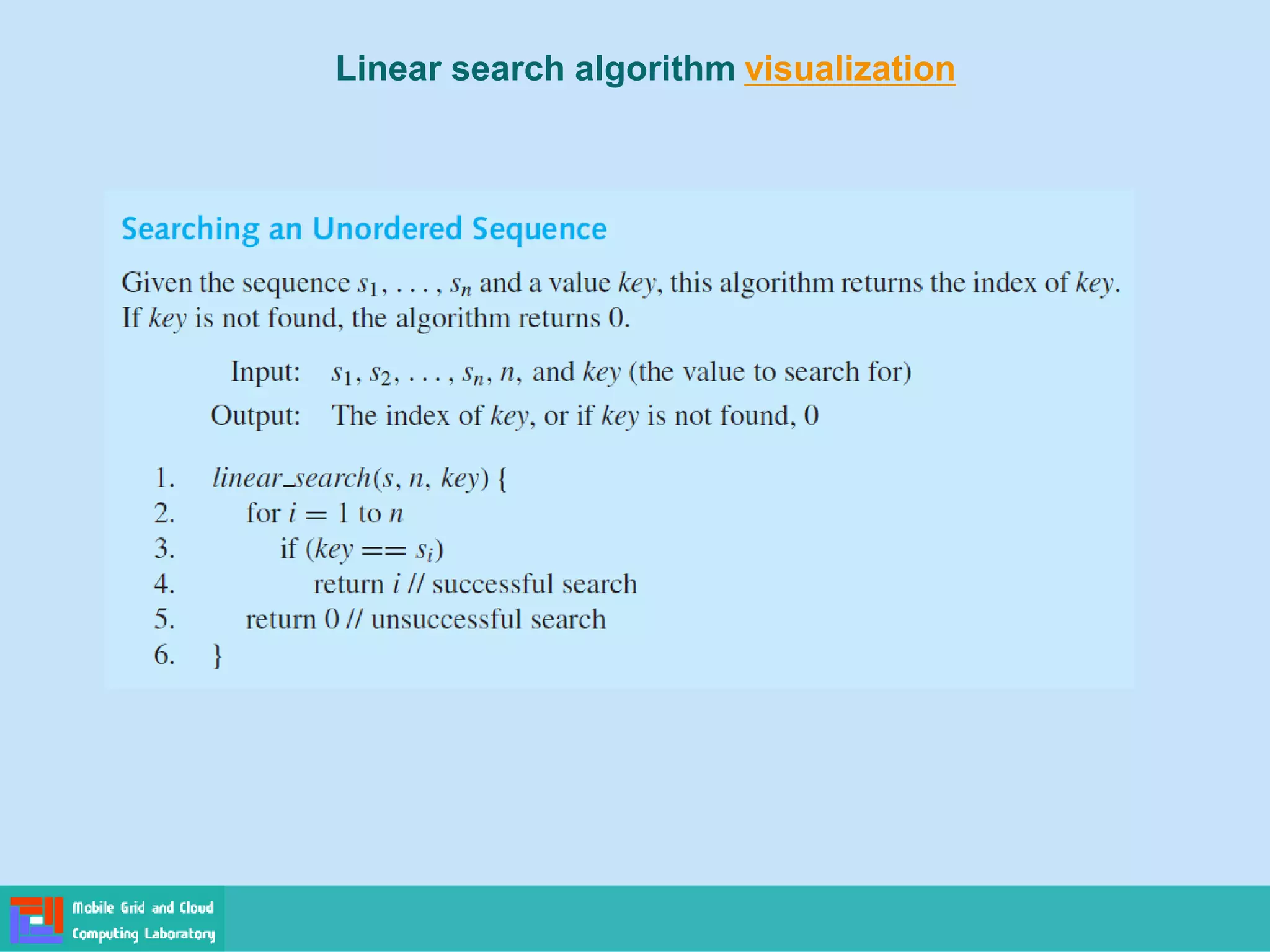

Linear search algorithm visualization

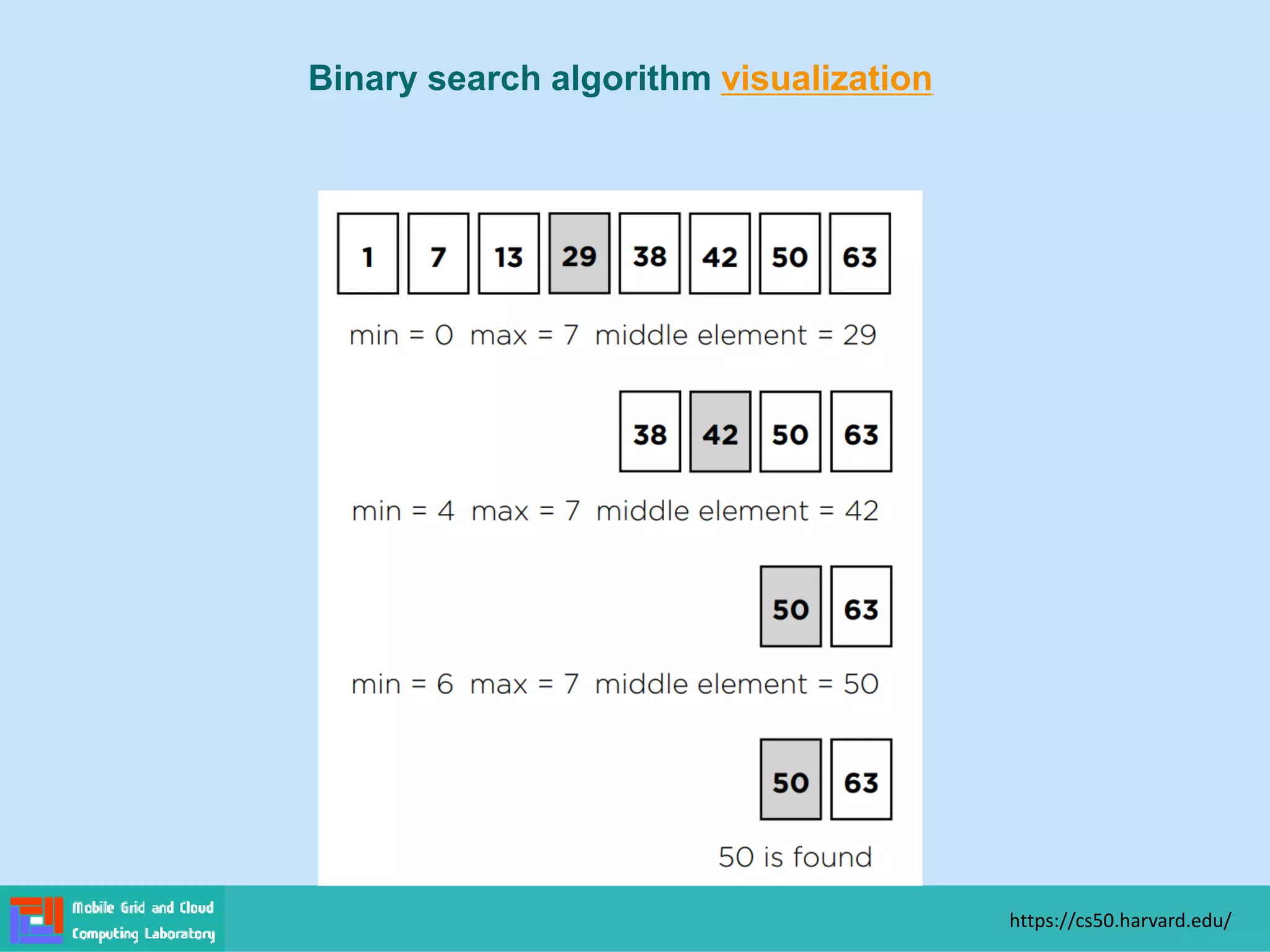

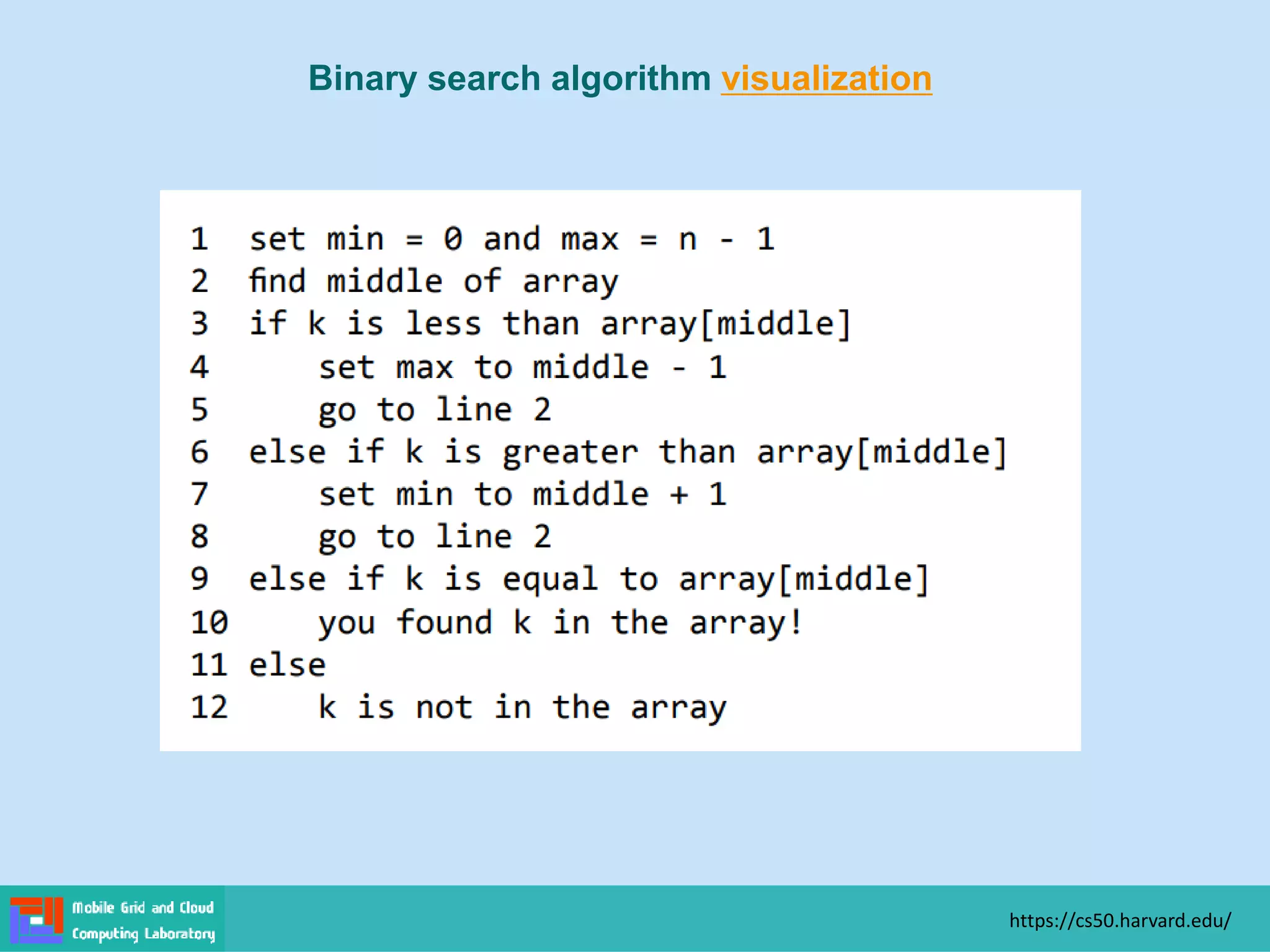

Binary search algorithm visualization
https://cs50.harvard.edu/

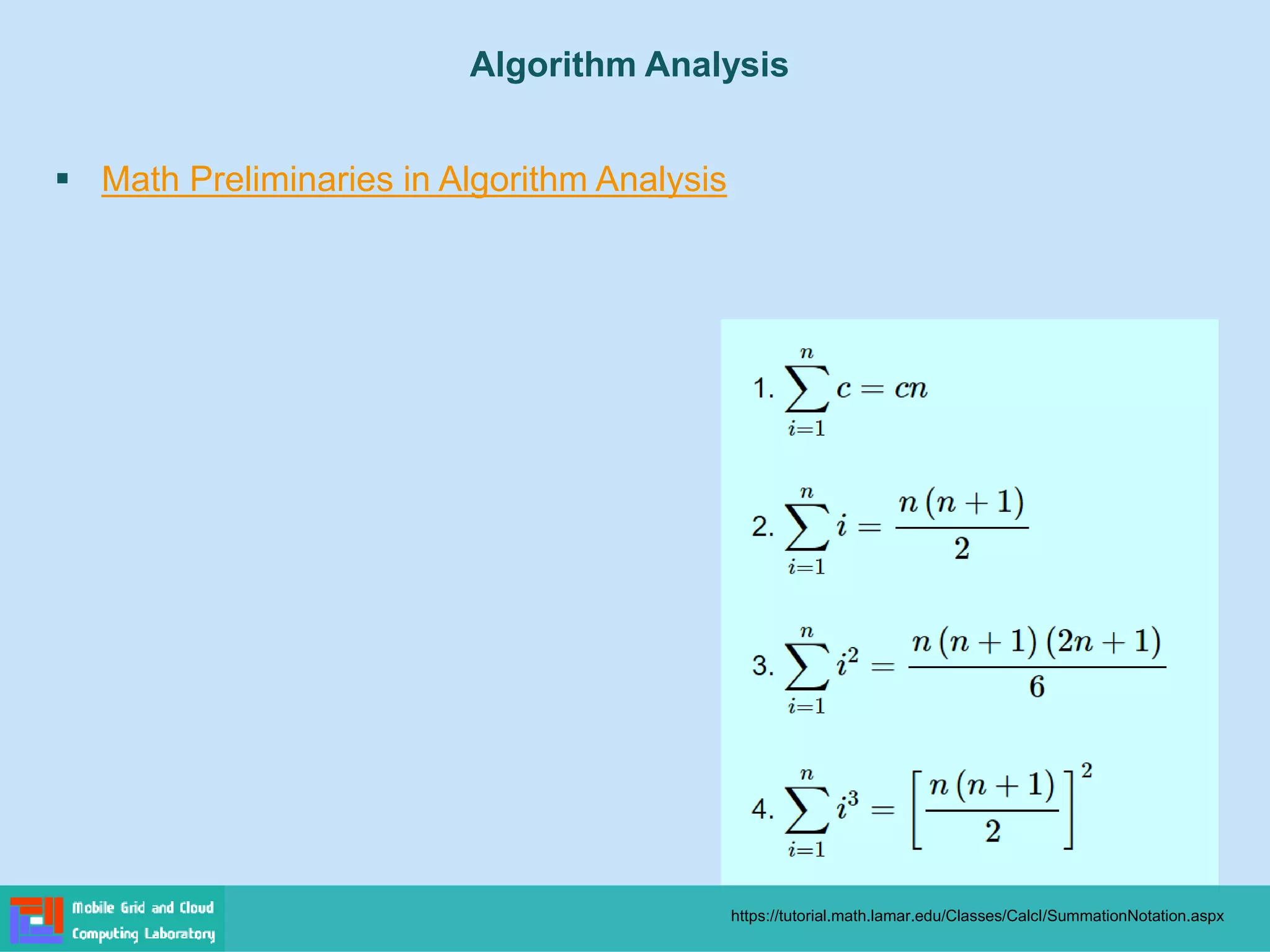

▪ Math Preliminaries in Algorithm Analysis
https://tutorial.math.lamar.edu/Classes/CalcI/SummationNotation.aspx

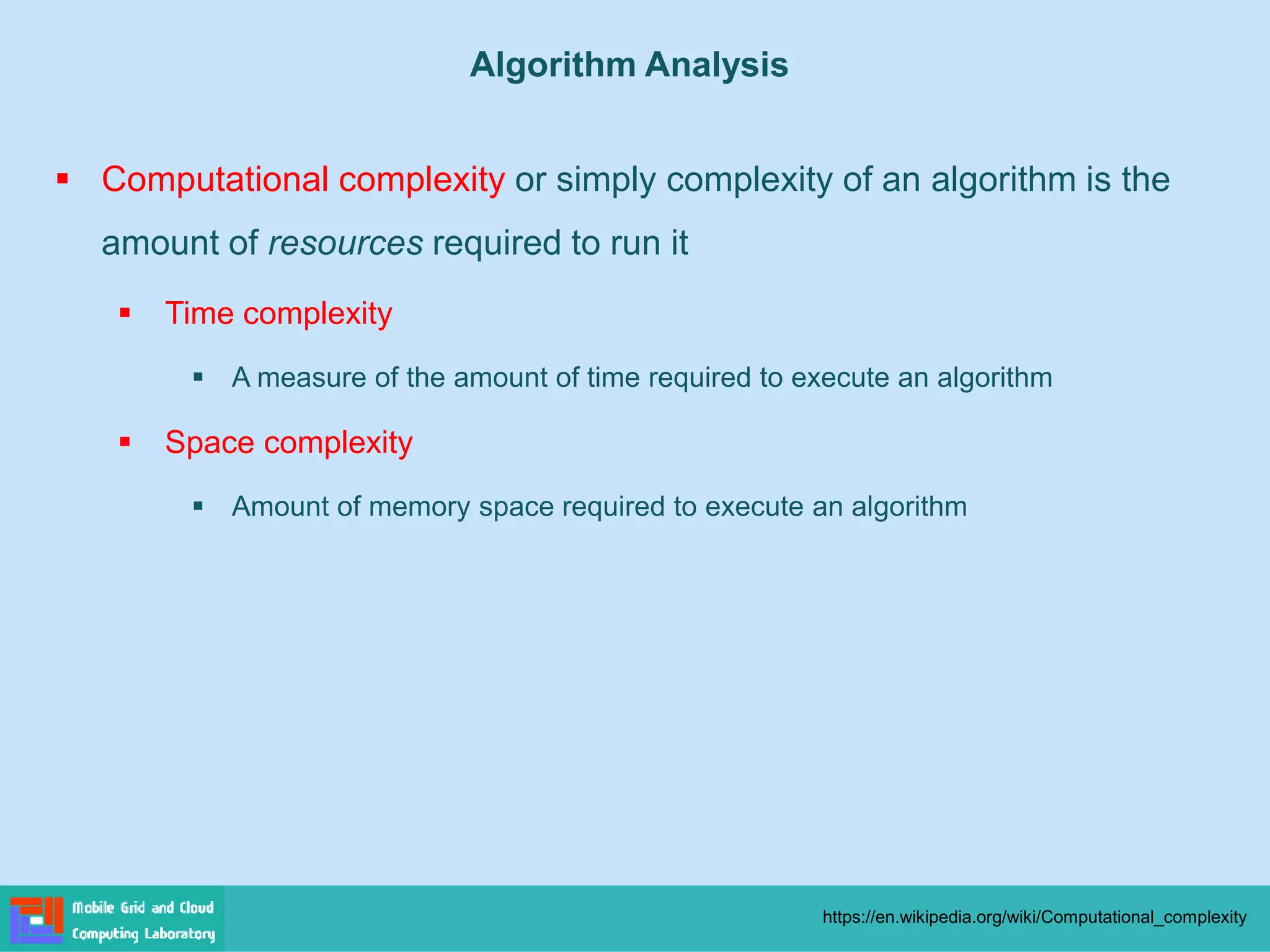

Algorithm Analysis

▪ Computational complexity or simply complexity of an algorithm is the
amount of resources required to run it
▪ Time complexity
▪ A measure of the amount of time required to execute an algorithm
▪ Space complexity
▪ Amount of memory space required to execute an algorithm
https://en.wikipedia.org/wiki/Computational_complexity

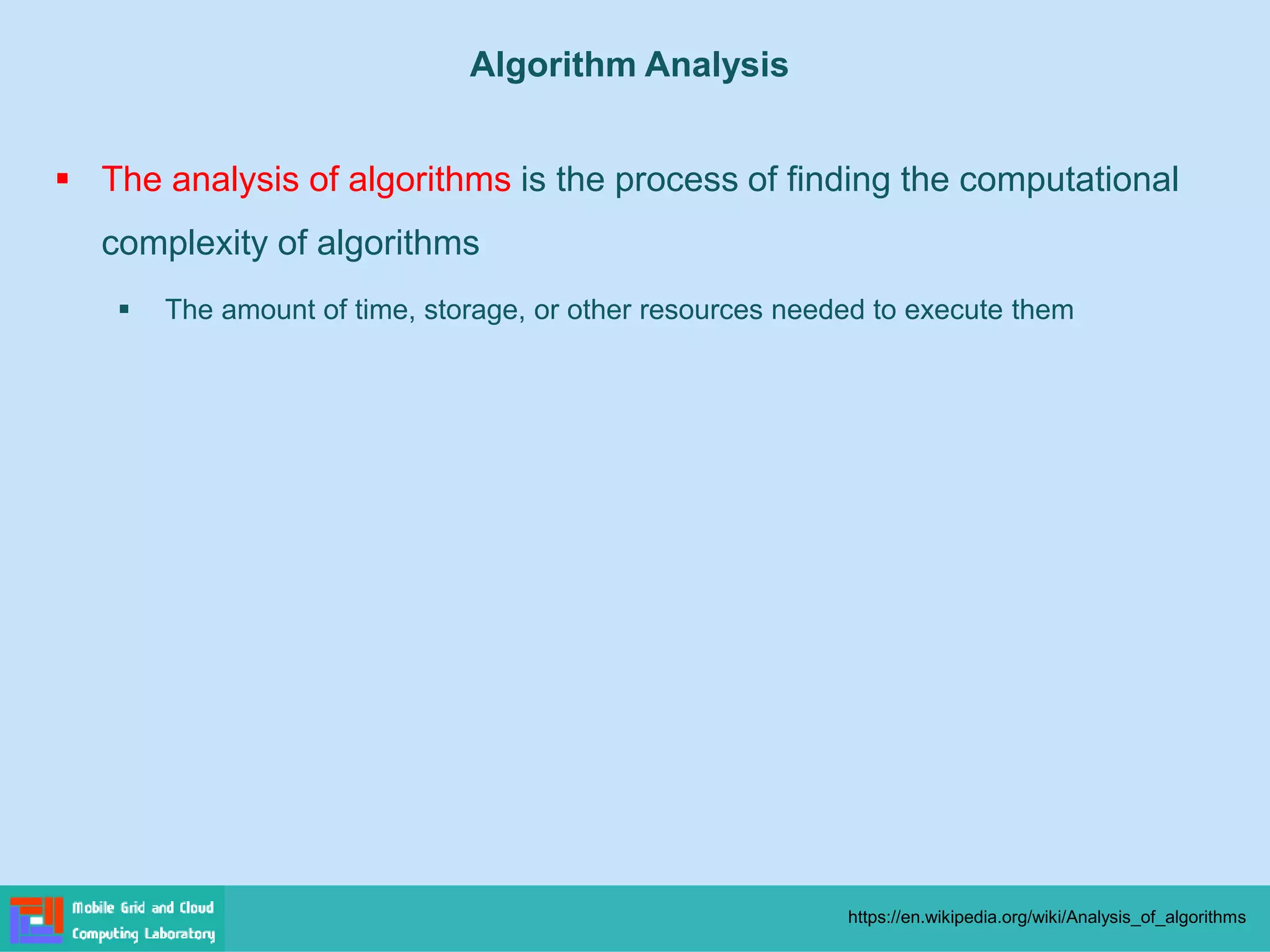

Algorithm Analysis

▪ The analysis of algorithms is the process of finding the computational
complexity of algorithms
▪ The amount of time, storage, or other resources needed to execute them
https://en.wikipedia.org/wiki/Analysis_of_algorithms
Algorithm Analysis

Algorithm Analysis
▪ An algorithm that is space-efficient uses the least amount of
computer memory to solve the problem
▪ An algorithm that is time-efficient uses the least amount of time
to solve the problem

▪ How do we compare the time efficiency of two algorithms that solve
the same problem?
Algorithm Analysis

the same problem?
▪ Manual

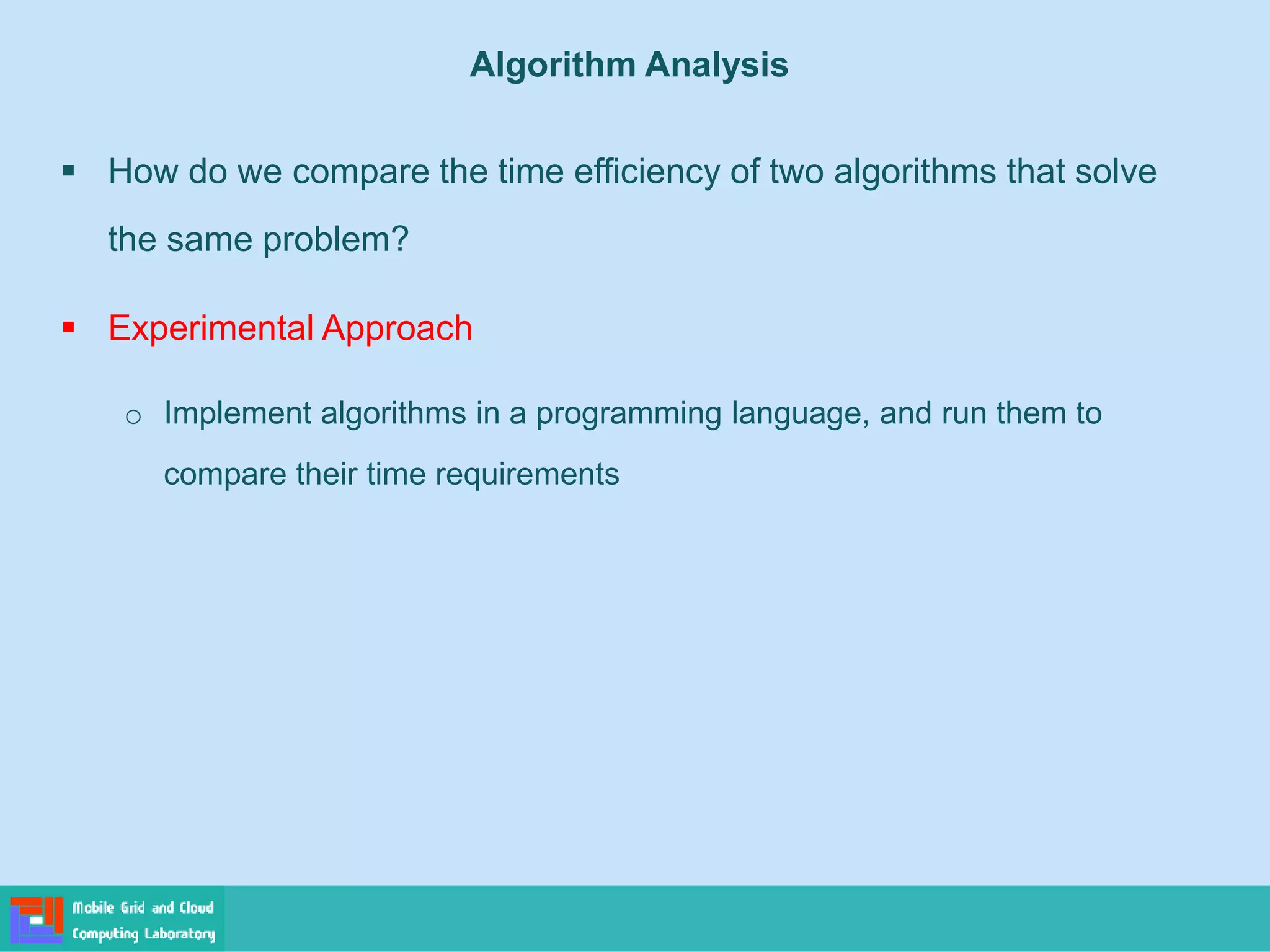

Algorithm Analysis

the same problem?
▪ Experimental Approach
o Implement algorithms in a programming language, and run them to
compare their time requirements
Algorithm Analysis

▪ Experimental Approach
o Comparing the programs instead of algorithms has difficulties because the
results would depend on
▪ How are the algorithms coded?
• We should not compare implementations, because they are sensitive to
programming style that may cloud the issue of which algorithm is inherently
more efficient
▪ What computer should we use?
• We should compare the efficiency of the algorithms independently of a
particular computer

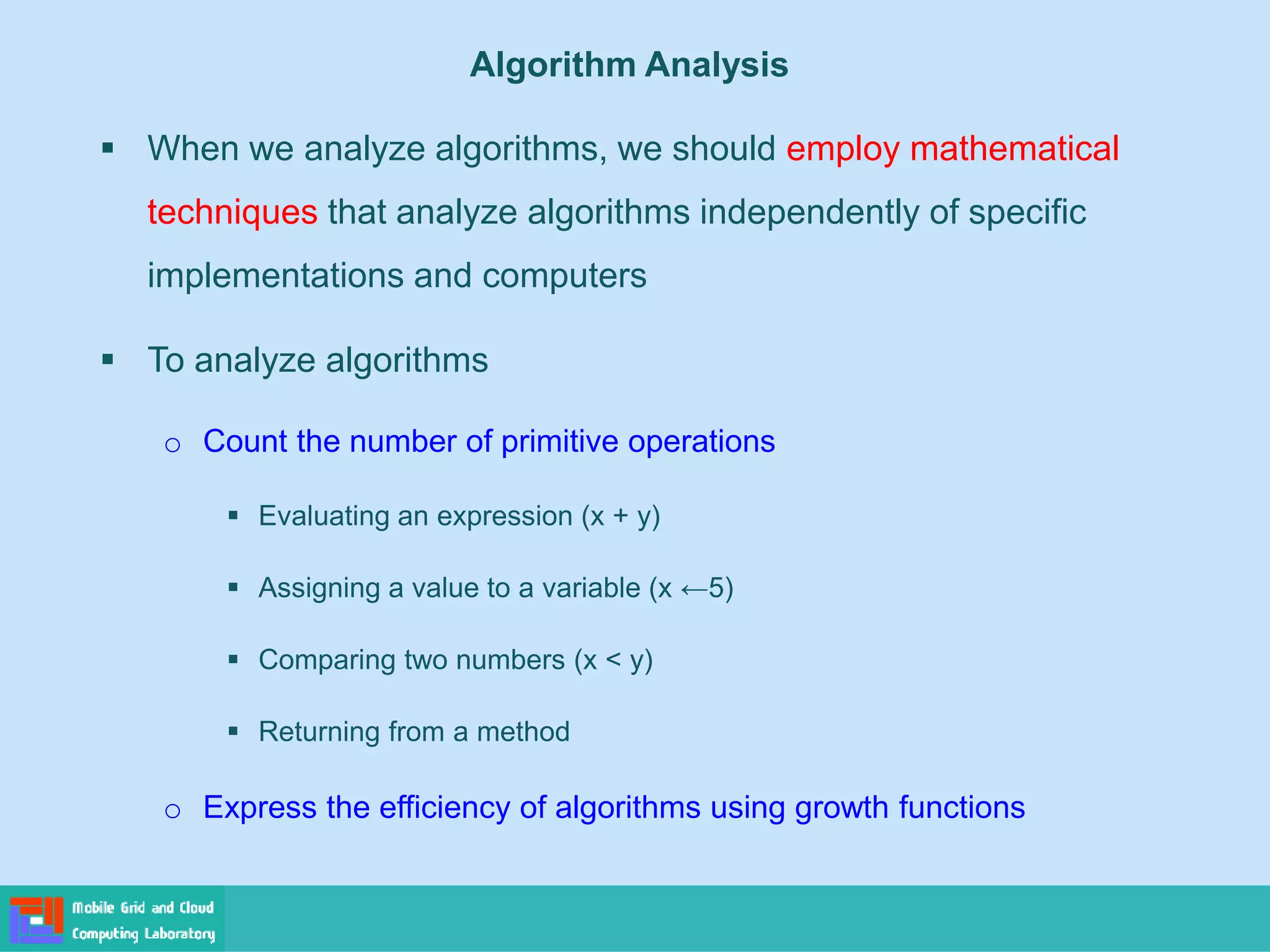

Algorithm Analysis

▪ When we analyze algorithms, we should employ mathematical
techniques that analyze algorithms independently of specific
implementations and computers
▪ To analyze algorithms
o Count the number of primitive operations
▪ Evaluating an expression (x + y)
▪ Assigning a value to a variable (x ←5)
▪ Comparing two numbers (x < y)
▪ Returning from a method
o Express the efficiency of algorithms using growth functions
Algorithm Analysis

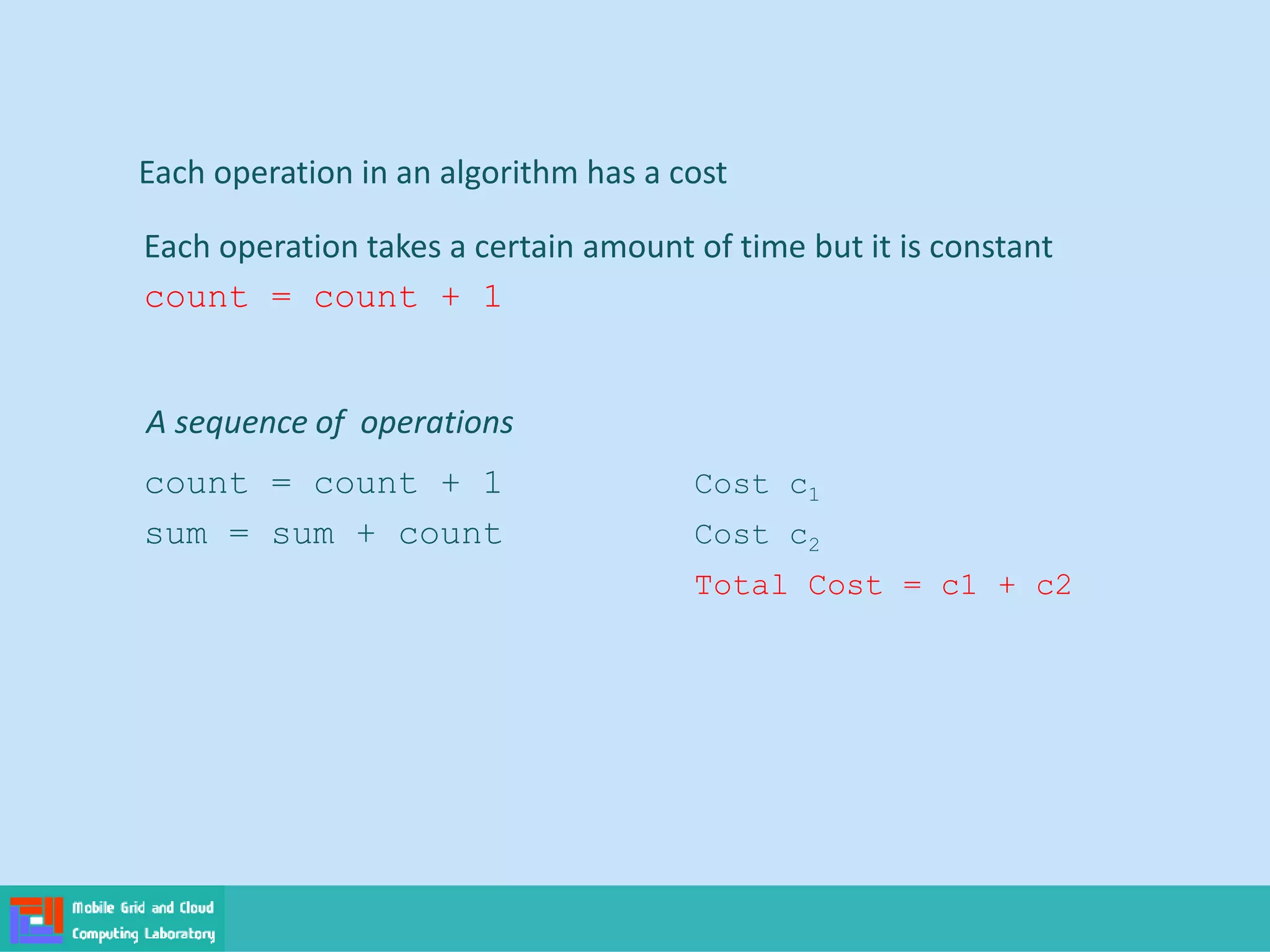

Each operation in an algorithm has a cost
Each operation takes a certain amount of time but it is constant
count = count + 1
A sequence of operations
count = count + 1 Cost c1
sum = sum + count Cost c2
Total Cost = c1 + c2

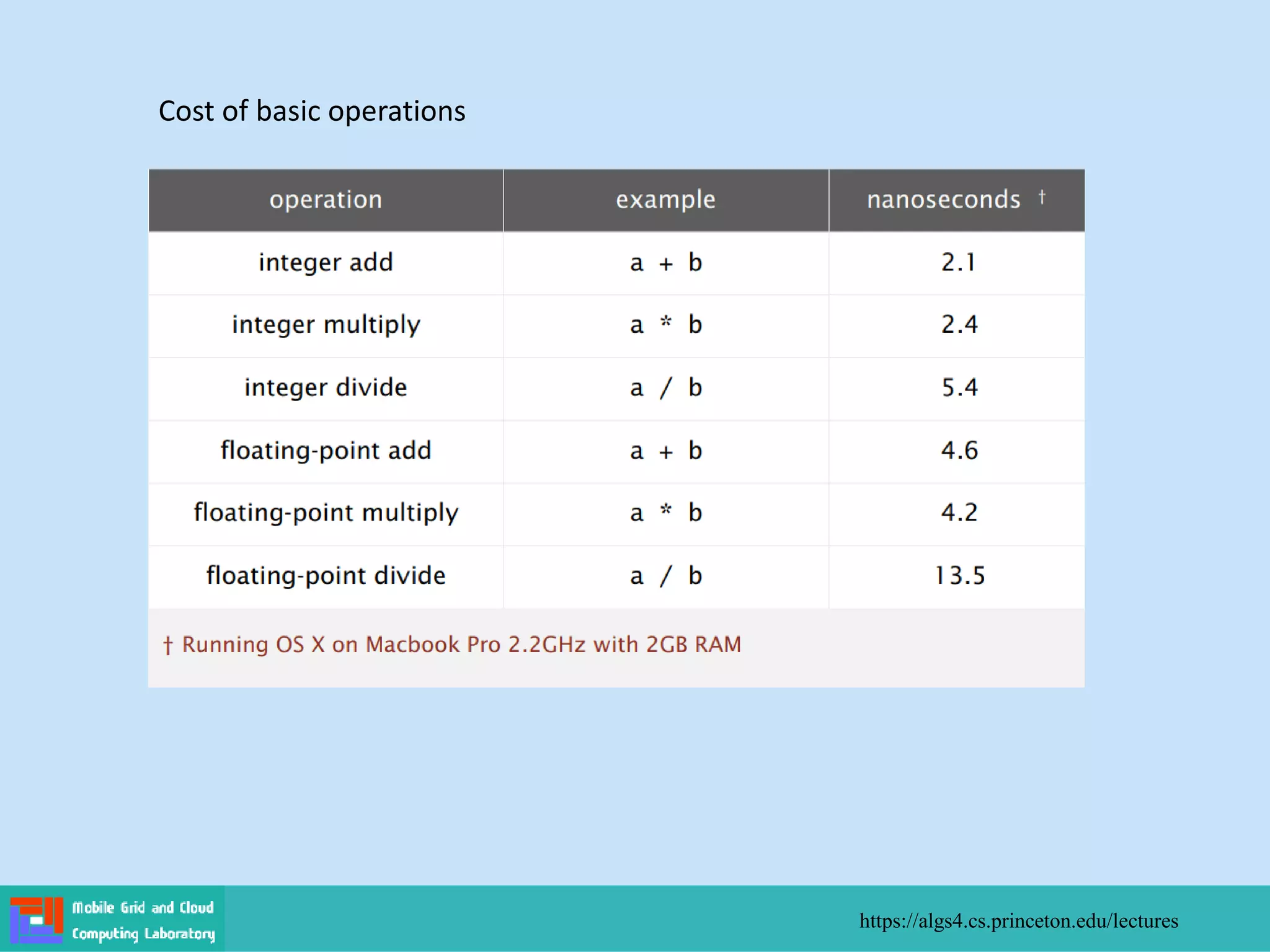

Cost of basic operations
https://algs4.cs.princeton.edu/lectures

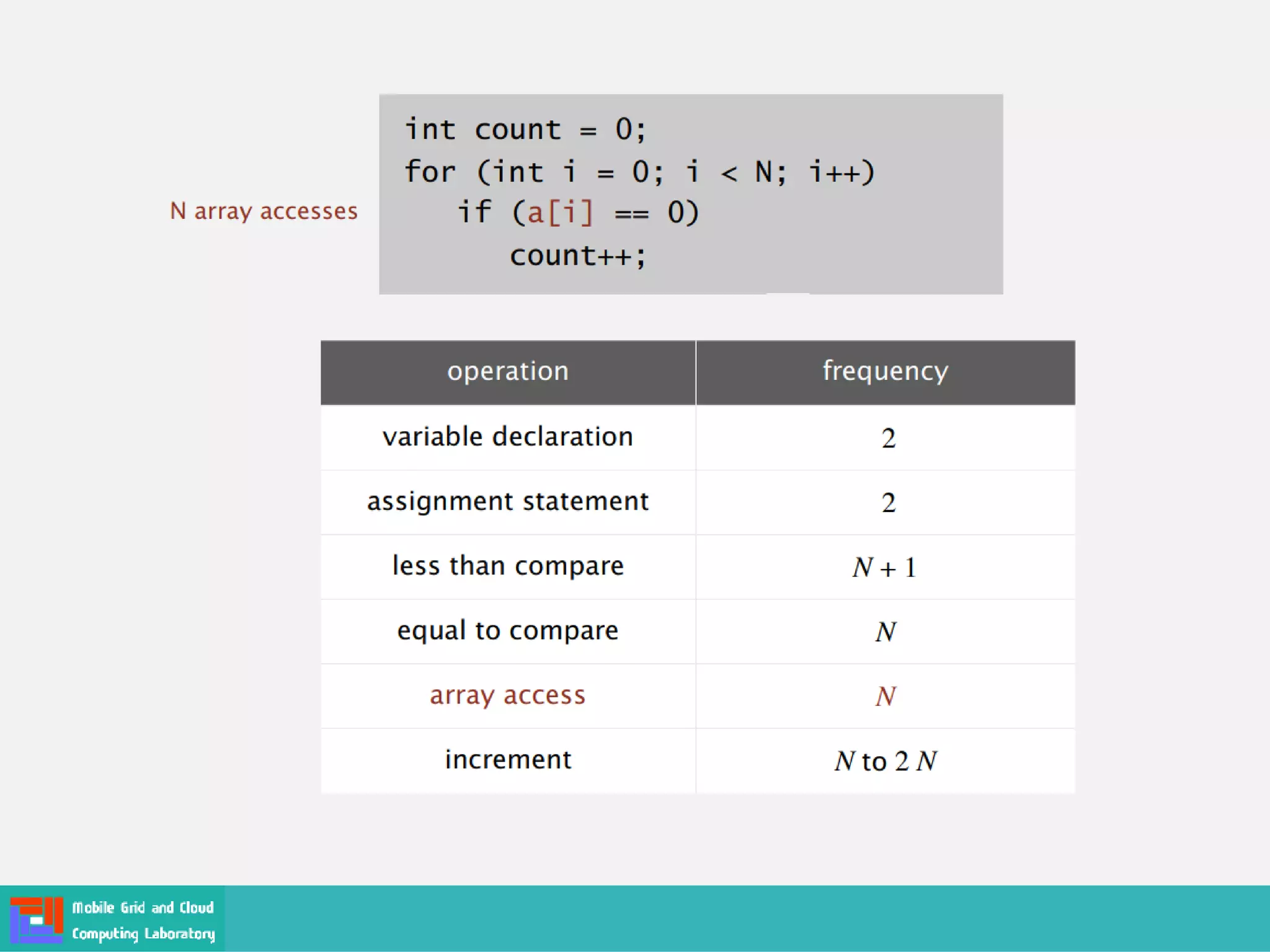

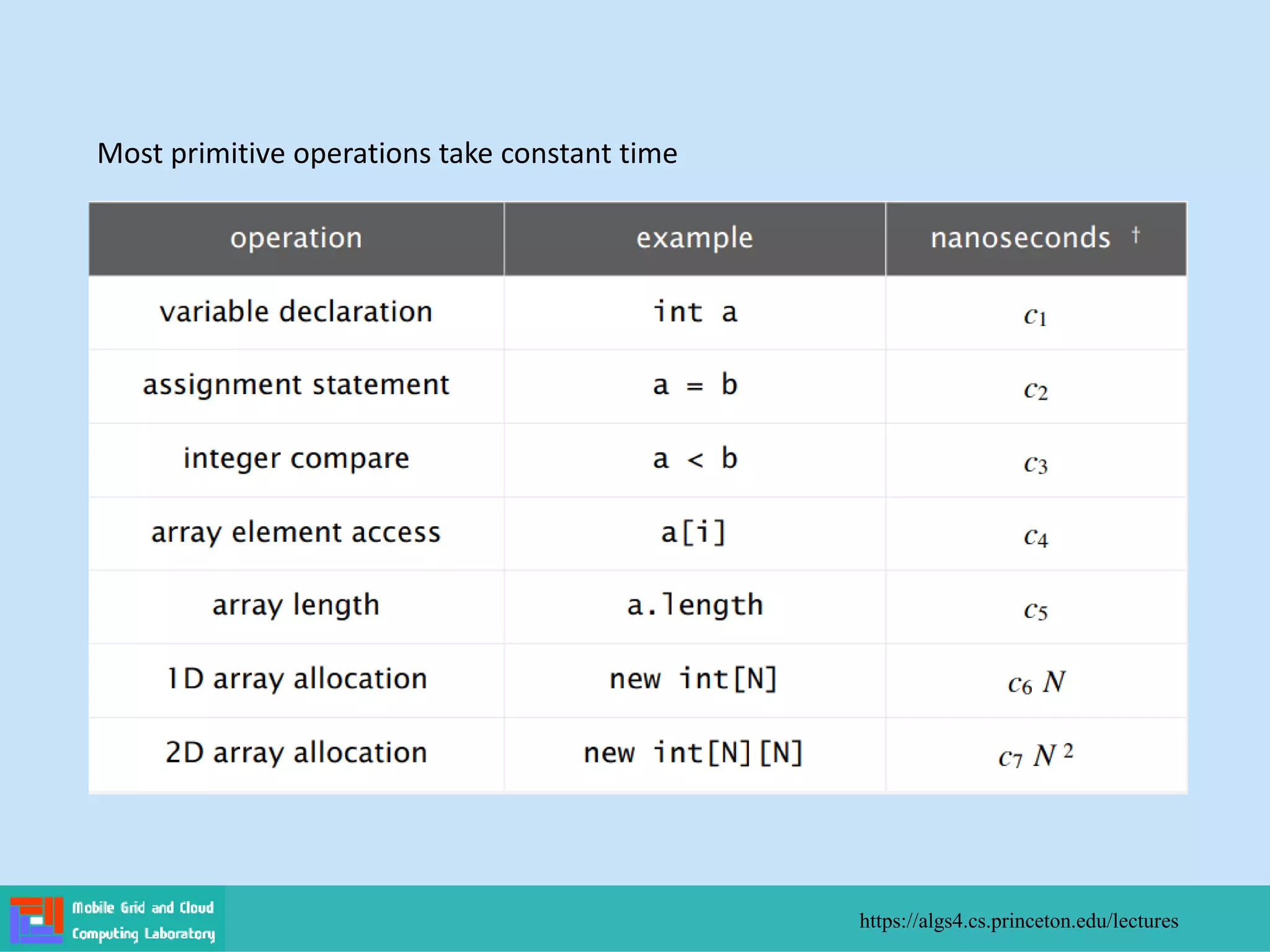

Most primitive operations take constant time
https://algs4.cs.princeton.edu/lectures

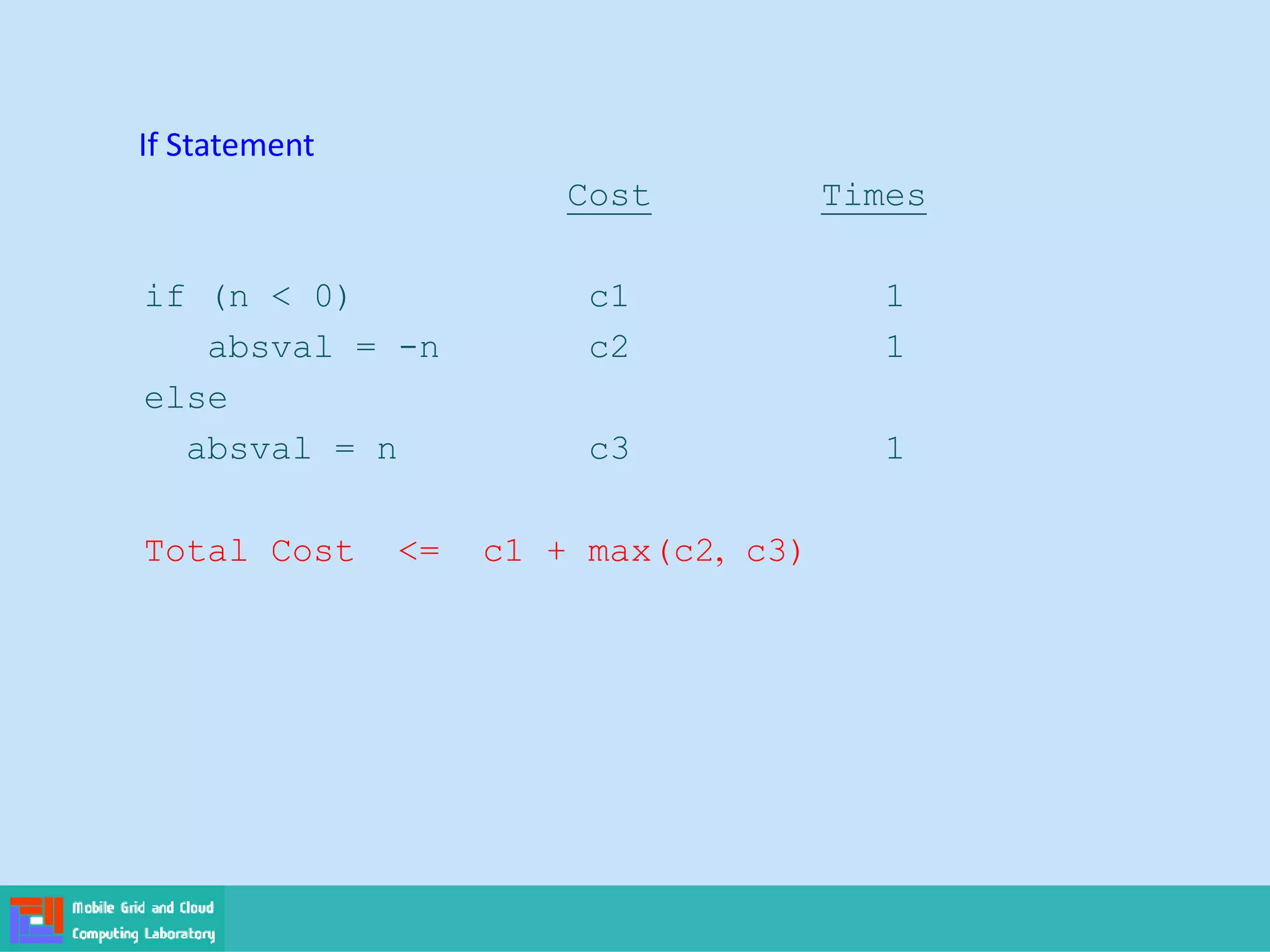

If Statement
Cost Times
if (n < 0) c1 1
absval = -n c2 1
else
absval = n c3 1
Total Cost <= c1 + max(c2, c3)

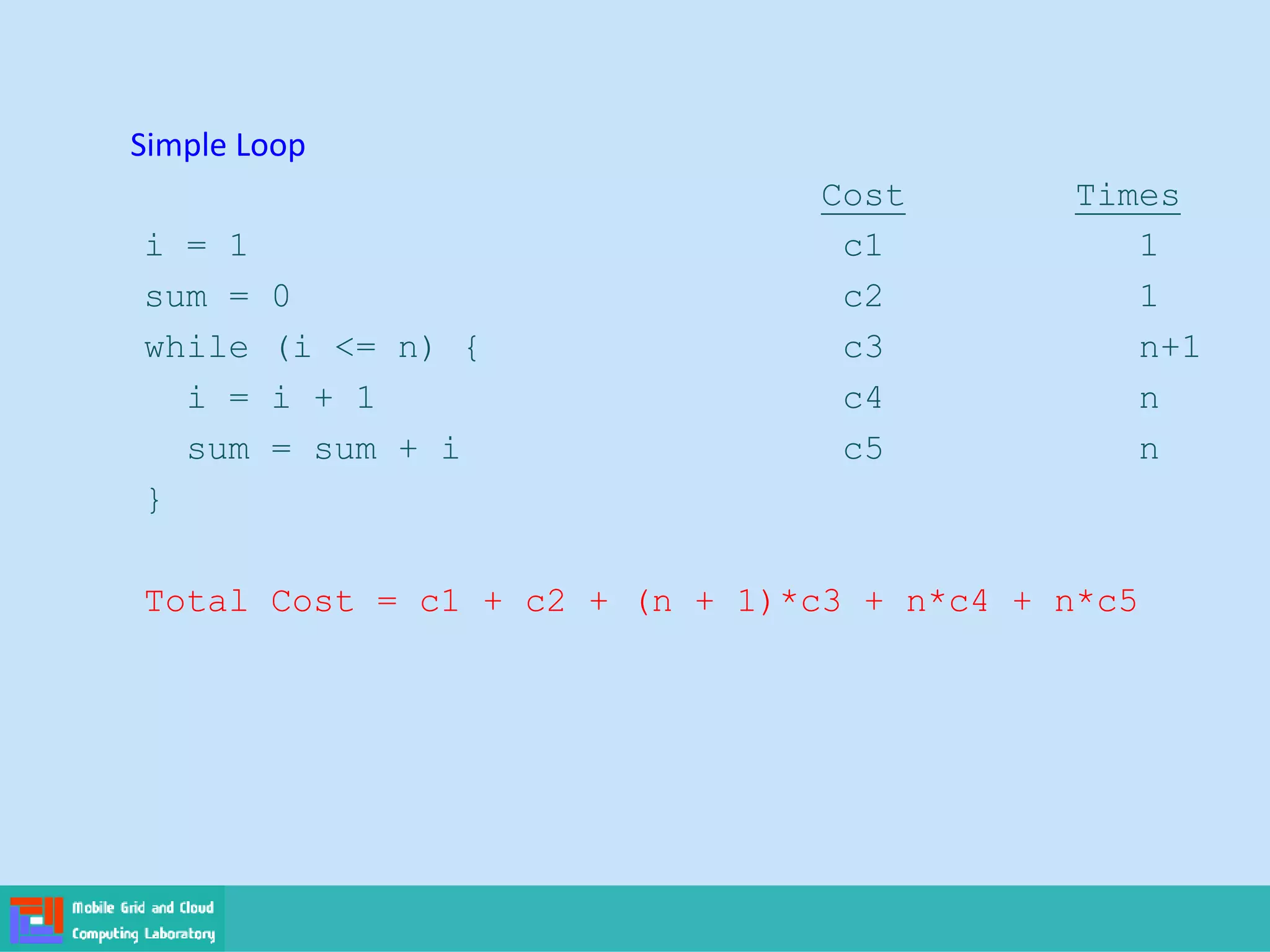

Simple Loop
Cost Times
i = 1 c1 1
sum = 0 c2 1
while (i <= n) { c3 n+1
i = i + 1 c4 n
sum = sum + i c5 n
}
Total Cost = c1 + c2 + (n + 1)*c3 + n*c4 + n*c5

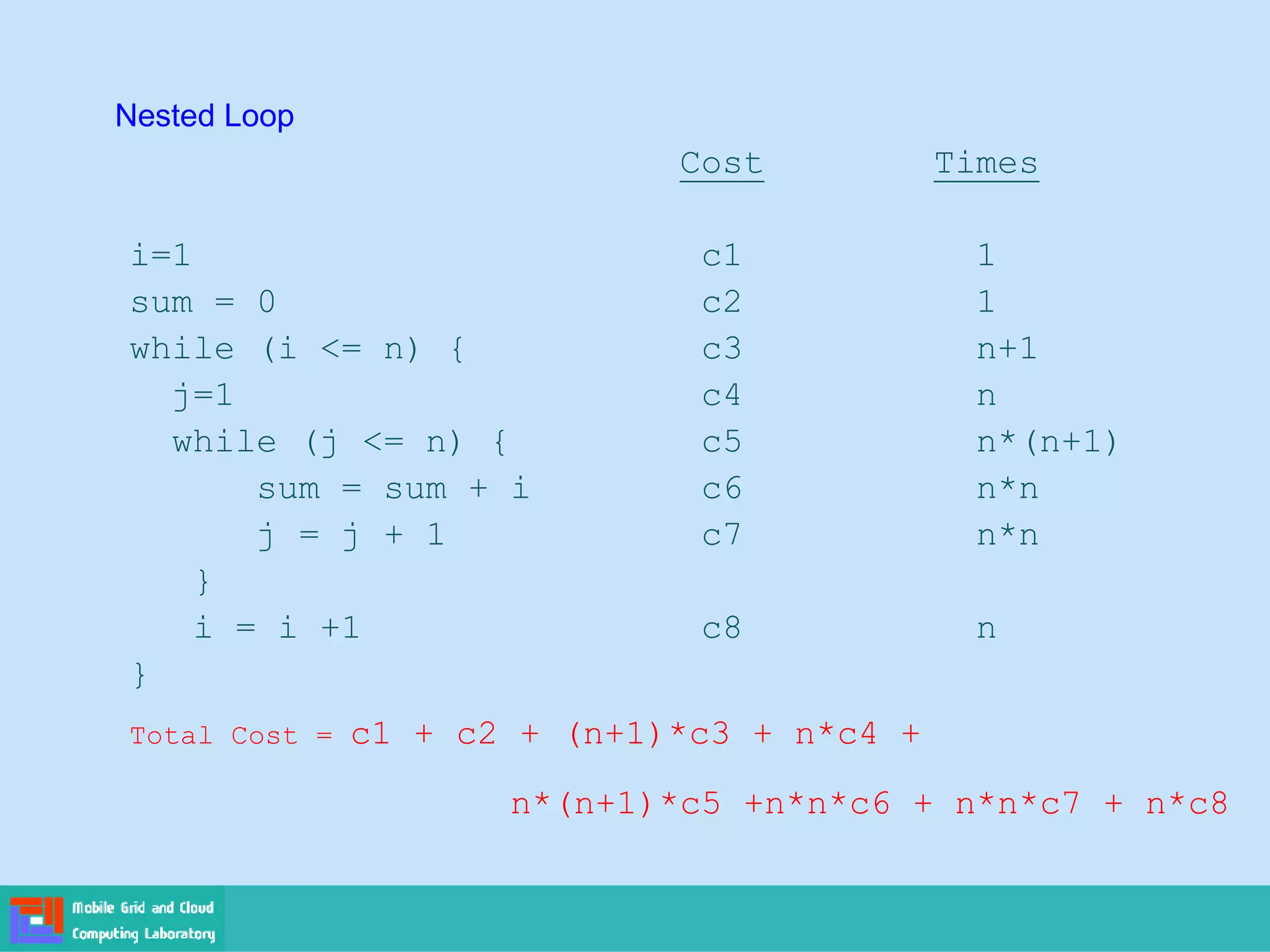

Nested Loop
Cost Times
i=1 c1 1
sum = 0 c2 1
while (i <= n) { c3 n+1
j=1 c4 n
while (j <= n) { c5 n*(n+1)
sum = sum + i c6 n*n
j = j + 1 c7 n*n
}
i = i +1 c8 n
}
Total Cost = c1 + c2 + (n+1)*c3 + n*c4 +
n*(n+1)*c5 +n*n*c6 + n*n*c7 + n*c8

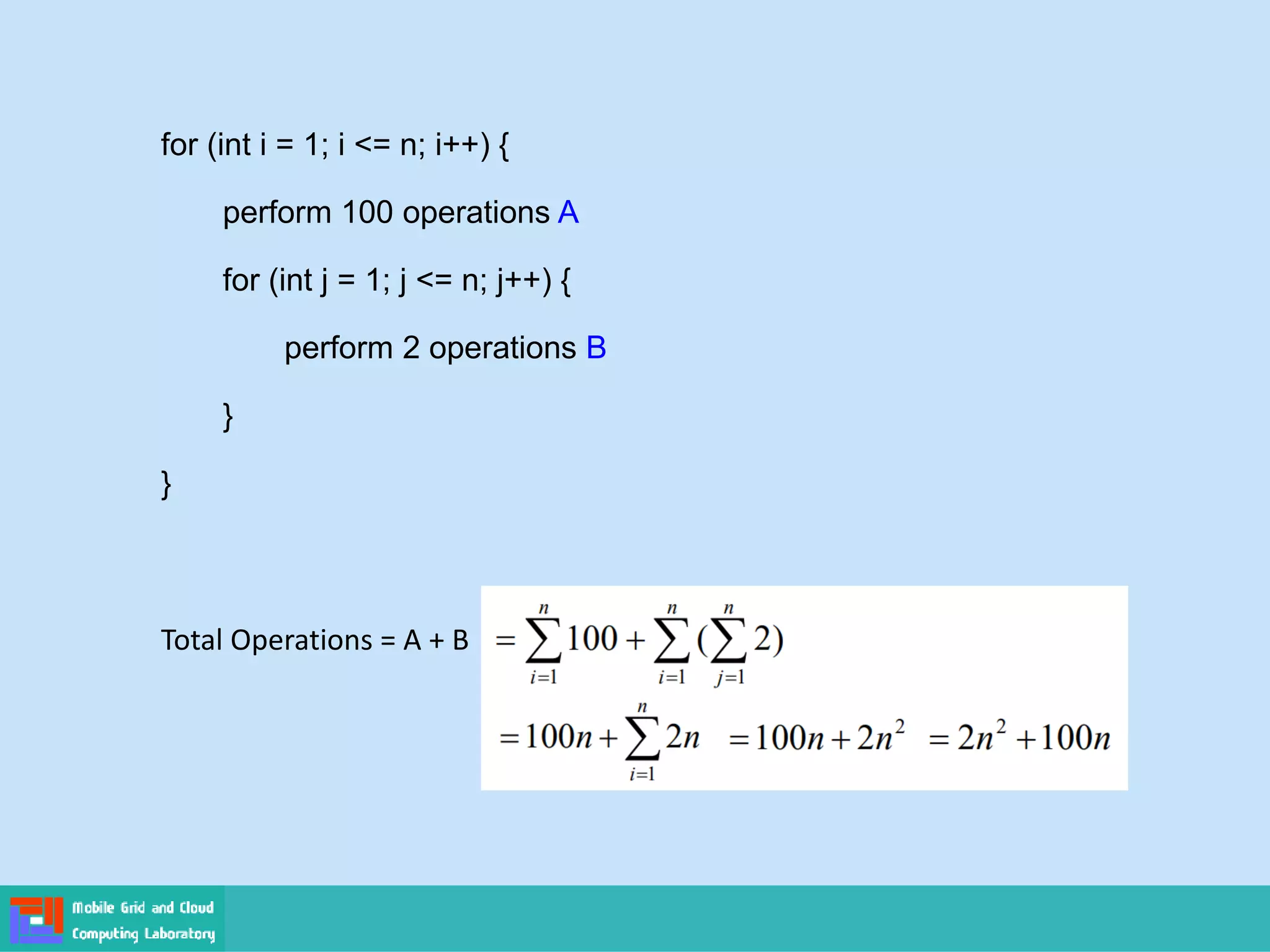

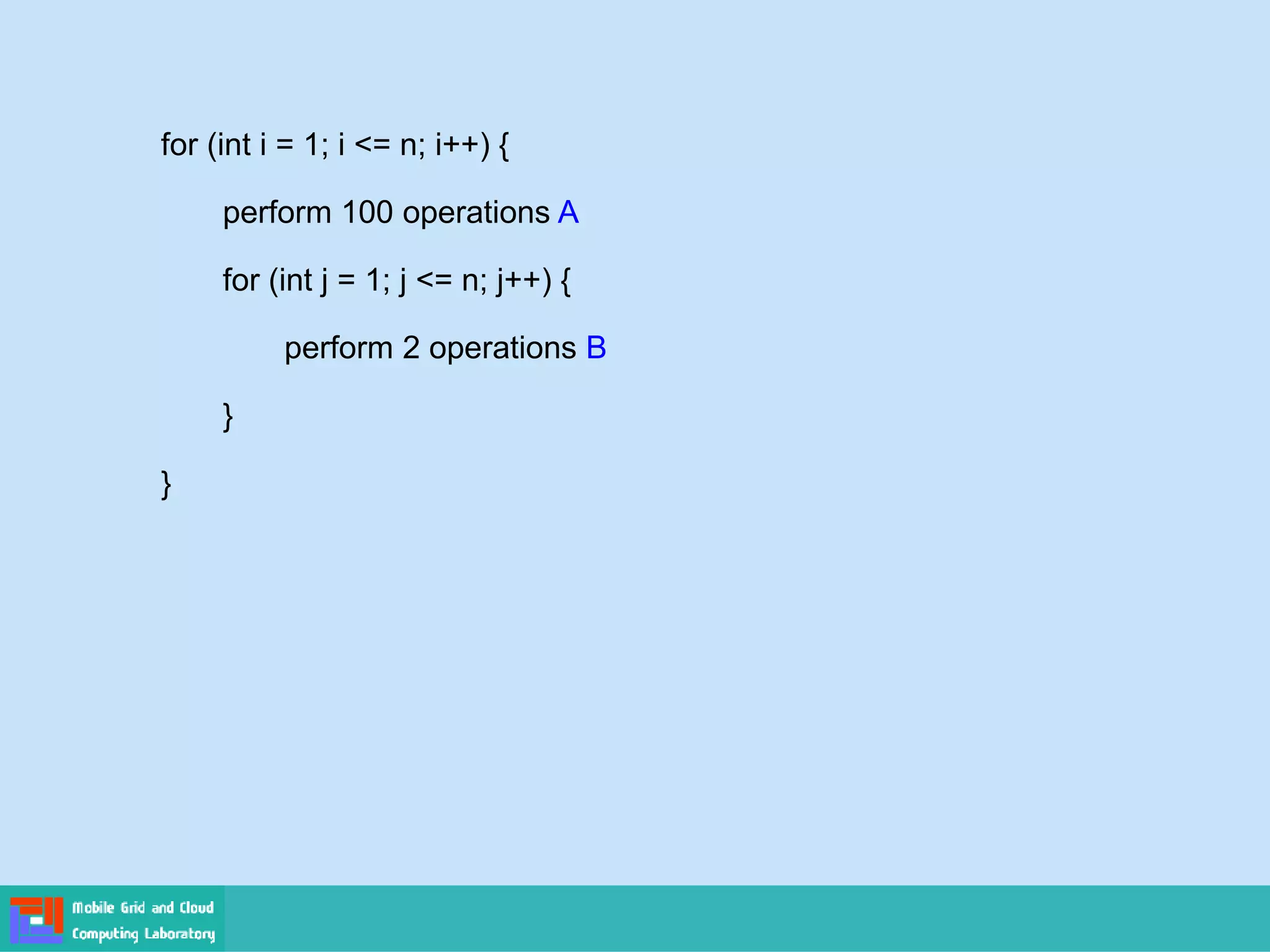

for (int i = 1; i <= n; i++) {
perform 100 operations A
for (int j = 1; j <= n; j++) {
perform 2 operations B
}
}

for (int i = 1; i <= n; i++) {
perform 100 operations A
for (int j = 1; j <= n; j++) {
perform 2 operations B
}
}
Total Operations = A + B

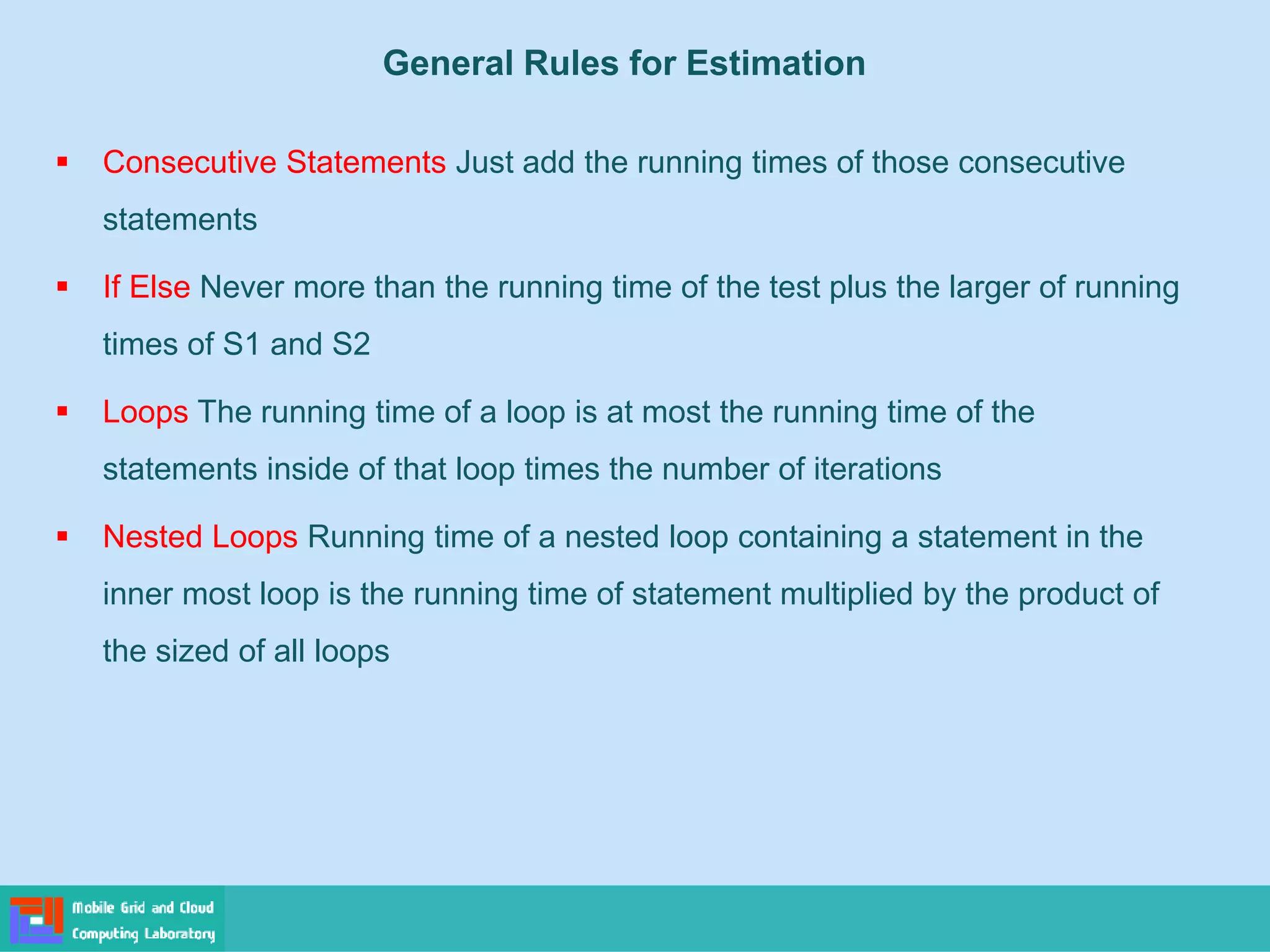

General Rules for Estimation
▪ Consecutive Statements Just add the running times of those consecutive
statements
▪ If Else Never more than the running time of the test plus the larger of running
times of S1 and S2
▪ Loops The running time of a loop is at most the running time of the
statements inside of that loop times the number of iterations
▪ Nested Loops Running time of a nested loop containing a statement in the
inner most loop is the running time of statement multiplied by the product of
the sized of all loops

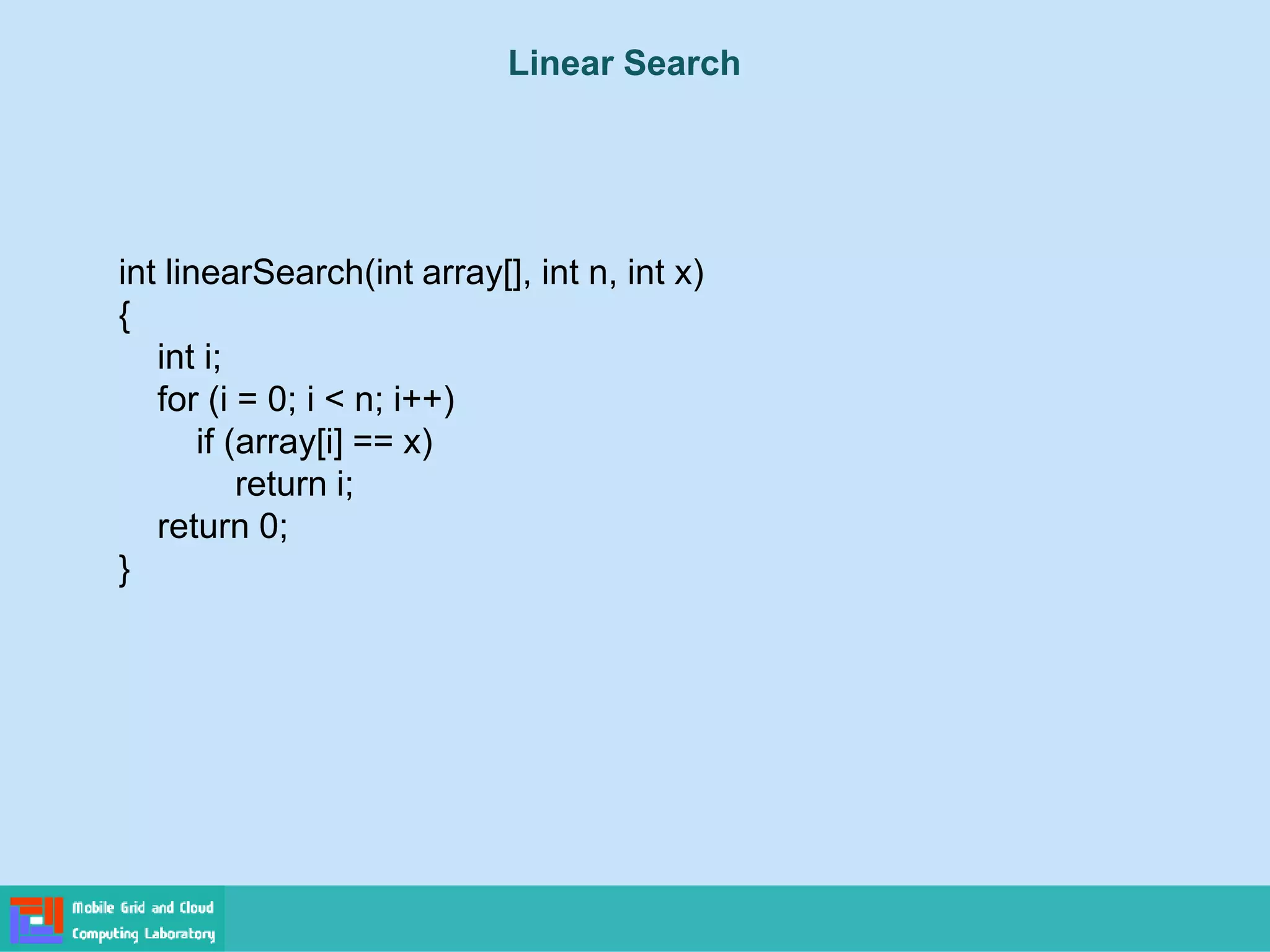

Linear Search
int linearSearch(int array[], int n, int x)
{
int i;
for (i = 0; i < n; i++)
if (array[i] == x)
return i;
return 0;
}

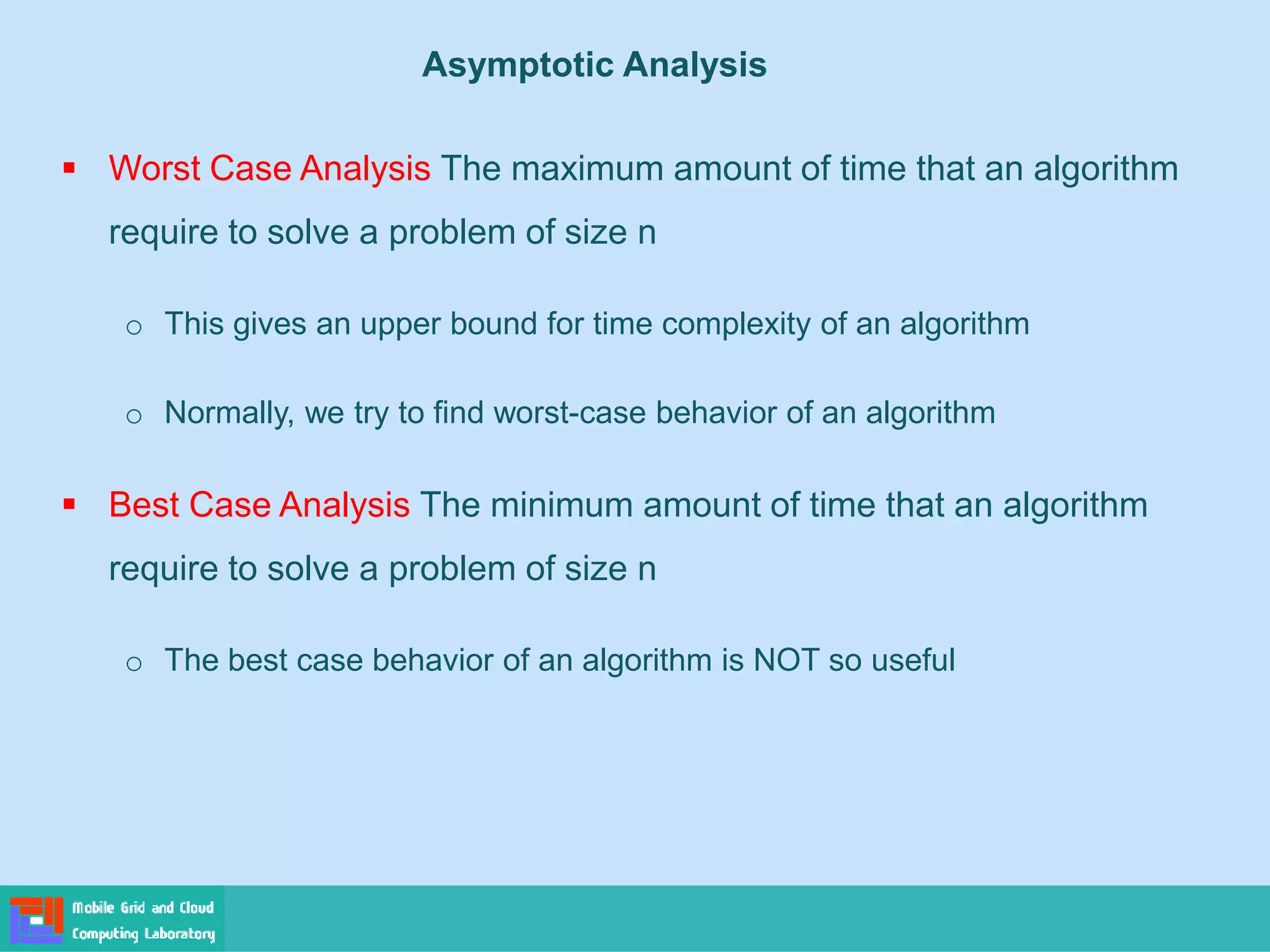

▪ Worst Case Analysis The maximum amount of time that an algorithm
require to solve a problem of size n
o This gives an upper bound for time complexity of an algorithm
o Normally, we try to find worst-case behavior of an algorithm
▪ Best Case Analysis The minimum amount of time that an algorithm
o The best case behavior of an algorithm is NOT so useful
Asymptotic Analysis

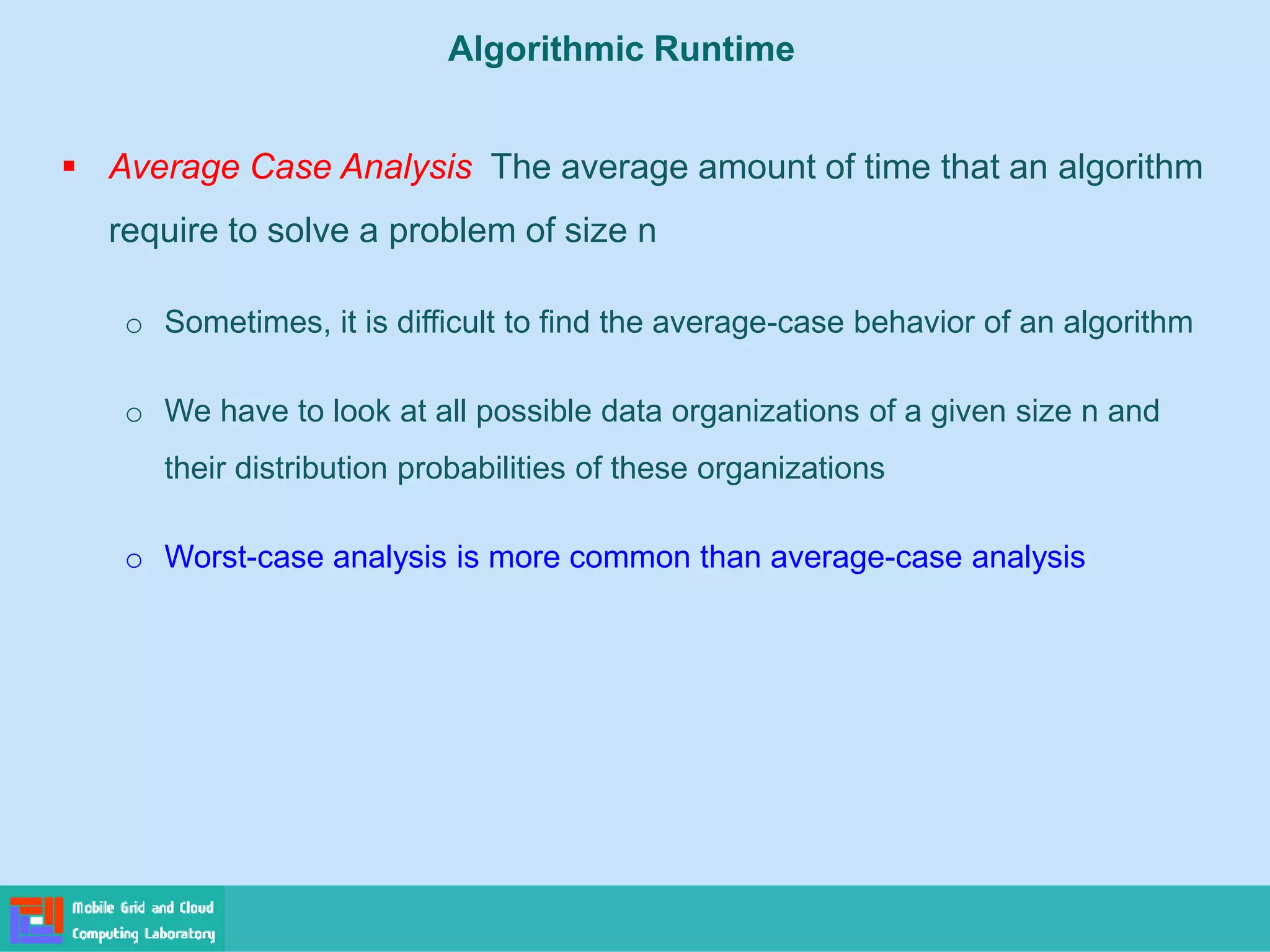

▪ Average Case Analysis The average amount of time that an algorithm
o Sometimes, it is difficult to find the average-case behavior of an algorithm
o We have to look at all possible data organizations of a given size n and
their distribution probabilities of these organizations
o Worst-case analysis is more common than average-case analysis
Algorithmic Runtime

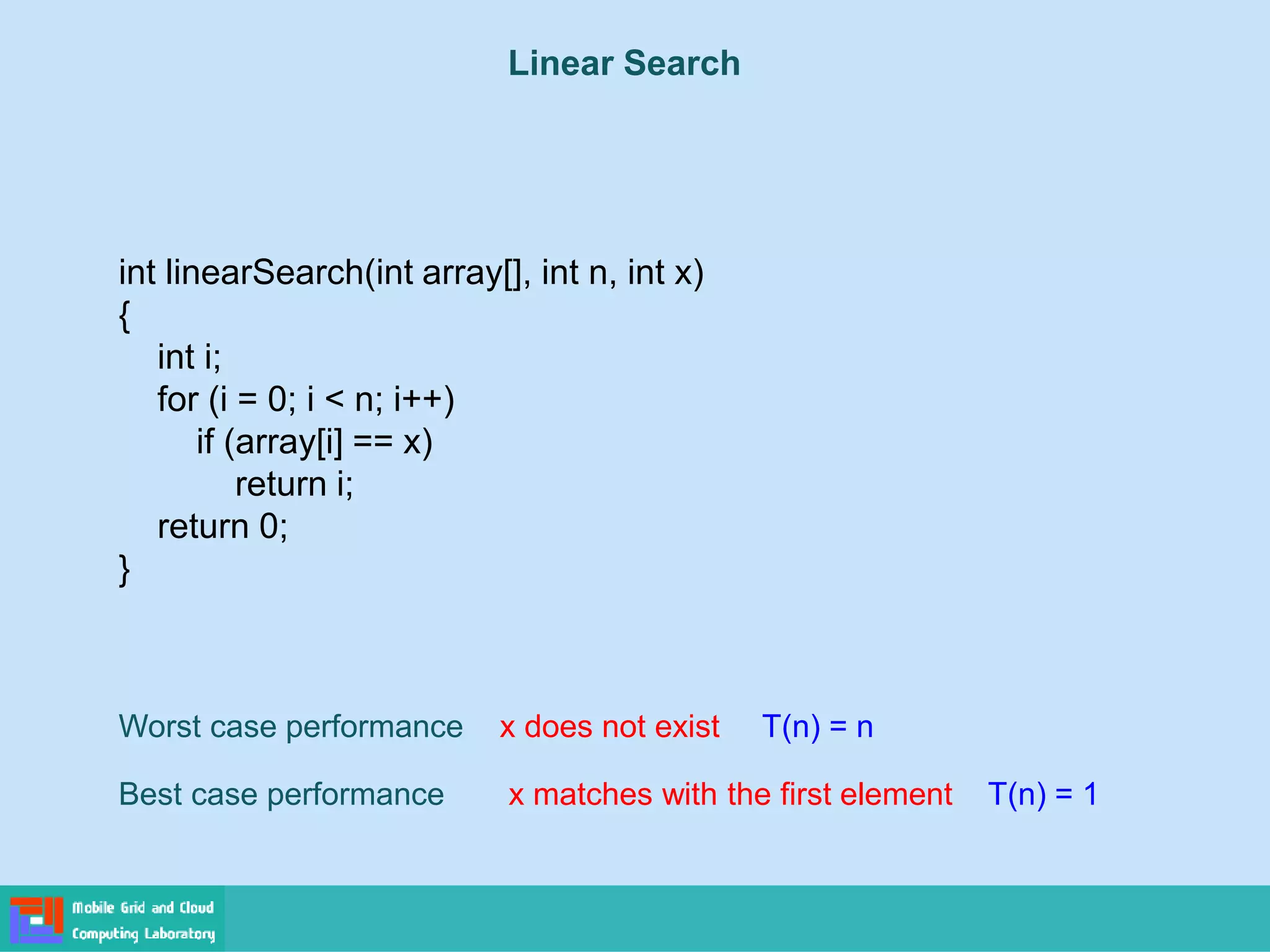

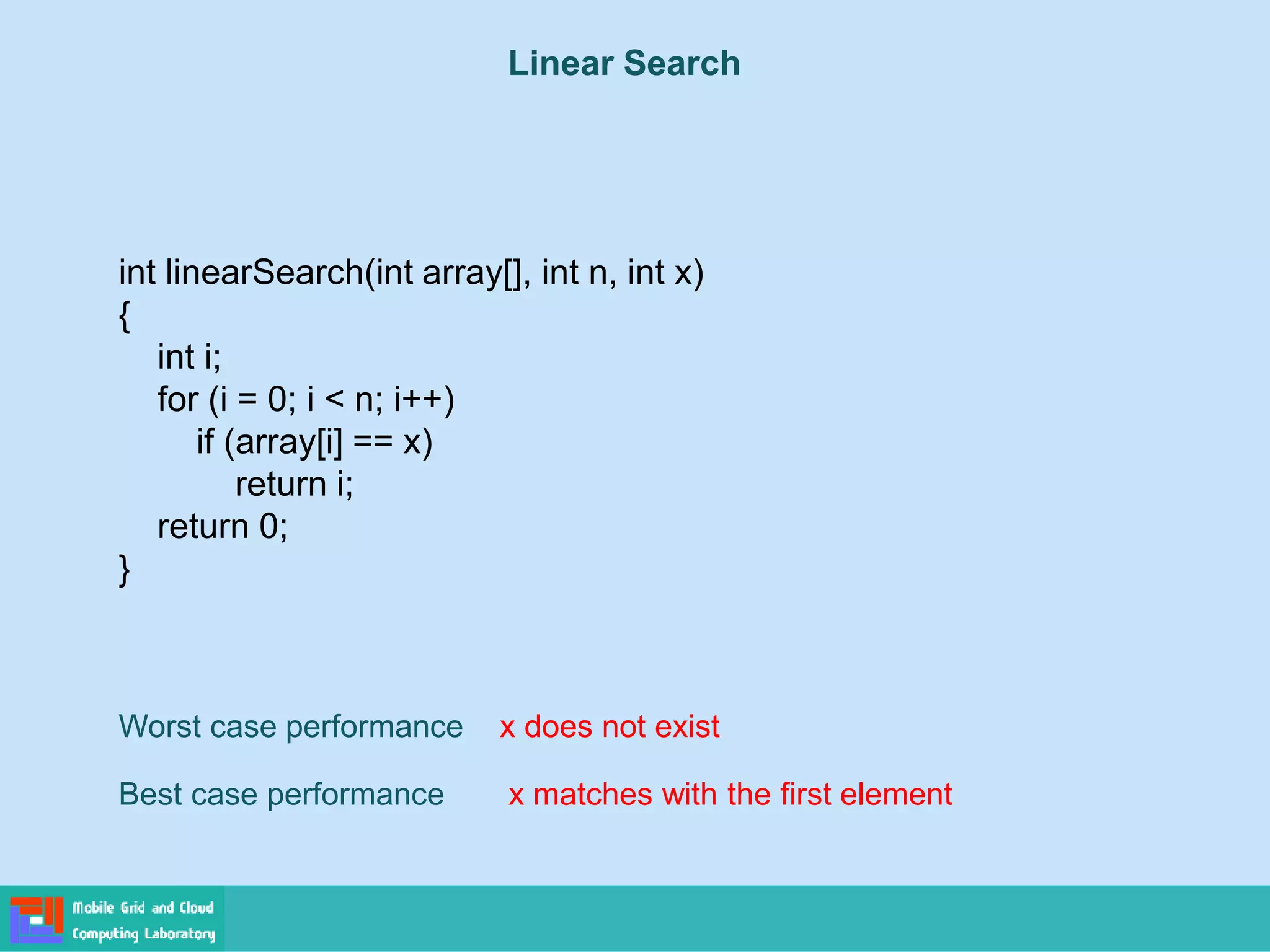

Linear Search
{
int i;
for (i = 0; i < n; i++)
if (array[i] == x)
return i;
return 0;
}
Worst case performance x does not exist
Best case performance x matches with the first element

Linear Search
{
int i;
for (i = 0; i < n; i++)
if (array[i] == x)
return i;
return 0;
}
Worst case performance x does not exist T(n) = n
Best case performance x matches with the first element T(n) = 1

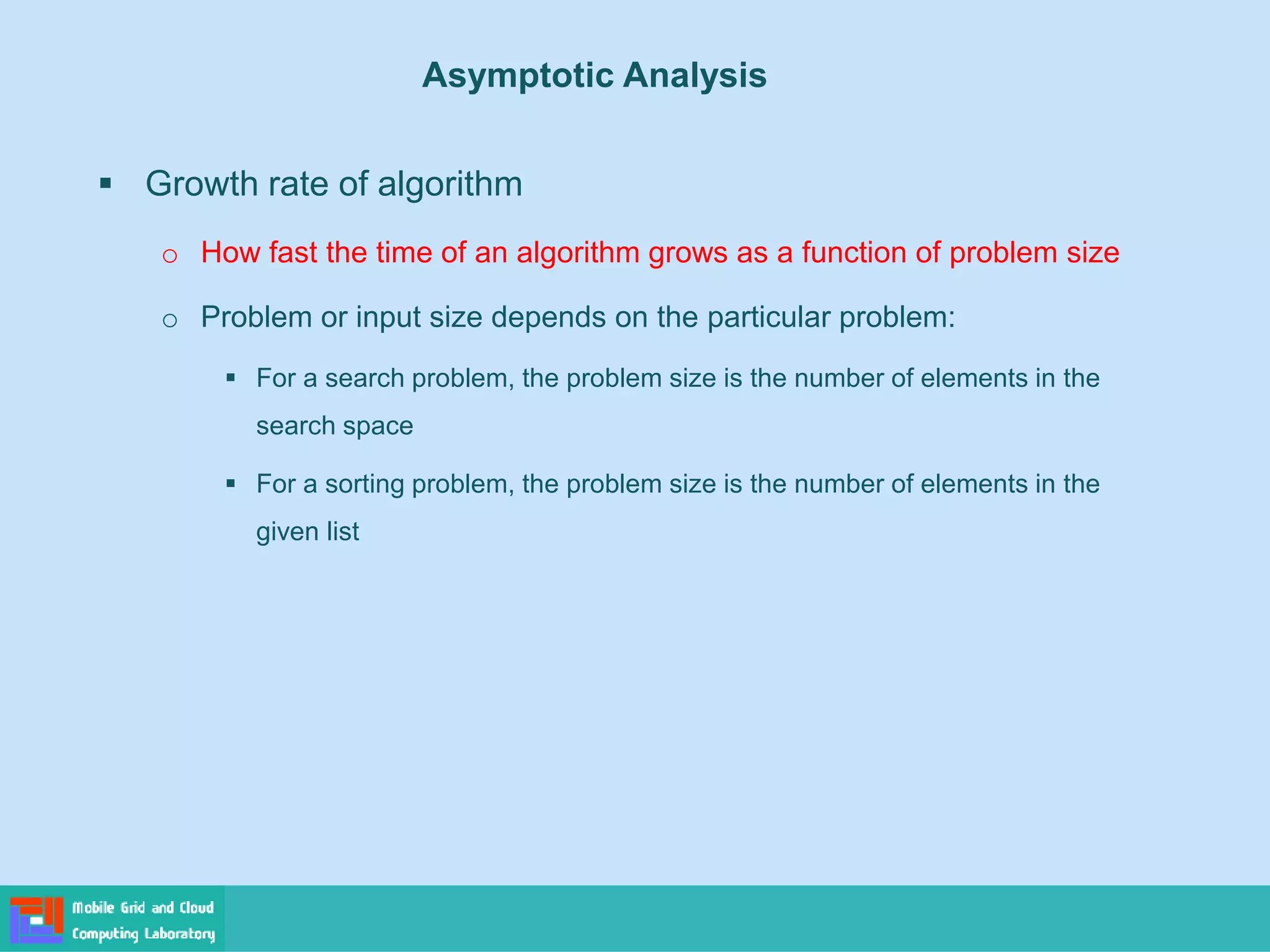

▪ Growth rate of algorithm
o How fast the time of an algorithm grows as a function of problem size
o Problem or input size depends on the particular problem:
▪ For a search problem, the problem size is the number of elements in the
search space
▪ For a sorting problem, the problem size is the number of elements in the
given list
Asymptotic Analysis

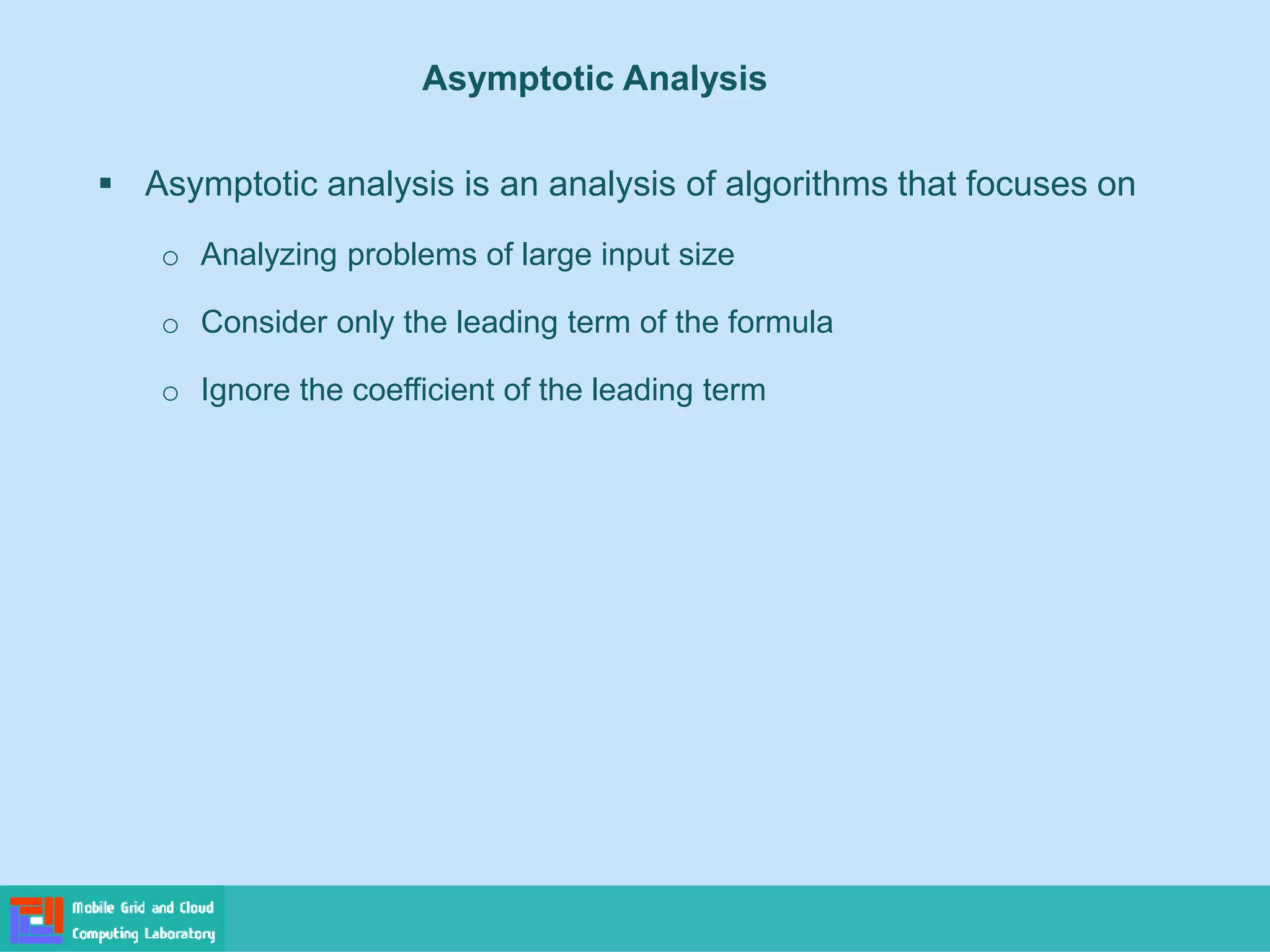

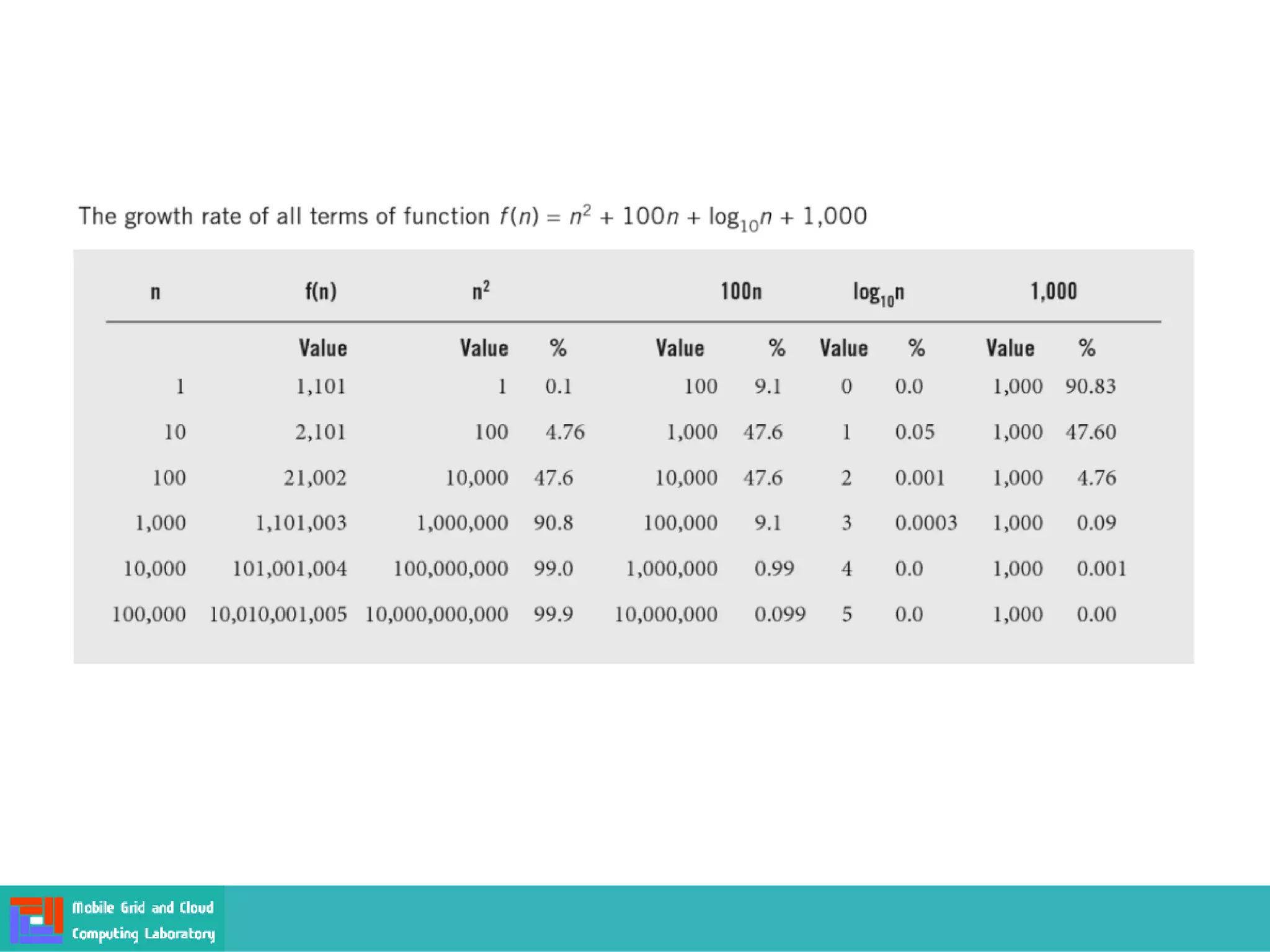

Asymptotic Analysis
▪ Asymptotic analysis is an analysis of algorithms that focuses on
o Analyzing problems of large input size
o Consider only the leading term of the formula
o Ignore the coefficient of the leading term

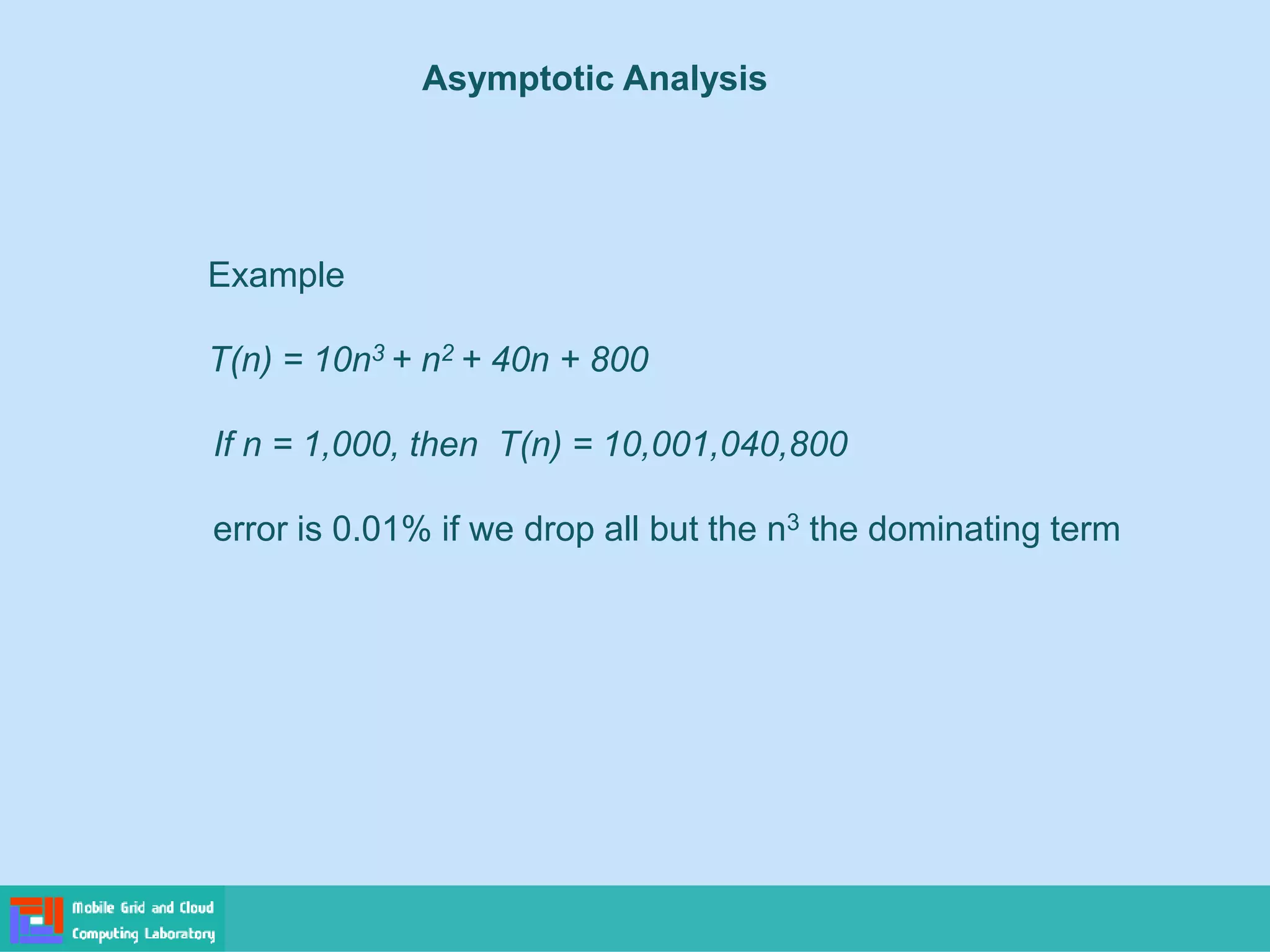

Example
T(n) = 10n3 + n2 + 40n + 800
If n = 1,000, then T(n) = 10,001,040,800
error is 0.01% if we drop all but the n3 the dominating term
Asymptotic Analysis

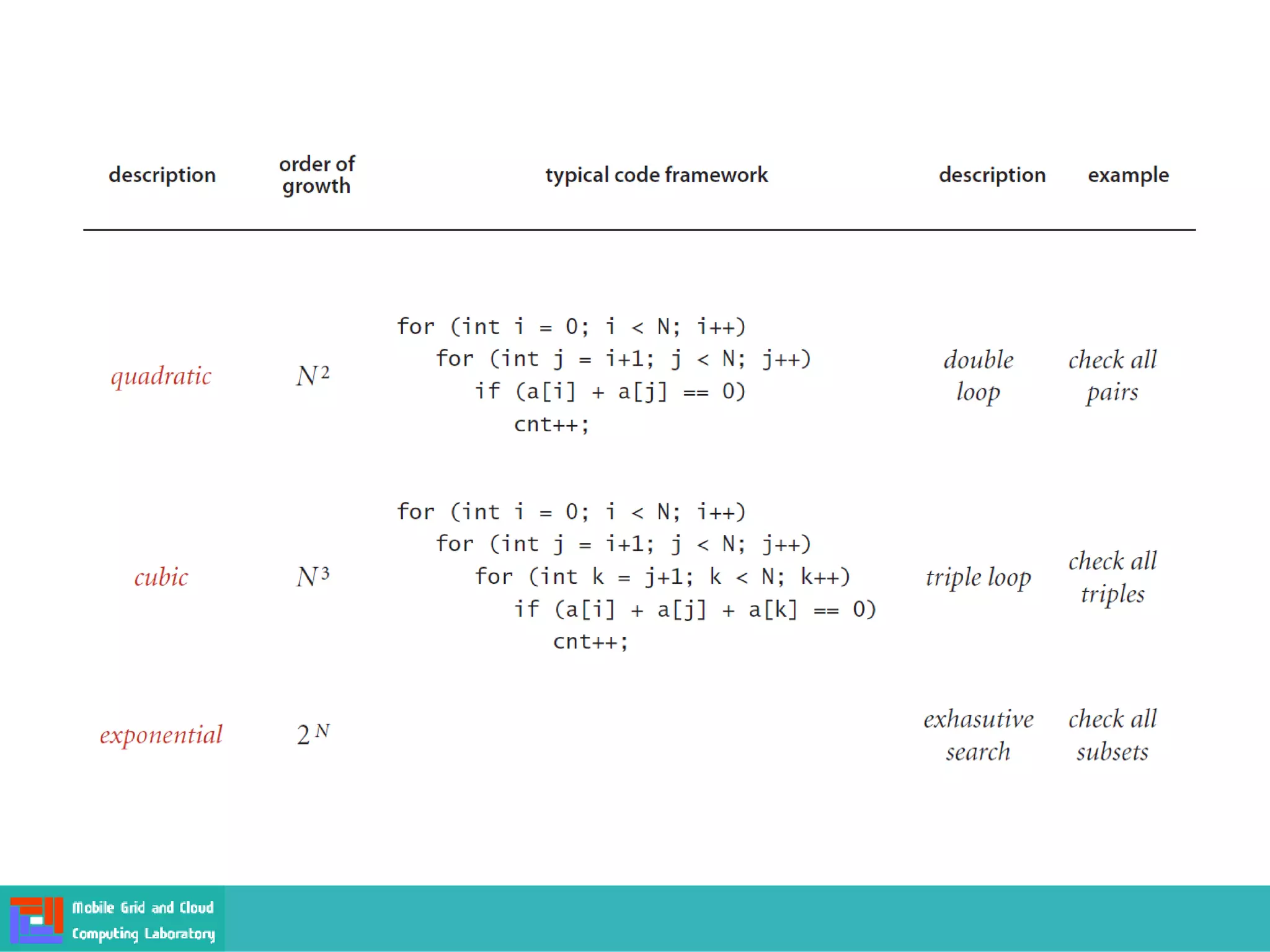

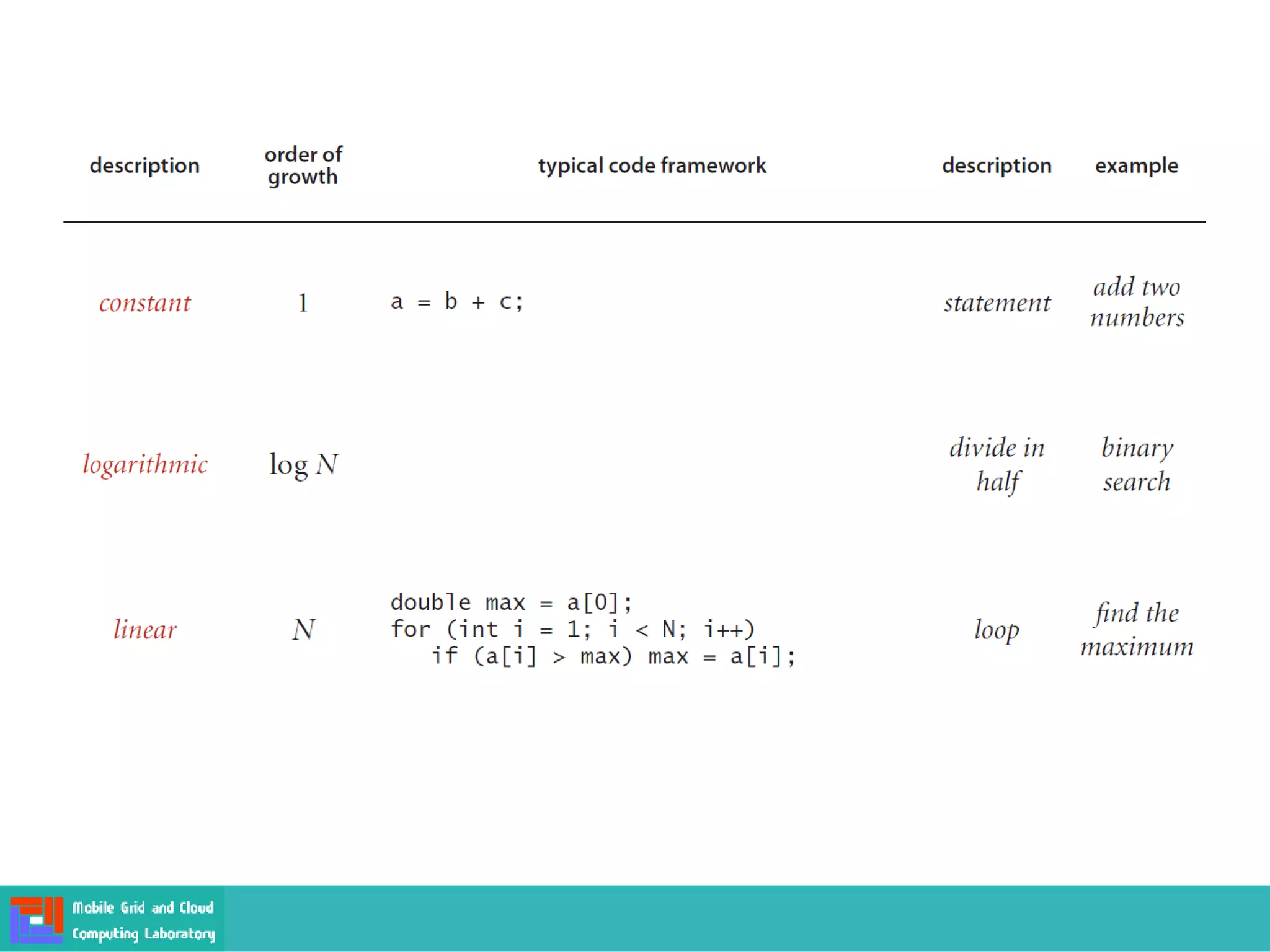

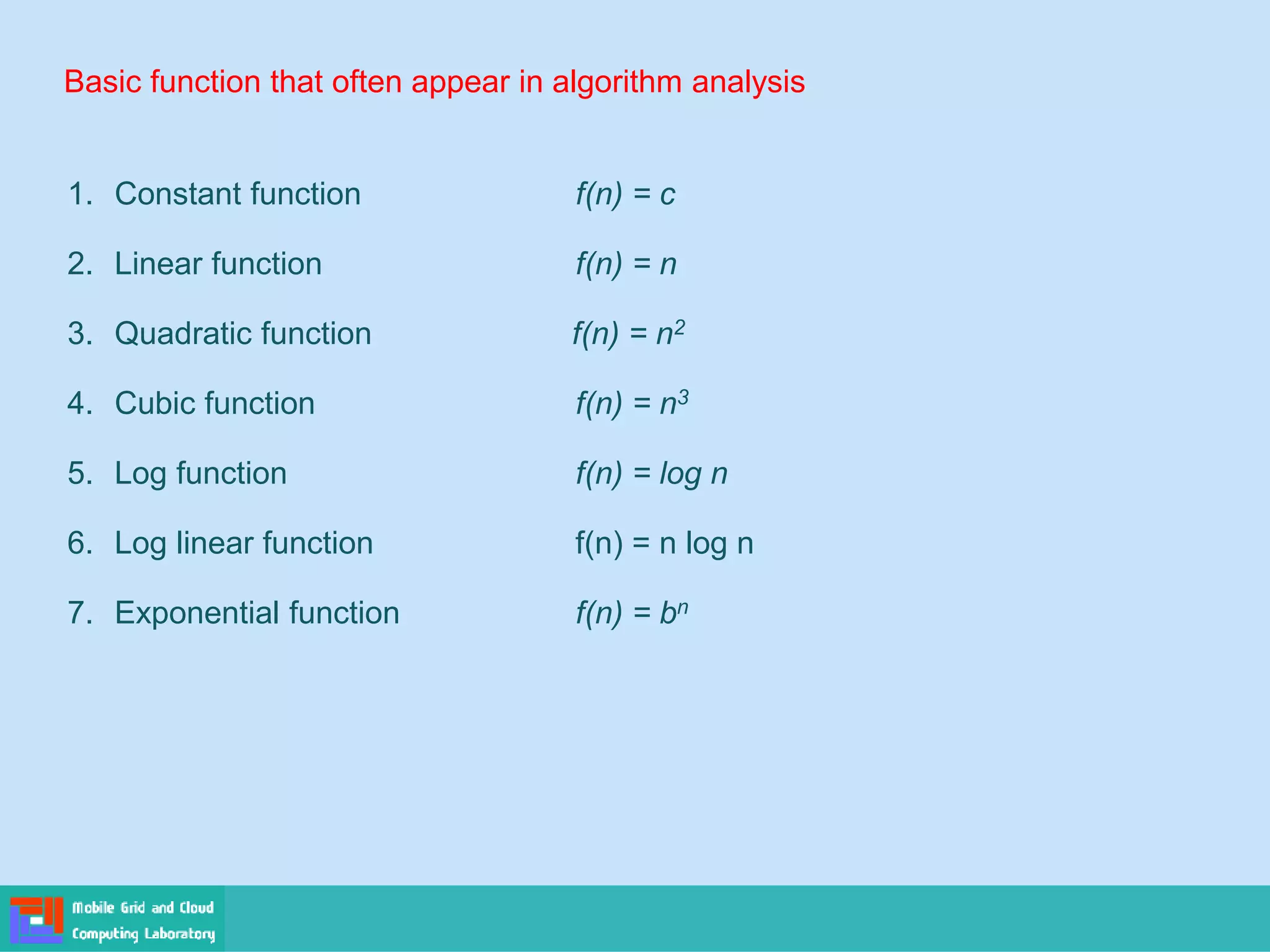

Basic function that often appear in algorithm analysis
1. Constant function f(n) = c
2. Linear function f(n) = n
3. Quadratic function f(n) = n2
4. Cubic function f(n) = n3
5. Log function f(n) = log n
6. Log linear function f(n) = n log n
7. Exponential function f(n) = bn

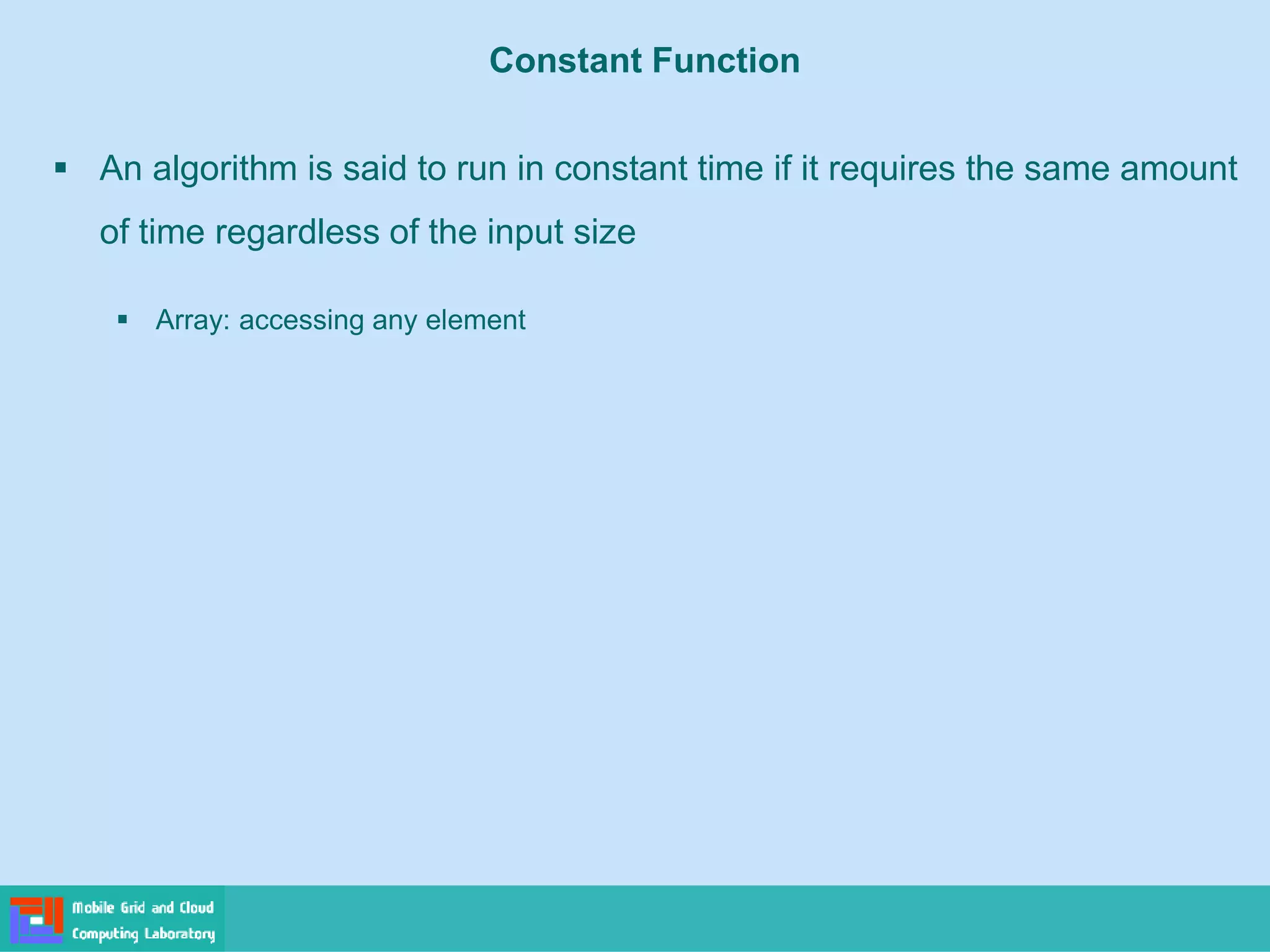

Constant Function
▪ An algorithm is said to run in constant time if it requires the same amount
of time regardless of the input size
▪ Array: accessing any element

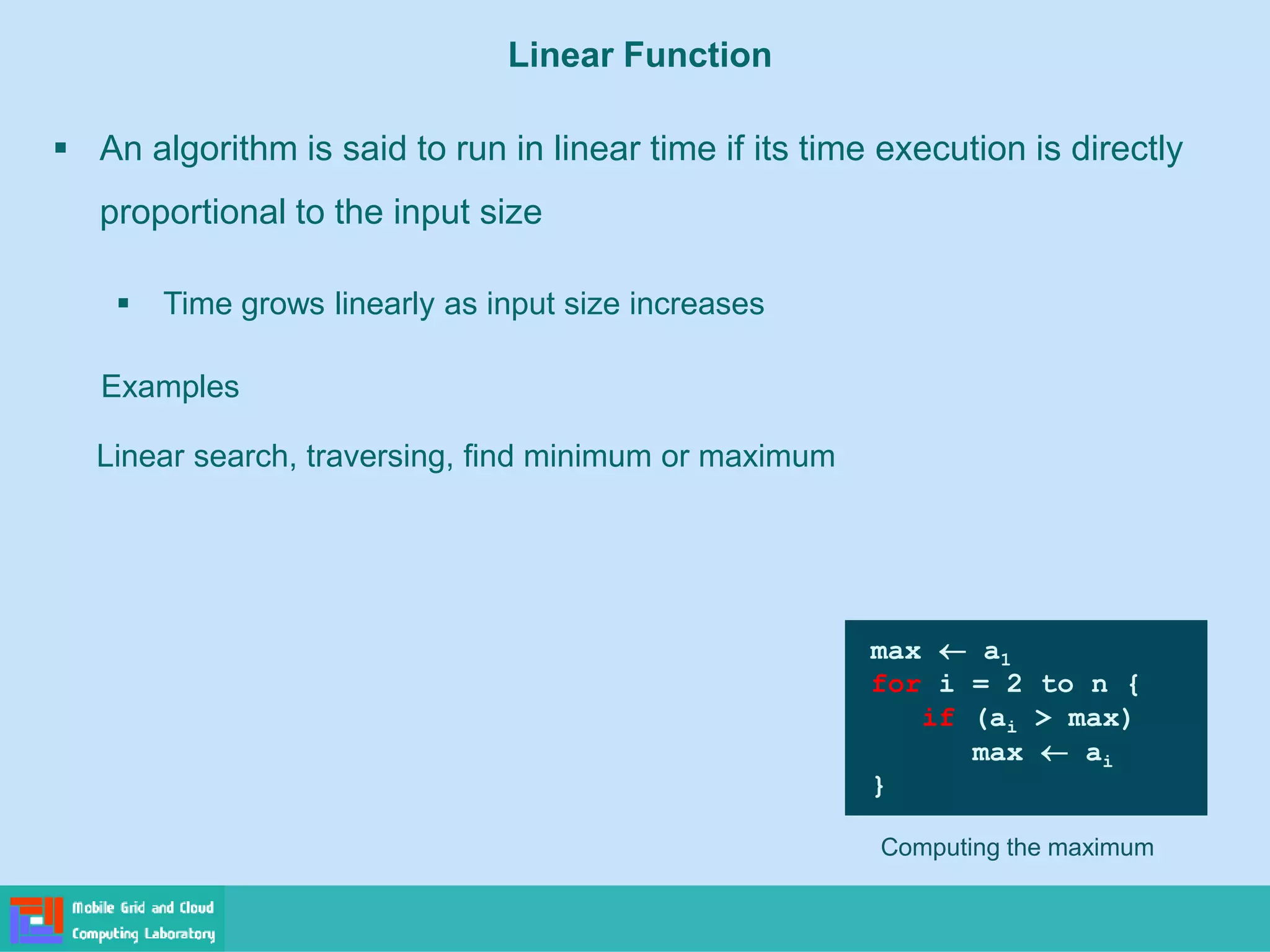

Linear Function
▪ An algorithm is said to run in linear time if its time execution is directly
proportional to the input size
▪ Time grows linearly as input size increases
Examples
Linear search, traversing, find minimum or maximum
Computing the maximum
max  a1
for i = 2 to n {
if (ai > max)
max  ai
}

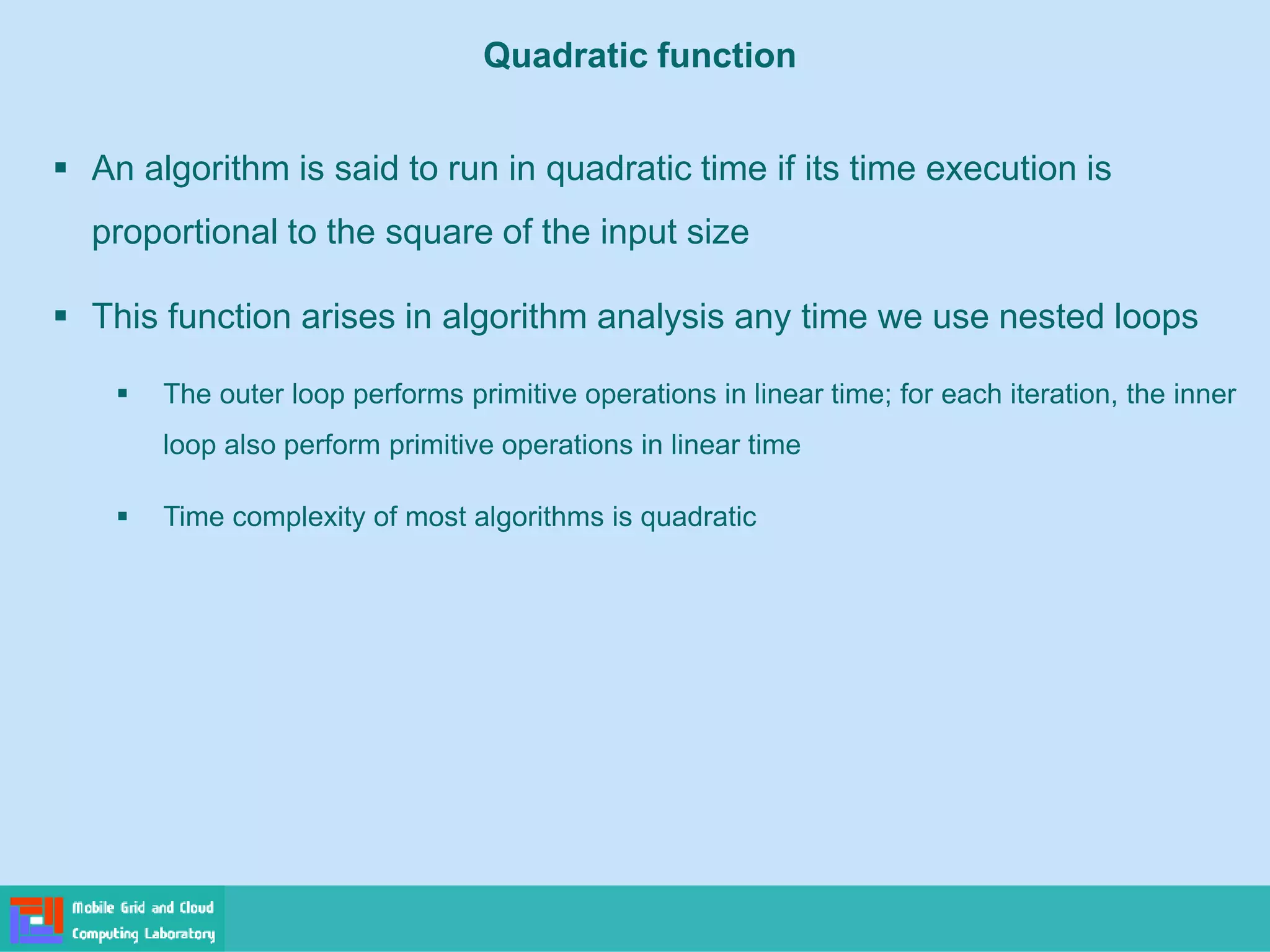

Quadratic function
▪ An algorithm is said to run in quadratic time if its time execution is
proportional to the square of the input size
▪ This function arises in algorithm analysis any time we use nested loops
▪ The outer loop performs primitive operations in linear time; for each iteration, the inner
loop also perform primitive operations in linear time
▪ Time complexity of most algorithms is quadratic

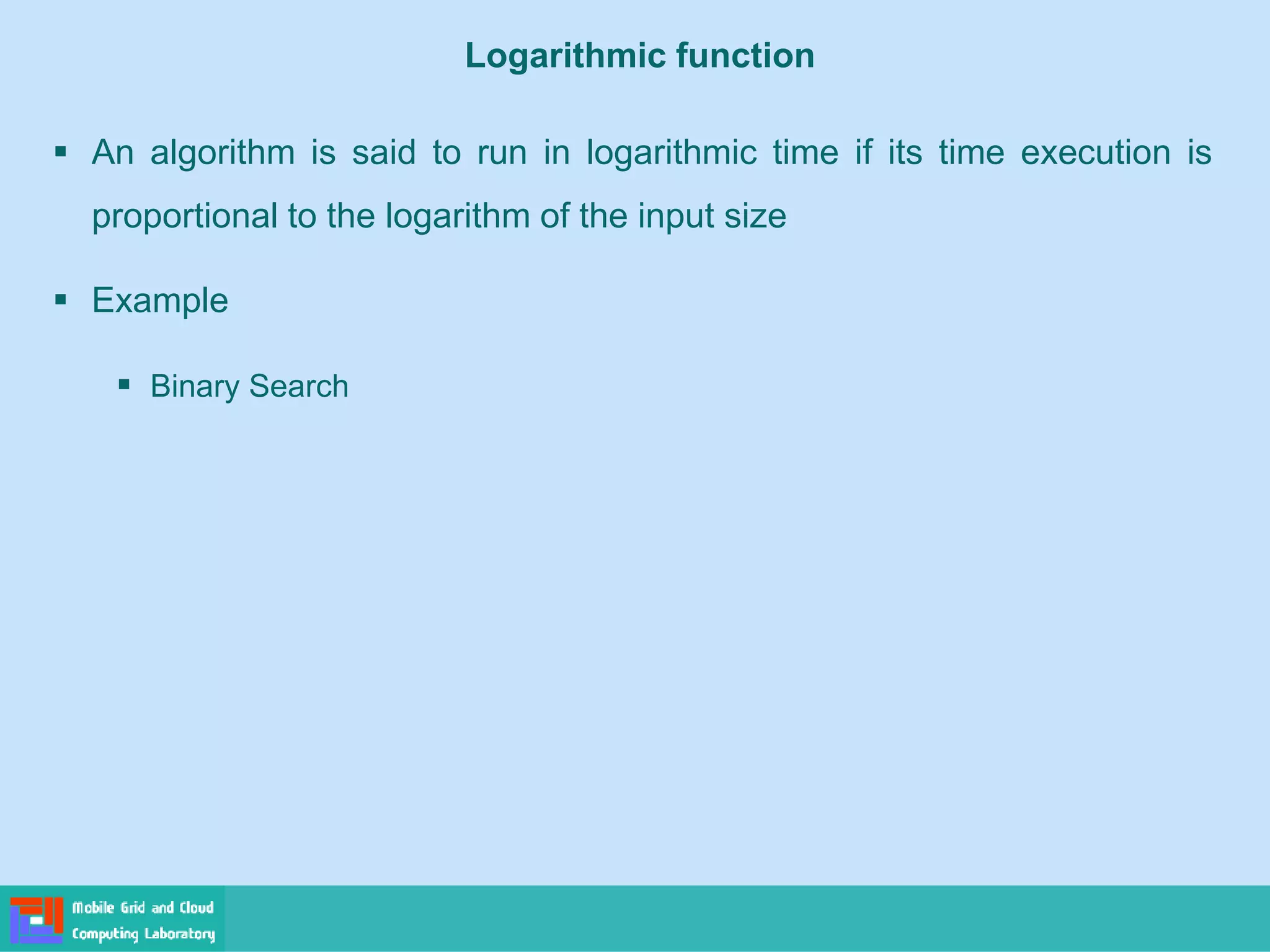

Logarithmic function
▪ An algorithm is said to run in logarithmic time if its time execution is
proportional to the logarithm of the input size
▪ Example
▪ Binary Search

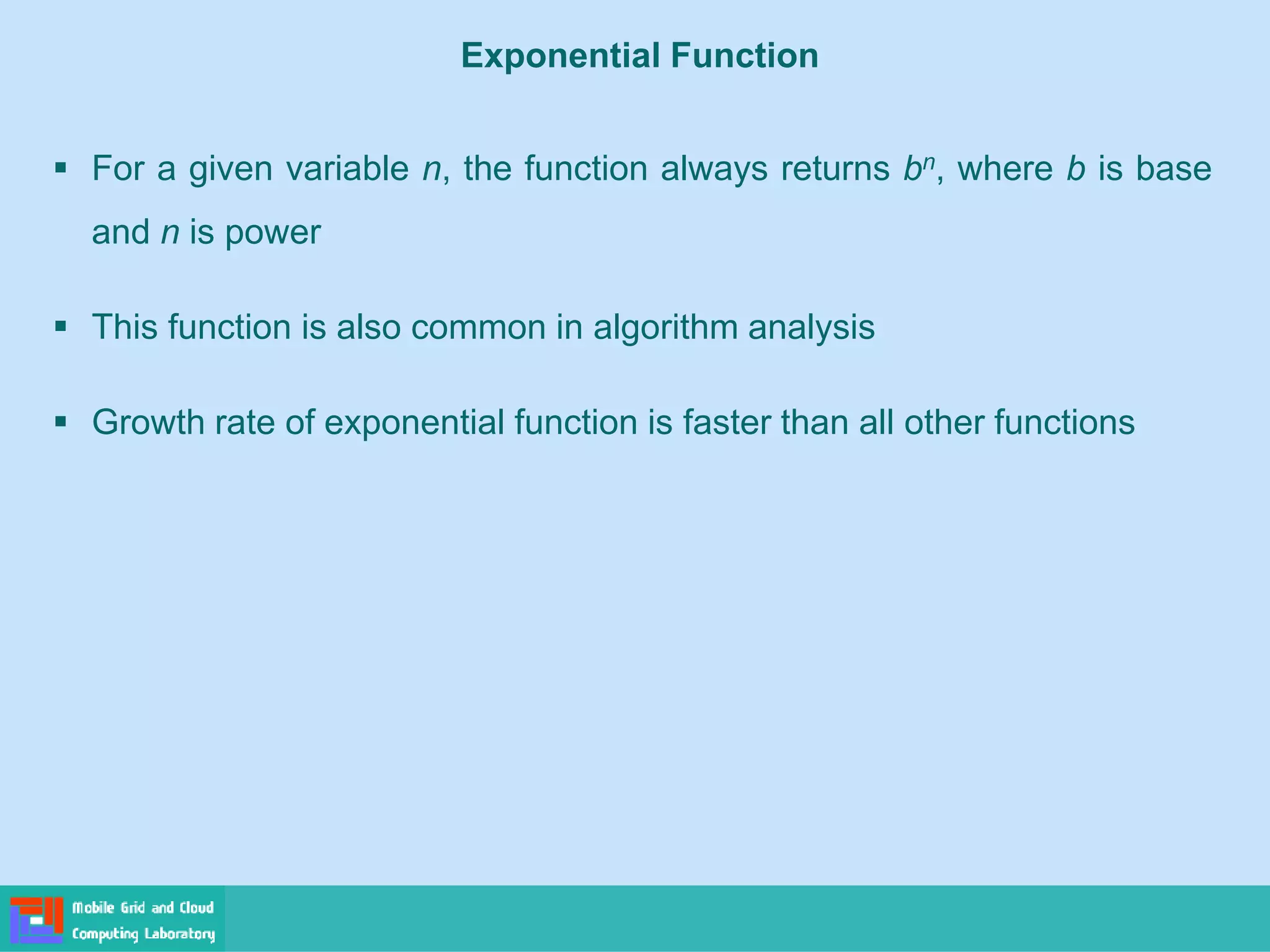

Exponential Function
▪ For a given variable n, the function always returns bn, where b is base
and n is power
▪ This function is also common in algorithm analysis
▪ Growth rate of exponential function is faster than all other functions

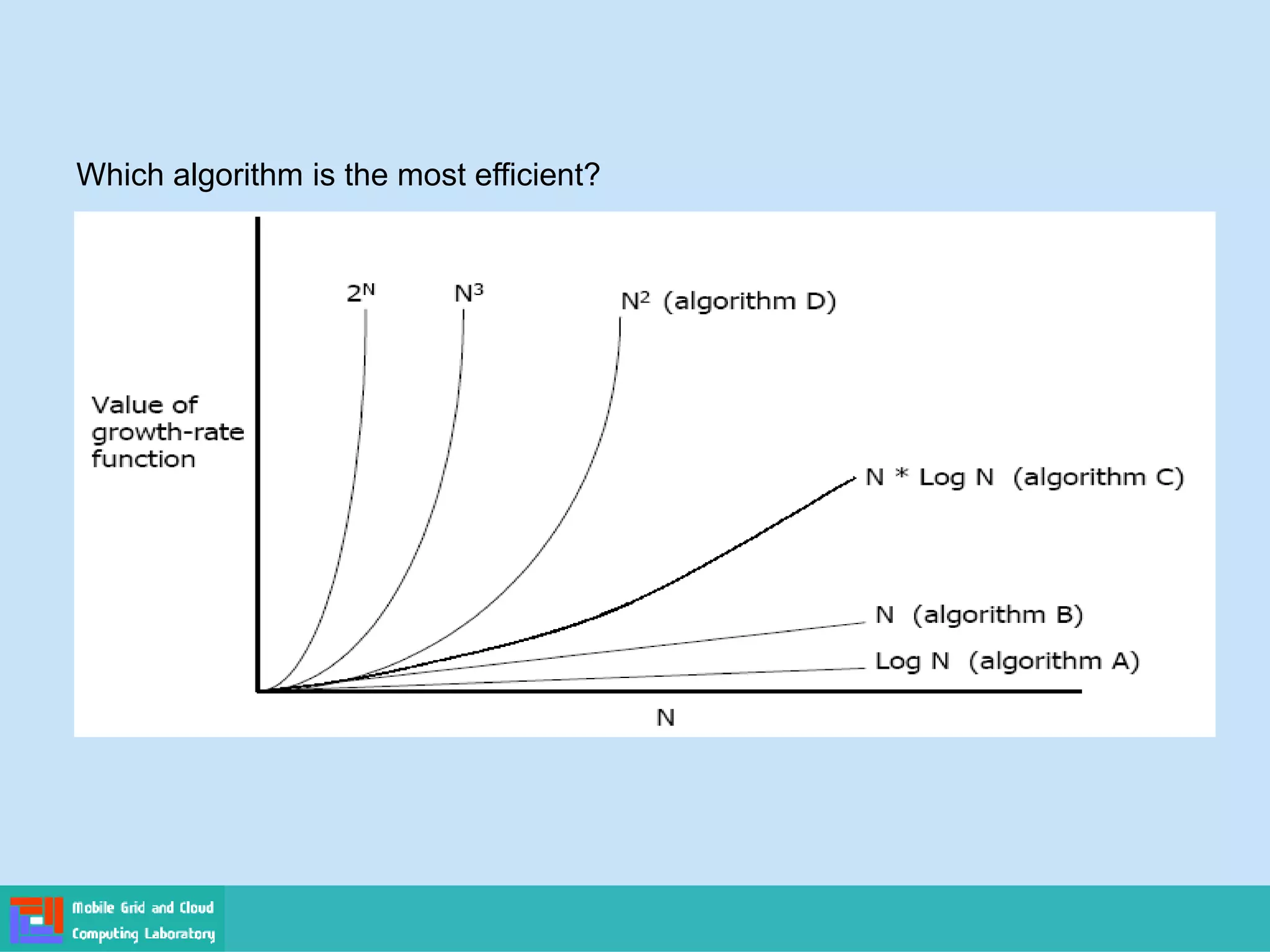

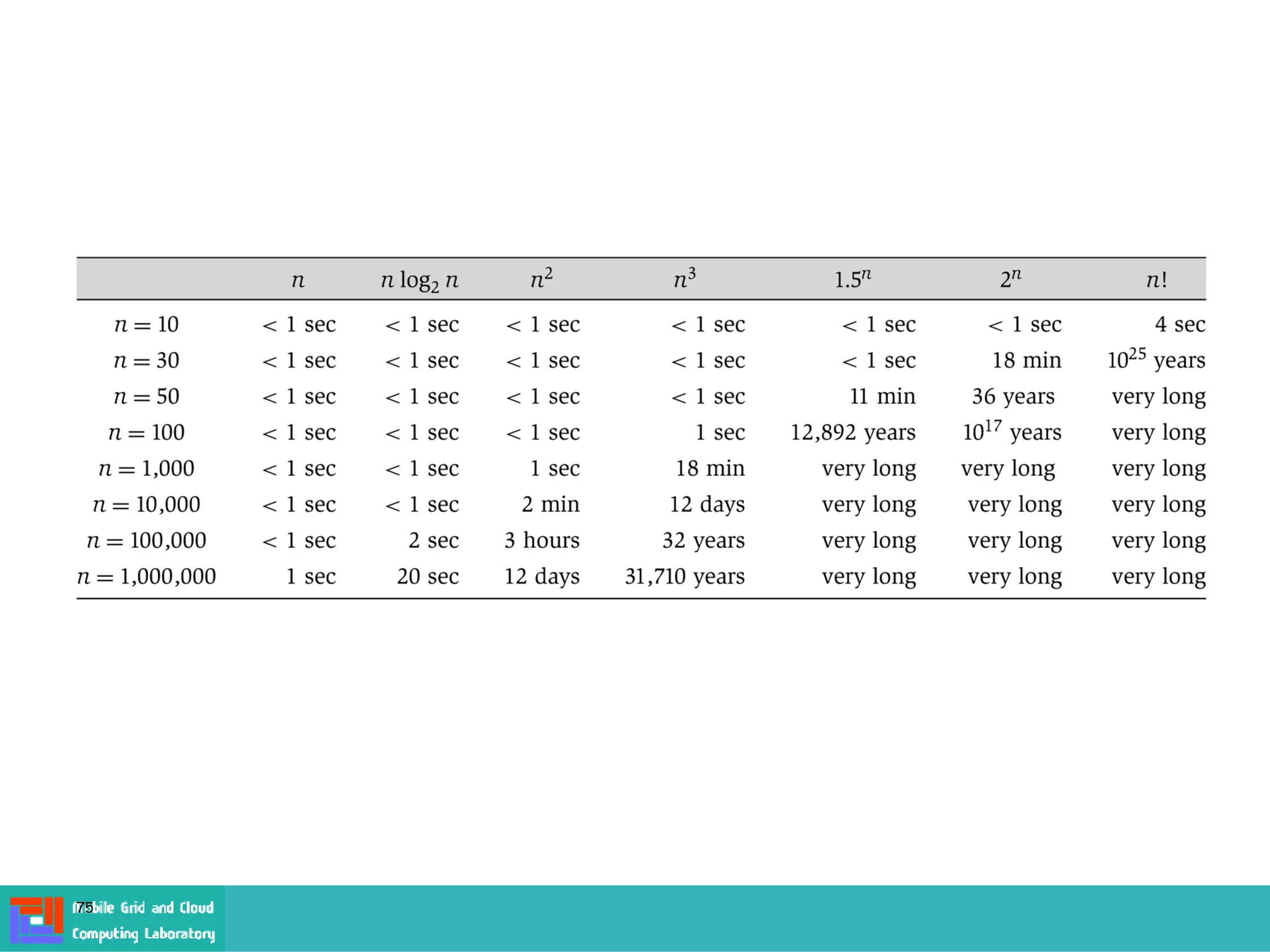

Which algorithm is the most efficient?

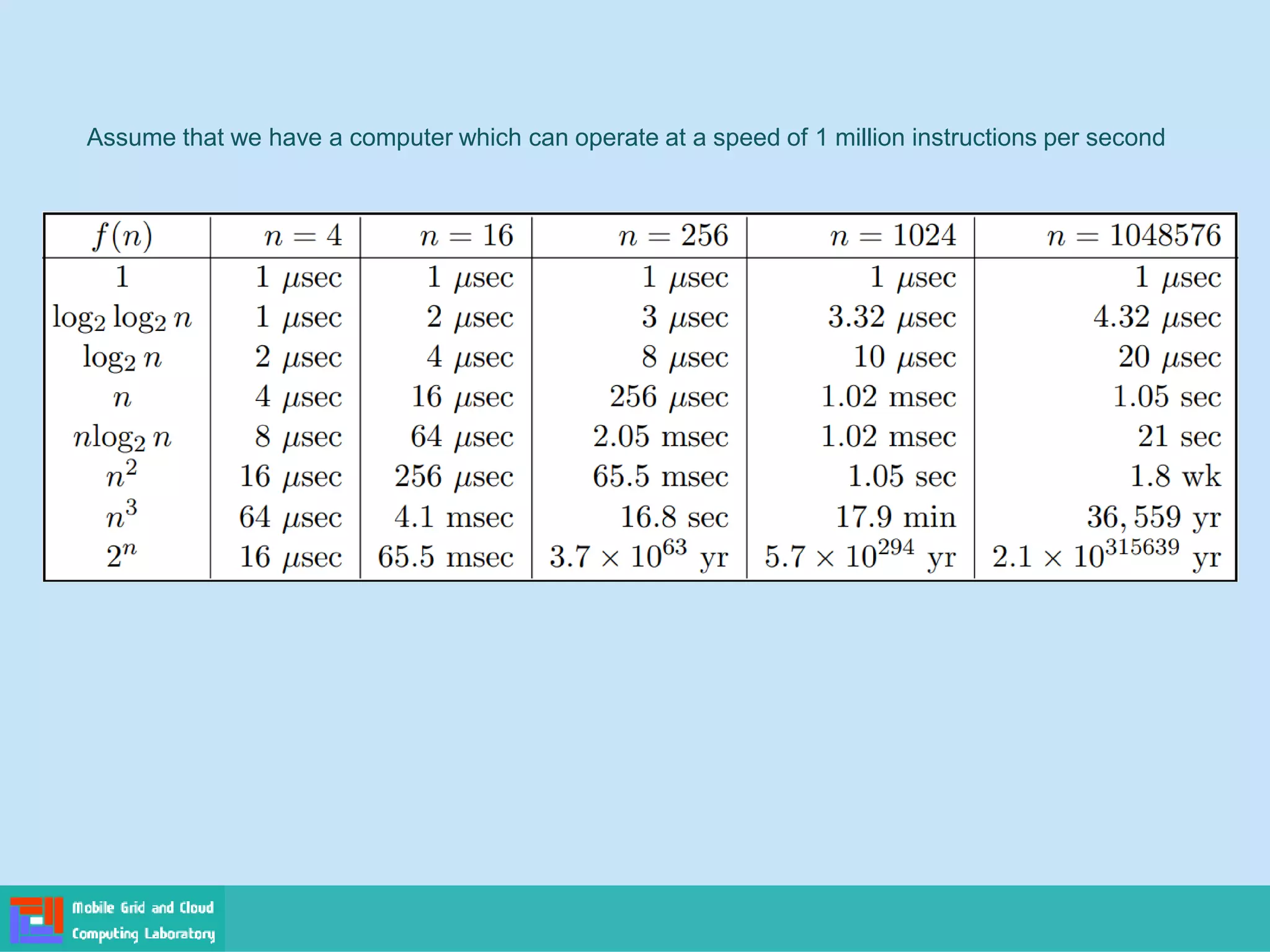

Assume that we have a computer which can operate at a speed of 1 million instructions per second

https://cathyatseneca.gitbooks.io/data-structures-and-algorithms/content/analysis/notations.html

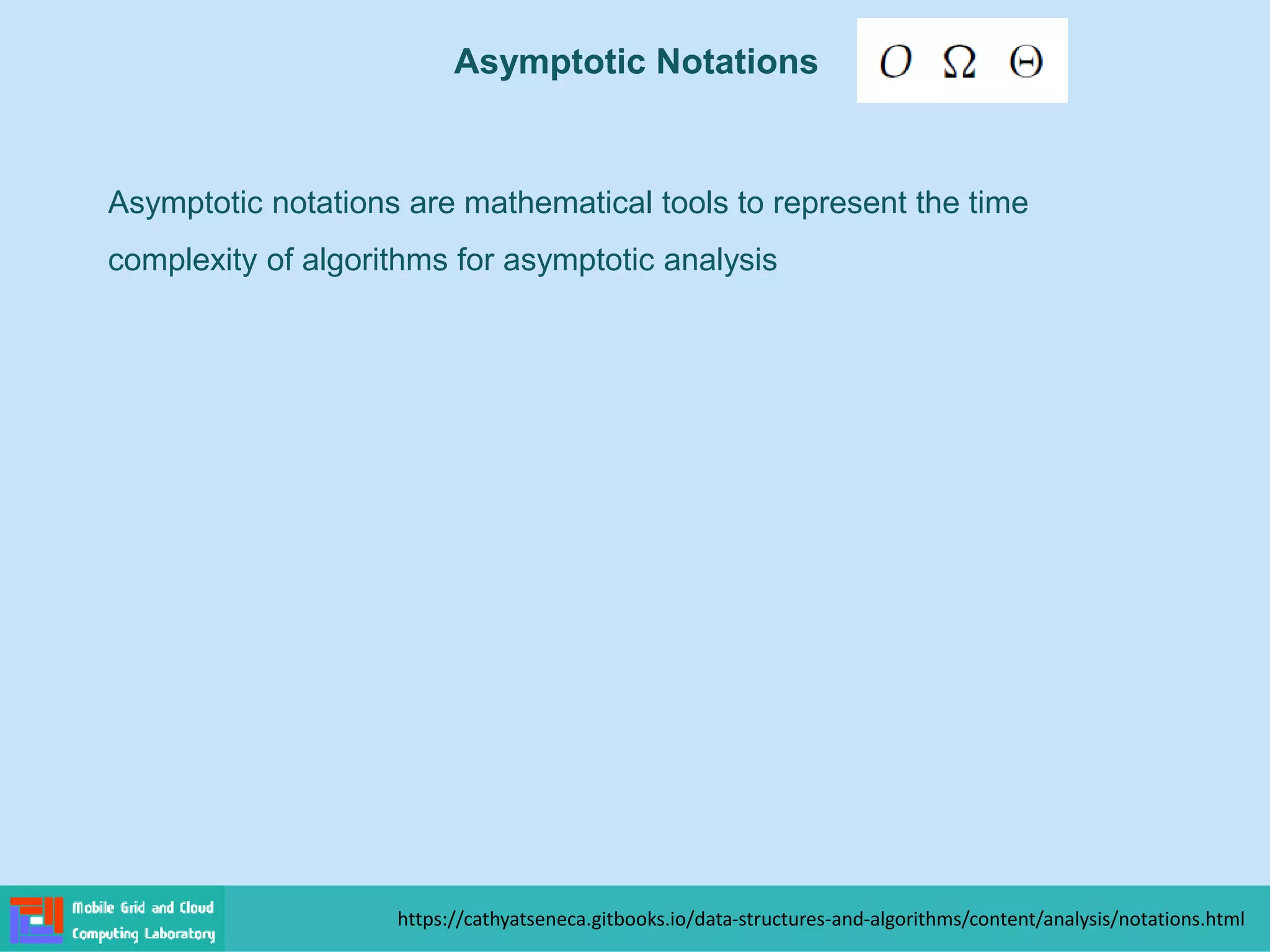

Asymptotic notations are mathematical tools to represent the time
complexity of algorithms for asymptotic analysis

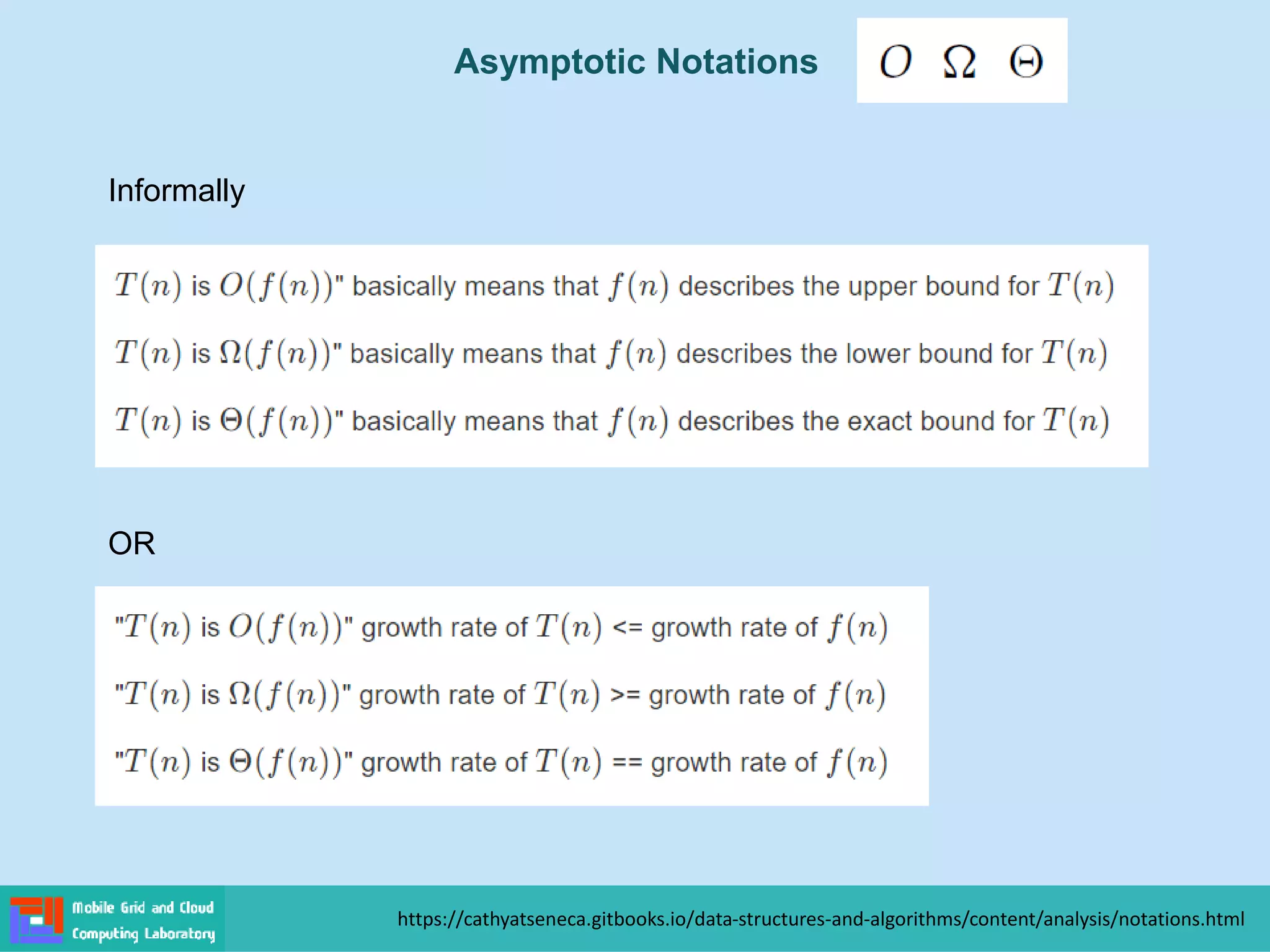

Asymptotic Notations

https://cathyatseneca.gitbooks.io/data-structures-and-algorithms/content/analysis/notations.html
Informally
OR
Asymptotic Notations

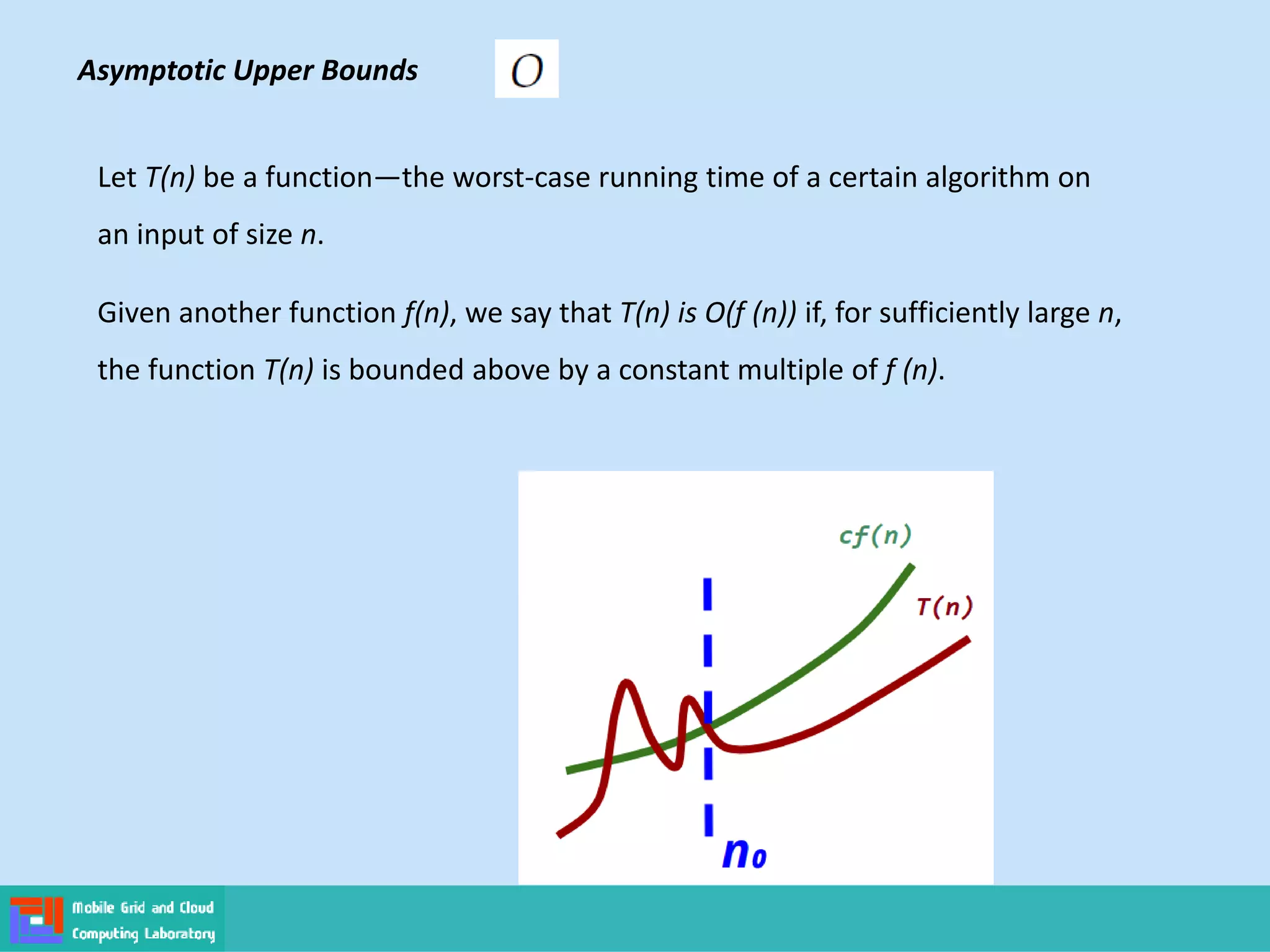

Let T(n) be a function—the worst-case running time of a certain algorithm on
an input of size n.
Given another function f(n), we say that T(n) is O(f (n)) if, for sufficiently large n,
the function T(n) is bounded above by a constant multiple of f (n).
Asymptotic Upper Bounds

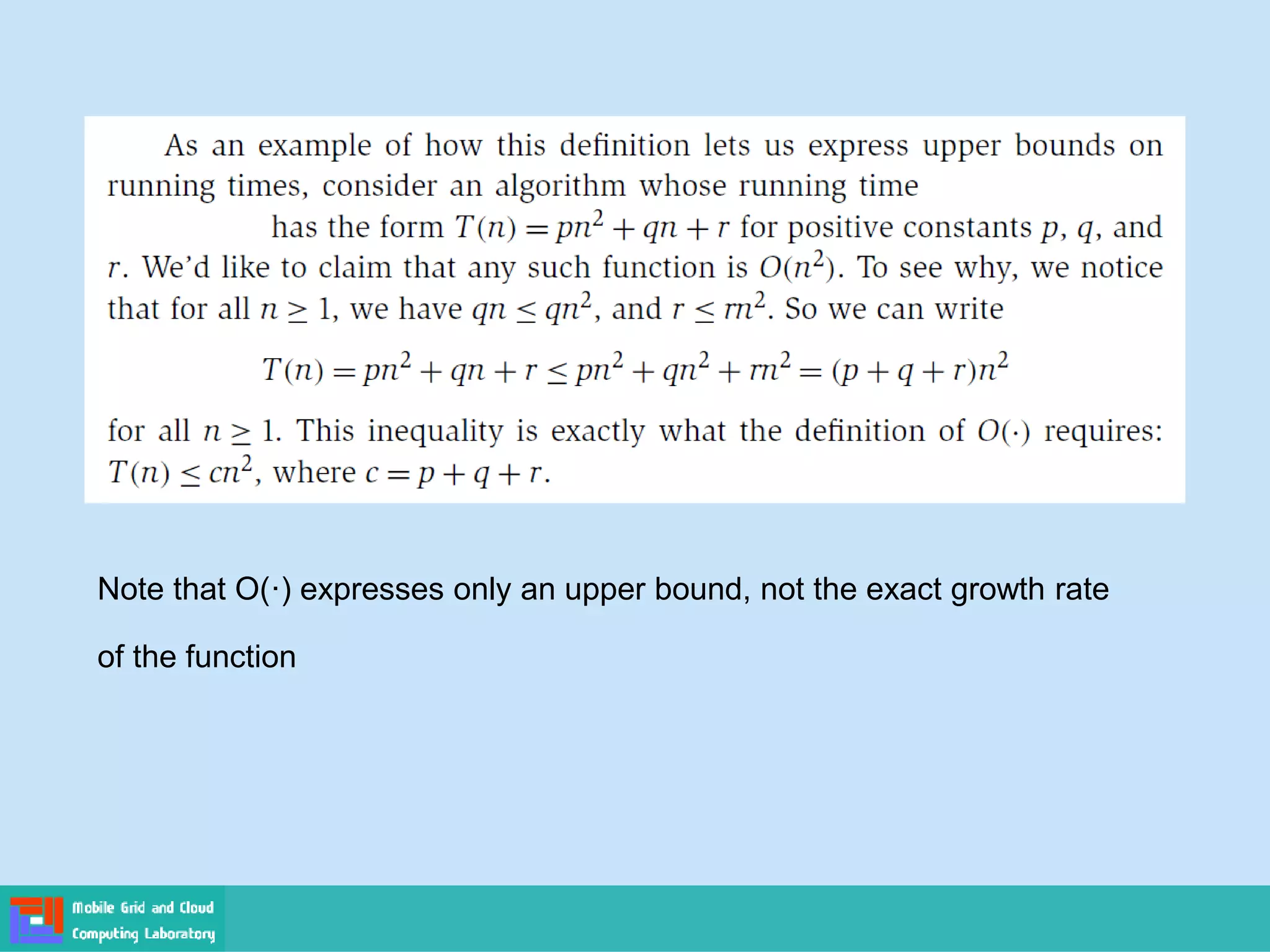

Note that O(·) expresses only an upper bound, not the exact growth rate
of the function

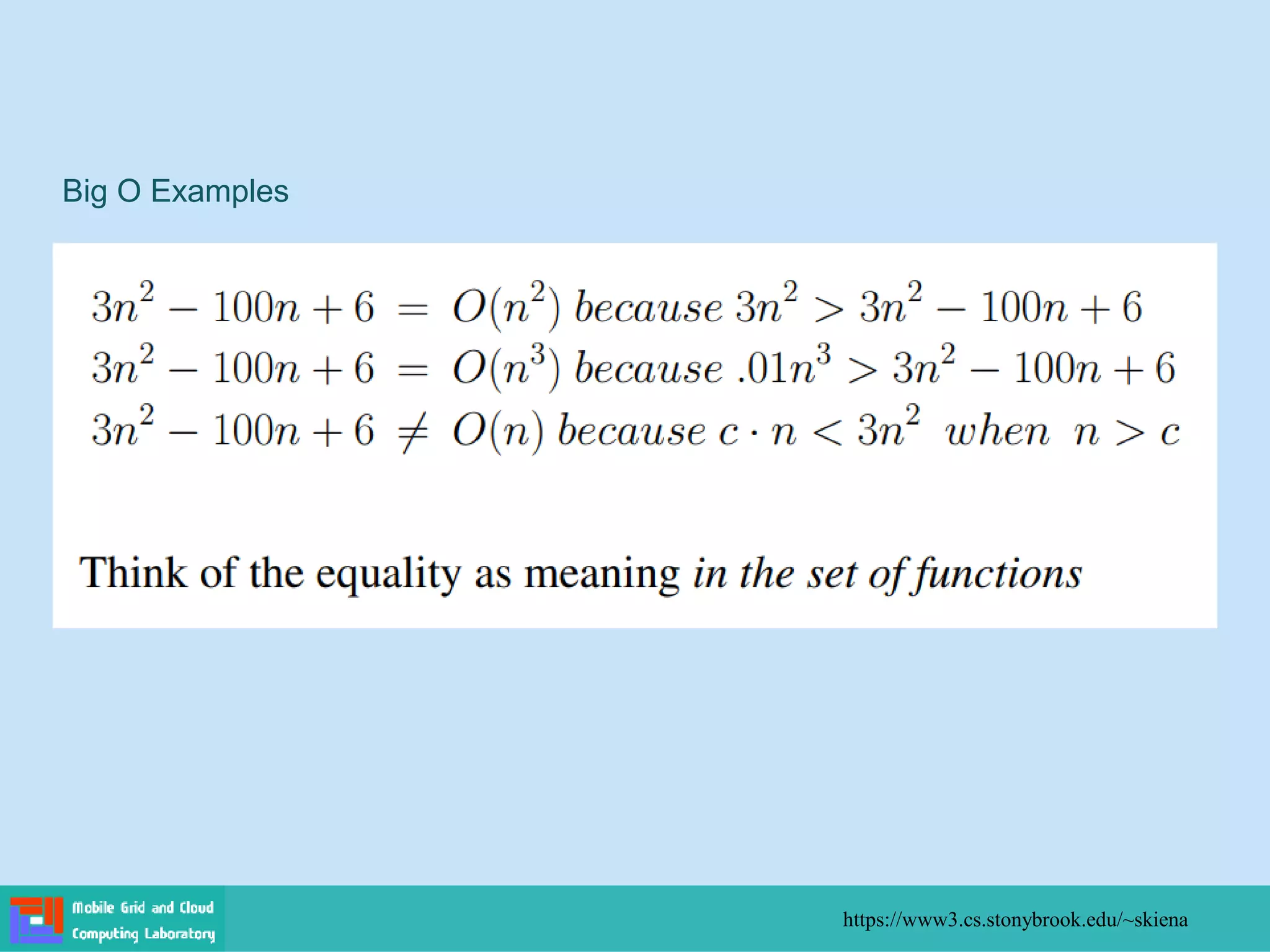

Big O Examples
https://www3.cs.stonybrook.edu/~skiena

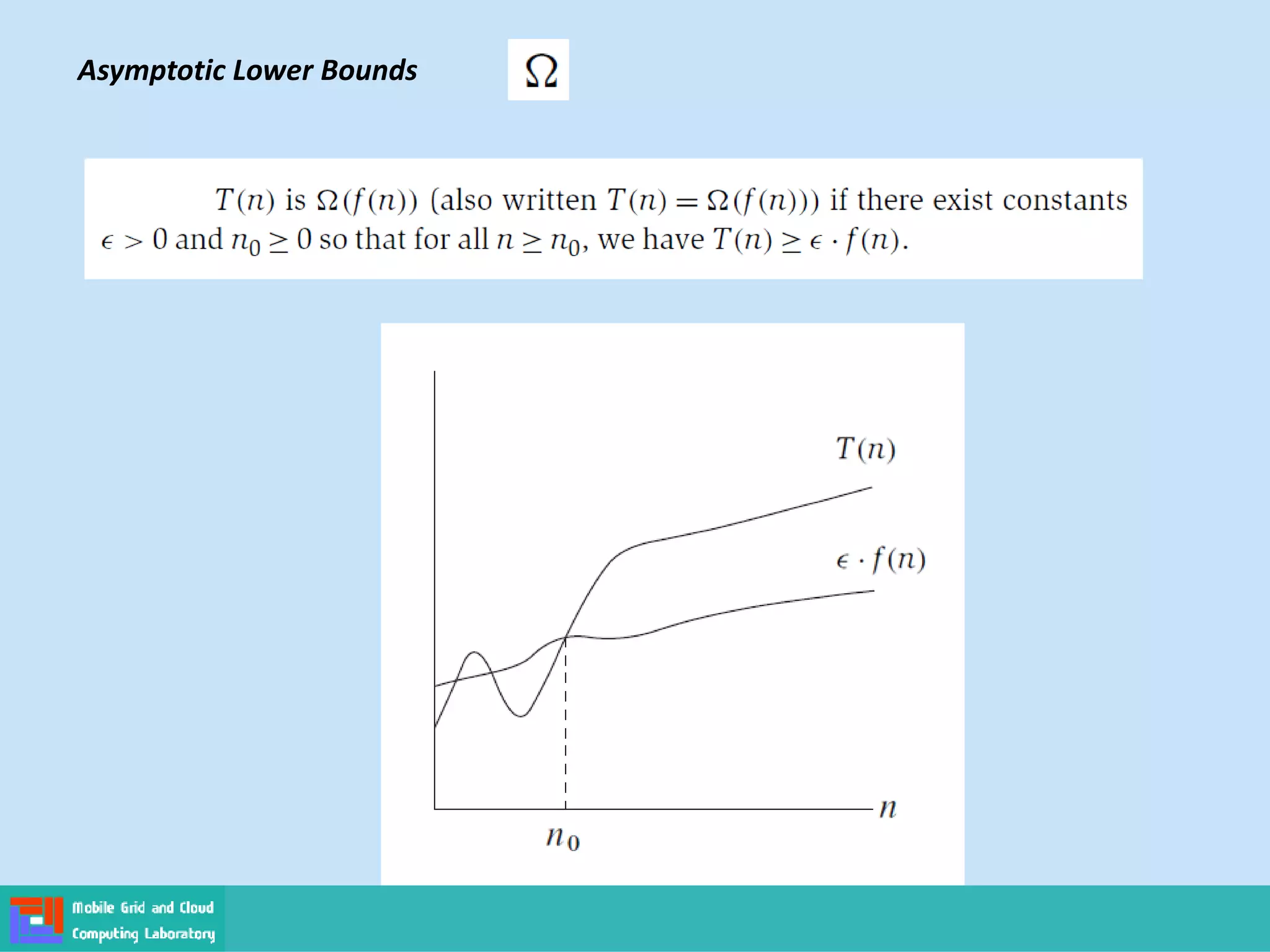

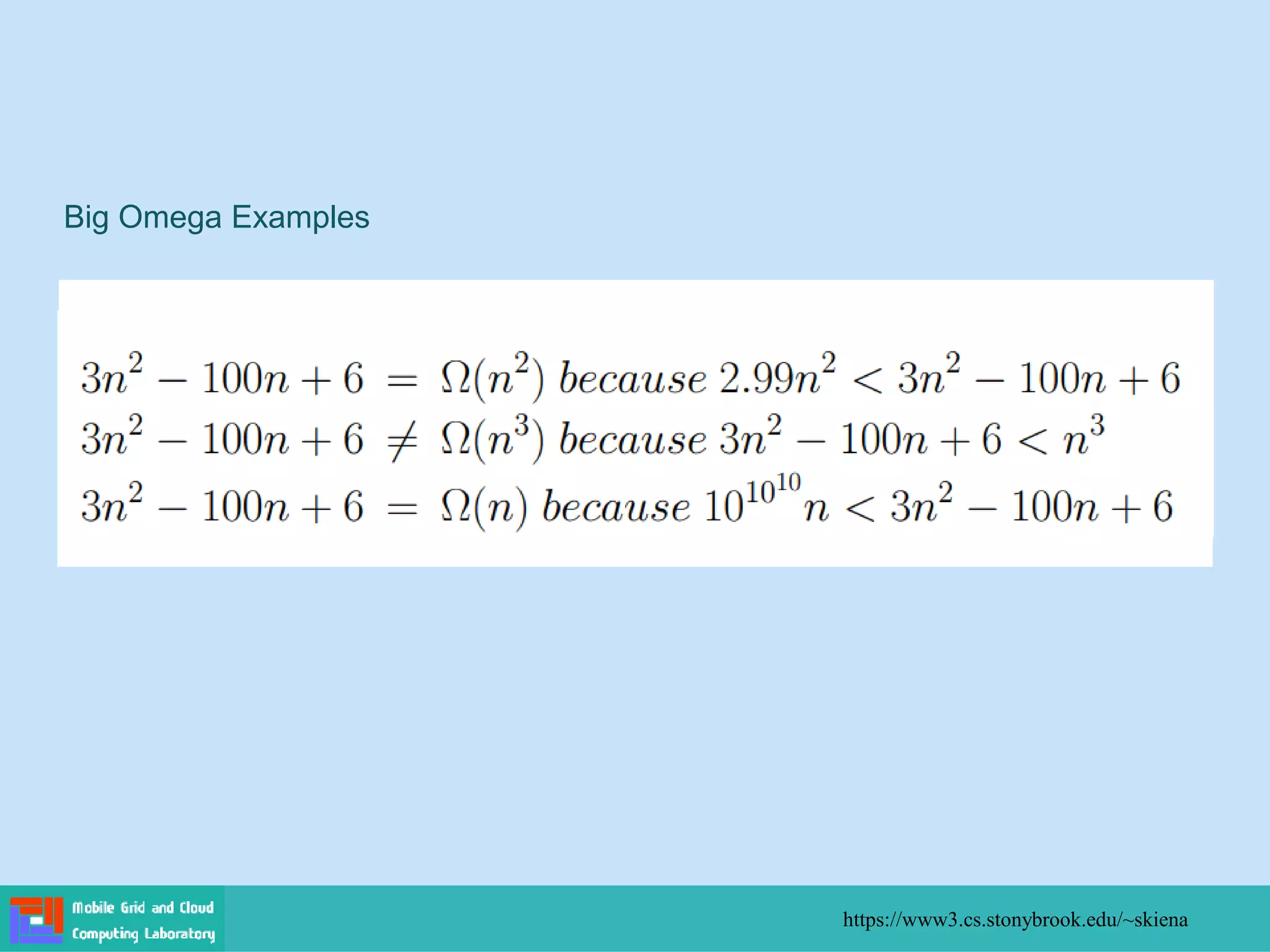

Big Omega Examples

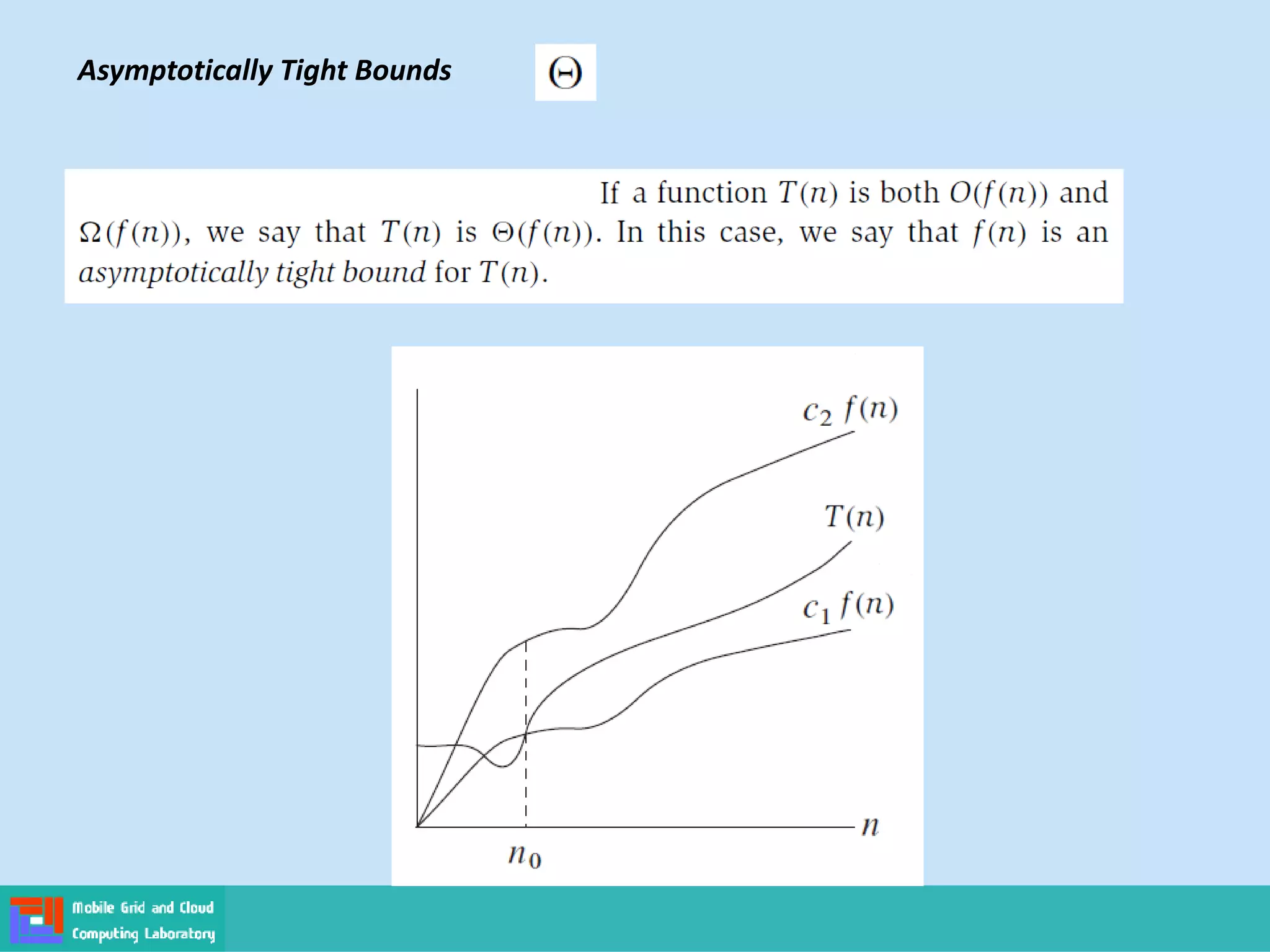

Big Theta Examples

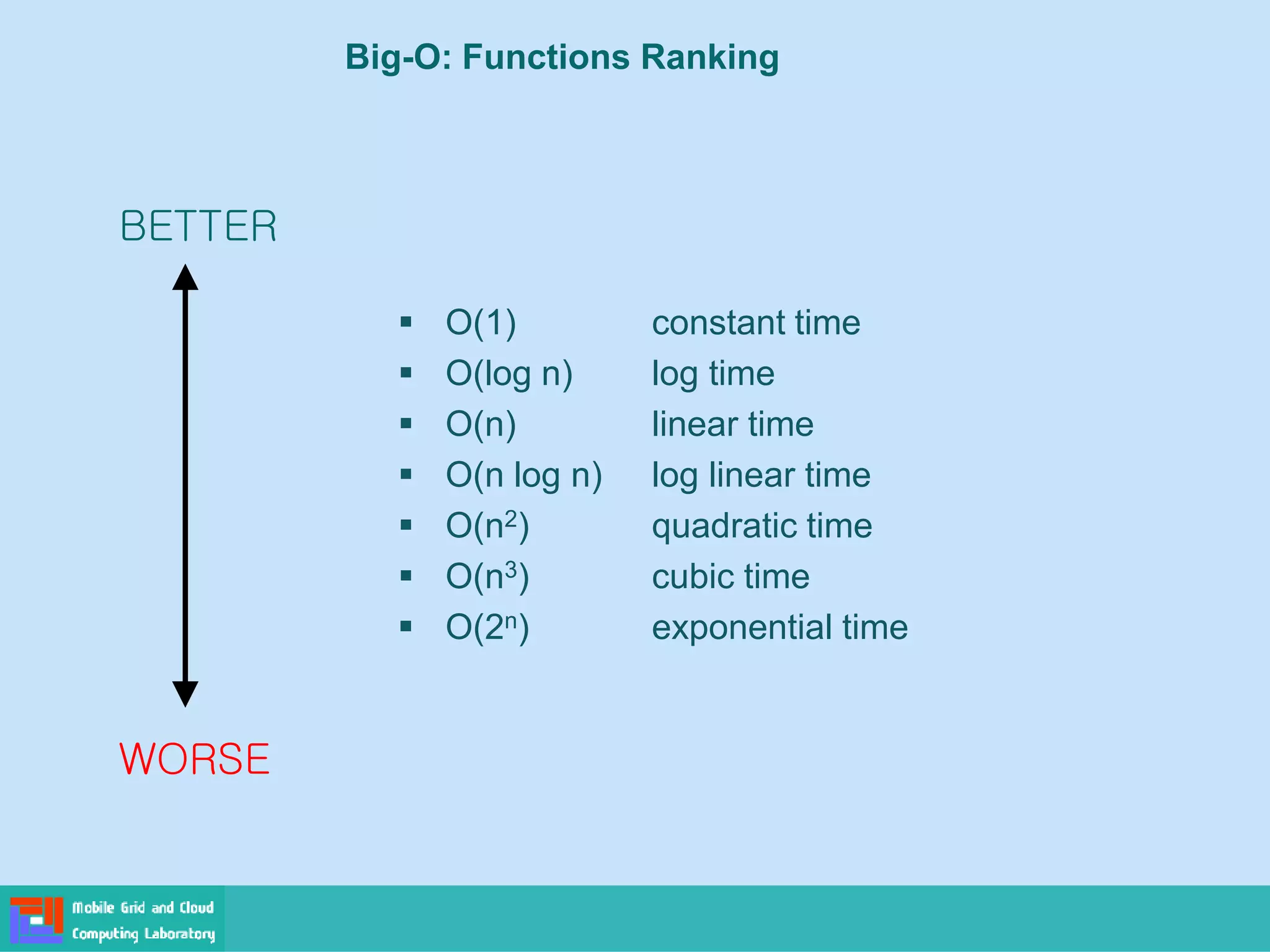

Big-O: Functions Ranking
▪ O(1) constant time
▪ O(log n) log time
▪ O(n) linear time
▪ O(n log n) log linear time
▪ O(n2) quadratic time
▪ O(n3) cubic time
▪ O(2n) exponential time
BETTER
WORSE

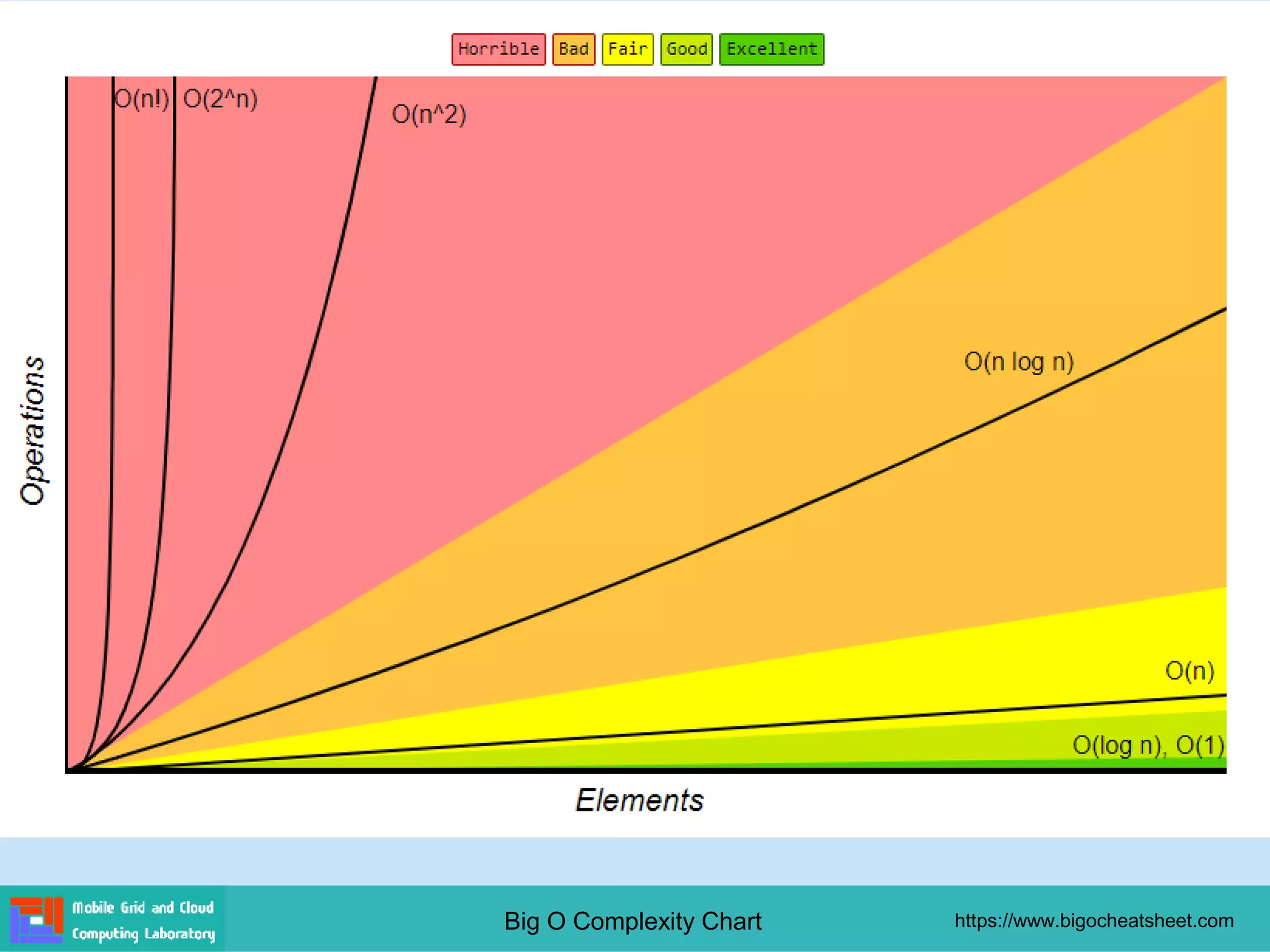

Big O Complexity Chart https://www.bigocheatsheet.com

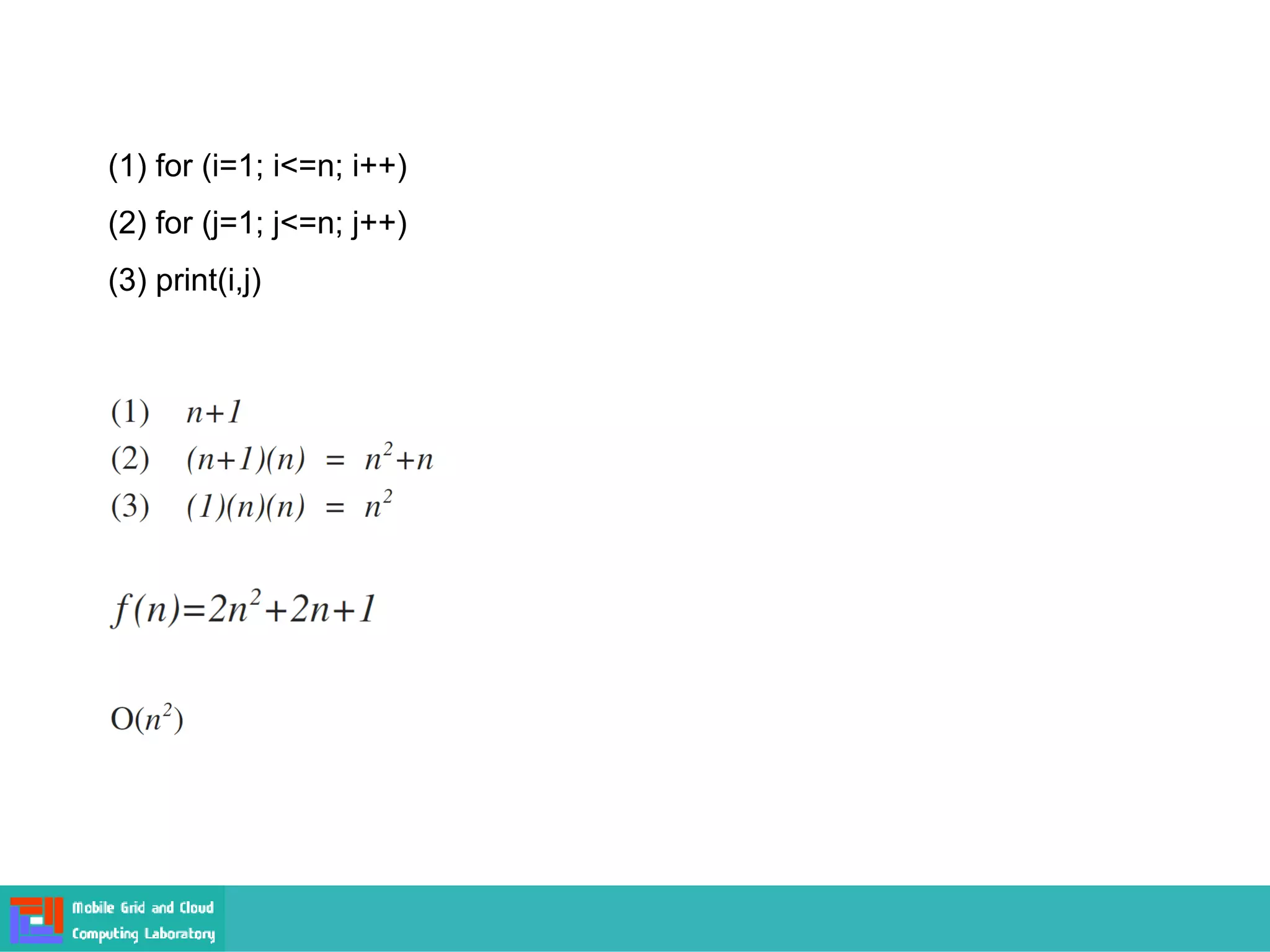

(1) for (i=1; i<=n; i++)
(2) for (j=1; j<=n; j++)
(3) print(i,j)

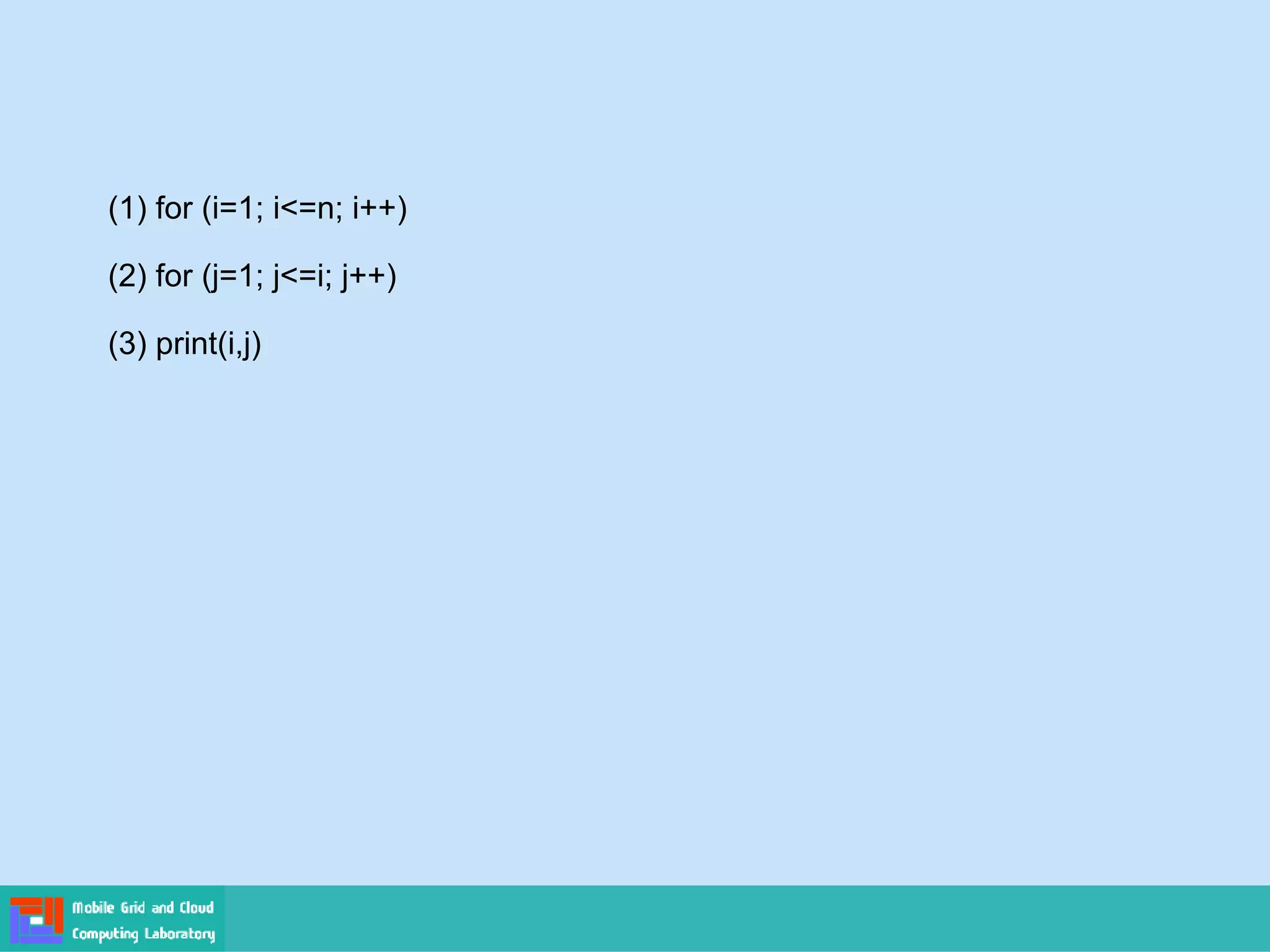

(1) for (i=1; i<=n; i++)
(2) for (j=1; j<=i; j++)
(3) print(i,j)

(1) for (i=1; i<=n; i++)
(2) for (j=1; j<=i; j++)
(3) print(i,j)

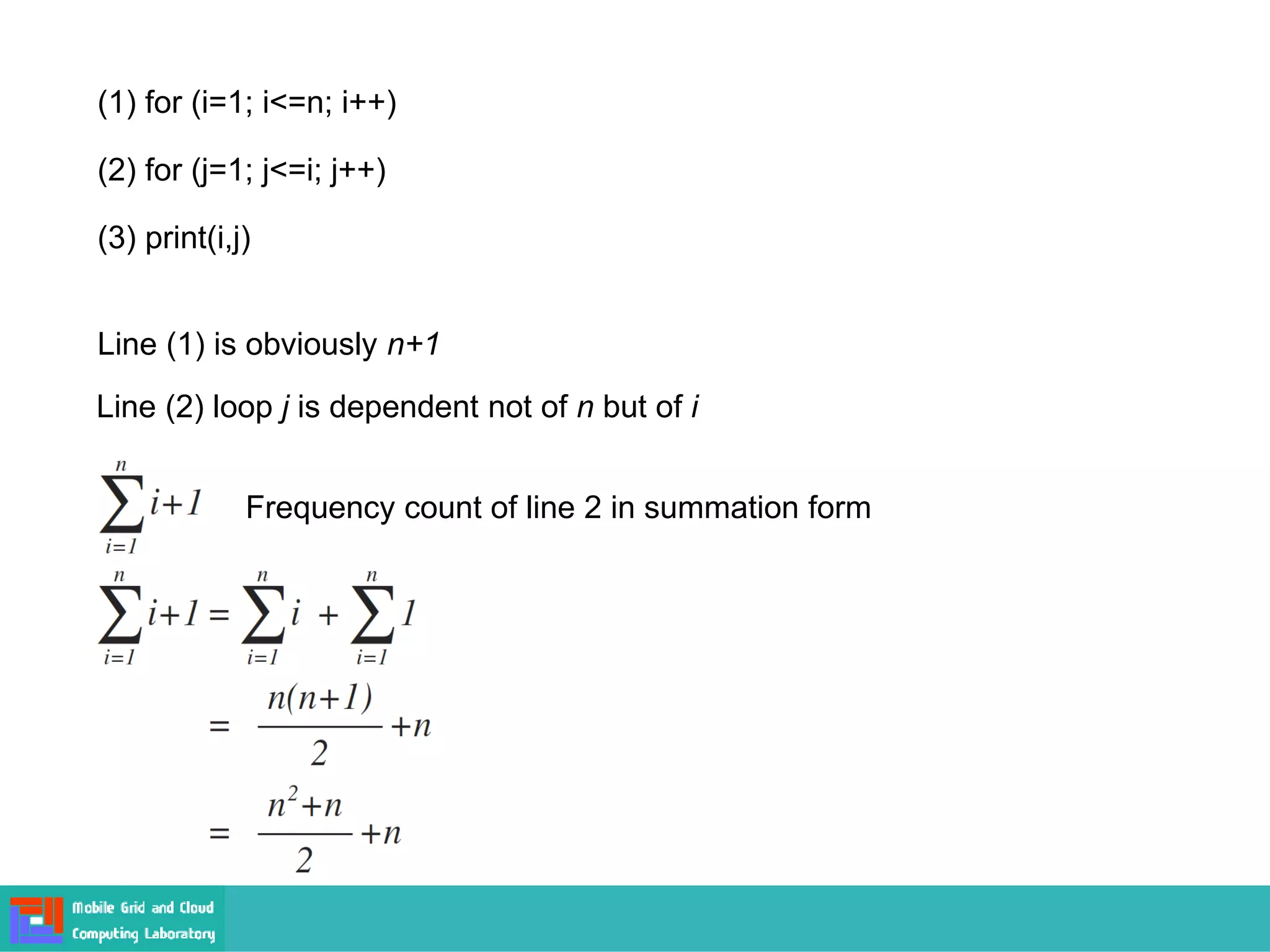

Line (1) is obviously n+1
Line (2) loop j is dependent not of n but of i
Frequency count of line 2 in summation form

Frequency count of line 3 in summation form
(1) for (i=1; i<=n; i++)
(2) for (j=1; j<=i; j++)
(3) print(i,j)

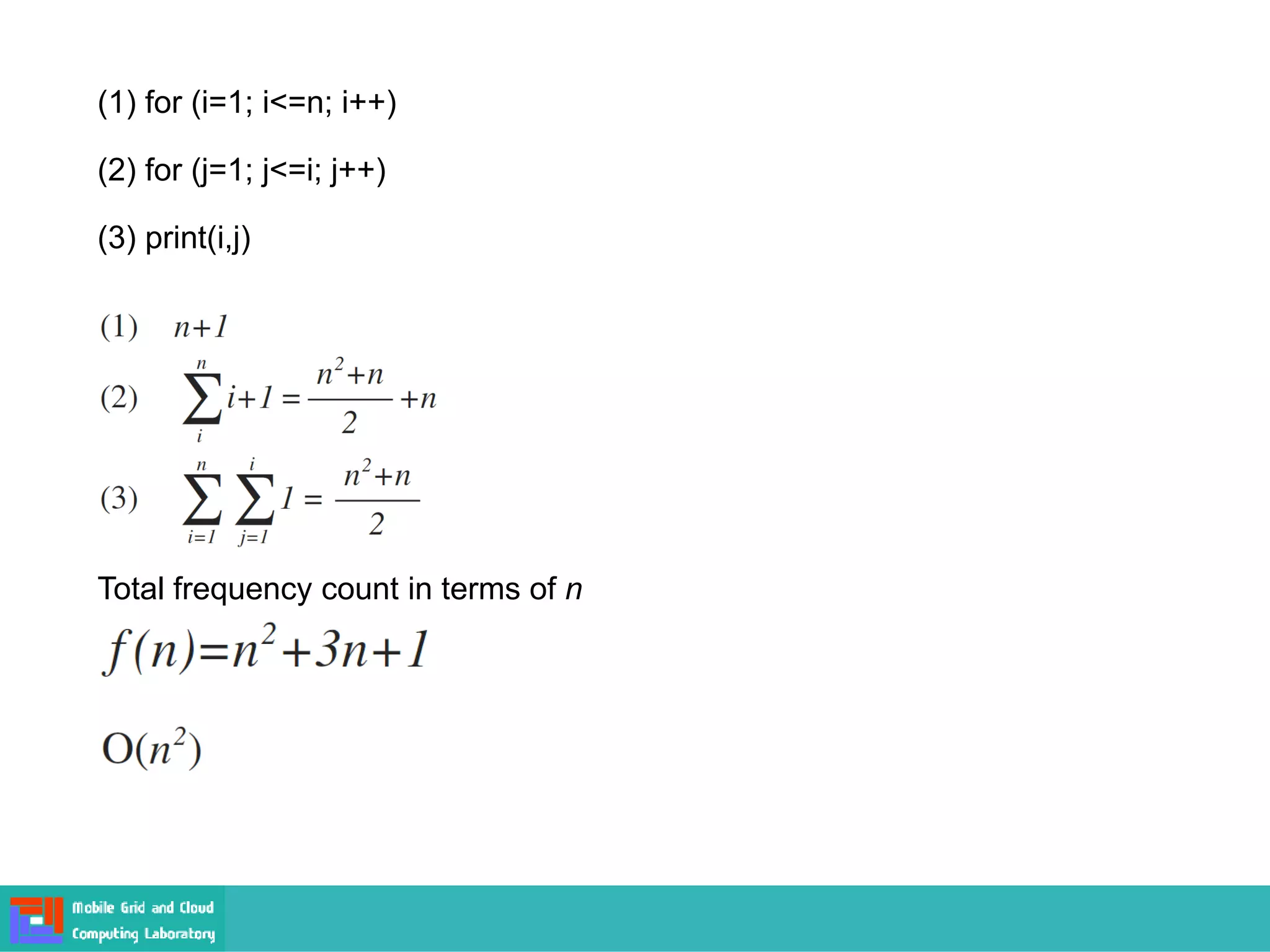

(1) for (i=1; i<=n; i++)
(2) for (j=1; j<=i; j++)
(3) print(i,j)
Total frequency count in terms of n

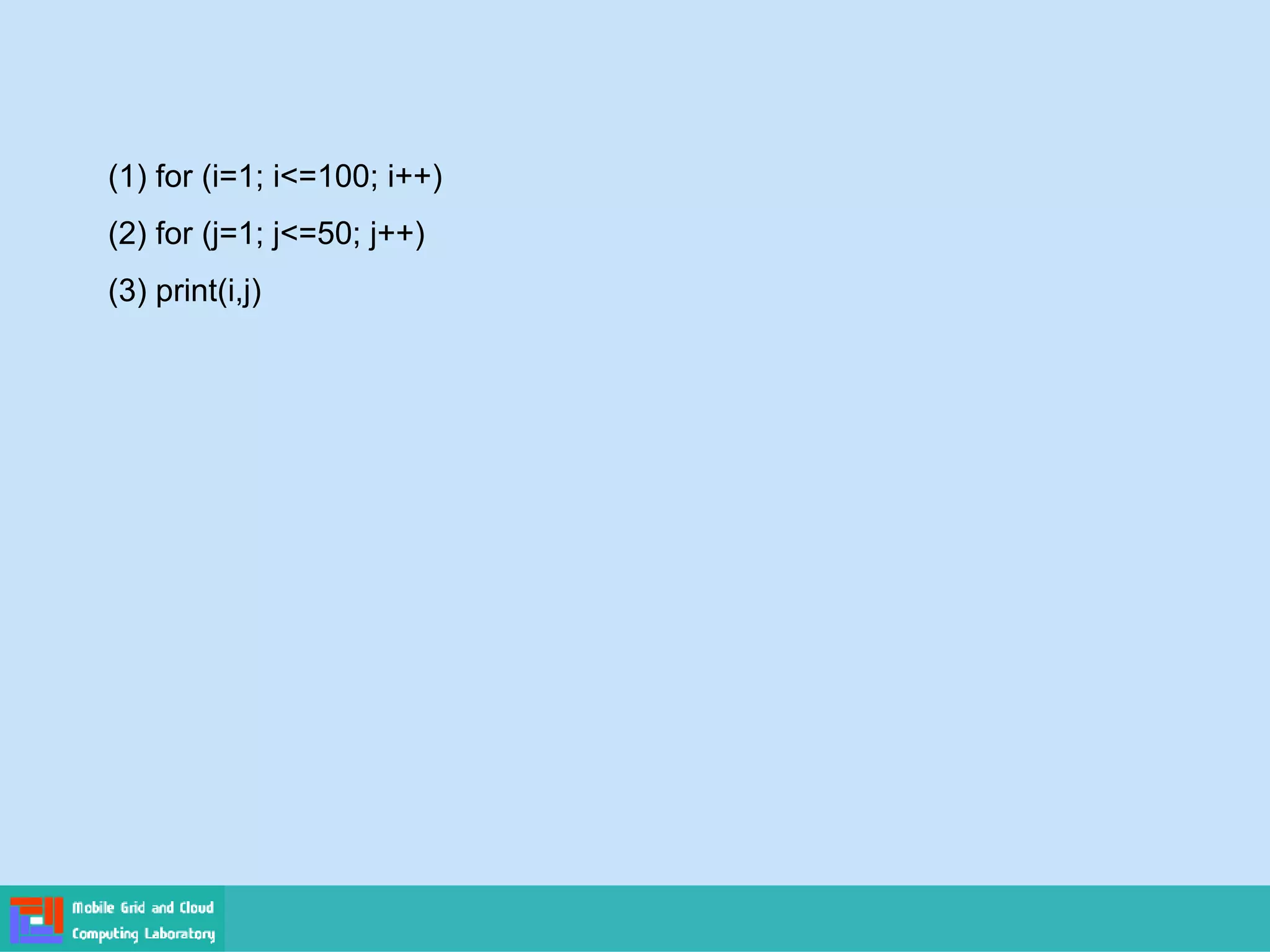

(1) for (i=1; i<=100; i++)
(2) for (j=1; j<=50; j++)
(3) print(i,j)

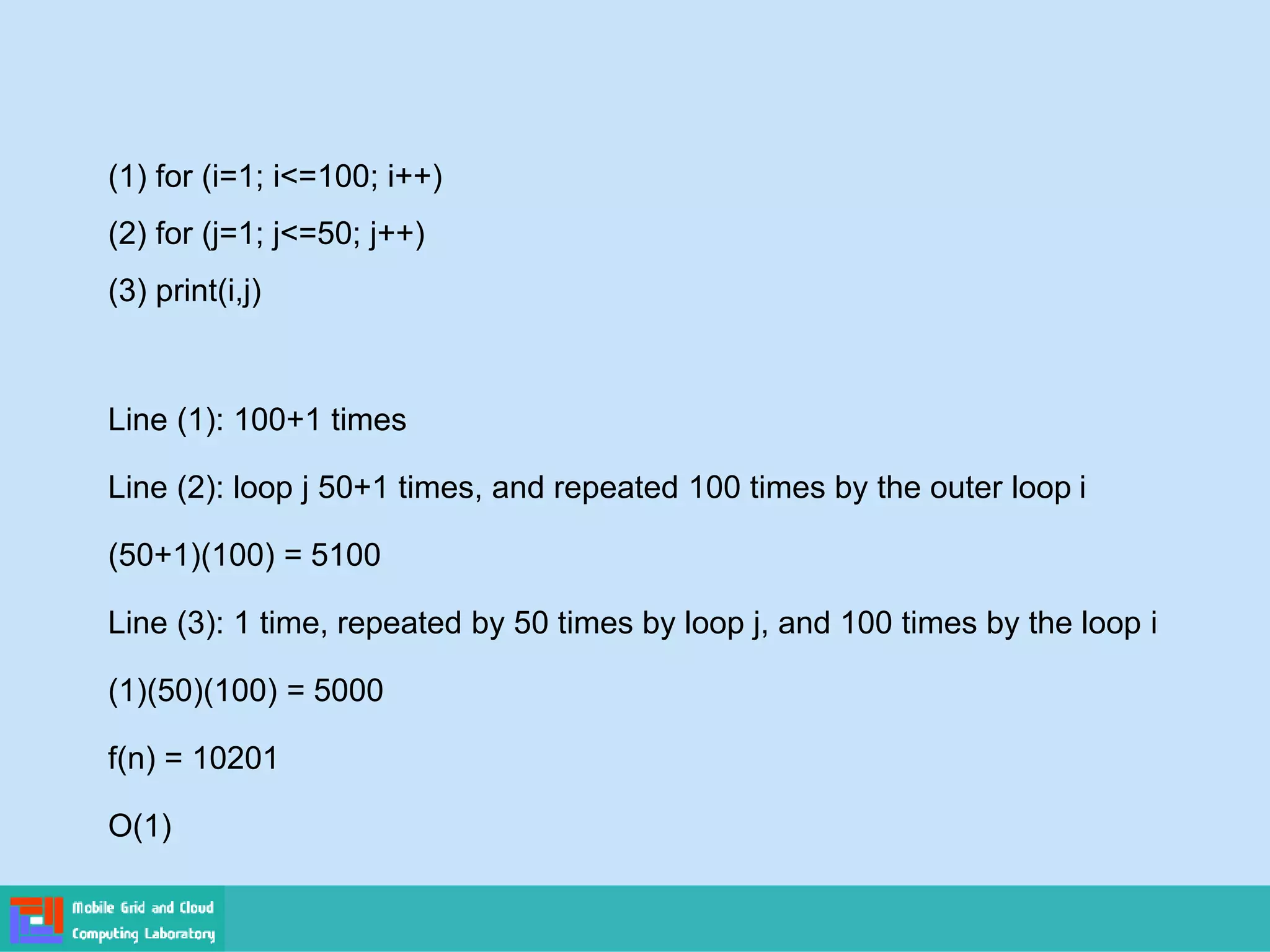

(1) for (i=1; i<=100; i++)
(2) for (j=1; j<=50; j++)
(3) print(i,j)
Line (1): 100+1 times
Line (2): loop j 50+1 times, and repeated 100 times by the outer loop i
(50+1)(100) = 5100
Line (3): 1 time, repeated by 50 times by loop j, and 100 times by the loop i
(1)(50)(100) = 5000
f(n) = 10201
O(1)

Time Complexity of Selection Sort
▪ To find the minimum element from the array of n elements, n−1 comparisons
are required.
▪ After inserting the minimum element in its proper position, the size of an
unsorted array reduces to n−1 and then n−2 comparisons are required to find
the minimum in the unsorted array.

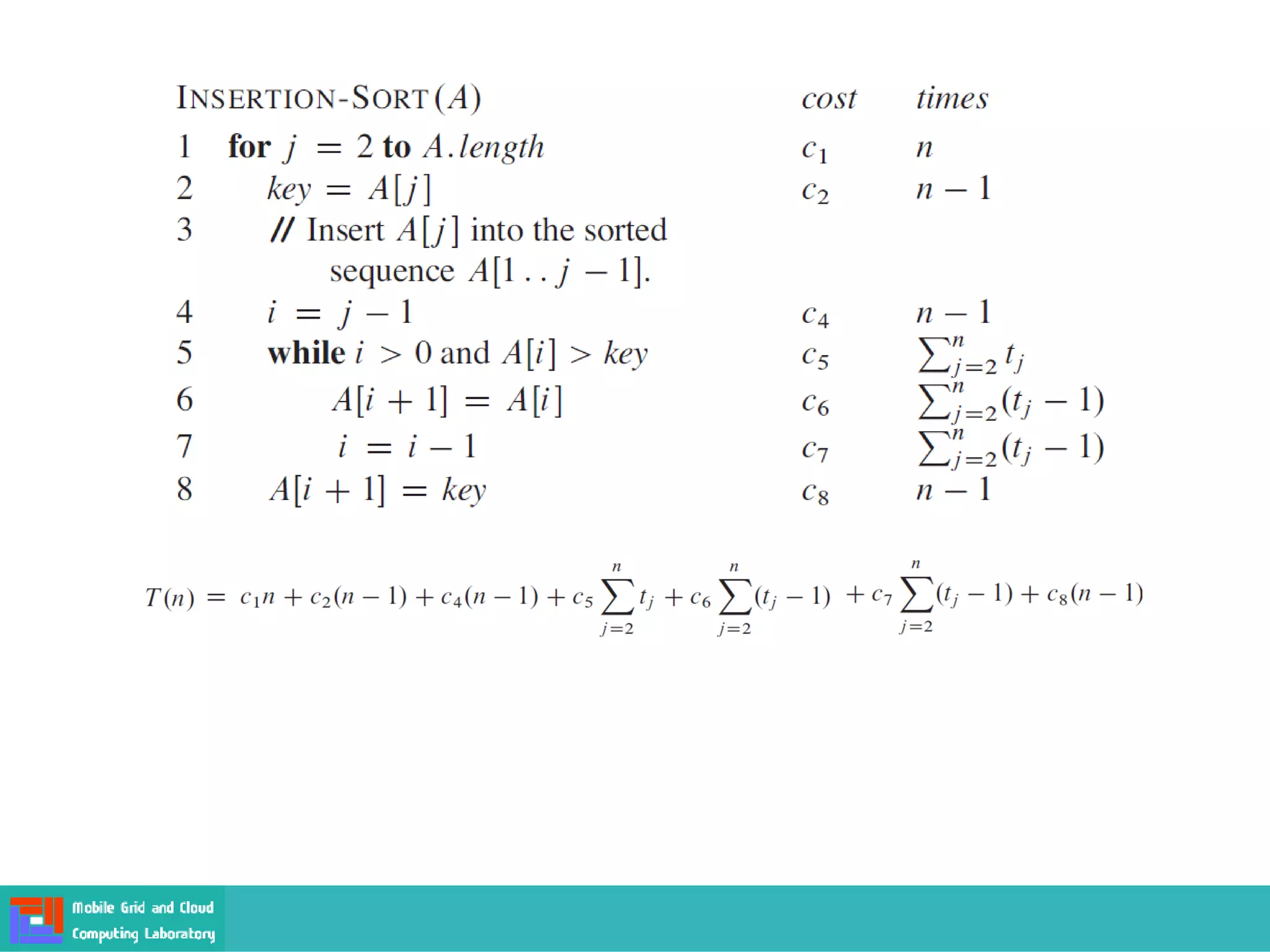

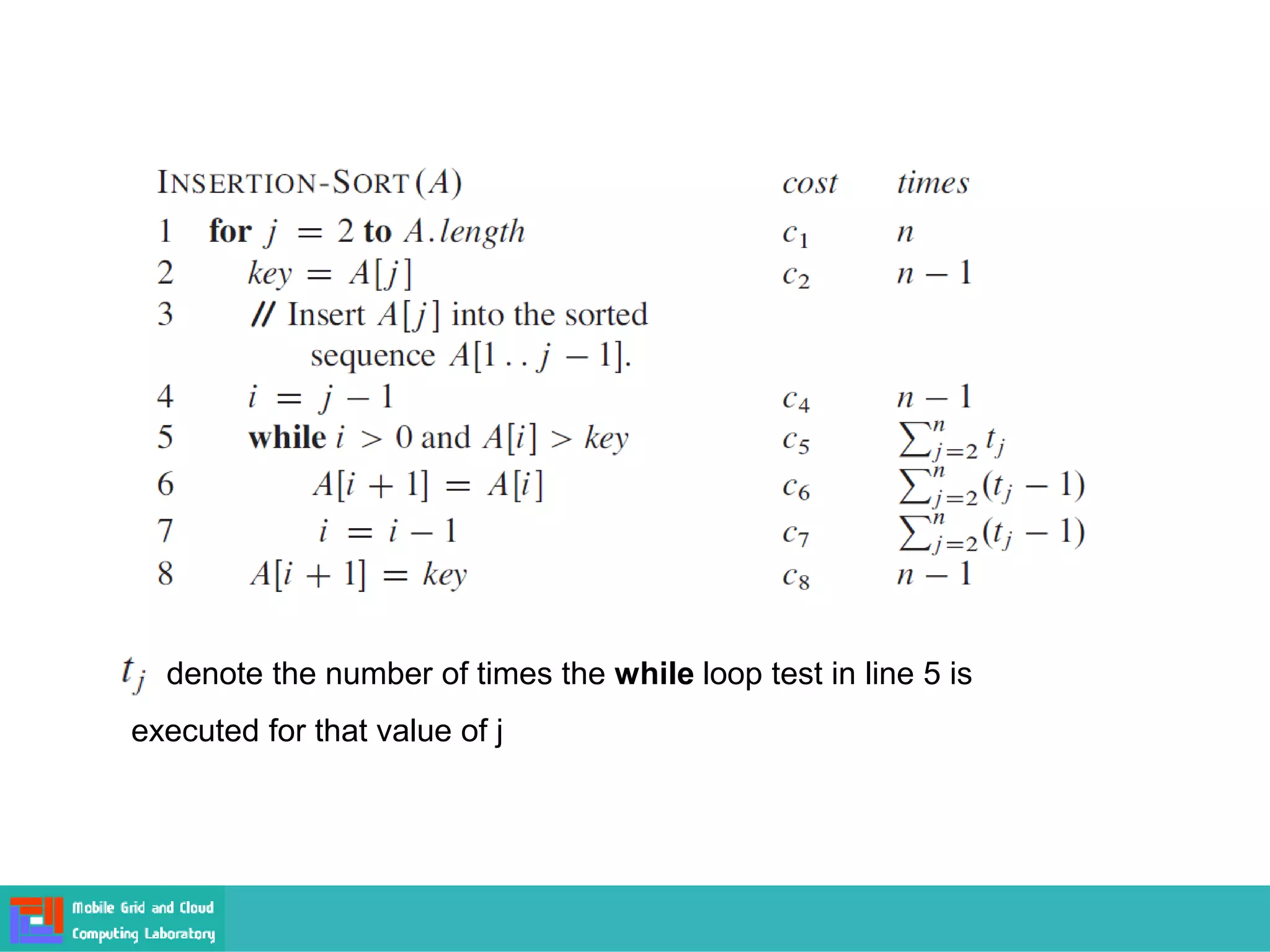

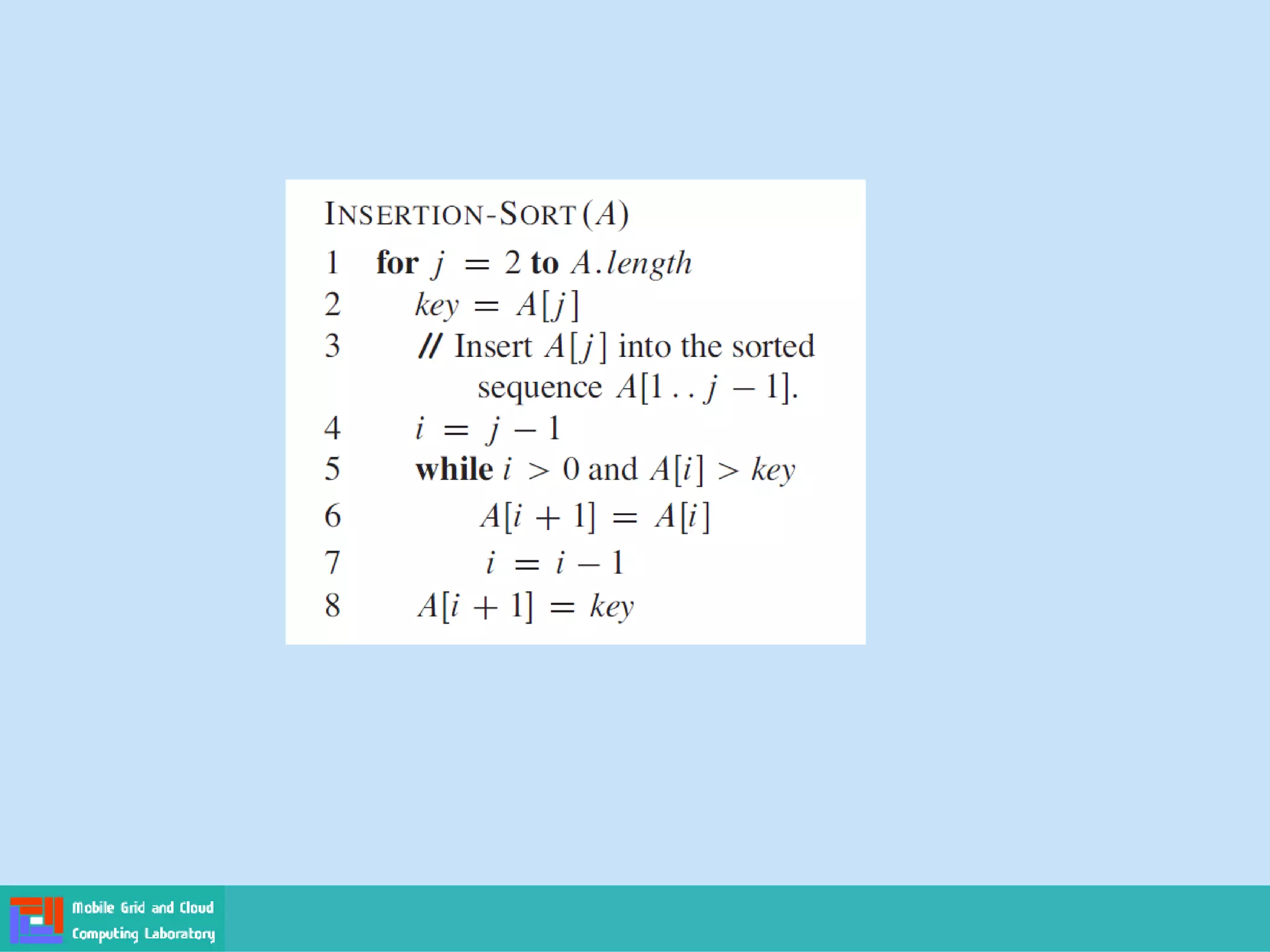

denote the number of times the while loop test in line 5 is
executed for that value of j

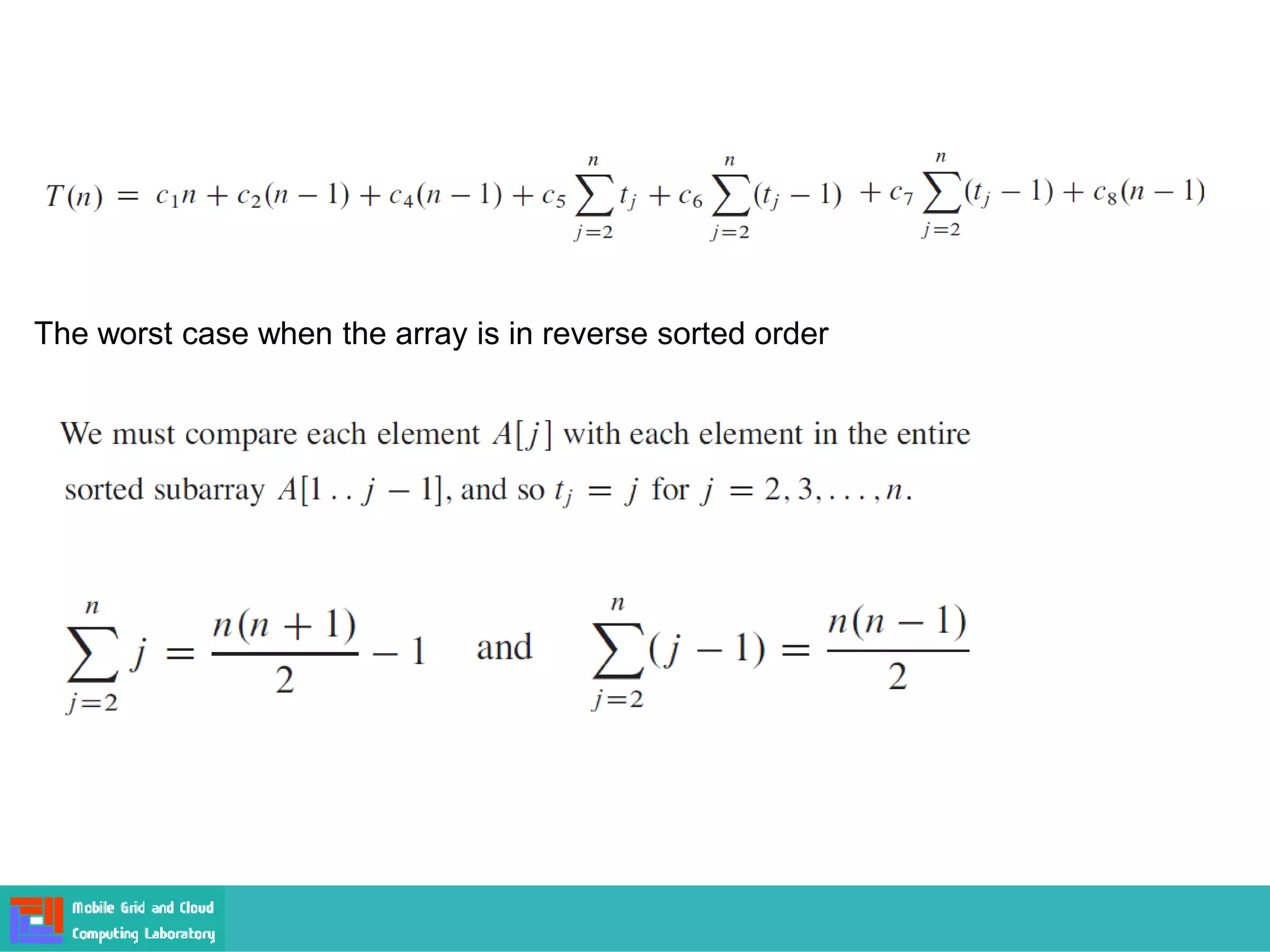

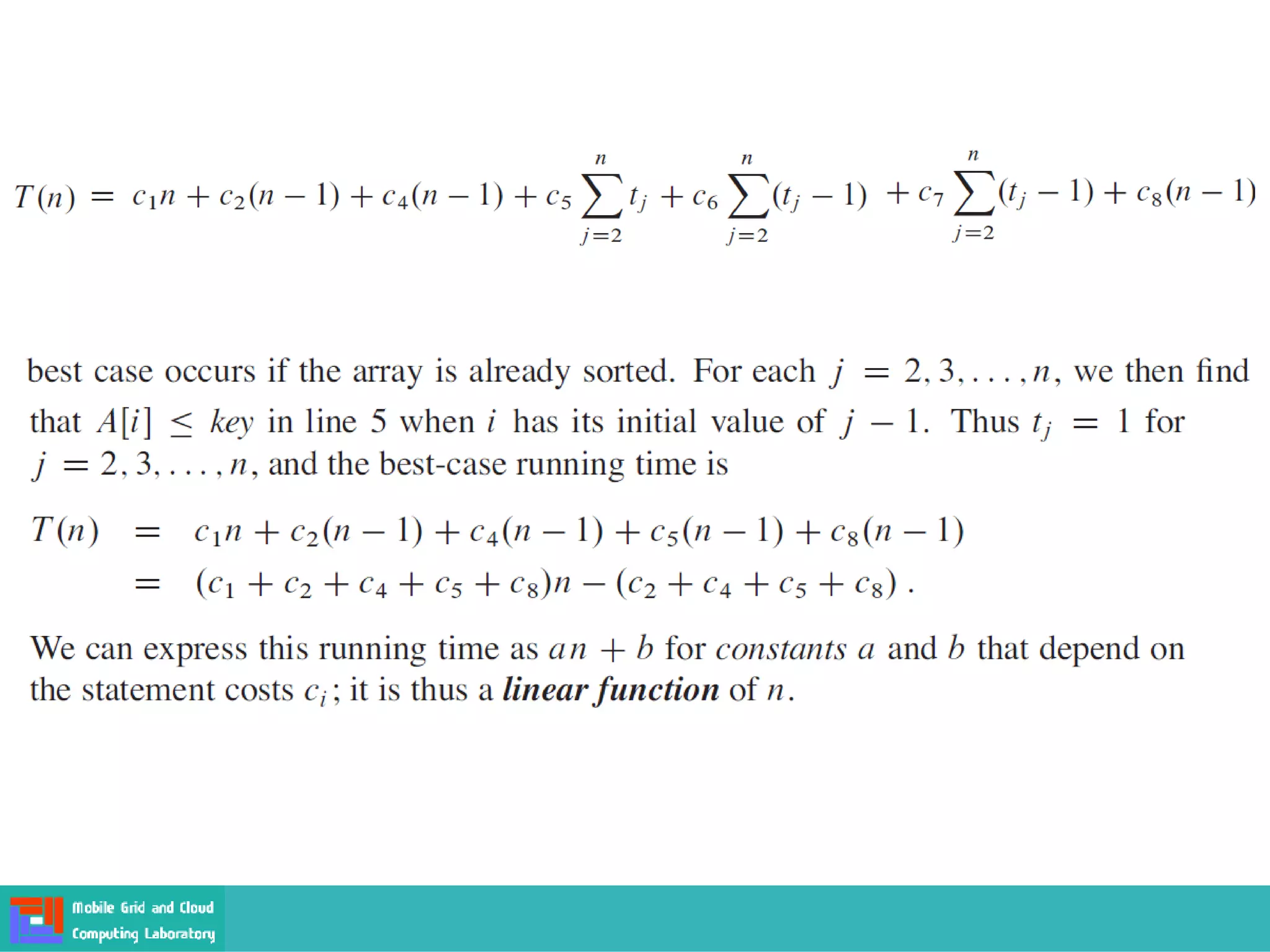

The worst case when the array is in reverse sorted order

Introduction to Basic Data Structures

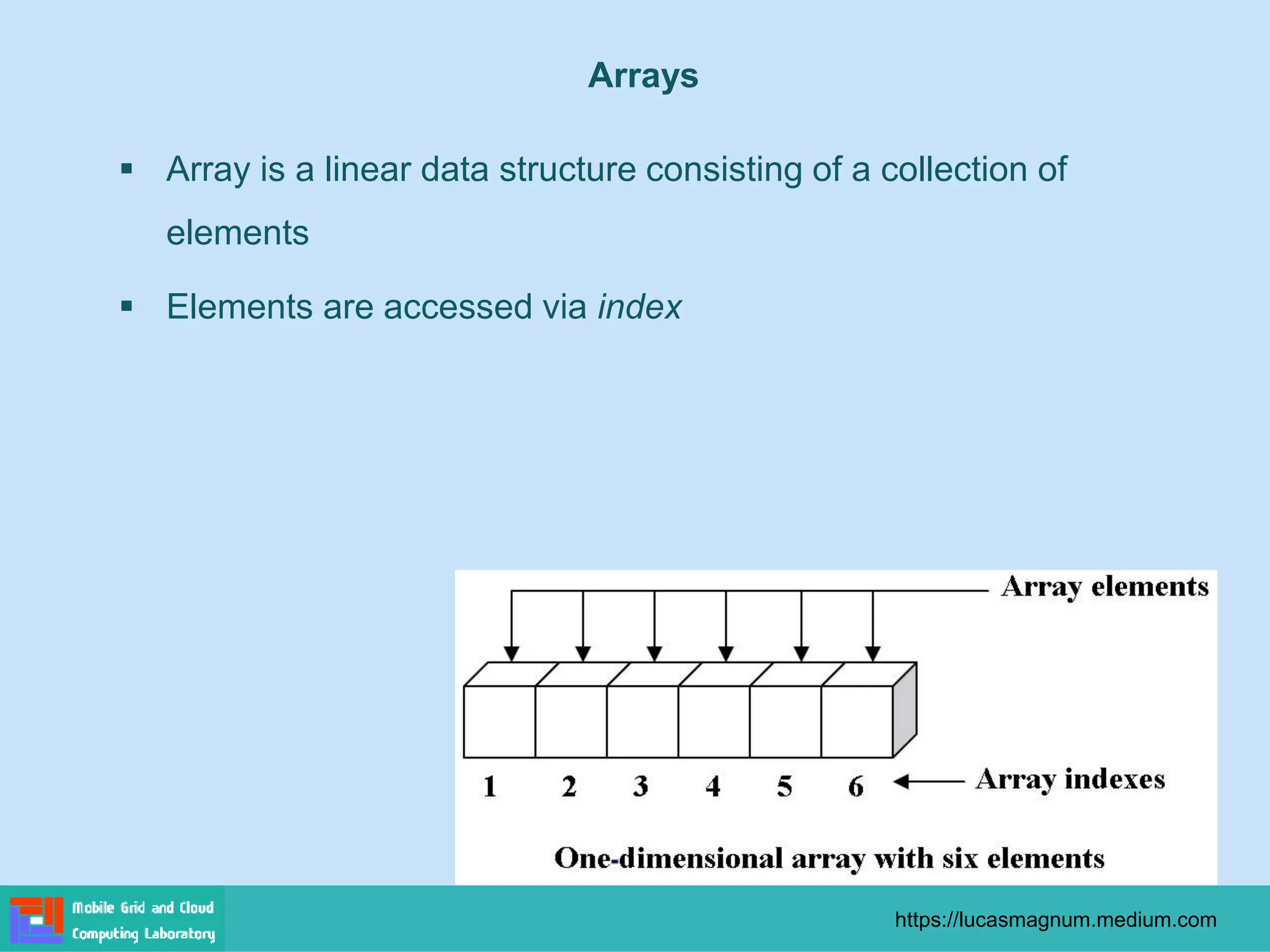

Arrays
▪ Array is a linear data structure consisting of a collection of
elements
▪ Elements are accessed via index
https://lucasmagnum.medium.com

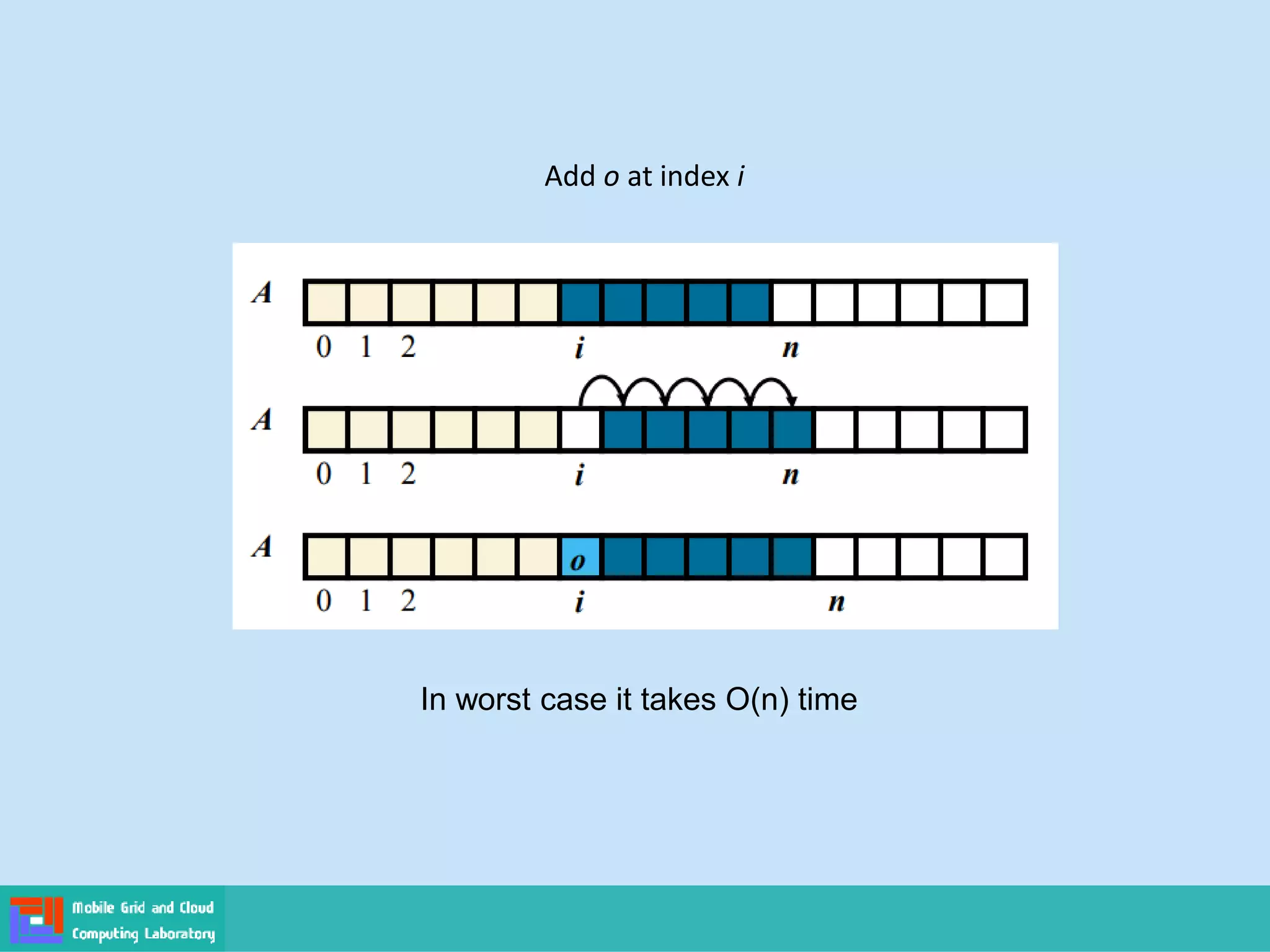

In worst case it takes O(n) time
Add o at index i

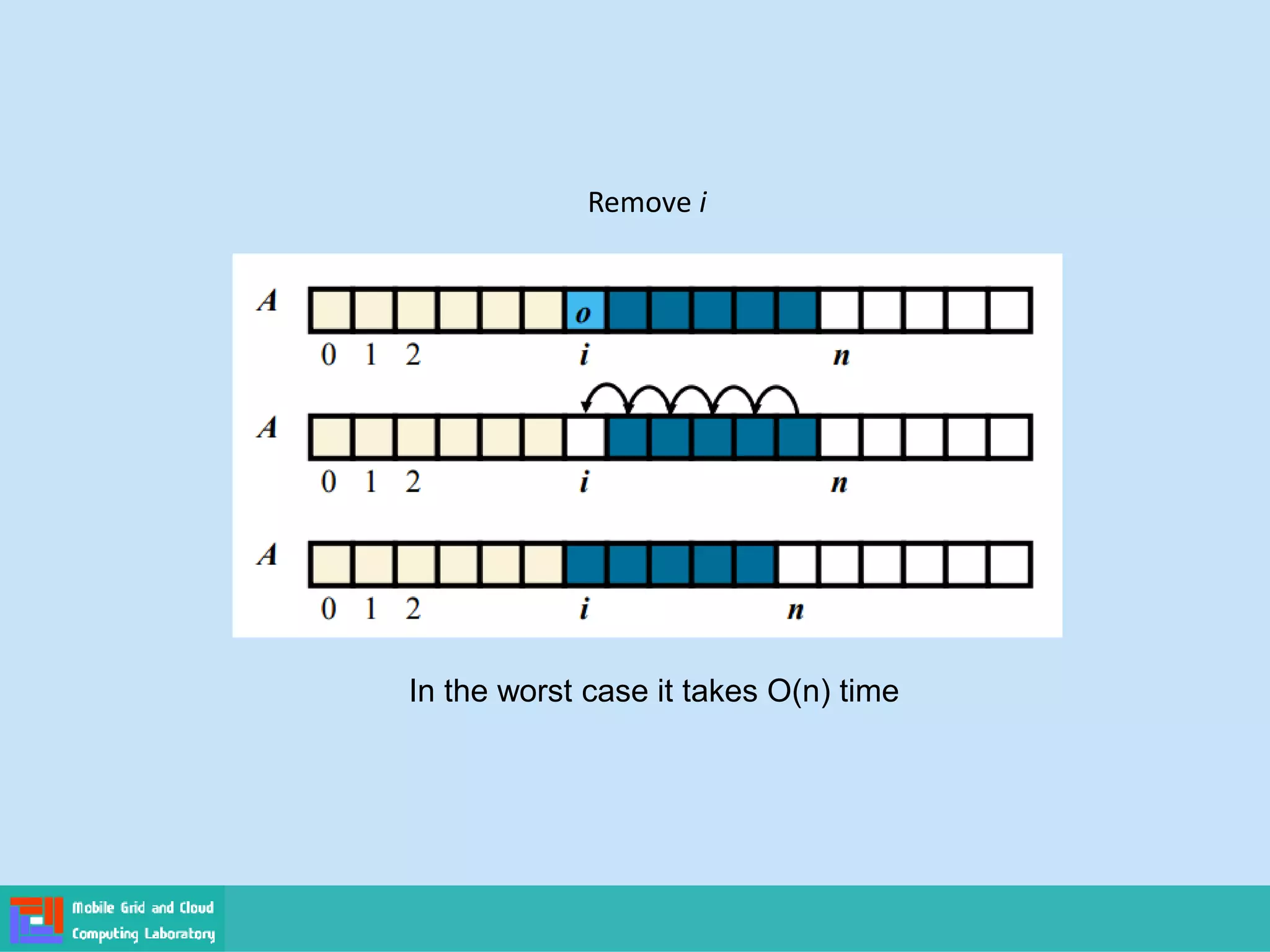

In the worst case it takes O(n) time
Remove i

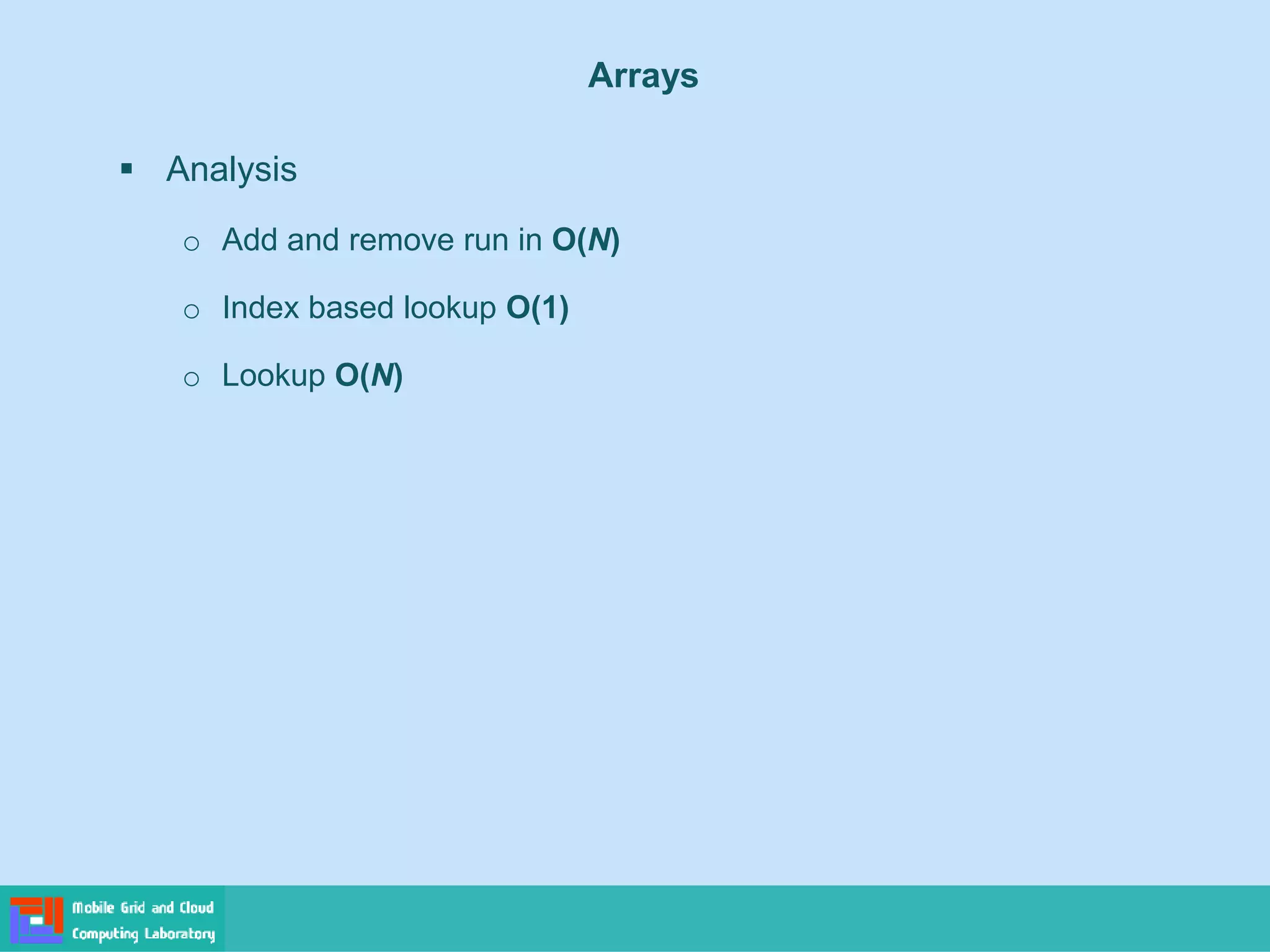

Arrays
▪ Analysis
o Add and remove run in O(N)
o Index based lookup O(1)
o Lookup O(N)

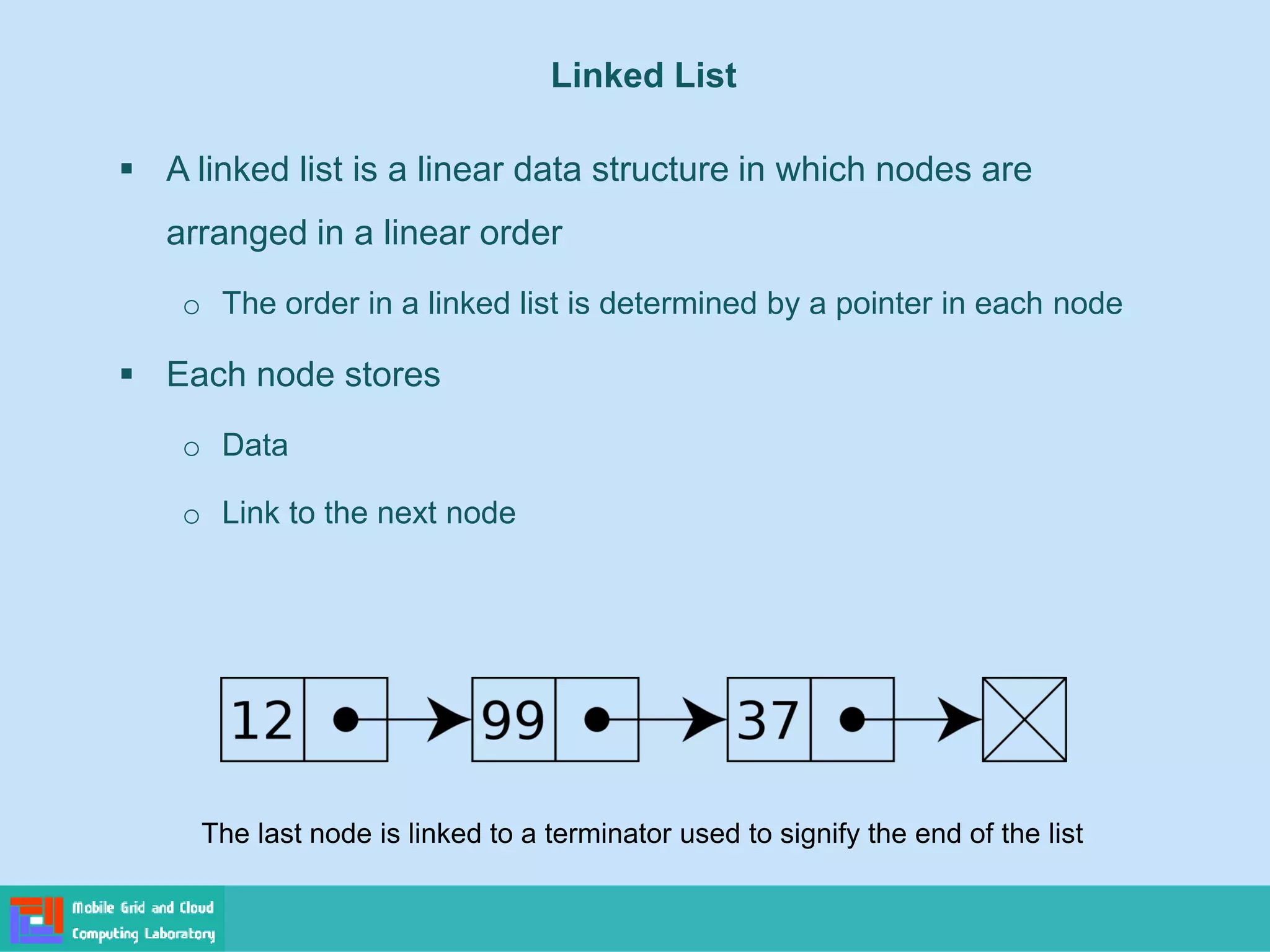

Linked List
▪ A linked list is a linear data structure in which nodes are
arranged in a linear order
o The order in a linked list is determined by a pointer in each node
▪ Each node stores
o Data
o Link to the next node
The last node is linked to a terminator used to signify the end of the list

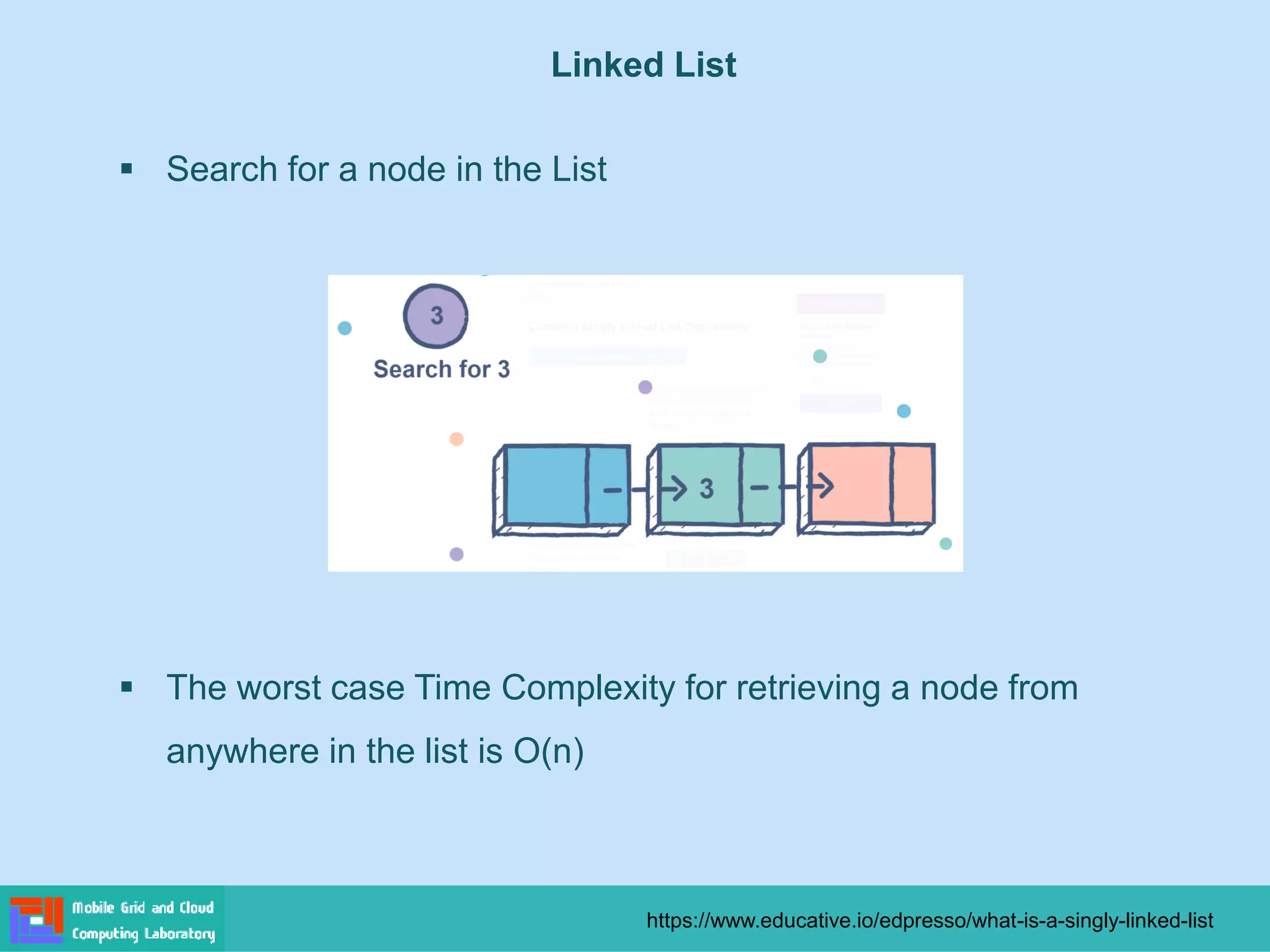

Linked List
▪ Search for a node in the List
▪ The worst case Time Complexity for retrieving a node from
anywhere in the list is O(n)
https://www.educative.io/edpresso/what-is-a-singly-linked-list

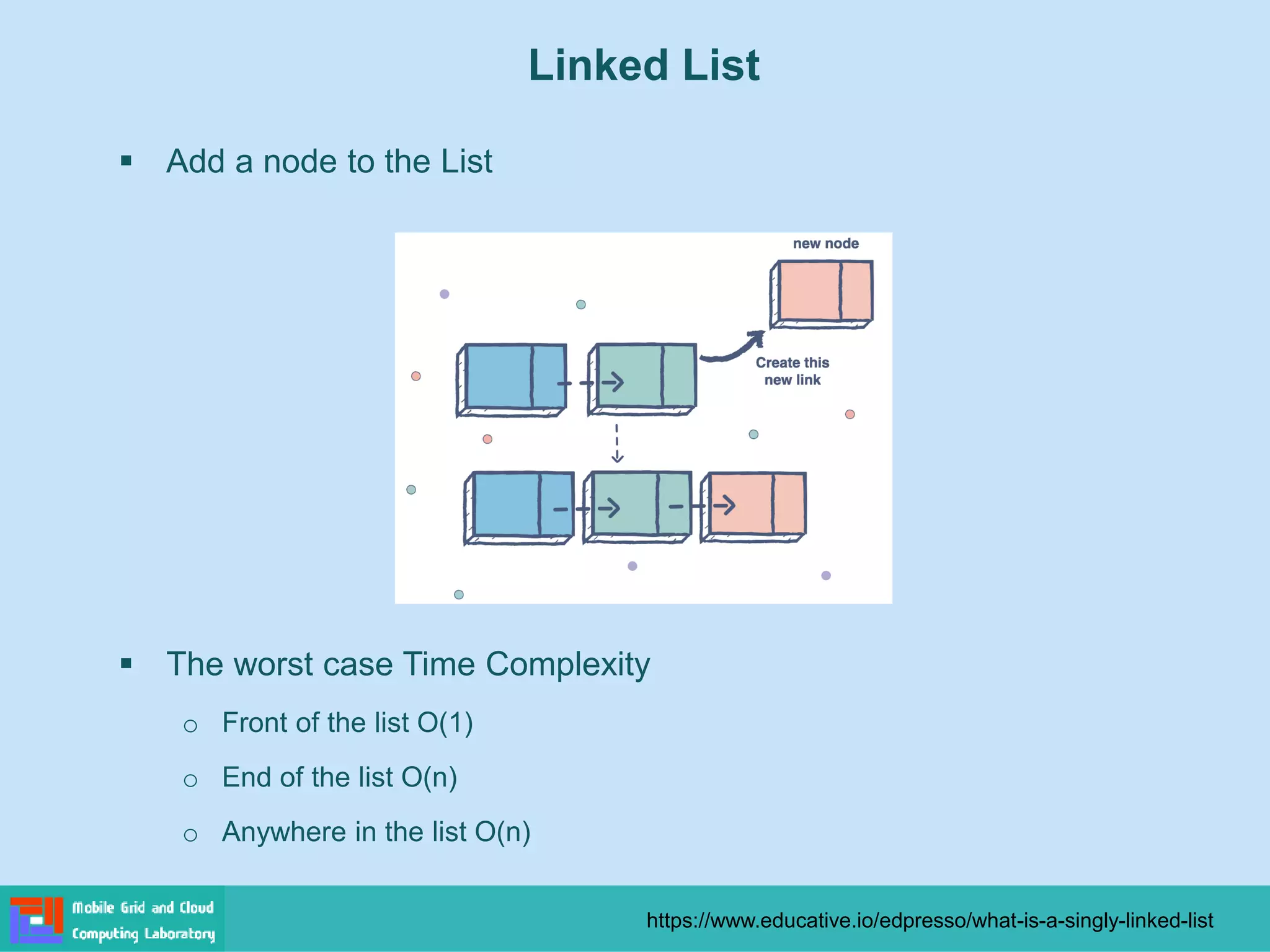

Linked List
▪ Add a node to the List
▪ The worst case Time Complexity
o Front of the list O(1)
o End of the list O(n)
o Anywhere in the list O(n)

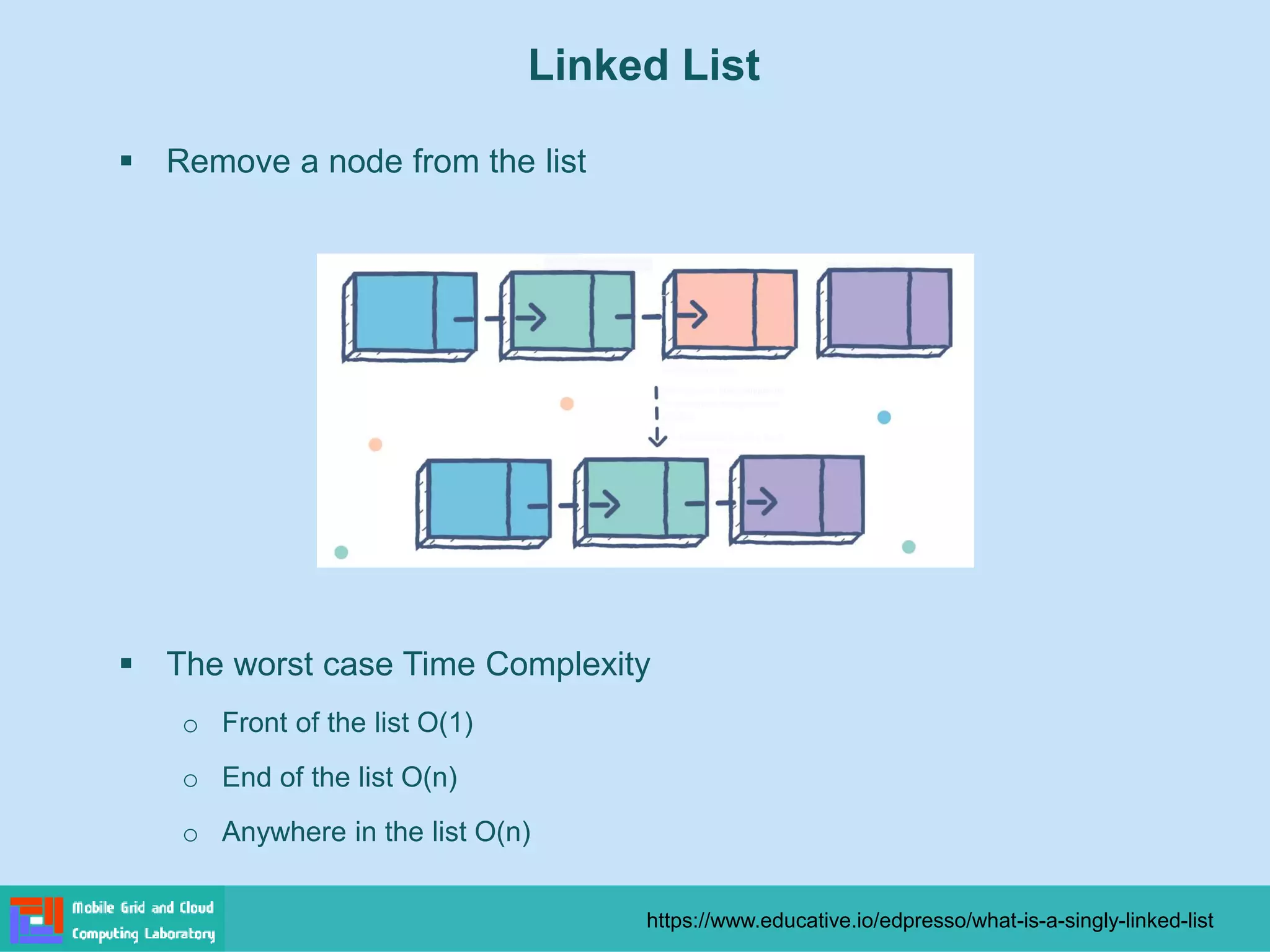

Linked List
▪ Remove a node from the list
▪ The worst case Time Complexity
o Front of the list O(1)
o End of the list O(n)
o Anywhere in the list O(n)

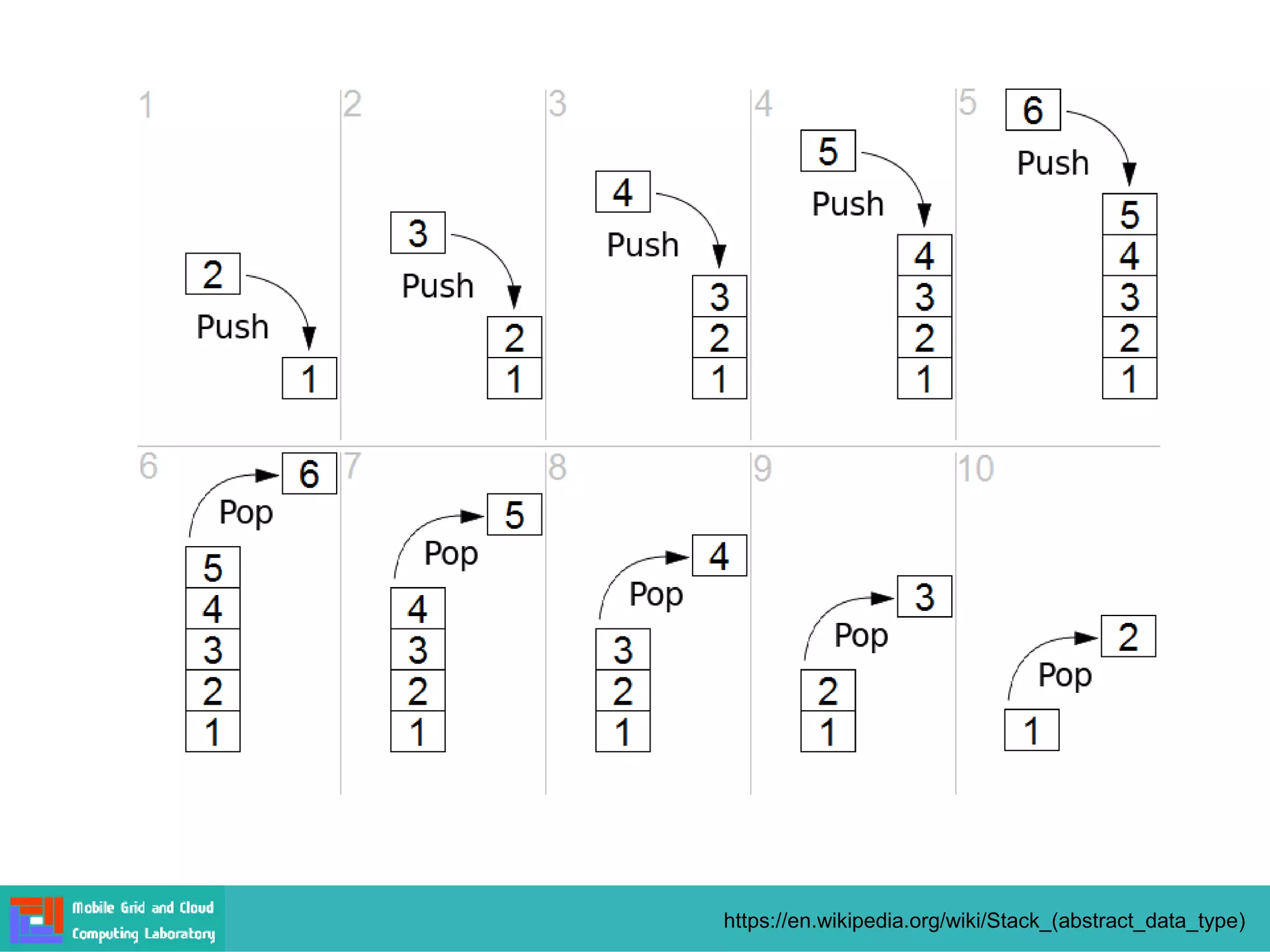

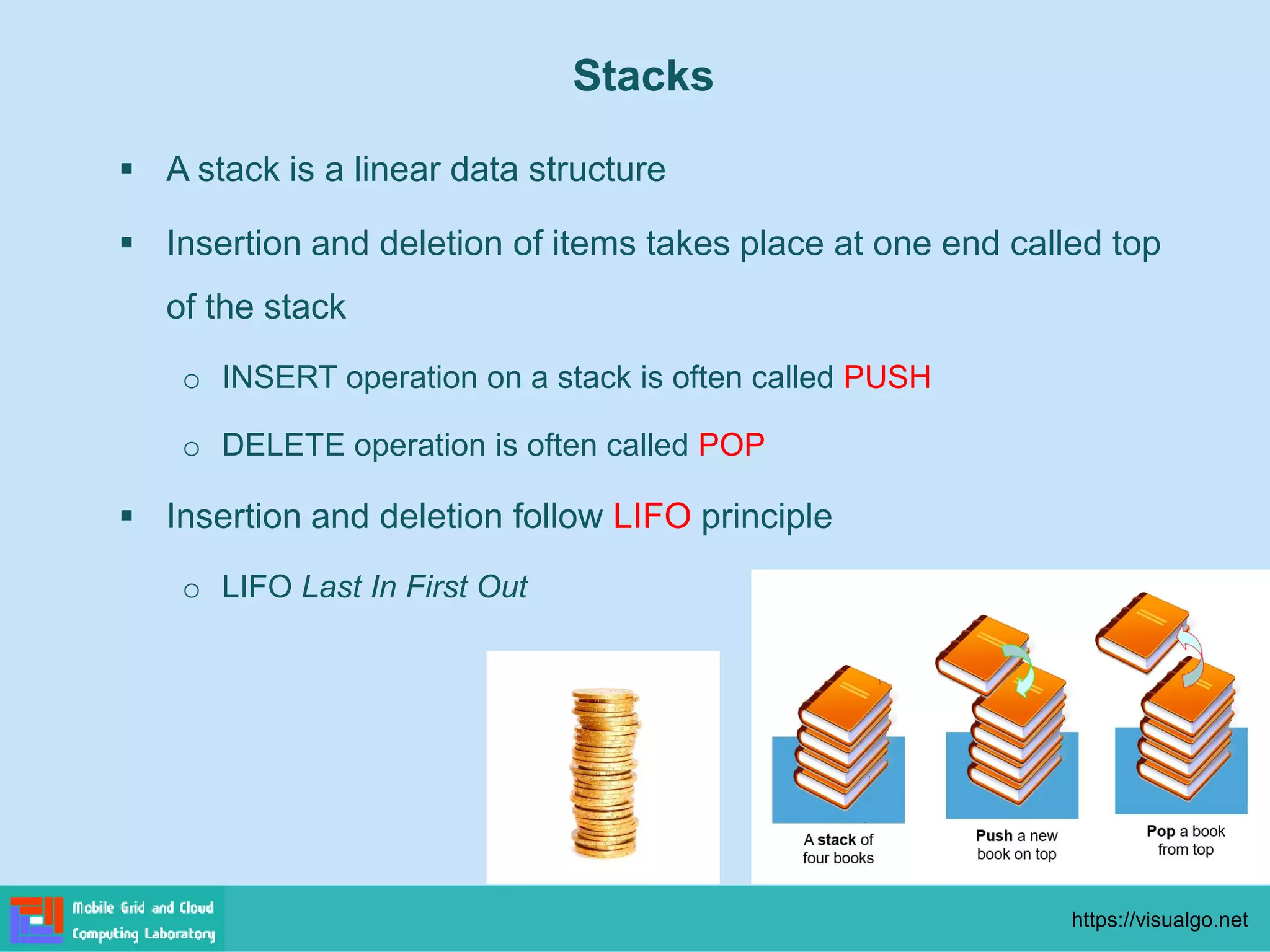

Stacks
▪ A stack is a linear data structure
▪ Insertion and deletion of items takes place at one end called top
of the stack
o INSERT operation on a stack is often called PUSH
o DELETE operation is often called POP
▪ Insertion and deletion follow LIFO principle
o LIFO Last In First Out
https://visualgo.net

https://en.wikipedia.org/wiki/Stack_(abstract_data_type)

Stacks

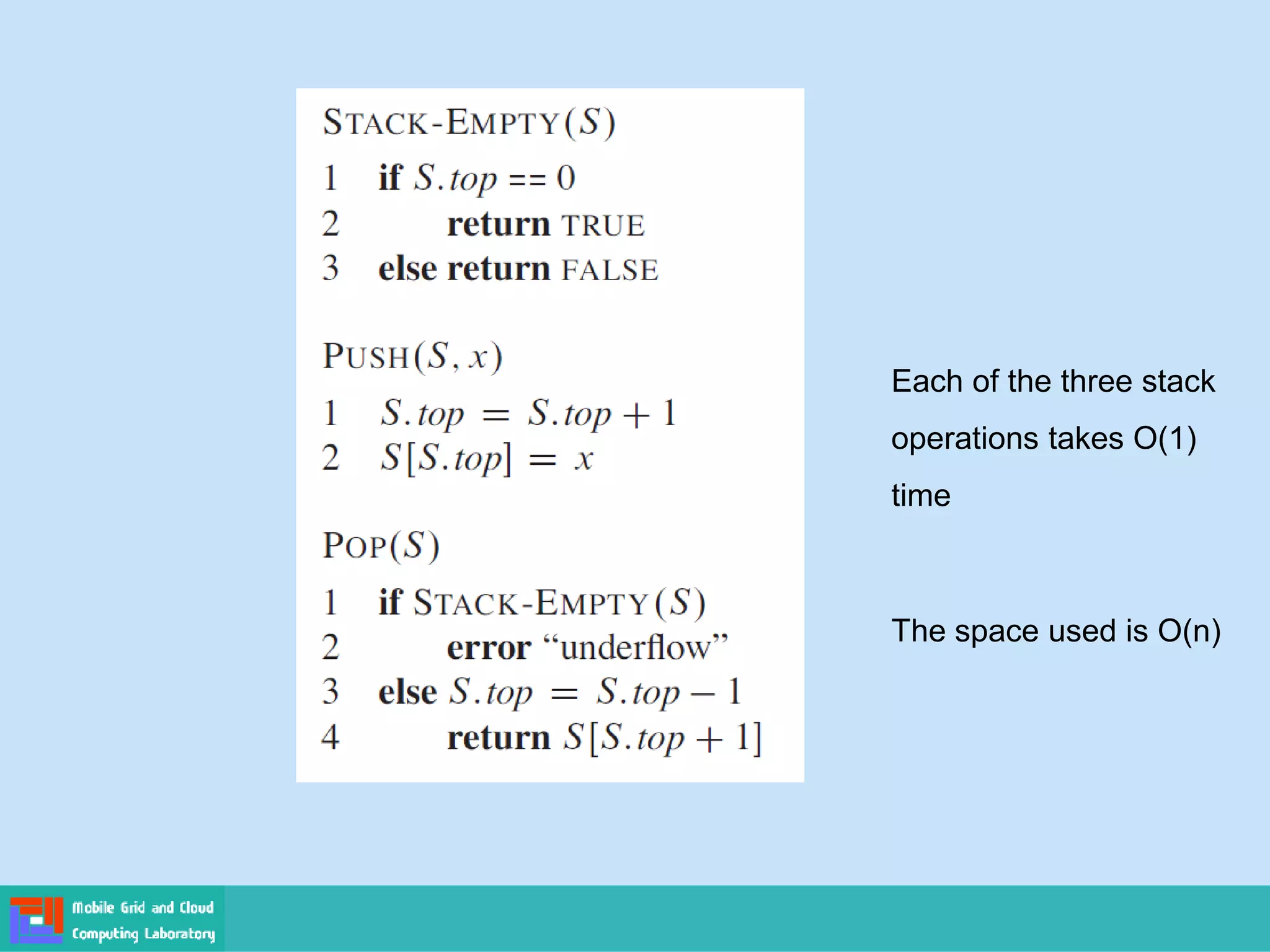

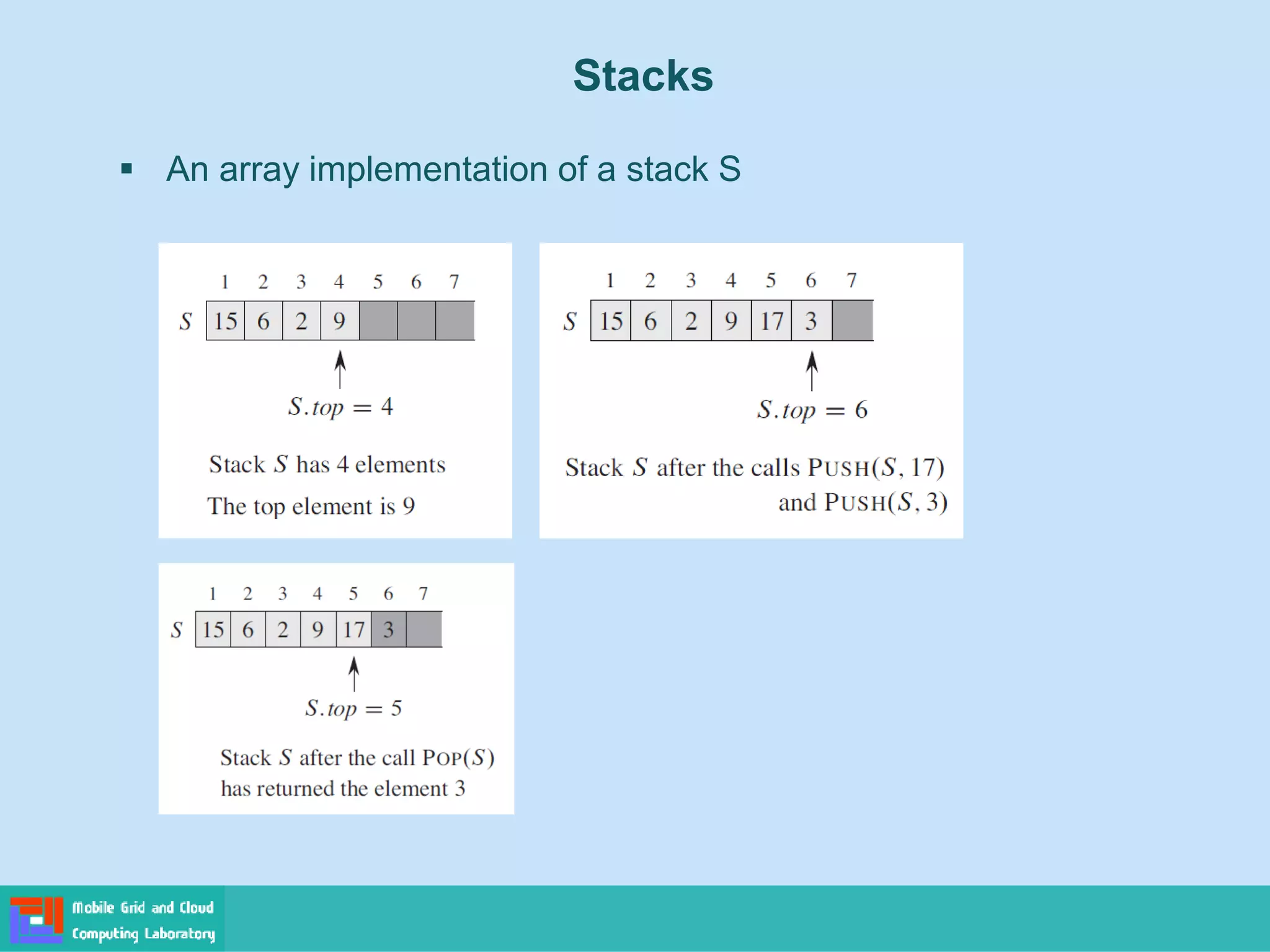

▪ An array implementation of a stack S

Each of the three stack
operations takes O(1)
time
The space used is O(n)

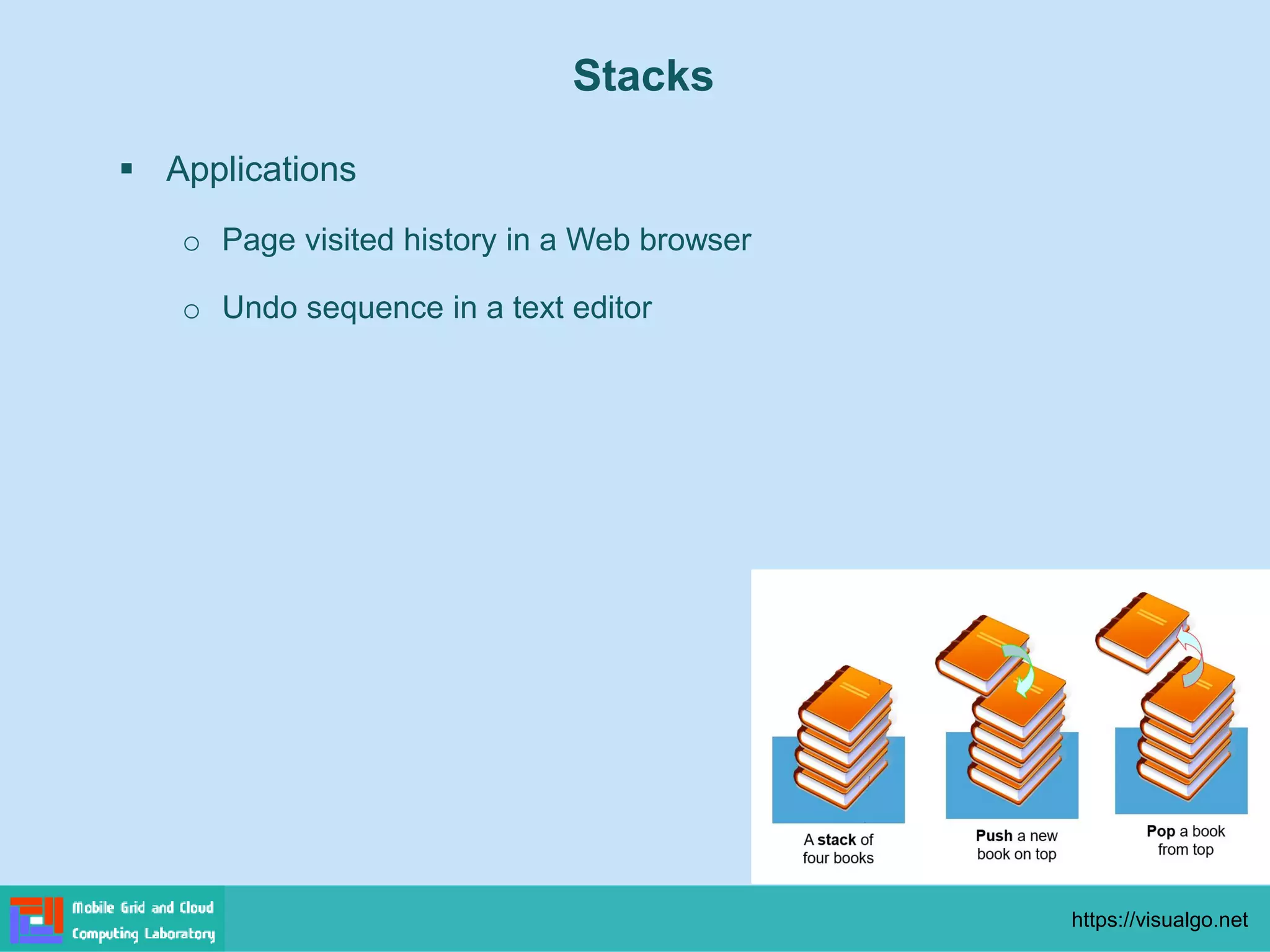

Stacks
▪ Applications
o Page visited history in a Web browser
o Undo sequence in a text editor

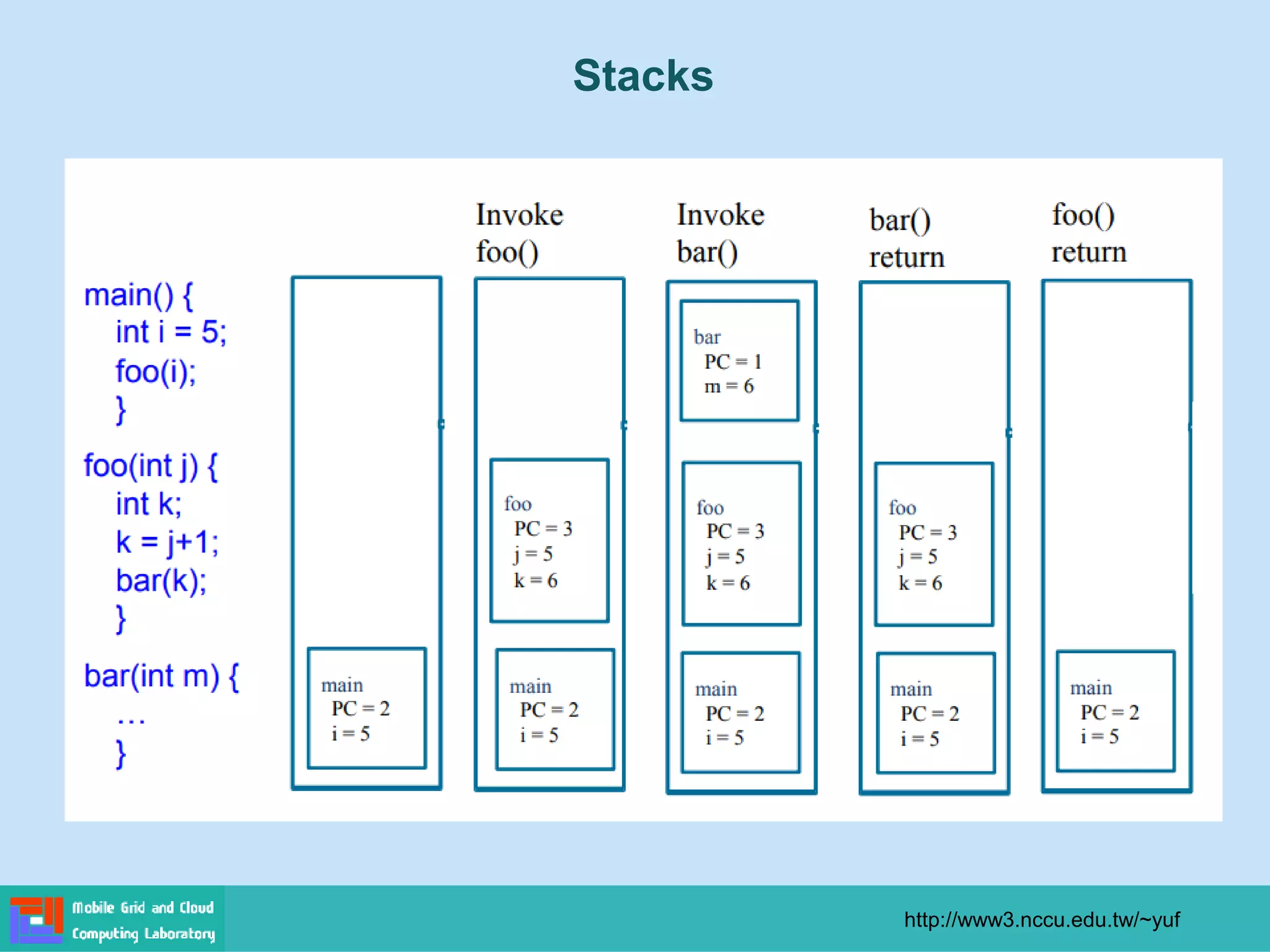

Stacks
http://www3.nccu.edu.tw/~yuf

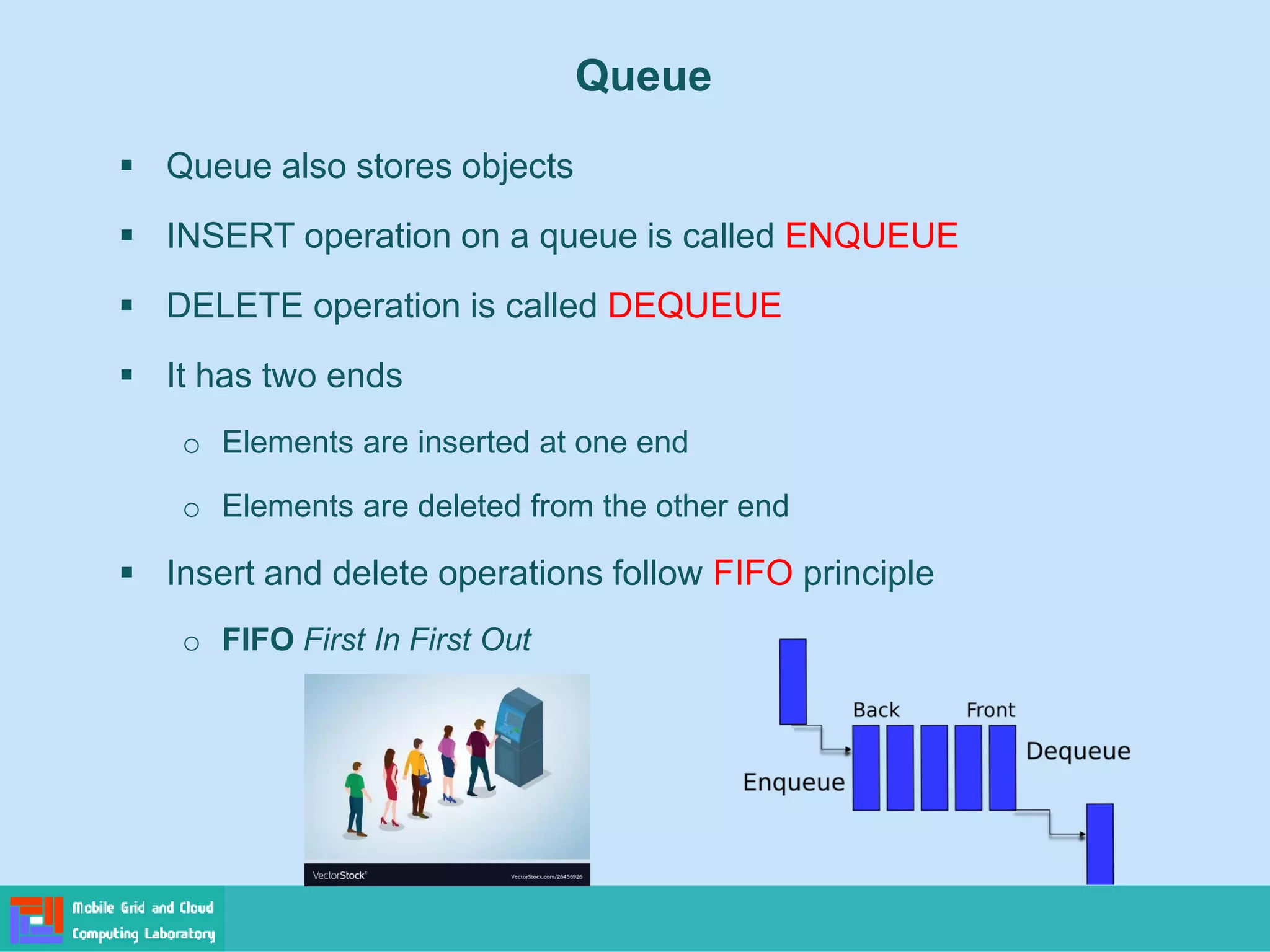

Queue
▪ Queue also stores objects
▪ INSERT operation on a queue is called ENQUEUE
▪ DELETE operation is called DEQUEUE
▪ It has two ends
o Elements are inserted at one end
o Elements are deleted from the other end
▪ Insert and delete operations follow FIFO principle
o FIFO First In First Out

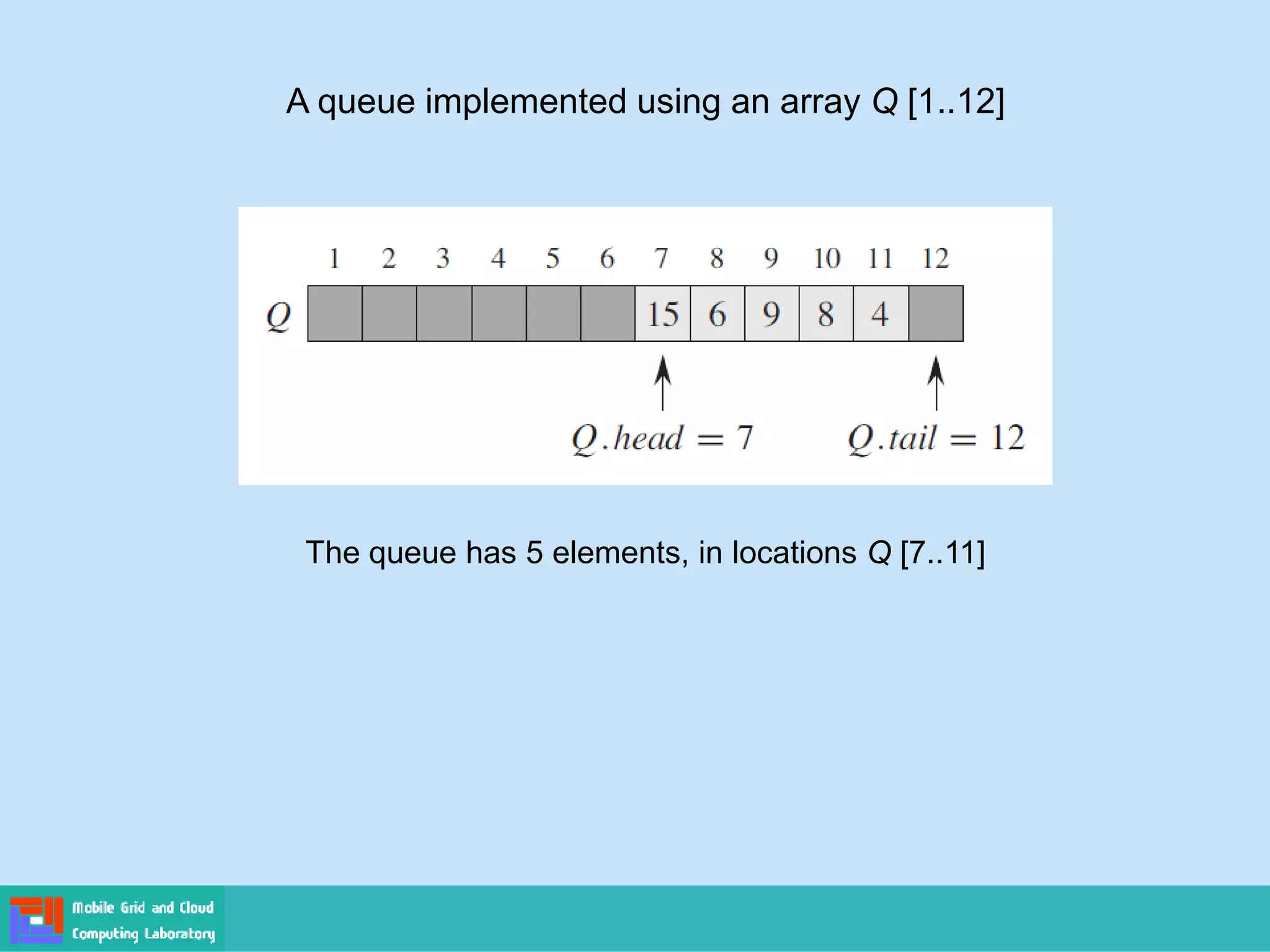

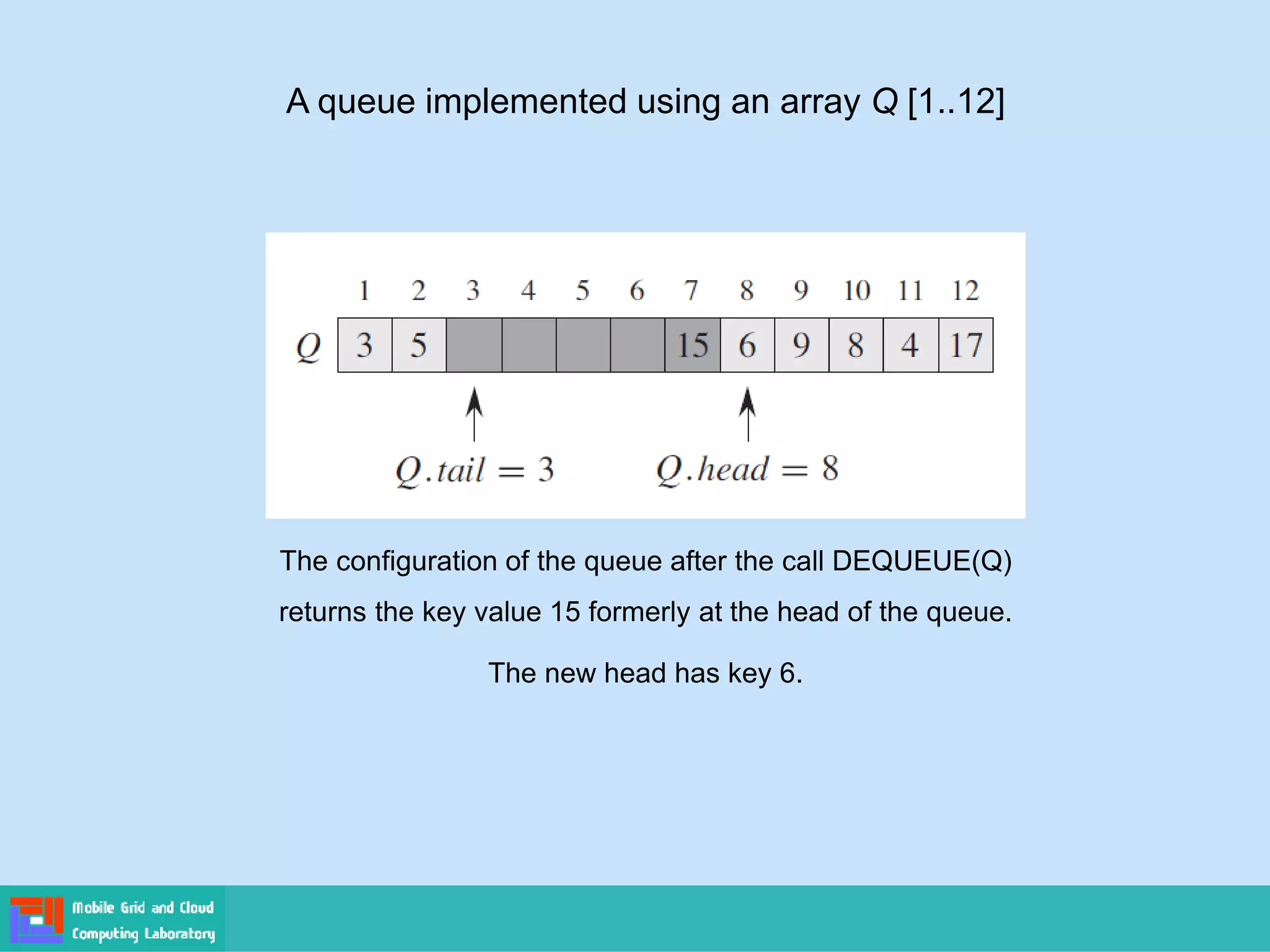

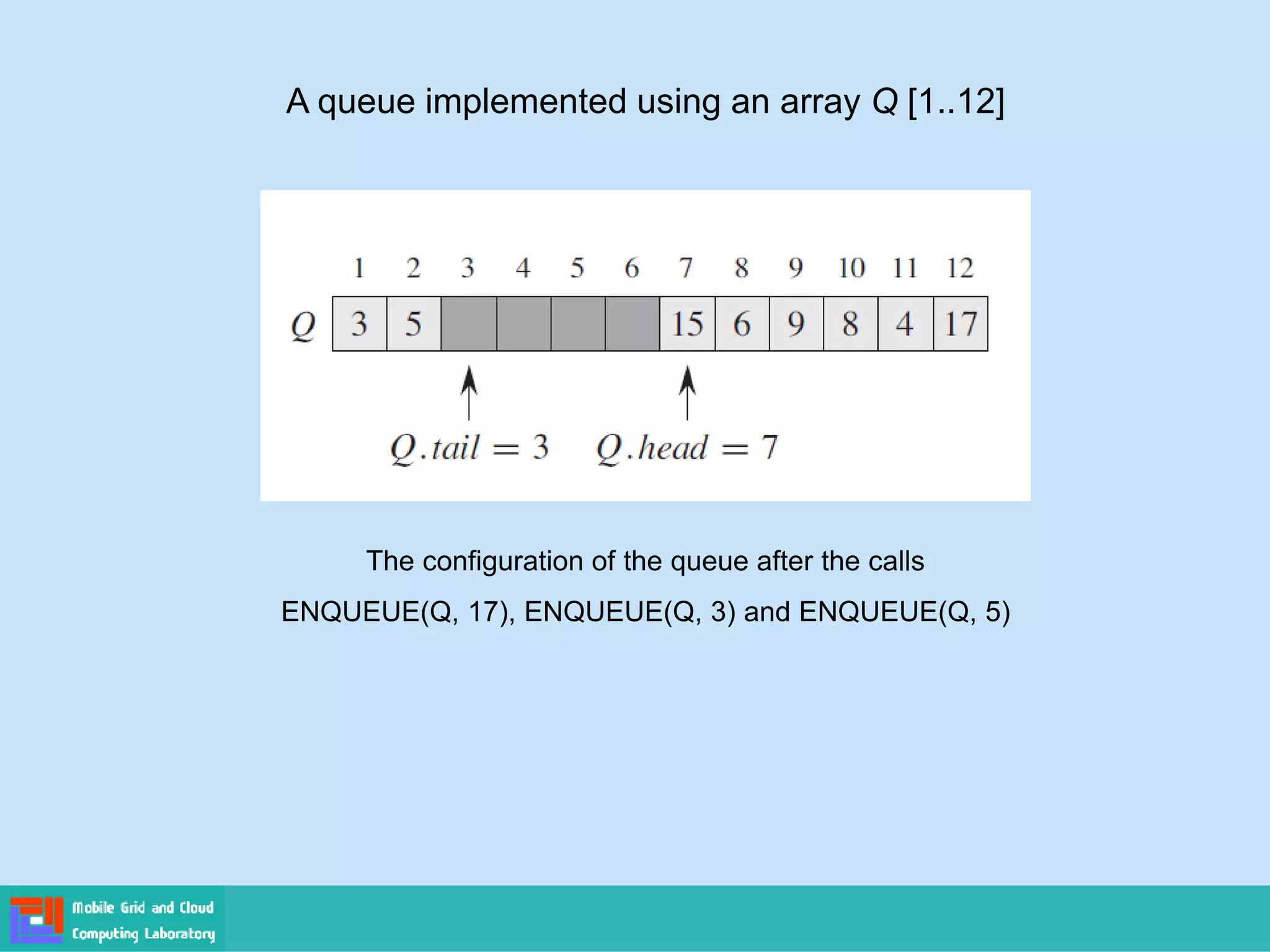

A queue implemented using an array Q [1..12]
The queue has 5 elements, in locations Q [7..11]

The configuration of the queue after the calls
ENQUEUE(Q, 17), ENQUEUE(Q, 3) and ENQUEUE(Q, 5)

The configuration of the queue after the call DEQUEUE(Q)
returns the key value 15 formerly at the head of the queue.
The new head has key 6.

The pseudocode assumes that n = Q.length
Each operation
takes O(1) time

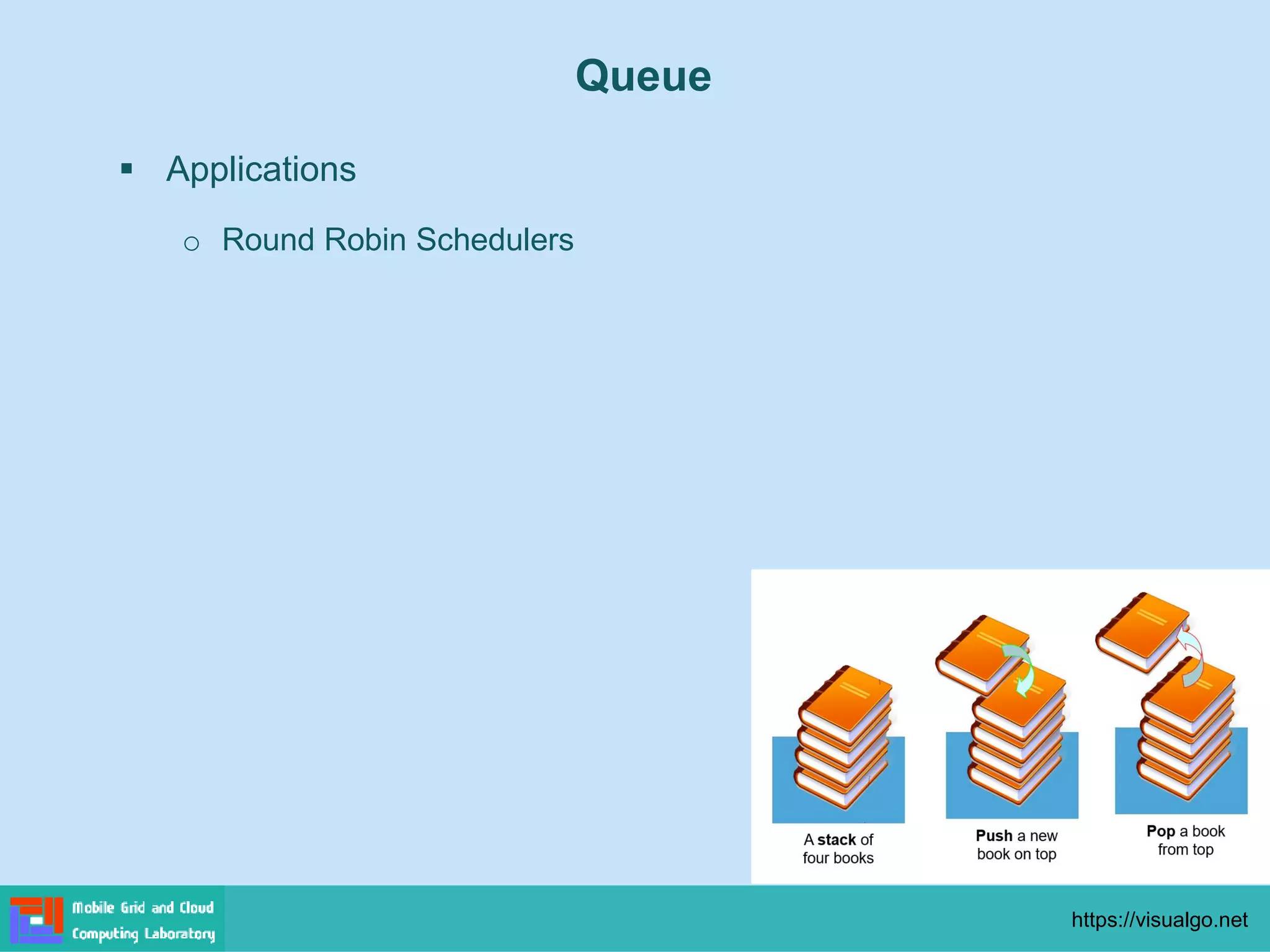

Queue
▪ Applications
o Round Robin Schedulers

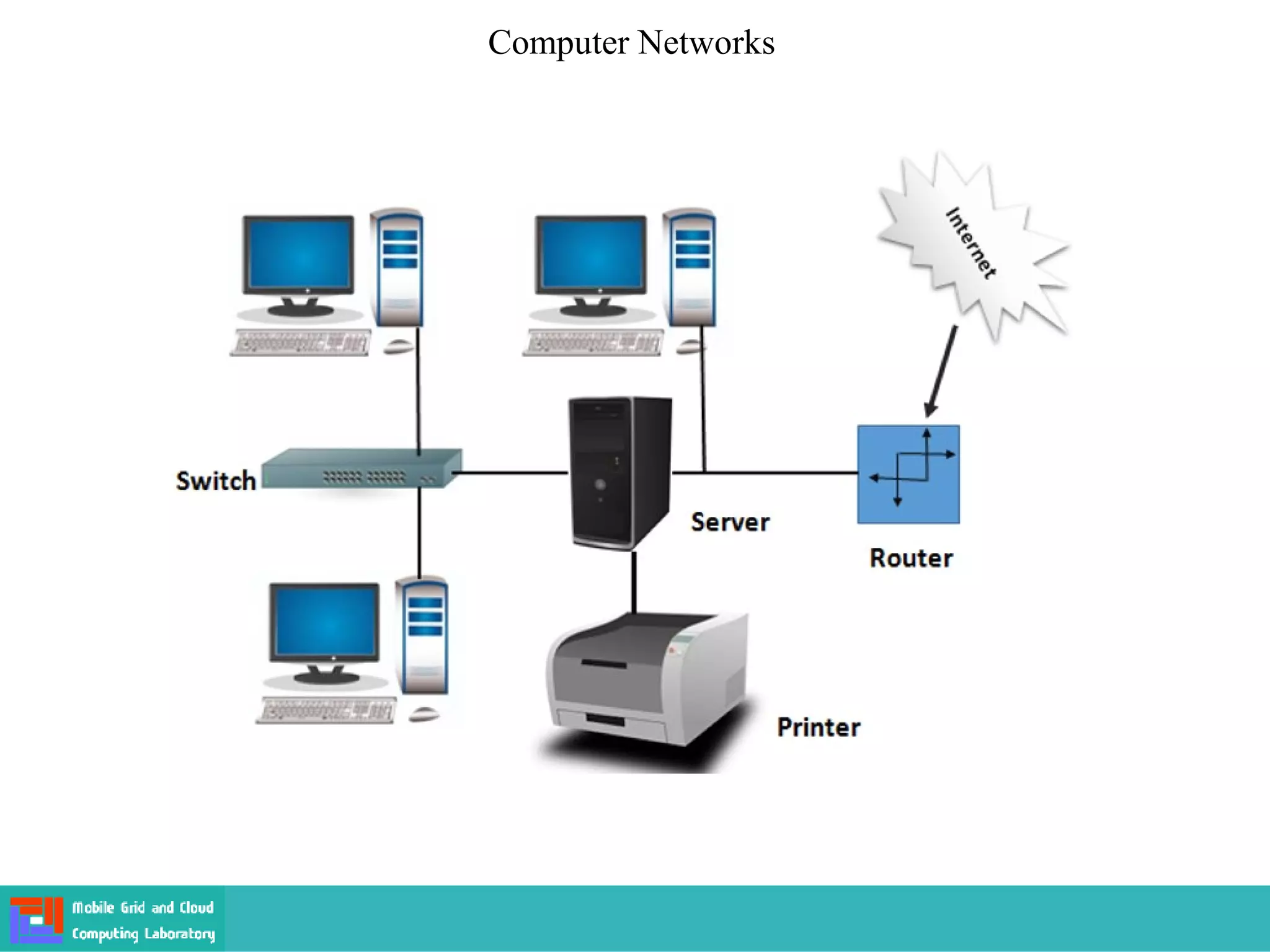

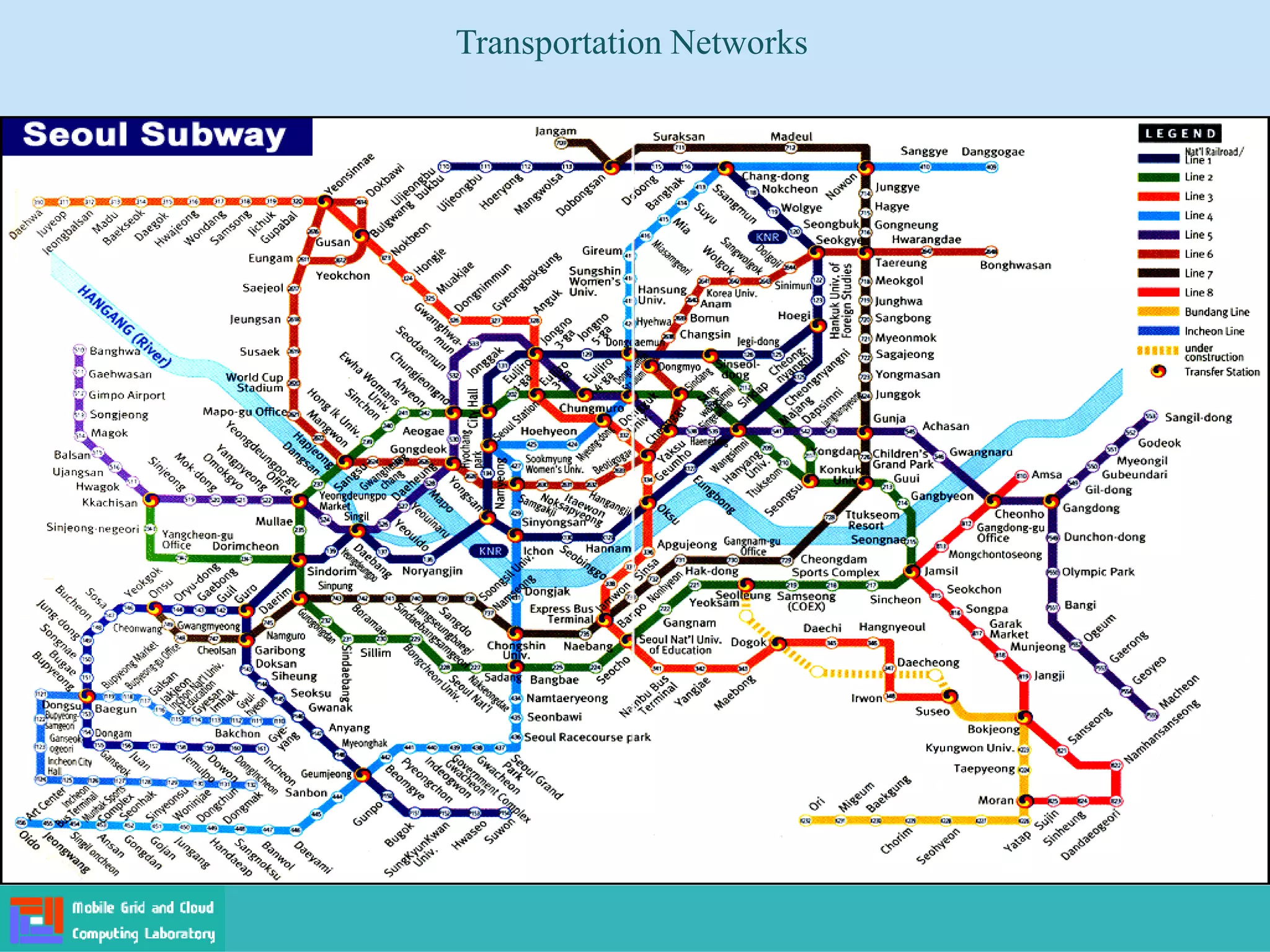

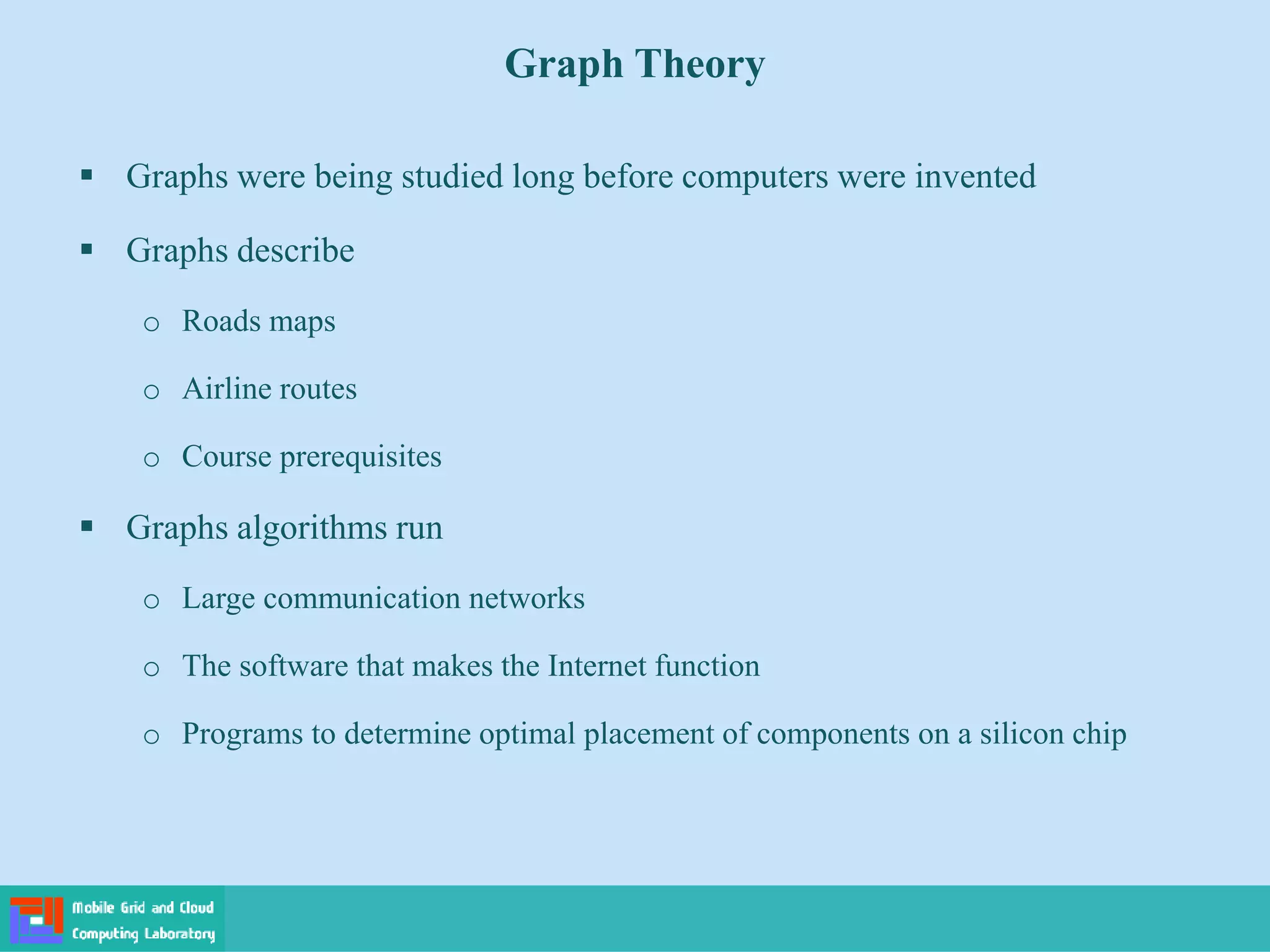

 Graphs were being studied long before computers were invented
 Graphs describe
o Roads maps
o Airline routes
o Course prerequisites
 Graphs algorithms run
o Large communication networks
o The software that makes the Internet function
o Programs to determine optimal placement of components on a silicon chip
Graph Theory

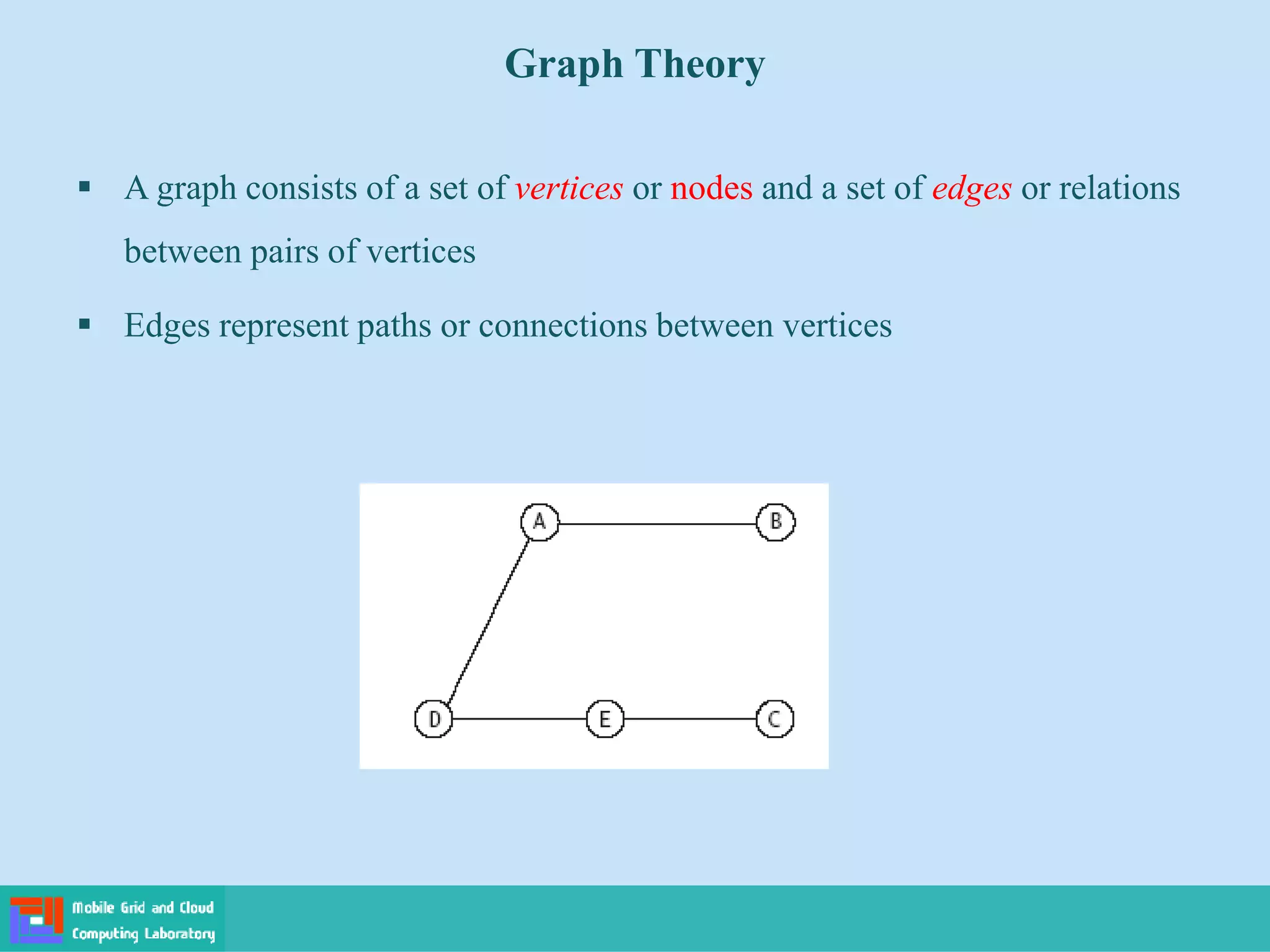

 A graph consists of a set of vertices or nodes and a set of edges or relations
between pairs of vertices
 Edges represent paths or connections between vertices
Graph Theory

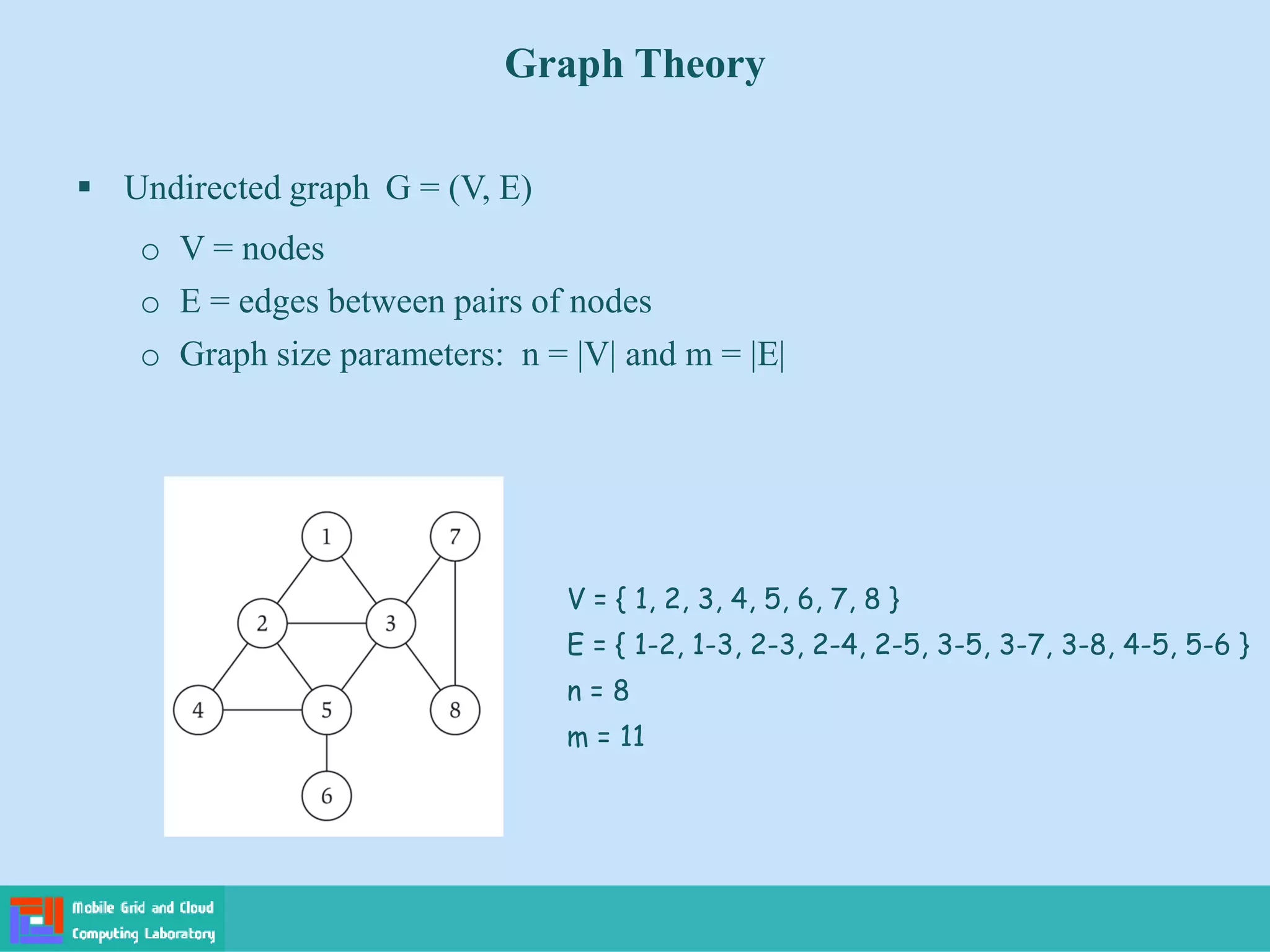

 Undirected graph G = (V, E)
o V = nodes
o E = edges between pairs of nodes
o Graph size parameters: n = |V| and m = |E|
Graph Theory
V = { 1, 2, 3, 4, 5, 6, 7, 8 }
E = { 1-2, 1-3, 2-3, 2-4, 2-5, 3-5, 3-7, 3-8, 4-5, 5-6 }
n = 8
m = 11

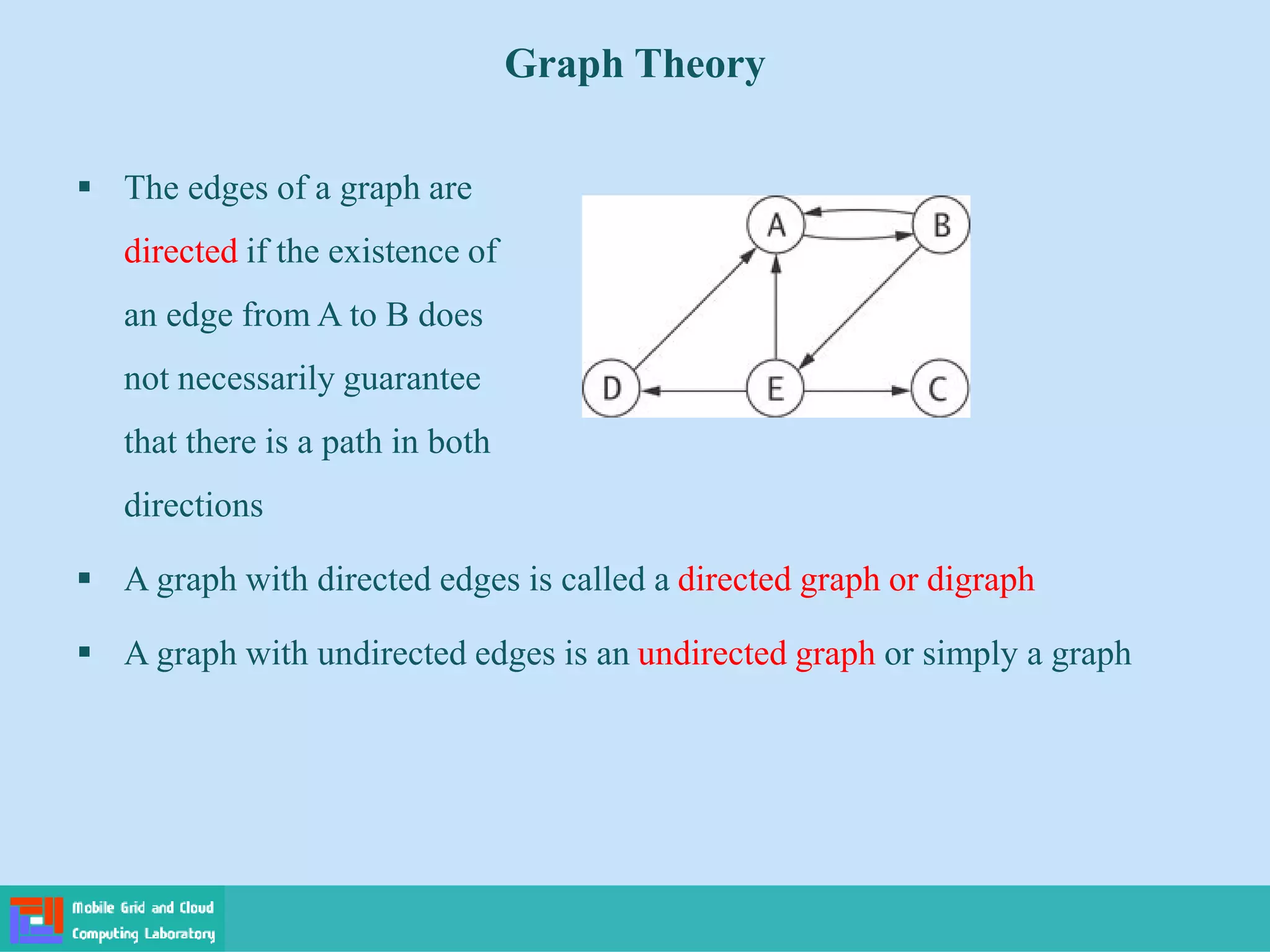

 The edges of a graph are
directed if the existence of
an edge from A to B does
not necessarily guarantee
that there is a path in both
directions
 A graph with directed edges is called a directed graph or digraph
 A graph with undirected edges is an undirected graph or simply a graph
Graph Theory

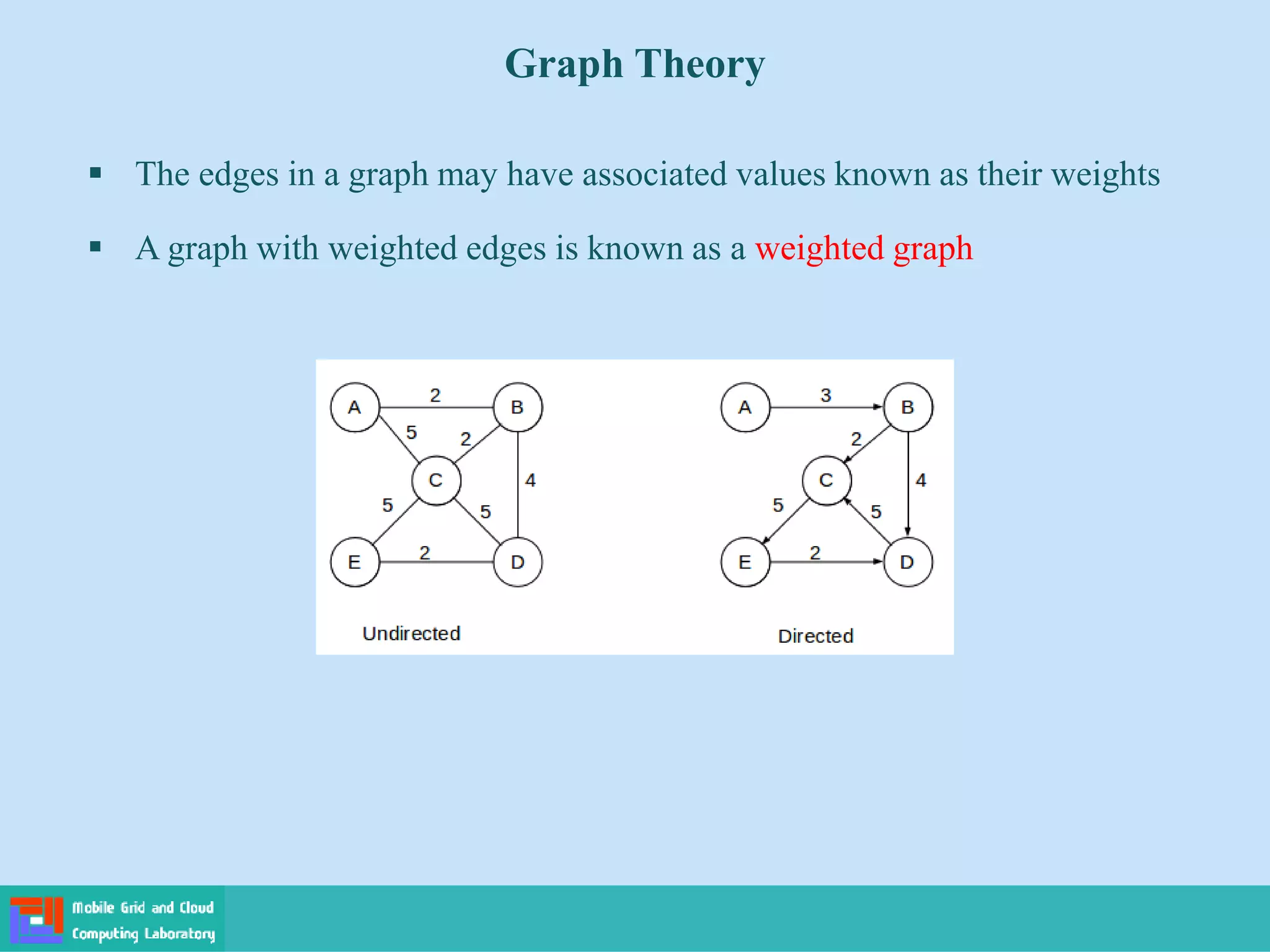

 The edges in a graph may have associated values known as their weights
 A graph with weighted edges is known as a weighted graph
Graph Theory

Graph Theory

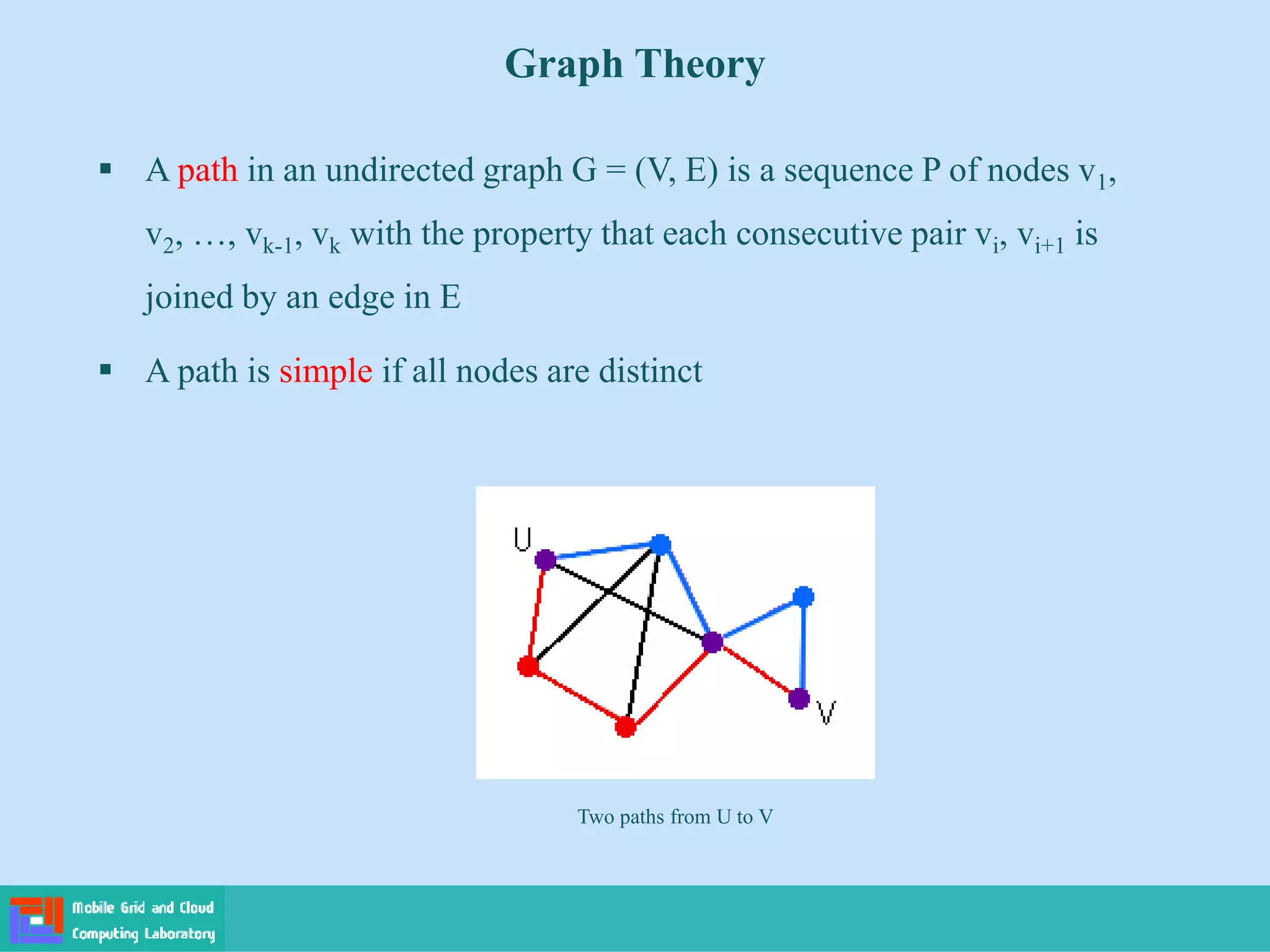

 A path in an undirected graph G = (V, E) is a sequence P of nodes v1,
v2, …, vk-1, vk with the property that each consecutive pair vi, vi+1 is
joined by an edge in E
 A path is simple if all nodes are distinct
Two paths from U to V

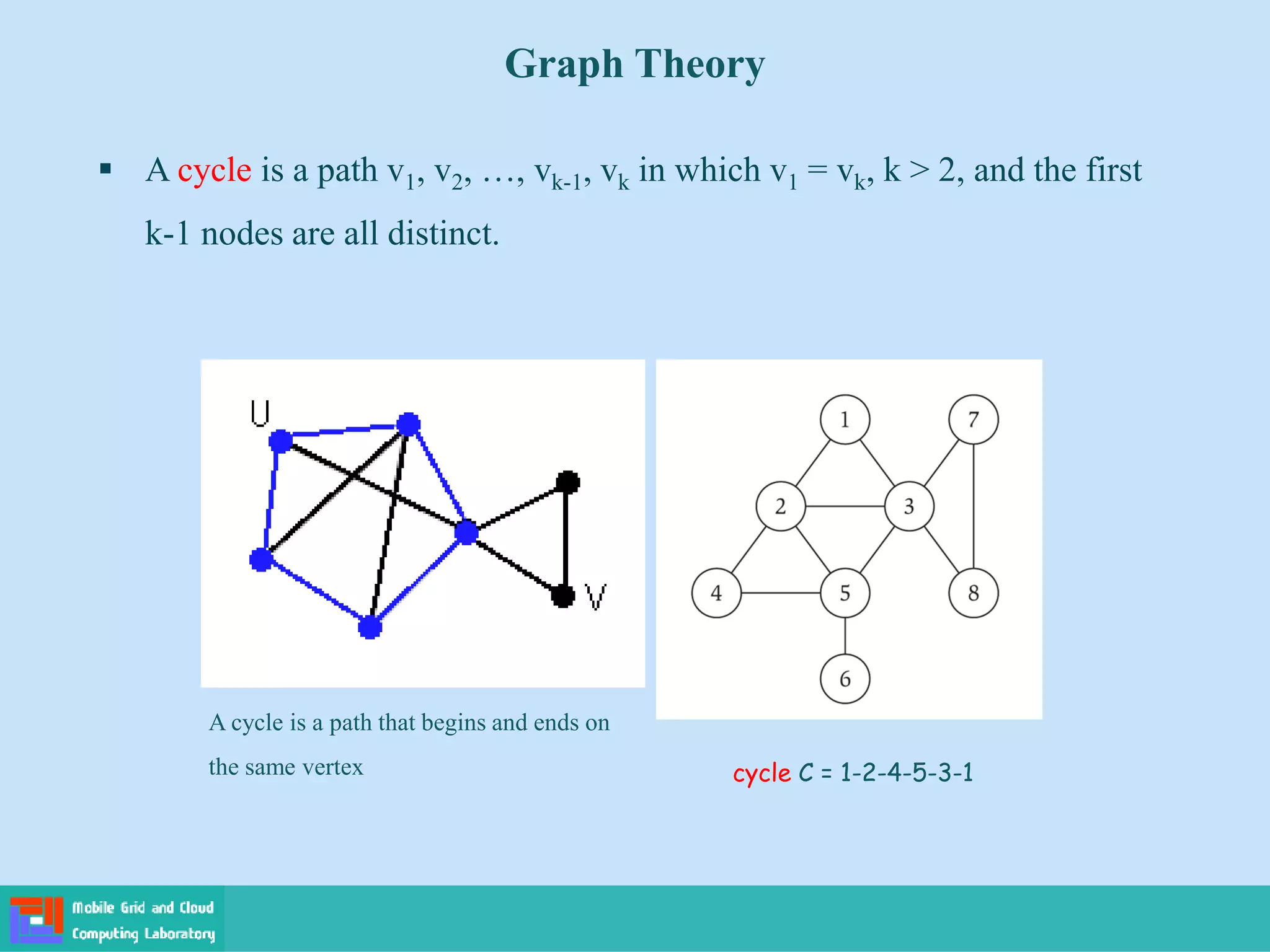

Graph Theory
 A cycle is a path v1, v2, …, vk-1, vk in which v1 = vk, k > 2, and the first
k-1 nodes are all distinct.
cycle C = 1-2-4-5-3-1
A cycle is a path that begins and ends on
the same vertex

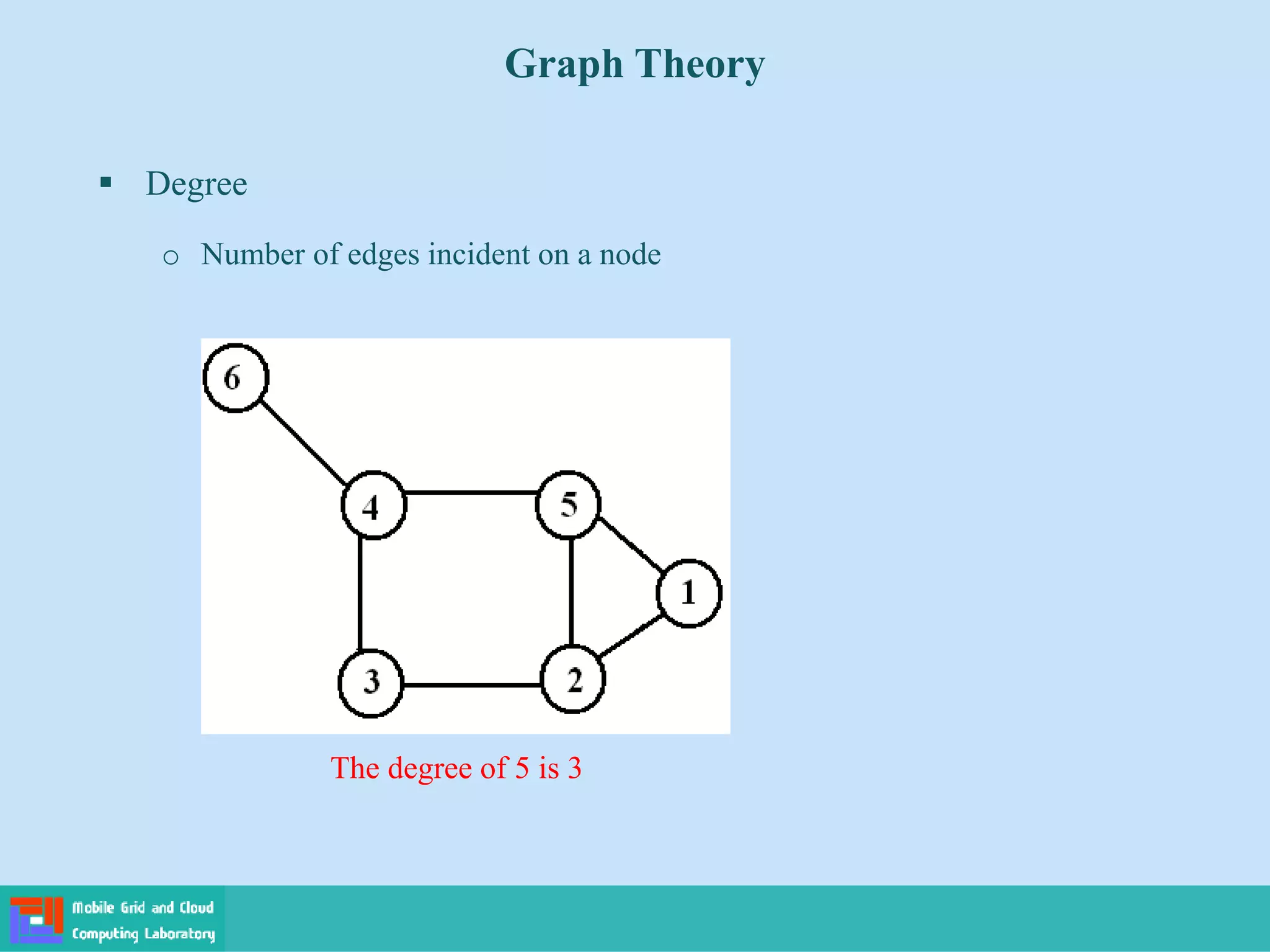

 Degree
o Number of edges incident on a node
The degree of 5 is 3
Graph Theory

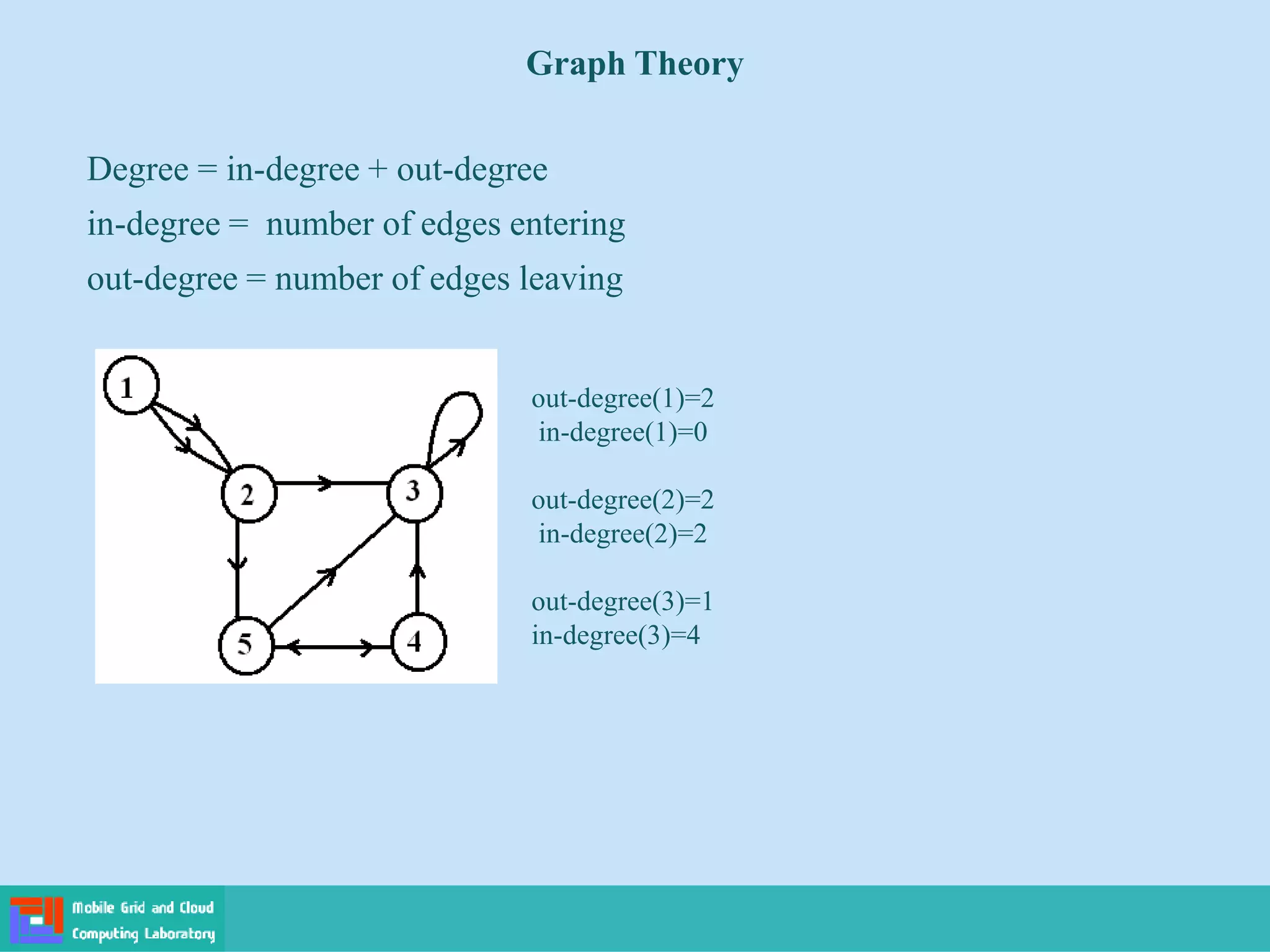

Degree = in-degree + out-degree
in-degree = number of edges entering
out-degree = number of edges leaving
out-degree(1)=2
in-degree(1)=0
out-degree(2)=2
in-degree(2)=2
out-degree(3)=1
in-degree(3)=4
Graph Theory

Graph Theory

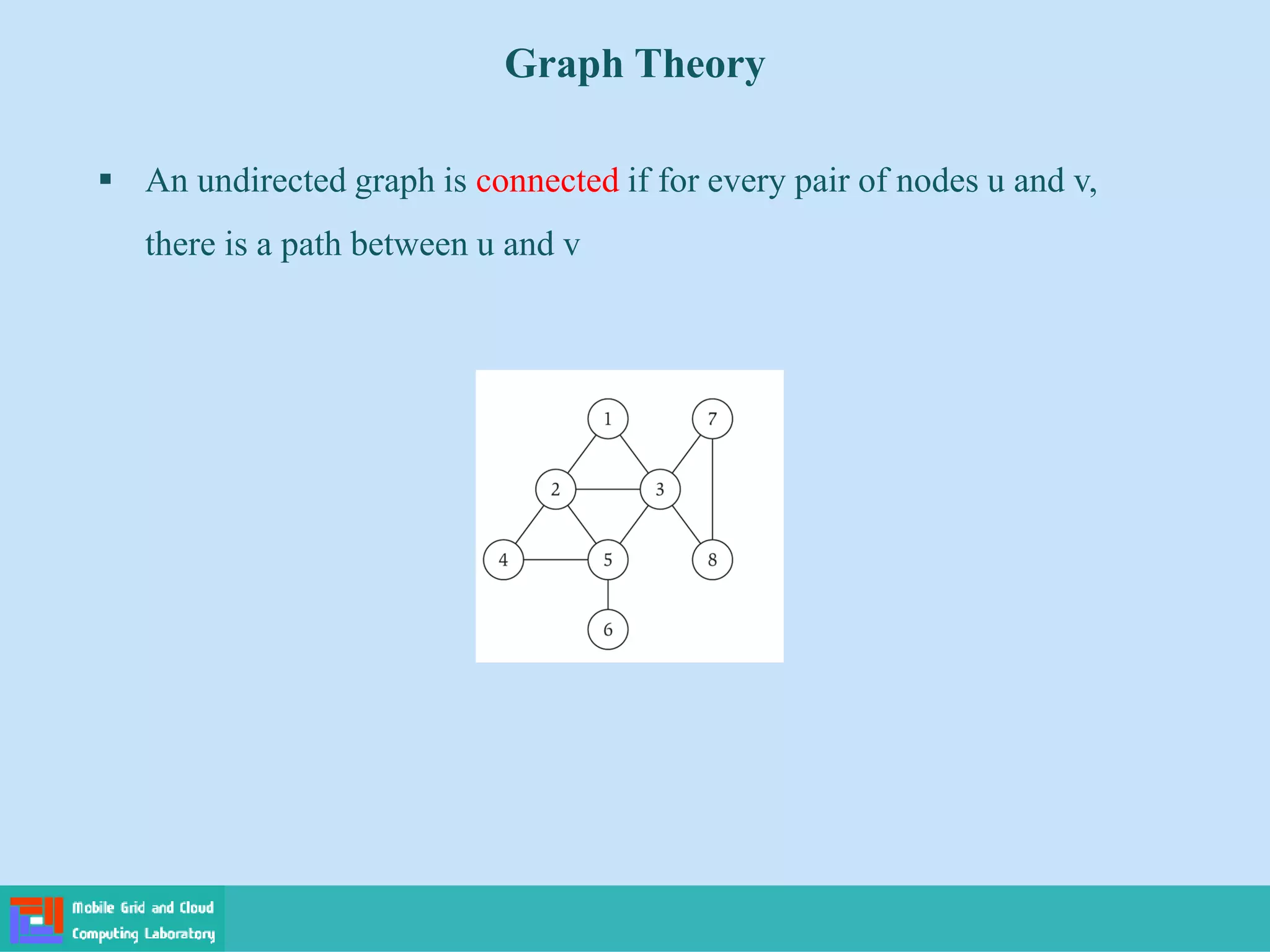

 An undirected graph is connected if for every pair of nodes u and v,
there is a path between u and v

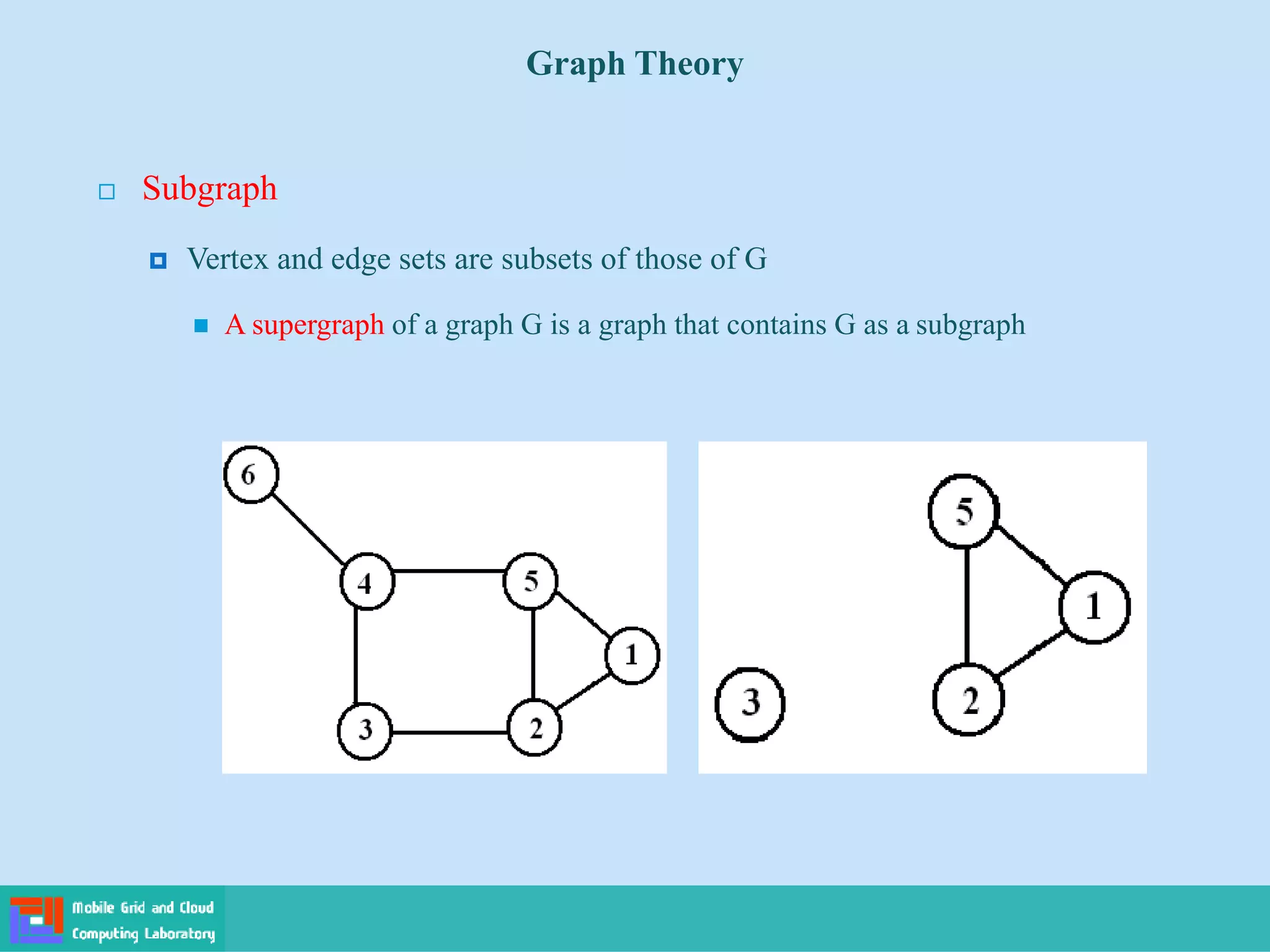

 Subgraph
 Vertex and edge sets are subsets of those of G
 A supergraph of a graph G is a graph that contains G as a subgraph
Graph Theory

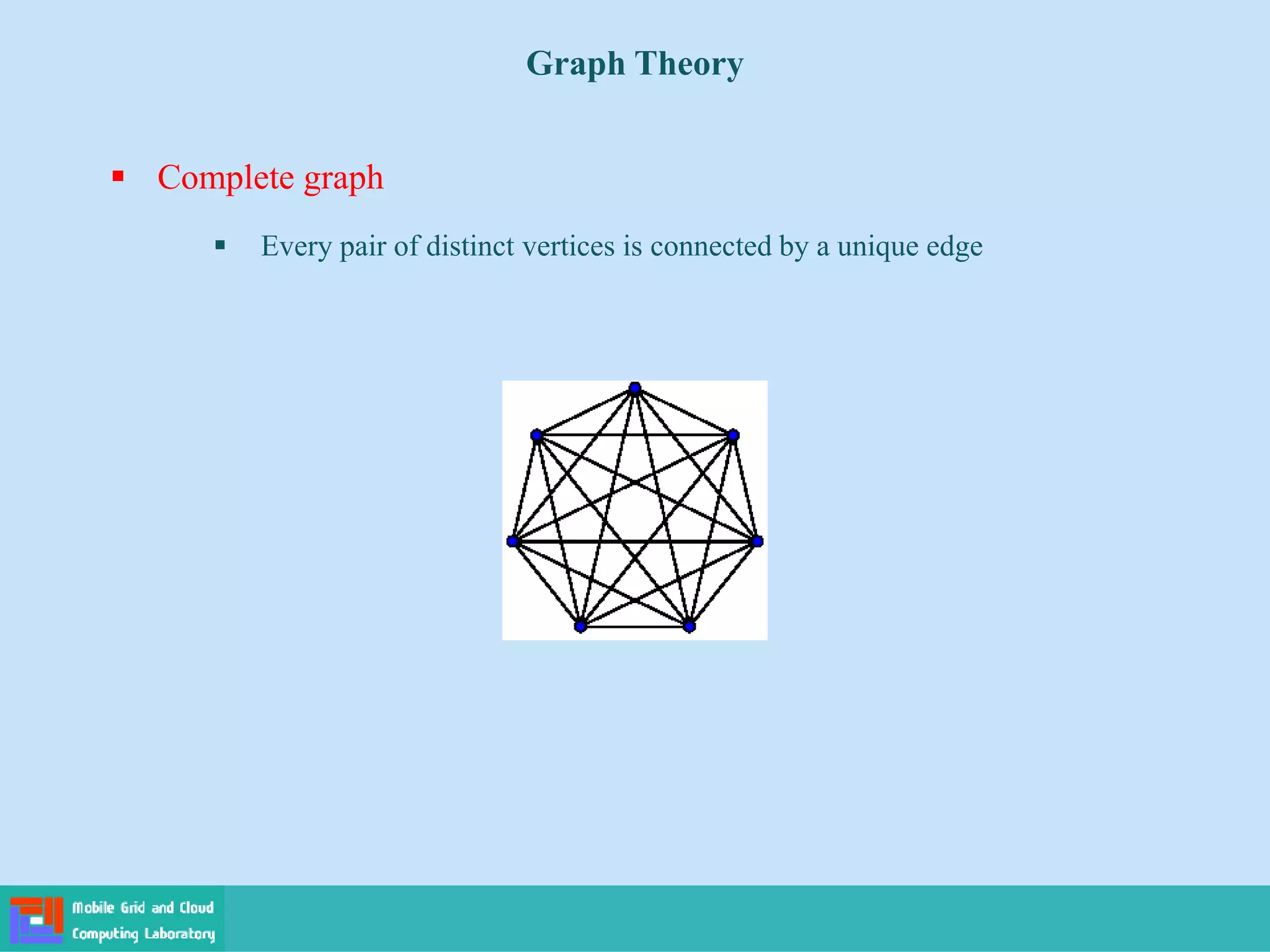

 Complete graph
 Every pair of distinct vertices is connected by a unique edge
Graph Theory

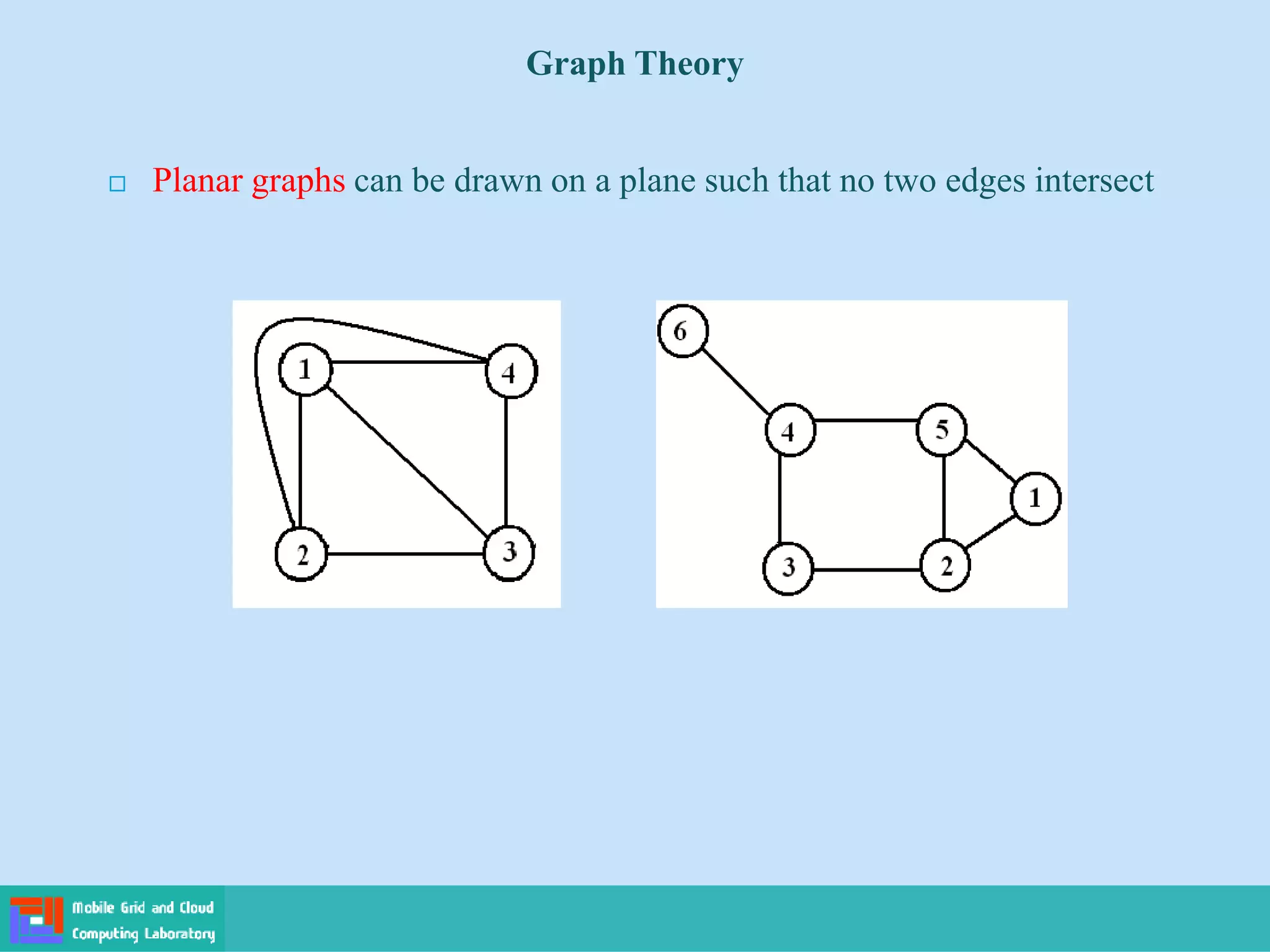

 Planar graphs can be drawn on a plane such that no two edges intersect

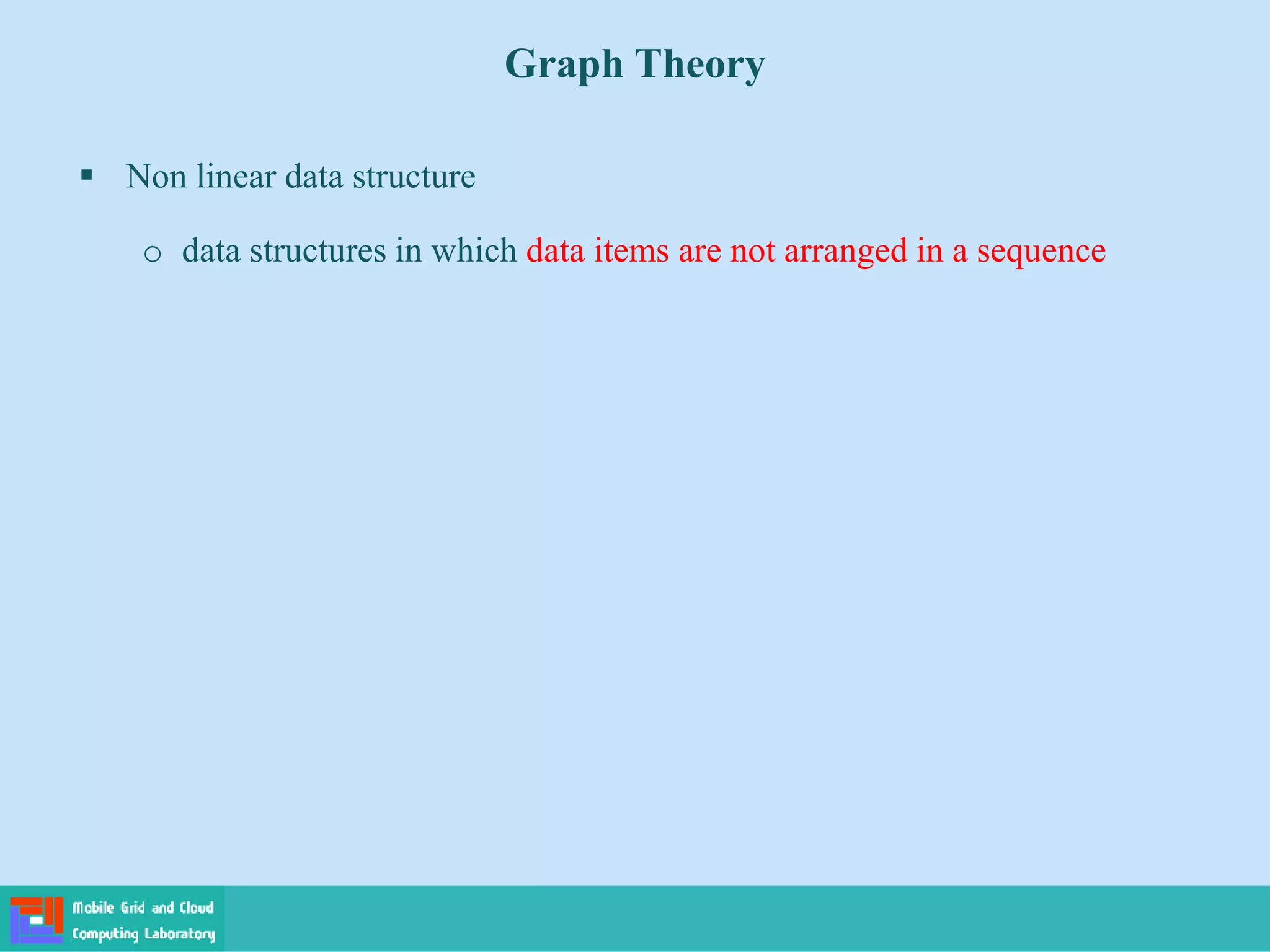

Graph Theory

 Non linear data structure
o data structures in which data items are not arranged in a sequence
Graph Theory

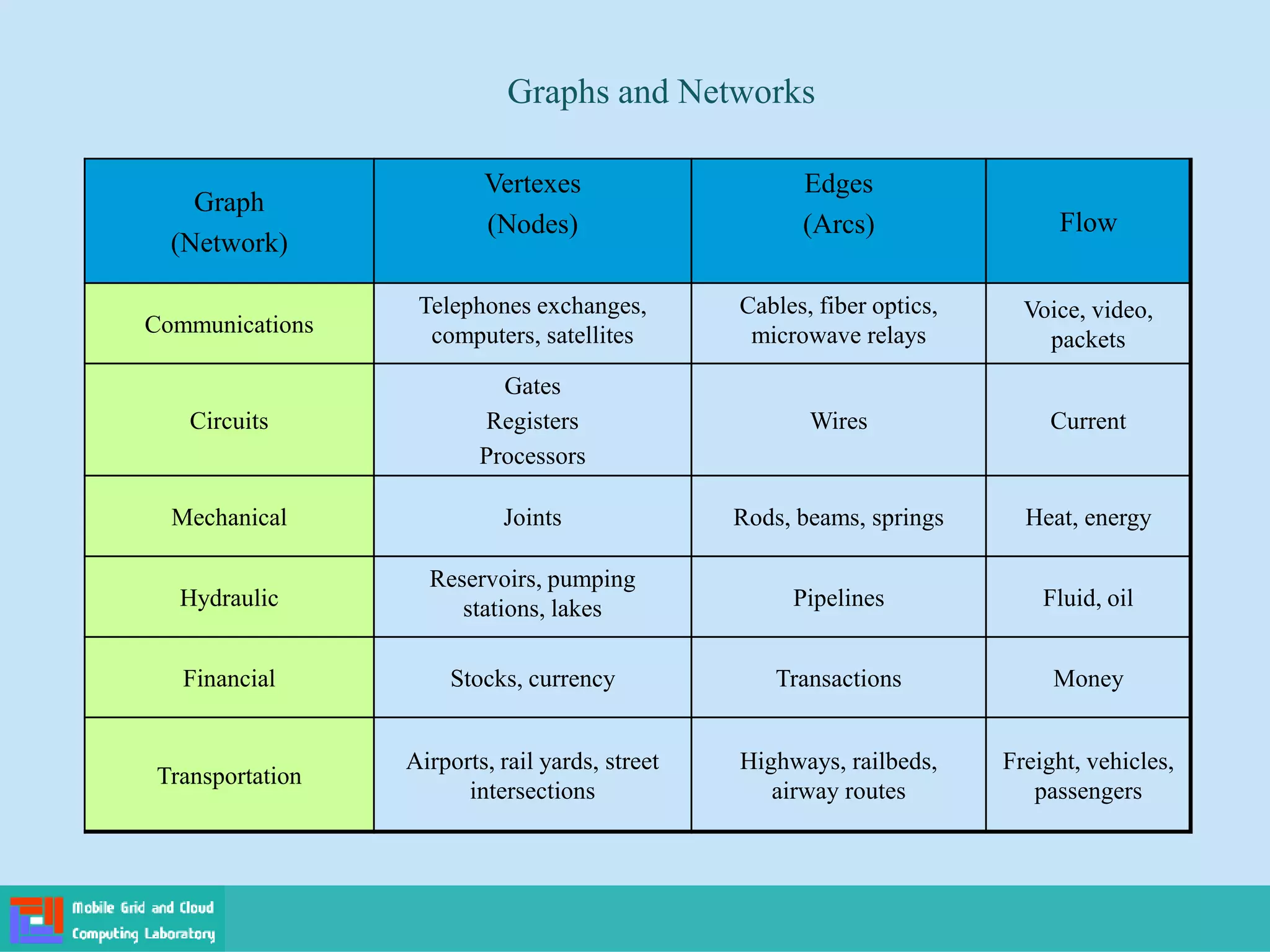

Graphs and Networks
Graph
(Network)
Vertexes
(Nodes)
Edges
(Arcs) Flow
Communications
Telephones exchanges,
computers, satellites
Cables, fiber optics,
microwave relays
Voice, video,
packets
Circuits
Gates
Registers
Processors
Wires Current
Mechanical Joints Rods, beams, springs Heat, energy
Hydraulic
Reservoirs, pumping
stations, lakes Pipelines Fluid, oil
Financial Stocks, currency Transactions Money
Transportation
Airports, rail yards, street
intersections
Highways, railbeds,
airway routes
Freight, vehicles,
passengers

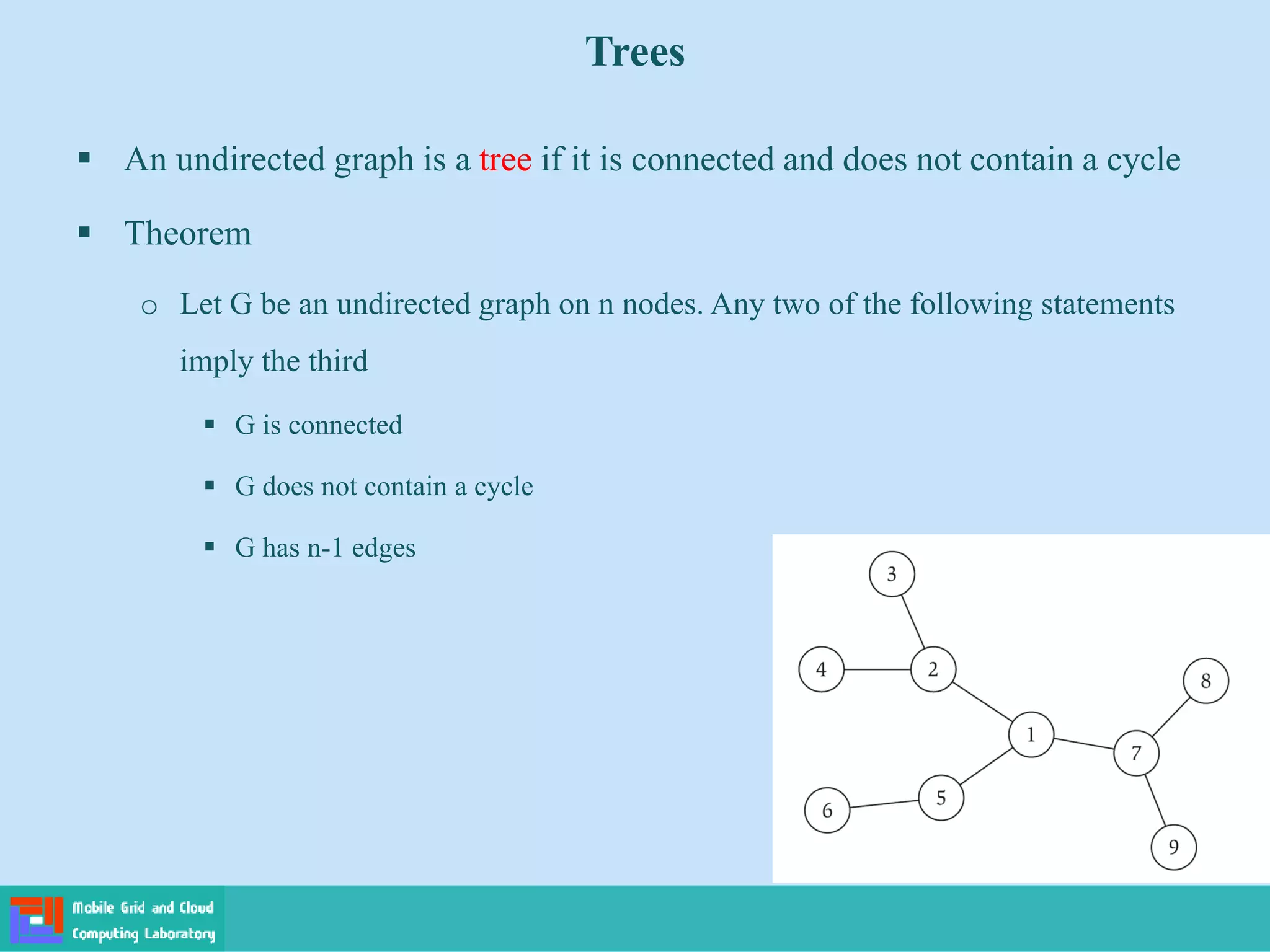

Trees
 An undirected graph is a tree if it is connected and does not contain a cycle
 Theorem
o Let G be an undirected graph on n nodes. Any two of the following statements
imply the third
 G is connected
 G does not contain a cycle
 G has n-1 edges

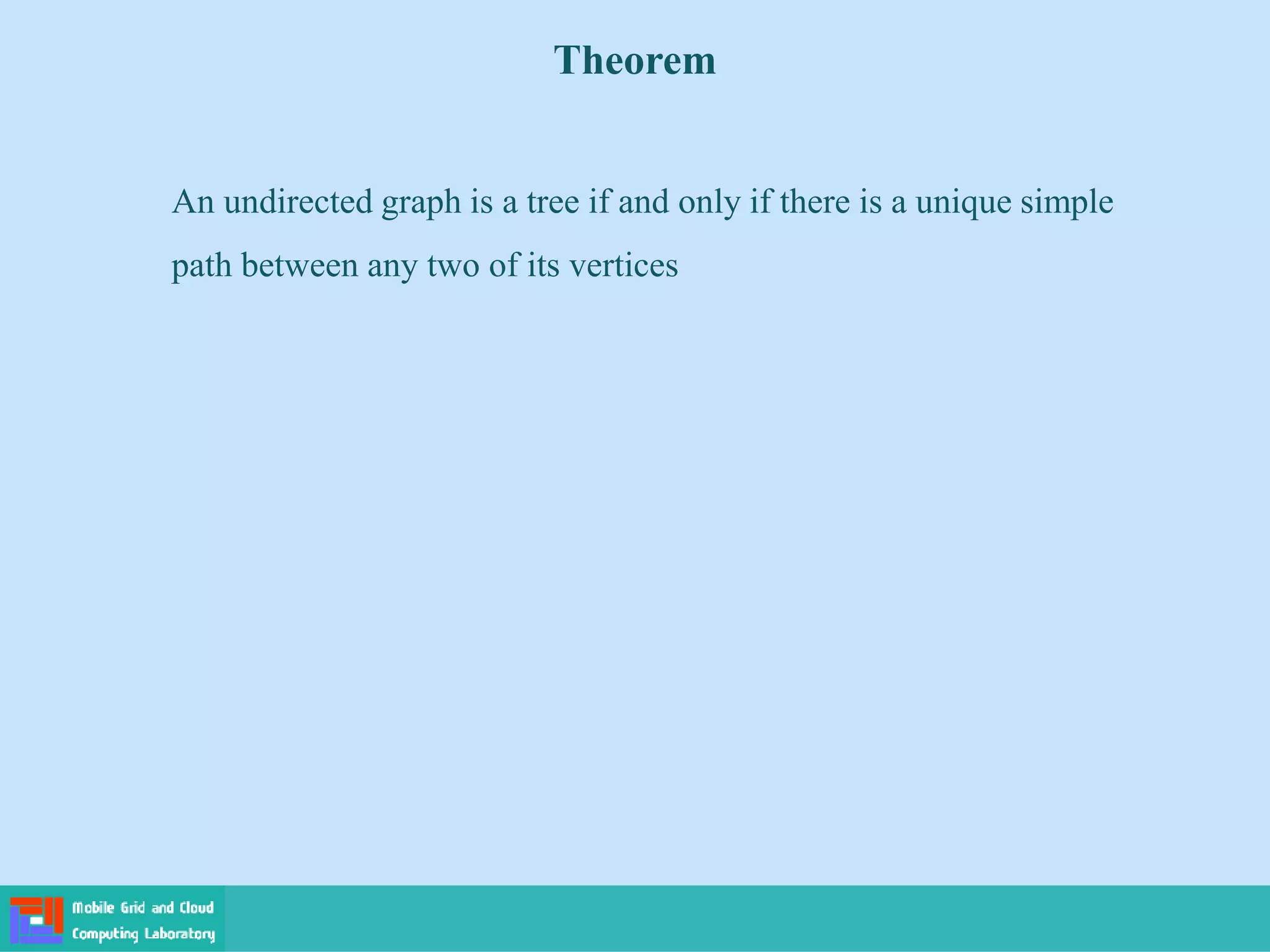

Theorem
An undirected graph is a tree if and only if there is a unique simple
path between any two of its vertices

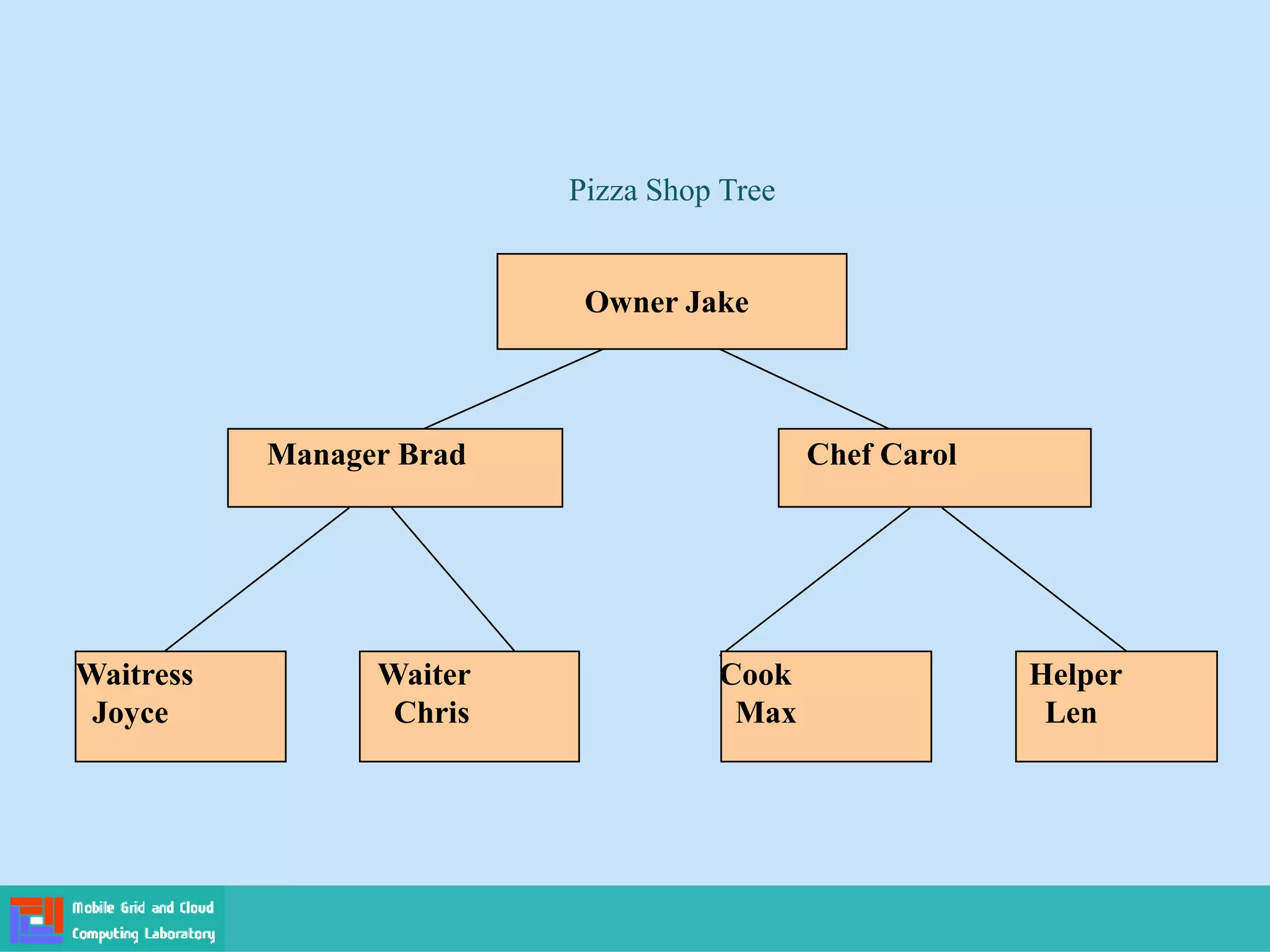

Pizza Shop Tree
Owner Jake
Manager Brad Chef Carol
Waitress Waiter Cook Helper
Joyce Chris Max Len

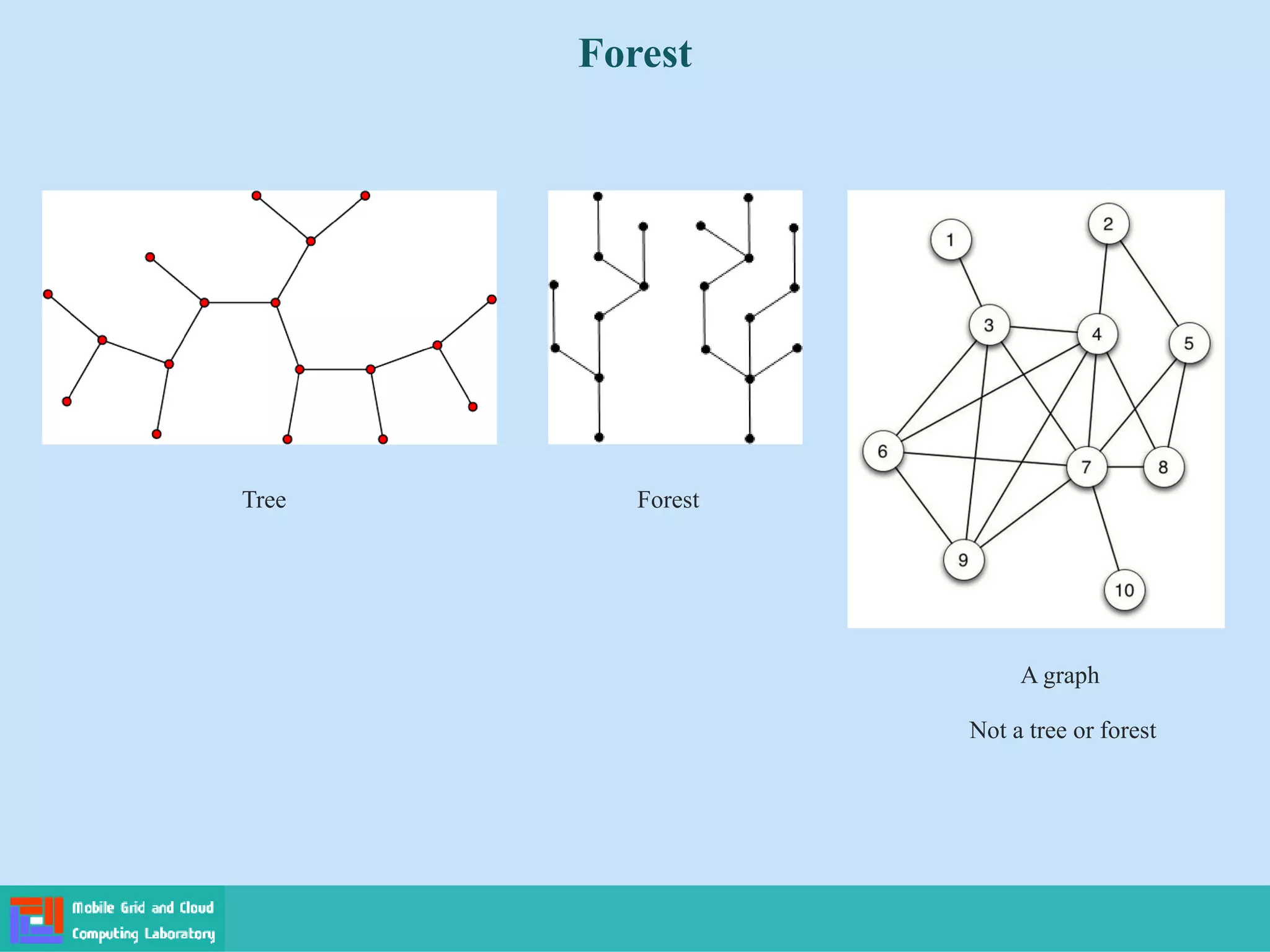

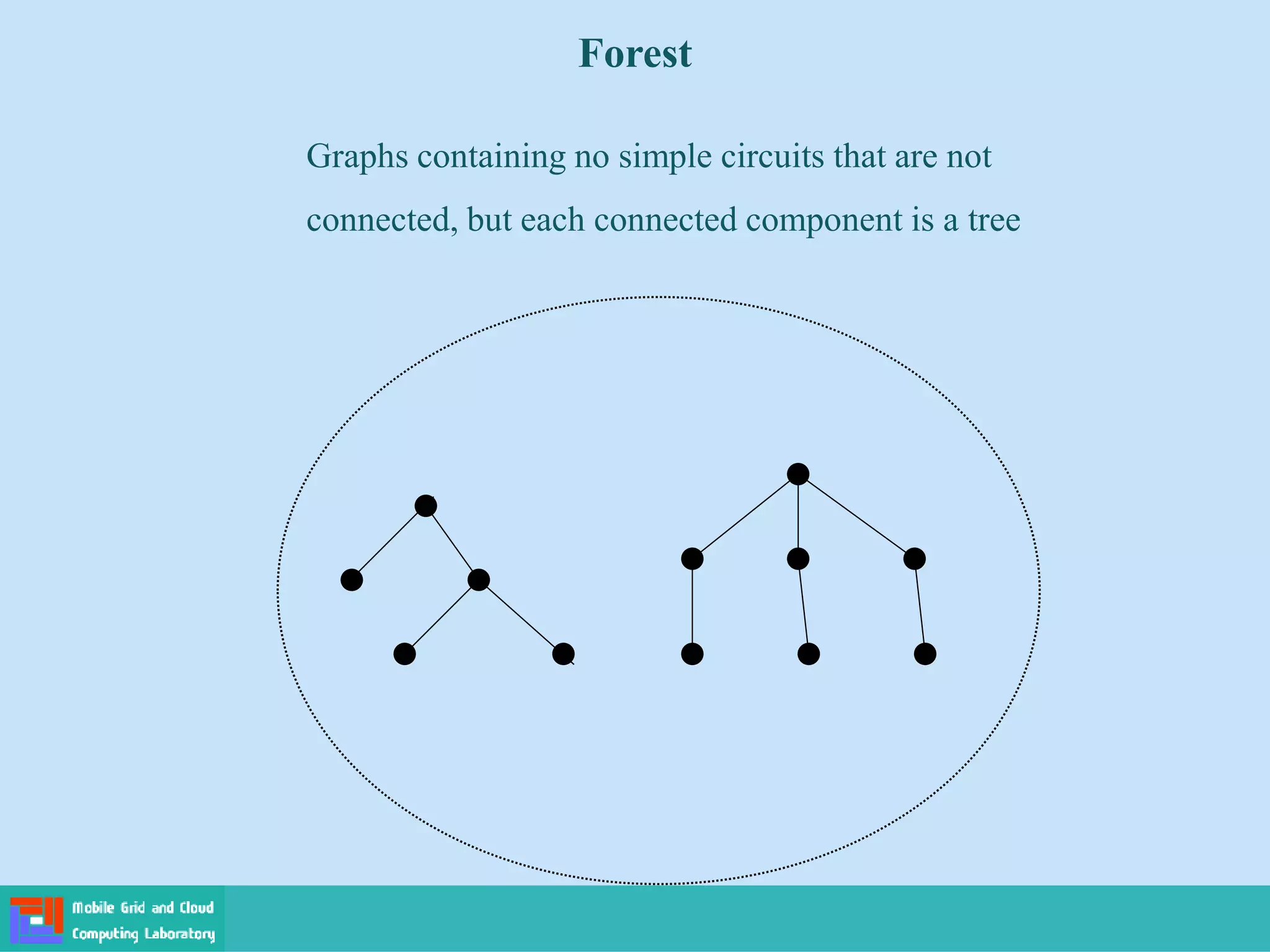

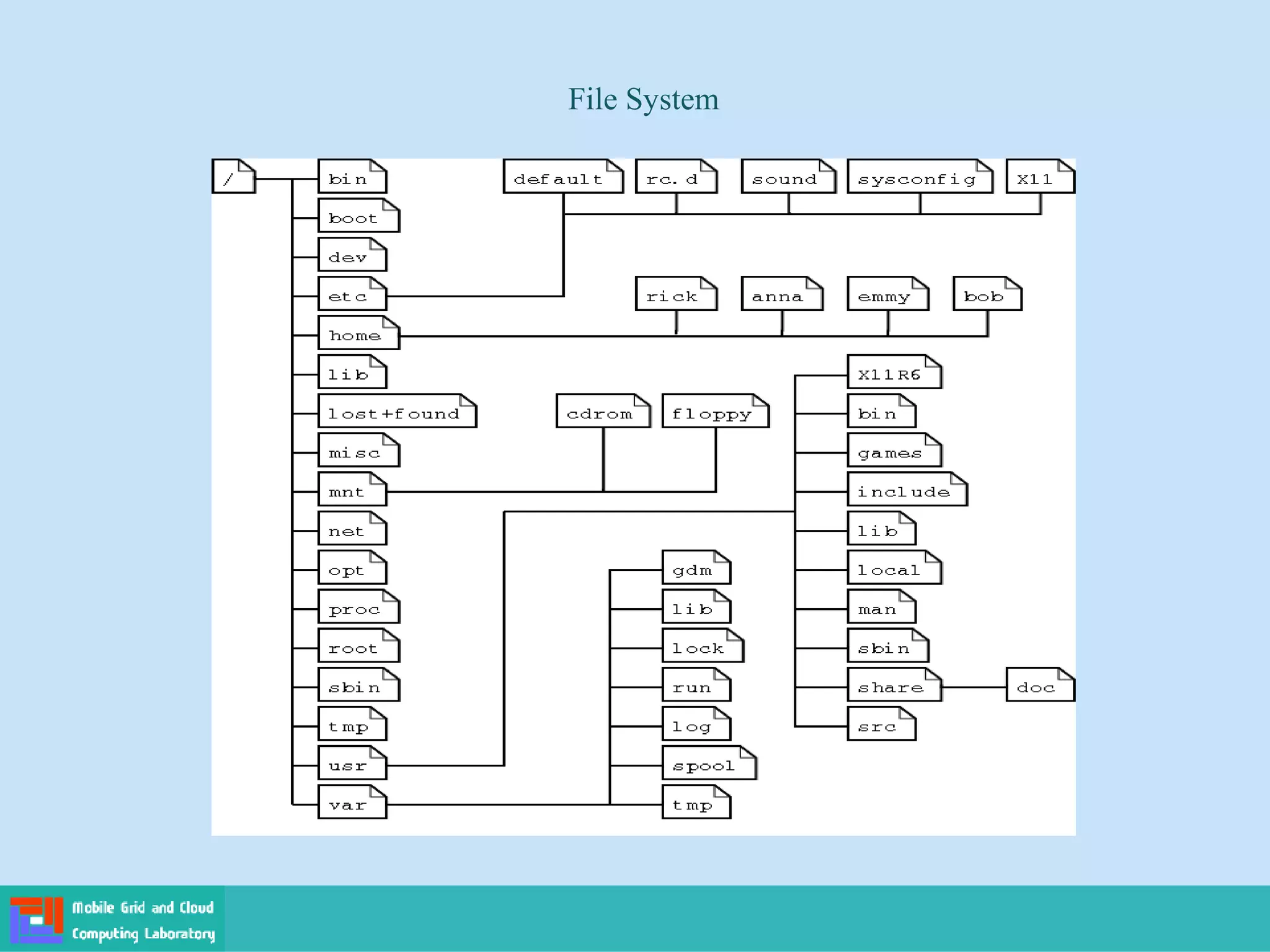

Forest
Graphs containing no simple circuits that are not
connected, but each connected component is a tree

Forest
Tree Forest
A graph
Not a tree or forest

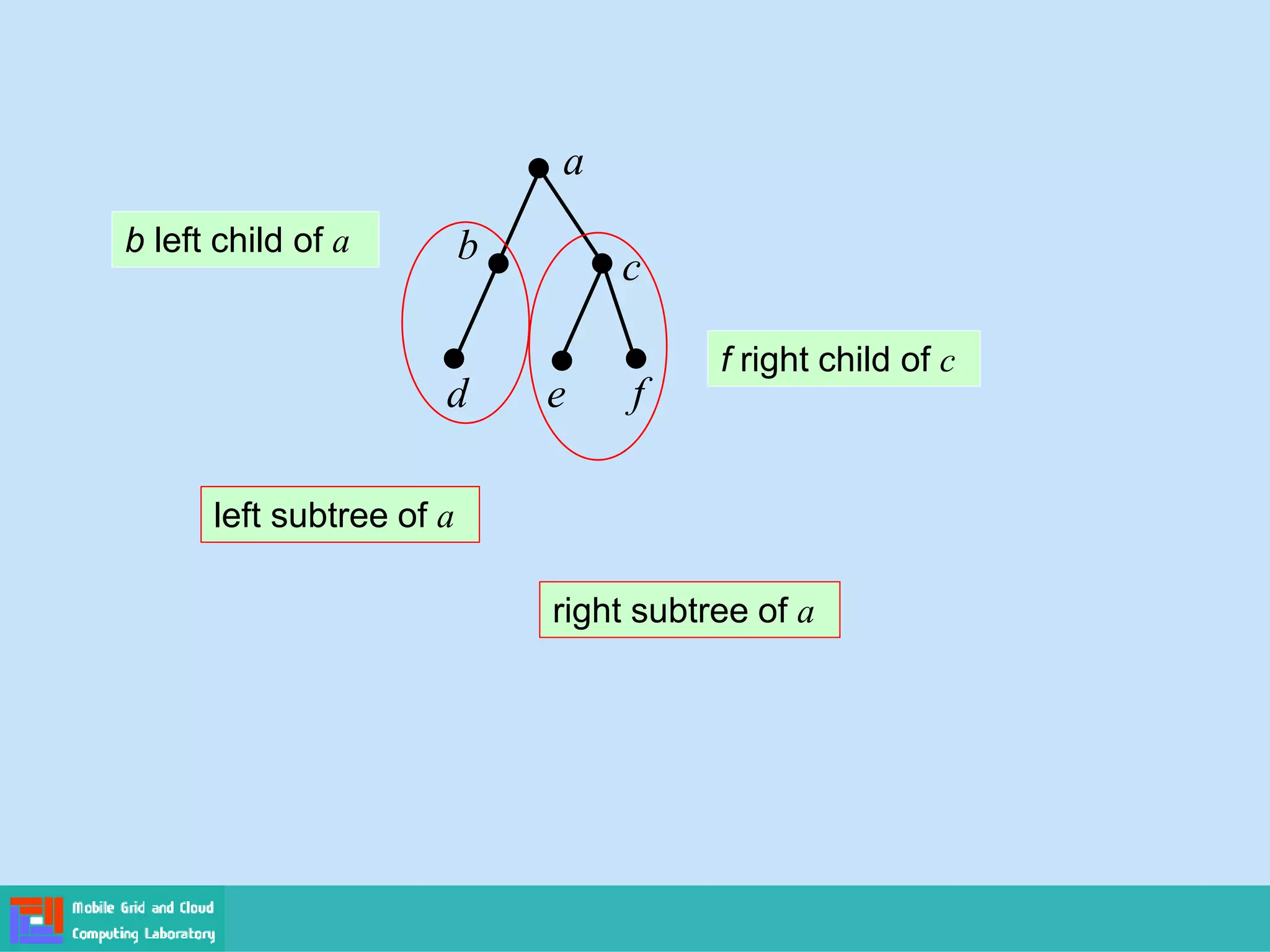

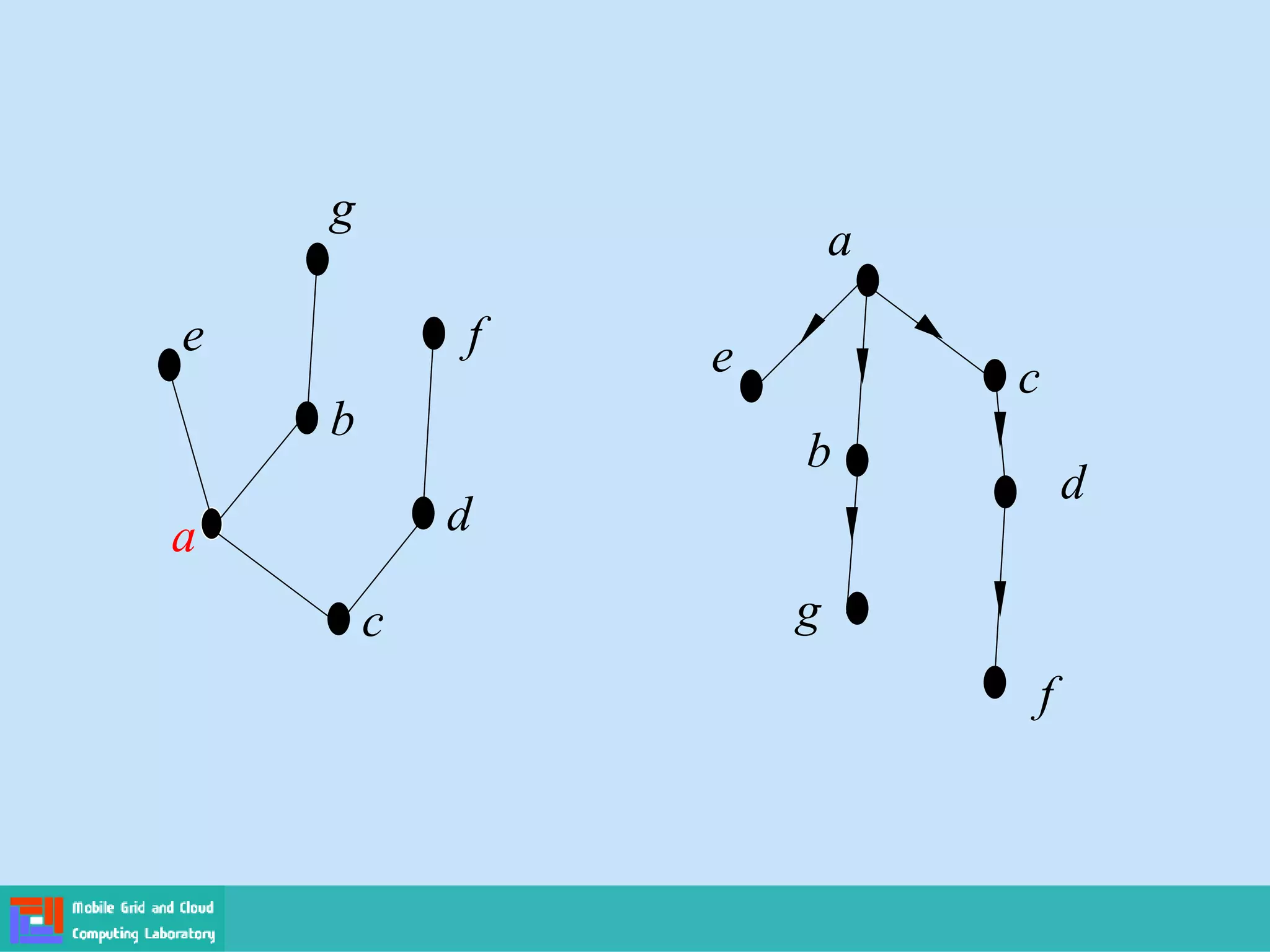

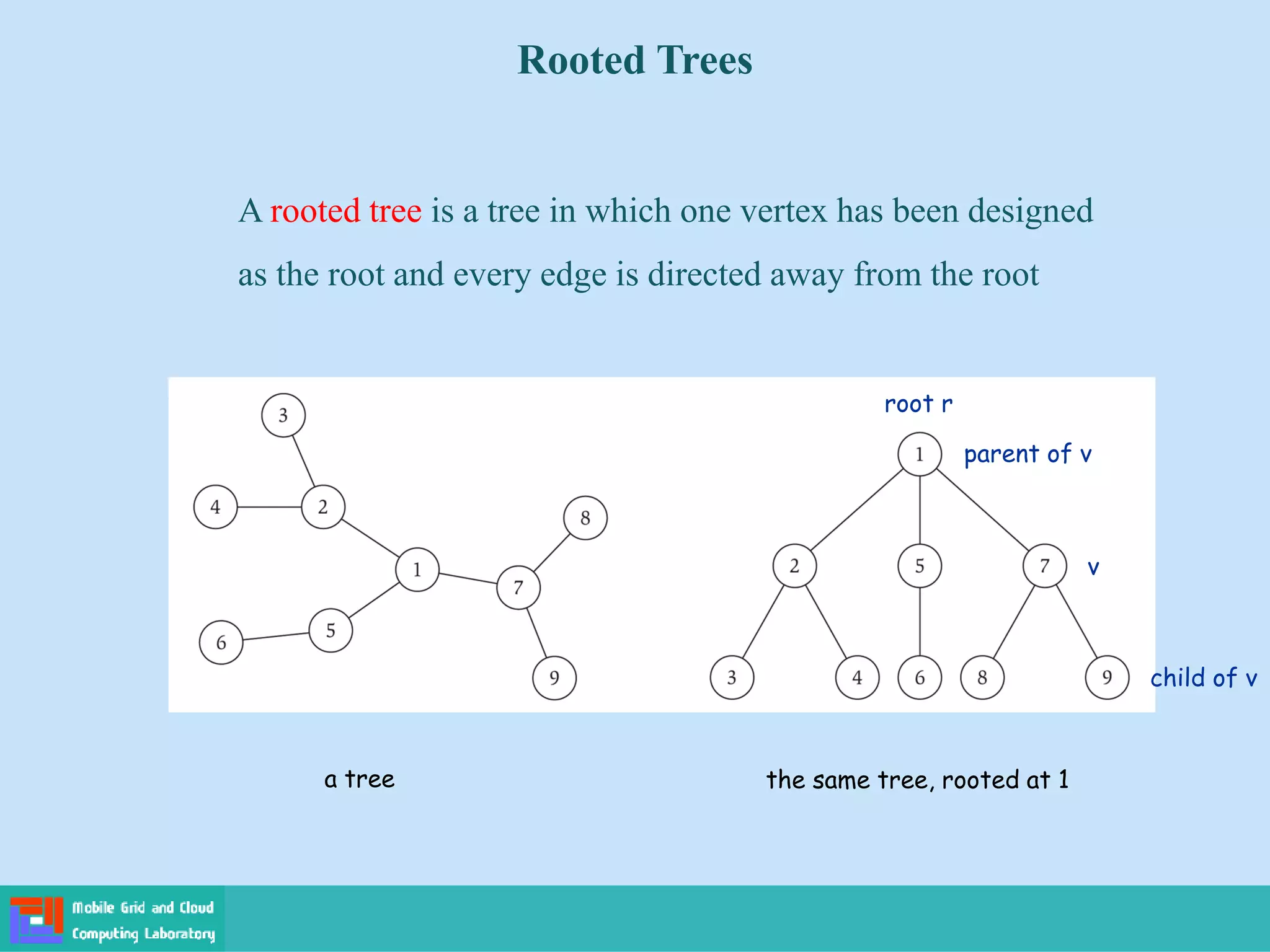

Rooted Trees
a tree the same tree, rooted at 1
v
parent of v
child of v
root r
A rooted tree is a tree in which one vertex has been designed
as the root and every edge is directed away from the root

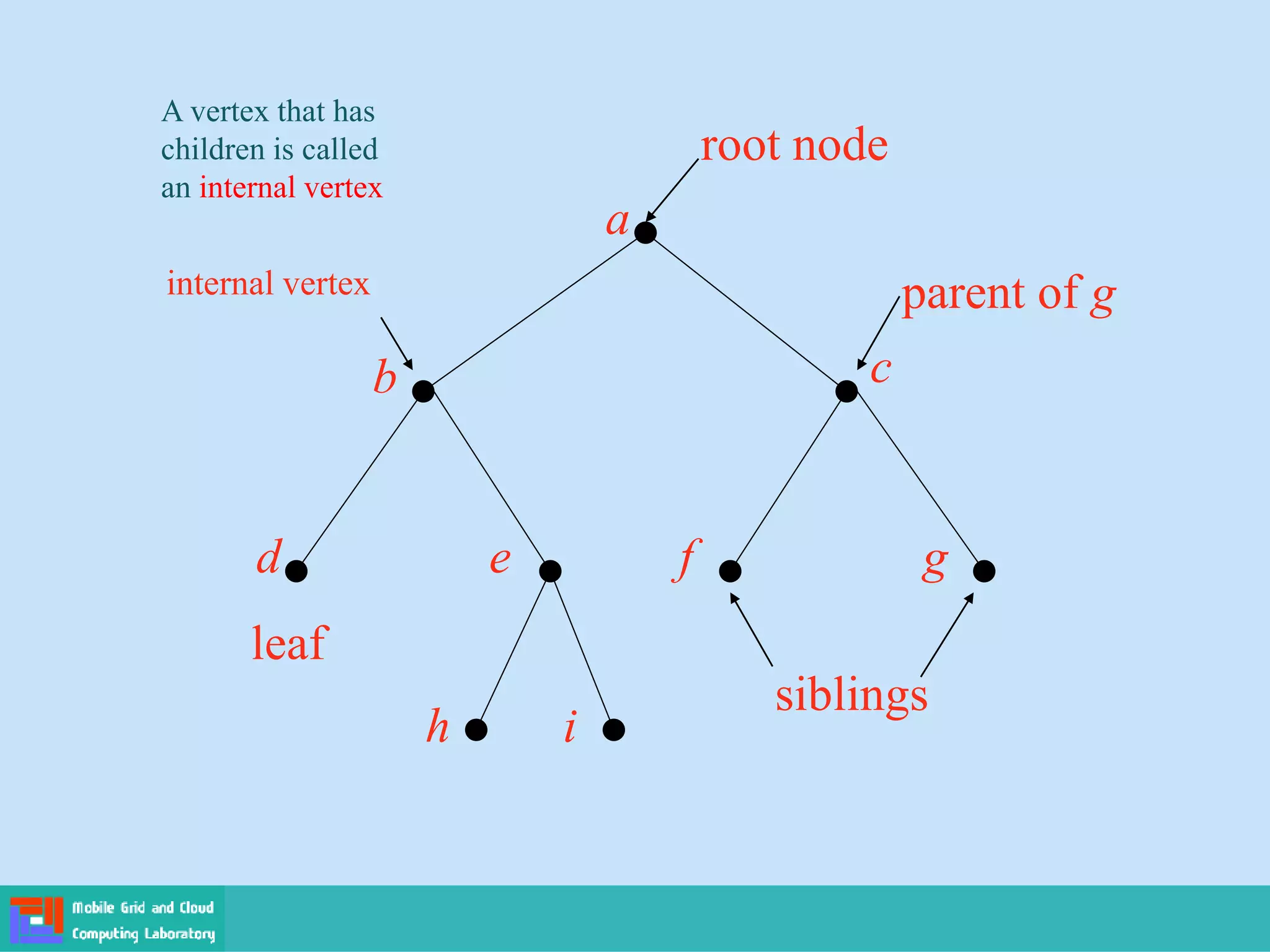

root node
a
b c
d e f g
h i
parent of g
siblings
leaf
internal vertex
A vertex that has
children is called
an internal vertex

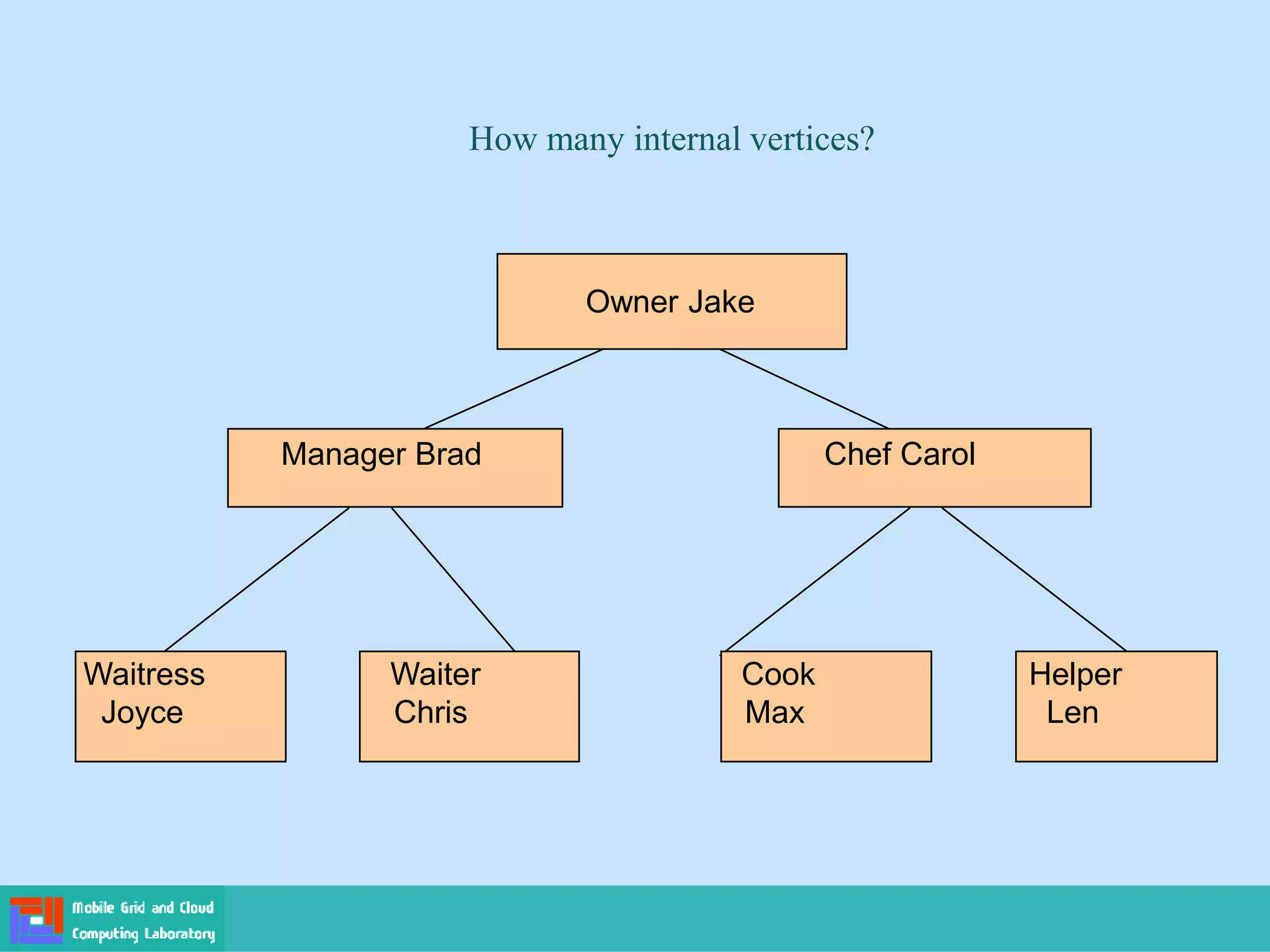

How many internal vertices?
Owner Jake
Manager Brad Chef Carol
Waitress Waiter Cook Helper
Joyce Chris Max Len

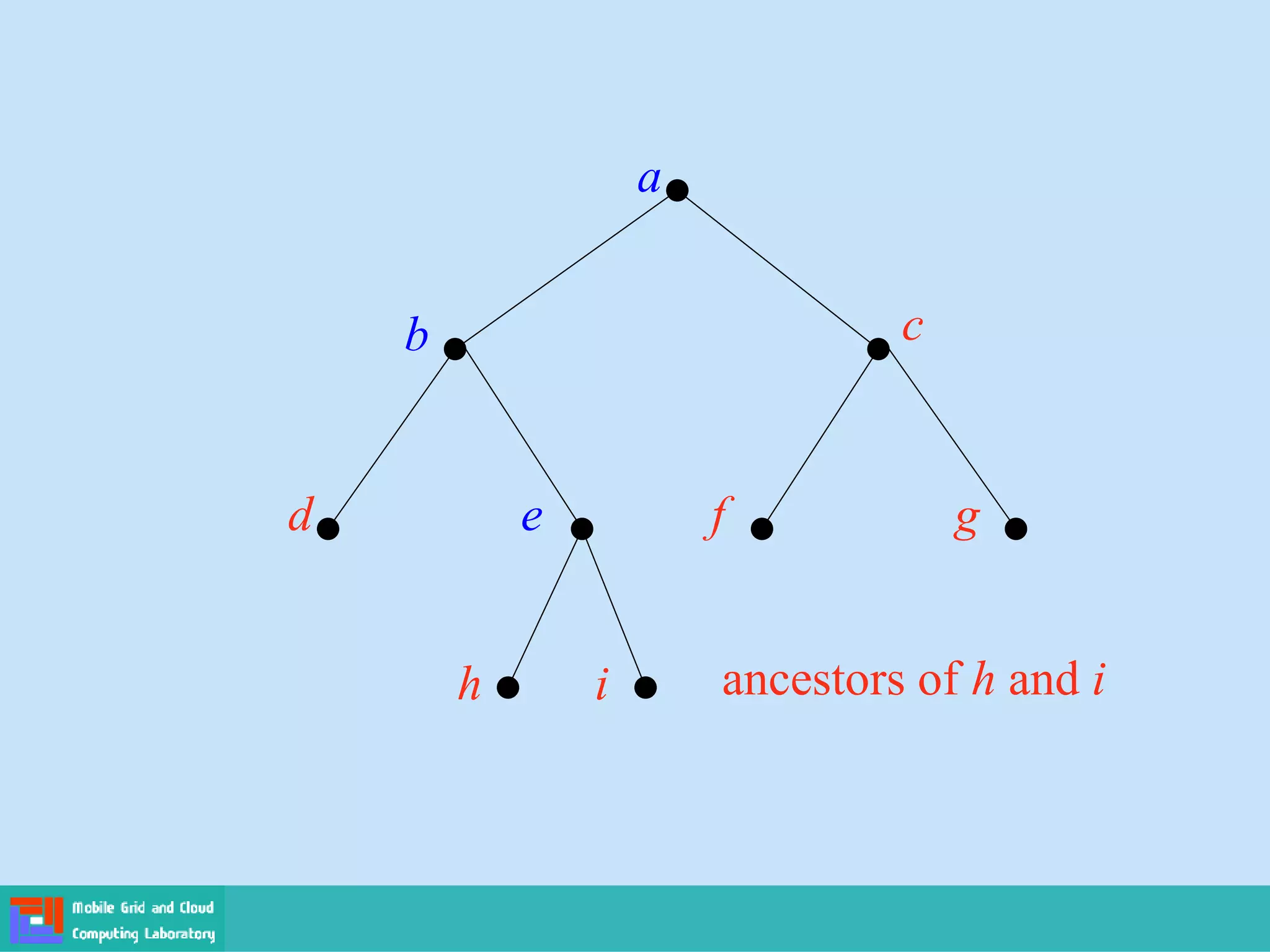

a
b c
d e f g
h i ancestors of h and i

a
b c
d e f g
h i
subtree with b as its root
subtree with c as its root

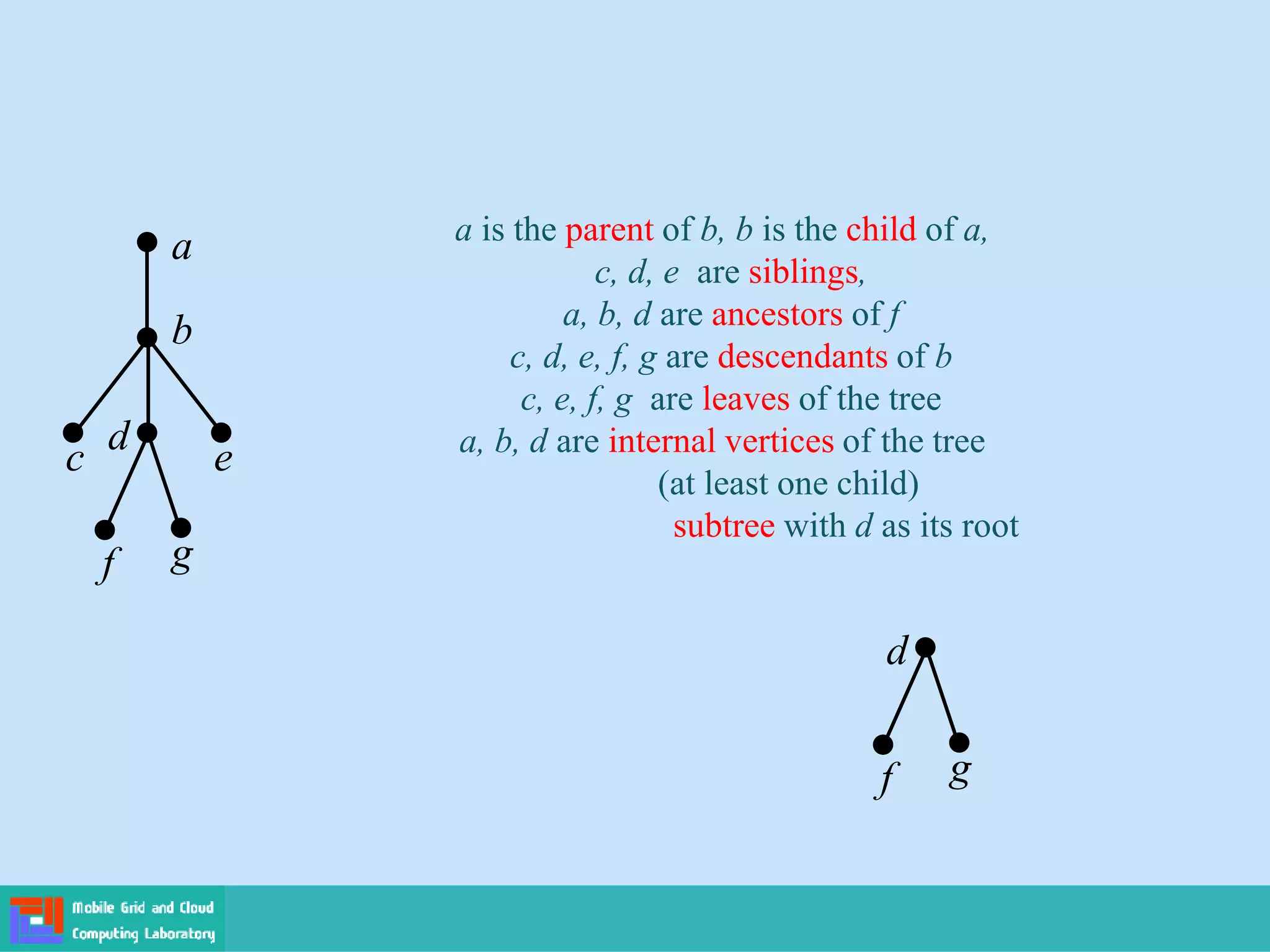

a is the parent of b, b is the child of a,
c, d, e are siblings,
a, b, d are ancestors of f
c, d, e, f, g are descendants of b
c, e, f, g are leaves of the tree
a, b, d are internal vertices of the tree
(at least one child)
subtree with d as its root
a
b
f
c e
d
g
f
d
g

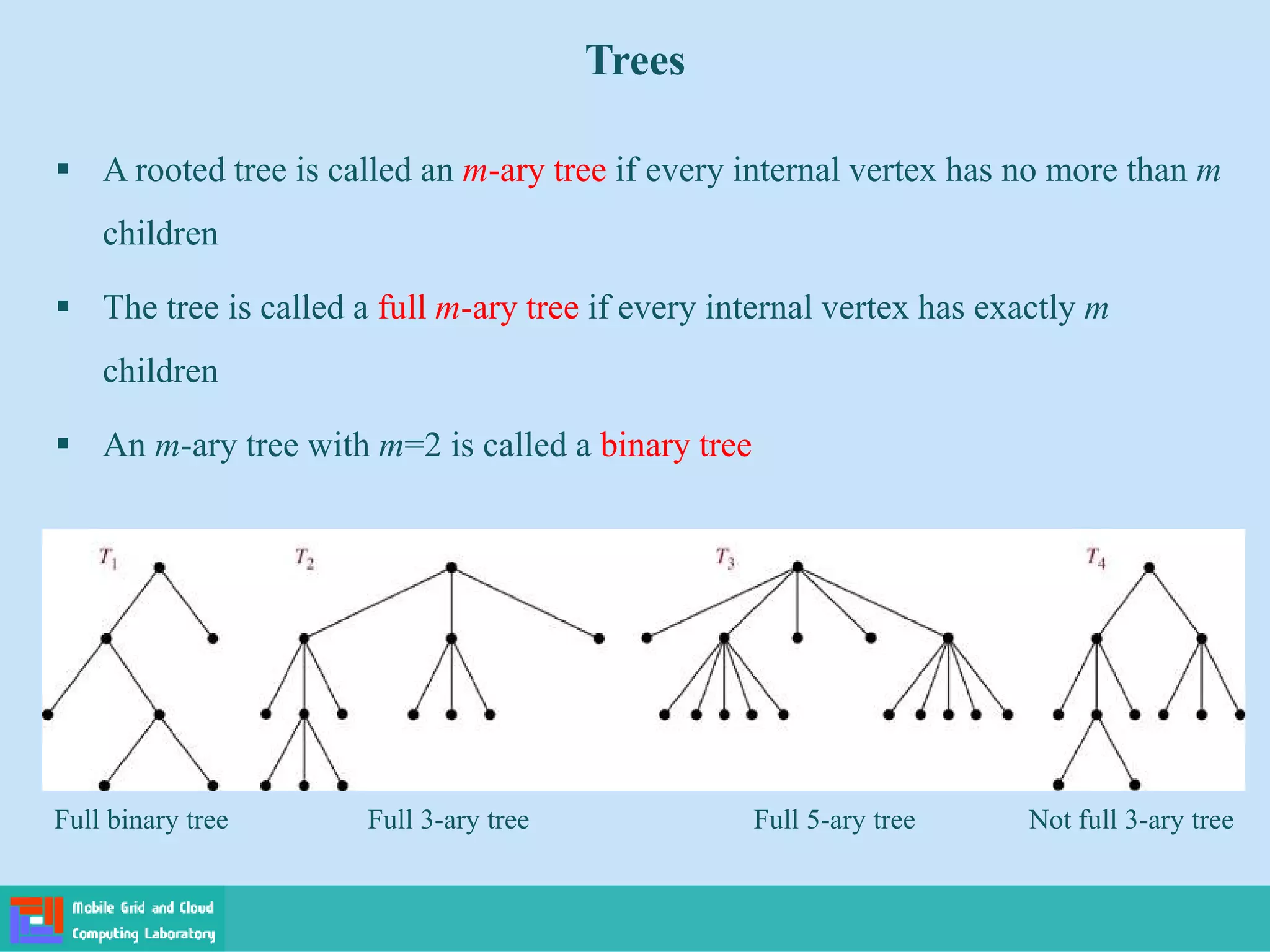

Trees
 A rooted tree is called an m-ary tree if every internal vertex has no more than m
children
 The tree is called a full m-ary tree if every internal vertex has exactly m
children
 An m-ary tree with m=2 is called a binary tree
Full binary tree Full 3-ary tree Full 5-ary tree Not full 3-ary tree

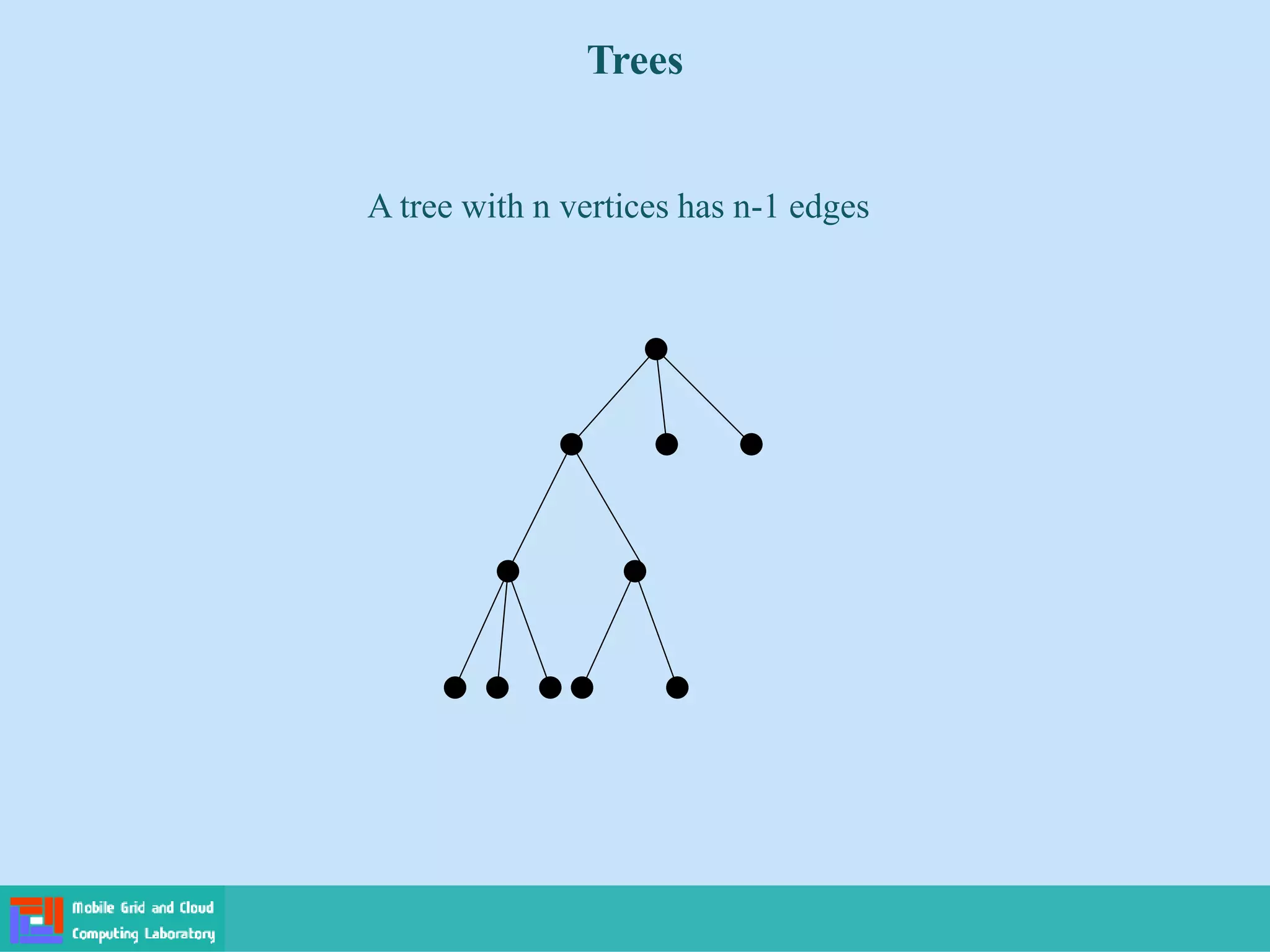

A tree with n vertices has n-1 edges
Trees

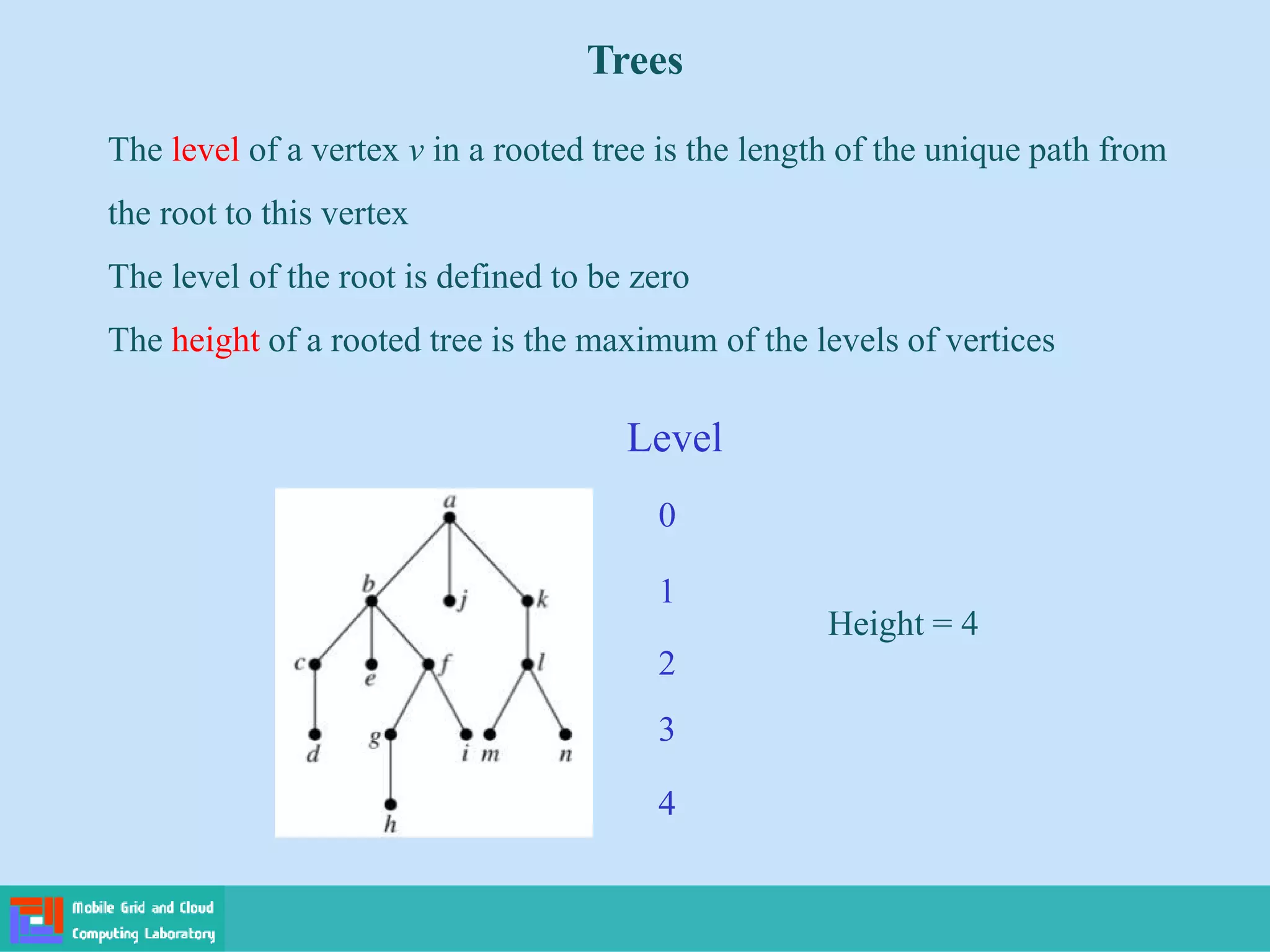

The level of a vertex v in a rooted tree is the length of the unique path from
the root to this vertex
The level of the root is defined to be zero
The height of a rooted tree is the maximum of the levels of vertices
Height = 4
Level
0
1
2
3
4
Trees

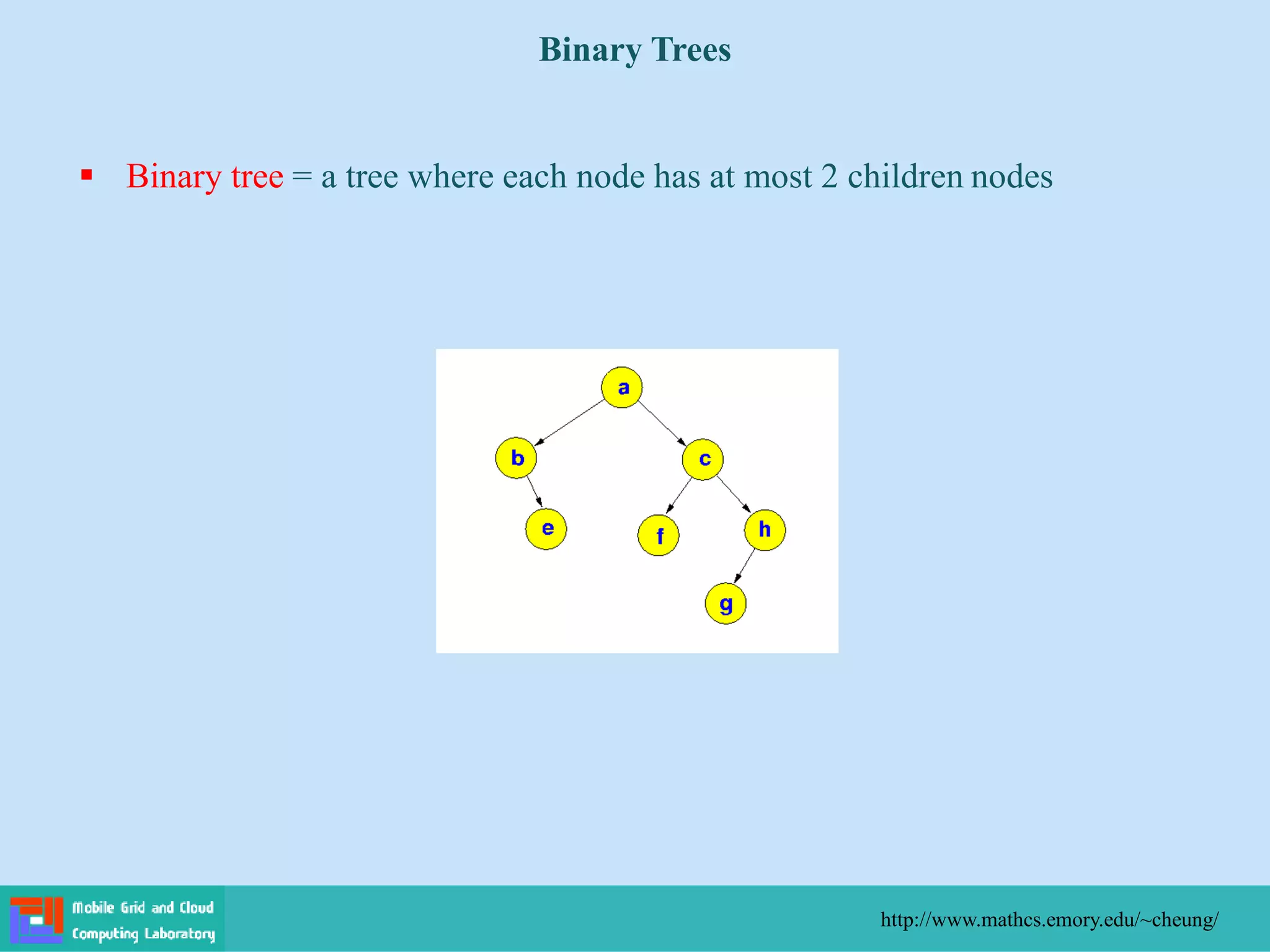

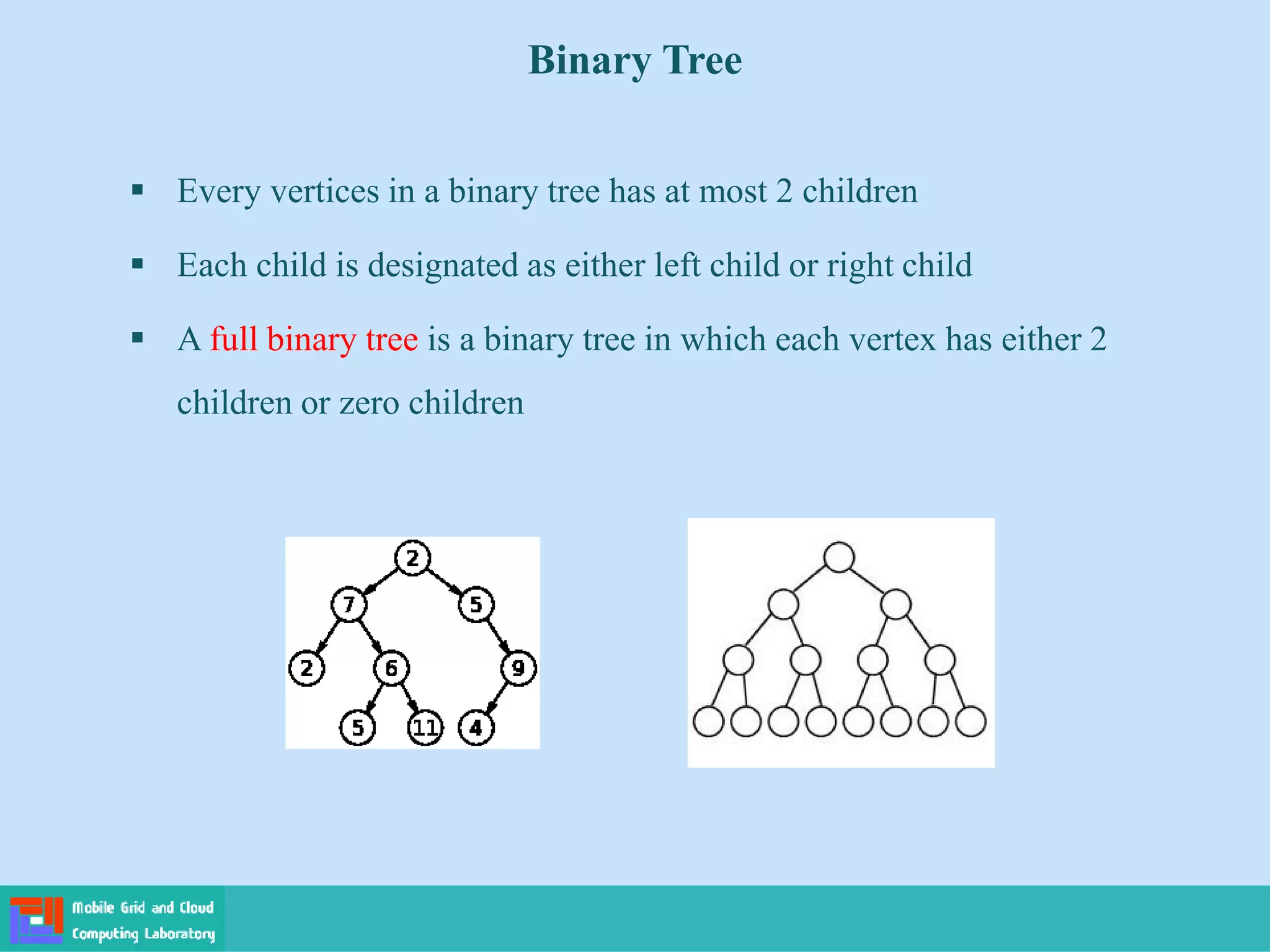

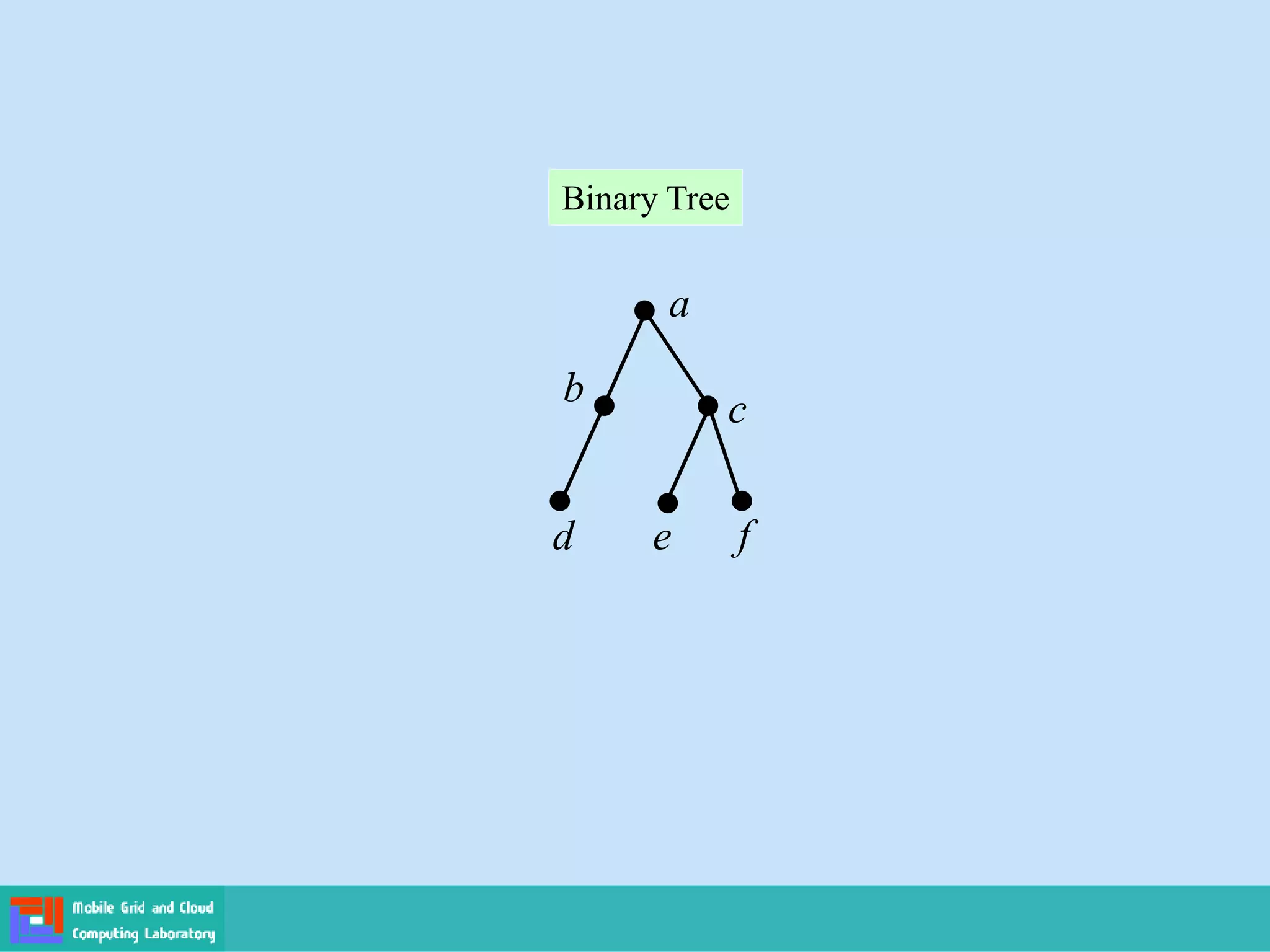

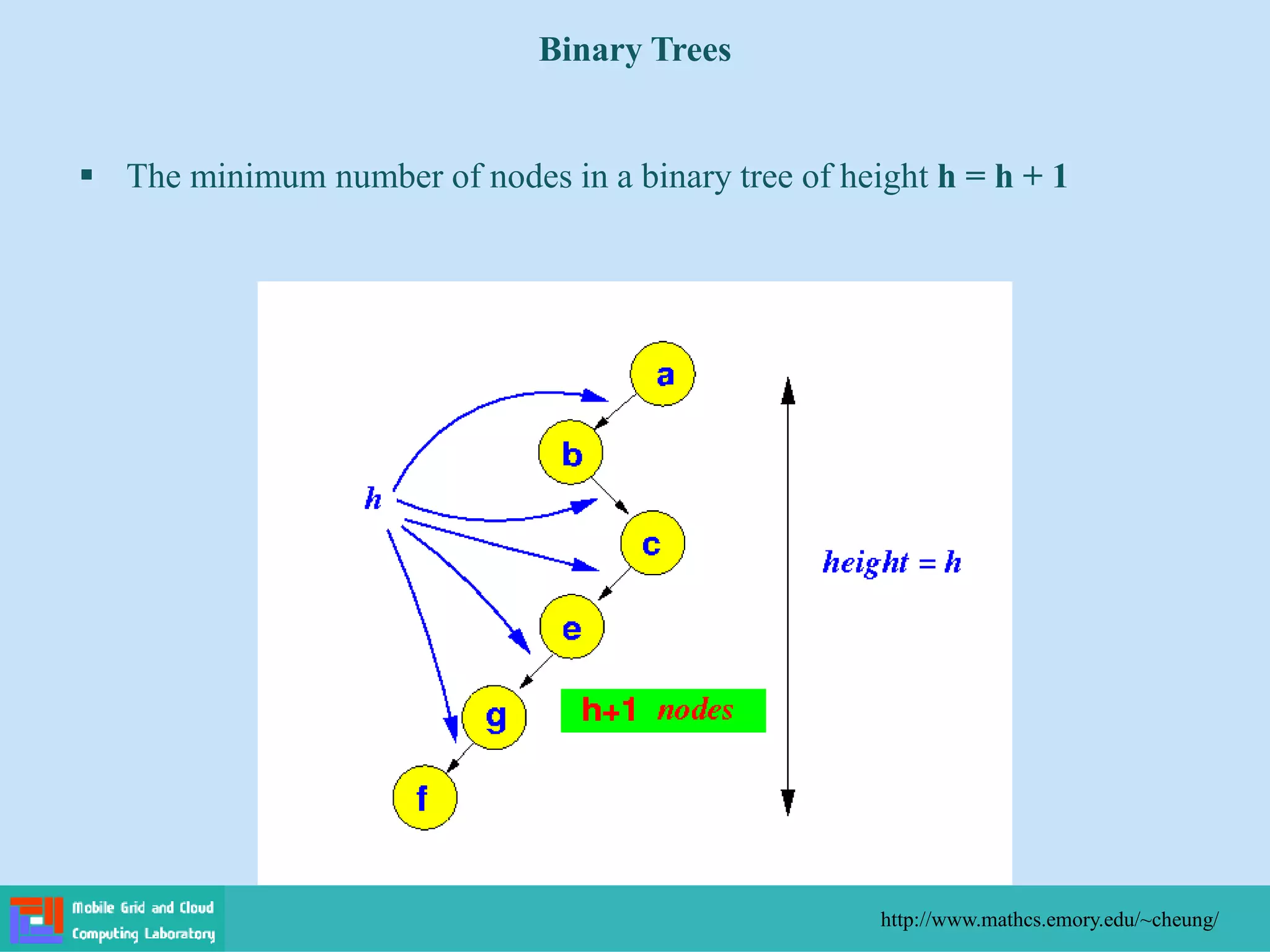

Binary Tree
 Every vertices in a binary tree has at most 2 children
 Each child is designated as either left child or right child
 A full binary tree is a binary tree in which each vertex has either 2
children or zero children

a
e
b
c
f
b left child of a
f right child of c
right subtree of a
d
left subtree of a

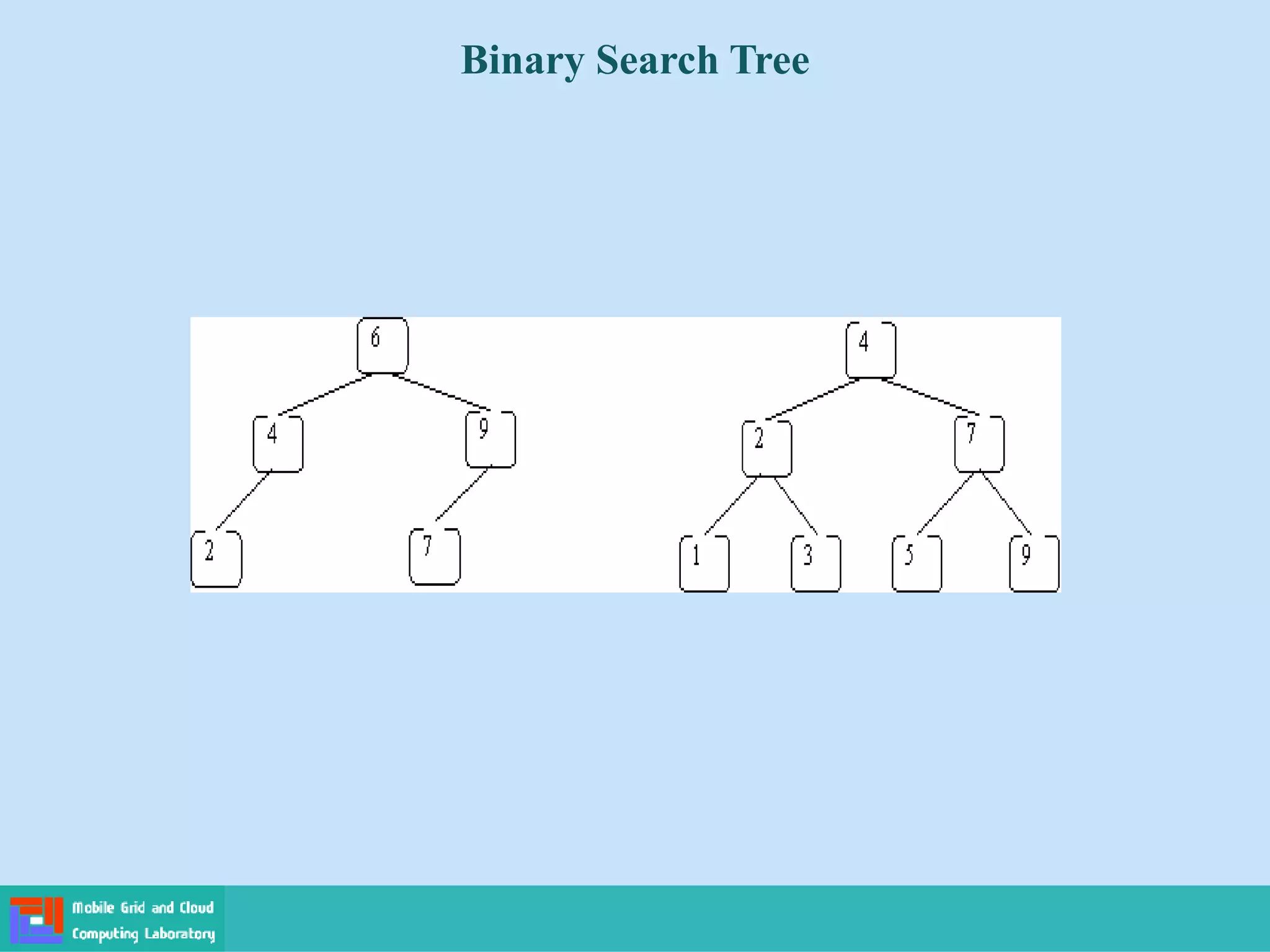

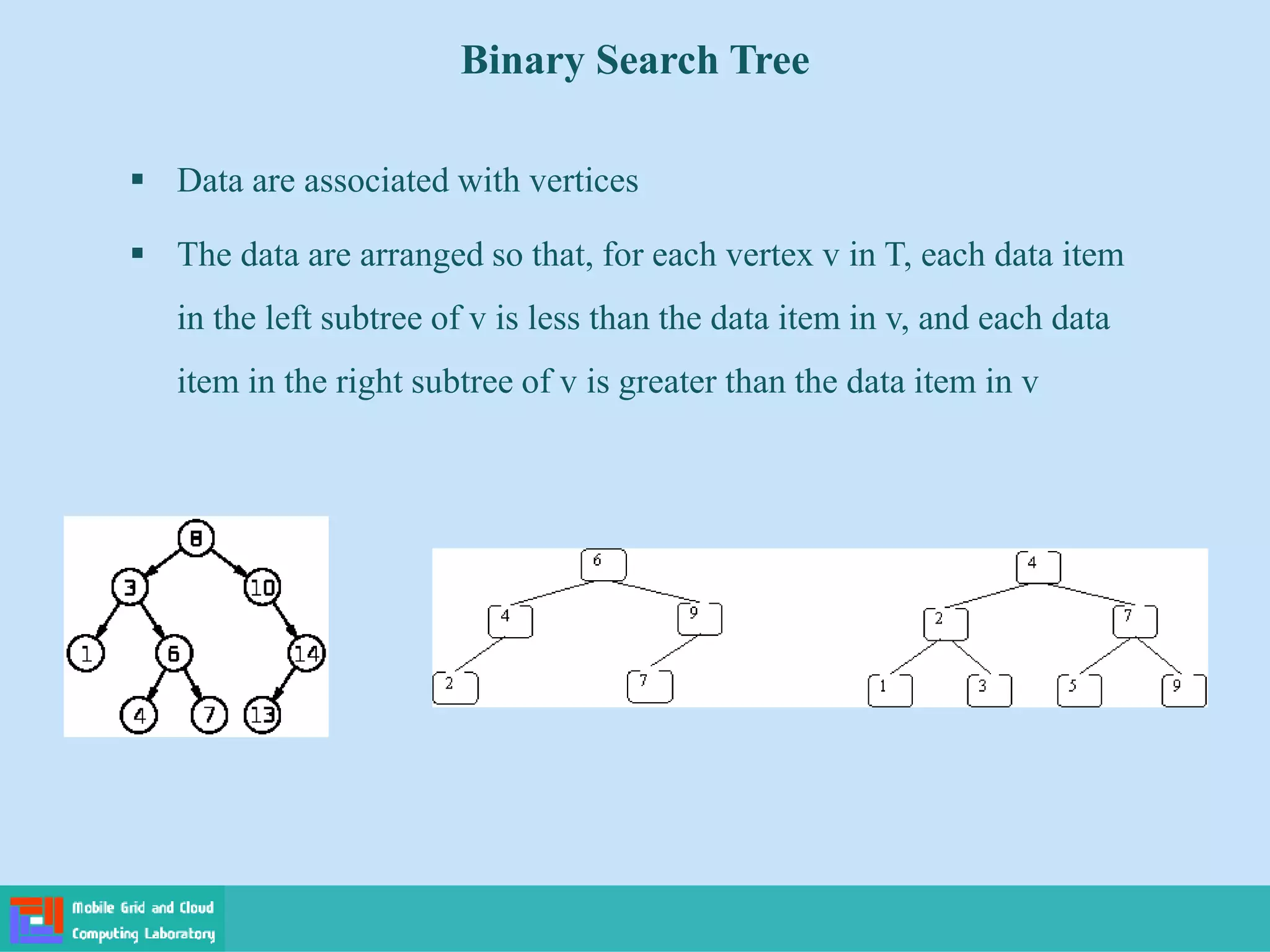

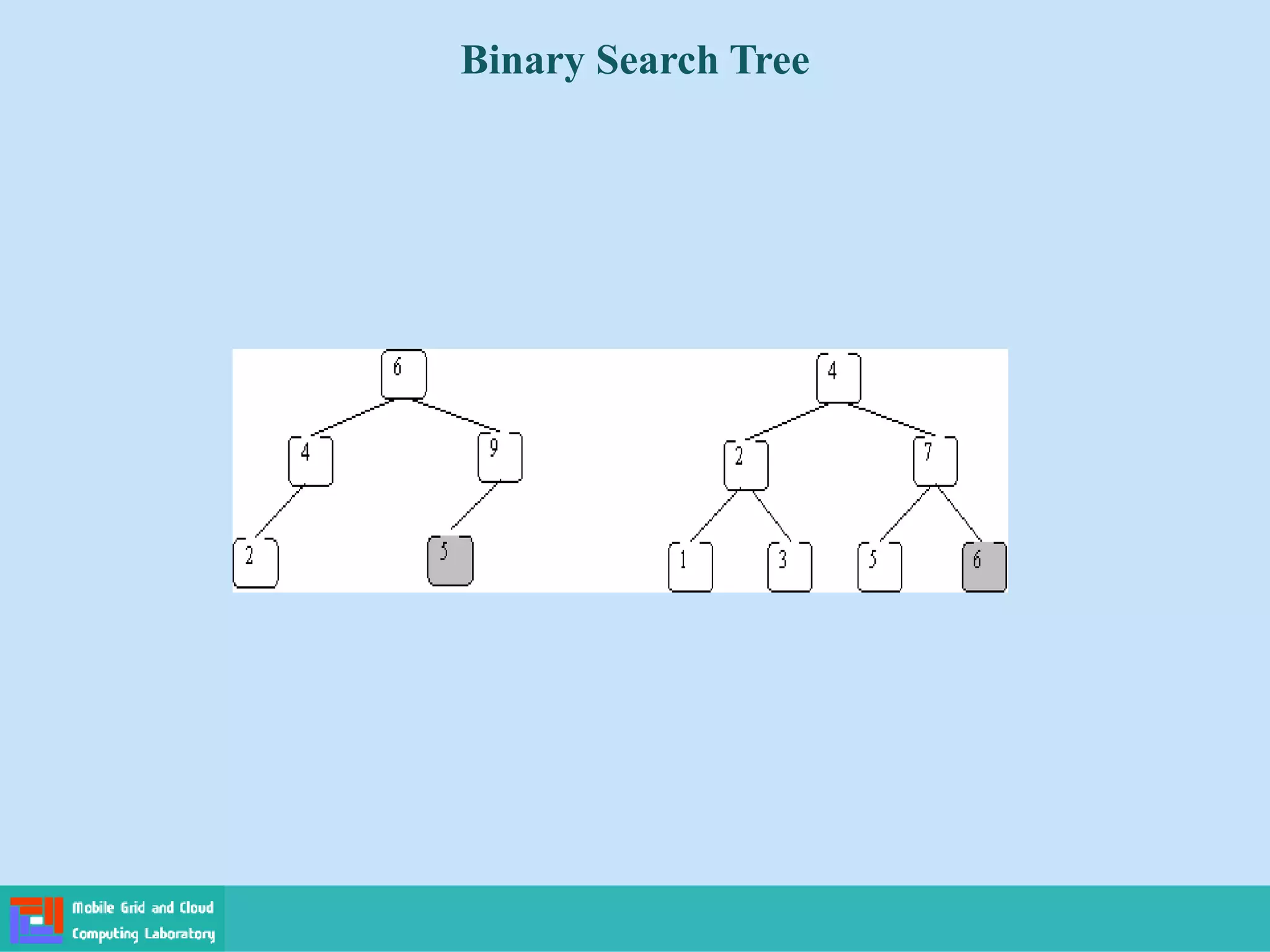

Binary Search Tree
 Data are associated with vertices
 The data are arranged so that, for each vertex v in T, each data item
in the left subtree of v is less than the data item in v, and each data
item in the right subtree of v is greater than the data item in v

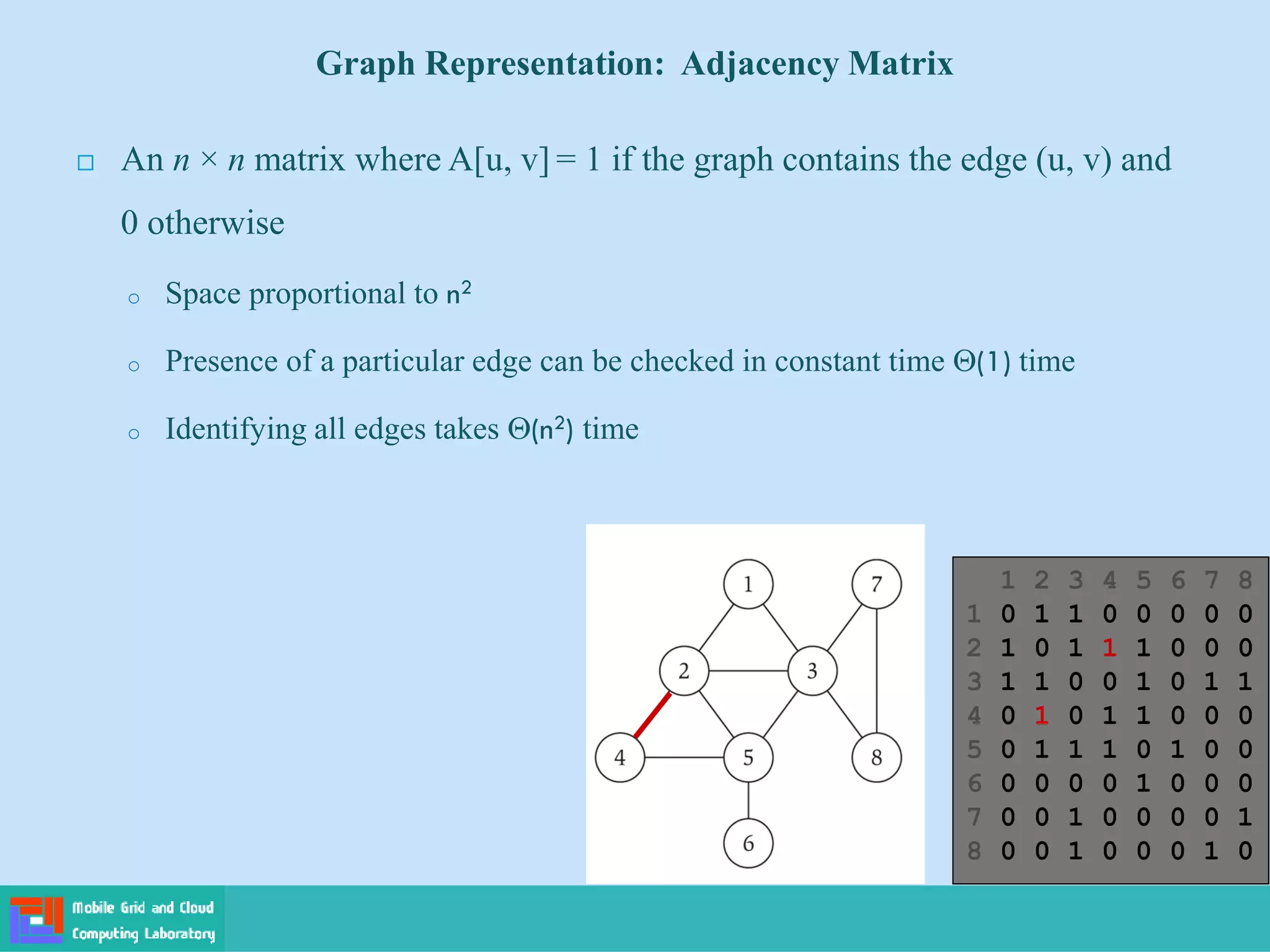

Graph Representation: Adjacency Matrix
 An n × n matrix where A[u, v] = 1 if the graph contains the edge (u, v) and
0 otherwise
o Space proportional to n2
o Presence of a particular edge can be checked in constant time (1) time
o Identifying all edges takes (n2) time
1 2 3 4 5 6 7 8
1 0 1 1 0 0 0 0 0
2 1 0 1 1 1 0 0 0
3 1 1 0 0 1 0 1 1
4 0 1 0 1 1 0 0 0
5 0 1 1 1 0 1 0 0
6 0 0 0 0 1 0 0 0
7 0 0 1 0 0 0 0 1
8 0 0 1 0 0 0 1 0

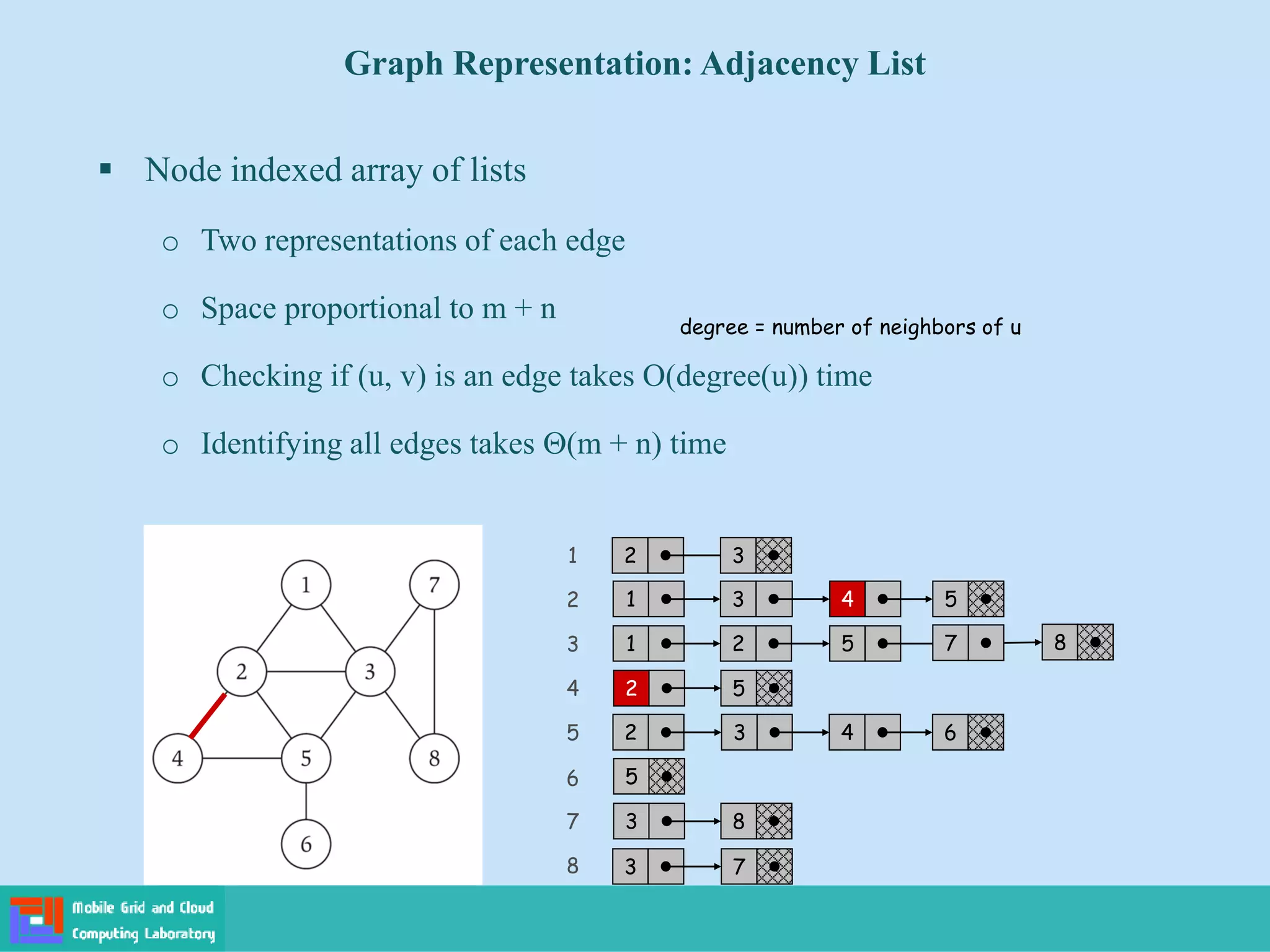

Graph Representation: Adjacency List
 Node indexed array of lists
o Two representations of each edge
o Space proportional to m + n
o Checking if (u, v) is an edge takes O(degree(u)) time
o Identifying all edges takes (m + n) time
degree = number of neighbors of u
1 2 3
2
3
4 2 5
5
6
7 3 8
8
1 3 4 5
1 2 5 8
7
2 3 4 6
5
3 7

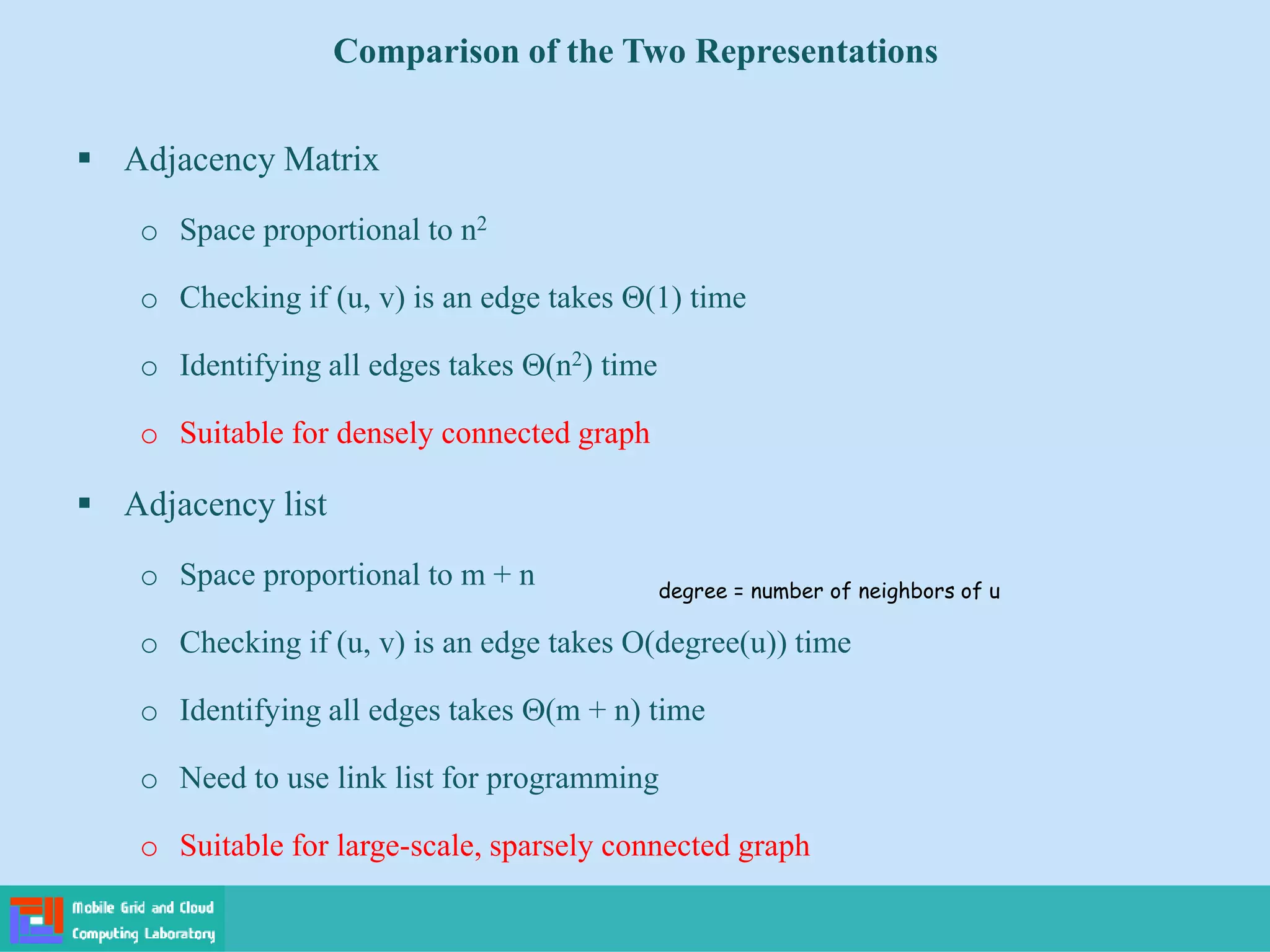

Comparison of the Two Representations
 Adjacency Matrix
o Space proportional to n2
o Checking if (u, v) is an edge takes (1) time
o Identifying all edges takes (n2) time
o Suitable for densely connected graph
 Adjacency list
o Space proportional to m + n
o Checking if (u, v) is an edge takes O(degree(u)) time
o Identifying all edges takes (m + n) time
o Need to use link list for programming
o Suitable for large-scale, sparsely connected graph
degree = number of neighbors of u

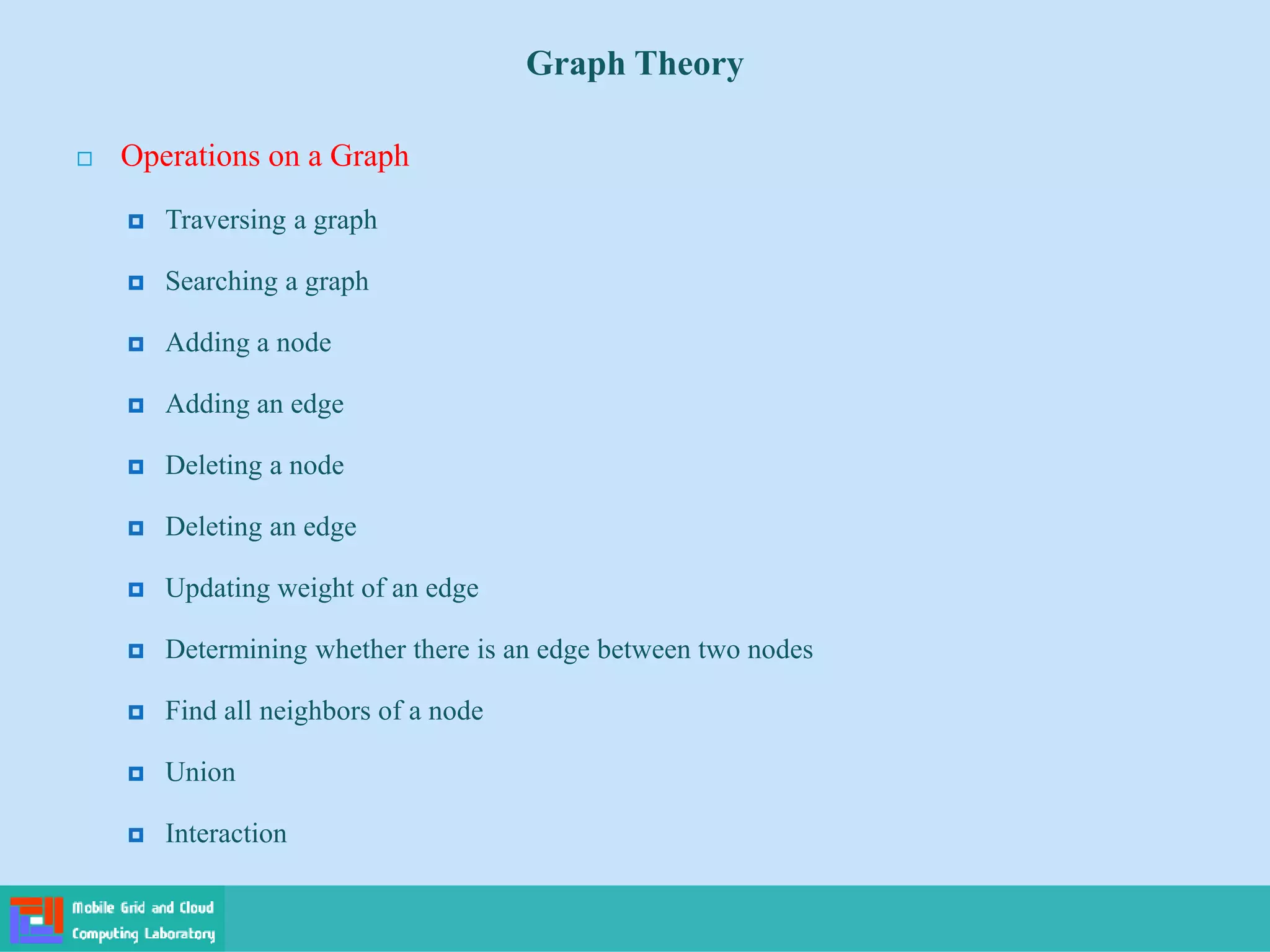

 Operations on a Graph
 Traversing a graph
 Searching a graph
 Adding a node
 Adding an edge
 Deleting a node
 Deleting an edge
 Updating weight of an edge
 Determining whether there is an edge between two nodes
 Find all neighbors of a node
 Union
 Interaction

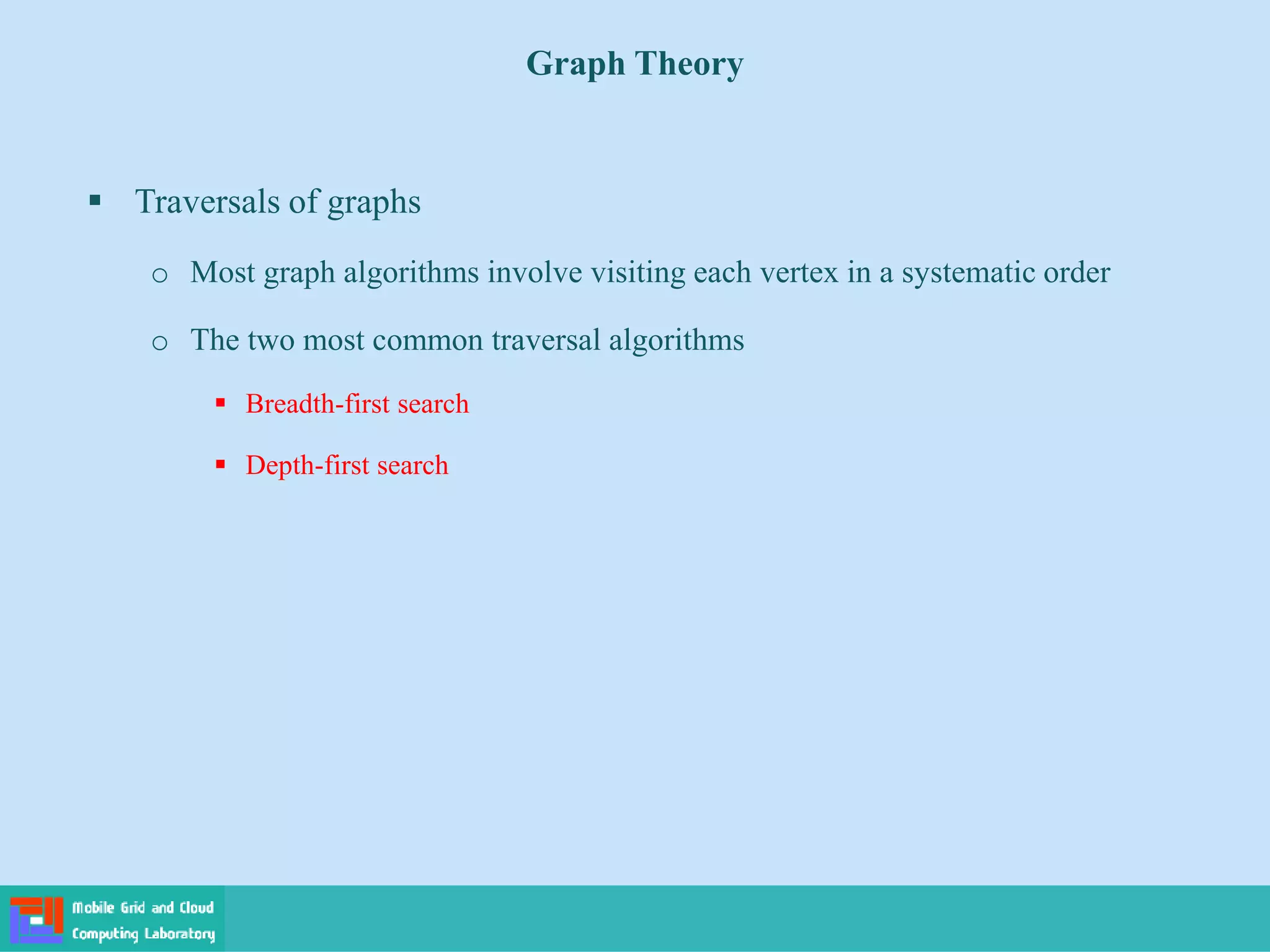

Graph Theory

 Traversals of graphs
o Most graph algorithms involve visiting each vertex in a systematic order
o The two most common traversal algorithms
 Breadth-first search
 Depth-first search
Graph Theory

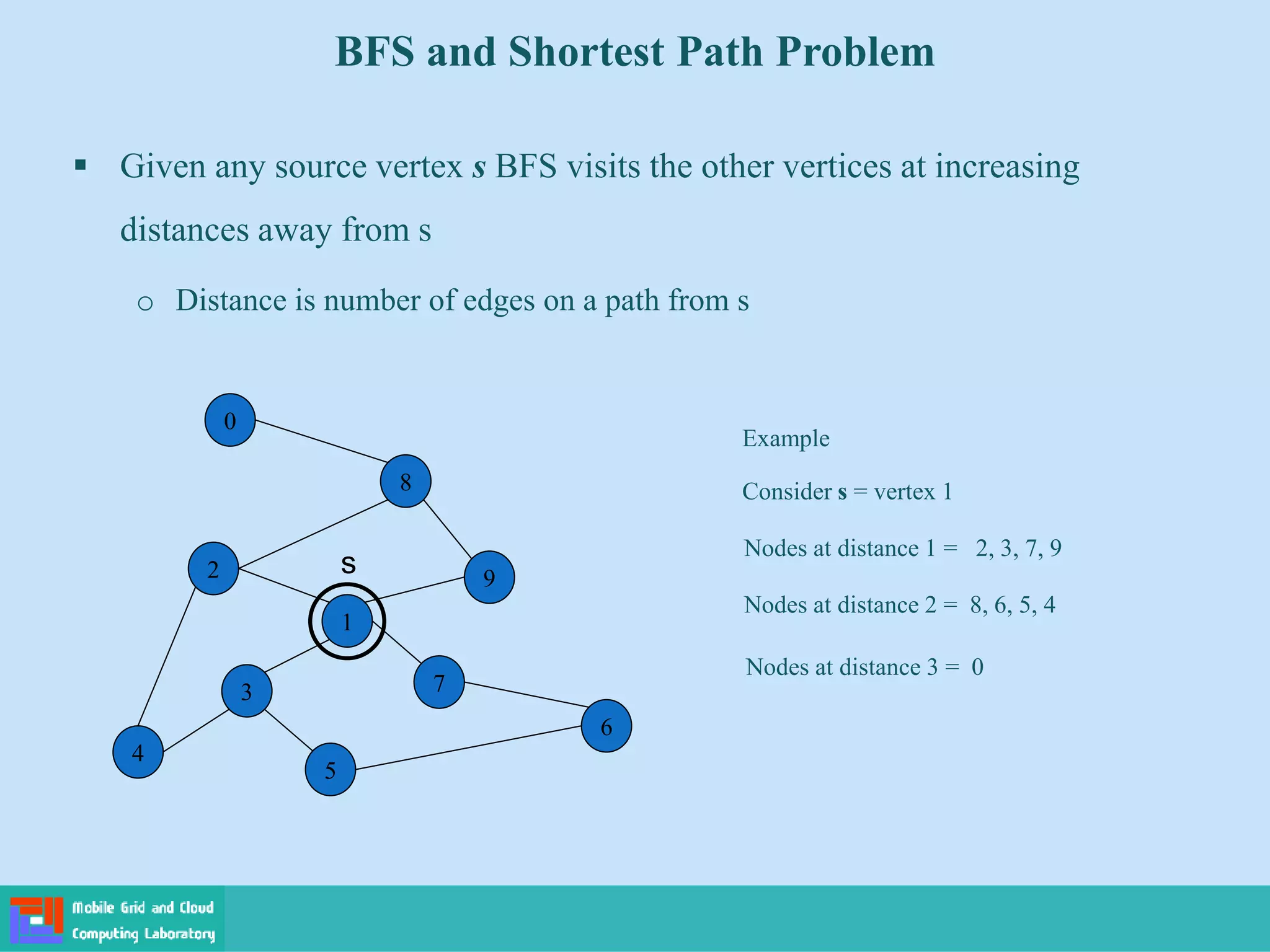

BFS and Shortest Path Problem
 Given any source vertex s BFS visits the other vertices at increasing
distances away from s
o Distance is number of edges on a path from s
2
4
3
5
1
7
6
9
8
0
Consider s = vertex 1
Nodes at distance 1 = 2, 3, 7, 9
s
Example
Nodes at distance 2 = 8, 6, 5, 4
Nodes at distance 3 = 0

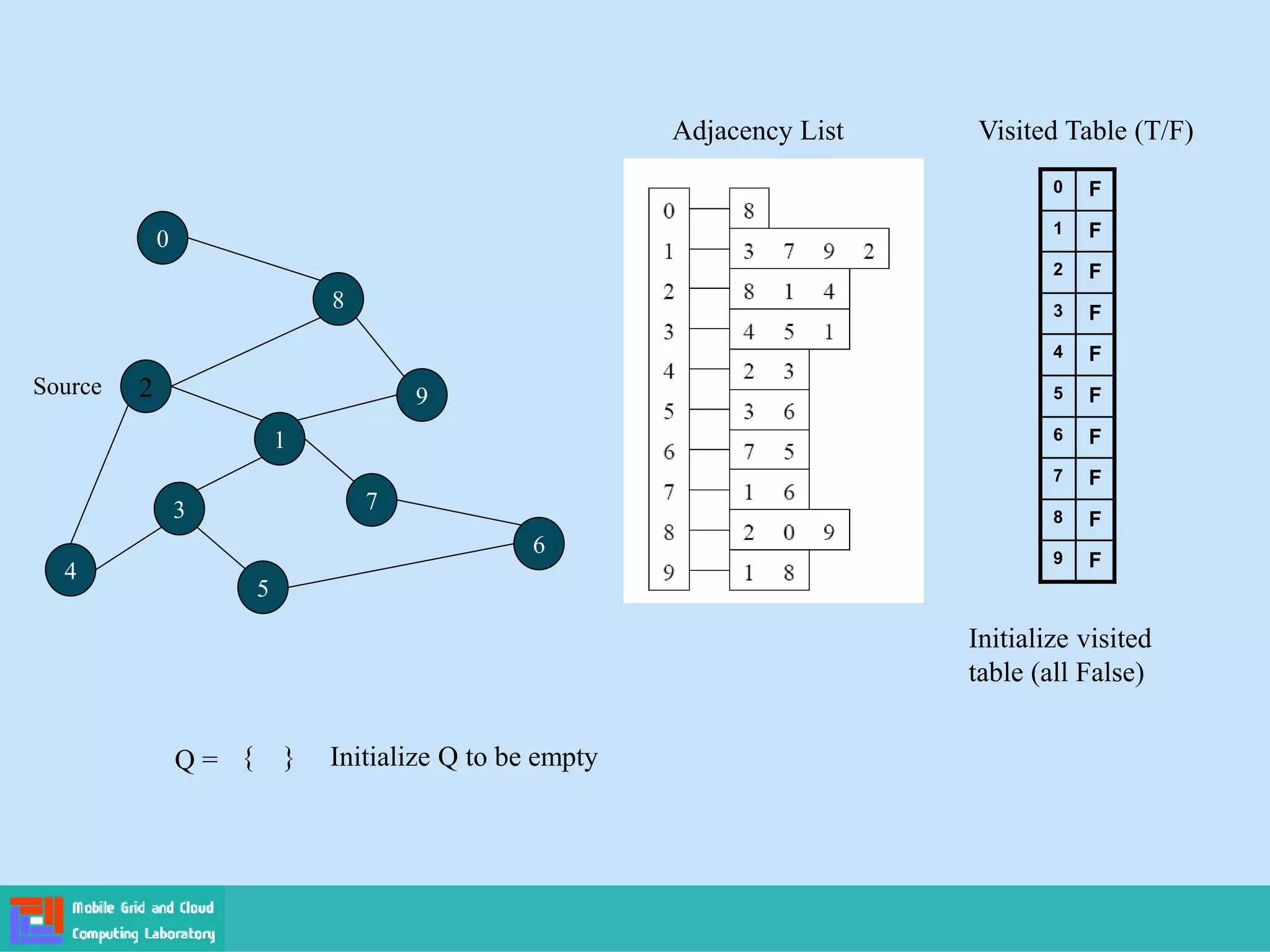

2
4
3
5
1
7
6
9
8
0
Adjacency List
Source
0
1
2
3
4
5
6
7
8
9
Visited Table (T/F)
F
F
F
F
F
F
F
F
F
F
Q = { }
Initialize visited
table (all False)
Initialize Q to be empty

2
4
3
5
1
7
6
9
8
0
Adjacency List
source
0
1
2
3
4
5
6
7
8
9
Visited Table (T/F)
F
F
T
F
F
F
F
F
F
F

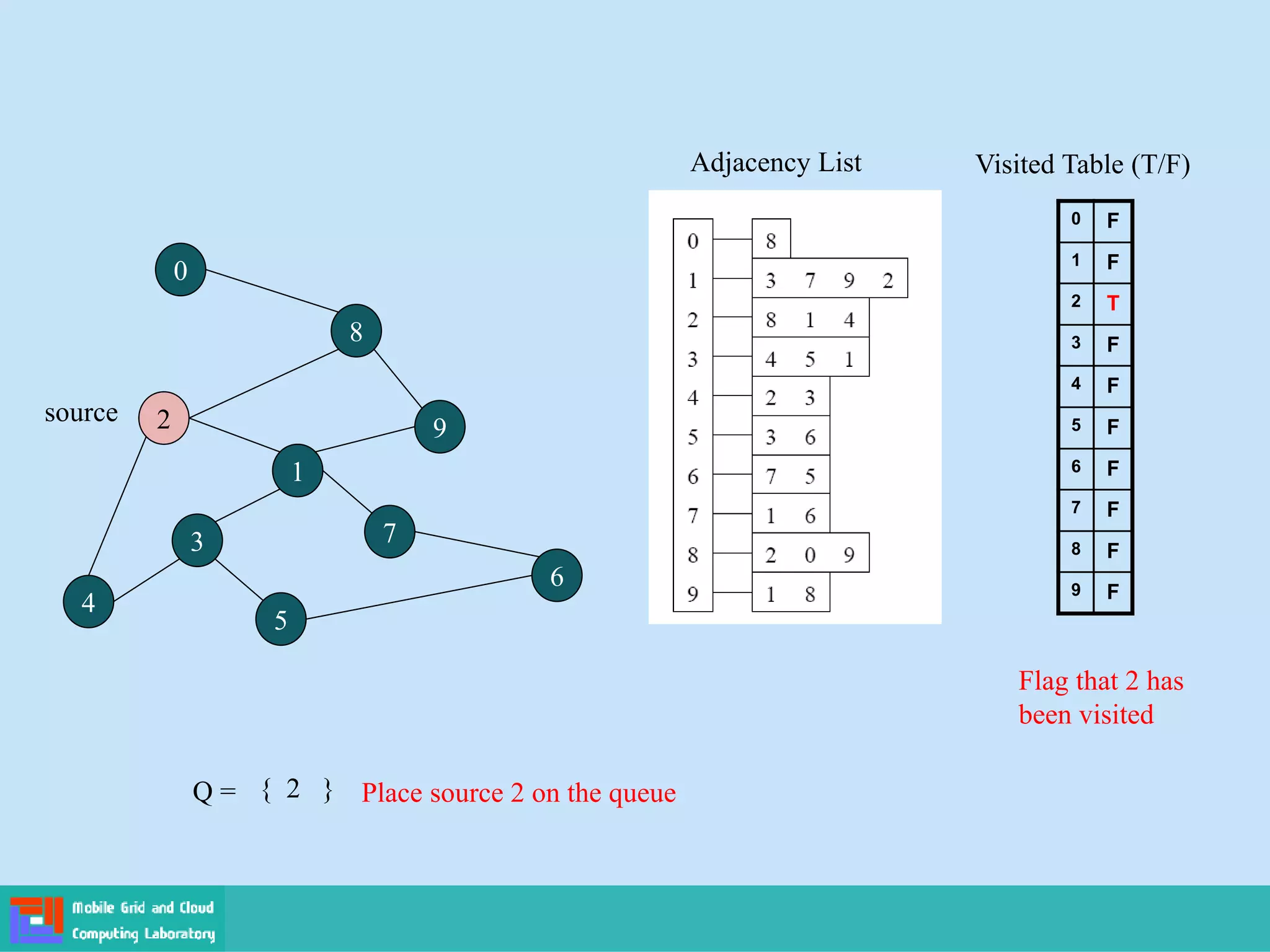

Q = { 2 }
Flag that 2 has
been visited
Place source 2 on the queue

2
4
3
5
1
7
6
9
8
0
Adjacency List
source
0
1
2
3
4
5
6
7
8
9
Visited Table (T/F)
F
T
T
F
T
F
F
F
T
F

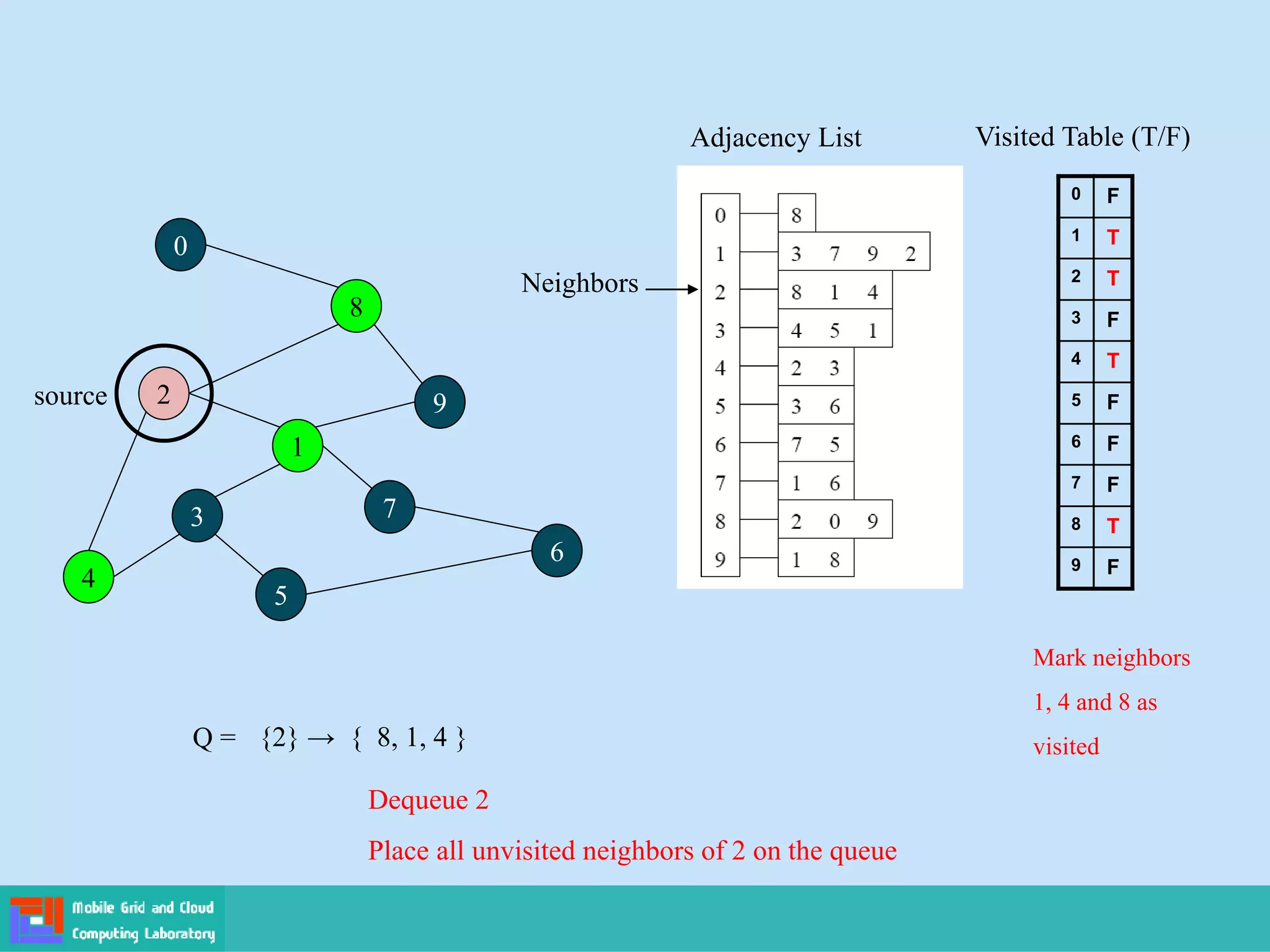

Q = {2} → { 8, 1, 4 }
Mark neighbors
1, 4 and 8 as
visited
Dequeue 2
Place all unvisited neighbors of 2 on the queue
Neighbors

2
4
3
5
1
7
6
9
8
0
Adjacency List
source
0
1
2
3
4
5
6
7
8
9
Visited Table (T/F)
T
T
T
F
T
F
F
F
T
T

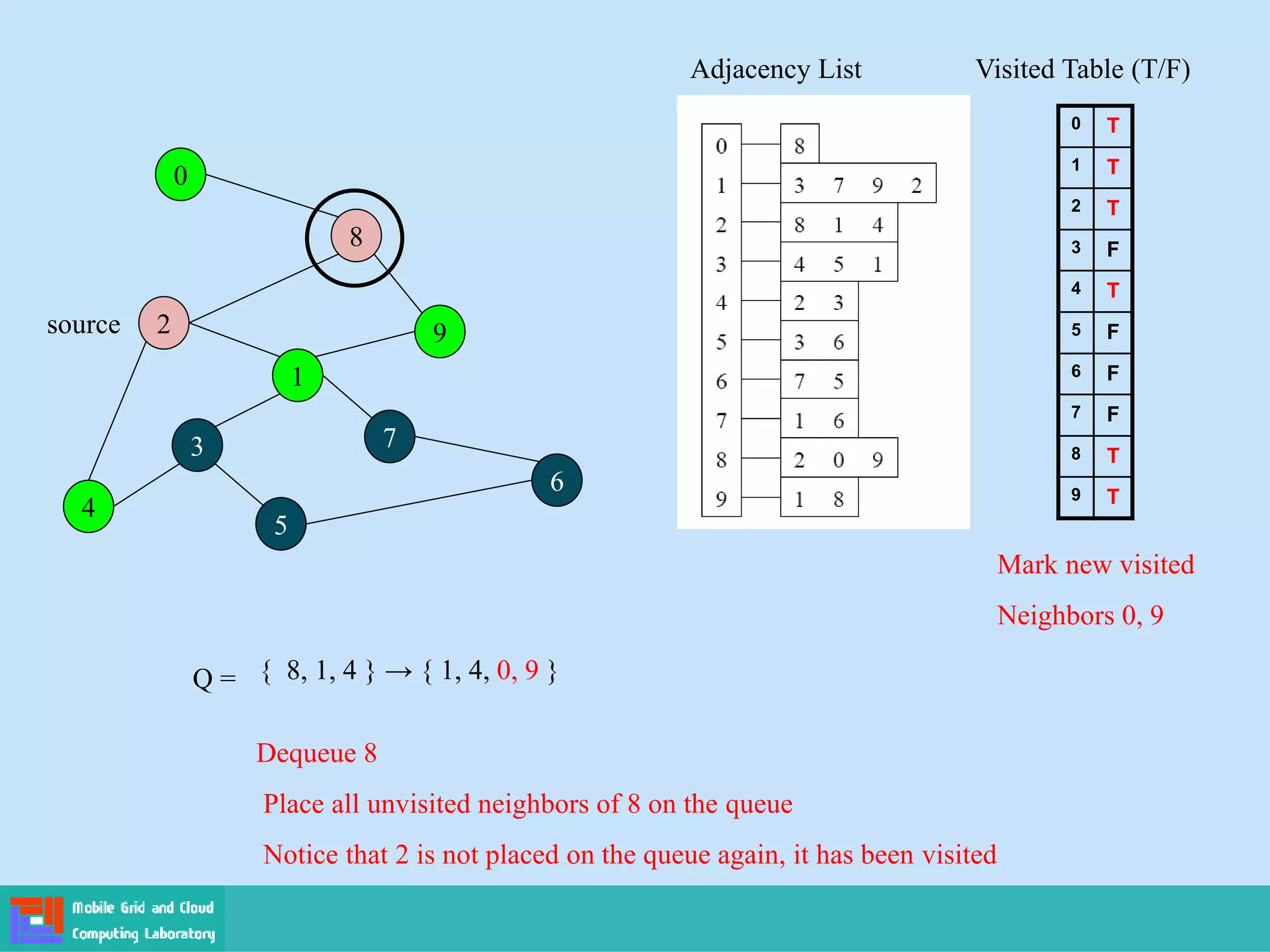

Q = { 8, 1, 4 } → { 1, 4, 0, 9 }
Mark new visited
Neighbors 0, 9
Dequeue 8
Notice that 2 is not placed on the queue again, it has been visited

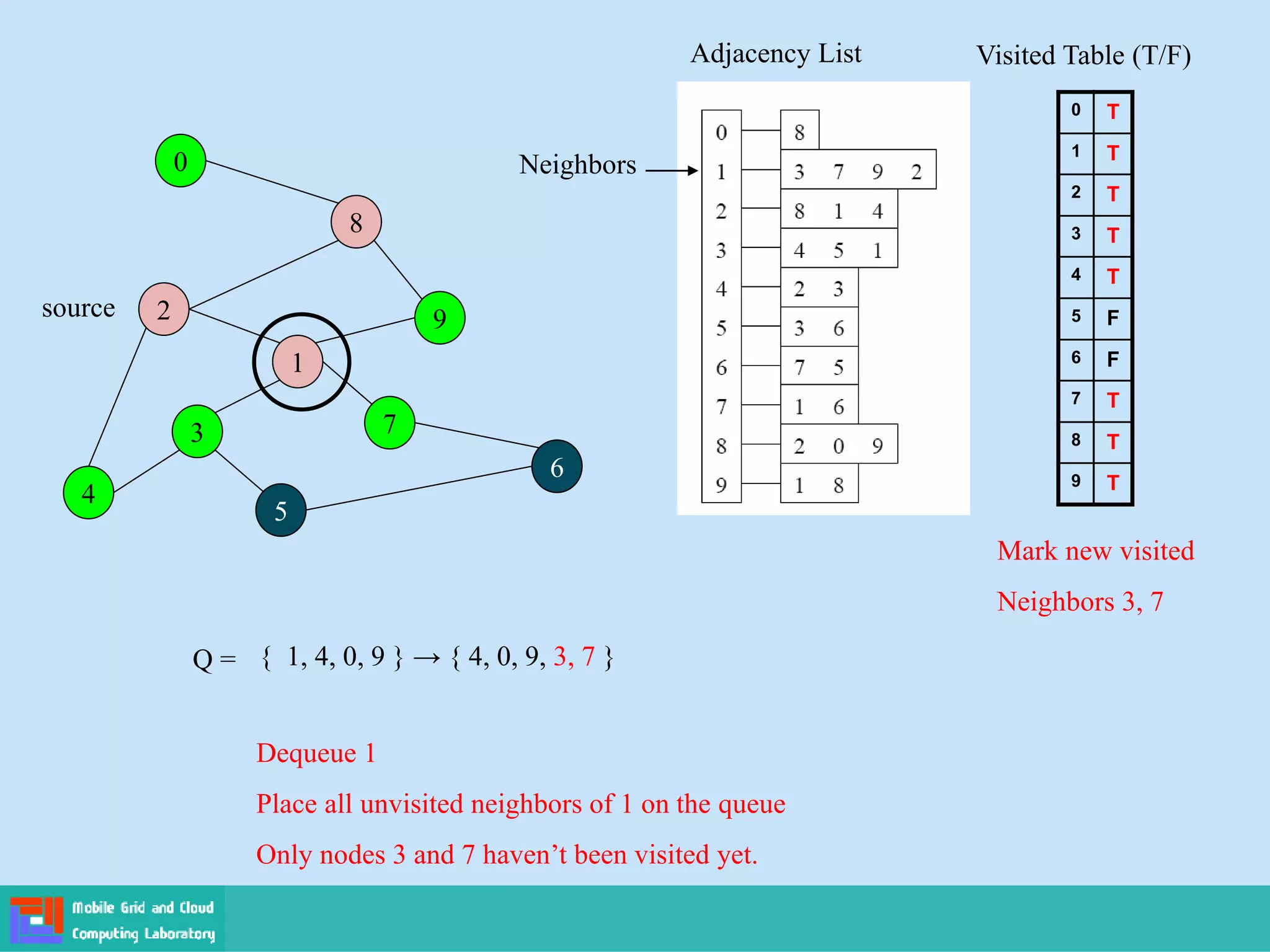

2
4
3
5
1
7
6
9
8
0
Adjacency List
source
0
1
2
3
4
5
6
7
8
9
Visited Table (T/F)
T
T
T
T
T
F
F
T
T
T
Q = { 1, 4, 0, 9 } → { 4, 0, 9, 3, 7 }
Mark new visited
Neighbors 3, 7
Dequeue 1
Only nodes 3 and 7 haven’t been visited yet.
Neighbors

2
4
3
5
1
7
6
9
8
0
Adjacency List
source
0
1
2
3
4
5
6
7
8
9
Visited Table (T/F)
T
T
T
T
T
F
F
T
T
T

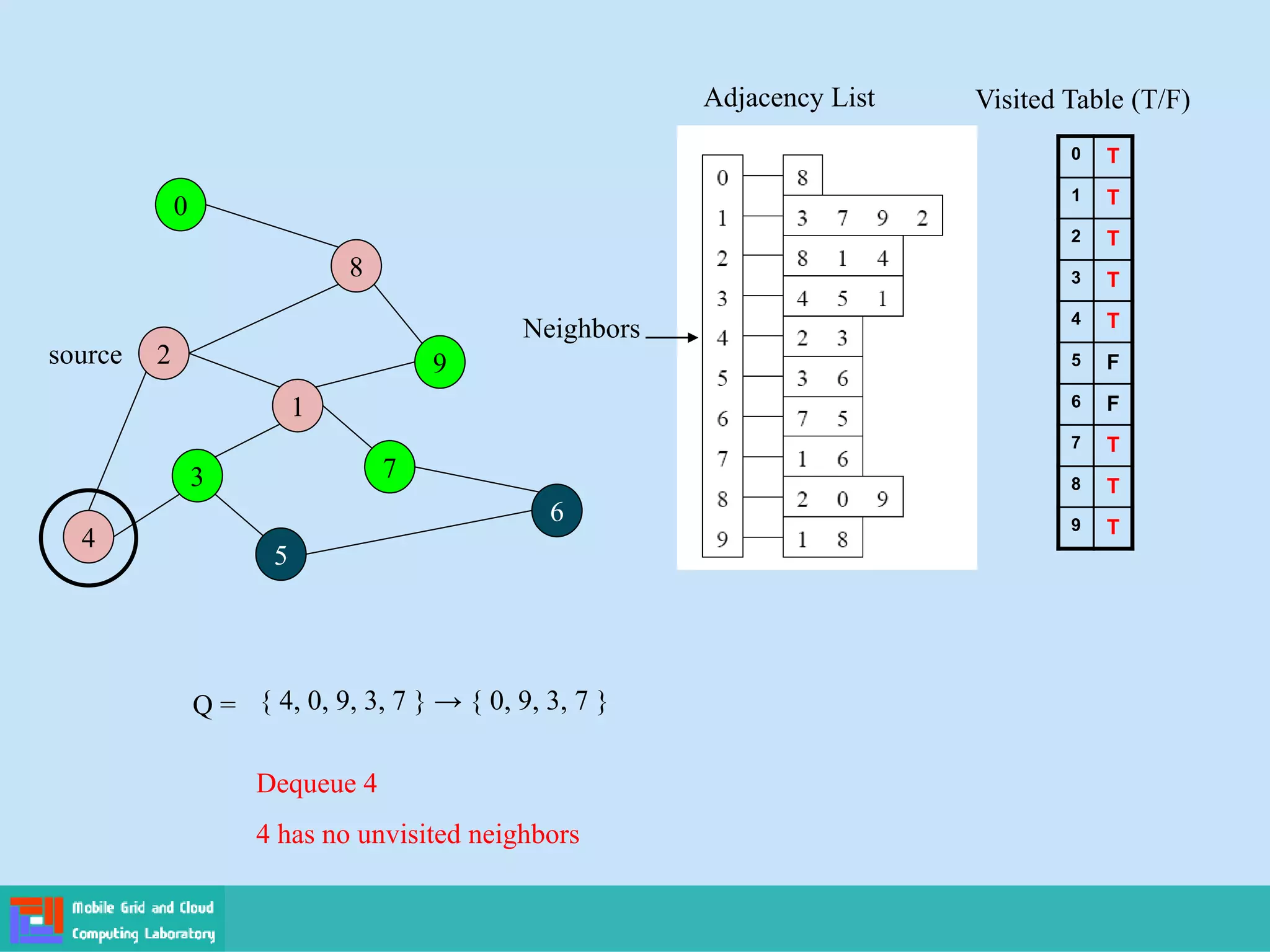

Q = { 4, 0, 9, 3, 7 } → { 0, 9, 3, 7 }
Dequeue 4
4 has no unvisited neighbors
Neighbors

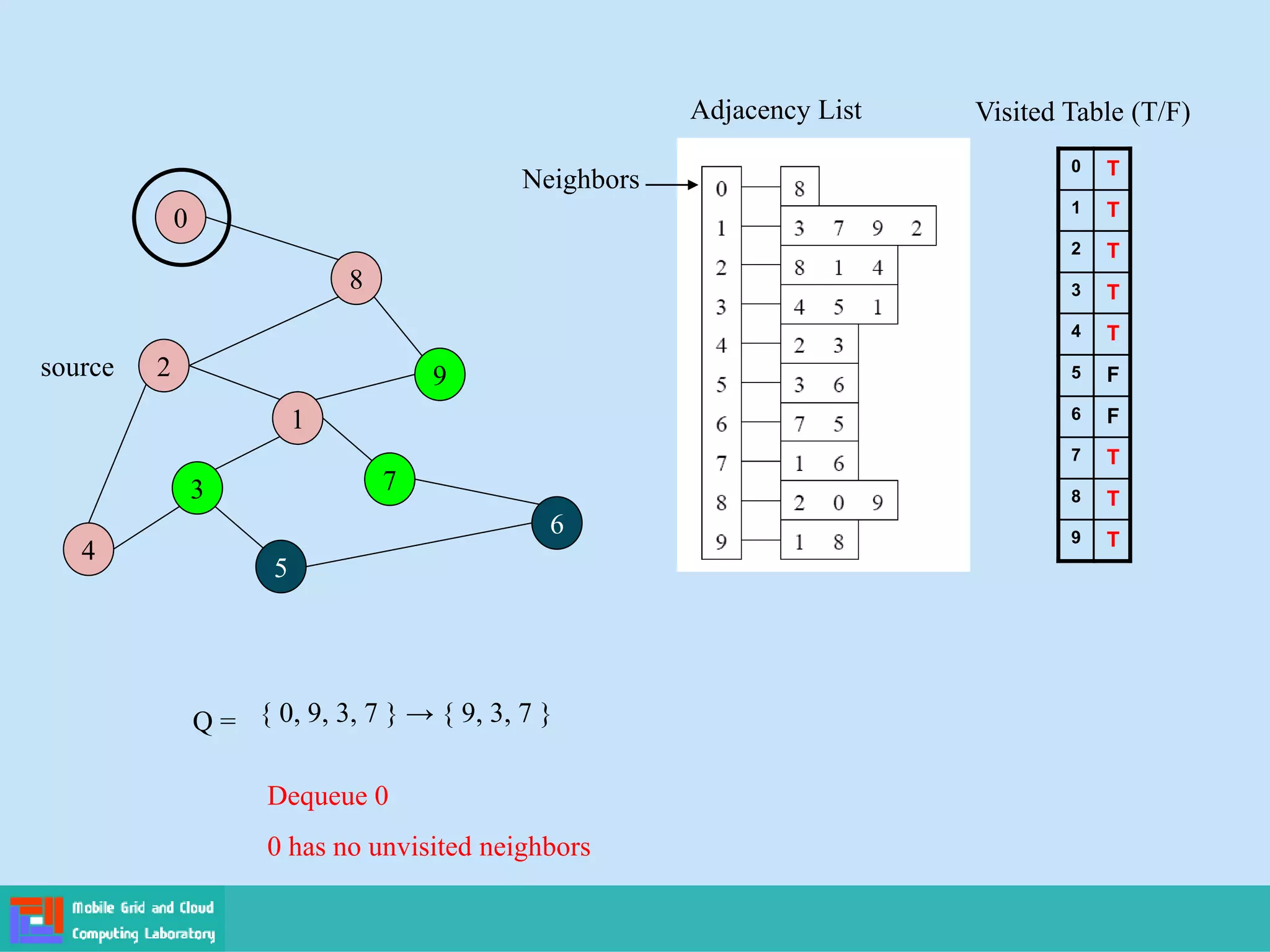

2
4
3
5
1
7
6
9
8
0
Adjacency List
source
0
1
2
3
4
5
6
7
8
9
Visited Table (T/F)
T
T
T
T
T
F
F
T
T
T
Q = { 0, 9, 3, 7 } → { 9, 3, 7 }
Dequeue 0
Neighbors

2
4
3
5
1
7
6
9
8
0
Adjacency List
source
0
1
2
3
4
5
6
7
8
9
Visited Table (T/F)
T
T
T
T
T
F
F
T
T
T

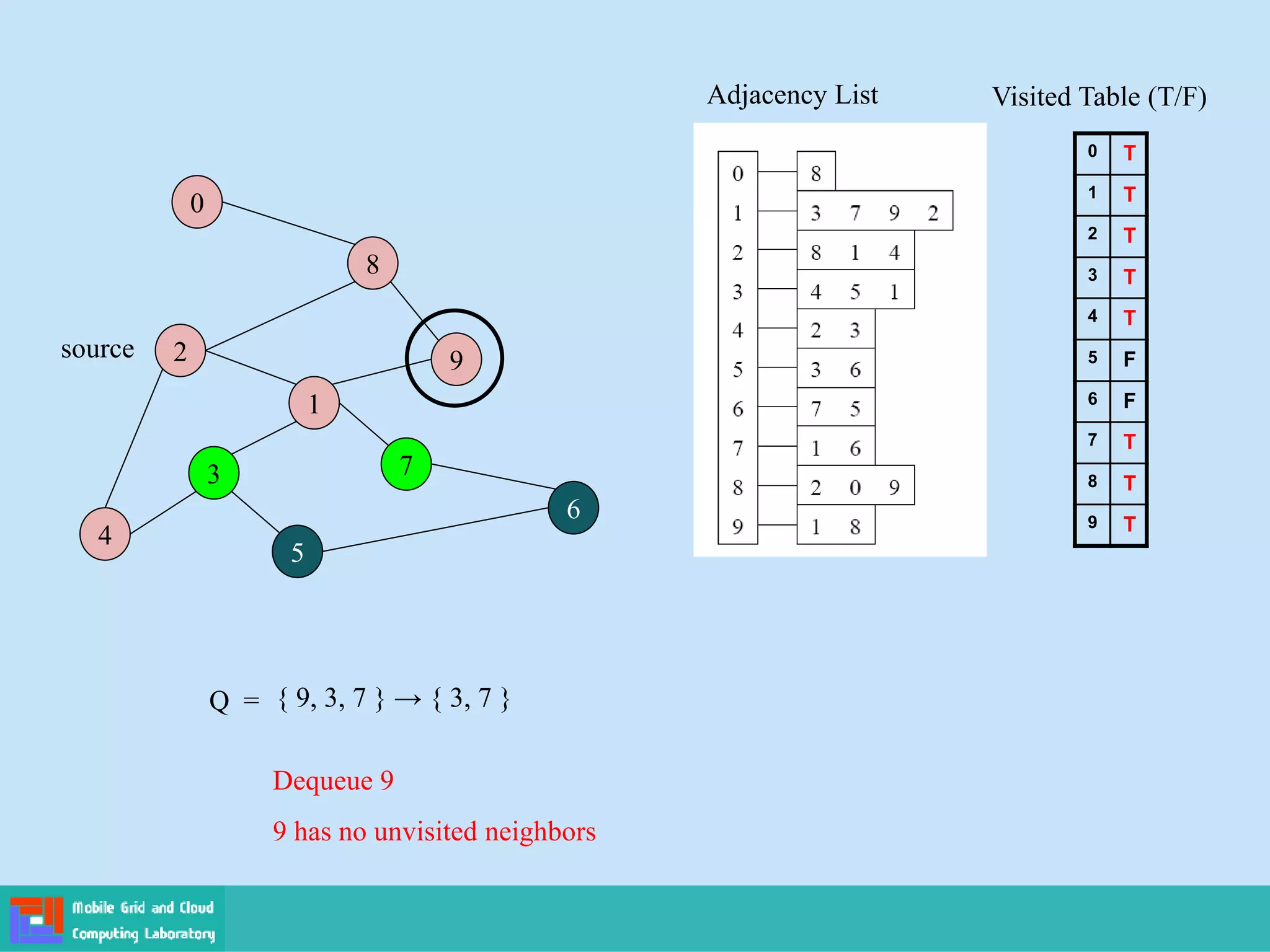

Q = { 9, 3, 7 } → { 3, 7 }
Dequeue 9

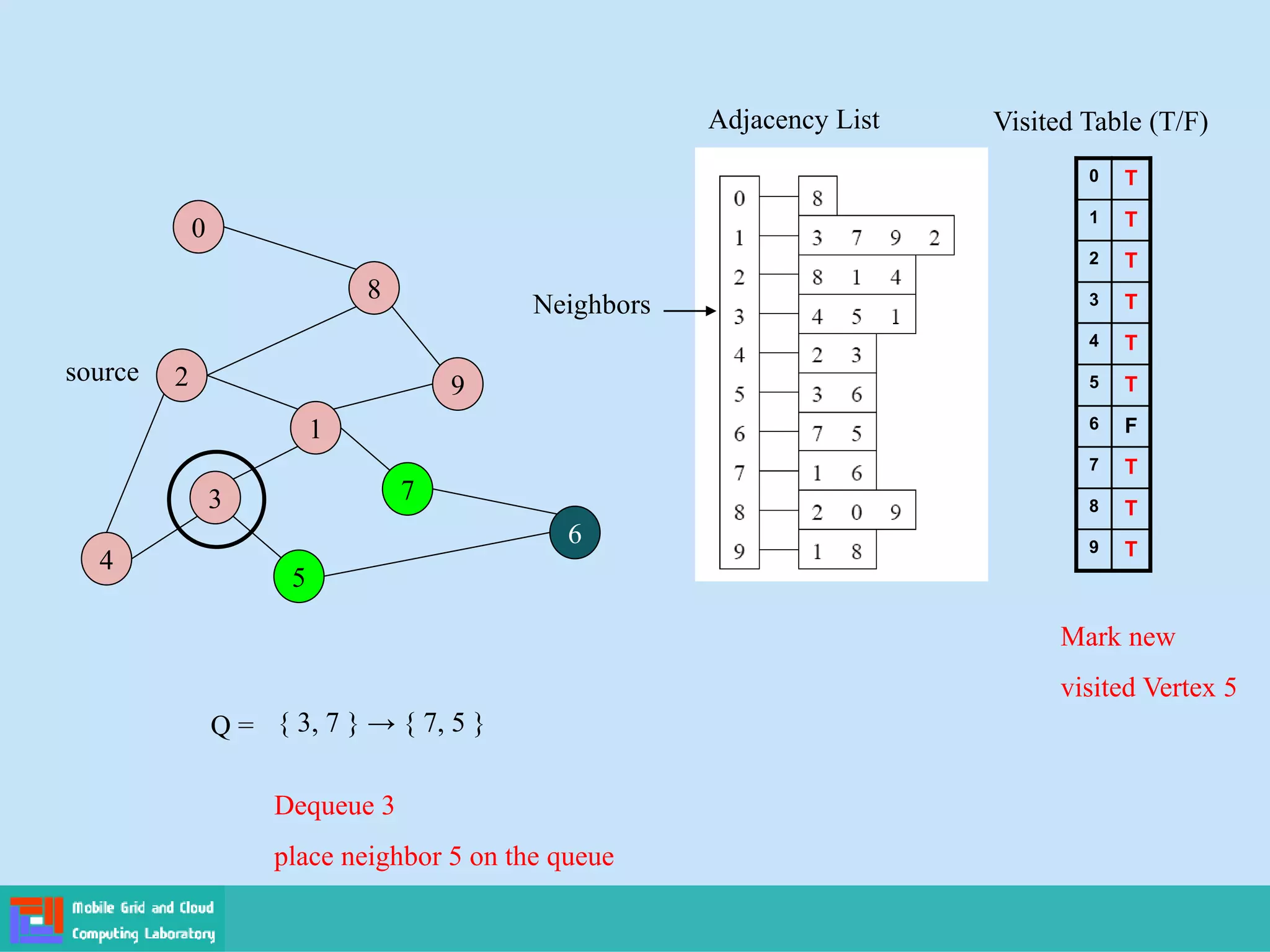

2
4
3
5
1
7
6
9
8
0
Adjacency List
source
0
1
2
3
4
5
6
7
8
9
Visited Table (T/F)
T
T
T
T
T
T
F
T
T
T
Q = { 3, 7 } → { 7, 5 }
Dequeue 3
place neighbor 5 on the queue
Neighbors
Mark new
visited Vertex 5

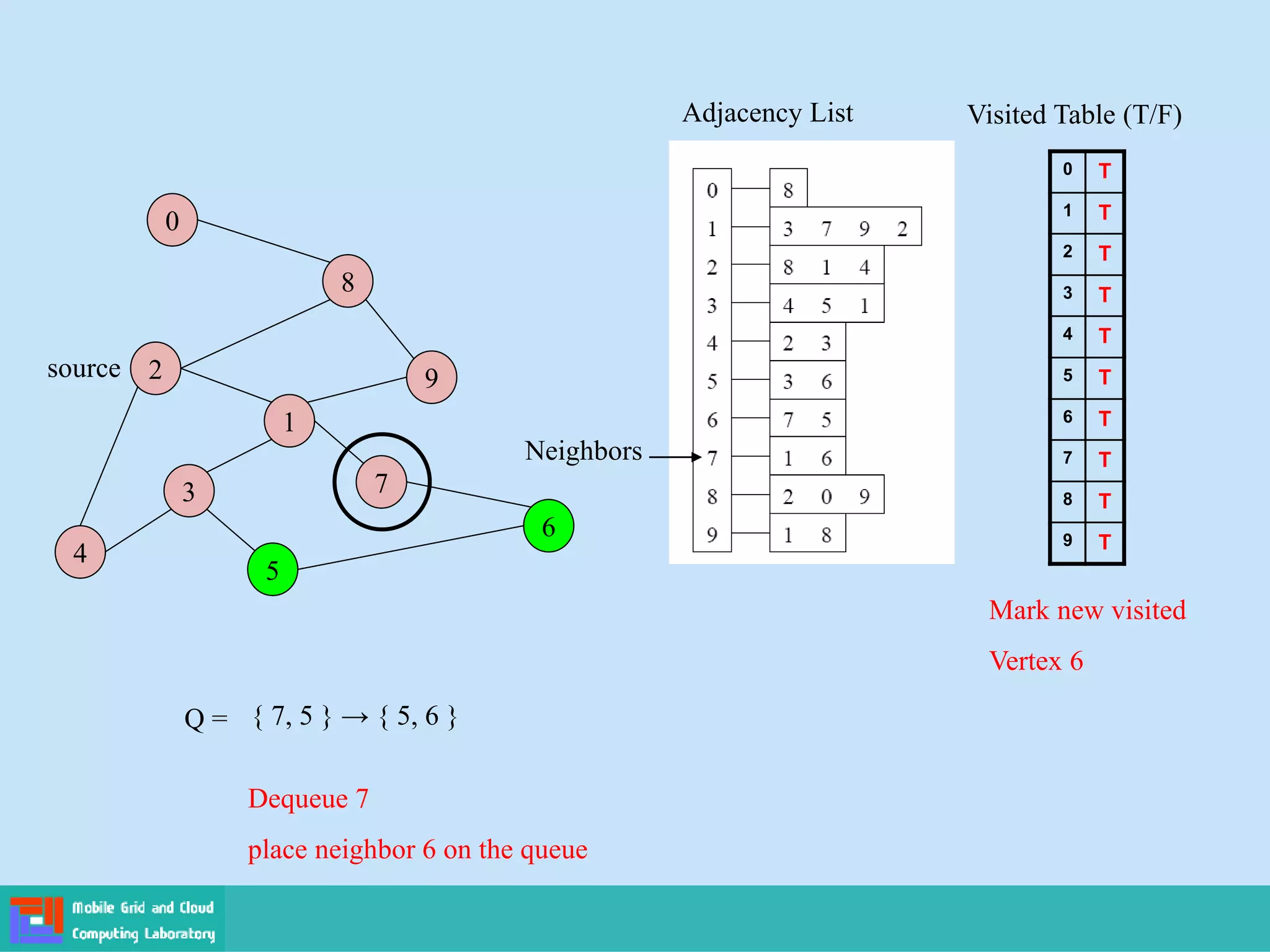

2
4
3
5
1
7
6
9
8
0
Adjacency List
source
0
1
2
3
4
5
6
7
8
9
Visited Table (T/F)
T
T
T
T
T
T
T
T
T
T
Q = { 7, 5 } → { 5, 6 }
Dequeue 7
place neighbor 6 on the queue
Neighbors
Mark new visited
Vertex 6

2
4
3
5
1
7
6
9
8
0
Adjacency List
source
0
1
2
3
4
5
6
7
8
9
Visited Table (T/F)
T
T
T
T
T
T
T
T
T
T

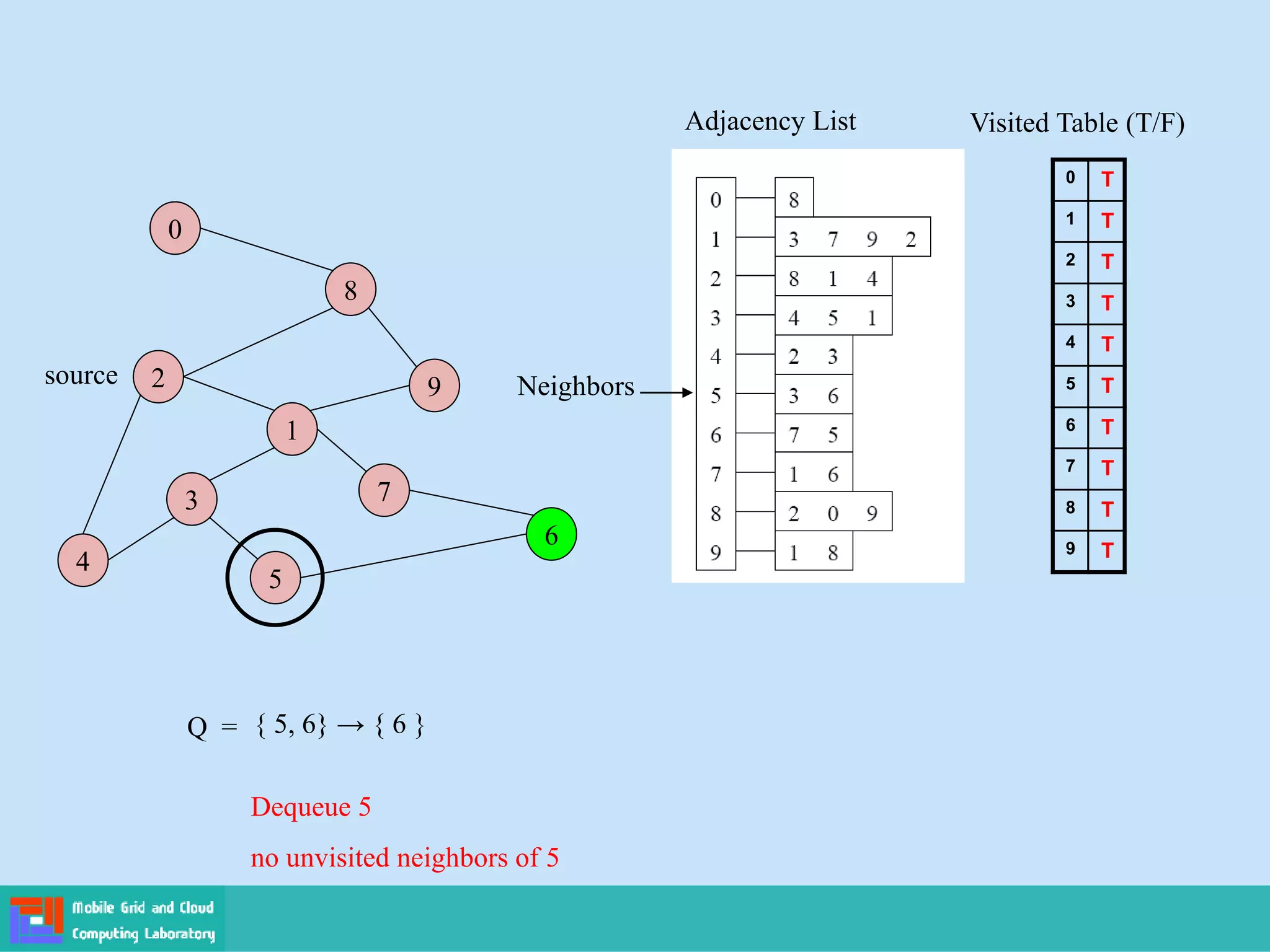

Q = { 5, 6} → { 6 }
Dequeue 5
no unvisited neighbors of 5
Neighbors

2
4
3
5
1
7
6
9
8
0
Adjacency List
source
0
1
2
3
4
5
6
7
8
9
Visited Table (T/F)
T
T
T
T
T
T
T
T
T
T

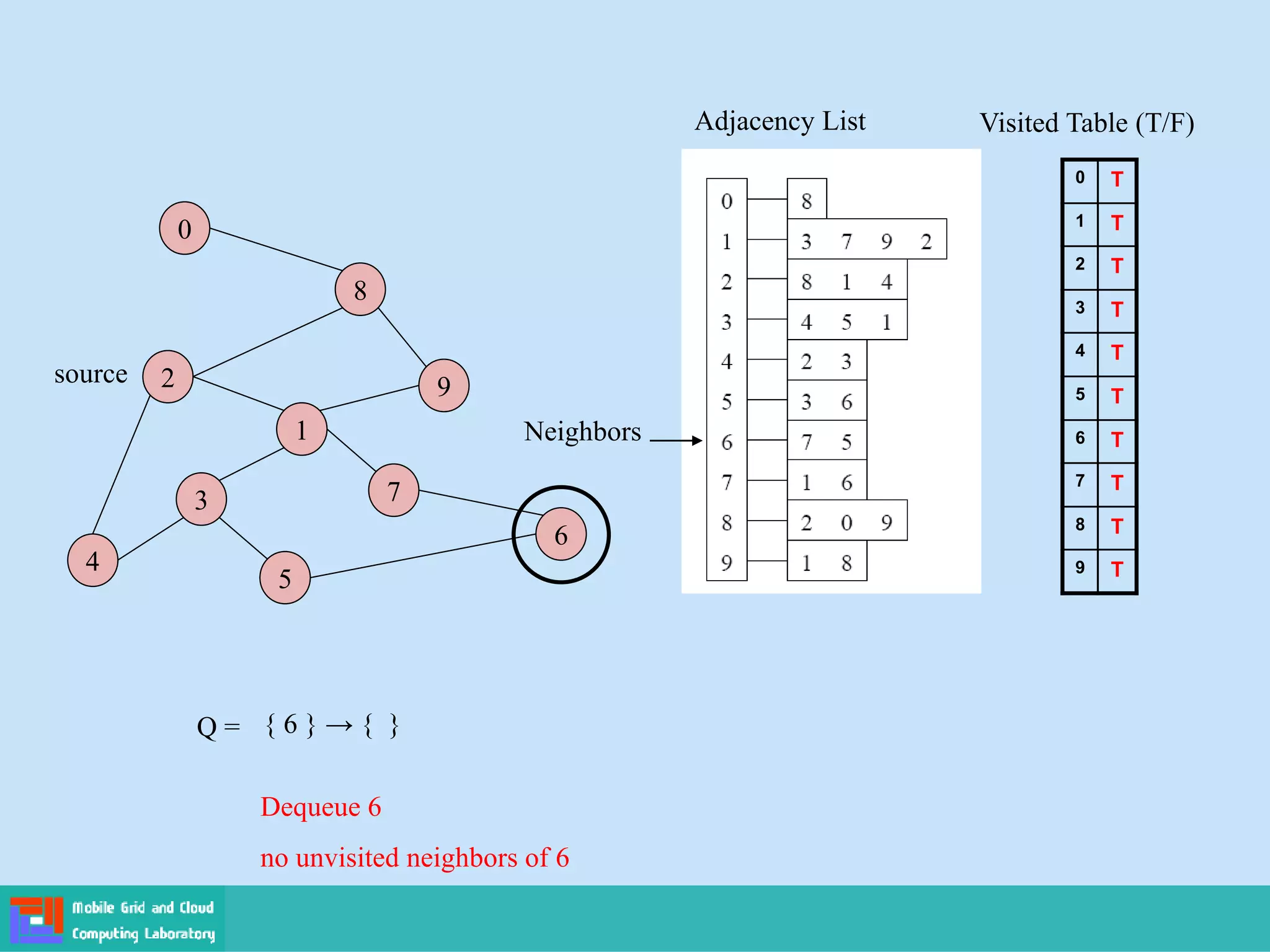

Q = { 6 } → { }
Dequeue 6
no unvisited neighbors of 6
Neighbors

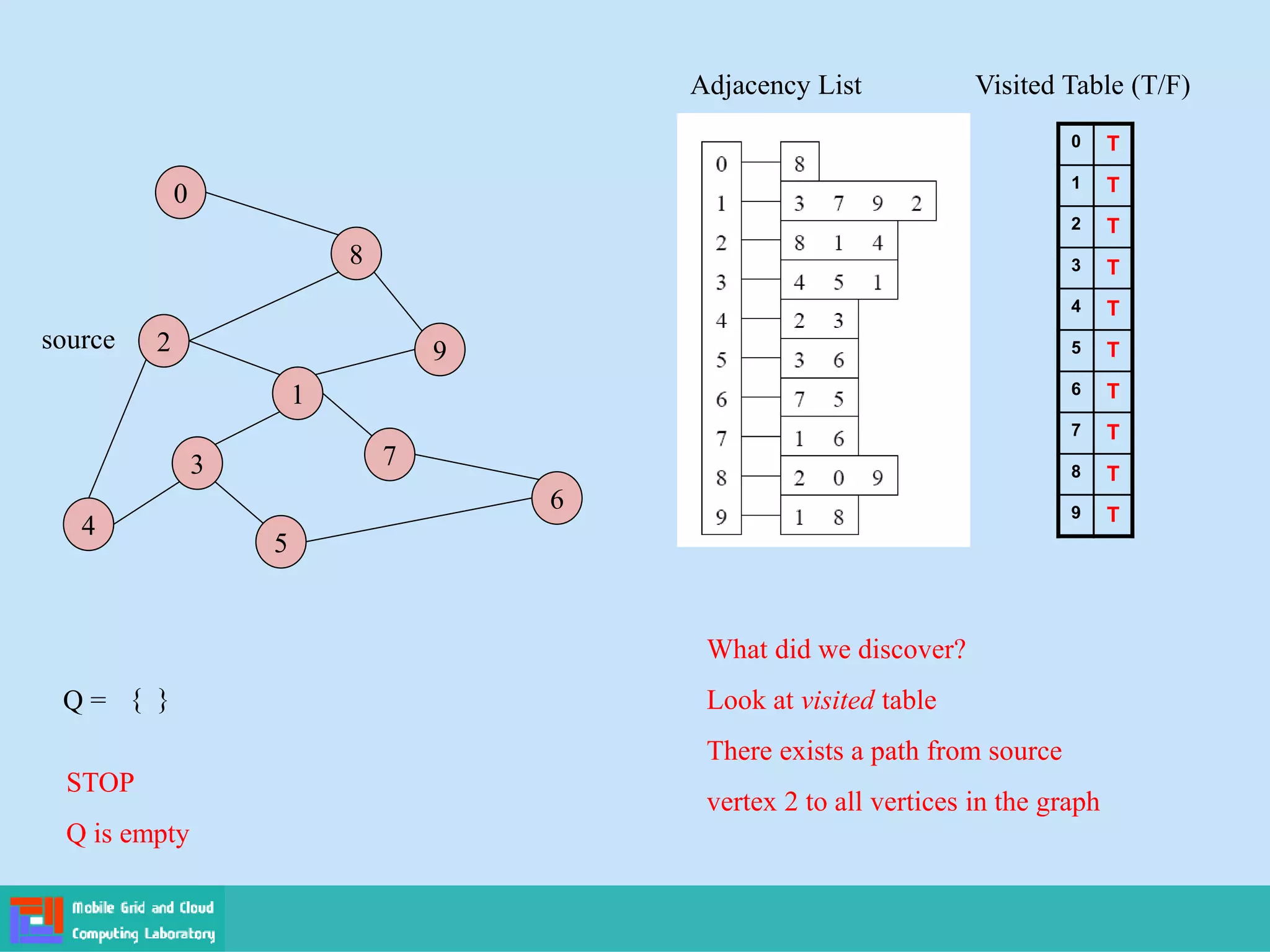

2
4
3
5
1
7
6
9
8
0
Adjacency List
source
0
1
2
3
4
5
6
7
8
9
Visited Table (T/F)
T
T
T
T
T
T
T
T
T
T
Q = { }
STOP
Q is empty
What did we discover?
Look at visited table
There exists a path from source
vertex 2 to all vertices in the graph

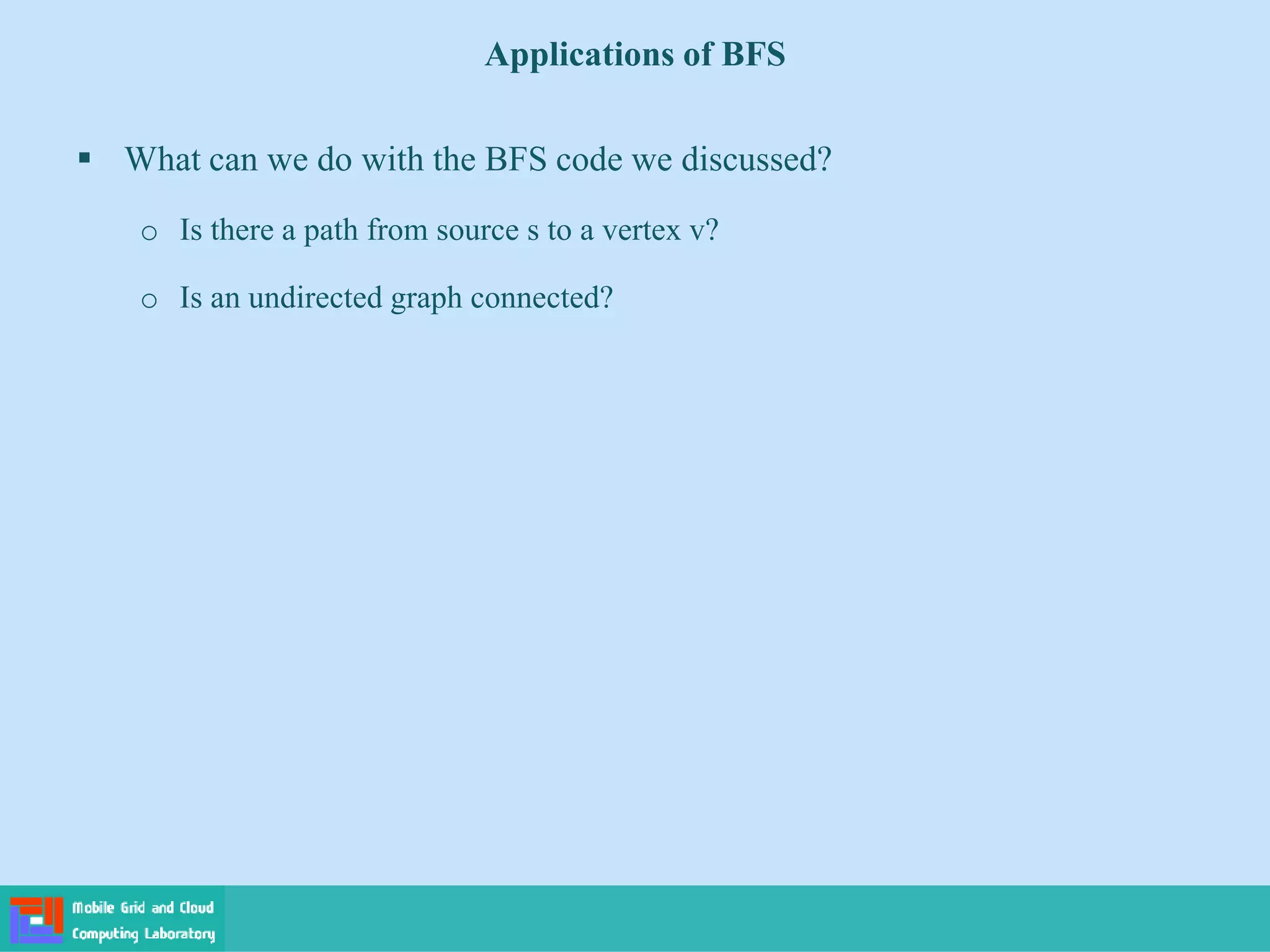

Applications of BFS

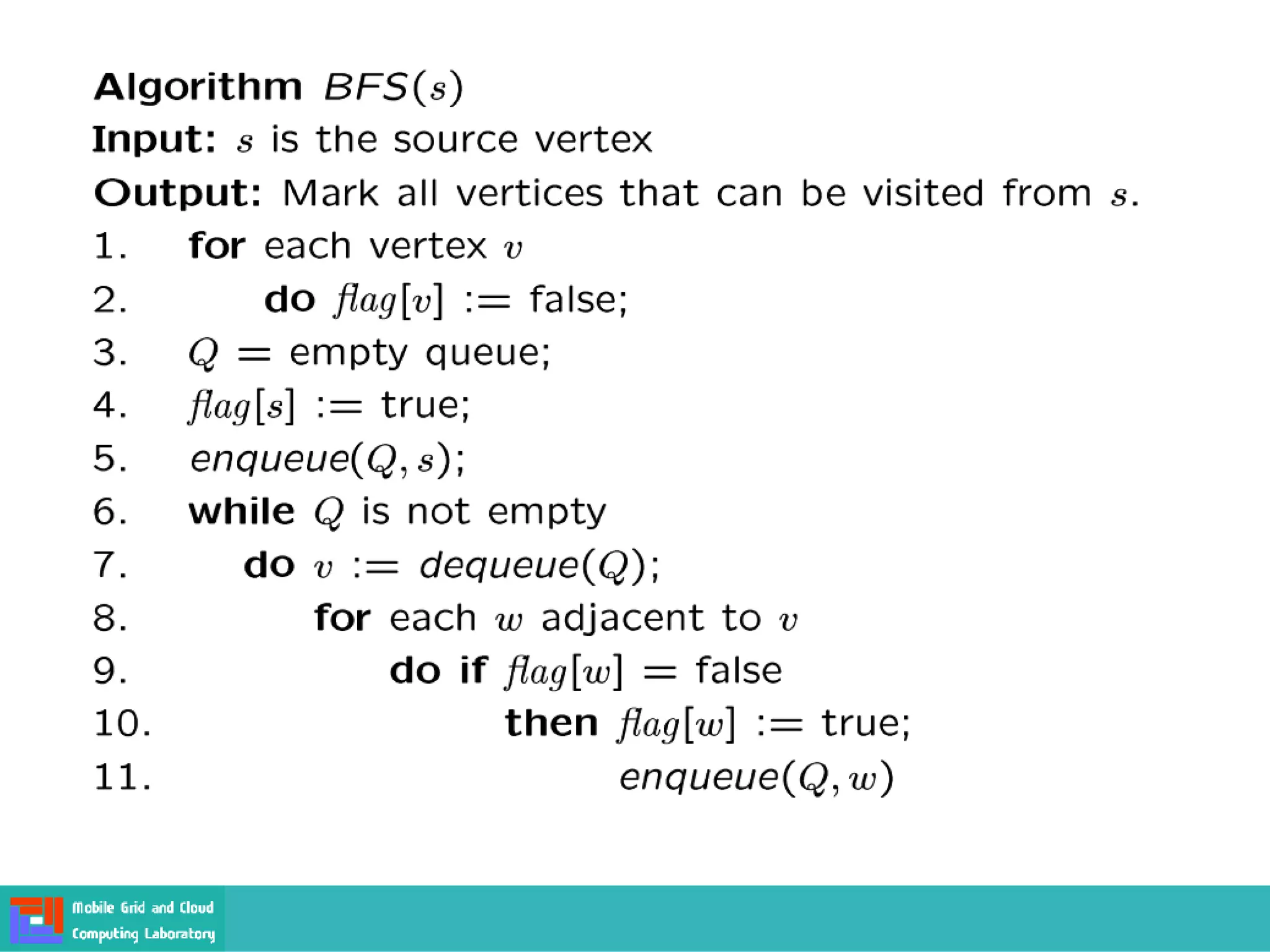

 What can we do with the BFS code we discussed?
o Is there a path from source s to a vertex v?
o Is an undirected graph connected?

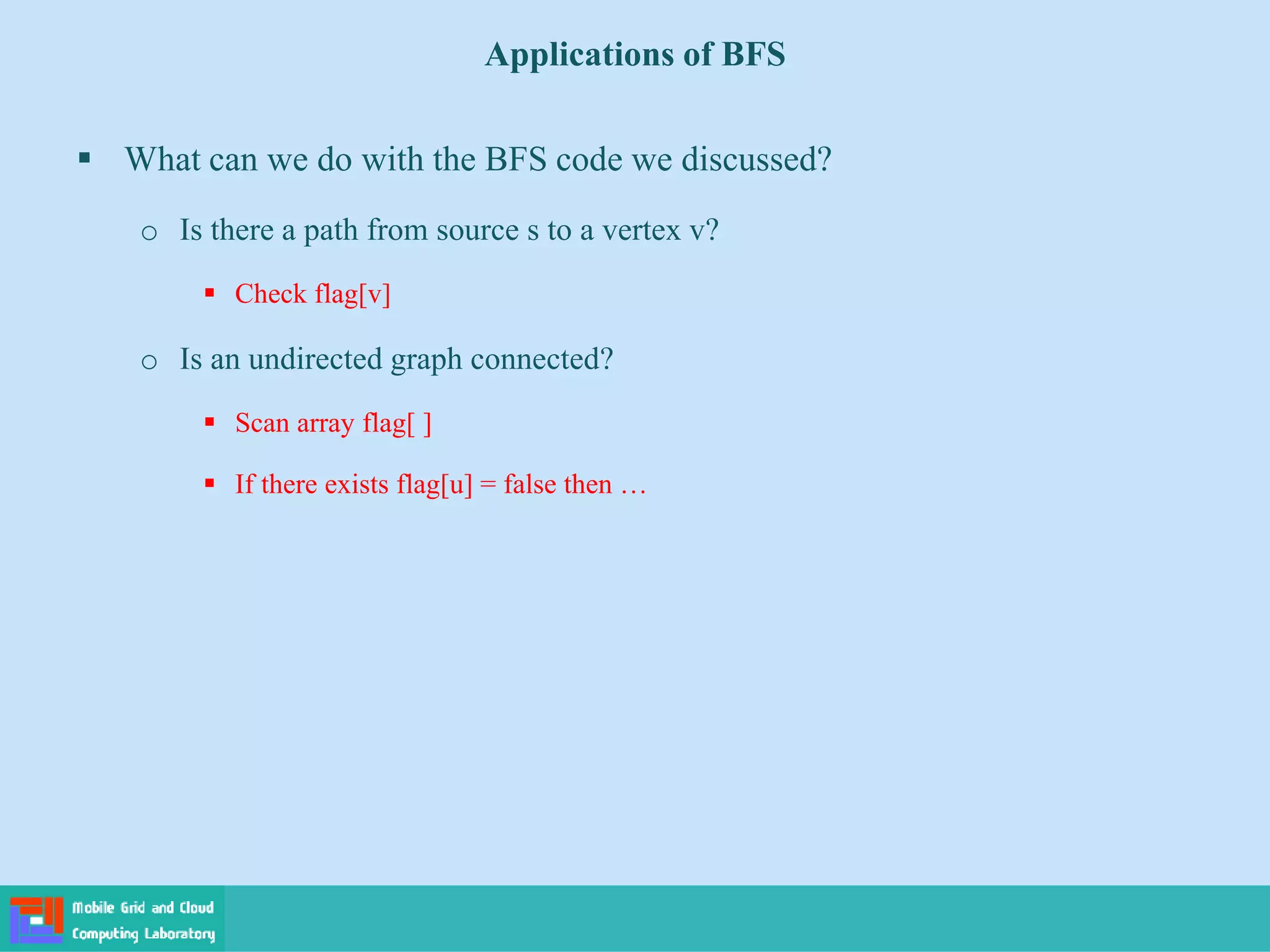

Applications of BFS
 What can we do with the BFS code we discussed?
o Is there a path from source s to a vertex v?
 Check flag[v]
o Is an undirected graph connected?
 Scan array flag[ ]
 If there exists flag[u] = false then …

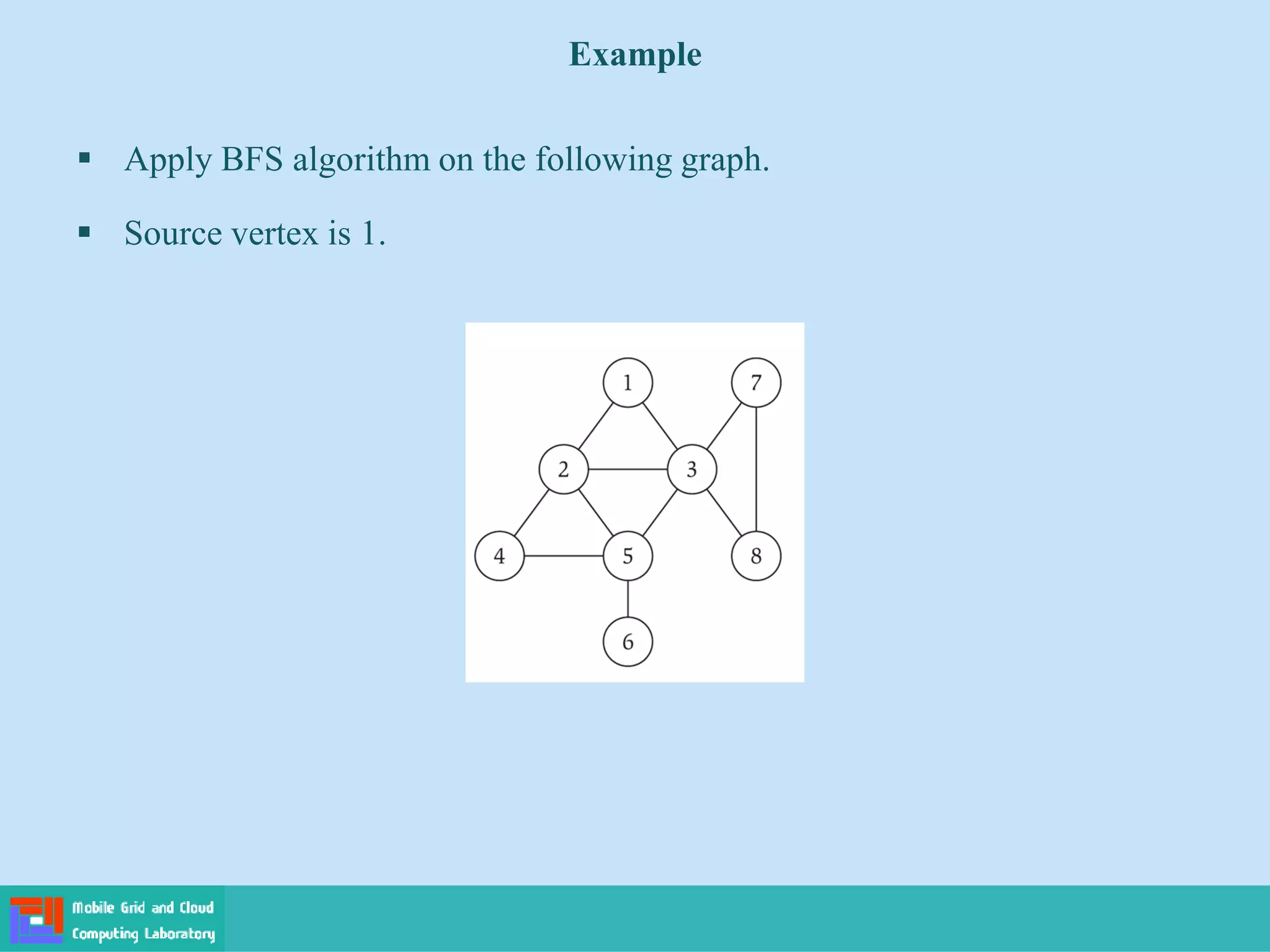

Example
 Apply BFS algorithm on the following graph.
 Source vertex is 1.

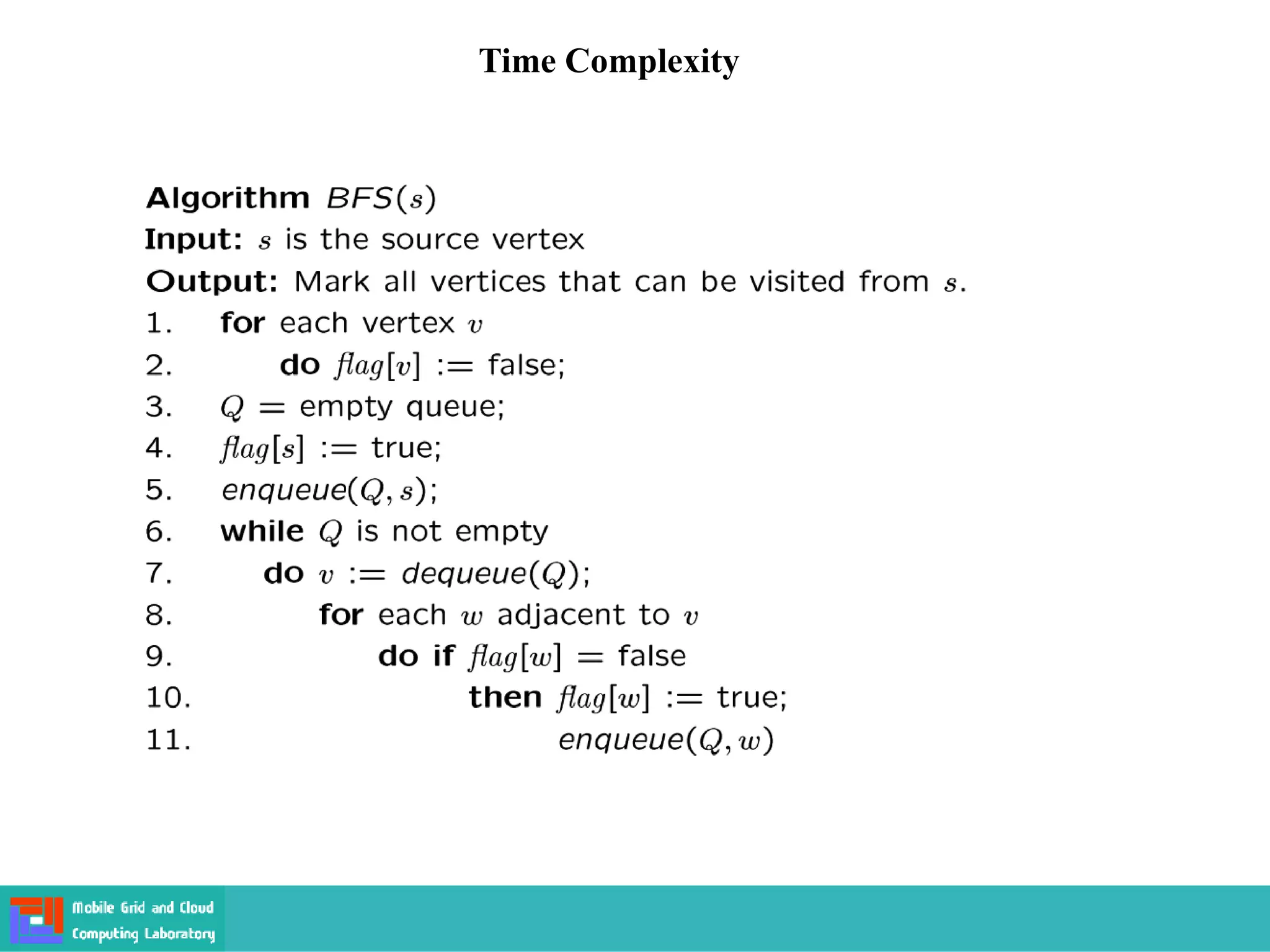

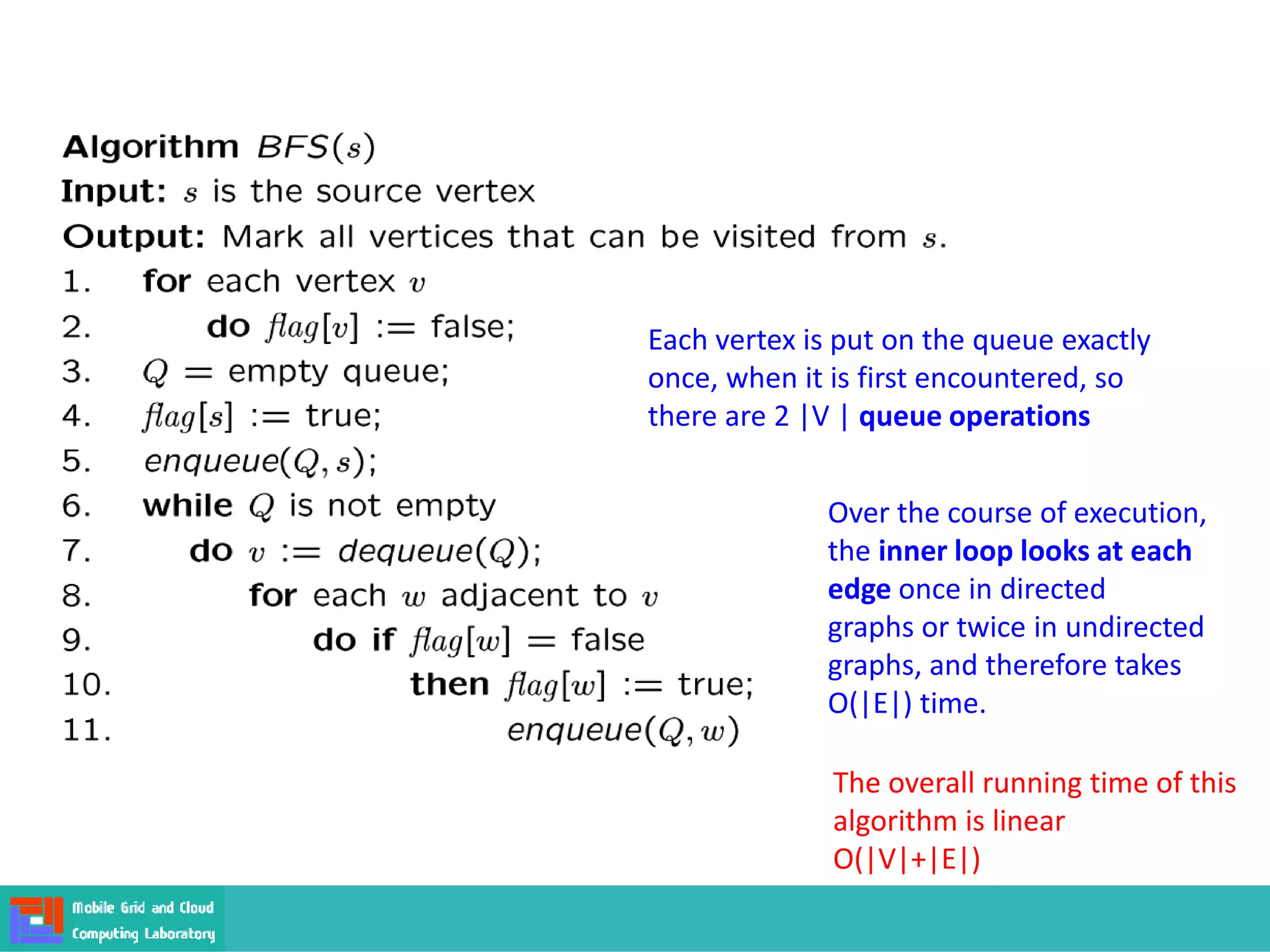

Each vertex is put on the queue exactly
once, when it is first encountered, so
there are 2 |V | queue operations
Over the course of execution,
the inner loop looks at each
edge once in directed
graphs or twice in undirected
graphs, and therefore takes
O(|E|) time.
The overall running time of this
algorithm is linear
O(|V|+|E|)

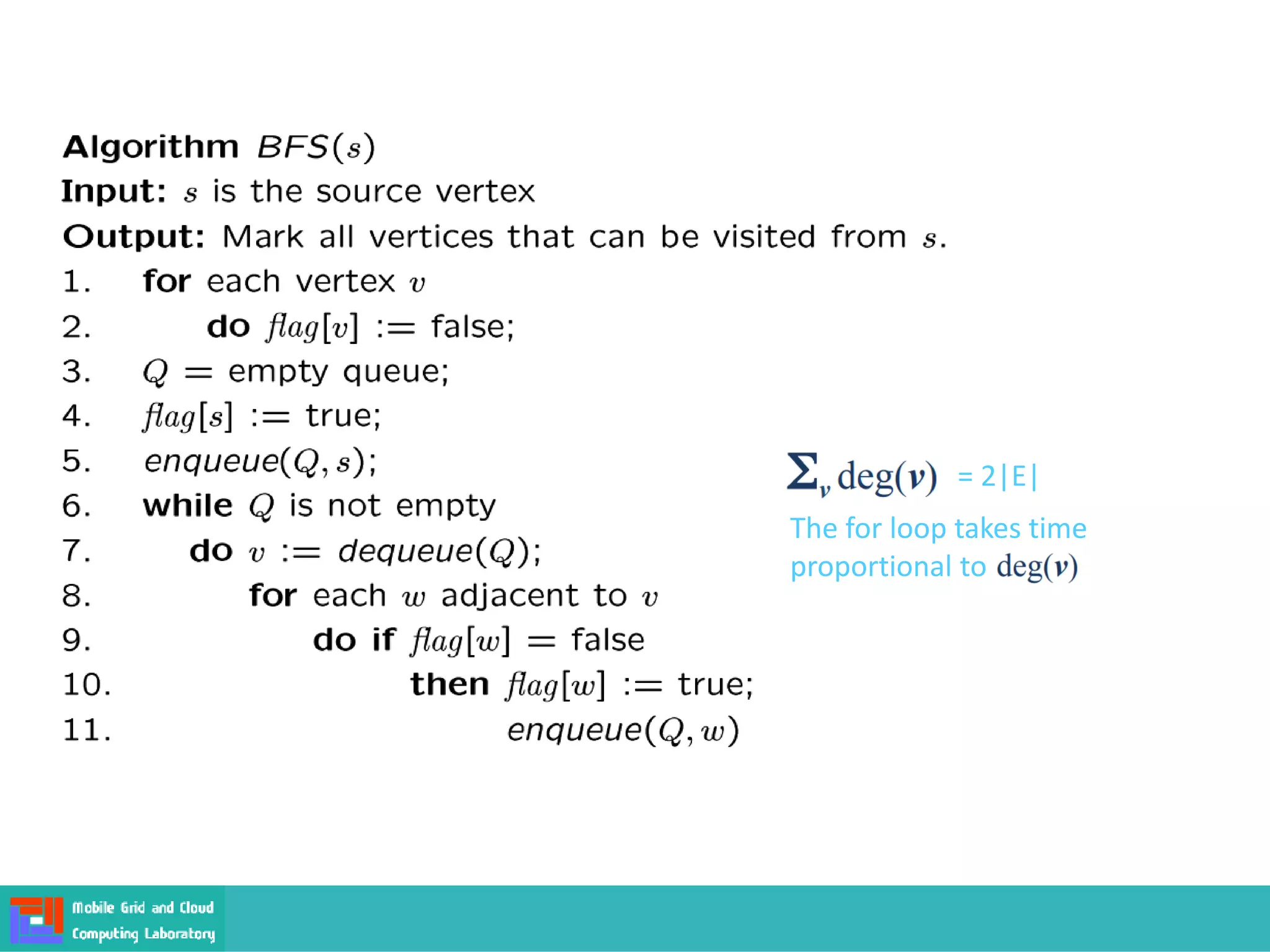

The for loop takes time
proportional to
= 2|E|

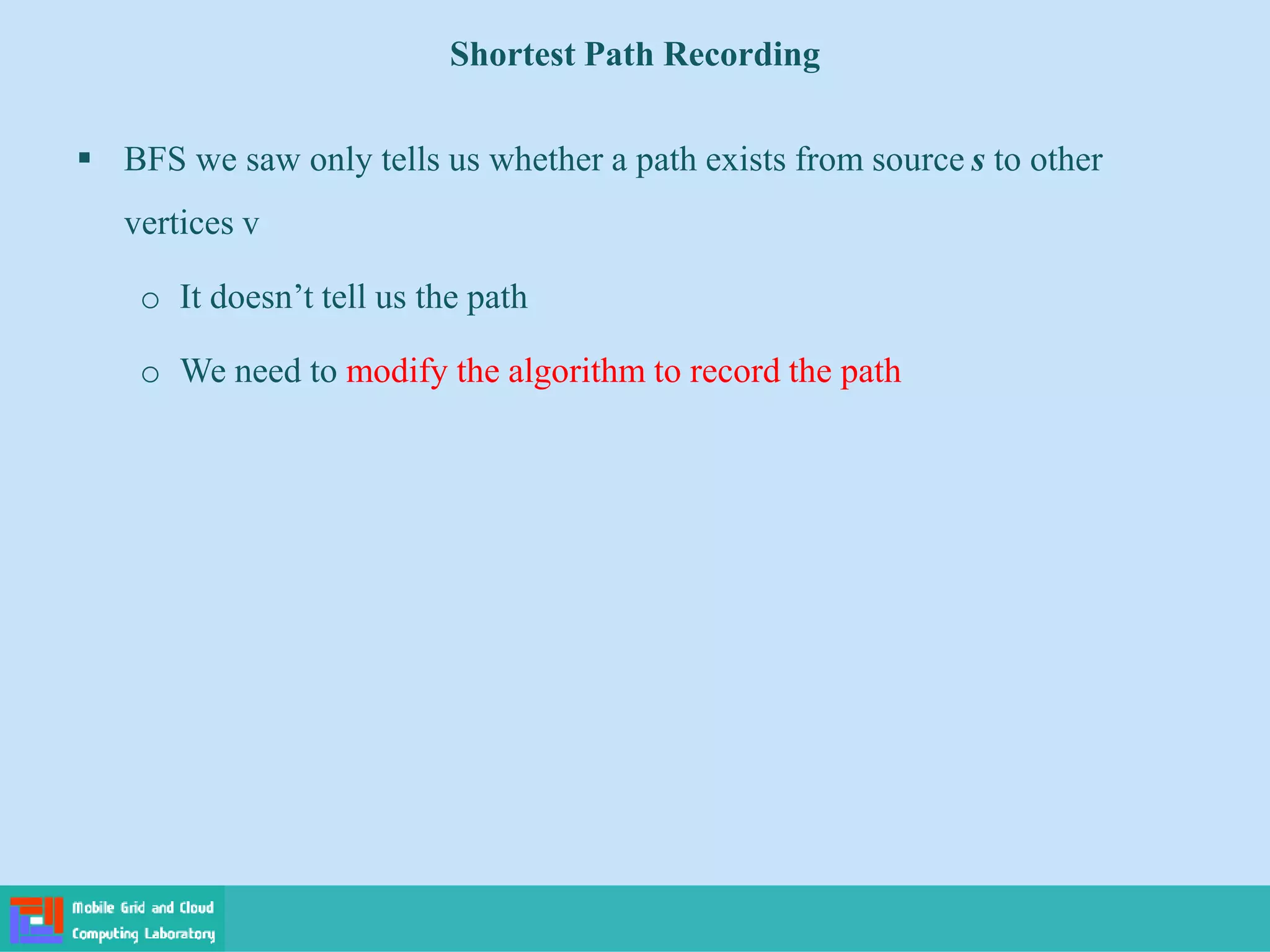

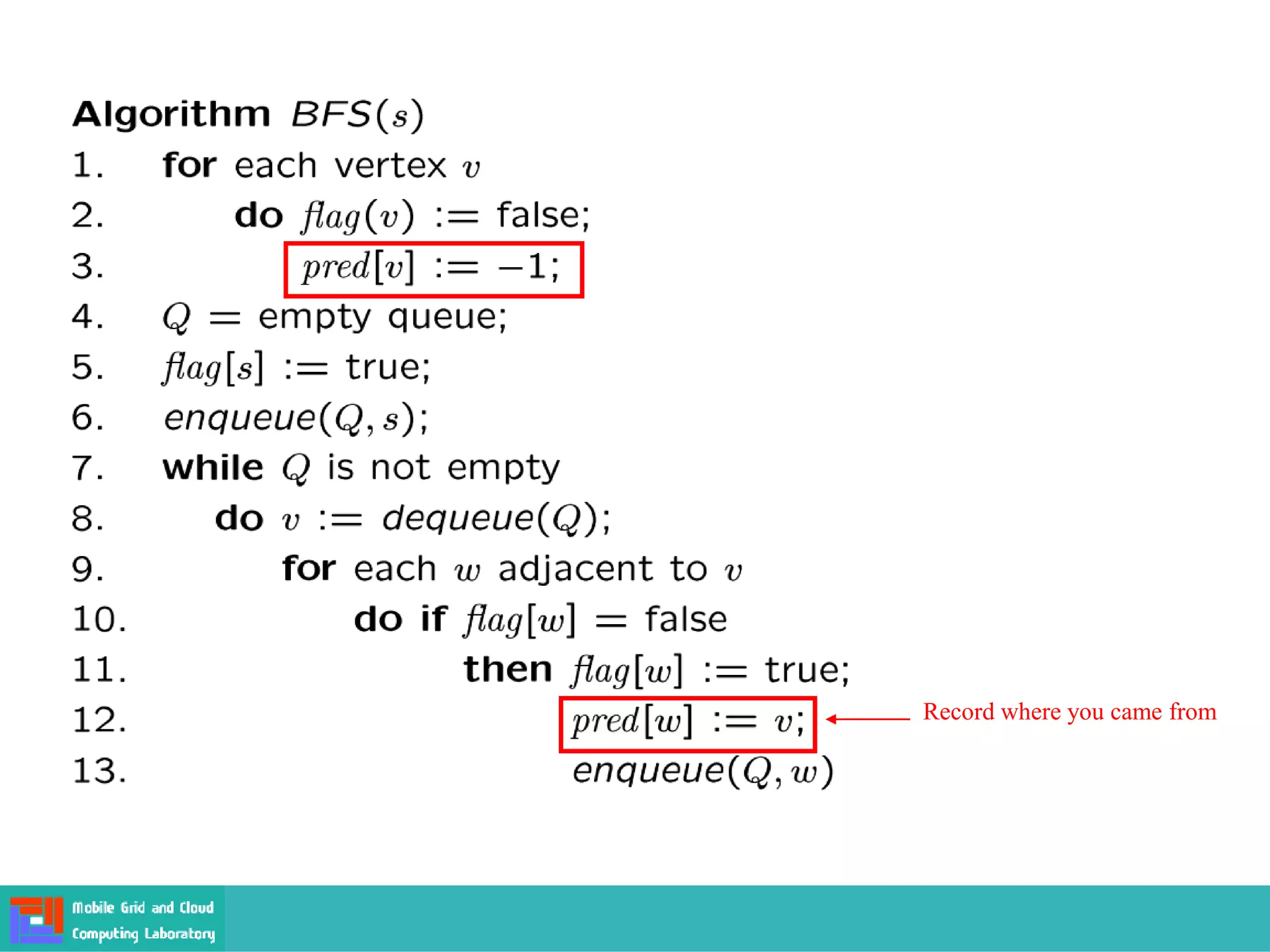

Shortest Path Recording
 BFS we saw only tells us whether a path exists from source s to other
vertices v
o It doesn’t tell us the path
o We need to modify the algorithm to record the path

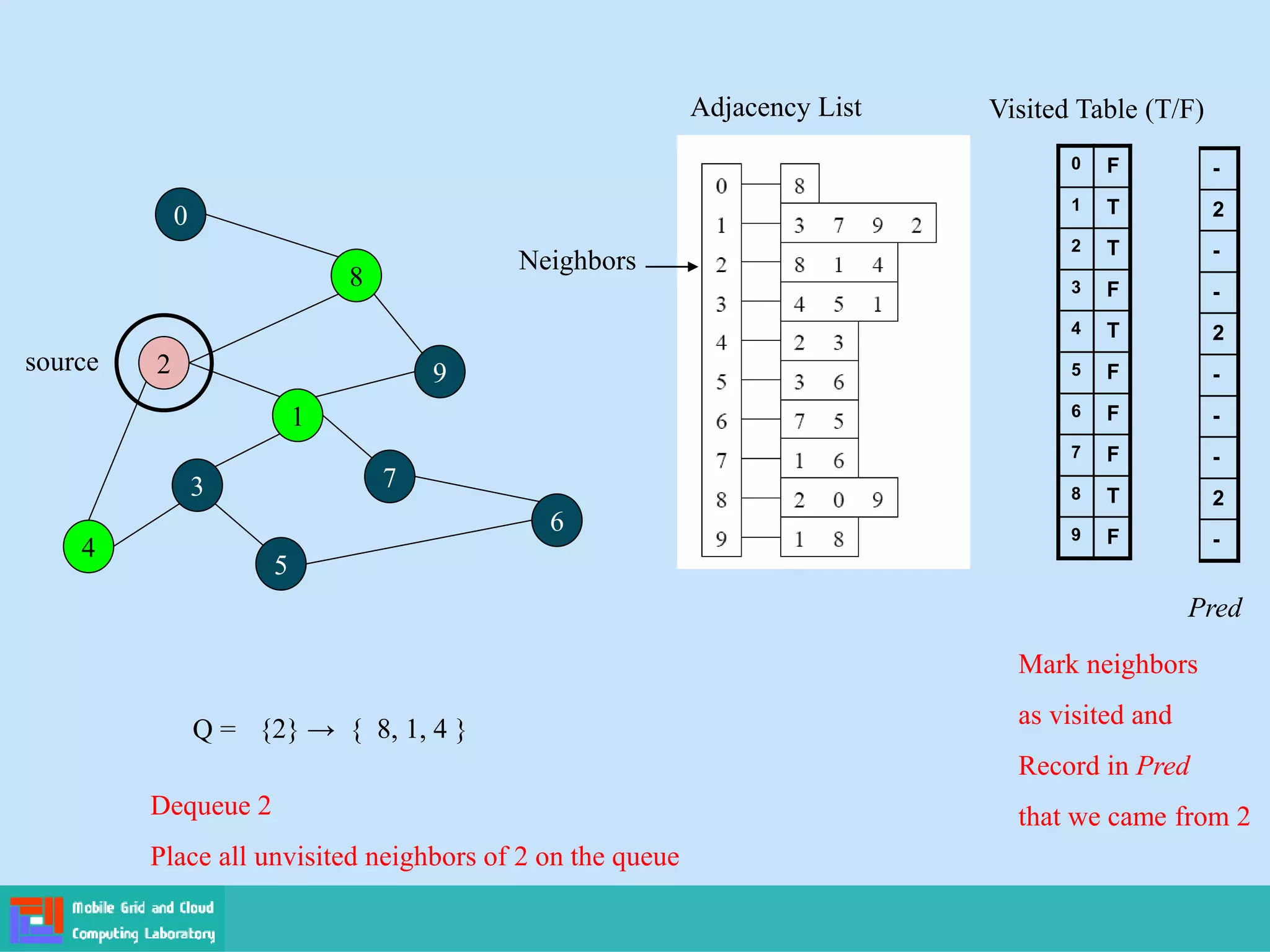

2
4
3
5
1
7
6
9
8
0
Adjacency List
source
0
1
2
3
4
5
6
7
8
9
Visited Table (T/F)
F
T
T
F
T
F
F
F
T
F
Q = {2} → { 8, 1, 4 }
Mark neighbors
as visited and
Record in Pred
that we came from 2
Dequeue 2
Neighbors
-
2
-
-
2
-
-
-
2
-
Pred

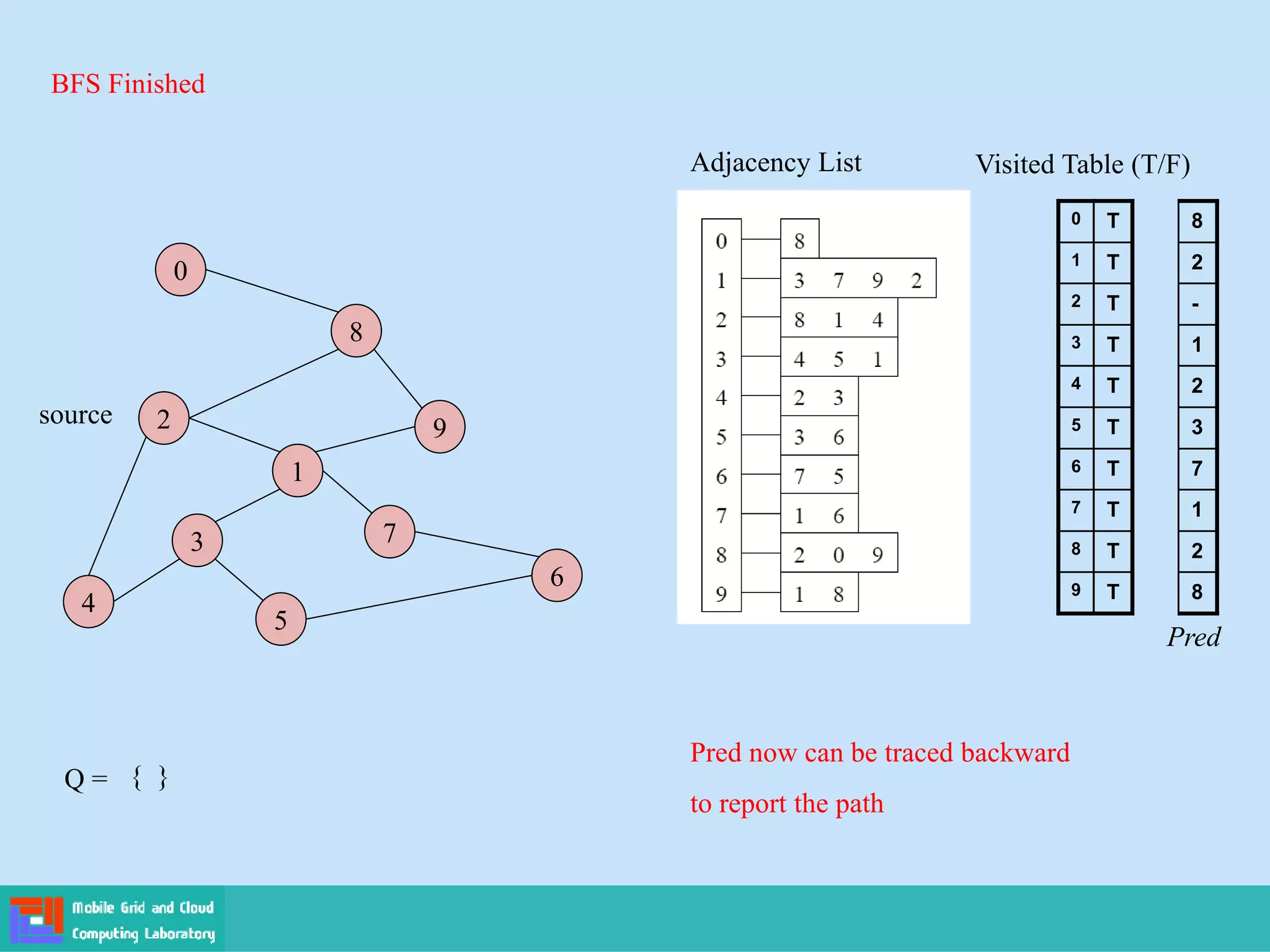

BFS Finished
2
4
3
5
1
7
6
9
8
0
Adjacency List
source
0
1
2
3
4
5
6
7
8
9
Visited Table (T/F)
T
T
T
T
T
T
T
T
T
T
Q = { }
Pred now can be traced backward
to report the path
8
2
-
1
2
3
7
1
2
8
Pred

2
4
3
5
1
7
6
9
8
0
Adjacency List
source
0
1
2
3
4
5
6
7
8
9
Visited Table (T/F)
T
T
T
T
T
T
T
T
T
T
8
2
-
1
2
3
7
1
2
8
Pred

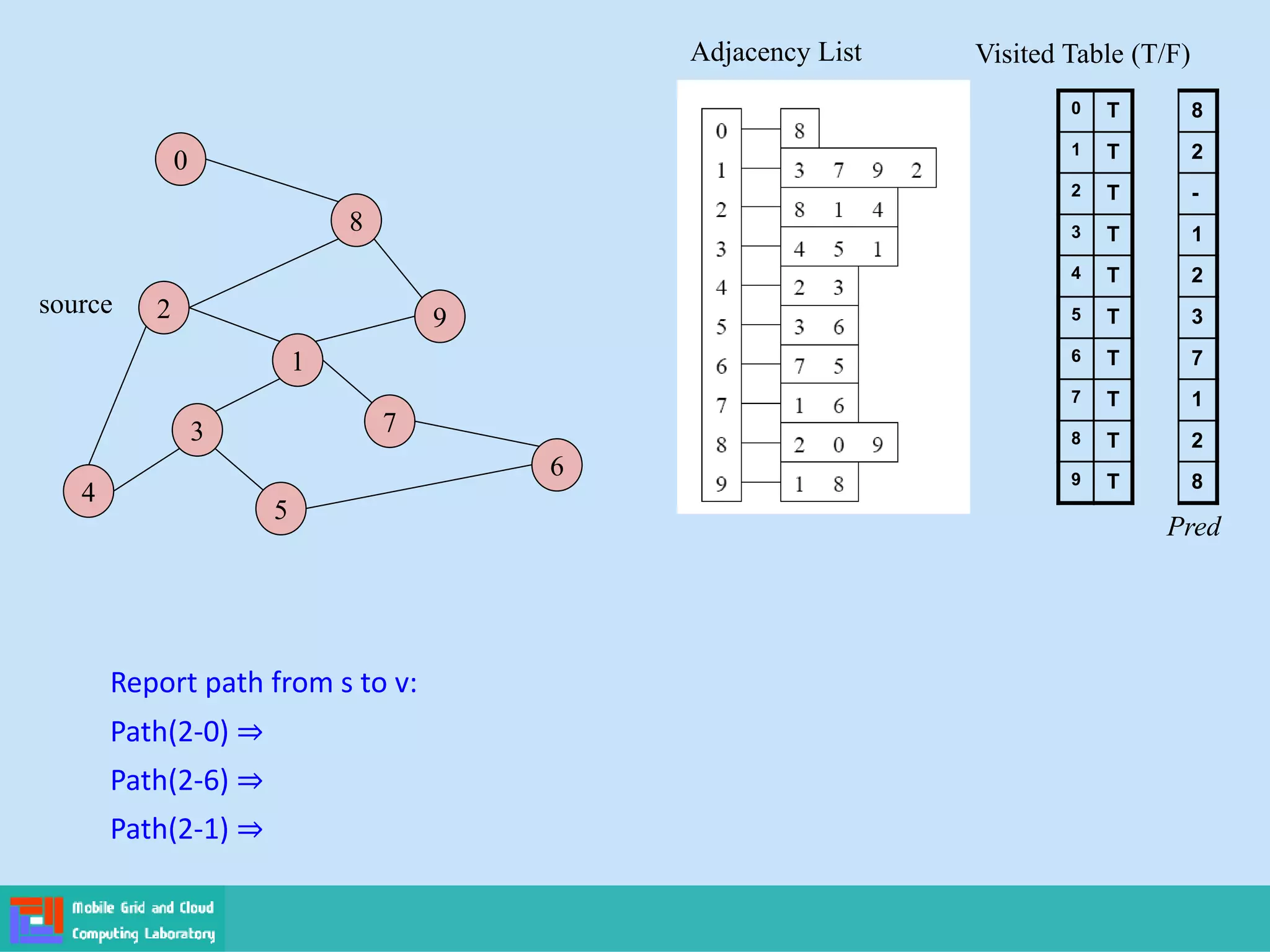

Report path from s to v:
Path(2-0) ⇒
Path(2-6) ⇒
Path(2-1) ⇒

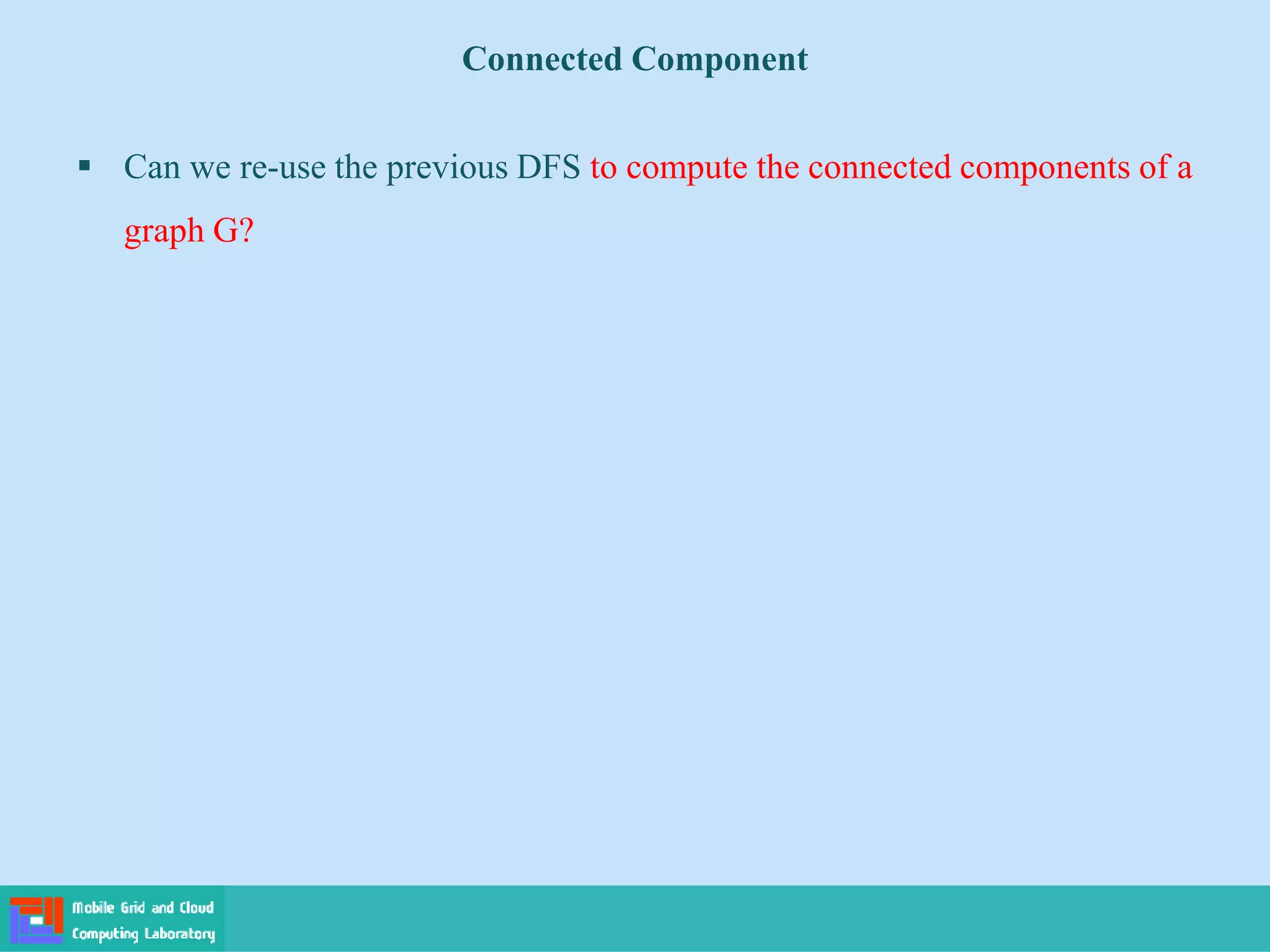

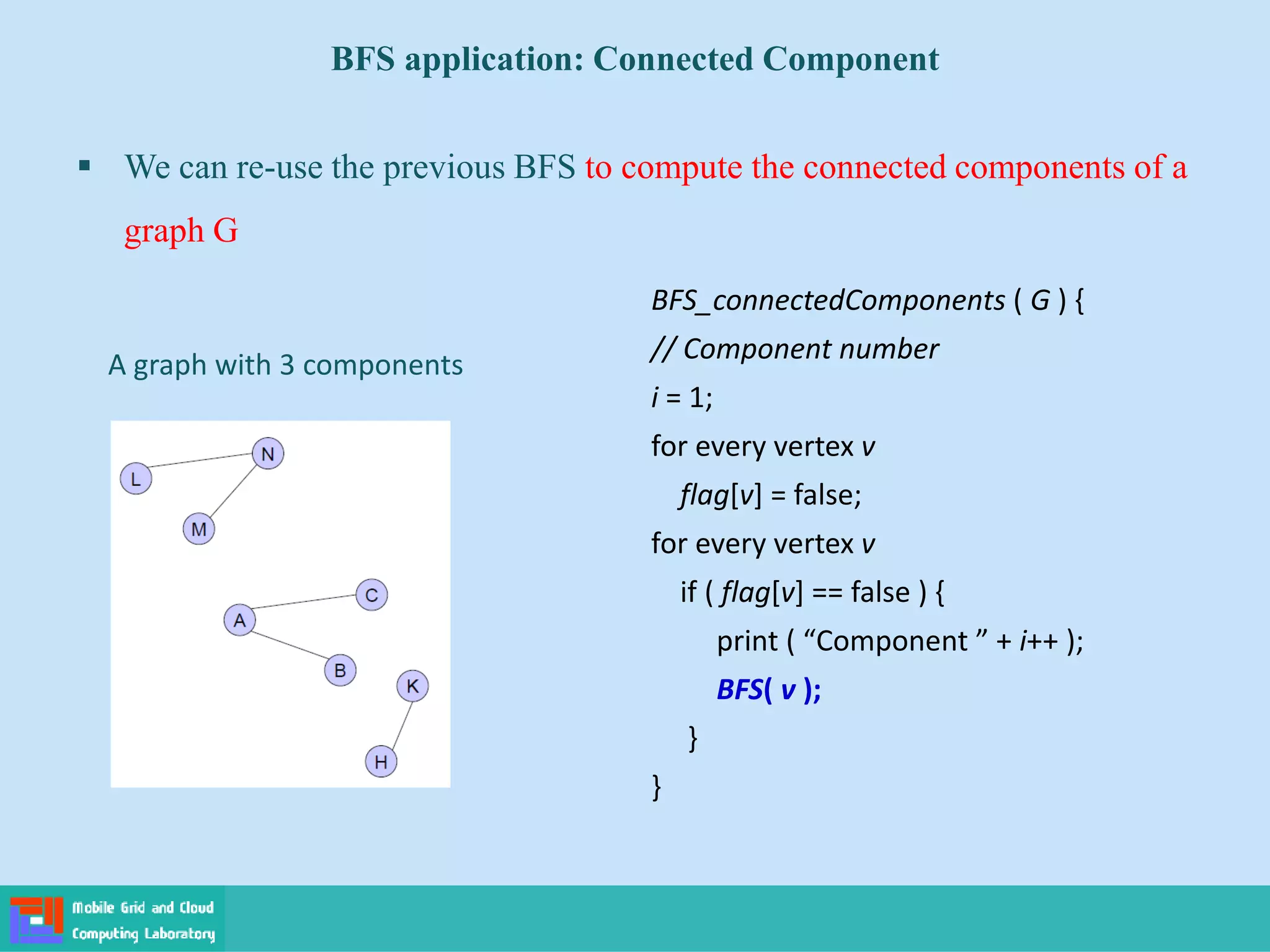

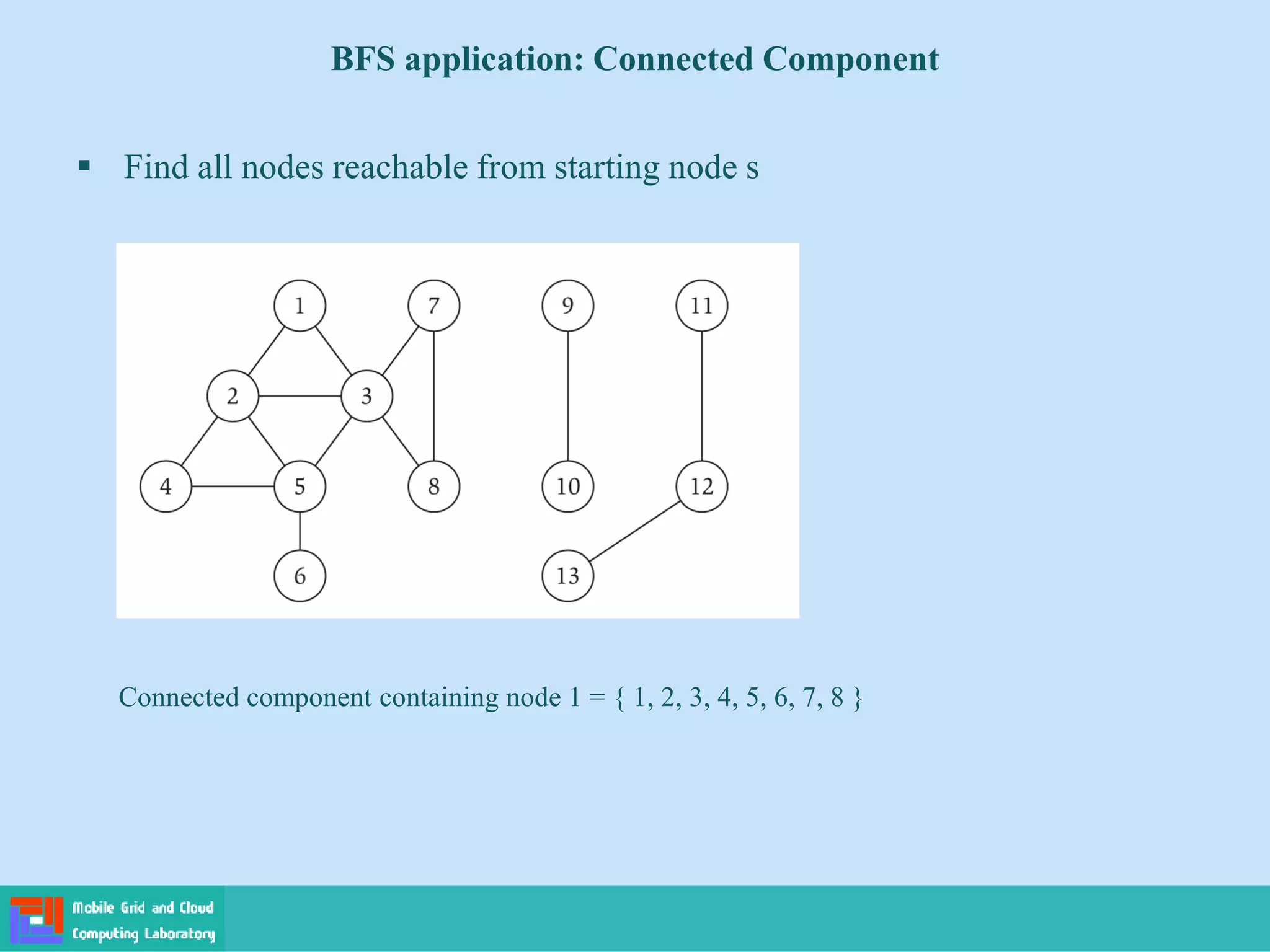

BFS application: Connected Component
 Find all nodes reachable from starting node s
Connected component containing node 1 = { 1, 2, 3, 4, 5, 6, 7, 8 }

 We can re-use the previous BFS to compute the connected components of a
graph G

 We can re-use the previous BFS to compute the connected components of a
graph G
A graph with 3 components
BFS_connectedComponents ( G ) {
// Component number
i = 1;
for every vertex v
flag[v] = false;
for every vertex v
if ( flag[v] == false ) {
print ( “Component ” + i++ );
BFS( v );
}
}

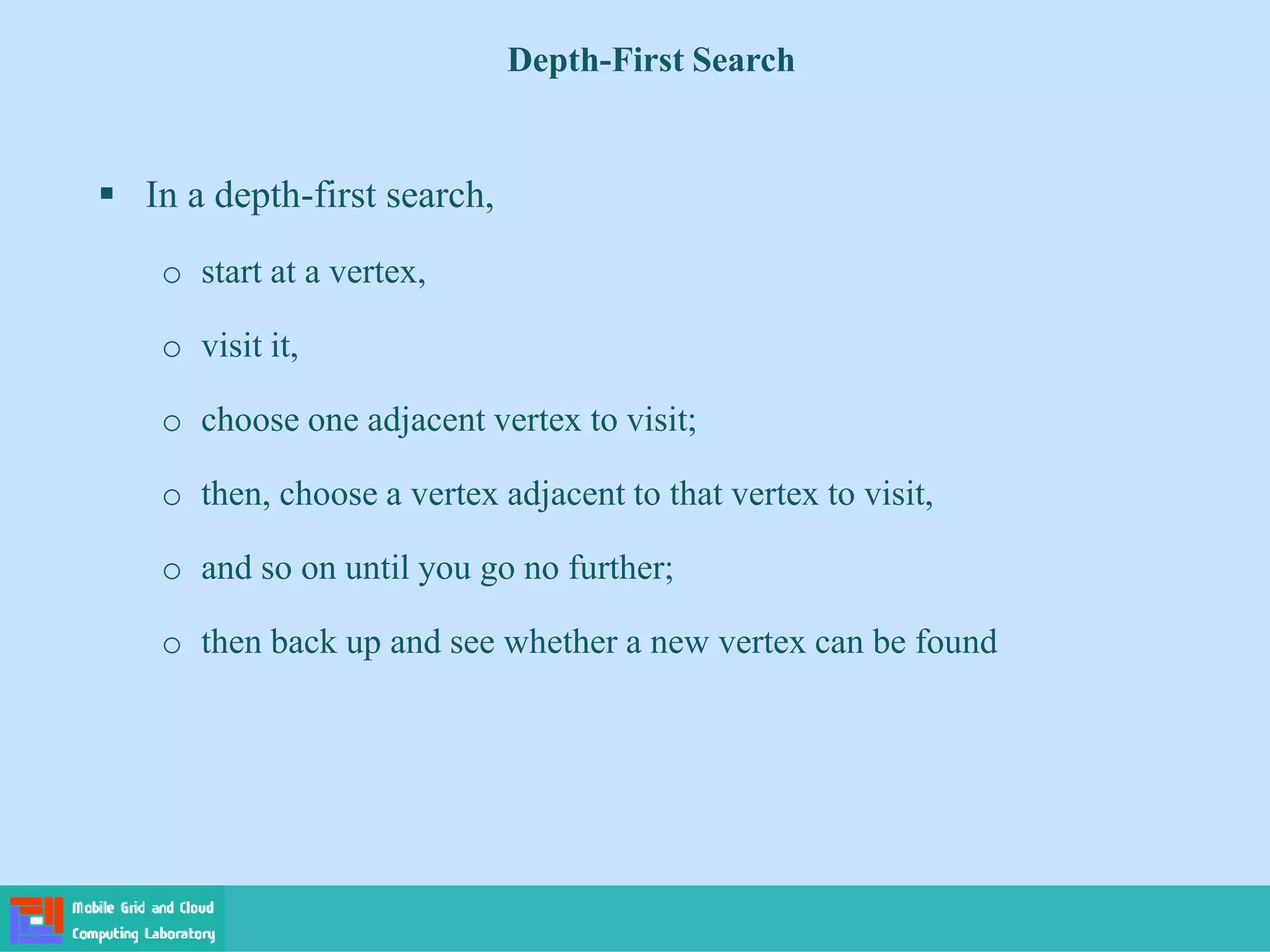

Depth-First Search
 In a depth-first search,
o start at a vertex,
o visit it,
o choose one adjacent vertex to visit;
o then, choose a vertex adjacent to that vertex to visit,
o and so on until you go no further;
o then back up and see whether a new vertex can be found

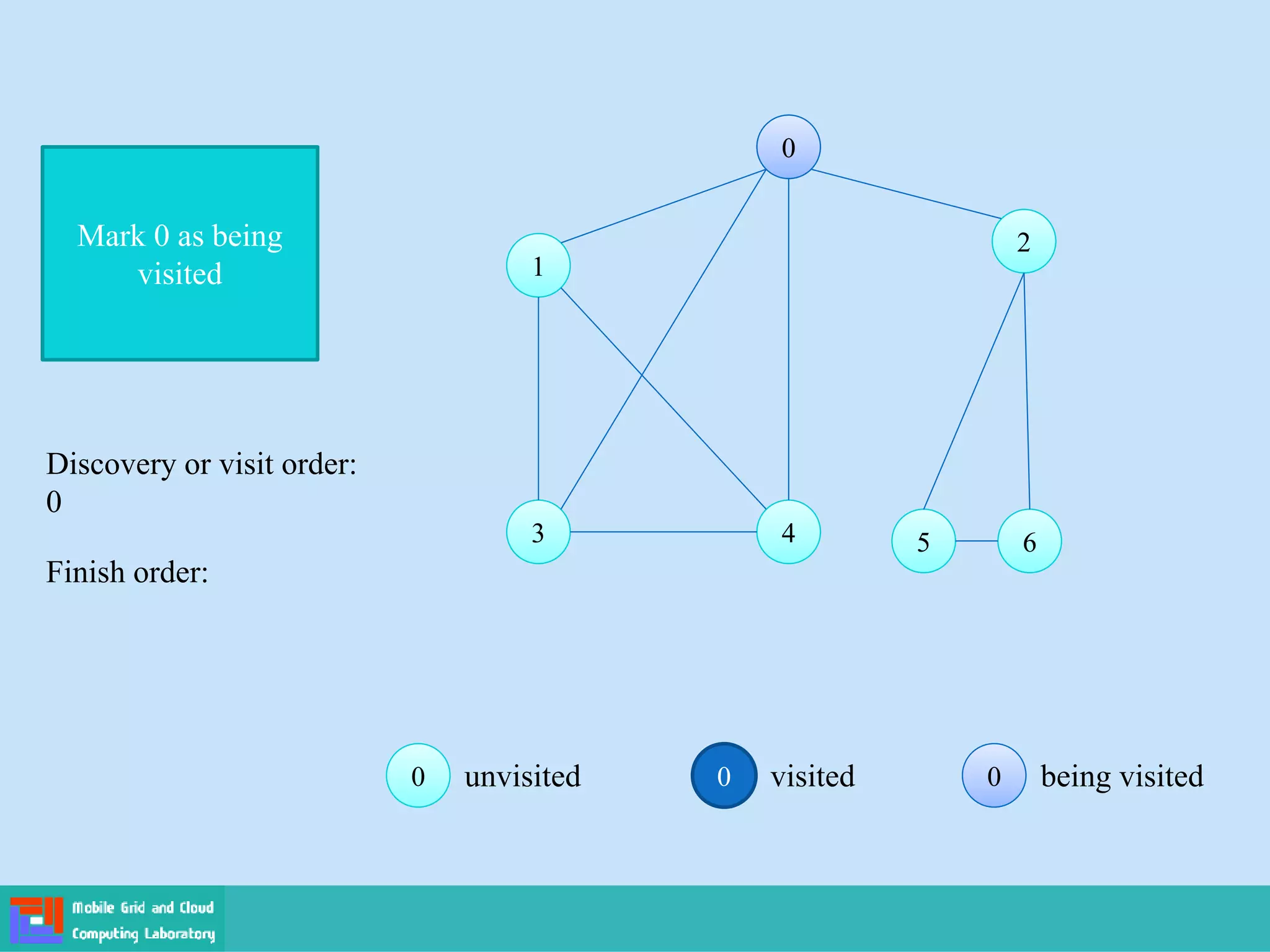

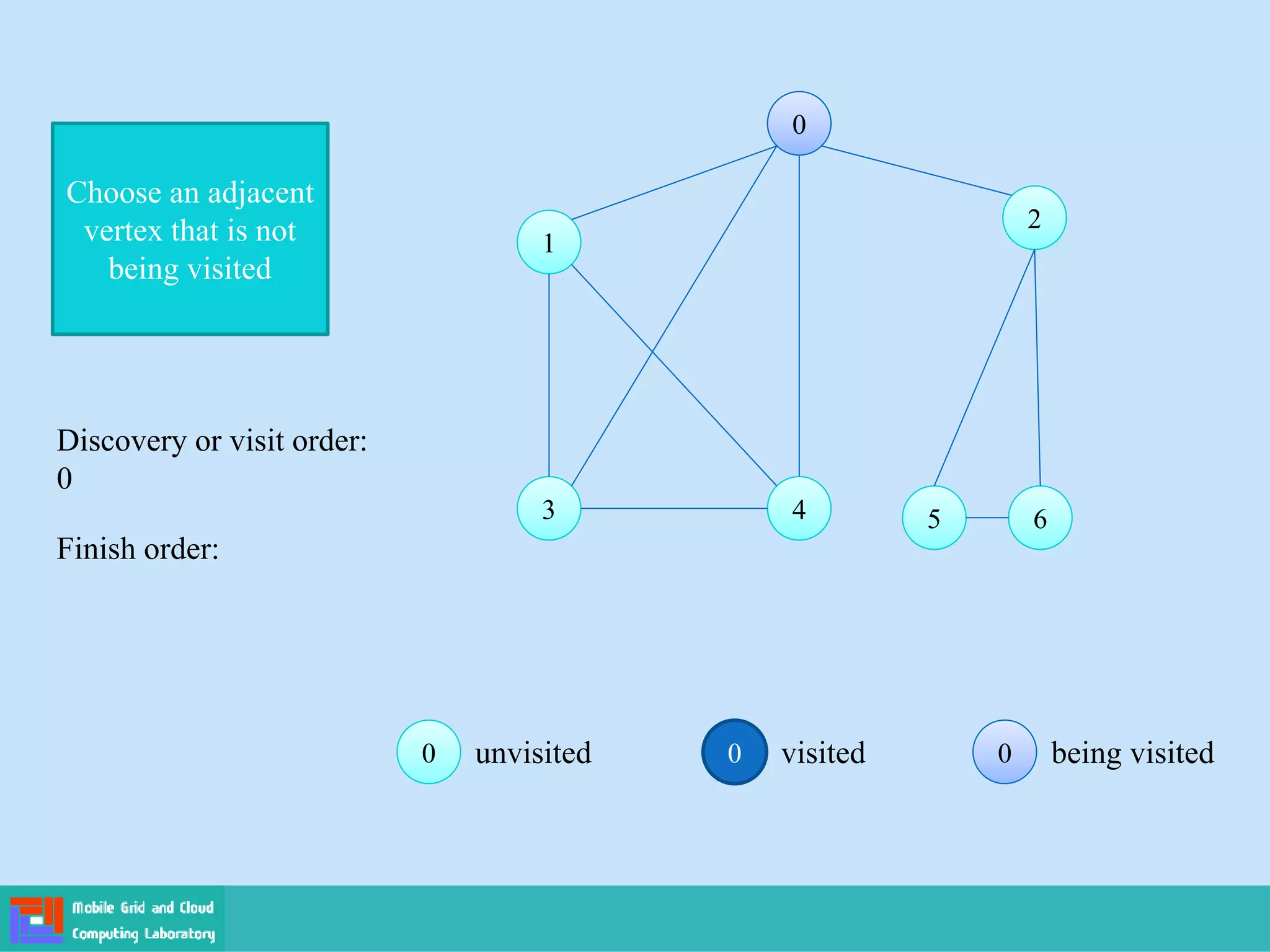

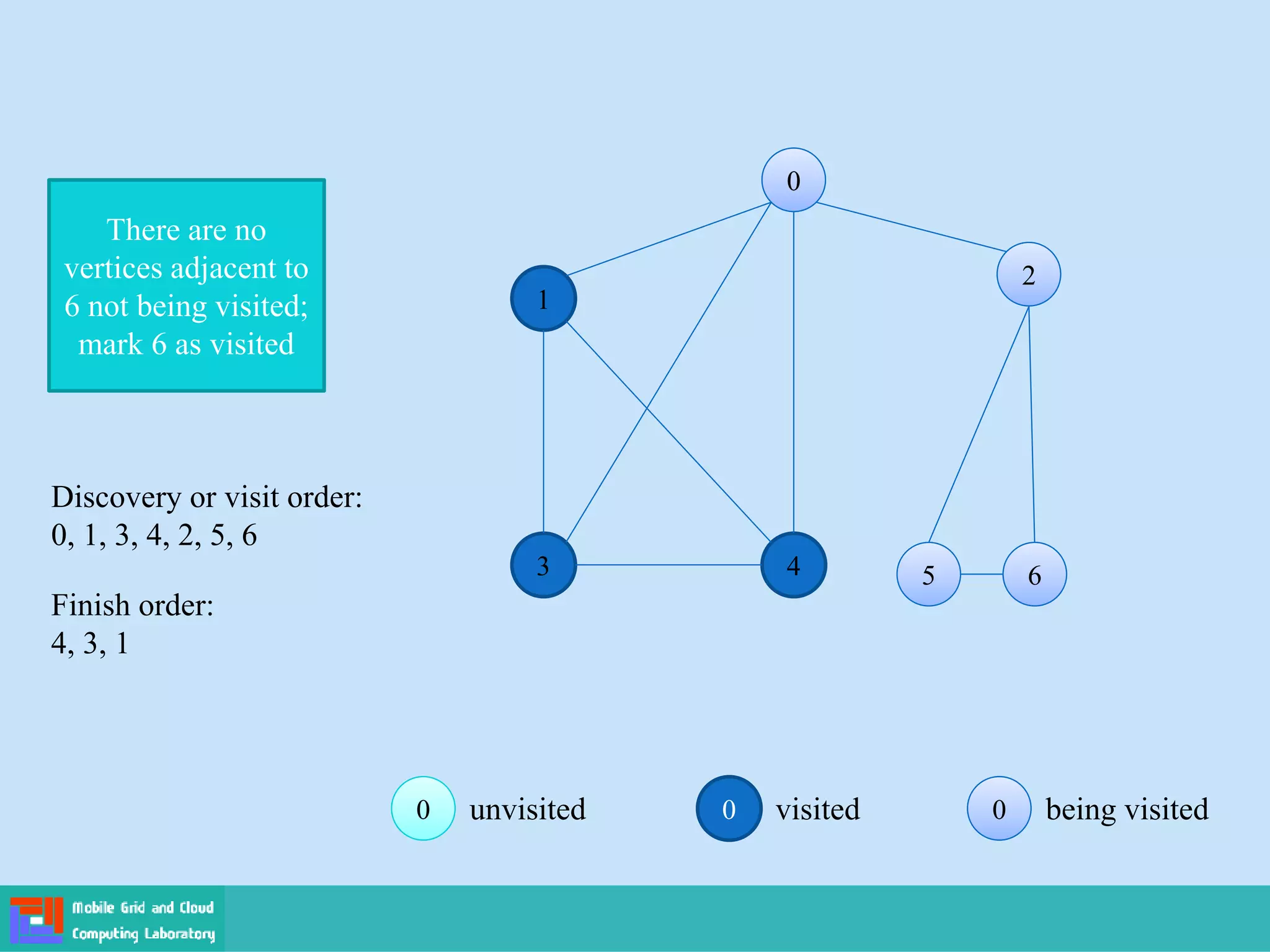

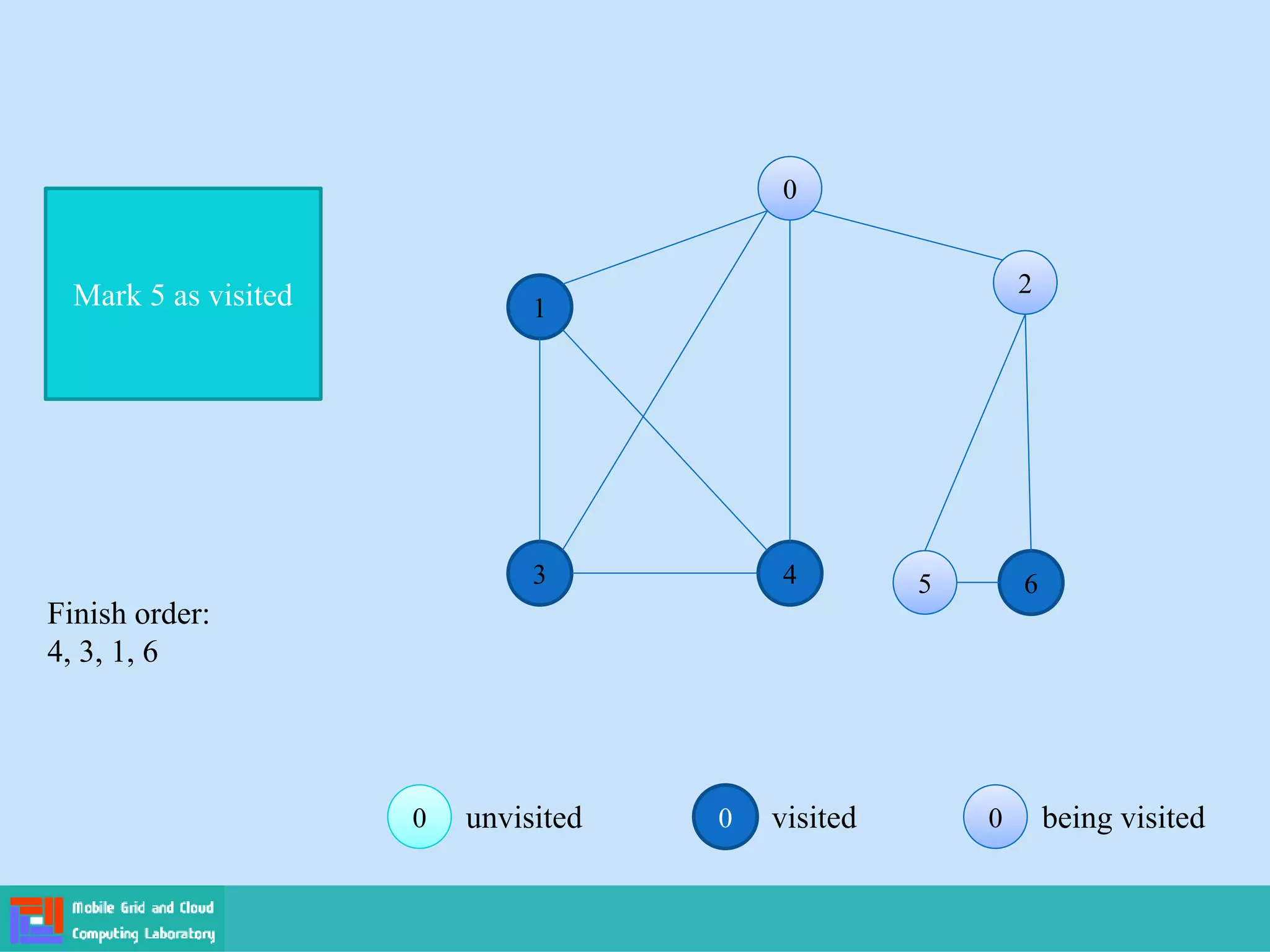

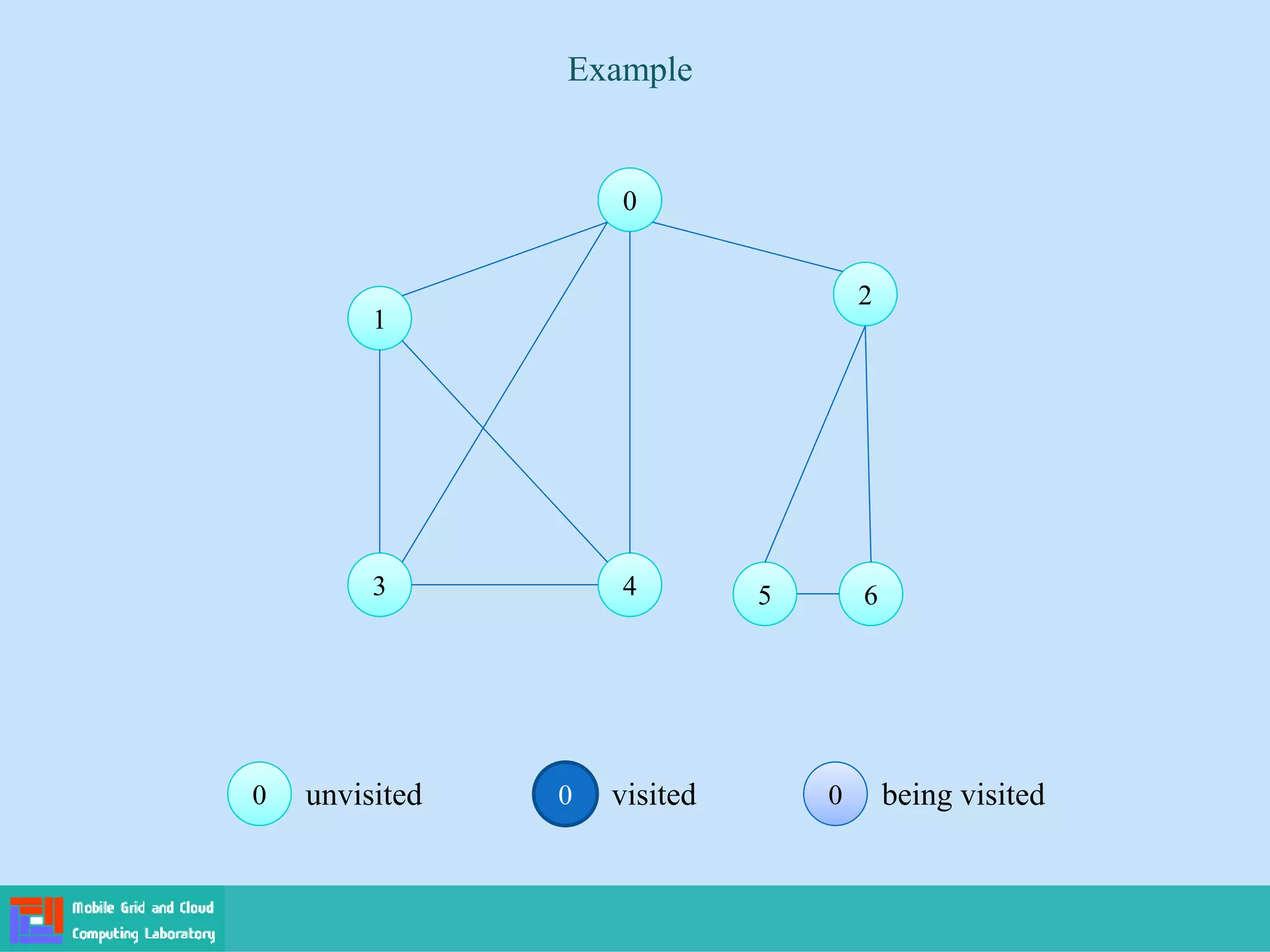

Example

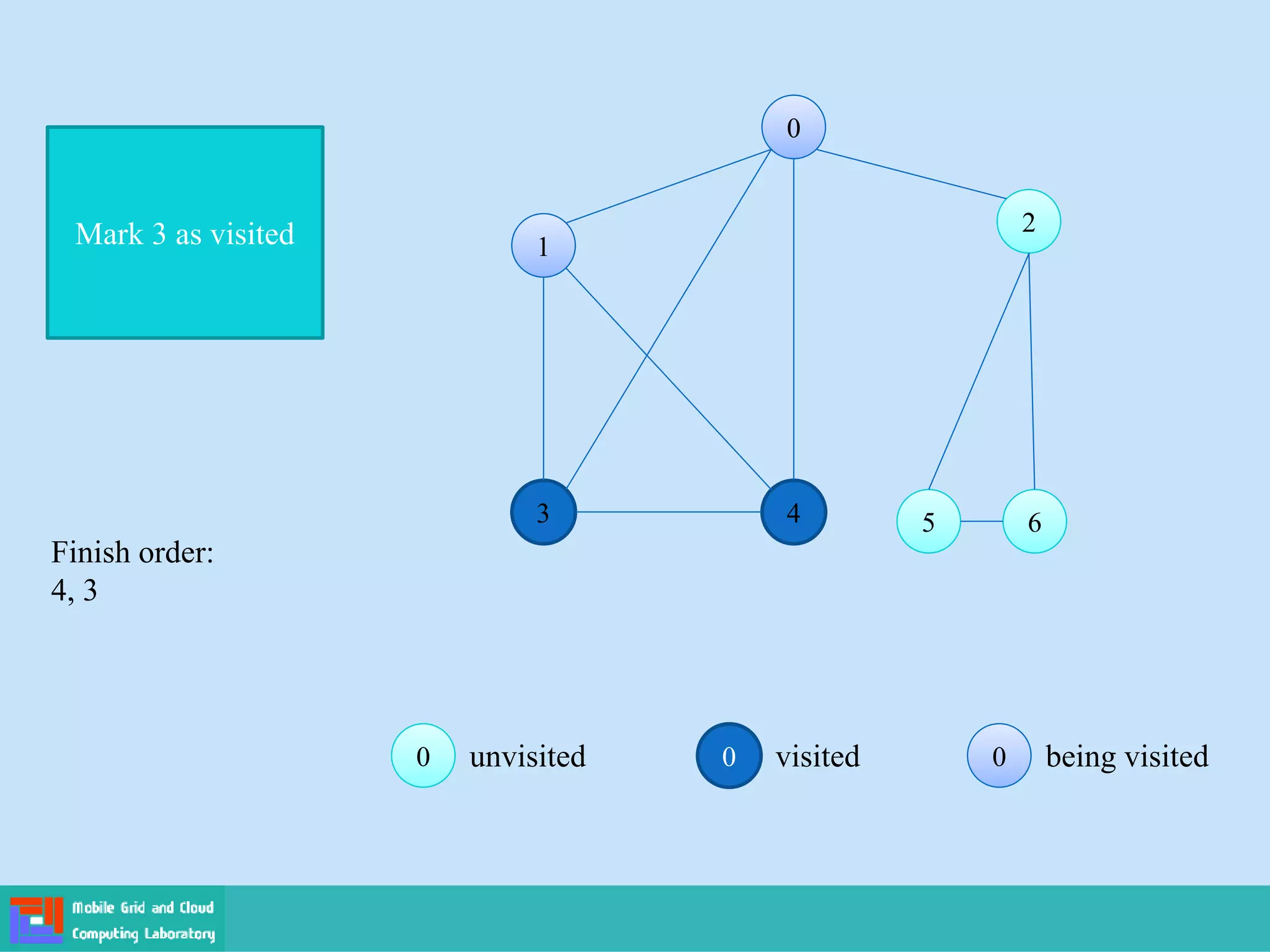

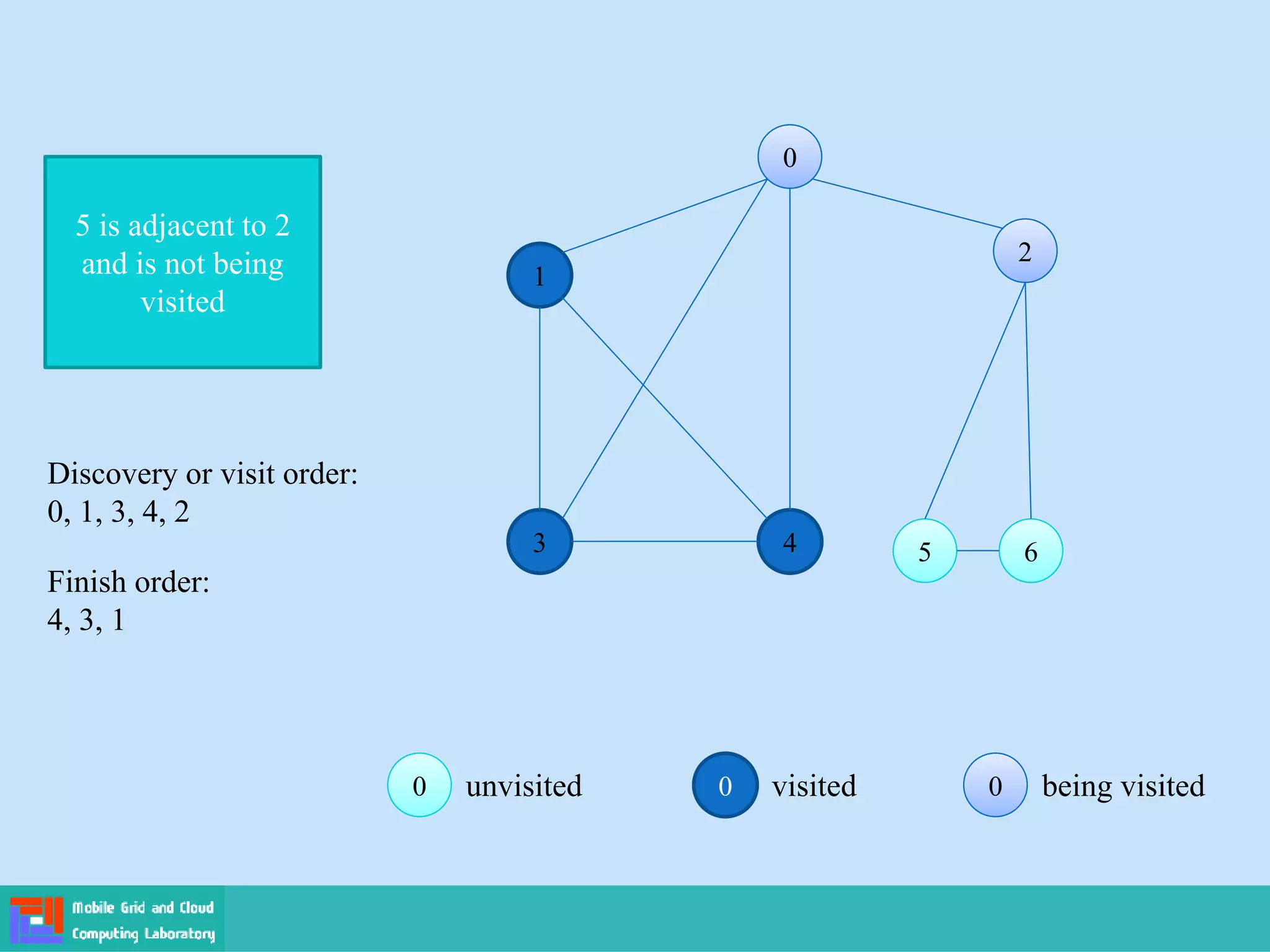

0 visited 0
0 being visited
0
0 unvisited
0
0
1
1
2
2
3
3 4
4 5
5 6
6

Mark 0 as being
visited
0 visited 0
0 being visited
0
0 unvisited
0
0
1
1
2
2
3
3 4
4 5
5 6
6
Finish order:
Discovery or visit order:
0

Choose an adjacent
vertex that is not
being visited
0 visited 0
0 being visited
0
0 unvisited
0
0
1
1
2
2
3
3 4
4 5
5 6
6
Finish order:
0

Choose an adjacent
vertex that is not
being visited
0 visited 0
0 being visited
0
0 unvisited
0
0
1
1
2
2
3
3 4
4 5
5 6
6
Finish order:
0, 1

Recursively choose
an adjacent vertex
that is not being
visited

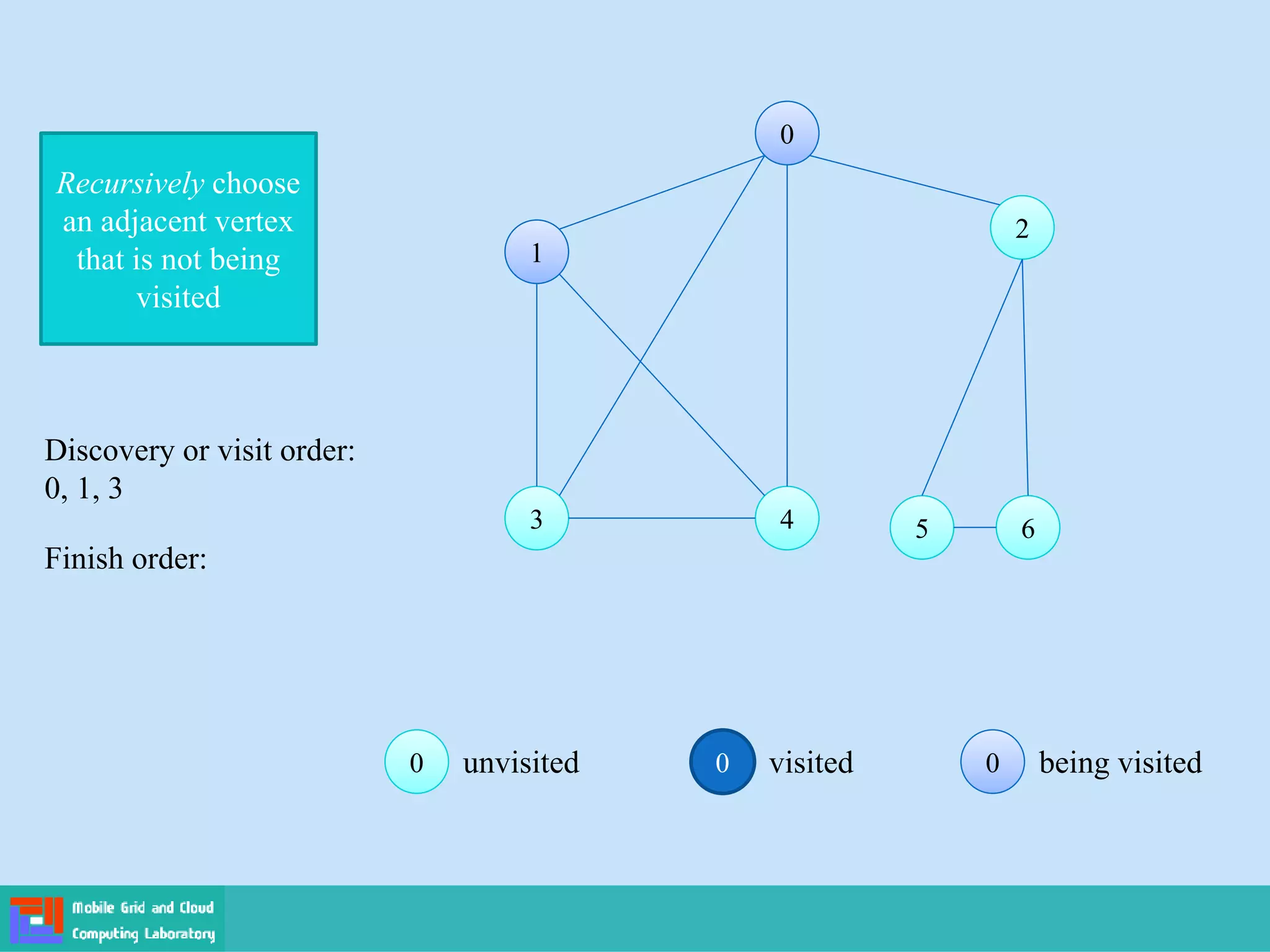

0 visited 0
0 being visited
0
0 unvisited
0
0
1
1
2
2
3
3 4
4 5
5 6
6
Finish order:
0, 1, 3

0 visited 0
0 being visited
0
0 unvisited
0
0
1
1
2
2
3
3 4
4 5
5 6
6
Recursively choose
an adjacent vertex
that is not being
visited
Finish order:
0, 1, 3, 4

0 visited 0
0 being visited
0
0 unvisited
0
0
1
1
2
2
3
3 4
4 5
5 6
6
There are no
vertices adjacent to
4 that are not being
visited
Finish order:
0, 1, 3, 4

0 visited 0
0 being visited
0
0 unvisited
0
0
1
1
2
2
3
3 4 5
5 6
6

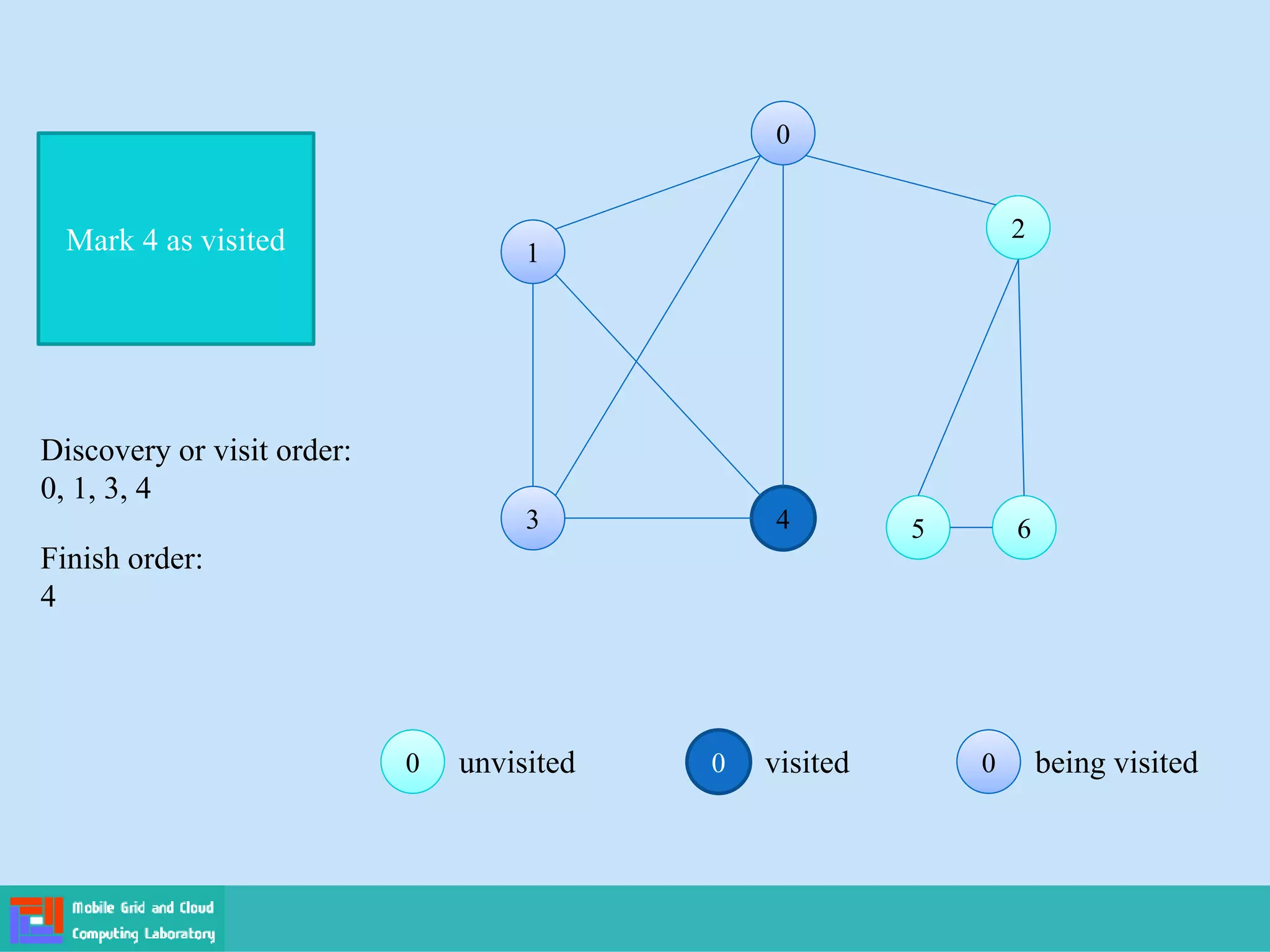

Mark 4 as visited
Finish order:
4
0, 1, 3, 4

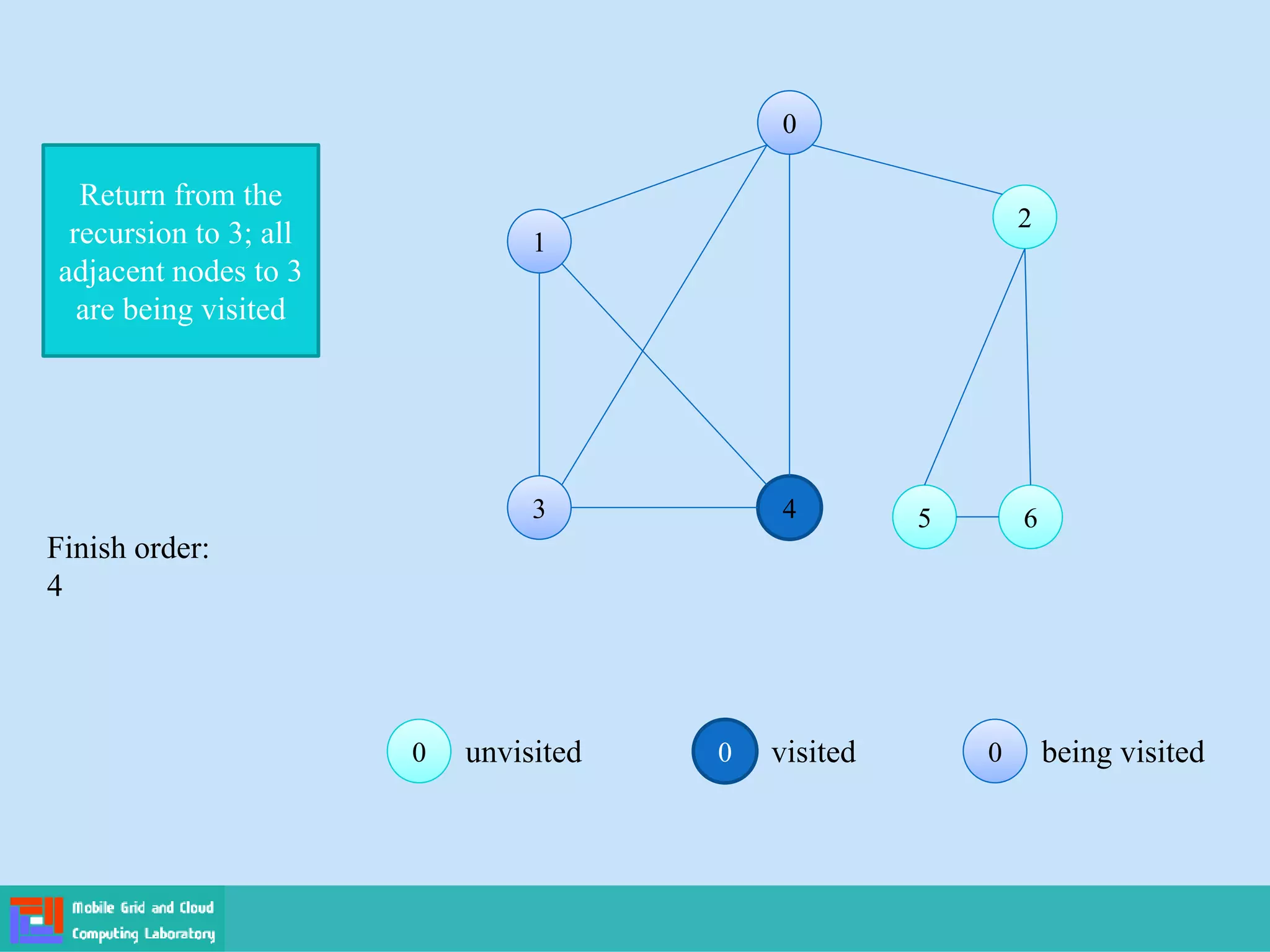

0 visited 0
0 being visited
0
0 unvisited
0
0
1
1
2
2
3
3 4 5
5 6
6
Return from the
recursion to 3; all
adjacent nodes to 3
are being visited
Finish order:
4

0 visited 0
0 being visited
0
0 unvisited
0
0
1
1
2
2
3 4 5
5 6
6
Mark 3 as visited
Finish order:
4, 3

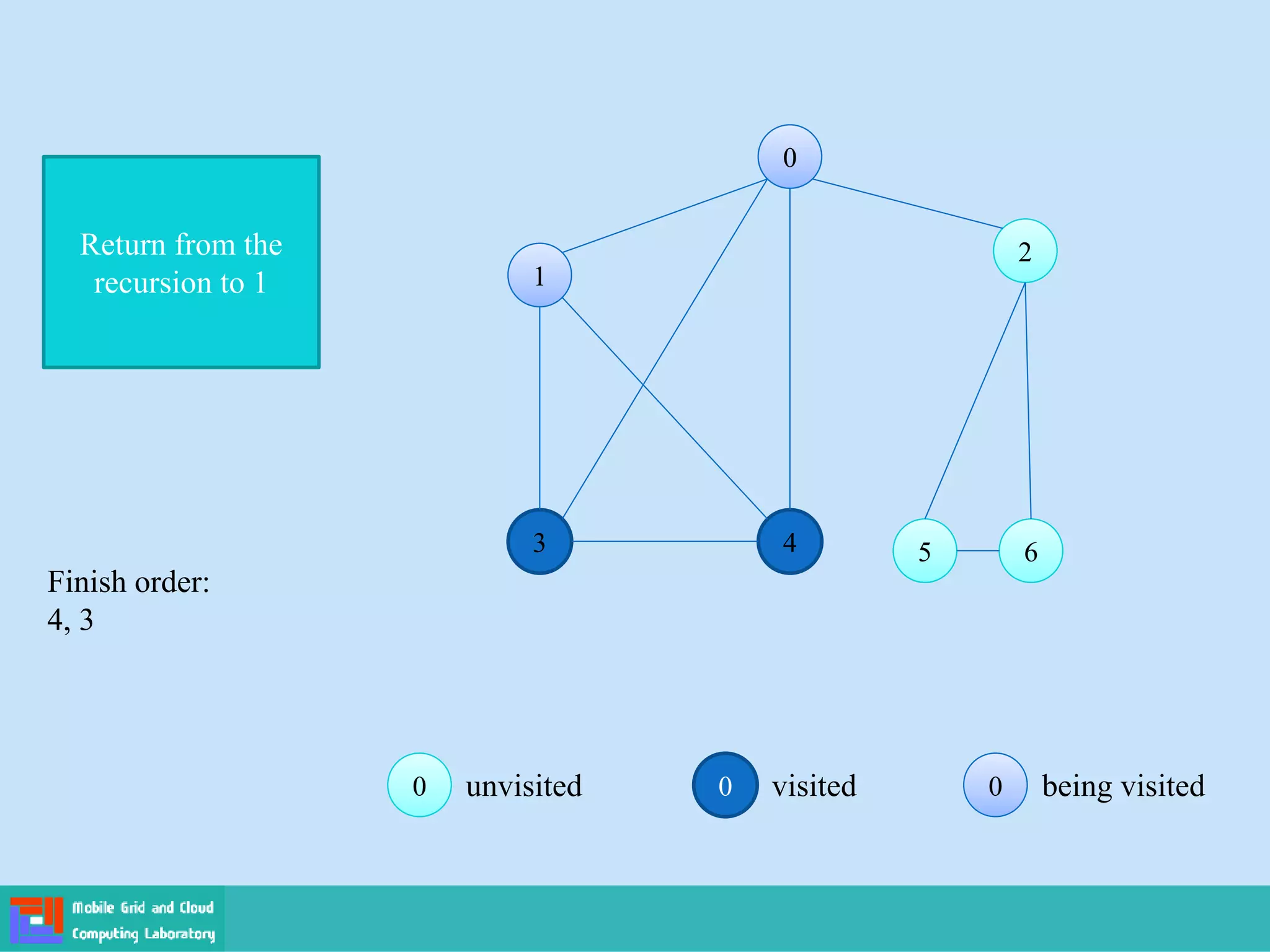

0 visited 0
0 being visited
0
0 unvisited
0
0
1
1
2
2
3 4 5
5 6
6
Return from the
recursion to 1
Finish order:
4, 3

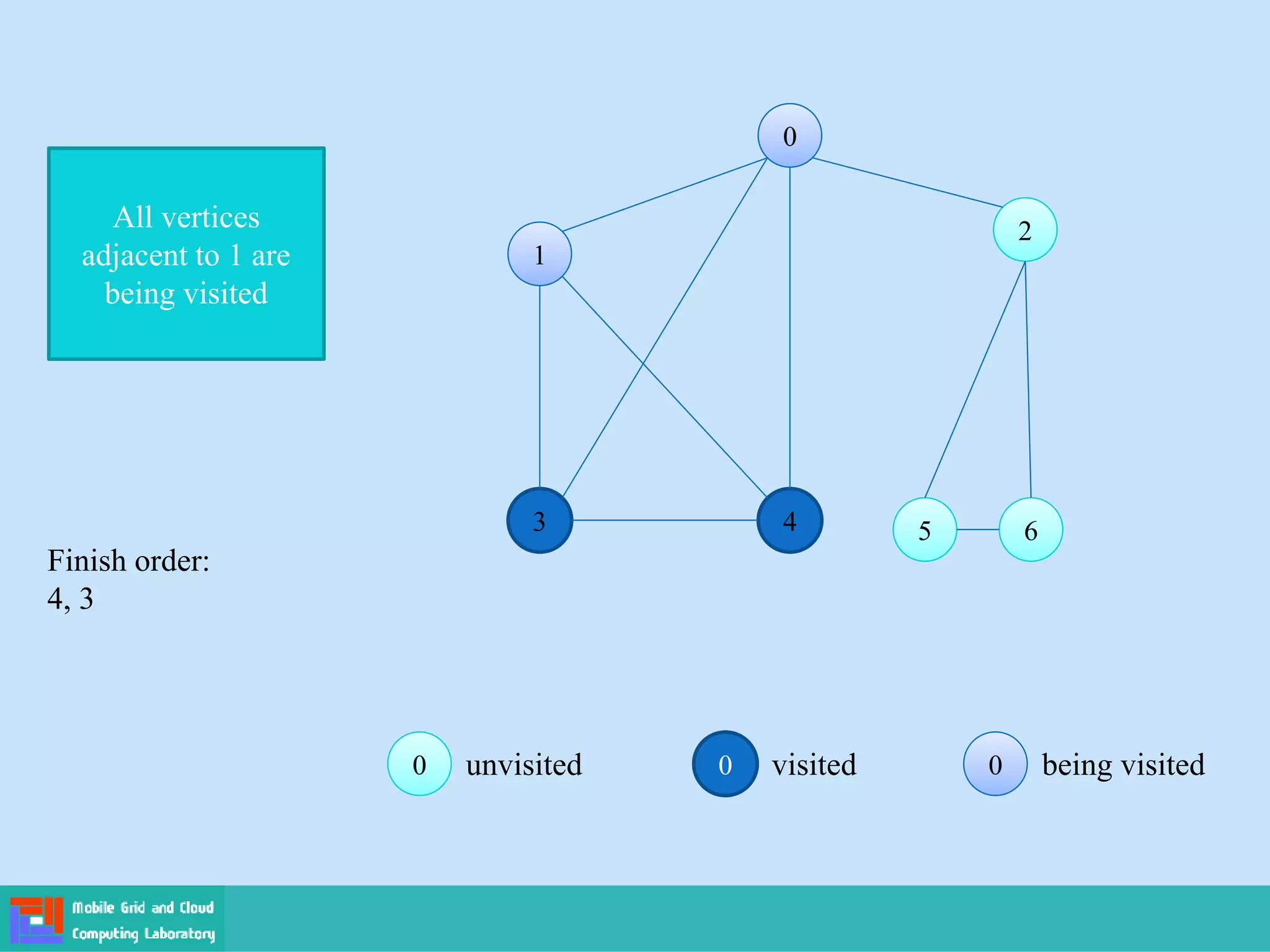

0 visited 0
0 being visited
0
0 unvisited
0
0
1
1
2
2
3 4 5
5 6
6
All vertices
adjacent to 1 are
being visited
Finish order:
4, 3

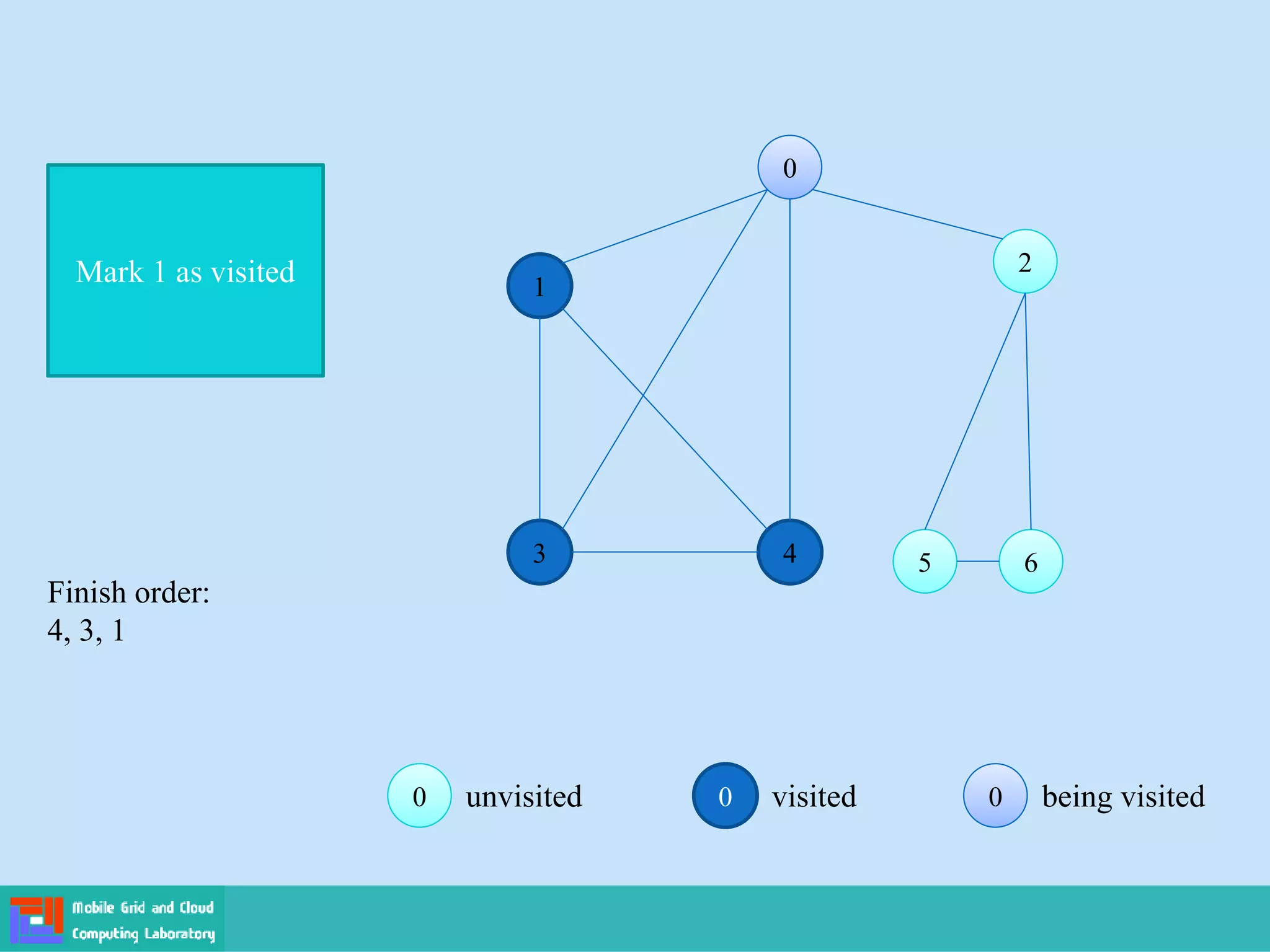

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
2
3 4 5
5 6
6
Mark 1 as visited
Finish order:
4, 3, 1

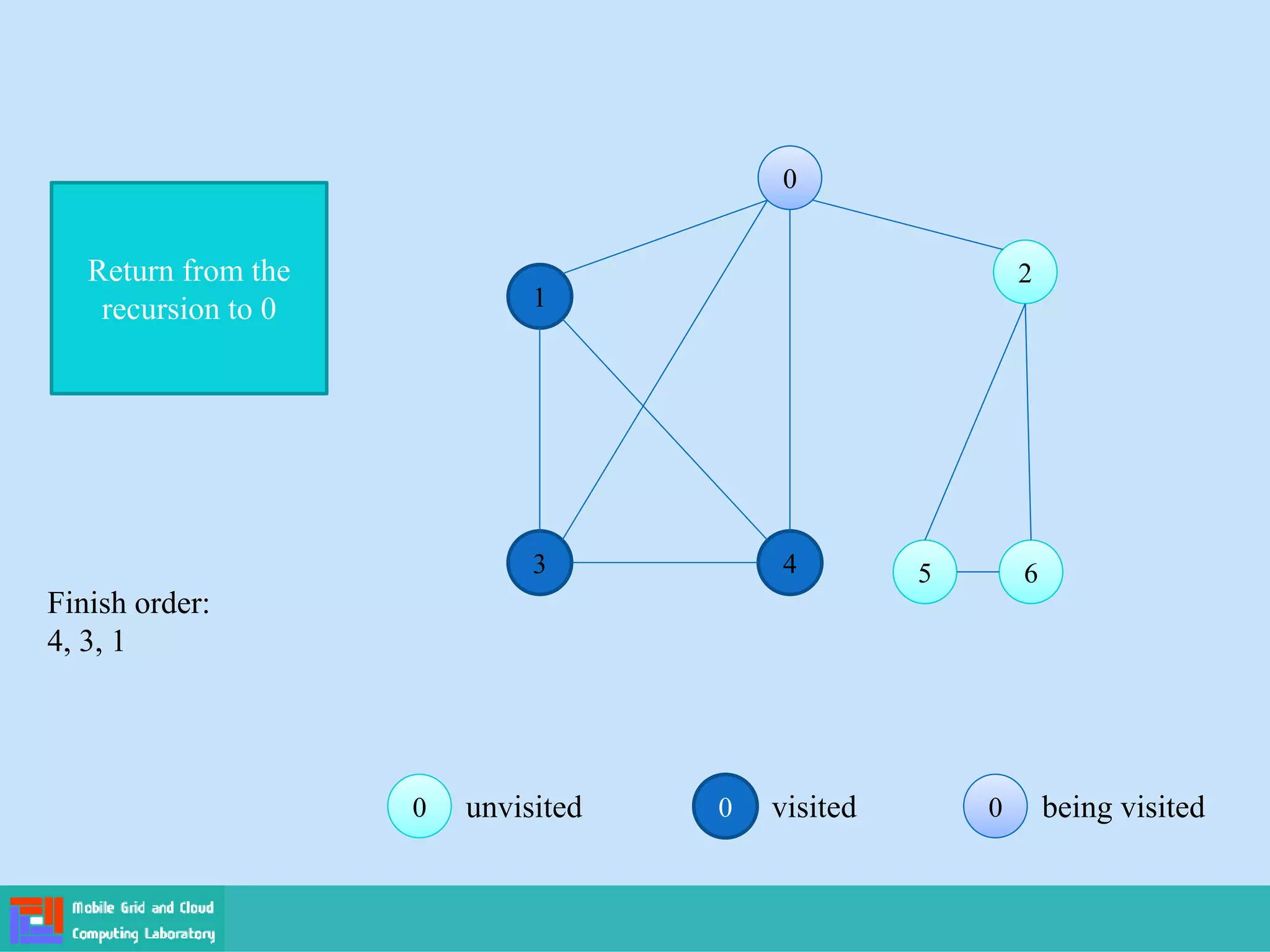

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
2
3 4 5
5 6
6
Return from the
recursion to 0
Finish order:
4, 3, 1

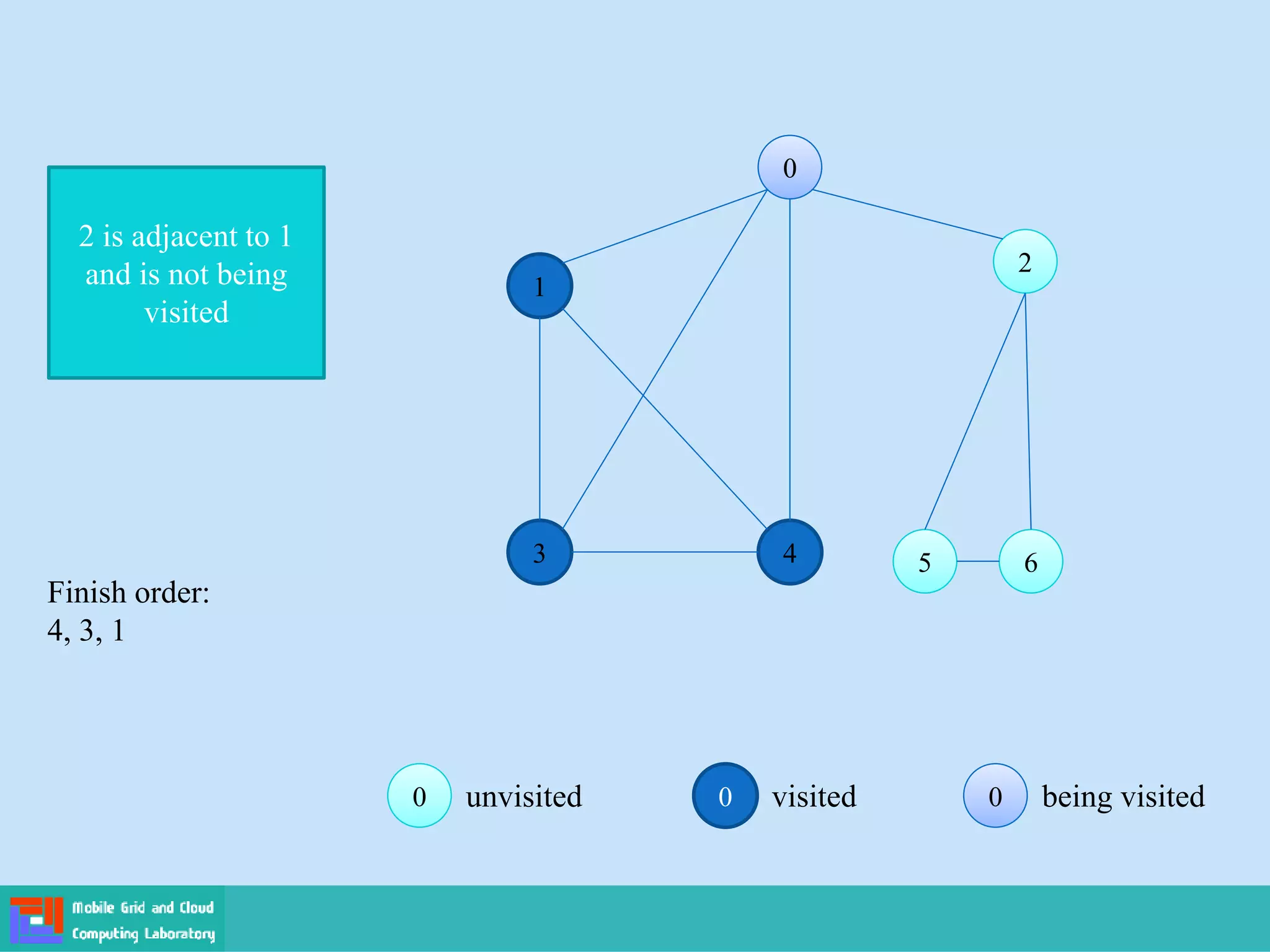

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
2
3 4 5
5 6
6
2 is adjacent to 1
and is not being
visited
Finish order:
4, 3, 1

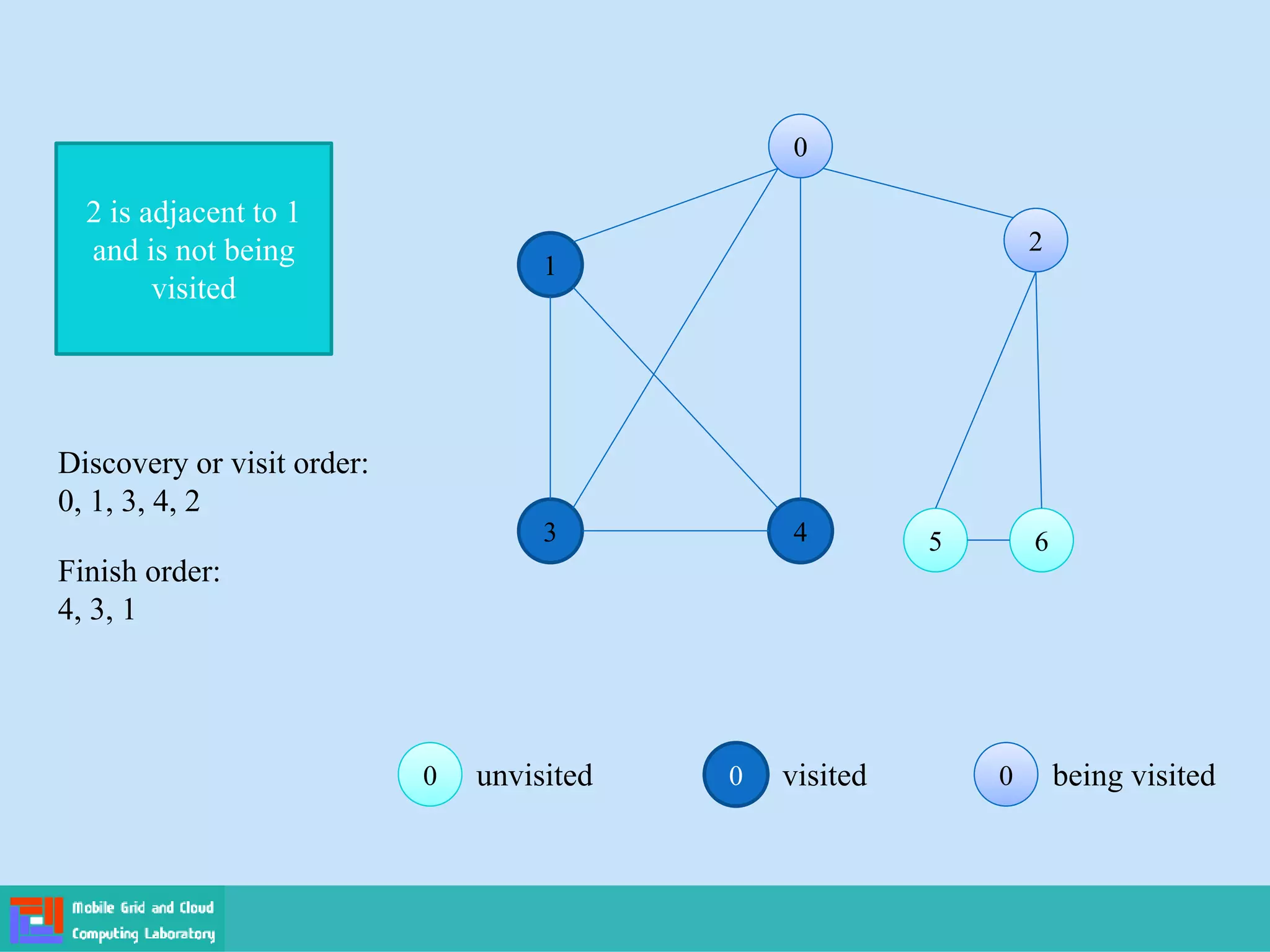

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
2
3 4 5
5 6
6
2 is adjacent to 1
and is not being
visited
Finish order:
4, 3, 1
0, 1, 3, 4, 2

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
2
3 4 5
5 6
6
5 is adjacent to 2
and is not being
visited
Finish order:
4, 3, 1
0, 1, 3, 4, 2

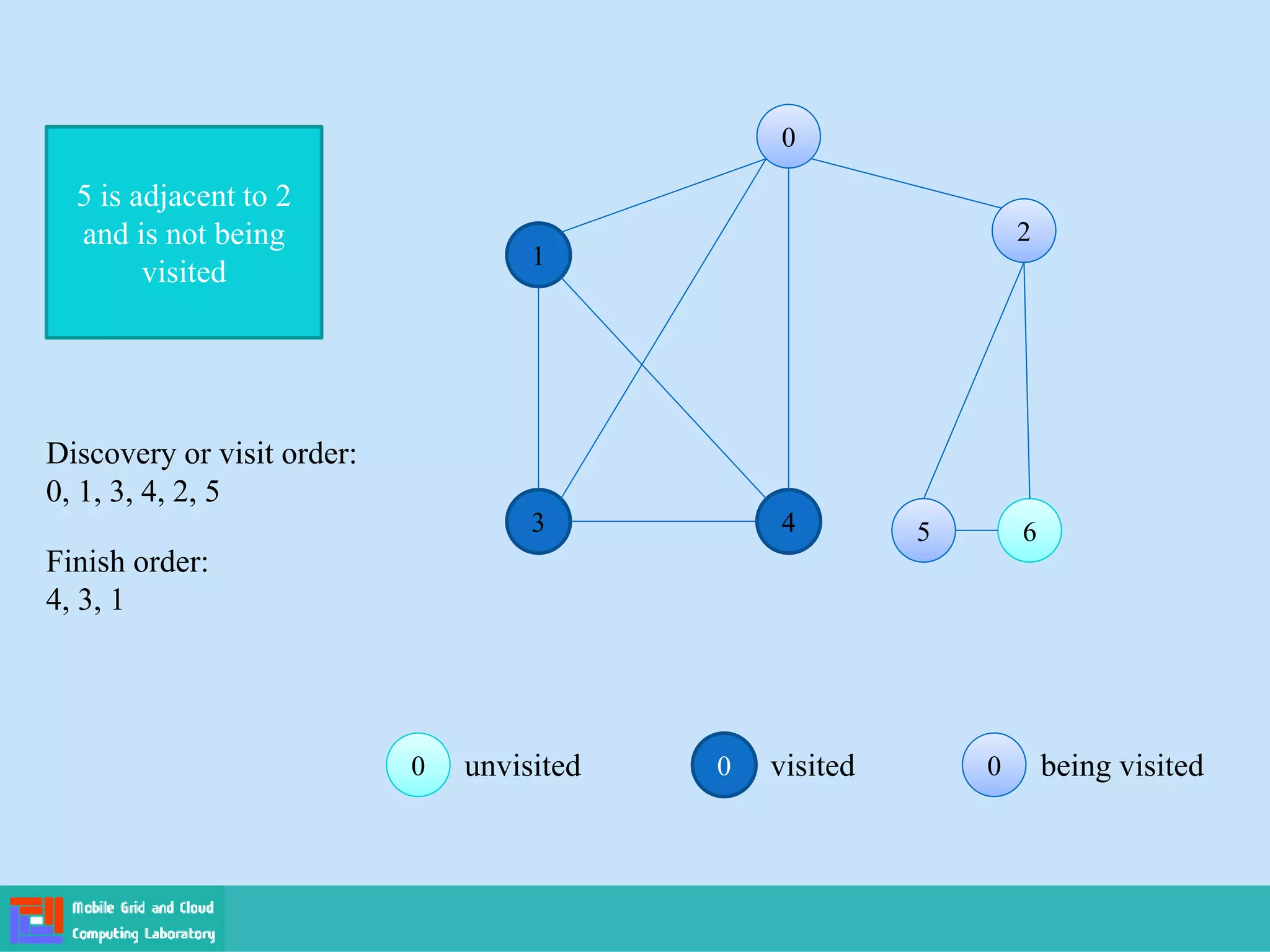

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
2
3 4 5
5 6
6
5 is adjacent to 2
and is not being
visited
Finish order:
4, 3, 1
0, 1, 3, 4, 2, 5

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
2
3 4 5
5 6
6
6 is adjacent to 5
and is not being
visited
Finish order:
4, 3, 1
0, 1, 3, 4, 2, 5

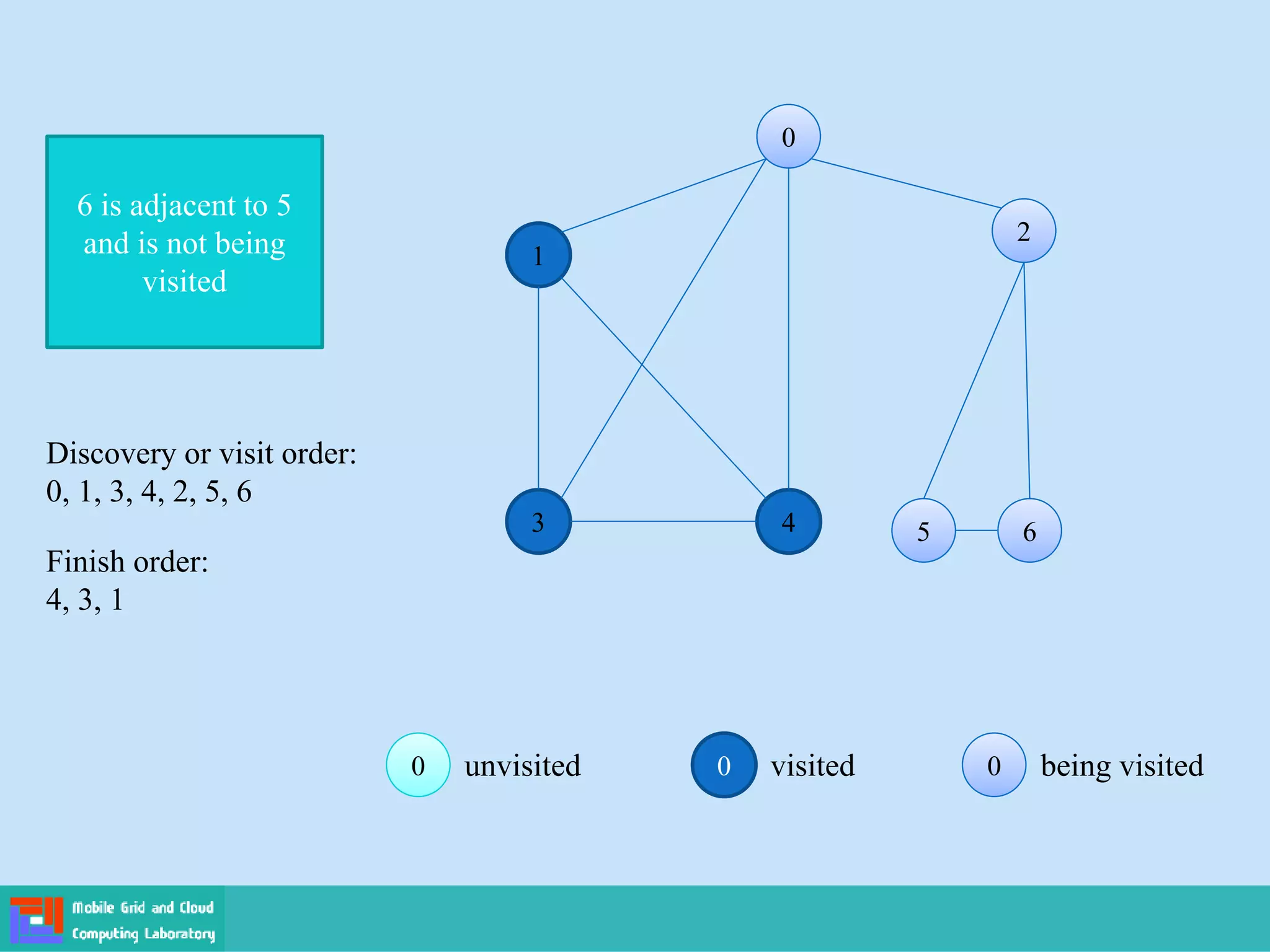

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
2
3 4 5
5 6
6

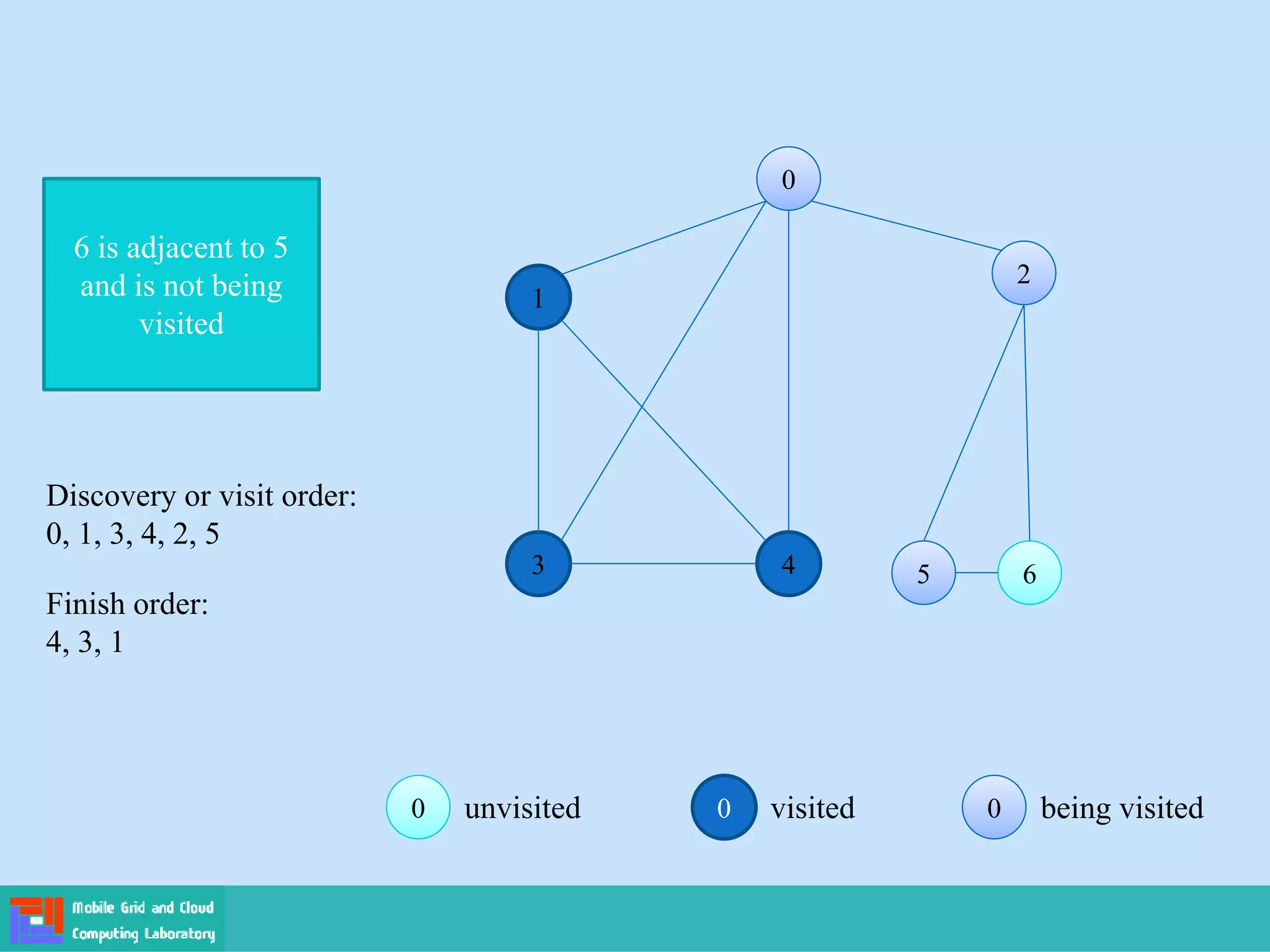

6 is adjacent to 5
and is not being
visited
Finish order:
4, 3, 1
0, 1, 3, 4, 2, 5, 6

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
2
3 4 5
5 6
6
There are no
6 not being visited;
mark 6 as visited
Finish order:
4, 3, 1
0, 1, 3, 4, 2, 5, 6

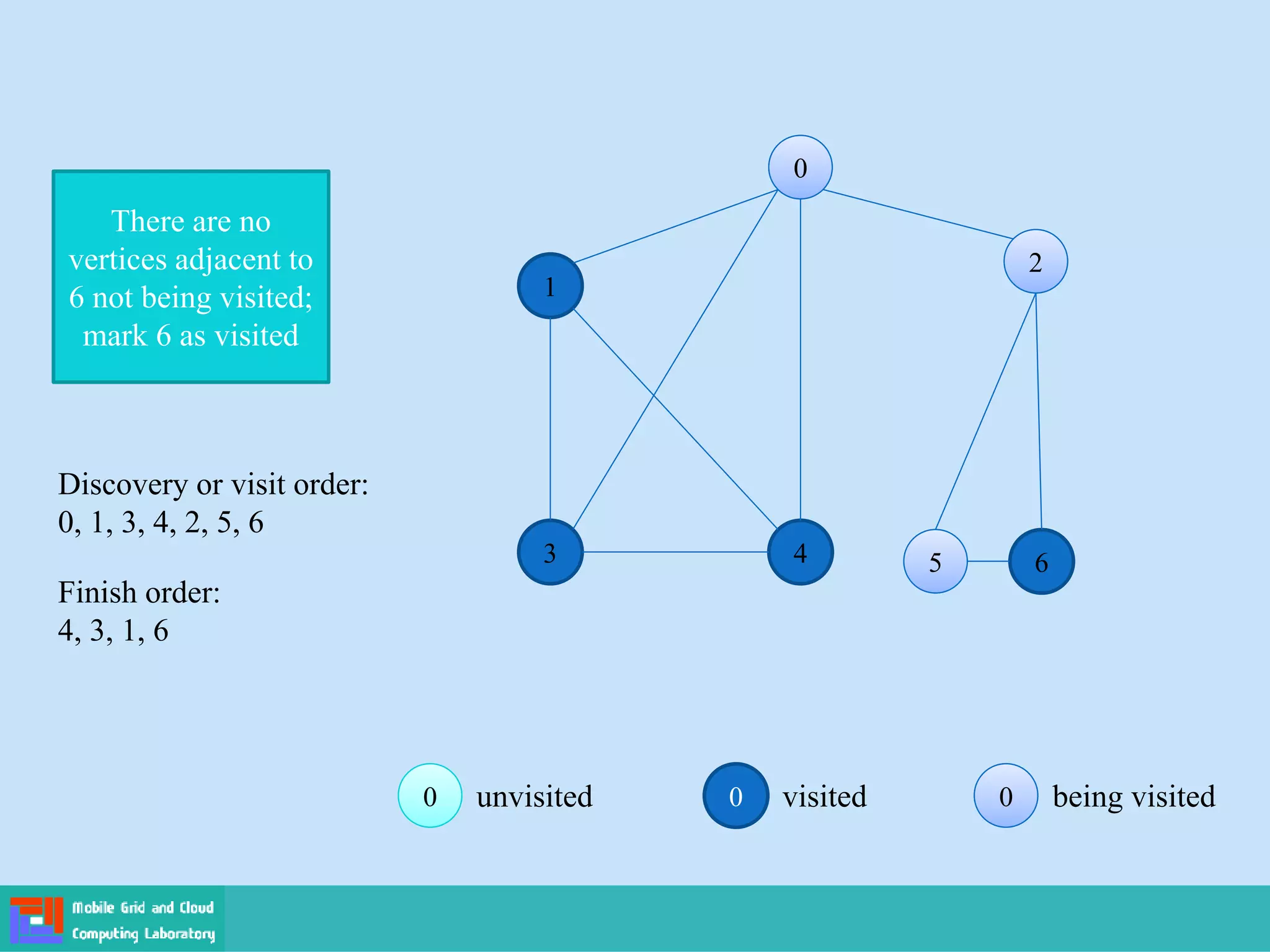

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
2
3 4 5
5 6
There are no
6 not being visited;
mark 6 as visited
Finish order:
4, 3, 1, 6
0, 1, 3, 4, 2, 5, 6

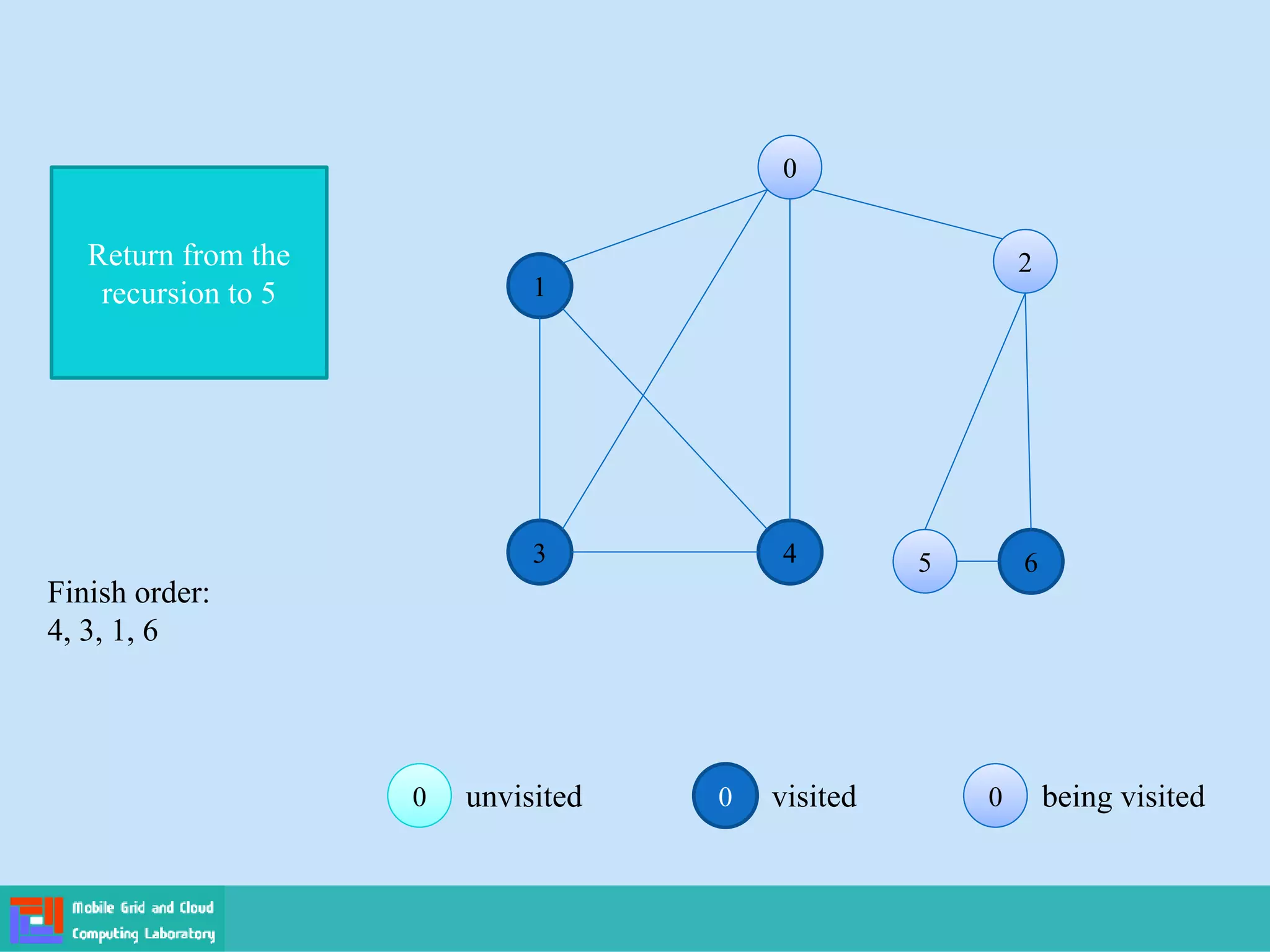

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
2
3 4 5
5 6
Return from the
recursion to 5
Finish order:
4, 3, 1, 6

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
2
3 4 5
5 6
Mark 5 as visited
Finish order:
4, 3, 1, 6

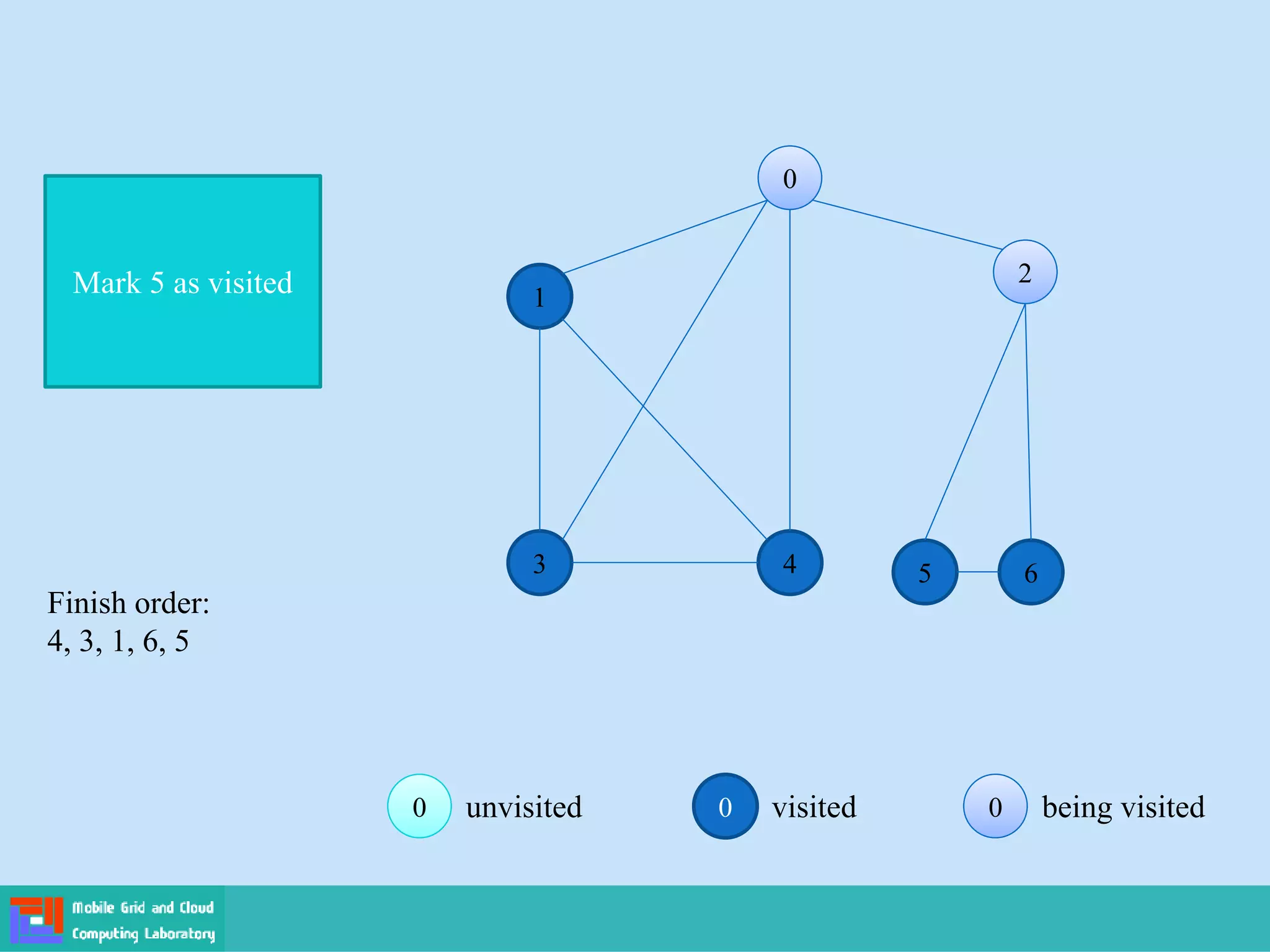

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
2
3 4 5 6
Mark 5 as visited
Finish order:
4, 3, 1, 6, 5

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
2
3 4 5 6

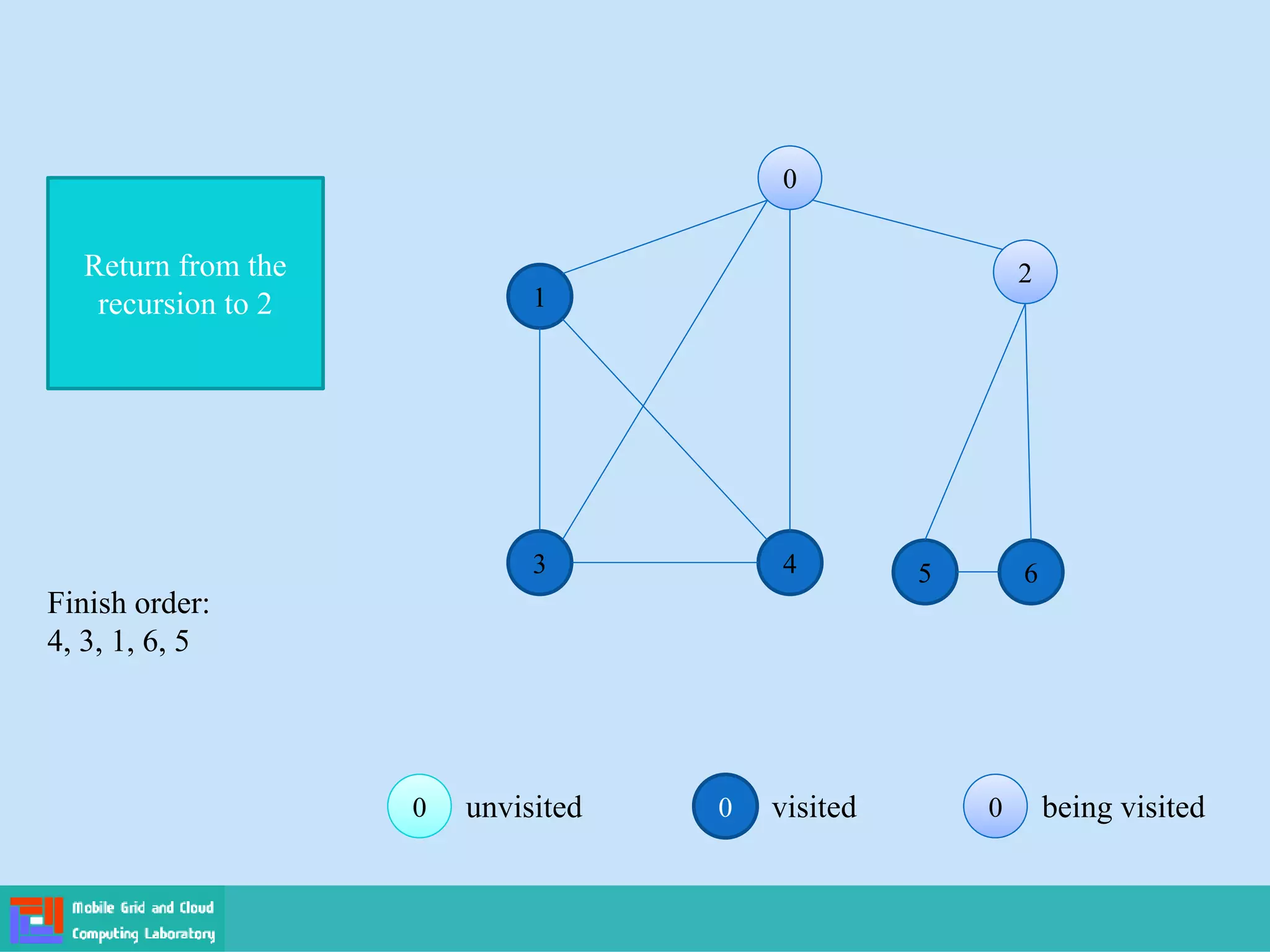

Return from the
recursion to 2
Finish order:
4, 3, 1, 6, 5

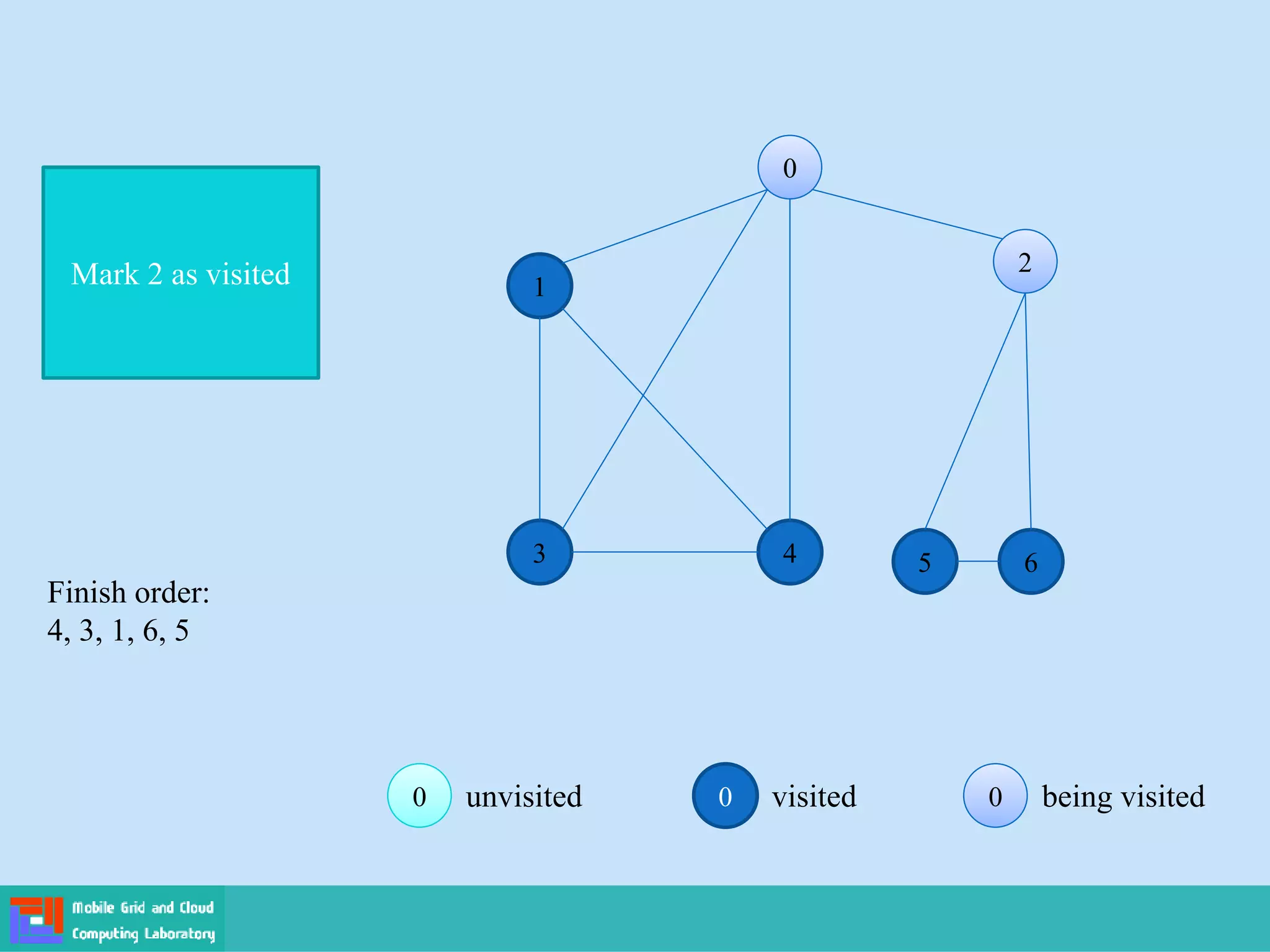

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
2
3 4 5 6
Mark 2 as visited
Finish order:
4, 3, 1, 6, 5

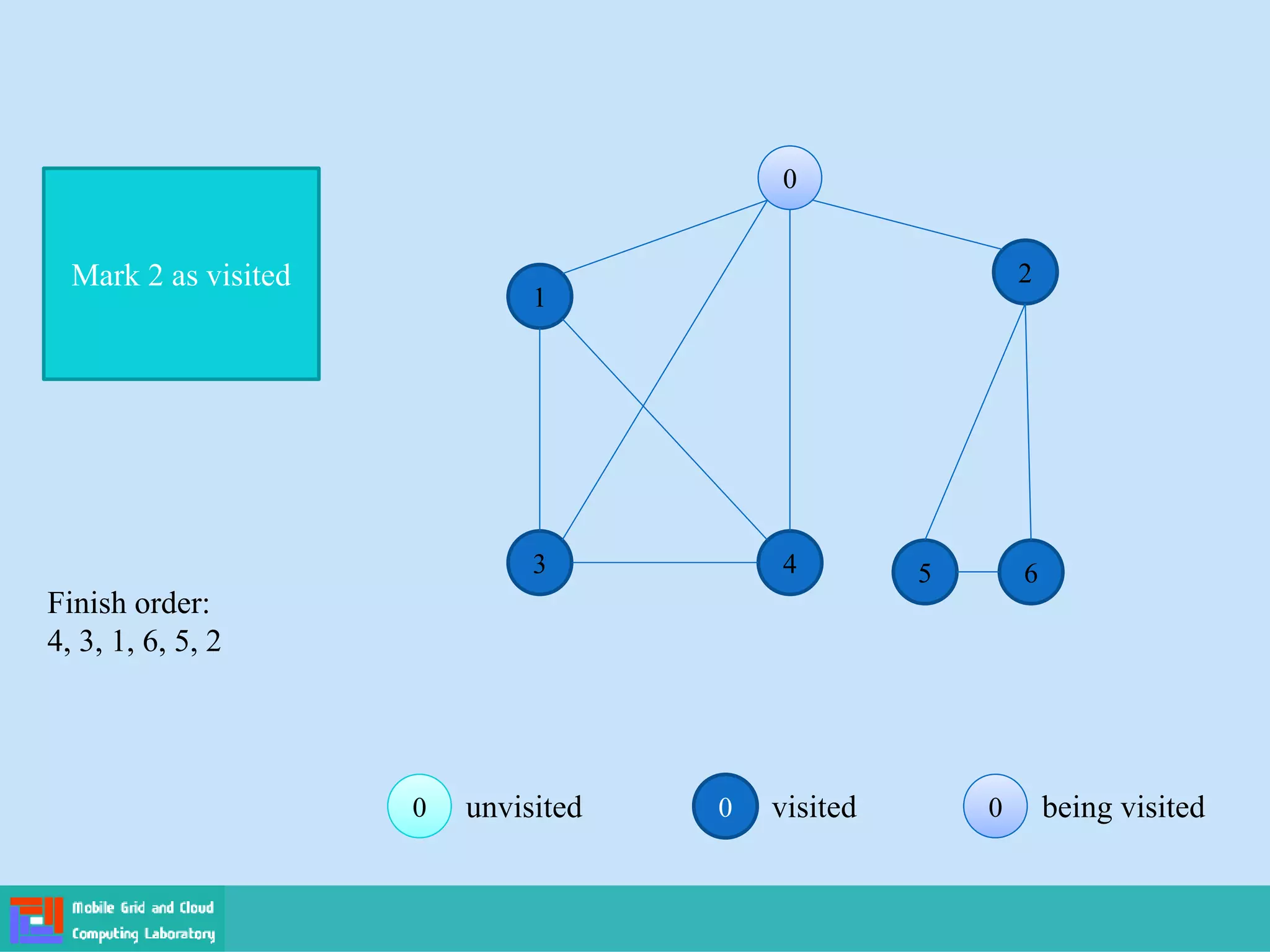

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
3 4 5 6
Mark 2 as visited
Finish order:
4, 3, 1, 6, 5, 2

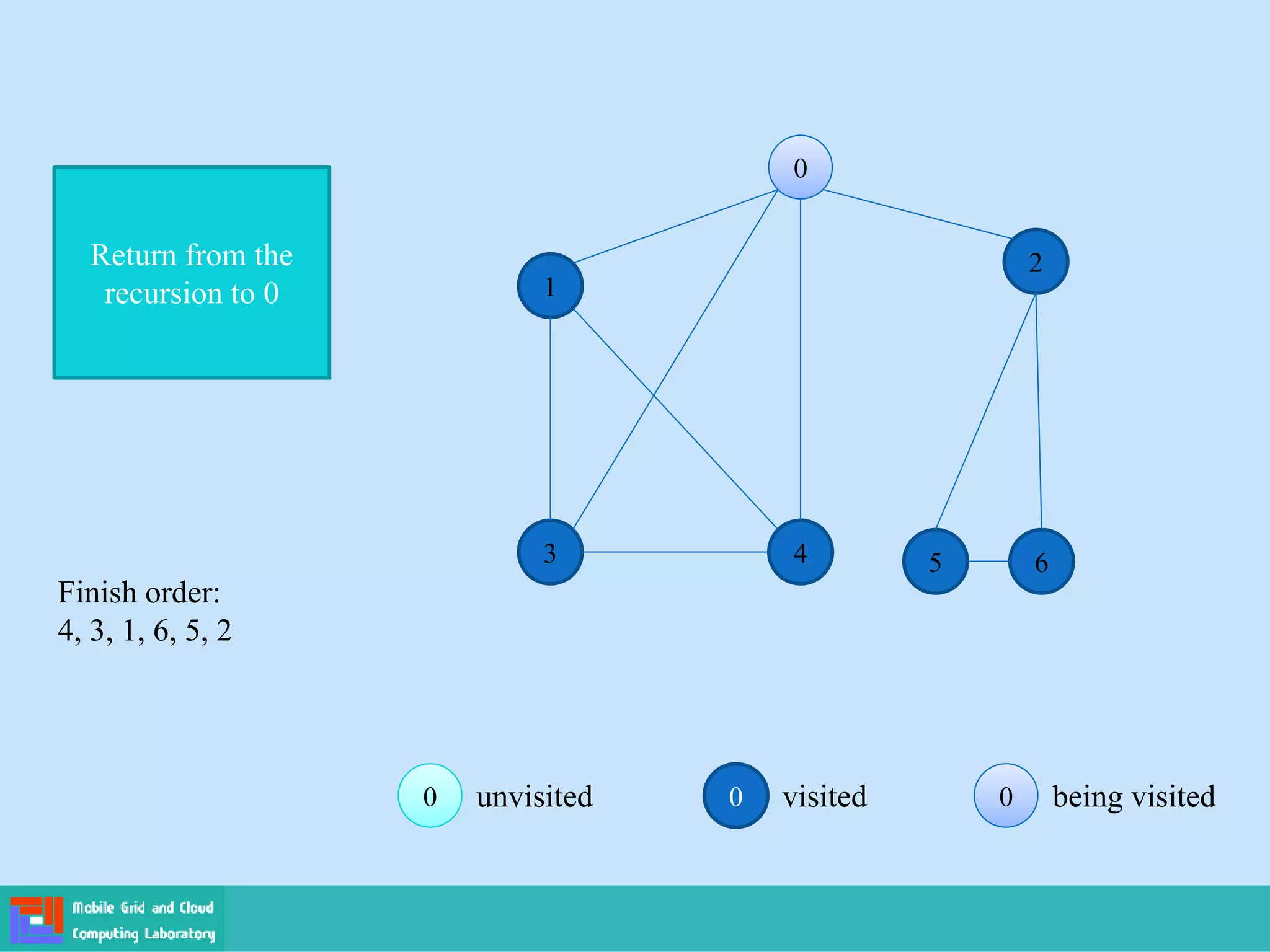

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
3 4 5 6
Return from the
recursion to 0
Finish order:
4, 3, 1, 6, 5, 2

0 visited 0
0 being visited
0
0 unvisited
0
0
1
2
3 4 5 6

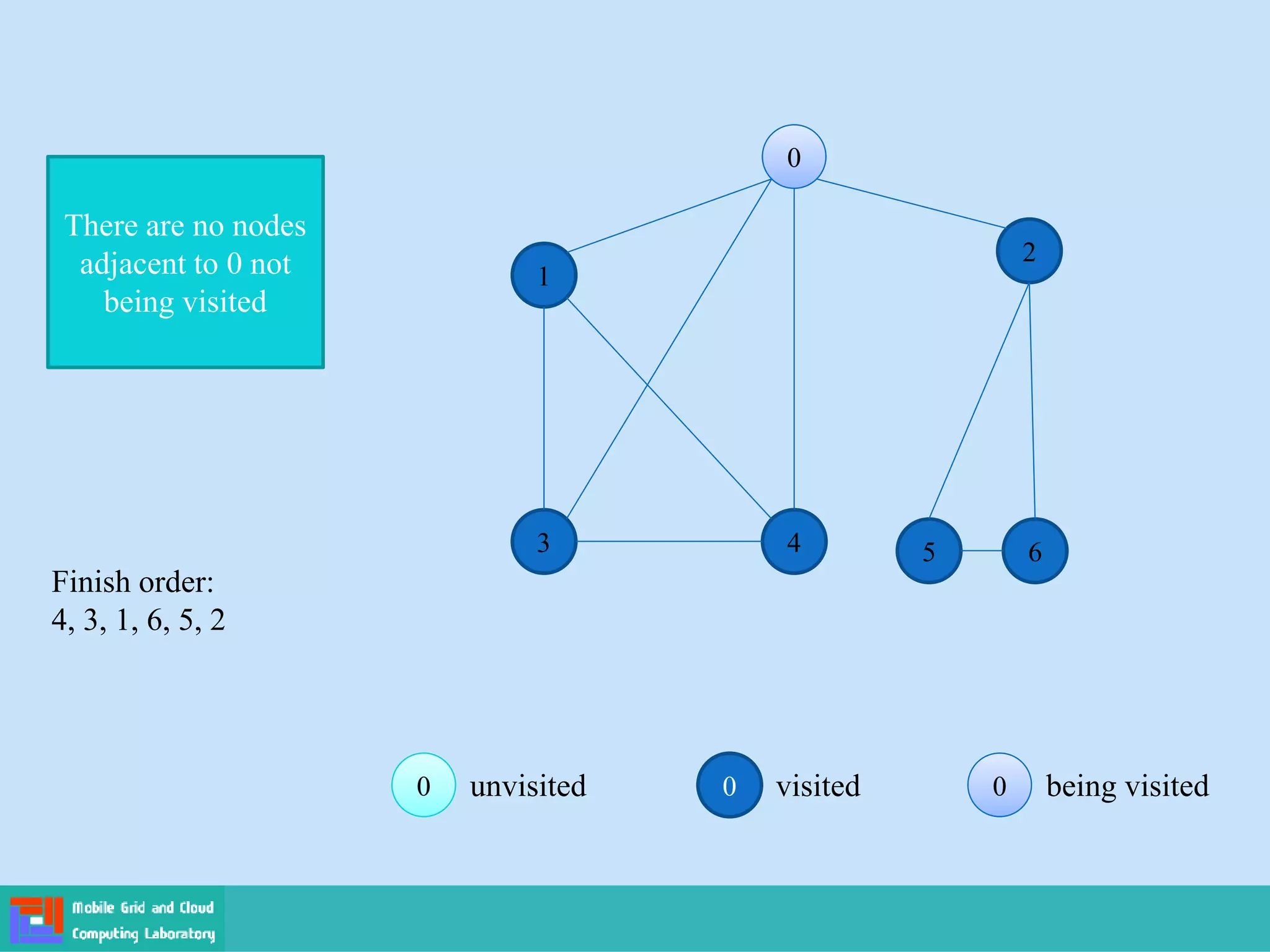

There are no nodes
adjacent to 0 not
being visited
Finish order:
4, 3, 1, 6, 5, 2

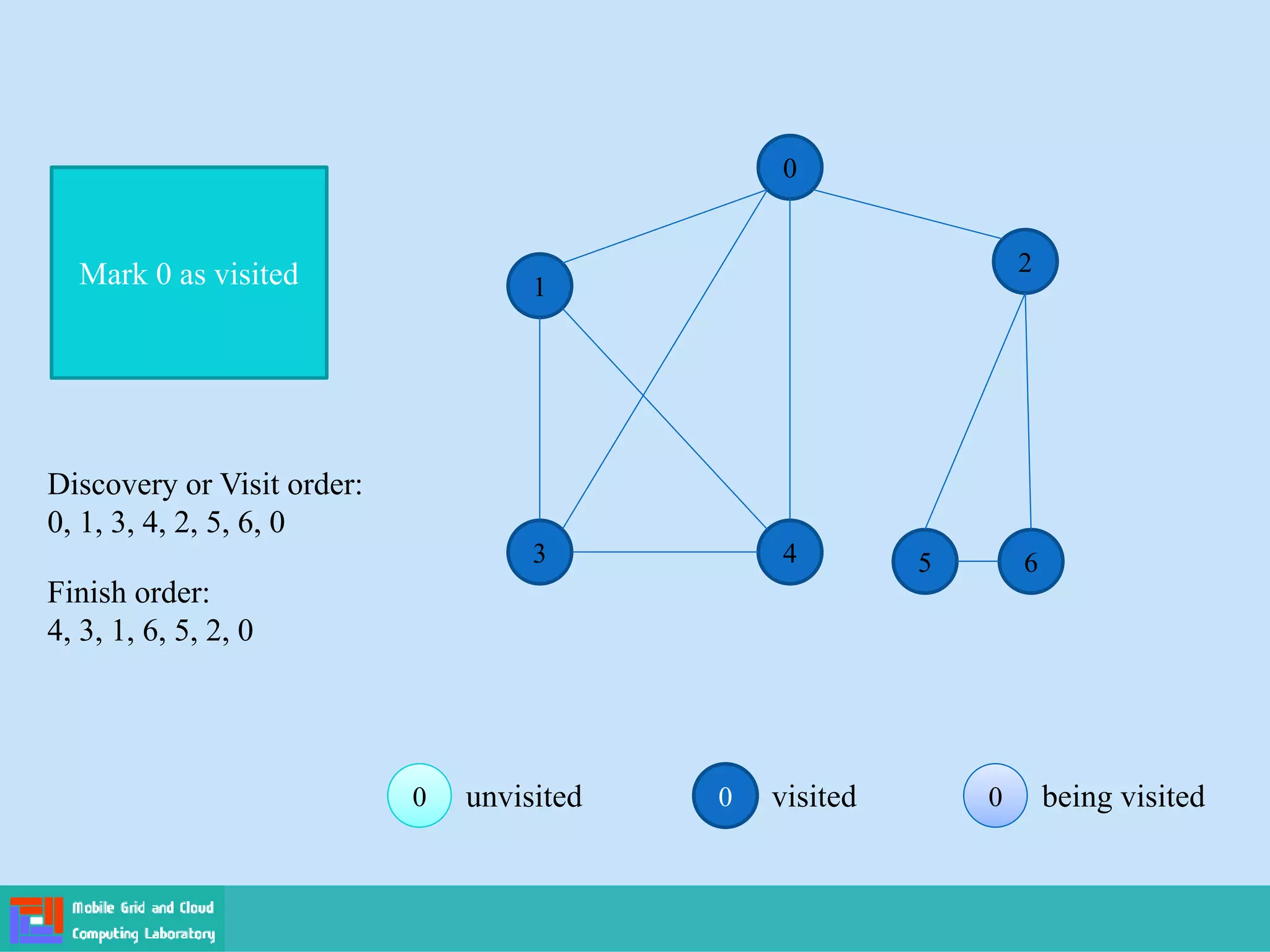

0 visited 0
0 being visited
0
0 unvisited
0
1
2
3 4 5 6
Mark 0 as visited
Finish order:
4, 3, 1, 6, 5, 2, 0
Discovery or Visit order:
0, 1, 3, 4, 2, 5, 6, 0

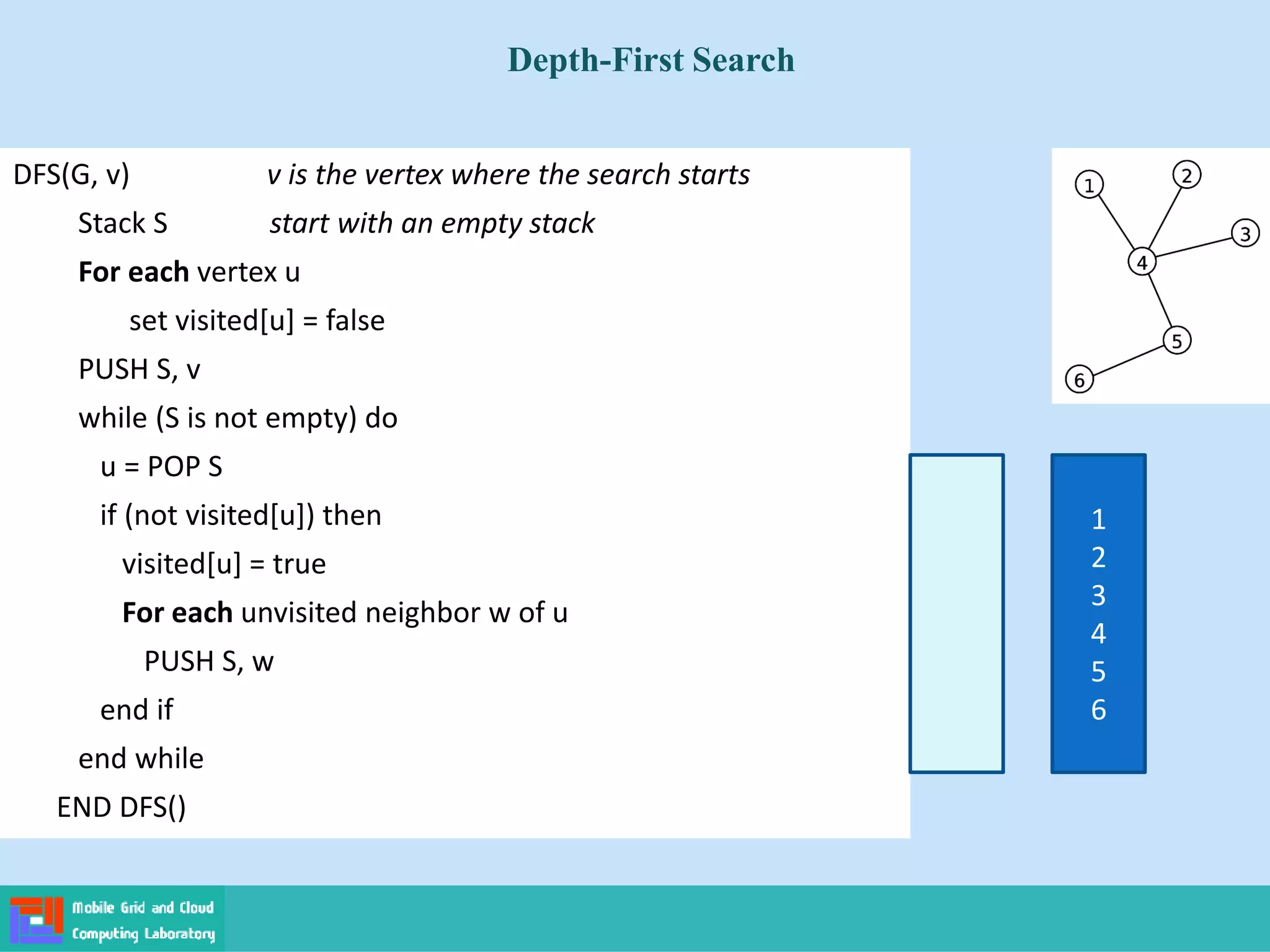

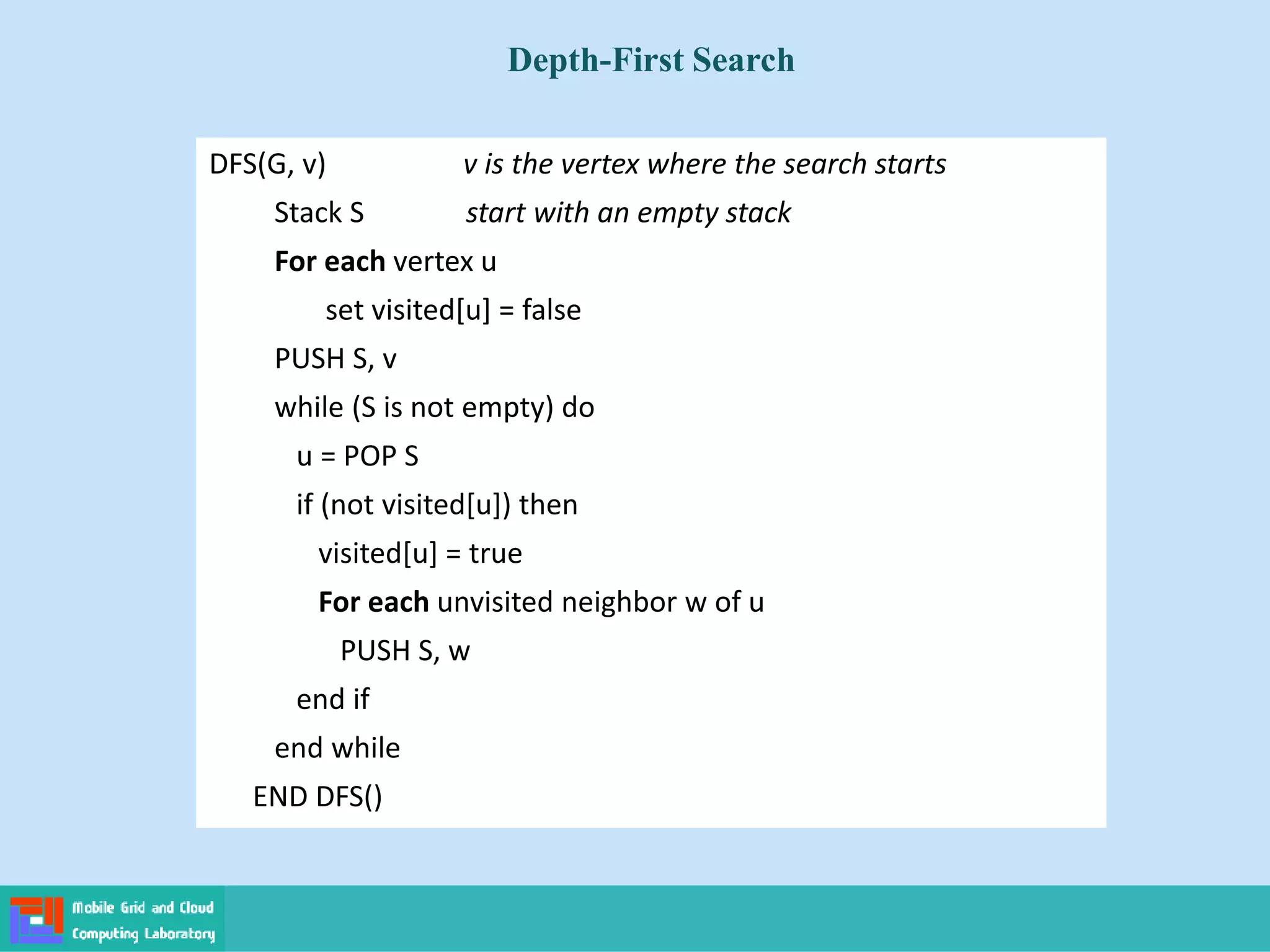

DFS(G, v) v is the vertex where the search starts
Stack S start with an empty stack
For each vertex u
set visited[u] = false
PUSH S, v
while (S is not empty) do
u = POP S
if (not visited[u]) then
visited[u] = true
For each unvisited neighbor w of u
PUSH S, w
end if
end while
END DFS()
Depth-First Search

DFS(G, v) v is the vertex where the search starts
Stack S start with an empty stack
For each vertex u
set visited[u] = false
PUSH S, v
while (S is not empty) do
u = POP S
if (not visited[u]) then
visited[u] = true
For each unvisited neighbor w of u
PUSH S, w
end if
end while
END DFS()
Depth-First Search
1
2
3
4
5
6

Connected Component
 Can we re-use the previous DFS to compute the connected components of a
graph G?

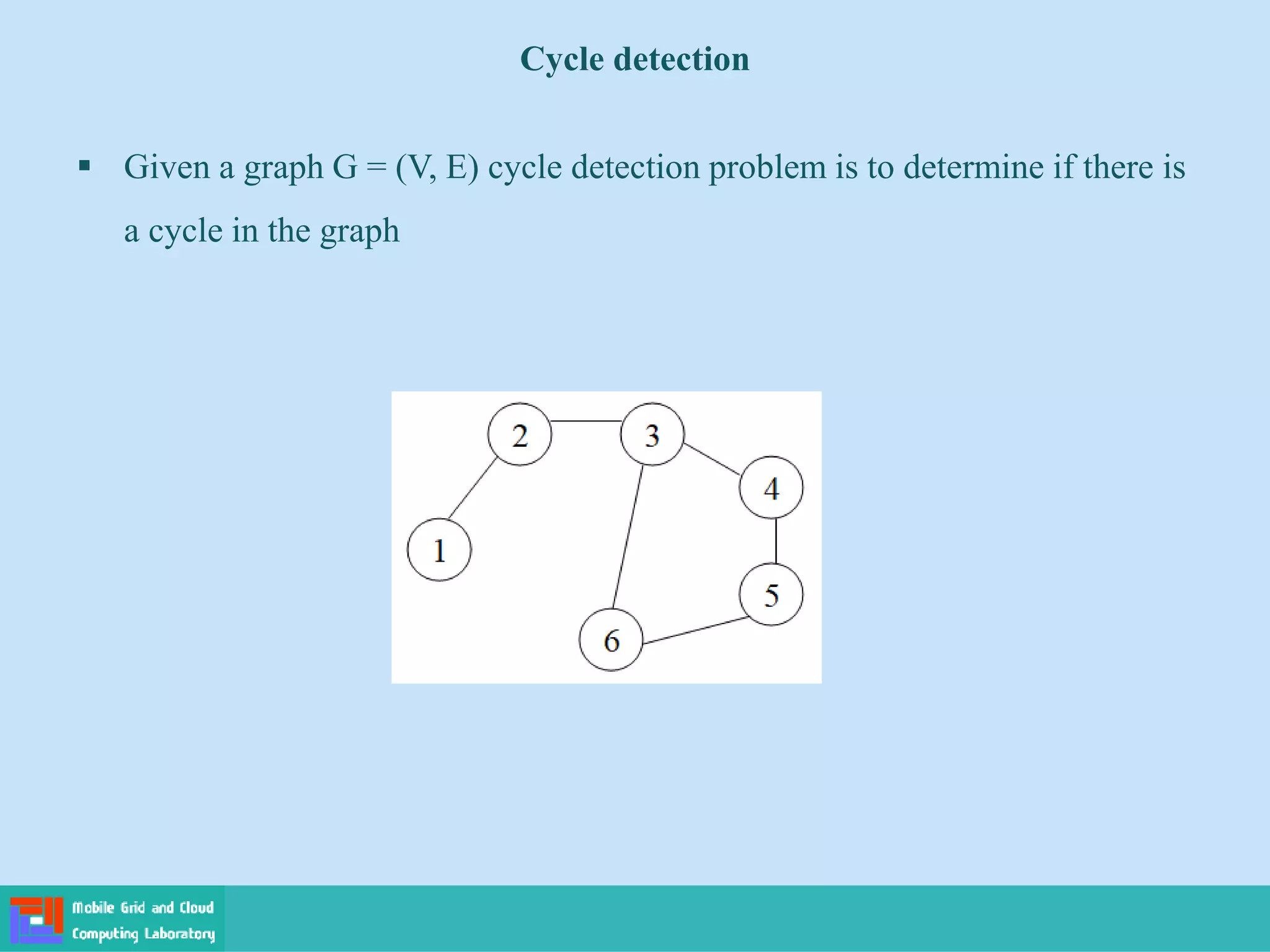

Cycle detection
 Given a graph G = (V, E) cycle detection problem is to determine if there is
a cycle in the graph

Cycle detection
 Can we use DFS to detect a cycle in an undirected graph?

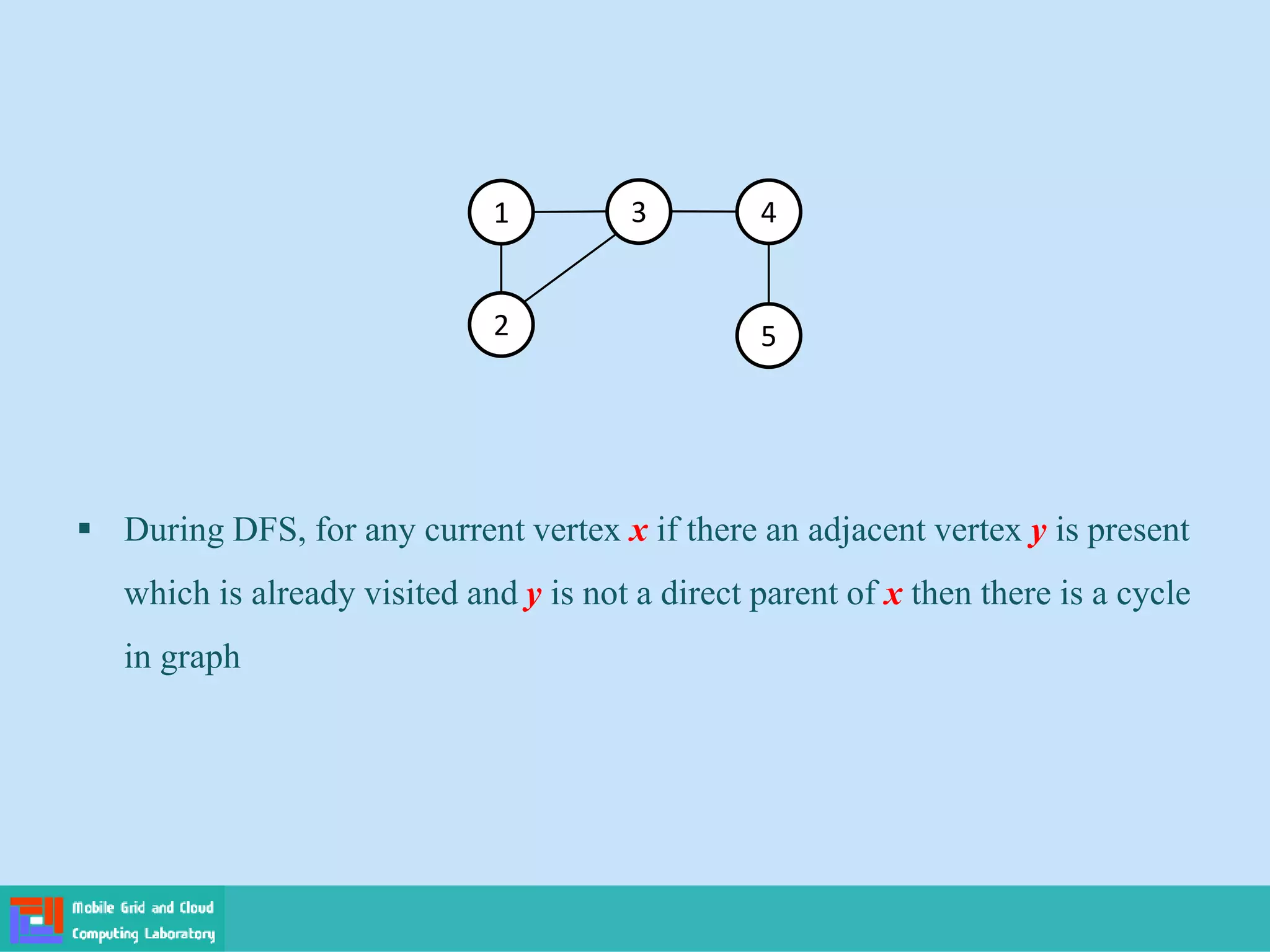

 During DFS, for any current vertex x if there an adjacent vertex y is present
which is already visited and y is not a direct parent of x then there is a cycle
in graph
1
2
3
5
4

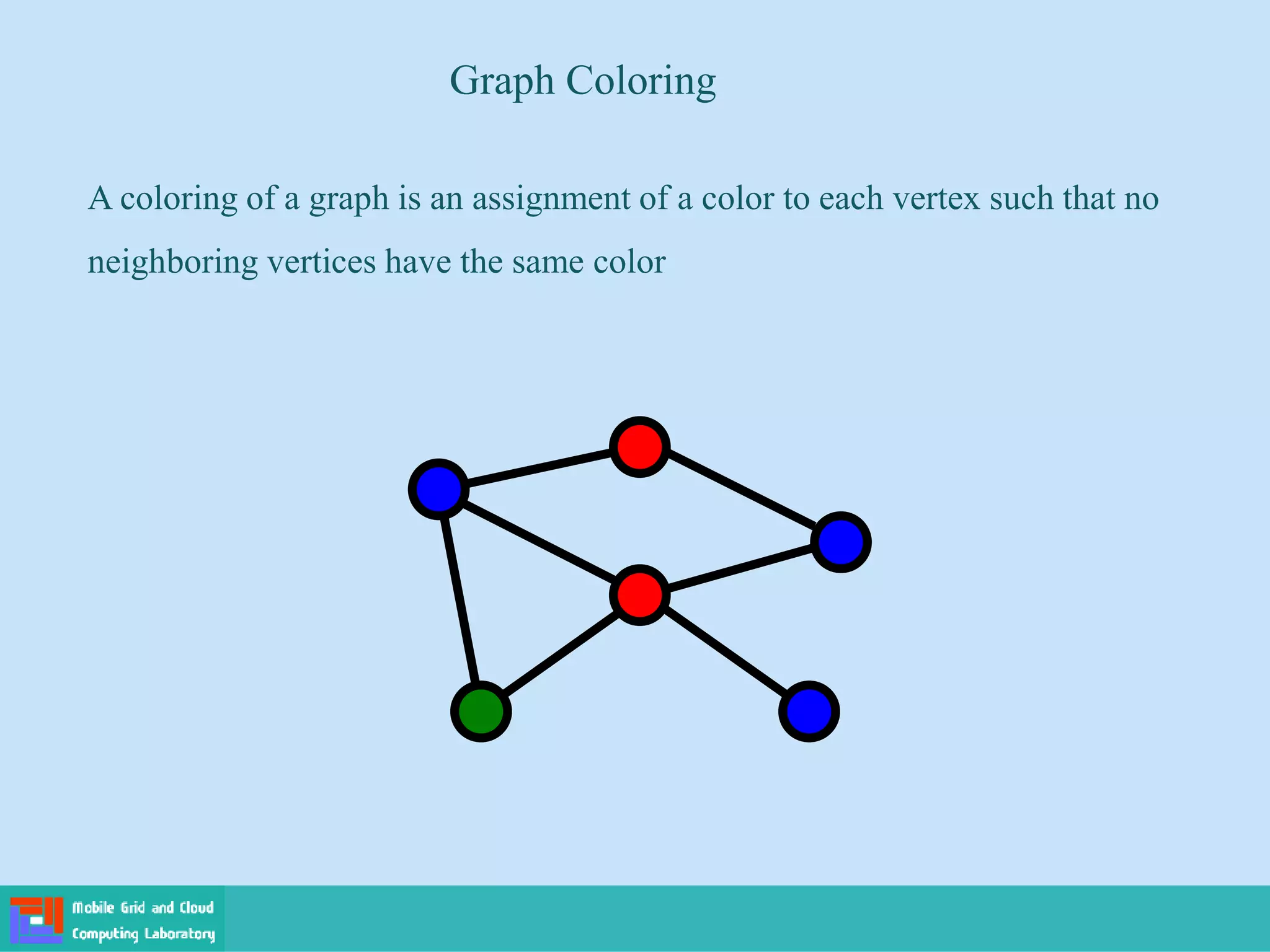

A coloring of a graph is an assignment of a color to each vertex such that no
neighboring vertices have the same color
Graph Coloring

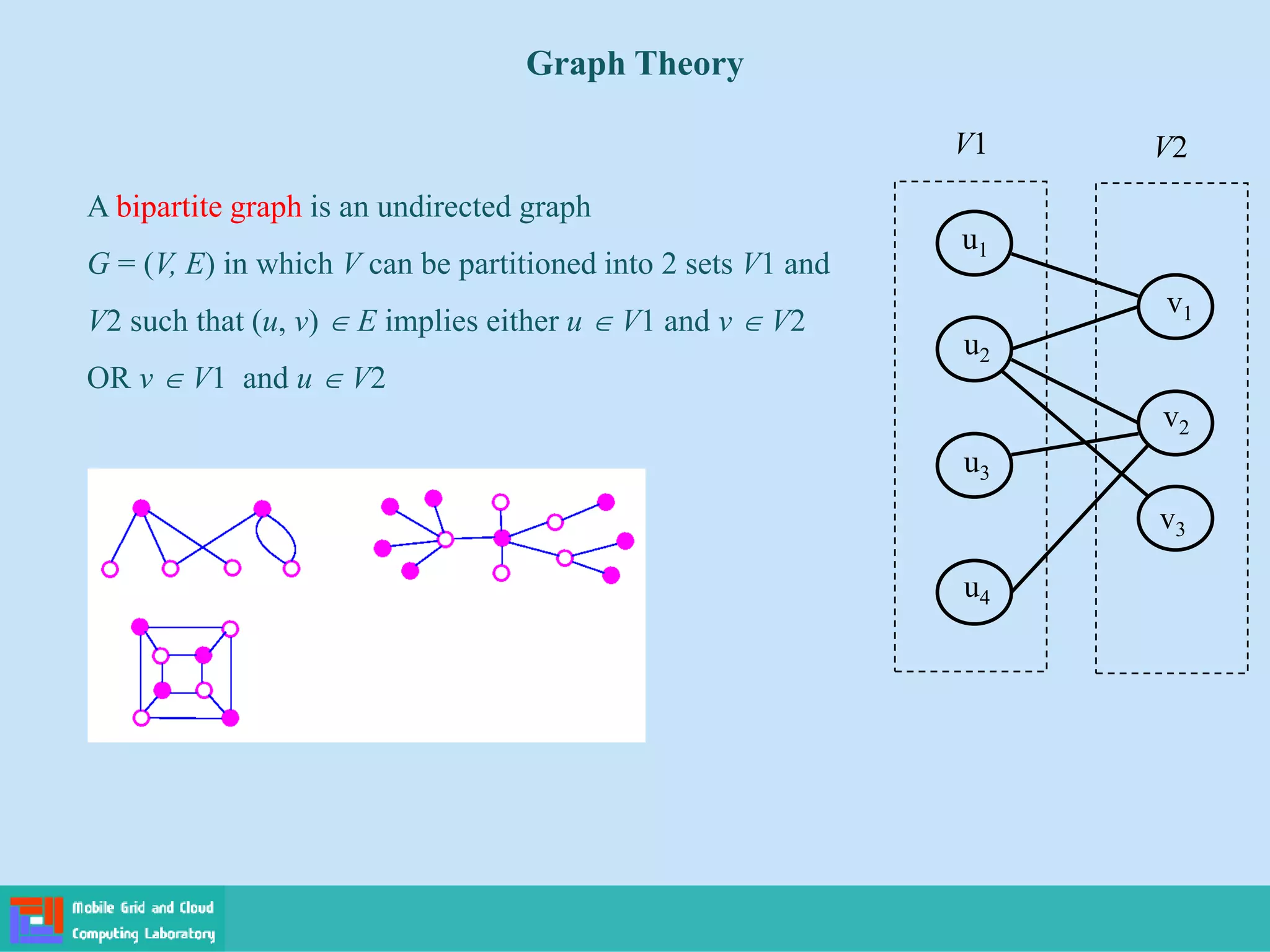

A bipartite graph is an undirected graph
G = (V, E) in which V can be partitioned into 2 sets V1 and
V2 such that (u, v)  E implies either u  V1 and v  V2
OR v  V1 and u  V2
u1
u2
u3
u4
v1
v2
v3
V1 V2

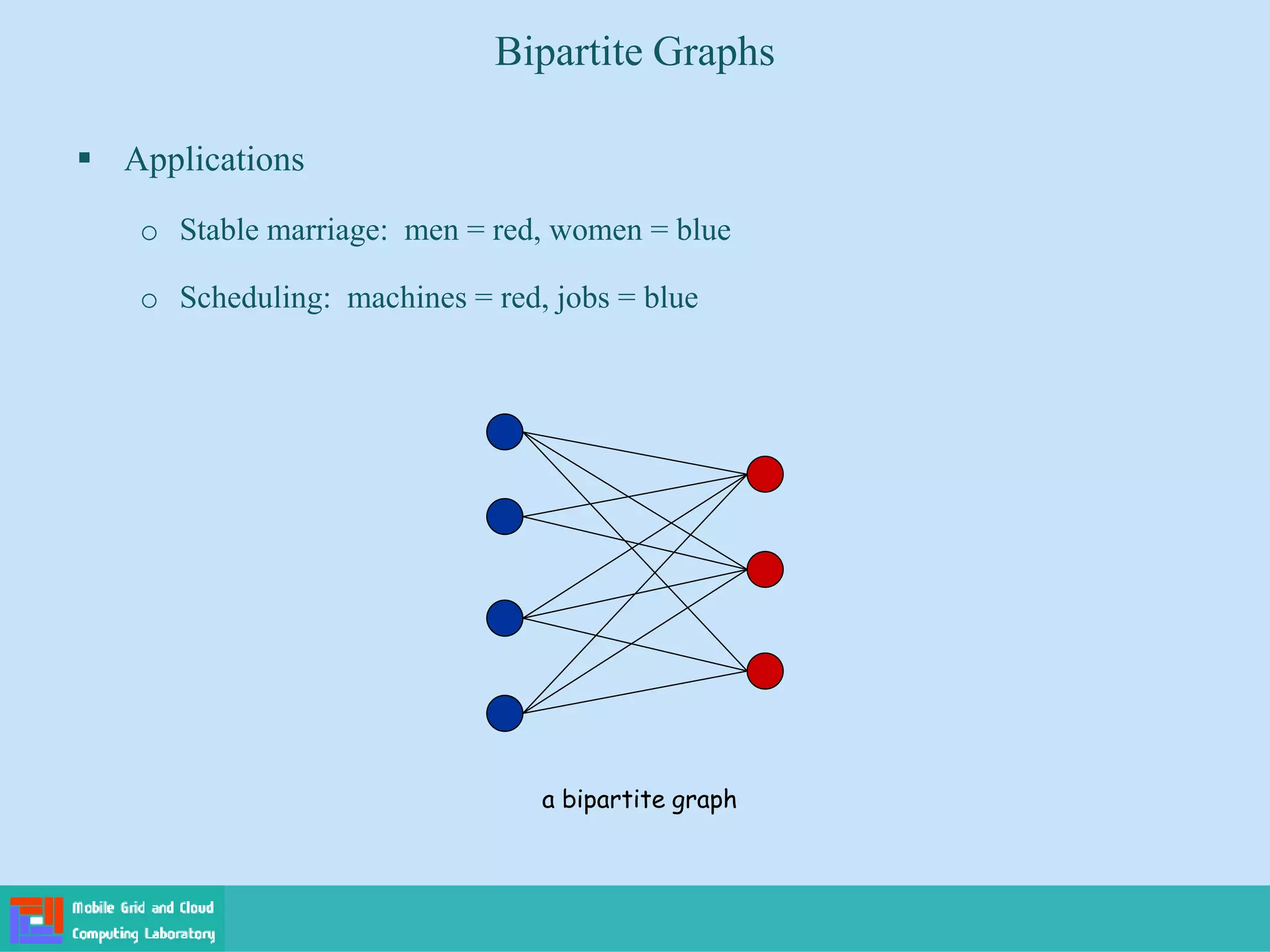

Graph Theory

Bipartite Graphs
 Applications
o Stable marriage: men = red, women = blue
o Scheduling: machines = red, jobs = blue
a bipartite graph

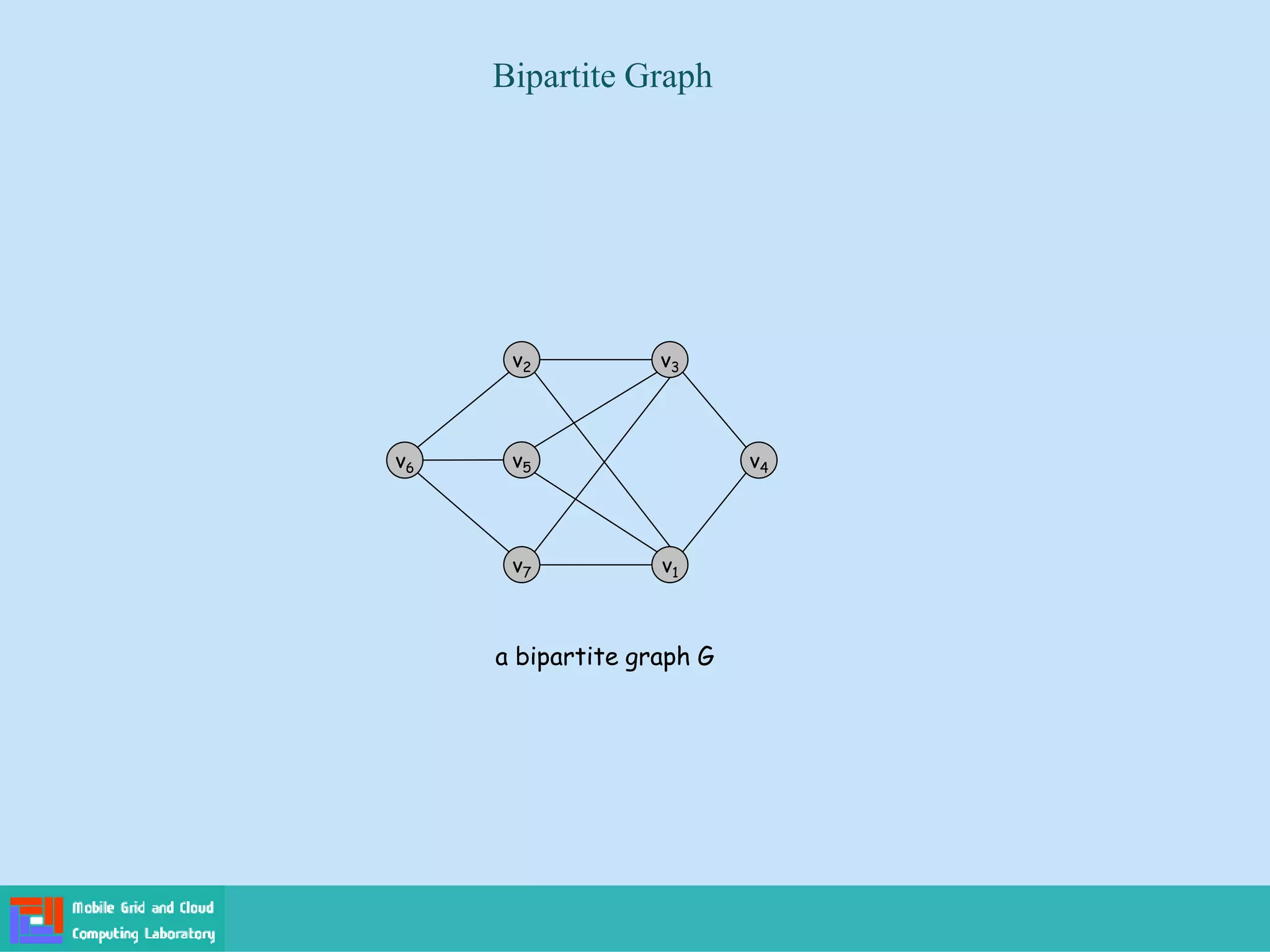

Bipartite Graph
v1
v2 v3
v6 v5 v4
v7
a bipartite graph G

Bipartite Graph
v1
v2 v3
v6 v5 v4
v7
v2
v4
v5
v7
v1
v3
v6
a bipartite graph G another drawing of G

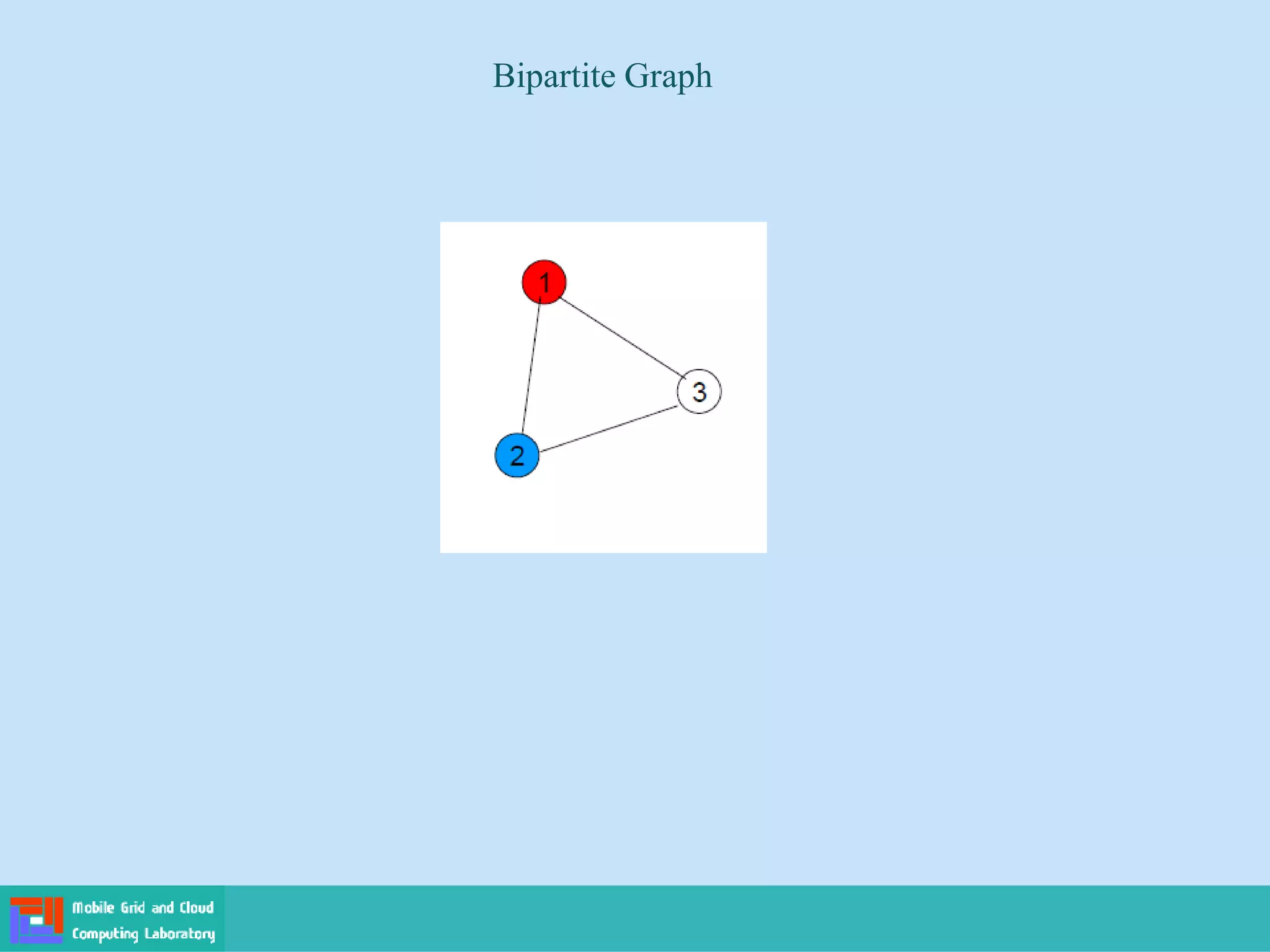

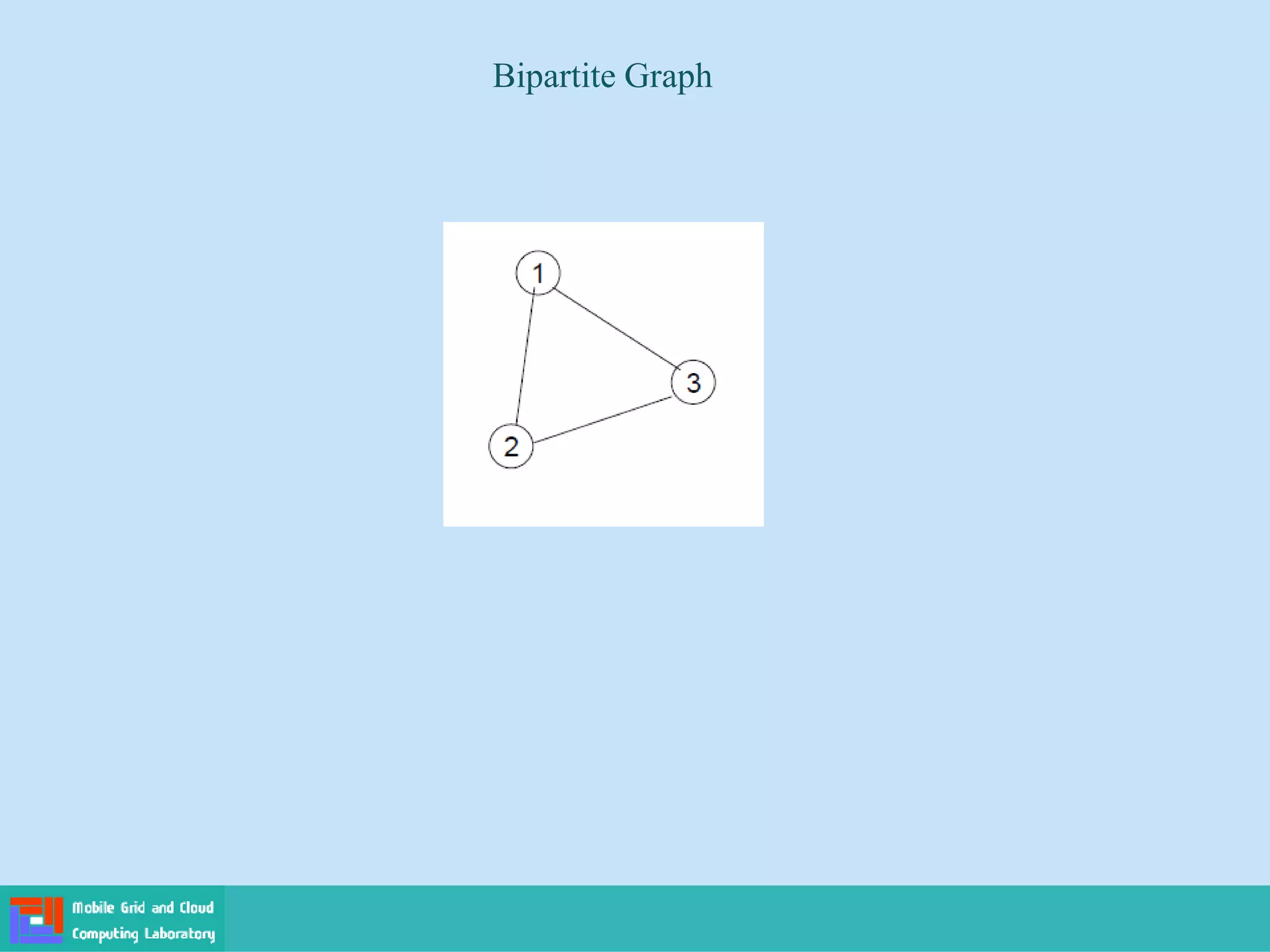

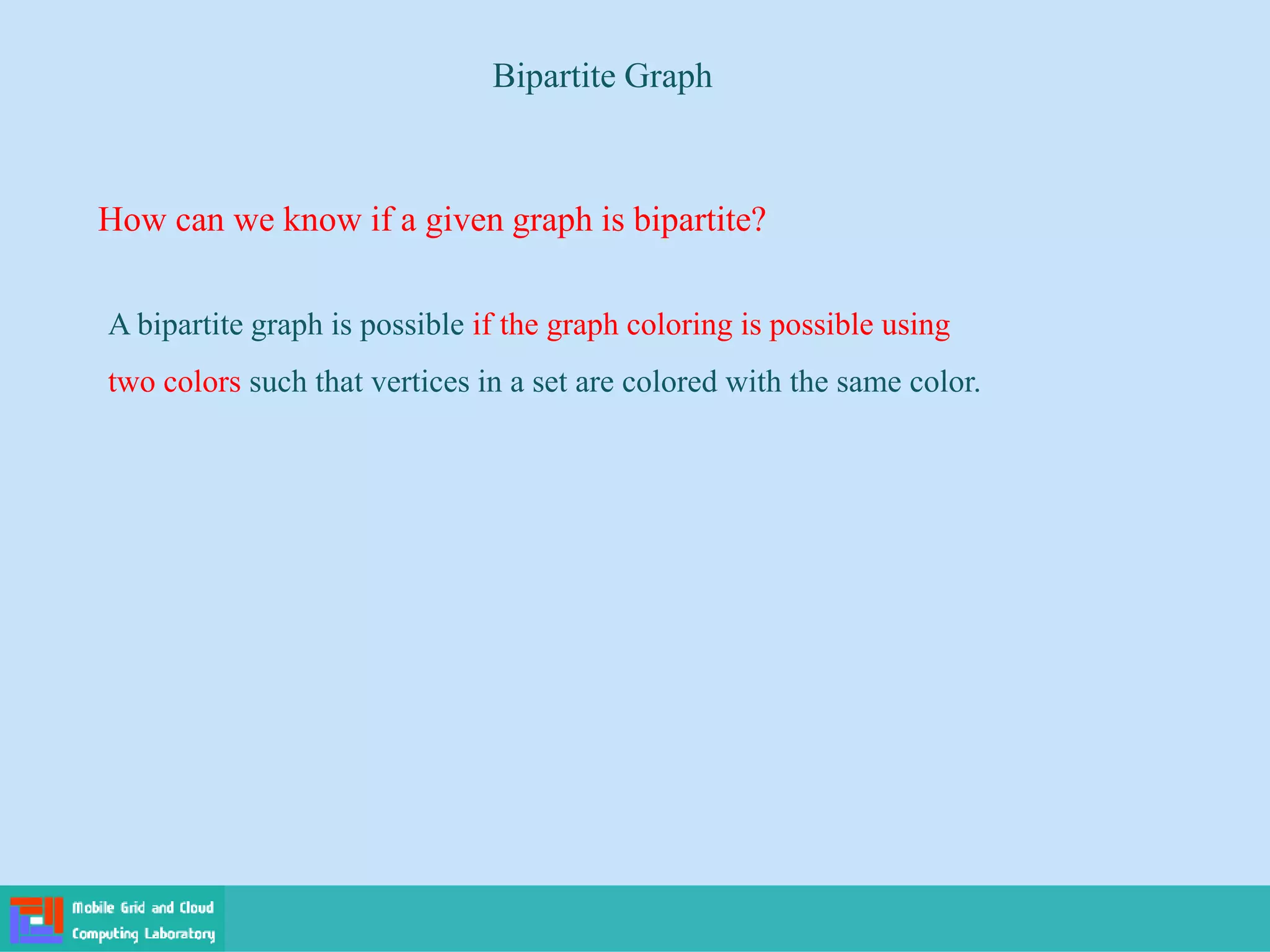

How can we know if a given graph is bipartite?

A bipartite graph is possible if the graph coloring is possible using
two colors such that vertices in a set are colored with the same color.
How can we know if a given graph is bipartite?

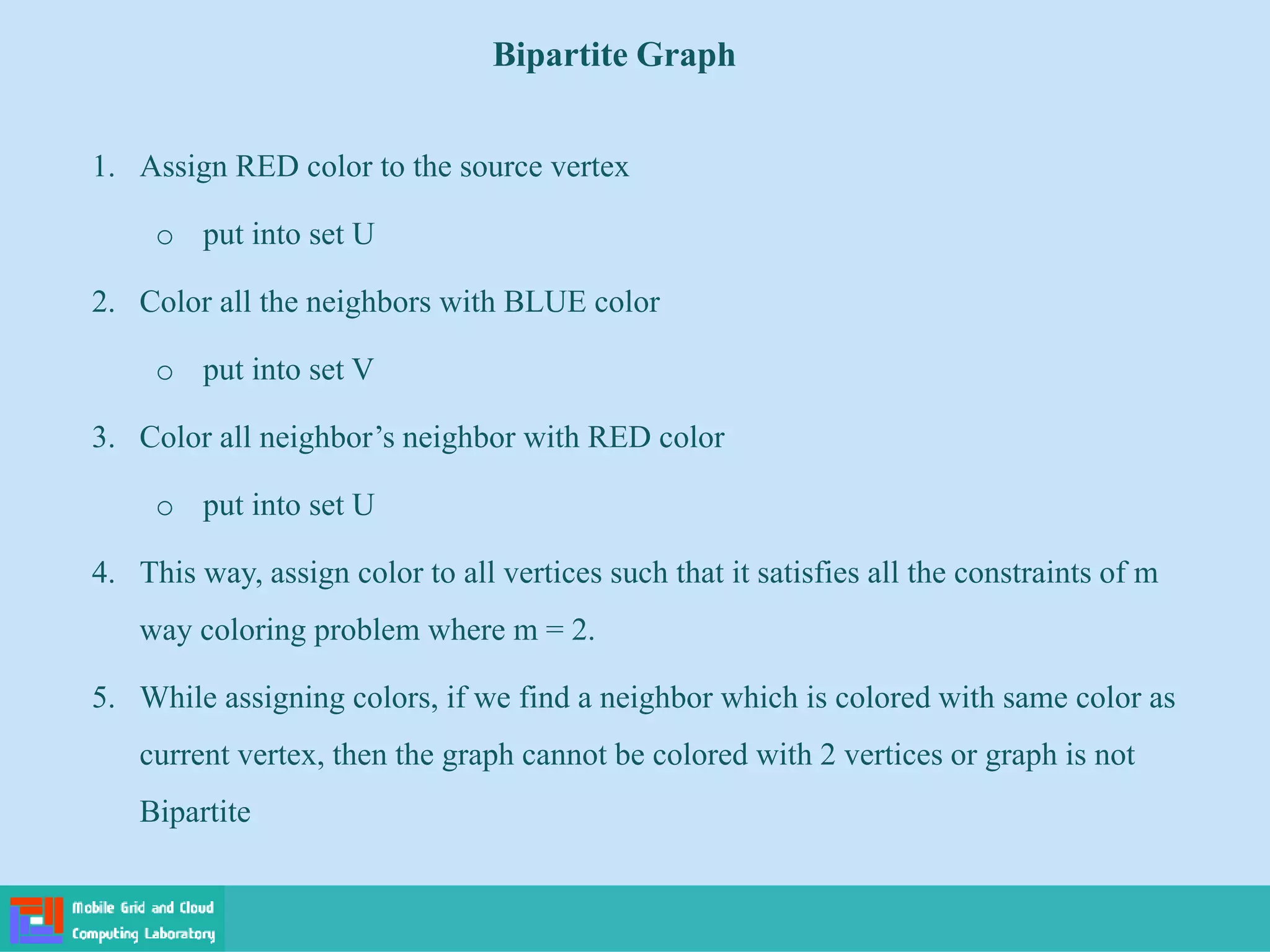

Bipartite Graph

1. Assign RED color to the source vertex
o put into set U
2. Color all the neighbors with BLUE color
o put into set V
3. Color all neighbor’s neighbor with RED color
o put into set U
4. This way, assign color to all vertices such that it satisfies all the constraints of m
way coloring problem where m = 2.
5. While assigning colors, if we find a neighbor which is colored with same color as
current vertex, then the graph cannot be colored with 2 vertices or graph is not

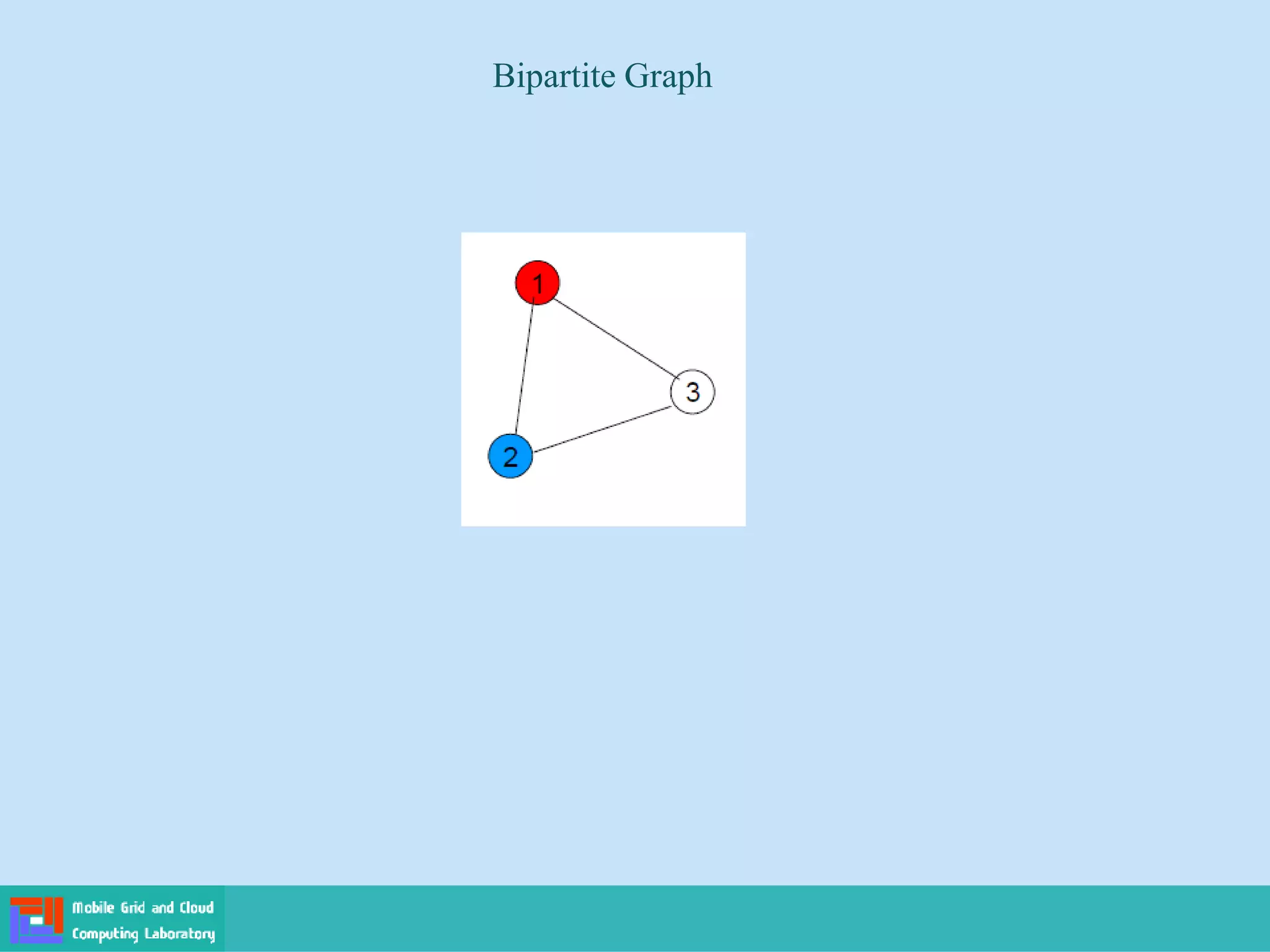

Bipartite

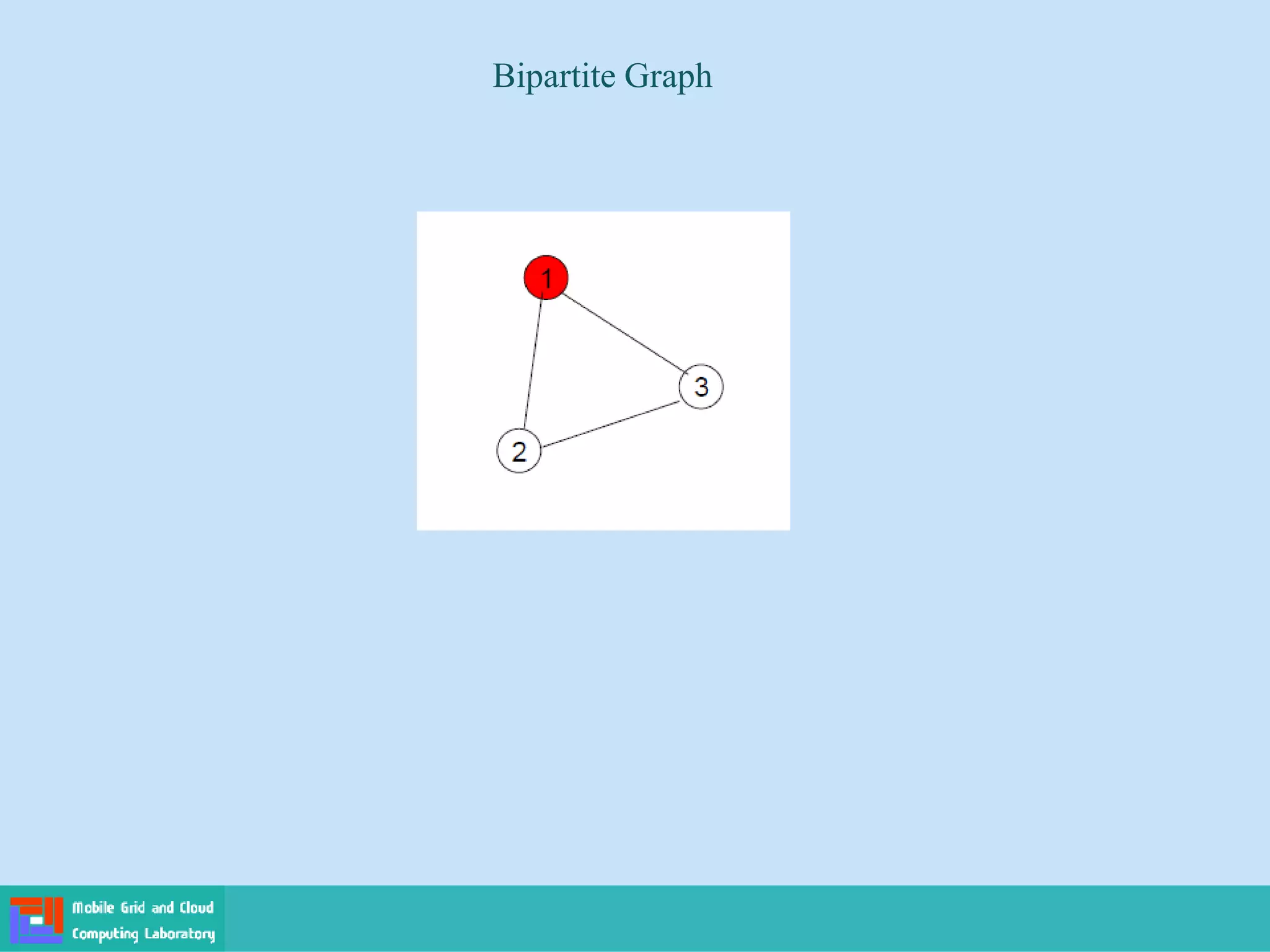

Bipartite Graph

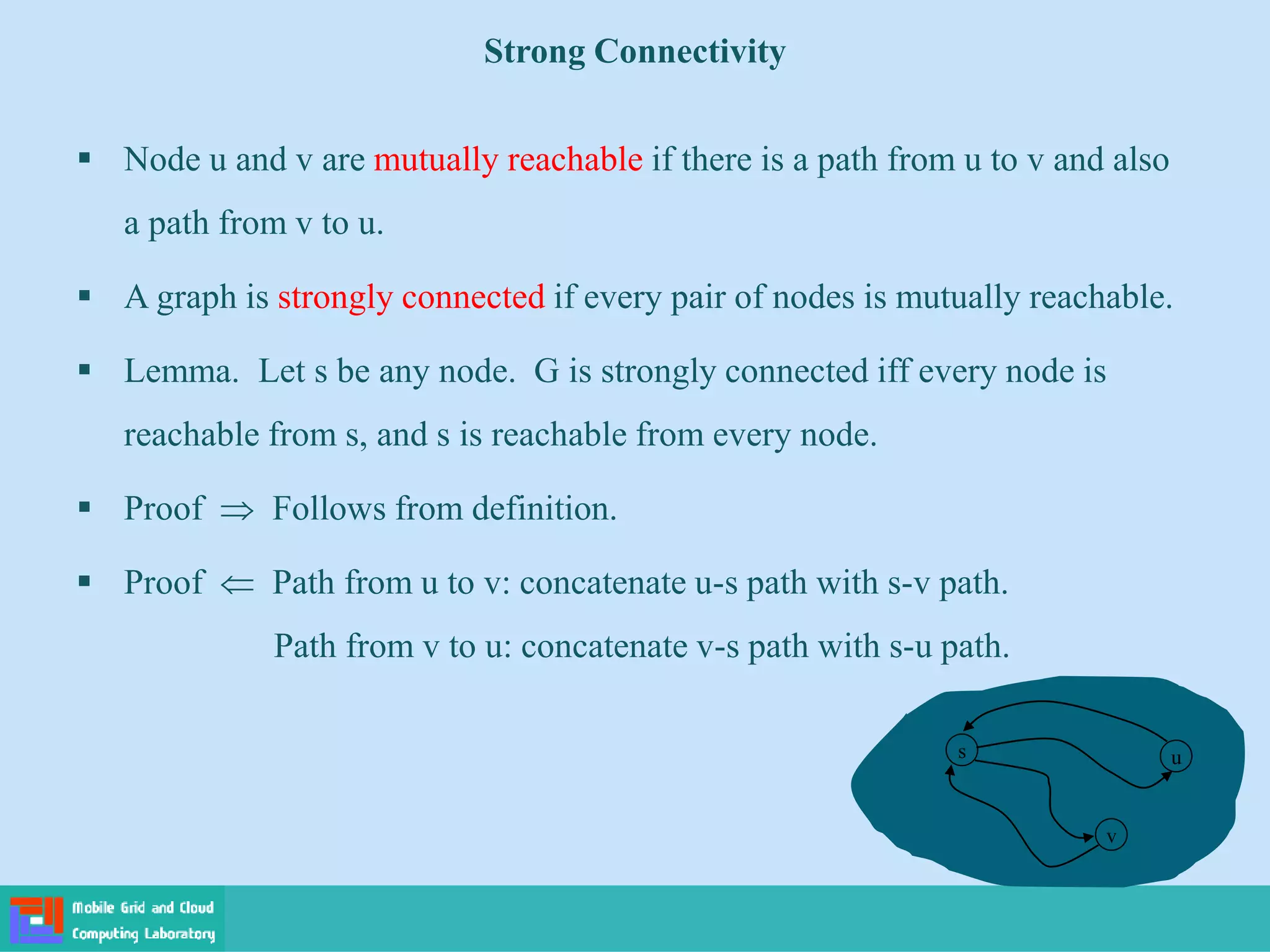

Strong Connectivity
 Node u and v are mutually reachable if there is a path from u to v and also
a path from v to u.
 A graph is strongly connected if every pair of nodes is mutually reachable.
 Lemma. Let s be any node. G is strongly connected iff every node is
reachable from s, and s is reachable from every node.
 Proof  Follows from definition.
 Proof  Path from u to v: concatenate u-s path with s-v path.
Path from v to u: concatenate v-s path with s-u path.
s
v
u

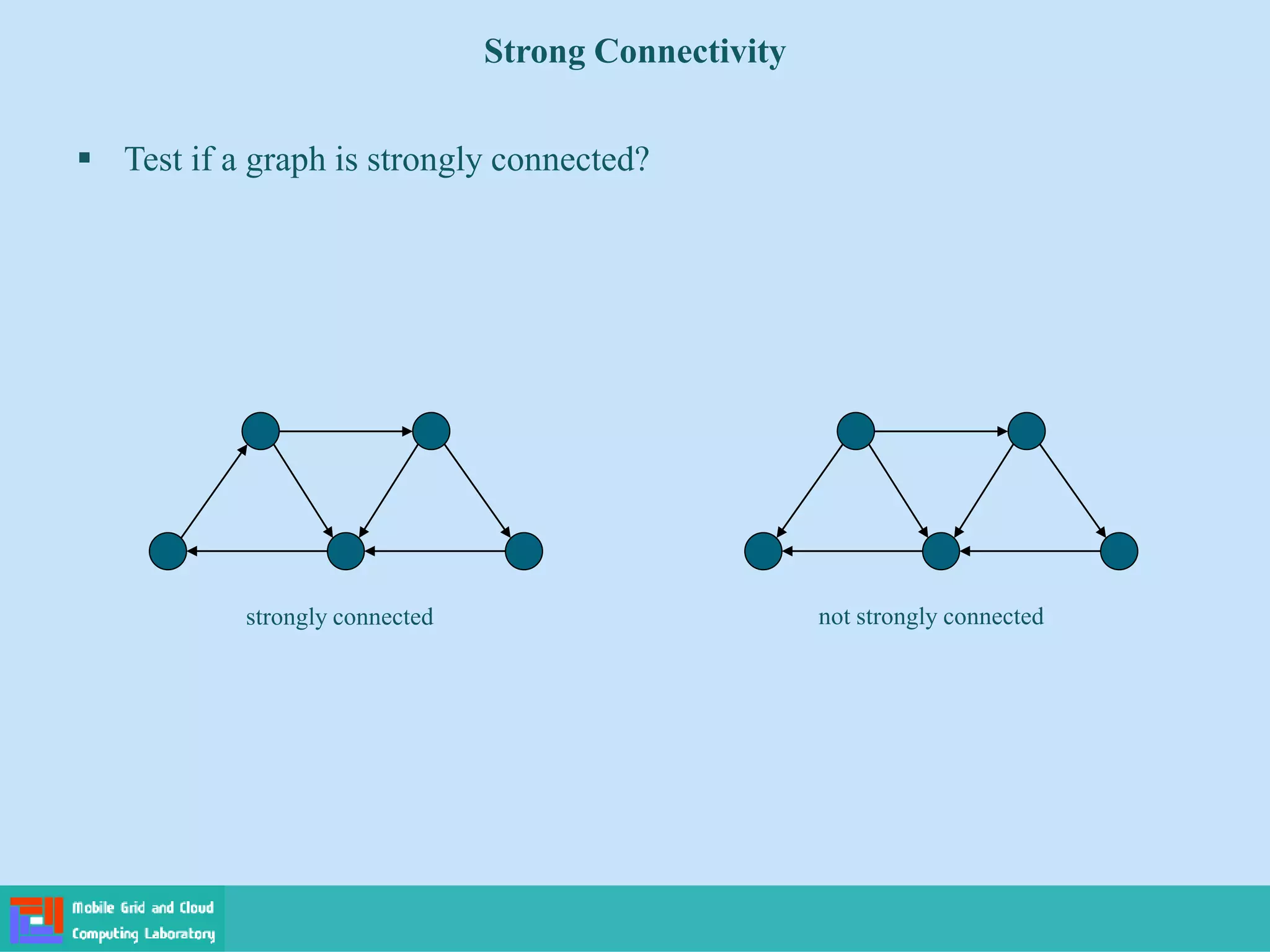

Strong Connectivity
 Test if a graph is strongly connected?
strongly connected not strongly connected

Algorithm
 Perform DFS or BFS starting from every vertices in the graph
 If DFS or BFS visits every vertex in the graph then graph is strongly
connected

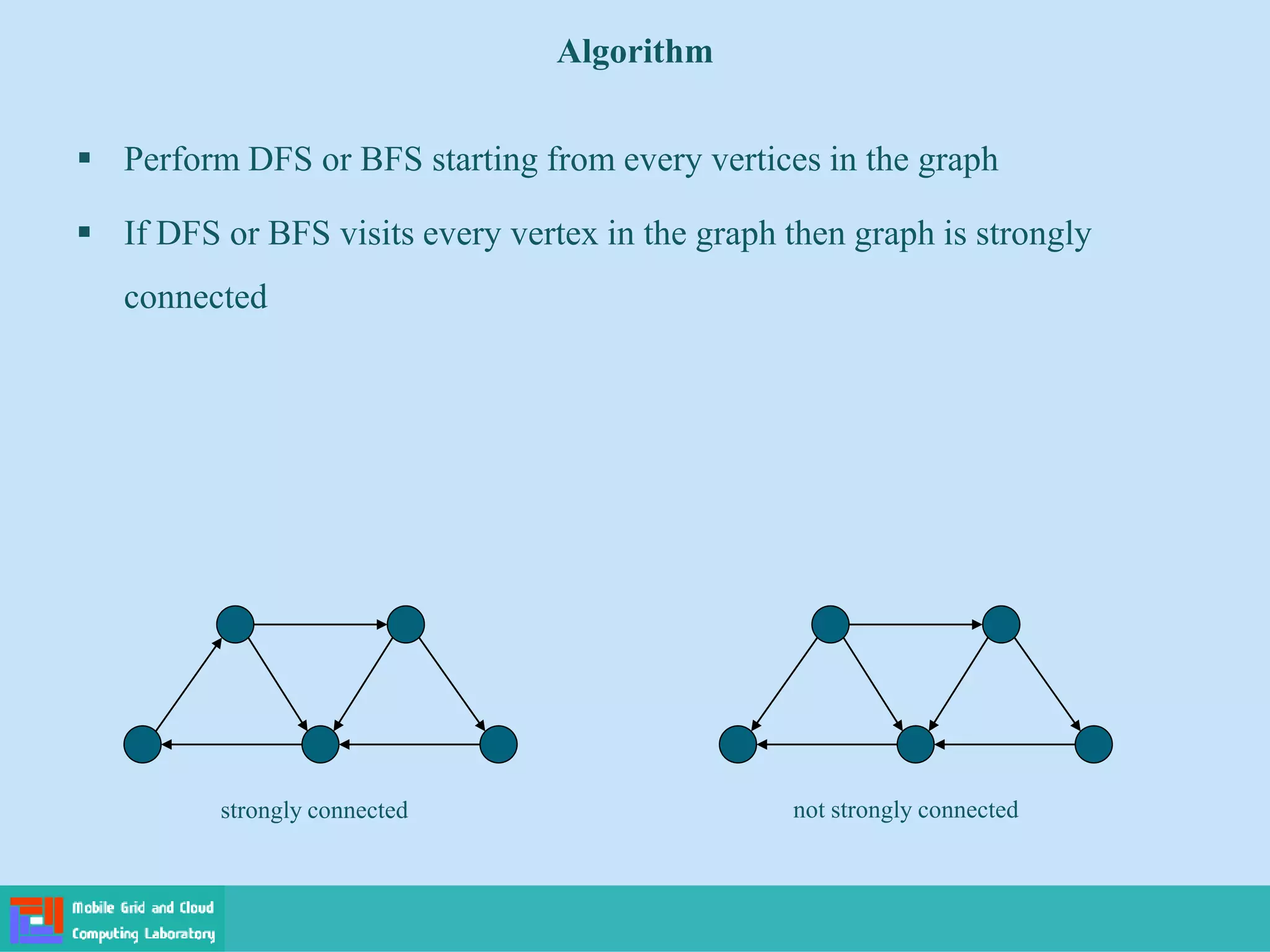

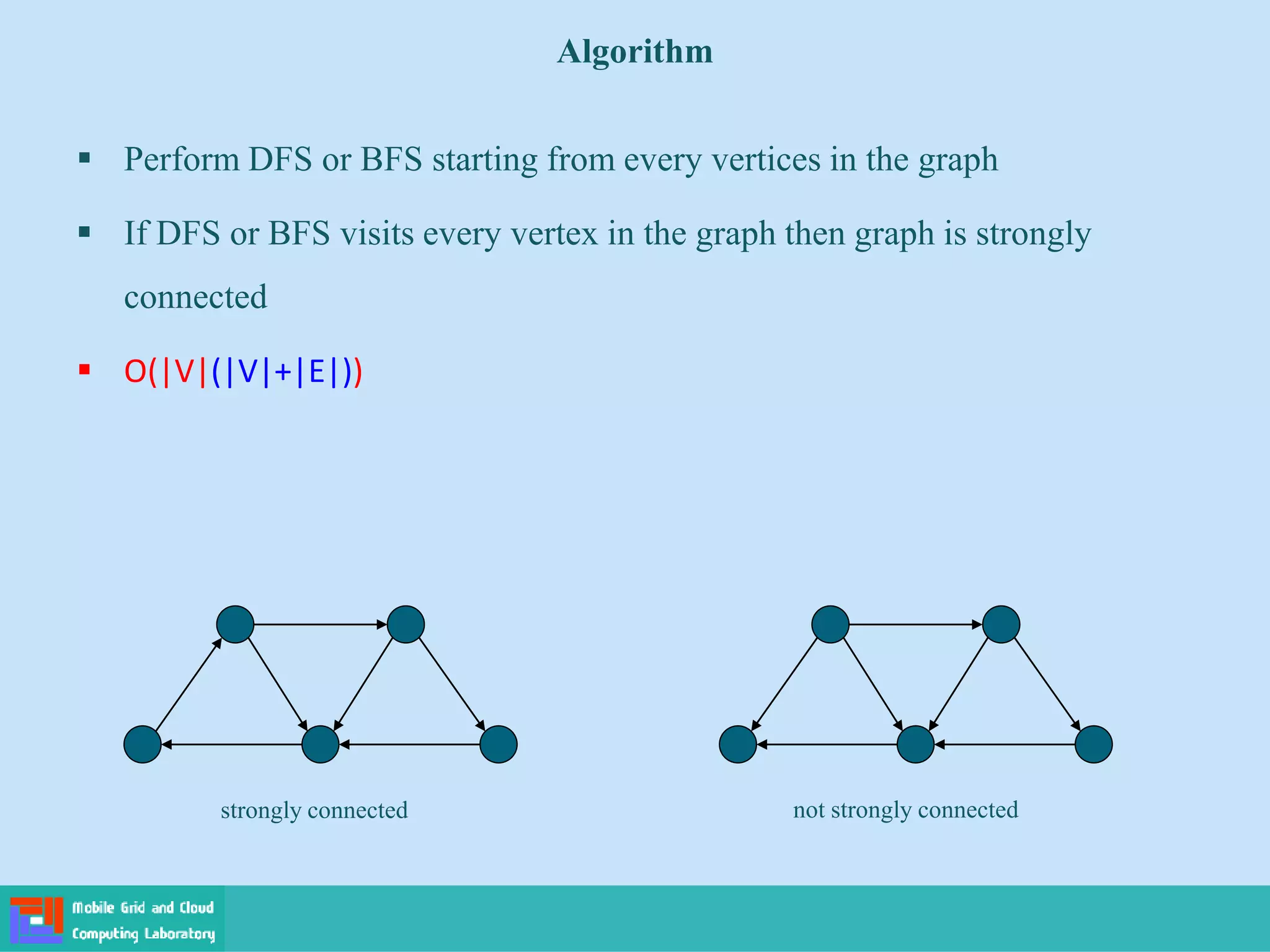

Algorithm
 Perform DFS or BFS starting from every vertices in the graph
 If DFS or BFS visits every vertex in the graph then graph is strongly
connected
 O(|V|(|V|+|E|))

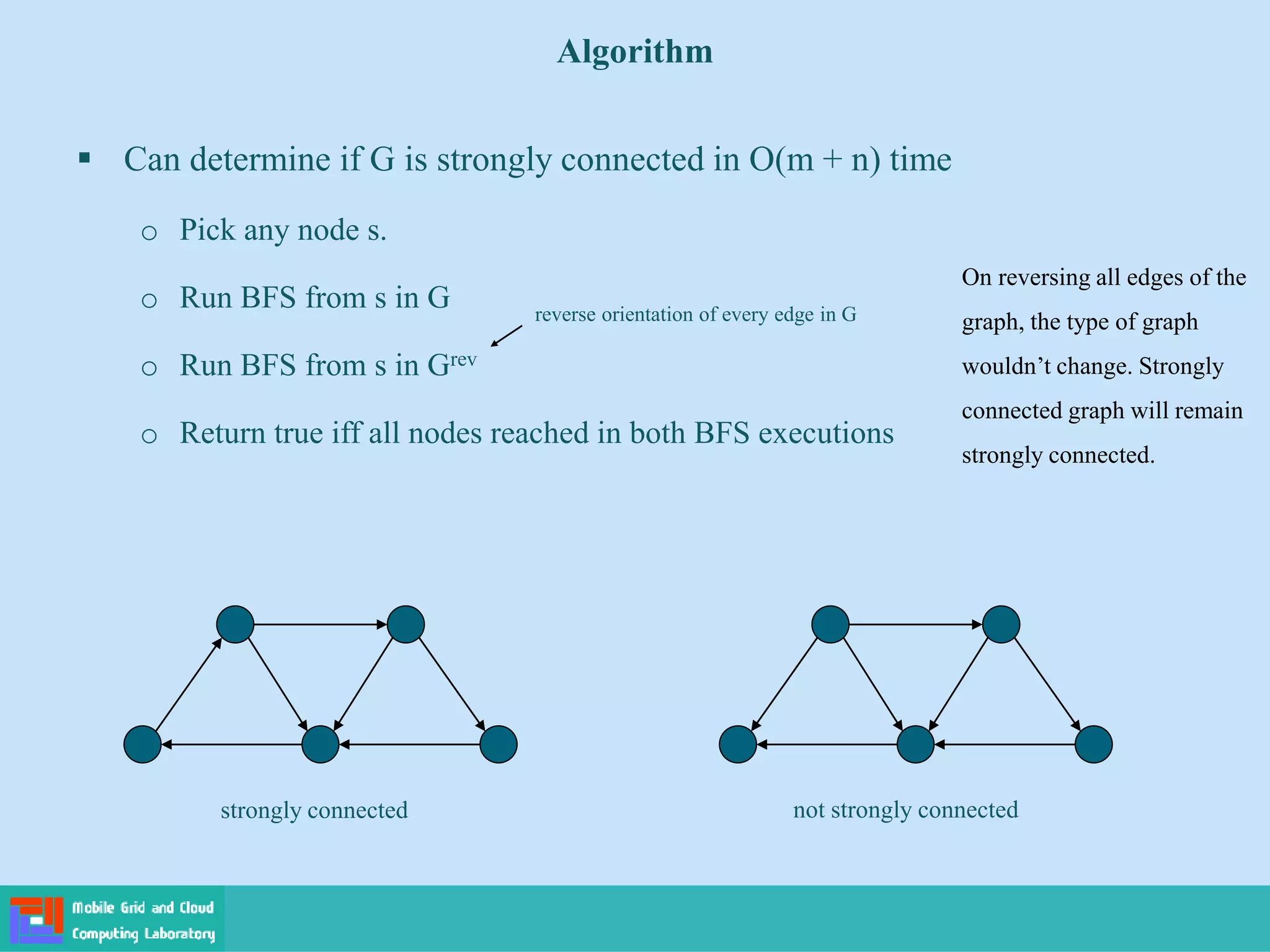

Algorithm
 Can determine if G is strongly connected in O(m + n) time
o Pick any node s.
o Run BFS from s in G
o Run BFS from s in Grev
o Return true iff all nodes reached in both BFS executions
reverse orientation of every edge in G
On reversing all edges of the
graph, the type of graph
wouldn’t change. Strongly
connected graph will remain
strongly connected.

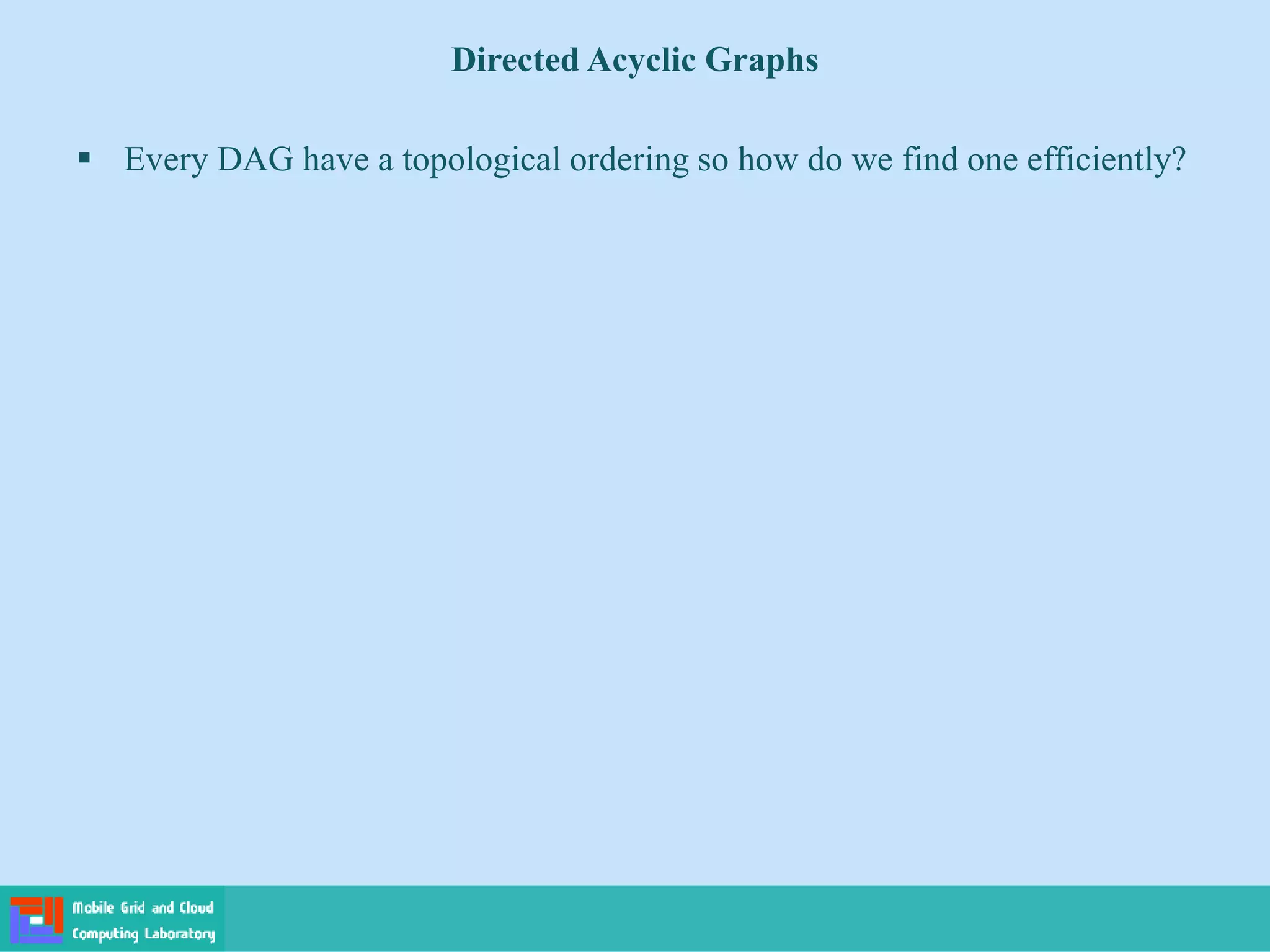

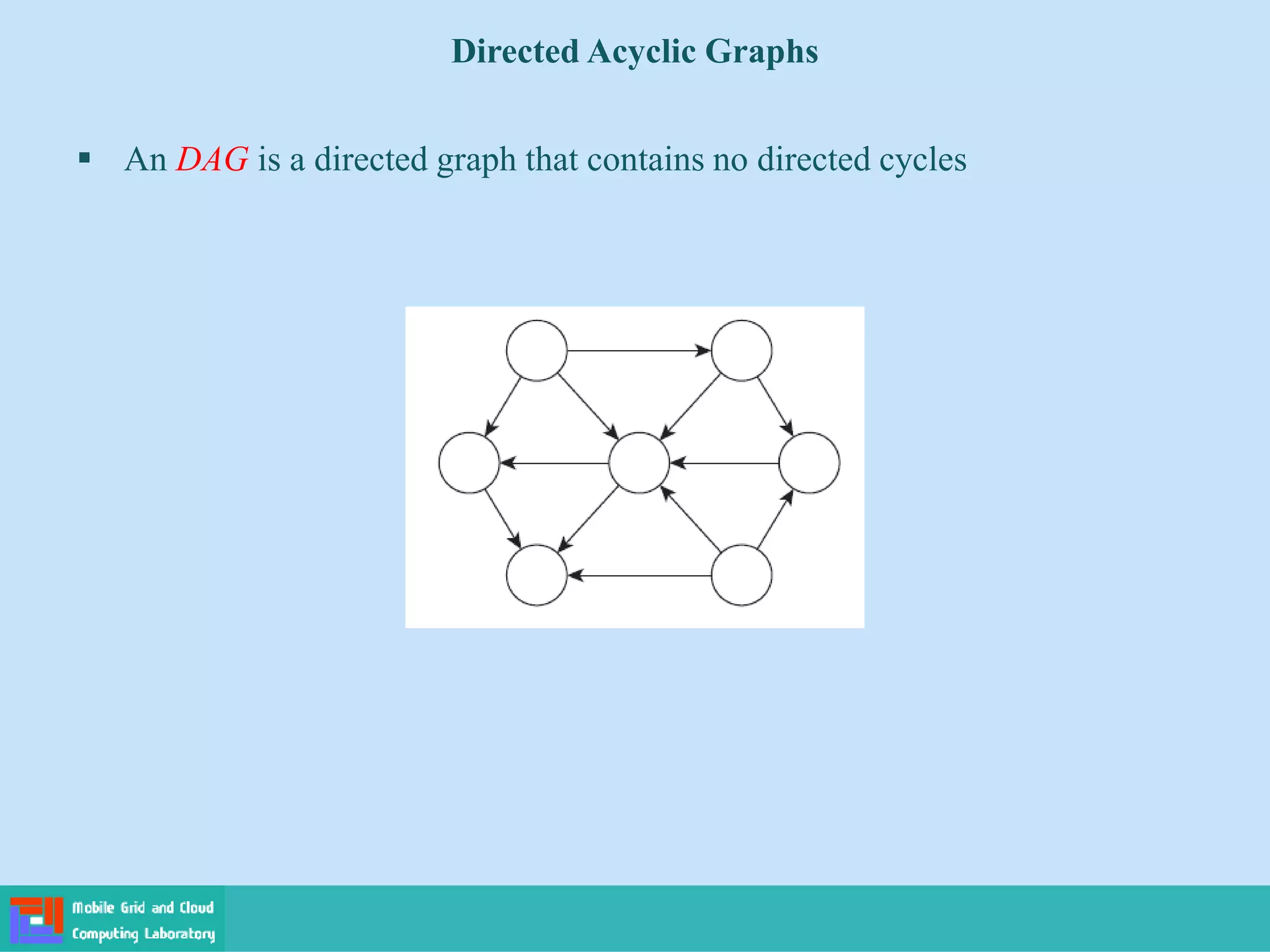

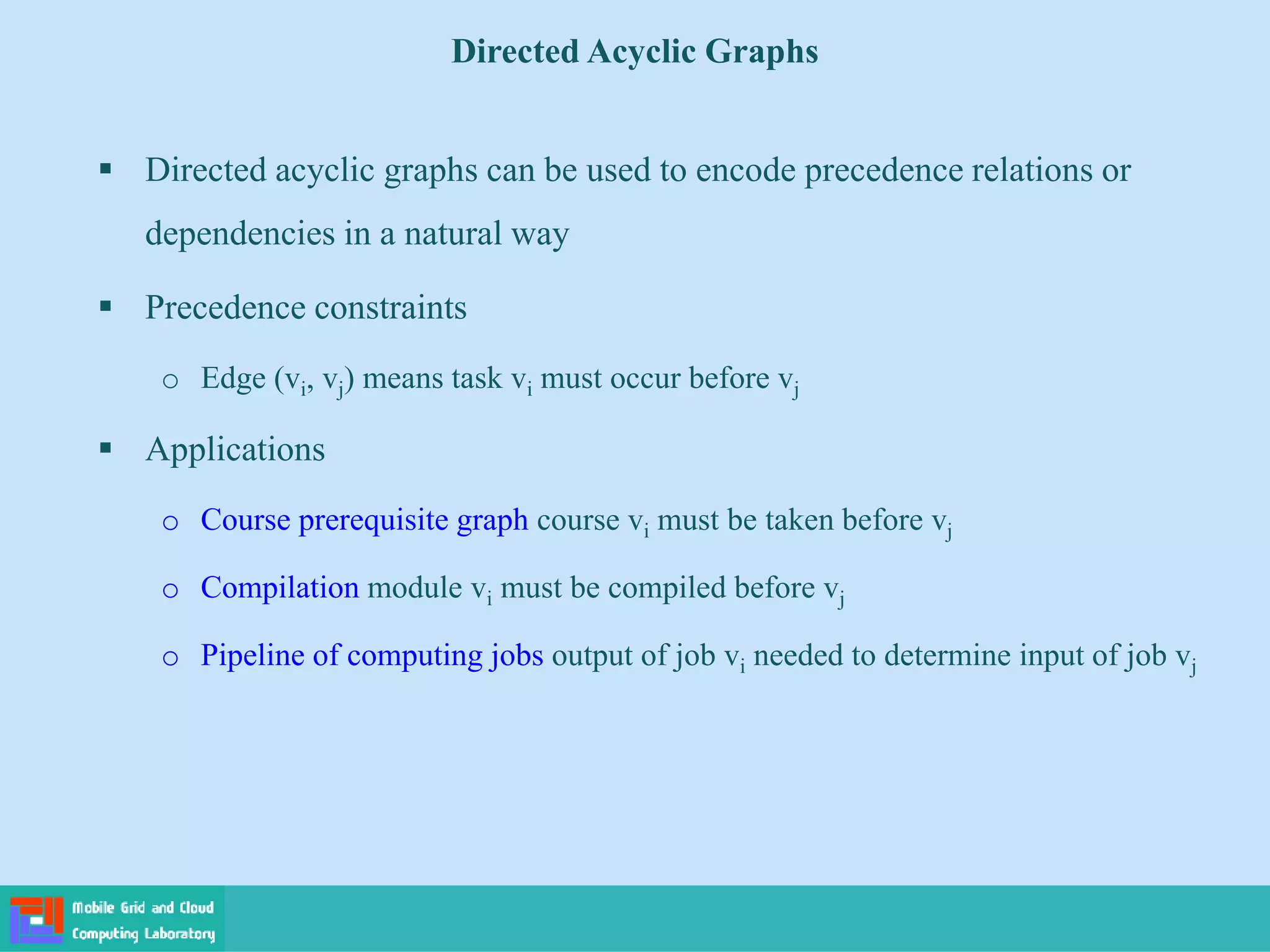

Directed Acyclic Graphs
 An DAG is a directed graph that contains no directed cycles

 Directed acyclic graphs can be used to encode precedence relations or
dependencies in a natural way
 Precedence constraints
o Edge (vi, vj) means task vi must occur before vj
 Applications
o Course prerequisite graph course vi must be taken before vj
o Compilation module vi must be compiled before vj
o Pipeline of computing jobs output of job vi needed to determine input of job vj

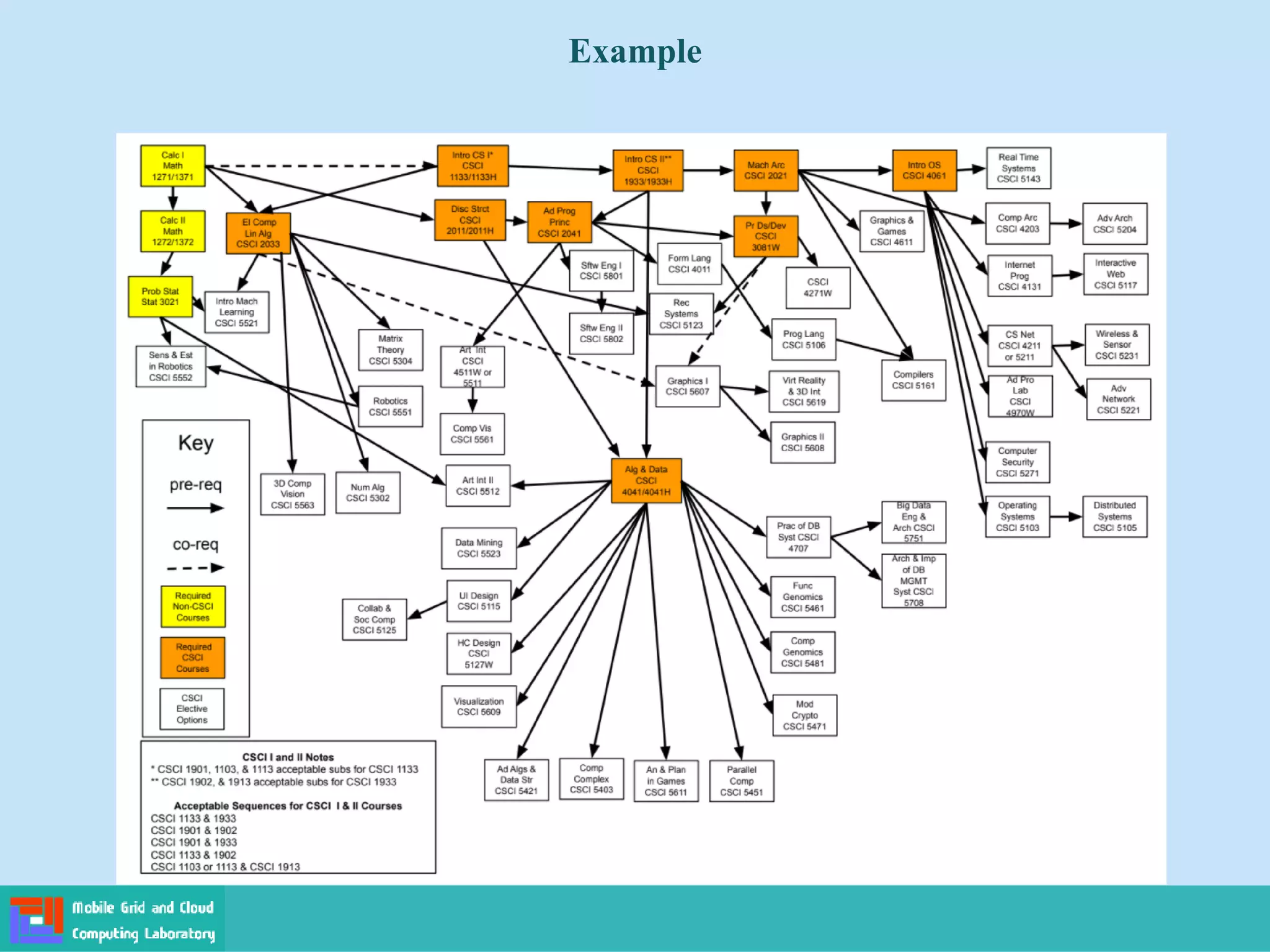

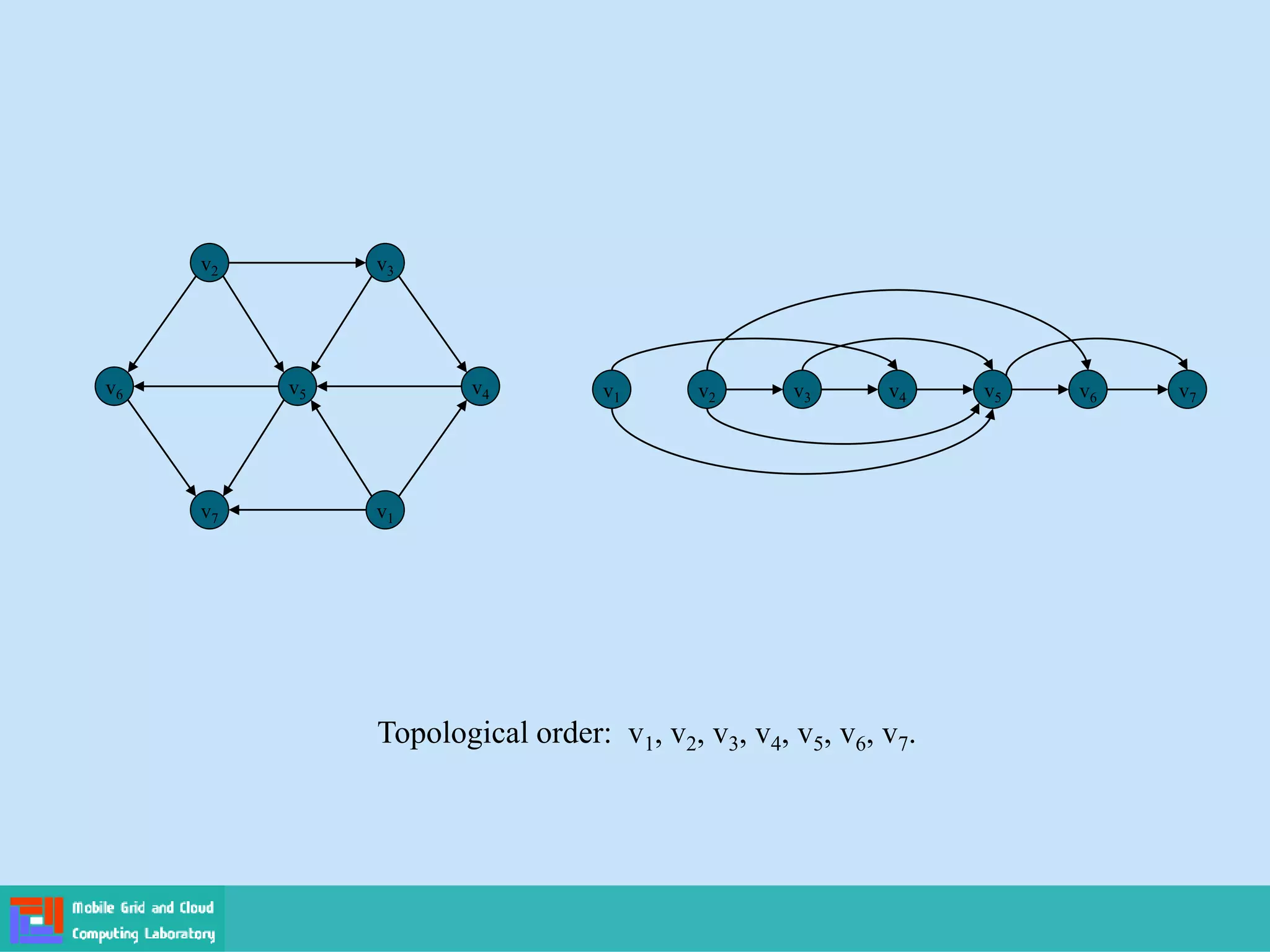

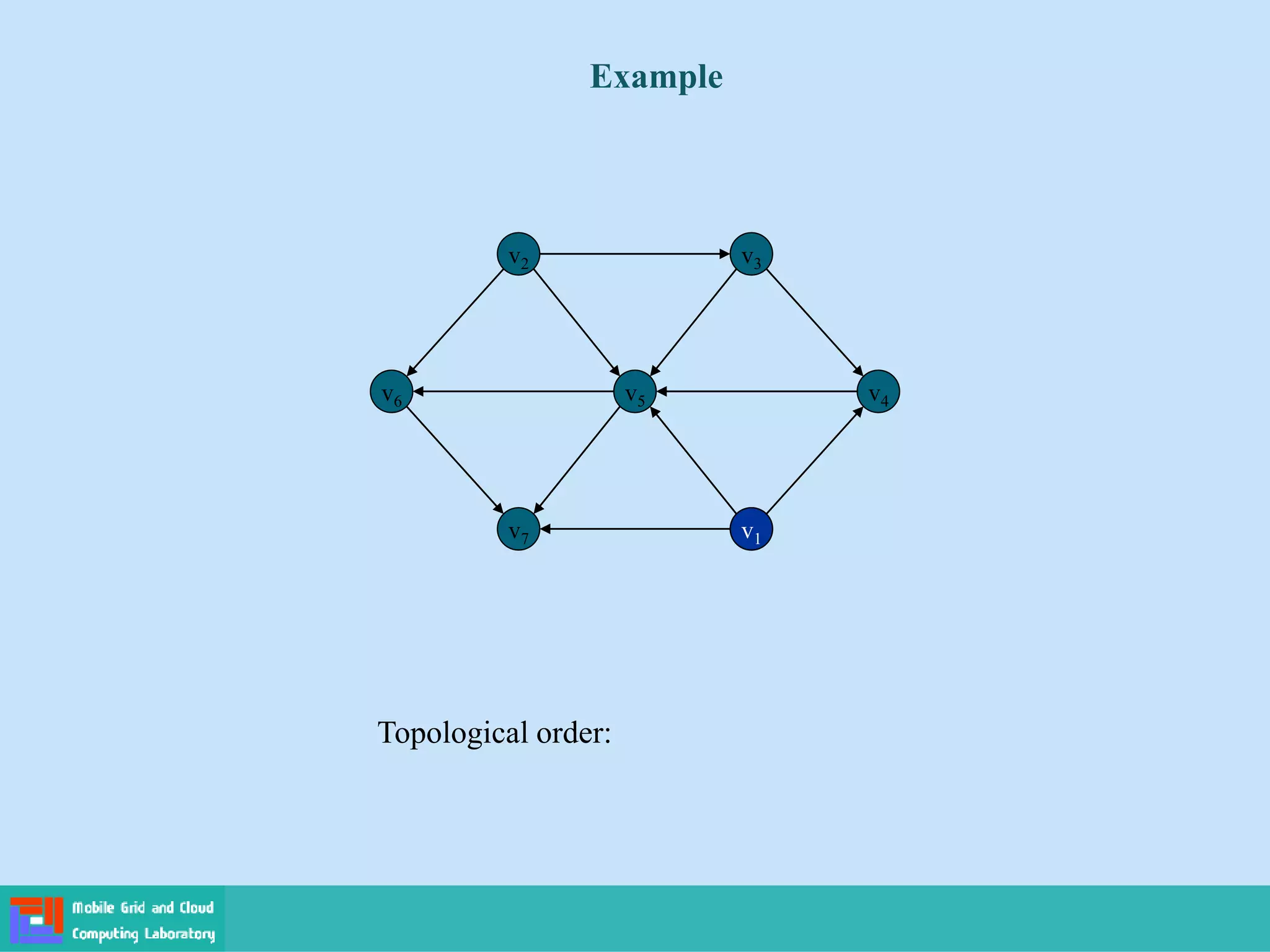

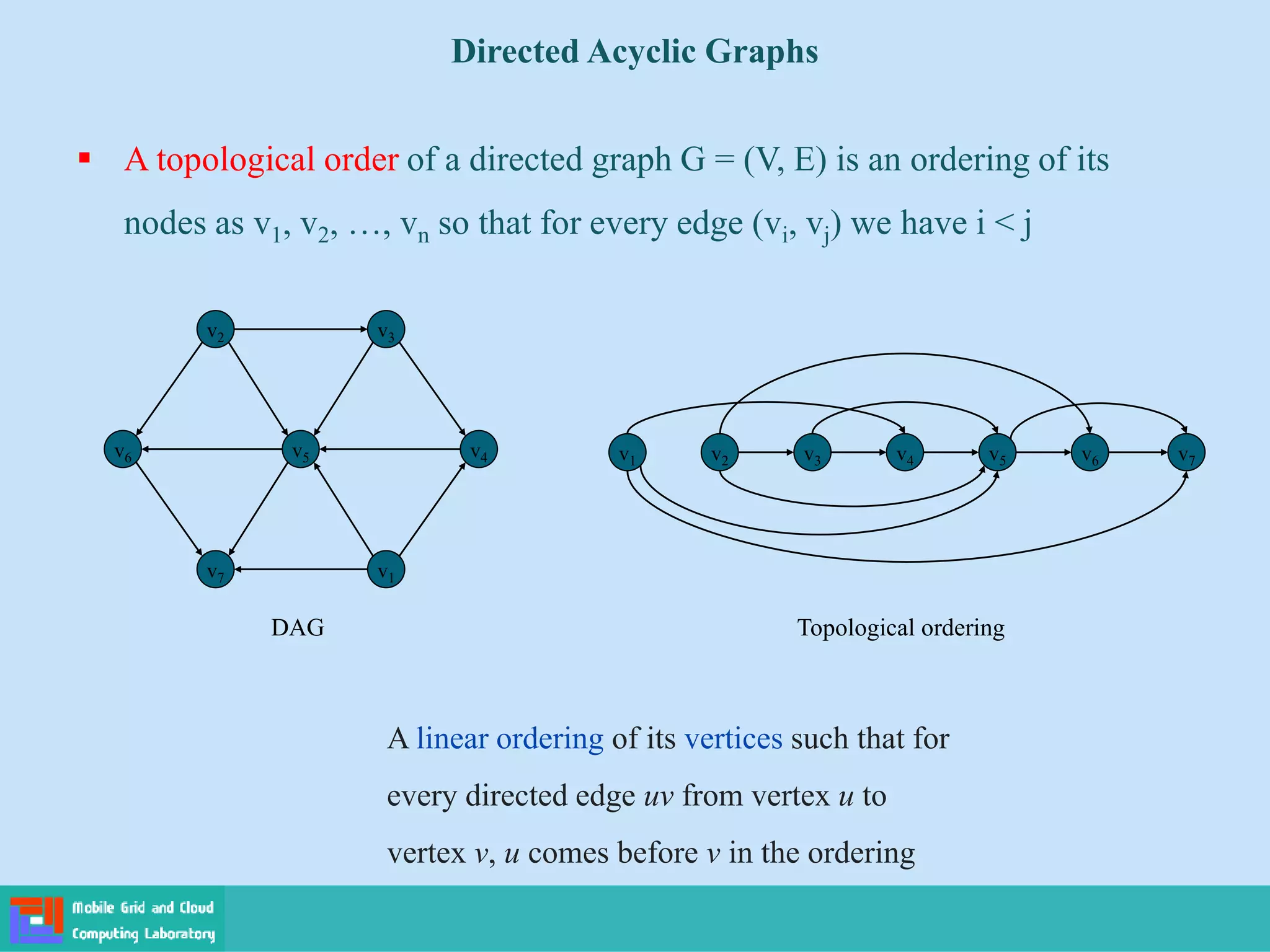

 A topological order of a directed graph G = (V, E) is an ordering of its
nodes as v1, v2, …, vn so that for every edge (vi, vj) we have i < j
DAG Topological ordering
v2 v3
v6 v5 v4
v7 v1
v1 v2 v3 v4 v5 v6 v7
A linear ordering of its vertices such that for
every directed edge uv from vertex u to
vertex v, u comes before v in the ordering

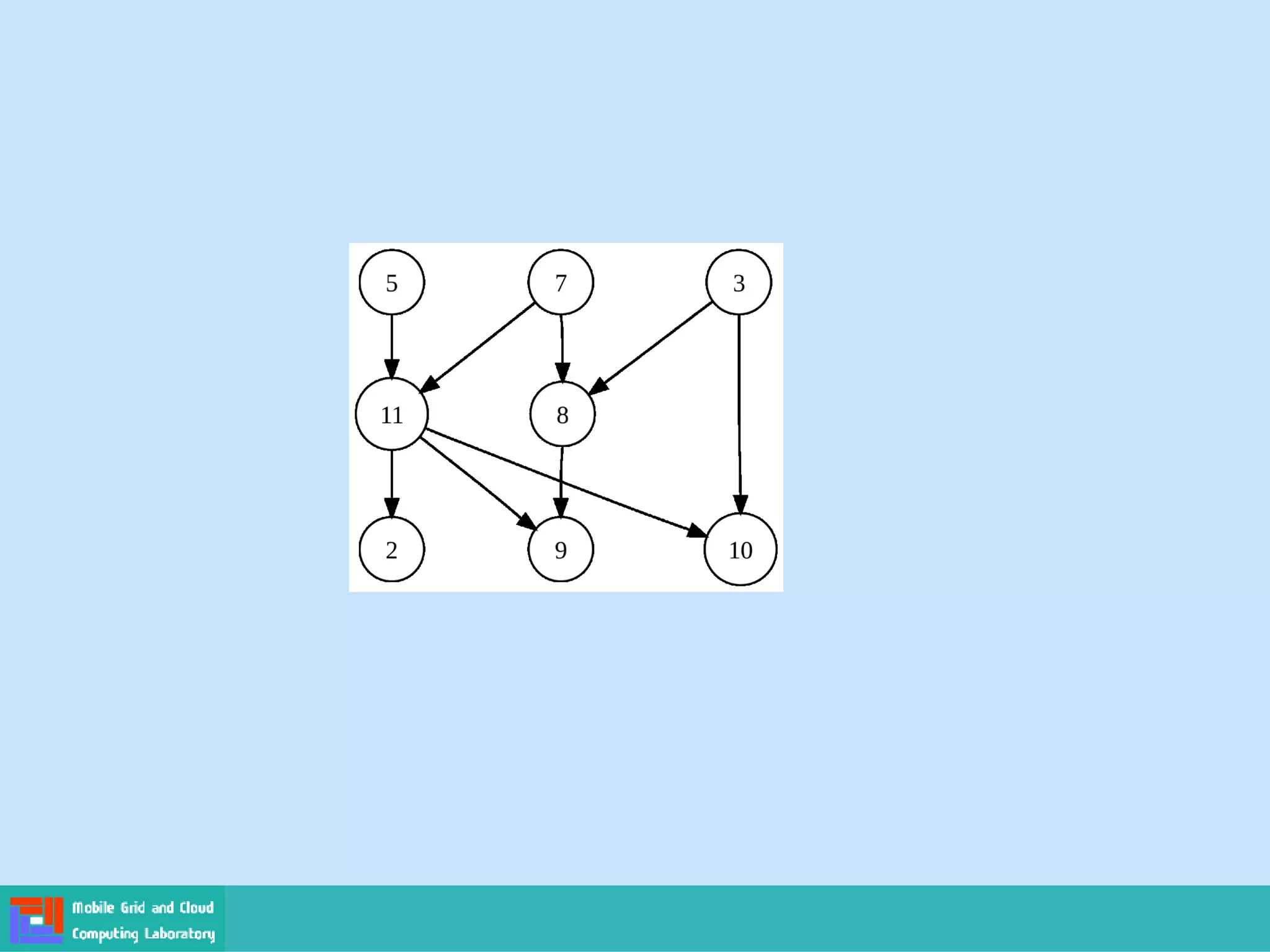

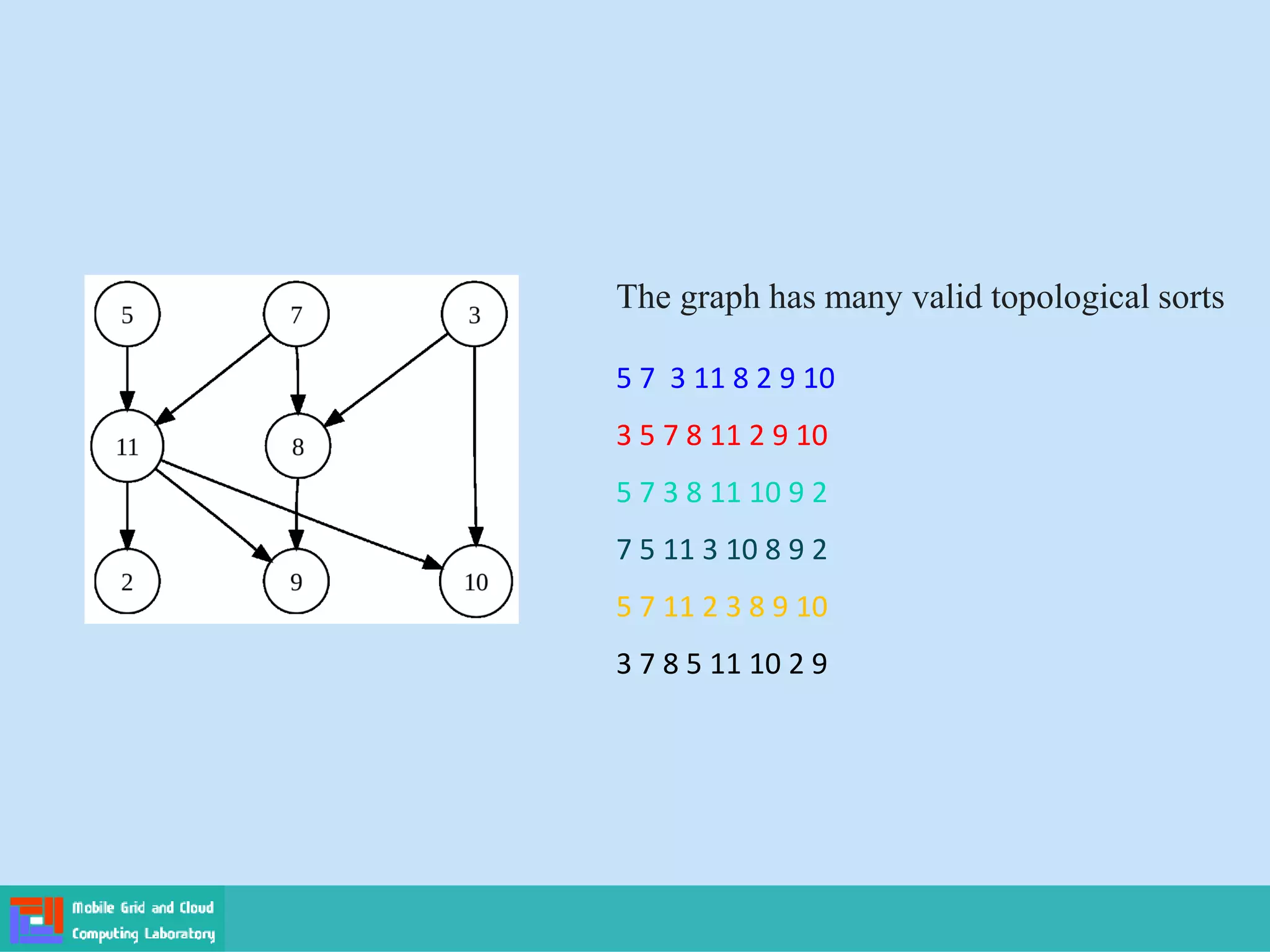

The graph has many valid topological sorts
5 7 3 11 8 2 9 10
3 5 7 8 11 2 9 10
5 7 3 8 11 10 9 2
7 5 11 3 10 8 9 2
5 7 11 2 3 8 9 10
3 7 8 5 11 10 2 9

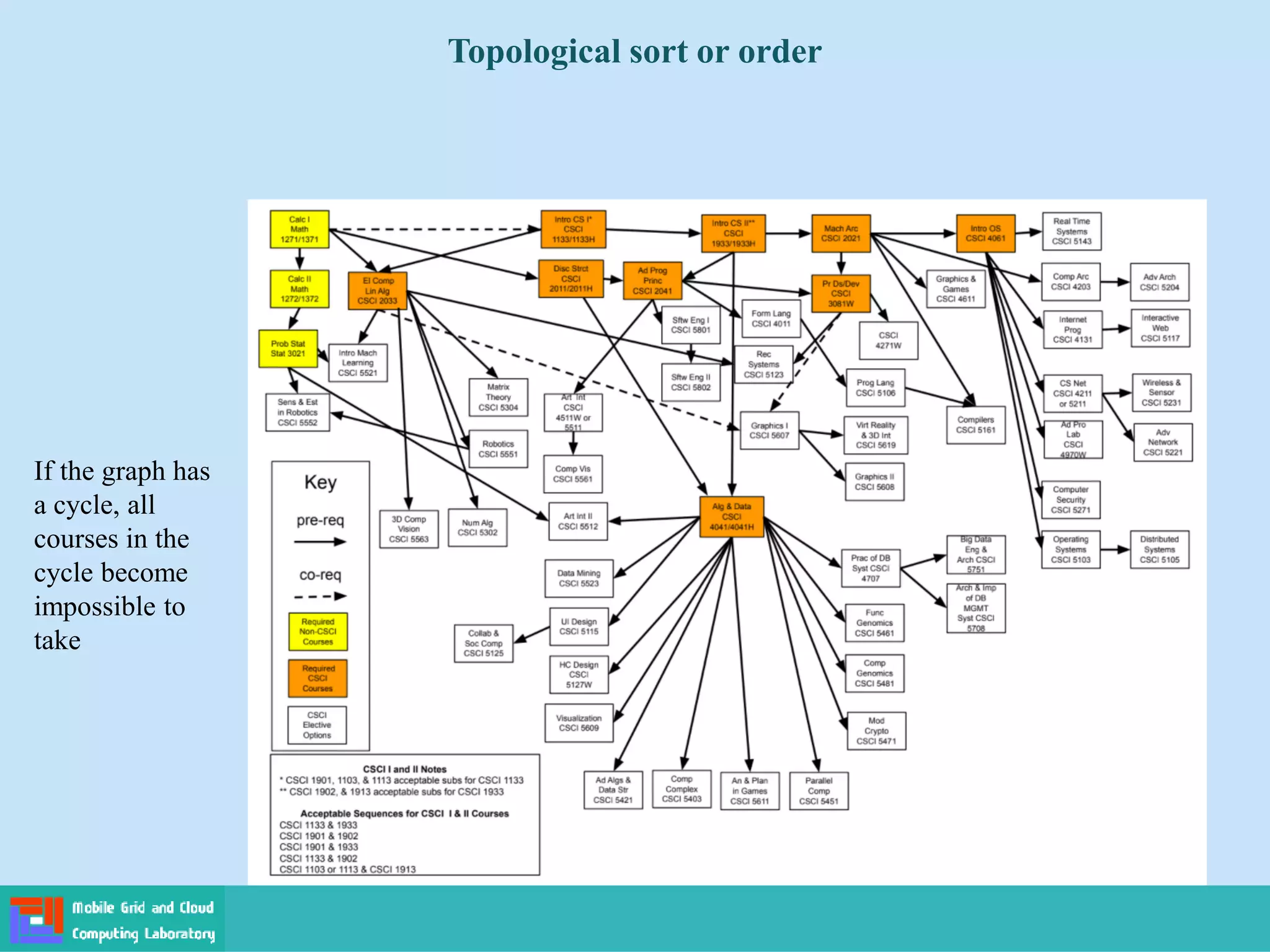

Topological sort or order
If the graph has
a cycle, all
courses in the
cycle become
impossible to
take

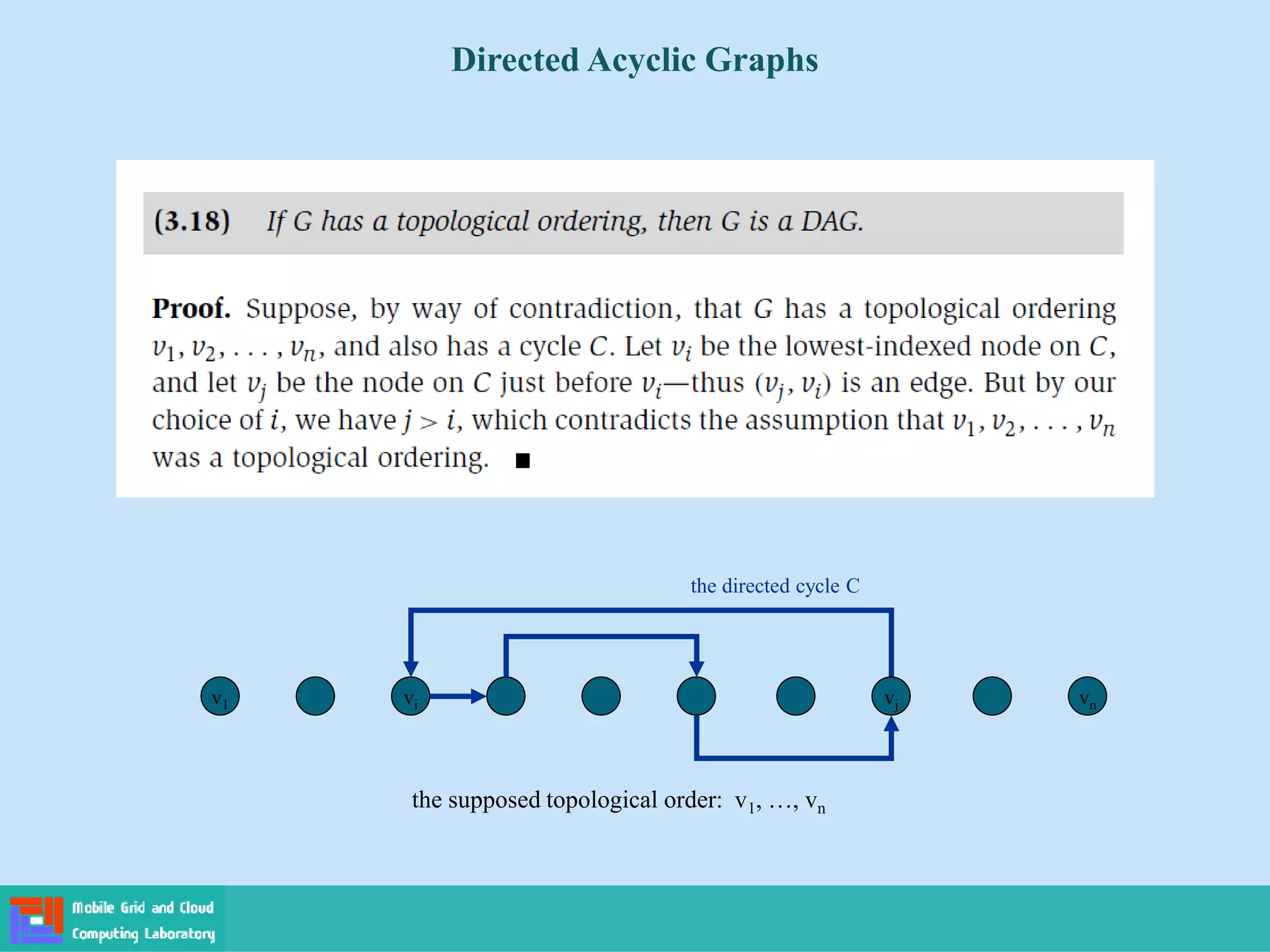

v1 vi vj vn
the supposed topological order: v1, …, vn
the directed cycle C

 Every DAG have a topological ordering so how do we find one efficiently?

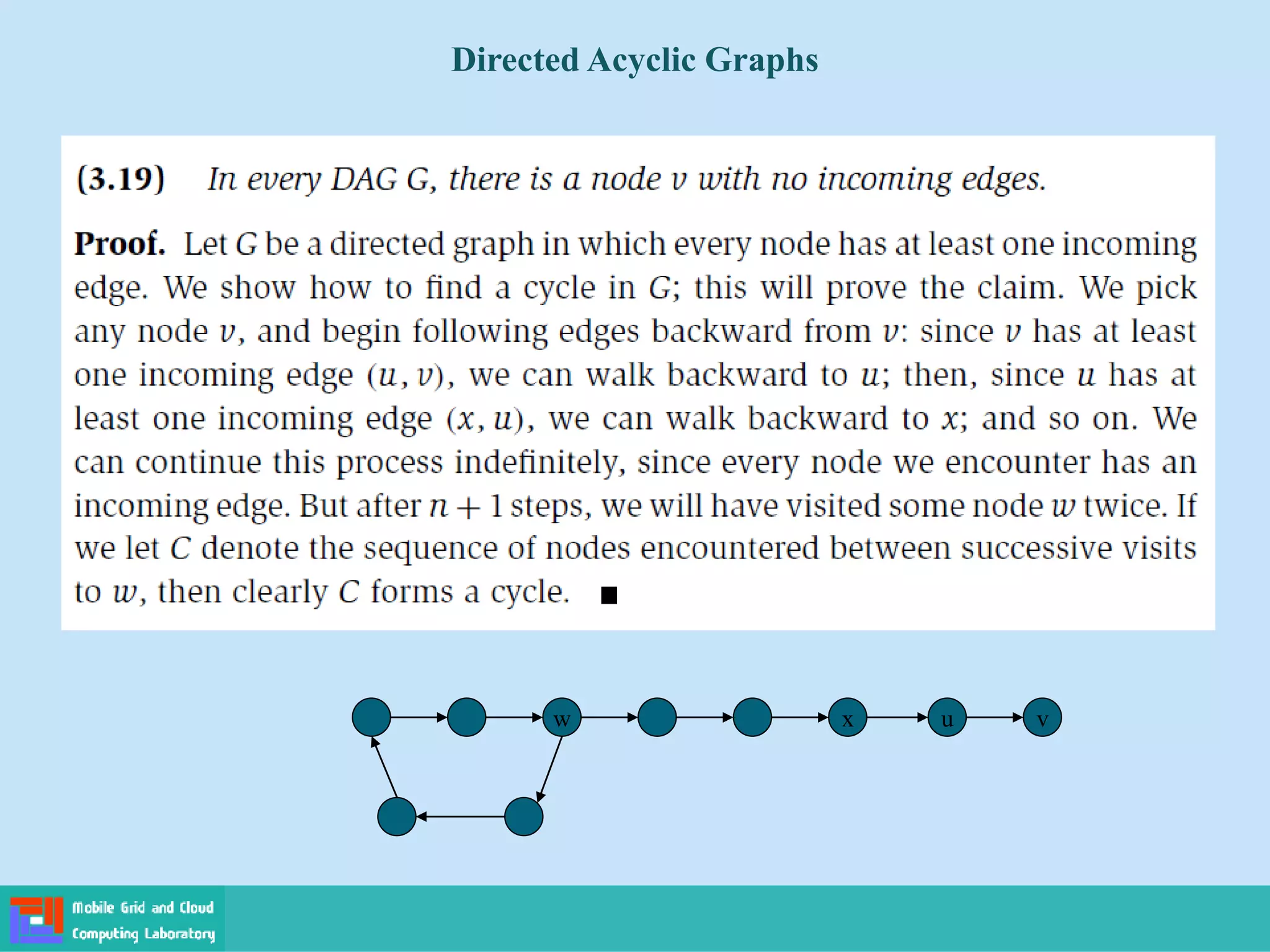

w x u v

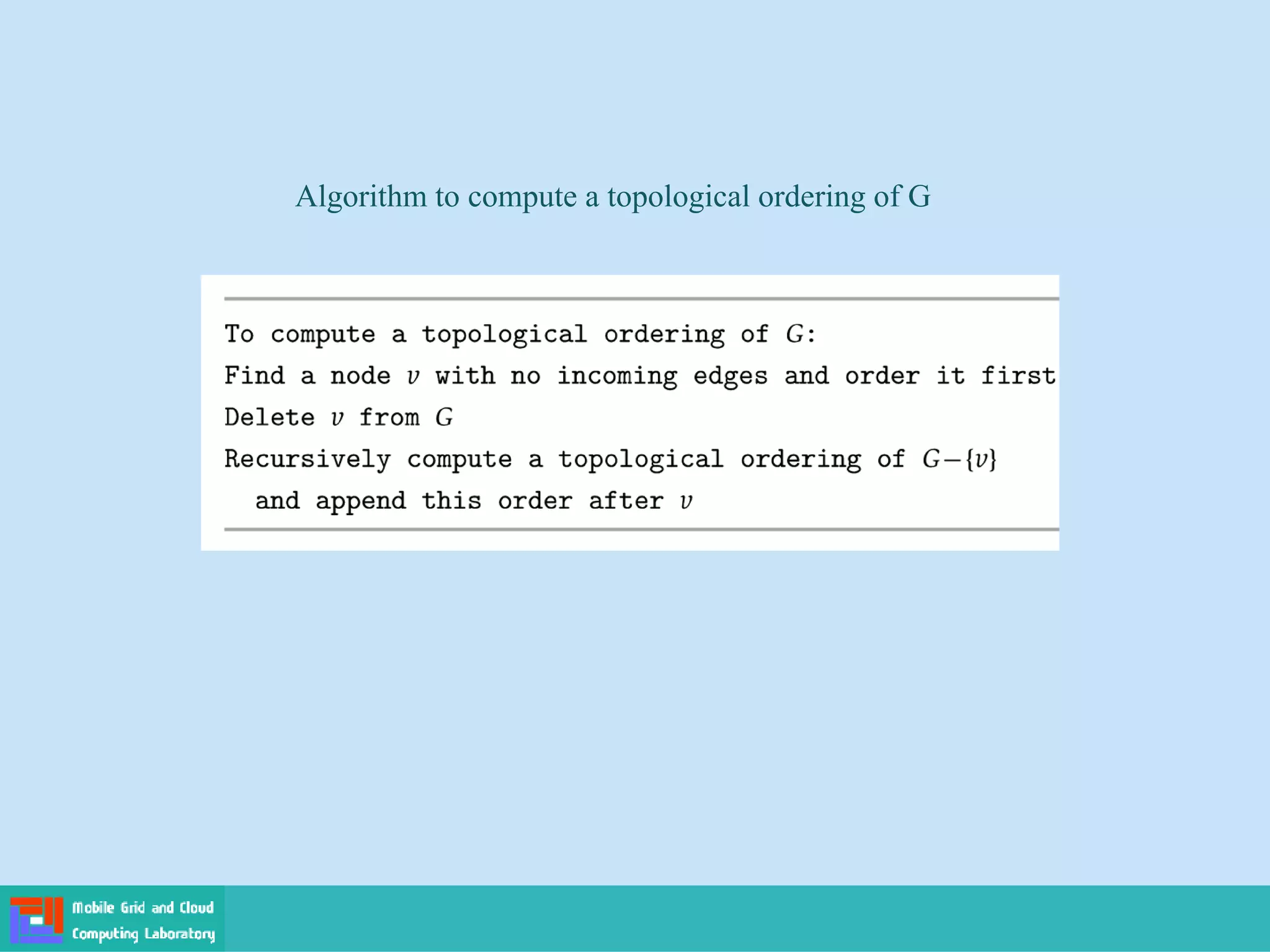

Algorithm to compute a topological ordering of G

v1
Example
Topological order:
v2 v3
v6 v5 v4
v7 v1

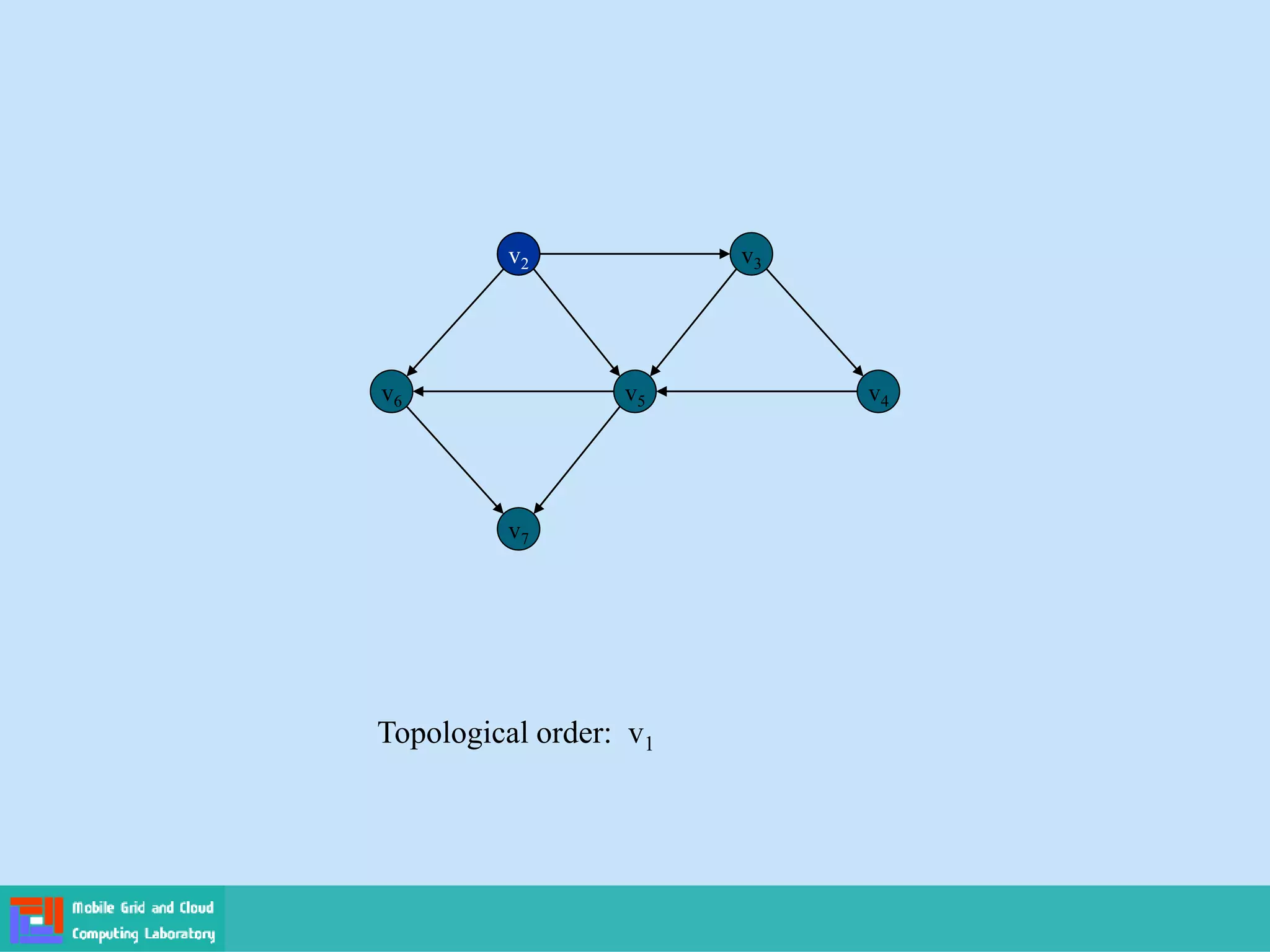

v2
Topological order: v1
v2 v3
v6 v5 v4
v7

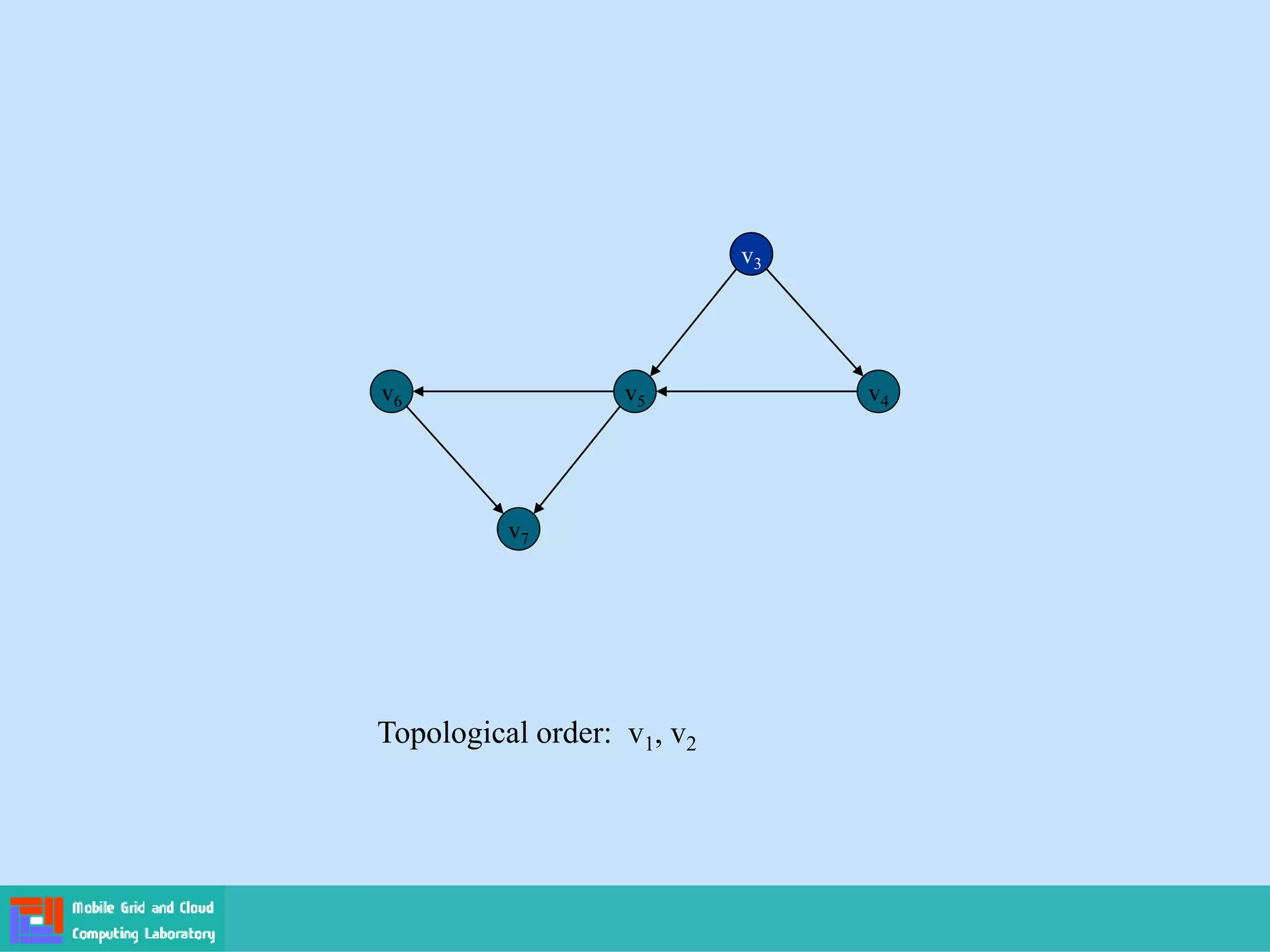

v3
Topological order: v1, v2
v3
v6 v5 v4
v7

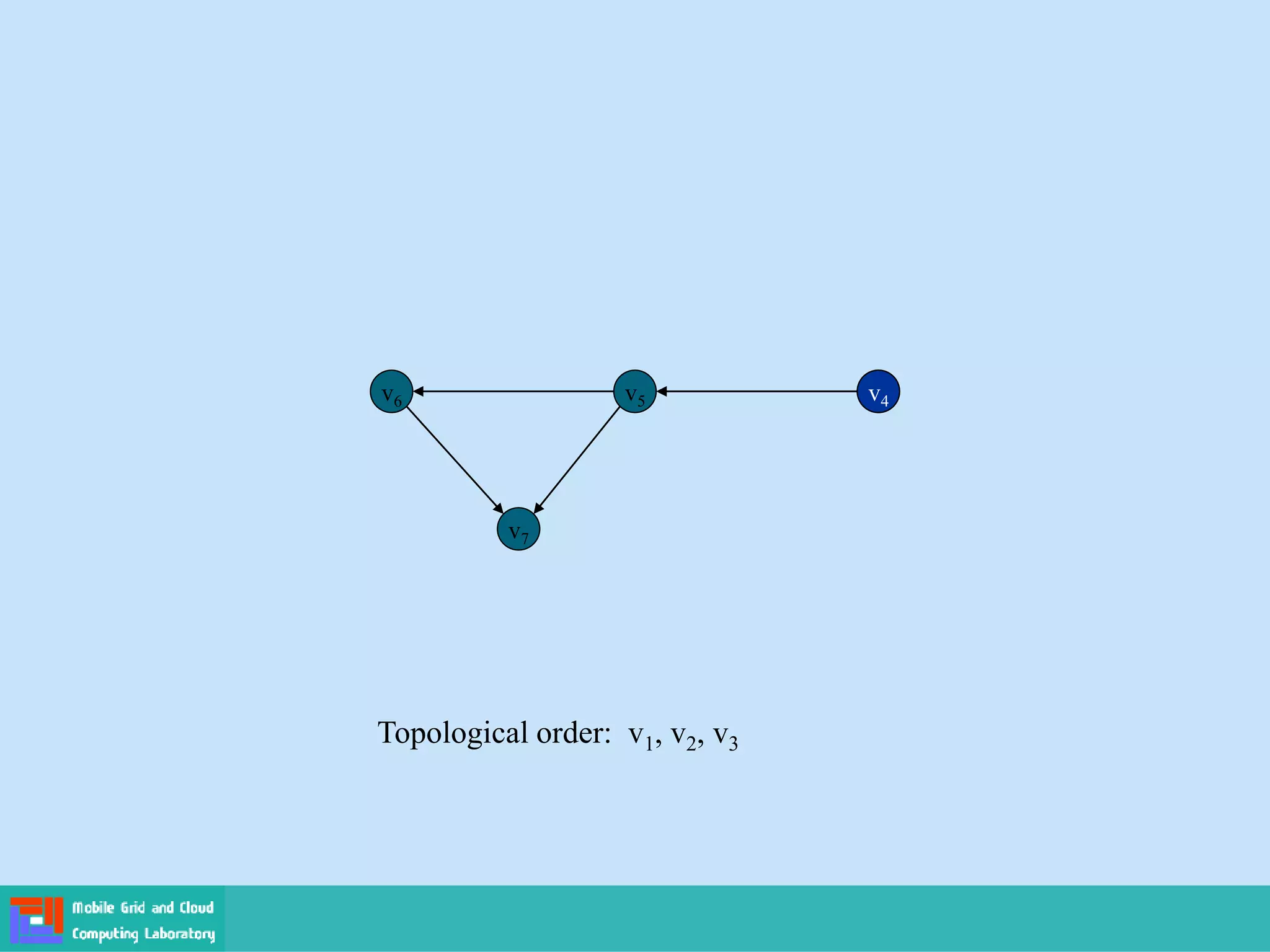

v4
Topological order: v1, v2, v3
v6 v5 v4
v7

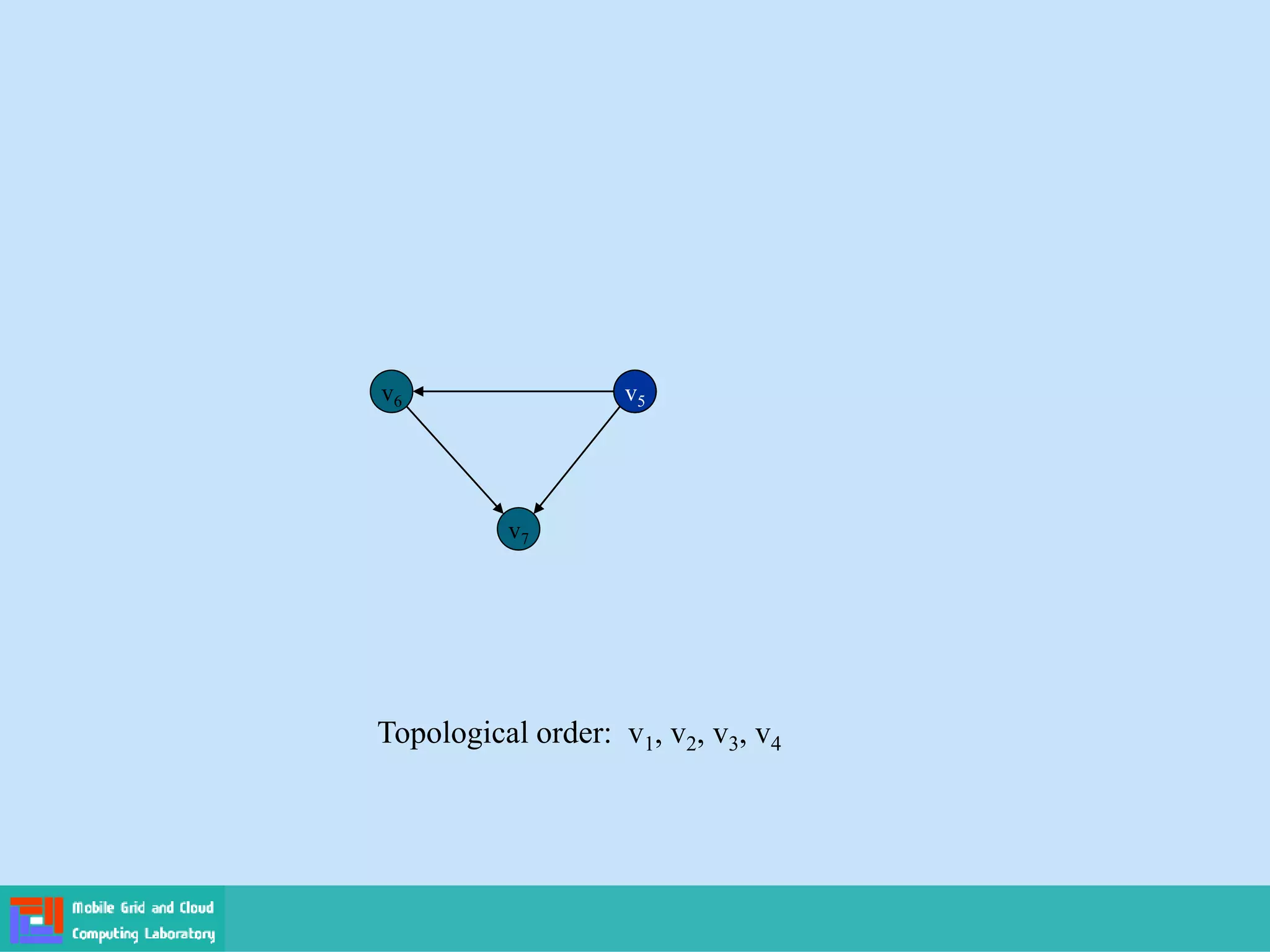

v5
Topological order: v1, v2, v3, v4
v6 v5
v7

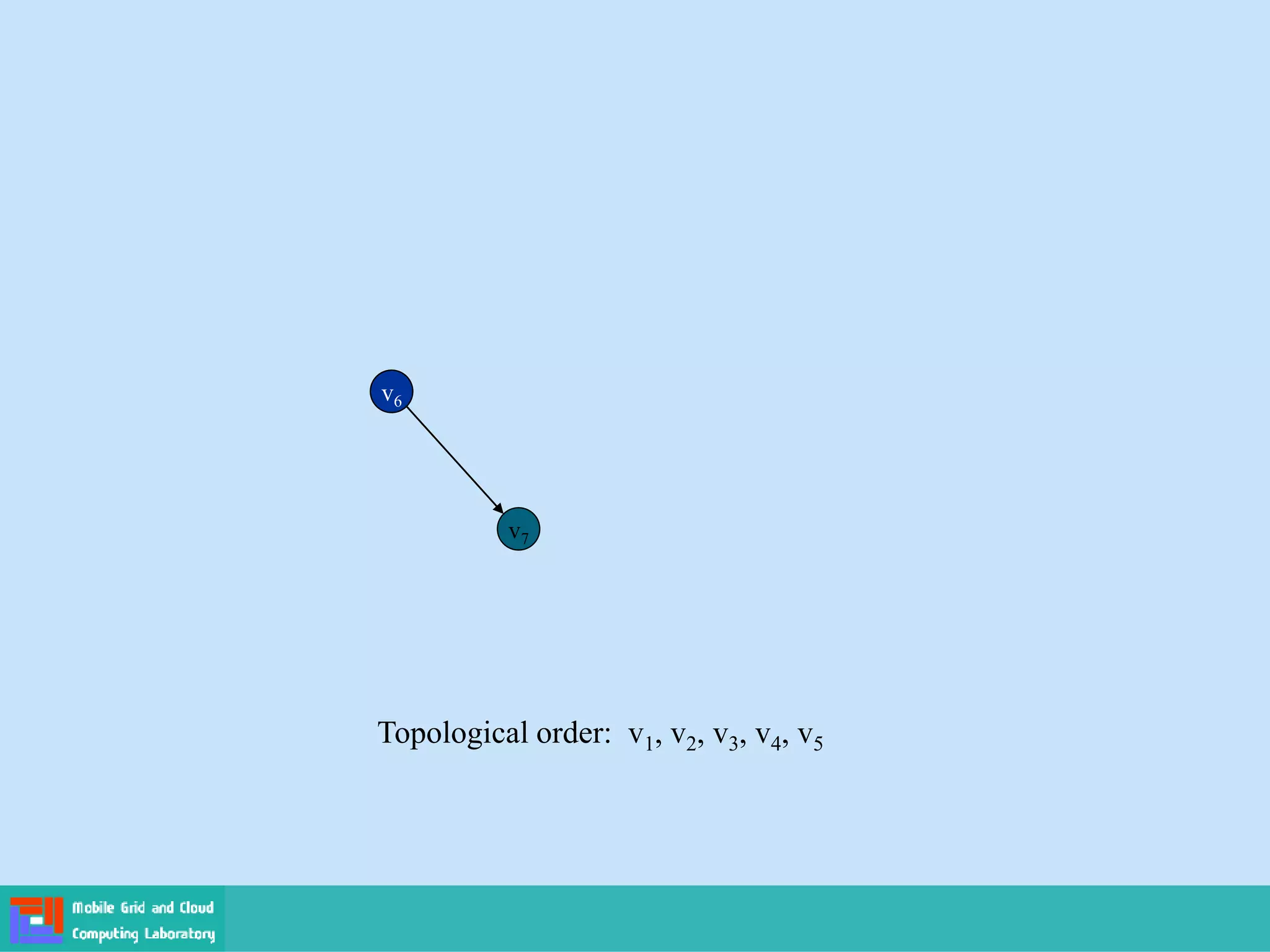

v6
Topological order: v1, v2, v3, v4, v5
v6
v7

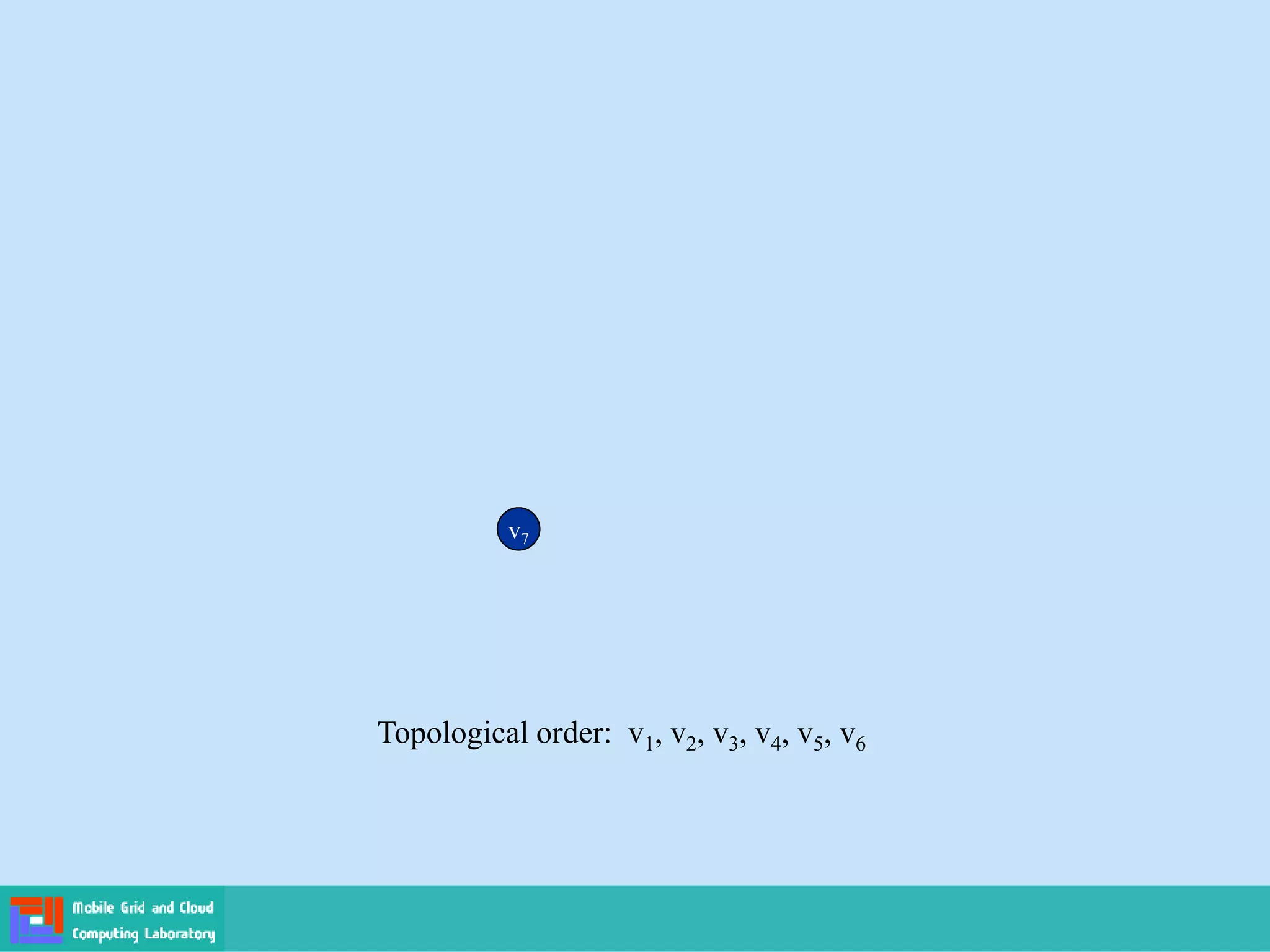

v7
Topological order: v1, v2, v3, v4, v5, v6
v7

Topological order: v1, v2, v3, v4, v5, v6, v7.
v2 v3
v6 v5 v4
v7 v1
v1 v2 v3 v4 v5 v6 v7

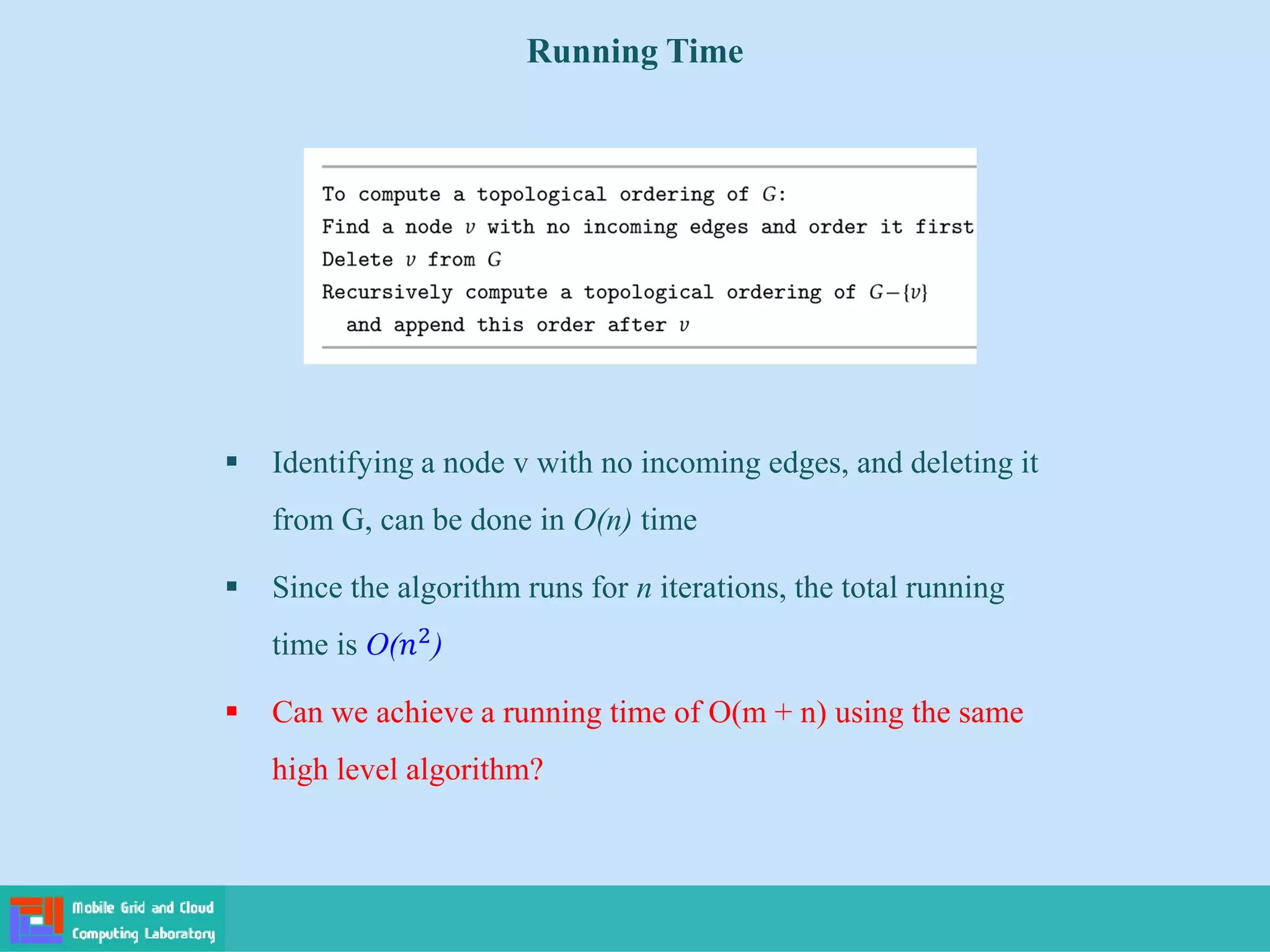

Running Time
 Identifying a node v with no incoming edges, and deleting it
from G, can be done in O(n) time
 Since the algorithm runs for n iterations, the total running
time is O(𝑛2
)
 Can we achieve a running time of O(m + n) using the same
high level algorithm?

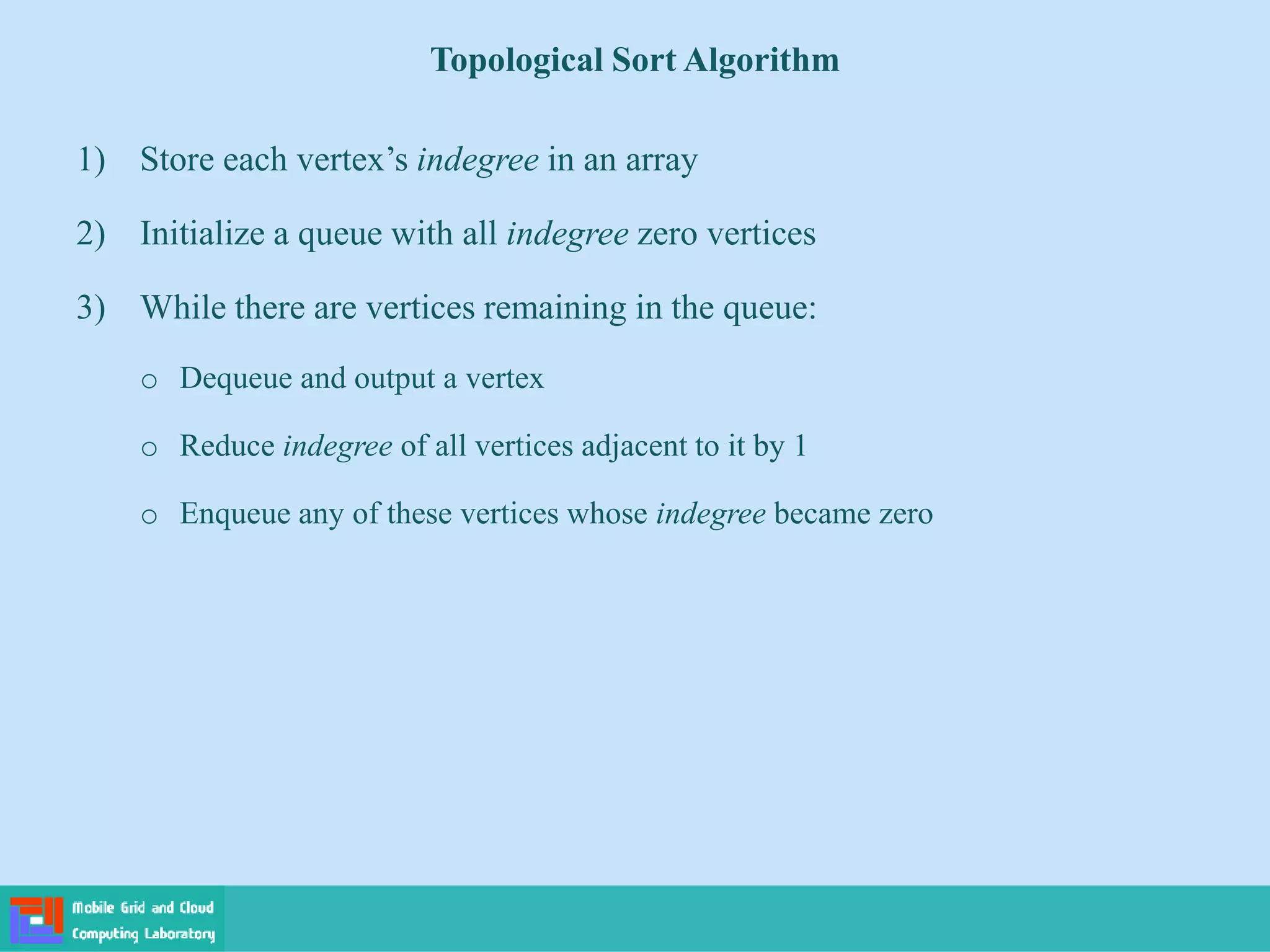

Topological Sort Algorithm
1) Store each vertex’s indegree in an array
2) Initialize a queue with all indegree zero vertices
3) While there are vertices remaining in the queue:
o Dequeue and output a vertex
o Reduce indegree of all vertices adjacent to it by 1
o Enqueue any of these vertices whose indegree became zero

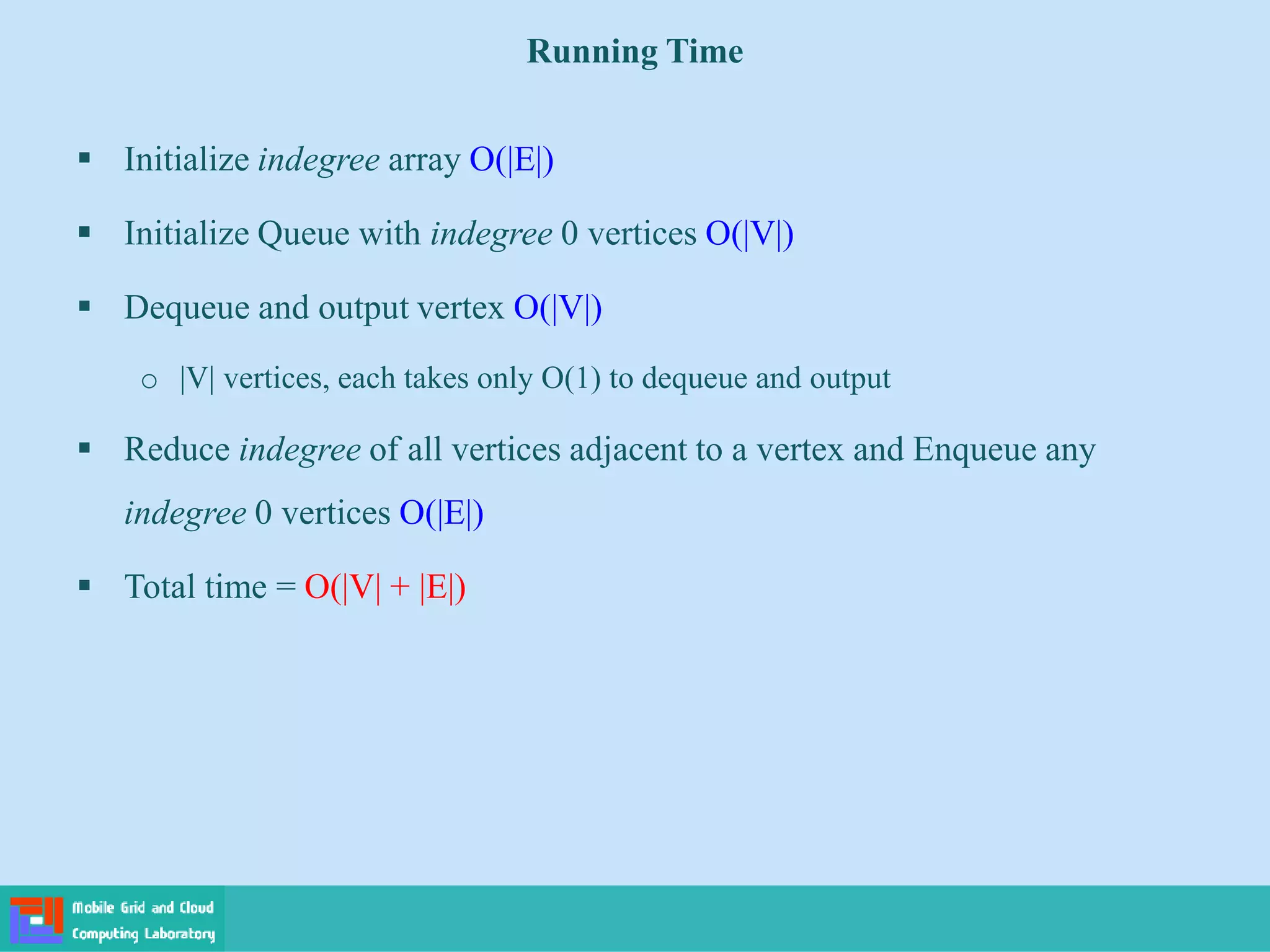

Running Time
 Initialize indegree array O(|E|)
 Initialize Queue with indegree 0 vertices O(|V|)
 Dequeue and output vertex O(|V|)
o |V| vertices, each takes only O(1) to dequeue and output
 Reduce indegree of all vertices adjacent to a vertex and Enqueue any
indegree 0 vertices O(|E|)
 Total time = O(|V| + |E|)

Running Time
 Topological sort using DFS

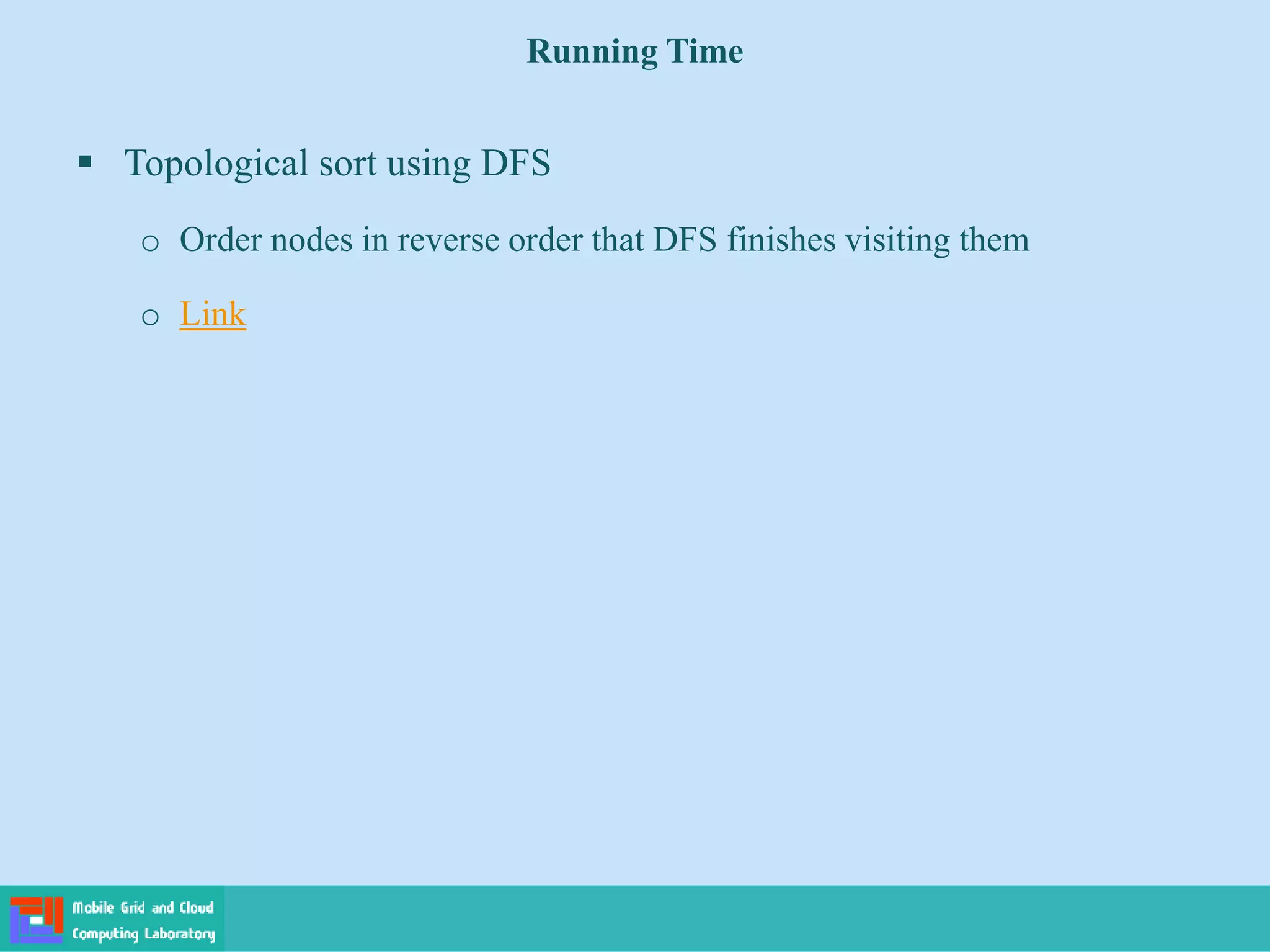

Running Time
 Topological sort using DFS
o Order nodes in reverse order that DFS finishes visiting them
o Link

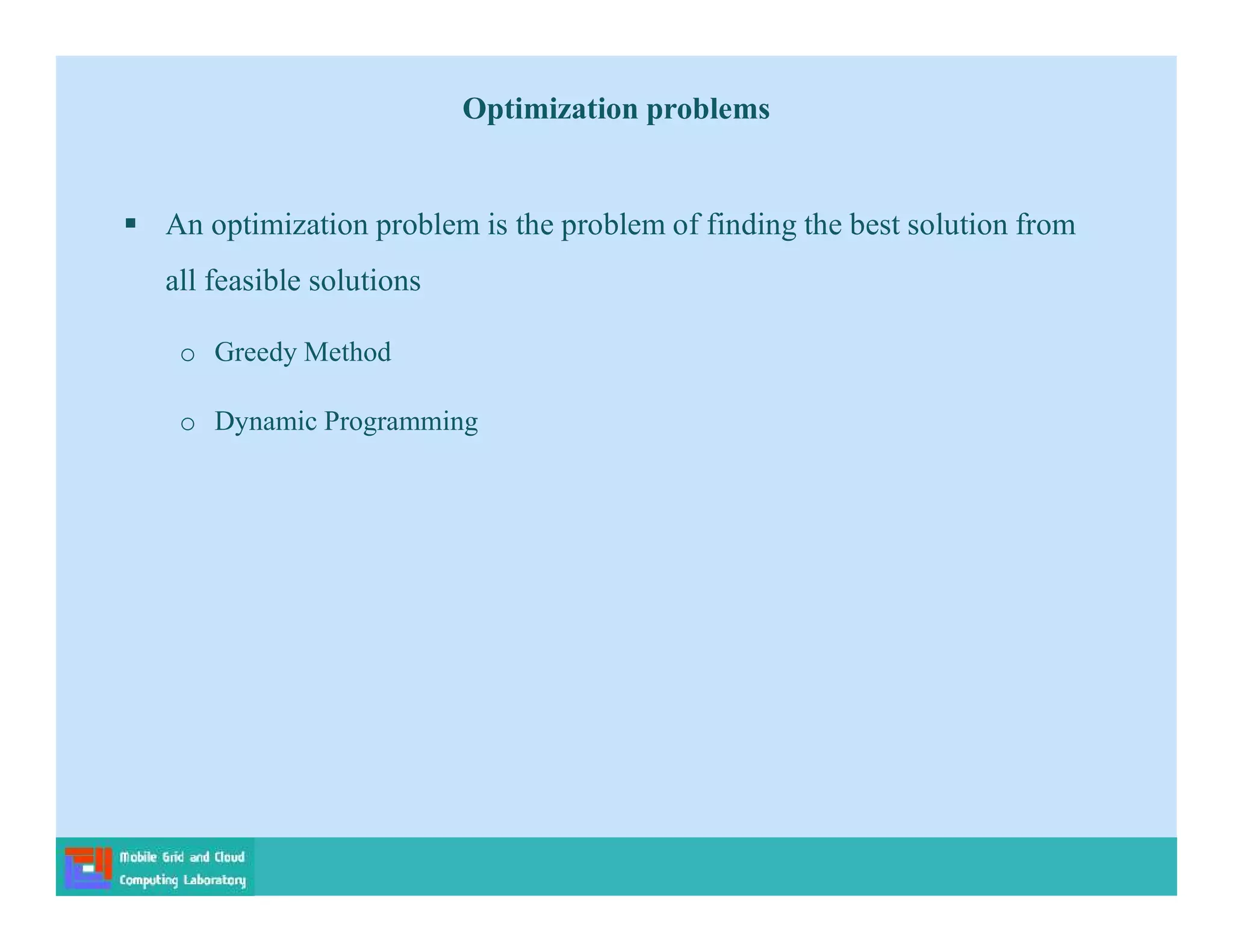

Optimization problems
 An optimization problem is the problem of finding the best solution from
all feasible solutions
o Greedy Method
o Dynamic Programming

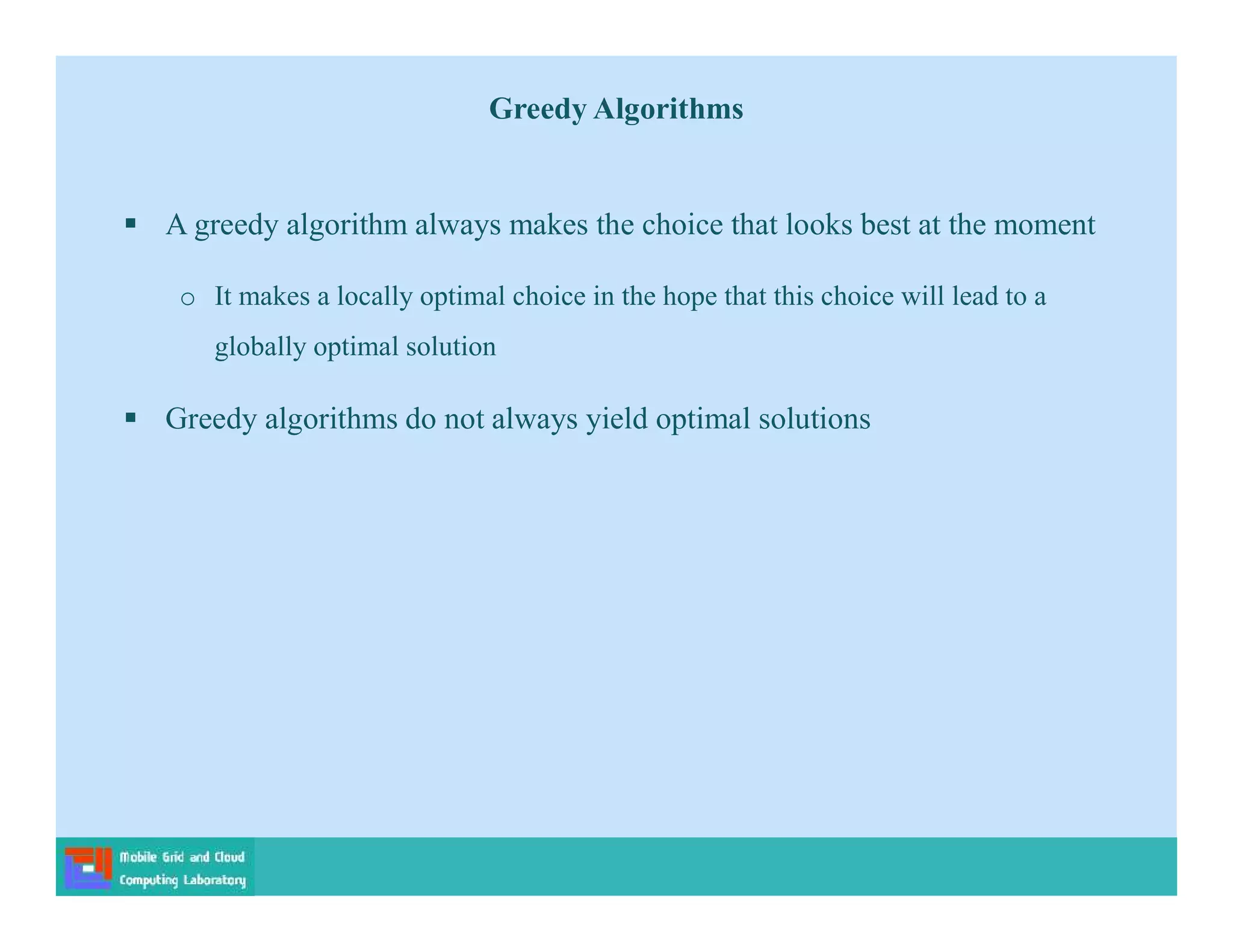

Greedy Algorithms
 A greedy algorithm always makes the choice that looks best at the moment
o It makes a locally optimal choice in the hope that this choice will lead to a
globally optimal solution
 Greedy algorithms do not always yield optimal solutions

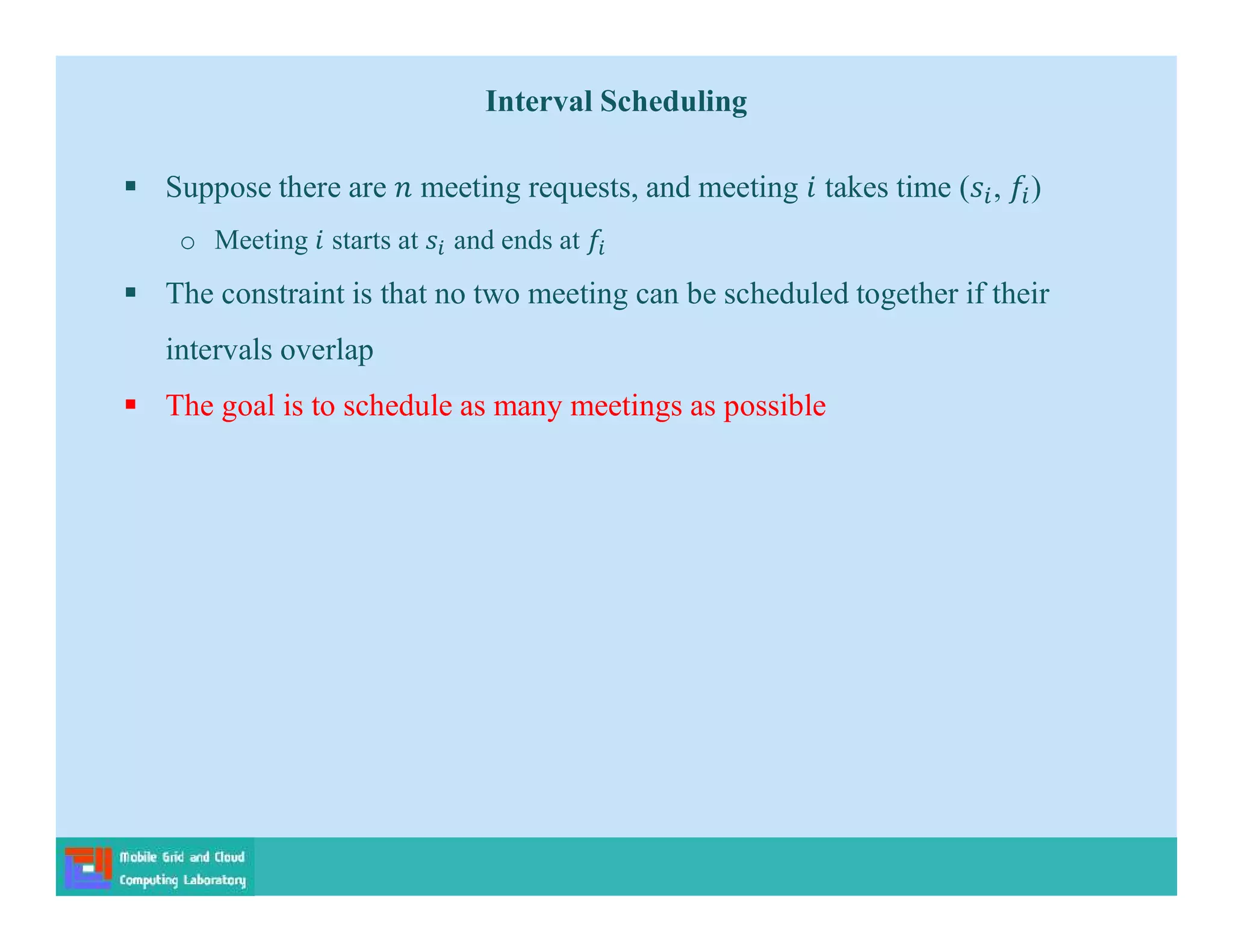

Interval Scheduling
 Suppose there are meeting requests, and meeting takes time ( , )
o Meeting starts at and ends at
 The constraint is that no two meeting can be scheduled together if their
intervals overlap
 The goal is to schedule as many meetings as possible

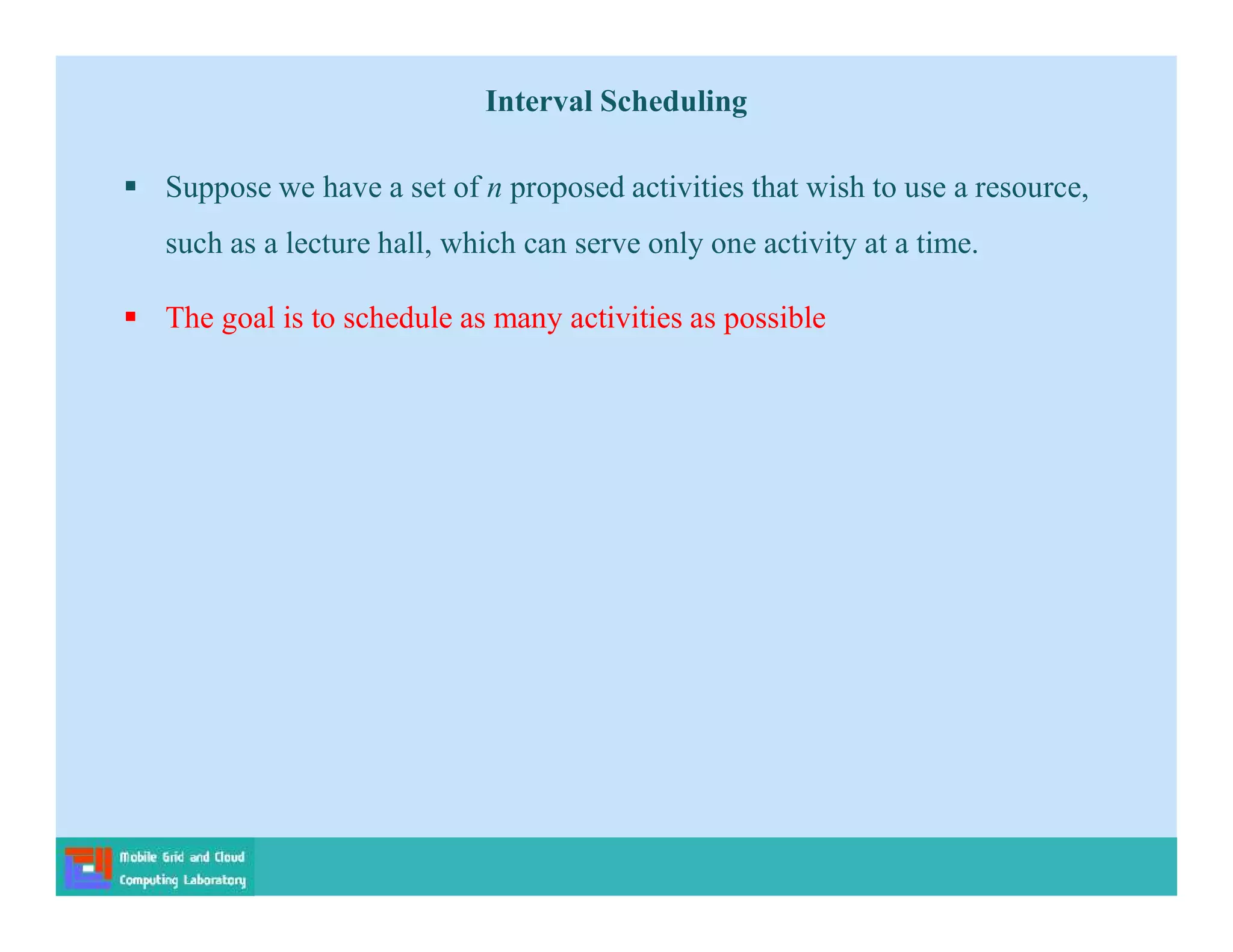

Interval Scheduling
 Suppose we have a set of n proposed activities that wish to use a resource,
such as a lecture hall, which can serve only one activity at a time.
 The goal is to schedule as many activities as possible

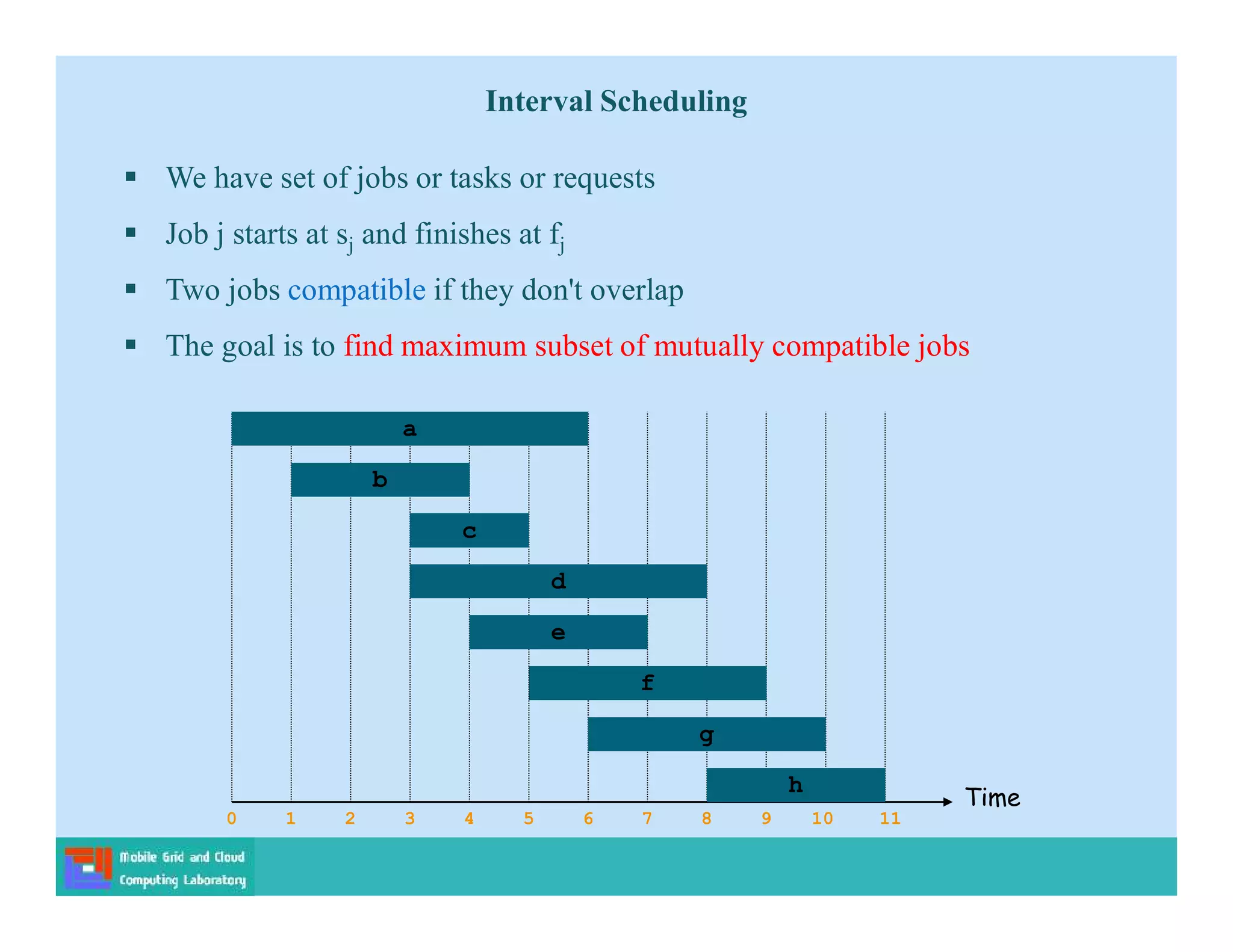

 We have set of jobs or tasks or requests
 Job j starts at sj and finishes at fj
 Two jobs compatible if they don't overlap
 The goal is to find maximum subset of mutually compatible jobs
Time
0 1 2 3 4 5 6 7 8 9 10 11
f
g
h
e
a
b
c
d
Interval Scheduling

Interval Scheduling

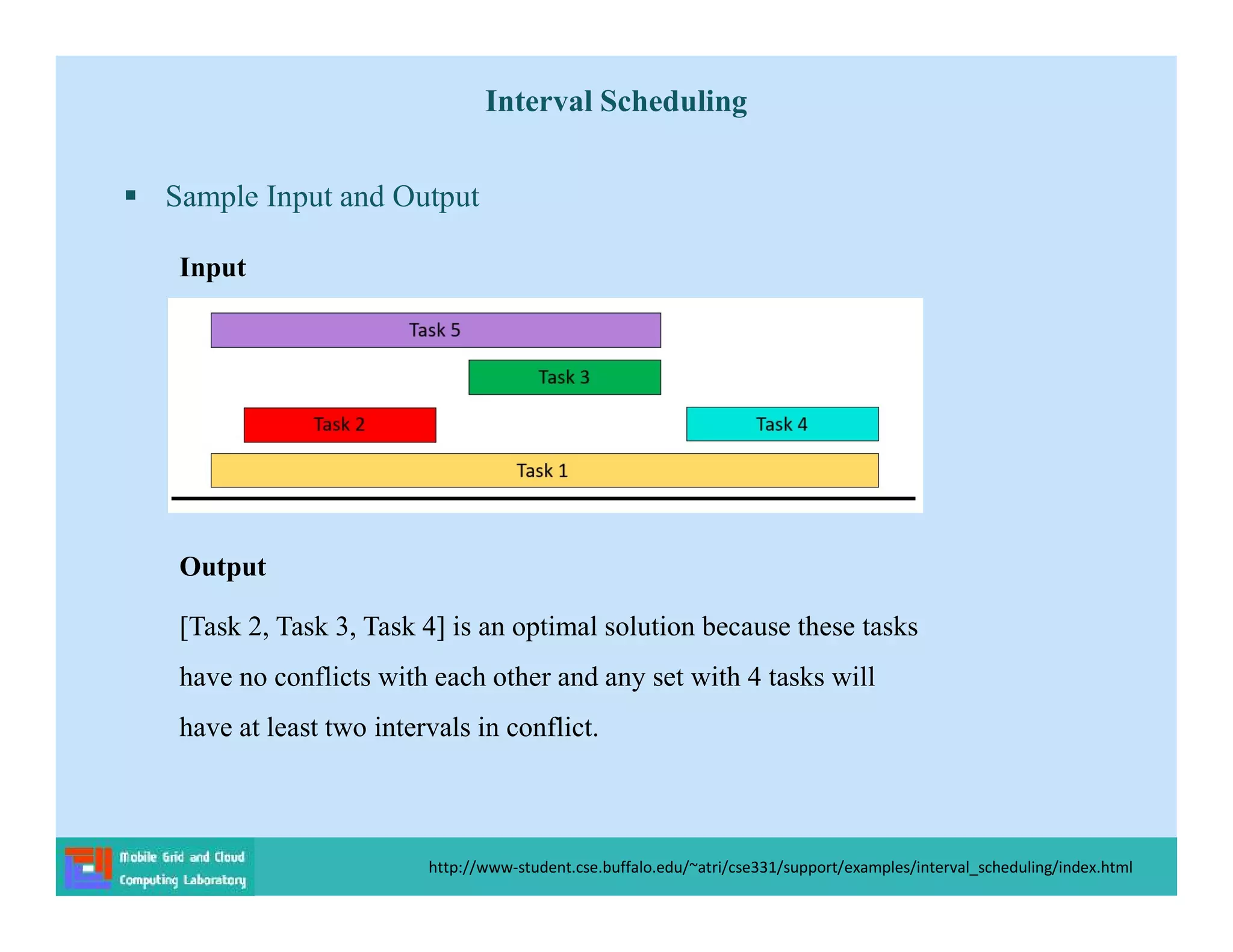

 Sample Input and Output
Output
[Task 2, Task 3, Task 4] is an optimal solution because these tasks
have no conflicts with each other and any set with 4 tasks will
have at least two intervals in conflict.
Input
http://www-student.cse.buffalo.edu/~atri/cse331/support/examples/interval_scheduling/index.html

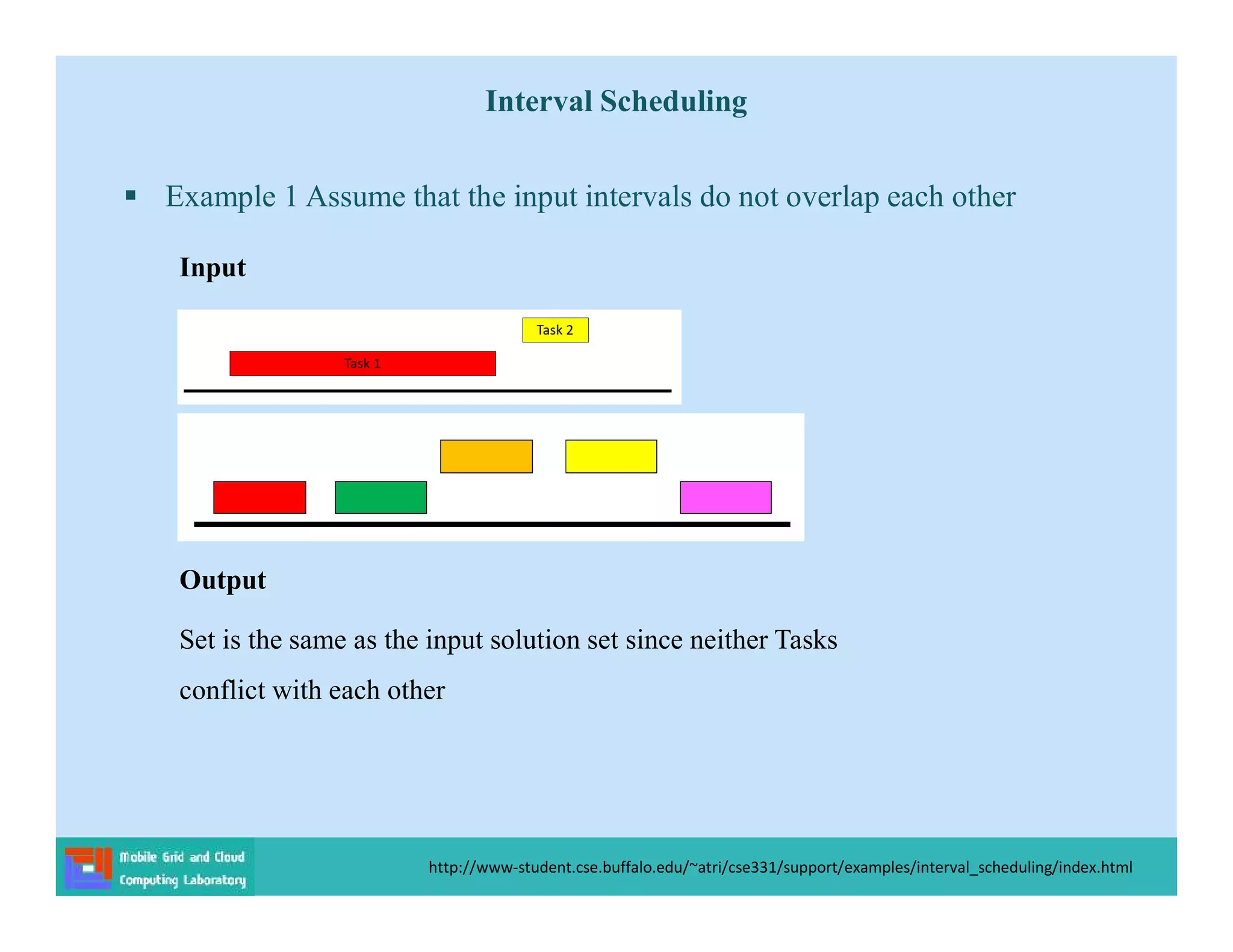

Interval Scheduling
 Example 1 Assume that the input intervals do not overlap each other
Output
Set is the same as the input solution set since neither Tasks
conflict with each other
Input

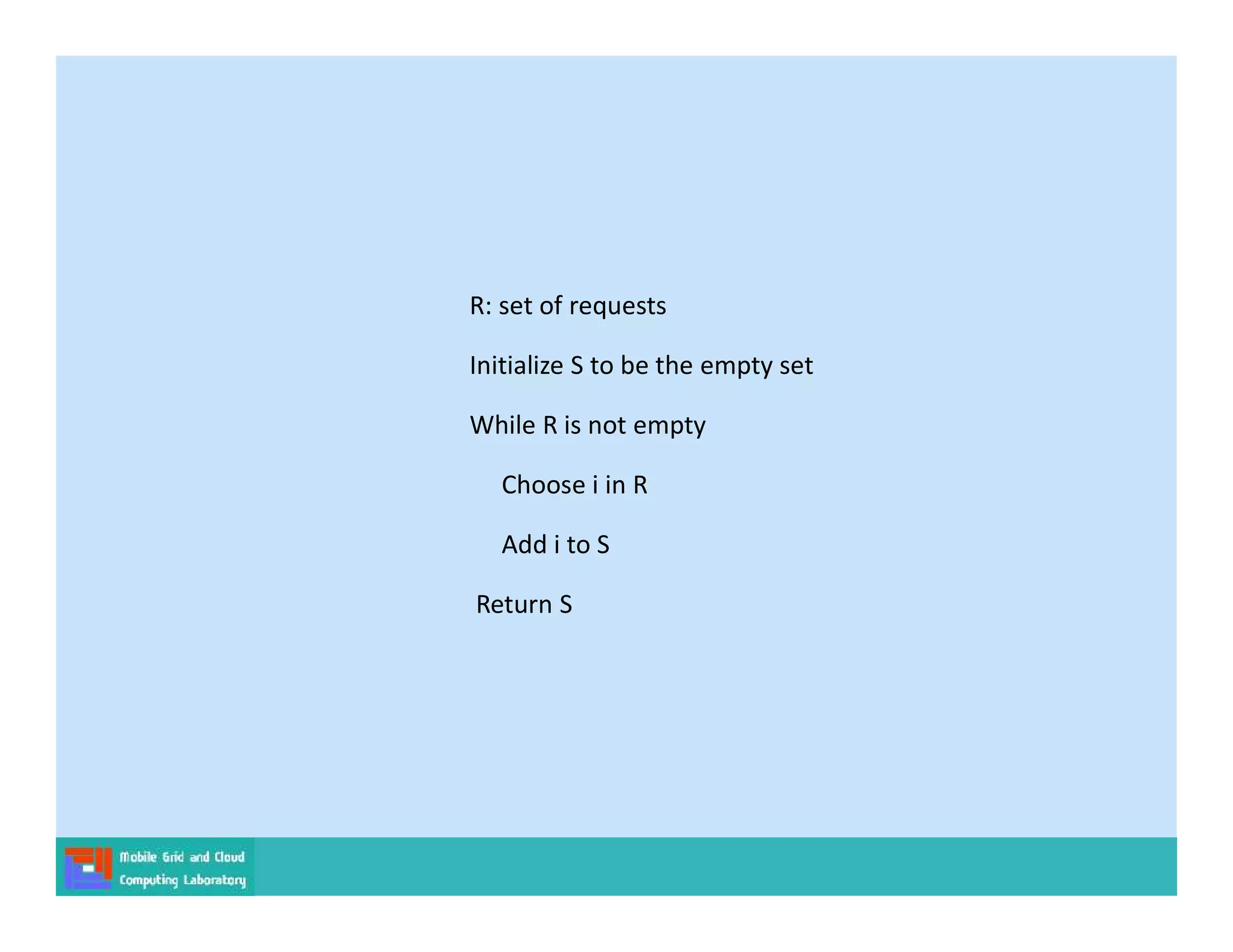

R: set of requests
Initialize S to be the empty set
While R is not empty
Choose i in R
Add i to S
Return S

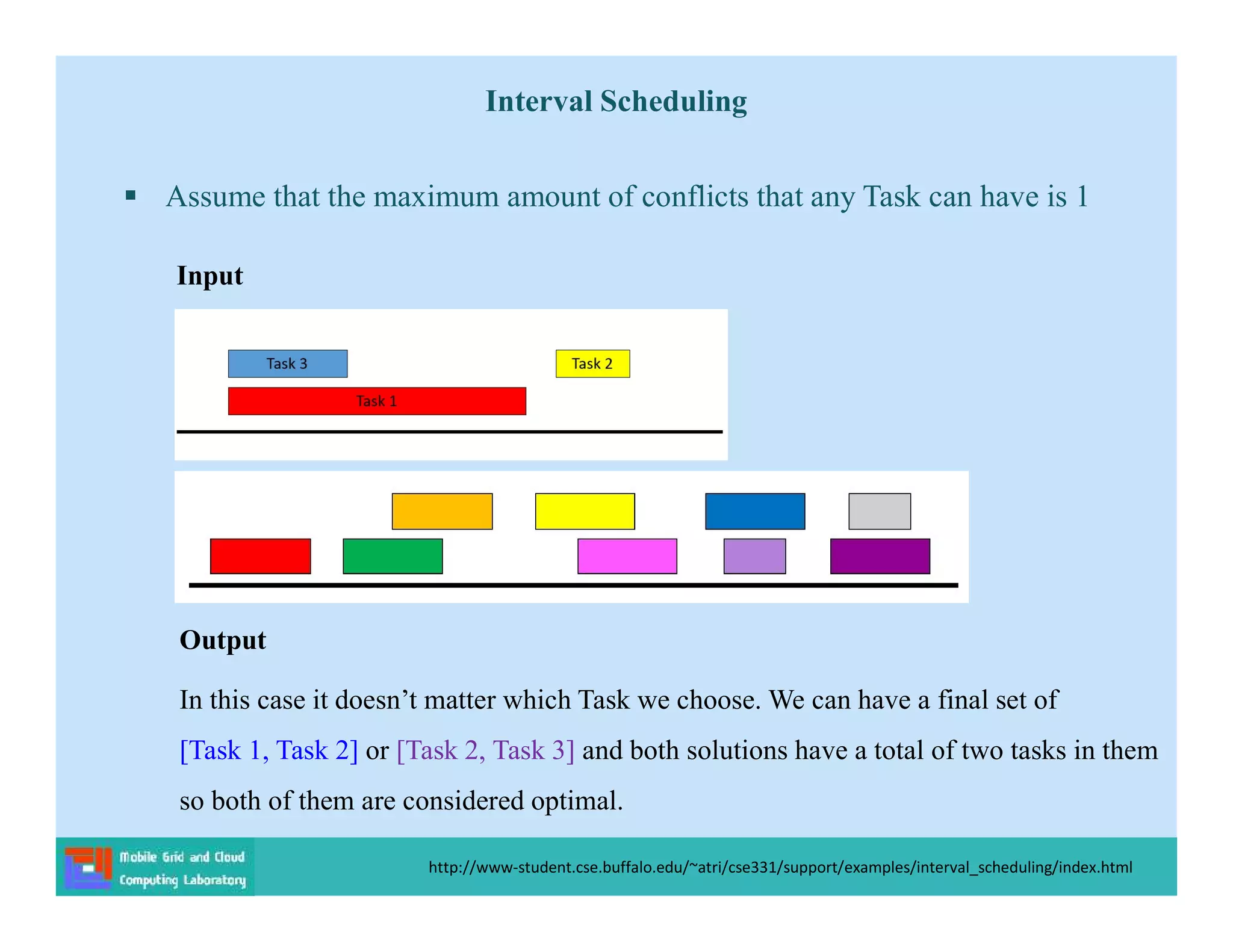

Interval Scheduling
 Assume that the maximum amount of conflicts that any Task can have is 1
Output
In this case it doesn’t matter which Task we choose. We can have a final set of
[Task 1, Task 2] or [Task 2, Task 3] and both solutions have a total of two tasks in them
so both of them are considered optimal.
Input

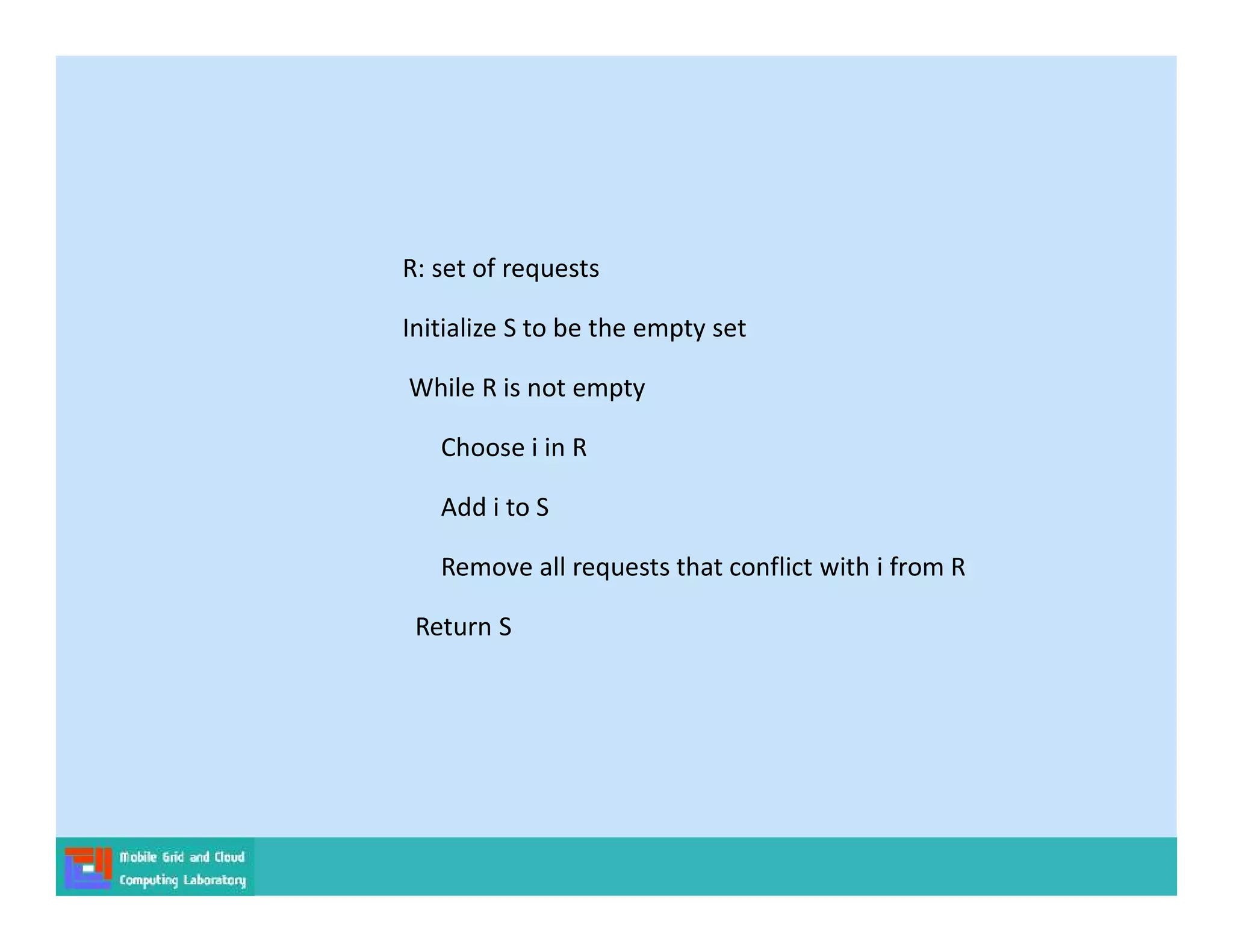

R: set of requests
Choose i in R
Add i to S
Remove all requests that conflict with i from R
Return S

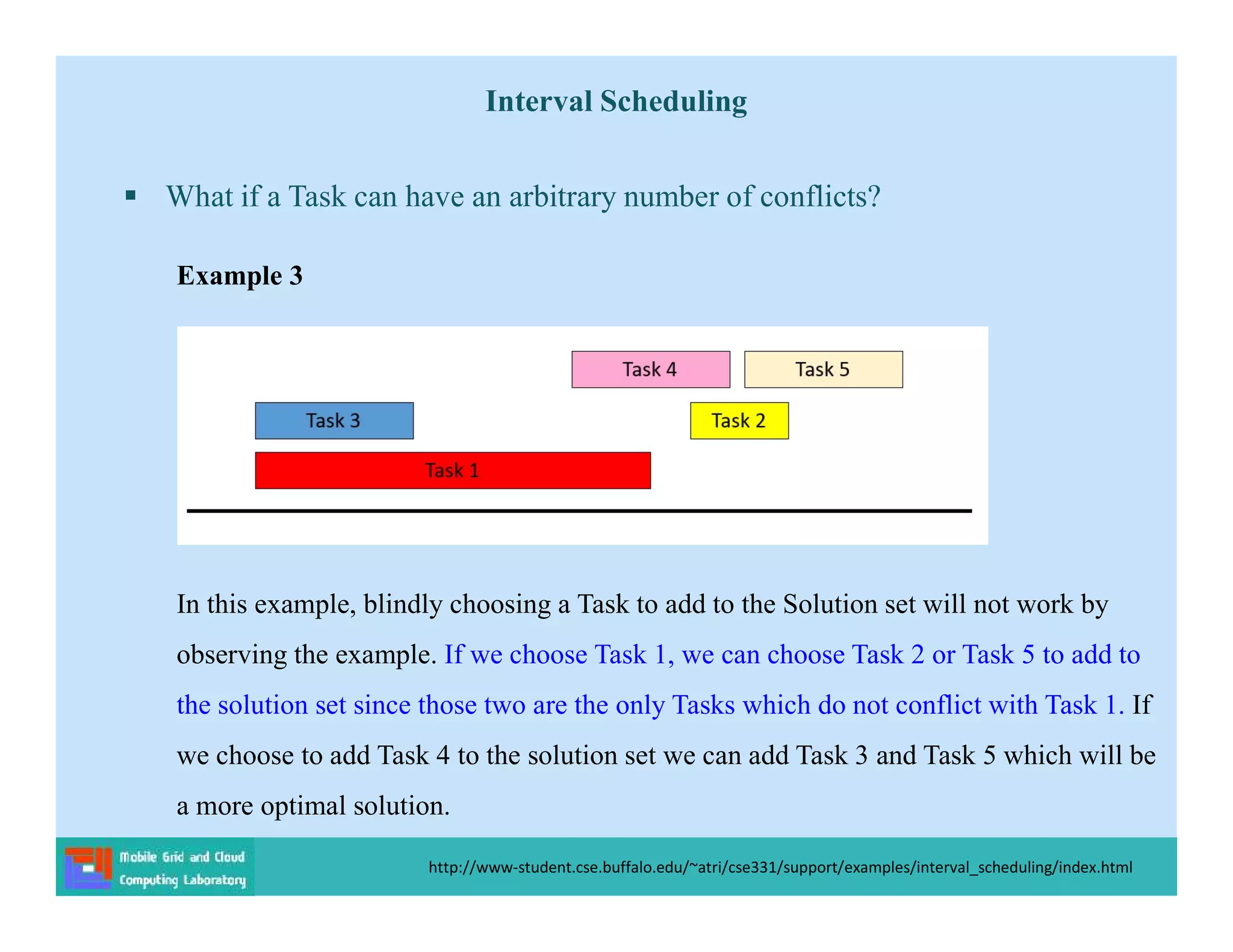

Interval Scheduling
 What if a Task can have an arbitrary number of conflicts?
In this example, blindly choosing a Task to add to the Solution set will not work by
observing the example. If we choose Task 1, we can choose Task 2 or Task 5 to add to
the solution set since those two are the only Tasks which do not conflict with Task 1. If
we choose to add Task 4 to the solution set we can add Task 3 and Task 5 which will be
a more optimal solution.
Example 3

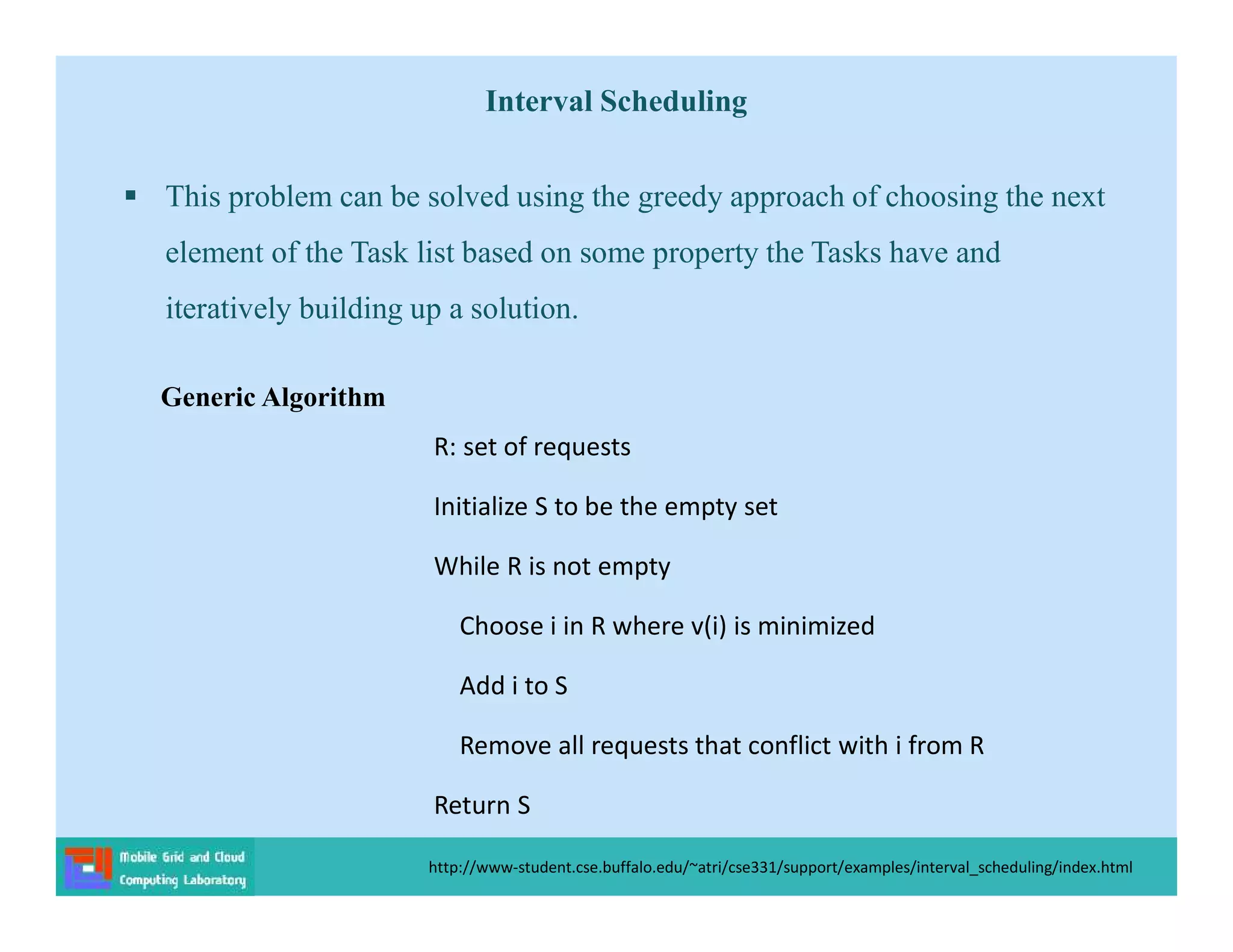

Interval Scheduling
 This problem can be solved using the greedy approach of choosing the next
element of the Task list based on some property the Tasks have and
iteratively building up a solution.
R: set of requests
Choose i in R where v(i) is minimized
Add i to S
Return S
Generic Algorithm

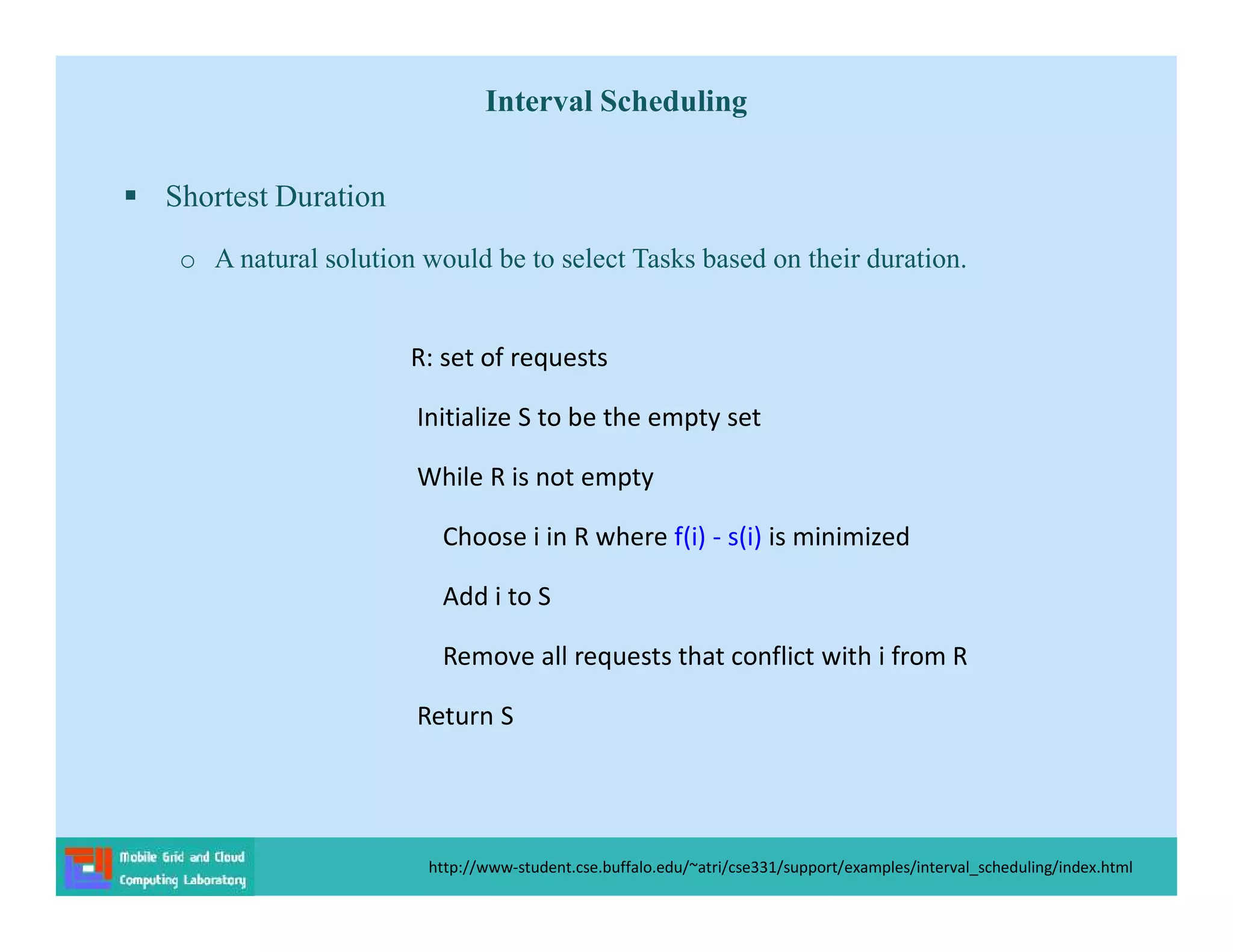

Interval Scheduling
 Shortest Duration
o A natural solution would be to select Tasks based on their duration.
R: set of requests
Choose i in R where f(i) - s(i) is minimized
Add i to S
Return S

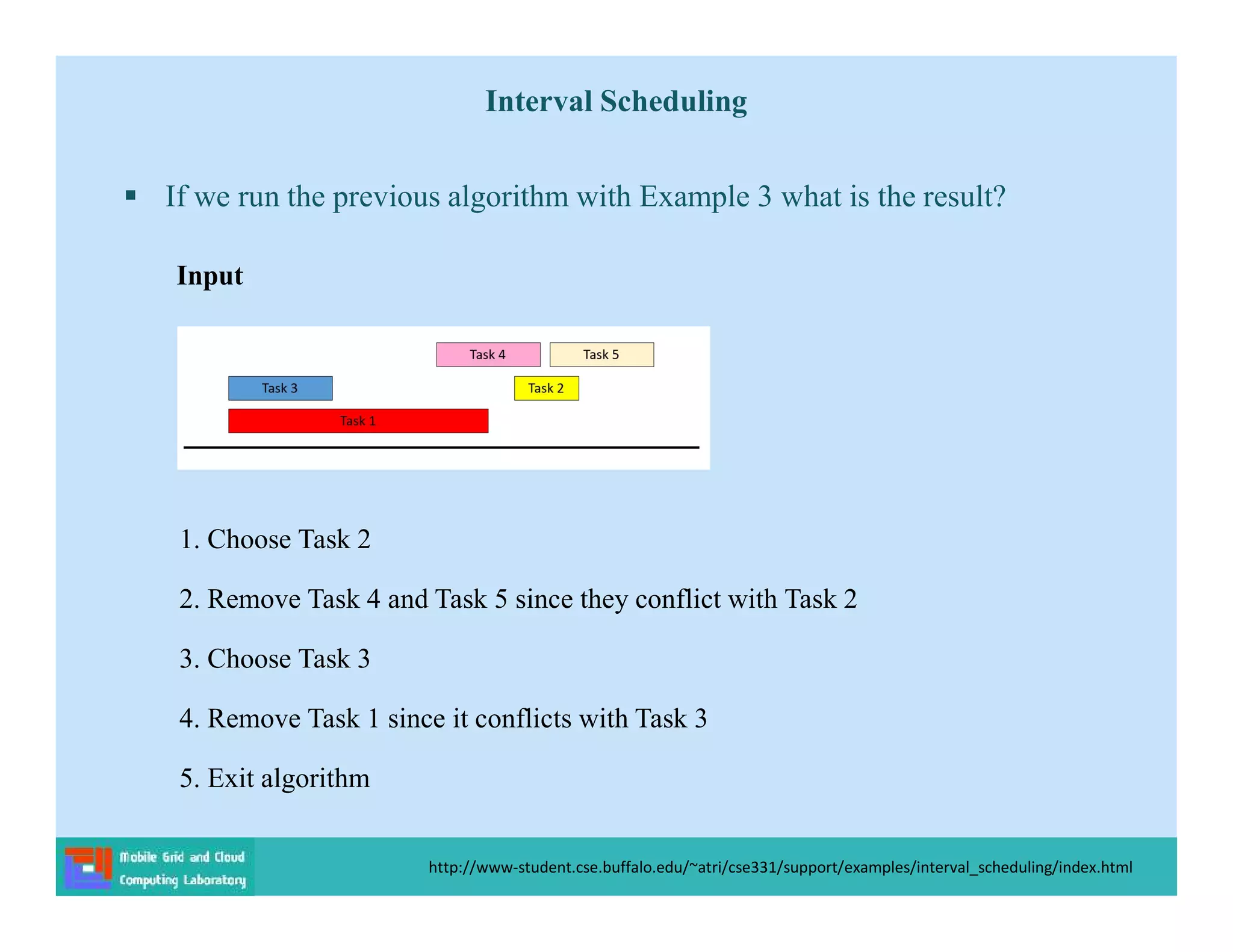

Interval Scheduling
 If we run the previous algorithm with Example 3 what is the result?
1. Choose Task 2
2. Remove Task 4 and Task 5 since they conflict with Task 2
3. Choose Task 3
4. Remove Task 1 since it conflicts with Task 3
5. Exit algorithm
Input

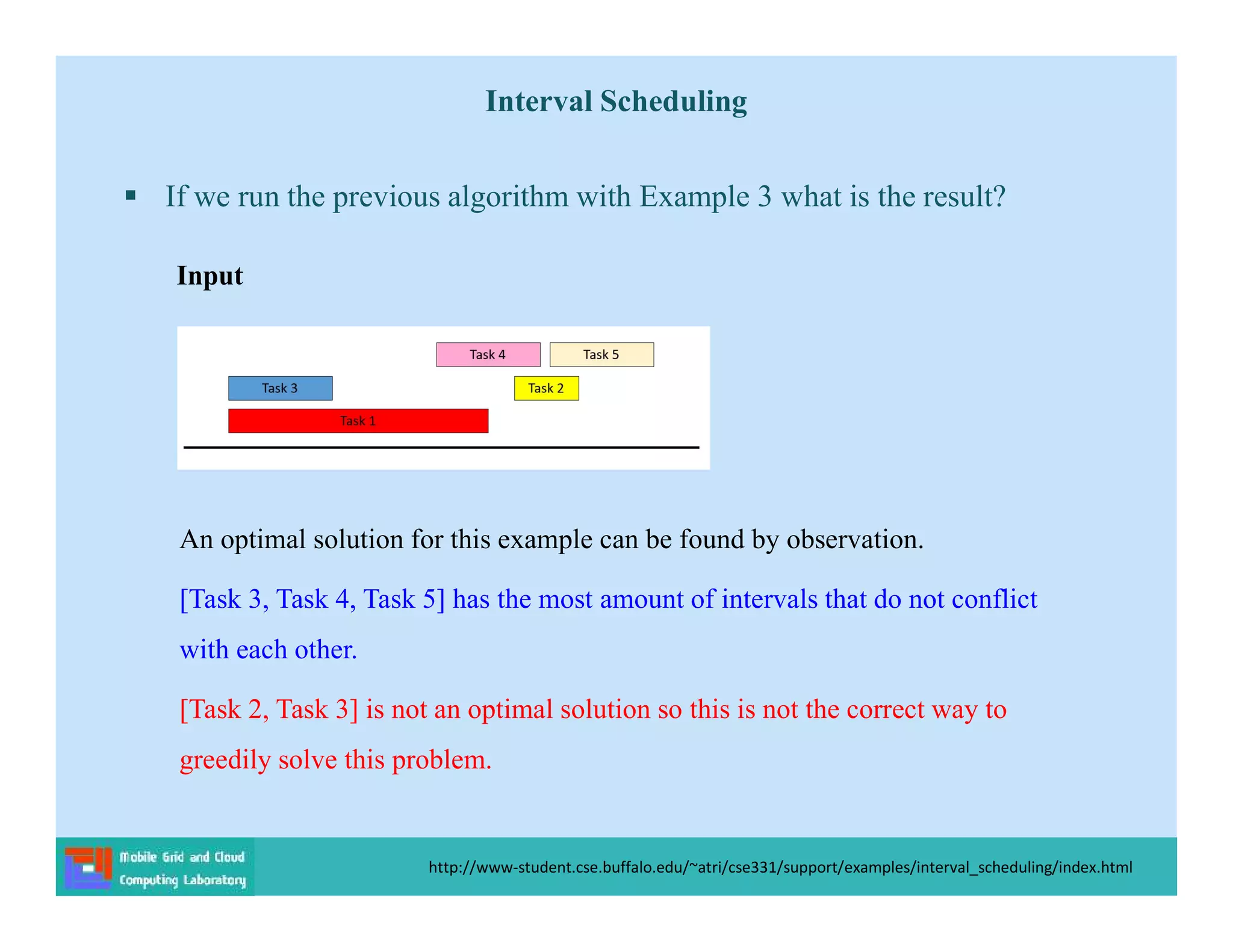

Interval Scheduling
An optimal solution for this example can be found by observation.
[Task 3, Task 4, Task 5] has the most amount of intervals that do not conflict
with each other.
[Task 2, Task 3] is not an optimal solution so this is not the correct way to
greedily solve this problem.
Input

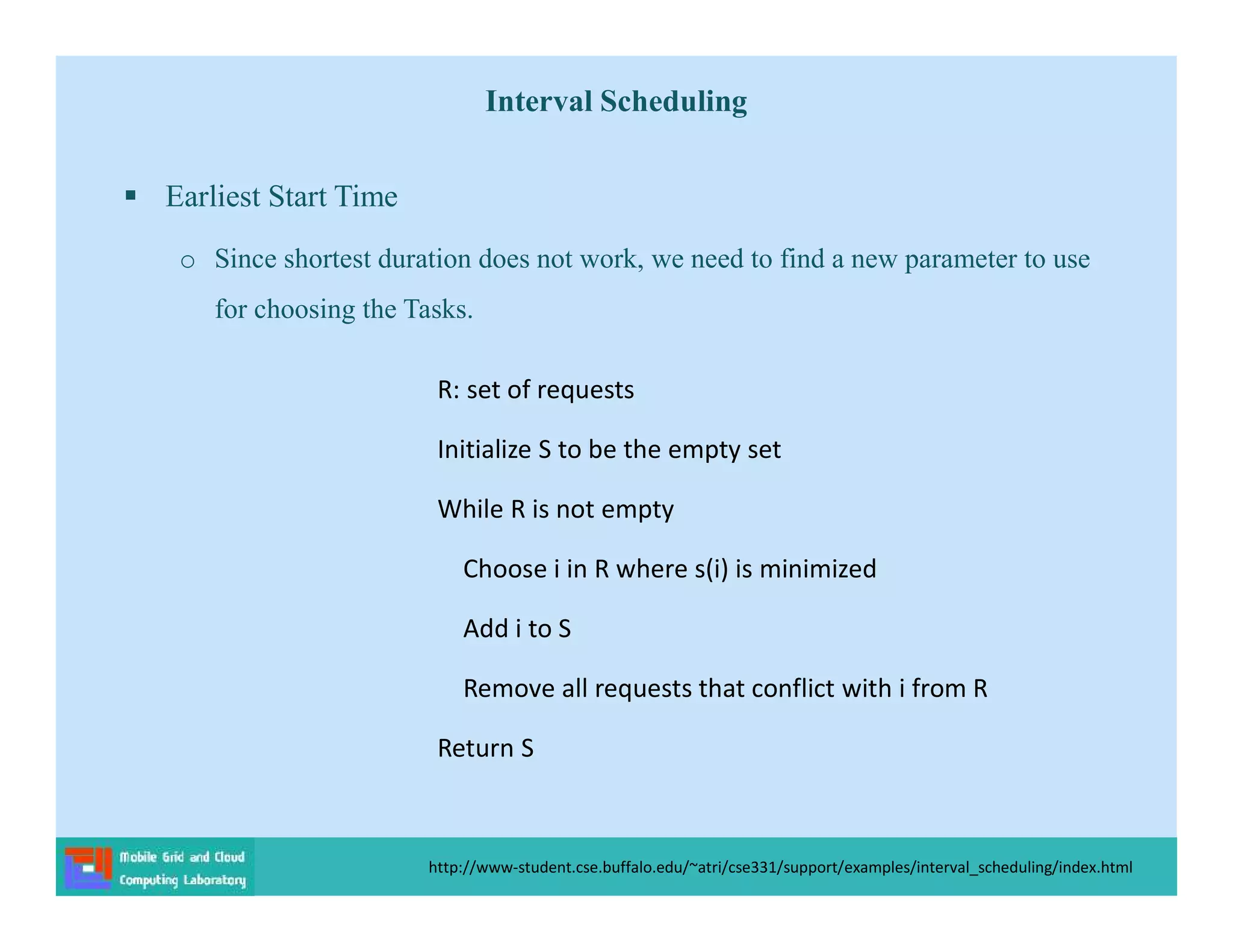

Interval Scheduling
 Earliest Start Time
o Since shortest duration does not work, we need to find a new parameter to use
for choosing the Tasks.
R: set of requests
Choose i in R where s(i) is minimized
Add i to S
Return S

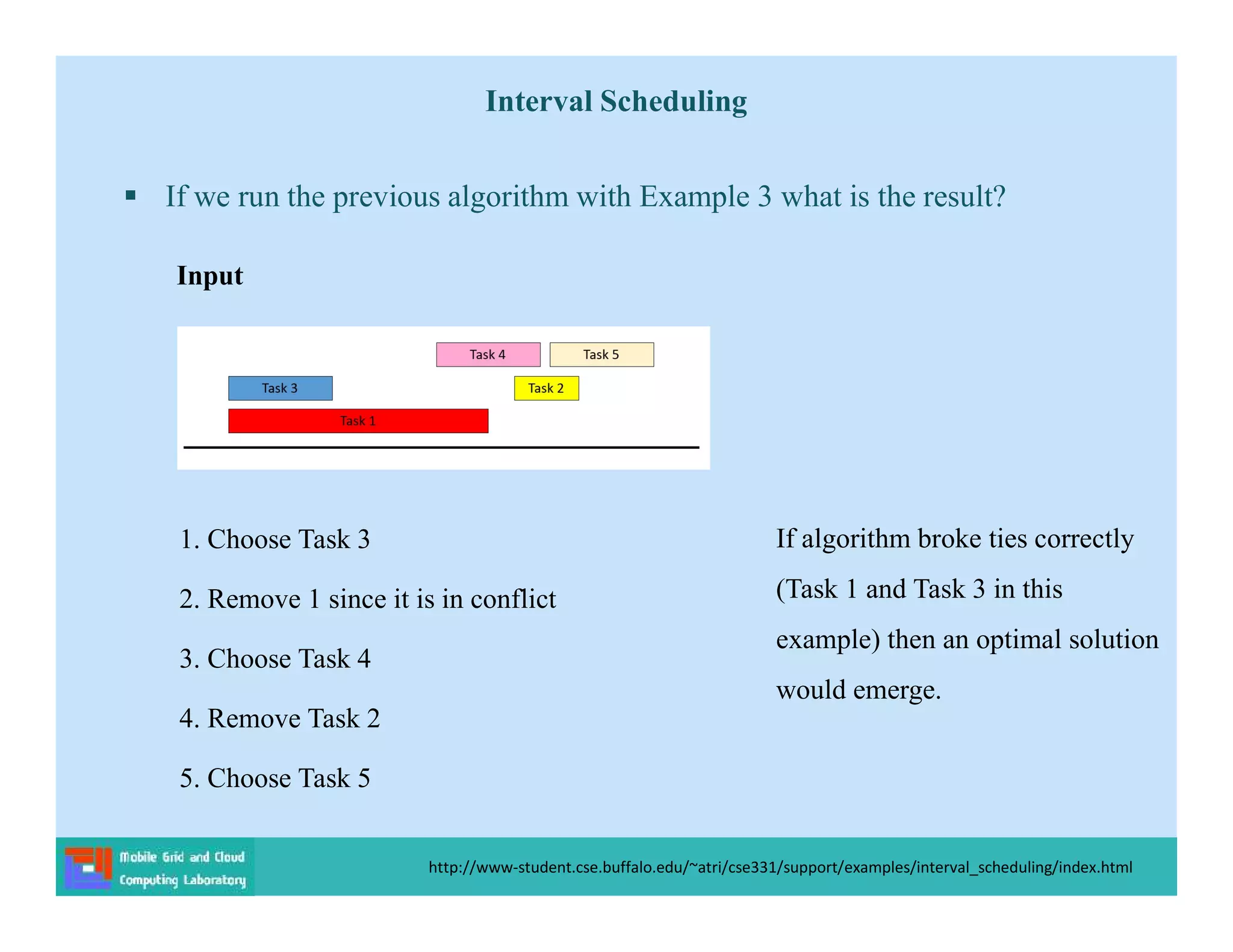

Interval Scheduling
1. Choose Task 3
2. Remove 1 since it is in conflict
3. Choose Task 4
4. Remove Task 2
5. Choose Task 5
Input
If algorithm broke ties correctly
(Task 1 and Task 3 in this
example) then an optimal solution
would emerge.

Interval Scheduling
Counter example

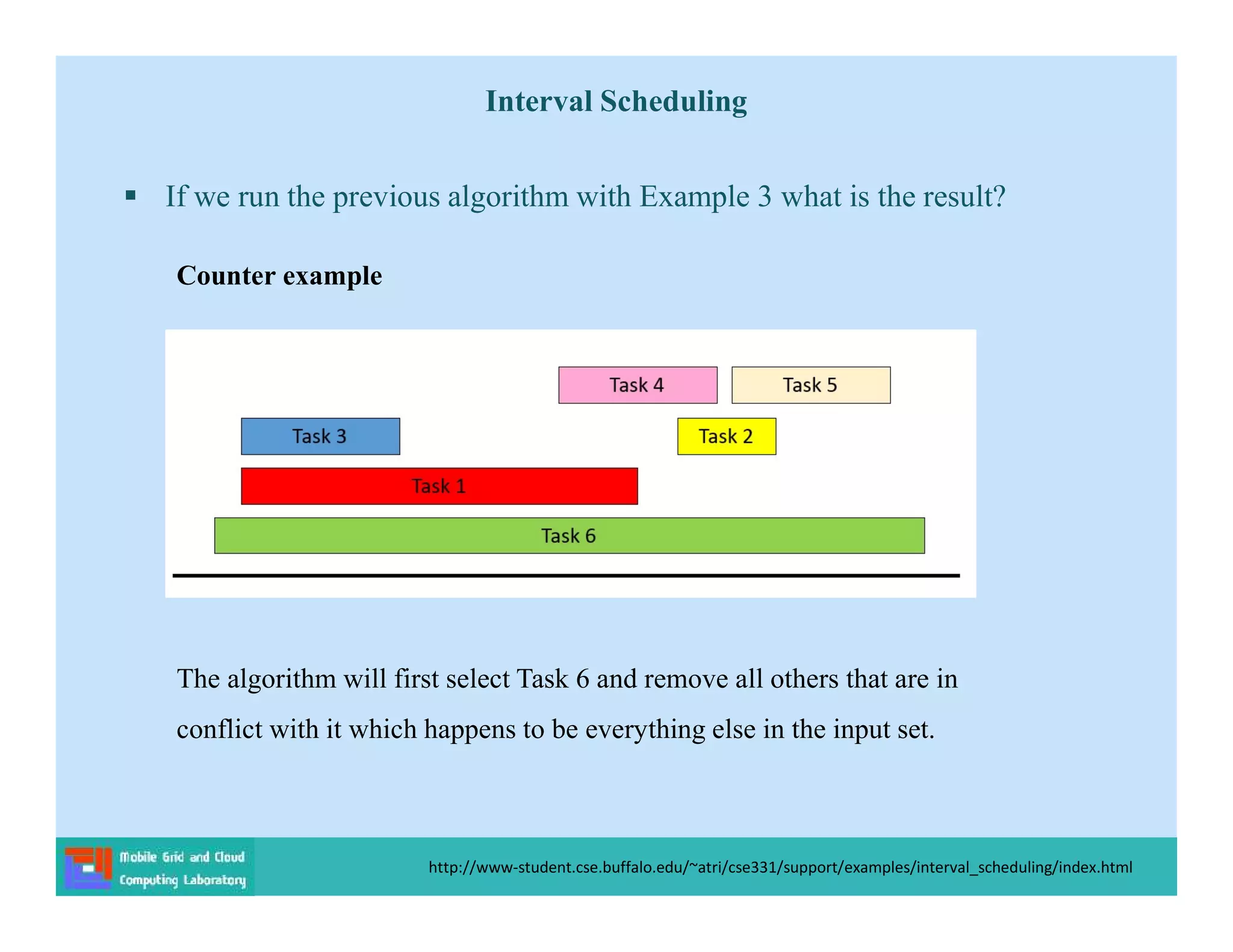

Interval Scheduling
Counter example
The algorithm will first select Task 6 and remove all others that are in
conflict with it which happens to be everything else in the input set.

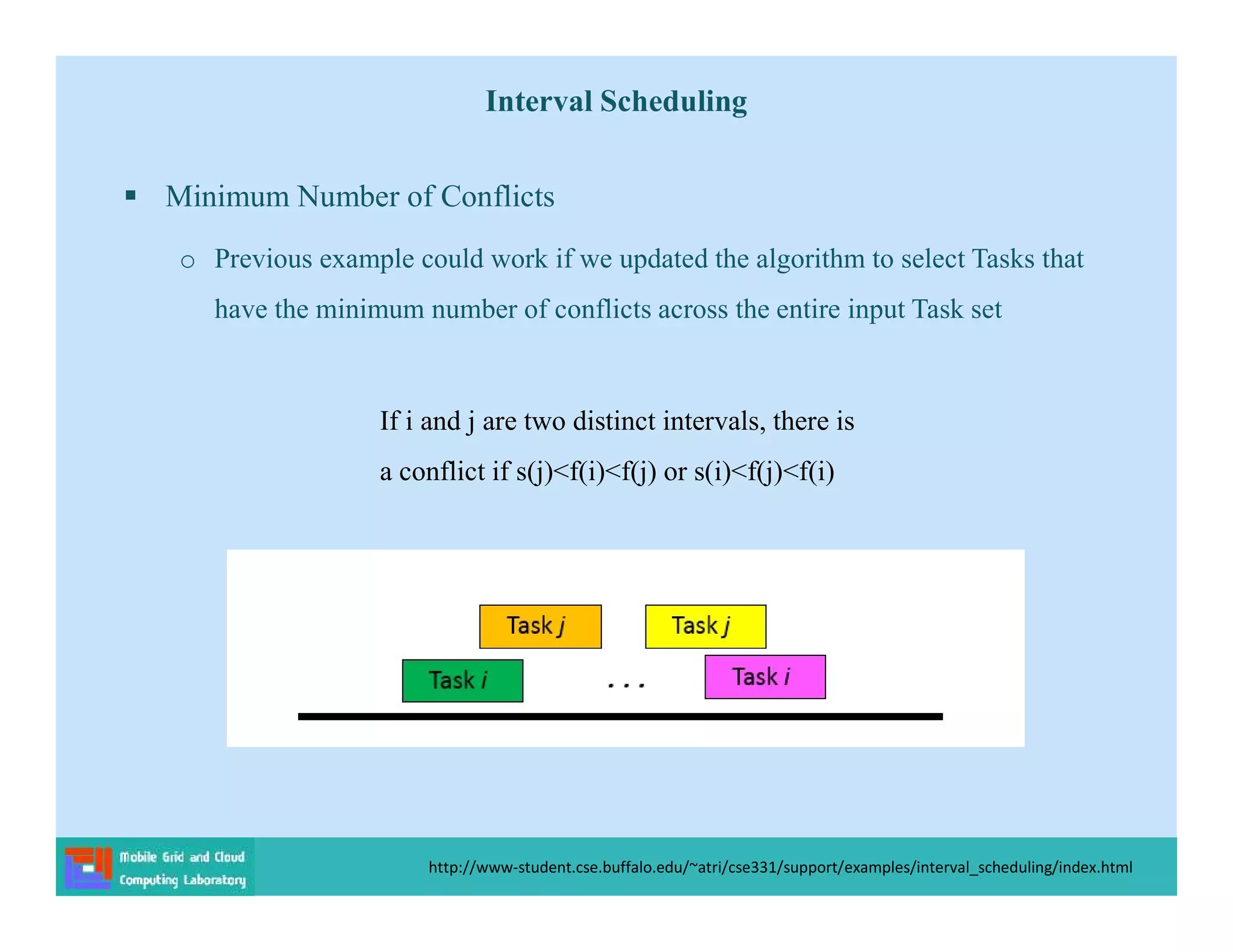

Interval Scheduling
 Minimum Number of Conflicts
o Previous example could work if we updated the algorithm to select Tasks that
have the minimum number of conflicts across the entire input Task set
If i and j are two distinct intervals, there is
a conflict if s(j)<f(i)<f(j) or s(i)<f(j)<f(i)

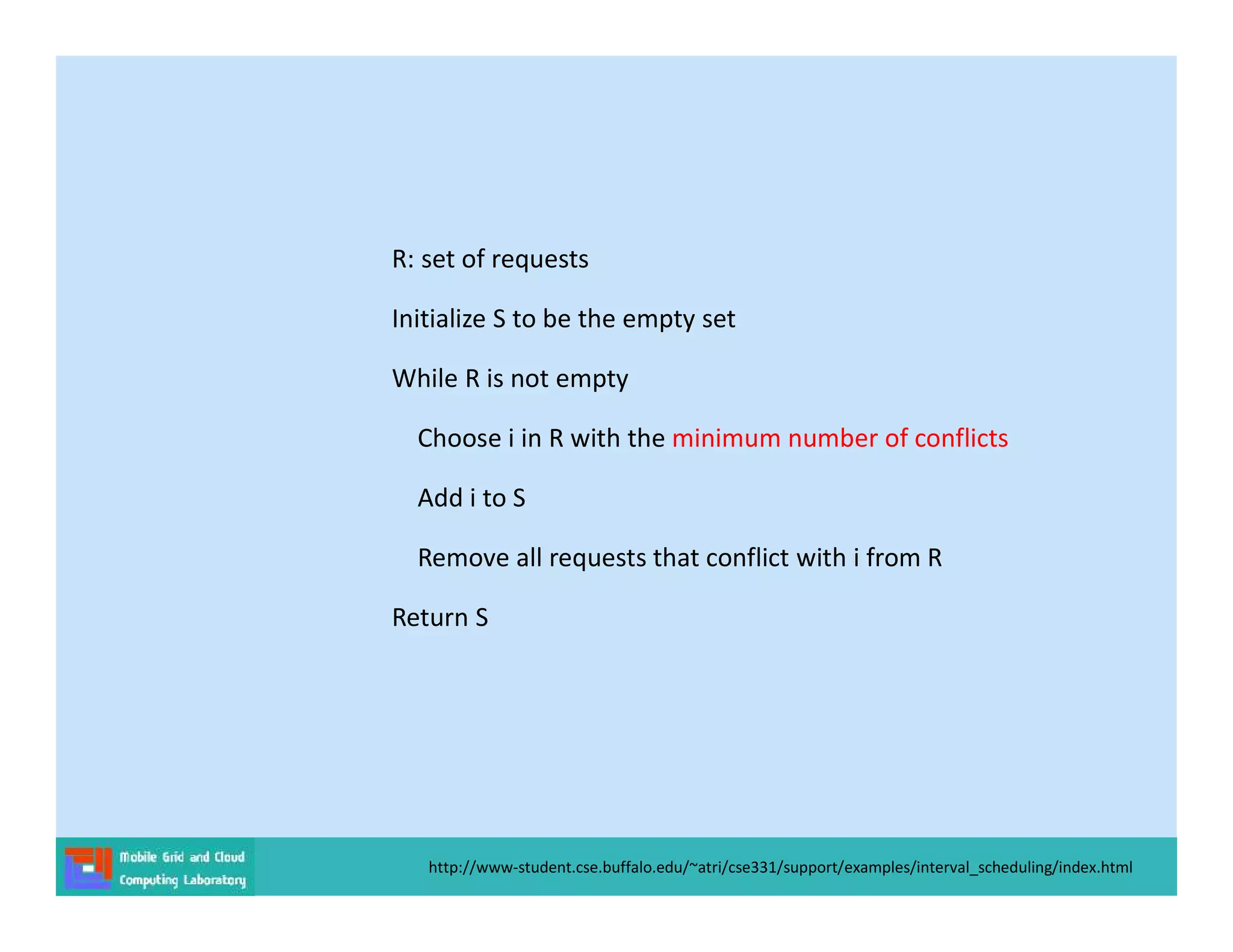

R: set of requests
Choose i in R with the minimum number of conflicts
Add i to S
Return S

Interval Scheduling

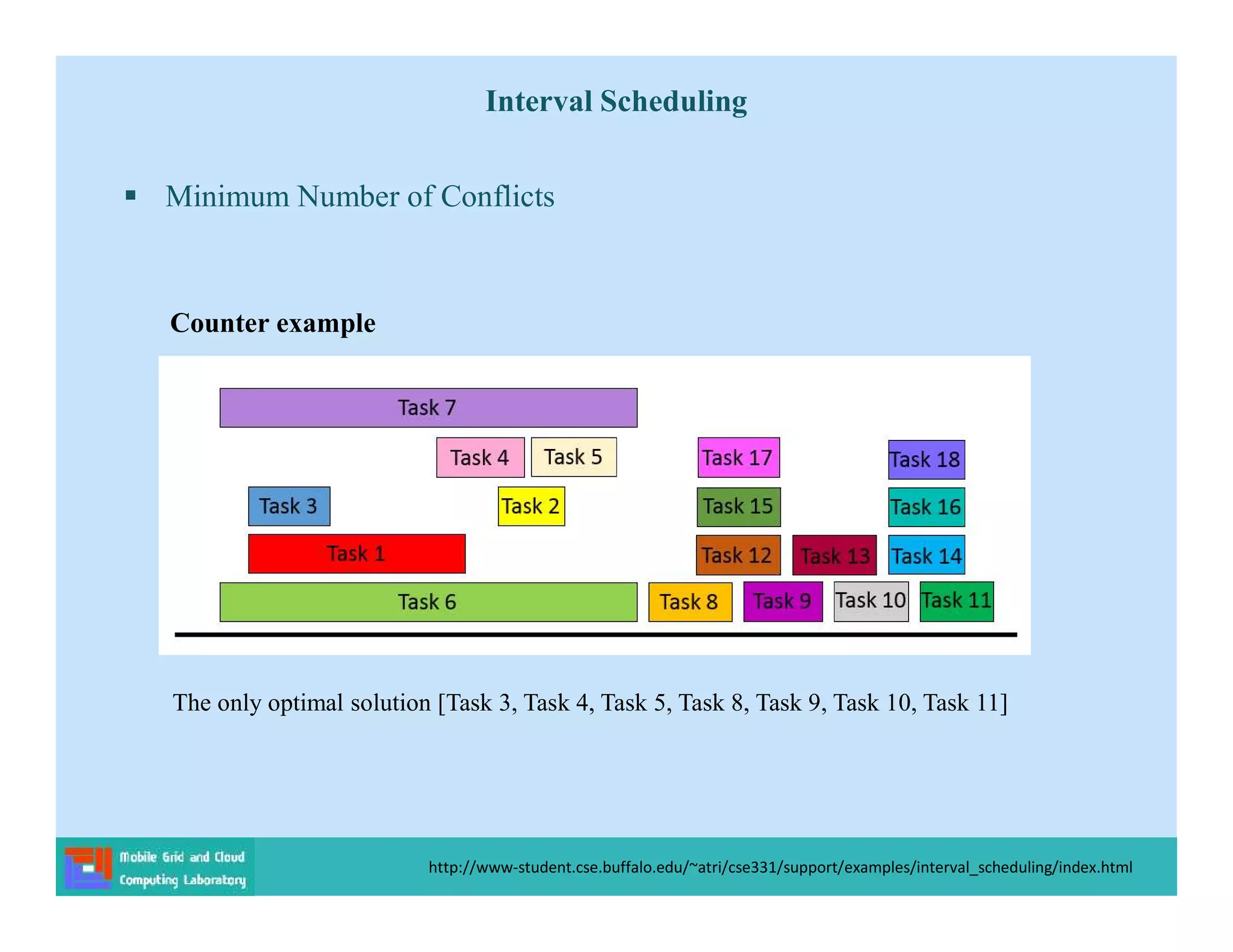

Counter example
The only optimal solution [Task 3, Task 4, Task 5, Task 8, Task 9, Task 10, Task 11]

Interval Scheduling

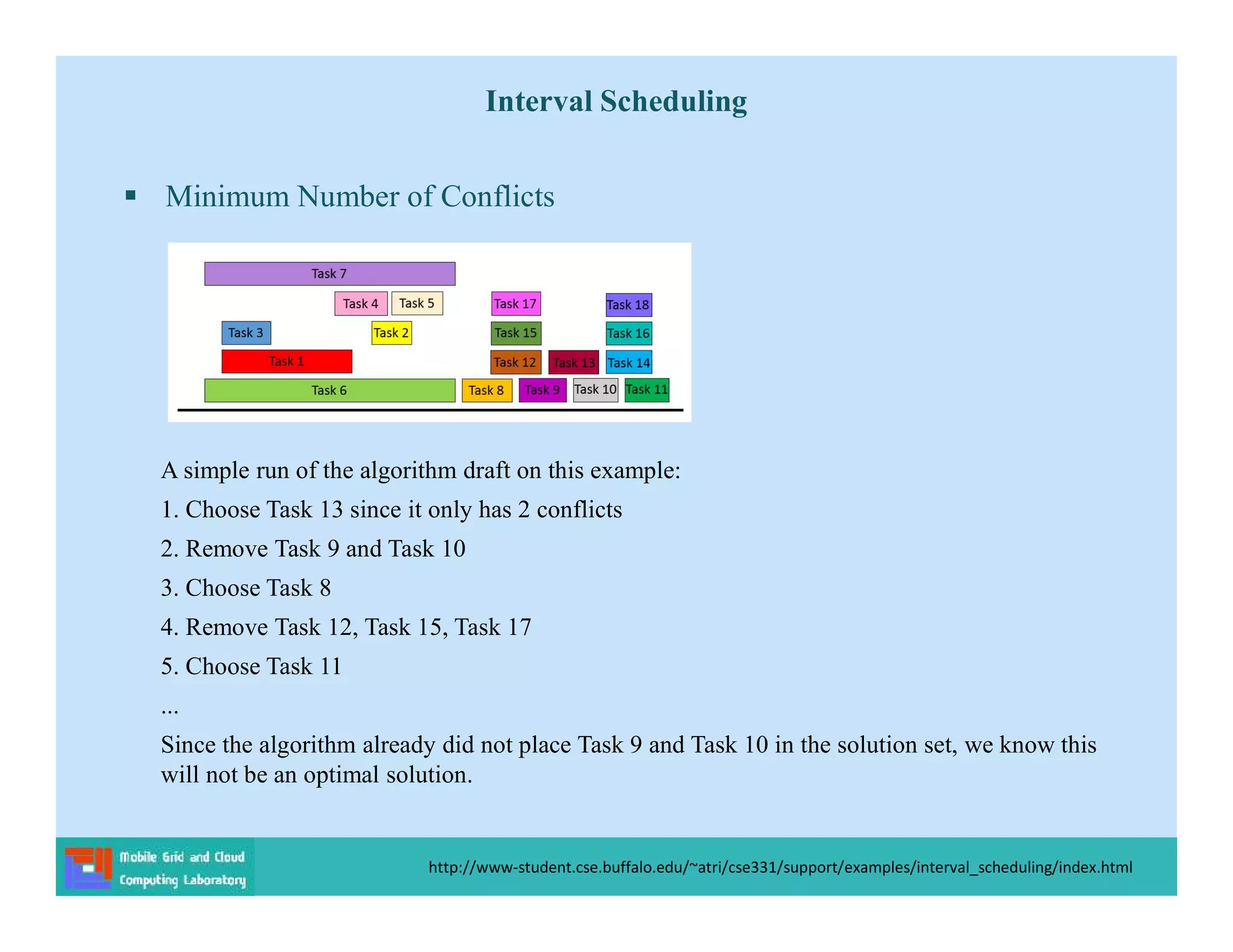

A simple run of the algorithm draft on this example:
1. Choose Task 13 since it only has 2 conflicts
2. Remove Task 9 and Task 10
3. Choose Task 8
4. Remove Task 12, Task 15, Task 17
5. Choose Task 11
...
Since the algorithm already did not place Task 9 and Task 10 in the solution set, we know this
will not be an optimal solution.

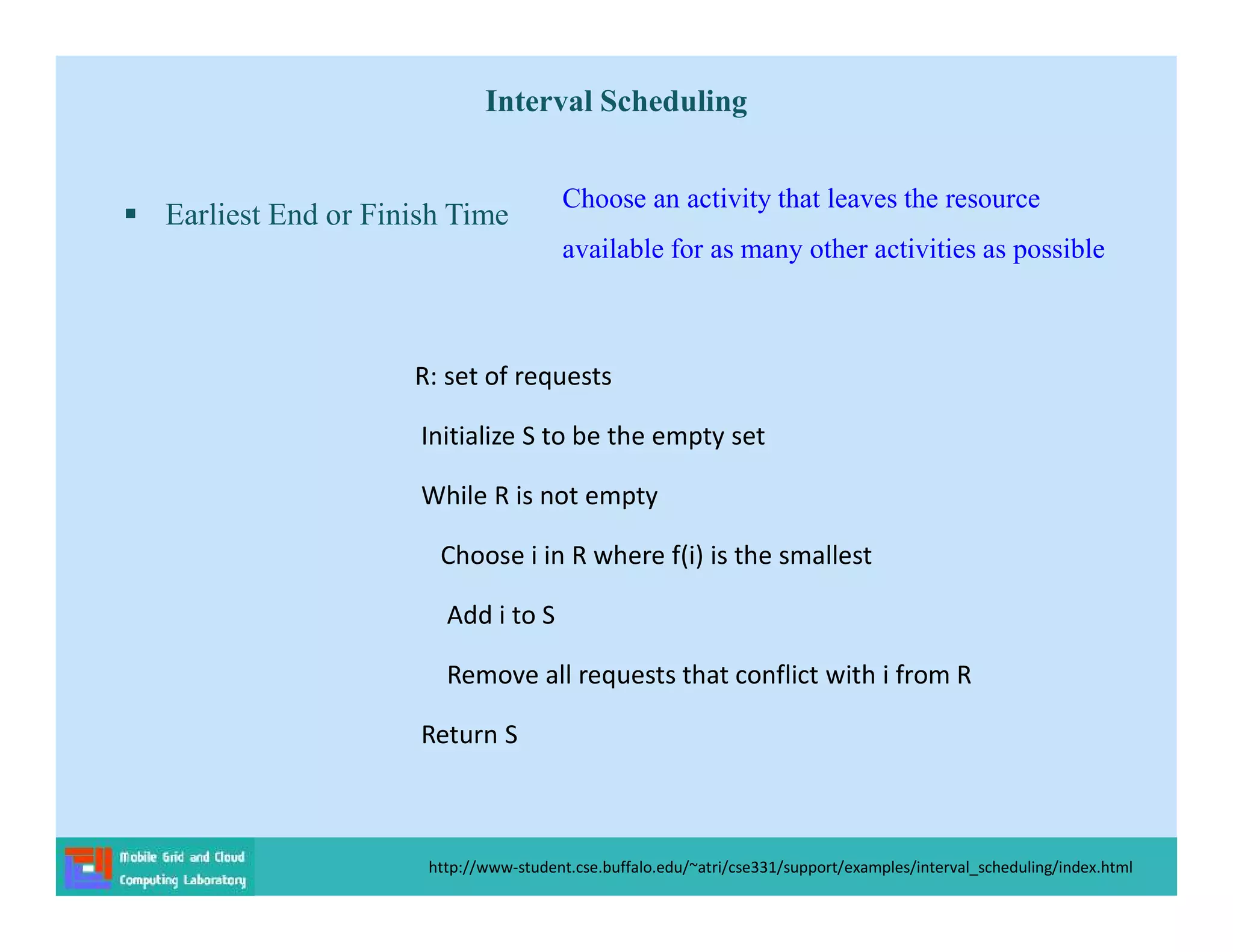

Interval Scheduling
 Earliest End or Finish Time
R: set of requests
Choose i in R where f(i) is the smallest
Add i to S
Return S
Choose an activity that leaves the resource
available for as many other activities as possible

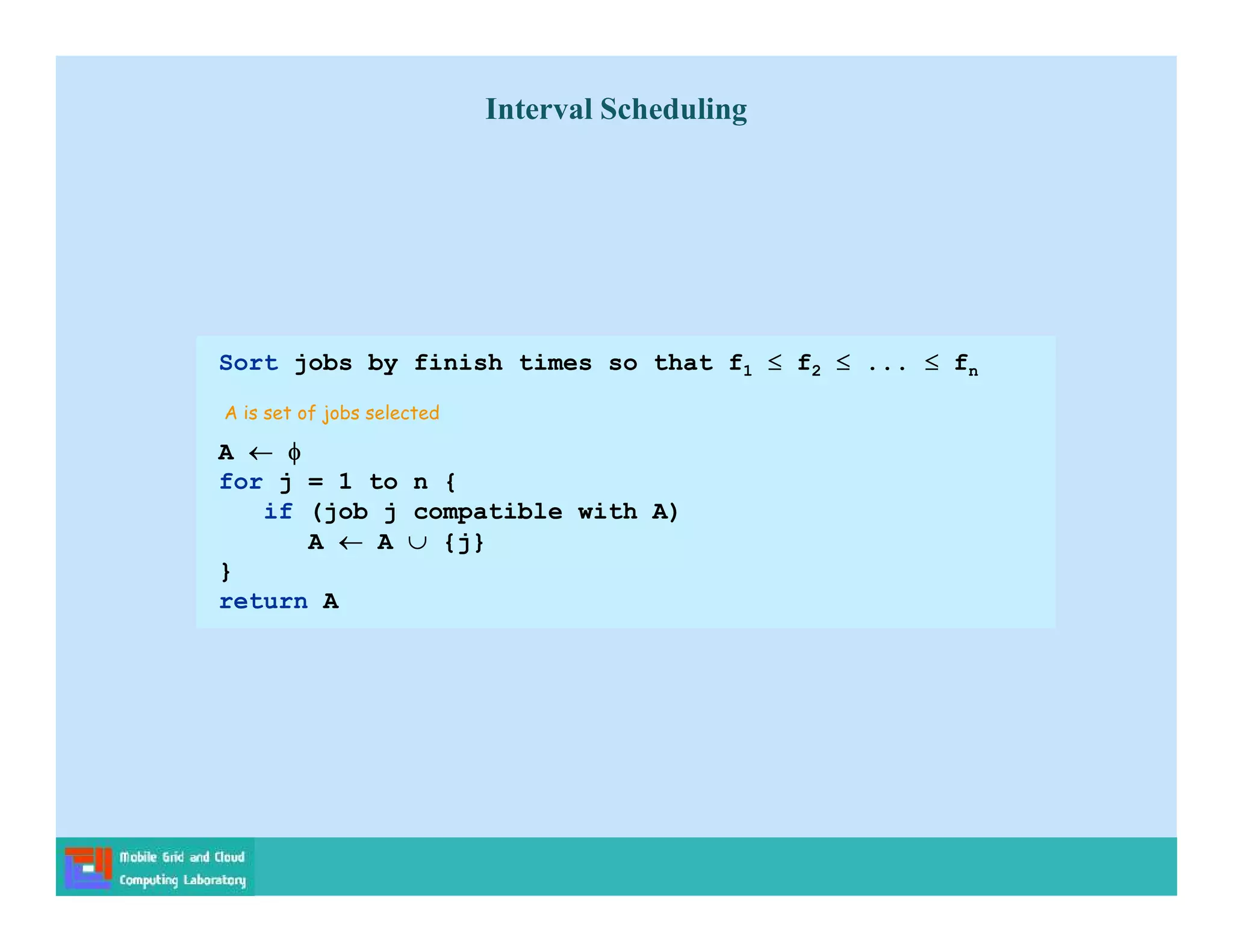

Sort jobs by finish times so that f1  f2  ...  fn
A  
for j = 1 to n {
if (job j compatible with A)
A  A  {j}
}
return A
A is set of jobs selected
Interval Scheduling

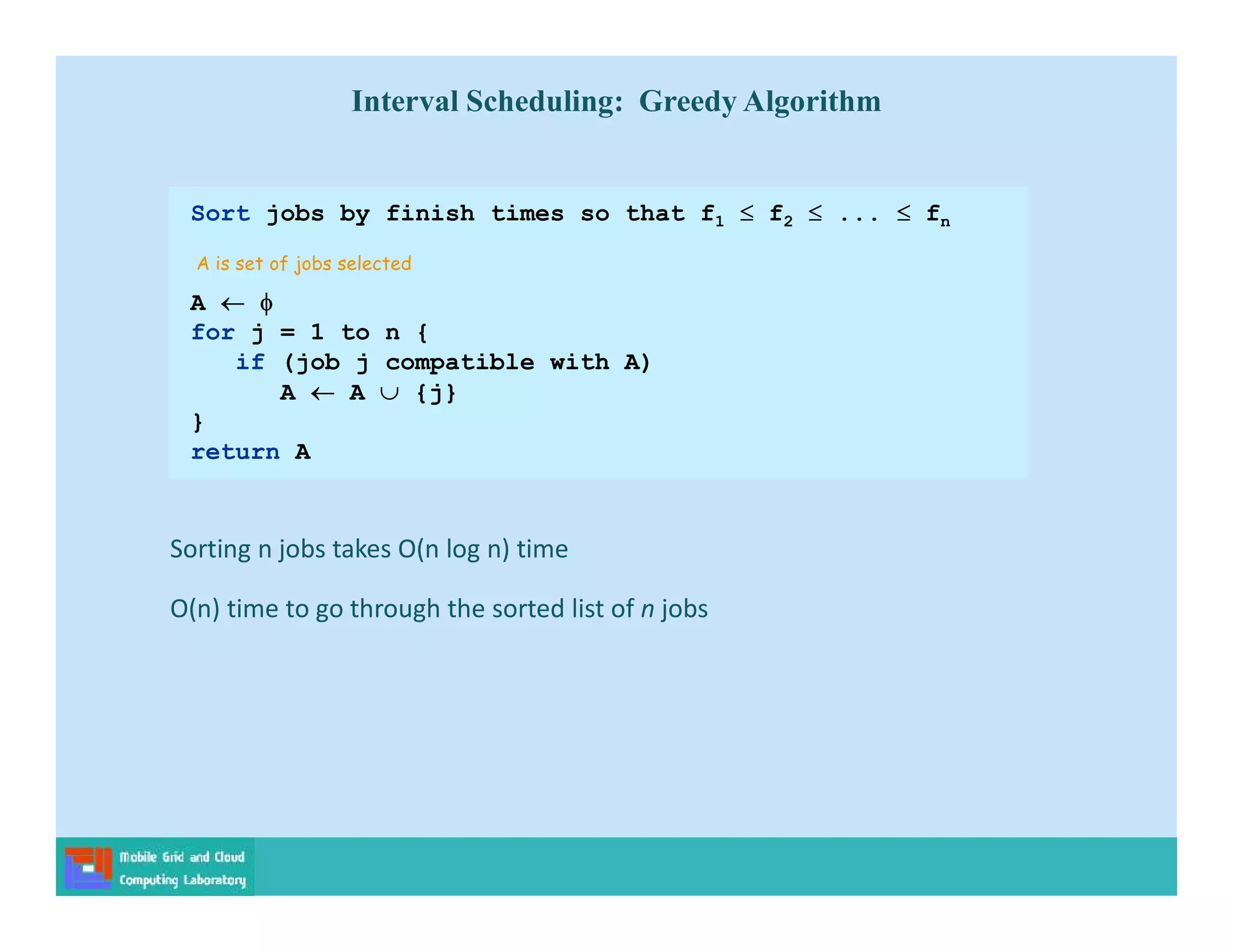

Sorting n jobs takes O(n log n) time
O(n) time to go through the sorted list of n jobs
Interval Scheduling: Greedy Algorithm
Sort jobs by finish times so that f1  f2  ...  fn
A  
for j = 1 to n {
if (job j compatible with A)
A  A  {j}
}
return A
A is set of jobs selected

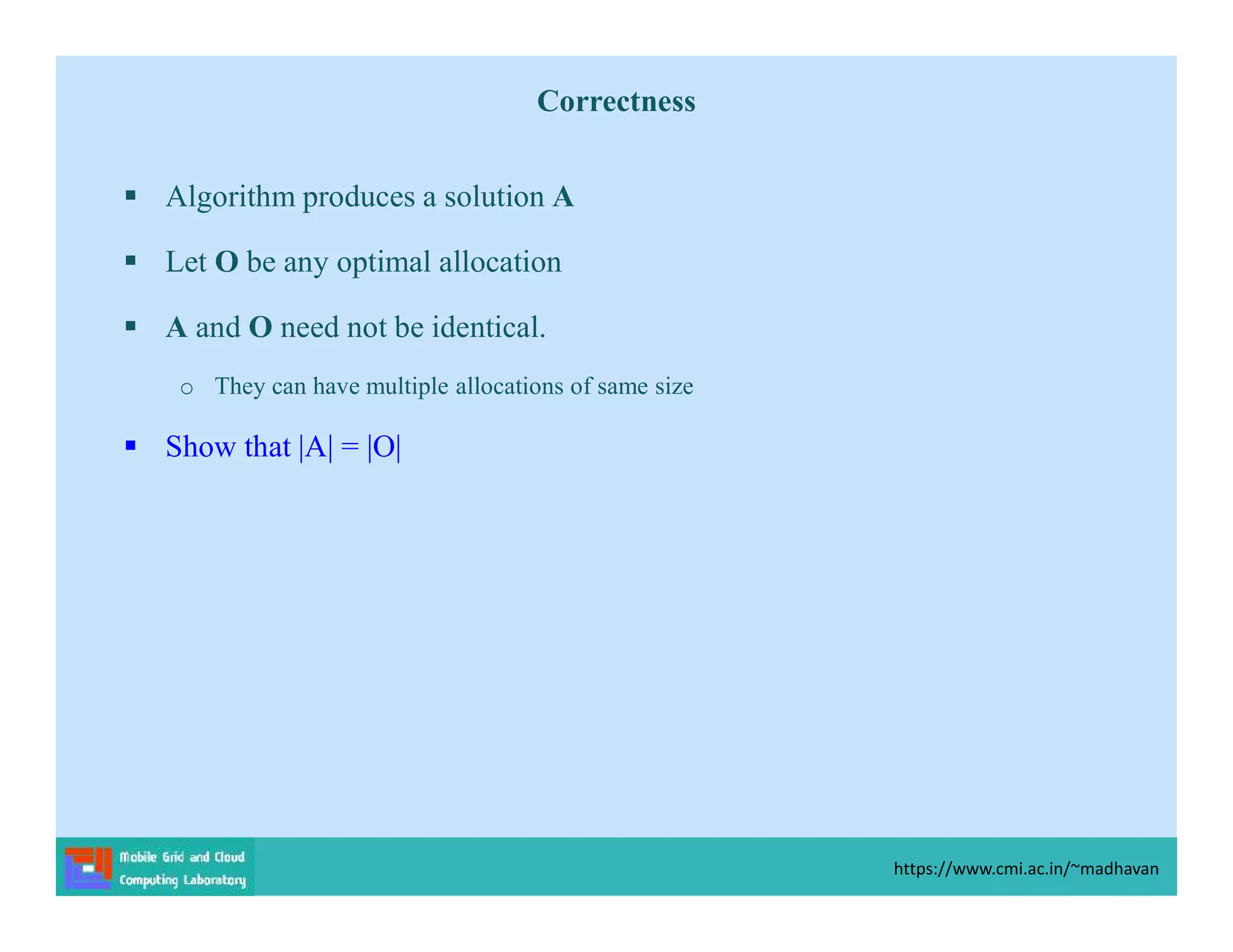

Correctness
 Algorithm produces a solution A
 Let O be any optimal allocation
 A and O need not be identical.
o They can have multiple allocations of same size
 Show that |A| = |O|
https://www.cmi.ac.in/~madhavan

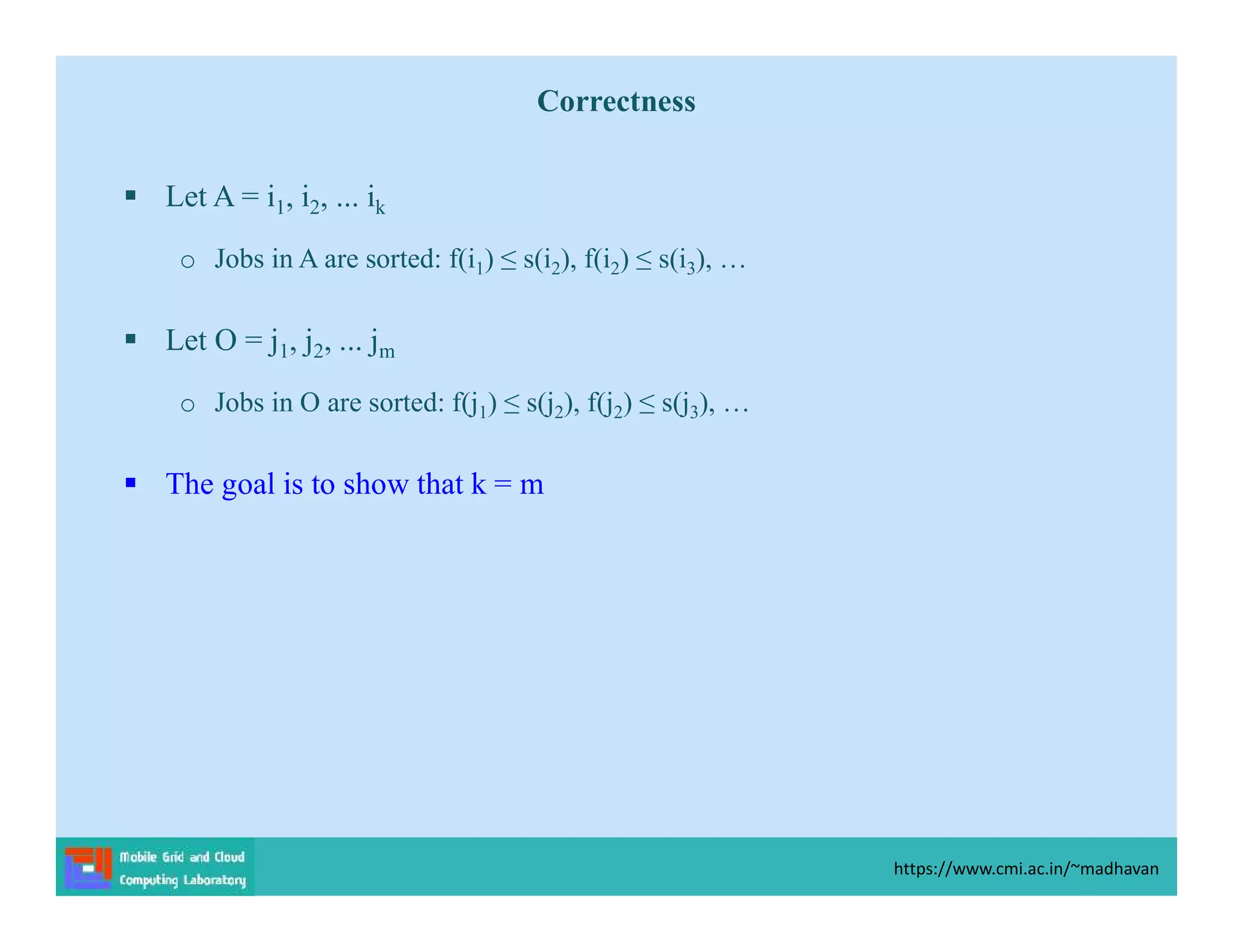

Correctness
 Let A = i1, i2, ... ik
o Jobs in A are sorted: f(i1) ≤ s(i2), f(i2) ≤ s(i3), …
 Let O = j1, j2, ... jm
o Jobs in O are sorted: f(j1) ≤ s(j2), f(j2) ≤ s(j3), …
 The goal is to show that k = m

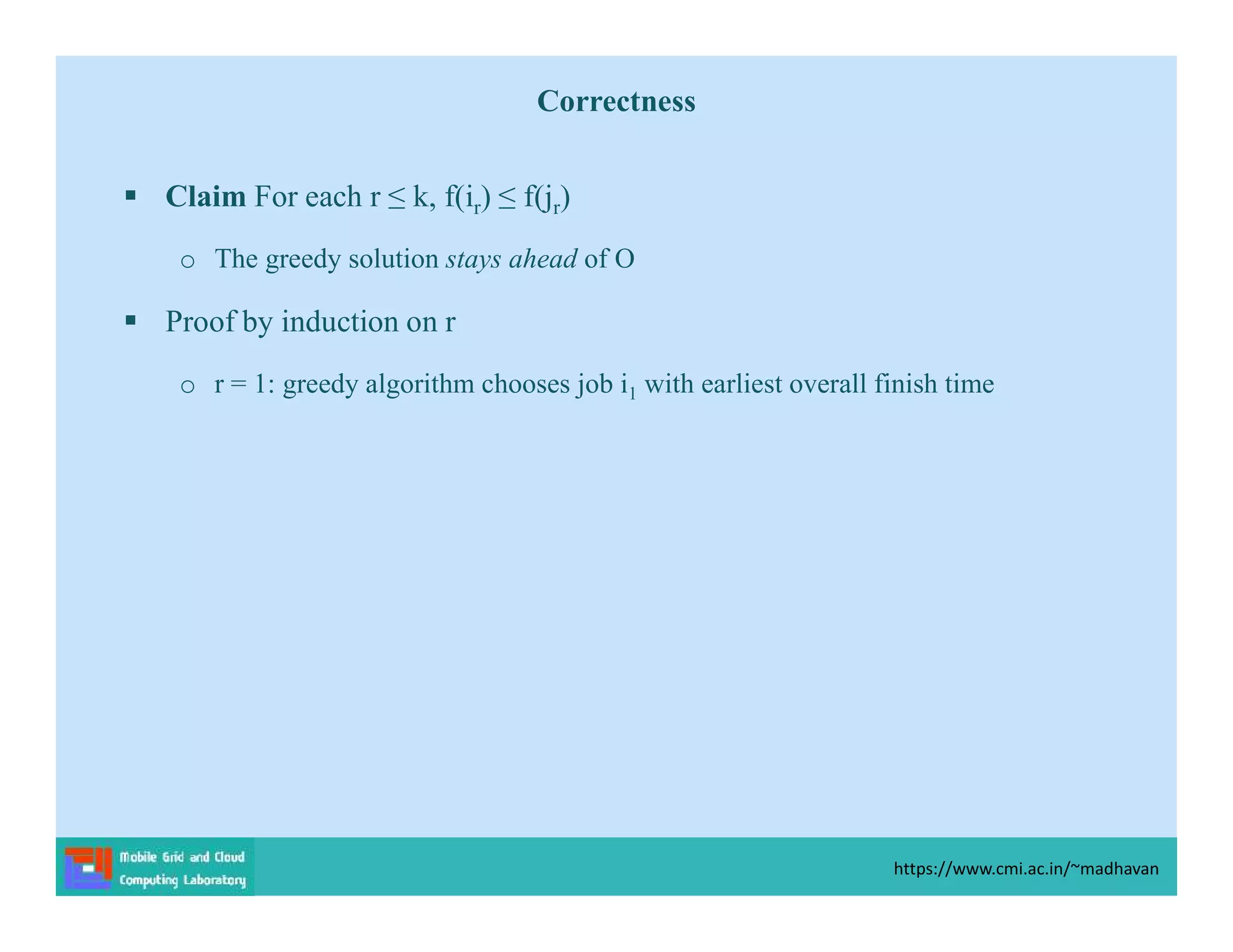

Correctness
 Claim For each r ≤ k, f(ir) ≤ f(jr)
o The greedy solution stays ahead of O
 Proof by induction on r
o r = 1: greedy algorithm chooses job i1 with earliest overall finish time

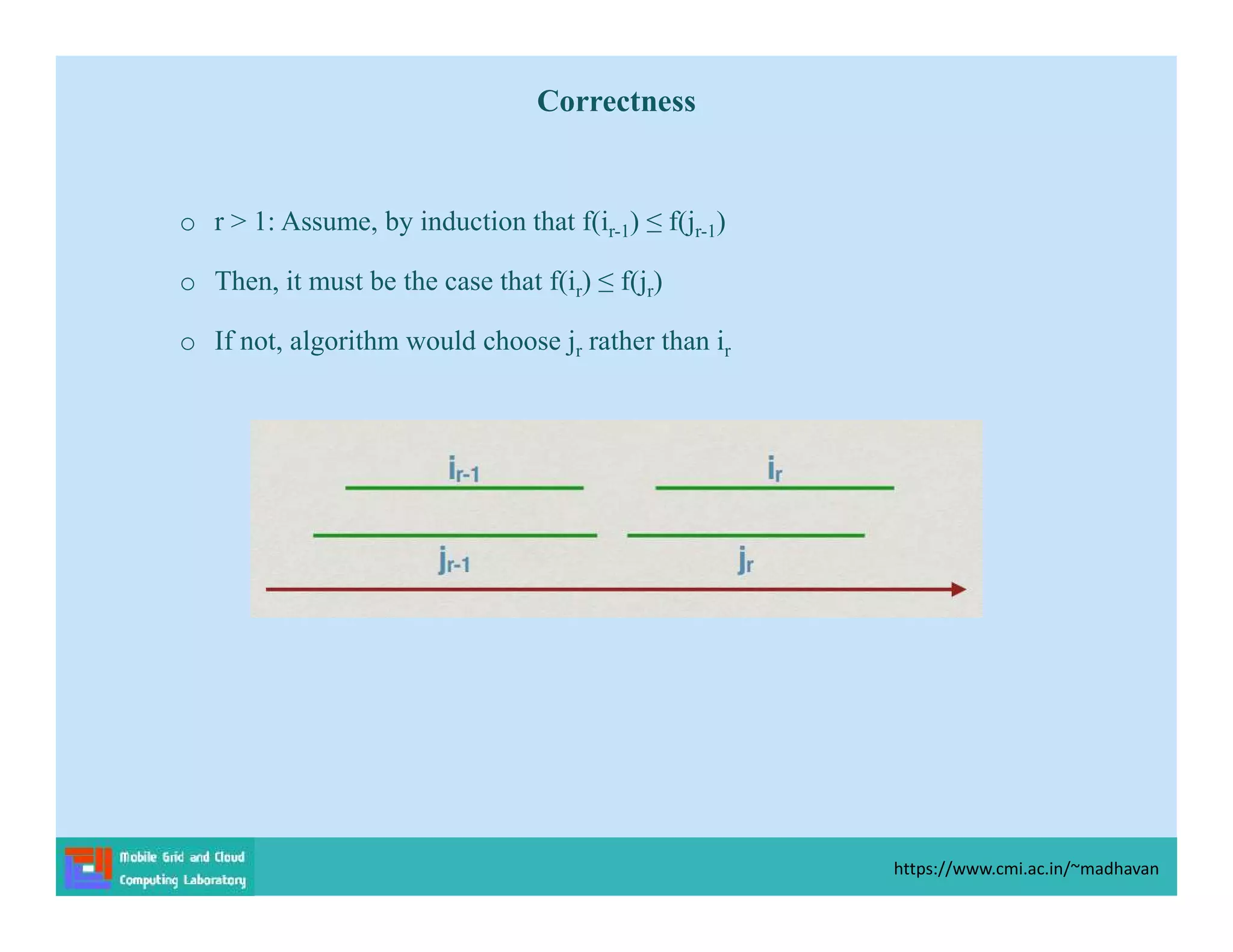

Correctness
o r > 1: Assume, by induction that f(ir-1) ≤ f(jr-1)
o Then, it must be the case that f(ir) ≤ f(jr)
o If not, algorithm would choose jr rather than ir

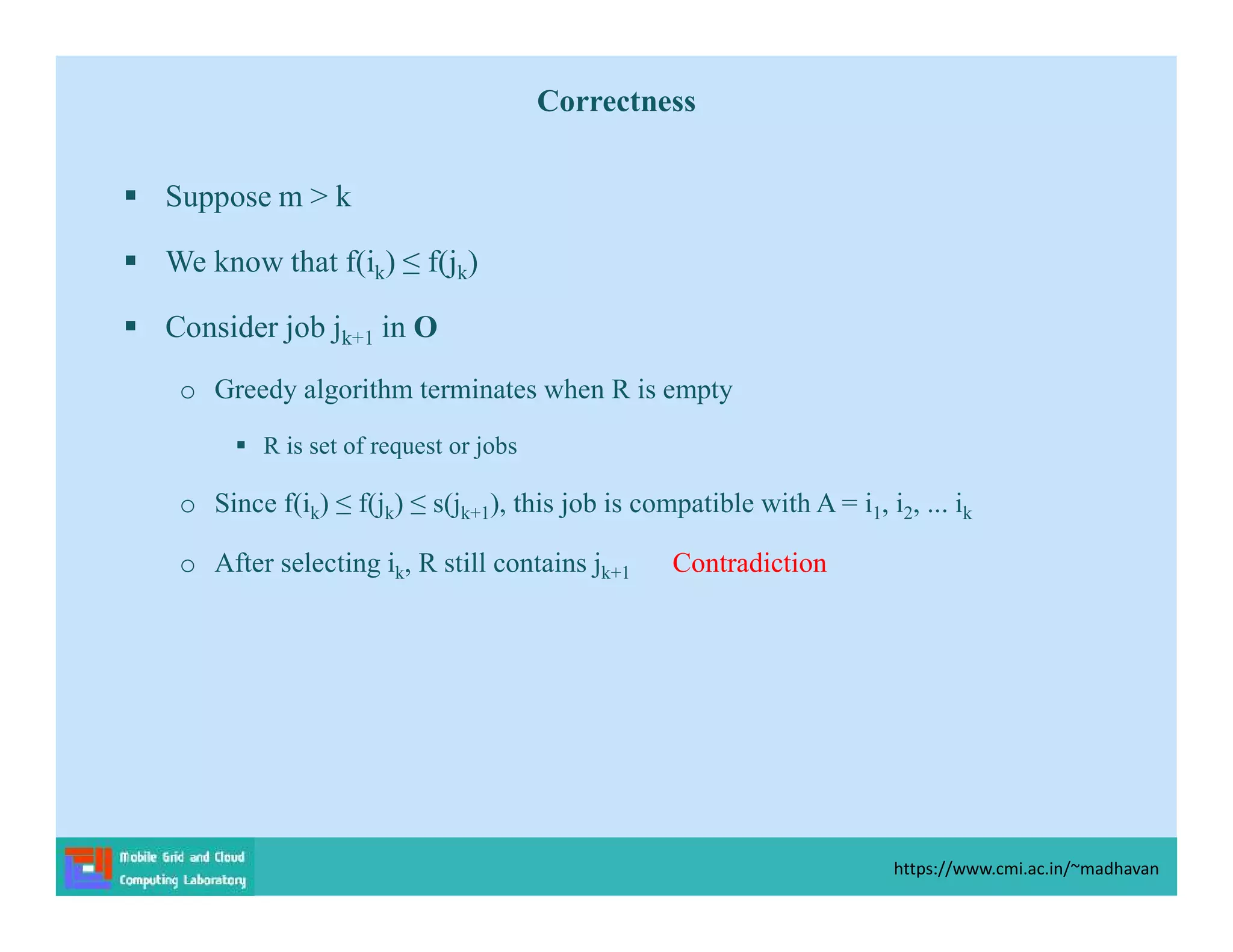

Correctness
 Suppose m > k
 We know that f(ik) ≤ f(jk)
 Consider job jk+1 in O
o Greedy algorithm terminates when R is empty
 R is set of request or jobs
o Since f(ik) ≤ f(jk) ≤ s(jk+1), this job is compatible with A = i1, i2, ... ik
o After selecting ik, R still contains jk+1 Contradiction

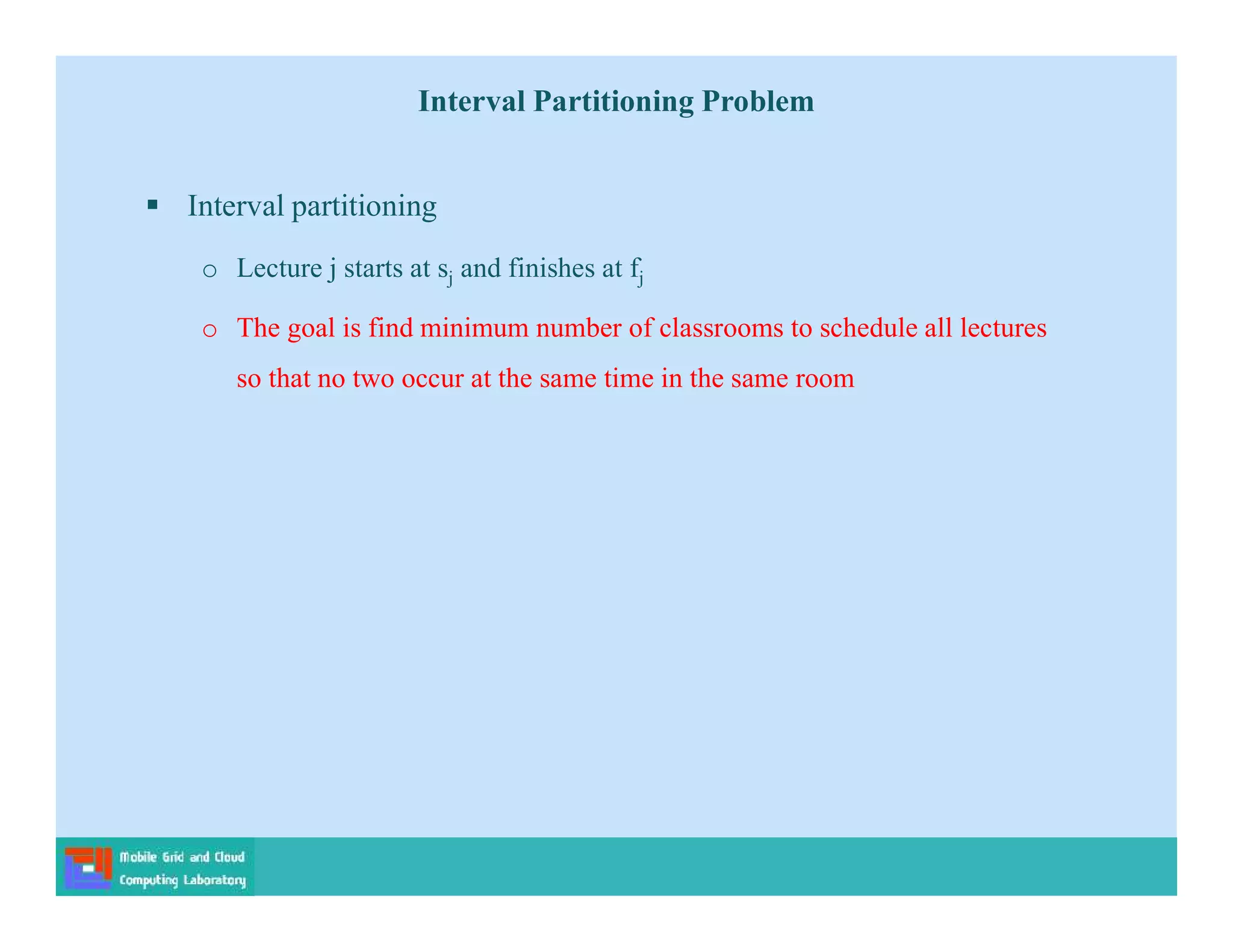

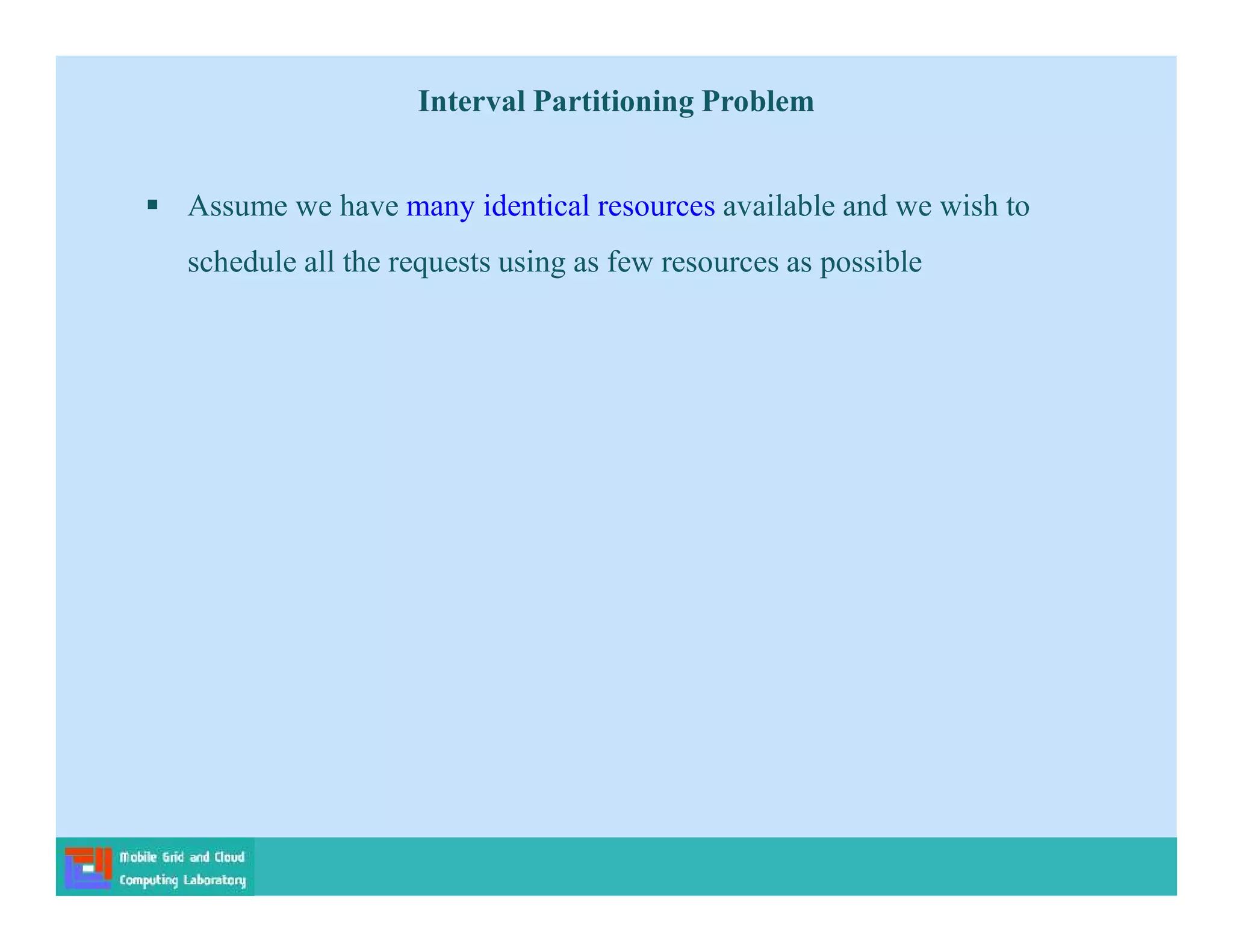

Interval Partitioning Problem
 Assume we have many identical resources available and we wish to
schedule all the requests using as few resources as possible

 Interval partitioning
o Lecture j starts at sj and finishes at fj
o The goal is find minimum number of classrooms to schedule all lectures
so that no two occur at the same time in the same room
Interval Partitioning Problem

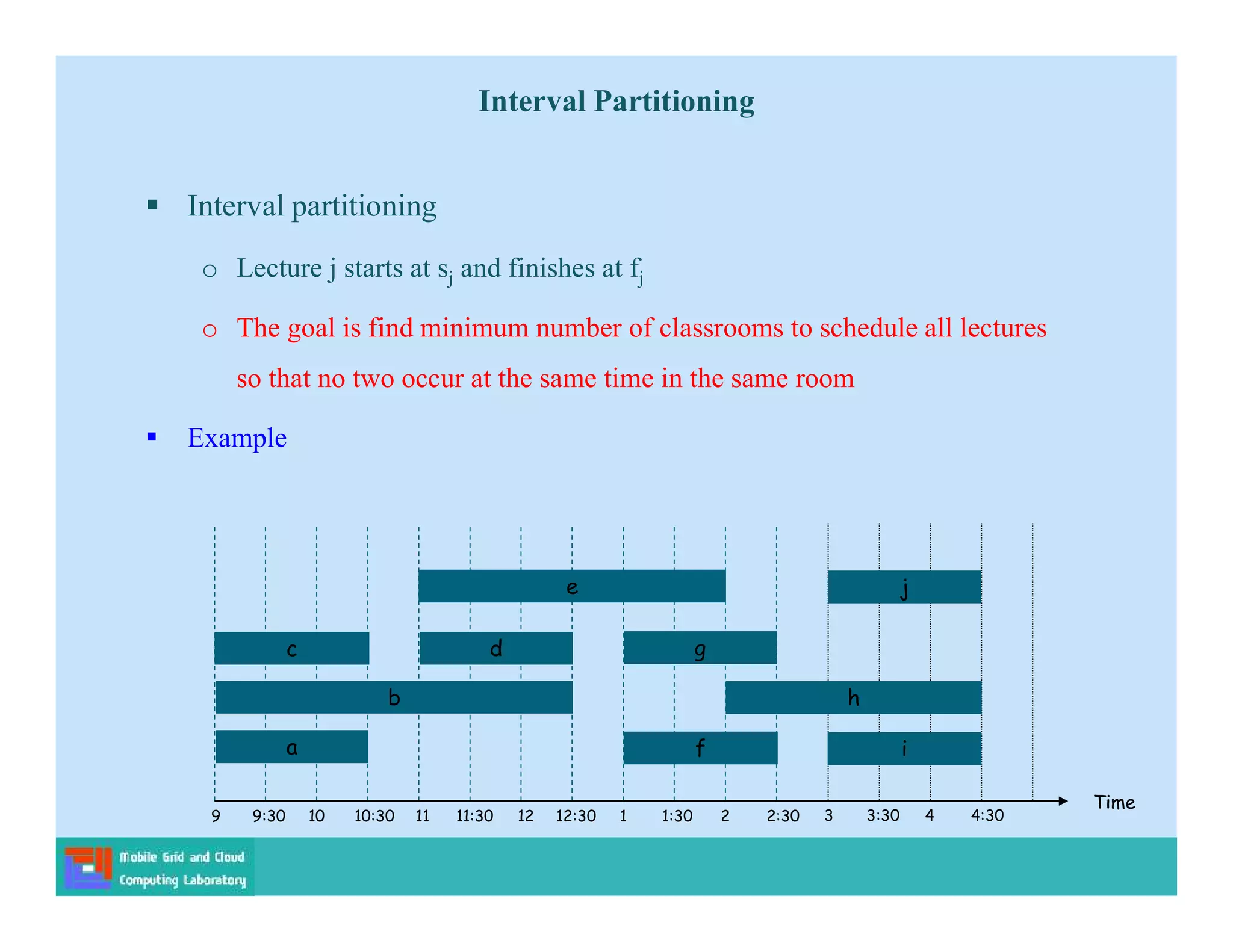

Interval Partitioning
 Example
Time
9 9:30 10 10:30 11 11:30 12 12:30 1 1:30 2 2:30
h
c
b
a
e
d g
f i
j
3 3:30 4 4:30

 Example This schedule uses 4 classrooms to schedule 10 lectures
Time
9 9:30 10 10:30 11 11:30 12 12:30 1 1:30 2 2:30
h
c
b
a
e
d g
f i
j
3 3:30 4 4:30
1
2
3
4

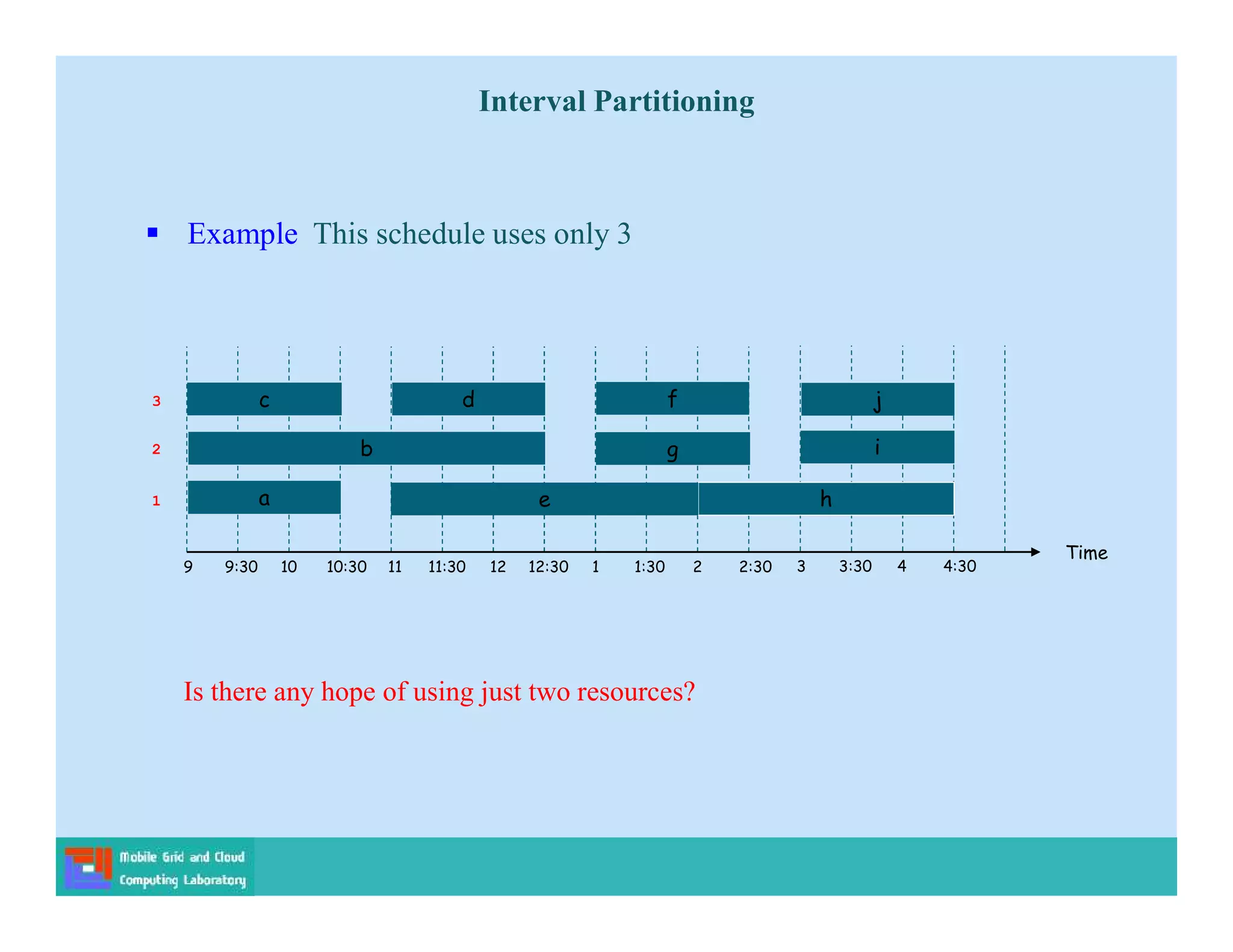

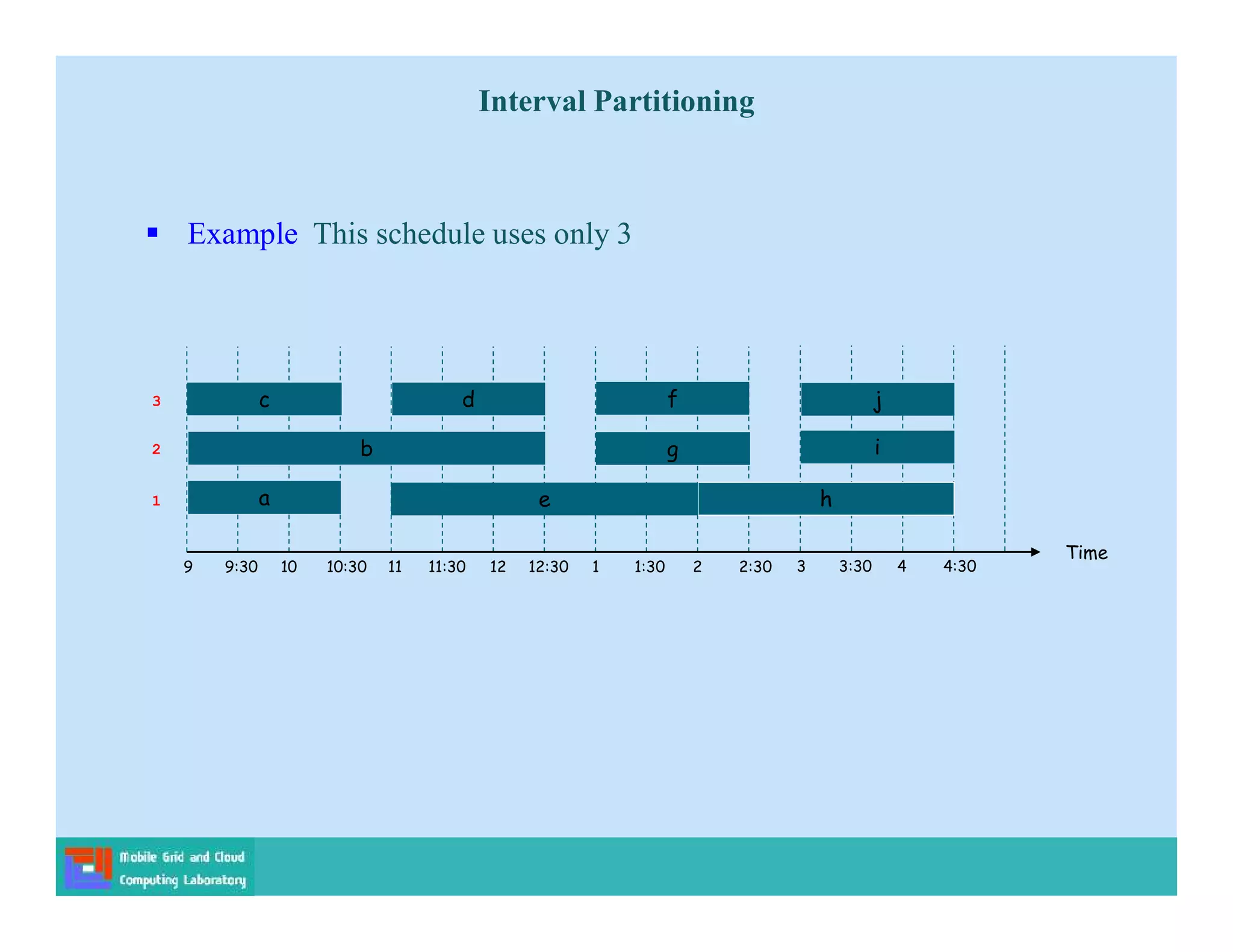

 Example This schedule uses only 3
Time
9 9:30 10 10:30 11 11:30 12 12:30 1 1:30 2 2:30
h
c
a e
f
g i
j
3 3:30 4 4:30
d
b
1
2
3

Time
9 9:30 10 10:30 11 11:30 12 12:30 1 1:30 2 2:30
h
c
a e
f
g i
j
3 3:30 4 4:30
d
b
1
2
3
Is there any hope of using just two resources?

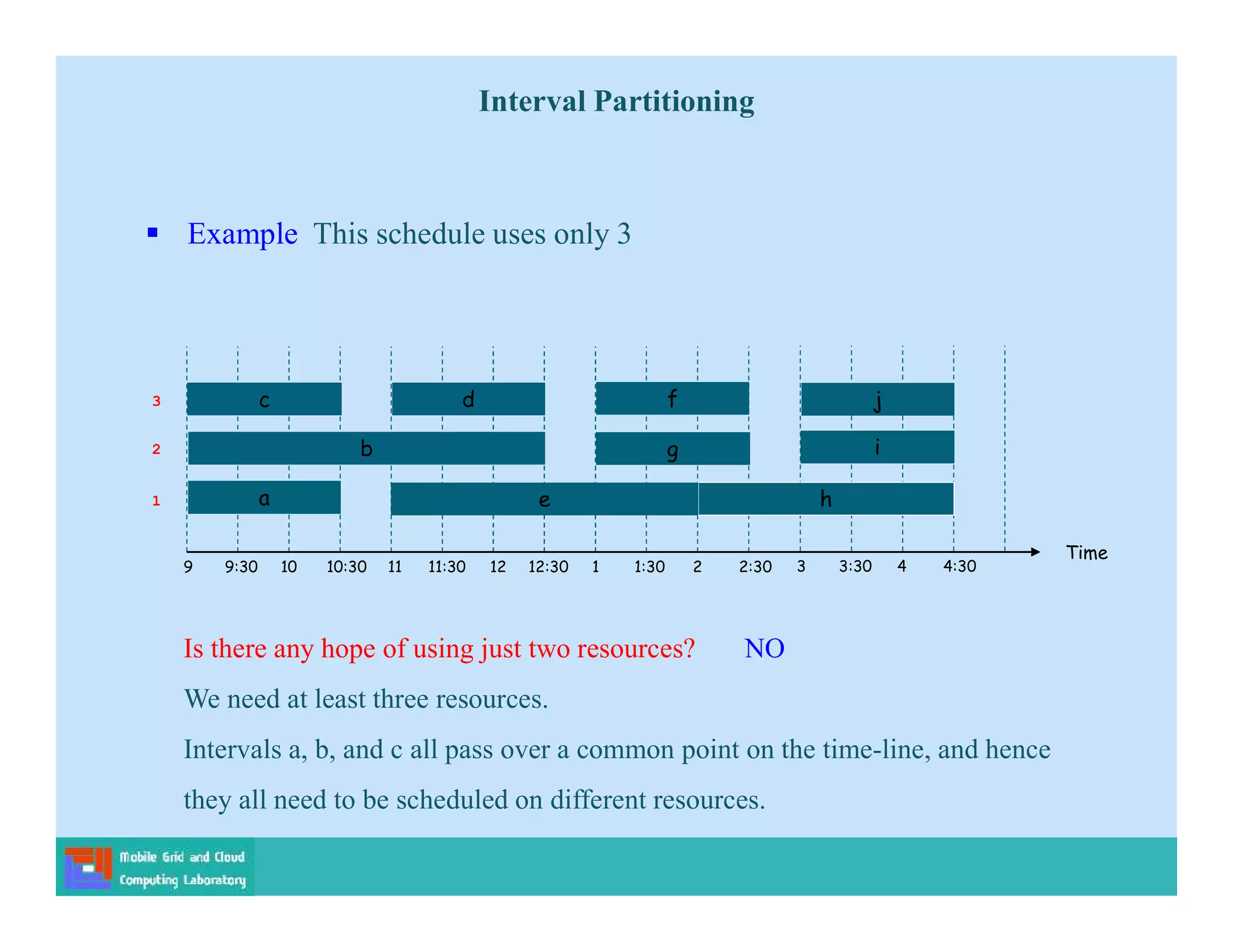

Time
9 9:30 10 10:30 11 11:30 12 12:30 1 1:30 2 2:30
h
c
a e
f
g i
j
3 3:30 4 4:30
d
b
1
2
3
Is there any hope of using just two resources? NO
We need at least three resources.
Intervals a, b, and c all pass over a common point on the time-line, and hence
they all need to be scheduled on different resources.

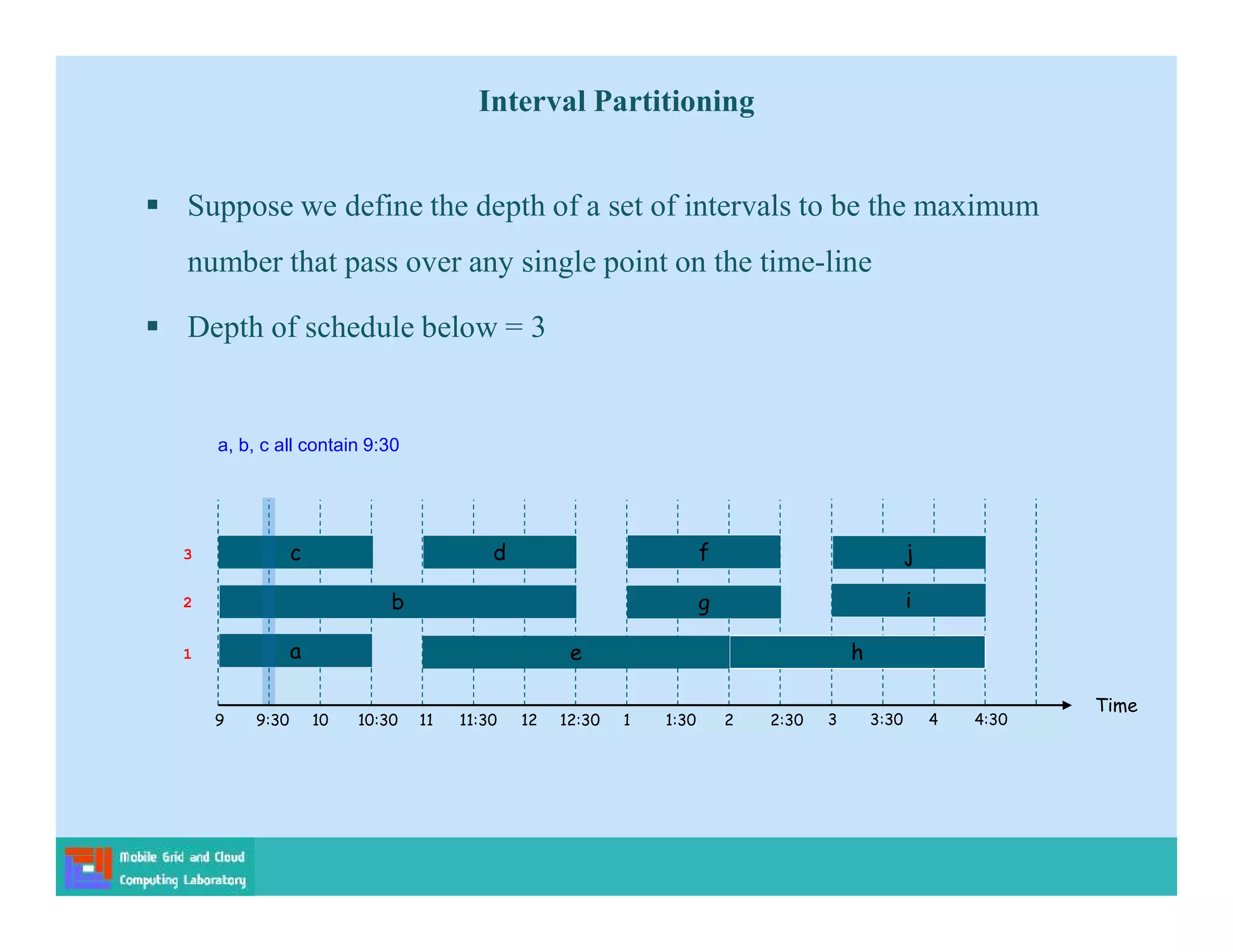

 Suppose we define the depth of a set of intervals to be the maximum
number that pass over any single point on the time-line
 Depth of schedule below = 3
Time
9 9:30 10 10:30 11 11:30 12 12:30 1 1:30 2 2:30
h
c
a e
f
g i
j
3 3:30 4 4:30
d
b
a, b, c all contain 9:30
1
2
3

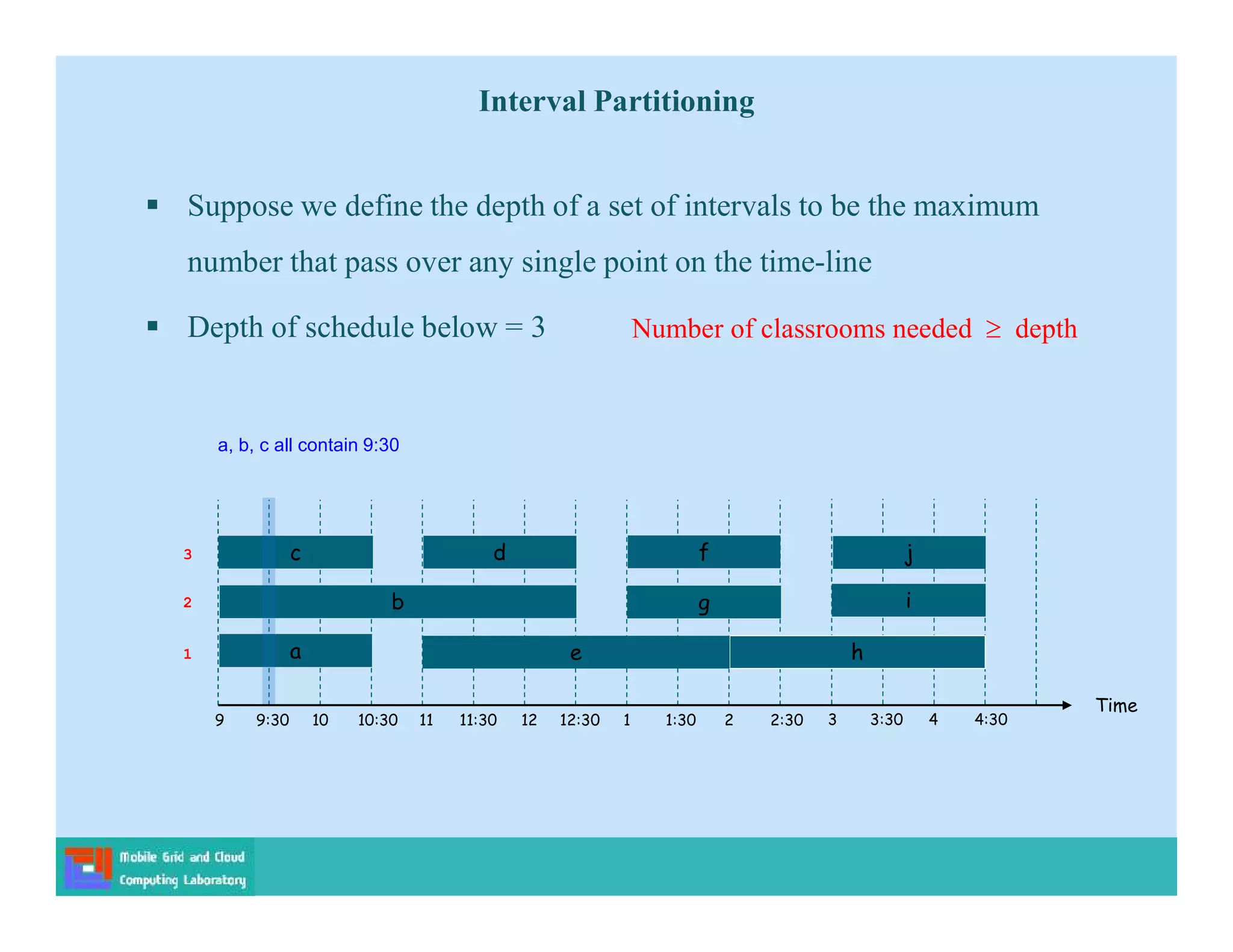

 Suppose we define the depth of a set of intervals to be the maximum
number that pass over any single point on the time-line
 Depth of schedule below = 3
Time
9 9:30 10 10:30 11 11:30 12 12:30 1 1:30 2 2:30
h
c
a e
f
g i
j
3 3:30 4 4:30
d
b
a, b, c all contain 9:30
1
2
3
Number of classrooms needed  depth

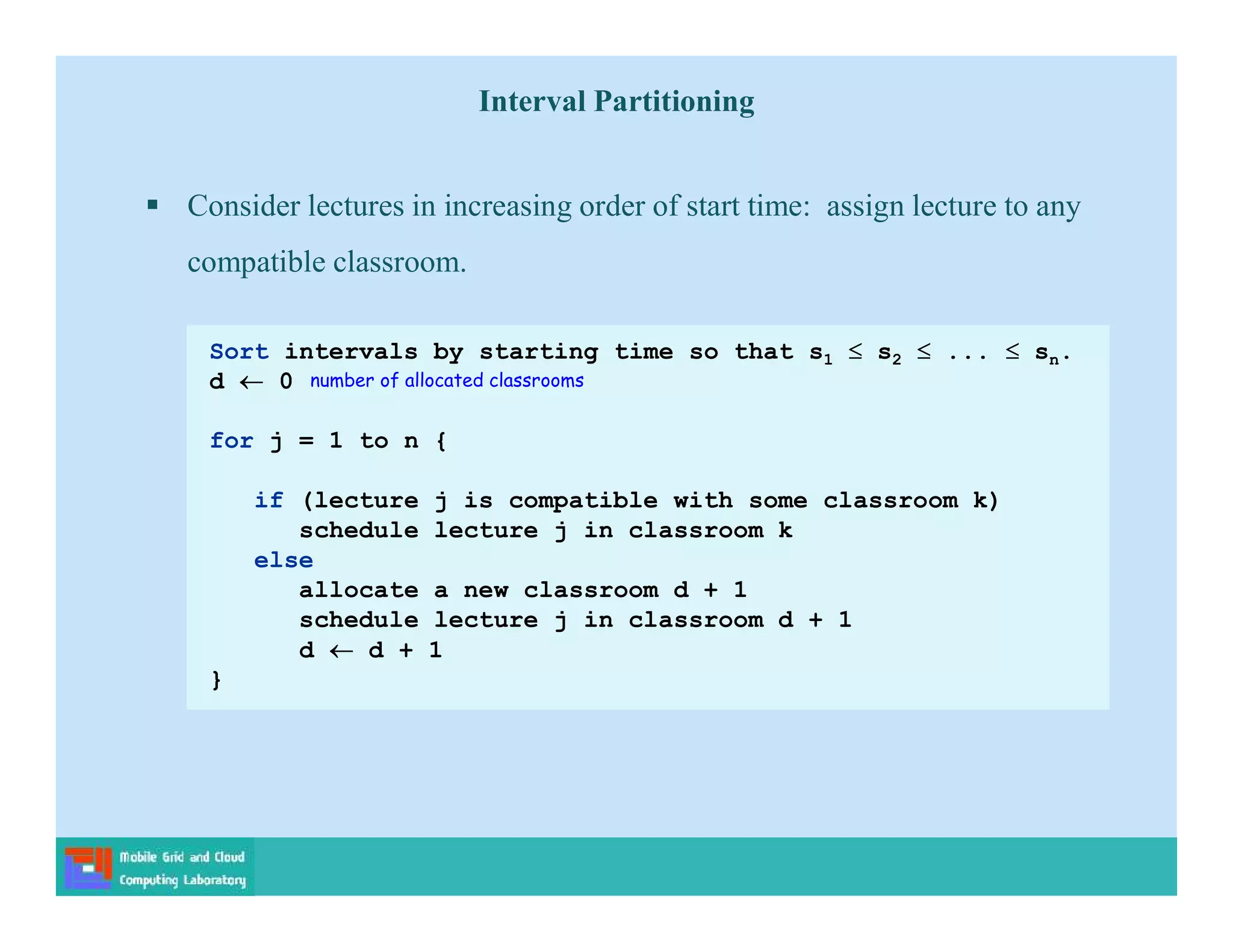

 Consider lectures in increasing order of start time: assign lecture to any
compatible classroom.
Sort intervals by starting time so that s1  s2  ...  sn.
d  0
for j = 1 to n {
if (lecture j is compatible with some classroom k)
schedule lecture j in classroom k
else
allocate a new classroom d + 1
schedule lecture j in classroom d + 1
d  d + 1
}
number of allocated classrooms

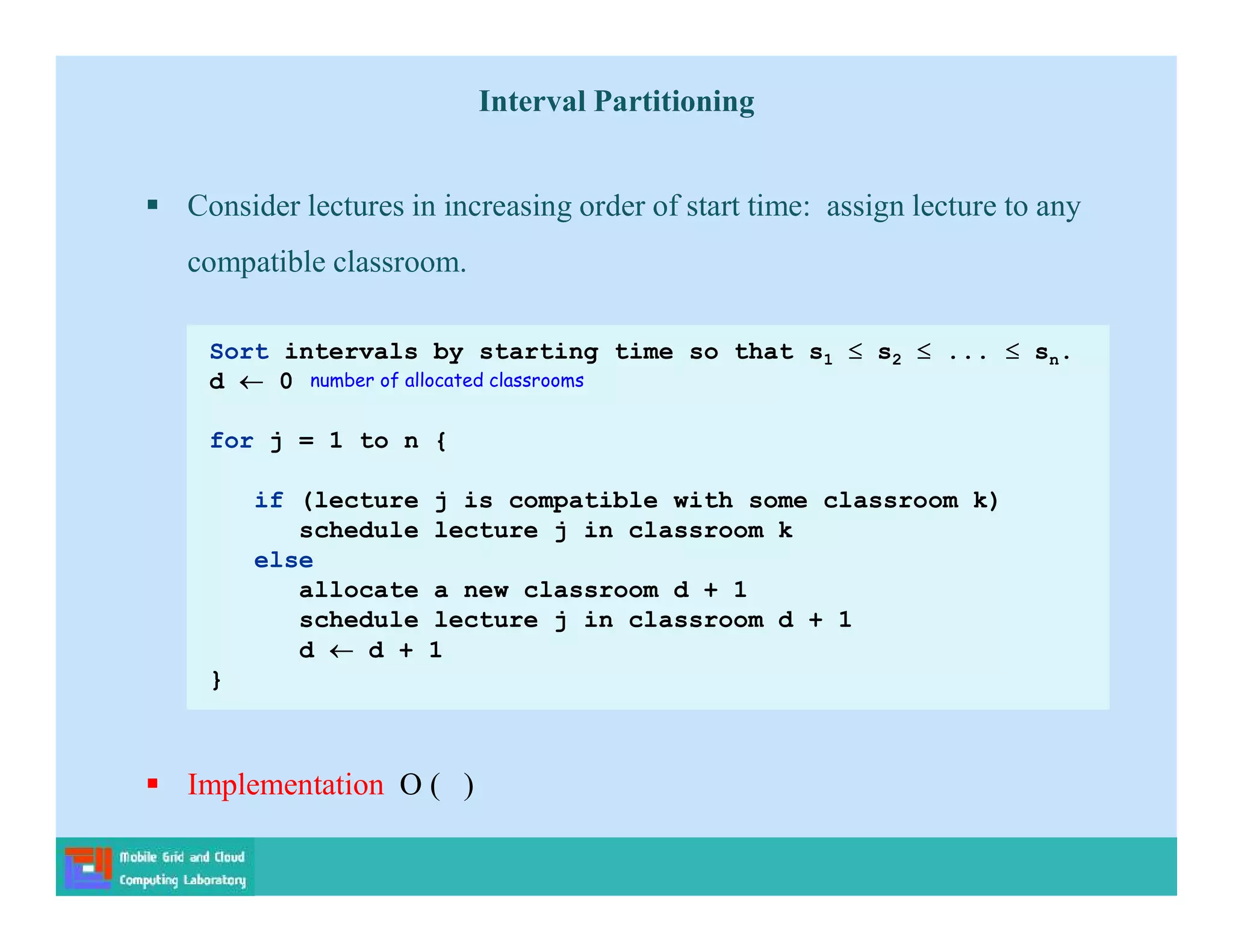

 Consider lectures in increasing order of start time: assign lecture to any
compatible classroom.
 Implementation O ( )
Sort intervals by starting time so that s1  s2  ...  sn.
d  0
for j = 1 to n {
if (lecture j is compatible with some classroom k)
schedule lecture j in classroom k
else
allocate a new classroom d + 1
schedule lecture j in classroom d + 1
d  d + 1
}
number of allocated classrooms

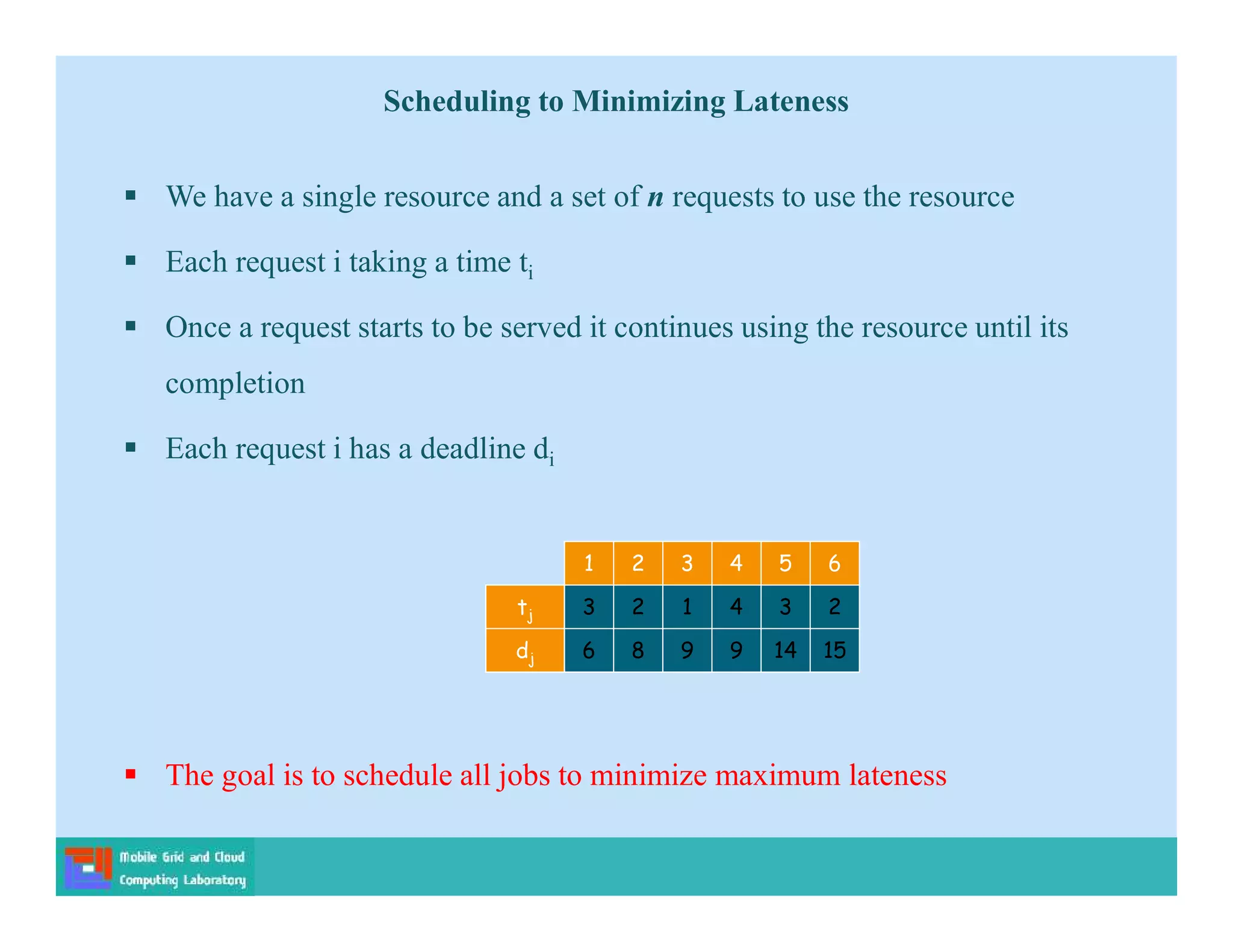

Scheduling to Minimizing Lateness
 We have a single resource and a set of n requests to use the resource
 Each request i taking a time ti
 Once a request starts to be served it continues using the resource until its
completion
 Each request i has a deadline di
 The goal is to schedule all jobs to minimize maximum lateness
dj 6
tj 3
1
8
2
2
9
1
3
9
4
4
14
3
5
15
2
6

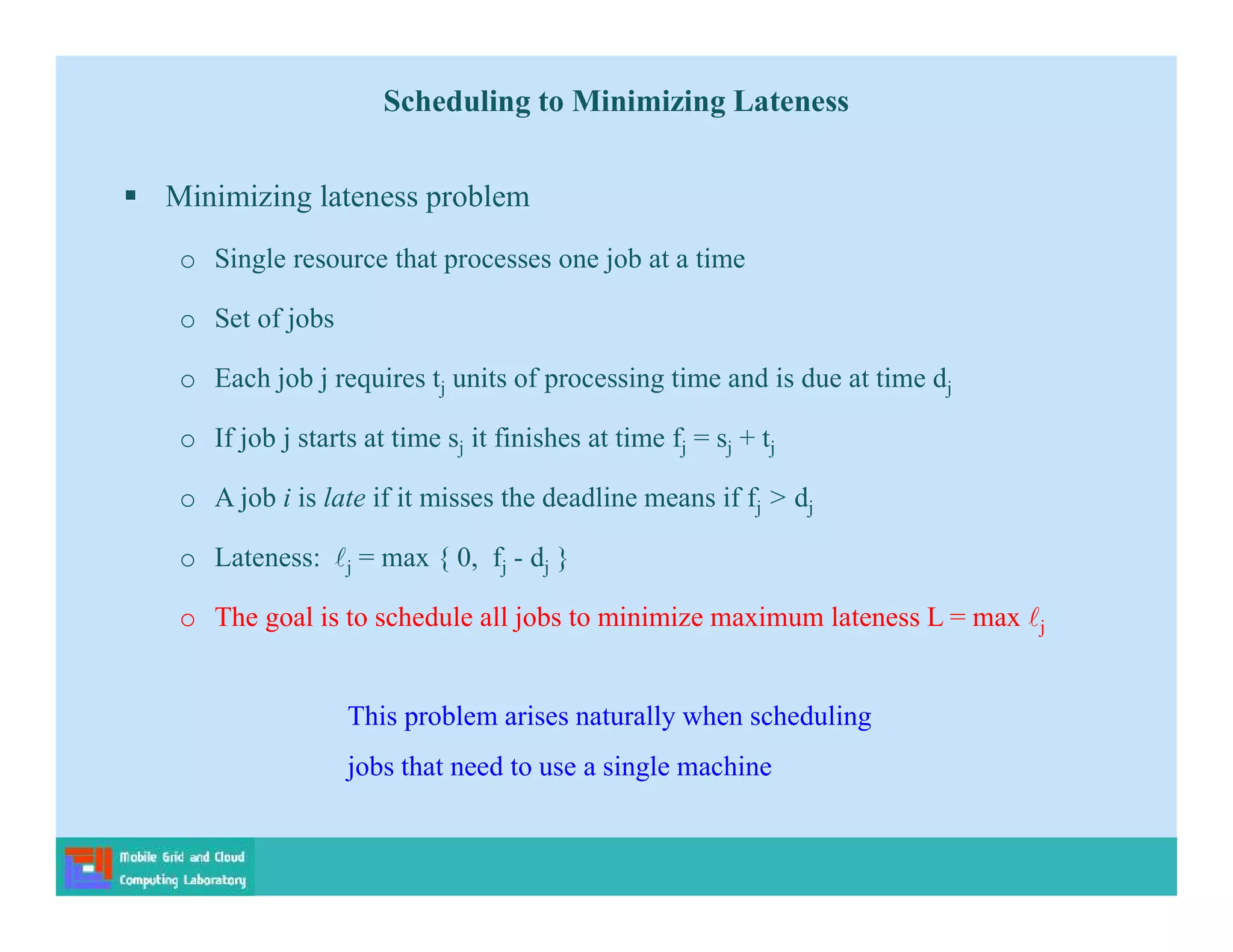

 Minimizing lateness problem
o Single resource that processes one job at a time
o Set of jobs
o Each job j requires tj units of processing time and is due at time dj
o If job j starts at time sj it finishes at time fj = sj + tj
o A job i is late if it misses the deadline means if fj > dj
o Lateness: j = max { 0, fj - dj }
o The goal is to schedule all jobs to minimize maximum lateness L = max j
This problem arises naturally when scheduling
jobs that need to use a single machine

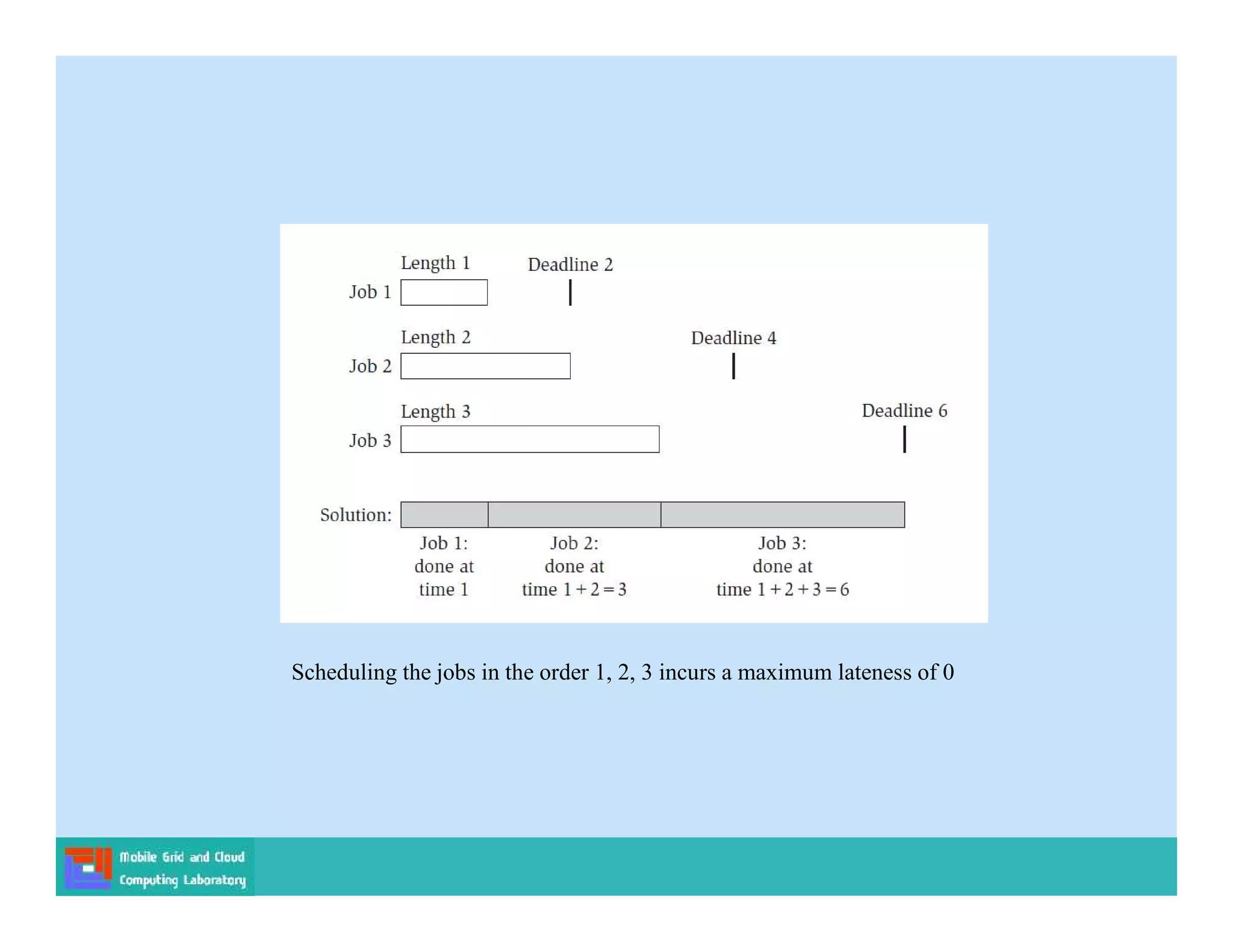

Scheduling the jobs in the order 1, 2, 3 incurs a maximum lateness of 0

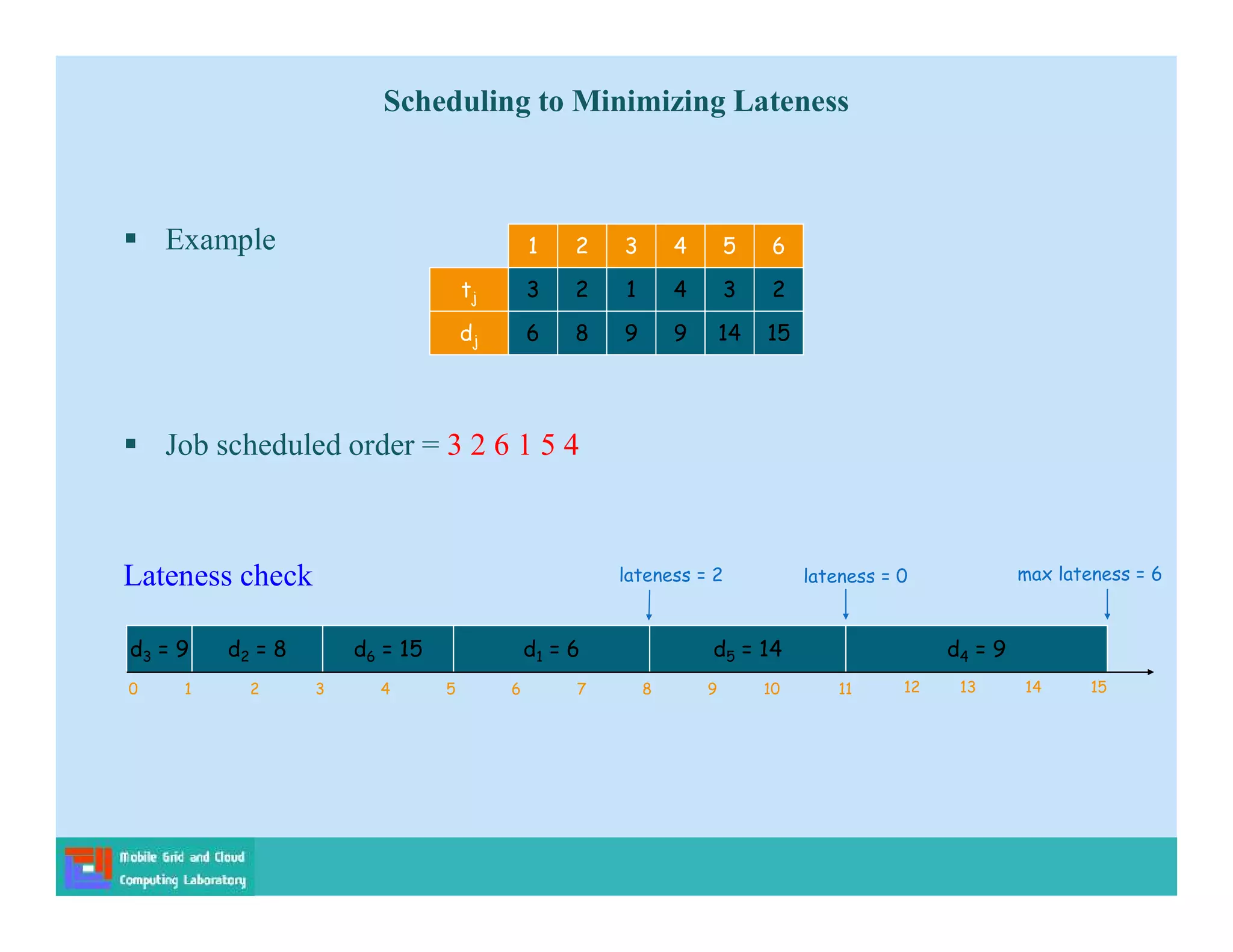

 Example
 Job scheduled order = 3 2 6 1 5 4
Lateness check
dj 6
tj 3
1
8
2
2
9
1
3
9
4
4
14
3
5
15
2
6
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
d5 = 14
d2 = 8 d6 = 15 d1 = 6 d4 = 9
d3 = 9
lateness = 0
lateness = 2 max lateness = 6

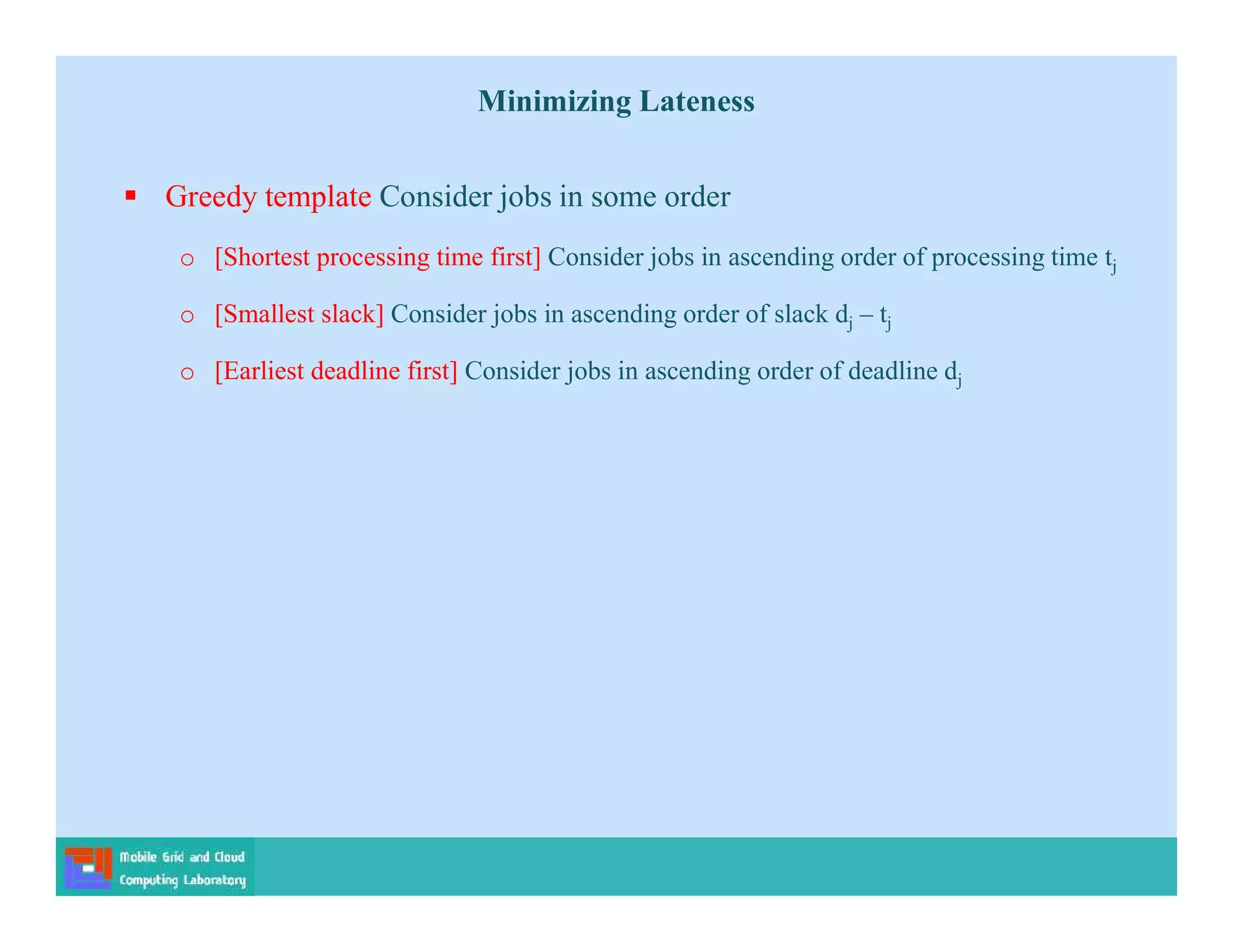

Minimizing Lateness
 Greedy template Consider jobs in some order
o [Shortest processing time first] Consider jobs in ascending order of processing time tj
o [Smallest slack] Consider jobs in ascending order of slack dj – tj
o [Earliest deadline first] Consider jobs in ascending order of deadline dj

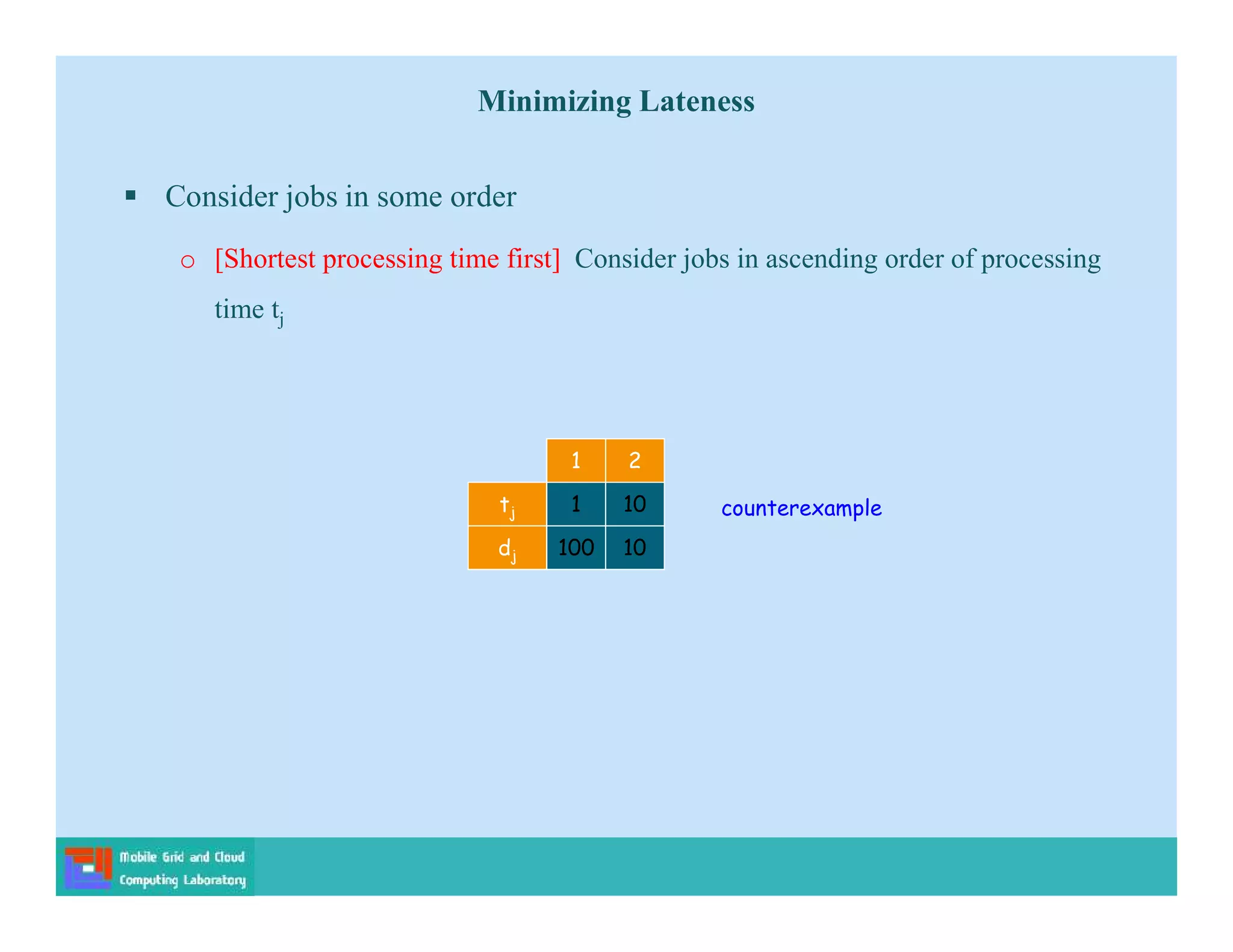

 Consider jobs in some order
o [Shortest processing time first] Consider jobs in ascending order of processing
time tj
counterexample
dj
tj
100
1
1
10
10
2
Minimizing Lateness

 The ones that need to be started with minimal delay
counterexample
dj
tj
2
1
1
10
10
2

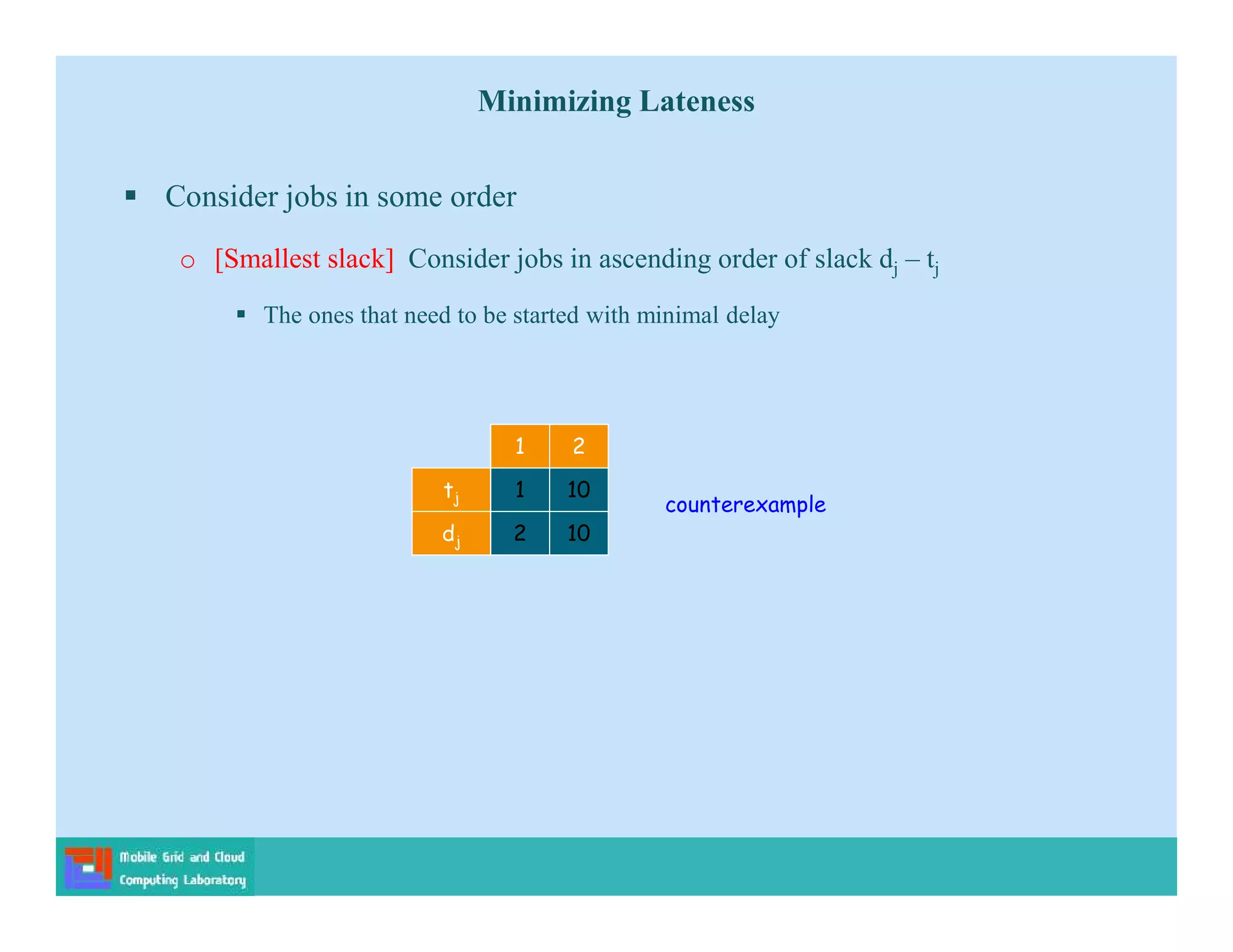

Minimizing Lateness

 The ones that need to be started with minimal delay
counterexample
dj
tj
2
1
1
10
10
2

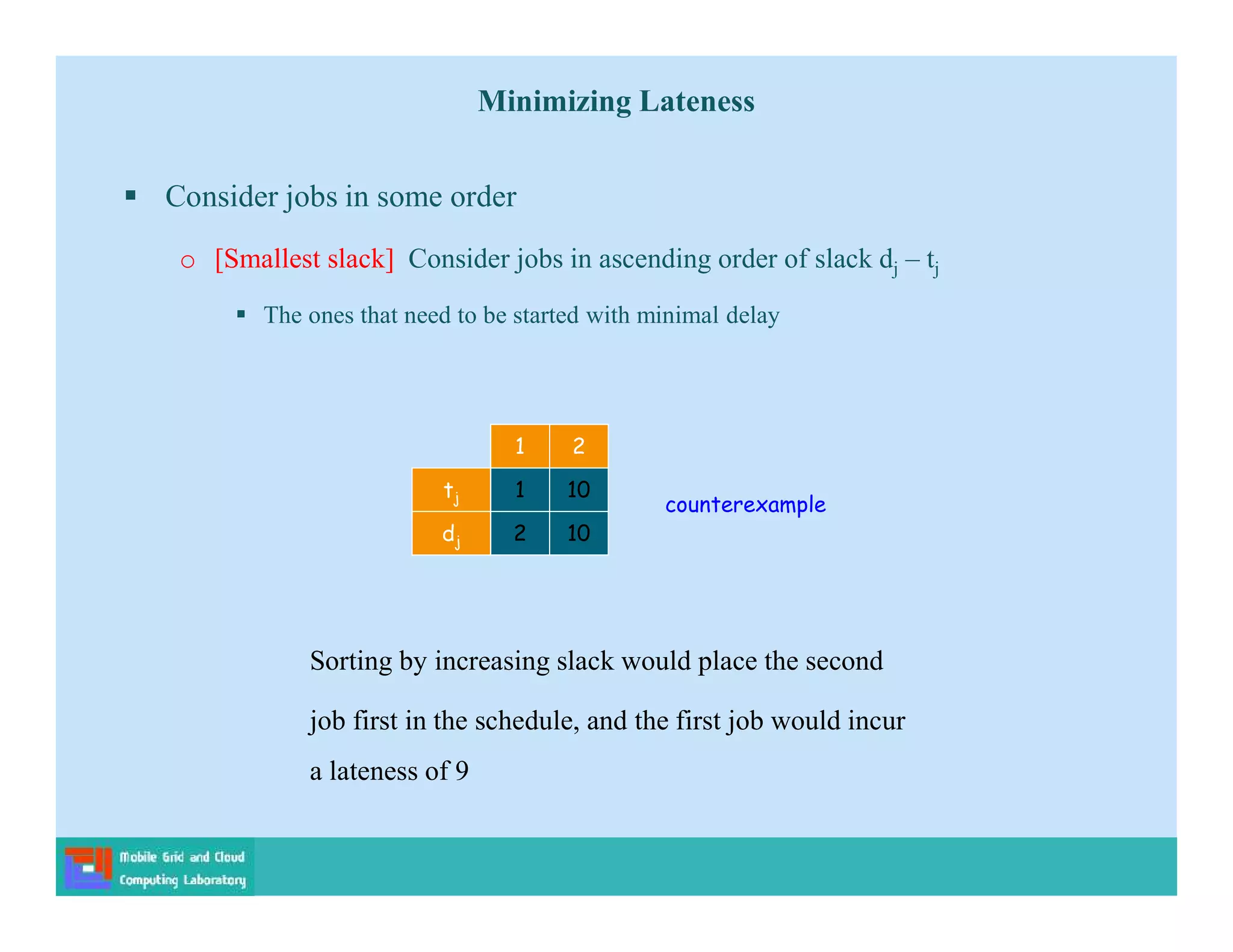

Minimizing Lateness
Sorting by increasing slack would place the second
job first in the schedule, and the first job would incur
a lateness of 9

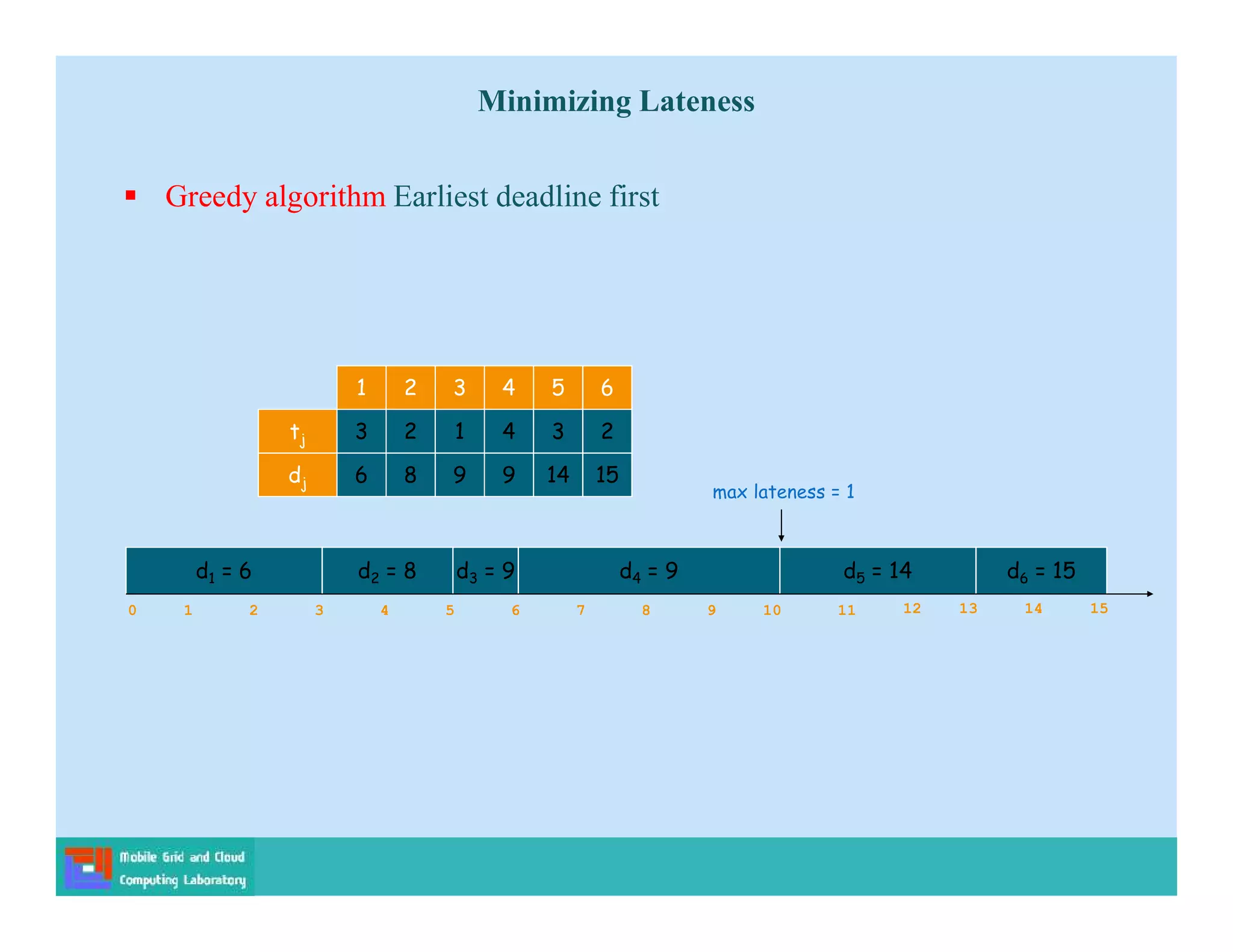

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
d5 = 14
d2 = 8 d6 = 15
d1 = 6 d4 = 9
d3 = 9
max lateness = 1
Minimizing Lateness
 Greedy algorithm Earliest deadline first
dj 6
tj 3
1
8
2
2
9
1
3
9
4
4
14
3
5
15
2
6

Sort n jobs by deadline so that d1  d2  …  dn
t  0
for j = 1 to n
Assign job j to interval [t, t + tj]
sj  t, fj  t + tj
t  t + tj
output intervals [sj, fj]

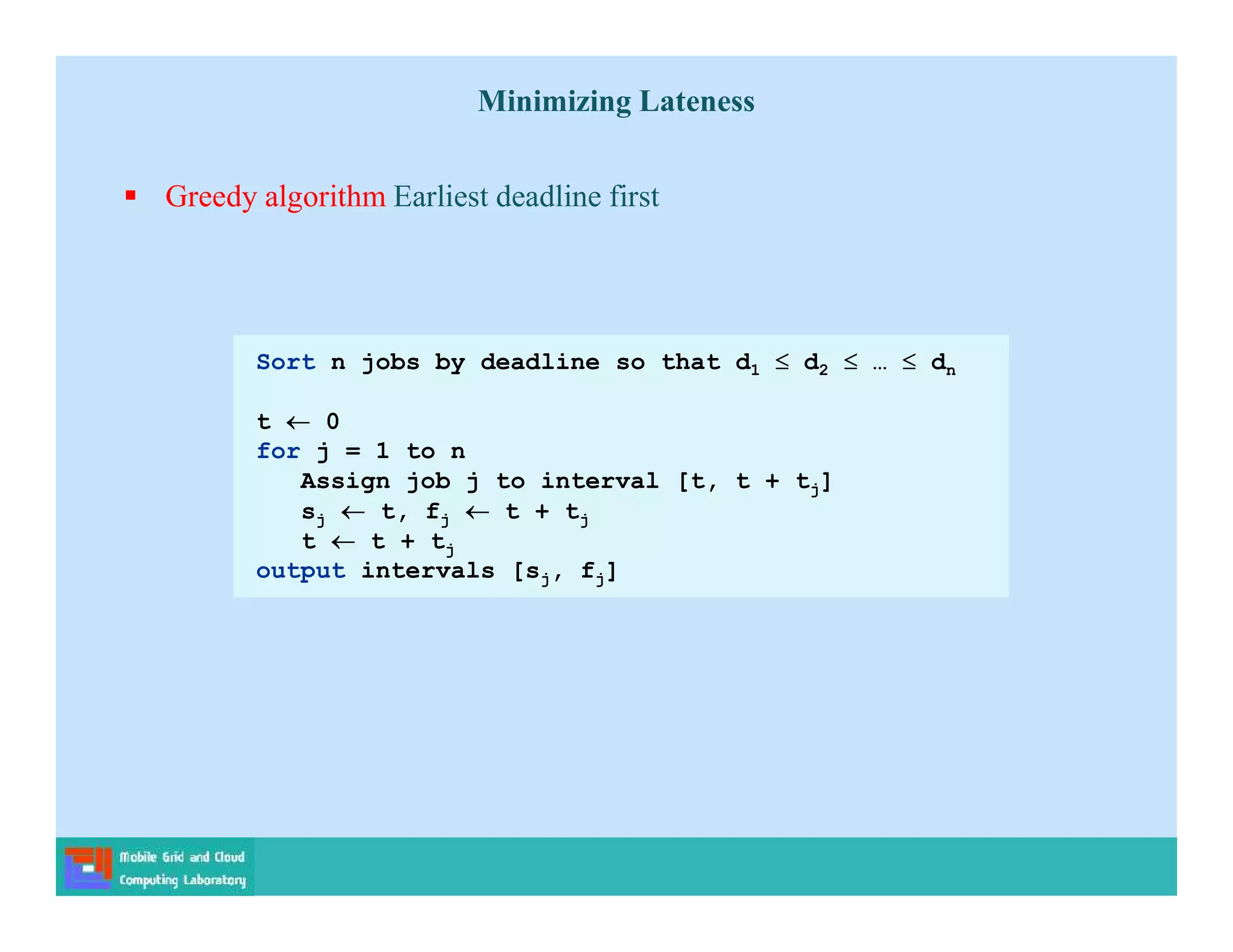

Minimizing Lateness
 Greedy algorithm Earliest deadline first

Shortest Paths in a Graph
shortest path from Princeton CS department to Einstein's house

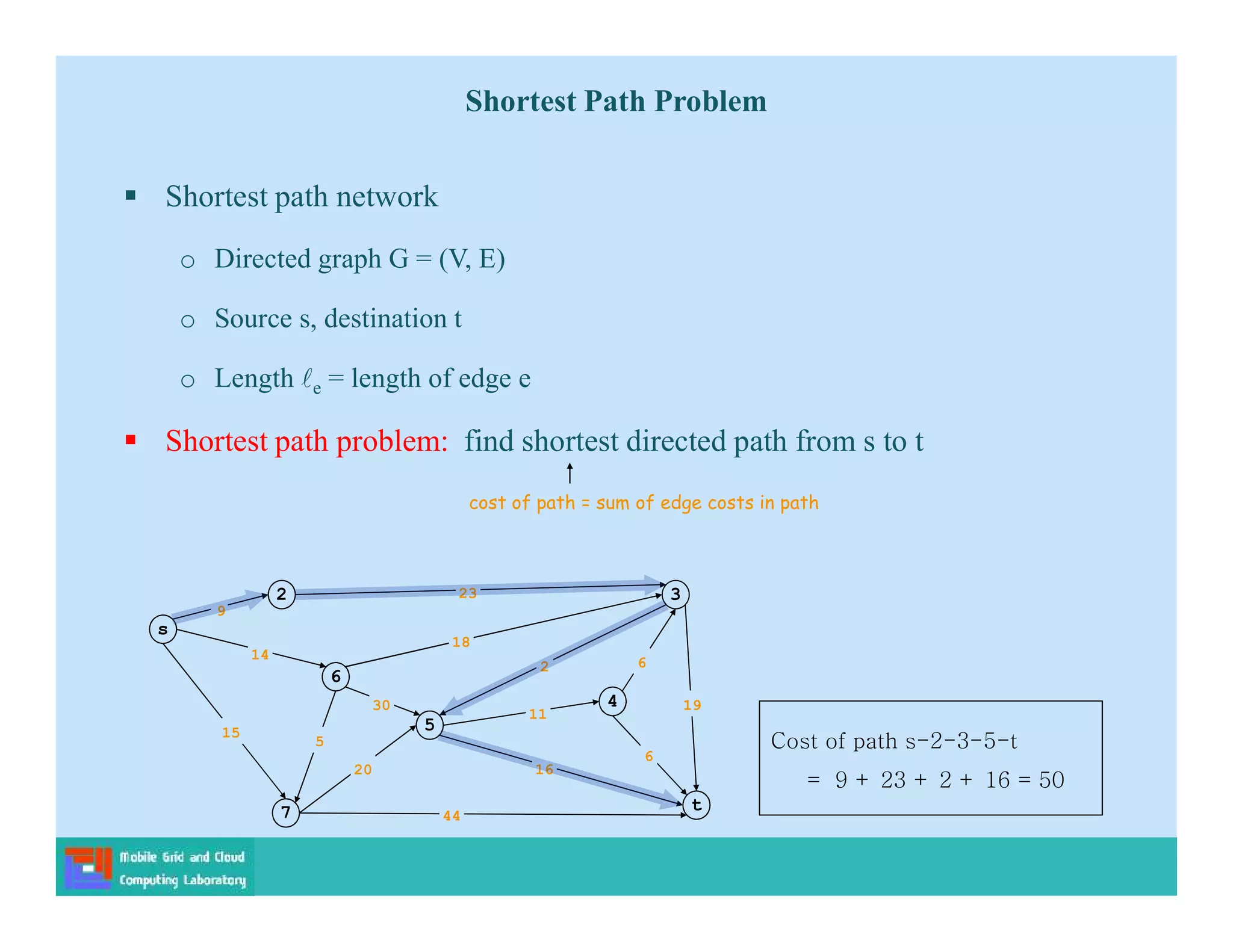

Shortest Path Problem
 Shortest path network
o Directed graph G = (V, E)
o Source s, destination t
o Length e = length of edge e
 Shortest path problem: find shortest directed path from s to t
cost of path = sum of edge costs in path
s
3
t
2
6
7
4
5
23
18
2
9
14
15
5
30
20
44
16
11
6
19
6
Cost of path s-2-3-5-t
= 9 + 23 + 2 + 16 = 50

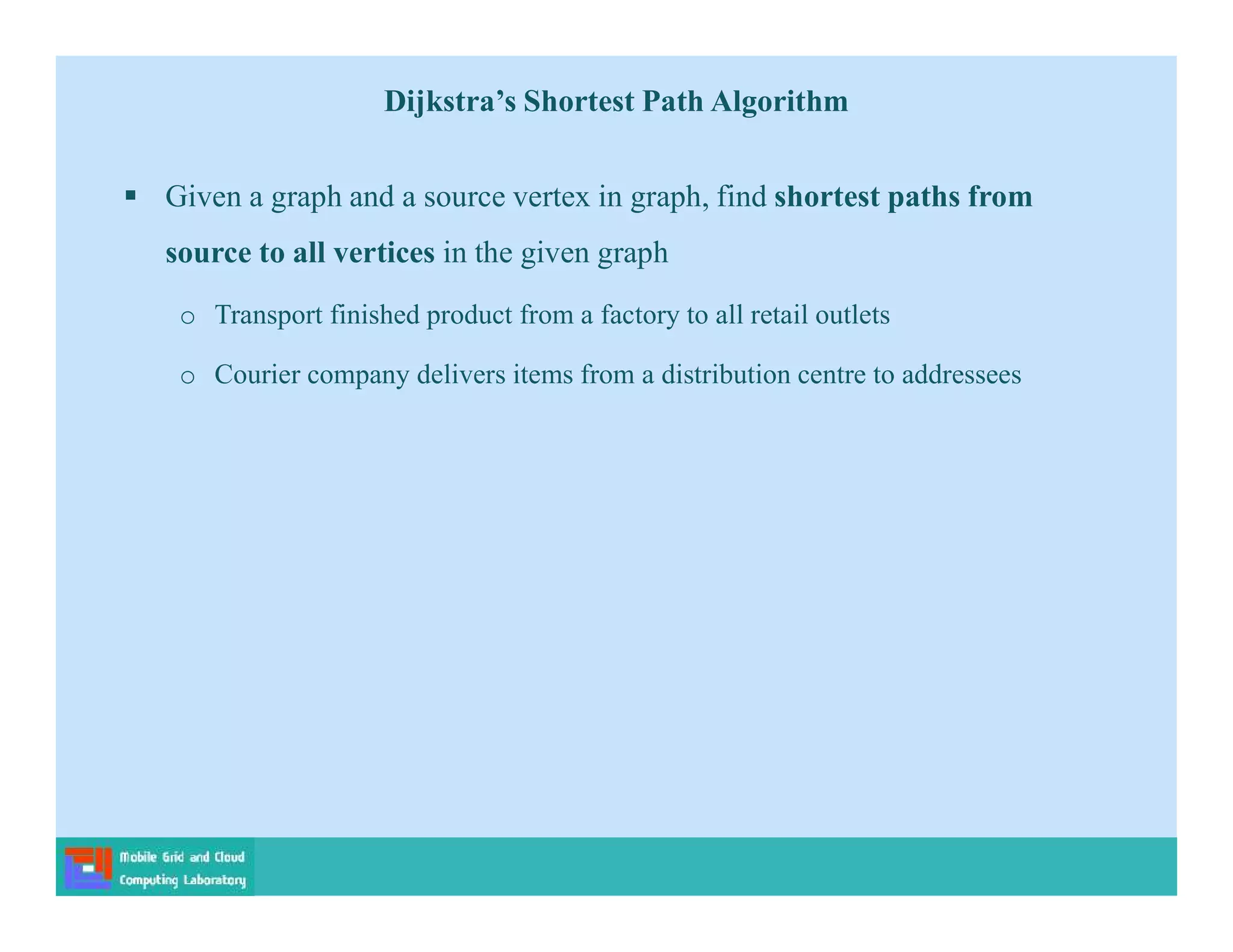

 Given a graph and a source vertex in graph, find shortest paths from
source to all vertices in the given graph
o Transport finished product from a factory to all retail outlets
o Courier company delivers items from a distribution centre to addressees

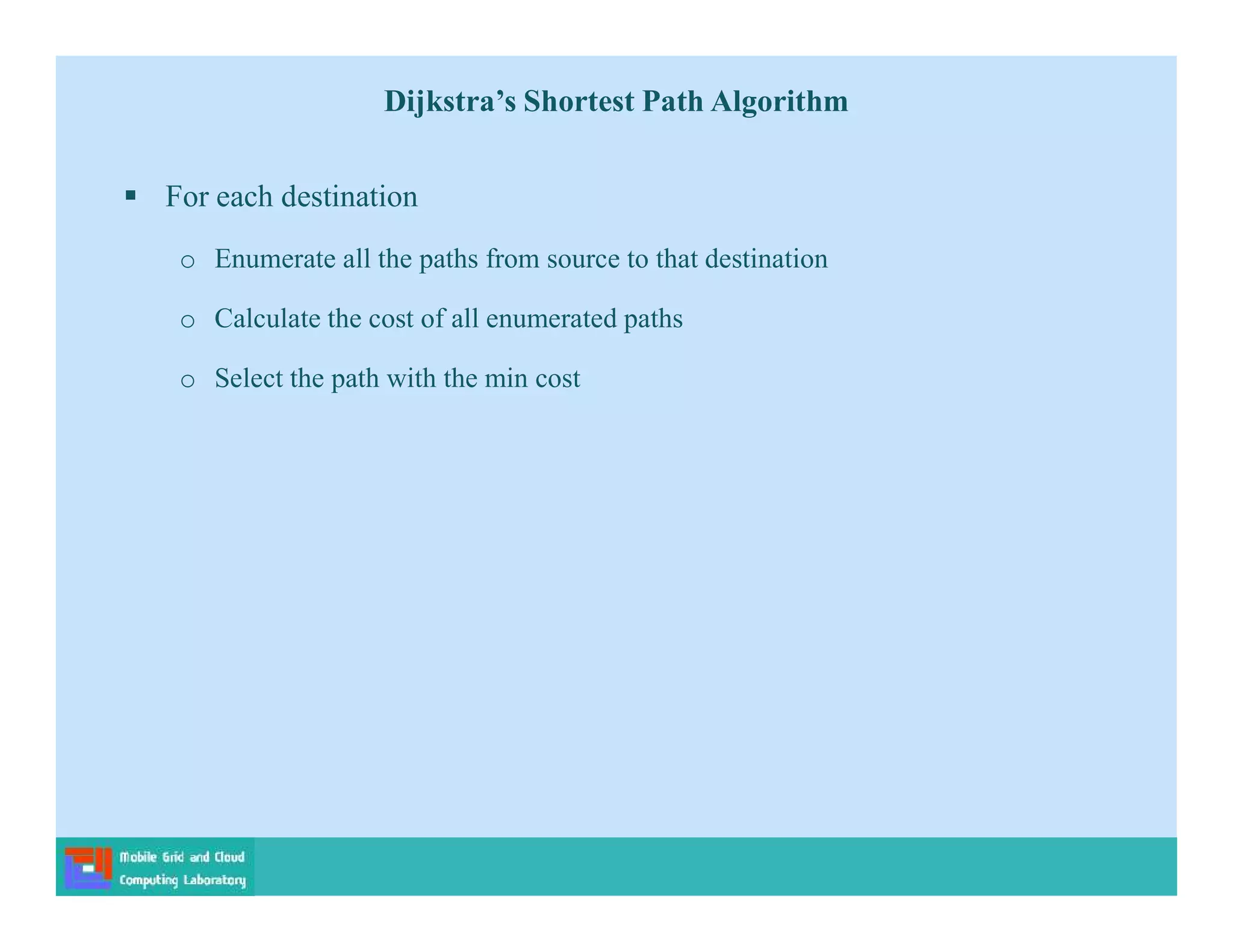

Dijkstra’s Shortest Path Algorithm

 For each destination
o Enumerate all the paths from source to that destination
o Calculate the cost of all enumerated paths
o Select the path with the min cost

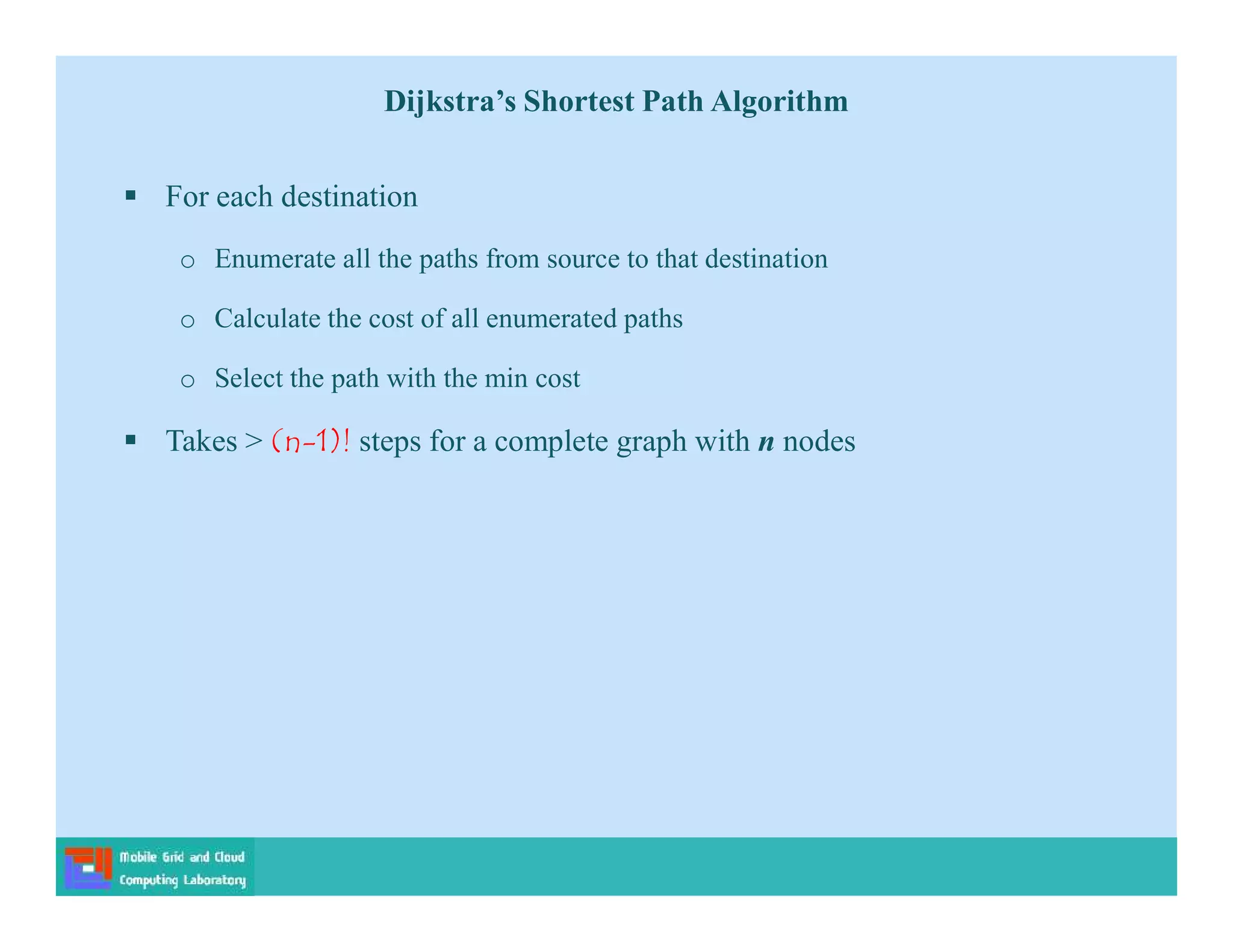

 For each destination
o Enumerate all the paths from source to that destination
o Calculate the cost of all enumerated paths
o Select the path with the min cost
 Takes > (n-1)! steps for a complete graph with n nodes

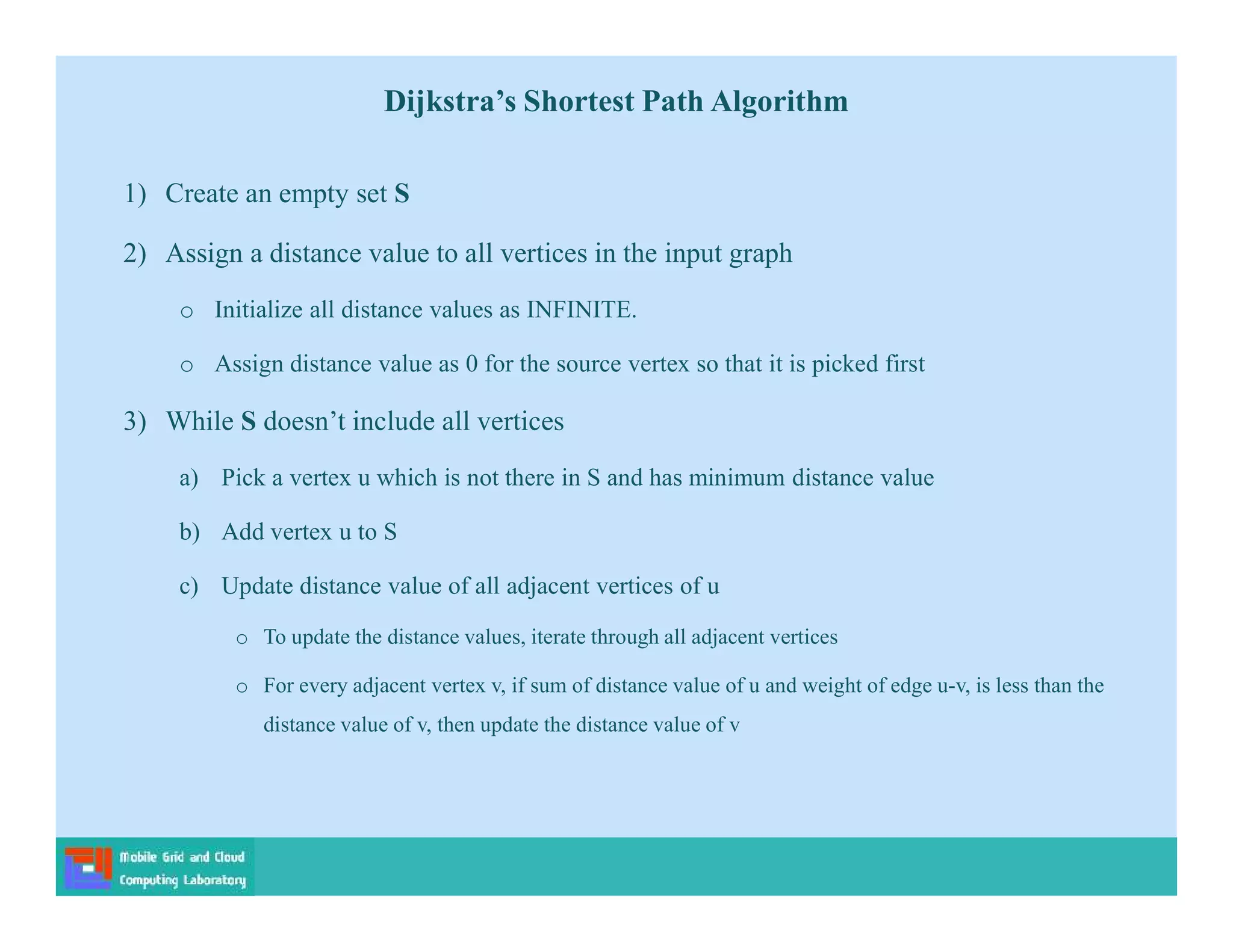

1) Create an empty set S
2) Assign a distance value to all vertices in the input graph
o Initialize all distance values as INFINITE.
o Assign distance value as 0 for the source vertex so that it is picked first
3) While S doesn’t include all vertices
a) Pick a vertex u which is not there in S and has minimum distance value
b) Add vertex u to S
c) Update distance value of all adjacent vertices of u
o To update the distance values, iterate through all adjacent vertices
o For every adjacent vertex v, if sum of distance value of u and weight of edge u-v, is less than the
distance value of v, then update the distance value of v

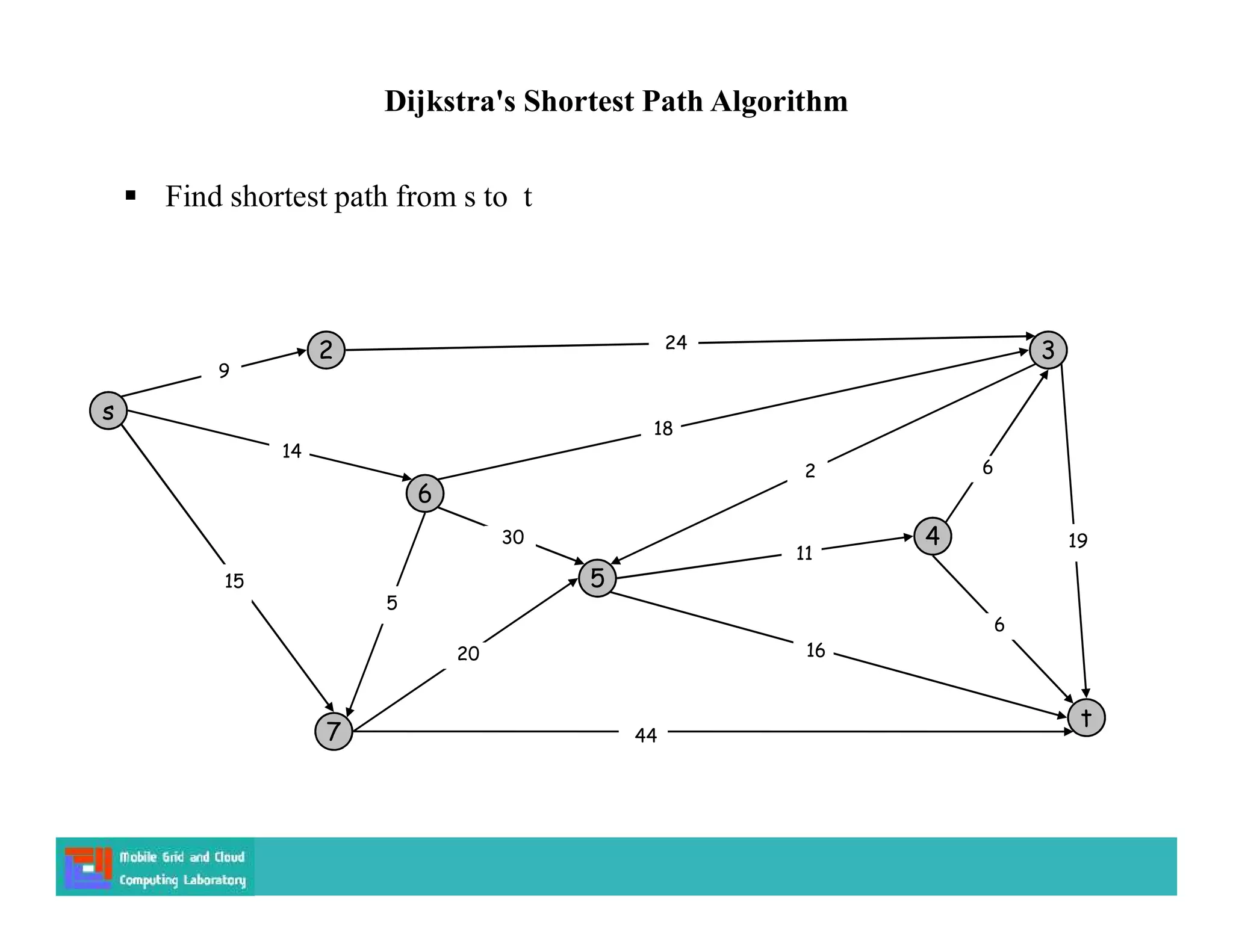

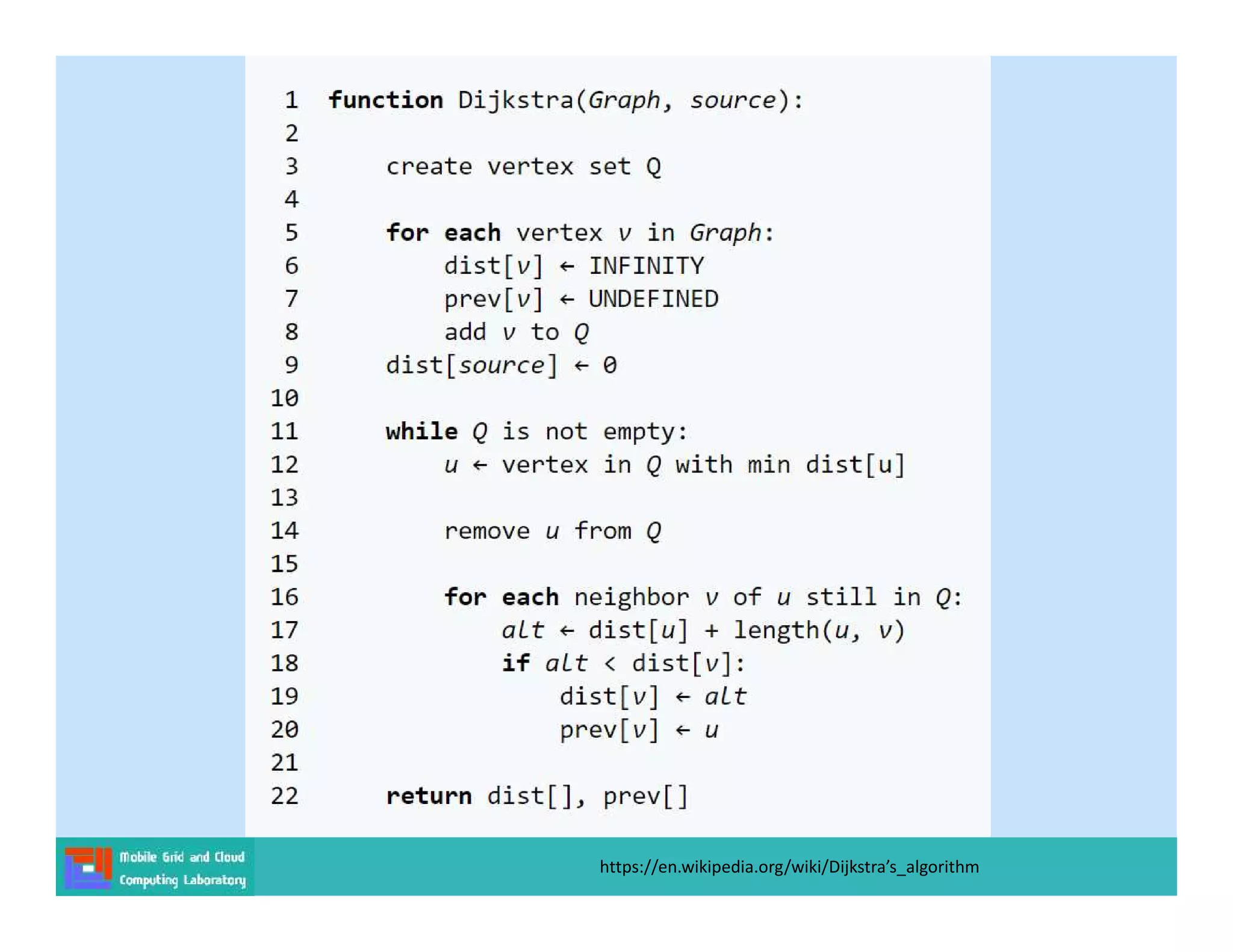

Dijkstra's Shortest Path Algorithm

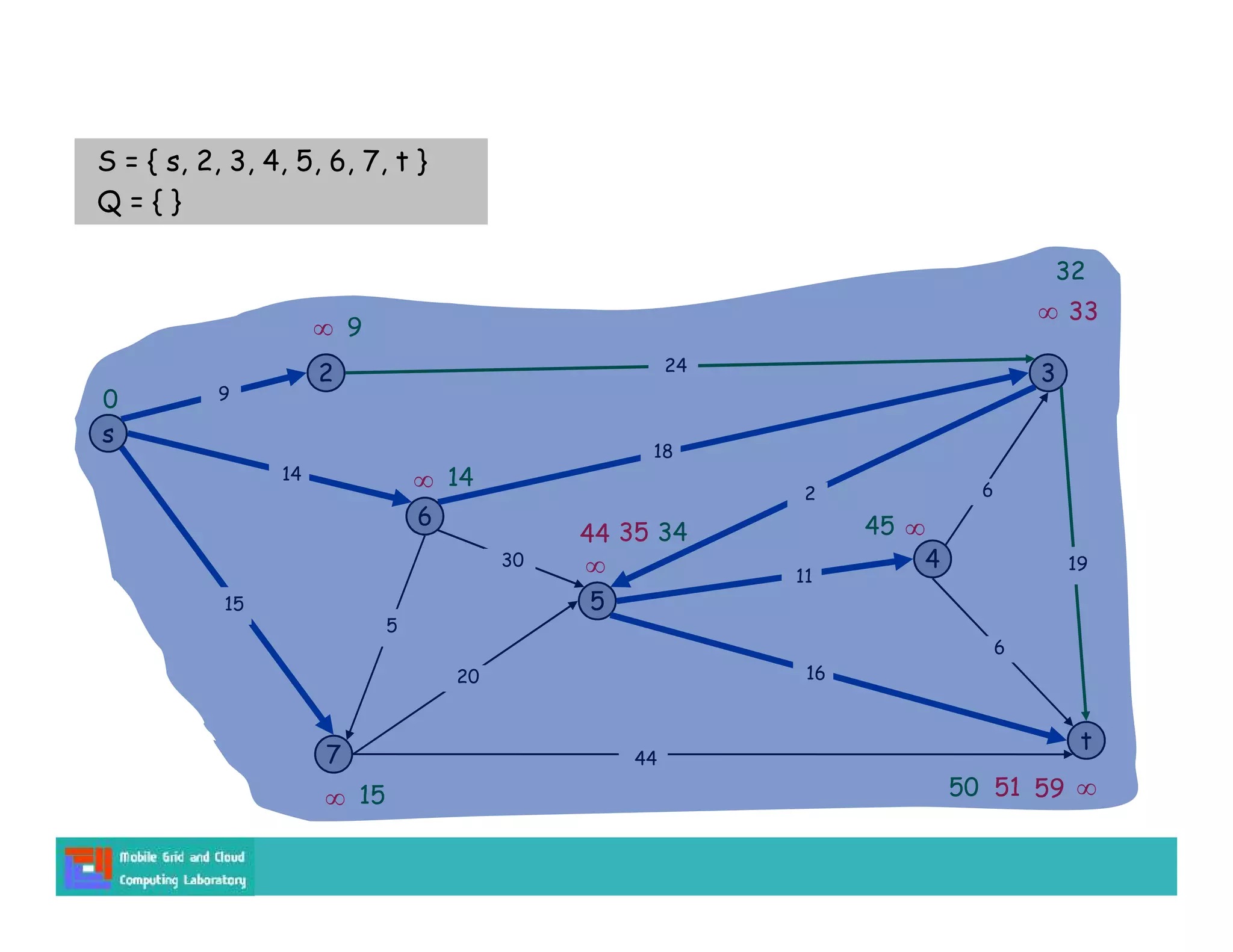

 Find shortest path from s to t
s
3
t
2
6
7
4
5
24
18
2
9
14
15
5
30
20
44
16
11
6
19
6

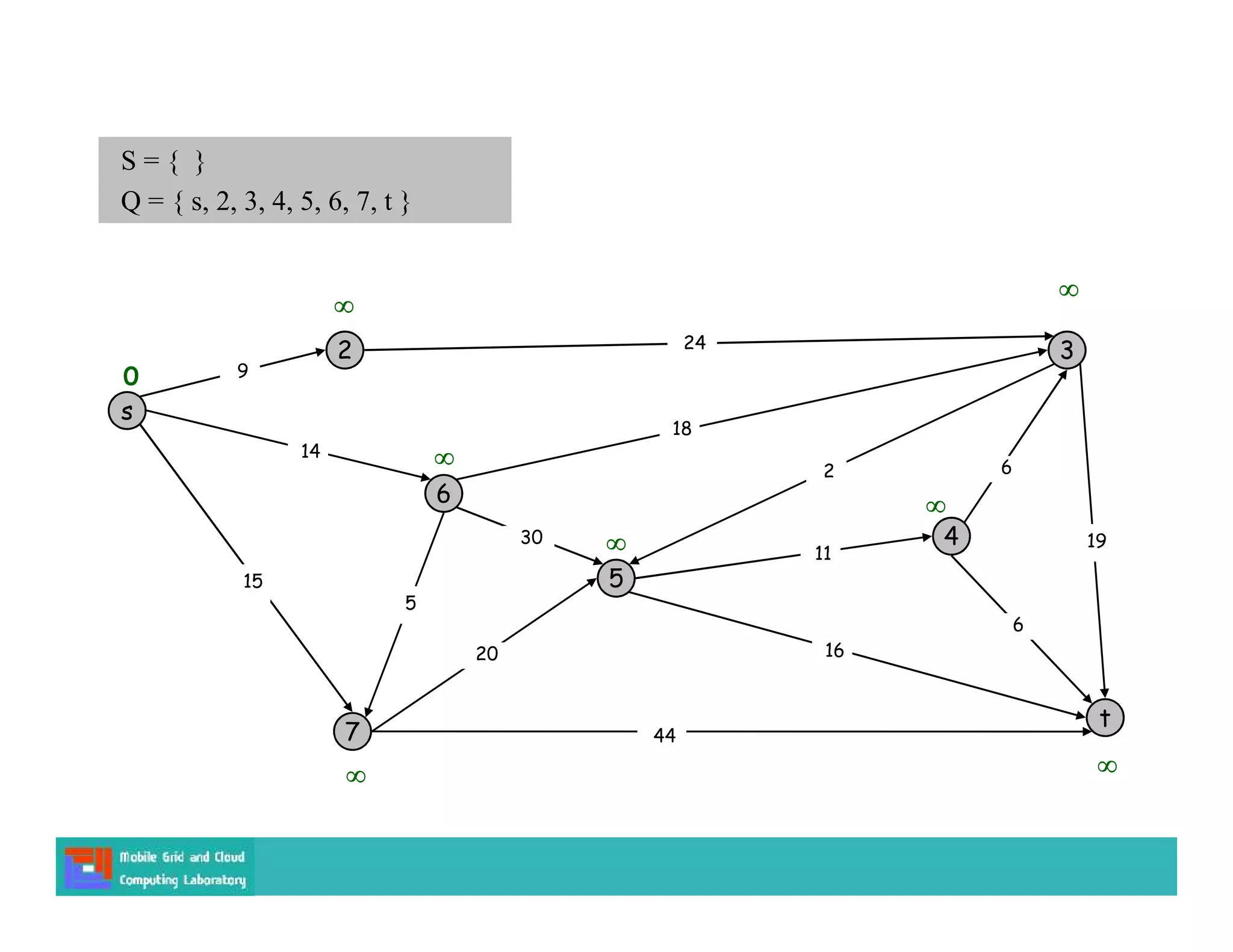

s
3
t
2
6
7
4
5
24
18
2
9
14
15
5
30
20
44
16
11
6
19
6







0
S = { }
Q = { s, 2, 3, 4, 5, 6, 7, t }

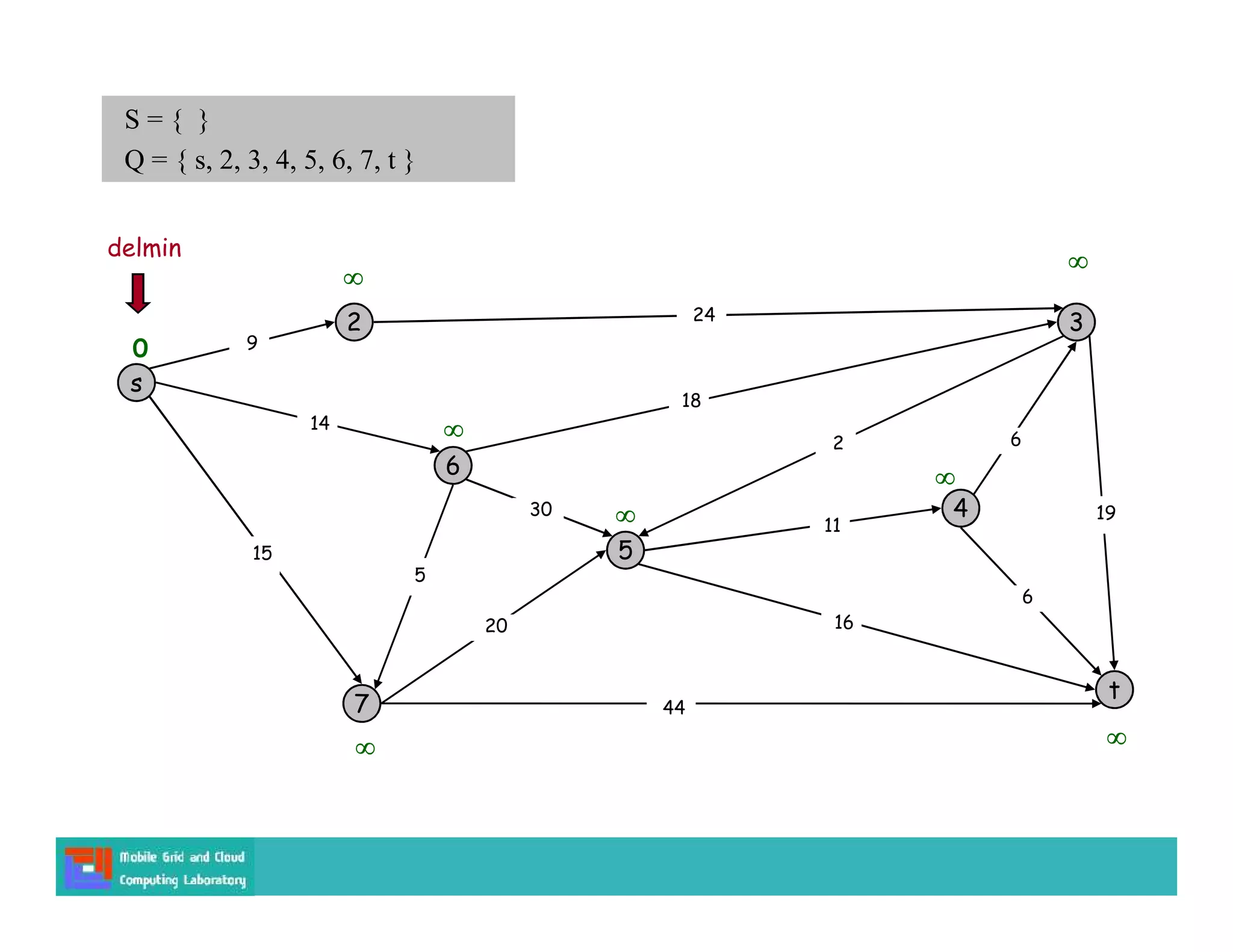

s
3
t
2
6
7
4
5
24
18
2
9
14
15
5
30
20
44
16
11
6
19
6







0
S = { }
Q = { s, 2, 3, 4, 5, 6, 7, t }
delmin

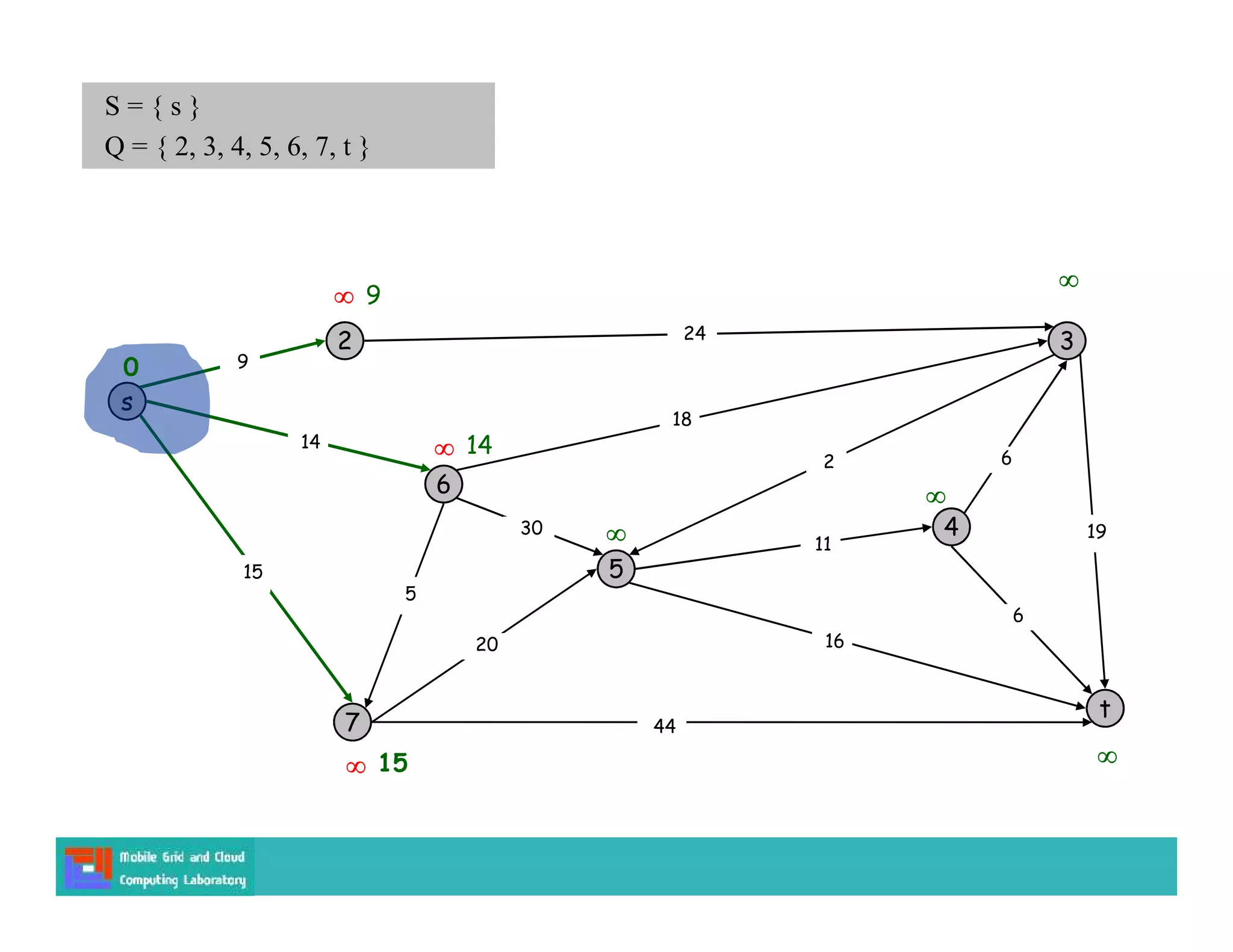

s
3
t
2
6
7
4
5
24
18
2
9
14
15
5
30
20
44
16
11
6
19
6
15
9



14

0
S = { s }
Q = { 2, 3, 4, 5, 6, 7, t }




s
3
t
2
6
7
4
5
24
18
2
9
14
15
5
30
20
44
16
11
6
19
6
15
9



14

0
S = { s }
Q = { 2, 3, 4, 5, 6, 7, t }



delmin

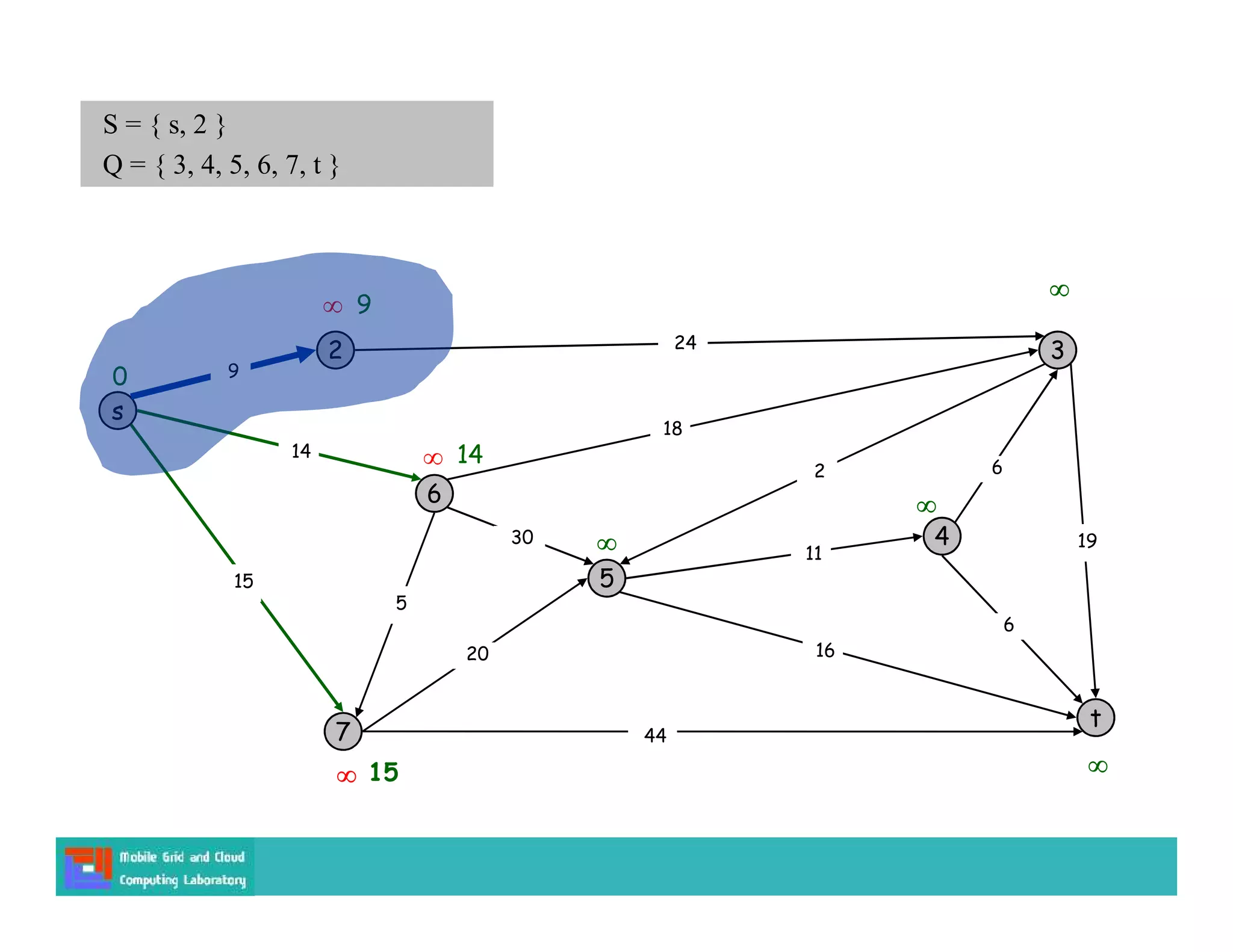

s
3
t
2
6
7
4
5
24
18
2
9
14
15
5
30
20
44
16
11
6
19
6
15
9



14

0
S = { s, 2 }
Q = { 3, 4, 5, 6, 7, t }




s
3
t
2
6
7
4
5
24
18
2
9
14
15
5
30
20
44
16
11
6
19
6
15
9



14

0
S = { s, 2 }
Q = { 3, 4, 5, 6, 7, t }



33

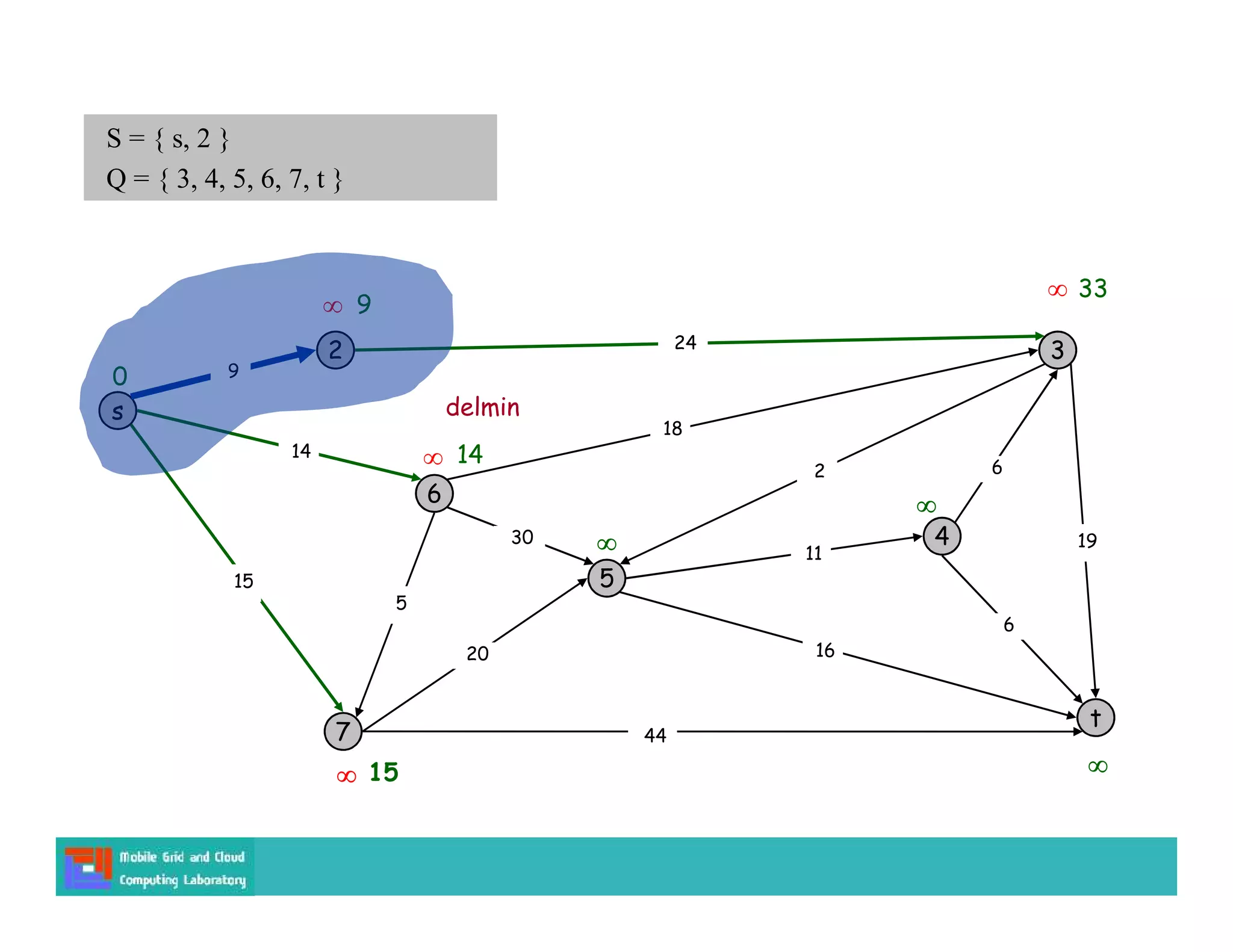

s
3
t
2
6
7
4
5
24
18
2
9
14
15
5
30
20
44
16
11
6
19
6
15
9



14

0
S = { s, 2 }
Q = { 3, 4, 5, 6, 7, t }



33
delmin

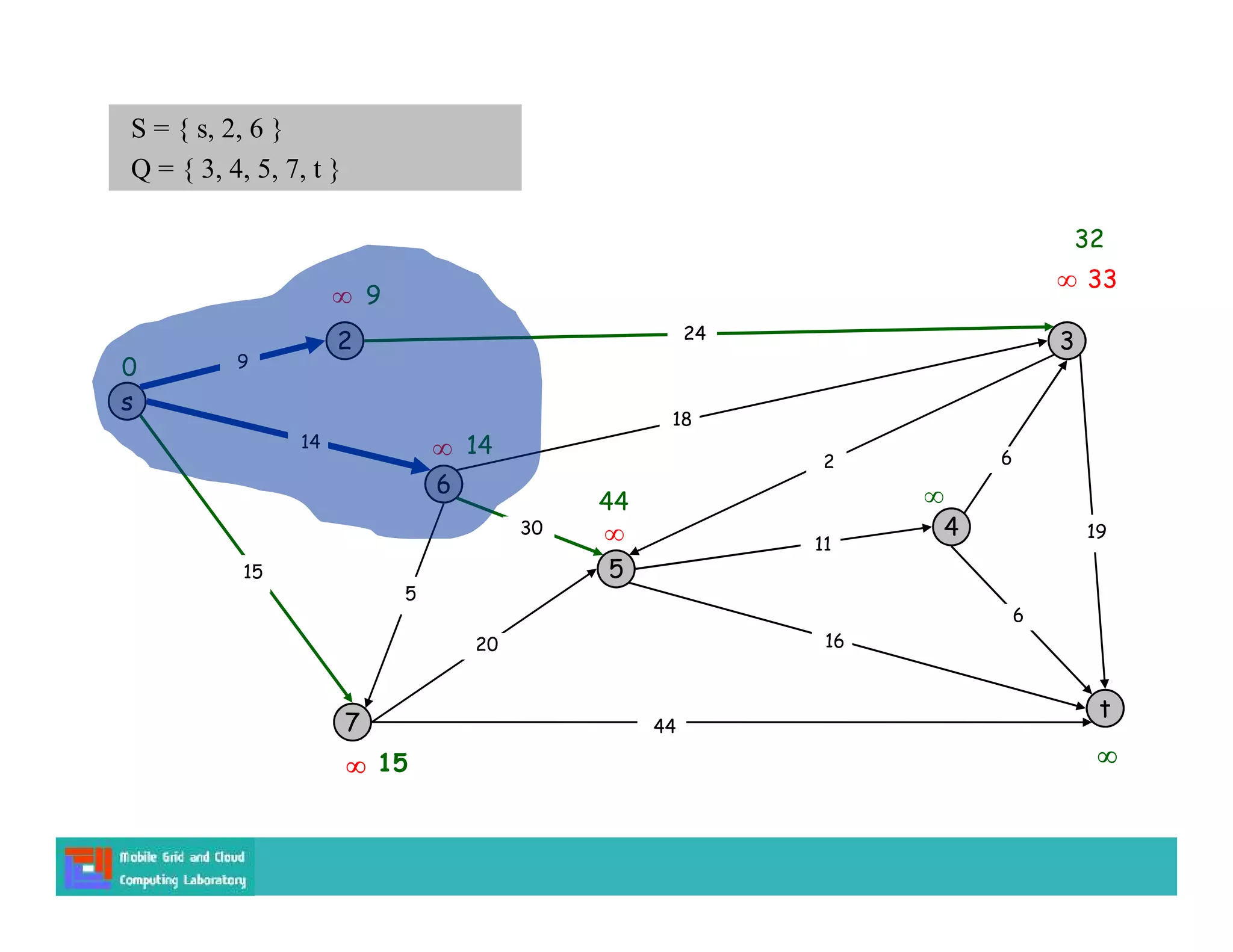

s
3
t
2
6
7
4
5
24
18
2
9
14
15
5
30
20
44
16
11
6
19
6
15
9



14

0
S = { s, 2, 6 }
Q = { 3, 4, 5, 7, t }



33
44
32

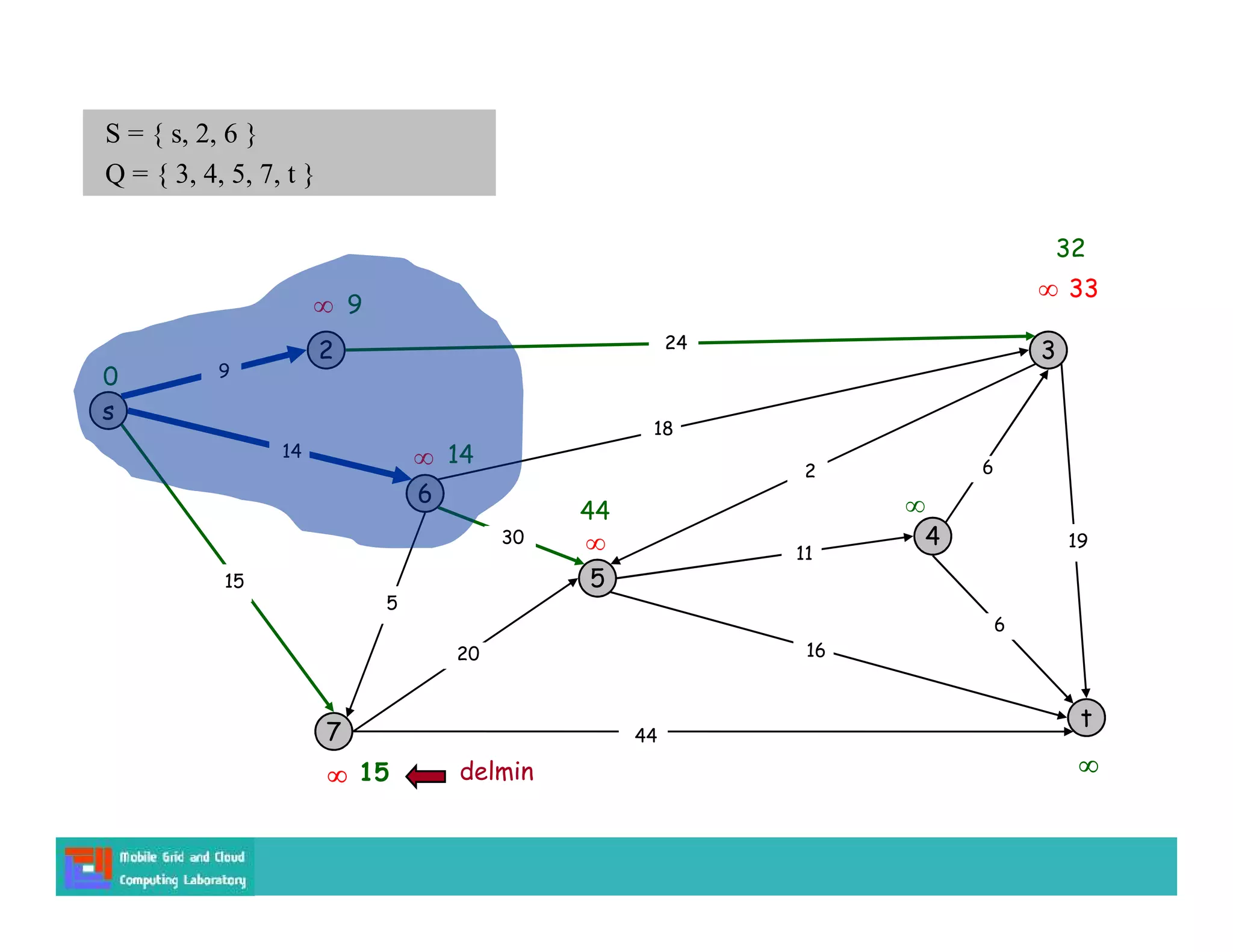

s
3
t
2
6
7
4
5
24
18
2
9
14
15
5
30
20
44
16
11
6
19
6
15
9


14

0
S = { s, 2, 6 }
Q = { 3, 4, 5, 7, t }



44
delmin

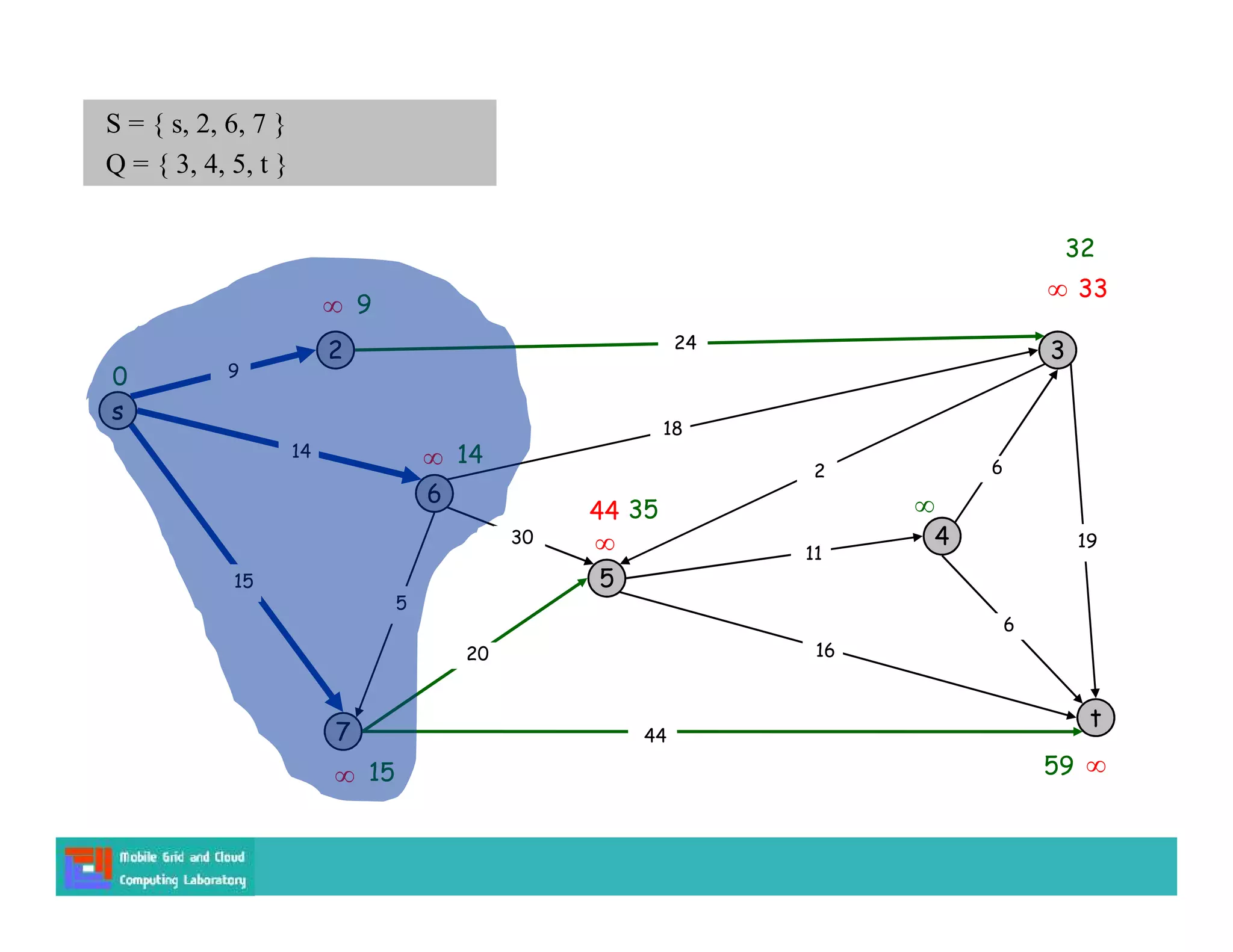

 33
32

s
3
t
2
6
7
4
5
18
2
9
14
15
5
30
20
44
16
11
6
19
6
15
9


14

0
S = { s, 2, 6, 7 }
Q = { 3, 4, 5, t }



44 35
59
24
 33
32

s
3
t
2
6
7
4
5
24
18
2
9
14
15
5
30
20
44
16
11
6
19
6
15
9


14

0
S = { s, 2, 6, 7 }
Q = { 3, 4, 5, t }



44 35
59
delmin
 33
32

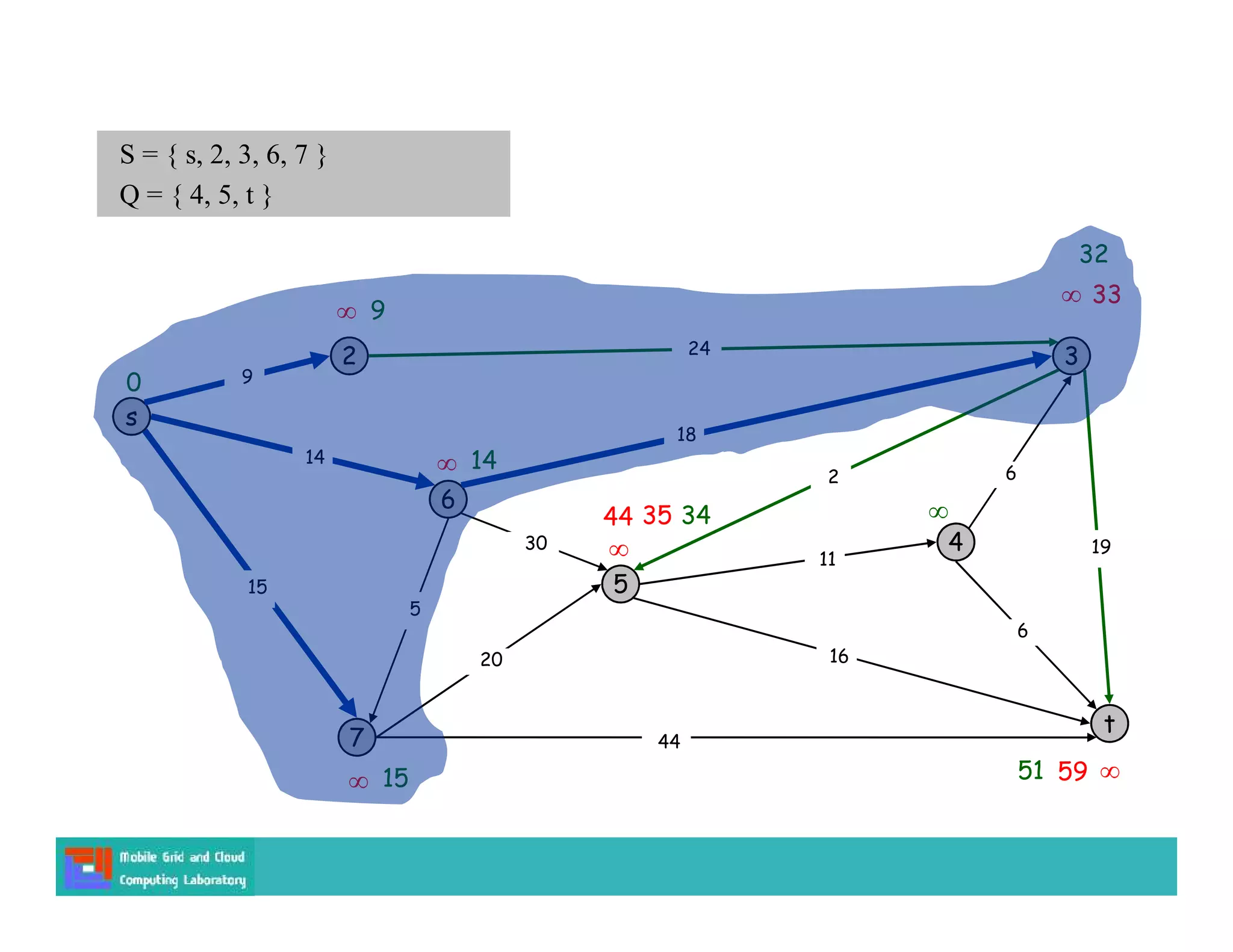

s
3
t
2
6
7
4
5
24
18
2
9
14
15
5
30
20
44
16
11
6
19
6
15
9


14

0
S = { s, 2, 3, 6, 7 }
Q = { 4, 5, t }



44 35
59
51
34
 33
32

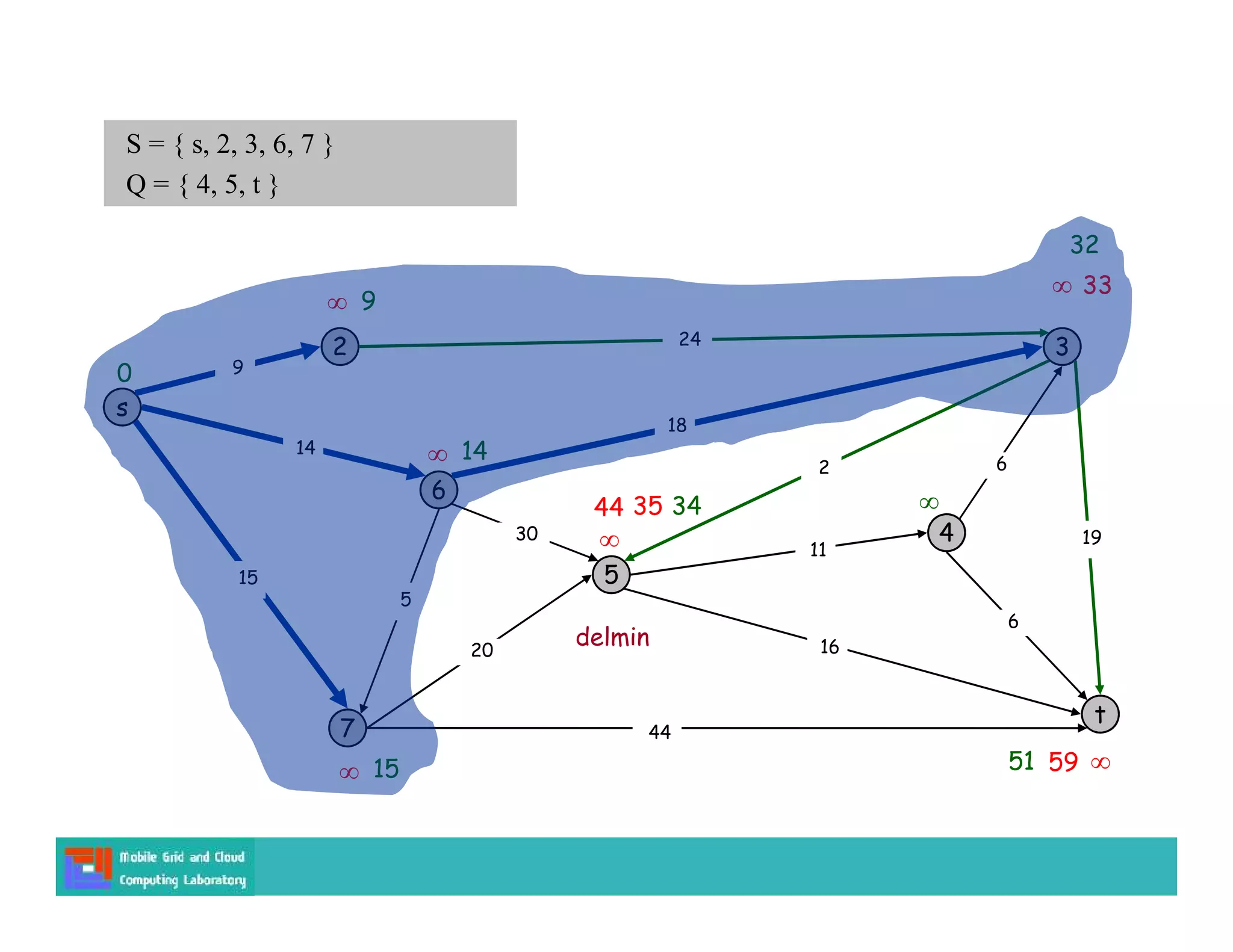

s
3
t
2
6
7
4
5
18
2
9
14
15
5
30
20
44
16
11
6
19
6
15
9


14

0
S = { s, 2, 3, 6, 7 }
Q = { 4, 5, t }



44 35
59
51
34
delmin

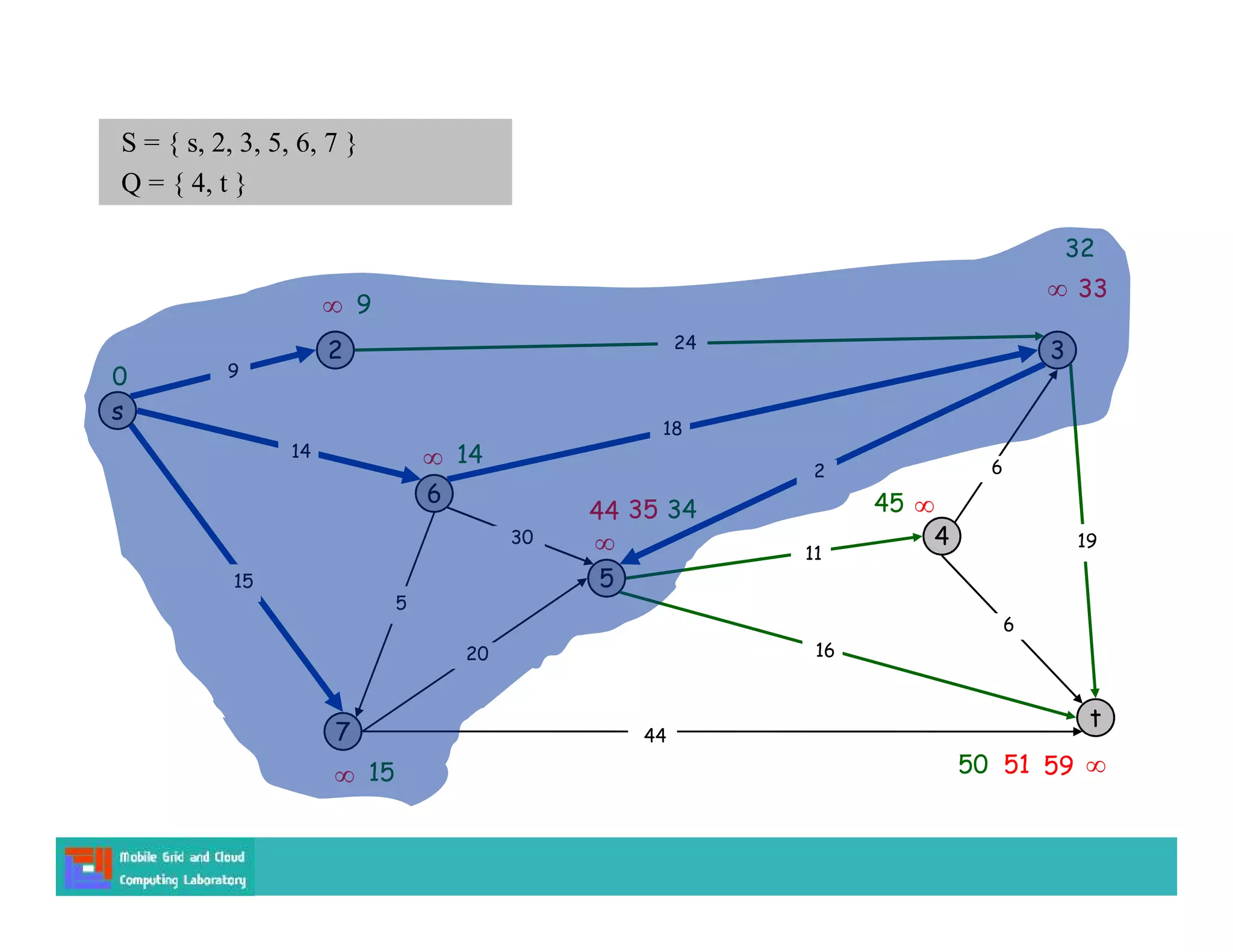

 33
32
24

s
3
t
2
6
7
4
5
18
2
9
14
15
5
30
20
44
16
11
6
19
6
15
9


14

0
S = { s, 2, 3, 5, 6, 7 }
Q = { 4, t }



44 35
59
51
34
24
50
45
 33
32

s
3
t
2
6
7
4
5
18
2
9
14
15
5
30
20
44
16
11
6
19
6
15
9


14

0
S = { s, 2, 3, 5, 6, 7 }
Q = { 4, t }



44 35
59
51
34
24
50
45

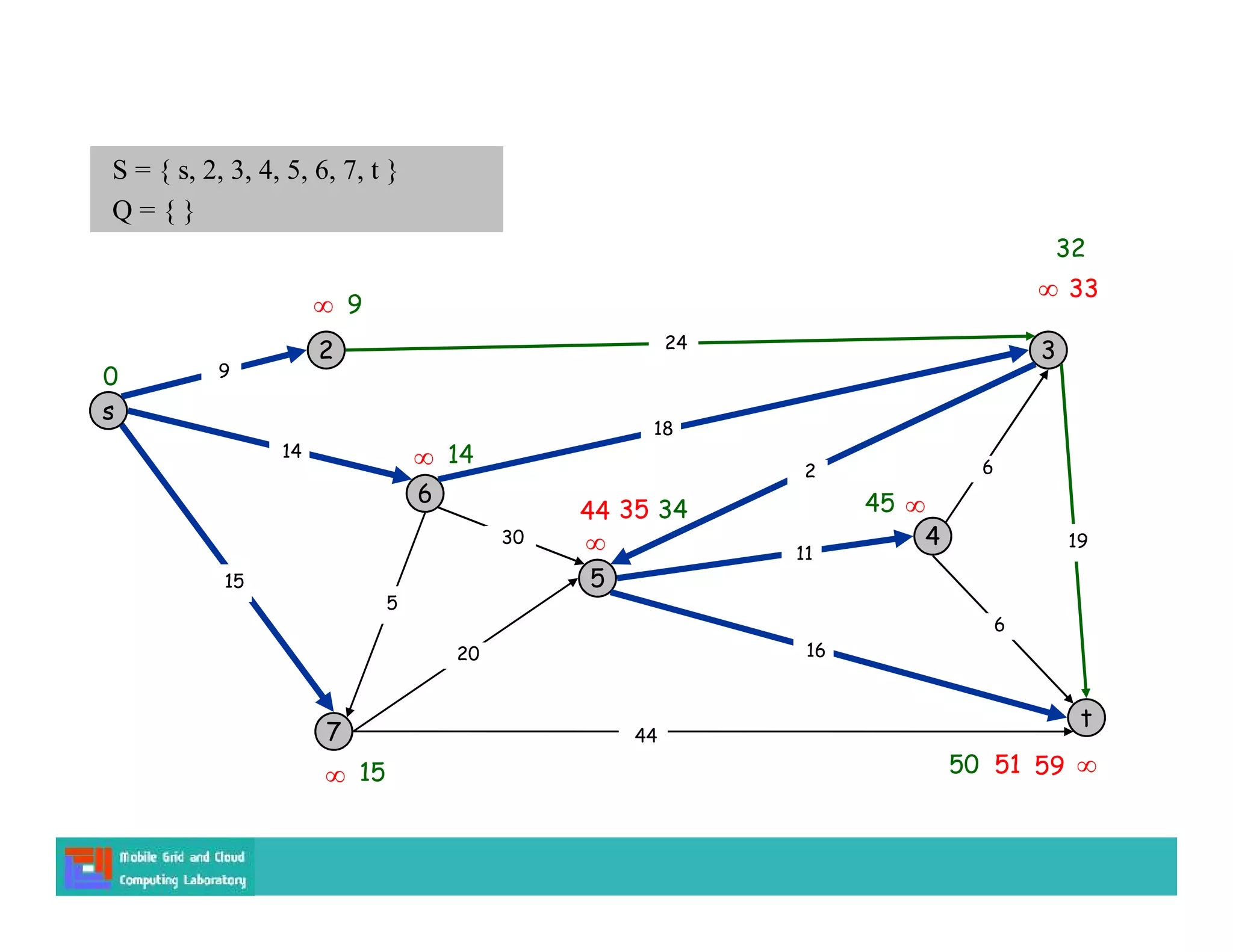

delmin
 33
32

s
3
t
2
6
7
4
5
18
2
9
14
15
5
30
20
44
16
11
6
19
6
15
9


14

0
S = { s, 2, 3, 4, 5, 6, 7 }
Q = { t }



44 35
59
51
34
24
50
45
 33
32

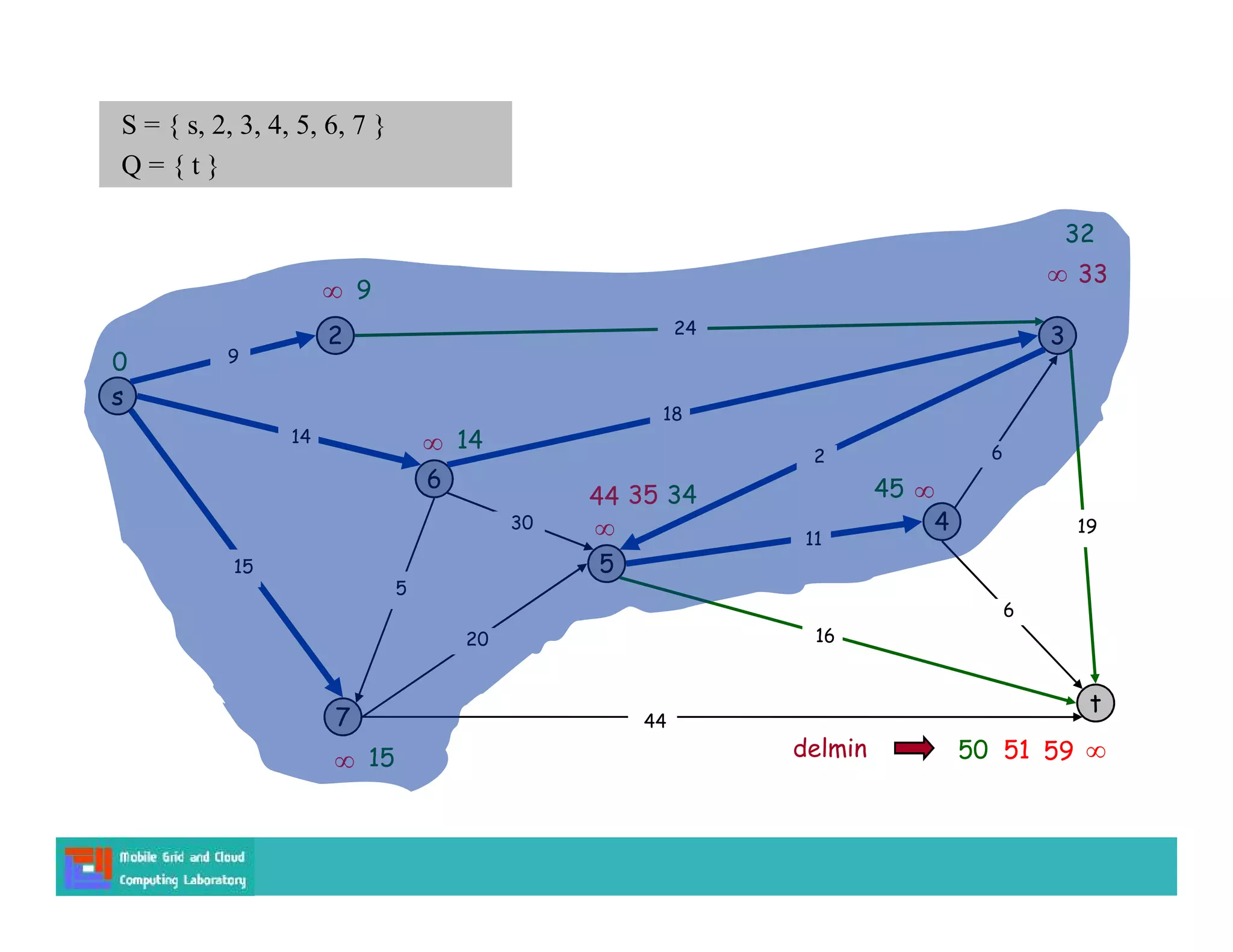

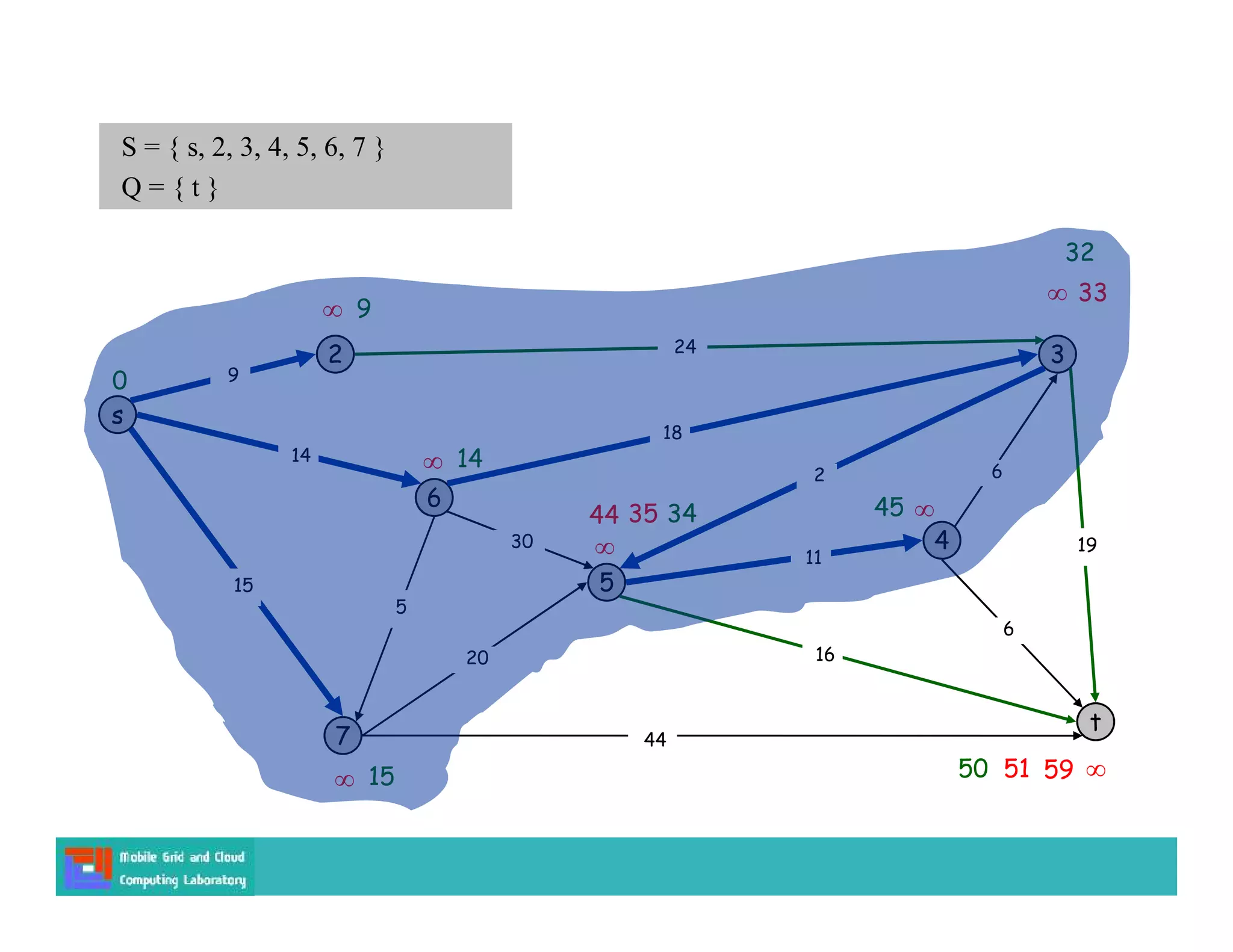

s
3
t
2
6
7
4
5
18
2
9
14
15
5
30
20
44
16
11
6
19
6
15
9


14

0
S = { s, 2, 3, 4, 5, 6, 7 }
Q = { t }



44 35
59
51
34
50
45
delmin
 33
32
24

s
3
t
2
6
7
4
5
24
18
2
9
14
15
5
30
20
44
16
11
6
19
6
15
9


14

0
S = { s, 2, 3, 4, 5, 6, 7, t }
Q = { }



44 35
59
51
34
50
45
 33
32

https://en.wikipedia.org/wiki/Dijkstra’s_algorithm

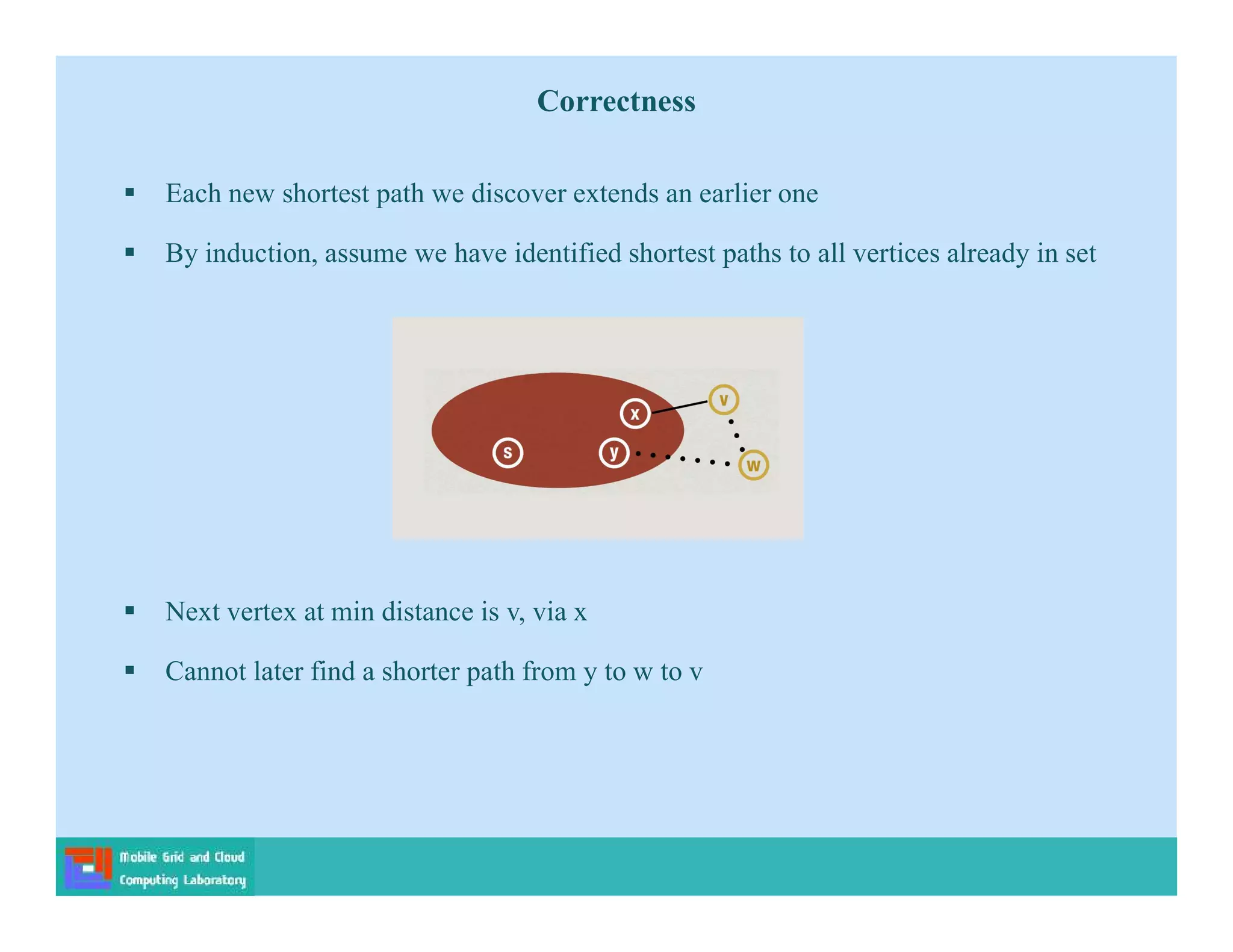

 Each new shortest path we discover extends an earlier one
 By induction, assume we have identified shortest paths to all vertices already in set
 Next vertex at min distance is v, via x
 Cannot later find a shorter path from y to w to v
Correctness

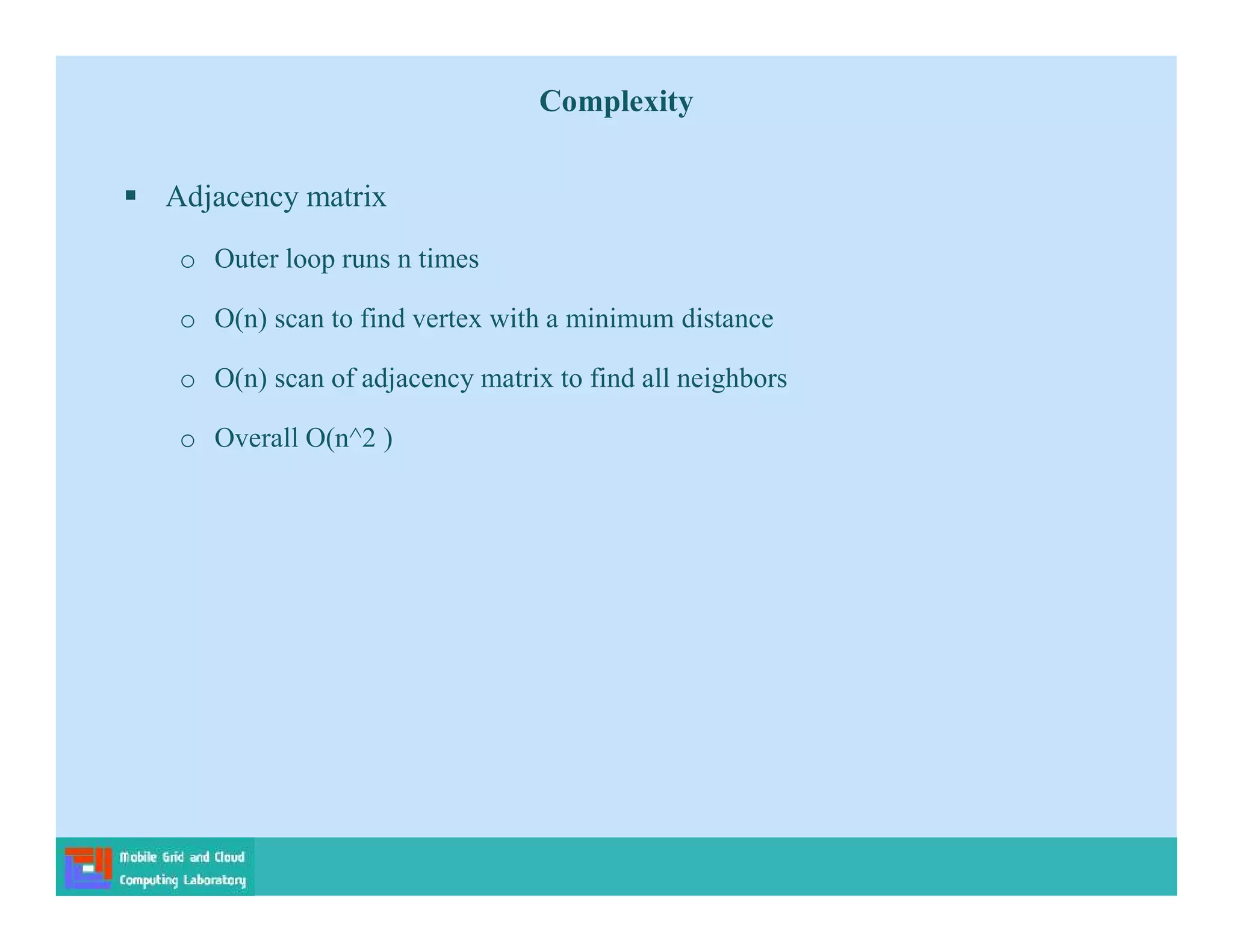

 Adjacency matrix
o Outer loop runs n times
o O(n) scan to find vertex with a minimum distance
o O(n) scan of adjacency matrix to find all neighbors
o Overall O(n^2 )

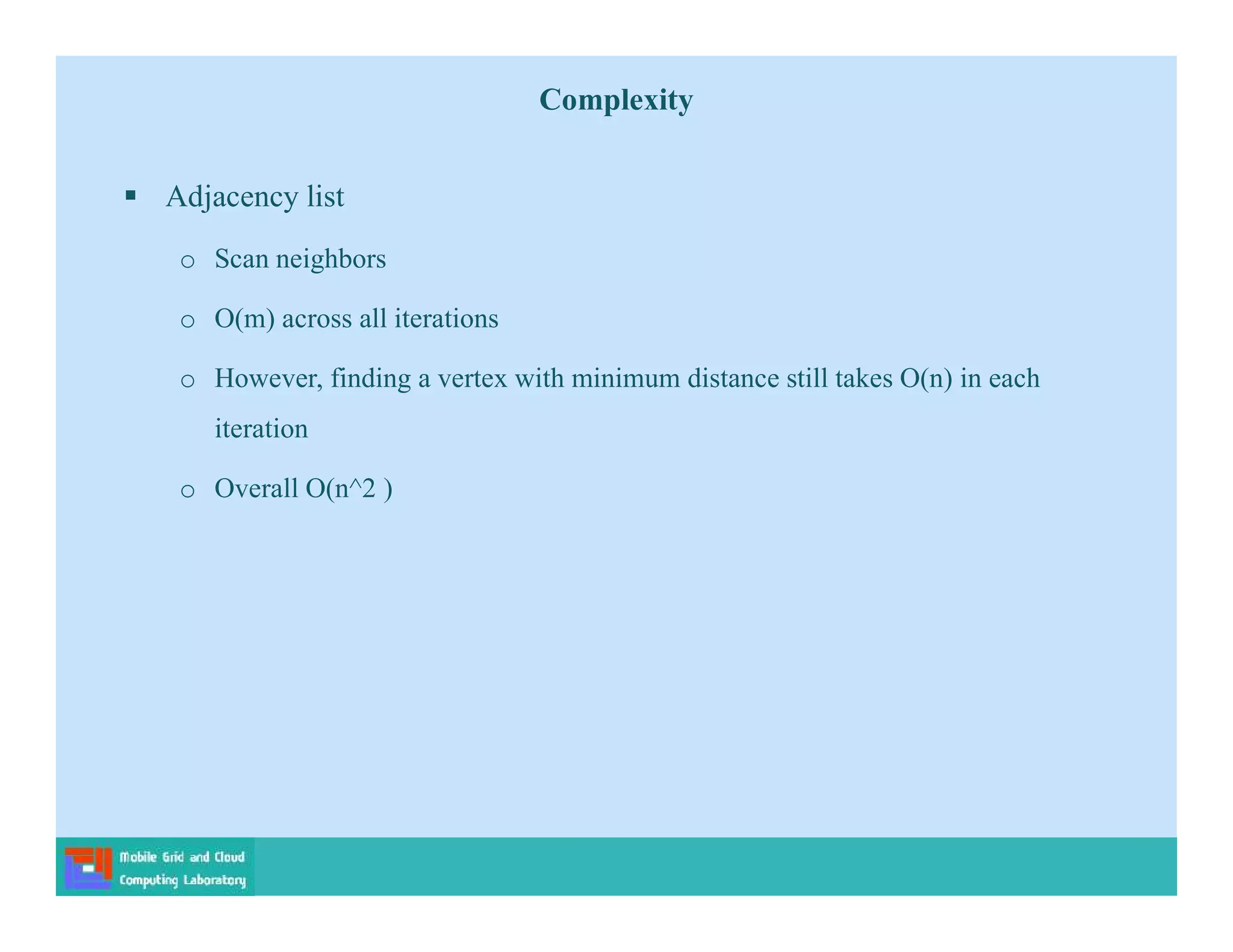

Complexity

 Adjacency list
o Scan neighbors
o O(m) across all iterations
o However, finding a vertex with minimum distance still takes O(n) in each
iteration
o Overall O(n^2 )
Complexity

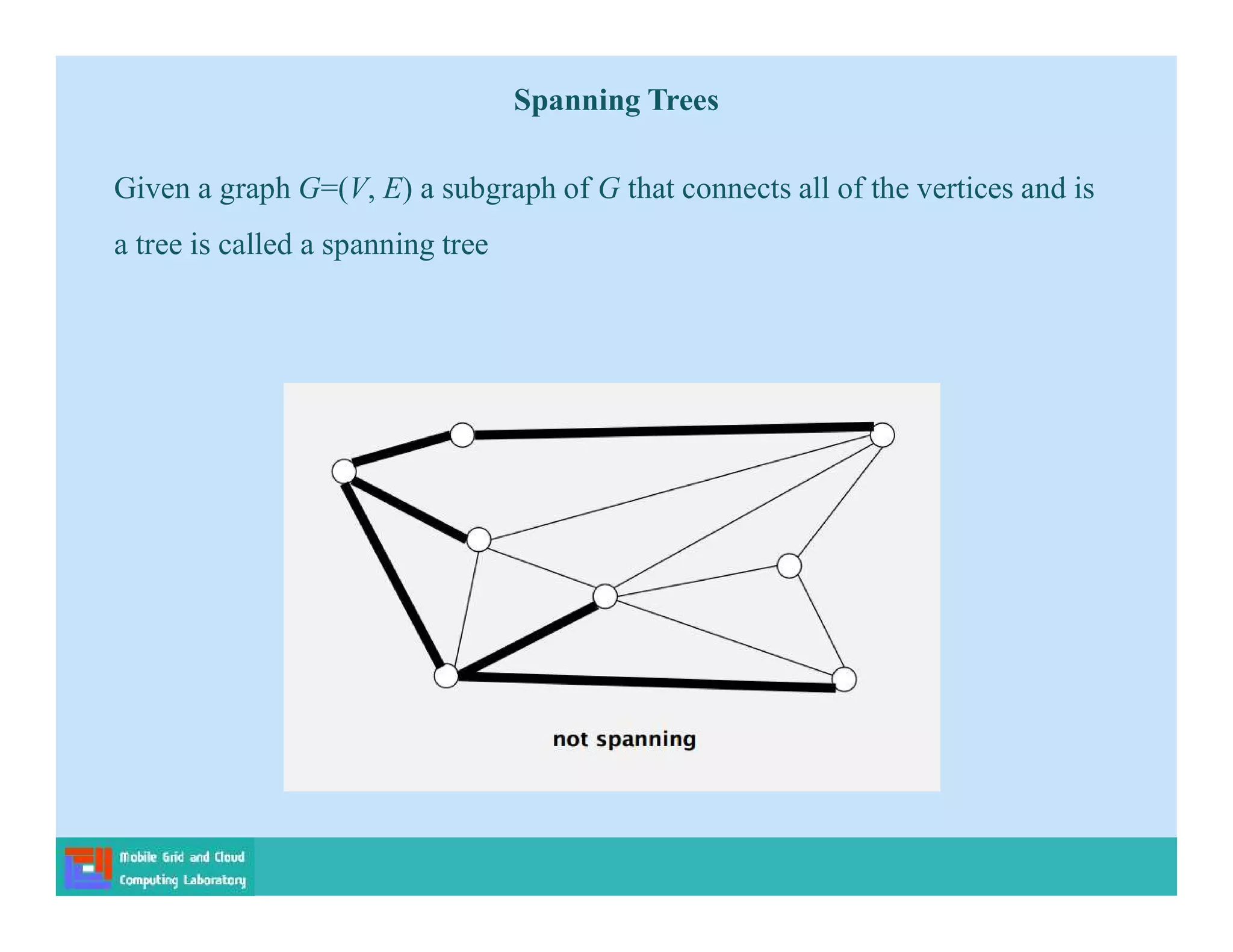

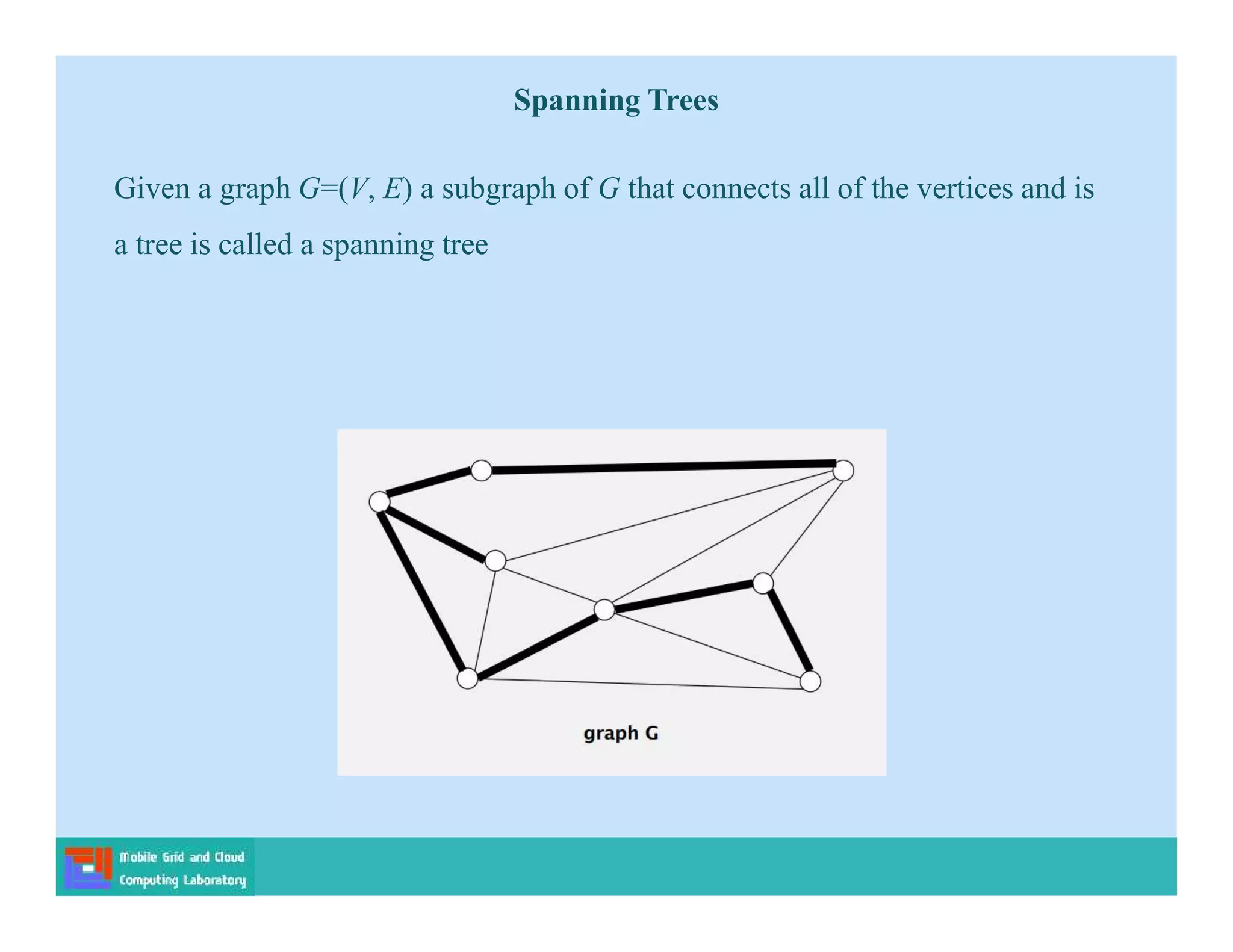

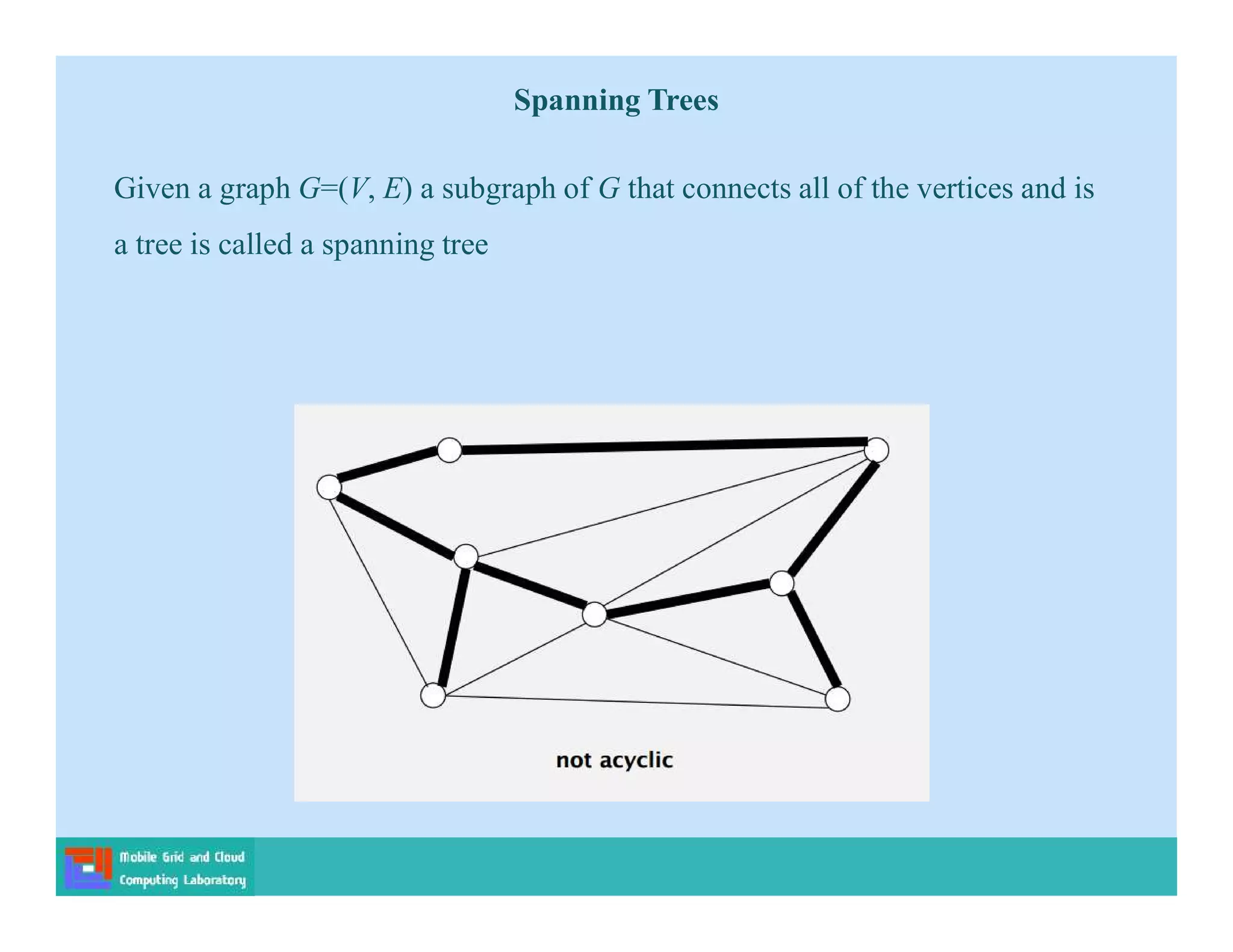

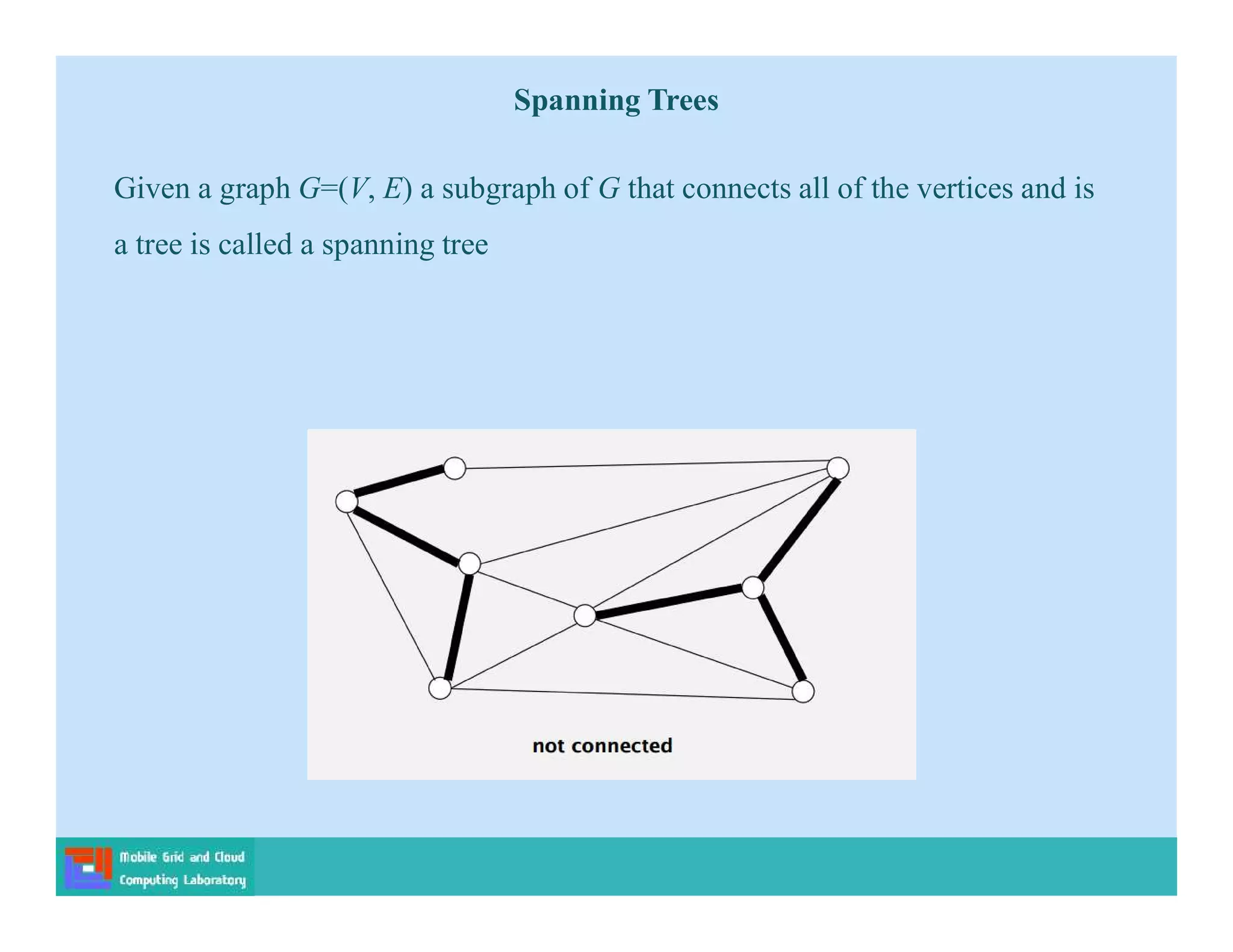

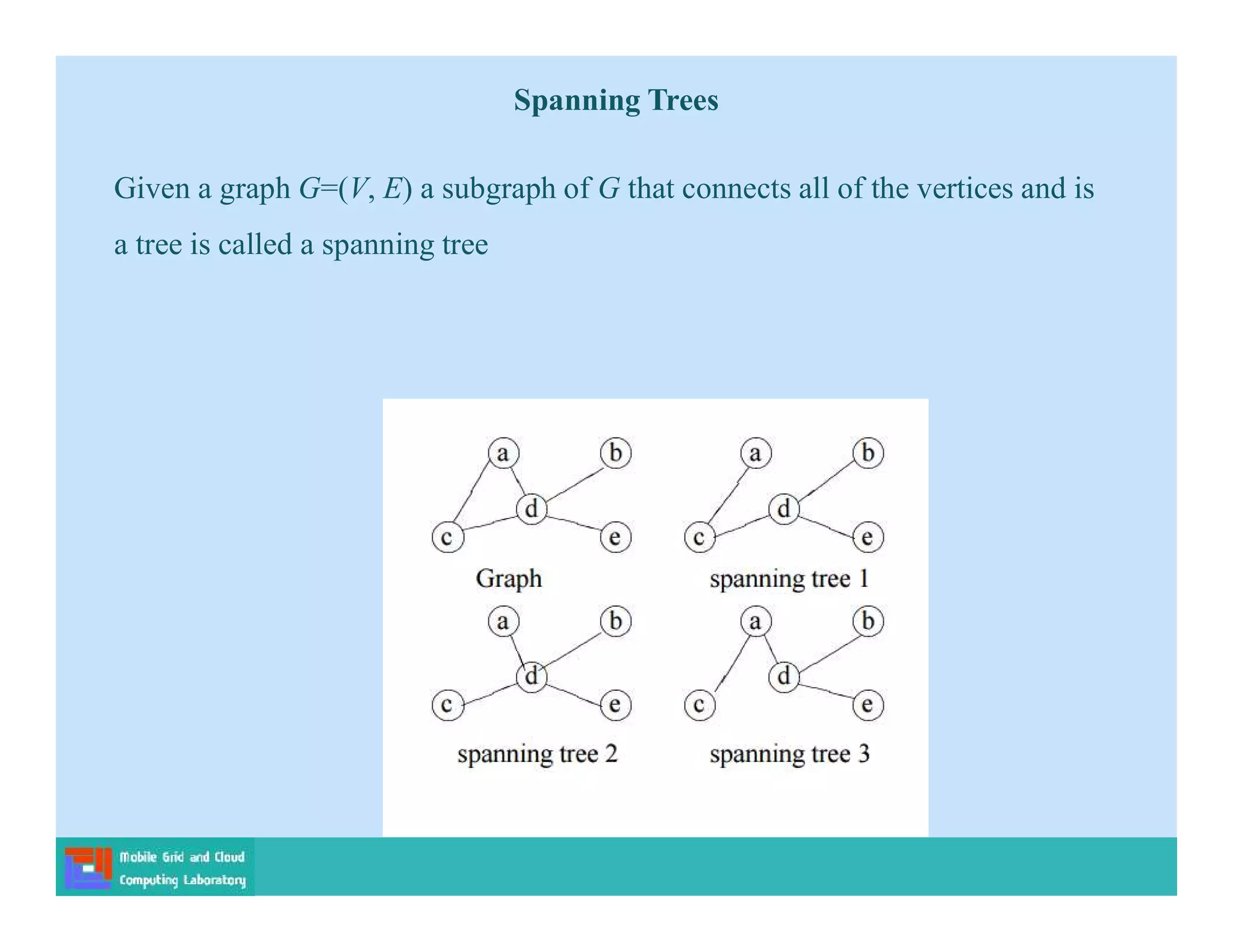

Given a graph G=(V, E) a subgraph of G that connects all of the vertices and is
a tree is called a spanning tree
Spanning Trees

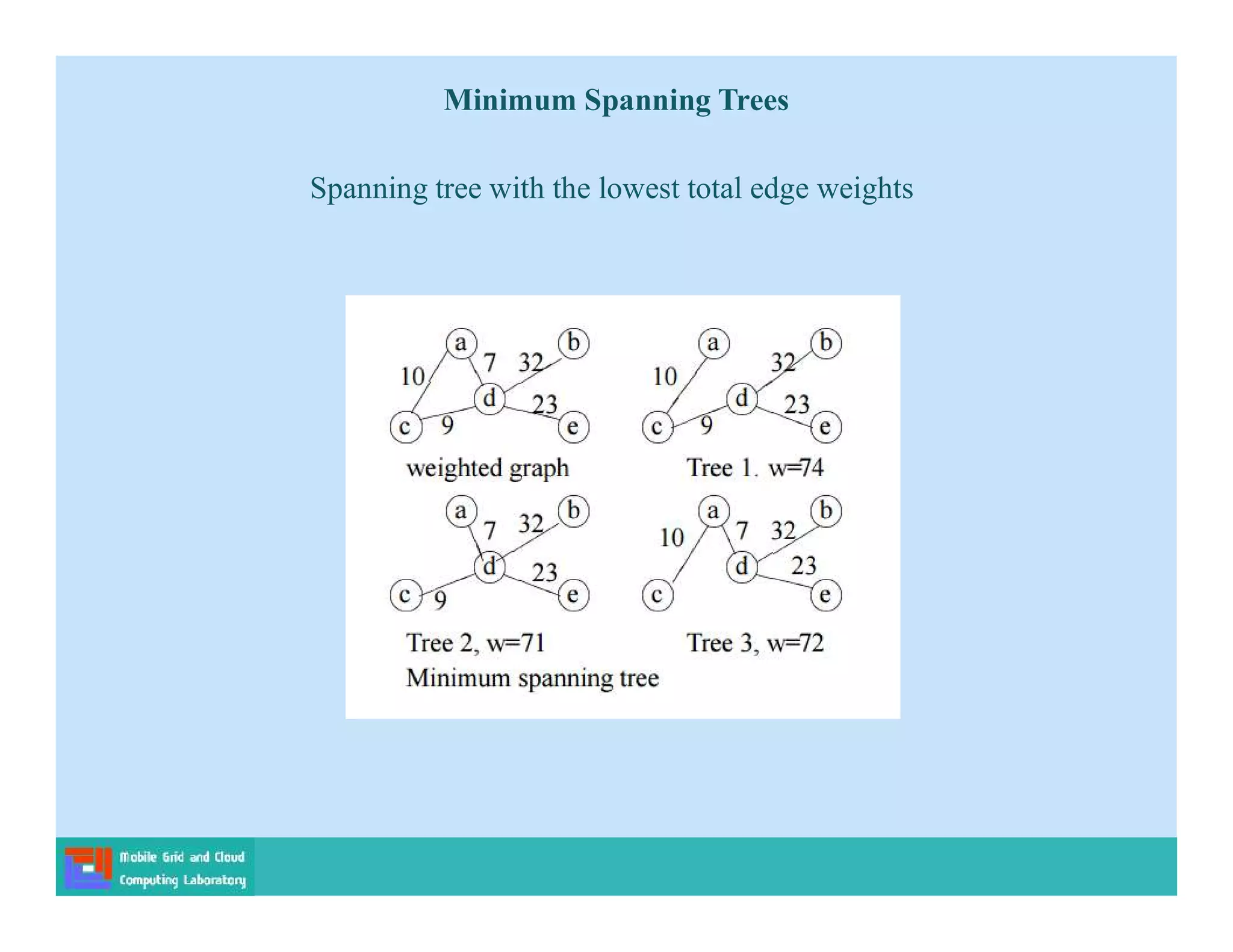

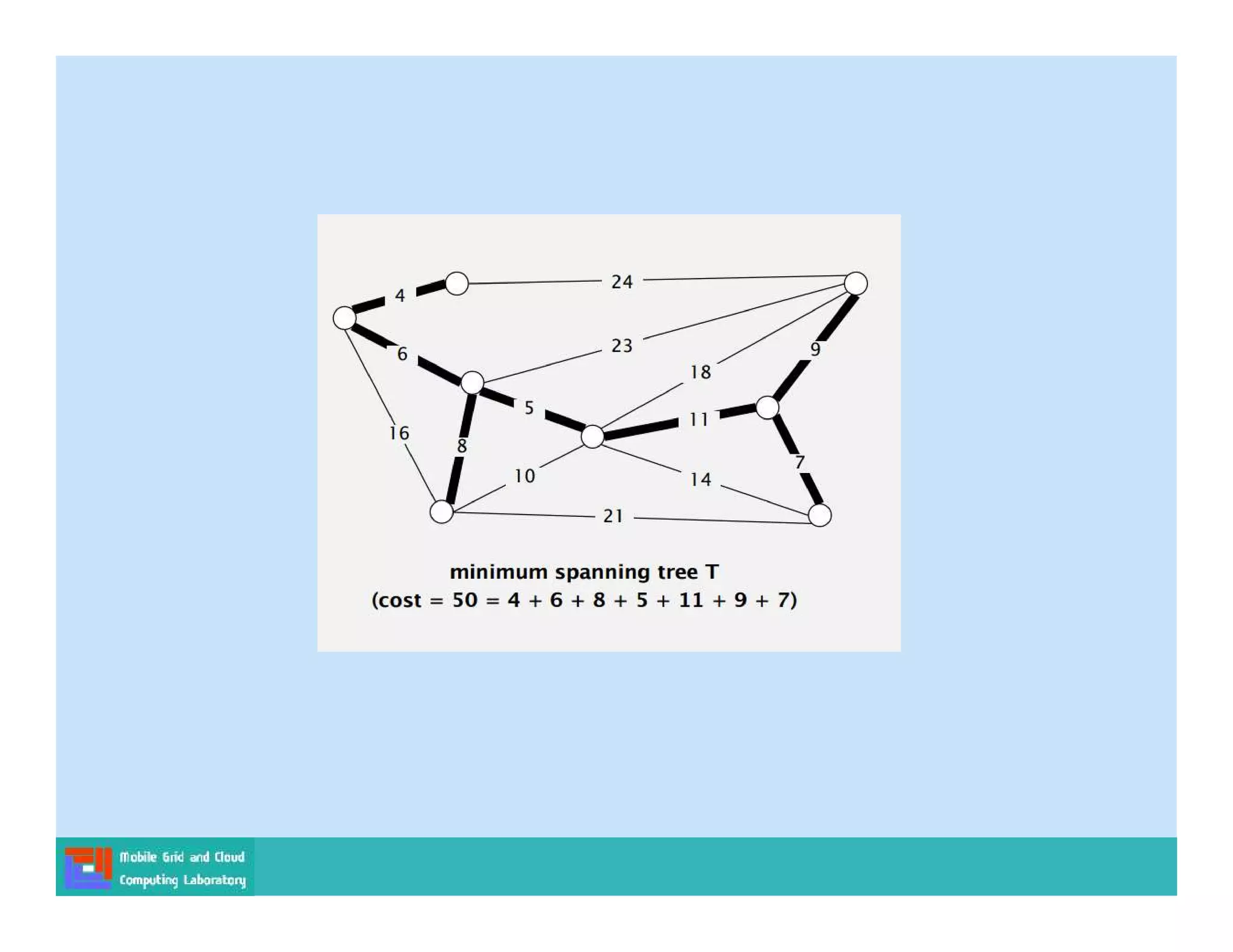

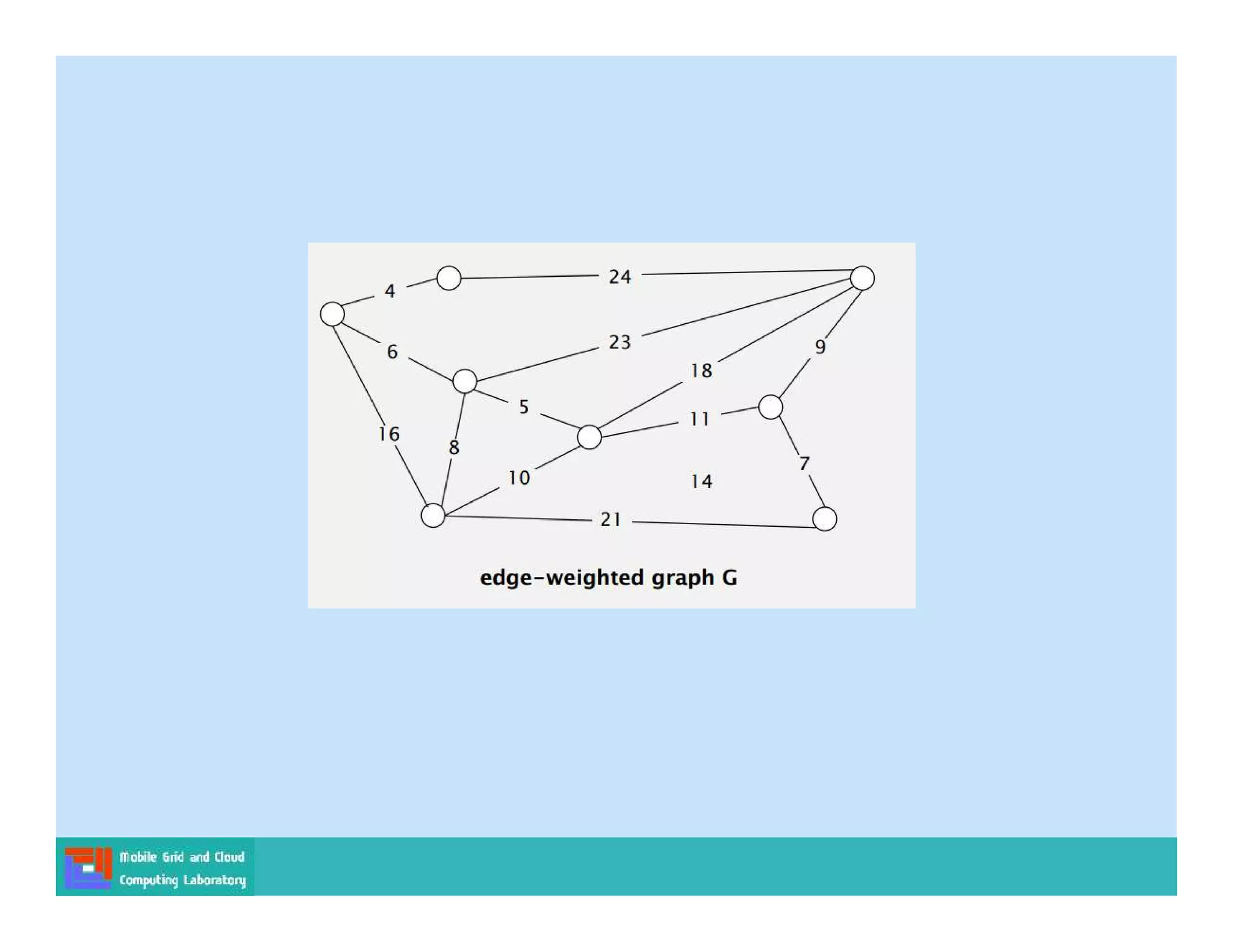

Spanning tree with the lowest total edge weights
Minimum Spanning Trees

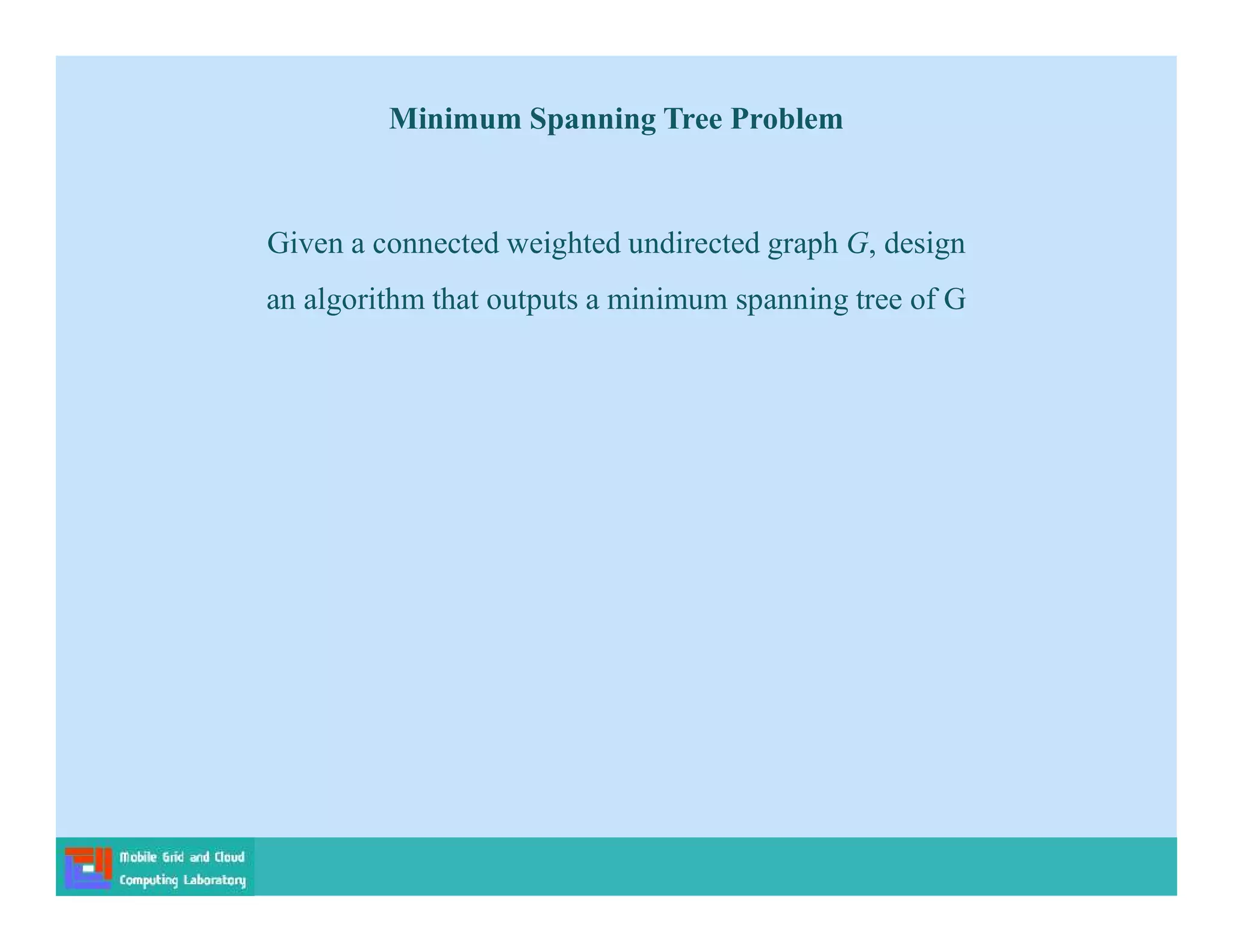

Given a connected weighted undirected graph G, design
an algorithm that outputs a minimum spanning tree of G
Minimum Spanning Tree Problem

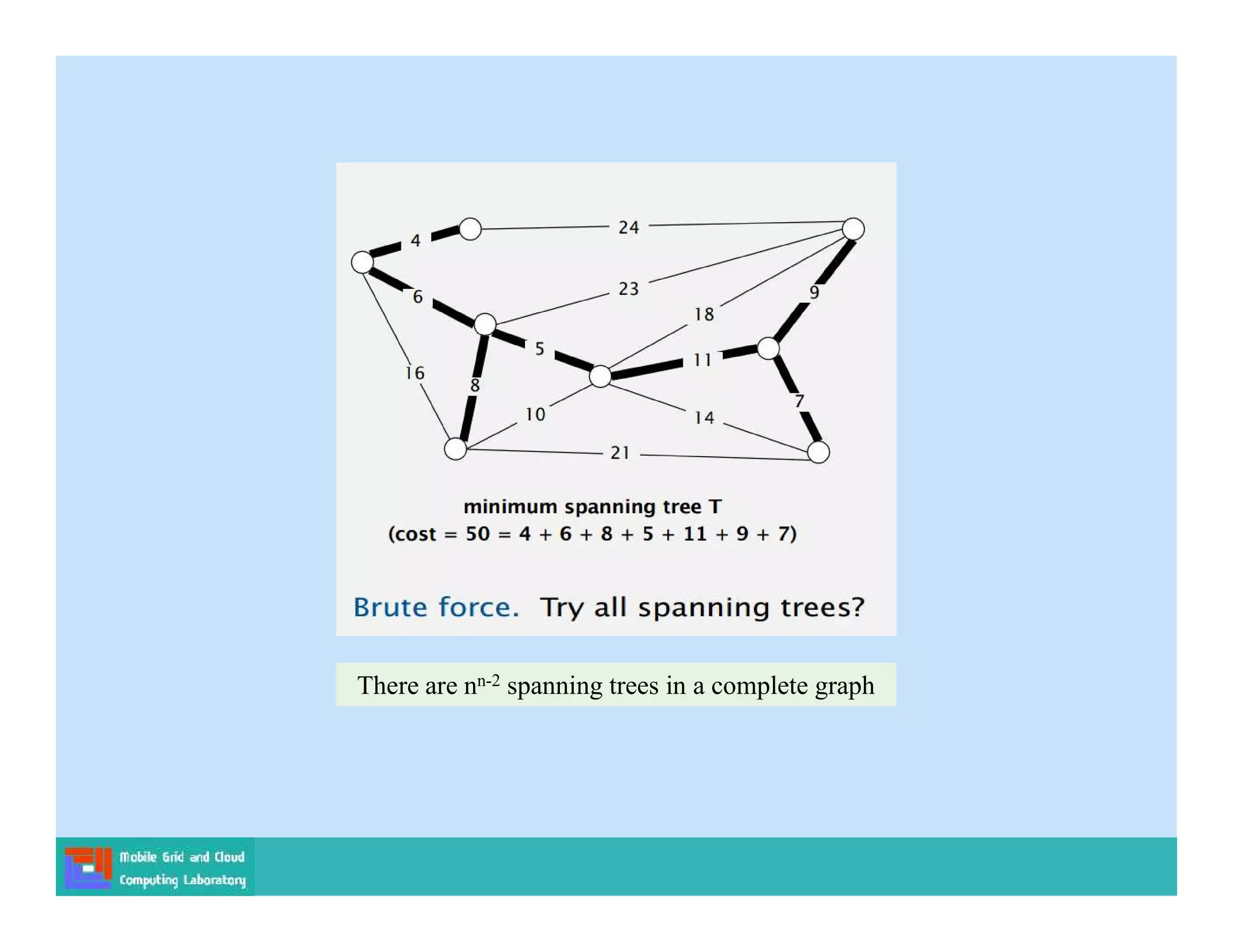

There are nn-2 spanning trees in a complete graph

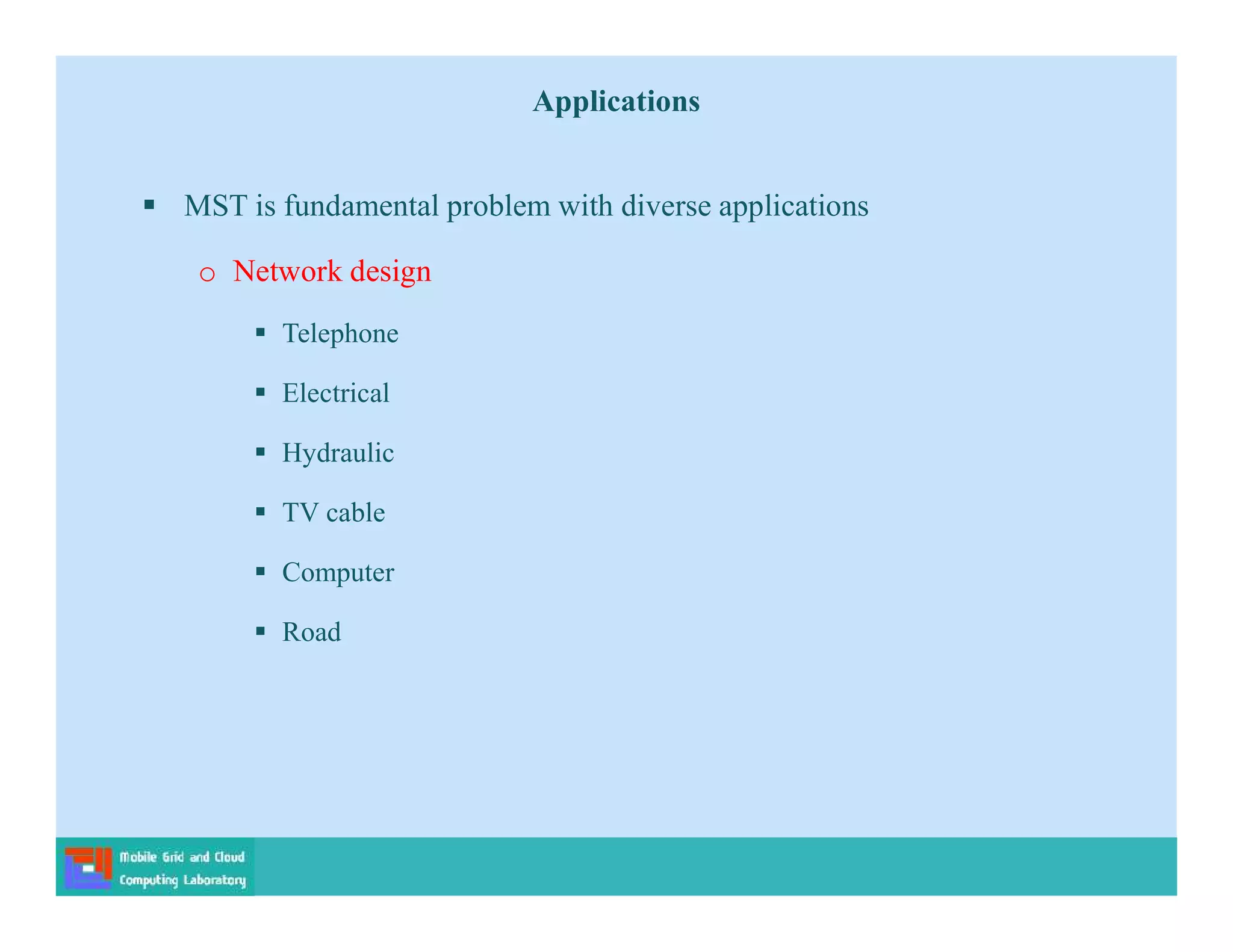

Applications
 MST is fundamental problem with diverse applications
o Network design
 Telephone
 Electrical
 Hydraulic
 TV cable
 Computer
 Road

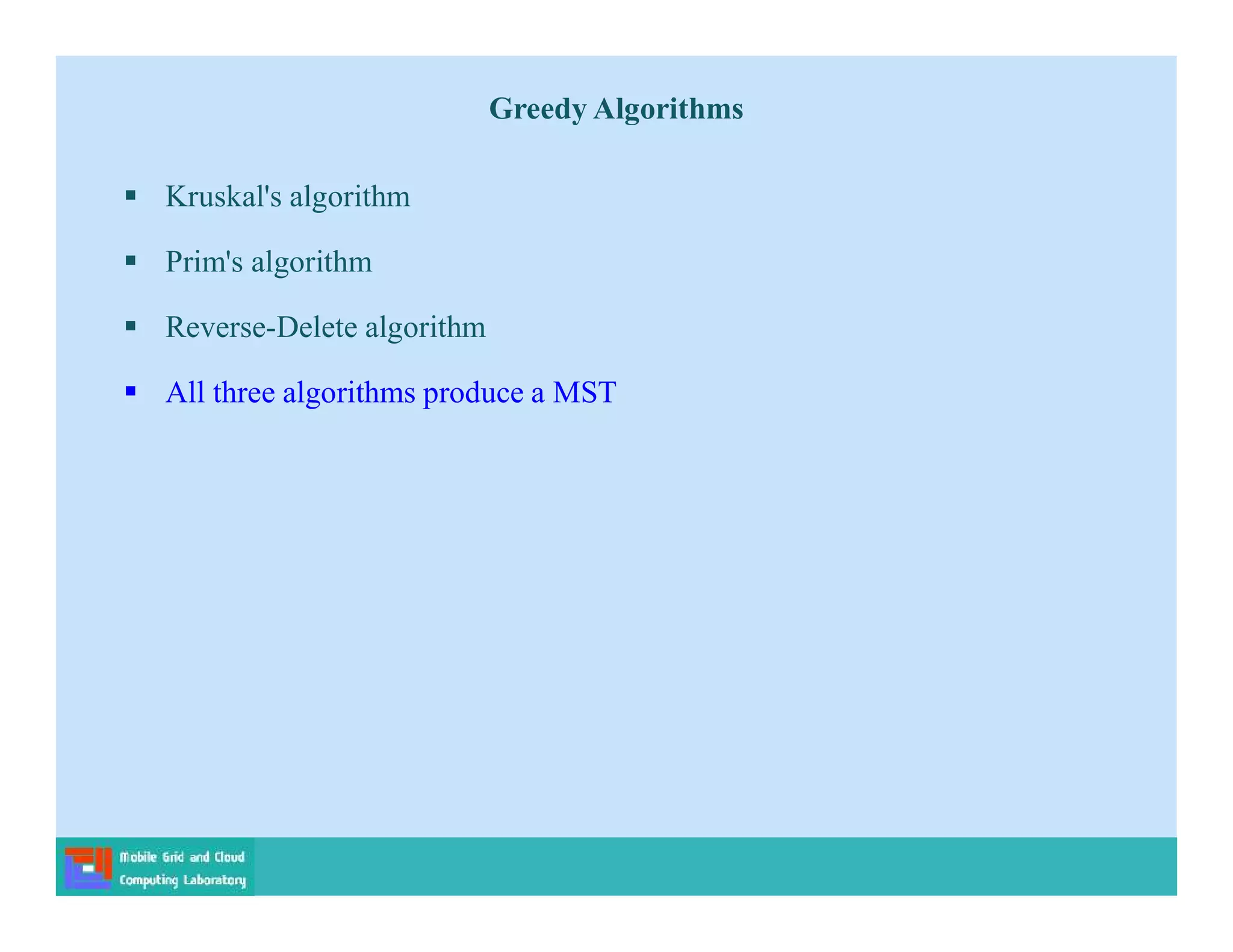

Greedy Algorithms
 Kruskal's algorithm
 Prim's algorithm
 Reverse-Delete algorithm
 All three algorithms produce a MST

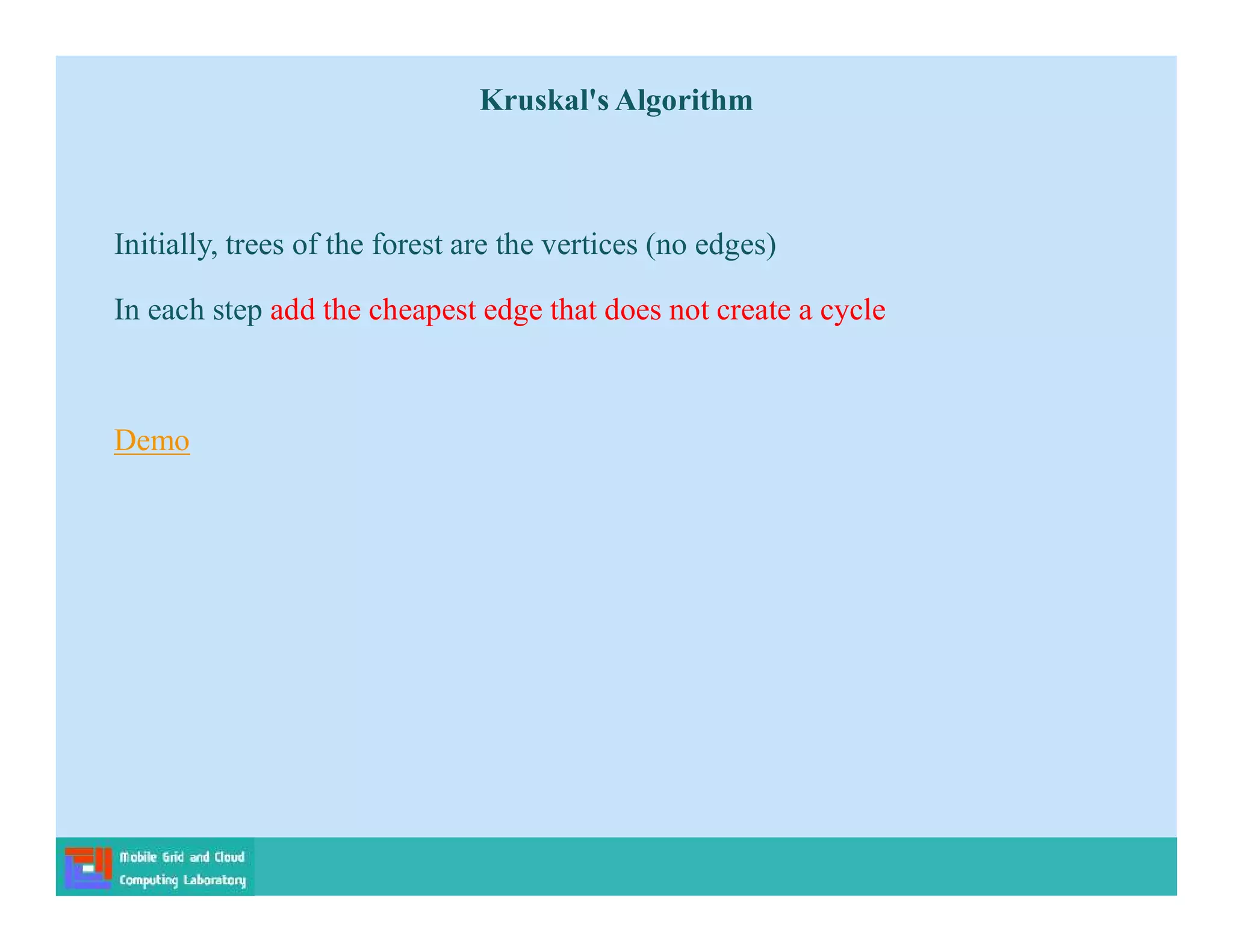

Initially, trees of the forest are the vertices (no edges)
In each step add the cheapest edge that does not create a cycle

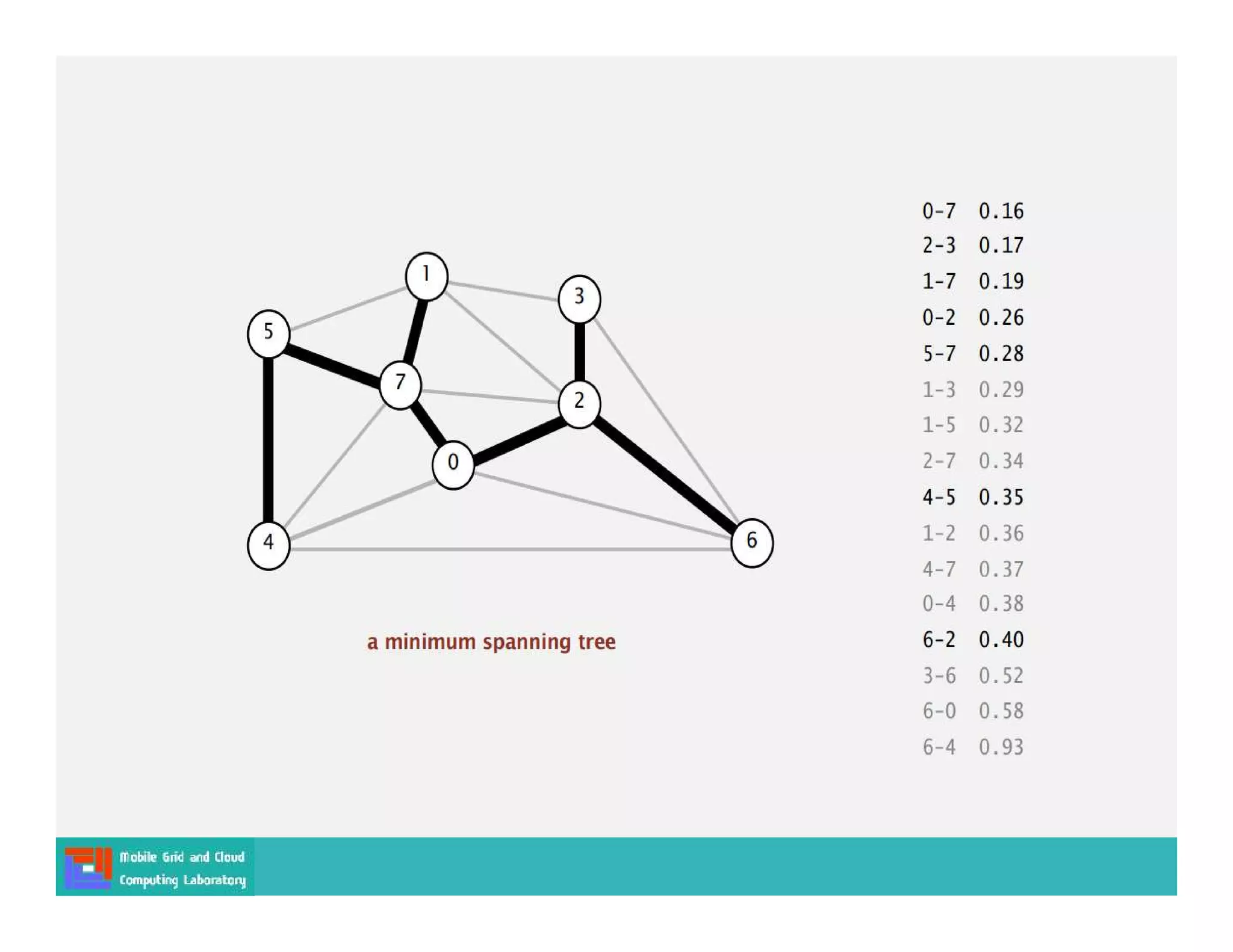

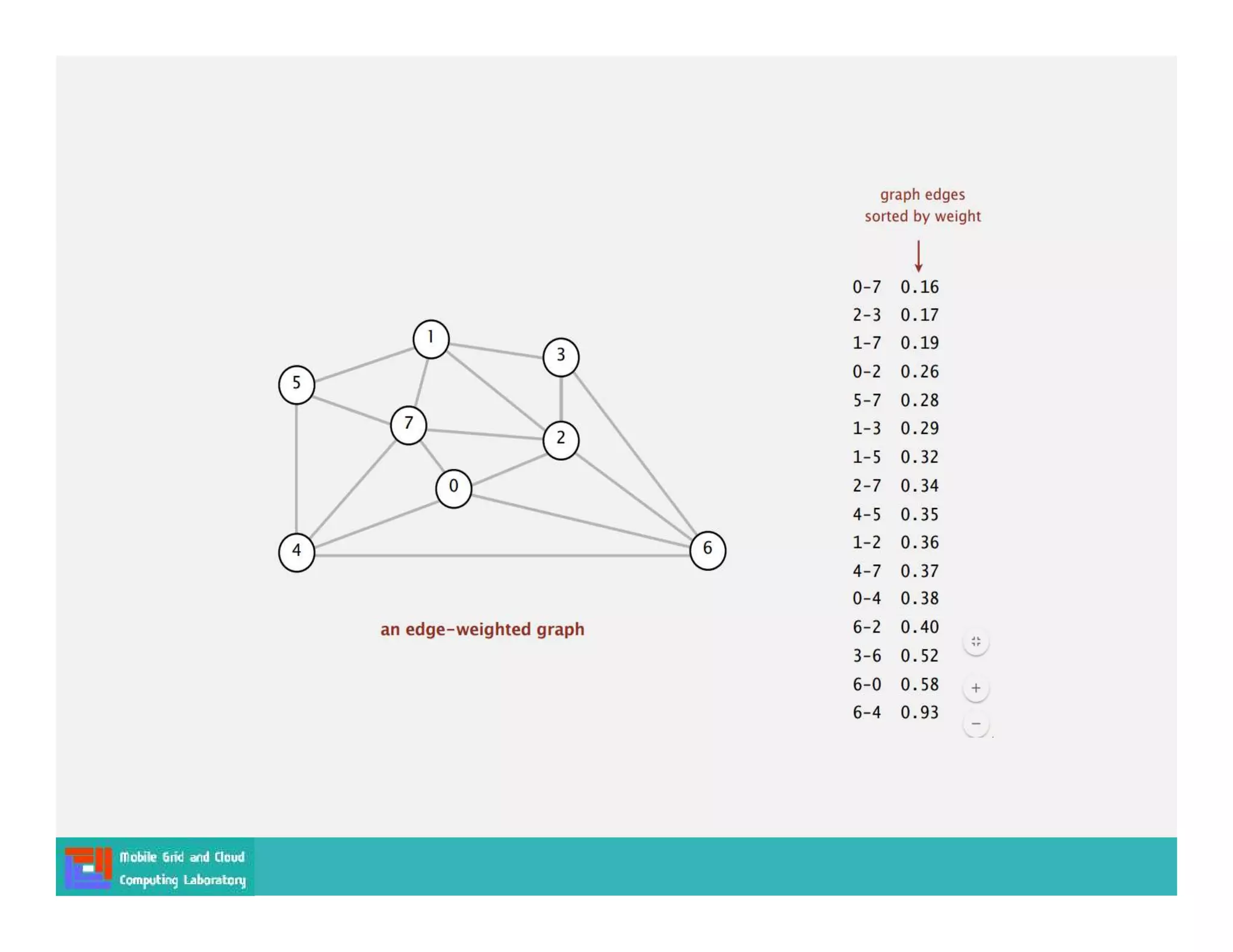

Demo
Kruskal's Algorithm

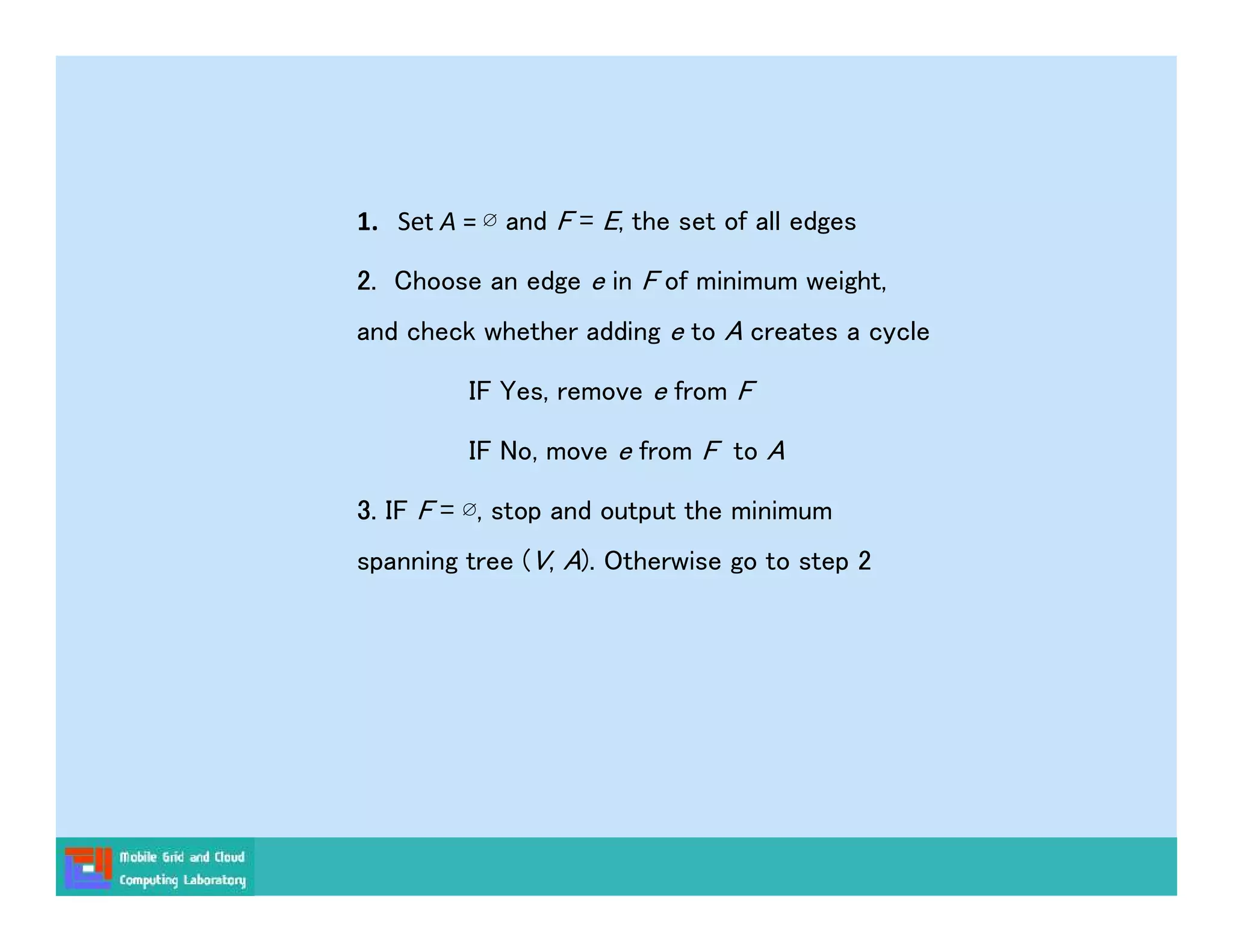

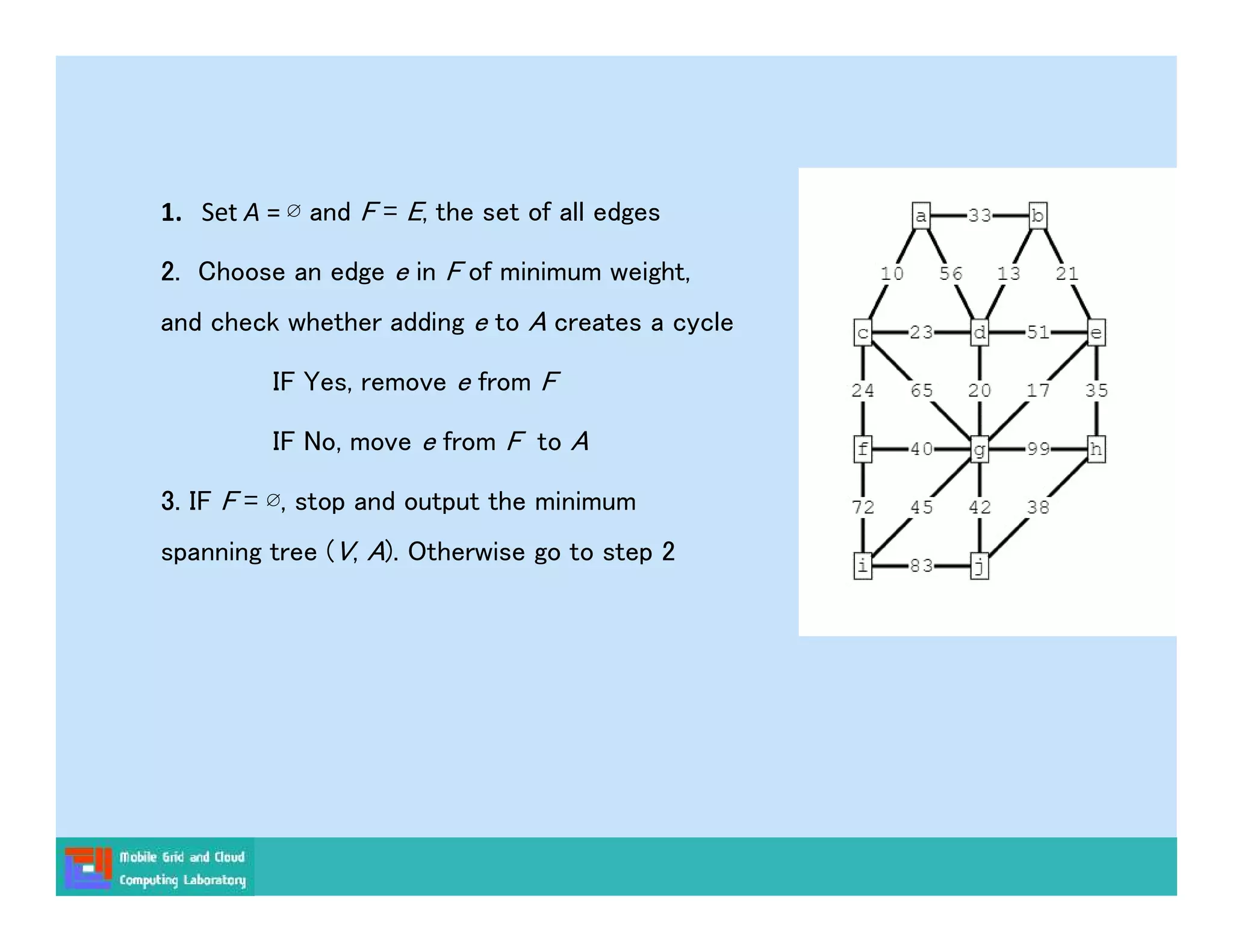

1. Set A = ∅ and F = E, the set of all edges
2. Choose an edge e in F of minimum weight,
and check whether adding e to A creates a cycle
IF Yes, remove e from F
IF No, move e from F to A
3. IF F = ∅, stop and output the minimum
spanning tree (V, A). Otherwise go to step 2

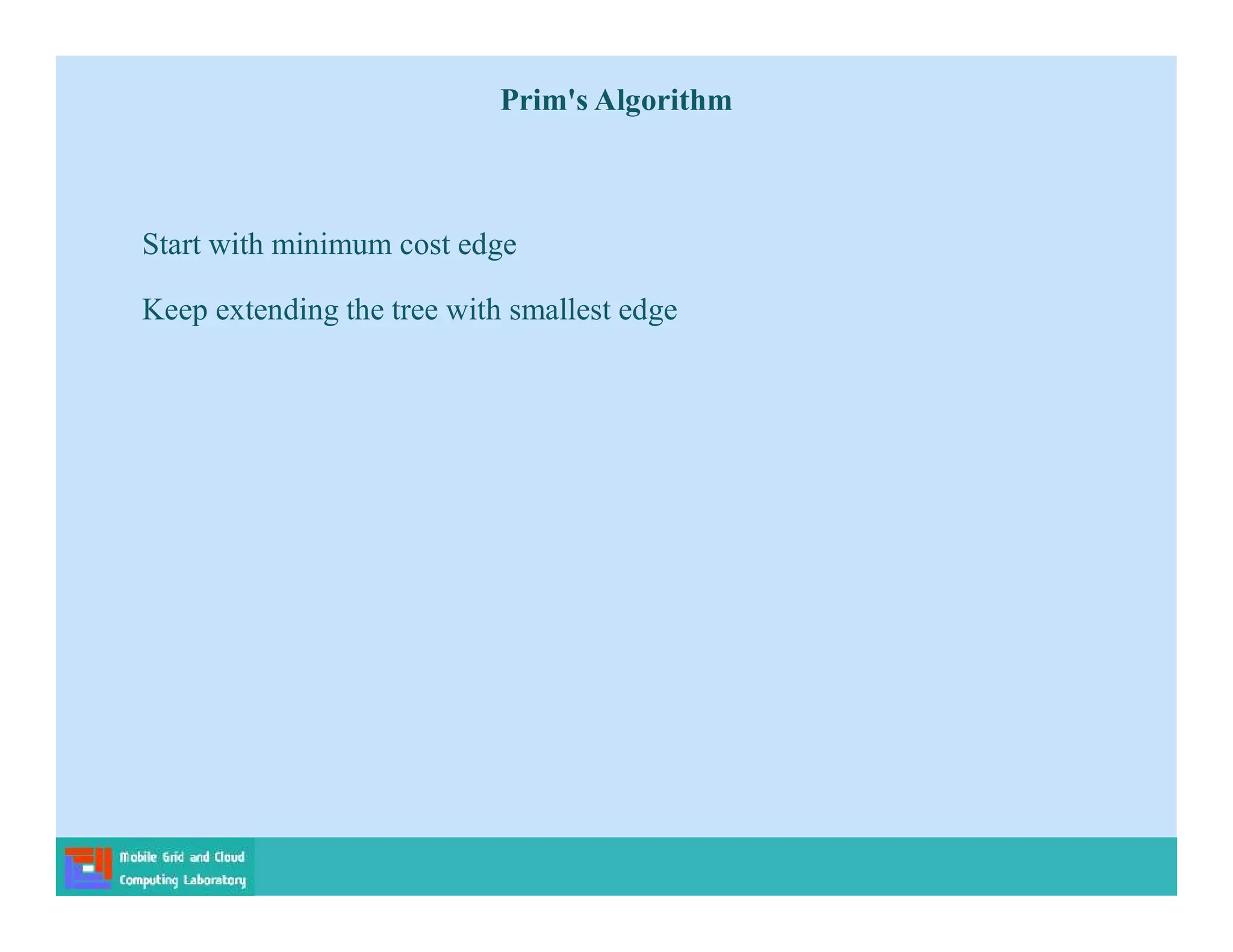

Start with minimum cost edge
Keep extending the tree with smallest edge
Prim's Algorithm

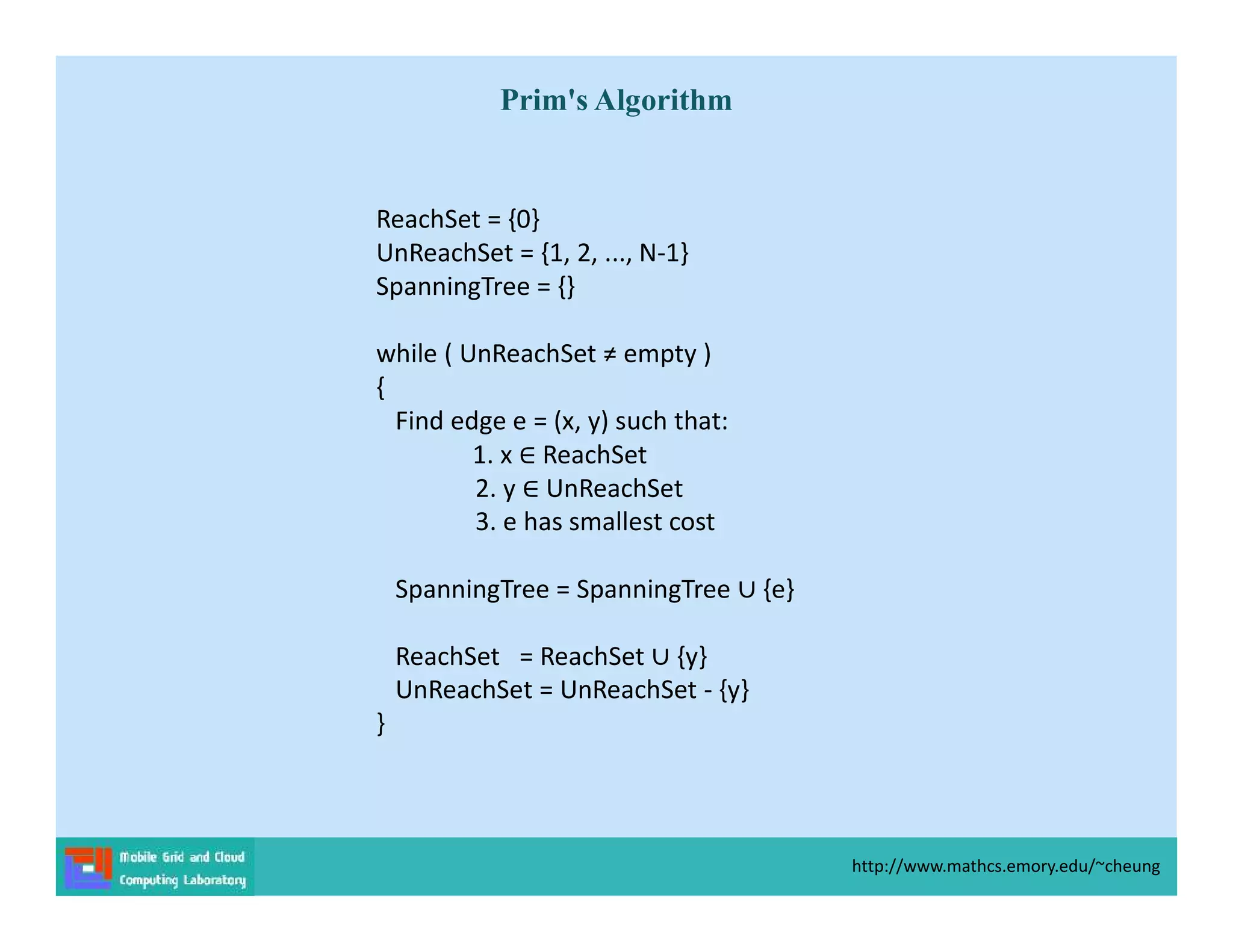

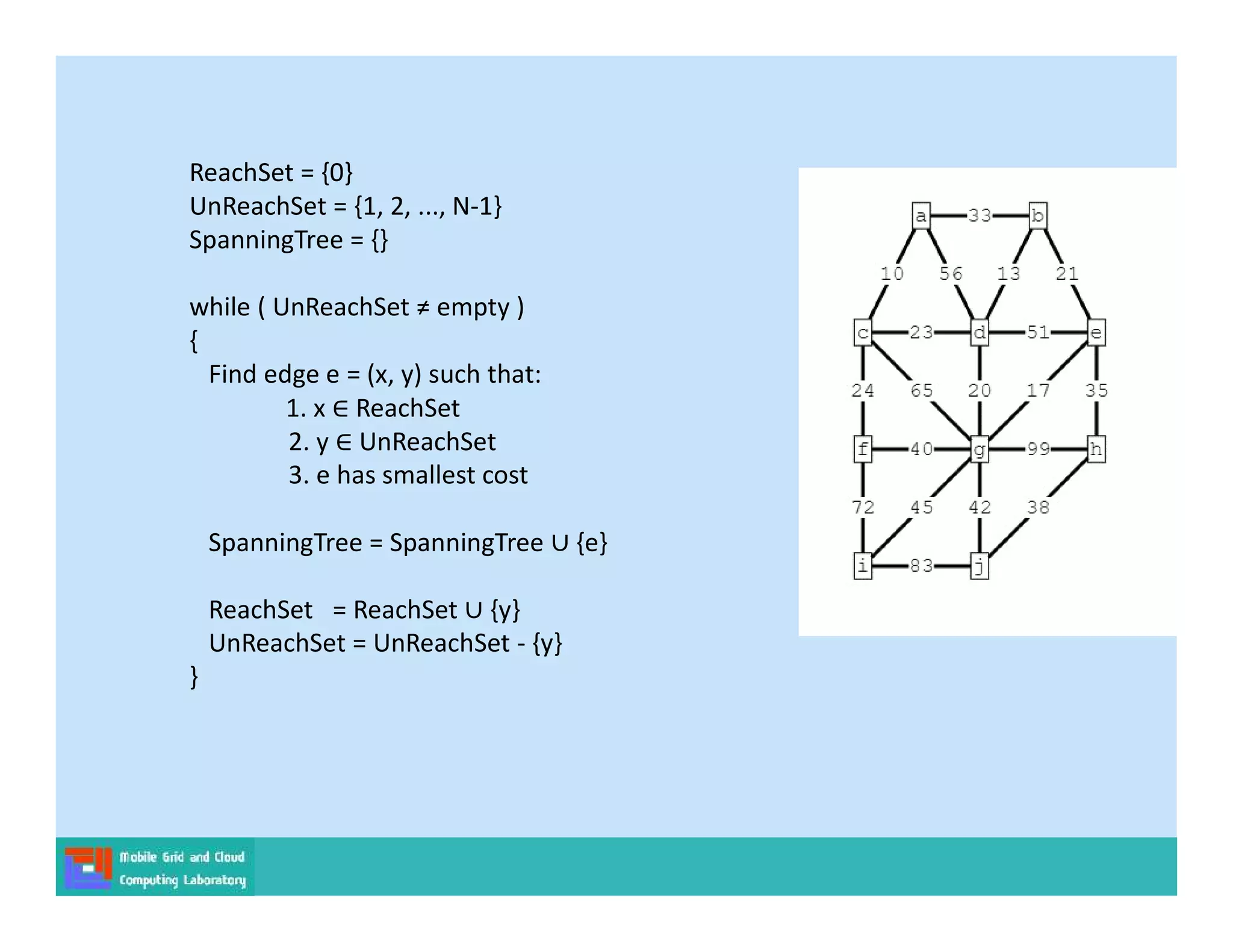

Prim's Algorithm
ReachSet = {0}
UnReachSet = {1, 2, ..., N-1}
SpanningTree = {}
while ( UnReachSet ≠ empty )
{
Find edge e = (x, y) such that:
1. x ReachSet
2. y UnReachSet
3. e has smallest cost
SpanningTree = SpanningTree {e}
ReachSet = ReachSet {y}
UnReachSet = UnReachSet - {y}
}
http://www.mathcs.emory.edu/~cheung

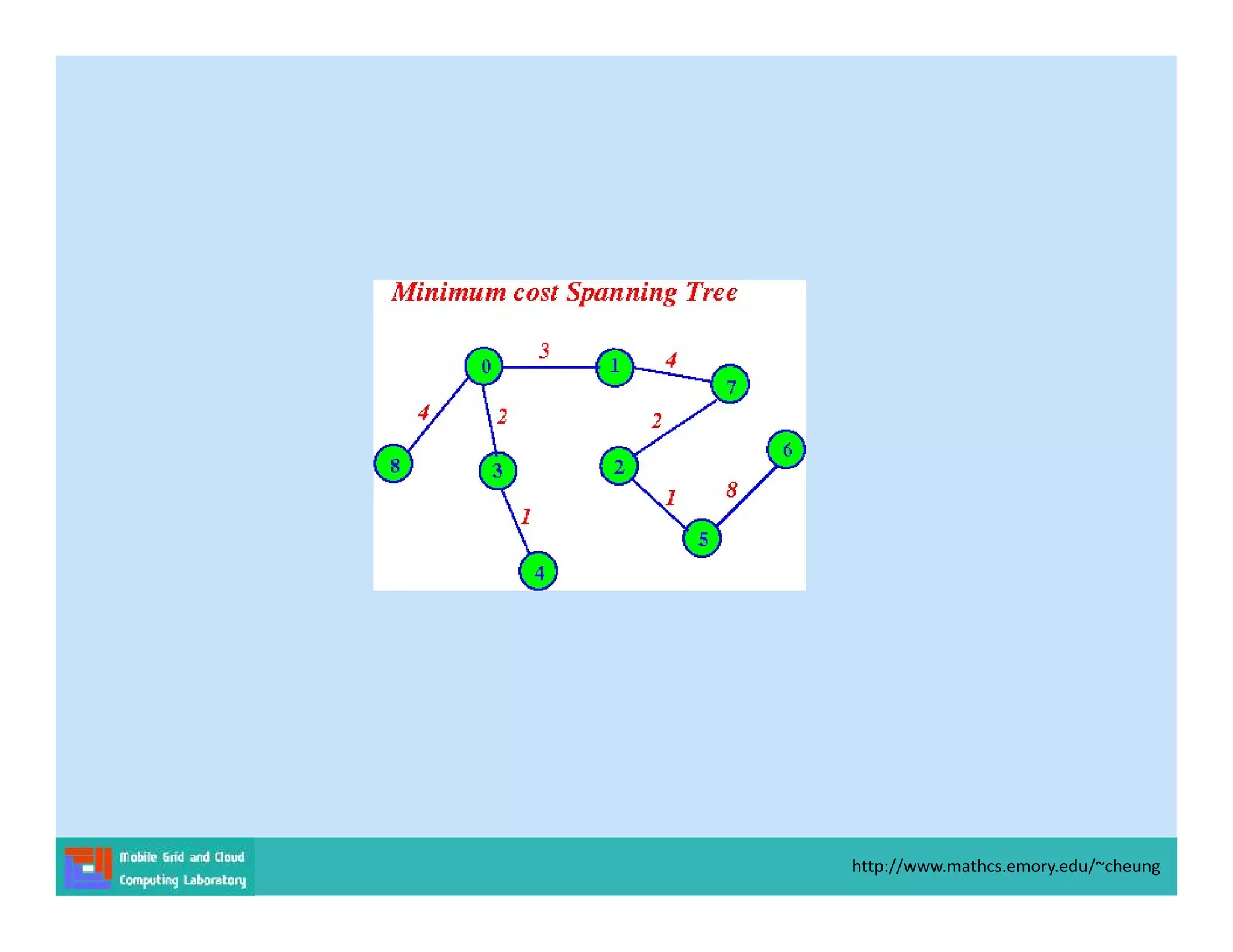

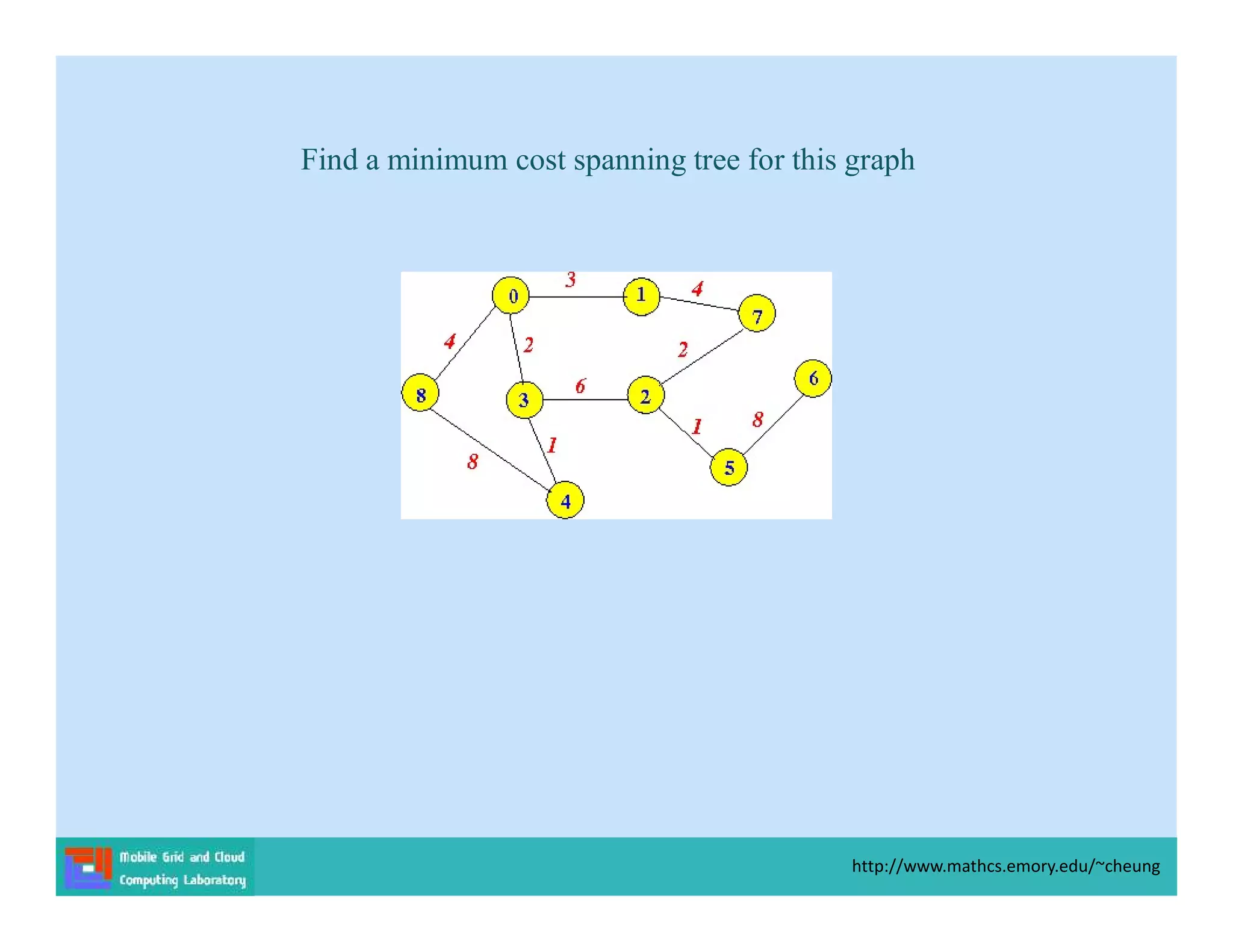

Find a minimum cost spanning tree for this graph

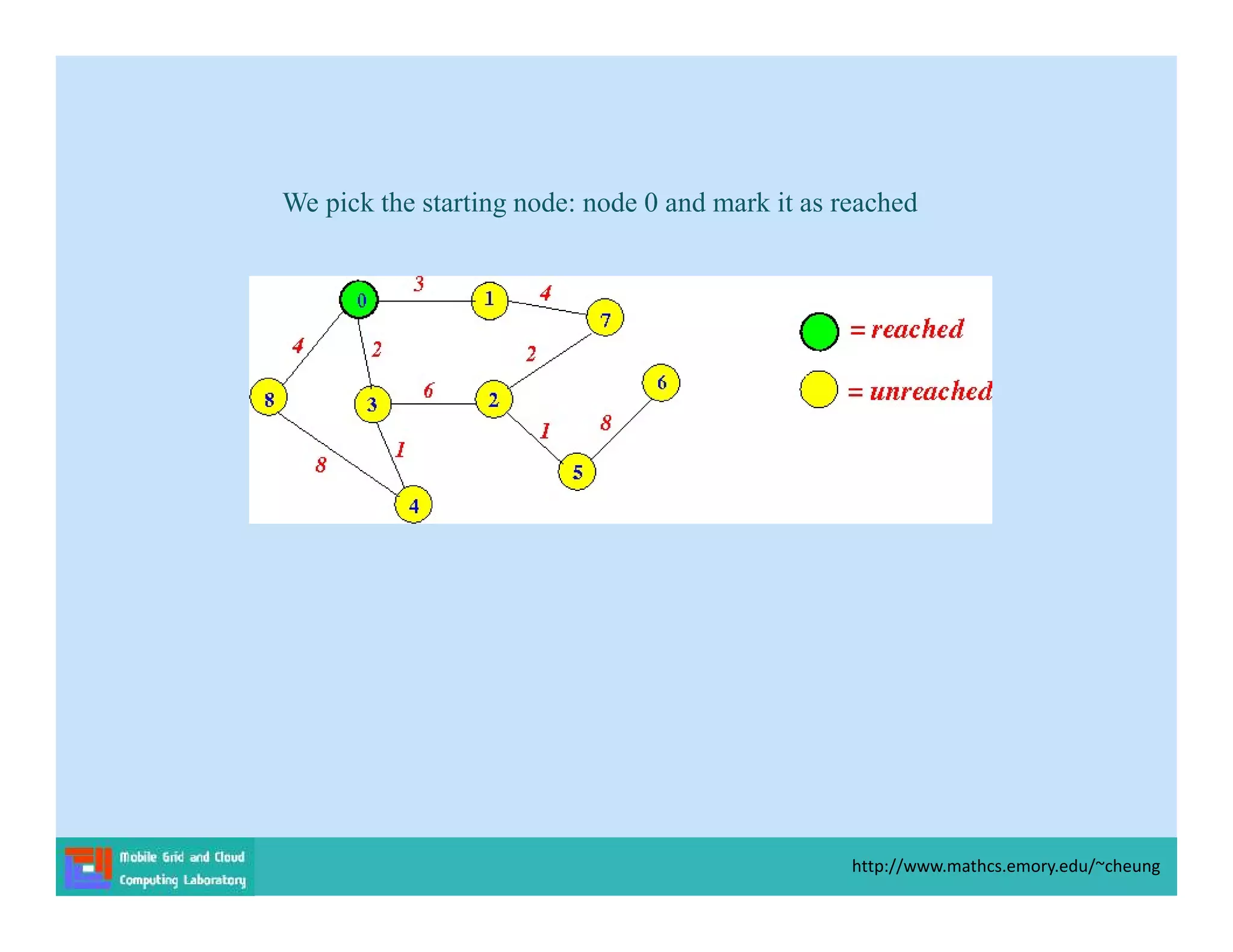

We pick the starting node: node 0 and mark it as reached

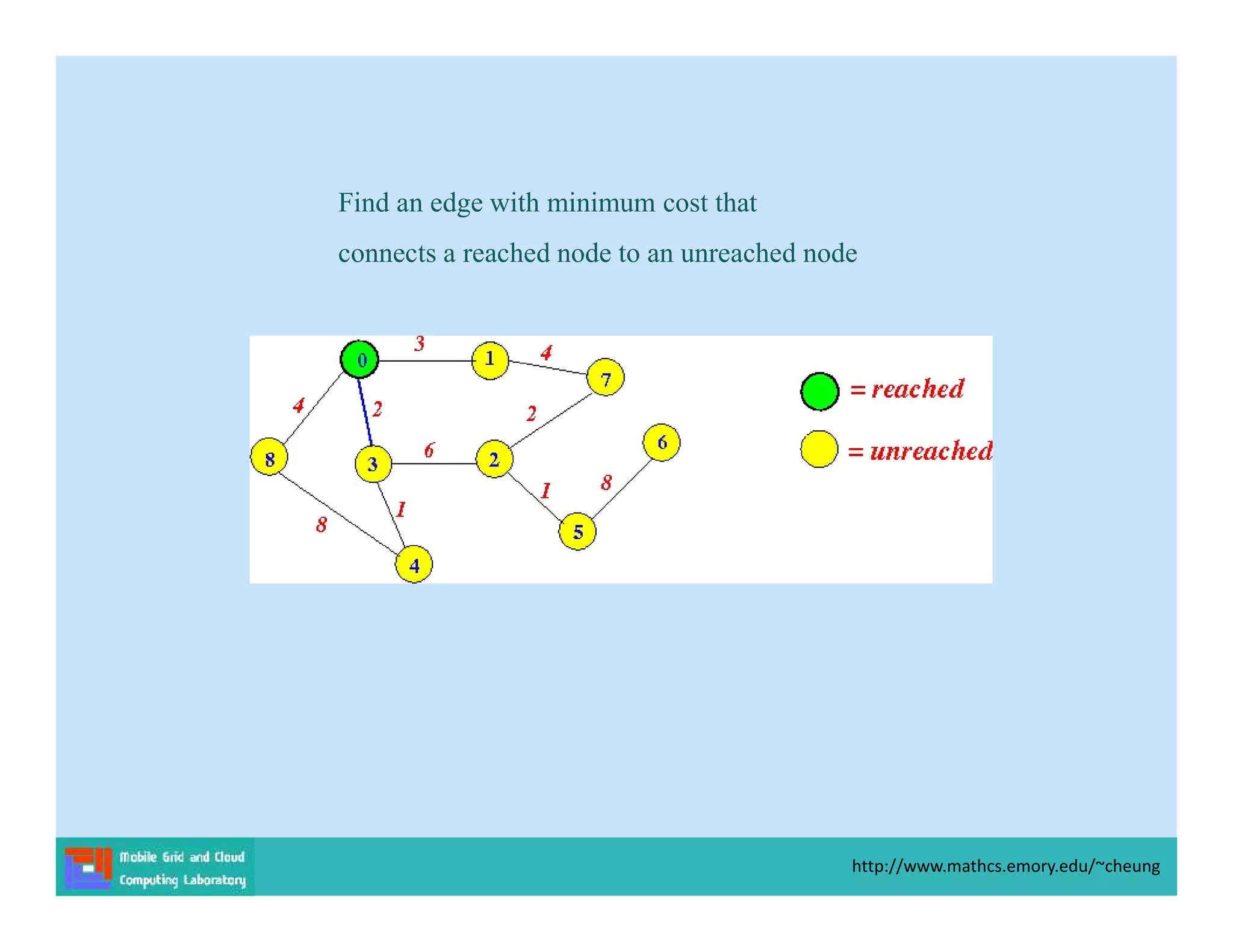

Find an edge with minimum cost that
connects a reached node to an unreached node

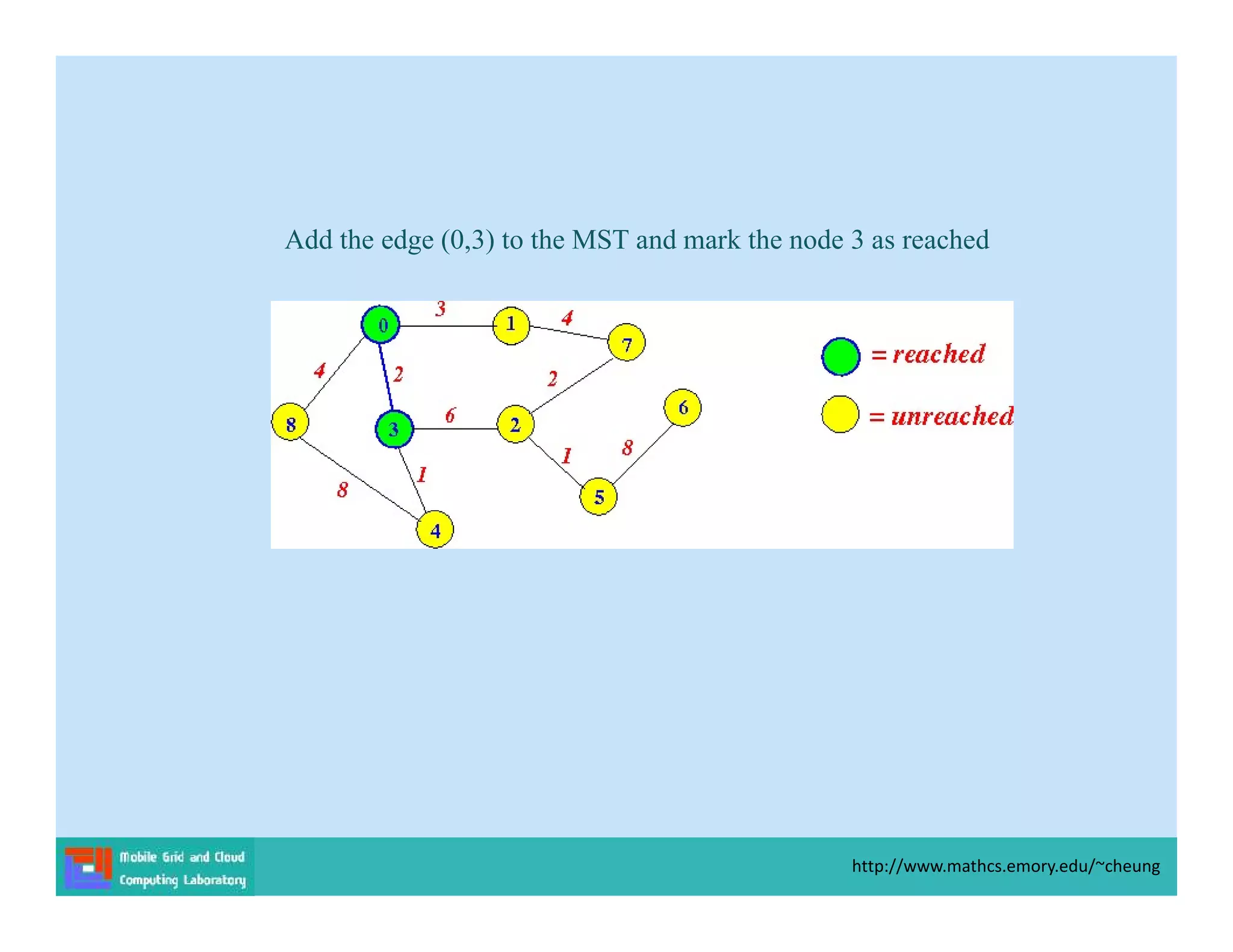

Add the edge (0,3) to the MST and mark the node 3 as reached

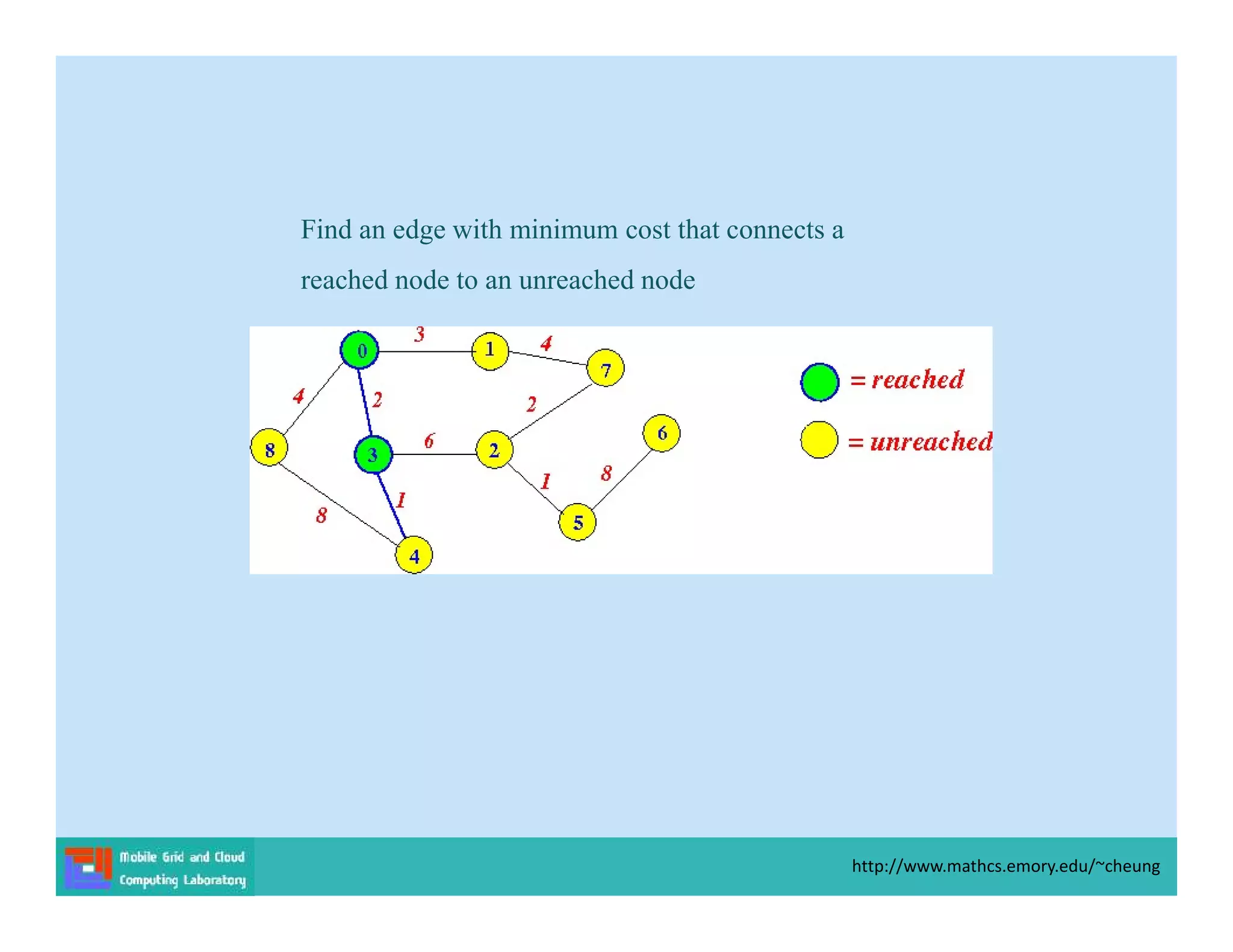

Find an edge with minimum cost that connects a
reached node to an unreached node

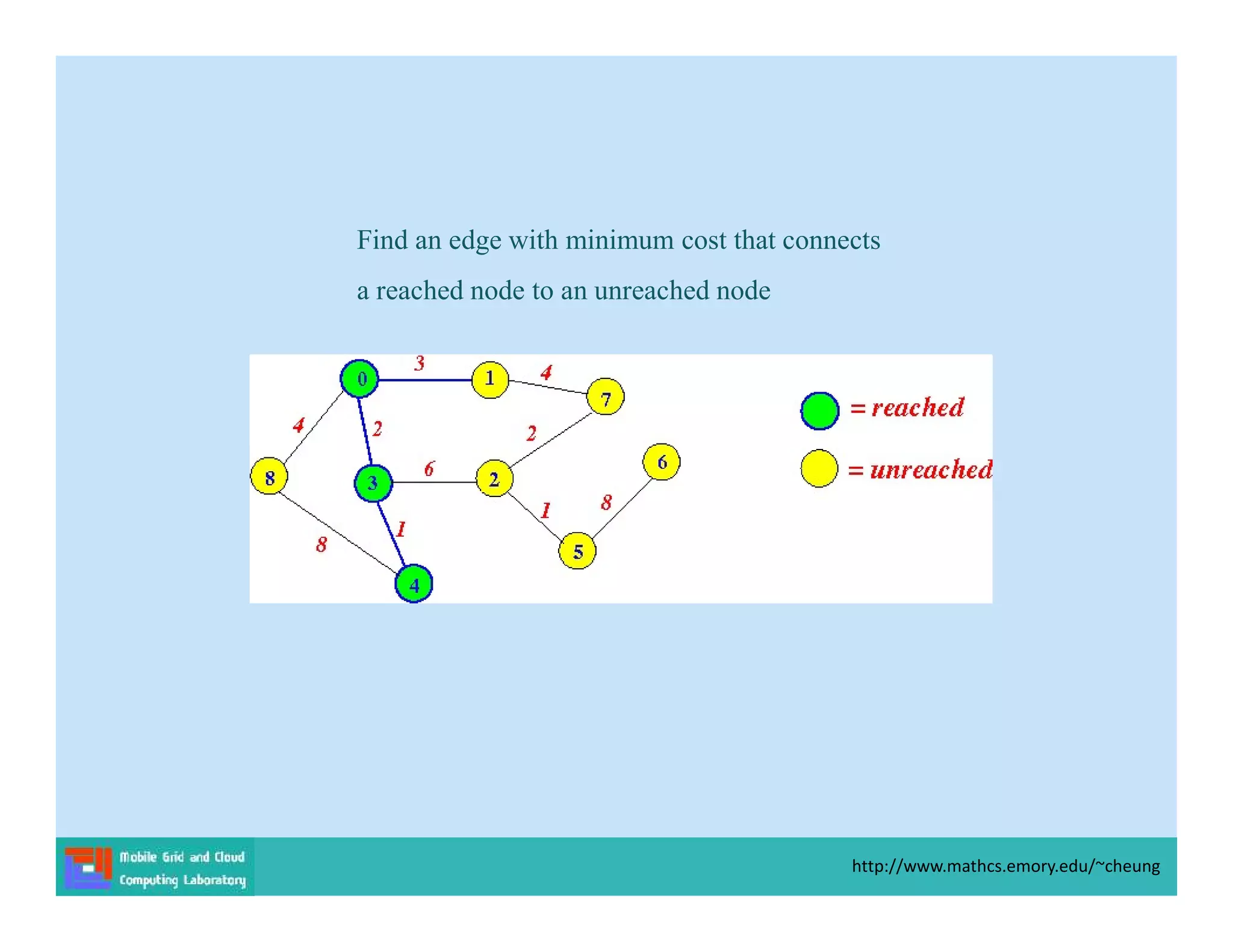

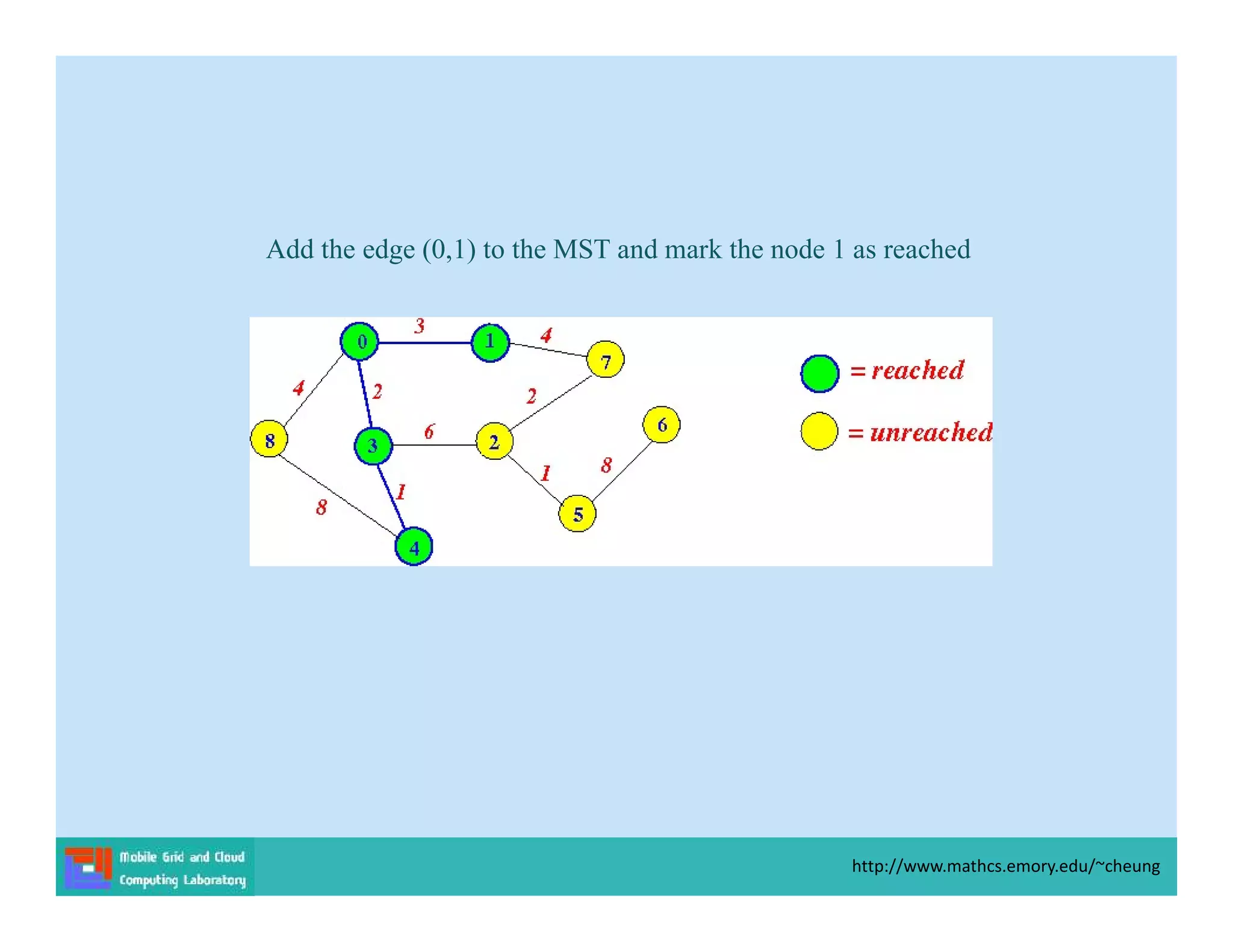

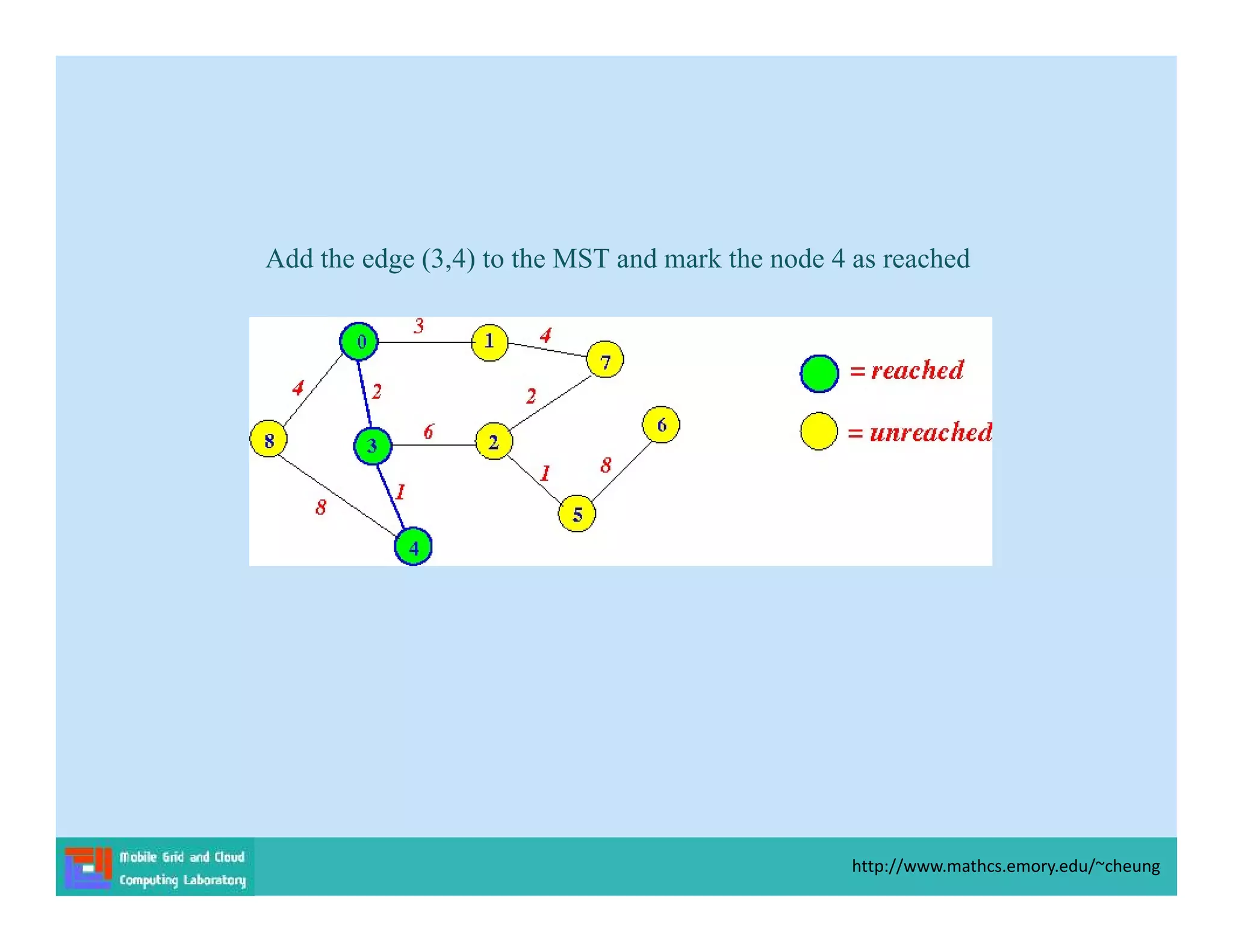

Find an edge with minimum cost that connects
a reached node to an unreached node

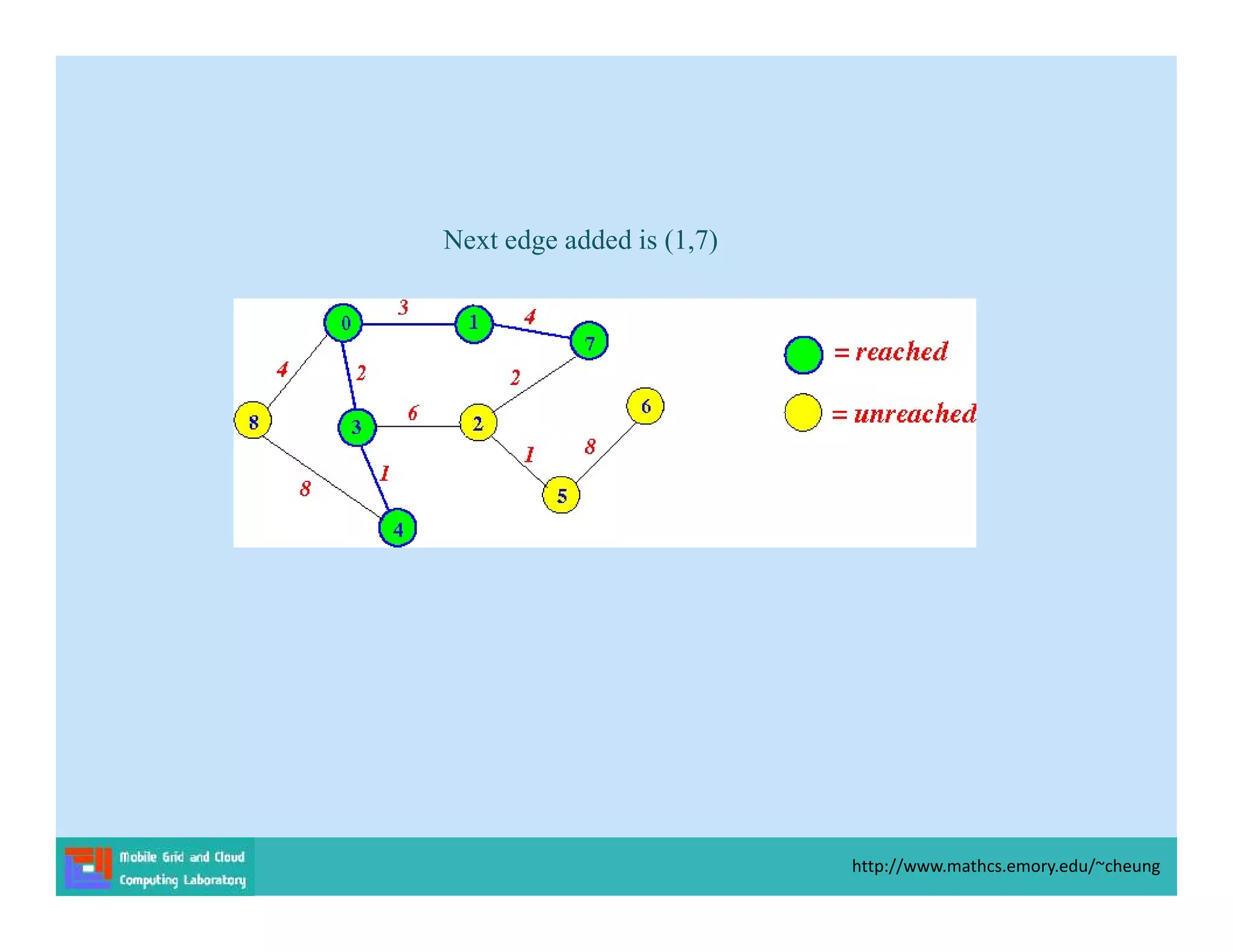

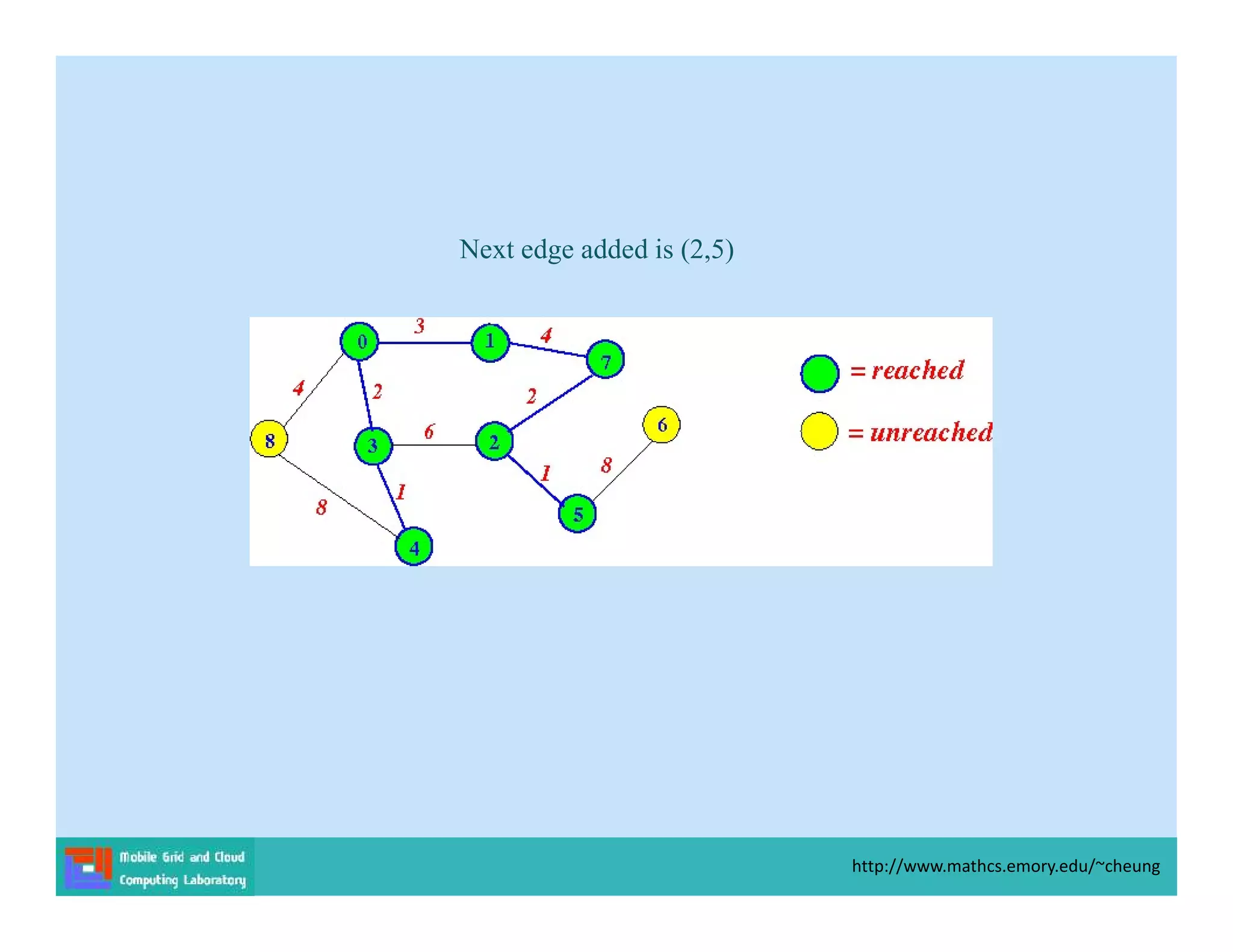

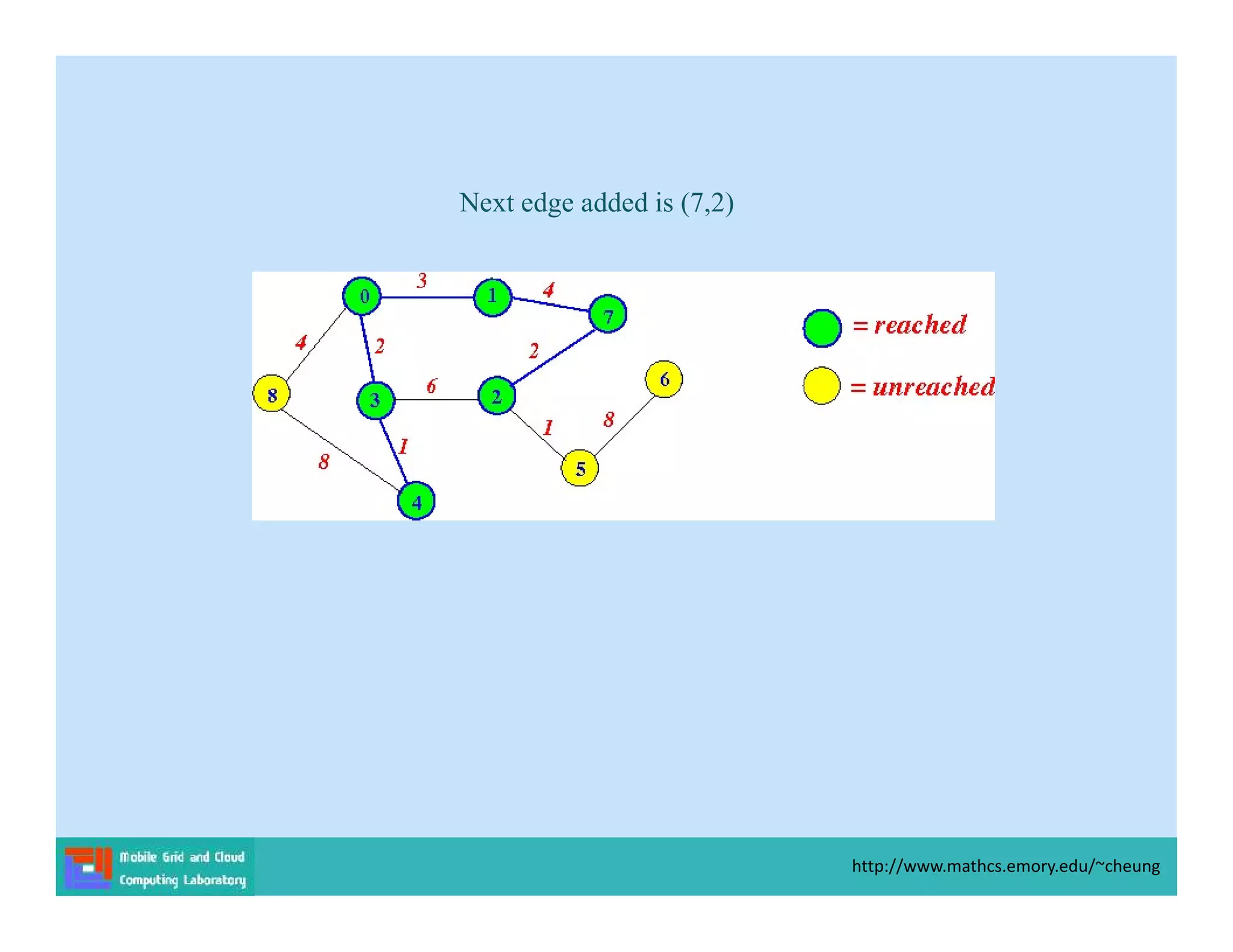

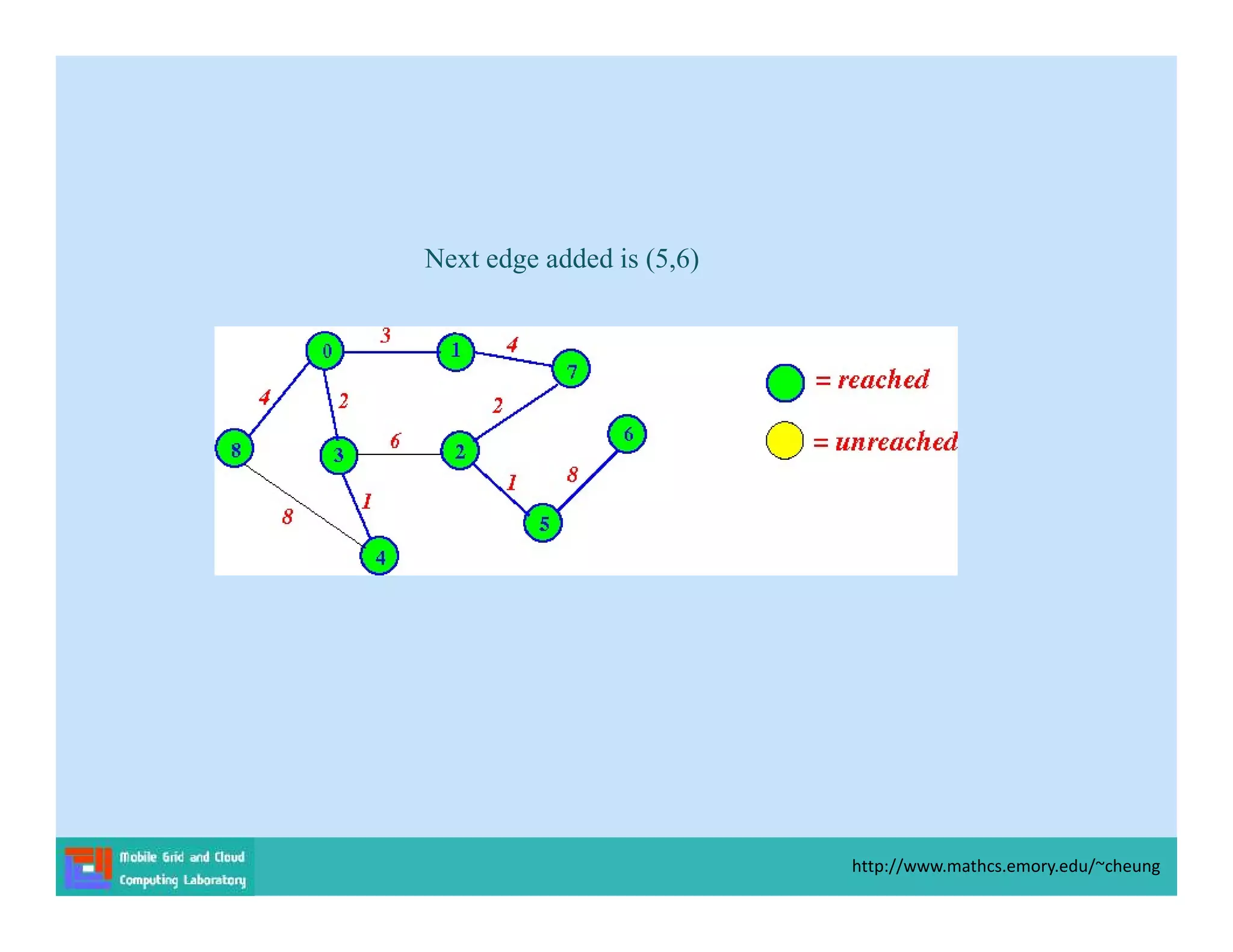

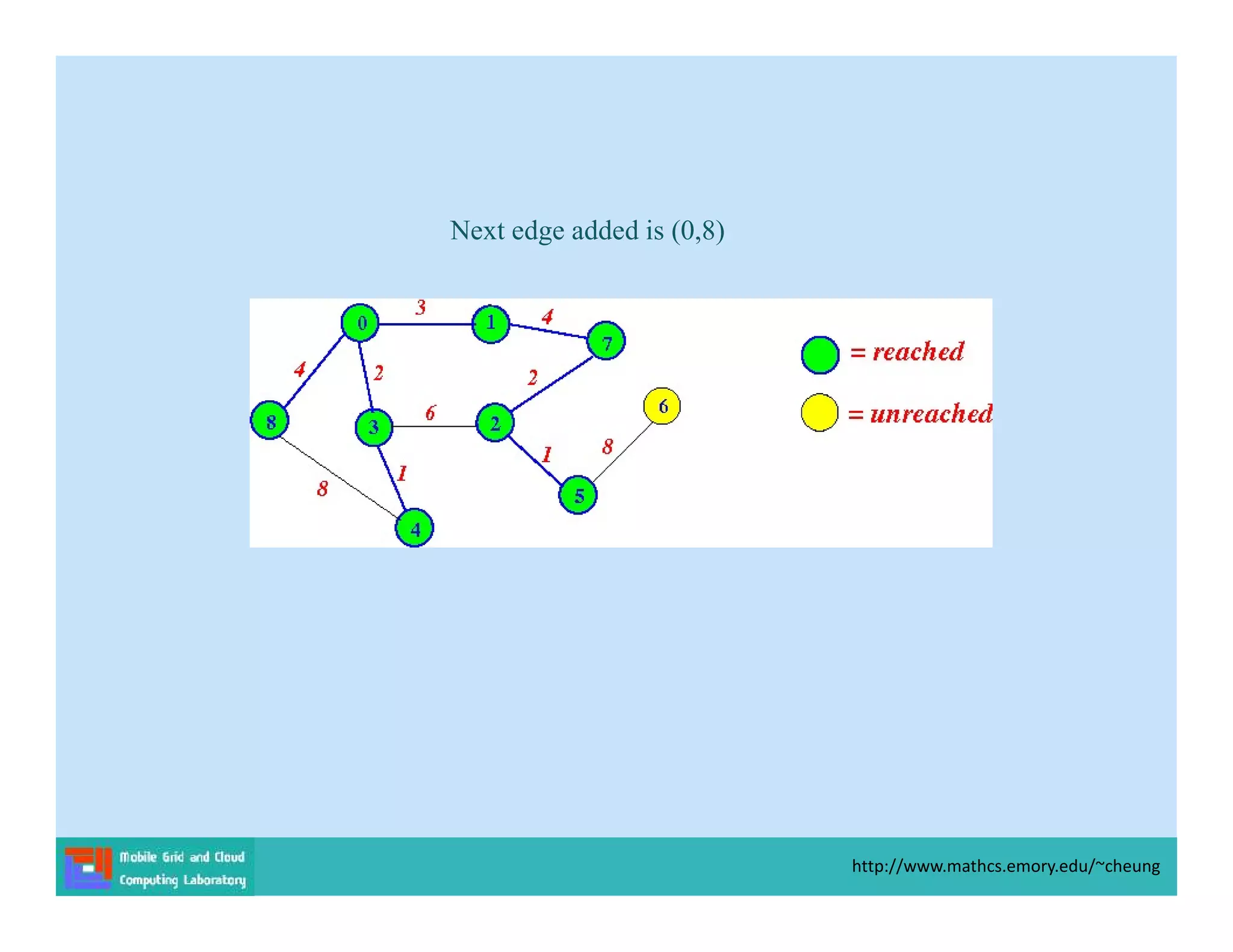

Next edge added is (1,7)

ReachSet = {0}
UnReachSet = {1, 2, ..., N-1}
SpanningTree = {}
{
1. x ReachSet
2. y UnReachSet
}

ReachSet = {0}
UnReachSet = {1, 2, ..., N-1}
SpanningTree = {}
{
1. x ReachSet
2. y UnReachSet
}

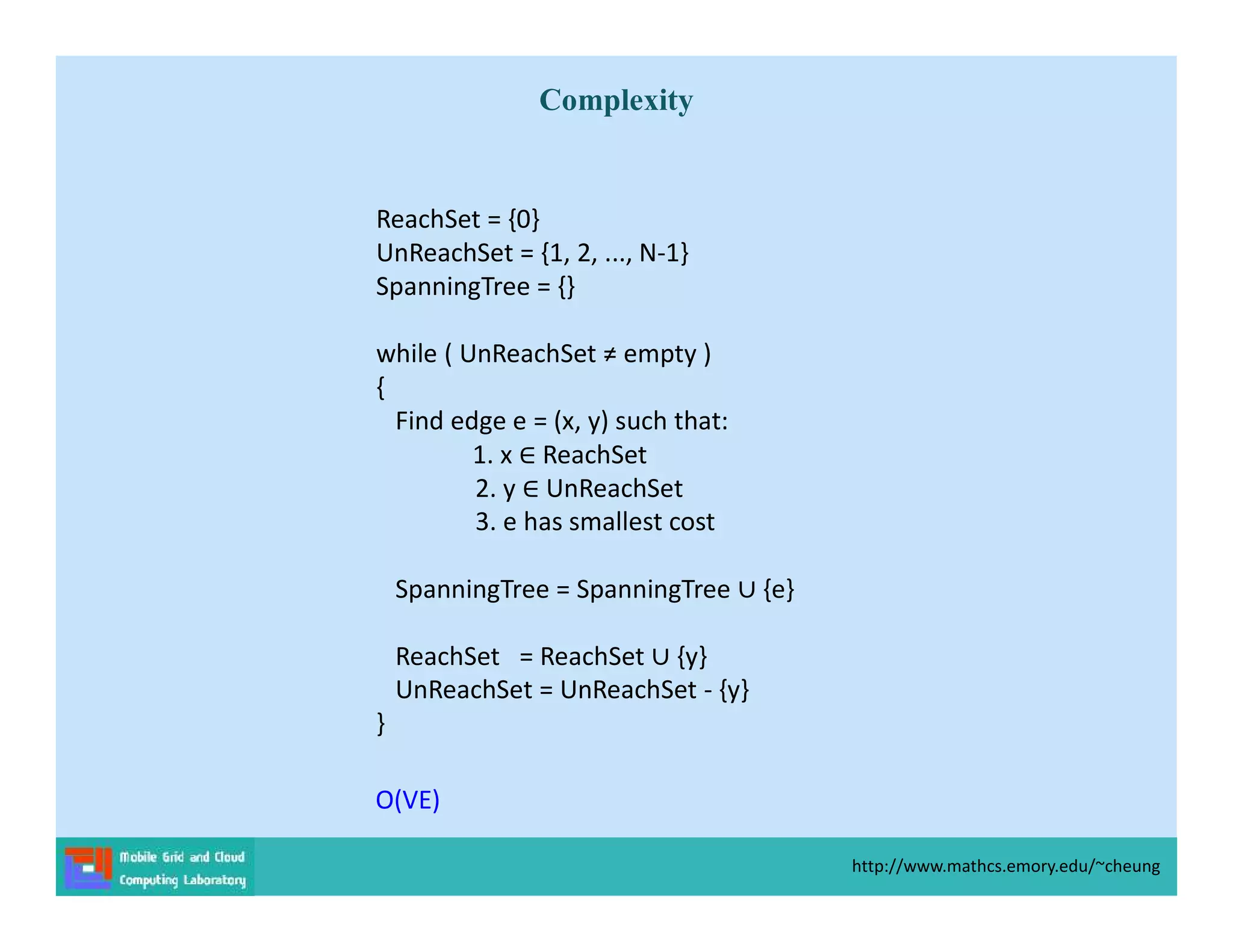

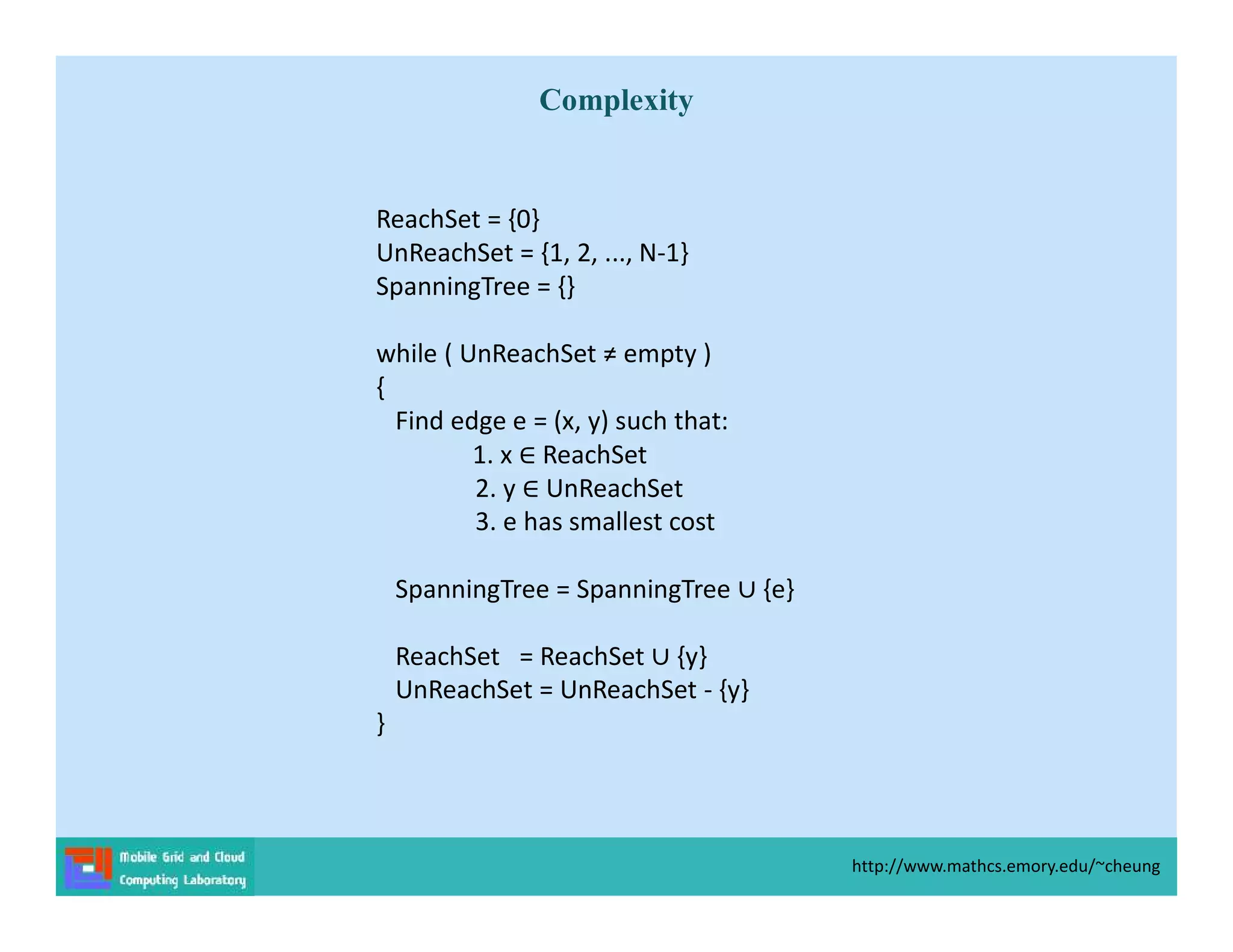

Complexity

ReachSet = {0}
UnReachSet = {1, 2, ..., N-1}
SpanningTree = {}
{
1. x ReachSet
2. y UnReachSet
}
Complexity
O(VE)

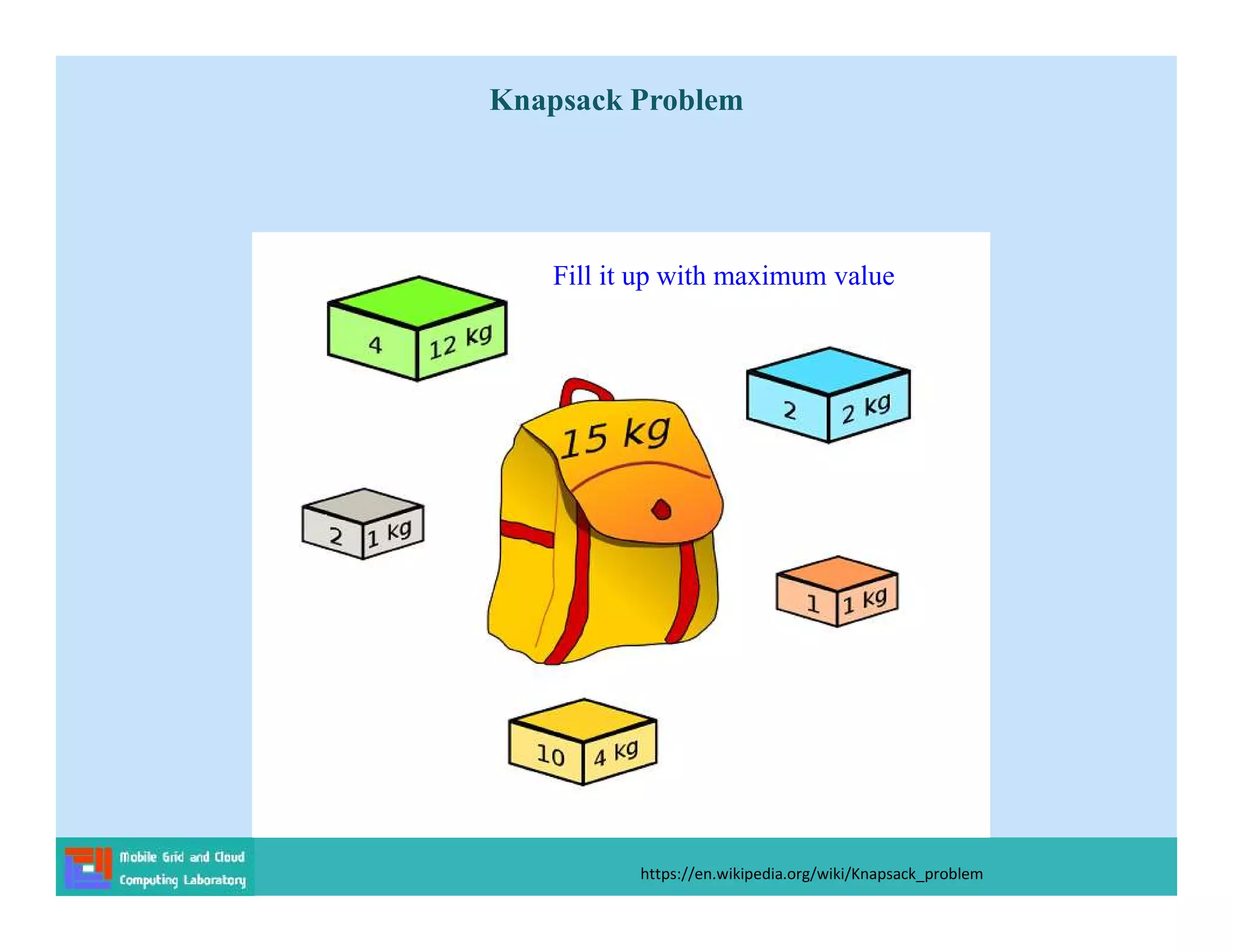

Knapsack Problem
Fill it up with maximum value
https://en.wikipedia.org/wiki/Knapsack_problem

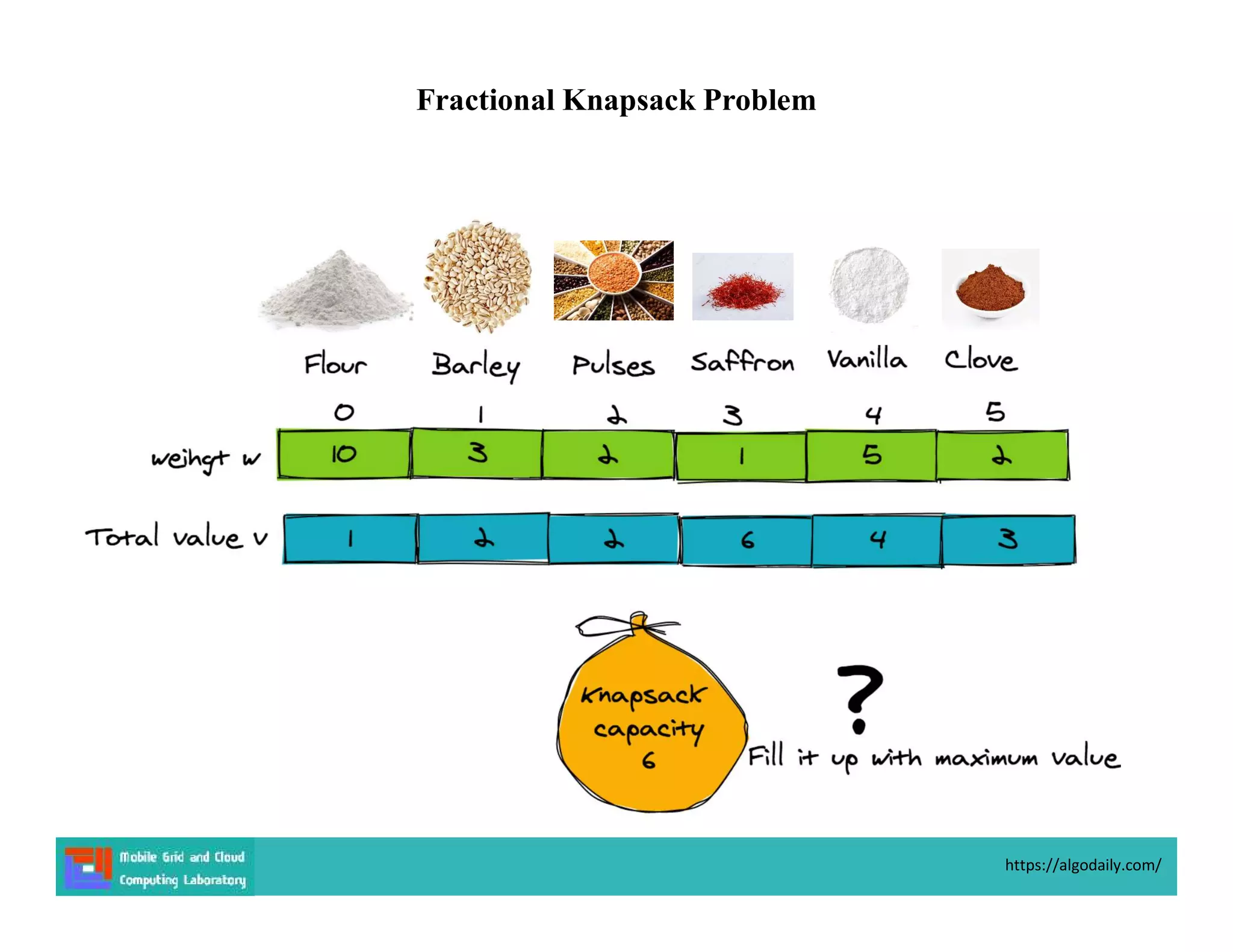

Fractional Knapsack Problem

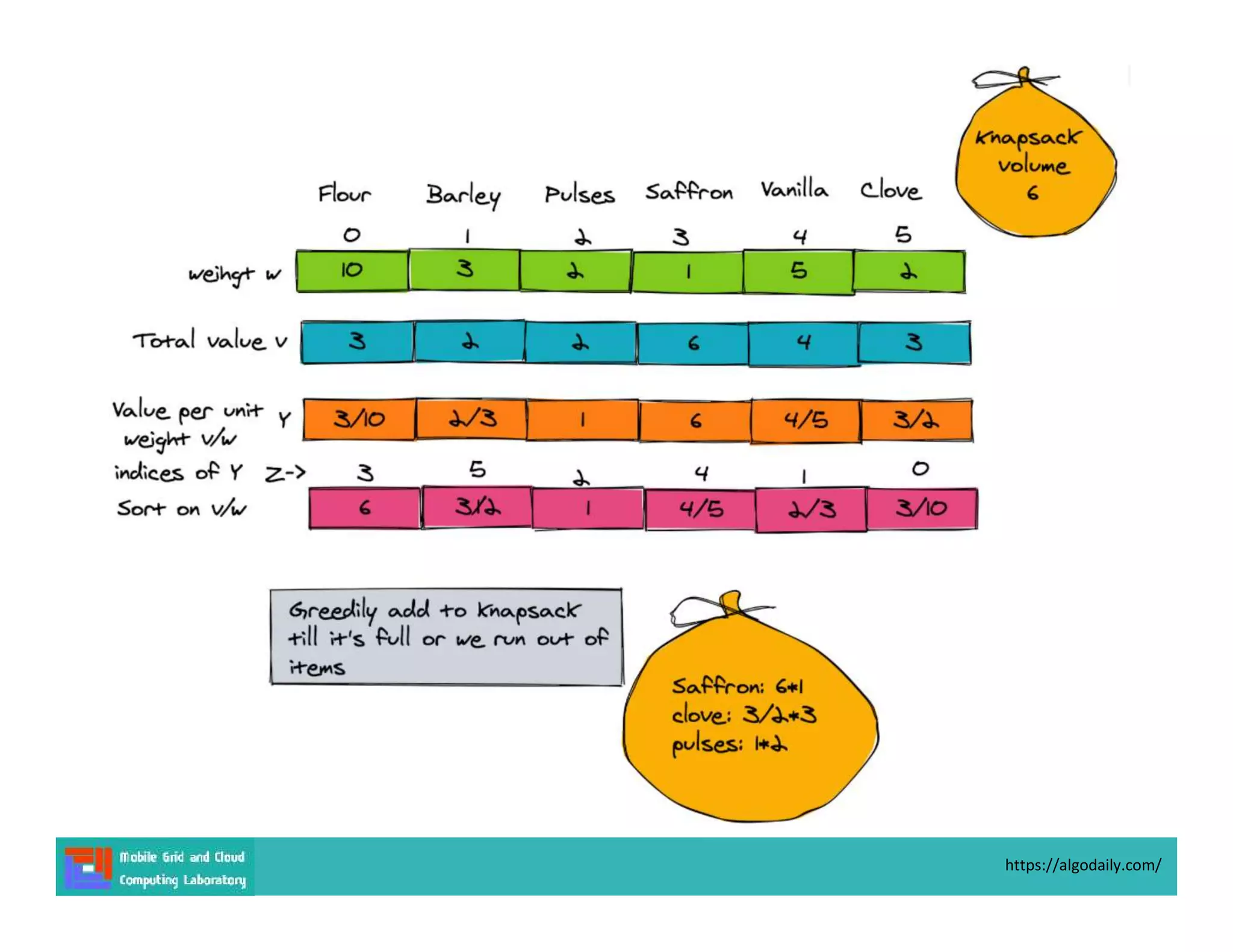

https://algodaily.com/

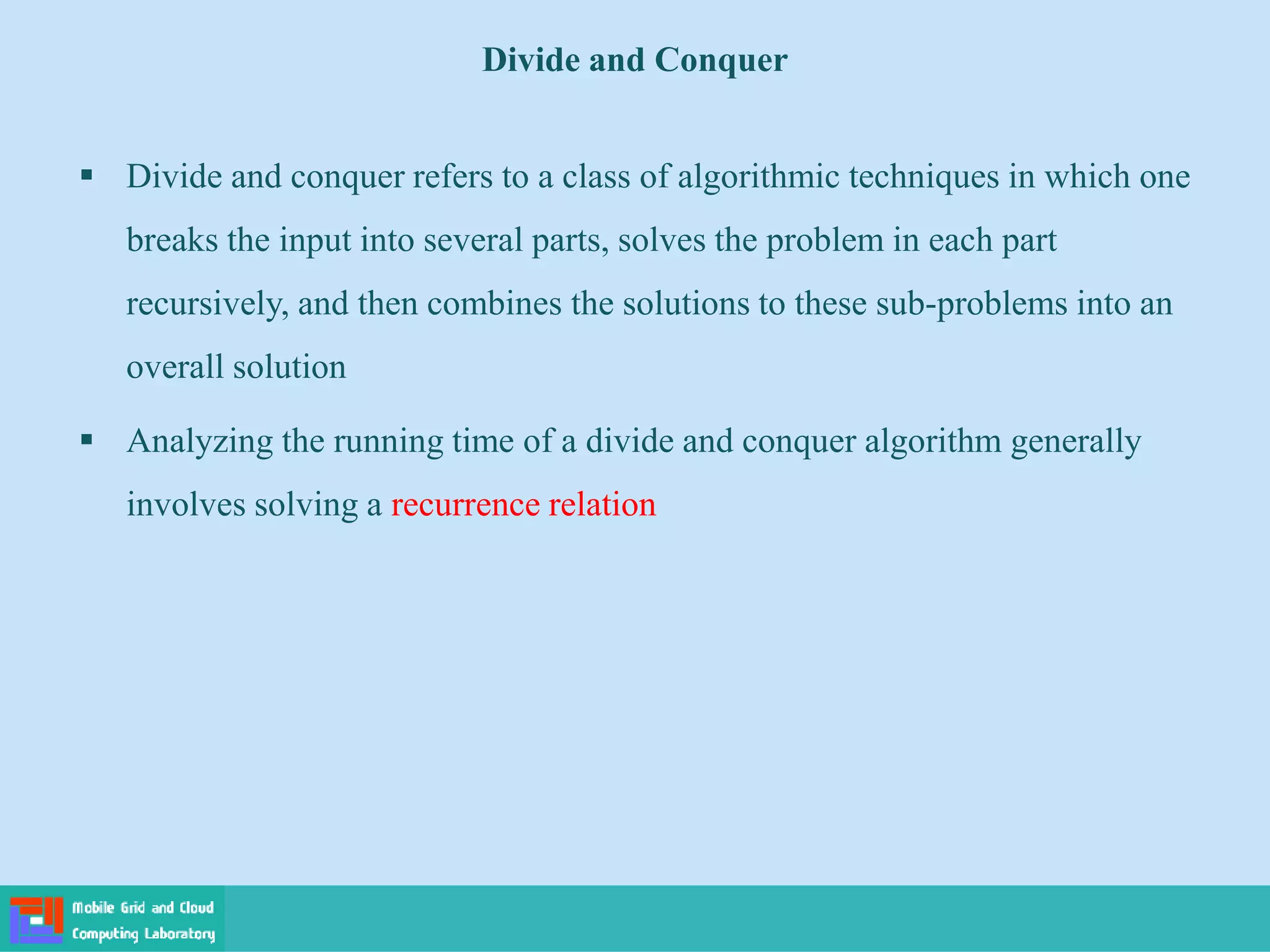

 Divide and conquer refers to a class of algorithmic techniques in which one
breaks the input into several parts, solves the problem in each part
recursively, and then combines the solutions to these sub-problems into an
overall solution
 Analyzing the running time of a divide and conquer algorithm generally
involves solving a recurrence relation
Divide and Conquer

 Binary tree = a tree where each node has at most 2 children nodes
Binary Trees
http://www.mathcs.emory.edu/~cheung/

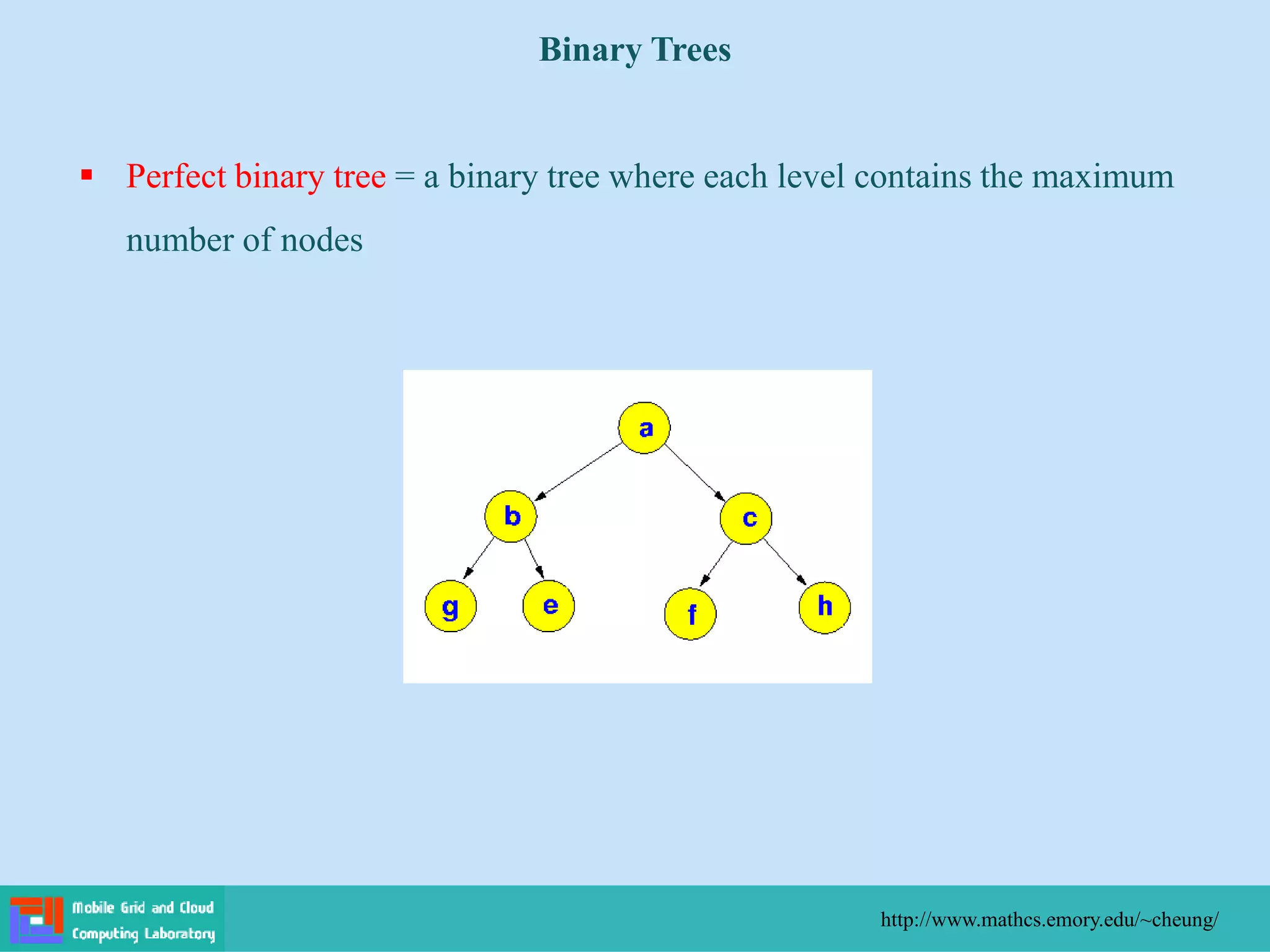

 Perfect binary tree = a binary tree where each level contains the maximum
number of nodes
Binary Trees

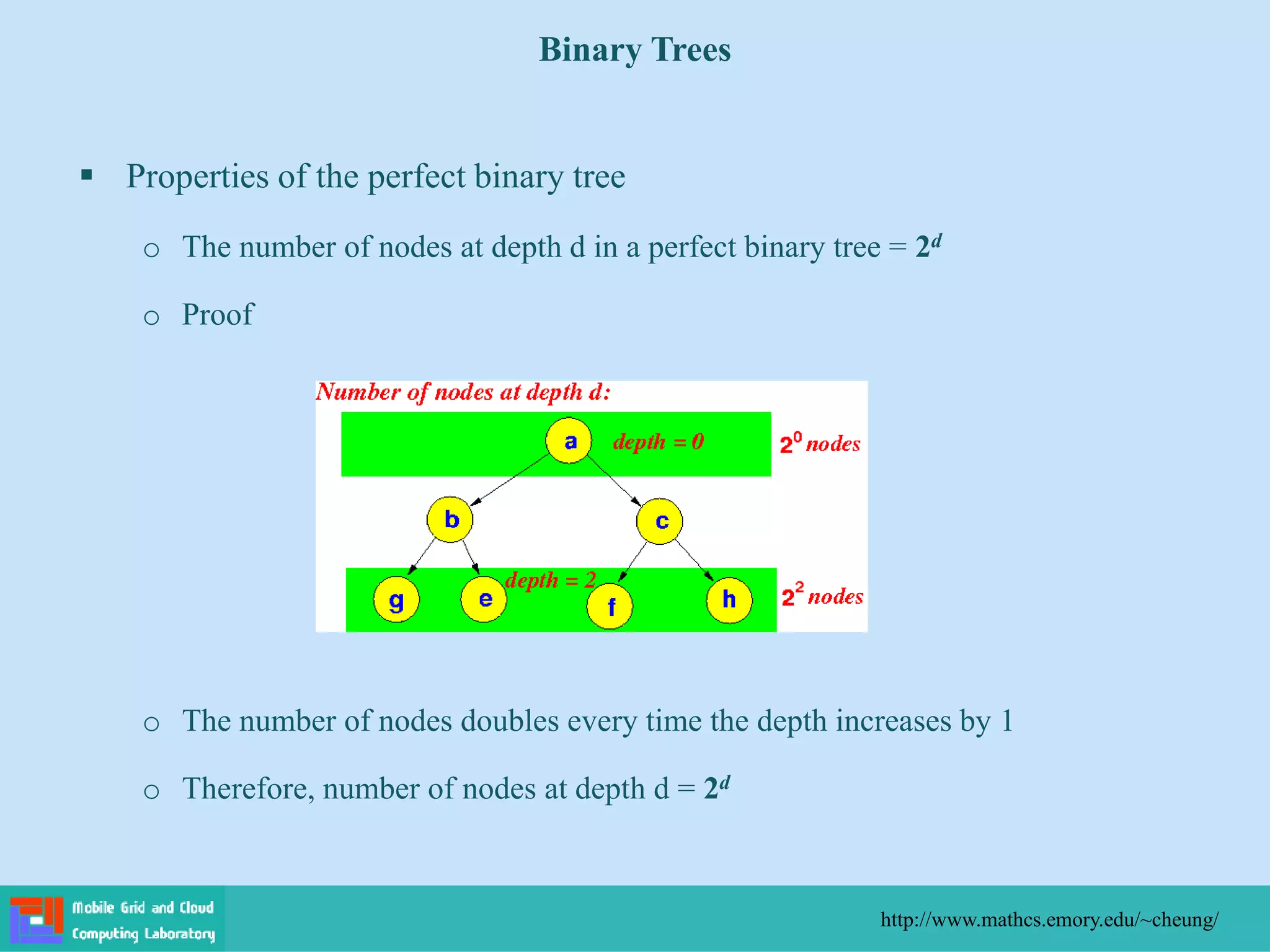

 Properties of the perfect binary tree
o The number of nodes at depth d in a perfect binary tree = 2d
o Proof
o The number of nodes doubles every time the depth increases by 1
o Therefore, number of nodes at depth d = 2d
Binary Trees

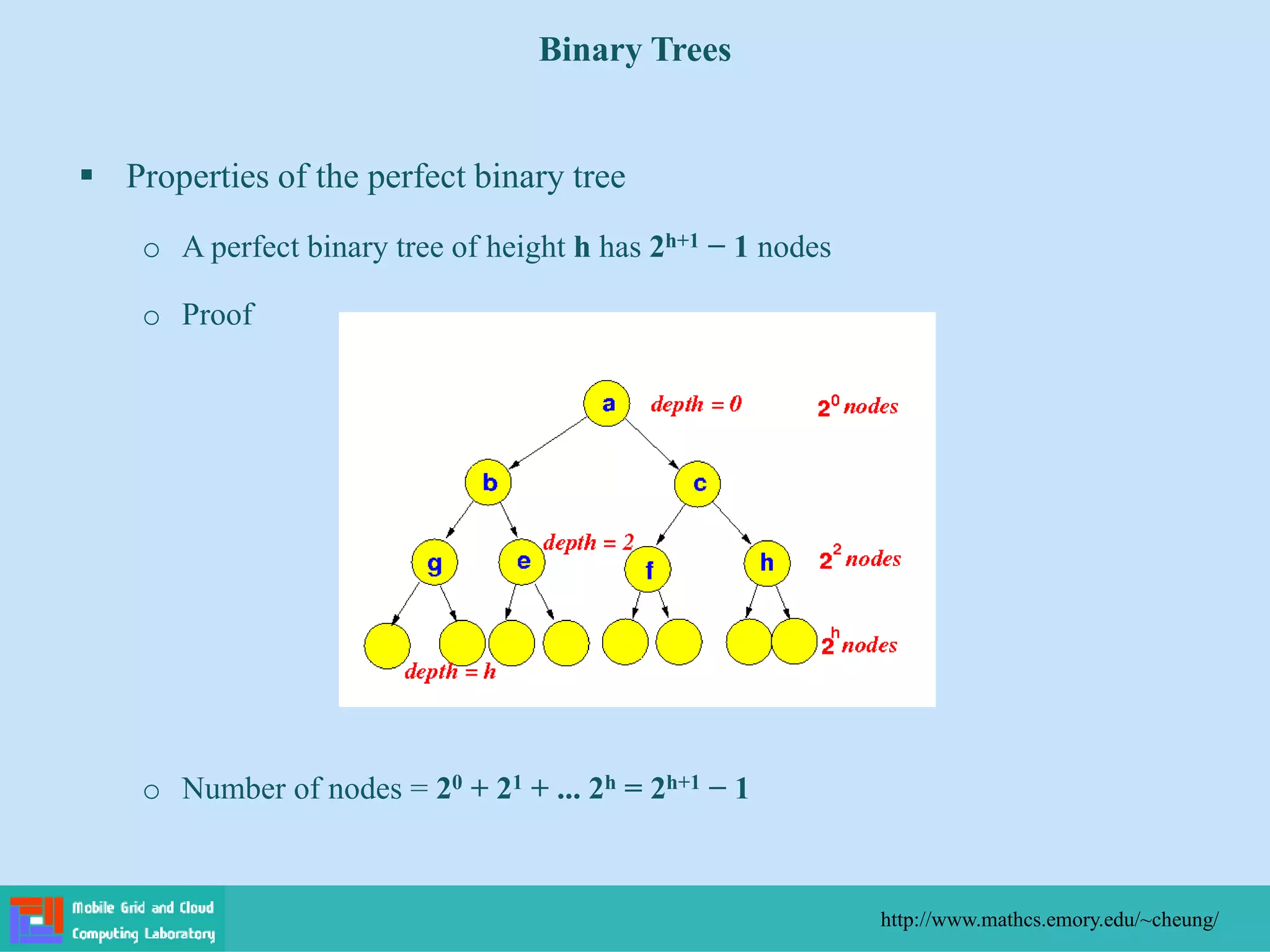

o A perfect binary tree of height h has 2h+1 − 1 nodes
o Proof
o Number of nodes = 20 + 21 + ... 2h = 2h+1 − 1
Binary Trees

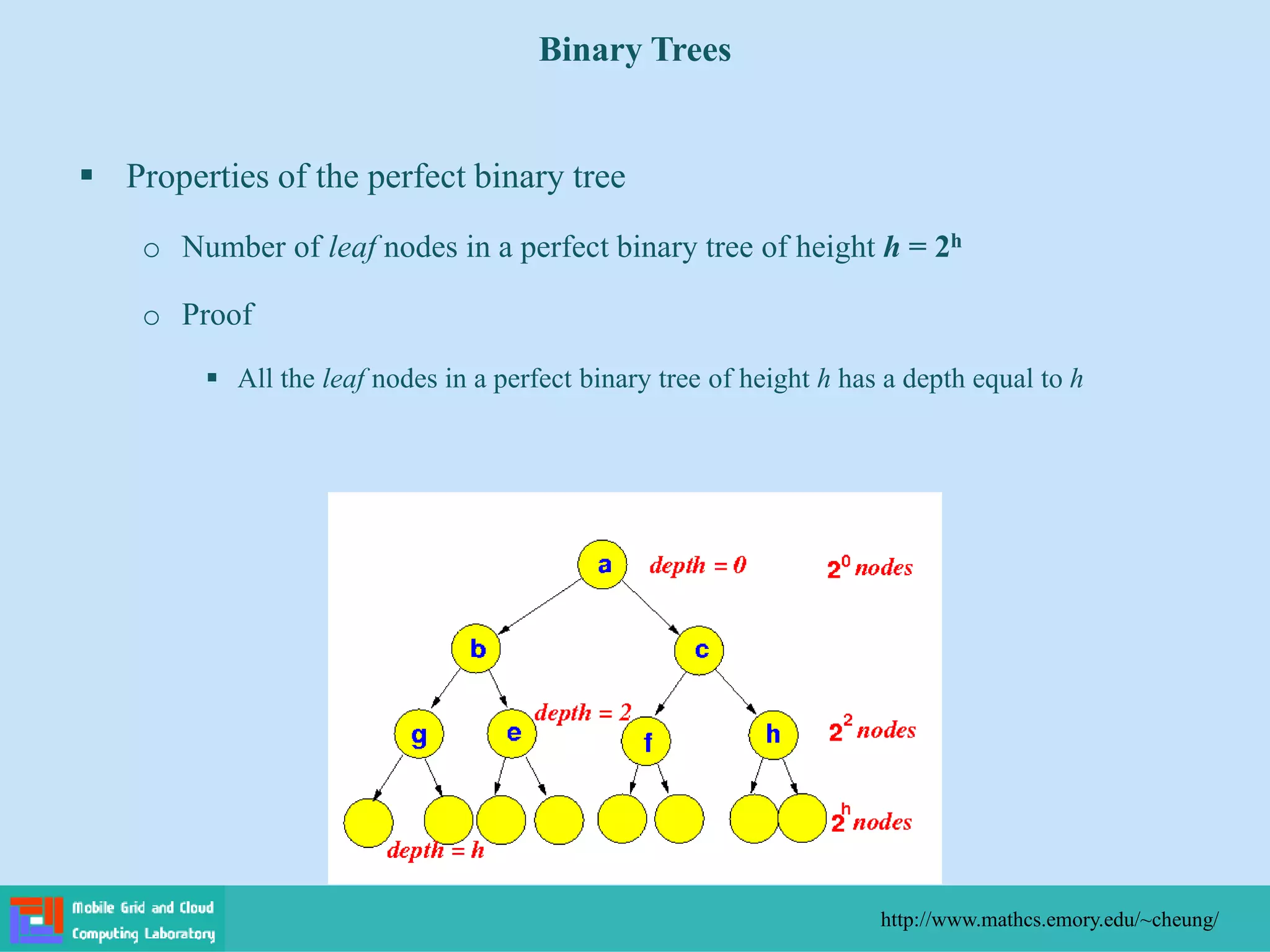

o Number of leaf nodes in a perfect binary tree of height h = 2h
o Proof
 All the leaf nodes in a perfect binary tree of height h has a depth equal to h
Binary Trees

 The minimum number of nodes in a binary tree of height h = h + 1
Binary Trees

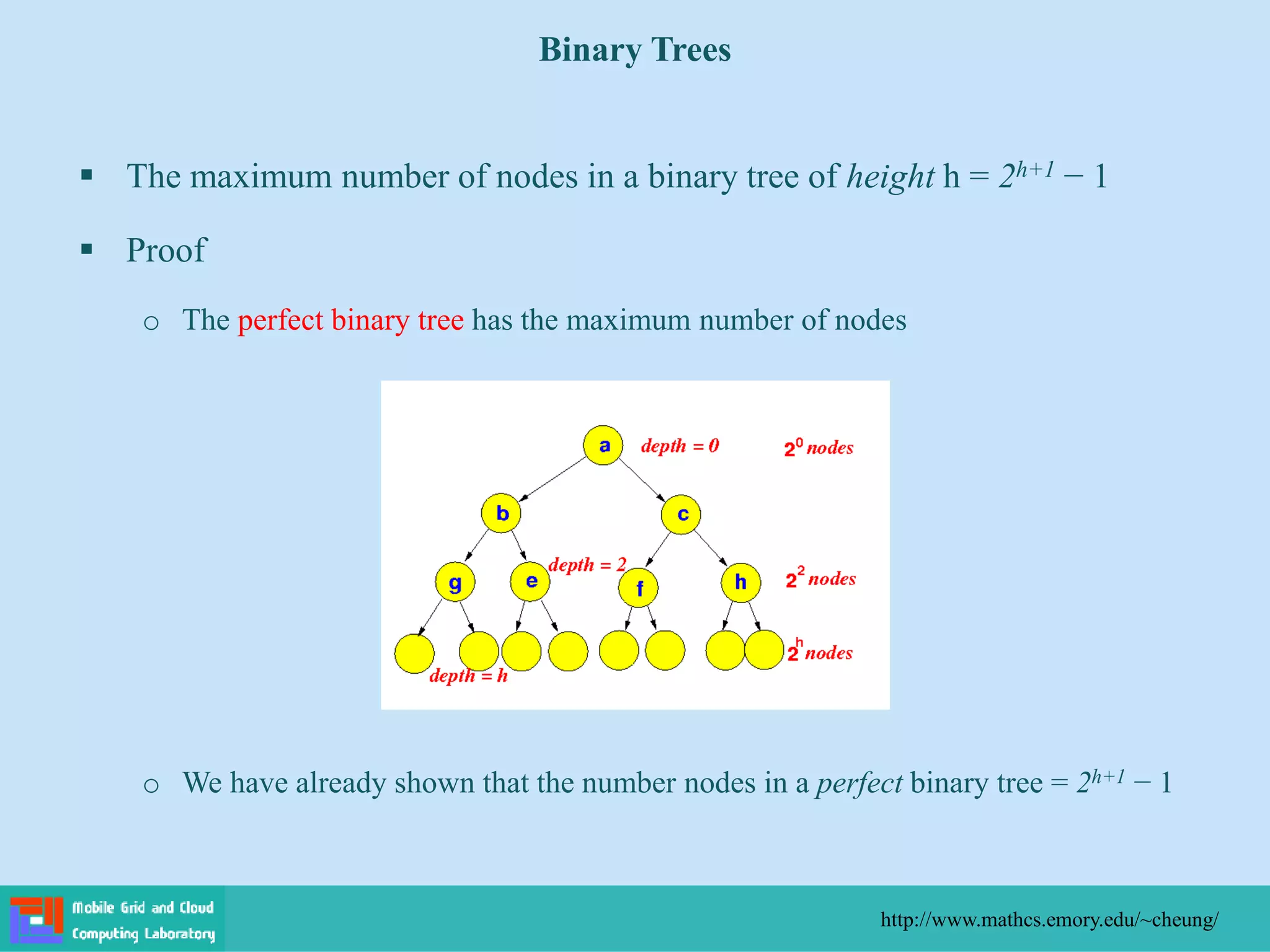

 The maximum number of nodes in a binary tree of height h = 2h+1 − 1
 Proof
o The perfect binary tree has the maximum number of nodes
o We have already shown that the number nodes in a perfect binary tree = 2h+1 − 1
Binary Trees

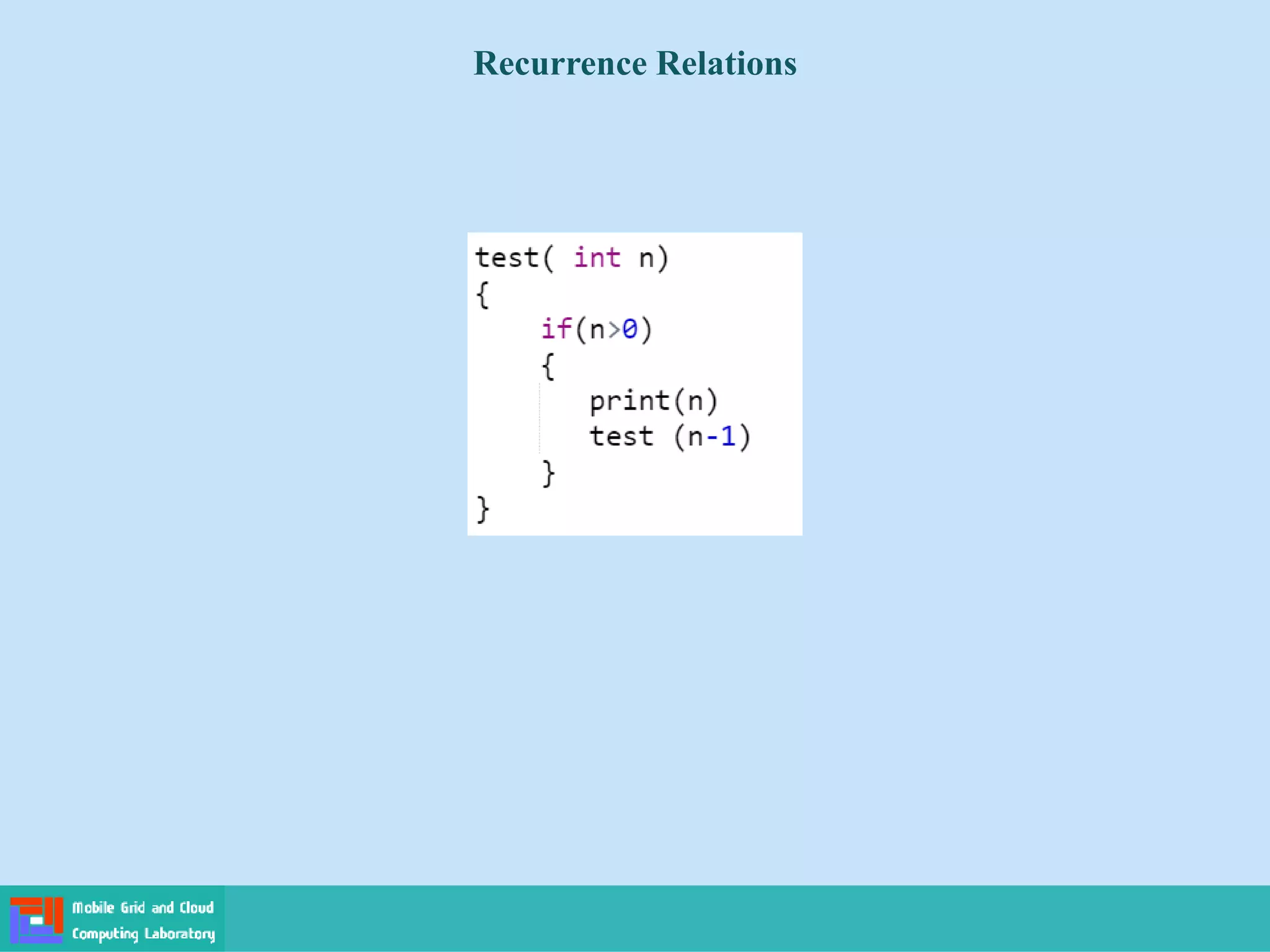

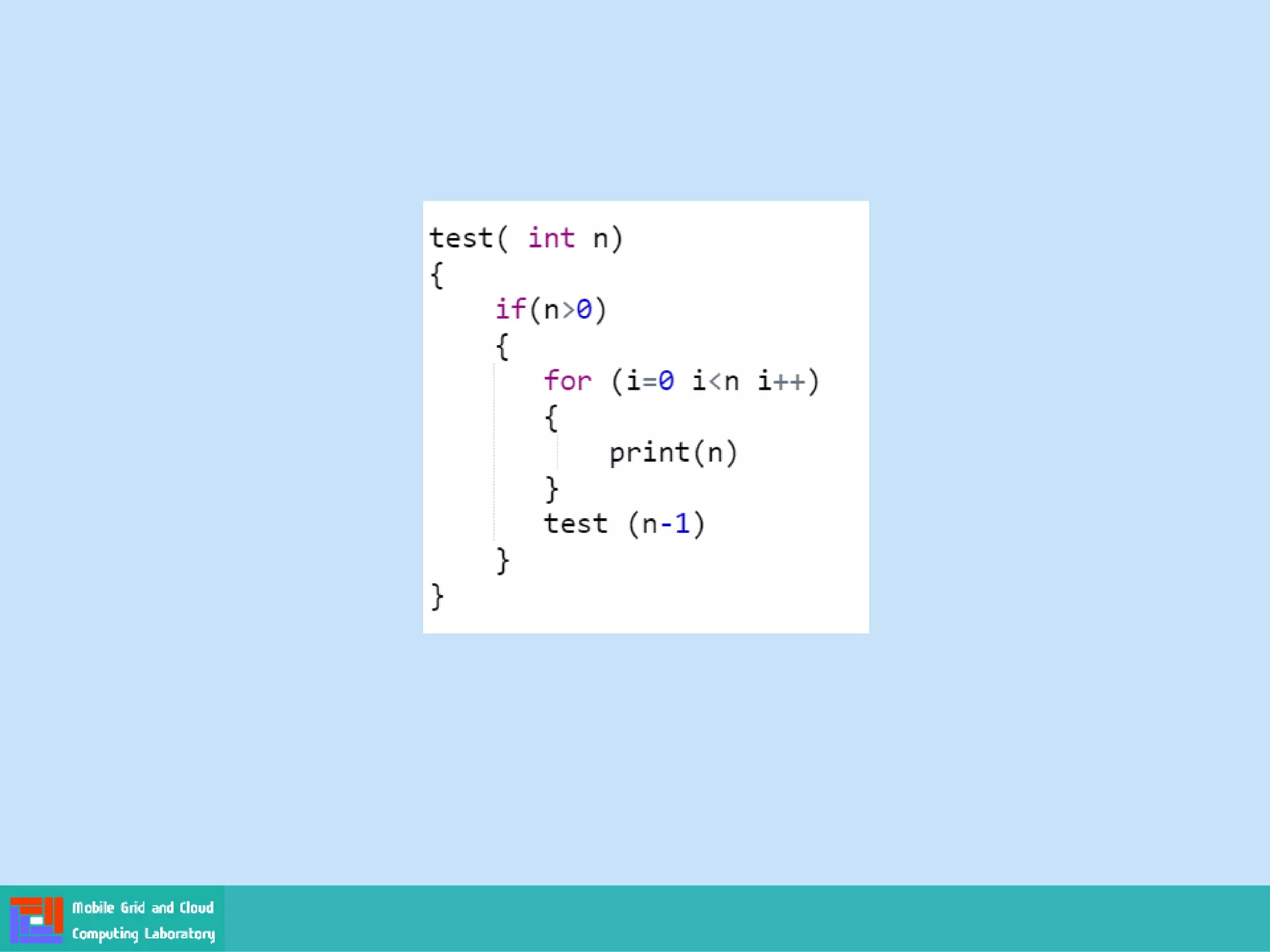

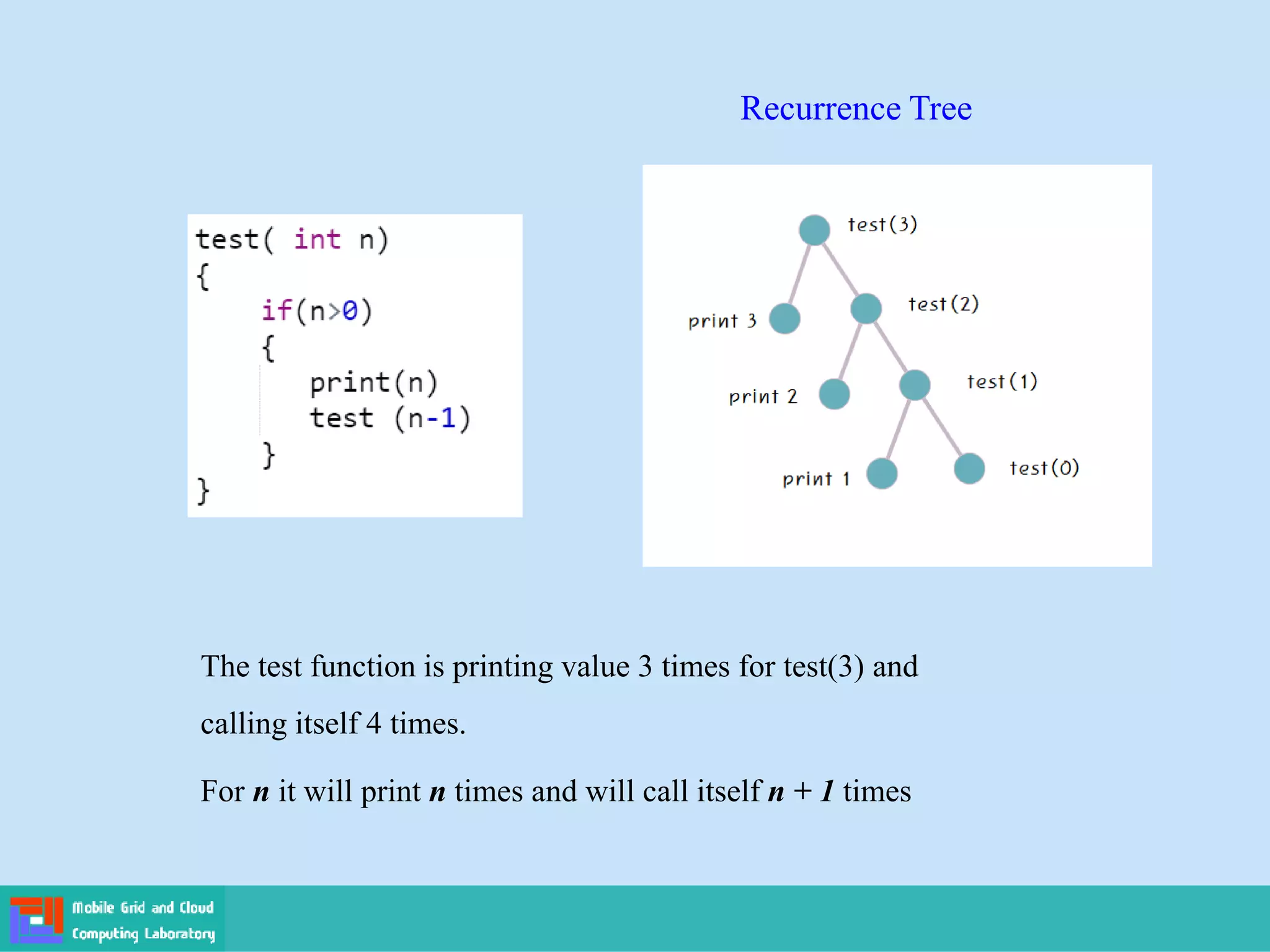

Recurrence Tree
The test function is printing value 3 times for test(3) and
calling itself 4 times.
For n it will print n times and will call itself n + 1 times

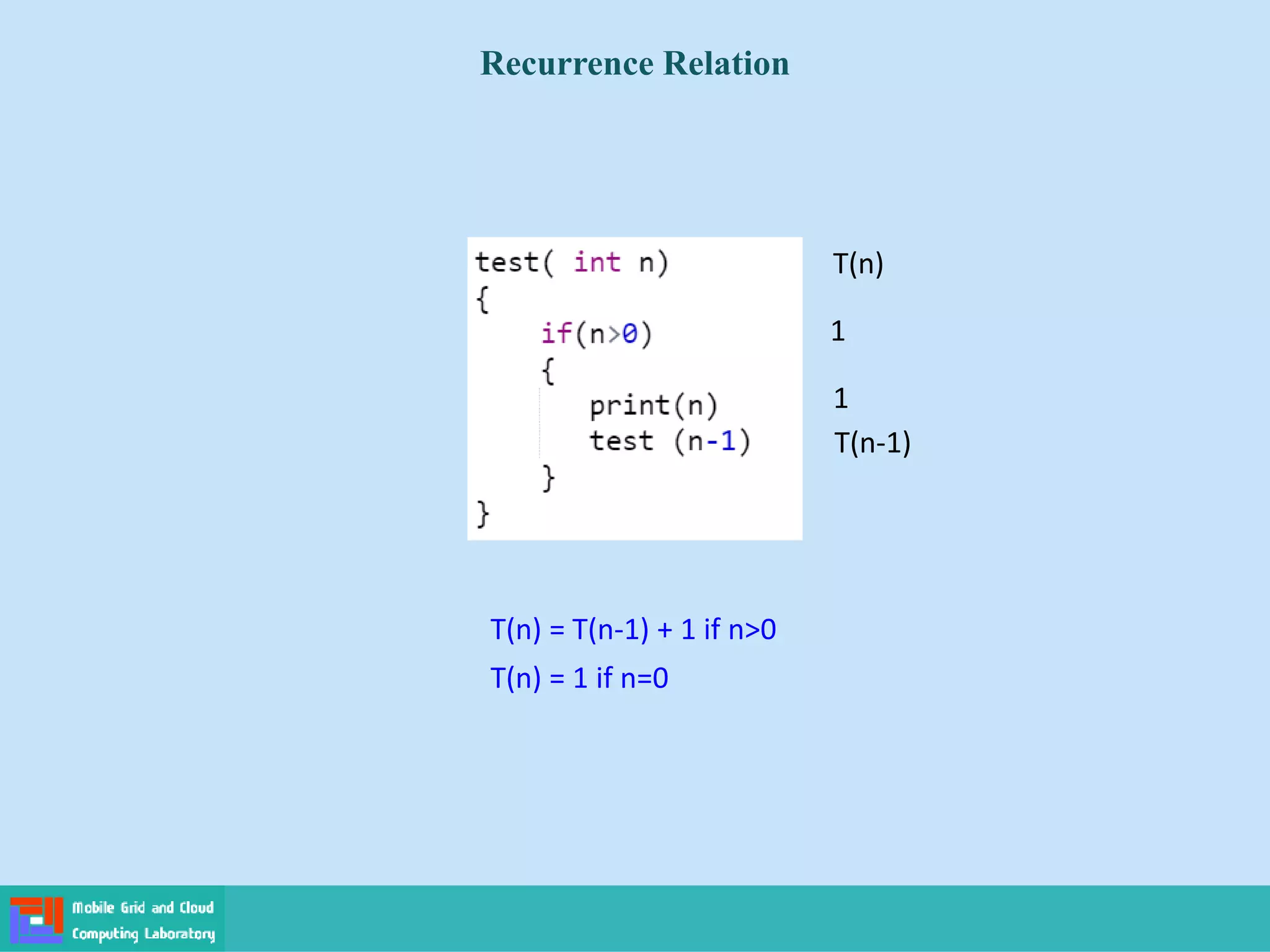

Recurrence Relation
T(n)
1
T(n-1)
T(n) = T(n-1) + 1 if n>0
T(n) = 1 if n=0
1

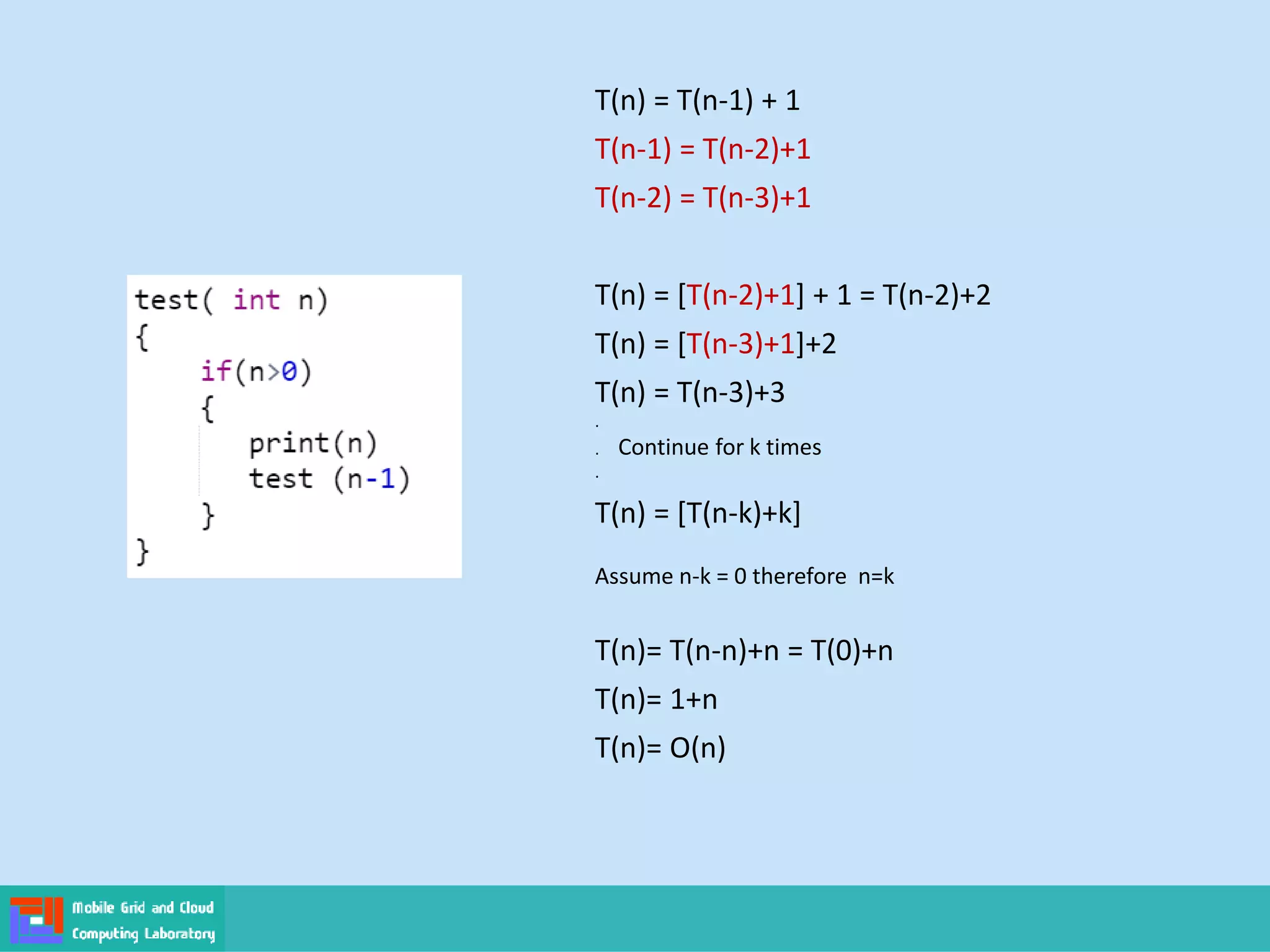

T(n) = T(n-1) + 1
T(n-1) = T(n-2)+1
T(n-2) = T(n-3)+1
T(n) = [T(n-2)+1] + 1 = T(n-2)+2
T(n) = [T(n-3)+1]+2
T(n) = T(n-3)+3
.
. Continue for k times
.
T(n) = [T(n-k)+k]
Assume n-k = 0 therefore n=k
T(n)= T(n-n)+n = T(0)+n
T(n)= 1+n
T(n)= O(n)

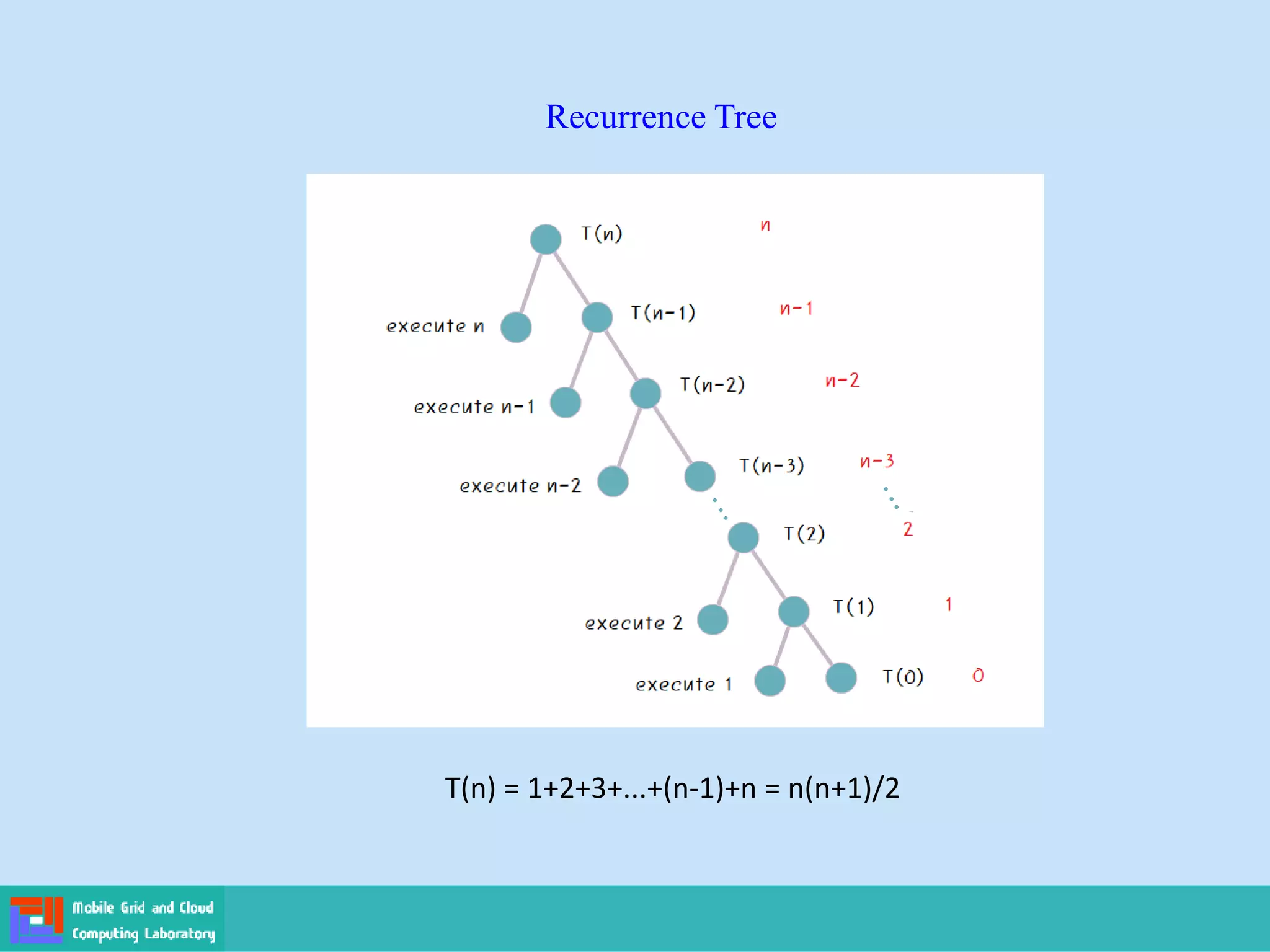

T(n) = 1+2+3+...+(n-1)+n = n(n+1)/2

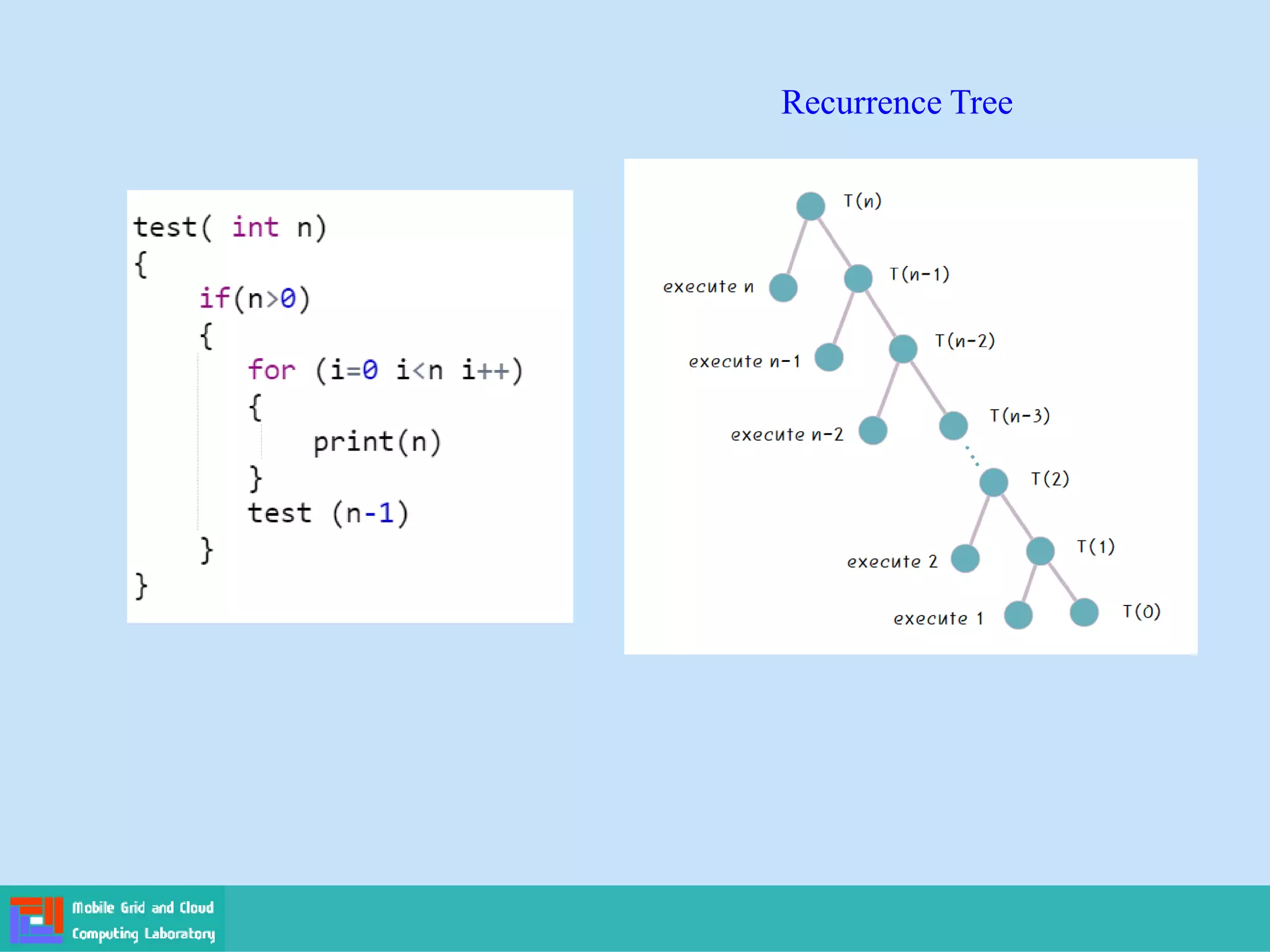

Recurrence Tree

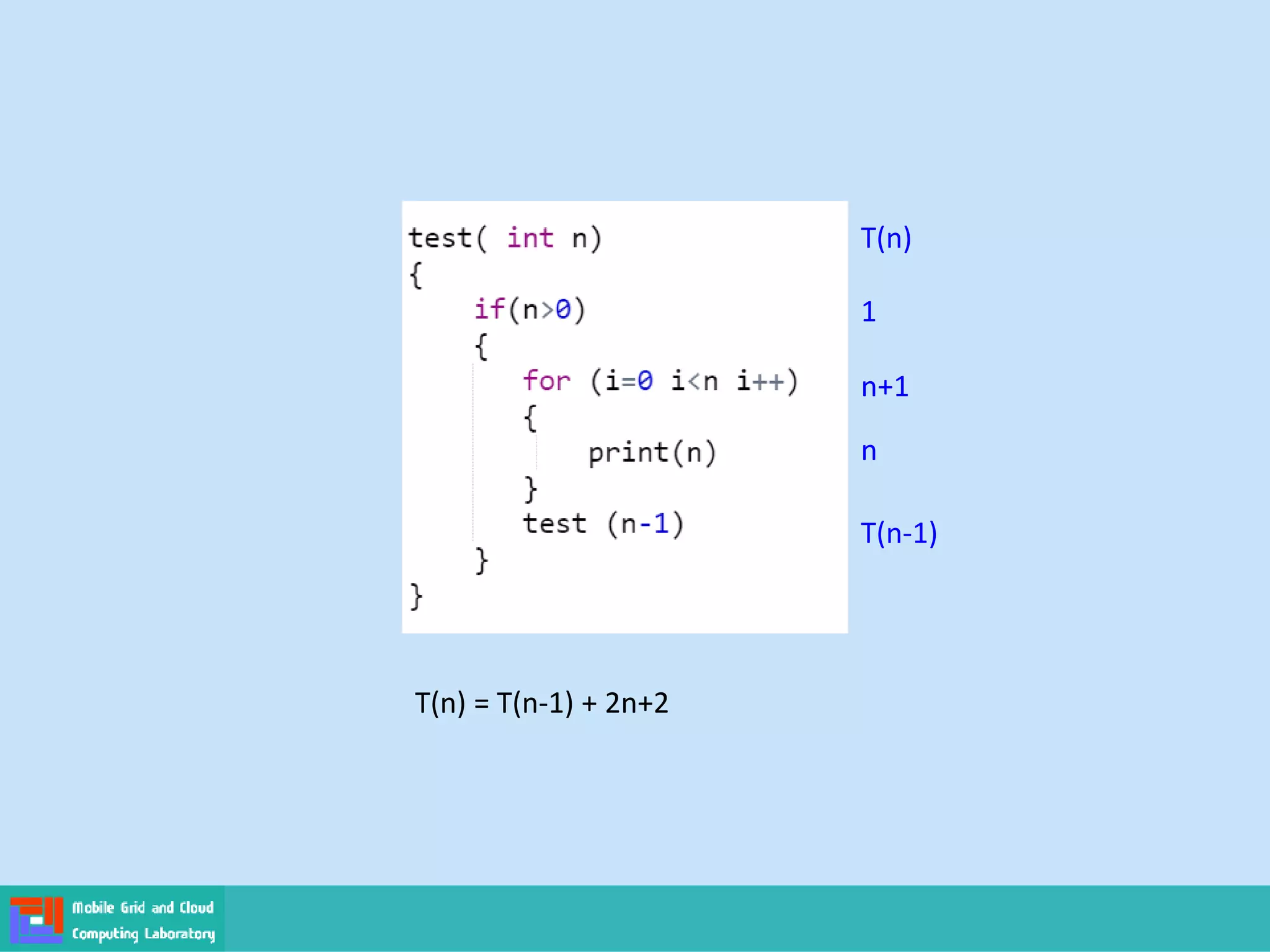

T(n)
1
n+1
n
T(n-1)
T(n) = T(n-1) + 2n+2

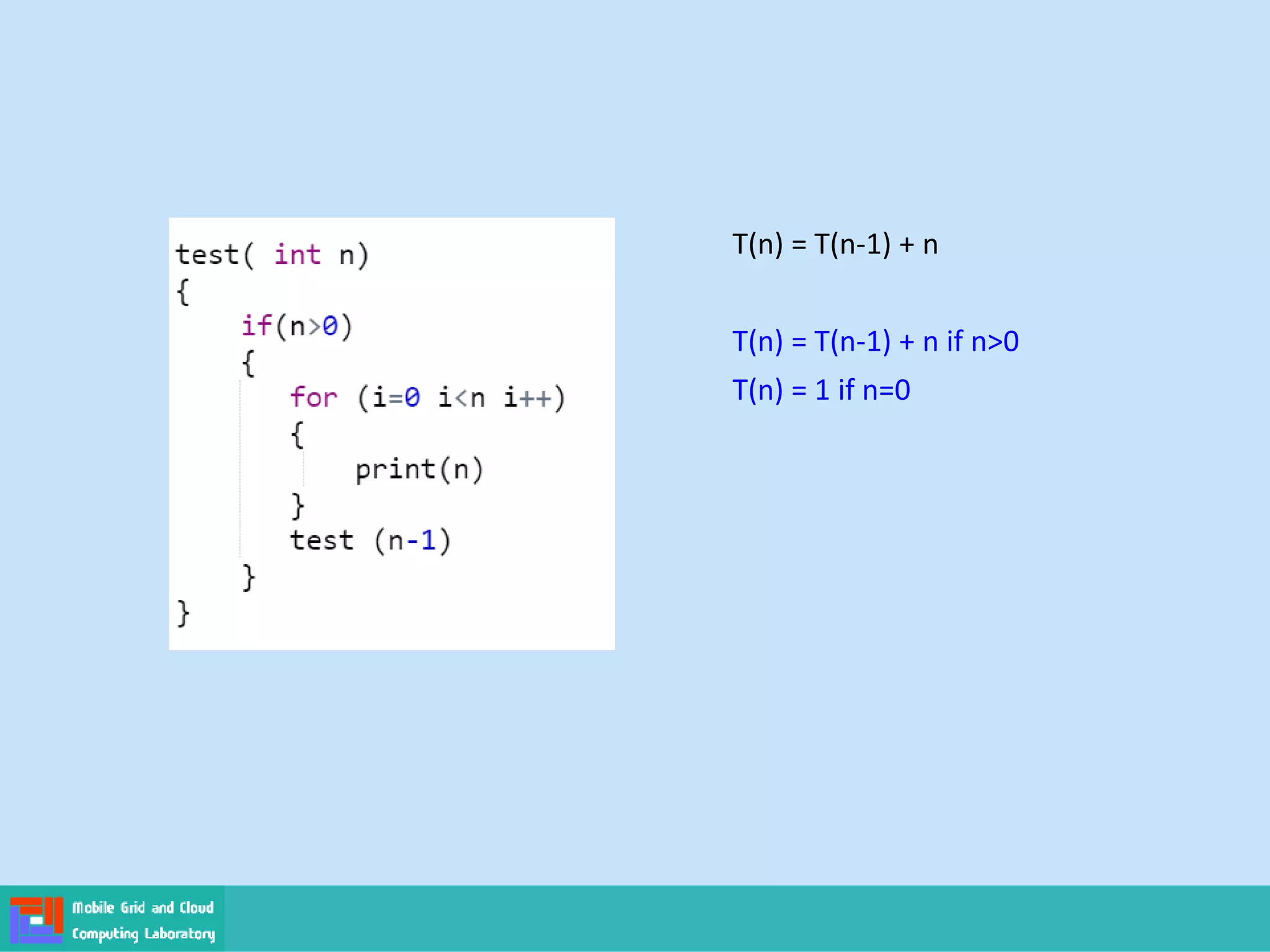

T(n) = T(n-1) + n
T(n) = T(n-1) + n if n>0
T(n) = 1 if n=0

T(n) = T(n-1) + n
T(n-1) = T(n-2) + n-1
T(n-2) = T(n-3) + n-2
Substitute values
T(n) = T(n-2) + n-1 + n
T(n) = T(n-3) + n-2 + n-1 + n
.
. If we continue for k times
.
T(n) = T(n-k) +(n-(k-1))+(n-(k-2)) + ...+ (n-1) + n
Assume n-k=0 therefore k=n
T(n)= T(n-n) + (n-n+1)+ (n-n+2) + ...+ (n-1)+n
T(n) = T(0)+ 1+2+3+...+(n-1)+n = n(n+1)/2
T(n) = 1+n(n+1)/2
T(n) = O(n^2)

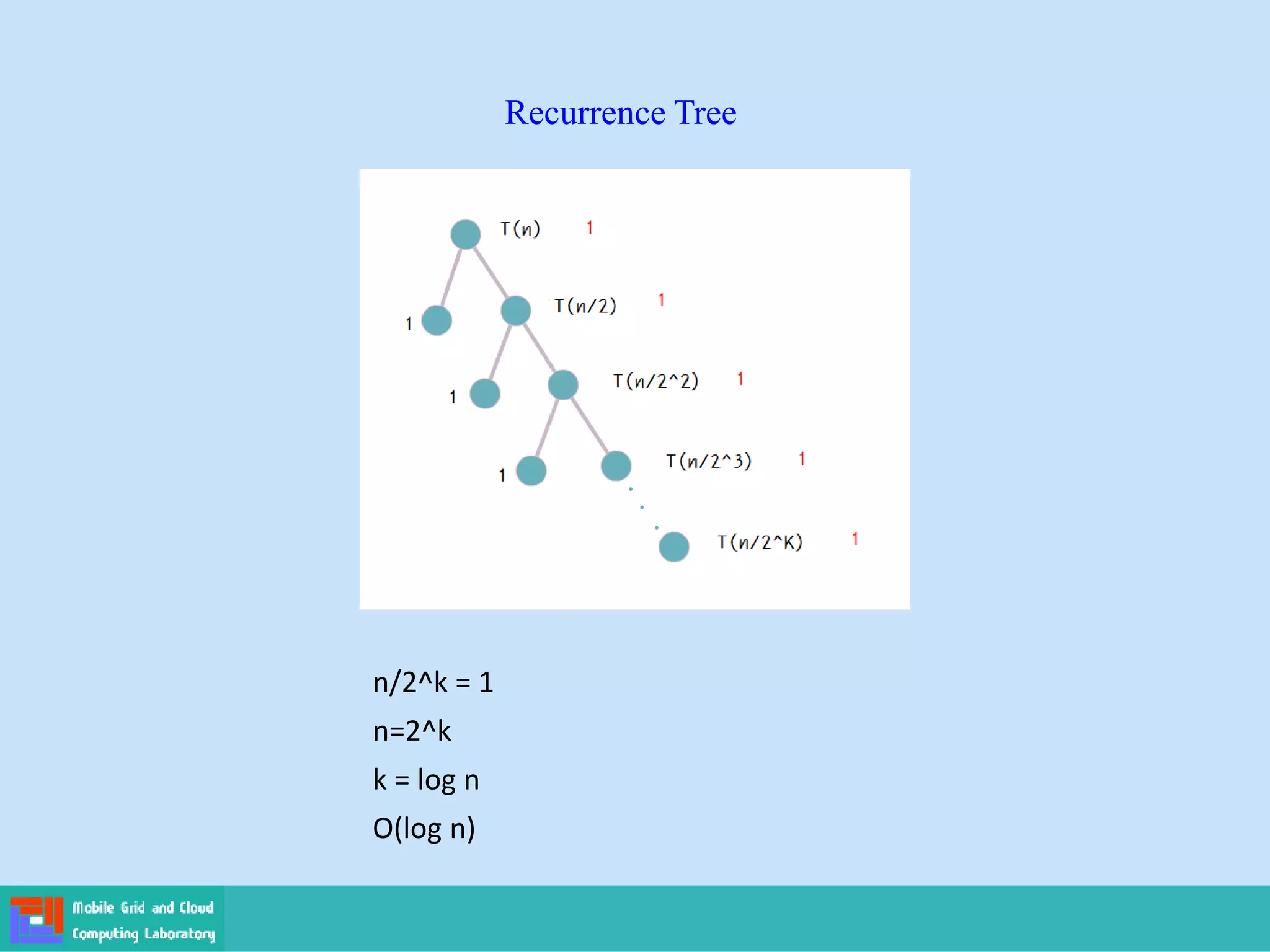

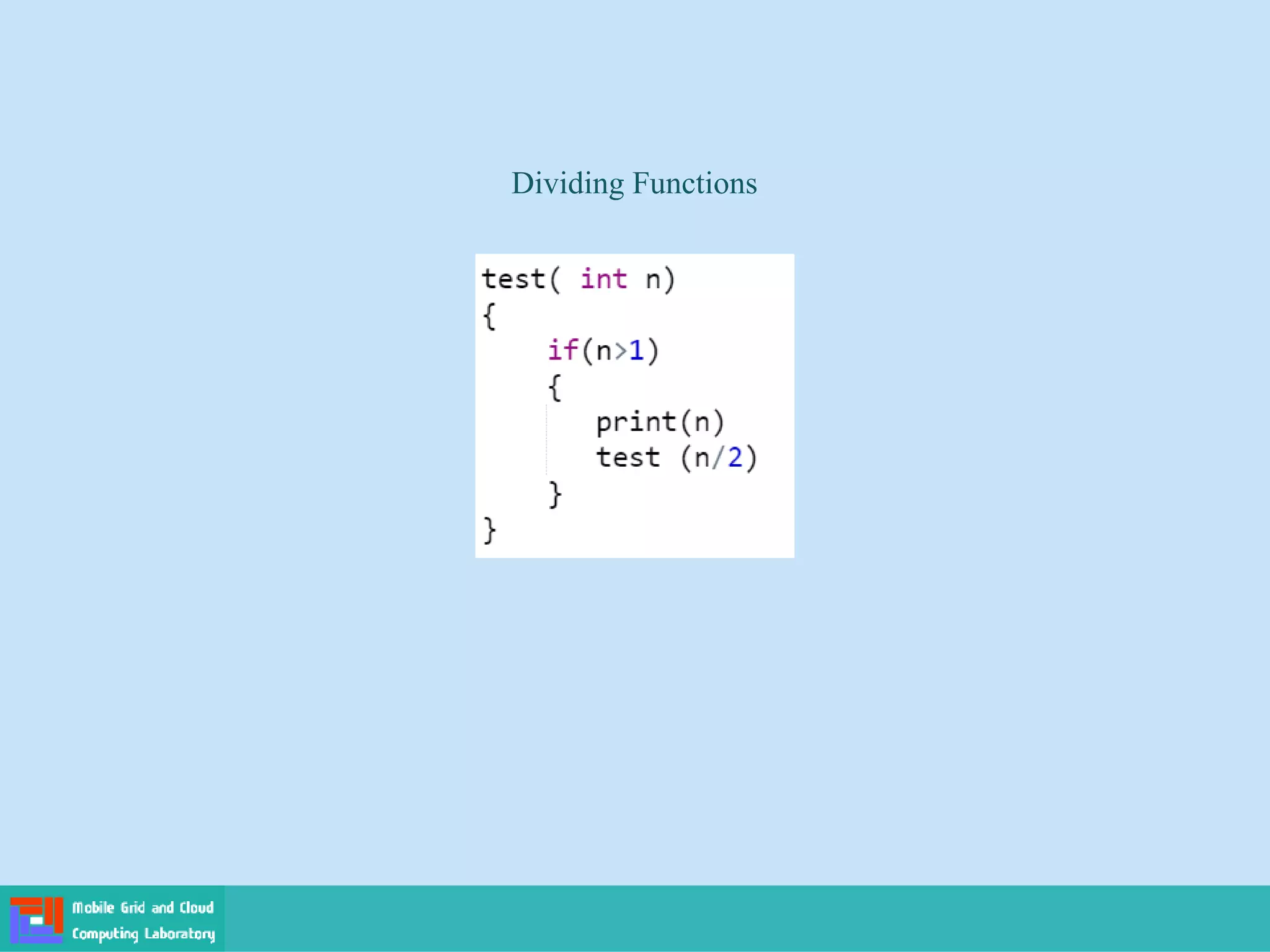

n/2^k = 1
n=2^k
k = log n
O(log n)

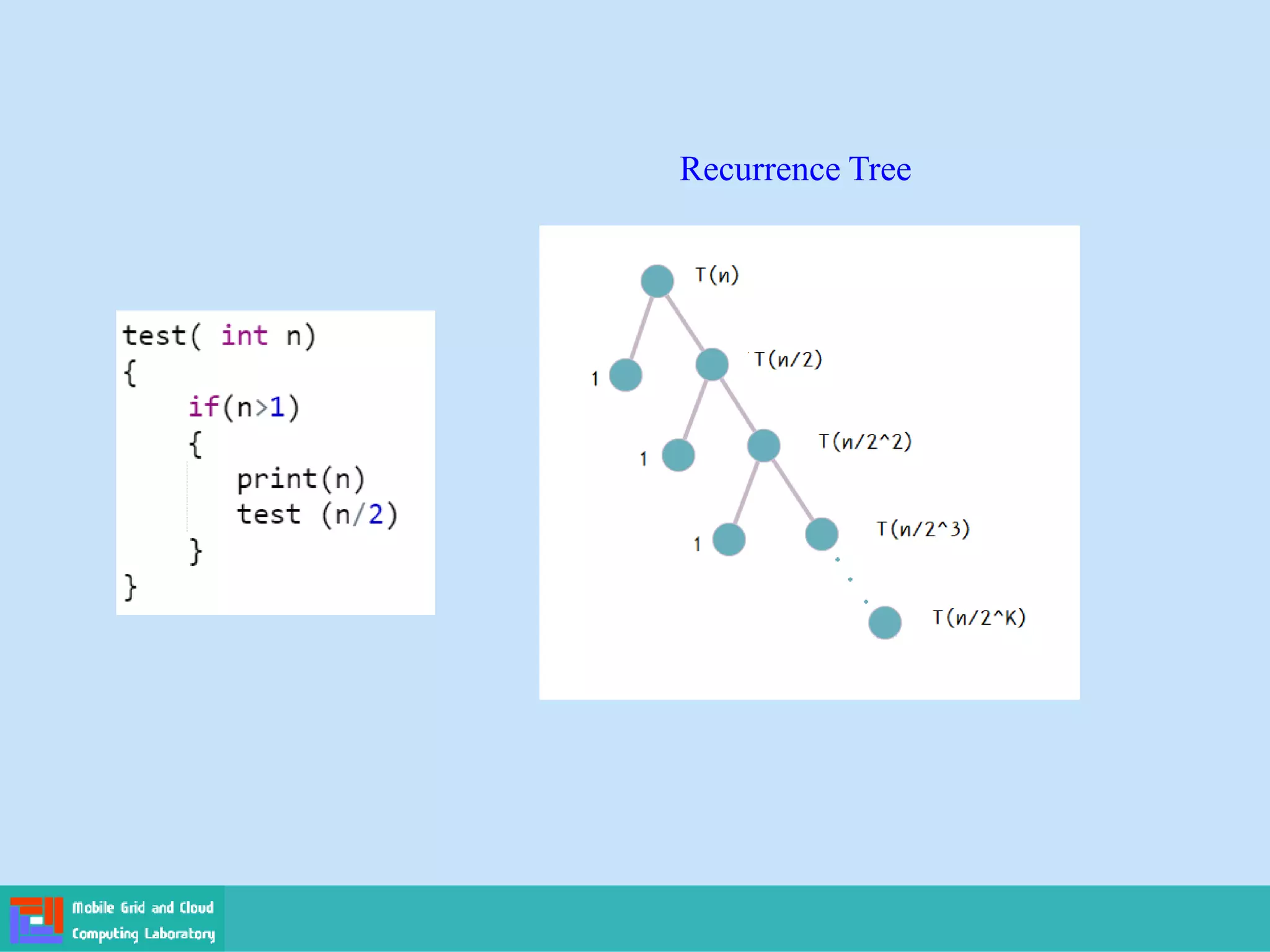

Recurrence Tree

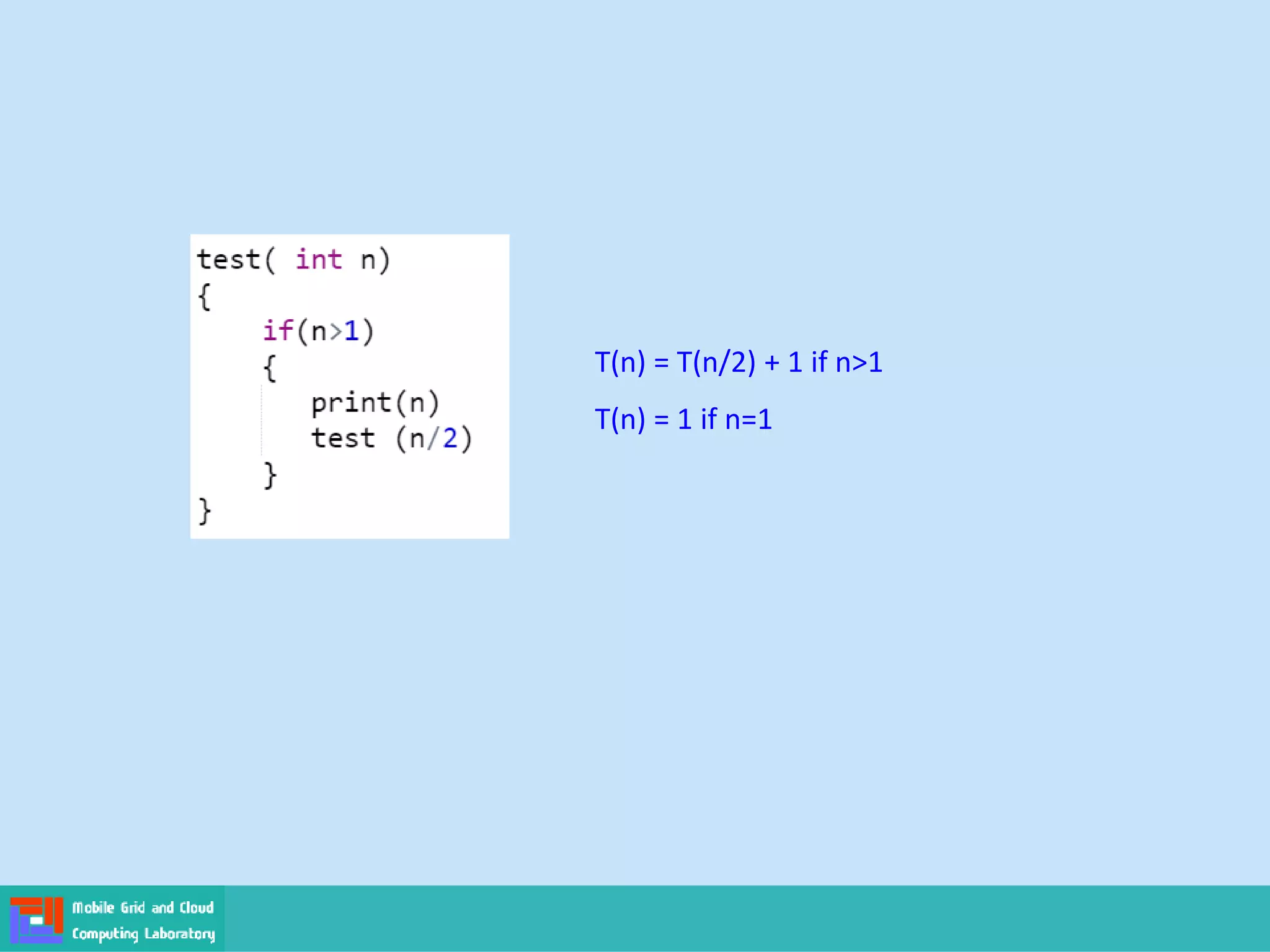

T(n) = T(n/2) + 1 if n>1
T(n) = 1 if n=1

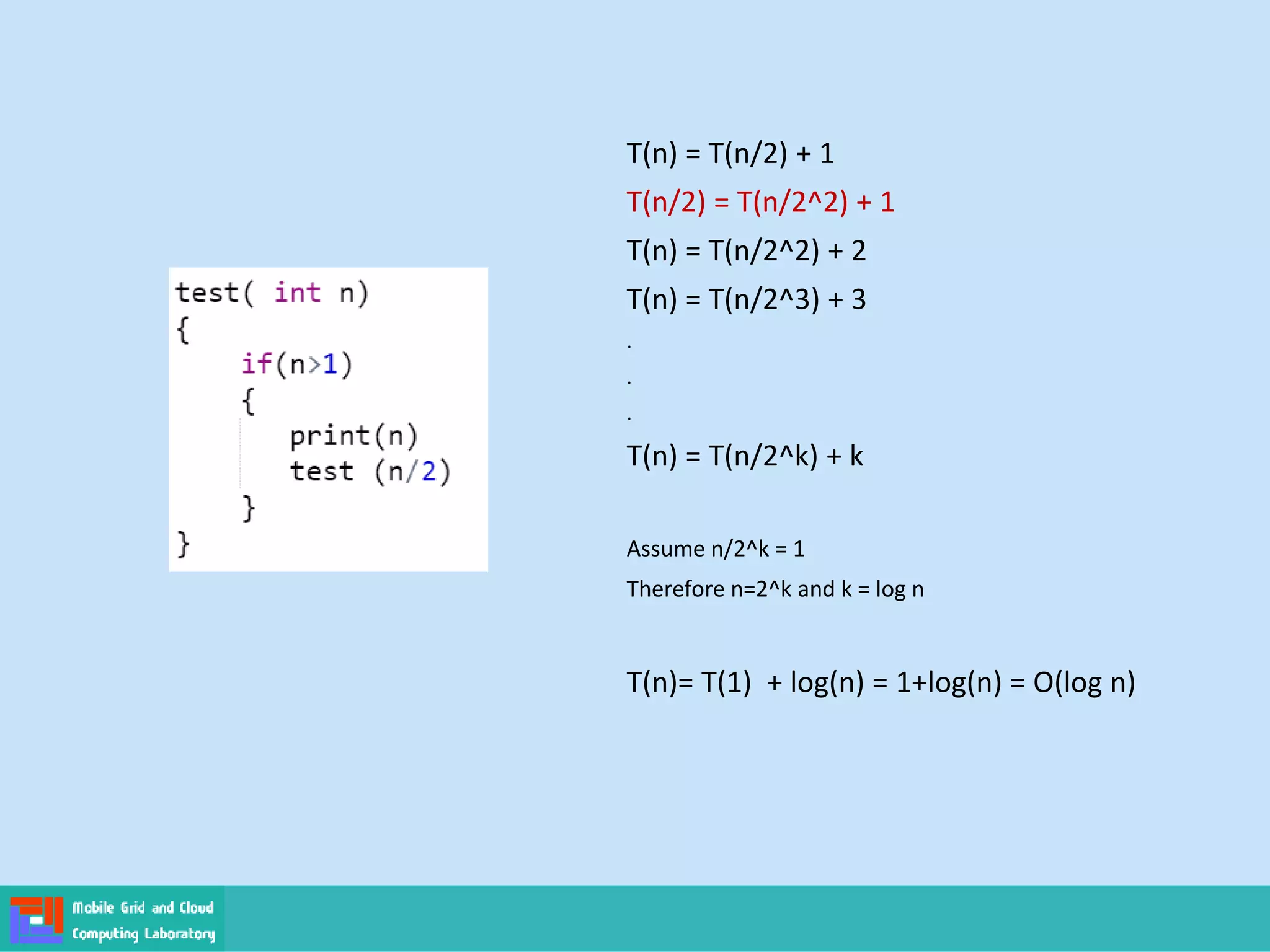

T(n) = T(n/2) + 1
T(n/2) = T(n/2^2) + 1
T(n) = T(n/2^2) + 2
T(n) = T(n/2^3) + 3
.
.
.
T(n) = T(n/2^k) + k
Assume n/2^k = 1
Therefore n=2^k and k = log n
T(n)= T(1) + log(n) = 1+log(n) = O(log n)

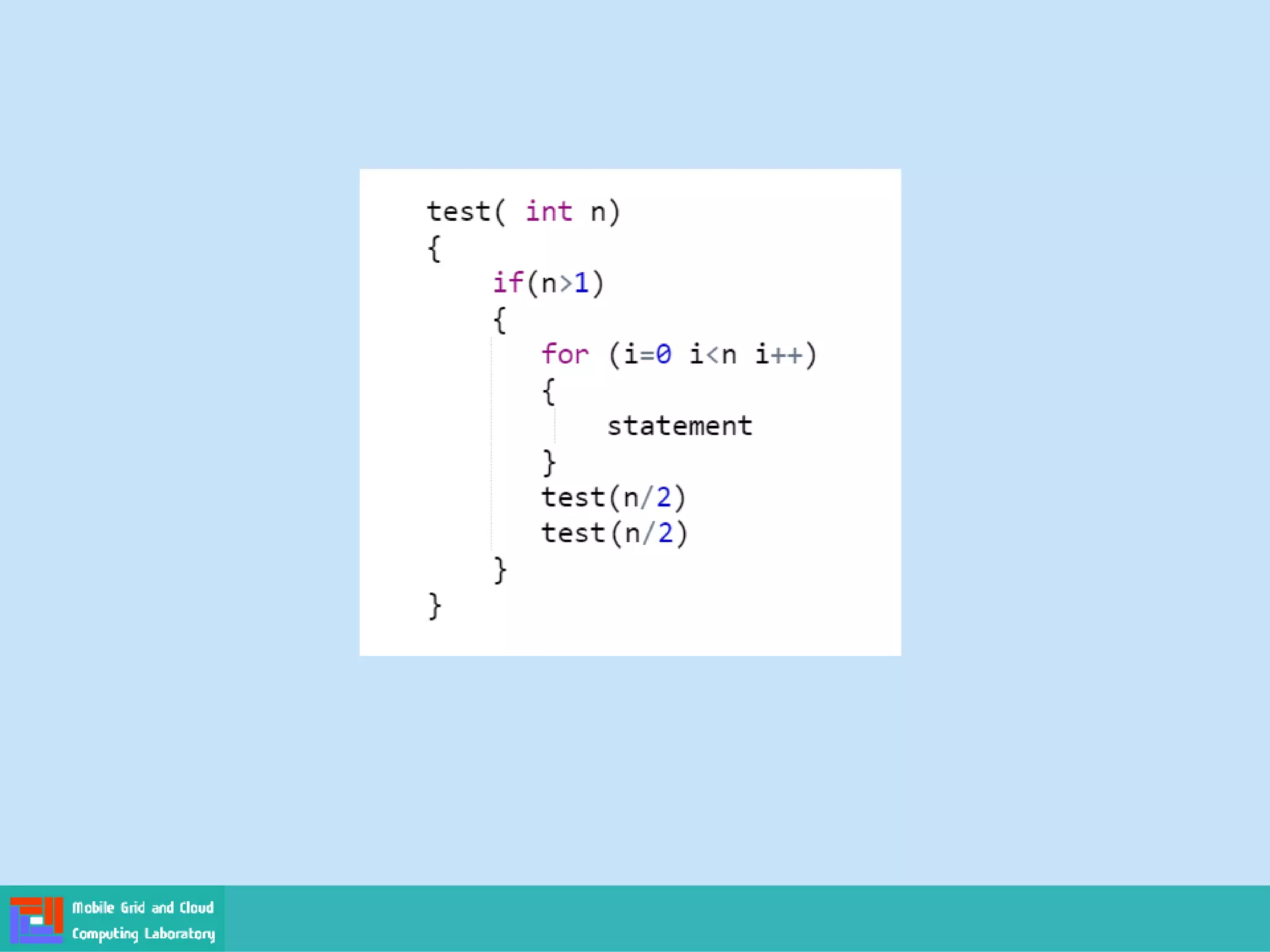

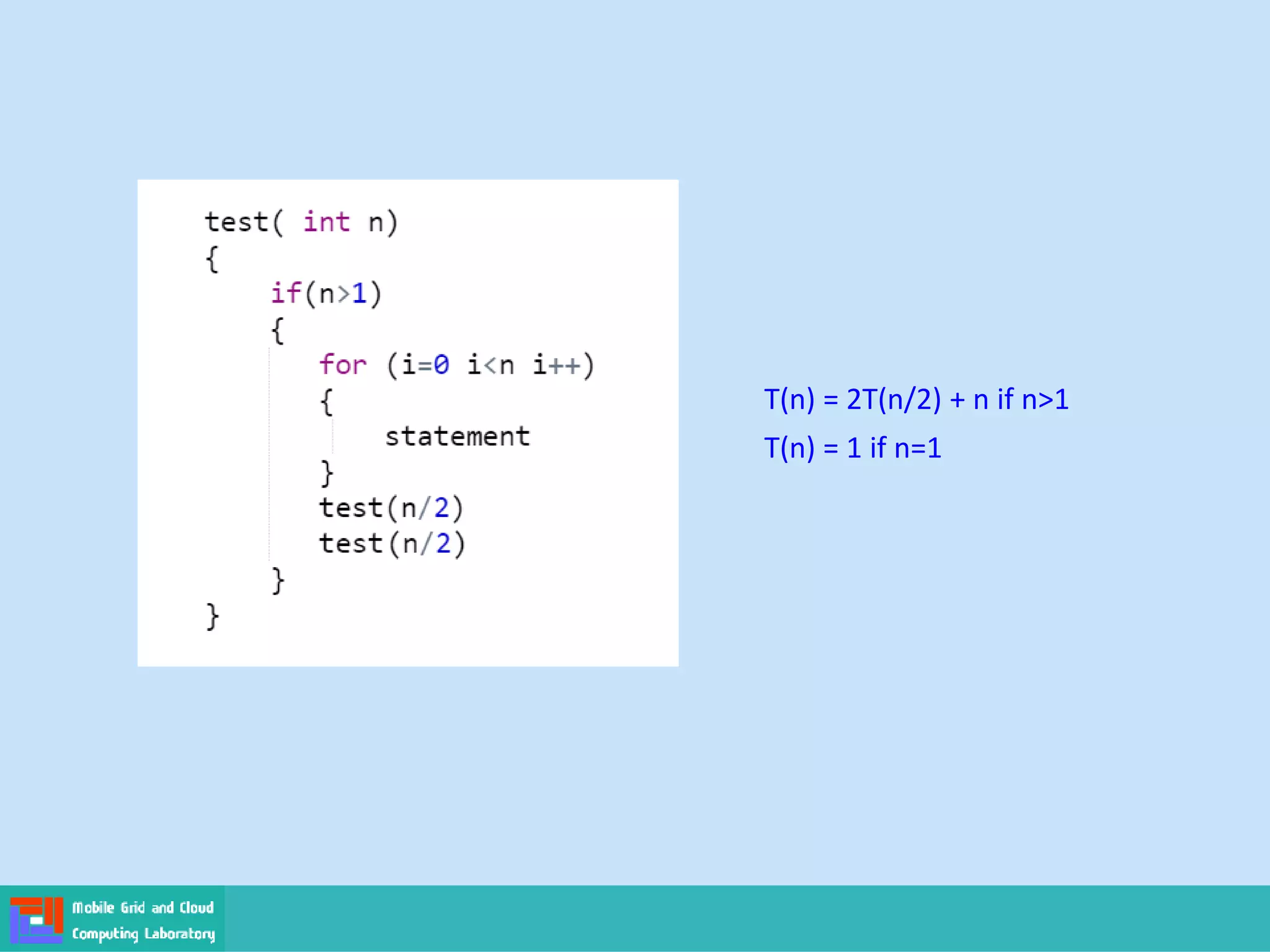

T(n) = 2T(n/2) + n if n>1
T(n) = 1 if n=1

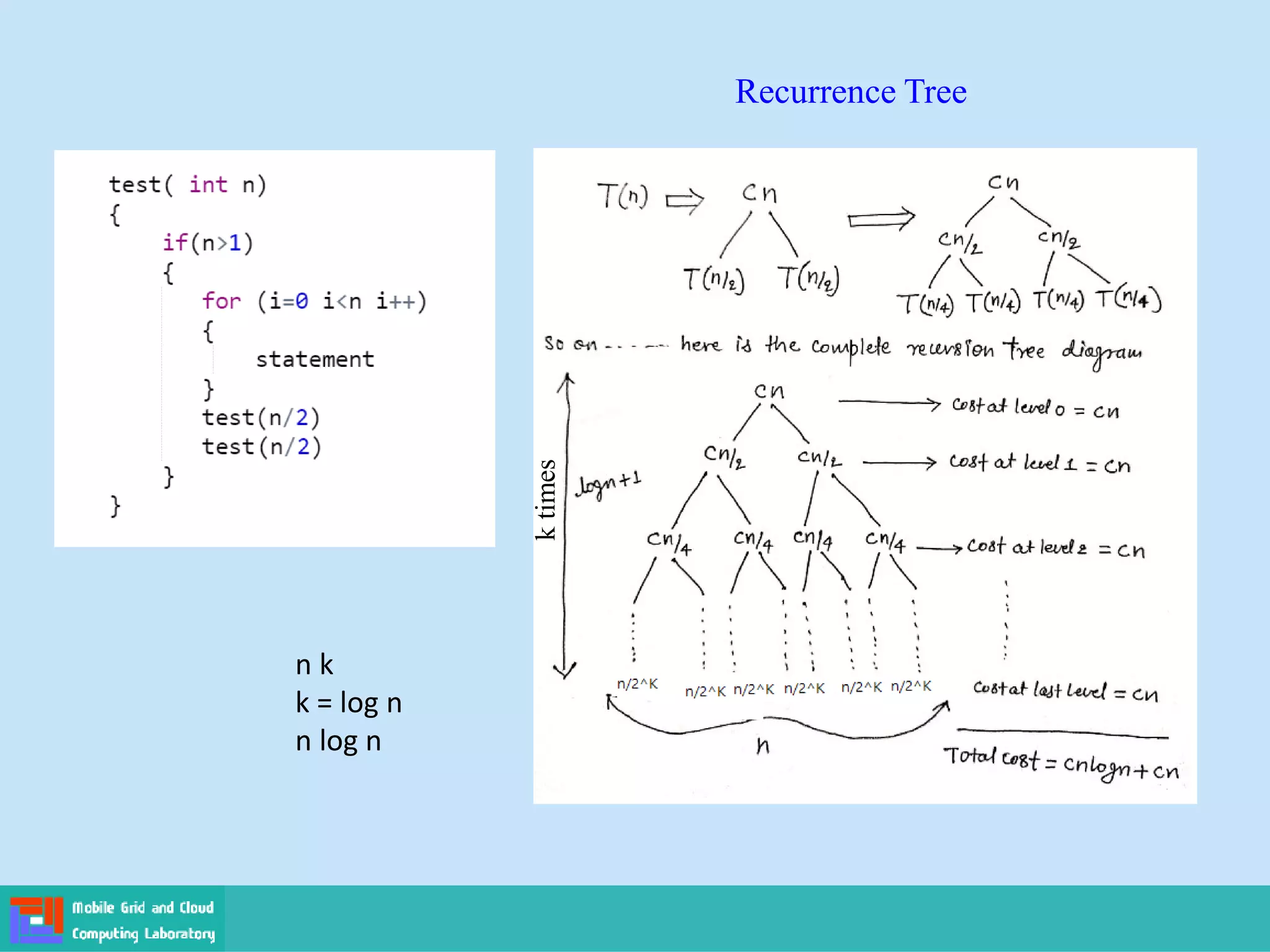

k
times
n k
k = log n
n log n
Recurrence Tree

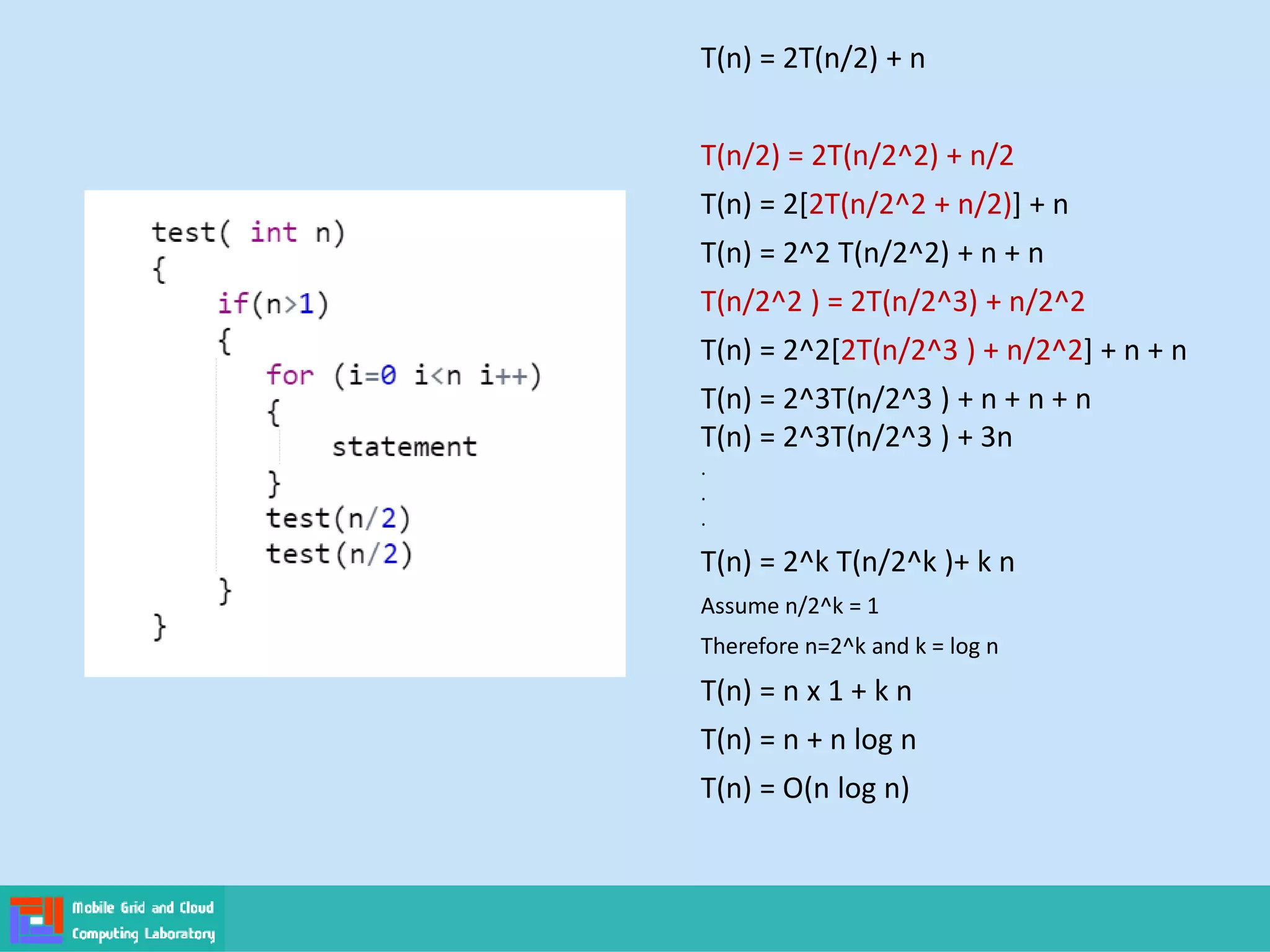

T(n) = 2T(n/2) + n
T(n/2) = 2T(n/2^2) + n/2
T(n) = 2[2T(n/2^2 + n/2)] + n
T(n) = 2^2 T(n/2^2) + n + n
T(n/2^2 ) = 2T(n/2^3) + n/2^2
T(n) = 2^2[2T(n/2^3 ) + n/2^2] + n + n
T(n) = 2^3T(n/2^3 ) + n + n + n
T(n) = 2^3T(n/2^3 ) + 3n
.
.
.
T(n) = 2^k T(n/2^k )+ k n
Assume n/2^k = 1
Therefore n=2^k and k = log n
T(n) = n x 1 + k n
T(n) = n + n log n
T(n) = O(n log n)

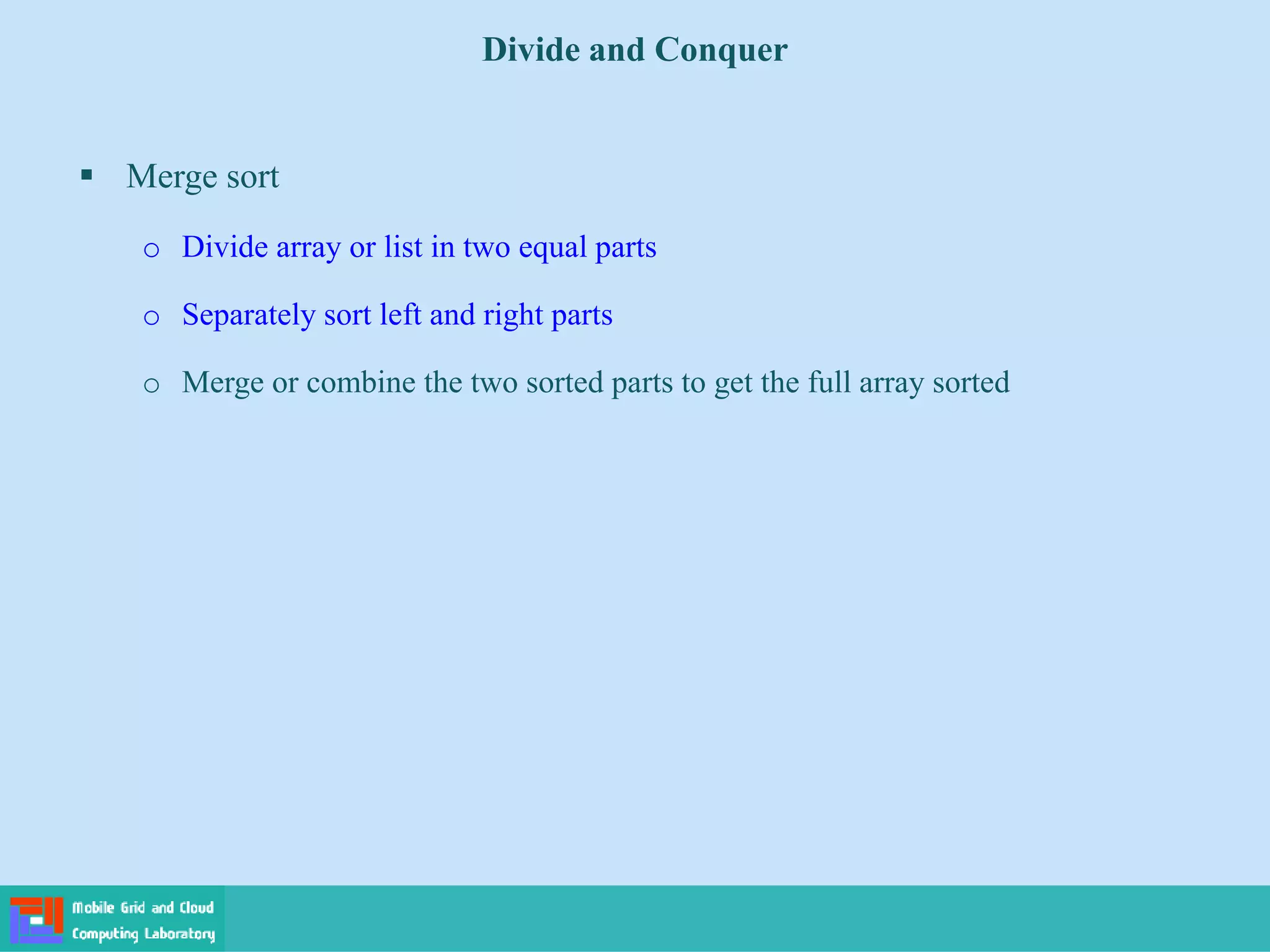

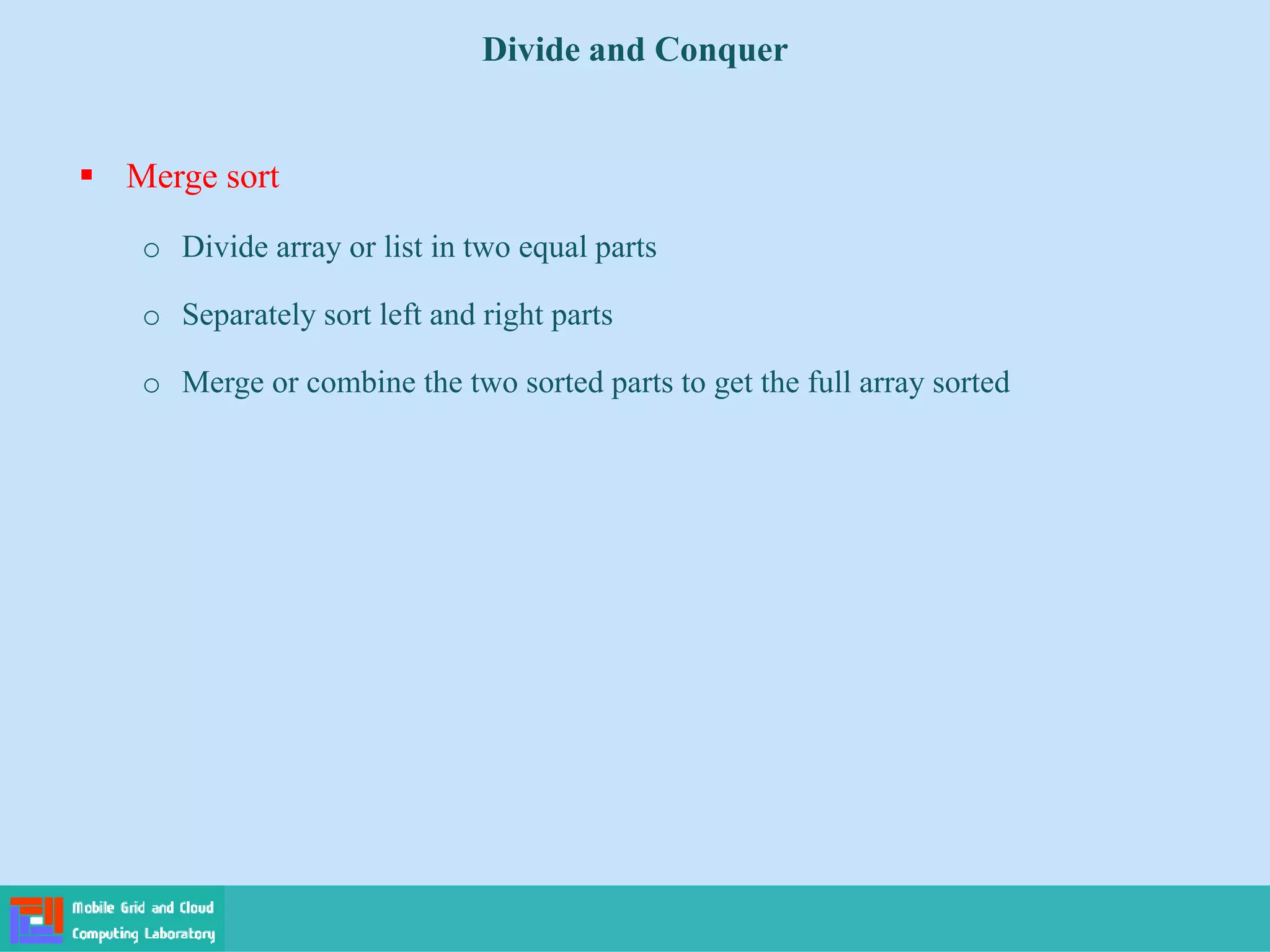

 Merge sort
o Divide array or list in two equal parts
o Separately sort left and right parts
o Merge or combine the two sorted parts to get the full array sorted
Divide and Conquer

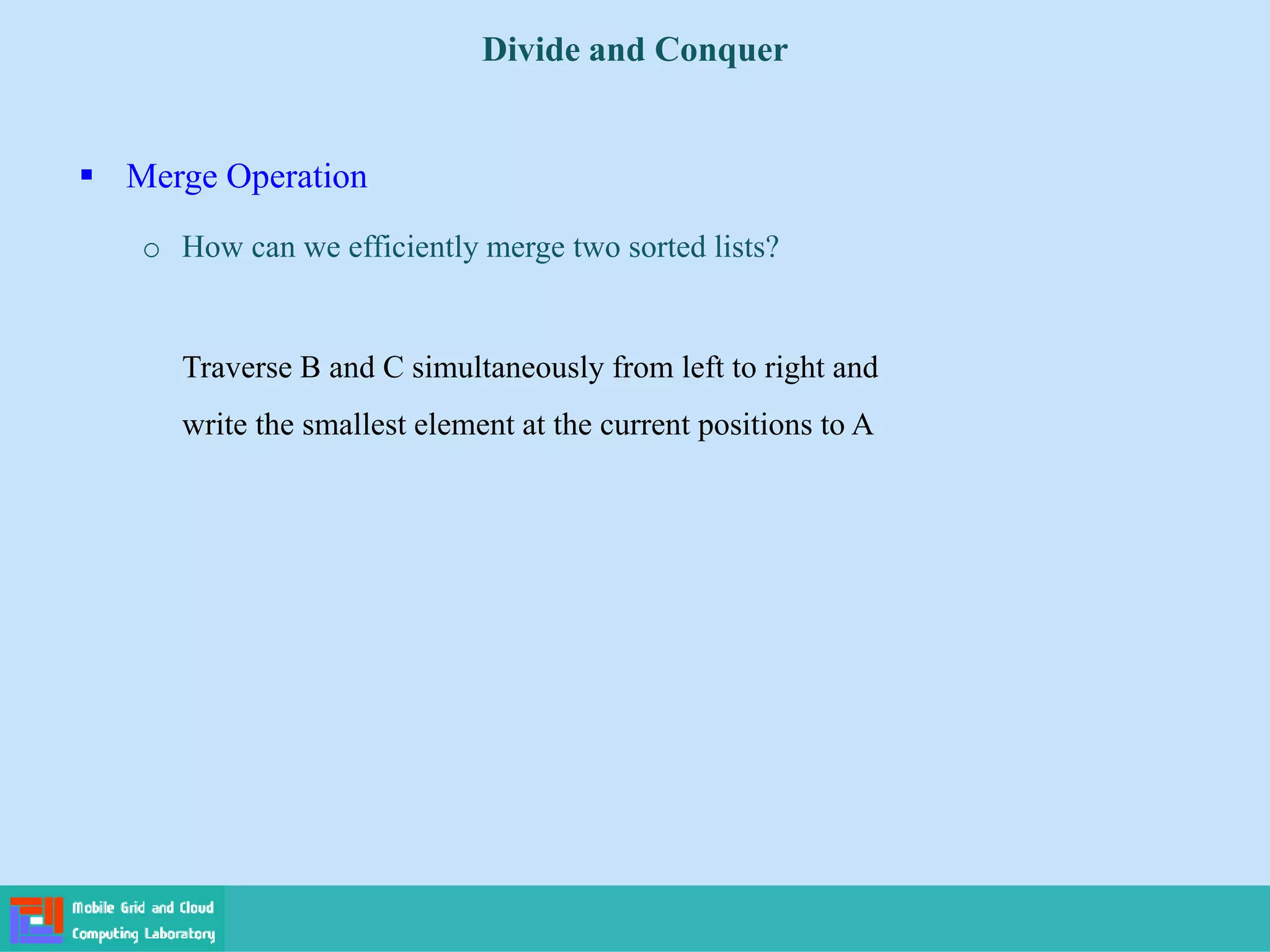

 Merge Operation
o How can we efficiently merge two sorted lists?
Divide and Conquer

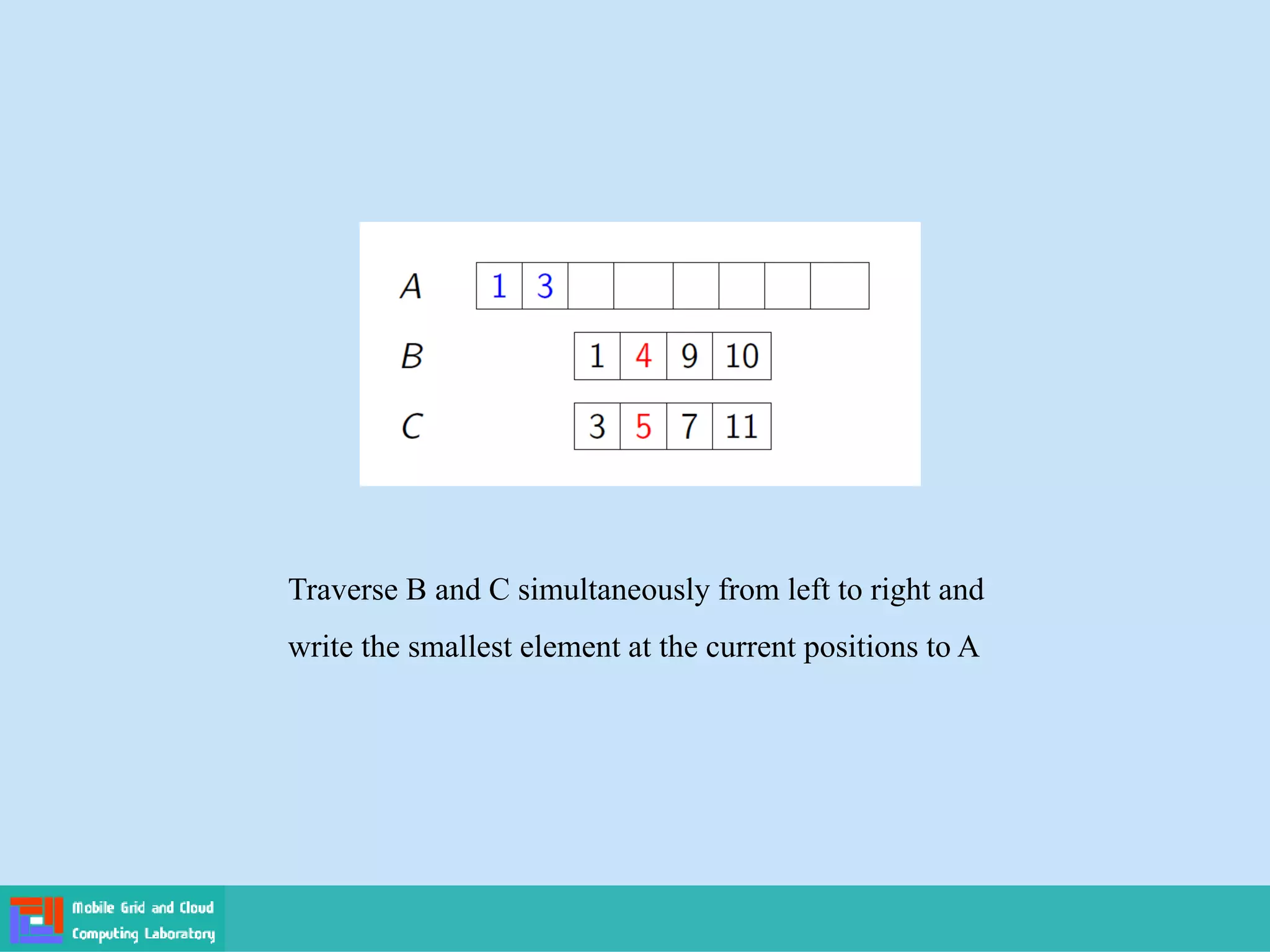

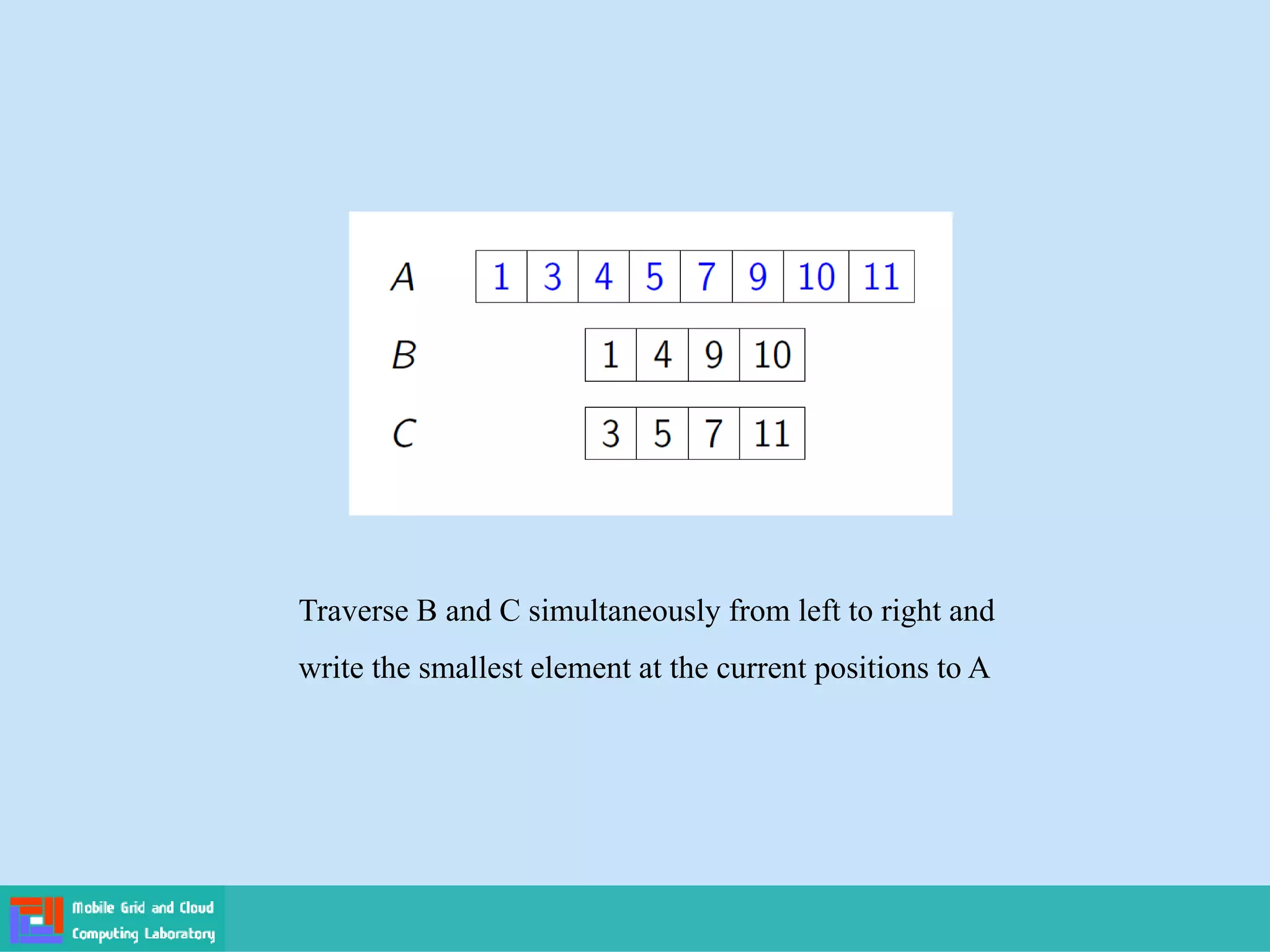

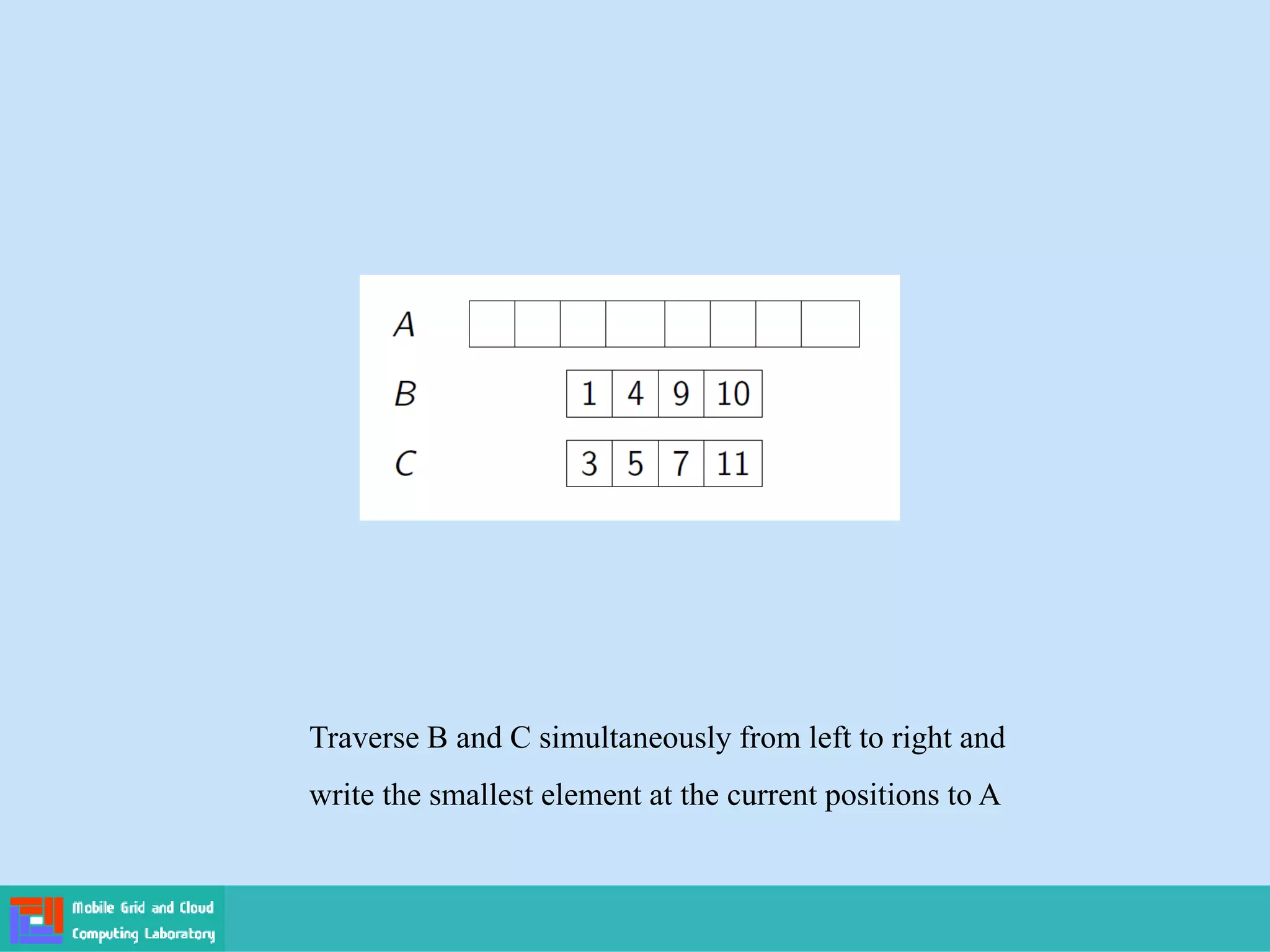

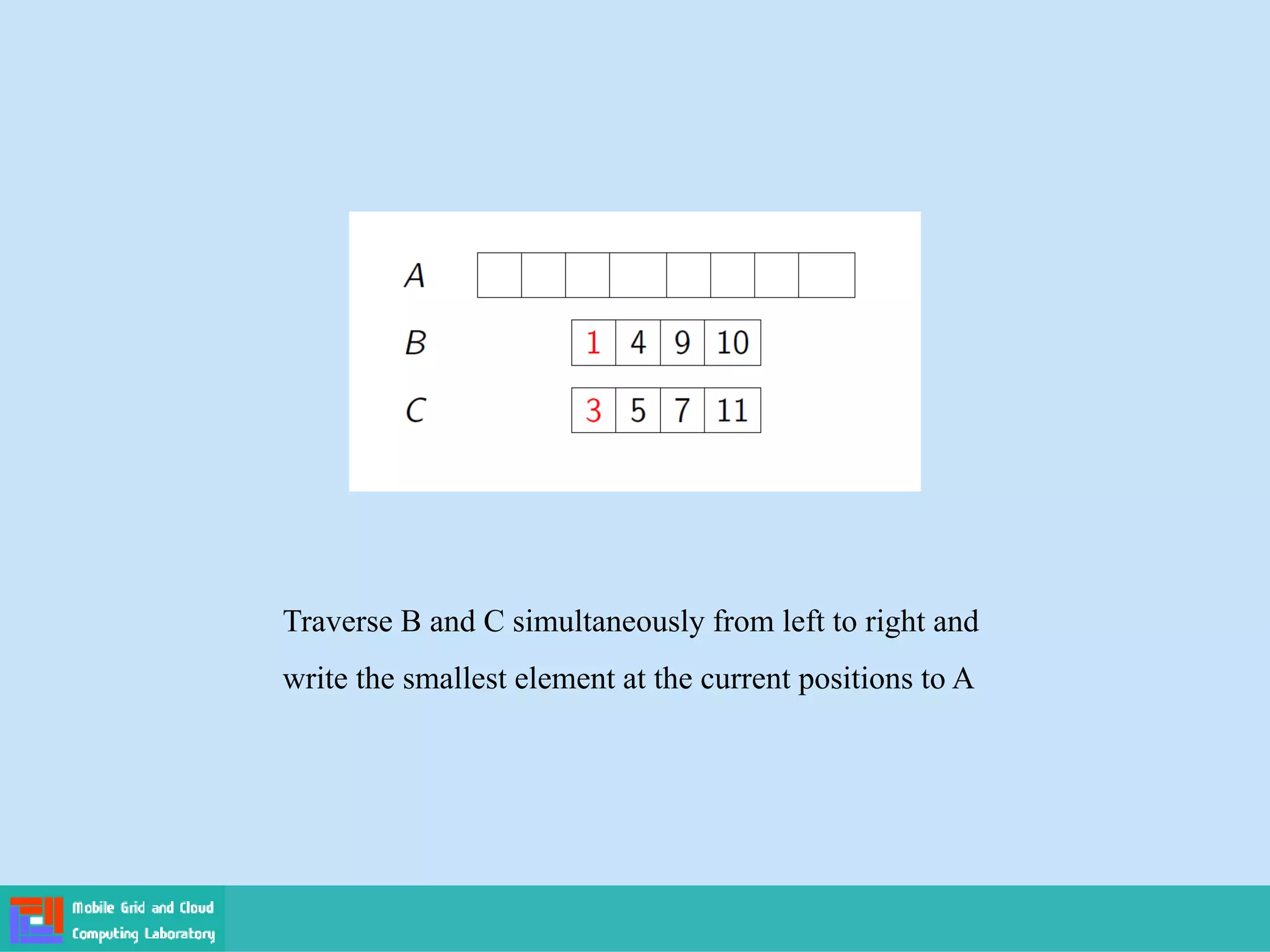

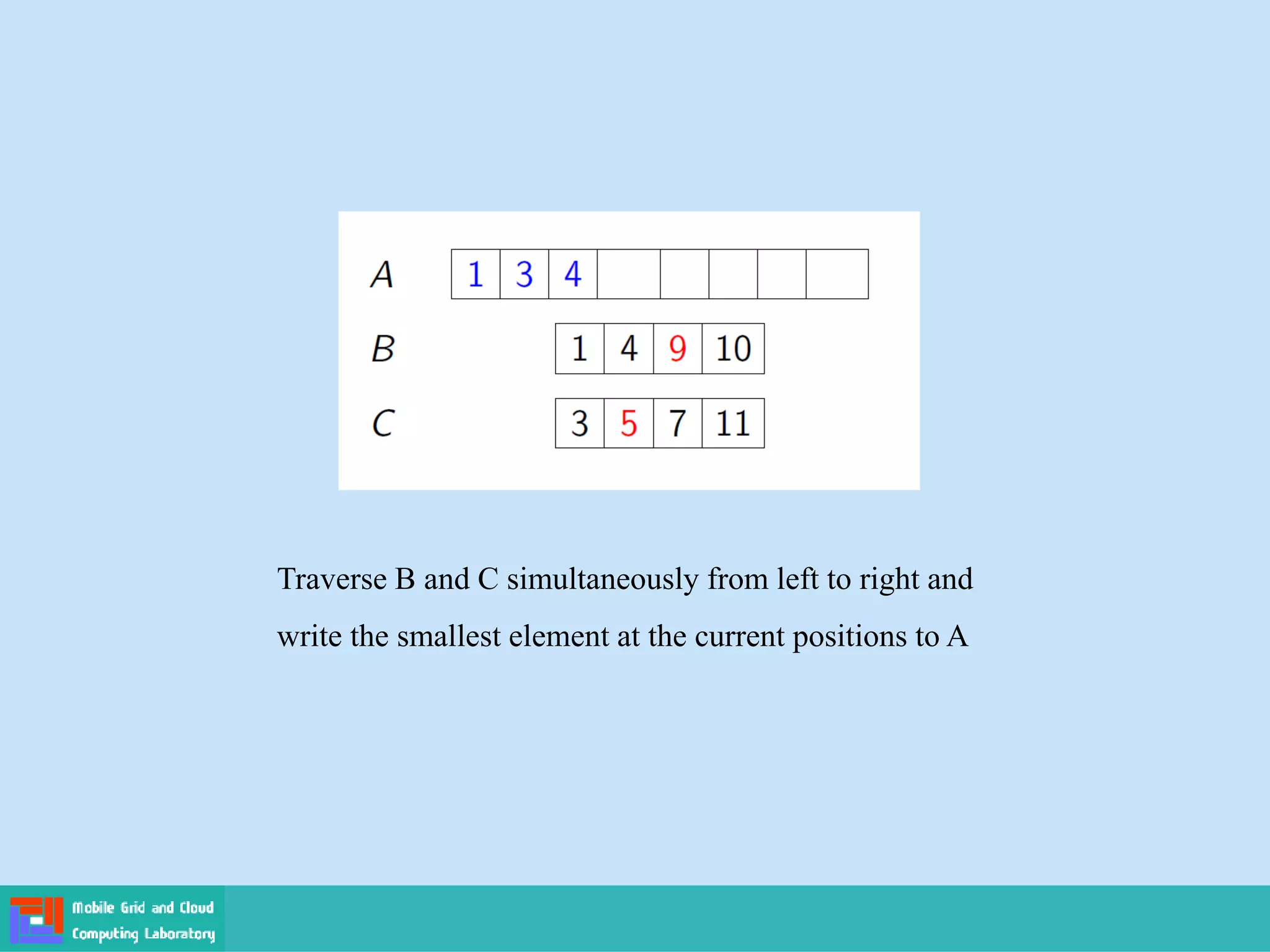

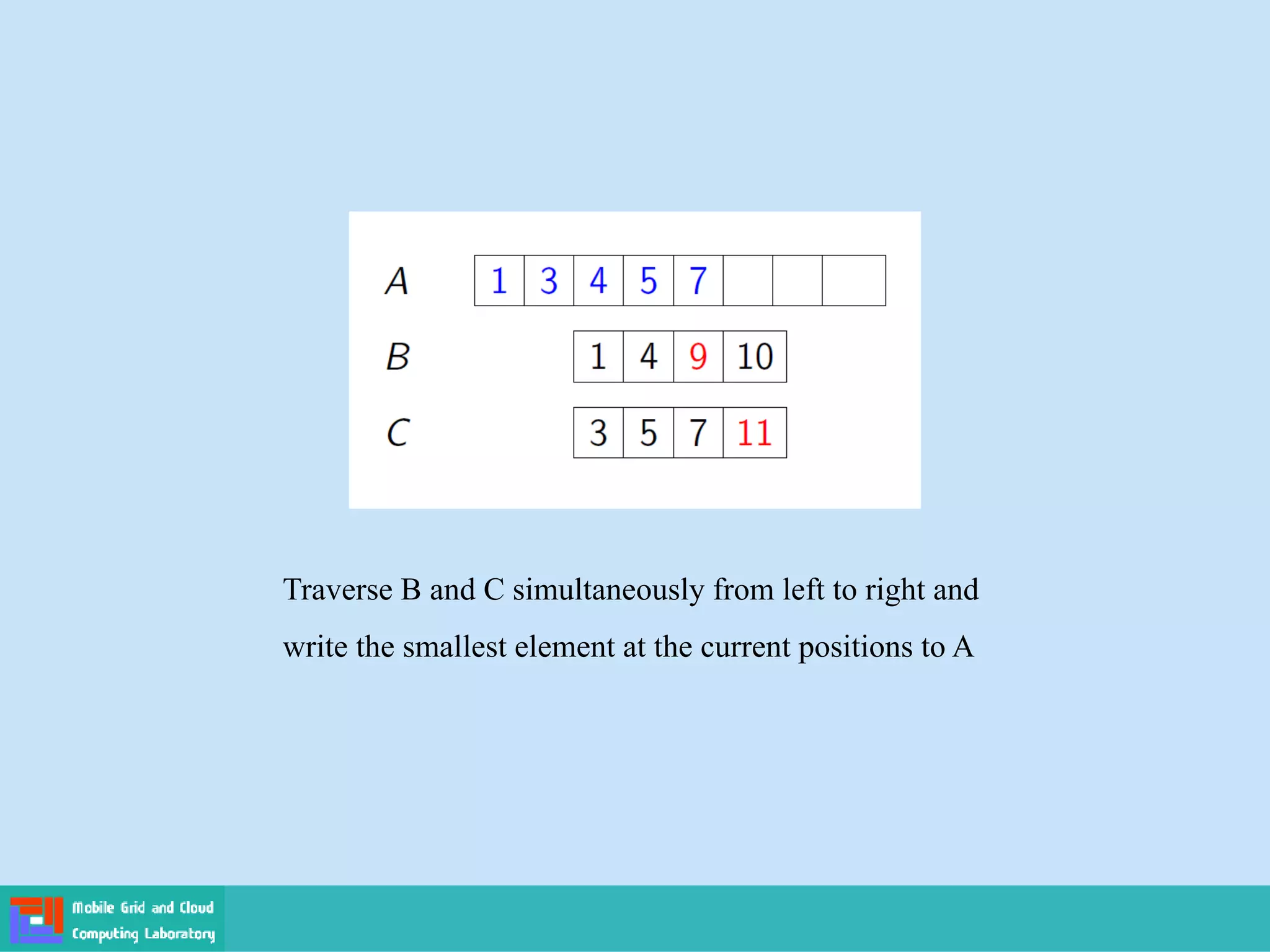

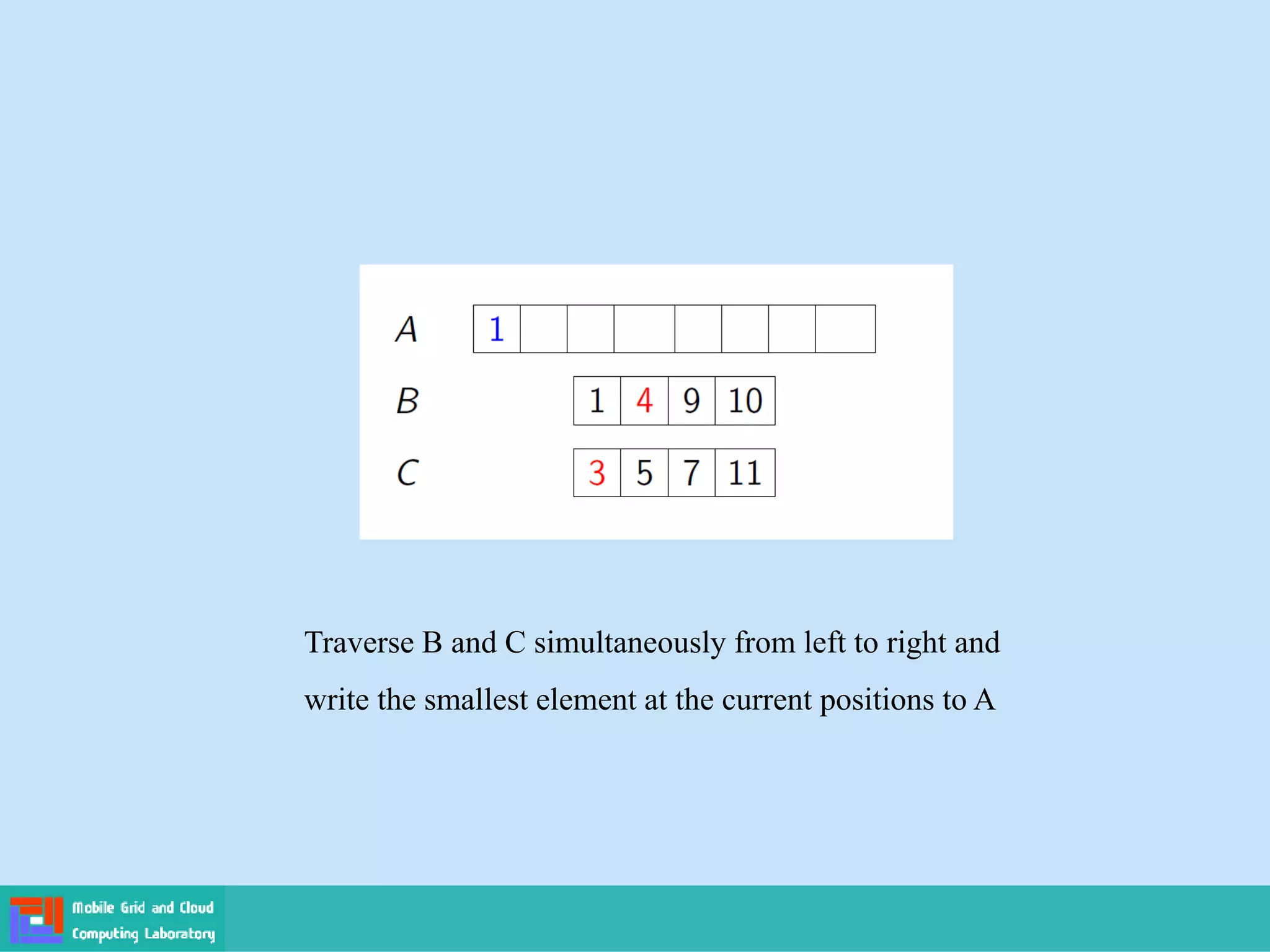

Traverse B and C simultaneously from left to right and
write the smallest element at the current positions to A

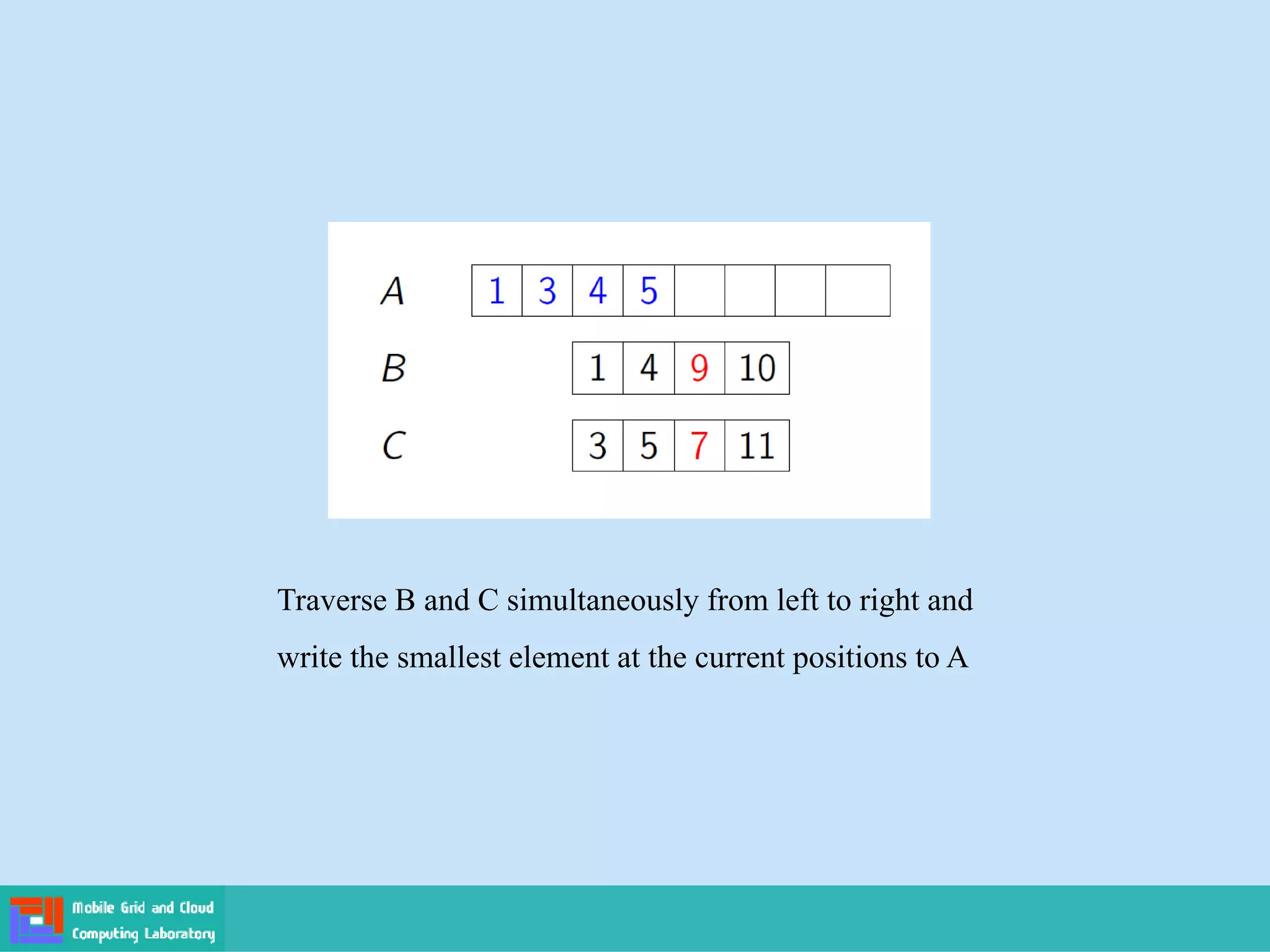

Traverse B and C simultaneously from left to right and
write the smallest element at the current positions to A

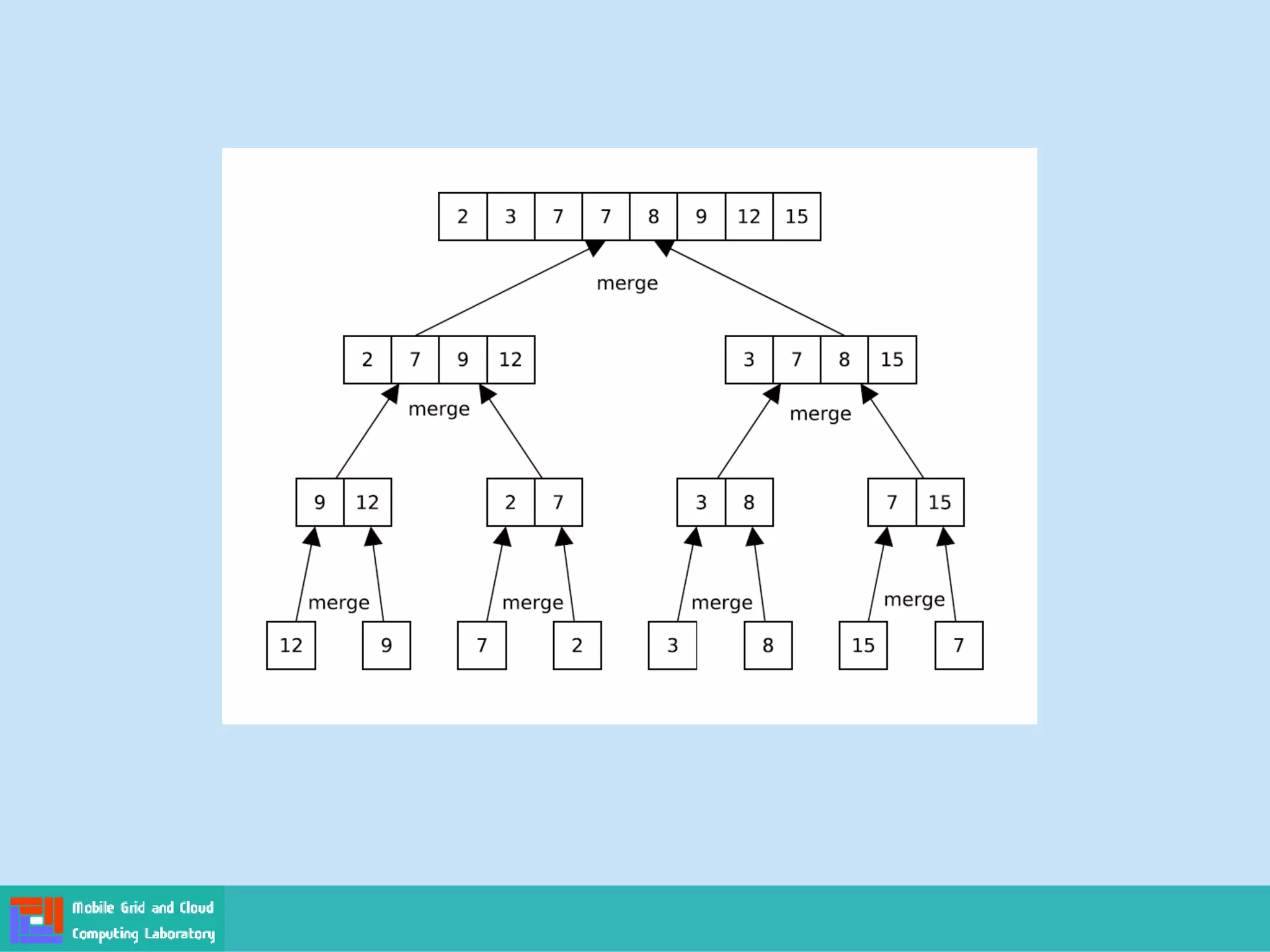

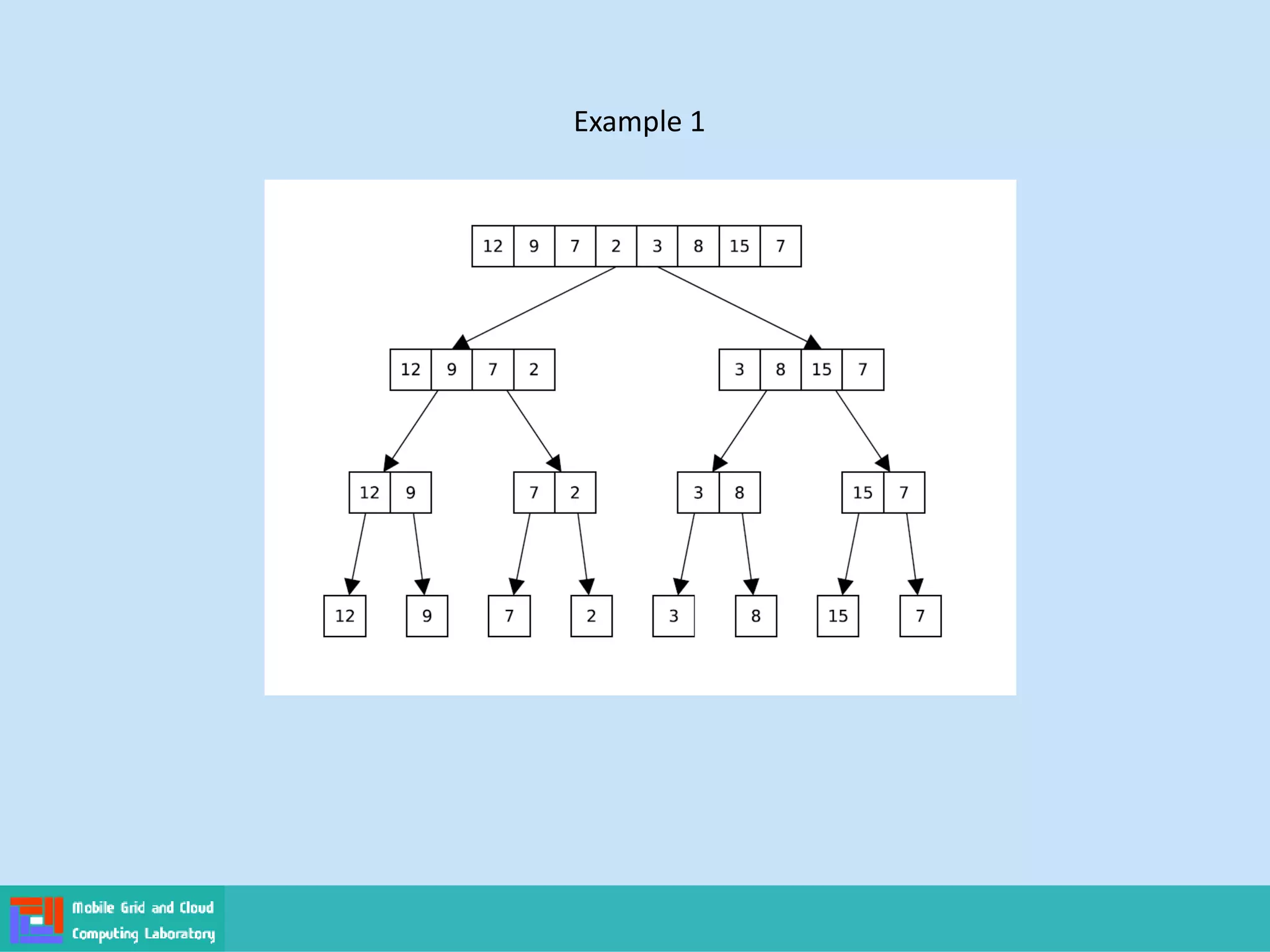

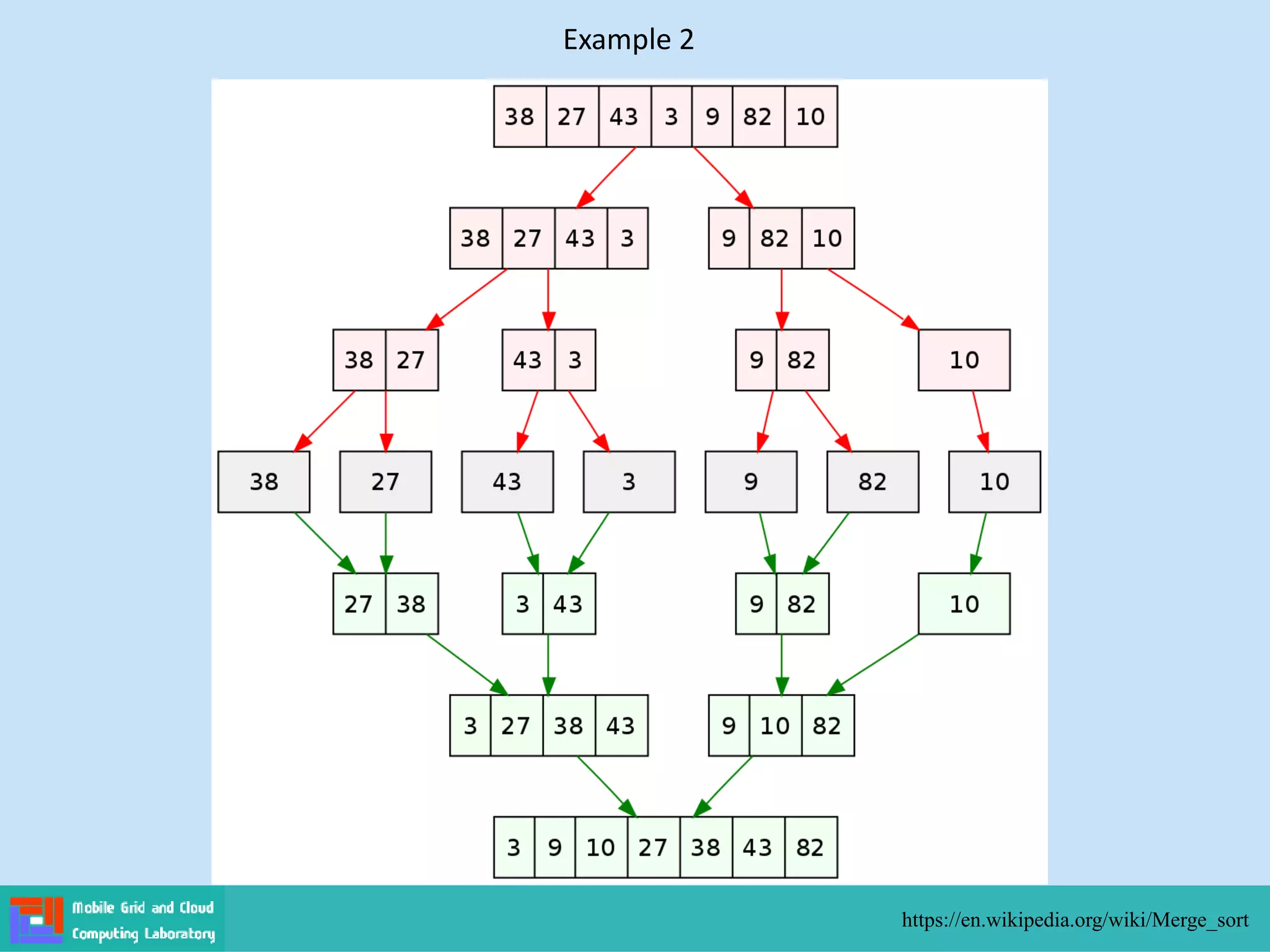

Merge Sort Example
https://en.wikipedia.org/wiki/Merge_sort
Example 2

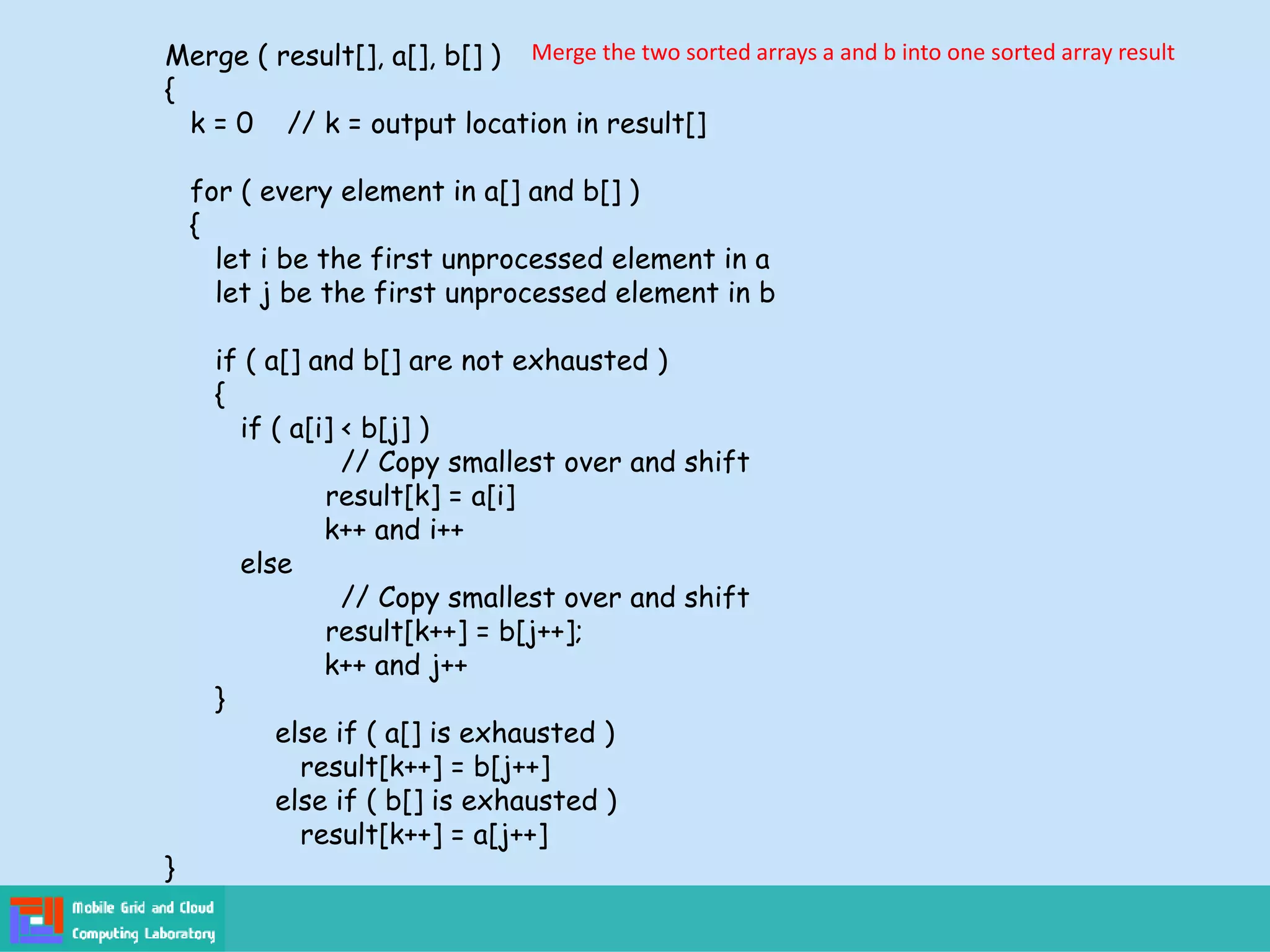

Merge ( result[], a[], b[] )
{
k = 0 // k = output location in result[]
for ( every element in a[] and b[] )
{
let i be the first unprocessed element in a
let j be the first unprocessed element in b
if ( a[] and b[] are not exhausted )
{
if ( a[i] < b[j] )
// Copy smallest over and shift
result[k] = a[i]
k++ and i++
else
// Copy smallest over and shift
result[k++] = b[j++];
k++ and j++
}
else if ( a[] is exhausted )
result[k++] = b[j++]
else if ( b[] is exhausted )
result[k++] = a[j++]
}
Merge the two sorted arrays a and b into one sorted array result

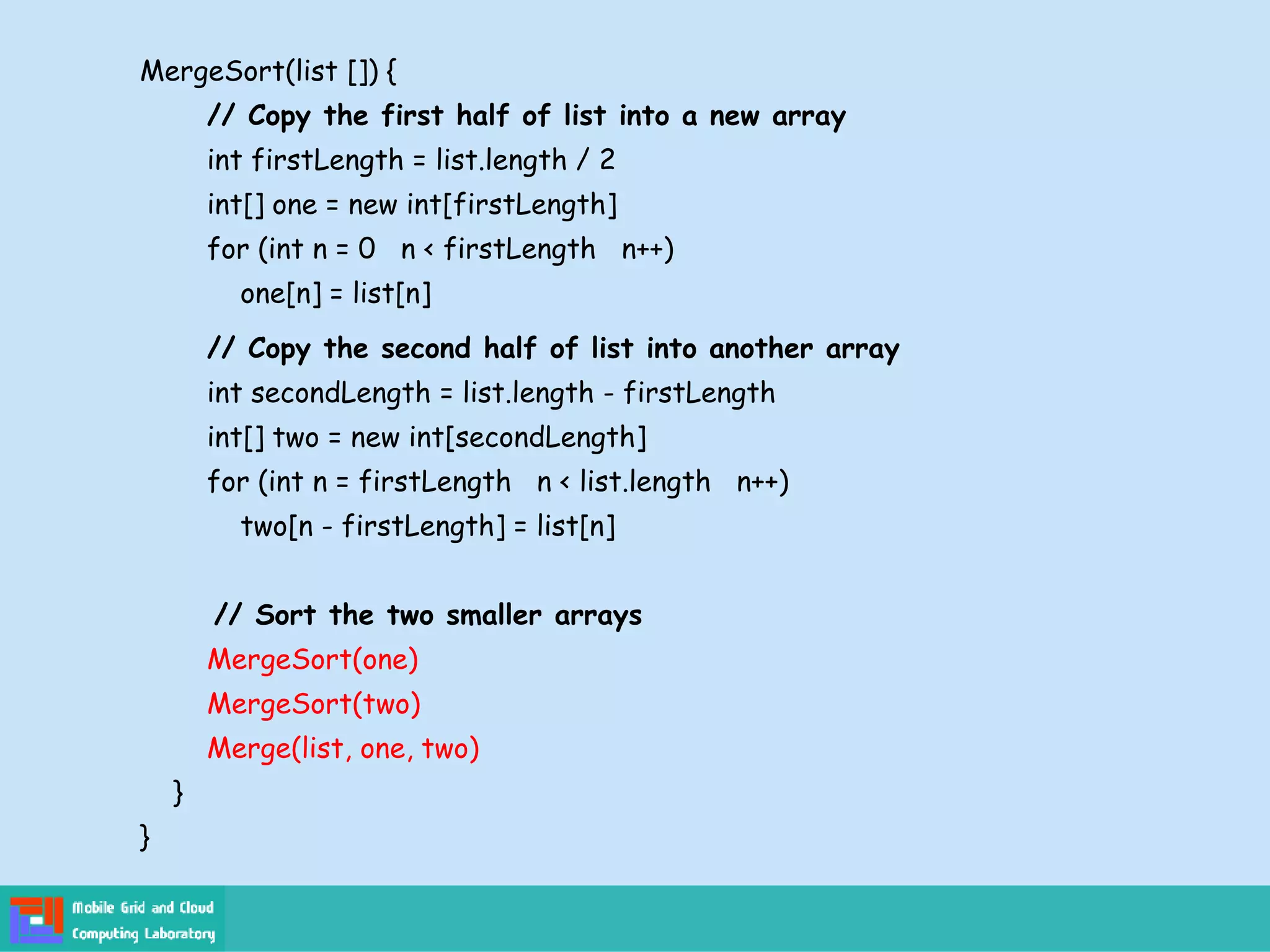

MergeSort(list []) {
// Copy the first half of list into a new array
int firstLength = list.length / 2
int[] one = new int[firstLength]
for (int n = 0 n < firstLength n++)
one[n] = list[n]
// Copy the second half of list into another array
int secondLength = list.length - firstLength
int[] two = new int[secondLength]
for (int n = firstLength n < list.length n++)
two[n - firstLength] = list[n]
// Sort the two smaller arrays
MergeSort(one)
MergeSort(two)
Merge(list, one, two)
}
}

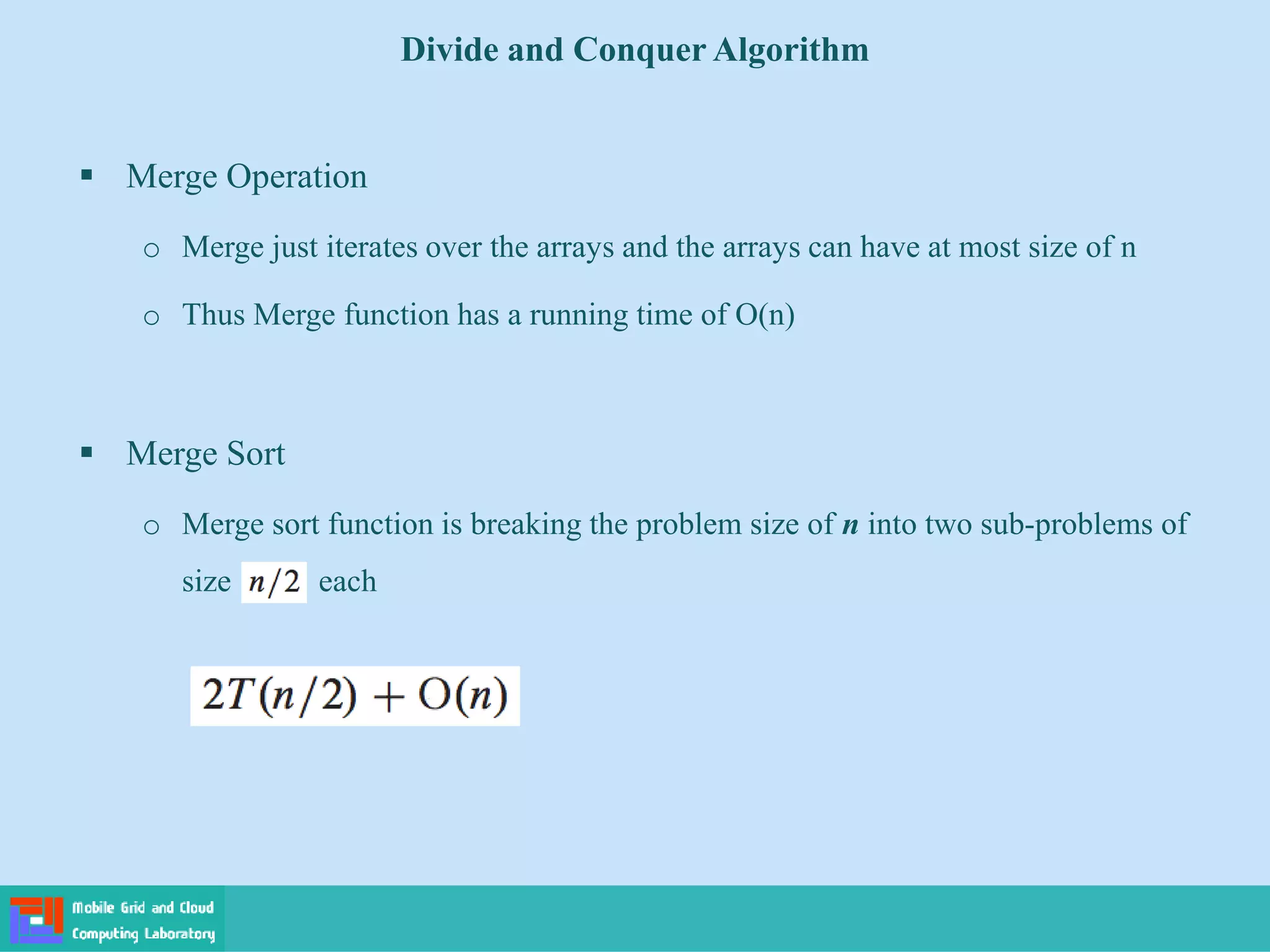

 Merge Operation
o Merge just iterates over the arrays and the arrays can have at most size of n
o Thus Merge function has a running time of O(n)
 Merge Sort
o Merge sort function is breaking the problem size of n into two sub-problems of
size each
Divide and Conquer Algorithm

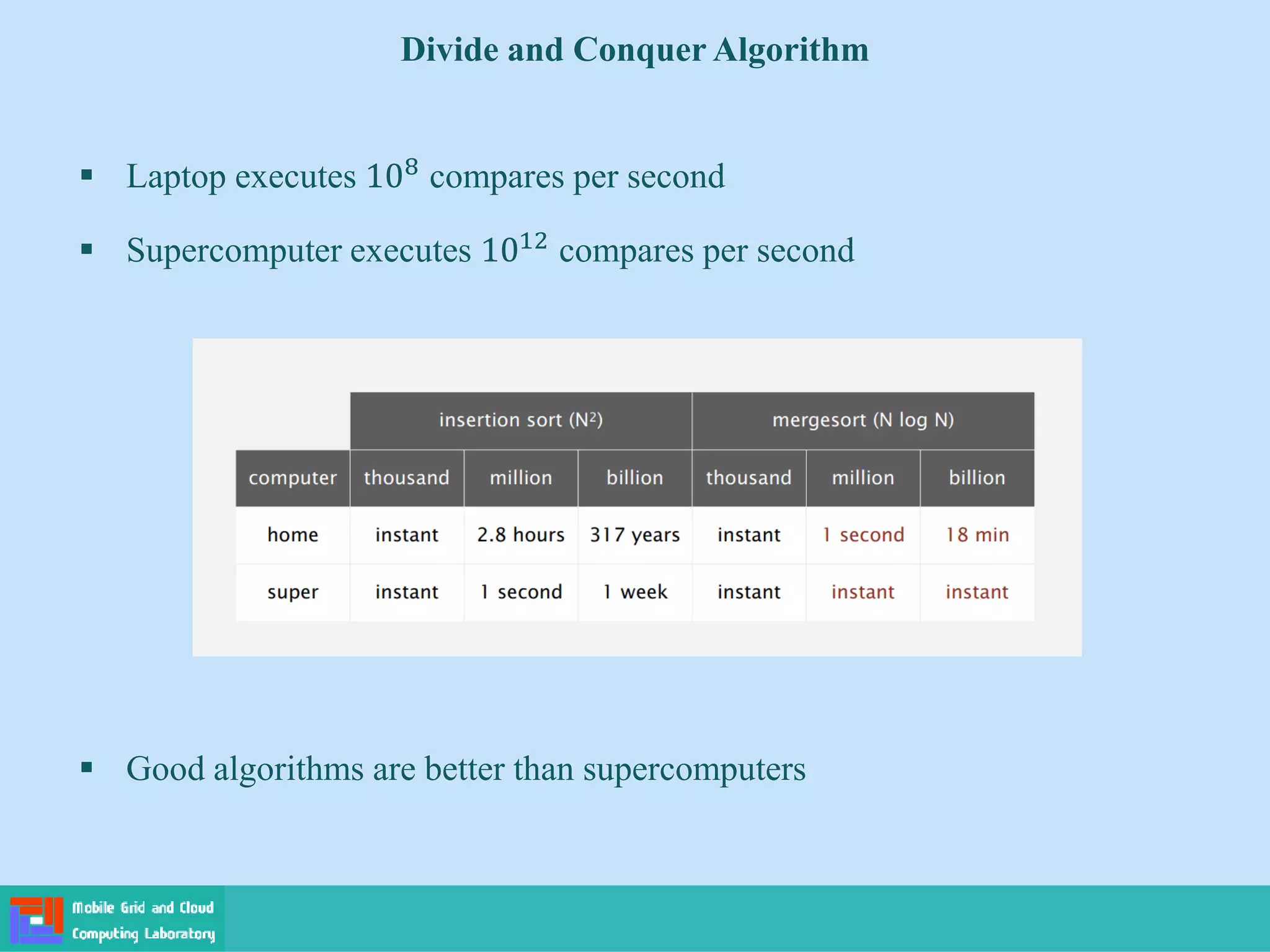

 Laptop executes 108
compares per second
 Supercomputer executes 1012 compares per second
 Good algorithms are better than supercomputers
Divide and Conquer Algorithm

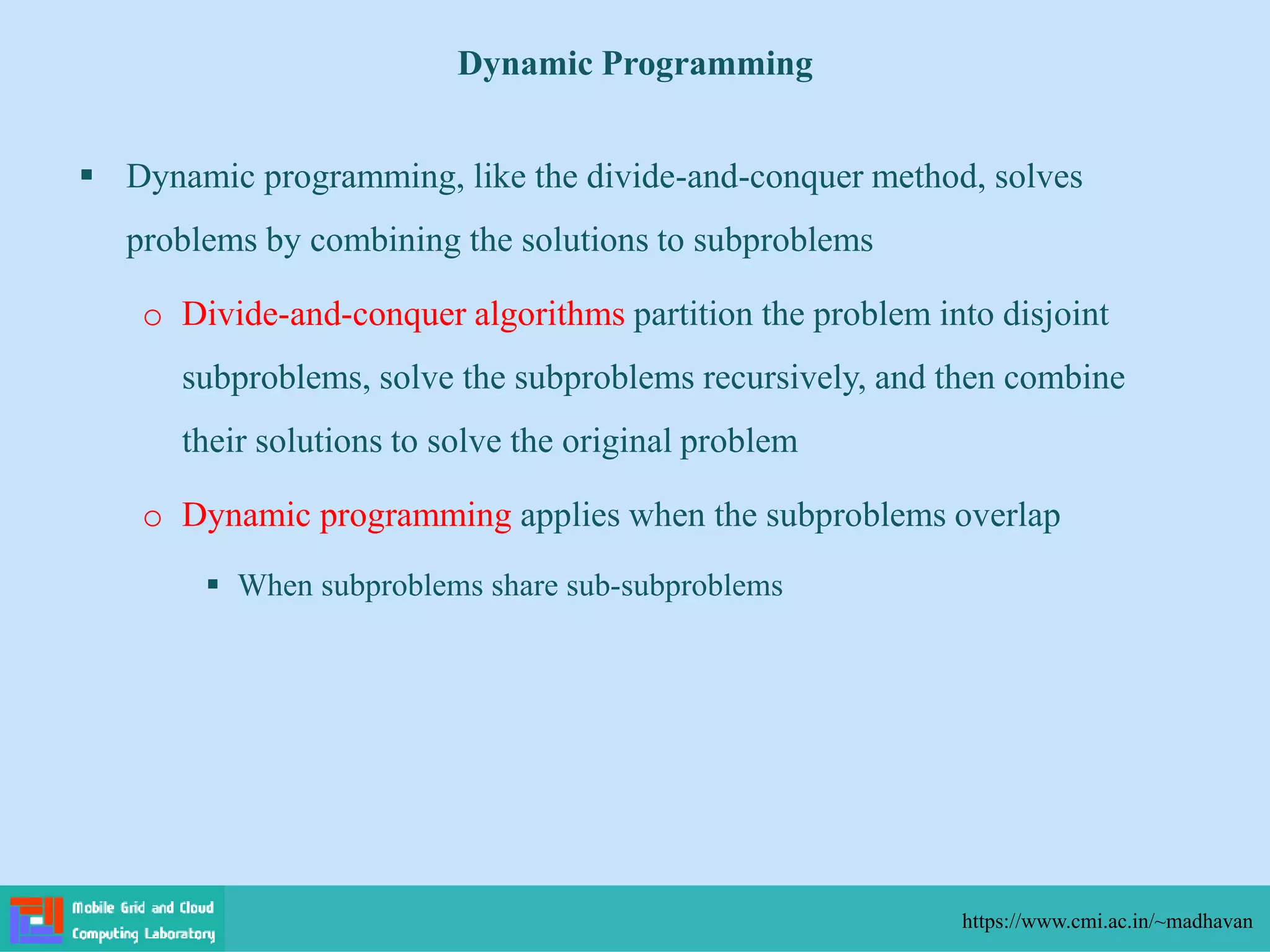

 Dynamic programming, like the divide-and-conquer method, solves
problems by combining the solutions to subproblems
o Divide-and-conquer algorithms partition the problem into disjoint
subproblems, solve the subproblems recursively, and then combine
their solutions to solve the original problem
o Dynamic programming applies when the subproblems overlap
 When subproblems share sub-subproblems
Dynamic Programming

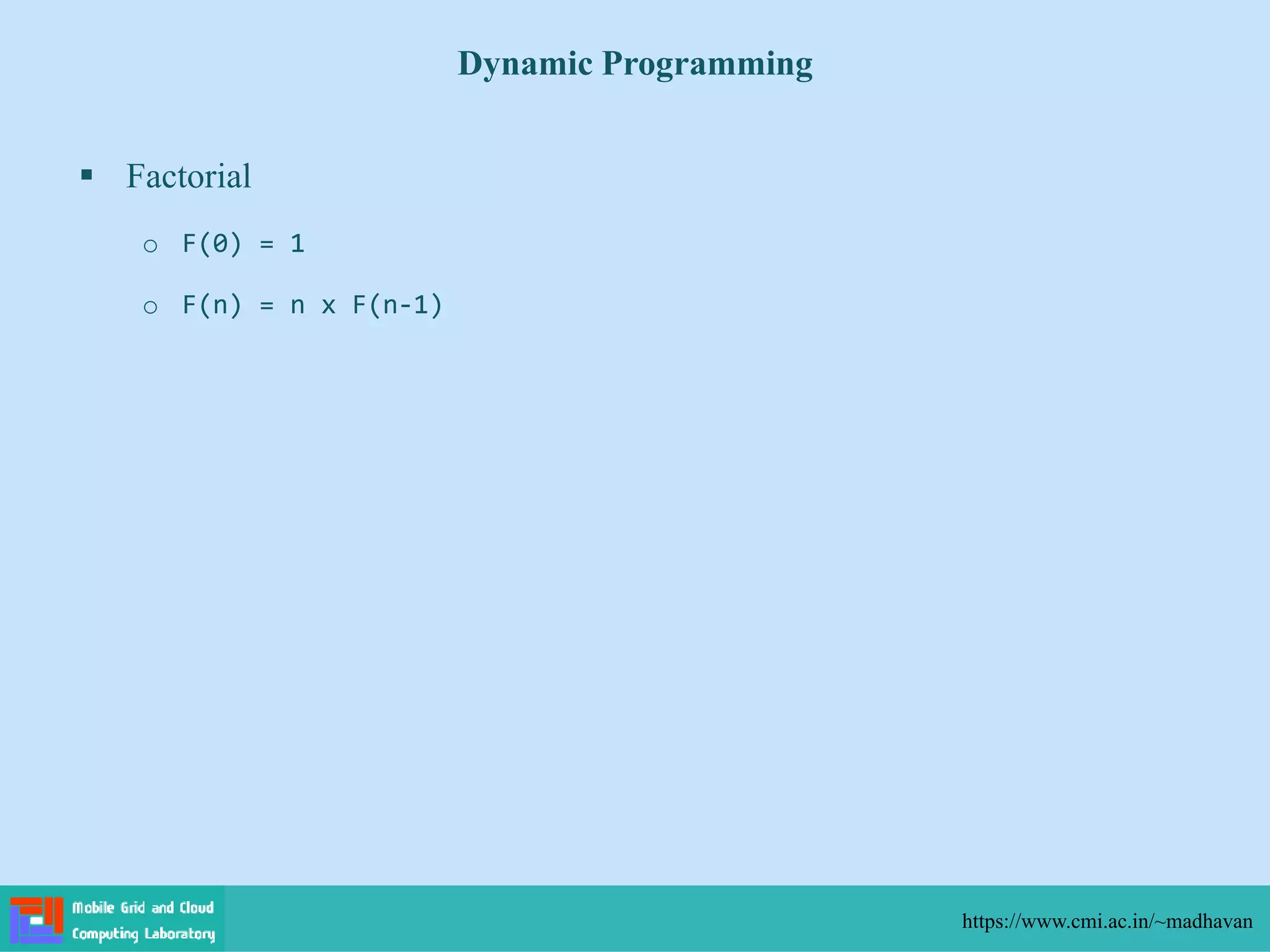

 Factorial
o F(0) = 1
o F(n) = n x F(n-1)
Dynamic Programming

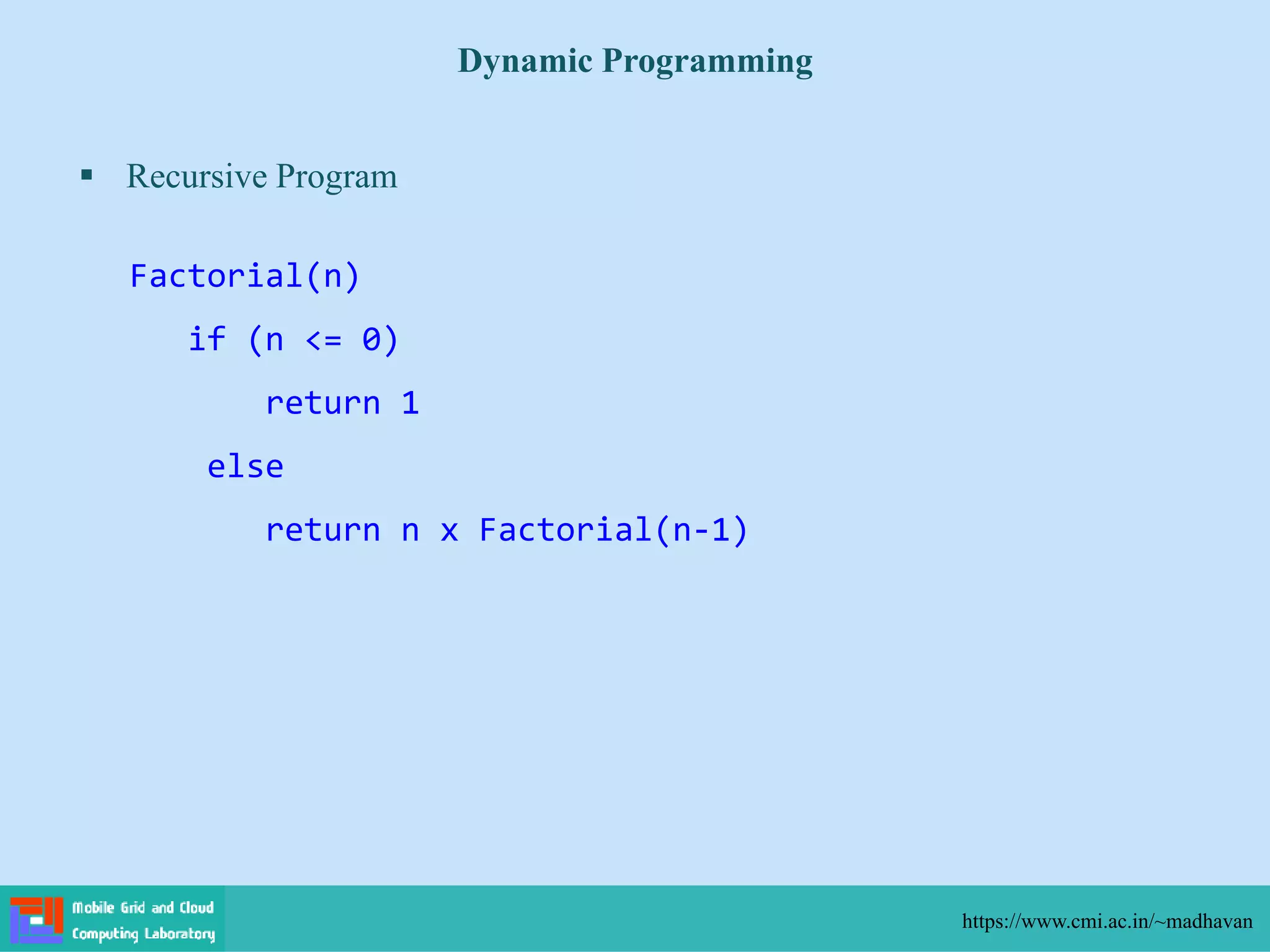

 Recursive Program
Dynamic Programming
Factorial(n)
if (n <= 0)
return 1
else
return n x Factorial(n-1)

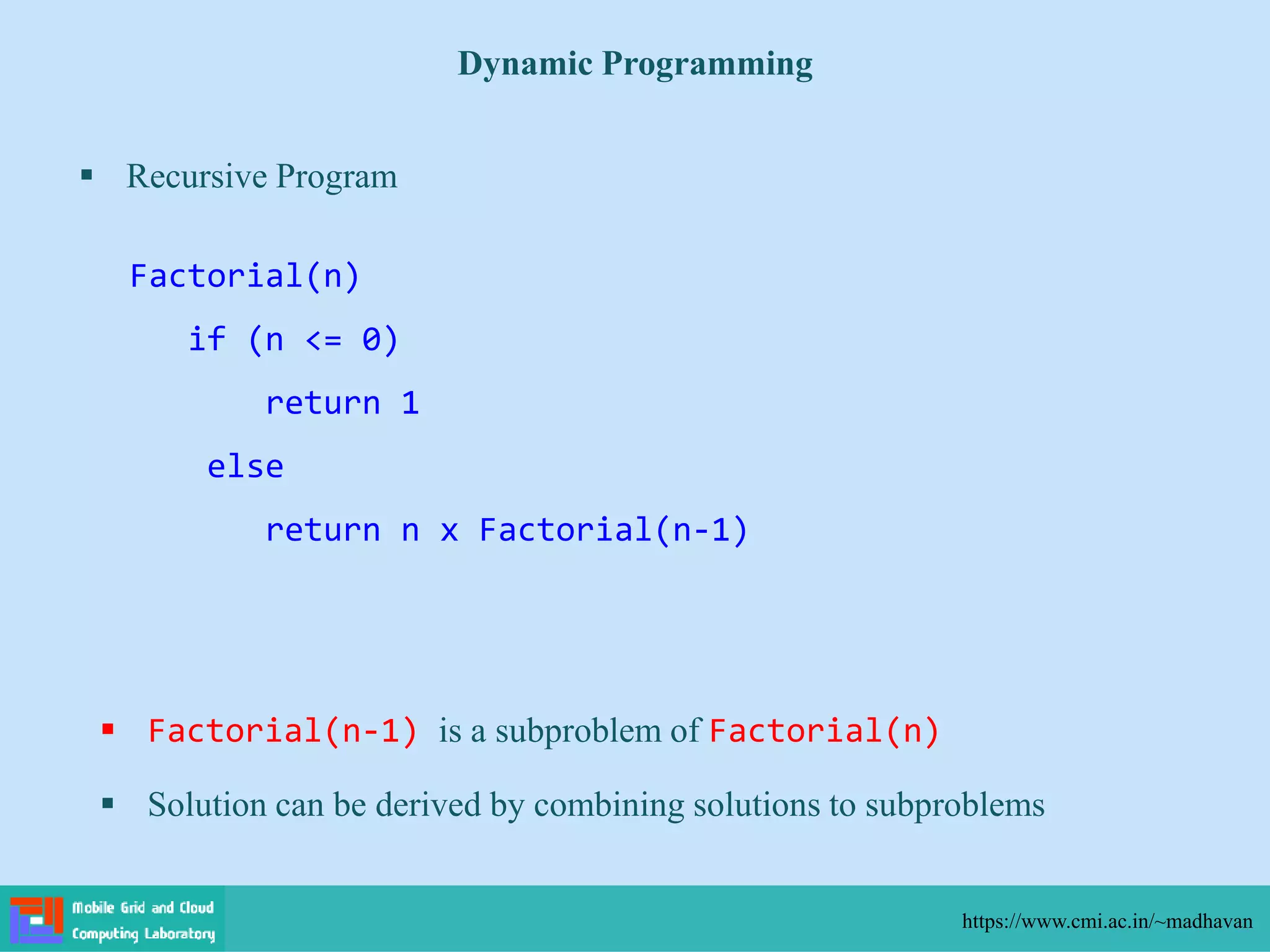

 Recursive Program
Dynamic Programming
Factorial(n)
if (n <= 0)
return 1
else
return n x Factorial(n-1)
 Factorial(n-1) is a subproblem of Factorial(n)
 Solution can be derived by combining solutions to subproblems

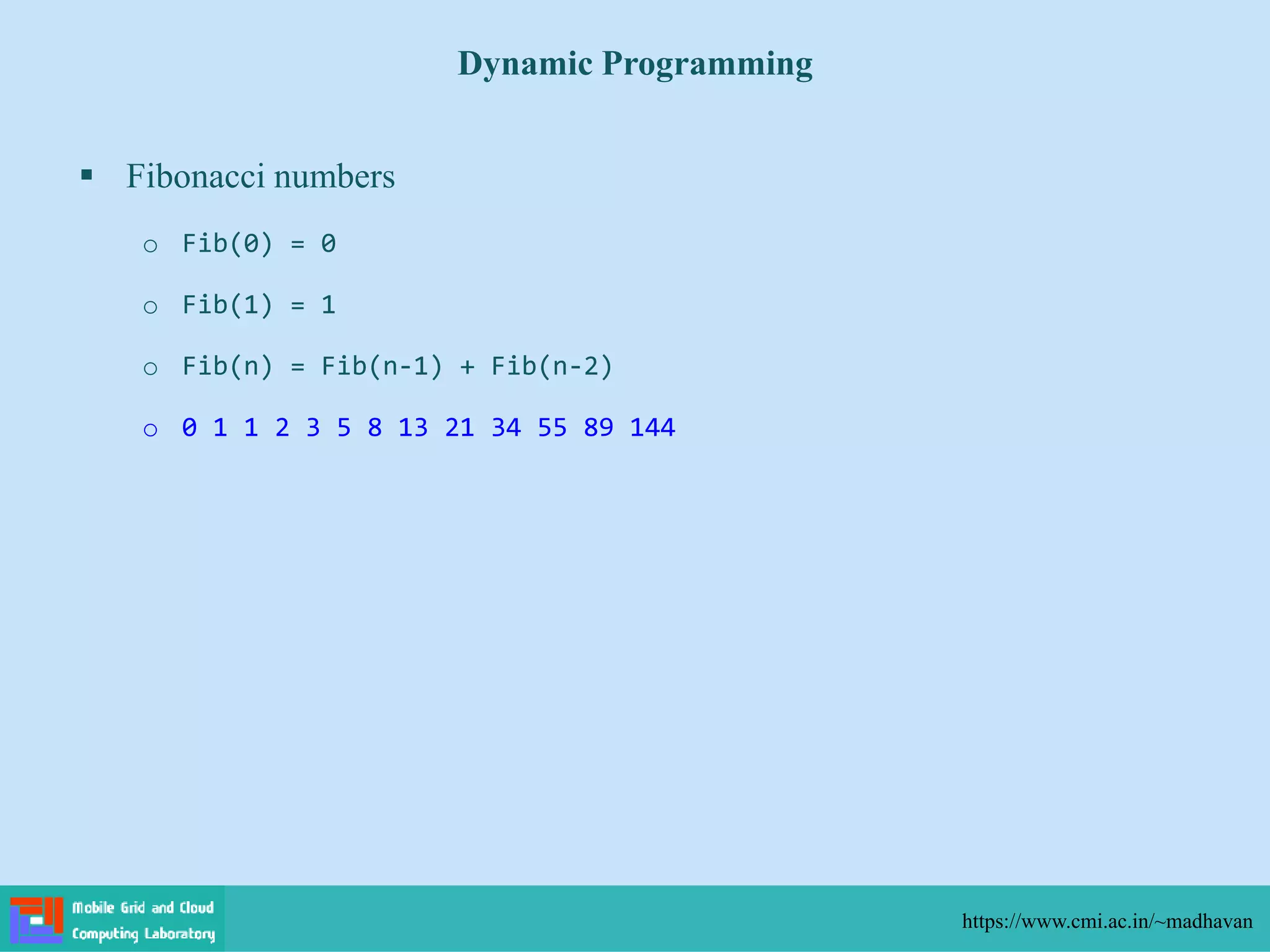

 Fibonacci numbers
o Fib(0) = 0
o Fib(1) = 1
o Fib(n) = Fib(n-1) + Fib(n-2)
o 0 1 1 2 3 5 8 13 21 34 55 89 144
Dynamic Programming

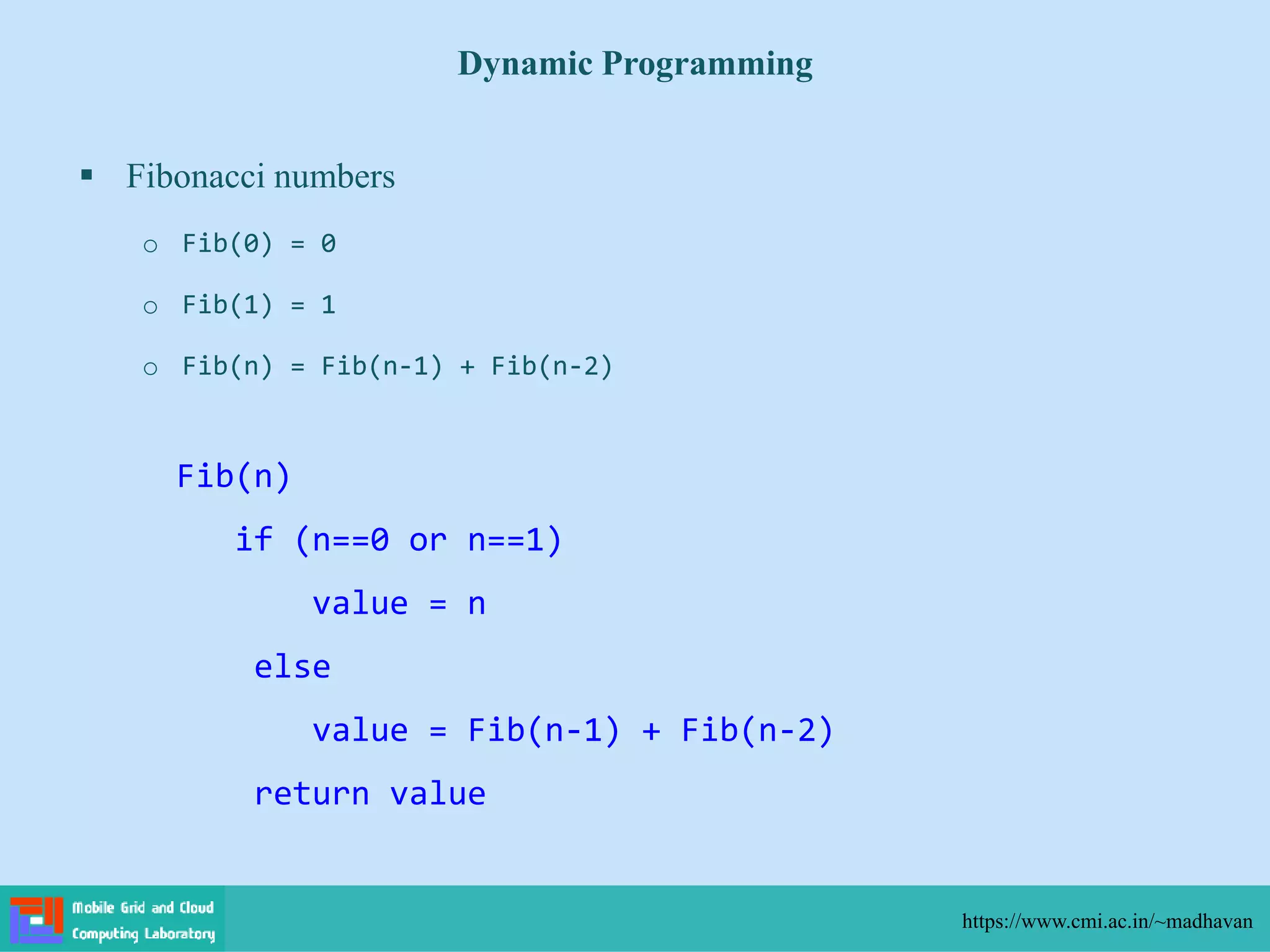

 Fibonacci numbers
o Fib(0) = 0
o Fib(1) = 1
o Fib(n) = Fib(n-1) + Fib(n-2)
Dynamic Programming
Fib(n)
if (n==0 or n==1)
value = n
else
value = Fib(n-1) + Fib(n-2)
return value

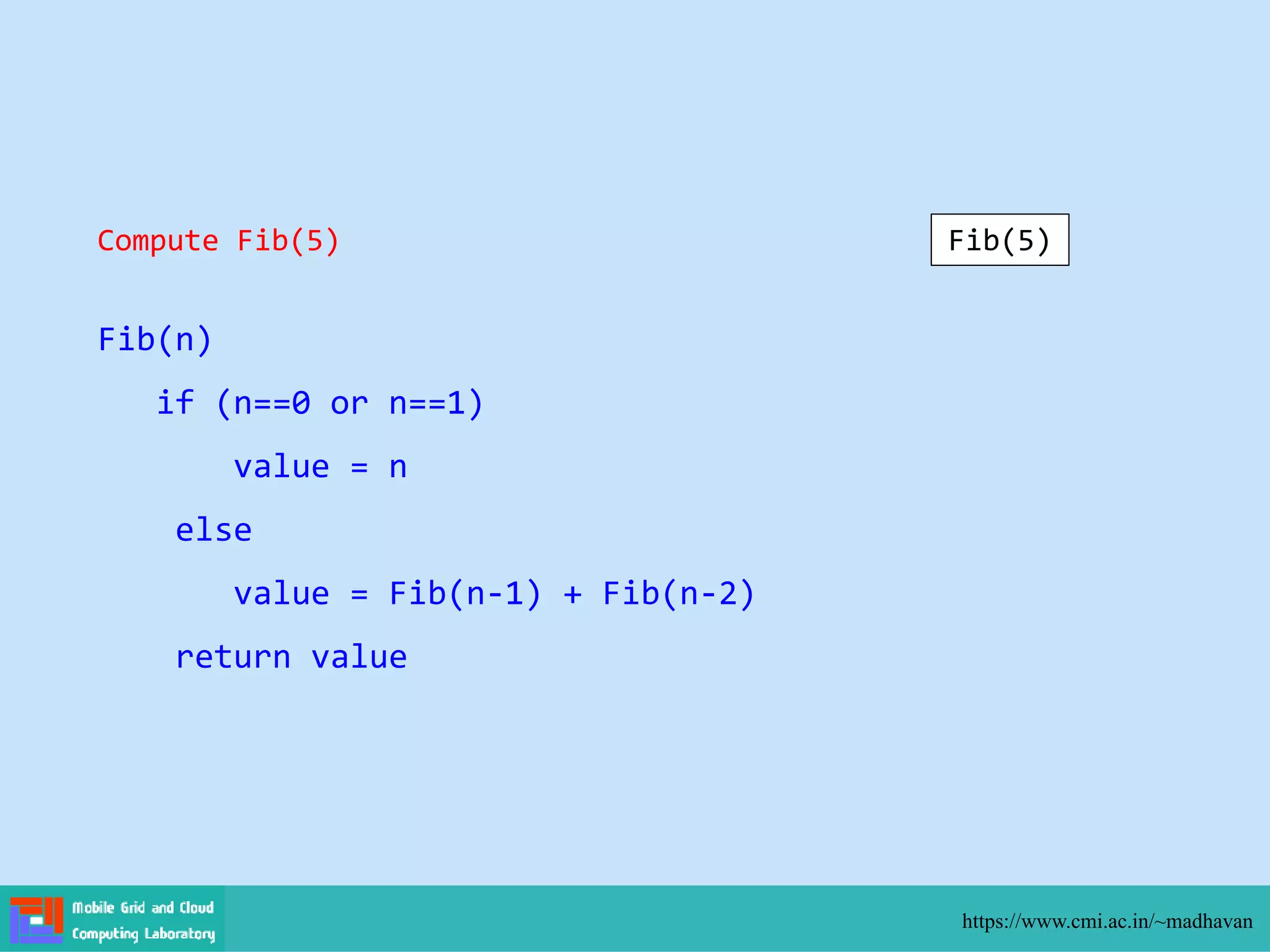

Fib(n)
if (n==0 or n==1)
value = n
else
return value

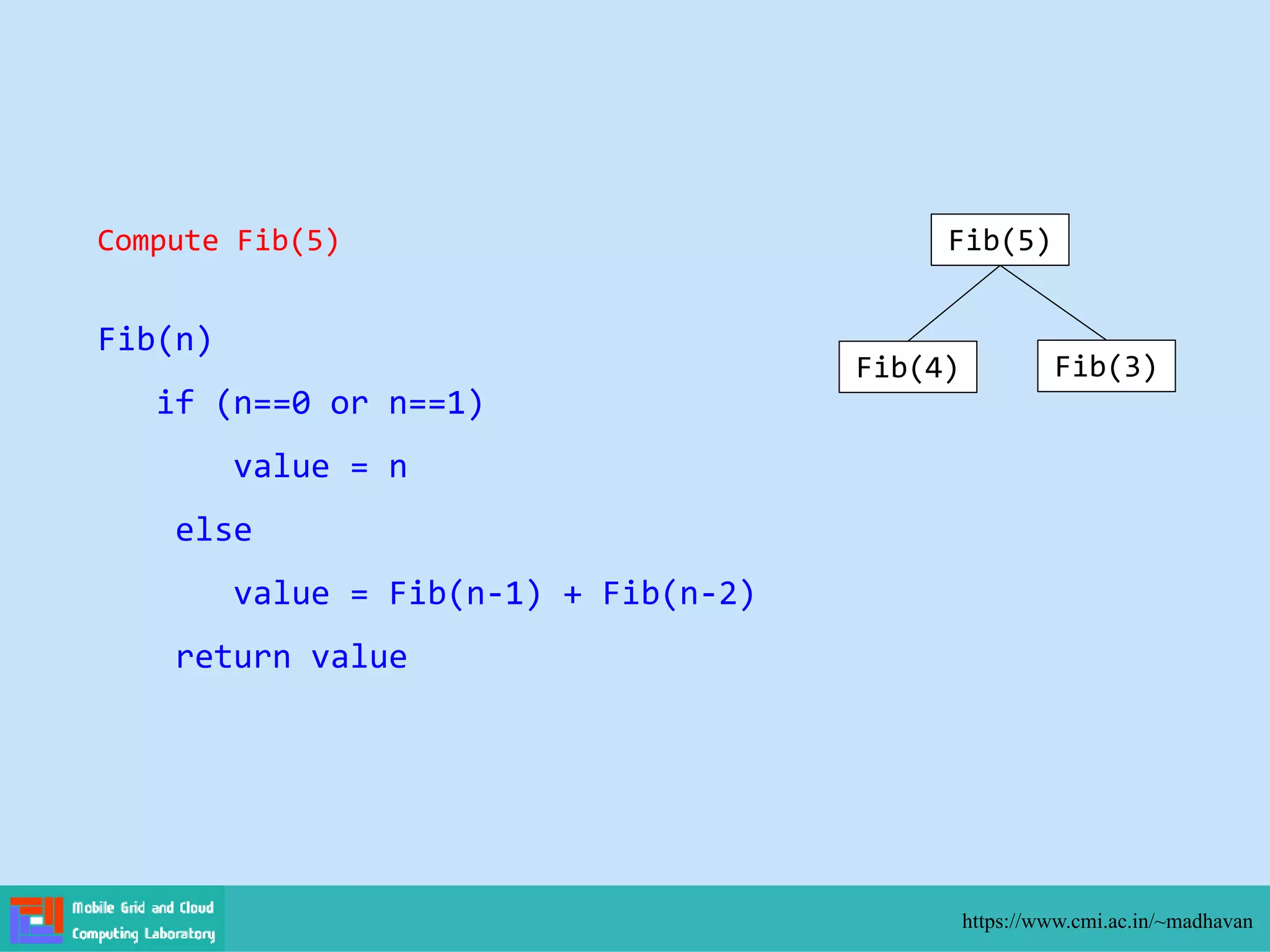

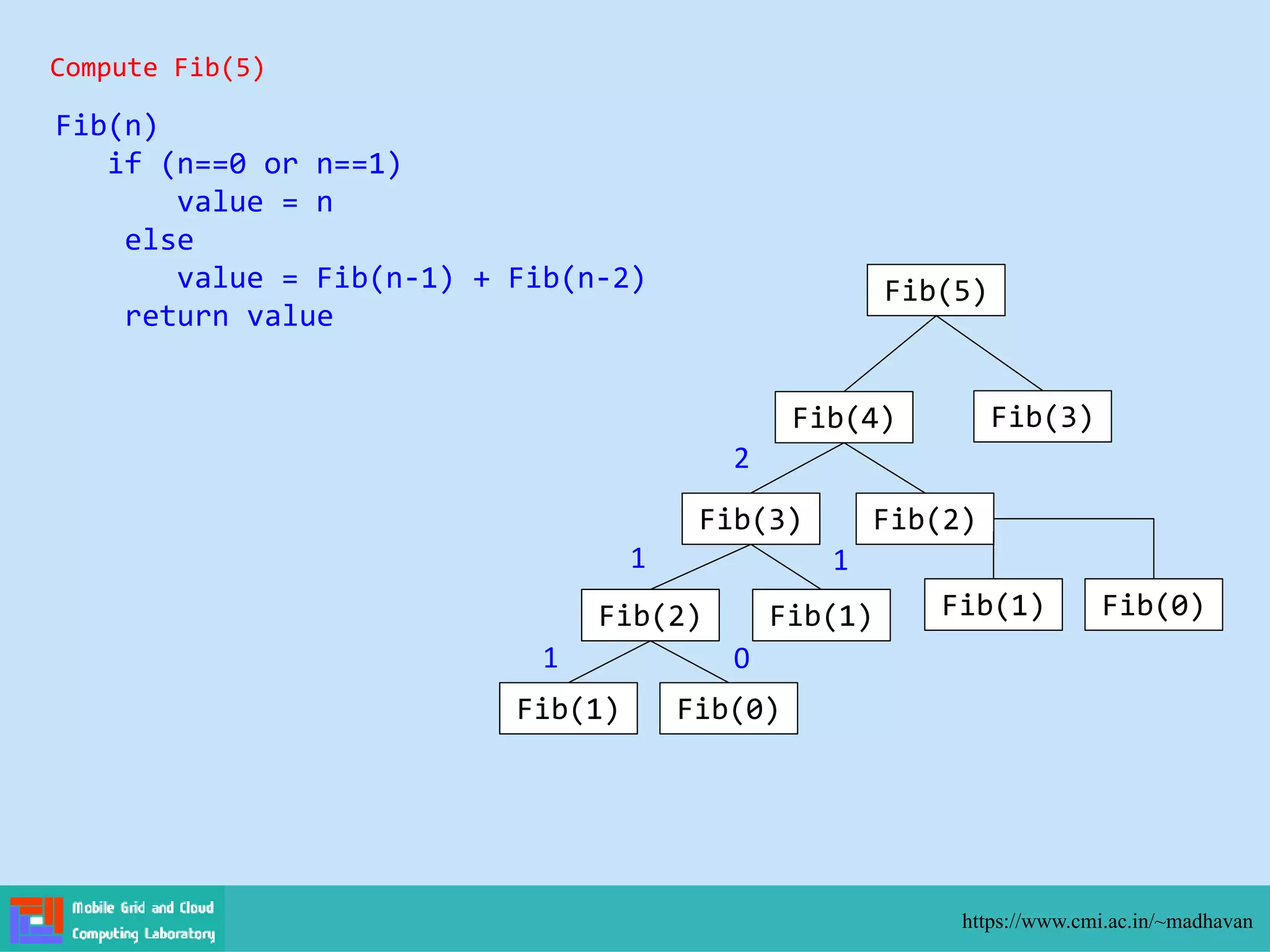

Compute Fib(5) Fib(5)

Fib(n)
if (n==0 or n==1)
value = n
else
return value
Compute Fib(5) Fib(5)
Fib(4) Fib(3)

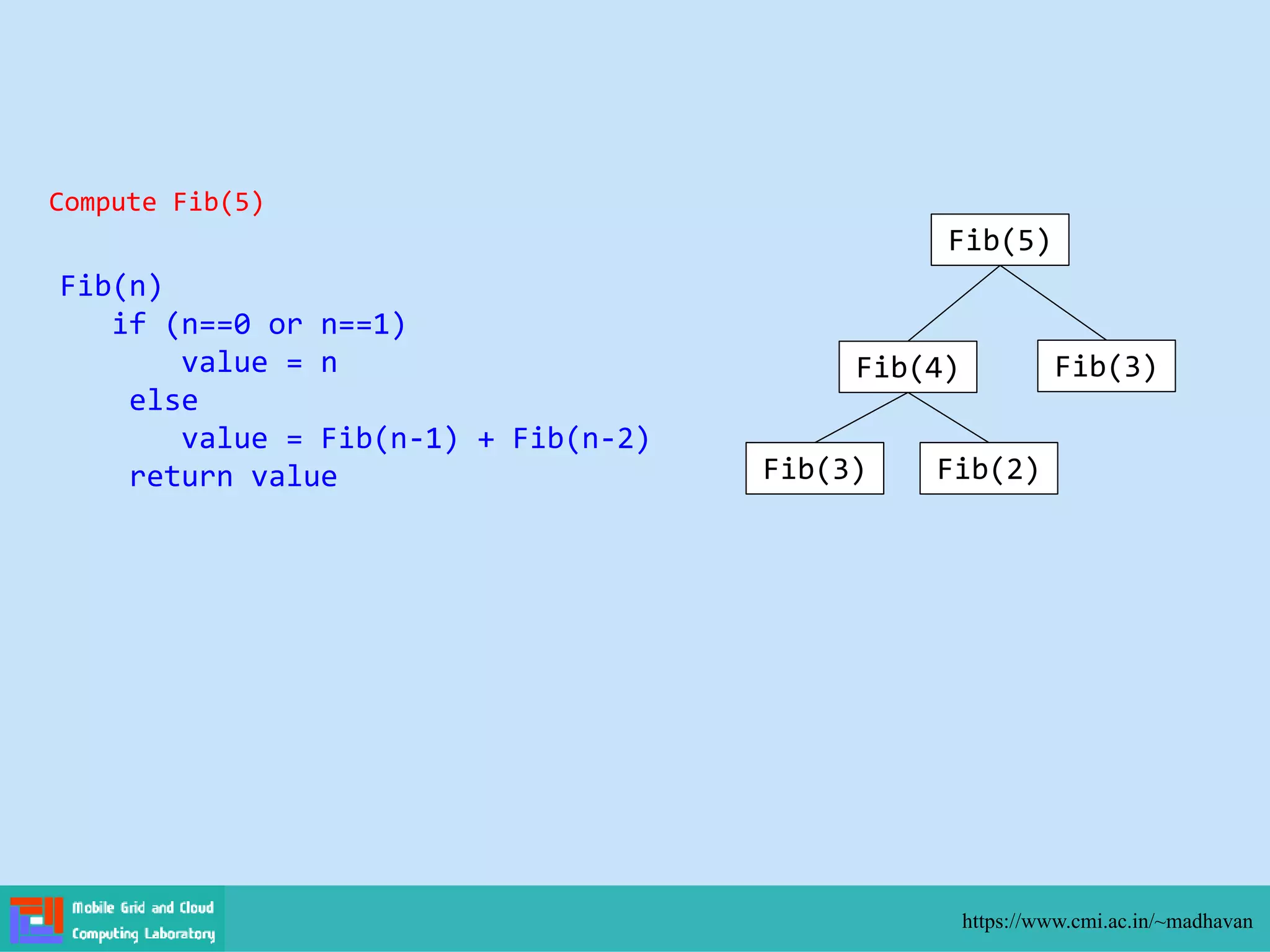

Fib(n)
if (n==0 or n==1)
value = n
else
return value
Compute Fib(5)
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)

Fib(n)
if (n==0 or n==1)
value = n
else
return value
Compute Fib(5)
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)

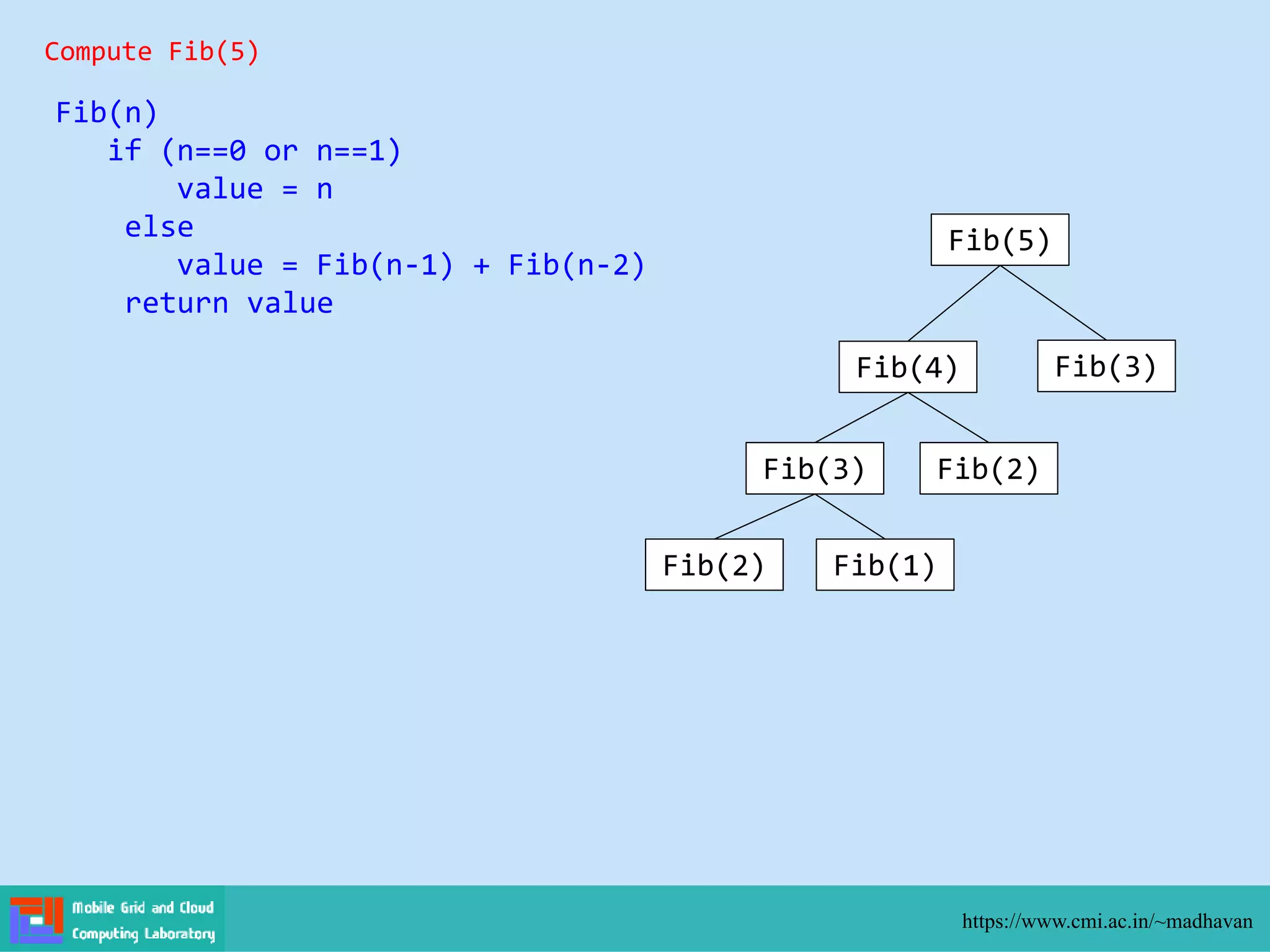

Fib(n)
if (n==0 or n==1)
value = n
else
return value
Compute Fib(5)
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)

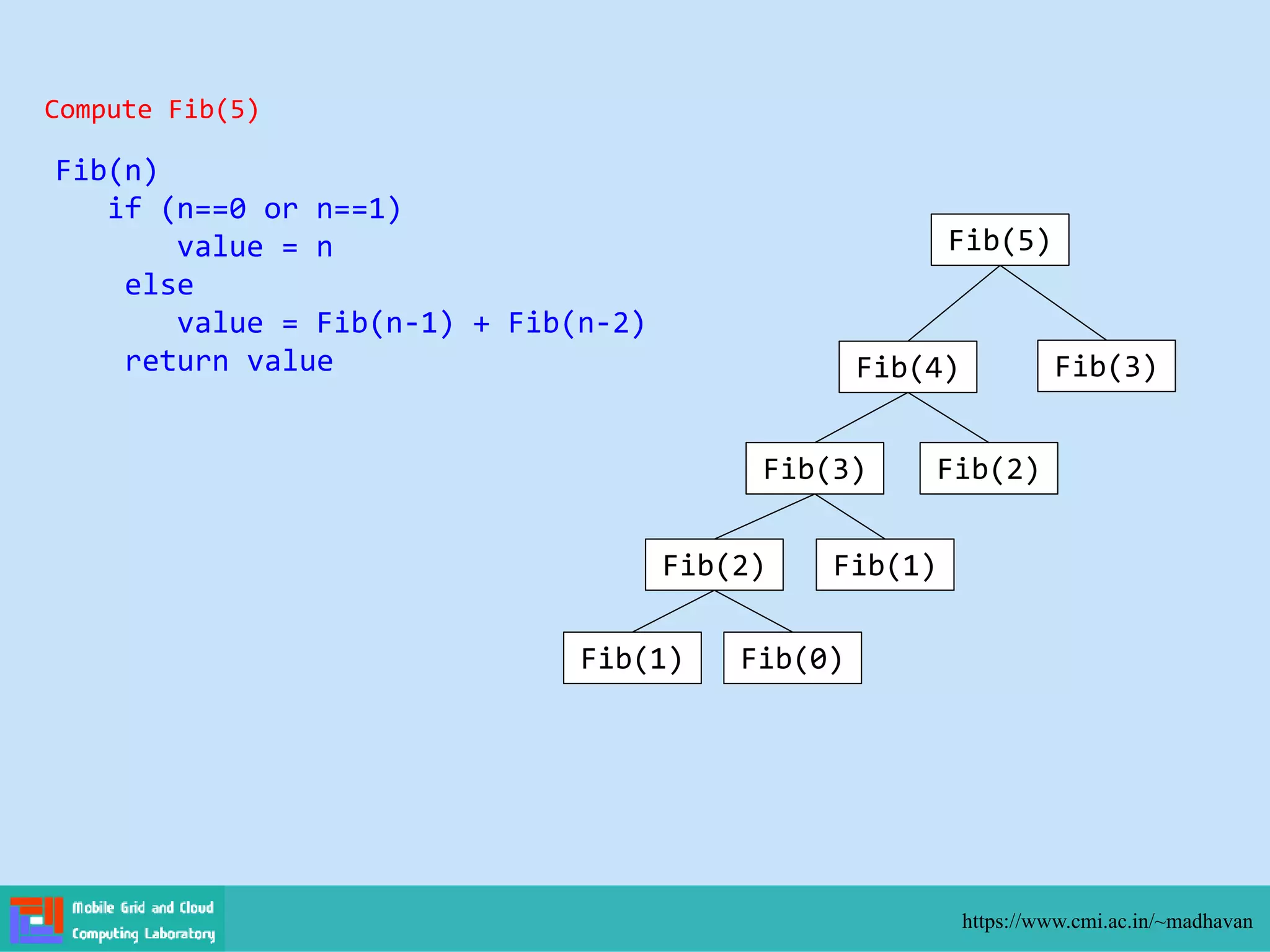

Fib(n)
if (n==0 or n==1)
value = n
else
return value

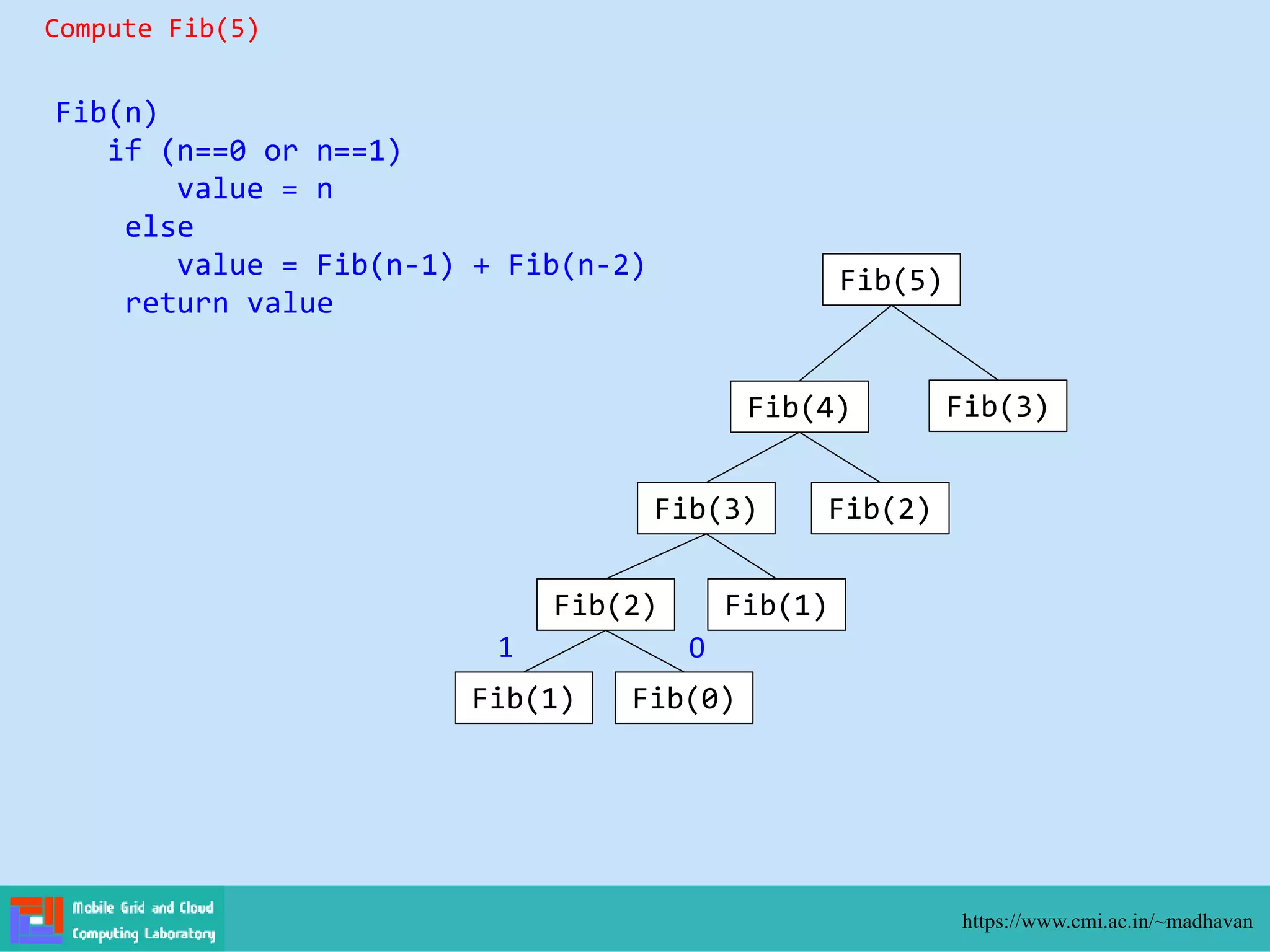

Compute Fib(5)
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
1 0

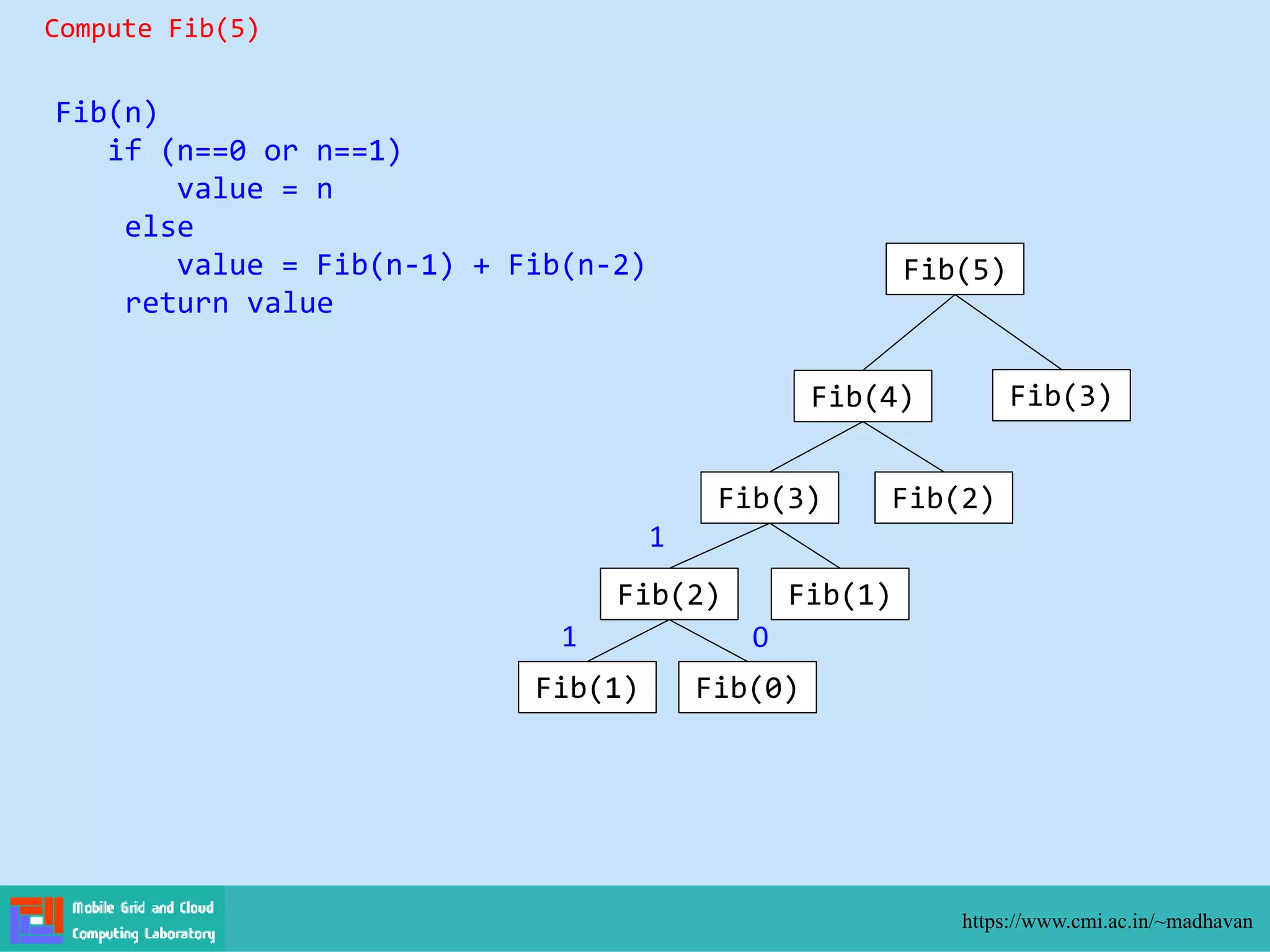

Fib(n)
if (n==0 or n==1)
value = n
else
return value
Compute Fib(5)
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
1 0
1

Fib(n)
if (n==0 or n==1)
value = n
else
return value
Compute Fib(5)
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
1 0
1 1

Fib(n)
if (n==0 or n==1)
value = n
else
return value
Compute Fib(5)
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
1 0
1 1
2

Fib(n)
if (n==0 or n==1)
value = n
else
return value
Compute Fib(5)
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
1 0
1 1
2
Fib(1) Fib(0)

Fib(n)
if (n==0 or n==1)
value = n
else
return value
Compute Fib(5)
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
Fib(1) Fib(0)
1 0
1 1
2
1 0

Fib(n)
if (n==0 or n==1)
value = n
else
return value
Compute Fib(5)
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
Fib(1) Fib(0)
1 0
1 1
2
1 0
1

Fib(n)
if (n==0 or n==1)
value = n
else
return value
Compute Fib(5)
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
Fib(1) Fib(0)
1 0
1 1
2
1 0
1
3

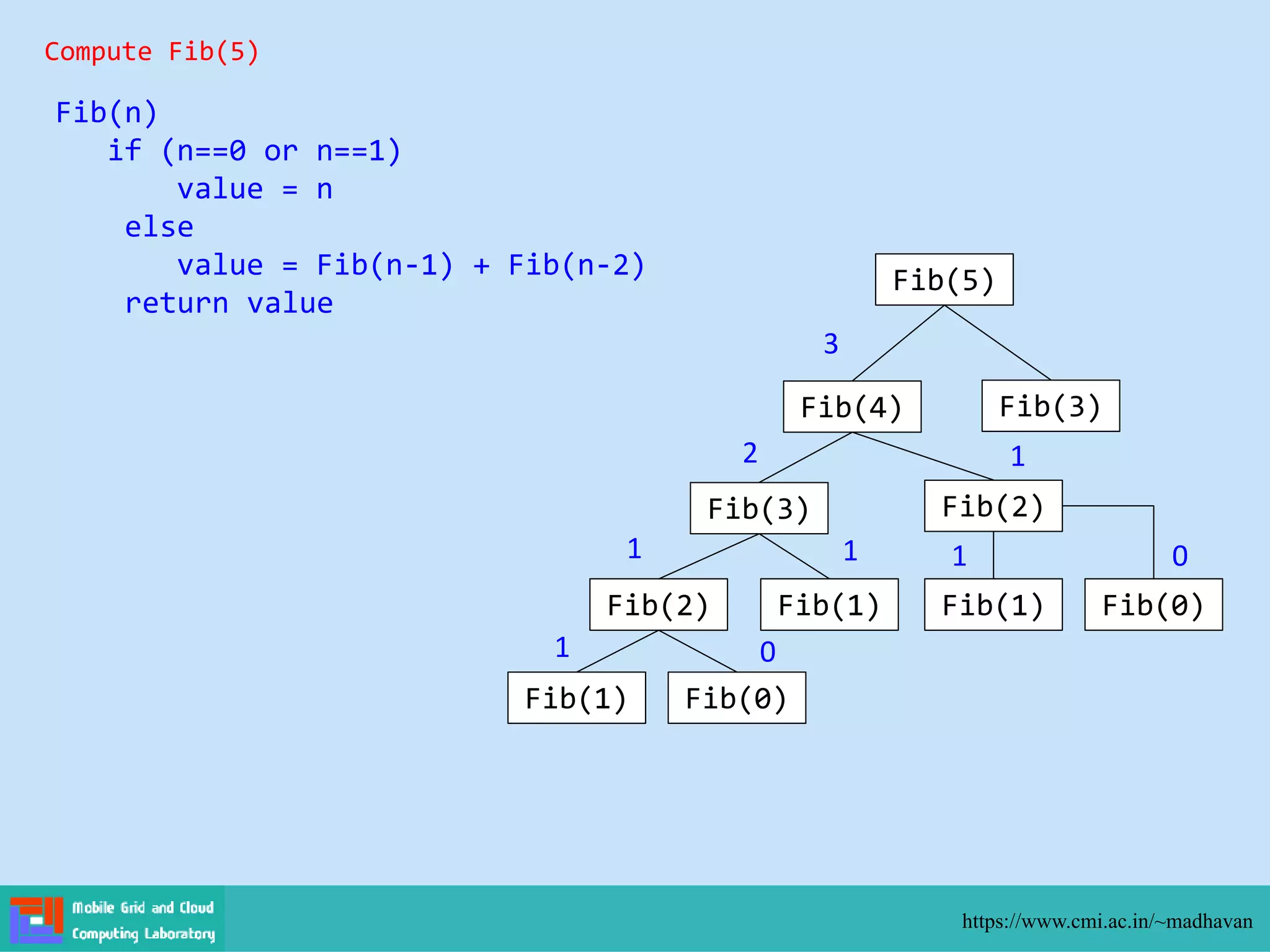

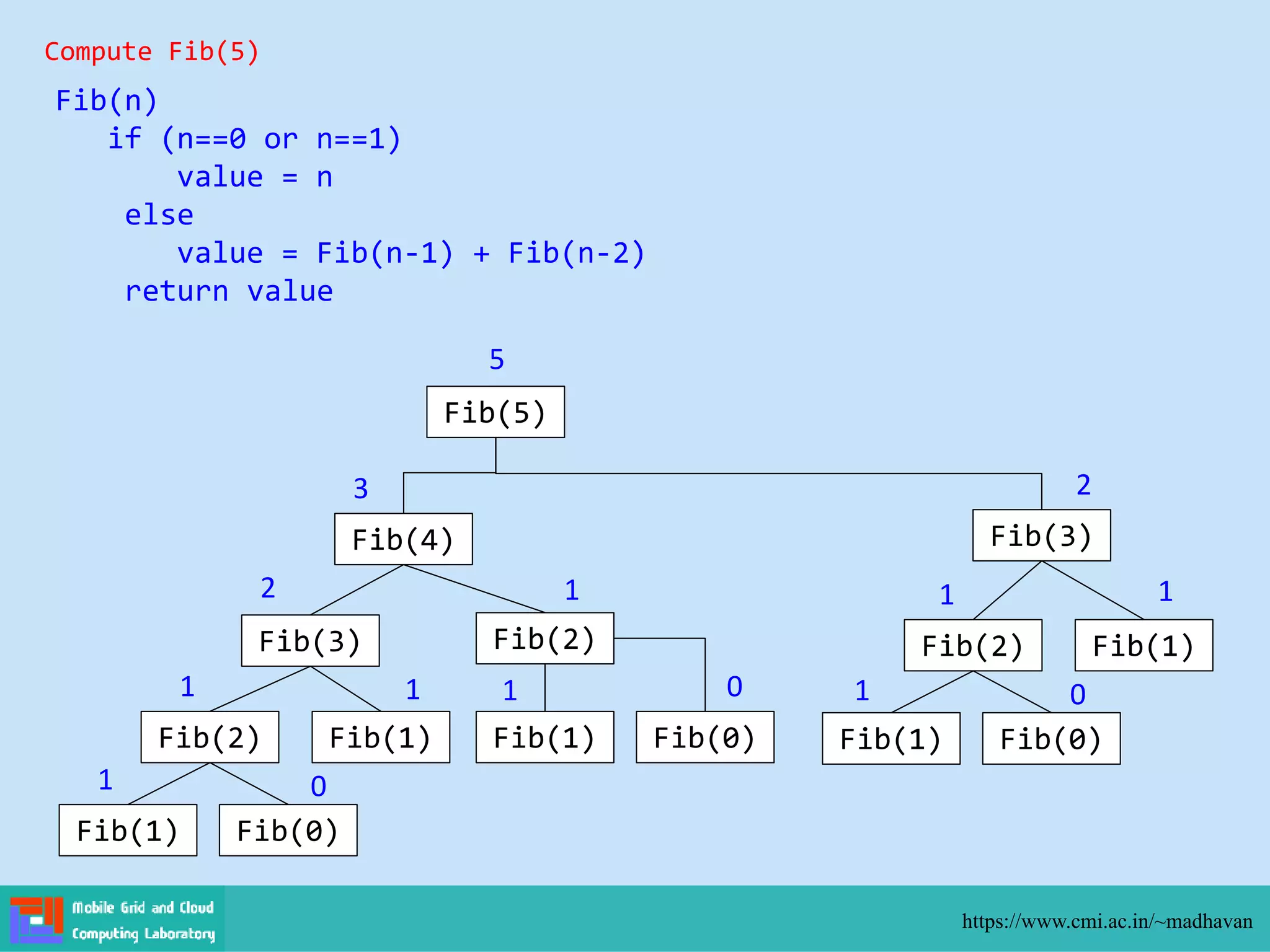

Fib(n)
if (n==0 or n==1)
value = n
else
return value
Compute Fib(5)
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
Fib(1) Fib(0)
Fib(2) Fib(1)
Fib(1) Fib(0)
1 0
1 1 1 1
1
0 0
1 1
2
3
5
2

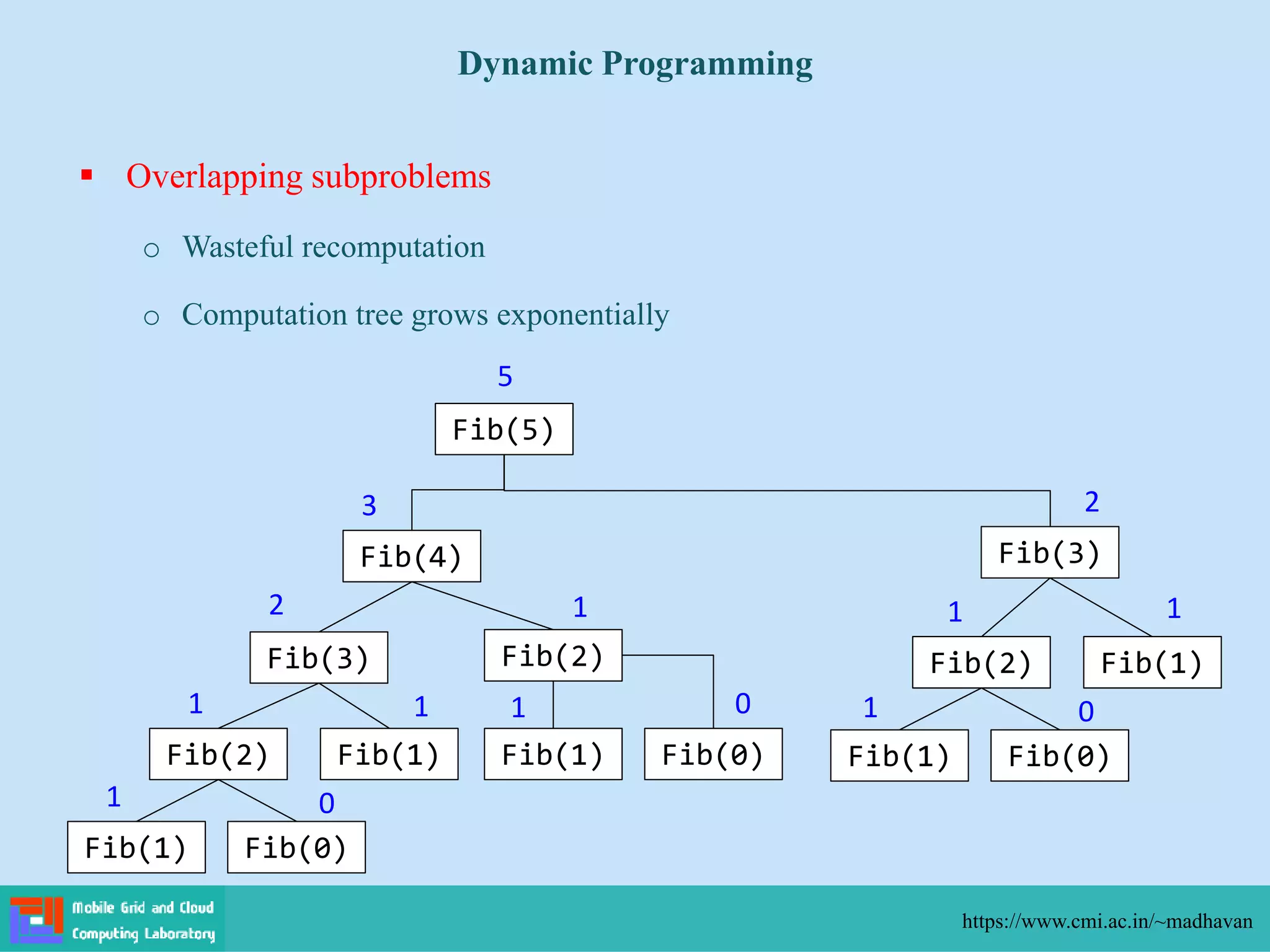

 Overlapping subproblems
o Wasteful recomputation
o Computation tree grows exponentially
Dynamic Programming
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
Fib(1) Fib(0)
Fib(2) Fib(1)
Fib(1) Fib(0)
1 0
1 1 1 1
1
0 0
1 1
2
3
5
2

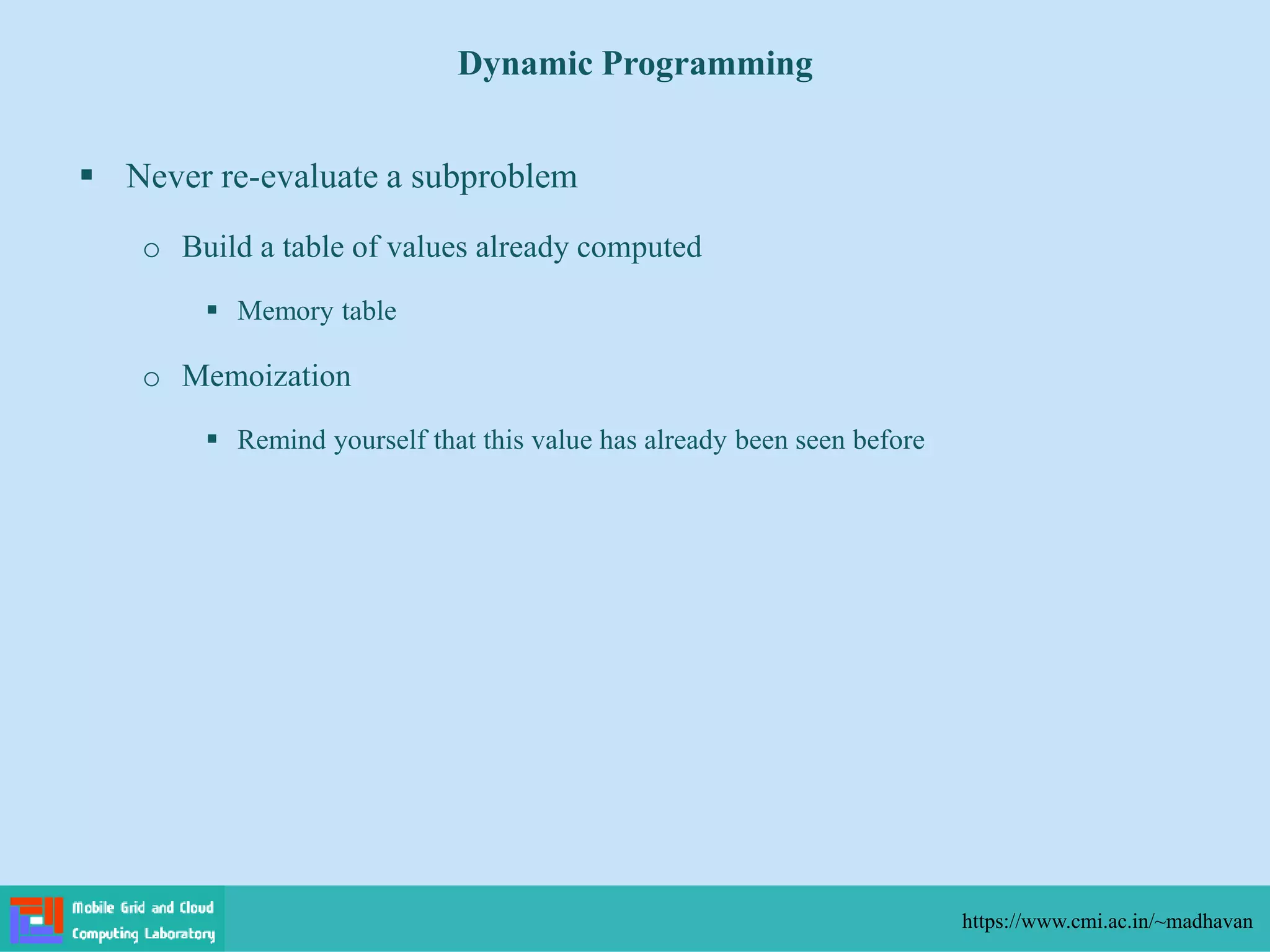

 Never re-evaluate a subproblem
o Build a table of values already computed
 Memory table
o Memoization
 Remind yourself that this value has already been seen before
Dynamic Programming

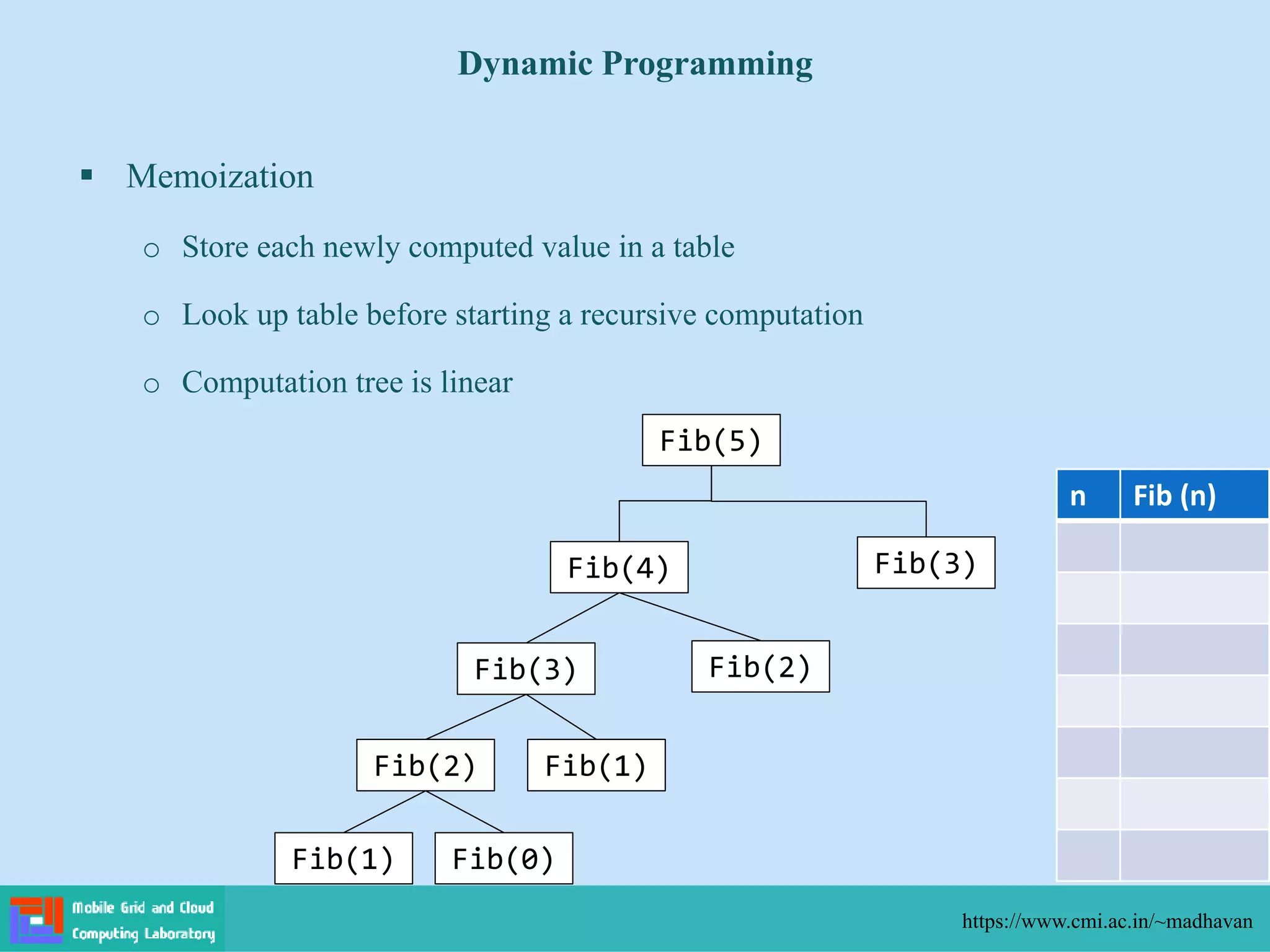

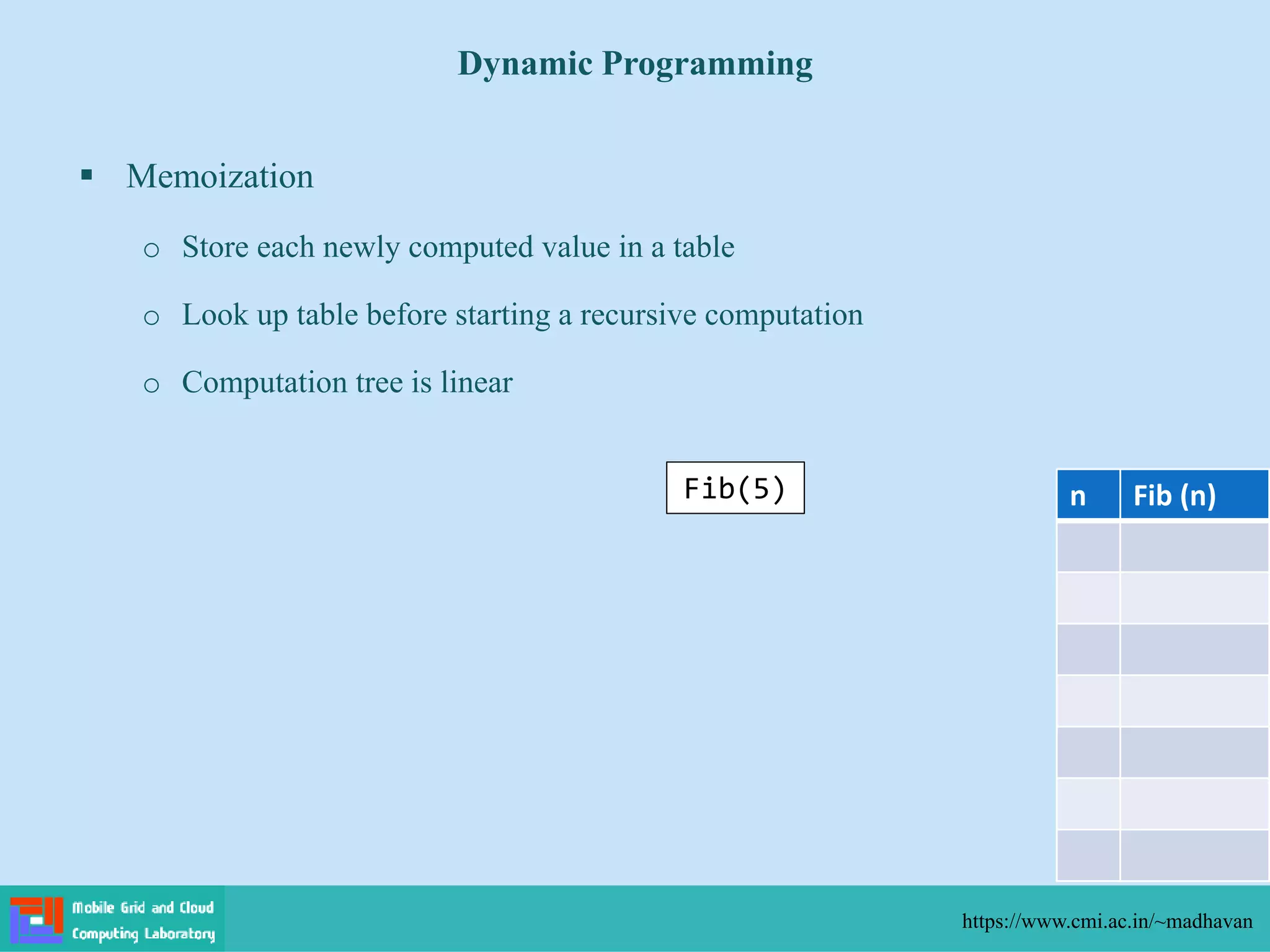

 Memoization
o Store each newly computed value in a table
o Look up table before starting a recursive computation
o Computation tree is linear
Dynamic Programming
n Fib (n)
Fib(5)

 Memoization
Dynamic Programming
n Fib (n)
Fib(5)
Fib(4) Fib(3)

 Memoization
Dynamic Programming

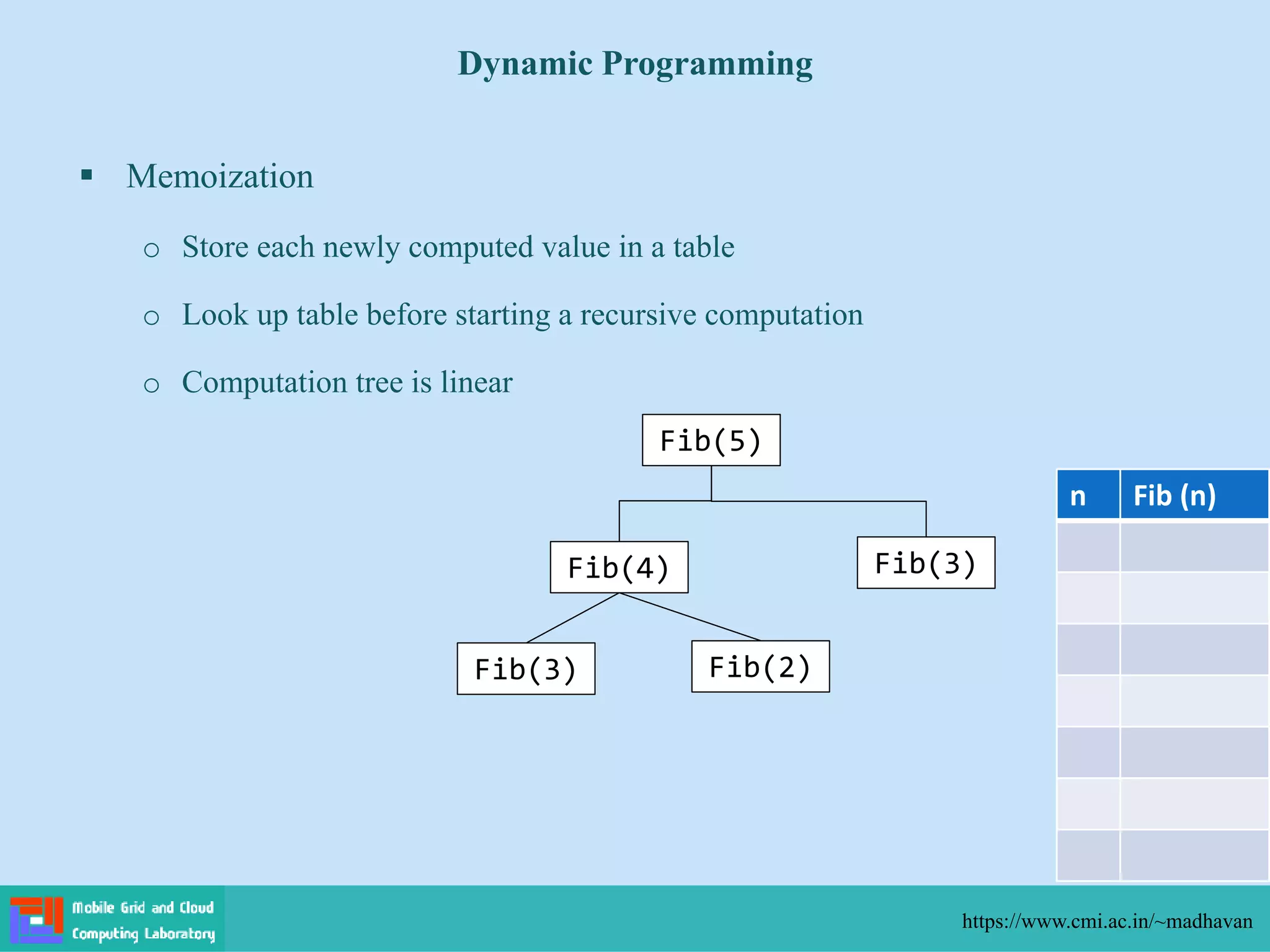

n Fib (n)
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)

 Memoization
Dynamic Programming

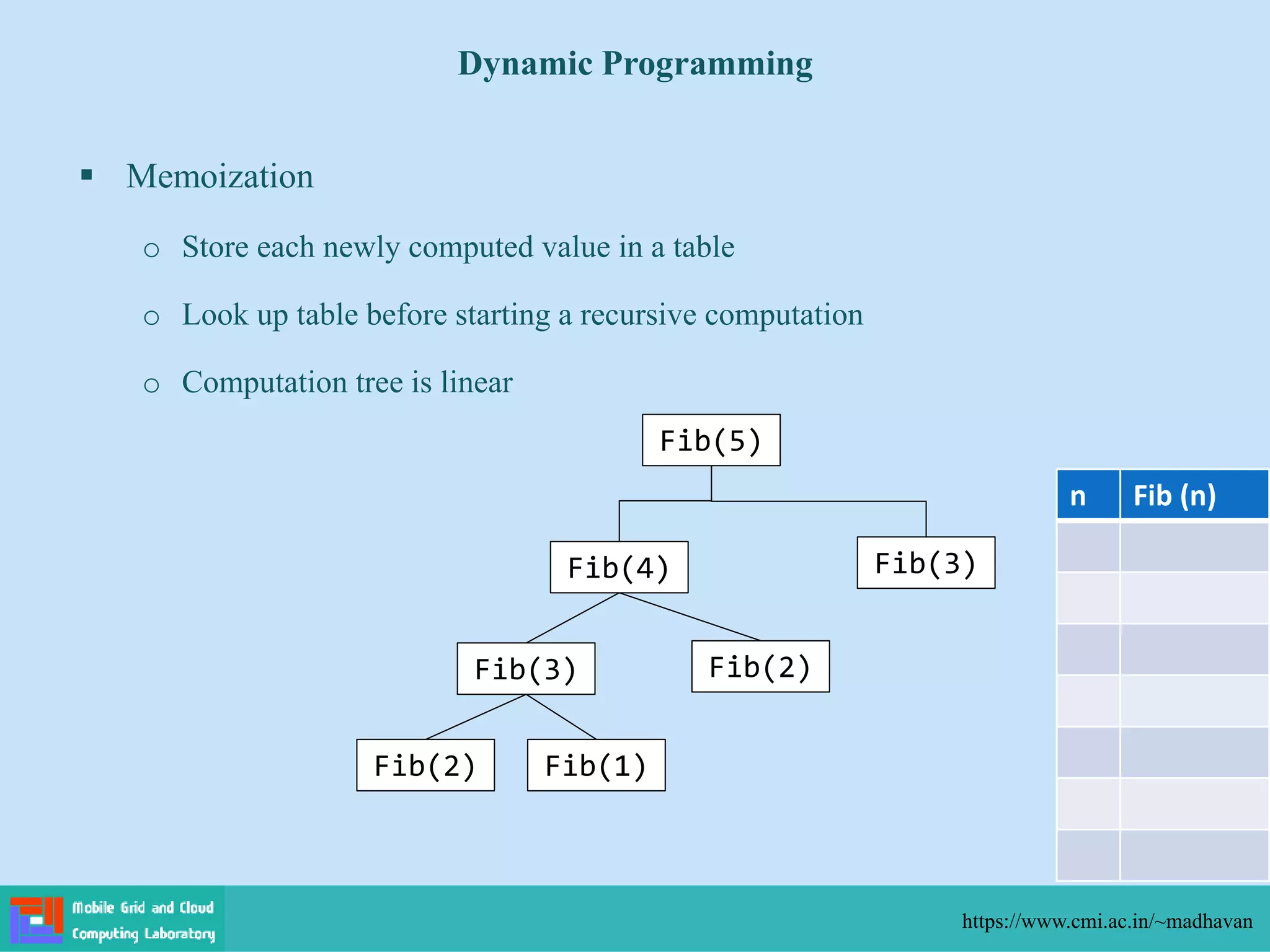

n Fib (n)
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)

 Memoization
Dynamic Programming
n Fib (n)
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)

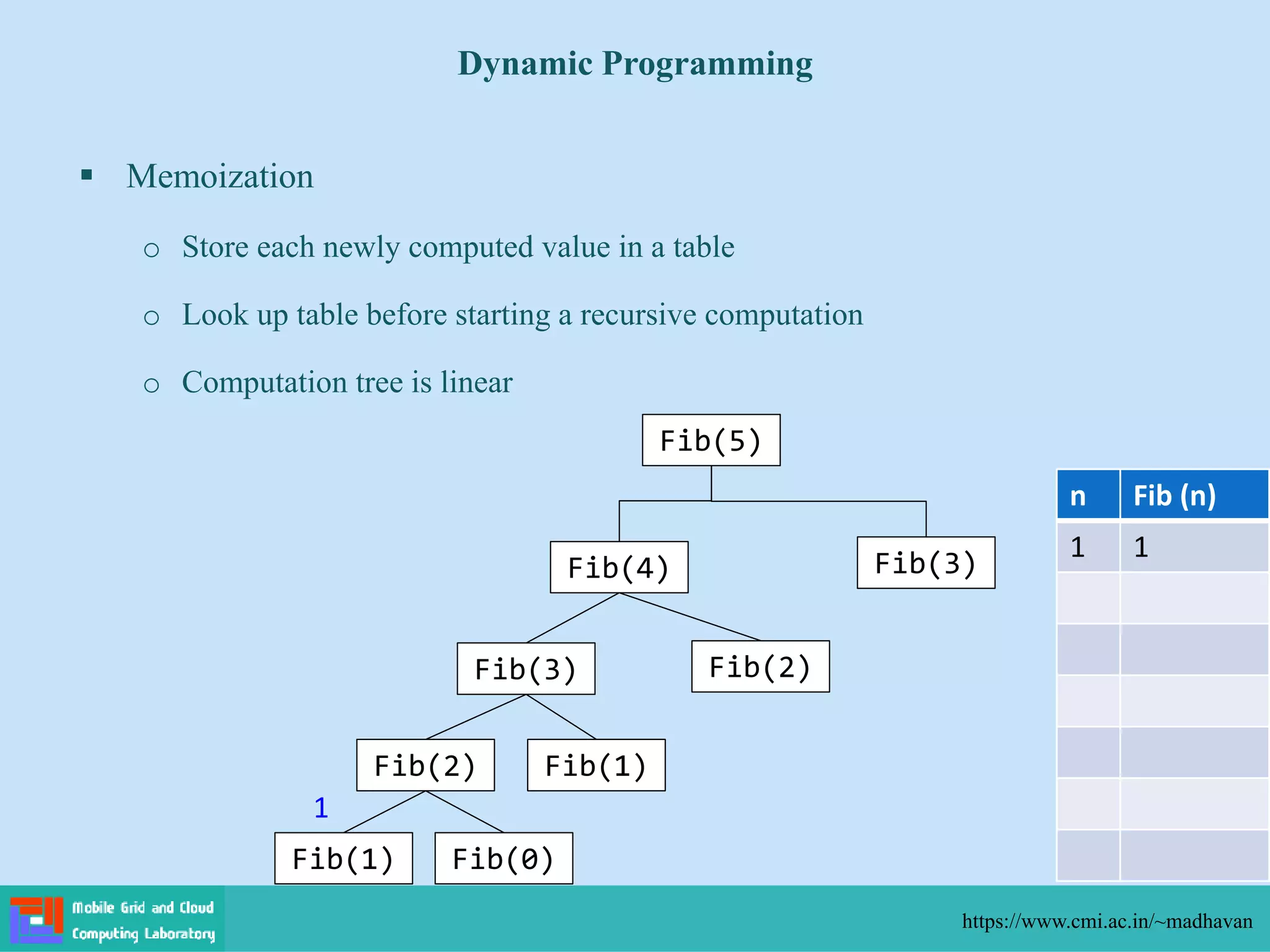

 Memoization
Dynamic Programming
n Fib (n)
1 1
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
1

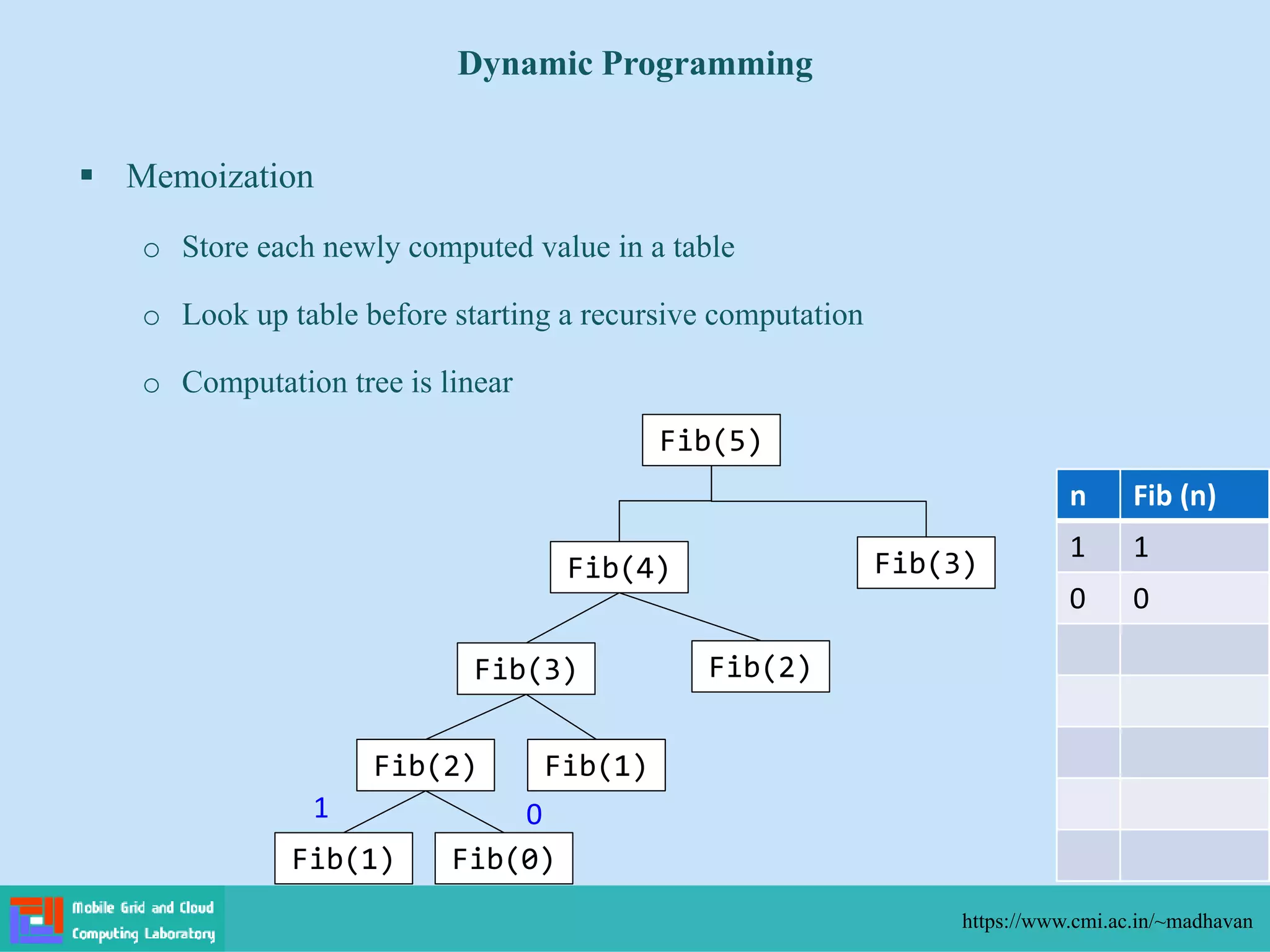

 Memoization
Dynamic Programming
n Fib (n)
1 1
0 0
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
1 0

 Memoization
Dynamic Programming

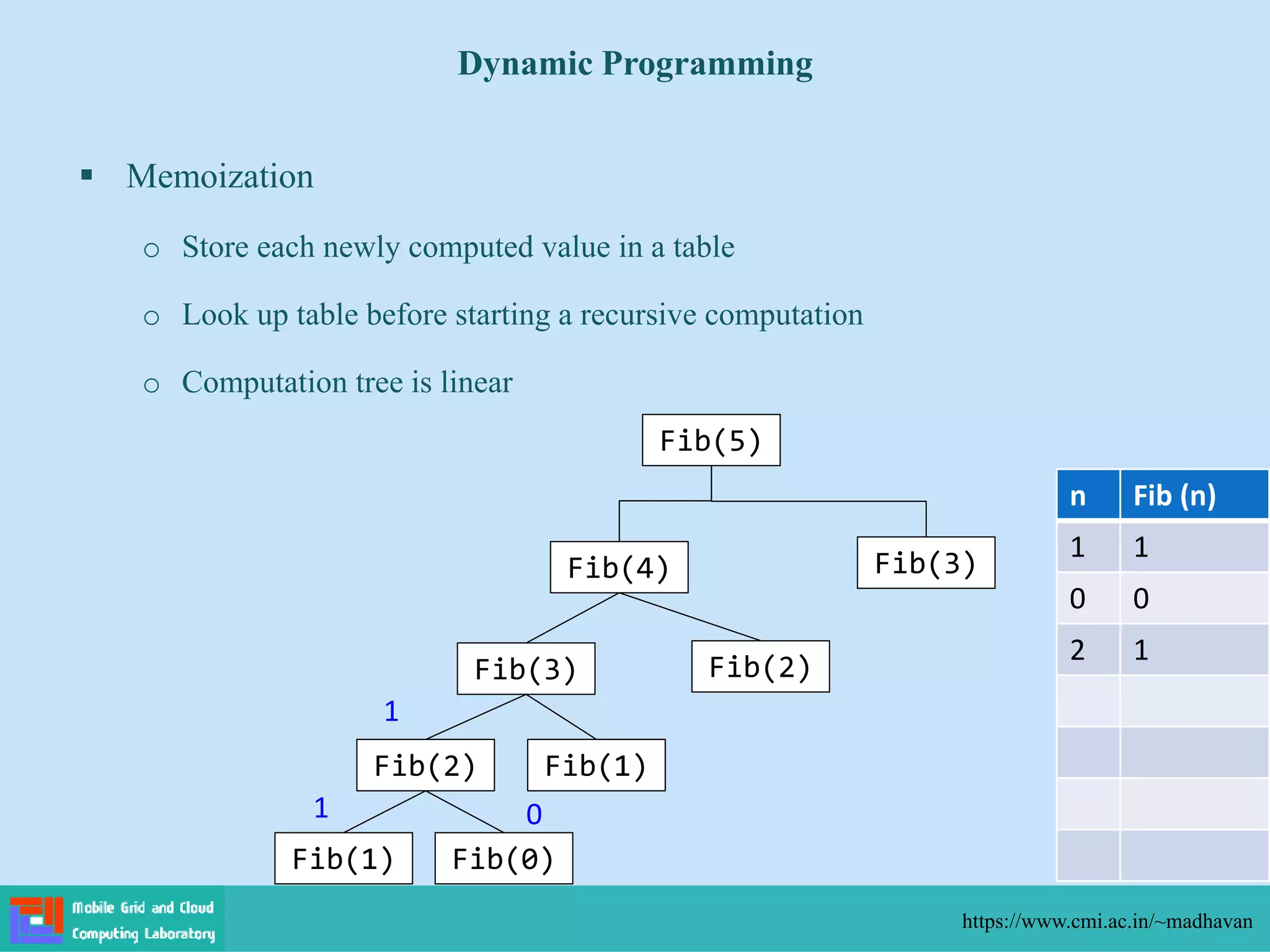

n Fib (n)
1 1
0 0
2 1
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
1 0
1

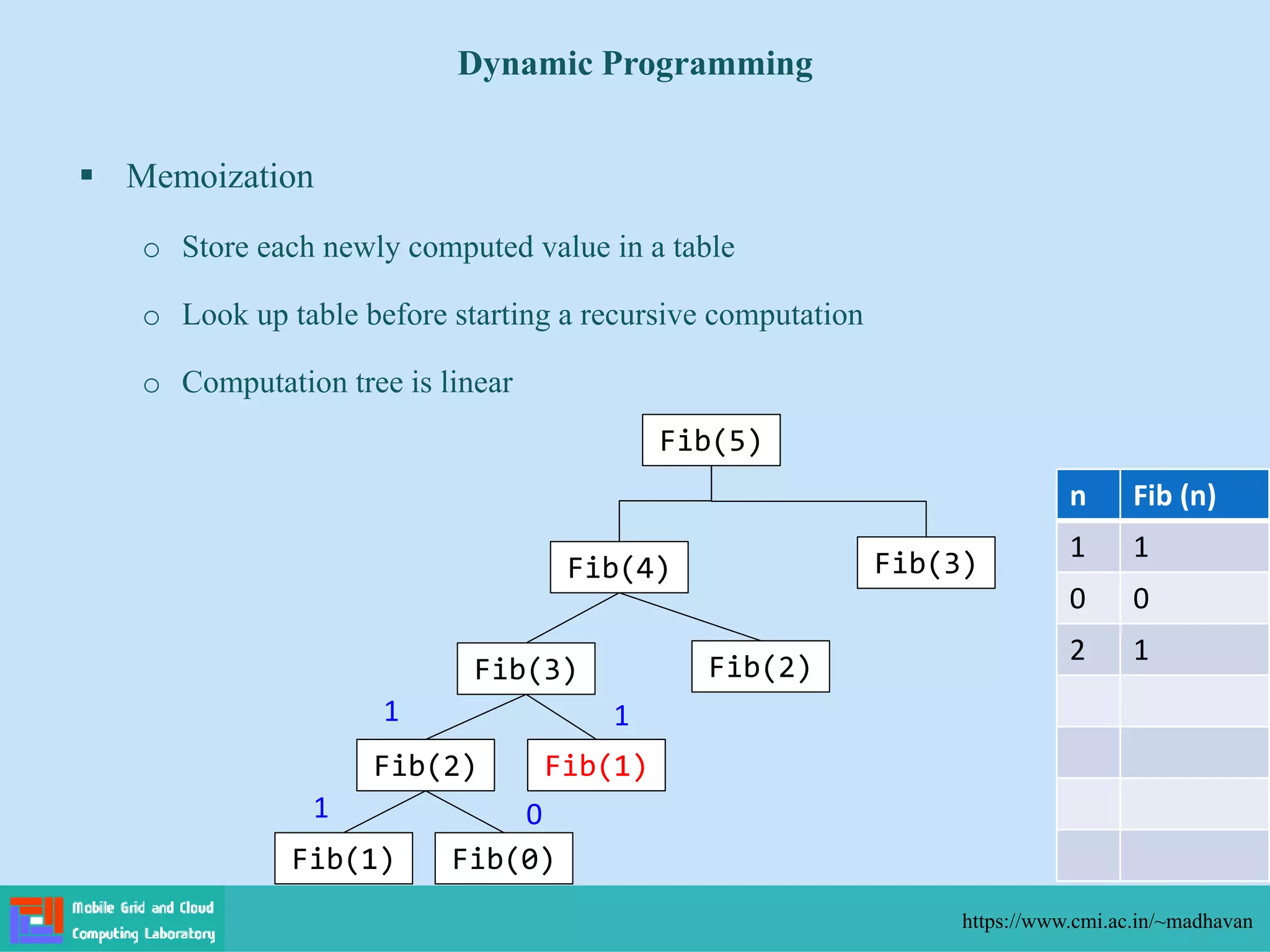

 Memoization
Dynamic Programming
n Fib (n)
1 1
0 0
2 1
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
1 0
1 1

 Memoization
Dynamic Programming
n Fib (n)
1 1
0 0
2 1
3 2
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
1 0
1 1
2

 Memoization
Dynamic Programming
n Fib (n)
1 1
0 0
2 1
3 2
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
1 0
1 1
2 1

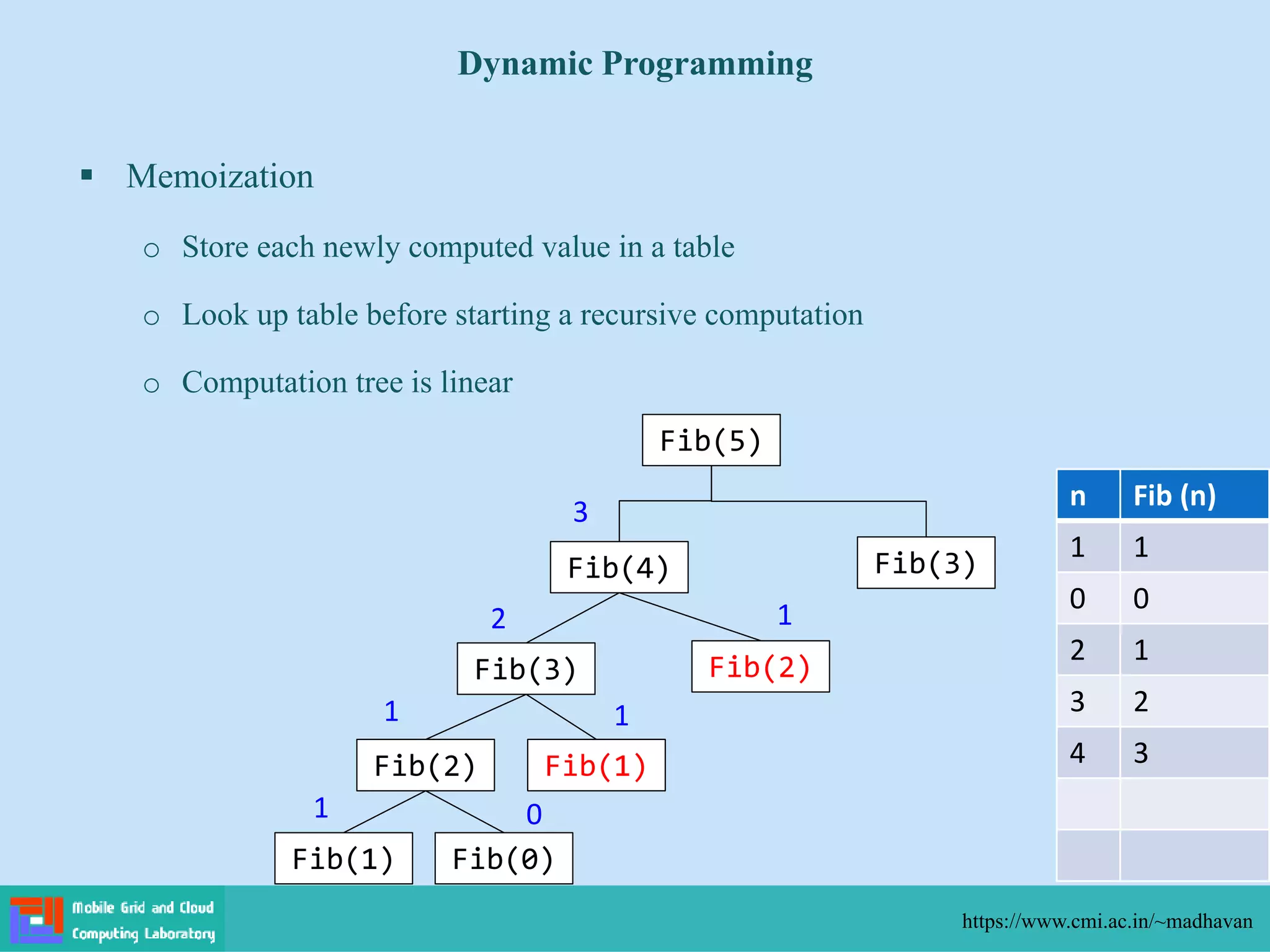

 Memoization
Dynamic Programming
n Fib (n)
1 1
0 0
2 1
3 2
4 3
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
1 0
1 1
2 1
3

 Memoization
Dynamic Programming
n Fib (n)
1 1
0 0
2 1
3 2
4 3
5 5
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
1 0
1 1
1
2
3 2

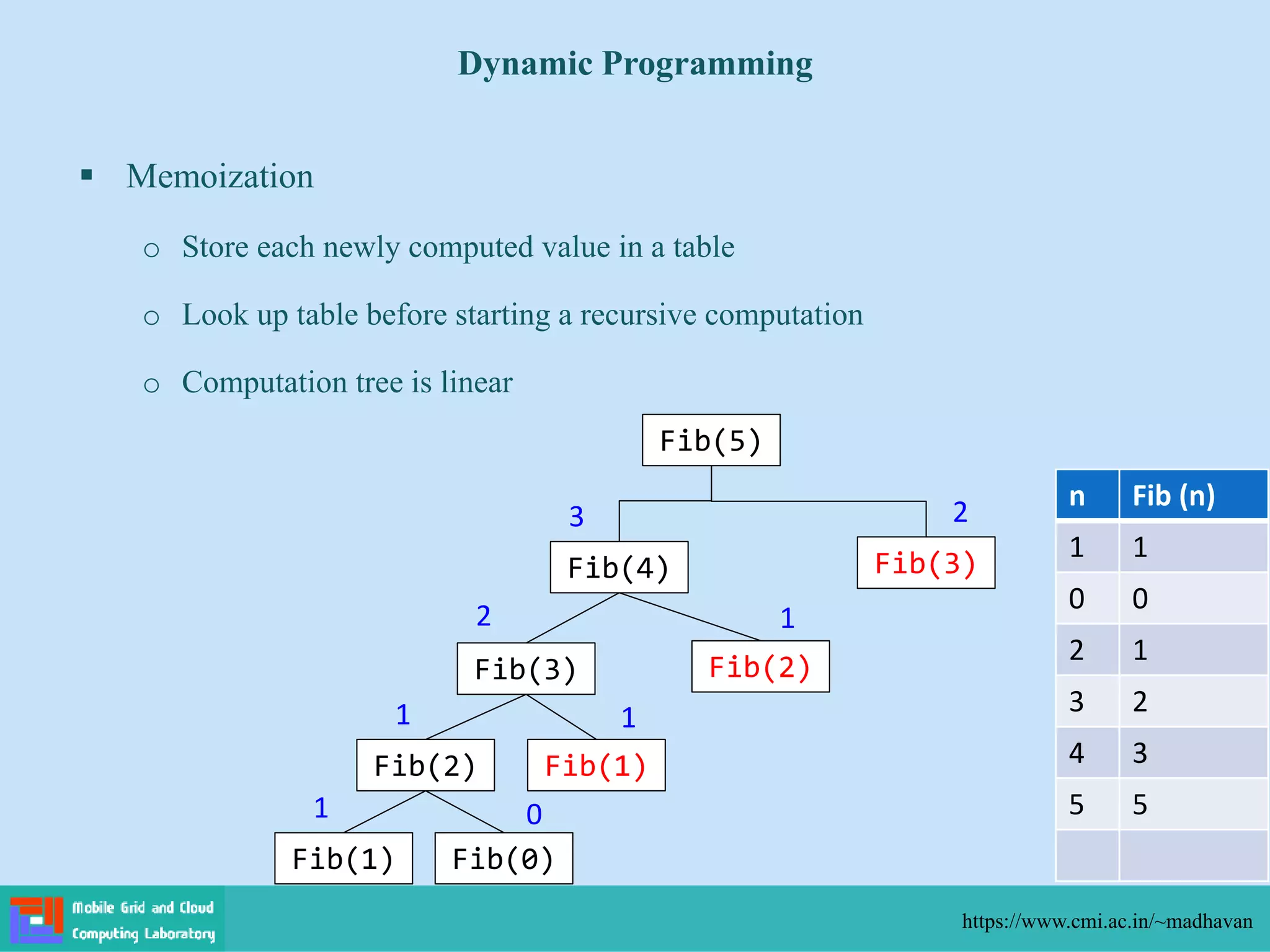

 Memoization
Dynamic Programming
n Fib (n)
1 1
0 0
2 1
3 2
4 3
5 5
Fib(5)
Fib(4) Fib(3)
Fib(3) Fib(2)
Fib(2) Fib(1)
Fib(1) Fib(0)
1 0
1 1
1
2
3
5
2

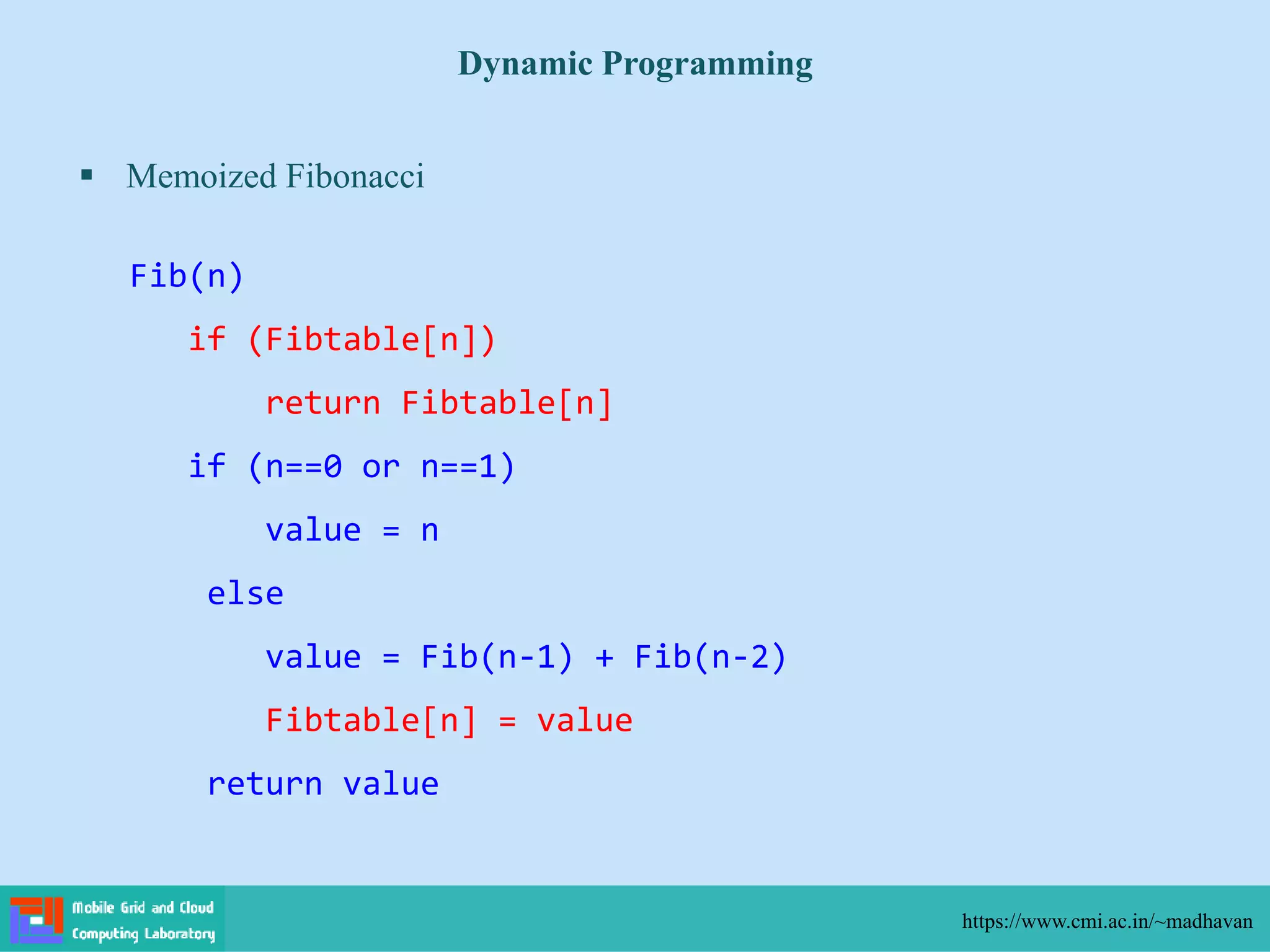

 Memoized Fibonacci
Dynamic Programming
Fib(n)
if (Fibtable[n])
return Fibtable[n]
if (n==0 or n==1)
value = n
else
Fibtable[n] = value
return value

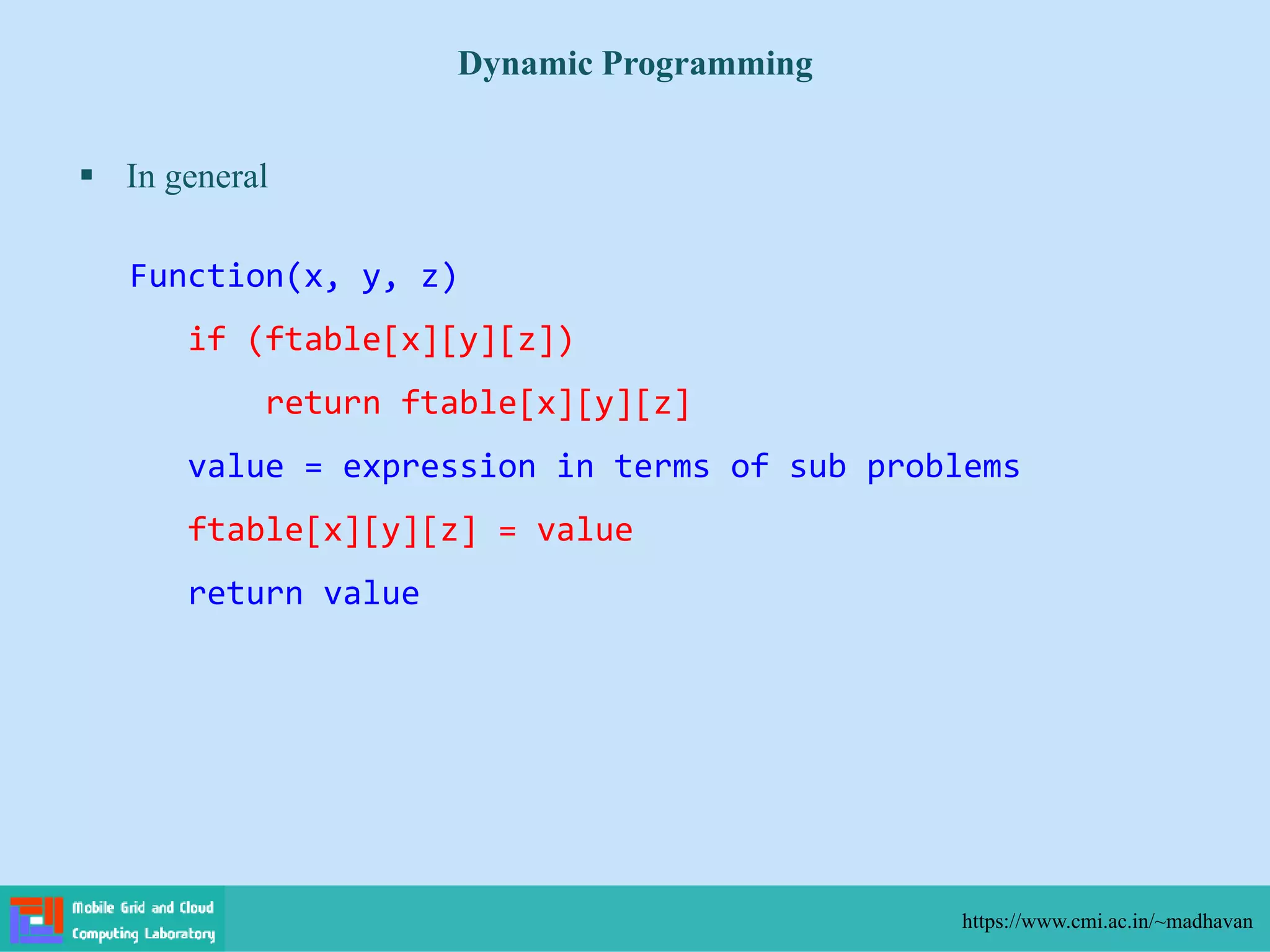

 In general
Dynamic Programming
Function(x, y, z)
if (ftable[x][y][z])
return ftable[x][y][z]
value = expression in terms of sub problems
ftable[x][y][z] = value
return value

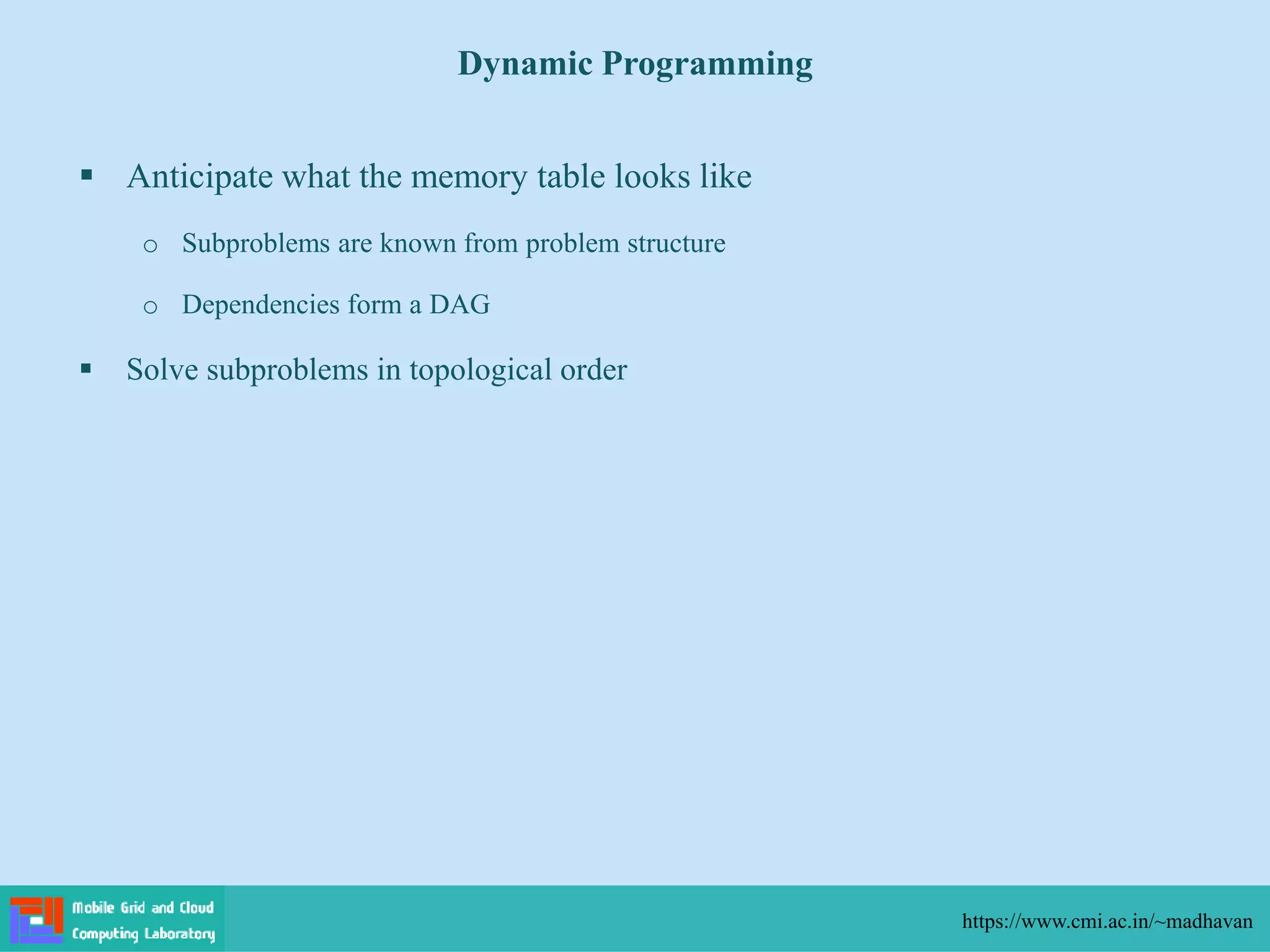

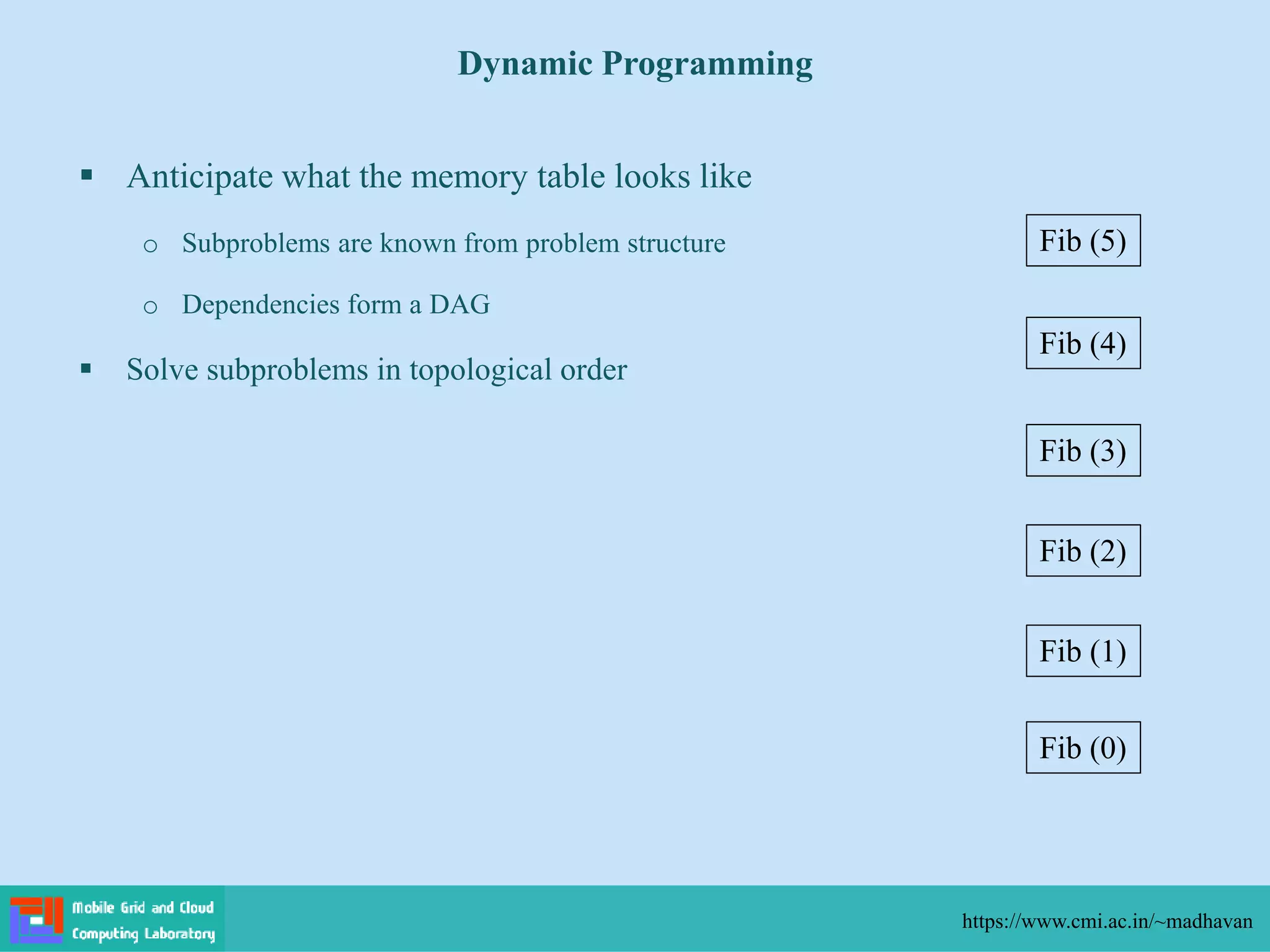

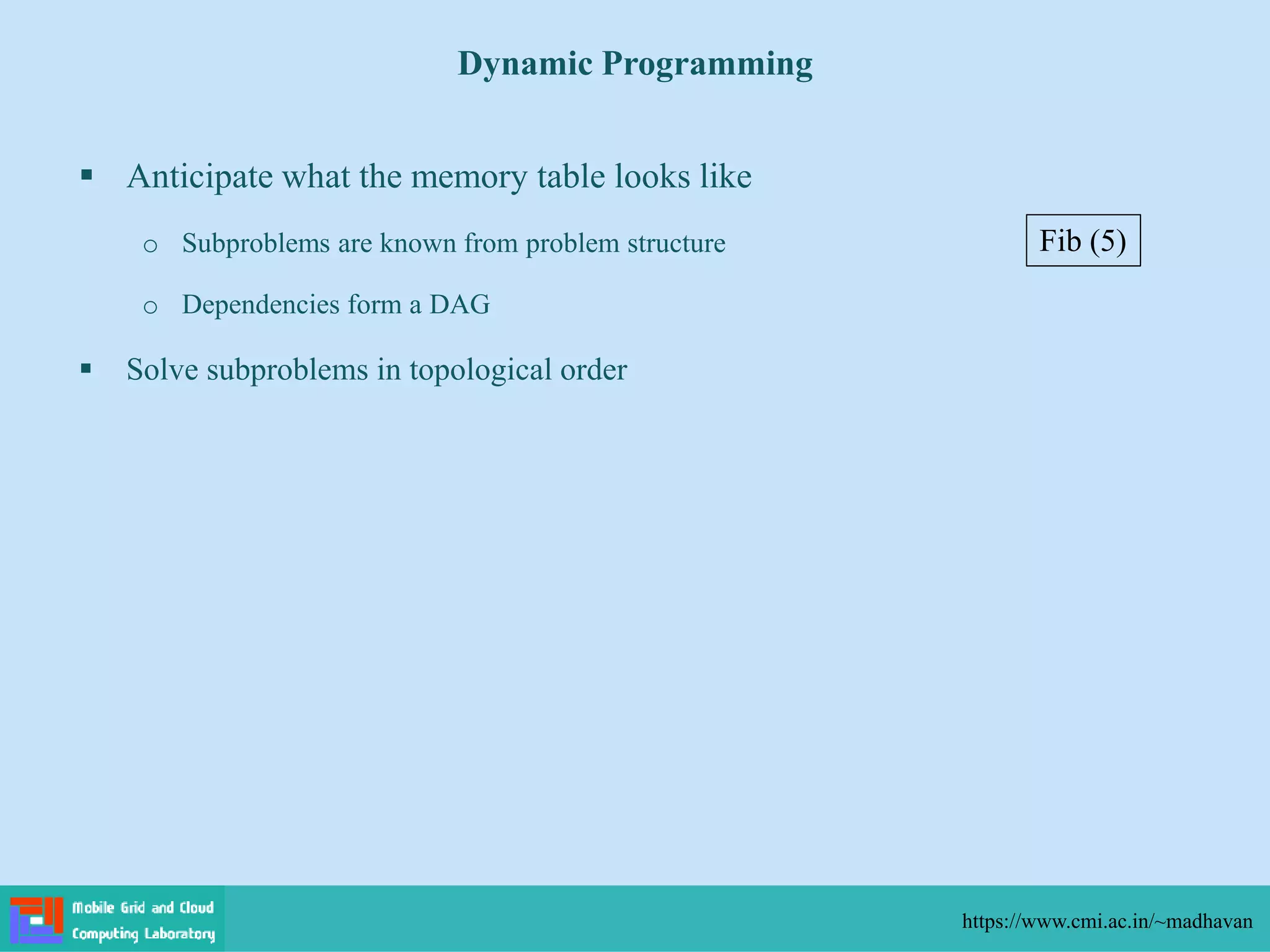

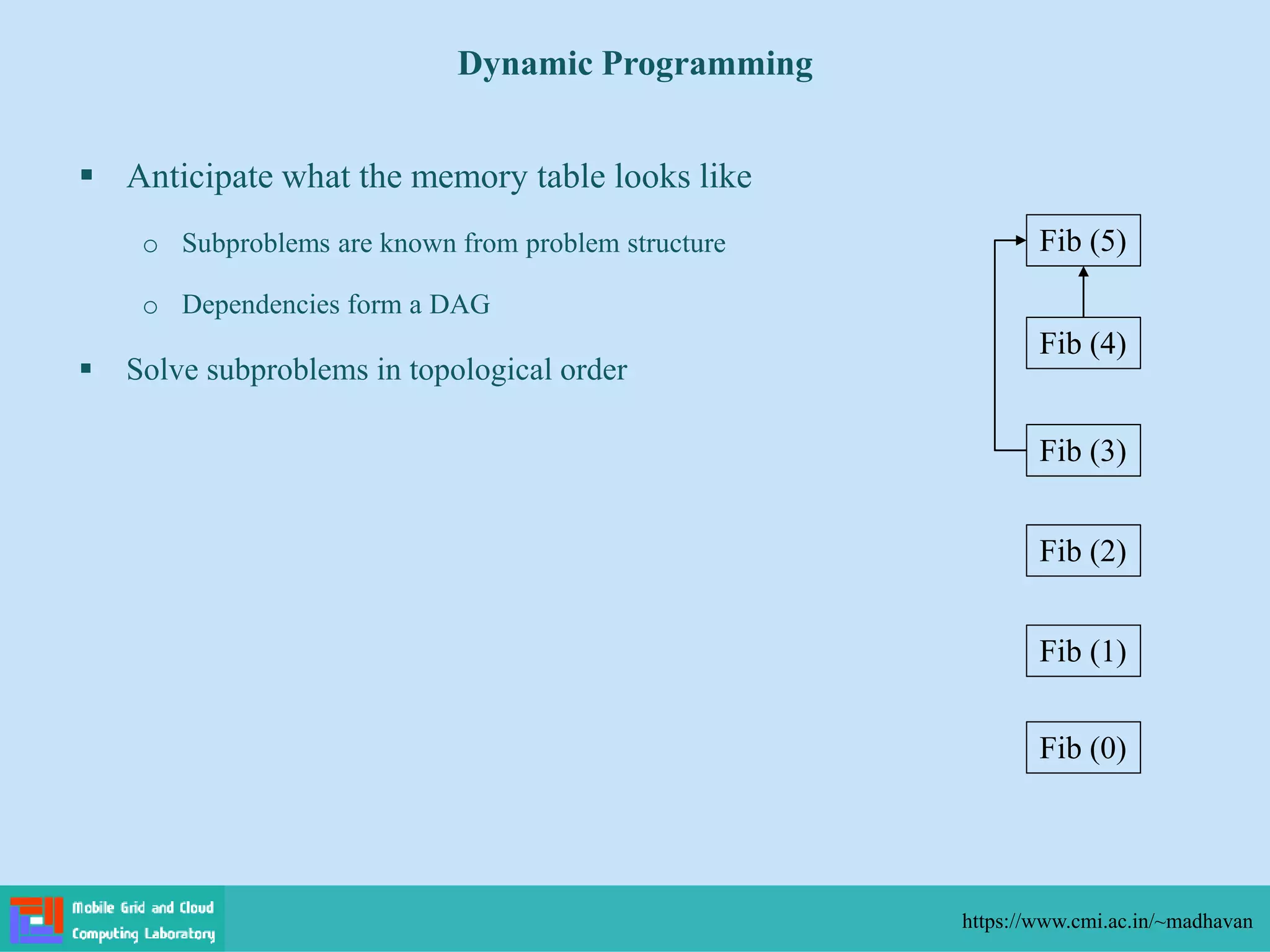

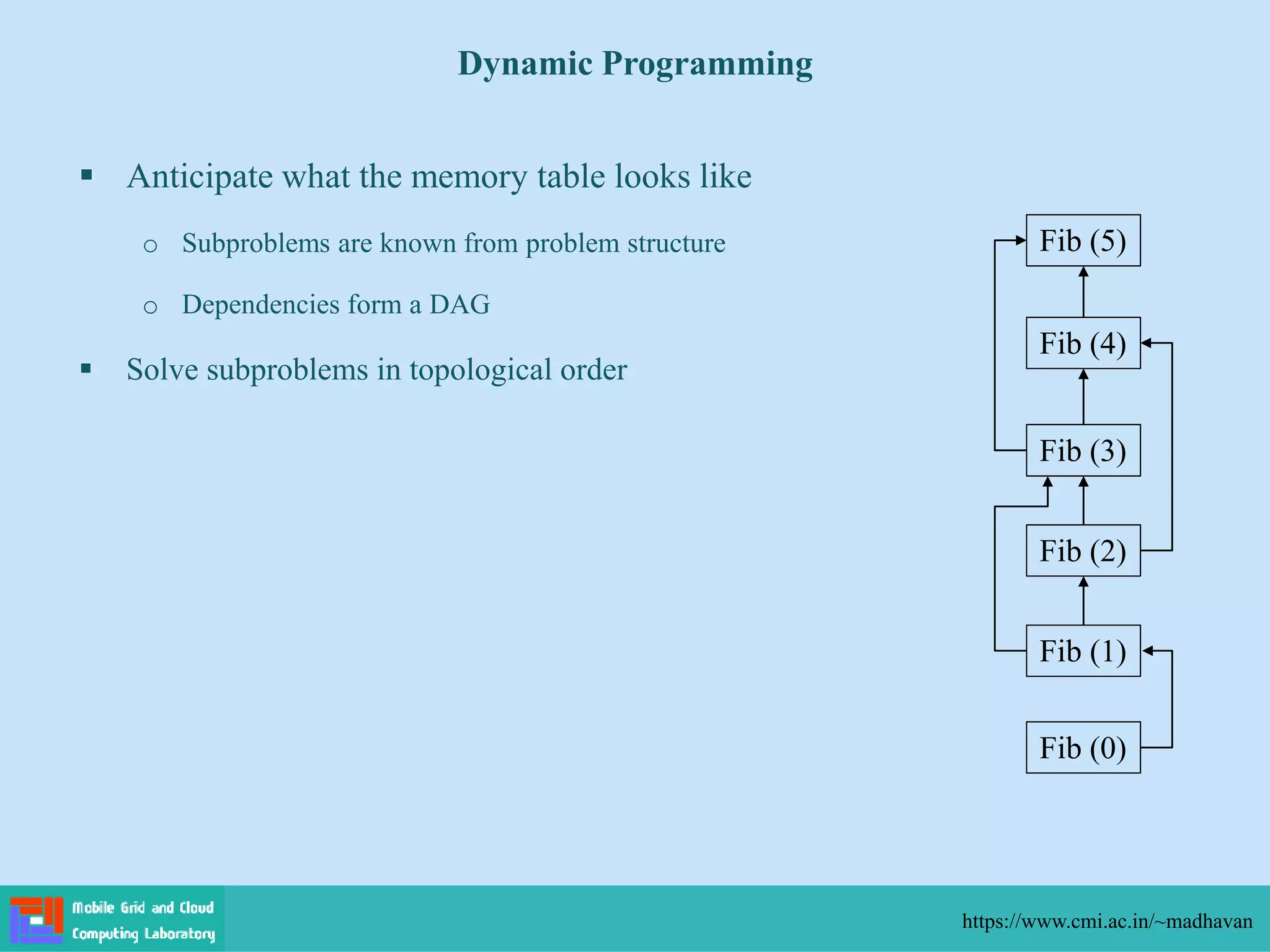

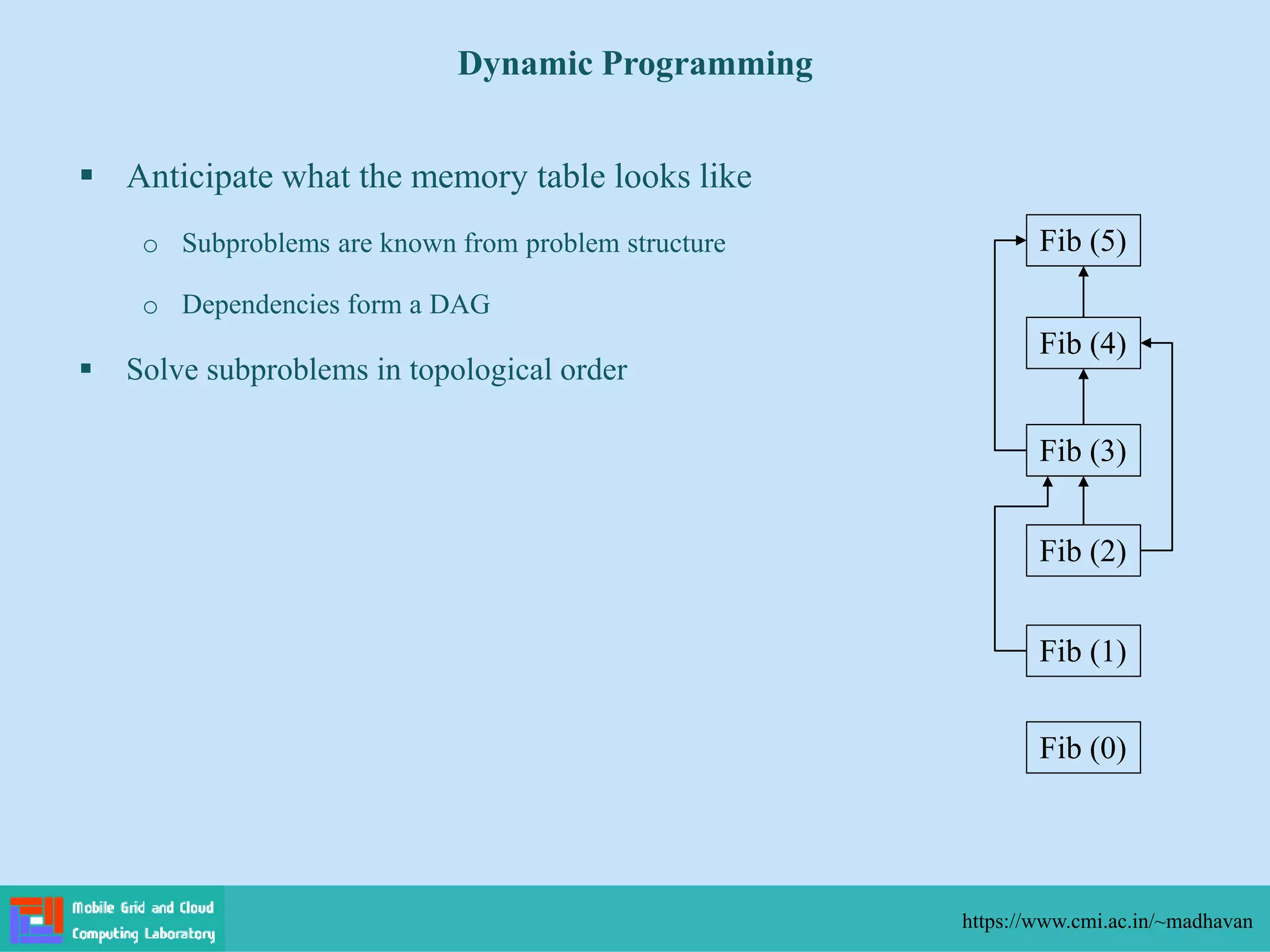

 Anticipate what the memory table looks like
o Subproblems are known from problem structure
o Dependencies form a DAG
 Solve subproblems in topological order

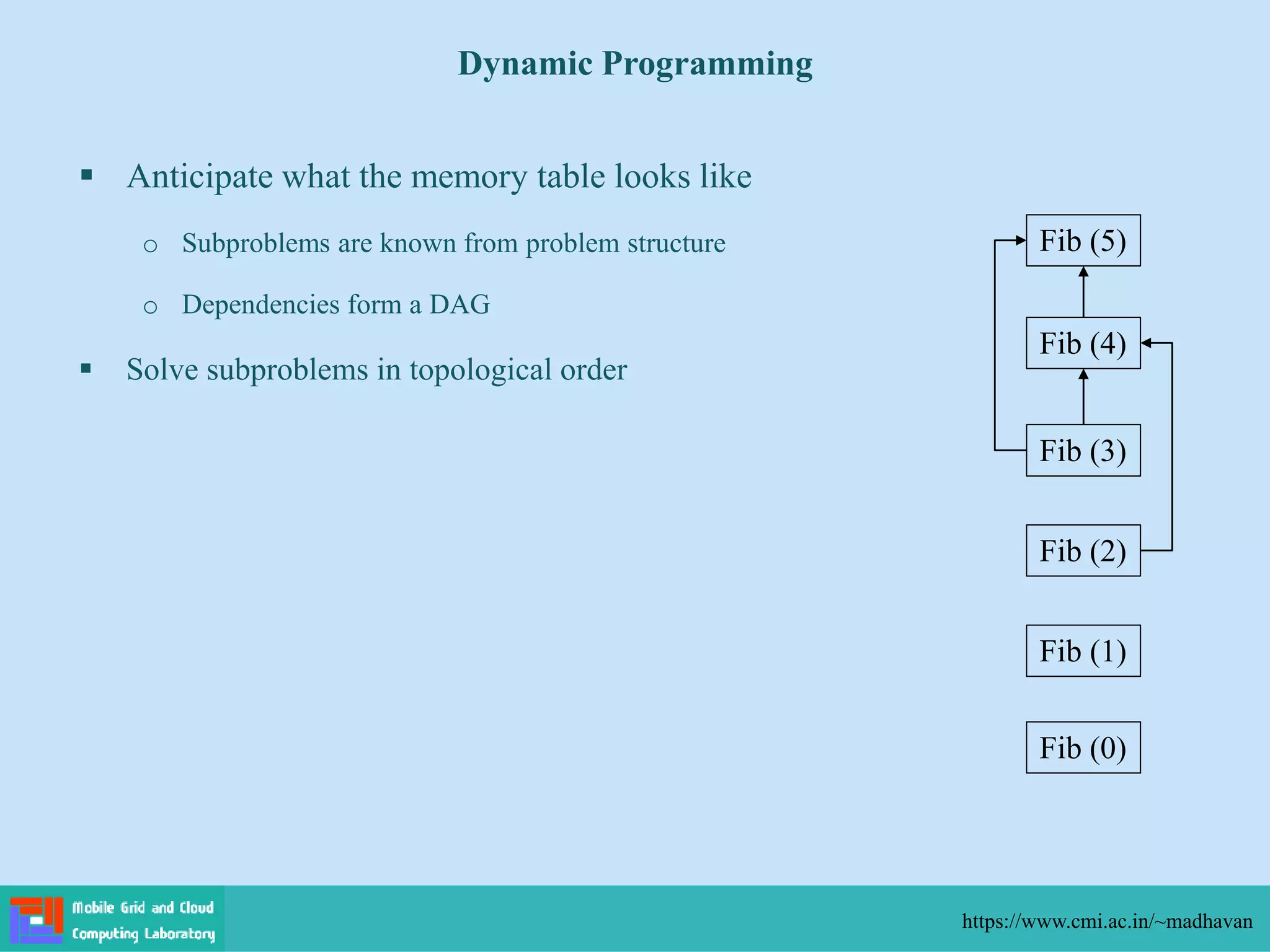

Dynamic Programming

Dynamic Programming
Fib (5)

Dynamic Programming
Fib (5)
Fib (4)
Fib (3)
Fib (2)
Fib (1)
Fib (0)

Dynamic Programming
Fib (5)
Fib (4)
Fib (3)
Fib (2)
Fib (1)
Fib (0)
n 0 1 2 3 4 5
Fib(n)

Dynamic Programming
Fib (5)
Fib (4)
Fib (3)
Fib (2)
Fib (1)
Fib (0)
n 0 1 2 3 4 5
Fib(n) 0

Dynamic Programming
Fib (5)
Fib (4)
Fib (3)
Fib (2)
Fib (1)
Fib (0)
n 0 1 2 3 4 5
Fib(n) 0 1

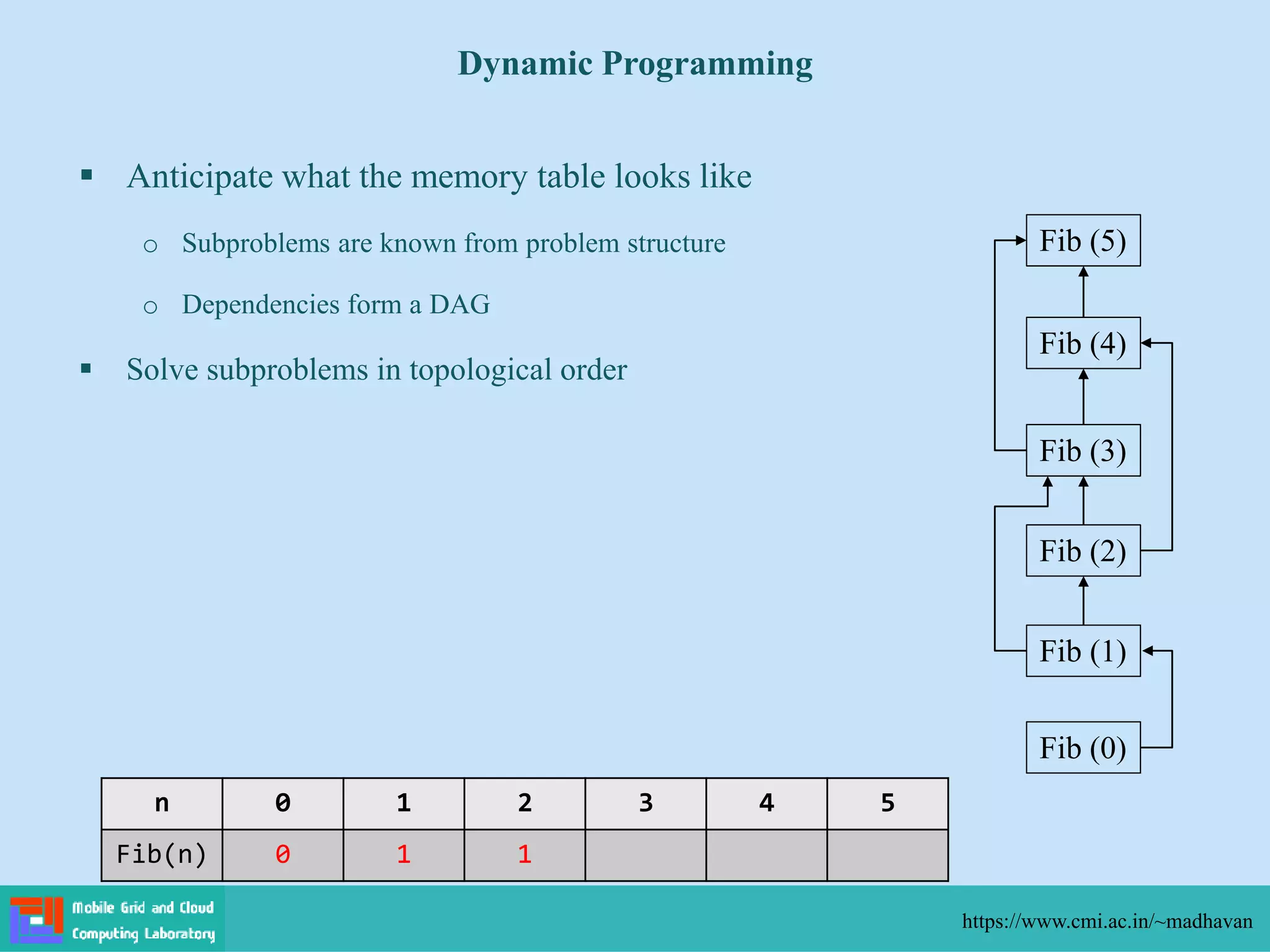

Dynamic Programming
Fib (5)
Fib (4)
Fib (3)
Fib (2)
Fib (1)
Fib (0)
n 0 1 2 3 4 5
Fib(n) 0 1 1

Dynamic Programming
Fib (5)
Fib (4)
Fib (3)
Fib (2)
Fib (1)
Fib (0)
n 0 1 2 3 4 5
Fib(n) 0 1 1 2

Dynamic Programming
Fib (5)
Fib (4)
Fib (3)
Fib (2)
Fib (1)
Fib (0)
n 0 1 2 3 4 5
Fib(n) 0 1 1 2 3

Dynamic Programming
Fib (5)
Fib (4)
Fib (3)
Fib (2)
Fib (1)
Fib (0)
n 0 1 2 3 4 5
Fib(n) 0 1 1 2 3 5

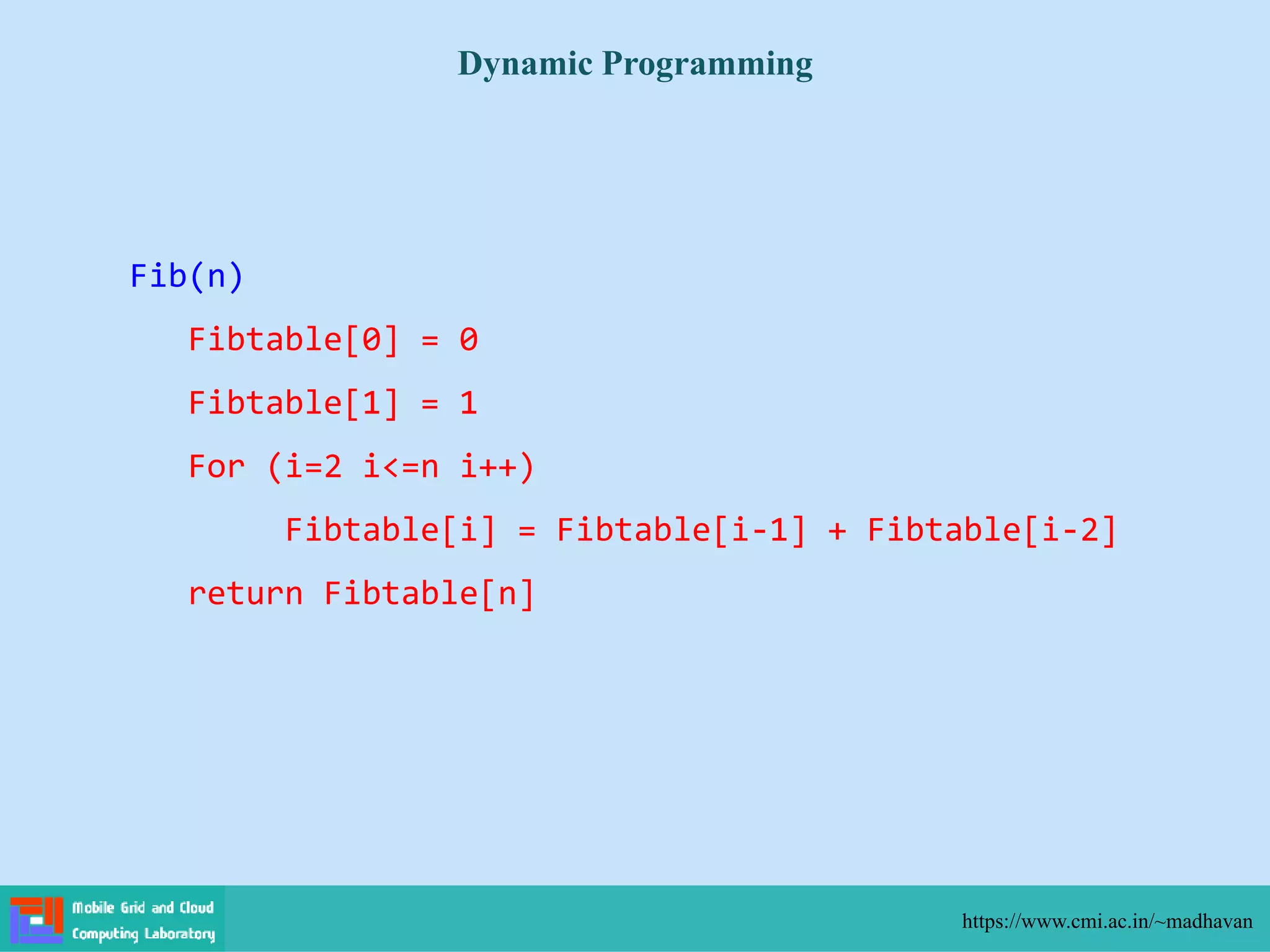

Dynamic Programming
Fib(n)
Fibtable[0] = 0
Fibtable[1] = 1
For (i=2 i<=n i++)
Fibtable[i] = Fibtable[i-1] + Fibtable[i-2]
return Fibtable[n]

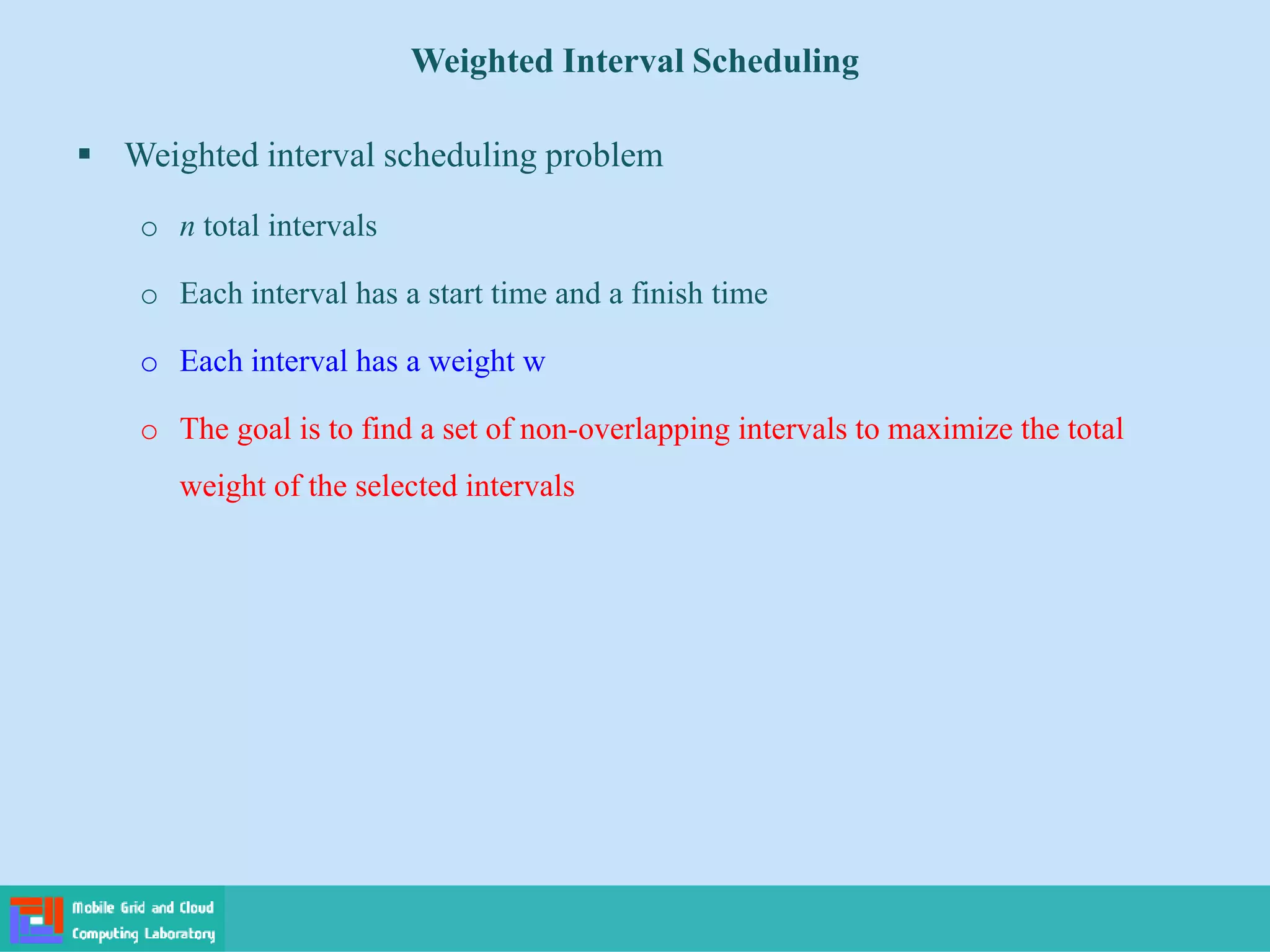

Weighted Interval Scheduling
 Weighted interval scheduling problem
o n total intervals
o Each interval has a start time and a finish time
o Each interval has a weight w
o The goal is to find a set of non-overlapping intervals to maximize the total
weight of the selected intervals

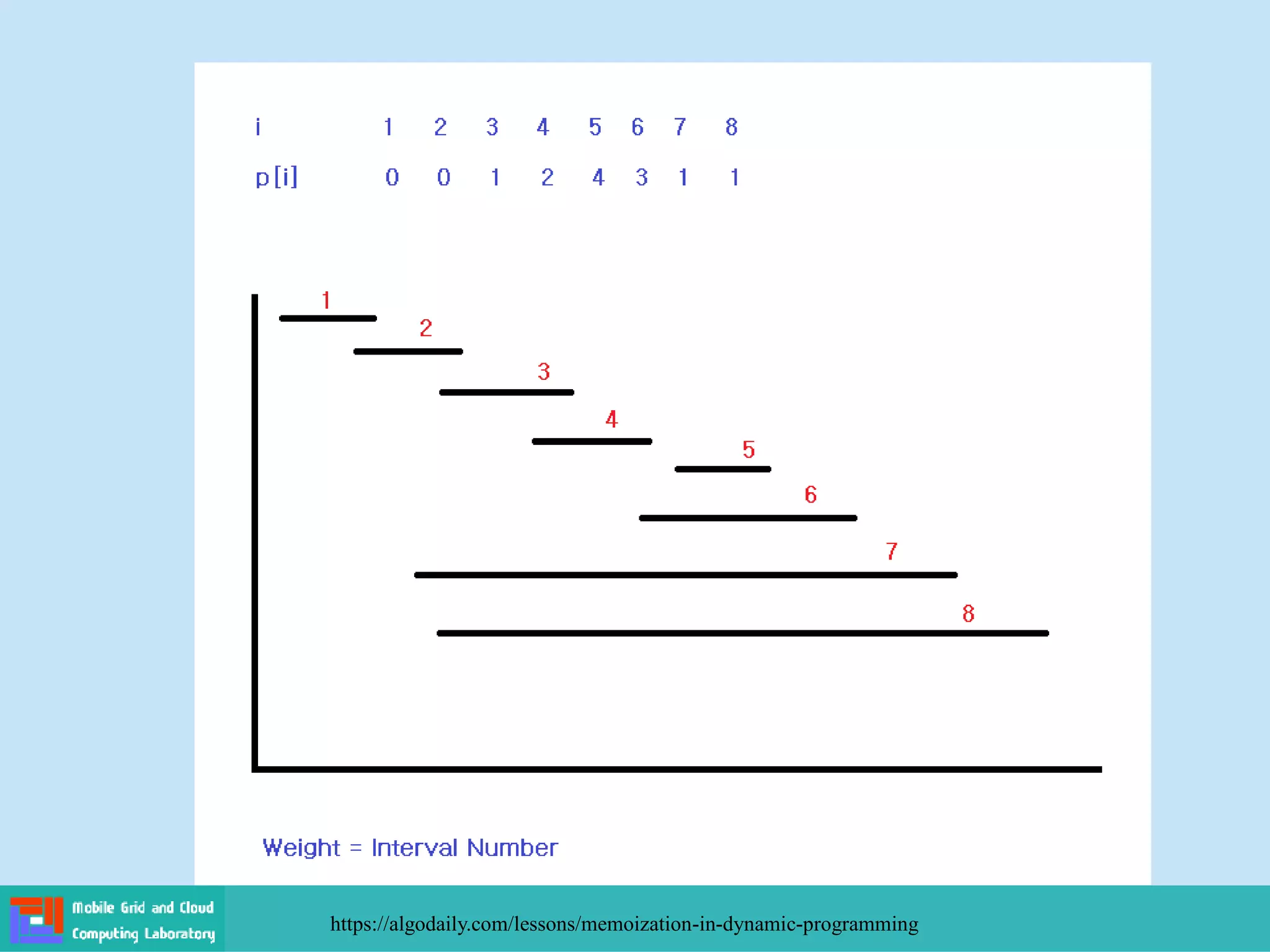

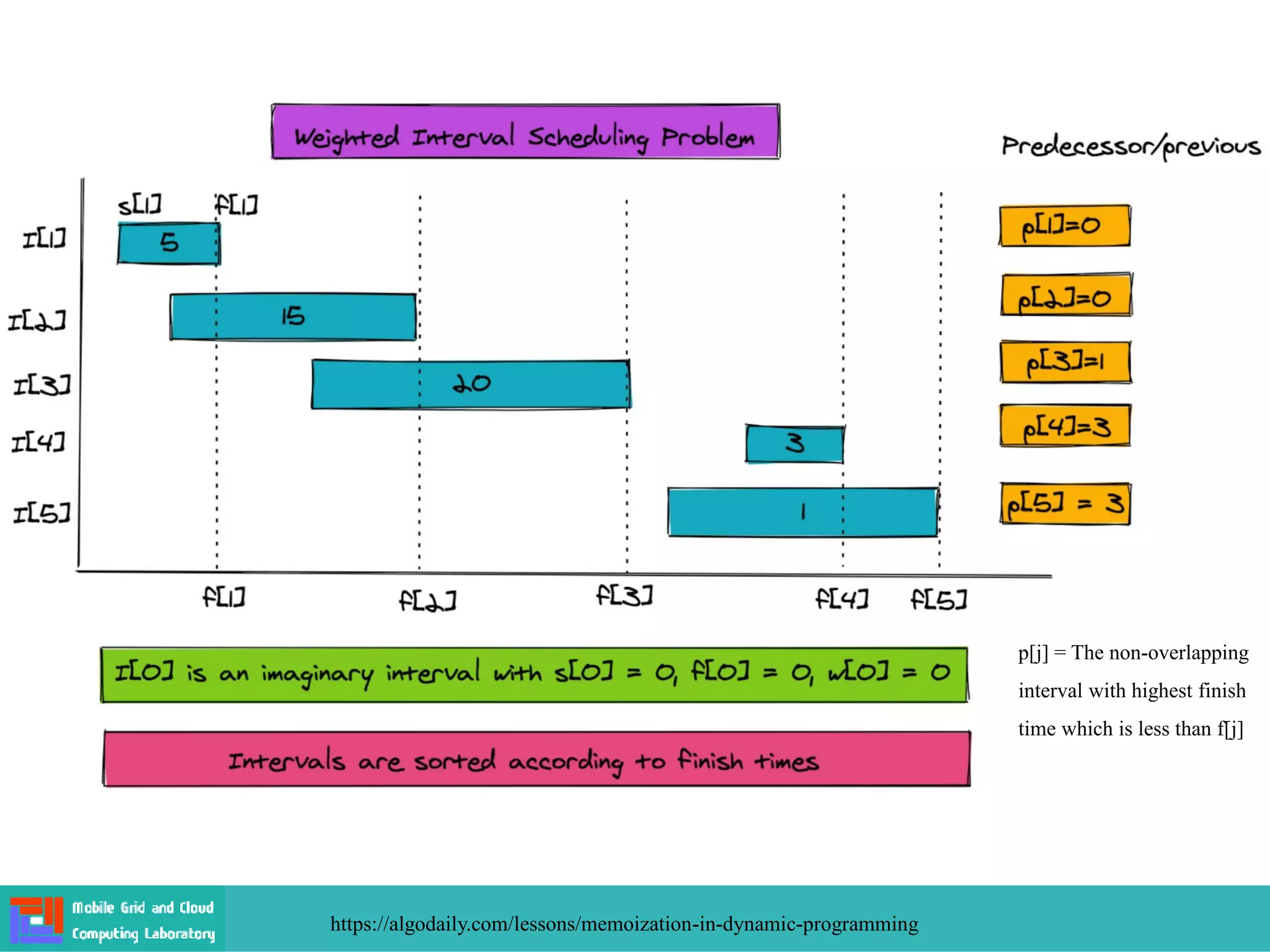

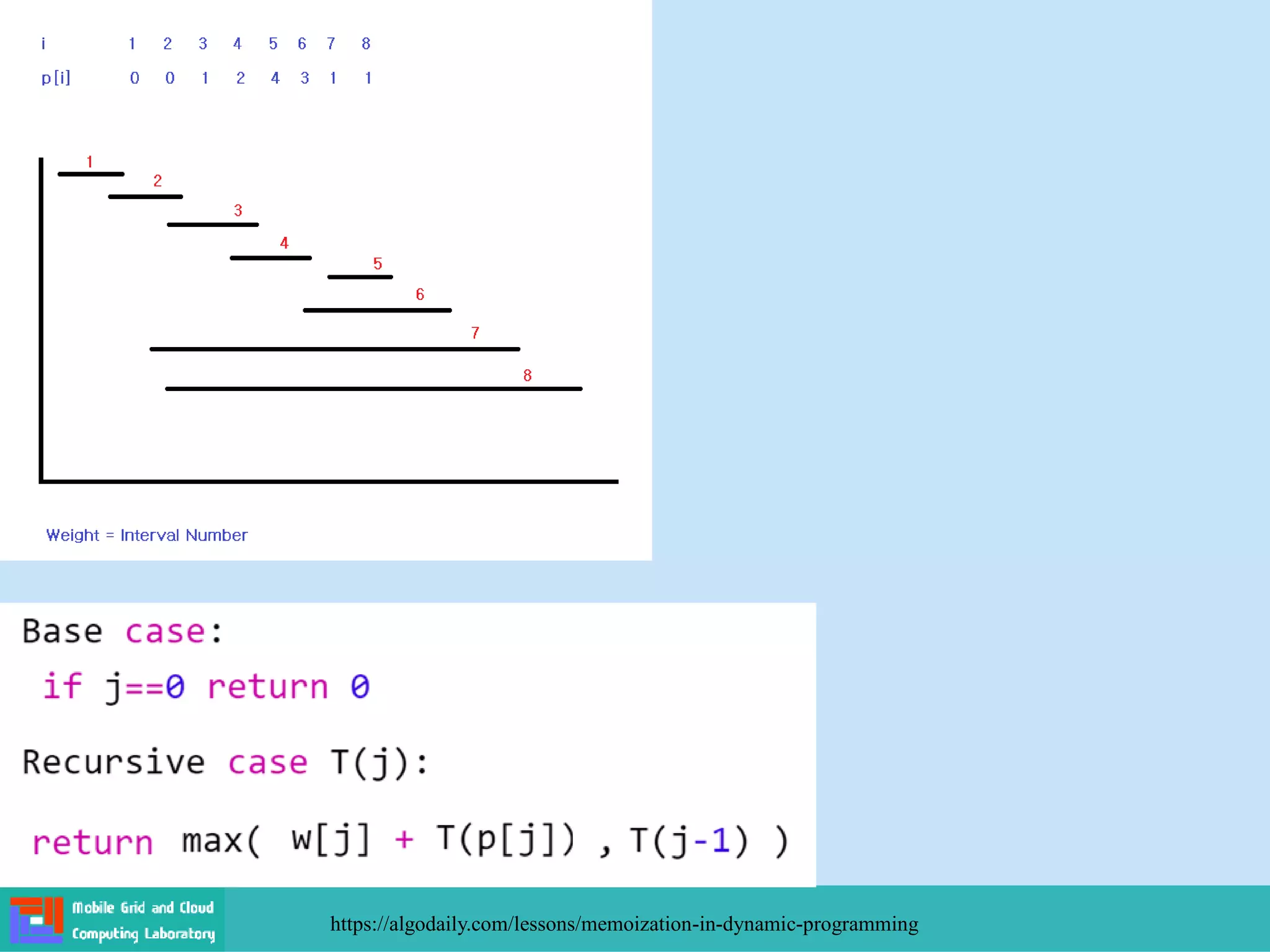

p[j] = The non-overlapping
interval with highest finish
time which is less than f[j]
https://algodaily.com/lessons/memoization-in-dynamic-programming

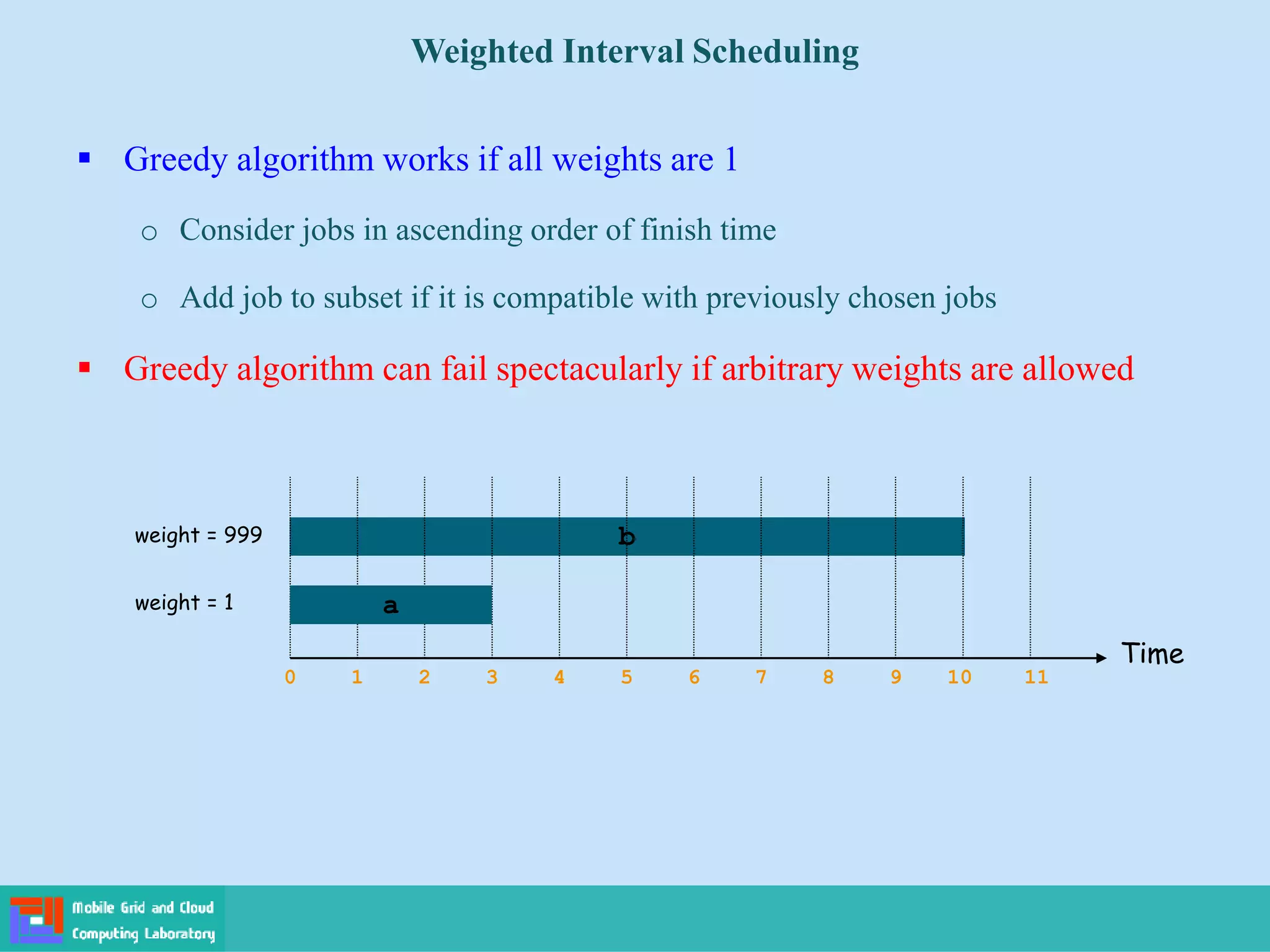

 Greedy algorithm works if all weights are 1
o Consider jobs in ascending order of finish time
o Add job to subset if it is compatible with previously chosen jobs
 Greedy algorithm can fail spectacularly if arbitrary weights are allowed
Time
0 1 2 3 4 5 6 7 8 9 10 11
b
a
weight = 999
weight = 1
Weighted Interval Scheduling

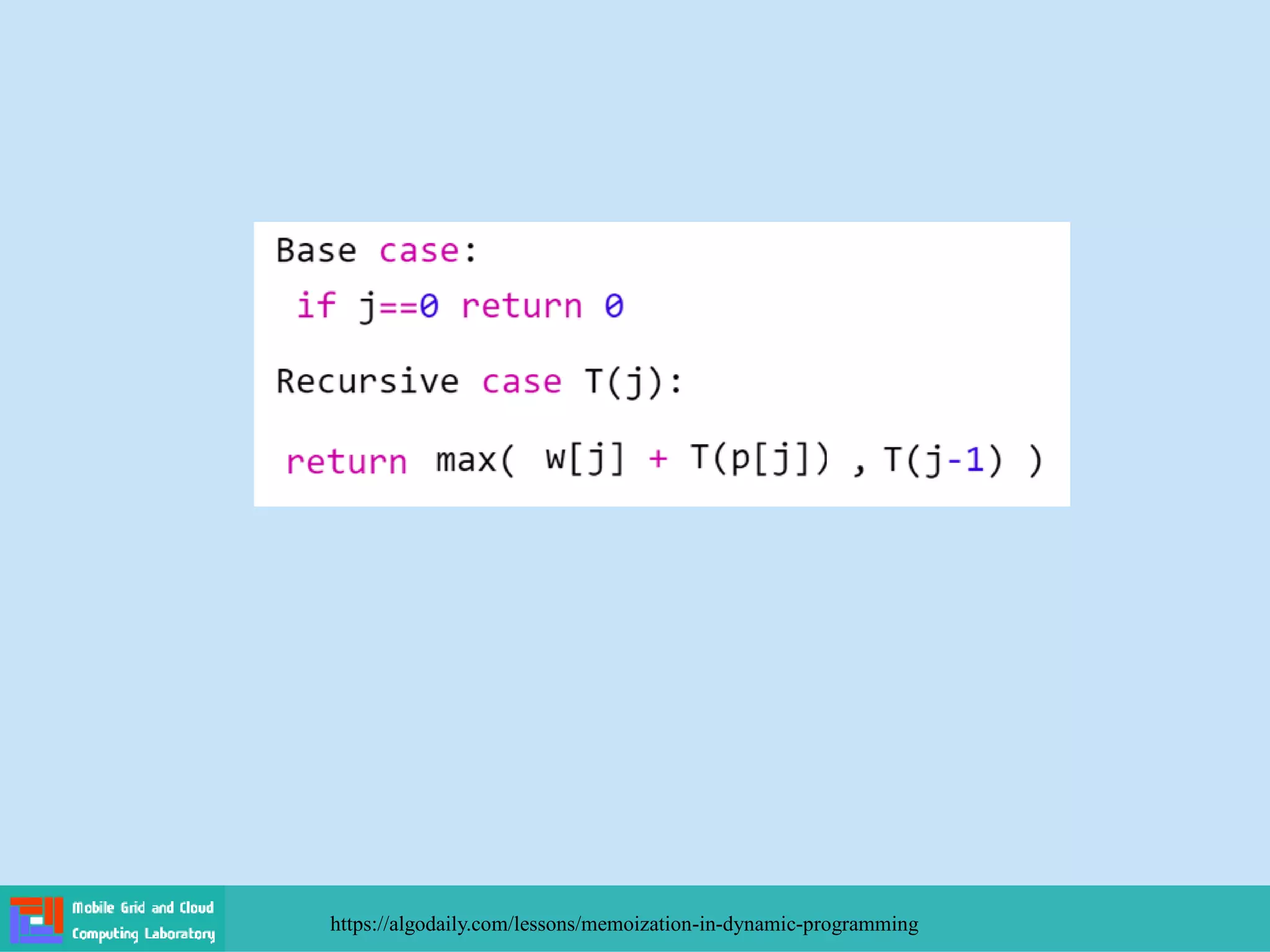

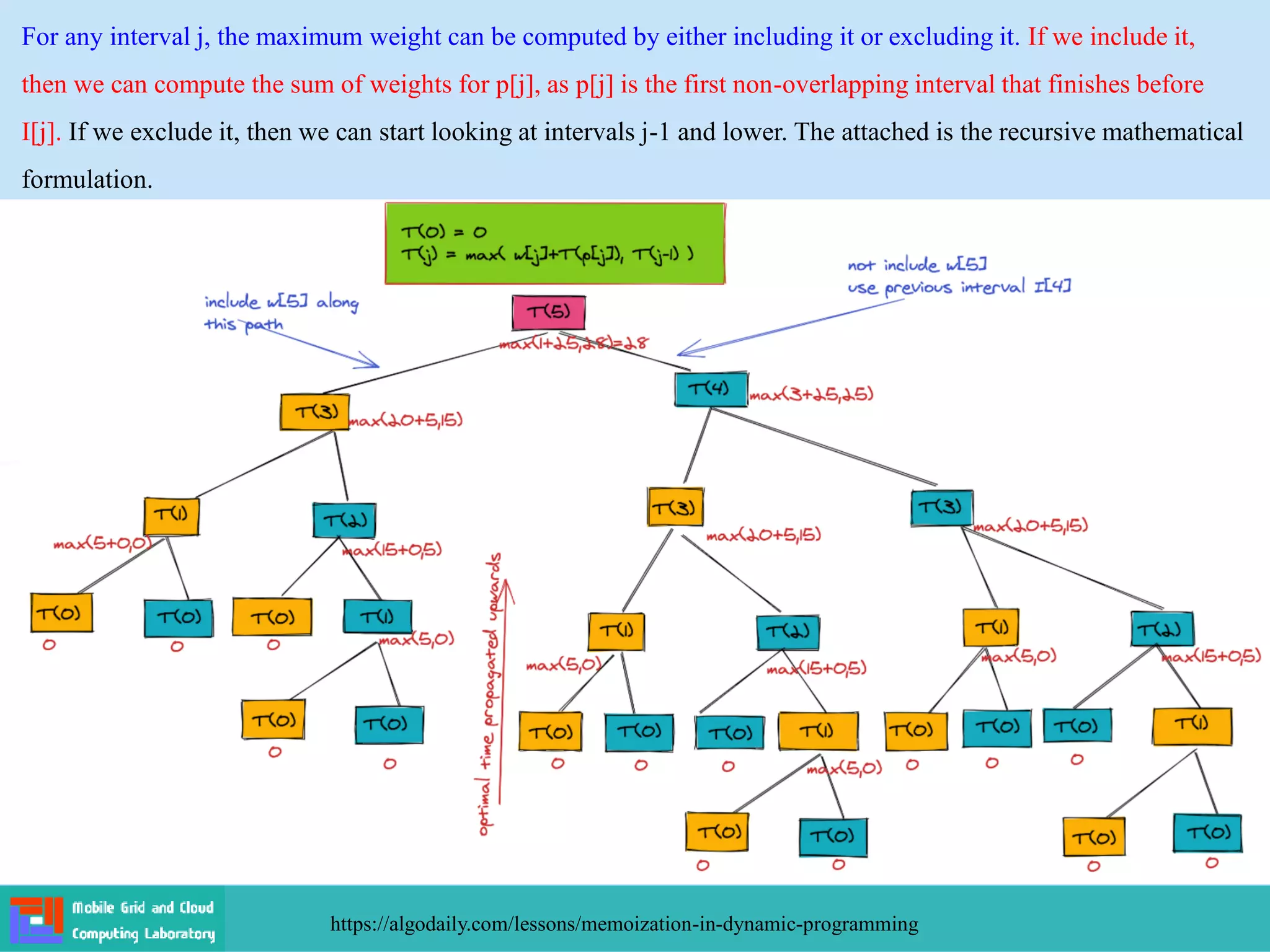

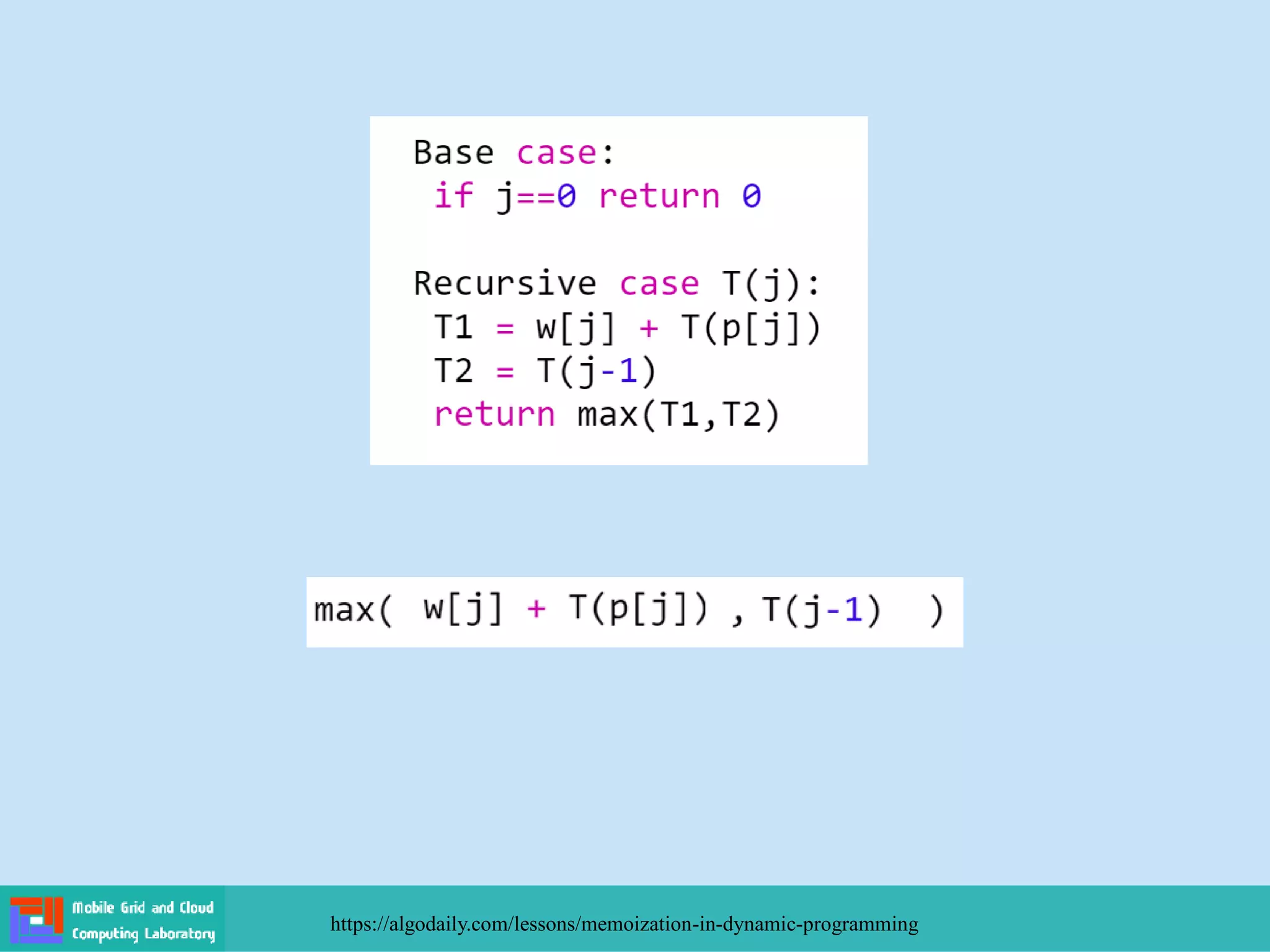

For any interval j, the maximum weight can be computed by either including it or excluding it. If we include it,
then we can compute the sum of weights for p[j], as p[j] is the first non-overlapping interval that finishes before
I[j]. If we exclude it, then we can start looking at intervals j-1 and lower. The attached is the recursive mathematical
formulation.

Exponential time complexity of O(2^n)

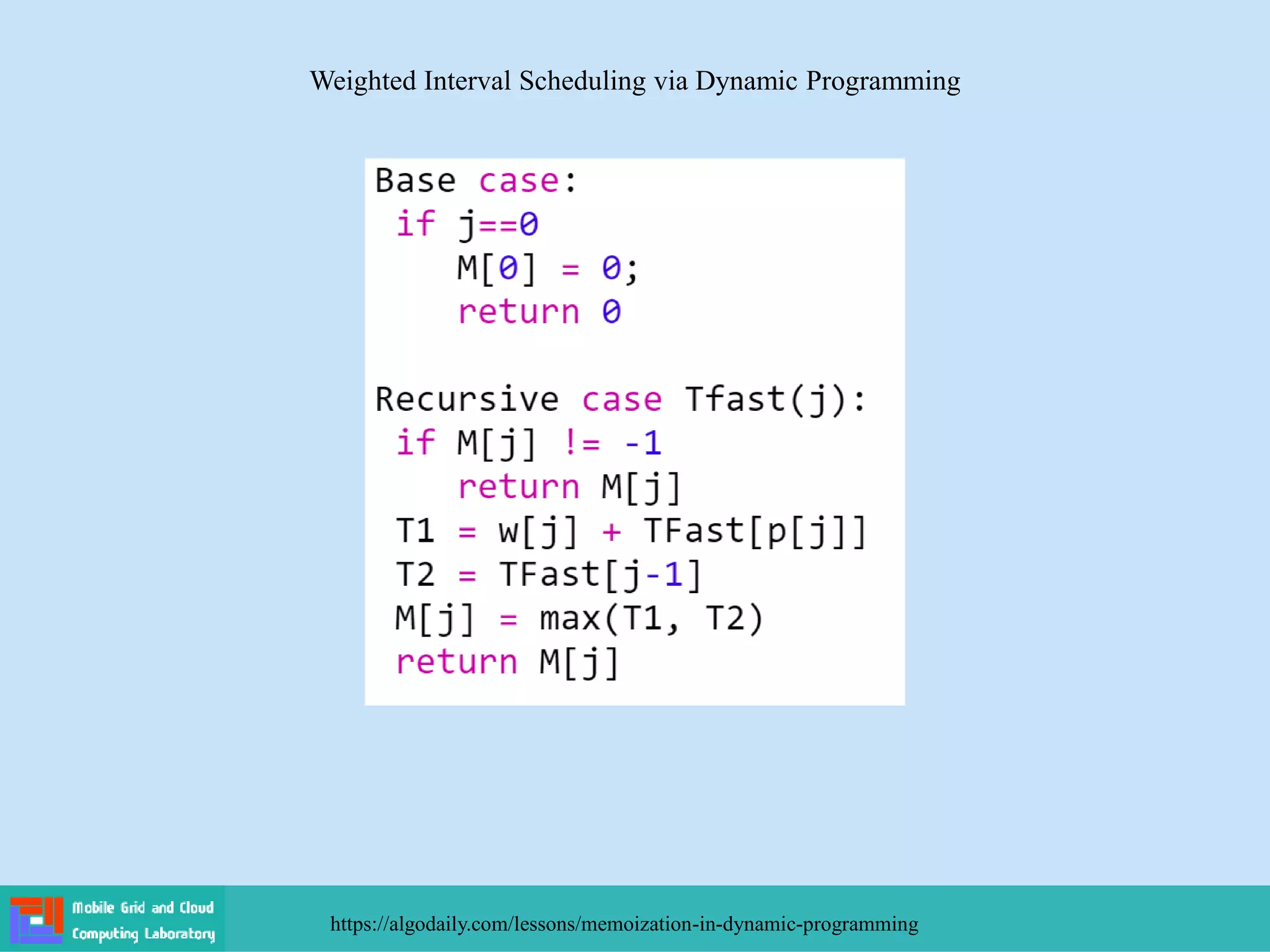

Weighted Interval Scheduling via Dynamic Programming

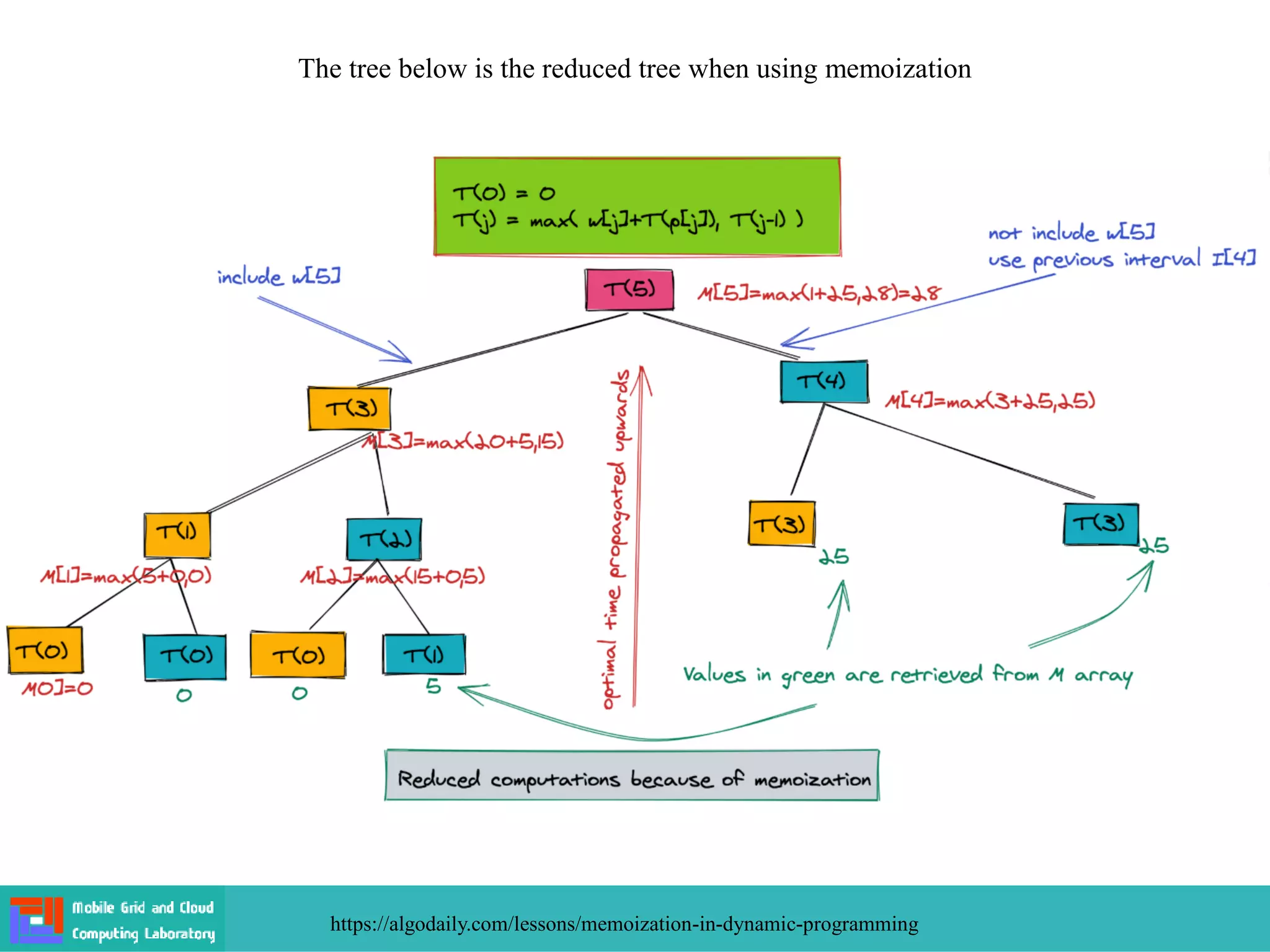

The tree below is the reduced tree when using memoization

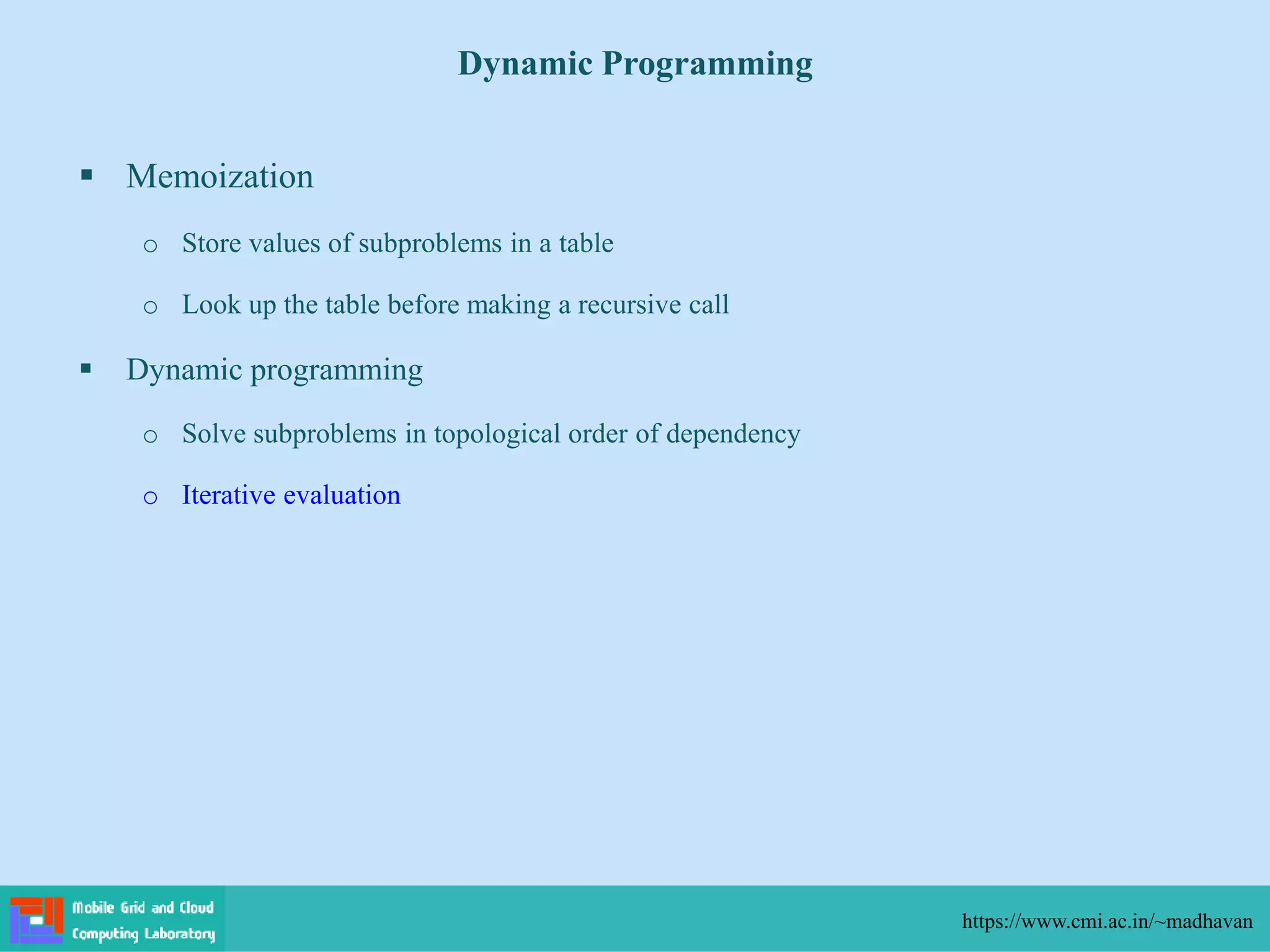

 Memoization
o Store values of subproblems in a table
o Look up the table before making a recursive call
 Dynamic programming
o Solve subproblems in topological order of dependency
o Iterative evaluation
Dynamic Programming

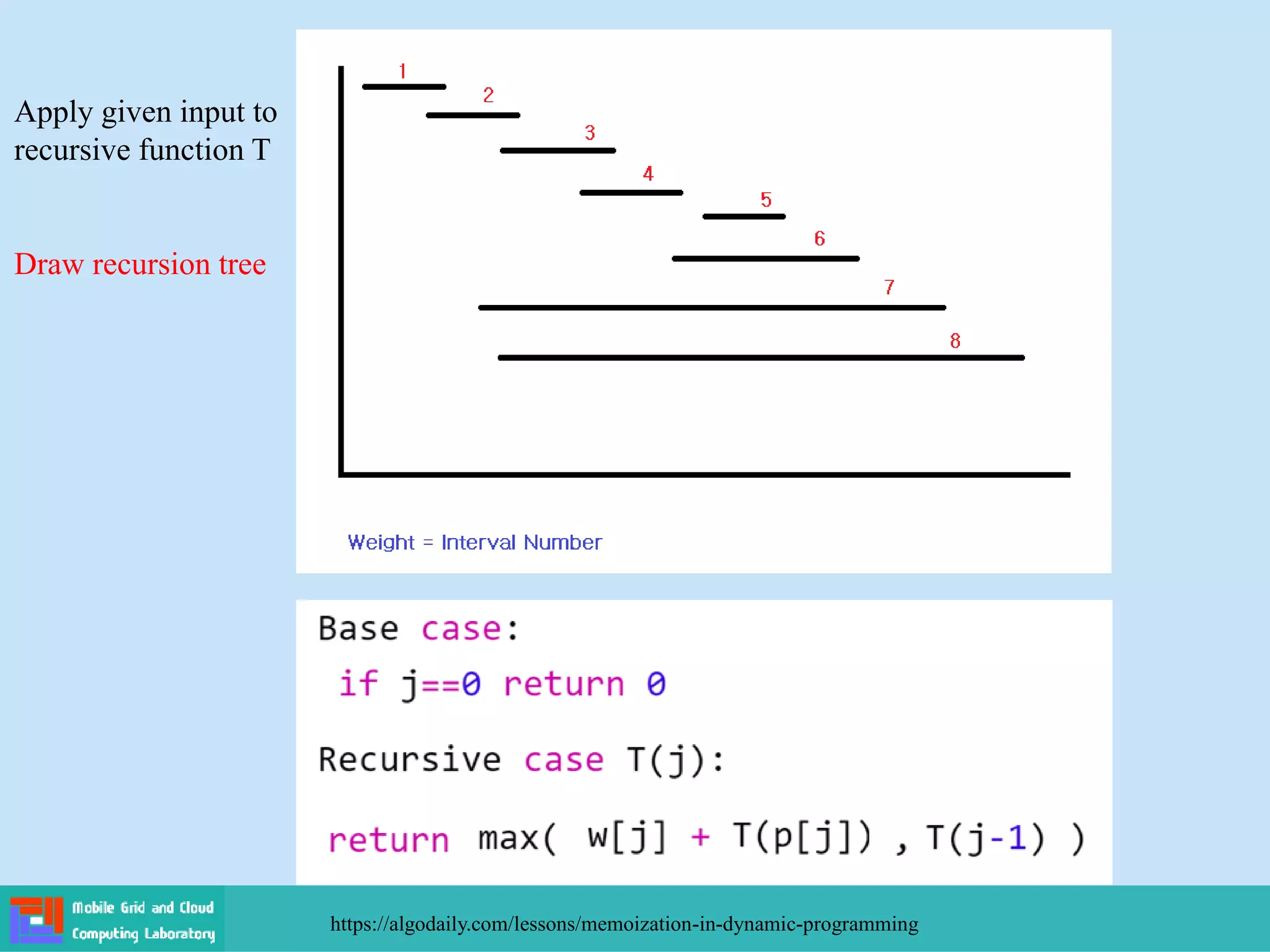

Apply given input to
recursive function T
Draw recursion tree

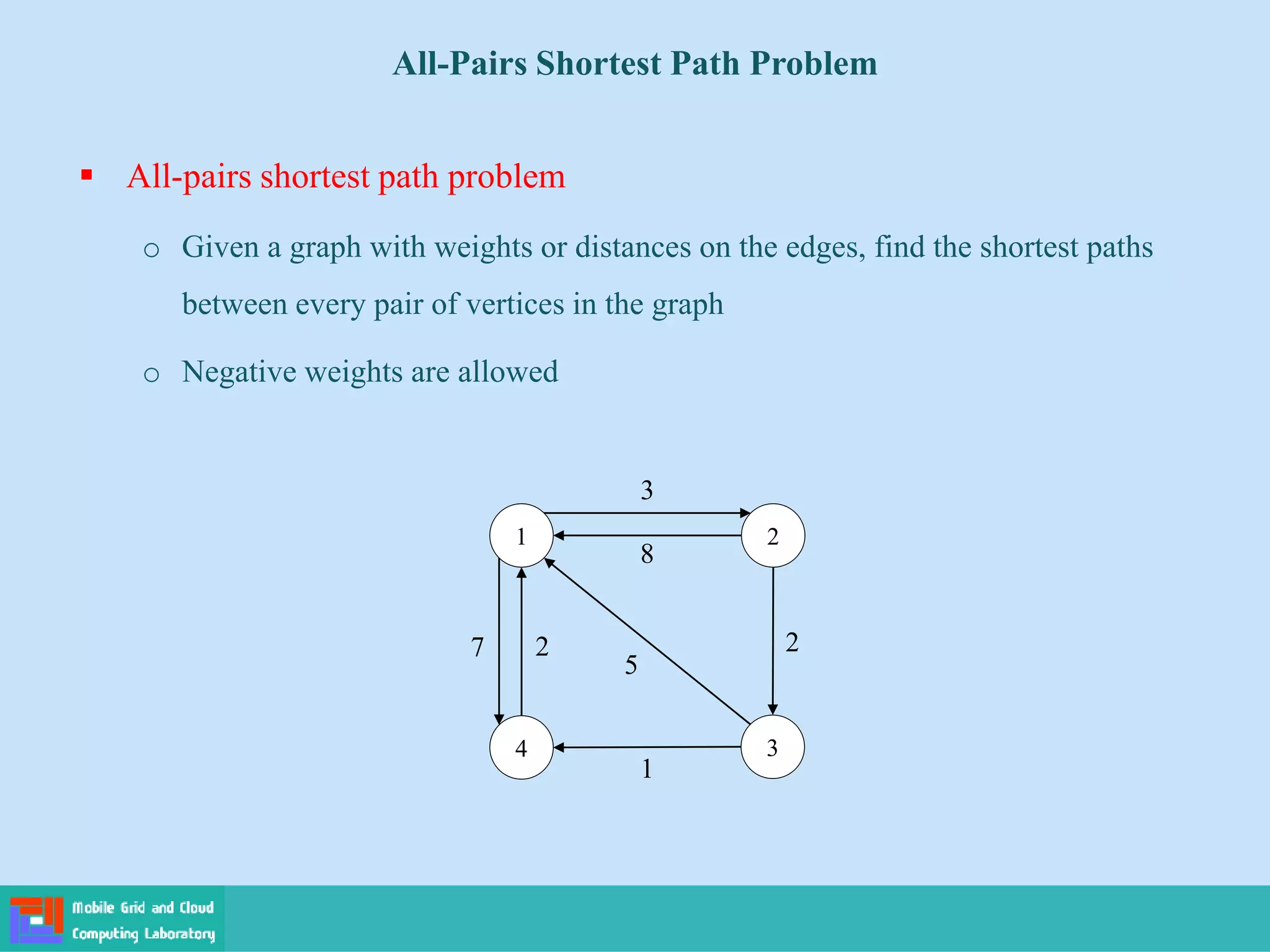

 All-pairs shortest path problem
o Given a graph with weights or distances on the edges, find the shortest paths
between every pair of vertices in the graph
o Negative weights are allowed
All-Pairs Shortest Path Problem
1
4 3
2
3
8
7 2
1
5
2

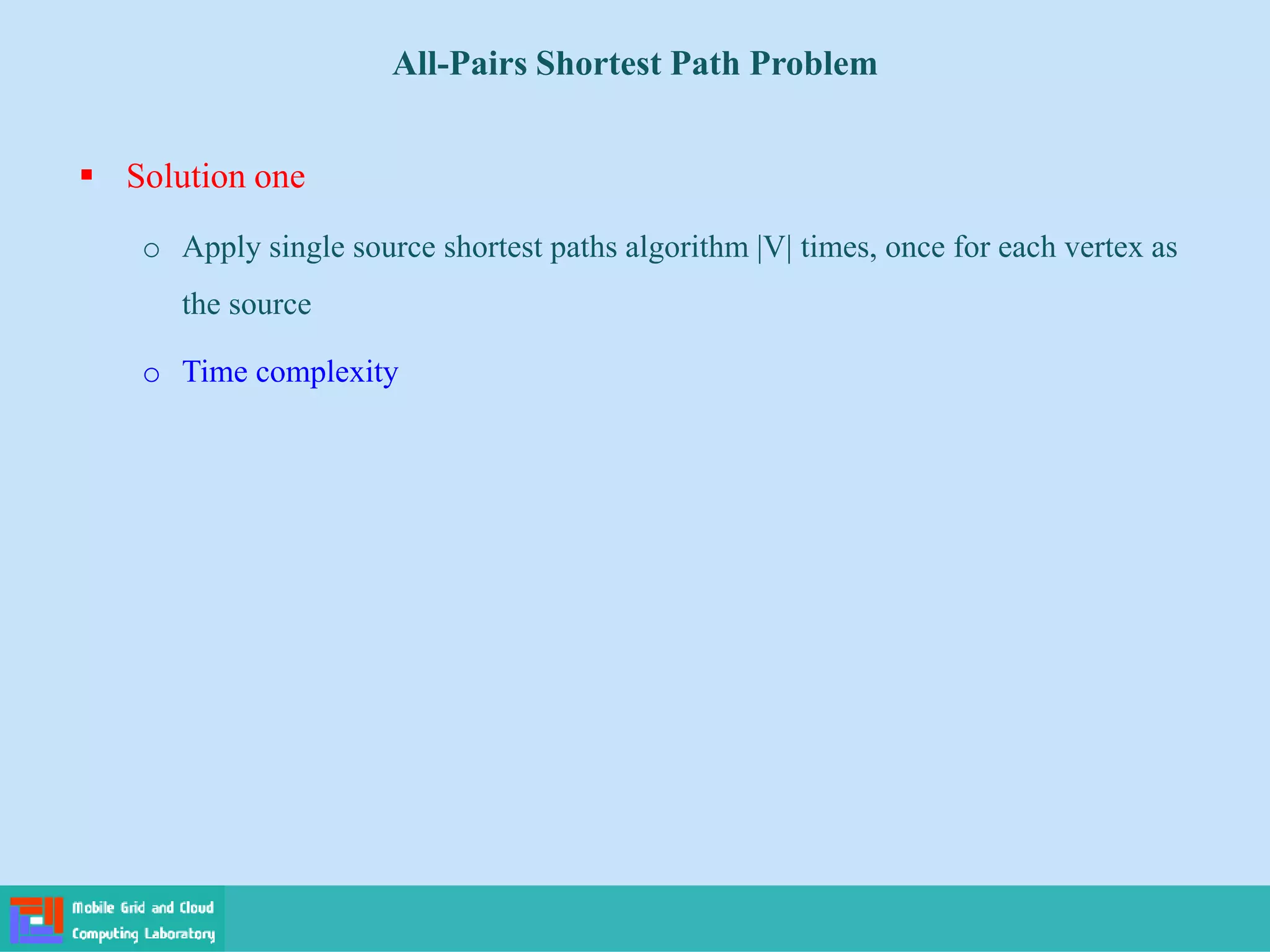

 Solution one
o Apply single source shortest paths algorithm |V| times, once for each vertex as
the source
o Time complexity

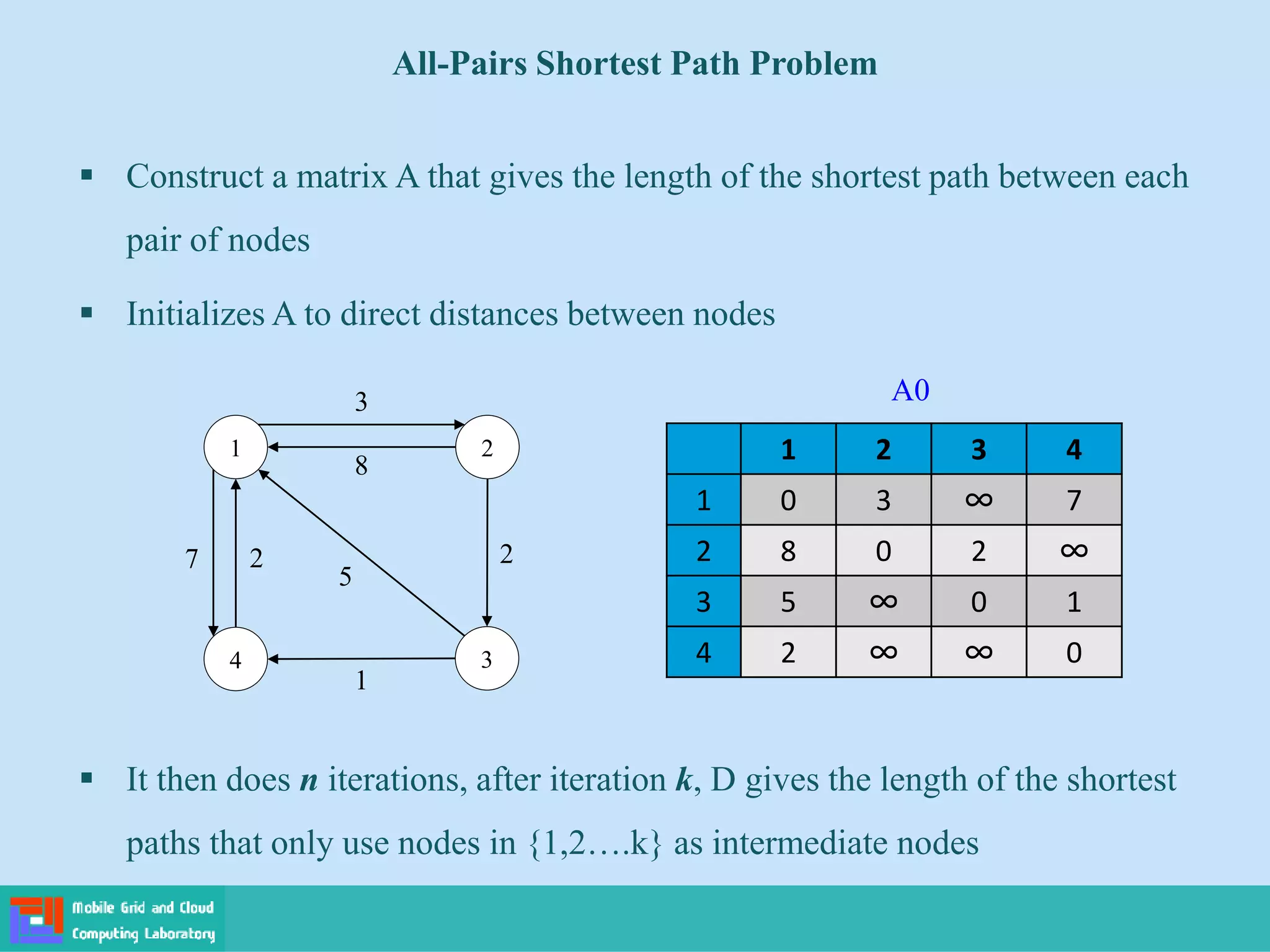

 Construct a matrix A that gives the length of the shortest path between each
pair of nodes
 Initializes A to direct distances between nodes
 It then does n iterations, after iteration k, D gives the length of the shortest
paths that only use nodes in {1,2….k} as intermediate nodes
1
4 3
2
3
8
7 2
1
5
2
1 2 3 4
1 0 3 ∞ 7
2 8 0 2 ∞
3 5 ∞ 0 1
4 2 ∞ ∞ 0
A0

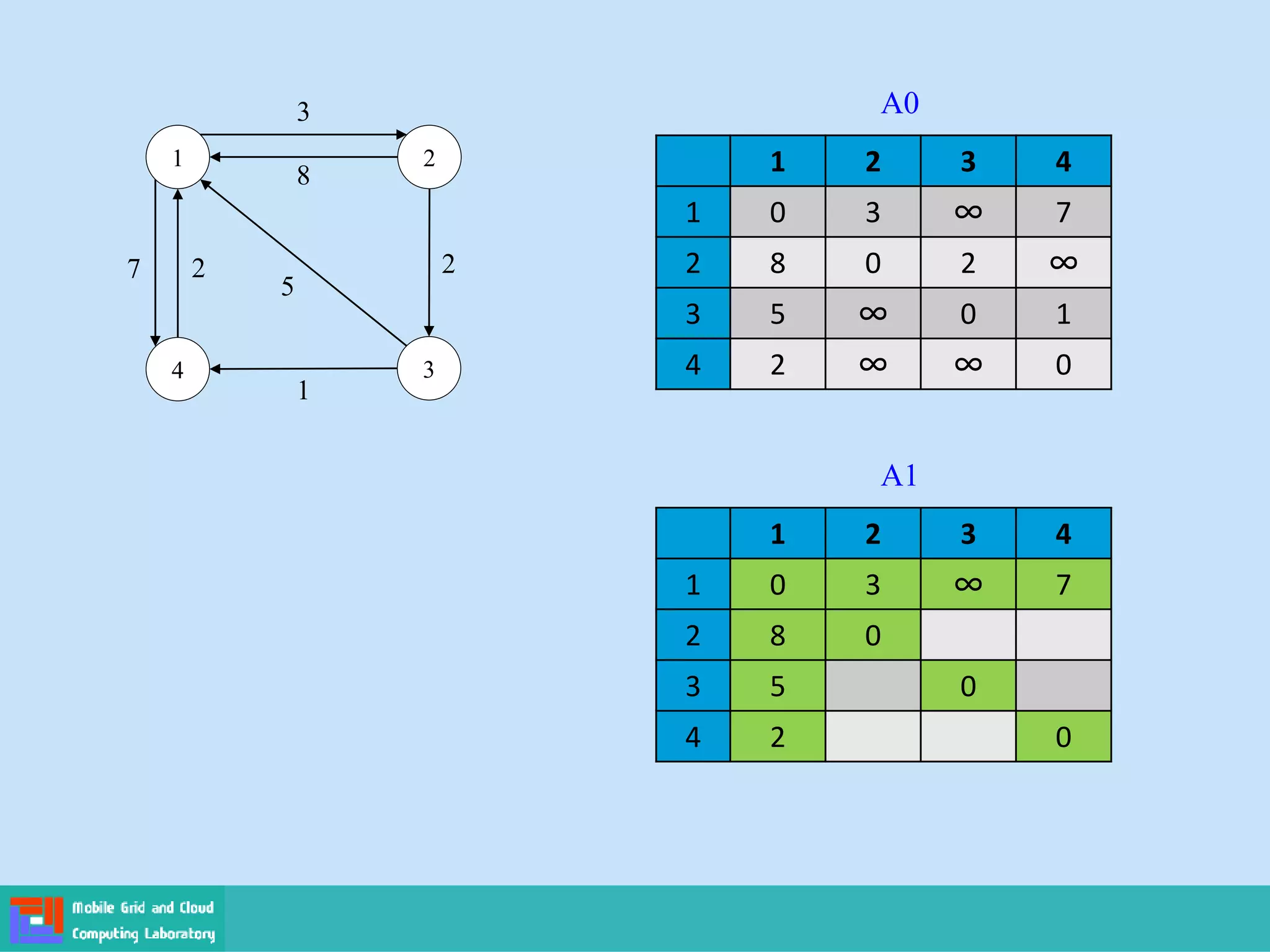

1
4 3
2
3
8
7 2
1
5
2
1 2 3 4
1 0 3 ∞ 7
2 8 0 2 ∞
3 5 ∞ 0 1
4 2 ∞ ∞ 0
A0
1 2 3 4
1 0 3 ∞ 7
2 8 0
3 5 0
4 2 0
A1

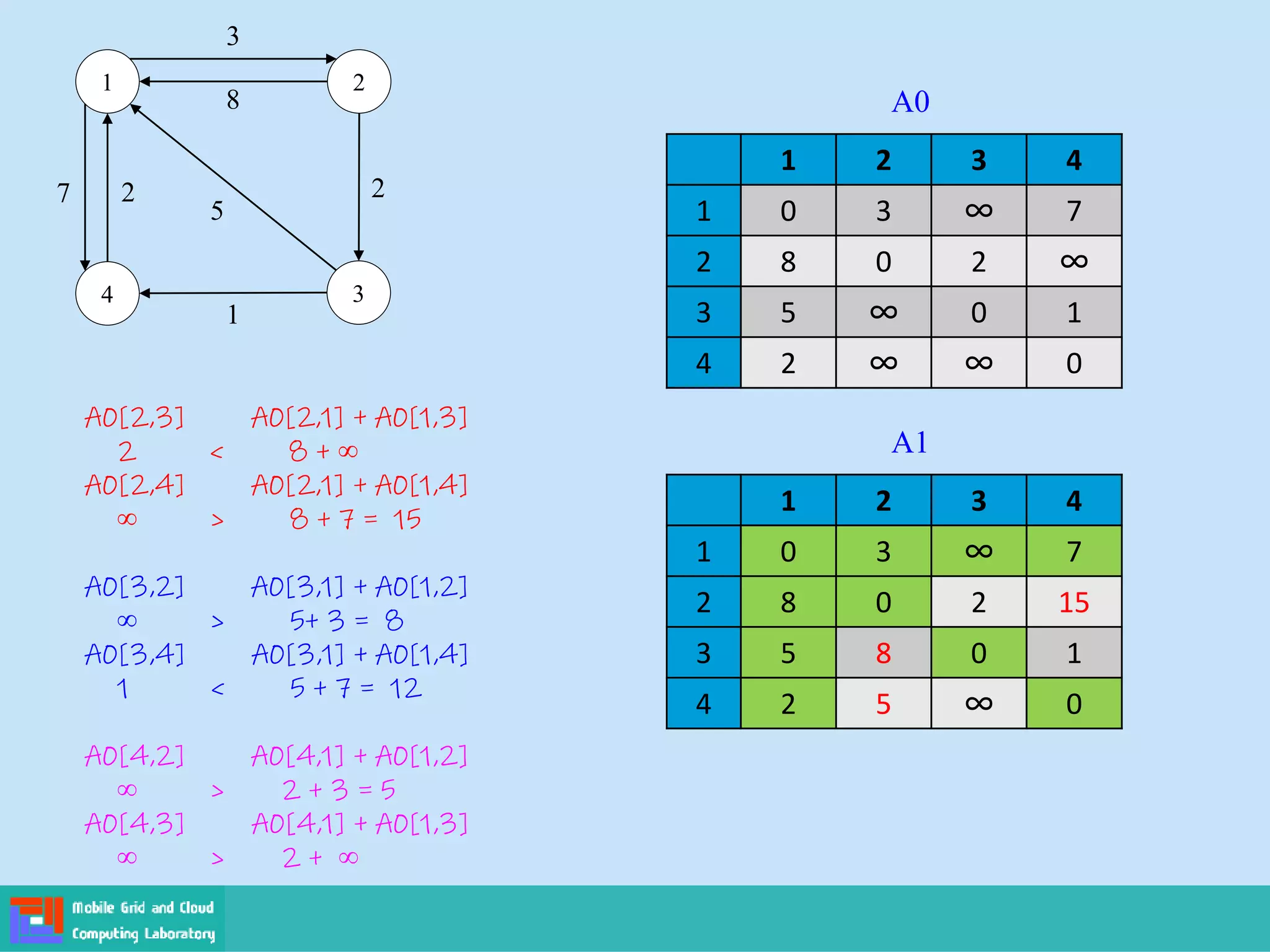

1
4 3
2
3
8
7 2
1
5
2
1 2 3 4
1 0 3 ∞ 7
2 8 0 2 ∞
3 5 ∞ 0 1
4 2 ∞ ∞ 0
A0
1 2 3 4
1 0 3 ∞ 7
2 8 0 2 15
3 5 8 0 1
4 2 5 ∞ 0
A1
A0[2,3] A0[2,1] + A0[1,3]
2 < 8 + ∞
A0[2,4] A0[2,1] + A0[1,4]
∞ > 8 + 7 = 15
A0[3,2] A0[3,1] + A0[1,2]
∞ > 5+ 3 = 8
A0[3,4] A0[3,1] + A0[1,4]
1 < 5 + 7 = 12
A0[4,2] A0[4,1] + A0[1,2]
∞ > 2 + 3 = 5
A0[4,3] A0[4,1] + A0[1,3]
∞ > 2 + ∞

1
4 3
2
3
8
7 2
1
5
2

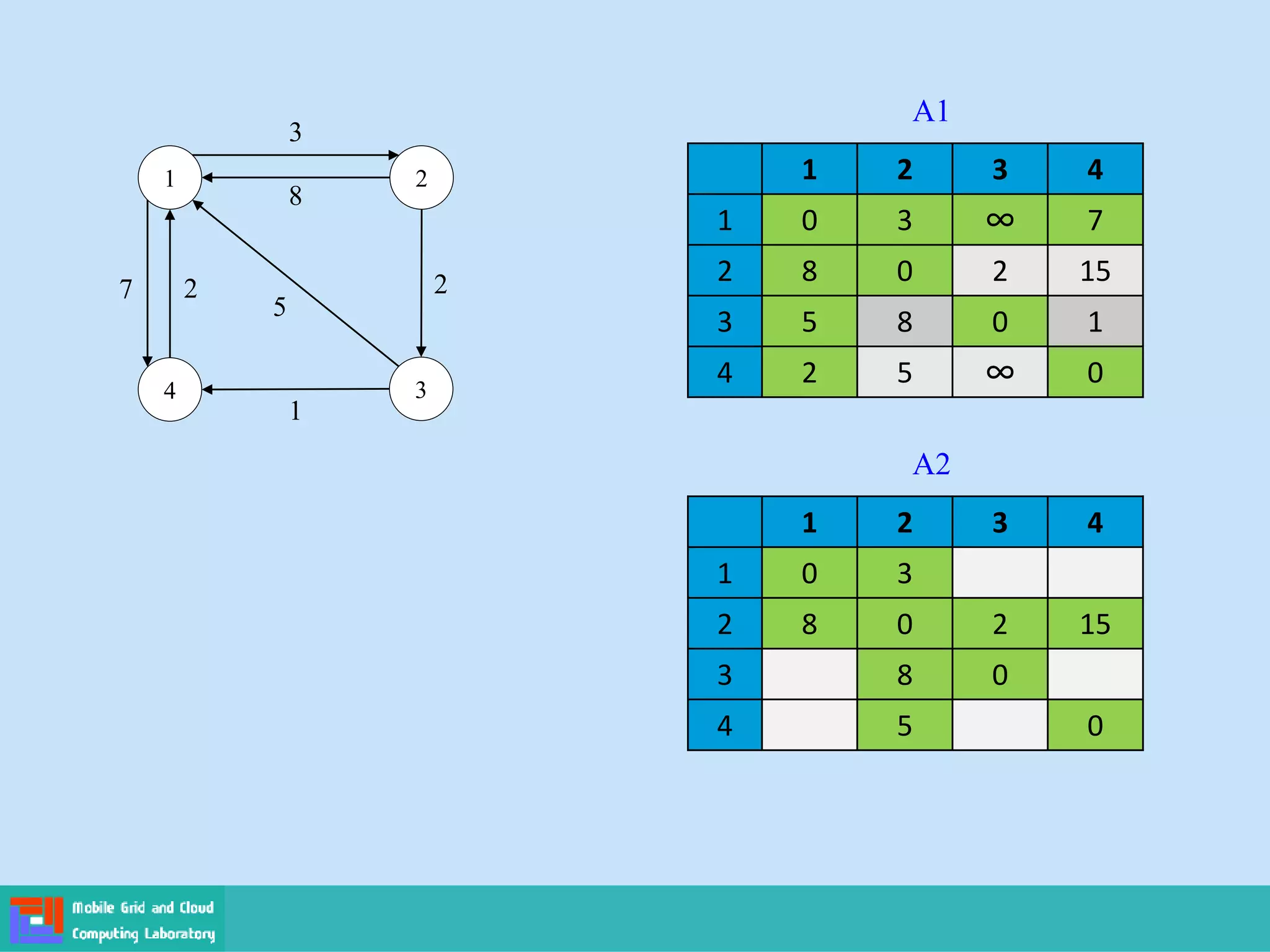

1 2 3 4
1 0 3 ∞ 7
2 8 0 2 15
3 5 8 0 1
4 2 5 ∞ 0
A1
1 2 3 4
1 0 3
2 8 0 2 15
3 8 0
4 5 0
A2

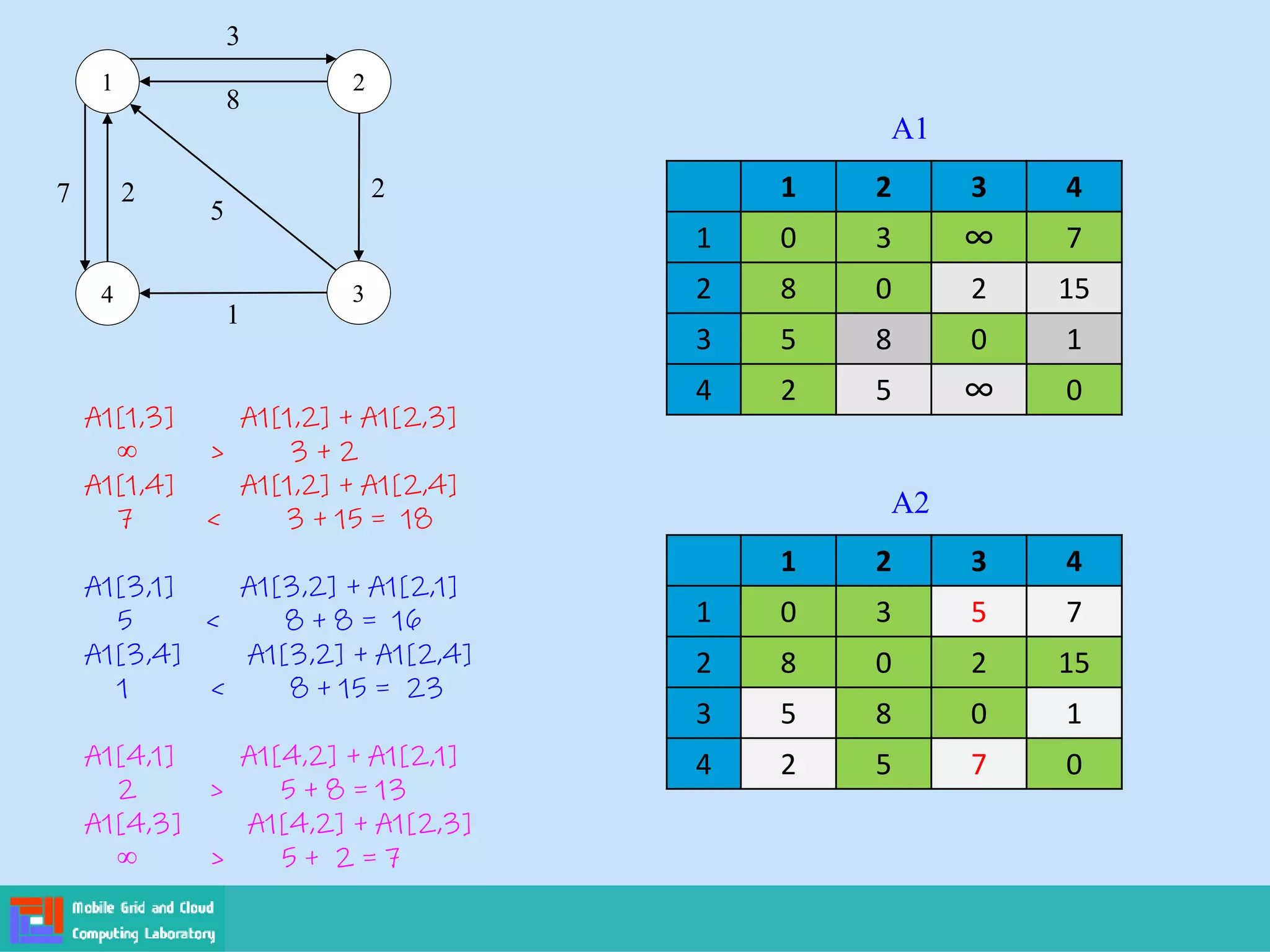

1
4 3
2
3
8
7 2
1
5
2 1 2 3 4
1 0 3 ∞ 7
2 8 0 2 15
3 5 8 0 1
4 2 5 ∞ 0
A1
A1[1,3] A1[1,2] + A1[2,3]
∞ > 3 + 2
A1[1,4] A1[1,2] + A1[2,4]
7 < 3 + 15 = 18
A1[3,1] A1[3,2] + A1[2,1]
5 < 8 + 8 = 16
A1[3,4] A1[3,2] + A1[2,4]
1 < 8 + 15 = 23
A1[4,1] A1[4,2] + A1[2,1]
2 > 5 + 8 = 13
A1[4,3] A1[4,2] + A1[2,3]
∞ > 5 + 2 = 7
1 2 3 4
1 0 3 5 7
2 8 0 2 15
3 5 8 0 1
4 2 5 7 0
A2

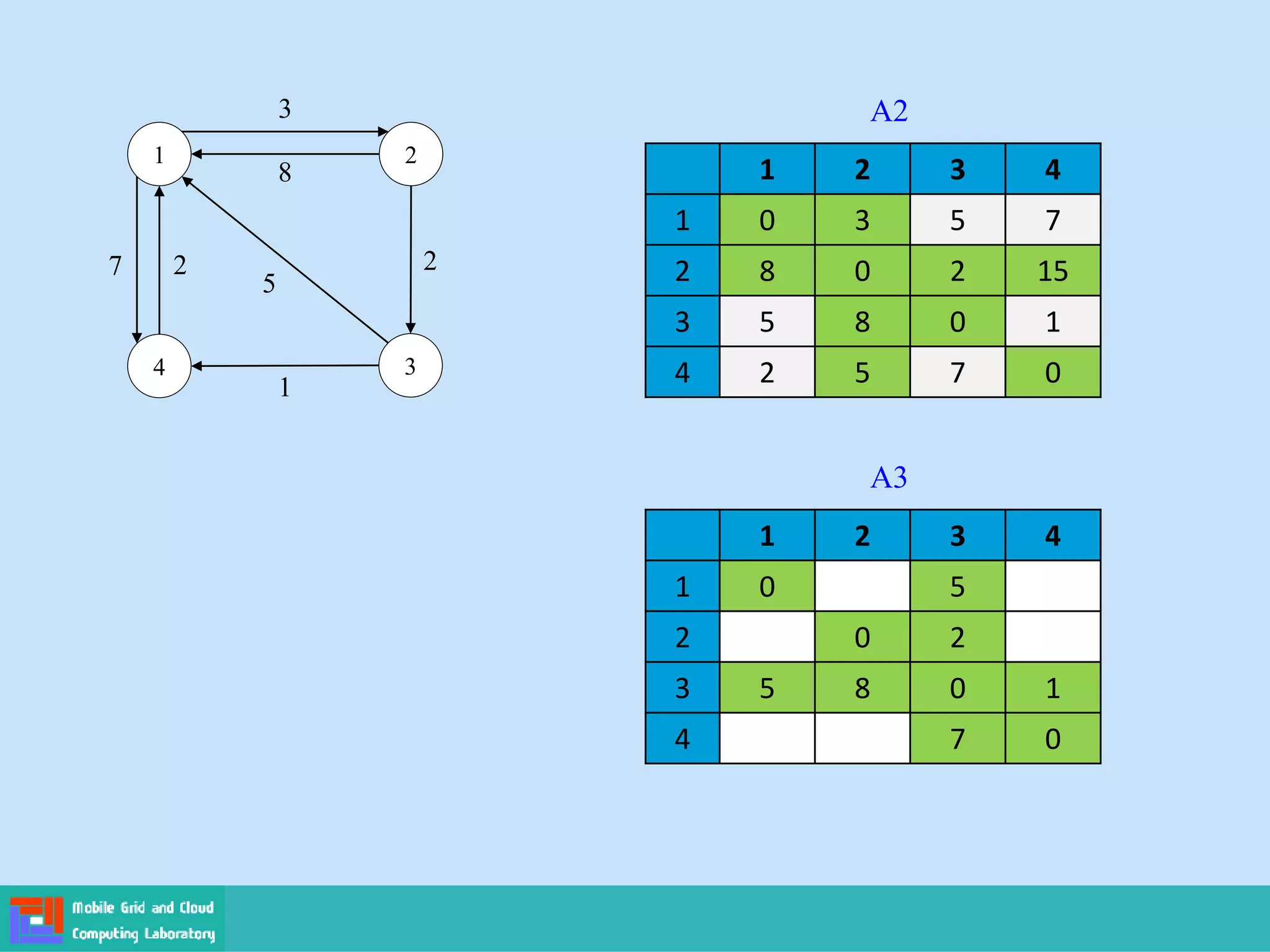

1
4 3
2
3
8
7 2
1
5
2
1 2 3 4
1 0 3 5 7
2 8 0 2 15
3 5 8 0 1
4 2 5 7 0
A2
1 2 3 4
1 0 5
2 0 2
3 5 8 0 1
4 7 0
A3

1
4 3
2
3
8
7 2
1
5
2

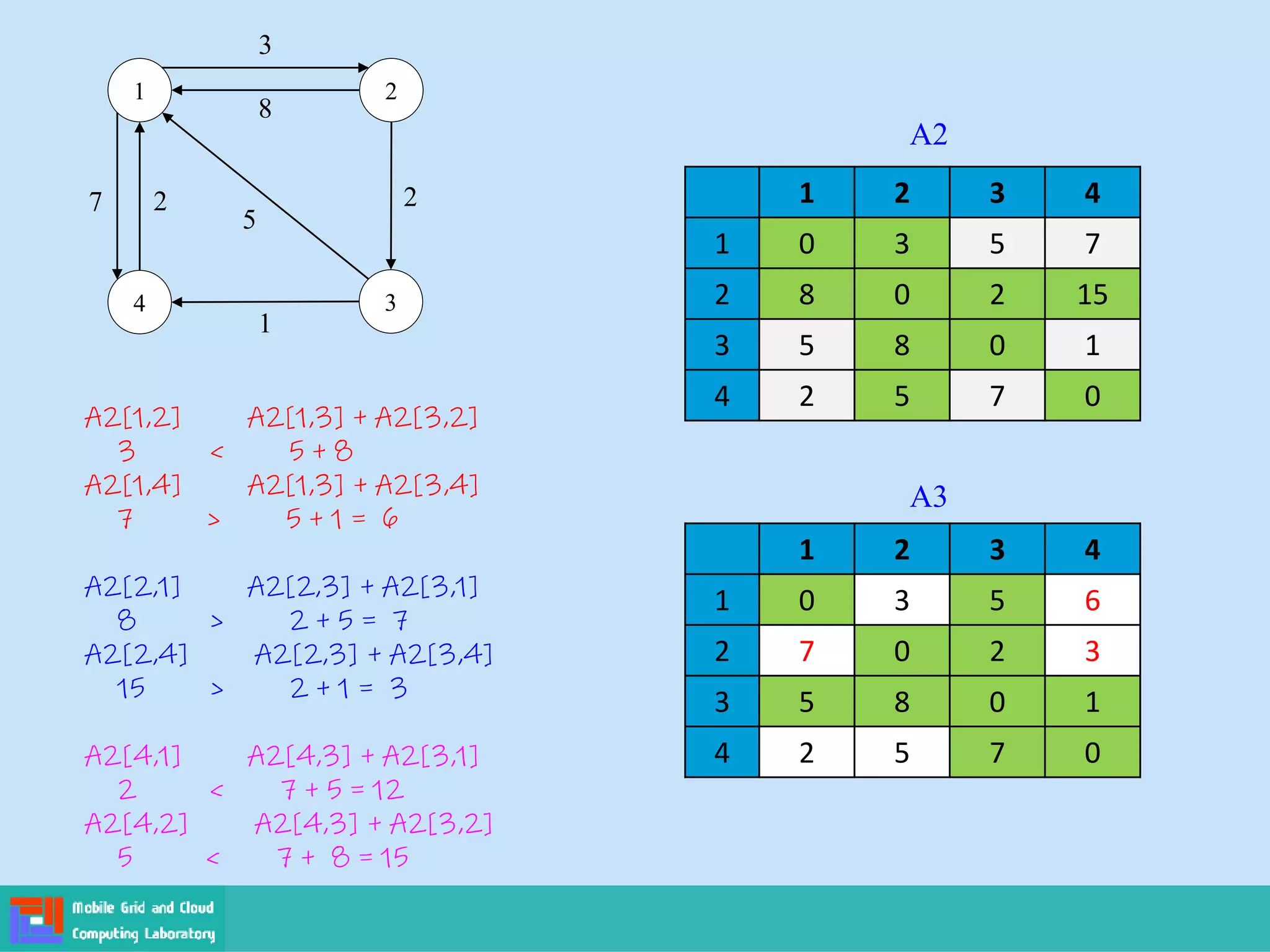

A2[1,2] A2[1,3] + A2[3,2]
3 < 5 + 8
A2[1,4] A2[1,3] + A2[3,4]
7 > 5 + 1 = 6
A2[2,1] A2[2,3] + A2[3,1]
8 > 2 + 5 = 7
A2[2,4] A2[2,3] + A2[3,4]
15 > 2 + 1 = 3
A2[4,1] A2[4,3] + A2[3,1]
2 < 7 + 5 = 12
A2[4,2] A2[4,3] + A2[3,2]
5 < 7 + 8 = 15
1 2 3 4
1 0 3 5 7
2 8 0 2 15
3 5 8 0 1
4 2 5 7 0
A2
1 2 3 4
1 0 3 5 6
2 7 0 2 3
3 5 8 0 1
4 2 5 7 0
A3

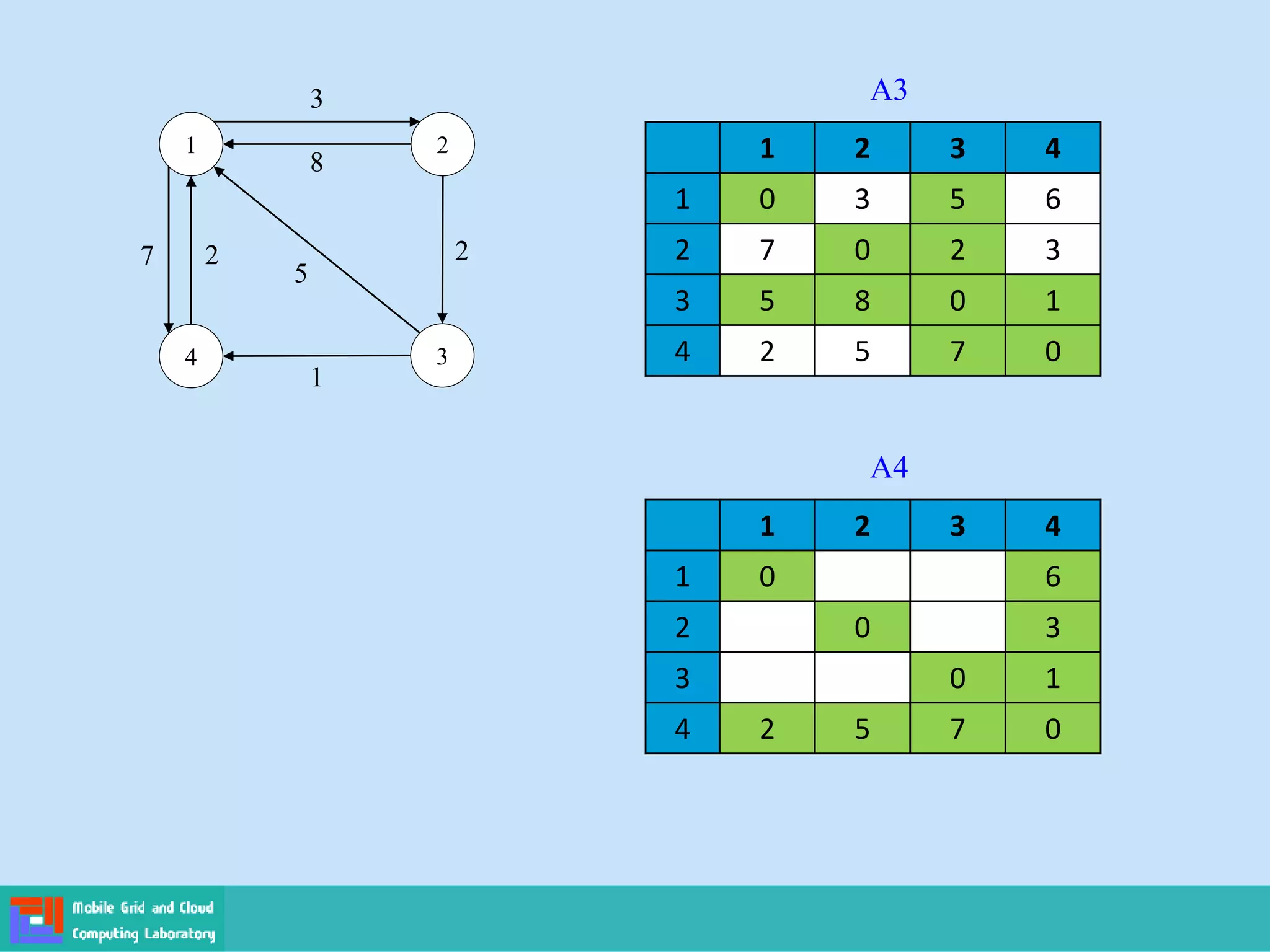

1
4 3
2
3
8
7 2
1
5
2
1 2 3 4
1 0 3 5 6
2 7 0 2 3
3 5 8 0 1
4 2 5 7 0
A3
1 2 3 4
1 0 6
2 0 3
3 0 1
4 2 5 7 0
A4

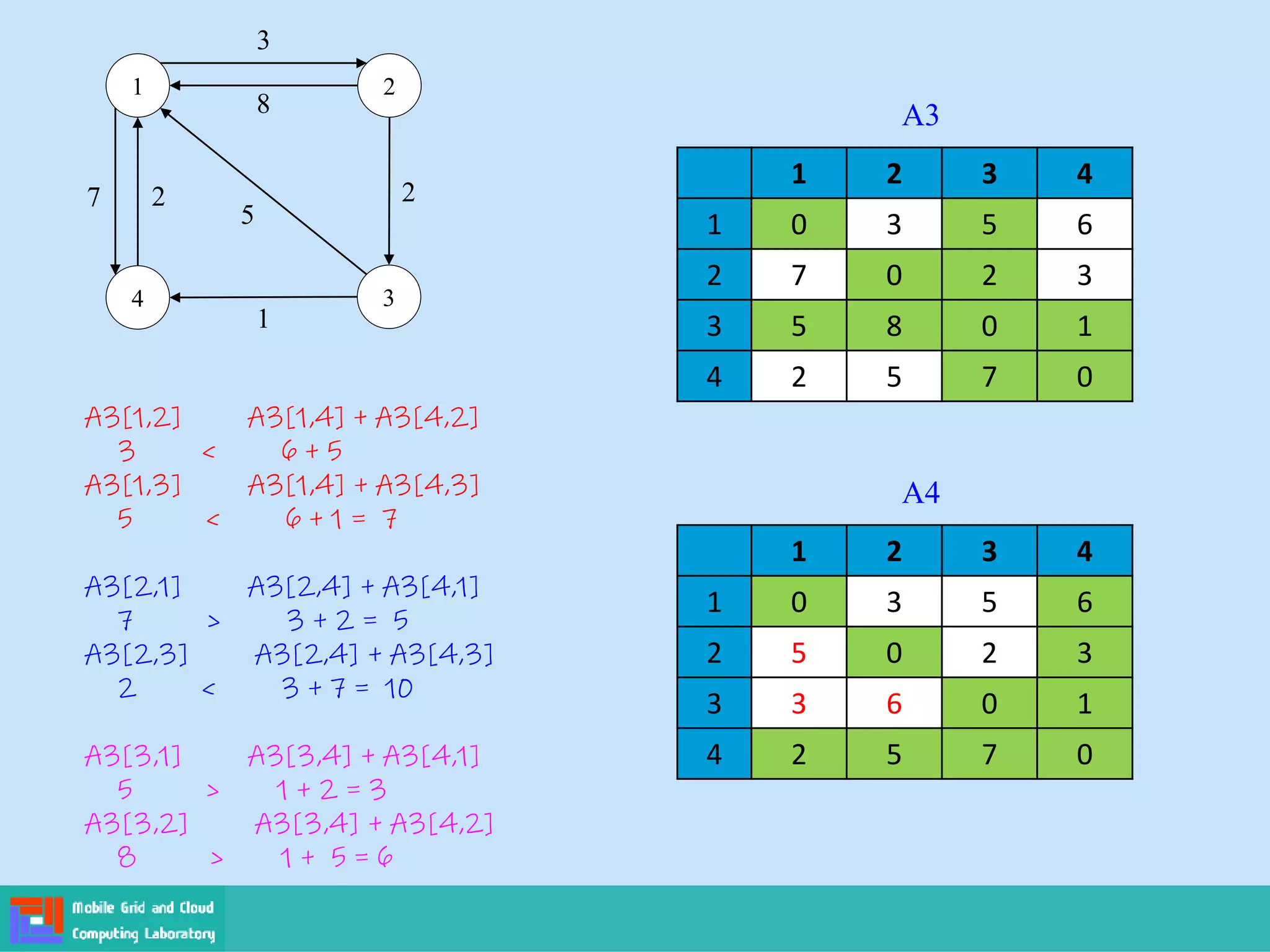

1
4 3
2
3
8
7 2
1
5
2
A3[1,2] A3[1,4] + A3[4,2]
3 < 6 + 5
A3[1,3] A3[1,4] + A3[4,3]
5 < 6 + 1 = 7
A3[2,1] A3[2,4] + A3[4,1]
7 > 3 + 2 = 5
A3[2,3] A3[2,4] + A3[4,3]
2 < 3 + 7 = 10
A3[3,1] A3[3,4] + A3[4,1]
5 > 1 + 2 = 3
A3[3,2] A3[3,4] + A3[4,2]
8 > 1 + 5 = 6
1 2 3 4
1 0 3 5 6
2 7 0 2 3
3 5 8 0 1
4 2 5 7 0
A3
1 2 3 4
1 0 3 5 6
2 5 0 2 3
3 3 6 0 1
4 2 5 7 0
A4

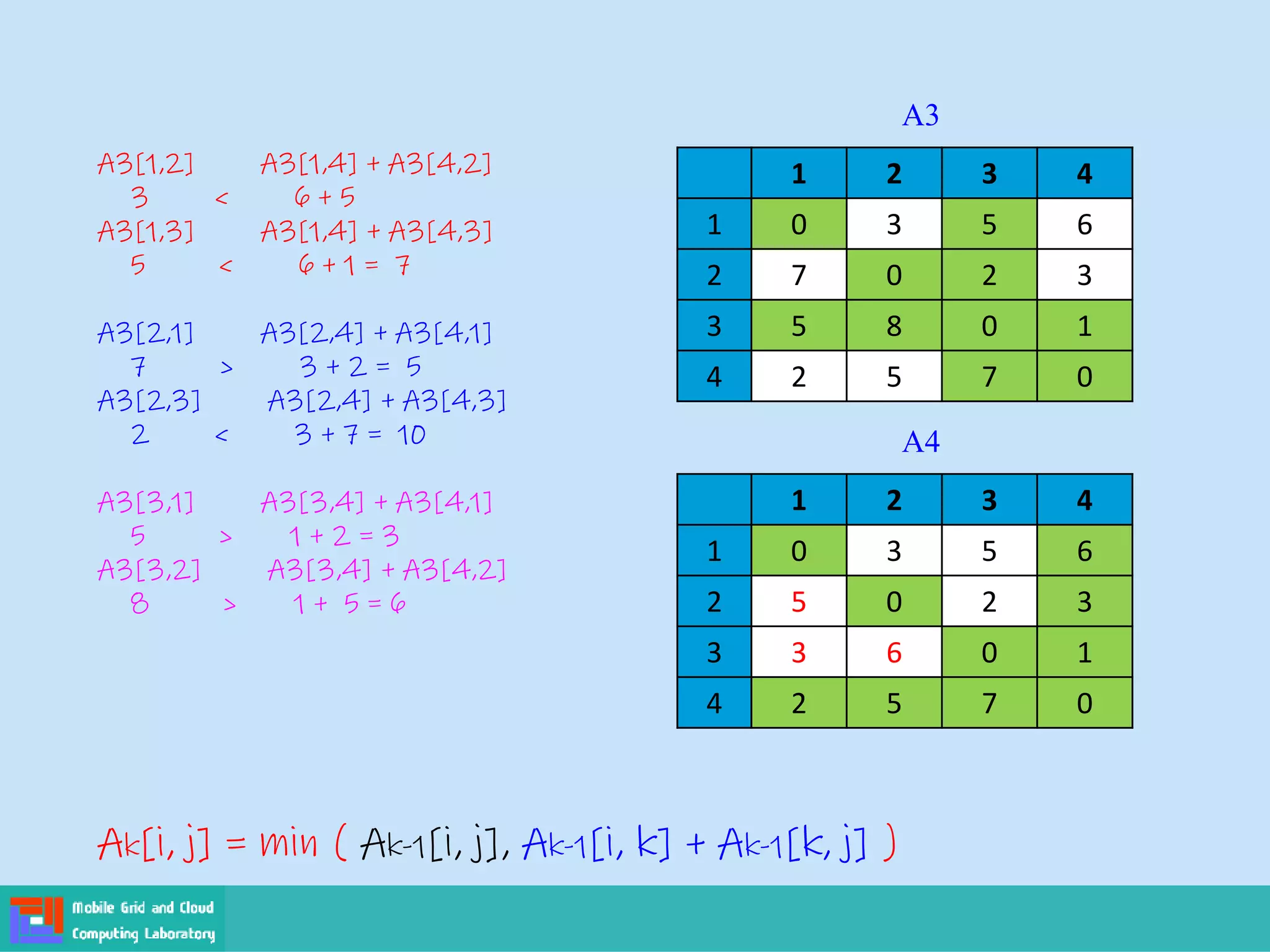

A3[1,2] A3[1,4] + A3[4,2]
3 < 6 + 5
A3[1,3] A3[1,4] + A3[4,3]
5 < 6 + 1 = 7
A3[2,1] A3[2,4] + A3[4,1]
7 > 3 + 2 = 5
A3[2,3] A3[2,4] + A3[4,3]
2 < 3 + 7 = 10
A3[3,1] A3[3,4] + A3[4,1]
5 > 1 + 2 = 3
A3[3,2] A3[3,4] + A3[4,2]
8 > 1 + 5 = 6
1 2 3 4
1 0 3 5 6
2 7 0 2 3
3 5 8 0 1
4 2 5 7 0
A3
1 2 3 4
1 0 3 5 6
2 5 0 2 3
3 3 6 0 1
4 2 5 7 0
A4
Ak[i, j] = min ( Ak-1[i, j], Ak-1[i, k] + Ak-1[k, j] )

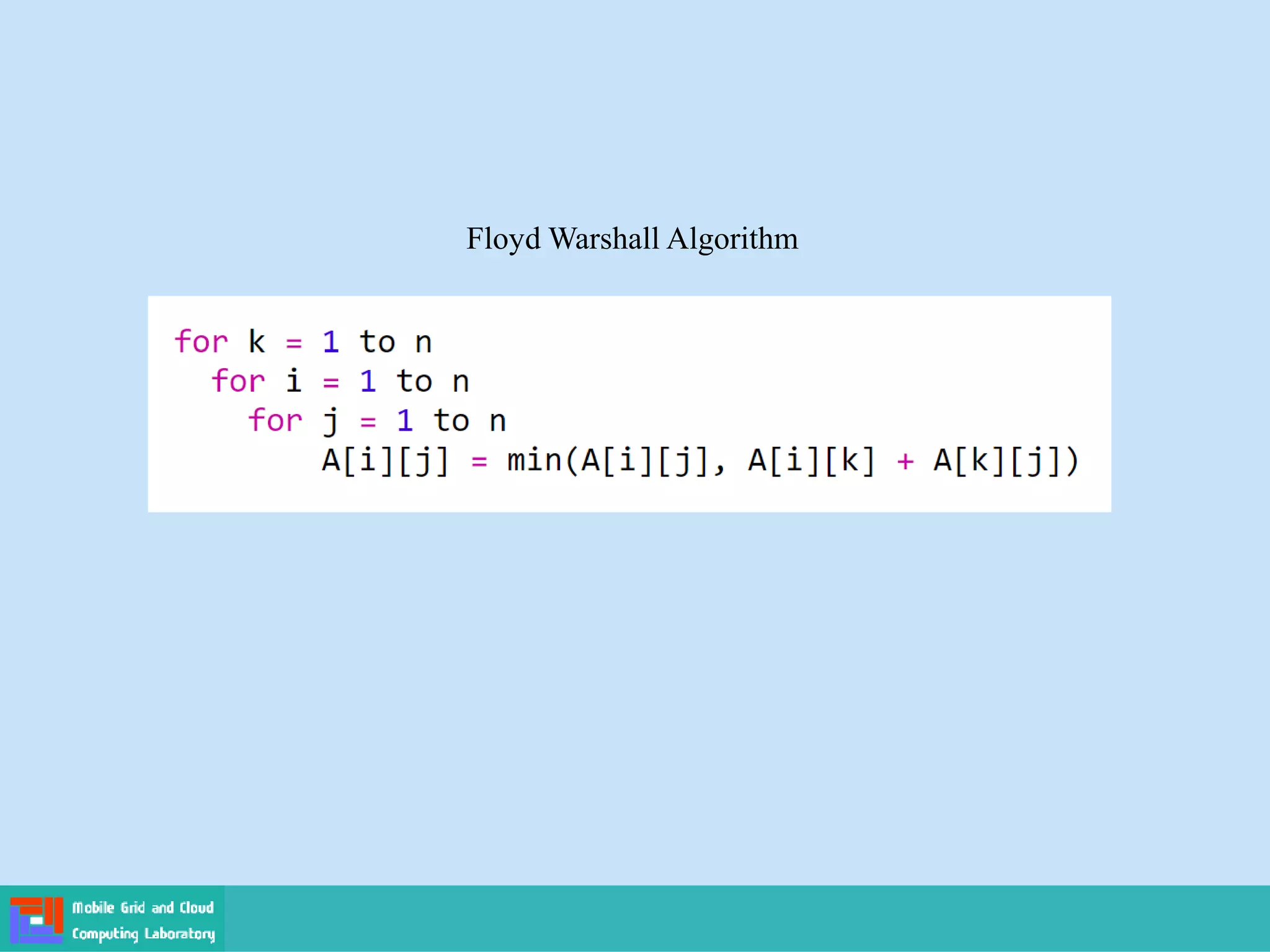

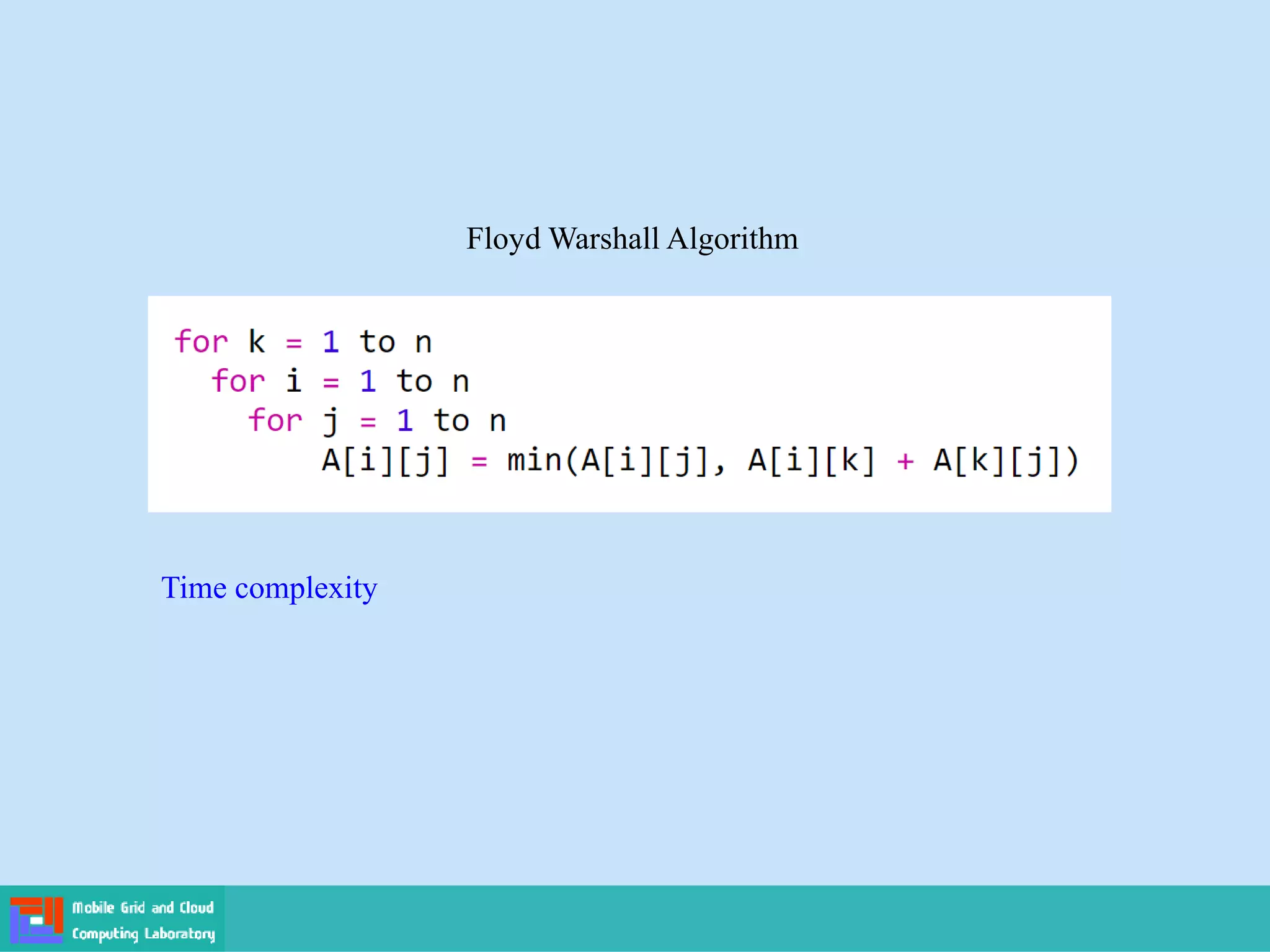

Floyd Warshall Algorithm
Time complexity

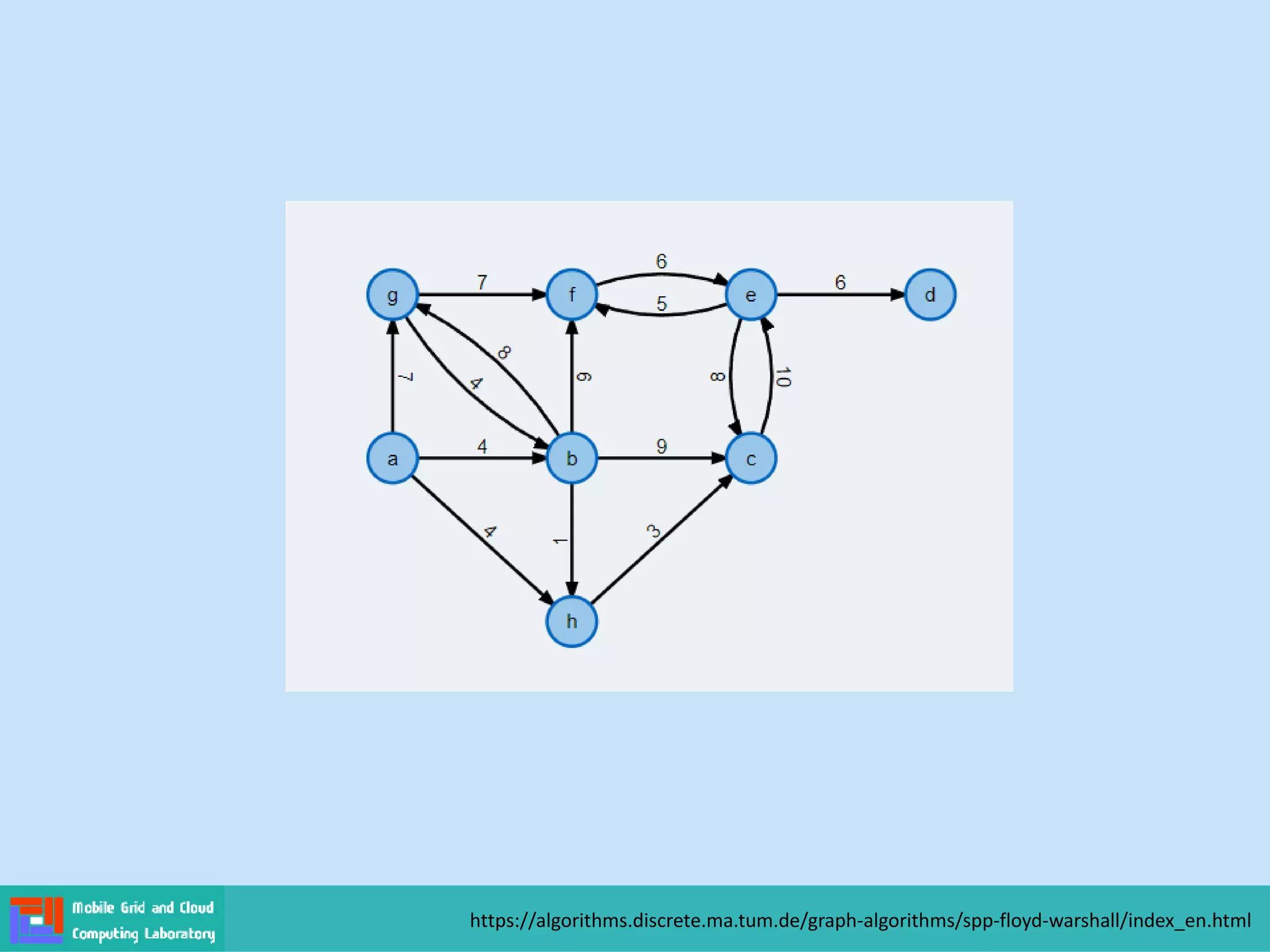

https://algorithms.discrete.ma.tum.de/graph-algorithms/spp-floyd-warshall/index_en.html

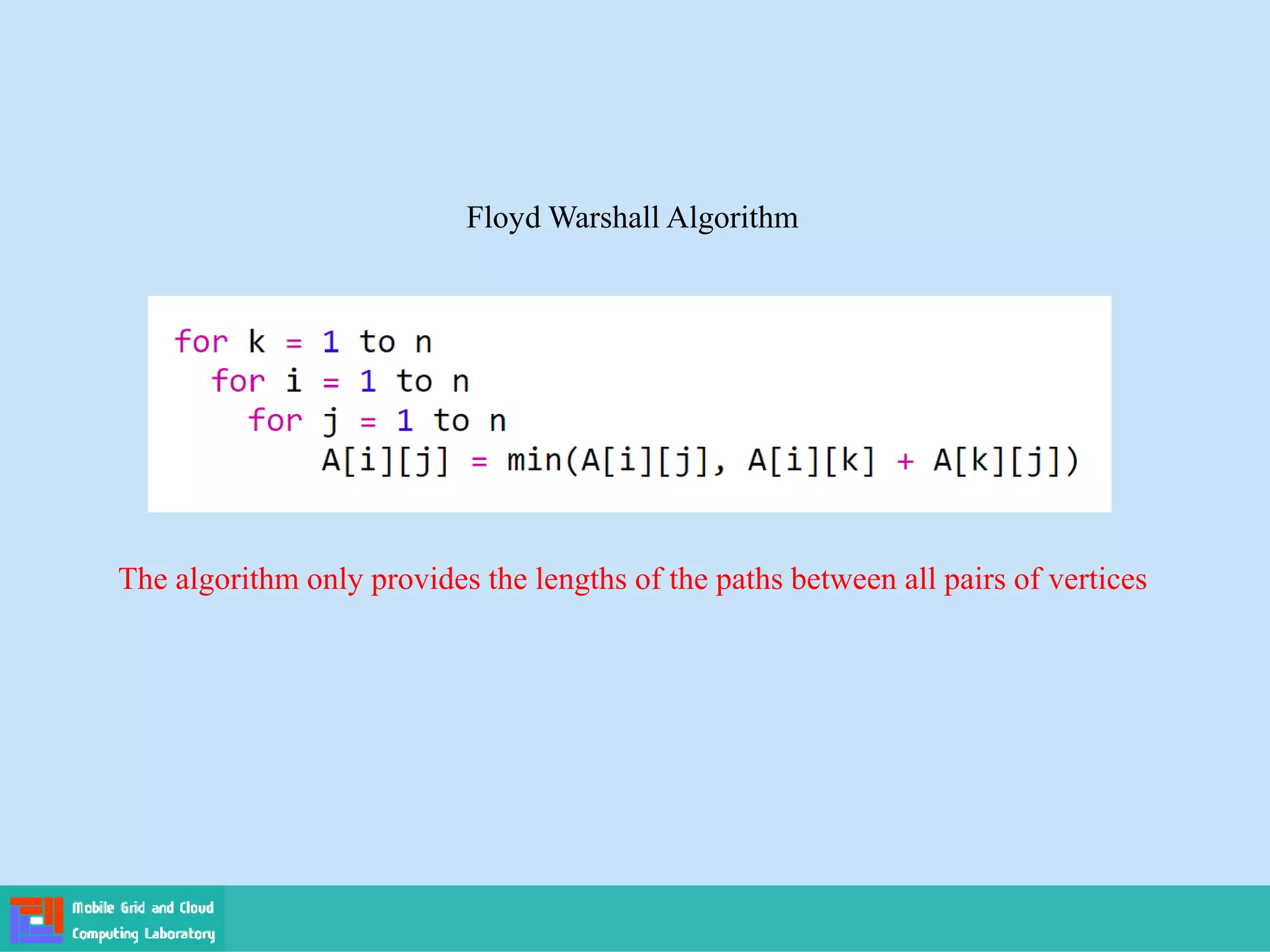

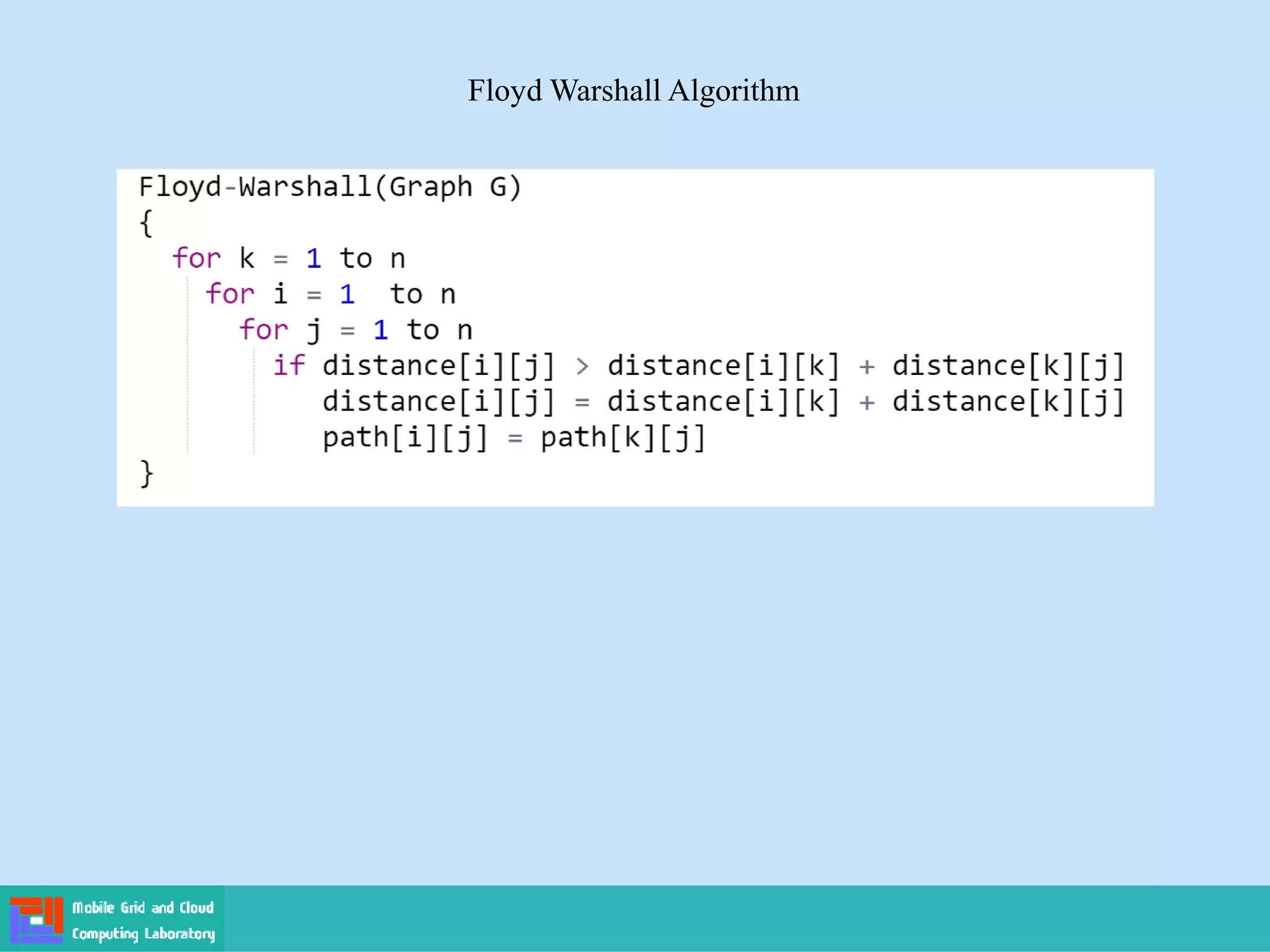

Floyd Warshall Algorithm
The algorithm only provides the lengths of the paths between all pairs of vertices

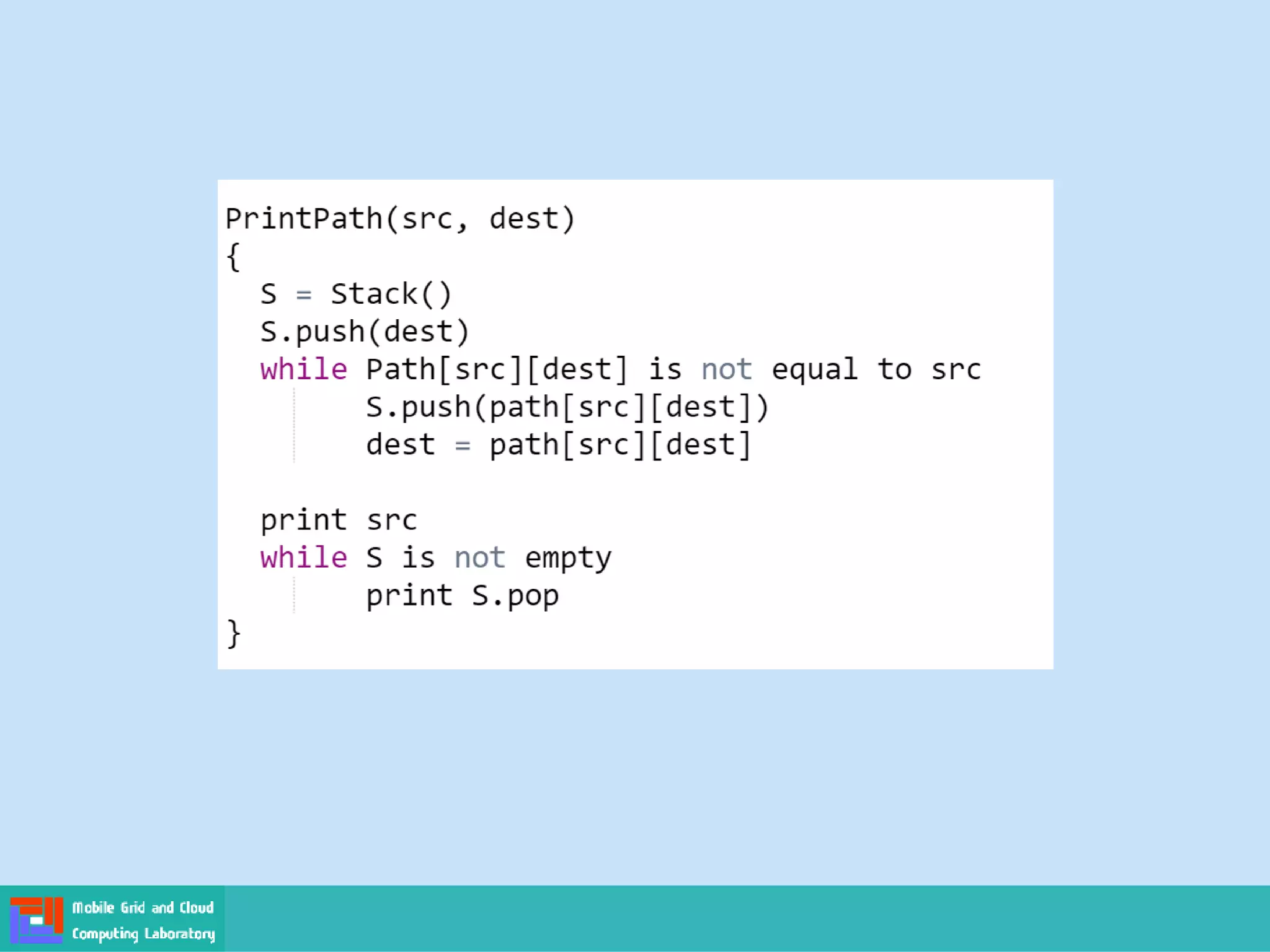

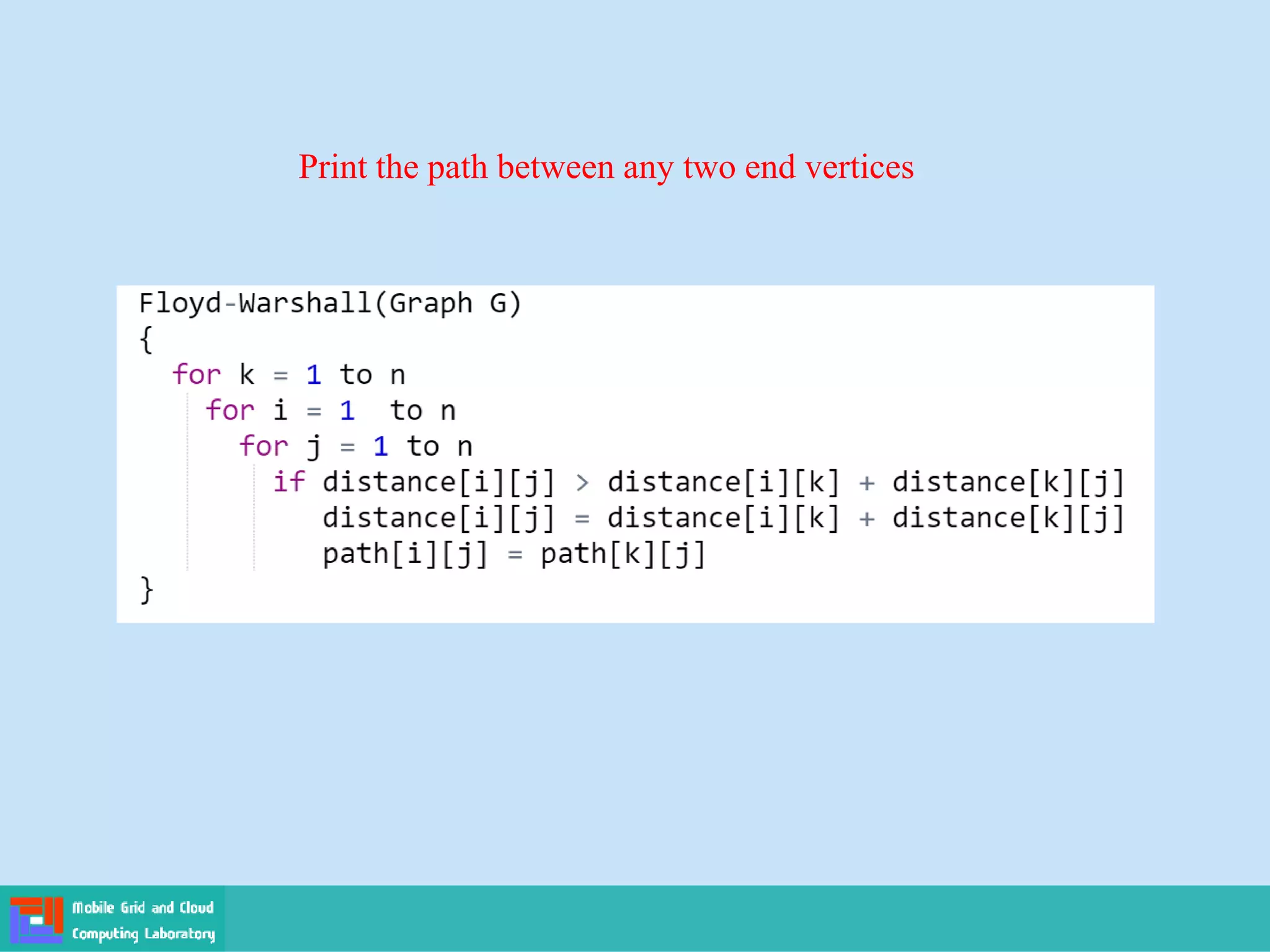

Print the path between any two end vertices

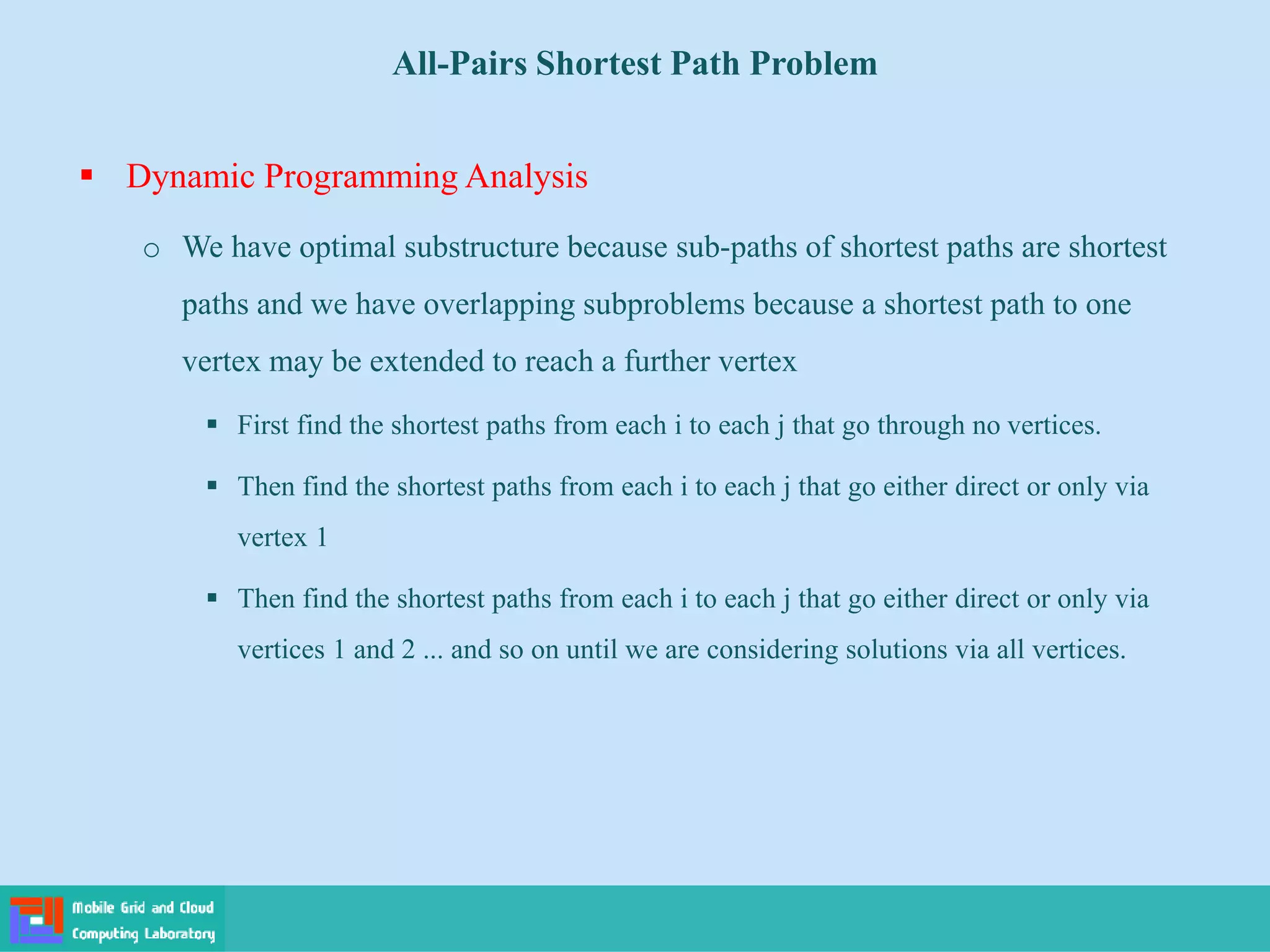

 Dynamic Programming Analysis
o We have optimal substructure because sub-paths of shortest paths are shortest
paths and we have overlapping subproblems because a shortest path to one
vertex may be extended to reach a further vertex
 First find the shortest paths from each i to each j that go through no vertices.
 Then find the shortest paths from each i to each j that go either direct or only via
vertex 1
 Then find the shortest paths from each i to each j that go either direct or only via
vertices 1 and 2 ... and so on until we are considering solutions via all vertices.

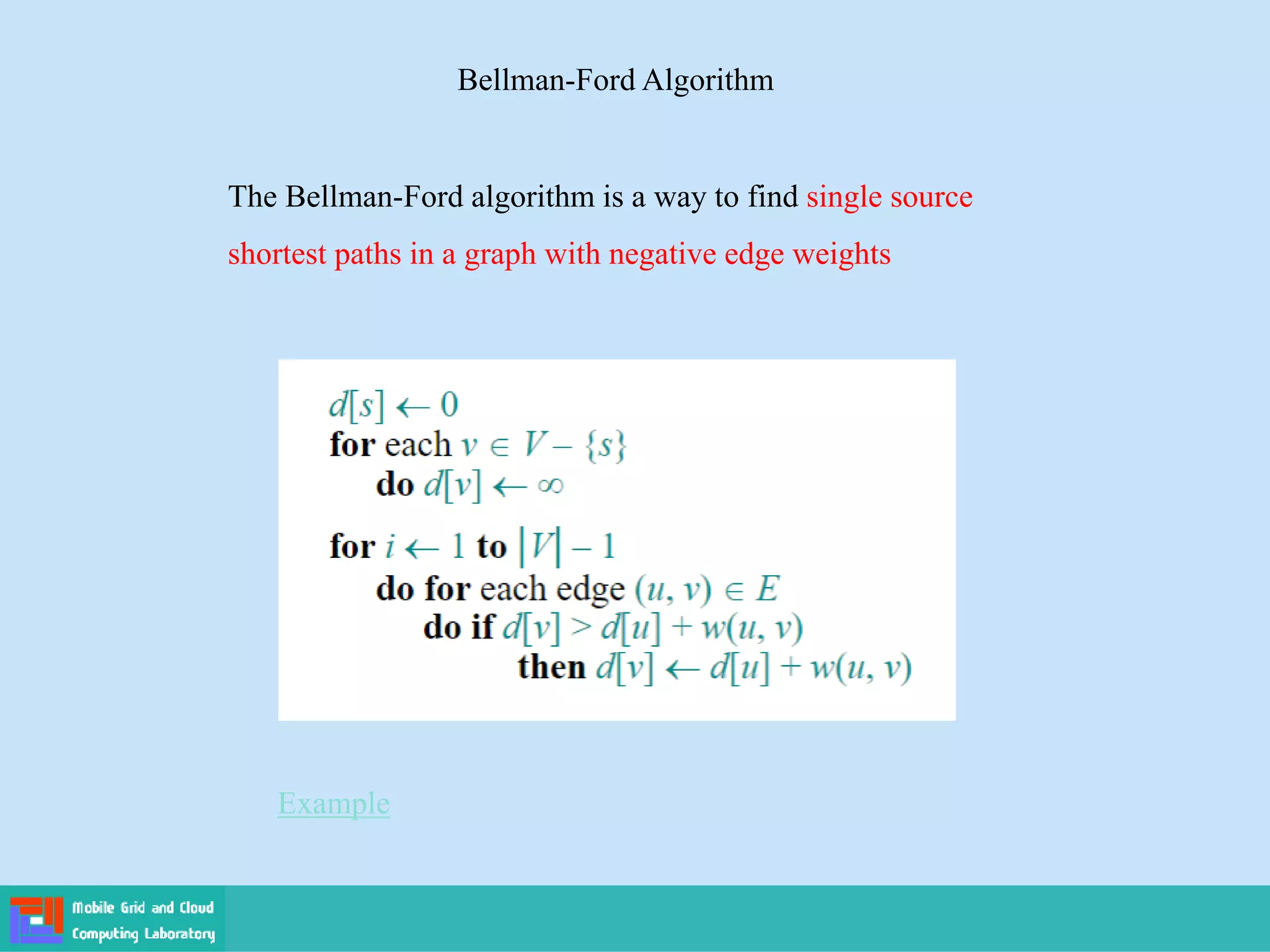

Bellman-Ford Algorithm
The Bellman-Ford algorithm is a way to find single source
shortest paths in a graph with negative edge weights

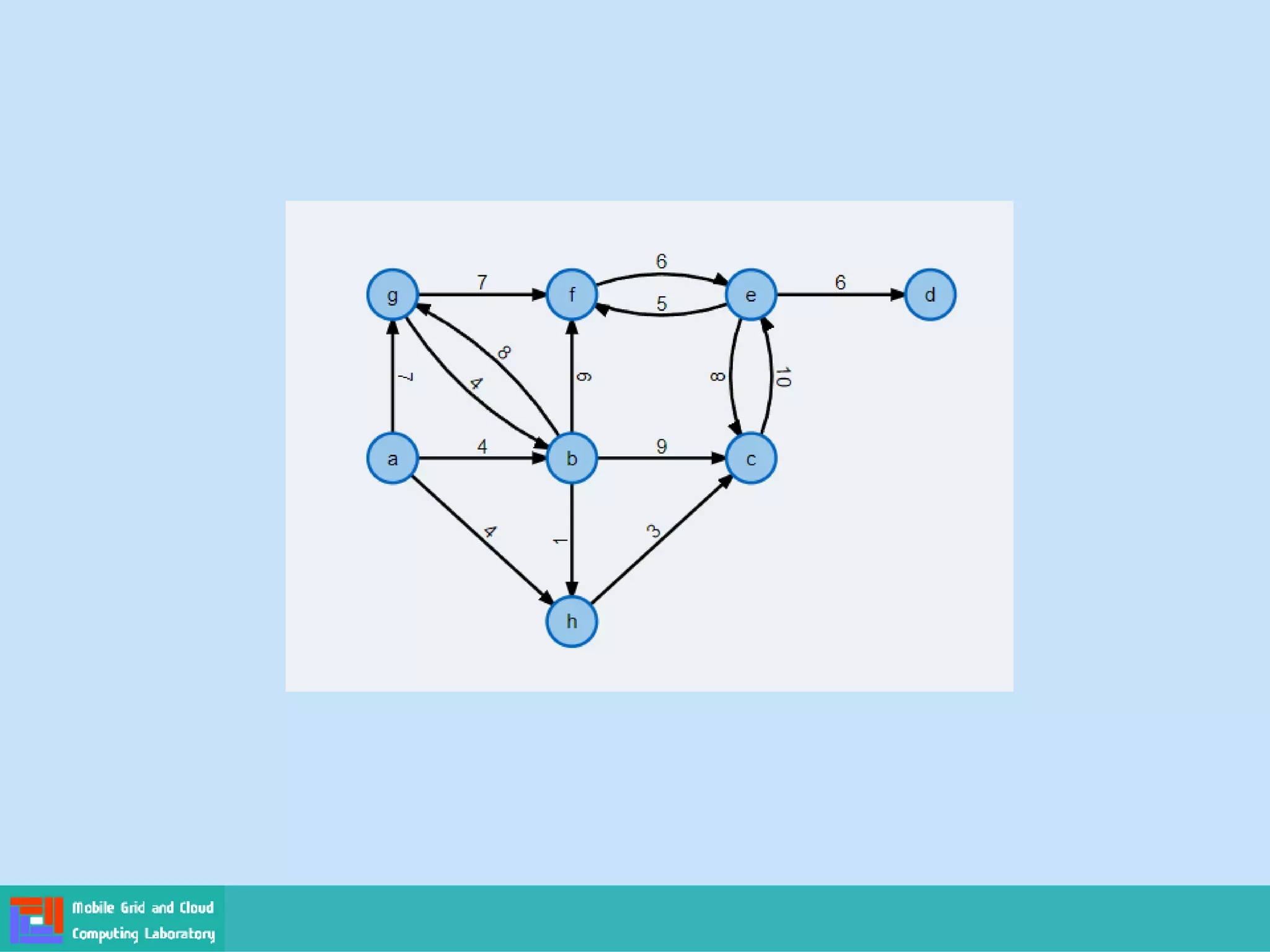

Example

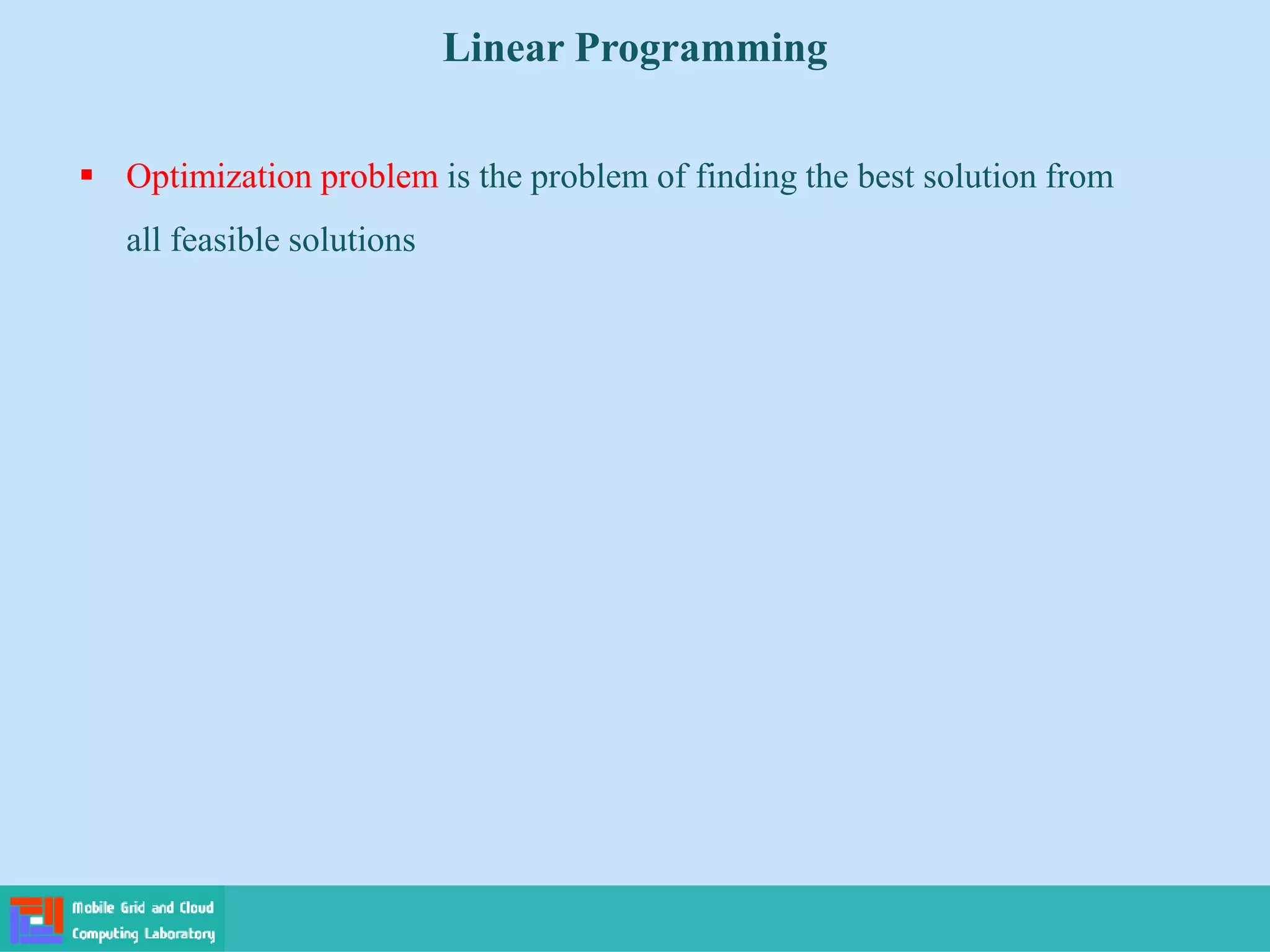

 Optimization problem is the problem of finding the best solution from
all feasible solutions
Linear Programming

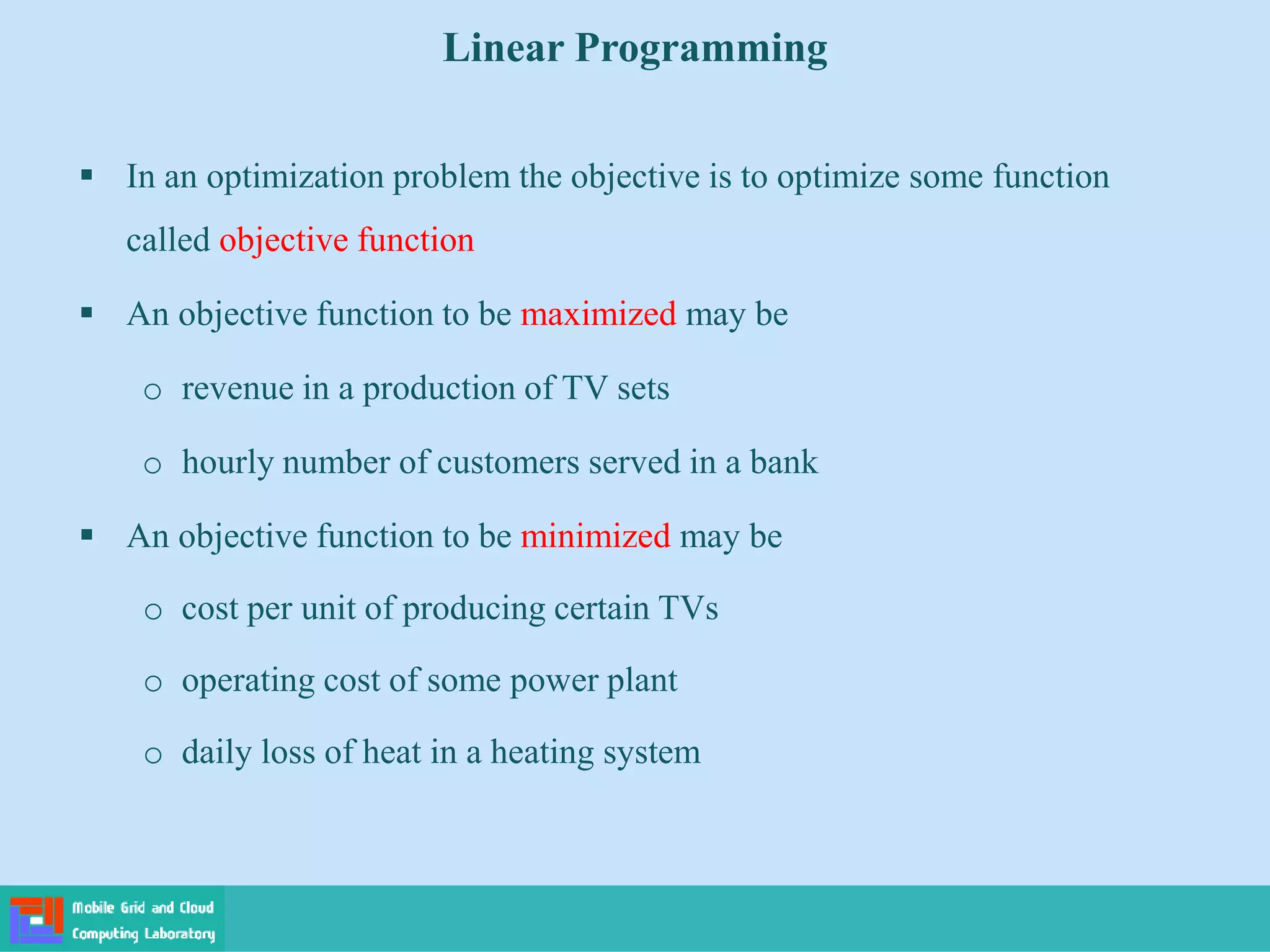

 In an optimization problem the objective is to optimize some function
called objective function
 An objective function to be maximized may be
o revenue in a production of TV sets
o hourly number of customers served in a bank
 An objective function to be minimized may be
o cost per unit of producing certain TVs
o operating cost of some power plant
o daily loss of heat in a heating system
Linear Programming

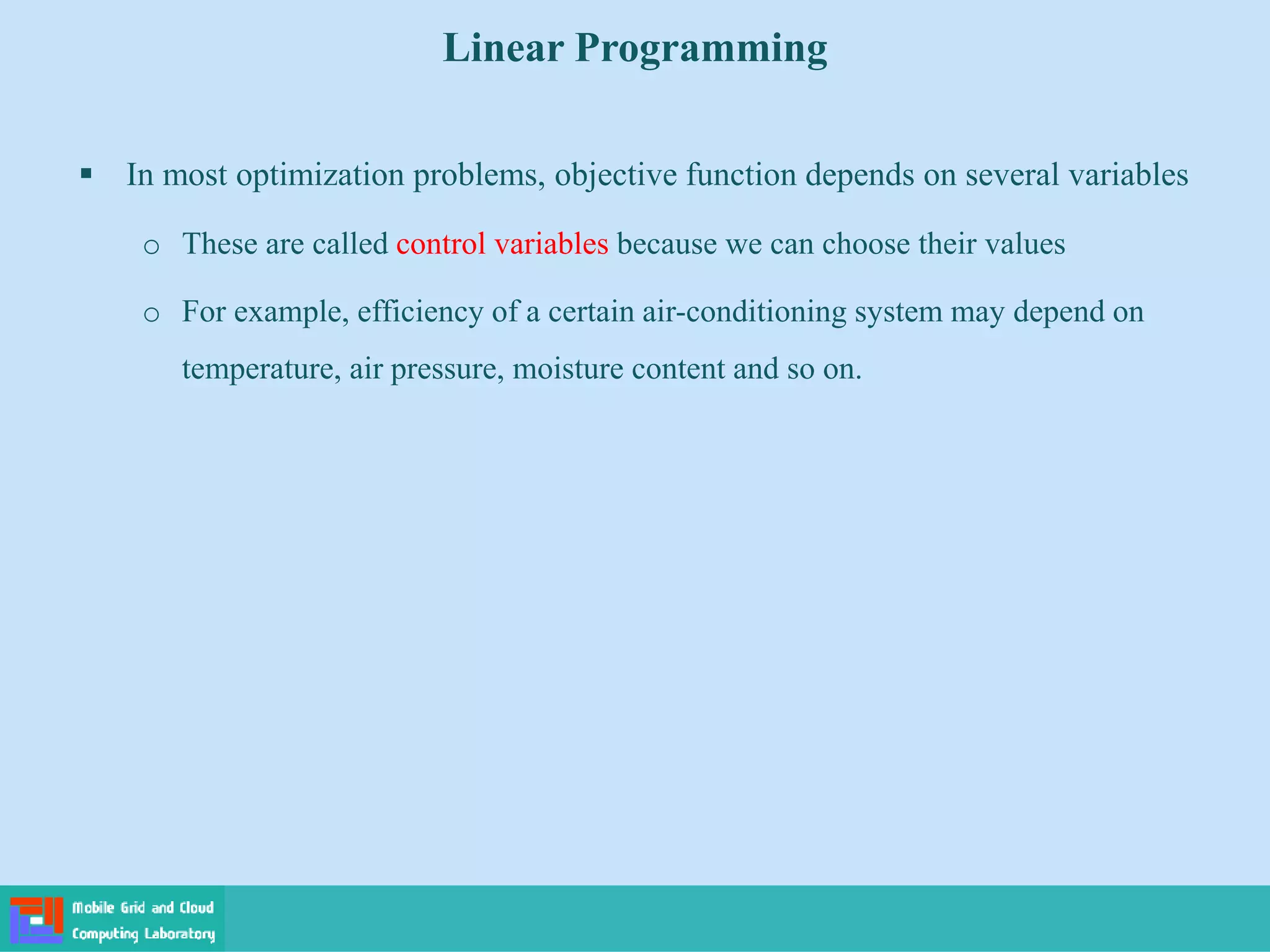

 In most optimization problems, objective function depends on several variables
o These are called control variables because we can choose their values
o For example, efficiency of a certain air-conditioning system may depend on
temperature, air pressure, moisture content and so on.
Linear Programming

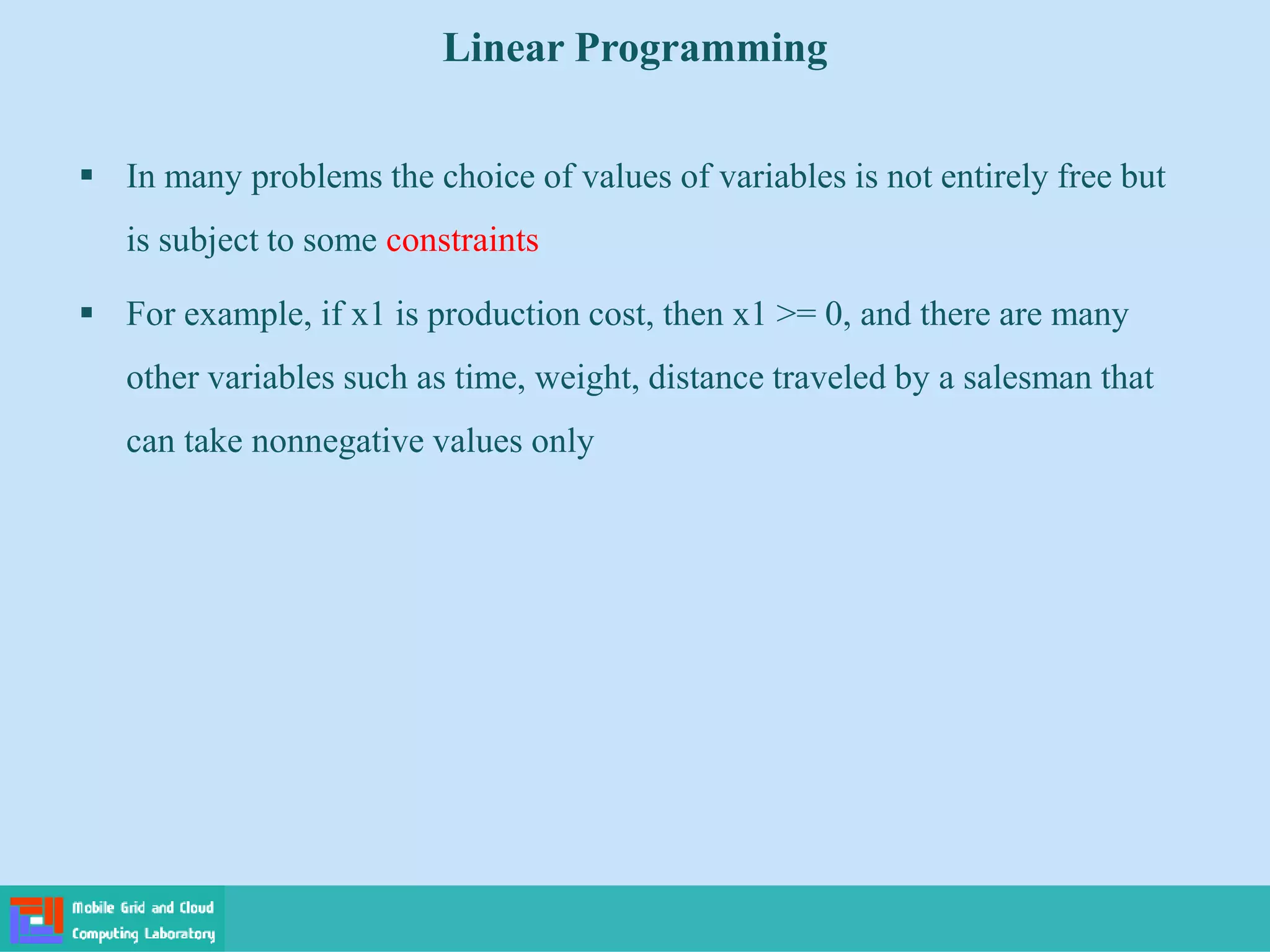

 In many problems the choice of values of variables is not entirely free but
is subject to some constraints
 For example, if x1 is production cost, then x1 >= 0, and there are many
other variables such as time, weight, distance traveled by a salesman that
can take nonnegative values only
Linear Programming

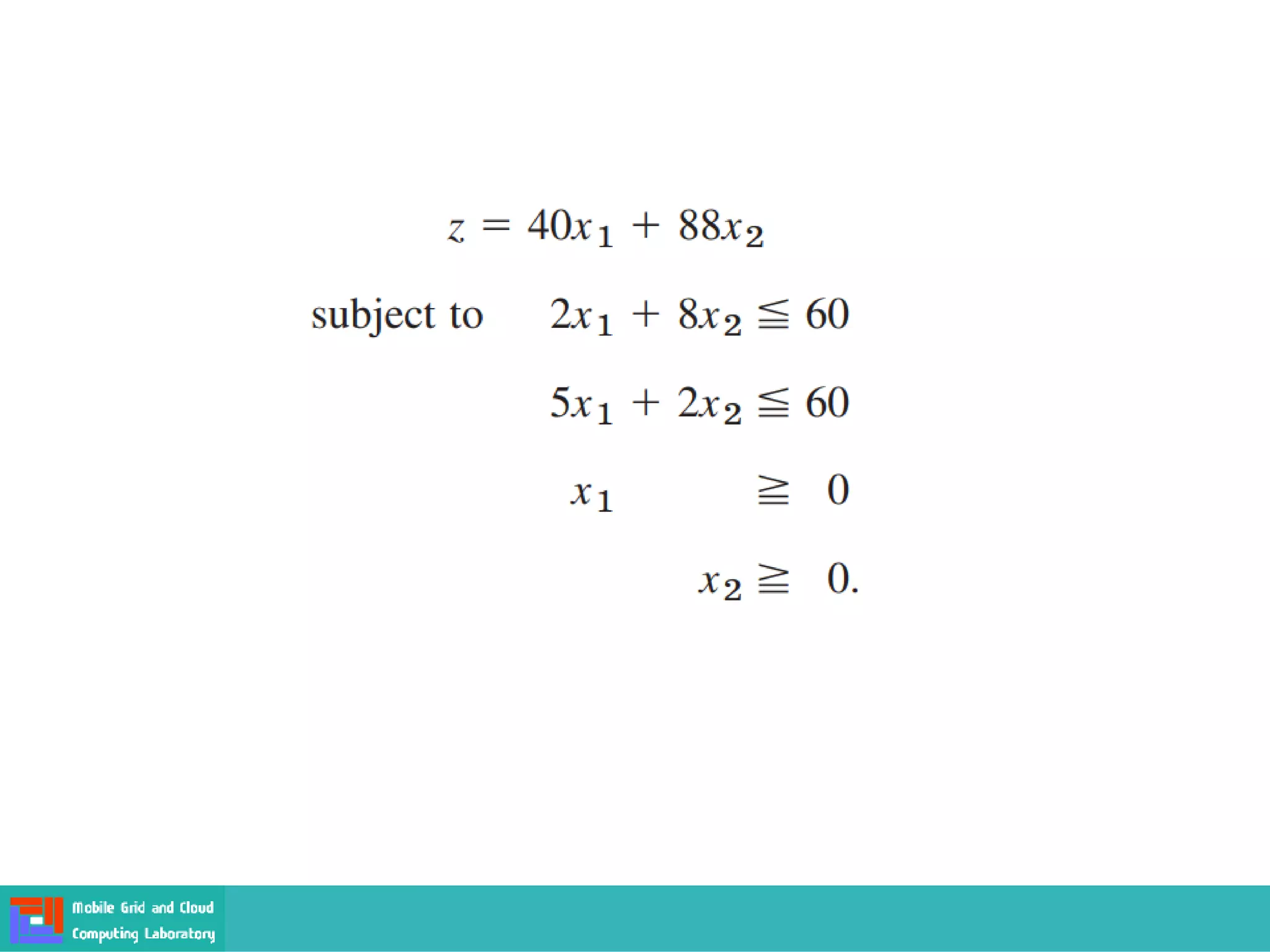

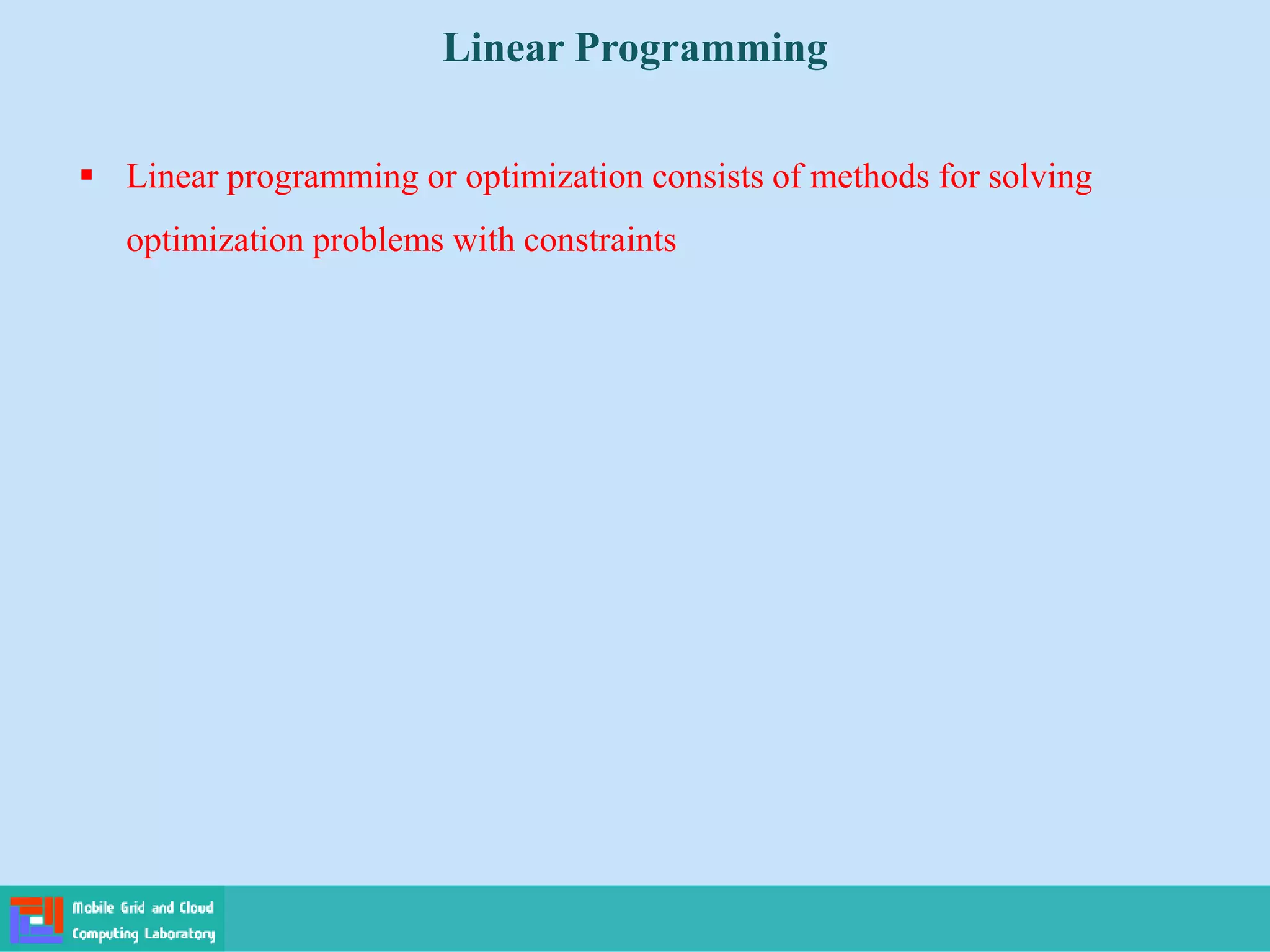

 Linear programming or optimization consists of methods for solving
optimization problems with constraints
Linear Programming

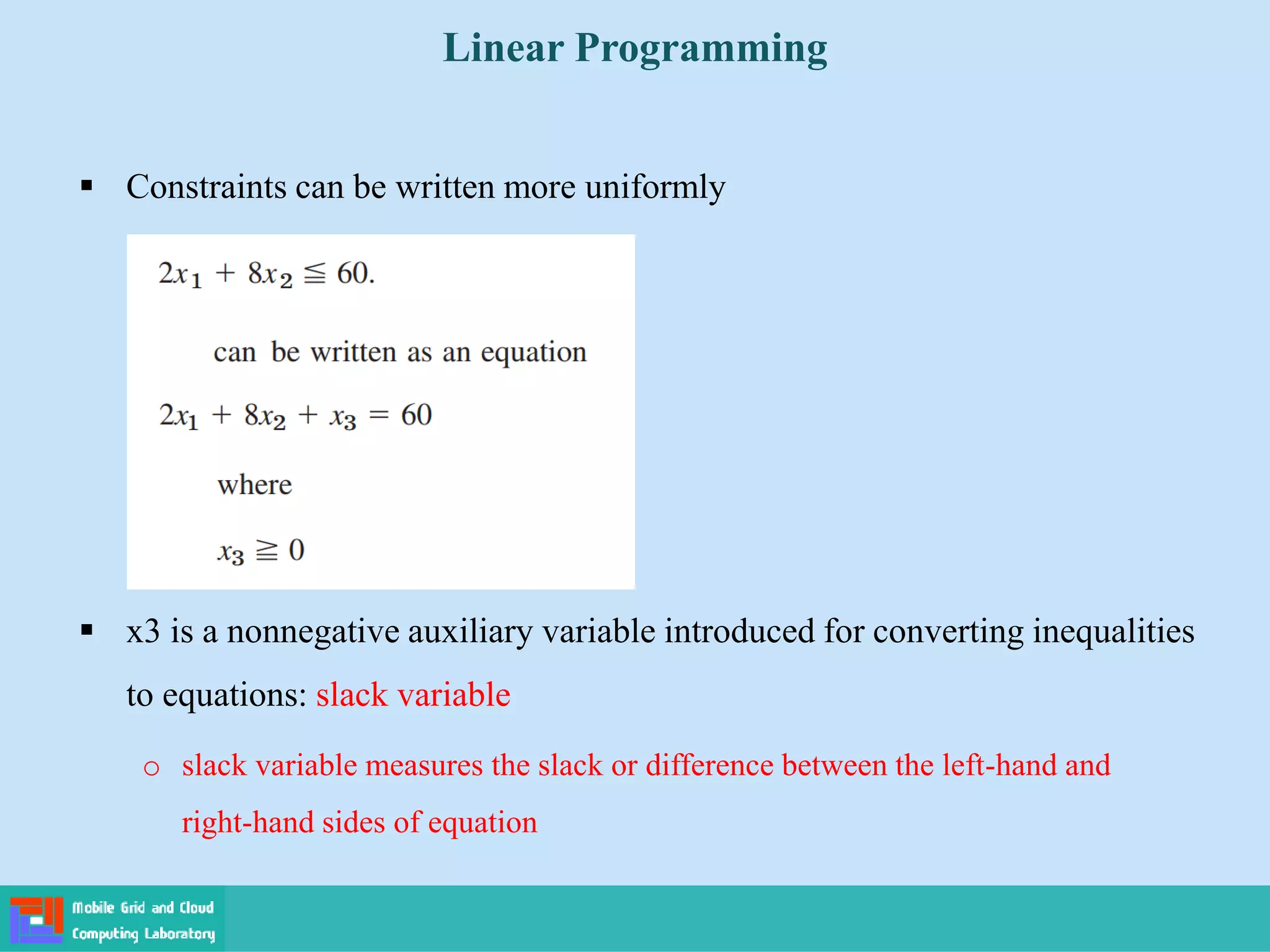

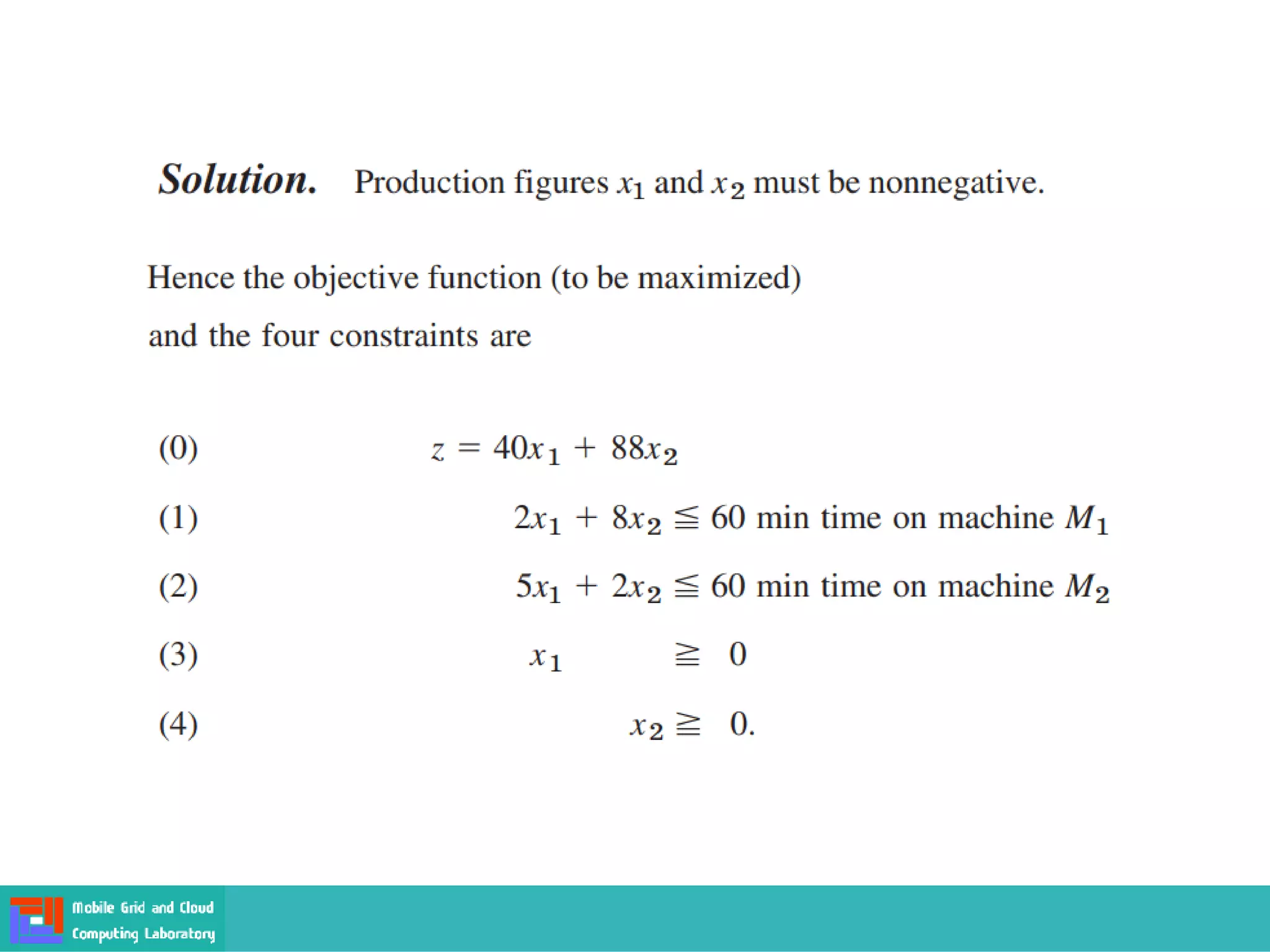

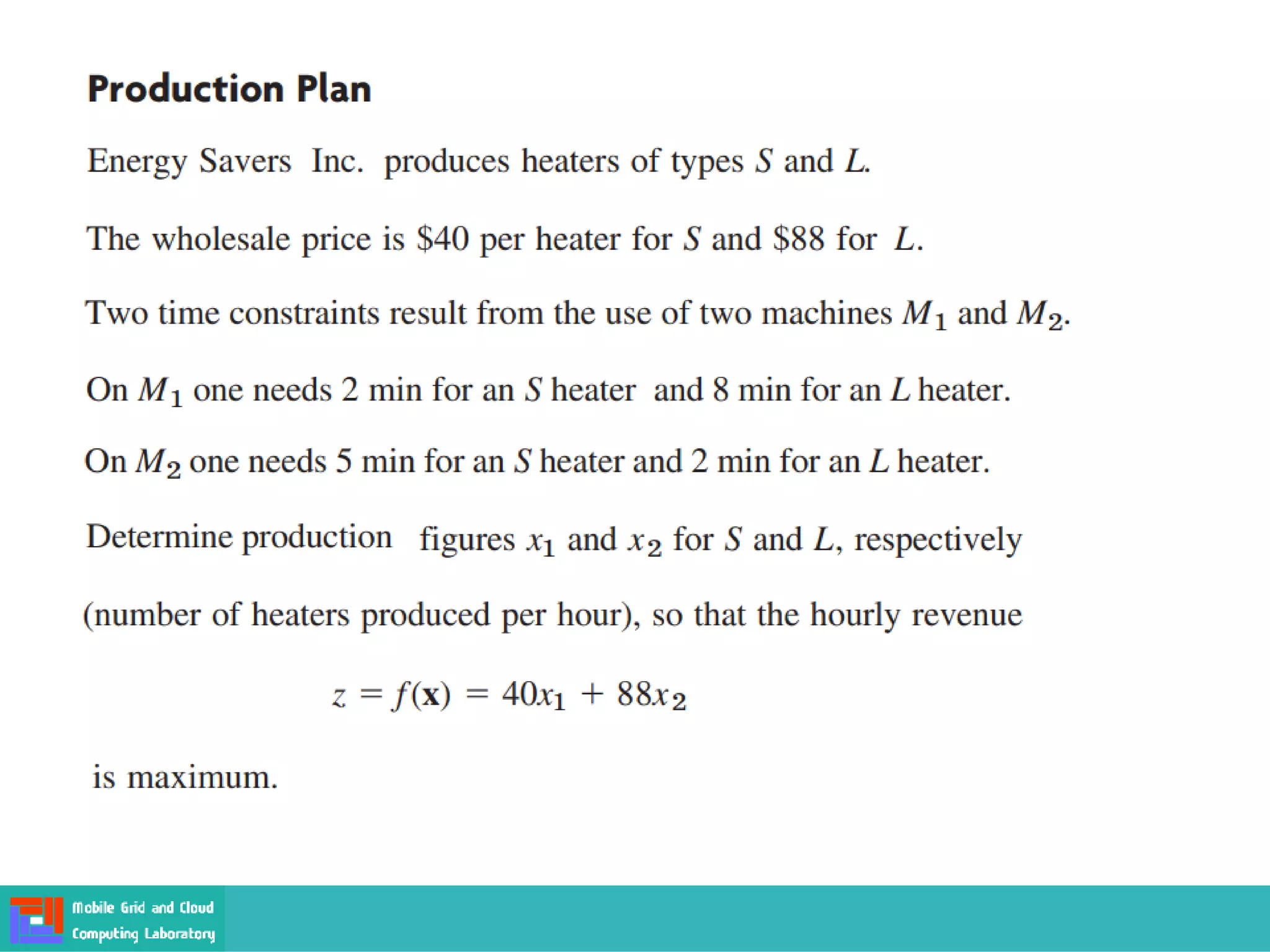

 Constraints can be written more uniformly
 x3 is a nonnegative auxiliary variable introduced for converting inequalities
to equations: slack variable
o slack variable measures the slack or difference between the left-hand and
right-hand sides of equation
Linear Programming

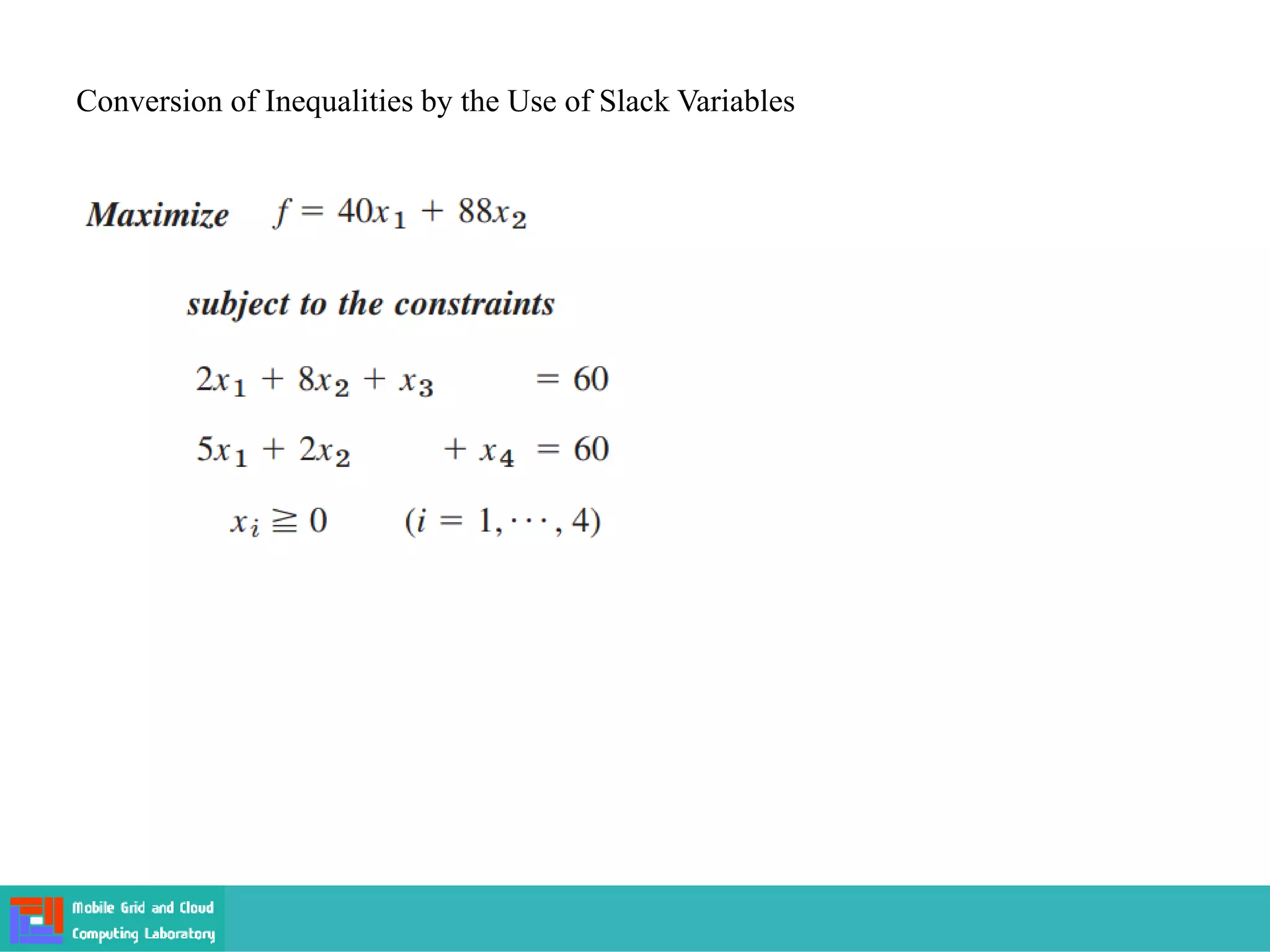

Conversion of Inequalities by the Use of Slack Variables

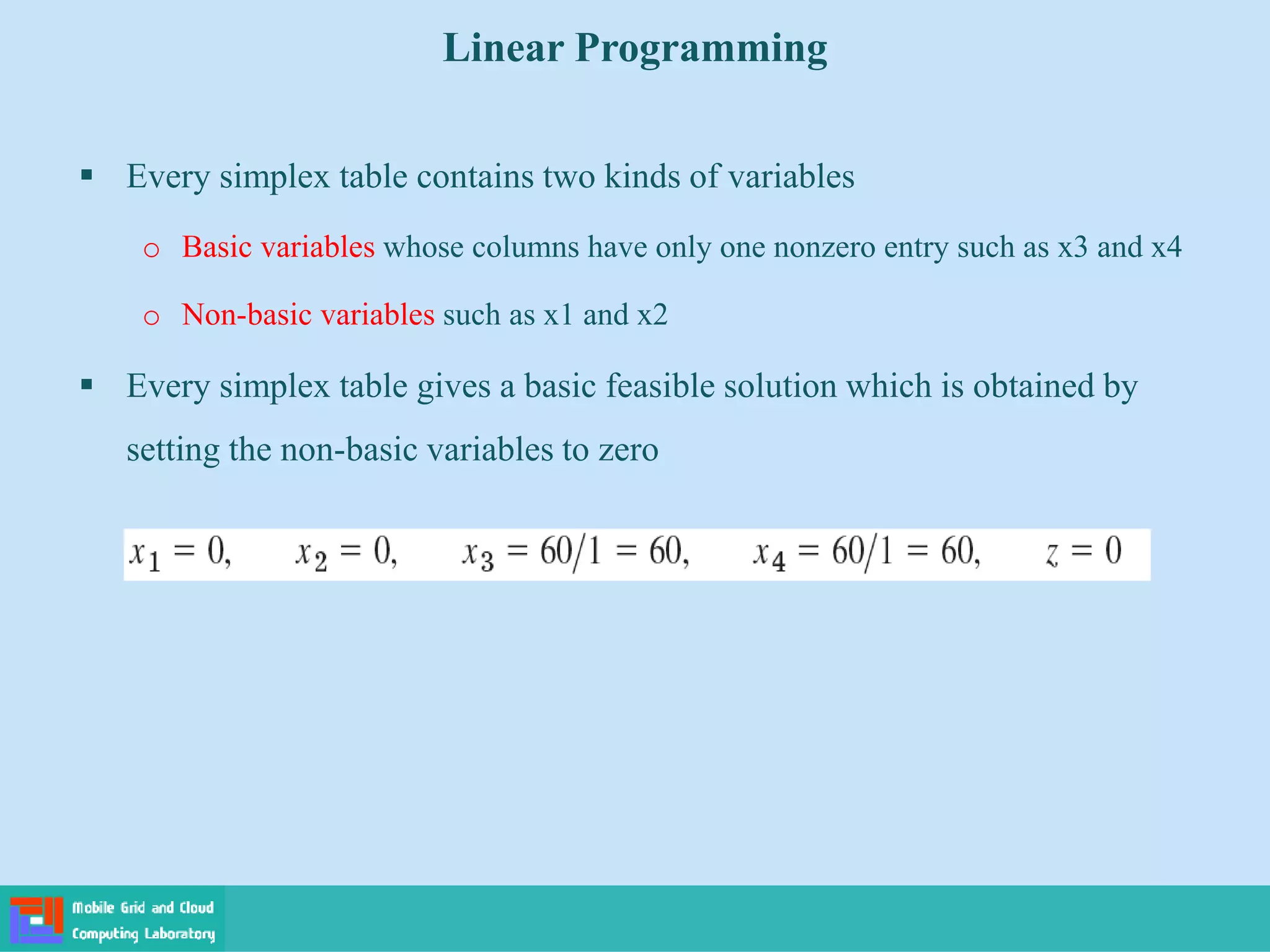

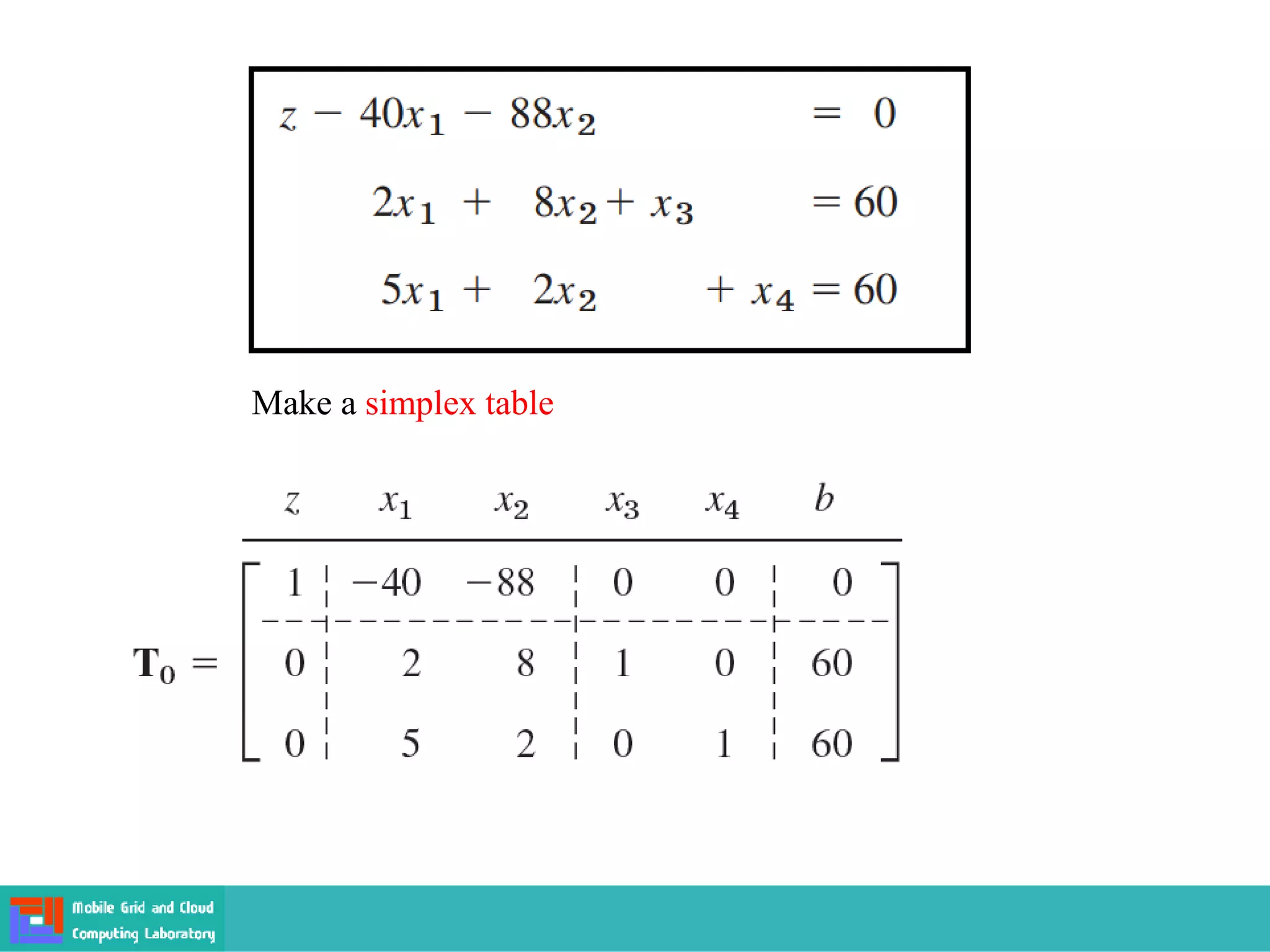

 Every simplex table contains two kinds of variables
o Basic variables whose columns have only one nonzero entry such as x3 and x4
o Non-basic variables such as x1 and x2
 Every simplex table gives a basic feasible solution which is obtained by
setting the non-basic variables to zero
Linear Programming

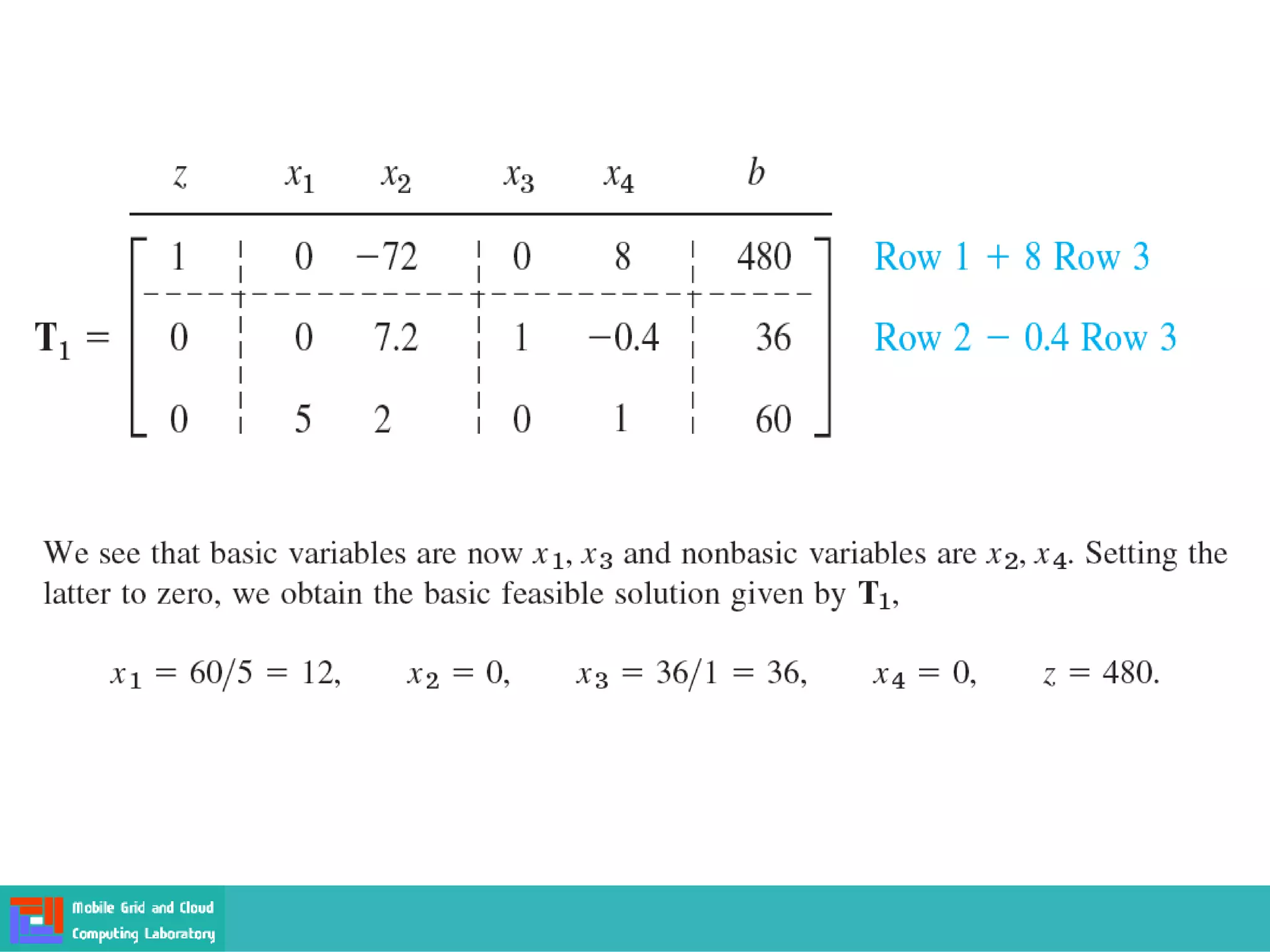

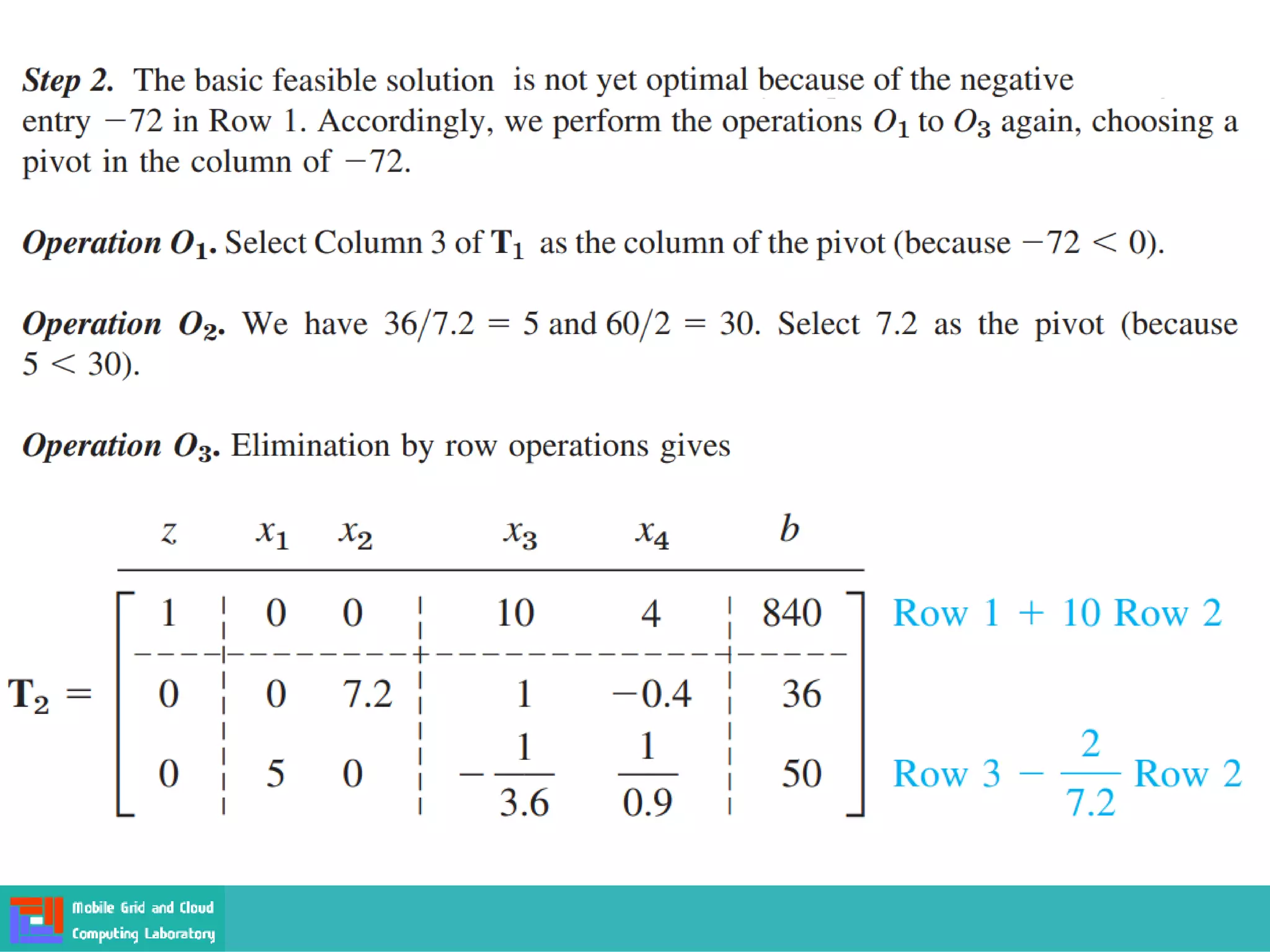

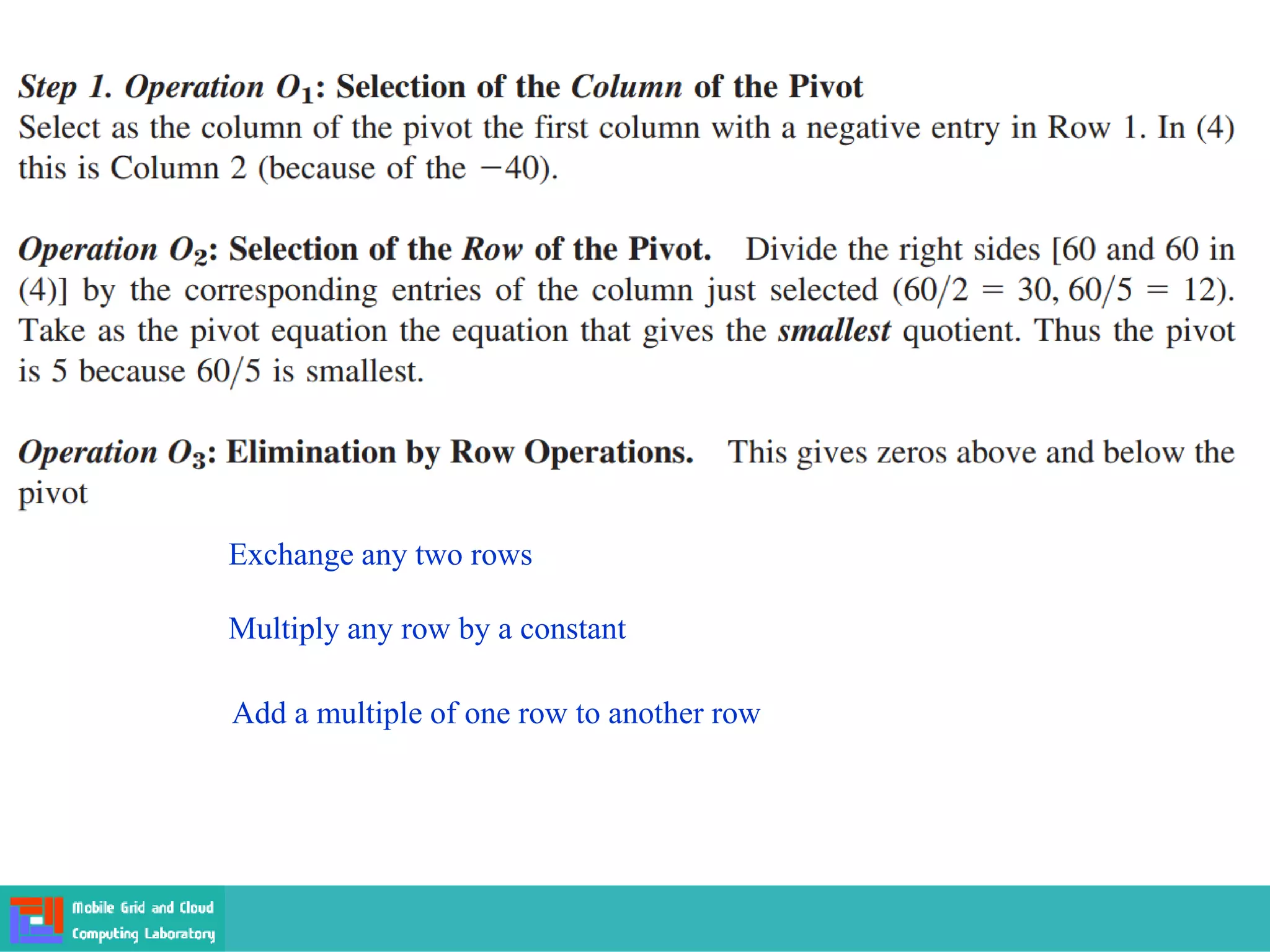

Exchange any two rows
Multiply any row by a constant
Add a multiple of one row to another row

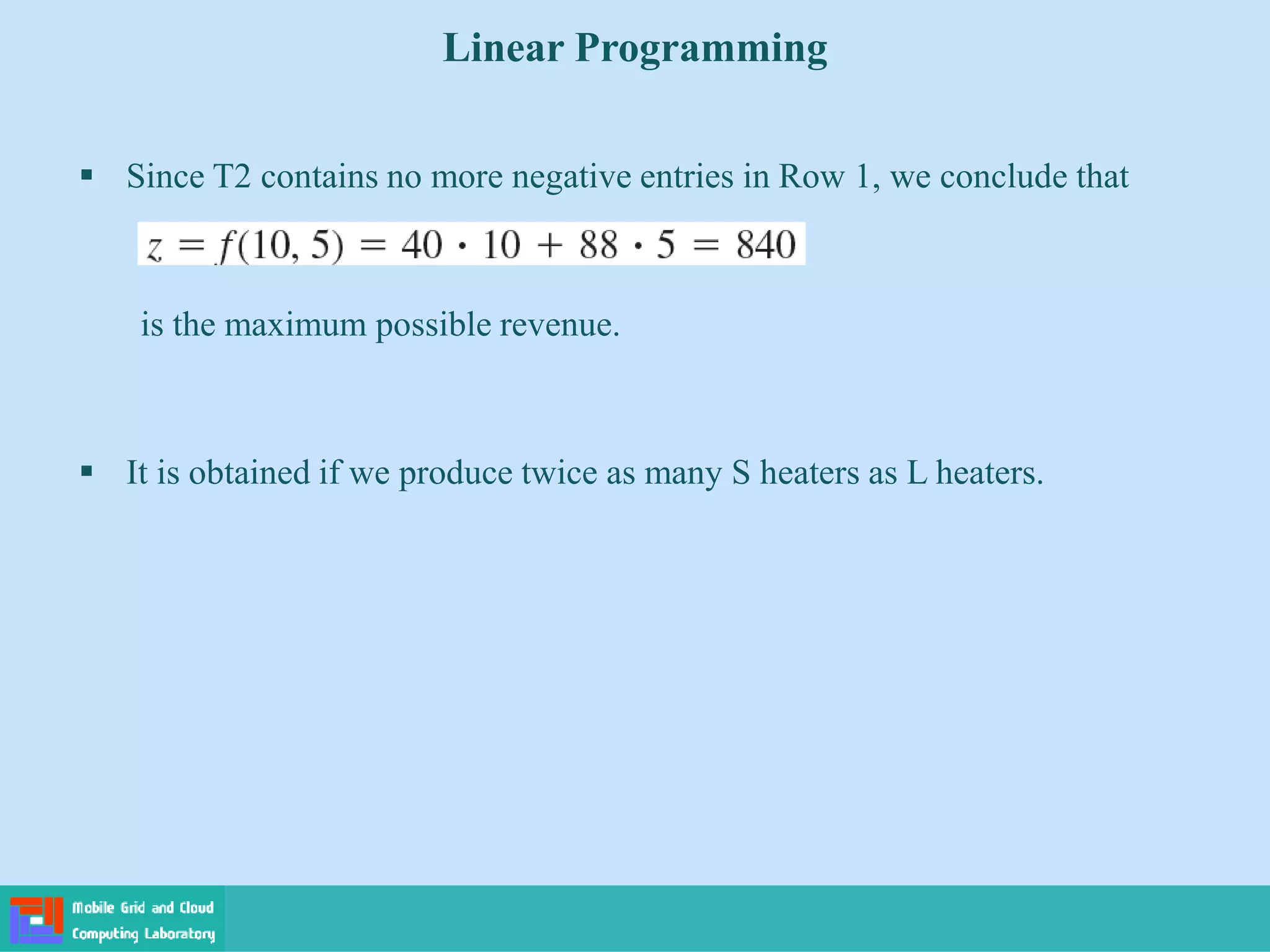

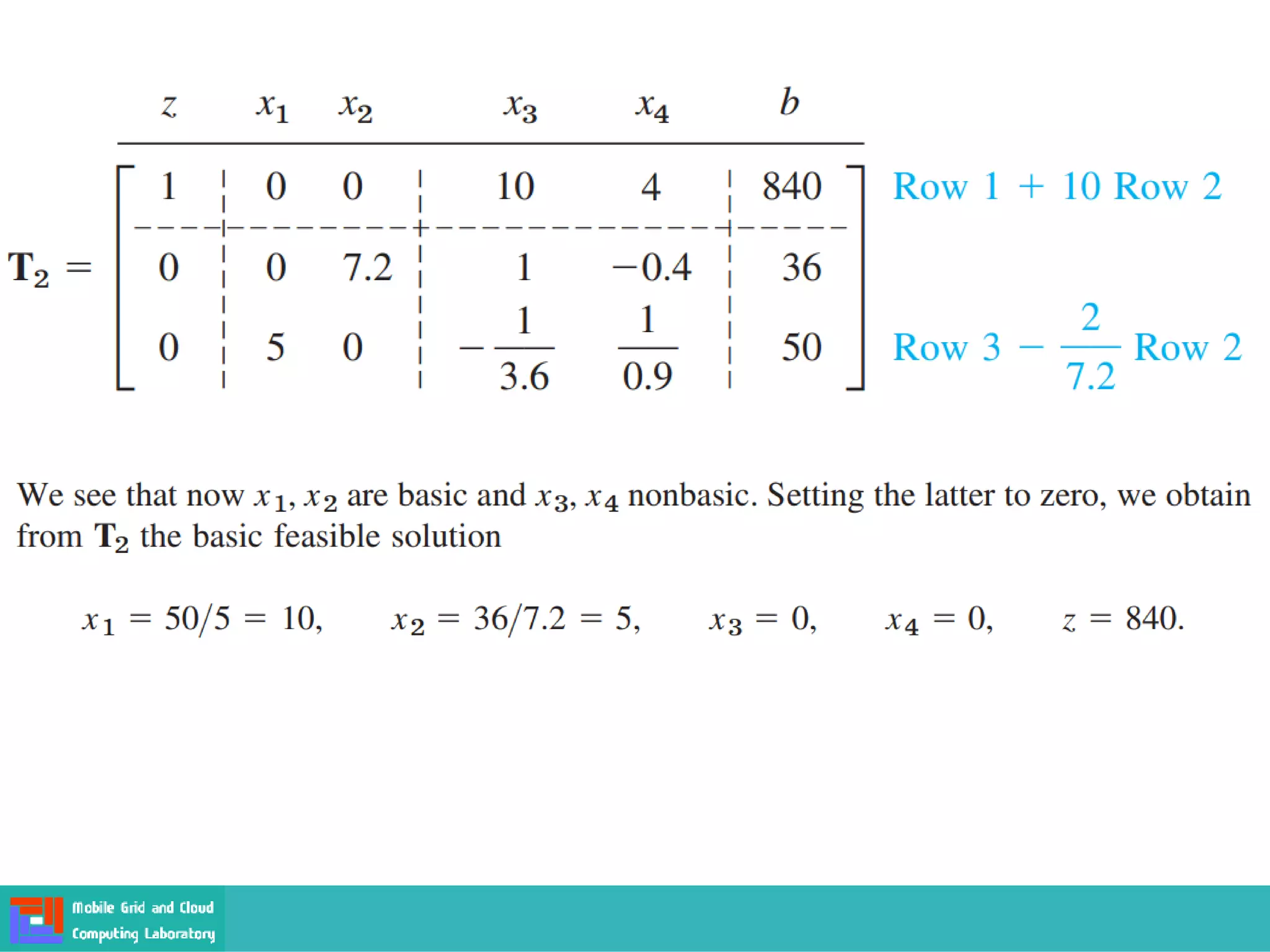

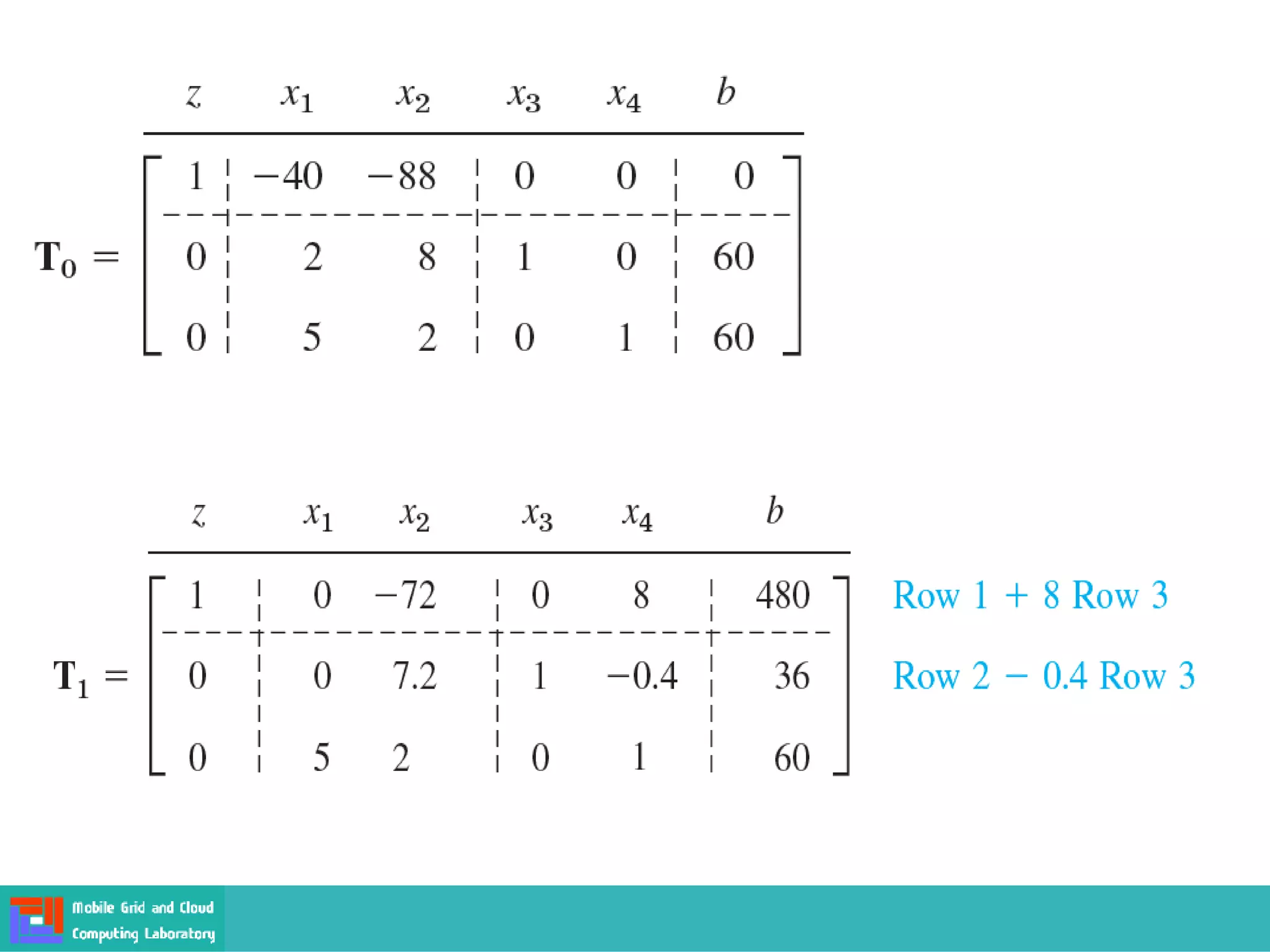

 Since T2 contains no more negative entries in Row 1, we conclude that
is the maximum possible revenue.
 It is obtained if we produce twice as many S heaters as L heaters.
Linear Programming

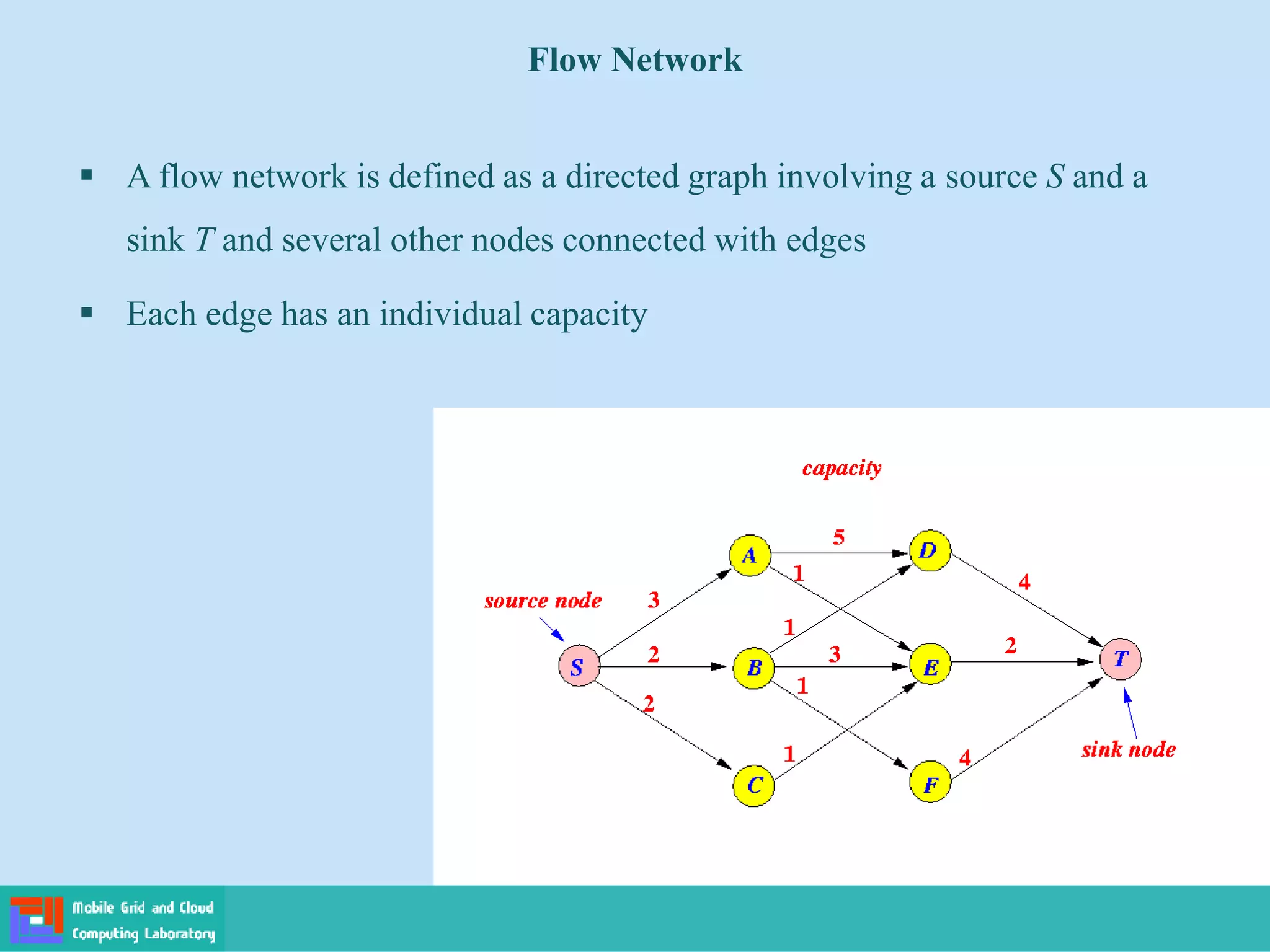

▪ A flow network is defined as a directed graph involving a source S and a
sink T and several other nodes connected with edges
▪ Each edge has an individual capacity
Flow Network

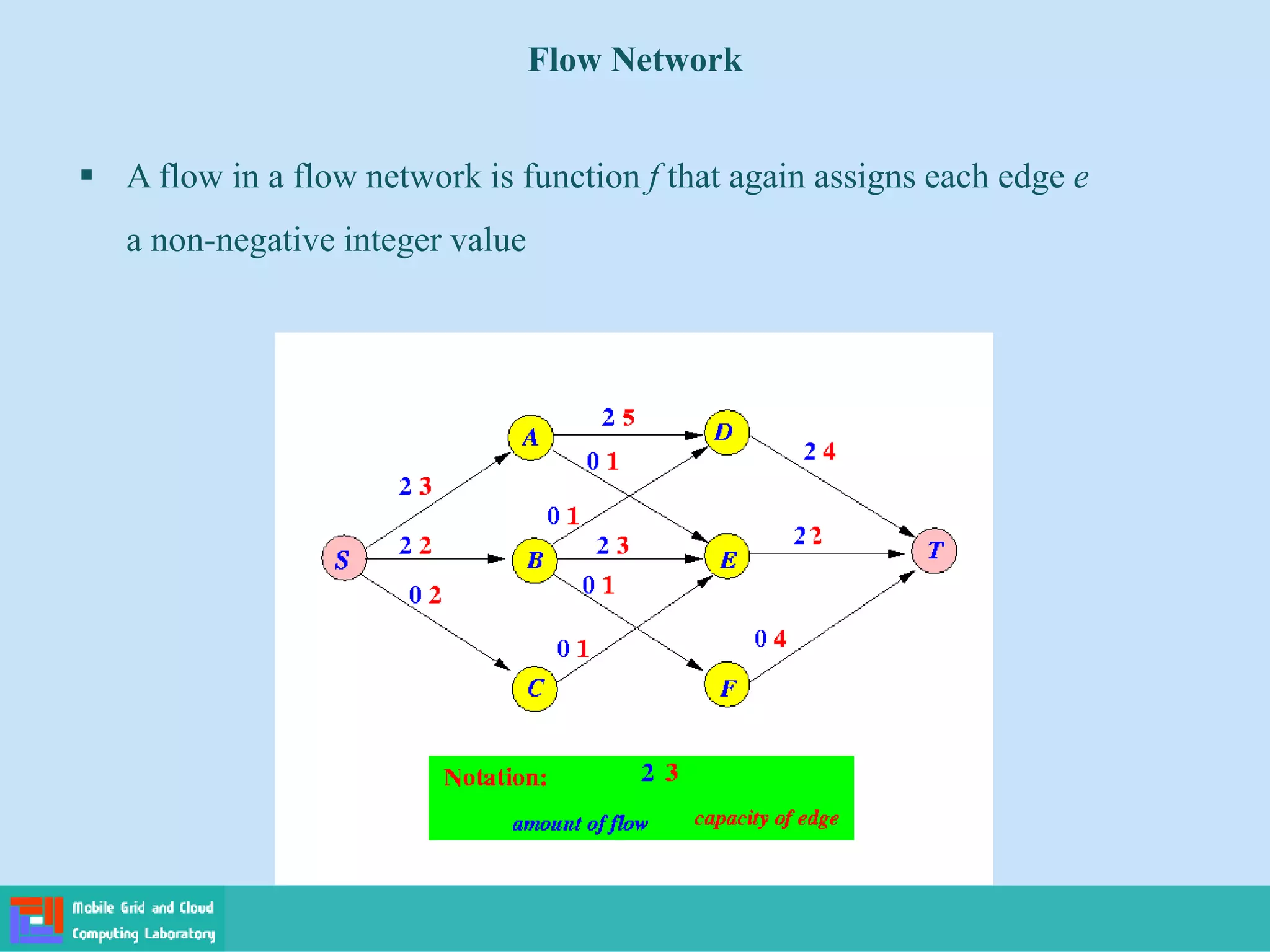

▪ A flow in a flow network is function f that again assigns each edge e
a non-negative integer value
Flow Network

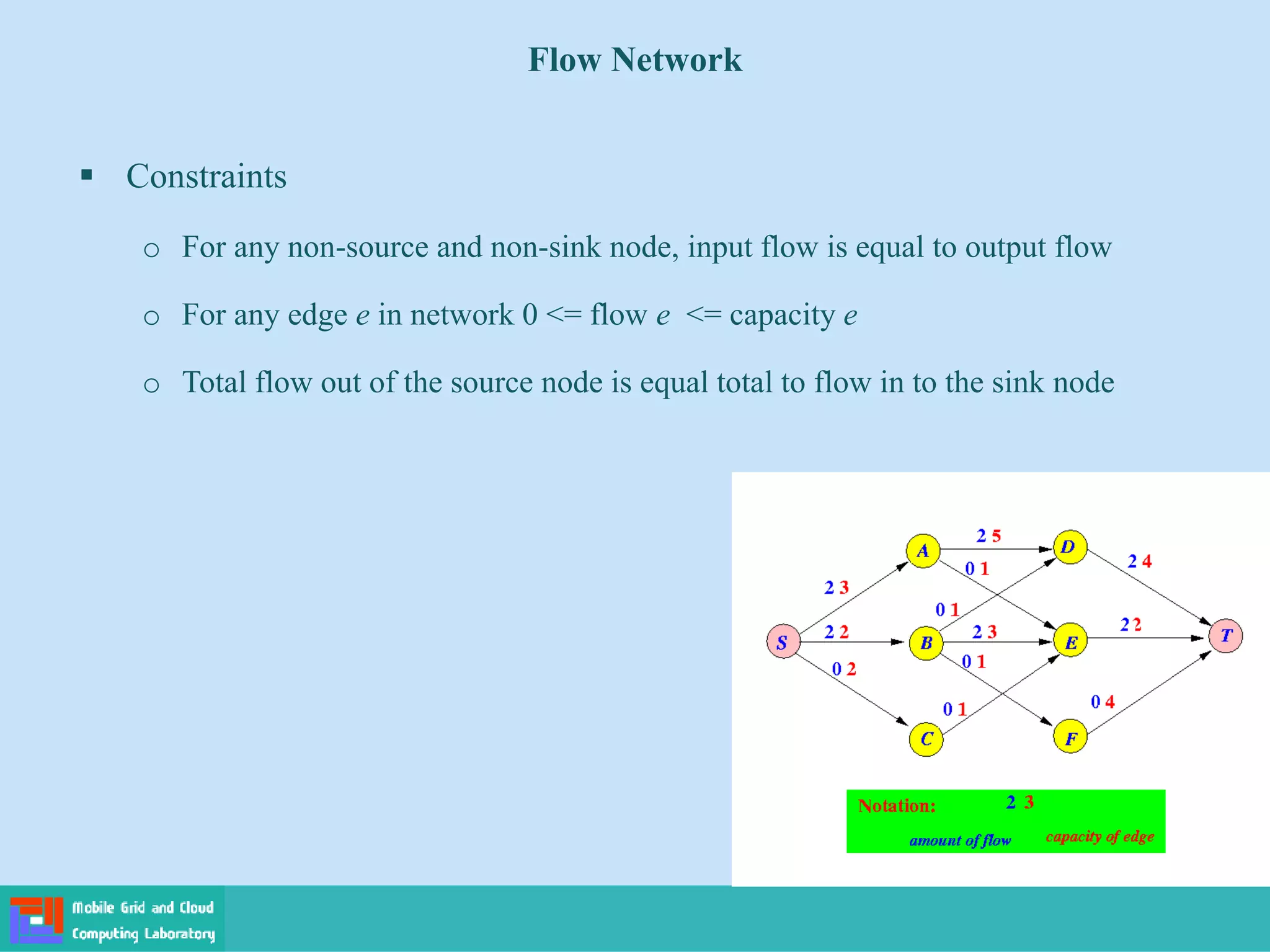

▪ Constraints
o For any non-source and non-sink node, input flow is equal to output flow
o For any edge e in network 0 <= flow e <= capacity e
o Total flow out of the source node is equal total to flow in to the sink node
Flow Network

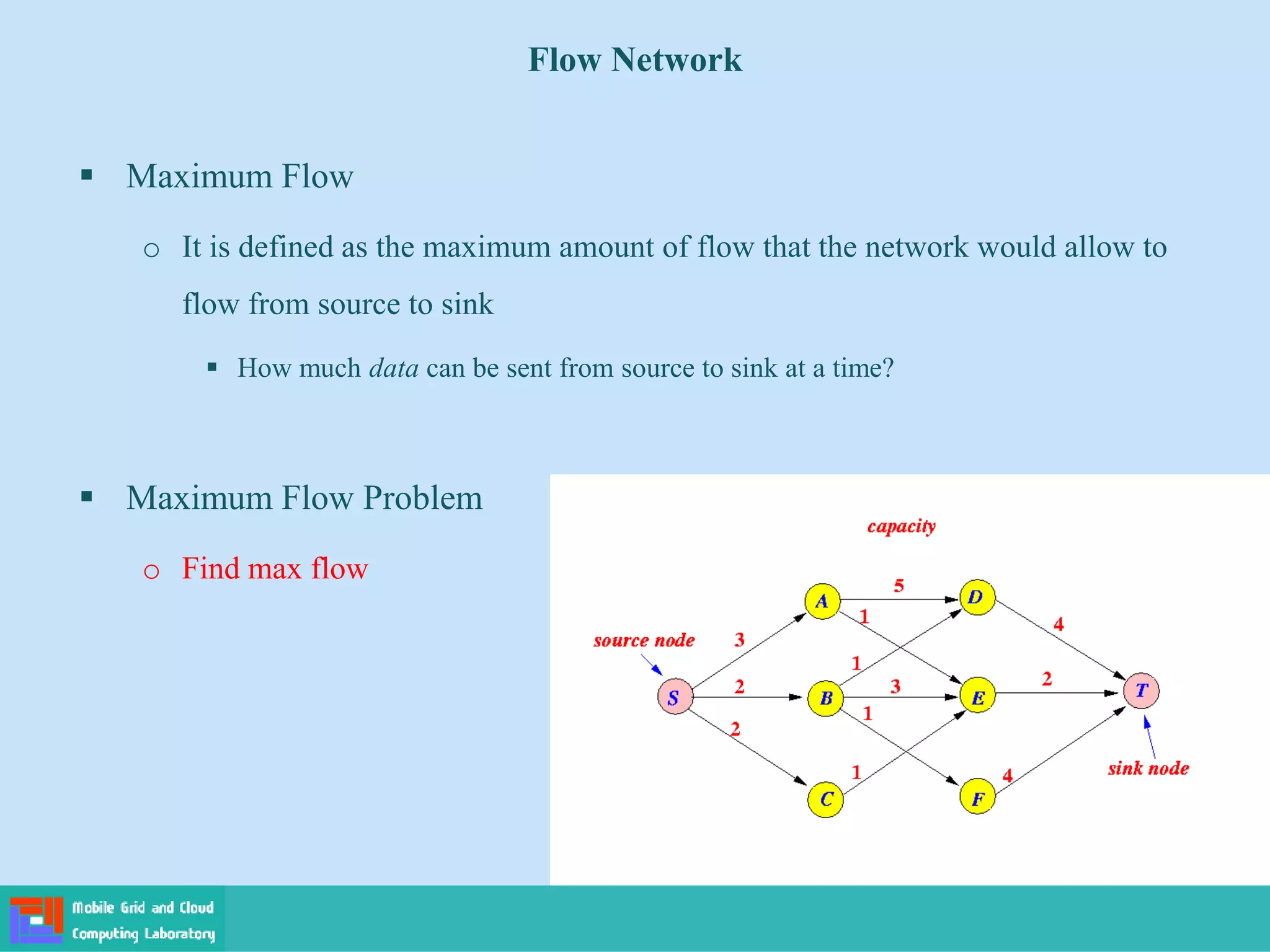

▪ Maximum Flow
o It is defined as the maximum amount of flow that the network would allow to
flow from source to sink
▪ How much data can be sent from source to sink at a time?
▪ Maximum Flow Problem
o Find max flow
Flow Network

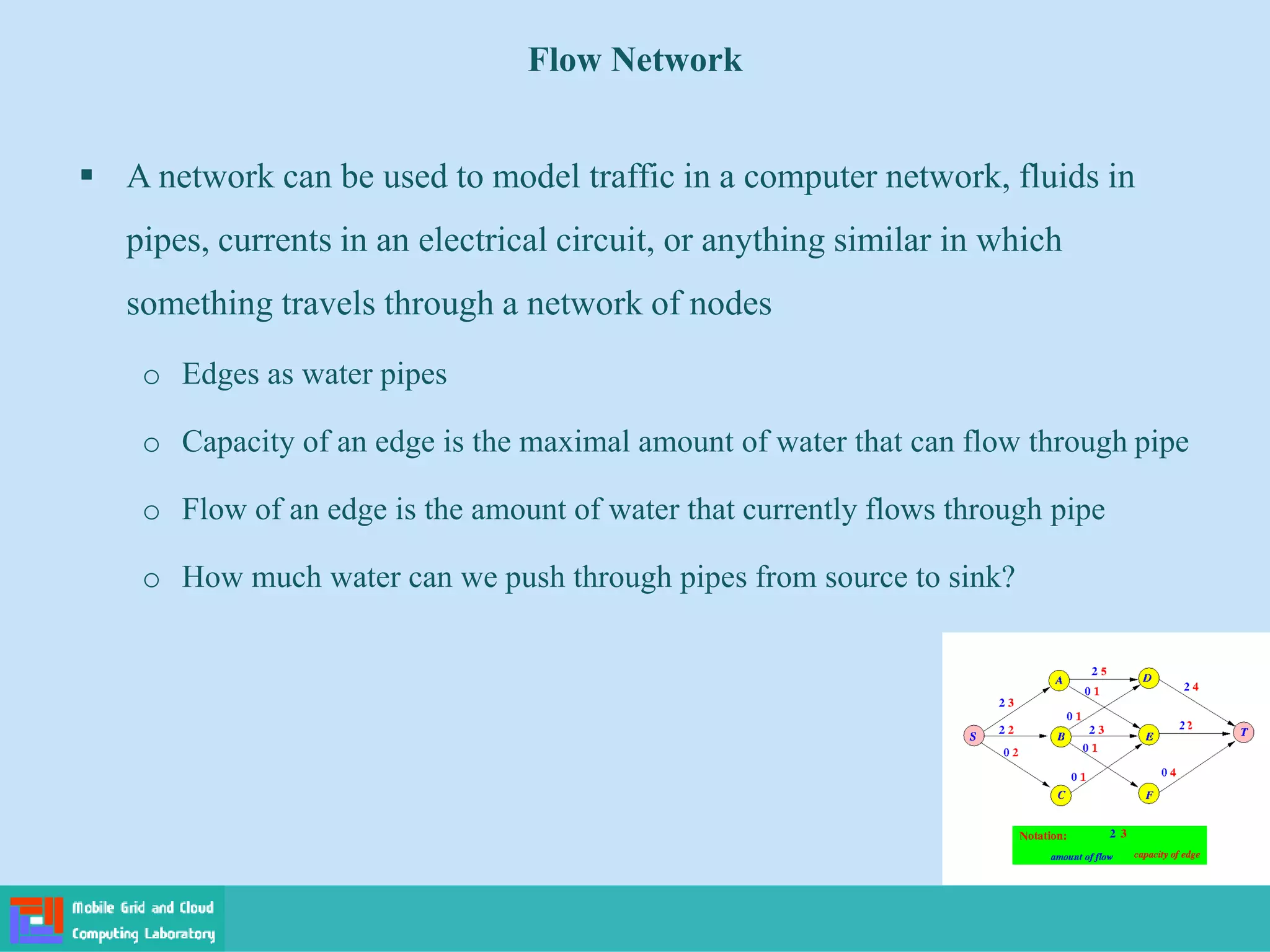

▪ A network can be used to model traffic in a computer network, fluids in
pipes, currents in an electrical circuit, or anything similar in which
something travels through a network of nodes
o Edges as water pipes
o Capacity of an edge is the maximal amount of water that can flow through pipe
o Flow of an edge is the amount of water that currently flows through pipe
o How much water can we push through pipes from source to sink?
Flow Network

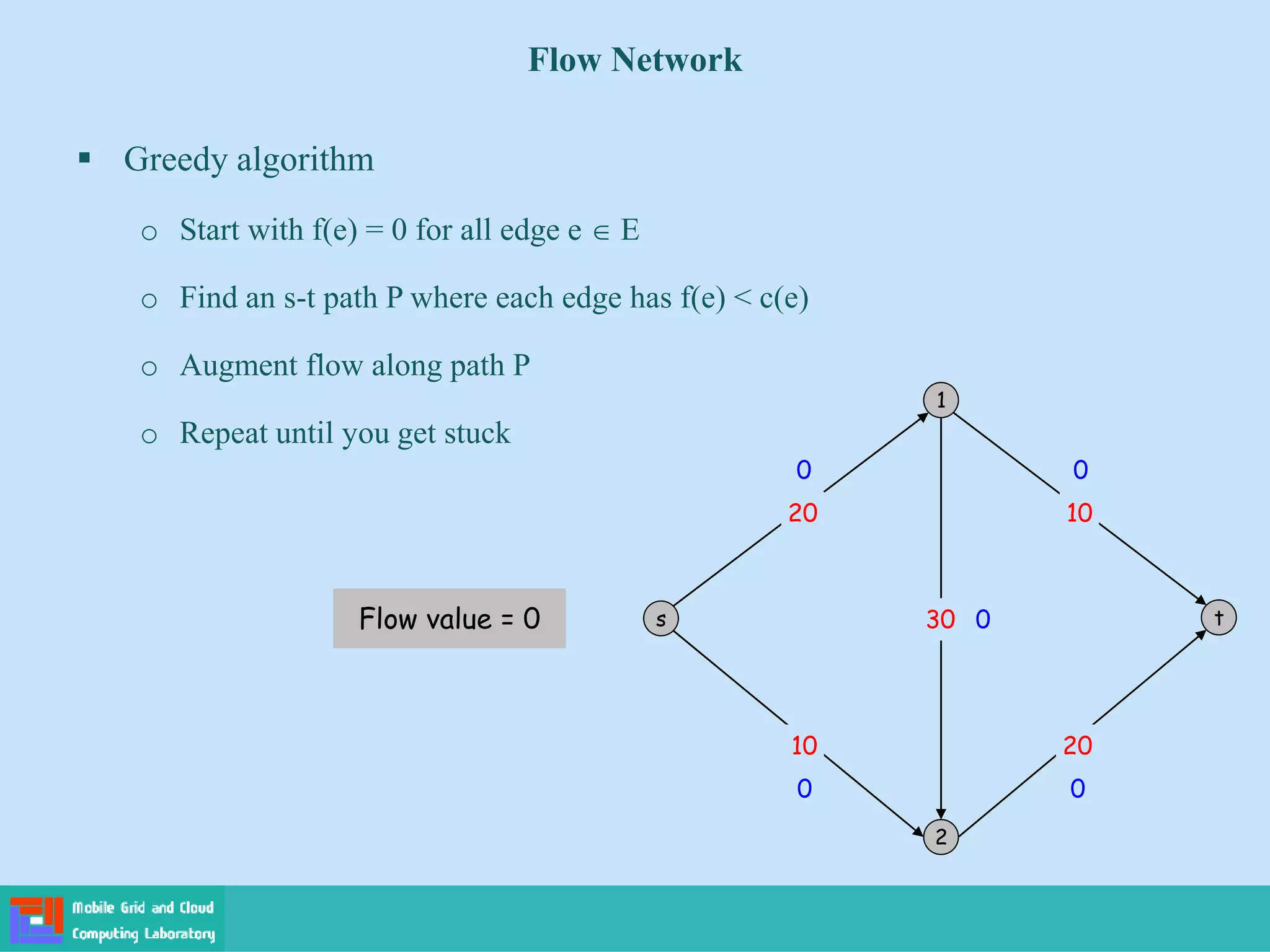

▪ Greedy algorithm
o Start with f(e) = 0 for all edge e  E
o Find an s-t path P where each edge has f(e) < c(e)
o Augment flow along path P
o Repeat until you get stuck
Flow Network

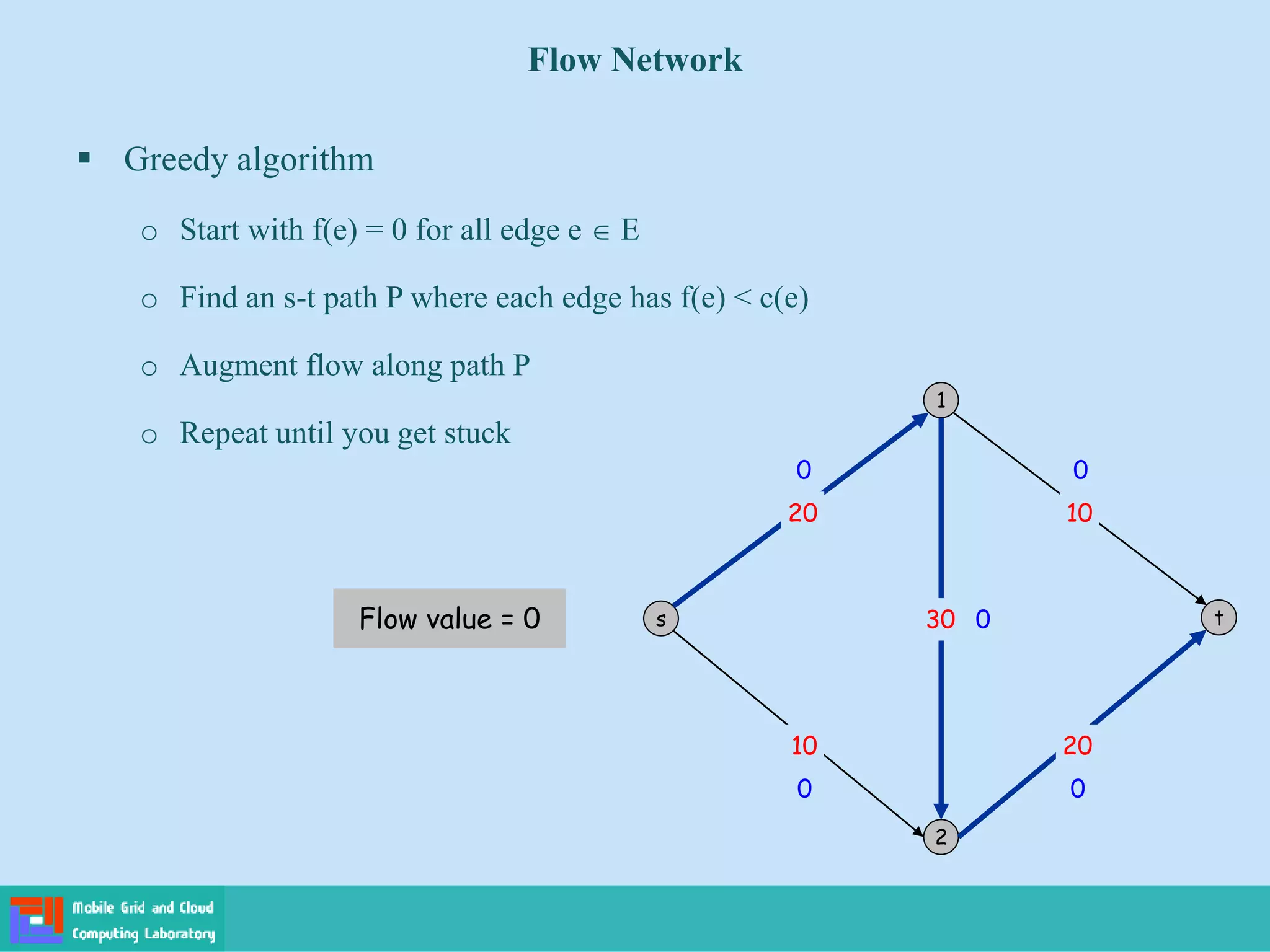

s
1
2
t
10
10
0 0
0 0
0
20
20
30
Flow value = 0

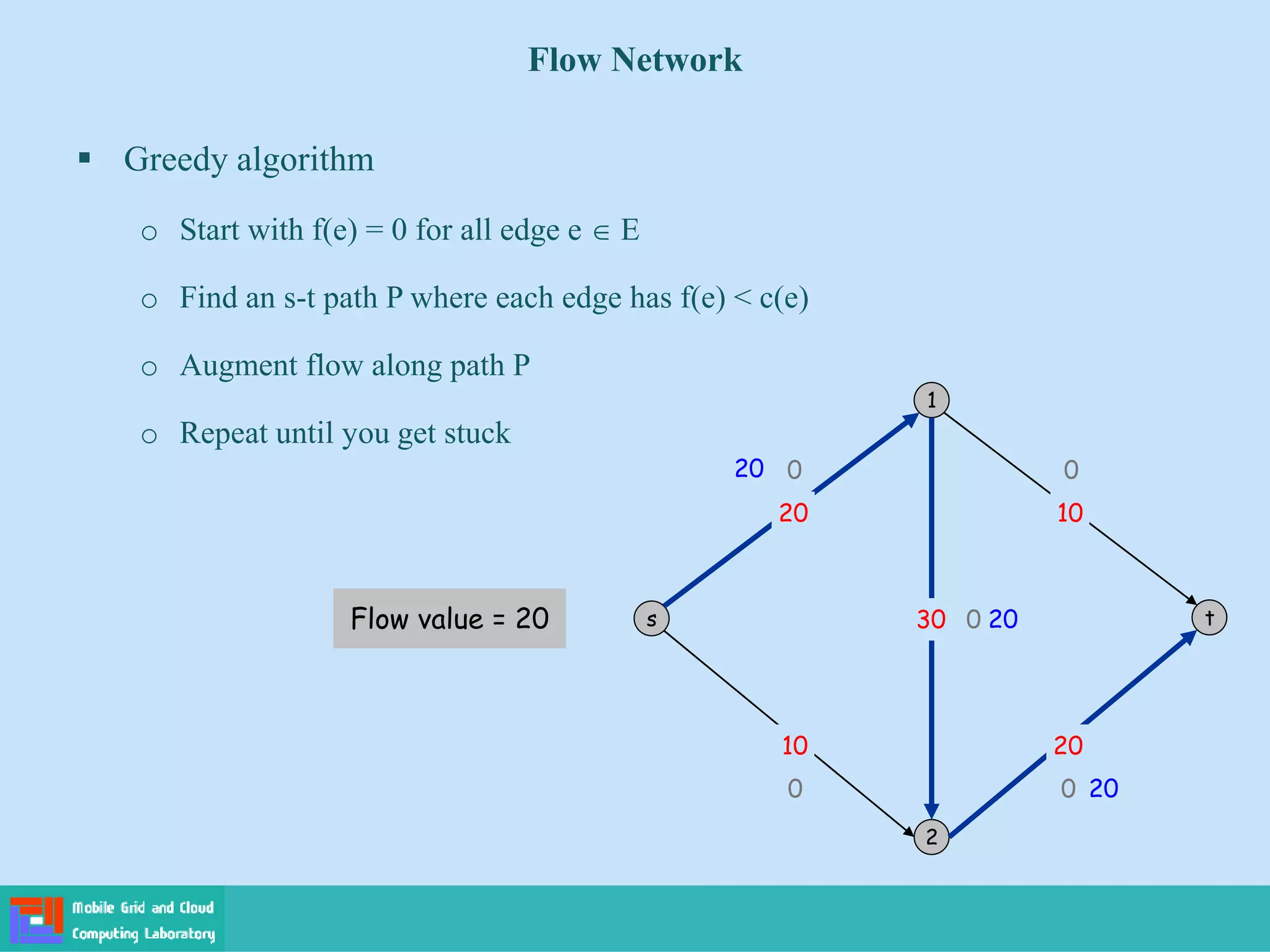

▪ Greedy algorithm
o Start with f(e) = 0 for all edge e  E
o Find an s-t path P where each edge has f(e) < c(e)
o Augment flow along path P
o Repeat until you get stuck
Flow Network
Flow value = 20 s
1
2
t
20 10
10 20
30
0 0
0 0
0
20
20
20

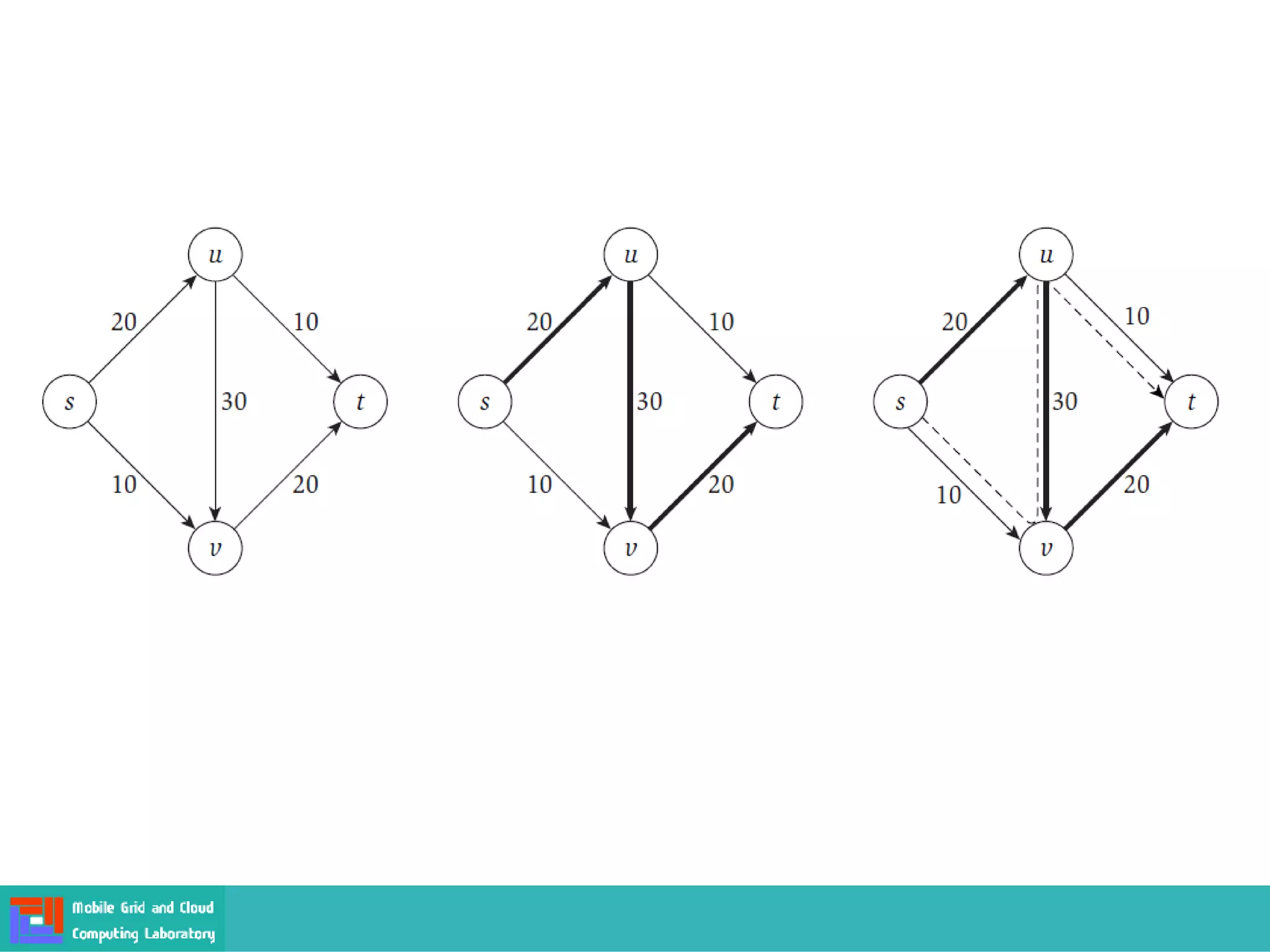

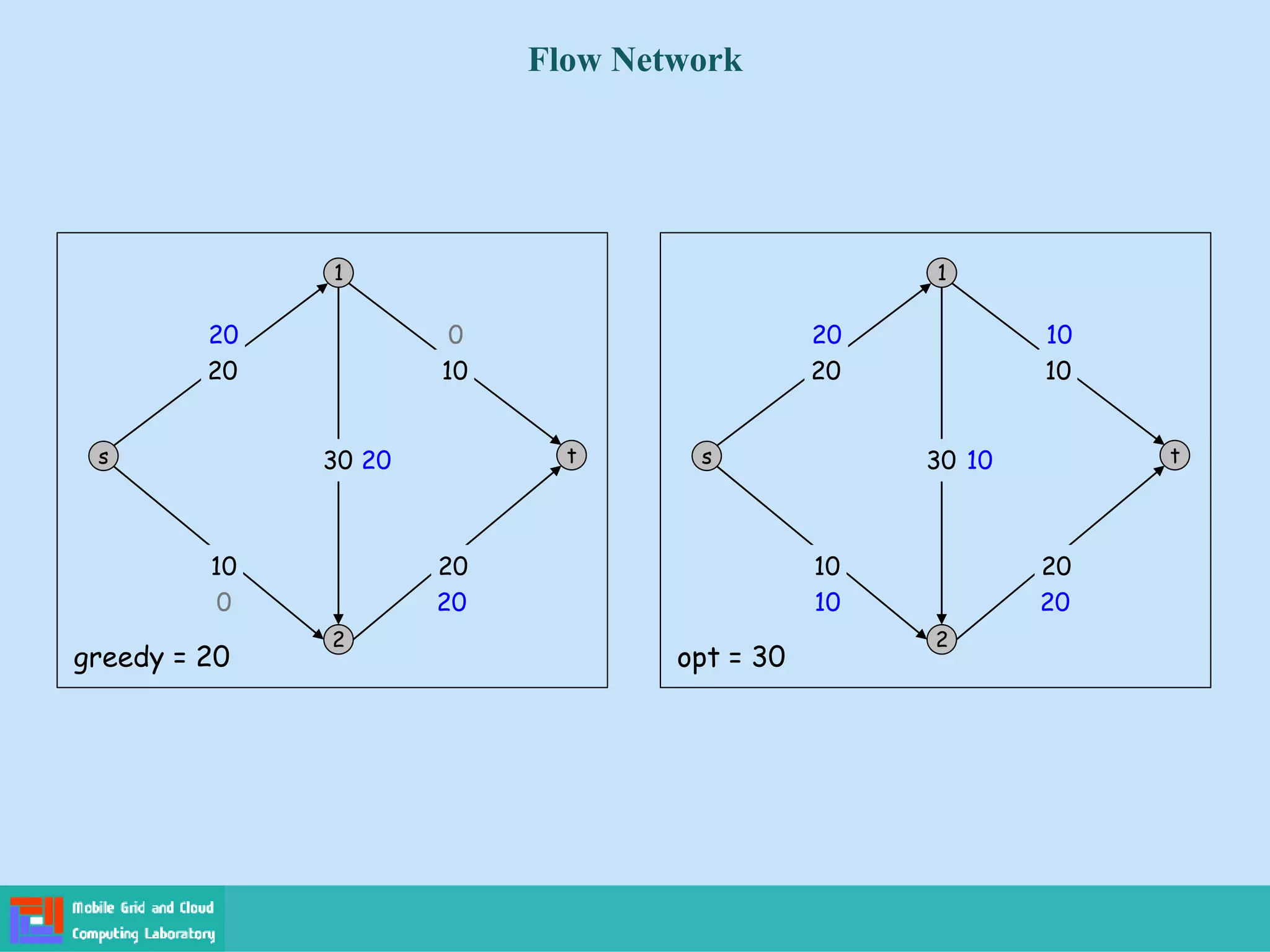

Flow Network
greedy = 20
s
1
2
t
20 10
10 20
30
20 0
0
20
20
opt = 30
s
1
2
t
20 10
10 20
30
20 10
10
10
20

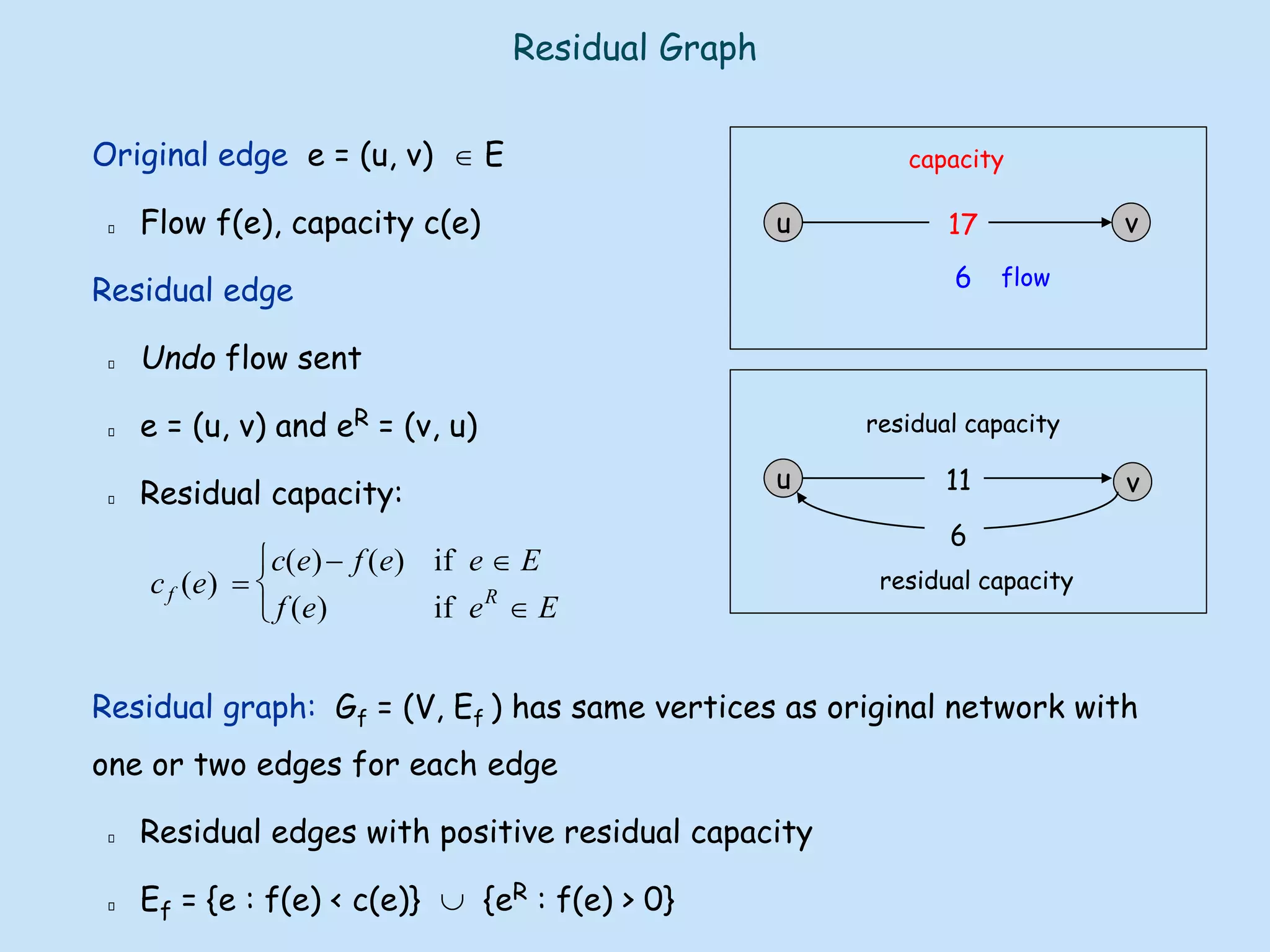

Residual Graph
Original edge e = (u, v)  E
Flow f(e), capacity c(e)
Residual edge
Undo flow sent
e = (u, v) and eR = (v, u)
Residual capacity:
Residual graph: Gf = (V, Ef ) has same vertices as original network with
one or two edges for each edge
Residual edges with positive residual capacity
Ef = {e : f(e) < c(e)}  {eR : f(e) > 0}
u v
17
6
capacity
u v
11
residual capacity
6
residual capacity
flow

cf (e) =
c(e)− f (e) if e  E
f (e) if eR
 E




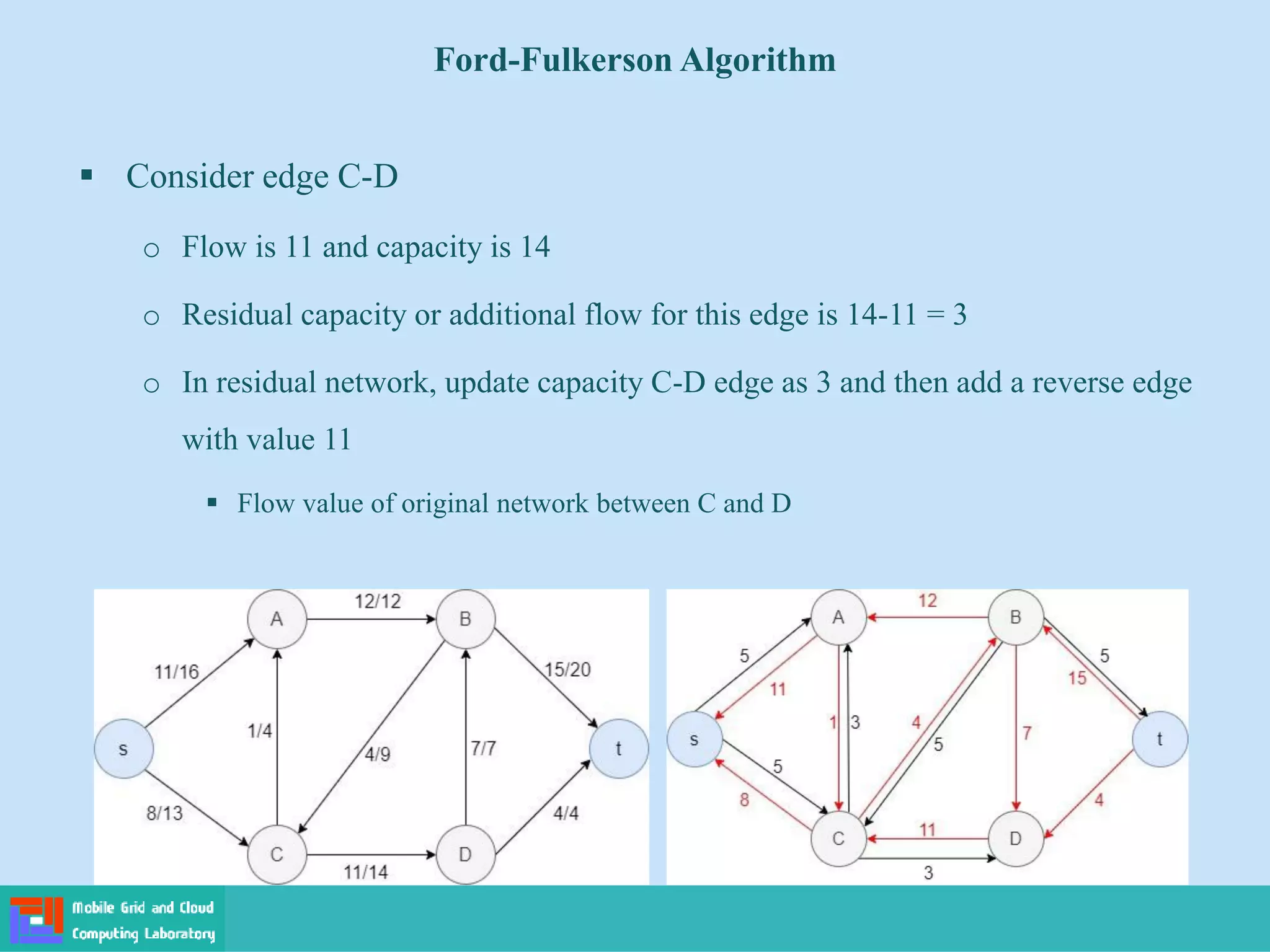

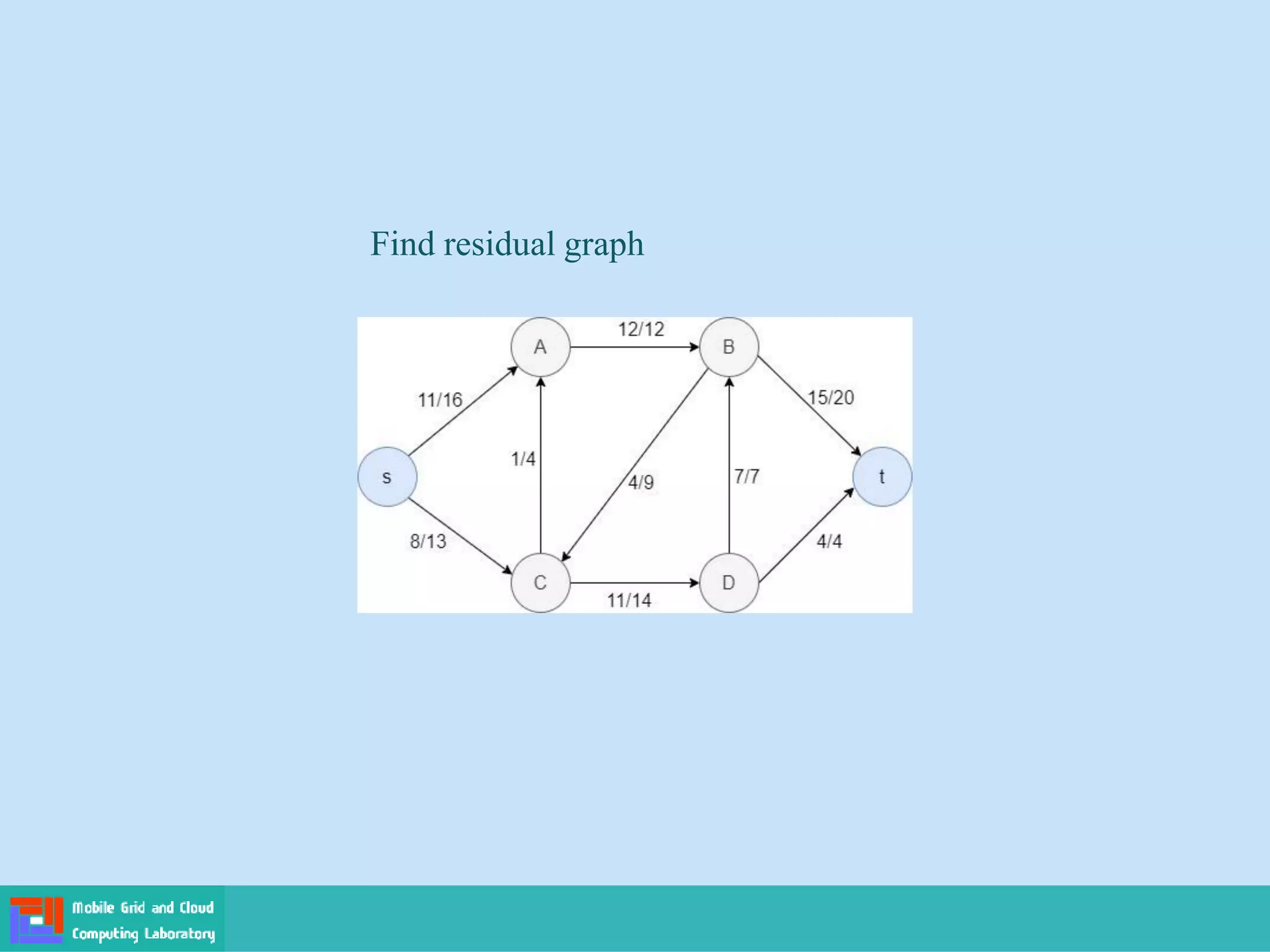

▪ Consider edge C-D
o Flow is 11 and capacity is 14
o Residual capacity or additional flow for this edge is 14-11 = 3
o In residual network, update capacity C-D edge as 3 and then add a reverse edge
with value 11
▪ Flow value of original network between C and D
Ford-Fulkerson Algorithm

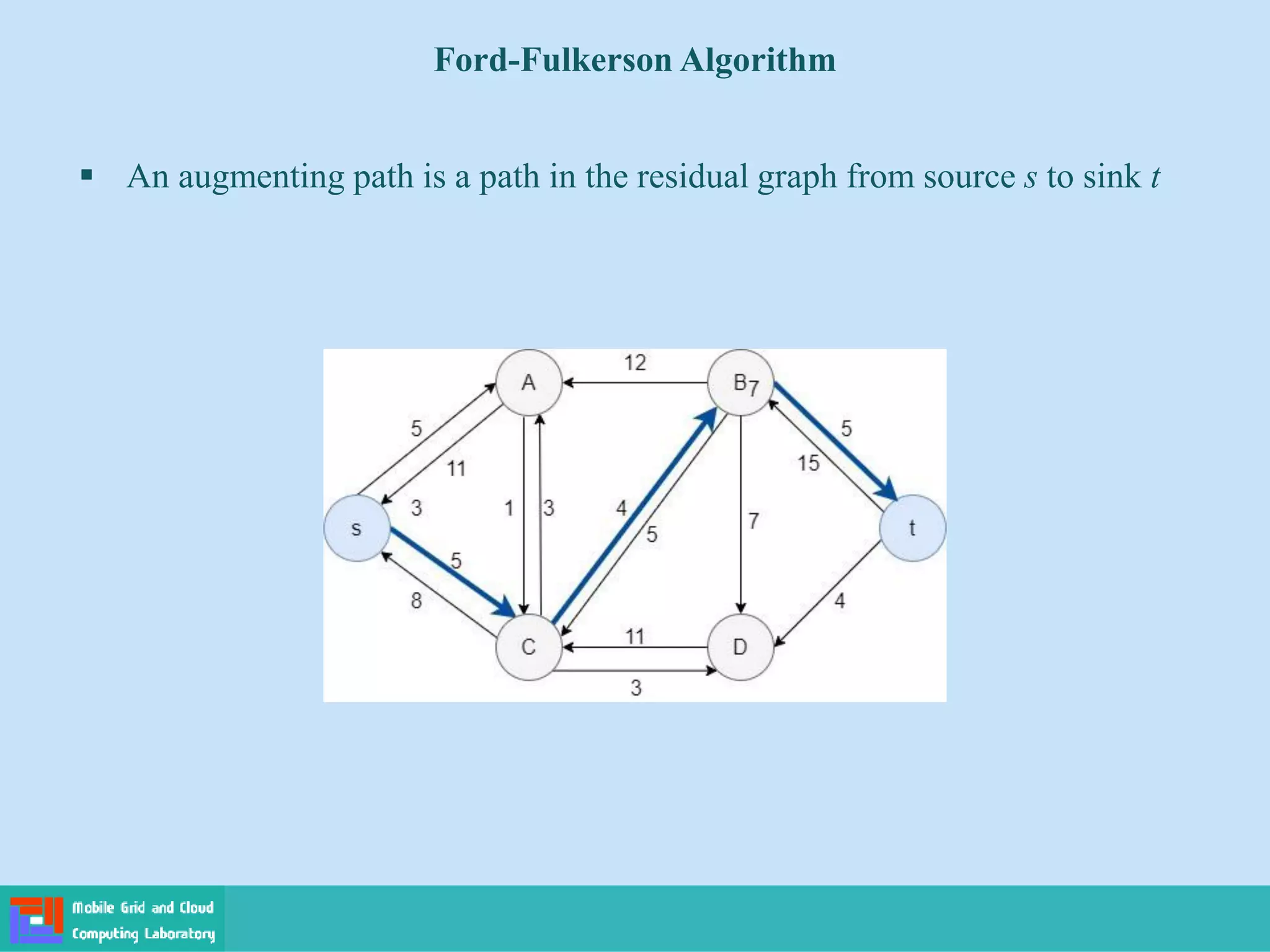

▪ An augmenting path is a path in the residual graph from source s to sink t

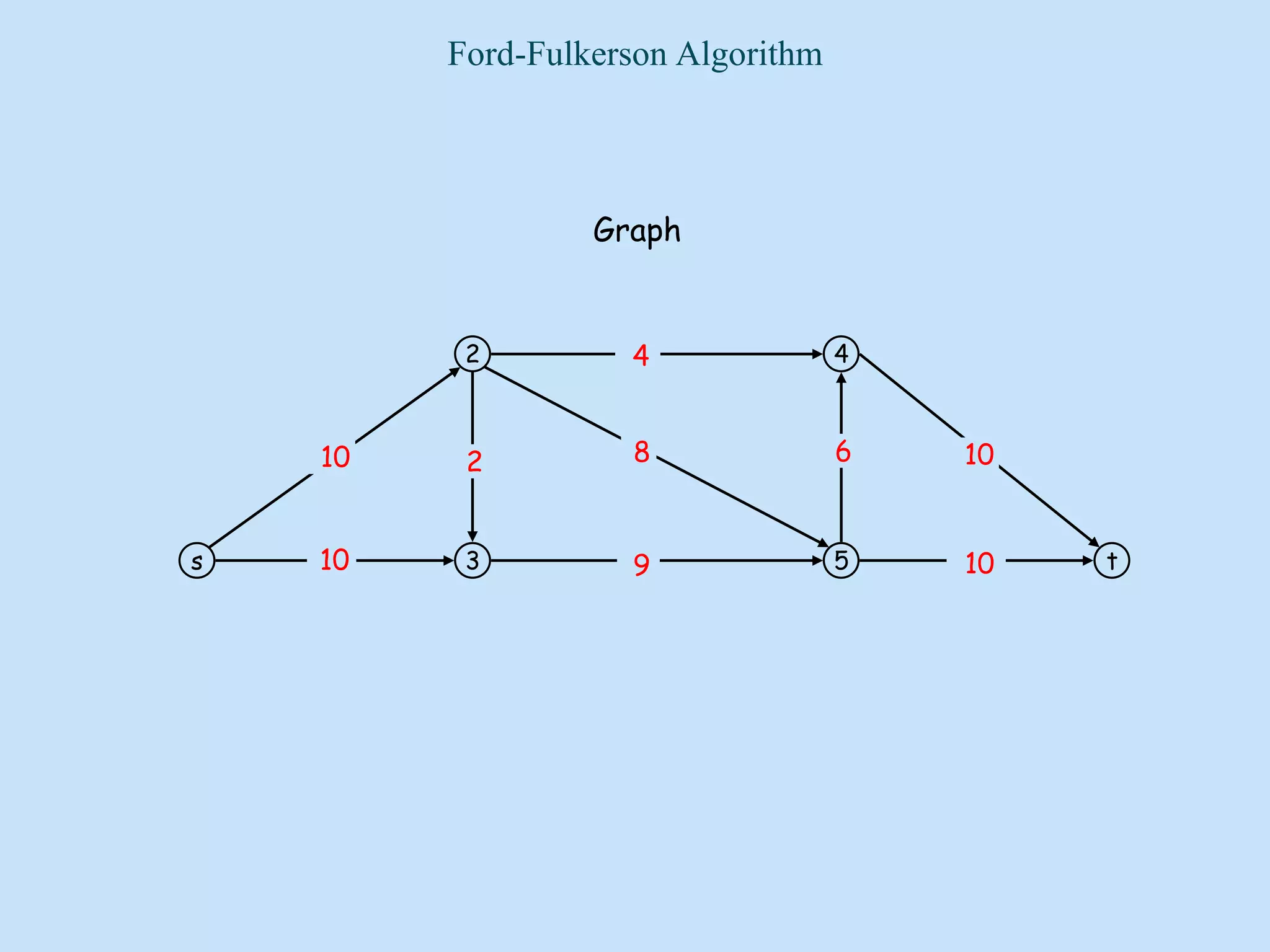

s
2
3
4
5 t
10
10
9
8
4
10
10
6
2
Graph

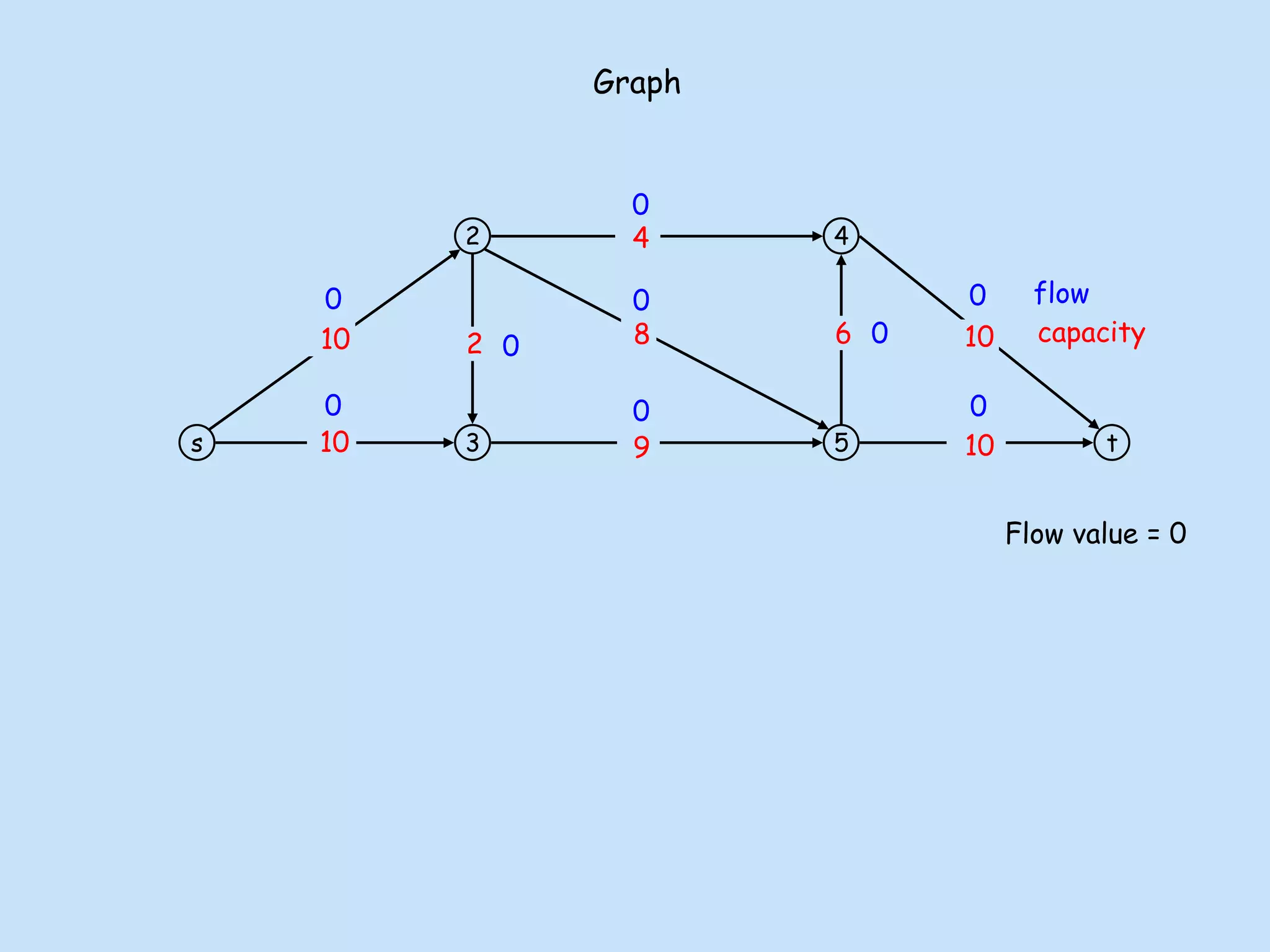

s
2
3
4
5 t
10
10
9
8
4
10
10
6
2
0
0
0
0 0 0
0
0
Graph
Flow value = 0
0
flow
capacity

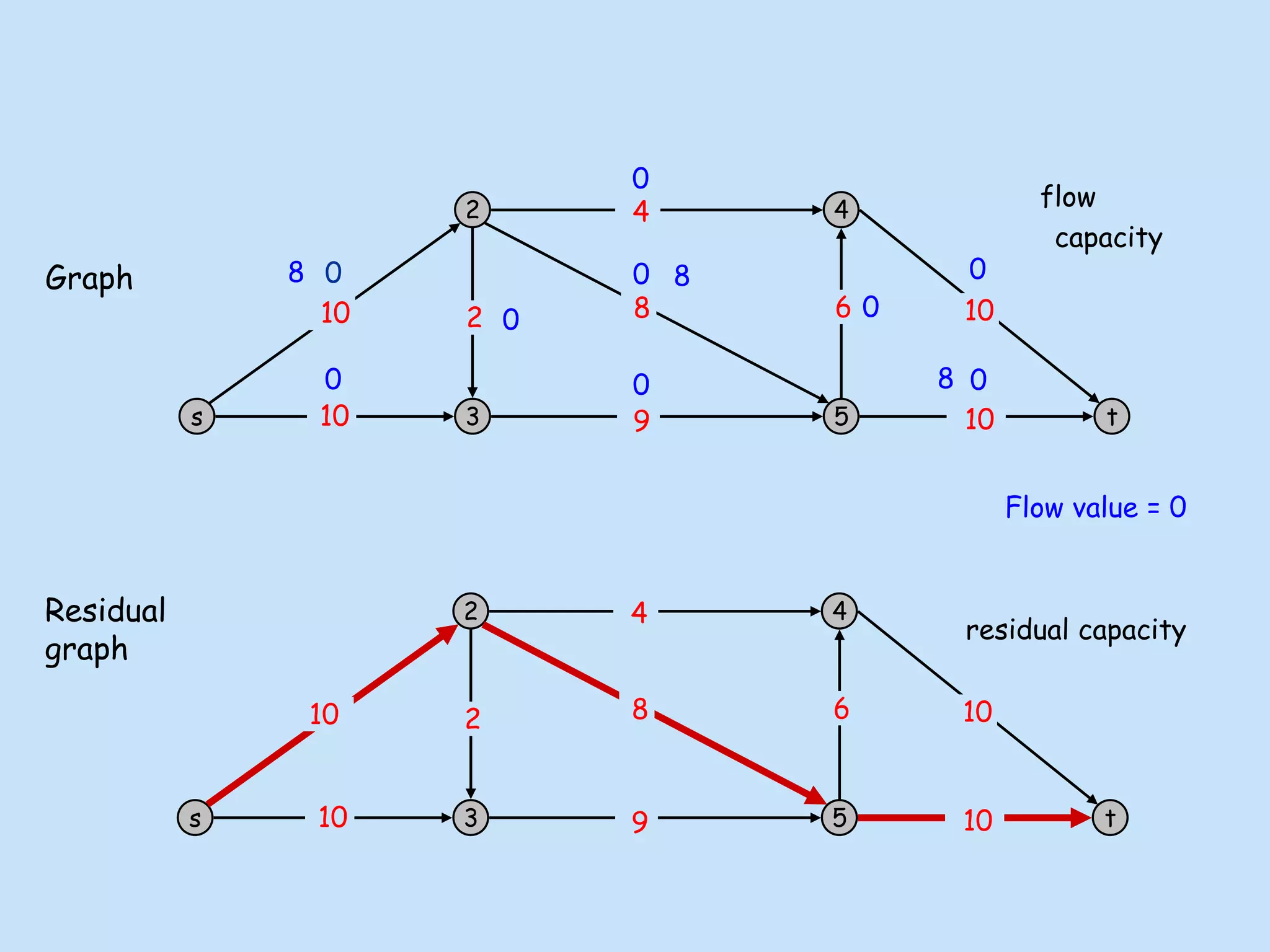

s
2
3
4
5 t
10
10
9
8
4
10
10
6
2
0
0
0
0 0 0
0
0
Graph
s
2
3
4
5 t
10 9
4
10
6
2
Residual
graph
10 8
10
8 8
8
0
Flow value = 0
capacity
residual capacity
flow

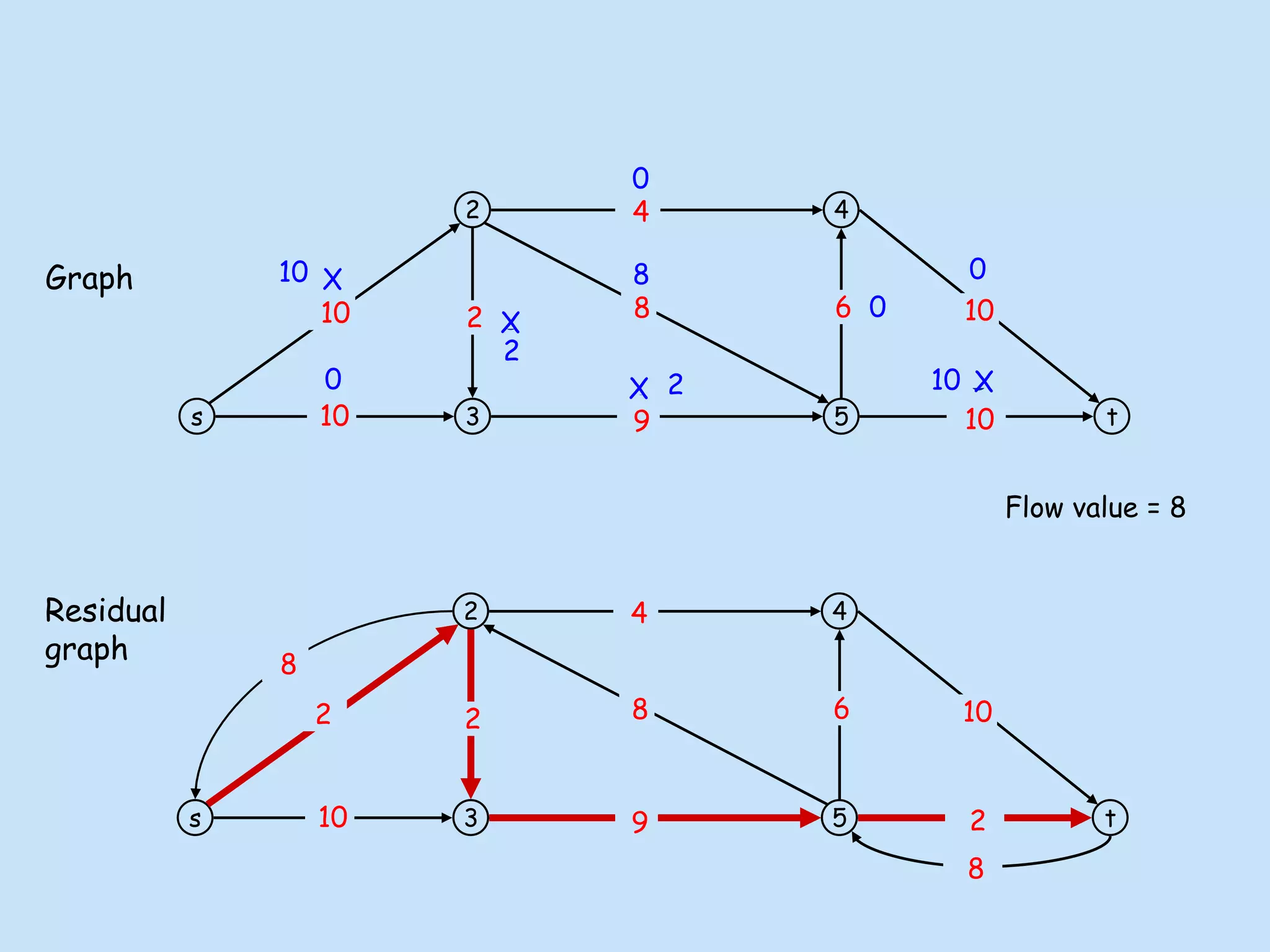

s
2
3
4
5 t
10
10
9
8
4
10
10
6
2
8
0
0
0 0 8
8
0 0
s
2
3
4
5 t
10
4
10
6
8
8
8
9
2
2
2
10
2
10
X
X
X
2
X
Flow value = 8
Graph
Residual
graph

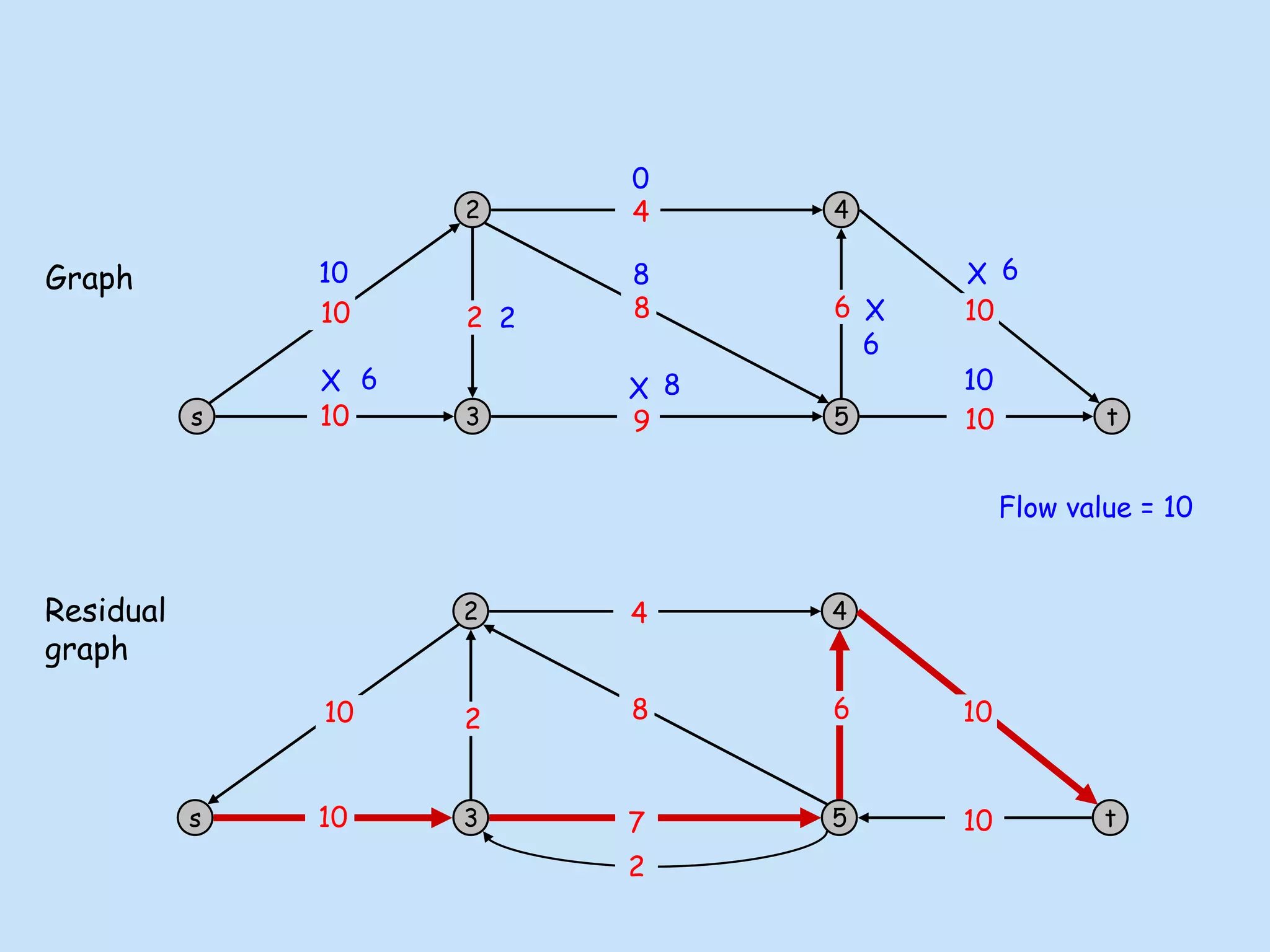

0
s
2
3
4
5 t
10
10
9
8
4
10
10
6
2
10
0
0
0 2 10
8
2
s
2
3
4
5 t
4
2
10
8
10
2
10 7
10
6
X
6
6
6
X
X
8
X
Flow value = 10
Graph
Residual
graph

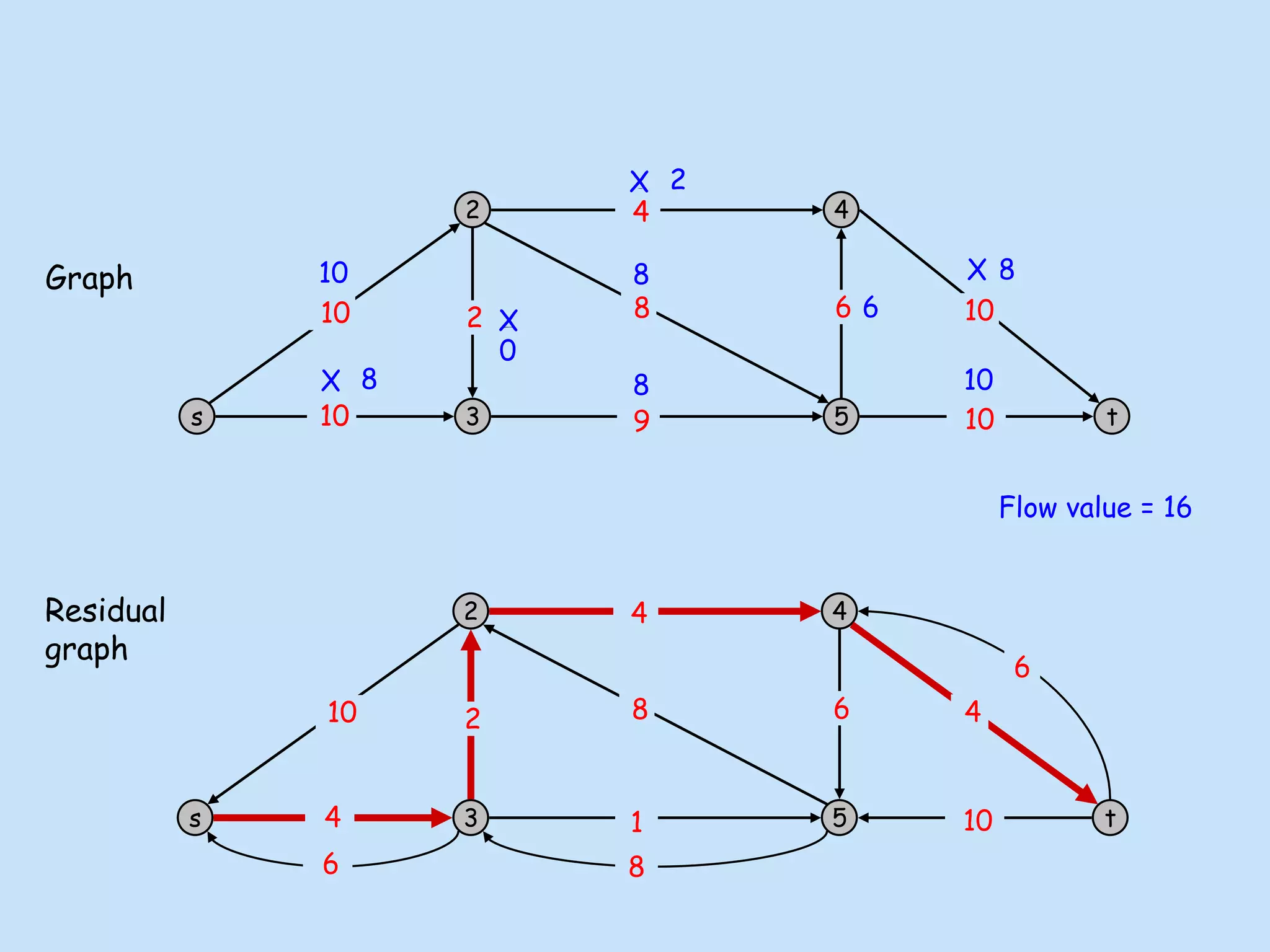

s
2
3
4
5 t
10
10
9
8
4
10
10
6
2
10
0
6
6 8 10
8
2
s
2
3
4
5 t
1
6
10
8
10
8
6
6
6
4
4
4
2
X
8
2
8
X
X
0
X
Flow value = 16
Graph
Residual
graph

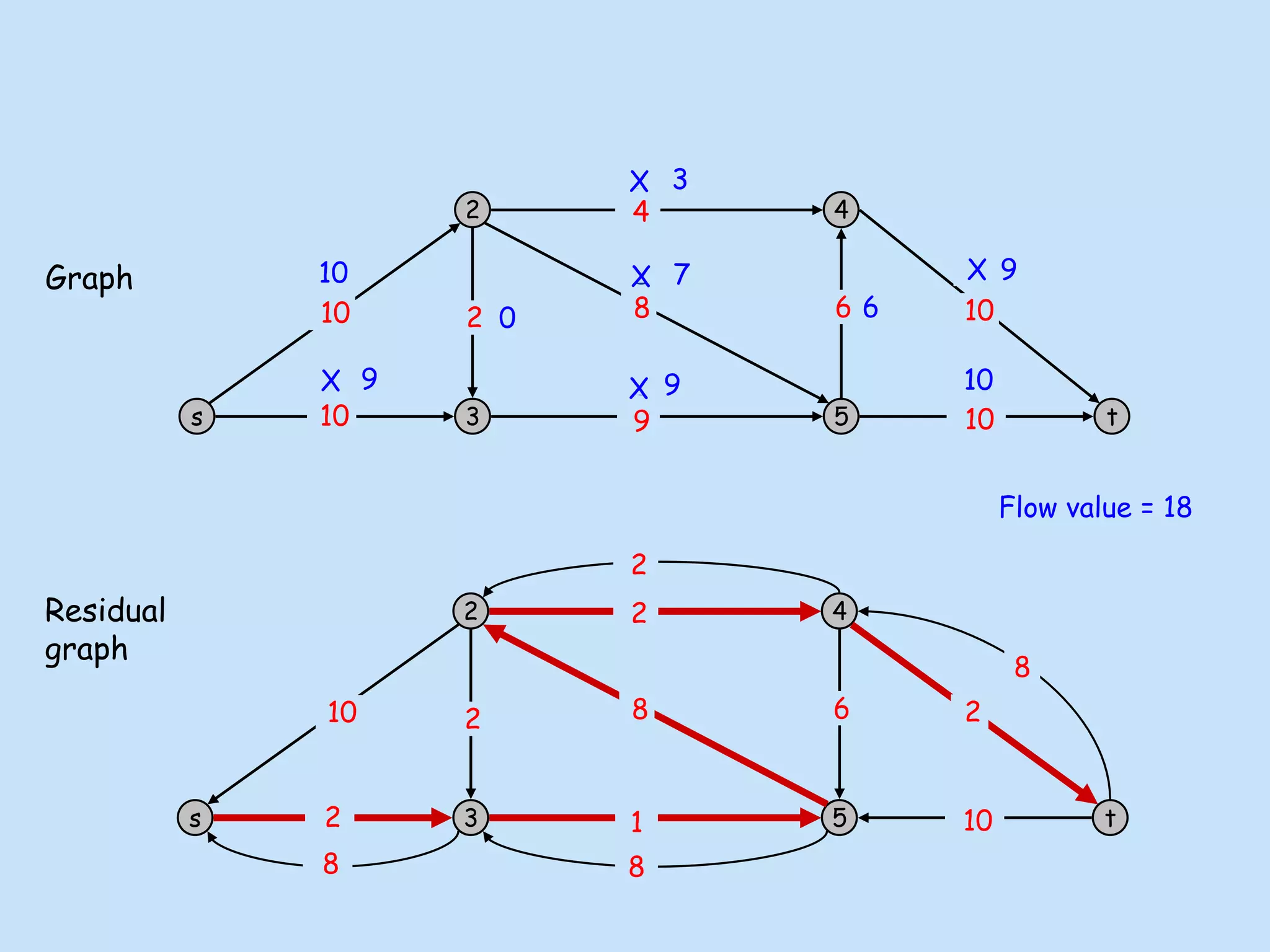

s
2
3
4
5 t
10
10
9
8
4
10
10
6
2
10
2
8
8 8 10
8
0
s
2
3
4
5 t
6
2
10
10
8
6
8
8
2
2 1
2
8 2
X
9
7 9
X
X
9
X
X 3
Flow value = 18
Graph
Residual
graph

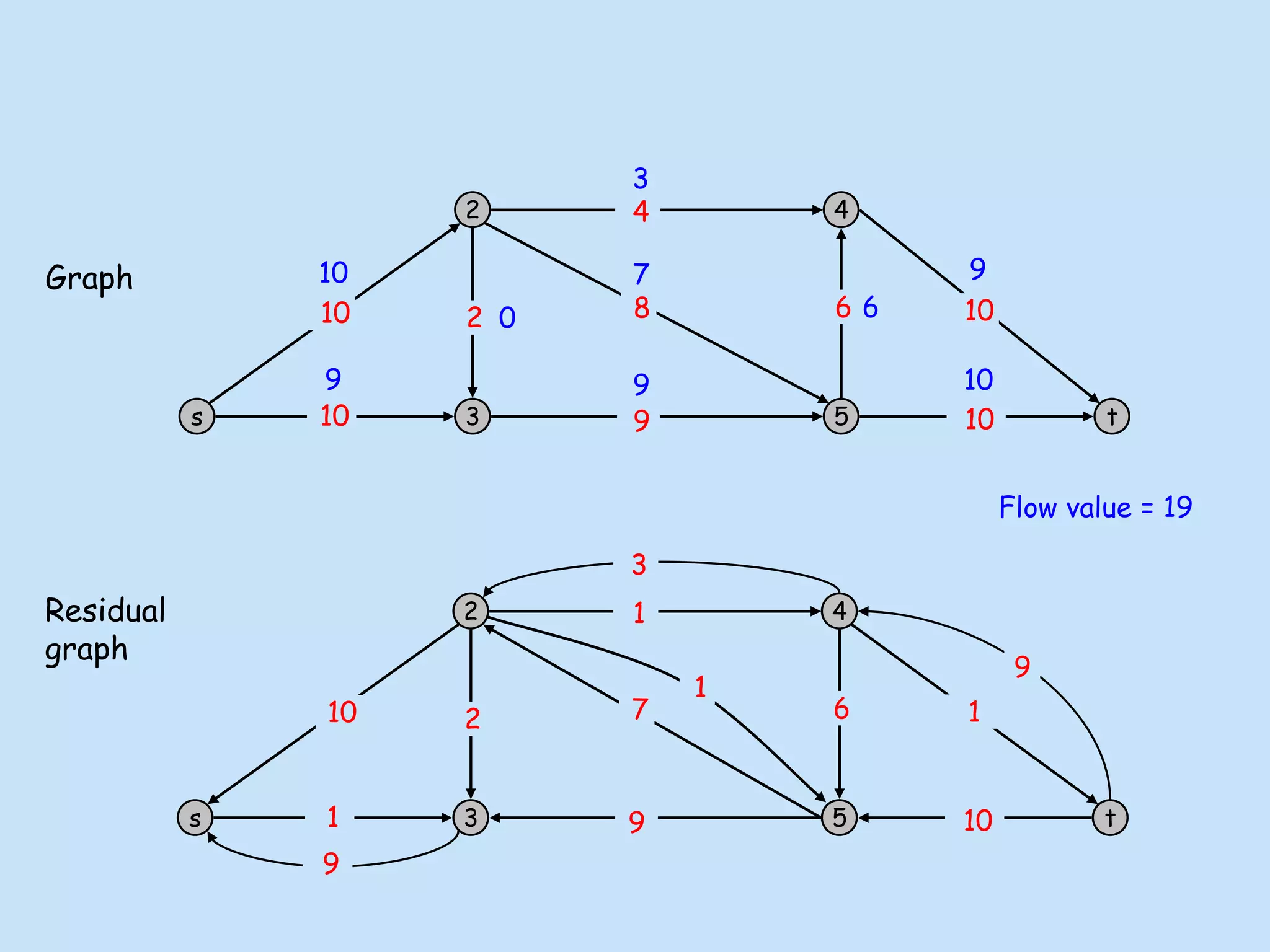

s
2
3
4
5 t
10
10
9
8
4
10
10
6
2
10
3
9
9 9 10
7
0
s
2
3
4
5 t
1 9
1
1
6
2
10
7
10
6
9
9
3
1
Flow value = 19
Graph
Residual
graph

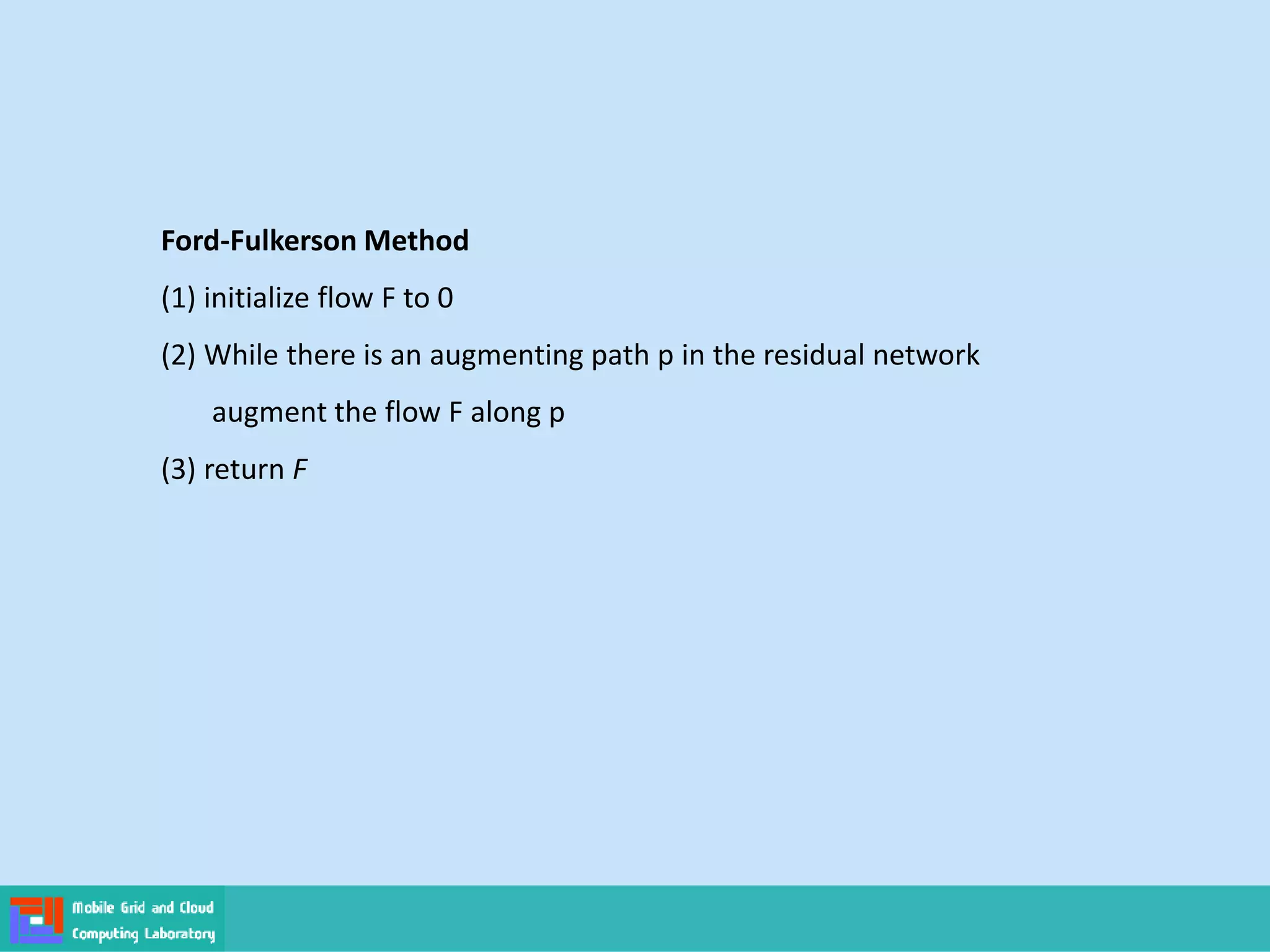

Ford-Fulkerson Method
(1) initialize flow F to 0
(2) While there is an augmenting path p in the residual network
augment the flow F along p
(3) return F

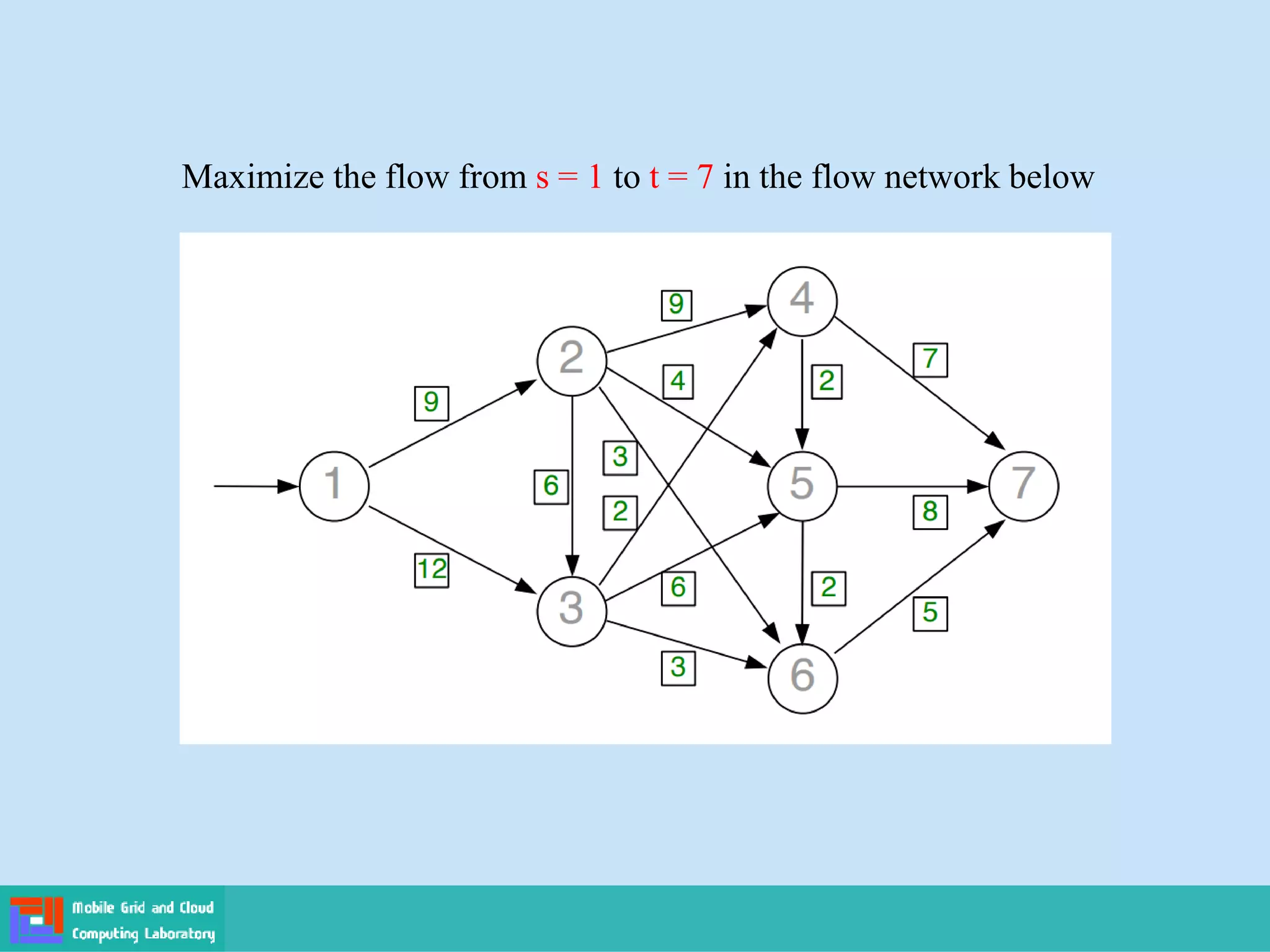

Maximize the flow from s = 1 to t = 7 in the flow network below

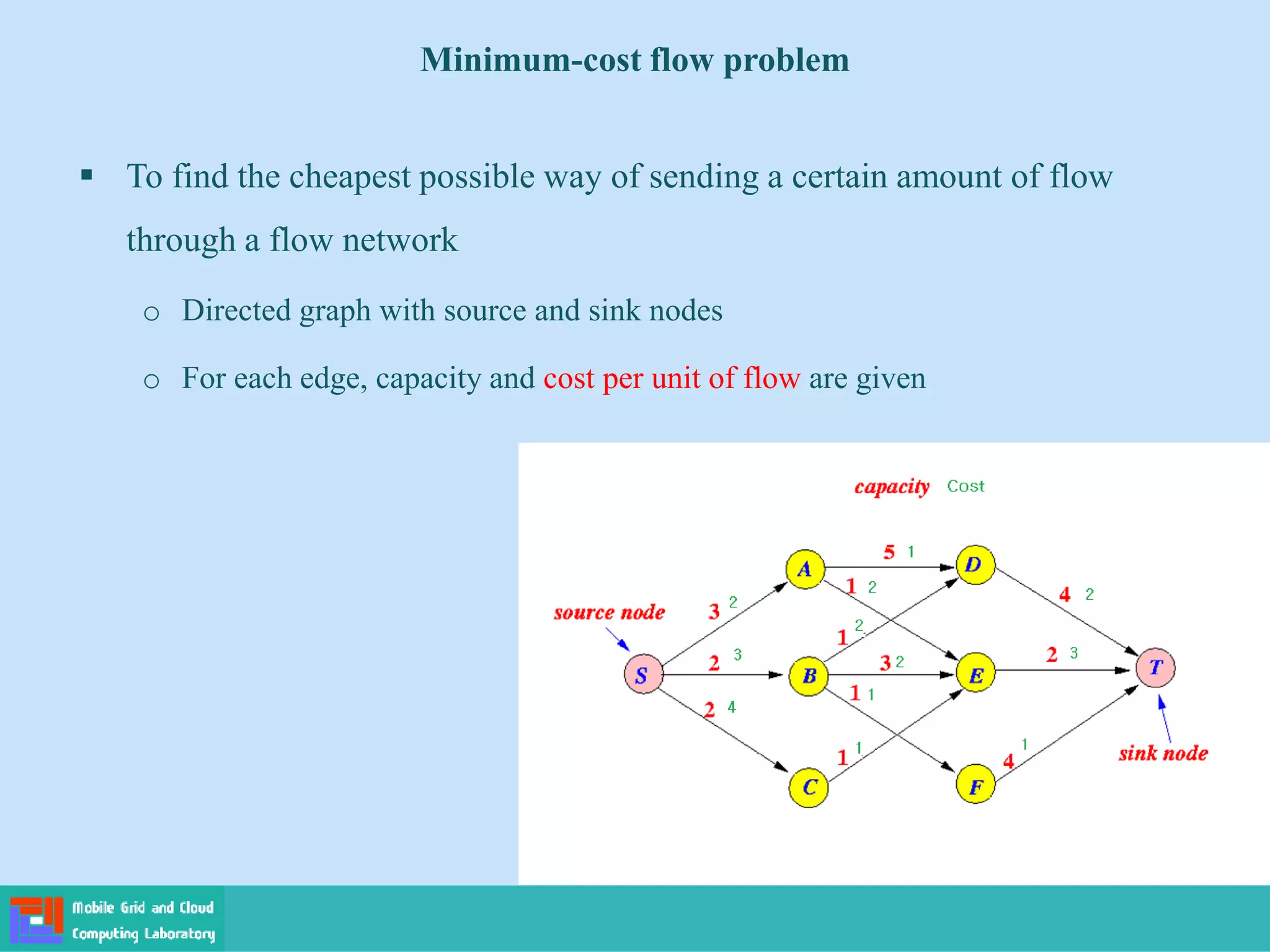

▪ To find the cheapest possible way of sending a certain amount of flow
through a flow network
o Directed graph with source and sink nodes
o For each edge, capacity and cost per unit of flow are given
Minimum-cost flow problem

Algorithm Design and Analysis

More Related Content

What's hot

Similar to Algorithm Design and Analysis

More from Sayed Chhattan Shah

Recently uploaded

Algorithm Design and Analysis
