1. Advanced JAVA
PREPARED BY:
Bhumi Aghera
Monika Dudhat
Radhika Talaviya
Rajvi Vaghasiya
JDBC Programming

2. Content
• The JDBC Connectivity Model
• Database Programming:
• Connecting to the Database
• Creating SQL Query
• Getting the Results
• Updating Database Data
• Error Checking and SQLException Class
• The SQL Warning Class

3. Introduction to JDBC
• JDBC - Java Database Connectivity.
• JDBC provides API or Protocol to interact with different databases.
• With the help of JDBC driver we can connect with different types of databases.
• Driver is must needed for connection establishment with any database.
• A driver works as an interface between the client and a database server.
• JDBC have so many classes and interfaces that allow a java application to send request made
by user to any specific DBMS(Data Base Management System).
• JDBC supports a wide level of portability. JDBC provides interfaces that are compatible with
java application.

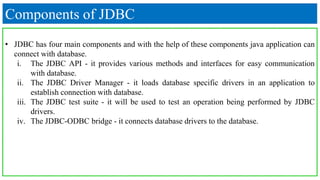

4. Components of JDBC
• JDBC has four main components and with the help of these components java application can
connect with database.
i. The JDBC API - it provides various methods and interfaces for easy communication
with database.
ii. The JDBC Driver Manager - it loads database specific drivers in an application to
establish connection with database.
iii. The JDBC test suite - it will be used to test an operation being performed by JDBC
drivers.
iv. The JDBC-ODBC bridge - it connects database drivers to the database.

5. JDBC Specification
• Different version of JDBC has different specification.
i. JDBC 1.0 - it provides basic functionality of JDBC.
ii. JDBC 2.0 - it provides JDBC API(JDBC 2.0Core API and JDBC 2.0 Optional Package
API).
iii. JDBC 3.0 - it provides classes and interfaces in two packages(java.sql and javax.sql).
iv. JDBC 4.0 - it provides so many extra features like Auto loading of the driver interface.

6. JDBC Architecture
• JDBC API provides classes and
interfaces to handle request made by user
and response made by database.
• Some of the important JDBC API are as
follow.
DriverManager
DriverConnection
Statement
PreparedStatement
CallableStatement
ResultSet
DatabaseMetaData
ResultSetMetaData

7. JDBC Architecture
• Here The Driver Manager plays an important role in JDBC architecture.
• It uses some database specific drivers to communicate our J2EE application to database.
• As per the diagram first of all we have to program our application with JDBC API.
• With the help of Driver Manager class than we connect to a specific database with the help of
specific database driver.
• Java drivers require some library to communicate with the database.
• We have four different types of java drivers.
• Some drivers are pure java drivers and some are partial. So with this kind of JDBC
architecture we can communicate with specific database.

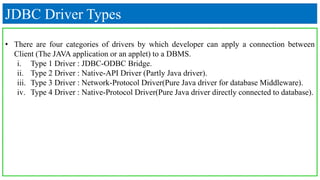

8. JDBC Driver Types
• There are four categories of drivers by which developer can apply a connection between
Client (The JAVA application or an applet) to a DBMS.
i. Type 1 Driver : JDBC-ODBC Bridge.
ii. Type 2 Driver : Native-API Driver (Partly Java driver).
iii. Type 3 Driver : Network-Protocol Driver(Pure Java driver for database Middleware).
iv. Type 4 Driver : Native-Protocol Driver(Pure Java driver directly connected to database).

9. Type 1 Driver: JDBC-ODBC Bridge
• The JDBC type 1 driver which is also
known as a JDBC-ODBC Bridge is a
convert JDBC methods into ODBC
function calls.
• Sun provides a JDBC-ODBC Bridge
driver by ‘sun.jdbc.odbc.JdbcOdbc
Driver’.
• The driver is a platform dependent
because it uses ODBC which is
depends on native libraries of the
operating system and also the driver
needs other installation for example,
ODBC must be installed on the
computer and the database must
support ODBC driver.

10. Type 1 Driver: JDBC-ODBC Bridge
• Type 1 is the simplest compare to all other driver but it’s a platform specific i.e. only on
Microsoft platform.
• The JDBC-ODBC Bridge is use only when there is no PURE-JAVA driver available for a
particular database.
• Process: Java Application → JDBC APIs → JDBC Driver Manager → Type 1 Driver →
ODBC Driver → Database library APIs → Database
• Advantage:
i. Connect to almost any database on any system, for which ODBC driver is installed.
ii. It’s an easy for installation as well as easy to use as compare the all other driver.
• Disadvantage:
i. The ODBC Driver needs to be installed on the client machine.
ii. It’s a not a purely platform independent because its use ODBC which is depends on
native libraries of the operating system on client machine.
iii. Not suitable for applets because the ODBC driver needs to be installed on the client
machine.

11. Type 2 Driver: Native-API Driver (Partly Java driver)
• The JDBC type 2 driver is uses
the libraries of the database which
is available at client side and this
driver converts the JDBC method
calls into native calls of the
database so this driver is also
known as a Native-API driver.
• Process: Java Application →
JDBC APIs → JDBC Driver
Manager → Type 2 Driver →
Vendor Client Database library
APIs → Database

12. Type 2 Driver: Native-API Driver (Partly Java driver)
• Advantage:
i. There is no implantation of JDBC-ODBC Bridge so it’s faster than a type 1 driver;
hence the performance is better as compare the type 1 driver(JDBC-ODBC Bridge).
• Disadvantage:
i. On the client machine require the extra installation because this driver uses the vendor
client libraries.
ii. The Client side software needed so can not use such type of driver in the web-based
application.
iii. Not all databases have the client side library.
iv. This driver supports all JAVA applications except applets.

13. Type 3 Driver: Network-Protocol Driver
• The JDBC type 3 driver uses the
middle tier (application server)
between the calling program and
the database and this middle tier
converts JDBC method calls into
the vendor specific database
protocol and the same driver can
be used for multiple databases also
so it’s also known as a Network-
Protocol driver as well as a JAVA
driver for database middleware.

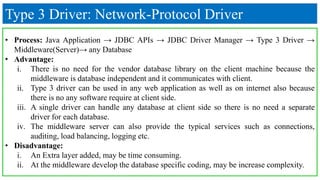

14. Type 3 Driver: Network-Protocol Driver
• Process: Java Application → JDBC APIs → JDBC Driver Manager → Type 3 Driver →
Middleware(Server)→ any Database
• Advantage:
i. There is no need for the vendor database library on the client machine because the
middleware is database independent and it communicates with client.
ii. Type 3 driver can be used in any web application as well as on internet also because
there is no any software require at client side.
iii. A single driver can handle any database at client side so there is no need a separate
driver for each database.
iv. The middleware server can also provide the typical services such as connections,
auditing, load balancing, logging etc.
• Disadvantage:
i. An Extra layer added, may be time consuming.
ii. At the middleware develop the database specific coding, may be increase complexity.

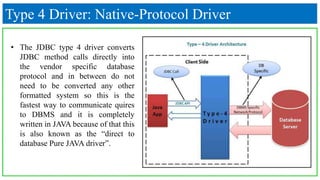

15. Type 4 Driver: Native-Protocol Driver
• The JDBC type 4 driver converts
JDBC method calls directly into
the vendor specific database
protocol and in between do not
need to be converted any other
formatted system so this is the
fastest way to communicate quires
to DBMS and it is completely
written in JAVA because of that this
is also known as the “direct to
database Pure JAVA driver”.

16. Type 4 Driver: Native-Protocol Driver
• Process: Java Application → JDBC APIs → JDBC Driver Manager → Type 4 Driver (Pure
JAVA Driver) → Database Server
• Advantage:
i. It’s a 100% pure JAVA Driver so it’s a platform independence.
ii. No translation or middleware layers are used so consider as a faster than other drivers.
iii. The all process of the application-to-database connection can manage by JVM so the
debugging is also managed easily.
• Disadvantage:
i. There is a separate driver needed for each database at the client side.
ii. Drivers are Database dependent, as different database vendors use different network
protocols.

17. Connecting to Database
• After installing the appropriate driver, next step is to establish a database connection using
JDBC.
• There are four steps to establish a JDBC connection as follows:
1. Import JDBC Packages: Add import statements to Java program to import required classes
in Java code.
2. Register JDBC Driver: This step causes the JVM to load the desired driver implementation
into memory so it can fulfill user’s JDBC requests.
3. Database URL Formulation: This is to create a properly formatted address that points to
the database to which user wish to connect.
4. Create Connection Object: Finally, code a call to the DriverManager object's
getConnection method to establish actual database connection.

18. Connecting to Database
1. Import JDBC Packages:
• The Import statements tell the Java compiler where to find the classes we reference in our
code and are placed at the very beginning of source code.
• To use the standard JDBC package, which allows to select, insert, update, and delete data in
• SQL tables, following imports are used in source code :
import java.sql.* ; // for standard JDBC program s
import java.m ath.* ; // for BigDecim al and BigInteger support

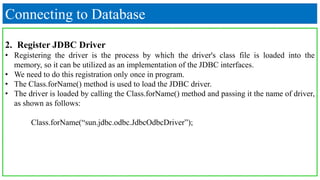

19. Connecting to Database
2. Register JDBC Driver
• Registering the driver is the process by which the driver's class file is loaded into the
memory, so it can be utilized as an implementation of the JDBC interfaces.
• We need to do this registration only once in program.
• The Class.forName() method is used to load the JDBC driver.
• The driver is loaded by calling the Class.forName() method and passing it the name of driver,
as shown as follows:
Class.forName(“sun.jdbc.odbc.JdbcOdbcDriver”);

20. Connecting to Database
3. Database URL Formulation :
• The data source that the JDBC component will connect to defined using the URL format.
• The URL consist of three parts:
• jdbc: which indicates that the JDBC protocol is to be used to read the URL.
• <subprotocol>: which is the jdbc driver name.
• <subname>:which is the name of the database.
• Connecting to a database using only the URL:
String url = “jdbc:odbc:Information”;
Connection con;
Class.forName(“sun.jdbc.odbc.JdbcOdbcDriver”);
con = DriverManager.getConnection(url);

21. Connecting to Database
4. Create Connection Object:
• Database limit access to authorized user and require the web server to supply a user ID and
password with the request to access the database.
• In this case, the Java component uses the (String url, String user, String password) method as
shown below:
String url = “jdbc:odbc:Information”;
String userID = “jim”;
String password = “keogh”;
Connection con;
Class.forName(“sun.jdbc.odbc.JdbcOdbcDriver”);
con = DriverManager.getConnection(url, UserID, password);

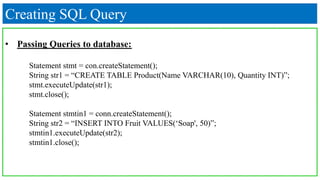

22. Creating SQL Query
• Passing Queries to database:
Statement stmt = con.createStatement();
String str1 = “CREATE TABLE Product(Name VARCHAR(10), Quantity INT)”;
stmt.executeUpdate(str1);
stmt.close();
Statement stmtin1 = conn.createStatement();
String str2 = “INSERT INTO Fruit VALUES(‘Soap', 50)”;
stmtin1.executeUpdate(str2);
stmtin1.close();

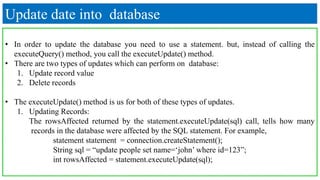

23. Update date into database
• In order to update the database you need to use a statement. but, instead of calling the
executeQuery() method, you call the executeUpdate() method.
• There are two types of updates which can perform on database:
1. Update record value
2. Delete records
• The executeUpdate() method is us for both of these types of updates.
1. Updating Records:
The rowsAffected returned by the statement.executeUpdate(sql) call, tells how many
records in the database were affected by the SQL statement. For example,
statement statement = connection.createStatement();
String sql = “update people set name=‘john’ where id=123”;
int rowsAffected = statement.executeUpdate(sql);

24. Update date into database
2. Deleting Records:
The rowsAffected returned by the statement.executeUpdate(sql) call, tells how many records
in the database were affected by the SQL statement.
Example:
Statement statement = connection.createStatement();
String sql = “delete from people where id=123”;
int rowsAffected = statement.executeUpdate(sql);

25. Get ResultSet
• Example of Getting ResultSet
String queryLehigh = "select * from Lehigh";
ResultSet rs = Stmt.executeQuery(queryLehigh);
while (rs.next())
{
int ssn = rs.getInt("SSN");
String name = rs.getString("NAME");
int marks = rs.getInt("MARKS");
}

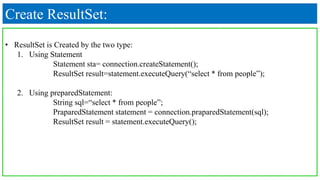

26. Create ResultSet:
• ResultSet is Created by the two type:
1. Using Statement
Statement sta= connection.createStatement();
ResultSet result=statement.executeQuery(“select * from people”);
2. Using preparedStatement:
String sql=“select * from people”;
PraparedStatement statement = connection.praparedStatement(sql);
ResultSet result = statement.executeQuery();

27. ResultSet Types
• There are three ResultSet Types:
1. ResultSet.TYPE_FORWARD_ONLY
2. ResultSet.TYPE_SCROLL_INSENSITIVE
3. ResultSet.TYPE_SCROLL_SENSITIVE
• The default type is TYPE_FORWARD_ONLY

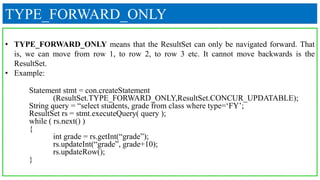

28. TYPE_FORWARD_ONLY
• TYPE_FORWARD_ONLY means that the ResultSet can only be navigated forward. That
is, we can move from row 1, to row 2, to row 3 etc. It cannot move backwards is the
ResultSet.
• Example:
Statement stmt = con.createStatement
(ResultSet.TYPE_FORWARD_ONLY,ResultSet.CONCUR_UPDATABLE);
String query = “select students, grade from class where type=‘FY’;
ResultSet rs = stmt.executeQuery( query );
while ( rs.next() )
{
int grade = rs.getInt(“grade”);
rs.updateInt(“grade”, grade+10);
rs.updateRow();
}

29. TYPE_SCROLL_INSENSITIVE
• TYPE_SCROLL_INSENSITIVE means that the ResultSet can be navigated both forward
and backwards. You can also jump to a position relative to the current position, or jump to an
absolute position. The ResultSet is insensitive to changes in the underlying data source while
the ResultSet is open.
• Example:
Statement stmt = con.createStatement
(ResultSet.TYPE_SCROLL_INSENSITIVE,ResultSet.CONCUR_READ_ONLY);
String query = “select students from class where type=‘not sleeping’ “;
ResultSet rs = stmt.executeQuery( query );
rs.previous(); / / go back in the RS
rs.relative(-5); / / go 5 records back
rs.relative(7); / / go 7 records forward
rs.absolute(100); / / go to 100th record

30. TYPE_SCROLL_SENSITIVE
• TYPE_SCROLL_SENSITIVE means that the ResultSet can be navigated both forward and
backwards. You can also jump to a position relative to the current position, or jump to an
absolute position. The ResultSet is sensitive to changes in the underlying data source while
the ResultSet open.
• Example:
Statement stmt = con.createStatement
(ResultSet. TYPE_SCROLL_SENSITIVE ResultSet.CONCUR_READ_ONLY);
String query = “select students from class where type=‘not sleeping’ “;
ResultSet rs = stmt.executeQuery( query );
rs.previous(); / / go back in the RS
rs.relative(-5); / / go 5 records back
rs.relative(7); / / go 7 records forward
rs.absolute(100); / / go to 100th record

31. Handling Errors
• When using the Microsoft JDBC Driver for SQL Server, all database error conditions are
returned to your Java application as exceptions using the SQLServerException class.
• The following methods of the SQLServerException class are inherited from
java.sql.SQLException and java.lang.Throwable; and they can be used to return specific
information about the SQL Server error that has occurred:
1. getSQLState returns the standard X/Open or SQL99 state code of the exception.
2. getErrorCode returns the specific database error number.
3. getNextException returns the next SQLServerException object or null if there are no
more exception objects to return.
4. getMessage returns the full text of the exception. The error message text describes the
problem, and frequently includes placeholders for information, such as object names,
that are inserted in the error message when it is displayed.

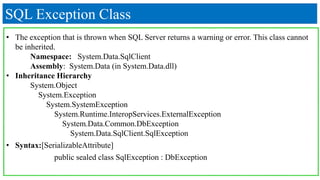

32. SQL Exception Class
• The exception that is thrown when SQL Server returns a warning or error. This class cannot
be inherited.
Namespace: System.Data.SqlClient
Assembly: System.Data (in System.Data.dll)
• Inheritance Hierarchy
System.Object
System.Exception
System.SystemException
System.Runtime.InteropServices.ExternalException
System.Data.Common.DbException
System.Data.SqlClient.SqlException
• Syntax:[SerializableAttribute]
public sealed class SqlException : DbException

33. SQL Exception Class
Properties:
Name Description
Class Gets the severity level of the error returned from the .NET Framework Data Provider
for SQL Server.
ClientConnection Represents the client connection ID.
Data Gets a collection of key/value pairs that provide additional user-defined information
about the exception.
ErrorCode Gets the HRESULT of the error.
Errors Gets a collection of one or more SqlError objects that give detailed information about
exceptions generated by the .NET Framework Data Provider for SQL Server.
HelpLink Gets or sets a link to the help file associated with this exception.
HResult Gets or sets HRESULT, a coded numerical value that is assigned to a specific
exception.

34. SQL Exception Class
Methods:
Name Description
Equals(Object) Determines whether the specified object is equal to the current
object.(Inherited from Object.)
GetBaseException() When overridden in a derived class, returns the Exception that is the
root cause of one or more subsequent exceptions.
GetHashCode() Serves as the default hash function.
GetObjectData(SerializationInf
o,StreamingContext)
Sets the SerializationInfo with information about the exception.
GetType() Gets or sets a link to the help file associated with this exception.
Tostring() Returns a string that represents the current SqlException object, and
includes the client connection ID

35. SQL Warning Class
java.lang.Object
|
+--java.lang.Throwable
|
+--java.lang.Exception
|
+--com.mimer.jdbc.SQLException
|
+--com.mimer.jdbc.SQLWarning
All Implemented Interfaces:
java.io.Serializable
Direct Known Subclasses:
DataTruncation

36. SQL Warning Class
Constructor:
Name Description
SQLWarning() Represents the client connection ID.
SQLWarning(java.lang.String reaso
n)
Gets a collection of key/value pairs that provide
additional user-defined information about the
exception.
SQLWarning(java.lang.String reaso
n, java.lang.String SQLstate)
Gets the HRESULT of the error.
SQLWarning(java.lang.String reaso
n, java.lang.String SQLstate,
int vendorCode)
Gets a collection of one or more SqlError objects that
give detailed information about exceptions generated
by the .NET Framework Data Provider for SQL
Server.

37. SQL Warning Class
Method:
Name Description
getNextWarning() Retrieves the warning chained to this SQLWarning
object.
setNextWarning(SQLWarning w) Adds an SQLWarning object to the end of the chain.
