1. Developer at ease with Java EE 6
JavaNight@capgemini
December 7, 2009
Eugene Bogaart
Solution Architect
Sun Microsystems NL
1

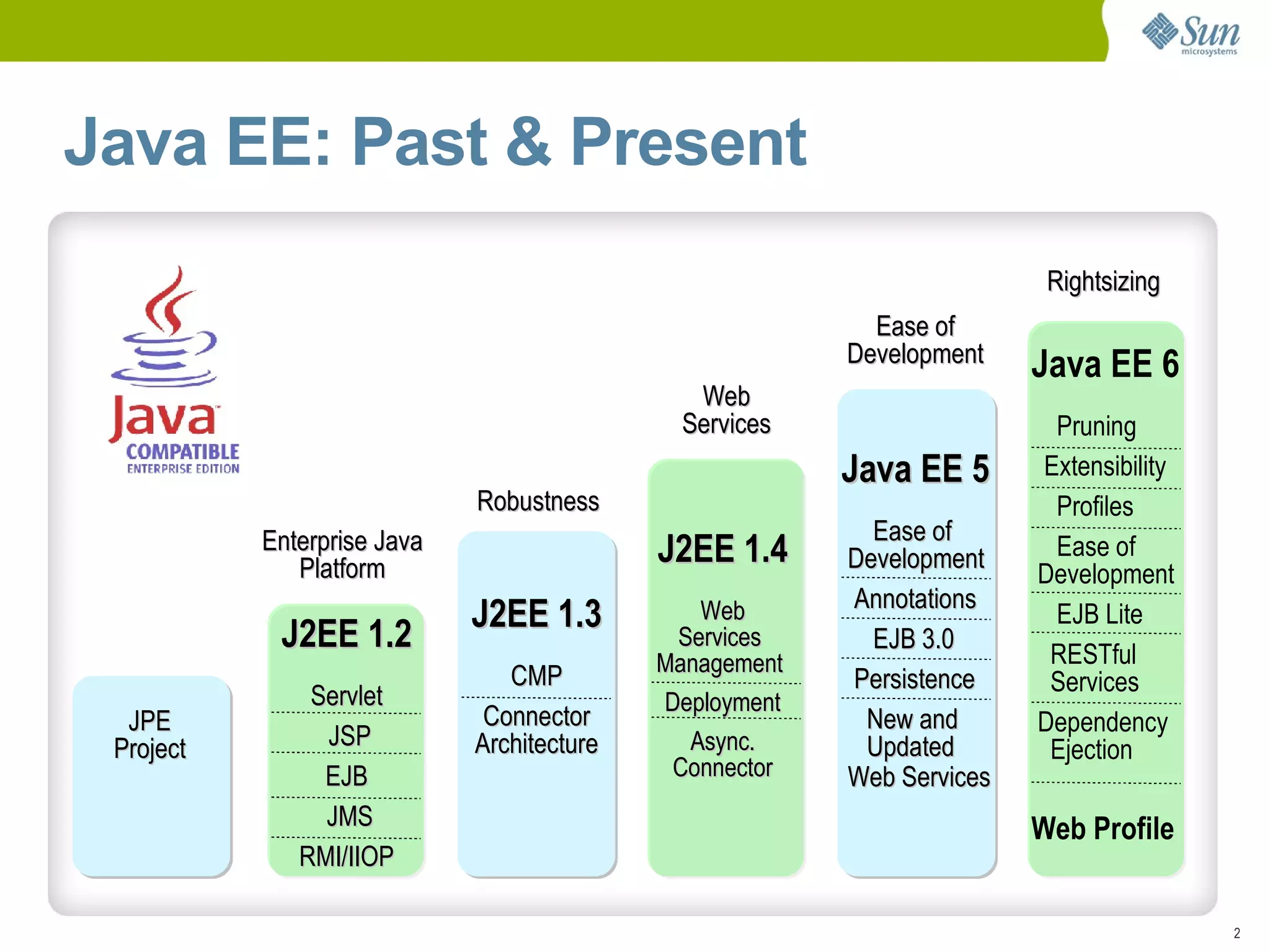

2. Java EE: Past & Present
Rightsizing
Ease of
Development Java EE 6
Web
Services Pruning
Java EE 5 Extensibility
Robustness Profiles
Enterprise Java Ease of
Platform
J2EE 1.4 Development Ease of
Development
Annotations
J2EE 1.3 Web EJB Lite
J2EE 1.2 Services EJB 3.0
RESTful
Management
CMP Persistence Services
Servlet Deployment
JPE Connector New and Dependency
Project JSP Architecture Async. Updated Ejection
EJB Connector Web Services
JMS Web Profile
RMI/IIOP
2

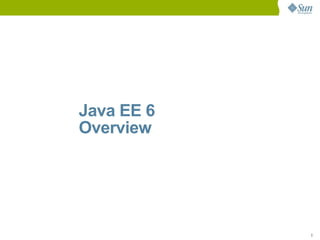

3. Java EE 6
Overview
3

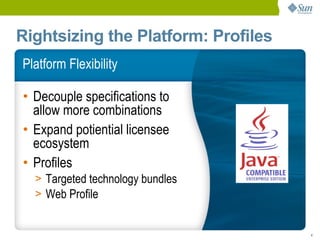

4. Rightsizing the Platform: Profiles
Platform Flexibility
• Decouple specifications to
allow more combinations
• Expand potiential licensee
ecosystem
• Profiles
> Targeted technology bundles
> Web Profile
4

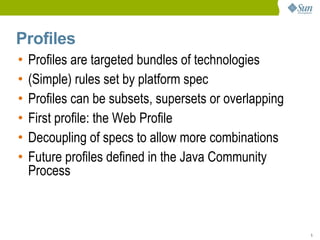

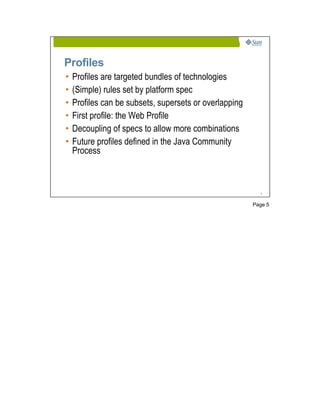

5. Profiles
• Profiles are targeted bundles of technologies
• (Simple) rules set by platform spec
• Profiles can be subsets, supersets or overlapping
• First profile: the Web Profile
• Decoupling of specs to allow more combinations
• Future profiles defined in the Java Community
Process
5

6. Rightsizing the Platform
Web Profile
• Fully functional mid-sized
profile
• Actively discussed
> Expert Group
> Industry
• Technologies
> Servlet 3.0, EJB Lite 3.1, JPA 2.0, JSP
2.2, EL 1.2, JSTL 1.2, JSF 2.0, JTA
1.1, JSR 45, Common Annotations
6

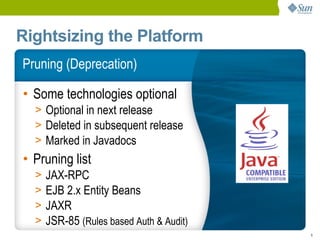

7. Rightsizing the Platform
Pruning (Deprecation)
• Some technologies optional
> Optional in next release
> Deleted in subsequent release
> Marked in Javadocs
• Pruning list
> JAX-RPC
> EJB 2.x Entity Beans
> JAXR
> JSR-85 (Rules based Auth & Audit)
9

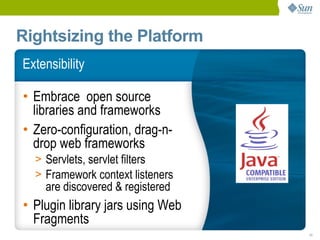

8. Rightsizing the Platform
Extensibility
• Embrace open source
libraries and frameworks
• Zero-configuration, drag-n-
drop web frameworks
> Servlets, servlet filters
> Framework context listeners
are discovered & registered
• Plugin library jars using Web
Fragments
11

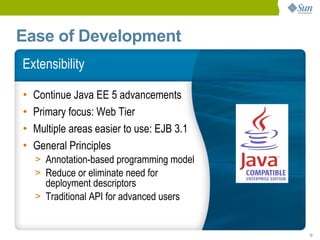

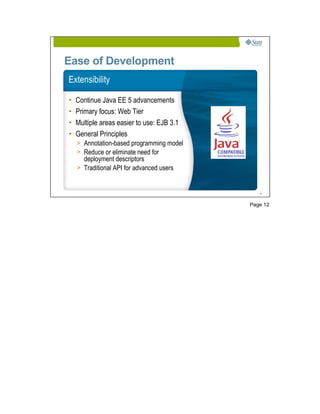

9. Ease of Development
Extensibility
• Continue Java EE 5 advancements
• Primary focus: Web Tier
• Multiple areas easier to use: EJB 3.1
• General Principles
> Annotation-based programming model
> Reduce or eliminate need for
deployment descriptors
> Traditional API for advanced users
12

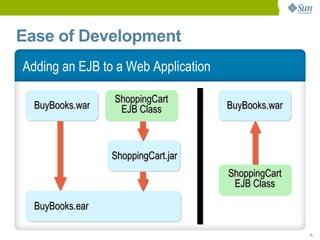

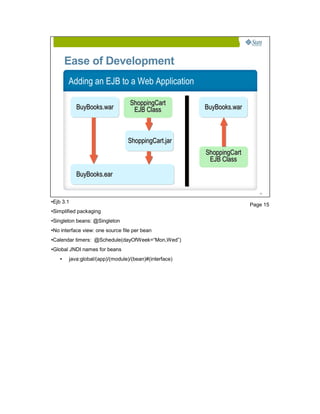

10. Ease of Development
Adding an EJB to a Web Application
ShoppingCart
BuyBooks.war EJB Class BuyBooks.war
ShoppingCart.jar
ShoppingCart
EJB Class
BuyBooks.ear
15

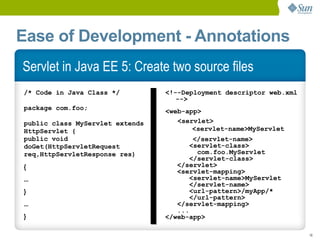

11. Ease of Development - Annotations
Servlet in Java EE 5: Create two source files
/* Code in Java Class */ <!--Deployment descriptor web.xml
-->
package com.foo; <web-app>
public class MyServlet extends <servlet>
HttpServlet { <servlet-name>MyServlet
public void </servlet-name>
doGet(HttpServletRequest <servlet-class>
req,HttpServletResponse res) com.foo.MyServlet
</servlet-class>
{ </servlet>
<servlet-mapping>
... <servlet-name>MyServlet
</servlet-name>
} <url-pattern>/myApp/*
</url-pattern>
... </servlet-mapping>
...
} </web-app>
16

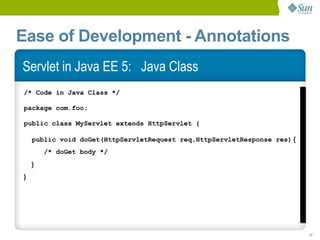

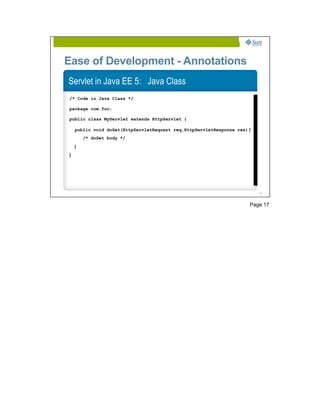

12. Ease of Development - Annotations
Servlet in Java EE 5: Java Class
/* Code in Java Class */
package com.foo;
public class MyServlet extends HttpServlet {
public void doGet(HttpServletRequest req,HttpServletResponse res) {
/* doGet body */
}
}
17

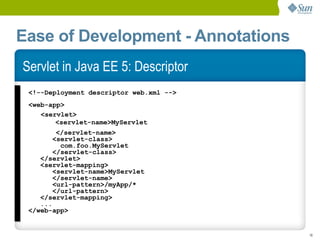

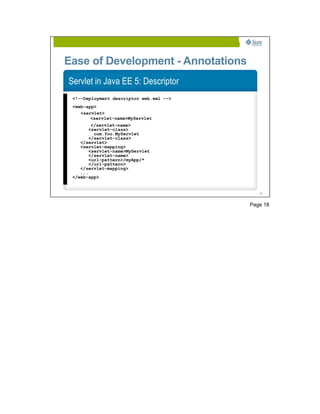

13. Ease of Development - Annotations
Servlet in Java EE 5: Descriptor
<!--Deployment descriptor web.xml -->
<web-app>
<servlet>
<servlet-name>MyServlet
</servlet-name>
<servlet-class>
com.foo.MyServlet
</servlet-class>
</servlet>
<servlet-mapping>
<servlet-name>MyServlet
</servlet-name>
<url-pattern>/myApp/*
</url-pattern>
</servlet-mapping>
...
</web-app>
18

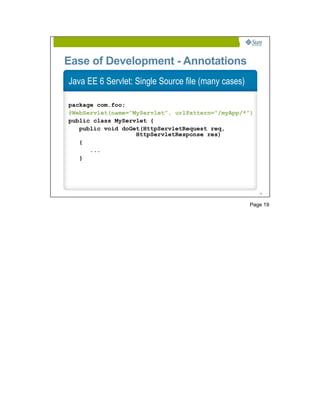

14. Ease of Development - Annotations
Java EE 6 Servlet: Single Source file (many cases)
package com.foo;
@WebServlet(name=”MyServlet”, urlPattern=”/myApp/*”)
public class MyServlet {
public void doGet(HttpServletRequest req,
HttpServletResponse res)
{
...
}
19

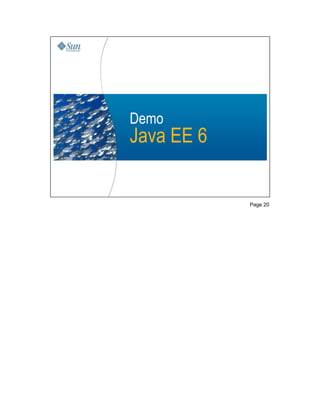

15. Demo
Java EE 6
20

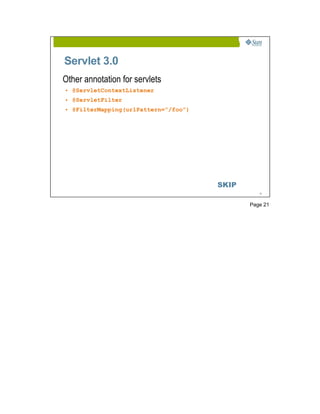

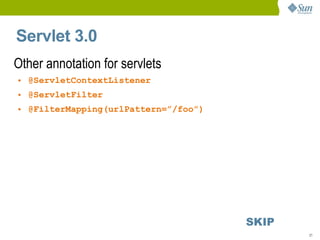

16. Servlet 3.0
Other annotation for servlets
• @ServletContextListener
• @ServletFilter
• @FilterMapping(urlPattern=”/foo”)
SKIP
21

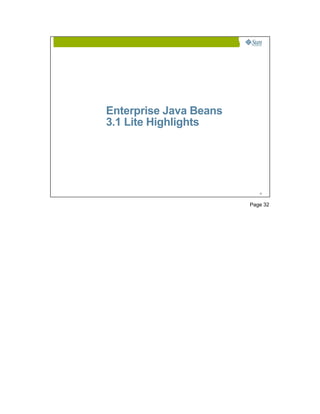

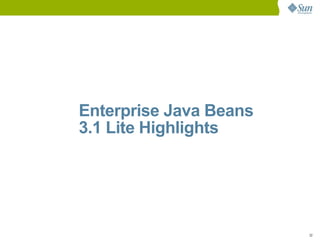

17. Enterprise Java Beans
3.1 Lite Highlights
32

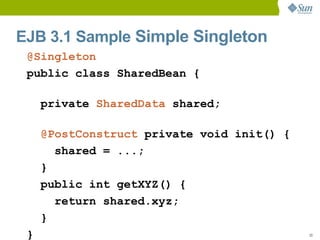

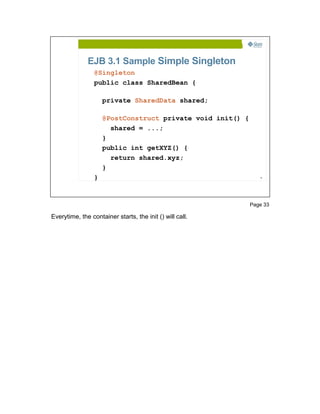

18. EJB 3.1 Sample Simple Singleton
@Singleton
public class SharedBean {
private SharedData shared;
@PostConstruct private void init() {
shared = ...;
}
public int getXYZ() {
return shared.xyz;
}
} 33

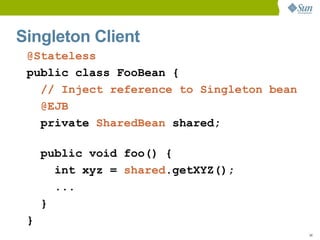

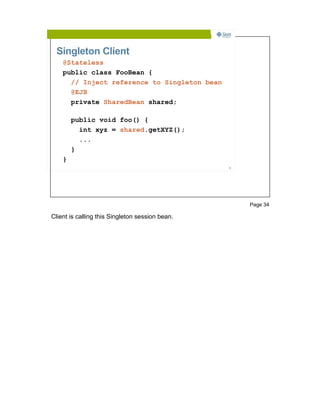

19. Singleton Client
@Stateless
public class FooBean {
// Inject reference to Singleton bean
@EJB
private SharedBean shared;
public void foo() {
int xyz = shared.getXYZ();
...
}
}
34

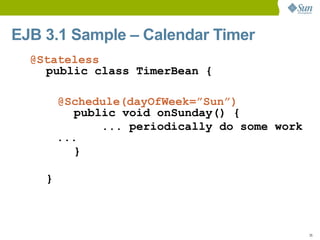

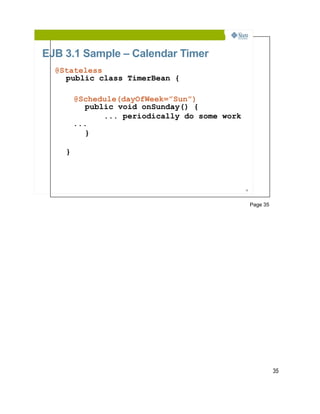

20. EJB 3.1 Sample – Calendar Timer
@Stateless
public class TimerBean {
@Schedule(dayOfWeek=”Sun”)
public void onSunday() {
... periodically do some work
...
}
}
35

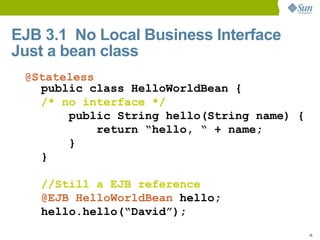

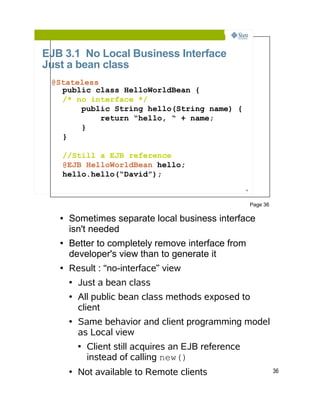

21. EJB 3.1 No Local Business Interface
Just a bean class
@Stateless
public class HelloWorldBean {
/* no interface */
public String hello(String name) {
return “hello, “ + name;
}
}
//Still a EJB reference
@EJB HelloWorldBean hello;
hello.hello(“David”);
36

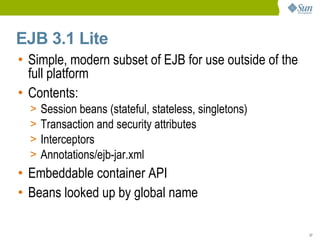

22. EJB 3.1 Lite
• Simple, modern subset of EJB for use outside of the
full platform
• Contents:
> Session beans (stateful, stateless, singletons)
> Transaction and security attributes
> Interceptors
> Annotations/ejb-jar.xml
• Embeddable container API
• Beans looked up by global name
37

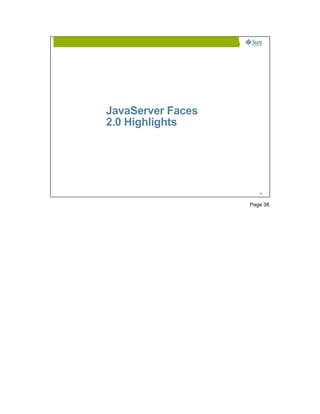

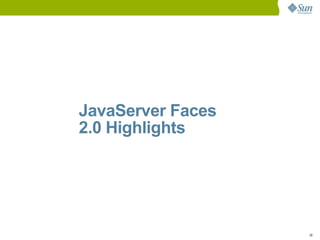

23. JavaServer Faces
2.0 Highlights
38

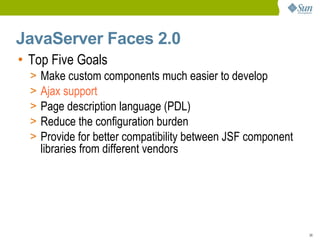

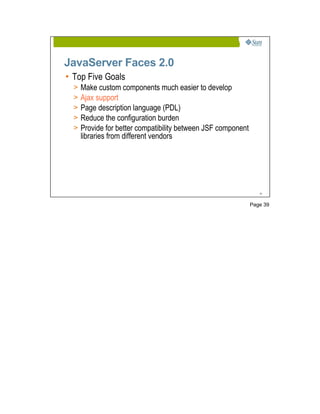

24. JavaServer Faces 2.0
• Top Five Goals
> Make custom components much easier to develop
> Ajax support
> Page description language (PDL)
> Reduce the configuration burden
> Provide for better compatibility between JSF component
libraries from different vendors
39

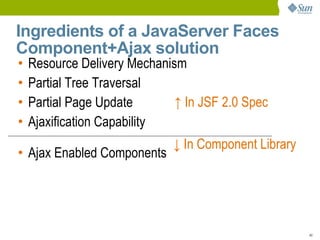

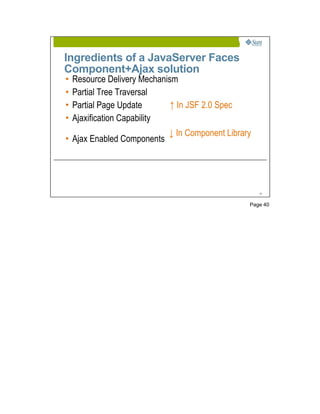

25. Ingredients of a JavaServer Faces
Component+Ajax solution
• Resource Delivery Mechanism
• Partial Tree Traversal
• Partial Page Update ↑ In JSF 2.0 Spec
• Ajaxification Capability
↓ In Component Library
• Ajax Enabled Components
40

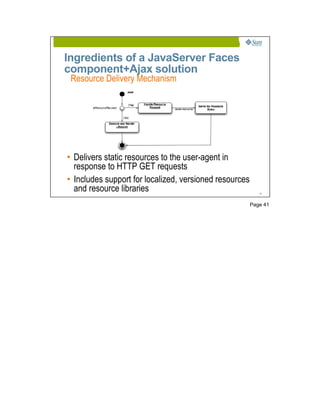

26. Ingredients of a JavaServer Faces
component+Ajax solution
Resource Delivery Mechanism
• Delivers static resources to the user-agent in
response to HTTP GET requests
• Includes support for localized, versioned resources
and resource libraries 41

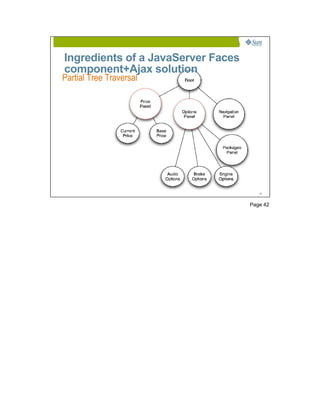

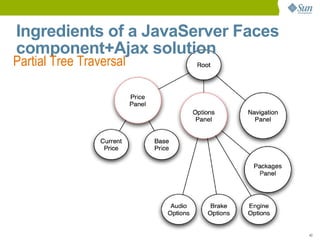

27. Ingredients of a JavaServer Faces
component+Ajax solution
Partial Tree Traversal
42

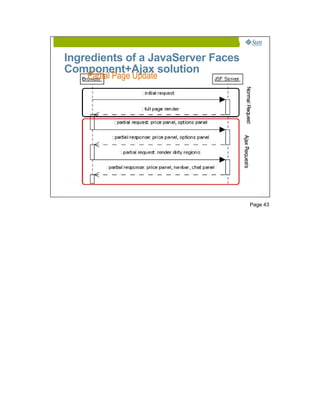

28. Ingredients of a JavaServer Faces
Component+Ajax solution
Partial Page Update
43

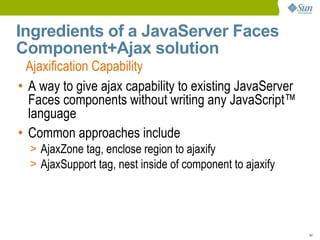

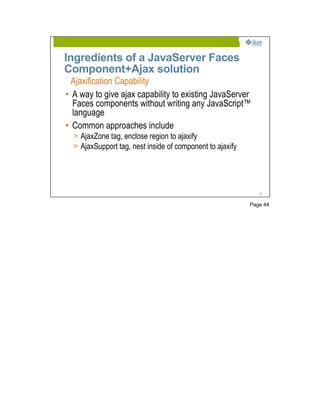

29. Ingredients of a JavaServer Faces
Component+Ajax solution
Ajaxification Capability
• A way to give ajax capability to existing JavaServer
Faces components without writing any JavaScript™
language
• Common approaches include
> AjaxZone tag, enclose region to ajaxify
> AjaxSupport tag, nest inside of component to ajaxify
44

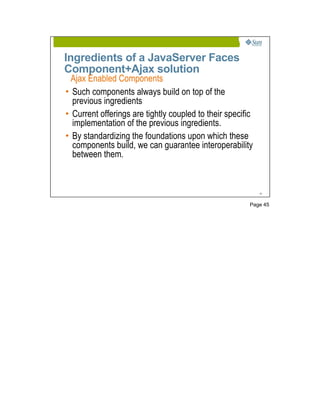

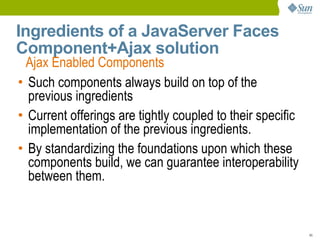

30. Ingredients of a JavaServer Faces
Component+Ajax solution
Ajax Enabled Components
• Such components always build on top of the
previous ingredients
• Current offerings are tightly coupled to their specific
implementation of the previous ingredients.
• By standardizing the foundations upon which these
components build, we can guarantee interoperability
between them.
45

31. Wrapup
46

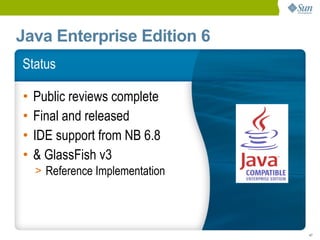

32. Java Enterprise Edition 6
Status
• Public reviews complete
• Final and released
• IDE support from NB 6.8
• & GlassFish v3
> Reference Implementation
47

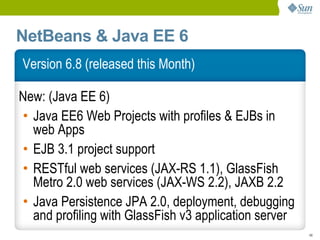

33. NetBeans & Java EE 6
Version 6.8 (released this Month)
New: (Java EE 6)
• Java EE6 Web Projects with profiles & EJBs in
web Apps
• EJB 3.1 project support
• RESTful web services (JAX-RS 1.1), GlassFish
Metro 2.0 web services (JAX-WS 2.2), JAXB 2.2
• Java Persistence JPA 2.0, deployment, debugging
and profiling with GlassFish v3 application server
48

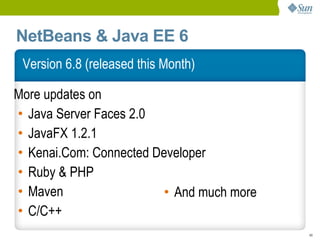

34. NetBeans & Java EE 6
Version 6.8 (released this Month)
More updates on
• Java Server Faces 2.0
• JavaFX 1.2.1
• Kenai.Com: Connected Developer
• Ruby & PHP
• Maven • And much more
• C/C++
49

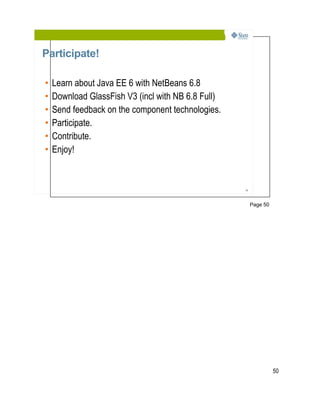

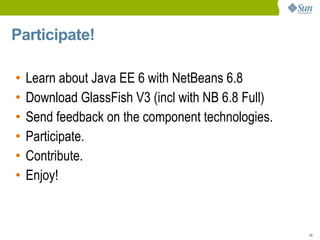

35. Participate!
• Learn about Java EE 6 with NetBeans 6.8
• Download GlassFish V3 (incl with NB 6.8 Full)
• Send feedback on the component technologies.
• Participate.
• Contribute.
• Enjoy!
50

36. Thanks
Eugene Bogaart
Eugene.Bogaart@sun.com
51

37. Developer at ease with Java EE 6
JavaNight@capgemini
December 7, 2009
Eugene Bogaart
Solution Architect
Sun Microsystems NL
1
Page 1

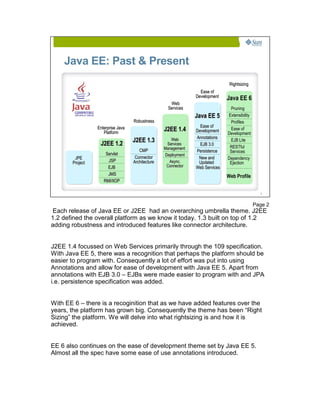

38. Java EE: Past & Present
Rightsizing
Ease of
Development Java EE 6
Web
Services Pruning
Java EE 5 Extensibility
Robustness Profiles
Enterprise Java Ease of
Platform
J2EE 1.4 Development Ease of
Development
Annotations
J2EE 1.3 Web EJB Lite
J2EE 1.2 Services EJB 3.0
RESTful
CMP Management
Persistence Services
Servlet Deployment
JPE Connector New and Dependency
Project JSP Architecture Async. Updated Ejection
EJB Connector Web Services
JMS Web Profile
RMI/IIOP
2
Page 2
Each release of Java EE or J2EE had an overarching umbrella theme. J2EE
1.2 defined the overall platform as we know it today. 1.3 built on top of 1.2
adding robustness and introduced features like connector architecture.
J2EE 1.4 focussed on Web Services primarily through the 109 specification.
With Java EE 5, there was a recognition that perhaps the platform should be
easier to program with. Consequently a lot of effort was put into using
Annotations and allow for ease of development with Java EE 5. Apart from
annotations with EJB 3.0 – EJBs were made easier to program with and JPA
i.e. persistence specification was added.
With EE 6 – there is a recoginition that as we have added features over the
years, the platform has grown big. Consequently the theme has been “Right
Sizing” the platform. We will delve into what rightsizing is and how it is
achieved.
EE 6 also continues on the ease of development theme set by Java EE 5.
Almost all the spec have some ease of use annotations introduced.

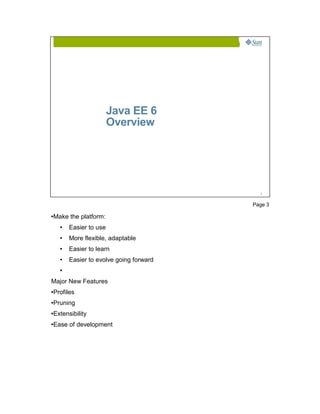

39. Java EE 6
Overview
3
Page 3
● Make the platform:
● Easier to use
● More flexible, adaptable
● Easier to learn
● Easier to evolve going forward
●
Major New Features
● Profiles
● Pruning
● Extensibility
● Ease of development

40. Rightsizing the Platform: Profiles
Platform Flexibility
• Decouple specifications to
allow more combinations
• Expand potiential licensee
ecosystem
• Profiles
> Targeted technology bundles
> Web Profile
4
Page 4
As partof right sizing – the notion of profiles was defined. Right
sizing is really right sizing for you. The idea is to allow multiple
specifications to be coupled in a manner such that they satisify
a business need. For example – the web profile targets the
web development needs. You could have additional profiles for
eg: a telco profile that will target the telco market.
This gives companies an opportuniity to build and license a
profile that they are specialized in. What this means for you as
a developer, adopter or a company is that you will have a large
ecosystem of licensed products to choose from. This increased
set of choices can help you choose the product that meets
your specific requirements.

41. Profiles
• Profiles are targeted bundles of technologies
• (Simple) rules set by platform spec
• Profiles can be subsets, supersets or overlapping
• First profile: the Web Profile
• Decoupling of specs to allow more combinations
• Future profiles defined in the Java Community
Process
5
Page 5

42. Rightsizing the Platform
Web Profile
• Fully functional mid-sized
profile
• Actively discussed
> Expert Group
> Industry
• Technologies
> Servlet 3.0, EJB Lite 3.1, JPA 2.0, JSP
2.2, EL 1.2, JSTL 1.2, JSF 2.0, JTA
1.1, JSR 45, Common Annotations
6
Page 6
An example of profile is the web profile.
The web profile is targeted to the “modern” web applications. The way web applications are
written have changed since the first servlet specification came about. .
Most web applications have significant requirements in the areas of transaction management,
security and persistence. Such requirements can be readily addressed by technologies that have
been part of the Java EE platform for quite some time, such as the Enterprise JavaBeans (EJB) 3.x
technology and the Java Persistence API, but that are rarely supported by “plain” servlet
containers. By incorporating many of these APIs, the Web Profile aims at raising the bar for what
should be considered a basic stack for the development of web applications using the Java
platform.
Targeting “modern” web applications then implies offering a reasonably complete stack,
composed of standard APIs, and capable out-of-the-box of addressing the needs of a large class of
web applications. Furthermore, this stack should be easy to grow, so as to address any remaining
developer needs.
Against this drive towards completeness, one wishes to balance a desire to limit the footprint of
web containers, both in physical and in conceptual terms. From the point of view of developers
learning the Web Profile, it is more valuable to have a small, focused profile, with as little overlap
between technologies as possible, rather than a more powerful but overly complex one, with
redundant APIs.

43. Rightsizing the Platform
Pruning (Deprecation)
• Some technologies optional
> Optional in next release
> Deleted in subsequent release
> Marked in Javadocs
• Pruning list
> JAX-RPC
> EJB 2.x Entity Beans
> JAXR
> JSR-85 (Rules based Auth & Audit)
9
Page 9
-admitting the fact that the platform grew. Some technologies
did not have the adoption in the market place or the underlying
technology did not have the adoption.
- UDDI – JAXR
- Same with JSR-85.
- Pruning makes it optional.
As the APIs are trimmed down, the Expert Group hopes to
reduce the need for APIs that may have limited appeal by
providing more extensibility points within the specification.
These interfaces and plug-in points should make it easier to
create technologies that extend that platform whilst remaining
well integrated into it, and may help the specification itself
regain some of its focus.

44. Rightsizing the Platform
Extensibility
• Embrace open source
libraries and frameworks
• Zero-configuration, drag-n-
drop web frameworks
> Servlets, servlet filters
> Framework context listeners
are discovered & registered
• Plugin library jars using Web
Fragments
11
Page 11
-Container Initializer: Framework writer defines the kinds of
resources it handles. At runtime the Container delegates
requests to it. The framework serves the request.
- The framework writer defines a CI. The developer does not
need to do anything. The framework is bootstrapped by simply
by including in the class path
- The second technique is for an application developer to
bundle the framework with the app.In this case the framework
writer has defined a web-fragment.xml that indicates the kind
of resources it serves. At runtime, the container gives the
framework an opportunity to serve the requests.
- In GF we have actually refactored JSP, JSF containers to be
plugged in this way with GF v3. Additionally scripting
containers have also been integrated this way.
With this technology – you will be able to integrate third party
frameworks into your existing Java EE 6 installations.

45. Ease of Development
Extensibility
• Continue Java EE 5 advancements
• Primary focus: Web Tier
• Multiple areas easier to use: EJB 3.1
• General Principles
> Annotation-based programming model
> Reduce or eliminate need for
deployment descriptors
> Traditional API for advanced users
12
Page 12

46. Ease of Development
Adding an EJB to a Web Application
ShoppingCart
BuyBooks.war EJB Class BuyBooks.war
ShoppingCart.jar
ShoppingCart
EJB Class
BuyBooks.ear
15
● Ejb 3.1
Page 15
● Simplified packaging
● Singleton beans: @Singleton
● No interface view: one source file per bean
● Calendar timers: @Schedule(dayOfWeek=“Mon,Wed”)
● Global JNDI names for beans
● java:global/(app)/(module)/(bean)#(interface)

47. Ease of Development - Annotations
Servlet in Java EE 5: Create two source files
/* Code in Java Class */ <!--Deployment descriptor web.xml
-->
package com.foo; <web-app>
public class MyServlet extends <servlet>
HttpServlet { <servlet-name>MyServlet
public void </servlet-name>
doGet(HttpServletRequest <servlet-class>
req,HttpServletResponse res) com.foo.MyServlet
</servlet-class>
{ </servlet>
<servlet-mapping>
... <servlet-name>MyServlet
</servlet-name>
} <url-pattern>/myApp/*
</url-pattern>
... </servlet-mapping>
...
} </web-app>
16
Page 16

48. Ease of Development - Annotations
Servlet in Java EE 5: Java Class
/* Code in Java Class */
package com.foo;
public class MyServlet extends HttpServlet {
public void doGet(HttpServletRequest req,HttpServletResponse res) {
/* doGet body */
}
}
17
Page 17

49. Ease of Development - Annotations
Servlet in Java EE 5: Descriptor
<!--Deployment descriptor web.xml -->
<web-app>
<servlet>
<servlet-name>MyServlet
</servlet-name>
<servlet-class>
com.foo.MyServlet
</servlet-class>
</servlet>
<servlet-mapping>
<servlet-name>MyServlet
</servlet-name>
<url-pattern>/myApp/*
</url-pattern>
</servlet-mapping>
...
</web-app>
18
Page 18

50. Ease of Development - Annotations
Java EE 6 Servlet: Single Source file (many cases)
package com.foo;
@WebServlet(name=”MyServlet”, urlPattern=”/myApp/*”)
public class MyServlet {
public void doGet(HttpServletRequest req,
HttpServletResponse res)
{
...
}
19
Page 19

51. Demo
Java EE 6
20
Page 20

52. Servlet 3.0
Other annotation for servlets
• @ServletContextListener
• @ServletFilter
• @FilterMapping(urlPattern=”/foo”)
SKIP
21
Page 21

53. Enterprise Java Beans
3.1 Lite Highlights
32
Page 32

54. EJB 3.1 Sample Simple Singleton
@Singleton
public class SharedBean {
private SharedData shared;
@PostConstruct private void init() {
shared = ...;
}
public int getXYZ() {
return shared.xyz;
}
} 33
Page 33
Everytime, the container starts, the init () will call.

55. Singleton Client
@Stateless
public class FooBean {
// Inject reference to Singleton bean
@EJB
private SharedBean shared;
public void foo() {
int xyz = shared.getXYZ();
...
}
}
34
Page 34
Client is calling this Singleton session bean.

56. EJB 3.1 Sample – Calendar Timer
@Stateless
public class TimerBean {
@Schedule(dayOfWeek=”Sun”)
public void onSunday() {
... periodically do some work
...
}
}
35
Page 35
35

57. EJB 3.1 No Local Business Interface
Just a bean class
@Stateless
public class HelloWorldBean {
/* no interface */
public String hello(String name) {
return “hello, “ + name;
}
}
//Still a EJB reference
@EJB HelloWorldBean hello;
hello.hello(“David”);
36
Page 36
● Sometimes separate local business interface
isn't needed
● Better to completely remove interface from
developer's view than to generate it
● Result : “no-interface” view
● Just a bean class
● All public bean class methods exposed to
client
● Same behavior and client programming model
as Local view
● Client still acquires an EJB reference
instead of calling new()
● Not available to Remote clients 36

58. EJB 3.1 Lite
• Simple, modern subset of EJB for use outside of the
full platform
• Contents:
> Session beans (stateful, stateless, singletons)
> Transaction and security attributes
> Interceptors
> Annotations/ejb-jar.xml
• Embeddable container API
• Beans looked up by global name
37
Page 37

59. JavaServer Faces
2.0 Highlights
38
Page 38

60. JavaServer Faces 2.0
• Top Five Goals
> Make custom components much easier to develop
> Ajax support
> Page description language (PDL)
> Reduce the configuration burden
> Provide for better compatibility between JSF component
libraries from different vendors
39
Page 39

61. Ingredients of a JavaServer Faces
Component+Ajax solution
• Resource Delivery Mechanism
• Partial Tree Traversal
• Partial Page Update ↑ In JSF 2.0 Spec
• Ajaxification Capability
↓ In Component Library
• Ajax Enabled Components
40
Page 40

62. Ingredients of a JavaServer Faces
component+Ajax solution
Resource Delivery Mechanism
• Delivers static resources to the user-agent in
response to HTTP GET requests
• Includes support for localized, versioned resources
and resource libraries 41
Page 41

63. Ingredients of a JavaServer Faces
component+Ajax solution
Partial Tree Traversal
42
Page 42

64. Ingredients of a JavaServer Faces
Component+Ajax solution
Partial Page Update
43
Page 43

65. Ingredients of a JavaServer Faces
Component+Ajax solution
Ajaxification Capability
• A way to give ajax capability to existing JavaServer
Faces components without writing any JavaScript™
language
• Common approaches include
> AjaxZone tag, enclose region to ajaxify
> AjaxSupport tag, nest inside of component to ajaxify
44
Page 44

66. Ingredients of a JavaServer Faces
Component+Ajax solution
Ajax Enabled Components
• Such components always build on top of the
previous ingredients
• Current offerings are tightly coupled to their specific
implementation of the previous ingredients.
• By standardizing the foundations upon which these
components build, we can guarantee interoperability
between them.
45
Page 45

67. Wrapup
46
Page 46

68. Java Enterprise Edition 6
Status
• Public reviews complete
• Final and released
• IDE support from NB 6.8
• & GlassFish v3
> Reference Implementation
47
Page 47
And Open Source can really lower TCO.
Many critics say that open source isn’t less expensive as that even though up front
costs are less – there are other factors that increase overall costs.
But Sun’s Enterprise Quality open source solves these issues by:
Lower Initial Cost
Lower Annual Costs
Pay only at the point of value (not up front)
Lower skills required (than standard open source) because we make it enterprise
quality, pre-bundle, add value adds
And we add additional value adds to open source which other proprietary vendors
add to increase performance, configuration mgmt, version control
And we add tools to increase productivity

69. NetBeans & Java EE 6
Version 6.8 (released this Month)
New: (Java EE 6)
• Java EE6 Web Projects with profiles & EJBs in
web Apps
• EJB 3.1 project support
• RESTful web services (JAX-RS 1.1), GlassFish
Metro 2.0 web services (JAX-WS 2.2), JAXB 2.2
• Java Persistence JPA 2.0, deployment, debugging
and profiling with GlassFish v3 application server
48
Page 48
Web Projects with Java EE 6 and Java EE 6 Web profiles,
EJBs in web applications
EJB 3.1 support, EJB project file wizard also supports
Singleton session type RESTful web services (JAX-RS 1.1),
GlassFish Metro 2.0 web services (JAX-WS 2.2), JAXB 2.2
Java Persistence JPA 2.0, deployment, debugging and
profiling with GlassFish v3 application server

70. NetBeans & Java EE 6
Version 6.8 (released this Month)
More updates on
• Java Server Faces 2.0
• JavaFX 1.2.1
• Kenai.Com: Connected Developer
• Ruby & PHP
• Maven • And much more
• C/C++
49
Page 49
Web Projects with JavaServer Faces 2.0 (Facelets)
• Code & namespace completion and error hints, doc popups, & tag auto-import for Facelets
• Editor support for Facelets libraries, composite components, expression language, including
generators for JSF and HTML forms
• Customizable JSF components palette generates JSF forms and JSF data tables from
entities
• New File wizard generates customizable CRUD (create/read/update/delete) JSF pages from
entities
• Broader usage of annotations instead of deployment descriptors
JavaFX
• Added support for the latest JavaFX SDK 1.2.1
• Improved code completion
• Editor Hints: Fix Imports, Surround With, Implements Abstract Methods, and more •
Improved navigation: Hyperlinks, Go to Type, Find Usages Full JIRA support
Kenai.com (Connected Developer)
(plugin from update center) Project dashboard with more member and project details, improved
search and navigation, easier project sharing Improved instant messenger integration: Online
presence, private and group chat with Kenai members, easy to add links to code / files /issues /
stack traces to messages Improved issue tracker integration

71. Participate!
• Learn about Java EE 6 with NetBeans 6.8
• Download GlassFish V3 (incl with NB 6.8 Full)
• Send feedback on the component technologies.
• Participate.
• Contribute.
• Enjoy!
50
Page 50
50

72. Thanks
Eugene Bogaart
Eugene.Bogaart@sun.com
51
Page 51
