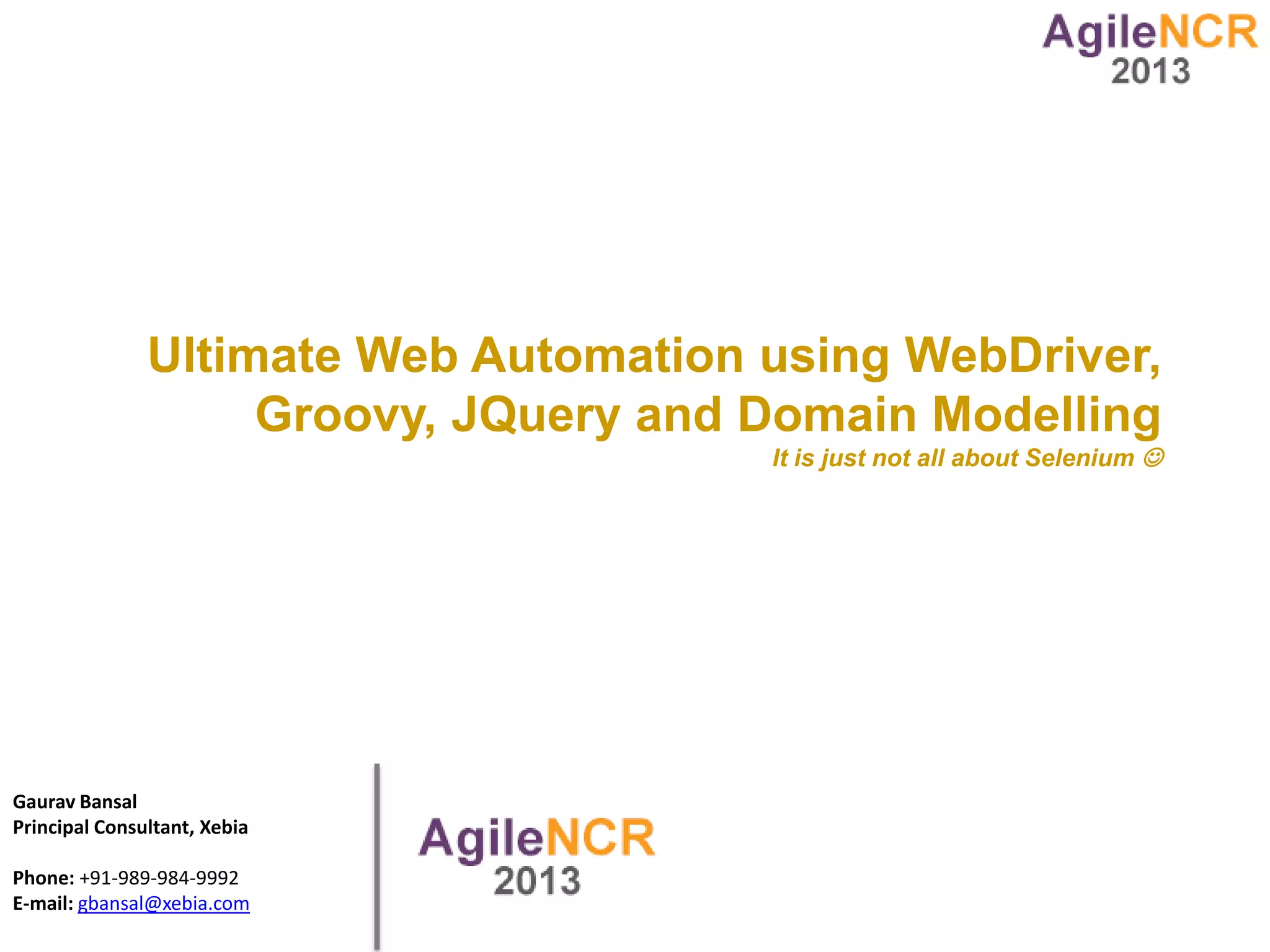

1. Ultimate Web Automation using WebDriver,
Groovy, JQuery and Domain Modelling
It is just not all about Selenium 
Gaurav Bansal
Principal Consultant, Xebia
Phone: +91-989-984-9992
E-mail: gbansal@xebia.com

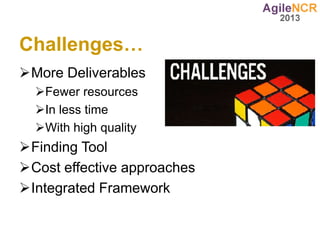

2. Challenges…
More Deliverables
Fewer resources
In less time
With high quality
Finding Tool
Cost effective approaches
Integrated Framework

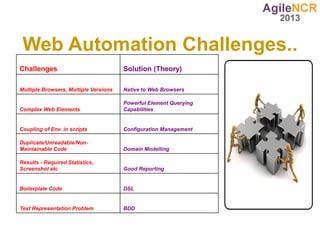

3. Web Automation Challenges..
Challenges Solution (Theory)
Multiple Browsers, Multiple Versions Native to Web Browsers
Powerful Element Querying
Complex Web Elements Capabilities
Coupling of Env. in scripts Configuration Management
Duplicate/Unreadable/Non-
Maintainable Code Domain Modelling
Results - Required Statistics,
Screenshot etc Good Reporting
Boilerplate Code DSL
Test Representation Problem BDD

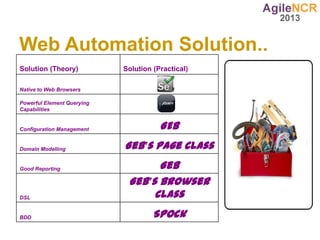

4. Web Automation Solution..
Solution (Theory) Solution (Practical)
Native to Web Browsers
Powerful Element Querying
Capabilities
Configuration Management GEB
Domain Modelling Geb’s Page Class
Good Reporting Geb
Geb’s Browser
DSL Class
BDD Spock

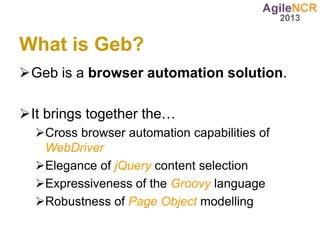

5. What is Geb?
Geb is a browser automation solution.
It brings together the…
Cross browser automation capabilities of
WebDriver
Elegance of jQuery content selection
Expressiveness of the Groovy language
Robustness of Page Object modelling

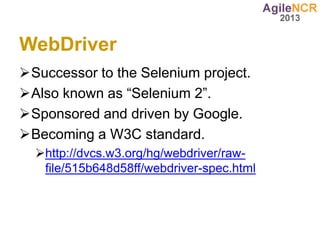

6. WebDriver
Successor to the Selenium project.
Also known as “Selenium 2”.
Sponsored and driven by Google.
Becoming a W3C standard.
http://dvcs.w3.org/hg/webdriver/raw-
file/515b648d58ff/webdriver-spec.html

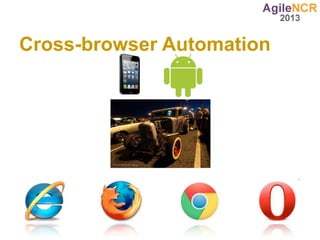

7. Cross-browser Automation

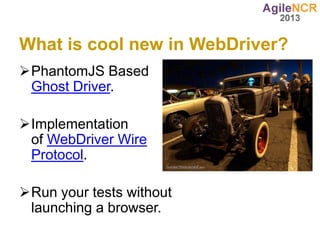

8. What is cool new in WebDriver?
PhantomJS Based
Ghost Driver.
Implementation
of WebDriver Wire
Protocol.
Run your tests without
launching a browser.

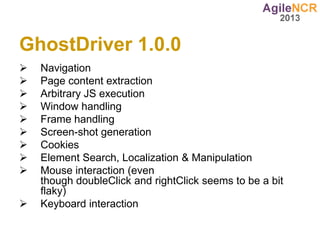

9. GhostDriver 1.0.0
 Navigation
 Page content extraction
 Arbitrary JS execution
 Window handling
 Frame handling
 Screen-shot generation
 Cookies
 Element Search, Localization & Manipulation
 Mouse interaction (even
though doubleClick and rightClick seems to be a bit
flaky)
 Keyboard interaction

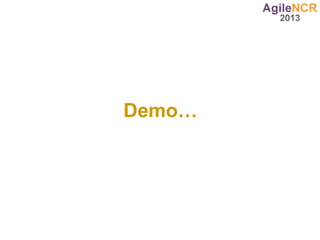

10. Demo…

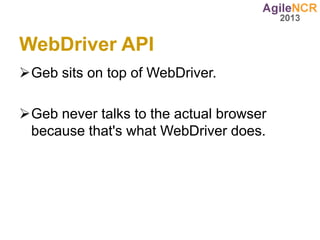

11. WebDriver API
Geb sits on top of WebDriver.
Geb never talks to the actual browser
because that's what WebDriver does.

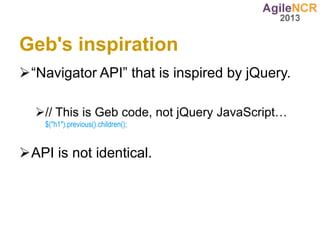

12. Geb's inspiration
“Navigator API” that is inspired by jQuery.
// This is Geb code, not jQuery JavaScript…
$("h1").previous().children();
API is not identical.

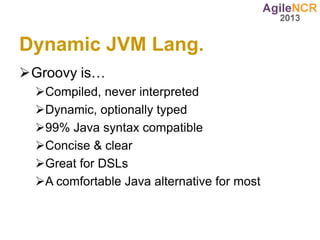

13. Dynamic JVM Lang.
Groovy is…
Compiled, never interpreted
Dynamic, optionally typed
99% Java syntax compatible
Concise & clear
Great for DSLs
A comfortable Java alternative for most

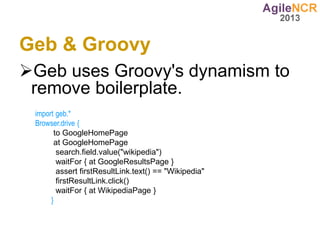

14. Geb & Groovy
Geb uses Groovy's dynamism to
remove boilerplate.
import geb.*
Browser.drive {
to GoogleHomePage
at GoogleHomePage
search.field.value("wikipedia")
waitFor { at GoogleResultsPage }
assert firstResultLink.text() == "Wikipedia"
firstResultLink.click()
waitFor { at WikipediaPage }
}

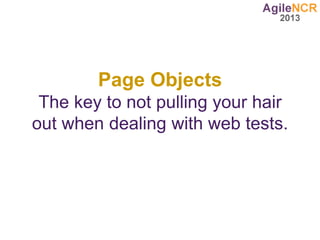

15. Page Objects
The key to not pulling your hair
out when dealing with web tests.

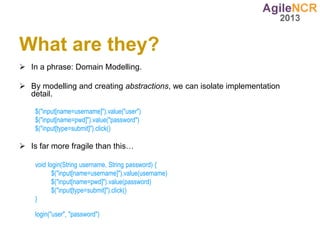

16. What are they?
 In a phrase: Domain Modelling.
 By modelling and creating abstractions, we can isolate implementation
detail.
$("input[name=username]").value("user")
$("input[name=pwd]").value("password")
$("input[type=submit]").click()
 Is far more fragile than this…
void login(String username, String password) {
$("input[name=username]").value(username)
$("input[name=pwd]").value(password)
$("input[type=submit]").click()
}
login("user", "password")

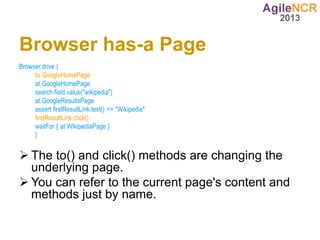

17. Browser has-a Page
Browser.drive {
to GoogleHomePage
at GoogleHomePage
search.field.value("wikipedia")
at GoogleResultsPage
assert firstResultLink.text() == "Wikipedia"
firstResultLink.click()
waitFor { at WikipediaPage }
}
 The to() and click() methods are changing the
underlying page.
 You can refer to the current page's content and
methods just by name.

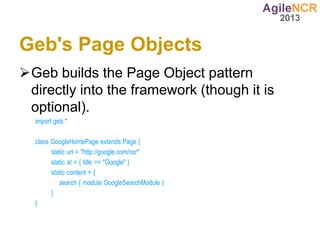

18. Geb's Page Objects
Geb builds the Page Object pattern
directly into the framework (though it is
optional).
import geb.*
class GoogleHomePage extends Page {
static url = "http://google.com/ncr"
static at = { title == "Google" }
static content = {
search { module GoogleSearchModule }
}
}

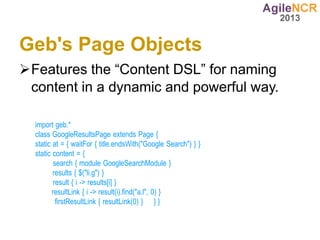

19. Geb's Page Objects
Features the “Content DSL” for naming
content in a dynamic and powerful way.
import geb.*
class GoogleResultsPage extends Page {
static at = { waitFor { title.endsWith("Google Search") } }
static content = {
search { module GoogleSearchModule }
results { $("li.g") }
result { i -> results[i] }
resultLink { i -> result(i).find("a.l", 0) }
firstResultLink { resultLink(0) } } }

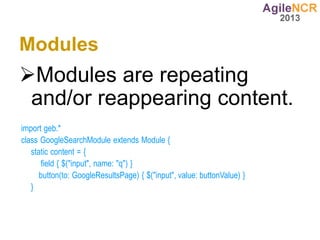

20. Modules
Modules are repeating
and/or reappearing content.
import geb.*
class GoogleSearchModule extends Module {
static content = {
field { $("input", name: "q") }
button(to: GoogleResultsPage) { $("input", value: buttonValue) }
}

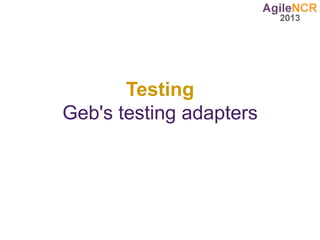

21. Testing
Geb's testing adapters

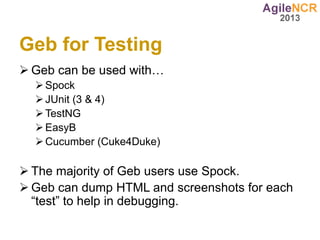

22. Geb for Testing
 Geb can be used with…
 Spock
 JUnit (3 & 4)
 TestNG
 EasyB
 Cucumber (Cuke4Duke)
 The majority of Geb users use Spock.
 Geb can dump HTML and screenshots for each
“test” to help in debugging.

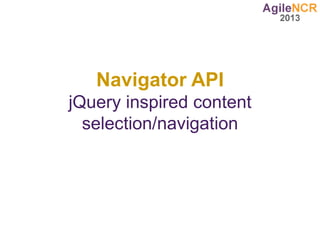

23. Navigator API
jQuery inspired content
selection/navigation

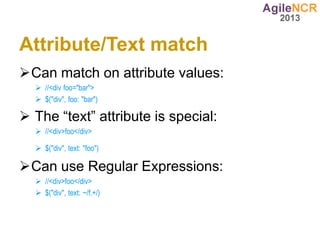

24. Attribute/Text match
Can match on attribute values:
 //<div foo="bar">
 $("div", foo: "bar")
 The “text” attribute is special:
 //<div>foo</div>
 $("div", text: "foo")
Can use Regular Expressions:
 //<div>foo</div>
 $("div", text: ~/f.+/)

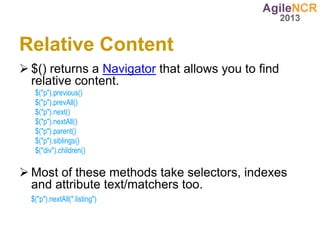

25. Relative Content
 $() returns a Navigator that allows you to find
relative content.
$("p").previous()
$("p").prevAll()
$("p").next()
$("p").nextAll()
$("p").parent()
$("p").siblings()
$("div").children()
 Most of these methods take selectors, indexes
and attribute text/matchers too.
$("p").nextAll(".listing")

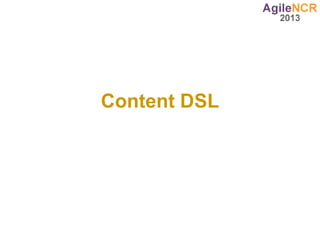

26. Content DSL

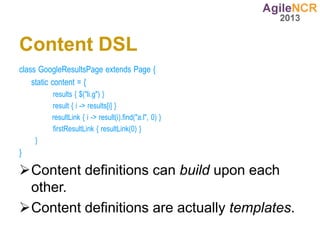

27. Content DSL
class GoogleResultsPage extends Page {
static content = {
results { $("li.g") }
result { i -> results[i] }
resultLink { i -> result(i).find("a.l", 0) }
firstResultLink { resultLink(0) }
}
}
Content definitions can build upon each
other.
Content definitions are actually templates.

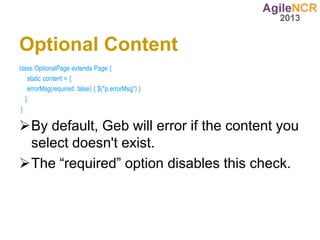

28. Optional Content
class OptionalPage extends Page {
static content = {
errorMsg(required: false) { $("p.errorMsg") }
}
}
By default, Geb will error if the content you
select doesn't exist.
The “required” option disables this check.

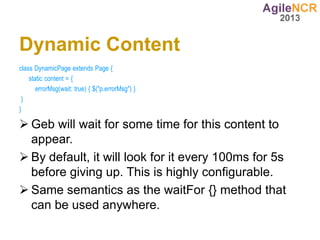

29. Dynamic Content
class DynamicPage extends Page {
static content = {
errorMsg(wait: true) { $("p.errorMsg") }
}
}
 Geb will wait for some time for this content to
appear.
 By default, it will look for it every 100ms for 5s
before giving up. This is highly configurable.
 Same semantics as the waitFor {} method that
can be used anywhere.

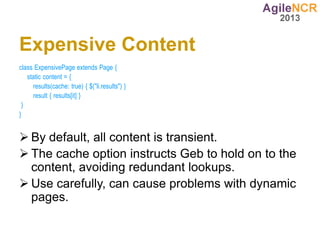

30. Expensive Content
class ExpensivePage extends Page {
static content = {
results(cache: true) { $("li.results") }
result { results[it] }
}
}
 By default, all content is transient.
 The cache option instructs Geb to hold on to the
content, avoiding redundant lookups.
 Use carefully, can cause problems with dynamic
pages.

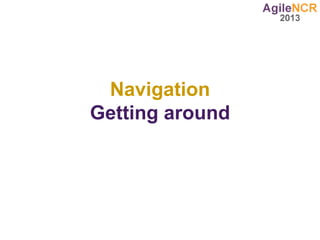

31. Navigation
Getting around

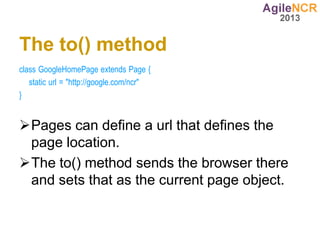

32. The to() method
class GoogleHomePage extends Page {
static url = "http://google.com/ncr"
}
Pages can define a url that defines the
page location.
The to() method sends the browser there
and sets that as the current page object.

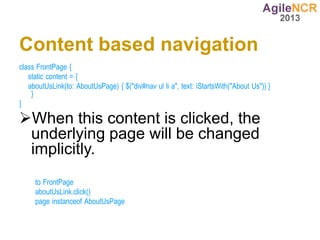

33. Content based navigation
class FrontPage {
static content = {
aboutUsLink(to: AboutUsPage) { $("div#nav ul li a", text: iStartsWith("About Us")) }
}
}
When this content is clicked, the
underlying page will be changed
implicitly.
to FrontPage
aboutUsLink.click()
page instanceof AboutUsPage

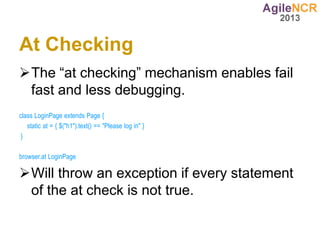

34. At Checking
The “at checking” mechanism enables fail
fast and less debugging.
class LoginPage extends Page {
static at = { $("h1").text() == "Please log in" }
}
browser.at LoginPage
Will throw an exception if every statement
of the at check is not true.

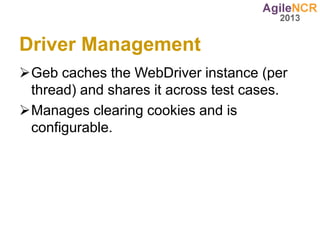

35. Driver Management
Geb caches the WebDriver instance (per
thread) and shares it across test cases.
Manages clearing cookies and is
configurable.

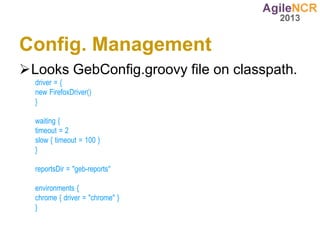

36. Config. Management
Looks GebConfig.groovy file on classpath.
driver = {
new FirefoxDriver()
}
waiting {
timeout = 2
slow { timeout = 100 }
}
reportsDir = "geb-reports“
environments {
chrome { driver = "chrome" }
}

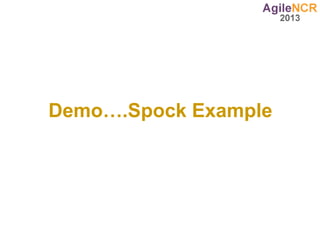

37. Demo….Spock Example

38. Summary
JUnit4 Spock Grails
TestNG EasyB

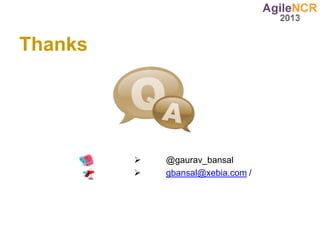

39. Thanks
 @gaurav_bansal
 gbansal@xebia.com /
