Kiss PageObjects [01-2017]

@yashaka 01.2017
KISS PageObjects

Plan
Intro
Classic examples
KISS PageObjects Demo
Retrospective
Q&A

Afterwords
There are good practices in context,
but there are no best practices.
(c) Cem Kaner, James Bach

Afterwords Preface
There are good practices in context,
but there are no best practices.
(c) Cem Kaner, James Bach

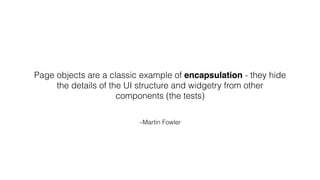

–Martin Fowler

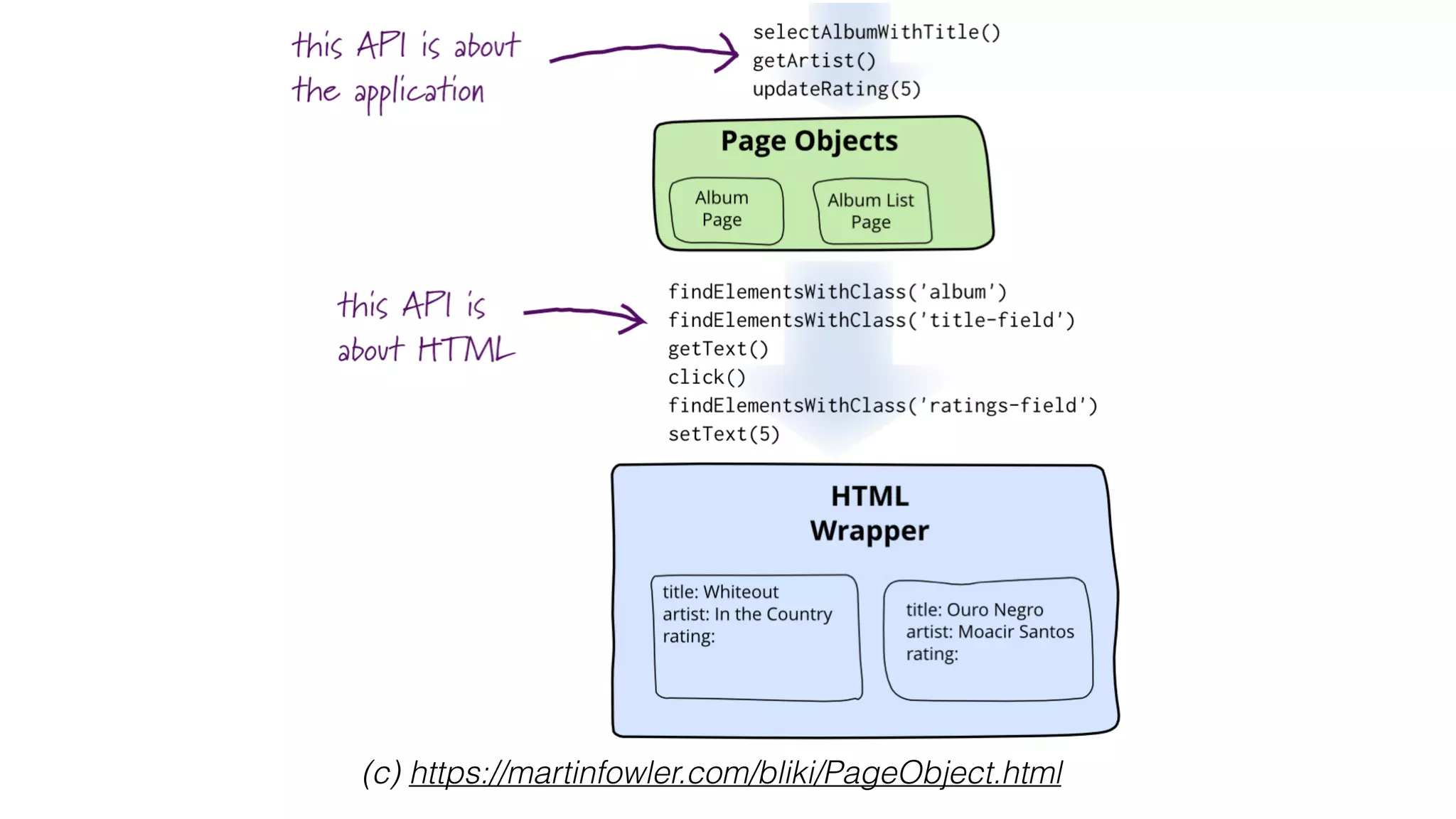

Page objects are a classic example of encapsulation - they hide
the details of the UI structure and widgetry from other
components (the tests)

(c) https://martinfowler.com/bliki/PageObject.html

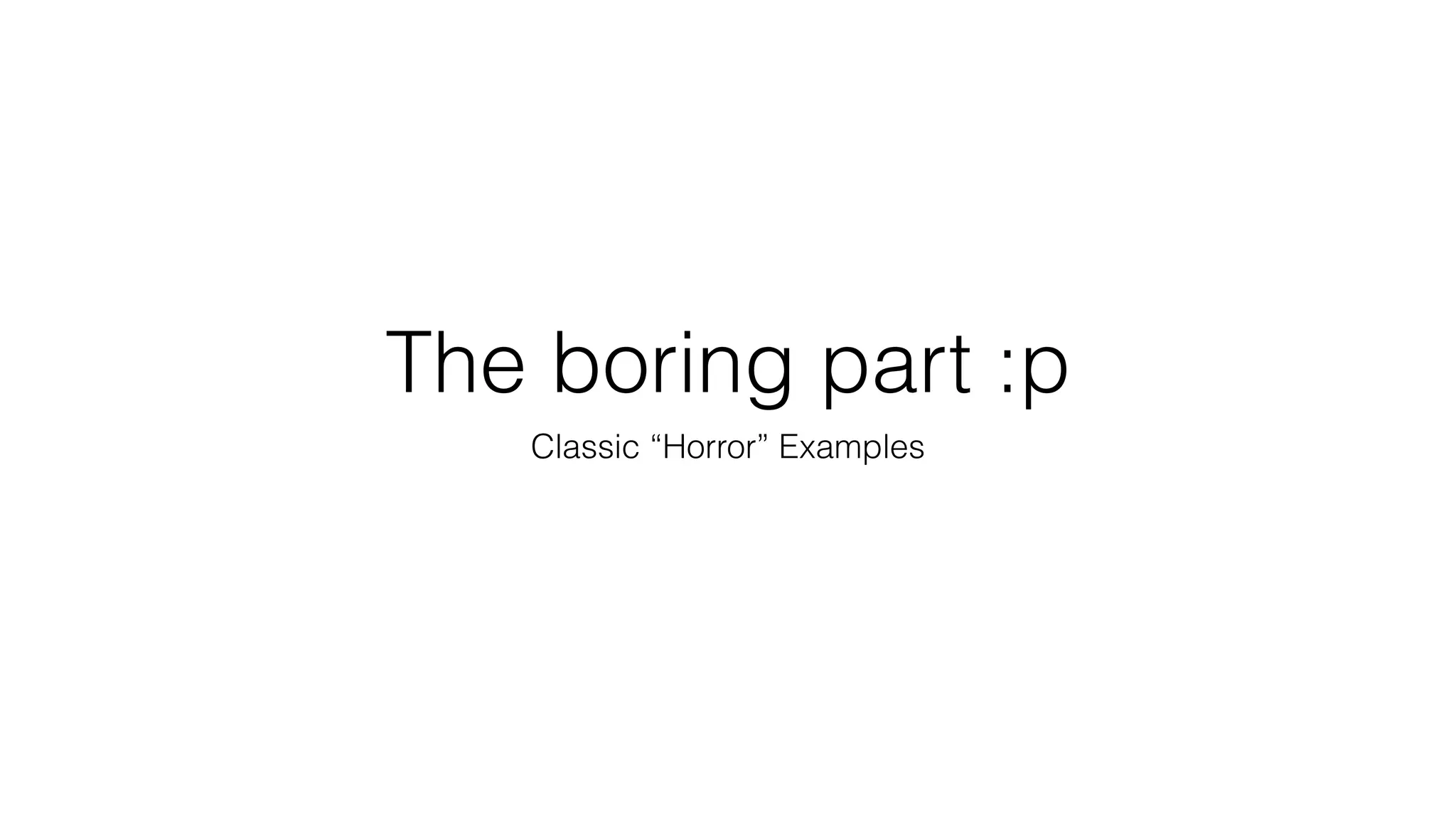

The boring part :p
Classic “Horror” Examples

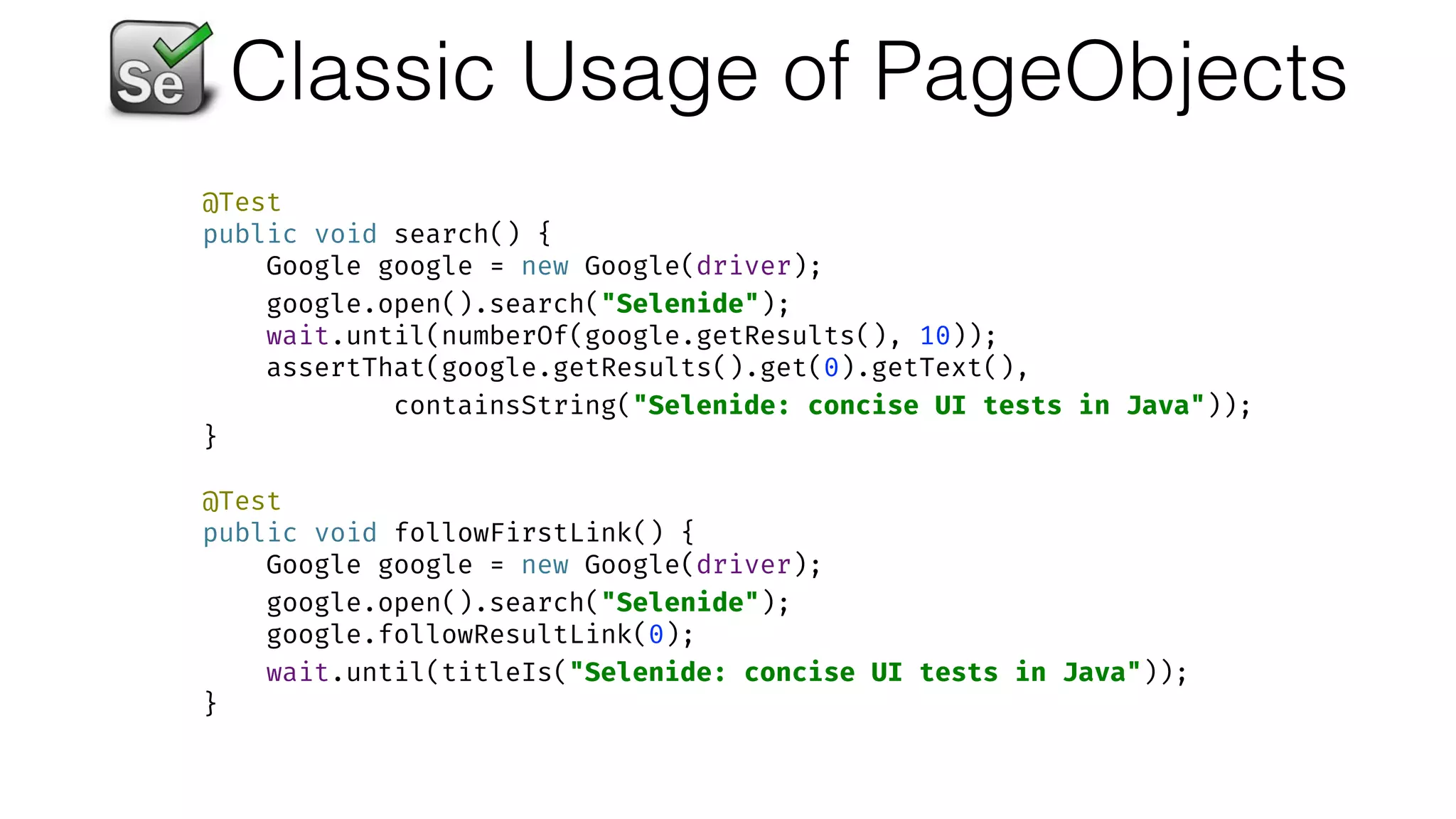

Classic Usage of PageObjects
@Test 
public void search() { 
Google google = new Google(driver); 
google.open().search("Selenide"); 
wait.until(numberOf(google.getResults(), 10)); 
assertThat(google.getResults().get(0).getText(),  
containsString("Selenide: concise UI tests in Java")); 
} 
 
@Test 
public void followFirstLink() { 
google.followResultLink(0); 
wait.until(titleIs("Selenide: concise UI tests in Java")); 
}

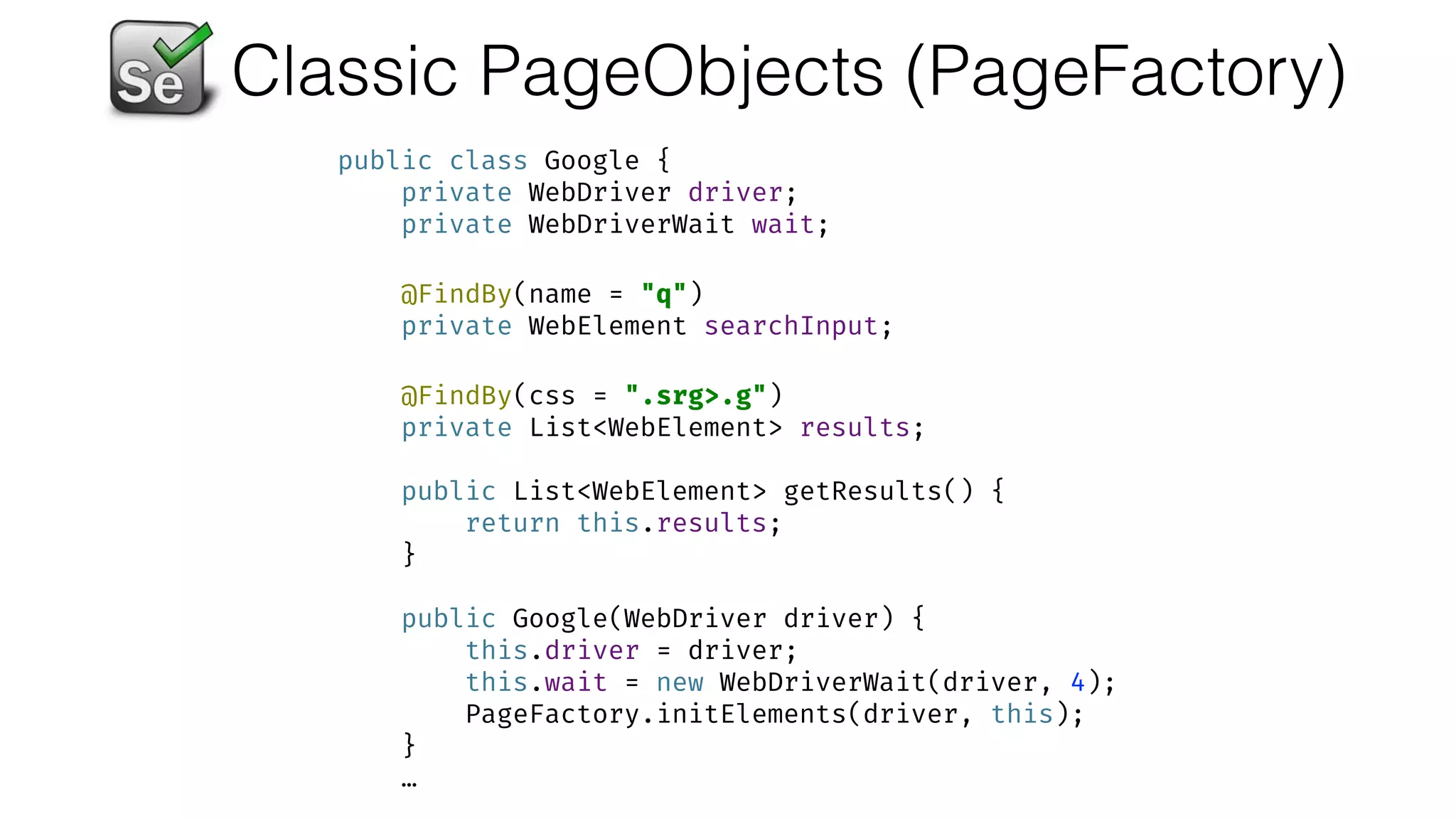

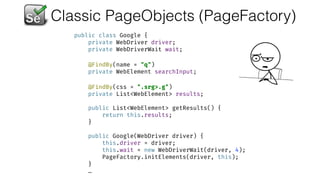

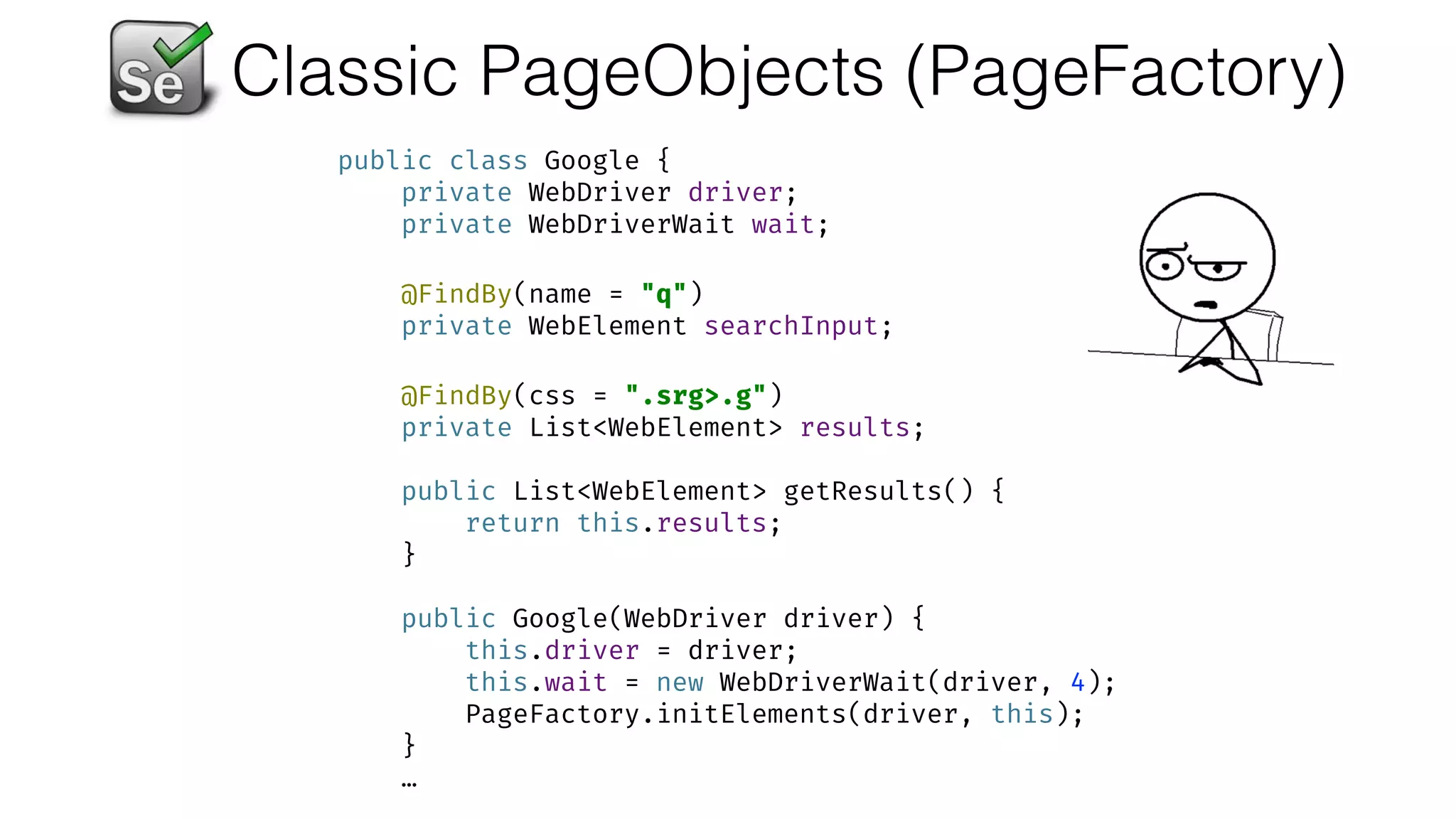

Classic PageObjects (PageFactory)
public class Google { 
private WebDriver driver; 
private WebDriverWait wait; 
 
@FindBy(name = "q") 
private WebElement searchInput; 
 
@FindBy(css = ".srg>.g") 
private List<WebElement> results; 
 
public List<WebElement> getResults() { 
return this.results; 
} 
 
public Google(WebDriver driver) { 
this.driver = driver; 
this.wait = new WebDriverWait(driver, 4); 
PageFactory.initElements(driver, this); 
}
…

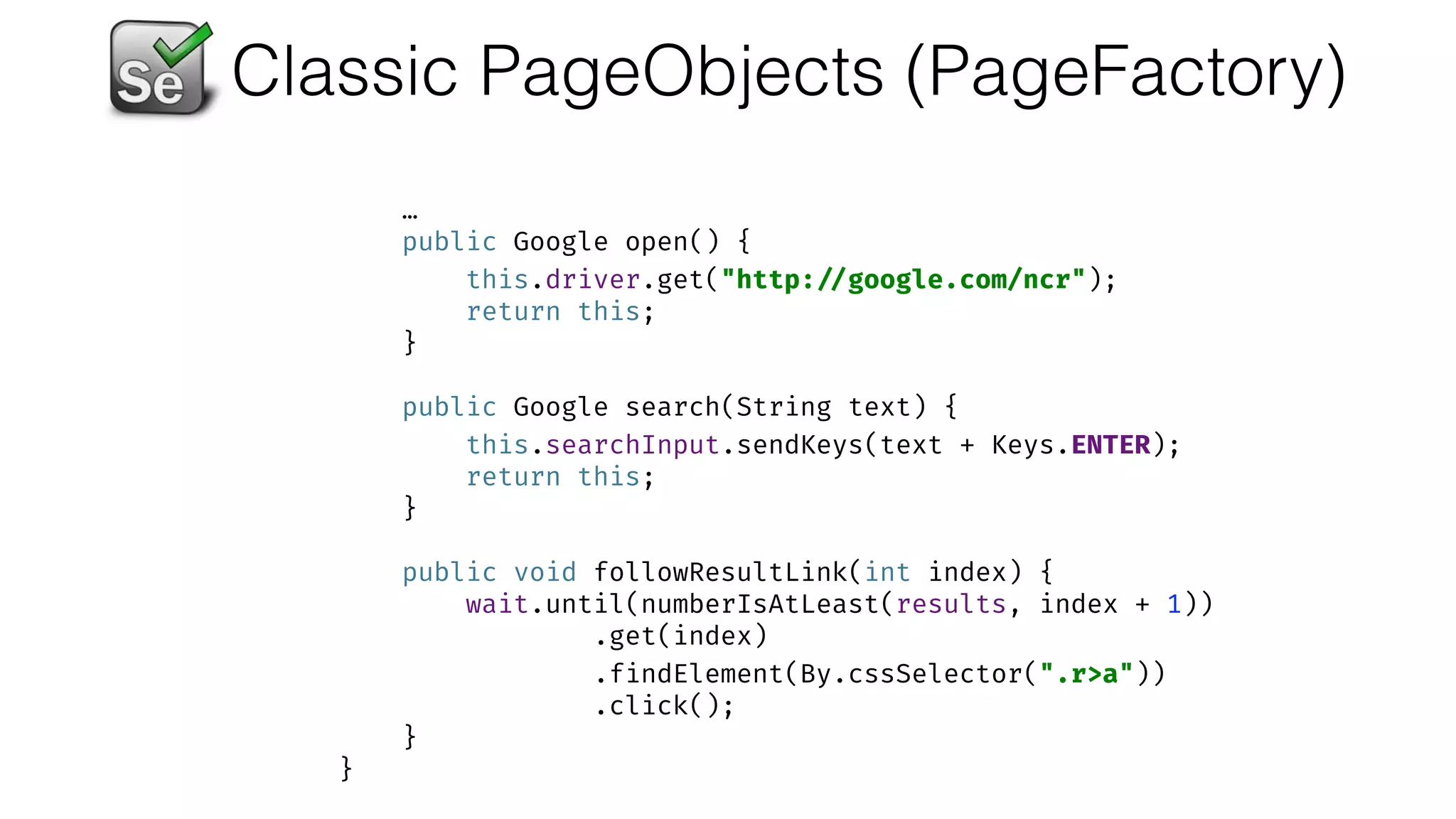

Classic PageObjects (PageFactory)
…
public Google open() { 
this.driver.get("http: //google.com/ncr"); 
return this; 
} 
 
public Google search(String text) { 
this.searchInput.sendKeys(text + Keys.ENTER); 
return this; 
} 
 
public void followResultLink(int index) { 
wait.until(numberIsAtLeast(results, index + 1)) 
.get(index) 
.findElement(By.cssSelector(".r>a")) 
.click(); 
} 
}

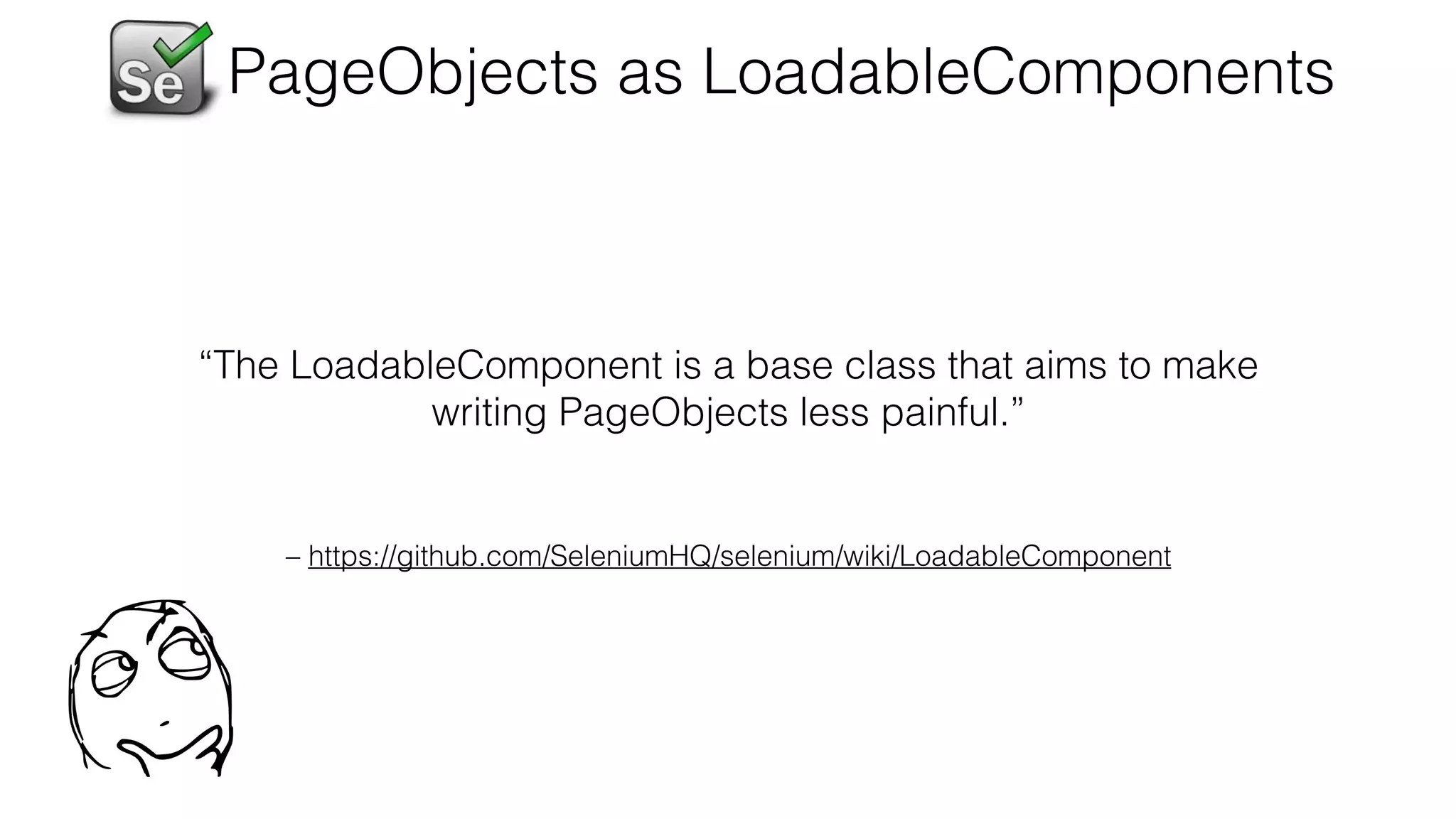

– https://github.com/SeleniumHQ/selenium/wiki/LoadableComponent
“The LoadableComponent is a base class that aims to make
writing PageObjects less painful.”

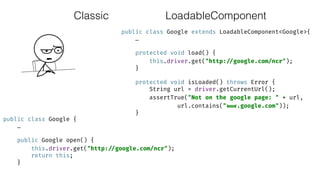

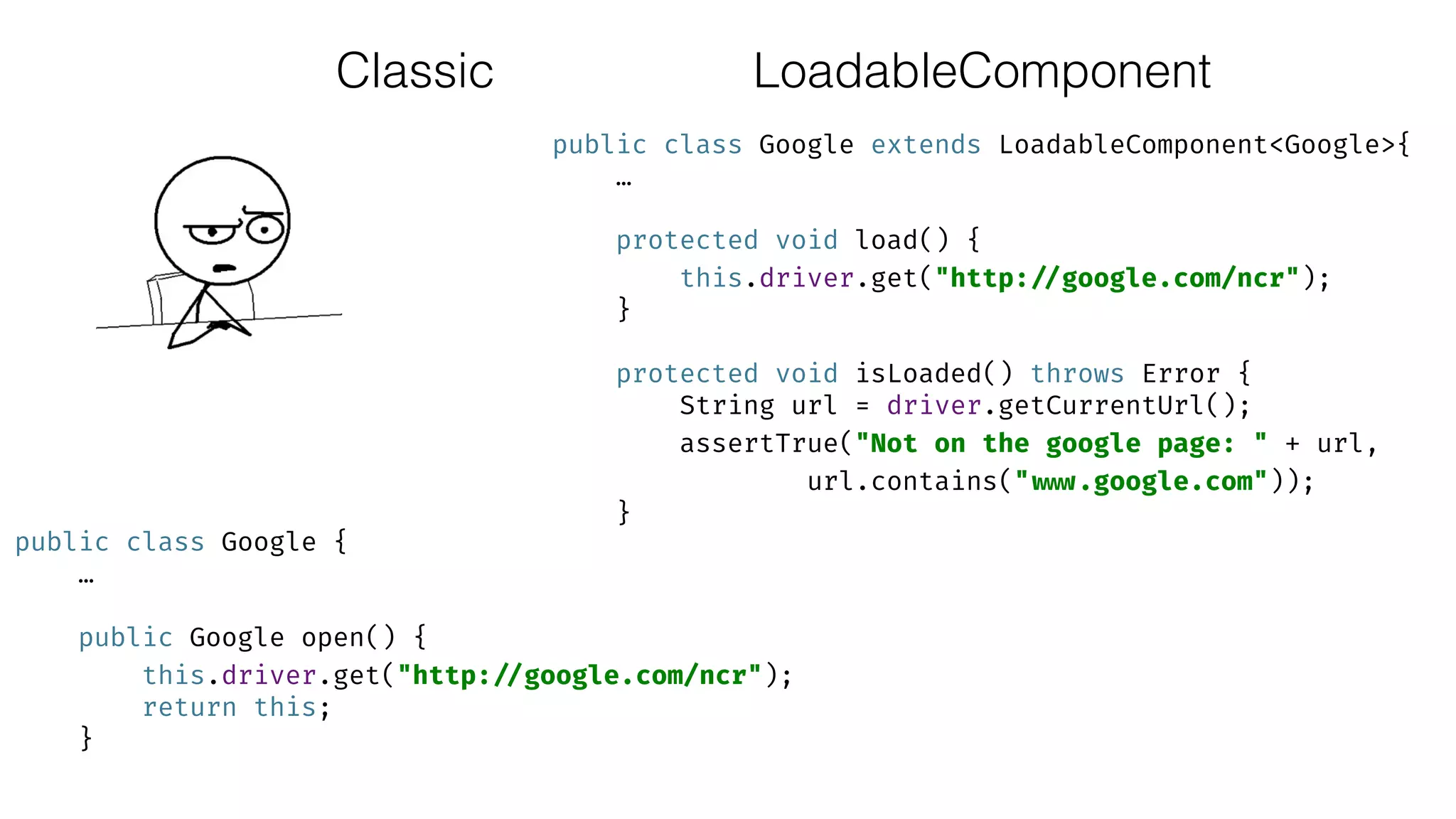

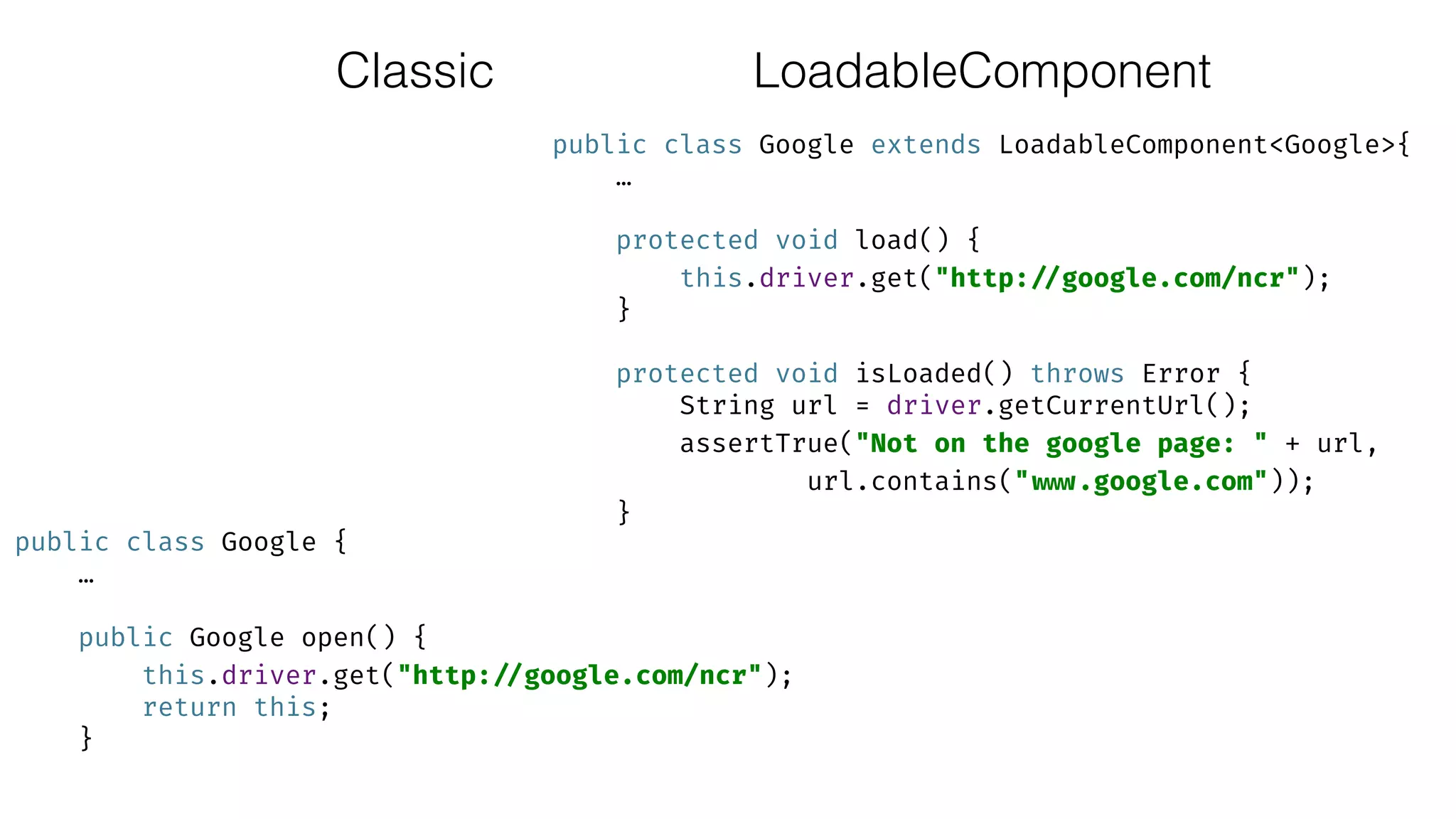

PageObjects as LoadableComponents

Classic
public class Google extends LoadableComponent<Google>{ 
… 
 
protected void load() { 
} 
 
protected void isLoaded() throws Error { 
String url = driver.getCurrentUrl(); 
assertTrue("Not on the google page: " + url,
url.contains(" www.google.com")); 
}
… 
 
return this; 
}

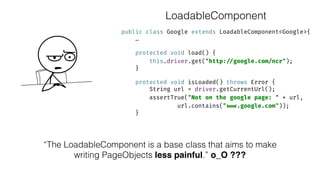

LoadableComponent

public class Google extends LoadableComponent<Google>{ 
… 
 
} 
 
protected void isLoaded() throws Error { 
String url = driver.getCurrentUrl(); 
assertTrue("Not on the google page: " + url,
url.contains(" www.google.com")); 
}

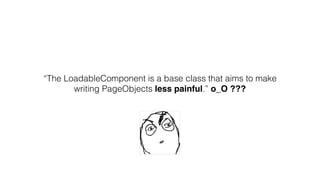

writing PageObjects less painful.” o_O ???
LoadableComponent

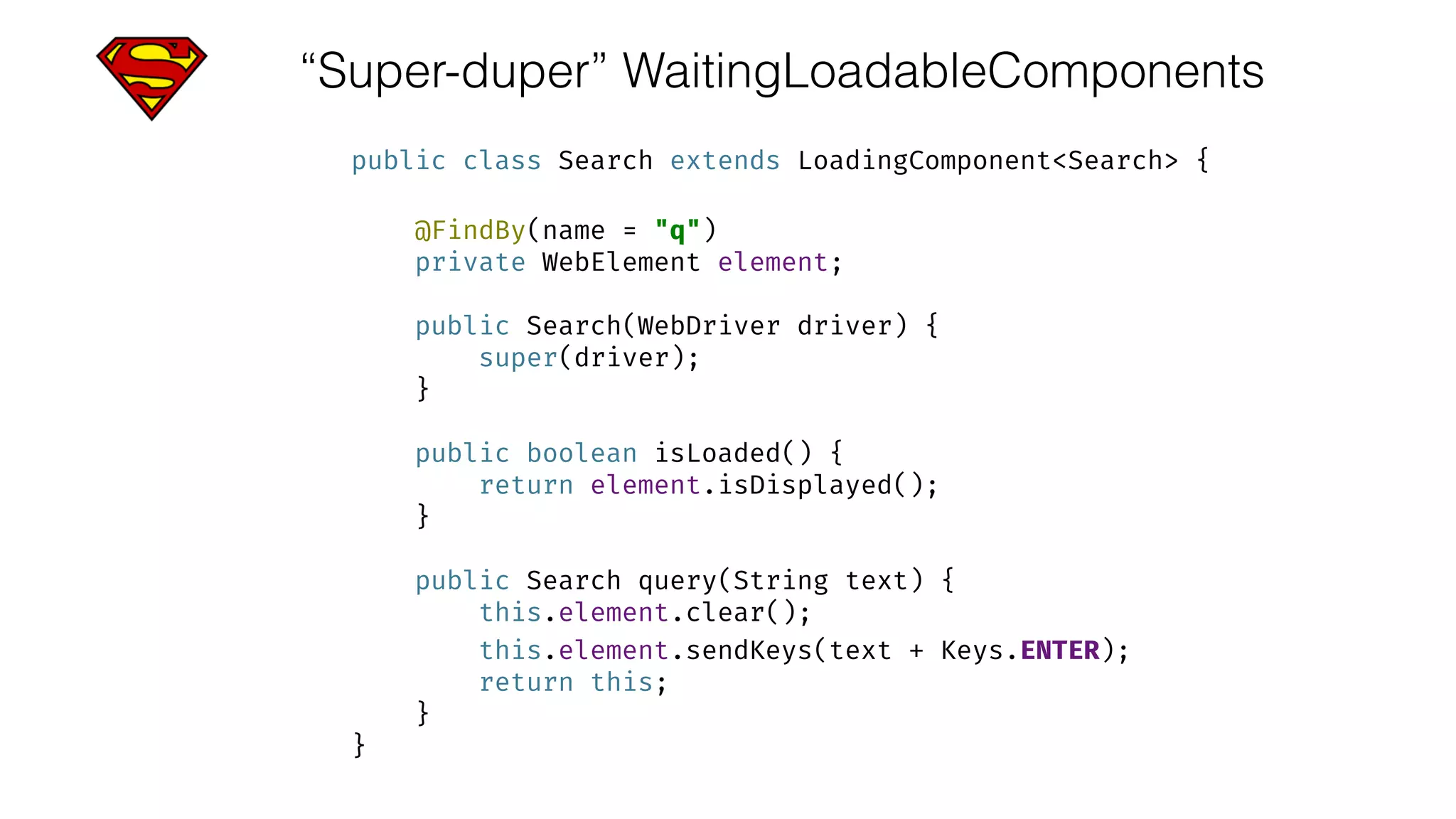

“Super-duper” WaitingLoadableComponents
public class Search extends LoadingComponent<Search> { 
 
private WebElement element; 
 
public Search(WebDriver driver) { 
super(driver); 
} 
 
public boolean isLoaded() { 
return element.isDisplayed(); 
} 
 
public Search query(String text) { 
this.element.clear(); 
this.element.sendKeys(text + Keys.ENTER); 
return this; 
} 
}

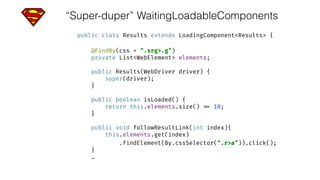

public class Results extends LoadingComponent<Results> { 
 
private List<WebElement> elements; 
 
public Results(WebDriver driver) { 
super(driver); 
} 
 
return this.elements.size() == 10; 
} 
 
public void followResultLink(int index){ 
this.elements.get(index)
.findElement(By.cssSelector(".r>a")).click(); 
}
…

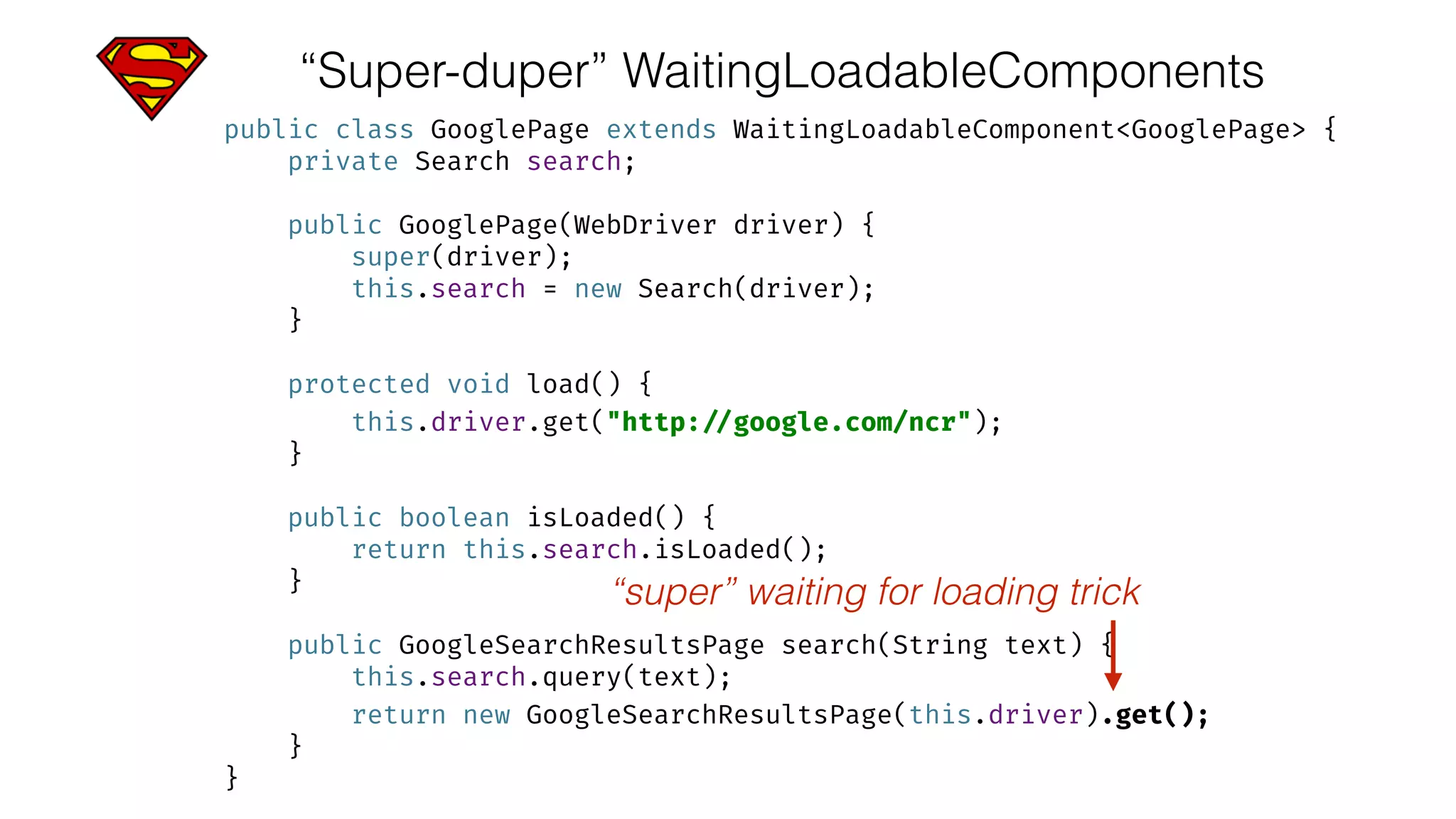

public class GooglePage extends WaitingLoadableComponent<GooglePage> { 
private Search search; 
 
public GooglePage(WebDriver driver) { 
super(driver); 
this.search = new Search(driver); 
} 
 
} 
 
return this.search.isLoaded(); 
} 
 
public GoogleSearchResultsPage search(String text) { 
this.search.query(text); 
return new GoogleSearchResultsPage(this.driver).get(); 
} 
}
“super” waiting for loading trick

public class GoogleSearchResultsPage  
extends LoadingComponent<GoogleSearchResultsPage> { 
private Search search; 
private Results results; 
 
public GoogleSearchResultsPage(WebDriver driver) { 
super(driver); 
this.search = new Search(driver); 
this.results = new Results(driver); 
} 
 
return this.results.isLoaded(); 
} 
 
public Results getResults() { 
} 
}

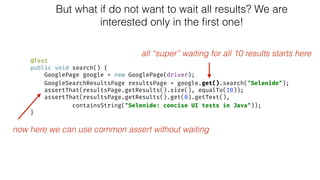

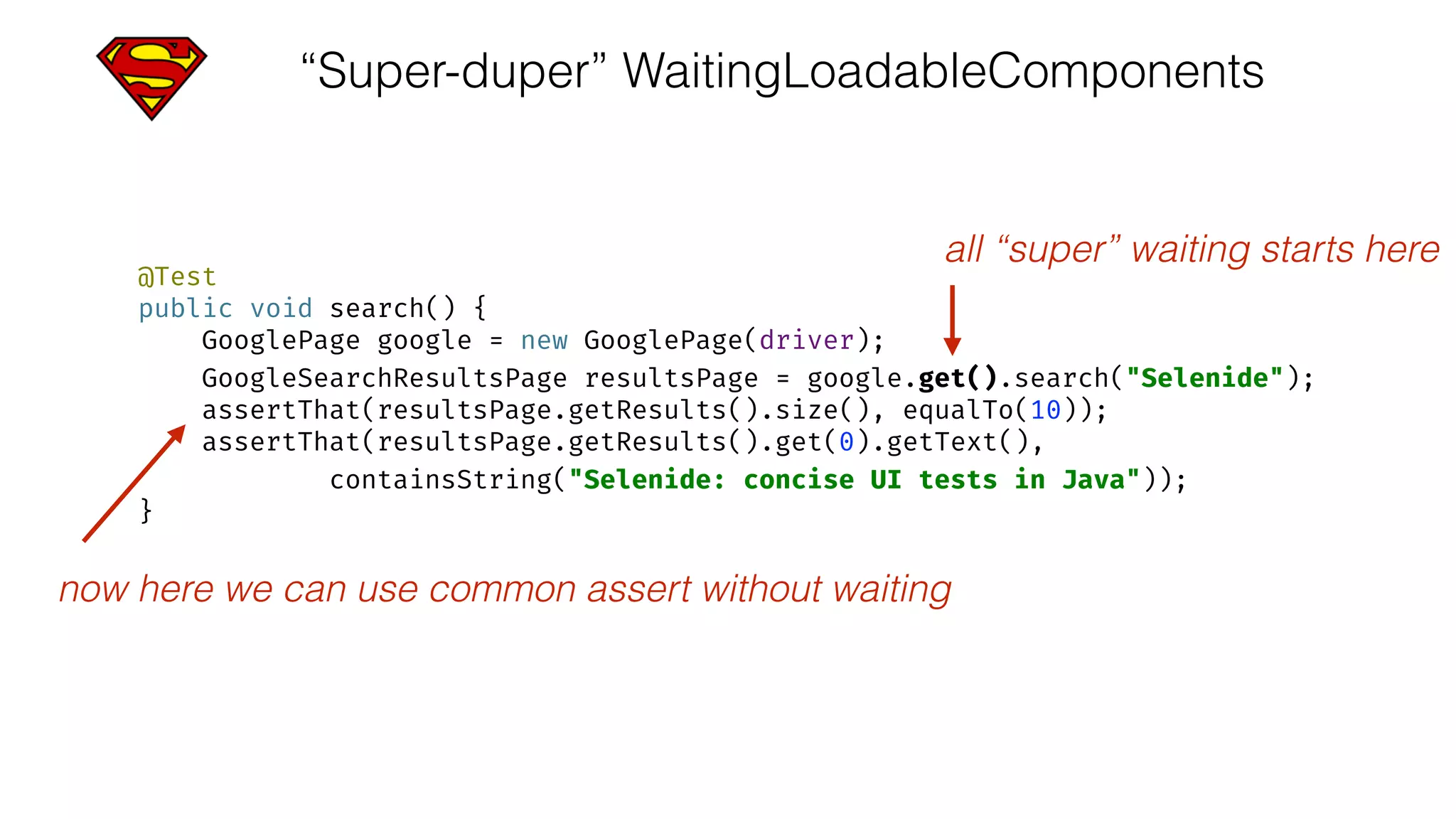

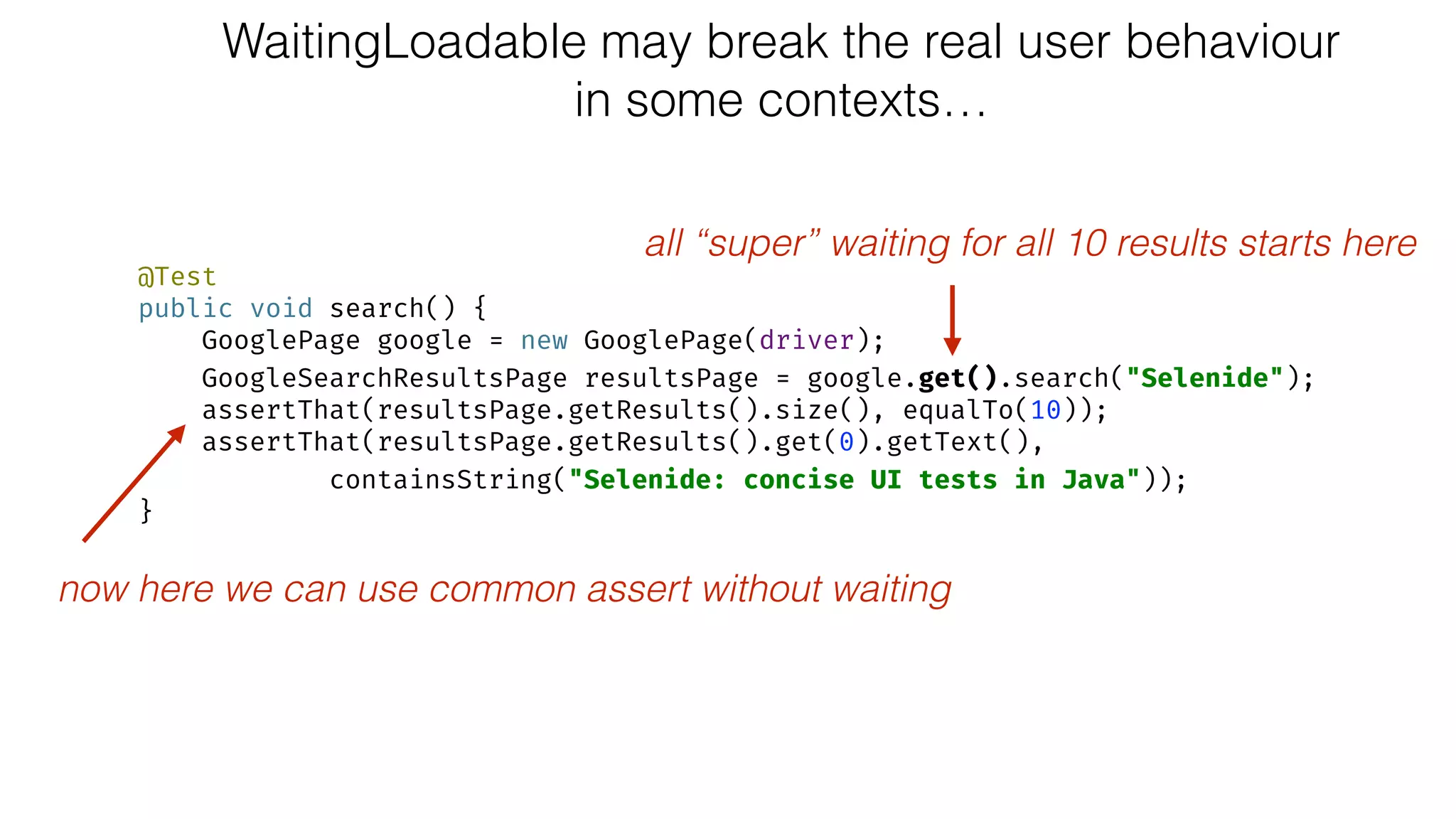

@Test 
GooglePage google = new GooglePage(driver); 
GoogleSearchResultsPage resultsPage = google.get().search("Selenide"); 
assertThat(resultsPage.getResults().size(), equalTo(10)); 
assertThat(resultsPage.getResults().get(0).getText(), 
}
all “super” waiting starts here
now here we can use common assert without waiting

writing PageObjects less painful.” o_O ???

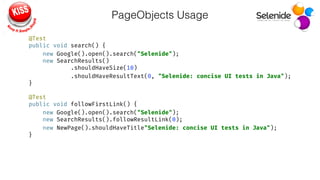

PageObjects Usage
@Test 
new Google().open().search("Selenide"); 
new SearchResults() 
.shouldHaveSize(10) 
.shouldHaveResultText(0, "Selenide: concise UI tests in Java"); 
} 
 
@Test 
new SearchResults().followResultLink(0); 
new NewPage().shouldHaveTitle"Selenide: concise UI tests in Java"); 
}

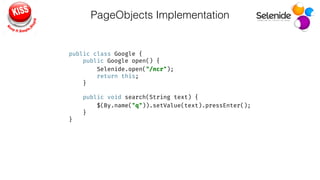

PageObjects Implementation
Selenide.open("/ncr"); 
return this; 
} 
 
public void search(String text) { 
$(By.name("q")).setValue(text).pressEnter(); 
} 
}

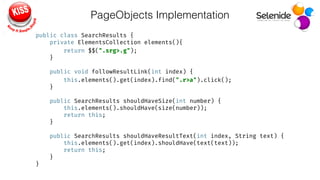

public class SearchResults { 
private ElementsCollection elements(){ 
return $$(".srg>.g"); 
} 
 
this.elements().get(index).find(".r>a").click(); 
} 
 
public SearchResults shouldHaveSize(int number) { 
this.elements().shouldHave(size(number)); 
return this; 
} 
 
public SearchResults shouldHaveResultText(int index, String text) { 
this.elements().get(index).shouldHave(text(text)); 
return this; 
} 
}

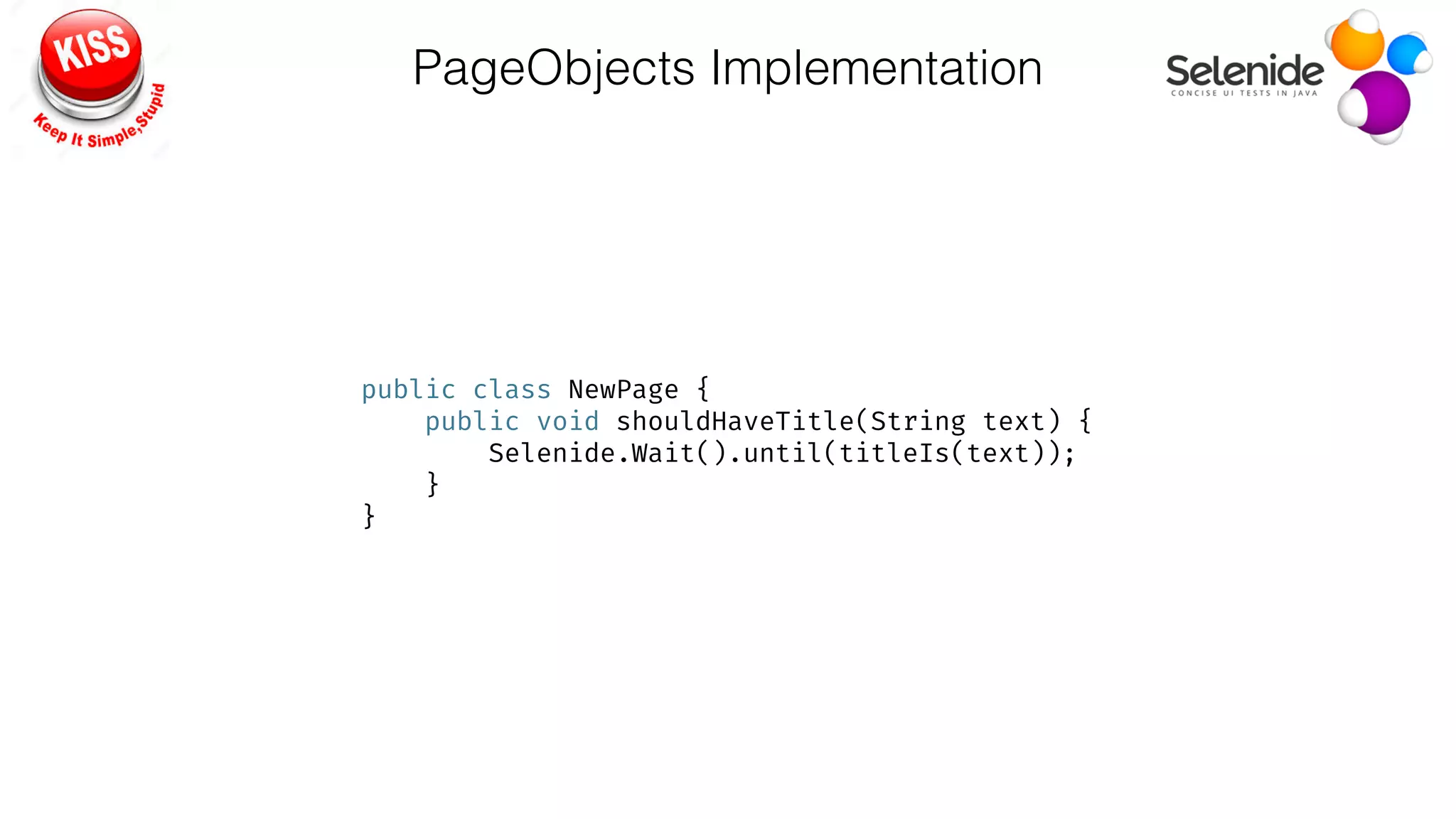

public class NewPage { 
public void shouldHaveTitle(String text) { 
Selenide.Wait().until(titleIs(text)); 
} 
}

So why do we need
PageObjects?
Despite of DRYing the code…

So why do we need PageObjects?
Despite of DRYing the code…

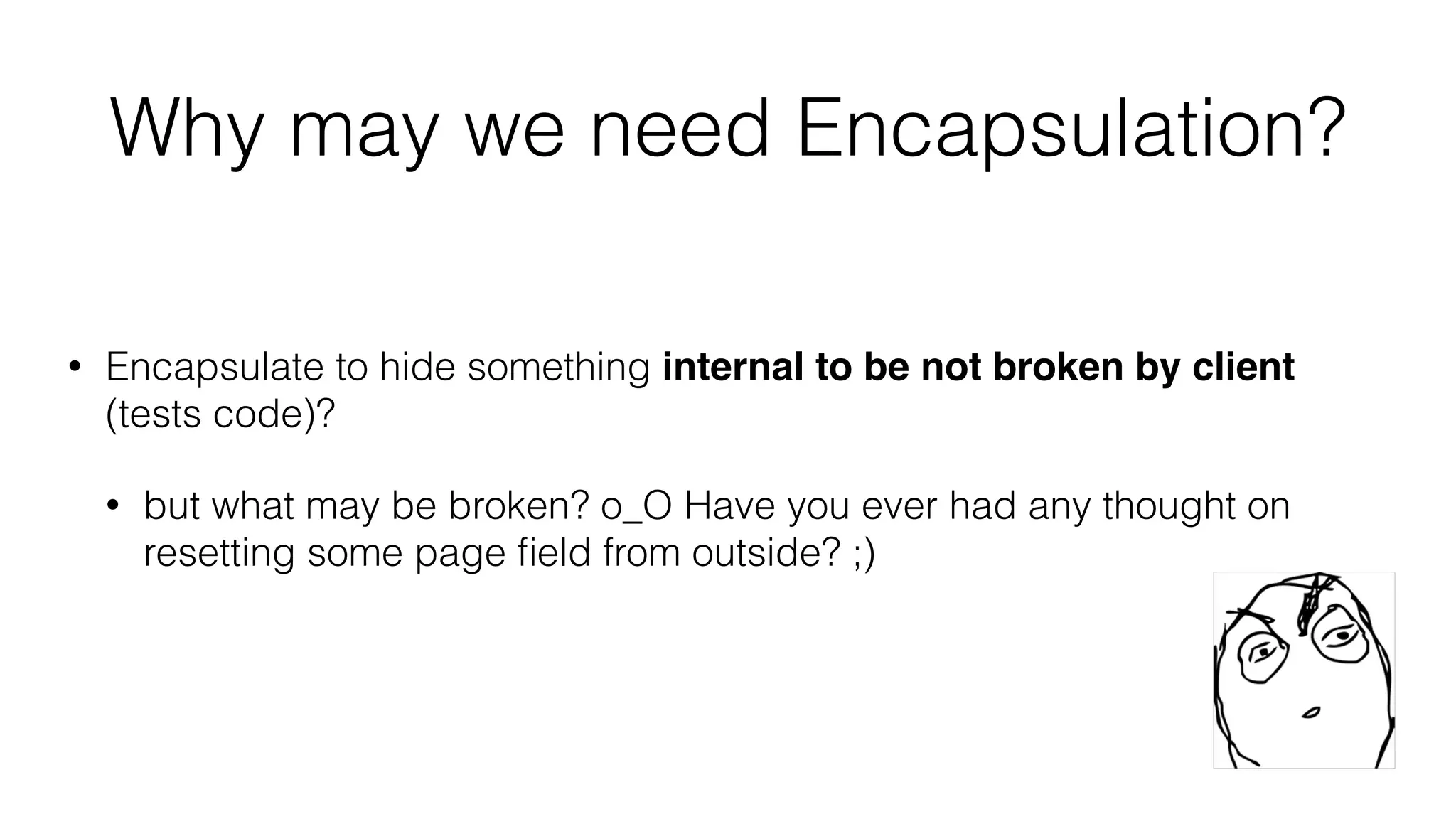

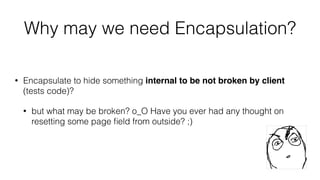

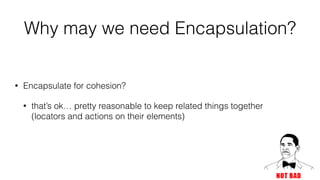

Why may we need Encapsulation?
• Encapsulate for cohesion?
• that’s ok… pretty reasonable to keep related things together
(locators and actions on their elements)

• Encapsulate to hide something internal to be not broken by client
(tests code)?
• but what may be broken? o_O Have you ever had any thought on
resetting some page ﬁeld from outside? ;)

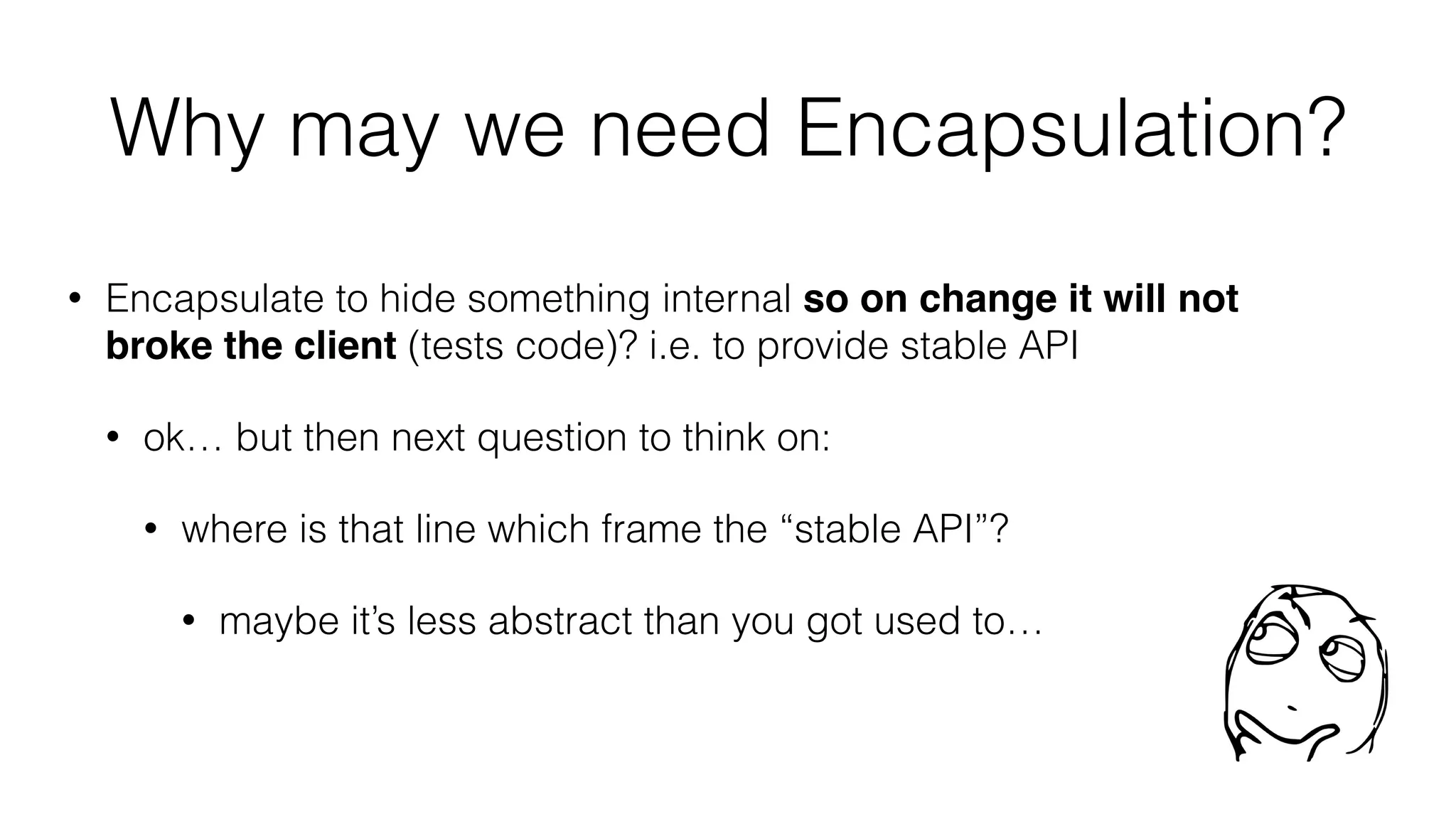

• Encapsulate to hide something internal so on change it will not
broke the client (tests code)? i.e. to provide stable API
• ok… but then next question to think on:
• where is that line which frame the “stable API”?
• maybe it’s less abstract than you got used to…

• Encapsulate to narrow User Oriented behavioural API to be
readable enough and convenient in usage?
• :)

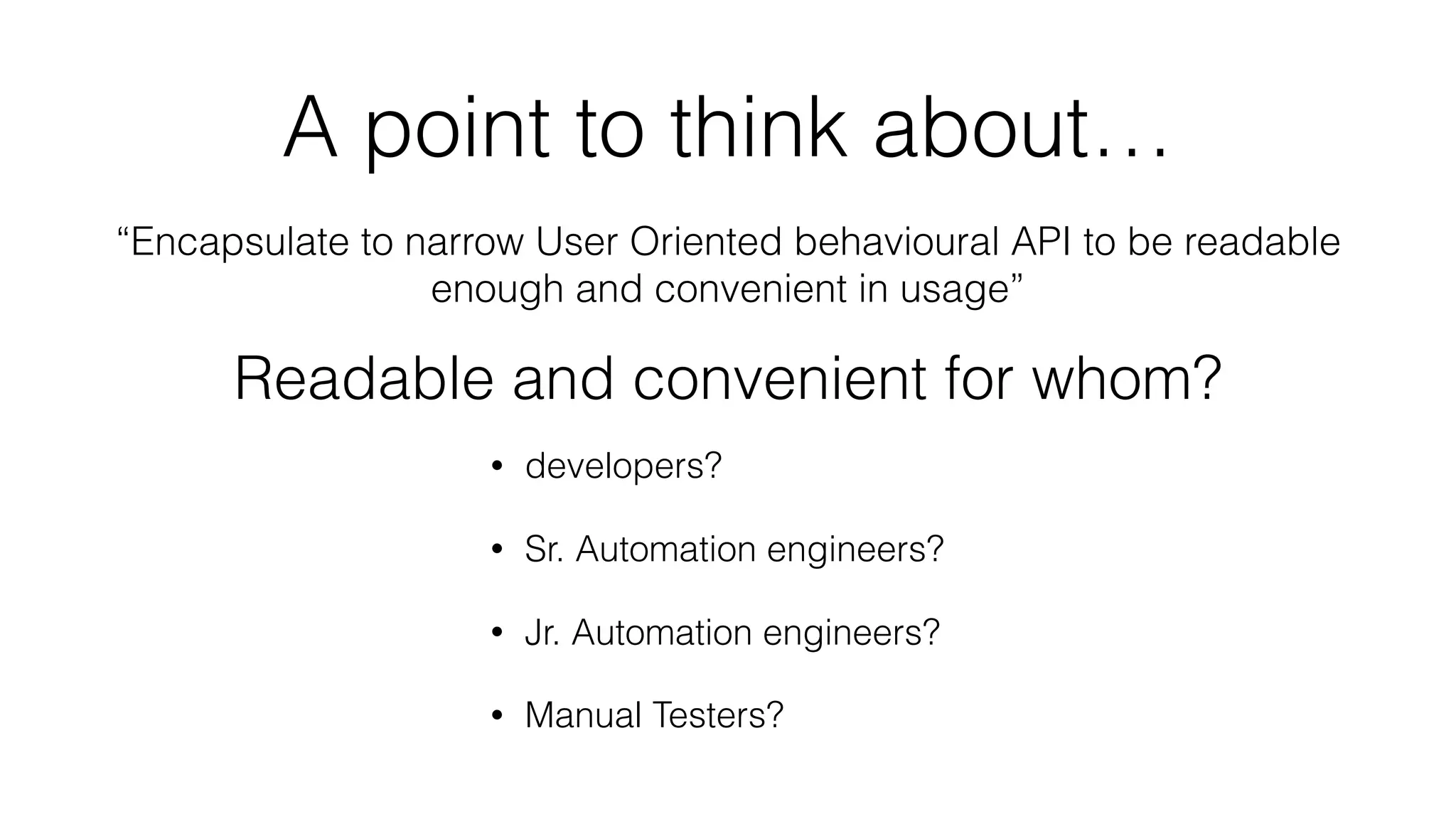

A point to think about…
“Encapsulate to narrow User Oriented behavioural API to be readable
enough and convenient in usage”
• developers?
• Sr. Automation engineers?
• Jr. Automation engineers?
• Manual Testers?
Readable and convenient for whom?

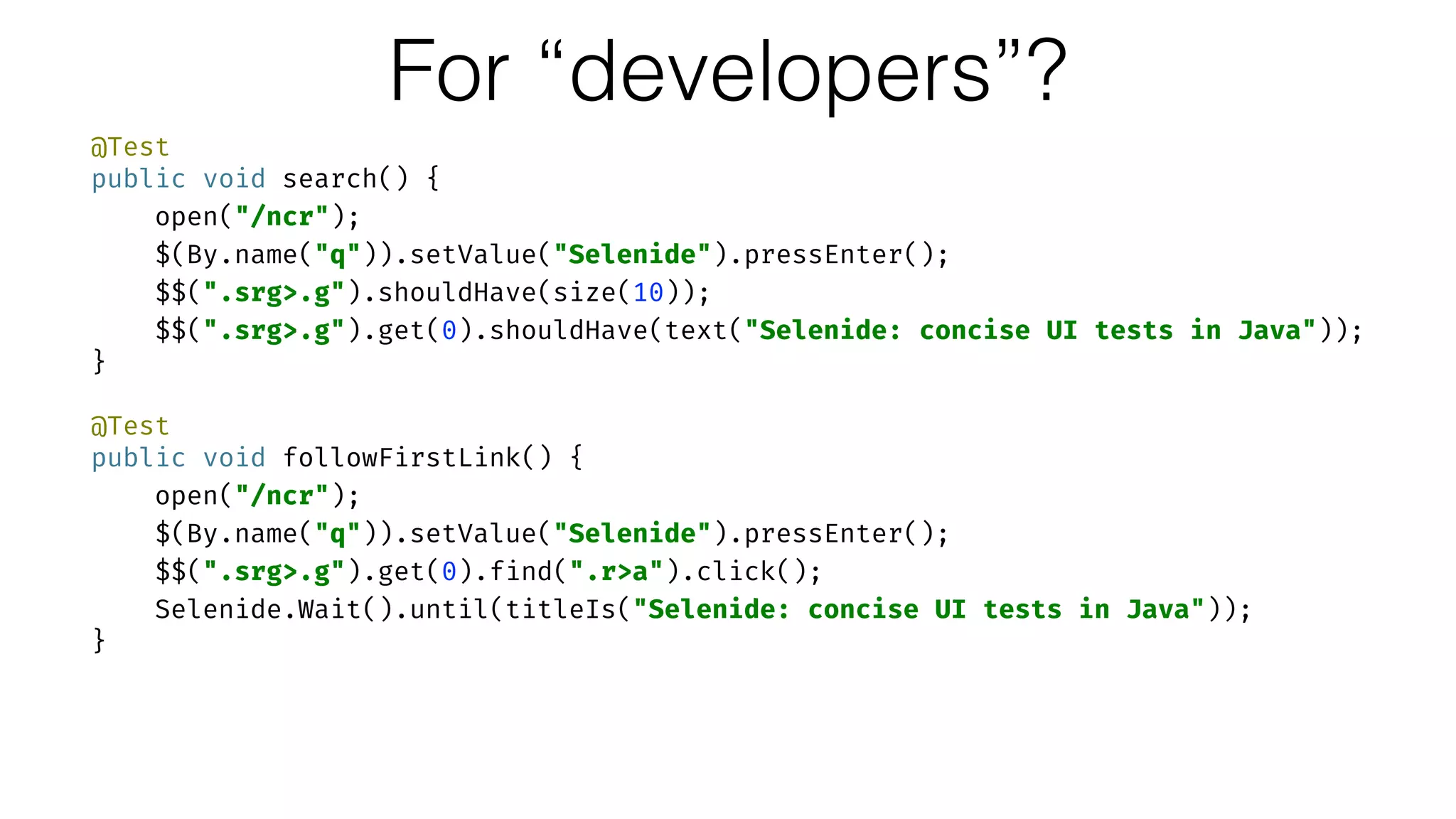

@Test 
open("/ncr"); 
$(By.name("q")).setValue("Selenide").pressEnter(); 
$$(".srg>.g").shouldHave(size(10)); 
$$(".srg>.g").get(0).shouldHave(text("Selenide: concise UI tests in Java")); 
} 
 
@Test 
open("/ncr"); 
$$(".srg>.g").get(0).find(".r>a").click(); 
Selenide.Wait().until(titleIs("Selenide: concise UI tests in Java")); 
}

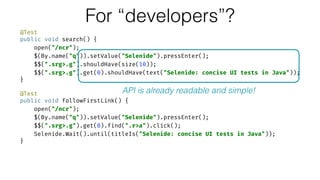

For “developers”?

@Test 
open("/ncr"); 
} 
 
@Test 
open("/ncr"); 
}
API is already readable and simple!

@Test 
open("/ncr"); 
} 
 
@Test 
open("/ncr"); 
}
developers know locators that are already readable for them too:)

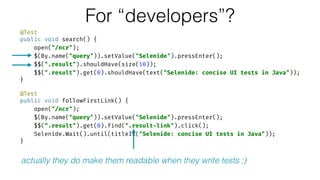

@Test 
open("/ncr"); 
$(By.name("query")).setValue("Selenide").pressEnter(); 
$$(".result").shouldHave(size(10)); 
$$(".result").get(0).shouldHave(text("Selenide: concise UI tests in Java")); 
} 
 
@Test 
open("/ncr"); 
$(By.name("query")).setValue("Selenide").pressEnter(); 
$$(“.result").get(0).find(".result-link").click(); 
}
actually they do make them readable when they write tests ;)

@Test 
open("/ncr"); 
} 
 
@Test 
open("/ncr"); 
}

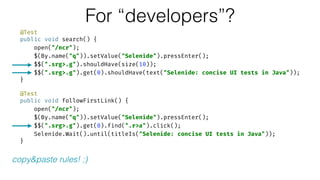

copy&paste rules! ;)

@Test 
open("/ncr"); 
} 
 
@Test 
open("/ncr"); 
}

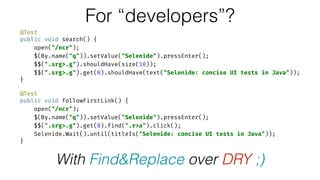

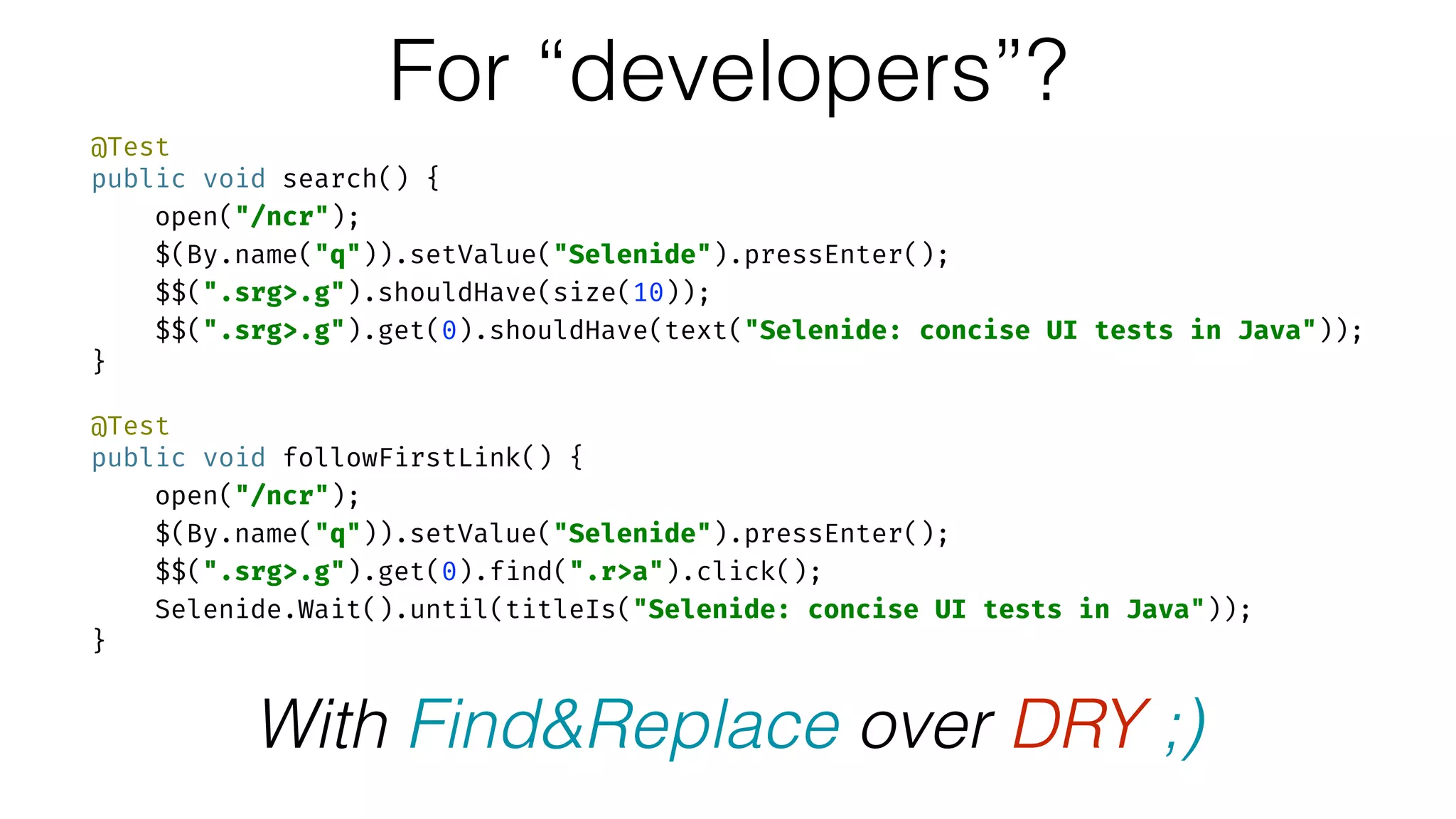

With Find&Replace over DRY ;)

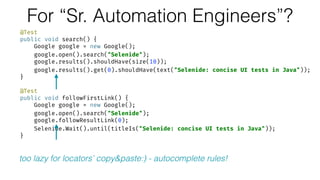

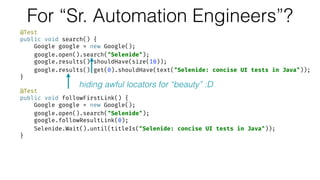

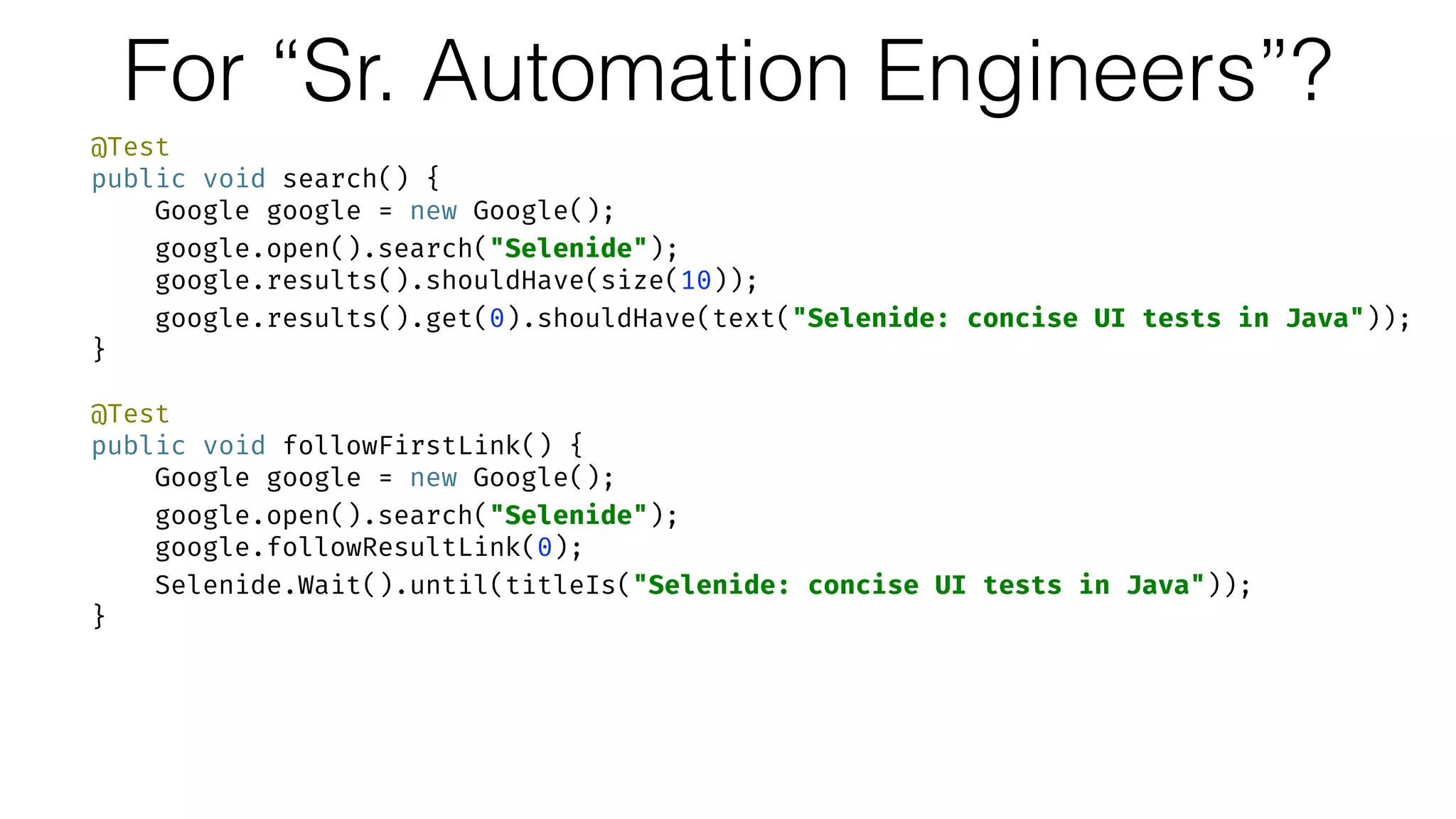

For “Sr. Automation Engineers”?
@Test 
Google google = new Google(); 
google.results().shouldHave(size(10)); 
google.results().get(0).shouldHave(text("Selenide: concise UI tests in Java")); 
} 
 
@Test 
}

@Test 
} 
 
@Test 
}
hiding awful locators for “beauty” :D

@Test 
} 
 
@Test 
}
too lazy for locators’ copy&paste:) - autocomplete rules!

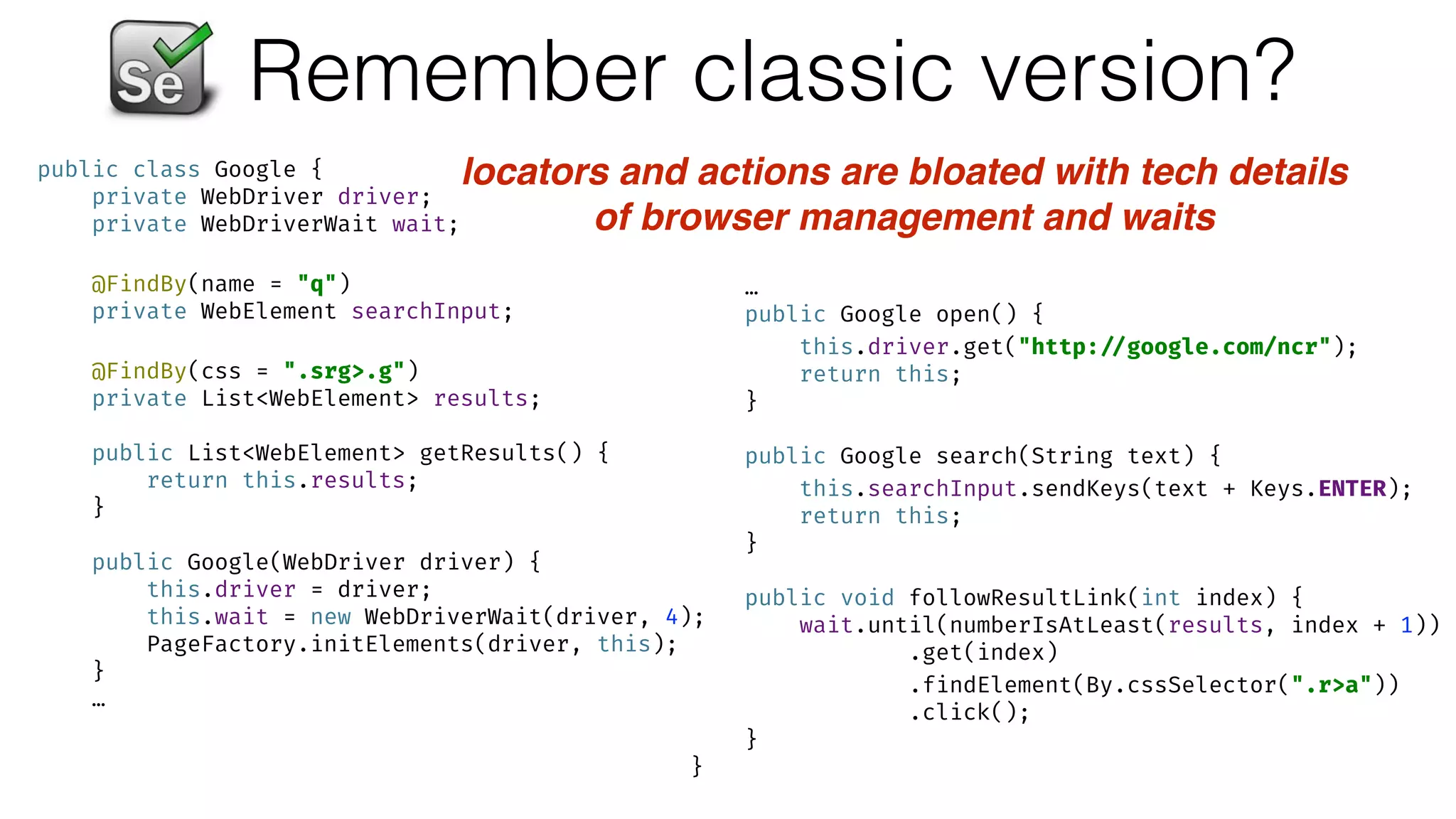

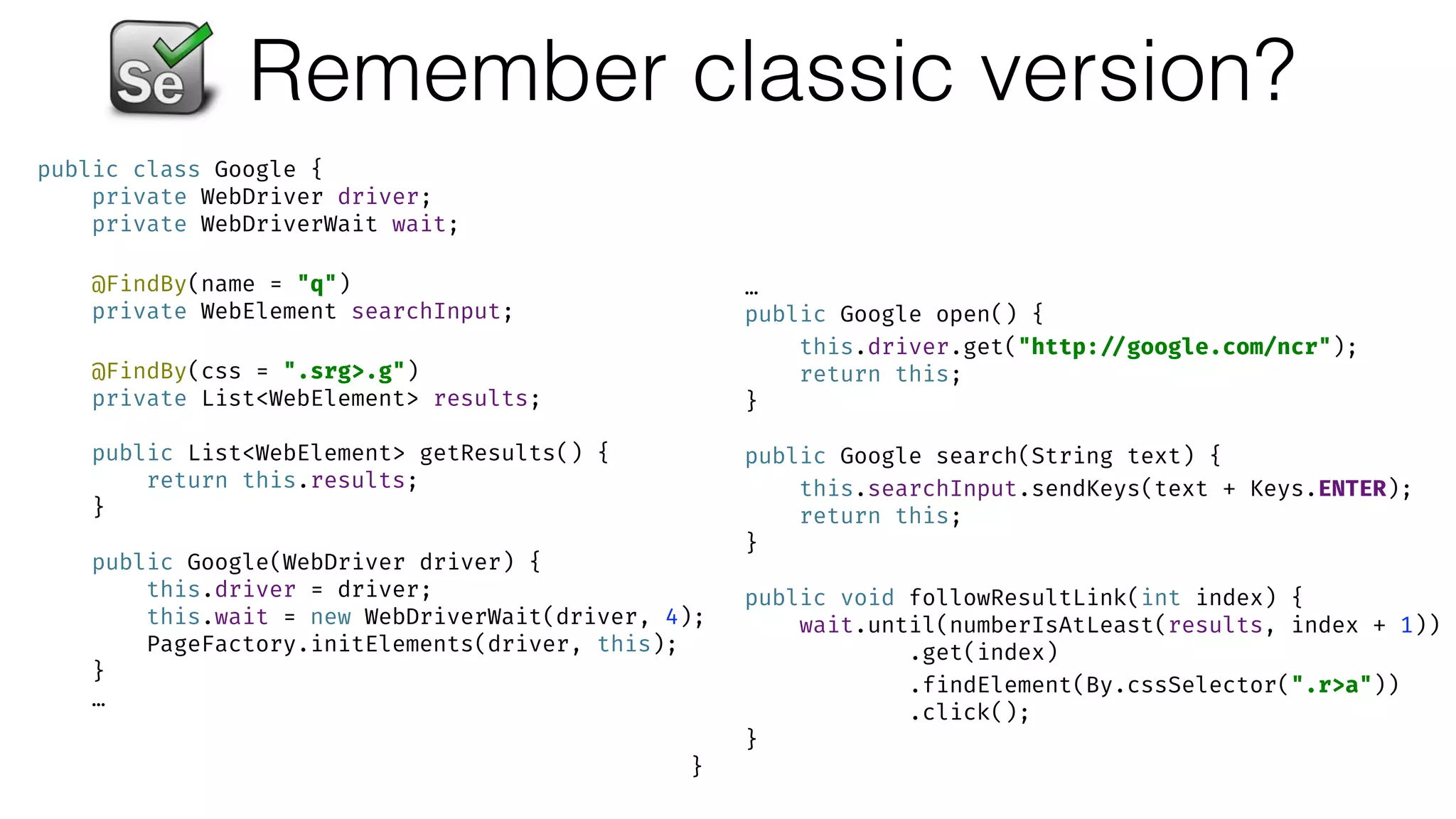

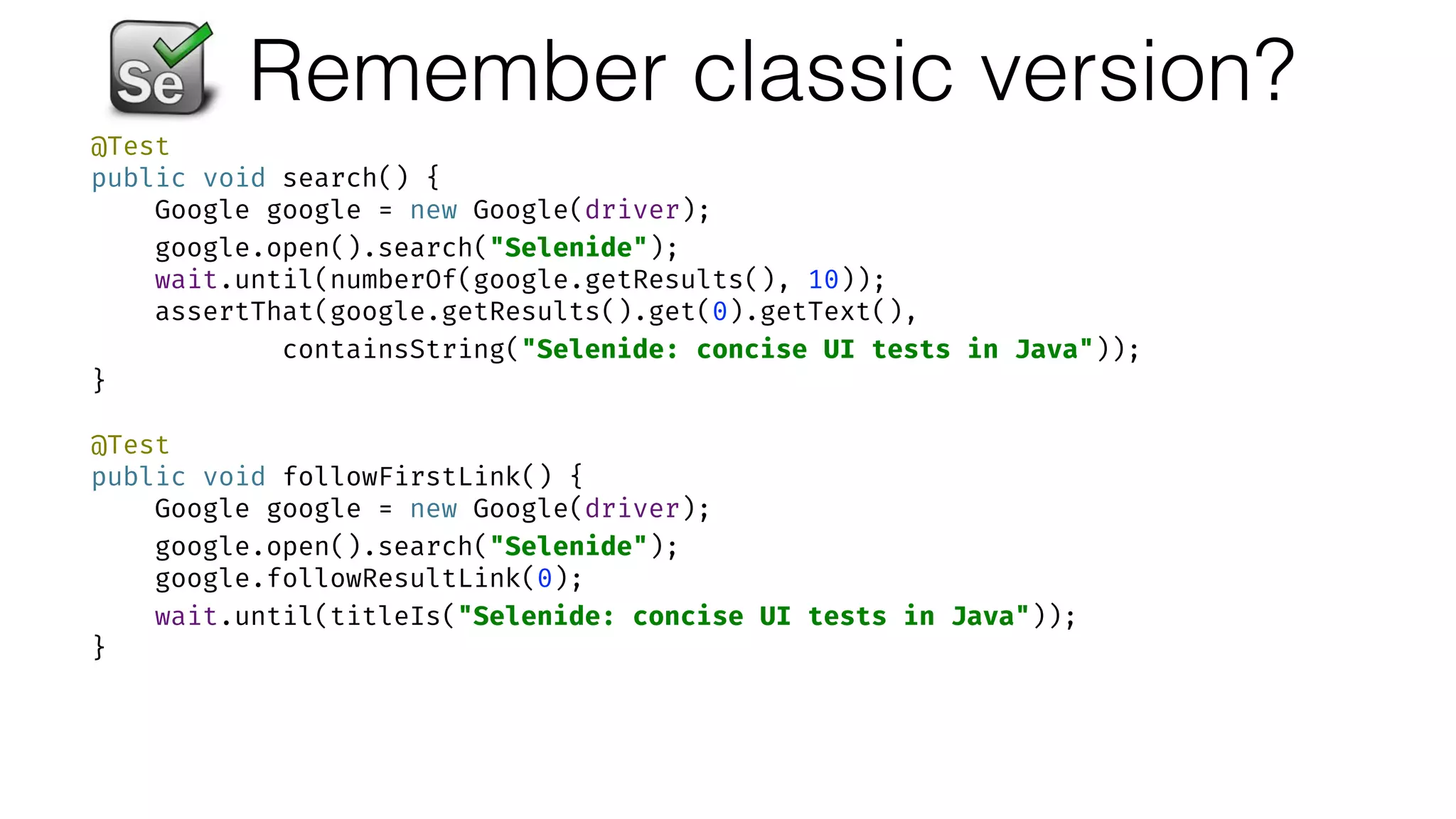

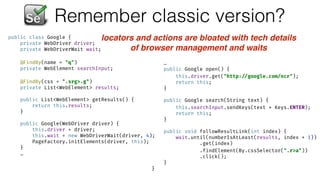

Remember classic version?
@Test 
wait.until(numberOf(google.getResults(), 10)); 
assertThat(google.getResults().get(0).getText(),  
} 
 
@Test 
wait.until(titleIs("Selenide: concise UI tests in Java")); 
}

 
 
 
} 
 
}
…
…
return this; 
} 
 
return this; 
} 
 
.get(index) 
.click(); 
} 
}

 
 
 
} 
 
}
…
…
return this; 
} 
 
return this; 
} 
 
.get(index) 
.click(); 
} 
}
locators and actions are bloated with tech details
of browser management and waits

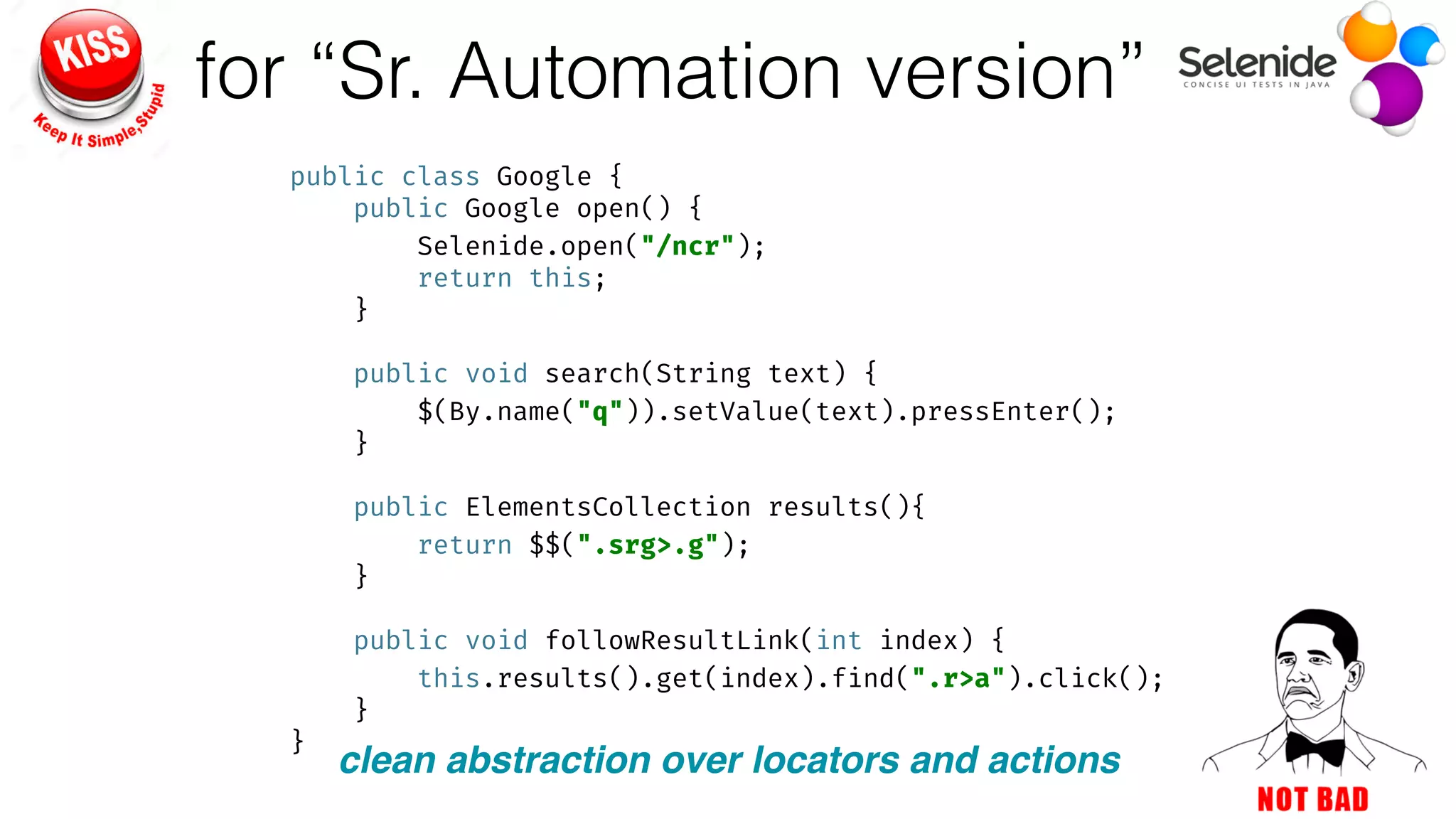

for “Sr. Automation version”
return this; 
} 
 
} 
 
public ElementsCollection results(){ 
} 
 
this.results().get(index).find(".r>a").click(); 
} 
}

for “Sr. Automation version”
return this; 
} 
 
} 
 
} 
 
} 
}
clean abstraction over locators and actions

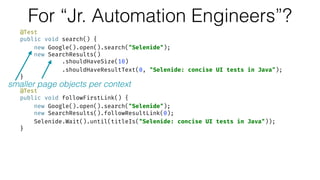

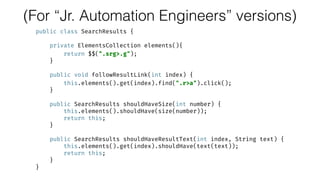

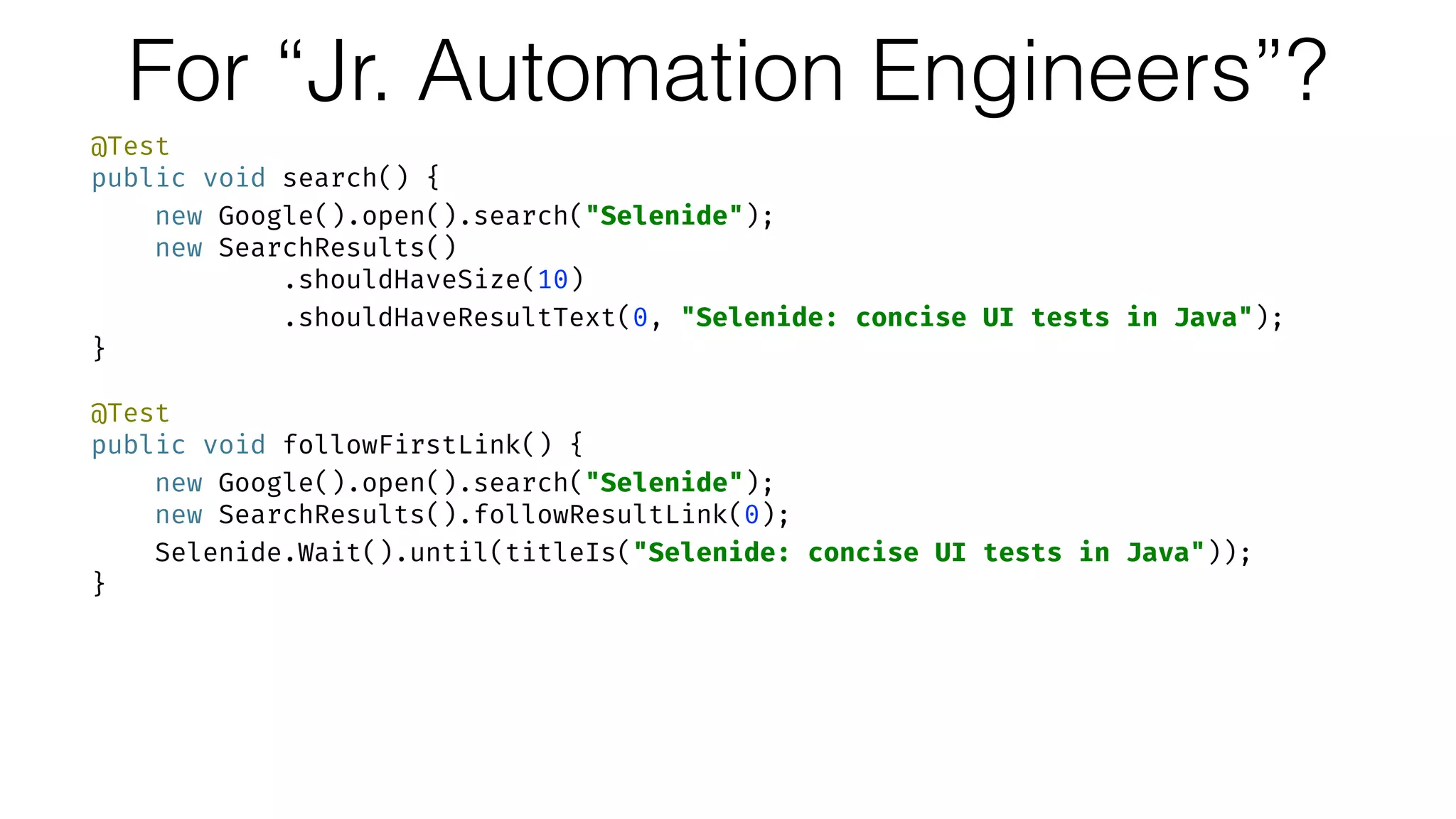

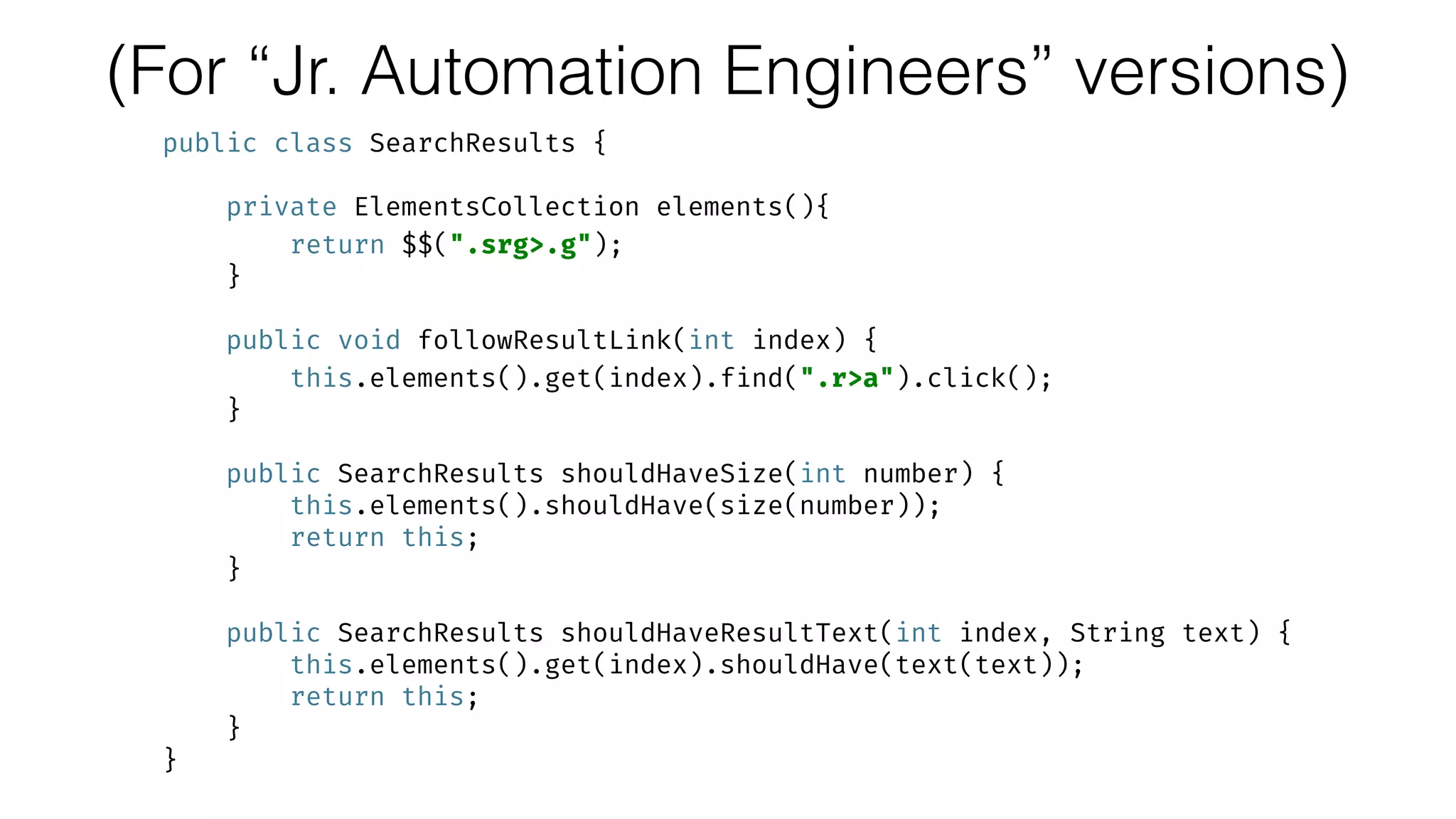

For “Jr. Automation Engineers”?
@Test 
} 
 
@Test 
}

@Test 
} 
 
@Test 
}
smaller page objects per context

@Test 
} 
 
@Test 
}
built in asserts

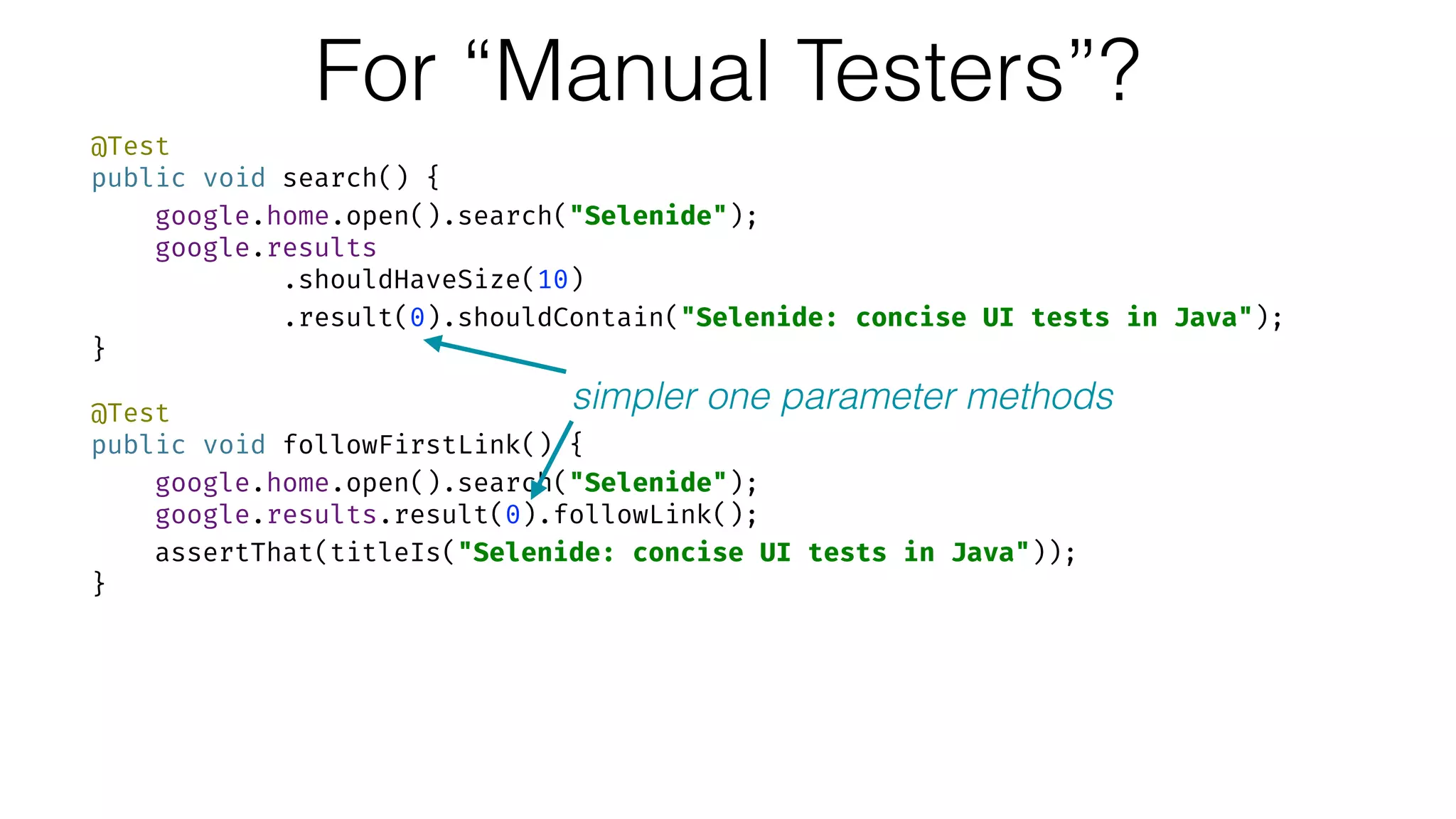

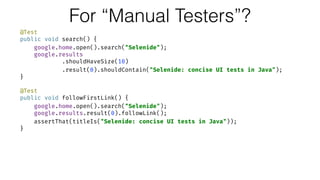

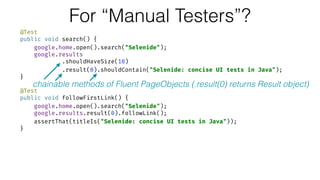

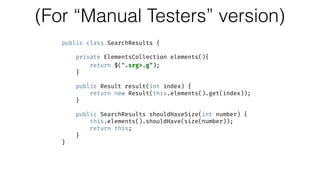

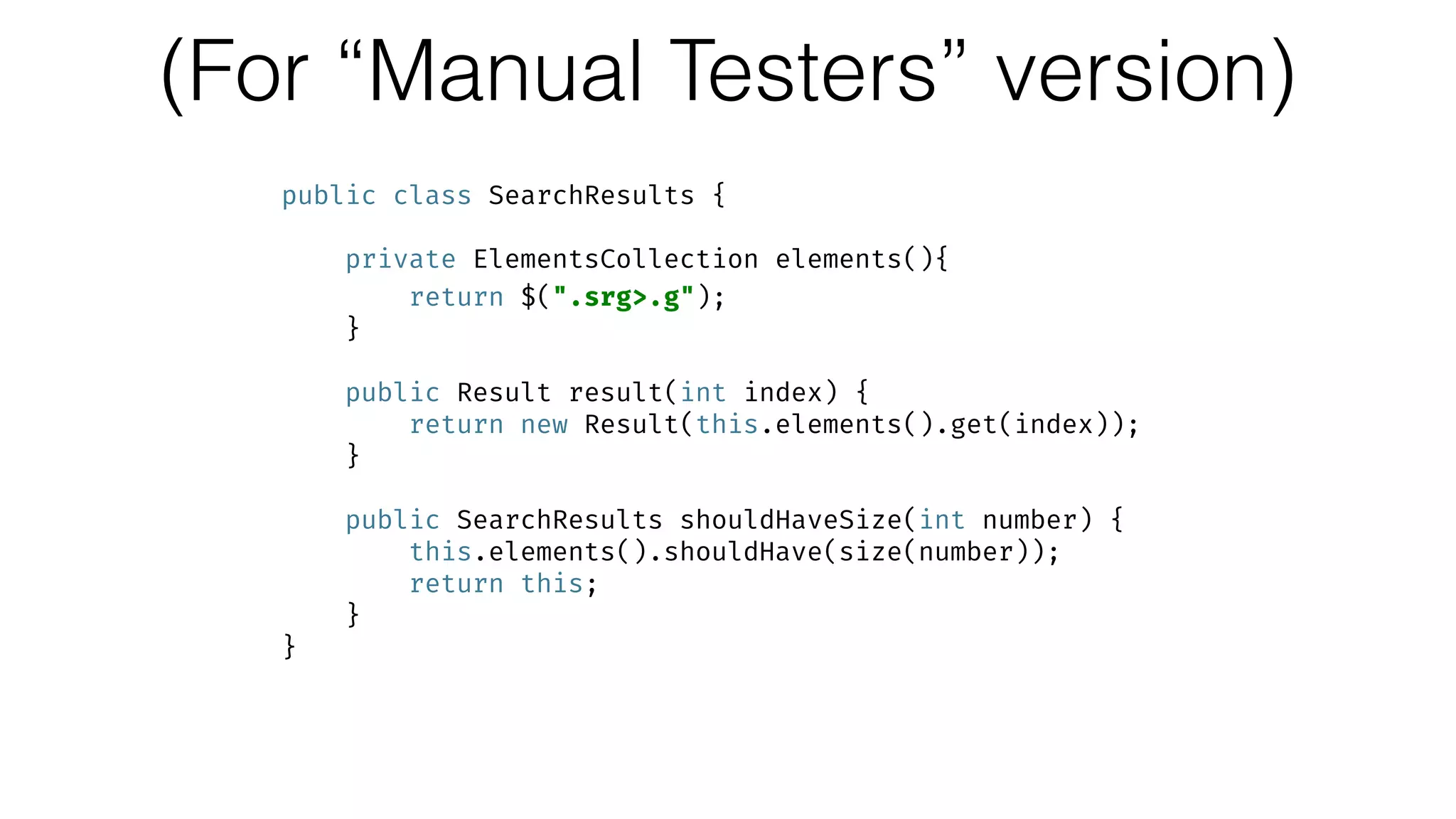

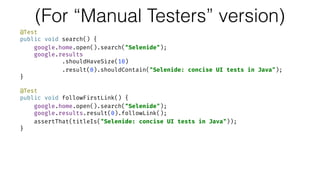

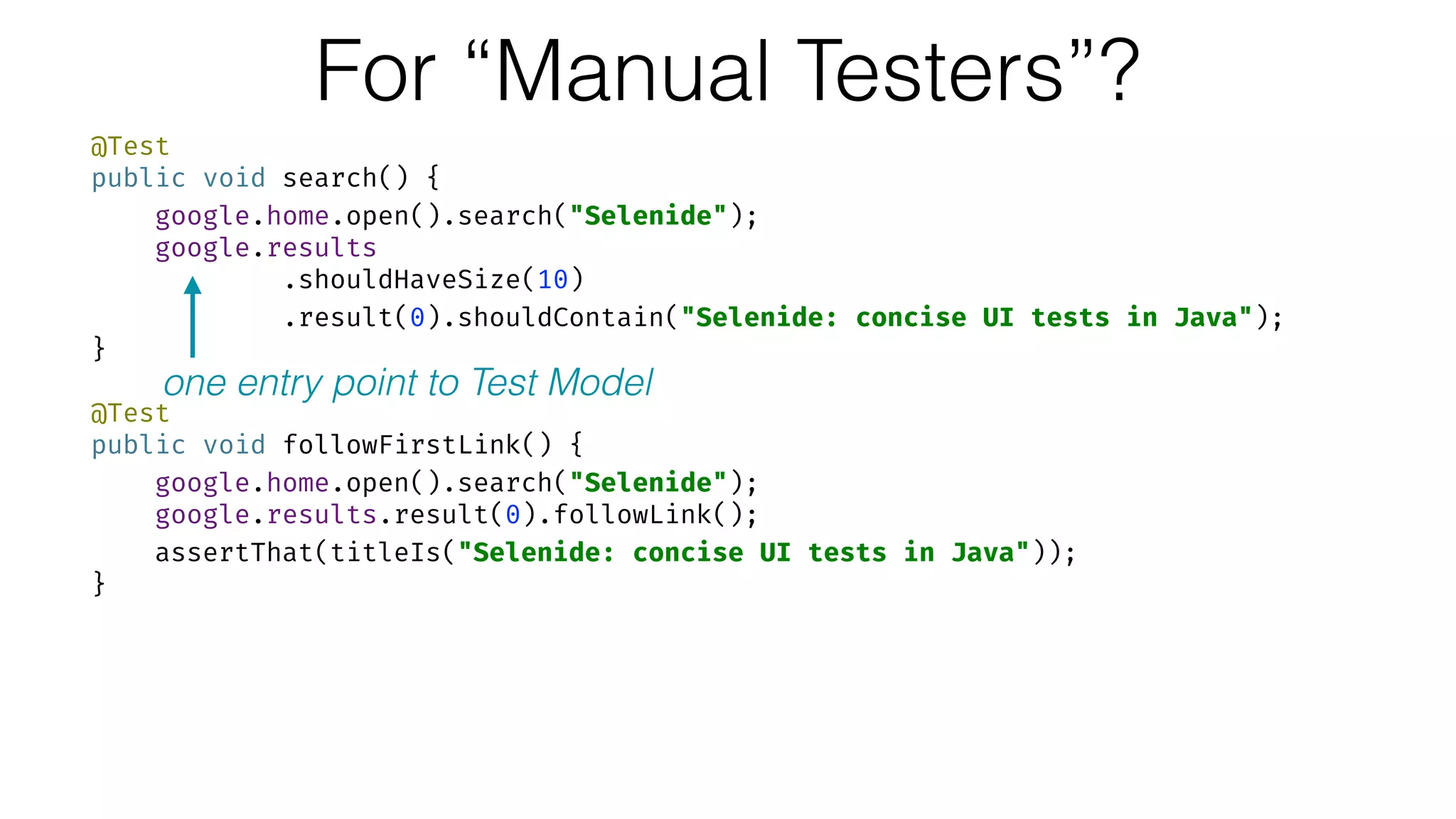

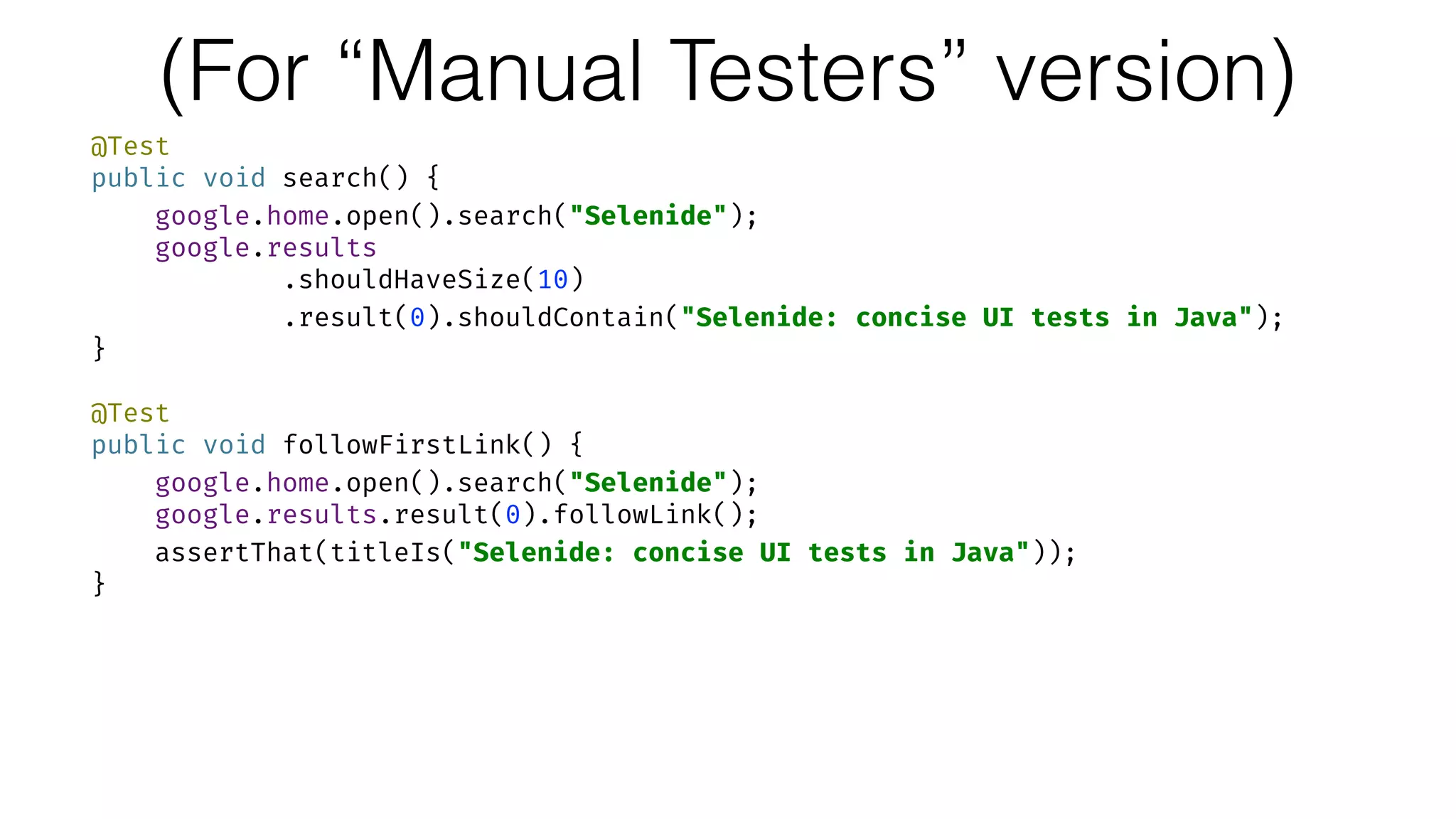

For “Manual Testers”?
@Test 
google.home.open().search("Selenide"); 
google.results 
.result(0).shouldContain("Selenide: concise UI tests in Java"); 
} 
 
@Test 
google.results.result(0).followLink(); 
assertThat(titleIs("Selenide: concise UI tests in Java")); 
}

@Test 
google.results 
} 
 
@Test 
}
one entry point to Test Model

@Test 
google.results 
} 
 
@Test 
}
simpler one parameter methods

@Test 
google.results 
} 
 
@Test 
}
chainable methods of Fluent PageObjects (.result(0) returns Result object)

Why should we care?
To be efﬁcient!

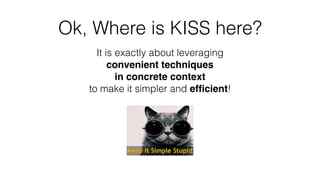

Ok, Where is KISS here?
It is exactly about leveraging
convenient techniques
in concrete context
to make it simpler and efﬁcient!

Reviewing some techniques of
PageObjects design
from KISS point of view

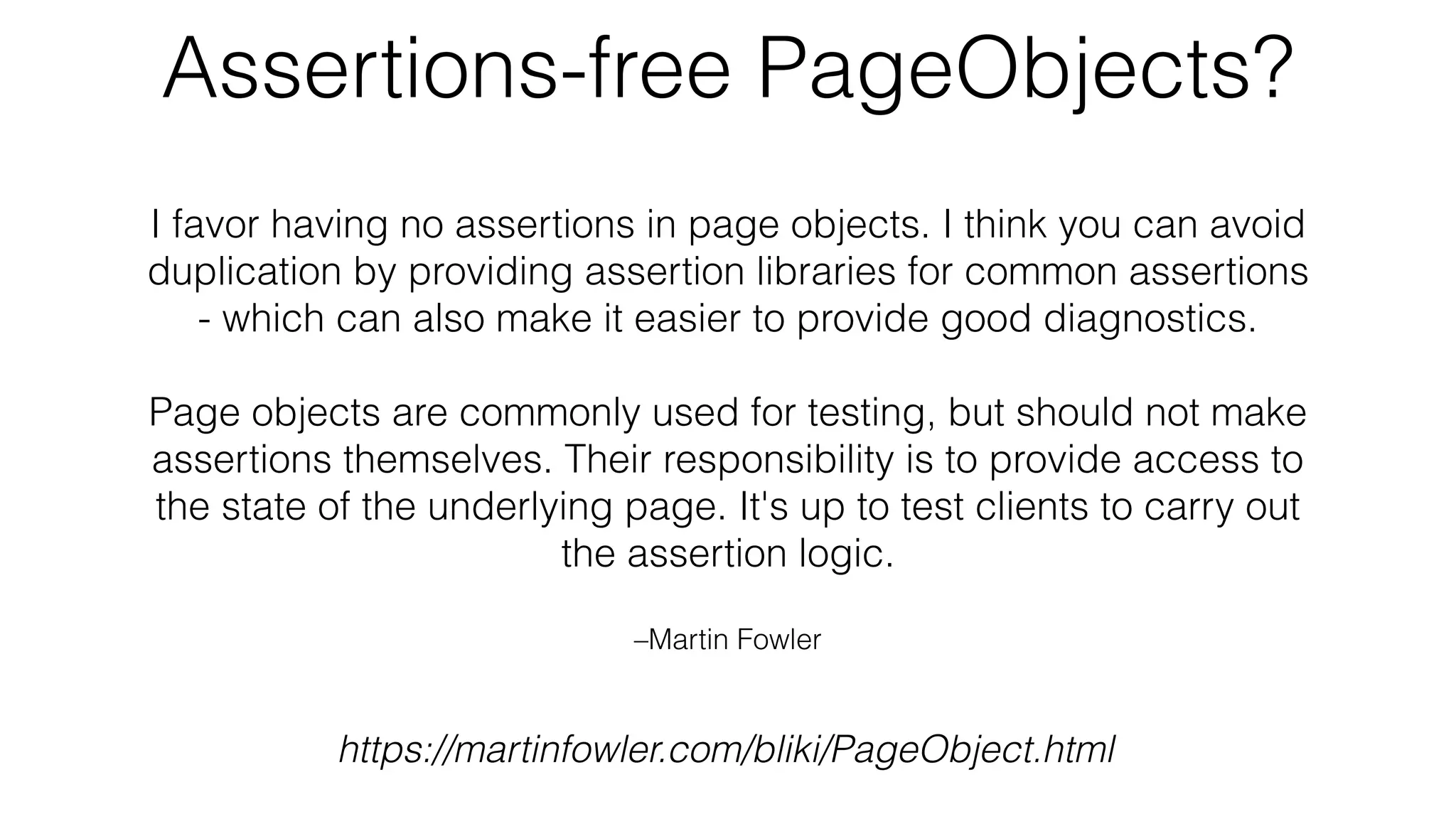

–Martin Fowler
I favor having no assertions in page objects. I think you can avoid
duplication by providing assertion libraries for common assertions
- which can also make it easier to provide good diagnostics.
Page objects are commonly used for testing, but should not make
assertions themselves. Their responsibility is to provide access to
the state of the underlying page. It's up to test clients to carry out
the assertion logic.
https://martinfowler.com/bliki/PageObject.html
Assertions-free PageObjects?

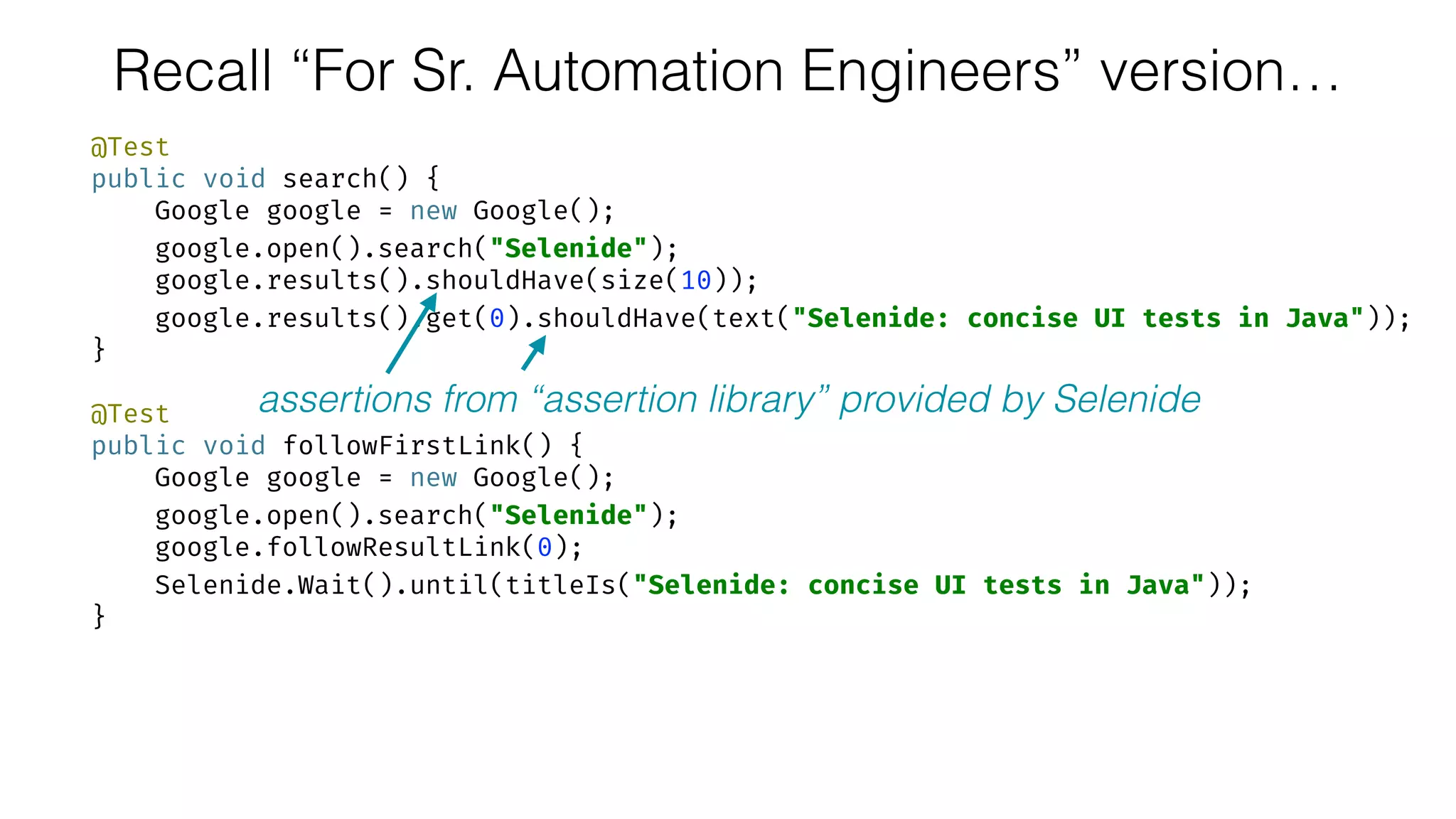

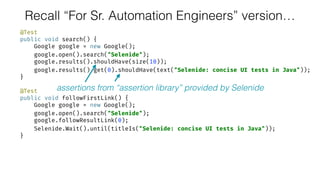

Recall “For Sr. Automation Engineers” version…
@Test 
} 
 
@Test 
}
assertions from “assertion library” provided by Selenide

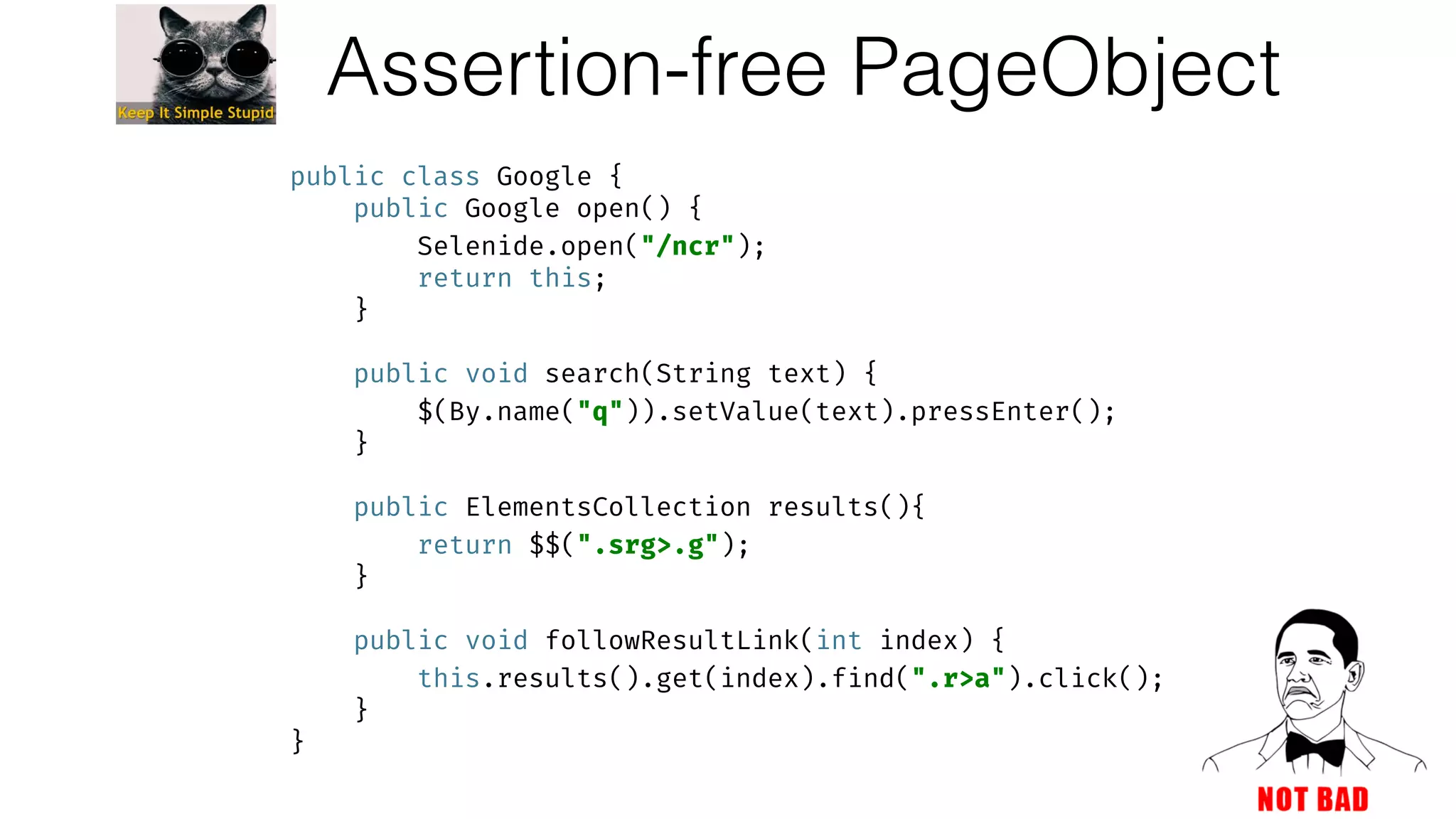

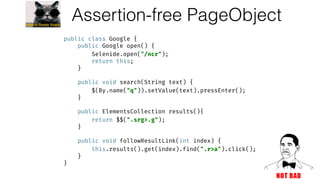

Assertion-free PageObject
return this; 
} 
 
} 
 
} 
 
} 
}

But… what if…
• The end user is not “Sr. Automation” ?
• Finally he may be even a Manual Tester…
• The UI is so complex that assertions become also more
composite?
• Crazy Managers demand higher level of abstraction in reports
• (they are “crazy”, so you can’t teach them what is good or bad:))

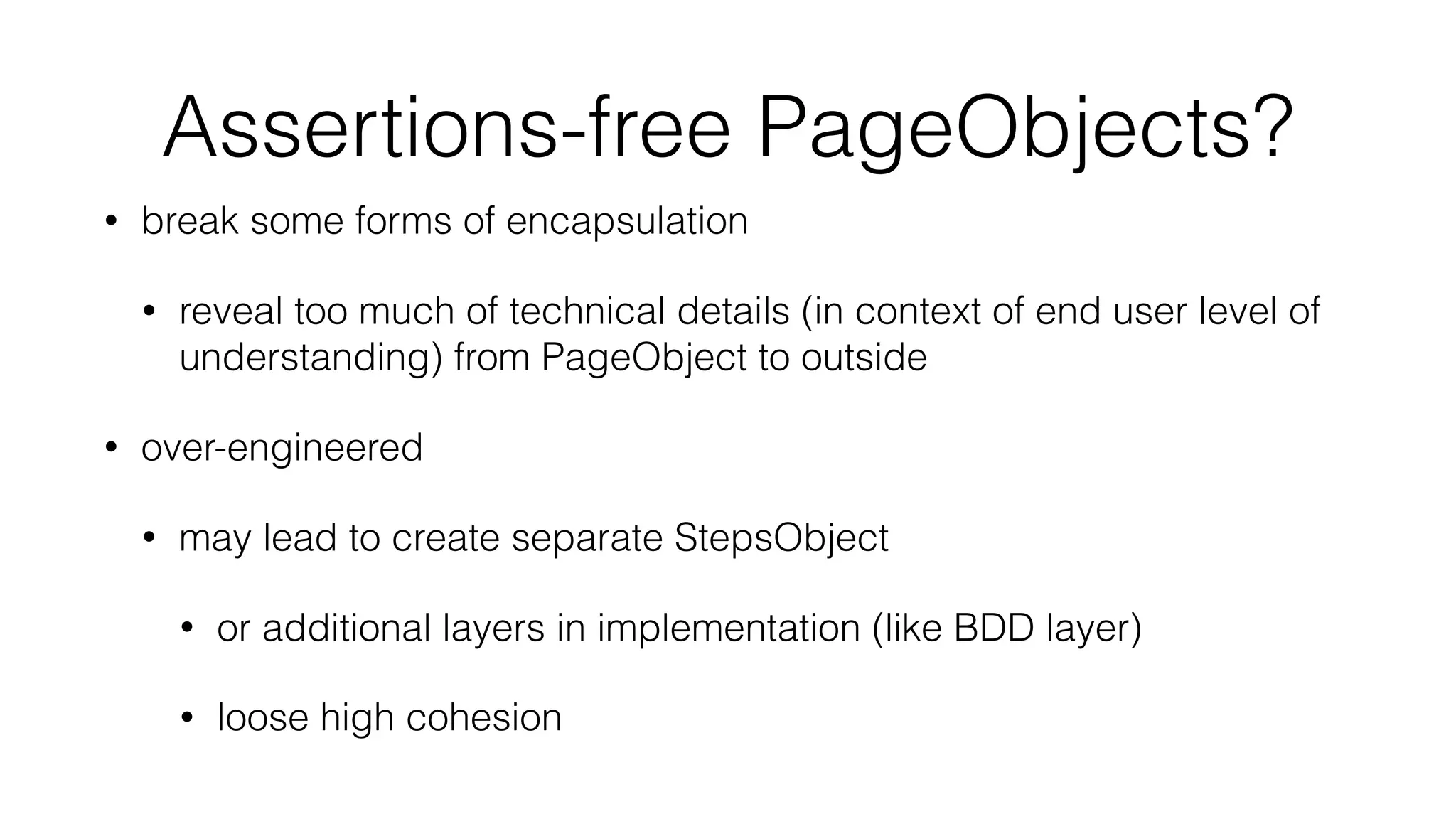

Assertions-free PageObjects?
• break some forms of encapsulation
• reveal too much of technical details (in context of end user level of
understanding) from PageObject to outside
• over-engineered
• may lead to create separate StepsObject
• or additional layers in implementation (like BDD layer)
• loose high cohesion

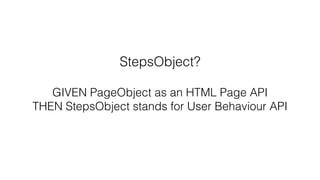

StepsObject?
GIVEN PageObject as an HTML Page API
THEN StepsObject stands for User Behaviour API

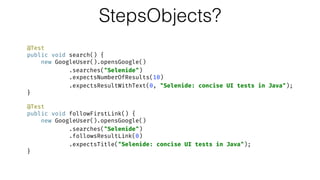

StepsObjects?
@Test 
new GoogleUser().opensGoogle() 
.searches("Selenide") 
.expectsNumberOfResults(10) 
.expectsResultWithText(0, "Selenide: concise UI tests in Java"); 
} 
 
@Test 
new GoogleUser().opensGoogle() 
.searches("Selenide") 
.followsResultLink(0) 
.expectsTitle("Selenide: concise UI tests in Java"); 
}

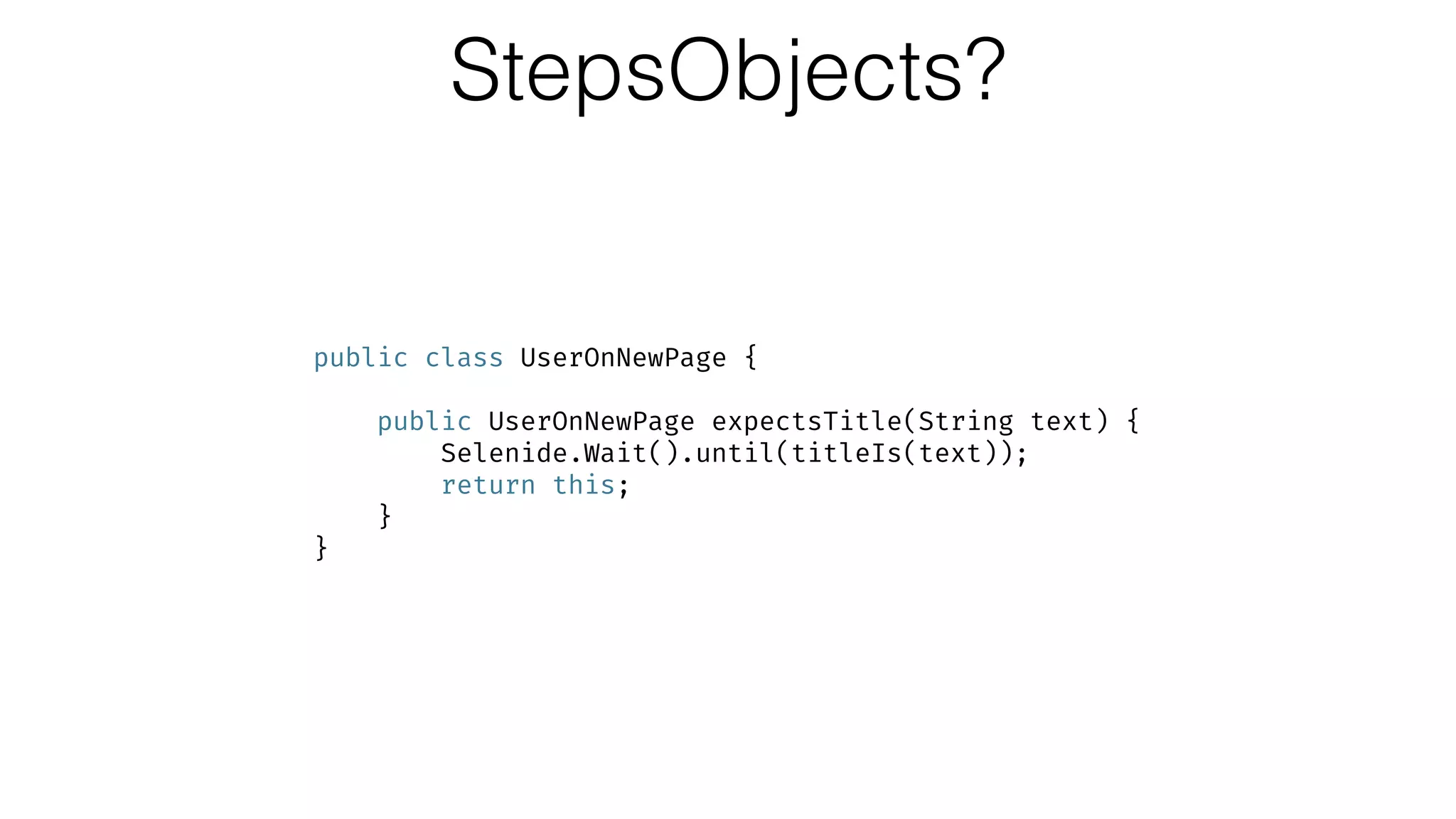

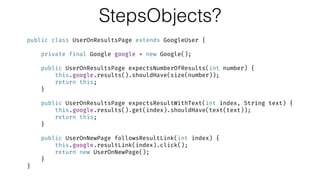

StepsObjects?
public class GoogleUser { 
 
private final Google google = new Google(); 
 
public GoogleUser opensGoogle() { 
open("/ncr"); 
return this; 
} 
 
public UserOnResultsPage searches(String text) { 
this.google.search().setValue(text).pressEnter(); 
return new UserOnResultsPage(); 
} 
}

StepsObjects?
public class UserOnResultsPage extends GoogleUser { 
 
private final Google google = new Google(); 
 
public UserOnResultsPage expectsNumberOfResults(int number) { 
this.google.results().shouldHave(size(number)); 
return this; 
} 
 
public UserOnResultsPage expectsResultWithText(int index, String text) { 
this.google.results().get(index).shouldHave(text(text)); 
return this; 
} 
 
public UserOnNewPage followsResultLink(int index) { 
this.google.resultLink(index).click(); 
return new UserOnNewPage(); 
} 
}

StepsObjects?
public class UserOnNewPage { 
 
public UserOnNewPage expectsTitle(String text) { 
Selenide.Wait().until(titleIs(text)); 
return this; 
} 
}

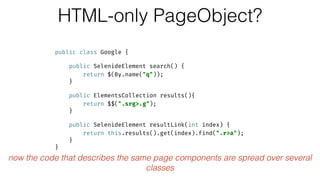

HTML-only PageObject?
 
public SelenideElement search() { 
return $(By.name("q")); 
} 
 
} 
 
public SelenideElement resultLink(int index) { 
return this.results().get(index).find(".r>a"); 
} 
}
now the code that describes the same page components are spread over several
classes

StepsObjects?
• over-engineered => at least two classes instead of one
• lower cohesion
• related things are not kept in one place

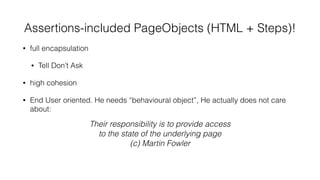

Assertions-included PageObjects (HTML + Steps)!
• full encapsulation
• Tell Don’t Ask
• high cohesion
• End User oriented. He needs “behavioural object”, He actually does not care
about:
• Bloated with code?
• KISS answer: break down into smaller PageObjects
• you will have still two or even more classes but for exactly one thing from
the User point of view
Their responsibility is to provide access
to the state of the underlying page
(c) Martin Fowler

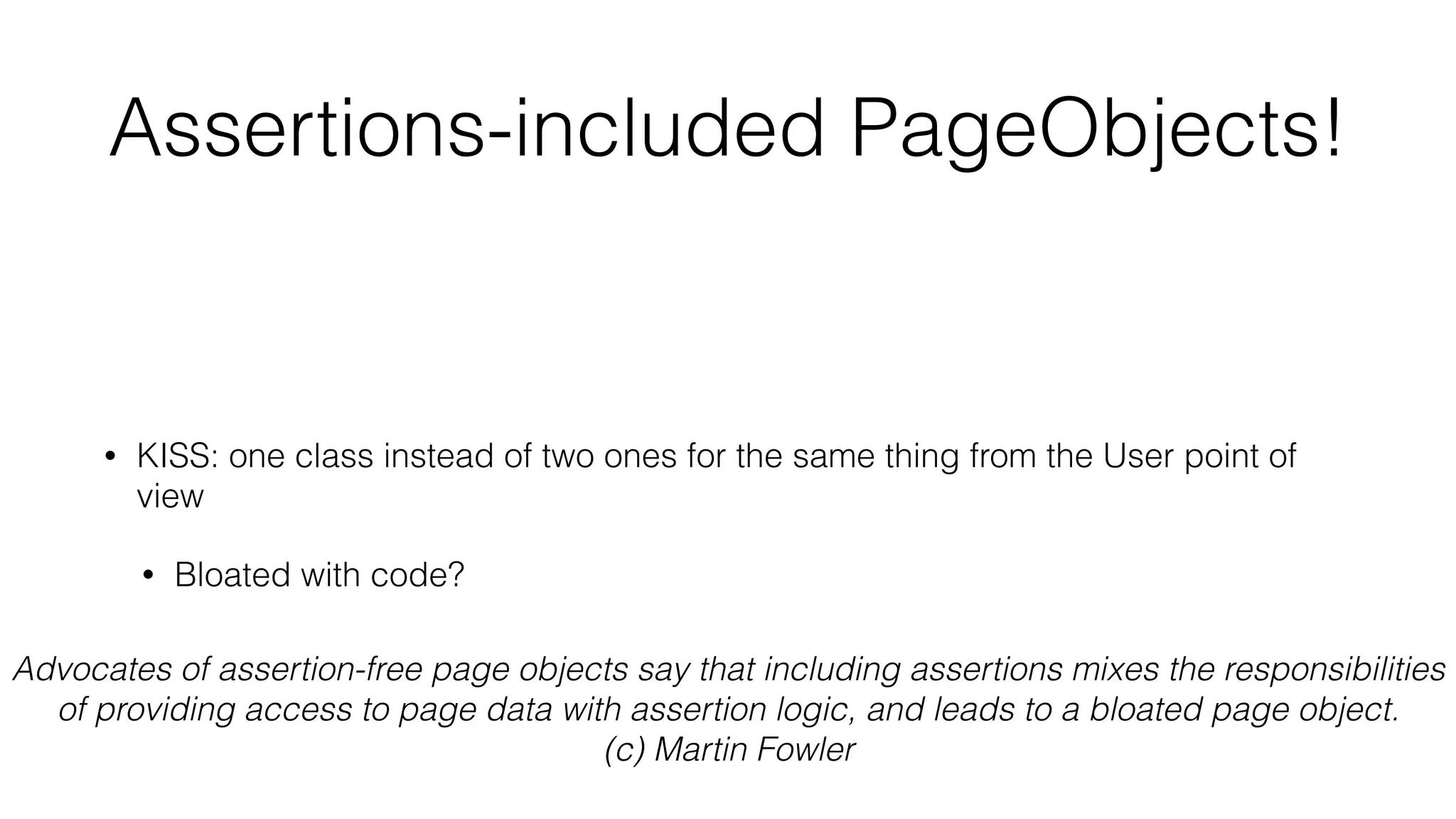

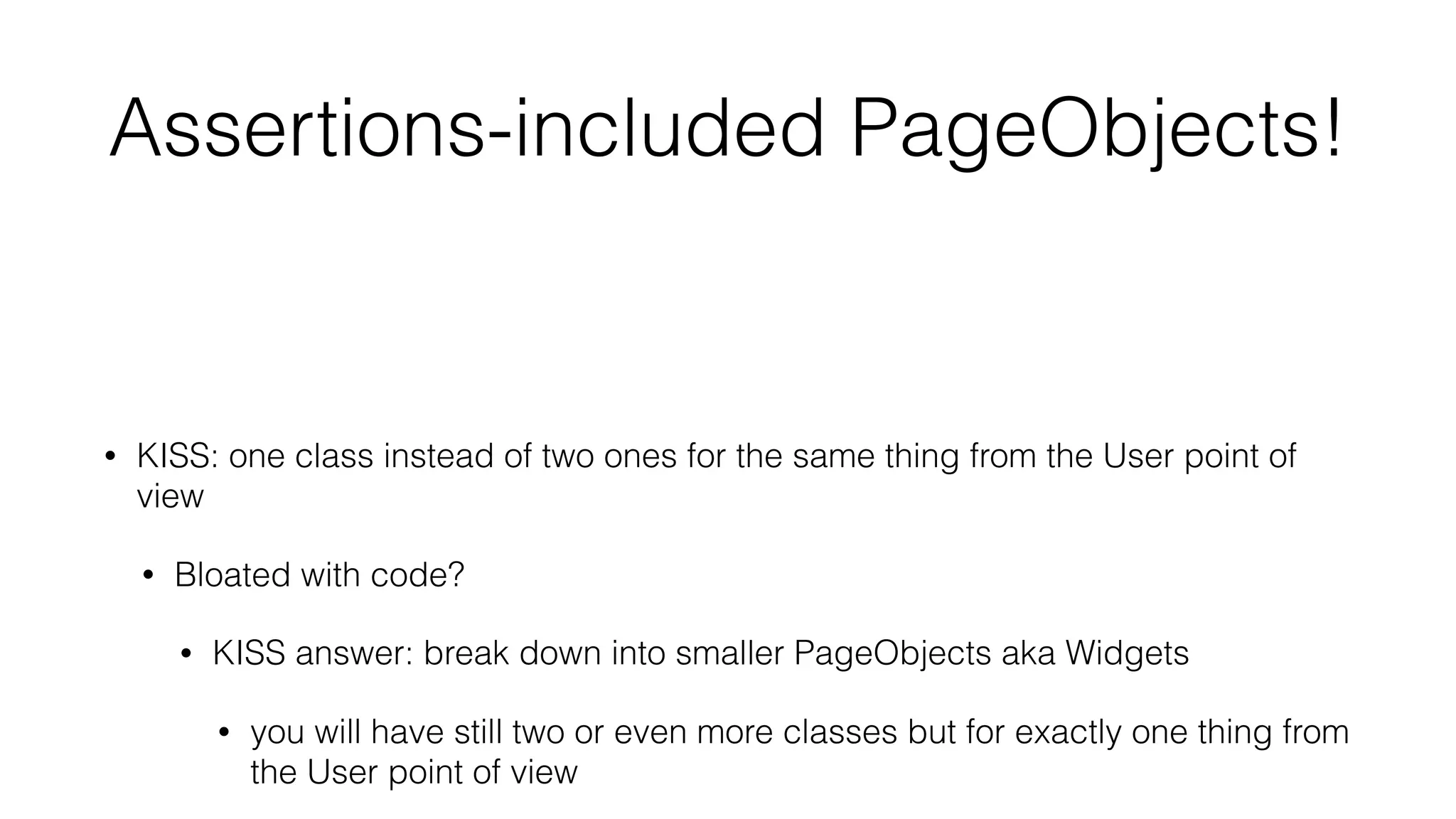

Assertions-included PageObjects!
• high cohesion
• KISS: one class instead of two ones for the same thing from the User point of
view

• high cohesion
view
Advocates of assertion-free page objects say that including assertions mixes the responsibilities
of providing access to page data with assertion logic, and leads to a bloated page object.
(c) Martin Fowler

(For “Jr. Automation Engineers” versions)
public class SearchResults {
 
} 
 
this.elements().get(index).find(".r>a").click(); 
} 
 
return this; 
} 
 
public SearchResults shouldHaveResultText(int index, String text) { 
this.elements().get(index).shouldHave(text(text)); 
return this; 
} 
}

• high cohesion
view
• KISS answer: break down into smaller PageObjects aka Widgets

• high cohesion
view
• KISS answer: break down into smaller PageObjects aka Widgets
Despite the term "page" object, these objects shouldn't usually be built for each page,
but rather for the signiﬁcant elements on a page
(c) Martin Fowler

(For “Manual Testers” version)
public class SearchResults { 
 
return $(".srg>.g"); 
} 
 
public Result result(int index) { 
return new Result(this.elements().get(index)); 
} 
 
return this; 
} 
}

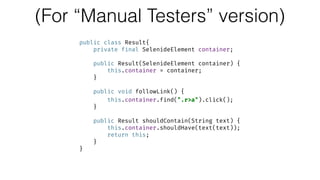

public class Result{ 
private final SelenideElement container; 
 
public Result(SelenideElement container) { 
this.container = container; 
} 
 
public void followLink() { 
this.container.find(".r>a").click(); 
} 
 
public Result shouldContain(String text) { 
this.container.shouldHave(text(text)); 
return this; 
} 
}

@Test 
google.results 
} 
 
@Test 
}

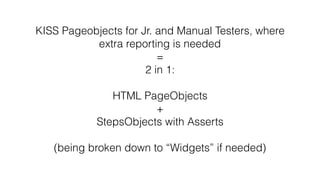

KISS Pageobjects for Jr. and Manual Testers, where
extra reporting is needed
=
2 in 1:
HTML PageObjects
+
StepsObjects with Asserts
(being broken down to “Widgets” if needed)

KISS
*=
simplicity instead of over-engineering
=
YAGNI = You Ain’t Gonna Need It

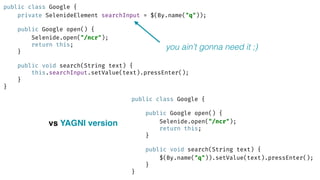

private SelenideElement searchInput = $(By.name("q")); 
 
return this; 
} 
 
this.searchInput.setValue(text).pressEnter(); 
} 
}
 
return this; 
} 
 
} 
}

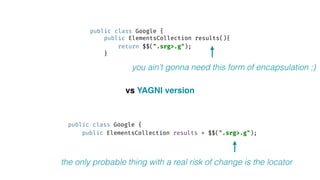

vs YAGNI version
you ain’t gonna need it ;)

}
public ElementsCollection results = $$(".srg>.g"); 
vs YAGNI version
you ain’t gonna need this form of encapsulation ;)
the only probable thing with a real risk of change is the locator

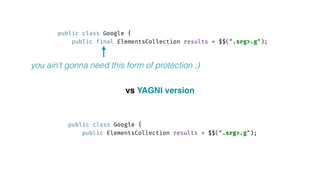

public final ElementsCollection results = $$(".srg>.g"); 
public ElementsCollection results = $$(".srg>.g"); 
vs YAGNI version
you ain’t gonna need this form of protection ;)

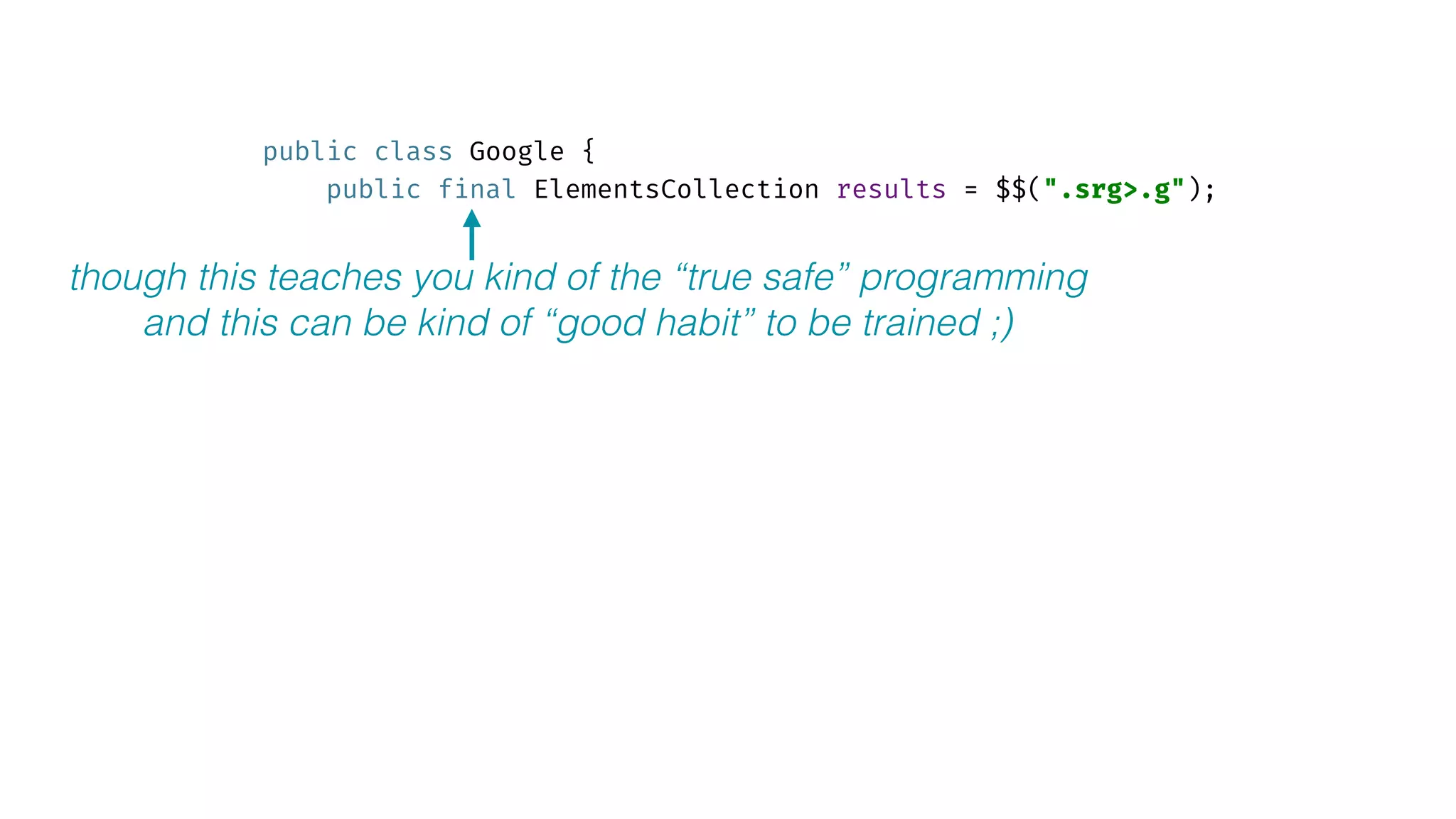

public final ElementsCollection results = $$(".srg>.g"); 
though this teaches you kind of the “true safe” programming
and this can be kind of “good habit” to be trained ;)

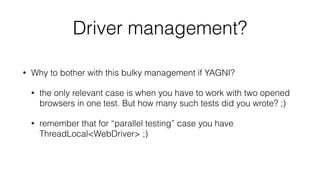

Driver management?
• Why to bother with this bulky management if YAGNI?
• the only relevant case is when you have to work with two opened
browsers in one test. But how many such tests did you wrote? ;)
• remember that for “parallel testing” case you have
ThreadLocal<WebDriver> ;)

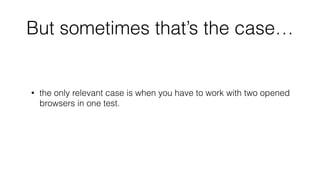

But sometimes that’s the case…
• Why to bother with this bulky management if YAGNI?
• the only relevant case is when you have to work with two opened
browsers in one test. But how many such tests did you wrote? ;)
• remember that for “parallel testing” case you have
ThreadLocal<WebDriver> ;)

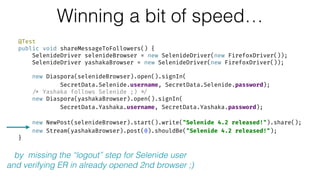

Winning a bit of speed…
@Test 
public void shareMessageToFollowers() { 
SelenideDriver selenideBrowser = new SelenideDriver(new FirefoxDriver()); 
SelenideDriver yashakaBrowser = new SelenideDriver(new FirefoxDriver()); 
 
new Diaspora(selenideBrowser).open().signIn( 
SecretData.Selenide.username, SecretData.Selenide.password); 
/* Yashaka follows Selenide ;) */ 
new Diaspora(yashakaBrowser).open().signIn( 
SecretData.Yashaka.username, SecretData.Yashaka.password); 
 
new NewPost(selenideBrowser).start().write("Selenide 4.2 released!").share(); 
new Stream(yashakaBrowser).post(0).shouldBe("Selenide 4.2 released!"); 
}
by missing the “logout” step for Selenide user
and verifying ER in already opened 2nd browser ;)

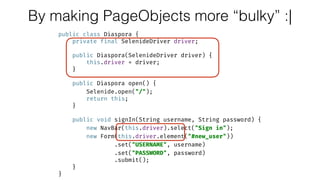

By making PageObjects more “bulky” :|
public class Diaspora { 
private final SelenideDriver driver; 
 
public Diaspora(SelenideDriver driver) { 
} 
 
public Diaspora open() { 
Selenide.open("/"); 
return this; 
} 
 
public void signIn(String username, String password) { 
new NavBar(this.driver).select("Sign in"); 
new Form(this.driver.element("#new_user")) 
.set("USERNAME", username) 
.set("PASSWORD", password) 
.submit(); 
} 
}

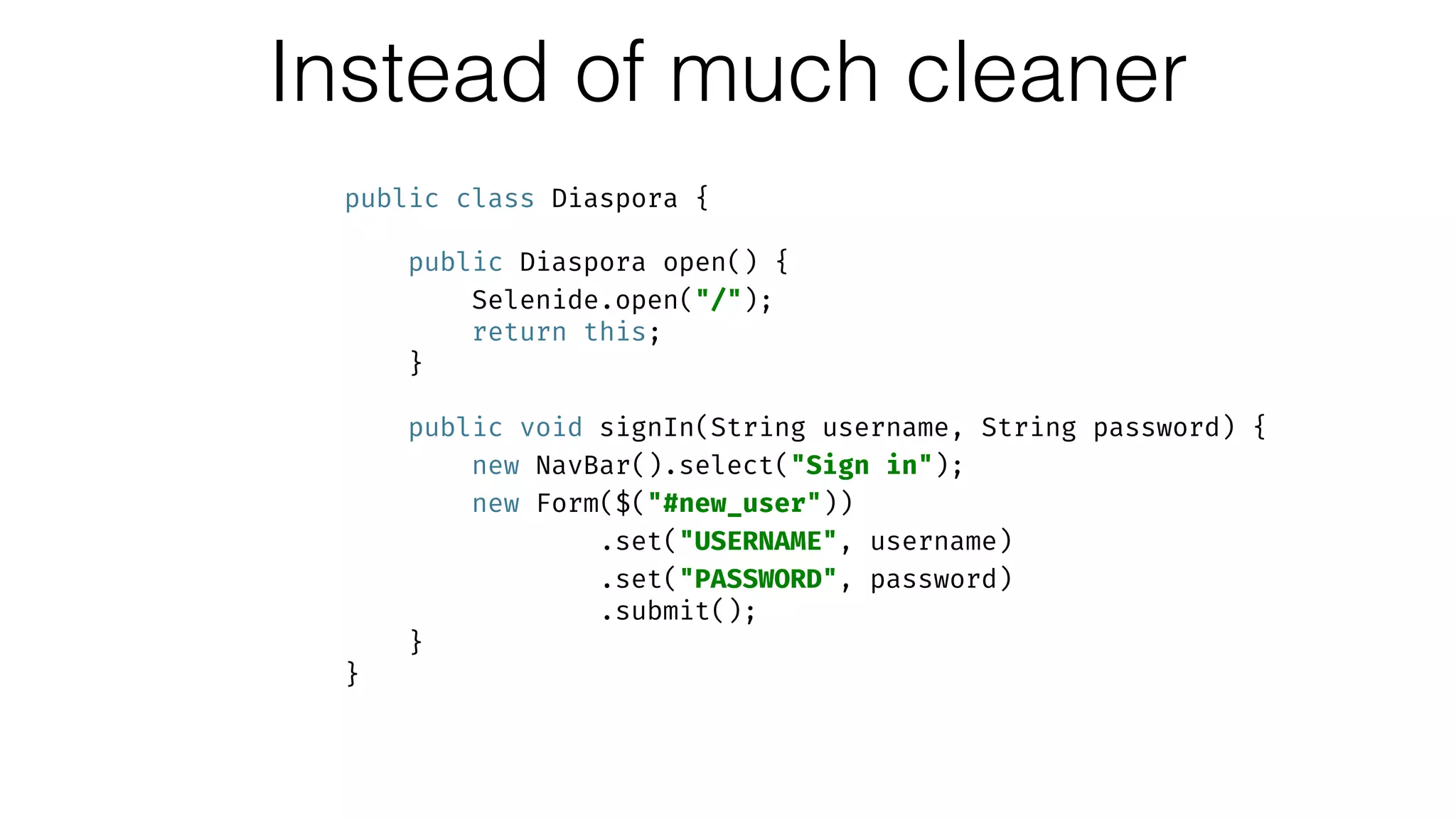

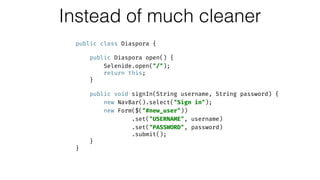

Instead of much cleaner
 
return this; 
} 
 
new NavBar().select("Sign in"); 
new Form($("#new_user")) 
.submit(); 
} 
}

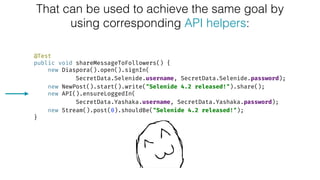

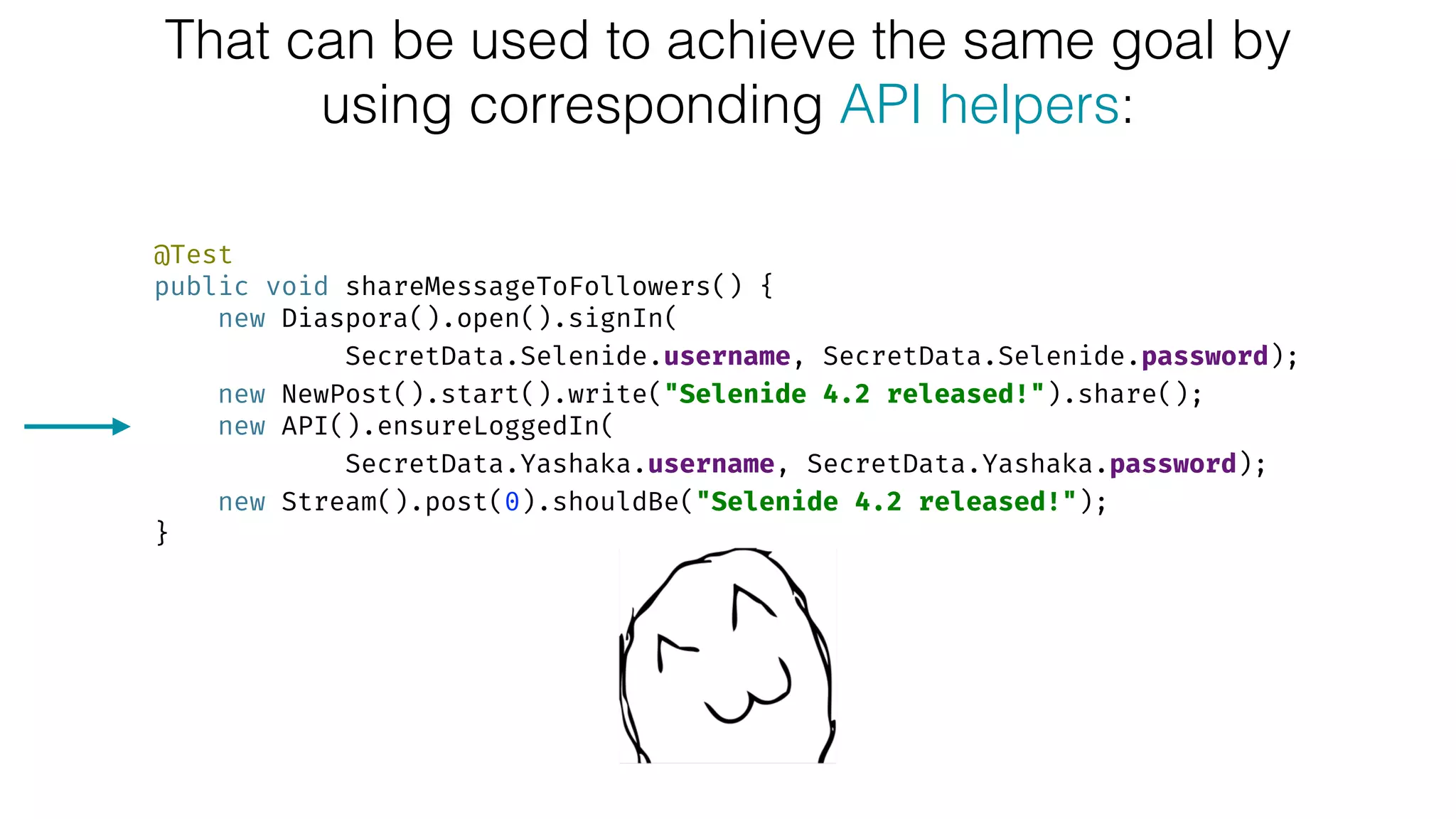

That can be used to achieve the same goal by
using corresponding API helpers:
@Test 
new Diaspora().open().signIn(
new NewPost().start().write("Selenide 4.2 released!").share(); 
new API().ensureLoggedIn(
new Stream().post(0).shouldBe("Selenide 4.2 released!"); 
}

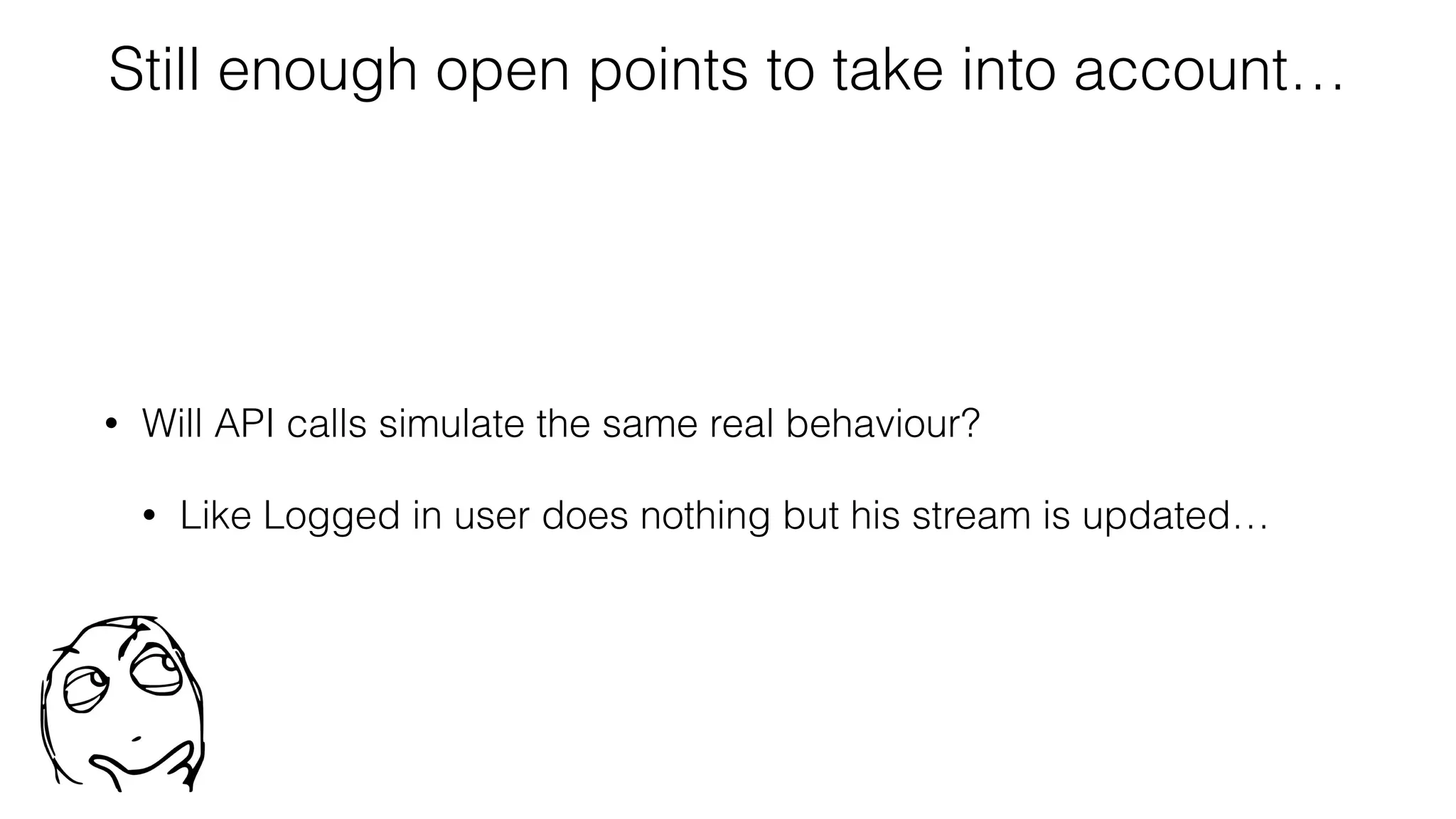

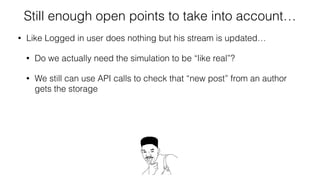

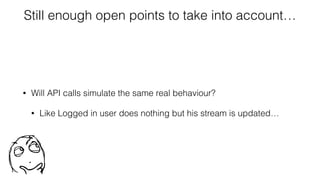

Still enough open points to take into account…
• Will API calls simulate the same real behaviour?
• Like Logged in user does nothing but his stream is updated…

• Like Logged in user does nothing but his stream is updated…
• Do we actually need the simulation to be “like real”?
• We still can use API calls to check that “new post” from an author
gets the storage
• And in separate test “the follower can do nothing” and after
populating the storage by API call with a “new author’s post” -
we will verify (via Selenium) that follower sees the post

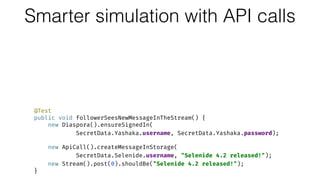

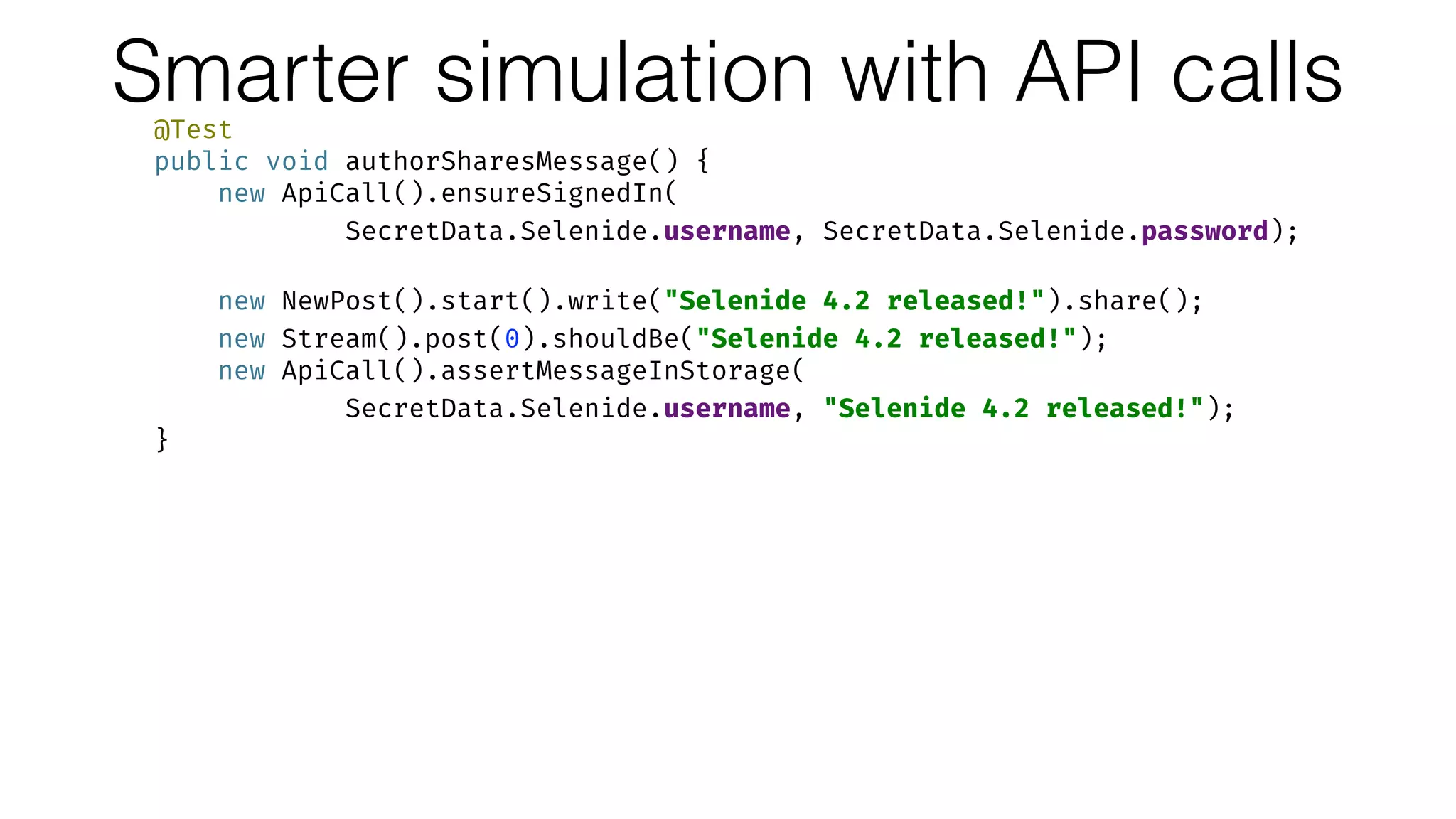

Smarter simulation with API calls@Test 
public void authorSharesMessage() { 
new ApiCall().ensureSignedIn( 
 
new ApiCall().assertMessageInStorage(
SecretData.Selenide.username, "Selenide 4.2 released!"); 
} 
 
@Test 
public void followerSeesNewMessageInTheStream() { 
new Diaspora().ensureSignedIn( 
 
new ApiCall().createMessageInStorage(
}

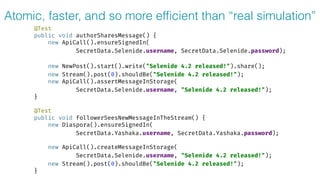

Atomic, faster, and so more efﬁcient than “real simulation”
@Test 
public void authorSharesMessage() { 
new ApiCall().ensureSignedIn( 
 
new ApiCall().assertMessageInStorage(
} 
 
@Test 
public void followerSeesNewMessageInTheStream() { 
new Diaspora().ensureSignedIn( 
 
new ApiCall().createMessageInStorage(
}

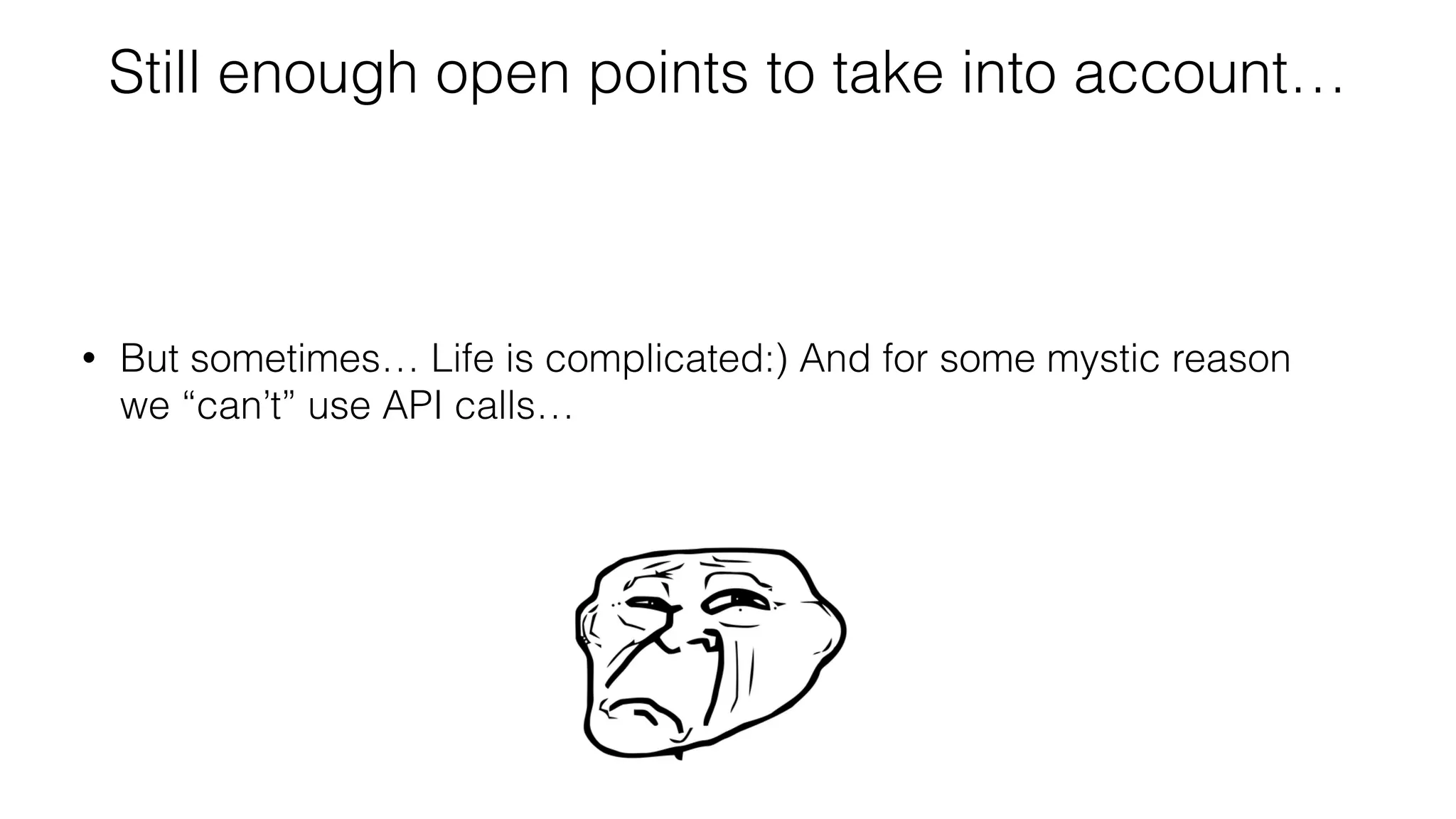

• But sometimes… Life is complicated:) And for some mystic reason
we “can’t” use API calls…

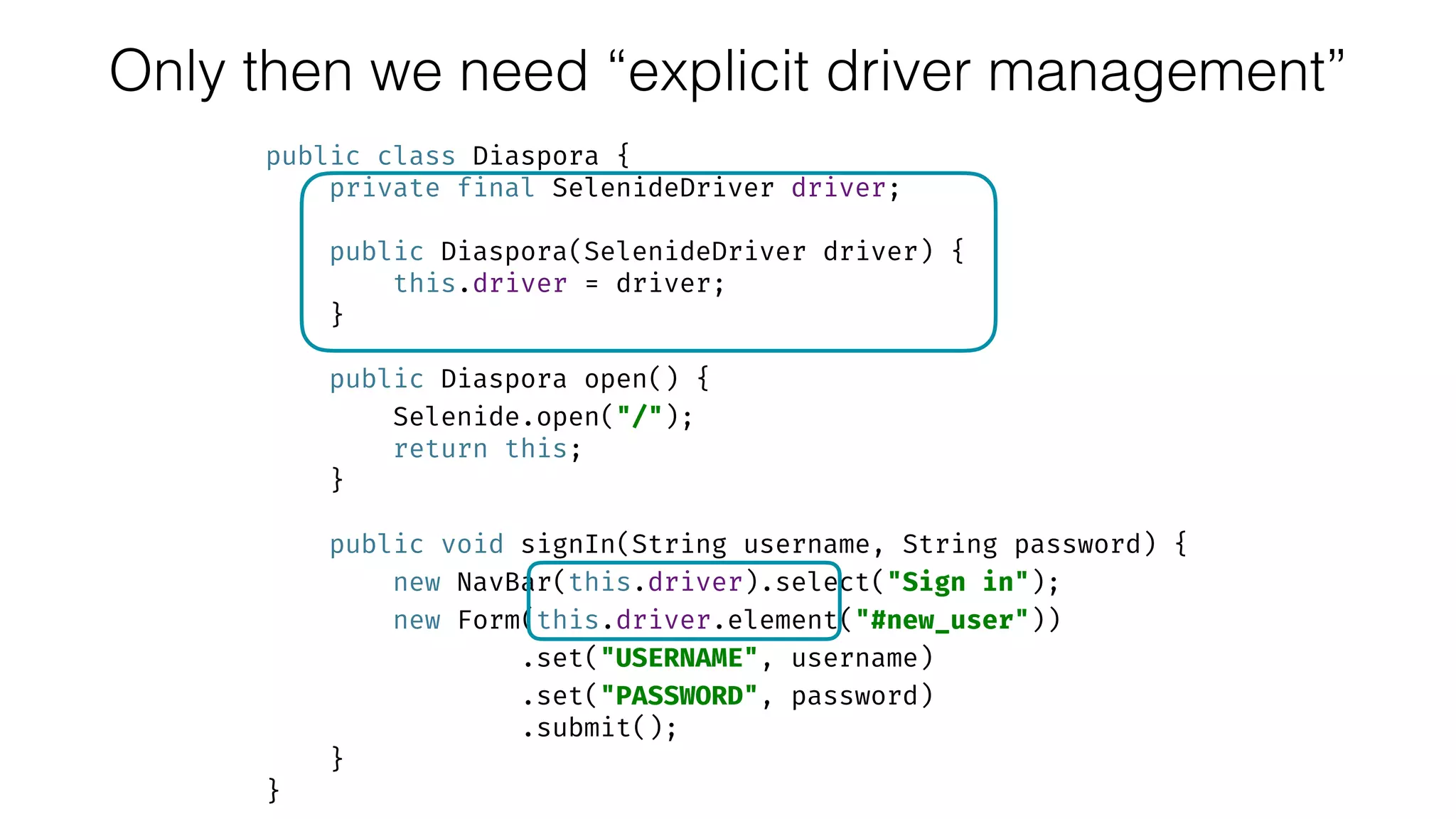

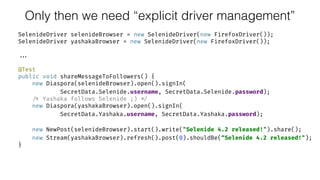

Only then we need “explicit driver management”
SelenideDriver selenideBrowser = new SelenideDriver(new FirefoxDriver()); 
SelenideDriver yashakaBrowser = new SelenideDriver(new FirefoxDriver());
...
@Test 
new Diaspora(selenideBrowser).open().signIn( 
/* Yashaka follows Selenide ;) */ 
new Diaspora(yashakaBrowser).open().signIn( 
 
new NewPost(selenideBrowser).start().write("Selenide 4.2 released!").share(); 
new Stream(yashakaBrowser).refresh().post(0).shouldBe(“Selenide 4.2 released!"); 
}

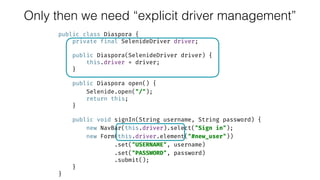

private final SelenideDriver driver; 
 
public Diaspora(SelenideDriver driver) { 
} 
 
return this; 
} 
 
new NavBar(this.driver).select("Sign in"); 
new Form(this.driver.element("#new_user")) 
.submit(); 
} 
}
Only then we need “explicit driver management”

KISS
=
not necessarily Easiness

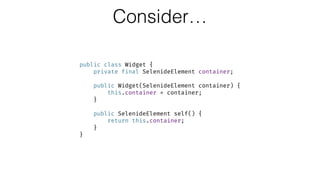

Consider…
public class Widget { 
 
public Widget(SelenideElement container) { 
} 
 
public SelenideElement self() { 
return this.container; 
} 
}

Easy
public class Post extends Widget{
 
public Post(SelenideElement container) { 
super(container); 
} 
 
public void shouldBe(String withText) { 
self().shouldHave(text(withText)); 
} 
}

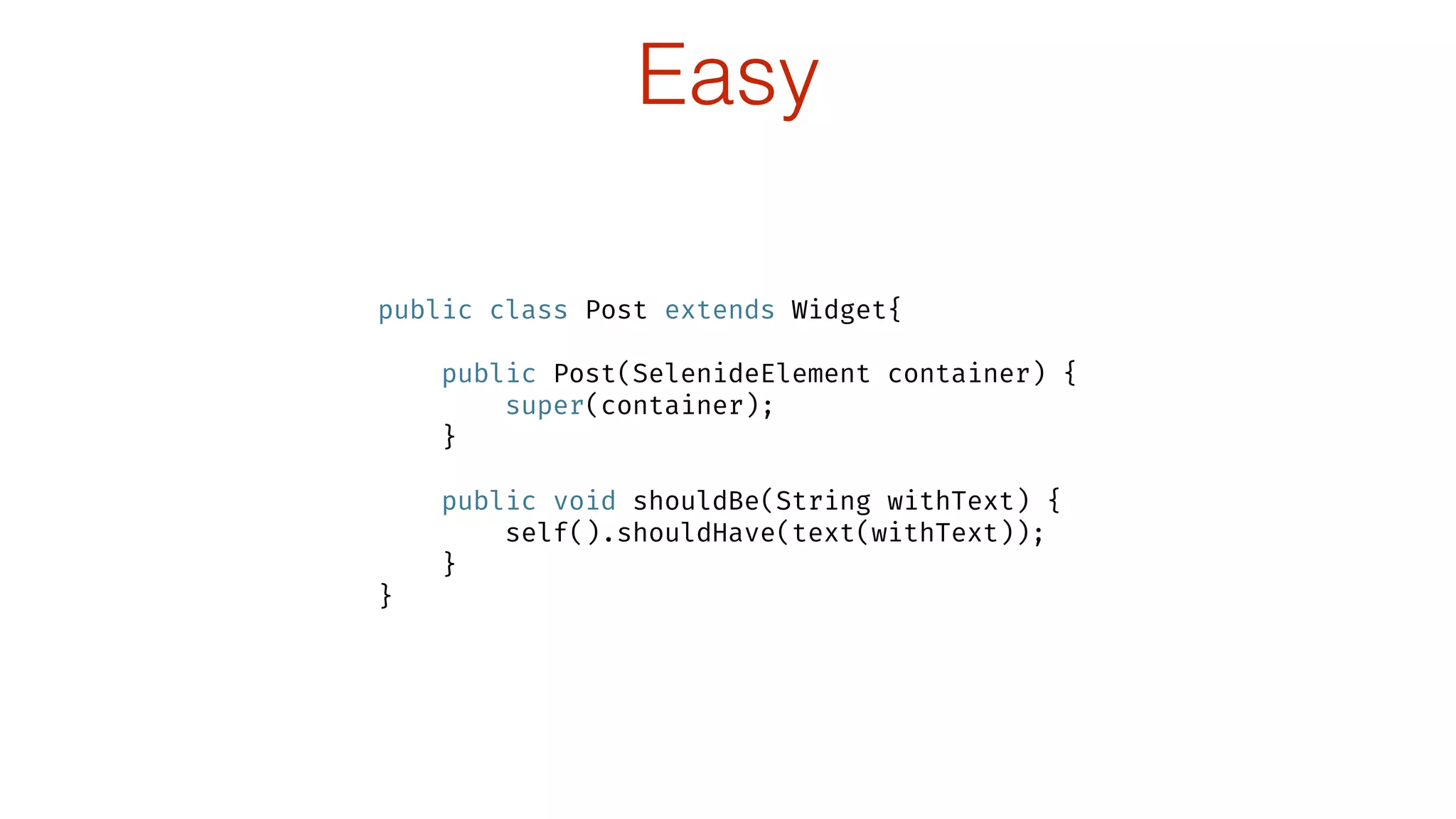

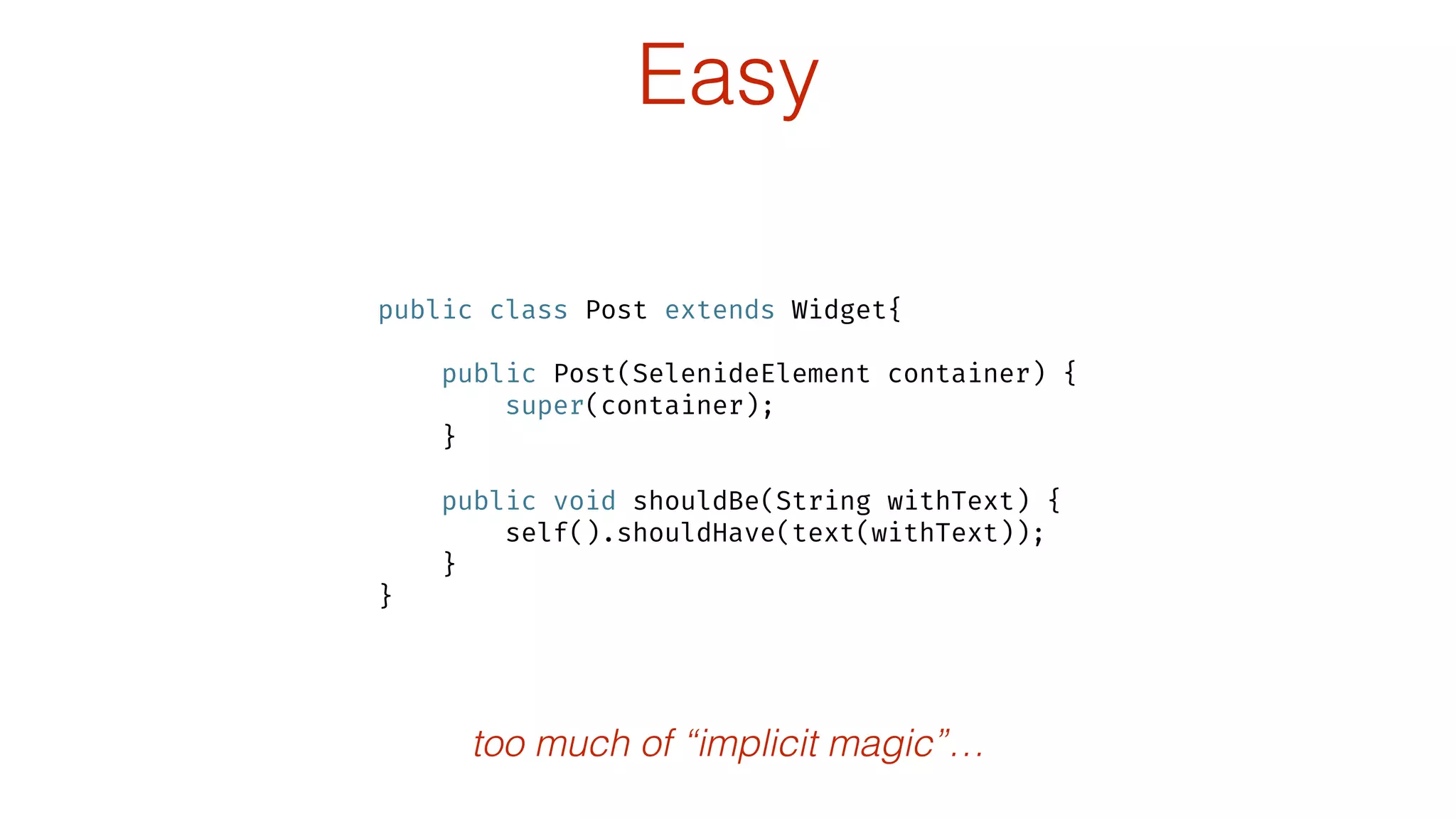

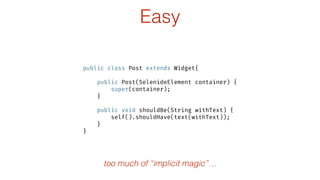

Easy
public class Post extends Widget{
 
super(container); 
} 
 
self().shouldHave(text(withText)); 
} 
}
too much of “implicit magic”…

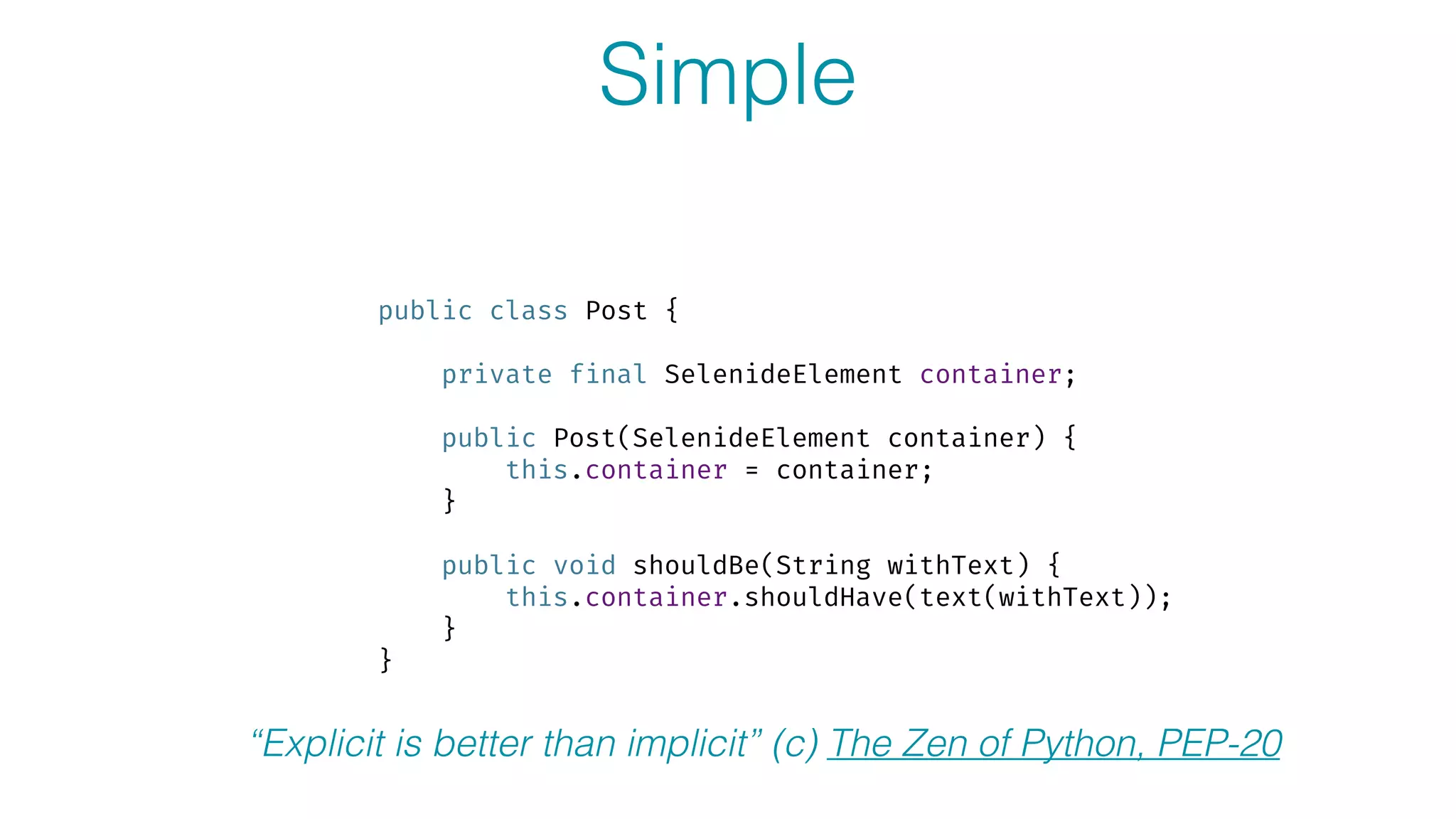

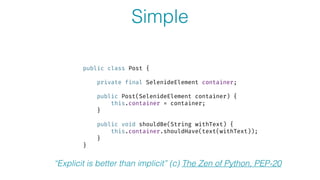

Simple
public class Post {
 
 
} 
 
this.container.shouldHave(text(withText)); 
} 
}
“Explicit is better than implicit” (c) The Zen of Python, PEP-20

–Rich Hickey
“Simple Made Easy”

assert KISS != magic
assert KISS == explicit

@Test 
public void shareMessage() { 
new Diaspora().open().signIn( 
new NewPost().shareNewPost("Selenide 4.2 released!”) 
}
hidden “start new post” test-logic, and hidden assertion

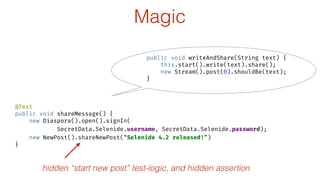

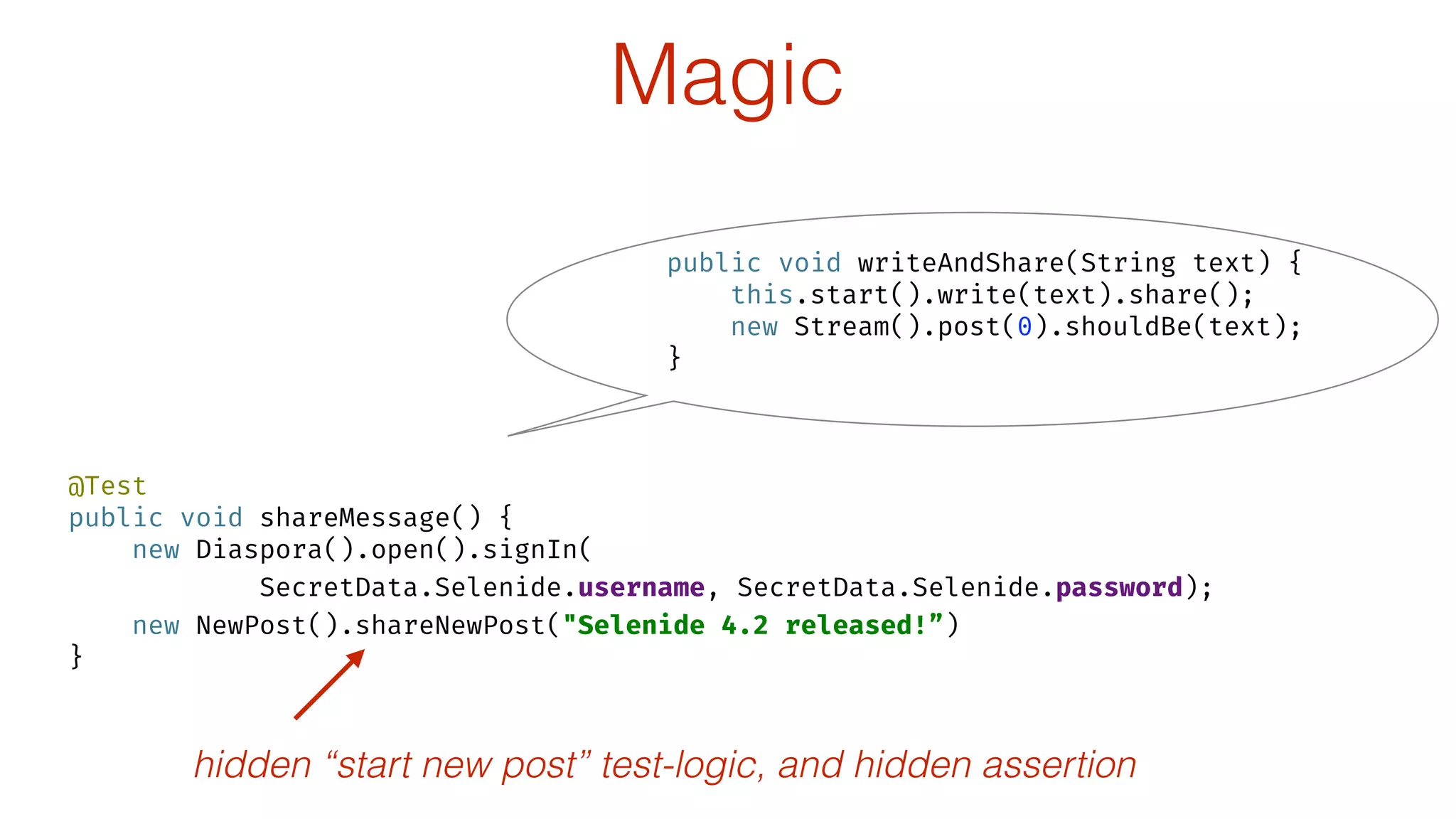

Magic
public void writeAndShare(String text) { 
this.start().write(text).share(); 
new Stream().post(0).shouldBe(text); 
}

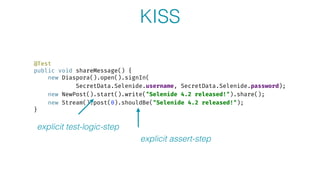

@Test 
public void shareMessage() { 
new Diaspora().open().signIn( 
}
explicit test-logic-step
explicit assert-step
KISS

Recall “Super-duper” WaitingLoadableComponents
@Test 
}
all “super” waiting for all results starts here

But what if do not want to wait all results? We are
interested only in the ﬁrst one!
@Test 
}
all “super” waiting for all 10 results starts here

WaitingLoadable may break the real user behaviour
in some contexts…
@Test 
}
all “super” waiting for all 10 results starts here

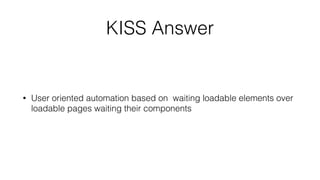

KISS Answer
• User oriented automation based on waiting loadable elements over
loadable pages waiting their components

Diaspora Demo
How often do you open Facebook, and proceed to proﬁle or messages,
while the stream is not loaded yet? ;)

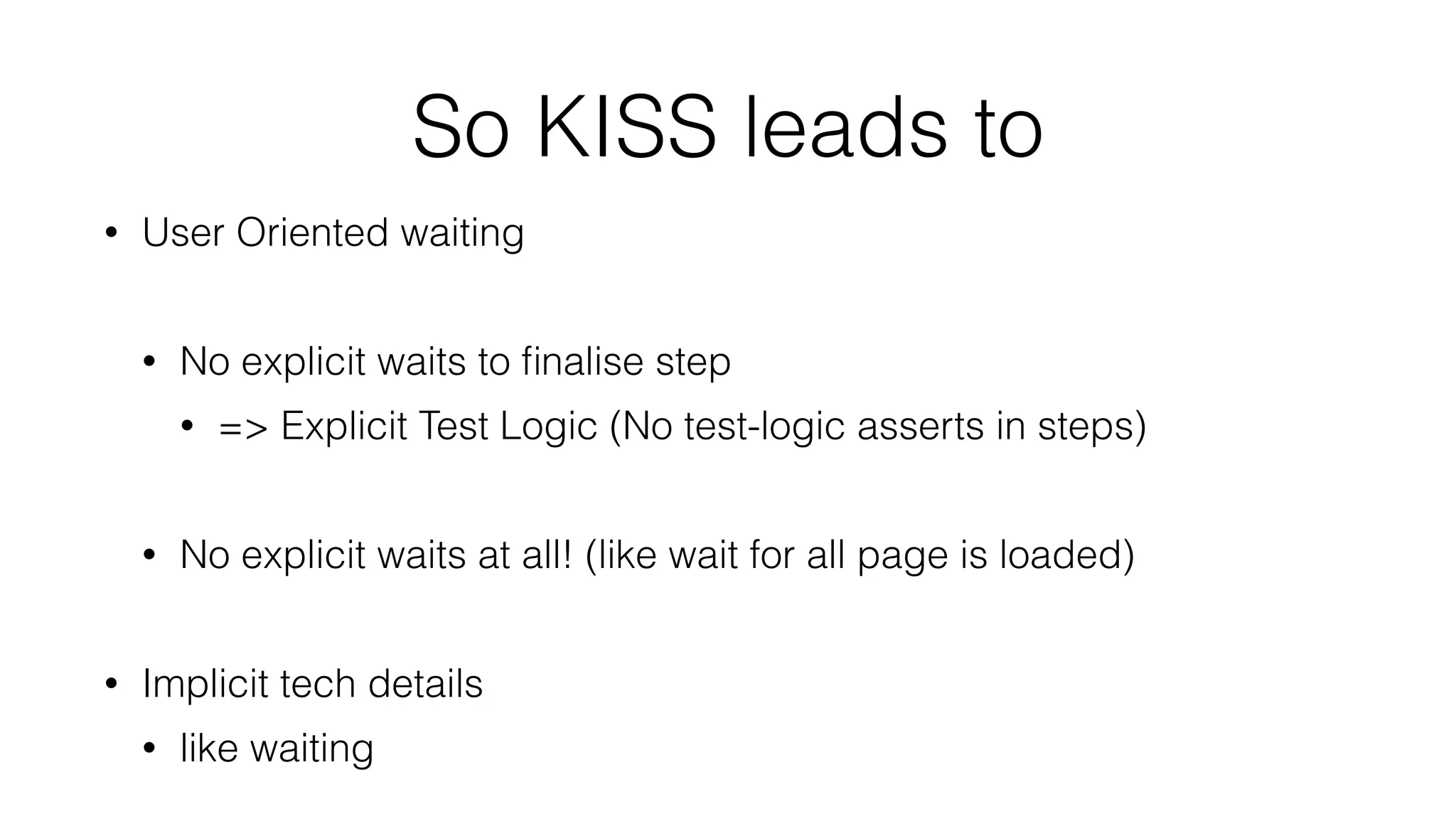

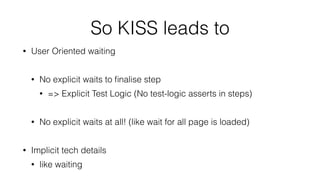

So KISS leads to
• User Oriented waiting
• No explicit waits to ﬁnalise step
• => Explicit Test Logic (No test-logic asserts in steps)
• No explicit waits at all! (like wait for all page is loaded)
• Implicit tech details
• like waiting

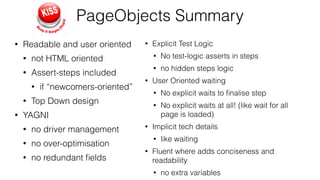

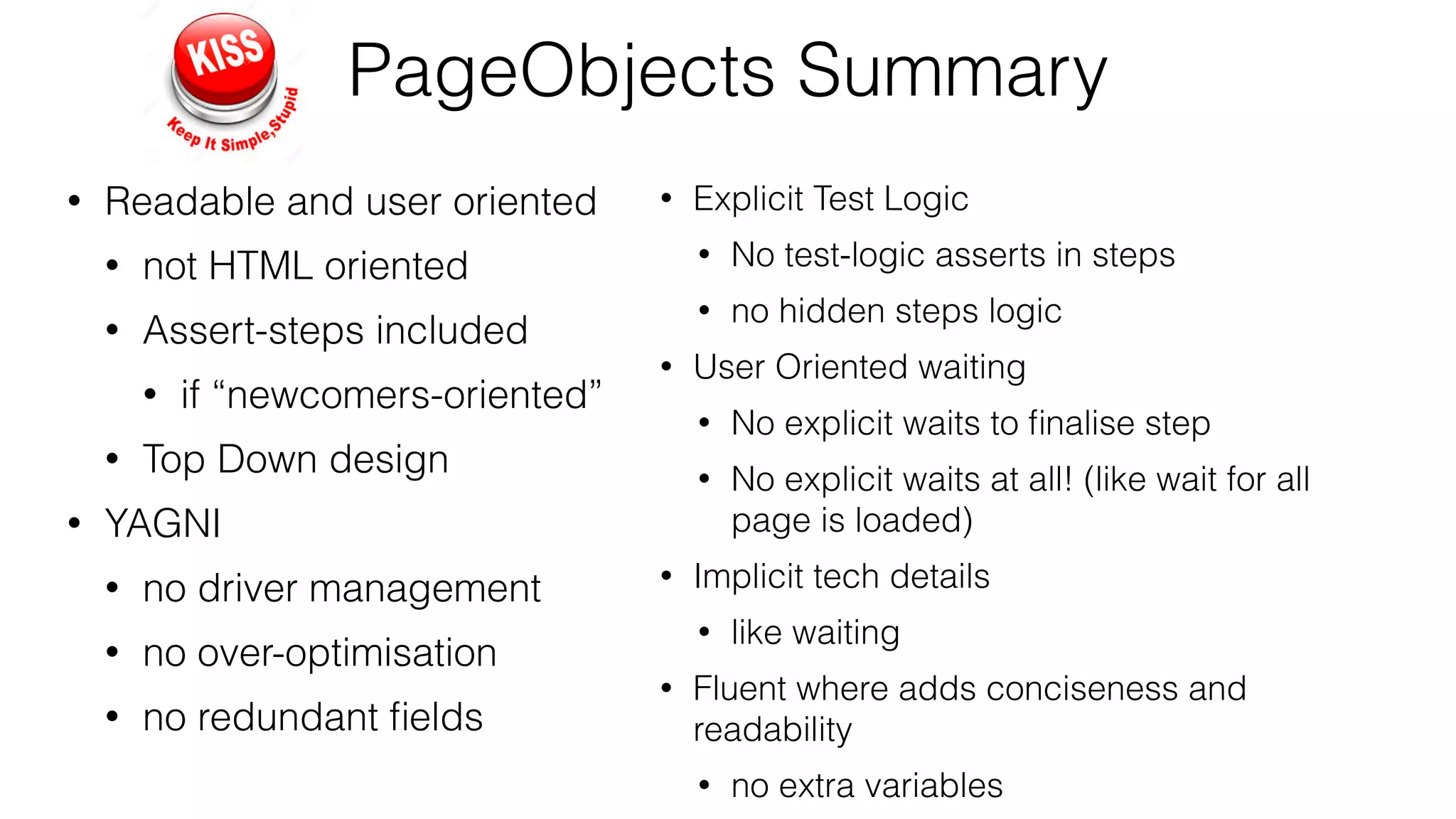

PageObjects Summary
• Readable and user oriented
• not HTML oriented
• Assert-steps included
• if “newcomers-oriented”
• Top Down design
• YAGNI
• no driver management
• no over-optimisation
• no redundant ﬁelds
• Explicit Test Logic
• No test-logic asserts in steps
• no hidden steps logic
• User Oriented waiting
• No explicit waits to ﬁnalise step
• No explicit waits at all! (like wait for all
page is loaded)
• Implicit tech details
• like waiting
• Fluent where adds conciseness and
readability
• no extra variables

PageObjects Secret ;)
NO Selenium Webdriver,
use more concise wrappers!

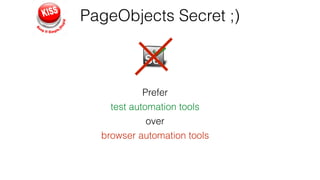

PageObjects Secret ;)
Prefer
test automation tools
over
browser automation tools

Thank you!
@yashaka 01.2017
github.com/automician
automician.com
seleniumcourses.com
yashaka @

Kiss PageObjects [01-2017]

More Related Content

What's hot

Similar to Kiss PageObjects [01-2017]

More from Iakiv Kramarenko

Recently uploaded

Kiss PageObjects [01-2017]
