Geb presentation

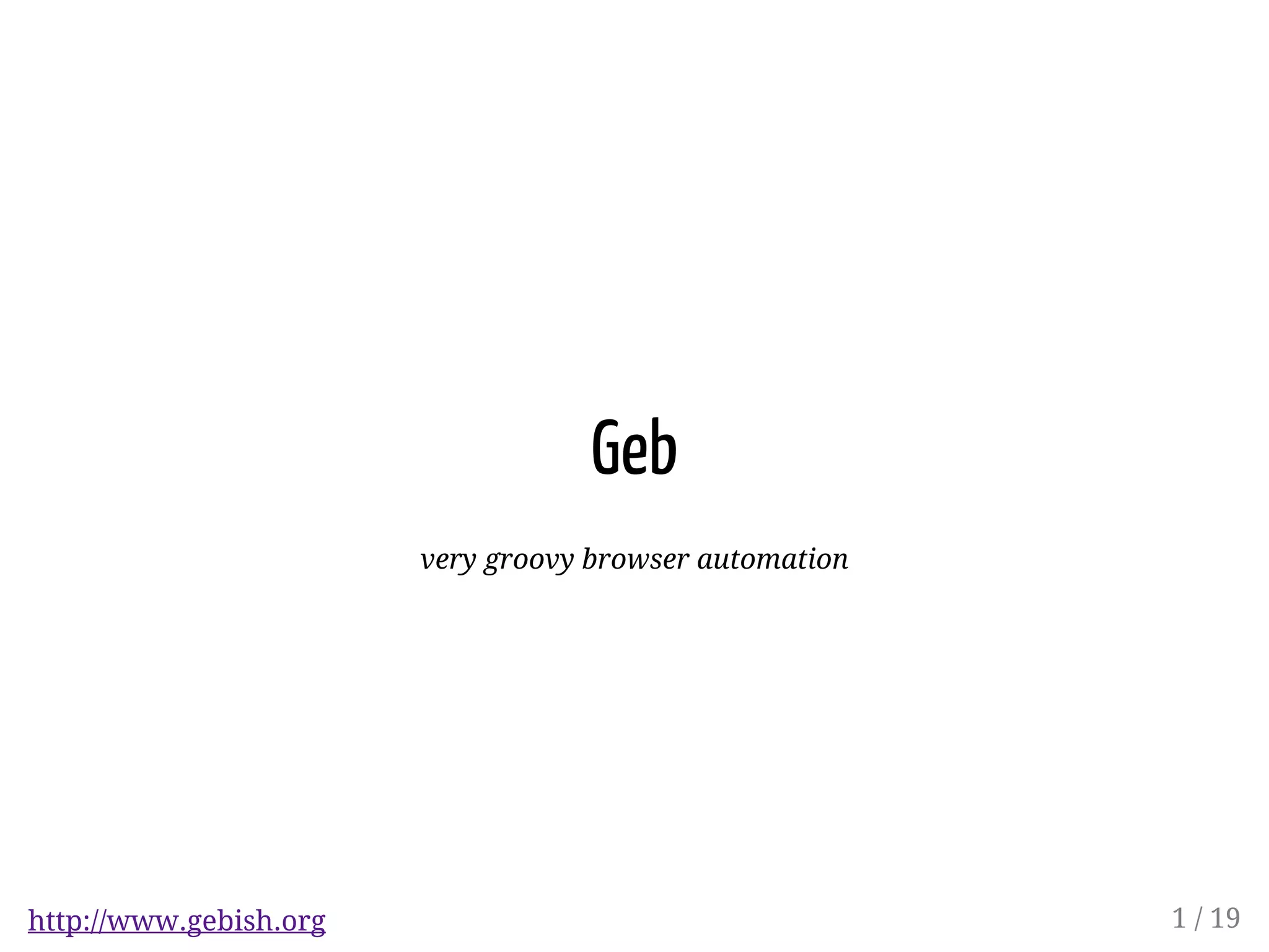

1. Geb
very groovy browser automation
http://www.gebish.org 1 / 19

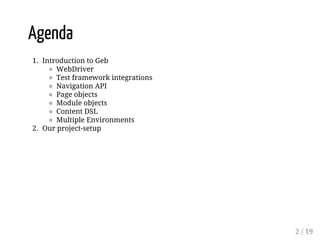

2. Agenda
1. Introduction to Geb
WebDriver
Test framework integrations
Navigation API
Page objects
Module objects
Content DSL
Multiple Environments
2. Our project-setup
2 / 19
3. Introduction
Automating the interaction between web browsers and web content
Acceptance Testing Web Applications
Screen scraping
Great documentation: http://www.gebish.org/manual/current/
3 / 19

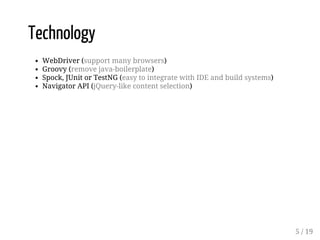

5. Technology
WebDriver (support many browsers)
Groovy (remove java-boilerplate)
Spock, JUnit or TestNG (easy to integrate with IDE and build systems)
Navigator API (jQuery-like content selection)
5 / 19
6. WebDriver
Geb builds on the WebDriver browser automation librar
Geb can work with any browser that WebDriver can
Geb provides an abstraction layer, but you can access WebDriver directly
Geb never talks to the actual browser.
You need specific driver for each browser you want to work with:
< >
< >org.seleniumhq.selenium</ >
< >selenium-firefox-driver</ >
< >2.20.0</ >
</ >
6 / 19

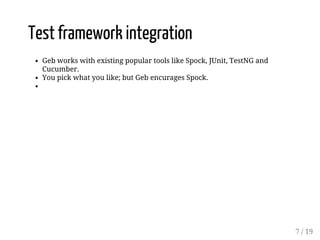

7. Test framework integration
Geb works with existing popular tools like Spock, JUnit, TestNG and
Cucumber.
You pick what you like; but Geb encurages Spock.
7 / 19

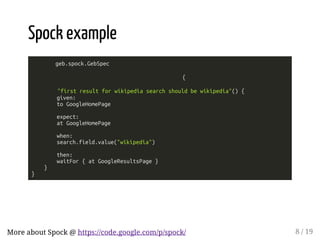

8. Spock example
geb.spock.GebSpec
{
"first result for wikipedia search should be wikipedia"() {
given:
to GoogleHomePage
expect:
at GoogleHomePage
when:
search.field.value("wikipedia")
then:
waitFor { at GoogleResultsPage }
}
}
More about Spock @ https://code.google.com/p/spock/ 8 / 19

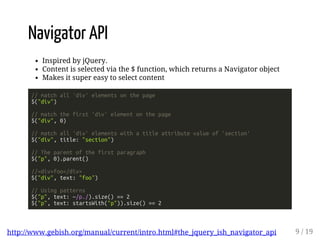

9. Navigator API
Inspired by jQuery.
Content is selected via the $ function, which returns a Navigator object
Makes it super easy to select content
// match all 'div' elements on the page
$("div")
// match the first 'div' element on the page
$("div", 0)
// match all 'div' elements with a title attribute value of 'section'
$("div", title: "section")
// The parent of the first paragraph
$("p", 0).parent()
//<div>foo</div>
$("div", text: "foo")
// Using patterns
$("p", text: ~/p./).size() == 2
$("p", text: startsWith("p")).size() == 2
http://www.gebish.org/manual/current/intro.html#the_jquery_ish_navigator_api 9 / 19

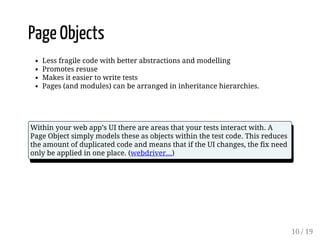

10. Page Objects
Less fragile code with better abstractions and modelling
Promotes resuse
Makes it easier to write tests
Pages (and modules) can be arranged in inheritance hierarchies.
Within your web app’s UI there are areas that your tests interact with. A
Page Object simply models these as objects within the test code. This reduces
the amount of duplicated code and means that if the UI changes, the fix need
only be applied in one place. (webdriver...)
10 / 19

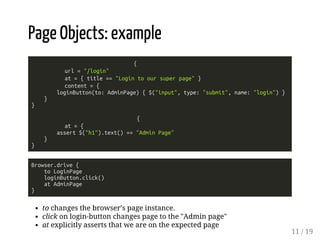

11. Page Objects: example
{
url = "/login"
at = { title == "Login to our super page" }
content = {
loginButton(to: AdminPage) { $("input", type: "submit", name: "login") }
}
}
{
at = {
assert $("h1").text() == "Admin Page"
}
}
Browser.drive {
to LoginPage
loginButton.click()
at AdminPage
}
to changes the browser’s page instance.
click on login-button changes page to the "Admin page"
at explicitly asserts that we are on the expected page
11 / 19

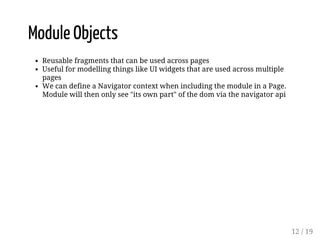

12. Module Objects
Reusable fragments that can be used across pages
Useful for modelling things like UI widgets that are used across multiple
pages
We can define a Navigator context when including the module in a Page.
Module will then only see "its own part" of the dom via the navigator api
12 / 19

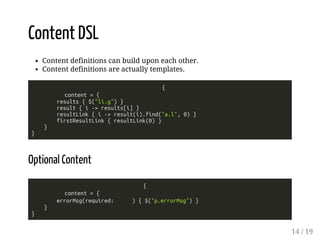

14. Content DSL
Content definitions can build upon each other.
Content definitions are actually templates.
{
content = {
results { $("li.g") }
result { i -> results[i] }
resultLink { i -> result(i).find("a.l", 0) }
firstResultLink { resultLink(0) }
}
}
Optional Content
{
content = {
errorMsg(required: ) { $("p.errorMsg") }
}
}
14 / 19
15. Dynamic content
{
content = {
linkTotrigger {$("a"}
awesomeContainer(required: ) { $("div.awesome") }
}
}
Browser.drive {
to DynamicPage
linkTotrigger.click()
waitFor { awesomeContainer }
}
By default, it will look for it every 100ms for 5s before giving up.
15 / 19
16. Multiple Environments
The Groovy ConfigSlurper mechanism has built in support for
environment sensitive configuration
system property to determine the environment to use
remoteDriver = {..}
driver = { FirefoxDriver() }
baseUrl = "http://iad.finn.no:3002/"
iadUrl = "http://dev.finn.no"
environments {
'dev' {
baseUrl = "http://dev.finn.no/talent/"
iadUrl = "http://dev.finn.no"
driver = remoteDriver
}
'prod' {
baseUrl = "http://www.finn.no/talent/"
iadUrl = "http://www.finn.no"
driver = remoteDriver
}
}
16 / 19

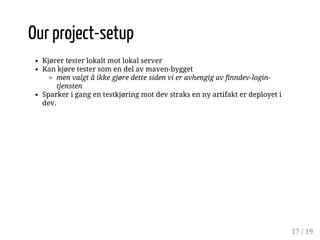

17. Our project-setup
Kjører tester lokalt mot lokal server
Kan kjøre tester som en del av maven-bygget
men valgt å ikke gjøre dette siden vi er avhengig av finndev-login-tjensten
Sparker i gang en testkjøring mot dev straks en ny artifakt er deployet i
dev.
17 / 19
18. FINN.no :: Testreports
JUnit-listner that intgrates Geb with http://testreports.finn.no
Support @Tags annotation
Gives status and screenshots for each test
Easy setup with the maven-surfire-plugin
< >
< >org.apache.maven.plugins</ >
< >maven-surefire-plugin</ >
< >2.16</ >
< >
< >
< >**/*Spec.*</ >
</ >
< >
< >target/test-reports/geb</ >
< >${artifactId}</ >
</ >
< >
< >
< >listener</ >
< >no.finntech.test.report.runner.GebTestReportRunListener</ >
</ >
</ > 18 / 19
