This document discusses integrating application security (AppSec) into agile development processes like DevOps. It begins with an overview of moving from traditional waterfall development with separate AppSec to integrating AppSec into agile feature-driven development (FDD) and test-driven development (TDD). The rest of the document details a two-phase approach: first, implementing security FDD by adding AppSec activities to each stage of FDD; second, implementing DevSecOps by adding automated security testing and monitoring throughout TDD. Key aspects covered include threat modeling, static/dynamic testing, monitoring and response.

1. Red7:|:applicationsecurity
© Copyright 2017 Robert Grupe. All rights reserved.
1
AGILE APPSEC DEVOPS
Secure Software Development
with Agile DevOps
robertGrupe, CISSP, CSSLP, PE, PMP
Tags :: Application, Software, Security, Development, AppSec, DevOps,
DevSecOps OWASP, Agile, Kanban, Scrum, Best Practices, Feature Driven
Development, FDD, Test Driven Development , TDD

2. Red7:|:applicationsecurity
© Copyright 2017 Robert Grupe. All rights reserved.
2

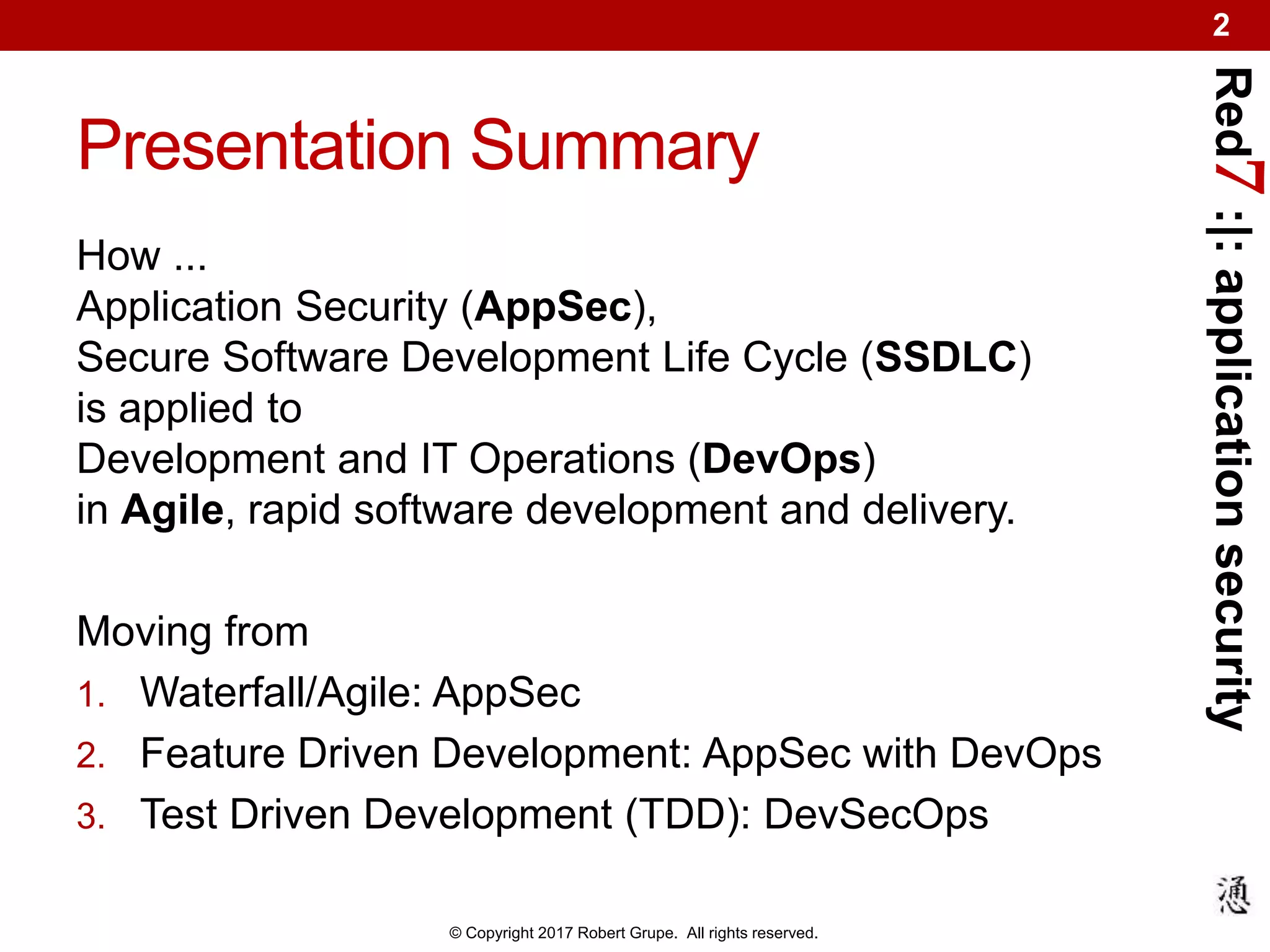

Presentation Summary
How ...
Application Security (AppSec),
Secure Software Development Life Cycle (SSDLC)
is applied to
Development and IT Operations (DevOps)
in Agile, rapid software development and delivery.
Moving from
1. Waterfall/Agile: AppSec
2. Feature Driven Development: AppSec with DevOps
3. Test Driven Development (TDD): DevSecOps

3. Red7:|:applicationsecurity
© Copyright 2017 Robert Grupe. All rights reserved.
3

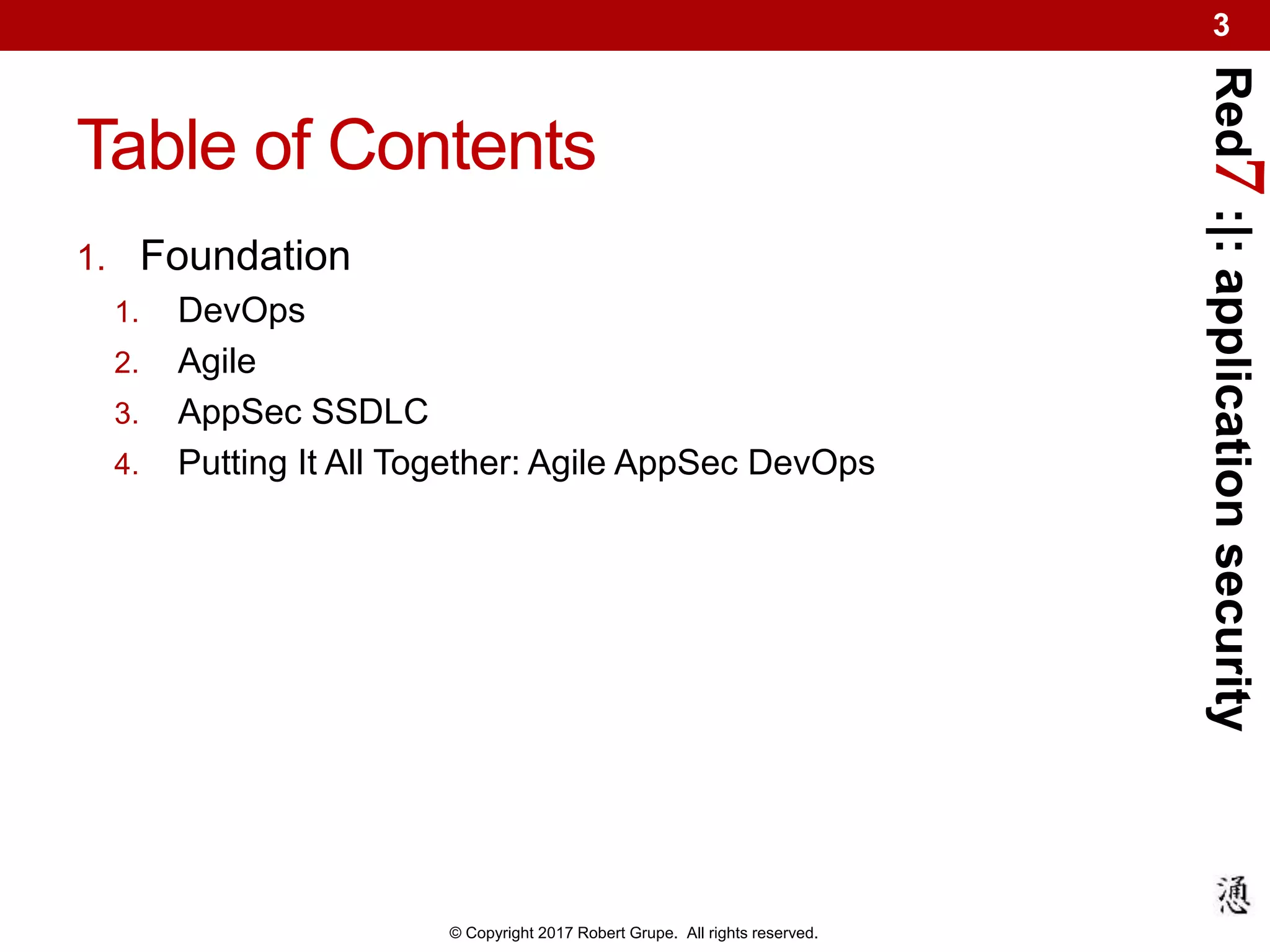

Table of Contents
1. AppSec with DevOps: Feature Diven Development
1. Foundational Elements
2. DevSecOps: Security Driven Development

4. Red7:|:applicationsecurity
© Copyright 2017 Robert Grupe. All rights reserved.
4

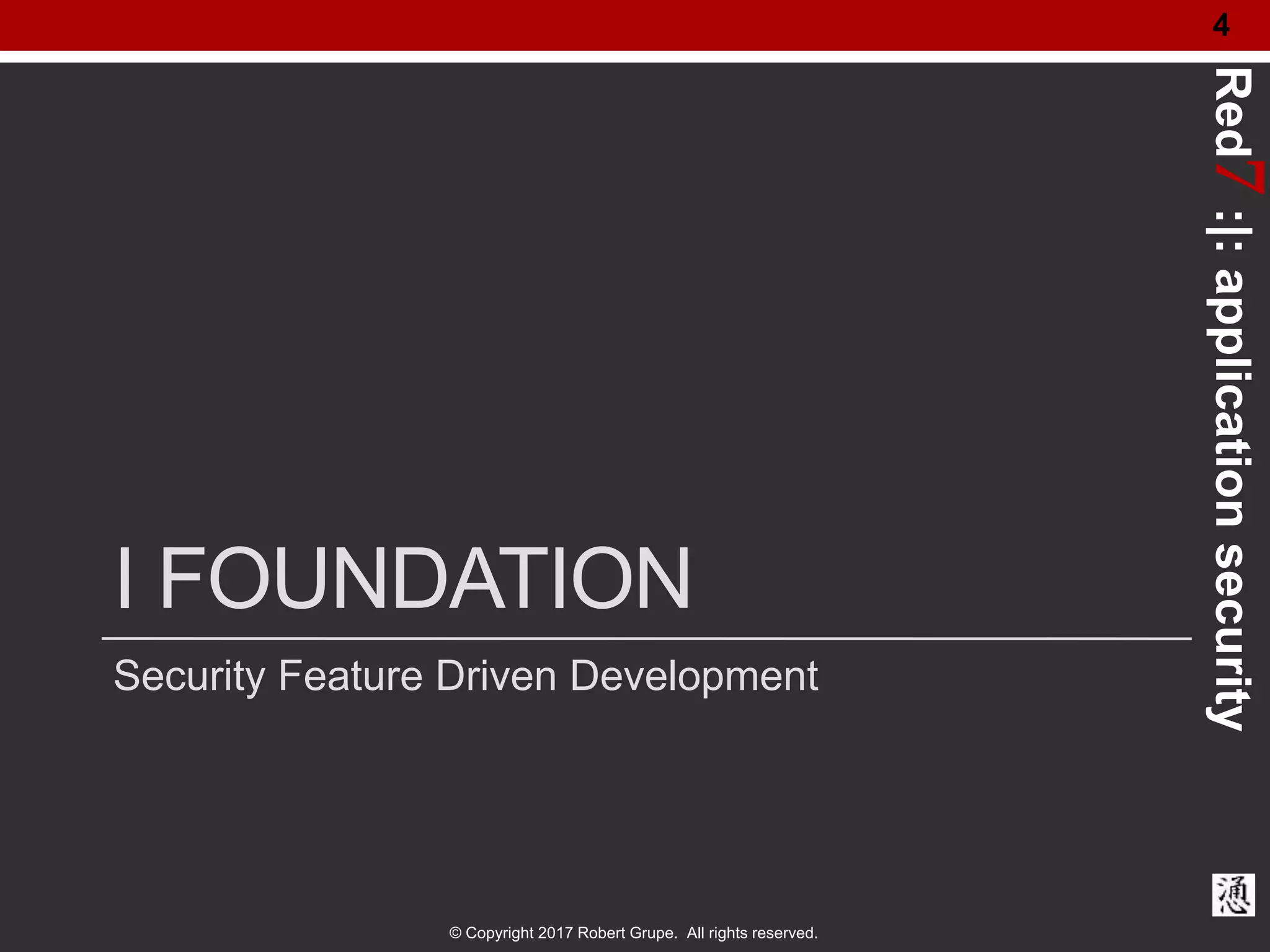

I FOUNDATION
Security Feature Driven Development

5. Red7:|:applicationsecurity
© Copyright 2017 Robert Grupe. All rights reserved.
5

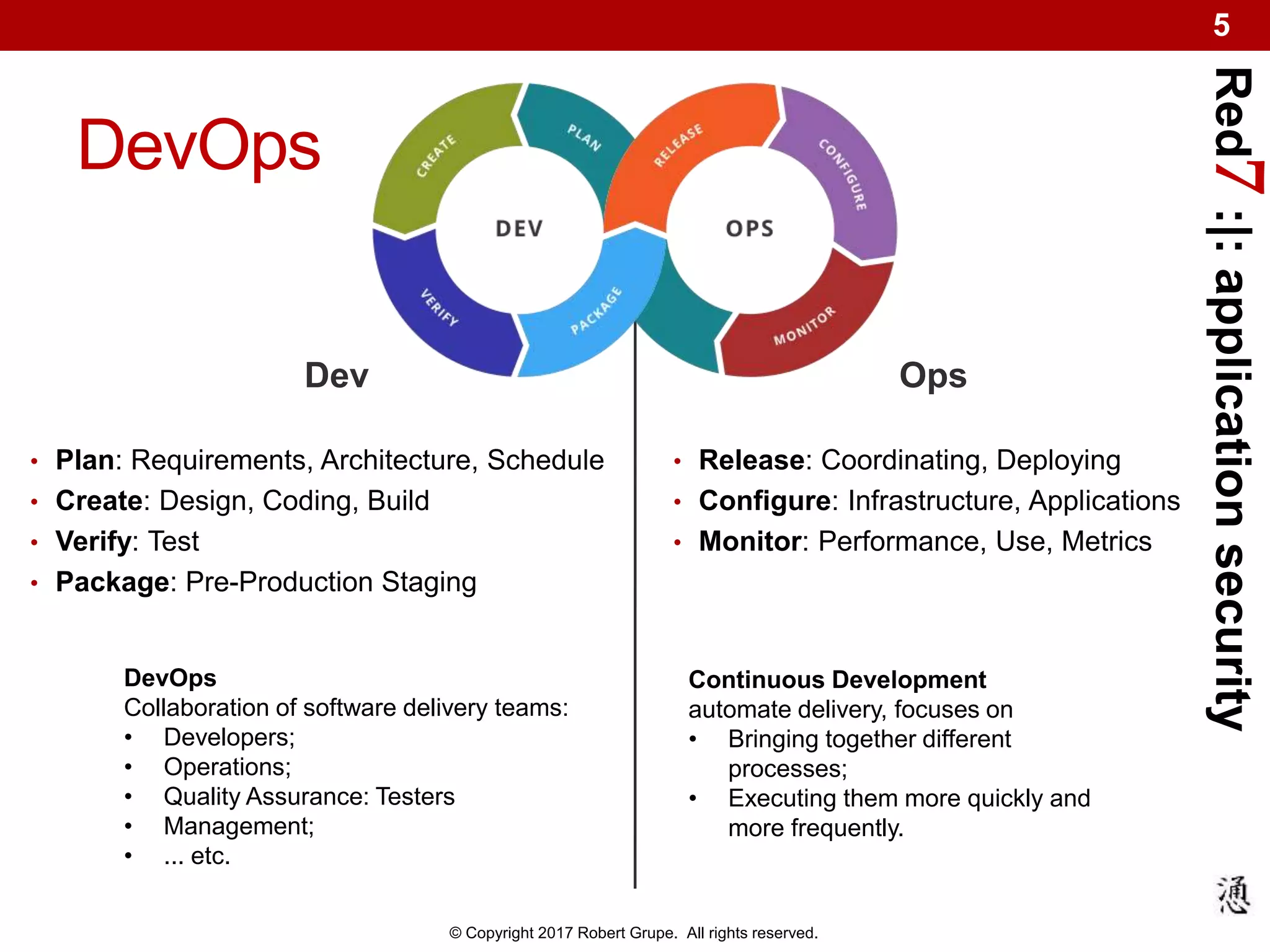

DevOps
Dev
• Plan: Requirements, Architecture, Schedule
• Create: Design, Coding, Build
• Verify: Test
• Package: Pre-Production Staging
Ops
• Release: Coordinating, Deploying
• Configure: Infrastructure, Applications
• Monitor: Performance, Use, Metrics
DevOps
Collaboration of software delivery teams:
• Developers;
• Operations;
• Quality Assurance: Testers
• Management;
• ... etc.
Continuous Development
automate delivery, focuses on
• Bringing together different
processes;
• Executing them more quickly and
more frequently.

6. Red7:|:applicationsecurity
© Copyright 2017 Robert Grupe. All rights reserved.
6

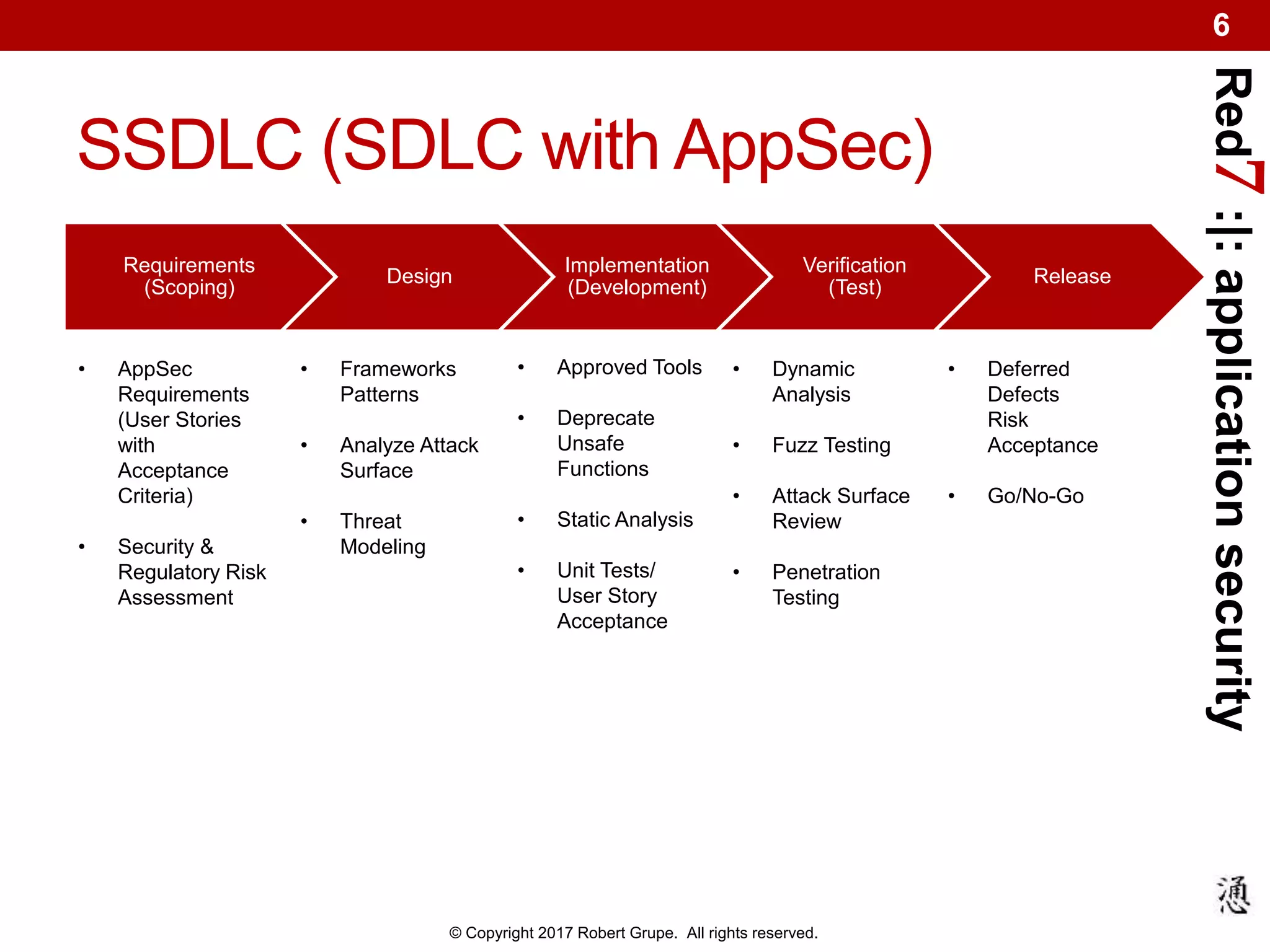

SSDLC (SDLC with AppSec)
Requirements
(Scoping)
Design
Implementation
(Development)
Verification
(Test)
Release
• AppSec
Requirements
(User Stories
with
Acceptance
Criteria)
• Security &
Regulatory Risk
Assessment
• Frameworks
Patterns
• Analyze Attack
Surface
• Threat
Modeling
• Approved Tools
• Deprecate
Unsafe
Functions
• Static Analysis
• Unit Tests/
User Story
Acceptance
• Dynamic
Analysis
• Fuzz Testing
• Attack Surface
Review
• Penetration
Testing
• Deferred
Defects
Risk
Acceptance
• Go/No-Go

7. Red7:|:applicationsecurity
© Copyright 2017 Robert Grupe. All rights reserved.
7

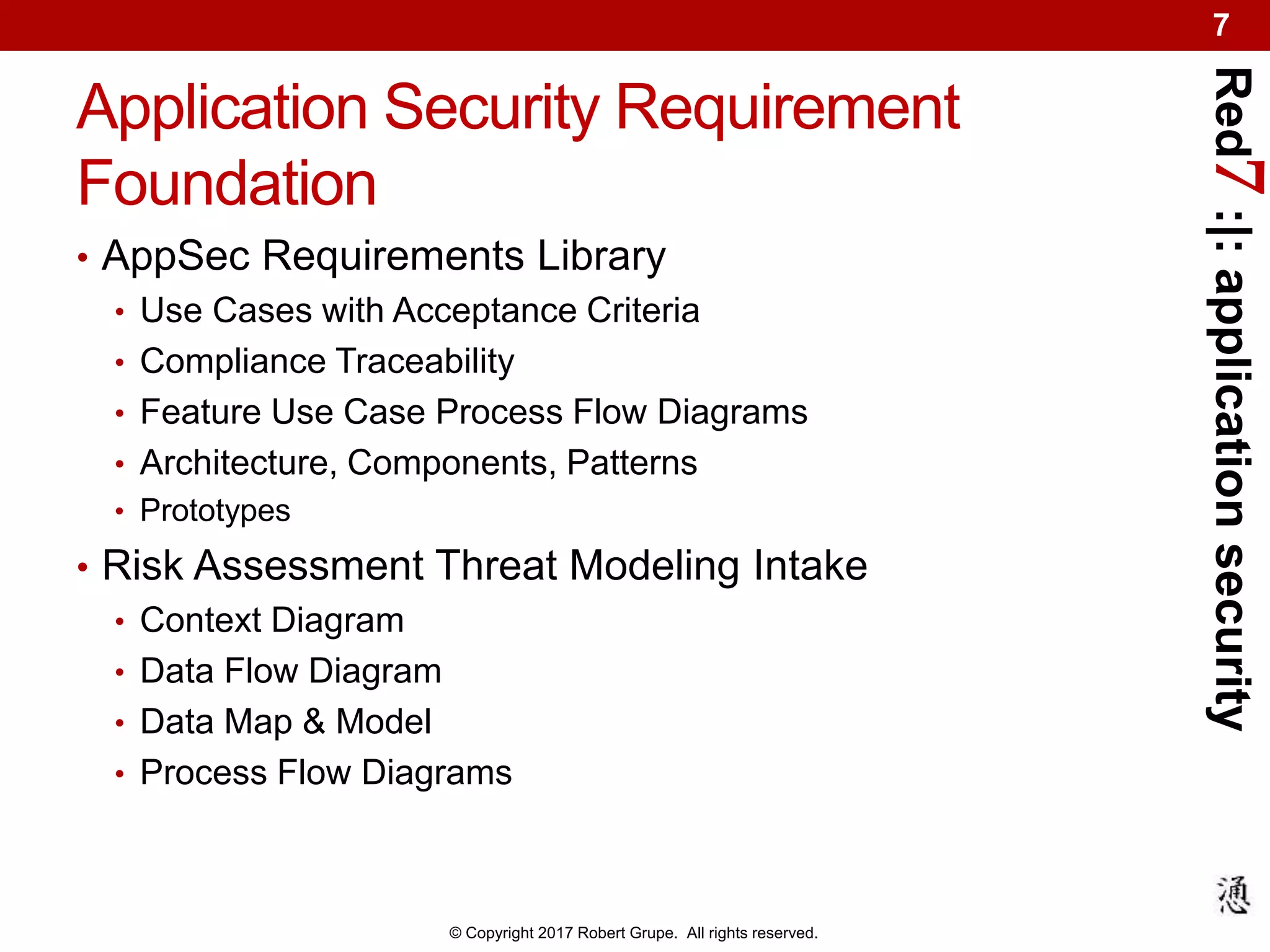

Application Security Requirement
Foundation
• AppSec Requirements Library
• Use Cases with Acceptance Criteria
• Compliance Traceability
• Feature Use Case Process Flow Diagrams
• Architecture, Components, Patterns
• Prototypes
• Risk Assessment Threat Modeling Intake
• Context Diagram
• Data Flow Diagram
• Data Map & Model
• Process Flow Diagrams

8. Red7:|:applicationsecurity
© Copyright 2017 Robert Grupe. All rights reserved.
8

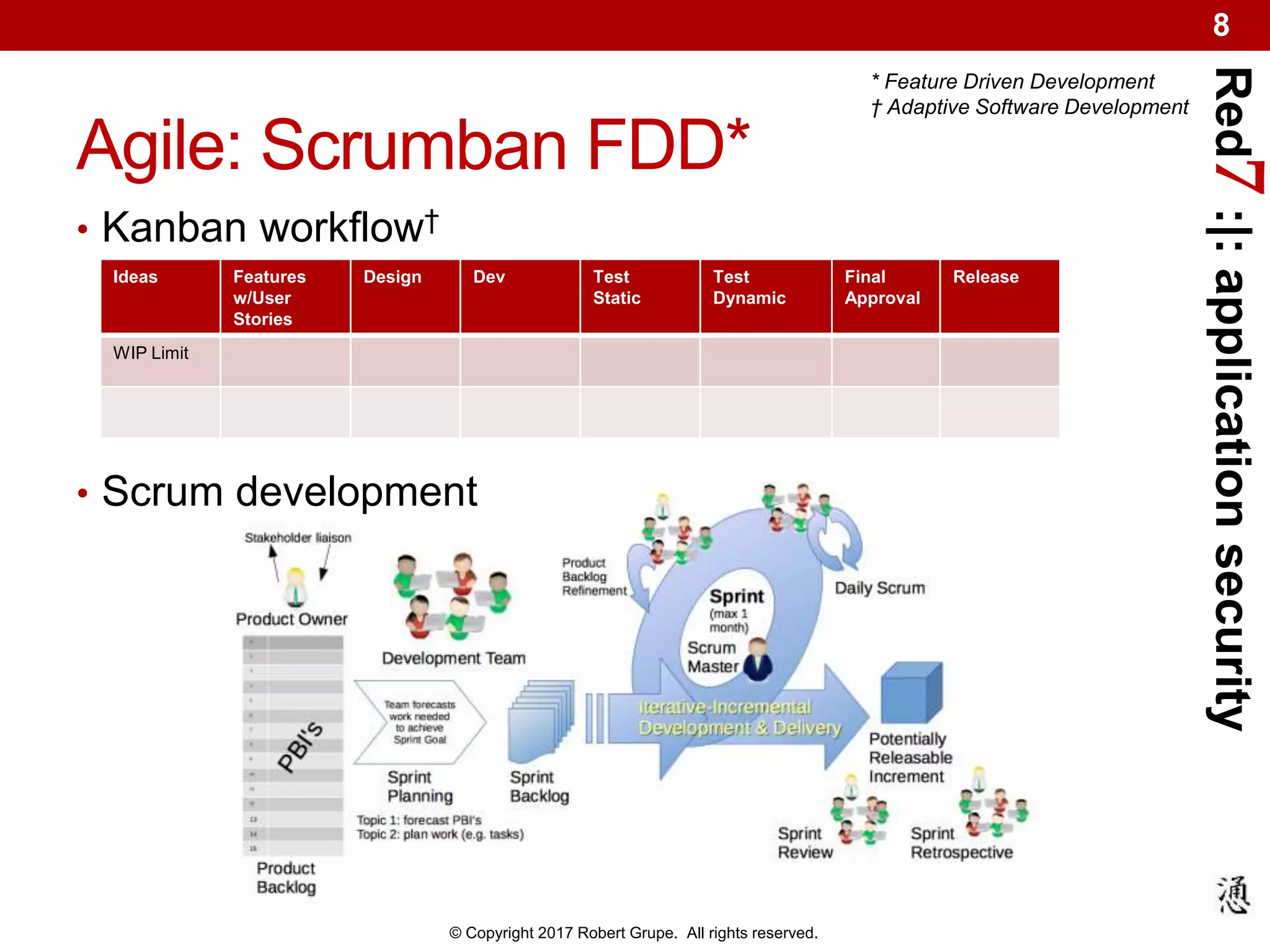

Agile: Scrumban FDD*
• Kanban workflow†
• Scrum development
Ideas Features
w/User
Stories
Design Dev Test
Static
Test
Dynamic
Final
Approval
Release
WIP Limit
* Feature Driven Development
† Adaptive Software Development

9. Red7:|:applicationsecurity
© Copyright 2017 Robert Grupe. All rights reserved.
9

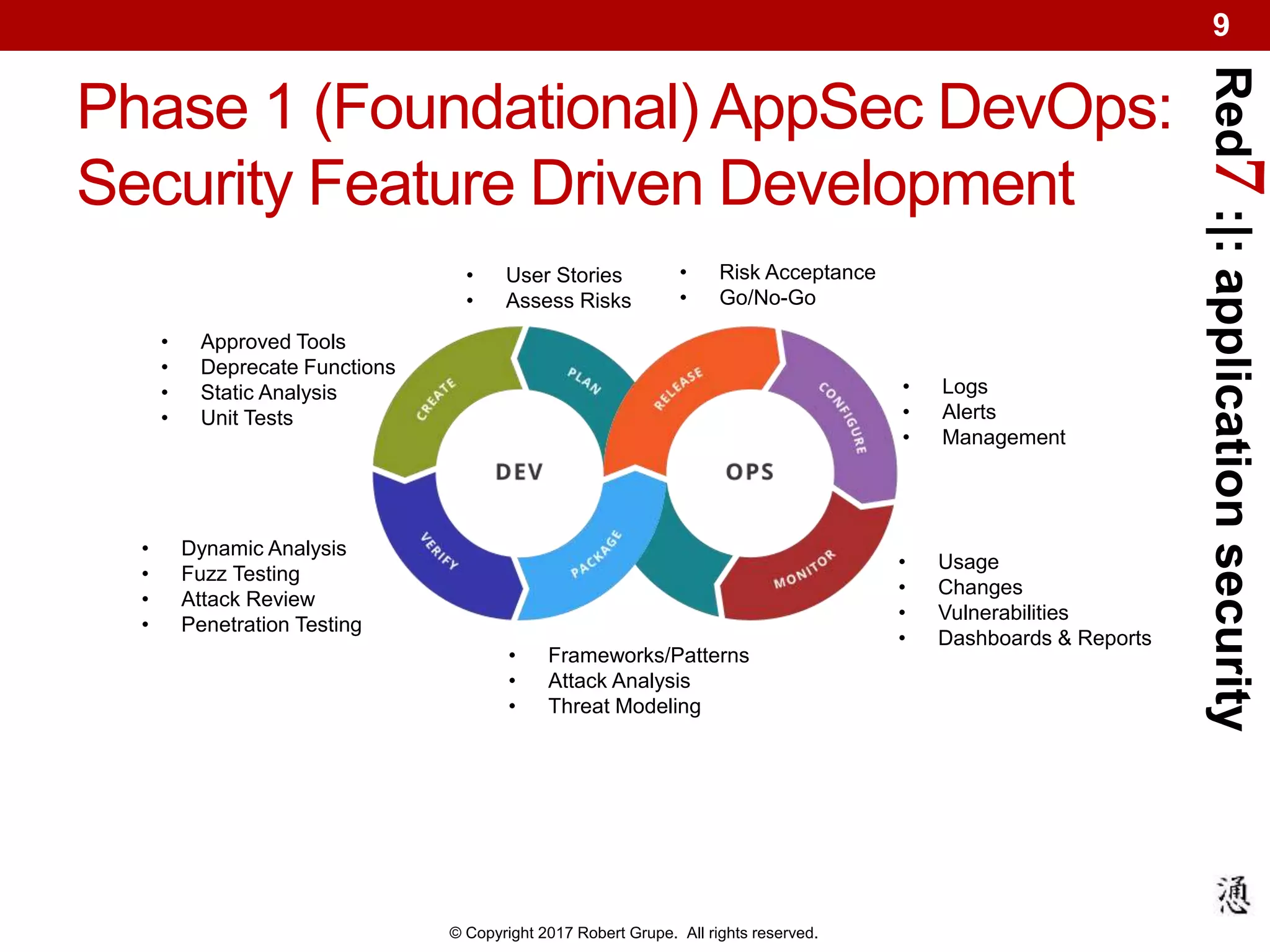

Phase 1 (Foundational) AppSec DevOps:
Security Feature Driven Development
• User Stories
• Assess Risks
• Frameworks/Patterns
• Attack Analysis
• Threat Modeling
• Approved Tools
• Deprecate Functions
• Static Analysis
• Unit Tests
• Dynamic Analysis
• Fuzz Testing
• Attack Review
• Penetration Testing
• Risk Acceptance
• Go/No-Go
• Logs
• Alerts
• Management
• Usage
• Changes
• Vulnerabilities
• Dashboards & Reports

10. Red7:|:applicationsecurity
© Copyright 2017 Robert Grupe. All rights reserved.
10

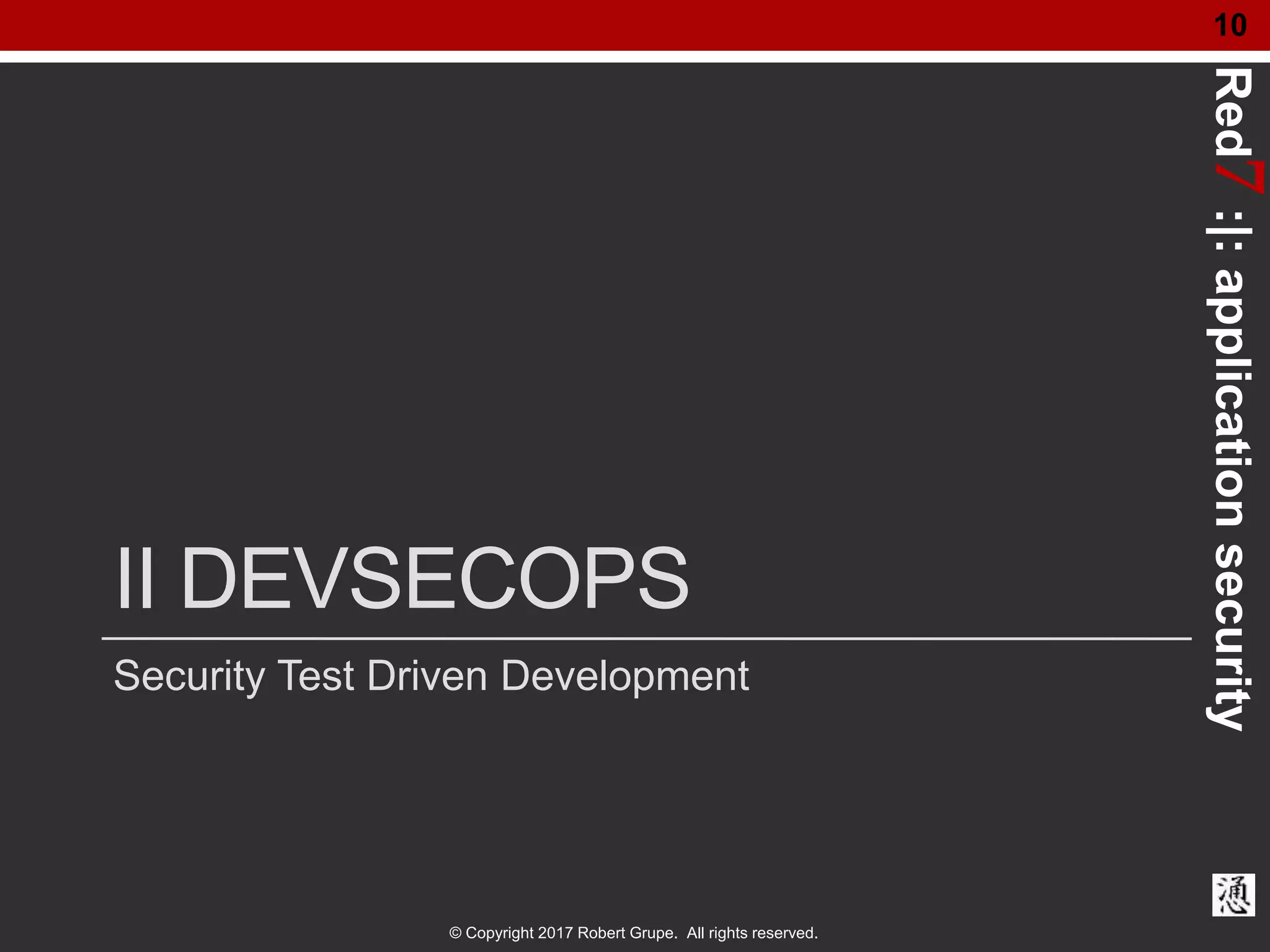

II DEVSECOPS
Security Test Driven Development

11. Red7:|:applicationsecurity
© Copyright 2017 Robert Grupe. All rights reserved.
11

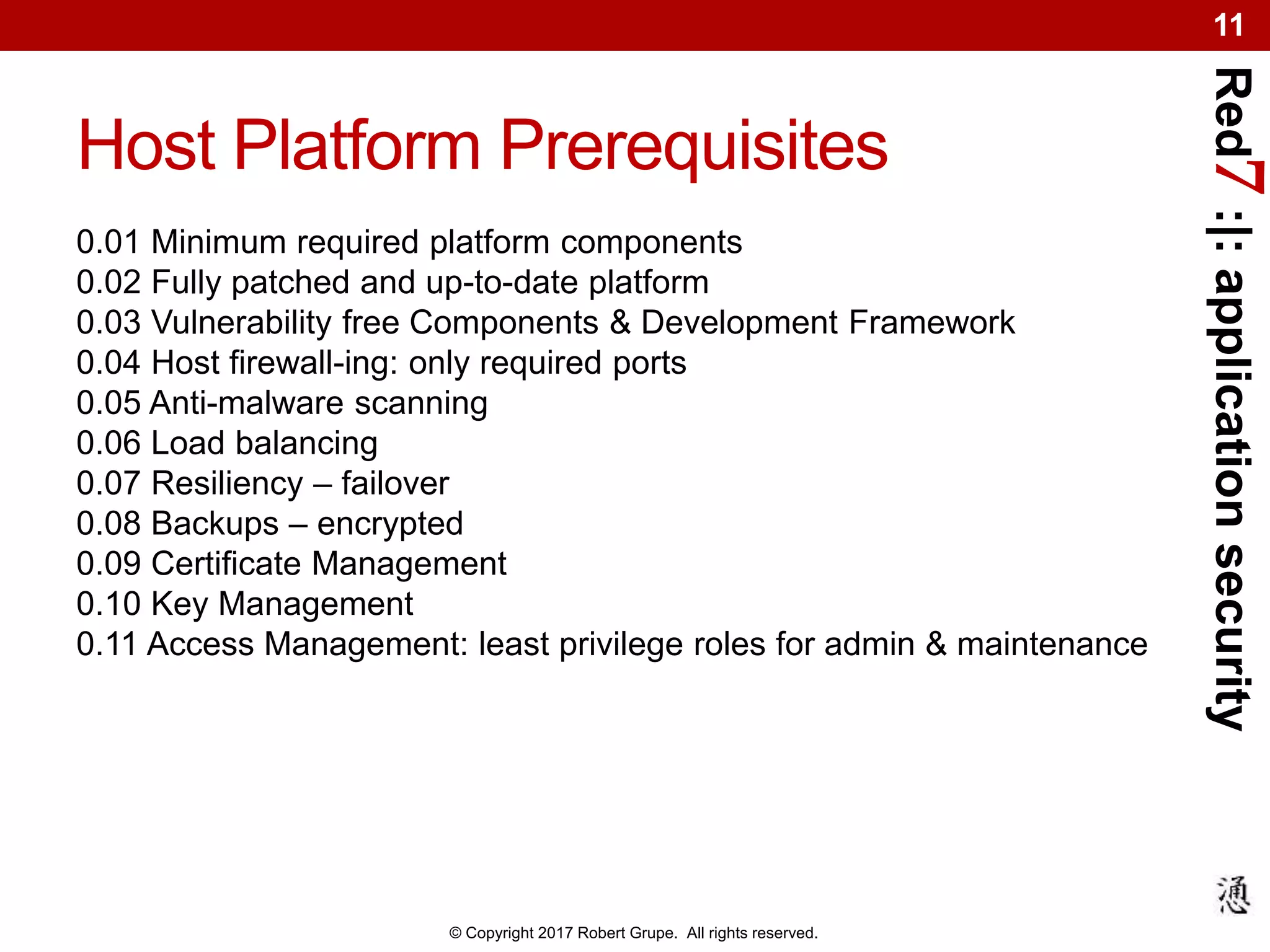

Host Platform Prerequisites
0.01 Minimum required platform components
0.02 Fully patched and up-to-date platform
0.03 Vulnerability free Components & Development Framework
0.04 Host firewall-ing: only required ports
0.05 Anti-malware scanning
0.06 Load balancing
0.07 Resiliency – failover
0.08 Backups – encrypted
0.09 Certificate Management
0.10 Key Management
0.11 Access Management: least privilege roles for admin & maintenance

12. Red7:|:applicationsecurity
© Copyright 2017 Robert Grupe. All rights reserved.
12

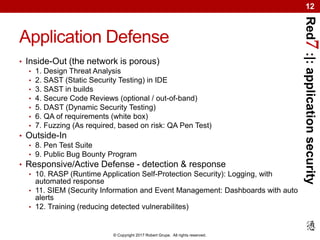

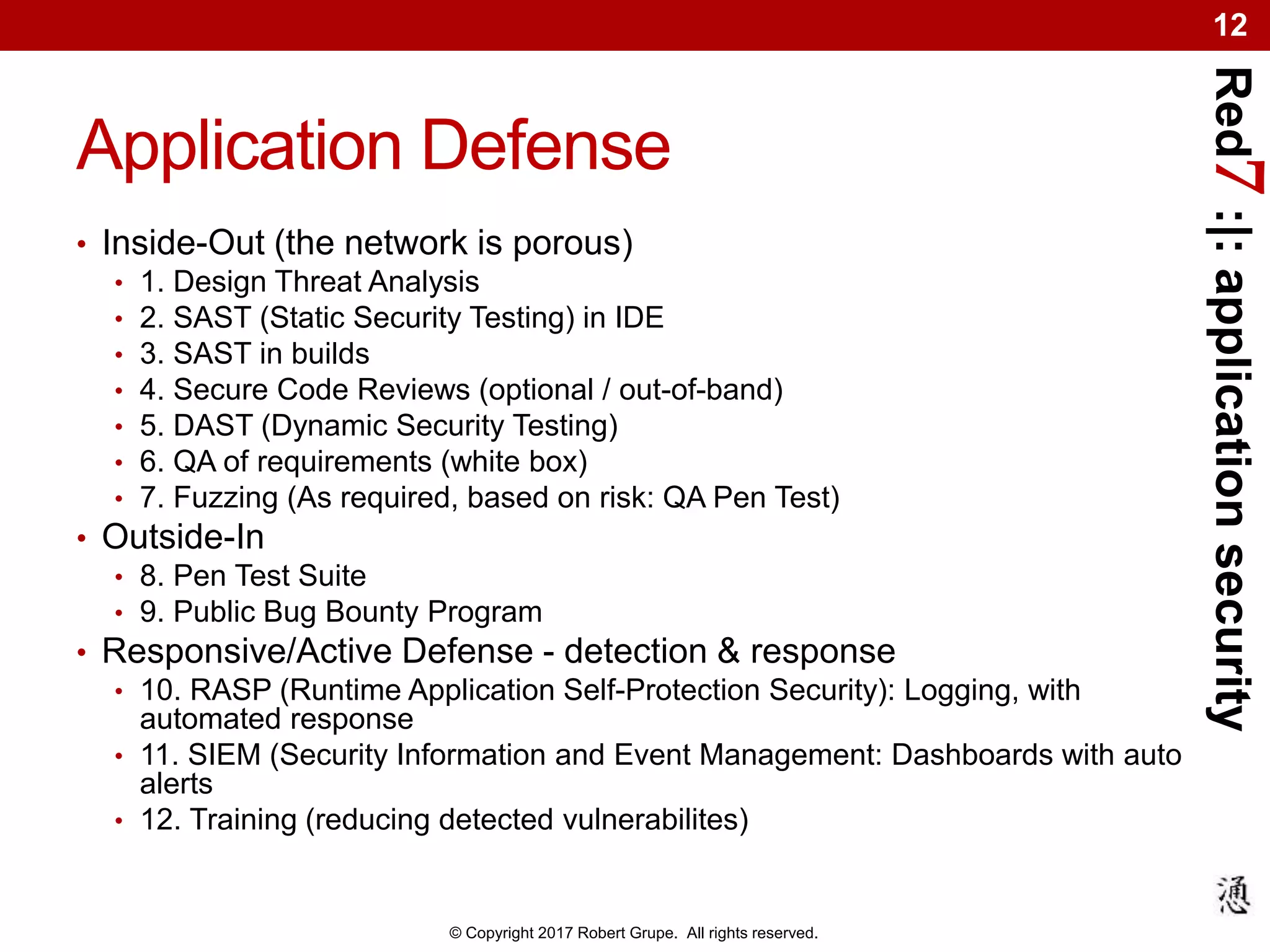

Application Defense
• Inside-Out (the network is porous)
• 1. Design Threat Analysis
• 2. SAST (Static Security Testing) in IDE
• 3. SAST in builds
• 4. Secure Code Reviews (optional / out-of-band)
• 5. DAST (Dynamic Security Testing)
• 6. QA of requirements (white box)
• 7. Fuzzing (As required, based on risk: QA Pen Test)
• Outside-In
• 8. Pen Test Suite
• 9. Public Bug Bounty Program
• Responsive/Active Defense - detection & response
• 10. RASP (Runtime Application Self-Protection Security): Logging, with
automated response
• 11. SIEM (Security Information and Event Management: Dashboards with auto
alerts
• 12. Training (reducing detected vulnerabilites)

13. Red7:|:applicationsecurity
© Copyright 2017 Robert Grupe. All rights reserved.
13

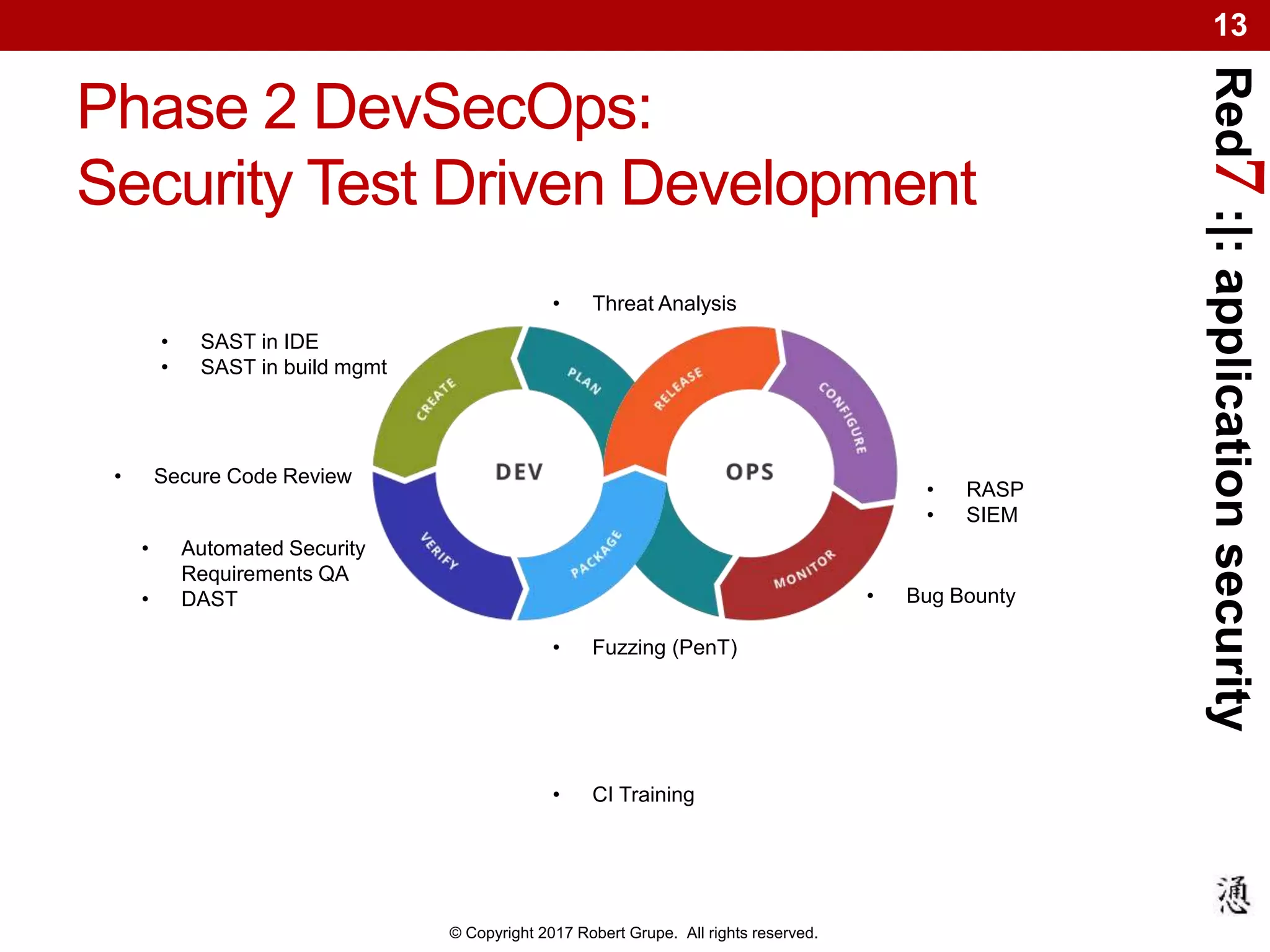

Phase 2 DevSecOps:
Security Test Driven Development
• Threat Analysis
• CI Training
• SAST in IDE
• SAST in build mgmt
• Automated Security
Requirements QA
• DAST
• RASP
• SIEM
• Secure Code Review
• Fuzzing (PenT)
• Bug Bounty

14. Red7:|:applicationsecurity
© Copyright 2017 Robert Grupe. All rights reserved.
14

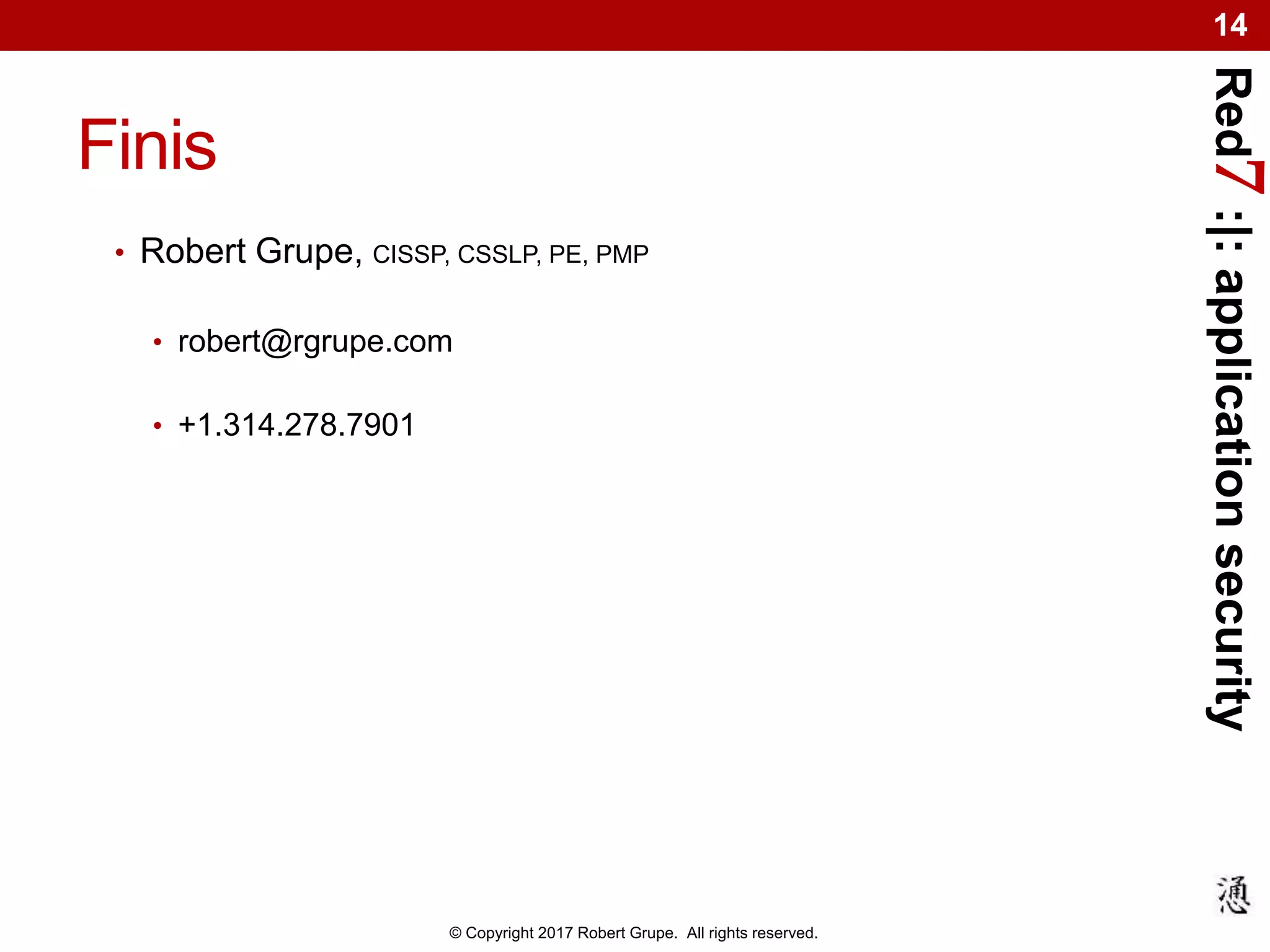

Finis
• Robert Grupe, CISSP, CSSLP, PE, PMP
• robert@rgrupe.com
• +1.314.278.7901
