2. Introduction to
Azure Data Lake Analytics
Presenter: Waqas Idrees
Principal Software Engineer
https://www.linkedin.com/in/mdwaqas/

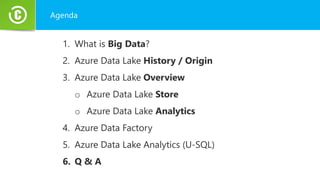

3. Agenda
1. What is Big Data?
2. Azure Data Lake History / Origin
3. Azure Data Lake Overview
o Azure Data Lake Store
o Azure Data Lake Analytics
4. Azure Data Factory
5. Azure Data Lake Analytics (U-SQL)
6. Q & A

4. There’s data, and then there’s Big data.
So, what’s the difference?
Presenter: Waqas Idrees

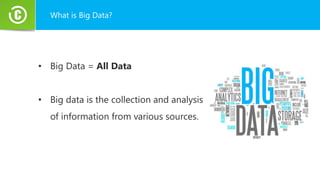

5. What is Big Data?
• Big Data = All Data
• Big data is the collection and analysis
of information from various sources.

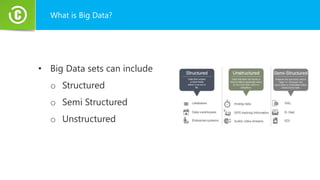

6. What is Big Data?
• Big Data sets can include
o Structured
o Semi Structured
o Unstructured

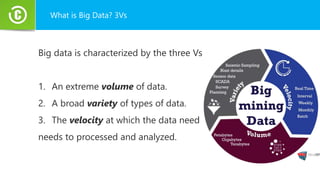

7. What is Big Data? 3Vs
Big data is characterized by the three Vs
1. An extreme volume of data.
2. A broad variety of types of data.
3. The velocity at which the data need
needs to processed and analyzed.

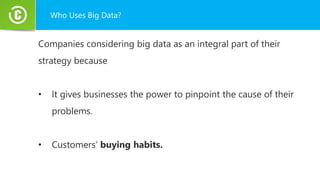

8. Who Uses Big Data?
Companies considering big data as an integral part of their
strategy because
• It gives businesses the power to pinpoint the cause of their
problems.
• Customers’ buying habits.

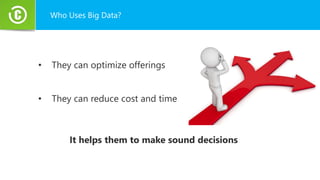

9. Who Uses Big Data?
• They can optimize offerings
• They can reduce cost and time
It helps them to make sound decisions

10. Azure Data Lake
Presenter: Waqas Idrees

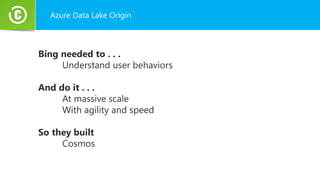

11. Azure Data Lake Origin
Bing needed to . . .
Understand user behaviors
And do it . . .
At massive scale
With agility and speed
So they built
Cosmos

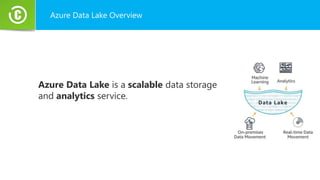

12. Azure Data Lake Overview
Azure Data Lake is a scalable data storage
and analytics service.

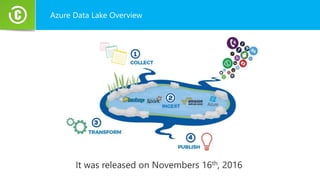

13. Azure Data Lake Overview
It was released on Novembers 16th, 2016

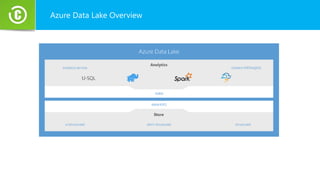

14. Azure Data Lake Overview

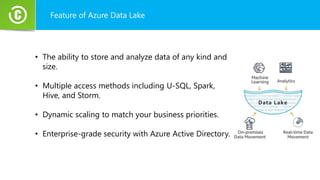

15. Feature of Azure Data Lake
• The ability to store and analyze data of any kind and
size.
• Multiple access methods including U-SQL, Spark,
Hive, and Storm.
• Dynamic scaling to match your business priorities.
• Enterprise-grade security with Azure Active Directory.

16. Azure Data Lake Store
Presenter: Waqas Idrees

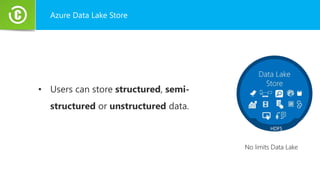

17. Azure Data Lake Store
• Users can store structured, semi-
structured or unstructured data.

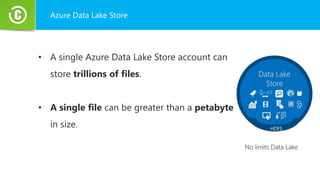

18. Azure Data Lake Store
• A single Azure Data Lake Store account can
store trillions of files.
• A single file can be greater than a petabyte
in size.

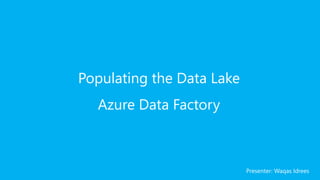

19. Populating the Data Lake
Azure Data Factory
Presenter: Waqas Idrees

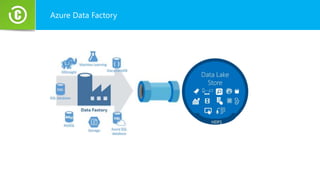

20. Azure Data Factory

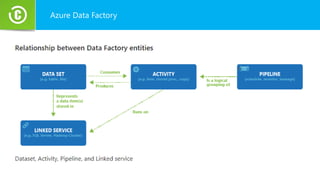

21. Azure Data Factory

23. Azure Data Lake Analytics
Presenter: Waqas Idrees

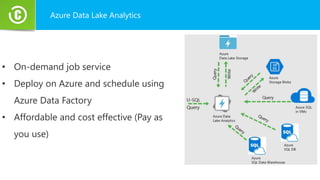

24. Azure Data Lake Analytics
• On-demand job service
• Deploy on Azure and schedule using
Azure Data Factory
• Affordable and cost effective (Pay as
you use)

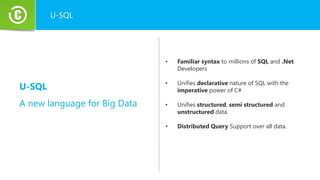

25. U-SQL
• Familiar syntax to millions of SQL and .Net
Developers
• Unifies declarative nature of SQL with the
imperative power of C#
• Unifies structured, semi structured and
unstructured data.
• Distributed Query Support over all data.
U-SQL
A new language for Big Data

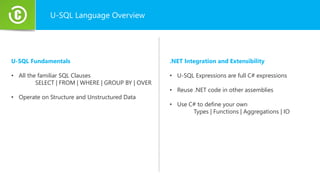

26. U-SQL Language Overview
U-SQL Fundamentals
• All the familiar SQL Clauses
SELECT | FROM | WHERE | GROUP BY | OVER
• Operate on Structure and Unstructured Data
.NET Integration and Extensibility
• U-SQL Expressions are full C# expressions
• Reuse .NET code in other assemblies
• Use C# to define your own
Types | Functions | Aggregations | IO

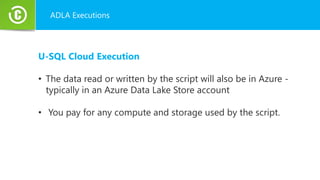

27. ADLA Executions
U-SQL Cloud Execution
• The data read or written by the script will also be in Azure -
typically in an Azure Data Lake Store account
• You pay for any compute and storage used by the script.

28. ADLA Executions
U-SQL Local Execution
• The data read and written by this script will be on you own
machine.
• There is no additional cost

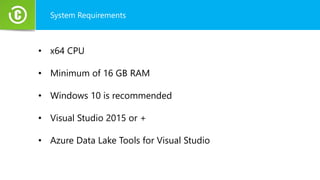

29. System Requirements
• x64 CPU
• Minimum of 16 GB RAM
• Windows 10 is recommended
• Visual Studio 2015 or +
• Azure Data Lake Tools for Visual Studio

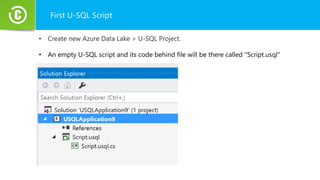

30. First U-SQL Script
• Create new Azure Data Lake > U-SQL Project.
• An empty U-SQL script and its code behind file will be there called "Script.usql"

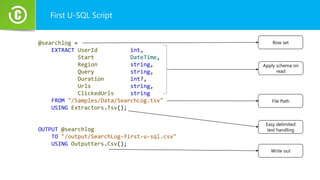

31. First U-SQL Script
@searchlog =
EXTRACT UserId int,
Start DateTime,
Region string,
Query string,
Duration int?,
Urls string,
ClickedUrls string
FROM "/Samples/Data/SearchLog.tsv"
USING Extractors.Tsv();
OUTPUT @searchlog
TO "/output/SearchLog-first-u-sql.csv"
USING Outputters.Csv();
Row set
Apply schema on
read
File Path
Write out
Easy delimited
text handling

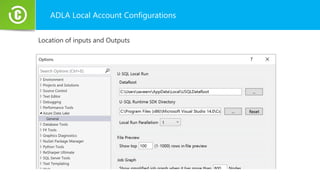

32. ADLA Local Account Configurations
Location of inputs and Outputs

34. Job Details
Job Properties

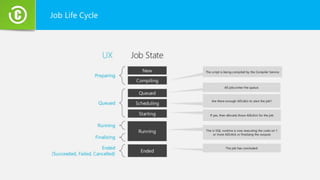

35. Job Life Cycle

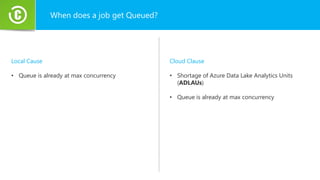

36. When does a job get Queued?
Local Cause
• Queue is already at max concurrency
Cloud Clause
• Shortage of Azure Data Lake Analytics Units
(ADLAUs)
• Queue is already at max concurrency

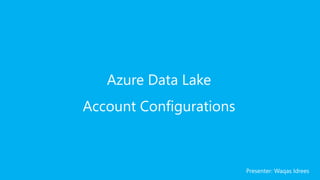

37. Azure Data Lake
Account Configurations
Presenter: Waqas Idrees

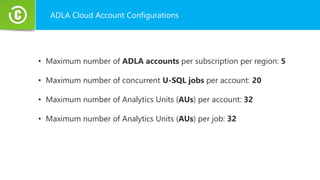

38. ADLA Cloud Account Configurations
• Maximum number of ADLA accounts per subscription per region: 5
• Maximum number of concurrent U-SQL jobs per account: 20
• Maximum number of Analytics Units (AUs) per account: 32
• Maximum number of Analytics Units (AUs) per job: 32

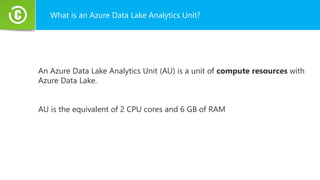

39. What is an Azure Data Lake Analytics Unit?
An Azure Data Lake Analytics Unit (AU) is a unit of compute resources with
Azure Data Lake.
AU is the equivalent of 2 CPU cores and 6 GB of RAM

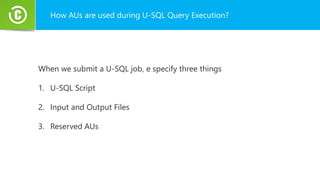

40. How AUs are used during U-SQL Query Execution?
When we submit a U-SQL job, e specify three things
1. U-SQL Script
2. Input and Output Files
3. Reserved AUs

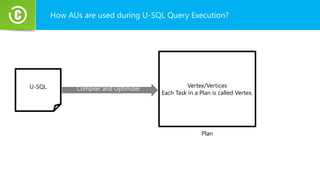

41. How AUs are used during U-SQL Query Execution?
U-SQL Compiler and Optimizer Vertex/Vertices
Each Task in a Plan is called Vertex.
Plan

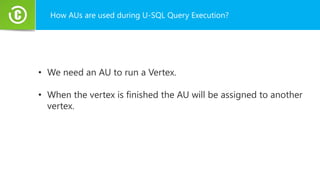

42. How AUs are used during U-SQL Query Execution?
• We need an AU to run a Vertex.
• When the vertex is finished the AU will be assigned to another
vertex.

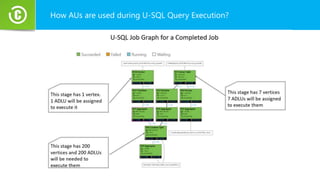

43. How AUs are used during U-SQL Query Execution?

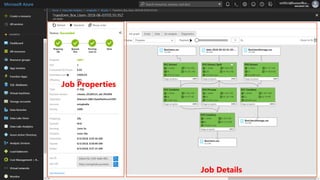

44. Job Details
Job Properties

45. What is an AU Second?
An AU Second is the unit used to measure the compute
resources used for a job.

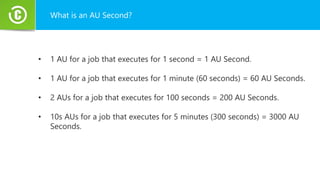

46. What is an AU Second?
• 1 AU for a job that executes for 1 second = 1 AU Second.
• 1 AU for a job that executes for 1 minute (60 seconds) = 60 AU Seconds.
• 2 AUs for a job that executes for 100 seconds = 200 AU Seconds.
• 10s AUs for a job that executes for 5 minutes (300 seconds) = 3000 AU
Seconds.

47. Pricing Details
USAGE PRICE
Analytics Unit $2/hour
Pay-as-You-Go

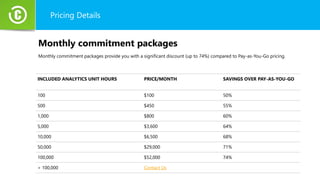

48. Pricing Details
INCLUDED ANALYTICS UNIT HOURS PRICE/MONTH SAVINGS OVER PAY-AS-YOU-GO
100 $100 50%
500 $450 55%
1,000 $800 60%
5,000 $3,600 64%
10,000 $6,500 68%
50,000 $29,000 71%
100,000 $52,000 74%
> 100,000 Contact Us
Monthly commitment packages
Monthly commitment packages provide you with a significant discount (up to 74%) compared to Pay-as-You-Go pricing.

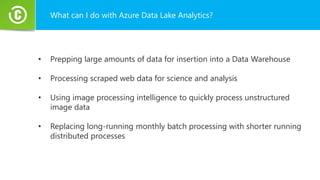

49. What can I do with Azure Data Lake Analytics?
• Prepping large amounts of data for insertion into a Data Warehouse
• Processing scraped web data for science and analysis
• Using image processing intelligence to quickly process unstructured
image data
• Replacing long-running monthly batch processing with shorter running
distributed processes

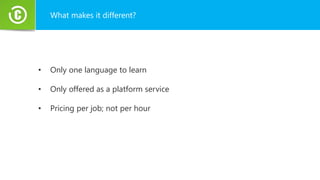

50. What makes it different?
• Only one language to learn
• Only offered as a platform service
• Pricing per job; not per hour

51. ADLA on Azure Portal
Presenter: Waqas Idrees

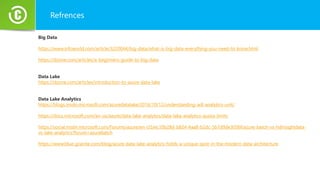

52. Refrences
Big Data
https://www.infoworld.com/article/3220044/big-data/what-is-big-data-everything-you-need-to-know.html
https://dzone.com/articles/a-beginners-guide-to-big-data
Data Lake
https://dzone.com/articles/introduction-to-azure-data-lake
Data Lake Analytics
https://blogs.msdn.microsoft.com/azuredatalake/2016/10/12/understanding-adl-analytics-unit/
https://docs.microsoft.com/en-us/azure/data-lake-analytics/data-lake-analytics-quota-limits
https://social.msdn.microsoft.com/Forums/azure/en-US/ec10b28d-b824-4aa8-b2dc-5b7d9de3056f/azure-batch-vs-hdinsightdata-
vs-lake-analytics?forum=azurebatch
https://www.blue-granite.com/blog/azure-data-lake-analytics-holds-a-unique-spot-in-the-modern-data-architecture
