1.  Chapter 11
 Database Performance Tuning and Query Optimization
ISBN-13: 978-1337627900
ISBN-10: 1337627909
Buy Book Amazon.com URL
Modified by:
Usman Tariq, PhD
Associate Professor, PSAU
Office ☎ 00966 11 588 8386

2. Learning Objectives
 In this chapter, the student will learn:
 Basic database performance-tuning
concepts
 How a DBMS processes SQL queries
 About the importance of indexes in query
processing
 About the types of decisions the query
optimizer has to make
 Some common practices used to write
efficient SQL code
 How to formulate queries and tune the
DBMS for optimal performance 2

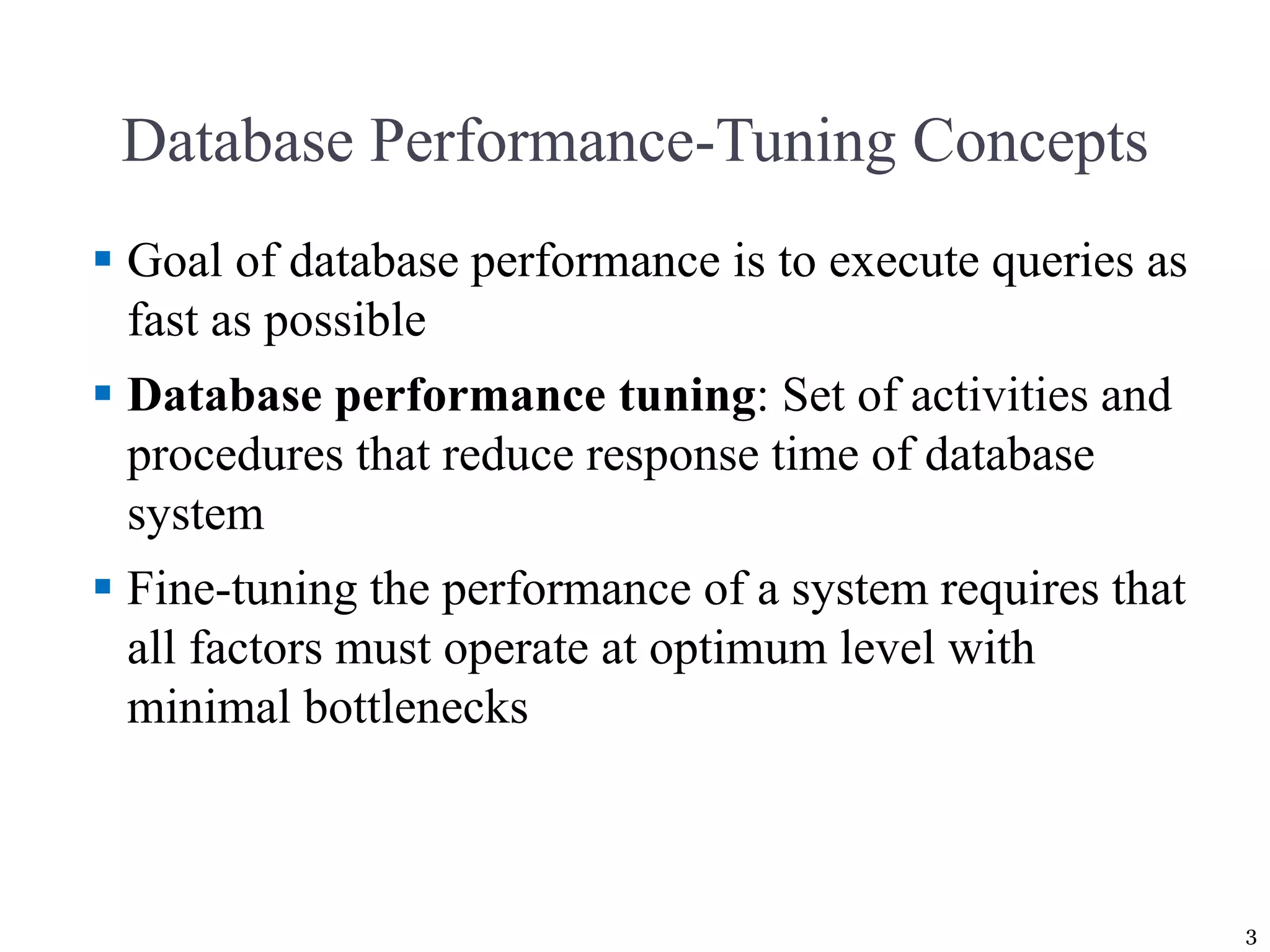

3. Database Performance-Tuning Concepts
 Goal of database performance is to execute queries as
fast as possible
 Database performance tuning: Set of activities and
procedures that reduce response time of database
system
 Fine-tuning the performance of a system requires that
all factors must operate at optimum level with
minimal bottlenecks
3

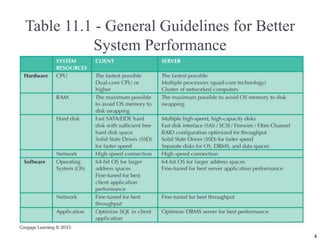

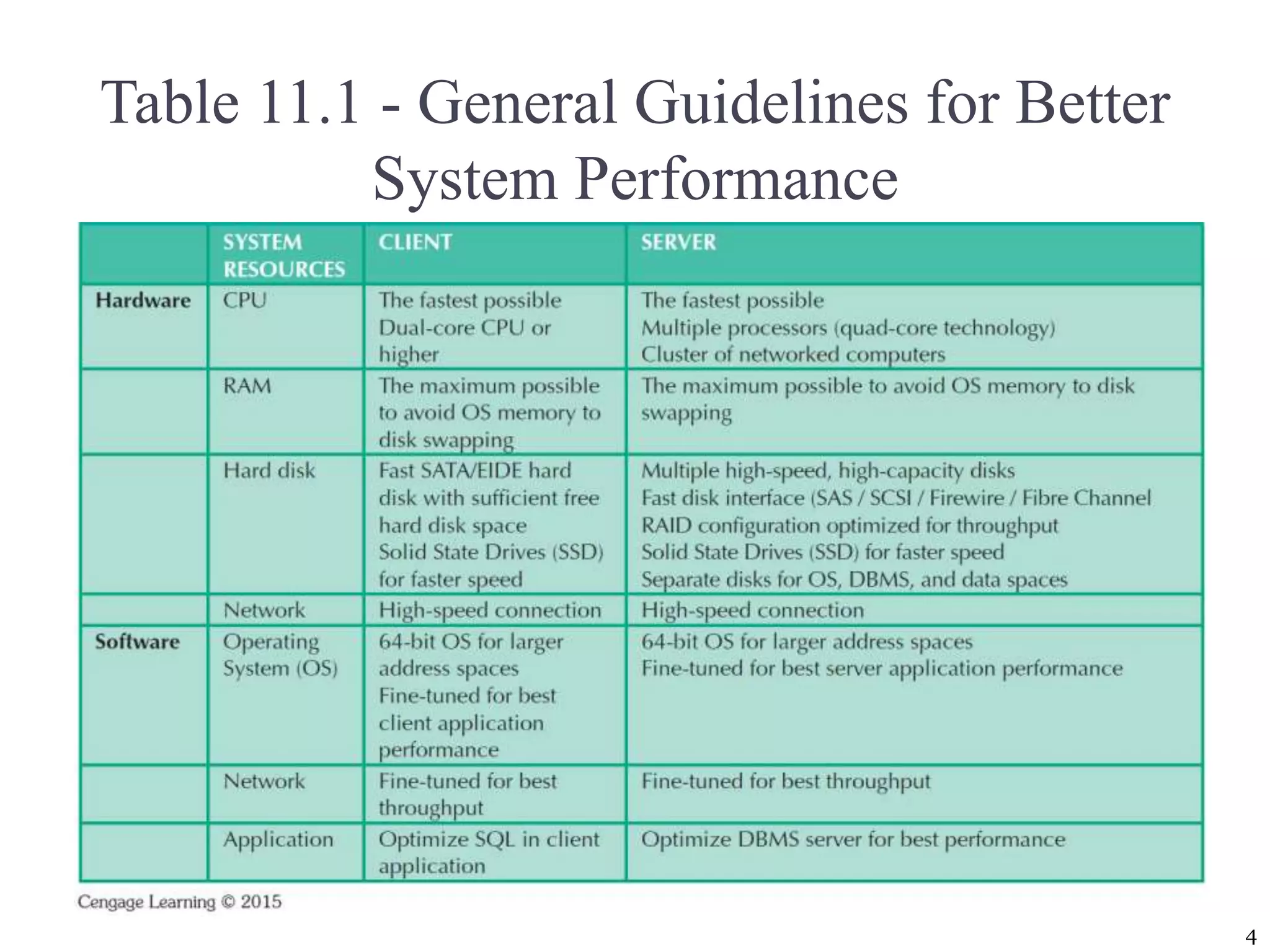

4. Table 11.1 - General Guidelines for Better
System Performance
4

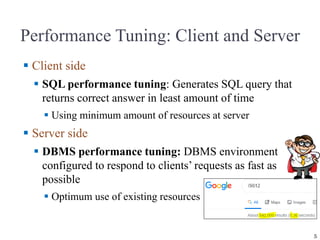

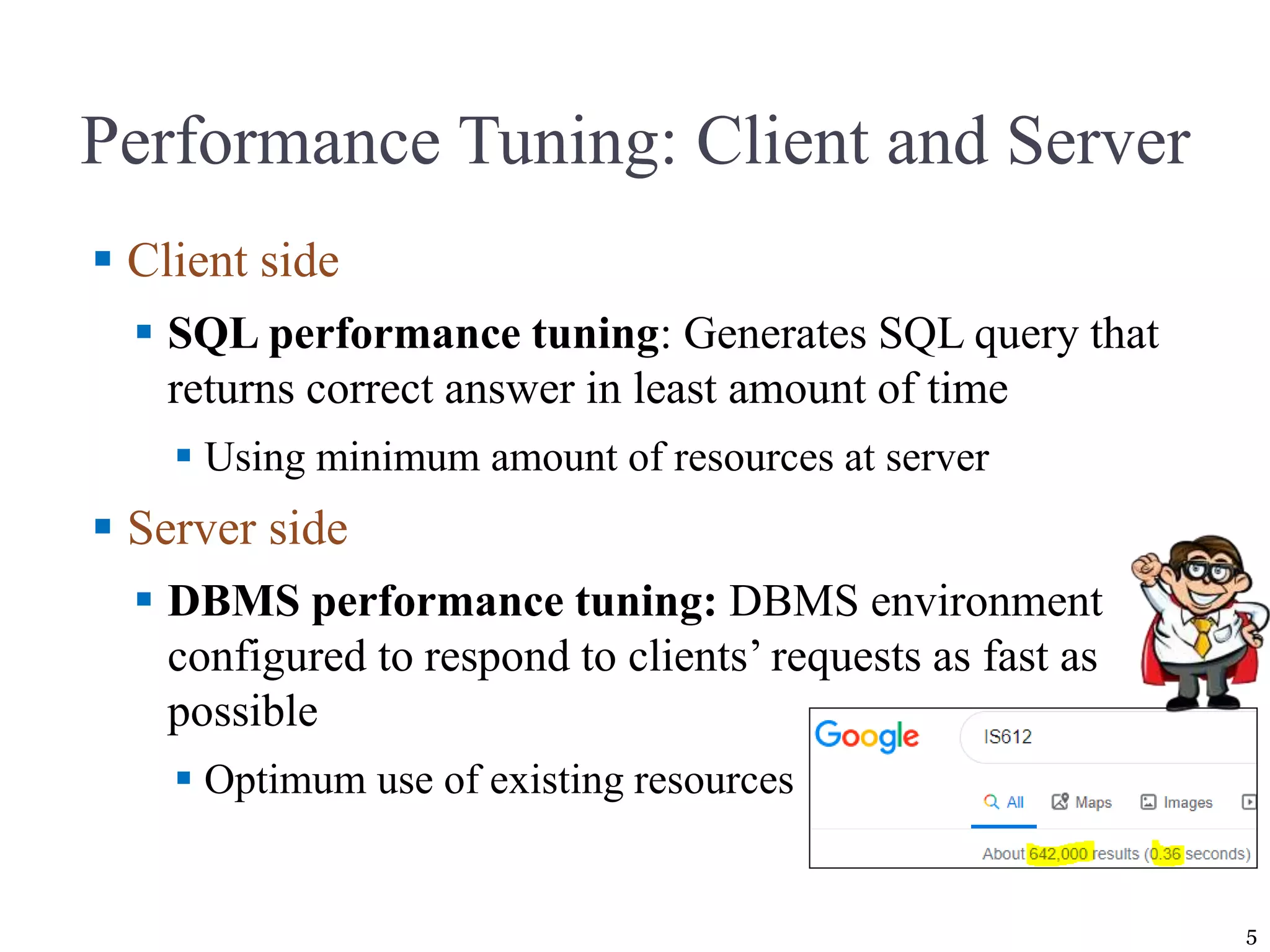

5. Performance Tuning: Client and Server
 Client side
 SQL performance tuning: Generates SQL query that
returns correct answer in least amount of time
 Using minimum amount of resources at server
 Server side
 DBMS performance tuning: DBMS environment
configured to respond to clients’ requests as fast as
possible
 Optimum use of existing resources
5

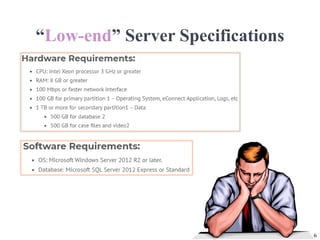

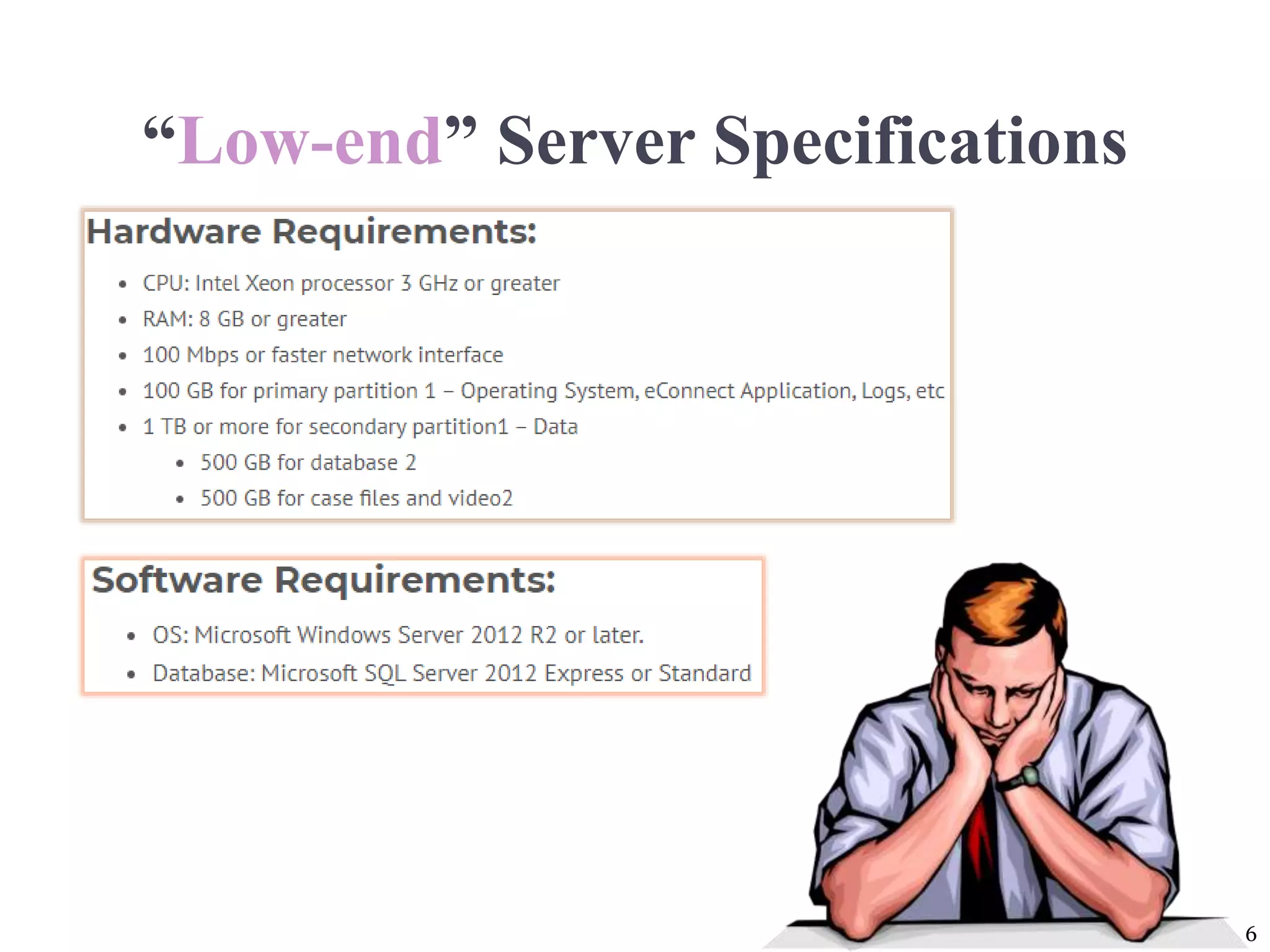

6. “Low-end” Server Specifications
6

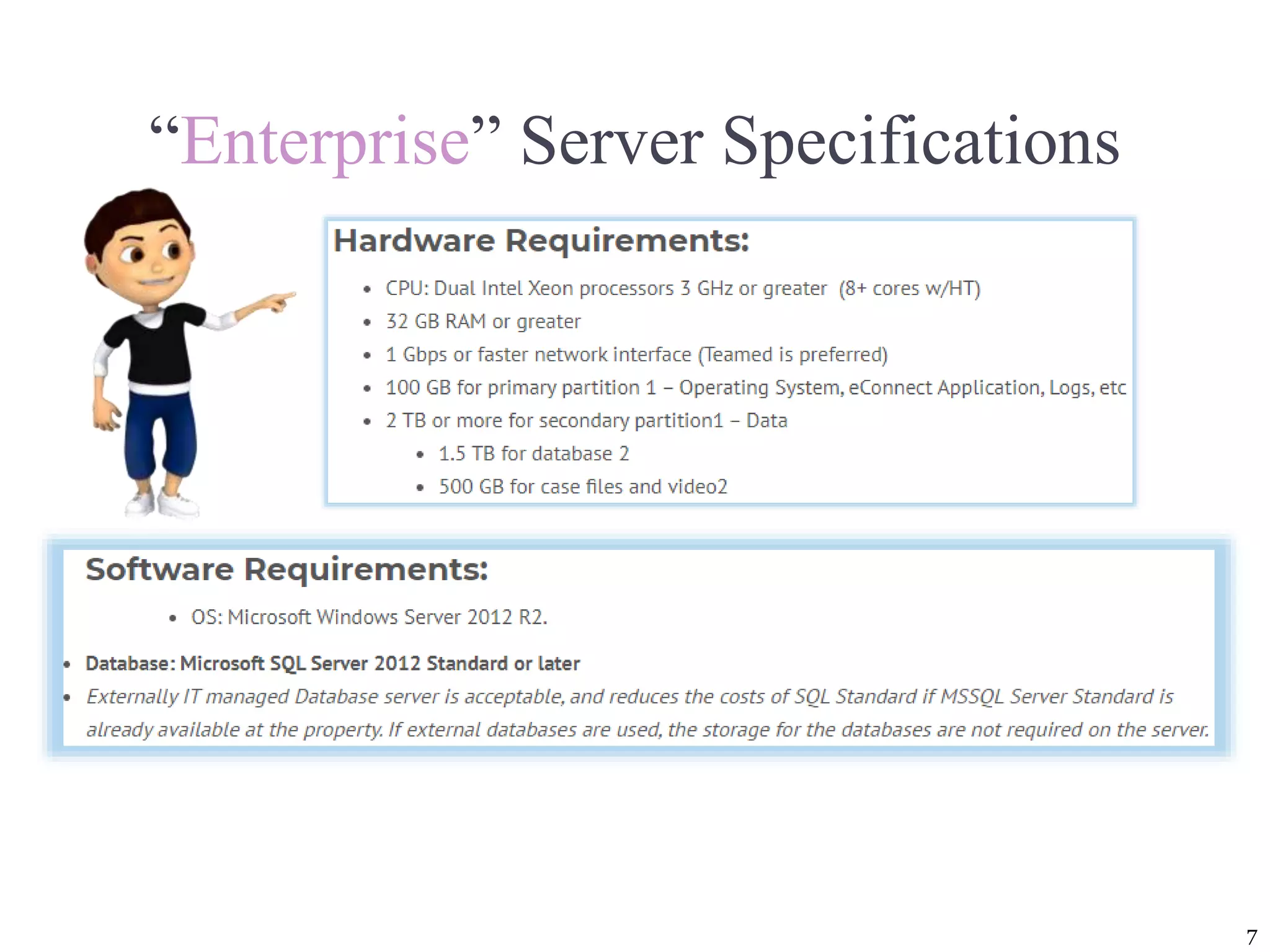

7. “Enterprise” Server Specifications
7

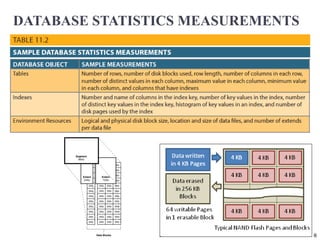

8. DATABASE STATISTICS MEASUREMENTS
8

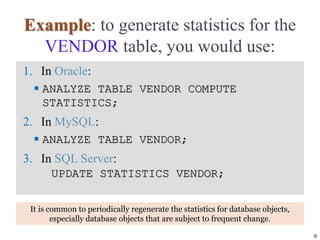

9. Example: to generate statistics for the
VENDOR table, you would use:
1. In Oracle:
 ANALYZE TABLE VENDOR COMPUTE
STATISTICS;
2. In MySQL:
 ANALYZE TABLE VENDOR;
3. In SQL Server:
UPDATE STATISTICS VENDOR;
9
It is common to periodically regenerate the statistics for database objects,
especially database objects that are subject to frequent change.

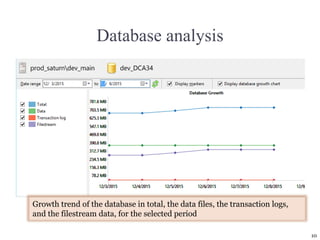

10. Database analysis
10
Growth trend of the database in total, the data files, the transaction logs,
and the filestream data, for the selected period

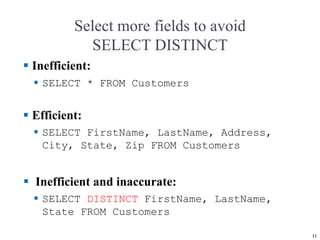

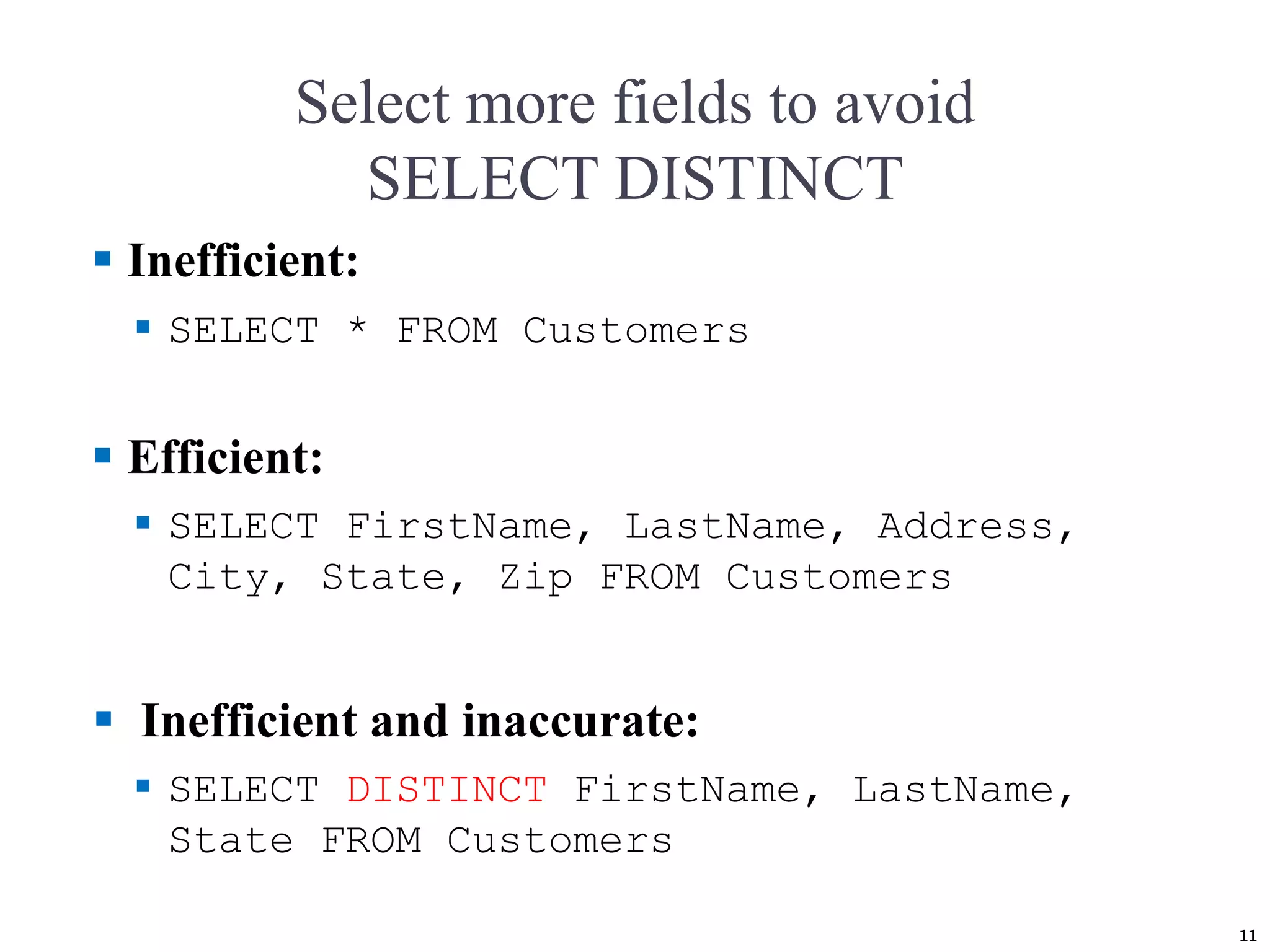

11. Select more fields to avoid
SELECT DISTINCT
 Inefficient:
 SELECT * FROM Customers
 Efficient:
 SELECT FirstName, LastName, Address,
City, State, Zip FROM Customers
 Inefficient and inaccurate:
 SELECT DISTINCT FirstName, LastName,
State FROM Customers
11

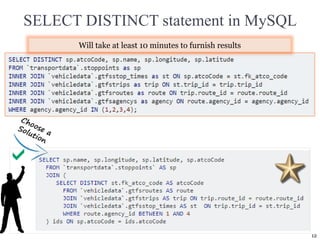

12. SELECT DISTINCT statement in MySQL
12
Will take at least 10 minutes to furnish results

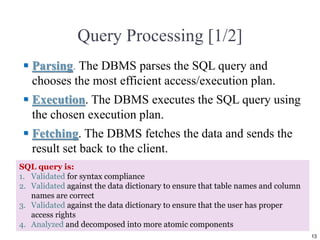

13. Query Processing [1/2]
 Parsing. The DBMS parses the SQL query and
chooses the most efficient access/execution plan.
 Execution. The DBMS executes the SQL query using
the chosen execution plan.
 Fetching. The DBMS fetches the data and sends the
result set back to the client.
13
SQL query is:
1. Validated for syntax compliance
2. Validated against the data dictionary to ensure that table names and column
names are correct
3. Validated against the data dictionary to ensure that the user has proper
access rights
4. Analyzed and decomposed into more atomic components

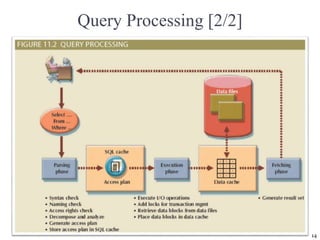

14. Query Processing [2/2]
14

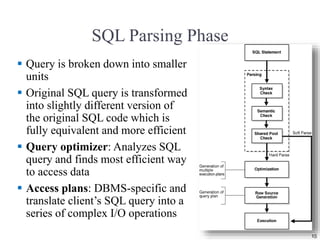

15. SQL Parsing Phase
 Query is broken down into smaller
units
 Original SQL query is transformed
into slightly different version of
the original SQL code which is
fully equivalent and more efficient
 Query optimizer: Analyzes SQL
query and finds most efficient way
to access data
 Access plans: DBMS-specific and
translate client’s SQL query into a
series of complex I/O operations
15

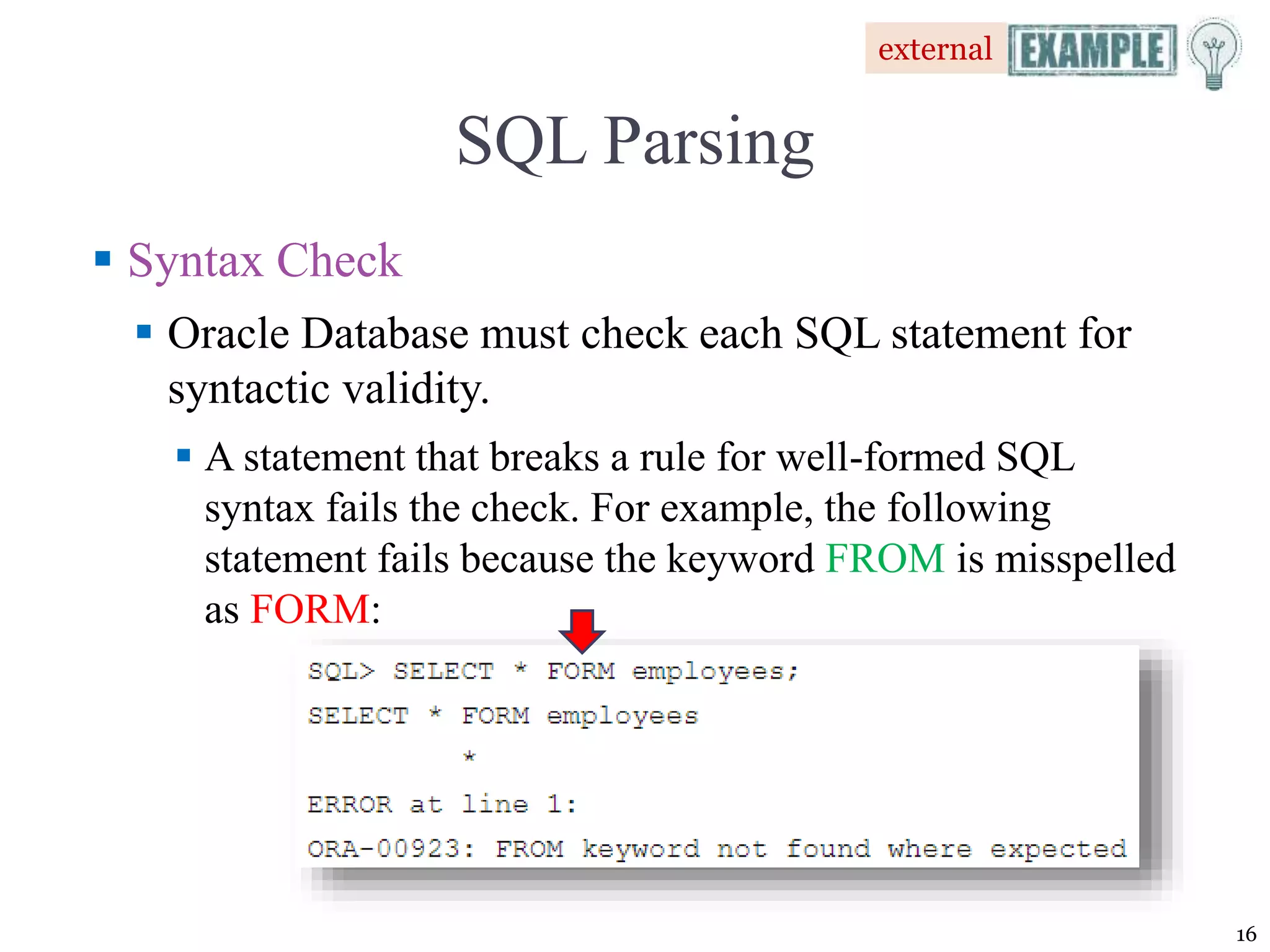

16. SQL Parsing
 Syntax Check
 Oracle Database must check each SQL statement for
syntactic validity.
 A statement that breaks a rule for well-formed SQL
syntax fails the check. For example, the following
statement fails because the keyword FROM is misspelled
as FORM:
16
external

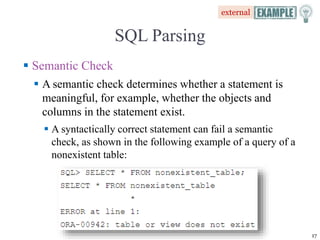

17. SQL Parsing
 Semantic Check
 A semantic check determines whether a statement is
meaningful, for example, whether the objects and
columns in the statement exist.
 A syntactically correct statement can fail a semantic
check, as shown in the following example of a query of a
nonexistent table:
17
external

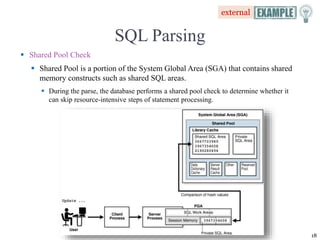

18. SQL Parsing
 Shared Pool Check
 Shared Pool is a portion of the System Global Area (SGA) that contains shared
memory constructs such as shared SQL areas.
 During the parse, the database performs a shared pool check to determine whether it
can skip resource-intensive steps of statement processing.
18
external

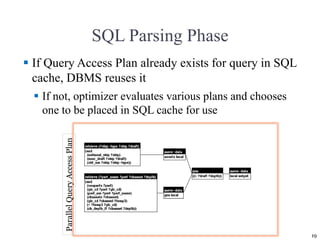

19. SQL Parsing Phase
 If Query Access Plan already exists for query in SQL
cache, DBMS reuses it
 If not, optimizer evaluates various plans and chooses
one to be placed in SQL cache for use
19
ParallelQueryAccessPlan

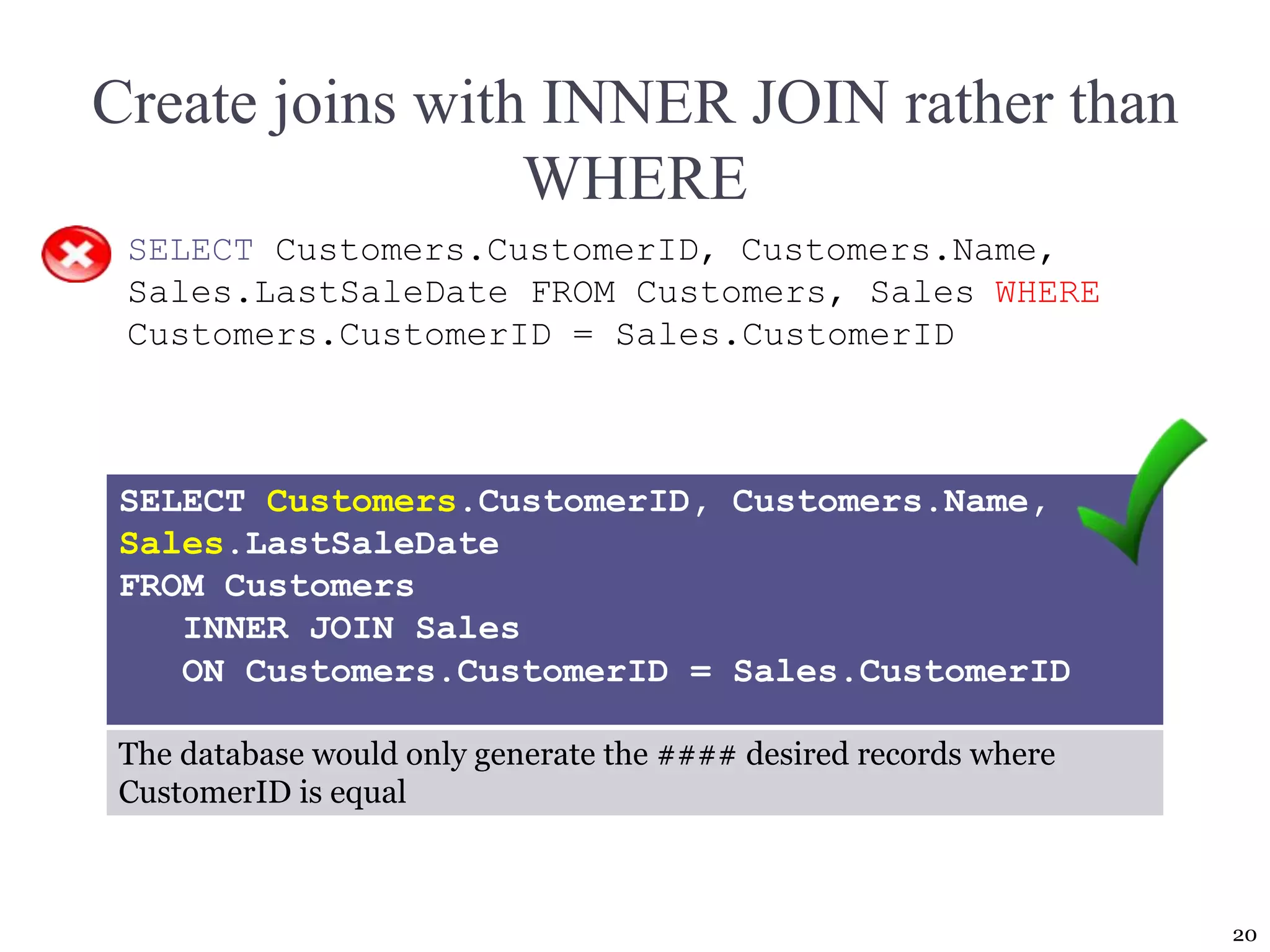

20. Create joins with INNER JOIN rather than
WHERE
 SELECT Customers.CustomerID, Customers.Name,
Sales.LastSaleDate FROM Customers, Sales WHERE
Customers.CustomerID = Sales.CustomerID
20
SELECT Customers.CustomerID, Customers.Name,
Sales.LastSaleDate
FROM Customers
INNER JOIN Sales
ON Customers.CustomerID = Sales.CustomerID
The database would only generate the #### desired records where
CustomerID is equal

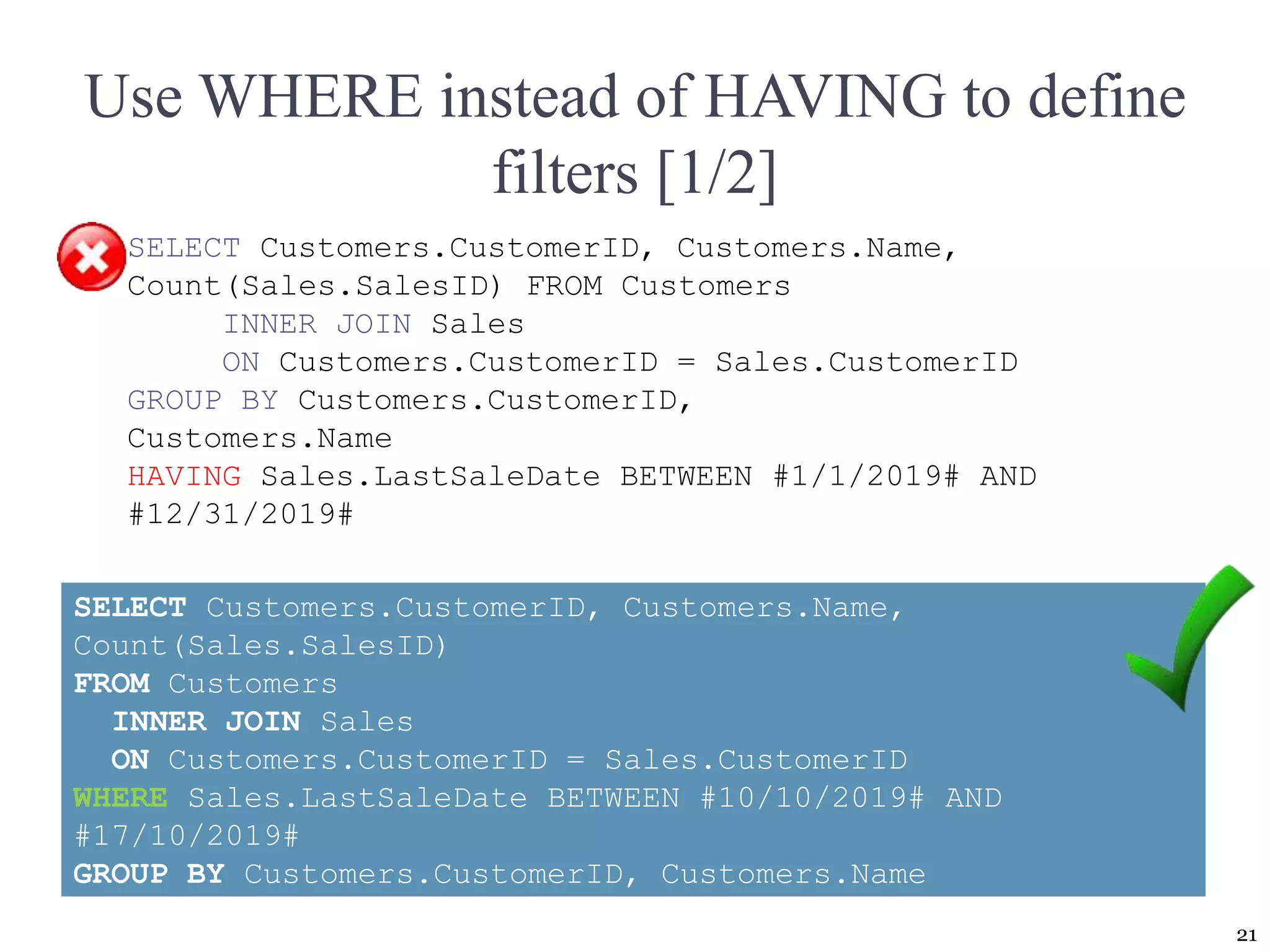

21. Use WHERE instead of HAVING to define
filters [1/2]
 SELECT Customers.CustomerID, Customers.Name,
Count(Sales.SalesID) FROM Customers
INNER JOIN Sales
ON Customers.CustomerID = Sales.CustomerID
GROUP BY Customers.CustomerID,
Customers.Name
HAVING Sales.LastSaleDate BETWEEN #1/1/2019# AND
#12/31/2019#
21
SELECT Customers.CustomerID, Customers.Name,
Count(Sales.SalesID)
FROM Customers
INNER JOIN Sales
ON Customers.CustomerID = Sales.CustomerID
WHERE Sales.LastSaleDate BETWEEN #10/10/2019# AND
#17/10/2019#
GROUP BY Customers.CustomerID, Customers.Name

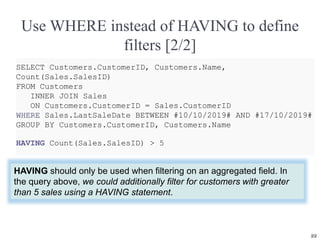

22. Use WHERE instead of HAVING to define
filters [2/2]
22
SELECT Customers.CustomerID, Customers.Name,
Count(Sales.SalesID)
FROM Customers
INNER JOIN Sales
ON Customers.CustomerID = Sales.CustomerID
WHERE Sales.LastSaleDate BETWEEN #10/10/2019# AND #17/10/2019#
GROUP BY Customers.CustomerID, Customers.Name
HAVING Count(Sales.SalesID) > 5
HAVING should only be used when filtering on an aggregated field. In
the query above, we could additionally filter for customers with greater
than 5 sales using a HAVING statement.

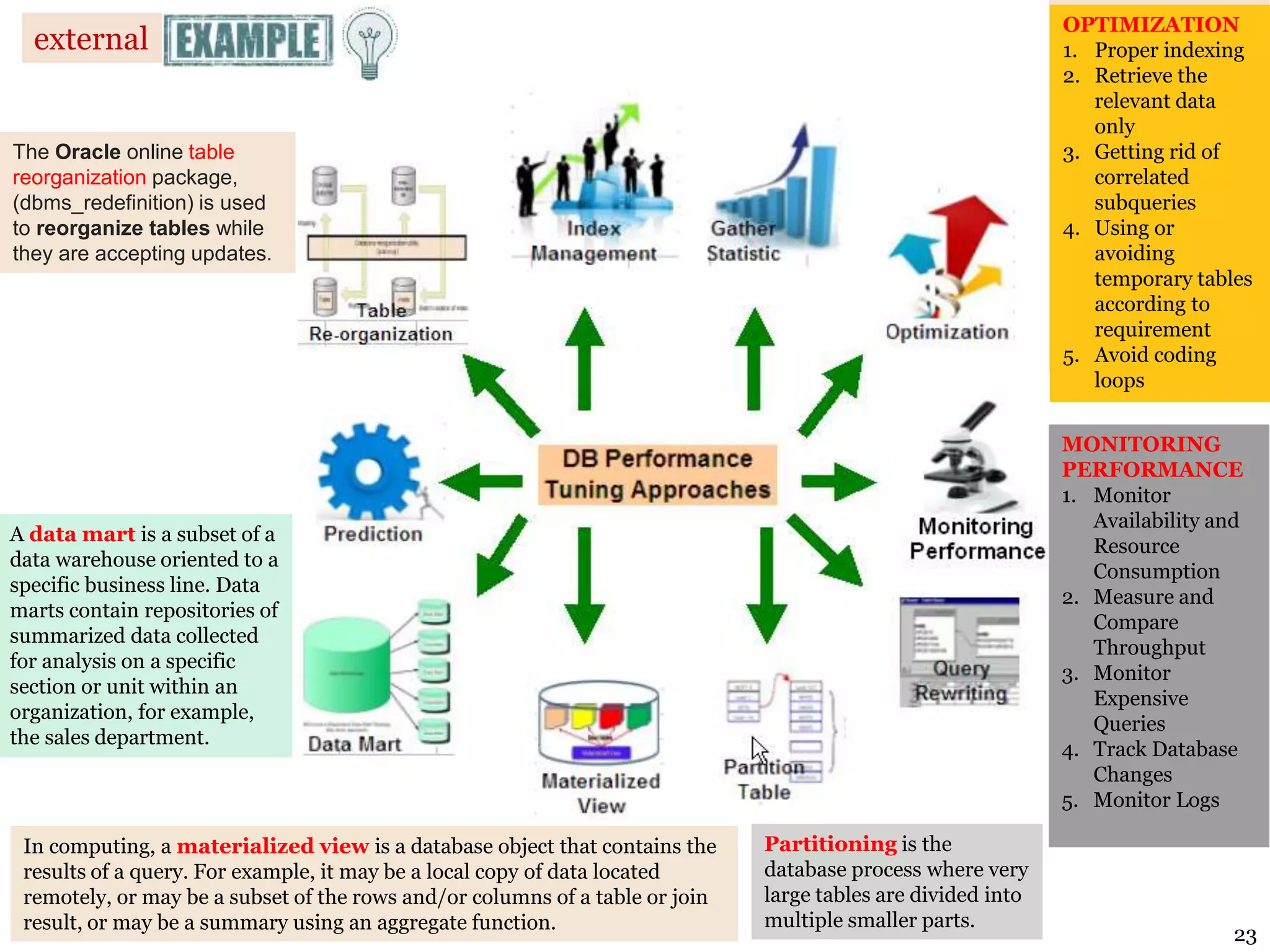

23. 23
1. Proper indexing
2. Retrieve the
relevant data
only
3. Getting rid of
correlated
subqueries
4. Using or
avoiding
temporary tables
according to
requirement
5. Avoid coding
loops
OPTIMIZATION
1. Proper indexing
2. Retrieve the
relevant data
only
3. Getting rid of
correlated
subqueries
4. Using or
avoiding
temporary tables
according to
requirement
5. Avoid coding
loops
MONITORING
PERFORMANCE
1. Monitor
Availability and
Resource
Consumption
2. Measure and
Compare
Throughput
3. Monitor
Expensive
Queries
4. Track Database
Changes
5. Monitor Logs
A data mart is a subset of a
data warehouse oriented to a
specific business line. Data
marts contain repositories of
summarized data collected
for analysis on a specific
section or unit within an
organization, for example,
the sales department.
The Oracle online table
reorganization package,
(dbms_redefinition) is used
to reorganize tables while
they are accepting updates.
Partitioning is the
database process where very
large tables are divided into
multiple smaller parts.
In computing, a materialized view is a database object that contains the
results of a query. For example, it may be a local copy of data located
remotely, or may be a subset of the rows and/or columns of a table or join
result, or may be a summary using an aggregate function.
external

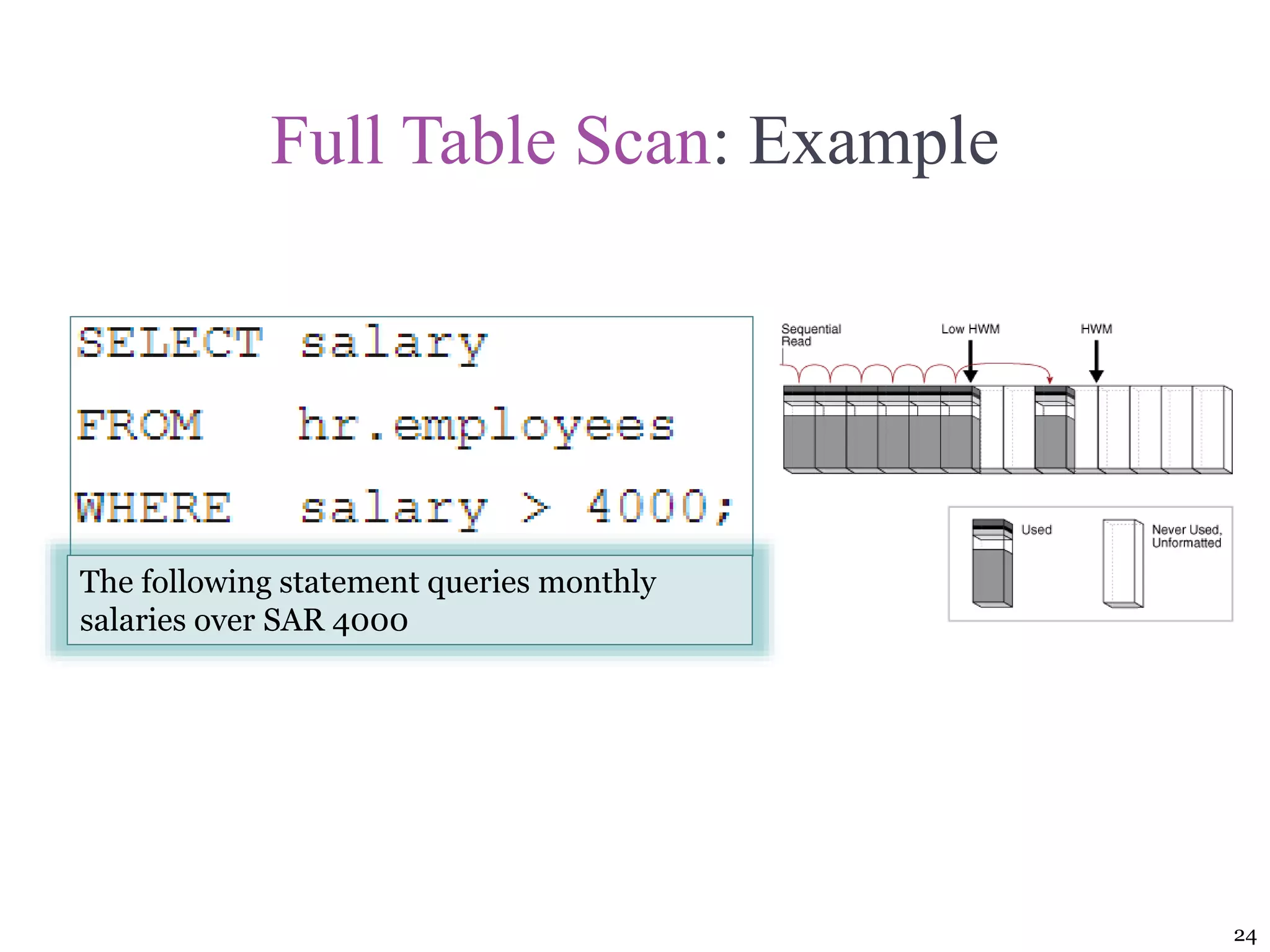

24. Full Table Scan: Example
24
The following statement queries monthly
salaries over SAR 4000

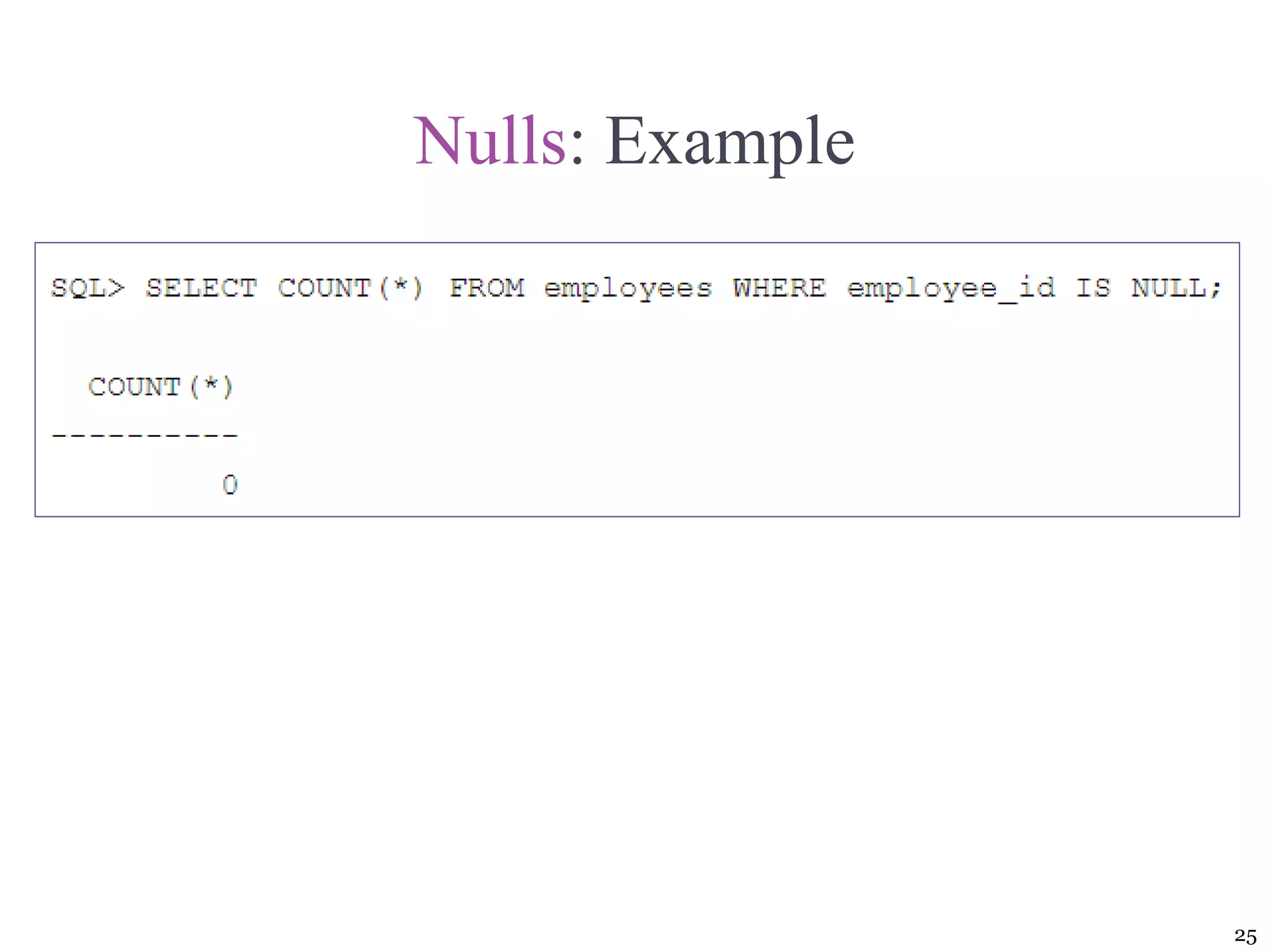

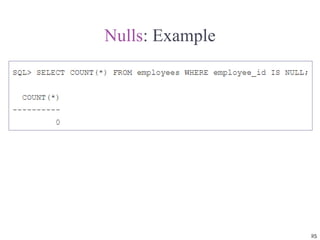

25. Nulls: Example
25

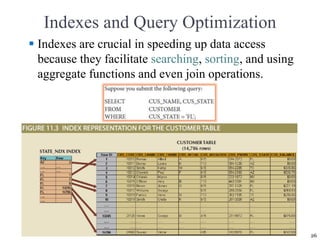

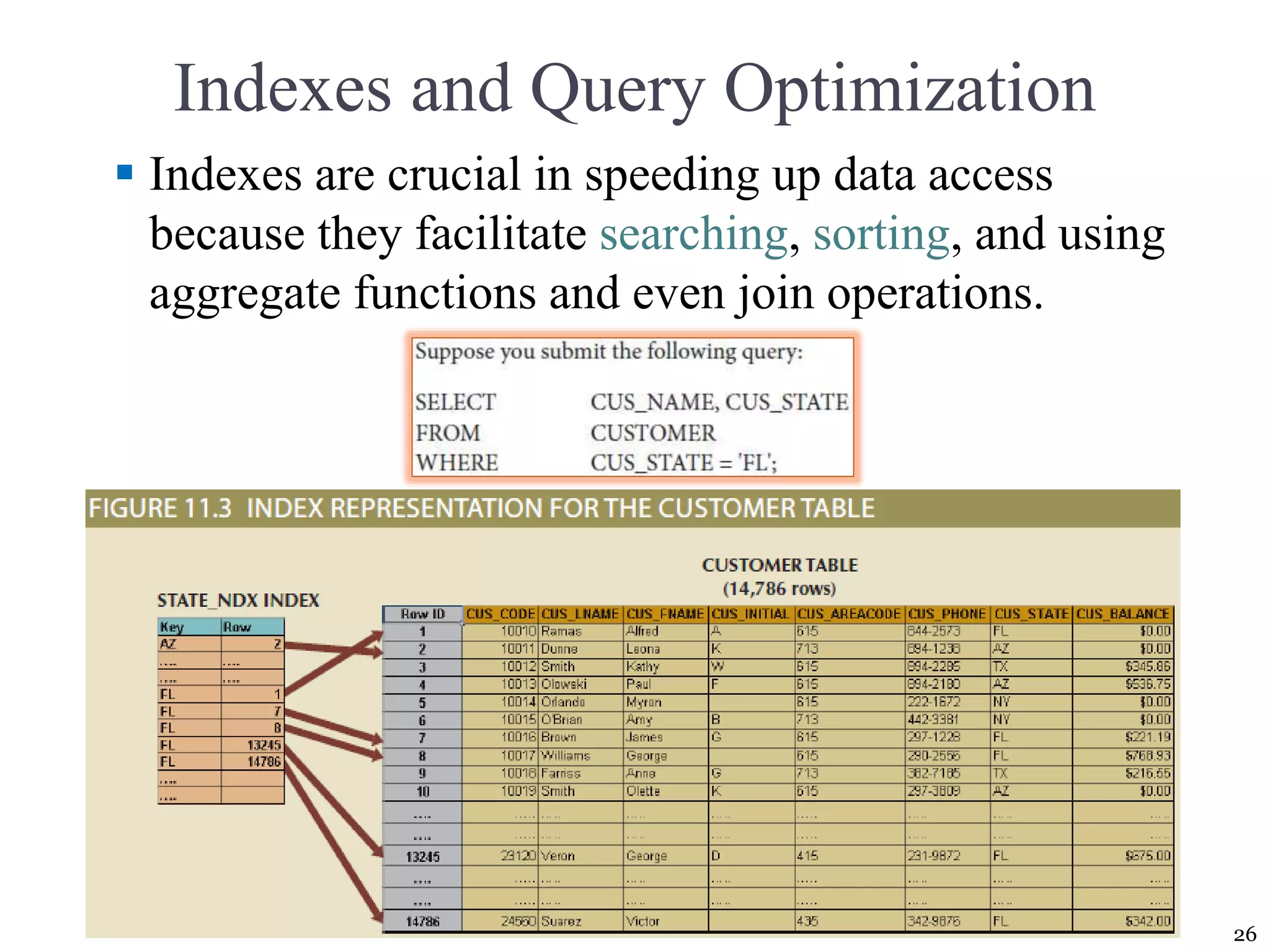

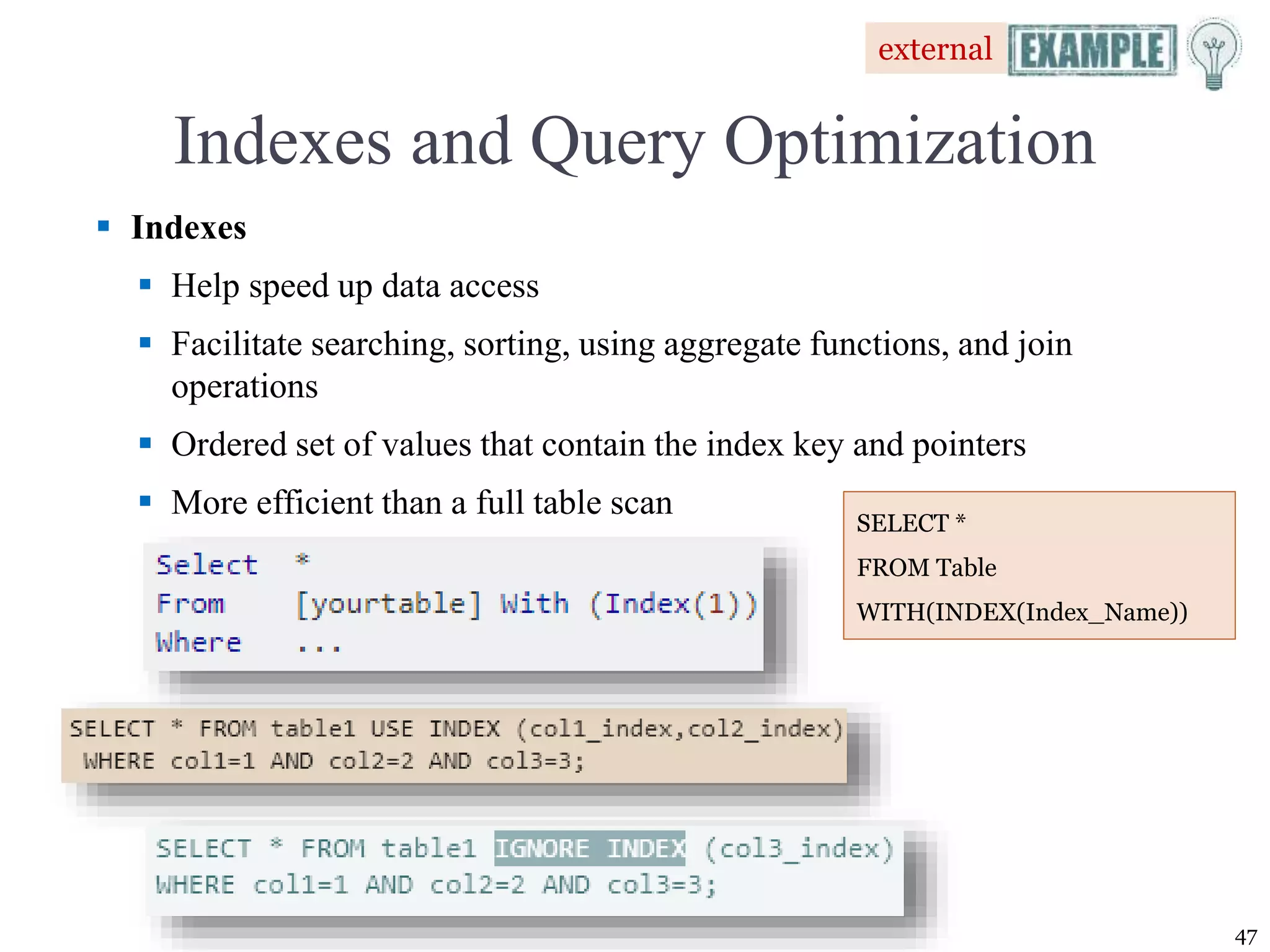

26. Indexes and Query Optimization
 Indexes are crucial in speeding up data access
because they facilitate searching, sorting, and using
aggregate functions and even join operations.
26

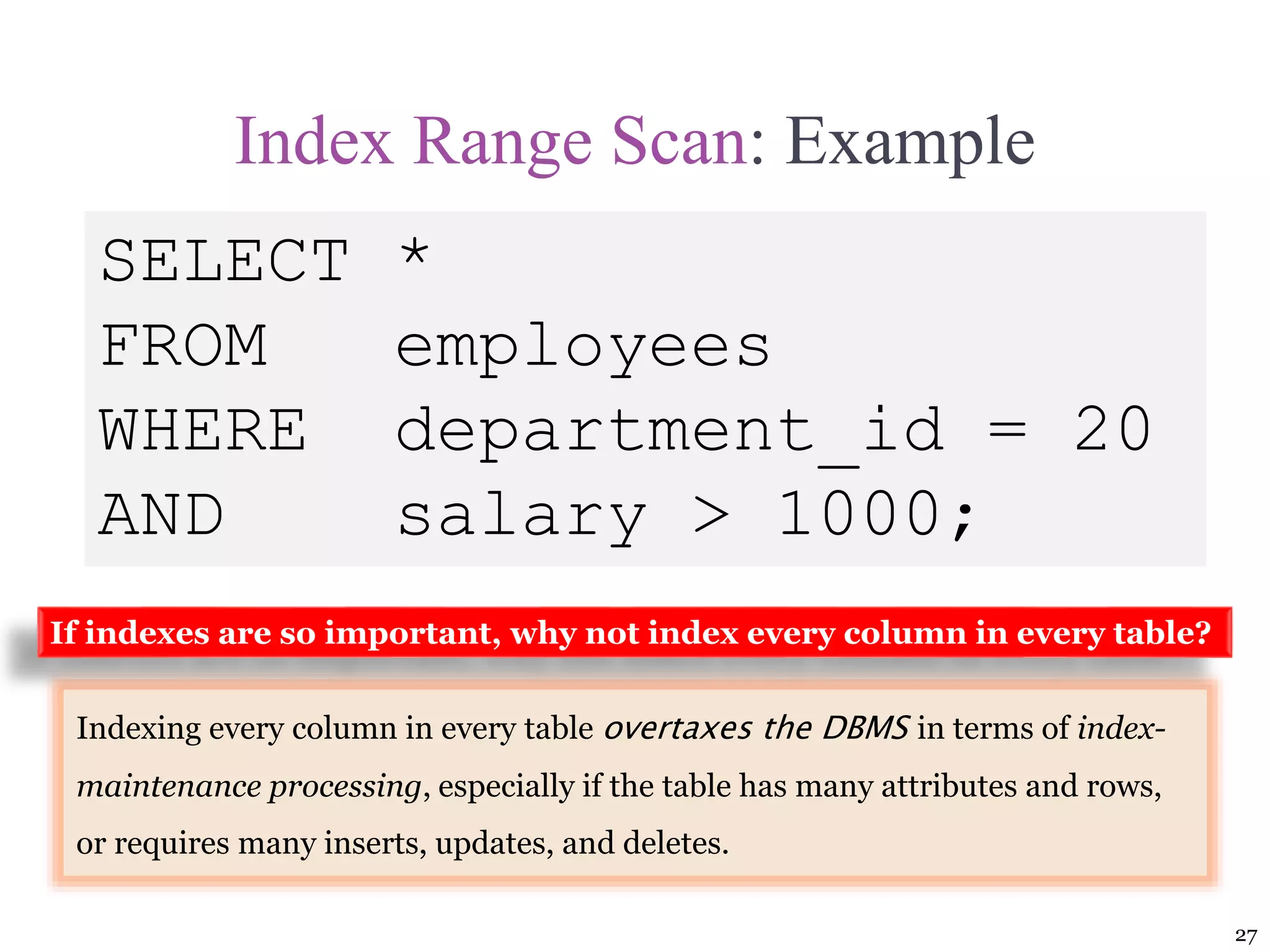

27. Index Range Scan: Example
27
SELECT *
FROM employees
WHERE department_id = 20
AND salary > 1000;
If indexes are so important, why not index every column in every table?
Indexing every column in every table overtaxes the DBMS in terms of index-
maintenance processing, especially if the table has many attributes and rows,
or requires many inserts, updates, and deletes.

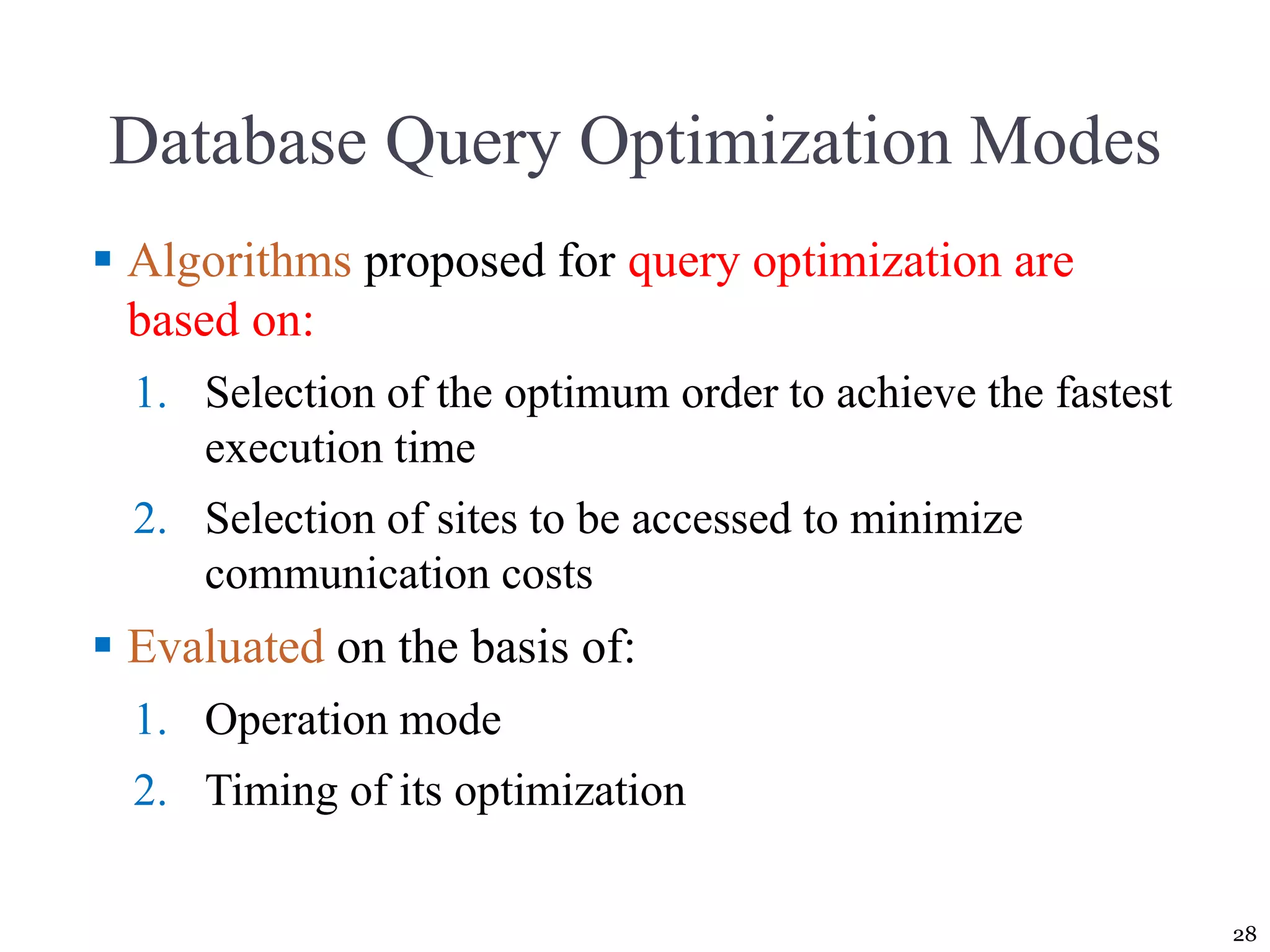

28. Database Query Optimization Modes
 Algorithms proposed for query optimization are
based on:
1. Selection of the optimum order to achieve the fastest
execution time
2. Selection of sites to be accessed to minimize
communication costs
 Evaluated on the basis of:
1. Operation mode
2. Timing of its optimization
28

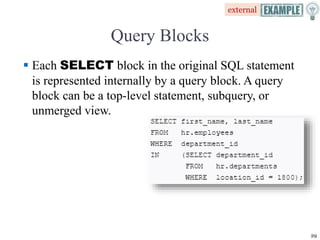

29. Query Blocks
 Each SELECT block in the original SQL statement
is represented internally by a query block. A query
block can be a top-level statement, subquery, or
unmerged view.
29
external

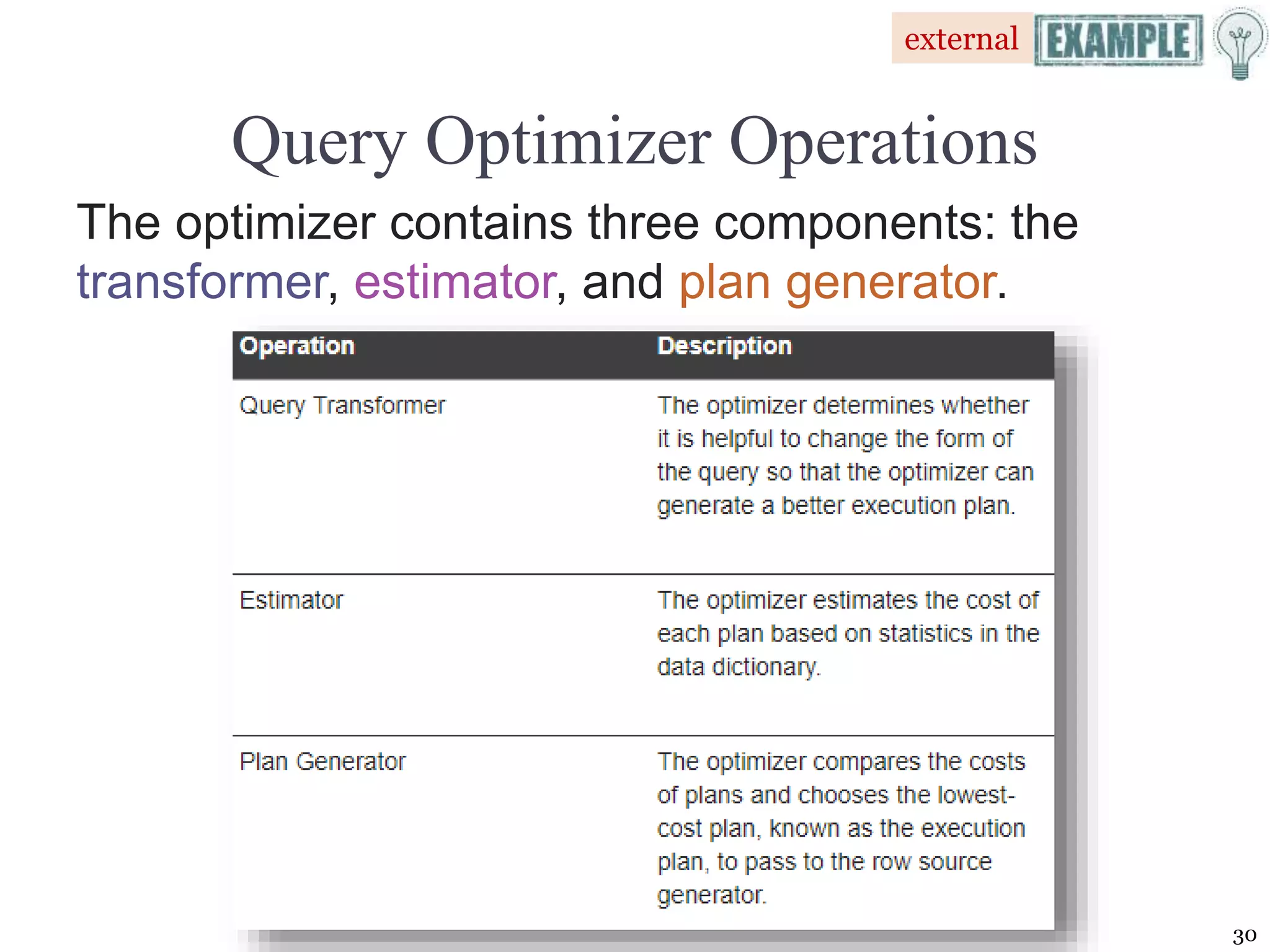

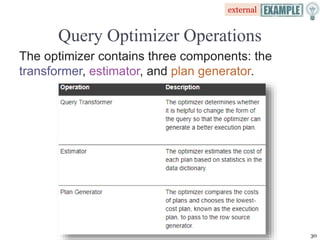

30. Query Optimizer Operations
30
The optimizer contains three components: the
transformer, estimator, and plan generator.
external

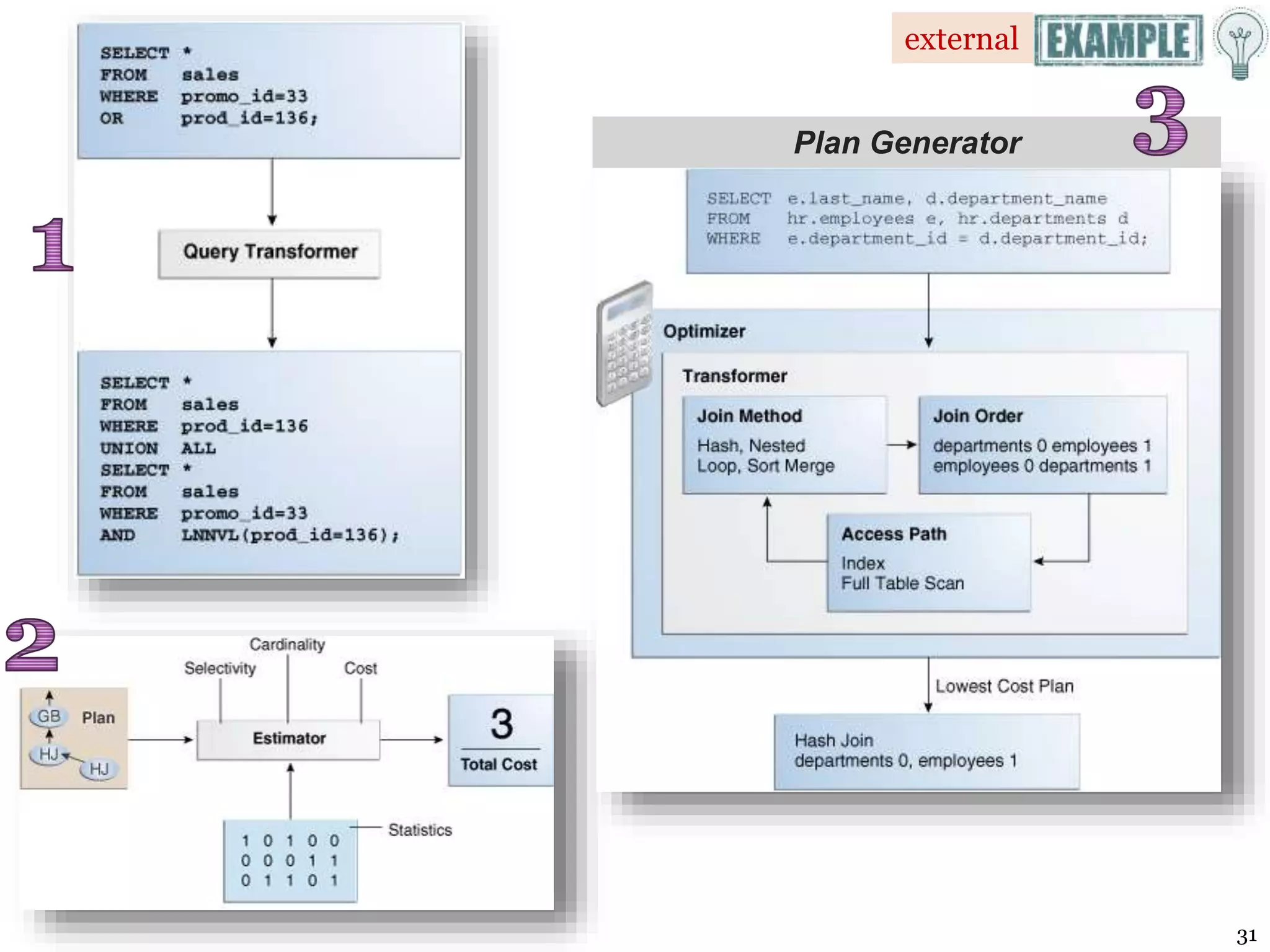

31. 31
Plan Generator
external

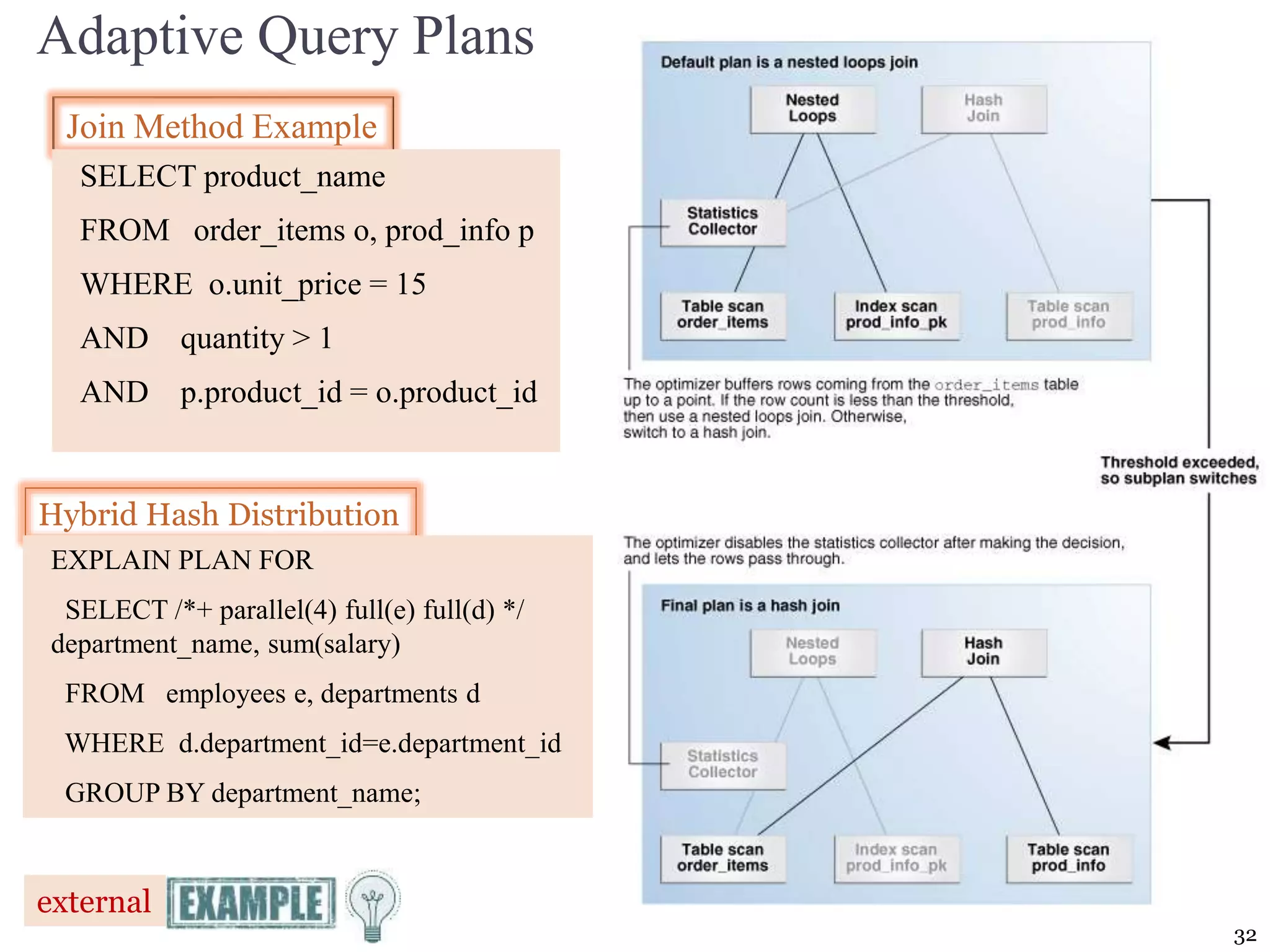

32. Join Method Example
Adaptive Query Plans
SELECT product_name
FROM order_items o, prod_info p
WHERE o.unit_price = 15
AND quantity > 1
AND p.product_id = o.product_id
32
external
Hybrid Hash Distribution
EXPLAIN PLAN FOR
SELECT /*+ parallel(4) full(e) full(d) */
department_name, sum(salary)
FROM employees e, departments d
WHERE d.department_id=e.department_id
GROUP BY department_name;

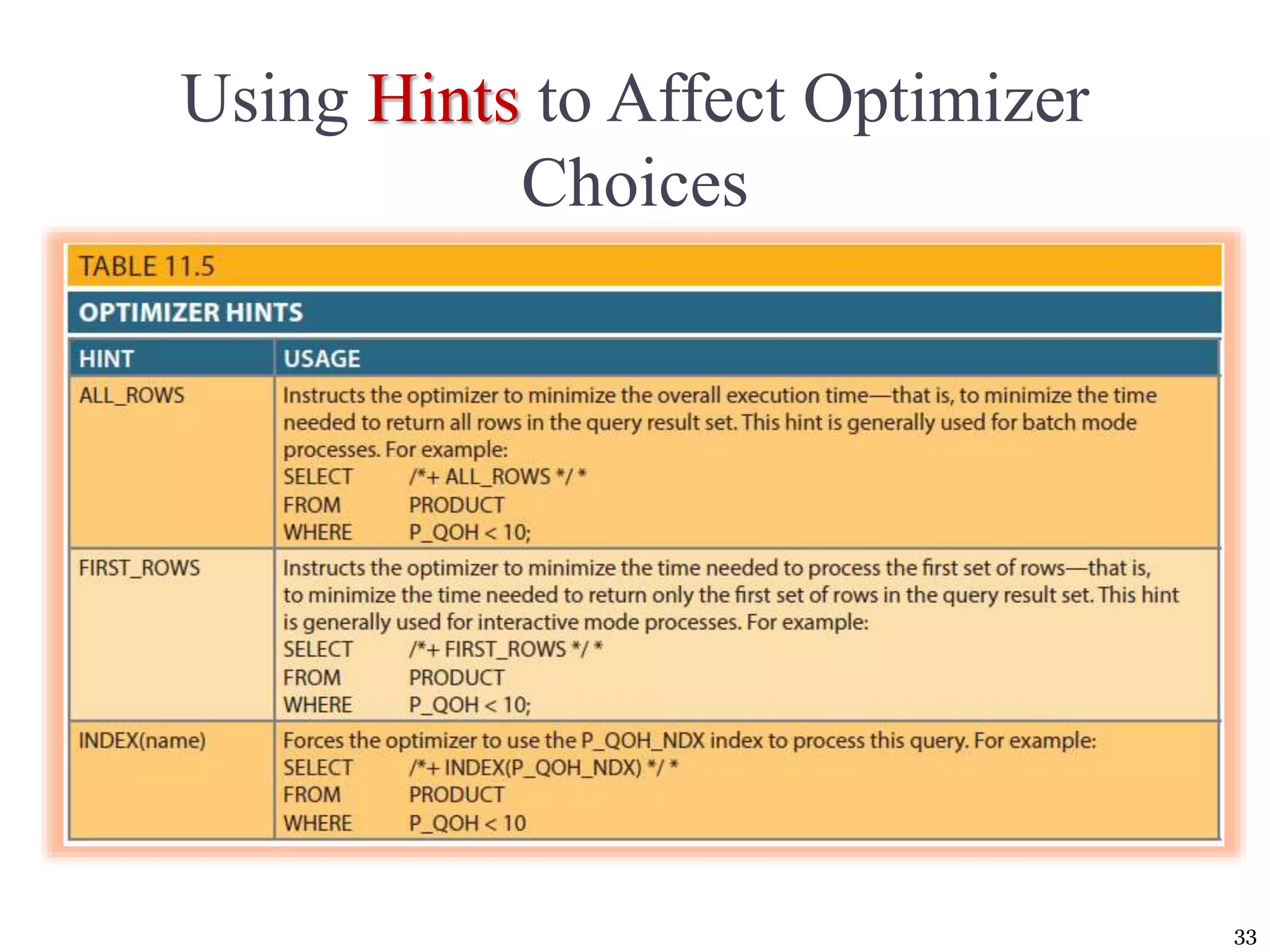

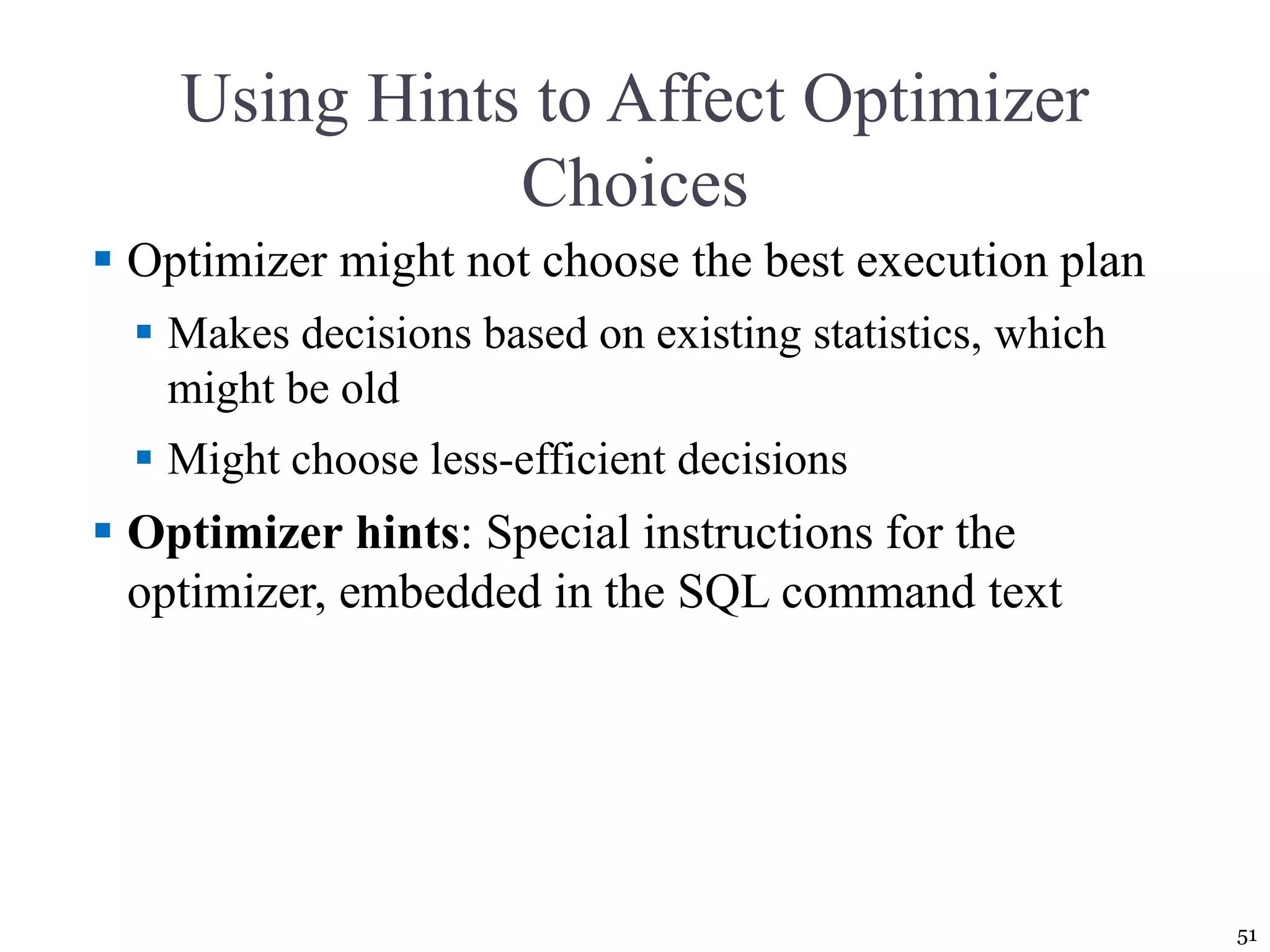

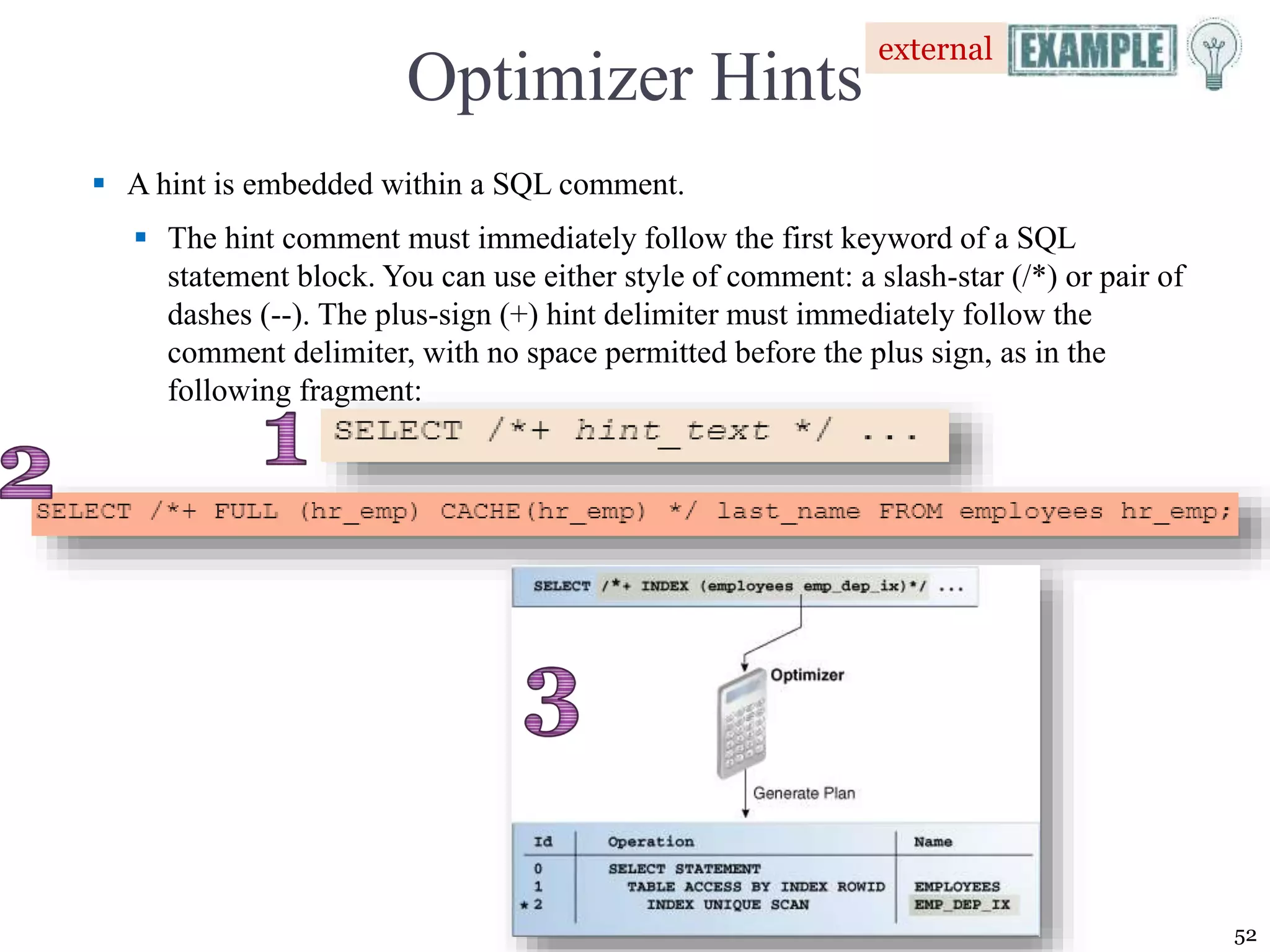

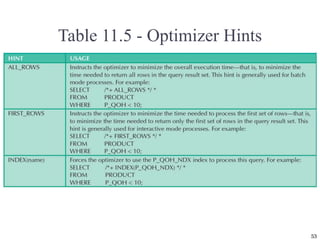

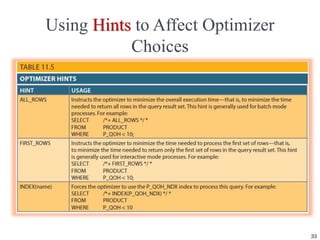

33. Using Hints to Affect Optimizer
Choices
33

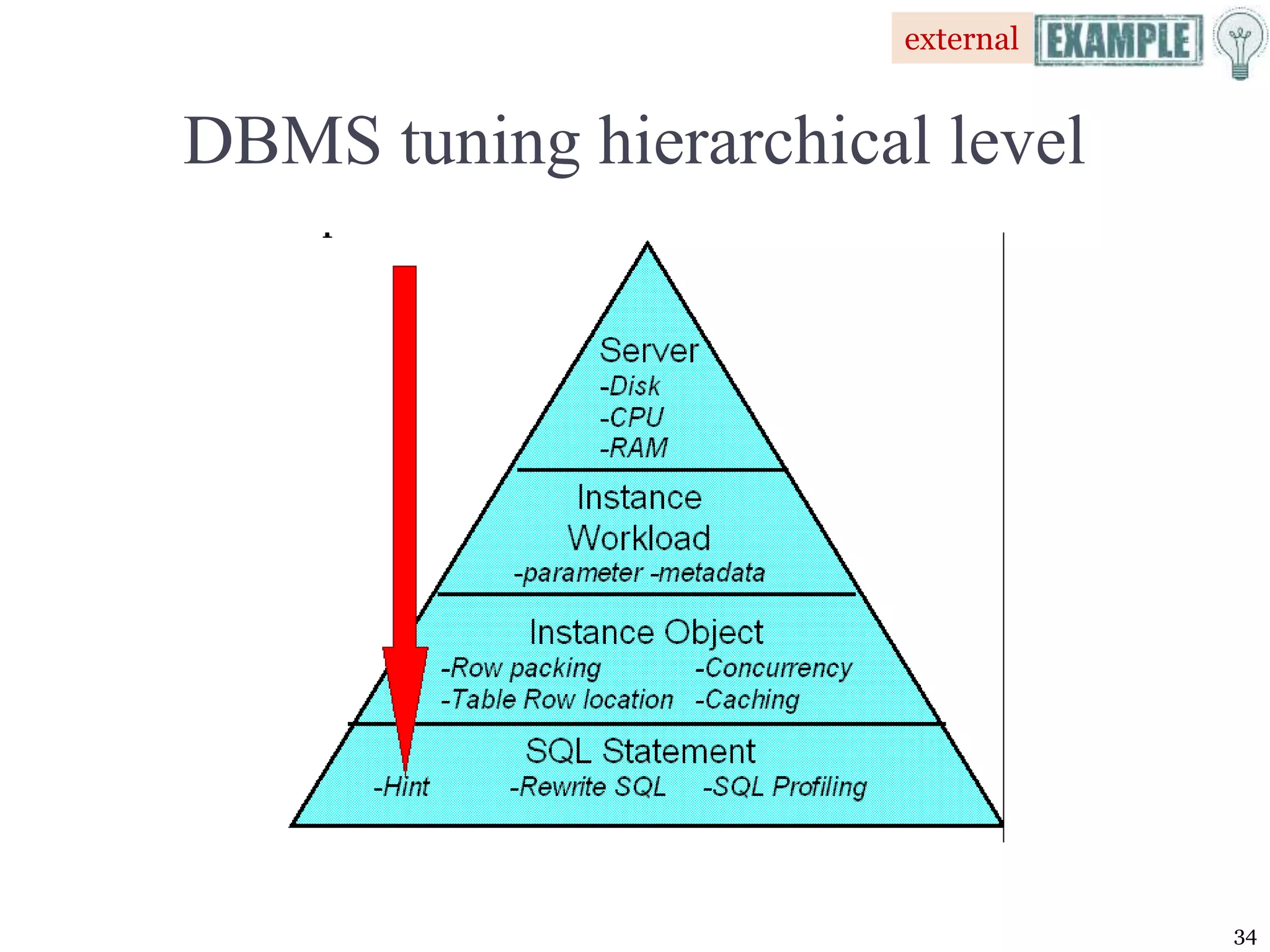

34. DBMS tuning hierarchical level
34
external

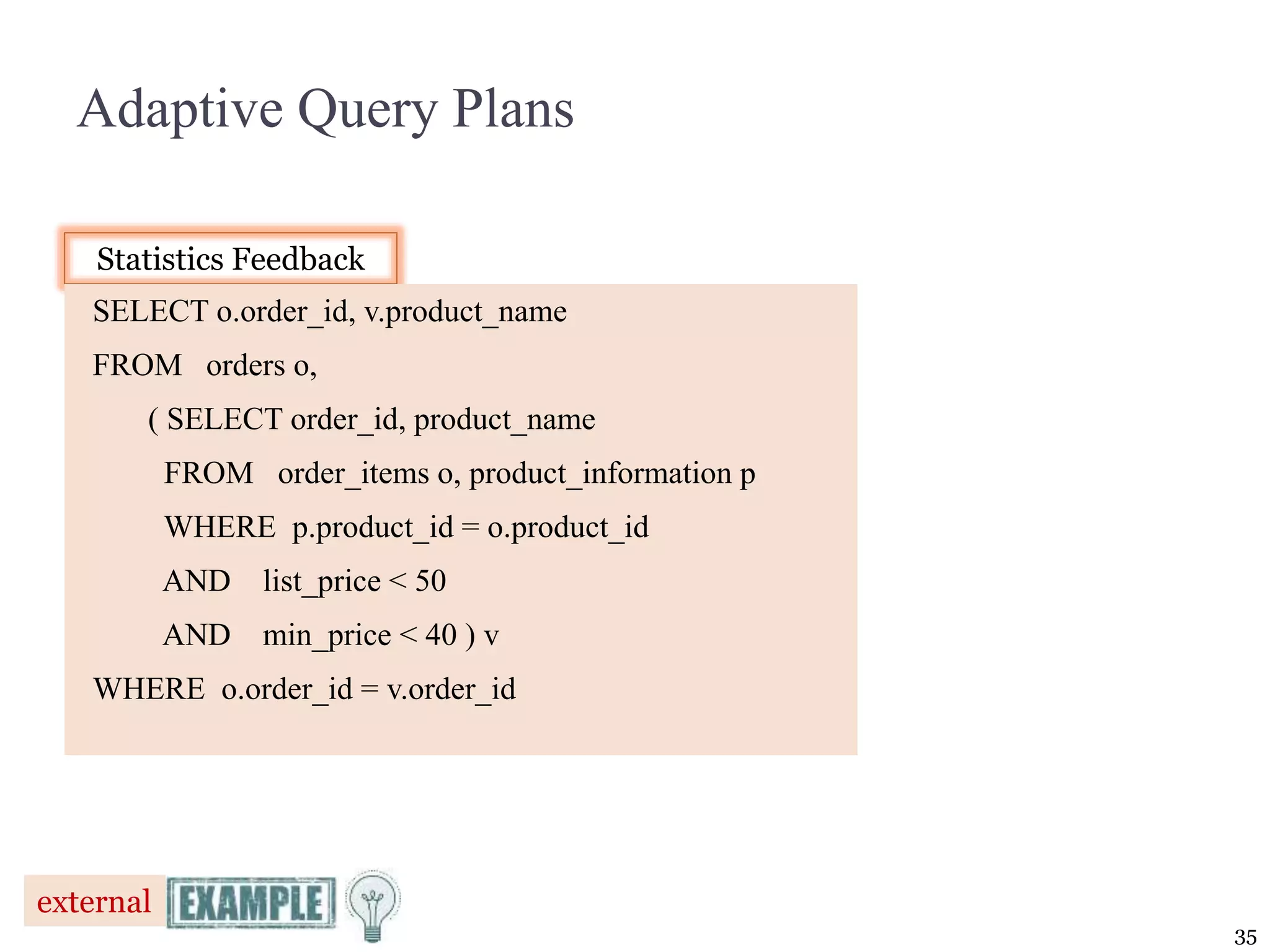

35. Adaptive Query Plans
35
Statistics Feedback
SELECT o.order_id, v.product_name
FROM orders o,
( SELECT order_id, product_name
FROM order_items o, product_information p
WHERE p.product_id = o.product_id
AND list_price < 50
AND min_price < 40 ) v
WHERE o.order_id = v.order_id
external

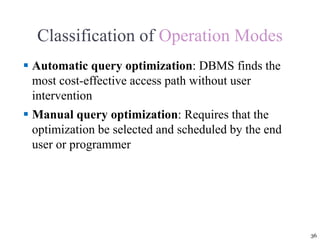

36. Classification of Operation Modes
 Automatic query optimization: DBMS finds the
most cost-effective access path without user
intervention
 Manual query optimization: Requires that the
optimization be selected and scheduled by the end
user or programmer
36

37. Classification Based on Timing of
Optimization
 Static query optimization: best optimization
strategy is selected when the query is compiled by the
DBMS
 Takes place at compilation time
 Dynamic query optimization: Access strategy is
dynamically determined by the DBMS at run time,
using the most up-to-date information about the
database
 Takes place at execution time
37

38. Classification Based on Type of
Information Used to Optimize the Query
 Statistically based query optimization algorithm:
Statistics are used by the DBMS to determine the best
access strategy
 Statistical information is generated by DBMS
through:
 Dynamic statistical generation mode
 Manual statistical generation mode
 Rule-based query optimization algorithm: based
on a set of user-defined rules to determine the best
query access strategy
38

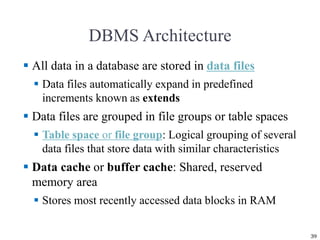

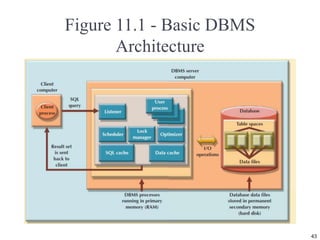

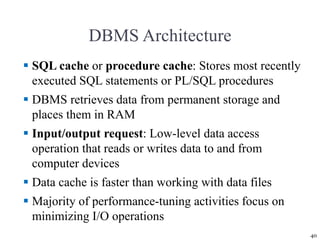

39. DBMS Architecture
 All data in a database are stored in data files
 Data files automatically expand in predefined
increments known as extends
 Data files are grouped in file groups or table spaces
 Table space or file group: Logical grouping of several
data files that store data with similar characteristics
 Data cache or buffer cache: Shared, reserved
memory area
 Stores most recently accessed data blocks in RAM
39

40. DBMS Architecture
 SQL cache or procedure cache: Stores most recently
executed SQL statements or PL/SQL procedures
 DBMS retrieves data from permanent storage and
places them in RAM
 Input/output request: Low-level data access
operation that reads or writes data to and from
computer devices
 Data cache is faster than working with data files
 Majority of performance-tuning activities focus on
minimizing I/O operations
40

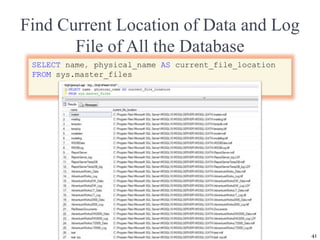

41. Find Current Location of Data and Log
File of All the Database
41
SELECT name, physical_name AS current_file_location
FROM sys.master_files

42. 42

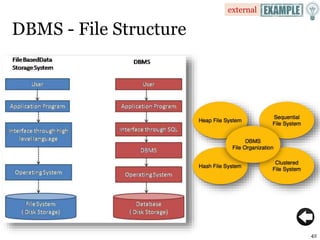

DBMS - File Structure
external

43. Figure 11.1 - Basic DBMS
Architecture
43

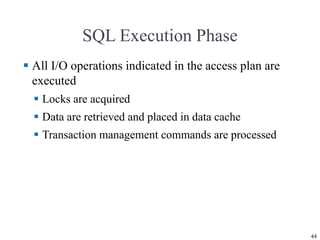

44. SQL Execution Phase
 All I/O operations indicated in the access plan are
executed
 Locks are acquired
 Data are retrieved and placed in data cache
 Transaction management commands are processed
44

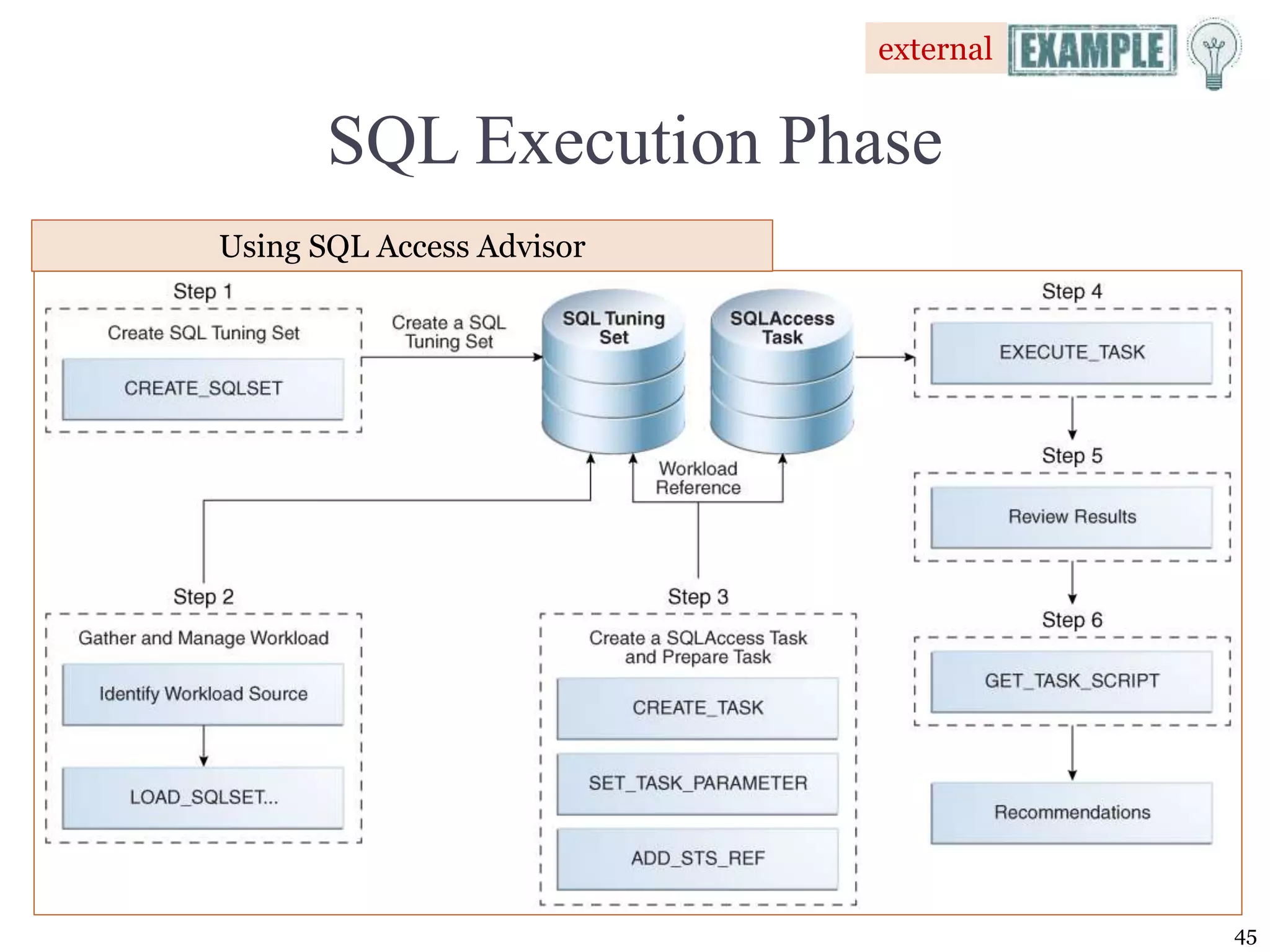

45. SQL Execution Phase
45
Using SQL Access Advisor
external

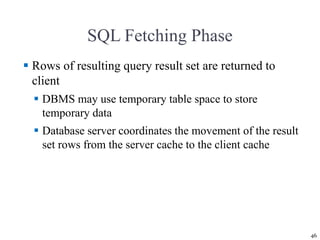

46. SQL Fetching Phase
 Rows of resulting query result set are returned to
client
 DBMS may use temporary table space to store
temporary data
 Database server coordinates the movement of the result
set rows from the server cache to the client cache
46

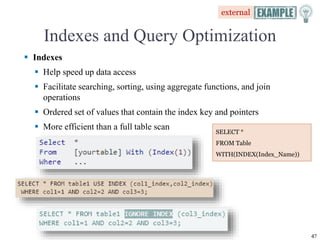

47. Indexes and Query Optimization
 Indexes
 Help speed up data access
 Facilitate searching, sorting, using aggregate functions, and join
operations
 Ordered set of values that contain the index key and pointers
 More efficient than a full table scan
47
SELECT *
FROM Table
WITH(INDEX(Index_Name))
external

48. Indexes and Query Optimization
 Data sparsity: Number of different values a column could have
 Data structures used to implement indexes:
 Hash indexes
 B-tree indexes
 Bitmap indexes
 DBMSs determine
best type of index
to use
48

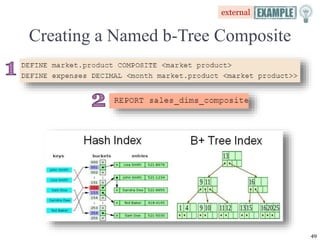

49. Creating a Named b-Tree Composite
49
external

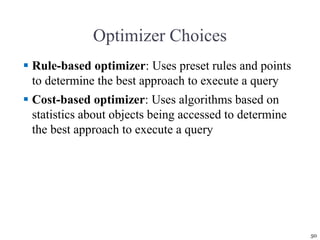

50. Optimizer Choices
 Rule-based optimizer: Uses preset rules and points
to determine the best approach to execute a query
 Cost-based optimizer: Uses algorithms based on
statistics about objects being accessed to determine
the best approach to execute a query
50

51. Using Hints to Affect Optimizer
Choices
 Optimizer might not choose the best execution plan
 Makes decisions based on existing statistics, which
might be old
 Might choose less-efficient decisions
 Optimizer hints: Special instructions for the
optimizer, embedded in the SQL command text
51

52. Optimizer Hints
 A hint is embedded within a SQL comment.
 The hint comment must immediately follow the first keyword of a SQL
statement block. You can use either style of comment: a slash-star (/*) or pair of
dashes (--). The plus-sign (+) hint delimiter must immediately follow the
comment delimiter, with no space permitted before the plus sign, as in the
following fragment:
52
external

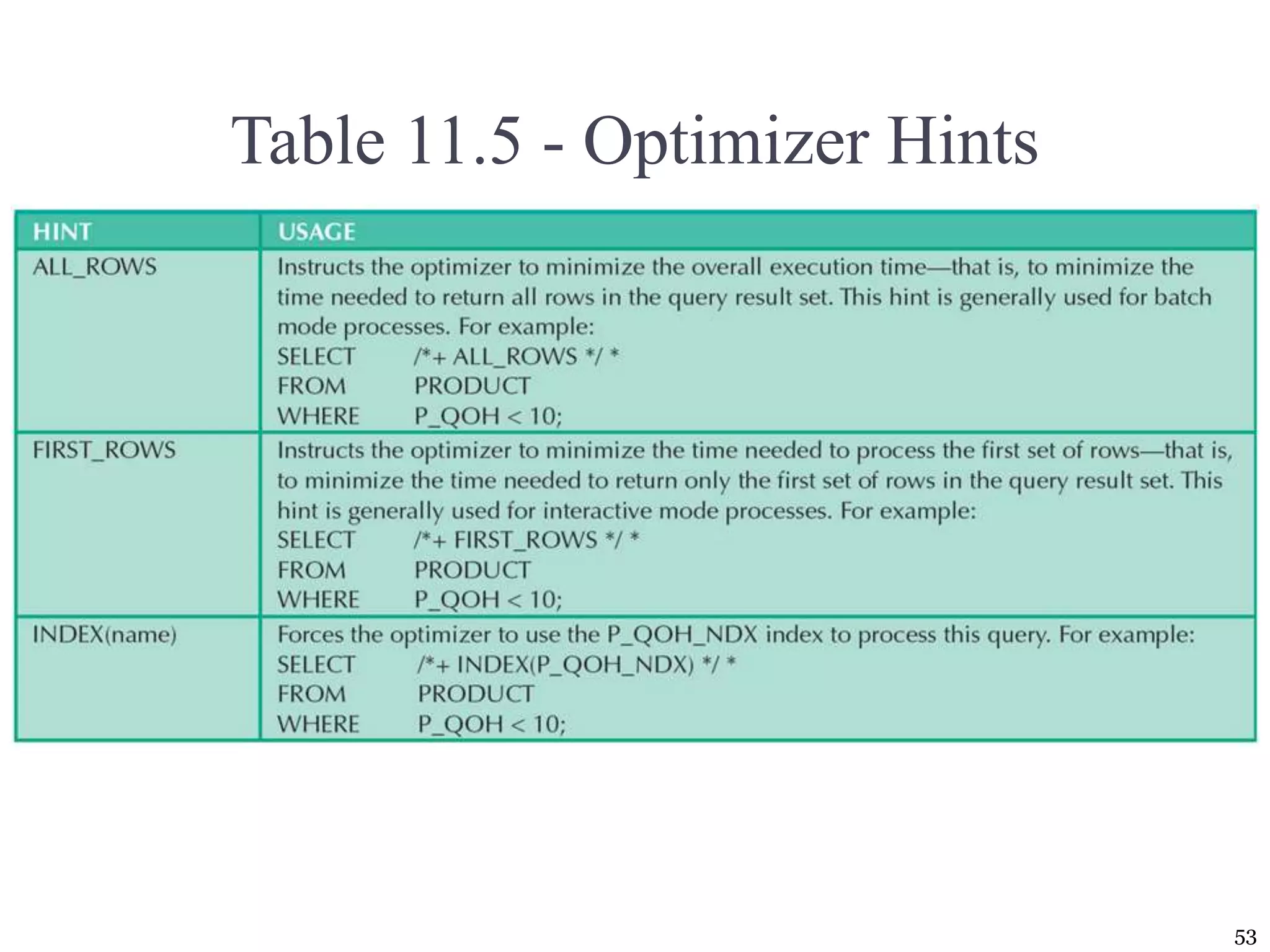

53. Table 11.5 - Optimizer Hints
53

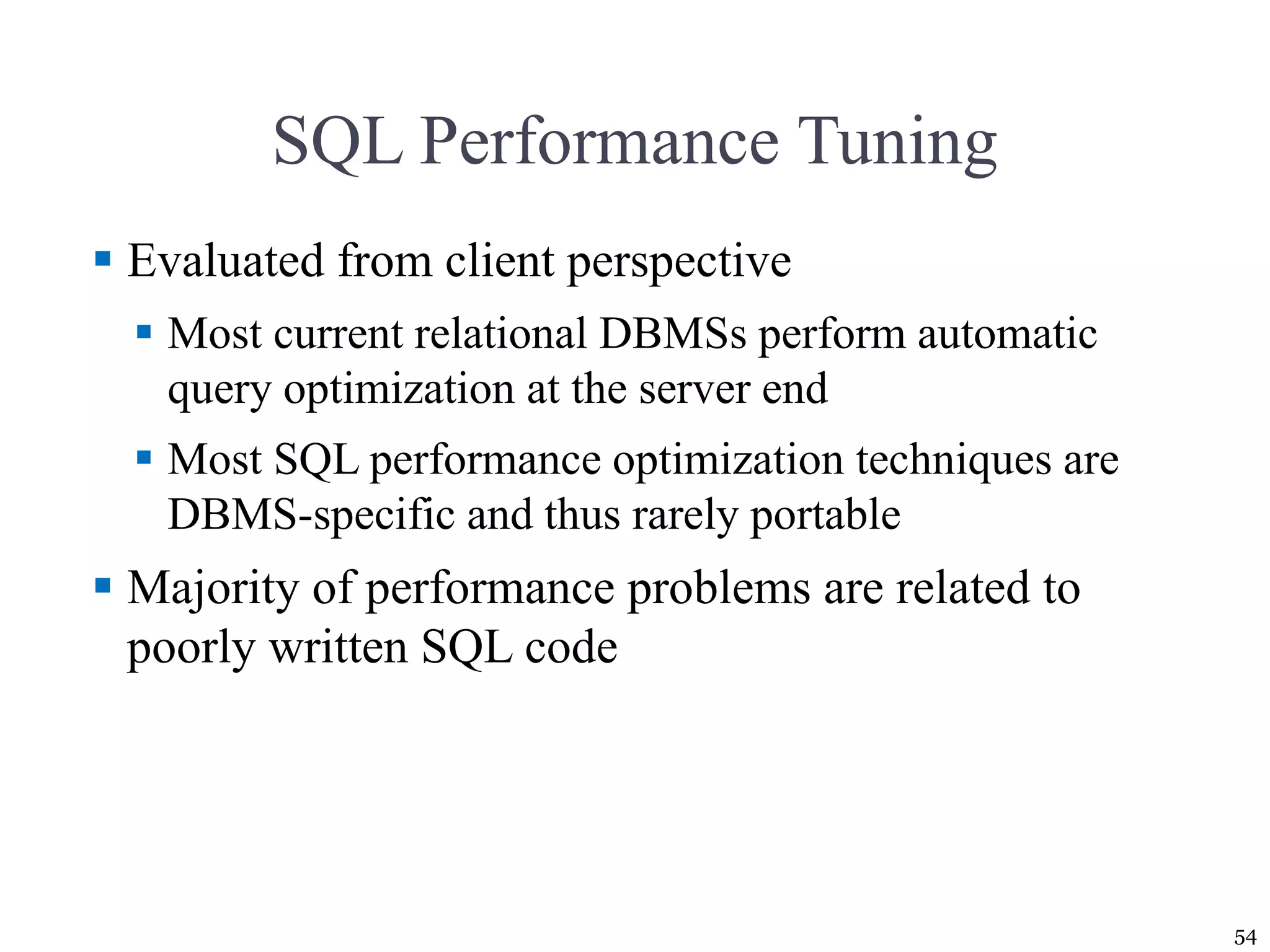

54. SQL Performance Tuning
 Evaluated from client perspective
 Most current relational DBMSs perform automatic
query optimization at the server end
 Most SQL performance optimization techniques are
DBMS-specific and thus rarely portable
 Majority of performance problems are related to
poorly written SQL code
54

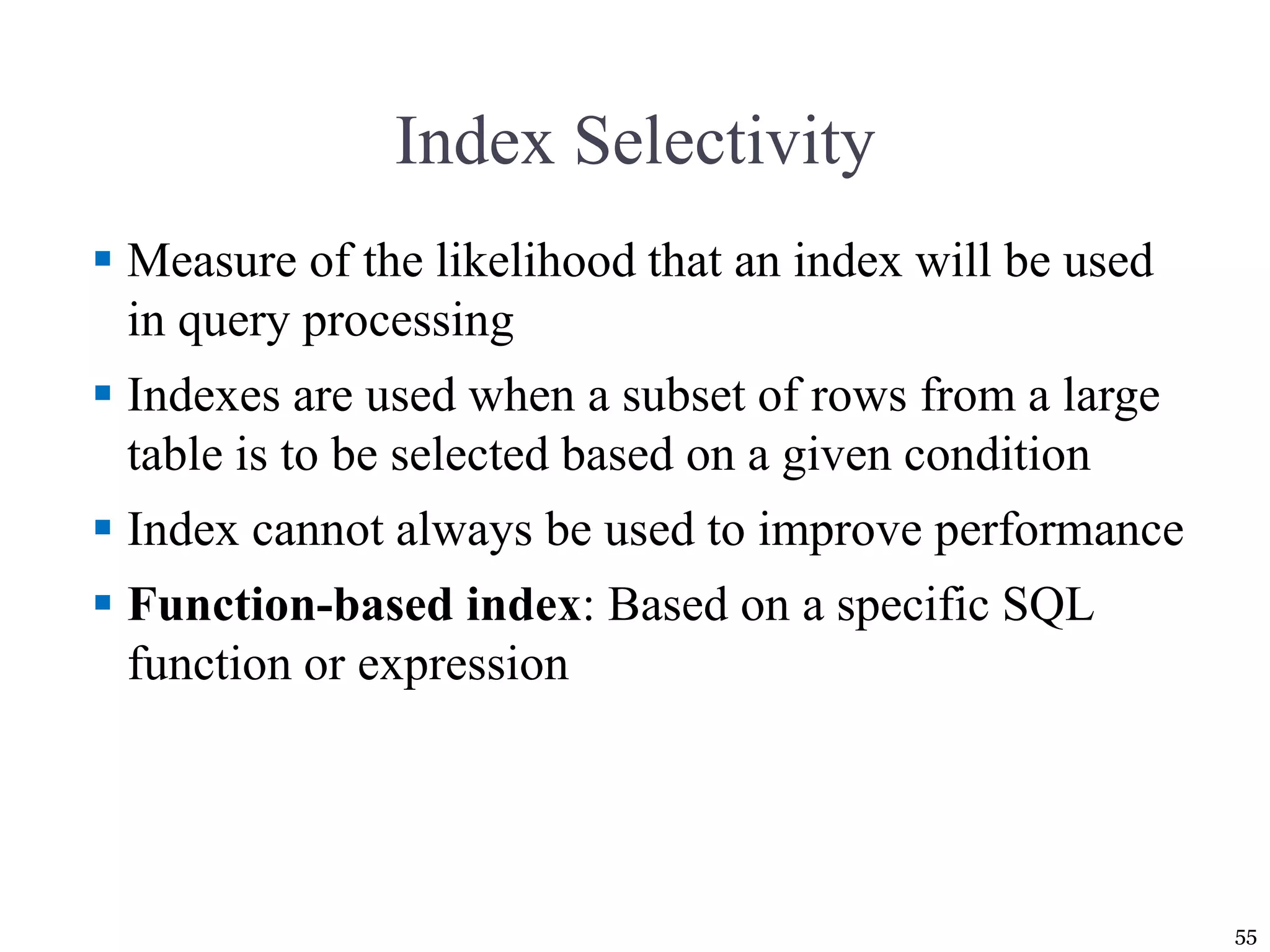

55. Index Selectivity
 Measure of the likelihood that an index will be used
in query processing
 Indexes are used when a subset of rows from a large
table is to be selected based on a given condition
 Index cannot always be used to improve performance
 Function-based index: Based on a specific SQL
function or expression
55

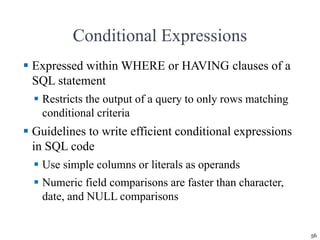

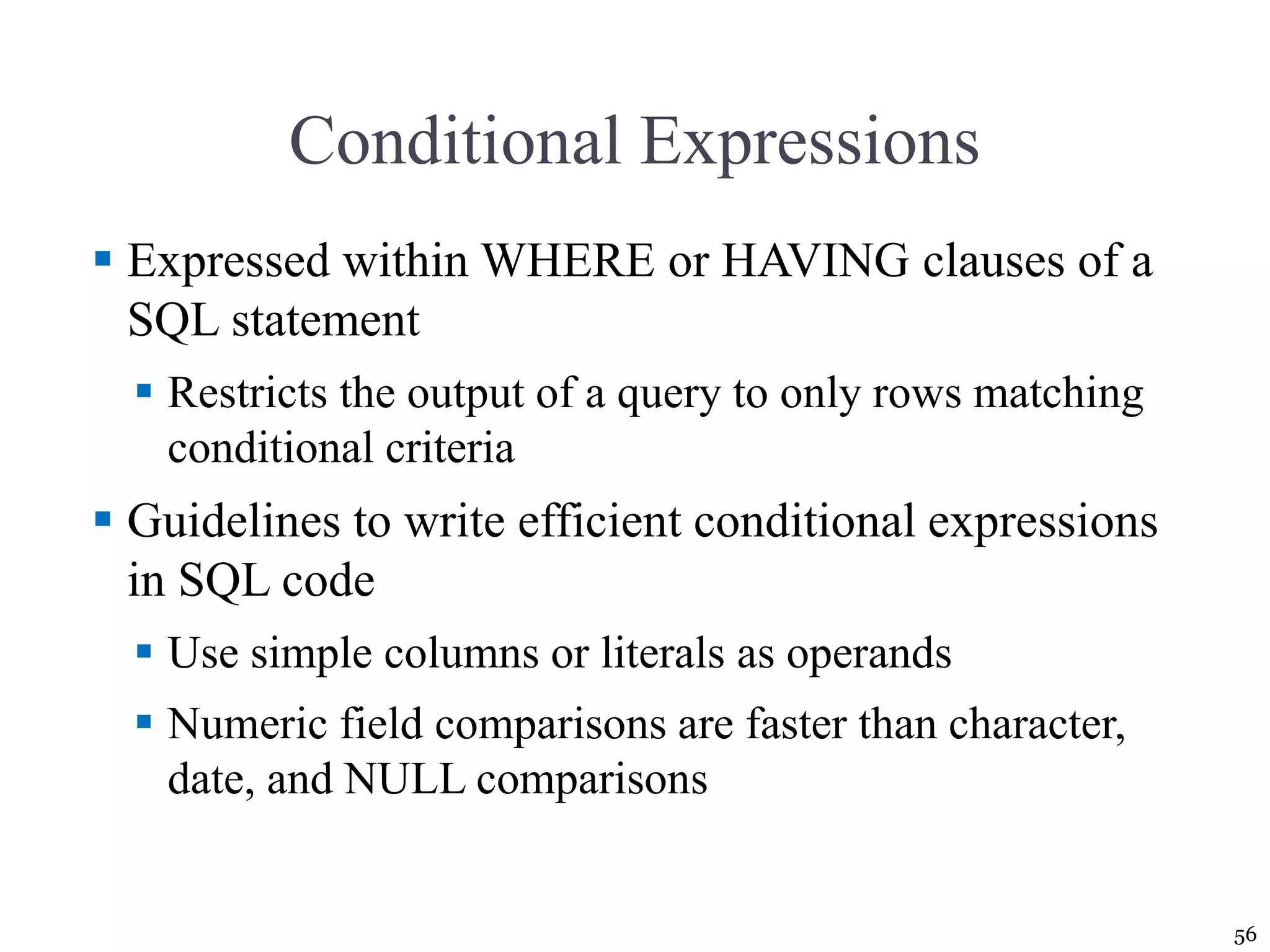

56. Conditional Expressions
 Expressed within WHERE or HAVING clauses of a
SQL statement
 Restricts the output of a query to only rows matching
conditional criteria
 Guidelines to write efficient conditional expressions
in SQL code
 Use simple columns or literals as operands
 Numeric field comparisons are faster than character,
date, and NULL comparisons
56

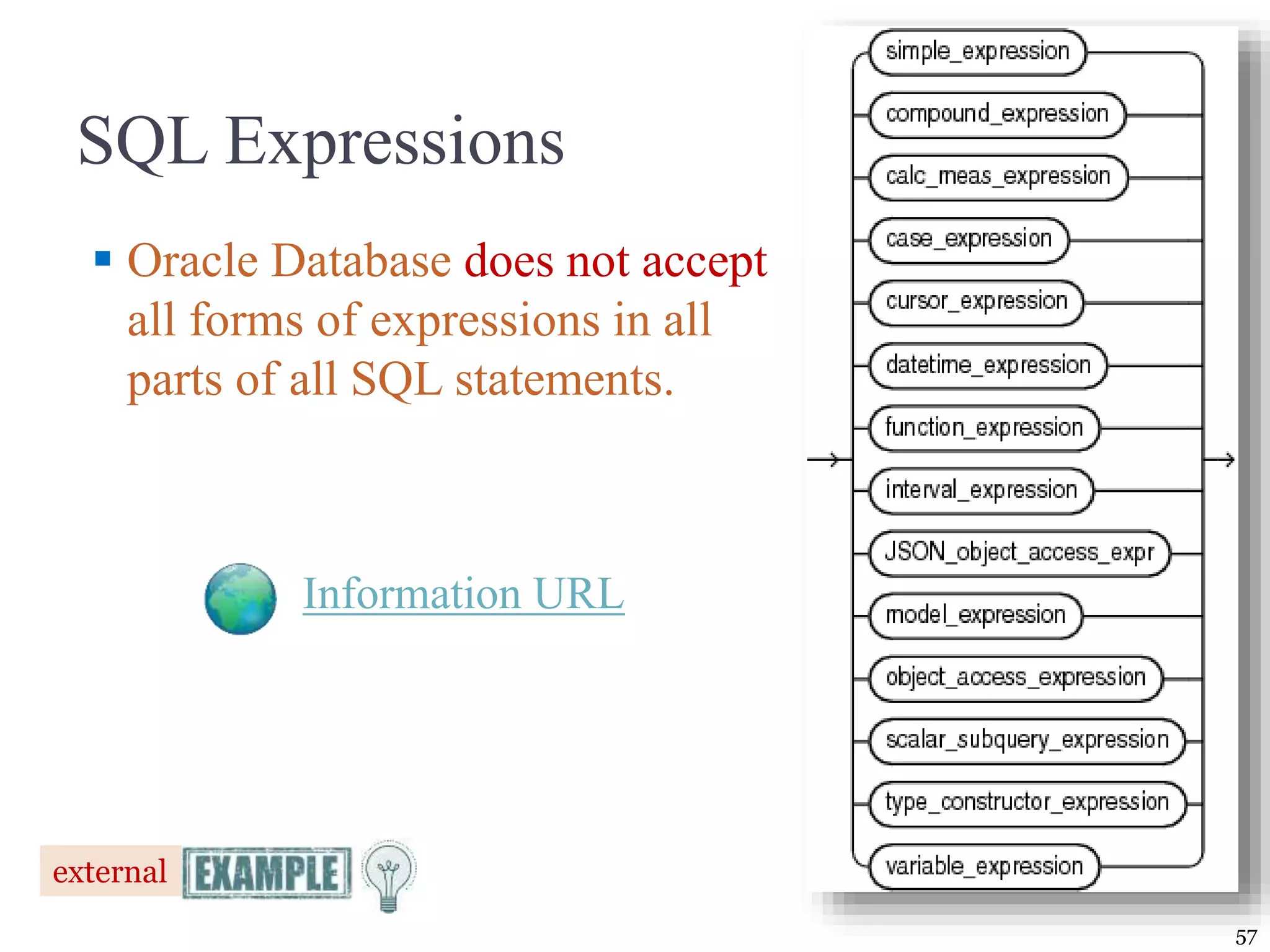

57. SQL Expressions
 Oracle Database does not accept
all forms of expressions in all
parts of all SQL statements.
Information URL
57
external

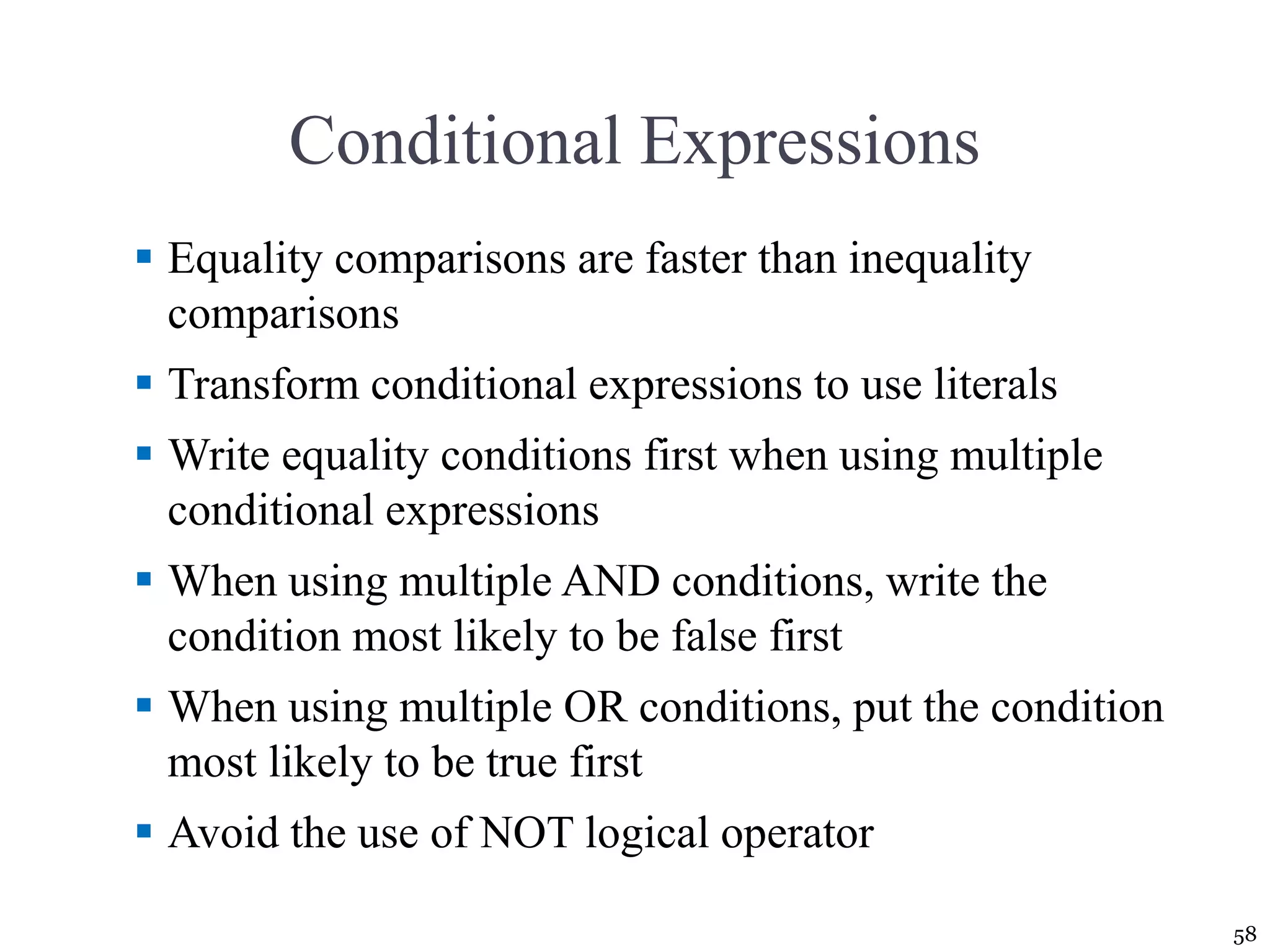

58. Conditional Expressions
 Equality comparisons are faster than inequality
comparisons
 Transform conditional expressions to use literals
 Write equality conditions first when using multiple
conditional expressions
 When using multiple AND conditions, write the
condition most likely to be false first
 When using multiple OR conditions, put the condition
most likely to be true first
 Avoid the use of NOT logical operator
58

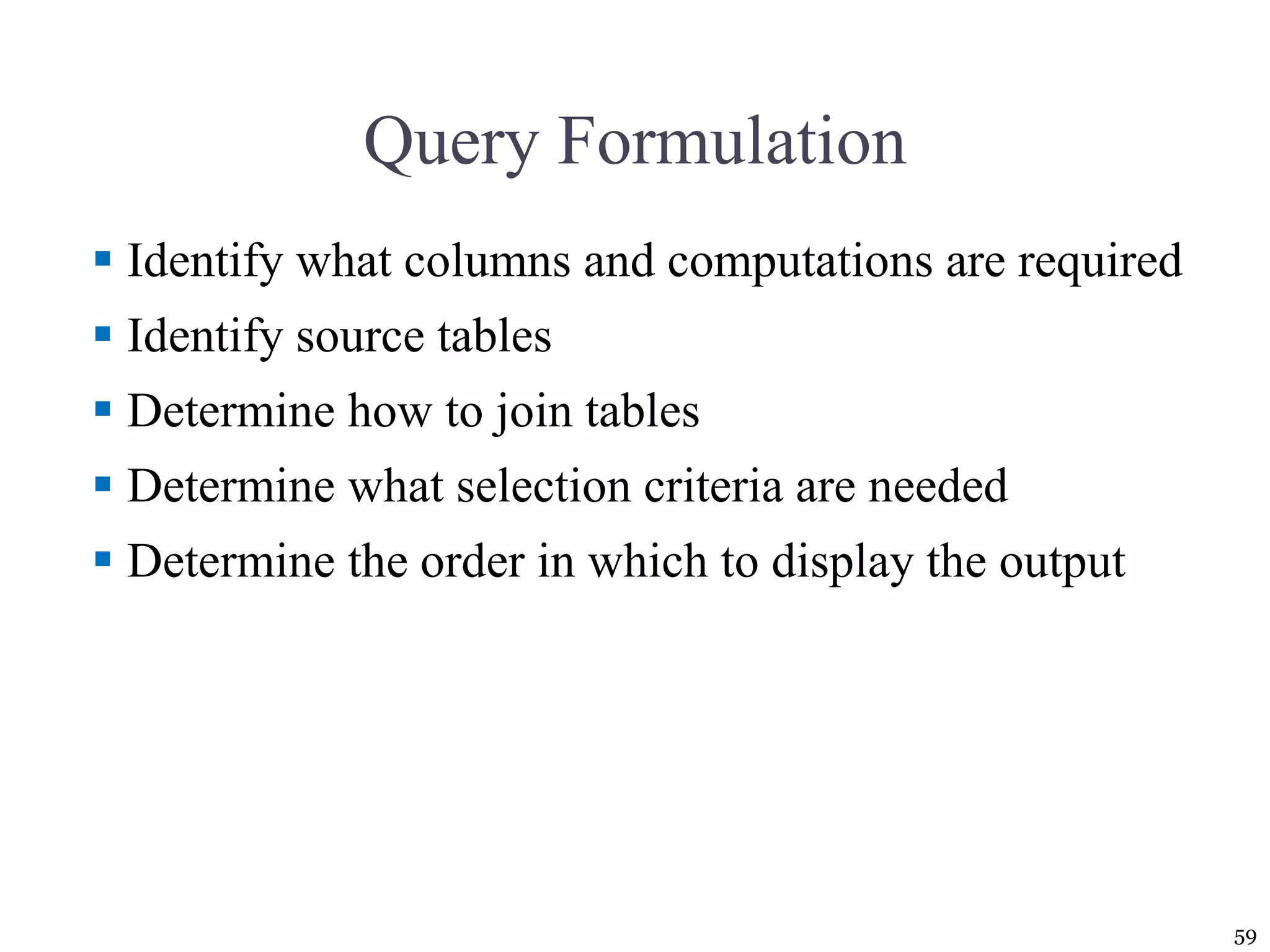

59. Query Formulation
 Identify what columns and computations are required
 Identify source tables
 Determine how to join tables
 Determine what selection criteria are needed
 Determine the order in which to display the output
59

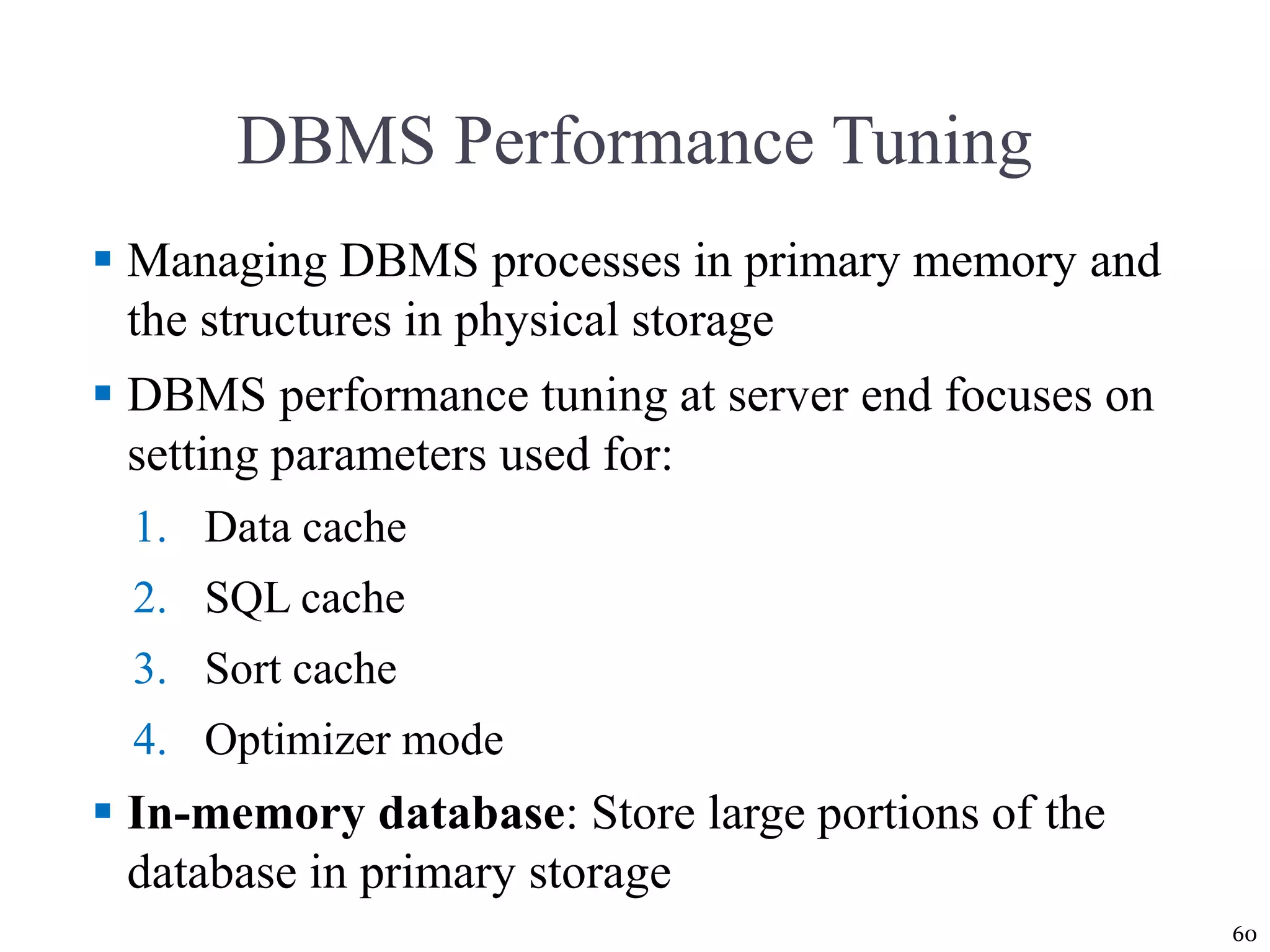

60. DBMS Performance Tuning
 Managing DBMS processes in primary memory and
the structures in physical storage
 DBMS performance tuning at server end focuses on
setting parameters used for:
1. Data cache
2. SQL cache
3. Sort cache
4. Optimizer mode
 In-memory database: Store large portions of the
database in primary storage
60

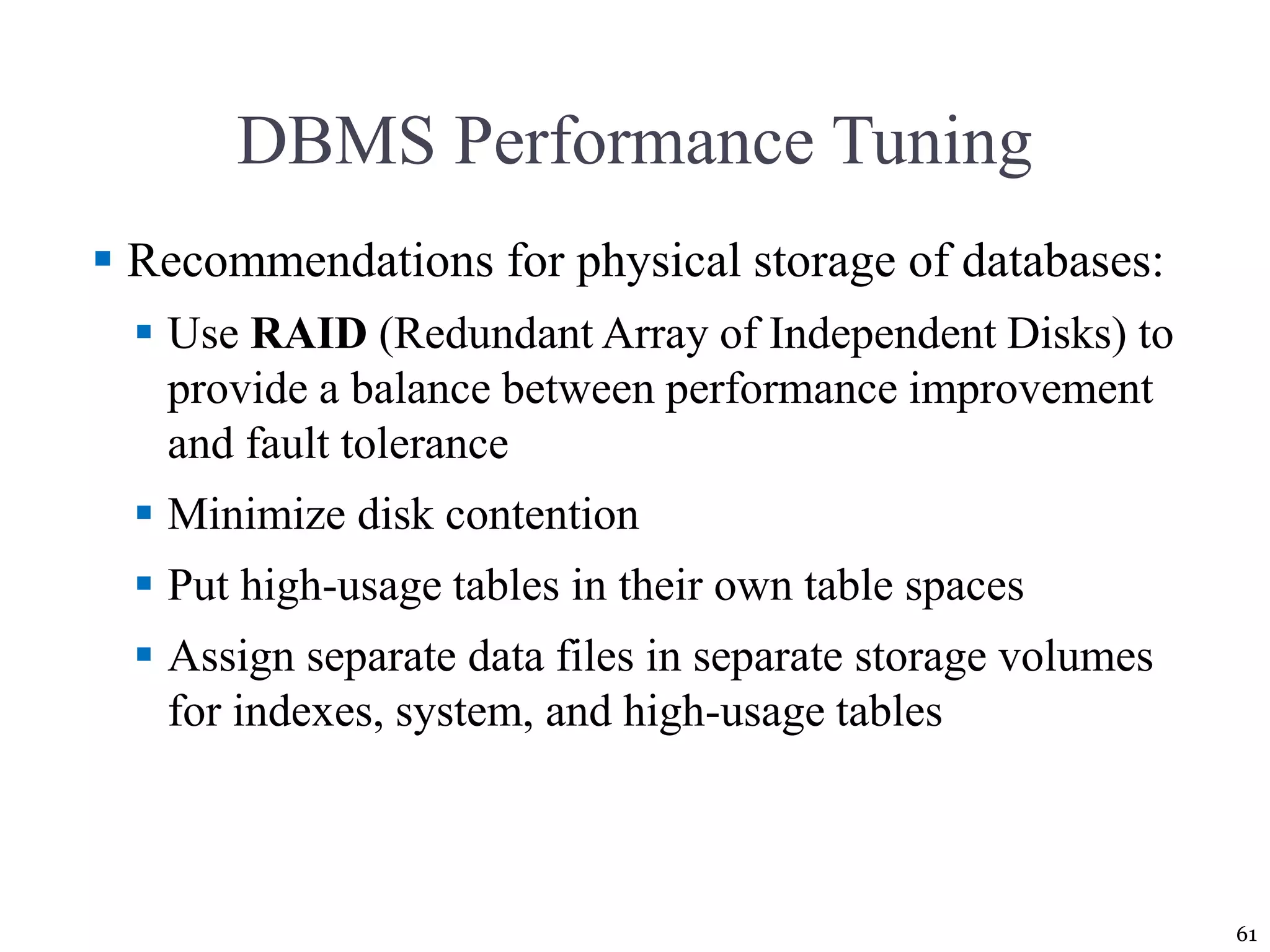

61. DBMS Performance Tuning
 Recommendations for physical storage of databases:
 Use RAID (Redundant Array of Independent Disks) to
provide a balance between performance improvement
and fault tolerance
 Minimize disk contention
 Put high-usage tables in their own table spaces
 Assign separate data files in separate storage volumes
for indexes, system, and high-usage tables
61

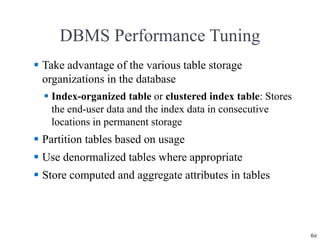

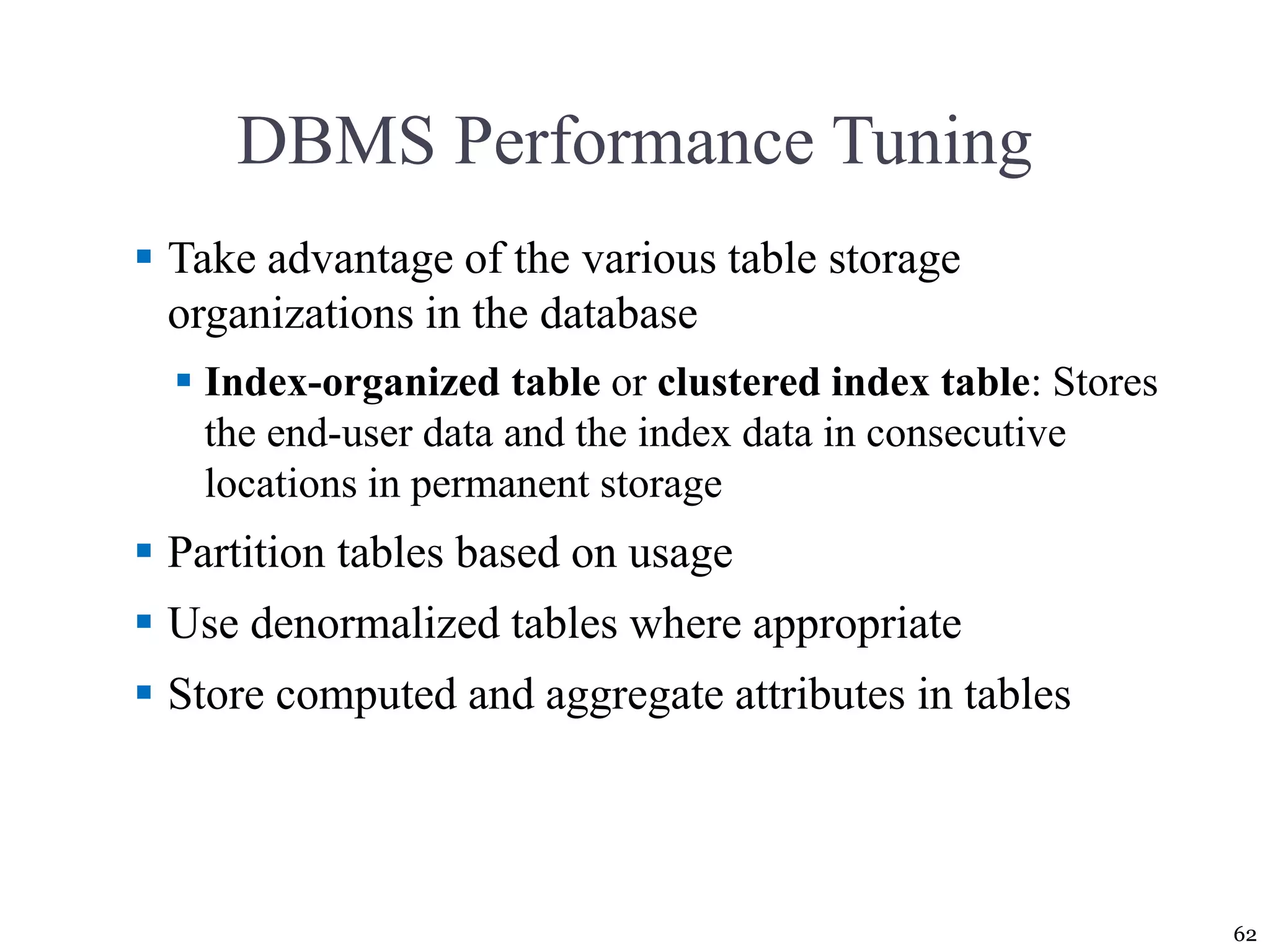

62. DBMS Performance Tuning
 Take advantage of the various table storage
organizations in the database
 Index-organized table or clustered index table: Stores
the end-user data and the index data in consecutive
locations in permanent storage
 Partition tables based on usage
 Use denormalized tables where appropriate
 Store computed and aggregate attributes in tables
62

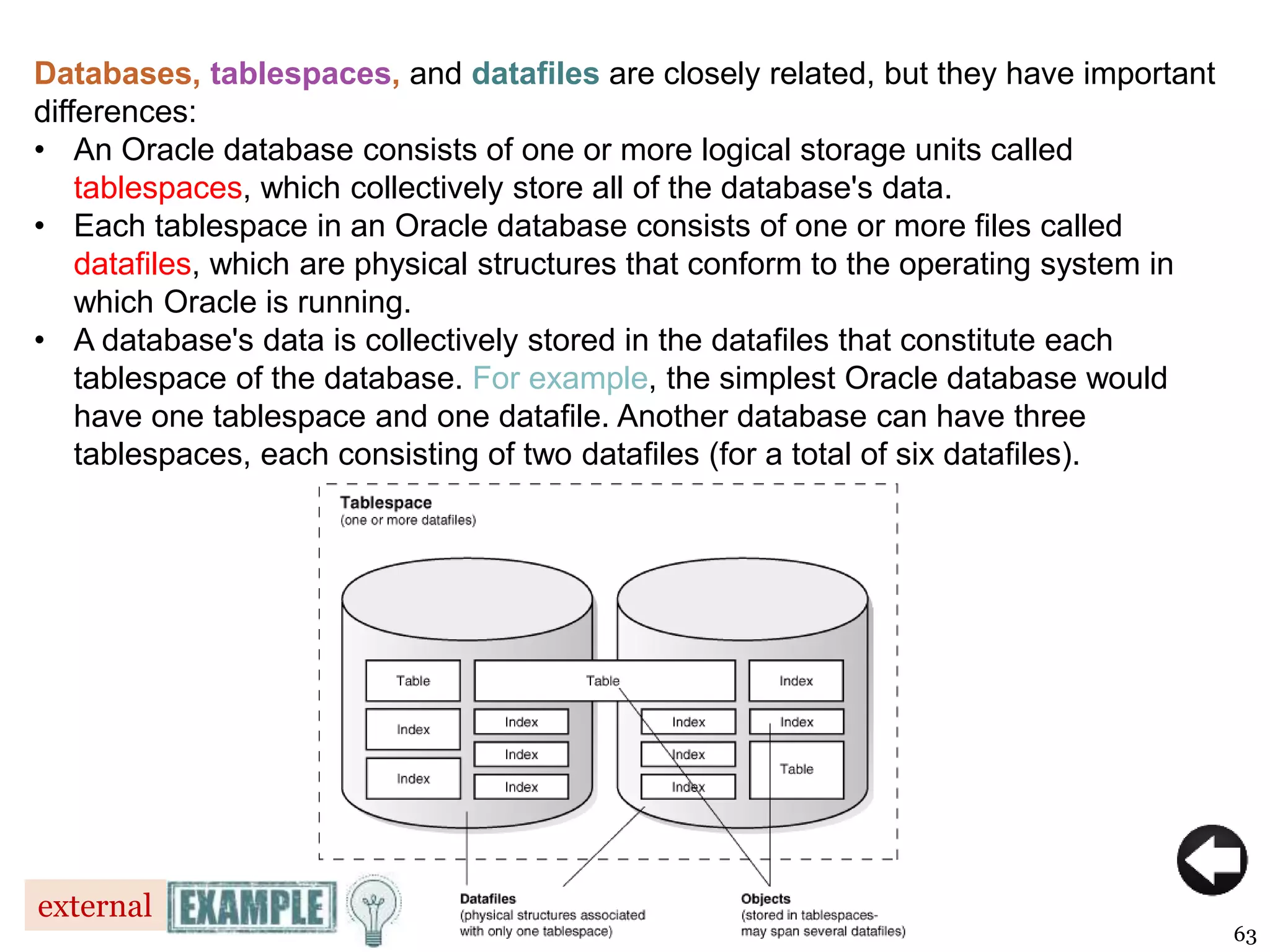

63. 63

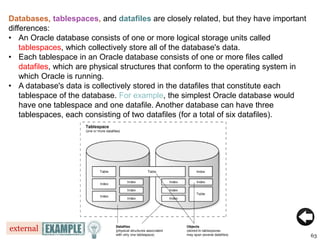

Databases, tablespaces, and datafiles are closely related, but they have important
differences:
• An Oracle database consists of one or more logical storage units called
tablespaces, which collectively store all of the database's data.
• Each tablespace in an Oracle database consists of one or more files called
datafiles, which are physical structures that conform to the operating system in
which Oracle is running.
• A database's data is collectively stored in the datafiles that constitute each
tablespace of the database. For example, the simplest Oracle database would
have one tablespace and one datafile. Another database can have three
tablespaces, each consisting of two datafiles (for a total of six datafiles).
external

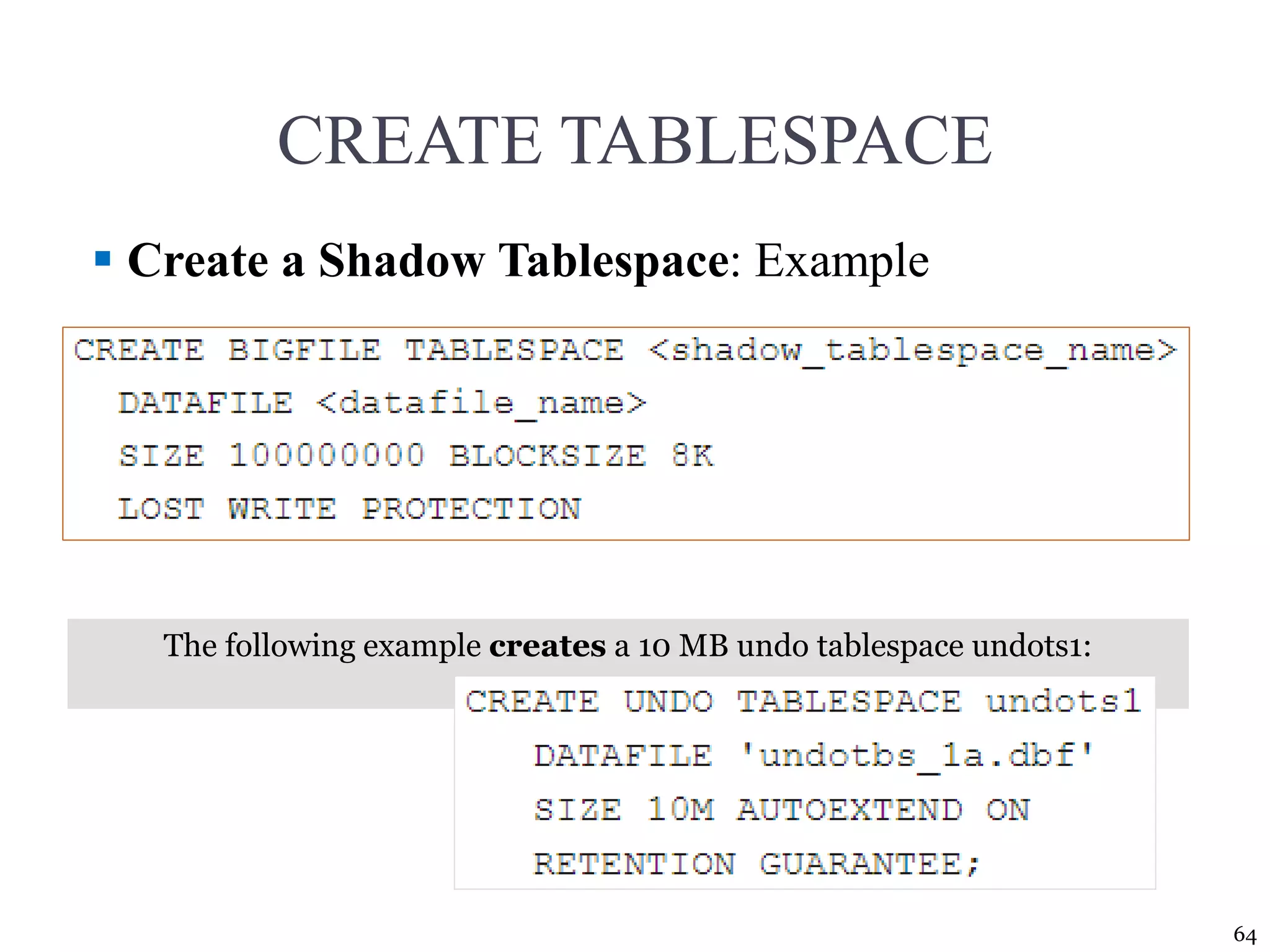

64. CREATE TABLESPACE
 Create a Shadow Tablespace: Example
64
The following example creates a 10 MB undo tablespace undots1:

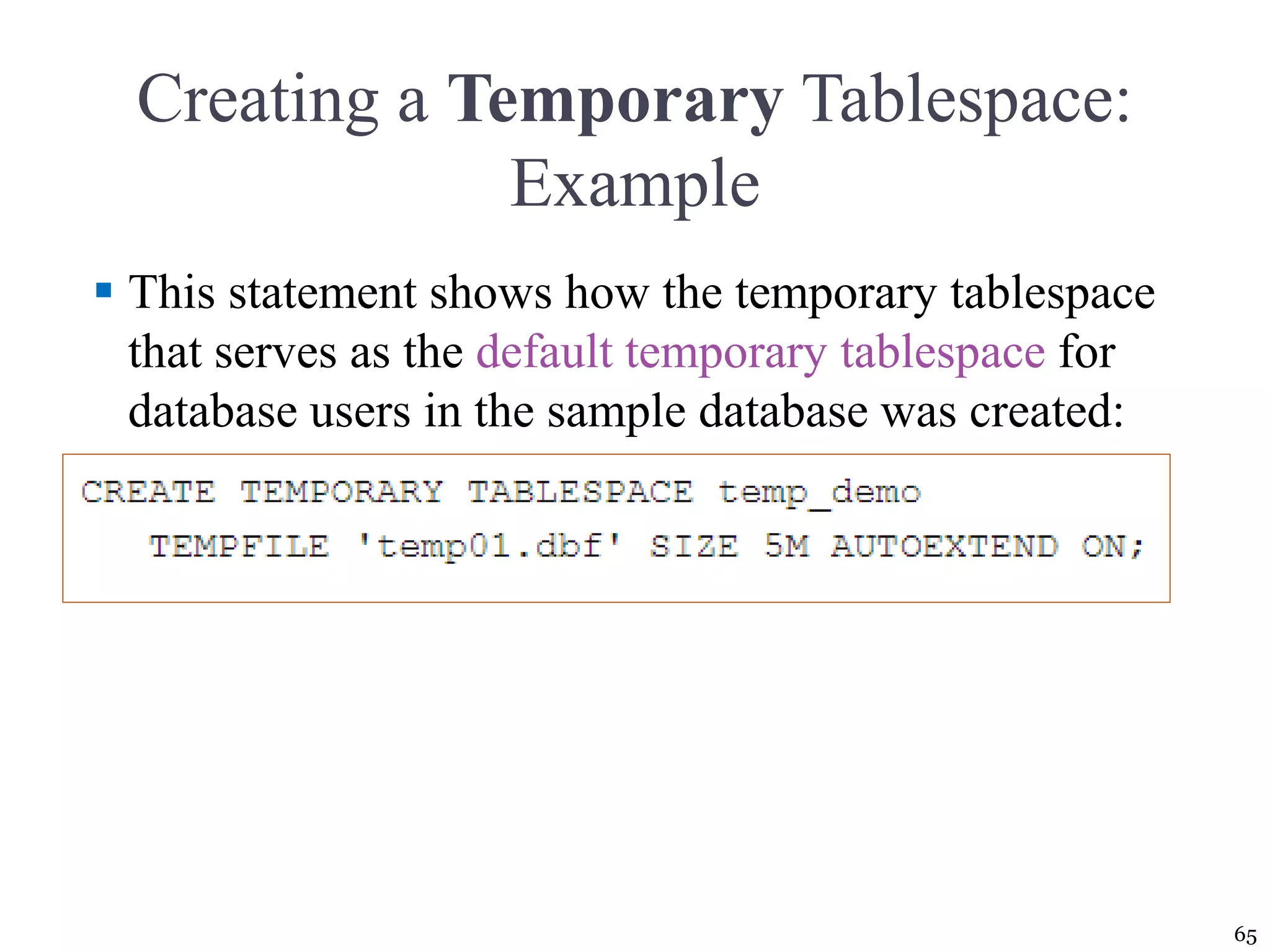

65. Creating a Temporary Tablespace:
Example
 This statement shows how the temporary tablespace
that serves as the default temporary tablespace for
database users in the sample database was created:
65

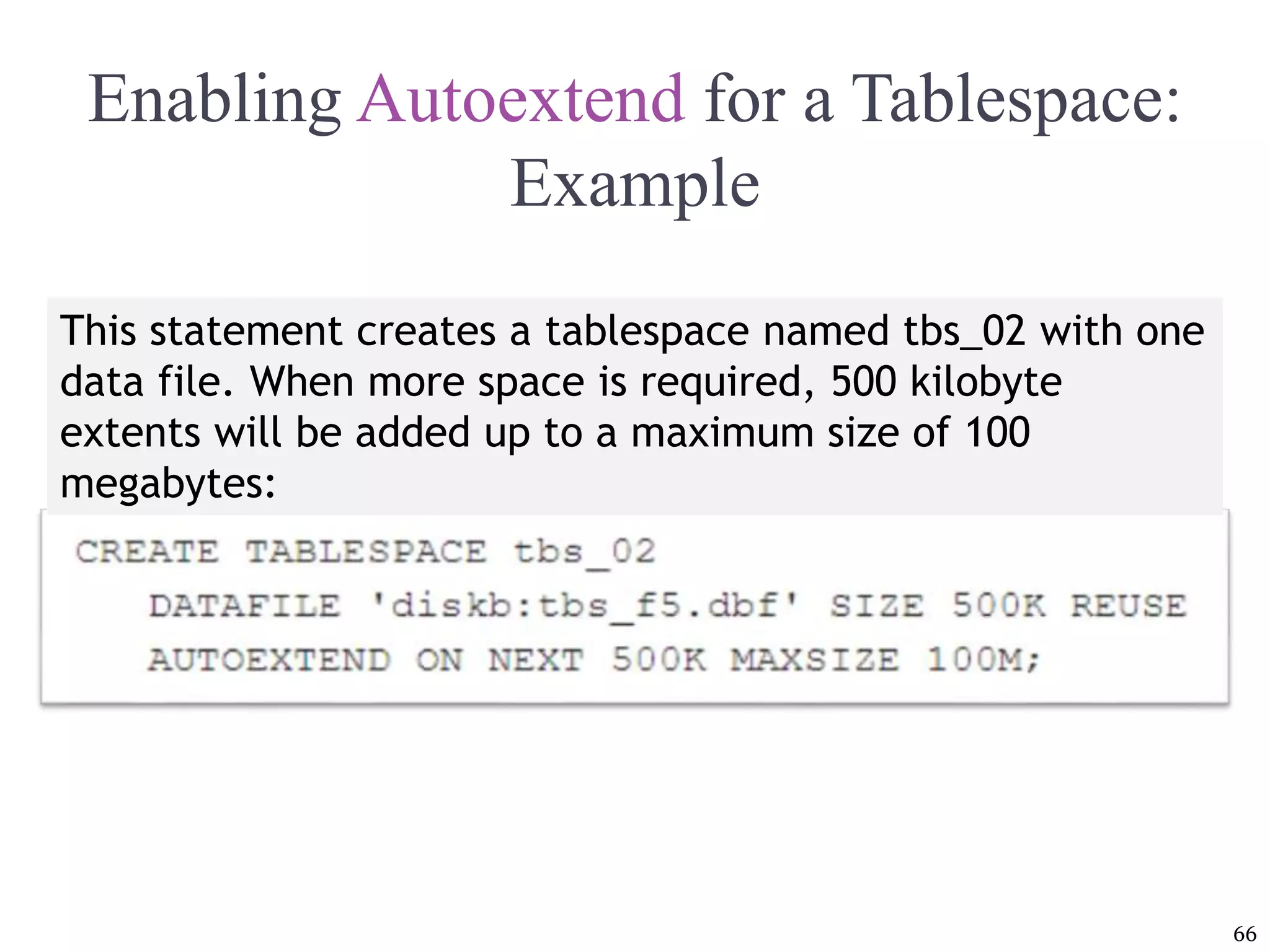

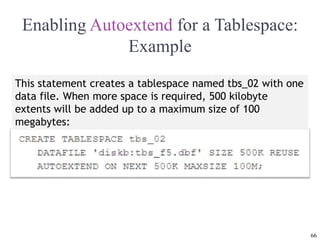

66. Enabling Autoextend for a Tablespace:
Example
66
This statement creates a tablespace named tbs_02 with one
data file. When more space is required, 500 kilobyte
extents will be added up to a maximum size of 100
megabytes:

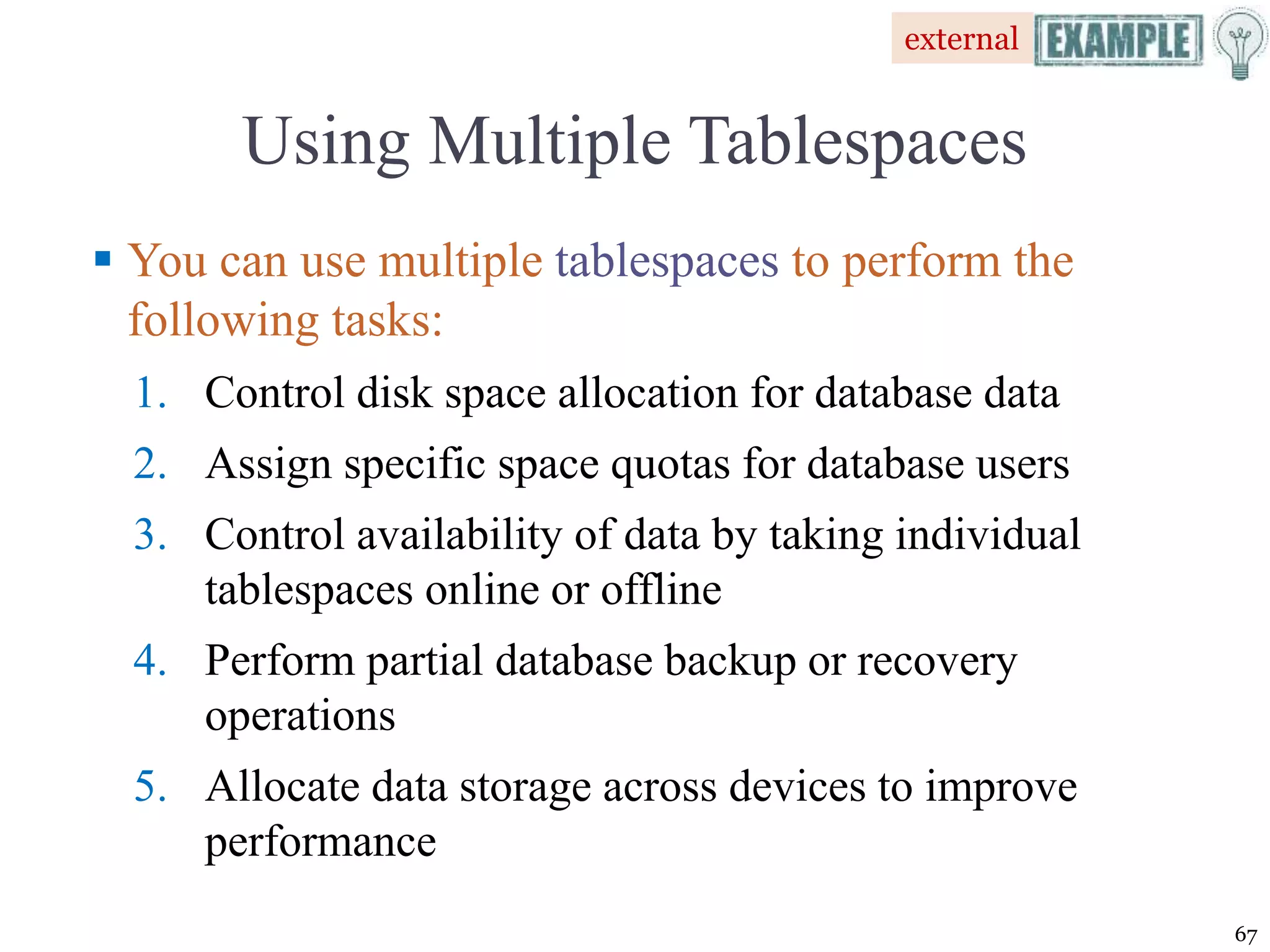

67. Using Multiple Tablespaces
 You can use multiple tablespaces to perform the
following tasks:
1. Control disk space allocation for database data
2. Assign specific space quotas for database users
3. Control availability of data by taking individual
tablespaces online or offline
4. Perform partial database backup or recovery
operations
5. Allocate data storage across devices to improve
performance
67
external

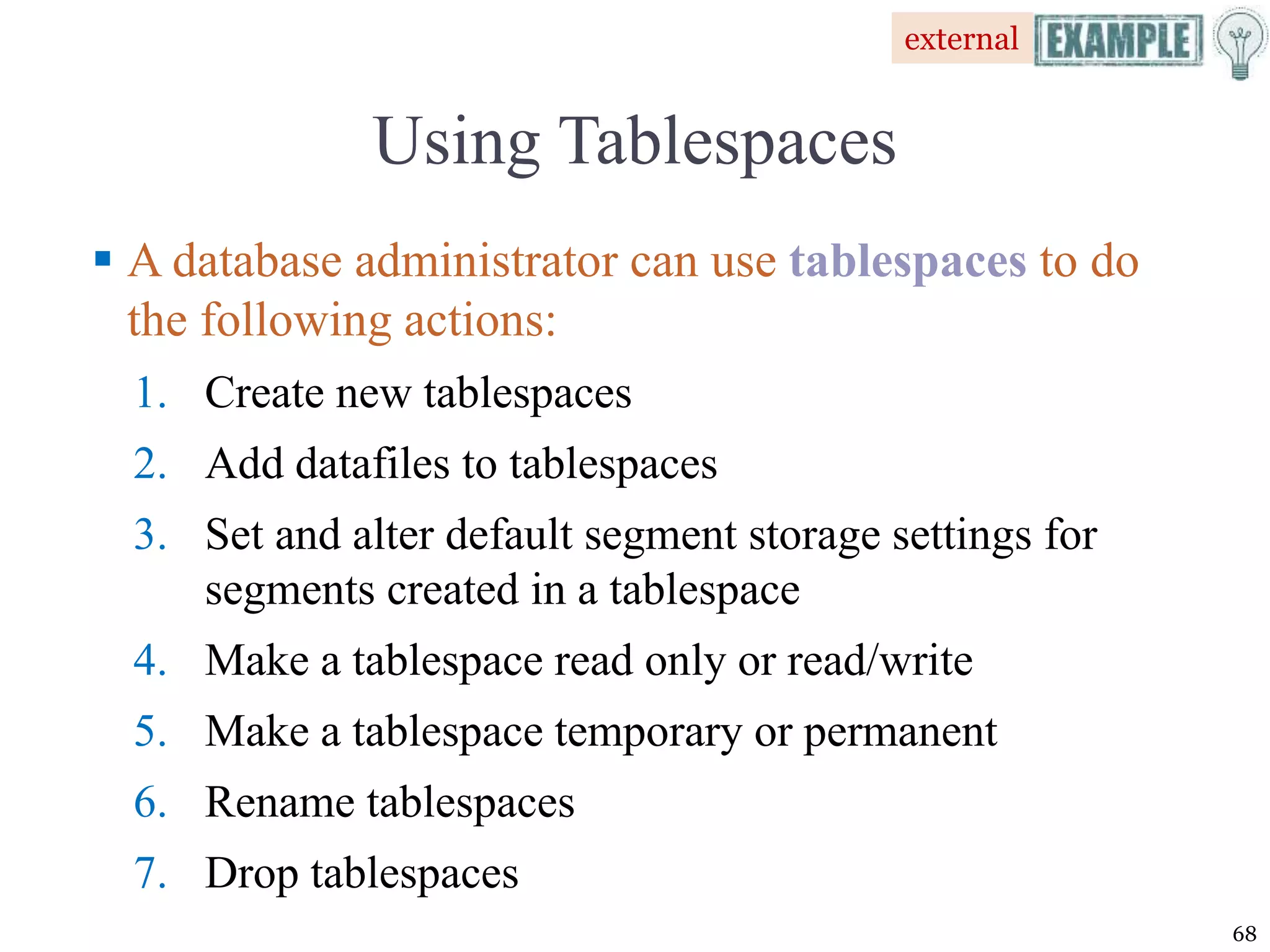

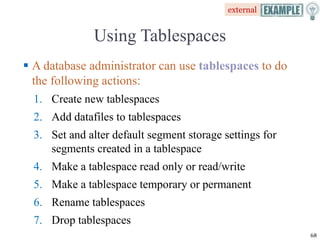

68. Using Tablespaces
 A database administrator can use tablespaces to do
the following actions:
1. Create new tablespaces
2. Add datafiles to tablespaces
3. Set and alter default segment storage settings for
segments created in a tablespace
4. Make a tablespace read only or read/write
5. Make a tablespace temporary or permanent
6. Rename tablespaces
7. Drop tablespaces
68
external

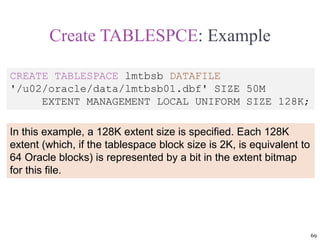

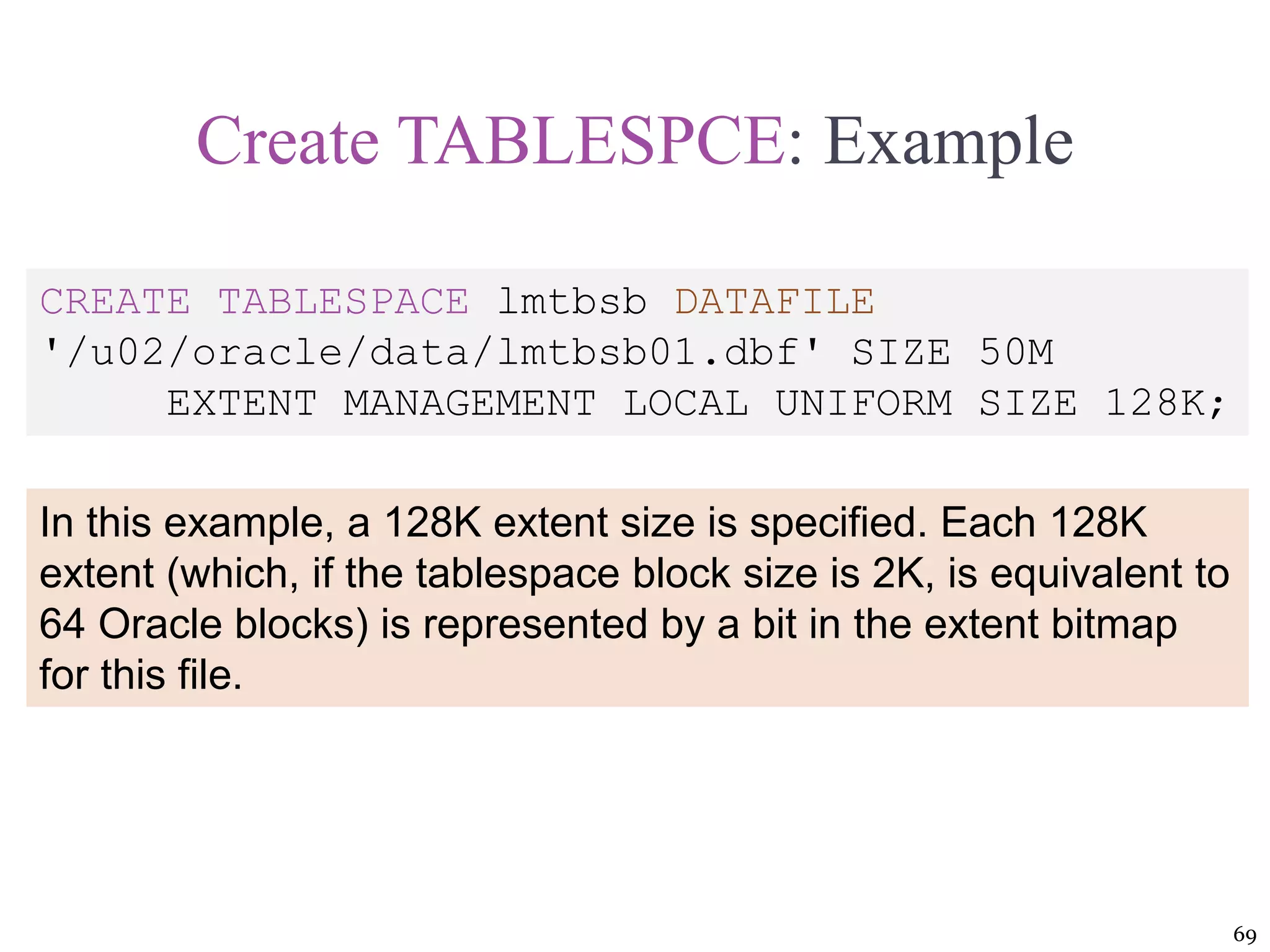

69. Create TABLESPCE: Example
69
CREATE TABLESPACE lmtbsb DATAFILE
'/u02/oracle/data/lmtbsb01.dbf' SIZE 50M
EXTENT MANAGEMENT LOCAL UNIFORM SIZE 128K;
In this example, a 128K extent size is specified. Each 128K
extent (which, if the tablespace block size is 2K, is equivalent to
64 Oracle blocks) is represented by a bit in the extent bitmap
for this file.

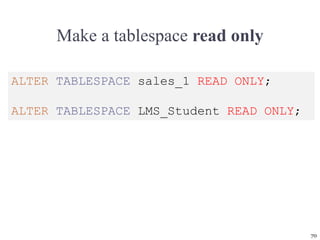

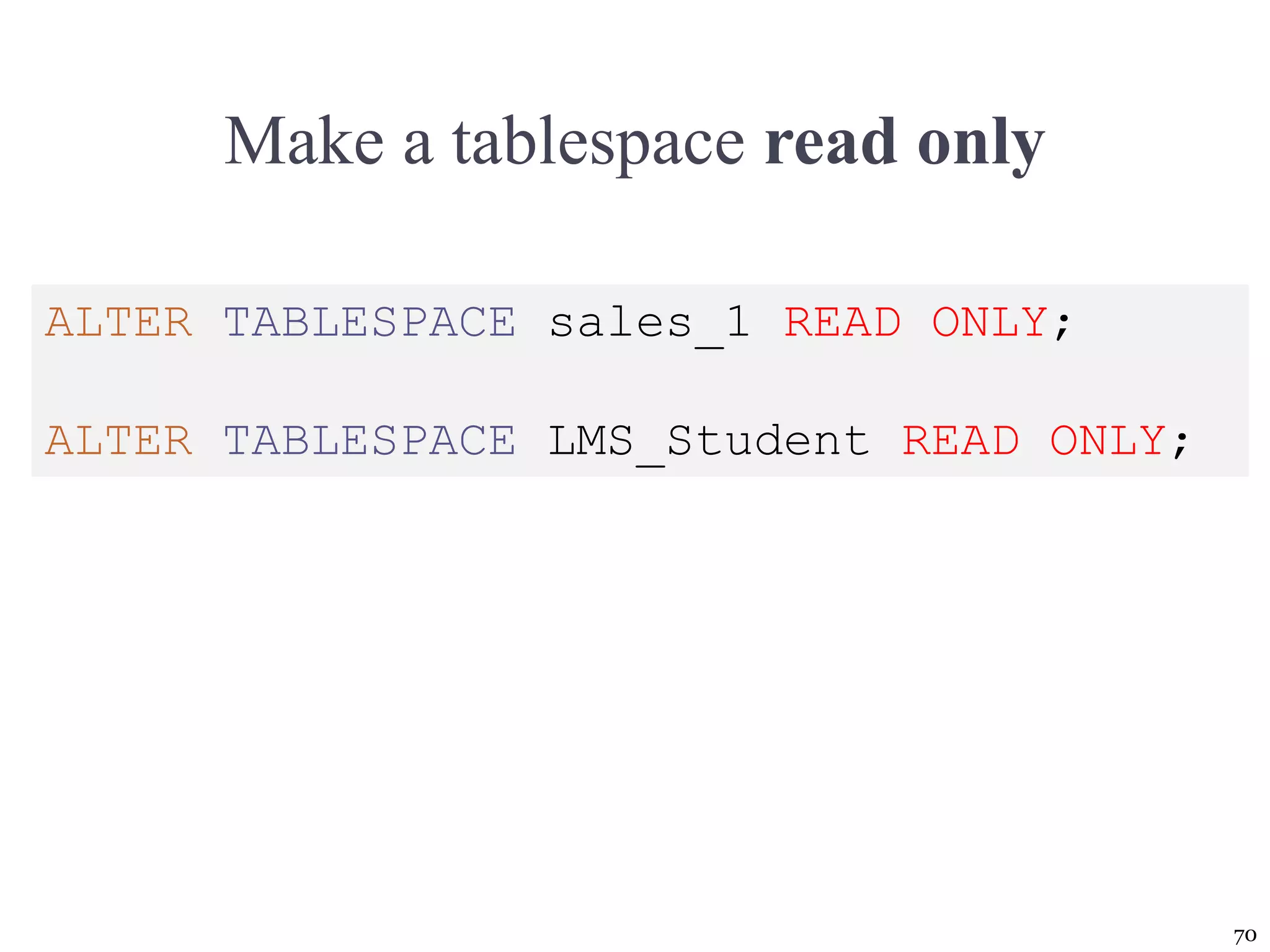

70. Make a tablespace read only
70
ALTER TABLESPACE sales_1 READ ONLY;
ALTER TABLESPACE LMS_Student READ ONLY;

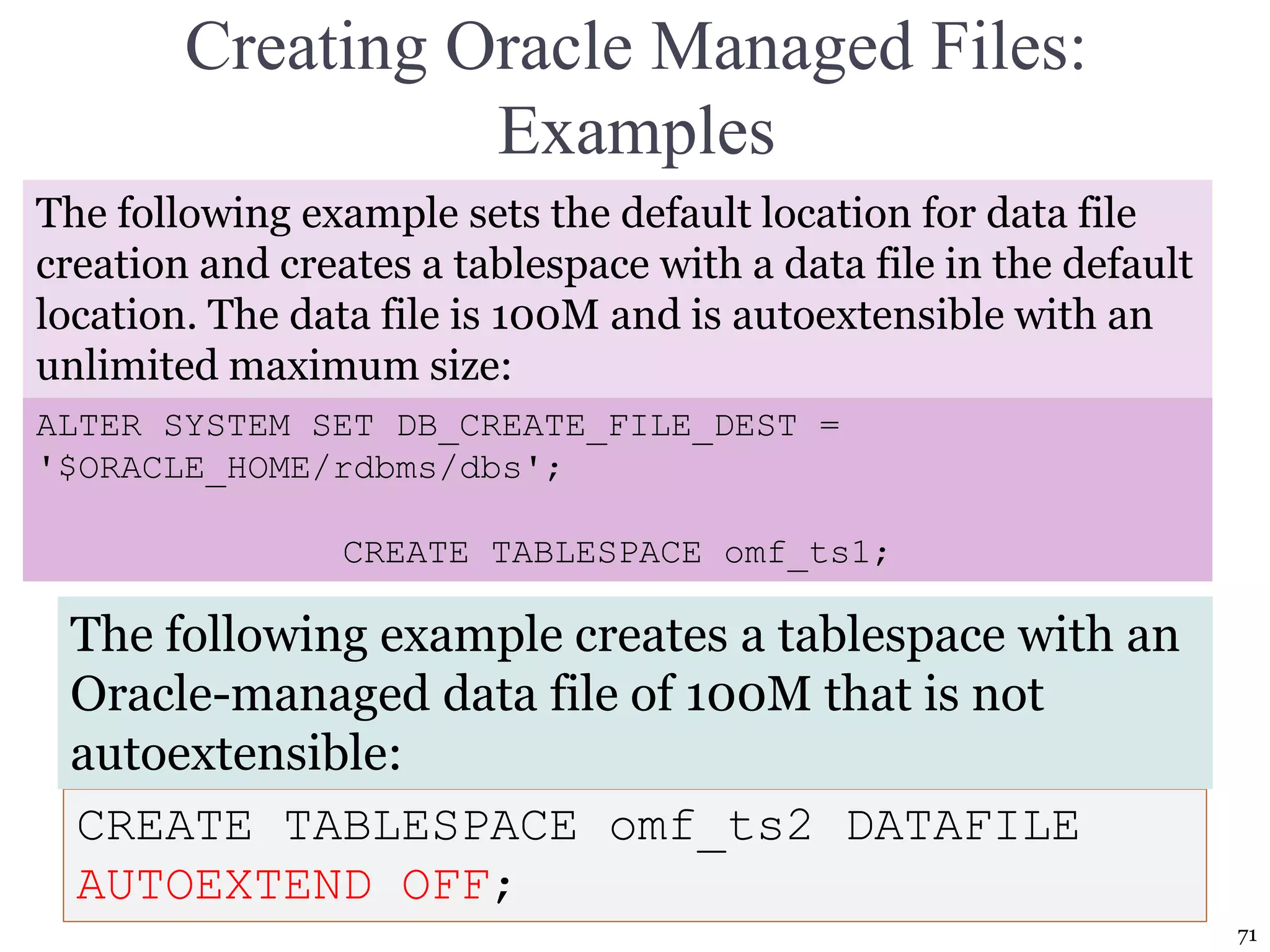

71. Creating Oracle Managed Files:
Examples
71
CREATE TABLESPACE omf_ts2 DATAFILE
AUTOEXTEND OFF;
The following example creates a tablespace with an
Oracle-managed data file of 100M that is not
autoextensible:
ALTER SYSTEM SET DB_CREATE_FILE_DEST =
'$ORACLE_HOME/rdbms/dbs';
CREATE TABLESPACE omf_ts1;
The following example sets the default location for data file
creation and creates a tablespace with a data file in the default
location. The data file is 100M and is autoextensible with an
unlimited maximum size:
