SOA / BPM – an overview
Jan Poortinga

2. Agenda
• SOA / BPM
• Fusion Middleware
• SOA Suite
• BPM Suite
• Fusion Applications

3. Channels
CRM ERP FinanceWeb
Presentation
Business processes
Data schemas
S %
+ -
< >
= |Business rules & logic * /
+ -
< >
= |
S %
* /
< >
= |
* /
+ -
< >
= |

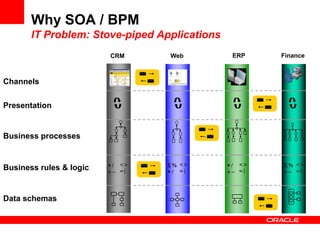

Why SOA / BPM
IT Problem: Stove-piped Applications

4. EIS Services EIS Services EIS Services
EIS EIS EIS
Application Integration
End-to-end Process Integration
With SOA/BPMBefore SOA/BPM
SOA / BPM

5. RMS
TopPlan
RDW
MAS
RDM
RDM
RDM
MAS
(Tandem)
RTE(Z)
Tandem
AIM
Sales
Audit
TMS
Sorter
PeopleSoft
(FMS)
PeopleSoft
(HR)
Stores Stores Stores Stores Stores
Credit
Switch
Credit
Authorizer
Tandem
(Fine
Jewlry)
Business
Warehouse
EJ
Aspect
ReconNet
EquityEdge
BlueBird
Planalytics

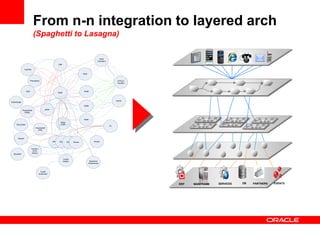

From n-n integration to layered arch
(Spaghetti to Lasagna)
PARTNERSDBERP MAINFRAME SERVICES EVENTS

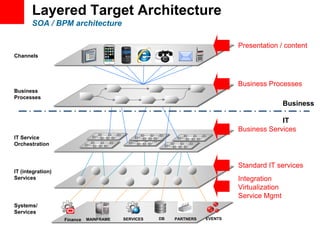

6. Layered Target Architecture
SOA / BPM architecture
Channels
Systems/
Services
IT (integration)
Services
Business
Processes
IT Service
Orchestration
Business
IT
Integration
Virtualization
Service Mgmt
Standard IT services
Business Services
Business Processes
PARTNERSDBFinance MAINFRAME SERVICES EVENTS
Presentation / content

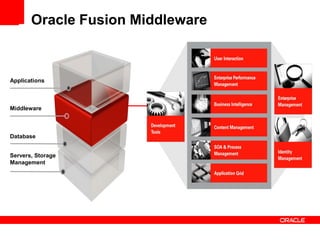

7. Oracle Fusion Middleware
Servers, Storage
Management
Database
Middleware
Applications

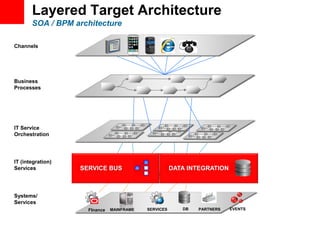

8. Layered Target Architecture
SOA / BPM architecture
Channels
Systems/
Services
IT (integration)
Services
Business
Processes
IT Service
Orchestration
PARTNERSDBFInance MAINFRAME SERVICES EVENTS
SERVICE BUS DATA INTEGRATION

9. Oracle Service Bus
• Scaling Your SOA
• Insulate from change, separation
of concerns
• Service Reuse & Tracking
• Service ManagementService
Service Service
Service
Oracle Service Bus
Portal BPEL

10. 10
MDM
Applications
SOA
Platforms
Oracle
Applications
Business
Intelligence
Activity
Monitoring
Custom
Applications
Oracle GoldenGate
Log-based CDC
Data Replication
Real-time Data
SOA Abstraction Layer
Service BusProcess Manager Data Services
Oracle Data Integrator
ELT/ETL
Data Transformation
Bulk Data Movement
OLTP
System
Flat FilesData Warehouse/
Data Mart
OLAP Cube Web 2.0 Web and Event
Services, SOAExadata
Data Verification
Oracle Data Quality
Data Profiling
Data Parsing
Data Cleansing
Data Federation
Data Lineage Match and Merge

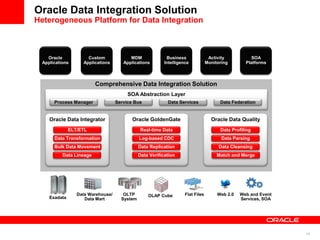

Comprehensive Data Integration Solution
Oracle Data Integration Solution
Heterogeneous Platform for Data Integration

11. Layered Target Architecture
SOA / BPM architecture
Channels
Systems/
Services
IT (integration)
Services
Business
Processes
IT Service
Orchestration
PARTNERSDBFInance MAINFRAME SERVICES EVENTS
SERVICE BUS DATA INTEGRATION
BPEL Process Manager

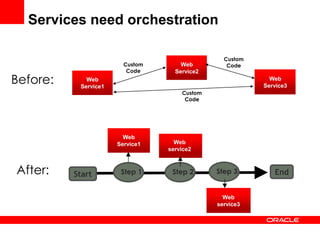

12. Services need orchestration
Start End
Web
Service1 Web
service2
Web
service3
Step 3Step 1 Step 2After:
Web
Service1
Web
Service2
Custom
Code
Custom
Code
Custom
Code
Before: Web
Service3

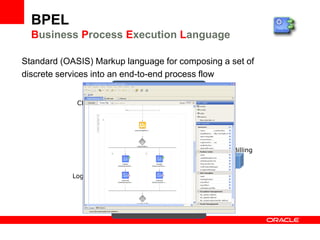

13. CRM
start
end
Logistics
Billing
Standard (OASIS) Markup language for composing a set of
discrete services into an end-to-end process flow
BPEL
Business Process Execution Language

14. Oracle BPEL Process Manager
Enterprise-strength infrastructure for Service Orchestration
Enterprise
Manager
MANAGE
BPEL
Jdeveloper
Composite Editor
BPEL Designer
Metadata Repository
Comprehensive and native
BPEL implementation
Easy-to-use modeling tool
Scalable and reliable engine
Rich management and
monitoring
SOA Service Infrastructure
BPEL
J2EE Application Server
(WebLogic, JBoss, WebSphere)
Human
Tasks
Rules

15. Layered Target Architecture
SOA / BPM architecture
Channels
Systems/
Services
IT (integration)
Services
Business
Processes
IT Service
Orchestration
PARTNERSDBFInance MAINFRAME SERVICES EVENTS
SERVICE BUS DATA INTEGRATION
BPEL PM
BPM
Business Rules
Human Workflow

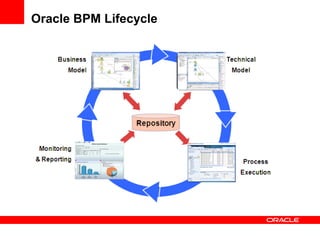

16. Oracle BPM Lifecycle

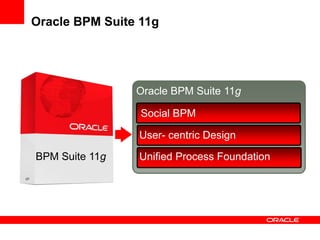

17. Oracle BPM Suite 11g
Unified Process Foundation
User- centric Design
Social BPM
Oracle BPM Suite 11g
BPM Suite 11g

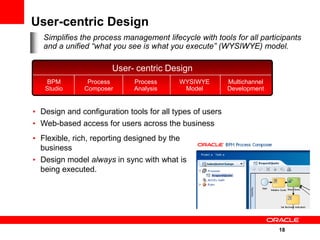

18. 18
User-centric Design
User- centric Design
BPM
Studio
Process
Composer
WYSIWYE
Model
Multichannel
Development
Process
Analysis
Simplifies the process management lifecycle with tools for all participants
and a unified “what you see is what you execute” (WYSIWYE) model.
• Flexible, rich, reporting designed by the
business
• Design model always in sync with what is
being executed.
• Design and configuration tools for all types of users
• Web-based access for users across the business

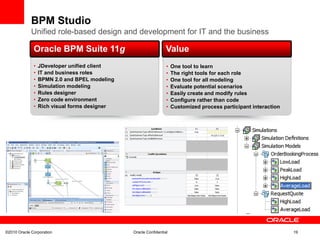

19. BPM Studio
Unified role-based design and development for IT and the business
Value
• JDeveloper unified client
• IT and business roles
• BPMN 2.0 and BPEL modeling
• Simulation modeling
• Rules designer
• Zero code environment
• Rich visual forms designer
Oracle BPM Suite 11g
• One tool to learn
• The right tools for each role
• One tool for all modeling
• Evaluate potential scenarios
• Easily create and modify rules
• Configure rather than code
• Customized process participant interaction
Oracle BPM Suite 11g Value
©2010 Oracle Corporation Oracle Confidential 19

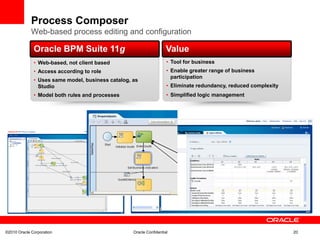

20. Process Composer
Web-based process editing and configuration
ValueOracle BPM Suite 11g
• Tool for business
• Enable greater range of business
participation
• Eliminate redundancy, reduced complexity
• Simplified logic management
Value
©2010 Oracle Corporation Oracle Confidential 20
• Web-based, not client based
• Access according to role
• Uses same model, business catalog, as
Studio
• Model both rules and processes
Oracle BPM Suite 11g

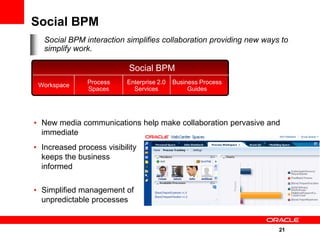

21. 21
Social BPM
Social BPM
Workspace Process
Spaces
Enterprise 2.0
Services
Business Process
Guides
Social BPM interaction simplifies collaboration providing new ways to
simplify work.
• New media communications help make collaboration pervasive and
immediate
• Increased process visibility
keeps the business
informed
• Simplified management of
unpredictable processes

22. 22
Unified Process Foundation
Unified Process Foundation
Unified
Engine
Business
Catalog
End-to-End
Management
Scalable
Architecture
Integration
Services
Simplifies process management with a unified process engine and pre-
integration of process subsystems.
Unified Engine
BPMN
Human
Workflow
Business
Rules
MediatorBPEL
• Manage all types of processes
• Single efficient engine with native BPMN 2.0 BPEL, Rules, and Human
Workflow execution
• Unified runtime with SOA, security with OPSS
• Process infrastructure will scale as the business grows
• Easily leverage Oracle Fusion Middleware and legacy systems

23. Repository
Business
Monitoring
Enterprise
Manager
JDev
Web
Policy
Manager
Unified Security, Management &
Visibility
ERP MAINFRAME SERVICES PARTNERSDB
BPEL PM
SERVICE BUS DATA INTEGRATION
BPM
Business Rules
Human Workflow

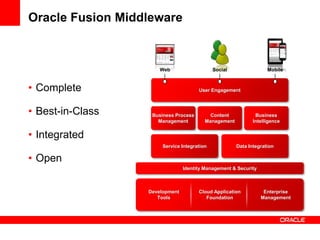

24. Oracle Fusion Middleware
User Engagement
Identity Management & Security
Business Process
Management
Content
Management
Business
Intelligence
Service Integration Data Integration
Development
Tools
Cloud Application
Foundation
Enterprise
Management
Web Social Mobile
• Complete
• Best-in-Class
• Integrated
• Open

25. 25
Engineered to Work Together
• Complete, Open, Integrated
Middleware
Oracle Fusion Middleware
Oracle Applications
• Complete. Open. Integrated.
• Certified on standards-based
Oracle Fusion Middleware 11g
© 2011 Oracle Corporation 25

26. Oracle Fusion Applications

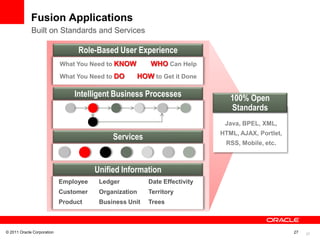

27. 27
Fusion Applications
Built on Standards and Services
Role-Based User Experience
What You Need to KNOW
What You Need to DO
WHO Can Help
HOW to Get it Done
Unified Information
Services
Intelligent Business Processes
Business Unit
Employee
Product
Customer
Date EffectivityLedger
Organization
Trees
Territory
Java, BPEL, XML,
HTML, AJAX, Portlet,
RSS, Mobile, etc.
100% Open
Standards
© 2011 Oracle Corporation 27

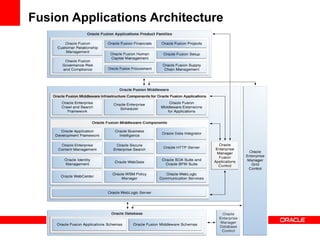

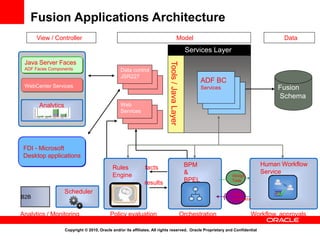

28. Fusion Applications Architecture

29. Copyright © 2010, Oracle and/or its affiliates. All rights reserved. Oracle Proprietary and Confidential
Fusion
Schema
Services Layer
ADF BC
Services
Tools/JavaLayer
Data control
JSR227
ModelView / Controller
Web
Services
Data
Rules
Engine Assign
Task
Task
Complete
Human Workflow
Service
BPM
&
BPELresults
facts
Analytics
WebCenter Services
Java Server Faces
ADF Faces Components
FDI - Microsoft
Desktop applications
Scheduler
Orchestration Workflow, approvalsPolicy evaluationAnalytics / Monitoring
Fusion Applications Architecture
B2B

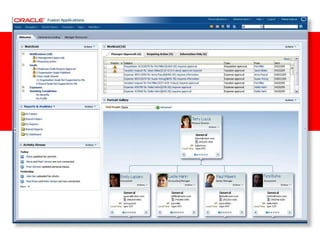

30. <Insert Picture Here>

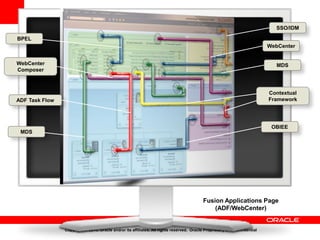

31. Copyright © 2010, Oracle and/or its affiliates. All rights reserved. Oracle Proprietary and Confidential
Fusion Applications Page
(ADF/WebCenter)
SSO/IDM
Contextual
Framework
MDS
OBIEE
BPEL
ADF Task Flow
MDS
WebCenter
WebCenter
Composer

32. Oracle Strategy
Comprehensive
Offering
Complete
Designed to
Work Together
Integrated
Industry Leader
Best of
Breed
#1
Standards-
Based
Architecture
Open
