1. LECTURER:UMAR TARIQ
MSC ANAESTHESIA/OTT

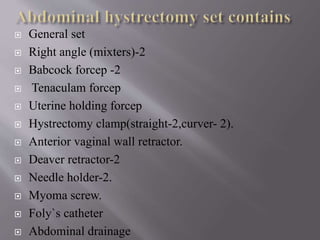

2.  General set
 Right angle (mixters)-2
 Babcock forcep -2
 Tenaculam forcep
 Uterine holding forcep
 Hystrectomy clamp(straight-2,curver- 2).
 Anterior vaginal wall retractor.
 Deaver retractor-2
 Needle holder-2.
 Myoma screw.
 Foly`s catheter
 Abdominal drainage

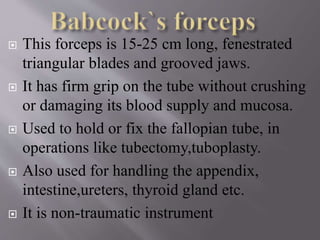

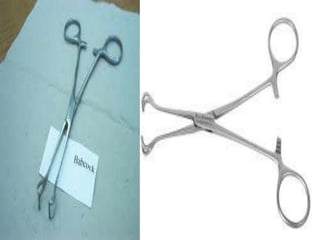

3.  This forceps is 15-25 cm long, fenestrated
triangular blades and grooved jaws.
 It has firm grip on the tube without crushing
or damaging its blood supply and mucosa.
 Used to hold or fix the fallopian tube, in
operations like tubectomy,tuboplasty.
 Also used for handling the appendix,
intestine,ureters, thyroid gland etc.
 It is non-traumatic instrument

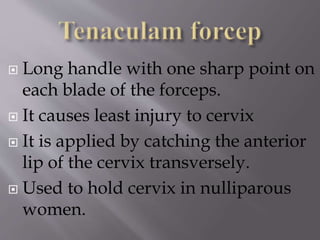

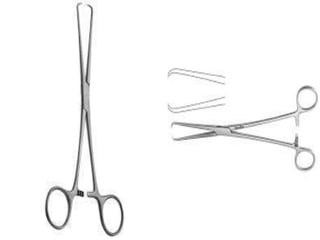

5.  Long handle with one sharp point on
each blade of the forceps.
 It causes least injury to cervix
 It is applied by catching the anterior
lip of the cervix transversely.
 Used to hold cervix in nulliparous
women.

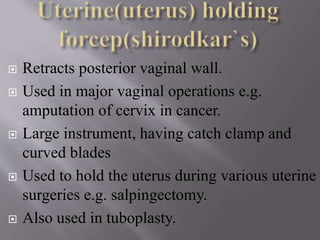

7.  Retracts posterior vaginal wall.
 Used in major vaginal operations e.g.
amputation of cervix in cancer.

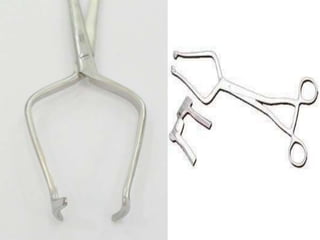

 Large instrument, having catch clamp and
curved blades
 Used to hold the uterus during various uterine
surgeries e.g. salpingectomy.
 Also used in tuboplasty.

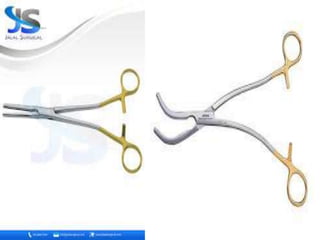

10.  Atraumatic jaws that holds tissue
firmly with minimal tissue demage.
 Tip serrations and longitudinal
grooves to prevent slippage
 Both straight and curved
 Mainly used for deeper pelvic
procedures and obese patients.

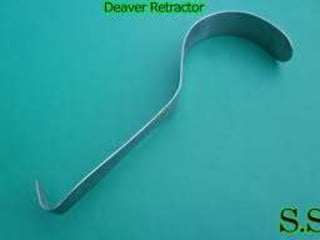

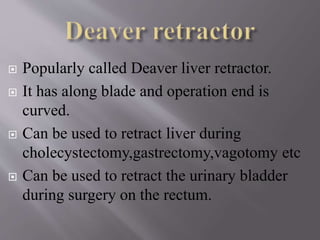

12.  Popularly called Deaver liver retractor.
 It has along blade and operation end is
curved.
 Can be used to retract liver during
cholecystectomy,gastrectomy,vagotomy etc
 Can be used to retract the urinary bladder
during surgery on the rectum.

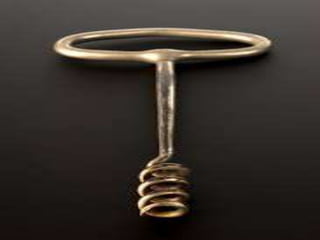

14.  This instrument is a coarse threaded screw
with a pointed tip and the other end is handle.
 It is screwed into the myoma which helps to
steady it and also heps to lift up the fibroid
which is then enucleated.
 Used to give traction to the uterus during
hystrectomy.

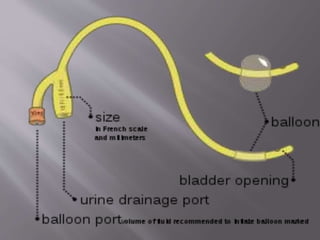

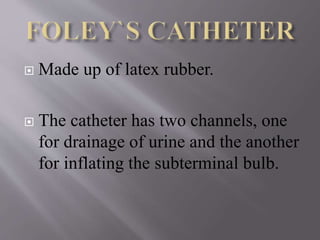

16.  Made up of latex rubber.
 The catheter has two channels, one
for drainage of urine and the another
for inflating the subterminal bulb.

17.  Retroverted gravid uterus with retension of
urine
 Monitoring of urine output in cases like
LSCS, eclampsia etc
 Prolonged obstructed labour
 Surgery on uterovaginal prolapse—3 days
 Abdominal hystrectomy—24 hrs
 Vesicovaginal fistula repair –7 days
 Repair of bladder injury 7 days
 LSCS—2-3 days

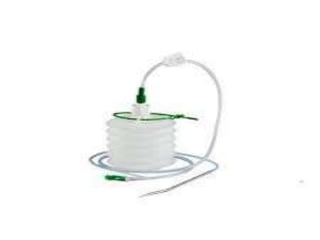

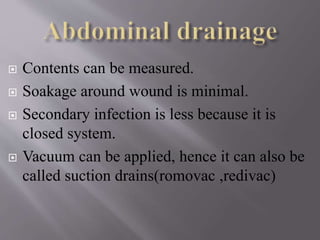

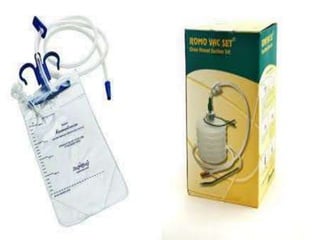

19.  Contents can be measured.
 Soakage around wound is minimal.
 Secondary infection is less because it is
closed system.
 Vacuum can be applied, hence it can also be
called suction drains(romovac ,redivac)
