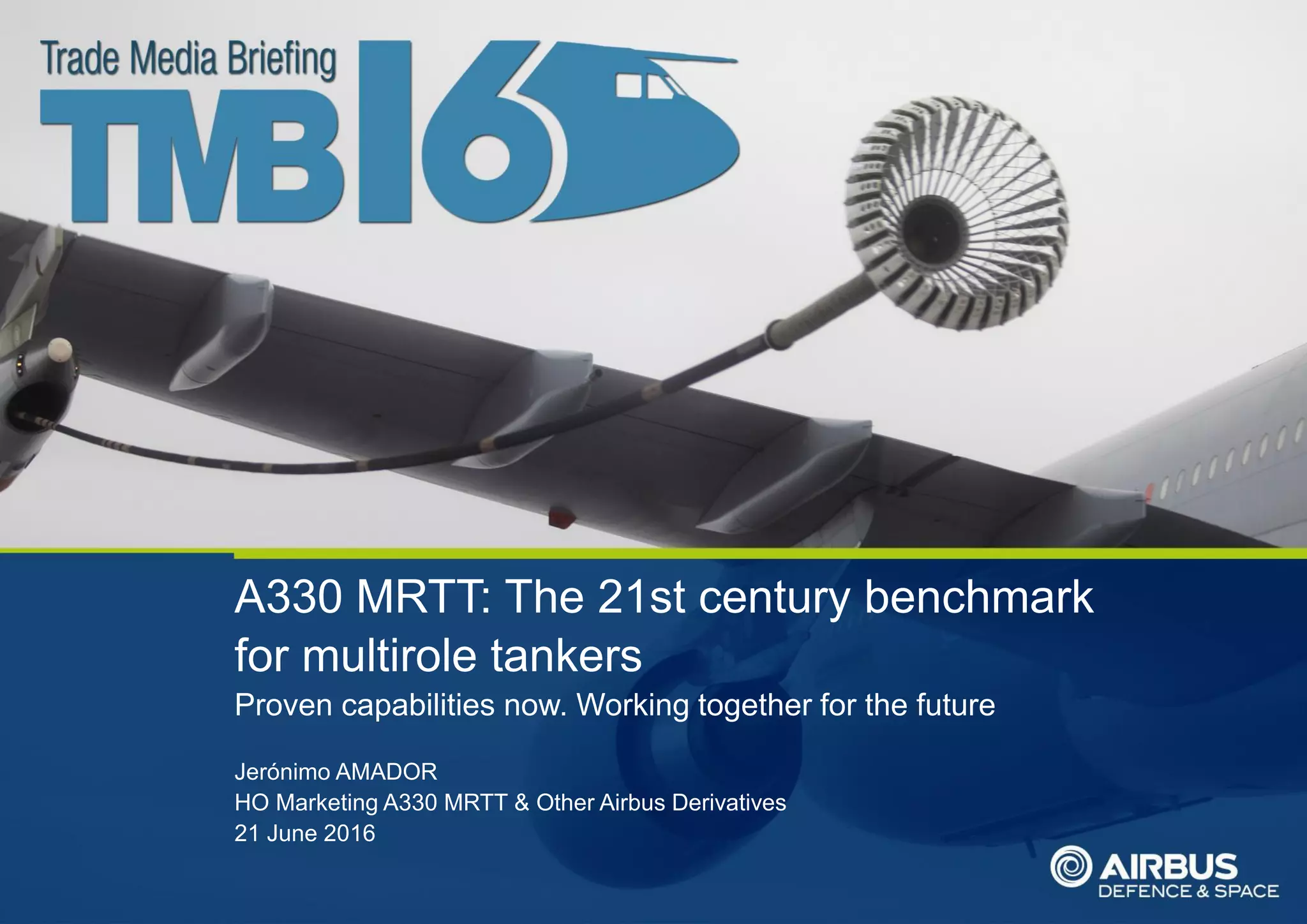

A330 MRTT: The 21st century benchmark
for multirole tankers
Proven capabilities now. Working together for the future
Jerónimo AMADOR
HO Marketing A330 MRTT & Other Airbus Derivatives
21 June 2016

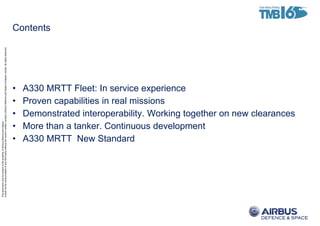

Contents
• A330 MRTT Fleet: In service experience
• Proven capabilities in real missions
• Demonstrated interoperability. Working together on new clearances
• More than a tanker. Continuous development
• A330 MRTT New Standard

5 Australia- RAAF
13 United Kingdom – RAF
6 Saudi Arabia- RSAF
3 United Arab Emirates- UAE AF&AD
27 A330 MRTT in service
A330 MRTT Fleet: In service experience growing at high speed
85,000+ FH
40,000 FH in last year
Outstanding reliability allows intensive operation
(over 1200 FH/aircraft in the last year) even in
demanding Middle East conditions

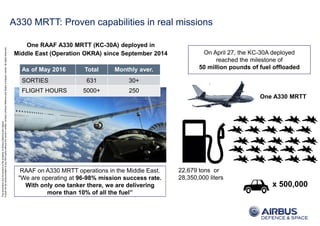

A330 MRTT: Proven capabilities in real missions
RAAF on A330 MRTT operations in the Middle East.
"We are operating at 96-98% mission success rate.
With only one tanker there, we are delivering
more than 10% of all the fuel”
As of May 2016 Total Monthly aver.
SORTIES 631 30+
FLIGHT HOURS 5000+ 250
On April 27, the KC-30A deployed
reached the milestone of
50 million pounds of fuel offloaded
One RAAF A330 MRTT (KC-30A) deployed in
Middle East (Operation OKRA) since September 2014
22,679 tons or
28,350,000 liters
x 500,000
One A330 MRTT

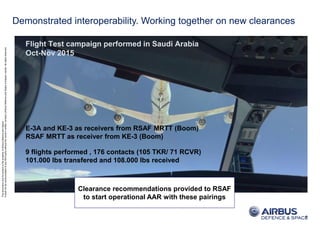

Demonstrated interoperability. Working together on new clearances
Flight Test campaign performed in Saudi Arabia
Oct-Nov 2015
E-3A and KE-3 as receivers from RSAF MRTT (Boom)
RSAF MRTT as receiver from KE-3 (Boom)
9 flights performed , 176 contacts (105 TKR/ 71 RCVR)
101.000 lbs transfered and 108.000 lbs received
5
Clearance recommendations provided to RSAF
to start operational AAR with these pairings

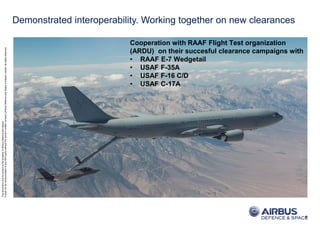

Cooperation with RAAF Flight Test organization
(ARDU) on their succesful clearance campaigns with
• RAAF E-7 Wedgetail
• USAF F-35A
• USAF F-16 C/D
• USAF C-17A
6

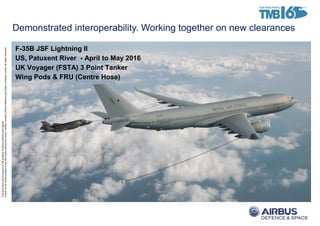

F-35B JSF Lightning II
US, Patuxent River - April to May 2016
UK Voyager (FSTA) 3 Point Tanker
Wing Pods & FRU (Centre Hose)

F-35AA400ME-7AA330 MRTTTornadoF-16F-15RafaleF-18Harrier IIMirage 2000F-35BKE-3C-130EA-6B
Eurofighter
Fully Interoperable with receivers all around the world
C-17

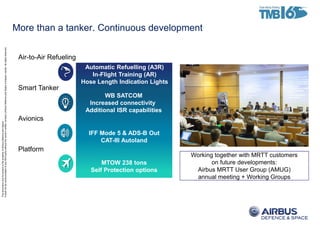

More than a tanker. Continuous development
Working together with MRTT customers
on future developments:
Airbus MRTT User Group (AMUG)
annual meeting + Working Groups
MTOW 238 tons
Self Protection options
Automatic Refuelling (A3R)
In-Flight Training (AR)
Hose Length Indication Lights
WB SATCOM
Increased connectivity
Additional ISR capabilities
IFF Mode 5 & ADS-B Out
CAT-III Autoland
Air-to-Air Refueling
Smart Tanker
Avionics
Platform

• Augmented reality with
a synthetic receiver
integrated in the
images of the real
boom and real
environment
• Tested in A310 Test
Bed
• Allows simulated
contacts with synthetic
receivers being fully
representative (boom
handling qualities –
Receiver motion) of a
real operation
10
In Flight Training: Real Tanker + Augmented Reality

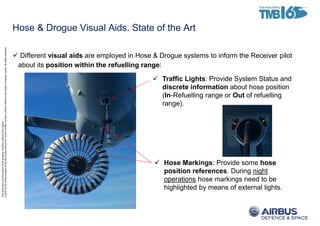

Hose & Drogue Visual Aids. State of the Art
 Different visual aids are employed in Hose & Drogue systems to inform the Receiver pilot
about its position within the refuelling range:
 Hose Markings: Provide some hose
position references. During night
operations hose markings need to be
highlighted by means of external lights.
 Traffic Lights: Provide System Status and
discrete information about hose position
(In-Refuelling range or Out of refuelling
range).

CONTACT
READY FOR
CONTACT
 In the Underwing Pods, the leds are
placed in the tail of the rear fairing.

13
 First Hardware received Feb 2016
 Integration in A310 Flight Testbed for flight evaluation
(pod lights) Mar 2016
Tested on A310 Testbed in
an underfuselage position.
- Satisfactory visibility reported by receiver pilots
- Improve Situational Awareness of the receiver pilots
Approach/separation rates
- Planned to be tested 2H2016 on real underwing Pods

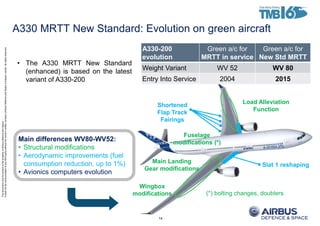

A330 MRTT New Standard: Evolution on green aircraft
14
Shortened
Flap Track
Fairings
Wingbox
modifications
Fuselage
modifications (*)
Load Alleviation
Function
Slat 1 reshaping
Main Landing
Gear modifications
Main differences WV80-WV52:
• Structural modifications
• Aerodynamic improvements (fuel
consumption reduction, up to 1%)
• Avionics computers evolution
(*) bolting changes, doublers
A330-200
evolution
Green a/c for
MRTT in service
Green a/c for
New Std MRTT
Weight Variant WV 52 WV 80
Entry Into Service 2004 2015
• The A330 MRTT New Standard
(enhanced) is based on the latest
variant of A330-200

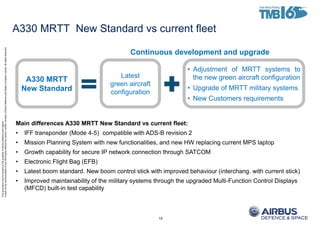

A330 MRTT New Standard vs current fleet
15
Main differences A330 MRTT New Standard vs current fleet:
• IFF transponder (Mode 4-5) compatible with ADS-B revision 2
• Mission Planning System with new functionalities, and new HW replacing current MPS laptop
• Growth capability for secure IP network connection through SATCOM
• Electronic Flight Bag (EFB)
• Latest boom standard. New boom control stick with improved behaviour (interchang. with current stick)
• Improved maintainability of the military systems through the upgraded Multi-Function Control Displays
(MFCD) built-in test capability
Latest
green aircraft
configuration
• Adjustment of MRTT systems to
the new green aircraft configuration
• Upgrade of MRTT military systems
• New Customers requirements
A330 MRTT
New Standard
Continuous development and upgrade

Presentation Title runs here (go to Header & Footer to edit this text)

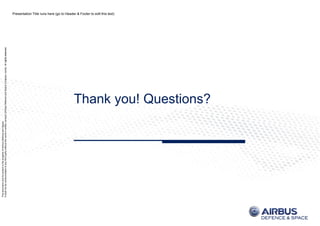

Thank you! Questions?
