- 1. A400M Flight TestUpdate May 2013 Presented by Eric ISORCE / Head of A400M Flight Tests

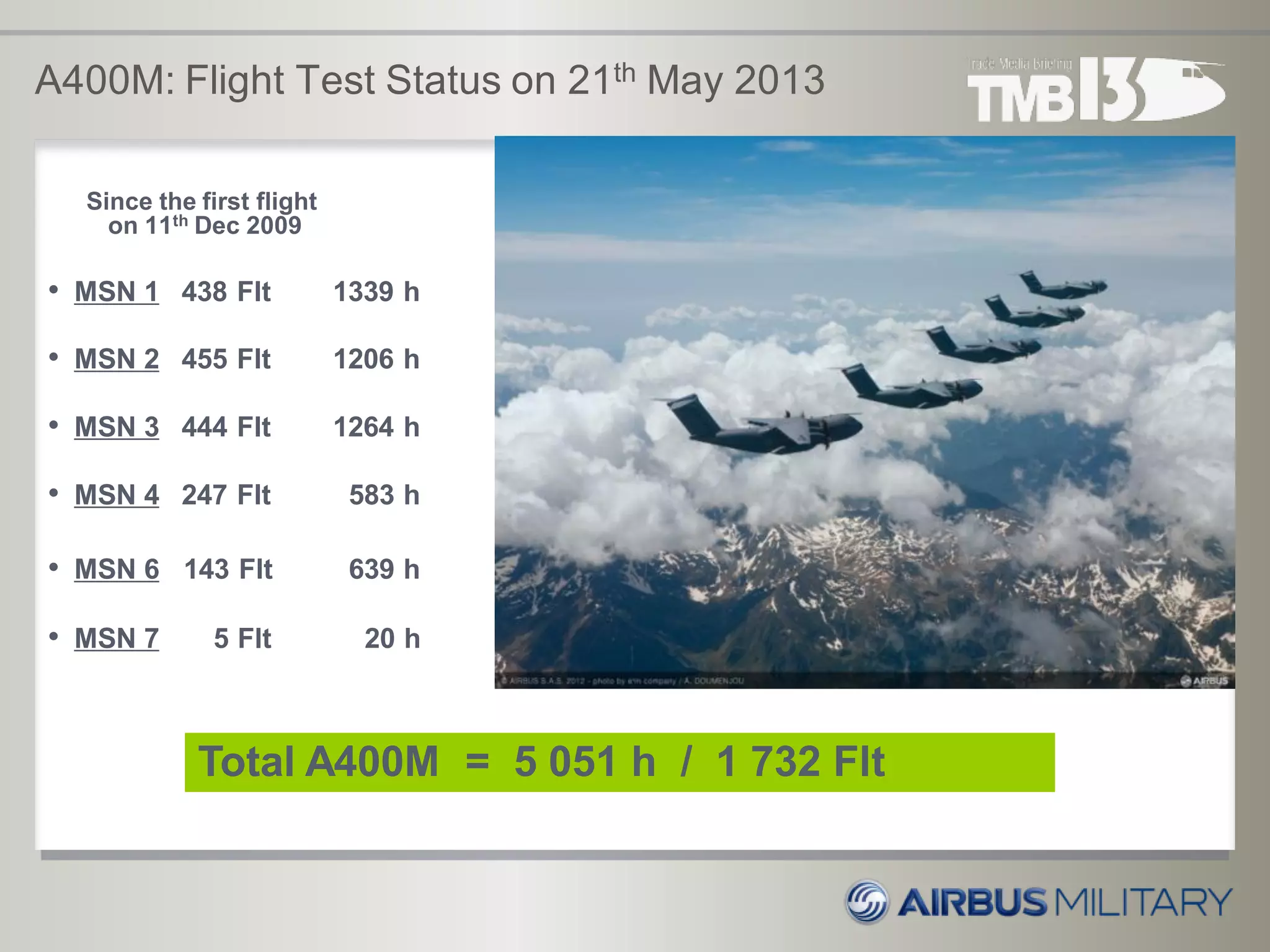

- 2. Since the firstflight on 11th Dec 2009 • MSN 1 438 Flt 1339 h • MSN 2 455 Flt 1206 h • MSN 3 444 Flt 1264 h • MSN 4 247 Flt 583 h • MSN 6 143 Flt 639 h • MSN 7 5 Flt 20 h A400M: Flight Test Status on 21th May 2013 Total A400M = 5 051 h / 1 732 Flt

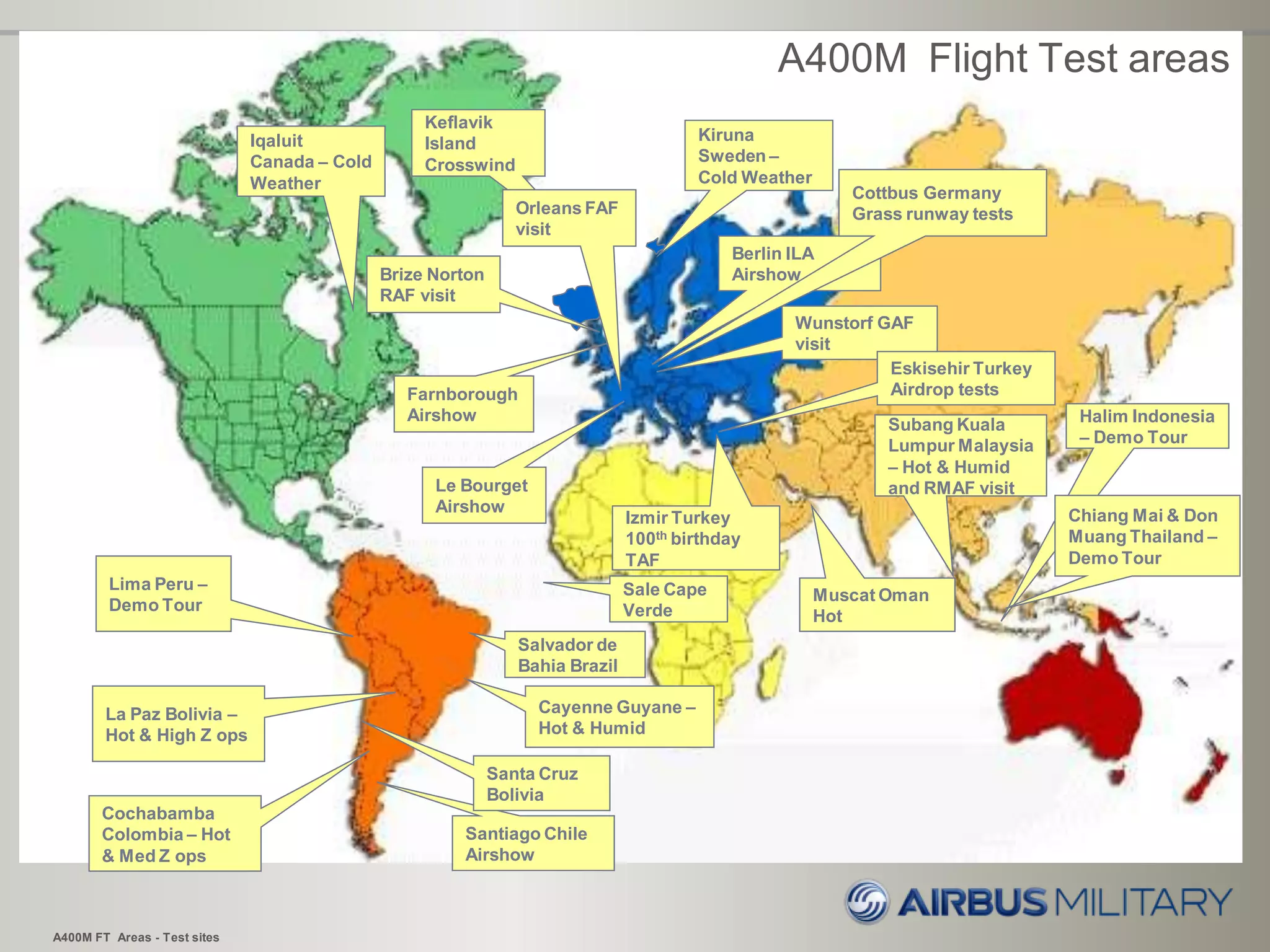

- 3. Berlin ILA Airshow A400M FTAreas - Test sites La Paz Bolivia – Hot & High Z ops Lima Peru – Demo Tour Subang Kuala Lumpur Malaysia – Hot & Humid and RMAF visit Cayenne Guyane – Hot & Humid Le Bourget Airshow Farnborough Airshow Kiruna Sweden – Cold Weather Cochabamba Colombia – Hot & Med Z ops Halim Indonesia – Demo Tour Santiago Chile Airshow Izmir Turkey 100th birthday TAF Brize Norton RAF visit Muscat Oman Hot Santa Cruz Bolivia Sale Cape Verde Salvador de Bahia Brazil Chiang Mai & Don Muang Thailand – Demo Tour A400M Flight Test areas Iqaluit Canada – Cold Weather Wunstorf GAF visit Keflavik Island Crosswind Orleans FAF visit Eskisehir Turkey Airdrop tests Cottbus Germany Grass runway tests

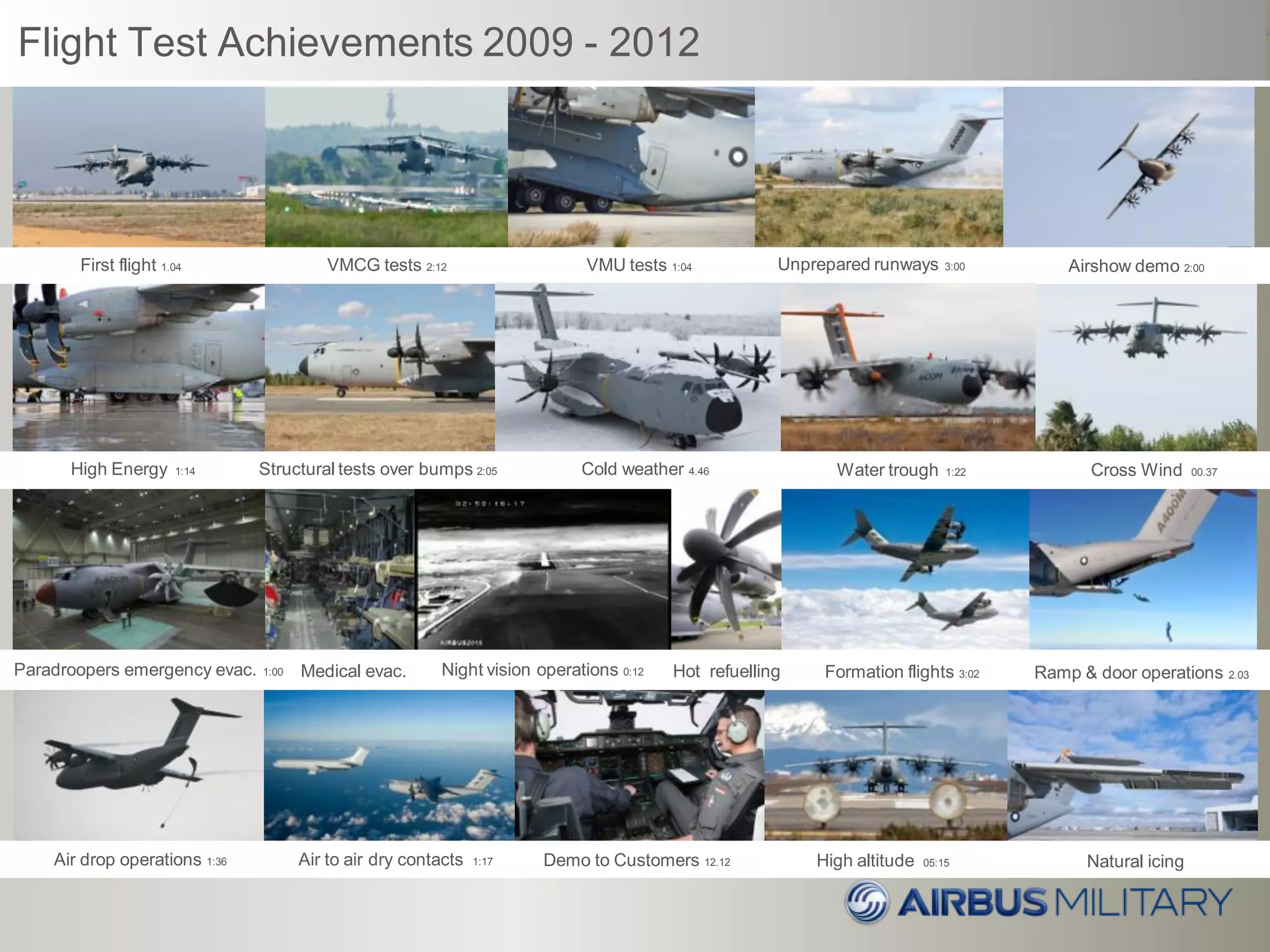

- 4. Flight Test Achievements2009 - 2012 Natural icingDemo to Customers 12.12Air drop operations 1:36 Air to air dry contacts 1:17 High altitude 05:15 Paradroopers emergency evac. 1:00 Medical evac. Hot refuelling Ramp & door operations 2.03Night vision operations 0:12 Formation flights 3:02 VMU tests 1:04 Airshow demo 2:00First flight 1.04 VMCG tests 2:12 Unprepared runways 3:00 High Energy 1:14 Structural tests over bumps 2:05 Cold weather 4.46 Cross Wind 00.37Water trough 1:22
- 5. Flight Test Achievements2013 & tests ongoing Operations on laterite runway Ablitas in June13 with MSN2 Aircraft identification and signature at Manching on MSN6 ongoing DASS - Radar Warning Receiver in Cazaux and Background recording at Meppen Defense AIDS System Flares and Chaff Ejection, Sensors 500 flares ejection over El Arenosillo test range Military mission management system Integral to most Military Systems & includes Functions such as Mil Terrain Ground Collision Avoidance – Tests on-going Airdrop static lines done - Paratroops May-July13 and Gravity Loads ongoing Ground loading / unloading Clearance of Multiple Loads (including Helicopter loading) Braking Max Energy MERTO in LFBO Toulouse April13 Communications Military Suite Tests on-going Airshows at Le Bourget RIAT + Rhyadh with MSN6 F & R Testing campaign on MSN6 tests completed in Dec12 Climatic Envelope Expansion in Iqaluit Canada Jan13

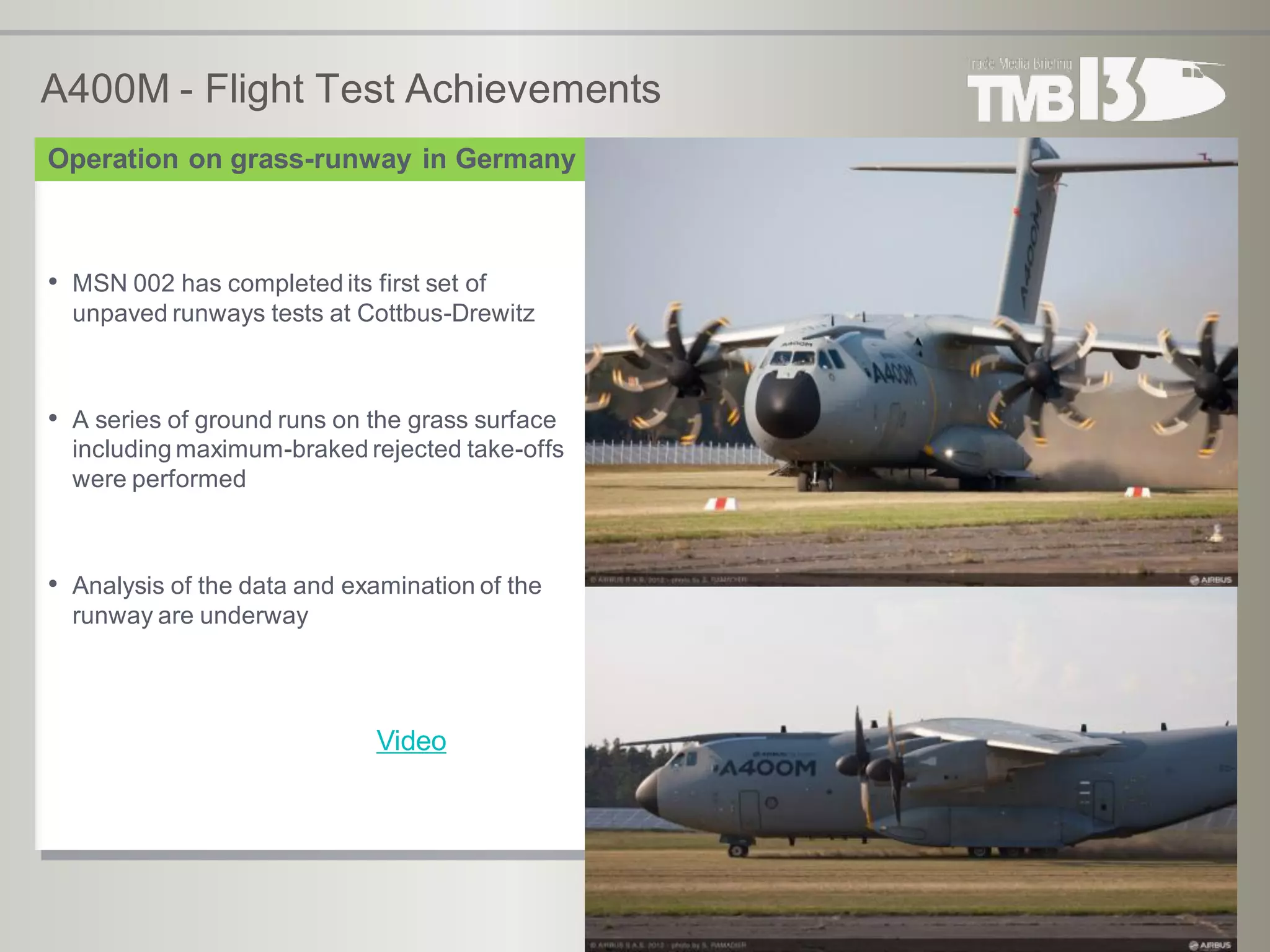

- 6. A400M - FlightTest Achievements • MSN 002 has completed its first set of unpaved runways tests at Cottbus-Drewitz • A series of ground runs on the grass surface including maximum-braked rejected take-offs were performed • Analysis of the data and examination of the runway are underway Operation on grass-runway in Germany Video

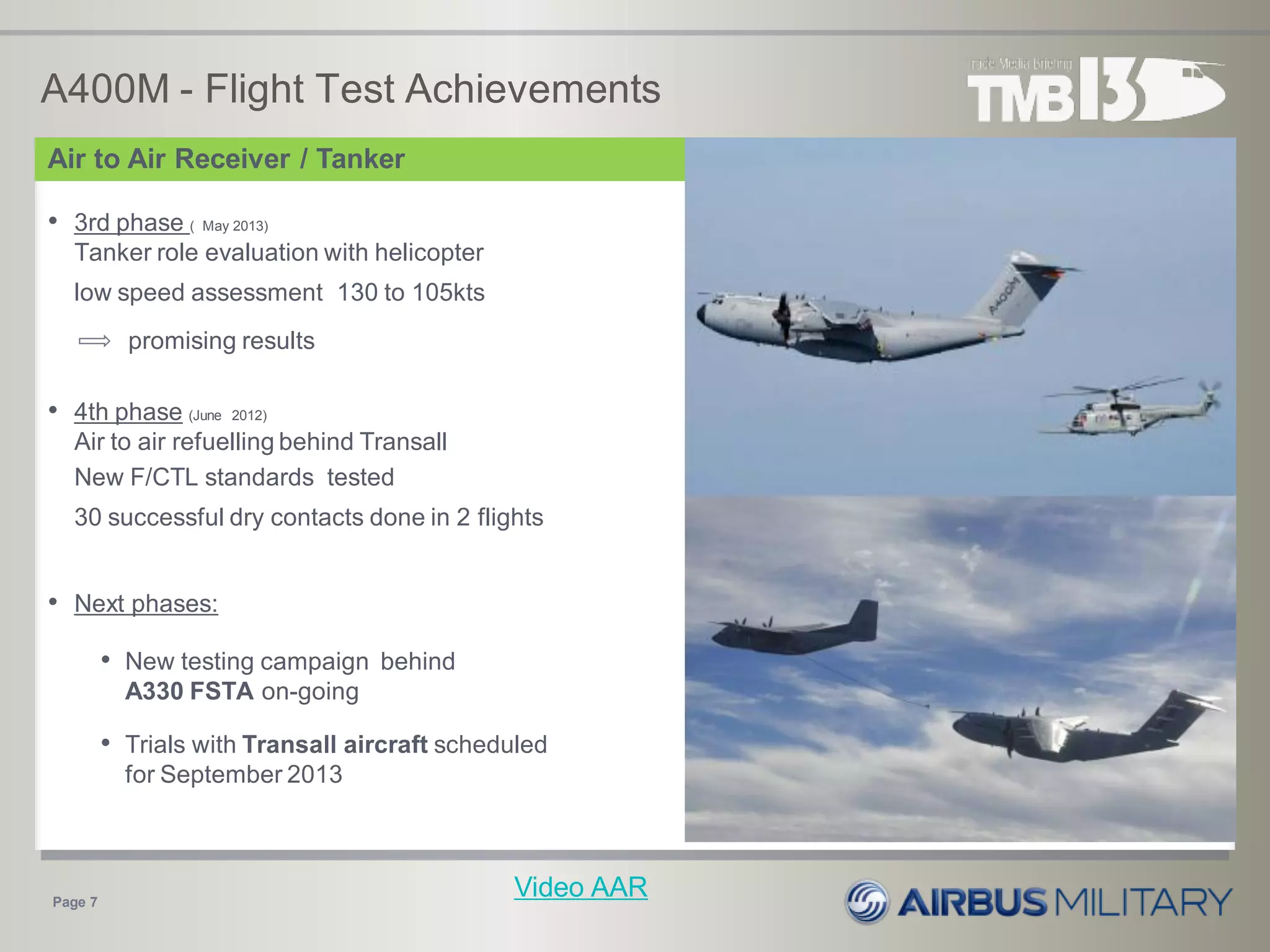

- 7. A400M - FlightTest Achievements • 3rd phase ( May 2013) Tanker role evaluation with helicopter 0 low speed assessment 130 to 105kts promising results • 4th phase (June 2012) Air to air refuelling behind Transall New F/CTL standards tested 0 30 successful dry contacts done in 2 flights • Next phases: • New testing campaign behind A330 FSTA on-going • Trials with Transall aircraft scheduled for September 2013 Page 7 Air to Air Receiver / Tanker Video AAR

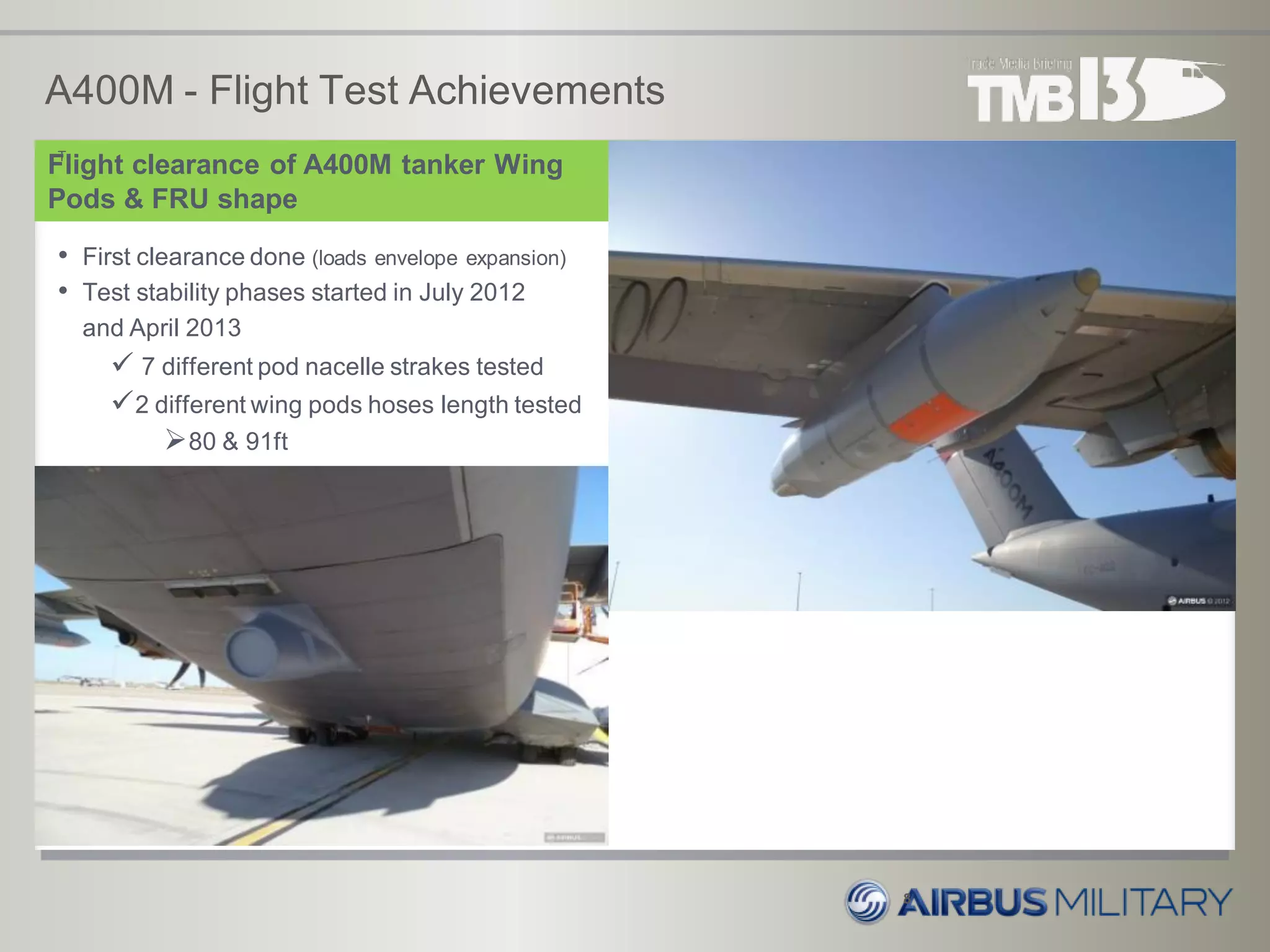

- 8. A400M - FlightTest Achievements 8 Flight clearance of A400M tanker Wing Pods & FRU shape T • First clearance done (loads envelope expansion) • Test stability phases started in July 2012 and April 2013 7 different pod nacelle strakes tested 2 different wing pods hoses length tested 80 & 91ft

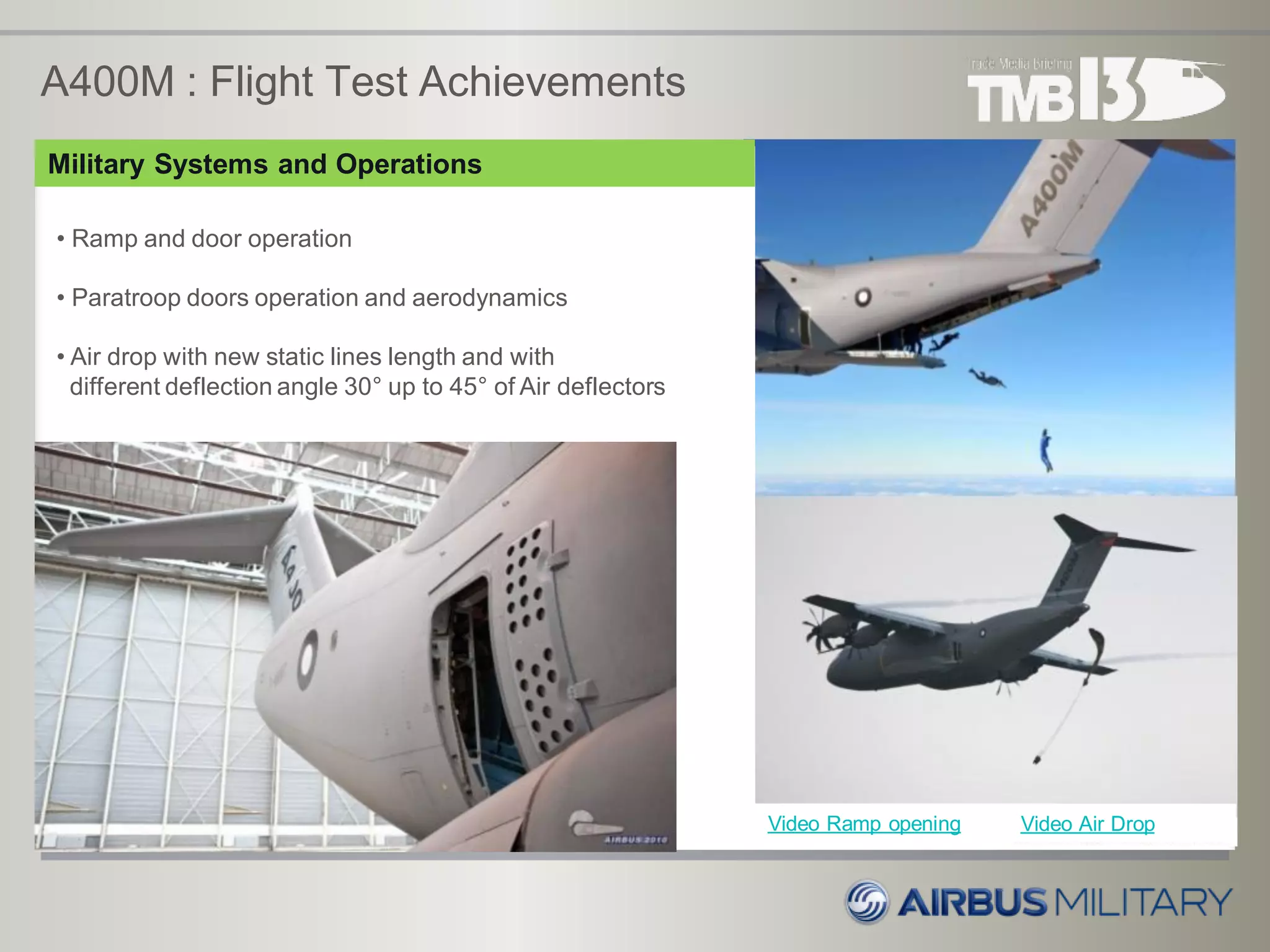

- 9. A400M : FlightTest Achievements • Ramp and door operation • Paratroop doors operation and aerodynamics • Air drop with new static lines length and with different deflection angle 30° up to 45° of Air deflectors Video Ramp opening Video Air Drop Military Systems and Operations

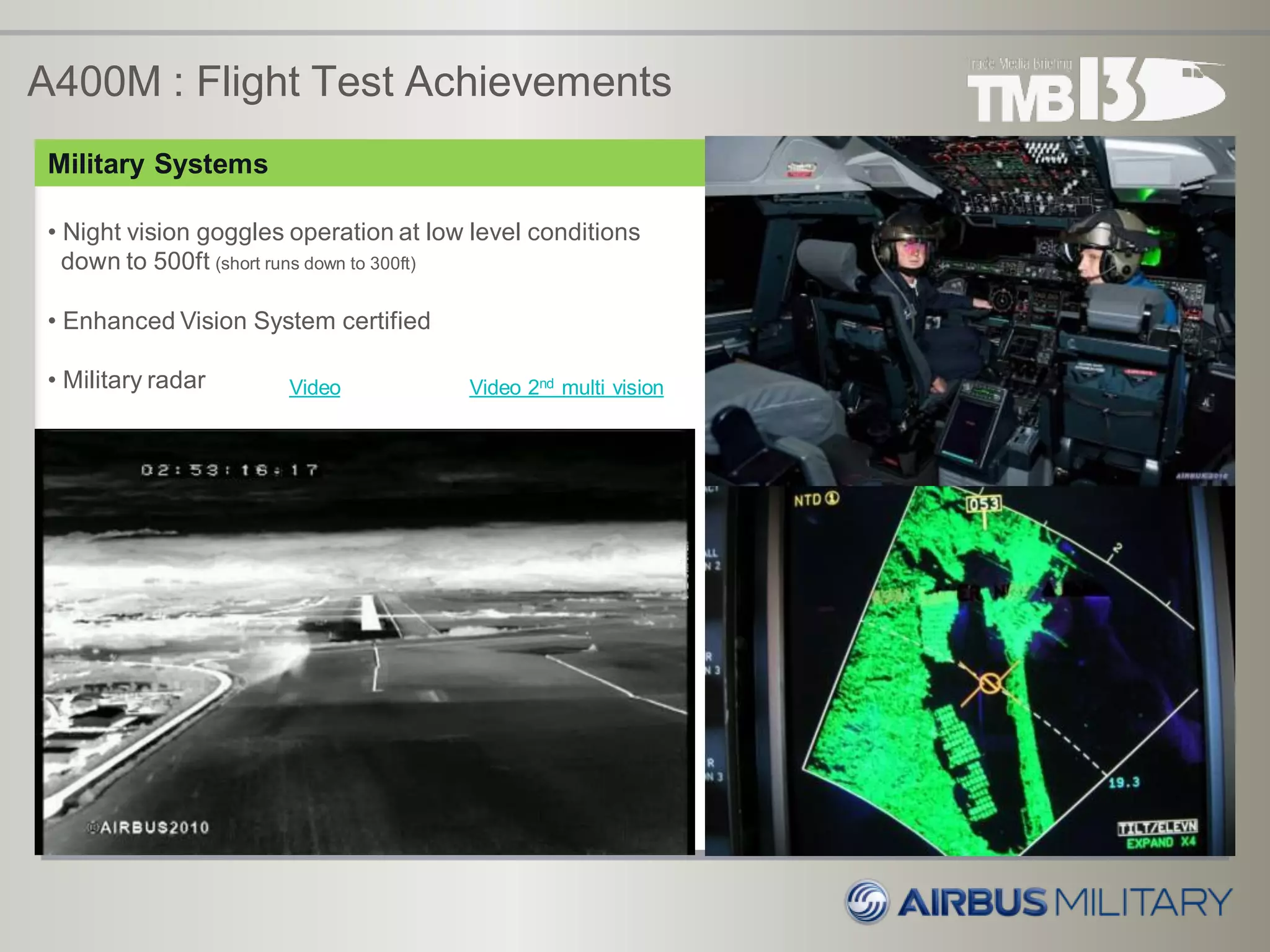

- 10. A400M : FlightTest Achievements Military Systems • Night vision goggles operation at low level conditions down to 500ft (short runs down to 300ft) • Enhanced Vision System certified • Military radar Video Video 2nd multi vision

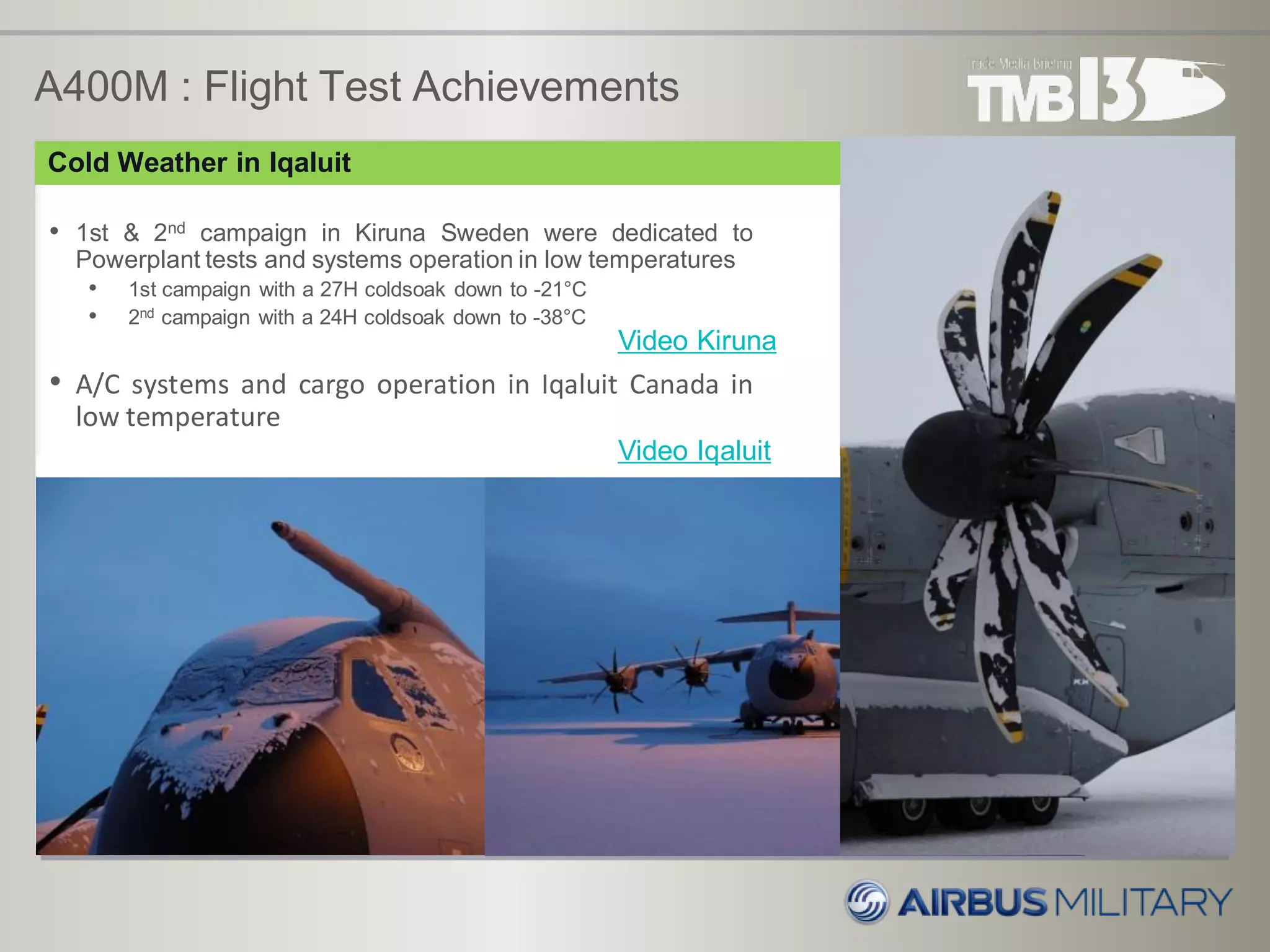

- 11. A400M : FlightTest Achievements • 1st & 2nd campaign in Kiruna Sweden were dedicated to Powerplant tests and systems operation in low temperatures • 1st campaign with a 27H coldsoak down to -21°C • 2nd campaign with a 24H coldsoak down to -38°C • A/C systems and cargo operation in Iqaluit Canada in low temperature Video Kiruna Cold Weather in Iqaluit Video Iqaluit

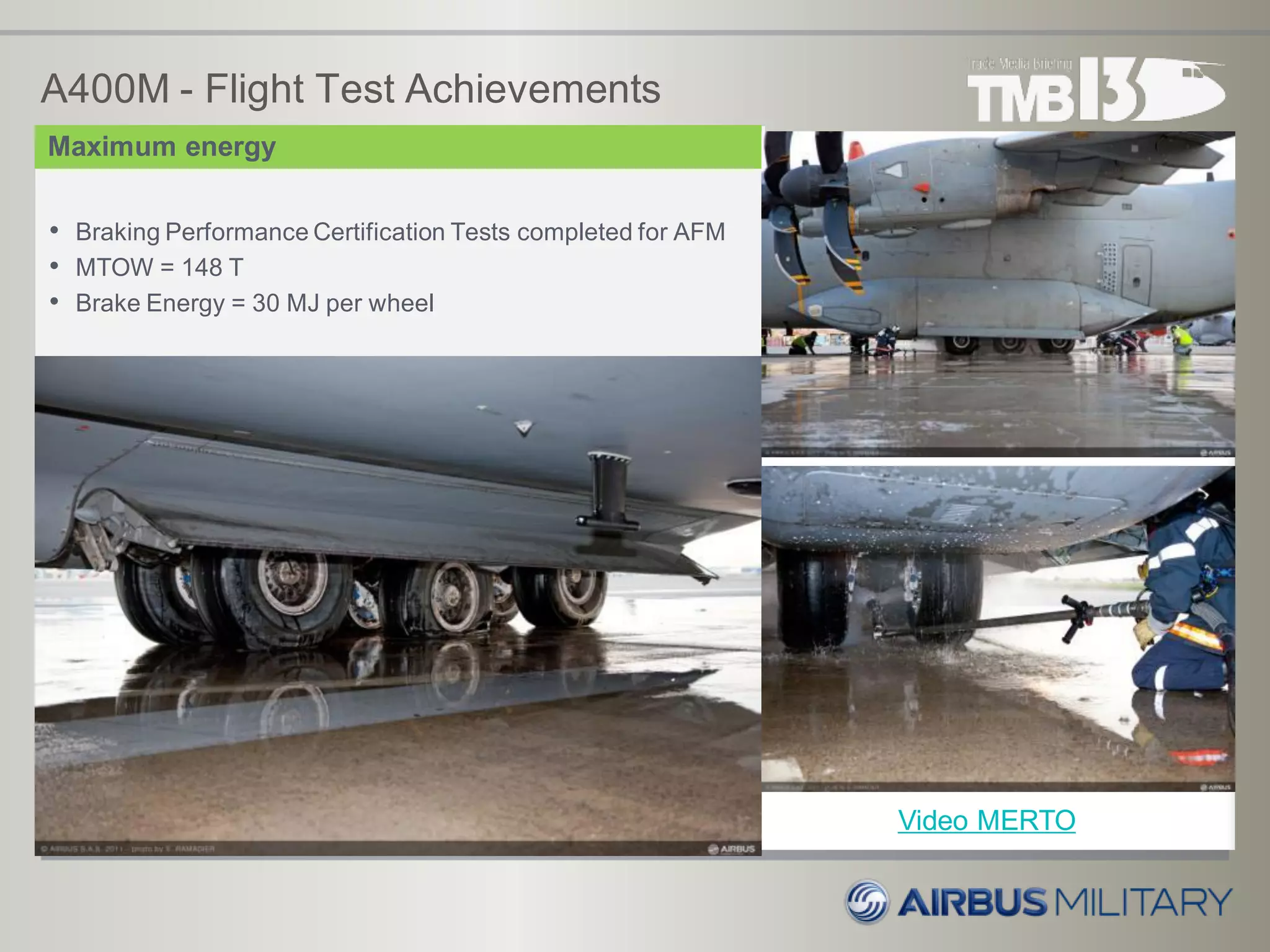

- 12. A400M - FlightTest Achievements • Braking Performance Certification Tests completed for AFM • MTOW = 148 T • Brake Energy = 30 MJ per wheel Maximum energy Video MERTO
- 13. A400M - FlightTest Achievements • 13 Demonstration flight with Customers • German Airforce • French Airforce • British Royal Air Force • Turkish Airforce

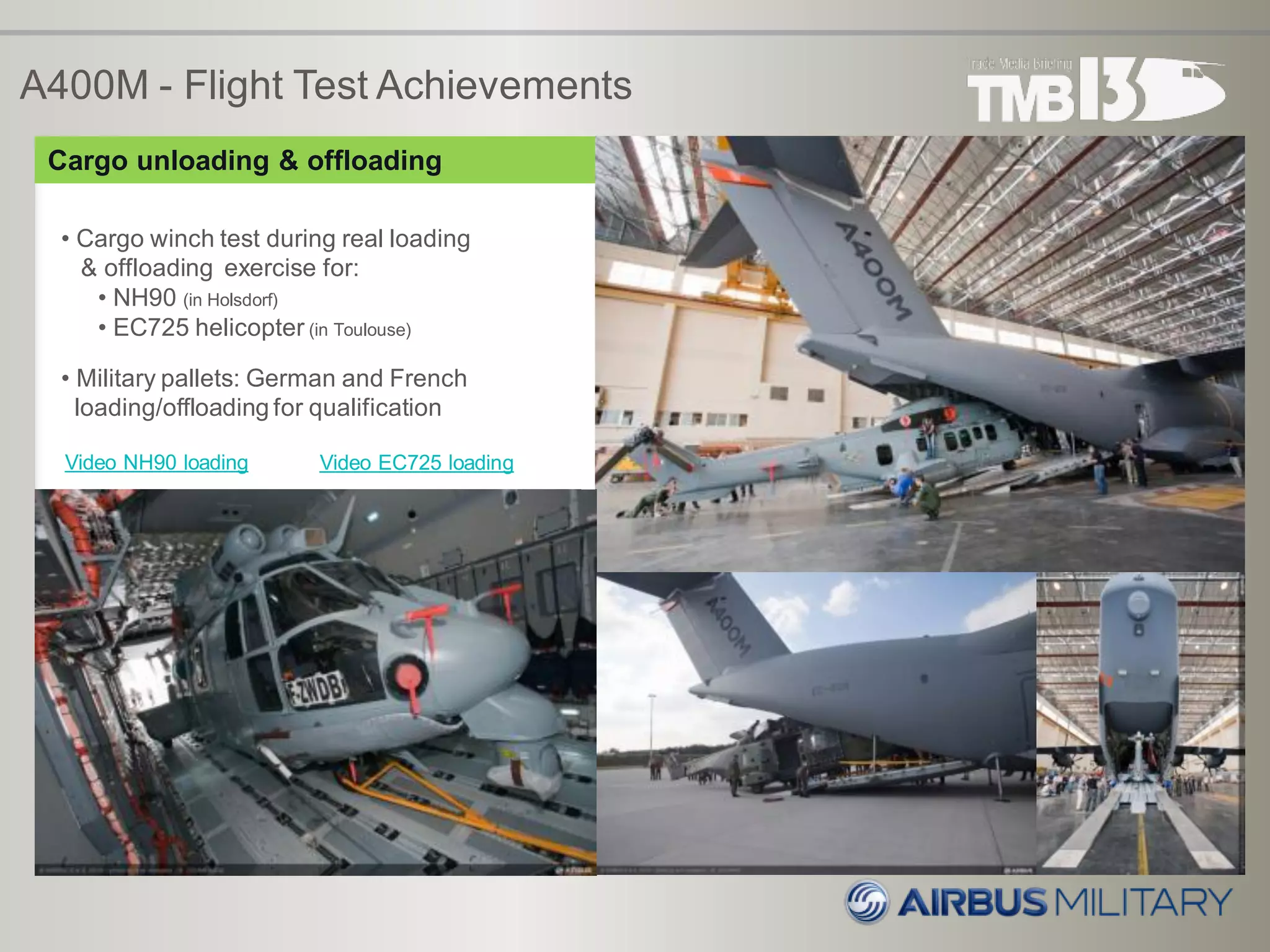

- 14. A400M - FlightTest Achievements • Cargo winch test during real loading & offloading exercise for: • NH90 (in Holsdorf) • EC725 helicopter (in Toulouse) • Military pallets: German and French loading/offloading for qualification Cargo unloading & offloading Video NH90 loading Video EC725 loading

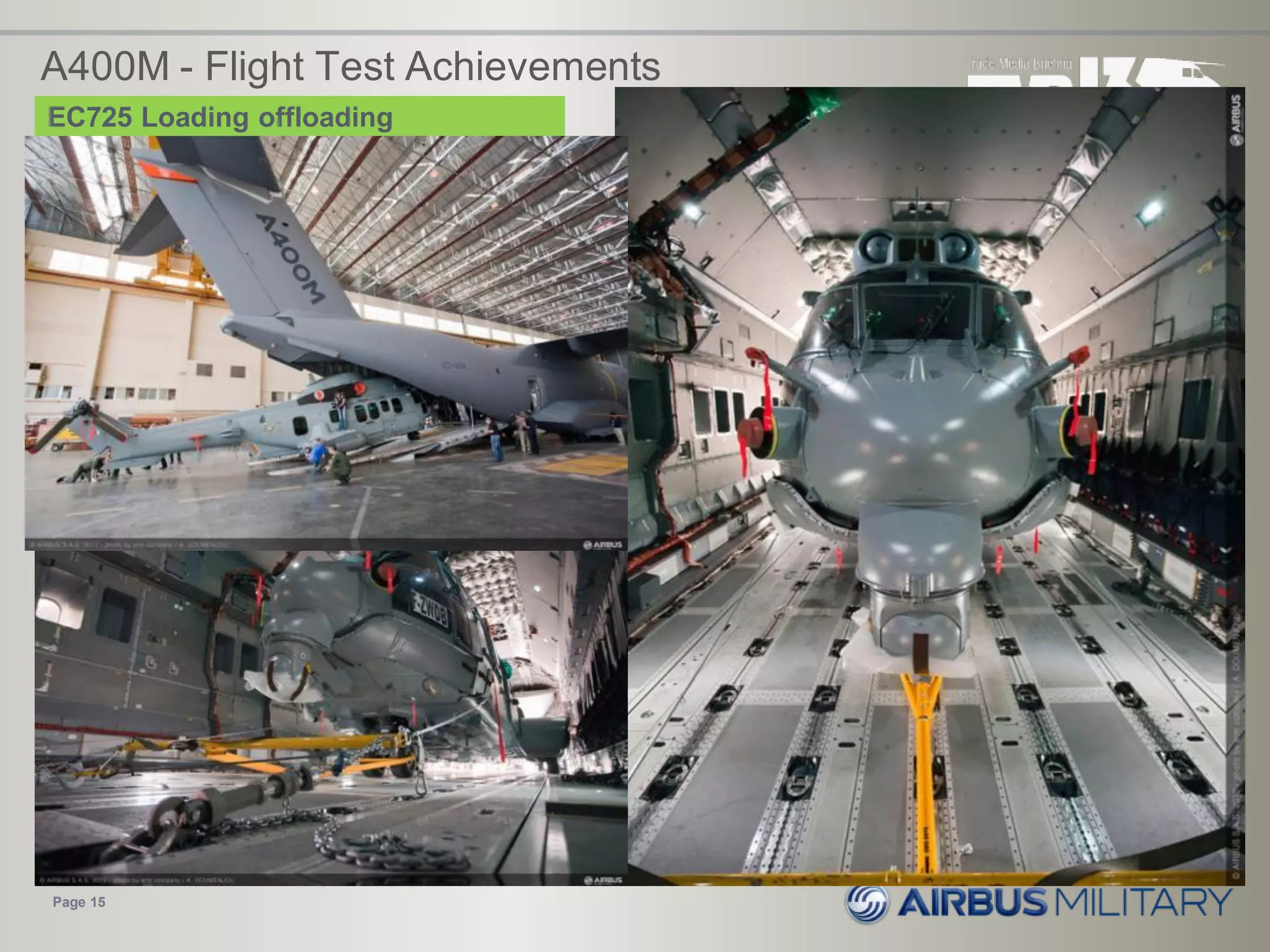

- 15. A400M - FlightTest Achievements • NH90 Loading in Holsdorf • EC725 Loading in Toulouse Page 15 EC725 Loading offloading

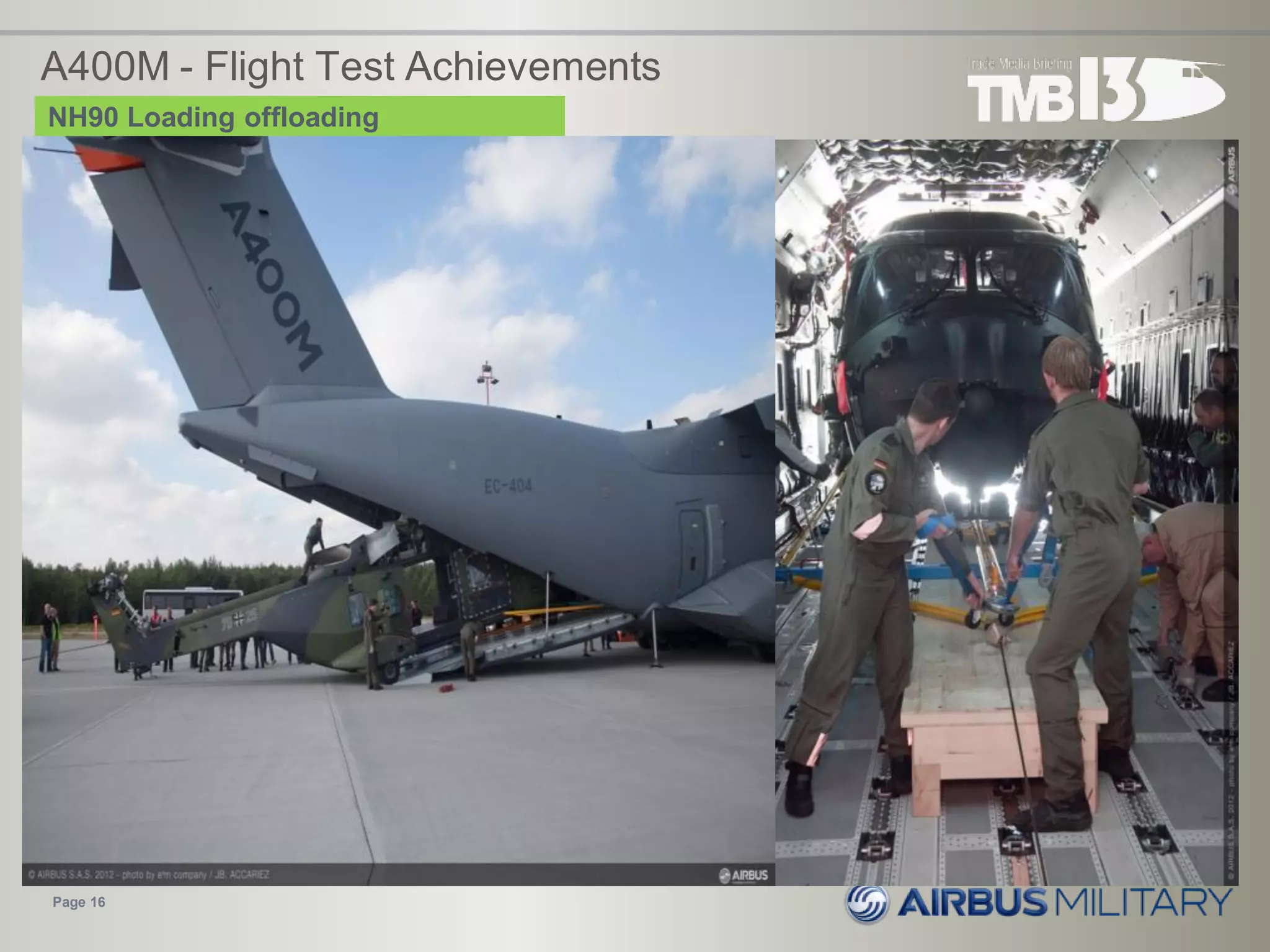

- 16. A400M - FlightTest Achievements • NH90 Loading in Holsdorf • EC725 Loading in Toulouse Page 16 NH90 Loading offloading

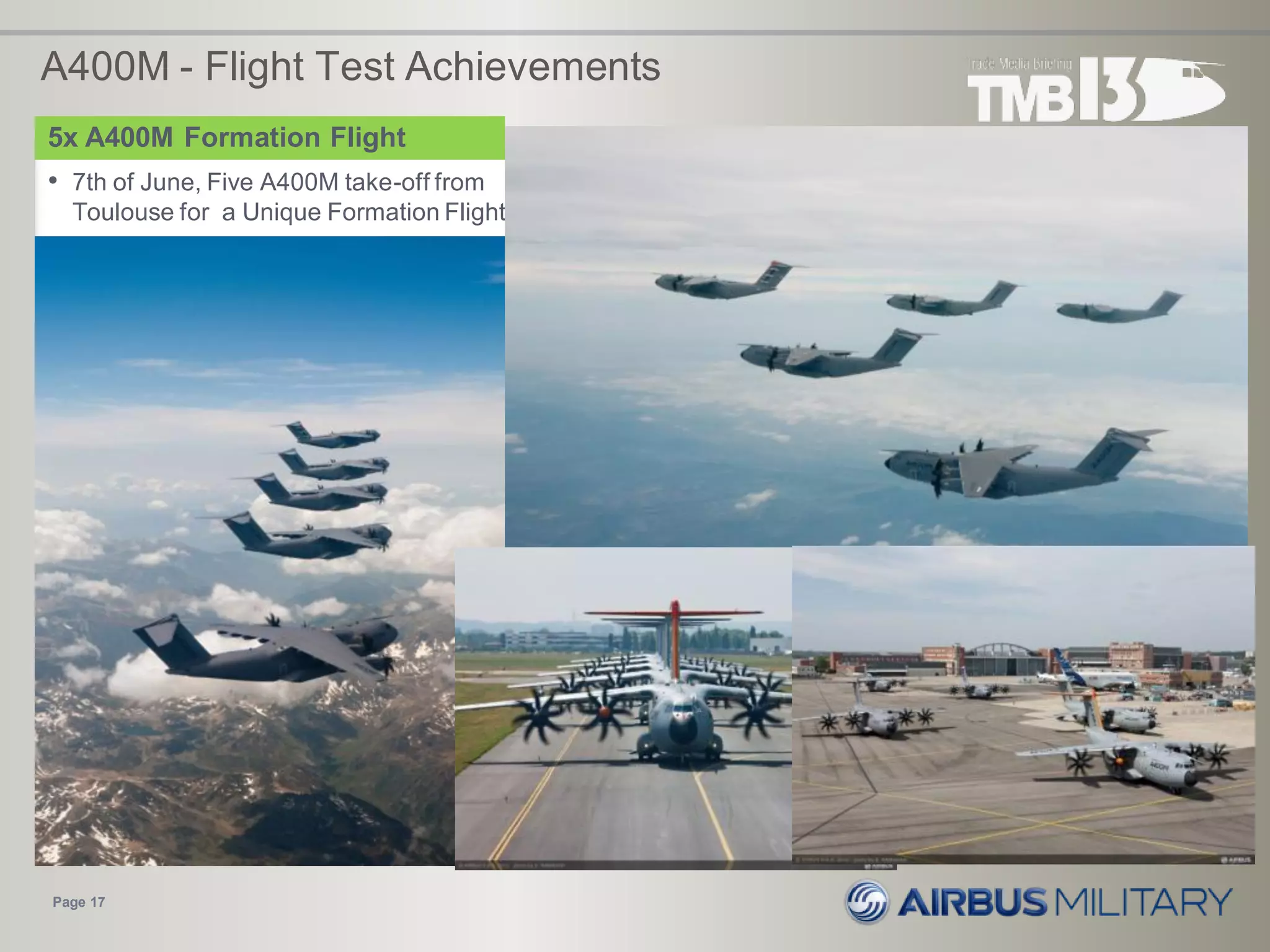

- 17. A400M - FlightTest Achievements • 7th of June, Five A400M take-off from Toulouse for a Unique Formation Flight Page 17 5x A400M Formation Flight MI5 Formation Flight

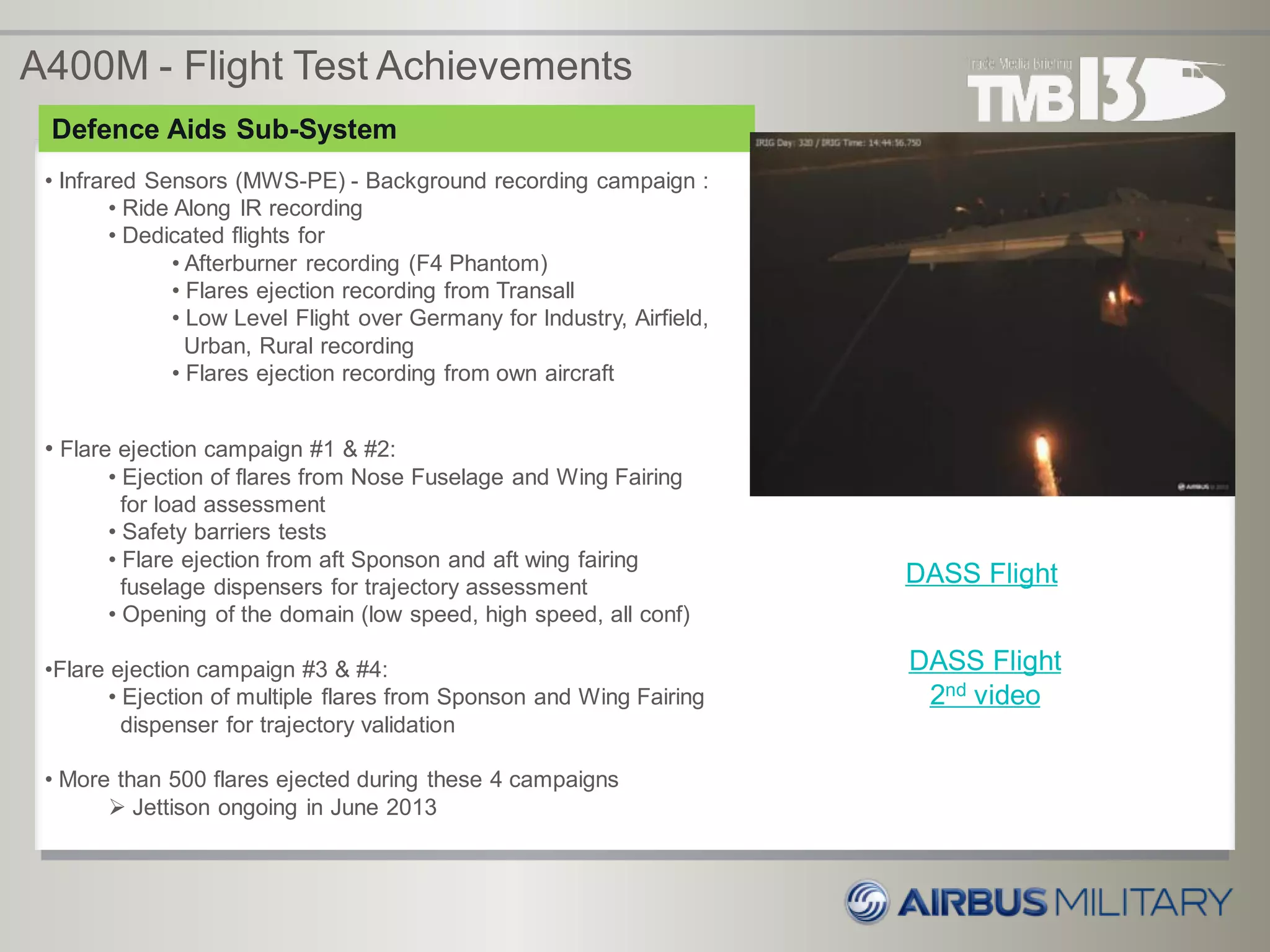

- 18. • Infrared Sensors(MWS-PE) - Background recording campaign : • Ride Along IR recording • Dedicated flights for • Afterburner recording (F4 Phantom) • Flares ejection recording from Transall • Low Level Flight over Germany for Industry, Airfield, Urban, Rural recording • Flares ejection recording from own aircraft DASS Flight Defence Aids Sub-System • Flare ejection campaign #1 & #2: • Ejection of flares from Nose Fuselage and Wing Fairing for load assessment • Safety barriers tests • Flare ejection from aft Sponson and aft wing fairing fuselage dispensers for trajectory assessment • Opening of the domain (low speed, high speed, all conf) •Flare ejection campaign #3 & #4: • Ejection of multiple flares from Sponson and Wing Fairing dispenser for trajectory validation • More than 500 flares ejected during these 4 campaigns Jettison ongoing in June 2013 A400M - Flight Test Achievements DASS Flight 2nd video

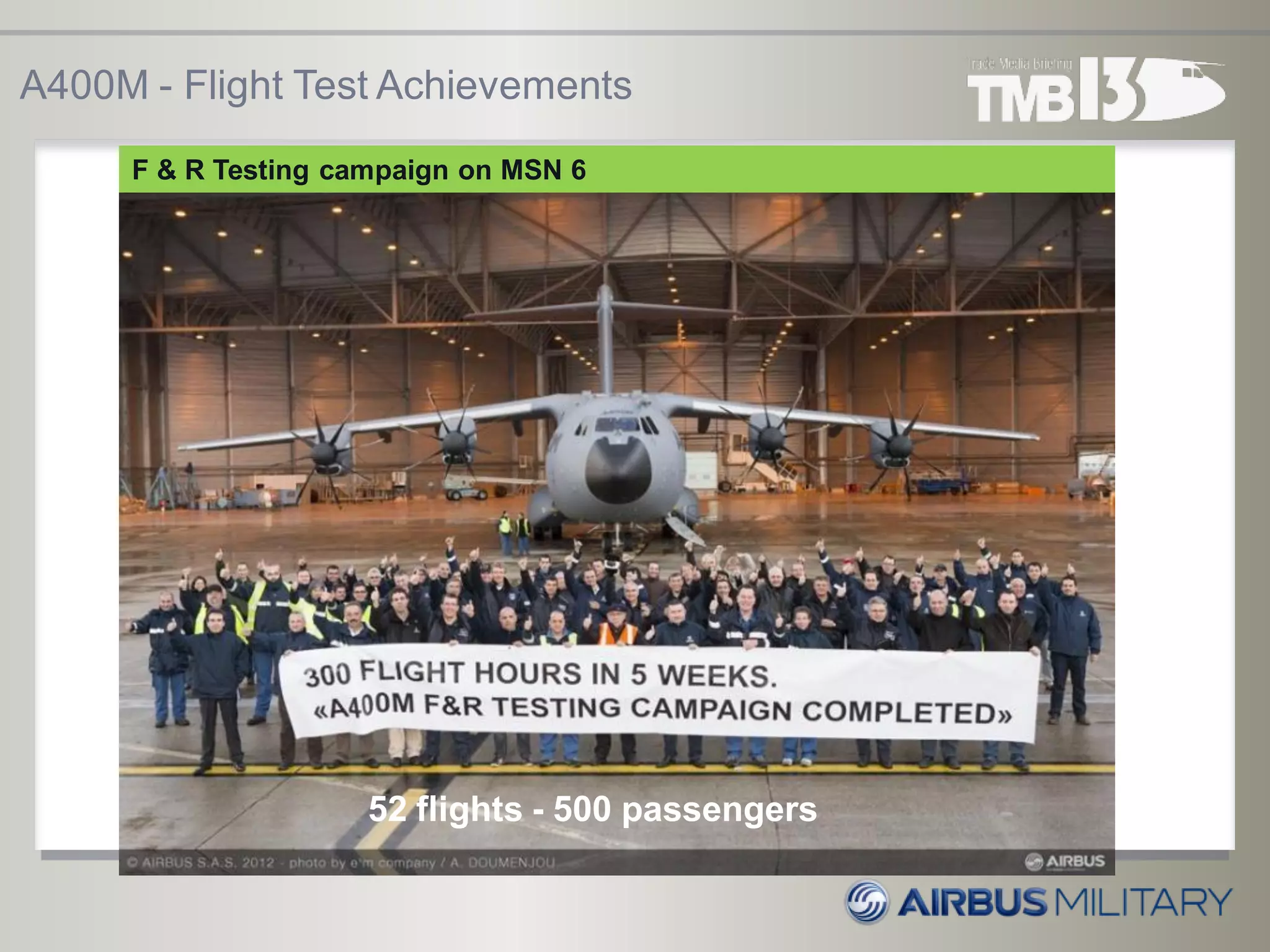

- 19. 52 flights -500 passengers A400M - Flight Test Achievements F & R Testing campaign on MSN 6

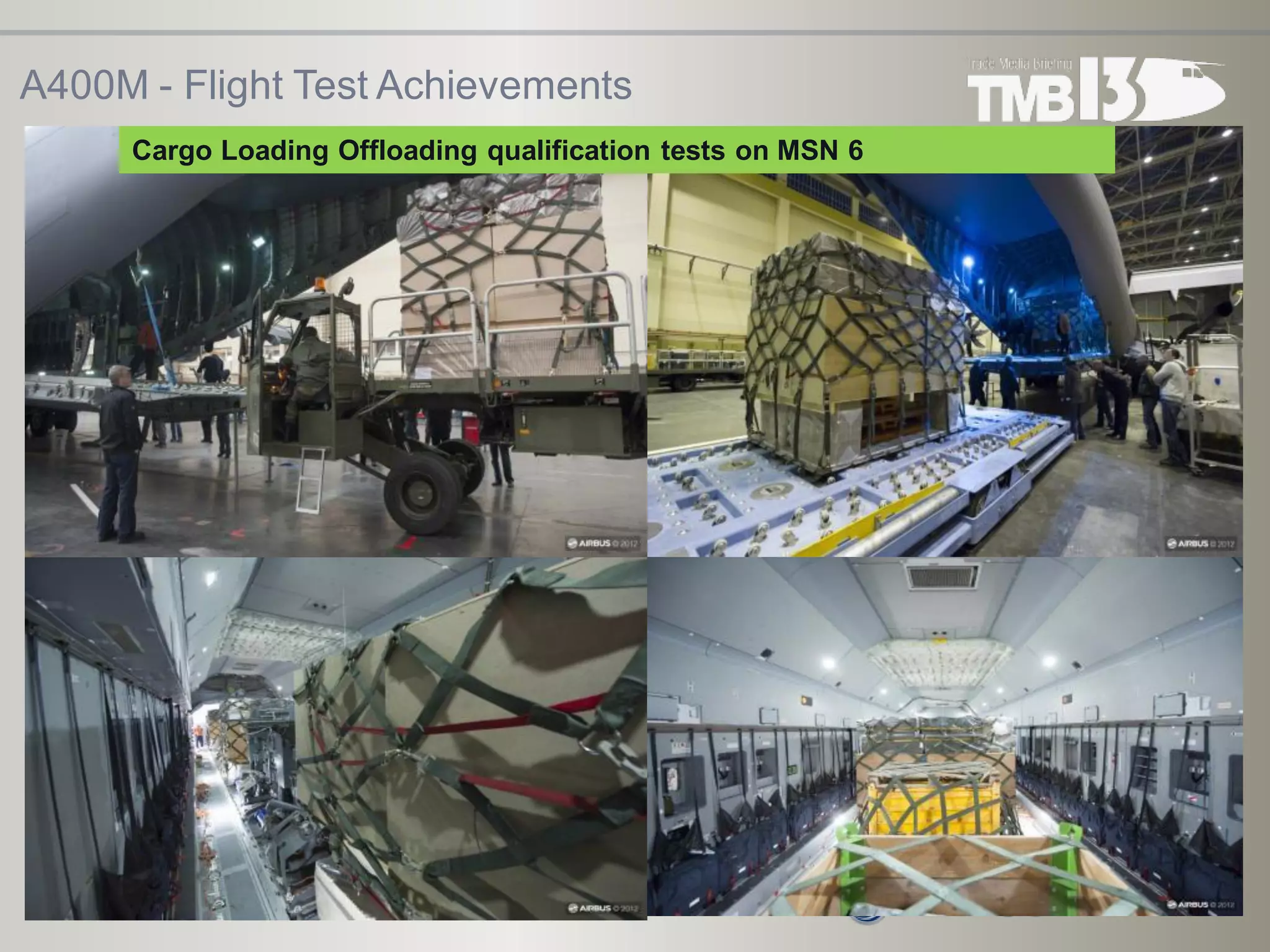

- 20. 52 flights -500 passengers A400M - Flight Test Achievements Cargo Loading Offloading qualification tests on MSN 6
- 21. Major objectives for2013 Operations on laterite & gravel runway with MSN2 Aircraft identification and signature at Manching on MSN6 DASS Tests - Radar Warning Receiver and Background recording at Meppen Defense AIDS System Flares and Chaff Ejection, Sensors incl. Jettison Military mission management system Integral to most Military Systems & includes Functions such as Mil Terrain Ground Collision Avoidance – Tests on-going Air to air refuelling behind C160 wet contact Ground loading / unloading Clearance of Multiple Loads in Boscombe down in June13 Air drop paratroops & loads Communications Military Suit Tests on-going Airshows at Le Bourget, RIAT + others with MSN6 AAR as tanker with helicopter A400M & fighter as receiver Air to air refuelling behind A330 MRTT wet contact

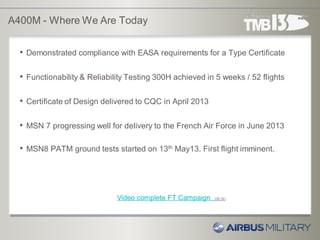

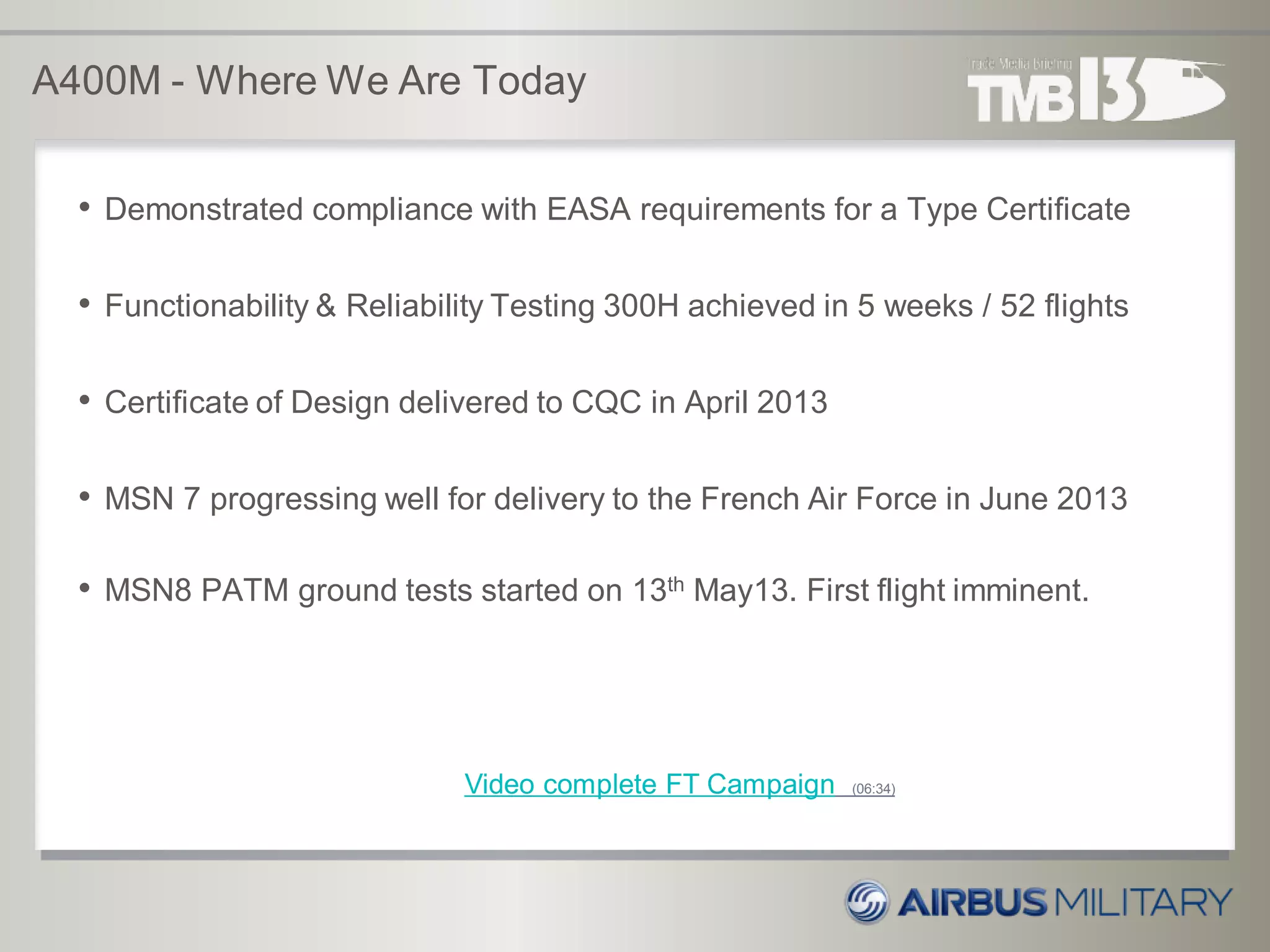

- 22. A400M - WhereWe Are Today • Demonstrated compliance with EASA requirements for a Type Certificate • Functionability & Reliability Testing 300H achieved in 5 weeks / 52 flights • Certificate of Design delivered to CQC in April 2013 • MSN 7 progressing well for delivery to the French Air Force in June 2013 • MSN8 PATM ground tests started on 13th May13. First flight imminent. Video complete FT Campaign (06:34)
