![Goal
3
“Enable development** of SCC applications with
minimal effort by various stakeholders* involved in
development process”
**Development -- “a set of related activities that leads to a production of a software product.’’ [Ian Sommerville,
Software Engineering (9th edition) , 2010]
*Stakeholders in software engineering to mean – people, who are involved in the application development.
Examples of stakeholders defined in [Taylor et al., Software Architecture, 2009] are software designer,
developer, domain expert, technologist, etc.](https://image.slidesharecdn.com/atoolsuiteforprototypinginternetofthingsapplications-140513081735-phpapp02/75/A-tool-suite-for-prototyping-internet-of-things-applications-3-2048.jpg)
![Commonality
at various levels
4
Functionality
(e.g., home
fire detection
Domain
(e.g., building
HVAC)
(e.g., Inria
Office)
(e.g., Google
Office)
Deployment
Room
temperature
(e.g. building
automation)
“Entities of Interest (EoI) is an object, including the
attributes that describes it, and its state that is
relevant from a user or an application perspective.”
[Stephan Haller, Internet ofThings, 2010]
Building fire
state
“Reusability
across concerns”](https://image.slidesharecdn.com/atoolsuiteforprototypinginternetofthingsapplications-140513081735-phpapp02/75/A-tool-suite-for-prototyping-internet-of-things-applications-4-2048.jpg)
Uploaded byPankesh Patel
A tool suite for prototyping internet of things applications
This document describes a ToolSuite for prototyping Sense-Compute-Control (SCC) applications. The ToolSuite aims to enable development of SCC applications with minimal effort from various stakeholders involved. It provides common concepts at different levels like functionality, domain, and deployment to enable reusability. These concepts include entities of interest, sensors, actuators, computational services. The ToolSuite uses domain experts to specify vocabularies, software designers to specify architectures, and application developers to implement application logic. It generates code for different platforms and links all components through a middleware.
More Related Content
![Nfv final[1]](https://cdn.slidesharecdn.com/ss_thumbnails/nfvfinal1-210505153334-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to A tool suite for prototyping internet of things applications
A tool suite for prototyping internet of things applications
- 1. A ToolSuite forPrototyping Sense-Compute-Control (SCC) Applications Dimitris Soukaras, Pankesh Patel (Tool Demo)

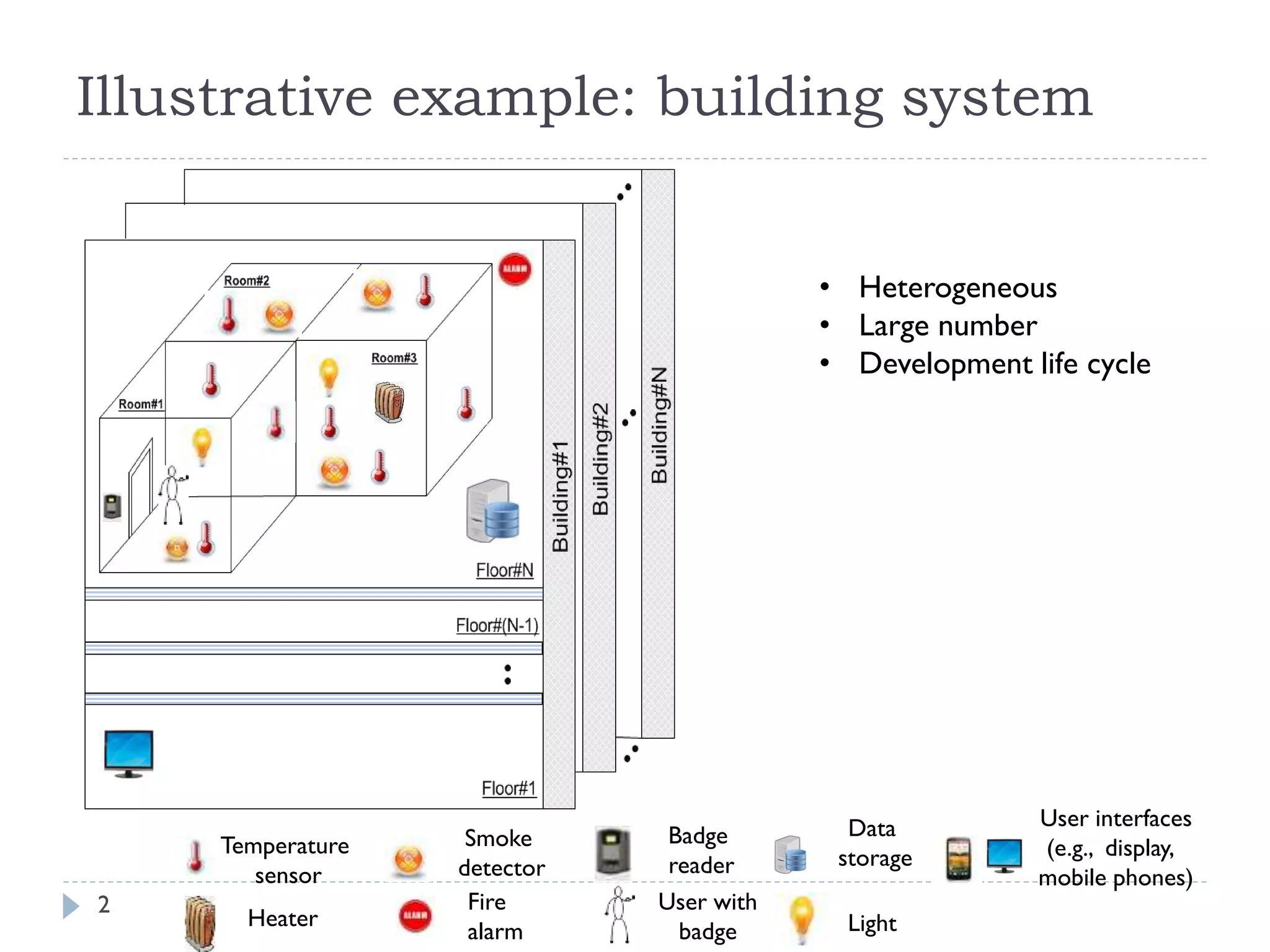

- 2. Illustrative example: buildingsystem 2 Smoke detector User interfaces (e.g., display, mobile phones) Fire alarm Badge reader User with badge Data storage Light Temperature sensor Heater • Heterogeneous • Large number • Development life cycle
- 3. Goal 3 “Enable development** ofSCC applications with minimal effort by various stakeholders* involved in development process” **Development -- “a set of related activities that leads to a production of a software product.’’ [Ian Sommerville, Software Engineering (9th edition) , 2010] *Stakeholders in software engineering to mean – people, who are involved in the application development. Examples of stakeholders defined in [Taylor et al., Software Architecture, 2009] are software designer, developer, domain expert, technologist, etc.

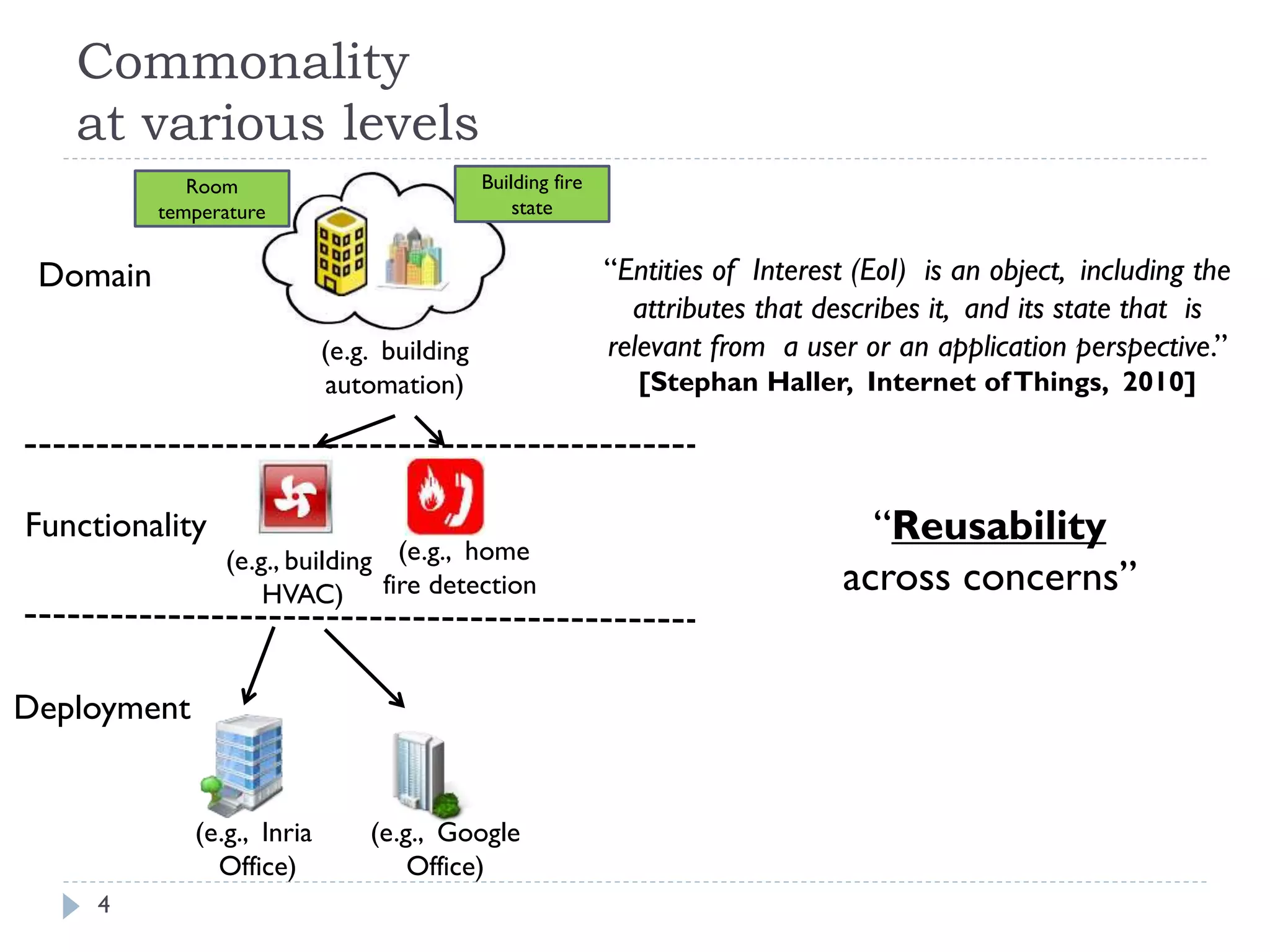

- 4. Commonality at various levels 4 Functionality (e.g.,home fire detection Domain (e.g., building HVAC) (e.g., Inria Office) (e.g., Google Office) Deployment Room temperature (e.g. building automation) “Entities of Interest (EoI) is an object, including the attributes that describes it, and its state that is relevant from a user or an application perspective.” [Stephan Haller, Internet ofThings, 2010] Building fire state “Reusability across concerns”

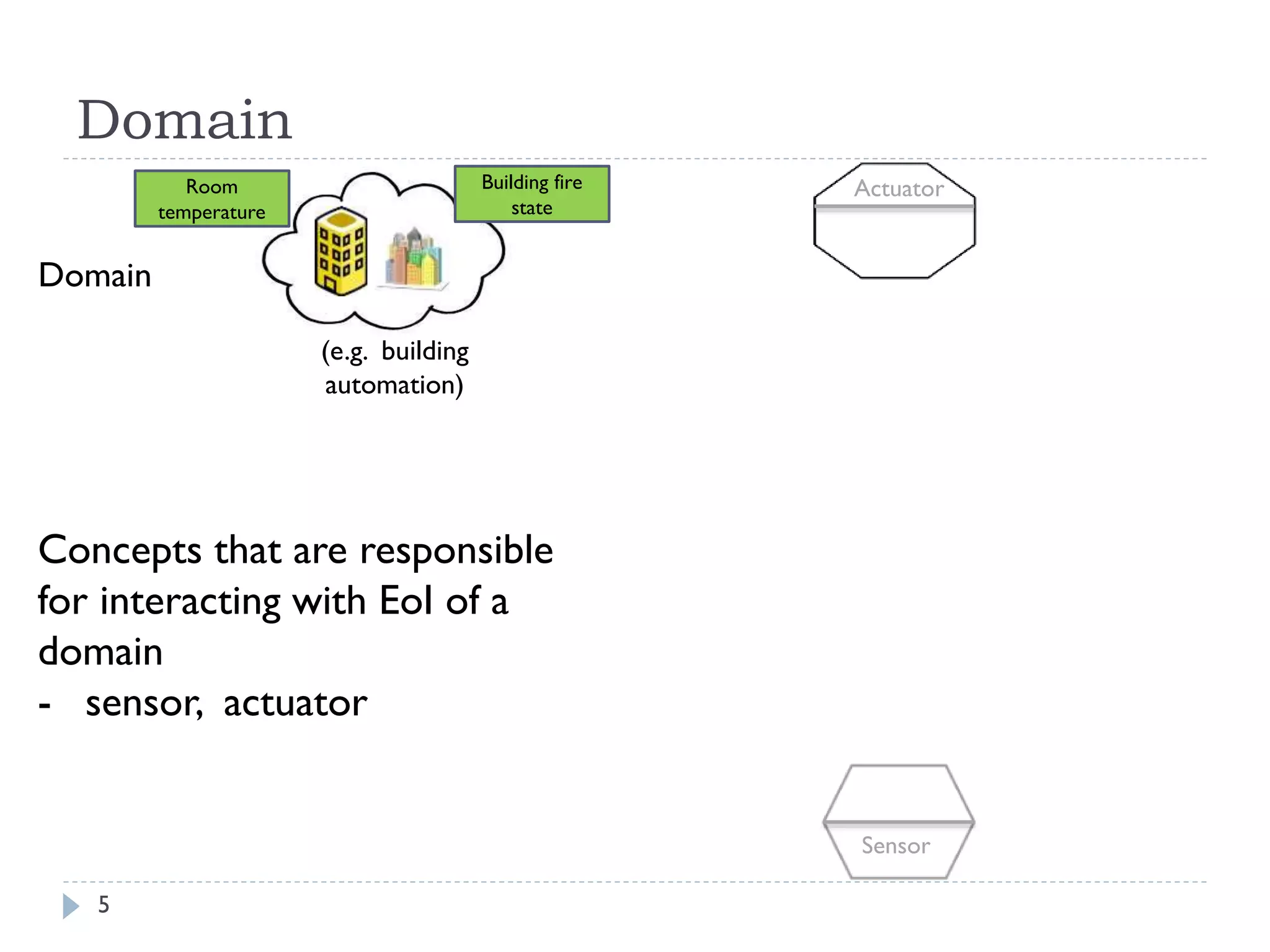

- 5. 5 Domain Room temperature (e.g. building automation) Domain Concepts thatare responsible for interacting with EoI of a domain - sensor, actuator Building fire state Actuator Sensor

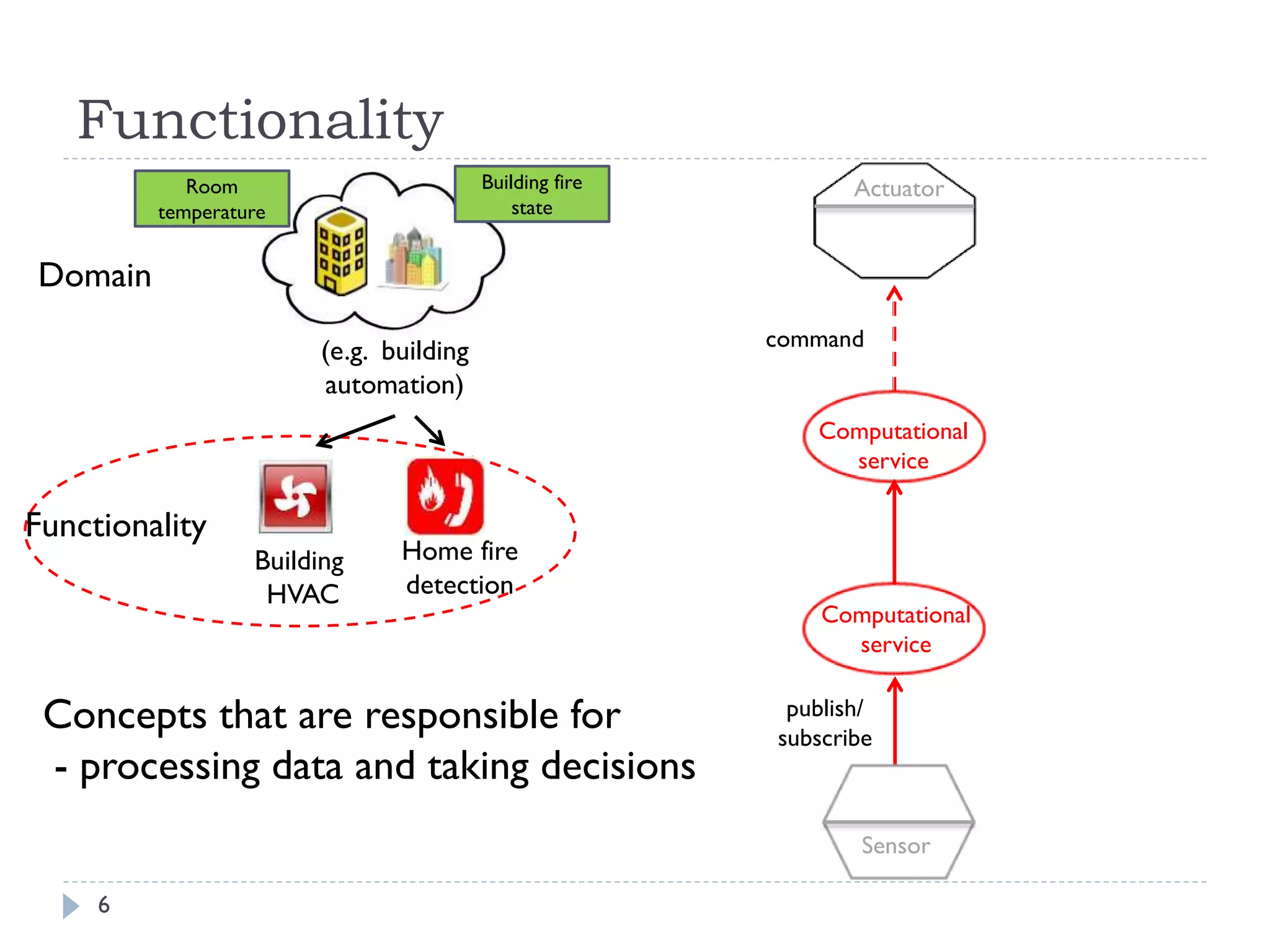

- 6. 6 Domain Room temperature (e.g. building automation) Functionality Functionality Home fire detection Building HVAC Computational service Actuator Sensor Computational service publish/ subscribe Conceptsthat are responsible for - processing data and taking decisions Building fire state command

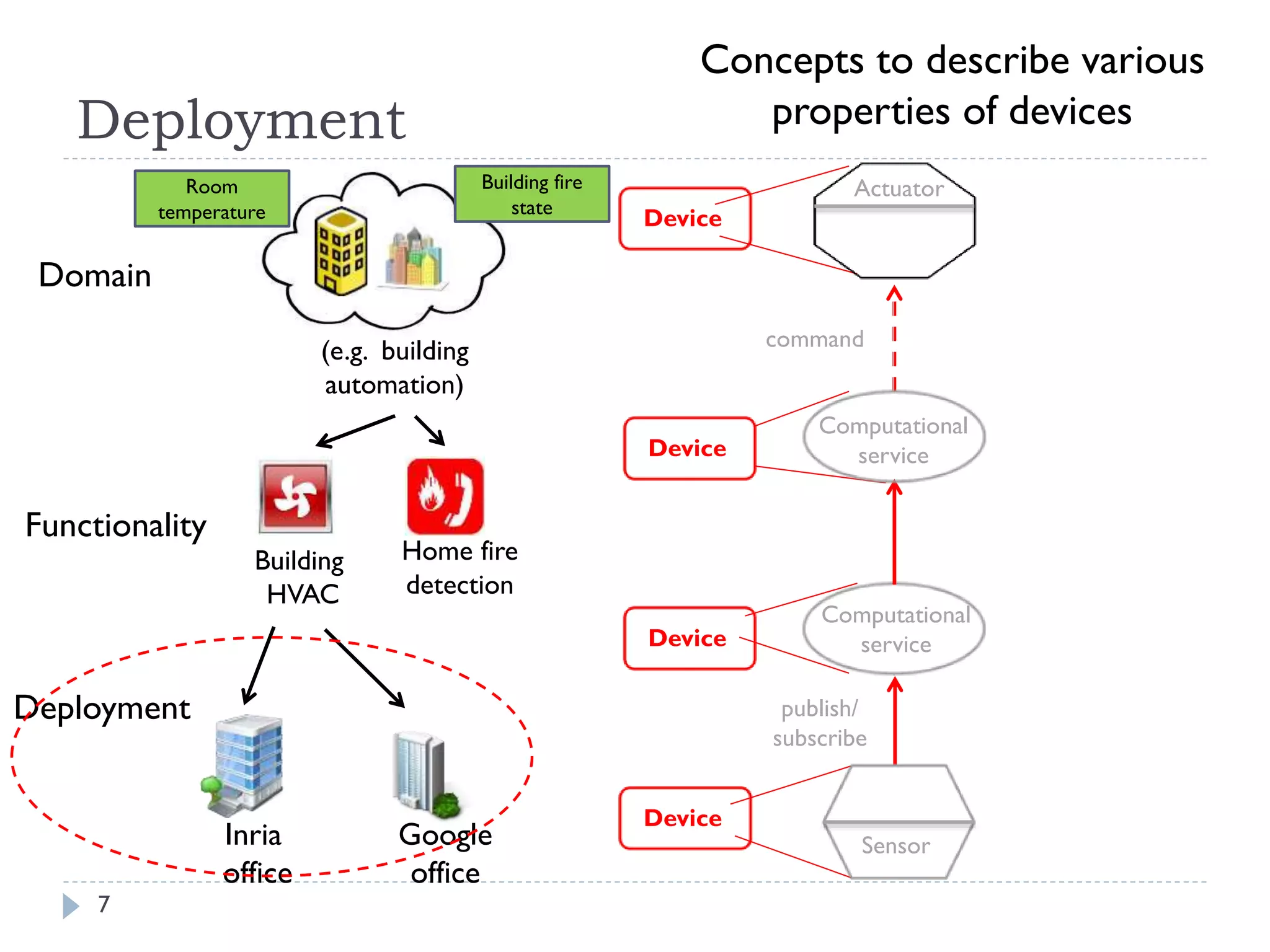

- 7. 7 Domain Room temperature (e.g. building automation) Deployment Functionality Inria office Google office Deployment Device Device Device Device Building fire state Conceptsto describe various properties of devices Home fire detection Building HVAC Computational service Actuator Sensor Computational service publish/ subscribe command

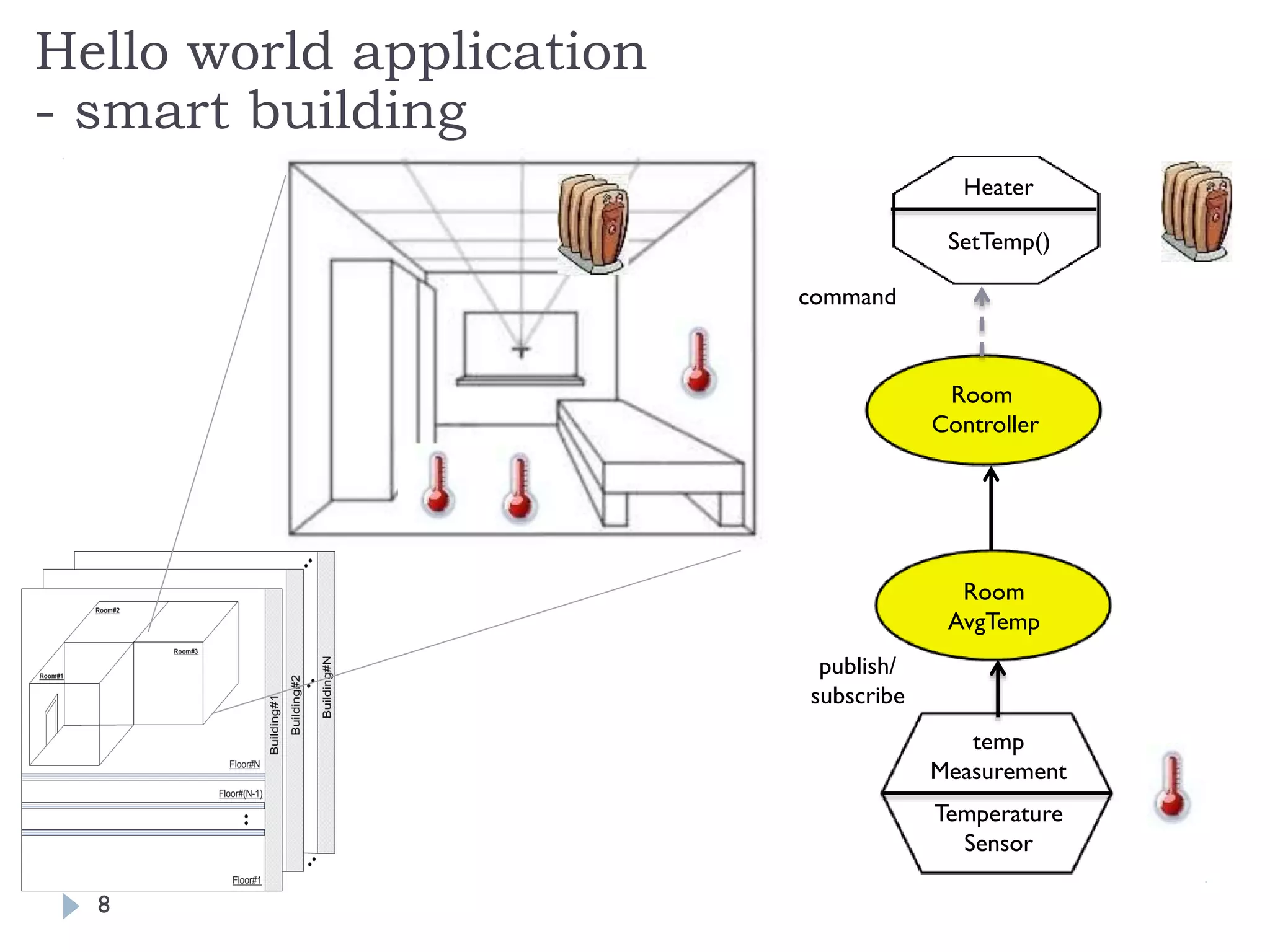

- 8. 8 Room Controller Heater SetTemp() Temperature Sensor temp Measurement Hello world application -smart building Room AvgTemp publish/ subscribe command

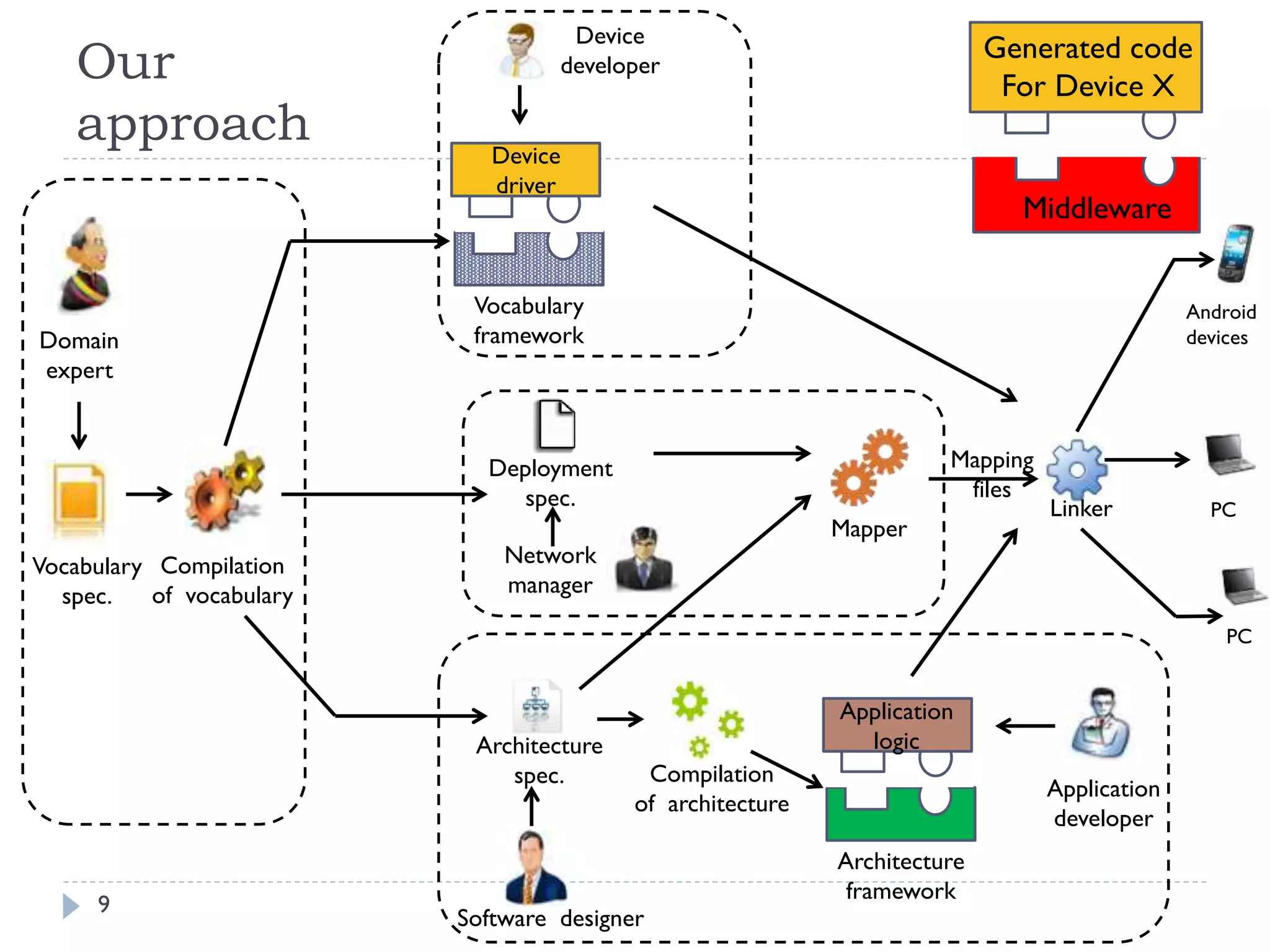

- 9. Our approach 9 Domain expert Vocabulary spec. Compilation of vocabulary Device developer Device driver Vocabulary framework Architecture spec. Compilation ofarchitecture Deployment spec. Mapper Application developer Application logic Architecture framework Software designer Network manager Linker Android devices PC PC Mapping files Generated code For Device X Middleware

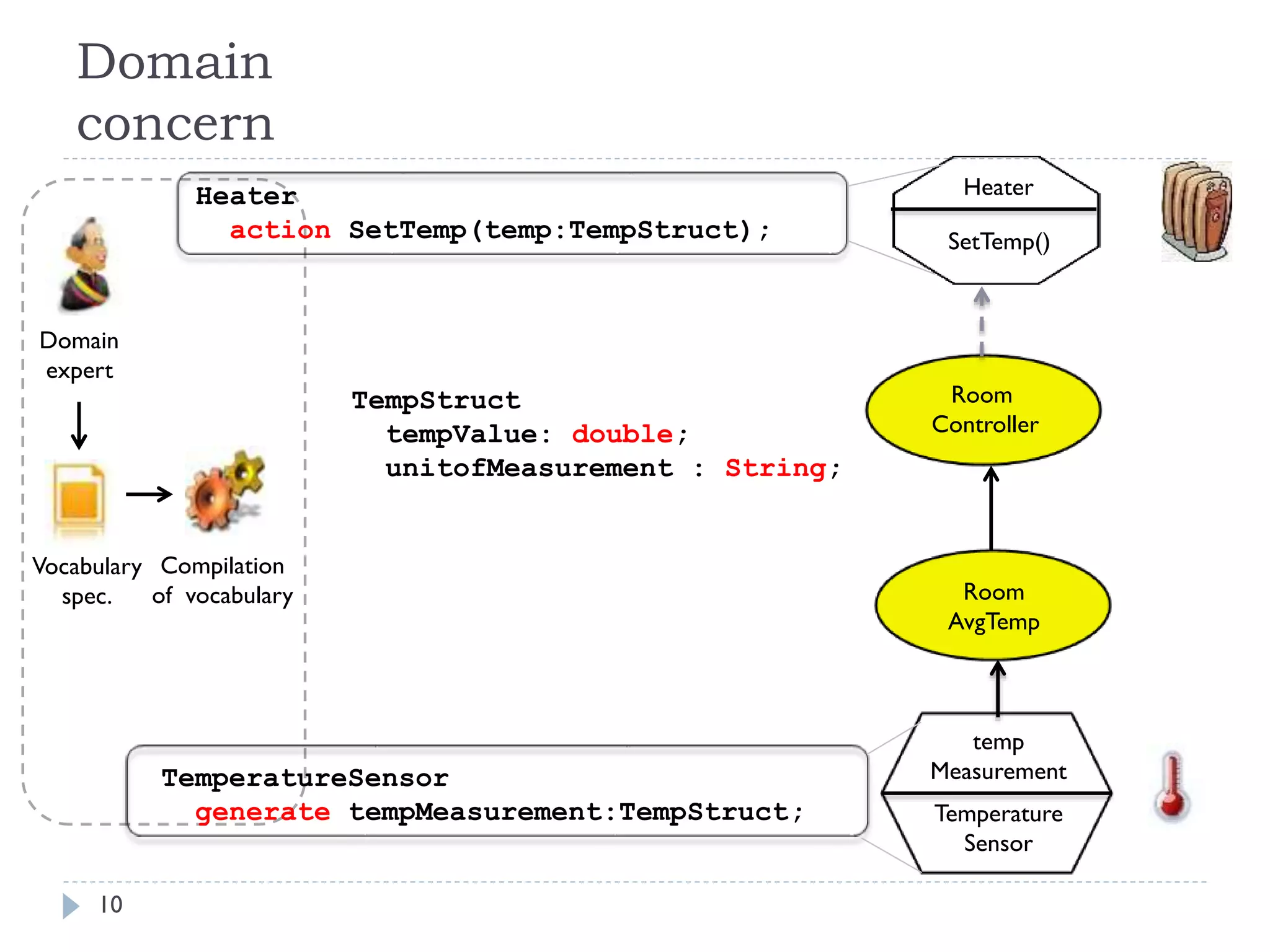

- 10. Domain concern 10 Domain expert Vocabulary spec. Compilation of vocabulary Room Controller Heater SetTemp() Temperature Sensor temp Measurement Room AvgTemp TemperatureSensor generate tempMeasurement:TempStruct; Heater actionSetTemp(temp:TempStruct); TempStruct tempValue: double; unitofMeasurement : String;

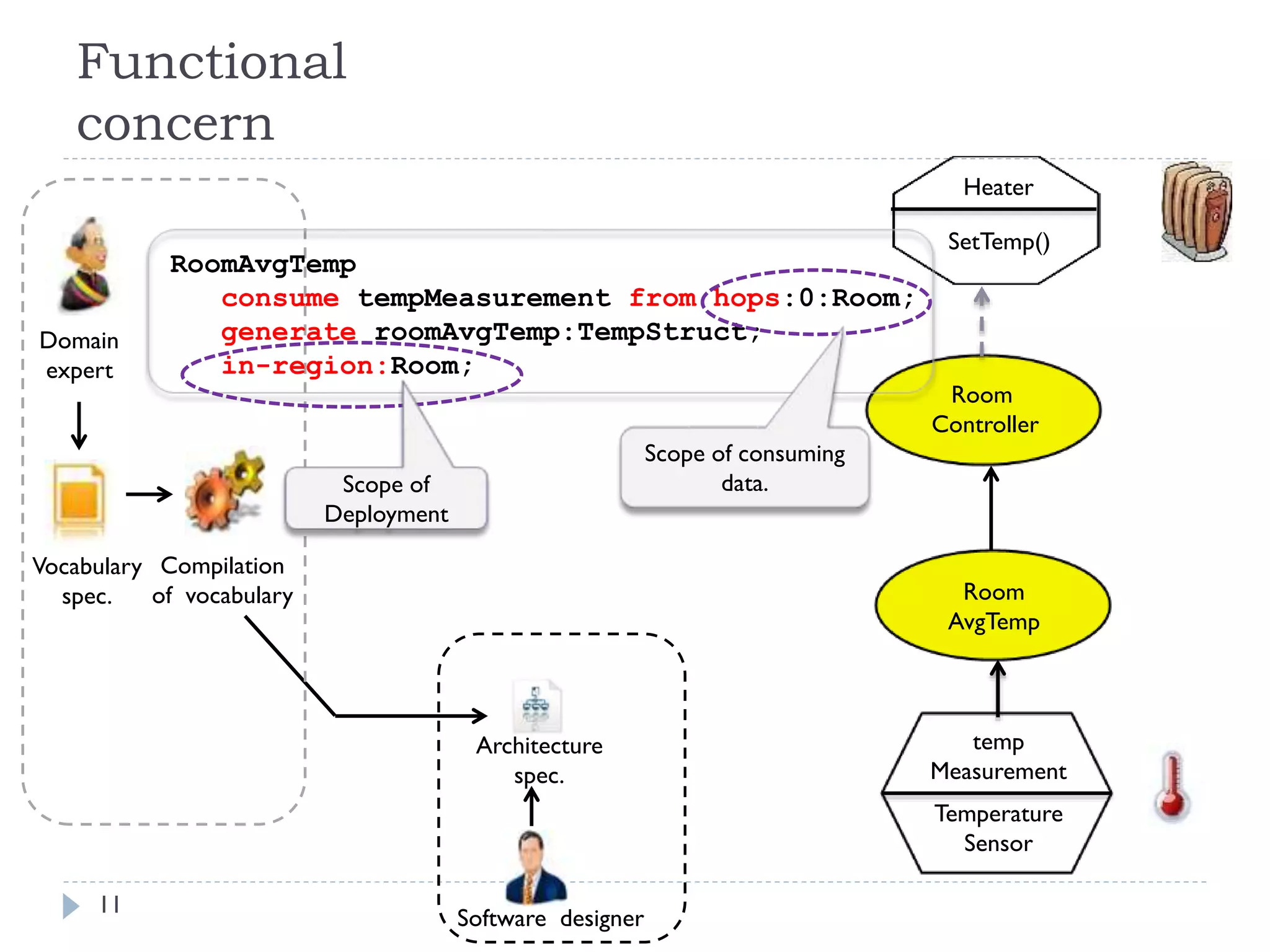

- 11. Functional concern 11 Domain expert Vocabulary spec. Compilation of vocabulary Architecture spec. Software designer Heater SetTemp() Temperature Sensor temp Measurement Room AvgTemp Room Controller RoomAvgTemp consumetempMeasurement from hops:0:Room; generate roomAvgTemp:TempStruct; in-region:Room; Scope of consuming data.Scope of Deployment

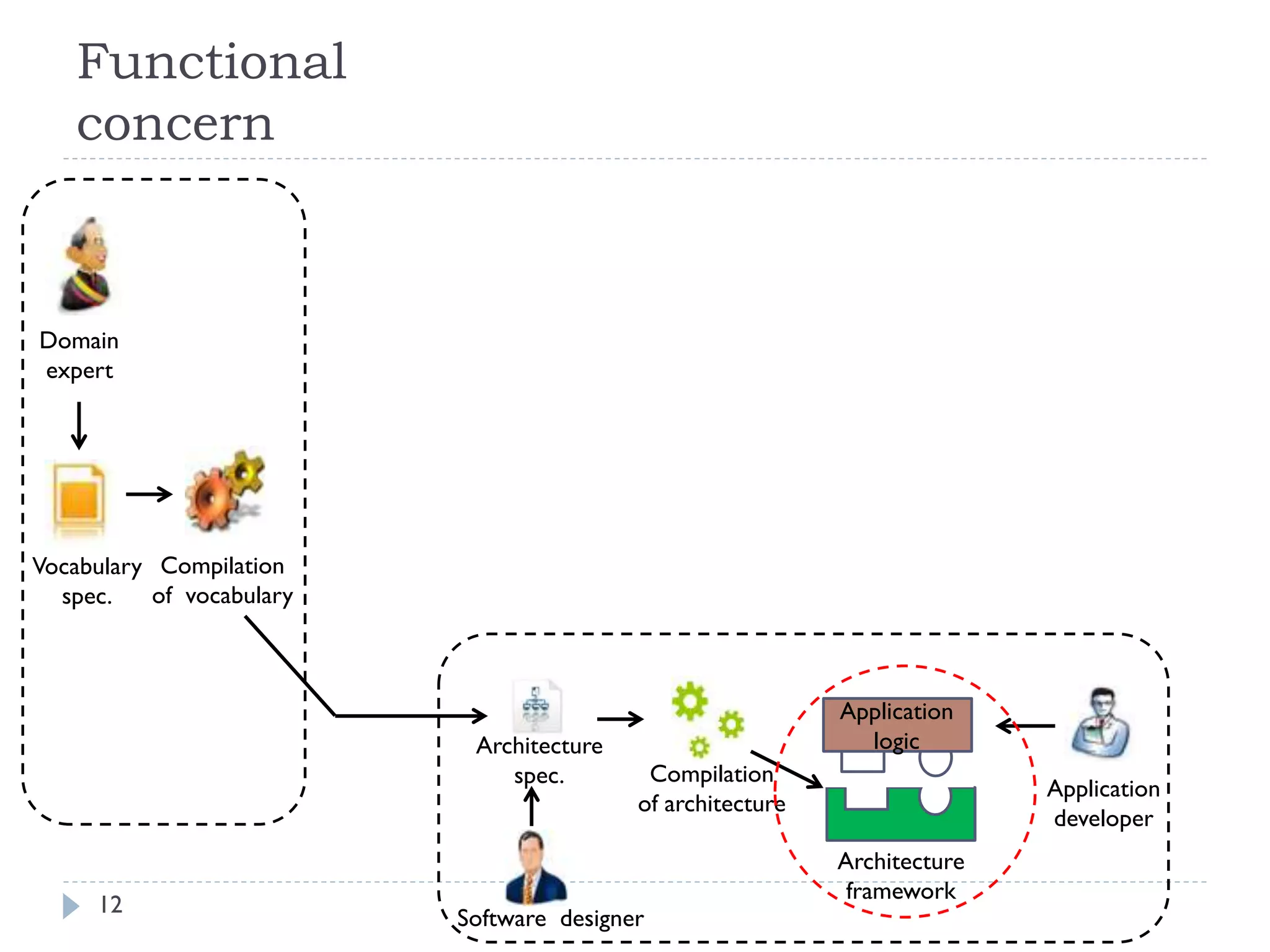

- 12. 12 Domain expert Vocabulary spec. Compilation of vocabulary Architecture spec. Compilation ofarchitecture Application developer Architecture framework Software designer Functional concern Application logic

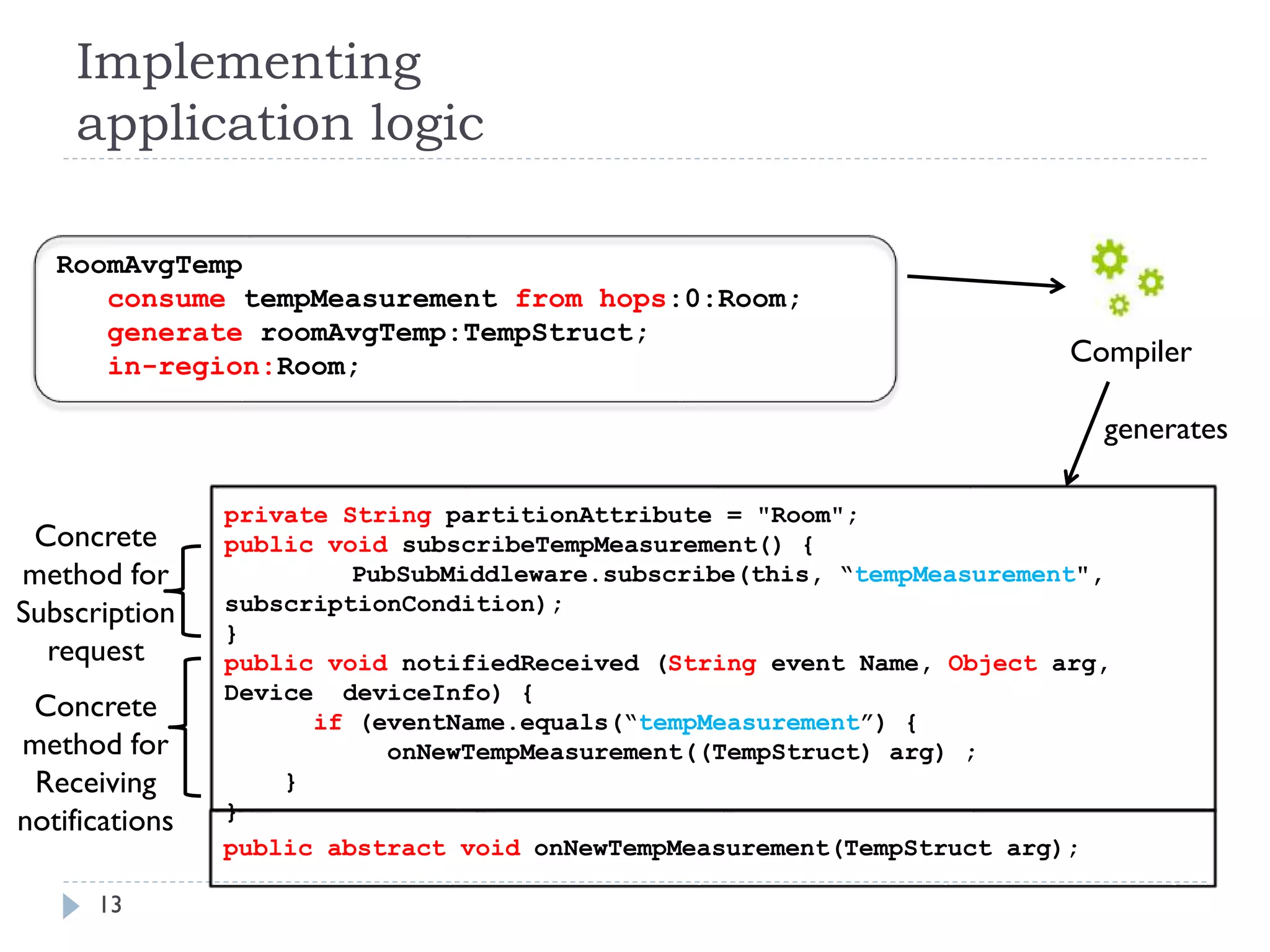

- 13. 13 RoomAvgTemp consume tempMeasurement fromhops:0:Room; generate roomAvgTemp:TempStruct; in-region:Room; Compiler generates private String partitionAttribute = "Room"; public void subscribeTempMeasurement() { PubSubMiddleware.subscribe(this, “tempMeasurement", subscriptionCondition); } public void notifiedReceived (String event Name, Object arg, Device deviceInfo) { if (eventName.equals(“tempMeasurement”) { onNewTempMeasurement((TempStruct) arg) ; } } public abstract void onNewTempMeasurement(TempStruct arg); Implementing application logic Concrete method for Subscription request Concrete method for Receiving notifications

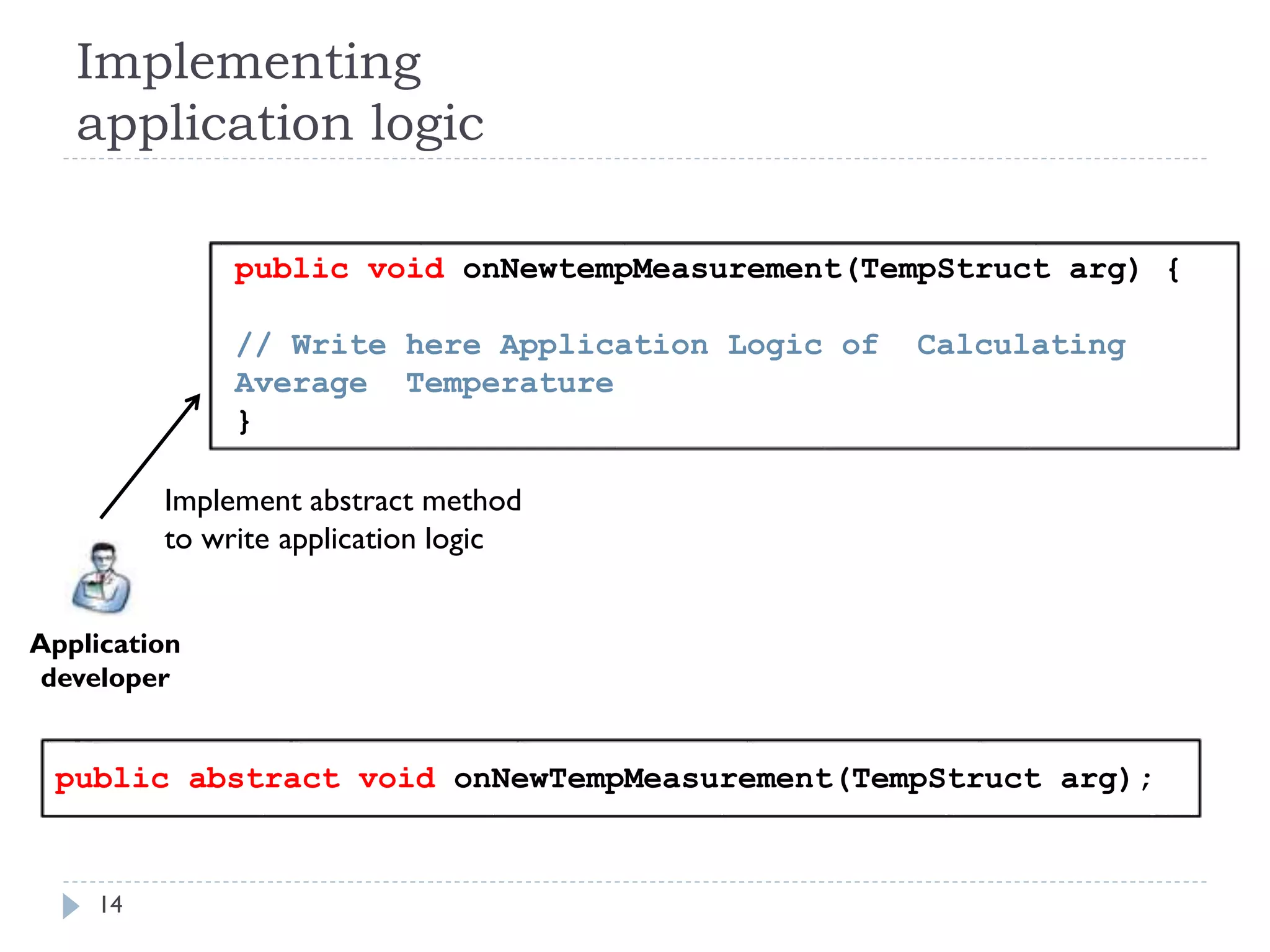

- 14. 14 public abstract voidonNewTempMeasurement(TempStruct arg); Implementing application logic public void onNewtempMeasurement(TempStruct arg) { // Write here Application Logic of Calculating Average Temperature } Application developer Implement abstract method to write application logic

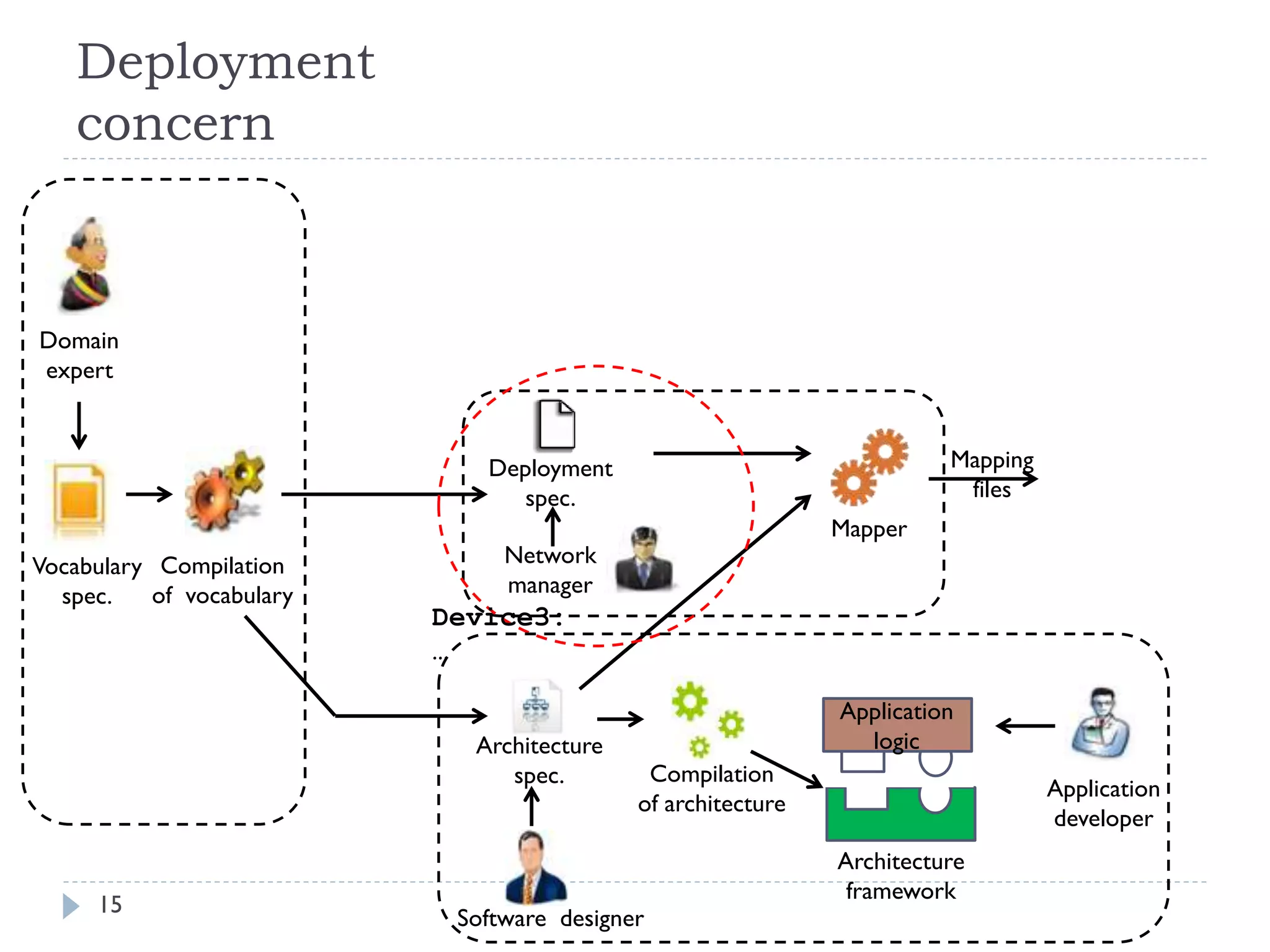

- 15. 15 Domain expert Vocabulary spec. Compilation of vocabulary Deployment spec. Mapper Network manager Deployment concern Mapping files Architecture spec. Compilation ofarchitecture Application developer Application logic Architecture framework Software designer Device3: …

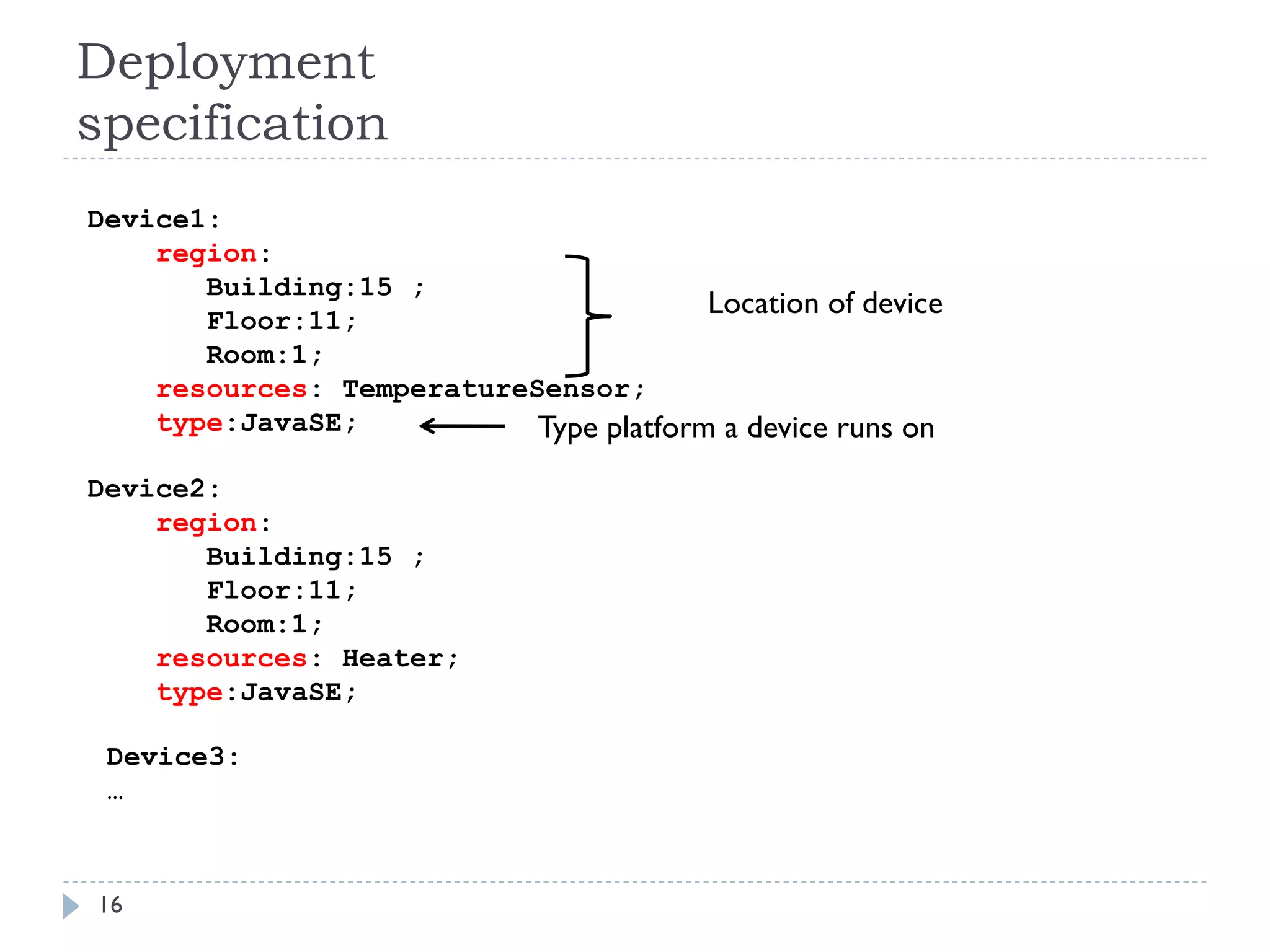

- 16. Deployment specification 16 Device1: region: Building:15 ; Floor:11; Room:1; resources: TemperatureSensor; type:JavaSE; Device3: … Locationof device Type platform a device runs on Device2: region: Building:15 ; Floor:11; Room:1; resources: Heater; type:JavaSE;

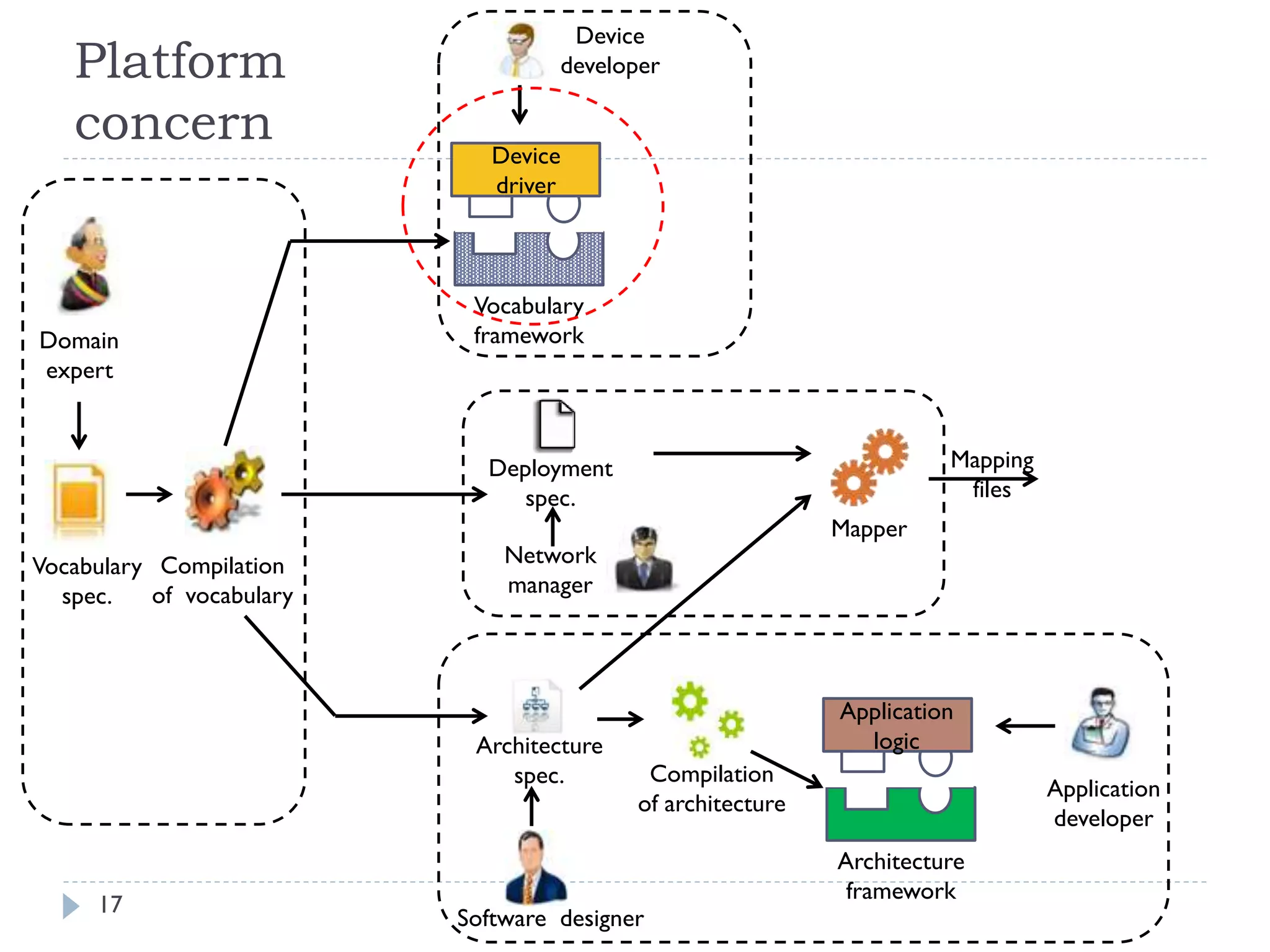

- 17. 17 Domain expert Vocabulary spec. Compilation of vocabulary Device developer Device driver Vocabulary framework Deployment spec. Mapper Network manager Mapping files Platform concern Architecture spec. Compilation ofarchitecture Application developer Application logic Architecture framework Software designer

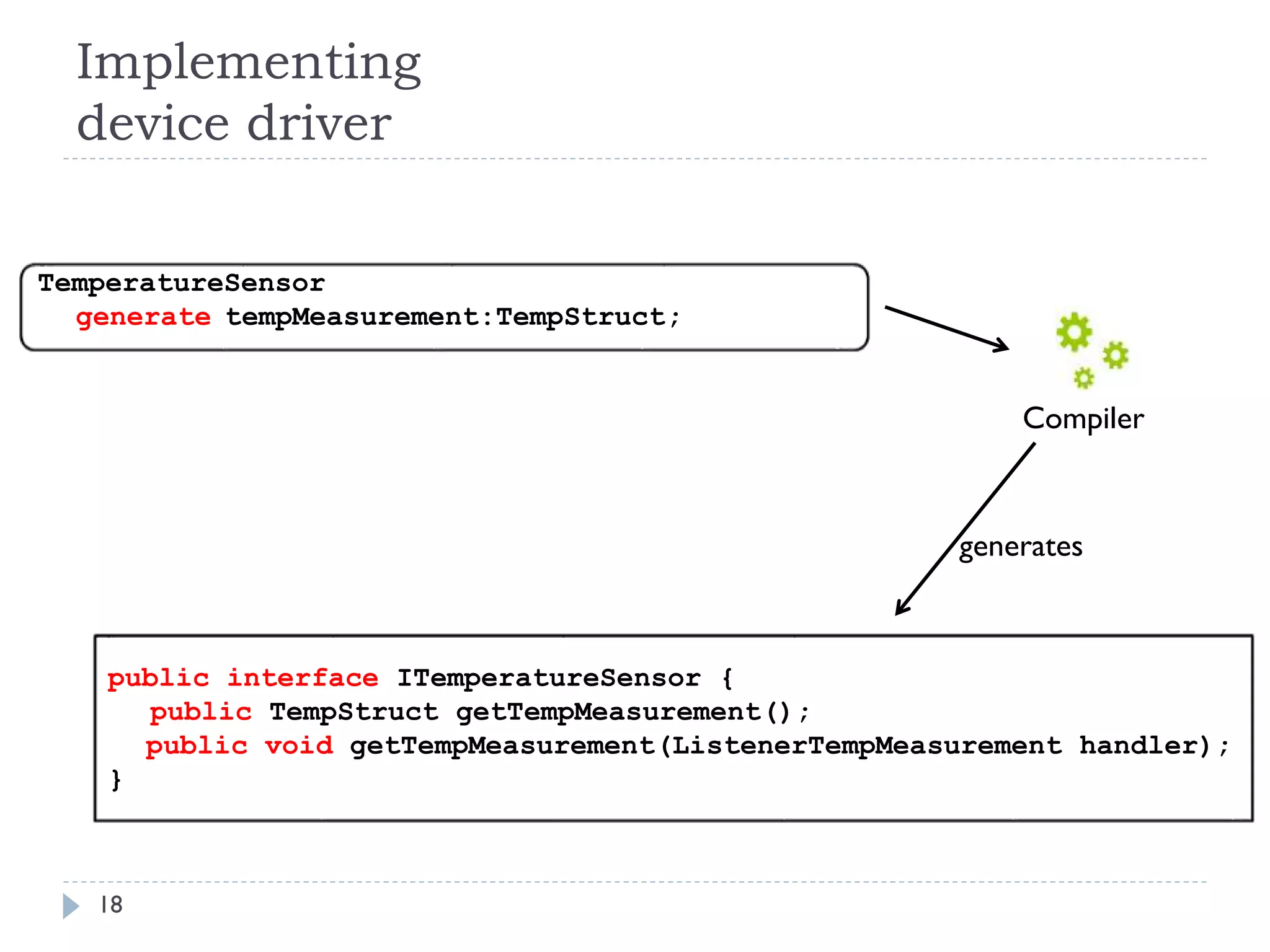

- 18. Implementing device driver 18 public interfaceITemperatureSensor { public TempStruct getTempMeasurement(); public void getTempMeasurement(ListenerTempMeasurement handler); } Compiler generates TemperatureSensor generate tempMeasurement:TempStruct;

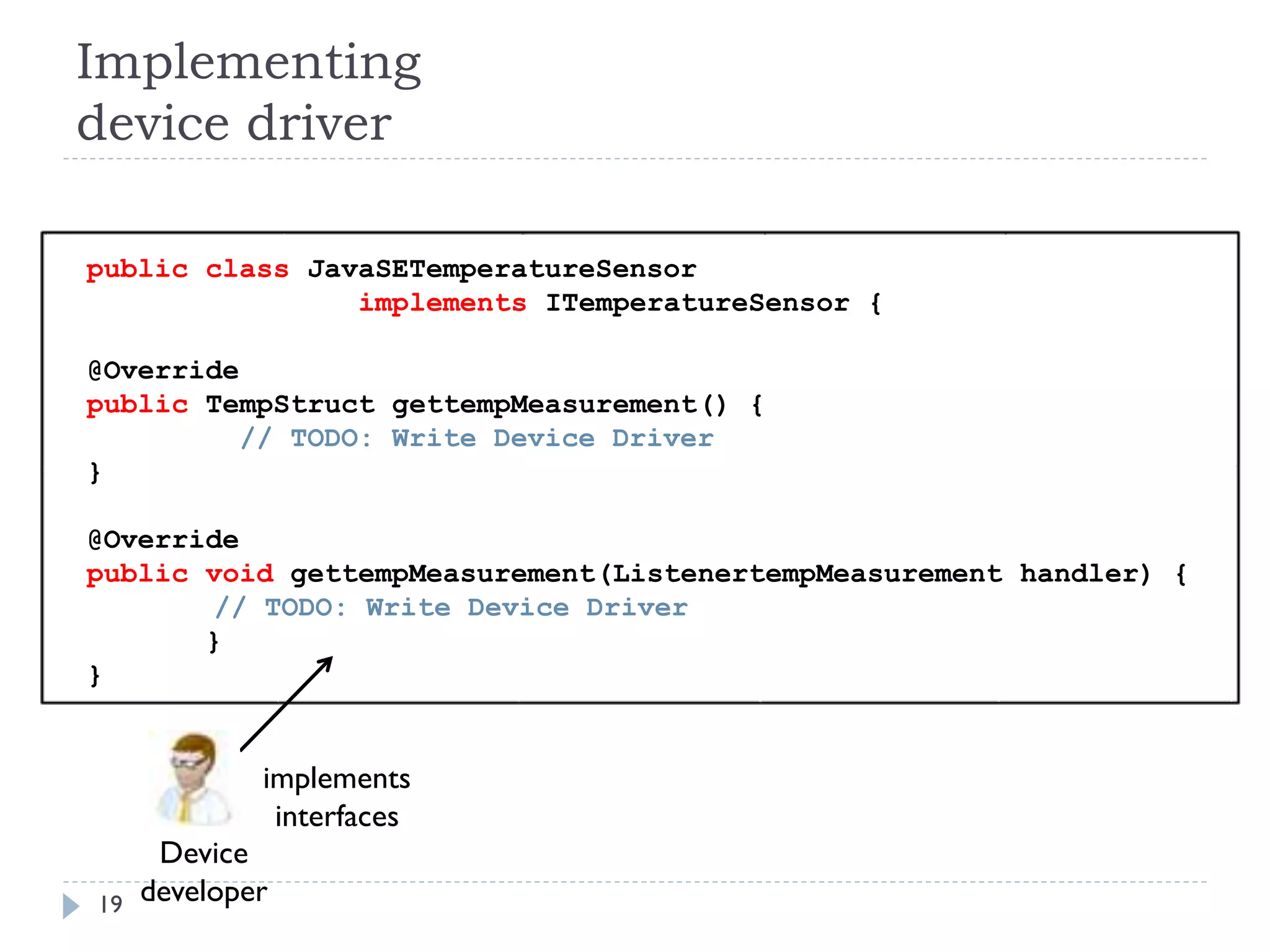

- 19. Implementing device driver 19 Device developer implements interfaces public classJavaSETemperatureSensor implements ITemperatureSensor { @Override public TempStruct gettempMeasurement() { // TODO: Write Device Driver } @Override public void gettempMeasurement(ListenertempMeasurement handler) { // TODO: Write Device Driver } }

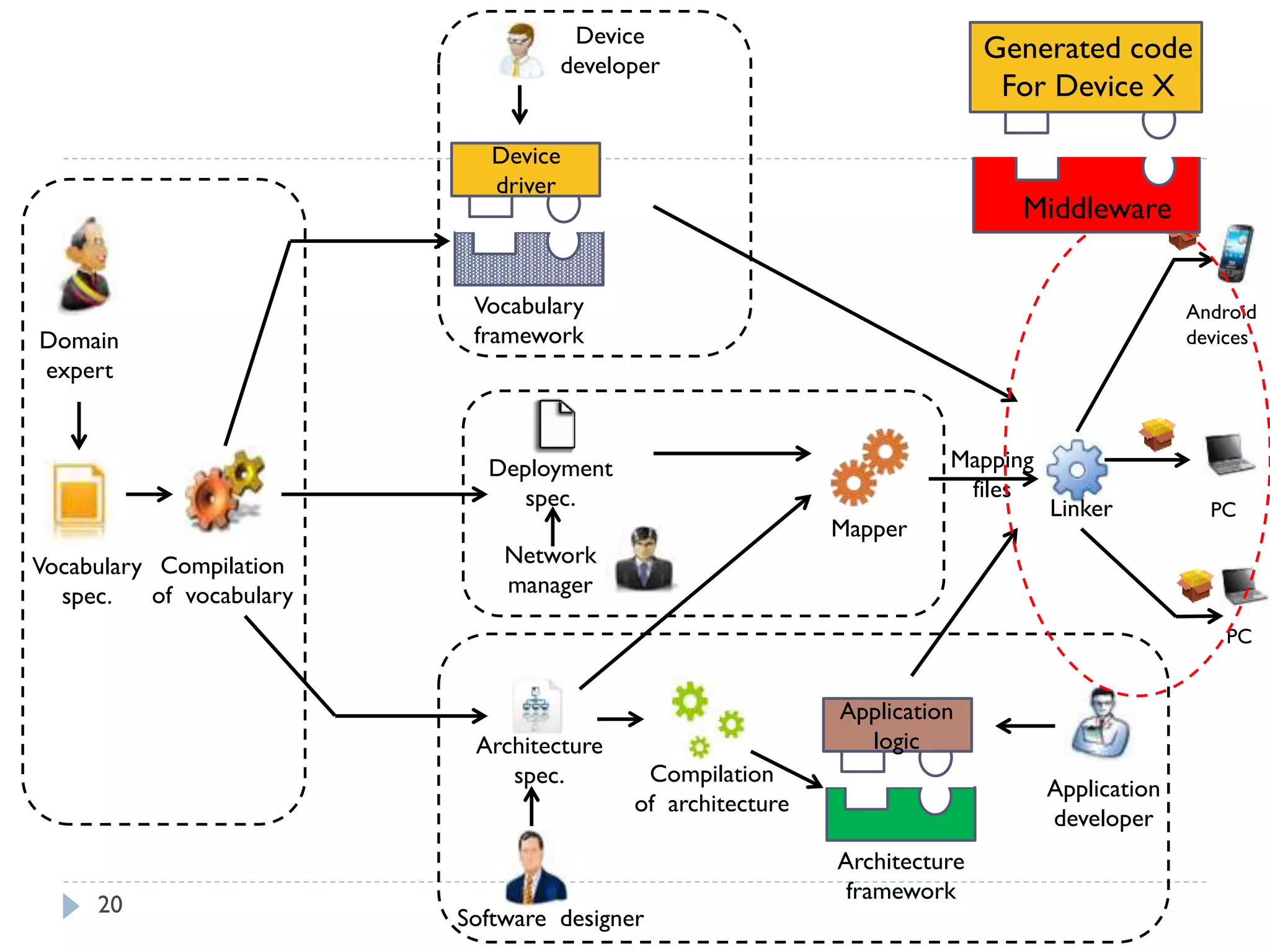

- 20. 20 Domain expert Vocabulary spec. Compilation of vocabulary Device developer Device driver Vocabulary framework Architecture spec. Compilation ofarchitecture Deployment spec. Mapper Application developer Application logic Architecture framework Software designer Network manager Linker Android devices PC PC Mapping files Generated code For Device X Middleware
- 21.
