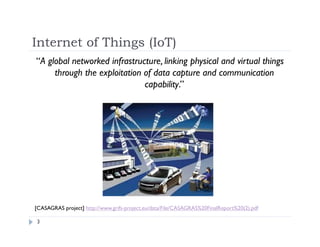

![Internet of Things (IoT)
3
“A global networked infrastructure, linking physical and virtual things
through the exploitation of data capture and communication
capability.”
[CASAGRAS project] http://www.grifs-project.eu/data/File/CASAGRAS%20FinalReport%20(2).pdf](https://image.slidesharecdn.com/srcenablingapplicationdevelopmentfortheinternetofthings-160127094126/85/SRCenabling-application-development-for-the-internet-of-things-3-320.jpg)

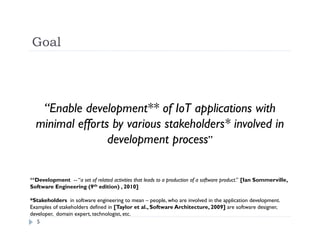

![Goal
5
“Enable development** of IoT applications with
minimal efforts by various stakeholders* involved in
development process”
**Development -- “a set of related activities that leads to a production of a software product.’’ [Ian Sommerville,
Software Engineering (9th edition) , 2010]
*Stakeholders in software engineering to mean – people, who are involved in the application development.
Examples of stakeholders defined in [Taylor et al., Software Architecture, 2009] are software designer,
developer, domain expert, technologist, etc.](https://image.slidesharecdn.com/srcenablingapplicationdevelopmentfortheinternetofthings-160127094126/85/SRCenabling-application-development-for-the-internet-of-things-5-320.jpg)
![9
Heterogeneity
Large number
Multiple expertise
Different life-
cycle phases
Software development life cycle phases -- requirement analysis, design, implementation, testing, evolution
and maintenance [Ian Sommerville, Software Engineering (9th edition) , 2010]
Design:Application logic has to be analyzed and then
separated into a set of distributed tasks.
Implementations: Application has to be implemented
for heterogeneous platforms
Deployment: Tasks of an application have to be
decomposed in a (large) number of heterogeneous
devices.
Challenges](https://image.slidesharecdn.com/srcenablingapplicationdevelopmentfortheinternetofthings-160127094126/85/SRCenabling-application-development-for-the-internet-of-things-9-320.jpg)

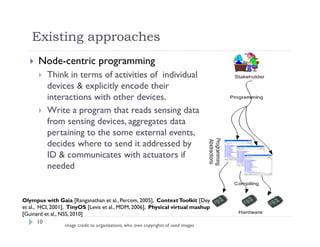

![Existing approaches
10
Node-centric programming
Think in terms of activities of individual
devices & explicitly encode their
interactions with other devices.
Write a program that reads sensing data
from sensing devices, aggregates data
pertaining to the some external events,
decides where to send it addressed by
ID & communicates with actuators if
needed
Olympus with Gaia [Ranganathan et al., Percom, 2005], ContextToolkit [Dey
et al., HCI, 2001], TinyOS [Levis et al., MDM, 2006], Physical virtual mashup
[Guinard et al., NSS, 2010]
image credit to organizations, who own copyrights of used images](https://image.slidesharecdn.com/srcenablingapplicationdevelopmentfortheinternetofthings-160127094126/85/SRCenabling-application-development-for-the-internet-of-things-10-320.jpg)

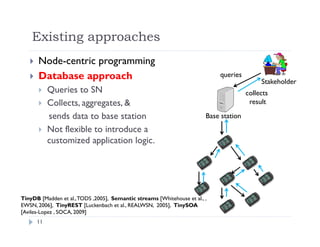

![Existing approaches
11
Node-centric programming
Database approach
Queries to SN
Collects, aggregates, &
sends data to base station
Not flexible to introduce a
customized application logic.
Stakeholder
Base station
queries
collects
result
TinyDB [Madden et al.,TODS ,2005], Semantic streams [Whitehouse et al., ,
EWSN, 2006], TinyREST [Luckenbach et al., REALWSN, 2005], TinySOA
[Aviles-Lopez , SOCA, 2009]](https://image.slidesharecdn.com/srcenablingapplicationdevelopmentfortheinternetofthings-160127094126/85/SRCenabling-application-development-for-the-internet-of-things-11-320.jpg)
![Existing approaches
12
Node-centric programming
Database approach
Macro-programming
Abstractions for high-level
collaborative behaviors
Lack of software engineering
methodology to support life
cycle phases – results in difficult
to maintain, reuse, and
platform-dependent design
Regiment [Newton et al., IPSN, 2007], MacroLab [Hnat et al.
, SenSys, 2008]
image credit to organizations, who own copyrights of used images](https://image.slidesharecdn.com/srcenablingapplicationdevelopmentfortheinternetofthings-160127094126/85/SRCenabling-application-development-for-the-internet-of-things-12-320.jpg)

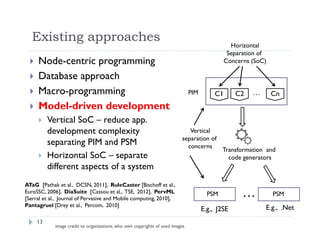

![Existing approaches
13
Node-centric programming
Database approach
Macro-programming
Model-driven development
Vertical SoC – reduce app.
development complexity
separating PIM and PSM
Horizontal SoC – separate
different aspects of a system
Transformation and
code generators
PIM
PSM
E.g., J2SE E.g., .Net
PSM…
C1 C2 Cn…
Horizontal
Separation of
Concerns (SoC)
Vertical
separation of
concerns
ATaG [Pathak et al., DCSN, 2011], RuleCaster [Bischoff et al.,
EuroSSC, 2006], DiaSuite [Cassou et al., TSE, 2012], PervML
[Serral et al., Journal of Pervasive and Mobile computing, 2010],
Pantagruel [Drey et al., Percom, 2010]
image credit to organizations, who own copyrights of used images](https://image.slidesharecdn.com/srcenablingapplicationdevelopmentfortheinternetofthings-160127094126/85/SRCenabling-application-development-for-the-internet-of-things-13-320.jpg)

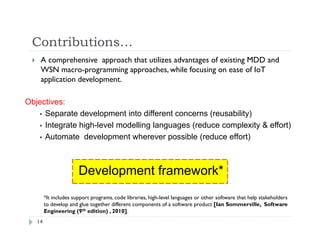

![Contributions…
14
A comprehensive approach that utilizes advantages of existing MDD and
WSN macro-programming approaches, while focusing on ease of IoT
application development.
*It includes support programs, code libraries, high-level languages or other software that help stakeholders
to develop and glue together different components of a software product [Ian Sommerville, Software
Engineering (9th edition) , 2010].
Objectives:
Separate development into different concerns (reusability)
Integrate high-level modelling languages (reduce complexity & effort)
Automate development wherever possible (reduce effort)
Development framework*](https://image.slidesharecdn.com/srcenablingapplicationdevelopmentfortheinternetofthings-160127094126/85/SRCenabling-application-development-for-the-internet-of-things-14-320.jpg)
Uploaded byIEI GSC
SRCenabling application development for the internet of things
The document discusses the challenges and methodologies involved in developing Internet of Things (IoT) applications, focusing on issues of heterogeneity across devices and the need for a comprehensive approach to simplify the development process. It outlines existing programming paradigms and proposes a framework that combines various methodologies to enhance reusability, expressiveness, and support for technological changes. Additionally, it provides case studies showcasing applications in building automation, highlighting metrics like lines of code and code coverage as measures of development effort and efficiency.
More Related Content
Similar to SRCenabling application development for the internet of things
SRCenabling application development for the internet of things
- 1. Enabling Application Development forthe Internet of Things Pankesh Patel*, Saurabh Chauhan+, and Sanjay Chaudhary** * Research Scientist, ABB Corporate Research, Bangalore + MTech (CSE) student, Institute of Engineering and Technology ** Professor and Head (Research), Institute of Engineering and Technology, Ahmedabad University

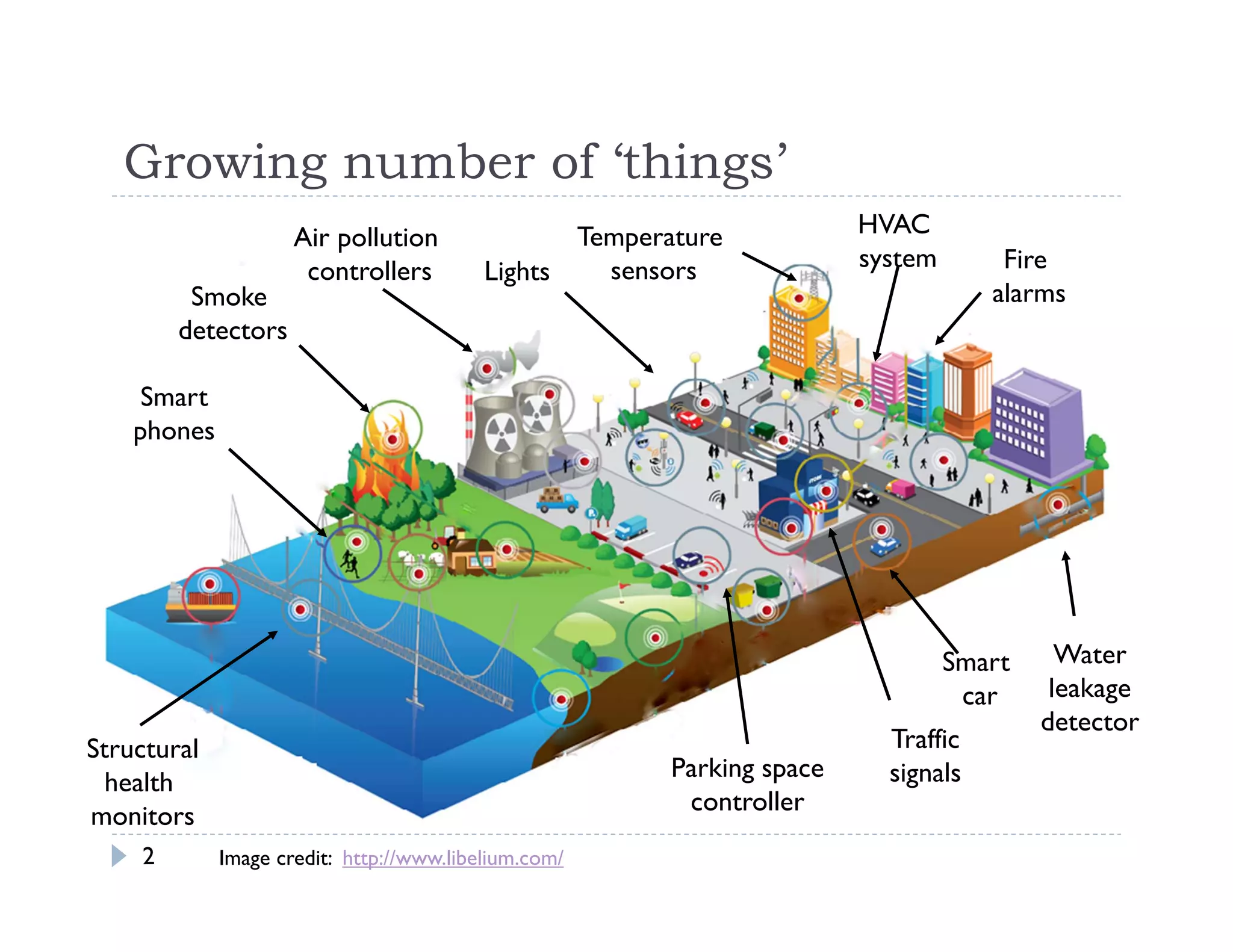

- 2. Growing number of‘things’ 2 Temperature sensors Fire alarmsSmoke detectors Lights Traffic signals Water leakage detector Smart phones Parking space controller Air pollution controllers Structural health monitors HVAC system Smart car Image credit: http://www.libelium.com/
- 3. Internet of Things(IoT) 3 “A global networked infrastructure, linking physical and virtual things through the exploitation of data capture and communication capability.” [CASAGRAS project] http://www.grifs-project.eu/data/File/CASAGRAS%20FinalReport%20(2).pdf
- 4. Internet of Thingsbrings following behaviors to the mix… (e.g., personalized HVAC system - user interactions) image credit to organizations, who own copyrights of used images Sense-Compute-Control Regular Data Collection (e.g., environment monitoring- cloud computing) Data Analytics andVisualization (e.g., collecting user’s activity through phone and health recommendation )
- 5. Goal 5 “Enable development** ofIoT applications with minimal efforts by various stakeholders* involved in development process” **Development -- “a set of related activities that leads to a production of a software product.’’ [Ian Sommerville, Software Engineering (9th edition) , 2010] *Stakeholders in software engineering to mean – people, who are involved in the application development. Examples of stakeholders defined in [Taylor et al., Software Architecture, 2009] are software designer, developer, domain expert, technologist, etc.

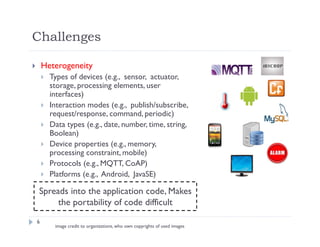

- 6. Challenges 6 Heterogeneity Typesof devices (e.g., sensor, actuator, storage, processing elements, user interfaces) Interaction modes (e.g., publish/subscribe, request/response, command, periodic) Data types (e.g., date, number, time, string, Boolean) Device properties (e.g., memory, processing constraint, mobile) Protocols (e.g., MQTT, CoAP) Platforms (e.g., Android, JavaSE) Spreads into the application code, Makes the portability of code difficult image credit to organizations, who own copyrights of used images

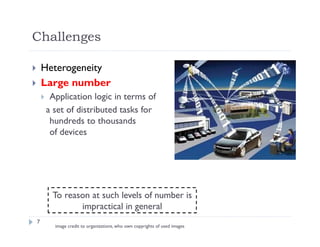

- 7. 7 Heterogeneity Largenumber Application logic in terms of a set of distributed tasks for hundreds to thousands of devices To reason at such levels of number is impractical in general image credit to organizations, who own copyrights of used images Challenges
- 8. 8 Heterogeneity Largenumber Multiple expertise Knowledge from multiple concerns intersect Application domain Software design Algorithm design, programming languages Platform-specific knowledge Clear conflict with skill possessed by the individual developer Deployment area image credit to organizations, who own copyrights of used images Challenges

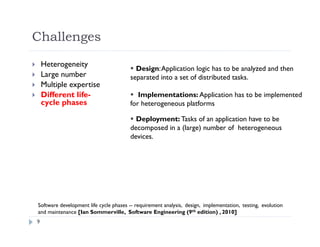

- 9. 9 Heterogeneity Largenumber Multiple expertise Different life- cycle phases Software development life cycle phases -- requirement analysis, design, implementation, testing, evolution and maintenance [Ian Sommerville, Software Engineering (9th edition) , 2010] Design:Application logic has to be analyzed and then separated into a set of distributed tasks. Implementations: Application has to be implemented for heterogeneous platforms Deployment: Tasks of an application have to be decomposed in a (large) number of heterogeneous devices. Challenges
- 10. Existing approaches 10 Node-centricprogramming Think in terms of activities of individual devices & explicitly encode their interactions with other devices. Write a program that reads sensing data from sensing devices, aggregates data pertaining to the some external events, decides where to send it addressed by ID & communicates with actuators if needed Olympus with Gaia [Ranganathan et al., Percom, 2005], ContextToolkit [Dey et al., HCI, 2001], TinyOS [Levis et al., MDM, 2006], Physical virtual mashup [Guinard et al., NSS, 2010] image credit to organizations, who own copyrights of used images
- 11. Existing approaches 11 Node-centricprogramming Database approach Queries to SN Collects, aggregates, & sends data to base station Not flexible to introduce a customized application logic. Stakeholder Base station queries collects result TinyDB [Madden et al.,TODS ,2005], Semantic streams [Whitehouse et al., , EWSN, 2006], TinyREST [Luckenbach et al., REALWSN, 2005], TinySOA [Aviles-Lopez , SOCA, 2009]
- 12. Existing approaches 12 Node-centricprogramming Database approach Macro-programming Abstractions for high-level collaborative behaviors Lack of software engineering methodology to support life cycle phases – results in difficult to maintain, reuse, and platform-dependent design Regiment [Newton et al., IPSN, 2007], MacroLab [Hnat et al. , SenSys, 2008] image credit to organizations, who own copyrights of used images
- 13. Existing approaches 13 Node-centricprogramming Database approach Macro-programming Model-driven development Vertical SoC – reduce app. development complexity separating PIM and PSM Horizontal SoC – separate different aspects of a system Transformation and code generators PIM PSM E.g., J2SE E.g., .Net PSM… C1 C2 Cn… Horizontal Separation of Concerns (SoC) Vertical separation of concerns ATaG [Pathak et al., DCSN, 2011], RuleCaster [Bischoff et al., EuroSSC, 2006], DiaSuite [Cassou et al., TSE, 2012], PervML [Serral et al., Journal of Pervasive and Mobile computing, 2010], Pantagruel [Drey et al., Percom, 2010] image credit to organizations, who own copyrights of used images
- 14. Contributions… 14 A comprehensiveapproach that utilizes advantages of existing MDD and WSN macro-programming approaches, while focusing on ease of IoT application development. *It includes support programs, code libraries, high-level languages or other software that help stakeholders to develop and glue together different components of a software product [Ian Sommerville, Software Engineering (9th edition) , 2010]. Objectives: Separate development into different concerns (reusability) Integrate high-level modelling languages (reduce complexity & effort) Automate development wherever possible (reduce effort) Development framework*

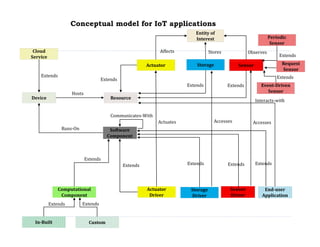

- 15. Entity of Interest Storage Sensor Observes Resource Extends Device Actuator Stores Affects Extends Extends Hosts Software Component Runs‐On Actuator Driver Storage Driver Sensor Driver Accesses Accesses Actuates Extends Extends Extends Computational Component Extends Communicates‐With End‐user Application Interacts‐with Extends Cloud Service Extends In‐Built Custom Extends Extends Periodic Sensor Event‐Driven Sensor Conceptual model for IoT applications Request Sensor Extends Extends
- 16. Commonality at various levels 16 Functionality (e.g.,home fire detection Domain (e.g., building HVAC) Deployment Room temperature (e.g. building automation) Building fire state “Reusability across concerns” ABB- BTP office ABB-Peenya office image credit to organizations, who own copyrights of used images

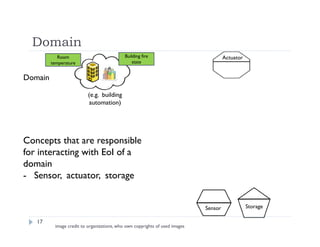

- 17. Domain 17 Domain Room temperature (e.g. building automation) Actuator Sensor Storage Conceptsthat are responsible for interacting with EoI of a domain - Sensor, actuator, storage Building fire state image credit to organizations, who own copyrights of used images

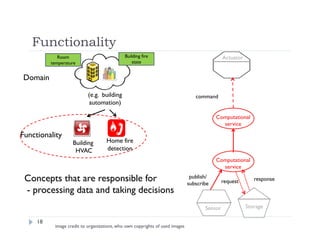

- 18. Functionality 18 Domain Room temperature (e.g. building automation) Functionality Home fire detection Building HVAC Computational service Actuator StorageSensor Computational service responserequest publish/ subscribe Conceptsthat are responsible for - processing data and taking decisions Building fire state command image credit to organizations, who own copyrights of used images

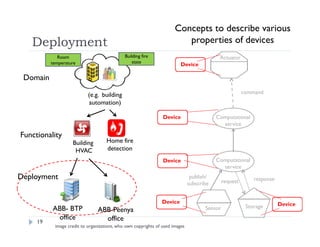

- 19. Deployment 19 Domain Room temperature (e.g. building automation) Functionality Deployment Device Device Device Device Device Buildingfire state Concepts to describe various properties of devices Actuator Sensor Storage Computational service Computational service responserequest publish/ subscribe Home fire detection Building HVAC command ABB- BTP office ABB-Peenya office image credit to organizations, who own copyrights of used images

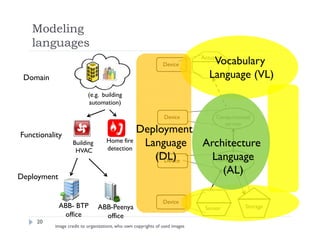

- 20. Modeling languages 20 Domain (e.g. building automation) Functionality ABB- BTP office ABB-Peenya office Deployment Device Device Device Device Actuator SensorStorage Computational service Computational service Home fire detection Building HVAC Vocabulary Language (VL) Architecture Language (AL) Deployment Language (DL) image credit to organizations, who own copyrights of used images

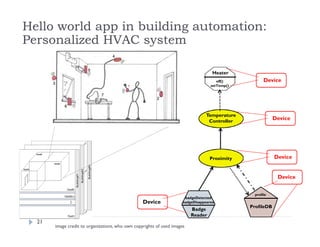

- 21. 21 Hello world appin building automation: Personalized HVAC system Badge Reader badgeDetected badgeDisappeared ProfileDB profile Proximity Heater off() setTemp() Temperature Controller Device Device Device Device Device image credit to organizations, who own copyrights of used images

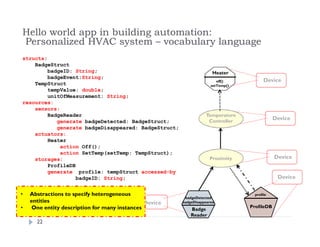

- 22. structs: BadgeStruct badgeID: String; badgeEvent:String; TempStruct tempValue: double; unitOfMeasurement:String; resources: sensors: BadgeReader generate badgeDetected: BadgeStruct; generate badgeDisappeared: BadgeStruct; actuators: Heater action Off(); action SetTemp(setTemp: TempStruct); storages: ProfileDB generate profile: tempStruct accessed-by badgeID: String; 22 Hello world app in building automation: Personalized HVAC system – vocabulary language Badge Reader badgeDetected badgeDisappeared ProfileDB profile Proximity Heater off() setTemp() Temperature Controller Device Device Device Device Device • Abstractions to specify heterogeneous entities • One entity description for many instances

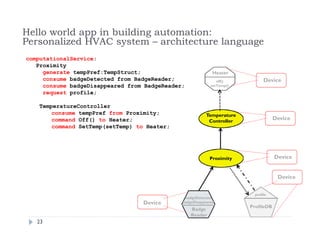

- 23. computationalService: Proximity generate tempPref:TempStruct; consume badgeDetectedfrom BadgeReader; consume badgeDisappeared from BadgeReader; request profile; TemperatureController consume tempPref from Proximity; command Off() to Heater; command SetTemp(setTemp) to Heater; 23 Hello world app in building automation: Personalized HVAC system – architecture language Badge Reader ProfileDB profile Heater off() setTemp() Device Device Device Device Device Proximity Temperature Controller badgeDetected badgeDisappeared

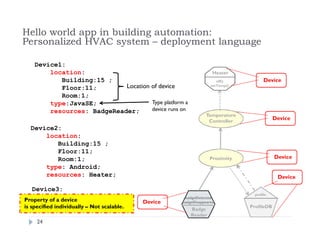

- 24. 24 Hello world appin building automation: Personalized HVAC system – deployment language Badge Reader ProfileDB profile Heater off() setTemp() Device Device Device Device Device Proximity Temperature Controller badgeDetected badgeDisappeared Device1: location: Building:15 ; Floor:11; Room:1; type:JavaSE; resources: BadgeReader; Device2: location: Building:15 ; Floor:11; Room:1; type: Android; resources: Heater; Device3: ... Type platform a device runs on Location of device Property of a device is specified individually – Not scalable.

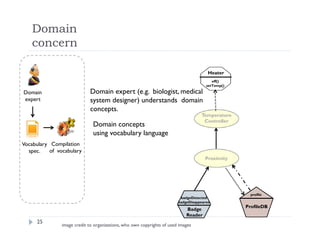

- 25. Domain concern 25 Domain expert Vocabulary spec. Compilation of vocabulary Domain expert(e.g. biologist, medical system designer) understands domain concepts. Domain concepts using vocabulary language Badge Reader badgeDetected badgeDisappeared ProfileDB profile Proximity Heater off() setTemp() Temperature Controller image credit to organizations, who own copyrights of used images

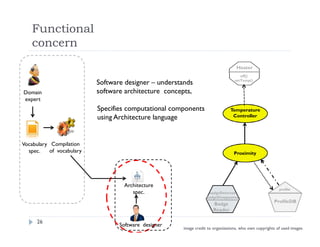

- 26. Functional concern 26 Domain expert Vocabulary spec. Compilation of vocabulary Architecture spec. Software designer Softwaredesigner – understands software architecture concepts, Specifies computational components using Architecture language Badge Reader ProfileDB profile Heater off() setTemp() Proximity Temperature Controller badgeDetected badgeDisappeared image credit to organizations, who own copyrights of used images

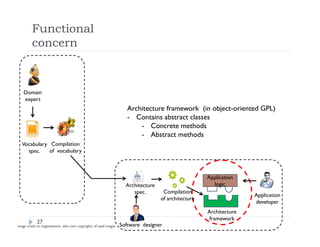

- 27. Functional concern 27 Domain expert Vocabulary spec. Compilation of vocabulary Architecture spec. Compilation ofarchitecture Application developer Architecture framework Software designer Application logic Architecture framework (in object-oriented GPL) - Contains abstract classes - Concrete methods - Abstract methods image credit to organizations, who own copyrights of used images

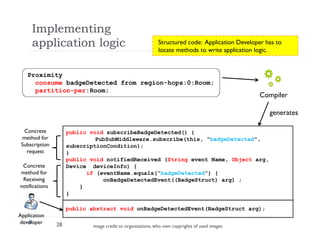

- 28. Implementing application logic 28 Proximity consume badgeDetectedfrom region-hops:0:Room; partition-per:Room; Compiler generates public void subscribeBadgeDetected() { PubSubMiddleware.subscribe(this, “badgeDetected", subscriptionCondition); } public void notifiedReceived (String event Name, Object arg, Device deviceInfo) { if (eventName.equals(“badgeDetected”) { onBadgeDetectedEvent((BadgeStruct) arg) ; } } public abstract void onBadgeDetectedEvent(BadgeStruct arg); Concrete method for Subscription request Concrete method for Receiving notifications Application developer Structured code: Application Developer has to locate methods to write application logic. image credit to organizations, who own copyrights of used images

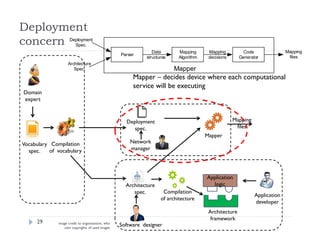

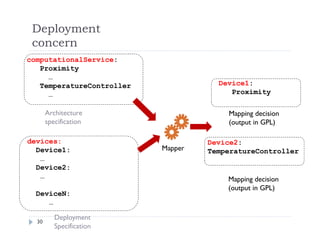

- 29. Deployment concern 29 Vocabulary spec. Compilation of vocabulary Deployment spec. Mapper Network manager Mapper –decides device where each computational service will be executing Mapping files Compilation of architecture Application developer Application logic Architecture framework Software designer Domain expert Architecture spec. Parser Mapping Algorithm Code Generator Deployment Spec. Architecture Spec. Mapping files Mapper Data structures Mapping decisions image credit to organizations, who own copyrights of used images
- 30.
- 31. Platform concern 31 Vocabulary spec. Compilation of vocabulary Device developer Device driver Deployment spec. Mapper Network manager Mapping files Compilation ofarchitecture Application developer Application logic Architecture framework Software designer • Device developer – understands inputs/outputs, protocols of device platform Vocabulary Framework • Abstract classes with concrete methods, interfaces Device Driver Sensing/actuating framework Vocabulary frameworkDomain expert Architecture spec. image credit to organizations, who own copyrights of used images

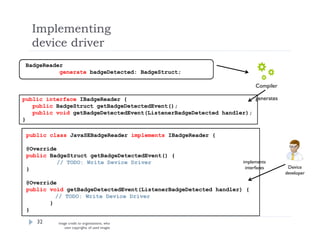

- 32. Implementing device driver 32 public interfaceIBadgeReader { public BadgeStruct getBadgeDetectedEvent(); public void getBadgeDetectedEvent(ListenerBadgeDetected handler); } Compiler generates BadgeReader generate badgeDetected: BadgeStruct; public class JavaSEBadgeReader implements IBadgeReader { @Override public BadgeStruct getBadgeDetectedEvent() { // TODO: Write Device Driver } @Override public void getBadgeDetectedEvent(ListenerBadgeDetected handler) { // TODO: Write Device Driver } } Device developer implements interfaces image credit to organizations, who own copyrights of used images

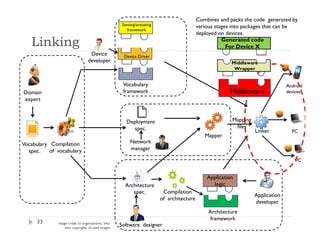

- 33. Linking 33 Domain expert Vocabulary spec. Compilation of vocabulary Architecture spec. Compilation ofarchitecture Deployment spec. Mapper Application developer Application logic Architecture framework Software designer Network manager Linker Android devices PC PC Mapping files Combines and packs the code generated by various stages into packages that can be deployed on devices. Generated code For Device X Middleware Device developer Device driver Vocabulary framework Device Driver Sensing/actuating framework Middleware Wrapper image credit to organizations, who own copyrights of used images

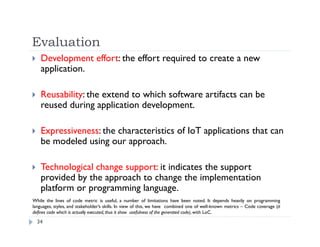

- 34. Evaluation 34 Development effort:the effort required to create a new application. Reusability: the extend to which software artifacts can be reused during application development. Expressiveness: the characteristics of IoT applications that can be modeled using our approach. Technological change support: it indicates the support provided by the approach to change the implementation platform or programming language. While the lines of code metric is useful, a number of limitations have been noted. It depends heavily on programming languages, styles, and stakeholder’s skills. In view of this, we have combined one of well-known metrics – Code coverage (it defines code which is actually executed, thus it show usefulness of the generated code), with LoC.

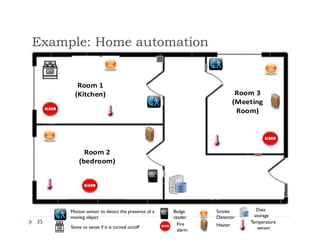

- 35. Example: Home automation 35 Motionsensor to detect the presence of a moving object Stove to sense if it is turned on/off Badge reader Smoke Detector Fire alarm Heater Data storage Temperature sensor Room 2 (bedroom) Room 1 (Kitchen) Room 3 (Meeting Room)

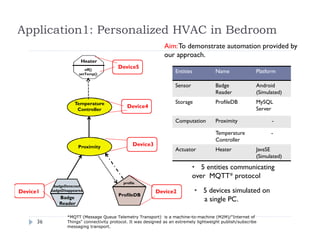

- 36. Application1: Personalized HVACin Bedroom 36 Badge Reader badgeDetected badgeDisappeared ProfileDB profile Proximity Heater off() setTemp() Temperature Controller Device1 Device2 Device3 Device4 Device5 • 5 entities communicating over MQTT* protocol *MQTT (Message Queue Telemetry Transport) is a machine-to-machine (M2M)/"Internet of Things" connectivity protocol. It was designed as an extremely lightweight publish/subscribe messaging transport. • 5 devices simulated on a single PC. Aim:To demonstrate automation provided by our approach. Entities Name Platform Sensor Badge Reader Android (Simulated) Storage ProfileDB MySQL Server Computation Proximity - Temperature Controller - Actuator Heater JavaSE (Simulated)

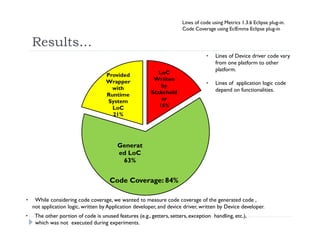

- 37. Results… Lines of codeusing Metrics 1.3.6 Eclipse plug-in. Code Coverage using EclEmma Eclipse plug-in • While considering code coverage, we wanted to measure code coverage of the generated code , not application logic, written by Application developer, and device driver, written by Device developer. • Lines of Device driver code vary from one platform to other platform. • Lines of application logic code depend on functionalities. • The other portion of code is unused features (e.g., getters, setters, exception handling, etc.), which was not executed during experiments. LoC Wriiten by Stakehold er 16% Generat ed LoC 63% Provided Wrapper with Runtime System LoC 21% Code Coverage: 84%

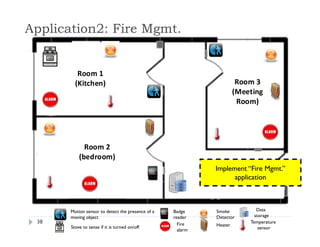

- 38. 38 Motion sensor todetect the presence of a moving object Stove to sense if it is turned on/off Badge reader Smoke Detector Fire alarm Heater Data storage Temperature sensor Room 2 (bedroom) Room 1 (Kitchen) Room 3 (Meeting Room) Implement “Fire Mgmt.” application Application2: Fire Mgmt.

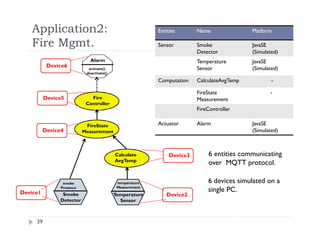

- 39. Application2: Fire Mgmt. 39 Smoke Detector smoke Presence Temperature Sensor temperature Measurement Calculate AvgTemp FireState Measurement Fire Controller Alarm activate() deactivate() Device2Device1 Device3 Device4 Device5 Device6 6 entitiescommunicating over MQTT protocol. 6 devices simulated on a single PC. Entities Name Platform Sensor Smoke Detector JavaSE (Simulated) Temperature Sensor JavaSE (Simulated) Computation CalculateAvgTemp - FireState Measurement - FireController Actuator Alarm JavaSE (Simulated)

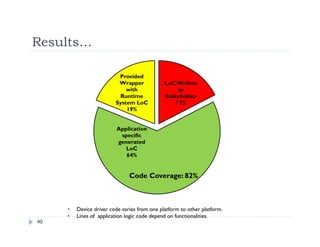

- 40. Results… 40 • Device drivercode varies from one platform to other platform. • Lines of application logic code depend on functionalities. LoC Wriiten by Stakeholder 17% Application specific generated LoC 64% Provided Wrapper with Runtime System LoC 19% Code Coverage: 82%

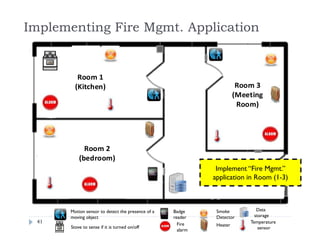

- 41. Implementing Fire Mgmt.Application 41 Motion sensor to detect the presence of a moving object Stove to sense if it is turned on/off Badge reader Smoke Detector Fire alarm Heater Data storage Temperature sensor Room 2 (bedroom) Room 1 (Kitchen) Room 3 (Meeting Room) Implement “Fire Mgmt.” application in Room (1-3)

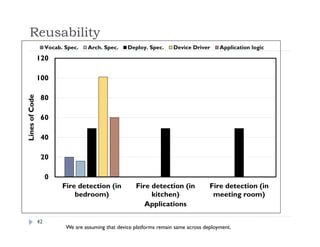

- 42. 0 20 40 60 80 100 120 Fire detection (in bedroom) Firedetection (in kitchen) Fire detection (in meeting room) LinesofCode Applications Vocab. Spec. Arch. Spec. Deploy. Spec. Device Driver Application logic Reusability 42 We are assuming that device platforms remain same across deployment.

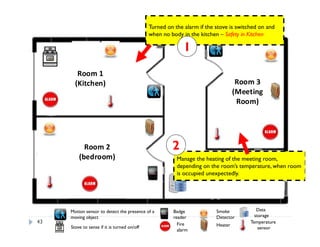

- 43. Evaluating Reusability… 43 Motion sensorto detect the presence of a moving object Stove to sense if it is turned on/off Badge reader Smoke Detector Fire alarm Heater Data storage Temperature sensor Room 2 (bedroom) Room 1 (Kitchen) Room 3 (Meeting Room) Turned on the alarm if the stove is switched on and when no body in the kitchen – Safety in Kitchen Manage the heating of the meeting room, depending on the room’s temperature, when room is occupied unexpectedly. 1 2

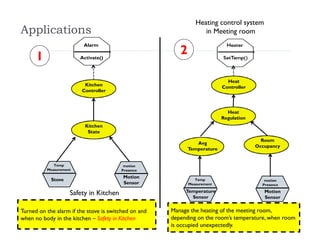

- 44. Applications 44 Stove Temp Measurement Motion Sensor motion Presence Kitchen State Alarm Activate() Kitchen Controller Temperature Sensor Temp Measurement Motion Sensor motion Presence Avg Temperature Room Occupancy Heat Regulation Heater SetTemp() Heat Controller Safety in Kitchen Heatingcontrol system in Meeting room Turned on the alarm if the stove is switched on and when no body in the kitchen – Safety in Kitchen Manage the heating of the meeting room, depending on the room’s temperature, when room is occupied unexpectedly. 1 2

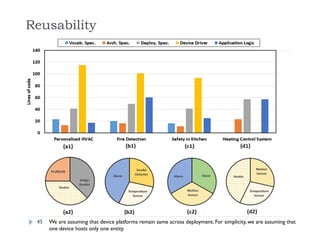

- 45. Reusability 45 We areassuming that device platforms remain same across deployment. For simplicity, we are assuming that one device hosts only one entity.
- 46. Application: Road trafficmonitoring & control 46 • Ramp metering: It influences traffic by controlling access to the highway. One of the techniques to control traffic: Image credit: http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.147.3471&rep=rep1&type=pdf Usually, this kind of system is divided into disjoint sectors, with each sector usually being controlled depending on the current status of the sector. • Speed sensors to measure and report the speeds of vehicles. • Presence sensors to measure and report the presence of vehicles. • Ramp signals designed to allow or disallow cars onto the highways.
- 47. Experiment setup 47 Speed sensor Speed Measurement Presence sensor Presence Measurement Calculate AvgSpeed Calculate AvgQueueLength RampSignal Controller Ramp Signal signal() Entities Name Platform SensorSpeed Sensor JavaSE (Simulated) Presence Sensor JavaSE (Simulated) Computation Calculate AvgSpeed - Calculate AvgLength - RampSignal Controller - Actuator Ramp Signal JavaSE (Simulated) hops:0:Sector Sector Sector Sector hops:0:Sector hops:0:Sector hops:0:Sector hops:0:Sector Entities communicating over MQTT protocol Devices simulated on a single PC.

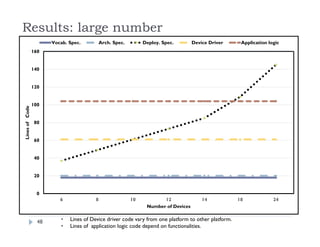

- 48. Results: large number 48• Lines of Device driver code vary from one platform to other platform. • Lines of application logic code depend on functionalities. 0 20 40 60 80 100 120 140 160 6 8 10 12 14 18 24 LinesofCode Number of Devices Vocab. Spec. Arch. Spec. Deploy. Spec. Device Driver Application logic

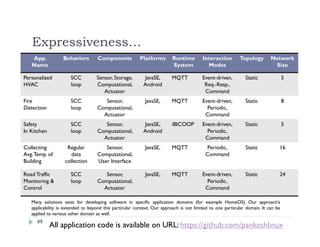

- 49. Expressiveness… 49 All application codeis available on URL: https://github.com/pankeshlinux Many solutions exist for developing software in specific application domains (for example HomeOS). Our approach’s applicability is extended to beyond this particular context. Our approach is not limited to one particular domain. It can be applied to various other domain as well. App. Name Behaviors Components Platforms Runtime System Interaction Modes Topology Network Size Personalized HVAC SCC loop Sensor, Storage, Computational, Actuator JavaSE, Android MQTT Event-driven, Req.-Resp., Command Static 5 Fire Detection SCC loop Sensor, Computational, Actuator JavaSE, MQTT Event-driven, Periodic, Command Static 8 Safety In Kitchen SCC loop Sensor, Computational, Actuator JavaSE, Android iBICOOP Event-driven, Periodic, Command Static 5 Collecting Avg.Temp. of Building Regular data collection Sensor, Computational, User Interface JavaSE, MQTT Periodic, Command Static 16 Road Traffic Monitoring & Control SCC loop Sensor, Computational, Actuator JavaSE, MQTT Event-driven, Periodic, Command Static 24

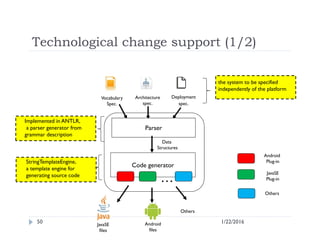

- 50. Technological change support(1/2) 1/22/201650 Vocabulary Spec. Architecture spec. Deployment spec. Code generator … Android Plug-in JavaSE Plug-in Data Structures Parser JavaSE files Android files Others Others Implemented in ANTLR, a parser generator from grammar description StringTemplateEngine, a template engine for generating source code the system to be specified independently of the platform

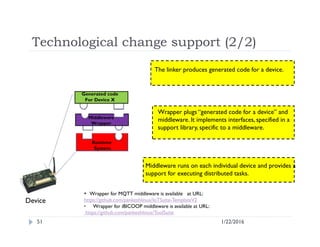

- 51. Technological change support(2/2) 1/22/201651 Generated code For Device X Runtime System Middleware Wrapper Middleware runs on each individual device and provides a support for executing distributed tasks. Wrapper plugs “generated code for a device” and middleware. It implements interfaces, specified in a support library, specific to a middleware. The linker produces generated code for a device. Device Wrapper for MQTT middleware is available at URL: https://github.com/pankeshlinux/IoTSuite-TemplateV2 • Wrapper for iBICOOP middleware is available at URL: https://github.com/pankeshlinux/ToolSuite

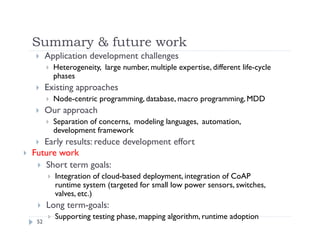

- 52. Summary & futurework 52 Application development challenges Heterogeneity, large number, multiple expertise, different life-cycle phases Existing approaches Node-centric programming, database, macro programming, MDD Our approach Separation of concerns, modeling languages, automation, development framework Early results: reduce development effort Future work Short term goals: Integration of cloud-based deployment, integration of CoAP runtime system (targeted for small low power sensors, switches, valves, etc.) Long term-goals: Supporting testing phase, mapping algorithm, runtime adoption
- 53. 53 Thanks! Email: dr.pankesh.patel@gmail.com sanjay.chaudhary@ahduni.edu.in Implementation of thiswork with documentations, running on both Android and JavaSE device and MQTT runtime system https://github.com/pankeshlinux/IoTSuite/wiki

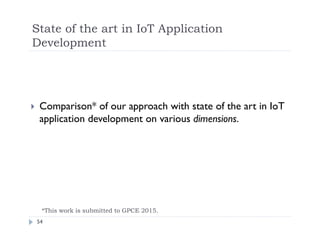

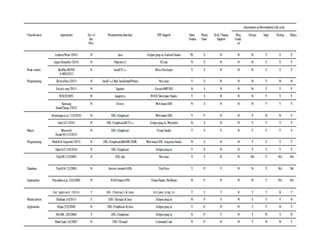

- 54. State of theart in IoT Application Development 54 Comparison* of our approach with state of the art in IoT application development on various dimensions. *This work is submitted to GPCE 2015.
- 55.
