1. C++ Templates
Manimala K
Assistant Professor
Department of Computer Science and Engineering
Government College of Engineering, Salem

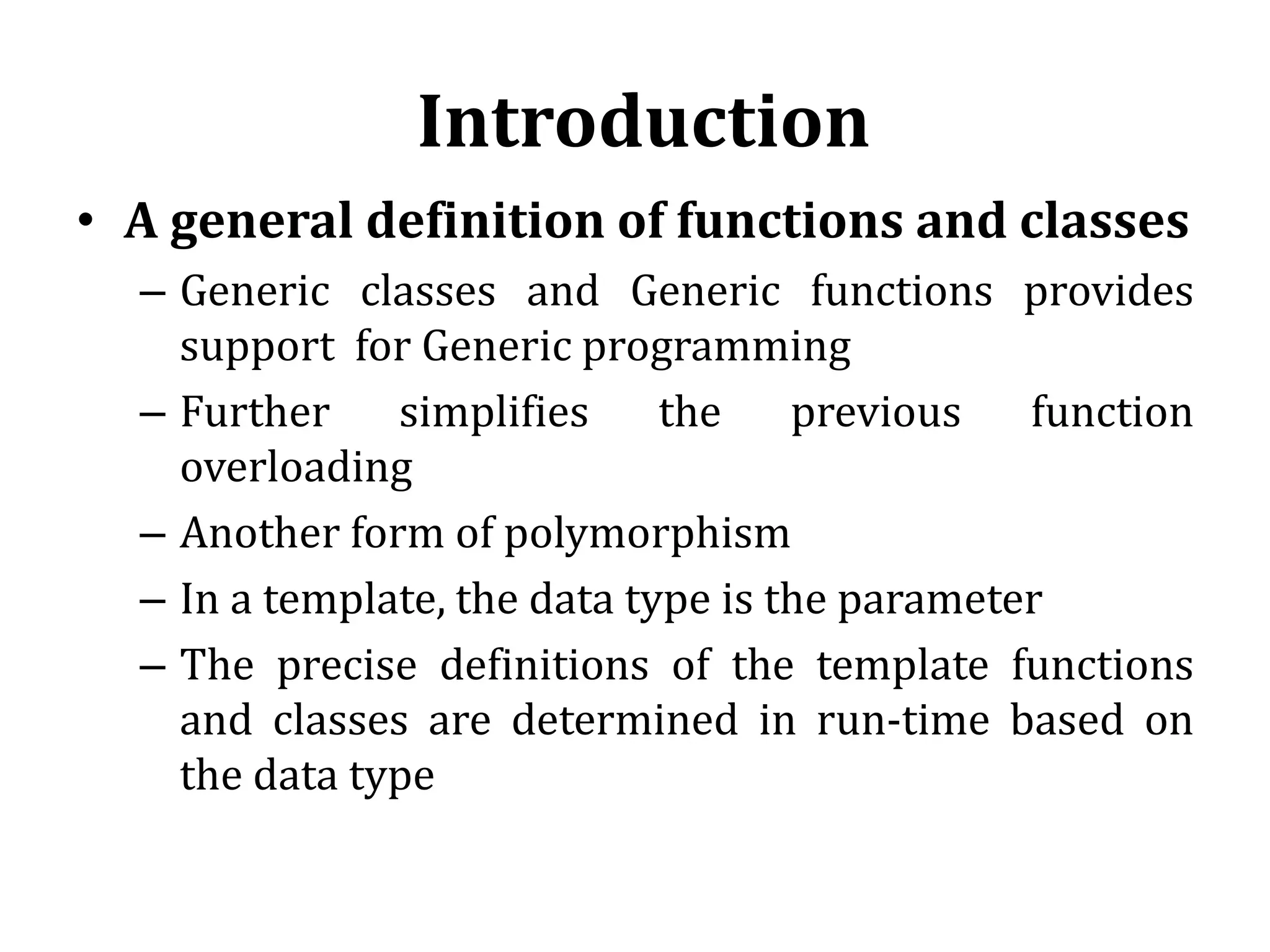

2. Introduction
• A general definition of functions and classes
– Generic classes and Generic functions provides
support for Generic programming
– Further simplifies the previous function
overloading
– Another form of polymorphism
– In a template, the data type is the parameter
– The precise definitions of the template functions
and classes are determined in run-time based on
the data type

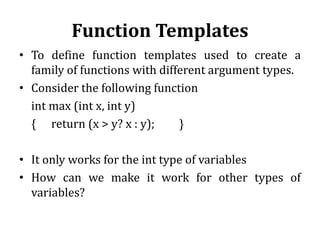

3. Function Templates
• To define function templates used to create a
family of functions with different argument types.
• Consider the following function
int max (int x, int y)
{ return (x > y? x : y); }
• It only works for the int type of variables
• How can we make it work for other types of
variables?

4. Function Templates (cont.)
• Use function overloading
float max (float x, float y)
{ return (x > y? x : y); }
double max (double x, double y)
{ return (x > y? x : y); }
char max (char x, char y)
{ return (x > y? x : y); }
……

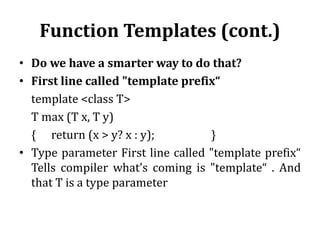

5. Function Templates (cont.)
• Do we have a smarter way to do that?
• First line called "template prefix“
template <class T>
T max (T x, T y)
{ return (x > y? x : y); }
• Type parameter First line called "template prefix“
Tells compiler what’s coming is "template“ . And
that T is a type parameter

6. Function Templates (cont.)
• In template <class T>, "class" means "type", or
"classification“. It is NOT the class we learned
before
• To avoid confusion, one can use “type name”.
• T can be replaced by any type in the run time,
predefined or user-defined (like a C++ class type),
in function definition body
• Note: one can use other symbol than "T", but T is
the "traditional" usage

7. How Does this Work?
• Consider the following example
#include <iostream.h>
template<typename T>
T abs(T x)
{ return x < 0? -x : x; }
void main()
{ int n = -5;
double d = -5.5;
cout << abs(n) << endl;
cout << abs(d) << endl;
return;
}

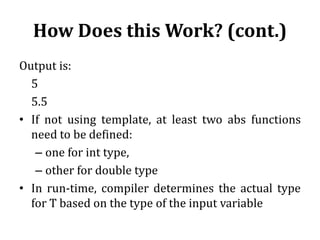

8. How Does this Work? (cont.)
Output is:
5
5.5
• If not using template, at least two abs functions
need to be defined:
– one for int type,
– other for double type
• In run-time, compiler determines the actual type
for T based on the type of the input variable

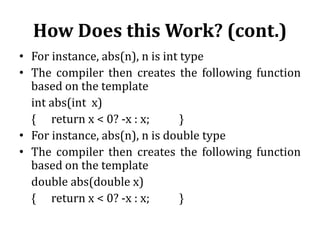

9. How Does this Work? (cont.)
• For instance, abs(n), n is int type
• The compiler then creates the following function
based on the template
int abs(int x)
{ return x < 0? -x : x; }
• For instance, abs(n), n is double type
• The compiler then creates the following function
based on the template
double abs(double x)
{ return x < 0? -x : x; }

10. Difference Between Template
Functions and Normal Functions
• Compiler won’t generate instance for template
functions during compiling. It generates when it is
called (see abs example).
• If a template function is used by several other
places in different .cpp files, the template function
and its body need to be put in the .h file not only
the declaration.
• The function pointer can only point to instance of
the template function

11. Back to the max function
• We now can use template to address our issue
with the max function
#include <iostream.h>
template<class T>
T max(T x, T y)
{ return x > y? x : y; }
void main()
{ int n1 = -5, n2 = 0;
double d1 = -5.5, d2 = -5.9;
cout << max(n1, n2) << endl;
cout << max(d1, d2) << endl;
}

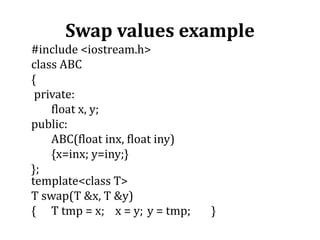

12. Swap values example
#include <iostream.h>
class ABC
{
private:
float x, y;
public:
ABC(float inx, float iny)
{x=inx; y=iny;}
};
template<class T>
T swap(T &x, T &y)
{ T tmp = x; x = y; y = tmp; }

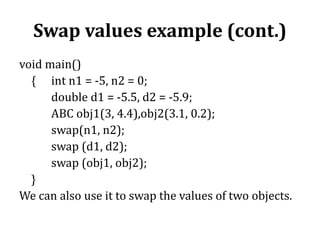

13. Swap values example (cont.)
void main()
{ int n1 = -5, n2 = 0;
double d1 = -5.5, d2 = -5.9;
ABC obj1(3, 4.4),obj2(3.1, 0.2);
swap(n1, n2);
swap (d1, d2);
swap (obj1, obj2);
}
We can also use it to swap the values of two objects.

14. Multiple Type Parameters
• Can have: template<class T1, class T2>
• Not typical Usually only need one "replaceable"
type Cannot have "unused" template parameters
Each must be "used" in definition Error otherwise

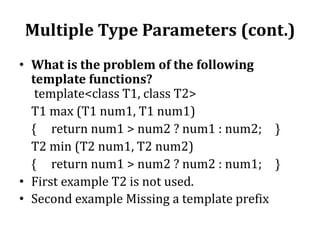

15. Multiple Type Parameters (cont.)
• What is the problem of the following
template functions?
template<class T1, class T2>
T1 max (T1 num1, T1 num1)
{ return num1 > num2 ? num1 : num2; }
T2 min (T2 num1, T2 num2)
{ return num1 > num2 ? num2 : num1; }
• First example T2 is not used.
• Second example Missing a template prefix

16. What is the output of the following program?
#include <iostream.h>
template<class T>
T max(T x, T y)
{ return x > y? x : y; }
void main()
{ int n1 = -5, n2 = 0;
double d1 = -5.5, d2 = -5.9;
cout << max(n1, d2) << endl;
cout << max(d1, n2) << endl;
}
• Compiling error. T ambiguous…
• How to fix it?
– Use multiple type parameters

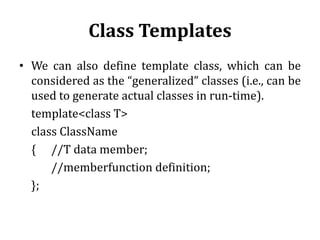

17. Class Templates
• We can also define template class, which can be
considered as the “generalized” classes (i.e., can be
used to generate actual classes in run-time).
template<class T>
class ClassName
{ //T data member;
//memberfunction definition;
};

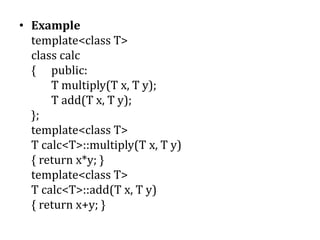

18. • Example
template<class T>
class calc
{ public:
T multiply(T x, T y);
T add(T x, T y);
};
template<class T>
T calc<T>::multiply(T x, T y)
{ return x*y; }
template<class T>
T calc<T>::add(T x, T y)
{ return x+y; }

19. void main()
{ calc<int> c1;
cout<<c1.multiply(10,20);
cout<<c1.add(100,200);
calc<float> c2;
cout<<c1.multiply(10.50,20.75 );
cout<<c1.add(100.66,200.77);
}

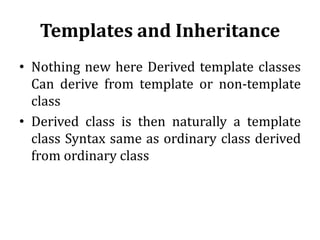

20. Templates and Inheritance
• Nothing new here Derived template classes
Can derive from template or non-template
class
• Derived class is then naturally a template
class Syntax same as ordinary class derived
from ordinary class

21. Summary Function templates
Class templates
• Define functions with parameter for a type
Class templates
• Define class with parameter for class
are template classes
• Can define template class derived from a
template base class

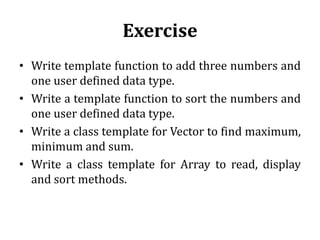

22. Exercise
• Write template function to add three numbers and
one user defined data type.
• Write a template function to sort the numbers and
one user defined data type.
• Write a class template for Vector to find maximum,
minimum and sum.
• Write a class template for Array to read, display
and sort methods.
