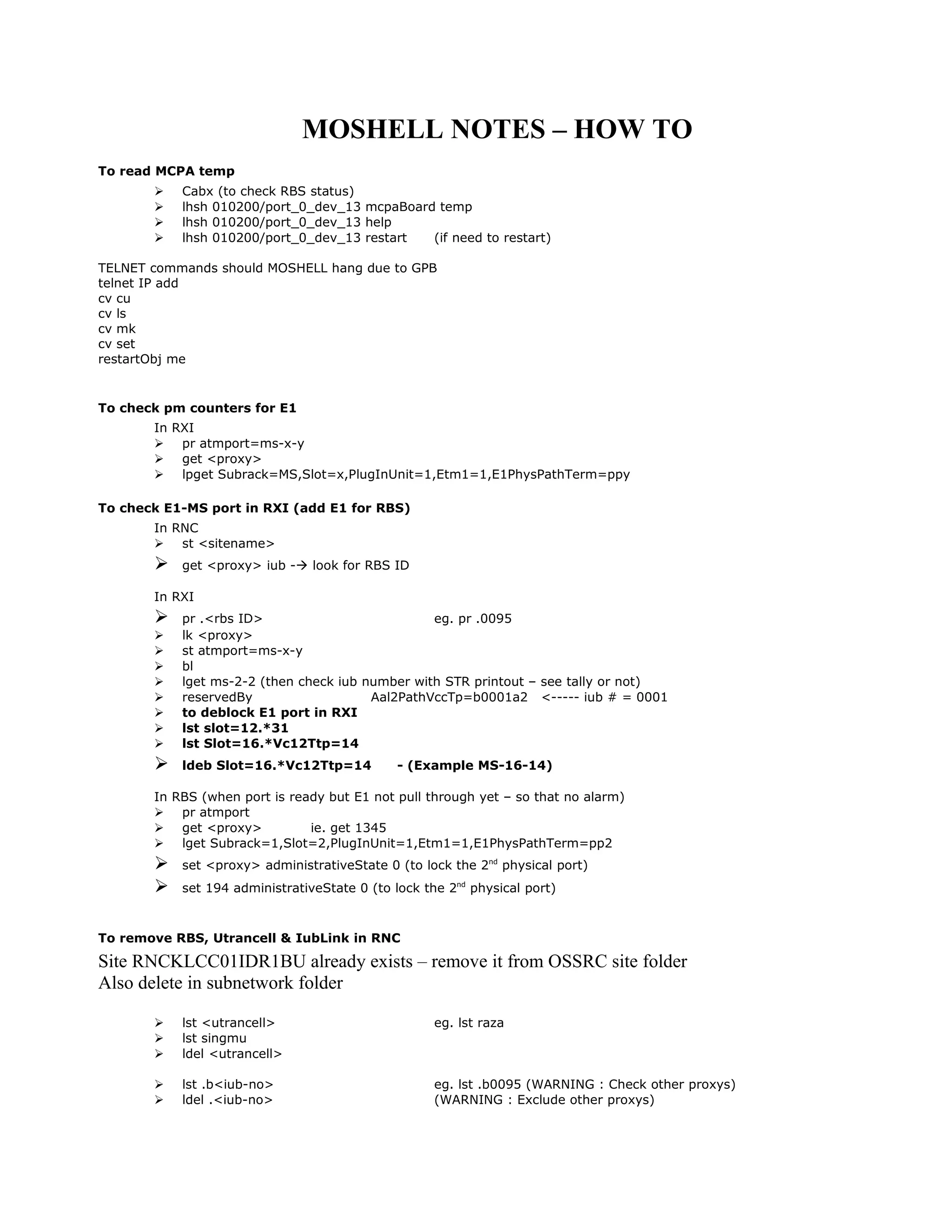

MOSHELL NOTES – HOW TO
To read MCPA temp
 Cabx (to check RBS status)
 lhsh 010200/port_0_dev_13 mcpaBoard temp
 lhsh 010200/port_0_dev_13 help
 lhsh 010200/port_0_dev_13 restart (if need to restart)
TELNET commands should MOSHELL hang due to GPB
telnet IP add
cv cu
cv ls
cv mk
cv set
restartObj me
To check pm counters for E1
In RXI
 pr atmport=ms-x-y
 get <proxy>
 lpget Subrack=MS,Slot=x,PlugInUnit=1,Etm1=1,E1PhysPathTerm=ppy
To check E1-MS port in RXI (add E1 for RBS)
In RNC
 st <sitename>
 get <proxy> iub - look for RBS ID
In RXI
 pr .<rbs ID> eg. pr .0095
 lk <proxy>
 st atmport=ms-x-y
 bl
 lget ms-2-2 (then check iub number with STR printout – see tally or not)
 reservedBy Aal2PathVccTp=b0001a2 <----- iub # = 0001
 to deblock E1 port in RXI
 lst slot=12.*31
 lst Slot=16.*Vc12Ttp=14
 ldeb Slot=16.*Vc12Ttp=14 - (Example MS-16-14)
In RBS (when port is ready but E1 not pull through yet – so that no alarm)
 pr atmport
 get <proxy> ie. get 1345
 lget Subrack=1,Slot=2,PlugInUnit=1,Etm1=1,E1PhysPathTerm=pp2
 set <proxy> administrativeState 0 (to lock the 2nd
physical port)
 set 194 administrativeState 0 (to lock the 2nd
physical port)
To remove RBS, Utrancell & IubLink in RNC
Site RNCKLCC01IDR1BU already exists – remove it from OSSRC site folder
Also delete in subnetwork folder
 lst <utrancell> eg. lst raza
 lst singmu
 ldel <utrancell>
 lst .b<iub-no> eg. lst .b0095 (WARNING : Check other proxys)
 ldel .<iub-no> (WARNING : Exclude other proxys)

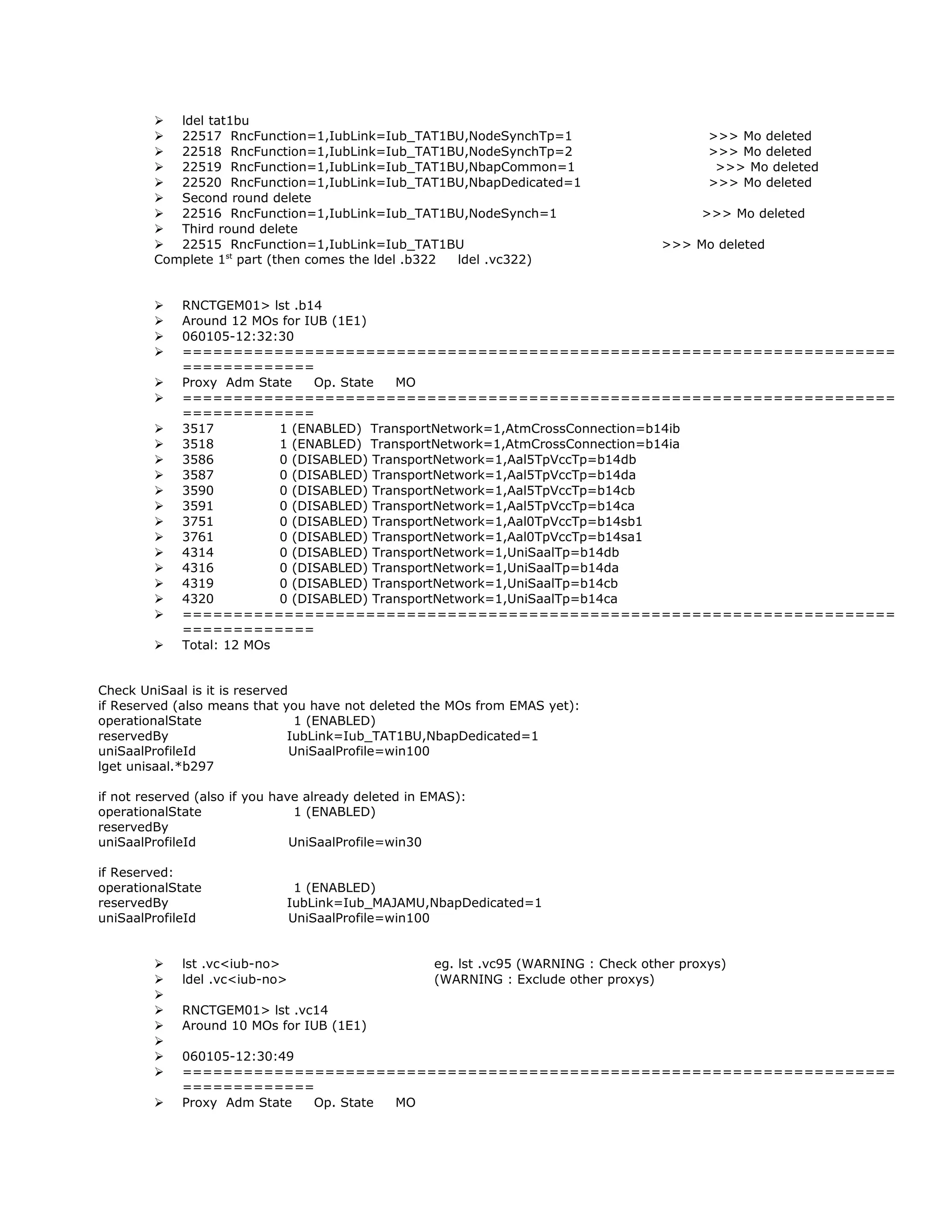

 ldel tat1bu
 22517 RncFunction=1,IubLink=Iub_TAT1BU,NodeSynchTp=1 >>> Mo deleted
 22518 RncFunction=1,IubLink=Iub_TAT1BU,NodeSynchTp=2 >>> Mo deleted
 22519 RncFunction=1,IubLink=Iub_TAT1BU,NbapCommon=1 >>> Mo deleted
 22520 RncFunction=1,IubLink=Iub_TAT1BU,NbapDedicated=1 >>> Mo deleted
 Second round delete
 22516 RncFunction=1,IubLink=Iub_TAT1BU,NodeSynch=1 >>> Mo deleted
 Third round delete
 22515 RncFunction=1,IubLink=Iub_TAT1BU >>> Mo deleted
Complete 1st
part (then comes the ldel .b322 ldel .vc322)
 RNCTGEM01> lst .b14
 Around 12 MOs for IUB (1E1)
 060105-12:32:30
 ======================================================================
=============
 Proxy Adm State Op. State MO
 ======================================================================
=============
 3517 1 (ENABLED) TransportNetwork=1,AtmCrossConnection=b14ib
 3518 1 (ENABLED) TransportNetwork=1,AtmCrossConnection=b14ia
 3586 0 (DISABLED) TransportNetwork=1,Aal5TpVccTp=b14db
 3587 0 (DISABLED) TransportNetwork=1,Aal5TpVccTp=b14da
 3590 0 (DISABLED) TransportNetwork=1,Aal5TpVccTp=b14cb
 3591 0 (DISABLED) TransportNetwork=1,Aal5TpVccTp=b14ca
 3751 0 (DISABLED) TransportNetwork=1,Aal0TpVccTp=b14sb1
 3761 0 (DISABLED) TransportNetwork=1,Aal0TpVccTp=b14sa1
 4314 0 (DISABLED) TransportNetwork=1,UniSaalTp=b14db
 4316 0 (DISABLED) TransportNetwork=1,UniSaalTp=b14da
 4319 0 (DISABLED) TransportNetwork=1,UniSaalTp=b14cb
 4320 0 (DISABLED) TransportNetwork=1,UniSaalTp=b14ca
 ======================================================================
=============
 Total: 12 MOs
Check UniSaal is it is reserved
if Reserved (also means that you have not deleted the MOs from EMAS yet):
operationalState 1 (ENABLED)
reservedBy IubLink=Iub_TAT1BU,NbapDedicated=1
uniSaalProfileId UniSaalProfile=win100
lget unisaal.*b297
if not reserved (also if you have already deleted in EMAS):
reservedBy
if Reserved:
reservedBy IubLink=Iub_MAJAMU,NbapDedicated=1
 lst .vc<iub-no> eg. lst .vc95 (WARNING : Check other proxys)
 ldel .vc<iub-no> (WARNING : Exclude other proxys)

 RNCTGEM01> lst .vc14
 Around 10 MOs for IUB (1E1)

 060105-12:30:49
 ======================================================================
=============
 Proxy Adm State Op. State MO

 ======================================================================
=============
 2972 1 (ENABLED) TransportNetwork=1,AtmPort=MS-26-1,VplTp=vp1,VpcTp=1,VclTp=vc1437
 ======================================================================
=============
 Total: 10 MOs
From RNCs delete external utran relations
 lpr utranrelation=<sitename>
 ldel utranrelation=<sitename>
when confirmed (undo mode ON)
 ldel .b297
it will be deleted in 2 stages
 8404 TransportNetwork=1,AtmCrossConnection=b297ia >>> Mo deleted
 8405 TransportNetwork=1,AtmCrossConnection=b297ib >>> Mo deleted
 8406 TransportNetwork=1,Aal0TpVccTp=b297sa1 >>> Mo deleted
 8407 TransportNetwork=1,Aal0TpVccTp=b297sb1 >>> Mo deleted
Followed by
 ldel .b297
 8408 TransportNetwork=1,Aal5TpVccTp=b297ca >>> Mo deleted
 8410 TransportNetwork=1,Aal5TpVccTp=b297cb >>> Mo deleted
 8412 TransportNetwork=1,Aal5TpVccTp=b297da >>> Mo deleted
 8414 TransportNetwork=1,Aal5TpVccTp=b297db >>> Mo deleted
Then DELETE the VC part
 ldel .vc297
 4307 TransportNetwork=1,AtmPort=MS-7-1,VplTp=vp101,VpcTp=1,VclTp=vc29732 >>> Mo deleted
FINISH RNC part
To remove rbs in RXI
 pr .b<iub-no>
 RXIKLCC02> pr .b322

 060608-14:35:25 10.78.0.97 6.1zc MOM-CELLO_4.3.2-3_5_1
 ======================================================================
=============
 Proxy MO
 ======================================================================
=============
 1724 TransportNetwork=1,Aal2PathVccTp=b322a1
 3268 TransportNetwork=1,Aal2Sp=1,Aal2Ap=b322

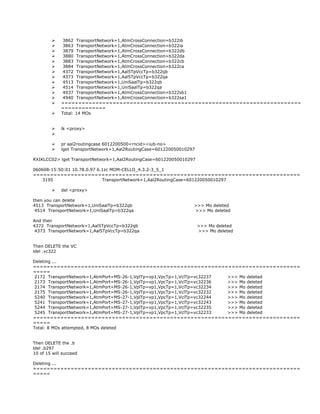

 3862 TransportNetwork=1,AtmCrossConnection=b322ib
 3863 TransportNetwork=1,AtmCrossConnection=b322ia
 3879 TransportNetwork=1,AtmCrossConnection=b322db
 3880 TransportNetwork=1,AtmCrossConnection=b322da
 3883 TransportNetwork=1,AtmCrossConnection=b322cb
 3884 TransportNetwork=1,AtmCrossConnection=b322ca
 4372 TransportNetwork=1,Aal5TpVccTp=b322qb
 4373 TransportNetwork=1,Aal5TpVccTp=b322qa
 4513 TransportNetwork=1,UniSaalTp=b322qb
 4514 TransportNetwork=1,UniSaalTp=b322qa
 4937 TransportNetwork=1,AtmCrossConnection=b322sb1
 4940 TransportNetwork=1,AtmCrossConnection=b322sa1
 ======================================================================
=============
 Total: 14 MOs
 lk <proxy>

 pr aal2routingcase 6012200500<rncid><iub-no>
 lget TransportNetwork=1,Aal2RoutingCase=601220050010297
RXIKLCC02> lget TransportNetwork=1,Aal2RoutingCase=601220050010297
060608-15:50:01 10.78.0.97 6.1zc MOM-CELLO_4.3.2-3_5_1
==============================================================================
3195 TransportNetwork=1,Aal2RoutingCase=601220050010297
 del <proxy>
then you can delete
4513 TransportNetwork=1,UniSaalTp=b322qb >>> Mo deleted
4514 TransportNetwork=1,UniSaalTp=b322qa >>> Mo deleted
And then
4372 TransportNetwork=1,Aal5TpVccTp=b322qb >>> Mo deleted
4373 TransportNetwork=1,Aal5TpVccTp=b322qa >>> Mo deleted
Then DELETE the VC
ldel .vc322
Deleting ...
==============================================================================
=====
2172 TransportNetwork=1,AtmPort=MS-26-1,VplTp=vp1,VpcTp=1,VclTp=vc32237 >>> Mo deleted
==============================================================================
=====
Total: 8 MOs attempted, 8 MOs deleted
Then DELETE the .b
ldel .b297
10 of 15 will succeed
Deleting ...
==============================================================================
=====

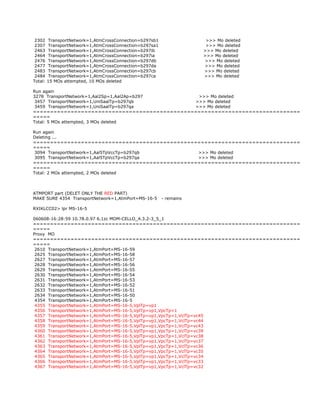

2302 TransportNetwork=1,AtmCrossConnection=b297sb1 >>> Mo deleted
2307 TransportNetwork=1,AtmCrossConnection=b297sa1 >>> Mo deleted
2463 TransportNetwork=1,AtmCrossConnection=b297ib >>> Mo deleted
2464 TransportNetwork=1,AtmCrossConnection=b297ia >>> Mo deleted
2476 TransportNetwork=1,AtmCrossConnection=b297db >>> Mo deleted
2477 TransportNetwork=1,AtmCrossConnection=b297da >>> Mo deleted
2483 TransportNetwork=1,AtmCrossConnection=b297cb >>> Mo deleted
2484 TransportNetwork=1,AtmCrossConnection=b297ca >>> Mo deleted
Run again
3278 TransportNetwork=1,Aal2Sp=1,Aal2Ap=b297 >>> Mo deleted
3457 TransportNetwork=1,UniSaalTp=b297qb >>> Mo deleted
3459 TransportNetwork=1,UniSaalTp=b297qa >>> Mo deleted
==============================================================================
=====
Run again
Deleting ...
==============================================================================
=====
3094 TransportNetwork=1,Aal5TpVccTp=b297qb >>> Mo deleted
3095 TransportNetwork=1,Aal5TpVccTp=b297qa >>> Mo deleted
==============================================================================
=====
ATMPORT part (DELET ONLY THE RED PART)
MAKE SURE 4354 TransportNetwork=1,AtmPort=MS-16-5 - remains
RXIKLCC02> lpr MS-16-5
060608-16:28:59 10.78.0.97 6.1zc MOM-CELLO_4.3.2-3_5_1
==============================================================================
=====
Proxy MO
==============================================================================
=====
2610 TransportNetwork=1,AtmPort=MS-16-59
4355 TransportNetwork=1,AtmPort=MS-16-5,VplTp=vp1
4356 TransportNetwork=1,AtmPort=MS-16-5,VplTp=vp1,VpcTp=1
4357 TransportNetwork=1,AtmPort=MS-16-5,VplTp=vp1,VpcTp=1,VclTp=vc45

==============================================================================
=====

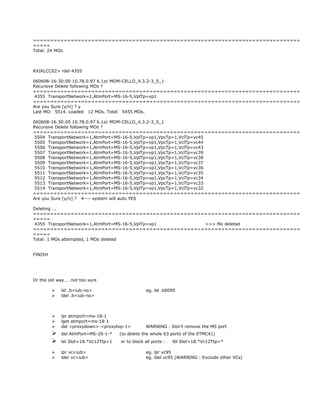

Total: 24 MOs
RXIKLCC02> rdel 4355
060608-16:30:00 10.78.0.97 6.1zc MOM-CELLO_4.3.2-3_5_1
Recursive Delete following MOs ?
==============================================================================
4355 TransportNetwork=1,AtmPort=MS-16-5,VplTp=vp1
==============================================================================
Are you Sure [y/n] ? y
Last MO: 5514. Loaded 12 MOs. Total: 5455 MOs.
060608-16:30:05 10.78.0.97 6.1zc MOM-CELLO_4.3.2-3_5_1
Recursive Delete following MOs ?
==============================================================================
==============================================================================
Are you Sure [y/n] ? --- system will auto YES
Deleting ...
==============================================================================
=====
4355 TransportNetwork=1,AtmPort=MS-16-5,VplTp=vp1 >>> Mo deleted
==============================================================================
=====
FINISH
Or the old way……not too sure
 lst .b<iub-no> eg. lst .b0095
 ldel .b<iub-no>
 lpr atmport=ms-18-1
 lget atmport=ms-18-1
 del <proxydown>-<proxytop-1> WARNING : Don’t remove the MS port
 del AtmPort=MS-20-1-* (to delete the whole 63 ports of the ETMC41)
 lst Slot=18.*Vc12Ttp=1 or to block all ports : lbl Slot=18.*Vc12Ttp=*
 lpr vc<iub> eg. lpr vc95
 ldel vc<iub> eg. ldel vc95 (WARNING : Exclude other VCs)

To remove rbs in ATMCC
 lst .b<iub-no> eg. lst .b0095
 ldel .b<iub-no>
 lpr vc<iub> eg. lpr vc95
 ldel vc<iub> eg. ldel vc95 (WARNING : Exclude other VCs)
To check pm (performance) counters in RNC/RXI
 get 1 (to see the performance directory)
 ls -l /p001200/pm/ | grep xml (to see the performance files)
 pst (list the scanners, status)
 pmr [-m 5 –p 3] (get performance report) [for the last 5 hours + 3 ]
To create performance counters scanner
 pst
 pgetsn <proxy>
 pcr <name> <mo-name> <counter-name> eg. pcr <rssi> cellcarrier pmAverageRssi
 pget <mo-name> <counter-name> to read the counters
 pbl/pdeb <proxy> to stop/resume scanner
 pdel <proxy> to delete scanner
To set SAC in Utrancell
 pr utrancell=ower serviceAreaRef (then)
 get utrancell=ower serviceAreaRef
 set utrancell=AMGMMU servicearearef LocationArea=1,servicearea=12 (SAC defined)

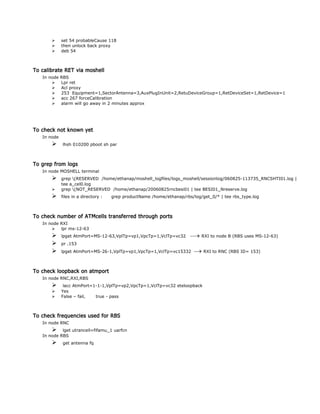

To set Electrical Tilt (RET)
 pr retdevice
 get <proxy>
 set <proxy> electricalAntennaTilt <value>
 get ret electrical
To set Latitude/Longitude
 get sector lat
 set sector latitude <value>
To log alarm in a nice format
 lgevsm
Sample Scripts in moshell
 for 10
Enter commmands (one per line), then type "done"
> get radiolink num
> wait 2
> done
To enable E1 supervision
 set
To create Group (eg. Not reserved VclTp)
 get vcltp reservedby !.*=
 lma <group-name> vcltp reservedby !.*=

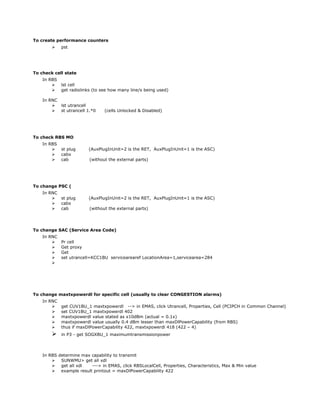

To create performance counters
 pst
To check cell state
In RBS
 lst cell
 get radiolinks (to see how many line/s being used)
In RNC
 lst utrancell
 st utrancell 1.*0 (cells Unlocked & Disabled)
To check RBS MO
In RBS
 st plug (AuxPlugInUnit=2 is the RET, AuxPlugInUnit=1 is the ASC)
 cabx
 cab (without the external parts)
To change PSC (
In RNC
 st plug (AuxPlugInUnit=2 is the RET, AuxPlugInUnit=1 is the ASC)
 cabx
 cab (without the external parts)
To change SAC (Service Area Code)
In RNC
 Pr cell
 Get proxy
 Get
 set utrancell=KCC1BU servicearearef LocationArea=1,servicearea=284

To change maxtxpowerdl for specific cell (usually to clear CONGESTION alarms)
In RNC
 get CUV1BU_1 maxtxpowerdl --> in EMAS, click Utrancell, Properties, Cell (PCIPCH in Common Channel)
 set CUV1BU_1 maxtxpowerdl 402
 maxtxpowerdl value stated as x10dBm (actual = 0.1x)
 maxtxpowerdl value usually 0.4 dBm lesser than maxDlPowerCapability (from RBS)
 thus if maxDlPowerCapability 422, maxtxpowerdl 418 (422 – 4)
 in P3 - get SOGXBU_1 maximumtransmissionpower
In RBS determine max capability to transmit
 SUNWMU> get all xdl
 get all xdl ---> in EMAS, click RBSLocalCell, Properties, Characteristics, Max & Min value
 example result printout = maxDlPowerCapability 422

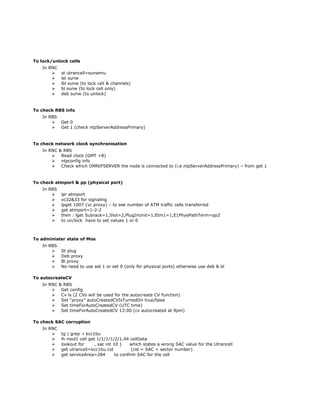

To lock/unlock cells
In RNC
 st utrancell=sunwmu
 lst sunw
 lbl sunw (to lock cell & channels)
 bl sunw (to lock cell only)
 deb sunw (to unlock)
To check RBS info
In RBS
 Get 0
 Get 1 (check ntpServerAddressPrimary)
To check network clock synchronisation
In RNC & RBS
 Read clock (GMT +8)
 ntpconfig info
 Check which OMNIFSERVER the node is connected to (i.e ntpServerAddressPrimary) – from get 1
To check atmport & pp (physical port)
In RBS
 lpr atmport
 vc32&33 for signaling
 lpget 1007 (vc proxy) – to see number of ATM traffic cells transferred
 get atmport=1-2-2
 then : lget Subrack=1,Slot=2,PlugInUnit=1,Etm1=1,E1PhysPathTerm=pp2
 to un/lock have to set values 1 or 0
To administer state of Mos
In RBS
 St plug
 Deb proxy
 Bl proxy
 No need to use set 1 or set 0 (only for physical ports) otherwise use deb & bl
To autocreateCV
In RNC & RBS
 Get config
 Cv ls (2 CVs will be used for the autocreate CV function)
 Set “proxy” autoCreatedCVIsTurnedOn true/false
 Set timeForAutoCreatedCV (UTC time)
 Set timeForAutoCreatedCV 13:00 (cv autocreated at 9pm)
To check SAC corruption
In RNC
 tg | grep -i kcc1bu
 lh mod1 cell get 1/1/1/1/2/1.44 cellData
 lookout for , sac int 10 } which states a wrong SAC value for the Utrancell
 get utrancell=kcc1bu cid (cid = SAC + sector number)
 get serviceArea=284 to confirm SAC for the cell

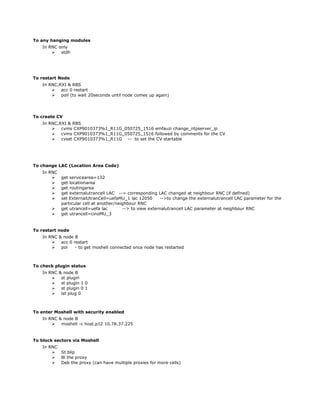

To any hanging modules
In RNC only
 stdh
To restart Node
In RNC,RXI & RBS
 acc 0 restart
 poll (to wait 20seconds until node comes up again)
To create CV
In RNC,RXI & RBS
 cvms CXP9010373%1_R11G_050725_1516 emfauzi change_ntpserver_ip
 cvms CXP9010373%1_R11G_050725_1516 followed by comments for the CV
 cvset CXP9010373%1_R11G -- to set the CV startable
To change LAC (Location Area Code)
In RNC
 get servicearea=132
 get locationarea
 get routingarea
 get externalutrancell LAC --> corresponding LAC changed at neighbour RNC (if defined)
 set ExternalUtranCell=uefaMU_1 lac 12050 -->to change the externalutrancell LAC parameter for the
particular cell at another/neighbour RNC
 get utrancell=uefa lac --> to view externalutrancell LAC parameter at neighbour RNC
 get utrancell=cinoMU_3
To restart node
In RNC & node B
 acc 0 restart
 pol - to get moshell connected once node has restarted
To check plugin status
In RNC & node B
 st plugin
 st plugin 1 0
 st plugin 0 1
 lst plug 0
To enter Moshell with security enabled
In RNC & node B
 moshell -c host.p12 10.78.37.225
To block sectors via Moshell
In RNC
 St blip
 Bl the proxy
 Deb the proxy (can have multiple proxies for more cells)

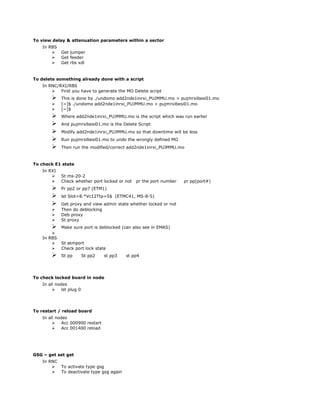

To view delay & attenuation parameters within a sector
In RBS
 Get jumper
 Get feeder
 Get rbs xdl
To delete something already done with a script
In RNC/RXI/RBS
 First you have to generate the MO Delete script
 This is done by ./undomo add2nde1inrxi_PUJMMU.mo > pujmrxibesi01.mo
 [~]$ ./undomo add2nde1inrxi_PUJMMU.mo > pujmrxibesi01.mo
 [~]$
 Where add2nde1inrxi_PUJMMU.mo is the script which was run earlier
 And pujmrxibesi01.mo is the Delete Script
 Modify add2nde1inrxi_PUJMMU.mo so that downtime will be less
 Run pujmrxibesi01.mo to undo the wrongly defined MO
 Then run the modified/correct add2nde1inrxi_PUJMMU.mo
To check E1 state
In RXI
 St ms-20-2
 Check whether port locked or not pr the port number pr pp(port#)
 Pr pp2 or pp7 (ETM1)
 lst Slot=8.*Vc12Ttp=5$ (ETMC41, MS-8-5)
 Get proxy and view admin state whether locked or not
 Then do deblocking
 Deb proxy
 St proxy
 Make sure port is deblocked (can also see in EMAS)

In RBS
 St atmport
 Check port lock state
 St pp St pp2 st pp3 st pp4
To check locked board in node
In all nodes
 lst plug 0
To restart / reload board
In all nodes
 Acc 000900 restart
 Acc 001400 reload
GSG – get set get
In RNC
 To activate type gsg
 To deactivate type gsg again

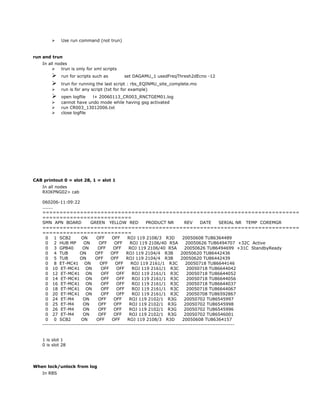

 Use run command (not trun)
run and trun
In all nodes
 trun is only for xml scripts
 run for scripts such as set DAGAMU_1 usedFreqThresh2dEcno -12
 trun for running the last script : rbs_EQINMU_site_complete.mo
 run is for any script (txt for for example)
 open logfile l+ 20060113_CR003_RNCTGEM01.log
 cannot have undo mode while having gsg activated
 run CR003_13012006.txt
 close logfile
CAB printout 0 = slot 28, 1 = slot 1
In all nodes
RXIKPNG02> cab
060206-11:09:22
.......
===========================================================================
==========================
SMN APN BOARD GREEN YELLOW RED PRODUCT NR REV DATE SERIAL NR TEMP COREMGR
===========================================================================
==========================
0 1 SCB2 ON OFF OFF ROJ 119 2108/3 R3D 20050608 TU86364489
0 2 HUB MP ON OFF OFF ROJ 119 2106/40 R5A 20050626 TU86494707 +32C Active
0 3 GPB40 ON OFF OFF ROJ 119 2106/40 R5A 20050626 TU86494699 +31C StandbyReady
0 4 TUB ON OFF OFF ROJ 119 2104/4 R3B 20050620 TU86442436
0 5 TUB ON OFF OFF ROJ 119 2104/4 R3B 20050620 TU86442439
0 8 ET-MC41 ON OFF OFF ROJ 119 2161/1 R3C 20050718 TU86644146
0 24 ET-M4 ON OFF OFF ROJ 119 2102/1 R3G 20050702 TU86545997
0 0 SCB2 ON OFF OFF ROJ 119 2108/3 R3D 20050608 TU86364157
-----------------------------------------------------------------------------------------------------
1 is slot 1
0 is slot 28
When lock/unlock from log
In RBS

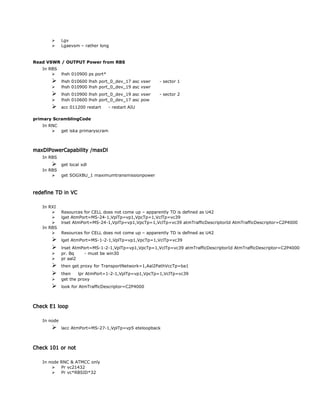

 Lgv
 Lgaevsm – rather long
Read VSWR / OUTPUT Power from RBS
In RBS
 lhsh 010900 ps port*
 lhsh 010600 lhsh port_0_dev_17 asc vswr - sector 1
 lhsh 010900 lhsh port_0_dev_19 asc vswr
 lhsh 010900 lhsh port_0_dev_19 asc vswr - sector 2
 lhsh 010600 lhsh port_0_dev_17 asc pow
 acc 011200 restart - restart AIU
primary ScramblingCode
In RNC
 get iska primaryscram
maxDlPowerCapability /maxDl
In RBS
 get local xdl
In RBS
 get SOGXBU_1 maximumtransmissionpower
redefine TD in VC
In RXI
 Resources for CELL does not come up – apparently TD is defined as U42
 lget AtmPort=MS-24-1,VplTp=vp1,VpcTp=1,VclTp=vc39
 lrset AtmPort=MS-24-1,VplTp=vp1,VpcTp=1,VclTp=vc39 atmTrafficDescriptorId AtmTrafficDescriptor=C2P4000
In RBS
 Resources for CELL does not come up – apparently TD is defined as U42
 lget AtmPort=MS-1-2-1,VplTp=vp1,VpcTp=1,VclTp=vc39
 lrset AtmPort=MS-1-2-1,VplTp=vp1,VpcTp=1,VclTp=vc39 atmTrafficDescriptorId AtmTrafficDescriptor=C2P4000
 pr. Bq - must be win30
 pr aal2
 then get proxy for TransportNetwork=1,Aal2PathVccTp=ba1
 then lpr AtmPort=1-2-1,VplTp=vp1,VpcTp=1,VclTp=vc39
 get the proxy
 look for AtmTrafficDescriptor=C2P4000
Check E1 loop
In node
 lacc AtmPort=MS-27-1,VplTp=vp5 eteloopback
Check 101 or not
In node RNC & ATMCC only
 Pr vc21432
 Pr vc*RBSID*32

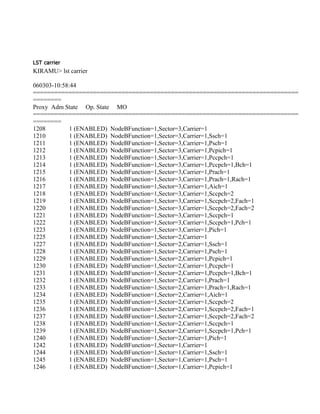

LST carrier
KIRAMU> lst carrier
060303-10:58:44
===========================================================================
========
Proxy Adm State Op. State MO
===========================================================================
========
1208 1 (ENABLED) NodeBFunction=1,Sector=3,Carrier=1
1210 1 (ENABLED) NodeBFunction=1,Sector=3,Carrier=1,Ssch=1
1211 1 (ENABLED) NodeBFunction=1,Sector=3,Carrier=1,Psch=1
1212 1 (ENABLED) NodeBFunction=1,Sector=3,Carrier=1,Pcpich=1
1213 1 (ENABLED) NodeBFunction=1,Sector=3,Carrier=1,Pccpch=1
1214 1 (ENABLED) NodeBFunction=1,Sector=3,Carrier=1,Pccpch=1,Bch=1
1215 1 (ENABLED) NodeBFunction=1,Sector=3,Carrier=1,Prach=1
1216 1 (ENABLED) NodeBFunction=1,Sector=3,Carrier=1,Prach=1,Rach=1
1217 1 (ENABLED) NodeBFunction=1,Sector=3,Carrier=1,Aich=1
1218 1 (ENABLED) NodeBFunction=1,Sector=3,Carrier=1,Sccpch=2
1219 1 (ENABLED) NodeBFunction=1,Sector=3,Carrier=1,Sccpch=2,Fach=1
1222 1 (ENABLED) NodeBFunction=1,Sector=3,Carrier=1,Sccpch=1,Pch=1
1223 1 (ENABLED) NodeBFunction=1,Sector=3,Carrier=1,Pich=1

===========================================================================
========

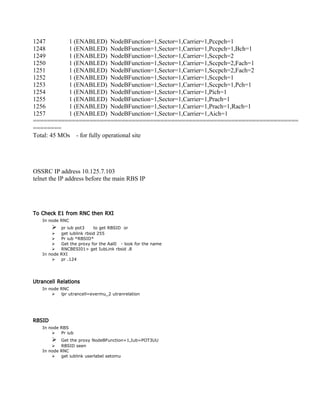

Total: 45 MOs - for fully operational site
OSSRC IP address 10.125.7.103
telnet the IP address before the main RBS IP
To Check E1 from RNC then RXI
In node RNC
 pr iub pot3 to get RBSID or
 get iublink rbsid 255
 Pr iub *RBSID*
 Get the proxy for the Aal0 - look for the name
 RNCBESI01> get IubLink rbsid .8
In node RXI
 pr .124
Utrancell Relations
In node RNC
 lpr utrancell=evermu_2 utranrelation
RBSID
In node RBS
 Pr iub
 Get the proxy NodeBFunction=1,Iub=POT3UU
 RBSID seen
In node RNC
 get iublink userlabel setomu

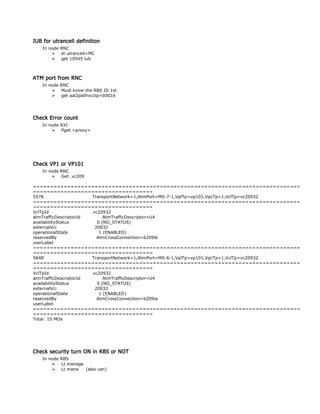

IUB for utrancell definition
In node RNC
 st utrancell=MC
 get 10545 iub
ATM port from RNC
In node RNC
 Must know the RBS ID 1st
 get aal2pathvcctp=b0016
Check Error count
In node RXI
 Pget <proxy>
Check VP1 or VP101
In node RNC
 Get .vc209
==============================================================================
===================================
==============================================================================
===================================
VclTpId vc20932
atmTrafficDescriptorId AtmTrafficDescriptor=U4
availabilityStatus 0 (NO_STATUS)
externalVci 20932
reservedBy AtmCrossConnection=b209ib
userLabel
==============================================================================
===================================
==============================================================================
===================================
VclTpId vc20932
atmTrafficDescriptorId AtmTrafficDescriptor=U4
availabilityStatus 0 (NO_STATUS)
externalVci 20932
reservedBy AtmCrossConnection=b209ia
userLabel
==============================================================================
===================================
Total: 10 MOs
Check security turn ON in RBS or NOT
In node RBS
 Lt manage
 Lt mana (also can)

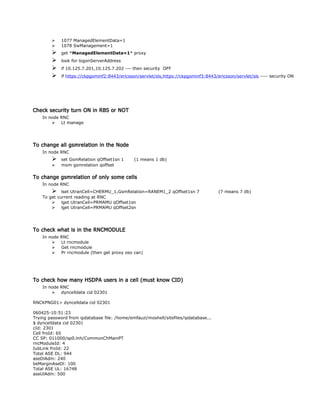

 1077 ManagedElementData=1
 1078 SwManagement=1
 get *ManagedElementData=1* proxy
 look for logonServerAddress
 if 10.125.7.201,10.125.7.202 --- then security OFF
 if https://ckpgominf2:8443/ericsson/servlet/sls,https://ckpgominf3:8443/ericsson/servlet/sls ---- security ON
Check security turn ON in RBS or NOT
In node RNC
 Lt manage
To change all gsmrelation in the Node
In node RNC
 set GsmRelation qOffset1sn 1 (1 means 1 db)
 mom gsmrelation qoffset
To change gsmrelation of only some cells
In node RNC
 lset UtranCell=CHERMU_1,GsmRelation=RANEM1_2 qOffset1sn 7 (7 means 7 db)
To get current reading at RNC
 lget UtranCell=PRMAMU qOffset1sn
 lget UtranCell=PRMAMU qOffset2sn
To check what is in the RNCMODULE
In node RNC
 Lt rncmodule
 Get rncmodule
 Pr rncmodule (then get proxy oso can)
To check how many HSDPA users in a cell (must know CID)
In node RNC
 dyncelldata cid 02301
RNCKPNG01> dyncelldata cid 02301
060425-10:51:23
Trying password from ipdatabase file: /home/emfauzi/moshell/sitefiles/ipdatabase...
$ dyncelldata cid 02301
cId: 2301
Cell froId: 65
CC SP: 011000/sp0.lnh/CommonChMainPT
rncModuleId: 4
IubLink froId: 22
Total ASE DL: 944
aseDlAdm: 240
beMarginAseDl: 100
Total ASE UL: 16748

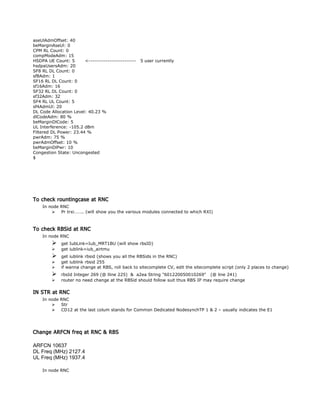

aseUlAdm: 500

aseUlAdmOffset: 40
beMarginAseUl: 0
CPM RL Count: 0
compModeAdm: 15
HSDPA UE Count: 5 <------------------------- 5 user currently
hsdpaUsersAdm: 20
SF8 RL DL Count: 0
sf8Adm: 1
SF16 RL DL Count: 0
sf16Adm: 16
SF32 RL DL Count: 0
sf32Adm: 32
SF4 RL UL Count: 5
sf4AdmUl: 20
DL Code Allocation Level: 40.23 %
dlCodeAdm: 80 %
beMarginDlCode: 5
UL Interference: -105.2 dBm
Filtered DL Power: 23.44 %
pwrAdm: 75 %
pwrAdmOffset: 10 %
beMarginDlPwr: 10
Congestion State: Uncongested
$
To check rountingcase at RNC
In node RNC
 Pr trxi…….. (will show you the various modules connected to which RXI)
To check RBSid at RNC
In node RNC
 get IubLink=Iub_MRT1BU (will show rbsID)
 get iublink=iub_airtmu
 get iublink rbsid (shows you all the RBSids in the RNC)
 get iublink rbsid 255
 if wanna change at RBS, roll back to sitecomplete CV, edit the sitecomplete script (only 2 places to change)
 rbsId Integer 269 (@ lline 225) & a2ea String "601220050010269" (@ line 241)
 router no need change at the RBSid should follow suit thus RBS IP may require change
IN STR at RNC
In node RNC
 Str
 CD12 at the last colum stands for Common Dedicated NodesynchTP 1 & 2 – usually indicates the E1
Change ARFCN freq at RNC & RBS
ARFCN 10637
DL Freq (MHz) 2127.4
UL Freq (MHz) 1937.4
In node RNC

 get allmmu_1 arf
 typical values (uarfcnDl 10662 & uarfcnUl 9712 )
In node RBS
 get antenna fq
 typical values (fqBandHighEdge 10712 & fqBandLowEdge 10612)
 thus if requested value at RNC is 10637 and if the value is between 10612 & 10712 at RBS, change only at RNC
To look for host.p12 in Node B
In node RBS
 Ls will show you are in drive D
 To go to C drive: cd /c
 Go to java folder
 Ls and you will
 ftp 10.78.....
 Pw – rbs rbs
 Bin (make sure in Binary and not ASCII)
 Cd /c
 Cd java
 Put host.p12 (ensure host.p12 file in moshell folder ya)
 bye
To continuously ping
Ping –s 10.78.1.1101
To check CS and PS links
In node RNC
 lga | grep Mtp3
To check Why cannot PING RBS
In node RXI
 pr atmcross.*23 (23 is the RBS ID)
 4031 TransportNetwork=1,AtmCrossConnection=b23sa1
 4032 TransportNetwork=1,AtmCrossConnection=b23sb1
 4033 TransportNetwork=1,AtmCrossConnection=b23ca
 4034 TransportNetwork=1,AtmCrossConnection=b23cb
 4035 TransportNetwork=1,AtmCrossConnection=b23da
 4036 TransportNetwork=1,AtmCrossConnection=b23db
 lget 4029
 AtmCrossConnectionId b23ia
 operationalState 1 (ENABLED)
 userLabel
 vclTpAId AtmPort=MS-26-1,VplTp=vp1,VpcTp=1,VclTp=vc2332
 vclTpBId AtmPort=MS-10-4,VplTp=vp1,VpcTp=1,VclTp=vc32
 acc AtmPort=MS-10-4,VplTp=vp1,VpcTp=1,VclTp=vc32 eteloopback
 2855 TransportNetwork=1,AtmPort=MS-10-4,VplTp=vp1,VpcTp=1,VclTp=vc32
 acc 2855 eteloopback
 Are you Sure [y/n] ? y
 2855 AtmPort=MS-10-4,VplTp=vp1,VpcTp=1,VclTp=vc32 eteLoopBack 0
 >>> Return value = true ----- OK

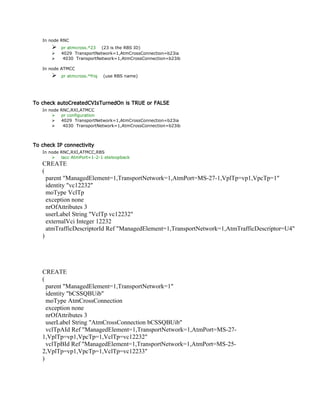

In node RNC
 pr atmcross.*23 (23 is the RBS ID)
In node ATMCC
 pr atmcross.*friq (use RBS name)
To check autoCreatedCVIsTurnedOn is TRUE or FALSE
In node RNC,RXI,ATMCC
 pr configuration
To check IP connectivity
In node RNC,RXI,ATMCC,RBS
 lacc AtmPort=1-2-1 eteloopback
CREATE
(
parent "ManagedElement=1,TransportNetwork=1,AtmPort=MS-27-1,VplTp=vp1,VpcTp=1"
identity "vc12232"
moType VclTp
exception none
nrOfAttributes 3
userLabel String "VclTp vc12232"
externalVci Integer 12232
atmTrafficDescriptorId Ref "ManagedElement=1,TransportNetwork=1,AtmTrafficDescriptor=U4"
)
CREATE
(
parent "ManagedElement=1,TransportNetwork=1"
identity "bCSSQBUib"
moType AtmCrossConnection
exception none
nrOfAttributes 3
userLabel String "AtmCrossConnection bCSSQBUib"
vclTpAId Ref "ManagedElement=1,TransportNetwork=1,AtmPort=MS-27-
1,VplTp=vp1,VpcTp=1,VclTp=vc12232"
vclTpBId Ref "ManagedElement=1,TransportNetwork=1,AtmPort=MS-25-
2,VplTp=vp1,VpcTp=1,VclTp=vc12233"
)

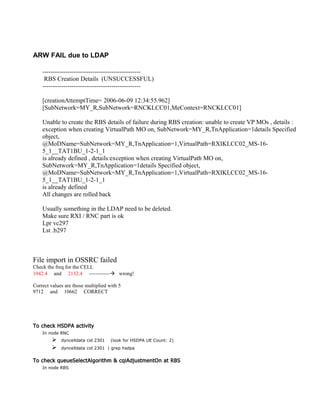

ARW FAIL due to LDAP
-----------------------------------------------
RBS Creation Details (UNSUCCESSFUL)
-----------------------------------------------
[creationAttemptTime= 2006-06-09 12:34:55.962]
[SubNetwork=MY_R,SubNetwork=RNCKLCC01,MeContext=RNCKLCC01]
Unable to create the RBS details of failure during RBS creation: unable to create VP MOs , details :
exception when creating VirtualPath MO on, SubNetwork=MY_R,TnApplication=1details Specified
object,
@MoDName=SubNetwork=MY_R,TnApplication=1,VirtualPath=RXIKLCC02_MS-16-
5_1__TAT1BU_1-2-1_1
is already defined , details:exception when creating VirtualPath MO on,
SubNetwork=MY_R,TnApplication=1details Specified object,
@MoDName=SubNetwork=MY_R,TnApplication=1,VirtualPath=RXIKLCC02_MS-16-
5_1__TAT1BU_1-2-1_1
is already defined
All changes are rolled back
Usually something in the LDAP need to be deleted.
Make sure RXI / RNC part is ok
Lpr vc297
Lst .b297
File import in OSSRC failed
Check the freq for the CELL
1942.4 and 2132.4 ------------ wrong!
Correct values are those multiplied with 5
9712 and 10662 CORRECT
To check HSDPA activity
In node RNC
 dyncelldata cid 2301 (look for HSDPA UE Count: 2)
 dyncelldata cid 2301 | grep hsdpa
To check queueSelectAlgorithm & cqiAdjustmentOn at RBS
In node RBS

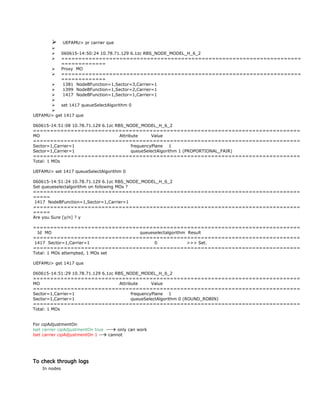

 UEFAMU> pr carrier que

 060615-14:50:24 10.78.71.129 6.1zc RBS_NODE_MODEL_H_6_2
 ======================================================================
=============
 Proxy MO
 ======================================================================
=============
 1381 NodeBFunction=1,Sector=3,Carrier=1

 set 1417 queueSelectAlgorithm 0

UEFAMU> get 1417 que
060615-14:51:08 10.78.71.129 6.1zc RBS_NODE_MODEL_H_6_2
==============================================================================
MO Attribute Value
==============================================================================
Sector=1,Carrier=1 frequencyPlane 1
Sector=1,Carrier=1 queueSelectAlgorithm 1 (PROPORTIONAL_FAIR)
==============================================================================
Total: 1 MOs
UEFAMU> set 1417 queueSelectAlgorithm 0
Set queueselectalgorithm on following MOs ?
==============================================================================
=====
1417 NodeBFunction=1,Sector=1,Carrier=1
==============================================================================
=====
Are you Sure [y/n] ? y
==============================================================================
Id MO queueselectalgorithm Result
==============================================================================
1417 Sector=1,Carrier=1 0 >>> Set.
==============================================================================
Total: 1 MOs attempted, 1 MOs set
UEFAMU> get 1417 que
==============================================================================
MO Attribute Value
==============================================================================
Sector=1,Carrier=1 frequencyPlane 1
Sector=1,Carrier=1 queueSelectAlgorithm 0 (ROUND_ROBIN)
==============================================================================
Total: 1 MOs
For cqiAdjustmentOn
lset carrier cqiAdjustmentOn true --- only can work
lset carrier cqiAdjustmentOn 1 -- cannot
To check through logs
In nodes

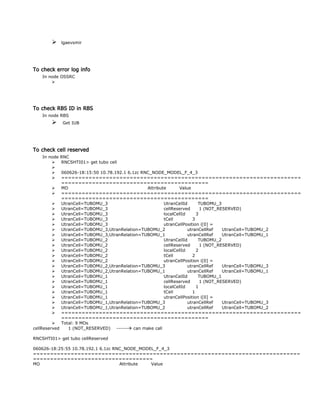

 lgaevsmir
To check error log info
In node OSSRC

To check RBS ID in RBS
In node RBS
 Get IUB
To check cell reserved
In node RNC
 RNCSHTI01> get tubo cell

 060626-18:15:50 10.78.192.1 6.1zc RNC_NODE_MODEL_F_4_3
 ======================================================================
===========================================
 MO Attribute Value
 ======================================================================
===========================================
 UtranCell=TUBOMU_3 UtranCellId TUBOMU_3
 UtranCell=TUBOMU_3 cellReserved 1 (NOT_RESERVED)
 UtranCell=TUBOMU_3 localCellId 3
 UtranCell=TUBOMU_3 tCell 3
 UtranCell=TUBOMU_3 utranCellPosition i[0] =
 UtranCell=TUBOMU_3,UtranRelation=TUBOMU_2 utranCellRef UtranCell=TUBOMU_2
 ======================================================================
===========================================
 Total: 9 MOs
cellReserved 1 (NOT_RESERVED) ------ can make call
RNCSHTI01> get tubo cellReserved
060626-18:25:55 10.78.192.1 6.1zc RNC_NODE_MODEL_F_4_3
==============================================================================
===================================
MO Attribute Value

==============================================================================
===================================
UtranCell=TUBOMU_3 cellReserved 0 (RESERVED)
==============================================================================
===================================
Total: 3 MOs
NO 3G RF signal on Phone
Cannot make call – must use specific SIM card
To which E1 Node B is using
In node RNC
 get jltg rbsid
In node RXI
 Lst .b(rbs ID)
 Get proxy ……. Can see which MS port
 lk UniSaalTp=b124qa (124=rbsID)
 st ms-10-52|ms-10-53
 lst slot=10.*53
 lst slot=10.*53|slot=10.*52
NBAP – AAL5, nodesynchTP AAL-0
To check RBS ID
In node RNC
 get IubLink rbsid 267
In node RXI
 Pr .267
To check antenna Supervision Threshold
In node RBS
 get antenna antennaSupervisionThreshold
To check downlink & uplink range
In node RBS
 lget antenna low|high
 The downlink – uplink = 190x5=950
To check commands executed within a node
In node
 Lgo 1
 1 for number of days

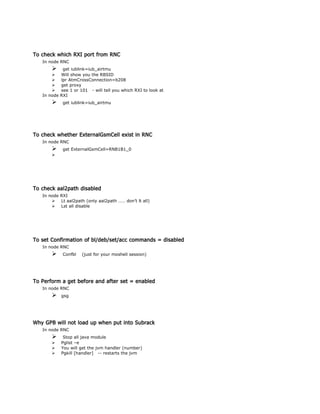

To check which RXI port from RNC
In node RNC
 Will show you the RBSID
 lpr AtmCrossConnection=b208
 get proxy
 see 1 or 101 - will tell you which RXI to look at
In node RXI
To check whether ExternalGsmCell exist in RNC
In node RNC
 get ExternalGsmCell=RNB1B1_0

To check aal2path disabled
In node RXI
 Lt aal2path (only aal2path …… don’t lt all)
 Lst all disable
To set Confirmation of bl/deb/set/acc commands = disabled
In node RNC
 Confbl (just for your moshell session)
To Perform a get before and after set = enabled
In node RNC
 gsg
Why GPB will not load up when put into Subrack
In node RNC
 Stop all java module
 Pglist –e
 You will get the jvm handler (number)
 Pgkill [handler] -- restarts the jvm

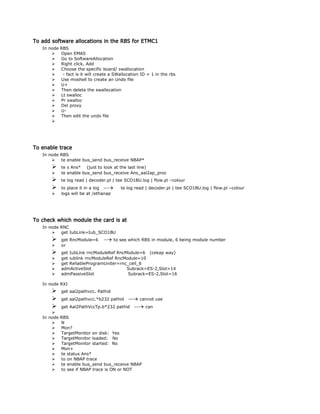

To add software allocations in the RBS for ETMC1
In node RBS
 Open EMAS
 Go to SoftwareAllocation
 Right click, Add
 Choose the specific board/ swallocation
 - fact is it will create a SWallocation ID = 1 in the rbs
 Use moshell to create an Undo file
 U+
 Then delete the swallocation
 Lt swalloc
 Pr swalloc
 Del proxy
 U-
 Then edit the undo file

To enable trace
In node RBS
 te enable bus_send bus_receive NBAP*
 te s Ans* (just to look at the last line)
 te enable bus_send bus_receive Ans_aal2ap_proc
 te log read | decoder.pl | tee SCO1BU.log | flow.pl –colour
 to place it in a log --- te log read | decoder.pl | tee SCO1BU.log | flow.pl –colour
 logs will be at /ethanap
To check which module the card is at
In node RNC
 get IubLink=Iub_SCO1BU
 get RncModule=6 -- to see which RBS in module, 6 being module number
 or
 get IubLink rncModuleRef RncModule=6 (cekap way)
 get iublink rncModuleRef RncModule=10
 get ReliableProgramUniter=rnc_cell_6
 admActiveSlot Subrack=ES-2,Slot=14
 admPassiveSlot Subrack=ES-2,Slot=16
In node RXI
 get aal2pathvcc. Pathid
 get aal2pathvcc.*b232 pathid --- cannot use
 get Aal2PathVccTp.b*232 pathid --- can

In node RBS
 N
 Mon?
 TargetMonitor on disk: Yes
 TargetMonitor loaded: No
 TargetMonitor started: No
 Mon+
 te status Ans*
 to on NBAP trace
 te enable bus_send bus_receive NBAP

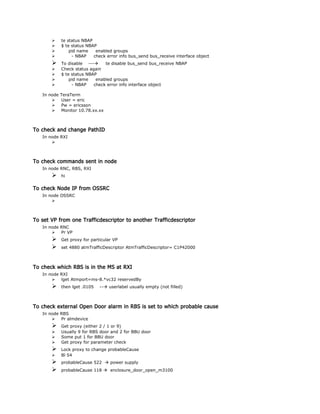

 to see if NBAP trace is ON or NOT

 te status NBAP
 $ te status NBAP
 pid name enabled groups
 - NBAP check error info bus_send bus_receive interface object
 To disable --- te disable bus_send bus_receive NBAP
 Check status again
 $ te status NBAP
 pid name enabled groups
 - NBAP check error info interface object
In node TeraTerm
 User = eric
 Pw = ericsson
 Monitor 10.78.xx.xx
To check and change PathID
In node RXI

To check commands sent in node
In node RNC, RBS, RXI
 hi
To check Node IP from OSSRC
In node OSSRC

To set VP from one Trafficdescriptor to another Trafficdescriptor
In node RNC
 Pr VP
 Get proxy for particular VP
 set 4880 atmTrafficDescriptor AtmTrafficDescriptor= C1P42000
To check which RBS is in the MS at RXI
In node RXI
 lget Atmport=ms-8.*vc32 reservedBy
 then lget .0105 -- userlabel usually empty (not filled)
To check external Open Door alarm in RBS is set to which probable cause
In node RBS
 Pr almdevice
 Get proxy (either 2 / 1 or 9)
 Usually 9 for RBS door and 2 for BBU door
 Some put 1 for BBU door
 Get proxy for parameter check
 Lock proxy to change probableCause
 Bl 54
 probableCause 522  power supply
 probableCause 118  enclosure_door_open_m3100

 set 54 probableCause 118
 then unlock back proxy
 deb 54
To calibrate RET via moshell
In node RBS
 Lpr ret
 Acl proxy
 253 Equipment=1,SectorAntenna=3,AuxPlugInUnit=2,RetuDeviceGroup=1,RetDeviceSet=1,RetDevice=1
 acc 267 forceCalibration
 alarm will go away in 2 minutes approx
To check not known yet
In node
 lhsh 010200 pboot sh par
To grep from logs
In node MOSHELL terminal
 grep (RESERVED /home/ethanap/moshell_logfiles/logs_moshell/sessionlog/060825-113735_RNCSHTI01.log |
tee a_cel0.log
 grep (NOT_RESERVED /home/ethanap/20060825rncbesi01 | tee BESI01_Nreserve.log
 files in a directory : grep productName /home/ethanap/rbs/log/get_0/* | tee rbs_type.log
To check number of ATMcells transferred through ports
In node RXI
 lpr ms-12-63
 lpget AtmPort=MS-12-63,VplTp=vp1,VpcTp=1,VclTp=vc32 --- RXI to node B (RBS uses MS-12-63)
 pr .153
 lpget AtmPort=MS-26-1,VplTp=vp1,VpcTp=1,VclTp=vc15332 -- RXI to RNC (RBS ID= 153)
To check loopback on atmport
In node RNC,RXI,RBS
 lacc AtmPort=1-1-1,VplTp=vp2,VpcTp=1,VclTp=vc32 eteloopback
 Yes
 False – fail, true - pass
To check frequencies used for RBS
In node RNC
 lget utrancell=fifamu_1 uarfcn
In node RBS
 get antenna fq

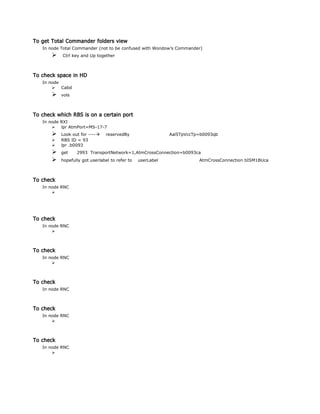

To get Total Commander folders view
In node Total Commander (not to be confused with Wondow’s Commander)
 Ctrl key and Up together
To check space in HD
In node
 Cabd
 vols
To check which RBS is on a certain port
In node RXI
 lpr AtmPort=MS-17-7
 Look out for ---- reservedBy Aal5TpVccTp=b0093qb
 RBS ID = 93
 lpr .b0093
 get 2993 TransportNetwork=1,AtmCrossConnection=b0093ca
 hopefully got userlabel to refer to userLabel AtmCrossConnection bISM1BUca

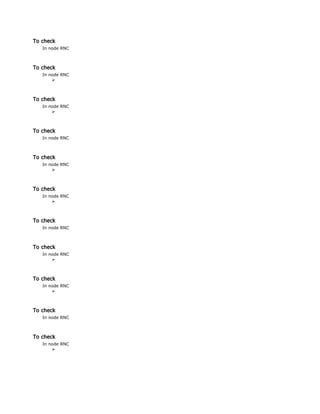

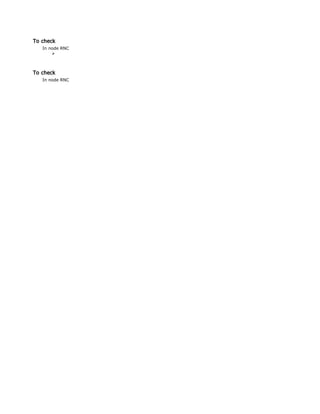

To check
In node RNC

To check
In node RNC

To check
In node RNC

To check
In node RNC
To check
In node RNC

To check
In node RNC


To check
In node RNC
To check
In node RNC

To check
In node RNC

To check
In node RNC
To check
In node RNC

To check
In node RNC

To check
In node RNC
To check
In node RNC

To check
In node RNC

To check
In node RNC
To check
In node RNC


To check
In node RNC

To check
In node RNC

3 g notes

More Related Content

What's hot

Viewers also liked

Recently uploaded

3 g notes
