The document describes various parameters related to system configuration, capacity management, directed retry, HSDPA/EUL, handover, IRAT, and idle mode selection and reselection in a wireless network. Parameters control things like maximum transmission power, admission limits, handover thresholds, measurement quantities, and hysteresis values used in cell selection and reselection decisions.

1. System Configuration
primaryCpichPower: Parameter that controls the power level of the Primary CPICH.
maximumTransmissionPower: Parameter that can be used to limit the total DL power in a cell
to a value lower than DL power capability of the RBS.
maxTxPowerUl: Used in UE functions for cell selection/ re-selection in idle mode and
connected mode and also used by UTRAN to control the maximum transmitted power level a
UE can use.
Capacity Management
compModeAdm: Absolute admission limit for the number of radio links in compressed mode
in a cell.
dlCodeAdm: Parameter that defines in percentage the absolute admission limit for DL code
usage
pwrAdm: Parameter that defines in percentage the absolute admission limit for DL power
utilization.
sf8Adm: Defines the absolute admission limit for the number of RLs with SF=8 (PS384) in
DL.
sf16Adm: Defines the absolute admission limit for the number of RLs with SF=16 (PS128
RAB) in DL.
sf32Adm: Defines the absolute admission limit for the number of RLs with SF=32 (PS64) in
DL.
sf4AdmUl: Absolute admission limit for the number of RLs with SF=4 in UL (PS384/HS)
sf8AdmUl: Defines the absolute admission limit for the number of RLs with SF=8 in UL.
sf16AdmUL: Parameter that defines absolute admission limit for the number of RLs with
SF=16 in UL.

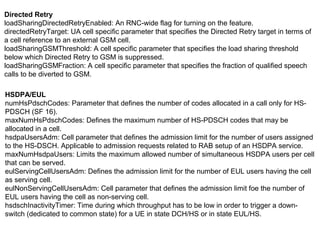

2. Directed Retry
loadSharingDirectedRetryEnabled: An RNC-wide flag for turning on the feature.
directedRetryTarget: UA cell specific parameter that specifies the Directed Retry target in terms of
a cell reference to an external GSM cell.
loadSharingGSMThreshold: A cell specific parameter that specifies the load sharing threshold
below which Directed Retry to GSM is suppressed.
loadSharingGSMFraction: A cell specific parameter that specifies the fraction of qualified speech
calls to be diverted to GSM.
HSDPA/EUL
numHsPdschCodes: Parameter that defines the number of codes allocated in a call only for HS-
PDSCH (SF 16).
maxNumHsPdschCodes: Defines the maximum number of HS-PDSCH codes that may be
allocated in a cell.
hsdpaUsersAdm: Cell parameter that defines the admission limit for the number of users assigned
to the HS-DSCH. Applicable to admission requests related to RAB setup of an HSDPA service.
maxNumHsdpaUsers: Limits the maximum allowed number of simultaneous HSDPA users per cell
that can be served.
eulServingCellUsersAdm: Defines the admission limit for the number of EUL users having the cell
as serving cell.
eulNonServingCellUsersAdm: Cell parameter that defines the admission limit foe the number of
EUL users having the cell as non-serving cell.
hsdschInactivityTimer: Time during which throughput has to be low in order to trigger a down-
switch (dedicated to common state) for a UE in state DCH/HS or in state EUL/HS.

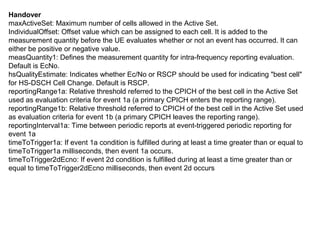

3. Handover
maxActiveSet: Maximum number of cells allowed in the Active Set.
IndividualOffset: Offset value which can be assigned to each cell. It is added to the
measurement quantity before the UE evaluates whether or not an event has occurred. It can
either be positive or negative value.
measQuantity1: Defines the measurement quantity for intra-frequency reporting evaluation.
Default is EcNo.
hsQualityEstimate: Indicates whether Ec/No or RSCP should be used for indicating "best cell"
for HS-DSCH Cell Change. Default is RSCP.
reportingRange1a: Relative threshold referred to the CPICH of the best cell in the Active Set
used as evaluation criteria for event 1a (a primary CPICH enters the reporting range).
reportingRange1b: Relative threshold referred to CPICH of the best cell in the Active Set used
as evaluation criteria for event 1b (a primary CPICH leaves the reporting range).
reportingInterval1a: Time between periodic reports at event-triggered periodic reporting for
event 1a
timeToTrigger1a: If event 1a condition is fulfilled during at least a time greater than or equal to
timeToTrigger1a milliseconds, then event 1a occurs.
timeToTrigger2dEcno: If event 2d condition is fulfilled during at least a time greater than or
equal to timeToTrigger2dEcno milliseconds, then event 2d occurs

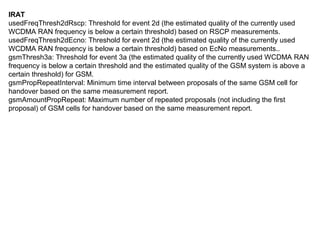

4. IRAT
usedFreqThresh2dRscp: Threshold for event 2d (the estimated quality of the currently used
WCDMA RAN frequency is below a certain threshold) based on RSCP measurements.
usedFreqThresh2dEcno: Threshold for event 2d (the estimated quality of the currently used
WCDMA RAN frequency is below a certain threshold) based on EcNo measurements..
gsmThresh3a: Threshold for event 3a (the estimated quality of the currently used WCDMA RAN
frequency is below a certain threshold and the estimated quality of the GSM system is above a
certain threshold) for GSM.
gsmPropRepeatInterval: Minimum time interval between proposals of the same GSM cell for
handover based on the same measurement report.
gsmAmountPropRepeat: Maximum number of repeated proposals (not including the first
proposal) of GSM cells for handover based on the same measurement report.

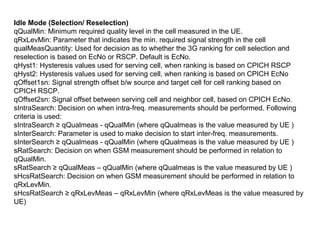

5. Idle Mode (Selection/ Reselection)
qQualMin: Minimum required quality level in the cell measured in the UE.
qRxLevMin: Parameter that indicates the min. required signal strength in the cell
qualMeasQuantity: Used for decision as to whether the 3G ranking for cell selection and
reselection is based on EcNo or RSCP. Default is EcNo.
qHyst1: Hysteresis values used for serving cell, when ranking is based on CPICH RSCP
qHyst2: Hysteresis values used for serving cell, when ranking is based on CPICH EcNo
qOffset1sn: Signal strength offset b/w source and target cell for cell ranking based on
CPICH RSCP.
qOffset2sn: Signal offset between serving cell and neighbor cell, based on CPICH EcNo.
sIntraSearch: Decision on when intra-freq. measurements should be performed. Following
criteria is used:
sIntraSearch ≥ qQualmeas - qQualMin (where qQualmeas is the value measured by UE )
sInterSearch: Parameter is used to make decision to start inter-freq. measurements.
sInterSearch ≥ qQualmeas - qQualMin (where qQualmeas is the value measured by UE )
sRatSearch: Decision on when GSM measurement should be performed in relation to
qQualMin.
sRatSearch ≥ qQualMeas – qQualMin (where qQualmeas is the value measured by UE )
sHcsRatSearch: Decision on when GSM measurement should be performed in relation to
qRxLevMin.
sHcsRatSearch ≥ qRxLevMeas – qRxLevMin (where qRxLevMeas is the value measured by
UE)
