This document provides an overview of mammography and the specialized equipment needed to perform it. Mammography requires high resolution and contrast to detect small breast lesions. Dedicated mammography equipment has a molybdenum target and rhodium filter to produce low-energy x-rays best suited for soft breast tissue. It also uses a small focal spot, grid, and compression to reduce noise and improve image quality while minimizing radiation dose. Stereotactic biopsy systems allow targeted needle biopsies of lesions using two x-ray angles to calculate the three-dimensional location.

1. GE Medical Systems
e
Introduction to Mammography
The Basics of mammography

2. GE Medical Systems
e
Introduction to Mammography

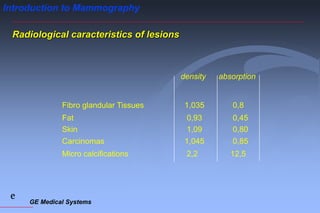

Radiological caracteristics of lesions
Fibro glandular Tissues 1,035 0,8
Fat 0,93 0,45
Skin 1,09 0,80
Carcinomas 1,045 0,85
Micro calcifications 2,2 12,5
density absorption

3. GE Medical Systems
e
Introduction to Mammography

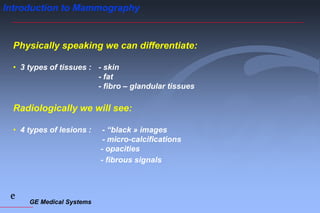

Physically speaking we can differentiate:
• 3 types of tissues : - skin
- fat
- fibro – glandular tissues
Radiologically we will see:
• 4 types of lesions : - “black » images
- micro-calcifications
- opacities
- fibrous signals

4. GE Medical Systems
e
Introduction to Mammography

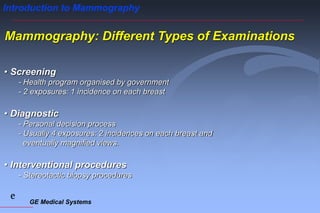

Mammography: Different Types of Examinations
• Screening
- Health program organised by government
- 2 exposures: 1 incidence on each breast
• Diagnostic
- Personal decision process
- Usually 4 exposures: 2 incidences on each breast and
eventually magnified views.
• Interventional procedures
- Stereotactic biopsy procedures

5. GE Medical Systems
e
Introduction to Mammography

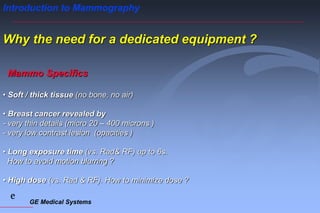

Why the need for a dedicated equipment ?
• Soft / thick tissue (no bone, no air)
• Breast cancer revealed by
- very thin details (micro 20 – 400 microns )
- very low contrast lesion (opacities )
• Long exposure time (vs. Rad& RF) up to 6s.
How to avoid motion blurring ?
• High dose (vs. Rad & RF). How to minimize dose ?
Mammo Specifics

6. GE Medical Systems
e
Introduction to Mammography

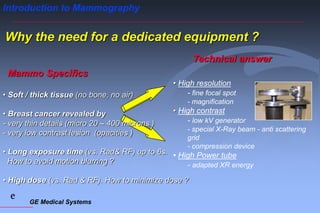

• High resolution
- fine focal spot
- magnification
• High contrast
- low kV generator
- special X-Ray beam - anti scattering
grid
- compression device
• High Power tube
- adapted XR energy
Technical answer
Why the need for a dedicated equipment ?
• Soft / thick tissue (no bone, no air)
• Breast cancer revealed by
- very thin details (micro 20 – 400 microns )
- very low contrast lesion (opacities )
• Long exposure time (vs. Rad& RF) up to 6s.
How to avoid motion blurring ?
• High dose (vs. Rad & RF). How to minimize dose ?
Mammo Specifics

7. GE Medical Systems
e
Introduction to Mammography

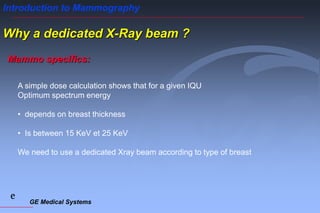

Why a dedicated X-Ray beam ?
Mammo specifics:
A simple dose calculation shows that for a given IQU
Optimum spectrum energy
• depends on breast thickness
• Is between 15 KeV et 25 KeV
We need to use a dedicated Xray beam according to type of breast

8. GE Medical Systems
e
Introduction to Mammography

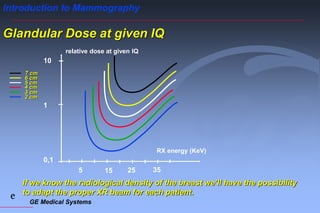

Glandular Dose at given IQ
If we know the radiological density of the breast we’ll have the possibility
to adapt the proper XR beam for each patient.
RX energy (KeV)
relative dose at given IQ
0,1
1
10
15 25
5 35
7 cm
6 cm
5 cm
4 cm
3 cm
2 cm

9. GE Medical Systems
e
Introduction to Mammography

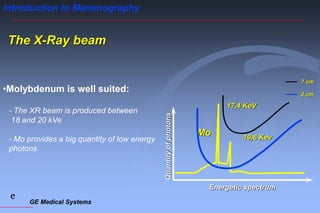

The X-Ray beam
•Molybdenum is well suited:
- The XR beam is produced between
18 and 20 kVe
- Mo provides a big quantity of low energy
photons
Mo
Quantity
of
photons
Energetic spectrum
17,4 KeV
19,6 Kev
7 cm
2 cm

10. GE Medical Systems
e
Introduction to Mammography
Why a Rhodium filter ?
• the optimal spectrum is not energized
by kV increase
• The proportion of “useless” RX
increases dramatically
Mo
17,4 KeV
19,6 Kev
Quantity
of
photons
Energetic spectrum

11. GE Medical Systems
e
Introduction to Mammography
Mo
17,4 KeV
19,6 Kev
IQ increase
IQ loses (contrast)

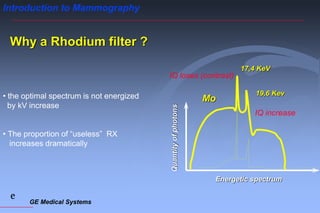

Why a Rhodium filter ?
• the optimal spectrum is not energized
by kV increase
• The proportion of “useless” RX
increases dramatically
Quantity
of
photons
Energetic spectrum

12. GE Medical Systems
e
Introduction to Mammography
Mo
17,4 KeV
19,6 Kev
IQ increase
Dose decrease

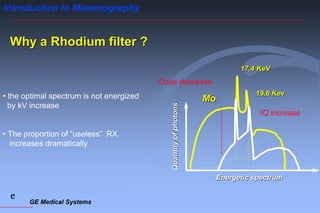

Why a Rhodium filter ?
• the optimal spectrum is not energized
by kV increase
• The proportion of “useless” RX
increases dramatically
Quantity
of
photons Energetic spectrum

13. GE Medical Systems
e
Introduction to Mammography
17,4 Kev
20,2 Kev
Mo Rh

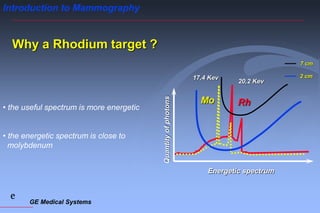

Why a Rhodium target ?
• the useful spectrum is more energetic
• the energetic spectrum is close to
molybdenum
7 cm
2 cm
Quantity
of
photons
Energetic spectrum

14. GE Medical Systems
e
Introduction to Mammography

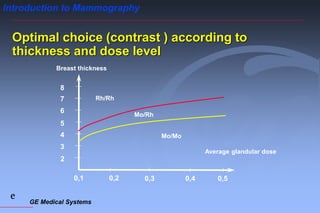

Optimal choice (contrast ) according to
thickness and dose level
0,2 0,3
0,1 0,4 0,5
2
3
4
5
6
7
8
Average glandular dose
Breast thickness
Mo/Mo
Rh/Rh
Mo/Rh

15. GE Medical Systems
e
Introduction to Mammography

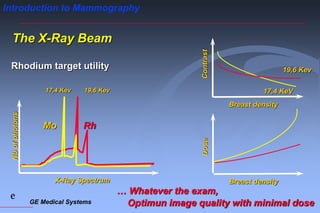

19,6 Kev
17,4 KeV
Breast density
Contrast
Breast density
Dose
Nb
of
photons
X-Ray Spectrum
17,4 Kev 19,6 Kev
Mo Rh
… Whatever the exam,
Optimun image quality with minimal dose
The X-Ray Beam
Rhodium target utility

16. GE Medical Systems
e
Introduction to Mammography

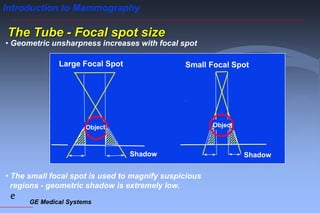

• Geometric unsharpness increases with focal spot
• The small focal spot is used to magnify suspicious
regions - geometric shadow is extremely low.
The Tube - Focal spot size
Large Focal Spot Small Focal Spot
Object
Shadow Shadow

17. GE Medical Systems
e
Introduction to Mammography

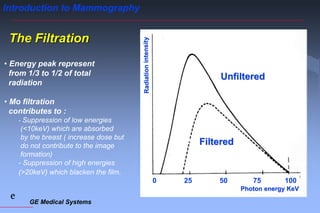

The Filtration
• Energy peak represent
from 1/3 to 1/2 of total
radiation
• Mo filtration
contributes to :
- Suppression of low energies
(<10keV) which are absorbed
by the breast ( increase dose but
do not contribute to the image
formation)
- Suppression of high energies
(>20keV) which blacken the film.
Unfiltered
Filtered
Photon energy KeV
0 25 50 75 100

18. GE Medical Systems
e
Introduction to Mammography

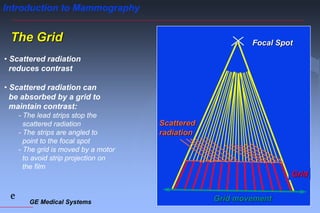

The Grid
• Scattered radiation
reduces contrast
• Scattered radiation can
be absorbed by a grid to
maintain contrast:
- The lead strips stop the
scattered radiation
- The strips are angled to
point to the focal spot
- The grid is moved by a motor
to avoid strip projection on
the film
Focal Spot
Scattered
radiation
Grid movement
Grid

19. GE Medical Systems
e
Introduction to Mammography
The Compression
• Eliminates motion
blurring
• Reduces geometric
unsharpness
• Reduces the formation
of scattered radiation
• Reduces skin doses
• Enables imaging of the
entire breast including
deep layers Breast
Support
plate
compression
device

20. GE Medical Systems
e
Introduction to Mammography

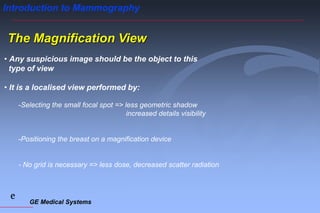

The Magnification View
• Any suspicious image should be the object to this
type of view
• It is a localised view performed by:
-Selecting the small focal spot => less geometric shadow
increased details visibility
-Positioning the breast on a magnification device
- No grid is necessary => less dose, decreased scatter radiation

21. GE Medical Systems
e
Introduction to Mammography

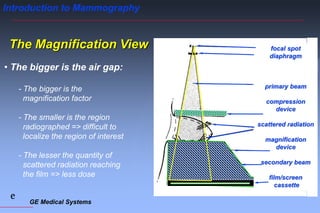

The Magnification View
• The bigger is the air gap:
- The bigger is the
magnification factor
- The smaller is the region
radiographed => difficult to
localize the region of interest
- The lesser the quantity of
scattered radiation reaching
the film => less dose
focal spot
diaphragm
primary beam
compression
device
scattered radiation
magnification
device
secondary beam
film/screen
cassette

22. GE Medical Systems
e
Introduction to Mammography
Automatic exposure mode “AOP”
Automatic selection of parameters: kV, mAs, anode, filtre
Selection of priority
User
 A.O.P. "Contrast"
 A.O.P. "Standard"
 A.O.P. "Dose"
AOP
Measurement of
radiological
density
Automatic
selection of
parameters
Control of mAs
with AEC
… Optimum image quality at lower dose whatever the breast density

23. GE Medical Systems
e
Introduction to Mammography

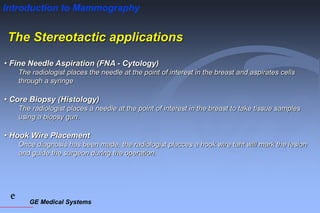

The Stereotactic applications
• Fine Needle Aspiration (FNA - Cytology)
The radiologist places the needle at the point of interest in the breast and aspirates cells
through a syringe
• Core Biopsy (Histology)
The radiologist places a needle at the point of interest in the breast to take tissue samples
using a biopsy gun.
• Hook Wire Placement
Once diagnosis has been made, the radiologist placces a hook wire taht will mark the lesion
and guide the surgeon during the operation.

24. GE Medical Systems
e
Introduction to Mammography

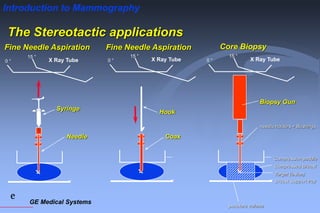

The Stereotactic applications
0 °
15 °
X Ray Tube
Syringe
Needle
Fine Needle Aspiration
0 °
15 °
X Ray Tube
Coax
Hook
Fine Needle Aspiration
Breast Support tray
Compression paddle
Compressed Breast
Target (lesion)
needle holders + Bushings
0 °
15 °
puncture volume
X Ray Tube
Biopsy Gun
Core Biopsy

25. GE Medical Systems
e
Introduction to Mammography

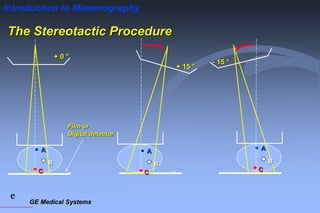

The Stereotactic Procedure
Film or
Digital detector
+ 0 °
A
B
C
+ 15 °
A
B
C
- 15 °
A
B
C

26. GE Medical Systems
e
Introduction to Mammography

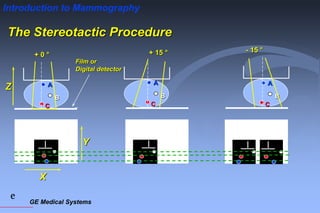

The Stereotactic Procedure
Film or
Digital detector
+ 0 °
A
B
C
X
Y
Z
+ 15 °
A
B
C
- 15 °
A
B
C

27. GE Medical Systems
e
Introduction to Mammography
28/09/2021 27
Thanks for listening
