The document discusses diabetic ketoacidosis (DKA), providing information on its pathophysiology, classification, epidemiology, clinical manifestations, diagnosis, and treatment in individuals with type 1 diabetes mellitus. DKA results from a lack of insulin leading to hyperglycemia and ketone production. Its presentation includes vomiting, Kussmaul breathing, and if severe, cerebral edema. Treatment involves fluid resuscitation, electrolyte replacement, low-dose insulin infusion to resolve acidosis without rapidly lowering blood glucose, and careful monitoring to prevent cerebral edema.

1. Diabetic Ketoacidosis Gary David Goulin, MD

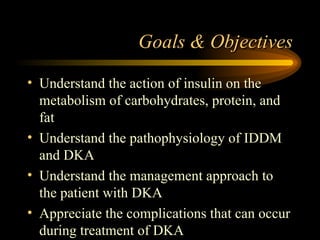

2. Goals & Objectives Understand the action of insulin on the metabolism of carbohydrates, protein, and fat Understand the pathophysiology of IDDM and DKA Understand the management approach to the patient with DKA Appreciate the complications that can occur during treatment of DKA

3. Introduction Diabetes mellitus is a syndrome of disturbed energy homeostasis caused by a deficiency of insulin or of its action resulting in abnormal metabolism of carbohydrate, protein, and fat Diabetes mellitus is the most common endocrine-metabolic disorder of childhood and adolescence

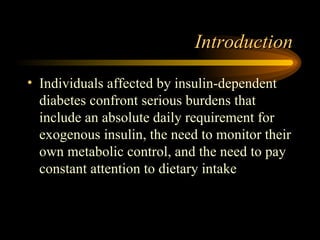

4. Introduction Individuals affected by insulin-dependent diabetes confront serious burdens that include an absolute daily requirement for exogenous insulin, the need to monitor their own metabolic control, and the need to pay constant attention to dietary intake

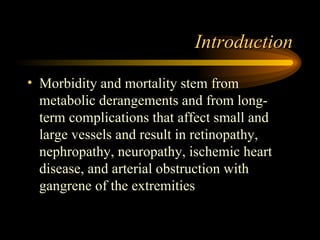

5. Introduction Morbidity and mortality stem from metabolic derangements and from long-term complications that affect small and large vessels and result in retinopathy, nephropathy, neuropathy, ischemic heart disease, and arterial obstruction with gangrene of the extremities

6. Classification Type I Diabetes ( insulin-dependent diabetes mellitus , IDDM) characterized by severe insulinopenia and dependence on exogenous insulin to prevent ketosis and to preserve life onset occurs predominantly in childhood probably has some genetic predisposition and is likely autoimmune-mediated

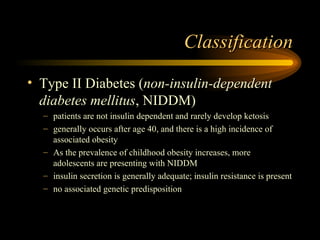

7. Classification Type II Diabetes ( non-insulin-dependent diabetes mellitus , NIDDM) patients are not insulin dependent and rarely develop ketosis generally occurs after age 40, and there is a high incidence of associated obesity As the prevalence of childhood obesity increases, more adolescents are presenting with NIDDM insulin secretion is generally adequate; insulin resistance is present no associated genetic predisposition

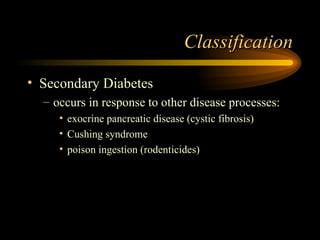

8. Classification Secondary Diabetes occurs in response to other disease processes: exocrine pancreatic disease (cystic fibrosis) Cushing syndrome poison ingestion (rodenticides)

9. Type I Diabetes Mellitus: Epidemiology Prevalence of IDDM among school-age children in the US is 1.9 per 1000 The annual incidence in the US is about 12 - 15 new cases per 100,000 Male to female ratio is equal Among African-Americans, the occurrence of IDDM is about 20 - 30% of that seen in Caucasian-Americans

10. Type I Diabetes Mellitus: Epidemiology Peaks of presentation occur at 5 - 7 years of age and at adolescence Newly recognized cases appear with greater frequency in the autumn and winter Definite increased incidence of IDDM in children with congenital rubella syndrome

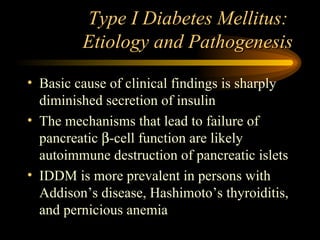

11. Type I Diabetes Mellitus: Etiology and Pathogenesis Basic cause of clinical findings is sharply diminished secretion of insulin The mechanisms that lead to failure of pancreatic  -cell function are likely autoimmune destruction of pancreatic islets IDDM is more prevalent in persons with Addison’s disease, Hashimoto’s thyroiditis, and pernicious anemia

12. Type I Diabetes Mellitus: Etiology and Pathogenesis 80 - 90% of newly diagnosed patients with IDDM have anti-islet cell antibodies

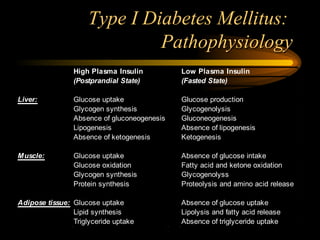

13. Type I Diabetes Mellitus: Pathophysiology

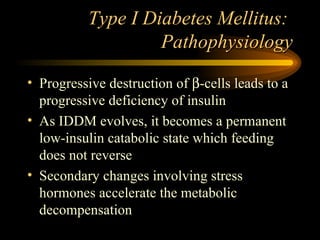

14. Type I Diabetes Mellitus: Pathophysiology Progressive destruction of  -cells leads to a progressive deficiency of insulin As IDDM evolves, it becomes a permanent low-insulin catabolic state which feeding does not reverse Secondary changes involving stress hormones accelerate the metabolic decompensation

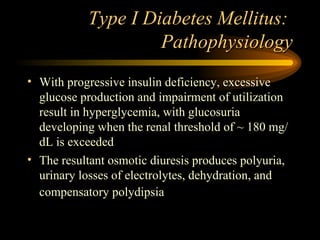

15. Type I Diabetes Mellitus: Pathophysiology With progressive insulin deficiency, excessive glucose production and impairment of utilization result in hyperglycemia, with glucosuria developing when the renal threshold of ~ 180 mg/dL is exceeded The resultant osmotic diuresis produces polyuria, urinary losses of electrolytes, dehydration, and compensatory polydipsia

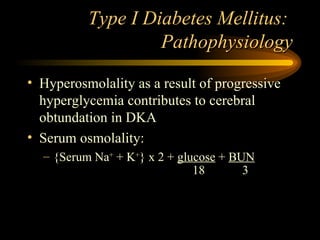

16. Type I Diabetes Mellitus: Pathophysiology Hyperosmolality as a result of progressive hyperglycemia contributes to cerebral obtundation in DKA Serum osmolality: {Serum Na + + K + } x 2 + glucose + BUN 18 3

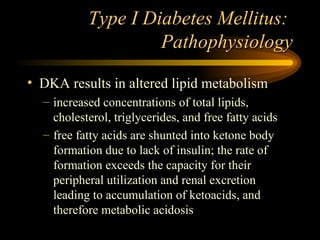

17. Type I Diabetes Mellitus: Pathophysiology DKA results in altered lipid metabolism increased concentrations of total lipids, cholesterol, triglycerides, and free fatty acids free fatty acids are shunted into ketone body formation due to lack of insulin; the rate of formation exceeds the capacity for their peripheral utilization and renal excretion leading to accumulation of ketoacids, and therefore metabolic acidosis

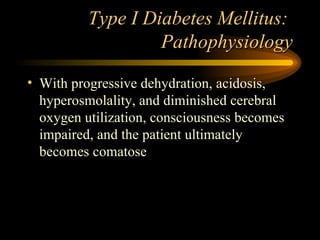

18. Type I Diabetes Mellitus: Pathophysiology With progressive dehydration, acidosis, hyperosmolality, and diminished cerebral oxygen utilization, consciousness becomes impaired, and the patient ultimately becomes comatose

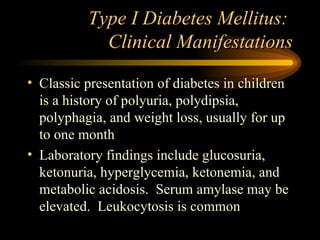

19. Type I Diabetes Mellitus: Clinical Manifestations Classic presentation of diabetes in children is a history of polyuria, polydipsia, polyphagia, and weight loss, usually for up to one month Laboratory findings include glucosuria, ketonuria, hyperglycemia, ketonemia, and metabolic acidosis. Serum amylase may be elevated. Leukocytosis is common

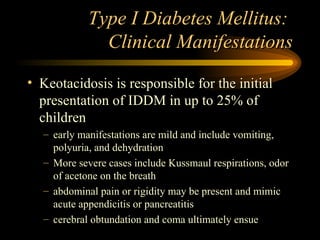

20. Type I Diabetes Mellitus: Clinical Manifestations Keotacidosis is responsible for the initial presentation of IDDM in up to 25% of children early manifestations are mild and include vomiting, polyuria, and dehydration More severe cases include Kussmaul respirations, odor of acetone on the breath abdominal pain or rigidity may be present and mimic acute appendicitis or pancreatitis cerebral obtundation and coma ultimately ensue

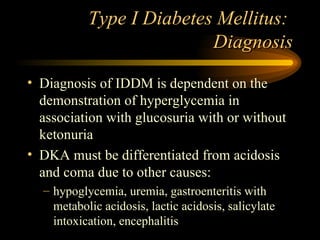

21. Type I Diabetes Mellitus: Diagnosis Diagnosis of IDDM is dependent on the demonstration of hyperglycemia in association with glucosuria with or without ketonuria DKA must be differentiated from acidosis and coma due to other causes: hypoglycemia, uremia, gastroenteritis with metabolic acidosis, lactic acidosis, salicylate intoxication, encephalitis

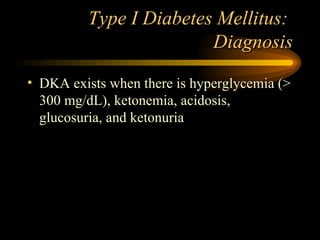

22. Type I Diabetes Mellitus: Diagnosis DKA exists when there is hyperglycemia (> 300 mg/dL), ketonemia, acidosis, glucosuria, and ketonuria

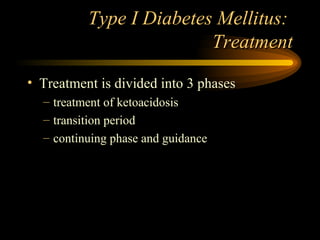

23. Type I Diabetes Mellitus: Treatment Treatment is divided into 3 phases treatment of ketoacidosis transition period continuing phase and guidance

24. Type I Diabetes Mellitus: Treatment Goals of treatment of DKA intravascular volume expansion correction of deficits in fluids, electrolytes, and acid-base status initiation of insulin therapy to correct catabolism, acidosis

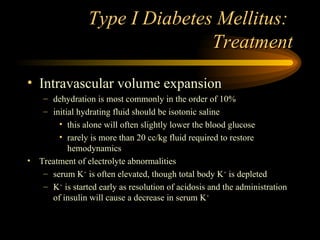

25. Type I Diabetes Mellitus: Treatment Intravascular volume expansion dehydration is most commonly in the order of 10% initial hydrating fluid should be isotonic saline this alone will often slightly lower the blood glucose rarely is more than 20 cc/kg fluid required to restore hemodynamics Treatment of electrolyte abnormalities serum K + is often elevated, though total body K + is depleted K + is started early as resolution of acidosis and the administration of insulin will cause a decrease in serum K +

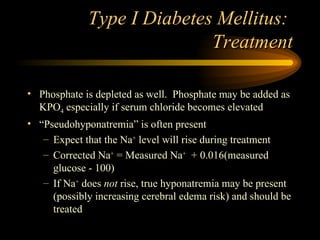

26. Type I Diabetes Mellitus: Treatment Phosphate is depleted as well. Phosphate may be added as KPO 4 especially if serum chloride becomes elevated “ Pseudohyponatremia” is often present Expect that the Na + level will rise during treatment Corrected Na + = Measured Na + + 0.016(measured glucose - 100) If Na + does not rise, true hyponatremia may be present (possibly increasing cerebral edema risk) and should be treated

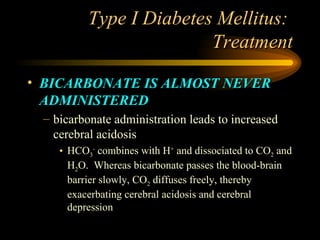

27. Type I Diabetes Mellitus: Treatment BICARBONATE IS ALMOST NEVER ADMINISTERED bicarbonate administration leads to increased cerebral acidosis HCO 3 - combines with H + and dissociated to CO 2 and H 2 O. Whereas bicarbonate passes the blood-brain barrier slowly, CO 2 diffuses freely, thereby exacerbating cerebral acidosis and cerebral depression

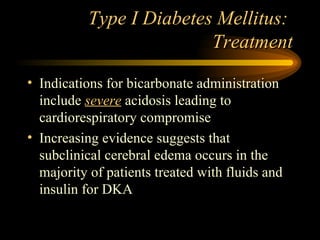

28. Type I Diabetes Mellitus: Treatment Indications for bicarbonate administration include severe acidosis leading to cardiorespiratory compromise Increasing evidence suggests that subclinical cerebral edema occurs in the majority of patients treated with fluids and insulin for DKA

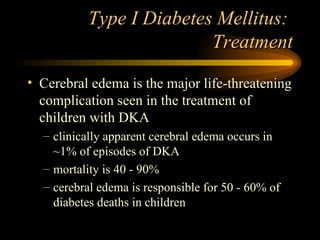

29. Type I Diabetes Mellitus: Treatment Cerebral edema is the major life-threatening complication seen in the treatment of children with DKA clinically apparent cerebral edema occurs in ~1% of episodes of DKA mortality is 40 - 90% cerebral edema is responsible for 50 - 60% of diabetes deaths in children

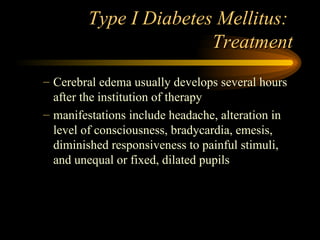

30. Type I Diabetes Mellitus: Treatment Cerebral edema usually develops several hours after the institution of therapy manifestations include headache, alteration in level of consciousness, bradycardia, emesis, diminished responsiveness to painful stimuli, and unequal or fixed, dilated pupils

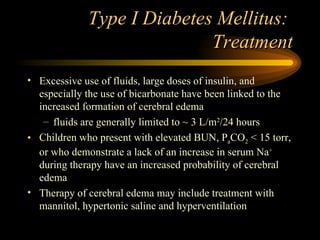

31. Type I Diabetes Mellitus: Treatment Excessive use of fluids, large doses of insulin, and especially the use of bicarbonate have been linked to the increased formation of cerebral edema fluids are generally limited to ~ 3 L/m 2 /24 hours Children who present with elevated BUN, P a CO 2 < 15 torr, or who demonstrate a lack of an increase in serum Na + during therapy have an increased probability of cerebral edema Therapy of cerebral edema may include treatment with mannitol, hypertonic saline and hyperventilation

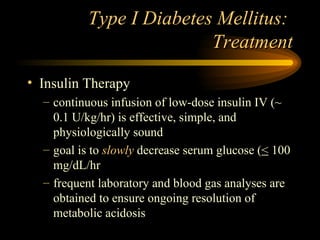

32. Type I Diabetes Mellitus: Treatment Insulin Therapy continuous infusion of low-dose insulin IV (~ 0.1 U/kg/hr) is effective, simple, and physiologically sound goal is to slowly decrease serum glucose ( < 100 mg/dL/hr frequent laboratory and blood gas analyses are obtained to ensure ongoing resolution of metabolic acidosis

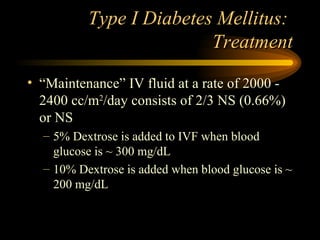

33. Type I Diabetes Mellitus: Treatment “Maintenance” IV fluid at a rate of 2000 - 2400 cc/m 2 /day consists of 2/3 NS (0.66%) or NS 5% Dextrose is added to IVF when blood glucose is ~ 300 mg/dL 10% Dextrose is added when blood glucose is ~ 200 mg/dL

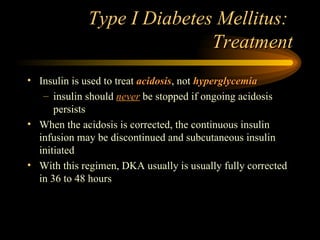

34. Type I Diabetes Mellitus: Treatment Insulin is used to treat acidosis , not hyperglycemia insulin should never be stopped if ongoing acidosis persists When the acidosis is corrected, the continuous insulin infusion may be discontinued and subcutaneous insulin initiated With this regimen, DKA usually is usually fully corrected in 36 to 48 hours

35. Type I Diabetes Mellitus: Treatment Hypoglycemic Reactions (Insulin Shock) symptoms and signs include pallor, sweating, apprehension, trembling, tachycardia, hunger, drowsiness, mental confusion, seizures and coma management includes administration (if conscious) of carbohydrate-containing snack or drink glucagon 0.5 mg is administered to an unconscious or vomiting child

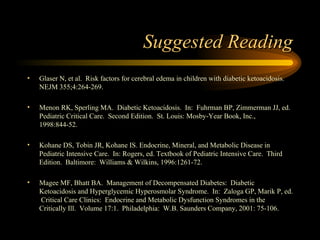

36. Suggested Reading Glaser N, et al. Risk factors for cerebral edema in children with diabetic ketoacidosis. NEJM 355;4:264-269. Menon RK, Sperling MA. Diabetic Ketoacidosis. In: Fuhrman BP, Zimmerman JJ, ed. Pediatric Critical Care. Second Edition. St. Louis: Mosby-Year Book, Inc., 1998:844-52. Kohane DS, Tobin JR, Kohane IS. Endocrine, Mineral, and Metabolic Disease in Pediatric Intensive Care. In: Rogers, ed. Textbook of Pediatric Intensive Care. Third Edition. Baltimore: Williams & Wilkins, 1996:1261-72. Magee MF, Bhatt BA. Management of Decompensated Diabetes: Diabetic Ketoacidosis and Hyperglycemic Hyperosmolar Syndrome. In: Zaloga GP, Marik P, ed. Critical Care Clinics: Endocrine and Metabolic Dysfunction Syndromes in the Critically Ill. Volume 17:1. Philadelphia: W.B. Saunders Company, 2001: 75-106.

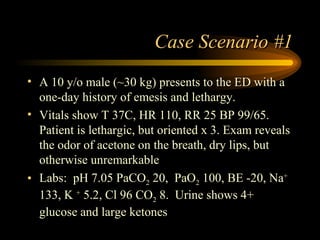

37. Case Scenario #1 A 10 y/o male (~30 kg) presents to the ED with a one-day history of emesis and lethargy. Vitals show T 37C, HR 110, RR 25 BP 99/65. Patient is lethargic, but oriented x 3. Exam reveals the odor of acetone on the breath, dry lips, but otherwise unremarkable Labs: pH 7.05 PaCO 2 20, PaO 2 100, BE -20, Na + 133, K + 5.2, Cl 96 CO 2 8. Urine shows 4+ glucose and large ketones

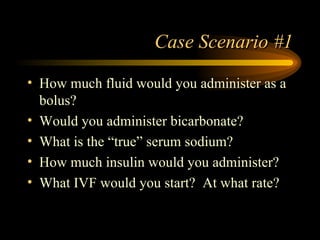

38. Case Scenario #1 How much fluid would you administer as a bolus? Would you administer bicarbonate? What is the “true” serum sodium? How much insulin would you administer? What IVF would you start? At what rate?

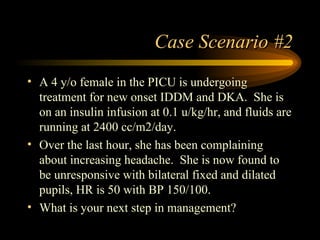

39. Case Scenario #2 A 4 y/o female in the PICU is undergoing treatment for new onset IDDM and DKA. She is on an insulin infusion at 0.1 u/kg/hr, and fluids are running at 2400 cc/m2/day. Over the last hour, she has been complaining about increasing headache. She is now found to be unresponsive with bilateral fixed and dilated pupils, HR is 50 with BP 150/100. What is your next step in management?
