![# Code Snippet
model = Sequential()
model.add(Conv2D(32, kernel_size=(3, 3), activation='relu', input_shape=input_shape))
model.add(Conv2D(64, (3, 3), activation='relu'))
model.add(MaxPooling2D(pool_size=(2, 2)))
model.add(Dropout(0.25))
model.add(Flatten())
model.add(Dense(128, activation='relu'))
model.add(Dropout(0.5))
model.add(Dense(num_classes, activation='softmax'))
model.compile(loss=keras.losses.categorical_crossentropy,
optimizer=keras.optimizers.Adadelta(),
metrics=['accuracy'])
model.fit(x_train, y_train,
batch_size=batch_size,
epochs=epochs,
verbose=1,
validation_data=(x_test, y_test))
score = model.evaluate(x_test, y_test, verbose=0)
Convolutional Neural Networks
https://github.com/fchollet/keras/blob/master/examples/mnist_cnn.py](https://image.slidesharecdn.com/20170703meetupd-170704122730/85/2017-07-03_meetup_d-27-320.jpg)
![[台灣人工智慧學校] 主題演講 - 張智威總經理 (President of HTC DeepQ)](https://cdn.slidesharecdn.com/ss_thumbnails/aischoolhsinzhukeynoteedwardchang-180725074840-thumbnail.jpg?width=640&height=640&fit=bounds)
2017 07 03_meetup_d
- 1. A World -LeadingScience Foundation Ireland Research Centre Deep Learning for Medical Image Analysis Keelin Murphy July 3rd 2017
- 2. About Me BA MathematicsTCD Software Industry 4-5 years MSc + PhD in Biomedical Image Analysis UCC (INFANT Research Centre) Utrecht Medical Center, the Netherlands

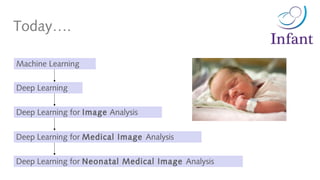

- 3. Today…. Machine Learning Deep Learning DeepLearning for Image Analysis Deep Learning for Medical Image Analysis Deep Learning for Neonatal Medical Image Analysis

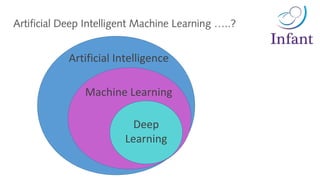

- 4. Artificial Deep IntelligentMachine Learning …..? Deep Learning Machine Learning Artificial Intelligence
- 5. Machine Learning Finding patternsin data Supervised learning – Learn by example, like humans
- 6. CAR Training: Feed in labelleddata Machine Learning CARGIRLDOG Testing: Request labels for new data

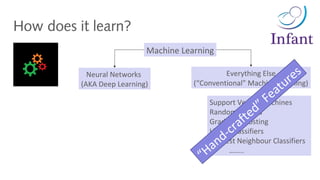

- 7. How does itlearn? Machine Learning Everything Else (“Conventional” Machine Learning) Neural Networks (AKA Deep Learning) Support Vector Machines Random Forests Gradient Boosting Linear Classifiers Nearest Neighbour Classifiers …….. “Hand-crafted” Features

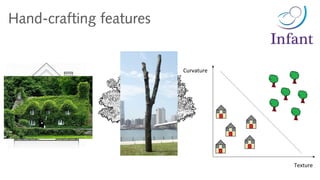

- 8.
- 9. What features dohumans use?
- 10.
- 11. Are humans alwaysthe best?
- 12. Are humans alwaysthe best?
- 13. Deep Learning (Artificial) Neuralnetworks with lots of hidden layers (deep) The network determines what features are useful Lost favour until around 2006-2012 - Large amounts of data online - GPU and distributed processing Source: Alexander Del Toro Barba https://www.linkedin.com/pulse/how-artificial-intelligence-revolutionizing-finance-del-toro-barba

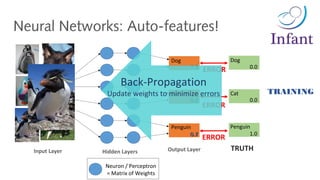

- 14. Neural Networks: Auto-features! Dog Cat Penguin 0.1 0.2 0.7 InputLayer Hidden Layers Output Layer Dog Cat Penguin 0.0 0.0 1.0 TRUTH ERROR ERROR ERROR Neuron / Perceptron = Matrix of Weights TRAINING 0.3 0.4 0.3 Back-Propagation Update weights to minimize errors

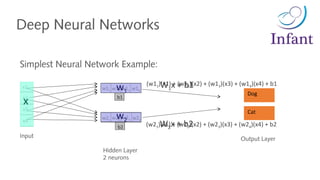

- 15. Deep Neural Networks SimplestNeural Network Example: Input Hidden Layer 2 neurons x1 x2 x4 x3 w11 b1 b2 w12 w13 w14 w21 w22 w23 w24 x w1 w2 W1x + b1 W2x + b2 (w11)(x1) + (w12)(x2) + (w13)(x3) + (w14)(x4) + b1 (w21)(x1) + (w22)(x2) + (w23)(x3) + (w24)(x4) + b2 Output Layer Dog Cat
- 16. Deep Neural Networks SimplestNeural Network Example: Input Hidden Layer 2 neurons x1 x2 x4 x3 w11 b1 b2 w12 w13 w14 w21 w22 w23 w24 x w1 w2 f(W1x + b1) f(W2x + b2) f = activation function (non linearity) Output Layer Dog Cat

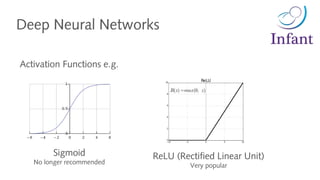

- 17. Deep Neural Networks ActivationFunctions e.g. Sigmoid No longer recommended ReLU (Rectified Linear Unit) Very popular
- 18. Deep Neural Networks SimplestNeural Network Example: Input Hidden Layer 2 neurons x1 x2 x4 x3 w11 b1 b2 w12 w13 w14 w21 w22 w23 w24 x w1 w2 f(W1x + b1) f(W2x + b2) f = activation function (non linearity) Output Layer Dog Cat Softmax Function n1 n2

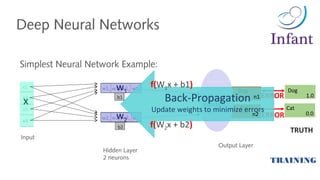

- 19. Deep Neural Networks SimplestNeural Network Example: Input Hidden Layer 2 neurons x1 x2 x4 x3 w11 b1 b2 w12 w13 w14 w21 w22 w23 w24 x w1 w2 Output Layer Dog Cat Softmax Function TRAINING Dog Cat TRUTH ERROR ERROR Back-Propagation Update weights to minimize errors 1.0 0.0 n1 n2 f(W1x + b1) f(W2x + b2)

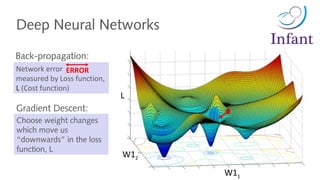

- 20. Deep Neural Networks Back-propagation: Chooseweight changes which move us “downwards” in the loss function, L Gradient Descent: W11 W12 L Network error measured by Loss function, L (Cost function) ERROR

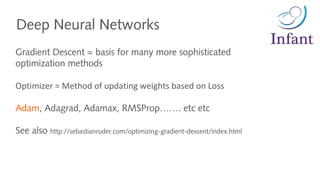

- 21. Deep Neural Networks GradientDescent = basis for many more sophisticated optimization methods Optimizer = Method of updating weights based on Loss Adam, Adagrad, Adamax, RMSProp……. etc etc See also http://sebastianruder.com/optimizing-gradient-descent/index.html

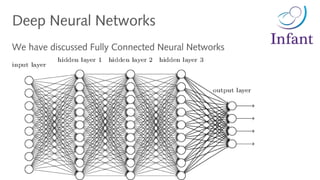

- 22. Deep Neural Networks Wehave discussed Fully Connected Neural Networks

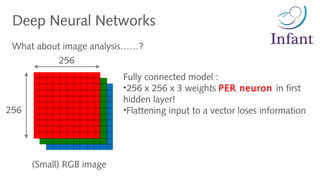

- 23. Deep Neural Networks 256 256 (Small)RGB image Fully connected model : •256 x 256 x 3 weights PER neuron in first hidden layer! •Flattening input to a vector loses information What about image analysis……?

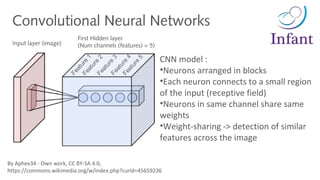

- 24. By Aphex34 -Own work, CC BY-SA 4.0, https://commons.wikimedia.org/w/index.php?curid=45659236 Convolutional Neural Networks Input layer (image) First Hidden layer (Num channels (features) = 5) CNN model : •Neurons arranged in blocks •Each neuron connects to a small region of the input (receptive field) •Neurons in same channel share same weights •Weight-sharing -> detection of similar features across the image

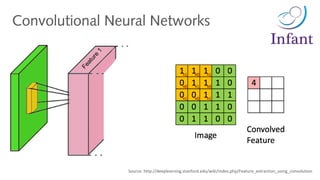

- 25.

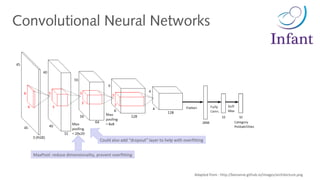

- 26. Convolutional Neural Networks Adaptedfrom : http://benanne.github.io/images/architecture.png MaxPool: reduce dimensionality, prevent overfitting Could also add “dropout” layer to help with overfitting

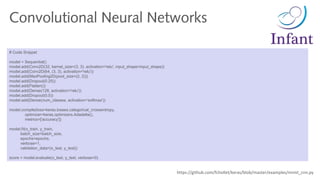

- 27. # Code Snippet model= Sequential() model.add(Conv2D(32, kernel_size=(3, 3), activation='relu', input_shape=input_shape)) model.add(Conv2D(64, (3, 3), activation='relu')) model.add(MaxPooling2D(pool_size=(2, 2))) model.add(Dropout(0.25)) model.add(Flatten()) model.add(Dense(128, activation='relu')) model.add(Dropout(0.5)) model.add(Dense(num_classes, activation='softmax')) model.compile(loss=keras.losses.categorical_crossentropy, optimizer=keras.optimizers.Adadelta(), metrics=['accuracy']) model.fit(x_train, y_train, batch_size=batch_size, epochs=epochs, verbose=1, validation_data=(x_test, y_test)) score = model.evaluate(x_test, y_test, verbose=0) Convolutional Neural Networks https://github.com/fchollet/keras/blob/master/examples/mnist_cnn.py

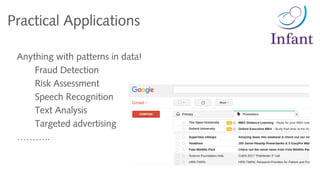

- 28. Anything with patternsin data! Fraud Detection Risk Assessment Speech Recognition Text Analysis Targeted advertising ……….. Practical Applications
- 29. e.g. Manufacturing Photo Management Driverless Car RemoteSensing Medical Images…… Imaging Applications
- 30. Image Categorisation flamingo Source :ImageNet 2011 (Large Scale Visual Recognition Challenge) Training data: 1.2 million images 1000 image categories

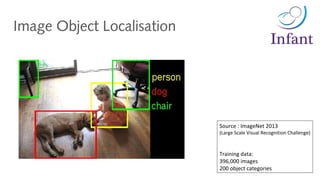

- 31. Image Object Localisation Source: ImageNet 2013 (Large Scale Visual Recognition Challenge) Training data: 396,000 images 200 object categories

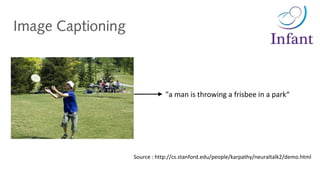

- 32. Image Captioning "a manis throwing a frisbee in a park“ Source : http://cs.stanford.edu/people/karpathy/neuraltalk2/demo.html

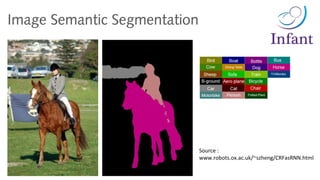

- 33. Image Semantic Segmentation Source: www.robots.ox.ac.uk/~szheng/CRFasRNN.html
- 34.
- 35.

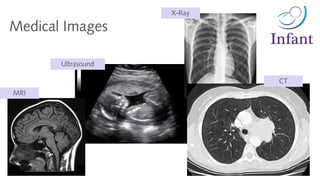

- 36. Medical Images –Brain MRI 3D Brain

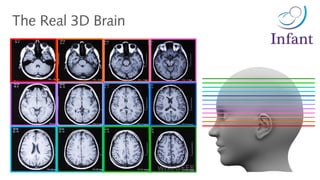

- 37. The Real 3DBrain
- 38. Medical Images -Why AI? Radiologist • Error-prone • Subjective • Qualitative Computers • Tireless • Objective (repeatable results) • Quantitative

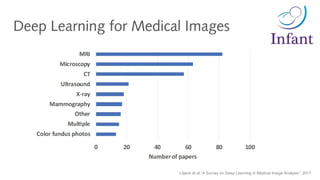

- 39. Deep Learning forMedical Images Litjens et al “A Survey on Deep Learning in Medical Image Analysis”, 2017

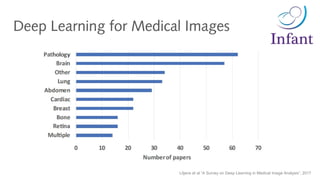

- 40. Deep Learning forMedical Images Litjens et al “A Survey on Deep Learning in Medical Image Analysis”, 2017
- 41.

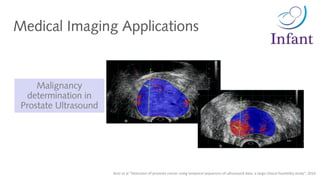

- 42. Detection of prostatecancer using temporal sequences of ultrasound data: a large clinical feasibility study Azizi et al “Detection of prostate cancer using temporal sequences of ultrasound data: a large clinical feasibility study”, 2016 Malignancy determination in Prostate Ultrasound Medical Imaging Applications
- 43. Detection of Tuberculosis inChest X-Ray Kim et al “Deconvolutional Feature Stacking for Weakly-Supervised Semantic Segmentation”, 2016 Medical Imaging Applications
- 44. Gao et al“Multi-label Deep Regression and Unordered Pooling for Holistic Interstitial Lung Disease Detection”, 2016 Detecting Patterns of Interstitial Lung Disease (CT) Medical Imaging Applications
- 45. Ghafoorian et al“Location Sensitive Deep Convolutional Neural Networks for Segmentation of White Matter Hyperintensities”, 2016 Segmentation of White-Matter Hyperintensities (MRI) Medical Imaging Applications

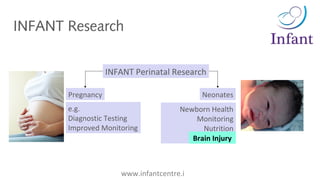

- 46. INFANT Research INFANT PerinatalResearch NeonatesPregnancy e.g. Diagnostic Testing Improved Monitoring Newborn Health Monitoring Nutrition Brain InjuryBrain Injury www.infantcentre.i
- 47. Hypoxic Ischemic Encephalopathy OxygenDeprivation during Birth Cause of brain injury 2-5 cases per 1000 live births Wide range of severities and outcomes Which part of the brain is injured and how severely?Which part of the brain is injured and how severely?

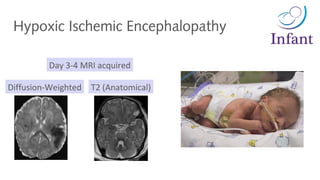

- 48. Hypoxic Ischemic Encephalopathy Day3-4 MRI acquired Diffusion-Weighted T2 (Anatomical)

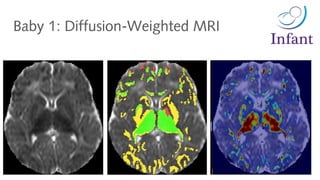

- 49.

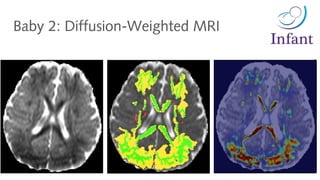

- 50.

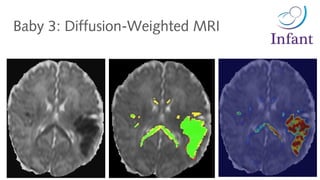

- 51.

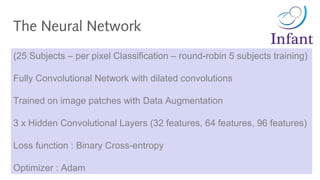

- 52. The Neural Network (25Subjects – per pixel Classification – round-robin 5 subjects training) Fully Convolutional Network with dilated convolutions Trained on image patches with Data Augmentation 3 x Hidden Convolutional Layers (32 features, 64 features, 96 features) Loss function : Binary Cross-entropy Optimizer : Adam
- 53. Brain Tissue Segmentation Segment8 tissue types in anatomical scans NeoBrainS12 Public Challenge 2 x subjects fully labelled (training) 5 x subjects no labels (test)

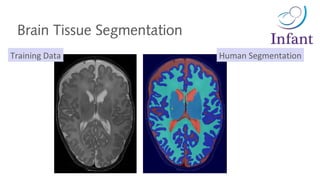

- 54. Brain Tissue Segmentation HumanSegmentationTraining Data

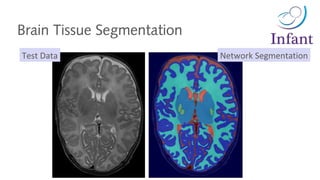

- 55. Network SegmentationTest Data BrainTissue Segmentation
- 56. The Neural Network (2training Subjects – per pixel classification) Fully Convolutional Network with dilated convolutions Trained on image patches with Data Augmentation Deep residual network with 11 convolutional layers stacked with batch- normalization and ‘ReLU’ activation layers. Loss function : Categorical Cross-entropy Optimizer : Adam

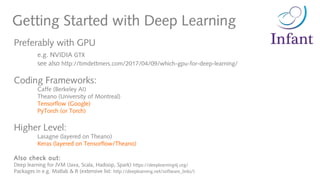

- 57. Getting Started withDeep Learning Preferably with GPU e.g. NVIDIA GTX see also http://timdettmers.com/2017/04/09/which-gpu-for-deep-learning/ Coding Frameworks: Caffe (Berkeley AI) Theano (University of Montreal) Tensorflow (Google) PyTorch (or Torch) Higher Level: Lasagne (layered on Theano) Keras (layered on Tensorflow/Theano) Also check out: Deep learning for JVM (Java, Scala, Hadoop, Spark) https://deeplearning4j.org/ Packages in e.g. Matlab & R (extensive list: http://deeplearning.net/software_links/)
- 58. Acknowledgements Kevin McGuinness, INSIGHTcentre DCU Joseph Antony, INSIGHT centre DCU
- 59. http://cs231n.github.io/ http://neuralnetworksanddeeplearning.com http://deeplearning.stanford.edu/wiki/index.php/UFLDL_Tutorial https://ayearofai.com https://arxiv.org/ (for researchliterature) https://github.com/kailashahirwar/cheatsheets-ai (cheat-sheets for programming) https://aiexperiments.withgoogle.com (fun stuff with neural nets) Useful (and fun) resources
- 60.
