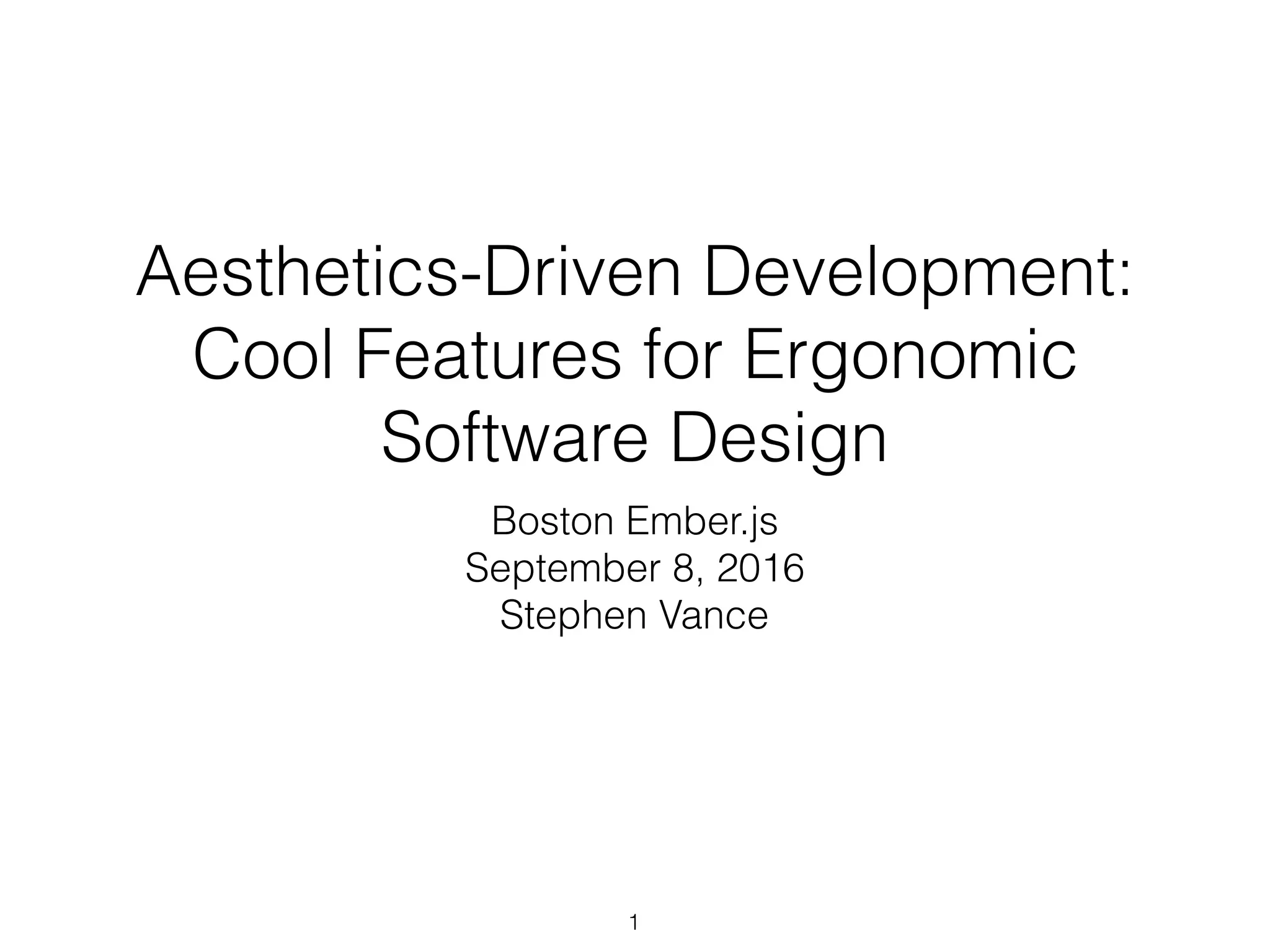

20160908 Aesthetic-Driven Development

Aesthetics-Driven Development:
Cool Features for Ergonomic
Software Design
Boston Ember.js
September 8, 2016
Stephen Vance
1

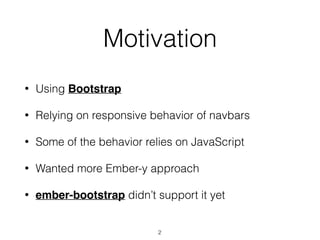

Motivation
• Using Bootstrap
• Relying on responsive behavior of navbars
• Some of the behavior relies on JavaScript
• Wanted more Ember-y approach
• ember-bootstrap didn’t support it yet
2

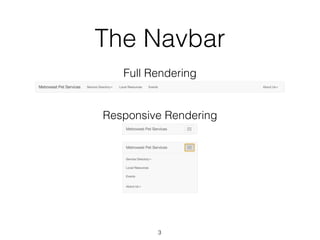

The Navbar
Full Rendering
Responsive Rendering
3

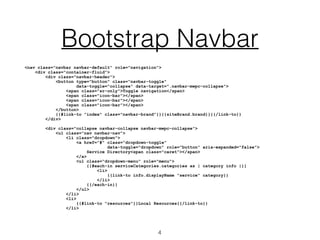

Bootstrap Navbar
<nav class="navbar navbar-default" role="navigation">
<div class="container-fluid">
<div class="navbar-header">
<button type="button" class=“navbar-toggle"
data-toggle="collapse" data-target=".navbar-mwpc-collapse">
<span class="sr-only">Toggle navigation</span>
<span class="icon-bar"></span>
</button>
{{#link-to "index" class="navbar-brand"}}{{siteBrand.brand}}{{/link-to}}
</div>
<div class="collapse navbar-collapse navbar-mwpc-collapse">
<ul class="nav navbar-nav">
<li class="dropdown">
<a href="#" class=“dropdown-toggle"
data-toggle="dropdown" role="button" aria-expanded="false">
Service Directory<span class="caret"></span>
</a>
<ul class="dropdown-menu" role="menu">
{{#each-in serviceCategories.categories as | category info |}}
<li>
{{link-to info.displayName "service" category}}
</li>
{{/each-in}}
</ul>
</li>
<li>
{{#link-to "resources"}}Local Resources{{/link-to}}
</li>
4

Bootstrap Navbar
<nav class="navbar navbar-default" role="navigation">
<div class="container-fluid">
<div class="navbar-header">
<button type="button" class=“navbar-toggle"
data-toggle="collapse" data-target=".navbar-mwpc-collapse">
</button>
{{#link-to "index" class="navbar-brand"}}{{siteBrand.brand}}{{/link-to}}
</div>
<div class="collapse navbar-collapse navbar-mwpc-collapse">
<ul class="nav navbar-nav">
<li class="dropdown">
<a href="#" class=“dropdown-toggle"
data-toggle="dropdown" role="button" aria-expanded="false">
Service Directory<span class="caret"></span>
</a>
<ul class="dropdown-menu" role="menu">
{{#each-in serviceCategories.categories as | category info |}}
<li>
{{link-to info.displayName "service" category}}
</li>
{{/each-in}}
</ul>
</li>
<li>
{{#link-to "resources"}}Local Resources{{/link-to}}
</li>
Navbar
Header
Toggle
Content
Nav
Brand
4

Navbar Structure
Navbar
Header
Toggle
Content
5

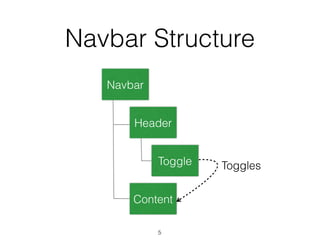

Navbar Structure
Navbar
Header
Toggle
Content
Toggles
5

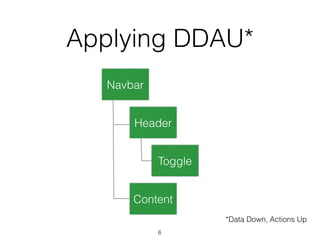

Applying DDAU*
Navbar
Header
Toggle
Content
*Data Down, Actions Up
6

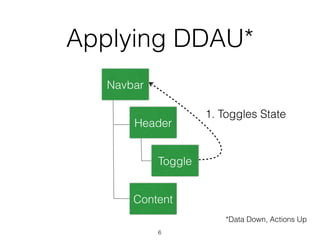

Applying DDAU*
Navbar
Header
Toggle
Content
1. Toggles State
6

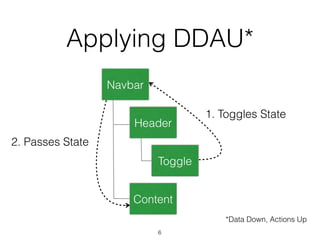

Applying DDAU*
Navbar
Header
Toggle
Content
1. Toggles State
2. Passes State
6

Design Concerns
• Peer components shouldn’t reference each other
• Navbar state should be within the component
• Outside would require users to deﬁne it
• Nearest common parent
• Support multiple navbars in a page
• Strive for clean DSL
• Minimize exposed plumbing
• Principle of Least Astonishment
7

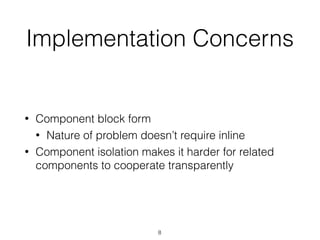

Implementation Concerns
• Component block form
• Nature of problem doesn’t require inline
• Component isolation makes it harder for related
components to cooperate transparently
8

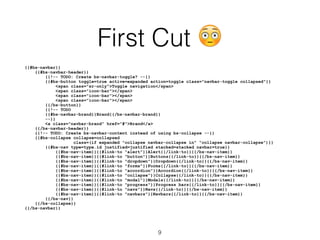

First Cut 😳
{{#bs-navbar}}
{{#bs-navbar-header}}
{{!-- TODO: Create bs-navbar-toggle? --}}
{{#bs-button toggle=true active=expanded action=toggle class="navbar-toggle collapsed"}}
{{/bs-button}}
{{!-- TODO
{{#bs-navbar-brand}}Brand{{/bs-navbar-brand}}
--}}
<a class="navbar-brand" href="#">Brand</a>
{{/bs-navbar-header}}
{{!-- TODO: Create bs-navbar-content instead of using bs-collapse --}}
{{#bs-collapse collapse=collapsed
class=(if expanded "collapse navbar-collapse in" "collapse navbar-collapse")}}
{{#bs-nav type=type.id justified=justified stacked=stacked navbar=true}}
{{#bs-nav-item}}{{#link-to "alert"}}Alert{{/link-to}}{{/bs-nav-item}}
{{#bs-nav-item}}{{#link-to "button"}}Buttons{{/link-to}}{{/bs-nav-item}}
{{#bs-nav-item}}{{#link-to "dropdown"}}Dropdown{{/link-to}}{{/bs-nav-item}}
{{#bs-nav-item}}{{#link-to "forms"}}Forms{{/link-to}}{{/bs-nav-item}}
{{#bs-nav-item}}{{#link-to "accordion"}}Accordion{{/link-to}}{{/bs-nav-item}}
{{#bs-nav-item}}{{#link-to "collapse"}}Collapse{{/link-to}}{{/bs-nav-item}}
{{#bs-nav-item}}{{#link-to "modal"}}Modals{{/link-to}}{{/bs-nav-item}}
{{#bs-nav-item}}{{#link-to "progress"}}Progress bars{{/link-to}}{{/bs-nav-item}}
{{#bs-nav-item}}{{#link-to "navs"}}Navs{{/link-to}}{{/bs-nav-item}}
{{#bs-nav-item}}{{#link-to "navbars"}}Navbars{{/link-to}}{{/bs-nav-item}}
{{/bs-nav}}
{{/bs-collapse}}
{{/bs-navbar}}
9

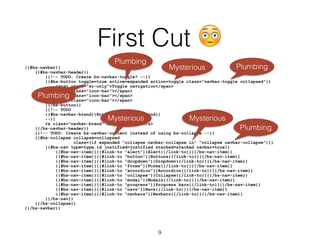

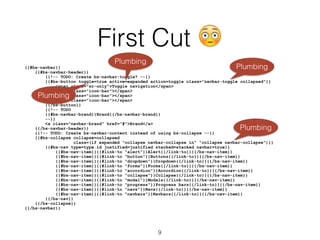

First Cut 😳
{{#bs-navbar}}
{{/bs-button}}
{{!-- TODO
--}}
{{/bs-nav}}
{{/bs-collapse}}
{{/bs-navbar}}
Plumbing
Plumbing
Plumbing
Plumbing
9

First Cut 😳
{{#bs-navbar}}
{{/bs-button}}
{{!-- TODO
--}}
{{/bs-nav}}
{{/bs-collapse}}
{{/bs-navbar}}
Plumbing
Plumbing
MysteriousMysterious
Mysterious
Plumbing
Plumbing
9

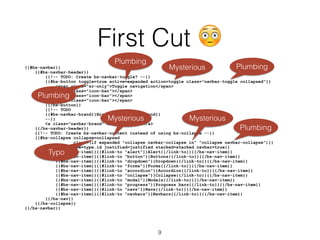

First Cut 😳
{{#bs-navbar}}
{{/bs-button}}
{{!-- TODO
--}}
{{/bs-nav}}
{{/bs-collapse}}
{{/bs-navbar}}
Plumbing
Plumbing
MysteriousMysterious
Mysterious
Plumbing
Plumbing
Typo
9

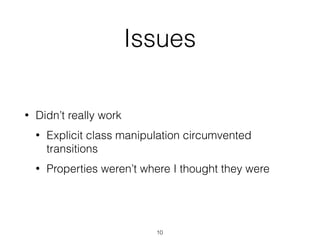

Issues
• Didn’t really work
• Explicit class manipulation circumvented
transitions
• Properties weren’t where I thought they were
10

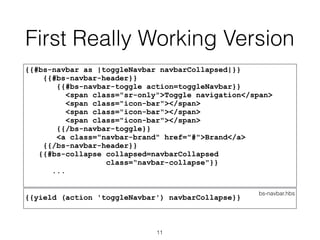

First Really Working Version
{{#bs-navbar as |toggleNavbar navbarCollapsed|}}
{{#bs-navbar-toggle action=toggleNavbar}}
{{/bs-navbar-toggle}}
{{#bs-collapse collapsed=navbarCollapsed
class=“navbar-collapse"}}
...
bs-navbar.hbs
{{yield (action 'toggleNavbar') navbarCollapse}}
11

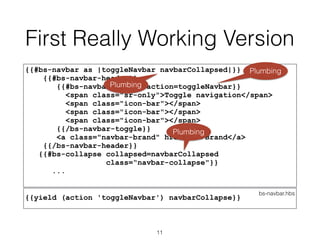

First Really Working Version
{{#bs-navbar as |toggleNavbar navbarCollapsed|}}
{{#bs-navbar-toggle action=toggleNavbar}}
{{#bs-collapse collapsed=navbarCollapsed
class=“navbar-collapse"}}
...
Plumbing
Plumbing
Plumbing
bs-navbar.hbs
{{yield (action 'toggleNavbar') navbarCollapse}}
11

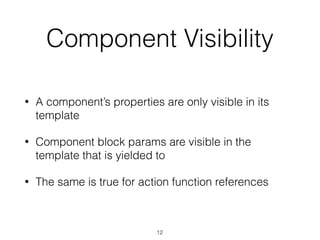

Component Visibility
• A component’s properties are only visible in its
template
• Component block params are visible in the
template that is yielded to
• The same is true for action function references
12

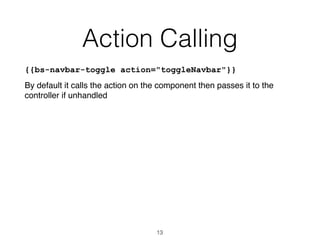

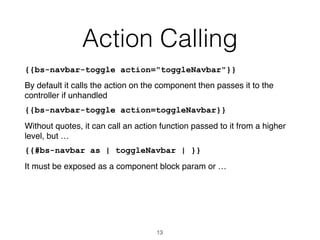

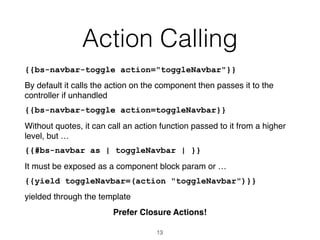

Action Calling
{{bs-navbar-toggle action="toggleNavbar"}}
By default it calls the action on the component then passes it to the
controller if unhandled
13

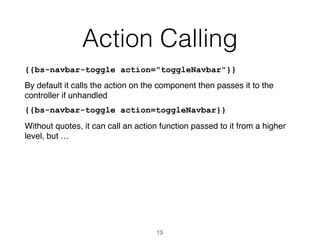

Action Calling
{{bs-navbar-toggle action=toggleNavbar}}
Without quotes, it can call an action function passed to it from a higher
level, but …
13

Action Calling
level, but …
{{#bs-navbar as | toggleNavbar | }}
It must be exposed as a component block param or …
13

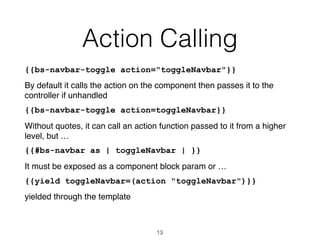

Action Calling
level, but …
{{yield toggleNavbar=(action "toggleNavbar")}}
yielded through the template
13

Action Calling
level, but …
{{yield toggleNavbar=(action "toggleNavbar")}}
yielded through the template
Prefer Closure Actions!
13

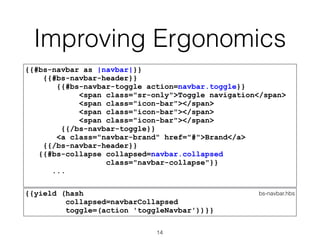

Improving Ergonomics
{{#bs-navbar as |navbar|}}
{{#bs-navbar-toggle action=navbar.toggle}}
{{#bs-collapse collapsed=navbar.collapsed
class="navbar-collapse"}}
...
bs-navbar.hbs{{yield (hash
collapsed=navbarCollapsed
toggle=(action 'toggleNavbar'))}}
14

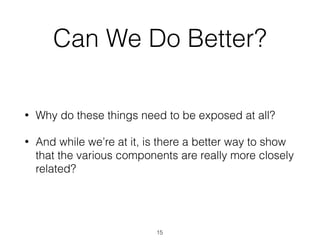

Can We Do Better?
• Why do these things need to be exposed at all?
• And while we’re at it, is there a better way to show
that the various components are really more closely
related?
15

Enter Contextual Components
{{#bs-navbar as |navbar|}}
{{#navbar.header}}
{{#navbar.toggle}}
{{/navbar.toggle}}
{{#navbar.brand}}Brand{{/navbar.brand}}
{{/navbar.header}}
{{#navbar.content}}
{{#navbar.nav}}
...
16

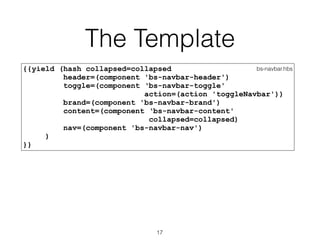

The Template
bs-navbar.hbs{{yield (hash collapsed=collapsed
header=(component 'bs-navbar-header')
toggle=(component ‘bs-navbar-toggle'
action=(action 'toggleNavbar'))
brand=(component 'bs-navbar-brand')
content=(component ‘bs-navbar-content'
collapsed=collapsed)
nav=(component 'bs-navbar-nav')
)
}}
17

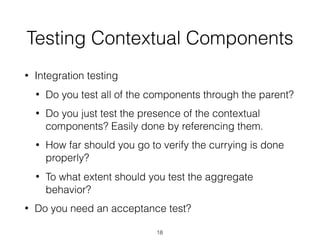

Testing Contextual Components
• Integration testing
• Do you test all of the components through the parent?
• Do you just test the presence of the contextual
components? Easily done by referencing them.
• How far should you go to verify the currying is done
properly?
• To what extent should you test the aggregate
behavior?
• Do you need an acceptance test?
18

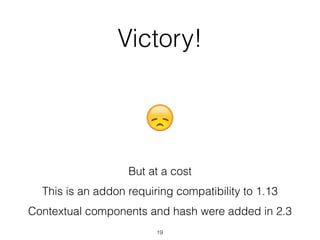

Victory!
But at a cost
This is an addon requiring compatibility to 1.13
Contextual components and hash were added in 2.3
😀😞
19

Final Form, But How?
{{#bs-navbar}} 
<div class="navbar-header"> 
{{#bs-navbar-toggle}} 
<span class="sr-only">Toggle navigation</span> 
<span class="icon-bar"></span> 
{{/bs-navbar-toggle}} 
<a class="navbar-brand" href="#">Brand</a> 
</div> 
{{#bs-navbar-content}} 
{{#bs-navbar-nav}}
...
20

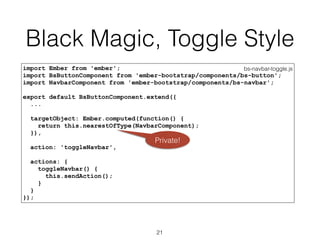

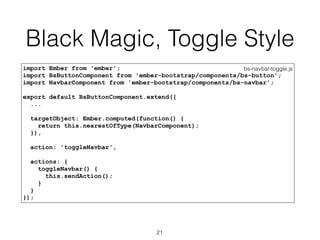

Black Magic, Toggle Style
bs-navbar-toggle.jsimport Ember from 'ember';
import BsButtonComponent from 'ember-bootstrap/components/bs-button';
import NavbarComponent from 'ember-bootstrap/components/bs-navbar';
export default BsButtonComponent.extend({
...
targetObject: Ember.computed(function() {
return this.nearestOfType(NavbarComponent);
}),
action: 'toggleNavbar',
actions: {
toggleNavbar() {
this.sendAction();
}
}
});
21

Black Magic, Toggle Style
bs-navbar-toggle.jsimport Ember from 'ember';
import BsButtonComponent from 'ember-bootstrap/components/bs-button';
export default BsButtonComponent.extend({
...
targetObject: Ember.computed(function() {
}),
action: 'toggleNavbar',
actions: {
toggleNavbar() {
this.sendAction();
}
}
});
21
Private!

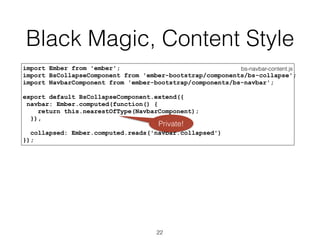

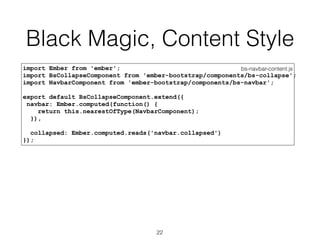

Black Magic, Content Style
bs-navbar-content.jsimport Ember from 'ember';
import BsCollapseComponent from 'ember-bootstrap/components/bs-collapse';
export default BsCollapseComponent.extend({
navbar: Ember.computed(function() {
}),
collapsed: Ember.computed.reads('navbar.collapsed')
});
22

Black Magic, Content Style
bs-navbar-content.jsimport Ember from 'ember';
import BsCollapseComponent from 'ember-bootstrap/components/bs-collapse';
export default BsCollapseComponent.extend({
navbar: Ember.computed(function() {
}),
collapsed: Ember.computed.reads('navbar.collapsed')
});
22
Private!

Wrapping Up
• Think about how it will be used and how
newcomers will perceive it
• Shoot for elegance, aesthetics, and ergonomics
• Use the latest cool features in the service of design
and ergonomics, not for their own sake
• Remember not everyone’s on the cutting edge
23

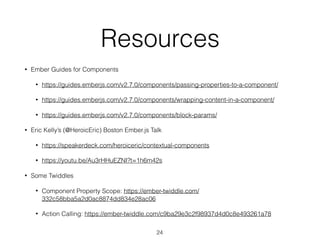

Resources
• Ember Guides for Components
• https://guides.emberjs.com/v2.7.0/components/passing-properties-to-a-component/
• https://guides.emberjs.com/v2.7.0/components/wrapping-content-in-a-component/
• https://guides.emberjs.com/v2.7.0/components/block-params/
• Eric Kelly’s (@HeroicEric) Boston Ember.js Talk
• https://speakerdeck.com/heroiceric/contextual-components
• https://youtu.be/Au3rHHuEZNI?t=1h6m42s
• Some Twiddles
• Component Property Scope: https://ember-twiddle.com/
332c58bba5a2d0ac8874dd834e28ac06
• Action Calling: https://ember-twiddle.com/c9ba29e3c2f98937d4d0c8e493261a78
24

Contact Me
Stephen Vance
http://www.vance.com
steve@vance.com
@StephenRVance
srvance on GitHub and LinkedIn
25
