Appium is an open source test automation framework that can be used to write automated test scripts for native, hybrid and mobile web apps on iOS and Android platforms. It drives iOS and Android apps using the WebDriver protocol. Appium allows testing on emulators and real devices by interacting with APIs provided by each mobile platform. Test scripts are written in Java, Python, JavaScript or other languages that support the WebDriver protocol.

1. Introduce Appium
@testotips.io

2. Twitter id: @Kazu_cocoa

3. Appium
?

4. Appium is an open source test
automation framework for use
with native, hybrid and mobile
web apps.
It drives iOS and Android apps
using the WebDriver protocol.
from: http://appium.io/

5. from: http://www.3pillarglobal.com/insights/appium-a-cross-browser-mobile-automation-tool

6. Integration TestUnit Test
Flow of automated test
GUI Test
Feature Test
(E2E Test)

7. GUI / Feature testing
Integration TestUnit Test
GUI Test
Feature Test
(E2E Test)

8. $ npm install appium
($ npm install -g appium)

9. node_module/.bin
appium.js
appium-doctor.js
authorize_ios.js

10. $ $(npm bin)appium

11. node_modules/appium/bin/appium.js
var appium = require('../lib/server/main.js');
!
var startRepl = function () {
var help = function () {
console.log("nWelcome to the Appium CLI".cyan);
console.log(" - Access the appium object via the object: 'appium'".grey);
console.log(" - appium.run is the function to start the server".grey);
console.log(" - args is the default params data structure".grey);
console.log(" - set args.app then run appium.run(args);n".grey);
return 'Thanks for asking';
};
!
help();
!
var r = repl.start('(appium): ');
r.context.appium = appium;
r.context.parser = parser();
r.context.help = help;
r.context.args = {
app: '/path/to/test/app'
, udid: null
, address: '127.0.0.1'
, port: 4723
};
!
var connections = 0;
var server = net.createServer(function (socket) {
connections += 1;
socket.setTimeout(5 * 60 * 1000, function () {
socket.destroy();
});
repl.start("(appium): ", socket);
}).listen(process.platform === "win32" ? ".pipenode-repl-sock-" + process.pid : "/tmp/node-repl-sock-" +
process.pid);
!
r.on('exit', function () {
server.close();
process.exit();
});

12. node_modules/appium/lib/server/main.js
var http = require('http')
, express = require('express')
, favicon = require('serve-favicon')
, bodyParser = require('body-parser')
, methodOverride = require('method-override')
, morgan = require('morgan') // logger
, routing = require('./routing.js')
, path = require('path')
, appium = require('../appium.js')
, parserWrap = require('./middleware').parserWrap
, appiumVer = require('../../package.json').version
, appiumRev = null
, async = require('async')
, helpers = require('./helpers.js')
, logFinalWarning = require('../helpers.js').logFinalDeprecationWarning
, getConfig = require('../helpers.js').getAppiumConfig
, allowCrossDomain = helpers.allowCrossDomain
, catchAllHandler = helpers.catchAllHandler
, checkArgs = helpers.checkArgs
, configureServer = helpers.configureServer
, startListening = helpers.startListening
, conditionallyPreLaunch = helpers.conditionallyPreLaunch
, prepareTmpDir = helpers.prepareTmpDir
, requestStartLoggingFormat = require('./helpers.js').requestStartLoggingFormat
, requestEndLoggingFormat = require('./helpers.js').requestEndLoggingFormat
, domainMiddleware = require('./helpers.js').domainMiddleware;

13. var loggerjs = require('./server/logger.js')
, logger = loggerjs.get('appium')
, UUID = require('uuid-js')
, _ = require('underscore')
, Capabilities = require('./server/capabilities')
, IOS = require('./devices/ios/ios.js')
, Safari = require('./devices/ios/safari.js')
, Android = require('./devices/android/android.js')
, Selendroid = require('./devices/android/selendroid.js')
, Chrome = require('./devices/android/chrome.js')
, FirefoxOs = require('./devices/firefoxos/firefoxos.js')
, jwpResponse = require('./devices/common.js').jwpResponse
, status = require("./server/status.js");
!
var DT_IOS = "ios"
, DT_SAFARI = "safari"
, DT_ANDROID = "android"
, DT_CHROME = "chrome"
, DT_SELENDROID = "selendroid"
, DT_FIREFOX_OS = "firefoxos";
node_modules/appium/lib/appium.js

14. !

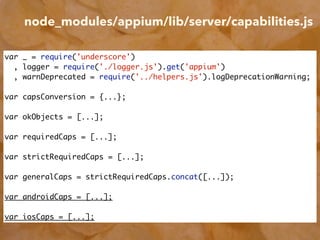

node_modules/appium/lib/server/capabilities.js
var _ = require('underscore')
, logger = require('./logger.js').get('appium')
, warnDeprecated = require('../helpers.js').logDeprecationWarning;
!
var capsConversion = {...};
!
var okObjects = [...];
!
var requiredCaps = [...];
!
var strictRequiredCaps = [...];
!
var generalCaps = strictRequiredCaps.concat([...]);
!
var androidCaps = [...];
!
var iosCaps = [...];

15. Appium
meets
iOS

16. Capabilities
IOS_CAPS_81 = {
automationName: 'Appium',
platformName: :ios,
platformVersion: '8.1',
deviceName: 'iPhone 6 Plus',
app: IOS_APP_PATH,
bundleId: APP_BUNDLE_ID,
!
calendarFormat: 'gregorian',
!
sendKeyStrategy: 'grouped'
!
localizableStringsDir: 'ja.lproj',
language: 'ja',
locale: 'ja_JP',
!
screenshotWaitTimeout: 20
}

17. create new plist before start app
appium/lib/devices/ios/ios.js
IOS.prototype.setDeviceTypeInInfoPlist = function (cb) {
var plist = path.resolve(this.args.app, "Info.plist");
var dString = this.getDeviceString();
var isiPhone = dString.toLowerCase().indexOf("ipad") === -1;
var deviceTypeCode = isiPhone ? 1 : 2;
parsePlistFile(plist, function (err, obj) {
if (err) {
logger.error("Could not set the device type in Info.plist");
return cb(err, null);
} else {
var newPlist;
obj.UIDeviceFamily = [deviceTypeCode];
if (binaryPlist) {
newPlist = bplistCreate(obj);
} else {
newPlist = xmlplist.build(obj);
}
fs.writeFile(plist, newPlist, function (err) {
if (err) {
logger.error("Could not save new Info.plist");
cb(err);
} else {
logger.debug("Wrote new app Info.plist with device type");
cb();
}
}.bind(this));
}
}.bind(this));
};

18. Appium
meets
Android

19. Capabilities
ANDROID_CAPS = {
automationName: 'Appium',
platformName: :android,
platformVersion: '4.2',
deviceName: ‘Android’,
app: ANDROID_APP_PATH,
!
unicodeKeyboard: true,
!
fullReset: true,
screenshotWaitTimeout: 20
}

20. appium/lib/devices/android/android.js
Android.prototype.pushAppium = function (cb) {
logger.debug("Pushing appium bootstrap to device...");
var binPath = path.resolve(__dirname, "..", "..", "..", "build",
"android_bootstrap", "AppiumBootstrap.jar");
fs.stat(binPath, function (err) {
if (err) {
cb(new Error("Could not find AppiumBootstrap.jar; please run " +
"'grunt buildAndroidBootstrap'"));
} else {
this.adb.push(binPath, this.remoteTempPath(), cb);
}
}.bind(this));
};
!
Android.prototype.startApp = function (args, cb) {
if (args.androidCoverage) {
this.adb.androidCoverage(args.androidCoverage, args.appWaitPackage,
args.appWaitActivity, cb);
} else {
this.adb.startApp({
pkg: args.appPackage,
activity: args.appActivity,
action: args.intentAction,
category: args.intentCategory,
flags: args.intentFlags,
waitPkg: args.appWaitPackage,
waitActivity: args.appWaitActivity,
optionalIntentArguments: args.optionalIntentArguments,
stopApp: args.stopAppOnReset
}, cb);
}
};

21. appium/lib/devices/android/bootstrap/

23. 例えば、UiDeviceのpressBack()を使う

24. Common
Selectors

25. exports.checkValidLocStrat = function (strat, includeWeb, cb) {
if (typeof includeWeb === "undefined") {
includeWeb = false;
}
var validStrats = [
'xpath',
'id',
'name',
'class name'
];
var nativeStrats = [
'-ios uiautomation',
'accessibility id',
'-android uiautomator'
];
var webStrats = [
'link text',
'css selector',
'tag name',
'partial link text'
];
var nativeDeprecations = {};
var webDeprecations = {};
var deprecations = {name: 'accessibility id'};

26. XPath
find_element :xpath, ”なんらかのXPath"
accessibility id
find_element :accessibility_id, ”なんらかの要素"
css selector
find_element :css_selector, ”なんらかの要素"
# Ruby Client使用時

27. iOS: UIAutomation
find_element :uiautomator,
"new UiSelector()
.className("android.widget.TextView")
.text("#{element_name}");”
find_element :uiautomation,
”$.mainApp().alert().buttons()[‘#{text}'];"
Android: uiautomator

28. Run test
concurrently

29. Appium is just server
Appium1: $appium -p 4723 &
Appium2: $appium -p 4725 -bp 4726 &
Appium1
iOS App Android
Appium
appium_server
= “http://127.0.0.1: 4723”
appium_server
= “http://127.0.0.1: 4725”
adb: 4726

30. Fin

31. One more tip

32. DroidDriver

33. DroidDriver
• Clone from Google to SauceLab(Appium)
• https://github.com/appium/droiddriver
• UiDeviceとか、UiElementとか使ってそう
• https://github.com/appium/droiddriver/tree/master/droiddriver-
android_support_test
• android-support-test libraryと並行して使うユースケースもある
が、android-support-test libraryはまだ開発されて日が浅いので
optionとしての統合に留められている

34. Thanks
