The document is a catalog from Nexus Technologies that describes their Leaf audio and video product line. It includes sections that describe their Home Series, Matrix Series, Premium Series, Speaker Range, Distribution & Upscalers, and Nexus Comparators product lines. It provides information on individual products, including specifications and configurations. Contact information is provided on the first and last pages.

1. NEXUS
COMPARATORS
DISTRIBUTION &
UPSCALERS
SPEAKER
RANGE
PREMIUM
SERIES
MATRIX
SERIES
CATALOG
2011
HOME
SERIES
www.leafaudio.com
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 1

2. www.leafaudio.com
Australia
Nexus Technolgies Pty Ltd
2/118 Malcolm Rd
Braeside, Victoria
Australia 3195
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
www.leafaudio.com
www.nexuscomparators.com
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 2

3. www.leafaudio.com
Contents
CONTENTS
WELCOME TO LEAF
OUR PRODUCTS
3
4
5
HOME SERIES
ALTAIR
XTR AMP
XTR AMP CONFIGURATION
HOME SYSTEM
HOME SYSTEM CONFIGURATION
HOME SYSTEM POWERED
HOME SYSTEM
POWERED CONFIGURATION
LHD44 HOME
LHD44 HOME CONFIGURATION
LHBP
6
7
8
9
12
13
14
MATRIX SERIES

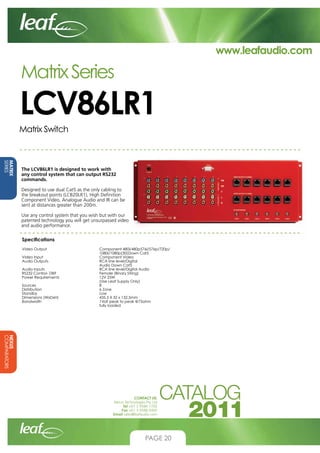

LCV86LR1
LCB20LR1

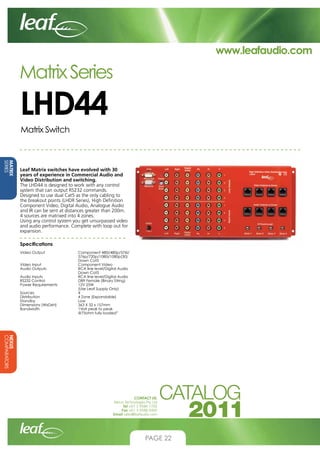

LHD44
LHD88

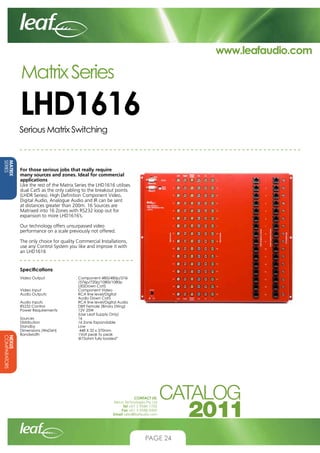

LHD1616
LHDR1
LHDMIB

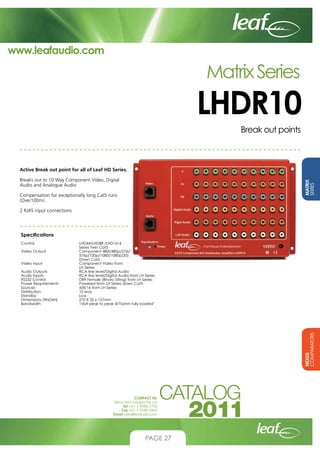

LHDR10

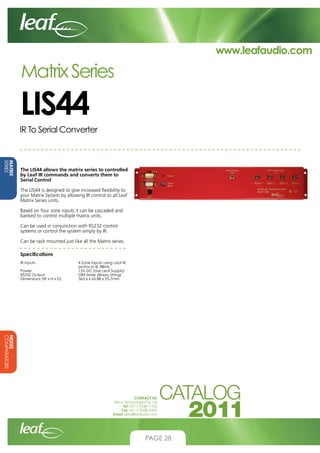

LIS44
LIS44 CONFIGURATION
LAB44
LAB44 CONFIGURATION
LAVZX1602
LVX1605

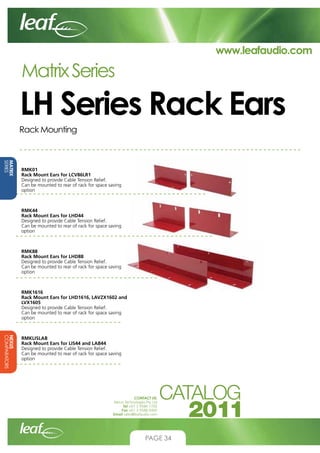

LH SERIES RACK EARS

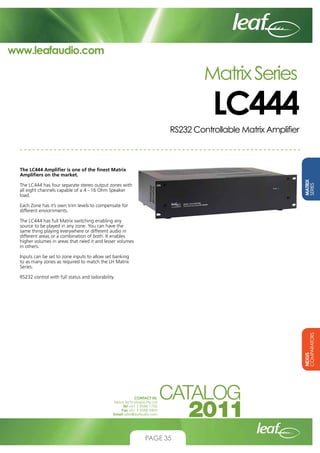

LC444

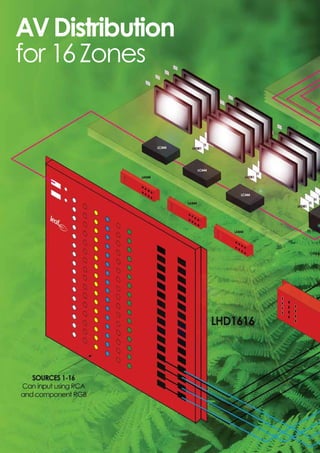

AV DISTRIBUTION DIAGRAM
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
15
16
17
18
LEAF PREMIUM SERIES

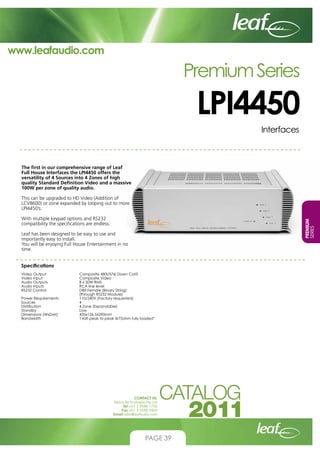

LPI4450

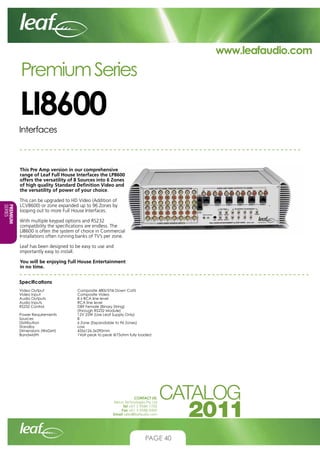

LI8600
LPI8640

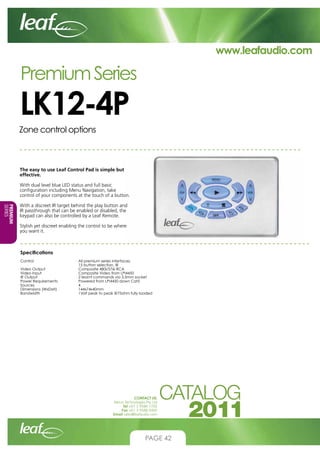

LK12-4P

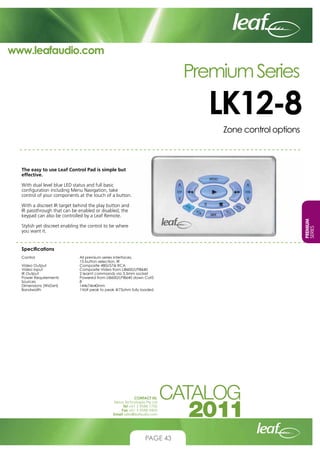

LK12-8

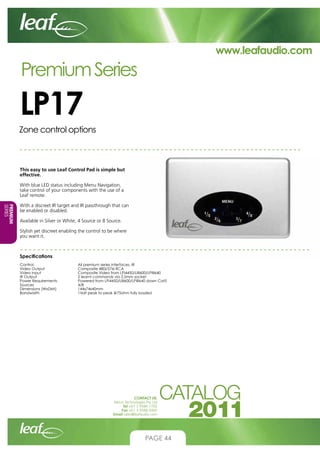

LP17
LP19

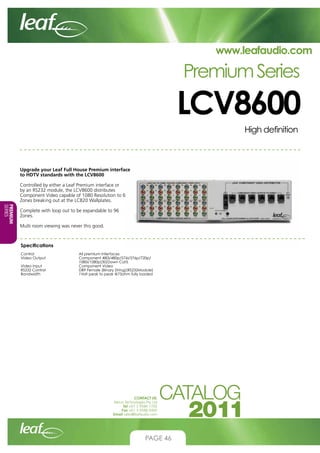

LCV8600

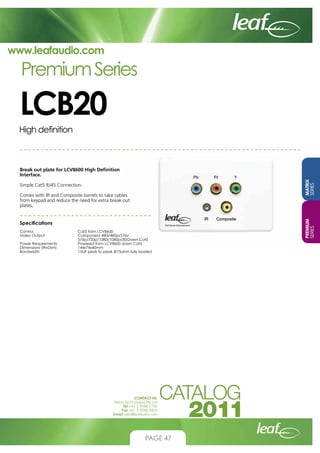

LCB20

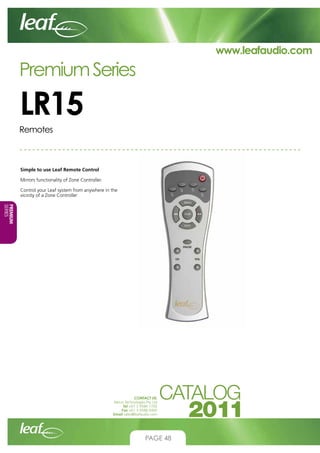

LR15

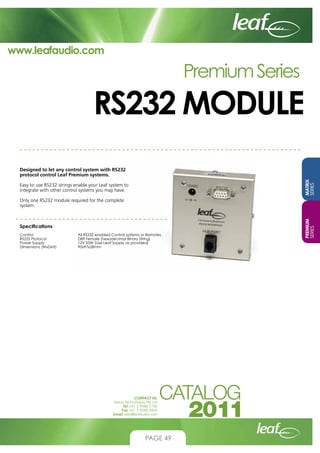

RS232 MODULE
RACK MOUNT KITS
ACCESSORIES
INSTALLATION

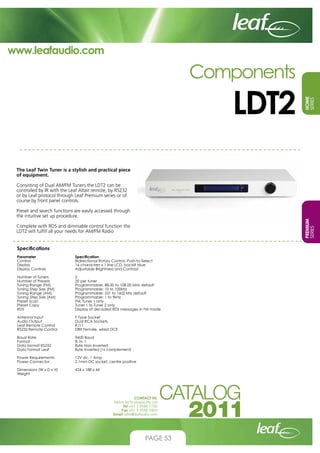

LDT2
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
SPEAKER RANGE
ICEBERG ROSE
WATTLE
ORCHID

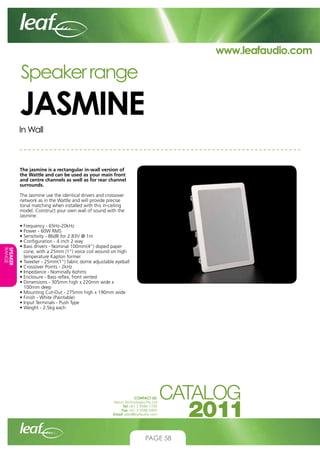

JASMINE
WATERLILY
CORAL
54
55
56
57
58
59
60
DISTRIBUTION & UPSCALERS
HDD3

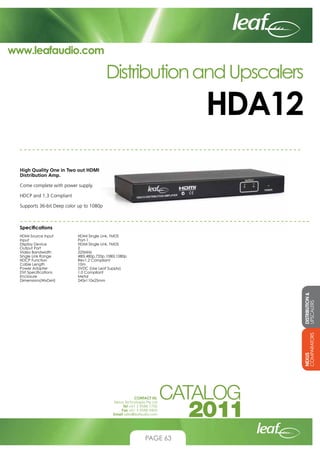

HDA12

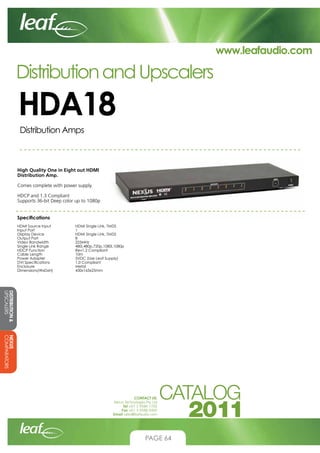

HDA18
HPS41

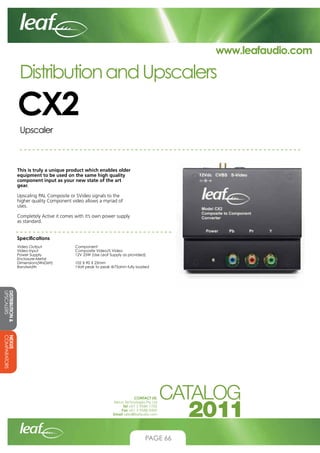

CX2
61
62
63
64
65
66
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 3

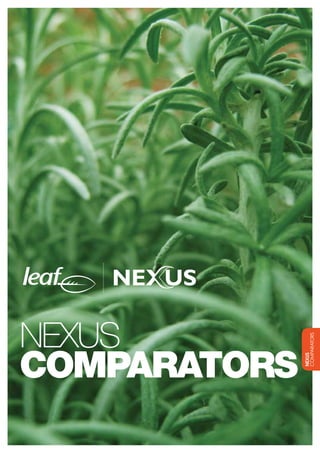

NEXUS COMPARATORS
SYSTEM 12

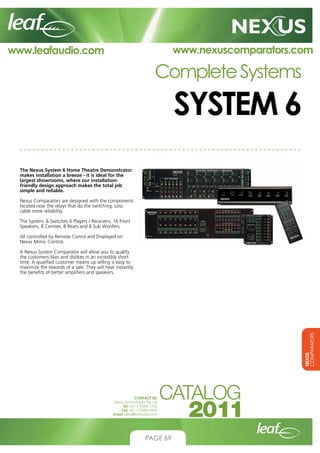

SYSTEM 6
SYSTEM 8
MODEL 44
N44ZK
MODEL 44100
AVDA8

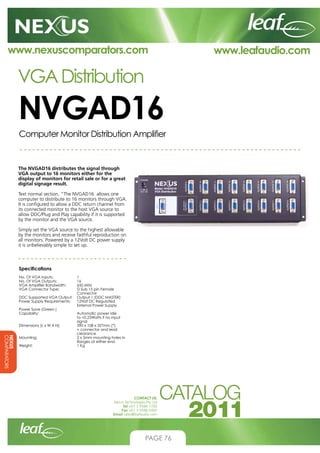

NGVAD16
TXDA6

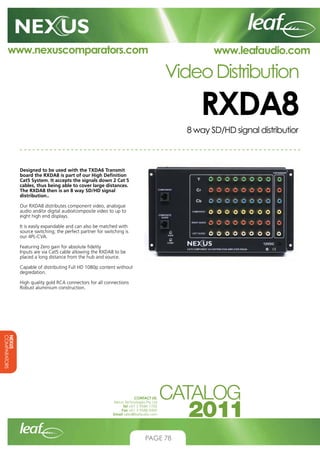

RXDA8
RXDA4
PA12/PA12U

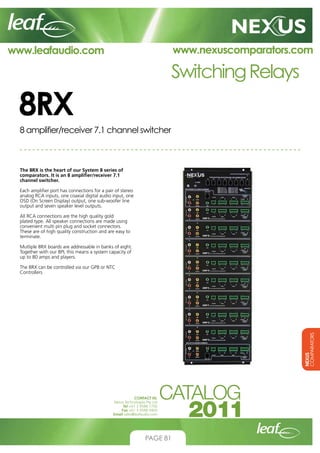

8RX

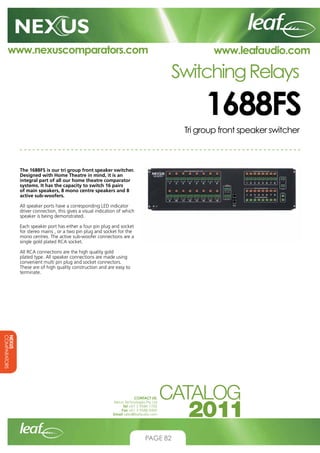

1688FS

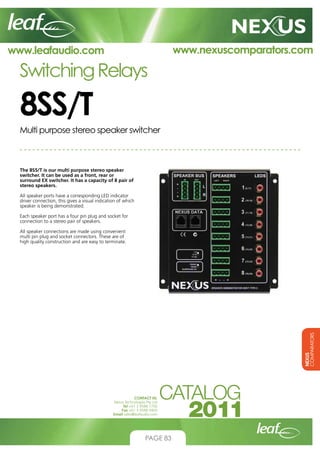

8SS/T

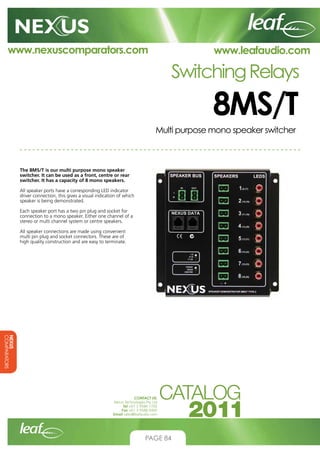

8MS/T

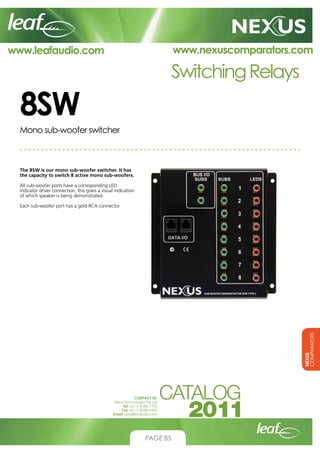

8SW
18EX

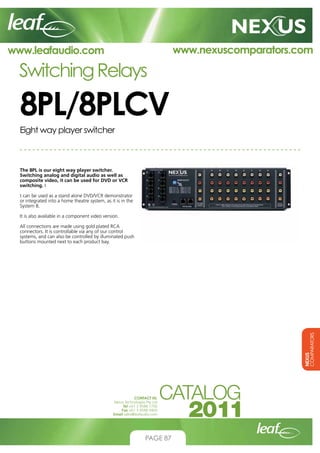

8PL/8PLCV
4PL-CVA
SG1
MIMIC DISPLAY

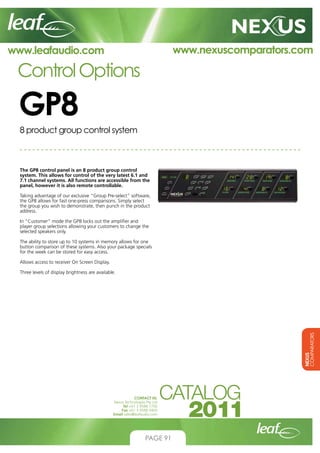

GP8
67
68
69
70
71
72
73
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91

4. www.leafaudio.com

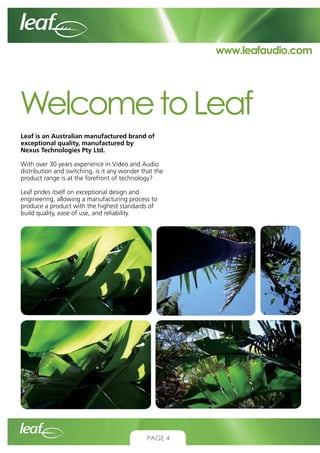

Welcome to Leaf
Leaf is an Australian manufactured brand of
exceptional quality, manufactured by
Nexus Technologies Pty Ltd.
With over 30 years experience in Video and Audio
distribution and switching, is it any wonder that the
product range is at the forefront of technology?
Leaf prides itself on exceptional design and
engineering, allowing a manufacturing process to
produce a product with the highest standards of
build quality, ease of use, and reliability.
Page 2
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 4

5. www.leafaudio.com
Our products
Here at Leaf we pride ourselves on solutions, whether on a small or
large scale.
Take the opportunity to look closely at our cutting edge range of products.
Our philosophy of quality and ease of use will be evident every time you use a Leaf
product.
We have options to suit all your multi room wants, whether standard definition or high
definition, four rooms or ninety-six. We have control options ranging from simple to
use keypads, to totally invisible solutions.If you already have an existing automation
system installed, we have RS232 options to upgrade the performance to true high
definition. This will compliment the performance levels of today’s plasma and lcd panel
technologies. Check out our architectural range of speakers.
Why compromise on audio quality?
We have upscalers, twin tuners, and many other fantastic options to create a complete
solution whether for home or commercial applications.
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 5

6. www.leafaudio.com
HOME
SERIES
HOME
SERIES
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 6

7. www.leafaudio.com
Home Series
Altair
HOME
SERIES
Leaf Altair Remote control
Not only does it control all of your Leaf products with it’s dedicated
Leaf mode, it is a fully fledged 8 Source Learning Remote.
Essentially capable of taking the place of 9 remotes you will wish you
bought one earlier.
Check out the features:
• 8 Sources
• Time and Date (12/24 hour)
• Dedicated Leaf Master Source
• Auto Back-Light
• Learning Function for each Source
• Battery Indicator
• 50 Year Code Storage (without battery)
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 7
MATRIX
SERIES
Leaf Altair Remote control is smarter than most.

8. www.leafaudio.com
Home Series
HOME
SERIES

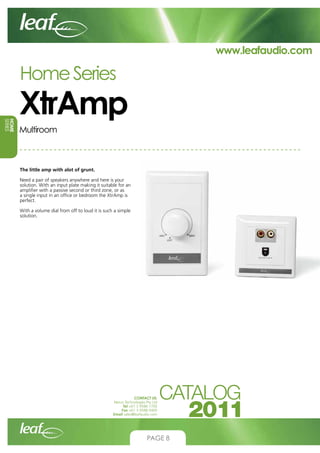

XtrAmp
Multiroom
The little amp with alot of grunt.
Need a pair of speakers anywhere and here is your
solution. With an input plate making it suitable for an
amplifier with a passive second or third zone, or as
a single input in an office or bedroom the XtrAmp is
perfect.
With a volume dial from off to loud it is such a simple
solution.
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 8

9. www.leafaudio.com
Xtr Amp Classic Configuration
HOME
SERIES
Audio Source
RCA Stereo Line out
240v
Power source
XtrAmp Input Plate
(Flush fitting, wall mounted)
Concealed
interconnect
cable(s)
Speaker
Concealed Speaker wiring
XtrAmp Main Unit
(Flush fitting, wall mounted)
Speaker
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 9

10. www.leafaudio.com
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 10

11. HOME
SERIES
www.leafaudio.com
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 11

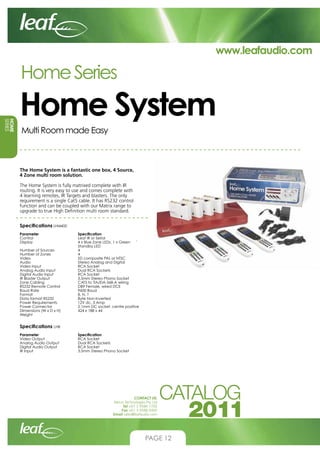

12. www.leafaudio.com
Home Series
HOME
SERIES
Home System
Multi Room made Easy
The Home System is a fantastic one box, 4 Source,
4 Zone multi room solution.
The Home System is fully matrixed complete with IR
routing. It is very easy to use and comes complete with
4 learning remotes, IR Targets and blasters. The only
requirement is a single Cat5 cable. It has RS232 control
function and can be coupled with our Matrix range to
upgrade to true High Definition multi room standard.
Specifications LHI4400
Parameter
Control
Display
Number of Sources
Number of Zones
Video
Audio
Video Input
Analog Audio Input
Digital Audio Input
IR Blaster Output
Zone Cabling
RS232 Remote Control
Baud Rate
Format
Data format RS232
Power Requirements
Power Connector
Dimensions (W x D x H)
Weight
Specification
Leaf IR or Serial
4 x Blue Zone LEDs, 1 x Green `
Standby LED
4
4
SD composite PAL or NTSC
Stereo Analog and Digital
RCA Socket
Dual RCA Sockets
RCA Socket
3.5mm Stereo Phono Socket
CAT5 to TIA/EIA-568-A wiring
DB9 Female, wired DCE
9600 Baud
8, N, 1
Byte Non-Inverted
12V dc, 3 Amp
2.1mm DC socket, centre positive
424 x 188 x 44
Specifications LHB
Parameter
Video Output
Analog Audio Output
Digital Audio Output
IR Input
Specification
RCA Socket
Dual RCA Sockets
RCA Socket
3.5mm Stereo Phono Socket
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 12

13. www.leafaudio.com
HOME
SERIES
Home System Classic Configuration
Altair
Remote control
Altair
Remote control
Altair
Remote control
Altair
Remote control
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 13

14. www.leafaudio.com
Home Series
HOME
SERIES
Home System
Powered
Multi Room made Easy
The powered ends are designed with enough
amplification to give you great sound performance
for speakers whether outdoor, architectural or free
standing. The Home System is a fantastic one box,
4 Source, 4 Zone multi room solution.
The Home System is fully matrixed complete with IR
routing. It is very easy to use and comes complete with
4 learning remotes, IR Targets and blasters. The only
requirement is a single Cat5 cable. It has RS232 control
function and can be coupled with our Matrix range to
upgrade to true High Definition multi room standard.
Specifications LHPI4400
Parameter
Control
Display
Number of Sources
Number of Zones
Video
Audio
Video Input
Analog Audio Input
Digital Audio Input
IR Blaster Output
Zone Cabling
RS232 Remote Control
Baud Rate
Format
Data format RS232
Power Requirements
Power Connector
Dimensions (W x D x H)
Weight
Specification
Leaf IR or Serial
4 x Blue Zone LEDs, 1 x Green `
Standby LED
4
4
SD composite PAL or NTSC
Stereo Analog and Digital
RCA Socket
Dual RCA Sockets
RCA Socket
3.5mm Stereo Phono Socket
CAT5 to TIA/EIA-568-A wiring
DB9 Female, wired DCE
9600 Baud
8, N, 1
Byte Non-Inverted
12V dc, 3 Amp
2.1mm DC socket, centre positive
424 x 188 x 44
Specifications LHBP
Parameter
Video output
Analogue Audio Output
Power
Direct Audio Inputs
RJ45 Inputs
IR Control
Dimensions (W x H X D)
Mounting Plate
Specification
Composite RCA Socket
15W RMS per Channel
DC 15V 3A (Use Leaf supply)
Analog and Digital
Audio and Video
Standard at 38kHz
108.44 x 73.05 x 37.4mm
As provided
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 14

15. www.leafaudio.com
HOME
SERIES

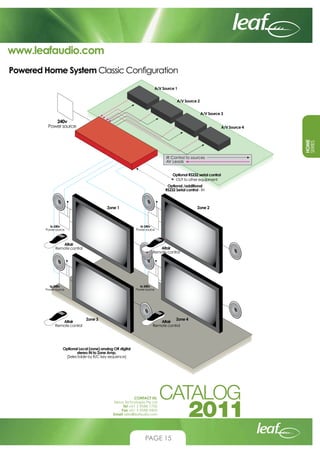

Powered Home System Classic Configuration
Altair
Remote control
Altair
Remote control
Altair
Remote control
Altair
Remote control
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 15

16. www.leafaudio.com
Home Series
HOME
SERIES
Home System High Definition Add-on
MATRIX
SERIES
LHD44 Home
Upgrade your Home System to High Definition
quality.
Comes all in one box for your convenience.
Specifications
Video Output
Video Input
Audio Outputs
Audio Inputs
RS232 Control
Power Requirements
Sources
Distribution
Standby
Dimensions (WxDxH)
Bandwidth
Component 480i/480p/576i/
576p/720p/1080i/1080p(30)
Down Cat5
Component Video
RCA line level/Digital Audio
Down Cat5
RCA line level/Digital Audio
DB9 Female (Binary String)
12V 25W
(Use Leaf Supply Only)
4
4 Zone (Expandable)
Low
363x157x32mm
1Volt peak to peak
@75ohm fully loaded”
Break Out Specifications
Control
LHD44 Home Series Twin Cat5
Video Output
Component 480i/480p/576i/
576p/720p/1080i/1080p(30)Down Cat5
Video Input
Component Video from LH Series
Audio Outputs
RCA line level/Digital Audio
Audio Inputs
RCA line level/Digital Audio from LH Series
RS232 Control
DB9 Female (Binary String) from LH Series
Power Requirements Powered from LH Series down Cat5
Sources
4/8/16 from LH Series
Distribution
Direct to TV
Standby
Low
Dimensions (WxDxH) 110x85x35mm
Bandwidth
1Volt peak to peak @75ohm fully loaded”
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 16

17. www.leafaudio.com
HOME
SERIES
Home System 44 with HD Add On Classic Configuration
Altair
Remote control
Altair
Remote control
Altair
Remote control
Altair
Remote control
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 17

18. www.leafaudio.com
Home Series
HOME
SERIES
LHBP
Amplified Break Out for Home System
The LHBP provides an tremendous Audio upgrade for
your Home System.
Want to listen to the sources connected to your Home System
with more power and quality. The Leaf LHBP is powerful
enough to even drive floor standing tower speakers, or if
the in ceiling variety is your go they will fill your room with
glorious sound. It simply replaces the conventional Home
System Breakout. It’s that easy, and don’t be fooled by its’
size inside is a brilliantly designed amplifier.
Specifications
Parameter
Video output
Analogue Audio Output
Power
Direct Audio Inputs
RJ45 Inputs
IR Control
Dimensions (W x H X D)
Mounting Plate
Specification
Composite RCA Socket
15W RMS per Channel
DC 15V 3A (Use Leaf supply)
Analog and Digital
Audio and Video
Standard at 38kHz
108.44 x 73.05 x 37.4mm
As provided
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 18

19. MATRIX
SERIES
www.leafaudio.com
MATRIX
SERIES
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 19

20. www.leafaudio.com
Matrix Series
LCV86LR1
Matrix Switch
MATRIX
SERIES
The LCV86LR1 is designed to work with
any control system that can output RS232
commands.
Designed to use dual Cat5 as the only cabling to
the breakout points (LCB20LR1), High Definition
Component Video, Analogue Audio and IR can be
sent at distances greater than 200m.
Use any control system that you wish but with our
patented technology you will get unsurpassed video
and audio performance.
Specifications
Video Output
Video Input
Audio Outputs
Audio Inputs
RS232 Control- DB9
Power Requirements
Sources
Distribution
Standby
Dimensions (WxDxH)
Bandwidth
Component 480i/480p576i/576p/720p/
1080i/1080p(30)Down Cat5
Component Video
RCA line level/Digital
Audio Down Cat5
RCA line level/Digital Audio
Female (Binary String)
12V 25W
(Use Leaf Supply Only)
8
6 Zone
Low
435.5 X 32 x 132.5mm
1Volt peak to peak @75ohm
fully loaded
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 20

21. www.leafaudio.com
Matrix Series
LCB20LR1
Break out points
Active Break out point for LCV86LR1
MATRIX
SERIES
Outputs for Component Video and Analogue Audio.
Passive IR Point.
Metal construction with world wide mounting
capability.
Compensation for exceptionally long Cat5 runs
(Over100m).
2 RJ45 input connections
Specifications
LCV86LR1 Twin Cat5
Component 480i/480p/576i/576p/720p/
1080i/1080p(30)Down Cat5
Component Video from LCV86LR1
RCA line level/Digital Audio
RCA line level/Digital Audio from LCV86LR1
DB9 Female (Binary String) from LCV86LR1
Powered from LCV86LR1 down Cat5
8 from LCV86LR1
Direct to TV
Low
135 X 23 x 90mm
1Volt peak to peak @75ohm fully loaded”
NEXUS
COMPARATORS
Control
Video Output
Video Input
Audio Outputs
Audio Inputs
RS232 Control
Power Requirements
Sources
Distribution
Standby
Dimensions (WxDxH)
Bandwidth
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 21

22. www.leafaudio.com
Matrix Series
LHD44
Matrix Switch
MATRIX
SERIES
Leaf Matrix switches have evolved with 30
years of experience in Commercial Audio and
Video Distribution and switching.
The LHD44 is designed to work with any control
system that can output RS232 commands.
Designed to use dual Cat5 as the only cabling to
the breakout points (LHDR Series), High Definition
Component Video, Digital Audio, Analogue Audio
and IR can be sent at distances greater than 200m.
4 sources are matrixed into 4 zones.
Using any control system you get unsurpassed video
and audio performance. Complete with loop out for
expansion.
Specifications
Video Output
Video Input
Audio Outputs
Audio Inputs
RS232 Control
Power Requirements
Sources
Distribution
Standby
Dimensions (WxDxH)
Bandwidth
Component 480i/480p/576i/
576p/720p/1080i/1080p(30)
Down Cat5
Component Video
RCA line level/Digital Audio
Down Cat5
RCA line level/Digital Audio
DB9 Female (Binary String)
12V 25W
(Use Leaf Supply Only)
4
4 Zone (Expandable)
Low
363 X 32 x 157mm
1Volt peak to peak
@75ohm fully loaded”
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 22

23. www.leafaudio.com
Matrix Series
LHD88
Matrix Switch
MATRIX
SERIES
The LHD88 is designed to work with any
control system that can output RS232
commands.
Designed to use dual Cat5 as the only cabling to
the breakout points (LHDR Series), High Definition
Component Video, Digital Audio, Analogue Audio
and IR can be sent at distances greater than 200m.
8 Sources are Matrixed into 8 zones with loop out
for expansion to as many units as you could want.
Use any control system that you wish but with our
patented technology you will get unsurpassed video
and audio performance.
Specifications
NEXUS
COMPARATORS
Video Output
Component
480i/480p/576i
/576p/720p/1080i/
1080p(30)Down Cat5
Video Input
Component Video
Audio Outputs
RCA line level/Digital
Audio Down Cat5
Audio Inputs
RCA line level/Digital Audio
RS232 Control
DB9 Female (Binary String)
Power Requirements 12V 25W
(Use Leaf Supply Only)
Sources
8
Distribution
8 Zone (Expandable to 96 Zones)
Standby
Low
Dimensions (WxDxH) 430 X 32 x 292mm
Bandwidth
1Volt peak to peak
@75ohm fully loaded
Consumption
250mA @12VDC
@75ohm fully loaded”
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 23

24. www.leafaudio.com
Matrix Series
LHD1616
Serious Matrix Switching
MATRIX
SERIES
For those serious jobs that really require
many sources and zones. Ideal for commercial
applications
Like the rest of the Matrix Series the LHD1616 utilises
dual Cat5 as the only cabling to the breakout points
(LHDR Series). High Definition Component Video,
Digital Audio, Analogue Audio and IR can be sent
at distances greater than 200m. 16 Sources are
Matrixed into 16 Zones with RS232 loop out for
expansion to more LHD1616’s.
Our technology offers unsurpassed video
performance on a scale previously not offered.
The only choice for quality Commercial Installations,
use any Control System you like and improve it with
an LHD1616
Specifications
NEXUS
COMPARATORS
Video Output
Video Input
Audio Outputs
Audio Inputs
RS232 Control
Power Requirements
Sources
Distribution
Standby
Dimensions (WxDxH)
Bandwidth
Component 480i/480p/576i
/576p/720p/1080i/1080p
(30)Down Cat5
Component Video
RCA line level/Digital
Audio Down Cat5
RCA line level/Digital Audio
DB9 Female (Binary String)
12V 25W
(Use Leaf Supply Only)
16
16 Zone Expandable
Low
448 X 32 x 370mm
1Volt peak to peak
@75ohm fully loaded”
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 24

25. www.leafaudio.com
Matrix Series
LHDR1
Break out points
Active Break out point for all of Leaf HD Series.
MATRIX
SERIES
Vertical mounting points for Component Video,
Digital Audio, and Analogue Audio.
Passive IR Point.
Metal construction with world wide mounting
capability.
Compensation for exceptionally long Cat5 runs
(Over100m).
2 RJ45 input connections.
Specifications
NEXUS
COMPARATORS
Control
LHD44/LHD88 /LHD1616 Series Twin Cat5
Video Output
Component 480i/480p/576i/
576p/720p/1080i/1080p(30)Down Cat5
Video Input
Component Video from LH Series
Audio Outputs
RCA line level/Digital Audio
Audio Inputs
RCA line level/Digital Audio from LH Series
RS232 Control
DB9 Female (Binary String) from LH Series
Power Requirements Powered from LH Series down Cat5
Sources
4/8/16 from LH Series
Distribution
Direct to TV
Standby
Low
Dimensions (WxDxH) 110 X 35 x 85mm
Bandwidth
1Volt peak to peak @75ohm fully loaded”
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 25

26. www.leafaudio.com
Matrix Series
LHDMIB
HDMI Break Out Points
MATRIX
SERIES
Active HDMI Break out point for all of Leaf HD
Series
Vertical mounting point for ease of use and and
sturdy metal construction with world wide mounting
points.
The LHDMIB is perfect for the client who wishes
to utilize the plethora of HDMI inputs on the latest
generation of TV’s.
Accepts signals via 2 RJ45 input connectors and
has compensation for exceptionally long Cat5 runs
(Over100m)
Specifications
Control
Video Output
PC Standards
Optional Audio Outputs
RS232 Control
Power Requirements
IR Input
Sources
Dimensions(WxHxD)
Mounting Plate
LHD44/LHD88/LHD1616
Series Twin Cat5
480i/480p/576i/576p/720p/
1080i/1080p(30) Down
Cat5
800x600/1280x768/1280x1025
/1400x1050/1400x900
Analogue and SPDIF
DB59 (Binary String) from
LH Series
12V
3.5mm Socket
4/8/16 from LH Series
122.54 x 106.76 x 26.8mm
As provided
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 26

27. www.leafaudio.com
Matrix Series
LHDR10
Break out points
Active Break out point for all of Leaf HD Series.
MATRIX
SERIES
Breaks out to 10 Way Component Video, Digital
Audio and Analogue Audio
Compensation for exceptionally long Cat5 runs
(Over100m).
2 RJ45 input connections
Specifications
LHD44/LHD88 /LHD1616
Series Twin Cat5
Component 480i/480p/576i/
576p/720p/1080i/1080p(30)
Down Cat5
Component Video from
LH Series
RCA line level/Digital Audio
RCA line level/Digital Audio from LH Series
DB9 Female (Binary String) from LH Series
Powered from LH Series down Cat5
4/8/16 from LH Series
10 way
Low
270 X 32 x 157mm
1Volt peak to peak @75ohm fully loaded”
NEXUS
COMPARATORS
Control
Video Output
Video Input
Audio Outputs
Audio Inputs
RS232 Control
Power Requirements
Sources
Distribution
Standby
Dimensions (WxDxH)
Bandwidth
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 27

28. www.leafaudio.com
Matrix Series
LIS44
IR To Serial Converter
MATRIX
SERIES
The LIS44 allows the matrix series to controlled
by Leaf IR commands and converts them to
Serial Control
The LIS44 is designed to give increased flexibility to
your Matrix System by allowing IR control to all Leaf
Matrix Series units.
Based on four zone inputs it can be cascaded and
banked to control multiple matrix units.
Can be used in conjunction with RS232 control
systems or control the system simply by IR.
Can be rack mounted just like all the Matrix series.
Specifications
IR Inputs
Power
RS232 Output
Dimensions (W x H x D)
4 Zone inputs using Leaf IR
protocol @ 38kHz
12V DC (Use Leaf Supply)
DB9 Male (Binary String)
363.6 x 65.88 x 25.7mm
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 28

29. www.leafaudio.com
MATRIX
SERIES

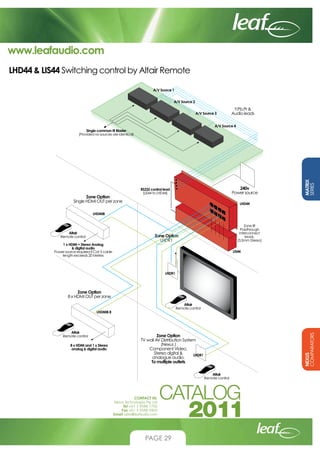

LHD44 & LIS44 Switching control by Altair Remote
Altair
Remote control
Altair
Remote control
NEXUS
COMPARATORS
Altair
Remote control
Altair
Remote control
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 29

30. www.leafaudio.com
LAB44
Leaf Rack Audio Break Out
MATRIX
SERIES
The LAB44 allows you to break out audio at the
rack end to use large power amps for those jobs
that require that extra audio punch.
The LAB44 provides audio flexibility for the Matrix
series.
Amplification from the head end provides the power
and the loop out to the conventional break out
points allows this flexibility. Analogue and Video
breakouts are available. The LAB44 gets its power
from the LH Series.
Specifications
Audio Outputs
Power Requirements
Mounting
Dimensions (W x H x D)
RCA line level/Digital Audio/
with Cat5 loop out
Powered from LH Series
Down Cat 5
Rack Ears available
363.6 x 65.88 x 25.7mm
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 30

31. www.leafaudio.com
LAB44 4 Zone Audio Breakout Interconnect diagram
LAB44
MATRIX
SERIES
Zone audio Cat 5 cables,
from host source
(LHD44 etc)
Recovered zone digital
(and / or) analog
stereo line level audio.
To audio equipment
NEXUS
COMPARATORS
Zone audio Cat 5 cables,
on toAV Breakouts,
if required.
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 31

32. www.leafaudio.com
Matrix Series
LAVZX1602
Audio Video Expander for use with LHD1616
MATRIX
SERIES
The LAVZX1602 allows you to expand both
video and audio to multiple LHD1616’s.
The LAVZX1602 will alllow up to 16 set bank
expansions for the LHD1616’s. providing up to 256
zones.
Specifications
Video Output
Video Input
Audio Outputs
Audio Inputs
Power Requirements
Sources
Distribution
Standby
Dimensions (WxDxH)
Bandwidth
Component
480i/480p/576i/576p
/720p/1080i/1080p(30)
Down Cat5
Component Video
RCA line level/Digital Audio
Down Cat5
RCA line level/Digital Audio
RS232
12V 25W(Use Leaf Supply
Only)
16
16 Zone Expandable
Low
448 X 32 x 370mm
1Volt peak to peak
@75ohm fully loaded
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 32

33. www.leafaudio.com
Matrix Series
LVX1605
Video Expander for use with LHD1616
MATRIX
SERIES
The LVX1605 allows you to expand video to
multiple LHD1616’s.
The LVX1605 will alllow up to 16 set bank expansions
for the LHD1616’s, providing up to 256 zones.
Perfect for commercial uses with 1 LVX1605
cascading to 4 extra LHD1616’s.
Specifications
Component
480i/480p/576i/576p
/720p/1080i/1080p(30)
Down Cat5
Component Video
RCA line level/Digital Audio
Down Cat5
RCA line level/Digital Audio
RS232
12V 25W(Use Leaf Supply
Only)
16
16 Zone Expandable
Low
448 X 32 x 370mm
1Volt peak to peak
@75ohm fully loaded
NEXUS
COMPARATORS
Video Output
Video Input
Audio Outputs
Audio Inputs
Power Requirements
Sources
Distribution
Standby
Dimensions (WxDxH)
Bandwidth
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 33

34. www.leafaudio.com
Matrix Series
LH Series Rack Ears
Rack Mounting
MATRIX
SERIES
RMK01
Rack Mount Ears for LCV86LR1
Designed to provide Cable Tension Relief.
Can be mounted to rear of rack for space saving
option
RMK44
Rack Mount Ears for LHD44
Designed to provide Cable Tension Relief.
Can be mounted to rear of rack for space saving
option
RMK88
Rack Mount Ears for LHD88
Designed to provide Cable Tension Relief.
Can be mounted to rear of rack for space saving
option
RMK1616
Rack Mount Ears for LHD1616, LAVZX1602 and
LVX1605
Designed to provide Cable Tension Relief.
Can be mounted to rear of rack for space saving
option
NEXUS
COMPARATORS
RMKLISLAB
Rack Mount Ears for LIS44 and LAB44
Designed to provide Cable Tension Relief.
Can be mounted to rear of rack for space saving
option
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 34

35. www.leafaudio.com
Matrix Series
LC444
RS232 Controllable Matrix Amplifier
MATRIX
SERIES
The LC444 Amplifier is one of the finest Matrix
Amplifiers on the market.
The LC444 has four separate stereo output zones with
all eight channels capable of a 4 - 16 Ohm Speaker
load.
Each Zone has it’s own trim levels to compensate for
different enviornments.
The LC444 has full Matrix switching enabling any
source to be played in any zone. You can have the
same thing playing everywhere or different audio in
different areas or a combination of both. It enables
higher volumes in areas that need it and lesser volumes
in others.
Inputs can be set to zone inputs to allow set banking
to as many zones as required to match the LH Matrix
Series.
NEXUS
COMPARATORS
RS232 control with full status and tailorability.
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 35

36. AV Distribution
for 16 Zones
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 36
www.leafaudio.com

37. www.leafaudio.com
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 37

38. www.leafaudio.com
PREMIUM
SERIES
PREMIUM
SERIES
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 38

39. www.leafaudio.com
Premium Series
LPI4450
Interfaces
The first in our comprehensive range of Leaf
Full House Interfaces the LPI4450 offers the
versatility of 4 Sources into 4 Zones of high
quality Standard Definition Video and a massive
100W per zone of quality audio.
This can be upgraded to HD Video (Addition of
LCV8600) or zone expanded by looping out to more
LPI4450’s.
PREMIUM
SERIES
With multiple keypad options and RS232
compatibility the specifications are endless.
Leaf has been designed to be easy to use and
importantly easy to install.
You will be enjoying Full House Entertainment in no
time.
Specifications
Video Output
Video Input
Audio Outputs
Audio Inputs
RS232 Control
Power Requirements
Sources
Distribution
Standby
Dimensions (WxDxH)
Bandwidth
Composite 480i/576i Down Cat5
Composite Video
8 x 50W RMS
RCA line level
DB9 Female (Binary String)
(through RS232 Module)
110/240V (Factory requested)
4
4 Zone (Expandable)
Low
435x126.5x290mm
1Volt peak to peak @75ohm fully loaded”
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 39

40. www.leafaudio.com
Premium Series
LI8600
Interfaces
This Pre Amp version in our comprehensive
range of Leaf Full House Interfaces the LP8600
offers the versatility of 8 Sources into 6 Zones
of high quality Standard Definition Video and
the versatility of power of your choice.
PREMIUM
SERIES
This can be upgraded to HD Video (Addition of
LCV8600) or zone expanded up to 96 Zones by
looping out to more Full House Interfaces.
With multiple keypad options and RS232
compatibility the specifications are endless. The
LI8600 is often the system of choice in Commercial
Installations often running banks of TV’s per zone.
Leaf has been designed to be easy to use and
importantly easy to install.
You will be enjoying Full House Entertainment
in no time.
Specifications
Video Output
Video Input
Audio Outputs
Audio Inputs
RS232 Control
Power Requirements
Sources
Distribution
Standby
Dimensions (WxDxH)
Bandwidth
Composite 480i/576i Down Cat5
Composite Video
8 x RCA line level
RCA line level
DB9 Female (Binary String)
(through RS232 Module)
12V 25W (Use Leaf Supply Only)
8
6 Zone (Expandable to 96 Zones)
Low
435x126.5x290mm
1Volt peak to peak @75ohm fully loaded
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 40

41. www.leafaudio.com
Premium Series
LPI8640
Interfaces
The most popular of our comprehensive range
of Leaf Full House Interfaces the LPI86400 offers
the versatility of 8 Sources into 6 Zones of high
quality Standard Definition Video and a massive
80W per zone of quality audio.
This can be upgraded to HD Video (Addition of
LCV8600) or zone expanded by looping out to more
interfaces up to 96 Zones
PREMIUM
SERIES
With multiple keypad options and RS232
compatibility the specifications are endless.
Leaf has been designed to be easy to use and
importantly easy to install.
You will be enjoying Full House Entertainment
in no time.
Specifications
Video Output
Video Input
Audio Outputs
Audio Inputs
RS232 Control
Power Requirements
Sources
Distribution
Standby
Dimensions (WxDxH)
Bandwidth
Composite 480i/576i Down Cat5
Composite Video
12 x 40W RMS
RCA line level
DB9 Female (Binary String)
(through RS232 Module)
110/240V (Factory requested)
8
6 Zone (Expandable to 96 Zones)
Low
435x126.5x290mm
1Volt peak to peak @75ohm fully loaded
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 41

42. www.leafaudio.com
Premium Series
LK12-4P
Zone control options
The easy to use Leaf Control Pad is simple but
effective.
With dual level blue LED status and full basic
configuration including Menu Navigation, take
control of your components at the touch of a button.
PREMIUM
SERIES
With a discreet IR target behind the play button and
IR passthrough that can be enabled or disabled, the
keypad can also be controlled by a Leaf Remote.
Stylish yet discreet enabling the control to be where
you want it.
Specifications
Control
Video Output
Video Input
IR Output
Power Requirements
Sources
Dimensions (WxDxH)
Bandwidth
All premium series interfaces,
15 button selection, IR
Composite 480i/576i RCA
Composite Video from LPI4450
2 learnt commands via 3.5mm socket
Powered from LPI4450 down Cat5
4
144x74x40mm
1Volt peak to peak @75ohm fully loaded
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 42

43. www.leafaudio.com
Premium Series
LK12-8
Zone control options
The easy to use Leaf Control Pad is simple but
effective.
With dual level blue LED status and full basic
configuration including Menu Navigation, take
control of your components at the touch of a button.
PREMIUM
SERIES
With a discreet IR target behind the play button and
IR passthrough that can be enabled or disabled, the
keypad can also be controlled by a Leaf Remote.
Stylish yet discreet enabling the control to be where
you want it.
Specifications
Control
Video Output
Video Input
IR Output
Power Requirements
Sources
Dimensions (WxDxH)
Bandwidth
All premium series interfaces,
15 button selection, IR
Composite 480i/576i RCA
Composite Video from LI8600/LPI8640
2 learnt commands via 3.5mm socket
Powered from LI8600/LPI8640 down Cat5
8
144x74x40mm
1Volt peak to peak @75ohm fully loaded
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 43

44. www.leafaudio.com
Premium Series
LP17
Zone control options
This easy to use Leaf Control Pad is simple but
effective.
With blue LED status including Menu Navigation,
take control of your components with the use of a
Leaf remote.
PREMIUM
PREMIUM
SERIES
SERIES
With a discreet IR target and IR passthrough that can
be enabled or disabled.
Available in Silver or White, 4 Source or 8 Source.
Stylish yet discreet enabling the control to be where
you want it.
Specifications
Control-
Video Output
Video Input
IR Output
Power Requirements
Sources
Dimensions (WxDxH)
Bandwidth
All premium series interfaces, IR
Composite 480i/576i RCA
Composite Video from LPI4450/LI8600/LPI8640
2 learnt commands via 3.5mm socket
Powered from LPI4450/LI8600/LPI8640 down Cat5
4/8
144x74x40mm
1Volt peak to peak @75ohm fully loaded
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 44

45. www.leafaudio.com
Premium Series
LP19
Zone control options
The LP19 is designed to be almost invisible but
give total zone control.
For use with a Leaf remote the small discrete and
plasma friendly target will leave the room with the
clean lines the architect intended.
PREMIUM
SERIES
Full zone control function and almost invisible.
Specifications
Control
Video Output
Video Input
IR Output
Power Requirements
Sources
Dimensions (WxDxH)
Bandwidth
All premium series interfaces, IR
Composite 480i/576i RCA
Composite Video
from LPI4450/LI8600/LPI8640
2 learnt commands via
3.5mm socket
Powered from LPI4450/
LI8600/LPI8640 down Cat5
4/8
144x74x40mm
1Volt peak to peak
@75ohm fully loaded
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 45

46. www.leafaudio.com
Premium Series
LCV8600
High definition
Upgrade your Leaf Full House Premium interface
to HDTV standards with the LCV8600
Controlled by either a Leaf Premium interface or
by an RS232 module, the LCV8600 distributes
Component Video capable of 1080 Resolution to 6
Zones breaking out at the LCB20 Wallplates.
PREMIUM
SERIES
Complete with loop out to be expandable to 96
Zones.
Multi room viewing was never this good.
Specifications
Control
Video Output
Video Input
RS232 Control
Bandwidth
All premium interfaces
Component 480i/480p/576i/576p/720p/
1080i/1080p(30)Down Cat5
Component Video
DB9 Female (Binary String)(RS232Module)
1Volt peak to peak @75ohm fully loaded
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 46

47. www.leafaudio.com
Premium Series
LCB20
High definition
Simple Cat5 RJ45 Connection.
Comes with IR and Composite barrels to take cables
from keypad and reduce the need for extra break out
plates.
Specifications
Control
Video Output
Power Requirements
Dimensions (WxDxH)
Bandwidth
Cat5 from LCV8600
Component 480i/480p/576i/
576p/720p/1080i/1080p(30)Down Cat5
Powered from LCV8600 down Cat5
144x74x40mm
1Volt peak to peak @75ohm fully loaded
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 47
PREMIUM
SERIES
MATRIX
SERIES
Break out plate for LCV8600 High Definition
Interface.

48. www.leafaudio.com
Premium Series
LR15
Remotes
Simple to use Leaf Remote Control
Mirrors functionality of Zone Controller.
Control your Leaf system from anywhere in the
vicinity of a Zone Controller
PREMIUM
SERIES
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 48

49. www.leafaudio.com
Premium Series
RS232 MODULE
MATRIX
SERIES
Designed to let any control system with RS232
protocol control Leaf Premium systems.
Easy to use RS232 strings enable your Leaf system to
integrate with other control systems you may have.
Specifications
Control
RS232 Protocol
Power Supply
Dimensions (WxDxH)
All RS232 enabled Control systems or Remotes
DB9 Female (hexadecimal Binary String)
12V 25W (Use Leaf Supply as provided)
90x97x28mm
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 49
PREMIUM
SERIES
Only one RS232 module required for the complete
system.

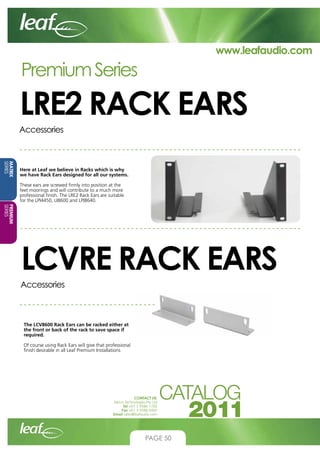

50. www.leafaudio.com
Premium Series
LRE2 RACK EARS
Accessories
MATRIX
SERIES
Here at Leaf we believe in Racks which is why
we have Rack Ears designed for all our systems.
These ears are screwed firmly into position at the
feet moorings and will contribute to a much more
professional finish. The LRE2 Rack Ears are suitable
for the LPI4450, LI8600 and LPI8640.
PREMIUM
SERIES
LCVRE RACK EARS
Accessories
The LCV8600 Rack Ears can be racked either at
the front or back of the rack to save space if
required.
Of course using Rack Ears will give that professional
finish desirable in all Leaf Premium Installations
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 50

51. www.leafaudio.com
Premium Series

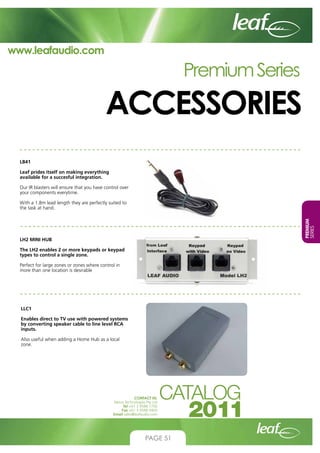

ACCESSORIES
LB41
Leaf prides itself on making everything
available for a succesful integration.
Our IR blasters will ensure that you have control over
your components everytime.
PREMIUM
SERIES
With a 1.8m lead length they are perfectly suited to
the task at hand.
LH2 MINI HUB
The LH2 enables 2 or more keypads or keypad
types to control a single zone.
Perfect for large zones or zones where control in
more than one location is desirable
LLC1
Enables direct to TV use with powered systems
by converting speaker cable to line level RCA
inputs.
Also useful when adding a Home Hub as a local
zone.
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 51

52. www.leafaudio.com
Premium Series
INSTALLATION
All you need for a premium installation
IK8600 INSTALLERS KIT
The IK8600 Installers kit comes complete with the basics required to
program a Leaf Premium System.
Complete with instruction manual, Cat5 cable tester, crimping tool and
the programming remote required to program the system.
Easy options and no need for a laptop. Leaf is a simple system to install.
(Note: Code Reading remotes may also be required)
PREMIUM
SERIES
LCR4 CODE READING REMOTE
Enables the learning, downloading and
programming of 4 component codes.
Menu functions and all basic commands such as Play,
Pause, FF etc. can be learned given a code number
between 21-24 and programmed for discrete use for
Leaf premium systems
LCR8 CODE READING REMOTE
Enables the learning, downloading and
programming of 4 component codes.
Menu functions and all basic commands such as Play,
Pause, FF etc. can be learned, given a code number
between 11-14 and programmed for discreet use for
Leaf premium systems
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 52

53. www.leafaudio.com
LDT2
HOME
SERIES
Components
The Leaf Twin Tuner is a stylish and practical piece
of equipment.
Consisting of Dual AM/FM Tuners the LDT2 can be
controlled by IR with the Leaf Altair remote, by RS232
or by Leaf protocol through Leaf Premium series or of
course by front panel controls.
PREMIUM
SERIES
Preset and search functions are easily accessed through
the intuitive set up procedure.
Complete with RDS and dimmable control function the
LDT2 will fulfill all your needs for AM/FM Radio
Specifications
Parameter
Control
Display
Display Controls
Specification
Bidirectional Rotary Control, Push-to-Select
16 characters x 1 line LCD, backlit blue
Adjustable Brightness and Contrast
Number of Tuners
Number of Presets
Tuning Range (FM)
Tuning Step Size (FM)
Tuning Range (AM)
Tuning Step Size (AM)
Preset Scan
Preset Copy
RDS
2
20 per tuner
Programmable: 88.00 to 108.00 MHz default
Programmable: 10 to 100kHz
Programmable: 531 to 1602 kHz default
Programmable: 1 to 9kHz
FM, Tuner 1 only
Tuner 1 to Tuner 2 only
Display of decoded RDS messages in FM mode
Antenna Input
Audio Output
Leaf Remote Control
RS232 Remote Control
F-Type Socket
Dual RCA Sockets
RJ11
DB9 Female, wired DCE
Baud Rate
Format
Data format RS232
Data Format Leaf
9600 Baud
8, N, 1
Byte Non-Inverted
Byte Inverted (1s complement)
Power Requirements
Power Connector
12V dc, 1 Amp
2.1mm DC socket, centre positive
Dimensions (W x D x H)
Weight
424 x 188 x 44
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 53

54. www.leafaudio.com
SPEAKER
RANGE
SPEAKER
RANGE
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 54

55. www.leafaudio.com
Speaker range
ICEBERG ROSE
Similar in size to a down light and able to be
painted to blend into any decor, the Iceberg
Rose speaker is almost invisible.
The Iceberg Rose produces a smooth and accurate
frequency response with good low frequency
extension, and is moisture resistant, perfect for your
BBQ area, home office or indulgent bathroom. Use
them in pairs or in multiples of two for large area
coverage.
SPEAKER
RANGE
• Frequency - 90Hz-20kHz
• Power - 40W RMS
• Sensitivity - 87dB for 2.83V @ 1m
• Configuration - 3”
• ass drivers - Nominal 75mm(3”) polypropolene
B
cone, with a 20mm (3/4”) voice coil wound on an
aluminium former and neodymium magnet
• mpedance - Nominally 8ohms
I
• nclosure - Infinate Baffle
E
• imensions - 95mm diameter x 108mm deep
D
• Mounting Cut-Out - 83mm
• Finish - White (Paintable)
• Input Terminals - Push Type
• Weight - 0.5kg each
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 55

56. www.leafaudio.com
Speaker range
WATTLE
In Ceiling
Fitting in nicely between the Iceberg Rose and
Orchids, the Wattle is the third product released
in the range of Leaf in-ceiling speakers.
Housed in a shallower and narrower enclosure than
the Orchid, the Wattle uses a single 4 inch bass driver
and the identical 25mm eyeball tweeter as its bigger
brother. For small to medium rooms, the Wattle will
deliver a spatial experience.
SPEAKER
RANGE
• Frequency - 65Hz-20kHz
• Power - 60W RMS
• Sensitivity - 86dB for 2.83V @ 1m
• Configuration - 4 inch 2 way
• ass drivers - Nominal 100mm(4”) doped paper
B
cone, with a 25mm (1”) voice coil wound on high
temperature Kapton former
• weeter - 25mm(1”) fabric dome adjustable eyeball
T
• Crossover Points - 2kHz
• Impedance - Nominally 6ohms
• Enclosure - Bass reflex, front vented
• imensions - 240mm diameter x 140mm deep
D
• Mounting Cut-Out - 205mm
• Finish - White (Paintable)
• Input Terminals - Push Type
• Weight - 2kg each
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 56

57. www.leafaudio.com
Speaker range
ORCHID
Taking on the challenge to create an unassuming
high quality in-ceiling speaker, Leaf presents the
Orchid.
The Orchid uses a 130mm bass driver matched with
a 25mm pivot tweeter housed in an enclosure for
in-ceiling installation. The enclosed design maximises
and controls bass response while keeping out dust and
other ceiling inhabitants.Orchids are ideal for an out of
sight home theatre experience.
SPEAKER
RANGE
• Frequency - 45Hz-20kHz
• Power - 100W RMS
• Sensitivity - 90dB for 2.83V @ 1m
• Configuration - 5 inch 2 way
• ass drivers - Cast aluminium basket with a nominal
B
130mm (5”) doped curvilinear paper cone. 25mm
(1”) voice coil wound on high powered aluminium
former with copper shorting ring. Vented and double
magnet shielded.
• weeter - 25mm(1”) fabric dome adjustable eyeball
T
• Crossover Points - 2.1kHz
• Impedance - Nominally 6ohms
• Enclosure - Bass reflex, front vented
• imensions - 280mm diameter x 190mm deep
D
• Mounting Cut-Out - 247mm
• Finish - White (Paintable)
• Input Terminals - Push Type
• Weight - 2.5kg each
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 57

58. www.leafaudio.com
Speaker range
JASMINE
In Wall
The jasmine is a rectangular in-wall version of
the Wattle and can be used as your main front
and centre channels as well as for rear channel
surrounds.
The Jasmine use the identical drivers and crossover
network as in the Wattle and will provide precise
tonal matching when installed with this in-ceiling
model. Construct your own wall of sound with the
Jasmine.
SPEAKER
RANGE
• Frequency - 65Hz-20kHz
• Power - 60W RMS
• Sensitivity - 86dB for 2.83V @ 1m
• Configuration - 4 inch 2 way
• ass drivers - Nominal 100mm(4”) doped paper
B
cone, with a 25mm (1”) voice coil wound on high
temperature Kapton former
• weeter - 25mm(1”) fabric dome adjustable eyeball
T
• Crossover Points - 2kHz
• Impedance - Nominally 6ohms
• Enclosure - Bass reflex, front vented
• imensions - 305mm high x 220mm wide x
D
100mm deep
• ounting Cut-Out - 275mm high x 190mm wide
M
• Finish - White (Paintable)
• Input Terminals - Push Type
• Weight - 2.5kg each
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 58

59. www.leafaudio.com
Speaker range
WATERLILY
Leaf has risen to the challenge of delivering high
quality outdoor sound reproduction within a
marine grade waterproof, all weather enclosure.
Internal ribs reinforce the UV-stabilsed polymer housing
to minimise panel resonance. Special treatment
beneath the Mylar tweeter’s dome improves high
frequency response, while the bass driver is given a
pre-determined operating range within the fully sealed
cabinet, delivering fast, punchy bass. The speaker is
fitted with an aluminium grille and mounting bracket,
plus marine grade stainless steel hardware to protect
against corrosion.
SPEAKER
RANGE
• Frequency - 70Hz-20kHz
• ower - 80W RMS Polyswitch protection has been
P
installed for the tweeter
• Sensitivity - 87dB for 2.83V @ 1m
• Configuration - 5 inch 2 way
• ass drivers - Nominal 130mm(5”) polypropolene
B
conewith rubber surround. 25mm (1”) high
temperature voice coil wound on a radial vented
Kapton former
• weeter - 25mm(1”) specially damped mylar dome
T
with phase plug. Ferro fluid cooled.
• Crossover Points - 3kHz
• Impedance - Nominally 8ohms
• nclosure - Sealed and gasketed waterproof
E
trapezoid enclosure with internal bracing. Injection
moulded with UV stabalizing
• imensions - 250mm high x 185mm wide x 190mm
D
deep
• inish - Painted Satin White or Black with Aluminium
F
grilles. (NB: Image shows logo badge with vertical
orientation. Product is supplied with horizontal
orientation as standard.
• nput Terminals - 5 way hand tightened binding
I
posts, nickel plated
• eight - 2.5kg each including bracket
W
• ounting - Adjustable ‘U’ shaped Aluminium bracket
M
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 59

60. www.leafaudio.com
Speaker range
CORAL
Outdoor
The Coral build on the benchmark set down by
the Water Lily waterproof outdoor design.
Using a larger enclosure, bass driver and tweeter, the
Coral deliver more effortless bass energy in larger
outdoor environments. Maintaining the same cabinet
styling and attention to detail within the construction
of this all weather enclosure, the Coral make dining
in the great outdoors a memorable experience.
SPEAKER
RANGE
• Frequency - 55Hz-20kHz
• ower - 100W RMS Polyswitch protection has been
P
installed for the tweeter
• Sensitivity - 87dB for 2.83V @ 1m
• Configuration - 6 inch 2 way
• ass drivers - Nominal 165mm(6 1/2”)
B
polypropolene conewith rubber surround. 25mm
(1”) high temperature voice coil wound on a radial
vented Kapton former and copper shorting ring for
lower distortion
• weeter - 26mm(1”) specially damped mylar dome
T
with phase plug. Ferro fluid cooled.
• Crossover Points - 2.4kHz
• Impedance - Nominally 8ohms
• nclosure - Sealed and gasketed waterproof
E
trapezoid enclosure with internal bracing. Injection
moulded with UV stabalizing
• imensions - 305mm high x 220mm wide x
D
225mm deep
• inish - Painted Satin White or Black with
F
Aluminium grilles.
• nput Terminals - 5 way hand tightened binding
I
posts, nickel plated
• eight - 3.5kg each including bracket
W
• ounting - Adjustable ‘U’ shaped Aluminium
M
bracket
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 60

61. DISTRIBUTION
UPSCALERS
www.leafaudio.com
DISTRIBUTION
UPSCALERS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 61

62. www.leafaudio.com
Distribution and Upscalers
HDD3
Distribution Amps
High quality amplifier enables one component
input to become 3 lossless outputs.
Active amplifier enables you to run 3 video displays off
the one feed.
Comes complete with power supply.
Specifications
Video Output
Video Input
Power Supply
Bandwidth
Component 480i/480p/576i/
576p/720p/1080i/1080p(30)
Component Video
12V 25W (Use Leaf Supply as provided)
1Volt peak to peak @75ohm fully loaded
DISTRIBUTION
UPSCALERS
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 62

63. www.leafaudio.com
Distribution and Upscalers
HDA12
High Quality One in Two out HDMI
Distribution Amp.
Come complete with power supply.
HDCP and 1.3 Compliant
Supports 36-bit Deep color up to 1080p
Specifications
DISTRIBUTION
UPSCALERS
HDMI Single Link, TMDS
Port-1
HDMI Single Link, TMDS
2
225MHz
480i,480p,720p,1080i,1080p
Rev1.2 Compliant
10m
5VDC (Use Leaf Supply)
1.0 Compliant
Metal
245x110x25mm
NEXUS
COMPARATORS
HDMI Source Input
Input
Display Device
Output Port
Video Bandwidth
Single Link Range
HDCP Function
Cable Length
Power Adapter
DVI Specifications
Enclosure
Dimensions(WxDxH)
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 63

64. www.leafaudio.com
Distribution and Upscalers
HDA18
Distribution Amps
High Quality One in Eight out HDMI
Distribution Amp.
Comes complete with power supply.
HDCP and 1.3 Compliant
Supports 36-bit Deep color up to 1080p
Specifications
HDMI Source Input
Input Port
Display Device
Output Port
Video Bandwidth
Single Link Range
HDCP Function
Cable Length
Power Adapter
DVI Specifications
Enclosure
Dimensions(WxDxH)
HDMI Single Link, TMDS
1
HDMI Single Link, TMDS
8
225MHz
480i,480p,720p,1080i,1080p
Rev1.2 Compliant
10m
5VDC (Use Leaf Supply)
1.0 Compliant
Metal
430x165x25mm
DISTRIBUTION
UPSCALERS
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 64

65. www.leafaudio.com
Distribution and Upscalers
HPS41
High Quality Four in One out HDMI Distribution
Selector.
IR remote control included.
Comes complete with power supply.
HDCP and 1.3 Compliant
Supports 36-bit Deep color up to 1080p
Specifications
DISTRIBUTION
UPSCALERS
HDMI Single Link, TMDS
1
HDMI Single Link, TMDS
8
225MHz
480i,480p,720p,1080i,1080p
Rev1.2 Compliant
10m
5VDC (Use Leaf Supply)
1.0 Compliant
Metal
430x165x25mm
NEXUS
COMPARATORS
HDMI Source Input
Input Port
Display Device
Output Port
Video Bandwidth
Single Link Range
HDCP Function
Cable Length
Power Adapter
DVI Specifications
Enclosure
Dimensions(WxDxH)
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 65

66. www.leafaudio.com
Distribution and Upscalers
CX2
Upscaler
This is truly a unique product which enables older
equipment to be used on the same high quality
component input as your new state of the art
gear.
Upscaling PAL Composite or SVideo signals to the
higher quality Component video allows a myriad of
uses.
Completely Active it comes with it’s own power supply
as standard.
Specifications
Video Output
Video Input
Power Supply
Enclosure-Metal
Dimensions(WxDxH)
Bandwidth
Component
Composite Video/S Video
12V 25W (Use Leaf Supply as provided)
102 X 90 X 25mm
1Volt peak to peak @75ohm fully loaded
DISTRIBUTION
UPSCALERS
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 66

67. NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 67
NEXUS
COMPARATORS
www.nexuscomparators.com
www.leafaudio.com

68. www.nexuscomparators.com
Complete Systems
SYSTEM 12
Home Theatre Demonstrator
The Nexus System 12 Home Theatre
Demonstrator makes installation a breeze - it
is ideal for the largest showrooms, where our
installation-friendly design approach makes the
total job simple and reliable.
Nexus Comparators are designed with the components
located near the relays that do the switching. Less
cable more reliability.
The System: 12 Switches 12 Players / Receivers, 16
Front Speakers, 8 Centres, 8 Rears and 8 Sub Woofers.
All controlled by Remote Conrol and Displayed on
Nexus Mimic Control.
Expandable to your needs.
A Nexus System Comparator will allow you to qualify
the customers likes and dislikes in an incredibly short
time. A qualified customer means up selling is easy to
maximize the rewards of a sale. They will hear instantly
the benefits of better amplifiers and speakers.
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 68
www.leafaudio.com

69. www.nexuscomparators.com
www.leafaudio.com
Complete Systems
SYSTEM 6
The Nexus System 6 Home Theatre Demonstrator
makes installation a breeze - it is ideal for the
largest showrooms, where our installationfriendly design approach makes the total job
simple and reliable.
Nexus Comparators are designed with the components
located near the relays that do the switching. Less
cable more reliability.
The System: 6 Switches 6 Players / Receivers, 16 Front
Speakers, 8 Centres, 8 Rears and 8 Sub Woofers.
All controlled by Remote Conrol and Displayed on
Nexus Mimic Control.
NEXUS
COMPARATORS
A Nexus System Comparator will allow you to qualify
the customers likes and dislikes in an incredibly short
time. A qualified customer means up selling is easy to
maximize the rewards of a sale. They will hear instantly
the benefits of better amplifiers and speakers.
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 69

70. www.nexuscomparators.com
Complete Systems
SYSTEM 8
Home Theatre Demonstrator
The Nexus System 8 Home Theatre Demonstrator
makes installation a breeze - it is ideal for the
largest showrooms, where our installationfriendly design approach makes the total job
simple and reliable.
Nexus Comparators are designed with the components
located near the relays that do the switching. Less
cable more reliability.
The System: 8 Switches 8 Players / Receivers, 16 Front
Speakers, 8 Centres, 8 Rears and 8 Sub Woofers.
Capable of 7.1 Configuration and totally expandable
even to touch screen control (See Control Options) this
is our premium system
All controlled by Remote Control and Touch Pad with
The GP8 controller which comes standard.
A Nexus System Comparator will allow you to qualify
the customers likes and dislikes in an incredibly short
time. A qualified customer means up selling is easy to
maximize the rewards of a sale. They will hear instantly
the benefits of better amplifiers and speakers.
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 70
www.leafaudio.com

71. www.nexuscomparators.com
www.leafaudio.com
PA Amplifiers
Model 44
The Model 44 Sound Reinforcement Amplifier is
one of the finest tailorable PA Amplifiers on the
market.
The Model 44 has four separate stereo output zones
with all eight channels capable of a 4 - 16 Ohm
Speaker load.
Paging is available through a Vox muting mode.
Each Zone has it’s own trim levels to compensate for
different enviornments.
The Model 44 has full Matrix switching enabling any
source to be played in any zone. You can have the
same thing playing everywhere or different audio in
different areas or a combination of both. It enables
higher volumes in areas that need it and lesser volumes
in others.
It has true high quality line level outputs providing an
audio quality significantly better than basic 100V line
level system.
NEXUS
COMPARATORS
This is no ordinary PA Amplifier it has all the features
you will ever need.
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 71

72. www.nexuscomparators.com
N44ZK
Model 44 Zone Control Pad
Take control of the zone of your Model 44 PA
Amplifier where you need it.
The N44ZK allows you to control the zone of the Model
44 PA by direct push, making the Model 44 truly flexible
and user friendly.
You can change volume, choose a different source or
turn off the zone by simply pressing the buttons on the
keypad.
The N44ZK is connected via one single Cat5 to the
Model 44 which sends all commands and also the power
to make the keypad active.
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 72
www.leafaudio.com

73. www.nexuscomparators.com
www.leafaudio.com
PA Amplifiers
Model 44100
The Nexus Model 44100 is derived from similar
attributes to the Nexus Model 44 but with 100V
or 70V outputs.
The model 44100 is essentially four 100V Amplifiers
in one. It has four inputs which are selectable over 4
zones.
Paging is available in either fixed or Vox mode and it
can be one, vox, two vox or no vox.
Each zone has its own trim levels to compensate for
different environments.
The Model 44100 has full matrix switching enabling
any source to be played in any zone. You can have
the same thing playing everywhere or different audio
in different areas or a combination of both. It enables
higher volumes in areas that need it and lesser in
others.
It also has true RS232 control and loop outs of both
RS232 and audio line outputs for use with slave
amps.
It also has a simple reset function to go back to the
installation settings so that if it has been mistakenly
changed by the user it can be defaulted to its original
functionality.
It also has complete mute to work with Fire
evacuation systems.
NEXUS
COMPARATORS
It has enough power to cover those larger spaces
that a conventional PA would struggle with, but the
flexibility to tailor to any use.
It also has the facility to be remotely controlled in the
zone down simple Cat5 cabling.
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 73

74. www.nexuscomparators.com
Specifications
Output : source 4 Zone 100V line level (70V
4
line level optional by build or Internal
installer access)
Power Source ;
230-240V AC or 110-120V build option
Control; Press turn recessed knobs on front
4
panel
RS232;
Yes 2 Way control and readback via
DB9
Rack Mounting;
Standard on front panel
Vox Paging Override; ources 1 2 can be individually
S
set to provide a Vox operated
source override function by installer
accessible menu.
Phantom
Microphone Power;
Yes at XLR sockets, options OFF, +12V,
+24V or +48V by installer menu
Audio Line Output;
Buffered Zone Line Level out
100V Speaker
Out Terminals:
Screw Type
Output:
600Watts
(150 Watts per each Zone of 4)
Frequency
Response;
50Hz to 15Khz
Weight:
Approx 15Kg
Dimensions;
Approx 480mm x 120mm x 310mm
(W x D X H)
Reset Default ;
Yes
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 74
www.leafaudio.com

75. www.nexuscomparators.com
www.leafaudio.com

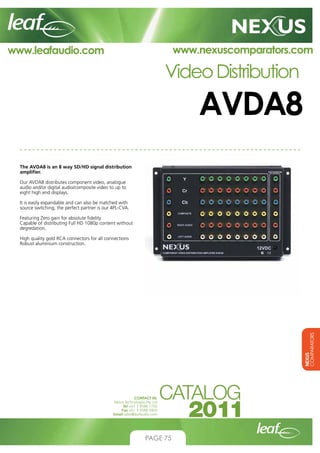

Video Distribution
AVDA8
The AVDA8 is an 8 way SD/HD signal distribution
amplifier.
Our AVDA8 distributes component video, analogue
audio and/or digital audio/composite video to up to
eight high end displays.
It is easily expandable and can also be matched with
source switching; the perfect partner is our 4PL-CVA.
Featuring Zero gain for absolute fidelity
Capable of distributing Full HD 1080p content without
degredation.
NEXUS
COMPARATORS
High quality gold RCA connectors for all connections
Robust aluminium construction.
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 75

76. www.nexuscomparators.com
VGA Distribution
NVGAD16
Computer Monitor Distribution Amplifier
The NVGAD16 distributes the signal through
VGA output to 16 monitors either for the
display of monitors for retail sale or for a great
digital signage result.
Text normal section. “The NVGAD16 allows one
computer to distribute to 16 monitors through VGA.
It is configured to allow a DDC return channel from
its connected monitor to the host VGA source to
allow DDC/Plug and Play capability if it is supported
by the monitor and the VGA source.
Simply set the VGA source to the highest allowable
by the monitors and receive faithful reproduction on
all monitors. Powered by a 12Volt DC power supply
it is unbelievably simple to set up.
Specifications
NEXUS
COMPARATORS
No. Of VGA Inputs;
1
No. Of VGA Outputs;
16
VGA Amplifier Bandwidth;
650 MHz
VGA Connector Type; Sub 15 pin Female
D
Connector
DDC Supported VGA Output; Output 1 (DDC MASTER)
Power Supply Requirements;
12Volt DC Regulated
External Power Supply
Power Save (Green )
Capability;
Automatic power idle
to 0.25Watts if no input
signal
Dimensions (L x W X H);
390 x 108 x 35*mm (*)
connector and lead
+
clearance
Mounting; x 5mm mounting holes in
2
flanges at either end
Weight;
1 Kg
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 76
www.leafaudio.com

77. www.nexuscomparators.com
www.leafaudio.com
Video Distribution
TXDA6
High Definition Video Distribution system
The TXDA6 is the heart of our Cat 5 High
Definition Video Distribution system. It is
expandable to more TXDA6’s for large video
walls.
The TXDA6 Takes Component Video, Digital Audio and
Analogue Audio and sends it down 2 Cat 5 cables to
break out at either our RXDA8 or RXDA4 depending
on the application.
By using our Cat 5 system large distances can be easily
accomplished with a huge reduction in the amount of
expensive cable required.
The TXDA6 Cat 5 system is our premium video
distribution system.
Featuring Zero gain for absolute fidelity
Capable of distributing Full HD 1080p content without
degredation.
NEXUS
COMPARATORS
Distribute SD/HD content over very long distances
Robust aluminium construction.
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 77

78. www.nexuscomparators.com
www.leafaudio.com
Video Distribution
RXDA8
8 way SD/HD signal distributior
Designed to be used with the TXDA6 Transmit
board the RXDA8 is part of our High Definition
Cat5 System. It accepts the signals down 2 Cat 5
cables, thus being able to cover large distances.
The RXDA8 then is an 8 way SD/HD signal
distribution..
Our RXDA8 distributes component video, analogue
audio and/or digital audio/composite video to up to
eight high end displays.
It is easily expandable and can also be matched with
source switching; the perfect partner for switching is
our 4PL-CVA.
Featuring Zero gain for absolute fidelity
Inputs are via Cat5 cable allowing the RXDA8 to be
placed a long distance from the hub and source.
Capable of distributing Full HD 1080p content without
degredation.
High quality gold RCA connectors for all connections
Robust aluminium construction.
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 78

79. www.nexuscomparators.com
www.leafaudio.com
Video Distribution
RXDA4
4 way SD/HD signal distributior
Designed to be used with the TXDA6 Transmit
board the RXDA4 is part of our High Definition
Cat5 System. It accepts the signals down 2 Cat 5
cables, thus being able to cover large distances.
The RXDA4 then is an 4 way SD/HD signal
distribution.
Our RXDA4 distributes component video, analogue
audio and/or digital audio/composite video to up to
four high end displays.
Featuring Zero gain for absolute fidelity
Inputs are via Cat5 cable allowing the RXDA8 to be
placed a long distance from the hub and source.
Capable of distributing Full HD 1080p content without
degredation.
NEXUS
COMPARATORS
High quality gold RCA connectors for all connections
Robust aluminium construction.
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 79

80. www.nexuscomparators.com
www.leafaudio.com

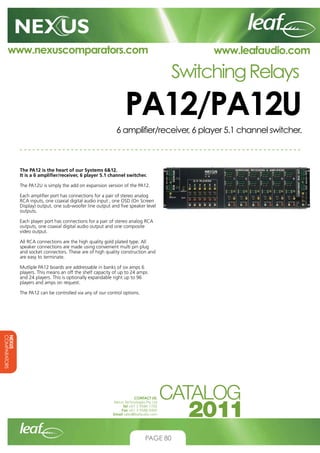

Switching Relays
PA12/PA12U
6 amplifier/receiver, 6 player 5.1 channel switcher.
The PA12 is the heart of our Systems 612.
It is a 6 amplifier/receiver, 6 player 5.1 channel switcher.
The PA12U is simply the add on expansion version of the PA12.
Each amplifier port has connections for a pair of stereo analog
RCA inputs, one coaxial digital audio input , one OSD (On Screen
Display) output, one sub-woofer line output and five speaker level
outputs.
Each player port has connections for a pair of stereo analog RCA
outputs, one coaxial digital audio output and one composite
video output.
All RCA connections are the high quality gold plated type. All
speaker connections are made using convenient multi pin plug
and socket connectors. These are of high quality construction and
are easy to terminate.
Mutliple PA12 boards are addressable in banks of six amps 6
players. This means an off the shelf capacity of up to 24 amps
and 24 players. This is optionally expandable right up to 96
players and amps on request.
The PA12 can be controlled via any of our control options.
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 80

81. www.nexuscomparators.com
www.leafaudio.com
Switching Relays
8RX
8 amplifier/receiver 7.1 channel switcher
The 8RX is the heart of our System 8 series of
comparators. It is an 8 amplifier/receiver 7.1
channel switcher.
Each amplifier port has connections for a pair of stereo
analog RCA inputs, one coaxial digital audio input, one
OSD (On Screen Display) output, one sub-woofer line
output and seven speaker level outputs.
All RCA connections are the high quality gold
plated type. All speaker connections are made using
convenient multi pin plug and socket connectors.
These are of high quality construction and are easy to
terminate.
Mutliple 8RX boards are addressable in banks of eight.
Together with our 8PL this means a system capacity of
up to 80 amps and players.
NEXUS
COMPARATORS
The 8RX can be controlled via our GP8 or NTC
Controllers
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 81

82. www.nexuscomparators.com
www.leafaudio.com
Switching Relays
1688FS
Tri group front speaker switcher
The 1688FS is our tri group front speaker switcher.
Designed with Home Theatre in mind, it is an
integral part of all our home theatre comparator
systems. It has the capacity to switch 16 pairs
of main speakers, 8 mono centre speakers and 8
active sub-woofers.
All speaker ports have a corresponding LED indicator
driver connection, this gives a visual indication of which
speaker is being demonstrated.
Each speaker port has either a four pin plug and socket
for stereo mains , or a two pin plug and socket for the
mono centres. The active sub-woofer connections are a
single gold plated RCA socket.
All RCA connections are the high quality gold
plated type. All speaker connections are made using
convenient multi pin plug and socket connectors.
These are of high quality construction and are easy to
terminate.
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 82

83. www.nexuscomparators.com
www.leafaudio.com
Switching Relays
8SS/T
Multi purpose stereo speaker switcher
The 8SS/T is our multi purpose stereo speaker
switcher. It can be used as a front, rear or
surround EX switcher. It has a capacity of 8 pair of
stereo speakers.
All speaker ports have a corresponding LED indicator
driver connection, this gives a visual indication of which
speaker is being demonstrated.
Each speaker port has a four pin plug and socket for
connection to a stereo pair of speakers.
NEXUS
COMPARATORS
All speaker connections are made using convenient
multi pin plug and socket connectors. These are of
high quality construction and are easy to terminate.
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 83

84. www.nexuscomparators.com
www.leafaudio.com
Switching Relays
8MS/T
Multi purpose mono speaker switcher
The 8MS/T is our multi purpose mono speaker
switcher. It can be used as a front, centre or rear
switcher. It has a capacity of 8 mono speakers.
All speaker ports have a corresponding LED indicator
driver connection, this gives a visual indication of which
speaker is being demonstrated.
Each speaker port has a two pin plug and socket for
connection to a mono speaker. Either one channel of a
stereo or multi channel system or centre speakers.
All speaker connections are made using convenient
multi pin plug and socket connectors. These are of
high quality construction and are easy to terminate.
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 84

85. www.nexuscomparators.com
www.leafaudio.com
Switching Relays
8SW
Mono sub-woofer switcher
The 8SW is our mono sub-woofer switcher. It has
the capacity to switch 8 active mono sub-woofers.
All sub-woofer ports have a corresponding LED
indicator driver connection, this gives a visual indication
of which speaker is being demonstrated.
NEXUS
COMPARATORS
Each sub-woofer port has a gold RCA connector.
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 85

86. www.nexuscomparators.com
www.leafaudio.com

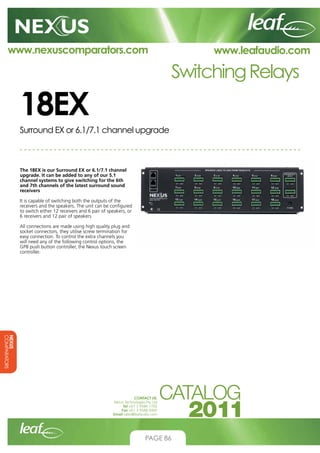

Switching Relays
18EX
Surround EX or 6.1/7.1 channel upgrade
The 18EX is our Surround EX or 6.1/7.1 channel
upgrade. It can be added to any of our 5.1
channel systems to give switching for the 6th
and 7th channels of the latest surround sound
receivers
It is capable of switching both the outputs of the
receivers and the speakers. The unit can be configured
to switch either 12 receivers and 6 pair of speakers, or
6 receivers and 12 pair of speakers
All connections are made using high quality plug and
socket connectors, they utilise screw termination for
easy connection. To control the extra channels you
will need any of the following control options, the
GP8 push button controller, the Nexus touch screen
controller.
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 86

87. www.nexuscomparators.com
www.leafaudio.com
Switching Relays
8PL/8PLCV
Eight way player switcher
The 8PL is our eight way player switcher.
Switching analog and digital audio as well as
composite video, it can be used for DVD or VCR
switching. I
t can be used as a stand alone DVD/VCR demonstrator
or integrated into a home theatre system, as it is in the
System 8.
It is also available in a component video version.
NEXUS
COMPARATORS
All connections are made using gold plated RCA
connectors. It is controllable via any of our control
systems, and can also be controlled by illuminated push
buttons mounted next to each product bay.
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 87

88. www.nexuscomparators.com
www.leafaudio.com
Switching Relays
4PL-CVA
Comprehensive source selector
Our compact 4PL-CVA is a comprehensive source
selector.
It selects the component video, analogue audio and/
or digital audio/composite video outputs up to four
sources.
Teamed with any of our distribution amplifiers, it
is ideally suited to demonstrating high end display
systems.
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 88

89. www.nexuscomparators.com
www.leafaudio.com
Control Options
SG1
Clever control option
The Nexus SG1 is an exceptionally easy to use and
clever control option.
Capable of being programmed for any of our relays
the SG1 can be controlled by remote or manual
manipulation.
The SG1 has a push and turn operation for easy access
to compare components.
NEXUS
COMPARATORS
Available in Black or White it is reliable and effective.
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 89

90. www.nexuscomparators.com
www.leafaudio.com
Control Options
Mimic Display
A beautiful looking option
The Combination of the Mimic Display and Nexus Remote
Control gives you a beautiful looking option.
For complete control over your Comparator and the ability to know
in a glance what is selected.
The mimic can be freestanding or installed onto a wall.
The mimic display teamed with remote control make up a flexible
comprehensive 5.1 channel home theatre controller. It controls the
six product groups required to fully demonstrate 5.1 channel Home
Theatre systems.
Instant one key A-B-C compare of three systems set in memory. Up
to 50 systems can be stored and recalled via a Macro function.
Our exclusive link feature links centre, rear and subs to main
speakers.
Adjustable brightness levels.
Mute function.
On Screen Display function of selected amplifier easily selectable.
NEXUS
COMPARATORS
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 90

91. www.nexuscomparators.com
www.leafaudio.com
Control Options
GP8
8 product group control system
The GP8 control panel is an 8 product group control
system. This allows for control of the very latest 6.1 and
7.1 channel systems. All functions are accessible from the
panel, however it is also remote controllable.
Taking advantage of our exclusive “Group Pre-select” software,
the GP8 allows for fast one-press comparisons. Simply select
the group you wish to demonstrate, then punch in the product
address.
In “Customer” mode the GP8 locks out the amplifier and
player group selections allowing your customers to change the
selected speakers only.
The ability to store up to 10 systems in memory allows for one
button comparison of these systems. Also your package specials
for the week can be stored for easy access.
Allows access to receiver On Screen Display.
NEXUS
COMPARATORS
Three levels of display brightness are available.
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 91

92. www.nexuscomparators.com
HOME
SERIES
MATRIX
SERIES
PREMIUM
SERIES
SPEAKER
RANGE
HEAD OFFICE
DISTRIBUTION
UPSCALERS
Australia
Nexus Technologies Pty Ltd
2/118 Malcolm Rd
Braeside, Victoria
Australia 3195
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
NEXUS
COMPARATORS
www.leafaudio.com
Dealer Stamp:
CONTACT US:
Nexus Technologies Pty Ltd
Tel +61 3 9586 1700
Fax +61 3 9588 0400
Email sales@leafaudio.com
PAGE 92
www.leafaudio.com
