Pioneer AV Receivers 2014 - features explained (Australia)

Pioneer's 2014 AV receiver lineup features several advanced audio and video technologies to provide high quality surround sound and 4K video support. Key audio technologies include upgraded DACs, improved sound retrieval features to restore compressed audio, and calibration technologies like MCACC to optimize the listening environment. The top models support 4K video pass through at 60 frames per second and include high performance amplifiers to deliver powerful surround sound.

Embed presentation

Download as PDF, PPTX
1 / 123
2 / 123
3 / 123
4 / 123
5 / 123
6 / 123
7 / 123
8 / 123
9 / 123
10 / 123
11 / 123
12 / 123
13 / 123
14 / 123
15 / 123
16 / 123
17 / 123
18 / 123
19 / 123
20 / 123
21 / 123
22 / 123
23 / 123
24 / 123
25 / 123
26 / 123
27 / 123
28 / 123
29 / 123
30 / 123
31 / 123
32 / 123
33 / 123
34 / 123
35 / 123
36 / 123
37 / 123
38 / 123
39 / 123
40 / 123
41 / 123
42 / 123
43 / 123
44 / 123
45 / 123
46 / 123
47 / 123
48 / 123
49 / 123
50 / 123
51 / 123
52 / 123
53 / 123
54 / 123
55 / 123
56 / 123
57 / 123
58 / 123
59 / 123
60 / 123
61 / 123
62 / 123
63 / 123
64 / 123
65 / 123
66 / 123
67 / 123
68 / 123
69 / 123
70 / 123
71 / 123
72 / 123
73 / 123
74 / 123
75 / 123
76 / 123
77 / 123
78 / 123
79 / 123
80 / 123
81 / 123
82 / 123
83 / 123
84 / 123
85 / 123
86 / 123
87 / 123
88 / 123
89 / 123
90 / 123
91 / 123
92 / 123
93 / 123
94 / 123
95 / 123
96 / 123
97 / 123
98 / 123
99 / 123
100 / 123
101 / 123
102 / 123
103 / 123
104 / 123
105 / 123
106 / 123
107 / 123
108 / 123
109 / 123
110 / 123
111 / 123
112 / 123
113 / 123
114 / 123
115 / 123
116 / 123
117 / 123
118 / 123
119 / 123
120 / 123
121 / 123
122 / 123
123 / 123
1 123 Pioneer AV Receivers 2014 Features

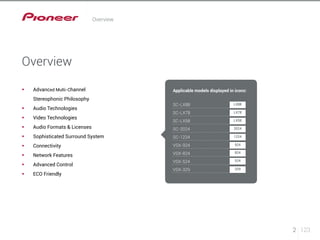

2 123 Overview §§ Advanced Multi-Channel Stereophonic Philosophy Overview §§ Audio Technologies §§ Video Technologies §§ Audio Formats & Licenses §§ Sophisticated Surround System §§ Connectivity §§ Network Features §§ Advanced Control §§ ECO Friendly Applicable models displayed in icons: SC-LX88 SC-LX78 SC-LX58 SC-2024 SC-1224 VSX-924 VSX-824 VSX-524 VSX-329 LX88 LX78 LX58 2024 1224 924 824 524 329
Advanced Multi-Channel Stereophonic Philosophy 3 123

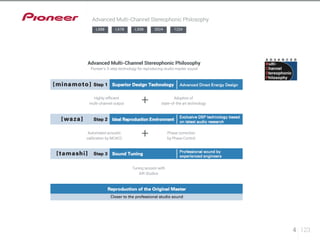

Advanced Multi-Channel Stereophonic Philosophy Pioneer’s 3-step technology for reproducing studio master sound 4 123 Advanced Multi-Channel Stereophonic Philosophy LX88 LX78 LX58 2024 1224 Highly-efficient multi-channel output Automated acoustic calibration by MCACC + + Tuning session with AIR Studios Adoption of state-of-the art technology Phase correction by Phase Control

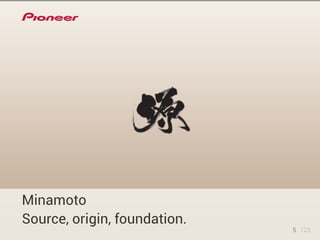

Minamoto Source, origin, foundation. 5 123

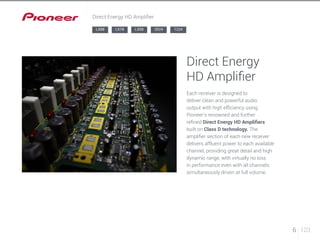

Direct Energy HD Amplifier Each receiver is designed to deliver clean and powerful audio output with high efficiency using Pioneer’s renowned and further refined Direct Energy HD Amplifiers built on Class D technology. The amplifier section of each new receiver delivers affluent power to each available channel, providing great detail and high dynamic range, with virtually no loss in performance even with all channels simultaneously driven at full volume. 6 123 Direct Energy HD Amplifier LX88 LX78 LX58 2024 1224

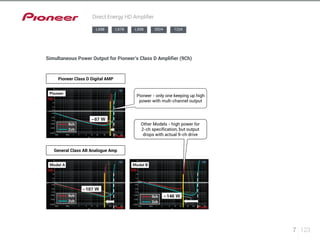

LX88 LX78 LX58 2024 1224 Pioneer Class D Digital AMP General Class AB Analogue Amp Pioneer - only one keeping up high power with mult-channel output Other Models - high power for 2-ch specification, but output drops with actual 9-ch drive 7 123 Direct Energy HD Amplifier Simultaneous Power Output for Pioneer’s Class D Amplifier (9Ch)

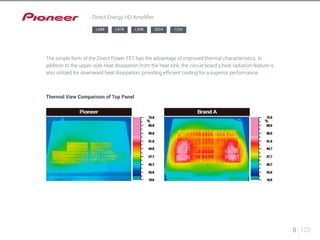

LX88 LX78 LX58 2024 1224 Thermal View Comparison of Top Panel 8 123 Direct Energy HD Amplifier The simple form of the Direct Power FET has the advantage of improved thermal characteristics. In addition to the upper-side heat dissipation from the heat sink, the circuit board’s heat radiation feature is also utilized for downward heat dissipation, providing efficient cooling for a superior performance.

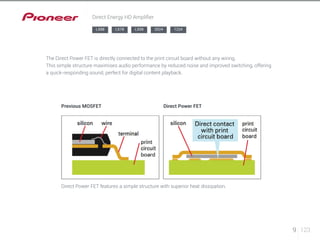

The Direct Power FET is directly connected to the print circuit board without any wiring. This simple structure maximises audio performance by reduced noise and improved switching, offering a quick-responding sound, perfect for digital content playback. Previous MOSFET Direct Power FET Direct Power FET features a simple structure with superior heat dissipation. 9 123 Direct Energy HD Amplifier LX88 LX78 LX58 2024 1224

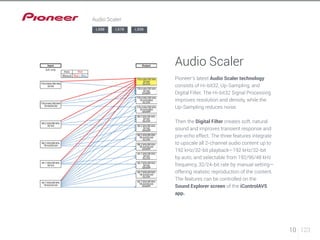

Audio Scaler Pioneer’s latest Audio Scaler technology consists of Hi-bit32, Up-Sampling, and Digital Filter. The Hi-bit32 Signal Processing improves resolution and density, while the Up-Sampling reduces noise. Then the Digital Filter creates soft, natural sound and improves transient response and pre-echo effect. The three features integrate to upscale all 2-channel audio content up to 192 kHz/32-bit playback—192 kHz/32-bit by auto, and selectable from 192/96/48 kHz frequency, 32/24-bit rate by manual setting— offering realistic reproduction of the content. The features can be controlled on the Sound Explorer screen of the iControlAV5 app. 10 123 Audio Scaler LX88 LX78 LX58

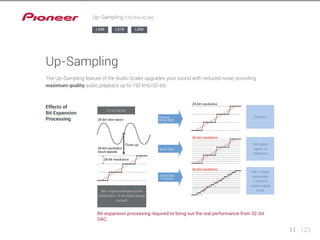

Up-Sampling The Up-Sampling feature of the Audio Scaler upgrades your sound with reduced noise, providing maximum quality audio playback up to 192 kHz/32-bit. Previous 24-bit Signals DAC alone makes no difference DAC + signal processing > closer to original signal in red Bit expansion processing required to bring out the real performance from 32-bit DAC. Effects of Bit Expansion Processing Red: original analogue signals (ideal) Black: 16-bit digital signals (actual) Previous 24-bit DAC 32-bit DAC 32-bit DAC + Hi-bit32 11 123 Up-Sampling (192 kHz/32-bit) LX88 LX78 LX58

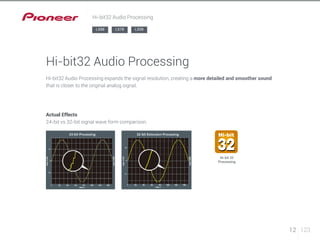

Hi-bit32 Audio Processing Hi-bit32 Audio Processing expands the signal resolution, creating a more detailed and smoother sound that is closer to the original analog signal. Hi-bit 32 Processing Actual Effects 24-bit vs 32-bit signal wave form comparison. 12 123 Hi-bit32 Audio Processing LX88 LX78 LX58

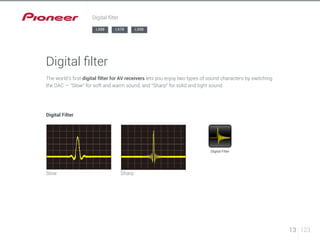

Digital Filter Digital Filter LX88 LX78 LX58 Slow Sharp 13 123 Digital filter Digital filter The world’s first digital filter for AV receivers lets you enjoy two types of sound characters by switching the DAC — “Slow” for soft and warm sound, and “Sharp” for solid and tight sound.

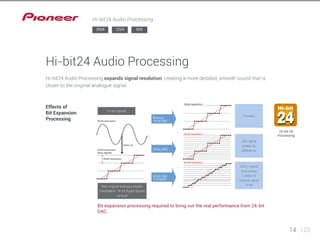

Hi-bit24 Audio Processing Hi-bit24 Audio Processing expands signal resolution, creating a more detailed, smooth sound that is closer to the original analogue signal. Previous 16-bit Signals DAC alone makes no difference DAC + signal processing > closer to original signal Red: original analogue signals in red (ideal)Black: 16-bit digital signals (actual) Bit expansion processing required to bring out the real performance from 24-bit DAC. Effects of Bit Expansion Processing Hi-bit 24 Processing Previous 16-bit DAC 24-bit DAC 24-bit DAC + Hi-bit24 14 123 Hi-bit24 Audio Processing 2024 1224 924

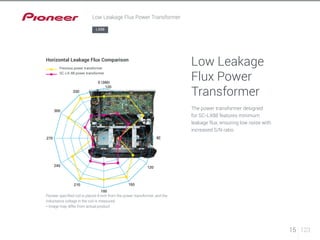

Low Leakage Flux Power Transformer The power transformer designed for SC-LX88 features minimum leakage flux, ensuring low noise with increased S/N ratio. Horizontal Leakage Flux Comparison Previous power transformer SC-LX-88 power transformer Pioneer specified coil is placed 4 inch from the power transformer, and the inductance voltage in the coil is measured. * Image may differ from actual product. 15 123 Low Leakage Flux Power Transformer LX88
WAZA Skill, technique , ability. 16 123

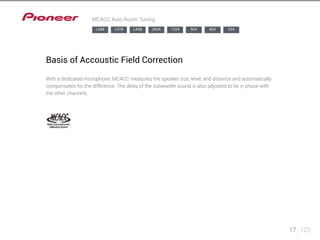

MCACC Auto Room Tuning Basis of Accoustic Field Correction With a dedicated microphone, MCACC measures the speaker size, level, and distance and automatically compensates for the difference. The delay of the subwoofer sound is also adjusted to be in phase with the other channels. 17 123 LX88 LX78 LX58 2024 1224 924 824 524
MCACC Auto Room Tuning After Calibration Speaker distance, sound pressure level, and frequency response are all equalized. 18 123 Acoustic Calibration by MCACC The sound field is automatically measured using the supplied mic. CALIBRATION Before Calibration Speaker distance, sound pressure level, and frequency response are all uneven. Speaker sizes and number of speakers are automatically detected. SET-UP MIC SET-UP MIC LX88 LX78 LX58 2024 1224 924 824 524

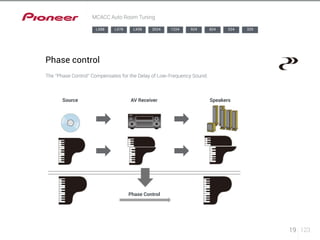

19 123 LX88 LX78 LX58 2024 1224 924 824 524 Phase control The “Phase Control” Compensates for the Delay of Low-Frequency Sound. Source AV Receiver Phase Control Speakers MCACC Auto Room Tuning 329

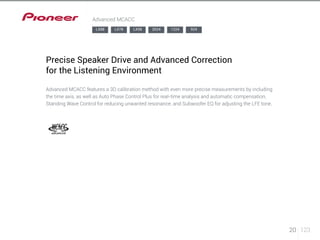

20 123 Advanced MCACC LX88 LX78 LX58 2024 1224 924 Precise Speaker Drive and Advanced Correction for the Listening Environment Advanced MCACC features a 3D calibration method with even more precise measurements by including the time axis, as well as Auto Phase Control Plus for real-time analysis and automatic compensation, Standing Wave Control for reducing unwanted resonance, and Subwoofer EQ for adjusting the LFE tone.

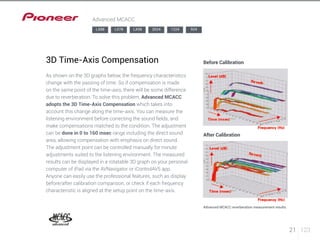

21 123 Advanced MCACC 3D Time-Axis Compensation As shown on the 3D graphs below, the frequency characteristics change with the passing of time. So if compensation is made on the same point of the time-axis, there will be some difference due to reverberation. To solve this problem, Advanced MCACC adopts the 3D Time-Axis Compensation which takes into account this change along the time-axis. You can measure the listening environment before correcting the sound fields, and make compensations matched to the condition. The adjustment can be done in 0 to 160 msec range including the direct sound area, allowing compensation with emphasis on direct sound. The adjustment point can be controlled manually for minute adjustments suited to the listening environment. The measured results can be displayed in a rotatable 3D graph on your personal computer of iPad via the AVNavigator or iControlAV5 app. Anyone can easily use the professional features, such as display before/after calibration comparison, or check if each frequency characteristic is aligned at the setup point on the time-axis. Before Calibration After Calibration Advanced MCACC reverberation measurement results. LX88 LX78 LX58 2024 1224 924

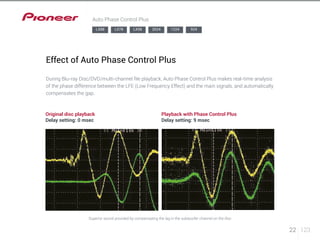

22 123 Auto Phase Control Plus LX88 LX78 LX58 2024 1224 924 Effect of Auto Phase Control Plus During Blu-ray Disc/DVD/multi-channel file playback, Auto Phase Control Plus makes real-time analysis of the phase difference between the LFE (Low Frequency Effect) and the main signals, and automatically compensates the gap. Original disc playback Delay setting: 0 msec Playback with Phase Control Plus Delay setting: 9 msec Superior sound provided by compensating the lag in the subwoofer channel on the disc
23 123 Standing Wave Control LX88 LX78 LX58 2024 1224 924 Standing Wave in a Typical Listening Room Standing Wave Control effectively decreases resonance and prevents inaccurate EQ-setting calibration. = Standing Wave Standing Wave in a Typical Listening Room

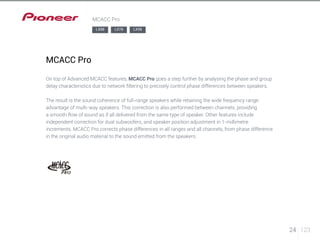

24 123 MCACC Pro MCACC Pro LX88 LX78 LX58 On top of Advanced MCACC features, MCACC Pro goes a step further by analysing the phase and group delay characteristics due to network filtering to precisely control phase differences between speakers. The result is the sound coherence of full-range speakers while retaining the wide frequency range advantage of multi-way speakers. This correction is also performed between channels, providing a smooth flow of sound as if all delivered from the same type of speaker. Other features include independent correction for dual subwoofers, and speaker position adjustment in 1-millimetre increments. MCACC Pro corrects phase differences in all ranges and all channels, from phase difference in the original audio material to the sound emitted from the speakers.

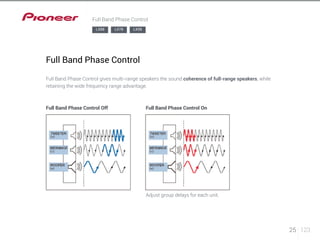

25 123 Full Band Phase Control Full Band Phase Control Full Band Phase Control gives multi-range speakers the sound coherence of full-range speakers, while retaining the wide frequency range advantage. Full Band Phase Control Off Full Band Phase Control On Adjust group delays for each unit. LX88 LX78 LX58
26 123 Precision Distance LX88 Precision Distance Precision Distance is an innovative, world’s first feature for making millimetre-level manual adjustments to speaker distance. You can easily duplicate a skilled installer’s precise positioning with the help of a level gauge shown on the display.
TAMASHI Soul, spirit, will. 27 123
LX88 LX78 Air Studios Studio 6 28 123 AIR Studios Sound Tuning AIR Studios Sound Tuning The combination of Pioneer’s audio expertise to the creation of multi-channel sound environments and George Martin’s AIR Studios monitoring methods intensifies the emotion and excitement of everything you see and hear.
Audio Technologies 29 123

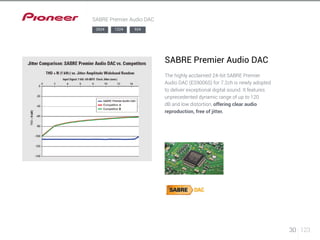

30 123 SABRE Premier Audio DAC SABRE Premier Audio DAC The highly acclaimed 24-bit SABRE Premier Audio DAC (ES9006S) for 7.2ch is newly adopted to deliver exceptional digital sound. It features unprecedented dynamic range of up to 120 dB and low distortion, offering clear audio reproduction, free of jitter. 2024 1224 924
10 ns Square (10Hz) Jitter, 10 kHz @-20 dB Signal Typical DAC With Jitter Without Jitter Jitter level lower than previous DAC even with jitter. With or without Jitter 31 123 SABRE³² Ultra DAC SABRE³² Ultra DAC The highly acclaimed 192 kHz/32-bit ESS SABRE³² Ultra DAC (ES9016S) is adopted to deliver exceptional sound, with ultra-low distortion and high signal-to-noise ratio. It offers jitter-free performance for an astounding audio reproduction with rich deep bass, bringing out the full potentials of Pioneer’s Class D amplifiers. LX88 LX78 LX58 ESS DAC SABRE32 Jitter Reduction Performance

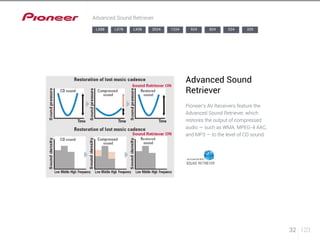

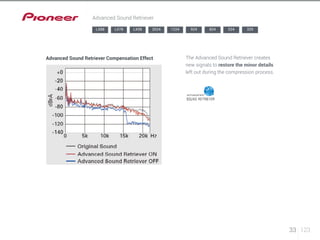

32 123 Advanced Sound Retriever LX88 LX78 LX58 2024 1224 924 824 524 329 Advanced Sound Retriever Pioneer’s AV Receivers feature the Advanced Sound Retriever, which restores the output of compressed audio — such as WMA, MPEG-4 AAC, and MP3 — to the level of CD sound.
33 123 Advanced Sound Retriever LX88 LX78 LX58 2024 1224 924 824 524 329 The Advanced Sound Retriever creates new signals to restore the minor details left out during the compression process. Advanced Sound Retriever Compensation Effect

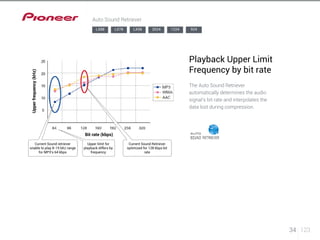

Current Sound Retriever unable to play 8-15 kHz range for MP3’s 64 kbps LX88 LX78 LX58 2024 1224 924 Current Sound Retriever optimized for 128 kbps bit Upper limit for playback differs by frequency Upper frequency (kHz) Bit rate (kbps) Current Sound retriever unable to play 8-15 kKz range for MP3’s 64 kbps Upper limit for playback differs by frequency Current Sound Retriever optimized for 128 kbps bit rate 34 123 Auto Sound Retriever Playback Upper Limit Frequency by bit rate The Auto Sound Retriever automatically determines the audio signal’s bit rate and interpolates the data lost during compression.

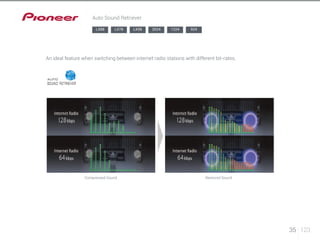

35 123 Auto Sound Retriever LX88 LX78 LX58 2024 1224 924 An ideal feature when switching between internet radio stations with different bit-rates. Compressed Sound Restored Sound
36 123 Auto Sound Retriever for ARC LX88 LX78 LX58 2024 1224 924 Auto Sound Retriever for ARC By applying Pioneer’s Auto Sound Retriever feature to TV broadcast signals, it adjusts the effects according to the bit rate transferred via the HDMI’s Audio Return Channel (ARC). This way you can enjoy digital TV broadcasts in high-definition sound via your AV Receiver.

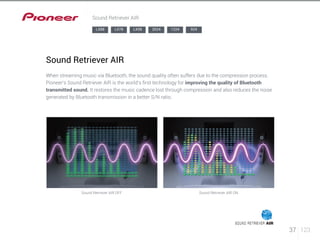

37 123 Sound Retriever AIR LX88 LX78 LX58 2024 1224 924 Sound Retriever AIR When streaming music via Bluetooth, the sound quality often suffers due to the compression process. Pioneer’s Sound Retriever AIR is the world’s first technology for improving the quality of Bluetooth transmitted sound. It restores the music cadence lost through compression and also reduces the noise generated by Bluetooth transmission in a better S/N ratio. Sound Retriever AIR OFF Sound Retriever AIR ON

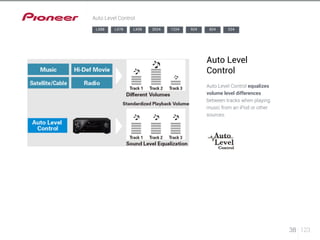

38 123 824 524 Auto Level Control Auto Level Control Auto Level Control equalizes volume level differences between tracks when playing music from an iPod or other sources. LX88 LX78 LX58 2024 1224 924

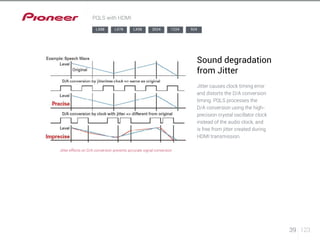

39 123 PQLS with HDMI LX88 LX78 LX58 2024 1224 924 Jitter effects on D/A conversion prevents accurate signal conversion Sound degradation from Jitter Jitter causes clock timing error and distorts the D/A conversion timing. PQLS processes the D/A conversion using the high-precision crystal oscillator clock instead of the audio clock, and is free from jitter created during HDMI transmission.

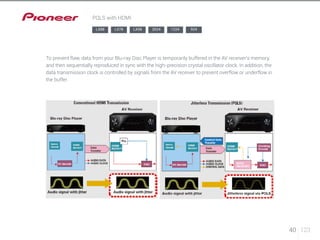

40 123 PQLS with HDMI LX88 LX78 LX58 2024 1224 924 To prevent flaw, data from your Blu-ray Disc Player is temporarily buffered in the AV receiver’s memory, and then sequentially reproduced in sync with the high-precision crystal oscillator clock. In addition, the data transmission clock is controlled by signals from the AV receiver to prevent overflow or underflow in the buffer.
41 123 Video Technologies

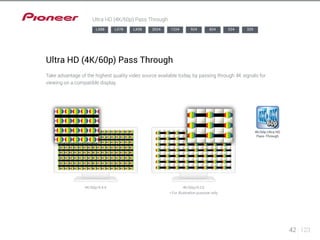

42 123 Ultra HD (4K/60p) Pass Through Ultra HD (4K/60p) Pass Through Take advantage of the highest quality video source available today, by passing through 4K signals for viewing on a compatible display. 4K/60p Ultra HD Pass-Through LX88 LX78 LX58 2024 1224 924 824 524 329 4K/60p/4:4:4 4K/60p/4:2:0 * For illustration purpose only

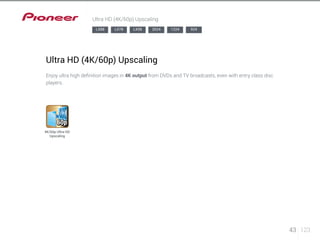

43 123 Ultra HD (4K/60p) Upscaling Ultra HD (4K/60p) Upscaling Enjoy ultra high definition images in 4K output from DVDs and TV broadcasts, even with entry class disc players. 4K/60p Ultra HD Upscaling LX88 LX78 LX58 2024 1224 924

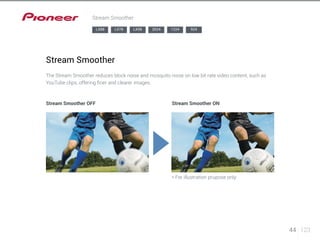

44 123 Stream Smoother LX88 LX78 LX58 2024 1224 924 Stream Smoother The Stream Smoother reduces block noise and mosquito noise on low bit rate video content, such as YouTube clips, offering finer and clearer images. Stream Smoother OFF Stream Smoother ON * For illustration prupose only

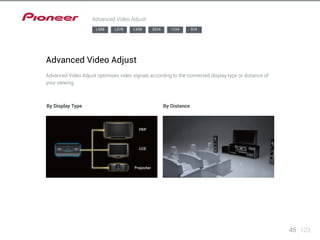

45 123 Advanced Video Adjust LX88 LX78 LX58 2024 1224 924 Advanced Video Adjust Advanced Video Adjust optimises video signals according to the connected display type or distance of your viewing. By Display Type By Distance

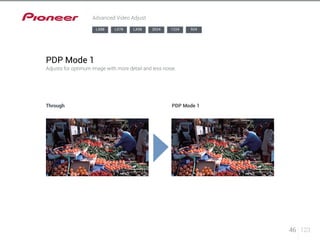

46 123 Advanced Video Adjust LX88 LX78 LX58 2024 1224 924 PDP Mode 1 Adjusts for optimum image with more detail and less noise. Through PDP Mode 1

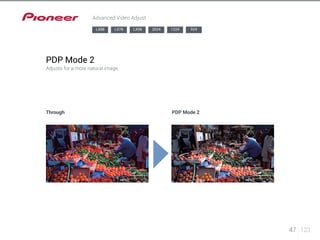

47 123 Advanced Video Adjust LX88 LX78 LX58 2024 1224 924 PDP Mode 2 Adjusts for a more natural image. Through PDP Mode 2

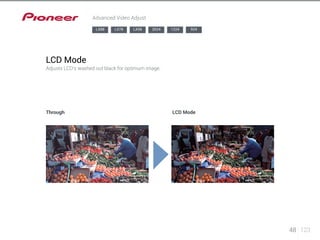

48 123 Advanced Video Adjust LX88 LX78 LX58 2024 1224 924 LCD Mode Adjusts LCD’s washed out black for optimum image. Through LCD Mode

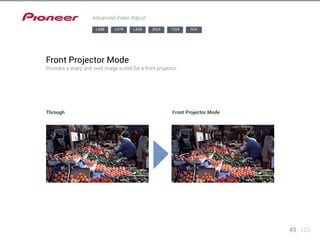

49 123 Advanced Video Adjust LX88 LX78 LX58 2024 1224 924 Front Projector Mode Provides a sharp and vivid image suited for a front projector. Through Front Projector Mode

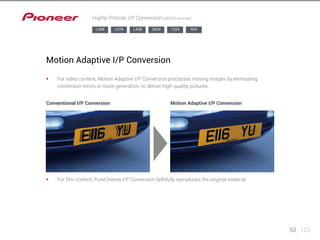

50 123 Highly-Precise I/P Conversion (HD/SD sources) LX88 LX78 LX58 2024 1224 924 Motion Adaptive I/P Conversion §§ For video content, Motion Adaptive I/P Conversion processes moving images by eliminating conversion errors or noise generation, to deliver high-quality pictures. Conventional I/P Conversion Motion Adaptive I/P Conversion §§ For film content, PureCinema I/P Conversion faithfully reproduces the original material.

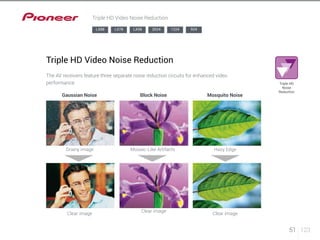

51 123 Gaussian Noise Grainy image Clear image Block Noise Mosaic-Like Artifacts Clear image Mosquito Noise Hazy Edge Clear image Triple HD Video Noise Reduction Triple HD Video Noise Reduction The AV receivers feature three separate noise reduction circuits for enhanced video performance. Triple HD Noise Reduction LX88 LX78 LX58 2024 1224 924

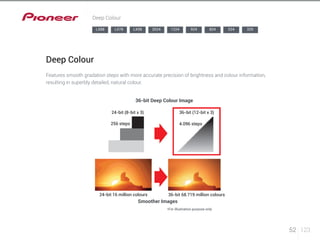

Deep Colour LX88 LX78 LX58 2024 1224 924 824 524 329 24-bit (8-bit x 3) 36-bit (12-bit x 3) 256 steps 4.096 steps 24-bit 16 million colours 36-bit 68.719 million colours 52 123 Deep Colour Features smooth gradation steps with more accurate precision of brightness and colour information, resulting in superbly detailed, natural colour. 36-bit Deep Colour Image Smoother Images *For illustration purpose only

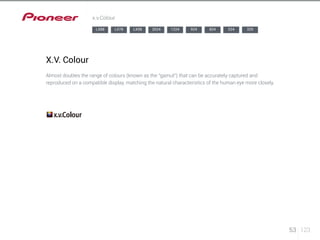

53 123 x.v.Colour X.V. Colour LX88 LX78 LX58 2024 1224 924 824 524 329 Almost doubles the range of colours (known as the “gamut”) that can be accurately captured and reproduced on a compatible display, matching the natural characteristics of the human eye more closely.
Audio Formats & Licenses 54 123

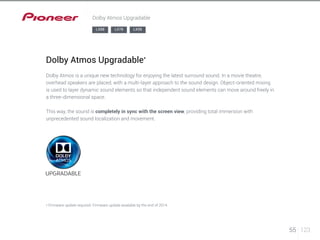

55 123 Dolby Atmos Upgradable LX88 LX78 LX58 Dolby Atmos Upgradable* Dolby Atmos is a unique new technology for enjoying the latest surround sound. In a movie theatre, overhead speakers are placed, with a multi-layer approach to the sound design. Object-oriented mixing is used to layer dynamic sound elements so that independent sound elements can move around freely in a three-dimensional space. This way, the sound is completely in sync with the screen view, providing total immersion with unprecedented sound localization and movement. * Firmware update required. Firmware update available by the end of 2014.

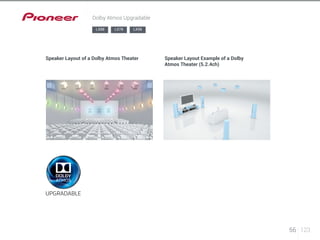

56 123 Dolby Atmos Upgradable LX88 LX78 LX58 Speaker Layout of a Dolby Atmos Theater Speaker Layout Example of a Dolby Atmos Theater (5.2.4ch)

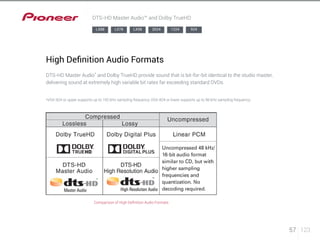

57 123 DTS-HD Master Audio™ and Dolby TrueHD LX88 LX78 LX58 2024 1224 924 High Definition Audio Formats DTS-HD Master Audio* and Dolby TrueHD provide sound that is bit-for-bit identical to the studio master, delivering sound at extremely high variable bit rates far exceeding standard DVDs. *VSX-924 or upper supports up to 192 kHz sampling frequency, VSX-824 or lower supports up to 96 kHz sampling frequency. Comparison of High Definition Audio Formats

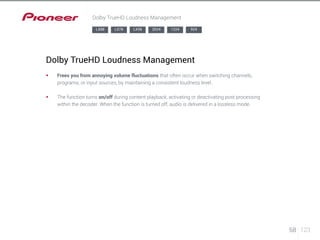

58 123 Dolby TrueHD Loudness Management LX88 LX78 LX58 2024 1224 924 Dolby TrueHD Loudness Management §§ Frees you from annoying volume fluctuations that often occur when switching channels, programs, or input sources, by maintaining a consistent loudness level. §§ The function turns on/off during content playback, activating or deactivating post processing within the decoder. When the function is turned off, audio is delivered in a lossless mode.
59 123 DSD File Playback LX88 LX78 LX58 2024 1224 924 DSD File Playback §§ Pioneer AV receivers support high-quality DSD (Direct Stream Digital) audio files via HDMI or via the front USB input. Additionally, they are the first to realise DSD streaming* via network. §§ T he SC-LX88** also supports Native DSD playback by DoP (DSD over PCM) transmission. A direct USB connection with your computer transfers signals via the USB-DAC for extremely precise audio playback. DSD Playability Comparison Via USB-B USB-A/Network Via HDMI SC-LX88 Native DSD Playback via USB-DAC with DoP 2.8 MHz (2ch) DSD Direct Playback 5.6 MHz (2ch) DSD Direct Playback 5.6 MHz (2ch) DSD Playback with PCM Transcode 5.6 MHz (2ch) * DLNA compatible server or NAS capable of DSD streaming required **A dedicated driver can be installed to your computer from the included CD-ROM. DSD Playback with PCM Transcode 2.8 MHz (2ch) DSD Disc (SACD) Direct Playback 2.8 MHz (2ch) DSD Disc (SACD) Playback with PCM Transcode 2.8 MHz (5.1ch) DSD Disc (SACD) Playback with PCM Transcode 2.8 MHz (2ch) SC-LX78 SC-LX58 SC-LX2024 SC-LX1224 VSX-924

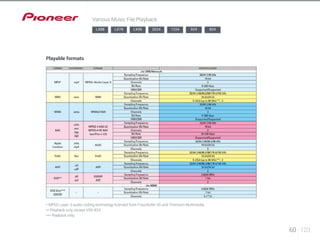

FORMAT EXTENSION STREAM SPECIFICATIONS * MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson Multimedia ** Playback only, except VSX-824 *** Playback only. 60 123 Various Music File Playback LX88 LX78 LX58 2024 1224 924 824 Playable formats
Sophisticated Surround System 61 123

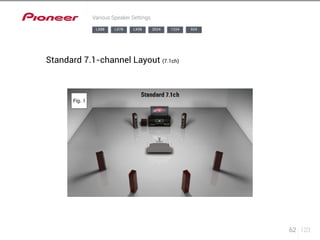

62 123 Various Speaker Settings LX88 LX78 LX58 2024 1224 924 Standard 7.1-channel Layout (7.1ch)

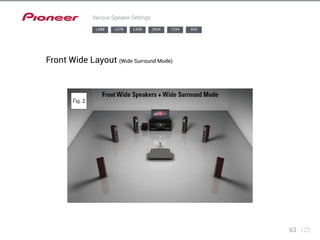

63 123 Various Speaker Settings LX88 LX78 LX58 2024 1224 924 Front Wide Layout (Wide Surround Mode)

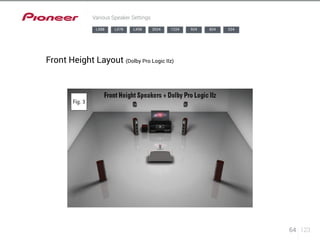

64 123 Various Speaker Settings LX88 LX78 LX58 2024 1224 924 824 524 Front Height Layout (Dolby Pro Logic IIz)

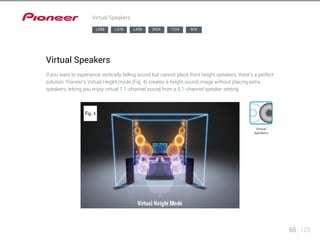

65 123 Virtual Speakers Virtual Speakers If you want to experience vertically falling sound but cannot place front height speakers, there’s a perfect solution. Pioneer’s Virtual Height mode (Fig. 4) creates a height sound image without placing extra speakers, letting you enjoy virtual 7.1-channel sound from a 5.1-channel speaker setting. Virtual Speakers LX88 LX78 LX58 2024 1224 924
66 123 Virtual Speakers Want to be thrilled by surrounding sound from behind, but don’t have the space for surround back speakers? Then try Virtual Surround Back mode (Fig. 5). It simulates 7.1-channel surround sound – giving the impression that you have surround back speakers – when listening to a 5.1-channel source. Virtual Speakers LX88 LX78 LX58 2024 1224 924
67 123 Virtual Speakers Virtual Wide mode (Fig. 6) is a useful solution for creating the effects of front wide speakers, letting you enjoy surround sound in a rich sound field — without placing extra speakers. Virtual Speakers LX88 LX78 LX58 2024 1224 924
68 123 9ch Speaker Configurations LX88 LX78 LX58 9ch Speaker Configurations With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (A) 9.2ch channel surround system (Top middle/Front wide) connection

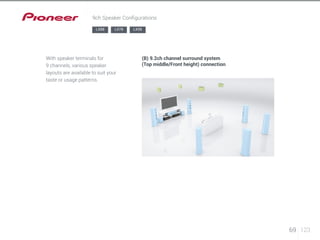

69 123 9ch Speaker Configurations LX88 LX78 LX58 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (B) 9.2ch channel surround system (Top middle/Front height) connection
70 123 9ch Speaker Configurations With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (C) 9.2 channel surround system (Top forward/Top backward) connection LX88 LX78 LX58
71 123 9ch Speaker Configurations LX88 LX78 LX58 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (D) 7.2 channel surround system & Speaker B connection
72 123 9ch Speaker Configurations LX88 LX78 LX58 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (E) 7.2 channel surround system & Speaker Bi-amping connection (High quality surround)
73 123 9ch Speaker Configurations LX88 LX78 LX58 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (F) 7.2 channel surround system & HDZONE connection (Multi Zone)
74 123 9ch Speaker Configurations With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (G) 5.2 channel surround system & Front Bi-amping connection (High quality surround) & HDZONE connection (Multi Zone) LX88 LX78 LX58

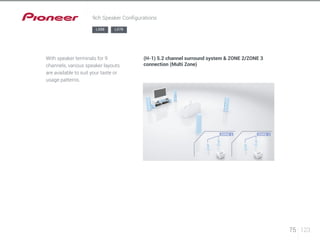

75 123 9ch Speaker Configurations LX88 LX78 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (H-1) 5.2 channel surround system & ZONE 2/ZONE 3 connection (Multi Zone)

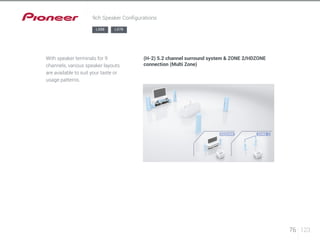

76 123 9ch Speaker Configurations LX88 LX78 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (H-2) 5.2 channel surround system & ZONE 2/HDZONE connection (Multi Zone)
77 123 9ch Speaker Configurations LX88 LX78 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (H-3) Multi-ZONE Music connection
78 123 9ch Speaker Configurations LX88 LX78 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (I) 5.2 channel surround system & Speaker B Bi-amping connection
79 123 9ch Speaker Configurations LX88 LX78 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (J) 5.2 channel surround system & Front and Surround Bi-amping connection (High quality surround)

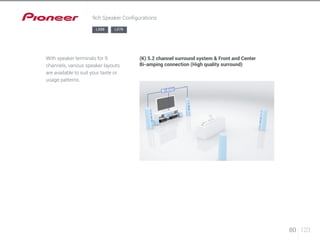

80 123 9ch Speaker Configurations LX88 LX78 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (K) 5.2 channel surround system & Front and Center Bi-amping connection (High quality surround)
81 123 9ch Speaker Configurations LX88 LX78 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (L) 5.2 channel surround system & Center and Surround Bi-amping connection (High quality surround)

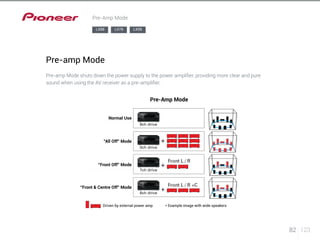

Pre-Amp Mode LX88 LX78 LX58 Normal Use “All Off” Mode “Front Off” Mode “Front & Centre Off” Mode Driven by external power amp * Example image with wide speakers 82 123 Pre-Amp Mode Pre-amp Mode Pre-amp Mode shuts down the power supply to the power amplifier, providing more clear and pure sound when using the AV receiver as a pre-amplifier.

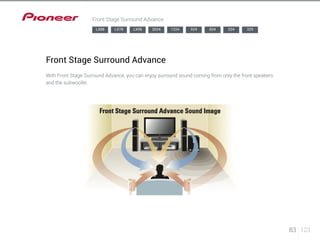

83 123 Front Stage Surround Advance LX88 LX78 LX58 2024 1224 924 824 524 329 Front Stage Surround Advance With Front Stage Surround Advance, you can enjoy surround sound coming from only the front speakers and the subwoofer.
LX88 LX78 LX58 3 elements of cinema sound controlled by optimum surround Bass boost Dialogue enhancement Surround sound enhancement 84 123 Optimum Surround Optimum Surround This Pioneer-exclusive listening mode automatically optimises the balance between bass, dialogue, and surround sound in order to bring home the real thrills of a movie as intended by the creators.
Connectivity 85 123

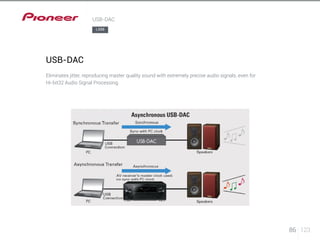

86 123 USB-DAC USB-DAC LX88 Eliminates jitter, reproducing master quality sound with extremely precise audio signals, even for Hi-bit32 Audio Signal Processing.
87 123 HDMI (ARC) HDMI (ARC) LX88 LX78 LX58 2024 1224 924 824 524 329 Enjoy full-digital transfer of high definition audio as well as up to 4K video signals by HDMI connection.

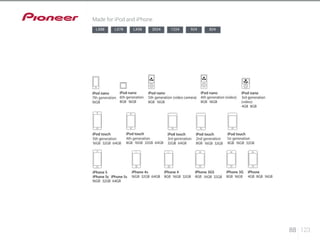

88 123 Made for iPod and iPhone LX88 LX78 LX58 2024 1224 924 824
89 123 Made for iPod and iPhone 524 329

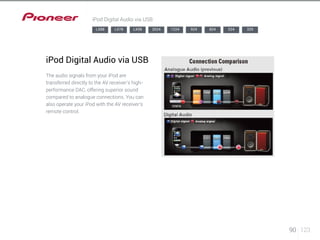

90 123 iPod Digital Audio via USB LX88 LX78 LX58 2024 1224 924 824 524 329 iPod Digital Audio via USB The audio signals from your iPod are transferred directly to the AV receiver’s high-performance DAC, offering superior sound compared to analogue connections. You can also operate your iPod with the AV receiver’s remote control.

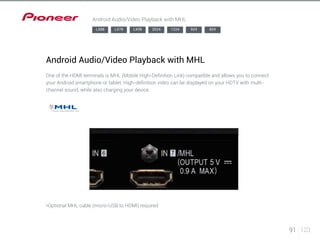

91 123 Android Audio/Video Playback with MHL LX88 LX78 LX58 2024 1224 924 824 Android Audio/Video Playback with MHL One of the HDMI terminals is MHL (Mobile High-Definition Link) compatible and allows you to connect your Android smartphone or tablet. High-definition video can be displayed on your HDTV with multi-channel sound, while also charging your device. *Optional MHL cable (micro-USB to HDMI) required

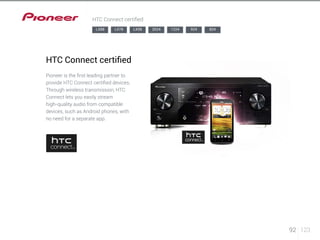

92 123 HTC Connect certified LX88 LX78 LX58 2024 1224 924 824 HTC Connect certified Pioneer is the first leading partner to provide HTC Connect certified devices. Through wireless transmission, HTC Connect lets you easily stream high-quality audio from compatible devices, such as Android phones, with no need for a separate app.
93 123 Front USB Input LX88 LX78 LX58 2024 1224 924 824 Front USB Input The front panel USB input terminal allows a straightforward connection with a USB memory stick. This plug and play connectivity enables you to easily play music files or watch JPEG pictures.
Network Features 94 123
95 123 AirPlay Certified LX88 LX78 LX58 2024 1224 924 824 AirPlay Certified AirPlay — Enthusiasts have complete access, control and playback of their entire iTunes music library wirelessly through their AV receiver. AirPlay Connection Examples

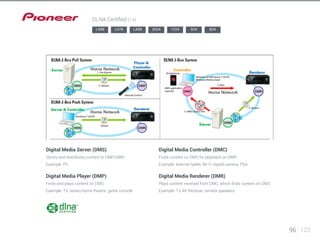

Digital Media Server (DMS) Stores and distributes content to DMP/DMR Example: PC Digital Media Player (DMP) Finds and plays content on DMS Example: TV, stereo/home theatre, game console Digital Media Controller (DMC) Finds content on DMS for playback on DMR Example: Internet tablet, Wi-Fi digital camera, PDA Digital Media Renderer (DMR) Plays content received from DMC, which finds content on DMS Example: TV, AV Receiver, remote speakers 96 123 DLNA Certified (1.5) LX88 LX78 LX58 2024 1224 924 824
97 123 Network features LX88 LX78 LX58 2024 1224 924 824 Network features Compatible with Windows 8.1* Compatible with Windows 7 Spotify High-Quality Audio Streaming Ready Internet Radio (vTuner) * SC-LX88 is compatible with Windows 8
Advanced Control 98 123

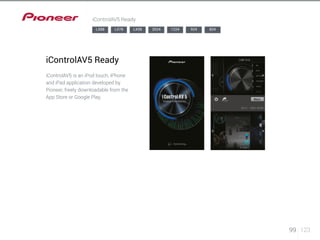

99 123 iControlAV5 Ready LX88 LX78 LX58 2024 1224 924 824 iControlAV5 Ready iControlAV5 is an iPod touch, iPhone and iPad application developed by Pioneer, freely downloadable from the App Store or Google Play.

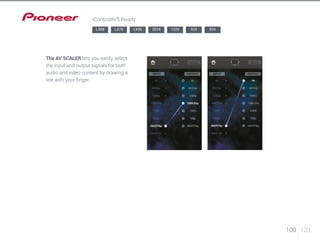

100 123 iControlAV5 Ready LX88 LX78 LX58 2024 1224 924 824 The AV SCALER lets you easily select the input and output signals for both audio and video content by drawing a line with your finger.

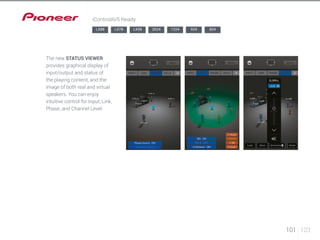

101 123 iControlAV5 Ready LX88 LX78 LX58 2024 1224 924 824 The new STATUS VIEWER provides graphical display of input/output and status of the playing content, and the image of both real and virtual speakers. You can enjoy intuitive control for Input, Link, Phase, and Channel Level.

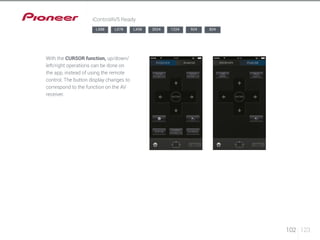

102 123 iControlAV5 Ready LX88 LX78 LX58 2024 1224 924 824 With the CURSOR function, up/down/ left/right operations can be done on the app, instead of using the remote control. The button display changes to correspond to the function on the AV receiver.

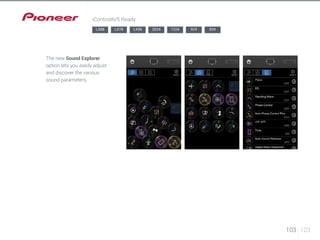

103 123 iControlAV5 Ready LX88 LX78 LX58 2024 1224 924 824 The new Sound Explorer option lets you easily adjust and discover the various sound parameters.

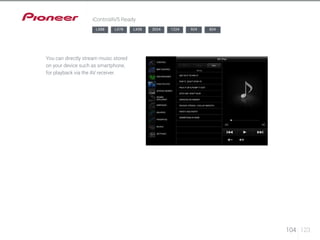

104 123 iControlAV5 Ready LX88 LX78 LX58 2024 1224 924 824 You can directly stream music stored on your device such as smartphone, for playback via the AV receiver.

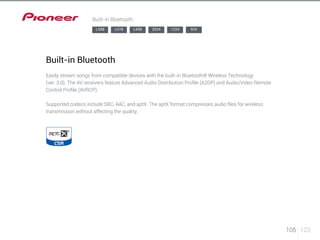

105 123 Built-in Bluetooth LX88 LX78 LX58 2024 1224 924 Built-in Bluetooth Easily stream songs from compatible devices with the built-in Bluetooth® Wireless Technology (ver. 3.0). The AV receivers feature Advanced Audio Distribution Profile (A2DP) and Audio/Video Remote Control Profile (AVRCP). Supported codecs include SBC, AAC, and aptX. The aptX format compresses audio files for wireless transmission without affecting the quality.

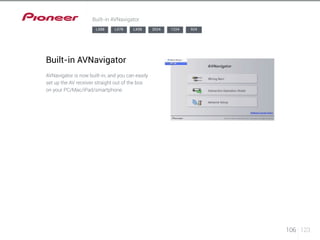

106 123 Built-in AVNavigator LX88 LX78 LX58 2024 1224 924 Built-in AVNavigator AVNavigator is now built-in, and you can easily set up the AV receiver straight out of the box on your PC/Mac/iPad/smartphone.

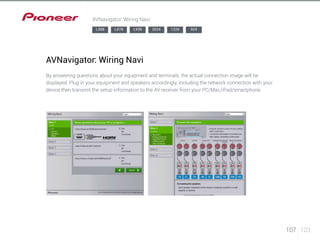

107 123 AVNavigator: Wiring Navi LX88 LX78 LX58 2024 1224 924 AVNavigator: Wiring Navi By answering questions about your equipment and terminals, the actual connection image will be displayed. Plug in your equipment and speakers accordingly, including the network connection with your device then transmit the setup information to the AV receiver from your PC/Mac/iPad/smartphone.

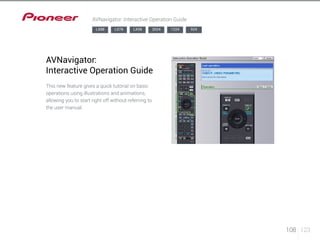

108 123 AVNavigator: Interactive Operation Guide LX88 LX78 LX58 2024 1224 924 AVNavigator: Interactive Operation Guide This new feature gives a quick tutorial on basic operations using illustrations and animations, allowing you to start right off without referring to the user manual.

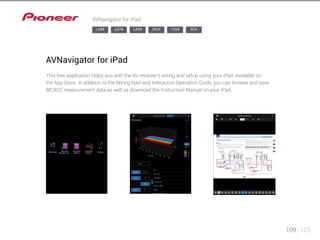

109 123 AVNavigator for iPad LX88 LX78 LX58 2024 1224 924 AVNavigator for iPad This free application helps you with the AV receiver’s wiring and setup using your iPad, available on the App Store. In addition to the Wiring Navi and Interactive Operation Guide, you can browse and save MCACC measurement data as well as download the Instruction Manual on your iPad.

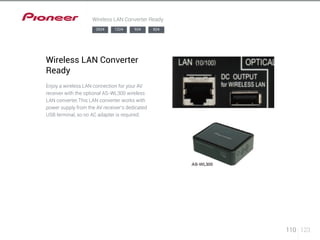

110 123 Wireless LAN Converter Ready 2024 1224 924 824 Wireless LAN Converter Ready Enjoy a wireless LAN connection for your AV receiver with the optional AS-WL300 wireless LAN converter.This LAN converter works with power supply from the AV receiver’s dedicated USB terminal, so no AC adapter is required.

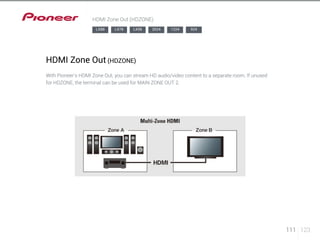

111 123 HDMI Zone Out (HDZONE) LX88 LX78 LX58 2024 1224 924 HDMI Zone Out (HDZONE) With Pioneer’s HDMI Zone Out, you can stream HD audio/video content to a separate room. If unused for HDZONE, the terminal can be used for MAIN ZONE OUT 2.
112 123 Multi-Zone (ZONE 2) LX88 LX78 LX58 2024 1224 924 Multi-Zone (ZONE 2) With Pioneer’s Multi-Zone, you can play music and movies from different sources in two zones at the same time.
113 123 Multi-Zone (ZONE 2/3) LX88 LX78 LX58 2024 1224 924 Multi-Zone (ZONE 2/3) With Pioneer’s Multi-Zone, you can play music and video from different sources in 2 or 3 zones at the same time. SC-LX88/LX78/ LX58/2024 SC-1224/VSX-924 Zone 2 audio, subwoofer, volume, balance and tone. Zone 3 audio, volume and balance. Zone 2 audio, volume, balance and tone.

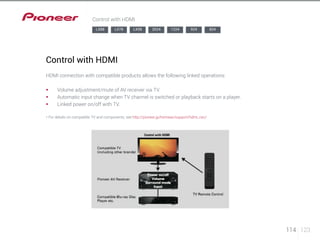

114 123 Control with HDMI LX88 LX78 LX58 2024 1224 924 824 Control with HDMI HDMI connection with compatible products allows the following linked operations: §§ Volume adjustment/mute of AV receiver via TV. §§ Automatic input change when TV channel is switched or playback starts on a player. §§ Linked power on/off with TV. * For details on compatible TV and components, see http://pioneer.jp/homeav/support/hdmi_cec/

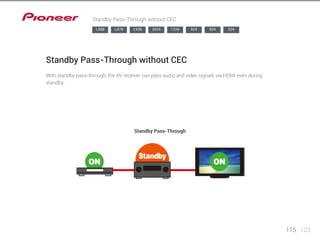

LX88 LX78 LX58 2024 1224 924 824 524 Standby Pass-Through 115 123 Standby Pass-Through without CEC Standby Pass-Through without CEC With standby pass-through, the AV receiver can pass audio and video signals via HDMI even during standby.

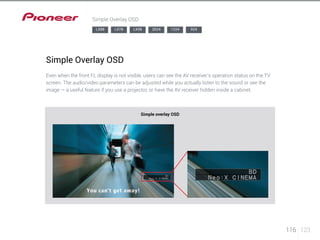

116 123 Simple Overlay OSD LX88 LX78 LX58 2024 1224 924 Simple Overlay OSD Even when the front FL display is not visible, users can see the AV receiver’s operation status on the TV screen. The audio/video parameters can be adjusted while you actually listen to the sound or see the image — a useful feature if you use a projector, or have the AV receiver hidden inside a cabinet. Simple overlay OSD

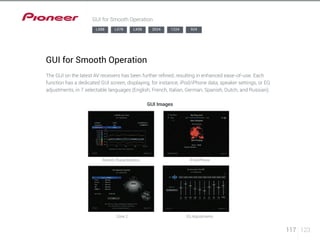

117 123 GUI for Smooth Operation LX88 LX78 LX58 2024 1224 924 GUI for Smooth Operation The GUI on the latest AV receivers has been further refined, resulting in enhanced ease-of-use. Each function has a dedicated GUI screen, displaying, for instance, iPod/iPhone data, speaker settings, or EQ adjustments, in 7 selectable languages (English, French, Italian, German, Spanish, Dutch, and Russian). GUI Images Reverb Characteristics iPod/iPhone Zone 2 EQ Adjustments
118 123 ECO friendly

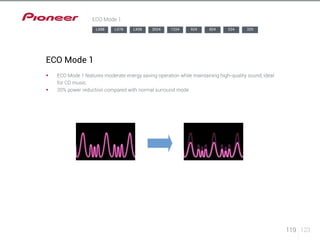

119 123 ECO Mode 1 ECO Mode 1 LX88 LX78 LX58 2024 1224 924 824 524 329 §§ ECO Mode 1 features moderate energy saving operation while maintaining high-quality sound, ideal for CD music. §§ 20% power reduction compared with normal surround mode

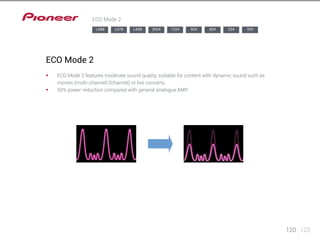

120 123 ECO Mode 2 ECO Mode 2 LX88 LX78 LX58 2024 1224 924 824 524 329 §§ ECO Mode 2 features moderate sound quality, suitable for content with dynamic sound such as movies (multi-channel/2channel) or live concerts. §§ 50% power reduction compared with general analogue AMP.

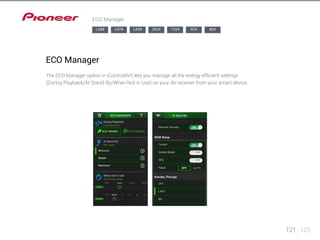

121 123 ECO Manager LX88 LX78 LX58 2024 1224 924 824 ECO Manager The ECO Manager option in iControlAV5 lets you manage all the energy efficient settings (During Playback/At Stand-By/When Not in Use) on your AV receiver from your smart device.

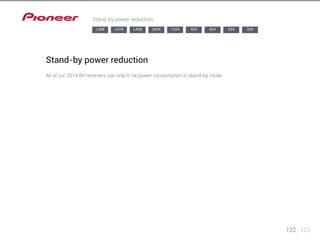

122 123 Stand-by power reduction LX88 LX78 LX58 2024 1224 924 824 524 329 Stand-by power reduction All of our 2014 AV receivers use only 0.1w power consumption in stand-by mode.
Pioneer AV Receivers 2014 Visit www.pioneer.com.au/av-receivers for our line-up & full details 123 123

More Related Content

PDF
Pioneer AV Receivers 2014 - features explained (Europe)
byPioneer Europe

PDF
Pioneer AV Receivers 2013 - features explained
byPioneer Europe

PDF
Pioneer AV Receivers 2013 - VSX series features explained
byPioneer Europe

PPTX
Pioneer AV Receivers 2012 - features of the LX Series
byPioneer Europe

PDF
Pioneer AV Receivers 2013 - VSX series features explained
byPioneer Europe

PDF
Pioneer AV Receivers 2014 - features explained (Thailand)
byPioneer Europe

PDF
Pioneer AV Receivers 2014 - features explained (Singapore)
byPioneer Europe

PDF
Pioneer AV Receivers 2014 - features explained (Vietnam, Philippines, Hong Ko...
byPioneer Europe

Pioneer AV Receivers 2014 - features explained (Europe)
byPioneer Europe

Pioneer AV Receivers 2013 - features explained
byPioneer Europe

Pioneer AV Receivers 2013 - VSX series features explained
byPioneer Europe

Pioneer AV Receivers 2012 - features of the LX Series
byPioneer Europe

Pioneer AV Receivers 2013 - VSX series features explained
byPioneer Europe

Pioneer AV Receivers 2014 - features explained (Thailand)
byPioneer Europe

Pioneer AV Receivers 2014 - features explained (Singapore)
byPioneer Europe

Pioneer AV Receivers 2014 - features explained (Vietnam, Philippines, Hong Ko...
byPioneer Europe


What's hot

PDF
Pioneer AV Receivers 2013 - features explained (Israel)
byPioneer Europe

PDF
Pioneer AV Receivers 2013 - VSX series features explained
byPioneer Europe

PPTX
PHASED ARRAY SPEAKER SYSTEM
byRaja Raman

PDF
AV TV and components at wagner
byKevinprot

PDF
Av tv sat install
byWagner Electronic Services

PPTX
DOORDARSHAN KENDRA PATNA SUMMER TRAINING
byRavi Shankar Kumar

PPTX
Digital Audio & Signal Processing (Elad Gariany)
byRon Reiter

PDF
Digital Tuner Project Final Presentation
bySamantha Luber

PDF
UHK-430 White paper
byKris Hill

PDF
Audac new-products-2019
byRomAudioVideo

PDF
Behringer mixer q1202 usb q1002usb_q802usb_q502usb_m_en
byNienda Dalumbar

PDF
Sound Devices 702T
byAV ProfShop

PDF
Data sheet en_us_1890384523
byamthanhbosch

PDF
Pioneer AV Receivers 2013 - features explained
byPioneer Europe

PDF
Sonifex redbox-products-products
byRadikal Ltd.

PDF
Dukane 8112
bySchoolVision Inc.

PDF
m5000_brochure
byBrian Belcher

PDF
Avr 320 Om Final (Rev 4 15 02)
byslavallie

Pioneer AV Receivers 2013 - features explained (Israel)
byPioneer Europe

Pioneer AV Receivers 2013 - VSX series features explained
byPioneer Europe

PHASED ARRAY SPEAKER SYSTEM
byRaja Raman

AV TV and components at wagner
byKevinprot

Av tv sat install
byWagner Electronic Services

DOORDARSHAN KENDRA PATNA SUMMER TRAINING
byRavi Shankar Kumar

Digital Audio & Signal Processing (Elad Gariany)
byRon Reiter

Digital Tuner Project Final Presentation
bySamantha Luber

UHK-430 White paper
byKris Hill

Audac new-products-2019
byRomAudioVideo

Behringer mixer q1202 usb q1002usb_q802usb_q502usb_m_en
byNienda Dalumbar

Sound Devices 702T
byAV ProfShop

Data sheet en_us_1890384523
byamthanhbosch

Pioneer AV Receivers 2013 - features explained
byPioneer Europe

Sonifex redbox-products-products
byRadikal Ltd.

Dukane 8112
bySchoolVision Inc.

m5000_brochure
byBrian Belcher

Avr 320 Om Final (Rev 4 15 02)
byslavallie


Similar to Pioneer AV Receivers 2014 - features explained (Australia)

PDF
Audac catalog-2019
byRomAudioVideo

PDF
Audio mastering handbook
bysocabaya

PDF
SAE-VP-series-EN.pdf sistema line array-
bymarcoescobar52

PDF
Kramer 788T
byAV ProfShop

PDF
Sound Devices 788T
byAV ProfShop

PDF
RAM Audio Catalogue - Premium Audio Power Amplifiers
byproaudioindia

PDF
vantage-audio-solutions.pdf
byAminMK2

PDF
Audio amplification System
byShivam Sharma

PDF
HPRO_CruiseShipBrochure_FINAL
byCaitlyn Rough

PDF
Sound Devices 552
byAV ProfShop

PDF
Sound Devices 552
byAV ProfShop

PDF
Sound Devices 552
byAV ProfShop

PDF
Comparative Study of Audio Amplifiers
byIOSRJECE

PDF
Data sheet en_us_1804764811
byamthanhbosch

PDF
Data sheet en_us_1881362443
byamthanhbosch

PDF
Sound Devices 552
byAV ProfShop

PDF
PGconsumerBro_2015_
byPaulo Molano

PDF
Junger Audio product matrix 2013
byRadikal Ltd.

PPTX
Power Amplifiers A Guide to Choosing the Right Amp.pptx
byAccusticarts

PDF
Mesa newproducts2009
bytriplegn

Audac catalog-2019
byRomAudioVideo

Audio mastering handbook
bysocabaya

SAE-VP-series-EN.pdf sistema line array-
bymarcoescobar52

Kramer 788T
byAV ProfShop

Sound Devices 788T
byAV ProfShop

RAM Audio Catalogue - Premium Audio Power Amplifiers
byproaudioindia

vantage-audio-solutions.pdf
byAminMK2

Audio amplification System
byShivam Sharma

HPRO_CruiseShipBrochure_FINAL
byCaitlyn Rough

Sound Devices 552
byAV ProfShop

Sound Devices 552
byAV ProfShop

Sound Devices 552
byAV ProfShop

Comparative Study of Audio Amplifiers
byIOSRJECE

Data sheet en_us_1804764811
byamthanhbosch

Data sheet en_us_1881362443
byamthanhbosch

Sound Devices 552
byAV ProfShop

PGconsumerBro_2015_
byPaulo Molano

Junger Audio product matrix 2013
byRadikal Ltd.

Power Amplifiers A Guide to Choosing the Right Amp.pptx
byAccusticarts

Mesa newproducts2009
bytriplegn


More from Pioneer Europe

PDF
Pioneer AV Receivers 2013 - VSX & SC-LX Series Funktionen
byPioneer Europe

PDF
Pioneer AV Amplificateurs 2013 - caractéristiques
byPioneer Europe

PDF
Pioneer AV Amplificateurs 2013 - VSX series caractéristiques
byPioneer Europe

PDF
Pioneer AV Receivers 2014 - kenmerken en specificaties
byPioneer Europe

PDF
Receptores AV 2014 de Pioneer (España)
byPioneer Europe

PDF
Pioneer VSX АВ ресиверы 2013 Характеристики
byPioneer Europe

PPTX
Pioneer AV Receivers 2012 - VSX series features explained.
byPioneer Europe

PPTX
Vehicle Bus display support on Pioneer AVIC products
byPioneer Europe

PDF
Pioneer AV Receivers 2014 - features explained (Gulf, Malaysia and Israel)
byPioneer Europe

PDF
Pioneer AV Amplificateurs 2014 - caractéristiques
byPioneer Europe

PDF
Pioneer АВ ресиверы 2014 - Характеристики
byPioneer Europe

PDF
Pioneer AV-receivers 2013 - kenmerken en specificaties
byPioneer Europe

PDF
Pioneer АВ ресиверы 2013 Характеристики
byPioneer Europe

PDF
Pioneer AV Receivers 2013 - VSX kenmerken
byPioneer Europe

PDF
Pioneer AV Receivers 2013 - VSX Serie Funktionen
byPioneer Europe

Pioneer AV Receivers 2013 - VSX & SC-LX Series Funktionen
byPioneer Europe

Pioneer AV Amplificateurs 2013 - caractéristiques
byPioneer Europe

Pioneer AV Amplificateurs 2013 - VSX series caractéristiques
byPioneer Europe

Pioneer AV Receivers 2014 - kenmerken en specificaties
byPioneer Europe

Receptores AV 2014 de Pioneer (España)
byPioneer Europe

Pioneer VSX АВ ресиверы 2013 Характеристики
byPioneer Europe

Pioneer AV Receivers 2012 - VSX series features explained.
byPioneer Europe

Vehicle Bus display support on Pioneer AVIC products
byPioneer Europe

Pioneer AV Receivers 2014 - features explained (Gulf, Malaysia and Israel)
byPioneer Europe

Pioneer AV Amplificateurs 2014 - caractéristiques
byPioneer Europe

Pioneer АВ ресиверы 2014 - Характеристики
byPioneer Europe

Pioneer AV-receivers 2013 - kenmerken en specificaties
byPioneer Europe

Pioneer АВ ресиверы 2013 Характеристики
byPioneer Europe

Pioneer AV Receivers 2013 - VSX kenmerken
byPioneer Europe

Pioneer AV Receivers 2013 - VSX Serie Funktionen
byPioneer Europe


Pioneer AV Receivers 2014 - features explained (Australia)

  • 1.
    1 123 Pioneer AV Receivers 2014 Features
  • 2.
    2 123 Overview §§ Advanced Multi-Channel Stereophonic Philosophy Overview §§ Audio Technologies §§ Video Technologies §§ Audio Formats & Licenses §§ Sophisticated Surround System §§ Connectivity §§ Network Features §§ Advanced Control §§ ECO Friendly Applicable models displayed in icons: SC-LX88 SC-LX78 SC-LX58 SC-2024 SC-1224 VSX-924 VSX-824 VSX-524 VSX-329 LX88 LX78 LX58 2024 1224 924 824 524 329
  • 3.
  • 4.
    Advanced Multi-Channel StereophonicPhilosophy Pioneer’s 3-step technology for reproducing studio master sound 4 123 Advanced Multi-Channel Stereophonic Philosophy LX88 LX78 LX58 2024 1224 Highly-efficient multi-channel output Automated acoustic calibration by MCACC + + Tuning session with AIR Studios Adoption of state-of-the art technology Phase correction by Phase Control
  • 5.
    Minamoto Source, origin,foundation. 5 123
  • 6.
    Direct Energy HDAmplifier Each receiver is designed to deliver clean and powerful audio output with high efficiency using Pioneer’s renowned and further refined Direct Energy HD Amplifiers built on Class D technology. The amplifier section of each new receiver delivers affluent power to each available channel, providing great detail and high dynamic range, with virtually no loss in performance even with all channels simultaneously driven at full volume. 6 123 Direct Energy HD Amplifier LX88 LX78 LX58 2024 1224
  • 7.
    LX88 LX78 LX582024 1224 Pioneer Class D Digital AMP General Class AB Analogue Amp Pioneer - only one keeping up high power with mult-channel output Other Models - high power for 2-ch specification, but output drops with actual 9-ch drive 7 123 Direct Energy HD Amplifier Simultaneous Power Output for Pioneer’s Class D Amplifier (9Ch)
  • 8.
    LX88 LX78 LX582024 1224 Thermal View Comparison of Top Panel 8 123 Direct Energy HD Amplifier The simple form of the Direct Power FET has the advantage of improved thermal characteristics. In addition to the upper-side heat dissipation from the heat sink, the circuit board’s heat radiation feature is also utilized for downward heat dissipation, providing efficient cooling for a superior performance.
  • 9.
    The Direct PowerFET is directly connected to the print circuit board without any wiring. This simple structure maximises audio performance by reduced noise and improved switching, offering a quick-responding sound, perfect for digital content playback. Previous MOSFET Direct Power FET Direct Power FET features a simple structure with superior heat dissipation. 9 123 Direct Energy HD Amplifier LX88 LX78 LX58 2024 1224
  • 10.
    Audio Scaler Pioneer’slatest Audio Scaler technology consists of Hi-bit32, Up-Sampling, and Digital Filter. The Hi-bit32 Signal Processing improves resolution and density, while the Up-Sampling reduces noise. Then the Digital Filter creates soft, natural sound and improves transient response and pre-echo effect. The three features integrate to upscale all 2-channel audio content up to 192 kHz/32-bit playback—192 kHz/32-bit by auto, and selectable from 192/96/48 kHz frequency, 32/24-bit rate by manual setting— offering realistic reproduction of the content. The features can be controlled on the Sound Explorer screen of the iControlAV5 app. 10 123 Audio Scaler LX88 LX78 LX58
  • 11.
    Up-Sampling The Up-Samplingfeature of the Audio Scaler upgrades your sound with reduced noise, providing maximum quality audio playback up to 192 kHz/32-bit. Previous 24-bit Signals DAC alone makes no difference DAC + signal processing > closer to original signal in red Bit expansion processing required to bring out the real performance from 32-bit DAC. Effects of Bit Expansion Processing Red: original analogue signals (ideal) Black: 16-bit digital signals (actual) Previous 24-bit DAC 32-bit DAC 32-bit DAC + Hi-bit32 11 123 Up-Sampling (192 kHz/32-bit) LX88 LX78 LX58
  • 12.
    Hi-bit32 Audio Processing Hi-bit32 Audio Processing expands the signal resolution, creating a more detailed and smoother sound that is closer to the original analog signal. Hi-bit 32 Processing Actual Effects 24-bit vs 32-bit signal wave form comparison. 12 123 Hi-bit32 Audio Processing LX88 LX78 LX58
  • 13.
    Digital Filter DigitalFilter LX88 LX78 LX58 Slow Sharp 13 123 Digital filter Digital filter The world’s first digital filter for AV receivers lets you enjoy two types of sound characters by switching the DAC — “Slow” for soft and warm sound, and “Sharp” for solid and tight sound.
  • 14.
    Hi-bit24 Audio Processing Hi-bit24 Audio Processing expands signal resolution, creating a more detailed, smooth sound that is closer to the original analogue signal. Previous 16-bit Signals DAC alone makes no difference DAC + signal processing > closer to original signal Red: original analogue signals in red (ideal)Black: 16-bit digital signals (actual) Bit expansion processing required to bring out the real performance from 24-bit DAC. Effects of Bit Expansion Processing Hi-bit 24 Processing Previous 16-bit DAC 24-bit DAC 24-bit DAC + Hi-bit24 14 123 Hi-bit24 Audio Processing 2024 1224 924
  • 15.
    Low Leakage FluxPower Transformer The power transformer designed for SC-LX88 features minimum leakage flux, ensuring low noise with increased S/N ratio. Horizontal Leakage Flux Comparison Previous power transformer SC-LX-88 power transformer Pioneer specified coil is placed 4 inch from the power transformer, and the inductance voltage in the coil is measured. * Image may differ from actual product. 15 123 Low Leakage Flux Power Transformer LX88
  • 16.
    WAZA Skill, technique, ability. 16 123
  • 17.
    MCACC Auto RoomTuning Basis of Accoustic Field Correction With a dedicated microphone, MCACC measures the speaker size, level, and distance and automatically compensates for the difference. The delay of the subwoofer sound is also adjusted to be in phase with the other channels. 17 123 LX88 LX78 LX58 2024 1224 924 824 524
  • 18.
    MCACC Auto RoomTuning After Calibration Speaker distance, sound pressure level, and frequency response are all equalized. 18 123 Acoustic Calibration by MCACC The sound field is automatically measured using the supplied mic. CALIBRATION Before Calibration Speaker distance, sound pressure level, and frequency response are all uneven. Speaker sizes and number of speakers are automatically detected. SET-UP MIC SET-UP MIC LX88 LX78 LX58 2024 1224 924 824 524
  • 19.
    19 123 LX88LX78 LX58 2024 1224 924 824 524 Phase control The “Phase Control” Compensates for the Delay of Low-Frequency Sound. Source AV Receiver Phase Control Speakers MCACC Auto Room Tuning 329
  • 20.
    20 123 AdvancedMCACC LX88 LX78 LX58 2024 1224 924 Precise Speaker Drive and Advanced Correction for the Listening Environment Advanced MCACC features a 3D calibration method with even more precise measurements by including the time axis, as well as Auto Phase Control Plus for real-time analysis and automatic compensation, Standing Wave Control for reducing unwanted resonance, and Subwoofer EQ for adjusting the LFE tone.
  • 21.
    21 123 AdvancedMCACC 3D Time-Axis Compensation As shown on the 3D graphs below, the frequency characteristics change with the passing of time. So if compensation is made on the same point of the time-axis, there will be some difference due to reverberation. To solve this problem, Advanced MCACC adopts the 3D Time-Axis Compensation which takes into account this change along the time-axis. You can measure the listening environment before correcting the sound fields, and make compensations matched to the condition. The adjustment can be done in 0 to 160 msec range including the direct sound area, allowing compensation with emphasis on direct sound. The adjustment point can be controlled manually for minute adjustments suited to the listening environment. The measured results can be displayed in a rotatable 3D graph on your personal computer of iPad via the AVNavigator or iControlAV5 app. Anyone can easily use the professional features, such as display before/after calibration comparison, or check if each frequency characteristic is aligned at the setup point on the time-axis. Before Calibration After Calibration Advanced MCACC reverberation measurement results. LX88 LX78 LX58 2024 1224 924
  • 22.
    22 123 AutoPhase Control Plus LX88 LX78 LX58 2024 1224 924 Effect of Auto Phase Control Plus During Blu-ray Disc/DVD/multi-channel file playback, Auto Phase Control Plus makes real-time analysis of the phase difference between the LFE (Low Frequency Effect) and the main signals, and automatically compensates the gap. Original disc playback Delay setting: 0 msec Playback with Phase Control Plus Delay setting: 9 msec Superior sound provided by compensating the lag in the subwoofer channel on the disc
  • 23.
    23 123 StandingWave Control LX88 LX78 LX58 2024 1224 924 Standing Wave in a Typical Listening Room Standing Wave Control effectively decreases resonance and prevents inaccurate EQ-setting calibration. = Standing Wave Standing Wave in a Typical Listening Room
  • 24.
    24 123 MCACCPro MCACC Pro LX88 LX78 LX58 On top of Advanced MCACC features, MCACC Pro goes a step further by analysing the phase and group delay characteristics due to network filtering to precisely control phase differences between speakers. The result is the sound coherence of full-range speakers while retaining the wide frequency range advantage of multi-way speakers. This correction is also performed between channels, providing a smooth flow of sound as if all delivered from the same type of speaker. Other features include independent correction for dual subwoofers, and speaker position adjustment in 1-millimetre increments. MCACC Pro corrects phase differences in all ranges and all channels, from phase difference in the original audio material to the sound emitted from the speakers.
  • 25.
    25 123 FullBand Phase Control Full Band Phase Control Full Band Phase Control gives multi-range speakers the sound coherence of full-range speakers, while retaining the wide frequency range advantage. Full Band Phase Control Off Full Band Phase Control On Adjust group delays for each unit. LX88 LX78 LX58
  • 26.
    26 123 PrecisionDistance LX88 Precision Distance Precision Distance is an innovative, world’s first feature for making millimetre-level manual adjustments to speaker distance. You can easily duplicate a skilled installer’s precise positioning with the help of a level gauge shown on the display.
  • 27.
  • 28.
    LX88 LX78 AirStudios Studio 6 28 123 AIR Studios Sound Tuning AIR Studios Sound Tuning The combination of Pioneer’s audio expertise to the creation of multi-channel sound environments and George Martin’s AIR Studios monitoring methods intensifies the emotion and excitement of everything you see and hear.
  • 29.
  • 30.
    30 123 SABREPremier Audio DAC SABRE Premier Audio DAC The highly acclaimed 24-bit SABRE Premier Audio DAC (ES9006S) for 7.2ch is newly adopted to deliver exceptional digital sound. It features unprecedented dynamic range of up to 120 dB and low distortion, offering clear audio reproduction, free of jitter. 2024 1224 924
  • 31.
    10 ns Square(10Hz) Jitter, 10 kHz @-20 dB Signal Typical DAC With Jitter Without Jitter Jitter level lower than previous DAC even with jitter. With or without Jitter 31 123 SABRE³² Ultra DAC SABRE³² Ultra DAC The highly acclaimed 192 kHz/32-bit ESS SABRE³² Ultra DAC (ES9016S) is adopted to deliver exceptional sound, with ultra-low distortion and high signal-to-noise ratio. It offers jitter-free performance for an astounding audio reproduction with rich deep bass, bringing out the full potentials of Pioneer’s Class D amplifiers. LX88 LX78 LX58 ESS DAC SABRE32 Jitter Reduction Performance
  • 32.
    32 123 AdvancedSound Retriever LX88 LX78 LX58 2024 1224 924 824 524 329 Advanced Sound Retriever Pioneer’s AV Receivers feature the Advanced Sound Retriever, which restores the output of compressed audio — such as WMA, MPEG-4 AAC, and MP3 — to the level of CD sound.
  • 33.
    33 123 AdvancedSound Retriever LX88 LX78 LX58 2024 1224 924 824 524 329 The Advanced Sound Retriever creates new signals to restore the minor details left out during the compression process. Advanced Sound Retriever Compensation Effect
  • 34.
    Current Sound Retriever unable to play 8-15 kHz range for MP3’s 64 kbps LX88 LX78 LX58 2024 1224 924 Current Sound Retriever optimized for 128 kbps bit Upper limit for playback differs by frequency Upper frequency (kHz) Bit rate (kbps) Current Sound retriever unable to play 8-15 kKz range for MP3’s 64 kbps Upper limit for playback differs by frequency Current Sound Retriever optimized for 128 kbps bit rate 34 123 Auto Sound Retriever Playback Upper Limit Frequency by bit rate The Auto Sound Retriever automatically determines the audio signal’s bit rate and interpolates the data lost during compression.
  • 35.
    35 123 AutoSound Retriever LX88 LX78 LX58 2024 1224 924 An ideal feature when switching between internet radio stations with different bit-rates. Compressed Sound Restored Sound
  • 36.
    36 123 AutoSound Retriever for ARC LX88 LX78 LX58 2024 1224 924 Auto Sound Retriever for ARC By applying Pioneer’s Auto Sound Retriever feature to TV broadcast signals, it adjusts the effects according to the bit rate transferred via the HDMI’s Audio Return Channel (ARC). This way you can enjoy digital TV broadcasts in high-definition sound via your AV Receiver.
  • 37.
    37 123 SoundRetriever AIR LX88 LX78 LX58 2024 1224 924 Sound Retriever AIR When streaming music via Bluetooth, the sound quality often suffers due to the compression process. Pioneer’s Sound Retriever AIR is the world’s first technology for improving the quality of Bluetooth transmitted sound. It restores the music cadence lost through compression and also reduces the noise generated by Bluetooth transmission in a better S/N ratio. Sound Retriever AIR OFF Sound Retriever AIR ON
  • 38.
    38 123 824524 Auto Level Control Auto Level Control Auto Level Control equalizes volume level differences between tracks when playing music from an iPod or other sources. LX88 LX78 LX58 2024 1224 924
  • 39.
    39 123 PQLSwith HDMI LX88 LX78 LX58 2024 1224 924 Jitter effects on D/A conversion prevents accurate signal conversion Sound degradation from Jitter Jitter causes clock timing error and distorts the D/A conversion timing. PQLS processes the D/A conversion using the high-precision crystal oscillator clock instead of the audio clock, and is free from jitter created during HDMI transmission.
  • 40.
    40 123 PQLSwith HDMI LX88 LX78 LX58 2024 1224 924 To prevent flaw, data from your Blu-ray Disc Player is temporarily buffered in the AV receiver’s memory, and then sequentially reproduced in sync with the high-precision crystal oscillator clock. In addition, the data transmission clock is controlled by signals from the AV receiver to prevent overflow or underflow in the buffer.
  • 41.
    41 123 VideoTechnologies
  • 42.
    42 123 UltraHD (4K/60p) Pass Through Ultra HD (4K/60p) Pass Through Take advantage of the highest quality video source available today, by passing through 4K signals for viewing on a compatible display. 4K/60p Ultra HD Pass-Through LX88 LX78 LX58 2024 1224 924 824 524 329 4K/60p/4:4:4 4K/60p/4:2:0 * For illustration purpose only
  • 43.
    43 123 UltraHD (4K/60p) Upscaling Ultra HD (4K/60p) Upscaling Enjoy ultra high definition images in 4K output from DVDs and TV broadcasts, even with entry class disc players. 4K/60p Ultra HD Upscaling LX88 LX78 LX58 2024 1224 924
  • 44.
    44 123 StreamSmoother LX88 LX78 LX58 2024 1224 924 Stream Smoother The Stream Smoother reduces block noise and mosquito noise on low bit rate video content, such as YouTube clips, offering finer and clearer images. Stream Smoother OFF Stream Smoother ON * For illustration prupose only
  • 45.
    45 123 AdvancedVideo Adjust LX88 LX78 LX58 2024 1224 924 Advanced Video Adjust Advanced Video Adjust optimises video signals according to the connected display type or distance of your viewing. By Display Type By Distance
  • 46.
    46 123 AdvancedVideo Adjust LX88 LX78 LX58 2024 1224 924 PDP Mode 1 Adjusts for optimum image with more detail and less noise. Through PDP Mode 1
  • 47.
    47 123 AdvancedVideo Adjust LX88 LX78 LX58 2024 1224 924 PDP Mode 2 Adjusts for a more natural image. Through PDP Mode 2
  • 48.
    48 123 AdvancedVideo Adjust LX88 LX78 LX58 2024 1224 924 LCD Mode Adjusts LCD’s washed out black for optimum image. Through LCD Mode
  • 49.
    49 123 AdvancedVideo Adjust LX88 LX78 LX58 2024 1224 924 Front Projector Mode Provides a sharp and vivid image suited for a front projector. Through Front Projector Mode
  • 50.
    50 123 Highly-PreciseI/P Conversion (HD/SD sources) LX88 LX78 LX58 2024 1224 924 Motion Adaptive I/P Conversion §§ For video content, Motion Adaptive I/P Conversion processes moving images by eliminating conversion errors or noise generation, to deliver high-quality pictures. Conventional I/P Conversion Motion Adaptive I/P Conversion §§ For film content, PureCinema I/P Conversion faithfully reproduces the original material.
  • 51.
    51 123 GaussianNoise Grainy image Clear image Block Noise Mosaic-Like Artifacts Clear image Mosquito Noise Hazy Edge Clear image Triple HD Video Noise Reduction Triple HD Video Noise Reduction The AV receivers feature three separate noise reduction circuits for enhanced video performance. Triple HD Noise Reduction LX88 LX78 LX58 2024 1224 924
  • 52.
    Deep Colour LX88LX78 LX58 2024 1224 924 824 524 329 24-bit (8-bit x 3) 36-bit (12-bit x 3) 256 steps 4.096 steps 24-bit 16 million colours 36-bit 68.719 million colours 52 123 Deep Colour Features smooth gradation steps with more accurate precision of brightness and colour information, resulting in superbly detailed, natural colour. 36-bit Deep Colour Image Smoother Images *For illustration purpose only
  • 53.
    53 123 x.v.Colour X.V. Colour LX88 LX78 LX58 2024 1224 924 824 524 329 Almost doubles the range of colours (known as the “gamut”) that can be accurately captured and reproduced on a compatible display, matching the natural characteristics of the human eye more closely.
  • 54.
    Audio Formats &Licenses 54 123
  • 55.
    55 123 DolbyAtmos Upgradable LX88 LX78 LX58 Dolby Atmos Upgradable* Dolby Atmos is a unique new technology for enjoying the latest surround sound. In a movie theatre, overhead speakers are placed, with a multi-layer approach to the sound design. Object-oriented mixing is used to layer dynamic sound elements so that independent sound elements can move around freely in a three-dimensional space. This way, the sound is completely in sync with the screen view, providing total immersion with unprecedented sound localization and movement. * Firmware update required. Firmware update available by the end of 2014.
  • 56.
    56 123 DolbyAtmos Upgradable LX88 LX78 LX58 Speaker Layout of a Dolby Atmos Theater Speaker Layout Example of a Dolby Atmos Theater (5.2.4ch)
  • 57.
    57 123 DTS-HDMaster Audio™ and Dolby TrueHD LX88 LX78 LX58 2024 1224 924 High Definition Audio Formats DTS-HD Master Audio* and Dolby TrueHD provide sound that is bit-for-bit identical to the studio master, delivering sound at extremely high variable bit rates far exceeding standard DVDs. *VSX-924 or upper supports up to 192 kHz sampling frequency, VSX-824 or lower supports up to 96 kHz sampling frequency. Comparison of High Definition Audio Formats
  • 58.
    58 123 DolbyTrueHD Loudness Management LX88 LX78 LX58 2024 1224 924 Dolby TrueHD Loudness Management §§ Frees you from annoying volume fluctuations that often occur when switching channels, programs, or input sources, by maintaining a consistent loudness level. §§ The function turns on/off during content playback, activating or deactivating post processing within the decoder. When the function is turned off, audio is delivered in a lossless mode.
  • 59.
    59 123 DSDFile Playback LX88 LX78 LX58 2024 1224 924 DSD File Playback §§ Pioneer AV receivers support high-quality DSD (Direct Stream Digital) audio files via HDMI or via the front USB input. Additionally, they are the first to realise DSD streaming* via network. §§ T he SC-LX88** also supports Native DSD playback by DoP (DSD over PCM) transmission. A direct USB connection with your computer transfers signals via the USB-DAC for extremely precise audio playback. DSD Playability Comparison Via USB-B USB-A/Network Via HDMI SC-LX88 Native DSD Playback via USB-DAC with DoP 2.8 MHz (2ch) DSD Direct Playback 5.6 MHz (2ch) DSD Direct Playback 5.6 MHz (2ch) DSD Playback with PCM Transcode 5.6 MHz (2ch) * DLNA compatible server or NAS capable of DSD streaming required **A dedicated driver can be installed to your computer from the included CD-ROM. DSD Playback with PCM Transcode 2.8 MHz (2ch) DSD Disc (SACD) Direct Playback 2.8 MHz (2ch) DSD Disc (SACD) Playback with PCM Transcode 2.8 MHz (5.1ch) DSD Disc (SACD) Playback with PCM Transcode 2.8 MHz (2ch) SC-LX78 SC-LX58 SC-LX2024 SC-LX1224 VSX-924
  • 60.
    FORMAT EXTENSION STREAMSPECIFICATIONS * MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson Multimedia ** Playback only, except VSX-824 *** Playback only. 60 123 Various Music File Playback LX88 LX78 LX58 2024 1224 924 824 Playable formats
  • 61.
  • 62.
    62 123 VariousSpeaker Settings LX88 LX78 LX58 2024 1224 924 Standard 7.1-channel Layout (7.1ch)
  • 63.
    63 123 VariousSpeaker Settings LX88 LX78 LX58 2024 1224 924 Front Wide Layout (Wide Surround Mode)
  • 64.
    64 123 VariousSpeaker Settings LX88 LX78 LX58 2024 1224 924 824 524 Front Height Layout (Dolby Pro Logic IIz)
  • 65.
    65 123 VirtualSpeakers Virtual Speakers If you want to experience vertically falling sound but cannot place front height speakers, there’s a perfect solution. Pioneer’s Virtual Height mode (Fig. 4) creates a height sound image without placing extra speakers, letting you enjoy virtual 7.1-channel sound from a 5.1-channel speaker setting. Virtual Speakers LX88 LX78 LX58 2024 1224 924
  • 66.
    66 123 VirtualSpeakers Want to be thrilled by surrounding sound from behind, but don’t have the space for surround back speakers? Then try Virtual Surround Back mode (Fig. 5). It simulates 7.1-channel surround sound – giving the impression that you have surround back speakers – when listening to a 5.1-channel source. Virtual Speakers LX88 LX78 LX58 2024 1224 924
  • 67.
    67 123 VirtualSpeakers Virtual Wide mode (Fig. 6) is a useful solution for creating the effects of front wide speakers, letting you enjoy surround sound in a rich sound field — without placing extra speakers. Virtual Speakers LX88 LX78 LX58 2024 1224 924
  • 68.
    68 123 9chSpeaker Configurations LX88 LX78 LX58 9ch Speaker Configurations With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (A) 9.2ch channel surround system (Top middle/Front wide) connection
  • 69.
    69 123 9chSpeaker Configurations LX88 LX78 LX58 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (B) 9.2ch channel surround system (Top middle/Front height) connection
  • 70.
    70 123 9chSpeaker Configurations With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (C) 9.2 channel surround system (Top forward/Top backward) connection LX88 LX78 LX58
  • 71.
    71 123 9chSpeaker Configurations LX88 LX78 LX58 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (D) 7.2 channel surround system & Speaker B connection
  • 72.
    72 123 9chSpeaker Configurations LX88 LX78 LX58 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (E) 7.2 channel surround system & Speaker Bi-amping connection (High quality surround)
  • 73.
    73 123 9chSpeaker Configurations LX88 LX78 LX58 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (F) 7.2 channel surround system & HDZONE connection (Multi Zone)
  • 74.
    74 123 9chSpeaker Configurations With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (G) 5.2 channel surround system & Front Bi-amping connection (High quality surround) & HDZONE connection (Multi Zone) LX88 LX78 LX58
  • 75.
    75 123 9chSpeaker Configurations LX88 LX78 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (H-1) 5.2 channel surround system & ZONE 2/ZONE 3 connection (Multi Zone)
  • 76.
    76 123 9chSpeaker Configurations LX88 LX78 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (H-2) 5.2 channel surround system & ZONE 2/HDZONE connection (Multi Zone)
  • 77.
    77 123 9chSpeaker Configurations LX88 LX78 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (H-3) Multi-ZONE Music connection
  • 78.
    78 123 9chSpeaker Configurations LX88 LX78 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (I) 5.2 channel surround system & Speaker B Bi-amping connection
  • 79.
    79 123 9chSpeaker Configurations LX88 LX78 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (J) 5.2 channel surround system & Front and Surround Bi-amping connection (High quality surround)
  • 80.
    80 123 9chSpeaker Configurations LX88 LX78 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (K) 5.2 channel surround system & Front and Center Bi-amping connection (High quality surround)
  • 81.
    81 123 9chSpeaker Configurations LX88 LX78 With speaker terminals for 9 channels, various speaker layouts are available to suit your taste or usage patterns. (L) 5.2 channel surround system & Center and Surround Bi-amping connection (High quality surround)
  • 82.
    Pre-Amp Mode LX88LX78 LX58 Normal Use “All Off” Mode “Front Off” Mode “Front & Centre Off” Mode Driven by external power amp * Example image with wide speakers 82 123 Pre-Amp Mode Pre-amp Mode Pre-amp Mode shuts down the power supply to the power amplifier, providing more clear and pure sound when using the AV receiver as a pre-amplifier.
  • 83.
    83 123 FrontStage Surround Advance LX88 LX78 LX58 2024 1224 924 824 524 329 Front Stage Surround Advance With Front Stage Surround Advance, you can enjoy surround sound coming from only the front speakers and the subwoofer.
  • 84.
    LX88 LX78 LX58 3 elements of cinema sound controlled by optimum surround Bass boost Dialogue enhancement Surround sound enhancement 84 123 Optimum Surround Optimum Surround This Pioneer-exclusive listening mode automatically optimises the balance between bass, dialogue, and surround sound in order to bring home the real thrills of a movie as intended by the creators.
  • 85.
  • 86.
    86 123 USB-DAC USB-DAC LX88 Eliminates jitter, reproducing master quality sound with extremely precise audio signals, even for Hi-bit32 Audio Signal Processing.
  • 87.
    87 123 HDMI(ARC) HDMI (ARC) LX88 LX78 LX58 2024 1224 924 824 524 329 Enjoy full-digital transfer of high definition audio as well as up to 4K video signals by HDMI connection.
  • 88.
    88 123 Madefor iPod and iPhone LX88 LX78 LX58 2024 1224 924 824
  • 89.
    89 123 Madefor iPod and iPhone 524 329
  • 90.
    90 123 iPodDigital Audio via USB LX88 LX78 LX58 2024 1224 924 824 524 329 iPod Digital Audio via USB The audio signals from your iPod are transferred directly to the AV receiver’s high-performance DAC, offering superior sound compared to analogue connections. You can also operate your iPod with the AV receiver’s remote control.
  • 91.
    91 123 AndroidAudio/Video Playback with MHL LX88 LX78 LX58 2024 1224 924 824 Android Audio/Video Playback with MHL One of the HDMI terminals is MHL (Mobile High-Definition Link) compatible and allows you to connect your Android smartphone or tablet. High-definition video can be displayed on your HDTV with multi-channel sound, while also charging your device. *Optional MHL cable (micro-USB to HDMI) required
  • 92.
    92 123 HTCConnect certified LX88 LX78 LX58 2024 1224 924 824 HTC Connect certified Pioneer is the first leading partner to provide HTC Connect certified devices. Through wireless transmission, HTC Connect lets you easily stream high-quality audio from compatible devices, such as Android phones, with no need for a separate app.
  • 93.
    93 123 FrontUSB Input LX88 LX78 LX58 2024 1224 924 824 Front USB Input The front panel USB input terminal allows a straightforward connection with a USB memory stick. This plug and play connectivity enables you to easily play music files or watch JPEG pictures.
  • 94.
  • 95.
    95 123 AirPlayCertified LX88 LX78 LX58 2024 1224 924 824 AirPlay Certified AirPlay — Enthusiasts have complete access, control and playback of their entire iTunes music library wirelessly through their AV receiver. AirPlay Connection Examples
  • 96.
    Digital Media Server(DMS) Stores and distributes content to DMP/DMR Example: PC Digital Media Player (DMP) Finds and plays content on DMS Example: TV, stereo/home theatre, game console Digital Media Controller (DMC) Finds content on DMS for playback on DMR Example: Internet tablet, Wi-Fi digital camera, PDA Digital Media Renderer (DMR) Plays content received from DMC, which finds content on DMS Example: TV, AV Receiver, remote speakers 96 123 DLNA Certified (1.5) LX88 LX78 LX58 2024 1224 924 824
  • 97.
    97 123 Networkfeatures LX88 LX78 LX58 2024 1224 924 824 Network features Compatible with Windows 8.1* Compatible with Windows 7 Spotify High-Quality Audio Streaming Ready Internet Radio (vTuner) * SC-LX88 is compatible with Windows 8
  • 98.
  • 99.
    99 123 iControlAV5Ready LX88 LX78 LX58 2024 1224 924 824 iControlAV5 Ready iControlAV5 is an iPod touch, iPhone and iPad application developed by Pioneer, freely downloadable from the App Store or Google Play.
  • 100.
    100 123 iControlAV5Ready LX88 LX78 LX58 2024 1224 924 824 The AV SCALER lets you easily select the input and output signals for both audio and video content by drawing a line with your finger.
  • 101.
    101 123 iControlAV5Ready LX88 LX78 LX58 2024 1224 924 824 The new STATUS VIEWER provides graphical display of input/output and status of the playing content, and the image of both real and virtual speakers. You can enjoy intuitive control for Input, Link, Phase, and Channel Level.
  • 102.
    102 123 iControlAV5Ready LX88 LX78 LX58 2024 1224 924 824 With the CURSOR function, up/down/ left/right operations can be done on the app, instead of using the remote control. The button display changes to correspond to the function on the AV receiver.
  • 103.
    103 123 iControlAV5Ready LX88 LX78 LX58 2024 1224 924 824 The new Sound Explorer option lets you easily adjust and discover the various sound parameters.
  • 104.
    104 123 iControlAV5Ready LX88 LX78 LX58 2024 1224 924 824 You can directly stream music stored on your device such as smartphone, for playback via the AV receiver.
  • 105.
    105 123 Built-inBluetooth LX88 LX78 LX58 2024 1224 924 Built-in Bluetooth Easily stream songs from compatible devices with the built-in Bluetooth® Wireless Technology (ver. 3.0). The AV receivers feature Advanced Audio Distribution Profile (A2DP) and Audio/Video Remote Control Profile (AVRCP). Supported codecs include SBC, AAC, and aptX. The aptX format compresses audio files for wireless transmission without affecting the quality.
  • 106.
    106 123 Built-inAVNavigator LX88 LX78 LX58 2024 1224 924 Built-in AVNavigator AVNavigator is now built-in, and you can easily set up the AV receiver straight out of the box on your PC/Mac/iPad/smartphone.
  • 107.
    107 123 AVNavigator:Wiring Navi LX88 LX78 LX58 2024 1224 924 AVNavigator: Wiring Navi By answering questions about your equipment and terminals, the actual connection image will be displayed. Plug in your equipment and speakers accordingly, including the network connection with your device then transmit the setup information to the AV receiver from your PC/Mac/iPad/smartphone.
  • 108.
    108 123 AVNavigator:Interactive Operation Guide LX88 LX78 LX58 2024 1224 924 AVNavigator: Interactive Operation Guide This new feature gives a quick tutorial on basic operations using illustrations and animations, allowing you to start right off without referring to the user manual.
  • 109.
    109 123 AVNavigatorfor iPad LX88 LX78 LX58 2024 1224 924 AVNavigator for iPad This free application helps you with the AV receiver’s wiring and setup using your iPad, available on the App Store. In addition to the Wiring Navi and Interactive Operation Guide, you can browse and save MCACC measurement data as well as download the Instruction Manual on your iPad.
  • 110.
    110 123 WirelessLAN Converter Ready 2024 1224 924 824 Wireless LAN Converter Ready Enjoy a wireless LAN connection for your AV receiver with the optional AS-WL300 wireless LAN converter.This LAN converter works with power supply from the AV receiver’s dedicated USB terminal, so no AC adapter is required.
  • 111.
    111 123 HDMIZone Out (HDZONE) LX88 LX78 LX58 2024 1224 924 HDMI Zone Out (HDZONE) With Pioneer’s HDMI Zone Out, you can stream HD audio/video content to a separate room. If unused for HDZONE, the terminal can be used for MAIN ZONE OUT 2.
  • 112.
    112 123 Multi-Zone(ZONE 2) LX88 LX78 LX58 2024 1224 924 Multi-Zone (ZONE 2) With Pioneer’s Multi-Zone, you can play music and movies from different sources in two zones at the same time.
  • 113.
    113 123 Multi-Zone(ZONE 2/3) LX88 LX78 LX58 2024 1224 924 Multi-Zone (ZONE 2/3) With Pioneer’s Multi-Zone, you can play music and video from different sources in 2 or 3 zones at the same time. SC-LX88/LX78/ LX58/2024 SC-1224/VSX-924 Zone 2 audio, subwoofer, volume, balance and tone. Zone 3 audio, volume and balance. Zone 2 audio, volume, balance and tone.
  • 114.
    114 123 Controlwith HDMI LX88 LX78 LX58 2024 1224 924 824 Control with HDMI HDMI connection with compatible products allows the following linked operations: §§ Volume adjustment/mute of AV receiver via TV. §§ Automatic input change when TV channel is switched or playback starts on a player. §§ Linked power on/off with TV. * For details on compatible TV and components, see http://pioneer.jp/homeav/support/hdmi_cec/
  • 115.
    LX88 LX78 LX582024 1224 924 824 524 Standby Pass-Through 115 123 Standby Pass-Through without CEC Standby Pass-Through without CEC With standby pass-through, the AV receiver can pass audio and video signals via HDMI even during standby.
  • 116.
    116 123 SimpleOverlay OSD LX88 LX78 LX58 2024 1224 924 Simple Overlay OSD Even when the front FL display is not visible, users can see the AV receiver’s operation status on the TV screen. The audio/video parameters can be adjusted while you actually listen to the sound or see the image — a useful feature if you use a projector, or have the AV receiver hidden inside a cabinet. Simple overlay OSD
  • 117.
    117 123 GUIfor Smooth Operation LX88 LX78 LX58 2024 1224 924 GUI for Smooth Operation The GUI on the latest AV receivers has been further refined, resulting in enhanced ease-of-use. Each function has a dedicated GUI screen, displaying, for instance, iPod/iPhone data, speaker settings, or EQ adjustments, in 7 selectable languages (English, French, Italian, German, Spanish, Dutch, and Russian). GUI Images Reverb Characteristics iPod/iPhone Zone 2 EQ Adjustments
  • 118.
    118 123 ECOfriendly
  • 119.
    119 123 ECOMode 1 ECO Mode 1 LX88 LX78 LX58 2024 1224 924 824 524 329 §§ ECO Mode 1 features moderate energy saving operation while maintaining high-quality sound, ideal for CD music. §§ 20% power reduction compared with normal surround mode
  • 120.
    120 123 ECOMode 2 ECO Mode 2 LX88 LX78 LX58 2024 1224 924 824 524 329 §§ ECO Mode 2 features moderate sound quality, suitable for content with dynamic sound such as movies (multi-channel/2channel) or live concerts. §§ 50% power reduction compared with general analogue AMP.
  • 121.
    121 123 ECOManager LX88 LX78 LX58 2024 1224 924 824 ECO Manager The ECO Manager option in iControlAV5 lets you manage all the energy efficient settings (During Playback/At Stand-By/When Not in Use) on your AV receiver from your smart device.
  • 122.
    122 123 Stand-bypower reduction LX88 LX78 LX58 2024 1224 924 824 524 329 Stand-by power reduction All of our 2014 AV receivers use only 0.1w power consumption in stand-by mode.
  • 123.
    Pioneer AV Receivers2014 Visit www.pioneer.com.au/av-receivers for our line-up & full details 123 123
