2015 Structures Congress - One Jackson Square
- 1. Case Study: OneJackson Square Philip Murray, PE Karl Rubenacker, PE, SE April 23RD , 2015 ASCE Structures Congress 2015

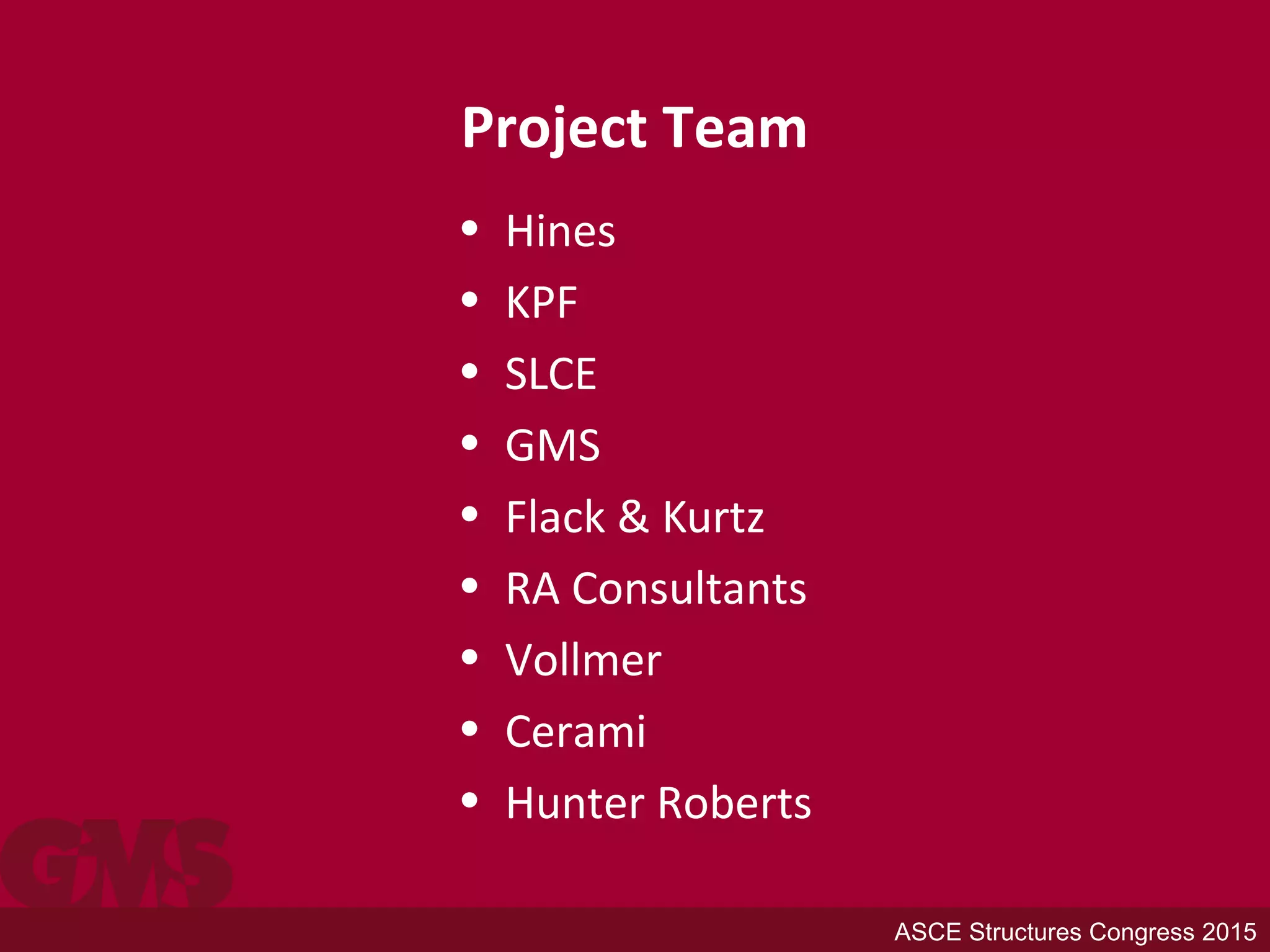

- 2. Project Team • Hines •KPF • SLCE • GMS • Flack & Kurtz • RA Consultants • Vollmer • Cerami • Hunter Roberts ASCE Structures Congress 2015

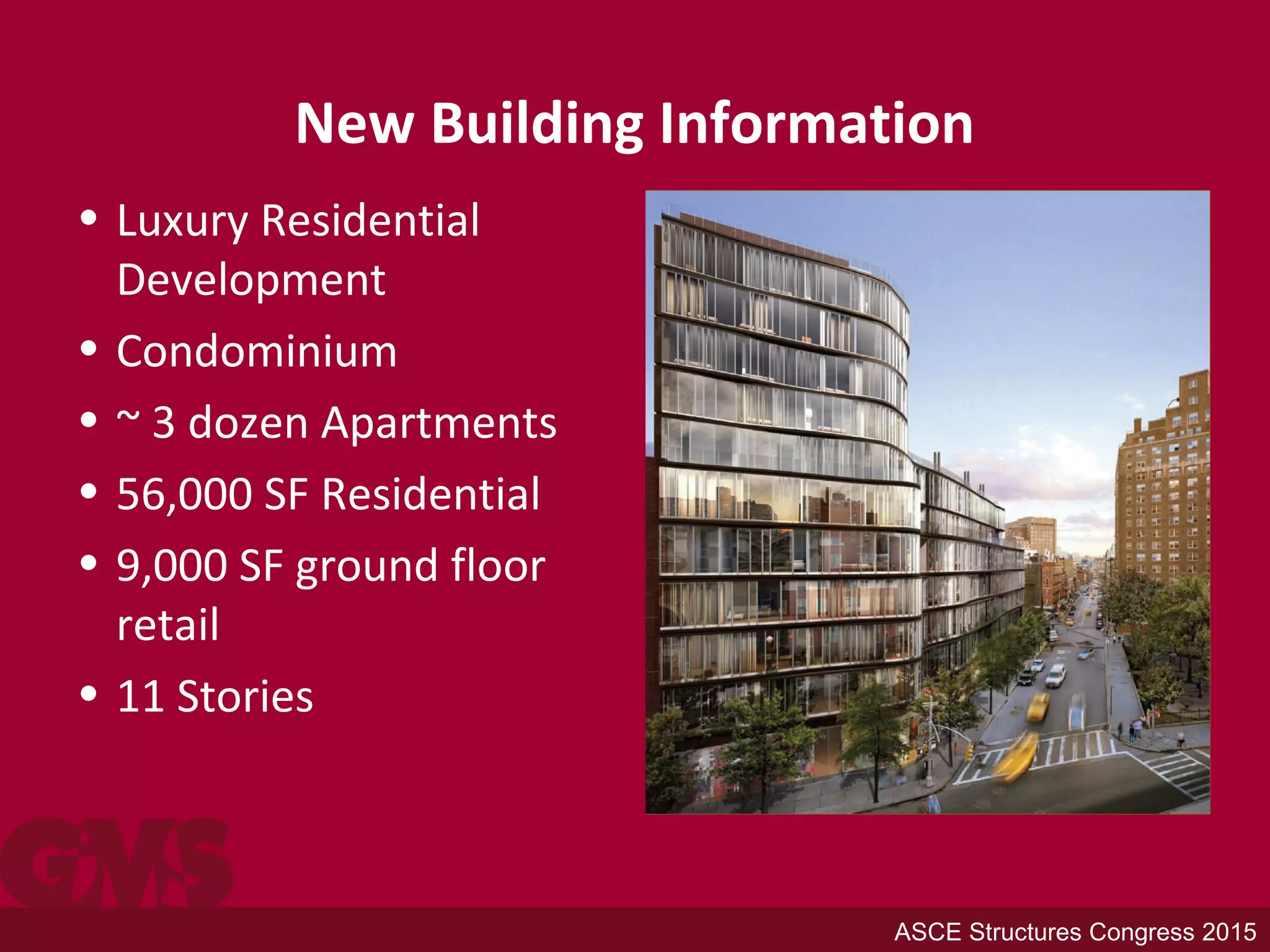

- 3. New Building Information •Luxury Residential Development • Condominium • ~ 3 dozen Apartments • 56,000 SF Residential • 9,000 SF ground floor retail • 11 Stories ASCE Structures Congress 2015

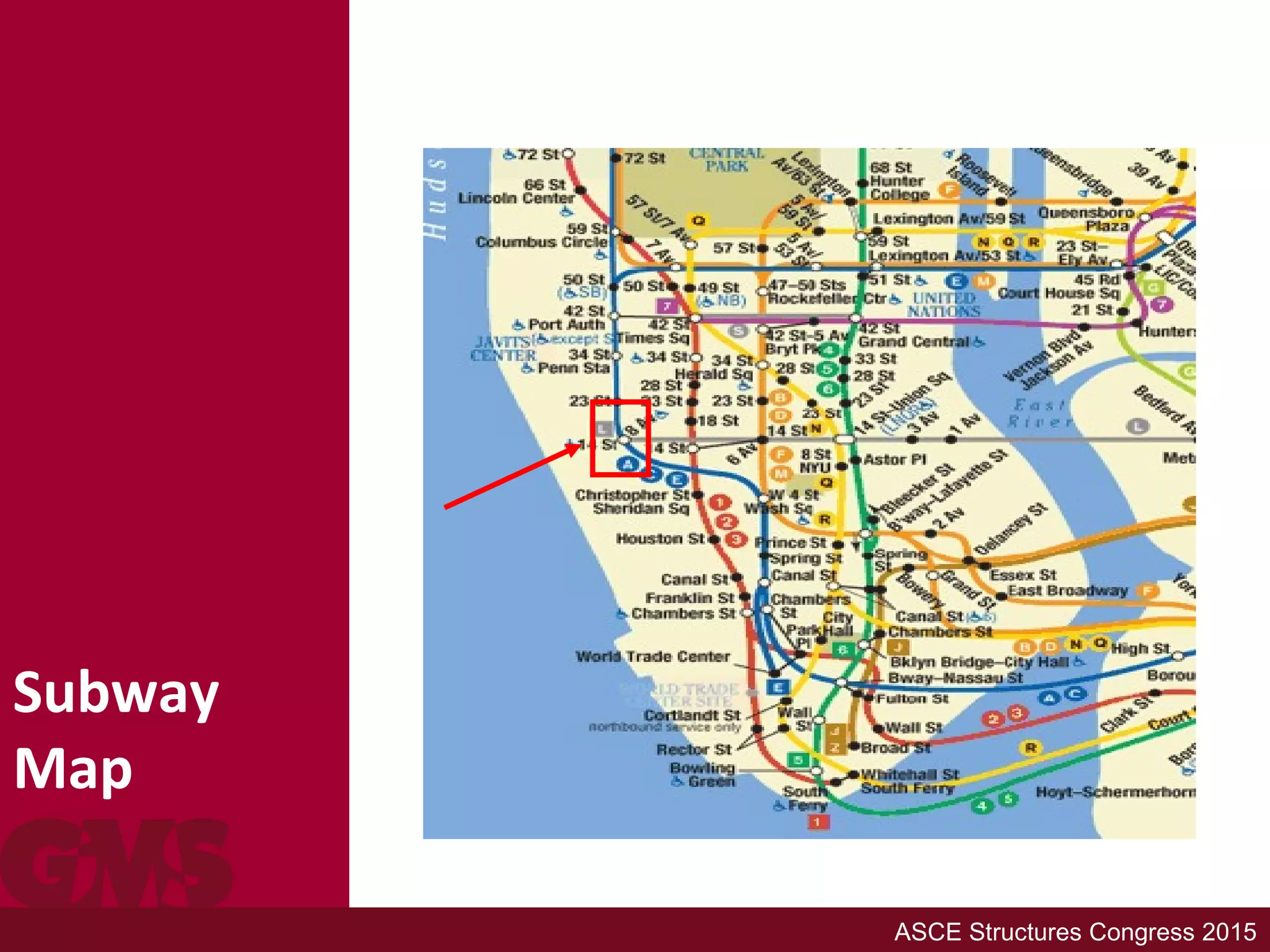

- 4.

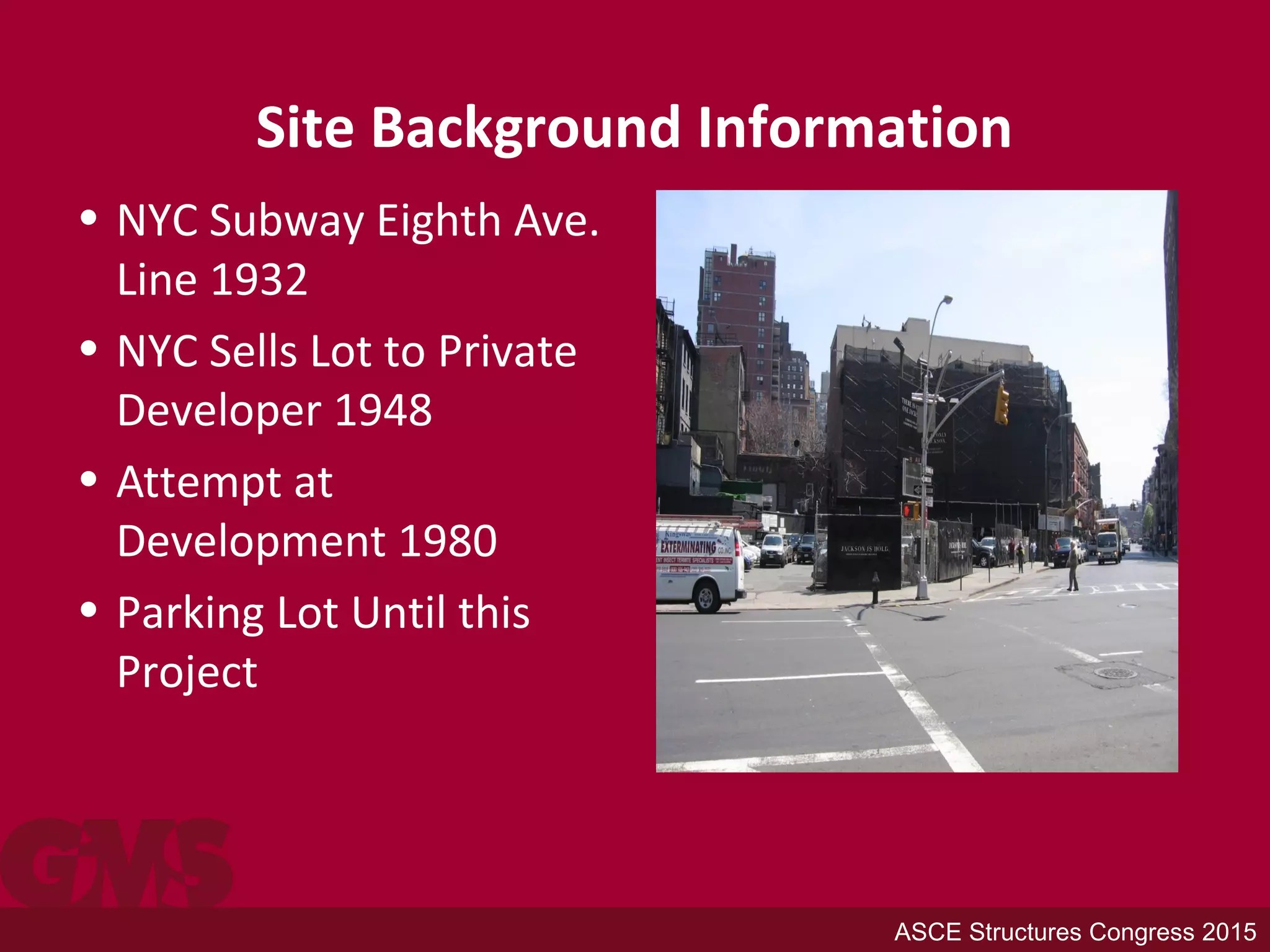

- 5. Site Background Information •NYC Subway Eighth Ave. Line 1932 • NYC Sells Lot to Private Developer 1948 • Attempt at Development 1980 • Parking Lot Until this Project ASCE Structures Congress 2015

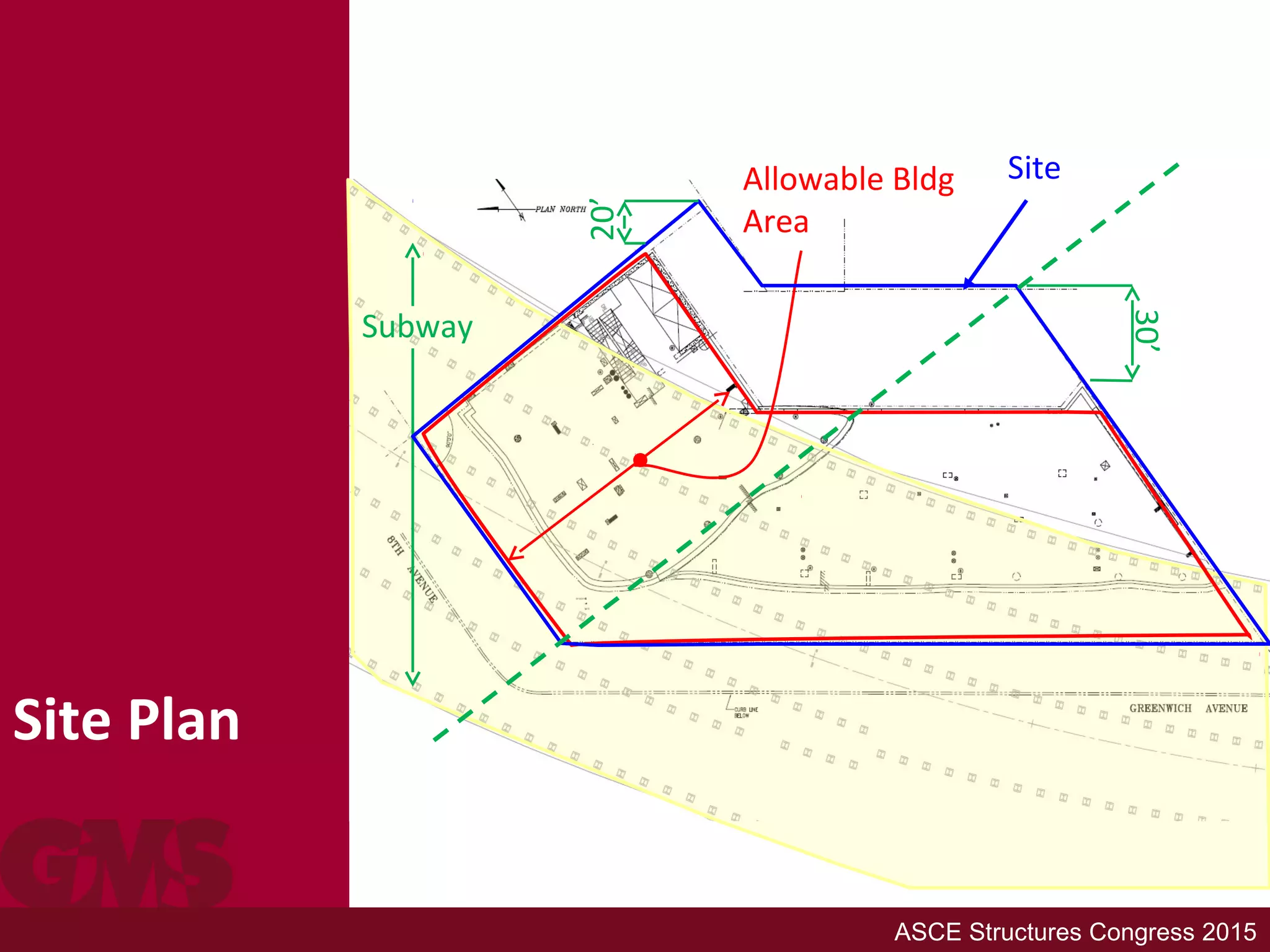

- 6. 20’ Site Plan Site Subway ASCE StructuresCongress 2015 Allowable Bldg Area 30’

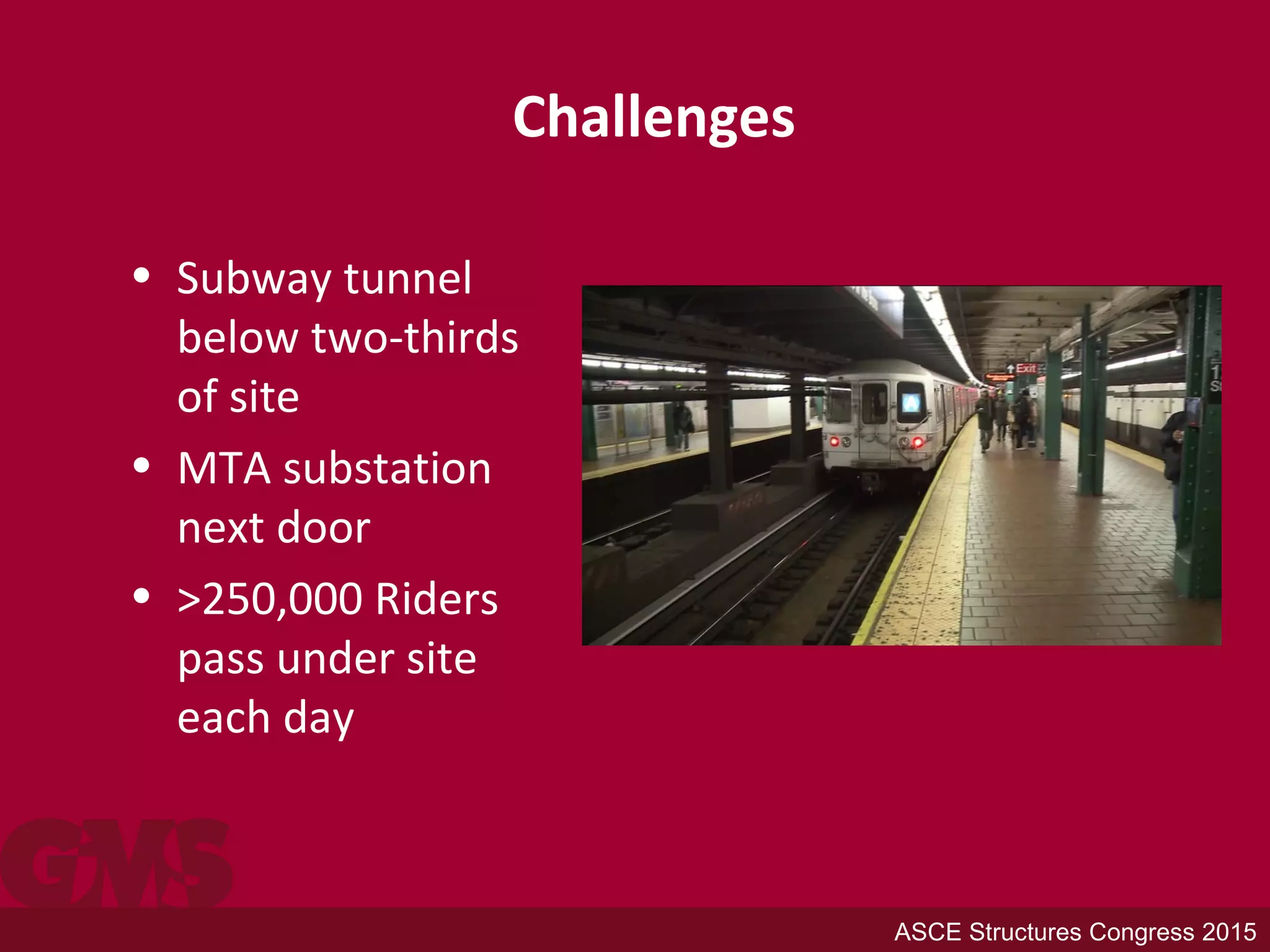

- 7. Challenges • Subway tunnel belowtwo-thirds of site • MTA substation next door • >250,000 Riders pass under site each day ASCE Structures Congress 2015

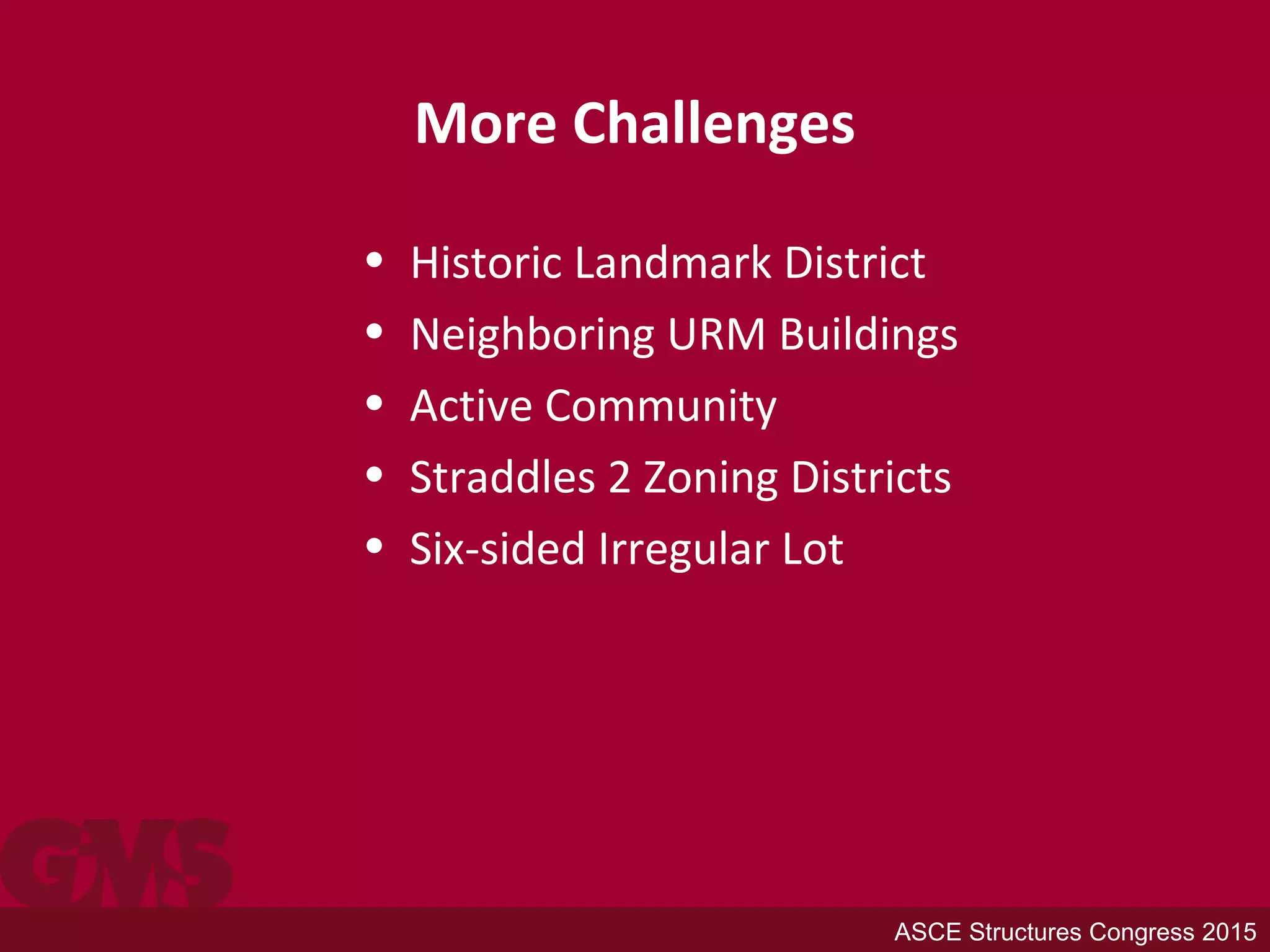

- 8. More Challenges • HistoricLandmark District • Neighboring URM Buildings • Active Community • Straddles 2 Zoning Districts • Six-sided Irregular Lot ASCE Structures Congress 2015

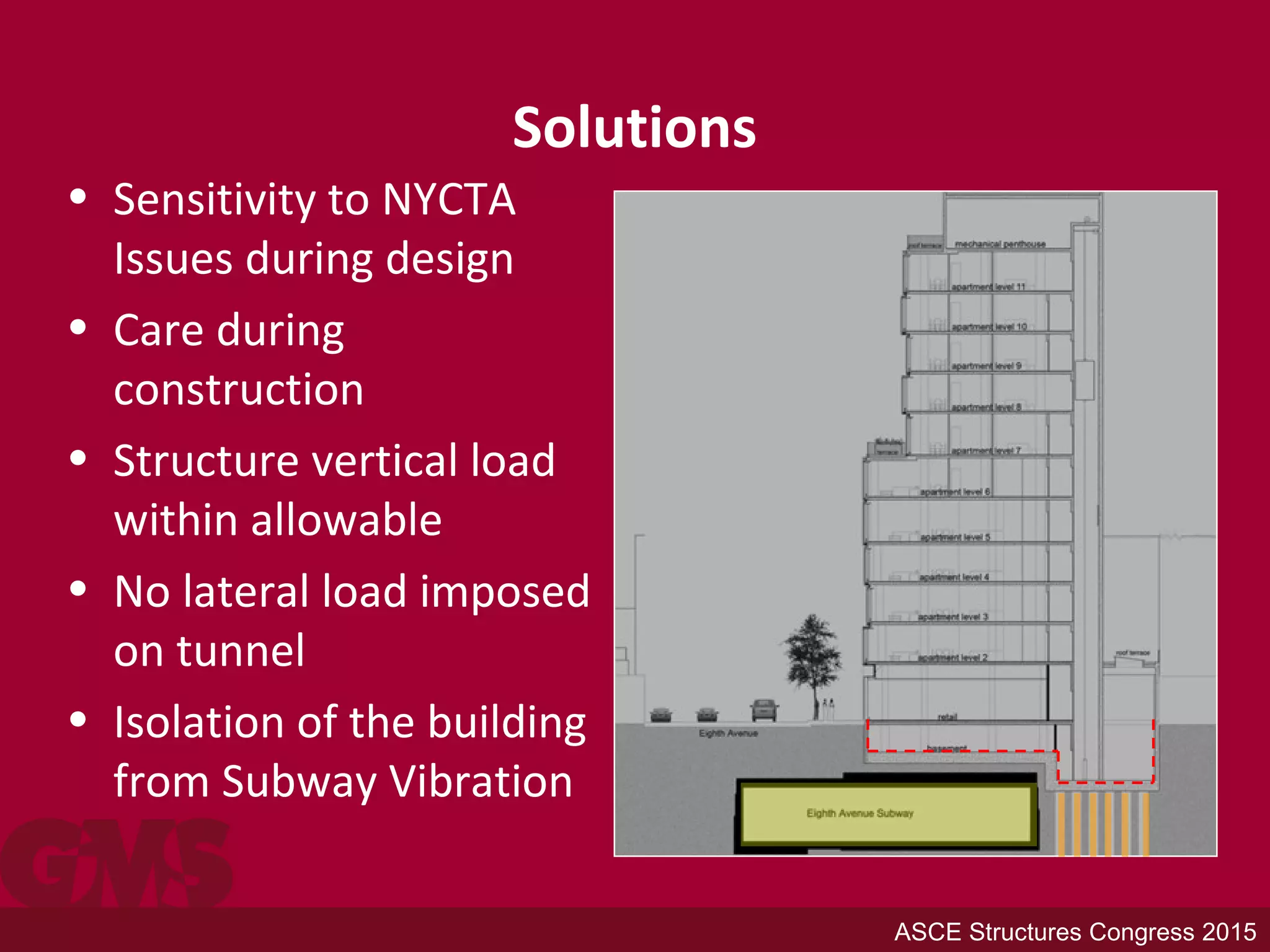

- 9. Solutions • Sensitivity toNYCTA Issues during design • Care during construction • Structure vertical load within allowable • No lateral load imposed on tunnel • Isolation of the building from Subway Vibration ASCE Structures Congress 2015

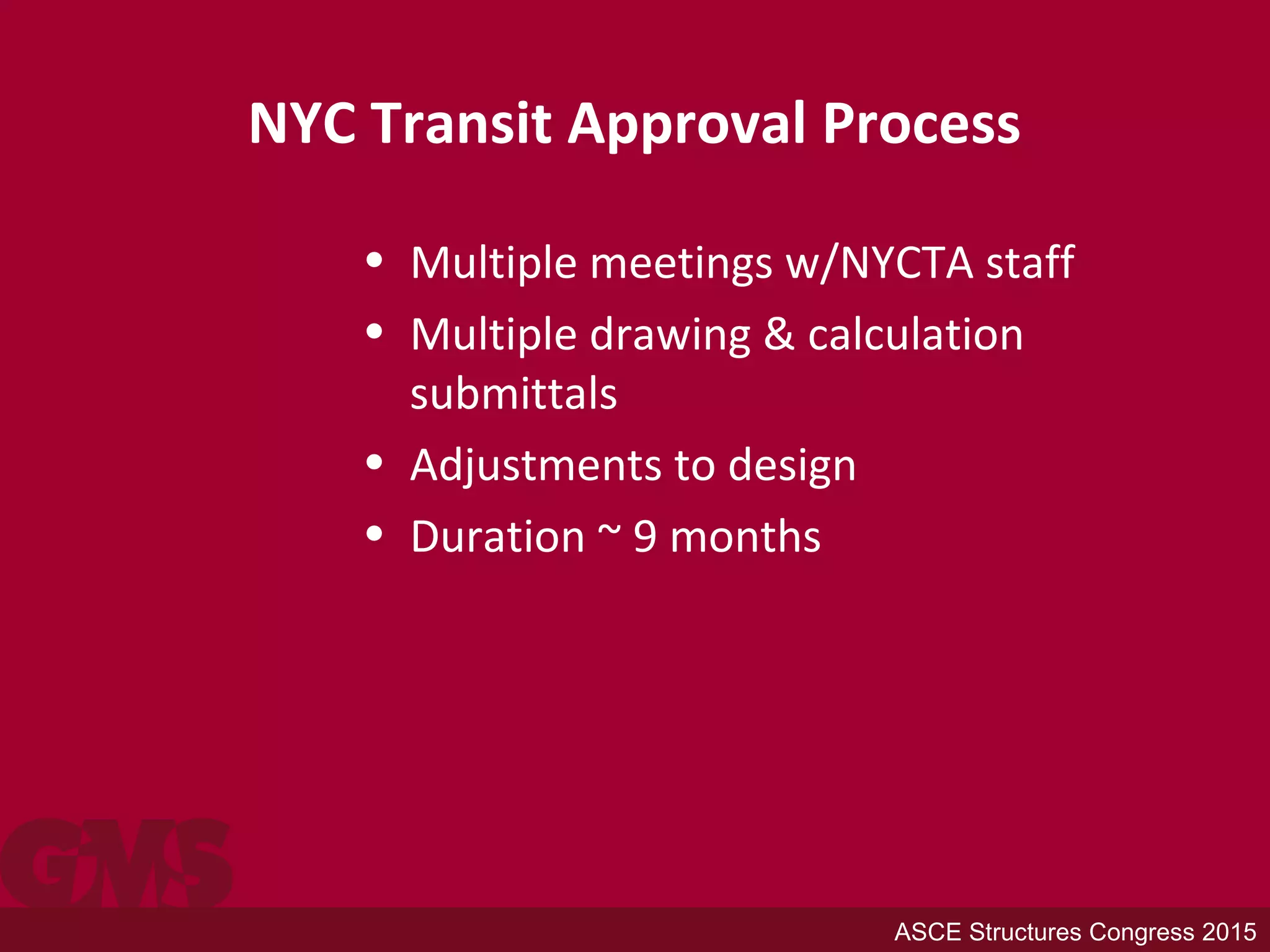

- 10. NYC Transit ApprovalProcess • Multiple meetings w/NYCTA staff • Multiple drawing & calculation submittals • Adjustments to design • Duration ~ 9 months ASCE Structures Congress 2015

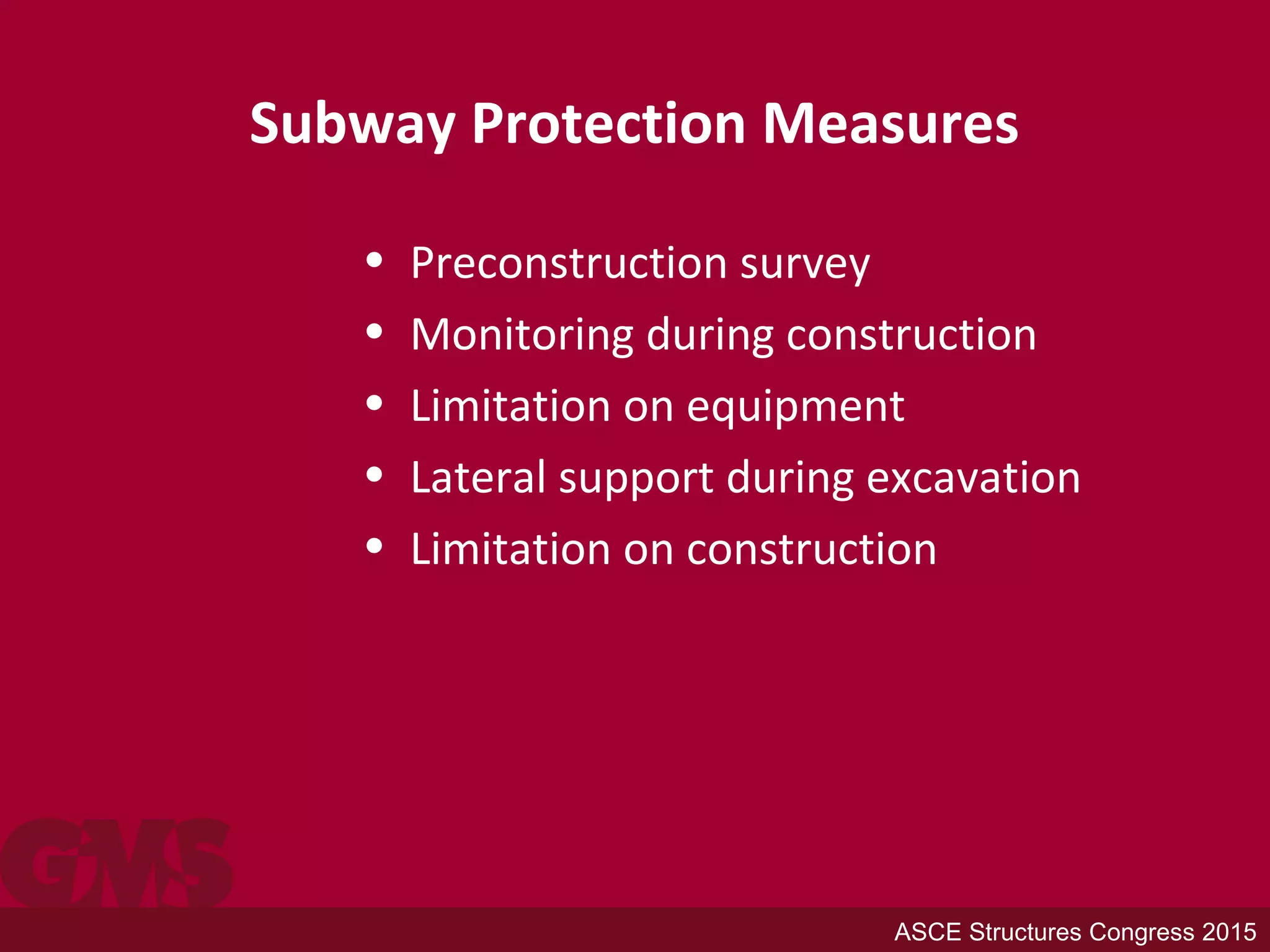

- 11. Subway Protection Measures •Preconstruction survey • Monitoring during construction • Limitation on equipment • Lateral support during excavation • Limitation on construction ASCE Structures Congress 2015

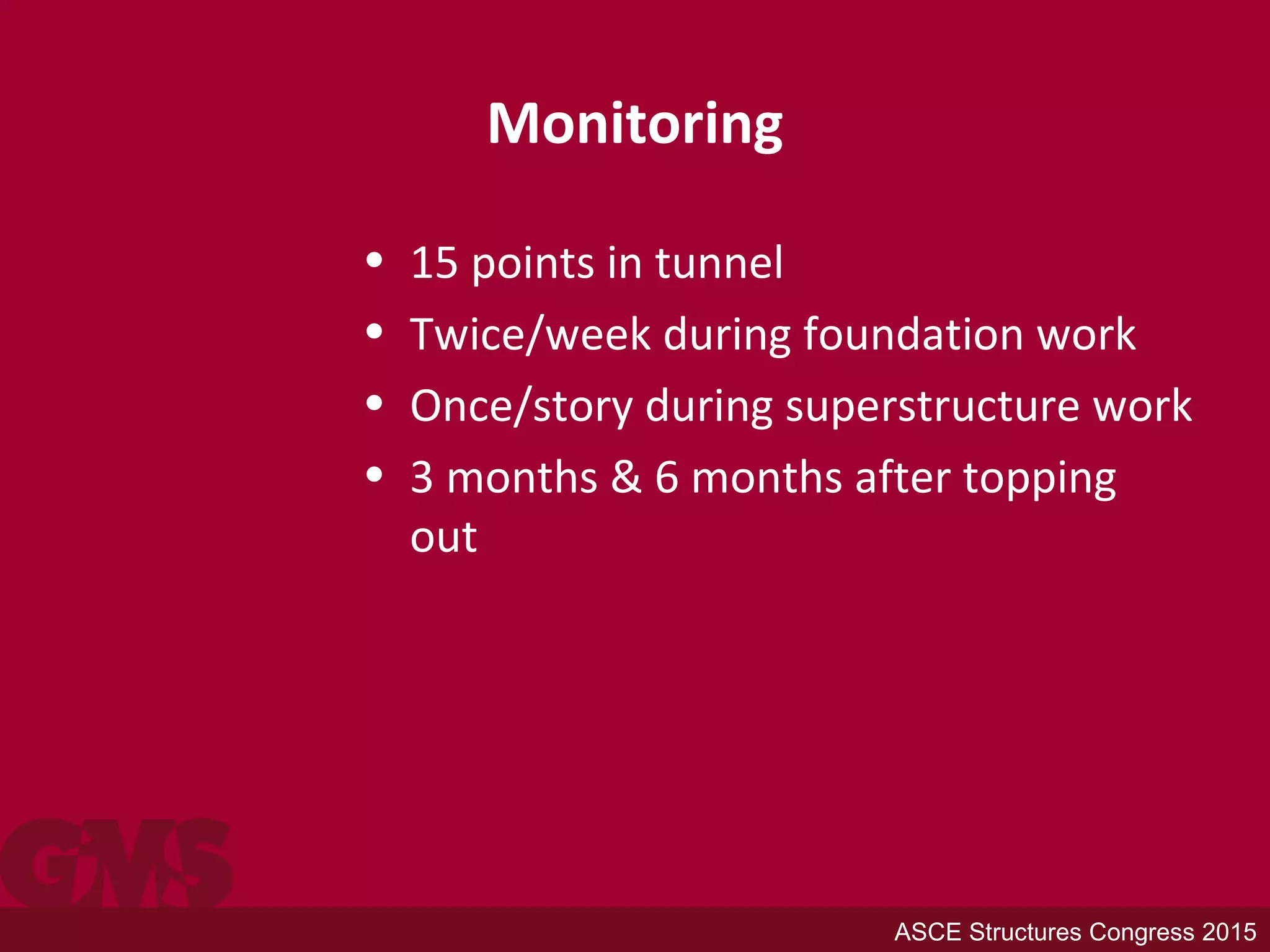

- 12. Monitoring • 15 pointsin tunnel • Twice/week during foundation work • Once/story during superstructure work • 3 months & 6 months after topping out ASCE Structures Congress 2015

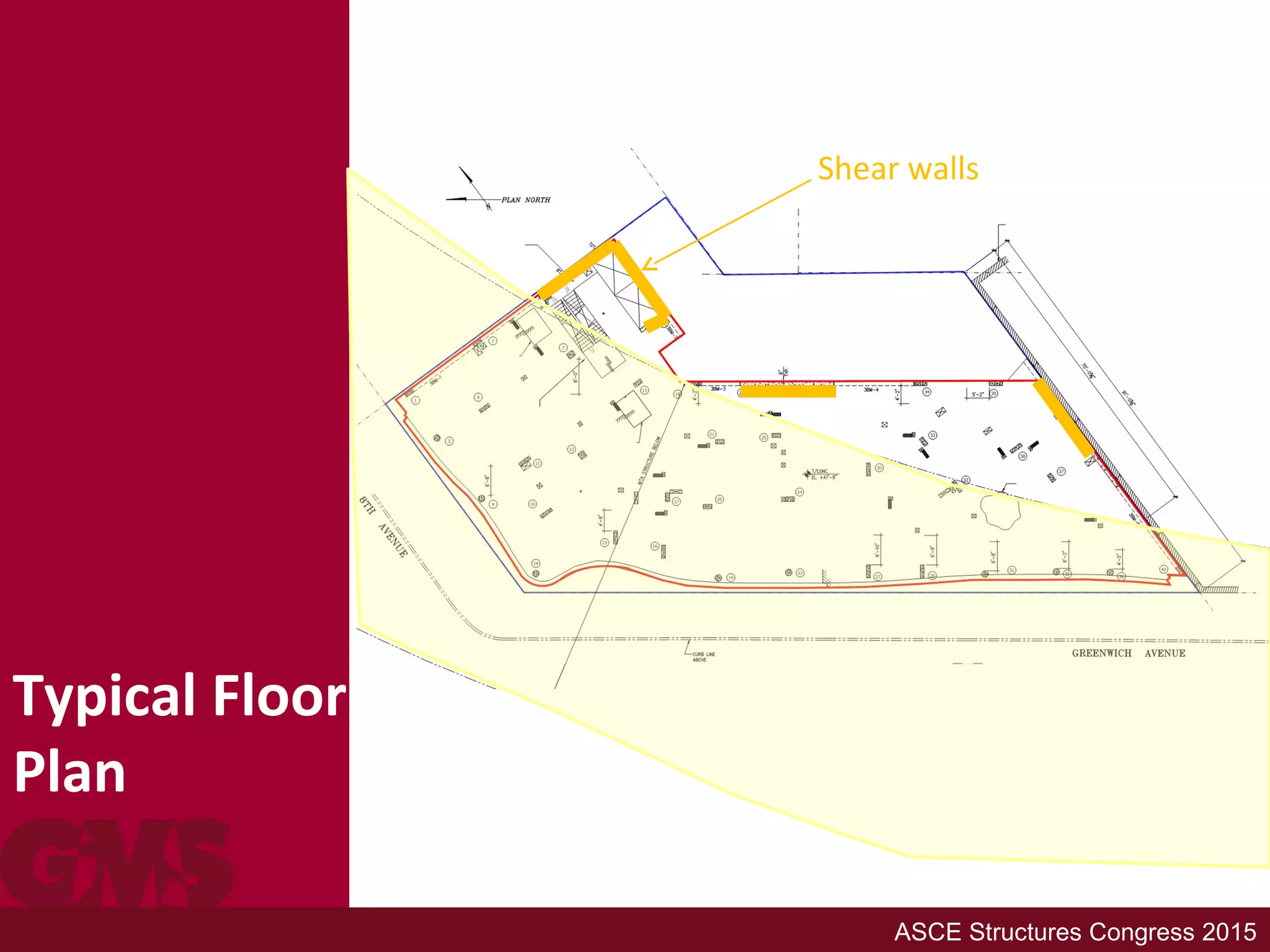

- 13. Typical Floor Plan ASCE StructuresCongress 2015 Shear walls

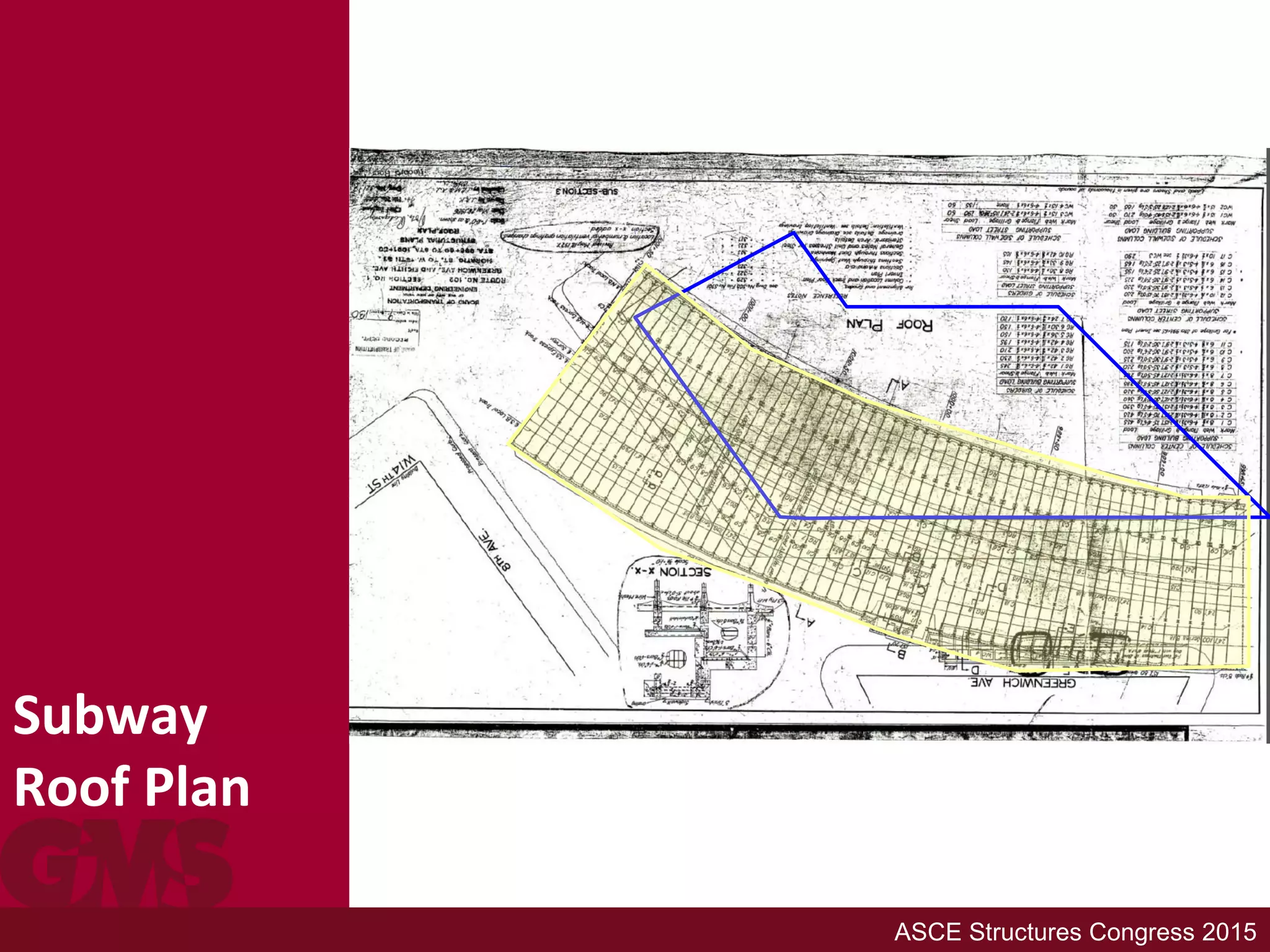

- 14. Subway Roof Plan ASCE StructuresCongress 2015

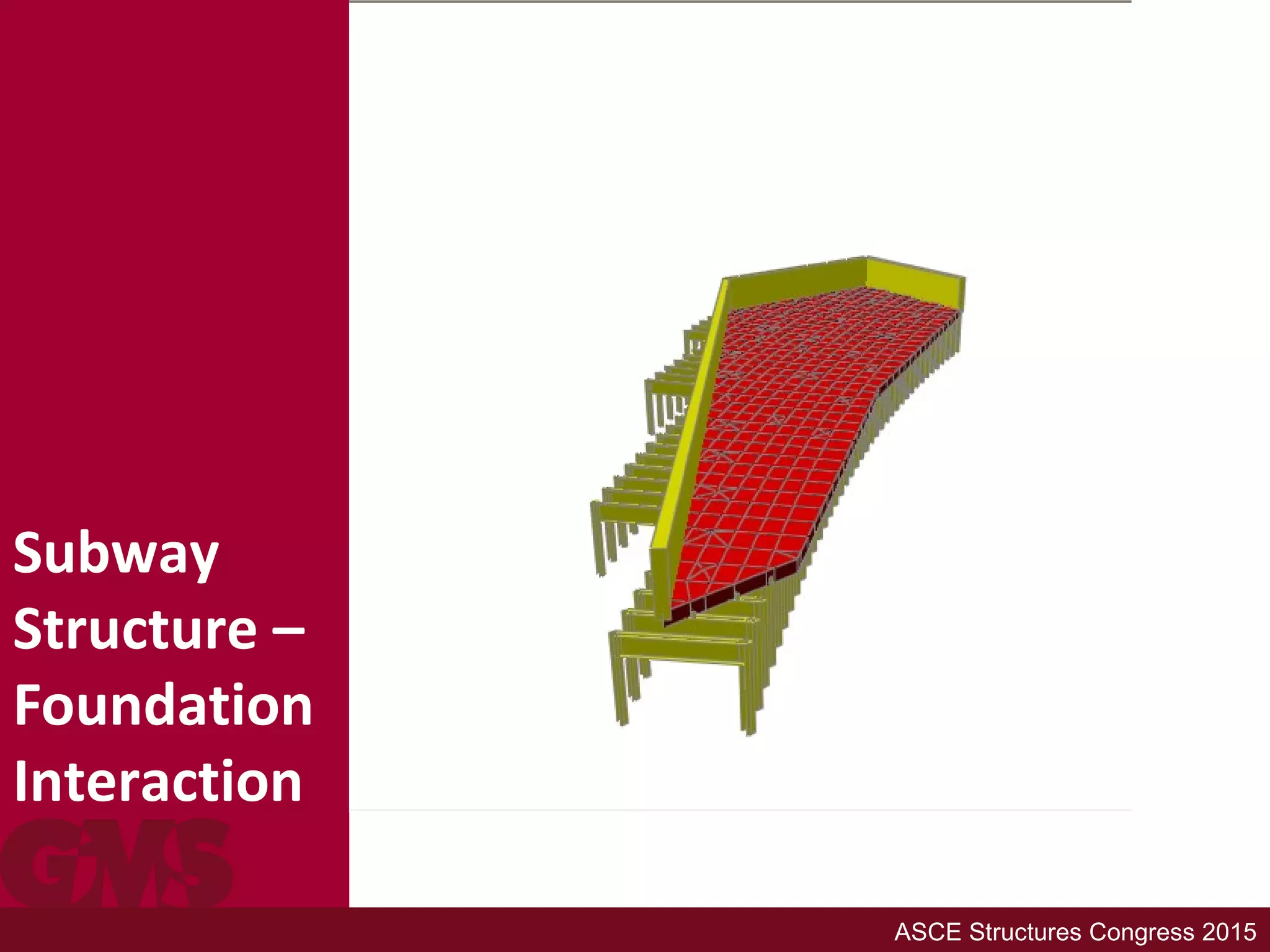

- 15.

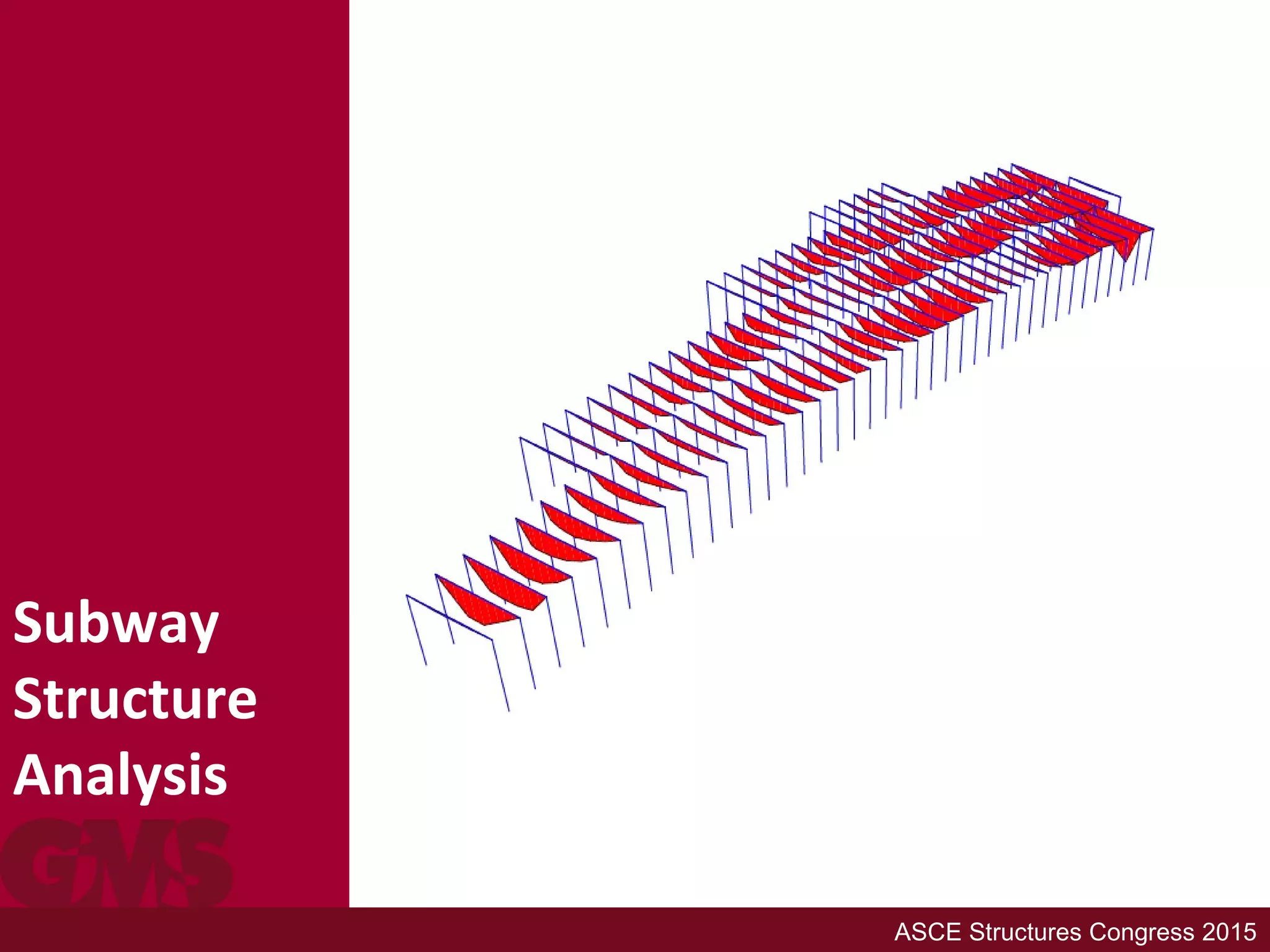

- 16.

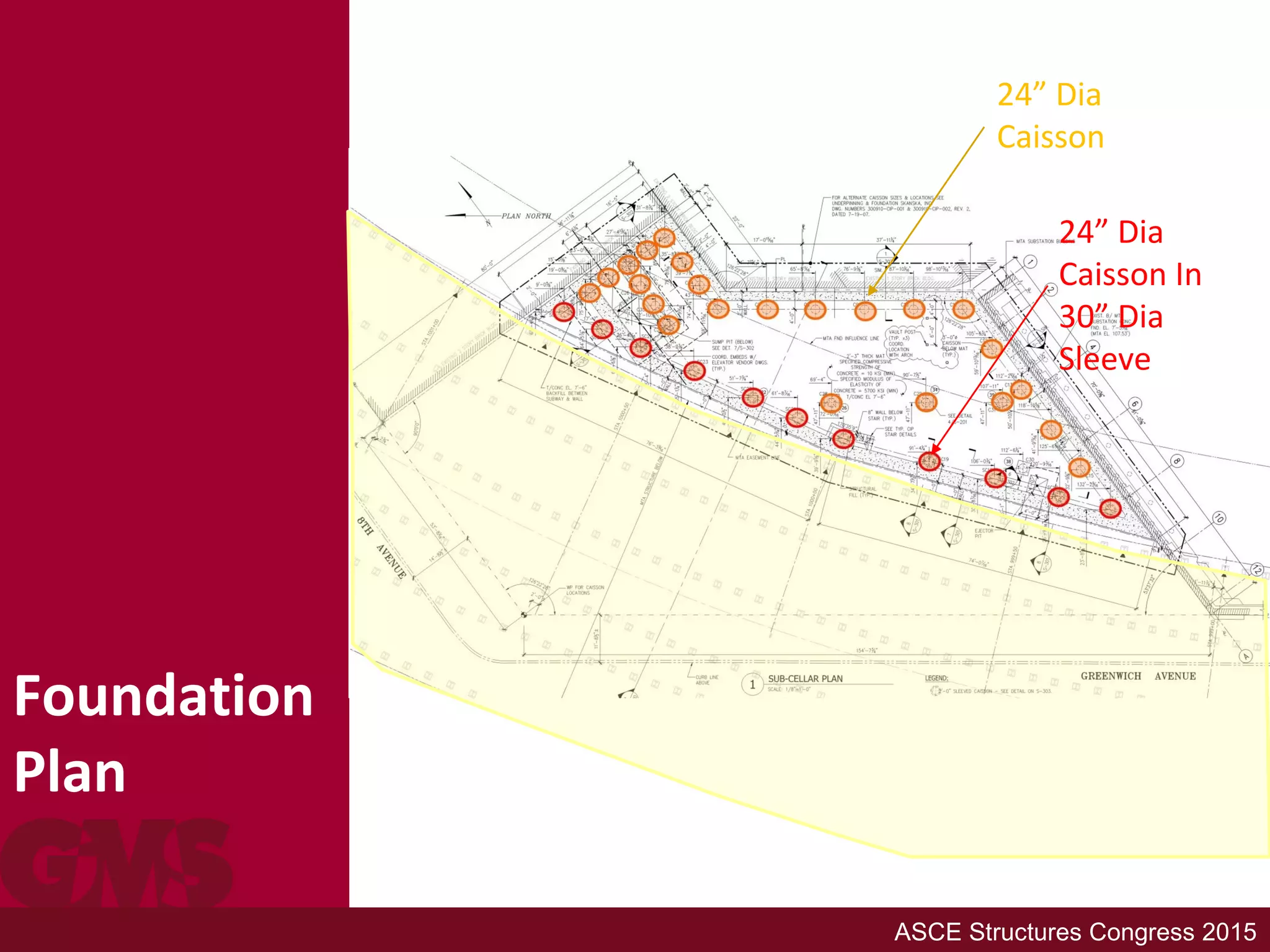

- 17. Foundation Plan ASCE Structures Congress2015 24” Dia Caisson In 30” Dia Sleeve 24” Dia Caisson

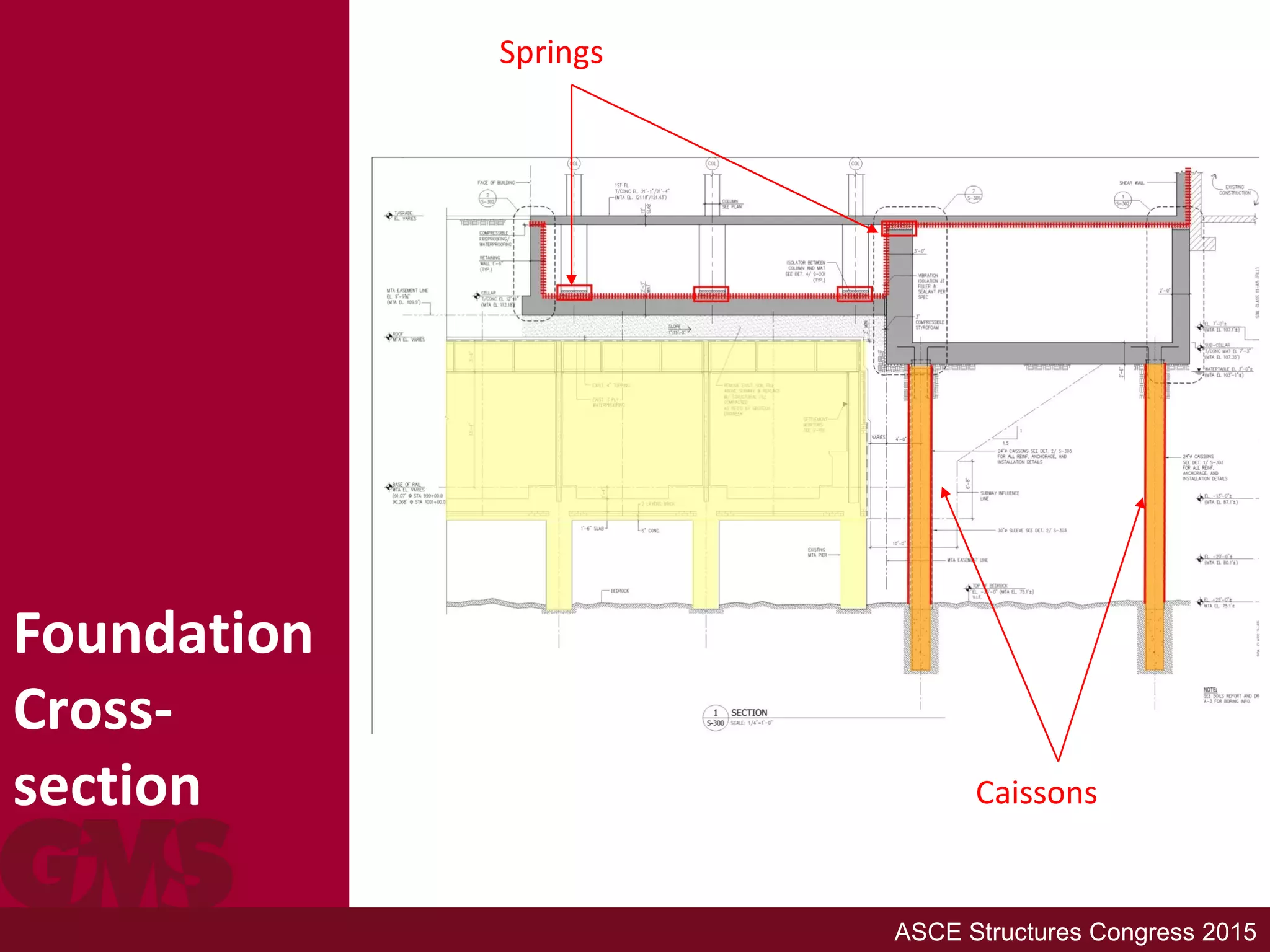

- 18. Foundation Cross- section ASCE Structures Congress2015 Springs Caissons

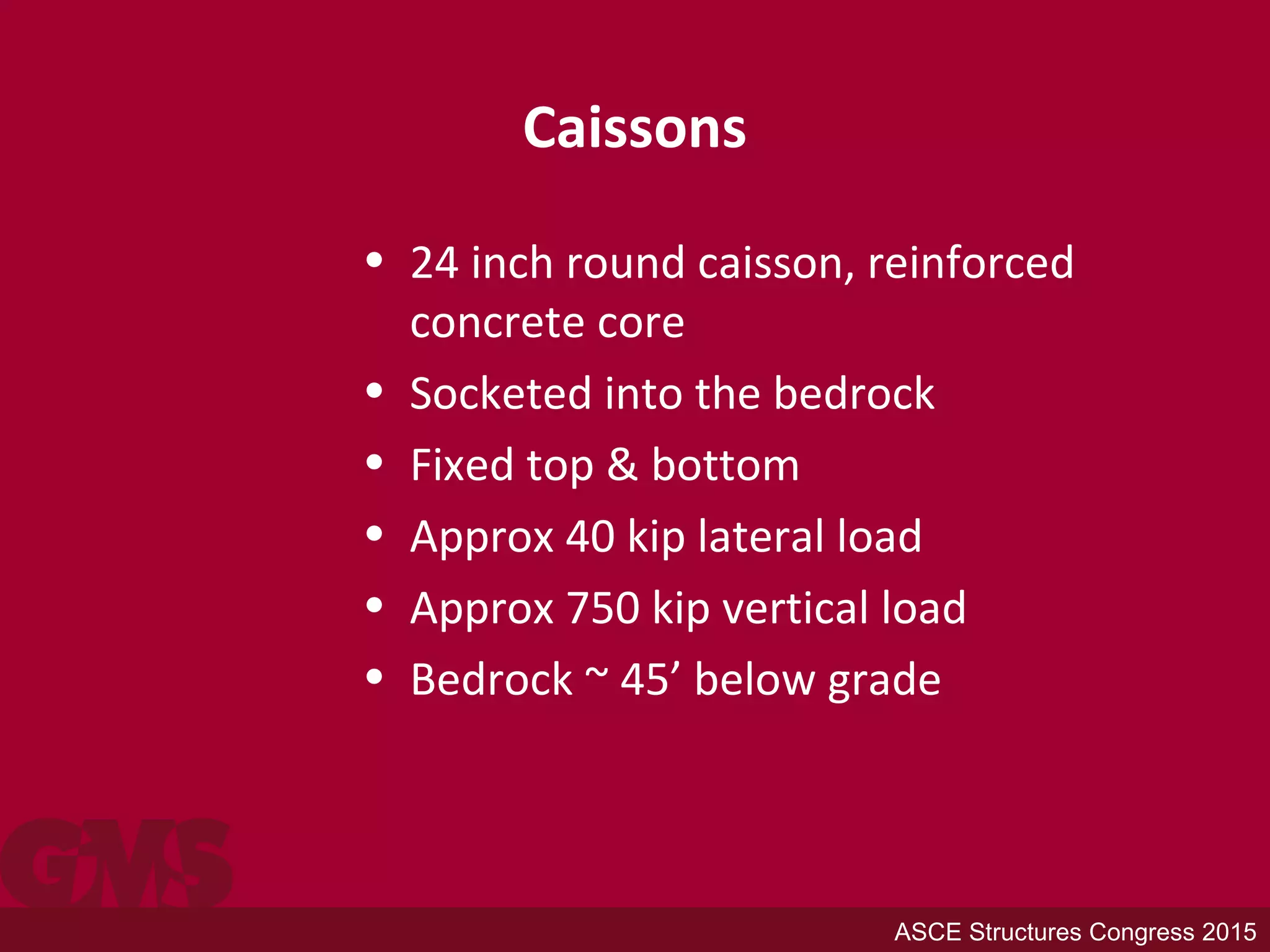

- 19. Caissons • 24 inchround caisson, reinforced concrete core • Socketed into the bedrock • Fixed top & bottom • Approx 40 kip lateral load • Approx 750 kip vertical load • Bedrock ~ 45’ below grade ASCE Structures Congress 2015

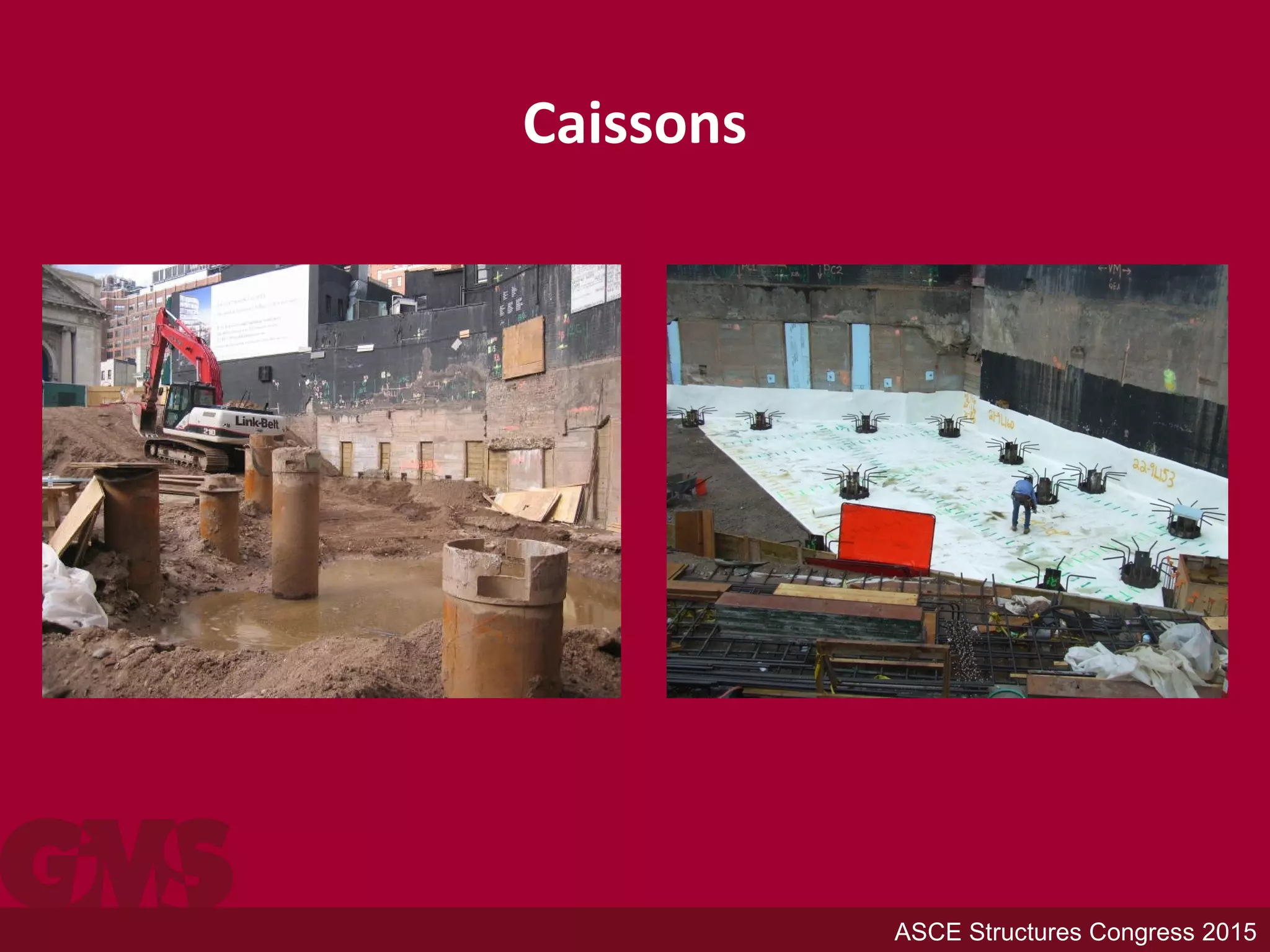

- 20.

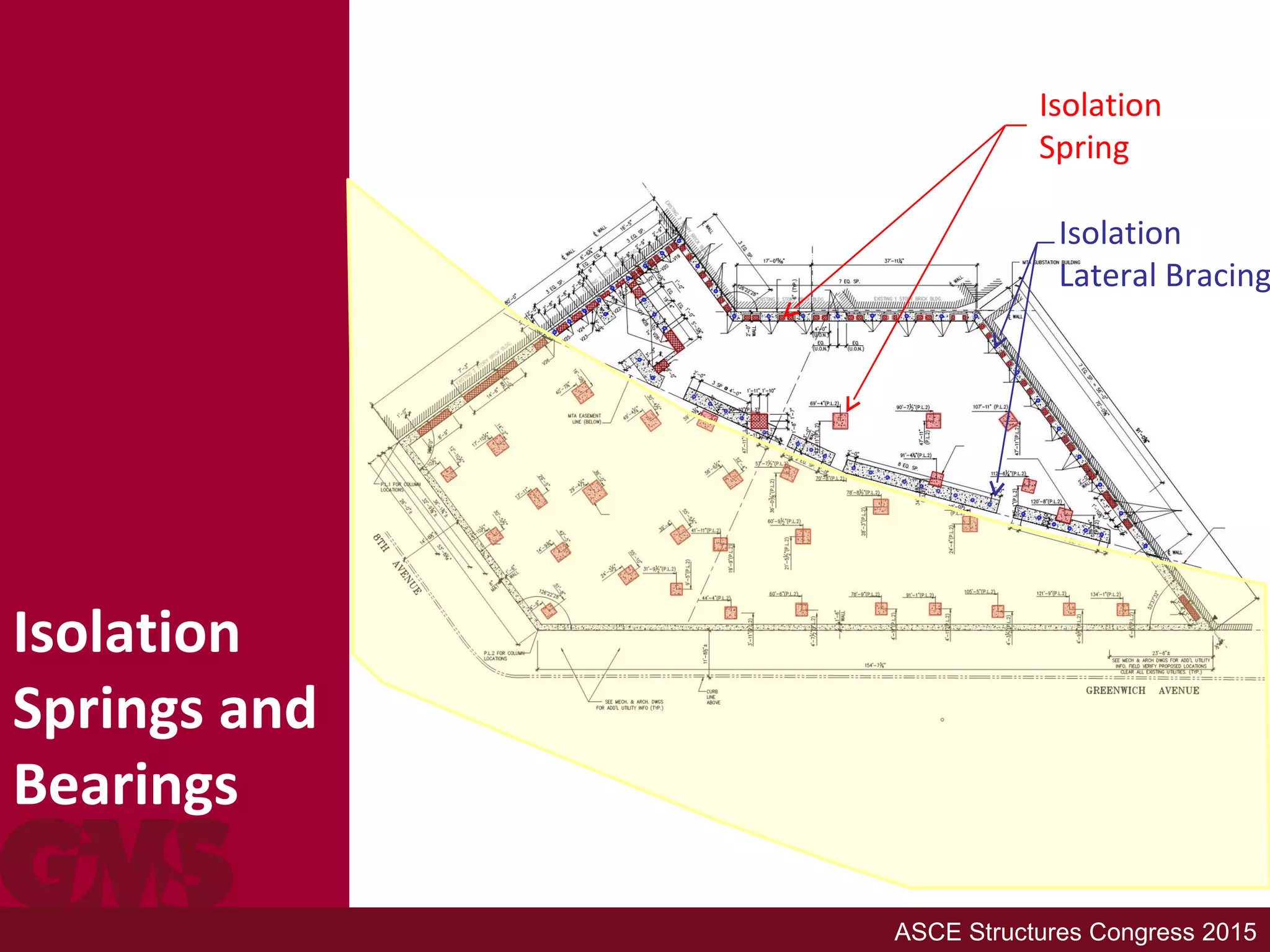

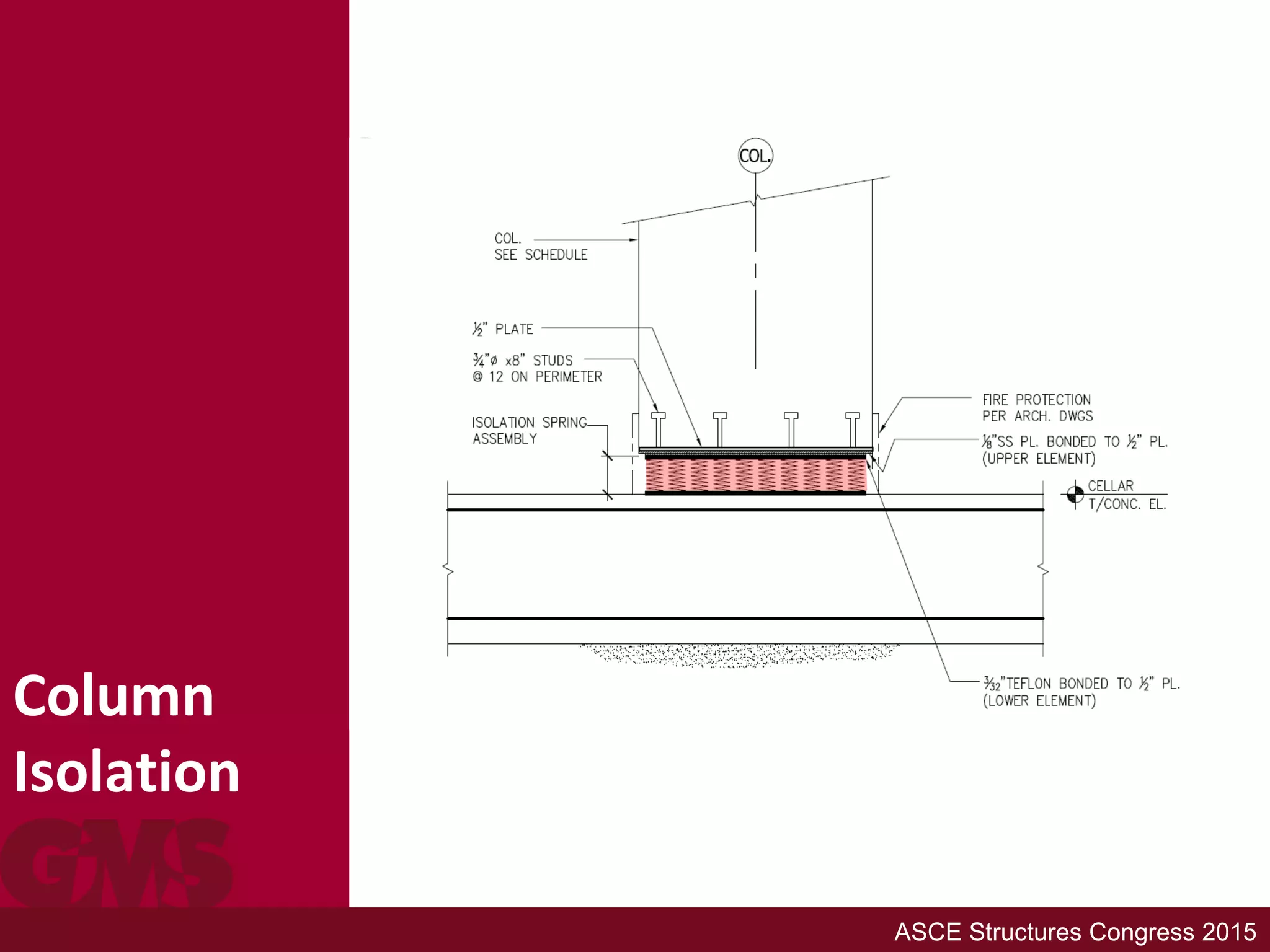

- 21. Isolation Springs and Bearings ASCE StructuresCongress 2015 Isolation Spring Isolation Lateral Bracing

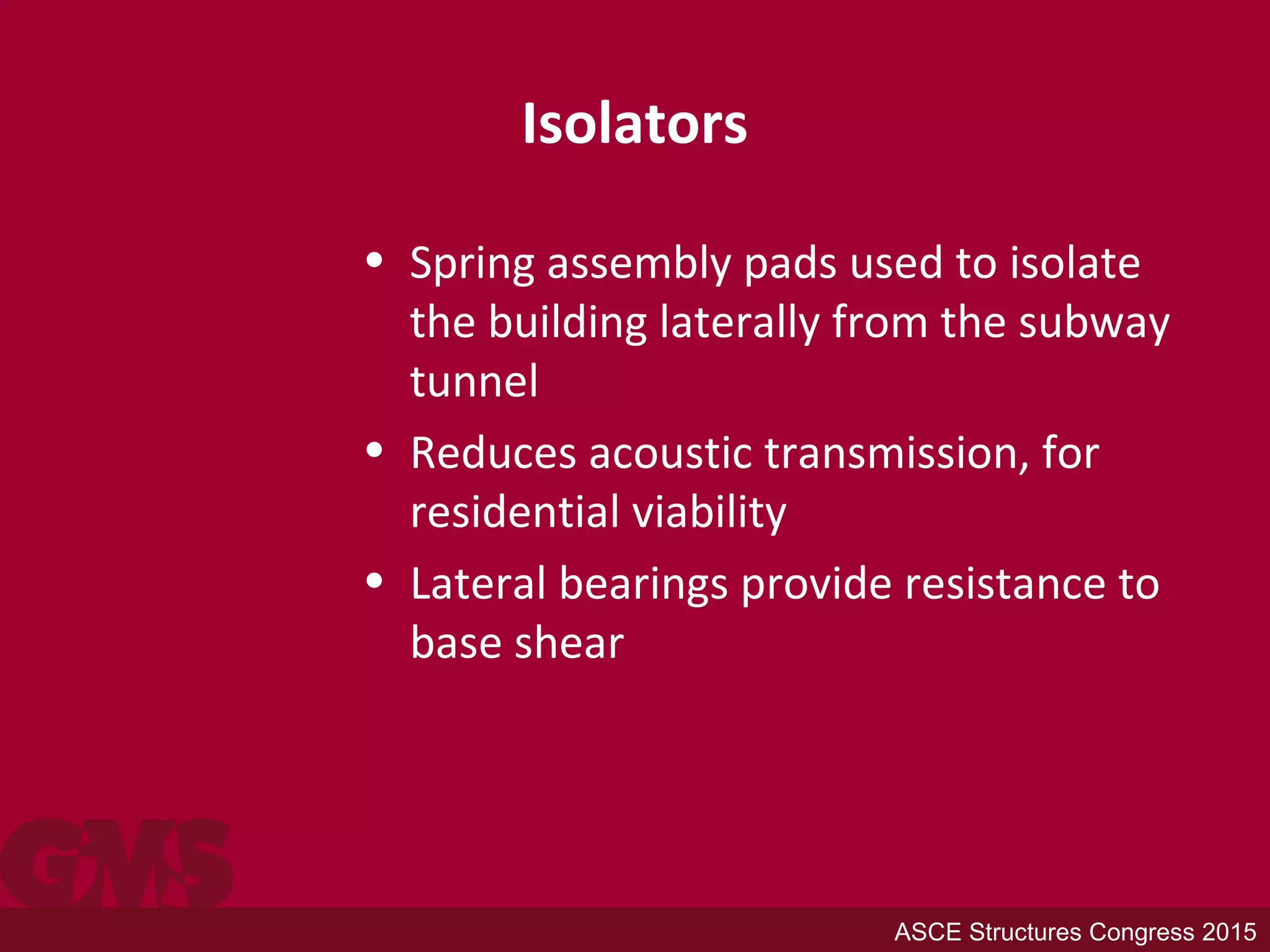

- 22. Isolators • Spring assemblypads used to isolate the building laterally from the subway tunnel • Reduces acoustic transmission, for residential viability • Lateral bearings provide resistance to base shear ASCE Structures Congress 2015
- 23.

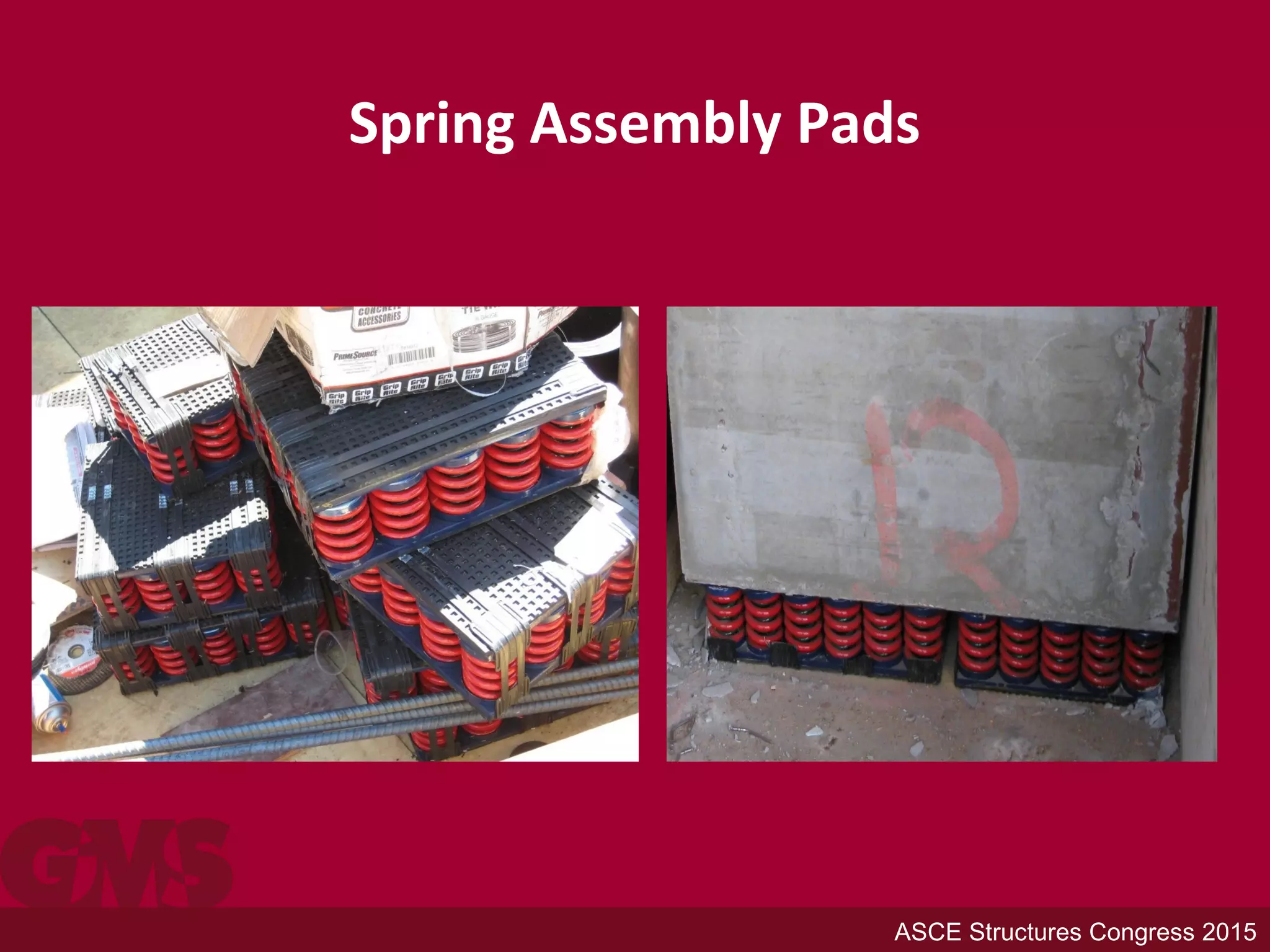

- 24. Spring Assembly Pads ASCEStructures Congress 2015

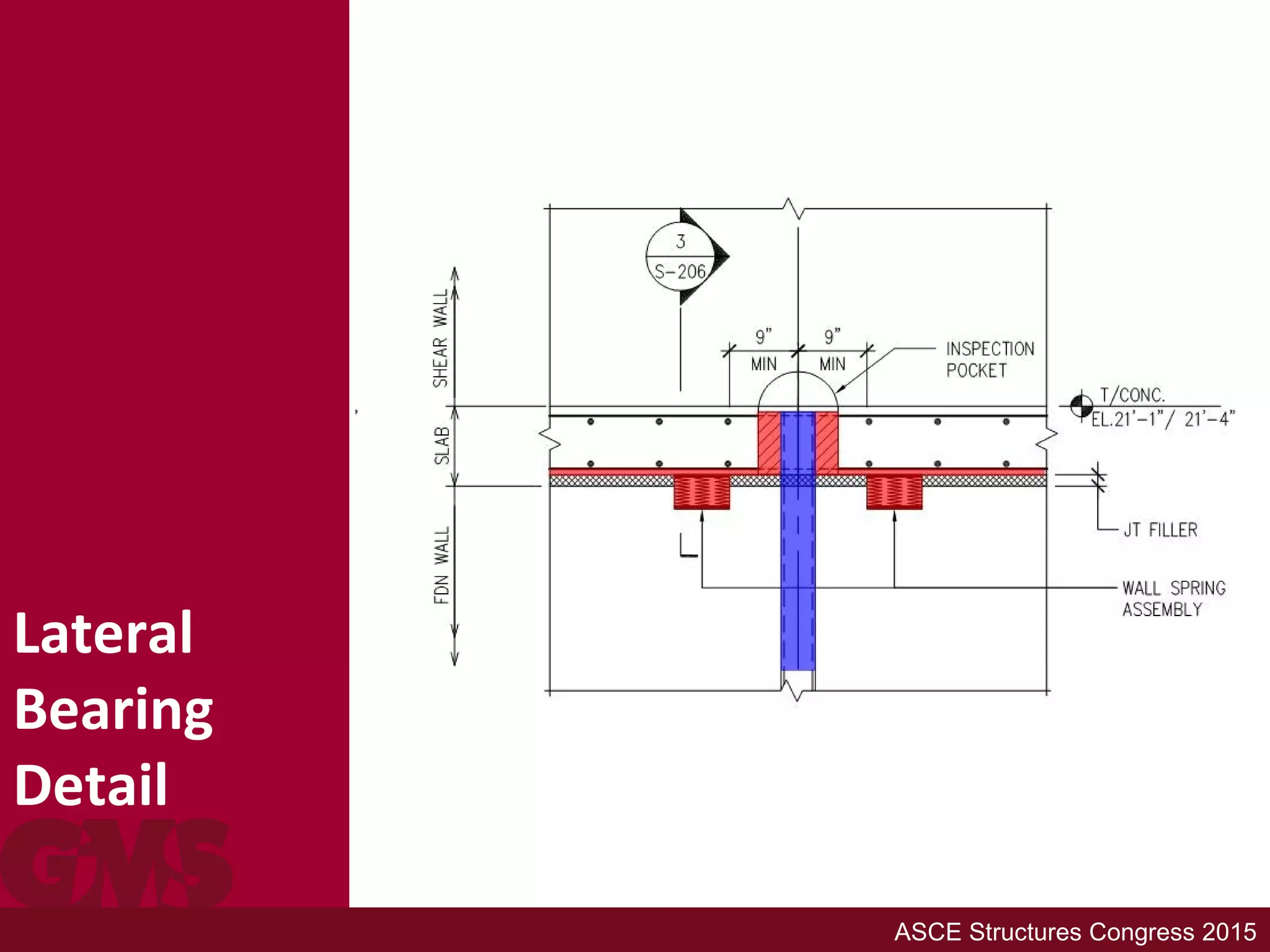

- 25.

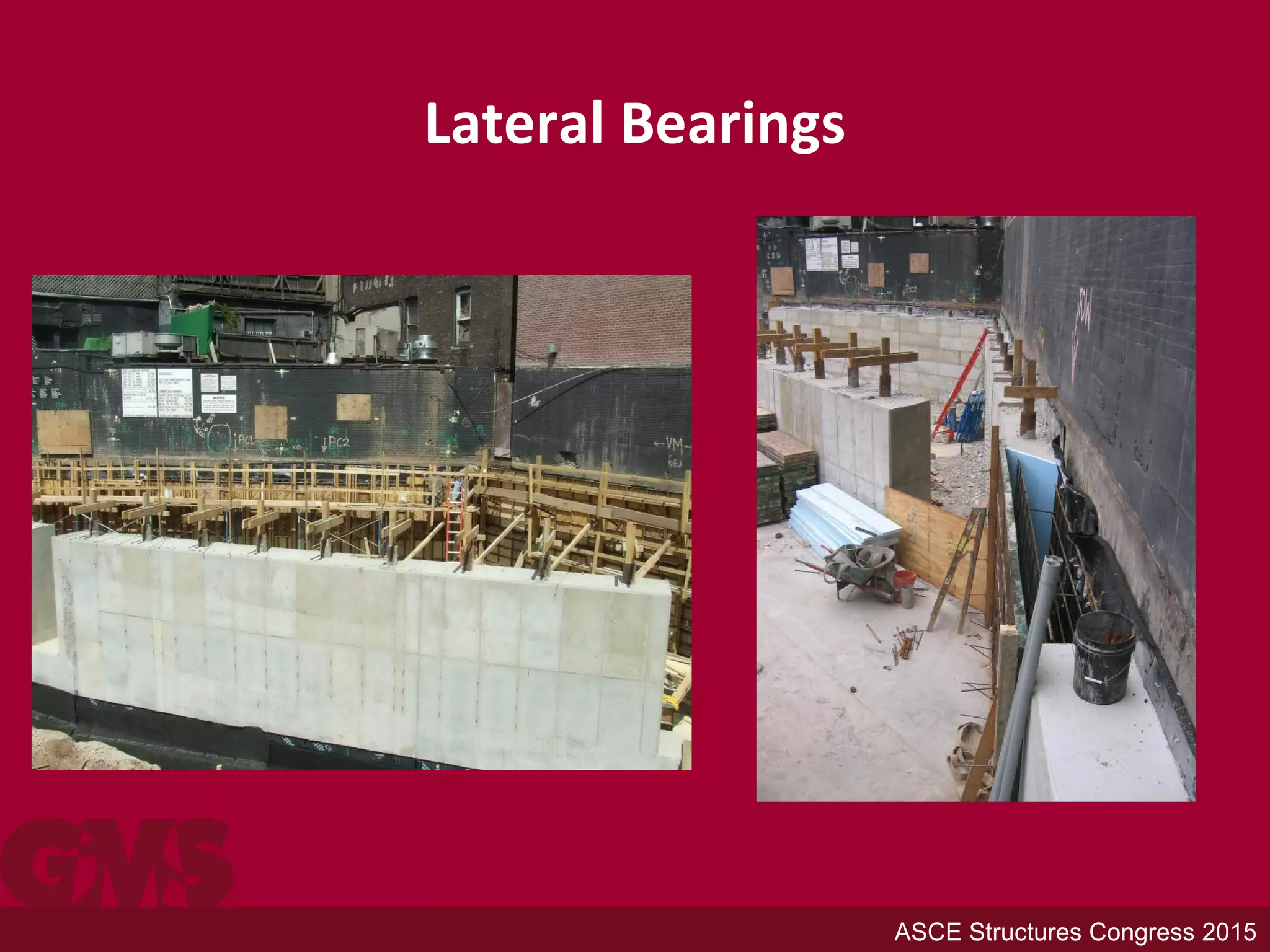

- 26. Lateral Bearings ASCE StructuresCongress 2015

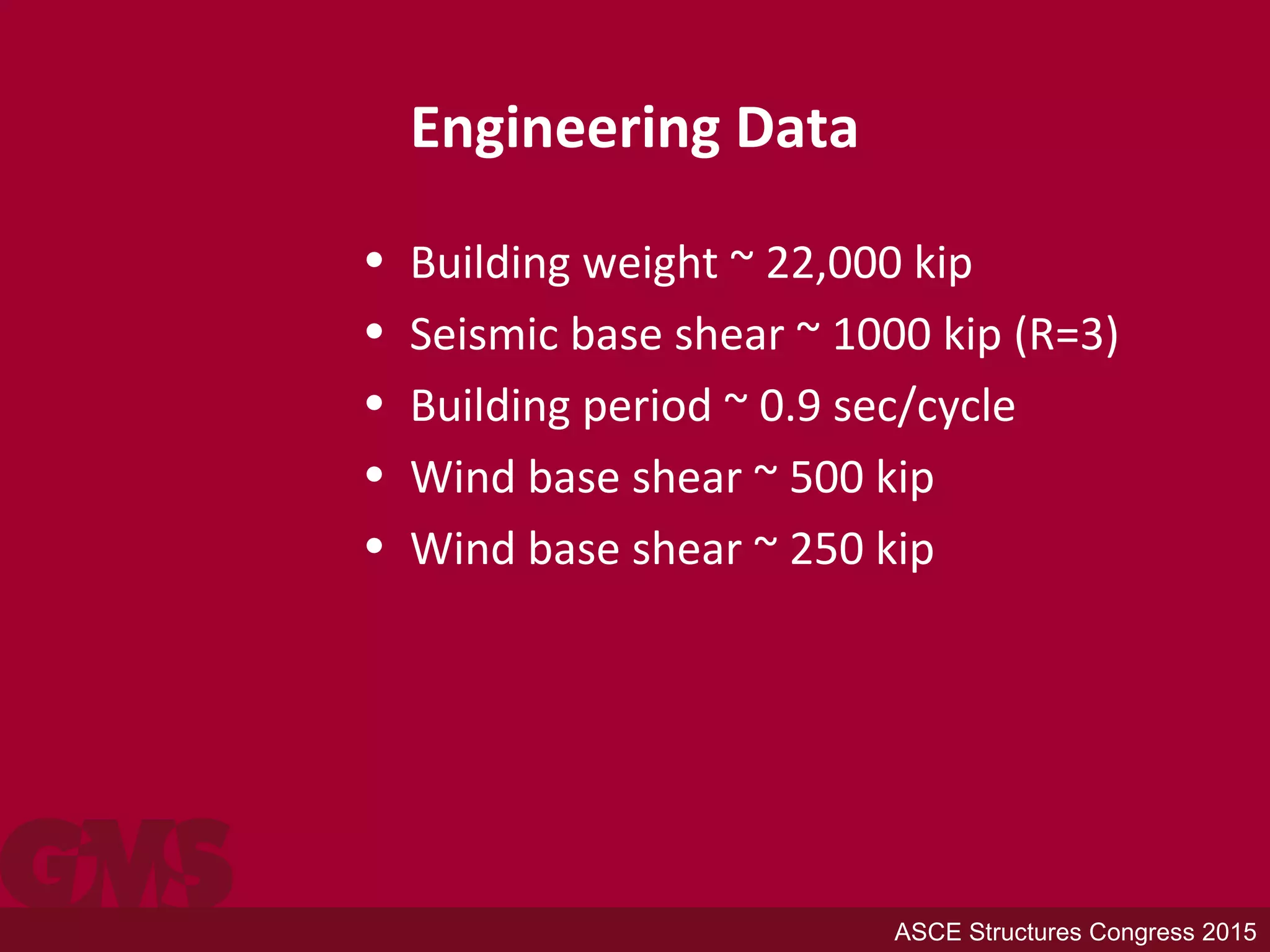

- 27. Engineering Data • Buildingweight ~ 22,000 kip • Seismic base shear ~ 1000 kip (R=3) • Building period ~ 0.9 sec/cycle • Wind base shear ~ 500 kip • Wind base shear ~ 250 kip ASCE Structures Congress 2015

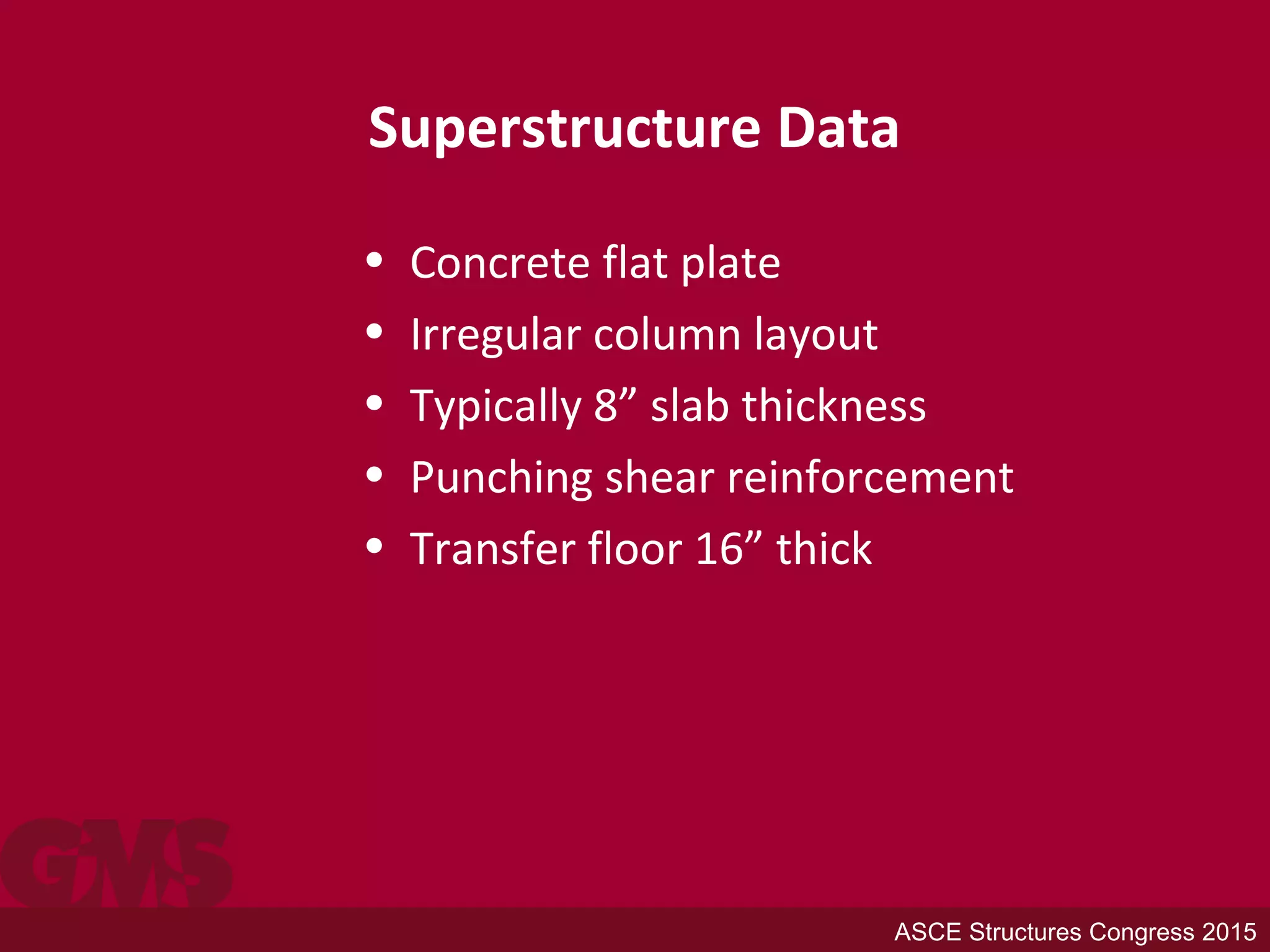

- 28. Superstructure Data • Concreteflat plate • Irregular column layout • Typically 8” slab thickness • Punching shear reinforcement • Transfer floor 16” thick ASCE Structures Congress 2015

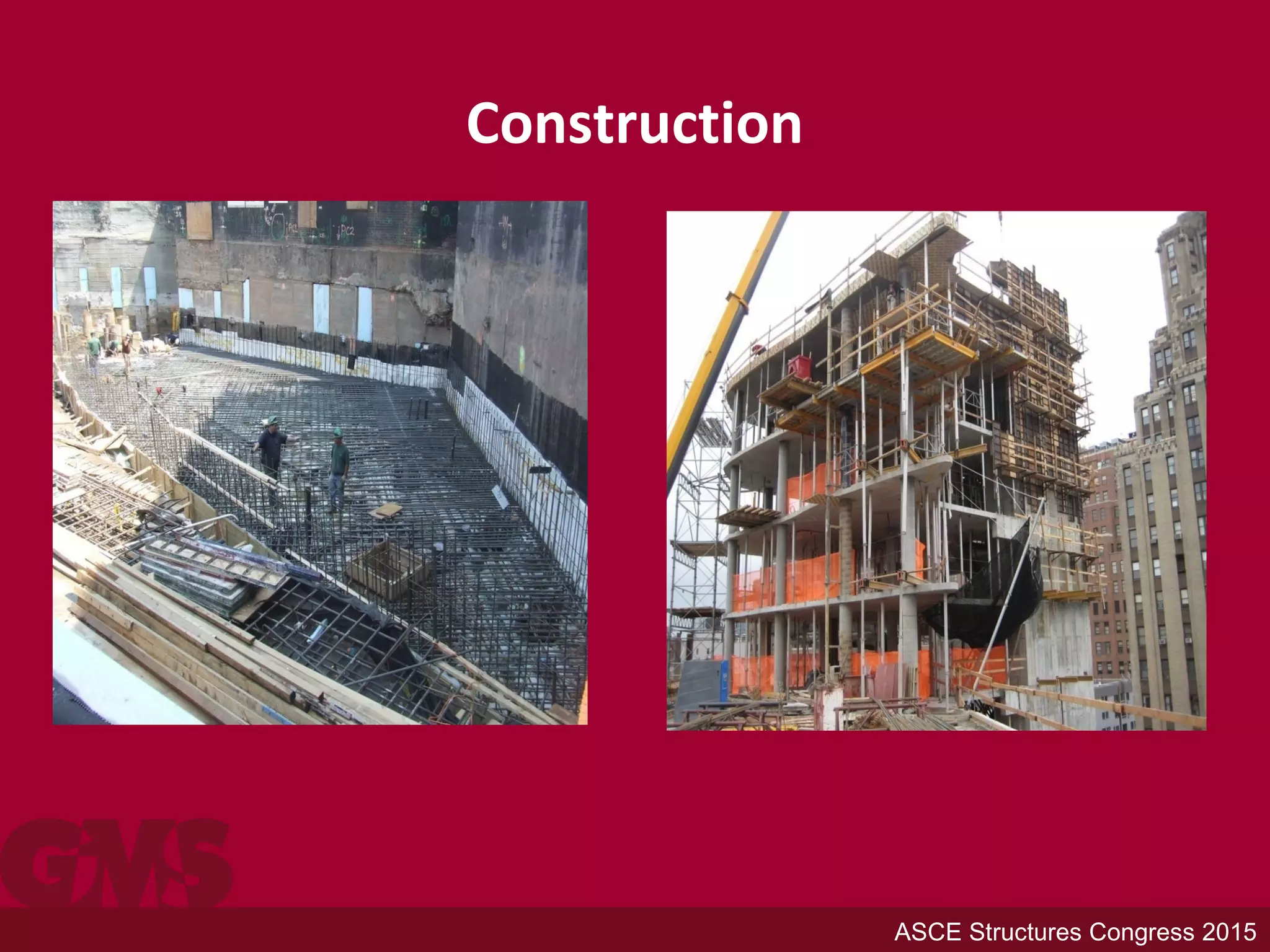

- 29.
- 30.
