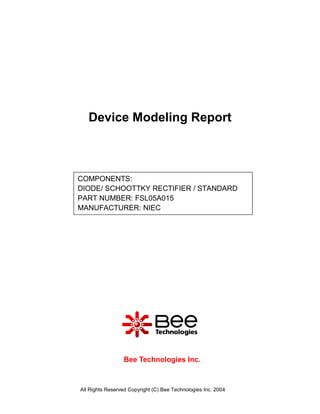

1. Device Modeling Report
COMPONENTS:
DIODE/ SCHOOTTKY RECTIFIER / STANDARD
PART NUMBER: FSL05A015
MANUFACTURER: NIEC
Bee Technologies Inc.
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

2. PSpice model
Model description
parameter
IS Saturation Current
N Emission Coefficient
RS Series Resistance
IKF High-injection Knee Current
CJO Zero-bias Junction Capacitance
M Junction Grading Coefficient
VJ Junction Potential
ISR Recombination Current Saturation Value
BV Reverse Breakdown Voltage(a positive value)
IBV Reverse Breakdown Current(a positive value)
TT Transit Time
EG Energy-band Gap
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

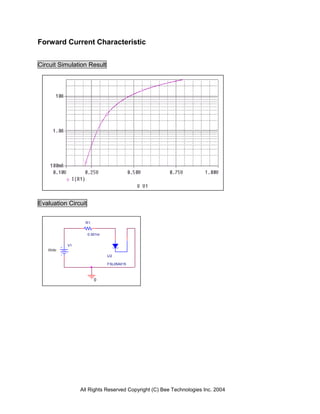

3. Forward Current Characteristic
Circuit Simulation Result
Evaluation Circuit
R1
0.001m
V1
0Vdc
U2
FSL05A015
0
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

4. Comparison Graph
Circuit Simulation Result
Simulation Result
Vfwd(V) Vfwd(V)
Ifwd(A) %Error
Measurement Simulation
1 0.283 0.282 -0.35
2 0.318 0.317 -0.31
5 0.381 0.382 0.26
10 0.475 0.474 -0.21
20 0.638 0.637 -0.16
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

5. Junction Capacitance Characteristic
Circuit Simulation Result
Evaluation Circuit
V2
U1
V1 = 0 V1 0Vdc
V2 = 15
TD = 0
TR = 10ns
TF = 50ns
PW = 5us
PER = 10us FSL05A015
0
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

6. Comparison Graph
Circuit Simulation Result
Simulation Result
Cj(pF) Cj(pF)
Vrev(V) %Error
Measurement Simulation
1 10.950 11.110 1.46
2 7.980 8.020 0.50
5 5.100 5.040 -1.18
10 3.450 3.420 -0.87
15 2.750 2.770 0.73
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004
